Ariston G.C.N.:41-116-40 (30 kW) User`s manual

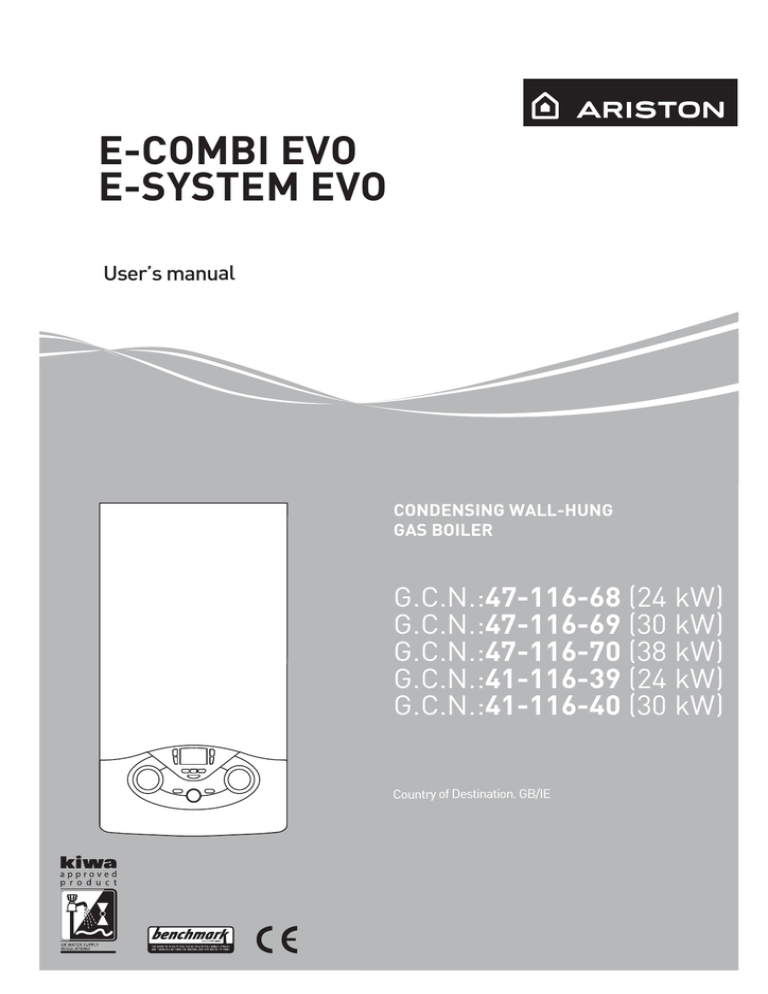

E-COMBI EVO
E-SYSTEM EVO
User’s manual
CONDENSING WALL-HUNG
GAS BOILER
G.C.N.:47-116-68 (24 kW)
G.C.N.:47-116-69 (30 kW)
G.C.N.:47-116-70 (38 kW)
G.C.N.:41-116-39 (24 kW)
G.C.N.:41-116-40 (30 kW)
Country of Destination. GB/IE
user’s manual
Dear Customer,
GUARANTEE
Thank you for choosing an ARISTON boiler.
We guarantee that your boiler is a reliable and technically
sound product.
This manual provides detailed instructions and
recommendations for proper installation, use and
maintenance.
Remember to keep this manual in a safe place for future
reference i.e. by the gas meter.
Your local ARISTON Servicing Centre is at your complete
disposal for all requirements.
The appliance is guaranteed for 2 years from the date of
purchase.
Aristons only obligation under the guarantee will be to repair
or replace the faulty appliance at Aristons discretion. This will
be carried out where the fault arises from within defects in the
appliance, caused either by material or workmanship of the
manufacturer.
This guarantee does not protect malfunction or damage
arising from incorrect installation, commissioning or
maintenance procedures as laid out in the installation and
servicing manual, inefficient flue system, poor or incorrect
electricicty, wrong gas supply or pressure, tampering by
inexperienced persons and any other cause not directly due
to manufacture.
Ariston Thermo UK Ltd cannot accept responsibility for any
cost arising from repair or maintenance carried out by any
third party.
Service under the guarantee does not affect the expiry date of
the guarantee. The guarantee on parts and appliances which
are exchanged ends when the guarantee on the original
appliance expires.
This guarantee does not affect your statutory rights.
The boiler must be registered with Ariston within 30 days from
date of installation.
Registration is online at www.ariston.co.uk.
2
user’s manual
The installation and first ignition of the boiler must be
performed by qualified personnel in compliance with current
national regulations regarding installation, and in conformity
with any requirements established by local authorities and
public health organisations.
After the boiler has been installed, the installer must ensure
that the end user receives the declaration of conformity and
the operating manual, and should provide all necessary
information as to how the boiler and the safety devices should
be handled.
This appliance is designed to produce hot water for domestic use
(combi version).
It should be connected to a heating system and a distribution
network for domestic hot water, both of which must be compatible
with its performance and power levels.
The use of the appliance for purposes other than those specified is
strictly forbidden. The manufacturer cannot be held responsible for
any damage caused by improper, incorrect and unreasonable use
of the appliance or by the failure to comply with the instructions
given in this manual.
Installation, maintenance and all other interventions must be
carried out in full conformity with the governing legal regulations
and the instructions provided by the manufacturer. Incorrect
installation can harm persons, animals and possessions; the
manufacturing company shall not be held responsible for any
damage caused as a result.
In the event of any maintenance or other structural work in the
immediate vicinity of the ducts or flue gas exhaust devices and
their accessories, switch the appliance off by switching the external
bipolar switch to the “OFF” position and shutting off the gas valve.
When the work has been completed, ask a qualified technician to
check the efficiency of the ducting and the devices.
If the boiler should be out of use for a prolonged period, it is
recommended that the electrical power supply be disconnected
and that the external gas cock be closed. If low temperatures are
expected, the boiler and system pipe work should be drained in
order to prevent frost damage.
Turn the boiler off and turn the external switch “OFF” to clean the
exterior parts of the appliance.
Do not allow children or inexperienced persons to use the
appliance without supervision.
CE labelling
The CE mark guarantees that the appliance conforms to the
following directives:
- 2009/142/CEE
relating to gas appliances
- 2004/108/CEE
relating to electromagnetic compatibility
- 92/42/CEE
relating to energy efficiency
- 2006/95/CEE
relating to electrical safety
Safety regulations
Key to symbols:
Failure to comply with this warning implies the risk of
personal injury, in some circumstances even fatal
Failure to comply with this warning implies the risk of
damage, in some circumstances even serious, to property,
plants or animals.
Do not perform operations which involve opening the appliance.
Electrocution from live components.
Personal injury caused by burns due to overheated components,
or wounds caused by sharp edges or protrusions.
Do not perform operations which involve removing the appliance from its installation space .
Electrocution from live components.
Flooding caused by water leaking from disconnected piping.
Explosions, fires or intoxication caused by gas leaking from disconnected piping.
Do not damage the power supply cable.
Electrocution from live uninsulated wires.
Do not leave anything on top of the appliance.
Personal injury caused by an object falling off the appliance as a
result of vibrations.
Damage to the appliance or items underneath it caused by the
object falling off as a result of vibrations.
Do not climb onto the appliance.
Personal injury caused by the appliance falling.
Damage to the appliance or any objects underneath it caused by
the appliance falling away from its installation space.
Do not climb onto chairs, stools, ladders or unstable supports
to clean the appliance.
Personal injury caused by falling from a height or cuts (step ladders
shutting accidentally).
Do not attempt to clean the appliance without first switching it
off and turning the external switch to the OFF position.
Electrocution from live components.
Do not use insecticides, solvents or aggressive detergents to
clean the appliance.
Damage to plastic and painted parts.
Do not use the appliance for any use other than normal domestic use.
Damage to the appliance caused by operation overload.
Damage caused to objects treated inappropriately.
Do not allow children or inexperienced individuals to operate
the appliance.
Damage to the appliance caused by improper use.If you detect a
smell of burning or smoke coming from the appliance, disconnect it from the electricity supply, turn off the main gas valve,
open all windows and call for assistance.
Personal injury caused by burns, smoke inhalation, intoxication.
If there is a strong smell of gas, turn off the main gas valve,
open all windows and call for assistance.
Explosions, fires or intoxication.
3
user’s manual
Control panel
1
2
12
3
11
4
2
1
24
23
22
4
3
12
5
21
6
7
19
10
8
18
9
17
15
14
13
10
6
16
12
11
5
20
I
9
9
6
8
7
Legend :
1. Display
2. Domestic Hot Water adjustment button +/(only for E-COMBI EVO models)
3. MODE button
(Operation mode selection (summer/winter)
4. Pressure gauge
5. Auto Function and/or Comfort Function
enable/disable button
(Comfort function only for E-COMBI EVO models)
6. ESC button - reserved for technical assistance
7. “encoder” programming knob
- reserved for technical assistance
8. OK button - reserved for technical assistance
9. ON/OFF button
10. TIME CLOCK (option for E-SYSTEM boilers))
11. RESET button
12. Heating temperature adjustument button +/Digits indicating:
- boiler status and temperature
indication (°C)
- error code signals (Err)
- menu settings
Technical assistance request
Flame detected with indication of
power used or indication of operation
shutdown
Hot Water Comfort activated
Boiler off with antifreeze function active
Antifreeze function activated
AUTO
AUTO function activated
(Temperature regulation activated)
Clip-in solar connected (optional)
Heating operation set
Heating operation active
Hot water operation set
Hot water operation active
4
Note: A radio frequency (RF) Programmable Room
Thermostat is available from Ariston stockists.
The Receiver unit can be fitted in the time clock
position (10)
user’s manual
Initial operating procedures
If the boiler is installed inside the apartment, make sure that
all provisions relating to the air inlet and room ventilation (in
compliance with current legislation) are respected.
Check the water pressure on the display regularly and make sure
that the figure is between 0.6 and1.5 bar when the system is cold.
If the pressure is just under the minimum value the display will
request a filling procedure.
Re-establish the correct pressure by filling loop.
If the pressure drops very frequently, there may be a water leak at
some point in the system. If this is the case a plumber should be
contacted.
E-COMBI EVO
Ignition procedure
Press the ON/OFF button 9 on the control panel to switch on the
boiler. The display shows:
● the operating mode:
Winter
Summer
Only Heating (E-SYSTEM EVO)
2
● The figures indicates:
- the flow temperature when no heating requests have been made
- the flow temperature in central heating mode
- the temperature of the hot water in domestic hot water
1
Note.
Note: Connections viewed from behind boiler
Connections
viewed from
behind boiler.
3
E-SYSTEM EVO
Operating mode selection
Use the MODE button 3 to select the desired operating mode.
Operating mode
Display
heating + hot water production for domestic use winter
hot water production for domestic use only summer
2
Only heating (only for System models)
1
The ignition of the burner is indicated on the display by the symbol
Note.
Note: Connections viewed
from behind
boiler
Connections
viewed
from
behind boiler.
the dashes underneath indicate the power utilised. .
3
1.
2.
3.
4.
To repressurise the system ensure flexible hose 3 is connected
Slowly open taps 1 & 2 (see diagrams above)
Water will be heard entering the system
When the pressure gauge reads 1.5 bar close taps 1 & 2
5
user’s manual
Adjusting the heating
It is possible to set the temperature of the heating water by pressing
the buttons 12.
The temperature that may be obtained which varies from:
- 20°C to 45°C (low temperature)
- 35°C to 82°C (high temperature).
Domestic hot water temperature adjustment
only for E-COMBI EVO MODELS
It is possible to set the temperature of the domestic hot water
by adjusting the button 2 a temperature may be obtained which
varies from about 36°C to about 60°C.
The value set previously will flash on the display.
Switching off the boiler
To switch off the boiler press the ON/OFF button, the display will
switch off.
The Anti-frost Function is already active.
ATTENTION!!
Switch off the boiler completely by switching the external electrical switch to the OFF position. Shut off the gas valve..
Clock Instructions
A
2
1
24
23
22
4
3
12
5
21
6
7
8
18
9
17
B
15
14
13
10
6
16
12
11
Switching off the heating
To switch off the heating, press the MODE button 3; the heating
operation symbol will disappear from the display. The Mode button
can be used to keep the domestic hot water production process
active or to place it in standby (modes deactivated).
In the figure below the boiler remains active only for the production
of domestic hot water, indicating the set temperature.
C
19
9
20
I
1. General layout
The mechanical clock covers a 24 hour period. Each tappet
represents 15 minutes A. An override switch is located on the clock
B.
2. To set the time
To set the time of day, grasp the outer edge of the dial and turn
slowly clockwise until the correct time is lined up with the arrow C.
3. To Set the “On” and “Off ” times
The clock uses a 24hours system. e.g. 8 = 8.00 am and 18 = 6.00
pm “ON” periods are set by sliding all tappets between the “ON”
time and the “OFF” time to the outer edge of the dial. The tappets
remaining at the centre of the dial are the “OFF” periods.
4. For operation
Put the selector switch B to the
symbol to control the central
heating by the clock. Put the switch B to “I” to select permanent
operation or to “0” to turn the central heating off permanently.
6
user’s manual
COMFORT / AUTO Function
To activate the Comfort function or AUTO function it is necessary
to press the button 5
COMFORT function (E-COMBI EVO models)
The comfort mode has priority over any other heating request.
There are two settings for the comfort mode (they can be adjusted
in the parameters menu):
1. As soon as DHW is drawn, the secondary heat exchanger is kept
warm for 30 mins.
2. As soon as DHW is drawn, the secondary heat exchanger is kept
warm permanently.
This function may be enabled by pressing the COMFORT button.
Auto button - Temperature adjustment activation
The AUTO function enables boiler operation to be adapted to
environmental conditions and to the type of system it is installed
on.
Comfortable temperature is reached inside the room in the quickest
way possible, without wasting money, energy or efficiency, while
substantially reducing the amount of wear experienced by the
components.
Your installer will advise you on the devices connectable to the
boiler and will program it according to the system.
In normal boilers the water temperature inside the heating
elements is usually set to a high value (70-80°C), thereby ensuring
effective heating during the few really cold winter days. It then
becomes excessive on less cold days (of which there are many)
more typical of the autumn and winter seasons. This leads to
excessive room heating after the thermostat has been switched off,
resulting in energy waste and uncomfortable conditions inside the
room.
The AUTO function “takes control” of the boiler and selects the best
operating regime based on environmental conditions, external
devices connected to the boiler and the performance required. It
constantly decides at which power level to operate based on the
environmental conditions and the room temperature required.
Note
Esc, Ok and Encoder
The Esc, Ok and Encoder are reserved for use by the service
technician.
If one of these buttons/knobs are activated by accident by the end
user ‘SERV’ is displayed
This will deactivate after a few seconds.
All other button are reserved for use by the end user
7
user’s manual
Appliance shut-off conditions
The boiler is protected from malfunctions by means of internal
checks performed by the electronic P.C.B., which stops the boiler
from operating if necessary. In the event of the boiler being shut off
in this manner, a code appears on the control panel display which
refers to the type of shut-off and the reason behind it.
Two types of shut-off may occur:
Operation shutdown error table
Display
Description
1 01
Overheating
5 01
No flame detection
1 03
Safety shut-off
This type of error is “volatile”, which
means that the boiler starts up
again automatically as soon as the
problem which caused the shut-off
is removed.
The display will flash ”Err” and the
error code.
In fact, as soon as the cause of the
shut-off disappears, the boiler starts
up again and continues to operate normally.
While the boiler is shut off for safety reasons, it is possible to
attempt to restore normal operation by switching the appliance off
and on again using the ON/OFF button on the control panel.
If the boiler still indicates a safety shut-off, switch it off. Make sure
the external electric switch is in the OFF position, close the gas tap
and contact a qualified technician.
Safety shut-off due to insufficient water pressure
If the water pressure inside the
heating circuit is insufficient, the
boiler will perform a safety shut-off.
(See table).
To re-pressurise the boiler, it will
be necessary to connect the silver
flexible hose supplied to the two
isolating points underneath the
boiler, once the hose is connected,
open up both of the black quarter
(see p.5) turn handles, once the pressure reads 1.5 bar on the
display, close both handles and disconnect the hose .
If the pressure drops very frequently, there may be a water leak
at some point in the system. If this is the case please contact your
installer and ask them to check it.
Operation shutdown
This type of error is “non volatile”, which means that it is not
removed automatically. The display will flash Err and the error
code.
In this case the boiler does not restart automatically, but it may
be reset by pressing the
button. If the problem manifests
itself again after several attempts to reset the appliance, contact a
qualified technician.
IMPORTANT
IF THIS SHUTDOWN OCCURS FREQUENTLY, CONTACT AN
AUTHORISED SERVICE CENTRE FOR ASSISTANCE. FOR SAFETY
REASONS, THE BOILER WILL ALLOW A MAXIMUM OF 5 RESET
OPERATIONS TO TAKE PLACE IN 15 MINUTES (INDIVIDUAL
PRESSES OF THE
BUTTON).
8
1 04
1 05
Insufficient circulation
1 06
1 07
1 08
Insufficient water (request filling)
3 05
P.C.B error
3 06
P.C.B error
3 07
P.C.B error
Anti-frost Device.
The anti-frost function acts on the central heating flow temperature
probe, independently from other settings, when the electrical
supply is turned on.
If the primary circuit temperature falls below 8°C the pump will run
for 2 minutes.
After the two minutes of circulation (fixed) the boiler will check the
following:
a) if the central heating flow temperature is > 8°C, the pump stops;
b) if the central heating flow temperature is between 4 and 8°C,
the pump will run for another two minutes;
c) if the central heating flow temperature is < 4°C, the burner will
fire (heating position) at minimum power until the temperature
reaches 33°C, the burner will go off and the pump will continue
to run for two minutes.
The anti-frost device activates only when (with the boiler operating
correctly):
- the system pressure is correct,
- the boiler is electrically powered,
- there is a supply of gas.
Change of gas type
Our boilers are designed to function either with Natural Gas
(methane) or L.P.G. gas. If you need to change from one gas to the
other, one of our Authorised Service Centres must be contacted to
convert the appliance.
Maintenance
Schedule an annual maintenance check-up for the boiler with a
competent person.
Correct maintenance always results in savings in the cost of
running the system.
Failure to arrange an annual service for the appliance will invalidate
the second year of the manufacturers guarantee.
Technical Advice: 0333 240 7777
Customer Service: 0444 240 8777
420010439800
Ariston Thermo UK Ltd
Hughenden Avenue
High Wycombe
Bucks HP13 5FT
Telephone: (01494) 755600
Fax: (01494) 459775
Internet: www.ariston.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
