Grounding the V2406A
V2406A Rear View
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
the power. Note that these products are intended to be mounted to
a well-grounded mounting surface, such as a metal panel.

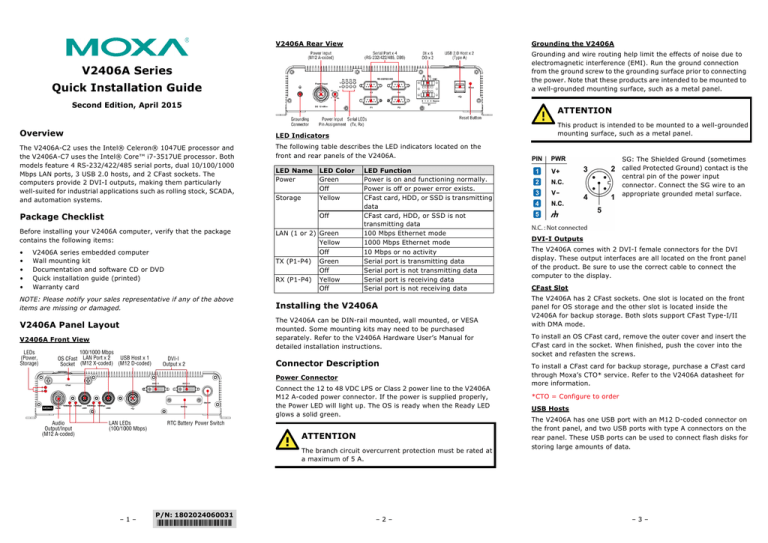

V2406A Series
Quick Installation Guide
Second Edition, April 2015
Overview
ATTENTION
The V2406A-C2 uses the Intel® Celeron® 1047UE processor and
the V2406A-C7 uses the Intel® Core™ i7-3517UE processor. Both
models feature 4 RS-232/422/485 serial ports, dual 10/100/1000
Mbps LAN ports, 3 USB 2.0 hosts, and 2 CFast sockets. The
computers provide 2 DVI-I outputs, making them particularly
well-suited for industrial applications such as rolling stock, SCADA,
and automation systems.
The following table describes the LED indicators located on the
front and rear panels of the V2406A.
LED Name
Power
Storage
Package Checklist
LED Color
Green
Off
Yellow
Off
Before installing your V2406A computer, verify that the package
contains the following items:
•
•
•
•
•
This product is intended to be mounted to a well-grounded
mounting surface, such as a metal panel.
LED Indicators
V2406A series embedded computer
Wall mounting kit
Documentation and software CD or DVD
Quick installation guide (printed)
Warranty card
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.
LAN (1 or 2) Green
Yellow
TX (P1-P4)
RX (P1-P4)
Off
Green
Off
Yellow
Off
LED Function
Power is on and functioning normally.
Power is off or power error exists.
CFast card, HDD, or SSD is transmitting
data
CFast card, HDD, or SSD is not
transmitting data
100 Mbps Ethernet mode
1000 Mbps Ethernet mode
10 Mbps or no activity
Serial port is transmitting data
Serial port is not transmitting data
Serial port is receiving data
Serial port is not receiving data
Installing the V2406A
The V2406A can be DIN-rail mounted, wall mounted, or VESA
mounted. Some mounting kits may need to be purchased
separately. Refer to the V2406A Hardware User’s Manual for
detailed installation instructions.
V2406A Panel Layout
V2406A Front View
Connector Description
Power Connector
Connect the 12 to 48 VDC LPS or Class 2 power line to the V2406A
M12 A-coded power connector. If the power is supplied properly,
the Power LED will light up. The OS is ready when the Ready LED
glows a solid green.
ATTENTION
The branch circuit overcurrent protection must be rated at
a maximum of 5 A.
–1–
P/N: 1802024060031
*1802024060031*
–2–
SG: The Shielded Ground (sometimes
called Protected Ground) contact is the
central pin of the power input
connector. Connect the SG wire to an
appropriate grounded metal surface.
DVI-I Outputs
The V2406A comes with 2 DVI-I female connectors for the DVI
display. These output interfaces are all located on the front panel
of the product. Be sure to use the correct cable to connect the
computer to the display.
CFast Slot
The V2406A has 2 CFast sockets. One slot is located on the front
panel for OS storage and the other slot is located inside the
V2406A for backup storage. Both slots support CFast Type-I/II
with DMA mode.
To install an OS CFast card, remove the outer cover and insert the
CFast card in the socket. When finished, push the cover into the
socket and refasten the screws.
To install a CFast card for backup storage, purchase a CFast card
through Moxa’s CTO* service. Refer to the V2406A datasheet for
more information.
*CTO = Configure to order
USB Hosts
The V2406A has one USB port with an M12 D-coded connector on
the front panel, and two USB ports with type A connectors on the
rear panel. These USB ports can be used to connect flash disks for
storing large amounts of data.
–3–
SATA Connector
**CTO = Configure to order
Pin No.
1
2
3
4
5
6
7
8
Ethernet Ports
Reset Button
Two 10/100/1000 Mbps Ethernet ports using M12 X-coded
connectors are located on the front panel. The pin assignments are
shown below.
Press the “Reset Button” on the rear panel of the computer to
reboot the system automatically. The Ready LED will blink on and
off for the first 5 seconds, and then maintain a steady glow once
the system has rebooted.
The V2406A has 1 SATA-I/II connector for 2.5" SSD/HDD storage
expansion. To expand storage capacity, purchase an SSD/HDD and
an internal storage kit* through Moxa’s CTO** service.
*This must be purchased separately to install an SSD / HDD. For
details, check the optional accessories section of the V2406A
datasheet.
Audio
Line in – Right
GND
Line in – Jack Detect
Line in – Left
Line out – Left
Line out – Jack Detect
Line out – Right
GND
Configuring the Ethernet Interface
W7E users should follow these steps:
1.
2.
3.
Go to Start  Control Panel  Network and Internet 
View network status and tasks  Change adapter
setting.
In the Local Area Connection Properties screen, click Internet
Protocol (TCP/IP) and then select Properties. Select
Internet Protocol Version 4, and then click Properties.
Click OK after inputting the proper IP address and netmask.
Real-Time Clock (RTC)
The V2406A’s real-time clock is powered by a lithium battery. You
can easily replace the battery yourself using an optional battery
kit*. However, please note that there is a risk of explosion if the
battery is replaced by an incorrect type of battery. Refer to the
V2406A Hardware User's Manual or contact a qualified Moxa
support engineer if you have any questions about the RTC battery.
*Moxa offers an “RTC battery kit” that you can use to easily replace
the battery. For details, check the optional accessories section of
the V2406A datasheet.
Serial Ports
The serial ports use DB9 connectors. Each port can be configured
by software for RS-232, RS-422, or RS-485. The pin assignments
for the ports are shown in the following table:
Pin RS-232 RS-422
1
2
3
4
5
6
7
8
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RS-485
(4-wire)
TxDA(-) TxDA(-)
TxDB(+) TxDB(+)
RxDB(+) RxDB(+)
RxDA(-) RxDA(-)
GND
GND
–
–
–
–
–
–
RS-485
(2-wire)
–
–
DataB(+)
DataA(-)
GND
–
–
–
ATTENTION
There is a risk of explosion if the battery is replaced by a
battery of the incorrect type.
Powering on the V2406A
To power on the V2406A, connect the power cable to the V2406A’s
M12 A-coded power connector (located on the rear panel). Press
the power button to turn on the computer. Note that the Shielded
Ground wire should be connected to the central pin of the
connector. It takes about 30 seconds for the system to boot up.
Once the system is ready, the Power LED will light up.
DI/DO
The V2406A comes with a 6-ch digital input and 2-ch digital output
on the terminal block connectors.
www.moxa.com/support
Audio Interface
The V2406A comes with an M12 A-coded audio connector for audio
input and audio output, allowing users to connect a speaker or an
earphone.
The Americas:
Europe:
Asia-Pacific:
China:
+1-714-528-6777 (toll-free: 1-888-669-2872)
+49-89-3 70 03 99-0
+886-2-8919-1230
+86-21-5258-9955 (toll-free: 800-820-5036)
 2015 Moxa Inc. All rights reserved.
