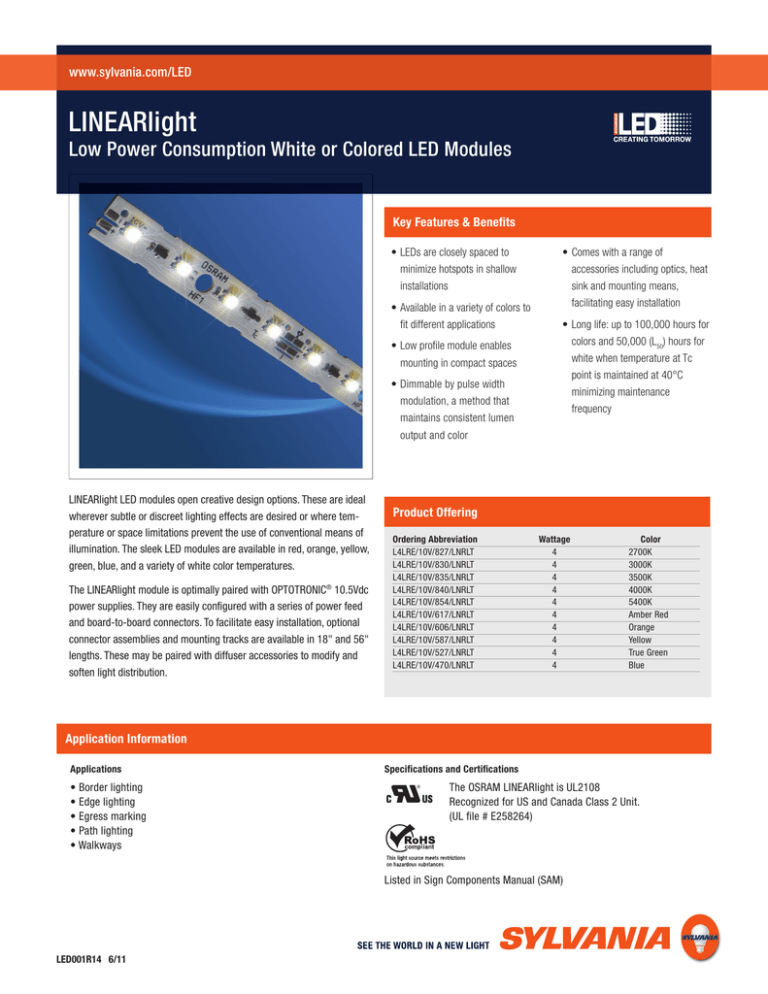

www.sylvania.com/LED
LINEARlight
Low Power Consumption White or Colored LED Modules
Key Features & Benefits
•LEDs are closely spaced to
minimize hotspots in shallow
installations
•Available in a variety of colors to
fit different applications
•Low profile module enables
mounting in compact spaces
•Comes with a range of
accessories including optics, heat
sink and mounting means,
facilitating easy installation
•Long life: up to 100,000 hours for
colors and 50,000 (L50) hours for
white when temperature at Tc
point is maintained at 40°C
minimizing maintenance
frequency
•Dimmable by pulse width modulation, a method that maintains consistent lumen output and color
LINEARlight LED modules open creative design options. These are ideal
wherever subtle or discreet lighting effects are desired or where temperature or space limitations prevent the use of conventional means of
illumination. The sleek LED modules are available in red, orange, yellow,
green, blue, and a variety of white color temperatures.
Product Offering
Ordering Abbreviation
L4LRE/10V/827/LNRLT
L4LRE/10V/830/LNRLT
L4LRE/10V/835/LNRLT
L4LRE/10V/840/LNRLT
L4LRE/10V/854/LNRLT
L4LRE/10V/617/LNRLT
L4LRE/10V/606/LNRLT
L4LRE/10V/587/LNRLT
L4LRE/10V/527/LNRLT
L4LRE/10V/470/LNRLT
The LINEARlight module is optimally paired with OPTOTRONIC® 10.5Vdc
power supplies. They are easily configured with a series of power feed
and board-to-board connectors. To facilitate easy installation, optional
connector assemblies and mounting tracks are available in 18" and 56"
lengths. These may be paired with diffuser accessories to modify and
soften light distribution.
Wattage
4
4
4
4
4
4
4
4
4
4
Color
2700K
3000K
3500K
4000K
5400K
Amber Red
Orange
Yellow
True Green
Blue
Application Information
Applications
Specifications and Certifications
• Border lighting
• Edge lighting
• Egress marking
• Path lighting
• Walkways
T he OSRAM LINEARlight is UL2108
Recognized for US and Canada Class 2 Unit.
(UL file # E258264)
Listed in Sign Components Manual (SAM)
LED001R14 6/11
Specification Data
Catalog #
Type
Project
Comments
Prepared by
Date
Ordering Information
Item Ordering Module
No. of Power Voltage
Current Number
Abbreviation
Length (ft) LEDs
(W)
(Vdc)
(Amps)
Color
70288
L4LRE/10V/827/LNRLT
1.47
32
4
10.5
0.4
White
70329
L4LRE/10V/830/LNRLT
1.47
32
4
10.5
0.4
White
70326
L4LRE/10V/835/LNRLT
1.47
32
4
10.5
0.4
White
70330
L4LRE/10V/840/LNRLT
1.47
32
4
10.5
0.4
White
70289
L4LRE/10V/854/LNRLT
1.47
32
4
10.5
0.4
White
70007
L4LRE/10V/617/LNRLT
1.47
32
4
10.5
0.4
Amber Red
70083
L4LRE/10V/606/LNRLT
1.47
32
4
10.5
0.4
Orange
70006
L4LRE/10V/587/LNRLT
1.47
32
4
10.5
0.4
Yellow
70008
L4LRE/10V/525/LNRLT
1.47
32
4
10.5
0.4
True Green
70009
L4LRE/10V/470/LNRLT
1.47
32
4
10.5
0.4
Blue
Color
Temperature/
Wavelength
2700K
3000K
3500K
4000K
5400K
617nm
606nm
587nm
525nm
470nm
Lumens
(lm)*
88
89
89
111
111
78
98
69
57
34
Lumens/ft Watts/ft
59.9
2.8
60.5
2.8
60.5
2.8
75.5
2.8
75.5
2.8
53
2.8
66.7
2.8
46.9
2.8
38.8
2.8
23
2.8
* All data is related to entire module measured at Tc point of 25°C. Data reflects statistical mean values. Actual data may differ depending on variances in the manufacturing process. Users need to
take into account the lumen depreciation as the temperature rises with various thermal management solutions installed.
Ordering Guide
L
4
L
R
E
/
10V
/
8
30
LED
Wattage
Linear
Rigid
Engine
Voltage
CRI>80
OR 617
/
Color Temperature
Wavelength
3000K
LNRLT
Product Family
LINEARlight
Power Supply Information
Max. No. of Modules & Max.
Length per Power Supply
OT6
(51502)
No. of Max. Modules
Length (ft)
All Item Numbers
1
1.47
OT20
(51599)
No. of Max. Modules
Length (ft)
1
5.88
OT50
(51509)
No. of Max.
Modules
Length (ft)
11
16.2
Notes:
1. A maximum of three (3) LINEARlight modules may be connected in any single branch circuit. Multiple branch circuits are supported. Consult the wiring diagram for more details.
2. OPTOTRONIC® power supplies are optimally paired with SYLVANIA LED modules and are specifically designed with protection features for safe operation.
3. The module is designed to work with constant voltage power supplies only. Reference the power supply PIB # ECS049 for product specification information.
4. The LINEARlight can be dimmed when used the OT DIM or OTRGB DIM controllers. Because of the power consumed by these controllers, an additional de-rating of the overall “Maximum” load must be
factored into the above chart. To determine this de-rating (wattage) value please reference Step 8 of Application Note # LED026.
5. These values are an approximation based on typical “power” values listed under the “Ordering Information” parameters. To accurately determine the maximum LED load, please evaluate the application
based on the application note “Determining the Maximum LED Load on a Constant Voltage Power Supply” LED026. This document can be found at www.sylvania.com.
Minimum and Maximum Ratings
Parameter
Operating Temperature at Tc point
Storage Temperature
Voltage Range
Maximum Reverse Voltage
Values
-30 to +75°C (-22 to +167°F) for green, blue and whites; -30 to +85°C (-22 to +185°F) for all others
-40 to +85°C (-40 to +185°F)
10 to 11 V dc
OVdc
Notes:
1. Exceeding maximum ratings may damage the LED module and cause potential safety hazards.
2. Elevated operating temperatures can be expected to negatively impact the service life in terms of lumen output.
Accessories
Item Number
70115
70133
70116
71237
71239
Ordering Abbreviation
Description
LAC-C/LL/IC/2P/20IN
Input Connector
LAC-C/LL/BB/2P/2IN
Board to Board
LAC-C/LL/BB/2P
Board to Board
LAC-T/LNRLT/P/5FT
Prismatic Mounting Track
LAC-T/LNRLT/D/5FT
Diffused Mounting Track
Assembly Diagram
17.64 [448] (O.A.L.)
2.20 [56.0]
SEU Length
0.55 [14.0]
(Typ. LED spacing)
0.27 [7.0]
+
0.40 [10.3]
OSRAM
10V
10V
Tc
1.10 [28.0]
+
+
10V
OSRAM
10V
Tc
+
10V
+
Tc Point
50.17 [54.2]
(Typ.)
2.20 [56.0]
0.14 [3.5]
0.06 [1.5]
Wiring Diagram
Linearlight *
Power Supply Unit
Input
VAC
N
L
+
RED
RED
-
BLK
BLK
Linearlight *
Power Supply Unit
Input
VAC
N
L
Control Signal
1...10 VDC
+
RED
RED
-
BLK
BLK
+
-
SELV
+
-
1-10V
10-24V
<0.6 mA
OUT
+
-
OUT
+
-
RED
BLK
OT-DIM (Dimmer)
LEGEND:
* Reference the "Power Supply" circuit requirement chart for the
maximum load per power supply. The maximum connected load for
a single run of Linearlight is 3 sticks.
Splice Point
Potential Splice Point
1 LED Module
+
+
10V
OSRAM
DIMENSIONS: inches [mm]
10V
Tc
+
Length
(in.)
19.69
1.97
–
56
56
Order
Qty.
10
10
10
6
6
Safety Information
WARNING: ONLY QUALIFIED PERSONNEL SHOULD PERFORM INSTALLATION.
TO AVOID ELECTRICAL SHOCK OR COMPONENT DAMAGE, DISCONNECT POWER BEFORE
ATTEMPTING INSTALLATION OF THE POWER SUPPLIES AND/OR MODULES.
Failure to install the power supplies and/or LED modules in accordance with the National Electric Code (NEC), all
applicable Federal, State and local electric codes as well as the specific Underwriters Laboratories (UL) safety
standards for the installation, location and application may cause serious personal injury, death, property damage
and/or product malfunction.
1. The LED module itself and all its components shall not be subjected to mechanical stress and assembly must not
damage or destroy conducting paths on the circuit board.
2. Installation of LED modules shall be made with regard to all applicable electrical and safety standards. Only
qualified personnel should be allowed to perform installations.
Warranty
SYLVANIA LED products are covered by our
LED Module, OPTOTRONIC® Power Supply
and/or Control warranty.
The LINEARlight is covered under warranty as
long as the temperature at the Tc point does
not exceed 40°C; exceeding this temperature
will void all warranties.
For additional information or to download the
warranty registration form, refer to the latest
version of the warranty available in the
Literature section of www.sylvania.com/LED.
Module Warranty: 3 years
System Warranty: 5 years
3. Observe correct electrical polarity, incorrect polarity may destroy the module. (Depending on the product,
incorrect polarity may lead to emission of red or no light.)
4. The LINEARlight can typically survive transient total current levels of up to 2 Amps. As a general design precaution, if the maximum current of the power supply is more than 2 Amps, fast-blow fuses should be incorporated
into the wiring plan.
5. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
(For more information, reference document # LED093 ESD Protection for LED Systems.)
7. Damage by corrosion and improper heat sinking will not be honored as a materials defect claim. It is the user’s
responsibility to ensure adequate heat sink and protection against corrosive agents such as moisture, condensation and other harmful elements.
Assembly Information
1. Solder connections should only be performed on designated solder pads (marked “10V +/-”). During soldering, do
not exceed the maximum soldering time of 10 seconds and the maximum soldering temperature of 260°C.
2. Each module can be separated into submodules of 4 LEDs each by carefully sawing or cutting at the marked lines
between coupons.
3. The mounting of the module is carried out by attaching it at the mounting holes. Mounting screws should be treated
with synthetic washers to prevent circuit board damage and possible short circuiting.
4. For applications involving exposure to humidity and dust, the module must be protected by a fixture, or housing with
a suitable protection class. The module can be protected against condensation by treatment with an appropriate
circuit board grade conformal coating. The conformal coating should have the following features:
a. Optical transparency
b. UV – resistance
c. Thermal expansion matching the thermal expansion of the module 15-30 x 10^-6cm/cm/K
d. Low permeability of steam for all climate conditions
e. Resistance against corrosive environment
The Acrylic Protective Lacquer (APL) from the company Electrolube (www.electrolube.com) has been tested and meets
the conditions for this product (or equivalent). Please reference “Assembly Information” for any preparation instructions.
