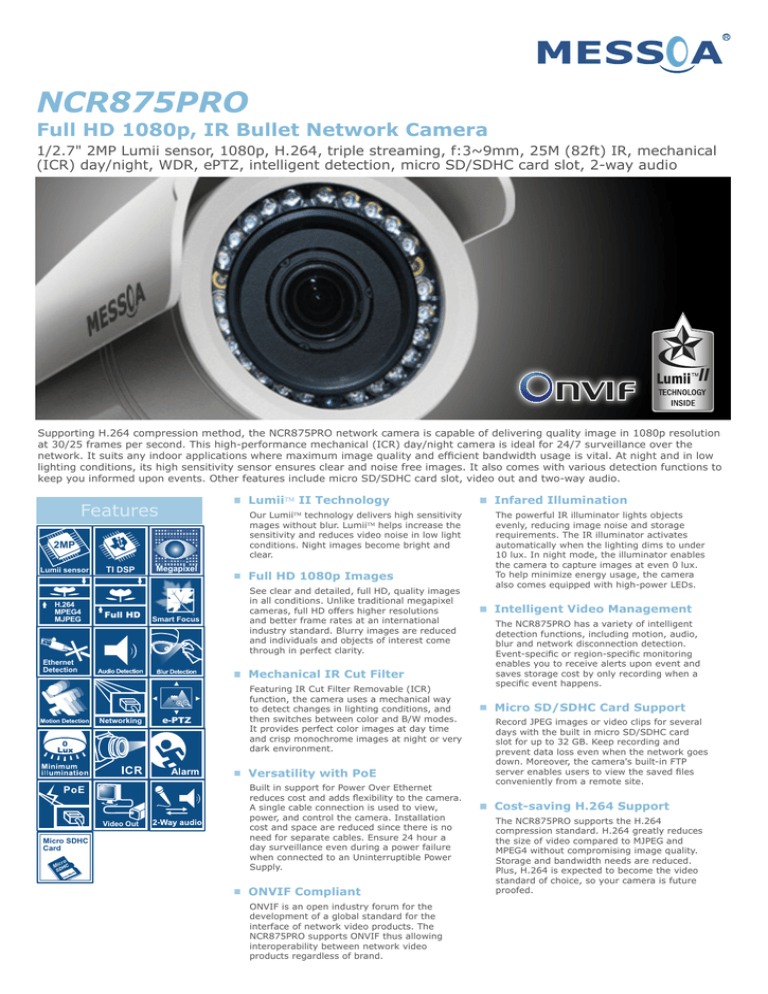

NCR875PRO Full HD 1080p, IR Bullet Network Camera

NCR875PRO Full HD 1080p, IR Bullet Network Camera
NCR875PRO
Full HD 1080p, IR Bullet Network Camera
1/2.7" 2MP Lumii sensor, 1080p, H.264, triple streaming, f:3~9mm, 25M (82ft) IR, mechanical
(ICR) day/night, WDR, ePTZ, intelligent detection, micro SD/SDHC card slot, 2-way audio
II
Supporting H.264 compression method, the NCR875PRO network camera is capable of delivering quality image in 1080p resolution
at 30/25 frames per second. This high-performance mechanical (ICR) day/night camera is ideal for 24/7 surveillance over the
network. It suits any indoor applications where maximum image quality and efficient bandwidth usage is vital. At night and in low
lighting conditions, its high sensitivity sensor ensures clear and noise free images. It also comes with various detection functions to
keep you informed upon events. Other features include micro SD/SDHC card slot, video out and two-way audio.
Lumii II Technology
Features
Our Lumii technology delivers high sensitivity
mages without blur. Lumii helps increase the
sensitivity and reduces video noise in low light conditions. Night images become bright and
clear.
2MP
Lumii sensor
H.264
MPEG4
MJPEG
TI DSP
Full HD
Megapixel
Smart Focus
Ethernet
Detection
Full HD 1080p Images
See clear and detailed, full HD, quality images
in all conditions. Unlike traditional megapixel
cameras, full HD offers higher resolutions
and better frame rates at an international
industry standard. Blurry images are reduced
and individuals and objects of interest come
through in perfect clarity.
Mechanical IR Cut Filter
Networking
0
e-PTZ
Featuring IR Cut Filter Removable (ICR)
function, the camera uses a mechanical way
to detect changes in lighting conditions, and
then switches between color and B/W modes.
It provides perfect color images at day time
and crisp monochrome images at night or very
dark environment.
Versatility with PoE
Video Out
Micro SDHC
Card
Built in support for Power Over Ethernet
reduces cost and adds flexibility to the camera.
A single cable connection is used to view,
power, and control the camera. Installation
cost and space are reduced since there is no
need for separate cables. Ensure 24 hour a
day surveillance even during a power failure
when connected to an Uninterruptible Power
Supply.
ONVIF Compliant
ONVIF is an open industry forum for the
development of a global standard for the
interface of network video products. The
NCR875PRO supports ONVIF thus allowing
interoperability between network video
products regardless of brand.
Infared Illumination
The powerful IR illuminator lights objects
evenly, reducing image noise and storage
requirements. The IR illuminator activates
automatically when the lighting dims to under
10 lux. In night mode, the illuminator enables
the camera to capture images at even 0 lux.
To help minimize energy usage, the camera
also comes equipped with high-power LEDs.
Intelligent Video Management
The NCR875PRO has a variety of intelligent
detection functions, including motion, audio,
blur and network disconnection detection.
Event-specific or region-specific monitoring
enables you to receive alerts upon event and
saves storage cost by only recording when a
specific event happens.
Micro SD/SDHC Card Support
Record JPEG images or video clips for several
days with the built in micro SD/SDHC card
slot for up to 32 GB. Keep recording and
prevent data loss even when the network goes
down. Moreover, the camera's built-in FTP
server enables users to view the saved files
conveniently from a remote site.
Cost-saving H.264 Support
The NCR875PRO supports the H.264
compression standard. H.264 greatly reduces
the size of video compared to MJPEG and
MPEG4 without compromising image quality.
Storage and bandwidth needs are reduced.
Plus, H.264 is expected to become the video
standard of choice, so your camera is future
proofed.
Specifications
Model
NCR875PRO
Description
Bullet Network Camera
Environment Image System
Image Sensor
1/2.7" 2MP image sensor optimized for low-light performance
Image Compression
Method
Maximum Frame rate
vs. Resolution
Triple Streaming : H.264 / MPEG4 / Motion JPEG
Built-in Mechanical IR Cut Filter varifocal lens f=3~9mm, F1.2 (Mega
pixel lens)
View Angle
H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele)
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity
10~ 90% RH
Storage Temperature
-20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulatory
CE, FCC, RoHS
Network 30 fps (NTSC) and 25 fps (PAL) in 2MP Full HD 1080p(1920x1080)
Lens
Operating Temperature
Electric
Ethernet
10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
Internet Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP,
ICMP, UPnP
Browser
IE browser 6.0 or above
I/O connector Shutter Time
Range from 1/10000s to 1/3.75s selectable (60Hz);
Range from 1/10000s to 1/3.125s selectable (50Hz)
Alarm Port
Terminal block 2 in / 1 out
Audio
Two-way Mono Audio, Full-duplex, G.711 PCM 8kHz
Audio In / Out port
3.5mm Phone Jack 1 in / 1 out
Alarm
External input
RS-485 Port
Terminal Block
RS-485
Reserved
Reset
Within 5 sec for rebooting system;
more than 5 sec for loading default
Day/Night Mode
Mechanical (ICR) D/N control: Auto Mode
Minimum Illumination
IR LED OFF: 0.08 Lux @30IRE; 0.20Lux @50IRE (shutter speed:
1/15sec)
IR LED ON: 0 lux
IR LED IR LED 24 pcs (850nm)
IR Distance
25 meters (82 ft.)
IR Turn On Status
Under 10 lux by auto control
LED Life
More than 10,000 hours (50ºC)
Video Port
BNC X1, 1.0Vp-p, 75Ω
Video Output
NTSC: 720 X 480 @30fps;
PAL: 720 X 576 @25fps
Image Enhancement
AWB, AES, AGC
Exposure Mode: Auto/Manual
White Balance: Auto/Manual
Backlight Compensation: 5x5 zones selectable
Sharpness, Staturation, Brightness, Contrast: 255 level sensitivity
Mechanism Dimensions(ΦxH)
300mm x 88mm x 86 mm (11.79inch x 3.47inch x 3.39inch)
Weight
995g (2.2 lb.)
Protection Class
IP67
Order Information
Yes; 5 level sensitivity
Privacy Zone
Yes; customized threshold privacy zone
Intelligent Video
Audio detection / Blur detection /Ethernet Detection/
Smart Encoding/ Smart Focus/ e-PTZ/ Event Management
Alarm Detection
Motion Detection: 5 x 5 zones, 5 level sensitivity or customized
threshold
Audio Detection: 5 level sensitivity or customized threshold
Blur Detection: customized threshold
External Input
Alarm Event
File upload via FTP, SMTP and SD Card
Notification via email, HTTP and TCP
External output activation
Video and audio recording to SD Card
Image Orientation
Mirror, Flip
Bit Rate Mode
Primary stream bit rate control: CBR/VBR
Mount Type
Local Storage
Memory Card
Micro SD/ Micro SDHC Card up to 32 GB
SD Card Overwrite
Yes
SD Card Store Category
Alarm / Motion / Schedule/ Un-interrupt recording
Power supply
Power Requirement
DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
Power Connector
Screwless Terminal block
Power Consumption
(Max.)
8W (TBD)
Dimension
Unit: mm (inch)
300mm (11.79”)
86mm (3.39”)
88mm (3.47”)
177mm (6.98”)
287mm (11.29” )
2011.08.30 version.
MESSOA reserves the right to update this datasheet at any time without notice.
MESSOA USA e-mail:[email protected]//MESSOA Taiwan e-mail:[email protected]
PAL model: NCR875PRO-HP5-MES
Accessory
Feature Brief
Digital WDR
NTSC model: NCR875PRO-HN5-MES;
TBD
