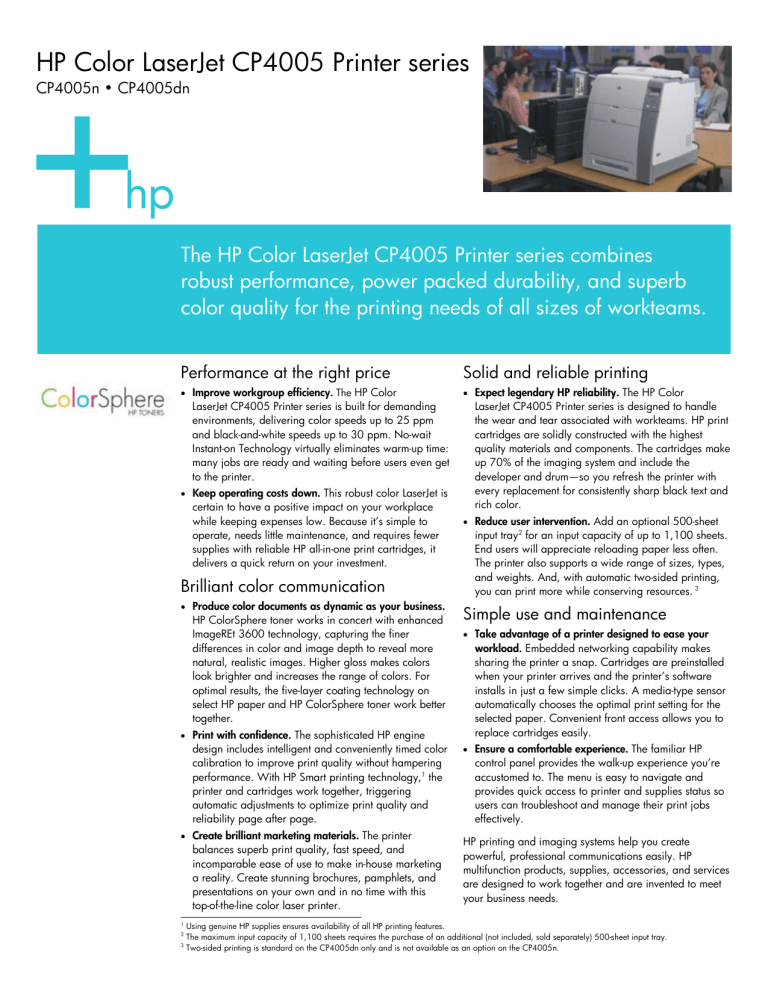

HP Color LaserJet CP4005 Printer series
CP4005n • CP4005dn
hp
The HP Color LaserJet CP4005 Printer series combines
robust performance, power packed durability, and superb
color quality for the printing needs of all sizes of workteams.
Performance at the right price
Solid and reliable printing
• Improve workgroup efficiency. The HP Color
• Expect legendary HP reliability. The HP Color
LaserJet CP4005 Printer series is built for demanding
environments, delivering color speeds up to 25 ppm
and black-and-white speeds up to 30 ppm. No-wait
Instant-on Technology virtually eliminates warm-up time:
many jobs are ready and waiting before users even get
to the printer.
• Keep operating costs down. This robust color LaserJet is
certain to have a positive impact on your workplace
while keeping expenses low. Because it’s simple to
operate, needs little maintenance, and requires fewer
supplies with reliable HP all-in-one print cartridges, it
delivers a quick return on your investment.
Brilliant color communication
• Produce color documents as dynamic as your business.
HP ColorSphere toner works in concert with enhanced
ImageREt 3600 technology, capturing the finer
differences in color and image depth to reveal more
natural, realistic images. Higher gloss makes colors
look brighter and increases the range of colors. For
optimal results, the five-layer coating technology on
select HP paper and HP ColorSphere toner work better
together.
• Print with confidence. The sophisticated HP engine
design includes intelligent and conveniently timed color
calibration to improve print quality without hampering
performance. With HP Smart printing technology,1 the
printer and cartridges work together, triggering
automatic adjustments to optimize print quality and
reliability page after page.
• Create brilliant marketing materials. The printer
balances superb print quality, fast speed, and
incomparable ease of use to make in-house marketing
a reality. Create stunning brochures, pamphlets, and
presentations on your own and in no time with this
top-of-the-line color laser printer.
1
2
3
LaserJet CP4005 Printer series is designed to handle
the wear and tear associated with workteams. HP print
cartridges are solidly constructed with the highest
quality materials and components. The cartridges make
up 70% of the imaging system and include the
developer and drum—so you refresh the printer with
every replacement for consistently sharp black text and
rich color.
• Reduce user intervention. Add an optional 500-sheet
input tray2 for an input capacity of up to 1,100 sheets.
End users will appreciate reloading paper less often.
The printer also supports a wide range of sizes, types,
and weights. And, with automatic two-sided printing,
you can print more while conserving resources. 3
Simple use and maintenance
• Take advantage of a printer designed to ease your
workload. Embedded networking capability makes
sharing the printer a snap. Cartridges are preinstalled
when your printer arrives and the printer’s software
installs in just a few simple clicks. A media-type sensor
automatically chooses the optimal print setting for the
selected paper. Convenient front access allows you to
replace cartridges easily.
• Ensure a comfortable experience. The familiar HP
control panel provides the walk-up experience you’re
accustomed to. The menu is easy to navigate and
provides quick access to printer and supplies status so
users can troubleshoot and manage their print jobs
effectively.
HP printing and imaging systems help you create
powerful, professional communications easily. HP
multifunction products, supplies, accessories, and services
are designed to work together and are invented to meet
your business needs.
Using genuine HP supplies ensures availability of all HP printing features.
The maximum input capacity of 1,100 sheets requires the purchase of an additional (not included, sold separately) 500-sheet input tray.
Two-sided printing is standard on the CP4005dn only and is not available as an option on the CP4005n.
HP Color LaserJet CP4005 Printer series
1 Automatic two-sided
printing offers efficient
duplexing at full engine
speed (CP4005dn
only)
2 Top cover
3 Front door allows
convenient access to
four, all-in-one HP print
cartridges
4 100-sheet multipurpose
tray handles heavy
custom media up to 58
lb bond (220 g/m2)
HP Color LaserJet CP4005dn Printer shown
1
2
7
8
3
9
4
5 500-sheet tray 2
6 Optional 500-sheet
tray 3
7 Control panel
simultaneously displays
up to four lines of text
and animated graphics
5
Right side view
8 Hi-Speed USB 2.0 port
9 HP Jetdirect Fast
Ethernet embedded
print server
6
Front view
Series at a glance
HP Color LaserJet CP4005n printer (CB503A)
HP Color LaserJet CP4005dn printer (CB504A)
• 100-sheet multipurpose tray 1
• 100-sheet multipurpose tray 1
• 500-sheet input tray 2 for a total of 600-sheet capacity
• 500-sheet input tray 2 for a total of 600-sheet capacity
• 128 MB total memory, expandable to 512 MB
• Automatic two-sided printing
• HP Jetdirect Fast Ethernet embedded print server
• 256 MB total, expandable to 512 MB
• HP Jetdirect Fast Ethernet embedded print server
So simple to use and maintain,
it almost takes care of itself.
HP Marketing Assistant Software
Save time and do more
When you print materials in-house, you have control over
the process: you ensure that printing is efficient,
affordable, confidential, and can make changes at a
moment’s notice without wasting printed material.
• HP Easy Printer Care Software 2.0 is your one-stop
However, complex marketing collateral software can be
overwhelming, leaving you wishing there were a better
way to create high-impact marketing materials.
HP Marketing Assistant Software answers this need.4 It
provides professionally-designed templates, top quality
HP paper, step-by-step instructions, and an online portal
with tips, success stories, and training classes—so even if
you’ve never created marketing materials before, you’ll
be whipping up dazzling documents in no time. For
optimal results, use HP Color Laser Glossy Brochure
Paper or HP Color Laser Soft Gloss Presentation Paper.
Convenient color access controls
Color can make your business more professional,
effective, and profitable—but it’s important to keep
printing costs in check. That’s why HP engineers have
developed color access controls to manage color
capability in your device. You can assign color access by
user and application or shut down color capability
completely until needed for special projects. Selected
teams can leverage the power of color, while those who
don’t need it automatically default to black-and-white
printing. More information is available at
www.hp.com/go/coloraccess.
Award-winning HP support
HP’s legendary customer service and support backs every
printer with a limited one-year warranty; fast,
knowledgeable online support available 24/7 at
www.hp.com/support; and easy-to-access phone support
provided by HP-trained agents. Plus, you can enhance
your warranty protection with the purchase of affordable
HP Care Pack Services.
management solution for up to 15 HP LaserJet printers
and MFPs. Perform multiple tasks with one tool: easily
view the status of one or multiple devices, set up
printer and supply alerts, generate basic usage
reports, and reorder supplies via HP SureSupply5 with
the click of a button. In addition, HP Instant Support
and HP Software Update provide fast, online help from
your desktop. More information is available at
www.hp.com/go/easyprintercare.
• Businesses have a huge investment in their print
resources, and providing and managing end-user
access to these resources can be a full-time job for
busy IT professionals. The HP Universal Print Driver
Series for Windows can alleviate such headaches with
a single, intelligent driver that replaces individual
drivers for most HP networked printers. For more
information and to download the driver for free, go to
www.hp.com/go/universalprintdriver.
100 million HP LaserJet printers shipped
No one has supplied more printers to more people than
HP. For more than 20 years, HP has introduced
innovative laser printing products. And now, HP
celebrates shipment of the
100 millionth HP LaserJet
printer. HP printers offer
proven reliability,
award-winning service and
support, and the broadest
portfolio of printing solutions
in the industry. Count on the
legendary quality of HP
LaserJet printers.
HP Marketing Assistant Software is available online at www.hp.com/go/marketingassistant.
Program features and availability may vary by country. For more information, visit www.hp.com/learn/suresupply. Order consolidation
available with HP Easy Printer Care Software installed or through HP Web Jetadmin Report Generation Plug-in.
4
5
HP Color LaserJet CP4005 Printer series
Technical specifications
HP Color LaserJet CP4005n printer (CB503A)
Print speed
First page out
Print resolution
Processor
Memory, standard
Memory, maximum
Durability rating
Paper
Handling
Output
Duplex printing
Sizes
Weights
Types
Connectivity
Interfaces
Languages and fonts
Operating systems
Network protocols
Dimensions (w by d by h)
Weight
What’s in the box
HP Color LaserJet CP4005dn printer (CB504A)
Up to 30 ppm black-and-white, up to 25 ppm color6
As fast as 10 seconds
600 by 600 dpi, HP ImageREt 3600
533 MHz MIPS
128 MB RAM
256 MB RAM
512 MB RAM
Recommended monthly page volume: 2,000 to 7,5007
Duty cycle: Up to 80,0008
100-sheet multipurpose tray 1, 500-sheet tray 2, optional 500-sheet tray 3
100-sheet multipurpose tray 1, 500-sheet tray 2, optional 500-sheet tray 3
500-sheet face-down output bin
Manual two-sided printing
Automatic two-sided printing
100-sheet multipurpose tray 1: 76 by 127 mm (3 by 5 in) to 216 by 356 mm (8.5 by 14 in);
letter, legal, statement, executive, executive, envelopes (Monarch)
Automatic two-sided printing and 500-sheet input trays: 148 by 210 mm (5.8 by 8.3 in) to 216 by 356 mm (8.5 by 14 in); letter, legal, executive
100-sheet multipurpose tray 1: 60 to 220 g/m2 (16 to 58 lb bond)
500-sheet tray 2 and optional 500-sheet tray 3: 60 to 120 g/m2 (16 to 32 lb bond)
Automatic two-sided printing: 60 to 120 g/m2 (16 to 32 lb bond)
100-sheet multipurpose tray 1: paper (plain, glossy, colored, preprinted, letterhead, recycled, HP tough, and high gloss laser), envelopes, transparencies, labels, cardstock
500-sheet input trays: paper (plain, glossy, colored, preprinted, letterhead, recycled, HP tough, and high gloss laser), transparencies, labels
Hi-Speed USB 2.0 port
HP Jetdirect Fast Ethernet embedded print server
HP PCL6, HP PCL5c, HP postscript level 3 emulation, direct PDF printing v 1.4
93 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation
Certified for Windows Vista®, Windows 2000, XP Home, XP Professional, XP Professional x64, Server 2003;
Mac OS X v10.3.9, v10.4 or later, PowerPC G3, G4, G5, and Intel Core processor
TCP/IP, IP Direct Mode, LPD printing, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP, HTTP, Auto-IP, Mac OS X v10.3.9, v10.4 or later, PowerPC G3, G4, G5, and Intel Core processor
For external value-featured print servers: TCP/IP, IPX/SPX direct mode, AppleTalk, IP Direct Mode, LPD printing, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP, HTTP, Auto-IP, Mac OS X
v10.3.9, v10.4 or later, PowerPC G3, G4, G5, and Intel Core processor
For external full-featured print servers: TCP/IP, IPX/SPX, AppleTalk, DLC/LLC, IP Direct Mode, LPD, FTP Printing, IPP, Netware NDS, Bindery, NDPS, iPrint, Telnet, SLP, IGMP, BOOTP/DHCP,
WINS, SNMP, HTTP, Auto-IP, Mac OS X v10.3.9, v10.4 or later, PowerPC G3, G4, G5, and Intel Core processor
20.5 in by 23.5 in by 22.9 in (521 mm by 598 mm by 582 mm)
20.5 in by 23.5 in by 24.7 in (521 mm by 598 mm by 628.6 mm)
105.1 lb (47.7 kg)
107.8 lb (48.9 kg)
HP Color LaserJet CP4005n printer, 100-sheet multipurpose tray 1, 500-sheet input tray 2,
HP Color LaserJet CP4005dn Printer, 100-sheet multipurpose tray 1, 500-sheet input tray 2,
power cable, software drivers and documentation on CD-ROM, in-box documentation
power cable, software drivers and documentation on CD-ROM, in-box documentation
(Getting Started Guide), full-capacity 7,500-page9 black, cyan, magenta, and yellow HP
(Getting Started Guide), full-capacity 7,500-page9 black, cyan, magenta, and yellow HP
Color LaserJet print cartridges with HP ColorSphere toner, HP Jetdirect Fast Ethernet
Color LaserJet print cartridges with HP ColorSphere toner, HP Jetdirect Fast Ethernet
embedded print server
embedded print server
Ordering information
Environmental ranges
Altitude
Sound power
Bystander sound pressure
Power consumption10
Power certifications
Warranty
HP SureSupply enabled
Maximum
10 to 30 degrees C (50 to 86 degrees F)
10 to 80 percent relative humidity
Recommended
17 to 25 degrees C (62.6 to 77 degrees F)
30 to 70 percent relative humidity
0 to 2300 m (0 to 7500 ft)
Power: active: 6.7 B(A); Ready: 7.7 B(A)
Pressure (bystander): active: 50 dB(A), standby: 31 d(B)A
110-volt models
110 to 127 V (±10 percent), 50/60 Hz (±2 Hz)
220-vold models 220 to 240 V (±10 percent), 50/60 Hz (±2 Hz)
Typical Electricity Consumption (TEC): 4.615 kWh/Week
Active
567 watts
Standby
55 watts
PowerSave
17 watts
Off
0.3 watts
EMC: CISPR 22: 1993/A1, A2; EN 55022: 1994/A1, A2 Class B; EN 61000-3-2:
2000; EN 61000-3-3: 1995/A1; EN 55024: 1998/A1, A2; FCC Title 47 CFR, Part 15
Class B/ICES-003, Issue 4/GB9254-1998, GB17625.1-1998; EMC Directive
89/336/EEC, the Low Voltage Directive 73/23/EEC and carries the CE-Marking
accordingly
Safety: Canada (cUL-CAN/CSA C22.2 No.60950-00), Mexico (NOM NYCE-NOM 019
SCFI), USA (UL-UL 60950; FDA-21 CFR Chapter 1 Subchapter J for lasers); Class 1
Laser/LED Product
One-year, next-day, onsite warranty; no installation
To learn more, please visit www.hp.com/go/SureSupply
Exact speed varies depending on the system configuration, software application, driver and document complexity.
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors
including supplies replacement intervals and device life over an extended warranty period.
8
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness
in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of
connected individuals or groups.
9
All print cartridge page yields are based at five percent page coverage. For more information, visit www.hp.com/go/pageyield.
10
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the
printer and void the product warranty.
6
7
Energy Star and the Energy Star logo are U.S. registered marks of the United States Environmental Protection Agency. Microsoft,
Windows, Windows NT, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
© Copyright 2006-2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
4AA0-6876ENUC, 1/2008, Rev. 2.0
Product
HP Color LaserJet CP4005n printer
HP Color LaserJet CP4005dn printer
Connectivity
HP Jetdirect ew2400 802.11g Wireless and Fast Ethernet external
print server (USB 2.0)
HP Jetdirect en3700 Fast Ethernet external print server (USB 2.0)
Accessories
HP 500-sheet paper input tray 3
HP printer stand
HP Color LaserJet Print Cartridges with HP ColorSphere Toner9
HP Color LaserJet Black Print Cartridge (7,500 pages)
HP Color LaserJet Cyan Print Cartridge (7,500 pages)
HP Color LaserJet Yellow Print Cartridge (7,500 pages)
HP Color LaserJet Magenta Print Cartridge (7,500 pages)
Memory and storage
128 MB 200-pin DDR DIMM
256 MB 200-pin DDR DIMM
512 MB 200-pin DDR DIMM
Cables
HP USB 2.0 printer cable a-b, 2 meter (6 feet)
Maintenance kits
110 volt image fuser
220 volt image fuser
110 volt image transfer kit
Service and support
Onsite installation and network configuration
3-year, next business day onsite service
4-year, next business day onsite service
5-year, next business day onsite service
3-year, 4-hour, 9x5, onsite service
4-year, 4-hour, 9x5, onsite service
5-year, 4-hour, 9x5, onsite service
3-year, 4-hour, 13x5, onsite service
4-year, 4-hour, 13x5, onsite service
5-year, 4-hour, 13x5, onsite service
1-year, post warranty, next business day onsite
1-year, post warranty, 4-hour, 9x5, onsite service
1-year, post warranty, 4-hour, 13x5, onsite service
1-year, post warranty, phone and online assistance
Paper
www.hp.com/go/paper
USA: 1-800-477-5010
Printer software
HP Web Jetadmin: www.hp.com/go/webjetadmin
HP Easy Printer Care Software: www/hp.com/go/easyprintercare
HP Universal Print Driver for Windows: www.hp.com/go/universalprintdriver
HP Install Network Printer Wizard: www.hp.com/go/inpw_sw
Solutions
www.hp.com/go/gsc
Number
CB503A
CB504A
J7951G
J7942G
Q7499A
Q7501A
CB400A
CB401A
CB402A
CB403A
Q7721A
Q7722A
Q7723A
Q6264A
Q7502A
Q7503A
Q7504A
H2872E
UG825E
UG826E
UG827E
UG828E
UG835E
UG836E
UG829E
UG830E
UG831E
UG832PE
UG834PE
UG833PE
HC130PE
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
