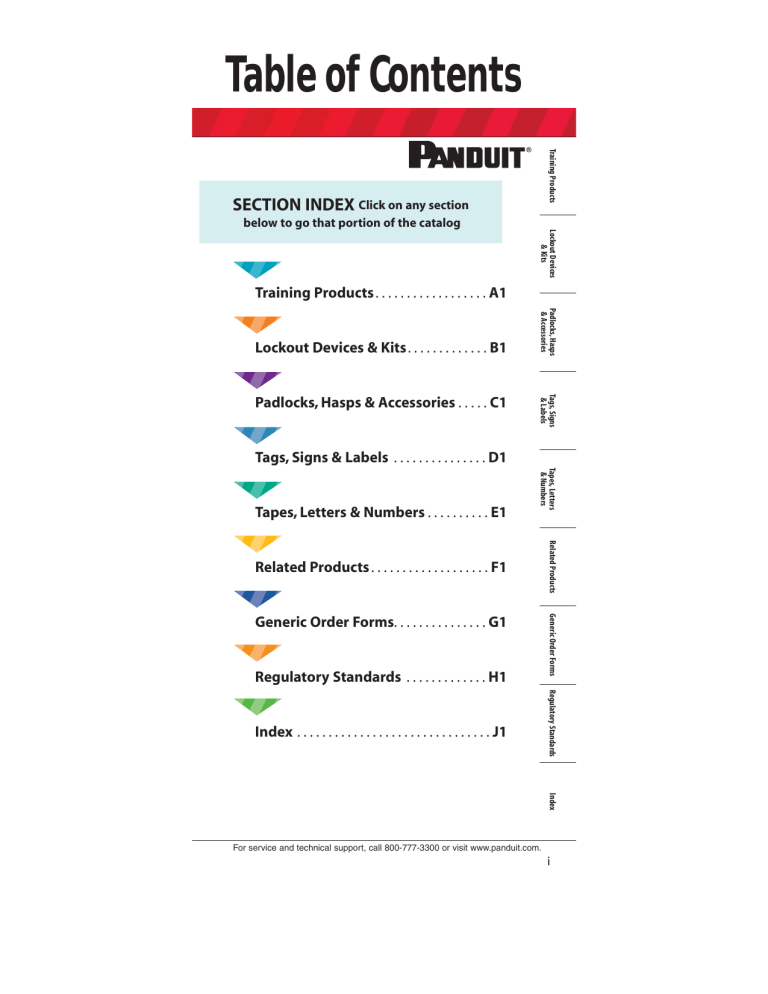

Table of Contents
Training Products
SECTION INDEX Click on any section
Lockout Devices
& Kits
below to go that portion of the catalog
Training Products . . . . . . . . . . . . . . . . . . A1
Tags, Signs
& Labels
Padlocks, Hasps & Accessories . . . . . C1
Padlocks, Hasps
& Accessories
Lockout Devices & Kits. . . . . . . . . . . . . B1
Tags, Signs & Labels . . . . . . . . . . . . . . . D1
Tapes, Letters
& Numbers
Tapes, Letters & Numbers . . . . . . . . . . E1
Regulatory Standards . . . . . . . . . . . . . H1
Regulatory Standards
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J1
Generic Order Forms
Generic Order Forms. . . . . . . . . . . . . . . G1
Related Products
Related Products . . . . . . . . . . . . . . . . . . . F1
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
i
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
The Occupational Safety and Health Administration (OSHA)
and other International Standards mandate that all energy
sources be isolated and locked out to protect employees from
injuries caused by the accidental startup of equipment under
repair or service. OSHA 1910.147 outlines the control of this
hazardous energy with an effective lockout/tagout program.
Panduit offers a complete line of lockout/tagout and safety
products to aid in compliance with OSHA 1910.147 and other
related International Standards including:
• Training manuals, videos, and templates/
checklists to help train employees on
the requirements of lockout/tagout
and assist safety professionals in
establishing and maintaining a
compliant lockout/tagout system
• Extensive line of universal, high
quality devices to lockout a variety
of energy sources
• Lockout/tagout kits and stations that
offer a convenient method to store
and contain lockout devices, tags
and padlocks
• High quality, durable, secure padlocks
in a variety of styles, colors and keying
configurations that ensure safety
and security
• Extensive line of safety identification
products that include tags, signs and
warning labels
Panduit offers everything you need to establish and maintain
an effective lockout/tagout program. Ensure employee safety
while conducting lockout/tagout procedures by utilizing Panduit
innovative products and high quality materials.
Index
Regulatory Standards
Lockout / Tagout Requirements
ii
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Training Products
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Part Number
Part Description
PSL-LOTO-TRAIN OSHA lockout/tagout compliance kit
Tags, Signs
& Labels
• This complete package includes:
Training video: DVD video “Life is
on the Line” for training employees
on the elements and application of
lockout/tagout (LOTO)
Compliance CD containing:
Training materials: Training agenda,
quiz, certificate, and key points for
hands on device training
Templates: Step-by-step interactive
presentation facility and machine
specific procedure templates;
equipment, training, and inspection
logs; lockout/tagout program template,
periodic and lockout/tagout checklists
Components: Demonstration
components for thorough “hands-on”
training including circuit breakers,
ball valves, etc., and the compatible
lockout devices
Padlocks, Hasps
& Accessories
• Takes you step-by-step through the
process of bringing your company into
compliance with OSHA Standard 1910.147;
also provides training materials and
devices for educating employees on the
the elements and applications of
lockout tagout
Lockout Devices
& Kits
OSHA Lockout/Tagout Compliance
and Training Kit
Std.
Pkg.
Qty.
1
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
A1
• “Your Lock is Your Key to Life” Training
Program provides thorough instruction on
OSHA recommended safety practices and
procedures for group lockout – multicraft/multi-shift lockout operations
Lockout Devices
& Kits
Training Products
Group Lockout/Tagout Training Video
Part Number
PSL-LTPGP
Part Description
Group lockout/tagout video
complete training program,
English, VHS format.
PSL-LTMGP
Replacement group
lockout/tagout participant
guides and cards, English.
Index
A2
Number of
Guides and Std. Std.
Cards
Pkg. Ctn.
Included
Qty. Qty.
10
1
5
10
1
10
Lockout Quick Reference Card
• Provides those employees responsible for
lockout/tagout with a constant reminder
of the OSHA recommended steps
for shutdown and startup
• Current calendar year is printed on back side
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
• This complete package includes:
Training video
Training materials:
Participant guides with quizzes
Certificate of completion cards
Leader’s guide complete with quiz key
Training log
Components:
Lockout/tagout samples
Panduit lockout/tagout bulletin
Lockout quick reference cards
Part Number
PSL-STEPS
Part Description
2.13" x 3.38", lockout/tagout
steps/calendar wallet card.
Number of
Cards
Included
25
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
4
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Lockout Devices & Kits
Part Description
Universal circuit breaker lockout.
PSL-CBIL
Circuit breaker lockout device for use with
Square D I-LINE^/Federal Pacific (FPE)
circuit breakers.
1
10
^I-LINE is a registered trademark of Square D Company.
Tapes, Letters
& Numbers
Part Number
PSL-CB
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Tags, Signs
& Labels
PSL-CBIL
Padlocks, Hasps
& Accessories
PSL-CB
• Quickly locks circuit breakers in
the off position using a screwdriver
• Compact, universal design fits a wide
range of single, double, and triple
handle circuit breakers
• Accommodates breaker handles
.30" – .60" (7.6mm x 15.2mm) tall
and .25" – .44" (6.6mm x 11.2mm) thick
• Easily secured to circuit breaker
without modifications or holes
in the breaker handle
• Constructed of rugged nylon and stainless
steel for industrial and harsh applications
Lockout Devices
& Kits
Circuit Breaker Lockout Devices
• Quickly locks circuit breakers in the off
position without any tools
• Compact, universal design fits a wide
range of single, double, and triple handle
circuit breakers
• Accommodates breaker handle sizes ranging
from .30" – .60" (7.6mm x 15.2mm) tall and
.16" – .35" (4.1mm x 8.9mm) thick
• Easily secured to circuit breaker without
modifications or holes in the breaker handle
• Constructed of rugged nylon and stainless
steel for industrial and harsh applications
Generic Order Forms
PSL-CBNT
Related Products
“No Tool” Circuit Breaker Lockout Devices
Regulatory Standards
PSL-CBILNT
Part Description
“No Tool” universal circuit breaker lockout.
PSL-CBILNT
“No Tool” circuit breaker lockout for use
with Square D I-LINE^/Federal Pacific
(FPE) circuit breakers.
1
10
Index
Part Number
PSL-CBNT
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
^I-LINE is a registered trademark of Square D Company.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B1
PSL-CBL
Part Number
PSL-CBL
• Quickly locks circuit breakers in the
off position without any tools
• Compact, universal design fits a wide
range of large handle circuit breakers
• Accommodates breaker handle
dimensions up to .80" thick x 3.00"
wide (20.3mm x 76.2mm)
• Easily secured to circuit breaker
without modifications or holes in
the breaker handle
• Constructed of rugged nylon and stainless
steel for industrial and harsh applications
Part Description
Large handle circuit breaker lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Training Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Large Handle Circuit Breaker Lockout Device
• Locks a wide range of individual plugs
to prevent energization
• Works with plugs that have a hole
in a blade of the plug
• Constructed of rugged nylon and stainless
steel for industrial and harsh applications
• Accommodates padlocks with shackle
lengths of 1.50" (38.1mm)
PSL-P
Part Number
PSL-P
Part Description
Plug lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Index
Regulatory Standards
Generic Order Forms
Related Products
Plug Lockout Device
B2
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Cord Lockout Devices
Lockout Devices
& Kits
• Locks out a wide range of corded plugs
to prevent energization
Padlocks, Hasps
& Accessories
PSL-CL110
Part Description
Lockout for small corded plugs,
2.00" x 2.00" x 3.50" outside dimensions.
PSL-CL480
Lockout for large corded plugs,
3.25" x 3.25" x 7.00" outside dimensions.
1
10
Tapes, Letters
& Numbers
Part Number
PSL-CL110
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Tags, Signs
& Labels
PSL-CL480
Receptacle Blockout Device
Related Products
Generic Order Forms
• Blocks out receptacles to prevent
equipment damage from overloading
circuits or electrical interference
• Accommodates industrial electrical
receptacles with two or three blades
Part Number
PSL-ERB
Part Description
Blockout for 120 V electrical receptacle.
Regulatory Standards
PSL-ERB
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
25
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B3
• Fits most toggle switches and some
small circuit breakers
• Easily attached without removal
of faceplate or screws
• Accommodates switches
.45" – .78" (11.4mm – 19.8mm) tall x
.25" – .38" (6.4mm – 9.7mm) wide x
.25" – .40" (6.4mm – 10.2mm) thick
• Constructed of rugged nylon and stainless
steel for industrial and harsh applications
PSL-WS
Part Number
PSL-WS
Part Description
Toggle switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Toggle Switch Lockout Device
• Designed for switches that are
frequently locked out
• Locks out toggle/rocker switches
controlling electrical supply
• Accommodates standard wall
switch faceplates
• Install using faceplate screws
PSL-WS1A
Part Number
PSL-WS1A
Part Description
Toggle/rocker switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Index
Regulatory Standards
Generic Order Forms
Related Products
Toggle/Rocker Switch Lockout Device
B4
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Gate Valve Lockout Devices
Part Number
PSL-V2A
PSL-V6A
PSL-V9
1
10
1
10
1
10
1
—
Ball/Butterfly Valve Lockout Devices
Tapes, Letters
& Numbers
PSL-V13
Std.
Ctn.
Qty.
10
Tags, Signs
& Labels
PSL-V4
Part Description
Gate valve lockout, accommodates
1.00" – 2.50" diameter handle.
Gate valve lockout, accommodates
2.5" to 5" diameter handle
Gate valve lockout, accommodates
2.50" – 6.50" diameter handle.
Gate valve lockout, accommodates
6.50" – 10.00" diameter handle.
Gate valve lockout, accommodates
10.00" – 13.00" diameter handle.
Std.
Pkg.
Qty.
1
Padlocks, Hasps
& Accessories
PSL-V2A
Lockout Devices
& Kits
• Quickly locks out gate valves regulating
hydraulic, pneumatic and chemical energy
• Accommodates valve handles ranging
from 1.00" (25.4mm) to 13.00" (330.2mm)
in diameter
Related Products
• Ball valves regulating hydraulic, pneumatic
and chemical energy can be locked out
quickly and easily
• Accommodates valve diameters ranging
from .25" (6.4mm) to 8.00" (203.2mm)
Generic Order Forms
PSL-BV1
Regulatory Standards
PSL-BFV
Part Number
PSL-BV1
PSL-BV2
PSL-BFV
1
10
1
10
1
10
Index
PSL-BV3
Part Description
Ball valve lockout, accommodates
.25" – 1.00" valve pipe diameter.
Ball valve lockout, accommodates
1.25" – 3.00" valve pipe diameter.
Ball valve lockout, accommodates
2.00" – 8.00" valve pipe diameter.
Butterfly valve lockout, accommodates
most butterfly valve handles.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B5
• Device can be used alone as a lockout hasp
or with provided 0.19" (4.8mm) diameter
cable to lockout electrical disconnects,
gate valves, or large cumbersome devices
• Compact and easy to install
• Constructed of rugged polycarbonate
and stainless steel for industrial and
harsh applications
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Multiple Lockout Device
PSL-MLD
Tapes, Letters
& Numbers
Part Number
PSL-MLD
PSL-MLDH-X
PSL-MLDC
Regulatory Standards
Index
B6
6.0' (1.8M) vinyl coated galvanized steel
cable with loophole (cable only).
200.0' (61.0M) vinyl coated galvanized steel
cable on roll without loophole (cable only).
PSL-MLD-CRIMP Additional crimps for creating
cable loopholes.
PSL-MLD-TOOL Tool for installing crimps on custom-length
cables using the PSL-MDLC200.
10
—
1
5
1
—
10
50
1
—
Pneumatic Energy Lockout Device
Generic Order Forms
Related Products
PSL-MLDC200
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
20
Part Description
Multiple lockout device; includes lockout
hasp and 6.0' (1.8M) vinyl coated
galvanized steel cable with loophole.
Multiple lockout device (hasp only).
PSL-PEL
Part Number
PSL-PEL
• Quickly locks out pneumatic energy
devices without costly tool modifications
or inconvenient in-line valves
• Installs on the male pneumatic fitting,
preventing the ability to engage into
the female fitting
• Universal compact design makes the
pneumatic lockout device easy to transport
and install on almost any fitting, even in
tight spaces
• Rugged stainless steel construction offers
superior strength, durability, added security
and corrosion resistance
Part Description
Pneumatic energy lockout device,
3.50" x 0.10" (88.9mm x 25.4mm) thick.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
20
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
UPD
UPDATED
PDATED
ATED
Electrician Lockout Kit
Tags, Signs
& Labels
Contractor Lockout Kit
Contents
Regulatory Standards
(1) Screwdriver.
(1) PSL-KT carrying case – 5.0" x 3.5" x 11.0"
(127mm x 89mm x 279mm).
(6) PSL-8 red non-conductive
lockout padlocks.
(1) PSL-1A lockout hasp – 1.0" (25mm)
jaw diameter.
(1) PSL-MLD multiple lockout device.
(3) PSL-WS wall switch lockouts.
(3) PSL-CBNT “No Tool” circuit breaker
lockout device.
(3) PSL-P plug lockouts.
(15 Tags) PVT-98 "EQUIPMENT LOCKED
OUT BY..." safety tags.
Std.
Pkg.
Qty.
1
Generic Order Forms
Part Number
PSL-KT-CONA
Related Products
• Kit contains a variety of lockout/tagout
devices commonly used by electrical
contractors and multiple electricians
• Contains items from electrician lockout kit
above and additional components
Tapes, Letters
& Numbers
UPD
UPDATED
PDATED
ATED
Contents
(1) Screwdriver.
(1) PSL-PK pouch.
(1) PSL-8 red non-conductive
lockout padlock.
(1) PSL-MLD multiple lockout device.
(1) PSL-WS wall switch lockout device.
(1) PSL-CBNT “No Tool” circuit breaker
lockout device.
(1) PSL-P plug lockout device.
(5) PVT-30 electrician’s blocking tags.
Padlocks, Hasps
& Accessories
Part Number
PSL-PK-EA
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
Lockout Devices
& Kits
• Kit contains a variety of lockout/tagout
devices commonly used by an
individual electrician
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B7
Maintenance/MRO Lockout Kit
• Kit contains a variety of lockout/tagout
devices commonly used by maintenance
and repair personnel in a facility
Part Number
PSL-KT-MROA
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
UPD
UPDATED
PDATED
ATED
Contents
(1) Screwdriver.
(1) PSL-BX carrying case – 6.5" x 5.0" x 14.5"
(32mm x 127mm x 368mm).
(3) PSL-8 red non-conductive
lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-WS wall switch lockouts.
(2) PSL-CBNT “No Tool” circuit breaker
lockout device.
(2) PSL-P plug lockouts.
(1) PSL-V6A gate valve lockout – 6.5"
(165mm).
(1) PSL-V2A gate valve lockout – 2.5"
(64mm).
(1) PSL-BV2 ball valve lockout – 3.0" (76mm).
(1) PSL-CL110 110V plug lockout.
(10) PVT-44 “DO NOT OPERATE”
maintenance tags.
Std.
Pkg.
Qty.
1
Circuit Breaker Lockout Device Kits
Part Number
PSL-CBKIT
Contents
(1) PSL-CBL large handle circuit breaker
lockout device.
(1) PSL-CBNT “No Tool” universal circuit
breaker lockout device.
(1) PSL-CBILNT “No Tool” universal circuit
breaker lockout device for Square D/I-Line.
PSL-CB-3PC
(3) PSL-CB universal circuit breaker
lockout device.
Std.
Pkg.
Qty.
1
1
Index
Regulatory Standards
Generic Order Forms
• Packages of commonly used circuit breaker lockout devices
B8
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
UPD
UPDATED
PDATED
ATED
Power and Panel Distribution
Lockout Kit
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Contents
(1) Screwdriver.
(1) PSL-STATION metal wall mount cabinet.
(2) PSL-8 red non-conductive lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-CBNT “No Tool” circuit breaker
lockout device.
(2) PSL-CBILNT circuit breaker lockout device
for Square D/I-LINE^/Federal Pacific (FPE)
circuit breakers.
(2) PSL-CBL large handle circuit breaker
lockout devices.
(1) PSL-P plug lockout.
(25) PVT-23-Q “DO NOT OPERATE
ELECTRICIANS AT WORK” tags.
Padlocks, Hasps
& Accessories
Part Number
PSL-KT-PWR
Std.
Pkg.
Qty.
1
Lockout Devices
& Kits
• Kit contains a variety of lockout/tagout
devices commonly used by maintenance
and repair personnel to isolate electrical
distribution panels
• Durable steel case can be wall mounted
or used as a portable case
^I-LINE is a registered trademark of Square D Company.
Related Products
Metal Wall Mount Cabinet (Case only)
Part Description
Metal wall mount cabinet.
Regulatory Standards
Part Number
PSL-STATION
Generic Order Forms
• Conveniently store lockout tools and
accessories in one common area
• Durable steel case can be wall-mounted
(nine mounting holes) or used as a
portable case
• 14.75" x 10.25" x 4.63"
(375.0mm x 260.0mm x 117.0mm)
Std.
Pkg.
Qty.
1
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B9
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Std.
Pkg
Qty.
1
Std.
Ctn.
Qty.
10
Part Number
PSL-PK
Part Description
Electrician pouch.
PSL-KT
Carrying case – 5.0" x 3.5" x 11.0"
(127mm x 89mm x 279mm).
1
2
PSL-BX
Carrying case – 6.5" x 5.0" x 14.5"
(165mm x 127mm x 368mm).
1
—
1
—
PSL-STATION Metal Wall Mount Cabinet 14.75" x 10.25"
x 4.63" (375mm x 260mm x 117mm).
Contact Your Local Panduit Representative for custom kits,
minimum order quanitity is 10 kits.
Call 800-777-3300 for additional information.
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Cases to Create Your Own Kit
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
B10
Training Products
Lockout Stations
PSL-20SA
23.00" x 23.00", 20 person lockout station
(sign only).
1
PSL-10SWCA
11.50" x 23.00", 10 person lockout station
with components; components include:
(10) PSL-8 red non-conductive lockout
padlocks (keyed differently),
(3) PSL-1.5 lockout hasps,
(15 tags) PVT-98 safety tags, and
(10 tags) PVT-41 safety tags.
1
PSL-10SA
11.50" x 23.00", 10 person lockout station
(sign only).
1
PSL-4SWCA
11.50" x 11.50", 4 person lockout station
with components; components include:
(4) PSL-8 red non-conductive lockout padlocks
(keyed differently),
(3) PSL-1.5 lockout hasps, and
(15 tags) PVT-98 safety tags.
1
PSL-4SA
11.50" x 11.50", 4 person lockout station
(sign only).
1
Tapes, Letters
& Numbers
Part Description
23.00" x 23.00", 20 person lockout station
with components; components include:
(20) PSL-8 red non-conductive lockout
padlocks (keyed differently),
(6) PSL-1.5 lockout hasps,
(25 tags) PVT-98 safety tags, and
(25 tags) PVT-41 safety tags.
Tags, Signs
& Labels
Part Number
PSL-20SWCA
Padlocks, Hasps
& Accessories
Std.
Pkg.
Qty.
1
Lockout Devices
& Kits
• Conveniently store padlocks, tags and
lockout devices in one common area
• Designs available to accomodate four,
ten, or twenty people
Related Products
Generic Order Forms
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
B11
Training Products
PSL-GLBN
Part Number
PSL-GLBN
• Manage multiple employees and
energy sources involved in a group
lockout procedure
• Accommodates up to thirteen padlocks
(not included)
• Rust-resistant lock box delivers
maximum durability
• Dimensions: 9.00" (228.6mm) W x
6" (152.4mm) H x 3.25" (82.6mm) D
• Innovative sliding lid design enhances
safety and security
Part Description
Group lock box.
Std.
Pkg.
Qty.
1
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Group Lock Box
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
B12
Training Products
Padlocks, Hasps, and Accessories
Color
Std.
Pkg.
Qty.
Tags, Signs
& Labels
Part Number
Padlocks, Hasps
& Accessories
PSL-8
• Standard locks are keyed differently each padlock is supplied with 1 key
• Non-conductive lock body and
shackle provide protection against
electrical hazards
• Available in eight assorted colors
for quick visual color identification
• Key-retention feature means that key
cannot be removed from padlock
when open
Lockout Devices
& Kits
Non-Conductive Lockout Padlocks
1.50" (38.1mm) Shackle
Red
1
PSL-8BL
Black
1
Blue
1
PSL-8GR
Green
1
PSL-8OR
Orange
1
PSL-8YL
Yellow
1
PSL-8PU
Purple
1
PSL-8BR
Brown
1
Related Products
PSL-8BU
Tapes, Letters
& Numbers
PSL-8
These locks can be master keyed or keyed alike.
These locks can also be custom engraved.
See Custom Lock Options on page G2.
Generic Order Forms
Replacement Labels for Non-Conductive
Lockout Padlocks
Part Number
PSL-8-LABEL
Color
Package of 20 replacement labels
for PSL-8 non-conductive
lockout padlocks.
Regulatory Standards
• Labels supplied in English, Spanish, and French
• Replacement labels for front and back of lock
• Used to identify employees’ locks
Std.
Pkg.
Qty.
1
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
C1
Training Products
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
High Security Padlocks
Tags, Signs
& Labels
PSL-7
• Standard locks are keyed differently -each
padlock is supplied with 2 keys
• Solid aluminum body with anodized
aluminum finish provides improved
durability and corrosion resistance
• Available in eight assorted colors for quick
visual color identification
• Padlocks can be ordered with various
keying options (keyed-alike and masterkeyed)
• Six-pin cylinder design allows for a large
number of key change options
Part Number
Color
Std.
Pkg.
Qty.
PSL-7
Red
1
PSL-7BL
Black
1
PSL-7BU
Blue
1
PSL-7GR
Green
1
PSL-7OR
Orange
1
PSL-7YL
Yellow
1
PSL-7PU
Purple
1
PSL-7BR
Brown
1
Long shackle – 3.00" (76.2mm)
PSL-7-LS
Red
1
PSL-7BL-LS
Black
1
PSL-7BU-LS
Blue
1
PSL-7GR-LS
Green
1
PSL-7OR-LS
Orange
1
PSL-7YL-LS
Yellow
1
PSL-7PU-LS
Purple
1
PSL-7BR-LS
Brown
1
These locks can be ordered with various keying options
(keyed-alike or master-keyed) and custom engraved.
See Generic Lock Options on page G2.
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Short shackle – 1.00" (25.4mm)
C2
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Laminated Steel Padlocks
Tags, Signs
& Labels
Color
Padlocks, Hasps
& Accessories
Part Number
Std.
Pkg.
Qty.
Lockout Devices
& Kits
PSL-6
• Standard locks are keyed differently each padlock is supplied with 2 keys
• Hardened steel shackle with double-ball
locking mechanism provides protection
from cutting, prying, and rusting
• Available in six vinyl bumper colors
for quick visual color identification
• Padlocks can be ordered with
various keying options (keyed-alike
and master-keyed)
• Galvanized layer design provides corrosion
resistance in harsh environments
Short shackle – .75" (19.3mm)
Red
1
PSL-6BL
Black
1
PSL-6BU
Blue
1
PSL-6GR
Green
1
PSL-6WH
White
1
PSL-6YL
Yellow
1
Tapes, Letters
& Numbers
PSL-6
Related Products
Long shackle – 2.00" (46.8mm)
Red
1
PSL-6BL-LS
Black
1
PSL-6BU-LS
Blue
1
PSL-6GR-LS
Green
1
PSL-6WH-LS
White
1
PSL-6YL-LS
Yellow
1
Generic Order Forms
PSL-6-LS
These locks are not suitable for custom engraving.
See Generic Lock Order Form on page G2.
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
C3
Training Products
Lockout Devices
& Kits
Lockout Hasps
PSL-MLD
PSL-1
PSL-1A
PSL-1.5A
PSL-HD3
Max. Std. Std.
No.
Pkg. Ctn.
Locks Qty. Qty.
6
1
20
Part Number
PSL-MLD
Part Description
Multiple lockout device; includes
lockout hasp and 6.0’ (1.8M) vinyl
coated galvanized steel cable
with loophole.
PSL-MLDH-X
Multiple lockout device (hasp only).
6
10
–
PSL-1
Hasp with 1.00" (25.4mm)
diameter jaw and overlapping tabs.
6
12
144
PSL-1.5
Hasp with 1.50" (38.1mm)
diameter jaw and overlapping tabs.
6
12
144
PSL-1A
Hasp with 1.00" (25.4mm)
diameter jaw.
6
12
144
PSL-1.5A
Hasp with 1.50" (38.1mm)
diameter jaw.
6
12
48
PSL-HD1
Heavy duty hasp with 1.00" x 1.00"
(25.4mm x 25.4mm) clearance.
5
12
–
PSL-HD2.4
Heavy duty hasp with 1.00" x 2.40"
(25.4mm x 60.0mm) clearance.
5
12
–
PSL-HD3
Heavy duty hasp with 1.00" x 3.00"
(25.4mm x 76.0mm) clearance.
7
12
–
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
PSL-1.5
PSL-HD1
• Energy sources can be locked
out quickly and easily by more
than one worker for group
lockout applications
• Heavy duty hasps with
tamper-resistant designs
to deter vandalism
• Variety of lockout hasp styles
and sizes to accommodate a
wide range of lockout applications
C4
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Self-Laminating Padlock Labels
Lockout Devices
& Kits
• Used to identify employees’ locks;
employees sign the label, attach it
to the padlock, and overwrap with
the clear vinyl to protect the legend
• Available in six colors for
departmental coding
• One-piece design is easy to use
In.
10.00
mm
254.0
In.
0.75
mm
19.0
Std.
Pkg.
Qty.
25
Std.
Ctn.
Qty.
150
PSL-PL1BLKY
Black
10.00
254.0
0.75
19.0
25
150
PSL-PL1BLUY
Blue
10.00
254.0
0.75
19.0
25
150
PSL-PL1GRNY
Green
10.00
254.0
0.75
19.0
25
150
PSL-PL1WHTY
White
10.00
254.0
0.75
19.0
25
150
PSL-PL1YELY
Yellow
10.00
254.0
0.75
19.0
25
150
Width
Height
Tapes, Letters
& Numbers
Labels are designed with blank write-on area for name and department
designation and can be clearly identified with Panduit permanent marking
pens, page D14.
Tags, Signs
& Labels
Color
Red
Padlocks, Hasps
& Accessories
Part Number
PSL-PL1REDY
Related Products
Metal I.D. Tags and Collars
PSL-SC
PSL-TG1
• All marker plates/tags can be embossed
or laser etched with Panduit Factory
Custom Marking Service*
Generic Order Forms
MT172W38-C
MTB1D-Q
• Provides permanent identification of pipes,
conduit, valves, cables and equipment in
harsh environments
Part Number
PSL-TG1
Part Description
Brass padlock identification tag.
PSL-SC
Padlock shackle collar and rivet.
12
48
MTB1D-Q
Brass identification tag
1.00" (25.4mm) diameter.
25
250
MT172W38-C
Stainless steel tag 1.72" x .38"
(43.7mm x 9.7mm).
100
1000
Regulatory Standards
Std. Std.
Pkg. Ctn.
Qty. Qty.
12
48
Index
*For information on the Panduit Custom Marking Service
visit www.panduit.com/permanentid.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
C5
Training Products
Lockout Devices
& Kits
Padlock Eyes
PSL-PE2
Part Number
PSL-PE1
Part Description
Padlock eyes, angled (metal mounting
screws included).
PSL-PE2
Padlock eyes, straight (wood mounting
screws included).
1
10
• Optional 9.00" (229.0mm) chain
for permanently attaching lockouts
at pre-designed locations
Part Number
PSL-PC
Part Description
Heavy duty zinc plated steel chain with
chain holder attached.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Index
Regulatory Standards
Generic Order Forms
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Chain Attachment
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
PSL-PE1
• Padlock eyes can be added to equipment
to lock it out
• Surface mounted eyes are made of .13"
(3.0mm) hard wrought steel
• Tamper resistant inside mounting eyes –
2.50" (64.0mm) wide, accept shackle
diameters up to .63" (16.0mm)
C6
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Tags, Signs, and Labels
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
• Meets OSHA Standard 1910.147
requirements for tagout applications
• Semi-rigid plastic tags are 3.00" (76.0mm)
wide x 5.75" (146.0mm) high with a
.38" (9.0mm) brass grommet for greater
strength and increased durability
• Tags can be attached with a lockout device
or with a Panduit PLT2S nylon tie (50 lb. loop
tensile strength) supplied with each tag
• PVT-* package consists of five tags
and five cable ties
• PVT-*-Q package consists of 25 tags
and 25 cable ties
• Can be clearly identified with Panduit
permanent marking pens, page D14
Lockout Devices
& Kits
Write-On Safety Tags
PVT-9-Q
Back
Front
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Back
Regulatory Standards
Front
PVT-15
Index
continued on page D2.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D1
Back
Front
PVT-23
PVT-23-Q
Training Products
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Write-On Safety Tags (continued)
Index
DO NOT
OPERATE
Back
PVT-41
Front
Regulatory Standards
Generic Order Forms
Related Products
Back
Front
Tapes, Letters
& Numbers
PVT-30
PVT-30-Q
Signed By
Date
D2
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Tapes, Letters
& Numbers
Back
Tags, Signs
& Labels
Related Products
Generic Order Forms
Regulatory Standards
Back
Front
Back
Padlocks, Hasps
& Accessories
Front
PVT-42-Q
Lockout Devices
& Kits
Front
Training Products
Write-On Safety Tags (continued)
PVT-43
PVT-44
PVT-44-Q
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
continued on page D4.
D3
D4
Index
Back
Front
Regulatory Standards
Generic Order Forms
Related Products
Back
Front
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Back
Front
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Write-On Safety Tags (continued)
PVT-57-Q
PVT-62-Q
PVT-96
PVT-96-Q
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Write-On Safety Tags (continued)
Padlocks, Hasps
& Accessories
Back
Front
Lockout Devices
& Kits
PVT-97
PVT-97-Q
Tags, Signs
& Labels
Back
Front
Tapes, Letters
& Numbers
PVT-98
PVT-98-Q
Related Products
Generic Order Forms
PVT-99
Back
Front
Regulatory Standards
DO NOT OPERATE
Index
continued on page D6.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D5
D6
Index
Back
Front
Regulatory Standards
Generic Order Forms
Related Products
Back
Front
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Back
Front
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Write-On Safety Tags (continued)
PVT-148-Q
PVT-150-Q
PVT-153-Q
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Tapes, Letters
& Numbers
Back
Tags, Signs
& Labels
Related Products
Generic Order Forms
Regulatory Standards
Back
Front
Back
Padlocks, Hasps
& Accessories
Front
PVT-155-Q
Lockout Devices
& Kits
Front
Training Products
Write-On Safety Tags (continued)
PVT-156-Q
PVT-157-Q
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
continued on page D8.
D7
D8
Index
Back
Front
Regulatory Standards
Generic Order Forms
Related Products
Back
Front
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Back
Front
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Write-On Safety Tags (continued)
PVT-158-Q
PVT-160-Q
PVT-238-Q
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Tapes, Letters
& Numbers
Back
Tags, Signs
& Labels
Related Products
Generic Order Forms
Regulatory Standards
Back
Front
Back
Padlocks, Hasps
& Accessories
Front
PVT-97S-Q
Lockout Devices
& Kits
Front
Training Products
Bilingual Write-On Safety Tags
(English/Spanish)
PVT-161-Q
PVT-165-Q
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D9
Training Products
Lockout Devices
& Kits
• Semi-rigid plastic tags with polyester laminate to protect photos
and other written data are 5.75" H x 3.00" W (146.0mm x
76.0mm) with a .38" (9.0mm) brass grommet for greater
strength and durability
• Tags have write-on surface and can be attached with a lockout
device or with a Panduit PLT2S nylon tie (50 lb. loop tensile
strength) supplied with each tag
• Package consists of five tags and five cable ties
• Can be clearly identified with Panduit permanent marking pens,
page D14
DO
NOT
OPERATE
Do not remove
this lock. It
is here to
protect my life.
Back
Front
PST-3
PLACE
HERE
Back
Front
PST-12
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Self-Laminating Photo Tags
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D10
Training Products
ISO Symbol Safety Tags
Lockout Devices
& Kits
• Meet International Organization for Standardization (ISO)
to communicate safety information
• Semi-rigid plastic tags are 5.75" H x 3.00" W (146.0mm x
76.0mm) with a .38" (9.0mm) brass grommet for greater
strength and durability
• Tags have write-on surface and can be attached with a lockout
device or with a Panduit PLT2S nylon tie (50 lb. loop tensile
strength) supplied with each tag
• Package consists of five tags and five cable ties
• Can be clearly identified with Panduit permanent marking pens,
page D14
Padlocks, Hasps
& Accessories
Back
Tapes, Letters
& Numbers
Front
Tags, Signs
& Labels
PVT-110
(Do Not
Throw Switch)
Related Products
Generic Order Forms
Back
Regulatory Standards
Front
PVT-111
(Prohibition)
Index
continued on page D12.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D11
Back
Front
PVT-112
(Warning of
Dangerous
Electrical
Voltage)
Training Products
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
ISO Symbol Safety Tags (continued)
• Semi-rigid plastic tags are 5.75" H x 3.00" W (146.0mm x
76.0mm) with a .38" (9.0mm) brass grommet for greater
strength and increased durability
• Tags can be attached with a lockout device or with a Panduit
PLT2S nylon tie (50 lb. loop tensile strength) supplied with
each tag
• Package consists of 25 tags and 25 cable ties
• Can be clearly identified with Panduit permanent marking pens,
page D14
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Do-It-Yourself Tags
PVT-95-Q
Index
Regulatory Standards
PVT-94-Q
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D12
Training Products
Do-It-Yourself Tags
PVT-179-Q
Lockout Devices
& Kits
PVT-113-Q
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
PVT-56-Q
Tapes, Letters
& Numbers
PVT-118-Q
DANGER
DANGER
Related Products
LIVE
WIRE
Signed By:
PANDUIT
PVT-118
PVT-56
PVT-199-Q
PVT-200-Q
FULL
CYLINDER
DO NOT
USE
READY FOR
USE
Regulatory Standards
EMPTY
CYLINDER
Generic Order Forms
Date:
PANDUIT
Index
PVT-199
PANDUIT
PVT-200
PANDUIT
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D13
• Fast drying permanent ink
• Can be used with write-on labels and tags
Part Number
PFX-0
PFX-2
Tapes, Letters
& Numbers
Related Products
Std. Std.
Ink
Pkg. Ctn.
Color Qty. Qty.
Black
12
144
Red
12
144
• Durable tag for marking fiber optic cable in
manhole and indoor/outdoor environments
• Clear overlaminate protects legend
• Can be installed as a wrap or flag
with Panduit Intermediate Cable Ties
• Can also be used with .33" and .50" width
Panduit ® Tak-Ty ® Hook and Loop Cable
Ties in the 90° flag application
Std. Std.
Width Width Height Height Pkg. Ctn.
Part Number Part Description (In.) (mm) (In.) (mm) Qty. Qty.
PST-FO
Black/yellow tag,
3.50 89.0 2.00 51.0 12 144
5 tags/pack
PST-FOBLNK Yellow blank tag,
3.50 89.0 2.00 51.0
1
40
5 tags/pack
Cable Marking Ground Warning Tags
• U.V. resistant legend is printed on
both sides
• Install with Panduit Intermediate
Cable Ties
• 100 tags per package
Generic Order Forms
Regulatory Standards
Index
Part Description
Permanent marking pen – fine tip.
Permanent marking pen – fine tip
Self-Laminating Fiber Optic Cable
Marker Tags
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Permanent Marking Pens
Part Number Part Description
PT-BGND
Ground Tag,
Network Bldg,
Green/Yellow,
100/Pk
PT-GND
Ground Tag,
Ground Wire,
Black/Yellow,
100/Pk
PT-TGND
Ground Tag,
Telephone,
Black/Yellow,
100/Pk
Std. Std.
Width Width Height Height Pkg. Ctn.
(In.) (mm) (In.) (mm) Qty. Qty.
2.75 70.0 1.38 35.0
1
5
2.75
70.0
1.38
35.0
1
5
2.75
70.0
1.38
35.0
1
5
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D14
Training Products
Safety Signs
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Panduit offers signs in three materials:
Indoor Adhesive Vinyl (Type PVS)
• Economical, general purpose signs
for use in most environments
• Very good adhesive properties when
applied to a clean surface
Indoor/Outdoor Sub-Surface Printed
Adhesive Polyester (Type PPS)
• High quality signs for use indoors
and outdoors
• Excellent resistance to UV light,
chemical atmosphere and abrasion
• Excellent life and adhesion properties
• Printed graphics are protected by clear
polyester laminate
Indoor/Outdoor Rigid Polyethylene
(Type PRS)
• Rugged signs for indoors and outdoors
• Abrasion resistant
• Used where adhesives will not work
Size Reference Chart
Signs
per
Card
1
Std.
Pkg.
Qty.
5 Signs
2.25
57.2
2.25
57.2
4
5 Cards
4.50
114.3
2.25
57.2
2
5 Cards
*0209*
9.00
228.6
2.25
57.2
1
5 Signs
*0305*
5.00
127.0
3.50
88.9
2
5 Cards
*0503*
*0505*
3.00
76.2
5.00
127.0
1
5 Signs
5.00
127.0
5.00
127.0
1
5 Signs
*0507*
7.00
177.8
5.00
127.0
1
5 Signs
*0509*
*0514*
9.00
228.6
5.00
127.0
1
5 Signs
14.00
355.6
5.00
127.0
1
5 Signs
*0710*
10.00
254.0
7.00
177.8
1
1 Sign
*1014*
*1209*
14.00
355.6
10.00
254.0
1
1 Sign
9.00
228.6
12.00
304.8
1
1 Sign
*1420*
20.00
508.0
14.00
355.6
1
1 Sign
*0204*
Regulatory Standards
mm
38.1
Height
Generic Order Forms
In.
1.50
Width
In.
9.00
Related Products
mm
228.6
Part
Number
*0109*
*0202*
Index
*Denotes the part number’s prefix and suffix.
See pages D16 – D23 for available signs.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D15
Training Products
Lockout/Tagout Safety Signs
Lockout Devices
& Kits
See page D15 for information on part number sizes and materials.
LOCK OUT
BEFORE SERVICING
Padlocks, Hasps
& Accessories
PVS0204C176Y
Tags, Signs
& Labels
PVS0710C180Y
PVS0204C177Y
Related Products
Tapes, Letters
& Numbers
PVS0204C171Y
Generic Order Forms
PVS0204W172Y
PVS0204C179Y
Regulatory Standards
THE FOLLOWING STEPS MUST
BE PERFORMED WHEN LOCKING
OUT EQUIPMENT:
PVS0710C173Y
1 - Identify all potential hazards
and energy sources.
2 - Inform operator / supervisor about
work to be performed.
3 - Prepare equipment for shutdown.
4 - Shutdown / turn off equipment.
5 - Isolate and LOCKOUT energy sources.
6 - Release all stored energy.
7 - Test equipment for zero energy state.
Index
8 - Clear personnel / tools before
and after job.
9 - Remove locks and tags when work
completed.
PVS0503N458Y
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D16
Training Products
Electrical Hazard Safety Signs
See page D15 for information on part number sizes and materials.
Lockout Devices
& Kits
PRS0710D68
PPS0710B364
PRS0710B364
PRS1014B364
PVS0509B364Y
PVS0710B364Y
Tags, Signs
& Labels
PPS0710C141
Padlocks, Hasps
& Accessories
PPS0710D66
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
PPS0514B363
PRS1014D71
Regulatory Standards
PPS0710D70
PRS1014D70
Index
PPS0710N203
continued on page D18.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D17
Training Products
Electrical Hazard Safety Signs (continued)
Lockout Devices
& Kits
See page D15 for information on part number sizes and materials.
Padlocks, Hasps
& Accessories
HIGH VOLTAGE
Tags, Signs
& Labels
PPS0710D77
PPS0710D72
PRS0710D72
PRS1014D72
PVS0109D72Y
PVS0204D72Y
PVS0710D72Y
Tapes, Letters
& Numbers
HIGH
VOLTAGE
PPS1007D72SE
PRS1014D79
PPS0305D73
PPS0710D73
PPS1014D73
PRS1014D73
PPS0305D75
PPS0710D75
PRS1420D75
Index
Regulatory Standards
Generic Order Forms
Related Products
ALTO
VOLTAJE
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D18
Training Products
Electrical Hazard Safety Signs (continued)
See page D15 for information on part number sizes and materials.
Lockout Devices
& Kits
PRS0910D453
Padlocks, Hasps
& Accessories
PPS0710D28
Short Circuit Hazard Signs
• Aids in compliance with
UL 508A requirement, see
page H14 for more information
Tags, Signs
& Labels
See page D15 for information on part number sizes and materials.
Tapes, Letters
& Numbers
PPS0305W2200
PPS0507W2200
Related Products
WARNING
RISK OF FIRE OR ELECTRIC SHOCK
The opening of the branch-circuit protective device may be
an indication that a fault current has been interrupted.
All current carrying parts and other componenets protected
by this device should be examined and replaced if damaged.
kA;
Generic Order Forms
If burnout of a current element of an overload relay occurs,
the complete overload relay must be replaced.
SHORT CIRCUIT CURRENT
VMAX
PANDUIT PVS0305W2201Y
PVS0305W2201Y
PVS0507W2201Y
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D19
Training Products
Machine and Operational Safety Signs
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
See page D15 for information on part number sizes and materials.
PPS0710N191
Tapes, Letters
& Numbers
Tags, Signs
& Labels
PPS0710D24
PVS0204D100Y
Related Products
PPS0202B493
Generic Order Forms
PVS0204C178Y
THIS EQUIPMENT
STARTS AUTOMATICALLY
Regulatory Standards
PPS0710D101
Index
PVS0305C174Y
PVS0505C174Y
PPS0305C174
PPS0710D77
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D20
Training Products
Other Facility Safety Signs
See page D15 for information on part number sizes and materials.
Lockout Devices
& Kits
PPS0514B265
Padlocks, Hasps
& Accessories
PPS0710B380
Tags, Signs
& Labels
PPS0710B430
Tapes, Letters
& Numbers
PRS0310F319
Related Products
PRS0710B251
PRS1209B317
Generic Order Forms
PVS0209D445Y
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D21
Training Products
Photoluminescent Safety Signs
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
See page D15 for information on part number sizes and materials.
• Used to mark egress routes, fire alarms, and fire equipment
that is clearly visible for up to ten hours after power is lost
• Absorbs energy from ambient light and releases this energy
in the form of a glow when power is lost
• Panduit Photoluminescent Signs meet or exceed the following
safety standard specification for photoluminescent safety
markings including: ASTM E 2072-00, ASTM E 2073-00,
ASTM E 2030-99, DIN67510-1, IMO Resolution A.752.18,
ISO/CD 15370, DIN 67510, UL 924, ASTM 162, ASTM 648,
ASTM 662, MIL-L-3891 B, NFPA 101 Life Safety Code,
OSHA 1910.137
• Recommended for use with Photoluminescent Tapes –
See page E3.
PPS0710G020
PPS1209G010
PPS1209G011
PPS1209G012
See page E3 for information on Photoluminescent Tapes.
Index
Regulatory Standards
Generic Order Forms
Related Products
PPS0710G001
PPS1014G002
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D22
Training Products
Arc Flash Hazard Signs
Tags, Signs
& Labels
WARNING
Standard*
Part Number
Detailed/Recommended
Part Description
Std. Std.
Pkg. Ctn.
Qty. Qty.
Tapes, Letters
& Numbers
Basic*
Padlocks, Hasps
& Accessories
Pre-Printed Signs
Lockout Devices
& Kits
• Aids in compliance with Article 110.16 of the National Electric
Code and NFPA 70E, see page H14 for more information
• Provides employees with the highest degree of safety through
proper identification and communication
• Large WARNING header, universal hazard symbols and clear,
concise, hazard description
• Clearly visible and recognizable hazard information
to communicate arc flash hazards present
• Multiple sizes to choose from for specific applications
• Labels are constructed of durable polyester (PPS) designed to
withstand UV exposure, outdoor use, water, abrasion or vinyl
material (PVS) that accepts handwritten hazard information by
using Panduit permanent black marking pens, page D14
PPS0204W2100
PPS0305W2100
5
100
5
50
5
50
5
50
5
50
5
50
Generic Order Forms
PPS0507W2100
4.50" x 2.25" (114.3mm x 57.2mm),
black/orange, adhesive polyester sign,
“WARNING. Potential Arc Flash
Hazard”, 2 labels per card.
3.50" x 5.00" (88.9mm x 127.0mm),
black/orange, adhesive polyester
sign, “WARNING. Potential Arc
Flash Hazard”.
5.00" x 7.00" (127.0mm x 177.8mm),
black/orange, adhesive polyester
sign, “WARNING. Potential Arc
Flash Hazard”.
Related Products
Basic*
Standard*
3.50" x 5.00" (88.9mm x 127.0mm),
black and orange/white, adhesive
vinyl sign, “WARMNING. Arc Flash And
Shock Hazard”.
Regulatory Standards
PVS0305W2102Y
Detailed/Recommended
Index
PVS0305W2101Y 3.50" x 5.00" (88.9mm x 127.0mm),
black and orange/white, adhesive vinyl
sign, “WARNING. Potential Arc Flash
Hazard” with detailed write-on area.
PVS0507W2101Y
5.00" x 7.00" (127.0mm x 177.8mm),
black and orange/white, adhesive vinyl
sign, “WARNING. Potential Arc Flash
Hazard” with detailed write-on area.
*Additional information required for NFPA 70E compliance.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D23
• Custom Arc Flash Hazard Labels or Facility Identification can be printed
using Panduit labeling software and desktop thermal transfer printers,
see pages F1 – F2.
Training Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Thermal Transfer Printable Labels
C400X400A11
C400X400A21
C400X400A31
C400X600AX1
C400X600AY1
C400X600Y81
C400X600YX1
C400X600YZ1
T400X000YX1
Part Number
Part Description
Std.
Pkg.
Qty.
Std.
Ctn.
Qty.
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
Related Products
Custom – Die Cut
C400X400A11
C400X400A21
Regulatory Standards
Generic Order Forms
C400X400A31
C400X600AX1
C400X600AY1
C400X600Y81
C400X600YX1
Index
C400X600YZ1
4.00" x 4.00" (101.6mm x 101.6mm),
polyester safety label, orange header,
green footer, 250 labels per roll.
4.00" x 4.00" (101.6mm x 101.6mm),
polyester safety label, orange header,
yellow footer, 250 labels per roll.
4.00" x 4.00" (101.6mm x 101.6mm),
polyester safety label, orange header,
red footer, 250 labels per roll
4.00" x 6.00" (101.6mm x 152.4mm),
polyester safety label, blue/ white
NOTICE header, 100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm),
polyester safety label, green/ white
SAFETY FIRST header, 100 labels
per roll.
4.00" x 6.00" (101.6mm x 152.4mm),
polyester safety label, yellow, 100 labels
per roll.
4.00" x 6.00" (101.6mm x 152.4mm),
polyester arc flash label, orange header,
100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm),
polyester arc flash label, red/white danger
header, 100 labels per roll.
Custom – Continuous Tape
T400X000YX1
4.00" x 50.0' (101.6mm x 15.24M),
polyester arc flash tape, orange header.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D24
Training Products
Laser Printable Adhesive Signs
Lockout Devices
& Kits
• Signs can be printed with a standard laser printer
• Indoor polyolefin pressure sensitive signs with square
corners on stay flat liner
• Signs are 8.50" x 11.00" (215.9mm x 279.4mm) in size
• 25 signs per package
Padlocks, Hasps
& Accessories
SEZ-1CLL
SEZ-1NLL
SEZ-1WLL
SEZ-1YLL
SEZ-1WHLL
Tags, Signs
& Labels
SEZ-1DLL
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D25
Training Products
Lockout Devices
& Kits
See page D15 for information on part number sizes and materials.
• Can be used with Panduit Thermal Transfer Desktop Printers
and Labeling Software to create your own custom signs
— Print your own legend on clear polyester tape with the TDP43MY
Thermal Transfer Desktop Printer and adhere label to sign to
adhesive or non-adhesive side panel, see pages F1– F3 for
more information.
PPS0710BWHT
PPS1014BWHT
PPS1420BWHT
PRS0710BWHT
PRS1014BWHT
PRS1420BWHT
PPS0710BYEL
PPS1014BYEL
PPS1420BYEL
PRS0710BYEL
PRS1014BYEL
PRS1420BYEL
PPS0710D440
PPS1014D440
PPS1420D440
PRS0710D440
PRS1014D440
PRS1420D440
PPS0710N443
PPS1014N443
PPS1420N443
PRS0710N443
PRS1014N443
PRS1420N443
PPS0710C442
PPS1014C442
PPS1420C442
PRS0710C442
PRS1014C442
PRS1420C442
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Sign Panels – Blank Space for
Custom Messages
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D26
Training Products
Pre-Coiled Clear Snap-On Markers
Pipe / Conduit O.D.
Range
19.0 57.0
5
1
2.25 3.25
57.0 83.0
5
1
3.25 6.00
83.0 152.0
5
1
In.
3.00
mm
76.0
In.
0.50 0.75
mm
13.0 19.0
PMSCLP
13.00
330.0
0.75 2.25
PMSCLN
17.00
432.0
PMSCLM
17.00
431.8
Tapes, Letters
& Numbers
Std.
Pkg.
Qty.
1
Marker Length
Tags, Signs
& Labels
Markers
Per Card
5
Part
Number
PMSCLL
Padlocks, Hasps
& Accessories
PMSCLL
PMSCLP
PMSCLN
PMSCLM
Lockout Devices
& Kits
• Use to increase durability of adhesive
pipe/conduit markers
• Excellent resistance to oils, bases,
detergents, solvents, salt water
and mild acids
• Estimated outdoor expectancy is 3 years
Related Products
Generic Order Forms
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D27
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Self-Laminating Adhesive Sign Carriers
•
•
•
•
Convert any printed paper page to a laminated, adhesive sign
Print paper sign using a laser/ink jet printer
Cut out paper sign and insert into the self-laminating carrier
For indoor use on a clean and dry surface
Part Number
SEZ-SNC4
SEZ-SNC3
SEZ-SNC2
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
SEZ-SNC1
Print paper
marker using a
laser or ink jet
printer and cut
out with scissors.
Carrier Size
In. (mm)
7.00 x 6.00
(177.8 x 152.4)
10.50 x 7.00
(266.7 x 177.8)
12.00 x 6.00
(304.8 x 152.4)
12.00 x 9.50
(304.8 x 241.3)
Place marker
between the
two pieces of
self-adhesive
laminate liner.
Maximum Label
Std.
Carriers/ Pkg.
Size
Pkg.
In. (mm)
Qty.
6.00 x 5.00
(152.4 x 127.0)
9.50 x 6.00
(241.3 x 152.4)
5
1
11.00 x 5.00
(279.4 x 127.0)
11.00 x 8.50
(279.4 x 215.9)
Remove top
adhesive liner
by peeling and
press firmly onto
top of marker.
Remove liner
on back of
carrier and
adhere to clean,
dry surface.
Self-Laminating Non-Adhesive Rigid
Sign Carriers
•
•
•
•
Convert paper to rigid indoor signs
Print paper tag using a laser/ink jet printer
Cut out paper sign and insert into the self-laminating carrier
For indoor use on a clean and dry surface
Part Number
SEZ-RSC1
SEZ-RSC2
SEZ-RSC3
Maximum Label
Std.
Carriers/ Pkg.
Size
Pkg.
In. (mm)
Qty.
6.0 x 5.0
(152 x 127)
9.5 x 6.0
(241 x 152)
5
1
11.0 x 8.5
(279 x 216)
11.0 x 5.0
(279 x 127)
Index
SEZ-RSC4
Carrier Size
In. (mm)
7.0 x 6.0
(178 x 152)
10.5 x 7.0
(267 x 178)
12.0 x 9.5
(305 x 241)
12.0 x 6.0
(305 x 152)
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D28
Training Products
Create Your Own Tags
Lockout Devices
& Kits
Indoor Rigid Vinyl Safety Tag Carriers
for Laser or Ink Jet Printers
1
4
1
20
1
20
Regulatory Standards
PST-2
Part Description
3.50" x 5.75" (88.9mm x 146.1mm),
front only lamination, 25 carriers
per package.
3.50" x 5.75" (88.9mm x 146.1mm),
front and back lamination, 25 carriers
per package.
3.00" x 2.00" (76.2mm x 50.8mm),
front only lamination, 10 carriers
per package.
3.25" x 5.75" (82.6mm x 146.1mm),
front only lamination, 5 carriers
per package.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
4
Generic Order Forms
PST-1
Place tag between
self-adhesive
laminate liner and
rigid vinyl backing.
Fasten tag with
Panduit cable tie
Related Products
PST-5
Tapes, Letters
& Numbers
Part Number
PST-4
Tags, Signs
& Labels
Print paper tag using
a laser/ink jet printer.
Use scissors to cut
out tag.
Padlocks, Hasps
& Accessories
• Create your own rigid indoor tags with protected legends
in minutes using a laser or ink jet printer!
• Cut out paper sign and insert into the self-laminating carrier
• Using the PST Tag carrier allows tags to be resistant to mild
chemicals and acids
• Self-laminating vinyl material for rigid carrier
• Sturdy brass grommet provides extra durability
• Panduit PLT2S (7.40") nylon ties included for quick
and easy installation
• Meet OSHA Standard 1910.147 for lockout tag 50 lb. pull
force requirement
Index
continued on page D30.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D29
Economical Card Stock Tags for Ink
Jet Printers
• Economical solution for temporary,
indoor tags
• Ink jet printable card stock material for
semi-rigid tag with perforation for easy
tag separation and punched hole
for hanging
Training Products
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Create Your Own Tags (continued)
Tags, Signs
& Labels
Part Number
SEZ-TAGWH
SEZ-TAGOR
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
1
5
1
5
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
SEZ-TAGY
Part Description
3.00" x 5.00" (76.2mm x 127.0mm),
white, four tags per sheet, 25 sheets
per package.
3.00" x 5.00" (76.2mm x 127.0mm),
orange, four tags per sheet, 25 sheets
per package.
3.00" x 5.00" (76.2mm x 127.0mm),
yellow, four tags per sheet, 25 sheets
per package.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D30
Training Products
Voltage Markers
Voltage and Fiber Optic Markers
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
• Vinyl – indoor
• Color – legend black; background orange
• Each Marker –
Style A: 2.25" x 9.00"
1 Marker per card
Pipe/Conduit O.D. Range 3.00" and over
Style B: 1.125" x 4.50"
4 Markers per card
Pipe/Conduit O.D. Range 1.25" – 3.00"
Style C: .50" x 2.25"
18 Markers per card
Pipe/Conduit O.D. Range 1.25"
and under
• Standard package quantity – 5 cards
Tags, Signs
& Labels
Part Number
PCV-ESCY
PCV-FACY
PCV-FOCY
PCV-FOCCY
PCV-MAINCY
PCV-TELECY
Emergency Service
Fire Alarm
Fiber Optic
Fiber Optic Cable
Main
Telephone
Index
PCV-ESBY
PCV-FABY
PCV-FOBY
PCV-FOCBY
PCV-MAINBY
PCV-TELEBY
Three Phase
415 Volts
4160 Volts
440 Volts
460 Volts
480 Volts
600 Volts
Blank-No Legend
Regulatory Standards
PCV-ESAY
PCV-FAAY
PCV-FOAY
PCV-FOCAY
PCV-MAINAY
PCV-TELEAY
Legend
110 Volts
115 Volts
120/208 Volts
120 Volts
12470 Volts
13200 Volts
13800 Volts
Single Phase
208 Volts
220 Volts
2300 Volts
230 Volts
2400 Volts
240 Volts
277/480 Volts
277 Volts
380 Volts
Generic Order Forms
Style C
PCV-110CY
PCV-115CY
PCV-120/208CY
PCV-120CY
PCV-12470CY
—
PCV-13800CY
PCV-1PHCY
PCV-208CY
PCV-220CY
PCV-2300CY
PCV-230CY
PCV-2400CY
PCV-240CY
PCV-277/480CY
PCV-277CY
PCV-380CY
PCV-3PHCY
PCV-415CY
PCV-4160CY
PCV-440CY
PCV-460CY
PCV-480CY
PCV-600CY
PCV-BLANKCY
Related Products
Style B
PCV-110BY
PCV-115BY
PCV-120/208BY
PCV-120BY
PCV-12470BY
PCV-13200BY
PCV-13800BY
PCV-1PHBY
PCV-208BY
PCV-220BY
PCV-2300BY
PCV-230BY
PCV-2400BY
PCV-240BY
PCV-277/480BY
PCV-277BY
PCV-380BY
PCV-3PHBY
PCV-415BY
PCV-4160BY
PCV-440BY
PCV-460BY
PCV-480BY
PCV-600BY
PCV-BLANKBY
Tapes, Letters
& Numbers
Style A
PCV-110AY
PCV-115AY
PCV-120/208AY
PCV-120AY
PCV-12470AY
PCV-13200AY
PCV-13800AY
PCV-1PHAY
PCV-208AY
PCV-220AY
PCV-2300AY
PCV-230AY
PCV-2400AY
PCV-240AY
PCV-277/480AY
PCV-277AY
PCV-380AY
PCV-3PHAY
PCV-415AY
PCV-4160AY
PCV-440AY
PCV-460AY
PCV-480AY
PCV-600AY
PCV-BLANKAY
continued on page D32.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D31
• Vinyl – indoor
• Color – legend black; background orange
• Each Marker –
Style M: 14.00" x 23.00"
Snap-on markers (non-adhesive)
Pipe/Conduit O.D. Range 2.25" – 6.00"
Style R: 8.00" x 8.00"
Snap-on markers (non-adhesive)
Pipe/Conduit O.D. Range 0.75" – 2.25"
• Standard package quantity – 5 cards
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Voltage and Fiber Optic Markers
(continued)
Generic Order Forms
Regulatory Standards
Style R
PCV-120RY
PCV-480RY
PCV-FORY
—
Legend
120 Volts
480 Volts
Fiber Optic
Fiber Optic
Voltage and Safety Marker Books
• Vinyl – indoor
• Each Marker –
Marker Size: 3.25" x 1.50"
(82.6mm x 38.1mm)
3 Markers per page
30 Markers per book
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Part Number
Style M
—
—
—
PCV-FOMY
Part Number
Part Description
Std. Std.
Pkg. Ctn.
Qty. Qty.
Voltage Markers
PCVB-110Y
Voltage Marker Book, Vinyl, ‘110 Volts’.
1
10
PCVB-220Y
Voltage Marker Book, Vinyl, ‘220 Volts’.
1
10
PCVB-277Y
Voltage Marker Book, Vinyl, ‘277 Volts’.
1
10
PCVB-277/480Y Voltage Marker Book, Vinyl, ‘277/480 Volts’.
1
10
PCVB-440Y
Voltage Marker Book, Vinyl, ‘440 Volts’.
1
10
PCVB-480Y
Voltage Marker Book, Vinyl, ‘480 Volts’.
1
10
PCVB-4160Y
Voltage Marker Book, Vinyl, ‘4160 Volts’.
1
10
Sign Book, ‘Danger High Voltage’,
Red/black on white.
1
10
Index
Safety Markers
PSSB-13
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D32
Training Products
Warning Labels
Labels in Dispenser
Lockout Devices
& Kits
• Provided in a handy dispenser for
convenience and label protection
• Made of durable, adhesive backed
polyester material
Padlocks, Hasps
& Accessories
Part Number
PLD-*
Label Size
In. (mm)
1.50" x 1.00" (38.1mm x 25.4mm)
Std.
Labels/
Pkg.
Dispenser Qty.
200
1 Disp.
‡Can be clearly identified with Panduit permanent marking pens, page D14.
Tags, Signs
& Labels
PLD-36
PLD-45
PLD-38
PLD-46
PLD-47
PLD-91
120 V
230 V
240 V
277 V
277 V/480 V
480 V
PLD-58
PLD-68‡
PLD-72
PLD-52
ISO 3864
Generic Order Forms
PLD-56
ISO 3864
PLD-43‡
Related Products
PLD-37
PLD-30‡
Tapes, Letters
& Numbers
PLD-12‡
PLD-67
Regulatory Standards
PLD-74
Index
PLD-81
continued on page D34.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D33
PLD-60
PLD-57
ISO 3864
PLD-57
ISO 3864
Write-On Quality Labels in Dispenser
Training Products
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Electrical Labels in Dispenser (continued)
PLD-17
PLD-18
PLD-22
PLD-28
PLD-29
PLD-3
PLD-4
PLD-7
1.50
1.00
PLD-80
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
PLD-11
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D34
Training Products
Electrical Symbols on Cards
PESC-J-*
0.75" x 0.75" (19.0mm x 19.0mm)
36
PCWL*
1.50" x 0.63" (38.1mm x 16.0mm)
14
PESC-H-HT
PESC-J-HT
Static Sensitive
Device —
Precautions Required
PESC-H-E
PESC-J-E
Earth (Ground)
PESC-H-AT
PESC-J-AT
Warning of Dangerous
Electrical Voltage
Tapes, Letters
& Numbers
PESC-H-EC
PESC-J-EC
Safety Function
Tags, Signs
& Labels
PESC-H-PE
PESC-J-PE
Protective Conductor
Std.
Pkg.
Qty.
10
Cards
10
Cards
25
Cards
Padlocks, Hasps
& Accessories
Markers/
Card
68
Lockout Devices
& Kits
Part Number
PESC-H-*
Marker Size
In. (mm)
0.51" x 0.51" (12.9mm x 12.9mm)
Related Products
PCWL-CAL
PCWL-ICAL
PCWL-REJ
Index
PCWL-CALD
PCWL-BL
Regulatory Standards
PCWL-ACC
Generic Order Forms
Write-on Labels on Cards
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D35
Training Products
Lockout Devices
& Kits
Part Number
PESS-A-*
PESS-B-*
PESS-C-*
PESS-D-*
PESS-E-*
Marker Diameter
In. (mm)
0.49" (12.5mm)
0.63" (16.0mm)
0.79" (20.0mm)
0.98" (25.0mm)
1.24" (31.5mm)
Markers/
Card
20
20
10
10
10
Std. Pkg.
Qty.
10 Sheets
10 Sheets
10 Sheets
10 Sheets
10 Sheets
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Conductor and Regulatory
Identification Labels
Earth (Ground)
PESS-A-ES
PESS-B-ES
PESS-C-ES
PESS-D-ES
PESS-E-ES
Safety Function
PESS-A-SS
PESS-B-SS
PESS-C-SS
PESS-D-SS
Outer Conductor – L1
PESS-A-L1
PESS-B-L1
PESS-C-L1
PESS-D-L1
PESS-E-L1
Outer Conductor – L2
PESS-A-L2
PESS-B-L2
PESS-C-L2
PESS-D-L2
PESS-E-L2
Outer Conductor – L3
PESS-A-L3
PESS-B-L3
PESS-C-L3
PESS-D-L3
PESS-E-L3
Neutral Conductor – N
PESS-A-N
PESS-B-N
PESS-C-N
PESS-D-N
Protective
Conductor – PE
PESS-A-PE
Lead Free – LF
PESS-A-LF
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
CE Symbol
PESS-A-CE
PESS-B-CE
PESS-C-CE
PESS-D-CE
PESS-E-CE
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D36
Training Products
Conductor and Regulatory
Identification Labels (continued)
Lockout Devices
& Kits
10
50
25
PESS-A-RC50
PESS-A-RC25
PESS-A-RCE
Tags, Signs
& Labels
PESS-A-RCIO
Padlocks, Hasps
& Accessories
PESS-A-ROHS
ISO Warning Symbols
1.00" (25.4mm)
10/card
10
cards
PESW-C-*
1.97" (50.0mm)
10/card
10
cards
PESW-D-*
3.90" (99.1mm)
3/card
10
cards
PESW-E-*
7.90" (200.7mm)
1/card
10
cards
PESW-*-1Y
Caution – Risk of
Electric Shock
PESW-*-6Y
Caution – Risk of
Ionizing Radiation
PESS-*-8Y
Caution –
Laser Beam
PESW-*-9Y
Caution – General
Warning, Risk
of Danger
PESW-*-11Y
Warning of Static
Sensitive Device
Generic Order Forms
PESW-B-*
Related Products
Part Number
PESW-A-*
Marker
Qty.
10/card
Tapes, Letters
& Numbers
Std.
Pkg.
Qty.
10
cards
Label Width
In. (mm)
0.50" (13.0mm)
Regulatory Standards
Index
continued on page D38.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
D37
Training Products
Lockout Devices
& Kits
Part Number
WL1
Label Width
In. (mm)
2.00" (50.8mm)
Marker
Qty.
500/roll
Std.
Pkg.
Qty.
1 roll
WL3
2.00" (50.8mm)
500/roll
1 roll
WL32Y
1.50" (38.1mm)
50
1 pkg.
WL33Y
4.50" (114.3mm)
50
1 pkg.
WL35Y
2.00" (50.8mm)
50
1 pkg.
WL36Y
2.00" (50.8mm)
50
1 pkg.
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
ISO Warning Symbols (continued)
WL3
Static Awareness
Warning
WL32Y
Risk of
Electric Shock
WL33Y
Risk of
Electric Shock
WL35Y
Caution – Hot
Surface Warning
WL36Y
Warning – Hot
Surface Warning
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
WL1
Static Awareness
Warning
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
D38
Training Products
Tapes, Letters, and Numbers
•
•
•
•
Self-adhesive striped warning/hazard tape
Color coded for quick identification
Can be used in place of paint
Durable vinyl continuous tape
for indoor use
Color
Black/Yellow
Width
(In.)
2.00
Roll
Length
(ft)
54.0
Std.
Pkg.
Qty.
1
Padlocks, Hasps
& Accessories
Part Number
HT2S-BLK-YEL
Lockout Devices
& Kits
Hazard Tape
Std.
Ctn.
Qty.
12
Red/White
2.00
54.0
1
12
HT3S-BLK-YEL
Black/Yellow
3.00
54.0
1
10
HT3S-RED-WHT
Red/White
3.00
54.0
1
10
Tags, Signs
& Labels
HT2S-RED-WHT
Tapes, Letters
& Numbers
Solid Color Adhesive Warning Tape
• Used to identify hazards, traffic lanes, etc.
• Installs faster and lasts longer than paint
• Durable vinyl continuous tape for
indoor use
Color
Blue
Roll
Length
(ft)
180.0
Std.
Pkg.
Qty.
1
Related Products
Part Number
HT2-BLU
Width
(In.)
2.00
Std.
Ctn.
Qty.
5
Green
2.00
180.0
1
5
HT2-ORN
Orange
2.00
180.0
1
5
HT2-RED
Red
2.00
180.0
1
5
HT2-YEL
Yellow
2.00
180.0
1
5
HT2-WHT
White
2.00
180.0
1
5
Generic Order Forms
HT2-GRN
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
E1
• Tapes offer crisp, clear legends
with superior legibility
• Available in continuous color vinyl
or clear polyester and supplied on rolls
• Panduit labeling software packages
include all label formats for quick
and easy label production
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Thermal Transfer Continuous Tapes
Height
Part Number Part Description In. mm
T100X000VP1Y White, vinyl tape.
1.00
25.4
100.0
30.5
1
4
T100X000VQ1Y Blue, vinyl tape.
1.00
25.4
100.0
30.5
1
4
T100X000VS1Y Green, vinyl tape.
1.00
25.4
100.0
30.5
1
4
T100X000VU1Y Orange, vinyl tape. 1.00
25.4
100.0
30.5
1
4
T100X000VW1Y Red, vinyl tape.
25.4
100.0
30.5
1
4
1.00
T100X000VX1Y Yellow, vinyl tape.
1.00
25.4
100.0
30.5
1
4
T100X000VY1Y Black, vinyl tape.
1.00
25.4
100.0
30.5
1
4
T200X000VP1Y White, vinyl tape.
2.00
50.8
100.0
30.5
1
4
T200X000VQ1Y Blue, vinyl tape.
2.00
50.8
100.0
30.5
1
4
T200X000VS1Y Green, vinyl tape.
2.00
50.8
100.0
30.5
1
4
T200X000VU1Y Orange, vinyl tape. 2.00
50.8
100.0
30.5
1
4
T200X000VV1Y Purple, vinyl tape.
2.00
50.8
100.0
30.5
1
4
T200X000VW1Y Red, vinyl tape.
T200X000VX1Y Yellow, vinyl tape.
2.00
50.8
100.0
30.5
1
4
2.00
50.8
100.0
30.5
1
4
T200X000VY1Y Black, vinyl tape.
Clear, polyester
T200X000YK1 tape.
2.00
50.8
100.0
30.5
1
4
2.00
50.8
100.0
30.5
1
4
2.25
57.2
100.0
30.5
1
4
4.00 101.6 100.0
30.5
1
4
100.0
30.5
1
4
100.0
30.5
1
4
100.0
30.5
1
4
100.0
30.5
1
4
T400X000VW1Y Red, vinyl tape.
T400X000VX1Y Yellow, vinyl tape.
4.00 101.6 100.0
30.5
1
4
4.00 101.6 100.0
30.5
1
4
T400X000VY1Y Black, vinyl tape.
T400X000YK1 Clear, polyester
tape.
4.00 101.6 100.0
4.00 101.6 100.0
30.5
30.5
1
1
4
4
4.25 107.9 100.0
30.5
1
4
T225X000YK1
Clear, polyester
tape.
T400X000VP1Y White, vinyl tape.
T400X000VQ1Y Blue, vinyl tape.
4.00 101.6
T400X000VS1Y Green, vinyl tape. 4.00 101.6
T400X000VU1Y Orange, vinyl tape. 4.00 101.6
T400X000VV1Y Purple, vinyl tape. 4.00 101.6
T425X000YK1
E2
Std. Std.
Length Pkg. Ctn.
Ft.
m Qty. Qty.
Clear, polyester
tape.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Photoluminescent Tapes
Tapes, Letters
& Numbers
PT2S-BLK
PT2S-RED
Roll
Length
(ft)
Std.
Pkg.
Qty.
Std.
Ctn.
Qty.
PT2S-ARW
Black Arrow
2.00
30.0
1
4
PT2S-BLK
Black Stripe
2.00
30.0
1
4
PT2S-RED
Red Stripe
2.00
30.0
1
4
—
—
2.00
4.00
15.0
15.0
1
1
4
4
Related Products
Legend
Width
(In.)
Part Number
Tags, Signs
& Labels
PT2S-ARW
Padlocks, Hasps
& Accessories
Blackout
Lockout Devices
& Kits
Normal Lighting
• Used to mark egress routes, fire alarms,
and fire equipment that is clearly visible
for up to ten hours after power is lost
• Absorb energy from ambient light and
releases this energy in the form of
a glow when power is lost
• Panduit photoluminescent tapes meet
or exceed the following safety standard
specification for photoluminescent safety
markings including: ASTM E 2072-00,
ASTM E 2073-00, ASTM E 2030-99,
DIN67510-1, IMO Resolution A.752.18,
ISO/CD 15370, DIN 67510, UL924,
ASTM 162, ASTM 648, ASTM 662,
MIL-L-3891 B, NFPA 101 Life Safety
Code, OSHA 1910.137
• Recommended for use with
Photoluminescent safety signs See page D22
Pre-Printed
Generic Order Forms
Blank
T200X000Y2T
T400X000Y2T
Regulatory Standards
See page D22 for information on Photoluminescent Signs.
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
E3
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
• Reflective Tapes can be used for illuminating or highlighting
a range of objects
• Increases safety during power outages or other low
light conditions
• Custom Legends can be printed using a Panduit TDP43MY
thermal printer
• Tapes are laminated for improved print quality and durability
T100X000RP1
T200X000RP1
T400X000RP1
T100X000RU1
T200X000RU1
T400X000RU1
T400X000RW1
T400X000RQ1
T100X000RX1
T200X000RX1
T400X000RX1
Part Number
T100X000RP1
Material
Color
White
Width
(In.)
1.00
Roll
Length
(ft)
50.0
Std.
Pkg.
Qty.
1
Std.
Ctn.
Qty.
4
T200X000RP1
White
2.00
50.0
1
4
T400X000RP1
White
4.00
50.0
1
4
T100X000RU1
Orange
1.00
50.0
1
4
T200X000RU1
Orange
2.00
50.0
1
4
T400X000RU1
Orange
4.00
50.0
1
4
T100X000RX1
Yellow
1.00
50.0
1
4
T200X000RX1
Yellow
2.00
50.0
1
4
T400X000RX1
Yellow
4.00
50.0
1
4
T400X000RW1
Red
4.00
50.0
1
4
T400X000RQ1
Blue
4.00
50.0
1
4
Index
Regulatory Standards
Generic Order Forms
Reflective Tapes
E4
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Underground Hazard Tape
Legend
Color
Roll
Std.
Width Length Pkg.
(Legend/
Background) (In.)
(ft)
Qty.
Padlocks, Hasps
& Accessories
Part Number
Lockout Devices
& Kits
• Used to warn of buried utility lines
• HTDU* parts are made of detectable
laminated aluminum tape
• HTU* parts are made of polyethylene tape
Laminated Detectable Aluminum
Black/Blue
2.00
1000.0
1
HTDU2O-FO
CAUTION
FIBER OPTIC
CABLE BURIED
BELOW
Black/Orange
2.00
1000.0
1
CAUTION
Black/Orange
TELEPHONE LINE
BURIED BELOW
2.00
1000.0
1
HTDU2O-T
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Red
2.00
1000.0
1
HTDU3O-FO
CAUTION
FIBER OPTIC
CABLE BURIED
BELOW
Black/Orange
3.00
1000.0
1
CAUTION
Black/Orange
TELEPHONE LINE
BURIED BELOW
3.00
1000.0
1
HTDU3O-T
Black/Red
3.00
1000.0
1
HTDU6O-FO
CAUTION
FIBER OPTIC
CABLE BURIED
BELOW
Black/Orange
6.00
1000.0
1
CAUTION
Black/Orange
TELEPHONE LINE
BURIED BELOW
6.00
1000.0
1
6.00
1000.0
1
HTDU6O-T
HTDU6R-E
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Red
Regulatory Standards
CAUTION
ELECTRIC LINE
BURIED BELOW
Generic Order Forms
HTDU3R-E
Related Products
HTDU2R-E
Tapes, Letters
& Numbers
CAUTION
WATER LINE
BURIED BELOW
Tags, Signs
& Labels
HTDU2B-W
Index
continued on page E6.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
E5
Training Products
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Underground Hazard Tape
(continued)
Part Number
Polyethylene
Tags, Signs
& Labels
HTU3G-T-M
HTU3O-FO-M
HTU3O-T-M
Black/Green
3.00
1000.0
1
CAUTION
BURIED FIBER
OPTIC CABLE
Black/Orange
3.00
1000.0
1
CAUTION
Black/Orange
TELEPHONE LINE
BURIED BELOW
3.00
1000.0
1
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Red
3.00
1000.0
1
HTU3Y-E-M
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Yellow
3.00
1000.0
1
HTU6O-TV
CAUTION
CABLE TV LINE
BURIED BELOW
Black/Orange
6.00
1000.0
1
HTU6R-E
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Red
6.00
1000.0
1
CAUTION
BURIED FIBER
OPTIC CABLE
Black/Orange
6.00
1000.0
1
CAUTION
Black/Orange
TELEPHONE LINE
BURIED BELOW
6.00
1000.0
1
Index
Regulatory Standards
HTU3R-E-M
Related Products
CAUTION
TELEPHONE LINE
BURIED BELOW
Generic Order Forms
Tapes, Letters
& Numbers
Legend
Color
Roll
Std.
Width Length Pkg.
(Legend/
Background) (In.)
(ft)
Qty.
E6
HTU6O-FO
HTU6O-T
HTU6Y-E
CAUTION
ELECTRIC LINE
BURIED BELOW
Black/Yellow
6.00
1000.0
1
HTU6Y-G
CAUTION
GAS LINE BURIED
BELOW
Black/Yellow
6.00
1000.0
1
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Barricade Tapes
Color
Roll
Std.
Width Length Pkg.
(Legend/
Background) (In.)
(ft)
Qty.
Black/Yellow 3.00 1000.0
1
Legend
CAUTION
HTB3-DNE-M CAUTION DO NOT Black/Yellow
ENTER
3.00
1000.0
1
HTB3-HV-M
3.00
1000.0
1
CAUTION HIGH
VOLTAGE
Black/Yellow
Padlocks, Hasps
& Accessories
Part Number
HTB3-C-M
Lockout Devices
& Kits
• Used to warn of temporary hazards
• Attaches easily to posts, walls, etc.
• Highly visible 2.00" (51.0mm) black legends
on yellow background
• Made of non-adhesive polyethylene film
Tags, Signs
& Labels
Vinyl Letters and Numbers
PVL200BY-0-Y
1.00
Black/Yellow
10
25
Cards
25
Cards
25
Cards
0
1
thru
9
A
thru
Z
–
25
Cards
2.00
Black/Yellow
10
Regulatory Standards
PVL200BY-1-Y
thru
PVL200BY-9-Y
PVL200BY-A-Y
thru
PVL200BY-Z-Y
PVL200BY-DSH-Y
1
thru
9
A
thru
Z
–
Generic Order Forms
PVL100BY-1-Y
thru
PVL100BY-9-Y
PVL100BY-A-Y
thru
PVL100BY-Z-Y
PVL100BY-DSH-Y
Legend
0
Std.
Pkg.
Qty.
25
Cards
25
Cards
Related Products
Part Number
PVL100BY-0-Y
Legend
Color
Markers
Height
(Legend/
Per
(In.)
Background)
Card
Tapes, Letters
& Numbers
• Identify shelving, cable tray, racks, etc.
• Vinyl material designed for indoor
and outdoor marking
25
Cards
25
Cards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
E7
• Identify shelving, cable tray, racks, etc.
• Vinyl cloth material designed for indoor
and outdoor marking
Part Number
PCL037-0
Legend
Color
Markers
Height
(Legend/
Legend (In.) Background) Per Card
0
PCL037-1
thru
PCL037-9
PCL037-0-9
1
thru
9
0 thru 9
PCL037-A-Z
A thru Z
0.38
Black/Yellow
78
PCL037-A
A
thru
thru
PCL037-Z
Z
PCLCP037-A-Z A thru Z
0 thru 9
PCL062-1
thru
PCL062-9
PCL062-A
thru
PCL062-Z
PCL062-A-Z
1
thru
9
A
thru
Z
A thru Z
PCL062-DSH
–
0.63
Black/Yellow
32
PCL100-1
thru
PCL100-9
PCL100-0-9
PCL100-A
thru
PCL100-Z
0
1
thru
9
0 thru 9
A
thru
Z
25
Cards
25
Cards
25
Cards
25
Cards
1 Card
Each Legend
25
Cards
25
Cards
PCLCP062-0-9 1 thru 5
6 thru 0
PCLCP062-A-Z A thru Z
PCL100-0
25
Cards
25
Cards
25
Cards
1 Card
Each Legend
25
Cards
25
Cards
25
Cards
25
Cards
PCLCP037-0-9 1 thru 5
6 thru 0
PCL062-0
0
PCL062-0-9
Std.
Pkg.
Qty.
25
Cards
25
Cards
1.00
Black/Yellow
10
25
Cards
25
Cards
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Vinyl Cloth Letters and Numbers
E8
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Vinyl Cloth Letters and Numbers
(continued)
Lockout Devices
& Kits
K thru T
PCL100-U-Z
U thru Z
PCL100-DSH
–
1.00
Black/Yellow
10
PCLCP100-0-9 1 thru 5
6 thru 0
PCLCP100-A-Z A thru Z
0
PCL200-A
thru
PCL200-Z
PCL200-A-J
A
thru
Z
A thru J
PCL200-K-T
K thru T
PCL200-U-Z
U thru Z
PCL200-DSH
–
25
Cards
25
Cards
Black/Yellow
10
3.00
Black/Yellow
6
PCLCP200-0-9 1 thru 5
6 thru 0
PCLCP200-A-Z A thru Z
PCL300-0
PCL300-1
thru
PCL300-9
PCL300-A
thru
PCL300-Z
PCL300-DSH
0
1
thru
9
A
thru
Z
–
25
Cards
25
Cards
25
Cards
1 Card
Each Legend
Index
PCLCP300-0-9 1 thru 5
6 thru 0
PCLCP300-A-Z A thru Z
25
Cards
25
Cards
25
Cards
25
Cards
25
Cards
1 Card
Each Legend
25
Cards
25
Cards
Regulatory Standards
2.00
Generic Order Forms
1
thru
9
0 thru 9
Related Products
PCL200-1
thru
PCL200-9
PCL200-0-9
Tapes, Letters
& Numbers
PCL200-0
Std.
Pkg.
Qty.
25
Cards
25
Cards
25
Cards
25
Cards
25
Cards
1 Card
Each Legend
25
Cards
25
Cards
Tags, Signs
& Labels
PCL100-K-T
Padlocks, Hasps
& Accessories
Part Number
PCL100-A-J
Legend
Color
Markers
Height
(Legend/
Legend (In.) Background) Per Card
A thru J
For service and technical support, call 800-777-3300 or visit www.panduit.com.
E9
• Highly reflective for visibility at night
or in dark places
• Reflective vinyl material designed for
indoor and outdoor marking
Part Number
PRL100BY-0
thru
PRL100BY-9
PRL100BY-A
thru
PRL100BY-Z
PRL100BY-DSH
Legend
0
thru
9
A
thru
Z
–
PRL100BY-BLNK
BLANK
PRL100BY-18KIT 0 thru 9,
A thru D,
L, P, R,
S
Related Products
PRL150YB-0
thru
PRL150YB-9
PRL150YB-A
thru
PRL150YB-Z
PRL150YB-DSH
0
thru
9
A
thru
Z
–
PRL250YB-0
thru
PRL250YB-9
PRL250YB-A
thru
PRL250YB-Z
PRL250YB-DSH
0
thru
9
A
thru
Z
–
Color
(Legend/
Background)
Markers
Per
Pkg.
Std.
Pkg.
Qty.
25
1.00
1
Pkg.
Black/Yellow
900
950
1
Pkg.
1.50
Yellow/Black
2.50
25
1
Pkg.
Index
Regulatory Standards
Legend
Height
(In.)
PRL100BY-36KIT 0 thru 9,
A thru Z,
–, Blank
Generic Order Forms
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Reflective Letters and Numbers
E10
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Related Products
Reference SA-ELCB10 for ordering information.
Tags, Signs
& Labels
Tapes, Letters
& Numbers
LS8EQ-KIT
Padlocks, Hasps
& Accessories
LS8EQ
Related Products
Generic Order Forms
• Innovative QWERTY keypad design delivers
faster text entry and label design for
enhanced productivity
• Cut-to-length functionality eliminates
label waste and label trimming labor
• Partial cut feature available to provide
tear-apart strips of labels or individual
cut labels for application flexibility
and quicker installation
• Market specific labeling tools simplify label
creation for network components, panel
building, and construction and maintenance
• Prints self-laminating labels, heat shrink
tubing, die-cut component labels, marker
plates, flag labels, and continuous tape
for improved printer versatility
• Label cassette contains integrated memory
device for automatic formatting, recall
of last legend used and number of
labels remaining in cassette for
improved efficiency
• Fast loading label cassette includes
both label material and ribbon for
easy label changeover
• USB interface for importing data, system
upgrades and printing from a wireless
laptop or desktop computer to increase
printer functionality
• Large graphic display with backlight
improves visibility; ideal for printing labels
at a remote job site
Lockout Devices
& Kits
LS8EQ Hand-Held Printer
with QWERTY Keypad
TDP43MY Thermal Transfer Desktop
Printer and Accessories
Regulatory Standards
TDP43MY
• Compact, lightweight design enables use
in office or remote locations
• 300 dpi thermal transfer printer creates
crisp, clear legends with superior legibility
• Up to 2.00" per second print speed for fast
label production
• Use to print a wide variety of self-laminating
labels, component labels, non-laminated
labels, heat shrink labels, marker plates
and continuous tapes up to 4.00" wide
• Easy-Mark™ Labeling Software and hybrid
ribbon included with printer
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
F1
PROG-EMCD3
PROG-EM2GO
Training Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Easy-Mark™ Labeling Software
• Easy-Mark™ Labeling Software simplifies
label creation for the specific needs of
your applications
• Instructions and user interface are
available in English, French, German,
Italian, Spanish, Korean, Chinese
and Portuguese
• Intuitive interview process allows automatic
generation of compliant labels and signs
• Software selects and formats the optimum
label for your specific project
• WYSIWYG (What You See Is What You
Get) user interface, alpha/numeric
serialization, data import, symbol import
• Panduit Easy Mark Portable Application
(PROG-EM2GO), available on USB
Flash Drive
System Requirements:
• WINDOWS^ 2000, WINDOWS^ NT4.x,
WINDOWS^ XP, WINDOWS^ Vista
or WINDOWS^ 7; 64MB hard drive
space and 64MB RAM (256MB
RAM Recommended)
Index
Regulatory Standards
Generic Order Forms
Related Products
CAD-Connect™ Labeling Software
F2
PROG-CCCD
• Generates labels quickly and easily
directly from electronic CAD files
• Eliminates steps and time spent
manually copying CAD identifiers
into labeling software
• Program combines the power of an
innovative wizard interview and
Easy-Mark ™ Labeling Software to capture
and organize identifiers from electronic CAD
files to automatically create and print labels
• Compatible with full versions of AutoCAD*
2000i or newer, AutoCAD Mechanical 2007,
and Visio^ 2002 or newer
• Exports to alternative formats such as
EXCEL^ (XLS) or Text (CSV) files for
future use and documentation
System Requirements:
• WINDOWS^ 2000, XP, or Vista; 64MB
hard drive space and 64MB RAM
(256MB RAM recommended)
*AutoCAD is a registered trademark of Autodesk, Inc.
^Windows, Visio and EXCEL are registered trademarks of Microsoft Corp.
in the United States and/or other countries.
Training Products
Self-Laminating Labels
Lockout Devices
& Kits
• Labels offer crisp, clear legends with
superior legibility
• Include a colored print-on area and clear
overlaminate to protect the legend for clear
and durable identification
• Labels are available in a large range of
wire/cable sizes
Padlocks, Hasps
& Accessories
Non-Laminated Labels
Tags, Signs
& Labels
Tapes, Letters
& Numbers
• Labels offer crisp, clear legends with
superior legibility
• Use as a wrap around label or flag style
marker for wire/cable labeling
• Labels are available in a large range of
wire/cable sizes
Related Products
Heat Shrink Labels
Generic Order Forms
• Labels offer crisp, clear legends with
superior legibility
• Meets UL Standard 224 for flammability
and meets print performance
requirements of MIL-M-81531
• Shrink ratio 3:1
Regulatory Standards
Component Labels
Index
• Labels offer crisp, clear legends with
superior legibility
• Multiple-purpose and high-temperature
labels for identifying flat surfaces such as
components, control panels, circuit boards
and general labeling
For service and technical support, call 800-777-3300 or visit www.panduit.com.
F3
Training Products
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Turn-Tell™ Labels
• Innovative label design allows labels to
rotate for visibility from any angle, and
for repositioning on the wire/cable to
align legends and improve aesthetics
• Labels can be easily installed on existing
terminated wires and assemblies without
disconnecting the wires/cables
• Available in computer printable rolls for use
with desktop thermal transfer printers
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Thermal Transfer Raised Panel Labels
F4
• Raised thermal transfer printable surface
with high-tack adhesive for strong
holding power
• Variety of sizes and colors for a wide range
of applications
• Thermal transfer print technology provides
crisp, clear, and durable text
• Use with Panduit RMR4BL and RMR4WH
resin thermal transfer ribbons
Thermal Transfer Marker Plates
• Marker plates offer crisp, clear legends
with superior legibility
• Print custom marker plates on demand
with a thermal transfer printer
• Attachable in a horizontal or
vertical orientation
• Available in a variety of colors and sizes
Marker Books
• Convenient, pocket-sized book
• Markers are perforated and can be torn in
half to mark both ends of conductors
• Terminal block markers are included
to properly identify connectors
• 10 pages of markers per book
Training Products
Pre-Printed Marker Tape Dispenser
Related Products
Generic Order Forms
• Tamper-resistant design blocks
unauthorized removal of cable,
IP phone, other networking equipment
or critical connection
• Deters unauthorized users from moving
or stealing VoIP phones helping to
maintain E911 service
• Compact design does not interfere
with adjacent jacks, even in
high-density applications
• Installation/removal tool allows plug to
be locked into or released from jack
for enhanced physical security
Tapes, Letters
& Numbers
RJ45 Plug Lock-in Device
Tags, Signs
& Labels
• Self-laminating labels are provided in
handy dispenser which protects markers
when not in use
• Clear section of marker overlaminates
and protects write-on legend
• Quick, easy to use for smaller installations
and maintenance
Padlocks, Hasps
& Accessories
Self-Laminating Wire
Marker Dispenser
Lockout Devices
& Kits
• Flexible polyester marker tape conforms
tightly to wires/cables
• Dispenser allows marker tape to be cut to
the exact length required for marking any
size wire/cable
• Durable plastic dispenser can be attached
to tool belt for industrial use
RJ45 Jack Blockout Device
Regulatory Standards
• Blocks unauthorized access to jacks and
potentially harmful foreign objects, saving
time and money associated with data
security breaches, network downtime,
repair and hardware replacement
• Compatible with most RJ45 jacks to
accommodate a variety of applications
and does not interfere with jack contacts
• Can be installed/removed without
interfering with adjacent jacks or hardware
• May only be released with the special
removal tool, ensuring the safety and
security of your network infrastructure
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
F5
F6
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Notes
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Table of Contents
Generic PVT Vinyl Tag Order Form
G4 – G5
Generic Adhesive PPS Safety Order Form
G6 – G7
Generic Semi-Rigid PRS Safety Sign Order Form
G8 – G9
Generic Conduit and Voltage Marker Order Form
G10 – G12
Generic Utility Tapes Order Form
G13 – G14
Generic Custom Engraved Marker Plate Order Form
G15 – G16
Tags, Signs
& Labels
G2 – G3
Padlocks, Hasps
& Accessories
Generic Lock Order Form
Lockout Devices
& Kits
Generic Order Forms
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G1
G2
Index
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Generic Padlock Opons
Distributor Contact:
Telephone#/Fax#:
Account #:
Panduit Sales Rep:
Distributor:
Fax orders to Panduit Corporation, Attn: Customer Service (708) 570-3570
Generic Locks are Non-Returnable
One Form per Generic Padlock Option
Panduit Corp. Generic Padlock Order Form
Generic Order Forms
Telephone#/Fax#:
Account #:
Date:
From:
Telephone #:
End User:
Regulatory Standards
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Generic Order Forms
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Qty
Notes
Min. 12 /
(Colors, Key Numbers,
Padlock
Set Description)
Series
PSL-6 Laminated Steel Padlocks: (Select from red, yellow, blue, black, green, or white bumper colors)
GPSL-6KA
Keyed Alike Padlock – ¾" Shackle
GPSL-6LSKA
Keyed Alike Padlock – 2" Shackle
GPSL-6MK
Master Keyed Padlock – ¾" Shackle
GPSL-6LSMK
Master Keyed Padlock – 2" Shackle
GPSL-6KAMK
Keyed Alike and Master Keyed Padlock – ¾" Shackle
GPSL-6LSKAMK Keyed Alike and Master Keyed Padlock – 2" Shackle
GPSL-6MKEY
Master Key for a PSL -6 Master Keyed Padlock
PSL-7 Coated Aluminum Padlocks: (Select from red, yellow, blue, black, green, or orange body colors)
GPSL-7KA
Keyed Alike Padlock – 1" Shackle
GPSL-7LSKA
Keyed Alike Padlock – 3" Shackle
GPSL-7MK
Master Keyed Padlock – 1" Shackle
GPSL-7LSMK
Master Keyed Padlock – 3" Shackle
GPSL-7KAMK
Keyed Alike and Master Keyed Padlock – 1" Shackle
GPSL-7LSKAMK Keyed Alike and Master Keyed Padlock – 3" Shackle
GPSL-7MKEY
Master Key for a PSL -7 Master Keyed Padlock
PSL-8 Safety Lockout Padlocks: (Select from red, yellow, blue, black, green, or orange body colors)
GPSL-8KA
Keyed Alike Padlock – 1.5" Shackle
GPSL-8MK
Master Keyed Padlock – 1.5" Shackle
GPSL-8KAMK
Keyed Alike and Master Keyed Padlock – 1.5" Shackle
GPSL-8MKEY
Master Key for a PSL -8 Master Keyed Padlock
Padlocks, Hasps
& Accessories
Description
Lockout Devices
& Kits
Generic Padlock
Part Number
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G3
G4
Index
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Distributor:
Telephone#/Fax#:
Account #:
Black on White
GPVT-RBW1
GPVT-RBW2
1
2
GPVT-BY2
GPVT-BY1
Black on Yellow
GPVT-BBW2
GPVT-BBW1
Black on White
GPVT-Y1-1
GPVT-Y1-2
GPVT-W1-1
GPVT-W1-2
“No Header”
Black on Yellow
Black on White
“No Header”
GPVT-R1-2
GPVT-R1-1
Black on Red
“No Header”
Select the Generic Vinyl Tag Part Number and Quantity:
Number of
Sides Printed
Account #:
Telephone#/Fax#:
End User:
Distributor Contact:
Panduit Sales Rep:
One Form per Generic Tag Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Tags are Non-Returnable
From:
Telephone #:
“No Header”
Lockout Devices
& Kits
GPVT-G1-2
GPVT-G1-1
Black on Green
Padlocks, Hasps
& Accessories
Panduit Corp. Generic PVT Vinyl Tag Order Form
Generic Order Forms
Date:
Regulatory Standards
Training Products
5.75"
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
*Normal position of header. Hole size = .375"
with grommet.
One Panduit tie is included per tag.
Character Height (legend will be formatted to fit
the size of the tag unless otherwise specified)
Logo Required
(Panduit reserves the right to assign artwork
approval when necessary)
Pictogram (type
)
Logo Required (camera ready artwork must
accompany the order form)
Check Applicable Order Requirements:
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
3.00"
BACK OF TAG
*
Tags, Signs
& Labels
Regulatory Standards
FRONT OF TAG
*
Padlocks, Hasps
& Accessories
Use this space to create a rough sketch of your tag.
Please indicate colors and legend. Please print.
Attach an additional page or customer sketch if needed.
Part Number:
Lockout Devices
& Kits
Quantity In Packs (min. of 4 packs, 25 tags and ties / pack):
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G5
G6
Index
Generic Order Forms
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Black on
Yellow
GPPS0305C
GPPS0710C
GPPS1014C
GPPS0305D
GPPS0710D
3" x 5"
7" x 10"
10" x 14" GPPS1014D
GPPS1014N
GPPS0710N
GPPS0305N
Black on
White
GPPS1014SF
GPPS0710SF
GPPS0305SF
Black on
White
GPPS1014W
GPPS0710W
GPPS0305W
Black on
Orange
Black on
White
Black on
Orange
Black on
Yellow
“No Header”
Red on
White
“No Header”
Lockout Devices
& Kits
GPPS1014B-BO GPPS1014B-BW GPPS1014B-BY GPPS1014B-RW
GPPS0710B-BO GPPS0710B-BW GPPS0710B-BY GPPS0710B-RW
GPPS0305B-BO GPPS0305B-BW GPPS0305B-BY GPPS0305B-RW
“No Header”
“No Header”
Select the Generic Polyester Sign Part Number and Quantity
Generic PPS Sign Options
Telephone#/Fax#:
Account #:
Distributor Contact:
Panduit Sales Rep :
Distributor:
One Form per Generic Sign Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
Black on
White
Account #:
Telephone#/Fax#:
Date:
From:
Telephone #:
End User:
Size
Related Products
Panduit Corp. Generic Adhesive PPS Safety Sign Order Form
Regulatory Standards
Training Products
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
Padlocks, Hasps
& Accessories
Notes:
Pictogram (type
)
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
Check Applicable Order Requirements
Include Logos and/or Pictograms
Print Legend in the Format Required:
Part Number:
Lockout Devices
& Kits
Quantity Per Legend Per Size (Minimum of 10):
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G7
G8
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Index
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Black on
Yellow
Red on
White
GPRS1420D GPRS1420C GPRS1420N GPRS1420SF GPRS1420W GPRS1420B-BO GPRS1420B-BW GPRS1420B-BY GPRS1420B-RW
Black on
White
Black on
Orange
GPRS1014D GPRS1014C GPRS1014N GPRS1014SF GPRS1014W GPRS1014B-BO GPRS1014B-BW GPRS1014B-BY GPRS1014B-RW
Black on
Orange
14" x 20"
Black on
White
“No Header”
GPRS0710D GPRS0710C GPRS0710N GPRS0710SF GPRS0710W GPRS0710B-BO GPRS0710B-BW GPRS0710B-BY GPRS0710B-RW
Black on
White
“No Header”
7" x 10"
Black on
Yellow
“No Header”
“No Header”
Select the Generic Semi-Rigid GMPE1 Polyethylene Sign Part Number and Quantity
Generic PRS Sign Options
Lockout Devices
& Kits
10" x 14"
Black on
White
Account #:
Telephone#/Fax#:
Account #:
Distributor Contact:
Panduit Sales Rep:
Distributor:
One Form per Generic Sign Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
Telephone#/Fax#:
Date:
From:
Telephone #:
End User:
Size
Generic Order Forms
Panduit Corp. Generic Semi-Rigid PRS Safety Sign Order Form
Regulatory Standards
Training Products
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
Notes:
Pictogram (type
)
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
Check Applicable Order Requirements
Each sign will have (1) .1875" hole in each corner and .375" radius corners.
Include Logos and/or Pictograms
Print Legend in the Format Required:
Part Number:
Lockout Devices
& Kits
Quantity Per Legend Per Size (Minimum of 10):
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G9
G10
Index
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Account #:
STYLE B
Marker size: 1.125" x 4.5"
1 marker per card
Character height: .75"
LEGEND
LEGEND
STYLE A
LEGEND
LEGEND
Marker size: 2.25" x 9"
1 marker per card
Character height: 1.75"
LEGEND
Pressure Sensitive Adhesive GMV1 Vinyl
Conduit and Voltage Markers
D
EN
G
LE
Semi-Rigid Snap-On GMPET Polyester
Conduit and Voltage Markers
Generic Conduit and Voltage Marker Options
Telephone#/Fax#:
Account #:
Distributor Contact:
Panduit Sales
:
Rep
Distributor:
Telephone#/Fax#:
Date:
From:
Telephone #:
End User:
One Form per Generic Marker Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Markers are Non-Returnable
Panduit Corp. Generic Conduit and Voltage Marker Order Form
Regulatory Standards
Lockout Devices
& Kits
Training Products
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
4
18
B
C
YELLOW
YELLOW
BLACK
BLACK
GPCV-BYY
GPCV-CYY
Related Products
Generic Order Forms
Regulatory Standards
*Note: In Style B and C, if you want several different legends on a
card, draw the lines to signify label division on the legend area.
Write in the different legends needed.
BLACK
BLACK
BLACK
BLACK
Legend
Color
YELLOW
YELLOW
ORANGE
ORANGE
Backgrnd
Color
M
R
M
R
Style
14"
8"
14"
8"
Length
of
Marker
10 markers per legend
per size
2.50" - 6.00"
.75" - 2.25"
2.50" - 6.00"
.75" - 2.25"
Conduit
O.D. Range
(In.)
Print Legend Required
Legend to fit on one line. Max. 19 characters including spaces.
1
A
YELLOW
Print Legend Required
Legend to fit on one line. Max. 17 characters including spaces.
GPCV-RYY
GPCV-MYY
18
C
ORANGE
BLACK
GPCV-AYY
BLACK
GPCV-COY
GPCV-ROY
GPCV-MOY
4
B
Part
Number
A
Quantity
of
Markers
ORANGE
BLACK
GPCV-BOY
Part
Desired
Markers/
Card
1
Style
Backgrnd
Color
ORANGE
Legend
Color
BLACK
Minimum Order Quantity:
Tapes, Letters
& Numbers
Part
Number
GPCV-AOY
10 cards per legend per size
and in multiples of 5 cards
Tags, Signs
& Labels
Part
Desired Quantity
of Cards
Minimum Order Quantity:
Padlocks, Hasps
& Accessories
STYLE C
Lockout Devices
& Kits
Marker size: .50" x 2.25" – 18 marker per card
Character height: .3125"
– Protected graphics
– 6 Reversible legends per marker
– Character height: Size M – .50"
Size R – .75"
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G11
G12
Index
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Panduit Sales Rep:
Distributor:
From:
Account #:
Account #:
Generic Utility Tape Options
Distributor Contact:
Telephone#/Fax#:
Telephone#/Fax#:
End User:
Telephone #:
Padlocks, Hasps
& Accessories
One Form per Generic Utility Tape Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Utility Tapes are Non-Returnable
Panduit Corp. Generic Utility Tapes Form
Generic Order Forms
Date:
Regulatory Standards
Lockout Devices
& Kits
Training Products
8
16
16
16
8
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
Tags, Signs
& Labels
Regulatory Standards
Comments:
Sketch Legend and/or Artwork Below:
Color:_____________________________________
_____________________________________ (select from Blue, Green, Orange, Red or Yellow)
Quantity:_________________________________
ROLLS ARE ON THREE INCH CORE
16
MAXIMUM OF TWO LINES OF TEXT
32
64
64
32
Min. Order
Order
Qty.
Increments
3.0"(76mm) 1,000'(305m) Underground Detectable
Barricade
Underground
Underground
Use
6.0"(152mm) 1,000'(305m) Underground Detectable
3.0"(76mm) 1,000'(305m)
3.0"(76mm) 1,000'(305m)
6.0"(152mm) 1,000'(305m)
Length
Part Number:___________________________
ALL LEGENDS ARE BLACK
GHTDU6
GHTDU3
Polyethylene
Polyethylene
Polyethylene
Polyethylene Encased
Aluminum
Polyethylene Encased
Aluminum
Width
Padlocks, Hasps
& Accessories
GHTB3
GHTU3
GHTU6
Material
Lockout Devices
& Kits
Part
Number
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G13
G14
Index
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Distributor Contact: _______________________
Telephone # / Fax #: _______________________
Account #: _______________________________
_________________________________________
Telephone #: ______________________________
Account #: ________________________________
2 – Select Mounting Method
(Check One):
With Adhesive
Screw Mounting Holes
No Mounting Method
1 – Material:
1/16” Thick Acrylic
3 – Select Color (Check One):
Black Text on White Marker Plate
Black Text on Yellow Marker Plate
White Text on Black Marker Plate
White Text on Blue Marker Plate
White Text on Green Marker Plate
White Text on Red Marker Plate
Generic Custom Engraved Marker Plate Options
4 – Select Size (Check One):
2.0” Wide x 1.0” High
3.0” Wide x 1.0” High
3.0” Wide x 2.5” High
4.0” Wide x 1.0” High
6.0” Wide x 3.0” High
8.5” Wide x 11.0” High
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
_________________________________________
_________________________________________
_________________________________________
Telephone #: _____________________________
End-User: ________________________________
Distributor: _______________________________
_________________________________________
From: ___________________________________
Panduit Sales Rep: ________________________
Custom Engraved Marker Plates are Non-Returnable
Fax orders to Panduit Corp., Attn. Customer Service (708)-570-3570
One Form Per Custom Engraved Marker Plate Option
Panduit Corp. Generic Custom Engraved Marker Plate Order Form
Generic Order Forms
Date: ___________________________________
Regulatory Standards
Lockout Devices
& Kits
Training Products
7 – Specify Order Quantity: __________
GAP3010-A
GAP2010-A
GAP2010
ACRYLIC WITH ADHESIVE
ACRYLIC WITHOUT ADHESIVE
GAP3025
GAP3025-A
3.0” x 2.5”
GAP4010
GAP4010-A
4.0” x 1.0”
GAP6030
GAP6030-A
6.0” X 3.0”
GAP85110
GAP85110-A
8.5” X 11.0”
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
Lockout Devices
& Kits
Regulatory Standards
_____________________________________________________________________________________________________
Comments: ___________________________________________________________________________________________
GAP3010
3.0” x 1.0”
2.0” x 1.0”
Material
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
6 – Specify Part Number: __________________
(See Table Below)
5 – Print Custom Legend Below (3 Lines x 30 Characters Maximum):
Training Products
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
G15
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Training Products
Notes
G16
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Lockout Devices
& Kits
1910.147(a)
Training Products
Occupational Health and Safety
Administration (OSHA) Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147
Scope, application and purpose Scope
1910.147(a)(1)(i)
1910.147(a)(1)(ii)
This standard does not cover the following:
Tags, Signs
& Labels
This standard covers the servicing and maintenance of machines and
equipment in which the unexpected energization or start up of the
machines or equipment, or release of stored energy could cause injury
to employees. This standard establishes minimum performance
requirements for the control of such hazardous energy.
Padlocks, Hasps
& Accessories
1910.147(a)(1)
1910.147(a)(1)(ii)(A)
Construction, agriculture and maritime employment;
Installations under the exclusive control of electric utilities for the purpose of
power generation, transmission and distribution, including related equipment
for communication or metering; and
Tapes, Letters
& Numbers
1910.147(a)(1)(ii)(B)
1910.147(a)(1)(ii)(C)
Related Products
Exposure to electrical hazards from work on, near, or with conductors or
equipment in electric utilization installations, which is covered by Subpart S
of this part; and
..1910.147(a)(1)(ii)(D)
1910.147(a)(1)(ii)(D)
Oil and gas well drilling and servicing.
Generic Order Forms
1910.147(a)(2)
Application.
1910.147(a)(2)(i)
This standard applies to the control of energy during servicing and/or
maintenance of machines and equipment.
1910.147(a)(2)(ii)
Regulatory Standards
Normal production operations are not covered by this standard (See Subpart
O of this Part). Servicing and/or maintenance which takes place during
normal production operations is covered by this standard only if:
1910.147(a)(2)(ii)(A)
An employee is required to remove or bypass a guard or other safety
device; or
1910.147(a)(2)(ii)(B)
Index
An employee is required to place any part of his or her body into an area on
a machine or piece of equipment where work is actually performed upon the
material being processed (point of operation) or where an associated danger
zone exists during a machine operating cycle.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H1
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
Note: Exception to paragraph (a)(2)(ii): Minor tool changes and
adjustments, and other minor servicing activities, which take place during
normal production operations, are not covered by this standard if they are
routine, repetitive, and integral to the use of the equipment for production,
provided that the work is performed using alternative measures which
provide effective protection (See Subpart O of this Part).
1910.147(a)(2)(iii)
This standard does not apply to the following:
..1910.147(a)(2)(iii)(A)
Tags, Signs
& Labels
1910.147(a)(2)(iii)(A)
Work on cord and plug connected electric equipment for which exposure
to the hazards of unexpected energization or start up of the equipment is
controlled by the unplugging of the equipment from the energy source and
by the plug being under the exclusive control of the employee performing
the servicing or maintenance.
Tapes, Letters
& Numbers
1910.147(a)(2)(iii)(B)
Hot tap operations involving transmission and distribution systems for
substances such as gas, steam, water or petroleum products when they
are performed on pressurized pipelines, provided that the employer
demonstrates that1910.147(a)(2)(iii)(B)(1)
continuity of service is essential;
Related Products
1910.147(a)(2)(iii)(B)(2)
shutdown of the system is impractical; and
1910.147(a)(2)(iii)(B)(3)
documented procedures are followed, and special equipment is used which
will provide proven effective protection for employees.
Regulatory Standards
Generic Order Forms
1910.147(a)(3)
Purpose.
1910.147(a)(3)(i)
This section requires employers to establish a program and utilize
procedures for affixing appropriate lockout devices or tagout devices to
energy isolating devices, and to otherwise disable machines or equipment
to prevent unexpected energization, start up or release of stored energy
in order to prevent injury to employees.
1910.147(a)(3)(ii)
When other standards in this part require the use of lockout or tagout,
they shall be used and supplemented by the procedural and training
requirements of this section.
1910.147(b)
Index
Definitions applicable to this section.
H2
Affected employee. An employee whose job requires him/her to operate
or use a machine or equipment on which servicing or maintenance is being
performed under lockout or tagout, or whose job requires him/her to work in
an area in which such servicing or maintenance is being performed.
Energy source. Any source of electrical, mechanical, hydraulic, pneumatic,
chemical, thermal, or other energy.
Tapes, Letters
& Numbers
Energy isolating device. A mechanical device that physically prevents the
transmission or release of energy, including but not limited to the following:
A manually operated electrical circuit breaker; a disconnect switch; a
manually operated switch by which the conductors of a circuit can be
disconnected from all ungrounded supply conductors, and, in addition,
no pole can be operated independently; a line valve; a block; and any similar
device used to block or isolate energy. Push buttons, selector switches and
other control circuit type devices are not energy isolating devices.
Tags, Signs
& Labels
Energized. Connected to an energy source or containing residual
or stored energy.
Padlocks, Hasps
& Accessories
Capable of being locked out. An energy isolating device is capable of
being locked out if it has a hasp or other means of attachment to which, or
through which, a lock can be affixed, or it has a locking mechanism built into
it. Other energy isolating devices are capable of being locked out, if lockout
can be achieved without the need to dismantle, rebuild, or replace the
energy isolating device or permanently alter its energy control capability.
Lockout Devices
& Kits
Authorized employee. A person who locks out or tags out machines or
equipment in order to perform servicing or maintenance on that machine or
equipment. An affected employee becomes an authorized employee when
that employee's duties include performing servicing or maintenance covered
under this section.
Training Products
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
Related Products
Hot tap. A procedure used in the repair, maintenance and services activities
which involves welding on a piece of equipment (pipelines, vessels or tanks)
under pressure, in order to install connections or appurtenances. it is
commonly used to replace or add sections of pipeline without the
interruption of service for air, gas, water, steam, and petrochemical
distribution systems.
Generic Order Forms
Lockout. The placement of a lockout device on an energy isolating device,
in accordance with an established procedure, ensuring that the energy
isolating device and the equipment being controlled cannot be operated until
the lockout device is removed.
Lockout device. A device that utilizes a positive means such as a lock,
either key or combination type, to hold an energy isolating device in the safe
position and prevent the energizing of a machine or equipment. Included are
blank flanges and bolted slip blinds.
Normal production operations. The utilization of a machine or equipment
to perform its intended production function.
Regulatory Standards
Servicing and/or maintenance. Workplace activities such as constructing,
installing, setting up, adjusting, inspecting, modifying, and maintaining
and/or servicing machines or equipment. These activities include lubrication,
cleaning or unjamming of machines or equipment and making adjustments
or tool changes, where the employee may be exposed to the unexpected
energization or startup of the equipment or release of hazardous energy.
Setting up. Any work performed to prepare a machine or equipment to
perform its normal production operation.
Index
Tagout. The placement of a tagout device on an energy isolating device, in
accordance with an established procedure, to indicate that the energy
isolating device and the equipment being controlled may not be operated
until the tagout device is removed.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H3
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
Tagout device. A prominent warning device, such as a tag and a means
of attachment, which can be securely fastened to an energy isolating device
in accordance with an established procedure, to indicate that the energy
isolating device and the equipment being controlled may not be operated
until the tagout device is removed.
..1910.147(c)
1910.147(c)
General 1910.147(c)(1)
Energy control program. The employer shall establish a program consisting
of energy control procedures, employee training and periodic inspections to
ensure that before any employee performs any servicing or maintenance on
a machine or equipment where the unexpected energizing, startup or
release of stored energy could occur and cause injury, the machine or
equipment shall be isolated from the energy source and rendered
inoperative.
Tapes, Letters
& Numbers
1910.147(c)(2)
Lockout/tagout.
1910.147(c)(2)(i)
If an energy isolating device is not capable of being locked out, the
employer's energy control program under paragraph (c)(1) of this section
shall utilize a tagout system.
Related Products
1910.147(c)(2)(ii)
If an energy isolating device is capable of being locked out, the employer's
energy control program under paragraph (c)(1) of this section shall utilize
lockout, unless the employer can demonstrate that the utilization of a tagout
system will provide full employee protection as set forth in paragraph (c)(3)
of this section.
Generic Order Forms
After January 2, 1990, whenever replacement or major repair, renovation or
modification of a machine or equipment is performed, and whenever new
machines or equipment are installed, energy isolating devices for such
machine or equipment shall be designed to accept a lockout device.
Regulatory Standards
1910.147(c)(2)(iii)
1910.147(c)(3)(i)
1910.147(c)(3)
Full employee protection.
When a tagout device is used on an energy isolating device which is
capable of being locked out, the tagout device shall be attached at the same
location that the lockout device would have been attached, and the employer
shall demonstrate that the tagout program will provide a level of safety
equivalent to that obtained by using a lockout program.
..1910.147(c)(3)(ii)
Index
1910.147(c)(3)(ii)
H4
In demonstrating that a level of safety is achieved in the tagout program
which is equivalent to the level of safety obtained by using a lockout
program, the employer shall demonstrate full compliance with all tagoutrelated provisions of this standard together with such additional elements as
are necessary to provide the equivalent safety available from the use of a
Energy control procedure.
1910.147(c)(4)(i)
Tapes, Letters
& Numbers
Related Products
Note: Exception: The employer need not document the required procedure
for a particular machine or equipment, when all of the following elements
exist: (1) The machine or equipment has no potential for stored or residual
energy or reaccumulation of stored energy after shut down which could
endanger employees; (2) the machine or equipment has a single energy
source which can be readily identified and isolated; (3) the isolation and
locking out of that energy source will completely de-energize and deactivate
the machine or equipment; (4) the machine or equipment is isolated from
that energy source and locked out during servicing or maintenance; (5) a
single lockout device will achieve a locker-out condition; (6) the lockout
device is under the exclusive control of the authorized employee performing
the servicing or maintenance; (7) the servicing or maintenance does not
create hazards for other employees; and (8) the employer, in utilizing this
exception, has had no accidents involving the unexpected activation
or reenergization of the machine or equipment during servicing
or maintenance.
Tags, Signs
& Labels
Procedures shall be developed, documented and utilized for the control of
potentially hazardous energy when employees are engaged in the activities
covered by this section.
Padlocks, Hasps
& Accessories
1910.147(c)(4)
Lockout Devices
& Kits
lockout device. Additional means to be considered as part of the
demonstration of full employee protection shall include the implementation
of additional safety measures such as the removal of an isolating circuit
element, blocking of a controlling switch, opening of an extra disconnecting
device, or the removal of a valve handle to reduce the likelihood of
inadvertent energization.
Training Products
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
1910.147(c)(4)(ii)
Generic Order Forms
The procedures shall clearly and specifically outline the scope, purpose,
authorization, rules, and techniques to be utilized for the control of
hazardous energy, and the means to enforce compliance including,
but not limited to, the following:
1910.147(c)(4)(ii)(A)
A specific statement of the intended use of the procedure;
1910.147(c)(4)(ii)(B)
Regulatory Standards
Specific procedural steps for shutting down, isolating, blocking and securing
machines or equipment to control hazardous energy;
1910.147(c)(4)(ii)(C)
Specific procedural steps for the placement, removal and transfer of lockout
devices or tagout devices and the responsibility for them; and
..1910.147(c)(4)(ii)(D)
1910.147(c)(4)(ii)(D)
Index
Specific requirements for testing a machine or equipment to determine and
verify the effectiveness of lockout devices, tagout devices, and other energy
control measures.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H5
Training Products
Lockout Devices
& Kits
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout / Tagout) 1910.147 (continued)
1910.147(c)(5)
Protective materials and hardware.
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
1910.147(c)(5)(i)
Locks, tags, chains, wedges, key blocks, adapter pins, self-locking fasteners,
or other hardware shall be provided by the employer for isolating, securing
or blocking of machines or equipment from energy sources.
1910.147(c)(5)(ii)
Lockout devices and tagout devices shall be singularly identified; shall be
the only devices(s) used for controlling energy; shall not be used for other
purposes; and shall meet the following requirements:
1910.147(c)(5)(ii)(A)
Durable.
1910.147(c)(5)(ii)(A)(1)
Tapes, Letters
& Numbers
Lockout and tagout devices shall be capable of withstanding the
environment to which they are exposed for the maximum period of time that
exposure is expected.
1910.147(c)(5)(ii)(A)(2)
Tagout devices shall be constructed and printed so that exposure to weather
conditions or wet and damp locations will not cause the tag to deteriorate or
the message on the tag to become illegible.
Index
Regulatory Standards
Generic Order Forms
Related Products
1910.147(c)(5)(ii)(A)(3)
Tags shall not deteriorate when used in corrosive environments such as
areas where acid and alkali chemicals are handled and stored.
..1910.147(c)(5)(ii)(B)
1910.147(c)(5)(ii)(B)
Standardized. Lockout and tagout devices shall be standardized within the
facility in at least one of the following criteria: Color; shape; or size; and
additionally, in the case of tagout devices, print and format shall be
standardized.
1910.147(c)(5)(ii)(C)
Substantial 1910.147(c)(5)(ii)(C)(1)
Lockout devices. Lockout devices shall be substantial enough to prevent
removal without the use of excessive force or unusual techniques, such as
with the use of bolt cutters or other metal cutting tools.
1910.147(c)(5)(ii)(C)(2)
Tagout devices. Tagout devices, including their means of attachment, shall
be substantial enough to prevent inadvertent or accidental removal. Tagout
device attachment means shall be of a non-reusable type, attachable by
hand, self-locking, and non-releasable with a minimum unlocking strength of
no less than 50 pounds and having the general design and basic
characteristics of being at least equivalent to a one-piece, all environmenttolerant nylon cable tie.
1910.147(c)(5)(ii)(D)
Identifiable. Lockout devices and tagout devices shall indicate the identity
of the employee applying the device(s).
H6
..1910.147(c)(6)
1910.147(c)(6)
Periodic inspection.
Padlocks, Hasps
& Accessories
Tagout devices shall warn against hazardous conditions if the machine or
equipment is energized and shall include a legend such as the following:
Do Not Start. Do Not Open. Do Not Close. Do Not Energize.
Do Not Operate.
Lockout Devices
& Kits
1910.147(c)(5)(iii)
Training Products
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout / Tagout) 1910.147 (continued)
1910.147(c)(6)(i)
1910.147(c)(6)(i)(A)
The periodic inspection shall be performed by an authorized employee other
than the ones(s) utilizing the energy control procedure being inspected.
Tags, Signs
& Labels
The employer shall conduct a periodic inspection of the energy control
procedure at least annually to ensure that the procedure and the
requirements of this standard are being followed.
1910.147(c)(6)(i)(B)
1910.147(c)(6)(i)(C)
Related Products
Where lockout is used for energy control, the periodic inspection shall
include a review, between the inspector and each authorized employee,
of that employee's responsibilities under the energy control procedure
being inspected.
Tapes, Letters
& Numbers
The periodic inspection shall be conducted to correct any deviations or
inadequacies identified.
1910.147(c)(6)(i)(D)
Generic Order Forms
Where tagout is used for energy control, the periodic inspection shall include
a review, between the inspector and each authorized and affected
employee, of that employee's responsibilities under the energy control
procedure being inspected, and the elements set forth in paragraph (c)(7)(ii)
of this section.
..1910.147(c)(6)(ii)
1910.147(c)(6)(ii)
Regulatory Standards
The employer shall certify that the periodic inspections have been
performed. The certification shall identify the machine or equipment on
which the energy control procedure was being utilized, the date of the
inspection, the employees included in the inspection, and the person
performing the inspection.
1910.147(c)(7)
Training and communication.
1910.147(c)(7)(i)
The employer shall provide training to ensure that the purpose and function
of the energy control program are understood by employees and that the
knowledge and skills required for the safe application, usage, and removal
of the energy controls are acquired by employees.
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H7
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
The training shall include the following:
1910.147(c)(7)(i)(A)
Each authorized employee shall receive training in the recognition of
applicable hazardous energy sources, the type and magnitude of the energy
available in the workplace, and the methods and means necessary for
energy isolation and control.
1910.147(c)(7)(i)(B)
Each affected employee shall be instructed in the purpose and use of the
energy control procedure.
Tags, Signs
& Labels
1910.147(c)(7)(i)(C)
All other employees whose work operations are or may be in an area where
energy control procedures may be utilized, shall be instructed about the
procedure, and about the prohibition relating to attempts to restart or
reenergize machines or equipment which are locked out or tagged out.
1910.147(c)(7)(ii)
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
When tagout systems are used, employees shall also be trained in the
following limitations of tags:
H8
..1910.147(c)(7)(ii)(A)
1910.147(c)(7)(ii)(A)
Tags are essentially warning devices affixed to energy isolating devices,
and do not provide the physical restraint on those devices that is provided
by a lock.
1910.147(c)(7)(ii)(B)
When a tag is attached to an energy isolating means, it is not to be removed
without authorization of the authorized person responsible for it, and it is
never to be bypassed, ignored, or otherwise defeated.
1910.147(c)(7)(ii)(C)
Tags must be legible and understandable by all authorized employees,
affected employees, and all other employees whose work operations are
or may be in the area, in order to be effective.
1910.147(c)(7)(ii)(D)
Tags and their means of attachment must be made of materials which will
withstand the environmental conditions encountered in the workplace.
1910.147(c)(7)(ii)(E)
Tags may evoke a false sense of security, and their meaning needs to be
understood as part of the overall energy control program.
1910.147(c)(7)(ii)(F)
Tags must be securely attached to energy isolating devices so that they
cannot be inadvertently or accidentally detached during use.
Employee retraining.
Lockout Devices
& Kits
1910.147(c)(7)(iii)
Training Products
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
..1910.147(c)(7)(iii)(A)
Retraining shall be provided for all authorized and affected employees
whenever there is a change in their job assignments, a change in machines,
equipment or processes that present a new hazard, or when there is a
change in the energy control procedures.
Padlocks, Hasps
& Accessories
1910.147(c)(7)(iii)(A)
1910.147(c)(7)(iii)(B)
1910.147(c)(7)(iii)(C)
Tags, Signs
& Labels
Additional retraining shall also be conducted whenever a periodic inspection
under paragraph (c)(6) of this section reveals, or whenever the employer has
reason to believe that there are deviations from or inadequacies in the
employee's knowledge or use of the energy control procedures.
The retraining shall reestablish employee proficiency and introduce new or
revised control methods and procedures, as necessary.
The employer shall certify that employee training has been accomplished
and is being kept up to date. The certification shall contain each employee's
name and dates of training.
Tapes, Letters
& Numbers
1910.147(c)(7)(iv)
1910.147(c)(8)
Related Products
Energy isolation. Lockout or tagout shall be performed only by the
authorized employees who are performing the servicing or maintenance.
1910.147(c)(9)
Notification of employees. Affected employees shall be notified by the
employer or authorized employee of the application and removal of lockout
devices or tagout devices.
Generic Order Forms
Notification shall be given before the controls are applied, and after they are
removed from the machine or equipment.
..1910.147(d)
1910.147(d)
Application of control. The established procedures for the application of
energy control (the lockout or tagout procedures) shall cover the following
elements and actions and shall be done in the following sequence:
Regulatory Standards
1910.147(d)(1)
Preparation for shutdown. Before an authorized or affected employee
turns off a machine or equipment, the authorized employee shall have
knowledge of the type and magnitude of the energy, the hazards of the
energy to be controlled, and the method or means to control the energy.
1910.147(d)(2)
Index
Machine or equipment shutdown. The machine or equipment shall be
turned off or shut down using the procedures established for the machine
or equipment. An orderly shutdown must be utilized to avoid any additional
or increased hazard(s) to employees as a result of the equipment stoppage.
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H9
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
1910.147(d)(3)
Machine or equipment isolation. All energy isolating devices that are
needed to control the energy to the machine or equipment shall be
physically located and operated in such a manner as to isolate the
machine or equipment from the energy source(s).
1910.147(d)(4)
Lockout or tagout device application.
1910.147(d)(4)(i)
Tags, Signs
& Labels
Lockout or tagout devices shall be affixed to each energy isolating device by
authorized employees.
..1910.147(d)(4)(ii)
1910.147(d)(4)(ii)
Lockout devices, where used, shall be affixed in a manner to that will hold
the energy isolating devices in a “safe” or “off” position.
Related Products
Tapes, Letters
& Numbers
1910.147(d)(4)(iii)
Tagout devices, where used, shall be affixed in such a manner as will clearly
indicate that the operation or movement of energy isolating devices from the
“safe” or “off” position is prohibited.
1910.147(d)(4)(iii)(A)
Where tagout devices are used with energy isolating devices designed with
the capability of being locked, the tag attachment shall be fastened at the
same point at which the lock would have been attached.
1910.147(d)(4)(iii)(B)
Where a tag cannot be affixed directly to the energy isolating device, the tag
shall be located as close as safely possible to the device, in a position that
will be immediately obvious to anyone attempting to operate the device.
1910.147(d)(5)
Index
Regulatory Standards
Generic Order Forms
Stored energy.
1910.147(d)(5)(i)
Following the application of lockout or tagout devices to energy isolating
devices, all potentially hazardous stored or residual energy shall be relieved,
disconnected, restrained, and otherwise rendered safe.
..1910.147(d)(5)(ii)
1910.147(d)(5)(ii)
If there is a possibility of reaccumulation of stored energy to a hazardous
level, verification of isolation shall be continued until the servicing or
maintenance is completed, or until the possibility of such accumulation no
longer exists.
1910.147(d)(6)
Verification of isolation. Prior to starting work on machines or equipment
that have been locked out or tagged out, the authorized employee shall
verify that isolation and de-energization of the machine or equipment have
been accomplished.
H10
Training Products
1910.147(e)
1910.147(e)(1)
The machine or equipment. The work area shall be inspected to ensure
that nonessential items have been removed and to ensure that machine or
equipment components are operationally intact.
Padlocks, Hasps
& Accessories
Release from lockout or tagout. Before lockout or tagout devices are
removed and energy is restored to the machine or equipment, procedures
shall be followed and actions taken by the authorized employee(s) to ensure
the following:
Lockout Devices
& Kits
OSHA Standard 29CFR
The Control of Hazardous Energy
(Lockout/Tagout) 1910.147 (continued)
1910.147(e)(2)
Employees.
Tags, Signs
& Labels
1910.147(e)(2)(i)
The work area shall be checked to ensure that all employees have been
safely positioned or removed.
1910.147(e)(2)(ii)
1910.147(e)(3)
Related Products
Lockout or tagout devices removal. Each lockout or tagout device shall be
removed from each energy isolating device by the employee who applied the
device. Exception to paragraph (e)(3): When the authorized employee who
applied the lockout or tagout device is not available to remove it, that device
may be removed under the direction of the employer, provided that specific
procedures and training for such removal have been developed,
documented and incorporated into the employer's energy control program.
The employer shall demonstrate that the specific procedure provides
equivalent safety to the removal of the device by the authorized employee
who applied it. The specific procedure shall include at least the following
elements:
Tapes, Letters
& Numbers
After lockout or tagout devices have been removed and before a machine or
equipment is started, affected employees shall be notified that the lockout or
tagout device(s) have been removed.
Generic Order Forms
1910.147(e)(3)(i)
Verification by the employer that the authorized employee who applied the
device is not at the facility:
1910.147(e)(3)(ii)
Making all reasonable efforts to contact the authorized employee to inform
him/her that his/her lockout or tagout device has been removed; and
Regulatory Standards
1910.147(e)(3)(iii)
Ensuring that the authorized employee has this knowledge before he/she
resumes work at that facility.
..1910.147(f)
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H11
Training Products
1910.147(f)
Padlocks, Hasps
& Accessories
Lockout Devices
& Kits
Additional requirements.
1910.147(f)(1)
Testing or positioning of machines, equipment or components thereof.
In situations in which lockout or tagout devices must be temporarily removed
from the energy isolating device and the machine or equipment energized
to test or position the machine, equipment or component thereof, the
following sequence of actions shall be followed:
1910.147(f)(1)(i)
Clear the machine or equipment of tools and materials in accordance
with paragraph (e)(1) of this section;
1910.147(f)(1)(ii)
Remove employees from the machine or equipment area in accordance
with paragraph (e)(2) of this section;
Tags, Signs
& Labels
1910.147(f)(1)(iii)
Remove the lockout or tagout devices as specified in paragraph (e)(3)
of this section;
1910.147(f)(1)(iv)
Energize and proceed with testing or positioning;
Tapes, Letters
& Numbers
1910.147(f)(1)(v)
Deenergize all systems and reapply energy control measures in accordance
with paragraph (d) of this section to continue the servicing and/or
maintenance.
1910.147(f)(2)
Regulatory Standards
Generic Order Forms
Related Products
Outside personnel (contractors, etc.).
1910.147(f)(2)(i)
Whenever outside servicing personnel are to be engaged in activities
covered by the scope and application of this standard, the on-site employer
and the outside employer shall inform each other of their respective lockout
or tagout procedures.
..1910.147(f)(2)(ii)
1910.147(f)(2)(ii)
The on-site employer shall ensure that his/her employees understand and
comply with the restrictions and prohibitions of the outside employer's energy
control program.
1910.147(f)(3)
Group lockout or tagout.
1910.147(f)(3)(i)
When servicing and/or maintenance is performed by a crew, craft,
department or other group, they shall utilize a procedure which affords the
employees a level of protection equivalent to that provided by the
implementation of a personal lockout or tagout device.
1910.147(f)(3)(ii)
Index
Group lockout or tagout devices shall be used in accordance with the
procedures required by paragraph (c)(4) of this section including, but not
necessarily limited to, the following specific requirements:
H12
Training Products
1910.147(f)(3)(ii)(A)
1910.147(f)(3)(ii)(B)
Provision for the authorized employee to ascertain the exposure status of
individual group members with regard to the lockout or tagout of the machine
or equipment and
When more than one crew, craft, department, etc. is involved, assignment of
overall job-associated lockout or tagout control responsibility to an
authorized employee designated to coordinate affected work forces and
ensure continuity of protection; and
Padlocks, Hasps
& Accessories
1910.147(f)(3)(ii)(C)
Lockout Devices
& Kits
Primary responsibility is vested in an authorized employee for a set number
of employees working under the protection of a group lockout or tagout
device (such as an operations lock);
..1910.147(f)(3)(ii)(D)
1910.147(f)(3)(ii)(D)
Tags, Signs
& Labels
Each authorized employee shall affix a personal lockout or tagout device to
the group lockout device, group lockbox, or comparable mechanism when he
or she begins work, and shall remove those devices when he or she stops
working on the machine or equipment being serviced or maintained.
1910.147(f)(4)
Tapes, Letters
& Numbers
Shift or personnel changes. Specific procedures shall be utilized during
shift or personnel changes to ensure the continuity of lockout or tagout
protection, including provision for the orderly transfer of lockout or tagout
device protection between off-going and oncoming employees, to minimize
exposure to hazards from the unexpected energization or start-up of the
machine or equipment, or the release of stored energy.
Related Products
Note: The following appendix to §1910.147 services as a non-mandatory
guideline to assist employers and employees in complying with the
requirements of this section, as well as to provide other helpful information.
Nothing in the appendix adds to or detracts from any of the requirements
of this section.
Generic Order Forms
OSHA 1910.333
Regulatory Standards
Safety-related work practices shall be employed to prevent electric shock
or other injuries resulting from either direct or indirect electrical contacts,
when work is performed near or on equipment or circuits which are
or may be energized.
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
H13
Training Products
National Electric Code – Article 110.16
110.16 Flash Protection. Electrical
equipment, such as switchboards, panel
boards, industrial motor control panels,
meter socket enclosures, and motor control
centers, that are in other than dwelling
occupancies, and are likely to require
examination, adjustment, servicing, or
maintenance while energized shall be
filed marked to warn qualified persons
of potential electric arc flash hazards.
The markings shall be located so as to be
clearly visible to qualified persons before
examination, adjustment, servicing, or
maintenance of the equipment.
NFPA 70E 130.2 (C) – Equipment Labeling
(for Arc Flash)
Equipment Labeling. Equipment shall be field marked with a label
containing the available incident energy or required level of PPE.
NFPA 70E 130.7 (E) (1) – Safety Signs
and Tags
Safety signs, safety symbols, or accident prevention tags shall be used
where necessary to warn employees about electrical hazards that might
endanger them.
UL 508A – Industrial Control Panels
UL 508aSB5 – Markings
SB5.2 – Cautionary Markings
SB5.2.1 An industrial control panel with a short circuit current rating based
on the high fault short circuit current ratings of one or more components as
specified in SB4.2.3 shall be marked with the word “WARNING” and the
following statement:
Risk of Fire or Electric Shock – The opening of the branch-circuit protective
device may be an indication that a fault current has been interrupted. All
current-carrying parts and other components protected by this device
should be examined and replaced if damaged. If burnout of a current
element of an overload relay occurs, the complete overload relay must
be replaced.
Index
Regulatory Standards
Generic Order Forms
Related Products
Tapes, Letters
& Numbers
Tags, Signs
& Labels
Padlocks, Hasps
& Accessories
Lockout Devices
WARNING
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
H14
Training Products
Part Number Index
Page
No.
Related Products
Generic Order Forms
Regulatory Standards
Index
P
PCL037-0 .................E8
PCL037-0-9..............E8
PCL037-1 –
PCL037-9 .............E8
PCL037-A –
PCL037-Z .............E8
PCL037-A-Z .............E8
PCL062-0 .................E8
PCL062-0-9..............E8
PCL062-1 –
PCL062-9 .............E8
Tapes, Letters
& Numbers
M
MT172W38-C...........C5
MTB1D-Q.................C5
Tags, Signs
& Labels
H
HT2-BLU ..................E1
HT2-GRN .................E1
HT2-ORN .................E1
HT2-RED..................E1
HT2S-BLK-YEL ........E1
HT2S-RED-WHT ......E1
HT2-WHT .................E1
HT2-YEL ..................E1
HT3S-BLK-YEL ........E1
HT3S-RED-WHT......E1
HTB3-C-M ................E7
HTB3-DNE-M ...........E7
HTB3-HV-M ..............E7
HTDU2B-W ..............E5
HTDU2O-FO ............E5
HTDU2O-T ...............E5
HTDU2R-E ...............E5
HTDU3O-FO ............E5
HTDU3O-T ...............E5
HTDU3R-E ...............E5
HTDU6O-FO ............E5
HTDU6O-T ...............E5
HTDU6R-E ...............E5
HTU3G-T-M ..............E6
HTU3O-FO-M...........E6
HTU3O-T-M ..............E6
HTU3R-E-M .............E6
HTU3Y-E-M ..............E6
HTU6O-FO...............E6
HTU6O-T..................E6
HTU6O-TV ...............E6
HTU6R-E..................E6
HTU6Y-E ..................E6
HTU6Y-G ..................E6
Page
Part
No.
Number
PCV-1PHBY ...........D31
PCV-1PHCY...........D31
PCV-208AY ............D31
PCV-208BY ............D31
PCV-208CY............D31
PCV-220AY ............D31
PCV-220BY ............D31
PCV-220CY............D31
PCV-2300AY ..........D31
PCV-2300BY ..........D31
PCV-2300CY..........D31
PCV-230AY ............D31
PCV-230BY ............D31
PCV-230CY............D31
PCV-2400AY ..........D31
PCV-2400BY ..........D31
PCV-2400CY..........D31
PCV-240AY ............D31
PCV-240BY ............D31
PCV-240CY............D31
PCV-277/480AY .....D31
PCV-277/480BY .....D31
PCV-277/480CY .....D31
PCV-277AY ............D31
PCV-277BY ............D31
PCV-277CY............D31
PCV-380AY ............D31
PCV-380BY ............D31
PCV-380CY............D31
PCV-3PHAY ...........D31
PCV-3PHBY ...........D31
PCV-3PHCY...........D31
PCV-415AY ............D31
PCV-415BY ............D31
PCV-415CY............D31
PCV-4160AY ..........D31
PCV-4160BY ..........D31
PCV-4160CY..........D31
PCV-440AY ............D31
PCV-440BY ............D31
PCV-440CY............D31
PCV-460AY ............D31
PCV-460BY ............D31
PCV-460CY............D31
PCV-480AY ............D31
PCV-480BY ............D31
PCV-480CY............D31
PCV-480RY ............D32
PCV-600AY ............D31
PCV-600BY ............D31
PCV-600CY............D31
PCVB-110Y............D32
PCVB-220Y............D32
PCVB-277/480Y .....D32
PCVB-277Y............D32
PCVB-4160Y..........D32
PCVB-440Y............D32
PCVB-480Y............D32
PCV-BLANKAY ......D31
PCV-BLANKBY ......D31
PCV-BLANKCY ......D31
Padlocks, Hasps
& Accessories
C
C400X400A11........D24
C400X400A21........D24
C400X400A31........D24
C400X600AX1 .......D24
C400X600AY1........D24
C400X600Y81........D24
C400X600YX1 .......D24
C400X600YZ1 .......D24
Page
Part
No.
Number
PCL062-A –
PCL062-Z .............E8
PCL062-A-Z .............E8
PCL062-DSH ...........E8
PCL100-0 .................E8
PCL100-0-9..............E8
PCL100-1 –
PCL100-9 .............E8
PCL100-A –
PCL100-Z .............E8
PCL100-A-J..............E9
PCL100-DSH ...........E9
PCL100-K-T .............E9
PCL100-U-Z .............E9
PCL200-0 .................E9
PCL200-0-9..............E9
PCL200-1 –
PCL200-9 .............E9
PCL200-A –
PCL200-Z .............E9
PCL200-A-J..............E9
PCL200-DSH ...........E9
PCL200-K-T .............E9
PCL200-U-Z .............E9
PCL300-0 .................E9
PCL300-1 –
PCL300-9 .............E9
PCL300-A –
PCL300-Z .............E9
PCL300-DSH ...........E9
PCLCP037-0-9.........E8
PCLCP037-A-Z ........E8
PCLCP062-0-9.........E8
PCLCP062-A-Z ........E8
PCLCP100-0-9.........E9
PCLCP100-A-Z ........E9
PCLCP200-0-9.........E9
PCLCP200-A-Z ........E9
PCLCP300-0-9.........E9
PCLCP300-A-Z ........E9
PCV-110AY ............D31
PCV-110BY ............D31
PCV-110CY............D31
PCV-115AY ............D31
PCV-115BY ............D31
PCV-115CY............D31
PCV-120/208AY .....D31
PCV-120/208BY .....D31
PCV-120/208CY .....D31
PCV-120AY ............D31
PCV-120BY ............D31
PCV-120CY............D31
PCV-120RY ............D32
PCV-12470AY ........D31
PCV-12470BY ........D31
PCV-12470CY........D31
PCV-13200AY ........D31
PCV-13200BY ........D31
PCV-13800AY ........D31
PCV-13800BY ........D31
PCV-13800CY........D31
PCV-1PHAY ...........D31
Lockout Devices
& Kits
Part
Number
For service and technical support, call 800-777-3300 or visit www.panduit.com.
J1
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
J2
Page
Part
No.
Number
PCV-ESAY .............D31
PCV-ESBY .............D31
PCV-ESCY .............D31
PCV-FAAY ..............D31
PCV-FABY..............D31
PCV-FACY..............D31
PCV-FOAY .............D31
PCV-FOBY .............D31
PCV-FOCAY...........D31
PCV-FOCBY ..........D31
PCV-FOCCY ..........D31
PCV-FOCY.............D31
PCV-FOMY ............D32
PCV-FORY .............D32
PCV-MAINAY .........D31
PCV-MAINBY .........D31
PCV-MAINCY.........D31
PCV-TELEAY .........D31
PCV-TELEBY .........D31
PCV-TELECY.........D31
PCWL.....................D35
PCWL-ACC ............D35
PCWL-BL ...............D35
PCWL-CAL ............D35
PCWL-CLAD..........D35
PCWL-ICAL ...........D35
PCWL-REJ.............D35
PESC-H-*...............D35
PESC-H-AT ............D35
PESC-H-E..............D35
PESC-H-EC ...........D35
PESC-H-HT ...........D35
PESC-H-PE ...........D35
PESC-J-*................D35
PESC-J-E...............D35
PESC-J-EC ............D35
PESC-J-HT ............D35
PESC-J-PE ............D35
PESS-A-* ...............D36
PESS-A-CE............D36
PESS-A-ES............D36
PESS-A-L1.............D36
PESS-A-L2.............D36
PESS-A-L3.............D36
PESS-A-LF ............D36
PESS-A-N ..............D36
PESS-A-PE............D36
PESS-A-RC10 .......D37
PESS-A-RC25 .......D37
PESS-A-RC50 .......D37
PESS-A-RCE .........D37
PESS-A-ROHS ......D37
PESS-A-SS............D36
PESS-B-* ...............D36
PESS-BCE.............D36
PESS-B-ES............D36
PESS-B-L1.............D36
PESS-B-L2.............D36
PESS-B-L3.............D36
PESS-B-N ..............D36
PESS-B-SS............D36
PESS-C-* ...............D36
PESS-C-CE ...........D36
Page
Part
No.
Number
PESS-C-ES............D36
PESS-C-L1 ............D36
PESS-C-L2 ............D36
PESS-C-L3 ............D36
PESS-C-N..............D36
PESS-C-SS............D36
PESS-D-* ...............D36
PESS-D-CE ...........D36
PESS-D-ES............D36
PESS-D-L1 ............D36
PESS-D-L2 ............D36
PESS-D-L3 ............D36
PESS-D-N..............D36
PESS-D-SS............D36
PESS-E-* ...............D36
PESS-E-CE............D36
PESS-E-ES............D36
PESS-E-L1.............D36
PESS-E-L2.............D36
PESS-E-L3.............D36
PESW-A-* ..............D37
PESW-B-* ..............D37
PESW-C-* ..............D37
PESW-D-* ..............D37
PESW-E-* ..............D37
PFX-0.....................D14
PFX-2.....................D14
PLD-3.....................D34
PLD-4.....................D34
PLD-7.....................D34
PLD-11...................D34
PLD-12...................D33
PLD-17...................D34
PLD-18...................D34
PLD-22...................D34
PLD-28...................D34
PLD-29...................D34
PLD-30...................D33
PLD-36...................D33
PLD-37...................D33
PLD-38...................D33
PLD-43...................D33
PLD-45...................D33
PLD-46...................D33
PLD-47...................D33
PLD-52...................D33
PLD-56...................D33
PLD-57...................D34
PLD-58...................D33
PLD-60...................D34
PLD-67...................D33
PLD-68...................D33
PLD-71...................D34
PLD-72...................D33
PLD-74...................D33
PLD-80...................D34
PLD-81...................D33
PLD-91...................D33
PMSCLL.................D27
PMSCLM................D27
PMSCLN ................D27
PMSCLP ................D27
PPS0202D493 .......D20
Page
Part
No.
Number
PPS0204W2100 .....D23
PPS0305C174 .......D20
PPS0305D73 .........D18
PPS0305D75 .........D18
PPS0305W2100 .....D23
PPS0305W2200 ....D19
PPS0507W2100 .....D23
PPS0507W2200 ....D19
PPS0514B265 .......D21
PPS0514B363 .......D17
PPS0710B364 .......D17
PPS0710B380 .......D21
PPS0710B430 .......D21
PPS0710BWHT .....D26
PPS0710BYEL.......D26
PPS0710C141 .......D17
PPS0710C442 .......D26
PPS0710D101 .......D20
PPS0710D24 .........D20
PPS0710D28 .........D19
PPS0710D440 .......D26
PPS0710D66 .........D17
PPS0710D68 .........D17
PPS0710D70 .........D17
PPS0710D72 .........D18
PPS0710D73 .........D18
PPS0710D75 .........D18
PPS0710D77 .........D18
PPS0710D77 .........D20
PPS0710G001 .......D22
PPS0710G020 .......D22
PPS0710N203 .......D17
PPS0710N443 .......D26
PPS0719N191 .......D20
PPS1007D72SE ....D18
PPS1014BWHT .....D26
PPS1014BYEL.......D26
PPS1014C442 .......D26
PPS1014D440 .......D26
PPS1014D73 .........D18
PPS1014G002 .......D22
PPS1014N443 .......D26
PPS1209G010 .......D22
PPS1209G011 .......D22
PPS1209G012 .......D22
PPS1420BWHT .....D26
PPS1420BYEL.......D26
PPS1420C442 .......D26
PPS1420D440 .......D26
PPS1420N443 .......D26
PRL100BY-0 –
PRL100BY-18KIT.E10
PRL100BY-36KIT ...E10
PRL100BY-9...........E10
PRL100BY-A –
PRL100BY-BLNK .E10
PRL100BY-DSH .....E10
PRL100BY-Z...........E10
PRL150YB-0 –
PRL150YB-9 ........E10
PRL150YB-A –
PRL150YB-DSH ..E10
PRL150YB-Z ..........E10
Training Products
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
Page
Part
No.
Number
PSL-PL1BLKY .........C5
PSL-PL1BLUY .........C5
PSL-PL1GRNY ........C5
PSL-PL1REDY .........C5
PSL-PL1WHTY ........C5
PSL-PL1YELY ..........C5
PSL-SC ....................C5
PSL-STATION ...B9-B10
PSL-STEPS .............A2
PSL-TG1 ..................C5
PSL-V13...................B5
PSL-V2A ..................B5
PSL-V4.....................B5
PSL-V6A ..................B5
PSL-V9.....................B5
PSL-WS ...................B4
PSL-WS1A ...............B4
PSSB-13 ................D32
PST-1 .....................D29
PST-12 ...................D10
PST-2 .....................D29
PST-3 .....................D10
PST-4 .....................D29
PST-5 .....................D29
PST-FO ..................D14
PST-FOBLNK .........D14
PT2S-ARW...............E3
PT2S-BLK ................E3
PT2S-RED ...............E3
PT-BGND ...............D14
PT-GND..................D14
PT-TGND................D14
PVL100BY-0-Y .........E5
PVL100BY-1-Y –
PVL100BY-9-Y .........E5
PVL100BY-A-Y –
PVL100BY-DSH-Y....E5
PVL100BY-Z-Y .........E5
PVL200BY-0-Y .........E5
PVL200BY-1-Y –
PVL200BY-9-Y .........E5
PVL200BY-A-Y –
PVL200BY-DSH-Y ...E5
PVL200BY-Z-Y .........E5
PVS0109D72Y.......D18
PVS0204C171Y.....D16
PVS0204C176Y.....D16
PVS0204C177Y.....D16
PVS0204C178Y.....D20
PVS0204C179Y.....D16
PVS0204D100Y.....D20
PVS0204D72Y.......D18
PVS0204W172Y ....D16
PVS0209D4415Y...D21
PVS0305C174Y.....D20
PVS0305W2101Y ....D23
PVS0305W2102Y ..D23
PVS0305W2201Y ..D19
PVS0503N458Y.....D16
PVS0505C174Y.....D20
PVS0507W2101Y ....D23
PVS0507W2201Y ..D19
PVS0509V364Y .....D17
Padlocks, Hasps
& Accessories
Page
Part
No.
Number
PSL-7GR..................C2
PSL-7GR-LS ............C2
PSL-7OR..................C2
PSL-7OR-LS ............C2
PSL-7PU ..................C2
PSL-7PU-LS ............C2
PSL-7YL...................C2
PSL-7YL-LS .............C2
PSL-8 .......................C1
PSL-8BL...................C1
PSL-8BR ..................C1
PSL-8BU ..................C1
PSL-8GR..................C1
PSL-8-LABEL...........C1
PSL-8OR..................C1
PSL-8PU ..................C1
PSL-8YL...................C1
PSL-BFV ..................B5
PSL-BV1 ..................B5
PSL-BV2 ..................B5
PSL-BV3 ..................B5
PSL-BX ..................B10
PSL-CB ....................B1
PSL-CB-3PC ............B8
PSL-CBIL .................B1
PSL-CBILNT ............B1
PSL-CBKIT...............B8
PSL-CBL ..................B2
PSL-CBNT ...............B1
PSL-CL110...............B3
PSL-CL480...............B3
PSL-DCJB................B7
PSL-DCJB-BL ..........B7
PSL-DCJB-BU..........B7
PSL-DCJB-IW ..........B7
PSL-DCJB-YL ..........B7
PSL-ERB..................B3
PSL-GLBN .............B12
PSL-HD1..................C4
PSL-HD2.4...............C4
PSL-HD3..................C4
PSL-KT...................B10
PSL-KT-CONA..........B7
PSL-KT-MROA .........B8
PSL-KT-PWR............B9
PSL-LOTO-TRAIN....A1
PSL-LTMGP .............A2
PSL-LTPGP..............A2
PSL-MLD..................B6
PSL-MLD .................C4
PSL-MLDC ...............B6
PSL-MLD-CRIMP.....B6
PSL-MLDC200 .........B6
PSL-MLDH-X ...........B6
PSL-MLDH-X ...........C4
PSL-MLD-TOOL.......B6
PSL-P.......................B2
PSL-PC ....................C6
PSL-PE1 ..................C6
PSL-PE2 ..................C6
PSL-PEL ..................B6
PSL-PK ..................B10
PSL-PK-EA ..............B7
Lockout Devices
& Kits
Page
Part
No.
Number
PRL250YB-0 –
PRL250YB-9 ........E10
PRL250YB-A –
PRL250YB-DSH ..E10
PRL250YB-Z ..........E10
PRS0310F319 .......D21
PRS0710B251 .......D21
PRS0710B364 .......D17
PRS0710BWHT .....D26
PRS0710BYEL ......D26
PRS0710C442 .......D26
PRS0710D440 .......D26
PRS0710D72 .........D18
PRS0710N443 .......D26
PRS0910D453 .......D19
PRS1014B364 .......D17
PRS1014BWHT .....D26
PRS1014BYEL ......D26
PRS1014C442 .......D26
PRS1014D440 .......D26
PRS1014D70 .........D17
PRS1014D71 .........D17
PRS1014D72 .........D18
PRS1014D73 .........D18
PRS1014D79 .........D18
PRS1014N443 .......D26
PRS1209B317 .......D21
PRS1420BWHT .....D26
PRS1420BYEL ......D26
PRS1420C442 .......D26
PRS1420D440 .......D26
PRS1420D75 .........D18
PRS1420N443 .......D26
PSL-1 .......................C4
PSL-1.5 ....................C4
PSL-1.5A..................C4
PSL-10SA ..............B11
PSL-10SWCA ........B11
PSL-1A.....................C4
PSL-20SA ..............B11
PSL-20SWCA ........B11
PSL-4SA ................B11
PSL-4SWCA ..........B11
PSL-6 .......................C3
PSL-6-LS .................C3
PSL-6BL...................C3
PSL-6BL-LS .............C3
PSL-6BU ..................C3
PSL-6BU-LS ............C3
PSL-6GR..................C3
PSL-6GR-LS ............C3
PSL-6WH .................C3
PSL-6WH-LS ...........C3
PSL-6YL...................C3
PSL-6YL-LS .............C3
PSL-7 .......................C2
PSL-7-LS .................C2
PSL-7BL...................C2
PSL-7BL-LS .............C2
PSL-7BR ..................C2
PSL-7BR-LS ............C2
PSL-7BU ..................C2
PSL-7BU-LS ............C2
For service and technical support, call 800-777-3300 or visit www.panduit.com.
J3
Training Products
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
J4
Page
Part
No.
Number
PVS0710B364Y .....D17
PVS0710C173Y.....D16
PVS0710C180Y.....D16
PVS0710D72Y.......D18
PVT-110 .................D11
PVT-111 .................D11
PVT-112 .................D12
PVT-113-Q .............D13
PVT-118-Q .............D13
PVT-148-Q ...............D6
PVT-15 .....................D1
PVT-150-Q ...............D6
PVT-153-Q ...............D6
PVT-155-Q ...............D7
PVT-156-Q ...............D7
PVT-157-Q ...............D7
PVT-158-Q ...............D8
PVT-160-Q ...............D8
PVT-161-Q ...............D9
PVT-165-Q ...............D9
PVT-179-Q .............D13
PVT-199-Q .............D13
PVT-200-Q .............D13
PVT-23 .....................D2
PVT-238-Q ...............D8
PVT-23-Q .................D2
PVT-30 .....................D2
PVT-30-Q .................D2
PVT-41 .....................D2
PVT-42-Q .................D3
PVT-43 .....................D3
PVT-44 .....................D3
PVT-44-Q .................D3
PVT-56-Q ...............D13
PVT-57-Q .................D4
PVT-62-Q .................D4
PVT-94-Q ...............D12
PVT-95-Q ...............D12
PVT-96 .....................D4
PVT-96-Q .................D4
PVT-97 .....................D5
PVT-97-Q .................D5
PVT-97S-Q ...............D9
PVT-98 .....................D5
PVT-98-Q .................D5
PVT-99 .....................D5
PVT-9-Q ...................D1
S
SEZ-1CLL ..............D25
SEZ-1DLL ..............D25
SEZ-1NLL ..............D25
SEZ-1WHLL...........D25
SEZ-1WLL .............D25
SEZ-1YLL ..............D25
SEZ-RSC1 .............D28
SEZ-RSC2 .............D28
SEZ-RSC3 .............D28
SEZ-RSC4 .............D28
SEZ-SNC1 .............D28
SEZ-SNC2 .............D28
SEZ-SNC3 .............D28
SEZ-SNC4 .............D28
Page
Part
No.
Number
SEZ-TAGOR...........D30
SEZ-TAGWH ..........D30
SEZ-TAGY..............D30
Part
Number
Page
No.
T
T100X000RP1..........E4
T100X000RU1..........E4
T100X000RX1..........E4
T100X000VP1Y .......E2
T100X000VQ1Y .......E2
T100X000VS1Y .......E2
T100X000VU1Y .......E2
T100X000VW1Y ......E2
T100X000VX1Y .......E2
T100X000VY1Y .......E2
T200X000RP1..........E4
T200X000RU1..........E4
T200X000RX1..........E4
T200X000VP1Y .......E2
T200X000VQ1Y .......E2
T200X000VS1Y .......E2
T200X000VU1Y .......E2
T200X000VV1Y .......E2
T200X000VW1Y ......E2
T200X000VX1Y .......E2
T200X000VY1Y .......E2
T200X000Y2T ..........E3
T200X000YK1..........E2
T225X000YK1..........E2
T400X000RP1..........E4
T400X000RQ1 .........E4
T400X000RU1..........E4
T400X000RW1.........E4
T400X000RX1..........E4
T400X000VP1Y .......E2
T400X000VQ1Y .......E2
T400X000VS1Y .......E2
T400X000VU1Y .......E2
T400X000VV1Y .......E2
T400X000VW1Y ......E2
T400X000VX1Y .......E2
T400X000VY1Y .......E2
T400X000Y2T ..........E3
T400X000YK1..........E2
T400X000YX1........D24
T425X000YK1..........E2
W
WL1........................D38
WL3........................D38
WL32Y ...................D38
WL33Y ...................D38
WL35Y ...................D38
WL36Y ...................D38
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Training Products
Notes
Lockout Devices
& Kits
Padlocks, Hasps
& Accessories
Tags, Signs
& Labels
Tapes, Letters
& Numbers
Related Products
Generic Order Forms
Regulatory Standards
Index
For service and technical support, call 800-777-3300 or visit www.panduit.com.
J5
Panduit is a global leader in
cabling and communication products,
delivering end-to-end solutions in support of
demanding electrical and networking requirements.
Panduit Catalogs
Electrical Solutions
SA-ELCB10
Bundle
Terminate
Cable Ties
Terminals
Cable Accessories
Power Connectors
Stainless Steel Cable Ties
Grounding Connectors
and Accessories
Identification and
Safety Solutions
Route/Protect
Wiring Duct
Surface Raceway
Abrasion Protection
Cable Management
Labeling Systems
Labels
Pre-Printed and
Write-On Markers
Permanent Identification
Lockout/Tagout and
Safety Solutions
Network Connectivity
SA-NCCB51
Copper Systems
Fiber Optic Systems
Power over Ethernet
Zone Cabling
Wireless
Outlets
Media Distribution
Physical Infrastructure
Management
Overhead and Underfloor
Routing
Surface Raceway
Cabinets, Racks, and
Cable Management
Grounding and Bonding
Industrial
Labeling and Identification
Cable Management
Accessories
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
