Motorola Netopia 2247-N8 is a powerful DSL Gateway that combines high-speed Internet access, wireless connectivity, and comprehensive security features to provide a seamless and secure networking experience for your home or small office. With its built-in 4-port Ethernet switch and 802.11b/g/n Wi-Fi, you can connect multiple devices to the Internet simultaneously, while the advanced firewall and intrusion detection system protect your network from unauthorized access and malicious attacks.
advertisement

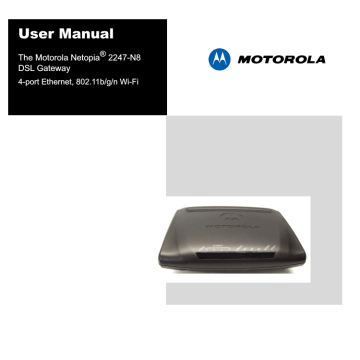

User Manual
The Motorola Netopia
® 2247-N8
DSL Gateway
4-port Ethernet, 802.11b/g/n Wi-Fi
Safety Information
2
IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION. Connect the power supply cord to the power jack on the Motorola Gateway. Plug the power supply into an appropriate electrical outlet.
CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply blades, power supply cord plug or the appliance coupler serves as the mains power disconnect. It is important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily accessible.
(Sweden) Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk
(Norway) Apparatet må kun tilkoples jordet stikkontakt.
TELECOMMUNICATION INSTALLATION. When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
•
•
•
Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
PRODUCT VENTILATION. The Motorola Gateway is intended for use in a consumer's home. Ambient temperatures around this product should not exceed 104°F (40°C). It should not be used in locations exposed to outside heat radiation or trapping of its own heat. The product should have at least one inch of clearance on all sides except the bottom when properly installed and should not be placed inside tightly enclosed spaces unless proper ventilation is provided.
SAVE THESE INSTRUCTIONS
Motorola Part Number: 579442-001-00
Copyright © 2010 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA and the Stylized M
Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me, and Windows NT are either trademarks or registered trademarks of Microsoft Corporation in the U.S and/or other countries. Macintosh is a registered trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla Foundation. All other product or service names are the property of their respective owners.
1
Checklist
Thank you for selecting the Motorola Netopia
®
2247-N8 DSL Gateway. This guide will help you set up and configure your network.
Check your package contents. It should contain the items shown here:
M
Motorola Gateway CD & User Manual
Power Supply
Telephone Cable Ethernet Cable
If you don’t have everything, contact your supplier immediately.
3
4
2
Connections
1.
Decide on a location for the Gateway.
Put the Gateway near a power source, a DSL wall outlet, and in a location where air can circulate freely around it.
2.
Power the Gateway.
Connect the power supply to the power jack on the back panel of the Gateway. Then, plug the power supply into an electrical outlet. Turn on the Power switch.
The Power LED should light solid green.
3.
Insert the Motorola Netopia
®
CD into your CDROM drive.
The Motorola Netopia
®
Installation Guide Wizard automates several tasks to get you up and running easily. These tasks include making the cable connections and configuring the
Gateway. Run the Wizard on every PC that will connect to your network.
The Installation Guide Wizard will start automatically and the
Welcome screen will appear to step through the process. Follow the on-screen instructions to make all of your connections.
When all of your connections are made, your network may look like this:
Rear View
DSL Port
Ethernet
Ports
WPS
Pushbutton
Power Switch
DC Power
4.
Enable Wireless Protected Setup (WPS) on your Wi-Fi devices.
Adding wireless clients to your network is easier using Wireless Protected Setup (WPS).
Older, non-WPS clients can still be added to the network by configuring them the standard way with WPA-PSK.
Make sure your wireless clients are running. Press the WPS push-button to begin the exchange, which may last up to two minutes.
Do not power off your Gateway during the exchange.
The Gateway will display a success message when the exchange has completed.
Note: Not all client wireless devices support WPS. Refer to their documentation.
5
When all of your connections are made, the status LEDs on the front of your Motorola IAD
Gateway will light, according to the following diagram:
Front View
6
Power
Ethernet 1, 2, 3, 4
Wireless
WPS
DSL
Activity
Internet
USB
LED
Power
Ethernet
1, 2, 3, 4
Wireless
Behavior
Green when power is on. Red if device malfunctions; flashes red when updating embedded software.
Solid green when connected. Flash green when there is activity on the LAN.
Flashes green when there is activity on the wireless LAN.
LED
WPS
USB
DSL
Internet
Activity
Behavior
Solid green when WPS is successful.
Not currently used.
Flashes green when training. Solid green when trained.
Green when device is connected. Flashes green for activity on WAN port.
Off = The device is not powered or the broadband connection is not present;
Flashing green = Inbound Internet activity seen from the broadband connection
7
3
Device Configuration
You can access the configuration pages at any time as follows:
1.
Run a Web browser, such as Firefox, Safari, or Microsoft Internet Explorer, and enter http://192.168.1.254
in the URL Address text box.
Press Return.
(If your ISP’s Configuration Worksheet tells you to use an IP address other than
192.168.1.254 to log in, enter http://< ip-address>.)
2.
The browser displays the Welcome page.
8
• You can choose Unrestricted LAN Access .
If you choose Unrestricted LAN Access, any user connected to your network can access and administer the Motorola Netopia
®
Gateway’s configuration pages.
Or,
• For security, you may create and enter an Administrative password for accessing the
Motorola Netopia
®
Gateway.
• The administrative User name is admin .
• The initial Password can be whatever you choose, from one to 32 characters long.
This user name and password are separate from the user name and password you might use to access the Internet. You may change them later. You will be challenged for this
Admin username and password any time that you attempt to access the Motorola Netopia
®
Gateway’s configuration pages.
If you have chosen to create an Administrative password, when you connect to your Gateway as an Administrator, you enter “ admin ” as the UserName and the Password you just created.
9
10
Record your subscriber information here for future reference:
Required Information
Your Telephone number:
Your entries:
(example: [email protected])
Your ISP Username:
Your ISP Password:
Service Provider support contact information:
Support desk number -
Congratulations!
Your connection is up and running and you should be able to browse the Internet by typing a URL address in your browser’s Address text box or by selecting any of your favorite bookmarks.
Should you require additional information, the
of this Guide contain Frequently Asked Questions (and Answers) and
“Basic Troubleshooting” on page 16
gives Basic
Troubleshooting tips. The latest Administrator’s Handbook with advanced configuration instructions is also available on-line at: http://broadband.motorola.com/consumers/support/default.asp?supportSection=blank
Client Configuration
Your Gateway serves Dynamically-assigned IP addresses by default. Be sure to configure each computer connected to your Gateway to accept a Dynamically-assigned IP address, commonly referred to as DHCP.
Microsoft Windows:
Step 1. Navigate to the TCP/IP Properties Control Panel. a.
Windows 98, 2000, and ME versions follow a path like this:
Start menu -> Settings -> Control Panel -> Network (or Network and Dialup Connections -> Local Area Connection -> Properties) -> TCP/IP
[your_network_card] or Internet Protocol [TCP/IP] -> Properties b.
Windows XP follows a path like this:
Start menu -> Control Panel -> Network and Internet Connections ->
Network Connections -> Local Area Connection -> Properties -> Internet
Protocol [TCP/IP] -> Properties
Step 2. Select Obtain an IP address automatically.
Step 3. Select Obtain DNS server address automatically, if available.
Step 4. Remove any previously configured Gateways, if available.
Step 5. OK the settings. Restart if prompted.
11
12 c.
Windows Vista is set to obtain an IP address automatically by default. You may not need to configure it at all.
To check, open the Networking Control Panel and select Internet Protocol Version 4 (TCP/IPv4).
Click the Properties button.
The Internet Protocol Version 4 (TCP/IPv4)
Properties window should appear as shown.
If not, select the radio buttons shown above, and click the OK button.
Macintosh Mac OS 9 or Mac OS X:
Step 1. Access the TCP/IP or Network control panel.
a. Mac OS 9 follows a path like this:
Apple Menu -> Control Panels -> TCP/IP Control Panel
b. Mac OS X follows a path like this:
Apple Menu -> System Preferences -> Network
Step 2. Select Built-in Ethernet
Step 3. Select Configure Using DHCP
Step 4. Close and Save, if prompted.
13
14
FAQs
Q: Why is my DSL light flashing green?
A: A flashing green light indicates that no cable is attached to the DSL port or that the
Motorola Netopia
®
Gateway is negotiating a connection. A solid green DSL light indicates that an internet connection is established.
If your DSL light does not become solid green, verify that the connection from the Motorola Netopia
®
Gateway’s DSL port to the telephone/DSL jack is secure. If the connection is secure, contact your ISP (Internet Service Provider) to verify that your DSL line is functioning properly.
Q: I forgot my password, how can I access my Motorola Netopia
®
Gateway?
A: If you don't have a password, the only way to access the Motorola Gateway is the following:
Referring to the following diagram, find the round Reset Switch opening.
Carefully insert the point of a pen or an unwound paperclip into the opening.
Factory Reset Switch
• If you press the factory default button for less than 1/2 a second, the unit will continue to run as normal.
• If you press the factory default button for more than 15 seconds, when you release it, the Gateway will perform a factory reset, clear all settings and configurations, and reboot.
Note: To assure the Motorola Netopia
®
Gateway factory defaults you MUST hold the reset switch for more than 15 seconds. When you release it, the Gateway will perform a factory reset, clear all setting and configurations, and reboot. Keep in mind that all of your settings will need to be reconfigured.
Q: What is the default IP address of my Motorola Netopia
®
Gateway?
A: The default IP address of the Motorola Netopia
®
Gateway is 192.168.1.254. You may access the WebUI configuration pages by typing http://192.168.1.254 URL into your browser.
Q: I made some configuration changes in my Motorola Netopia
®
Gateway and the changes have not taken effect.
A: Any configuration changes made to the Motorola Netopia
®
Gateway require a save and restart before they take effect.
Q: How do I access the configuration screens of my Motorola Netopia
®
Gateway?
A: You may access your Motorola Netopia
®
Gateway by typing the following into your web browser http://192.168.1.254.
Note: By default, your Motorola Netopia
®
Gateway has an Ethernet IP Address of
192.168.1.254.
Q: What is the default user name and password of the Motorola Netopia
®
Gateway?
A: Motorola Netopia
®
Gateways are not distributed with a default password. Upon initial configuration, the Gateway requires a new password to be set.
15
Basic Troubleshooting
This section gives some simple suggestions for troubleshooting problems with your Gateway’s initial configuration.
Before troubleshooting, make sure you have
• plugged in all the necessary cables (see
“Connections” on page 4 ); and
• set your PC’s TCP/IP controls to obtain an IP address automatically (see
“Client Configuration” on page 11 ).
The first step in troubleshooting is to check the status indicator lights (LEDs) in the order outlined below.
Front View
16
Power
Ethernet 1, 2, 3, 4
Wireless
WPS
DSL
Activity
Internet
USB
LED Function Summary
Unlit
Solid Green
Flashing Green
Solid Red
Flashing Red
Power
No power
Power on
N/A
System malfunction
Updating embedded software
DSL
No signal
DSL line synched with the DSLAM
Activity on the DSL cable
N/A
N/A
Internet
Not connected
Connected to the Internet
Transmitting or receiving data on the WAN port
N/A
N/A
Unlit
Solid Green
Flashing Green
Solid Red
Flashing Red
Ethernet 1, 2, 3, 4
No signal
Synched with Ethernet card
Activity on the Ethernet cable
N/A
N/A
WPS
No wireless signal
WPS exchange with client is successful
N/A
N/A
N/A
Wireless
No wireless signal
N/A
Activity on the wireless
LAN
N/A
N/A
17
18
If a status indicator light does not look correct, look for these possible problems:
If LED is not Lit
Power
DSL
Possible problems
• Make sure the power switch is in the ON position.
• Make sure the power adapter is plugged into the DSL Gateway properly.
• Try a known good wall outlet.
• Replace the power supply and/or unit.
• Make sure that any telephone has a microfilter installed.
• Make sure that you are using the correct cable. The DSL cable is the thinner standard telephone cable.
• Make sure the DSL cable is plugged into the correct wall jack.
• Make sure the DSL cable is plugged into the DSL port on the DSL Gateway.
• Make sure the DSL line has been activated at the central office DSLAM.
• Make sure the DSL Gateway is not plugged into a micro filter.
Ethernet
1,2,3,4
• Make sure you are using the Ethernet cable, not the DSL cable. The Ethernet cable is thicker than the standard telephone cable.
• Make sure the Ethernet cable is securely plugged into the Ethernet jack on the PC.
• Make sure the Ethernet cable is securely plugged into the Ethernet port on the DSL Gateway.
• Try another Ethernet cable if you have one available.
• Make sure you have Ethernet drivers installed on the PC.
• Make sure the PC’s TCP/IP Properties for the Ethernet Network Control
Panel is set to obtain an IP address via DHCP.
• Make sure the PC has obtained an address in the 192.168.1.x range. (You may have changed the subnet addressing.)
• Make sure the PC is configured to access the Internet over a LAN.
• Disable any installed network devices (Ethernet, HomePNA, wireless) that are not being used to connect to the DSL Gateway.
19
20
Support
Answers to many frequently asked product-related questions, as well as full product documentation with advanced configuration instructions, are also available on-line at: http://broadband.motorola.com/consumers/support/default.asp?supportSection=blank
Note the serial number (SN:) of your Gateway. It is located on the label on the bottom of the
Gateway below the model number. You will need the Gateway’s serial number if you need to call for technical support.
Recycling your Motorola Equipment
When you see this symbol on a
Motorola product, do not dispose of the product with residential or commercial waste.
Please do not dispose of this product with your residential or commercial waste. Some countries or regions, such as the European Union, have set up systems to collect and recycle electrical and electronic waste items. Contact your local authorities for information about practices established for your region.
If collection systems are not available, call Motorola Customer Service for assistance. For instructions on recycling please visit: http://www.motorola.com/recycle
Umweltschutz durch
Recycling
Wenn Sie dieses Zeichen auf einem
Produkt von Motorola sehen, entsorgen Sie das Produkt bitte nicht als gewöhnlichen Hausoder Büromüll.
Recycling bei Geräten von Motorola
Bitte entsorgen Sie dieses Produkt nicht als gewöhnlichen Haus- oder Büromüll. In einigen Ländern und
Gebieten, z. B. in der Europäischen Union, wurden
Systeme für die Rücknahme und Wiederverwertung von Elektroschrott eingeführt. Erkundigen Sie sich bitte bei Ihrer Stadtoder Kreisverwaltung nach der geltenden Entsorgungspraxis. Falls bei Ihnen noch kein
Abfuhroder Rücknahmesystem besteht, wenden Sie sich bitte an den Kundendienst von Motorola.
Recyclage pour le respect de l'environnement
Lorsque vous voyez ce symbole sur un produit Motorola, ne le jetez pas avec vos ordures ménagères ou vos rebuts d'entreprise.
Recyclage de votre équipement Motorola
Veuillez ne pas jeter ce produit avec vos ordures ménagères ou vos rebuts d'entreprise. Certains pays ou certaines régions comme l'Union Européenne ont mis en place des systèmes de collecte et de recyclage des produits électriques et électroniques mis au rebut.
Veuillez contacter vos autorités locales pour vous informer des pratiques instaurées dans votre region.
Si aucun système de collecte n'est disponible, veuillez appeler le Service clientèle de Motorola qui vous apportera son assistance.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
Frequently Answers and Questions
What is the purpose of the WPS push-button on the Motorola Netopia 2247-N8?
How do I access the Motorola Netopia 2247-N8's configuration pages?
What is the default administrative username and password for the Motorola Netopia 2247-N8?
How do I configure my computer to obtain an IP address automatically from the Motorola Netopia 2247-N8?
What is the default IP address of the Motorola Netopia 2247-N8?
advertisement
Table of contents
- 2 Safety Information
- 2 IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION
- 2 CAUTION:
- 2 TELECOMMUNICATION INSTALLATION
- 2 PRODUCT VENTILATION
- 3 Checklist
- 4 Connections
- 8 Device Configuration
- 11 Client Configuration
- 11 Microsoft Windows:
- 13 Macintosh Mac OS 9 or Mac OS X:
- 14 FAQs
- 16 Basic Troubleshooting
- 17 LED Function Summary
- 20 Support
- 21 Recycling your Motorola Equipment
- 21 Recycling bei Geräten von Motorola
- 21 Umweltschutz durch Recycling
- 22 Recyclage de votre équipement Motorola
- 22 Recyclage pour le respect de l'environnement
