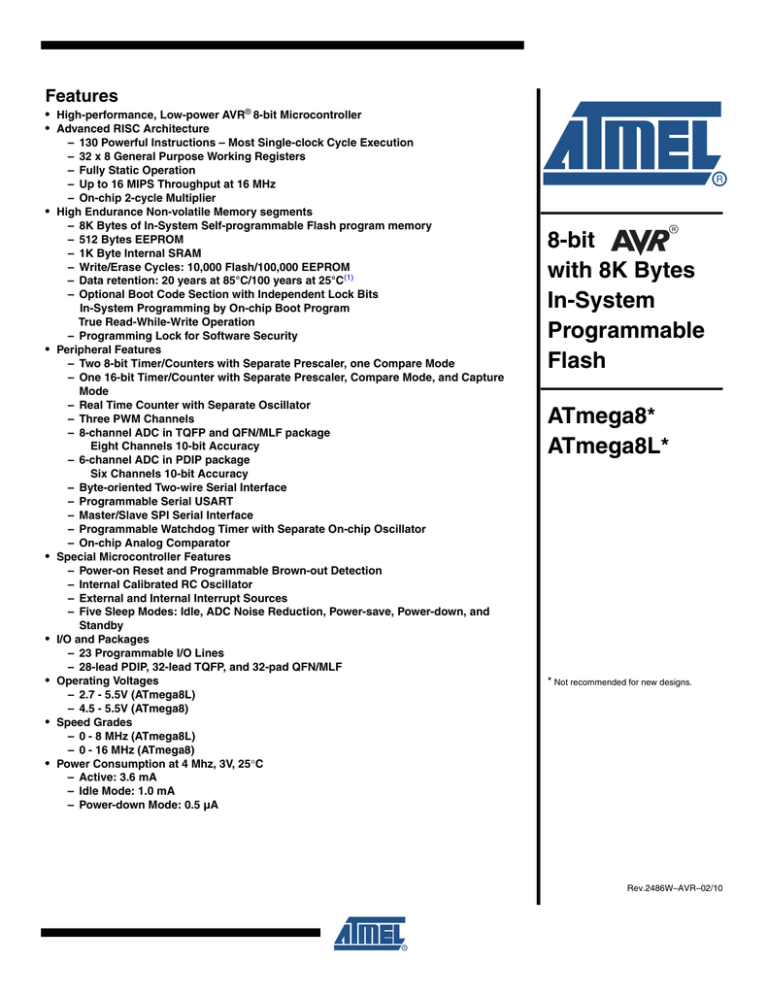

Features

High-performance, Low-power AVR

®

8-bit Microcontroller

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 8K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Byte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

– 8-channel ADC in TQFP and QFN/MLF package

Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package

Six Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF

Operating Voltages

– 2.7 - 5.5V (ATmega8L)

– 4.5 - 5.5V (ATmega8)

Speed Grades

– 0 - 8 MHz (ATmega8L)

– 0 - 16 MHz (ATmega8)

Power Consumption at 4 Mhz, 3V, 25

°C

– Active: 3.6 mA

– Idle Mode: 1.0 mA

– Power-down Mode: 0.5 µA

8-bit with 8K Bytes

In-System

Programmable

Flash

ATmega8

*

ATmega8L

*

*

Not recommended for new designs.

Rev.2486W–AVR–02/10

Pin

Configurations

(RESET) PC6

(RXD) PD0

(TXD) PD1

(INT0) PD2

(INT1) PD3

(XCK/T0) PD4

VCC

GND

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

(T1) PD5

(AIN0) PD6

(AIN1) PD7

(ICP1) PB0

8

9

10

11

12

13

14

5

6

3

4

7

1

2

PDIP

21

20

19

18

17

16

15

28

27

26

25

24

23

22

PC5 (ADC5/SCL)

PC4 (ADC4/SDA)

PC3 (ADC3)

PC2 (ADC2)

PC1 (ADC1)

PC0 (ADC0)

GND

AREF

AVCC

PB5 (SCK)

PB4 (MISO)

PB3 (MOSI/OC2)

PB2 (SS/OC1B)

PB1 (OC1A)

TQFP Top View

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

MLF Top View

2

ATmega8(L)

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

NOTE:

The large center pad underneath the MLF packages is made of metal and internally connected to GND. It should be soldered or glued to the PCB to ensure good mechanical stability. If the center pad is left unconneted, the package might loosen from the PCB.

2486W–AVR–02/10

Overview

Block Diagram

ATmega8(L)

The ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture.

By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Figure 1. Block Diagram

XTAL1

RESET

VCC

PC0 - PC6 PB0 - PB7

XTAL2

PORTC DRIVERS/BUFFERS

PORTC DIGITAL INTERFACE

GND

PORTB DRIVERS/BUFFERS

PORTB DIGITAL INTERFACE

AGND

AREF

MUX &

ADC

ADC

INTERFACE

PROGRAM

COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

AVR CPU

STACK

POINTER

SRAM

GENERAL

PURPOSE

REGISTERS

X

Y

Z

ALU

STATUS

REGISTER

PROGRAMMING

LOGIC

+

-

SPI

COMP.

INTERFACE

TWI

TIMERS/

COUNTERS

OSCILLATOR

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CTRL.

& TIMING

INTERRUPT

UNIT

OSCILLATOR

EEPROM

USART

PORTD DIGITAL INTERFACE

PORTD DRIVERS/BUFFERS

PD0 - PD7

3

2486W–AVR–02/10

Disclaimer

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATmega8 provides the following features: 8K bytes of In-System Programmable Flash with

Read-While-Write capabilities, 512 bytes of EEPROM, 1K byte of SRAM, 23 general purpose

I/O lines, 32 general purpose working registers, three flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, a byte oriented Twowire Serial Interface, a 6-channel ADC (eight channels in TQFP and QFN/MLF packages) with

10-bit accuracy, a programmable Watchdog Timer with Internal Oscillator, an SPI serial port, and five software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The Powerdown mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next Interrupt or Hardware Reset. In Power-save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O modules except asynchronous timer and ADC, to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

Flash Program memory can be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip boot program running on the

AVR core. The boot program can use any interface to download the application program in the

Application Flash memory. Software in the Boot Flash Section will continue to run while the

Application Flash Section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel

ATmega8 is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many embedded control applications.

The ATmega8 AVR is supported with a full suite of program and system development tools, including C compilers, macro assemblers, program debugger/simulators, In-Circuit Emulators, and evaluation kits.

Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.

4

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Pin Descriptions

VCC

GND

Port B (PB7..PB0)

XTAL1/XTAL2/TOSC1/

TOSC2

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Depending on the clock selection fuse settings, PB6 can be used as input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

Depending on the clock selection fuse settings, PB7 can be used as output from the inverting

Oscillator amplifier.

If the Internal Calibrated RC Oscillator is used as chip clock source, PB7..6 is used as TOSC2..1

input for the Asynchronous Timer/Counter2 if the AS2 bit in ASSR is set.

The various special features of Port B are elaborated in

“Alternate Functions of Port B” on page

58

and

“System Clock and Clock Options” on page 25 .

Port C (PC5..PC0)

Digital supply voltage.

Ground.

PC6/RESET

Port D (PD7..PD0)

RESET

Port C is an 7-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port C output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset condition becomes active, even if the clock is not running.

If the RSTDISBL Fuse is programmed, PC6 is used as an I/O pin. Note that the electrical characteristics of PC6 differ from those of the other pins of Port C.

If the RSTDISBL Fuse is unprogrammed, PC6 is used as a Reset input. A low level on this pin for longer than the minimum pulse length will generate a Reset, even if the clock is not running.

The minimum pulse length is given in

Table 15 on page 38 . Shorter pulses are not guaranteed to

generate a Reset.

The various special features of Port C are elaborated on page 61

.

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATmega8 as listed on

page

63

.

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in

Table 15 on page

38

. Shorter pulses are not guaranteed to generate a reset.

5

2486W–AVR–02/10

AV

CC

AREF

ADC7..6 (TQFP and

QFN/MLF Package

Only)

AV

CC

is the supply voltage pin for the A/D Converter, Port C (3..0), and ADC (7..6). It should be externally connected to V

CC

, even if the ADC is not used. If the ADC is used, it should be connected to V

CC

through a low-pass filter. Note that Port C (5..4) use digital supply voltage, V

CC

.

AREF is the analog reference pin for the A/D Converter.

In the TQFP and QFN/MLF package, ADC7..6 serve as analog inputs to the A/D converter.

These pins are powered from the analog supply and serve as 10-bit ADC channels.

6

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Resources

A comprehensive set of development tools, application notes and datasheets are available for download on http://www.atmel.com/avr.

Note: 1.

Data Retention

Reliability Qualification results show that the projected data retention failure rate is much less than 1 PPM over 20 years at 85°C or 100 years at 25°C.

2486W–AVR–02/10

7

About Code

Examples

This datasheet contains simple code examples that briefly show how to use various parts of the device. These code examples assume that the part specific header file is included before compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

8

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

AVR CPU Core

Introduction

Architectural

Overview

This section discusses the AVR core architecture in general. The main function of the CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

Figure 2. Block Diagram of the AVR MCU Architecture

Data Bus 8-bit

Flash

Program

Memory

Program

Counter

Status and Control

Instruction

Register

Instruction

Decoder

Control Lines

32 x 8

General

Purpose

Registrers

ALU

Interrupt

Unit

SPI

Unit

Watchdog

Timer

Analog

Comparator

Data

SRAM i/O Module1 i/O Module 2 i/O Module n

EEPROM

I/O Lines

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the Program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the Program memory. This concept enables instructions to be executed in every clock cycle. The Program memory is In-System Reprogrammable Flash memory.

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two operands are output from the Register File, the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data

Space addressing – enabling efficient address calculations. One of the these address pointers

9

2486W–AVR–02/10

can also be used as an address pointer for look up tables in Flash Program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the ALU. After an arithmetic operation, the Status Register is updated to reflect information about the result of the operation.

The Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every Program memory address contains a 16- or 32-bit instruction.

Program Flash memory space is divided in two sections, the Boot program section and the

Application program section. Both sections have dedicated Lock Bits for write and read/write protection. The SPM instruction that writes into the Application Flash memory section must reside in the Boot program section.

During interrupts and subroutine calls, the return address Program Counter (PC) is stored on the

Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the reset routine (before subroutines or interrupts are executed). The Stack

Pointer SP is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps.

A flexible interrupt module has its control registers in the I/O space with an additional global interrupt enable bit in the Status Register. All interrupts have a separate Interrupt Vector in the

Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, SPI, and other I/O functions. The I/O Memory can be accessed directly, or as the Data

Space locations following those of the Register File, 0x20 - 0x5F.

10

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Arithmetic Logic

Unit – ALU

Status Register

The high-performance AVR ALU operates in direct connection with all the 32 general purpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed. The ALU operations are divided into three main categories – arithmetic, logical, and bit-functions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

The Status Register contains information about the result of the most recently executed arithmetic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Reference. This will in many cases remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

The Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt. This must be handled by software.

The AVR Status Register – SREG – is defined as:

Bit

Read/Write

Initial Value

7

I

R/W

0

6

T

R/W

0

5

H

R/W

0

4

S

R/W

0

3

V

R/W

0

2

N

R/W

0

1

Z

R/W

0

0

C

R/W

0

SREG

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable

Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The I-bit can also be set and cleared by the application with the SEI and CLI instructions, as described in the Instruction Set Reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the

BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the

BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement

Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the

“Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the

“Instruction Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction

Set Description” for detailed information.

11

2486W–AVR–02/10

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a Carry in an arithmetic or logic operation. See the “Instruction Set

Description” for detailed information.

General Purpose

Register File

The Register File is optimized for the AVR Enhanced RISC instruction set. In order to achieve the required performance and flexibility, the following input/output schemes are supported by the

Register File:

• One 8-bit output operand and one 8-bit result input.

• Two 8-bit output operands and one 8-bit result input.

• Two 8-bit output operands and one 16-bit result input.

• One 16-bit output operand and one 16-bit result input.

Figure 3

shows the structure of the 32 general purpose working registers in the CPU.

Figure 3. AVR CPU General Purpose Working Registers

7

General

Purpose

Working

Registers

0 Addr.

R28

R29

R30

R31

R17

R26

R27

R13

R14

R15

R16

R0 0x00

R1 0x01

R2

0x02

0x0D

0x0E

0x0F

0x10

0x11

0x1A

0x1B

0x1C

0x1D

0x1E

0x1F

X-register Low Byte

X-register High Byte

Y-register Low Byte

Y-register High Byte

Z-register Low Byte

Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

As shown in

Figure 3

, each register is also assigned a Data memory address, mapping them directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y-, and Z-pointer Registers can be set to index any register in the file.

12

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

The X-register, Yregister and Z-register

The registers R26..R31 have some added functions to their general purpose usage. These registers are 16-bit address pointers for indirect addressing of the Data Space. The three indirect address registers X, Y and Z are defined as described in

Figure 4 .

Figure 4. The X-, Y- and Z-Registers

XH

X-register

15

7

R27 (0x1B)

0 7

R26 (0x1A)

XL 0

0

Y-register

15

7

R29 (0x1D)

YH

0 7

R28 (0x1C)

YL 0

0

Stack Pointer

Z-register

15

7

R31 (0x1F)

ZH

0 7

R30 (0x1E)

ZL

0

0

In the different addressing modes these address registers have functions as fixed displacement, automatic increment, and automatic decrement (see the Instruction Set Reference for details).

The Stack is mainly used for storing temporary data, for storing local variables and for storing return addresses after interrupts and subroutine calls. The Stack Pointer Register always points to the top of the Stack. Note that the Stack is implemented as growing from higher memory locations to lower memory locations. This implies that a Stack PUSH command decreases the Stack

Pointer.

The Stack Pointer points to the data SRAM Stack area where the Subroutine and Interrupt

Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above 0x60. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two when the return address is pushed onto the Stack with subroutine call or interrupt. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instruction, and it is incremented by two when address is popped from the Stack with return from subroutine RET or return from interrupt RETI.

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The number of bits actually used is implementation dependent. Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present.

Bit

Read/Write

Initial Value

15

SP15

SP7

7

R/W

R/W

0

0

14

SP14

SP6

6

R/W

R/W

0

0

13

SP13

SP5

5

R/W

R/W

0

0

12

SP12

SP4

4

R/W

R/W

0

0

11

SP11

SP3

3

R/W

R/W

0

0

10

SP10

SP2

2

R/W

R/W

0

0

9

SP9

SP1

1

R/W

R/W

0

0

8

SP8

SP0

0

R/W

R/W

0

0

SPH

SPL

Instruction

Execution Timing

This section describes the general access timing concepts for instruction execution. The AVR

CPU is driven by the CPU clock clk

CPU

, directly generated from the selected clock source for the chip. No internal clock division is used.

13

2486W–AVR–02/10

Figure 5 shows the parallel instruction fetches and instruction executions enabled by the Har-

vard architecture and the fast-access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 5. The Parallel Instruction Fetches and Instruction Executions

T1 T2 T3 T4 clk

CPU

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

Figure 6

shows the internal timing concept for the Register File. In a single clock cycle an ALU operation using two register operands is executed, and the result is stored back to the destination register.

Figure 6. Single Cycle ALU Operation

T1 T2 T3 T4 clk

CPU

Total Execution Time

Register Operands Fetch

ALU Operation Execute

Result Write Back

Reset and

Interrupt Handling

The AVR provides several different interrupt sources. These interrupts and the separate Reset

Vector each have a separate Program Vector in the Program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt

Enable bit in the Status Register in order to enable the interrupt. Depending on the Program

Counter value, interrupts may be automatically disabled when Boot Lock Bits BLB02 or BLB12

are programmed. This feature improves software security. See the section “Memory Programming” on page 222 for details.

The lowest addresses in the Program memory space are by default defined as the Reset and

Interrupt Vectors. The complete list of Vectors is shown in

“Interrupts” on page 46

. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request

0. The Interrupt Vectors can be moved to the start of the boot Flash section by setting the Interrupt Vector Select (IVSEL) bit in the General Interrupt Control Register (GICR). Refer to

“Interrupts” on page 46 for more information. The Reset Vector can also be moved to the start of

the boot Flash section by programming the BOOTRST Fuse, see

“Boot Loader Support – Read-

While-Write Self-Programming” on page 209

.

14

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a

Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the

Interrupt Flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding

Interrupt Flag. Interrupt Flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the global interrupt enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the global interrupt enable bit is set, and will then be executed by order of priority.

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Interrupt Flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be handled by software.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled.

No interrupt will be executed after the CLI instruction, even if it occurs simultaneously with the

CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence.

Assembly Code Example

in

r16, SREG

; store SREG value

cli

; disable interrupts during timed sequence

sbi

EECR, EEMWE

; start EEPROM write

sbi

EECR, EEWE

out

SREG, r16

; restore SREG value (I-bit)

C Code Example

char

cSREG; cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

_CLI();

EECR |= (1<<EEMWE); /* start EEPROM write */

EECR |= (1<<EEWE);

SREG = cSREG; /* restore SREG value (I-bit) */

15

Interrupt Response

Time

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in the following example.

Assembly Code Example

sei

; set global interrupt enable

sleep

; enter sleep, waiting for interrupt

; note: will enter sleep before any pending

; interrupt(s)

C Code Example

_SEI(); /* set global interrupt enable */

_SLEEP(); /* enter sleep, waiting for interrupt */

/* note: will enter sleep before any pending interrupt(s) */

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After four clock cycles, the Program Vector address for the actual interrupt handling routine is executed. During this 4-clock cycle period, the Program Counter is pushed onto the

Stack. The Vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by four clock cycles. This increase comes in addition to the start-up time from the selected sleep mode.

A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (2 bytes) is popped back from the Stack, the Stack Pointer is incremented by 2, and the I-bit in SREG is set.

16

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

AVR ATmega8

Memories

This section describes the different memories in the ATmega8. The AVR architecture has two main memory spaces, the Data memory and the Program Memory space. In addition, the

ATmega8 features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

In-System

Reprogrammable

Flash Program

Memory

The ATmega8 contains 8K bytes On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16- or 32-bits wide, the Flash is organized as 4K x

16 bits. For software security, the Flash Program memory space is divided into two sections,

Boot Program section and Application Program section.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATmega8 Program Counter (PC) is 12 bits wide, thus addressing the 4K Program memory locations. The operation of Boot Program section and associated Boot Lock Bits for software protection are described in detail in

“Boot Loader Support – Read-While-Write Self-Programming” on page

209

.

“Memory Programming” on page 222 contains a detailed description on Flash Program-

ming in SPI- or Parallel Programming mode.

Constant tables can be allocated within the entire Program memory address space (see the

LPM – Load Program memory instruction description).

Timing diagrams for instruction fetch and execution are presented in

“Instruction Execution Timing” on page 13 .

Figure 7. Program Memory Map

$000

Application Flash Section

Boot Flash Section

$FFF

17

2486W–AVR–02/10

SRAM Data

Memory

Figure 8

shows how the ATmega8 SRAM Memory is organized.

The lower 1120 Data memory locations address the Register File, the I/O Memory, and the internal data SRAM. The first 96 locations address the Register File and I/O Memory, and the next

1024 locations address the internal data SRAM.

The five different addressing modes for the Data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register

File, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space.

The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-register.

When using register indirect addressing modes with automatic pre-decrement and post-increment, the address registers X, Y and Z are decremented or incremented.

The 32 general purpose working registers, 64 I/O Registers, and the 1024 bytes of internal data

SRAM in the ATmega8 are all accessible through all these addressing modes. The Register File

is described in “General Purpose Register File” on page 12

.

Figure 8. Data Memory Map

Register File

R0

R1

R2

...

Data Address Space

$0000

$0001

$0002

...

R29

R30

R31

I/O Registers

$00

$01

$02

...

$3D

$3E

$3F

$001D

$001E

$001F

$0020

$0021

$0022

...

$005D

$005E

$005F

Internal SRAM

$0060

$0061

...

$045E

$045F

18

ATmega8(L)

2486W–AVR–02/10

Data Memory

Access Times

ATmega8(L)

This section describes the general access timing concepts for internal memory access. The internal data SRAM access is performed in two clk

CPU

cycles as described in

Figure 9 .

Figure 9. On-chip Data SRAM Access Cycles

T1 T2 T3 clk

CPU

Address

Data

WR

Data

RD

Compute Address

Address Valid

Memory Vccess Instruction

Next Instruction

EEPROM Data

Memory

EEPROM Read/Write

Access

The ATmega8 contains 512 bytes of data EEPROM memory. It is organized as a separate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described bellow, specifying the EEPROM Address Registers, the EEPROM Data Register, and the

EEPROM Control Register.

“Memory Programming” on page 222 contains a detailed description on EEPROM Programming

in SPI- or Parallel Programming mode.

The EEPROM Access Registers are accessible in the I/O space.

The write access time for the EEPROM is given in

Table 1

on

page 21 . A self-timing function,

however, lets the user software detect when the next byte can be written. If the user code contains instructions that write the EEPROM, some precautions must be taken. In heavily filtered power supplies, V

CC

is likely to rise or fall slowly on Power-up/down. This causes the device for some period of time to run at a voltage lower than specified as minimum for the clock frequency

used. See “Preventing EEPROM Corruption” on page 23.

for details on how to avoid problems in

these situations.

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed.

Refer to the description of the EEPROM Control Register for details on this.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

19

2486W–AVR–02/10

The EEPROM Address

Register – EEARH and

EEARL

Bit

Read/Write

Initial Value

15

EEAR7

7

R

R/W

0

X

14

EEAR6

6

R

R/W

0

X

13

EEAR5

5

R

R/W

0

X

12

EEAR4

4

R

R/W

0

X

11

EEAR3

3

R

R/W

0

X

10

EEAR2

2

R

R/W

0

X

9

EEAR1

1

R

R/W

0

X

8

EEAR8

EEAR0

0

R/W

R/W

X

X

EEARH

EEARL

• Bits 15..9 – Res: Reserved Bits

These bits are reserved bits in the ATmega8 and will always read as zero.

• Bits 8..0 – EEAR8..0: EEPROM Address

The EEPROM Address Registers – EEARH and EEARL – specify the EEPROM address in the

512 bytes EEPROM space. The EEPROM data bytes are addressed linearly between 0 and

511. The initial value of EEAR is undefined. A proper value must be written before the EEPROM may be accessed.

The EEPROM Data

Register – EEDR

Bit

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

EEDR

• Bits 7..0 – EEDR7..0: EEPROM Data

For the EEPROM write operation, the EEDR Register contains the data to be written to the

EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the

EEDR contains the data read out from the EEPROM at the address given by EEAR.

The EEPROM Control

Register – EECR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

EERIE

R/W

0

2

EEMWE

R/W

0

1

EEWE

R/W

X

0

EERE

R/W

0

EECR

• Bits 7..4 – Res: Reserved Bits

These bits are reserved bits in the ATmega8 and will always read as zero.

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I bit in SREG is set. Writing

EERIE to zero disables the interrupt. The EEPROM Ready interrupt generates a constant interrupt when EEWE is cleared.

• Bit 2 – EEMWE: EEPROM Master Write Enable

The EEMWE bit determines whether setting EEWE to one causes the EEPROM to be written.

When EEMWE is set, setting EEWE within four clock cycles will write data to the EEPROM at the selected address If EEMWE is zero, setting EEWE will have no effect. When EEMWE has been written to one by software, hardware clears the bit to zero after four clock cycles. See the description of the EEWE bit for an EEPROM write procedure.

• Bit 1 – EEWE: EEPROM Write Enable

The EEPROM Write Enable Signal EEWE is the write strobe to the EEPROM. When address and data are correctly set up, the EEWE bit must be written to one to write the value into the

EEPROM. The EEMWE bit must be written to one before a logical one is written to EEWE, oth-

20

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

erwise no EEPROM write takes place. The following procedure should be followed when writing the EEPROM (the order of steps 3 and 4 is not essential):

1.

Wait until EEWE becomes zero.

2.

Wait until SPMEN in SPMCR becomes zero.

3.

Write new EEPROM address to EEAR (optional).

4.

Write new EEPROM data to EEDR (optional).

5.

Write a logical one to the EEMWE bit while writing a zero to EEWE in EECR.

6.

Within four clock cycles after setting EEMWE, write a logical one to EEWE.

The EEPROM can not be programmed during a CPU write to the Flash memory. The software must check that the Flash programming is completed before initiating a new EEPROM write.

Step 2 is only relevant if the software contains a boot loader allowing the CPU to program the

Flash. If the Flash is never being updated by the CPU, step 2 can be omitted. See “Boot Loader

Support – Read-While-Write Self-Programming” on page 209 for details about boot

programming.

Caution: An interrupt between step 5 and step 6 will make the write cycle fail, since the

EEPROM Master Write Enable will time-out. If an interrupt routine accessing the EEPROM is interrupting another EEPROM access, the EEAR or EEDR Register will be modified, causing the interrupted EEPROM access to fail. It is recommended to have the Global Interrupt Flag cleared during all the steps to avoid these problems.

When the write access time has elapsed, the EEWE bit is cleared by hardware. The user software can poll this bit and wait for a zero before writing the next byte. When EEWE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal EERE is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to a logic one to trigger the

EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed.

The user should poll the EEWE bit before starting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

The calibrated Oscillator is used to time the EEPROM accesses.

Table 1

lists the typical programming time for EEPROM access from the CPU.

Table 1. EEPROM Programming Time

Symbol

Number of Calibrated RC

Oscillator Cycles

(1)

EEPROM Write (from CPU) 8448

Note: 1. Uses 1 MHz clock, independent of CKSEL Fuse settings.

Typ Programming Time

8.5 ms

21

The following code examples show one assembly and one C function for writing to the

EEPROM. The examples assume that interrupts are controlled (for example by disabling interrupts globally) so that no interrupts will occur during execution of these functions. The examples also assume that no Flash boot loader is present in the software. If such code is present, the

EEPROM write function must also wait for any ongoing SPM command to finish.

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic

EECR,EEWE

rjmp

EEPROM_write

; Set up address (r18:r17) in address register

out

EEARH, r18

out

EEARL, r17

; Write data (r16) to data register

out

EEDR,r16

; Write logical one to EEMWE

sbi

EECR,EEMWE

; Start eeprom write by setting EEWE

sbi

EECR,EEWE

ret

C Code Example

void

EEPROM_write(unsigned int uiAddress, unsigned char ucData)

{

/* Wait for completion of previous write */ while(EECR & (1<<EEWE))

;

/* Set up address and data registers */

EEAR = uiAddress;

EEDR = ucData;

/* Write logical one to EEMWE */

EECR |= (1<<EEMWE);

/* Start eeprom write by setting EEWE */

EECR |= (1<<EEWE);

}

22

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic

EECR,EEWE

rjmp

EEPROM_read

; Set up address (r18:r17) in address register

out

EEARH, r18

out

EEARL, r17

; Start eeprom read by writing EERE

sbi

EECR,EERE

; Read data from data register

in

r16,EEDR

ret

C Code Example

unsigned char

EEPROM_read(unsigned int uiAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEWE))

;

/* Set up address register */

EEAR = uiAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from data register */

return EEDR;

}

EEPROM Write during

Power-down Sleep

Mode

When entering Power-down sleep mode while an EEPROM write operation is active, the

EEPROM write operation will continue, and will complete before the Write Access time has passed. However, when the write operation is completed, the Oscillator continues running, and as a consequence, the device does not enter Power-down entirely. It is therefore recommended to verify that the EEPROM write operation is completed before entering Power-down.

Preventing EEPROM

Corruption

During periods of low V

CC, the EEPROM data can be corrupted because the supply voltage is too low for the CPU and the EEPROM to operate properly. These issues are the same as for board level systems using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Second, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

EEPROM data corruption can easily be avoided by following this design recommendation:

Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can be done by enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V

CC

Reset Protec-

23

2486W–AVR–02/10

I/O Memory

tion circuit can be used. If a reset occurs while a write operation is in progress, the write operation will be completed provided that the power supply voltage is sufficient.

The I/O space definition of the ATmega8 is shown in “” on page 287 .

All ATmega8 I/Os and peripherals are placed in the I/O space. The I/O locations are accessed by the IN and OUT instructions, transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0x1F are directly bitaccessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 - 0x3F must be used. When addressing I/O Registers as data space using LD and ST instructions,

0x20 must be added to these addresses.

For compatibility with future devices, reserved bits should be written to zero if accessed.

Reserved I/O memory addresses should never be written.

Some of the Status Flags are cleared by writing a logical one to them. Note that the CBI and SBI instructions will operate on all bits in the I/O Register, writing a one back into any flag read as set, thus clearing the flag. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

The I/O and Peripherals Control Registers are explained in later sections.

24

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

System Clock and Clock

Options

Clock Systems and their

Distribution

Figure 10 presents the principal clock systems in the AVR and their distribution. All of the clocks

need not be active at a given time. In order to reduce power consumption, the clocks to modules

not being used can be halted by using different sleep modes, as described in “Power Management and Sleep Modes” on page 33

. The clock systems are detailed Figure 10 .

Figure 10. Clock Distribution

Asynchronous

Timer/Counter

General I/O

Modules

ADC CPU Core RAM

Flash and

EEPROM clk

I/O clk

ASY clk

ADC

AVR Clock

Control Unit clk

CPU clk

FLASH

Reset Logic Watchdog Timer

Source Clock

Clock

Multiplexer

Watchdog Clock

Watchdog

Oscillator

Timer/Counter

Oscillator

External RC

Oscillator External Clock

Crystal

Oscillator

Low-Frequency

Crystal Oscillator

Calibrated RC

Oscillator

CPU Clock – clk

CPU

The CPU clock is routed to parts of the system concerned with operation of the AVR core.

Examples of such modules are the General Purpose Register File, the Status Register and the

Data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

I/O Clock – clk

I/O

Flash Clock – clk

FLASH

The I/O clock is used by the majority of the I/O modules, like Timer/Counters, SPI, and USART.

The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted. Also note that address recognition in the TWI module is carried out asynchronously when clk

I/O

is halted, enabling TWI address reception in all sleep modes.

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

25

2486W–AVR–02/10

Asynchronous Timer

Clock – clk

ASY

ADC Clock – clk

ADC

The Asynchronous Timer clock allows the Asynchronous Timer/Counter to be clocked directly from an external 32 kHz clock crystal. The dedicated clock domain allows using this

Timer/Counter as a real-time counter even when the device is in sleep mode. The Asynchronous

Timer/Counter uses the same XTAL pins as the CPU main clock but requires a CPU main clock frequency of more than four times the Oscillator frequency. Thus, asynchronous operation is only available while the chip is clocked on the Internal Oscillator.

The ADC is provided with a dedicated clock domain. This allows halting the CPU and I/O clocks in order to reduce noise generated by digital circuitry. This gives more accurate ADC conversion results.

Clock Sources

The device has the following clock source options, selectable by Flash Fuse Bits as shown below. The clock from the selected source is input to the AVR clock generator, and routed to the appropriate modules.

Table 2. Device Clocking Options Select

(1)

Device Clocking Option

External Crystal/Ceramic Resonator

External Low-frequency Crystal

External RC Oscillator

Calibrated Internal RC Oscillator

CKSEL3..0

1111 - 1010

1001

1000 - 0101

0100 - 0001

External Clock 0000

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down or Power-save, the selected clock source is used to time the startup, ensuring stable Oscillator operation before instruction execution starts. When the CPU starts from reset, there is as an additional delay allowing the power to reach a stable level before commencing normal operation. The Watchdog Oscillator is used for timing this real-time part of the start-up time. The number of WDT Oscillator cycles used for each time-out is shown in

Table 3 .

The frequency of the Watchdog Oscillator is voltage dependent as shown in “ATmega8 Typical

Characteristics”. The device is shipped with CKSEL = “0001” and SUT = “10” (1 MHz Internal

RC Oscillator, slowly rising power).

Table 3. Number of Watchdog Oscillator Cycles

Typical Time-out (V

CC

= 5.0V) Typical Time-out (V

CC

= 3.0V)

4.1 ms 4.3 ms

65 ms 69 ms

Number of Cycles

4K (4,096)

64K (65,536)

26

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Crystal Oscillator

XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be configured for use as an On-chip Oscillator, as shown in

Figure 11 . Either a quartz crystal or a

ceramic resonator may be used. The CKOPT Fuse selects between two different Oscillator amplifier modes. When CKOPT is programmed, the Oscillator output will oscillate a full rail-torail swing on the output. This mode is suitable when operating in a very noisy environment or when the output from XTAL2 drives a second clock buffer. This mode has a wide frequency range. When CKOPT is unprogrammed, the Oscillator has a smaller output swing. This reduces power consumption considerably. This mode has a limited frequency range and it cannot be used to drive other clock buffers.

For resonators, the maximum frequency is 8 MHz with CKOPT unprogrammed and 16 MHz with

CKOPT programmed. C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in

Table 4 . For ceramic resonators, the

capacitor values given by the manufacturer should be used.

Figure 11. Crystal Oscillator Connections

C2

XTAL2

C1

XTAL1

GND

The Oscillator can operate in three different modes, each optimized for a specific frequency

range. The operating mode is selected by the fuses CKSEL3..1 as shown in Table 4

.

Table 4. Crystal Oscillator Operating Modes

CKOPT

1

CKSEL3..1

101

(1)

Frequency

Range(MHz)

0.4 - 0.9

Recommended Range for Capacitors

C1 and C2 for Use with Crystals (pF)

1 110 0.9 - 3.0

12 - 22

1 111 3.0 - 8.0

12 - 22

0 101, 110, 111 1.0

12 - 22

Note: 1. This option should not be used with crystals, only with ceramic resonators.

The CKSEL0 Fuse together with the SUT1..0 Fuses select the start-up times as shown in

Table

5 .

27

2486W–AVR–02/10

Table 5. Start-up Times for the Crystal Oscillator Clock Selection

CKSEL0 SUT1..0

Start-up Time from Power-down and Power-save

Additional Delay from Reset

(V

CC

= 5.0V) Recommended Usage

0 00 258 CK

(1)

4.1 ms

Ceramic resonator, fast rising power

0

0

0

1

01

10

11

00

258 CK

1K CK

1K CK

1K CK

(1)

(2)

(2)

(2)

65 ms

4.1 ms

65 ms

Ceramic resonator, slowly rising power

Ceramic resonator, BOD enabled

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

1

1

01

10

16K CK

16K CK

4.1 ms

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

1 11 16K CK 65 ms

Crystal Oscillator, slowly rising power

Notes: 1. These options should only be used when not operating close to the maximum frequency of the device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2. These options are intended for use with ceramic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

Low-frequency

Crystal Oscillator

To use a 32.768 kHz watch crystal as the clock source for the device, the Low-frequency Crystal

Oscillator must be selected by setting the CKSEL Fuses to “1001”. The crystal should be con-

nected as shown in Figure 11

. By programming the CKOPT Fuse, the user can enable internal capacitors on XTAL1 and XTAL2, thereby removing the need for external capacitors. The internal capacitors have a nominal value of 36 pF.

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 6 .

Table 6. Start-up Times for the Low-frequency Crystal Oscillator Clock Selection

SUT1..0

00

01

10

Start-up Time from

Power-down and

Power-save

1K CK

(1)

1K CK

(1)

32K CK

Additional Delay from Reset

(V

CC

= 5.0V)

4.1 ms

65 ms

65 ms

Recommended Usage

Fast rising power or BOD enabled

Slowly rising power

Stable frequency at start-up

11 Reserved

Note: 1. These options should only be used if frequency stability at start-up is not important for the application.

External RC

Oscillator

For timing insensitive applications, the external RC configuration shown in

Figure 12

can be used. The frequency is roughly estimated by the equation f = 1/(3RC). C should be at least 22

28

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

pF. By programming the CKOPT Fuse, the user can enable an internal 36 pF capacitor between

XTAL1 and GND, thereby removing the need for an external capacitor.

Figure 12. External RC Configuration

V

CC

R

NC

C

XTAL2

XTAL1

GND

The Oscillator can operate in four different modes, each optimized for a specific frequency

range. The operating mode is selected by the fuses CKSEL3..0 as shown in Table 7

.

Table 7. External RC Oscillator Operating Modes

CKSEL3..0

0101

0110

0111

1000

Frequency Range (MHz)

0.1 - 0.9

0.9 - 3.0

3.0 - 8.0

8.0 - 12.0

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 8 .

Table 8. Start-up Times for the External RC Oscillator Clock Selection

SUT1..0

00

01

Start-up Time from

Power-down and

Power-save

18 CK

18 CK

Additional Delay from Reset

(V

CC

= 5.0V)

4.1 ms

Recommended Usage

BOD enabled

Fast rising power

10 18 CK 65 ms Slowly rising power

11 6 CK

(1)

4.1 ms Fast rising power or BOD enabled

Note: 1. This option should not be used when operating close to the maximum frequency of the device.

29

Calibrated Internal

RC Oscillator

The calibrated internal RC Oscillator provides a fixed 1.0, 2.0, 4.0, or 8.0 MHz clock. All frequencies are nominal values at 5V and 25

°C. This clock may be selected as the system clock by

programming the CKSEL Fuses as shown in Table 9 . If selected, it will operate with no external

components. The CKOPT Fuse should always be unprogrammed when using this clock option.

During reset, hardware loads the 1 MHz calibration byte into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. At 5V, 25

°C and 1.0 MHz Oscillator frequency selected, this calibration gives a frequency within ± 3% of the nominal frequency. Using run-time calibration methods as described in application notes available at www.atmel.com/avr it is possible to achieve ± 1% accuracy at any given V

CC

and Temperature. When this Oscillator is used as the chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the

Reset Time-out. For more information on the pre-programmed calibration value, see the section

“Calibration Byte” on page 225 .

Table 9. Internal Calibrated RC Oscillator Operating Modes

CKSEL3..0

0001

(1)

0010

Nominal Frequency (MHz)

1.0

2.0

0011

0100

Note: 1. The device is shipped with this option selected.

4.0

8.0

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 10 . PB6 (XTAL1/TOSC1) and PB7(XTAL2/TOSC2) can be used as either general I/O pins

or Timer Oscillator pins..

Table 10. Start-up Times for the Internal Calibrated RC Oscillator Clock Selection

SUT1..0

Start-up Time from

Power-down and

Power-save

Additional Delay from Reset

(V

CC

= 5.0V)

– 00

01

10

(1)

6 CK

6 CK

6 CK

4.1 ms

65 ms

11 Reserved

Note: 1. The device is shipped with this option selected.

Recommended Usage

BOD enabled

Fast rising power

Slowly rising power

30

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Oscillator Calibration

Register – OSCCAL

Bit

Read/Write

Initial Value

7

CAL7

R/W

6

CAL6

R/W

5

CAL5

4

CAL4

3

CAL3

2

CAL2

R/W R/W R/W R/W

Device Specific Calibration Value

1

CAL1

R/W

0

CAL0

R/W

OSCCAL

• Bits 7..0 – CAL7..0: Oscillator Calibration Value

Writing the calibration byte to this address will trim the Internal Oscillator to remove process variations from the Oscillator frequency. During Reset, the 1 MHz calibration value which is located in the signature row High byte (address 0x00) is automatically loaded into the OSCCAL Register. If the internal RC is used at other frequencies, the calibration values must be loaded manually. This can be done by first reading the signature row by a programmer, and then store the calibration values in the Flash or EEPROM. Then the value can be read by software and loaded into the OSCCAL Register. When OSCCAL is zero, the lowest available frequency is chosen. Writing non-zero values to this register will increase the frequency of the Internal Oscillator. Writing 0xFF to the register gives the highest available frequency. The calibrated Oscillator is used to time EEPROM and Flash access. If EEPROM or Flash is written, do not calibrate to more than 10% above the nominal frequency. Otherwise, the EEPROM or Flash write may fail.

Note that the Oscillator is intended for calibration to 1.0, 2.0, 4.0, or 8.0 MHz. Tuning to other

values is not guaranteed, as indicated in Table 11 .

Table 11. Internal RC Oscillator Frequency Range

OSCCAL Value

0x00

Min Frequency in Percentage of

Nominal Frequency (%)

50

0x7F

0xFF

75

100

Max Frequency in Percentage of

Nominal Frequency (%)

100

150

200

31

2486W–AVR–02/10

External Clock

To drive the device from an external clock source, XTAL1 should be driven as shown in Figure

13

. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”.

By programming the CKOPT Fuse, the user can enable an internal 36 pF capacitor between

XTAL1 and GND, and XTAL2 and GND.

Figure 13. External Clock Drive Configuration

EXTERNAL

CLOCK

SIGNAL

Timer/Counter

Oscillator

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 12 .

Table 12. Start-up Times for the External Clock Selection

SUT1..0

00

Start-up Time from

Power-down and

Power-save

6 CK

Additional Delay from Reset

(V

CC

= 5.0V)

01

10

11

6 CK

6 CK

4.1 ms

65 ms

Reserved

Recommended Usage

BOD enabled

Fast rising power

Slowly rising power

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behavior. It is required to ensure that the

MCU is kept in Reset during such changes in the clock frequency.

For AVR microcontrollers with Timer/Counter Oscillator pins (TOSC1 and TOSC2), the crystal is connected directly between the pins. By programming the CKOPT Fuse, the user can enable internal capacitors on XTAL1 and XTAL2, thereby removing the need for external capacitors.

The Oscillator is optimized for use with a 32.768 kHz watch crystal. Applying an external clock source to TOSC1 is not recommended.

Note: The Timer/Counter Oscillator uses the same type of crystal oscillator as Low-Frequency Oscillator and the internal capacitors have the same nominal value of 36 pF.

32

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Power

Management and Sleep

Modes

Sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

To enter any of the five sleep modes, the SE bit in MCUCR must be written to logic one and a

SLEEP instruction must be executed. The SM2, SM1, and SM0 bits in the MCUCR Register select which sleep mode (Idle, ADC Noise Reduction, Power-down, Power-save, or Standby) will be activated by the SLEEP instruction. See

Table 13 for a summary. If an enabled interrupt

occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, it executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from sleep. If a reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

Note that the Extended Standby mode present in many other AVR MCUs has been removed in the ATmega8, as the TOSC and XTAL inputs share the same physical pins.

Figure 10 on page 25 presents the different clock systems in the ATmega8, and their distribu-

tion. The figure is helpful in selecting an appropriate sleep mode.

MCU Control Register

– MCUCR

The MCU Control Register contains control bits for power management.

Bit

Read/Write

Initial Value

7

SE

R/W

0

6

SM2

R/W

0

5

SM1

R/W

0

4

SM0

R/W

0

3

ISC11

R/W

0

2

ISC10

R/W

0

1

ISC01

R/W

0

0

ISC00

R/W

0

MCUCR

• Bit 7 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the sleep mode unless it is the programmer’s purpose, it is recommended to set the Sleep Enable (SE) bit just before the execution of the

SLEEP instruction.

• Bits 6..4 – SM2..0: Sleep Mode Select Bits 2, 1, and 0

These bits select between the five available sleep modes as shown in Table 13 .

Table 13. Sleep Mode Select

SM2

0

0

1

0

0

SM1

0

0

1

1

0

SM0

0

1

0

1

0

Sleep Mode

Idle

ADC Noise Reduction

Power-down

Power-save

Reserved

1 0 1 Reserved

1 1 0

Standby

(1)

Note: 1. Standby mode is only available with external crystals or resonators.

33

2486W–AVR–02/10

Idle Mode

When the SM2..0 bits are written to 000, the SLEEP instruction makes the MCU enter Idle mode, stopping the CPU but allowing SPI, USART, Analog Comparator, ADC, Two-wire Serial

Interface, Timer/Counters, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

CPU

and clk

FLASH

, while allowing the other clocks to run.

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow and USART Transmit Complete interrupts. If wake-up from the

Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion starts automatically when this mode is entered.

ADC Noise

Reduction Mode

When the SM2..0 bits are written to 001, the SLEEP instruction makes the MCU enter ADC

Noise Reduction mode, stopping the CPU but allowing the ADC, the external interrupts, the

Two-wire Serial Interface address watch, Timer/Counter2 and the Watchdog to continue operating (if enabled). This sleep mode basically halts clk

I/O

, clk

CPU

, and clk

FLASH

, while allowing the other clocks to run.

This improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the

ADC Conversion Complete interrupt, only an External Reset, a Watchdog Reset, a Brown-out

Reset, a Two-wire Serial Interface address match interrupt, a Timer/Counter2 interrupt, an

SPM/EEPROM ready interrupt, or an external level interrupt on INT0 or INT1, can wake up the

MCU from ADC Noise Reduction mode.

Power-down Mode

When the SM2..0 bits are written to 010, the SLEEP instruction makes the MCU enter Powerdown mode. In this mode, the External Oscillator is stopped, while the external interrupts, the

Two-wire Serial Interface address watch, and the Watchdog continue operating (if enabled).

Only an External Reset, a Watchdog Reset, a Brown-out Reset, a Two-wire Serial Interface address match interrupt, or an external level interrupt on INT0 or INT1, can wake up the MCU.

This sleep mode basically halts all generated clocks, allowing operation of asynchronous modules only.

Note that if a level triggered interrupt is used for wake-up from Power-down mode, the changed

level must be held for some time to wake up the MCU. Refer to “External Interrupts” on page 66

for details.

When waking up from Power-down mode, there is a delay from the wake-up condition occurs until the wake-up becomes effective. This allows the clock to restart and become stable after having been stopped. The wake-up period is defined by the same CKSEL Fuses that define the

Reset Time-out period, as described in “Clock Sources” on page 26 .

Power-save Mode

When the SM2..0 bits are written to 011, the SLEEP instruction makes the MCU enter Powersave mode. This mode is identical to Power-down, with one exception:

If Timer/Counter2 is clocked asynchronously, i.e. the AS2 bit in ASSR is set,

Timer/Counter2 will run during sleep. The device can wake up from either Timer Overflow or

Output Compare event from Timer/Counter2 if the corresponding Timer/Counter2 interrupt enable bits are set in TIMSK, and the global interrupt enable bit in SREG is set.

If the asynchronous timer is NOT clocked asynchronously, Power-down mode is recommended instead of Power-save mode because the contents of the registers in the asynchronous timer should be considered undefined after wake-up in Power-save mode if AS2 is 0.

This sleep mode basically halts all clocks except clk

ASY

, allowing operation only of asynchronous modules, including Timer/Counter 2 if clocked asynchronously.

34

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Standby Mode

When the SM2..0 bits are 110 and an external crystal/resonator clock option is selected, the

SLEEP instruction makes the MCU enter Standby mode. This mode is identical to Power-down with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in 6 clock cycles.

Table 14. Active Clock Domains and Wake-up Sources in the Different Sleep Modes

Sleep

Mode

Idle

Active Clock Domains Oscillators Wake-up Sources clk

CPU clk

FLASH clk

IO

X

clk

ADC

X

clk

ASY

X

Main Clock

Source Enabled

X

Timer Osc.

Enabled

INT1

INT0

TWI

Address

Match

Timer

2

SPM/

EEPROM

Ready ADC

Other

I/O

X

(2)

X X X X X X

ADC Noise

Reduction

Power

Down

X X X

Power

Save

X

(2)

Standby

(1)

X

Notes: 1. External Crystal or resonator selected as clock source.

2. If AS

2

bit in ASSR is set.

3. Only level interrupt INT1 and INT0.

X

(2)

X

(2)

X

(3)

X

(3)

X

(3)

X

(3)

X

X

X

X

X

X

(2)

X X

Minimizing Power

Consumption

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

Analog-to-Digital

Converter (ADC)

Analog Comparator

If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should be disabled before entering any sleep mode. When the ADC is turned off and on again, the next

conversion will be an extended conversion. Refer to “Analog-to-Digital Converter” on page 196

for details on ADC operation.

When entering Idle mode, the Analog Comparator should be disabled if not used. When entering

ADC Noise Reduction mode, the Analog Comparator should be disabled. In the other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to

“Analog Comparator” on page 193 for details on how to

configure the Analog Comparator.

35

2486W–AVR–02/10

Brown-out Detector

Internal Voltage

Reference

Watchdog Timer

Port Pins

If the Brown-out Detector is not needed in the application, this module should be turned off. If the

Brown-out Detector is enabled by the BODEN Fuse, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to

“Brown-out Detection” on page 40

for details on how to configure the Brown-out Detector.

The Internal Voltage Reference will be enabled when needed by the Brown-out Detector, the

Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to

“Internal Voltage Reference” on page 42

for details on the start-up time.

If the Watchdog Timer is not needed in the application, this module should be turned off. If the

Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consump-

tion. Refer to “Watchdog Timer” on page 43 for details on how to configure the Watchdog Timer.

When entering a sleep mode, all port pins should be configured to use minimum power. The most important thing is then to ensure that no pins drive resistive loads. In sleep modes where the both the I/O clock (clk

I/O

) and the ADC clock (clk

ADC

) are stopped, the input buffers of the device will be disabled. This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will

then be enabled. Refer to the section “Digital Input Enable and Sleep Modes” on page 55

for details on which pins are enabled. If the input buffer is enabled and the input signal is left floating or have an analog signal level close to V

CC

/2, the input buffer will use excessive power.

36

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

System Control and Reset

Resetting the AVR

Reset Sources

During Reset, all I/O Registers are set to their initial values, and the program starts execution from the Reset Vector. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. This is also the case if the Reset Vector is in the Application section while the Interrupt Vectors are in the boot section

or vice versa. The circuit diagram in Figure 14

shows the Reset Logic.

Table 15 defines the elec-

trical parameters of the reset circuitry.

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the CKSEL Fuses. The different selec-

tions for the delay period are presented in “Clock Sources” on page 26

.

The ATmega8 has four sources of Reset:

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset threshold (V

POT

).

• External Reset. The MCU is reset when a low level is present on the RESET pin for longer than the minimum pulse length.

• Watchdog Reset. The MCU is reset when the Watchdog Timer period expires and the

Watchdog is enabled.

• Brown-out Reset. The MCU is reset when the supply voltage V

CC

is below the Brown-out

Reset threshold (V

BOT

) and the Brown-out Detector is enabled.

37

2486W–AVR–02/10

Figure 14. Reset Logic

DATA BUS

MCU Control and Status

Register (MCUCSR)

BODEN

BODLEVEL

Pull-up Resistor

Brown-Out

Reset Circuit

SPIKE

FILTER

Watchdog

Oscillator

Clock

Generator

CKSEL[3:0]

SUT[1:0]

CK

Delay Counters

TIMEOUT

Table 15. Reset Characteristics

Symbol Parameter

Power-on Reset Threshold

Voltage (rising)

(1)

V

POT

Power-on Reset Threshold

Voltage (falling)

V

RST

RESET Pin Threshold Voltage t

RST

Minimum pulse width on

RESET Pin

Condition Min Typ Max Units

0.2

1.4

1.3

2.3

2.3

0.9

1.5

V

V

V

CC

µs

V t

BOT

BOD

Brown-out Reset Threshold

Voltage

(2)

Minimum low voltage period for

Brown-out Detection

BODLEVEL = 1 2.4

BODLEVEL = 0 3.7

BODLEVEL = 1

BODLEVEL = 0

2.6

4.0

2

2

2.9

4.5

V

µs

µs

V

HYST

Brown-out Detector hysteresis 130 mV

Notes: 1. The Power-on Reset will not work unless the supply voltage has been below V

POT

(falling).

2. V

BOT

may be below nominal minimum operating voltage for some devices. For devices where this is the case, the device is tested down to V

CC

= V

BOT

during the production test. This guarantees that a Brown-out Reset will occur before V

CC

drops to a voltage where correct operation of the microcontroller is no longer guaranteed. The test is performed using

BODLEVEL = 1 for ATmega8L and BODLEVEL = 0 for ATmega8. BODLEVEL = 1 is not applicable for ATmega8.

38

ATmega8(L)

2486W–AVR–02/10

Power-on Reset

ATmega8(L)

A Power-on Reset (POR) pulse is generated by an On-chip detection circuit. The detection level is defined in

Table 15

. The POR is activated whenever V

CC

is below the detection level. The

POR circuit can be used to trigger the Start-up Reset, as well as to detect a failure in supply voltage.

A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the

Power-on Reset threshold voltage invokes the delay counter, which determines how long the device is kept in RESET after V

CC when V

CC

rise. The RESET signal is activated again, without any delay,

decreases below the detection level.

Figure 15. MCU Start-up, RESET Tied to V

CC

V

POT

V

CC

V

RST

RESET

TIME-OUT t

TOUT

INTERNAL

RESET

Figure 16. MCU Start-up, RESET Extended Externally

V

POT

V

CC

V

RST

RESET t

TOUT

TIME-OUT

INTERNAL

RESET

39

2486W–AVR–02/10

External Reset

An External Reset is generated by a low level on the RESET pin. Reset pulses longer than the minimum pulse width (see

Table 15 ) will generate a reset, even if the clock is not running.

Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the

Reset Threshold Voltage – V

RST

on its positive edge, the delay counter starts the MCU after the time-out period t

TOUT

has expired.

Figure 17. External Reset During Operation

CC

Brown-out Detection

ATmega8 has an On-chip Brown-out Detection (BOD) circuit for monitoring the V

CC

level during operation by comparing it to a fixed trigger level. The trigger level for the BOD can be selected by the fuse BODLEVEL to be 2.7V (BODLEVEL unprogrammed), or 4.0V (BODLEVEL programmed). The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V

BOT+

V

BOT

- V

HYST

/2.

= V

BOT

+ V

HYST

/2 and V

BOT-

=

The BOD circuit can be enabled/disabled by the fuse BODEN. When the BOD is enabled

(BODEN programmed), and V

CC

decreases to a value below the trigger level (V

BOT-

in

Figure

18

), the Brown-out Reset is immediately activated. When V

CC

increases above the trigger level

(V

BOT+

in expired.

Figure 18

), the delay counter starts the MCU after the time-out period t

TOUT

has

The BOD circuit will only detect a drop in V

CC

if the voltage stays below the trigger level for longer than t

BOD

given in

Table 15 .

Figure 18. Brown-out Reset During Operation

V

CC

V

BOT+

V

BOT-

RESET t

TOUT TIME-OUT

INTERNAL

RESET

40

ATmega8(L)

2486W–AVR–02/10

Watchdog Reset

ATmega8(L)

When the Watchdog times out, it will generate a short reset pulse of 1 CK cycle duration. On the falling edge of this pulse, the delay timer starts counting the time-out period t

TOUT

43

for details on operation of the Watchdog Timer.

. Refer to

page

Figure 19. Watchdog Reset During Operation

CC

CK

MCU Control and

Status Register –

MCUCSR

The MCU Control and Status Register provides information on which reset source caused an

MCU Reset.

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

WDRF

R/W

2

BORF

1

EXTRF

R/W R/W

See Bit Description

0

PORF

R/W

MCUCSR

• Bit 7..4 – Res: Reserved Bits

These bits are reserved bits in the ATmega8 and always read as zero.

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag.

To make use of the Reset Flags to identify a reset condition, the user should read and then reset the MCUCSR as early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the Reset Flags.

41

2486W–AVR–02/10

Internal Voltage

Reference

Voltage Reference

Enable Signals and

Start-up Time

ATmega8 features an internal bandgap reference. This reference is used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the ADC. The 2.56V reference to the ADC is generated from the internal bandgap reference.

The voltage reference has a start-up time that may influence the way it should be used. The start-up time is given in

Table 16 . To save power, the reference is not always turned on. The ref-

erence is on during the following situations:

1.

When the BOD is enabled (by programming the BODEN Fuse).

2.

When the bandgap reference is connected to the Analog Comparator (by setting the

ACBG bit in ACSR).

3.

When the ADC is enabled.

Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user must always allow the reference to start up before the output from the Analog Comparator or

ADC is used. To reduce power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

Table 16. Internal Voltage Reference Characteristics

Symbol Parameter

V

BG t

BG

I

BG

Bandgap reference voltage

Bandgap reference start-up time

Bandgap reference current consumption

Min

1.15

Typ

1.30

40

10

Max

1.40

70

Units

V

µs

µA

42

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Watchdog Timer

The Watchdog Timer is clocked from a separate On-chip Oscillator which runs at 1 MHz. This is the typical value at V

CC

= 5V. See characterization data for typical values at other V

CC

levels. By controlling the Watchdog Timer prescaler, the Watchdog Reset interval can be adjusted as

shown in Table 17 on page 44

. The WDR – Watchdog Reset – instruction resets the Watchdog

Timer. The Watchdog Timer is also reset when it is disabled and when a Chip Reset occurs.

Eight different clock cycle periods can be selected to determine the reset period. If the reset period expires without another Watchdog Reset, the ATmega8 resets and executes from the

Reset Vector. For timing details on the Watchdog Reset, refer to page 41 .

To prevent unintentional disabling of the Watchdog, a special turn-off sequence must be followed when the Watchdog is disabled. Refer to the description of the Watchdog Timer Control

Register for details.

Figure 20. Watchdog Timer

WATCHDOG

OSCILLATOR

Watchdog Timer

Control Register –

WDTCR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

4

WDCE

R/W

0

3

WDE

R/W

0

2

WDP2

R/W

0

1

WDP1

R/W

0

0

WDP0

R/W

0

WDTCR

• Bits 7..5 – Res: Reserved Bits

These bits are reserved bits in the ATmega8 and will always read as zero.

• Bit 4 – WDCE: Watchdog Change Enable

This bit must be set when the WDE bit is written to logic zero. Otherwise, the Watchdog will not be disabled. Once written to one, hardware will clear this bit after four clock cycles. Refer to the description of the WDE bit for a Watchdog disable procedure. In Safety Level 1 and 2, this bit

must also be set when changing the prescaler bits. See the Code Examples on page 45

.

43

2486W–AVR–02/10

• Bit 3 – WDE: Watchdog Enable

When the WDE is written to logic one, the Watchdog Timer is enabled, and if the WDE is written to logic zero, the Watchdog Timer function is disabled. WDE can only be cleared if the WDCE bit has logic level one. To disable an enabled Watchdog Timer, the following procedure must be followed:

1.

In the same operation, write a logic one to WDCE and WDE. A logic one must be written to WDE even though it is set to one before the disable operation starts.

2.

Within the next four clock cycles, write a logic 0 to WDE. This disables the Watchdog.

• Bits 2..0 – WDP2, WDP1, WDP0: Watchdog Timer Prescaler 2, 1, and 0

The WDP2, WDP1, and WDP0 bits determine the Watchdog Timer prescaling when the Watchdog Timer is enabled. The different prescaling values and their corresponding Timeout Periods are shown in

Table 17

.

Table 17. Watchdog Timer Prescale Select

WDP2 WDP1 WDP0

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

0

1

0

1

0

1

0

1

Number of WDT

Oscillator Cycles

16K (16,384)

32K (32,768)

64K (65,536)

128K (131,072)

256K (262,144)

512K (524,288)

1,024K (1,048,576)

2,048K (2,097,152)

Typical Time-out at V

CC

= 3.0V

17.1 ms

34.3 ms

68.5 ms

0.14 s

0.27 s

0.55 s

1.1 s

2.2 s

Typical Time-out at V

CC

= 5.0V

16.3 ms

32.5 ms

65 ms

0.13 s

0.26 s

0.52 s

1.0 s

2.1 s

The following code example shows one assembly and one C function for turning off the WDT.

The example assumes that interrupts are controlled (for example, by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

44

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Timed Sequences for Changing the

Configuration of the Watchdog

Timer

The sequence for changing the Watchdog Timer configuration differs slightly between the safety levels. Separate procedures are described for each level.

Assembly Code Example

WDT_off:

; reset WDT

WDR

; Write logical one to WDCE and WDE

in

r16, WDTCR

ori

r16, (1<<WDCE)|(1<<WDE)

out

WDTCR, r16

; Turn off WDT

ldi

r16, (0<<WDE)

out

WDTCR, r16

ret

C Code Example

void

WDT_off(void)

{

/* reset WDT */

_WDR();

/* Write logical one to WDCE and WDE */

WDTCR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCR = 0x00;

}

Safety Level 1

(WDTON Fuse

Unprogrammed)

Safety Level 2

(WDTON Fuse

Programmed)

In this mode, the Watchdog Timer is initially disabled, but can be enabled by writing the WDE bit to 1 without any restriction. A timed sequence is needed when changing the Watchdog Time-out period or disabling an enabled Watchdog Timer. To disable an enabled Watchdog Timer and/or changing the Watchdog Time-out, the following procedure must be followed:

1.

In the same operation, write a logic one to WDCE and WDE. A logic one must be written to WDE regardless of the previous value of the WDE bit.

2.

Within the next four clock cycles, in the same operation, write the WDE and WDP bits as desired, but with the WDCE bit cleared.

In this mode, the Watchdog Timer is always enabled, and the WDE bit will always read as one. A timed sequence is needed when changing the Watchdog Time-out period. To change the

Watchdog Time-out, the following procedure must be followed:

1.

In the same operation, write a logical one to WDCE and WDE. Even though the WDE always is set, the WDE must be written to one to start the timed sequence.

Within the next four clock cycles, in the same operation, write the WDP bits as desired, but with the WDCE bit cleared. The value written to the WDE bit is irrelevant.

45

2486W–AVR–02/10

Interrupts

This section describes the specifics of the interrupt handling performed by the ATmega8. For a general explanation of the AVR interrupt handling, refer to

“Reset and Interrupt Handling” on page 14 .

Interrupt Vectors in ATmega8

Table 18. Reset and Interrupt Vectors

Vector No.

1

7

8

5

6

2

3

4

Program

Address

(2)

0x000

(1)

0x001

0x002

0x003

0x004

0x005

0x006

0x007

Source

RESET

Interrupt Definition

External Pin, Power-on Reset, Brown-out

Reset, and Watchdog Reset

External Interrupt Request 0 INT0

INT1

TIMER2 COMP

TIMER2 OVF

TIMER1 CAPT

External Interrupt Request 1

Timer/Counter2 Compare Match

Timer/Counter2 Overflow

Timer/Counter1 Capture Event

TIMER1 COMPA Timer/Counter1 Compare Match A

TIMER1 COMPB Timer/Counter1 Compare Match B

13

14

15

16

9

10

11

12

0x008

0x009

0x00A

0x00B

0x00C

0x00D

0x00E

0x00F

TIMER1 OVF

TIMER0 OVF

SPI, STC

USART, RXC

USART, UDRE

USART, TXC

ADC

EE_RDY

Timer/Counter1 Overflow

Timer/Counter0 Overflow

Serial Transfer Complete

USART, Rx Complete

USART Data Register Empty

USART, Tx Complete

ADC Conversion Complete

EEPROM Ready

17

18

0x010

0x011

ANA_COMP

TWI

Analog Comparator

Two-wire Serial Interface

19 0x012 SPM_RDY Store Program Memory Ready

Notes: 1. When the BOOTRST Fuse is programmed, the device will jump to the Boot Loader address at

reset, see “Boot Loader Support – Read-While-Write Self-Programming” on page 209 .

2. When the IVSEL bit in GICR is set, Interrupt Vectors will be moved to the start of the boot

Flash section. The address of each Interrupt Vector will then be the address in this table added to the start address of the boot Flash section.

Table 19

shows reset and Interrupt Vectors placement for the various combinations of

BOOTRST and IVSEL settings. If the program never enables an interrupt source, the Interrupt

Vectors are not used, and regular program code can be placed at these locations. This is also the case if the Reset Vector is in the Application section while the Interrupt Vectors are in the boot section or vice versa.

46

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Table 19. Reset and Interrupt Vectors Placement

BOOTRST

(1)

IVSEL Reset Address Interrupt Vectors Start Address

0

0

1

1

0

1

0

1

0x000

0x000

Boot Reset Address

Boot Reset Address

0x001

Boot Reset Address + 0x001

0x001

Boot Reset Address + 0x001

Note:

1. The Boot Reset Address is shown in Table 82 on page 220

. For the BOOTRST Fuse “1” means unprogrammed while “0” means programmed.

The most typical and general program setup for the Reset and Interrupt Vector Addresses in

ATmega8 is: addressLabels Code Comments

$008

$009

$00a

$00b

$00c

$00d

$00e

$00f

$000

$001

$002

$003

$004

$005

$006

$007 rjmp RESET rjmp EXT_INT0 rjmp EXT_INT1 rjmp TIM2_COMP rjmp TIM2_OVF rjmp TIM1_CAPT rjmp TIM1_COMPA rjmp TIM1_COMPB rjmp TIM1_OVF rjmp TIM0_OVF rjmp SPI_STC rjmp USART_RXC rjmp USART_UDRE rjmp USART_TXC rjmp ADC rjmp EE_RDY

; Reset Handler

; IRQ0 Handler

; IRQ1 Handler

; Timer2 Compare Handler

; Timer2 Overflow Handler

; Timer1 Capture Handler

; Timer1 CompareA Handler

; Timer1 CompareB Handler

; Timer1 Overflow Handler

; Timer0 Overflow Handler

; SPI Transfer Complete Handler

; USART RX Complete Handler

; UDR Empty Handler

; USART TX Complete Handler

; ADC Conversion Complete Handler

; EEPROM Ready Handler

$010

$011

$012

; rjmp rjmp rjmp

$013 RESET: ldi

$014 out

$015

$016 ldi out

ANA_COMP

TWSI

SPM_RDY

; Analog Comparator Handler

; Two-wire Serial Interface Handler

; Store Program Memory Ready Handler r16,high(RAMEND); Main program start

SPH,r16 r16,low(RAMEND)

SPL,r16

; Set Stack Pointer to top of RAM

$017

$018

...

sei

<instr> xxx

...

...

; Enable interrupts

47

When the BOOTRST Fuse is unprogrammed, the boot section size set to 2K bytes and the

IVSEL bit in the GICR Register is set before any interrupts are enabled, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

AddressLabels Code Comments

$000

; rjmp RESET ; Reset handler

$001 RESET:ldi

$002

$003

$004

$005

$006 out ldi out sei r16,high(RAMEND); Main program start

SPH,r16 ; Set Stack Pointer to top of RAM r16,low(RAMEND)

SPL,r16

; Enable interrupts

<instr> xxx

;

.org $c01

$c01

$c02

...

$c12 rjmp rjmp

...

rjmp

EXT_INT0

EXT_INT1

... ;

SPM_RDY

; IRQ0 Handler

; IRQ1 Handler

; Store Program Memory Ready Handler

When the BOOTRST Fuse is programmed and the boot section size set to 2K bytes, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

AddressLabels Code Comments

.org $001

$001

$002

...

rjmp EXT_INT0 rjmp EXT_INT1

...

...

; IRQ0 Handler

; IRQ1 Handler

;

$012 rjmp SPM_RDY ; Store Program Memory Ready Handler

;

.org $c00

$c00

; rjmp

$c01 RESET:ldi

RESET ; Reset handler r16,high(RAMEND); Main program start

$c02

$c03

$c04

$c05

$c06 out ldi out

SPH,r16 sei

<instr> xxx

; Set Stack Pointer to top of RAM r16,low(RAMEND)

SPL,r16

; Enable interrupts

48

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

When the BOOTRST Fuse is programmed, the boot section size set to 2K bytes, and the IVSEL bit in the GICR Register is set before any interrupts are enabled, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

AddressLabels Code Comments

;

.org $c00

$c00

$c01 rjmp RESET rjmp EXT_INT0

; Reset handler

; IRQ0 Handler

$c02

...

$c12 rjmp EXT_INT1

...

... ; rjmp SPM_RDY

$c13 RESET: ldi

$c14

$c15 out ldi

; IRQ1 Handler

; Store Program Memory Ready Handler r16,high(RAMEND); Main program start

SPH,r16 ; Set Stack Pointer to top of RAM r16,low(RAMEND)

$c16

$c17

$c18 out SPL,r16 sei

<instr> xxx

; Enable interrupts

The General Interrupt Control Register controls the placement of the Interrupt Vector table.

Moving Interrupts

Between Application and Boot Space

General Interrupt

Control Register –

GICR

Bit

Read/Write

Initial Value

7

INT1

R/W

0

6

INT0

R/W

0

R

0

5

R

0

4

R

0

3

R

0

2

1

IVSEL

R/W

0

0

IVCE

R/W

0

GICR

• Bit 1 – IVSEL: Interrupt Vector Select

When the IVSEL bit is cleared (zero), the Interrupt Vectors are placed at the start of the Flash memory. When this bit is set (one), the Interrupt Vectors are moved to the beginning of the Boot

Loader section of the Flash. The actual address of the start of the boot Flash section is determined by the BOOTSZ Fuses. Refer to the section

“Boot Loader Support – Read-While-Write

Self-Programming” on page 209

for details. To avoid unintentional changes of Interrupt Vector tables, a special write procedure must be followed to change the IVSEL bit:

1.

Write the Interrupt Vector Change Enable (IVCE) bit to one.

2.

Within four cycles, write the desired value to IVSEL while writing a zero to IVCE.

Interrupts will automatically be disabled while this sequence is executed. Interrupts are disabled in the cycle IVCE is set, and they remain disabled until after the instruction following the write to

IVSEL. If IVSEL is not written, interrupts remain disabled for four cycles. The I-bit in the Status

Register is unaffected by the automatic disabling.

Note: If Interrupt Vectors are placed in the Boot Loader section and Boot Lock bit BLB02 is programmed, interrupts are disabled while executing from the Application section. If Interrupt

Vectors are placed in the Application section and Boot Lock bit BLB12 is programed, interrupts are disabled while executing from the Boot Loader section. Refer to the section

“Boot Loader

Support – Read-While-Write Self-Programming” on page 209

for details on Boot Lock Bits.

49

2486W–AVR–02/10

• Bit 0 – IVCE: Interrupt Vector Change Enable

The IVCE bit must be written to logic one to enable change of the IVSEL bit. IVCE is cleared by hardware four cycles after it is written or when IVSEL is written. Setting the IVCE bit will disable interrupts, as explained in the IVSEL description above. See Code Example below.

Assembly Code Example

Move_interrupts:

; Enable change of Interrupt Vectors

ldi

r16, (1<<IVCE)

out

GICR, r16

; Move interrupts to boot Flash section

ldi

r16, (1<<IVSEL)

out

GICR, r16

ret

C Code Example

void

Move_interrupts(void)

{

/* Enable change of Interrupt Vectors */

GICR = (1<<IVCE);

/* Move interrupts to boot Flash section */

GICR = (1<<IVSEL);

}

50

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

I/O Ports

Introduction

All AVR ports have true Read-Modify-Write functionality when used as general digital I/O ports.

This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as input). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

CC

and Ground as indicated in Figure 21 . Refer to

“Electrical Characteristics” on page 242 for a complete list of parameters.

Figure 21. I/O Pin Equivalent Schematic

Pxn

C

pin

R

pu

Logic

See Figure

"General Digital I/O" for

Details

Ports as General

Digital I/O

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used (i.e., PORTB3 for bit 3 in Port B, here documented generally as PORTxn). The physical I/O Registers and bit locations are listed in

“Register Description for I/O Ports” on page 65 .

Three I/O memory address locations are allocated for each port, one each for the Data Register

– PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins

I/O location is read only, while the Data Register and the Data Direction Register are read/write.

In addition, the Pull-up Disable – PUD bit in SFIOR disables the pull-up function for all pins in all ports when set.

Using the I/O port as General Digital I/O is described in

“Ports as General Digital I/O” on page

51 . Most port pins are multiplexed with alternate functions for the peripheral features on the

device. How each alternate function interferes with the port pin is described in

“Alternate Port

Functions” on page 56 . Refer to the individual module sections for a full description of the alter-

nate functions.

Note that enabling the alternate function of some of the port pins does not affect the use of the other pins in the port as general digital I/O.

The ports are bi-directional I/O ports with optional internal pull-ups.

Figure 22

shows a functional description of one I/O port pin, here generically called Pxn.

51

2486W–AVR–02/10

Figure 22. General Digital I/O

(1)

PUD

Q D

DDxn

Q

CLR

RESET

WDx

RDx

Configuring the Pin

Pxn

SLEEP

Q D

PORTxn

Q

CLR

RESET

WPx

RRx

SYNCHRONIZER

D Q

L Q

D Q

PINxn

Q

RPx clk

I/O

PUD:

SLEEP: clk

I/O

:

PULLUP DISABLE

SLEEP CONTROL

I/O CLOCK

WDx:

RDx:

WPx:

RRx:

RPx:

WRITE DDRx

READ DDRx

WRITE PORTx

READ PORTx REGISTER

READ PORTx PIN

Note: 1. WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

I/O

, SLEEP, and PUD are common to all ports.

Each port pin consists of 3 Register bits: DDxn, PORTxn, and PINxn. As shown in

“Register

Description for I/O Ports” on page 65

, the DDxn bits are accessed at the DDRx I/O address, the

PORTxn bits at the PORTx I/O address, and the PINxn bits at the PINx I/O address.

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one,

Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when a reset condition becomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn}

= 0b11), an intermediate state with either pull-up enabled ({DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver

52

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

and a pull-up. If this is not the case, the PUD bit in the SFIOR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn}

= 0b11) as an intermediate step.

Table 20 summarizes the control signals for the pin value.

Table 20. Port Pin Configurations

DDxn PORTxn

0 0

PUD

(in SFIOR)

X

I/O

Input

Pull-up Comment

No Tri-state (Hi-Z)

0

0

1

1

1

1

0

1

0

1

X

X

Input

Input

Output

Output

Yes

No

No

No

Pxn will source current if external pulled low.

Tri-state (Hi-Z)

Output Low (Sink)

Output High (Source)

Reading the Pin Value

Independent of the setting of Data Direction bit DDxn, the port pin can be read through the

PINxn Register Bit. As shown in Figure 22

, the PINxn Register bit and the preceding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also introduces a delay.

Figure 23

shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t pd,max

and t pd,min

, respectively.

Figure 23. Synchronization when Reading an Externally Applied Pin Value

SYSTEM CLK

INSTRUCTIONS

SYNC LATCH

PINxn r17

XXX XXX in r17, PINx

0xFF 0x00 t pd, max t pd, min

2486W–AVR–02/10

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows t pd,max

and t pd,min

, a single signal transition on the pin will be delayed between ½ and 1-½ system clock period depending upon the time of assertion.

53

When reading back a software assigned pin value, a nop instruction must be inserted as indicated in

Figure 24

. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay t pd through the synchronizer is 1 system clock period.

Figure 24. Synchronization when Reading a Software Assigned Pin Value

SYSTEM CLK r16

INSTRUCTIONS

SYNC LATCH

PINxn r17

out PORTx, r16 nop

0xFF in r17, PINx

0x00 t pd

0xFF

54

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Digital Input Enable and Sleep Modes

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 7 as input with pull-ups assigned to port pins 6 and 7. The resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to some of the pins.

Assembly Code Example

(1)

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi

r16,(1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0)

ldi

r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out

PORTB,r16

out

DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in

r16,PINB

...

C Code Example

(1)

unsigned char

i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

_NOP();

/* Read port pins */ i = PINB;

...

Note: 1. For the assembly program, two temporary registers are used to minimize the time from pullups are set on pins 0, 1, 6, and 7, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

As shown in Figure 22 , the digital input signal can be clamped to ground at the input of the

Schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in

Power-down mode, Power-save mode, and Standby mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

CC

/2.

SLEEP is overridden for port pins enabled as External Interrupt pins. If the External Interrupt

Request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in

“Alternate Port Functions” on page 56 .

If a logic high level (“one”) is present on an Asynchronous External Interrupt pin configured as

“Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while the external interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned sleep modes, as the clamping in these sleep modes produces the requested logic change.

55

2486W–AVR–02/10

Unconnected pins

Alternate Port

Functions

If some pins are unused, it is recommended to ensure that these pins have a defined level. Even though most of the digital inputs are disabled in the deep sleep modes as described above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode and Idle mode).

The simplest method to ensure a defined level of an unused pin, is to enable the internal pull-up.

In this case, the pull-up will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pull-up or pull-down. Connecting unused pins directly to V

CC

or GND is not recommended, since this may cause excessive currents if the pin is accidentally configured as an output.

Most port pins have alternate functions in addition to being general digital I/Os. Figure 25

shows how the port pin control signals from the simplified

Figure 22 can be overridden by alternate

functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

Figure 25. Alternate Port Functions

(1)

PUOExn

PUOVxn

1

0

PUD

DDOExn

DDOVxn

1

0

PVOExn

PVOVxn

Q D

DDxn

Q

CLR

RESET

WDx

RDx

Pxn

1

0

Q D

PORTxn

Q

CLR

RESET

1

0

DIEOExn

DIEOVxn

SLEEP

WPx

RRx

SYNCHRONIZER

D

SET

Q

L

CLR

Q

D Q

PINxn

CLR

Q

RPx clk

I/O

DIxn

AIOxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE

PUOVxn: Pxn PULL-UP OVERRIDE VALUE

DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE

DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE

PVOExn: Pxn PORT VALUE OVERRIDE ENABLE

PVOVxn: Pxn PORT VALUE OVERRIDE VALUE

DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE

DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE

SLEEP: SLEEP CONTROL

PUD:

WDx:

RDx:

RRx:

WPx:

RPx: clk

I/O

:

DIxn:

AIOxn:

PULLUP DISABLE

WRITE DDRx

READ DDRx

READ PORTx REGISTER

WRITE PORTx

READ PORTx PIN

I/O CLOCK

DIGITAL INPUT PIN n ON PORTx

ANALOG INPUT/OUTPUT PIN n ON PORTx

Note: 1. WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

I/O

, SLEEP, and PUD are common to all ports. All other signals are unique for each pin.

56

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Table 21 summarizes the function of the overriding signals. The pin and port indexes from

Figure 25 are not shown in the succeeding tables. The overriding signals are generated internally in

the modules having the alternate function.

Table 21. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

PUOE

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

DI

AIO

Pull-up Override

Enable

Pull-up Override

Value

Data Direction

Override Enable

Data Direction

Override Value

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when

PUOV is set/cleared, regardless of the setting of the

DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

Port Value

Override Enable

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If

PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

Port Value

Override Value

Digital Input Enable

Override Enable

Digital Input Enable

Override Value

Digital Input

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital

Input Enable is determined by MCU-state (Normal mode, sleep modes).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep modes).

This is the Digital Input to alternate functions. In the figure, the signal is connected to the output of the schmitt trigger but before the synchronizer. Unless the

Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

Analog Input/output This is the Analog Input/output to/from alternate functions. The signal is connected directly to the pad, and can be used bi-directionally.

The following subsections shortly describe the alternate functions for each port, and relate the overriding signals to the alternate function. Refer to the alternate function description for further details.

57

Special Function IO

Register – SFIOR

Bit

Read/Write

Initial Value

7

R

0

6

R

0

5

R

0

4

R

0

3

ACME

R/W

0

2

PUD

R/W

0

1

PSR2

R/W

0

0

PSR10

R/W

0

SFIOR

• Bit 2 – PUD: Pull-up Disable

When this bit is written to one, the pull-ups in the I/O ports are disabled even if the DDxn and

PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Configuring the Pin” on page 52 for more details about this feature.

Alternate Functions of

Port B

The Port B pins with alternate functions are shown in

Table 22 .

Table 22. Port B Pins Alternate Functions

Port Pin Alternate Functions

PB7

PB6

PB5

PB4

XTAL2 (

Chip Clock Oscillator pin 2

)

TOSC2 (

Timer Oscillator pin 2

)

XTAL1 (

Chip Clock Oscillator pin 1 or External clock input

)

TOSC1 (

Timer Oscillator pin 1

)

SCK (SPI Bus Master clock Input)

MISO (SPI Bus Master Input/Slave Output)

PB3

PB2

PB1

PB0

MOSI (SPI Bus Master Output/Slave Input)

OC2 (Timer/Counter2 Output Compare Match Output)

SS (SPI Bus Master Slave select)

OC1B (Timer/Counter1 Output Compare Match B Output)

OC1A (Timer/Counter1 Output Compare Match A Output)

ICP1 (Timer/Counter1 Input Capture Pin)

The alternate pin configuration is as follows:

• XTAL2/TOSC2 – Port B, Bit 7

XTAL2: Chip clock Oscillator pin 2. Used as clock pin for crystal Oscillator or Low-frequency crystal Oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

TOSC2: Timer Oscillator pin 2. Used only if internal calibrated RC Oscillator is selected as chip clock source, and the asynchronous timer is enabled by the correct setting in ASSR. When the

AS2 bit in ASSR is set (one) to enable asynchronous clocking of Timer/Counter2, pin PB7 is disconnected from the port, and becomes the inverting output of the Oscillator amplifier. In this mode, a crystal Oscillator is connected to this pin, and the pin cannot be used as an I/O pin.

If PB7 is used as a clock pin, DDB7, PORTB7 and PINB7 will all read 0.

• XTAL1/TOSC1 – Port B, Bit 6

XTAL1: Chip clock Oscillator pin 1. Used for all chip clock sources except internal calibrated RC

Oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

TOSC1: Timer Oscillator pin 1. Used only if internal calibrated RC Oscillator is selected as chip clock source, and the asynchronous timer is enabled by the correct setting in ASSR. When the

AS2 bit in ASSR is set (one) to enable asynchronous clocking of Timer/Counter2, pin PB6 is disconnected from the port, and becomes the input of the inverting Oscillator amplifier. In this mode, a crystal Oscillator is connected to this pin, and the pin can not be used as an I/O pin.

If PB6 is used as a clock pin, DDB6, PORTB6 and PINB6 will all read 0.

58

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

• SCK – Port B, Bit 5

SCK: Master Clock output, Slave Clock input pin for SPI channel. When the SPI is enabled as a

Slave, this pin is configured as an input regardless of the setting of DDB5. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB5. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB5 bit.

• MISO – Port B, Bit 4

MISO: Master Data input, Slave Data output pin for SPI channel. When the SPI is enabled as a

Master, this pin is configured as an input regardless of the setting of DDB4. When the SPI is enabled as a Slave, the data direction of this pin is controlled by DDB4. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB4 bit.

• MOSI/OC2 – Port B, Bit 3

MOSI: SPI Master Data output, Slave Data input for SPI channel. When the SPI is enabled as a

Slave, this pin is configured as an input regardless of the setting of DDB3. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB3. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB3 bit.

OC2, Output Compare Match Output: The PB3 pin can serve as an external output for the

Timer/Counter2 Compare Match. The PB3 pin has to be configured as an output (DDB3 set

(one)) to serve this function. The OC2 pin is also the output pin for the PWM mode timer function.

• SS/OC1B – Port B, Bit 2

SS: Slave Select input. When the SPI is enabled as a Slave, this pin is configured as an input regardless of the setting of DDB2. As a Slave, the SPI is activated when this pin is driven low.

When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB2. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB2 bit.

OC1B, Output Compare Match output: The PB2 pin can serve as an external output for the

Timer/Counter1 Compare Match B. The PB2 pin has to be configured as an output (DDB2 set

(one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer function.

• OC1A – Port B, Bit 1

OC1A, Output Compare Match output: The PB1 pin can serve as an external output for the

Timer/Counter1 Compare Match A. The PB1 pin has to be configured as an output (DDB1 set

(one)) to serve this function. The OC1A pin is also the output pin for the PWM mode timer function.

• ICP1 – Port B, Bit 0

ICP1 – Input Capture Pin: The PB0 pin can act as an Input Capture Pin for Timer/Counter1.

Table 23

and

Table 24

relate the alternate functions of Port B to the overriding signals shown in

Figure 25 on page 56

. SPI MSTR INPUT and SPI SLAVE OUTPUT constitute the MISO signal, while MOSI is divided into SPI MSTR OUTPUT and SPI SLAVE INPUT.

59

Table 23. Overriding Signals for Alternate Functions in PB7..PB4

Signal

Name

PB7/XTAL2/

TOSC2

(1)(2)

PUOE EXT • (INTRC +

AS2)

PUO 0

PB6/XTAL1/

TOSC1

(1)

INTRC + AS2

0

PB5/SCK

SPE • MSTR

PB4/MISO

SPE • MSTR

PORTB5 • PUD PORTB4 • PUD

SPE • MSTR SPE • MSTR DDOE EXT • (INTRC +

AS2)

DDOV

PVOE

DI

AIO

0

0

PVOV 0

DIEOE EXT • (INTRC +

AS2)

DIEOV 0

INTRC + AS2

0

0

0

INTRC + AS2

0

Oscillator Output Oscillator/Clock

Input

0

SPE • MSTR

SCK OUTPUT

0

0

SCK INPUT

0

SPE • MSTR

SPI SLAVE OUTPUT

0

0

SPI MSTR INPUT

Notes: 1. INTRC means that the internal RC Oscillator is selected (by the CKSEL Fuse).

2. EXT means that the external RC Oscillator or an external clock is selected (by the CKSEL

Fuse).

Table 24. Overriding Signals for Alternate Functions in PB3..PB0

Signal

Name PB3/MOSI/OC2 PB2/SS/OC1B PB1/OC1A

PUOE

PUO

SPE • MSTR

PORTB3 • PUD

DDOE SPE • MSTR

DDOV 0

PVOE SPE • MSTR +

OC2 ENABLE

SPE • MSTR 0

PORTB2 • PUD 0

SPE • MSTR

0

0

0

OC1B ENABLE OC1A ENABLE 0

0

0

PB0/ICP1

0

0

PVOV SPI MSTR OUTPUT + OC2 OC1B

DIEOE 0 0

DIEOV 0

DI SPI SLAVE INPUT

AIO –

0

SPI SS

0

OC1A

0

0

0

0

ICP1 INPUT

60

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Alternate Functions of

Port C

The Port C pins with alternate functions are shown in Table 25 .

Table 25. Port C Pins Alternate Functions

Port Pin Alternate Function

PC6

PC5

PC4

PC3

PC2

PC1

PC0

RESET (Reset pin)

ADC5 (ADC Input Channel 5)

SCL (Two-wire Serial Bus Clock Line)

ADC4 (ADC Input Channel 4)

SDA (Two-wire Serial Bus Data Input/Output Line)

ADC3 (ADC Input Channel 3)

ADC2 (ADC Input Channel 2)

ADC1 (ADC Input Channel 1)

ADC0 (ADC Input Channel 0)

The alternate pin configuration is as follows:

• RESET – Port C, Bit 6

RESET, Reset pin: When the RSTDISBL Fuse is programmed, this pin functions as a normal I/O pin, and the part will have to rely on Power-on Reset and Brown-out Reset as its reset sources.

When the RSTDISBL Fuse is unprogrammed, the reset circuitry is connected to the pin, and the pin can not be used as an I/O pin.

If PC6 is used as a reset pin, DDC6, PORTC6 and PINC6 will all read 0.

• SCL/ADC5 – Port C, Bit 5

SCL, Two-wire Serial Interface Clock: When the TWEN bit in TWCR is set (one) to enable the

Two-wire Serial Interface, pin PC5 is disconnected from the port and becomes the Serial Clock

I/O pin for the Two-wire Serial Interface. In this mode, there is a spike filter on the pin to suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain driver with slew-rate limitation.

PC5 can also be used as ADC input Channel 5. Note that ADC input channel 5 uses digital power.

• SDA/ADC4 – Port C, Bit 4

SDA, Two-wire Serial Interface Data: When the TWEN bit in TWCR is set (one) to enable the

Two-wire Serial Interface, pin PC4 is disconnected from the port and becomes the Serial Data

I/O pin for the Two-wire Serial Interface. In this mode, there is a spike filter on the pin to suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain driver with slew-rate limitation.

PC4 can also be used as ADC input Channel 4. Note that ADC input channel 4 uses digital power.

• ADC3 – Port C, Bit 3

PC3 can also be used as ADC input Channel 3. Note that ADC input channel 3 uses analog power.

• ADC2 – Port C, Bit 2

PC2 can also be used as ADC input Channel 2. Note that ADC input channel 2 uses analog power.

• ADC1 – Port C, Bit 1

61

2486W–AVR–02/10

PC1 can also be used as ADC input Channel 1. Note that ADC input channel 1 uses analog power.

• ADC0 – Port C, Bit 0

PC0 can also be used as ADC input Channel 0. Note that ADC input channel 0 uses analog power.

Table 26

and

Table 27 relate the alternate functions of Port C to the overriding signals shown in

Figure 25 on page 56

.

Table 26. Overriding Signals for Alternate Functions in PC6..PC4

Signal Name PC6/RESET

PUOE RSTDISBL

PC5/SCL/ADC5

TWEN

PC4/SDA/ADC4

TWEN

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

DI

AIO

0

0

1

RSTDISBL

PORTC5 • PUD

TWEN

SCL_OUT

TWEN

PORTC4 • PUD

TWEN

SDA_OUT

TWEN

0

0

RSTDISBL

0

0

0

0

0

0

RESET INPUT ADC5 INPUT / SCL INPUT ADC4 INPUT / SDA INPUT

Table 27. Overriding Signals for Alternate Functions in PC3..PC0

(1)

Signal Name PC3/ADC3 PC2/ADC2 PC1/ADC1

PUOE

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

PC0/ADC0

0

0

0

0

0

0

0

0

DI – – – –

AIO ADC3 INPUT ADC2 INPUT ADC1 INPUT ADC0 INPUT

Note: 1. When enabled, the Two-wire Serial Interface enables slew-rate controls on the output pins

PC4 and PC5. This is not shown in the figure. In addition, spike filters are connected between the AIO outputs shown in the port figure and the digital logic of the TWI module.

62

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Alternate Functions of

Port D

The Port D pins with alternate functions are shown in Table 28 .

Table 28. Port D Pins Alternate Functions

Port Pin Alternate Function

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

AIN1 (Analog Comparator Negative Input)

AIN0 (Analog Comparator Positive Input)

T1 (Timer/Counter 1 External Counter Input)

XCK (USART External Clock Input/Output)

T0 (Timer/Counter 0 External Counter Input)

INT1 (External Interrupt 1 Input)

INT0 (External Interrupt 0 Input)

TXD (USART Output Pin)

RXD (USART Input Pin)

The alternate pin configuration is as follows:

• AIN1 – Port D, Bit 7

AIN1, Analog Comparator Negative Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog

Comparator.

• AIN0 – Port D, Bit 6

AIN0, Analog Comparator Positive Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog

Comparator.

• T1 – Port D, Bit 5

T1, Timer/Counter1 counter source.

• XCK/T0 – Port D, Bit 4

XCK, USART external clock.

T0, Timer/Counter0 counter source.

• INT1 – Port D, Bit 3

INT1, External Interrupt source 1: The PD3 pin can serve as an external interrupt source.

• INT0 – Port D, Bit 2

INT0, External Interrupt source 0: The PD2 pin can serve as an external interrupt source.

• TXD – Port D, Bit 1

TXD, Transmit Data (Data output pin for the USART). When the USART Transmitter is enabled, this pin is configured as an output regardless of the value of DDD1.

• RXD – Port D, Bit 0

RXD, Receive Data (Data input pin for the USART). When the USART Receiver is enabled this pin is configured as an input regardless of the value of DDD0. When the USART forces this pin to be an input, the pull-up can still be controlled by the PORTD0 bit.

Table 29

and

Table 30 relate the alternate functions of Port D to the overriding signals shown in

Figure 25 on page 56

.

63

2486W–AVR–02/10

Table 29. Overriding Signals for Alternate Functions PD7..PD4

Signal Name PD7/AIN1 PD6/AIN0 PD5/T1 PD4/XCK/T0

PUOE

PUO

OOE

OO

PVOE

PVO

DIEOE

DIEO

DI

AIO

0

0

0

0

0

0

0

0

AIN1 INPUT

0

0

0

0

0

0

0

0

AIN0 INPUT

0

0

0

0

0

0

0

0

T1 INPUT

0

0

0

0

0

0

UMSEL

XCK OUTPUT

XCK INPUT / T0 INPUT

Table 30. Overriding Signals for Alternate Functions in PD3..PD0

Signal Name

PUOE

PD3/INT1

0

PD2/INT0

0

PD1/TXD

TXEN

PUO

OOE

OO

PVOE

PVO

DIEOE

DIEO

DI

AIO

0

0

0

0

0

INT1 ENABLE

1

INT1 INPUT

0

0

0

0

0

INT0 ENABLE

1

INT0 INPUT

0

TXEN

1

TXEN

0

TXD

0

0

0

0

0

PD0/RXD

RXEN

PORTD0 • PUD

RXEN

0

RXD

64

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Register Description for I/O Ports

The Port B Data

Register – PORTB

Bit

Read/Write

Initial Value

7

PORTB7

R/W

0

6

PORTB6

R/W

0

5

PORTB5

R/W

0

4

PORTB4

R/W

0

3

PORTB3

R/W

0

2

PORTB2

R/W

0

1

PORTB1

R/W

0

0

PORTB0

R/W

0

PORTB

The Port B Data

Direction Register –

DDRB

Bit

Read/Write

Initial Value

7

DDB7

R/W

0

6

DDB6

R/W

0

5

DDB5

R/W

0

4

DDB4

R/W

0

3

DDB3

R/W

0

2

DDB2

R/W

0

1

DDB1

R/W

0

0

DDB0

R/W

0

DDRB

The Port B Input Pins

Address – PINB

Bit

Read/Write

Initial Value

7

PINB7

R

N/A

6

PINB6

R

N/A

5

PINB5

R

N/A

4

PINB4

R

N/A

3

PINB3

R

N/A

2

PINB2

R

N/A

1

PINB1

R

N/A

0

PINB0

R

N/A

PINB

The Port C Data

Register – PORTC

Bit

Read/Write

Initial Value

R

0

7

6

PORTC6

R/W

0

5

PORTC5

R/W

0

4

PORTC4

R/W

0

3

PORTC3

R/W

0

2

PORTC2

R/W

0

1

PORTC1

R/W

0

0

PORTC0

R/W

0

PORTC

The Port C Data

Direction Register –

DDRC

Bit

Read/Write

Initial Value

R

0

7

6

DDC6

R/W

0

5

DDC5

R/W

0

4

DDC4

R/W

0

3

DDC3

R/W

0

2

DDC2

R/W

0

1

DDC1

R/W

0

0

DDC0

R/W

0

DDRC

The Port C Input Pins

Address – PINC

Bit

Read/Write

Initial Value

R

0

7

6

PINC6

R

N/A

5

PINC5

R

N/A

4

PINC4

R

N/A

3

PINC3

R

N/A

2

PINC2

R

N/A

1

PINC1

R

N/A

0

PINC0

R

N/A

PINC

The Port D Data

Register – PORTD

Bit

Read/Write

Initial Value

7

PORTD7

R/W

0

6

PORTD6

R/W

0

5

PORTD5

R/W

0

4

PORTD4

R/W

0

3

PORTD3

R/W

0

2

PORTD2

R/W

0

1

PORTD1

R/W

0

0

PORTD0

R/W

0

PORTD

The Port D Data

Direction Register –

DDRD

Bit

Read/Write

Initial Value

7

DDD7

R/W

0

6

DDD6

R/W

0

5

DDD5

R/W

0

4

DDD4

R/W

0

3

DDD3

R/W

0

2

DDD2

R/W

0

1

DDD1

R/W

0

0

DDD0

R/W

0

DDRD

The Port D Input Pins

Address – PIND

Bit

Read/Write

Initial Value

7

PIND7

R

N/A

6

PIND6

R

N/A

5

PIND5

R

N/A

4

PIND4

R

N/A

3

PIND3

R

N/A

2

PIND2

R

N/A

1

PIND1

R

N/A

0

PIND0

R

N/A

PIND

65

2486W–AVR–02/10

External

Interrupts

The external interrupts are triggered by the INT0, and INT1 pins. Observe that, if enabled, the interrupts will trigger even if the INT0..1 pins are configured as outputs. This feature provides a way of generating a software interrupt. The external interrupts can be triggered by a falling or rising edge or a low level. This is set up as indicated in the specification for the MCU Control

Register – MCUCR. When the external interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT0 and INT1 requires the presence of an I/O clock, described in

“Clock

Systems and their Distribution” on page 25 . Low level interrupts on INT0/INT1 are detected

asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode. The I/O clock is halted in all sleep modes except Idle mode.

Note that if a level triggered interrupt is used for wake-up from Power-down mode, the changed level must be held for some time to wake up the MCU. This makes the MCU less sensitive to noise. The changed level is sampled twice by the Watchdog Oscillator clock. The period of the

Watchdog Oscillator is 1 µs (nominal) at 5.0V and 25

°C. The frequency of the Watchdog Oscillator is voltage dependent as shown in

“Electrical Characteristics” on page 242 . The MCU will

wake up if the input has the required level during this sampling or if it is held until the end of the start-up time. The start-up time is defined by the SUT Fuses as described in

“System Clock and

Clock Options” on page 25

. If the level is sampled twice by the Watchdog Oscillator clock but disappears before the end of the start-up time, the MCU will still wake up, but no interrupt will be generated. The required level must be held long enough for the MCU to complete the wake up to trigger the level interrupt.

MCU Control Register

– MCUCR

The MCU Control Register contains control bits for interrupt sense control and general MCU functions.

Bit

Read/Write

Initial Value

7

SE

R/W

0

6

SM2

R/W

0

5

SM1

R/W

0

4

SM0

R/W

0

3

ISC11

R/W

0

2

ISC10

R/W

0

1

ISC01

R/W

0

0

ISC00

R/W

0

MCUCR

• Bit 3, 2 – ISC11, ISC10: Interrupt Sense Control 1 Bit 1 and Bit 0

The External Interrupt 1 is activated by the external pin INT1 if the SREG I-bit and the corresponding interrupt mask in the GICR are set. The level and edges on the external INT1 pin that activate the interrupt are defined in

Table 31

. The value on the INT1 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 31. Interrupt 1 Sense Control

ISC11 ISC10 Description

1

1

0

0

0

1

0

1

The low level of INT1 generates an interrupt request.

Any logical change on INT1 generates an interrupt request.

The falling edge of INT1 generates an interrupt request.

The rising edge of INT1 generates an interrupt request.

66

ATmega8(L)

2486W–AVR–02/10

General Interrupt

Control Register –

GICR

ATmega8(L)

• Bit 1, 0 – ISC01, ISC00: Interrupt Sense Control 0 Bit 1 and Bit 0

The External Interrupt 0 is activated by the external pin INT0 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT0 pin that activate the interrupt are defined in

Table 32

. The value on the INT0 pin is sampled before detecting edges.

If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 32. Interrupt 0 Sense Control

ISC01 ISC00 Description

1

1

0

0

0

1

0

1

The low level of INT0 generates an interrupt request.

Any logical change on INT0 generates an interrupt request.

The falling edge of INT0 generates an interrupt request.

The rising edge of INT0 generates an interrupt request.

Bit

Read/Write

Initial Value

7

INT1

R/W

0

6

INT0

R/W

0

R

0

5

R

0

4

R

0

3

R

0

2

1

IVSEL

R/W

0

0

IVCE

R/W

0

GICR

• Bit 7 – INT1: External Interrupt Request 1 Enable

When the INT1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control1 bits 1/0 (ISC11 and ISC10) in the MCU general Control Register (MCUCR) define whether the external interrupt is activated on rising and/or falling edge of the INT1 pin or level sensed. Activity on the pin will cause an interrupt request even if INT1 is configured as an output. The corresponding interrupt of External Interrupt

Request 1 is executed from the INT1 Interrupt Vector.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU general Control Register (MCUCR) define whether the external interrupt is activated on rising and/or falling edge of the INT0 pin or level sensed. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt

Request 0 is executed from the INT0 Interrupt Vector.

67

2486W–AVR–02/10

General Interrupt Flag

Register – GIFR

Bit

Read/Write

Initial Value

7

INTF1

R/W

0

6

INTF0

R/W

0

R

0

5

R

0

4

R

0

3

R

0

2

R

0

1

R

0

0

– GIFR

• Bit 7 – INTF1: External Interrupt Flag 1

When an event on the INT1 pin triggers an interrupt request, INTF1 becomes set (one). If the Ibit in SREG and the INT1 bit in GICR are set (one), the MCU will jump to the corresponding

Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT1 is configured as a level interrupt.

• Bit 6 – INTF0: External Interrupt Flag 0

When an event on the INT0 pin triggers an interrupt request, INTF0 becomes set (one). If the Ibit in SREG and the INT0 bit in GICR are set (one), the MCU will jump to the corresponding

Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT0 is configured as a level interrupt.

68

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

8-bit

Timer/Counter0

Timer/Counter0 is a general purpose, single channel, 8-bit Timer/Counter module. The main features are:

Single Channel Counter

Frequency Generator

External Event Counter

10-bit Clock Prescaler

Overview

A simplified block diagram of the 8-bit Timer/Counter is shown in Figure 26

. For the actual placement of I/O pins, refer to

“Pin Configurations” on page 2 . CPU accessible I/O Registers,

including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit loca-

tions are listed in the “8-bit Timer/Counter Register Description” on page 72 .

Figure 26. 8-bit Timer/Counter Block Diagram

TCCRn count

Control Logic clk

Tn

Clock Select

Edge

Detector

( From Prescaler )

TOVn

(Int.Req.)

Tn

Timer/Counter

TCNTn

=

0xFF

Registers

Definitions

The Timer/Counter (TCNT0) is an 8-bit register. Interrupt request (abbreviated to Int. Req. in the figure) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure since these registers are shared by other timer units.

The Timer/Counter can be clocked internally or via the prescaler, or by an external clock source on the T0 pin. The Clock Select logic block controls which clock source and edge the

Timer/Counter uses to increment its value. The Timer/Counter is inactive when no clock source is selected. The output from the clock select logic is referred to as the timer clock (clk

T0

).

Many register and bit references in this document are written in general form. A lower case “n” replaces the Timer/Counter number, in this case 0. However, when using the register or bit defines in a program, the precise form must be used i.e. TCNT0 for accessing Timer/Counter0 counter value and so on.

The definitions in Table 33

are also used extensively throughout this datasheet.

Table 33. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0x00

MAX The counter reaches its MAXimum when it becomes 0xFF (decimal 255)

69

2486W–AVR–02/10

Timer/Counter

Clock Sources

Counter Unit

Operation

The Timer/Counter can be clocked by an internal or an external clock source. The clock source is selected by the clock select logic which is controlled by the clock select (CS02:0) bits located in the Timer/Counter Control Register (TCCR0). For details on clock sources and prescaler, see

“Timer/Counter0 and Timer/Counter1 Prescalers” on page 74

.

The main part of the 8-bit Timer/Counter is the programmable counter unit.

Figure 27

shows a block diagram of the counter and its surroundings.

Figure 27. Counter Unit Block Diagram

DATA BUS

TOVn

(Int. Req.)

TCNTn count

Control Logic clk

Tn

Clock Select

Edge

Detector

Tn

( From Prescaler ) max

Signal description (internal signals):

count

Increment TCNT0 by 1.

clk

Tn

max

Timer/Counter clock, referred to as clk

T0

in the following.

Signalize that TCNT0 has reached maximum value.

The counter is incremented at each timer clock (clk

T0

). clk

T0

can be generated from an external or internal clock source, selected by the clock select bits (CS02:0). When no clock source is selected (CS02:0 = 0) the timer is stopped. However, the TCNT0 value can be accessed by the

CPU, regardless of whether clk

T0 counter clear or count operations.

is present or not. A CPU write overrides (has priority over) all

The counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 8-bit value (MAX = 0xFF) and then restarts from the bottom (0x00). In normal operation the Timer/Counter Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0 becomes zero. The TOV0 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. A new counter value can be written anytime.

70

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Timer/Counter

Timing Diagrams

The Timer/Counter is a synchronous design and the timer clock (clk

T0

) is therefore shown as a clock enable signal in the following figures. The figures include information on when Interrupt

Flags are set.

Figure 28

contains timing data for basic Timer/Counter operation. The figure shows the count sequence close to the MAX value.

Figure 28. Timer/Counter Timing Diagram, No Prescaling

clk

I/O

clk

(clk

Tn

/1)

I/O

TCNTn

MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

Figure 29 shows the same timing data, but with the prescaler enabled.

Figure 29. Timer/Counter Timing Diagram, with Prescaler (f clk_I/O

/8)

clk

I/O

clk

(clk

I/O

Tn

/8)

TCNTn

MAX - 1 MAX BOTTOM

TOVn

BOTTOM + 1

71

2486W–AVR–02/10

8-bit

Timer/Counter

Register

Description

Timer/Counter Control

Register – TCCR0

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

R

0

3

2

CS02

R/W

0

1

CS01

R/W

0

0

CS00

R/W

0

TCCR0

1

1

1

0

1

0

0

• Bit 2:0 – CS02:0: Clock Select

The three clock select bits select the clock source to be used by the Timer/Counter.

Table 34. Clock Select Bit Description

CS02

0

CS01

0

CS00

0

Description

No clock source (Timer/Counter stopped).

0

1

1

1

0

0

1

1

0

1

1

0

1

0 clk

I/O

/(No prescaling) clk

I/O

/8 (From prescaler) clk

I/O

/64 (From prescaler) clk

I/O

/256 (From prescaler) clk

I/O

/1024 (From prescaler)

External clock source on T0 pin. Clock on falling edge.

External clock source on T0 pin. Clock on rising edge.

If external pin modes are used for the Timer/Counter0, transitions on the T0 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

Timer/Counter

Register – TCNT0

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

TCNT0[7:0]

R/W

0

R/W

0

2

R/W

0

1

R/W

0

0

R/W

0

TCNT0

The Timer/Counter Register gives direct access, both for read and write operations, to the

Timer/Counter unit 8-bit counter.

Timer/Counter

Interrupt Mask

Register – TIMSK

Bit

Read/Write

Initial Value

7

OCIE2

R/W

0

6

TOIE2

R/W

0

5

TICIE1

R/W

0

4

OCIE1A

R/W

0

3

OCIE1B

R/W

0

2

TOIE1

R/W

0

1

R/W

0

0

TOIE0

R/W

0

TIMSK

• Bit 0 – TOIE0: Timer/Counter0 Overflow Interrupt Enable

When the TOIE0 bit is written to one, and the I-bit in the Status Register is set (one), the

Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter0 occurs, i.e., when the TOV0 bit is set in the Timer/Counter Interrupt

Flag Register – TIFR.

72

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Timer/Counter

Interrupt Flag Register

– TIFR

Bit

Read/Write

Initial Value

7

OCF2

R/W

0

6

TOV2

R/W

0

5

ICF1

R/W

0

4

OCF1A

R/W

0

3

OCF1B

R/W

0

2

TOV1

R/W

0

1

R/W

0

0

TOV0

R/W

0

TIFR

• Bit 0 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set (one) when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, TOV0 is cleared by writing a logic one to the flag. When the SREG I-bit, TOIE0 (Timer/Counter0 Overflow

Interrupt Enable), and TOV0 are set (one), the Timer/Counter0 Overflow interrupt is executed.

2486W–AVR–02/10

73

Timer/Counter0 and

Timer/Counter1

Prescalers

Timer/Counter1 and Timer/Counter0 share the same prescaler module, but the Timer/Counters can have different prescaler settings. The description below applies to both Timer/Counter1 and

Timer/Counter0.

Internal Clock Source

The Timer/Counter can be clocked directly by the system clock (by setting the CSn2:0 = 1). This provides the fastest operation, with a maximum Timer/Counter clock frequency equal to system clock frequency (f

CLK_I/O

). Alternatively, one of four taps from the prescaler can be used as a clock source. The prescaled clock has a frequency of either f

CLK_I/O

/8, f

CLK_I/O

/64, f

CLK_I/O

/256, or f

CLK_I/O

/1024.

Prescaler Reset

The prescaler is free running (i.e., operates independently of the clock select logic of the

Timer/Counter) and it is shared by Timer/Counter1 and Timer/Counter0. Since the prescaler is not affected by the Timer/Counter’s clock select, the state of the prescaler will have implications for situations where a prescaled clock is used. One example of prescaling artifacts occurs when the timer is enabled and clocked by the prescaler (6 > CSn2:0 > 1). The number of system clock cycles from when the timer is enabled to the first count occurs can be from 1 to N+1 system clock cycles, where N equals the prescaler divisor (8, 64, 256, or 1024).

It is possible to use the prescaler reset for synchronizing the Timer/Counter to program execution. However, care must be taken if the other Timer/Counter that shares the same prescaler also uses prescaling. A prescaler reset will affect the prescaler period for all Timer/Counters it is connected to.

External Clock Source

An external clock source applied to the T1/T0 pin can be used as Timer/Counter clock

(clk

T1

/clk

T0

). The T1/T0 pin is sampled once every system clock cycle by the pin synchronization

logic. The synchronized (sampled) signal is then passed through the edge detector. Figure 30

shows a functional equivalent block diagram of the T1/T0 synchronization and edge detector logic. The registers are clocked at the positive edge of the internal system clock ( clk

I/O

). The latch is transparent in the high period of the internal system clock.

The edge detector generates one clk

T1

(CSn2:0 = 6) edge it detects.

/clk

T 0

pulse for each positive (CSn2:0 = 7) or negative

Figure 30. T1/T0 Pin Sampling

74

Tn

D Q

LE

D Q D Q

Tn_sync

(To Clock

Select Logic) clk

I/O

Synchronization Edge Detector

The synchronization and edge detector logic introduces a delay of 2.5 to 3.5 system clock cycles from an edge has been applied to the T1/T0 pin to the counter is updated.

Enabling and disabling of the clock input must be done when T1/T0 has been stable for at least one system clock cycle, otherwise it is a risk that a false Timer/Counter clock pulse is generated.

Each half period of the external clock applied must be longer than one system clock cycle to ensure correct sampling. The external clock must be guaranteed to have less than half the system clock frequency (f

ExtClk

< f clk_I/O

/2) given a 50/50% duty cycle. Since the edge detector uses

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

sampling, the maximum frequency of an external clock it can detect is half the sampling frequency (Nyquist sampling theorem). However, due to variation of the system clock frequency and duty cycle caused by Oscillator source (crystal, resonator, and capacitors) tolerances, it is recommended that maximum frequency of an external clock source is less than f clk_I/O

/2.5.

An external clock source can not be prescaled.

Figure 31. Prescaler for Timer/Counter0 and Timer/Counter1

(1)

clk

I/O

Clear

PSR10

T0

T1

Synchronization

Synchronization

clk

T1 clk

T0

Note: 1. The synchronization logic on the input pins (

T1/T0) is shown in

Figure 30

.

Special Function IO

Register – SFIOR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

ACME

R/W

0

2

PUD

R/W

0

1

PSR2

R/W

0

0

PSR10

R/W

0

SFIOR

• Bit 0 – PSR10: Prescaler Reset Timer/Counter1 and Timer/Counter0

When this bit is written to one, the Timer/Counter1 and Timer/Counter0 prescaler will be reset.

The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. Note that Timer/Counter1 and Timer/Counter0 share the same prescaler and a reset of this prescaler will affect both timers. This bit will always be read as zero.

75

2486W–AVR–02/10

16-bit

Timer/Counter1

The 16-bit Timer/Counter unit allows accurate program execution timing (event management), wave generation, and signal timing measurement. The main features are:

True 16-bit Design (i.e., allows 16-bit PWM)

Two Independent Output Compare Units

Double Buffered Output Compare Registers

One Input Capture Unit

Input Capture Noise Canceler

Clear Timer on Compare Match (Auto Reload)

Glitch-free, Phase Correct Pulse Width Modulator (PWM)

Variable PWM Period

Frequency Generator

External Event Counter

Four Independent Interrupt Sources (TOV1, OCF1A, OCF1B, and ICF1)

Overview

Most register and bit references in this section are written in general form. A lower case “n” replaces the Timer/Counter number, and a lower case “x” replaces the Output Compare unit channel. However, when using the register or bit defines in a program, the precise form must be used i.e., TCNT1 for accessing Timer/Counter1 counter value and so on.

A simplified block diagram of the 16-bit Timer/Counter is shown in

Figure 32

. For the actual

placement of I/O pins, refer to “Pin Configurations” on page 2 . CPU accessible I/O Registers,

including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit loca-

tions are listed in the “16-bit Timer/Counter Register Description” on page 96 .

76

ATmega8(L)

2486W–AVR–02/10

Registers

2486W–AVR–02/10

ATmega8(L)

Figure 32. 16-bit Timer/Counter Block Diagram

(1)

Count

Clear

Direction

Control Logic clk

Tn

TOP BOTTOM

Timer/Counter

TCNTn

= =

0

=

OCRnA

=

OCRnB

ICRn

TCCRnA

TOVn

(Int. Req.)

Clock Select

Edge

Detector

( From Prescaler )

Tn

OCFnA

(Int. Req.)

Waveform

Generation

OCnA

Fixed

TOP

Values

TCCRnB

ICFn (Int.Req.)

Edge

Detector

OCFnB

(Int.Req.)

Waveform

Generation

OCnB

( From Analog

Comparator Ouput )

Noise

Canceler

ICPn

Note:

1. Refer to “Pin Configurations” on page 2 ,

Table 22 on page 58

, and Table 28 on page 63

for

Timer/Counter1 pin placement and description.

The Timer/Counter (TCNT1), Output Compare Registers (OCR1A/B), and Input Capture Regis-

ter (ICR1) are all 16-bit registers. Special procedures must be followed when accessing the 16bit registers. These procedures are described in the section

“Accessing 16-bit Registers” on page 79

. The Timer/Counter Control Registers (TCCR1A/B) are 8-bit registers and have no CPU access restrictions. Interrupt requests (abbreviated to Int.Req. in the figure) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer

Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure since these registers are shared by other timer units.

The Timer/Counter can be clocked internally, via the prescaler, or by an external clock source on the T1 pin. The Clock Select logic block controls which clock source and edge the Timer/Counter uses to increment (or decrement) its value. The Timer/Counter is inactive when no clock source is selected. The output from the clock select logic is referred to as the timer clock (clk

T 1

).

The double buffered Output Compare Registers (OCR1A/B) are compared with the Timer/Counter value at all time. The result of the compare can be used by the waveform generator to generate a PWM or variable frequency output on the Output Compare Pin (OC1A/B).

See “Output Compare Units” on page 84.

The Compare Match event will also set the Compare Match

Flag (OCF1A/B) which can be used to generate an Output Compare interrupt request.

77

Definitions

Compatibility

The Input Capture Register can capture the Timer/Counter value at a given external (edge trig-

gered) event on either the Input Capture Pin (ICP1) or on the Analog Comparator pins (see

“Analog Comparator” on page 193). The Input Capture unit includes a digital filtering unit (Noise

Canceler) for reducing the chance of capturing noise spikes.

The TOP value, or maximum Timer/Counter value, can in some modes of operation be defined by either the OCR1A Register, the ICR1 Register, or by a set of fixed values. When using

OCR1A as TOP value in a PWM mode, the OCR1A Register can not be used for generating a

PWM output. However, the TOP value will in this case be double buffered allowing the TOP value to be changed in run time. If a fixed TOP value is required, the ICR1 Register can be used as an alternative, freeing the OCR1A to be used as PWM output.

The following definitions are used extensively throughout the document:

Table 35. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0x0000.

MAX

TOP

The counter reaches its MAXimum when it becomes 0xFFFF (decimal

65535).

The counter reaches the TOP when it becomes equal to the highest value in the count sequence. The TOP value can be assigned to be one of the fixed values: 0x00FF, 0x01FF, or 0x03FF, or to the value stored in the OCR1A or ICR1 Register. The assignment is dependent of the mode of operation.

The 16-bit Timer/Counter has been updated and improved from previous versions of the 16-bit

AVR Timer/Counter. This 16-bit Timer/Counter is fully compatible with the earlier version regarding:

• All 16-bit Timer/Counter related I/O Register address locations, including Timer Interrupt

Registers.

• Bit locations inside all 16-bit Timer/Counter Registers, including Timer Interrupt Registers.

• Interrupt Vectors.

The following control bits have changed name, but have same functionality and register location:

• PWM10 is changed to WGM10.

• PWM11 is changed to WGM11.

• CTC1 is changed to WGM12.

The following bits are added to the 16-bit Timer/Counter Control Registers:

• FOC1A and FOC1B are added to TCCR1A.

• WGM13 is added to TCCR1B.

The 16-bit Timer/Counter has improvements that will affect the compatibility in some special cases.

78

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Accessing 16-bit

Registers

The TCNT1, OCR1A/B, and ICR1 are 16-bit registers that can be accessed by the AVR CPU via the 8-bit data bus. The 16-bit register must be byte accessed using two read or write operations.

The 16-bit timer has a single 8-bit register for temporary storing of the High byte of the 16-bit access. The same temporary register is shared between all 16-bit registers within the 16-bit timer. Accessing the Low byte triggers the 16-bit read or write operation. When the Low byte of a

16-bit register is written by the CPU, the High byte stored in the temporary register, and the Low byte written are both copied into the 16-bit register in the same clock cycle. When the Low byte of a 16-bit register is read by the CPU, the High byte of the 16-bit register is copied into the temporary register in the same clock cycle as the Low byte is read.

Not all 16-bit accesses uses the temporary register for the High byte. Reading the OCR1A/B 16bit registers does not involve using the temporary register.

To do a 16-bit write, the High byte must be written before the Low byte. For a 16-bit read, the

Low byte must be read before the High byte.

The following code examples show how to access the 16-bit Timer Registers assuming that no interrupts updates the temporary register. The same principle can be used directly for accessing the OCR1A/B and ICR1 Registers. Note that when using “C”, the compiler handles the 16-bit access.

Assembly Code Example

(1)

...

; Set TCNT1 to 0x01FF

ldi

r17,0x01

ldi

r16,0xFF

out

TCNT1H,r17

out

TCNT1L,r16

; Read TCNT1 into r17:r16

in

r16,TCNT1L

in

r17,TCNT1H

...

C Code Example

(1)

unsigned int

i;

...

/* Set TCNT1 to 0x01FF */

TCNT

1 = 0x1FF;

/* Read TCNT1 into i */ i = TCNT

1;

...

Note:

1. See “About Code Examples” on page 8.

The assembly code example returns the TCNT1 value in the r17:r16 Register pair.

It is important to notice that accessing 16-bit registers are atomic operations. If an interrupt occurs between the two instructions accessing the 16-bit register, and the interrupt code updates the temporary register by accessing the same or any other of the 16-bit Timer Registers, then the result of the access outside the interrupt will be corrupted. Therefore, when both the main code and the interrupt code update the temporary register, the main code must disable the interrupts during the 16-bit access.

79

2486W–AVR–02/10

The following code examples show how to do an atomic read of the TCNT1 Register contents.

Reading any of the OCR1A/B or ICR1 Registers can be done by using the same principle.

Assembly Code Example

(1)

TIM16_ReadTCNT1:

; Save Global Interrupt Flag

in

r18,SREG

; Disable interrupts

cli

; Read TCNT1 into r17:r16

in

r16,TCNT1L

in

r17,TCNT1H

; Restore Global Interrupt Flag

out

SREG,r18

ret

C Code Example

(1)

unsigned int

TIM16_ReadTCNT1( void )

{

unsigned char

sreg;

unsigned int

i;

/* Save Global Interrupt Flag */ sreg = SREG;

/* Disable interrupts */

_CLI();

/* Read TCNT1 into i */ i = TCNT

1;

/* Restore Global Interrupt Flag */

SREG = sreg;

return

i;

}

Note:

1. See “About Code Examples” on page 8.

The assembly code example returns the TCNT1 value in the r17:r16 Register pair.

80

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

The following code examples show how to do an atomic write of the TCNT1 Register contents.

Writing any of the OCR1A/B or ICR1 Registers can be done by using the same principle.

Assembly Code Example

(1)

TIM16_WriteTCNT1:

; Save Global Interrupt Flag

in

r18,SREG

; Disable interrupts

cli

; Set TCNT1 to r17:r16

out

TCNT1H,r17

out

TCNT1L,r16

; Restore Global Interrupt Flag

out

SREG,r18

ret

C Code Example

(1)

void

TIM16_WriteTCNT1( unsigned int i )

{

unsigned char

sreg;

unsigned int

i;

/* Save Global Interrupt Flag */ sreg = SREG;

/* Disable interrupts */

_CLI();

/* Set TCNT1 to i */

TCNT

1 = i;

/* Restore Global Interrupt Flag */

SREG = sreg;

}

Note:

1. See “About Code Examples” on page 8.

The assembly code example requires that the r17:r16 Register pair contains the value to be written to TCNT1.

Reusing the

Temporary High Byte

Register

If writing to more than one 16-bit register where the High byte is the same for all registers written, then the High byte only needs to be written once. However, note that the same rule of atomic operation described previously also applies in this case.

81

2486W–AVR–02/10

Timer/Counter

Clock Sources

Counter Unit

82

The Timer/Counter can be clocked by an internal or an external clock source. The clock source is selected by the clock select logic which is controlled by the clock select (CS12:0) bits located in the Timer/Counter Control Register B (TCCR1B). For details on clock sources and prescaler, see

“Timer/Counter0 and Timer/Counter1 Prescalers” on page 74 .

The main part of the 16-bit Timer/Counter is the programmable 16-bit bi-directional counter unit.

Figure 33 shows a block diagram of the counter and its surroundings.

Figure 33. Counter Unit Block Diagram

DATA BUS

(8-bit)

TOVn

(Int. Req.)

TEMP (8-bit)

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter) count clear direction

Control Logic clk

Tn

Clock Select

Edge

Detector

Tn

( From Prescaler )

TOP BOTTOM

Signal description (internal signals):

count

Increment or decrement TCNT1 by 1.

direction

Select between increment and decrement.

clear

Clear TCNT1 (set all bits to zero).

clk

T 1

TOP

Timer/Counter clock.

Signalize that TCNT1 has reached maximum value.

BOTTOM

Signalize that TCNT1 has reached minimum value (zero).

The 16-bit counter is mapped into two 8-bit I/O memory locations: counter high (TCNT1H) containing the upper eight bits of the counter, and Counter Low (TCNT1L) containing the lower eight bits. The TCNT1H Register can only be indirectly accessed by the CPU. When the CPU does an access to the TCNT1H I/O location, the CPU accesses the High byte temporary register

(TEMP). The temporary register is updated with the TCNT1H value when the TCNT1L is read, and TCNT1H is updated with the temporary register value when TCNT1L is written. This allows the CPU to read or write the entire 16-bit counter value within one clock cycle via the 8-bit data bus. It is important to notice that there are special cases of writing to the TCNT1 Register when the counter is counting that will give unpredictable results. The special cases are described in the sections where they are of importance.

Depending on the mode of operation used, the counter is cleared, incremented, or decremented at each timer clock (clk

T 1

). The clk

T 1

can be generated from an external or internal clock source, selected by the clock select bits (CS12:0). When no clock source is selected (CS12:0 = 0) the timer is stopped. However, the TCNT1 value can be accessed by the CPU, independent of whether clk

T 1

is present or not. A CPU write overrides (has priority over) all counter clear or count operations.

The counting sequence is determined by the setting of the Waveform Generation mode bits

(WGM13:0) located in the Timer/Counter Control Registers A and B (TCCR1A and TCCR1B).

There are close connections between how the counter behaves (counts) and how waveforms

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

are generated on the Output Compare Outputs OC1x. For more details about advanced count-

ing sequences and waveform generation, see “Modes of Operation” on page 88 .

The Timer/Counter Overflow (TOV1) fLag is set according to the mode of operation selected by the WGM13:0 bits. TOV1 can be used for generating a CPU interrupt.

Input Capture Unit

The Timer/Counter incorporates an Input Capture unit that can capture external events and give them a time-stamp indicating time of occurrence. The external signal indicating an event, or multiple events, can be applied via the ICP1 pin or alternatively, via the Analog Comparator unit.

The time-stamps can then be used to calculate frequency, duty-cycle, and other features of the signal applied. Alternatively the time-stamps can be used for creating a log of the events.

The Input Capture unit is illustrated by the block diagram shown in Figure 34 . The elements of

the block diagram that are not directly a part of the Input Capture unit are gray shaded. The small “n” in register and bit names indicates the Timer/Counter number.

Figure 34. Input Capture Unit Block Diagram

DATA BUS

(8-bit)

TEMP (8-bit)

ICRnH (8-bit)

WRITE

ICRnL (8-bit)

ICRn (16-bit Register)

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter)

2486W–AVR–02/10

ACO*

Analog

Comparator

ACIC* ICNC

Noise

Canceler

ICES

Edge

Detector

ICFn (Int. Req.)

ICPn

When a change of the logic level (an event) occurs on the Input Capture Pin (ICP1), alternatively on the Analog Comparator Output (ACO), and this change confirms to the setting of the edge detector, a capture will be triggered. When a capture is triggered, the 16-bit value of the counter

(TCNT1) is written to the Input Capture Register (ICR1). The Input Capture Flag (ICF1) is set at the same system clock as the TCNT1 value is copied into ICR1 Register. If enabled (TICIE1 =

1), the Input Capture Flag generates an Input Capture interrupt. The ICF1 Flag is automatically cleared when the interrupt is executed. Alternatively the ICF1 Flag can be cleared by software by writing a logical one to its I/O bit location.

Reading the 16-bit value in the Input Capture Register (ICR1) is done by first reading the Low byte (ICR1L) and then the High byte (ICR1H). When the Low byte is read the High byte is copied into the High byte temporary register (TEMP). When the CPU reads the ICR1H I/O location it will access the TEMP Register.

The ICR1 Register can only be written when using a Waveform Generation mode that utilizes the ICR1 Register for defining the counter’s TOP value. In these cases the Waveform Genera-

83

Input Capture Pin

Source

Noise Canceler

Using the Input

Capture Unit

Output Compare

Units

tion mode (WGM13:0) bits must be set before the TOP value can be written to the ICR1

Register. When writing the ICR1 Register the High byte must be written to the ICR1H I/O location before the Low byte is written to ICR1L.

For more information on how to access the 16-bit registers refer to

“Accessing 16-bit Registers” on page 79 .

The main trigger source for the Input Capture unit is the Input Capture Pin (ICP1). Timer/Counter

1 can alternatively use the Analog Comparator Output as trigger source for the Input Capture unit. The Analog Comparator is selected as trigger source by setting the Analog Comparator

Input Capture (ACIC) bit in the Analog Comparator Control and Status Register (ACSR). Be aware that changing trigger source can trigger a capture. The Input Capture Flag must therefore be cleared after the change.

Both the Input Capture Pin (ICP1) and the Analog Comparator Output (ACO) inputs are sampled using the same technique as for the T1 pin (

Figure 30 on page 74 ). The edge detector is also

identical. However, when the noise canceler is enabled, additional logic is inserted before the edge detector, which increases the delay by four system clock cycles. Note that the input of the noise canceler and edge detector is always enabled unless the Timer/Counter is set in a Waveform Generation mode that uses ICR1 to define TOP.

An Input Capture can be triggered by software by controlling the port of the ICP1 pin.

The noise canceler improves noise immunity by using a simple digital filtering scheme. The noise canceler input is monitored over four samples, and all four must be equal for changing the output that in turn is used by the edge detector.

The noise canceler is enabled by setting the Input Capture Noise Canceler (ICNC1) bit in

Timer/Counter Control Register B (TCCR1B). When enabled the noise canceler introduces additional four system clock cycles of delay from a change applied to the input, to the update of the

ICR1 Register. The noise canceler uses the system clock and is therefore not affected by the prescaler.

The main challenge when using the Input Capture unit is to assign enough processor capacity for handling the incoming events. The time between two events is critical. If the processor has not read the captured value in the ICR1 Register before the next event occurs, the ICR1 will be overwritten with a new value. In this case the result of the capture will be incorrect.

When using the Input Capture interrupt, the ICR1 Register should be read as early in the interrupt handler routine as possible. Even though the Input Capture interrupt has relatively high priority, the maximum interrupt response time is dependent on the maximum number of clock cycles it takes to handle any of the other interrupt requests.

Using the Input Capture unit in any mode of operation when the TOP value (resolution) is actively changed during operation, is not recommended.

Measurement of an external signal’s duty cycle requires that the trigger edge is changed after each capture. Changing the edge sensing must be done as early as possible after the ICR1

Register has been read. After a change of the edge, the Input Capture Flag (ICF1) must be cleared by software (writing a logical one to the I/O bit location). For measuring frequency only, the clearing of the ICF1 Flag is not required (if an interrupt handler is used).

The 16-bit comparator continuously compares TCNT1 with the Output Compare Register

(OCR1x). If TCNT equals OCR1x the comparator signals a match. A match will set the Output

Compare Flag (OCF1x) at the next timer clock cycle. If enabled (OCIE1x = 1), the Output Compare Flag generates an Output Compare interrupt. The OCF1x Flag is automatically cleared when the interrupt is executed. Alternatively the OCF1x Flag can be cleared by software by writ-

84

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

ing a logical one to its I/O bit location. The waveform generator uses the match signal to generate an output according to operating mode set by the Waveform Generation mode

(WGM13:0) bits and Compare Output mode (COM1x1:0) bits. The TOP and BOTTOM signals are used by the waveform generator for handling the special cases of the extreme values in some modes of operation (

See “Modes of Operation” on page 88.

)

A special feature of Output Compare unit A allows it to define the Timer/Counter TOP value (i.e.

counter resolution). In addition to the counter resolution, the TOP value defines the period time for waveforms generated by the waveform generator.

Figure 35

shows a block diagram of the Output Compare unit. The small “n” in the register and bit names indicates the device number (n = 1 for Timer/Counter 1), and the “x” indicates Output

Compare unit (A/B). The elements of the block diagram that are not directly a part of the Output

Compare unit are gray shaded.

Figure 35. Output Compare Unit, Block Diagram

DATA BUS

(8-bit)

TEMP (8-bit)

OCRnxH Buf. (8-bit) OCRnxL Buf. (8-bit)

OCRnx Buffer (16-bit Register)

TCNTnH (8-bit) TCNTnL (8-bit)

TCNTn (16-bit Counter)

OCRnxH (8-bit) OCRnxL (8-bit)

OCRnx (16-bit Register)

TOP

BOTTOM

=

(16-bit Comparator )

OCFnx (Int.Req.)

Waveform Generator

WGMn3:0 COMnx1:0

OCnx

The OCR1x Register is double buffered when using any of the twelve Pulse Width Modulation

(PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR1x Compare

Register to either TOP or BOTTOM of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free.

The OCR1x Register access may seem complex, but this is not case. When the double buffering is enabled, the CPU has access to the OCR1x Buffer Register, and if double buffering is disabled the CPU will access the OCR1x directly. The content of the OCR1x (Buffer or Compare)

Register is only changed by a write operation (the Timer/Counter does not update this register automatically as the TCNT1 and ICR1 Register). Therefore OCR1x is not read via the High byte temporary register (TEMP). However, it is a good practice to read the Low byte first as when accessing other 16-bit registers. Writing the OCR1x Registers must be done via the TEMP Register since the compare of all 16-bit is done continuously. The High byte (OCR1xH) has to be

85

Force Output

Compare

Compare Match

Blocking by TCNT1

Write

Using the Output

Compare Unit

written first. When the High byte I/O location is written by the CPU, the TEMP Register will be updated by the value written. Then when the Low byte (OCR1xL) is written to the lower eight bits, the High byte will be copied into the upper 8-bits of either the OCR1x buffer or OCR1x Compare Register in the same system clock cycle.

For more information of how to access the 16-bit registers refer to “Accessing 16-bit Registers” on page 79 .

In non-PWM Waveform Generation modes, the match output of the comparator can be forced by writing a one to the Force Output Compare (FOC1x) bit. Forcing Compare Match will not set the

OCF1x Flag or reload/clear the timer, but the OC1x pin will be updated as if a real Compare

Match had occurred (the COM1x1:0 bits settings define whether the OC1x pin is set, cleared or toggled).

All CPU writes to the TCNT1 Register will block any Compare Match that occurs in the next timer clock cycle, even when the timer is stopped. This feature allows OCR1x to be initialized to the same value as TCNT1 without triggering an interrupt when the Timer/Counter clock is enabled.

Since writing TCNT1 in any mode of operation will block all compare matches for one timer clock cycle, there are risks involved when changing TCNT1 when using any of the Output Compare channels, independent of whether the Timer/Counter is running or not. If the value written to

TCNT1 equals the OCR1x value, the Compare Match will be missed, resulting in incorrect waveform generation. Do not write the TCNT1 equal to TOP in PWM modes with variable TOP values. The Compare Match for the TOP will be ignored and the counter will continue to

0xFFFF. Similarly, do not write the TCNT1 value equal to BOTTOM when the counter is downcounting.

The setup of the OC1x should be performed before setting the Data Direction Register for the port pin to output. The easiest way of setting the OC1x value is to use the Force Output Compare (FOC1x) strobe bits in Normal mode. The OC1x Register keeps its value even when changing between Waveform Generation modes.

Be aware that the COM1x1:0 bits are not double buffered together with the compare value.

Changing the COM1x1:0 bits will take effect immediately.

86

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Compare Match

Output Unit

The Compare Output mode (COM1x1:0) bits have two functions. The waveform generator uses the COM1x1:0 bits for defining the Output Compare (OC1x) state at the next Compare Match.

Secondly the COM1x1:0 bits control the OC1x pin output source. Figure 36 shows a simplified

schematic of the logic affected by the COM1x1:0 bit setting. The I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O Port Control Registers

(DDR and PORT) that are affected by the COM1x1:0 bits are shown. When referring to the

OC1x state, the reference is for the internal OC1x Register, not the OC1x pin. If a System Reset occur, the OC1x Register is reset to “0”.

Figure 36. Compare Match Output Unit, Schematic

COMnx1

COMnx0

FOCnx

Waveform

Generator

D Q

OCnx

D Q

1

0

PORT

D Q

OCnx

Pin

DDR

clk

I/O

The general I/O port function is overridden by the Output Compare (OC1x) from the waveform generator if either of the COM1x1:0 bits are set. However, the OC1x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction

Register bit for the OC1x pin (DDR_OC1x) must be set as output before the OC1x value is visible on the pin. The port override function is generally independent of the Waveform Generation mode, but there are some exceptions. Refer to

Table 36 , Table 37

and Table 38 for details.

The design of the Output Compare Pin logic allows initialization of the OC1x state before the output is enabled. Note that some COM1x1:0 bit settings are reserved for certain modes of oper-

ation. See “16-bit Timer/Counter Register Description” on page 96.

The COM1x1:0 bits have no effect on the Input Capture unit.

87

2486W–AVR–02/10

Compare Output Mode and Waveform

Generation

The waveform generator uses the COM1x1:0 bits differently in normal, CTC, and PWM modes.

For all modes, setting the COM1x1:0 = 0 tells the waveform generator that no action on the

OC1x Register is to be performed on the next Compare Match. For compare output actions in the non-PWM modes refer to

Table 36 on page 97 . For fast PWM mode refer to Table 37 on page 97

, and for phase correct and phase and frequency correct PWM refer to Table 38 on page

98

.

A change of the COM1x1:0 bits state will have effect at the first Compare Match after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the

FOC1x strobe bits.

Modes of

Operation

Normal Mode

The mode of operation (i.e., the behavior of the Timer/Counter and the Output Compare pins) is defined by the combination of the Waveform Generation mode (WGM13:0) and Compare Output

mode (COM1x1:0) bits. The Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode bits do. The COM1x1:0 bits control whether the PWM output generated should be inverted or not (inverted or non-inverted PWM). For non-PWM modes the COM1x1:0 bits control whether the output should be set, cleared or toggle at a Compare

Match.

See “Compare Match Output Unit” on page 87.

For detailed timing information refer to

“Timer/Counter Timing Diagrams” on page 95

.

The simplest mode of operation is the Normal mode (WGM13:0 = 0). In this mode the counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 16-bit value (MAX = 0xFFFF) and then restarts from the

BOTTOM (0x0000). In normal operation the Timer/Counter Overflow Flag (TOV1) will be set in the same timer clock cycle as the TCNT1 becomes zero. The TOV1 Flag in this case behaves like a 17th bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV1 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

The Input Capture unit is easy to use in Normal mode. However, observe that the maximum interval between the external events must not exceed the resolution of the counter. If the interval between events are too long, the timer overflow interrupt or the prescaler must be used to extend the resolution for the capture unit.

The Output Compare units can be used to generate interrupts at some given time. Using the

Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time.

Clear Timer on

Compare Match (CTC)

Mode

In Clear Timer on Compare or CTC mode (WGM13:0 = 4 or 12), the OCR1A or ICR1 Register are used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT1) matches either the OCR1A (WGM13:0 = 4) or the ICR1 (WGM13:0 =

12). The OCR1A or ICR1 define the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in

Figure 37 . The counter value (TCNT1)

increases until a Compare Match occurs with either OCR1A or ICR1, and then counter (TCNT1) is cleared.

88

ATmega8(L)

2486W–AVR–02/10

Figure 37. CTC Mode, Timing Diagram

ATmega8(L)

OCnA Interrupt Flag Set or ICFn Interrupt Flag Set

(Interrupt on TOP)

Fast PWM Mode

TCNTn

OCnA

(Toggle)

Period

1 2 3 4

(COMnA1:0 = 1)

An interrupt can be generated at each time the counter value reaches the TOP value by either using the OCF1A or ICF1 Flag according to the register used to define the TOP value. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing the TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR1A or ICR1 is lower than the current value of

TCNT1, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFFFF) and wrap around starting at 0x0000 before the Compare Match can occur.

In many cases this feature is not desirable. An alternative will then be to use the fast PWM mode using OCR1A for defining TOP (WGM13:0 = 15) since the OCR1A then will be double buffered.

For generating a waveform output in CTC mode, the OC1A output can be set to toggle its logical level on each Compare Match by setting the Compare Output mode bits to toggle mode

(COM1A1:0 = 1). The OC1A value will not be visible on the port pin unless the data direction for the pin is set to output (DDR_OC1A = 1). The waveform generated will have a maximum frequency of f

OC

1

A

= f clk_I/O

/2 when OCR1A is set to zero (0x0000). The waveform frequency is defined by the following equation:

f

OCnA

=

2

N

(

f

1 +

OCRnA

)

The N variable represents the prescaler factor (1, 8, 64, 256, or 1024).

As for the Normal mode of operation, the TOV1 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x0000.

The fast Pulse Width Modulation or fast PWM mode (WGM13:0 = 5, 6, 7, 14, or 15) provides a high frequency PWM waveform generation option. The fast PWM differs from the other PWM options by its single-slope operation. The counter counts from BOTTOM to TOP then restarts from BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is cleared on the Compare Match between TCNT1 and OCR1x, and set at BOTTOM. In inverting Compare

Output mode output is set on Compare Match and cleared at BOTTOM. Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the phase correct and phase and frequency correct PWM modes that use dual-slope operation. This high frequency makes the fast PWM mode well suited for power regulation, rectification, and DAC applications. High frequency allows physically small sized external components (coils, capacitors), hence reduces total system cost.

The PWM resolution for fast PWM can be fixed to 8-, 9-, or 10-bit, or defined by either ICR1 or

OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to 0x0003), and the max-

89

2486W–AVR–02/10

imum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated by using the following equation:

R

FPWM

= log

TOP 1 log 2

+

)

In fast PWM mode the counter is incremented until the counter value matches either one of the fixed values 0x00FF, 0x01FF, or 0x03FF (WGM13:0 = 5, 6, or 7), the value in ICR1 (WGM13:0 =

14), or the value in OCR1A (WGM13:0 = 15). The counter is then cleared at the following timer

clock cycle. The timing diagram for the fast PWM mode is shown in Figure 38 . The figure shows

fast PWM mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x Interrupt Flag will be set when a Compare Match occurs.

Figure 38. Fast PWM Mode, Timing Diagram

OCRnx / TOP Update and TOVn Interrupt Flag

Set and OCnA Interrupt

Flag Set or ICFn

Interrupt Flag Set

(Interrupt on TOP)

TCNTn

OCnx

OCnx

(COMnx1:0 = 2)

(COMnx1:0 = 3)

Period

1 2 3 4 5 6 7 8

The Timer/Counter Overflow Flag (TOV1) is set each time the counter reaches TOP. In addition the OCF1A or ICF1 Flag is set at the same timer clock cycle as TOV1 is set when either OCR1A or ICR1 is used for defining the TOP value. If one of the interrupts are enabled, the interrupt handler routine can be used for updating the TOP and compare values.

When changing the TOP value the program must ensure that the new TOP value is higher or equal to the value of all of the Compare Registers. If the TOP value is lower than any of the

Compare Registers, a Compare Match will never occur between the TCNT1 and the OCR1x.

Note that when using fixed TOP values the unused bits are masked to zero when any of the

OCR1x Registers are written.

The procedure for updating ICR1 differs from updating OCR1A when used for defining the TOP value. The ICR1 Register is not double buffered. This means that if ICR1 is changed to a low value when the counter is running with none or a low prescaler value, there is a risk that the new

ICR1 value written is lower than the current value of TCNT1. The result will then be that the counter will miss the Compare Match at the TOP value. The counter will then have to count to the MAX value (0xFFFF) and wrap around starting at 0x0000 before the Compare Match can occur. The OCR1A Register, however, is double buffered. This feature allows the OCR1A I/O location to be written anytime. When the OCR1A I/O location is written the value written will be put into the OCR1A Buffer Register. The OCR1A Compare Register will then be updated with the value in the Buffer Register at the next timer clock cycle the TCNT1 matches TOP. The update is done at the same timer clock cycle as the TCNT1 is cleared and the TOV1 Flag is set.

90

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Phase Correct PWM

Mode

Using the ICR1 Register for defining TOP works well when using fixed TOP values. By using

ICR1, the OCR1A Register is free to be used for generating a PWM output on OC1A. However, if the base PWM frequency is actively changed (by changing the TOP value), using the OCR1A as TOP is clearly a better choice due to its double buffer feature.

In fast PWM mode, the compare units allow generation of PWM waveforms on the OC1x pins.

Setting the COM1x1:0 bits to 2 will produce a non-inverted PWM and an inverted PWM output can be generated by setting the COM1x1:0 to 3. See

Table 37 on page 97

. The actual OC1x value will only be visible on the port pin if the data direction for the port pin is set as output

(DDR_OC1x). The PWM waveform is generated by setting (or clearing) the OC1x Register at the Compare Match between OCR1x and TCNT1, and clearing (or setting) the OC1x Register at the timer clock cycle the counter is cleared (changes from TOP to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

f

OCnxPWM

=

f

N

⋅ (

1 +

TOP

)

The N variable represents the prescaler divider (1, 8, 64, 256, or 1024).

The extreme values for the OCR1x Register represents special cases when generating a PWM waveform output in the fast PWM mode. If the OCR1x is set equal to BOTTOM (0x0000) the output will be a narrow spike for each TOP+1 timer clock cycle. Setting the OCR1x equal to TOP will result in a constant high or low output (depending on the polarity of the output set by the

COM1x1:0 bits.)

A frequency (with 50% duty cycle) waveform output in fast PWM mode can be achieved by setting OC1A to toggle its logical level on each Compare Match (COM1A1:0 = 1). This applies only if OCR1A is used to define the TOP value (WGM13:0 = 15). The waveform generated will have a maximum frequency of f

OC

1

A

= f clk_I/O

/2 when OCR1A is set to zero (0x0000). This feature is similar to the OC1A toggle in CTC mode, except the double buffer feature of the Output Compare unit is enabled in the fast PWM mode.

The phase correct Pulse Width Modulation or phase correct PWM mode (WGM13:0 = 1, 2, 3,

10, or 11) provides a high resolution phase correct PWM waveform generation option. The phase correct PWM mode is, like the phase and frequency correct PWM mode, based on a dualslope operation. The counter counts repeatedly from BOTTOM (0x0000) to TOP and then from

TOP to BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is cleared on the Compare Match between TCNT1 and OCR1x while upcounting, and set on the

Compare Match while downcounting. In inverting Output Compare mode, the operation is inverted. The dual-slope operation has lower maximum operation frequency than single slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

The PWM resolution for the phase correct PWM mode can be fixed to 8-, 9-, or 10-bit, or defined by either ICR1 or OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to

0x0003), and the maximum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated by using the following equation:

R

PCPWM

= log

TOP 1 log 2

+

)

In phase correct PWM mode the counter is incremented until the counter value matches either one of the fixed values 0x00FF, 0x01FF, or 0x03FF (WGM13:0 = 1, 2, or 3), the value in ICR1

(WGM13:0 = 10), or the value in OCR1A (WGM13:0 = 11). The counter has then reached the

TOP and changes the count direction. The TCNT1 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct PWM mode is shown on

Figure 39 . The figure

shows phase correct PWM mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The

91

2486W–AVR–02/10

diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x Interrupt Flag will be set when a Compare Match occurs.

Figure 39. Phase Correct PWM Mode, Timing Diagram

OCRnx / TOP Update and

OCnA Interrupt Flag Set or ICFn Interrupt Flag Set

(Interrupt on TOP)

TOVn Interrupt Flag Set

(Interrupt on Bottom)

92

TCNTn

OCnx

OCnx

(COMnx1:0 = 2)

(COMnx1:0 = 3)

Period

1 2 3 4

The Timer/Counter Overflow Flag (TOV1) is set each time the counter reaches BOTTOM. When either OCR1A or ICR1 is used for defining the TOP value, the OC1A or ICF1 Flag is set accordingly at the same timer clock cycle as the OCR1x Registers are updated with the double buffer value (at TOP). The Interrupt Flags can be used to generate an interrupt each time the counter reaches the TOP or BOTTOM value.

When changing the TOP value the program must ensure that the new TOP value is higher or equal to the value of all of the Compare Registers. If the TOP value is lower than any of the

Compare Registers, a Compare Match will never occur between the TCNT1 and the OCR1x.

Note that when using fixed TOP values, the unused bits are masked to zero when any of the

OCR1x Registers are written. As the third period shown in Figure 39

illustrates, changing the

TOP actively while the Timer/Counter is running in the Phase Correct mode can result in an unsymmetrical output. The reason for this can be found in the time of update of the OCR1x Register. Since the OCR1x update occurs at TOP, the PWM period starts and ends at TOP. This implies that the length of the falling slope is determined by the previous TOP value, while the length of the rising slope is determined by the new TOP value. When these two values differ the two slopes of the period will differ in length. The difference in length gives the unsymmetrical result on the output.

It is recommended to use the Phase and Frequency Correct mode instead of the Phase Correct mode when changing the TOP value while the Timer/Counter is running. When using a static

TOP value there are practically no differences between the two modes of operation.

In phase correct PWM mode, the compare units allow generation of PWM waveforms on the

OC1x pins. Setting the COM1x1:0 bits to 2 will produce a non-inverted PWM and an inverted

PWM output can be generated by setting the COM1x1:0 to 3. See

Table 38 on page 98

. The actual OC1x value will only be visible on the port pin if the data direction for the port pin is set as output (DDR_OC1x). The PWM waveform is generated by setting (or clearing) the OC1x Register at the Compare Match between OCR1x and TCNT1 when the counter increments, and clearing (or setting) the OC1x Register at Compare Match between OCR1x and TCNT1 when

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

the counter decrements. The PWM frequency for the output when using phase correct PWM can be calculated by the following equation:

f

OCnxPCPWM

=

f

----------------------------

2 clk_I/O

N TOP

The N variable represents the prescaler divider (1, 8, 64, 256, or 1024).

The extreme values for the OCR1x Register represent special cases when generating a PWM waveform output in the phase correct PWM mode. If the OCR1x is set equal to BOTTOM the output will be continuously low and if set equal to TOP the output will be continuously high for non-inverted PWM mode. For inverted PWM the output will have the opposite logic values.

If OCR1A is used to define the TOP value (WMG13:0 = 11) and COM1A1:0 = 1, the OC1A output will toggle with a 50% duty cycle.

Phase and Frequency

Correct PWM Mode

The phase and frequency correct Pulse Width Modulation, or phase and frequency correct PWM mode (WGM13:0 = 8 or 9) provides a high resolution phase and frequency correct PWM waveform generation option. The phase and frequency correct PWM mode is, like the phase correct

PWM mode, based on a dual-slope operation. The counter counts repeatedly from BOTTOM

(0x0000) to TOP and then from TOP to BOTTOM. In non-inverting Compare Output mode, the

Output Compare (OC1x) is cleared on the Compare Match between TCNT1 and OCR1x while upcounting, and set on the Compare Match while downcounting. In inverting Compare Output mode, the operation is inverted. The dual-slope operation gives a lower maximum operation frequency compared to the single-slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

The main difference between the phase correct, and the phase and frequency correct PWM

mode is the time the OCR1x Register is updated by the OCR1x Buffer Register, (see Figure 39

and

Figure 40

).

The PWM resolution for the phase and frequency correct PWM mode can be defined by either

ICR1 or OCR1A. The minimum resolution allowed is 2-bit (ICR1 or OCR1A set to 0x0003), and the maximum resolution is 16-bit (ICR1 or OCR1A set to MAX). The PWM resolution in bits can be calculated using the following equation:

R

PFCPWM

= log

TOP 1 log 2

+

)

In phase and frequency correct PWM mode the counter is incremented until the counter value matches either the value in ICR1 (WGM13:0 = 8), or the value in OCR1A (WGM13:0 = 9). The counter has then reached the TOP and changes the count direction. The TCNT1 value will be equal to TOP for one timer clock cycle. The timing diagram for the phase correct and frequency correct PWM mode is shown on

Figure 40 . The figure shows phase and frequency correct PWM

mode when OCR1A or ICR1 is used to define TOP. The TCNT1 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes noninverted and inverted PWM outputs. The small horizontal line marks on the TCNT1 slopes represent compare matches between OCR1x and TCNT1. The OC1x Interrupt Flag will be set when a Compare Match occurs.

93

2486W–AVR–02/10

Figure 40. Phase and Frequency Correct PWM Mode, Timing Diagram

OCnA Interrupt Flag Set or

ICFn Interrupt Flag Set

(Interrupt on TOP)

OCRnx / TOP Update and

TOVn Interrupt Flag Set

(Interrupt on Bottom)

94

TCNTn

OCnx

OCnx

Period

1 2 3 4

(COMnx1:0 = 2)

(COMnx1:0 = 3)

The Timer/Counter Overflow Flag (TOV1) is set at the same timer clock cycle as the OCR1x

Registers are updated with the double buffer value (at BOTTOM). When either OCR1A or ICR1 is used for defining the TOP value, the OC1A or ICF1 Flag set when TCNT1 has reached TOP.

The Interrupt Flags can then be used to generate an interrupt each time the counter reaches the

TOP or BOTTOM value.

When changing the TOP value the program must ensure that the new TOP value is higher or equal to the value of all of the Compare Registers. If the TOP value is lower than any of the

Compare Registers, a Compare Match will never occur between the TCNT1 and the OCR1x.

As Figure 40

shows the output generated is, in contrast to the Phase Correct mode, symmetrical in all periods. Since the OCR1x Registers are updated at BOTTOM, the length of the rising and the falling slopes will always be equal. This gives symmetrical output pulses and is therefore frequency correct.

Using the ICR1 Register for defining TOP works well when using fixed TOP values. By using

ICR1, the OCR1A Register is free to be used for generating a PWM output on OC1A. However, if the base PWM frequency is actively changed by changing the TOP value, using the OCR1A as

TOP is clearly a better choice due to its double buffer feature.

In phase and frequency correct PWM mode, the compare units allow generation of PWM waveforms on the OC1x pins. Setting the COM1x1:0 bits to 2 will produce a non-inverted PWM and an inverted PWM output can be generated by setting the COM1x1:0 to 3. See

Table 38 on page

98

. The actual OC1x value will only be visible on the port pin if the data direction for the port pin is set as output (DDR_OC1x). The PWM waveform is generated by setting (or clearing) the

OC1x Register at the Compare Match between OCR1x and TCNT1 when the counter increments, and clearing (or setting) the OC1x Register at Compare Match between OCR1x and

TCNT1 when the counter decrements. The PWM frequency for the output when using phase and frequency correct PWM can be calculated by the following equation:

f

OCnxPFCPWM

=

f

----------------------------

2

N TOP

The N variable represents the prescaler divider (1, 8, 64, 256, or 1024).

The extreme values for the OCR1x Register represents special cases when generating a PWM waveform output in the phase correct PWM mode. If the OCR1x is set equal to BOTTOM the

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Timer/Counter

Timing Diagrams

output will be continuously low and if set equal to TOP the output will be set to high for noninverted PWM mode. For inverted PWM the output will have the opposite logic values.

If OCR1A is used to define the TOP value (WGM13:0 = 9) and COM1A1:0 = 1, the OC1A output will toggle with a 50% duty cycle.

The Timer/Counter is a synchronous design and the timer clock (clk

T1

) is therefore shown as a clock enable signal in the following figures. The figures include information on when Interrupt

Flags are set, and when the OCR1x Register is updated with the OCR1x buffer value (only for modes utilizing double buffering).

Figure 41 shows a timing diagram for the setting of OCF1x.

Figure 41. Timer/Counter Timing Diagram, Setting of OCF1x, no Prescaling

clk

I/O

clk

Tn

(clk

I/O

/1)

TCNTn

OCRnx

OCRnx - 1 OCRnx

OCRnx Value

OCRnx + 1 OCRnx + 2

OCFnx

Figure 42 shows the same timing data, but with the prescaler enabled.

Figure 42. Timer/Counter Timing Diagram, Setting of OCF1x, with Prescaler (f clk_I/O

/8)

clk

I/O

clk

(clk

I/O

Tn

/8)

TCNTn

OCRnx - 1 OCRnx OCRnx + 1 OCRnx + 2

OCRnx

OCFnx

OCRnx Value

Figure 43 shows the count sequence close to TOP in various modes. When using phase and

frequency correct PWM mode the OCR1x Register is updated at BOTTOM. The timing diagrams

95

2486W–AVR–02/10

will be the same, but TOP should be replaced by BOTTOM, TOP-1 by BOTTOM+1 and so on.

The same renaming applies for modes that set the TOV1 Flag at BOTTOM.

Figure 43. Timer/Counter Timing Diagram, no Prescaling clk

I/O clk

Tn

(clk

I/O

/1)

TCNTn

(CTC and FPWM)

TCNTn

(PC and PFC PWM)

TOVn

(FPWM) and ICFn

(if used as TOP)

OCRnx

(Update at TOP)

TOP - 1

TOP - 1

Old OCRnx Value

TOP

TOP

BOTTOM

TOP - 1

BOTTOM + 1

New OCRnx Value

TOP - 2

Figure 44 shows the same timing data, but with the prescaler enabled.

Figure 44. Timer/Counter Timing Diagram, with Prescaler (f clk_I/O

/8) clk

I/O clk

(clk

Tn

I/O

/8)

TCNTn

(CTC and FPWM)

TCNTn

(PC and PFC PWM)

TOVn

(FPWM) and ICFn

(if used as TOP)

OCRnx

(Update at TOP)

TOP - 1

TOP - 1

Old OCRnx Value

TOP

TOP

BOTTOM

TOP - 1

BOTTOM + 1

TOP - 2

New OCRnx Value

16-bit

Timer/Counter

Register

Description

Timer/Counter 1

Control Register A –

TCCR1A

96

Bit

Read/Write

7

COM1A1

R/W

6

COM1A0

R/W

5

COM1B1

R/W

4

COM1B0

R/W

3

FOC1A

W

2

FOC1B

W

1

WGM11

R/W

0

WGM10

R/W

TCCR1A

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Initial Value 0 0 0 0 0 0

• Bit 7:6 – COM1A1:0: Compare Output Mode for channel A

• Bit 5:4 – COM1B1:0: Compare Output Mode for channel B

0 0

The COM1A1:0 and COM1B1:0 control the Output Compare Pins (OC1A and OC1B respectively) behavior. If one or both of the COM1A1:0 bits are written to one, the OC1A output overrides the normal port functionality of the I/O pin it is connected to. If one or both of the

COM1B1:0 bit are written to one, the OC1B output overrides the normal port functionality of the

I/O pin it is connected to. However, note that the Data Direction Register (DDR) bit corresponding to the OC1A or OC1B pin must be set in order to enable the output driver.

When the OC1A or OC1B is connected to the pin, the function of the COM1x1:0 bits is dependent of the WGM13:0 bits setting.

Table 36

shows the COM1x1:0 bit functionality when the

WGM13:0 bits are set to a normal or a CTC mode (non-PWM).

Table 36. Compare Output Mode, Non-PWM

COM1A1/

COM1B1

COM1A0/

COM1B0 Description

1

1

0

0

0

1

0

1

Normal port operation, OC1A/OC1B disconnected.

Toggle OC1A/OC1B on Compare Match

Clear OC1A/OC1B on Compare Match (Set output to low level)

Set OC1A/OC1B on Compare Match (Set output to high level)

Table 37 shows the COM1x1:0 bit functionality when the WGM13:0 bits are set to the fast PWM

mode.

Table 37. Compare Output Mode, Fast PWM

(1)

COM1A1/

COM1B1

COM1A0/

COM1B0 Description

0

0

0

1

Normal port operation, OC1A/OC1B disconnected.

WGM13:0 = 15: Toggle OC1A on Compare Match, OC1B disconnected (normal port operation). For all other WGM1 settings, normal port operation, OC1A/OC1B disconnected.

1 0 Clear OC1A/OC1B on Compare Match, set OC1A/OC1B at

BOTTOM, (non-inverting mode)

1 1 Set OC1A/OC1B on Compare Match, clear OC1A/OC1B at

BOTTOM, (inverting mode)

Note: 1. A special case occurs when OCR1A/OCR1B equals TOP and COM1A1/COM1B1 is set. In this case the Compare Match is ignored, but the set or clear is done at BOTTOM.

See “Fast

PWM Mode” on page 89.

for more details.

97

Table 38

shows the COM1x1:0 bit functionality when the WGM13:0 bits are set to the phase correct or the phase and frequency correct, PWM mode.

Table 38. Compare Output Mode, Phase Correct and Phase and Frequency Correct PWM

(1)

COM1A1/

COM1B1

0

COM1A0/

COM1B0 Description

0 Normal port operation, OC1A/OC1B disconnected.

0

1

1

0

WGM13:0 = 9 or 14: Toggle OC1A on Compare Match, OC1B disconnected (normal port operation). For all other WGM1 settings, normal port operation, OC1A/OC1B disconnected.

Clear OC1A/OC1B on Compare Match when up-counting. Set

OC1A/OC1B on Compare Match when downcounting.

1 1 Set OC1A/OC1B on Compare Match when up-counting. Clear

OC1A/OC1B on Compare Match when downcounting.

Note:

1. A special case occurs when OCR1A/OCR1B equals TOP and COM1A1/COM1B1 is set. See

“Phase Correct PWM Mode” on page 91.

for more details.

• Bit 3 – FOC1A: Force Output Compare for channel A

• Bit 2 – FOC1B: Force Output Compare for channel B

The FOC1A/FOC1B bits are only active when the WGM13:0 bits specifies a non-PWM mode.

However, for ensuring compatibility with future devices, these bits must be set to zero when

TCCR1A is written when operating in a PWM mode. When writing a logical one to the

FOC1A/FOC1B bit, an immediate Compare Match is forced on the waveform generation unit.

The OC1A/OC1B output is changed according to its COM1x1:0 bits setting. Note that the

FOC1A/FOC1B bits are implemented as strobes. Therefore it is the value present in the

COM1x1:0 bits that determine the effect of the forced compare.

A FOC1A/FOC1B strobe will not generate any interrupt nor will it clear the timer in Clear Timer on Compare Match (CTC) mode using OCR1A as TOP.

The FOC1A/FOC1B bits are always read as zero.

• Bit 1:0 – WGM11:0: Waveform Generation Mode

Combined with the WGM13:2 bits found in the TCCR1B Register, these bits control the counting sequence of the counter, the source for maximum (TOP) counter value, and what type of waveform generation to be used, see

Table 39 . Modes of operation supported by the Timer/Counter

unit are: Normal mode (counter), Clear Timer on Compare Match (CTC) mode, and three types of Pulse Width Modulation (PWM) modes. (

See “Modes of Operation” on page 88.

)

Table 39. Waveform Generation Mode Bit Description

Mode WGM13

WGM12

(CTC1)

WGM11

(PWM11)

WGM10

(PWM10)

Timer/Counter Mode of

Operation

(1)

4

5

6

2

3

0

1

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

1

1

1

0

0

0

1

0

0

1

0

1

Normal

PWM, Phase Correct, 8-bit

PWM, Phase Correct, 9-bit

PWM, Phase Correct, 10-bit

CTC

Fast PWM, 8-bit

Fast PWM, 9-bit

TOP

Update of

OCR1 x

TOV1 Flag

Set on

0xFFFF Immediate MAX

0x00FF TOP BOTTOM

0x01FF TOP

0x03FF TOP

BOTTOM

BOTTOM

OCR1A Immediate MAX

0x00FF BOTTOM TOP

0x01FF BOTTOM TOP

98

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Table 39. Waveform Generation Mode Bit Description

Mode WGM13

7 0

10

11

8

9

12

13

1

1

1

1

1

1

WGM12

(CTC1)

1

0

0

0

0

1

1

WGM11

(PWM11)

1

1

1

0

0

0

0

WGM10

(PWM10)

1

0

1

0

1

0

1

Timer/Counter Mode of

Operation

(1)

Fast PWM, 10-bit

TOP

Update of

OCR1 x

0x03FF BOTTOM

TOV1 Flag

Set on

TOP

PWM, Phase and Frequency Correct ICR1 BOTTOM

PWM, Phase and Frequency Correct OCR1A BOTTOM

PWM, Phase Correct

PWM, Phase Correct

ICR1

OCR1A

TOP

TOP

CTC

(Reserved)

ICR1

BOTTOM

BOTTOM

BOTTOM

BOTTOM

Immediate MAX

– –

14 1 1 1 0 Fast PWM ICR1 BOTTOM TOP

15 1 1 1 1 Fast PWM OCR1A BOTTOM TOP

Note: 1. The CTC1 and PWM11:0 bit definition names are obsolete. Use the

WGM

12:0 definitions. However, the functionality and location of these bits are compatible with previous versions of the timer.

99

2486W–AVR–02/10

Timer/Counter 1

Control Register B –

TCCR1B

Bit

Read/Write

Initial Value

7

ICNC1

R/W

0

6

ICES1

R/W

0

R

0

5

4

WGM13

R/W

0

3

WGM12

R/W

0

2

CS12

R/W

0

1

CS11

R/W

0

0

CS10

R/W

0

TCCR1B

• Bit 7 – ICNC1: Input Capture Noise Canceler

Setting this bit (to one) activates the Input Capture Noise Canceler. When the noise canceler is activated, the input from the Input Capture Pin (ICP1) is filtered. The filter function requires four successive equal valued samples of the ICP1 pin for changing its output. The Input Capture is therefore delayed by four Oscillator cycles when the noise canceler is enabled.

• Bit 6 – ICES1: Input Capture Edge Select

This bit selects which edge on the Input Capture Pin (ICP1) that is used to trigger a capture event. When the ICES1 bit is written to zero, a falling (negative) edge is used as trigger, and when the ICES1 bit is written to one, a rising (positive) edge will trigger the capture.

When a capture is triggered according to the ICES1 setting, the counter value is copied into the

Input Capture Register (ICR1). The event will also set the Input Capture Flag (ICF1), and this can be used to cause an Input Capture Interrupt, if this interrupt is enabled.

When the ICR1 is used as TOP value (see description of the WGM13:0 bits located in the

TCCR1A and the TCCR1B Register), the ICP1 is disconnected and consequently the Input Capture function is disabled.

• Bit 5 – Reserved Bit

This bit is reserved for future use. For ensuring compatibility with future devices, this bit must be written to zero when TCCR1B is written.

• Bit 4:3 – WGM13:2: Waveform Generation Mode

See TCCR1A Register description.

• Bit 2:0 – CS12:0: Clock Select

The three clock select bits select the clock source to be used by the Timer/Counter, see

Figure

41

and

Figure 42 .

Table 40. Clock Select Bit Description

CS12 CS11 CS10 Description

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

0

1

0

1

0

1

0

1

No clock source. (Timer/Counter stopped) clk

I/O

/1 (No prescaling) clk

I/O

/8 (From prescaler) clk

I/O

/64 (From prescaler) clk

I/O

/256 (From prescaler) clk

I/O

/1024 (From prescaler)

External clock source on T1 pin. Clock on falling edge.

External clock source on T1 pin. Clock on rising edge.

If external pin modes are used for the Timer/Counter1, transitions on the T1 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

100

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Timer/Counter 1 –

TCNT1H and TCNT1L

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

TCNT1[15:8]

TCNT1[7:0]

R/W R/W

0 0

2

R/W

0

1

R/W

0

0

R/W

0

TCNT1H

TCNT1L

The two Timer/Counter I/O locations (TCNT1H and TCNT1L, combined TCNT1) give direct access, both for read and for write operations, to the Timer/Counter unit 16-bit counter. To ensure that both the high and Low bytes are read and written simultaneously when the CPU accesses these registers, the access is performed using an 8-bit temporary High byte Register

(TEMP). This temporary register is shared by all the other 16-bit registers.

See “Accessing 16-bit

Registers” on page 79.

Modifying the counter (TCNT1) while the counter is running introduces a risk of missing a Compare Match between TCNT1 and one of the OCR1x Registers.

Writing to the TCNT1 Register blocks (removes) the Compare Match on the following timer clock for all compare units.

Output Compare

Register 1 A –

OCR1AH and OCR1AL

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

OCR1A[15:8]

OCR1A[7:0]

R/W R/W

0 0

2

R/W

0

1

R/W

0

0

R/W

0

OCR1AH

OCR1AL

Output Compare

Register 1 B –

OCR1BH and OCR1BL

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

OCR1B[15:8]

OCR1B[7:0]

R/W R/W

0 0

2

R/W

0

1

R/W

0

0

R/W

0

OCR1BH

OCR1BL

The Output Compare Registers contain a 16-bit value that is continuously compared with the counter value (TCNT1). A match can be used to generate an Output Compare Interrupt, or to generate a waveform output on the OC1x pin.

The Output Compare Registers are 16-bit in size. To ensure that both the high and Low bytes are written simultaneously when the CPU writes to these registers, the access is performed using an 8-bit temporary High byte Register (TEMP). This temporary register is shared by all the

other 16-bit registers. See “Accessing 16-bit Registers” on page 79.

101

2486W–AVR–02/10

Input Capture Register

1 – ICR1H and ICR1L

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4

ICR1[15:8]

3

ICR1[7:0]

R/W R/W

0 0

2

R/W

0

1

R/W

0

0

R/W

0

ICR1H

ICR1L

The Input Capture is updated with the counter (TCNT1) value each time an event occurs on the

ICP1 pin (or optionally on the Analog Comparator Output for Timer/Counter1). The Input Capture can be used for defining the counter TOP value.

The Input Capture Register is 16-bit in size. To ensure that both the high and Low bytes are read simultaneously when the CPU accesses these registers, the access is performed using an 8-bit temporary High byte Register (TEMP). This temporary register is shared by all the other 16-bit

registers. See “Accessing 16-bit Registers” on page 79.

Timer/Counter

Interrupt Mask

Register – TIMSK

(1)

Bit

Read/Write

Initial Value

7

OCIE2

R/W

0

6

TOIE2

R/W

0

5

TICIE1

R/W

0

4

OCIE1A

R/W

0

3

OCIE1B

R/W

0

2

TOIE1

R/W

0

R

0

1

0

TOIE0

R/W

0

TIMSK

Note: 1. This register contains interrupt control bits for several Timer/Counters, but only Timer1 bits are described in this section. The remaining bits are described in their respective timer sections.

• Bit 5 – TICIE1: Timer/Counter1, Input Capture Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Input Capture Interrupt is enabled. The corresponding Interrupt

Vector (see “Interrupts” on page 46) is executed when the ICF1 Flag, located in TIFR, is set.

• Bit 4 – OCIE1A: Timer/Counter1, Output Compare A Match Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Output Compare A match interrupt is enabled. The corresponding

Interrupt Vector (see “Interrupts” on page 46) is executed when the OCF1A Flag, located in

TIFR, is set.

• Bit 3 – OCIE1B: Timer/Counter1, Output Compare B Match Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Output Compare B match interrupt is enabled. The corresponding

Interrupt Vector (see “Interrupts” on page 46) is executed when the OCF1B Flag, located in

TIFR, is set.

• Bit 2 – TOIE1: Timer/Counter1, Overflow Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Overflow Interrupt is enabled. The corresponding Interrupt Vector

(see “Interrupts” on page 46) is executed when the TOV1 Flag, located in TIFR, is set.

Timer/Counter

Interrupt Flag Register

– TIFR

(1)

Bit

Read/Write

Initial Value

7

OCF2

R/W

0

6

TOV2

R/W

0

5

ICF1

R/W

0

4

OCF1A

R/W

0

3

OCF1B

R/W

0

2

TOV1

R/W

0

R

0

1

0

TOV0

R/W

0

TIFR

Note: 1. This register contains flag bits for several Timer/Counters, but only Timer1 bits are described in this section. The remaining bits are described in their respective timer sections.

• Bit 5 – ICF1: Timer/Counter1, Input Capture Flag

102

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

This flag is set when a capture event occurs on the ICP1 pin. When the Input Capture Register

(ICR1) is set by the WGM13:0 to be used as the TOP value, the ICF1 Flag is set when the counter reaches the TOP value.

ICF1 is automatically cleared when the Input Capture Interrupt Vector is executed. Alternatively,

ICF1 can be cleared by writing a logic one to its bit location.

• Bit 4 – OCF1A: Timer/Counter1, Output Compare A Match Flag

This flag is set in the timer clock cycle after the counter (TCNT1) value matches the Output

Compare Register A (OCR1A).

Note that a Forced Output Compare (FOC1A) strobe will not set the OCF1A Flag.

OCF1A is automatically cleared when the Output Compare Match A Interrupt Vector is executed. Alternatively, OCF1A can be cleared by writing a logic one to its bit location.

• Bit 3 – OCF1B: Timer/Counter1, Output Compare B Match Flag

This flag is set in the timer clock cycle after the counter (TCNT1) value matches the Output

Compare Register B (OCR1B).

Note that a Forced Output Compare (FOC1B) strobe will not set the OCF1B Flag.

OCF1B is automatically cleared when the Output Compare Match B Interrupt Vector is executed. Alternatively, OCF1B can be cleared by writing a logic one to its bit location.

• Bit 2 – TOV1: Timer/Counter1, Overflow Flag

The setting of this flag is dependent of the WGM13:0 bits setting. In normal and CTC modes, the

TOV1 Flag is set when the timer overflows. Refer to

Table 39 on page 98

for the TOV1 Flag behavior when using another WGM13:0 bit setting.

TOV1 is automatically cleared when the Timer/Counter1 Overflow Interrupt Vector is executed.

Alternatively, TOV1 can be cleared by writing a logic one to its bit location.

103

8-bit

Timer/Counter2 with PWM and

Asynchronous

Operation

Timer/Counter2 is a general purpose, single channel, 8-bit Timer/Counter module. The main features are:

Single Channel Counter

Clear Timer on Compare Match (Auto Reload)

Glitch-free, phase Correct Pulse Width Modulator (PWM)

Frequency Generator

10-bit Clock Prescaler

Overflow and Compare Match Interrupt Sources (TOV2 and OCF2)

Allows Clocking from External 32 kHz Watch Crystal Independent of the I/O Clock

Overview

A simplified block diagram of the 8-bit Timer/Counter is shown in Figure 45

. For the actual placement of I/O pins, refer to

“Pin Configurations” on page 2 . CPU accessible I/O Registers,

including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit loca-

tions are listed in the “8-bit Timer/Counter Register Description” on page 117 .

Figure 45. 8-bit Timer/Counter Block Diagram

TCCRn

Timer/Counter

TCNTn

count clear direction

BOTTOM

Control Logic

TOP clk

Tn

Prescaler

= 0 =

0xFF

=

OCn

(Int. Req.)

Waveform

Generation

T/C

Oscillator

TOVn

(Int. Req.)

TOSC1

TOSC2 clk

I/O

OCn

OCRn

Status Flags

ASSRn

Synchronized Status Flags

Synchronization Unit

asynchronous Mode

Select (ASn)

clk

I/O clk

ASY

Registers

The Timer/Counter (TCNT2) and Output Compare Register (OCR2) are 8-bit registers. Interrupt request (shorten as Int.Req.) signals are all visible in the Timer Interrupt Flag Register (TIFR).

104

ATmega8(L)

2486W–AVR–02/10

Definitions

Timer/Counter

Clock Sources

ATmega8(L)

All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and

TIMSK are not shown in the figure since these registers are shared by other timer units.

The Timer/Counter can be clocked internally, via the prescaler, or asynchronously clocked from the TOSC1/2 pins, as detailed later in this section. The asynchronous operation is controlled by the Asynchronous Status Register (ASSR). The Clock Select logic block controls which clock source the Timer/Counter uses to increment (or decrement) its value. The Timer/Counter is inactive when no clock source is selected. The output from the clock select logic is referred to as the timer clock (clk

T2

).

The double buffered Output Compare Register (OCR2) is compared with the Timer/Counter value at all times. The result of the compare can be used by the waveform generator to generate

a PWM or variable frequency output on the Output Compare Pin (OC2). For details, see “Output

Compare Unit” on page 107. The Compare Match event will also set the Compare Flag (OCF2)

which can be used to generate an Output Compare interrupt request.

Many register and bit references in this document are written in general form. A lower case “n” replaces the Timer/Counter number, in this case 2. However, when using the register or bit defines in a program, the precise form must be used (i.e., TCNT2 for accessing Timer/Counter2 counter value and so on).

The definitions in Table 41

are also used extensively throughout the document.

Table 41. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes zero (0x00).

MAX

TOP

The counter reaches its MAXimum when it becomes 0xFF (decimal 255).

The counter reaches the TOP when it becomes equal to the highest value in the count sequence. The TOP value can be assigned to be the fixed value 0xFF (MAX) or the value stored in the OCR2 Register. The assignment is dependent on the mode of operation.

The Timer/Counter can be clocked by an internal synchronous or an external asynchronous clock source. The clock source clk

T2

is by default equal to the MCU clock, clk

I/O

. When the AS2 bit in the ASSR Register is written to logic one, the clock source is taken from the Timer/Counter

Oscillator connected to TOSC1 and TOSC2. For details on asynchronous operation, see

“Asynchronous Status Register – ASSR” on page 119

. For details on clock sources and prescaler, see

“Timer/Counter Prescaler” on page 123

.

105

2486W–AVR–02/10

Counter Unit

The main part of the 8-bit Timer/Counter is the programmable bi-directional counter unit.

Figure

46

shows a block diagram of the counter and its surrounding environment.

Figure 46. Counter Unit Block Diagram

DATA BUS

TOVn

(Int. Req.)

TOSC1

TCNTn

count clear

Control Logic direction clk

Tn

Prescaler

T/C

Oscillator

TOSC2

BOTTOM TOP clk

I/O

Signal description (internal signals):

count

Increment or decrement TCNT2 by 1.

direction

Selects between increment and decrement.

clear

Clear TCNT2 (set all bits to zero).

clk

T2

TOP

Timer/Counter clock.

Signalizes that TCNT2 has reached maximum value.

BOTTOM

Signalizes that TCNT2 has reached minimum value (zero).

Depending on the mode of operation used, the counter is cleared, incremented, or decremented at each timer clock (clk

T2

). clk

T2

can be generated from an external or internal clock source, selected by the clock select bits (CS22:0). When no clock source is selected (CS22:0 = 0) the timer is stopped. However, the TCNT2 value can be accessed by the CPU, regardless of whether clk

T2

is present or not. A CPU write overrides (has priority over) all counter clear or count operations.

The counting sequence is determined by the setting of the WGM21 and WGM20 bits located in the Timer/Counter Control Register (TCCR2). There are close connections between how the counter behaves (counts) and how waveforms are generated on the Output Compare Output

OC2. For more details about advanced counting sequences and waveform generation, see

“Modes of Operation” on page 110 .

The Timer/Counter Overflow (TOV2) Flag is set according to the mode of operation selected by the WGM21:0 bits. TOV2 can be used for generating a CPU interrupt.

106

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Output Compare

Unit

The 8-bit comparator continuously compares TCNT2 with the Output Compare Register

(OCR2). Whenever TCNT2 equals OCR2, the comparator signals a match. A match will set the

Output Compare Flag (OCF2) at the next timer clock cycle. If enabled (OCIE2 = 1), the Output

Compare Flag generates an Output Compare interrupt. The OCF2 Flag is automatically cleared when the interrupt is executed. Alternatively, the OCF2 Flag can be cleared by software by writing a logical one to its I/O bit location. The waveform generator uses the match signal to generate an output according to operating mode set by the WGM21:0 bits and Compare Output mode (COM21:0) bits. The max and bottom signals are used by the waveform generator for han-

dling the special cases of the extreme values in some modes of operation (see “Modes of

Operation” on page 110).

Figure 47 shows a block diagram of the Output Compare unit.

Figure 47. Output Compare Unit, Block Diagram

DATA BUS

OCRn TCNTn

=

(8-bit Comparator )

OCFn (Int. Req.)

TOP

BOTTOM

FOCn

Waveform Generator

OCxy

WGMn1:0 COMn1:0

The OCR2 Register is double buffered when using any of the Pulse Width Modulation (PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR2 Compare Register to either top or bottom of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free.

The OCR2 Register access may seem complex, but this is not case. When the double buffering is enabled, the CPU has access to the OCR2 Buffer Register, and if double buffering is disabled the CPU will access the OCR2 directly.

107

2486W–AVR–02/10

Force Output

Compare

Compare Match

Blocking by TCNT2

Write

Using the Output

Compare Unit

In non-PWM Waveform Generation modes, the match output of the comparator can be forced by writing a one to the Force Output Compare (FOC2) bit. Forcing Compare Match will not set the

OCF2 Flag or reload/clear the timer, but the OC2 pin will be updated as if a real Compare Match had occurred (the COM21:0 bits settings define whether the OC2 pin is set, cleared or toggled).

All CPU write operations to the TCNT2 Register will block any Compare Match that occurs in the next timer clock cycle, even when the timer is stopped. This feature allows OCR2 to be initialized to the same value as TCNT2 without triggering an interrupt when the Timer/Counter clock is enabled.

Since writing TCNT2 in any mode of operation will block all compare matches for one timer clock cycle, there are risks involved when changing TCNT2 when using the Output Compare channel, independently of whether the Timer/Counter is running or not. If the value written to TCNT2 equals the OCR2 value, the Compare Match will be missed, resulting in incorrect waveform generation. Similarly, do not write the TCNT2 value equal to BOTTOM when the counter is downcounting.

The setup of the OC2 should be performed before setting the Data Direction Register for the port pin to output. The easiest way of setting the OC2 value is to use the Force Output Compare

(FOC2) strobe bit in Normal mode. The OC2 Register keeps its value even when changing between waveform generation modes.

Be aware that the COM21:0 bits are not double buffered together with the compare value.

Changing the COM21:0 bits will take effect immediately.

108

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Compare Match

Output Unit

The Compare Output mode (COM21:0) bits have two functions. The waveform generator uses the COM21:0 bits for defining the Output Compare (OC2) state at the next Compare Match.

Also, the COM21:0 bits control the OC2 pin output source.

Figure 48

shows a simplified schematic of the logic affected by the COM21:0 bit setting. The I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O Port Control Registers (DDR and

PORT) that are affected by the COM21:0 bits are shown. When referring to the OC2 state, the reference is for the internal OC2 Register, not the OC2 pin.

Figure 48. Compare Match Output Unit, Schematic

COMn1

COMn0

FOCn

Waveform

Generator

D Q

OCn

D Q

1

0

OCn

Pin

PORT

D Q

DDR

clk

I/O

The general I/O port function is overridden by the Output Compare (OC2) from the waveform generator if either of the COM21:0 bits are set. However, the OC2 pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC2 pin (DDR_OC2) must be set as output before the OC2 value is visible on the pin. The port override function is independent of the Waveform Generation mode.

The design of the Output Compare Pin logic allows initialization of the OC2 state before the output is enabled. Note that some COM21:0 bit settings are reserved for certain modes of

operation. See “8-bit Timer/Counter Register Description” on page 117.

109

2486W–AVR–02/10

Compare Output Mode and Waveform

Generation

The Waveform Generator uses the COM21:0 bits differently in normal, CTC, and PWM modes.

For all modes, setting the COM21:0 = 0 tells the waveform generator that no action on the OC2

Register is to be performed on the next Compare Match. For compare output actions in the non-

PWM modes refer to Table 43 on page 118 . For fast PWM mode, refer to Table 44 on page 118 ,

and for phase correct PWM refer to

Table 45 on page 118 .

A change of the COM21:0 bits state will have effect at the first Compare Match after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the

FOC2 strobe bits.

Modes of

Operation

Normal Mode

The mode of operation (i.e., the behavior of the Timer/Counter and the Output Compare pins) is defined by the combination of the Waveform Generation mode (WGM21:0) and Compare Output mode (COM21:0) bits. The Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode bits do. The COM21:0 bits control whether the PWM output generated should be inverted or not (inverted or non-inverted PWM). For non-PWM modes the COM21:0 bits control whether the output should be set, cleared, or toggled at a Compare

Match (see “Compare Match Output Unit” on page 109).

For detailed timing information refer to

“Timer/Counter Timing Diagrams” on page 114 .

The simplest mode of operation is the Normal mode (WGM21:0 = 0). In this mode the counting direction is always up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 8-bit value (TOP = 0xFF) and then restarts from the bottom (0x00). In normal operation the Timer/Counter Overflow Flag (TOV2) will be set in the same timer clock cycle as the TCNT2 becomes zero. The TOV2 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV2 Flag, the timer resolution can be increased by software.

There are no special cases to consider in the Normal mode, a new counter value can be written anytime.

The Output Compare unit can be used to generate interrupts at some given time. Using the Output Compare to generate waveforms in Normal mode is not recommended, since this will occupy too much of the CPU time.

110

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Clear Timer on

Compare Match (CTC)

Mode

In Clear Timer on Compare or CTC mode (WGM21:0 = 2), the OCR2 Register is used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value

(TCNT2) matches the OCR2. The OCR2 defines the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

The timing diagram for the CTC mode is shown in

Figure 49 . The counter value (TCNT2)

increases until a Compare Match occurs between TCNT2 and OCR2, and then counter (TCNT2) is cleared.

Figure 49. CTC Mode, Timing Diagram

OCn Interrupt Flag Set

TCNTn

OCn

(Toggle)

Period

1 2 3 4

(COMn1:0 = 1)

An interrupt can be generated each time the counter value reaches the TOP value by using the

OCF2 Flag. If the interrupt is enabled, the interrupt handler routine can be used for updating the

TOP value. However, changing the TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR2 is lower than the current value of TCNT2, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFF) and wrap around starting at 0x00 before the Compare Match can occur.

For generating a waveform output in CTC mode, the OC2 output can be set to toggle its logical level on each Compare Match by setting the Compare Output mode bits to toggle mode

(COM21:0 = 1). The OC2 value will not be visible on the port pin unless the data direction for the pin is set to output. The waveform generated will have a maximum frequency of f

OC2

= f clk_I/O

/2 when OCR2 is set to zero (0x00). The waveform frequency is defined by the following equation:

f

OCn

=

2

N f

(

1 +

OCRn

)

The N variable represents the prescale factor (1, 8, 32, 64, 128, 256, or 1024).

As for the Normal mode of operation, the TOV2 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x00.

111

2486W–AVR–02/10

Fast PWM Mode

The fast Pulse Width Modulation or fast PWM mode (WGM21:0 = 3) provides a high frequency

PWM waveform generation option. The fast PWM differs from the other PWM option by its single-slope operation. The counter counts from BOTTOM to MAX then restarts from BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC2) is cleared on the Compare

Match between TCNT2 and OCR2, and set at BOTTOM. In inverting Compare Output mode, the output is set on Compare Match and cleared at BOTTOM. Due to the single-slope operation, the operating frequency of the fast PWM mode can be twice as high as the phase correct PWM mode that uses dual-slope operation. This high frequency makes the fast PWM mode well suited for power regulation, rectification, and DAC applications. High frequency allows physically small sized external components (coils, capacitors), and therefore reduces total system cost.

In fast PWM mode, the counter is incremented until the counter value matches the MAX value.

The counter is then cleared at the following timer clock cycle. The timing diagram for the fast

PWM mode is shown in

Figure 50

. The TCNT2 value is in the timing diagram shown as a histogram for illustrating the single-slope operation. The diagram includes non-inverted and inverted

PWM outputs. The small horizontal line marks on the TCNT2 slopes represent compare matches between OCR2 and TCNT2.

Figure 50. Fast PWM Mode, Timing Diagram

OCRn Interrupt Flag Set

OCRn Update and

TOVn Interrupt Flag Set

TCNTn

112

OCn

OCn

(COMn1:0 = 2)

(COMn1:0 = 3)

Period

1 2 3 4 5 6 7

The Timer/Counter Overflow Flag (TOV2) is set each time the counter reaches MAX. If the interrupt is enabled, the interrupt handler routine can be used for updating the compare value.

In fast PWM mode, the compare unit allows generation of PWM waveforms on the OC2 pin. Setting the COM21:0 bits to 2 will produce a non-inverted PWM and an inverted PWM output can

be generated by setting the COM21:0 to 3 (see Table 44 on page 118

). The actual OC2 value will only be visible on the port pin if the data direction for the port pin is set as output. The PWM waveform is generated by setting (or clearing) the OC2 Register at the Compare Match between

OCR2 and TCNT2, and clearing (or setting) the OC2 Register at the timer clock cycle the counter is cleared (changes from MAX to BOTTOM).

The PWM frequency for the output can be calculated by the following equation:

f

OCnPWM

=

f

clk_I/O

N 256

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Phase Correct PWM

Mode

The N variable represents the prescale factor (1, 8, 32, 64, 128, 256, or 1024).

The extreme values for the OCR2 Register represent special cases when generating a PWM waveform output in the fast PWM mode. If the OCR2 is set equal to BOTTOM, the output will be a narrow spike for each MAX+1 timer clock cycle. Setting the OCR2 equal to MAX will result in a constantly high or low output (depending on the polarity of the output set by the COM21:0 bits.)

A frequency (with 50% duty cycle) waveform output in fast PWM mode can be achieved by setting OC2 to toggle its logical level on each Compare Match (COM21:0 = 1). The waveform generated will have a maximum frequency of f oc2

= f clk_I/O

/2 when OCR2 is set to zero. This feature is similar to the OC2 toggle in CTC mode, except the double buffer feature of the Output

Compare unit is enabled in the fast PWM mode.

The phase correct PWM mode (WGM21:0 = 1) provides a high resolution phase correct PWM waveform generation option. The phase correct PWM mode is based on a dual-slope operation.

The counter counts repeatedly from BOTTOM to MAX and then from MAX to BOTTOM. In noninverting Compare Output mode, the Output Compare (OC2) is cleared on the Compare Match between TCNT2 and OCR2 while upcounting, and set on the Compare Match while downcounting. In inverting Output Compare mode, the operation is inverted. The dual-slope operation has lower maximum operation frequency than single slope operation. However, due to the symmetric feature of the dual-slope PWM modes, these modes are preferred for motor control applications.

The PWM resolution for the phase correct PWM mode is fixed to eight bits. In phase correct

PWM mode the counter is incremented until the counter value matches MAX. When the counter reaches MAX, it changes the count direction. The TCNT2 value will be equal to MAX for one timer clock cycle. The timing diagram for the phase correct PWM mode is shown on

Figure 51 .

The TCNT2 value is in the timing diagram shown as a histogram for illustrating the dual-slope operation. The diagram includes non-inverted and inverted PWM outputs. The small horizontal line marks on the TCNT2 slopes represent compare matches between OCR2 and TCNT2.

Figure 51. Phase Correct PWM Mode, Timing Diagram

OCn Interrupt Flag Set

OCRn Update

TOVn Interrupt Flag Set

TCNTn

OCn

OCn

Period

1 2 3

(COMn1:0 = 2)

(COMn1:0 = 3)

113

2486W–AVR–02/10

Timer/Counter

Timing Diagrams

The Timer/Counter Overflow Flag (TOV2) is set each time the counter reaches BOTTOM. The

Interrupt Flag can be used to generate an interrupt each time the counter reaches the BOTTOM value.

In phase correct PWM mode, the compare unit allows generation of PWM waveforms on the

OC2 pin. Setting the COM21:0 bits to 2 will produce a non-inverted PWM. An inverted PWM output can be generated by setting the COM21:0 to 3 (see

Table 45 on page 118 ). The actual OC2

value will only be visible on the port pin if the data direction for the port pin is set as output. The

PWM waveform is generated by clearing (or setting) the OC2 Register at the Compare Match between OCR2 and TCNT2 when the counter increments, and setting (or clearing) the OC2

Register at Compare Match between OCR2 and TCNT2 when the counter decrements. The

PWM frequency for the output when using phase correct PWM can be calculated by the following equation:

f

OCnPCPWM

=

f

clk_I/O

N 510

The N variable represents the prescale factor (1, 8, 32, 64, 128, 256, or 1024).

The extreme values for the OCR2 Register represent special cases when generating a PWM waveform output in the phase correct PWM mode. If the OCR2 is set equal to BOTTOM, the output will be continuously low and if set equal to MAX the output will be continuously high for noninverted PWM mode. For inverted PWM the output will have the opposite logic values.

At the very start of period 2 in

Figure 51 OCn has a transition from high to low even though there

is no Compare Match. The point of this transition is to guarantee symmetry around BOTTOM.

There are two cases that give a transition without Compare Match:

OCR2A changes its value from MAX, like in Figure 51 . When the OCR2A value is MAX the

OCn pin value is the same as the result of a down-counting Compare Match. To ensure symmetry around BOTTOM the OCn value at MAX must correspond to the result of an upcounting Compare Match.

• The timer starts counting from a value higher than the one in OCR2A, and for that reason misses the Compare Match and hence the OCn change that would have happened on the way up.

The following figures show the Timer/Counter in Synchronous mode, and the timer clock (clk

T2

) is therefore shown as a clock enable signal. In Asynchronous mode, clk

I/O

should be replaced by the Timer/Counter Oscillator clock. The figures include information on when Interrupt Flags are set.

Figure 52 contains timing data for basic Timer/Counter operation. The figure shows the

count sequence close to the MAX value in all modes other than phase correct PWM mode.

Figure 52. Timer/Counter Timing Diagram, no Prescaling

clk

I/O

clk

Tn

(clk

I/O

/1)

TCNTn

MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

114

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 53 shows the same timing data, but with the prescaler enabled.

Figure 53. Timer/Counter Timing Diagram, with Prescaler (f clk_I/O

/8)

clk

I/O

clk

(clk

I/O

Tn

/8)

TCNTn

MAX - 1 MAX BOTTOM

TOVn

BOTTOM + 1

Figure 54 shows the setting of OCF2 in all modes except CTC mode.

Figure 54. Timer/Counter Timing Diagram, Setting of OCF2, with Prescaler (f clk_I/O

/8)

clk

I/O

clk

(clk

I/O

Tn

/8)

TCNTn

OCRn - 1 OCRn OCRn + 1 OCRn + 2

OCRn

OCRn Value

OCFn

Figure 55 shows the setting of OCF2 and the clearing of TCNT2 in CTC mode.

115

Figure 55. Timer/Counter Timing Diagram, Clear Timer on Compare Match Mode, with Prescaler (f clk_I/O

/8)

clk

I/O

clk

Tn

(clk

I/O

/8)

TCNTn

(CTC)

OCRn

TOP - 1 TOP

TOP

BOTTOM BOTTOM + 1

OCFn

116

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

8-bit

Timer/Counter

Register

Description

Timer/Counter Control

Register – TCCR2

Bit

Read/Write

Initial Value

7

FOC2

W

0

6

WGM20

R/W

0

5

COM21

R/W

0

4

COM20

R/W

0

3

WGM21

R/W

0

2

CS22

R/W

0

1

CS21

R/W

0

0

CS20

R/W

0

TCCR2

• Bit 7 – FOC2: Force Output Compare

The FOC2 bit is only active when the WGM bits specify a non-PWM mode. However, for ensuring compatibility with future devices, this bit must be set to zero when TCCR2 is written when operating in PWM mode. When writing a logical one to the FOC2 bit, an immediate Compare

Match is forced on the waveform generation unit. The OC2 output is changed according to its

COM21:0 bits setting. Note that the FOC2 bit is implemented as a strobe. Therefore it is the value present in the COM21:0 bits that determines the effect of the forced compare.

A FOC2 strobe will not generate any interrupt, nor will it clear the timer in CTC mode using

OCR2 as TOP.

The FOC2 bit is always read as zero.

• Bit 6,3 – WGM21:0: Waveform Generation Mode

These bits control the counting sequence of the counter, the source for the maximum (TOP) counter value, and what type of waveform generation to be used. Modes of operation supported by the Timer/Counter unit are: Normal mode, Clear Timer on Compare Match (CTC) mode, and two types of Pulse Width Modulation (PWM) modes. See

Table 42

and

“Modes of Operation” on page 110

.

Table 42. Waveform Generation Mode Bit Description

Mode

WGM21

(CTC2)

WGM20

(PWM2)

Timer/Counter Mode

of Operation

(1)

0

1

0

0

0

1

Normal

PWM, Phase Correct

TOP

0xFF

0xFF

Update of

OCR2

TOV2 Flag

Set

Immediate MAX

TOP BOTTOM

2 1 0 CTC OCR2 Immediate MAX

3 1 1 Fast PWM 0xFF BOTTOM MAX

Note: 1. The CTC2 and PWM2 bit definition names are now obsolete. Use the WGM21:0 definitions.

However, the functionality and location of these bits are compatible with previous versions of the timer.

• Bit 5:4 – COM21:0: Compare Match Output Mode

These bits control the Output Compare Pin (OC2) behavior. If one or both of the COM21:0 bits are set, the OC2 output overrides the normal port functionality of the I/O pin it is connected to.

However, note that the Data Direction Register (DDR) bit corresponding to OC2 pin must be set in order to enable the output driver.

When OC2 is connected to the pin, the function of the COM21:0 bits depends on the WGM21:0

bit setting. Table 43 shows the COM21:0 bit functionality when the WGM21:0 bits are set to a

normal or CTC mode (non-PWM).

117

2486W–AVR–02/10

Table 43. Compare Output Mode, Non-PWM Mode

COM21 COM20 Description

1

1

0

0

0

1

0

1

Normal port operation, OC2 disconnected.

Toggle OC2 on Compare Match

Clear OC2 on Compare Match

Set OC2 on Compare Match

Table 44 shows the COM21:0 bit functionality when the WGM21:0 bits are set to fast PWM

mode.

Table 44. Compare Output Mode, Fast PWM Mode

(1)

COM21

0

COM20

0

Description

Normal port operation, OC2 disconnected.

0

1

1

0

Reserved

Clear OC2 on Compare Match, set OC2 at BOTTOM,

(non-inverting mode)

1 1 Set OC2 on Compare Match, clear OC2 at BOTTOM,

(inverting mode)

Note: 1. A special case occurs when OCR2 equals TOP and COM21 is set. In this case, the Compare

Match is ignored, but the set or clear is done at BOTTOM. See “Fast PWM Mode” on page 112

for more details.

Table 45

shows the COM21:0 bit functionality when the WGM21:0 bits are set to phase correct

PWM mode.

Table 45. Compare Output Mode, Phase Correct PWM Mode

(1)

COM21 COM20 Description

0 0 Normal port operation, OC2 disconnected.

0

1

1

0

Reserved

Clear OC2 on Compare Match when up-counting. Set OC2 on Compare

Match when downcounting.

1 1

Set OC2 on Compare Match when up-counting. Clear OC2 on Compare

Match when downcounting.

Note: 1. A special case occurs when OCR2 equals TOP and COM21 is set. In this case, the Compare

Match is ignored, but the set or clear is done at TOP. See “Phase Correct PWM Mode” on page

113 for more details.

118

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

• Bit 2:0 – CS22:0: Clock Select

The three clock select bits select the clock source to be used by the Timer/Counter, see Table

46

.

Table 46. Clock Select Bit Description

CS22

0

CS21

0

CS20

0

Description

No clock source (Timer/Counter stopped).

1

1

1

0

1

0

0

0

1

1

1

0

0

1

1

0

1

1

0

1

0 clk

T2S

/(No prescaling) clk

T2S

/8 (From prescaler) clk

T2S

/32 (From prescaler) clk

T2S

/64 (From prescaler) clk

T2S

/128 (From prescaler) clk

T

2

S

/256 (From prescaler) clk

T 2 S

/1024 (From prescaler)

Timer/Counter

Register – TCNT2

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

TCNT2[7:0]

R/W

0

R/W

0

2

R/W

0

1

R/W

0

0

R/W

0

TCNT2

The Timer/Counter Register gives direct access, both for read and write operations, to the

Timer/Counter unit 8-bit counter. Writing to the TCNT2 Register blocks (removes) the Compare

Match on the following timer clock. Modifying the counter (TCNT2) while the counter is running, introduces a risk of missing a Compare Match between TCNT2 and the OCR2 Register.

Output Compare

Register – OCR2

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4

OCR2[7:0]

3

R/W

0

R/W

0

2

R/W

0

1

R/W

0

0

R/W

0

OCR2

The Output Compare Register contains an 8-bit value that is continuously compared with the counter value (TCNT2). A match can be used to generate an Output Compare interrupt, or to generate a waveform output on the OC2 pin.

Asynchronous

Operation of the

Timer/Counter

Asynchronous Status

Register – ASSR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

AS2

R/W

0

2

TCN2UB

R

0

1

OCR2UB

R

0

0

TCR2UB

R

0

ASSR

• Bit 3 – AS2: Asynchronous Timer/Counter2

When AS2 is written to zero, Timer/Counter 2 is clocked from the I/O clock, clk

I/O

. When AS2 is written to one, Timer/Counter 2 is clocked from a crystal Oscillator connected to the Timer Oscillator 1 (TOSC1) pin. When the value of AS2 is changed, the contents of TCNT2, OCR2, and

TCCR2 might be corrupted.

119

2486W–AVR–02/10

Asynchronous

Operation of

Timer/Counter2

120

• Bit 2 – TCN2UB: Timer/Counter2 Update Busy

When Timer/Counter2 operates asynchronously and TCNT2 is written, this bit becomes set.

When TCNT2 has been updated from the temporary storage register, this bit is cleared by hardware. A logical zero in this bit indicates that TCNT2 is ready to be updated with a new value.

• Bit 1 – OCR2UB: Output Compare Register2 Update Busy

When Timer/Counter2 operates asynchronously and OCR2 is written, this bit becomes set.

When OCR2 has been updated from the temporary storage register, this bit is cleared by hardware. A logical zero in this bit indicates that OCR2 is ready to be updated with a new value.

• Bit 0 – TCR2UB: Timer/Counter Control Register2 Update Busy

When Timer/Counter2 operates asynchronously and TCCR2 is written, this bit becomes set.

When TCCR2 has been updated from the temporary storage register, this bit is cleared by hardware. A logical zero in this bit indicates that TCCR2 is ready to be updated with a new value.

If a write is performed to any of the three Timer/Counter2 Registers while its update busy flag is set, the updated value might get corrupted and cause an unintentional interrupt to occur.

The mechanisms for reading TCNT2, OCR2, and TCCR2 are different. When reading TCNT2, the actual timer value is read. When reading OCR2 or TCCR2, the value in the temporary storage register is read.

When Timer/Counter2 operates asynchronously, some considerations must be taken.

• Warning: When switching between asynchronous and synchronous clocking of

Timer/Counter2, the Timer Registers TCNT2, OCR2, and TCCR2 might be corrupted. A safe procedure for switching clock source is:

1.

Disable the Timer/Counter2 interrupts by clearing OCIE2 and TOIE2.

2.

Select clock source by setting AS2 as appropriate.

3.

Write new values to TCNT2, OCR2, and TCCR2.

4.

To switch to asynchronous operation: Wait for TCN2UB, OCR2UB, and TCR2UB.

5.

Clear the Timer/Counter2 Interrupt Flags.

6.

Enable interrupts, if needed.

• The Oscillator is optimized for use with a 32.768 kHz watch crystal. Applying an external clock to the TOSC1 pin may result in incorrect Timer/Counter2 operation. The CPU main clock frequency must be more than four times the Oscillator frequency.

• When writing to one of the registers TCNT2, OCR2, or TCCR2, the value is transferred to a temporary register, and latched after two positive edges on TOSC1. The user should not write a new value before the contents of the temporary register have been transferred to its destination. Each of the three mentioned registers have their individual temporary register, which means that e.g. writing to TCNT2 does not disturb an OCR2 write in progress. To detect that a transfer to the destination register has taken place, the Asynchronous Status

Register – ASSR has been implemented.

• When entering Power-save mode after having written to TCNT2, OCR2, or TCCR2, the user must wait until the written register has been updated if Timer/Counter2 is used to wake up the device. Otherwise, the MCU will enter sleep mode before the changes are effective. This is particularly important if the Output Compare2 interrupt is used to wake up the device, since the Output Compare function is disabled during writing to OCR2 or TCNT2. If the write cycle is not finished, and the MCU enters sleep mode before the OCR2UB bit returns to zero, the device will never receive a Compare Match interrupt, and the MCU will not wake up.

• If Timer/Counter2 is used to wake the device up from Power-save mode, precautions must be taken if the user wants to re-enter one of these modes: The interrupt logic needs one

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

TOSC1 cycle to be reset. If the time between wake-up and re-entering sleep mode is less than one TOSC1 cycle, the interrupt will not occur, and the device will fail to wake up. If the user is in doubt whether the time before re-entering Power-save or Extended Standby mode is sufficient, the following algorithm can be used to ensure that one TOSC1 cycle has elapsed:

1.

Write a value to TCCR2, TCNT2, or OCR2.

2.

Wait until the corresponding Update Busy Flag in ASSR returns to zero.

3.

Enter Power-save or Extended Standby mode.

• When the asynchronous operation is selected, the 32.768 kHZ Oscillator for Timer/Counter2 is always running, except in Power-down and Standby modes. After a Power-up Reset or

Wake-up from Power-down or Standby mode, the user should be aware of the fact that this

Oscillator might take as long as one second to stabilize. The user is advised to wait for at least one second before using Timer/Counter2 after Power-up or Wake-up from Power-down or Standby mode. The contents of all Timer/Counter2 Registers must be considered lost after a wake-up from Power-down or Standby mode due to unstable clock signal upon startup, no matter whether the Oscillator is in use or a clock signal is applied to the TOSC1 pin.

• Description of wake up from Power-save or Extended Standby mode when the timer is clocked asynchronously: When the interrupt condition is met, the wake up process is started on the following cycle of the timer clock, that is, the timer is always advanced by at least one before the processor can read the counter value. After wake-up, the MCU is halted for four cycles, it executes the interrupt routine, and resumes execution from the instruction following SLEEP.

• Reading of the TCNT2 Register shortly after wake-up from Power-save may give an incorrect result. Since TCNT2 is clocked on the asynchronous TOSC clock, reading TCNT2 must be done through a register synchronized to the internal I/O clock domain.

Synchronization takes place for every rising TOSC1 edge. When waking up from Powersave mode, and the I/O clock (clk

I/O

) again becomes active, TCNT2 will read as the previous value (before entering sleep) until the next rising TOSC1 edge. The phase of the TOSC clock after waking up from Power-save mode is essentially unpredictable, as it depends on the wake-up time. The recommended procedure for reading TCNT2 is thus as follows:

1.

Write any value to either of the registers OCR2 or TCCR2.

2.

Wait for the corresponding Update Busy Flag to be cleared.

3.

Read TCNT2.

• During asynchronous operation, the synchronization of the Interrupt Flags for the asynchronous timer takes three processor cycles plus one timer cycle. The timer is therefore advanced by at least one before the processor can read the timer value causing the setting of the Interrupt Flag. The Output Compare Pin is changed on the timer clock and is not synchronized to the processor clock.

121

Timer/Counter

Interrupt Mask

Register – TIMSK

Bit

Read/Write

Initial Value

7

OCIE2

R/W

0

6

TOIE2

R/W

0

5

TICIE1

R/W

0

4

OCIE1A

R/W

0

3

OCIE1B

R/W

0

2

TOIE1

R/W

0

R

0

1

0

TOIE0

R/W

0

TIMSK

• Bit 7 – OCIE2: Timer/Counter2 Output Compare Match Interrupt Enable

When the OCIE2 bit is written to one and the I-bit in the Status Register is set (one), the

Timer/Counter2 Compare Match interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter2 occurs (i.e., when the OCF2 bit is set in the Timer/Counter

Interrupt Flag Register – TIFR).

• Bit 6 – TOIE2: Timer/Counter2 Overflow Interrupt Enable

When the TOIE2 bit is written to one and the I-bit in the Status Register is set (one), the

Timer/Counter2 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter2 occurs (i.e., when the TOV2 bit is set in the Timer/Counter Interrupt

Flag Register – TIFR).

Timer/Counter

Interrupt Flag Register

– TIFR

Bit

Read/Write

Initial Value

7

OCF2

R/W

0

6

TOV2

R/W

0

5

ICF1

R/W

0

4

OCF1A

R/W

0

3

OCF1B

R/W

0

2

TOV1

R/W

0

R

0

1

0

TOV0

R/W

0

TIFR

• Bit 7 – OCF2: Output Compare Flag 2

The OCF2 bit is set (one) when a Compare Match occurs between the Timer/Counter2 and the data in OCR2 – Output Compare Register2. OCF2 is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, OCF2 is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE2 (Timer/Counter2 Compare Match Interrupt Enable), and

OCF2 are set (one), the Timer/Counter2 Compare Match Interrupt is executed.

• Bit 6 – TOV2: Timer/Counter2 Overflow Flag

The TOV2 bit is set (one) when an overflow occurs in Timer/Counter2. TOV2 is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, TOV2 is cleared by writing a logic one to the flag. When the SREG I-bit, TOIE2 (Timer/Counter2 Overflow

Interrupt Enable), and TOV2 are set (one), the Timer/Counter2 Overflow interrupt is executed. In

PWM mode, this bit is set when Timer/Counter2 changes counting direction at 0x00.

122

ATmega8(L)

2486W–AVR–02/10

Timer/Counter

Prescaler

Figure 56. Prescaler for Timer/Counter2 clk

I/O

TOSC1 clk

T2S

Clear

AS2

10-BIT T/C PRESCALER

ATmega8(L)

PSR2

0

CS20

CS21

CS22

TIMER/COUNTER2 CLOCK SOURCE clk

T2

The clock source for Timer/Counter2 is named clk

T2S

. clk

T2S

is by default connected to the main system I/O clock clk

I/O

. By setting the AS2 bit in ASSR, Timer/Counter2 is asynchronously clocked from the TOSC1 pin. This enables use of Timer/Counter2 as a Real Time Counter

(RTC). When AS2 is set, pins TOSC1 and TOSC2 are disconnected from Port B. A crystal can then be connected between the TOSC1 and TOSC2 pins to serve as an independent clock source for Timer/Counter2. The Oscillator is optimized for use with a 32.768 kHz crystal. Applying an external clock source to TOSC1 is not recommended.

For Timer/Counter2, the possible prescaled selections are: clk clk

T2S

/128, clk

T2S

/256, and clk

T2S

/1024. Additionally, clk

T2S

T2S

/8, clk

T2S

/32, clk

T2S

/64,

as well as 0 (stop) may be selected.

Setting the PSR2 bit in SFIOR resets the prescaler. This allows the user to operate with a predictable prescaler.

Special Function IO

Register – SFIOR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

ACME

R/W

0

2

PUD

R/W

0

1

PSR2

R/W

0

0

PSR10

R/W

0

SFIOR

• Bit 1 – PSR2: Prescaler Reset Timer/Counter2

When this bit is written to one, the Timer/Counter2 prescaler will be reset. The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. This bit will always be read as zero if Timer/Counter2 is clocked by the internal CPU clock. If this bit is written when Timer/Counter2 is operating in Asynchronous mode, the bit will remain one until the prescaler has been reset.

123

2486W–AVR–02/10

Serial

Peripheral

Interface – SPI

The Serial Peripheral Interface (SPI) allows high-speed synchronous data transfer between the

ATmega8 and peripheral devices or between several AVR devices. The ATmega8 SPI includes the following features:

Full-duplex, Three-wire Synchronous Data Transfer

Master or Slave Operation

LSB First or MSB First Data Transfer

Seven Programmable Bit Rates

End of Transmission Interrupt Flag

Write Collision Flag Protection

Wake-up from Idle Mode

Double Speed (CK/2) Master SPI Mode

Figure 57. SPI Block Diagram

(1)

DIVIDER

/2/4/8/16/32/64/128

Note:

1. Refer to “Pin Configurations” on page 2

, and

Table 22 on page 58 for SPI pin placement.

The interconnection between Master and Slave CPUs with SPI is shown in Figure 58

. The system consists of two Shift Registers, and a Master clock generator. The SPI Master initiates the communication cycle when pulling low the Slave Select SS pin of the desired Slave. Master and

Slave prepare the data to be sent in their respective Shift Registers, and the Master generates the required clock pulses on the SCK line to interchange data. Data is always shifted from Master to Slave on the Master Out – Slave In, MOSI, line, and from Slave to Master on the Master In

– Slave Out, MISO, line. After each data packet, the Master will synchronize the Slave by pulling high the Slave Select, SS, line.

124

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

When configured as a Master, the SPI interface has no automatic control of the SS line. This must be handled by user software before communication can start. When this is done, writing a byte to the SPI Data Register starts the SPI clock generator, and the hardware shifts the eight bits into the Slave. After shifting one byte, the SPI clock generator stops, setting the end of

Transmission Flag (SPIF). If the SPI interrupt enable bit (SPIE) in the SPCR Register is set, an interrupt is requested. The Master may continue to shift the next byte by writing it into SPDR, or signal the end of packet by pulling high the Slave Select, SS line. The last incoming byte will be kept in the Buffer Register for later use.

When configured as a Slave, the SPI interface will remain sleeping with MISO tri-stated as long as the SS pin is driven high. In this state, software may update the contents of the SPI Data

Register, SPDR, but the data will not be shifted out by incoming clock pulses on the SCK pin until the SS pin is driven low. As one byte has been completely shifted, the end of Transmission

Flag, SPIF is set. If the SPI interrupt enable bit, SPIE, in the SPCR Register is set, an interrupt is requested. The Slave may continue to place new data to be sent into SPDR before reading the incoming data. The last incoming byte will be kept in the Buffer Register for later use.

Figure 58. SPI Master-Slave Interconnection

MSB MASTER LSB

MISO

8 BIT SHIFT REGISTER

MOSI

MISO

MOSI

MSB SLAVE LSB

8 BIT SHIFT REGISTER

SHIFT

ENABLE

SPI

CLOCK GENERATOR

SCK

SS

V

CC

SCK

SS

The system is single buffered in the transmit direction and double buffered in the receive direction. This means that bytes to be transmitted cannot be written to the SPI Data Register before the entire shift cycle is completed. When receiving data, however, a received character must be read from the SPI Data Register before the next character has been completely shifted in. Otherwise, the first byte is lost.

In SPI Slave mode, the control logic will sample the incoming signal of the SCK pin. To ensure correct sampling of the clock signal, the minimum low and high periods should be:

Low period: longer than 2 CPU clock cycles

High period: longer than 2 CPU clock cycles.

When the SPI is enabled, the data direction of the MOSI, MISO, SCK, and SS pins is overridden according to

Table 47

. For more details on automatic port overrides, refer to “Alternate Port

Functions” on page 56 .

Table 47. SPI Pin Overrides

(1)

Pin Direction, Master SPI

MOSI User Defined

Direction, Slave SPI

Input

125

Table 47. SPI Pin Overrides

(1)

Pin Direction, Master SPI Direction, Slave SPI

MISO

SCK

Input

User Defined

User Defined

Input

SS User Defined Input

Note: 1. See

“Port B Pins Alternate Functions” on page 58 for a detailed description of how to define

the direction of the user defined SPI pins.

The following code examples show how to initialize the SPI as a Master and how to perform a simple transmission. DDR_SPI in the examples must be replaced by the actual Data Direction

Register controlling the SPI pins. DD_MOSI, DD_MISO and DD_SCK must be replaced by the actual data direction bits for these pins. E.g. if MOSI is placed on pin PB5, replace DD_MOSI with DDB5 and DDR_SPI with DDRB.

126

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

Assembly Code Example

(1)

SPI_MasterInit:

; Set MOSI and SCK output, all others input

ldi

r17,(1<<DD_MOSI)|(1<<DD_SCK)

out

DDR_SPI,r17

; Enable SPI, Master, set clock rate fck/16

ldi

r17,(1<<SPE)|(1<<MSTR)|(1<<SPR0)

out

SPCR,r17

ret

SPI_MasterTransmit:

; Start transmission of data (r16)

out

SPDR,r16

Wait_Transmit:

; Wait for transmission complete

sbis

SPSR,SPIF

rjmp

Wait_Transmit

ret

C Code Example

(1)

void

SPI_MasterInit(void)

{

/* Set MOSI and SCK output, all others input */

DDR_SPI = (1<<DD_MOSI)|(1<<DD_SCK);

/* Enable SPI, Master, set clock rate fck/16 */

SPCR = (1<<SPE)|(1<<MSTR)|(1<<SPR0);

}

void

SPI_MasterTransmit(char cData)

{

/* Start transmission */

SPDR = cData;

/* Wait for transmission complete */

while

(!(SPSR & (1<<SPIF)))

;

}

Note:

1. See “About Code Examples” on page 8.

ATmega8(L)

127

The following code examples show how to initialize the SPI as a Slave and how to perform a simple reception.

Assembly Code Example

(1)

SPI_SlaveInit:

; Set MISO output, all others input

ldi

r17,(1<<DD_MISO)

out

DDR_SPI,r17

; Enable SPI

ldi

r17,(1<<SPE)

out

SPCR,r17

ret

SPI_SlaveReceive:

; Wait for reception complete

sbis

SPSR,SPIF

rjmp

SPI_SlaveReceive

; Read received data and return

in

r16,SPDR

ret

C Code Example

(1)

void

SPI_SlaveInit(void)

{

/* Set MISO output, all others input */

DDR_SPI = (1<<DD_MISO);

/* Enable SPI */

SPCR = (1<<SPE);

}

char

SPI_SlaveReceive(void)

{

/* Wait for reception complete */

while

(!(SPSR & (1<<SPIF)))

;

/* Return data register */

return

SPDR;

}

Note:

1. See “About Code Examples” on page 8.

128

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

SS Pin

Functionality

Slave Mode

Master Mode

When the SPI is configured as a Slave, the Slave Select (SS) pin is always input. When SS is held low, the SPI is activated, and MISO becomes an output if configured so by the user. All other pins are inputs. When SS is driven high, all pins are inputs except MISO which can be user configured as an output, and the SPI is passive, which means that it will not receive incoming data. Note that the SPI logic will be reset once the SS pin is driven high.

The SS pin is useful for packet/byte synchronization to keep the Slave bit counter synchronous with the master clock generator. When the SS pin is driven high, the SPI Slave will immediately reset the send and receive logic, and drop any partially received data in the Shift Register.

When the SPI is configured as a Master (MSTR in SPCR is set), the user can determine the direction of the SS pin.

If SS is configured as an output, the pin is a general output pin which does not affect the SPI system. Typically, the pin will be driving the SS pin of the SPI Slave.

If SS is configured as an input, it must be held high to ensure Master SPI operation. If the SS pin is driven low by peripheral circuitry when the SPI is configured as a Master with the SS pin defined as an input, the SPI system interprets this as another Master selecting the SPI as a

Slave and starting to send data to it. To avoid bus contention, the SPI system takes the following actions:

1.

The MSTR bit in SPCR is cleared and the SPI system becomes a Slave. As a result of the SPI becoming a Slave, the MOSI and SCK pins become inputs.

2.

The SPIF Flag in SPSR is set, and if the SPI interrupt is enabled, and the I-bit in SREG is set, the interrupt routine will be executed.

Thus, when interrupt-driven SPI transmission is used in Master mode, and there exists a possibility that SS is driven low, the interrupt should always check that the MSTR bit is still set. If the

MSTR bit has been cleared by a Slave Select, it must be set by the user to re-enable SPI Master mode.

SPI Control Register –

SPCR

Bit

Read/Write

Initial Value

7

SPIE

R/W

0

6

SPE

R/W

0

5

DORD

R/W

0

4

MSTR

R/W

0

3

CPOL

R/W

0

2

CPHA

R/W

0

1

SPR1

R/W

0

0

SPR0

R/W

0

SPCR

• Bit 7 – SPIE: SPI Interrupt Enable

This bit causes the SPI interrupt to be executed if SPIF bit in the SPSR Register is set and the if the global interrupt enable bit in SREG is set.

• Bit 6 – SPE: SPI Enable

When the SPE bit is written to one, the SPI is enabled. This bit must be set to enable any SPI operations.

• Bit 5 – DORD: Data Order

When the DORD bit is written to one, the LSB of the data word is transmitted first.

When the DORD bit is written to zero, the MSB of the data word is transmitted first.

• Bit 4 – MSTR: Master/Slave Select

This bit selects Master SPI mode when written to one, and Slave SPI mode when written logic zero. If SS is configured as an input and is driven low while MSTR is set, MSTR will be cleared,

129

2486W–AVR–02/10

and SPIF in SPSR will become set. The user will then have to set MSTR to re-enable SPI Master mode.

• Bit 3 – CPOL: Clock Polarity

When this bit is written to one, SCK is high when idle. When CPOL is written to zero, SCK is low

when idle. Refer to Figure 59 and Figure 60 for an example. The CPOL functionality is summa-

rized below:

Table 48. CPOL Functionality

CPOL

0

1

Leading Edge

Rising

Falling

Trailing Edge

Falling

Rising

• Bit 2 – CPHA: Clock Phase

The settings of the clock phase bit (CPHA) determine if data is sampled on the leading (first) or

trailing (last) edge of SCK. Refer to Figure 59 and Figure 60

for an example. The CPHA functionality is summarized below:

Table 49. CPHA Functionality

CPHA Leading Edge

0

1

Sample

Setup

Trailing Edge

Setup

Sample

• Bits 1, 0 – SPR1, SPR0: SPI Clock Rate Select 1 and 0

These two bits control the SCK rate of the device configured as a Master. SPR1 and SPR0 have no effect on the Slave. The relationship between SCK and the Oscillator Clock frequency f osc is shown in the following table:

Table 50. Relationship Between SCK and the Oscillator Frequency

SPI2X

1

1

1

1

0

0

0

0

SPR1

1

1

0

0

1

1

0

0

SPR0

0

1

0

1

0

1

0

1

SCK Frequency

f osc

/

4 f osc

/

16 f osc

/

64 f osc

/

128 f osc

/

2 f osc

/

8 f osc

/

32 f osc

/

64

130

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

SPI Status Register –

SPSR

Bit

Read/Write

Initial Value

7

SPIF

R

0

6

WCOL

R

0

R

0

5

R

0

4

R

0

3

R

0

2

R

0

1

0

SPI2X

R/W

0

SPSR

• Bit 7 – SPIF: SPI Interrupt Flag

When a serial transfer is complete, the SPIF Flag is set. An interrupt is generated if SPIE in

SPCR is set and global interrupts are enabled. If SS is an input and is driven low when the SPI is in Master mode, this will also set the SPIF Flag. SPIF is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, the SPIF bit is cleared by first reading the

SPI Status Register with SPIF set, then accessing the SPI Data Register (SPDR).

• Bit 6 – WCOL: Write COLlision Flag

The WCOL bit is set if the SPI Data Register (SPDR) is written during a data transfer. The

WCOL bit (and the SPIF bit) are cleared by first reading the SPI Status Register with WCOL set, and then accessing the SPI Data Register.

• Bit 5..1 – Res: Reserved Bits

These bits are reserved bits in the ATmega8 and will always read as zero.

• Bit 0 – SPI2X: Double SPI Speed Bit

When this bit is written logic one the SPI speed (SCK Frequency) will be doubled when the SPI

is in Master mode (see Table 50 ). This means that the minimum SCK period will be 2 CPU clock

periods. When the SPI is configured as Slave, the SPI is only guaranteed to work at f osc

/4 or lower.

The SPI interface on the ATmega8 is also used for Program memory and EEPROM download-

ing or uploading. See page 237 for Serial Programming and verification.

SPI Data Register –

SPDR

Bit

Read/Write

Initial Value

7

MSB

R/W

X

6

R/W

X

5

R/W

X

4

R/W

X

3

R/W

X

2

R/W

X

1

R/W

X

0

LSB

R/W

X

SPDR

Undefined

The SPI Data Register is a Read/Write Register used for data transfer between the Register File and the SPI Shift Register. Writing to the register initiates data transmission. Reading the register causes the Shift Register Receive buffer to be read.

131

2486W–AVR–02/10

Data Modes

There are four combinations of SCK phase and polarity with respect to serial data, which are determined by control bits CPHA and CPOL. The SPI data transfer formats are shown in

Figure

59 and Figure 60 . Data bits are shifted out and latched in on opposite edges of the SCK signal,

ensuring sufficient time for data signals to stabilize. This is clearly seen by summarizing

Table

48

and

Table 49 , as done below:

Table 51. CPOL and CPHA Functionality

Leading Edge

CPOL = 0, CPHA = 0

CPOL = 0, CPHA = 1

CPOL = 1, CPHA = 0

CPOL = 1, CPHA = 1

Sample (Rising)

Setup (Rising)

Sample (Falling)

Setup (Falling)

Trailing Edge

Setup (Falling)

Sample (Falling)

Setup (Rising)

Sample (Rising)

SPI Mode

2

3

0

1

Figure 59. SPI Transfer Format with CPHA = 0

SCK (CPOL = 0) mode 0

SCK (CPOL = 1) mode 2

SAMPLE I

MOSI/MISO

CHANGE 0

MOSI PIN

CHANGE 0

MISO PIN

SS

MSB first (DORD = 0)

LSB first (DORD = 1)

MSB

LSB

Bit 6

Bit 1

Bit 5

Bit 2

Figure 60. SPI Transfer Format with CPHA = 1

SCK (CPOL = 0) mode 1

SCK (CPOL = 1) mode 3

SAMPLE I

MOSI/MISO

CHANGE 0

MOSI PIN

CHANGE 0

MISO PIN

SS

Bit 4

Bit 3

Bit 3

Bit 4

Bit 2

Bit 5

Bit 1

Bit 6

LSB

MSB

MSB first (DORD = 0)

LSB first (DORD = 1)

MSB

LSB

Bit 6

Bit 1

Bit 5

Bit 2

Bit 4

Bit 3

Bit 3

Bit 4

Bit 2

Bit 5

Bit 1

Bit 6

LSB

MSB

132

ATmega8(L)

2486W–AVR–02/10

USART

Overview

2486W–AVR–02/10

ATmega8(L)

The Universal Synchronous and Asynchronous serial Receiver and Transmitter (USART) is a highly-flexible serial communication device. The main features are:

Full Duplex Operation (Independent Serial Receive and Transmit Registers)

Asynchronous or Synchronous Operation

Master or Slave Clocked Synchronous Operation

High Resolution Baud Rate Generator

Supports Serial Frames with 5, 6, 7, 8, or 9 Databits and 1 or 2 Stop Bits

Odd or Even Parity Generation and Parity Check Supported by Hardware

Data OverRun Detection

Framing Error Detection

Noise Filtering Includes False Start Bit Detection and Digital Low Pass Filter

Three Separate Interrupts on TX Complete, TX Data Register Empty and RX Complete

Multi-processor Communication Mode

Double Speed Asynchronous Communication Mode

A simplified block diagram of the USART Transmitter is shown in Figure 61 . CPU accessible I/O

Registers and I/O pins are shown in bold.

Figure 61. USART Block Diagram

(1)

Clock Generator

UBRR[H:L]

BAUD RATE GENERATOR

OSC

SYNC LOGIC

UDR (Transmit)

TRANSMIT SHIFT REGISTER

PARITY

GENERATOR

RECEIVE SHIFT REGISTER

UDR (Receive)

CLOCK

RECOVERY

DATA

RECOVERY

PARITY

CHECKER

PIN

CONTROL

Transmitter

TX

CONTROL

XCK

PIN

CONTROL

Receiver

RX

CONTROL

TxD

PIN

CONTROL

RxD

UCSRA UCSRB UCSRC

Note:

1. Refer to “Pin Configurations” on page 2 ,

Table 30 on page 64 , and Table 29 on page 64

for

USART pin placement.

133

AVR USART vs. AVR

UART – Compatibility

The dashed boxes in the block diagram separate the three main parts of the USART (listed from the top): Clock generator, Transmitter and Receiver. Control Registers are shared by all units.

The clock generation logic consists of synchronization logic for external clock input used by synchronous slave operation, and the baud rate generator. The XCK (transfer clock) pin is only used by synchronous transfer mode. The Transmitter consists of a single write buffer, a serial

Shift Register, Parity Generator and control logic for handling different serial frame formats. The write buffer allows a continuous transfer of data without any delay between frames. The

Receiver is the most complex part of the USART module due to its clock and data recovery units. The recovery units are used for asynchronous data reception. In addition to the recovery units, the Receiver includes a parity checker, control logic, a Shift Register and a two level receive buffer (UDR). The Receiver supports the same frame formats as the Transmitter, and can detect Frame Error, Data OverRun and Parity Errors.

The USART is fully compatible with the AVR UART regarding:

• Bit locations inside all USART Registers.

• Baud Rate Generation.

• Transmitter Operation.

• Transmit Buffer Functionality.

• Receiver Operation.

However, the receive buffering has two improvements that will affect the compatibility in some special cases:

• A second Buffer Register has been added. The two Buffer Registers operate as a circular

FIFO buffer. Therefore the UDR must only be read once for each incoming data! More important is the fact that the Error Flags (FE and DOR) and the ninth data bit (RXB8) are buffered with the data in the receive buffer. Therefore the status bits must always be read before the UDR Register is read. Otherwise the error status will be lost since the buffer state is lost.

• The Receiver Shift Register can now act as a third buffer level. This is done by allowing the received data to remain in the serial Shift Register (see

Figure 61 ) if the Buffer Registers are

full, until a new start bit is detected. The USART is therefore more resistant to Data OverRun

(DOR) error conditions.

The following control bits have changed name, but have same functionality and register location:

• CHR9 is changed to UCSZ2.

• OR is changed to DOR.

Clock Generation

The clock generation logic generates the base clock for the Transmitter and Receiver. The

USART supports four modes of clock operation: normal asynchronous, double speed asynchronous, Master synchronous and Slave Synchronous mode. The UMSEL bit in USART Control and Status Register C (UCSRC) selects between asynchronous and synchronous operation.

Double speed (Asynchronous mode only) is controlled by the U2X found in the UCSRA Register. When using Synchronous mode (UMSEL = 1), the Data Direction Register for the XCK pin

(DDR_XCK) controls whether the clock source is internal (Master mode) or external (Slave mode). The XCK pin is only active when using Synchronous mode.

Figure 62 shows a block diagram of the clock generation logic.

134

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 62. Clock Generation Logic, Block Diagram

UBRR

Prescaling

Down-Counter fosc

UBRR+1

/ 2

OSC

Sync

Register

Edge

Detector

XCK

Pin xcki xcko

DDR_XCK UCPOL

/ 4 / 2

U2X

0

1

DDR_XCK

0

1

0

1 txclk

UMSEL

1

0 rxclk

Internal Clock

Generation – The

Baud Rate Generator

Signal description:

txclk

Transmitter clock. (Internal Signal)

rxclk

Receiver base clock. (Internal Signal)

xcki

Input from XCK pin (internal Signal). Used for synchronous slave operation.

xcko

Clock output to XCK pin (Internal Signal). Used for synchronous master operation.

fosc

XTAL pin frequency (System Clock).

Internal clock generation is used for the asynchronous and the Synchronous Master modes of

operation. The description in this section refers to Figure 62 .

The USART Baud Rate Register (UBRR) and the down-counter connected to it function as a programmable prescaler or baud rate generator. The down-counter, running at system clock

(fosc), is loaded with the UBRR value each time the counter has counted down to zero or when the UBRRL Register is written. A clock is generated each time the counter reaches zero. This clock is the baud rate generator clock output (= fosc/(UBRR+1)). The Transmitter divides the baud rate generator clock output by 2, 8, or 16 depending on mode. The baud rate generator output is used directly by the Receiver’s clock and data recovery units. However, the recovery units use a state machine that uses 2, 8, or 16 states depending on mode set by the state of the

UMSEL, U2X and DDR_XCK bits.

Table 52 contains equations for calculating the baud rate (in bits per second) and for calculating

the UBRR value for each mode of operation using an internally generated clock source.

135

2486W–AVR–02/10

Double Speed

Operation (U2X)

External Clock

Table 52. Equations for Calculating Baud Rate Register Setting

Equation for Calculating

Baud Rate

(1)

Equation for Calculating

UBRR Value Operating Mode

Asynchronous Normal mode

(U2X = 0)

Asynchronous Double Speed

Mode (U2X = 1)

Synchronous Master Mode

BAUD

=

f

---------------------------------------

16

(

UBRR 1

)

BAUD

=

f

-----------------------------------

8

(

UBRR 1

)

BAUD

=

f

-----------------------------------

2

(

UBRR 1

)

UBRR

= ------------------------

16

f

BAUD

– 1

UBRR

= --------------------

8

f

BAUD

– 1

UBRR

= --------------------

2

f

BAUD

1

Note: 1. The baud rate is defined to be the transfer rate in bit per second (bps).

BAUD Baud rate (in bits per second, bps) f

OSC

System Oscillator clock frequency

UBRR Contents of the UBRRH and UBRRL Registers, (0 - 4095)

Some examples of UBRR values for some system clock frequencies are found in

Table 60 (see page 159

).

The transfer rate can be doubled by setting the U2X bit in UCSRA. Setting this bit only has effect for the asynchronous operation. Set this bit to zero when using synchronous operation.

Setting this bit will reduce the divisor of the baud rate divider from 16 to 8, effectively doubling the transfer rate for asynchronous communication. Note however that the Receiver will in this case only use half the number of samples (reduced from 16 to 8) for data sampling and clock recovery, and therefore a more accurate baud rate setting and system clock are required when this mode is used. For the Transmitter, there are no downsides.

External clocking is used by the Synchronous Slave modes of operation. The description in this

section refers to Figure 62 for details.

External clock input from the XCK pin is sampled by a synchronization register to minimize the chance of meta-stability. The output from the synchronization register must then pass through an edge detector before it can be used by the Transmitter and Receiver. This process introduces a two CPU clock period delay and therefore the maximum external XCK clock frequency is limited by the following equation:

f

XCK

<

f

-----------

4

Note that f osc

depends on the stability of the system clock source. It is therefore recommended to add some margin to avoid possible loss of data due to frequency variations.

136

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Synchronous Clock

Operation

Frame Formats

When Synchronous mode is used (UMSEL = 1), the XCK pin will be used as either clock input

(Slave) or clock output (Master). The dependency between the clock edges and data sampling or data change is the same. The basic principle is that data input (on RxD) is sampled at the opposite XCK clock edge of the edge the data output (TxD) is changed.

Figure 63. Synchronous Mode XCK Timing

UCPOL = 1 XCK

RxD / TxD

Sample

UCPOL = 0 XCK

RxD / TxD

Sample

The UCPOL bit UCRSC selects which XCK clock edge is used for data sampling and which is used for data change. As

Figure 63 shows, when UCPOL is zero the data will be changed at ris-

ing XCK edge and sampled at falling XCK edge. If UCPOL is set, the data will be changed at falling XCK edge and sampled at rising XCK edge.

A serial frame is defined to be one character of data bits with synchronization bits (start and stop bits), and optionally a parity bit for error checking. The USART accepts all 30 combinations of the following as valid frame formats:

• 1 start bit

• 5, 6, 7, 8, or 9 data bits

• no, even or odd parity bit

• 1 or 2 stop bits

A frame starts with the start bit followed by the least significant data bit. Then the next data bits, up to a total of nine, are succeeding, ending with the most significant bit. If enabled, the parity bit is inserted after the data bits, before the stop bits. When a complete frame is transmitted, it can be directly followed by a new frame, or the communication line can be set to an idle (high) state.

Figure 64

illustrates the possible combinations of the frame formats. Bits inside brackets are optional.

Figure 64. Frame Formats

FRAME

(IDLE) St 0 1 2 3 4 [5] [6] [7] [8] [P] Sp1 [Sp2] (St / IDLE)

St

(n)

P

Sp

Start bit, always low.

Data bits (0 to 8).

Parity bit. Can be odd or even.

Stop bit, always high.

137

2486W–AVR–02/10

IDLE No transfers on the communication line (RxD or TxD). An IDLE line must be high.

The frame format used by the USART is set by the UCSZ2:0, UPM1:0 and USBS bits in UCSRB and UCSRC. The Receiver and Transmitter use the same setting. Note that changing the setting of any of these bits will corrupt all ongoing communication for both the Receiver and Transmitter.

The USART Character SiZe (UCSZ2:0) bits select the number of data bits in the frame. The

USART Parity mode (UPM1:0) bits enable and set the type of parity bit. The selection between one or two stop bits is done by the USART Stop Bit Select (USBS) bit. The Receiver ignores the second stop bit. An FE (Frame Error) will therefore only be detected in the cases where the first stop bit is zero.

Parity Bit Calculation

The parity bit is calculated by doing an exclusive-or of all the data bits. If odd parity is used, the result of the exclusive or is inverted. The relation between the parity bit and data bits is as follows:

P even

P odd

=

=

d d

⊕ … ⊕

d

d

⊕ ⊕

d

⊕ … ⊕

d

3

3

d

2

2

d d

1

1

d

0

0

0

1

P even

P odd

Parity bit using even parity.

Parity bit using odd parity.

d n

Data bit n of the character.

If used, the parity bit is located between the last data bit and first stop bit of a serial frame.

USART

Initialization

The USART has to be initialized before any communication can take place. The initialization process normally consists of setting the baud rate, setting frame format and enabling the

Transmitter or the Receiver depending on the usage. For interrupt driven USART operation, the

Global Interrupt Flag should be cleared (and interrupts globally disabled) when doing the initialization.

Before doing a re-initialization with changed baud rate or frame format, be sure that there are no ongoing transmissions during the period the registers are changed. The TXC Flag can be used to check that the Transmitter has completed all transfers, and the RXC Flag can be used to check that there are no unread data in the receive buffer. Note that the TXC Flag must be cleared before each transmission (before UDR is written) if it is used for this purpose.

The following simple USART initialization code examples show one assembly and one C function that are equal in functionality. The examples assume asynchronous operation using polling

(no interrupts enabled) and a fixed frame format. The baud rate is given as a function parameter.

For the assembly code, the baud rate parameter is assumed to be stored in the r17:r16 Registers. When the function writes to the UCSRC Register, the URSEL bit (MSB) must be set due to the sharing of I/O location by UBRRH and UCSRC.

138

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Assembly Code Example

(1)

USART_Init:

; Set baud rate

out

UBRRH, r17

out

UBRRL, r16

; Enable receiver and transmitter

ldi

r16, (1<<RXEN)|(1<<TXEN)

out

UCSRB,r16

; Set frame format: 8data, 2stop bit

ldi

r16, (1<<URSEL)|(1<<USBS)|(3<<UCSZ0)

out

UCSRC,r16

ret

C Code Example

(1)

#define FOSC 1843200// Clock Speed

#define BAUD 9600

#define MYUBRR FOSC/16/BAUD-1

void

main( void )

{

...

USART_Init ( MYUBRR );

...

}

void

USART_Init( unsigned int ubrr)

{

/* Set baud rate */

UBRRH = (unsigned char)(ubrr>>8);

UBRRL = (unsigned char)ubrr;

/* Enable receiver and transmitter */

UCSRB = (1<<RXEN)|(1<<TXEN);

/* Set frame format: 8data, 2stop bit */

UCSRC = (1<<URSEL)|(1<<USBS)|(3<<UCSZ0);

}

Note:

1. See “About Code Examples” on page 8.

More advanced initialization routines can be made that include frame format as parameters, disable interrupts and so on. However, many applications use a fixed setting of the Baud and

Control Registers, and for these types of applications the initialization code can be placed directly in the main routine, or be combined with initialization code for other I/O modules.

139

Data Transmission

– The USART

Transmitter

The USART Transmitter is enabled by setting the Transmit Enable (TXEN) bit in the UCSRB

Register. When the Transmitter is enabled, the normal port operation of the TxD pin is overridden by the USART and given the function as the Transmitter’s serial output. The baud rate, mode of operation and frame format must be set up once before doing any transmissions. If synchronous operation is used, the clock on the XCK pin will be overridden and used as transmission clock.

Sending Frames with

5 to 8 Data Bits

A data transmission is initiated by loading the transmit buffer with the data to be transmitted. The

CPU can load the transmit buffer by writing to the UDR I/O location. The buffered data in the transmit buffer will be moved to the Shift Register when the Shift Register is ready to send a new frame. The Shift Register is loaded with new data if it is in idle state (no ongoing transmission) or immediately after the last stop bit of the previous frame is transmitted. When the Shift Register is loaded with new data, it will transfer one complete frame at the rate given by the Baud Register,

U2X bit or by XCK depending on mode of operation.

The following code examples show a simple USART transmit function based on polling of the

Data Register Empty (UDRE) Flag. When using frames with less than eight bits, the most significant bits written to the UDR are ignored. The USART has to be initialized before the function can be used. For the assembly code, the data to be sent is assumed to be stored in Register

R16

Assembly Code Example

(1)

USART_Transmit:

; Wait for empty transmit buffer

sbis

UCSRA,UDRE

rjmp

USART_Transmit

; Put data (r16) into buffer, sends the data

out

UDR,r16

ret

C Code Example

(1)

void

USART_Transmit( unsigned char data )

{

/* Wait for empty transmit buffer */

while

( !( UCSRA & (1<<UDRE)) )

;

/* Put data into buffer, sends the data */

UDR = data;

}

Note:

1. See “About Code Examples” on page 8.

The function simply waits for the transmit buffer to be empty by checking the UDRE Flag, before loading it with new data to be transmitted. If the Data Register Empty Interrupt is utilized, the interrupt routine writes the data into the buffer.

140

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Sending Frames with

9 Data Bits

If 9-bit characters are used (UCSZ = 7), the ninth bit must be written to the TXB8 bit in UCSRB before the Low byte of the character is written to UDR. The following code examples show a transmit function that handles 9-bit characters. For the assembly code, the data to be sent is assumed to be stored in registers R17:R16.

Assembly Code Example

(1)

USART_Transmit:

; Wait for empty transmit buffer

sbis

UCSRA,UDRE

rjmp

USART_Transmit

; Copy ninth bit from r17 to TXB8

cbi

UCSRB,TXB8

sbrc

r17,0

sbi

UCSRB,TXB8

; Put LSB data (r16) into buffer, sends the data

out

UDR,r16

ret

C Code Example

(1)

void

USART_Transmit( unsigned int data )

{

/* Wait for empty transmit buffer */

while

( !( UCSRA & (1<<UDRE)) )

;

/* Copy ninth bit to TXB8 */

UCSRB &= ~(1<<TXB8); if ( data & 0x0100 )

UCSRB |= (1<<TXB8);

/* Put data into buffer, sends the data */

UDR = data;

}

Note: 1. These transmit functions are written to be general functions. They can be optimized if the contents of the UCSRB is static. I.e. only the TXB8 bit of the UCSRB Register is used after initialization.

The ninth bit can be used for indicating an address frame when using multi processor communication mode or for other protocol handling as for example synchronization.

Transmitter Flags and

Interrupts

The USART Transmitter has two flags that indicate its state: USART Data Register Empty

(UDRE) and Transmit Complete (TXC). Both flags can be used for generating interrupts.

The Data Register Empty (UDRE) Flag indicates whether the transmit buffer is ready to receive new data. This bit is set when the transmit buffer is empty, and cleared when the transmit buffer contains data to be transmitted that has not yet been moved into the Shift Register. For compatibility with future devices, always write this bit to zero when writing the UCSRA Register.

When the Data Register empty Interrupt Enable (UDRIE) bit in UCSRB is written to one, the

USART Data Register Empty Interrupt will be executed as long as UDRE is set (provided that global interrupts are enabled). UDRE is cleared by writing UDR. When interrupt-driven data transmission is used, the Data Register empty Interrupt routine must either write new data to

141

2486W–AVR–02/10

Parity Generator

Disabling the

Transmitter

UDR in order to clear UDRE or disable the Data Register empty Interrupt, otherwise a new interrupt will occur once the interrupt routine terminates.

The Transmit Complete (TXC) Flag bit is set one when the entire frame in the transmit Shift Register has been shifted out and there are no new data currently present in the transmit buffer. The

TXC Flag bit is automatically cleared when a transmit complete interrupt is executed, or it can be cleared by writing a one to its bit location. The TXC Flag is useful in half-duplex communication interfaces (like the RS485 standard), where a transmitting application must enter Receive mode and free the communication bus immediately after completing the transmission.

When the Transmit Compete Interrupt Enable (TXCIE) bit in UCSRB is set, the USART Transmit

Complete Interrupt will be executed when the TXC Flag becomes set (provided that global interrupts are enabled). When the transmit complete interrupt is used, the interrupt handling routine does not have to clear the TXC Flag, this is done automatically when the interrupt is executed.

The Parity Generator calculates the parity bit for the serial frame data. When parity bit is enabled

(UPM1 = 1), the Transmitter control logic inserts the parity bit between the last data bit and the first stop bit of the frame that is sent.

The disabling of the Transmitter (setting the TXEN to zero) will not become effective until ongoing and pending transmissions are completed (i.e., when the Transmit Shift Register and

Transmit Buffer Register do not contain data to be transmitted). When disabled, the Transmitter will no longer override the TxD pin.

142

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Data Reception –

The USART

Receiver

The USART Receiver is enabled by writing the Receive Enable (RXEN) bit in the UCSRB Register to one. When the Receiver is enabled, the normal pin operation of the RxD pin is overridden by the USART and given the function as the Receiver’s serial input. The baud rate, mode of operation and frame format must be set up once before any serial reception can be done. If synchronous operation is used, the clock on the XCK pin will be used as transfer clock.

Receiving Frames with

5 to 8 Data Bits

The Receiver starts data reception when it detects a valid start bit. Each bit that follows the start bit will be sampled at the baud rate or XCK clock, and shifted into the Receive Shift Register until the first stop bit of a frame is received. A second stop bit will be ignored by the Receiver. When the first stop bit is received (i.e., a complete serial frame is present in the Receive Shift Register), the contents of the Shift Register will be moved into the receive buffer. The receive buffer can then be read by reading the UDR I/O location.

The following code example shows a simple USART receive function based on polling of the

Receive Complete (RXC) Flag. When using frames with less than eight bits the most significant bits of the data read from the UDR will be masked to zero. The USART has to be initialized before the function can be used.

Assembly Code Example

(1)

USART_Receive:

; Wait for data to be received

sbis

UCSRA, RXC

rjmp

USART_Receive

; Get and return received data from buffer

in

r16, UDR

ret

C Code Example

(1)

unsigned char

USART_Receive( void )

{

/* Wait for data to be received */

while

( !(UCSRA & (1<<RXC)) )

;

/* Get and return received data from buffer */

return

UDR;

}

Note:

1. See “About Code Examples” on page 8.

The function simply waits for data to be present in the receive buffer by checking the RXC Flag, before reading the buffer and returning the value.

143

2486W–AVR–02/10

Receiving Frames with

9 Data Bits

If 9-bit characters are used (UCSZ=7) the ninth bit must be read from the RXB8 bit in UCSRB

before reading the low bits from the UDR. This rule applies to the FE, DOR and PE Status Flags as well. Read status from UCSRA, then data from UDR. Reading the UDR I/O location will change the state of the receive buffer FIFO and consequently the TXB8, FE, DOR, and PE bits, which all are stored in the FIFO, will change.

144

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

The following code example shows a simple USART receive function that handles both 9-bit characters and the status bits.

Assembly Code Example

(1)

USART_Receive:

; Wait for data to be received

sbis

UCSRA, RXC

rjmp

USART_Receive

; Get status and ninth bit, then data from buffer

in

r18, UCSRA

in

r17, UCSRB

in

r16, UDR

; If error, return -1

andi

r18,(1<<FE)|(1<<DOR)|(1<<PE)

breq

USART_ReceiveNoError

ldi

r17, HIGH(-1)

ldi

r16, LOW(-1)

USART_ReceiveNoError:

; Filter the ninth bit, then return

lsr

r17

andi

r17, 0x01

ret

C Code Example

(1)

unsigned int

USART_Receive( void )

{

unsigned char

status, resh, resl;

/* Wait for data to be received */

while

( !(UCSRA & (1<<RXC)) )

;

/* Get status and ninth bit, then data */

/* from buffer */ status = UCSRA; resh = UCSRB; resl = UDR;

/* If error, return -1 */

if

( status & (1<<FE)|(1<<DOR)|(1<<PE) )

return

-1;

/* Filter the ninth bit, then return */ resh = (resh >> 1) & 0x01;

return

((resh << 8) | resl);

}

Note:

1. See “About Code Examples” on page 8.

The receive function example reads all the I/O Registers into the Register File before any computation is done. This gives an optimal receive buffer utilization since the buffer location read will be free to accept new data as early as possible.

145

Receive Compete Flag and Interrupt

The USART Receiver has one flag that indicates the Receiver state.

The Receive Complete (RXC) Flag indicates if there are unread data present in the receive buffer. This flag is one when unread data exist in the receive buffer, and zero when the receive buffer is empty (i.e., does not contain any unread data). If the Receiver is disabled (RXEN = 0), the receive buffer will be flushed and consequently the RXC bit will become zero.

When the Receive Complete Interrupt Enable (RXCIE) in UCSRB is set, the USART Receive

Complete Interrupt will be executed as long as the RXC Flag is set (provided that global interrupts are enabled). When interrupt-driven data reception is used, the receive complete routine must read the received data from UDR in order to clear the RXC Flag, otherwise a new interrupt will occur once the interrupt routine terminates.

Receiver Error Flags

The USART Receiver has three error flags: Frame Error (FE), Data OverRun (DOR) and Parity

Error (PE). All can be accessed by reading UCSRA. Common for the error flags is that they are located in the receive buffer together with the frame for which they indicate the error status. Due to the buffering of the error flags, the UCSRA must be read before the receive buffer (UDR), since reading the UDR I/O location changes the buffer read location. Another equality for the error flags is that they can not be altered by software doing a write to the flag location. However, all flags must be set to zero when the UCSRA is written for upward compatibility of future

USART implementations. None of the error flags can generate interrupts.

The Frame Error (FE) Flag indicates the state of the first stop bit of the next readable frame stored in the receive buffer. The FE Flag is zero when the stop bit was correctly read (as one), and the FE Flag will be one when the stop bit was incorrect (zero). This flag can be used for detecting out-of-sync conditions, detecting break conditions and protocol handling. The FE Flag is not affected by the setting of the USBS bit in UCSRC since the Receiver ignores all, except for the first, stop bits. For compatibility with future devices, always set this bit to zero when writing to

UCSRA.

The Data OverRun (DOR) Flag indicates data loss due to a Receiver buffer full condition. A Data

OverRun occurs when the receive buffer is full (two characters), it is a new character waiting in the Receive Shift Register, and a new start bit is detected. If the DOR Flag is set there was one or more serial frame lost between the frame last read from UDR, and the next frame read from

UDR. For compatibility with future devices, always write this bit to zero when writing to UCSRA.

The DOR Flag is cleared when the frame received was successfully moved from the Shift Register to the receive buffer.

The Parity Error (PE) Flag indicates that the next frame in the receive buffer had a parity error when received. If parity check is not enabled the PE bit will always be read zero. For compatibility with future devices, always set this bit to zero when writing to UCSRA. For more details see

“Parity Bit Calculation” on page 138

and

“Parity Checker” on page 147

.

146

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Parity Checker

The Parity Checker is active when the high USART Parity mode (UPM1) bit is set. Type of parity check to be performed (odd or even) is selected by the UPM0 bit. When enabled, the Parity

Checker calculates the parity of the data bits in incoming frames and compares the result with the parity bit from the serial frame. The result of the check is stored in the receive buffer together with the received data and stop bits. The Parity Error (PE) Flag can then be read by software to check if the frame had a parity error.

The PE bit is set if the next character that can be read from the receive buffer had a parity error when received and the parity checking was enabled at that point (UPM1 = 1). This bit is valid until the receive buffer (UDR) is read.

Disabling the Receiver

In contrast to the Transmitter, disabling of the Receiver will be immediate. Data from ongoing receptions will therefore be lost. When disabled (i.e., the RXEN is set to zero) the Receiver will no longer override the normal function of the RxD port pin. The Receiver buffer FIFO will be flushed when the Receiver is disabled. Remaining data in the buffer will be lost

Flushing the Receive

Buffer

The Receiver buffer FIFO will be flushed when the Receiver is disabled (i.e., the buffer will be emptied of its contents). Unread data will be lost. If the buffer has to be flushed during normal operation, due to for instance an error condition, read the UDR I/O location until the RXC Flag is cleared. The following code example shows how to flush the receive buffer.

Assembly Code Example

(1)

USART_Flush:

sbis

UCSRA, RXC

ret in

r16, UDR

rjmp

USART_Flush

C Code Example

(1)

void

USART_Flush( void )

{

unsigned char

dummy;

while

( UCSRA & (1<<RXC) ) dummy = UDR;

}

Note:

1. See “About Code Examples” on page 8.

Asynchronous

Data Reception

Asynchronous Clock

Recovery

The USART includes a clock recovery and a data recovery unit for handling asynchronous data reception. The clock recovery logic is used for synchronizing the internally generated baud rate clock to the incoming asynchronous serial frames at the RxD pin. The data recovery logic samples and low pass filters each incoming bit, thereby improving the noise immunity of the

Receiver. The asynchronous reception operational range depends on the accuracy of the internal baud rate clock, the rate of the incoming frames, and the frame size in number of bits.

The clock recovery logic synchronizes internal clock to the incoming serial frames.

Figure 65

illustrates the sampling process of the start bit of an incoming frame. The sample rate is 16 times the baud rate for Normal mode, and eight times the baud rate for Double Speed mode. The horizontal arrows illustrate the synchronization variation due to the sampling process. Note the larger time variation when using the Double Speed mode (U2X = 1) of operation. Samples denoted zero are samples done when the RxD line is idle (i.e., no communication activity).

147

2486W–AVR–02/10

Figure 65. Start Bit Sampling

RxD IDLE START BIT 0

Sample

(U2X = 0)

Sample

(U2X = 1)

0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3

0 1 2 3 4 5 6 7 8 1 2

Asynchronous Data

Recovery

When the clock recovery logic detects a high (idle) to low (start) transition on the RxD line, the start bit detection sequence is initiated. Let sample 1 denote the first zero-sample as shown in the figure. The clock recovery logic then uses samples 8, 9 and 10 for Normal mode, and samples 4, 5 and 6 for Double Speed mode (indicated with sample numbers inside boxes on the figure), to decide if a valid start bit is received. If two or more of these three samples have logical high levels (the majority wins), the start bit is rejected as a noise spike and the Receiver starts looking for the next high to low-transition. If however, a valid start bit is detected, the clock recovery logic is synchronized and the data recovery can begin. The synchronization process is repeated for each start bit.

When the Receiver clock is synchronized to the start bit, the data recovery can begin. The data recovery unit uses a state machine that has 16 states for each bit in Normal mode and eight states for each bit in Double Speed mode.

Figure 66 shows the sampling of the data bits and the

parity bit. Each of the samples is given a number that is equal to the state of the recovery unit.

Figure 66. Sampling of Data and Parity Bit

RxD BIT n

Sample

(U2X = 0)

Sample

(U2X = 1)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1

1 2 3 4 5 6 7 8 1

The decision of the logic level of the received bit is taken by doing a majority voting of the logic value to the three samples in the center of the received bit. The center samples are emphasized on the figure by having the sample number inside boxes. The majority voting process is done as follows: If two or all three samples have high levels, the received bit is registered to be a logic 1.

If two or all three samples have low levels, the received bit is registered to be a logic 0. This majority voting process acts as a low pass filter for the incoming signal on the RxD pin. The recovery process is then repeated until a complete frame is received. Including the first stop bit.

Note that the Receiver only uses the first stop bit of a frame.

Figure 67 shows the sampling of the stop bit and the earliest possible beginning of the start bit of

the next frame.

148

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 67. Stop Bit Sampling and Next Start Bit Sampling

RxD STOP 1

(A)

Sample

(U2X = 0)

Sample

(U2X = 1)

(B)

1 2 3 4 5 6 7 8 9 10 0/1 0/1 0/1

1 2 3 4 5 6 0/1

(C)

Asynchronous

Operational Range

The same majority voting is done to the stop bit as done for the other bits in the frame. If the stop bit is registered to have a logic 0 value, the Frame Error (FE) Flag will be set.

A new high to low transition indicating the start bit of a new frame can come right after the last of the bits used for majority voting. For Normal Speed mode, the first low level sample can be at

point marked (A) in Figure 67

. For Double Speed mode the first low level must be delayed to (B).

(C) marks a stop bit of full length. The early start bit detection influences the operational range of the Receiver.

The operational range of the Receiver is dependent on the mismatch between the received bit rate and the internally generated baud rate. If the Transmitter is sending frames at too fast or too slow bit rates, or the internally generated baud rate of the Receiver does not have a similar (see

Table 53

) base frequency, the Receiver will not be able to synchronize the frames to the start bit.

The following equations can be used to calculate the ratio of the incoming data rate and internal

Receiver baud rate.

R slow

=

D 1

+

)S

D S

+

S

F

R fast

=

(

+

)S

+

M

D

S

Sum of character size and parity size (D = 5- to 10-bit)

Samples per bit. S = 16 for Normal Speed mode and S = 8 for Double Speed mode.

S

S

F

M

First sample number used for majority voting. S

F

= 8 for Normal Speed and S

F

= 4 for Double Speed mode.

Middle sample number used for majority voting. S

M

= 9 for Normal Speed and S

M

= 5 for Double Speed mode.

R slow is the ratio of the slowest incoming data rate that can be accepted in relation to the

Receiver baud rate. R fast

is the ratio of the fastest incoming data rate that can be accepted in relation to the Receiver baud rate.

Table 53 and Table 54

list the maximum Receiver baud rate error that can be tolerated. Note that Normal Speed mode has higher toleration of baud rate variations.

149

2486W–AVR–02/10

Table 53. Recommended Maximum Receiver Baud Rate Error for Normal Speed Mode (U2X =

0)

D#

(Data+Parity Bit)

5

R slow

(%) R fast

(%)

93,20 106,67

Max Total

Error (%)

+6.67/-6.8

Recommended Max

Receiver Error (%)

± 3.0

8

9

6

7

10

94,12

94,81

95,36

95,81

96,17

105,79

105,11

104,58

104,14

103,78

+5.79/-5.88

+5.11/-5.19

+4.58/-4.54

+4.14/-4.19

+3.78/-3.83

± 2.0

± 2.0

± 2.0

± 1.5

± 1.5

Table 54. Recommended Maximum Receiver Baud Rate Error for Double Speed Mode (U2X =

1)

D#

(Data+Parity Bit) R slow

(%) R fast

(%)

5 94,12 105,66

Max Total

Error (%)

+5.66/-5.88

Recommended Max

Receiver Error (%)

± 2.5

8

9

6

7

10

94,92

95,52

96,00

96,39

96,70

104,92

104,35

103,90

103,53

103,23

+4.92/-5.08

+4.35/-4.48

+3.90/-4.00

+3.53/-3.61

+3.23/-3.30

± 2.0

± 1.5

± 1.5

± 1.5

± 1.0

The recommendations of the maximum Receiver baud rate error was made under the assumption that the Receiver and Transmitter equally divides the maximum total error.

There are two possible sources for the Receivers Baud Rate error. The Receiver’s system clock

(XTAL) will always have some minor instability over the supply voltage range and the temperature range. When using a crystal to generate the system clock, this is rarely a problem, but for a resonator the system clock may differ more than 2% depending of the resonators tolerance. The second source for the error is more controllable. The baud rate generator can not always do an exact division of the system frequency to get the baud rate wanted. In this case an UBRR value that gives an acceptable low error can be used if possible.

150

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Multi-processor

Communication

Mode

Using MPCM

Setting the Multi-processor Communication mode (MPCM) bit in UCSRA enables a filtering function of incoming frames received by the USART Receiver. Frames that do not contain address information will be ignored and not put into the receive buffer. This effectively reduces the number of incoming frames that has to be handled by the CPU, in a system with multiple

MCUs that communicate via the same serial bus. The Transmitter is unaffected by the MPCM setting, but has to be used differently when it is a part of a system utilizing the Multi-processor

Communication mode.

If the Receiver is set up to receive frames that contain 5 to 8 data bits, then the first stop bit indicates if the frame contains data or address information. If the Receiver is set up for frames with nine data bits, then the ninth bit (RXB8) is used for identifying address and data frames. When the frame type bit (the first stop or the ninth bit) is one, the frame contains an address. When the frame type bit is zero the frame is a data frame.

The Multi-processor Communication mode enables several Slave MCUs to receive data from a

Master MCU. This is done by first decoding an address frame to find out which MCU has been addressed. If a particular Slave MCU has been addressed, it will receive the following data frames as normal, while the other Slave MCUs will ignore the received frames until another address frame is received.

For an MCU to act as a Master MCU, it can use a 9-bit character frame format (UCSZ = 7). The ninth bit (TXB8) must be set when an address frame (TXB8 = 1) or cleared when a data frame

(TXB = 0) is being transmitted. The Slave MCUs must in this case be set to use a 9-bit character frame format.

The following procedure should be used to exchange data in Multi-processor Communication mode:

1.

All Slave MCUs are in Multi-processor Communication mode (MPCM in UCSRA is set).

2.

The Master MCU sends an address frame, and all slaves receive and read this frame. In the Slave MCUs, the RXC Flag in UCSRA will be set as normal.

3.

Each Slave MCU reads the UDR Register and determines if it has been selected. If so, it clears the MPCM bit in UCSRA, otherwise it waits for the next address byte and keeps the MPCM setting.

4.

The addressed MCU will receive all data frames until a new address frame is received.

The other Slave MCUs, which still have the MPCM bit set, will ignore the data frames.

5.

When the last data frame is received by the addressed MCU, the addressed MCU sets the MPCM bit and waits for a new address frame from Master. The process then repeats from 2.

Using any of the 5- to 8-bit character frame formats is possible, but impractical since the

Receiver must change between using n and n+1 character frame formats. This makes fullduplex operation difficult since the Transmitter and Receiver uses the same character size setting. If 5- to 8-bit character frames are used, the Transmitter must be set to use two stop bit

(USBS = 1) since the first stop bit is used for indicating the frame type.

Do not use Read-Modify-Write instructions (SBI and CBI) to set or clear the MPCM bit. The

MPCM bit shares the same I/O location as the TXC Flag and this might accidentally be cleared when using SBI or CBI instructions.

151

2486W–AVR–02/10

Accessing

UBRRH/UCSRC

Registers

Write Access

The UBRRH Register shares the same I/O location as the UCSRC Register. Therefore some special consideration must be taken when accessing this I/O location.

When doing a write access of this I/O location, the high bit of the value written, the USART Register Select (URSEL) bit, controls which one of the two registers that will be written. If URSEL is zero during a write operation, the UBRRH value will be updated. If URSEL is one, the UCSRC setting will be updated.

The following code examples show how to access the two registers.

Assembly Code Examples

(1)

...

; Set UBRRH to 2

ldi

r16,0x02

out

UBRRH,r16

...

; Set the USBS and the UCSZ1 bit to one, and

; the remaining bits to zero.

ldi

r16,(1<<URSEL)|(1<<USBS)|(1<<UCSZ1)

out

UCSRC,r16

...

C Code Examples

(1)

...

/* Set UBRRH to 2 */

UBRRH = 0x02;

...

/* Set the USBS and the UCSZ1 bit to one, and */

/* the remaining bits to zero. */

UCSRC = (1<<URSEL)|(1<<USBS)|(1<<UCSZ1);

...

Note:

1. See “About Code Examples” on page 8.

As the code examples illustrate, write accesses of the two registers are relatively unaffected of the sharing of I/O location.

152

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Read Access

Doing a read access to the UBRRH or the UCSRC Register is a more complex operation. However, in most applications, it is rarely necessary to read any of these registers.

The read access is controlled by a timed sequence. Reading the I/O location once returns the

UBRRH Register contents. If the register location was read in previous system clock cycle, reading the register in the current clock cycle will return the UCSRC contents. Note that the timed sequence for reading the UCSRC is an atomic operation. Interrupts must therefore be controlled

(e.g., by disabling interrupts globally) during the read operation.

The following code example shows how to read the UCSRC Register contents.

Assembly Code Example

(1)

USART_ReadUCSRC:

; Read UCSRC

in

r16,UBRRH

in

r16,UCSRC

ret

C Code Example

(1)

unsigned char

USART_ReadUCSRC( void )

{

unsigned char

ucsrc;

/* Read UCSRC */ ucsrc = UBRRH; ucsrc = UCSRC; return ucsrc;

}

Note:

1. See “About Code Examples” on page 8.

The assembly code example returns the UCSRC value in r16.

Reading the UBRRH contents is not an atomic operation and therefore it can be read as an ordinary register, as long as the previous instruction did not access the register location.

USART Register

Description

USART I/O Data

Register – UDR

Bit

Read/Write

Initial Value

7

R/W

0

6

R/W

0

5

R/W

0

4 3

R/W

0

RXB[7:0]

TXB[7:0]

R/W

0

2

R/W

0

1

R/W

0

0

R/W

0

UDR (Read)

UDR (Write)

The USART Transmit Data Buffer Register and USART Receive Data Buffer Registers share the same I/O address referred to as USART Data Register or UDR. The Transmit Data Buffer Register (TXB) will be the destination for data written to the UDR Register location. Reading the

UDR Register location will return the contents of the Receive Data Buffer Register (RXB).

For 5-, 6-, or 7-bit characters the upper unused bits will be ignored by the Transmitter and set to zero by the Receiver.

The transmit buffer can only be written when the UDRE Flag in the UCSRA Register is set. Data written to UDR when the UDRE Flag is not set, will be ignored by the USART Transmitter. When

153

2486W–AVR–02/10

data is written to the transmit buffer, and the Transmitter is enabled, the Transmitter will load the data into the Transmit Shift Register when the Shift Register is empty. Then the data will be serially transmitted on the TxD pin.

The receive buffer consists of a two level FIFO. The FIFO will change its state whenever the receive buffer is accessed. Due to this behavior of the receive buffer, do not use Read-Modify-

Write instructions (SBI and CBI) on this location. Be careful when using bit test instructions

(SBIC and SBIS), since these also will change the state of the FIFO.

USART Control and

Status Register A –

UCSRA

Bit

Read/Write

Initial Value

7

RXC

R

0

6

TXC

R/W

0

5

UDRE

R

1

4

FE

R

0

3

DOR

R

0

2

PE

R

0

1

U2X

R/W

0

0

MPCM

R/W

0

UCSRA

• Bit 7 – RXC: USART Receive Complete

This flag bit is set when there are unread data in the receive buffer and cleared when the receive buffer is empty (i.e. does not contain any unread data). If the Receiver is disabled, the receive buffer will be flushed and consequently the RXC bit will become zero. The RXC Flag can be used to generate a Receive Complete interrupt (see description of the RXCIE bit).

• Bit 6 – TXC: USART Transmit Complete

This flag bit is set when the entire frame in the Transmit Shift Register has been shifted out and there are no new data currently present in the transmit buffer (UDR). The TXC Flag bit is automatically cleared when a transmit complete interrupt is executed, or it can be cleared by writing a one to its bit location. The TXC Flag can generate a Transmit Complete interrupt (see description of the TXCIE bit).

• Bit 5 – UDRE: USART Data Register Empty

The UDRE Flag indicates if the transmit buffer (UDR) is ready to receive new data. If UDRE is one, the buffer is empty, and therefore ready to be written. The UDRE Flag can generate a Data

Register Empty interrupt (see description of the UDRIE bit).

UDRE is set after a reset to indicate that the Transmitter is ready.

• Bit 4 – FE: Frame Error

This bit is set if the next character in the receive buffer had a Frame Error when received (i.e., when the first stop bit of the next character in the receive buffer is zero). This bit is valid until the receive buffer (UDR) is read. The FE bit is zero when the stop bit of received data is one. Always set this bit to zero when writing to UCSRA.

• Bit 3 – DOR: Data OverRun

This bit is set if a Data OverRun condition is detected. A Data OverRun occurs when the receive buffer is full (two characters), it is a new character waiting in the Receive Shift Register, and a new start bit is detected. This bit is valid until the receive buffer (UDR) is read. Always set this bit to zero when writing to UCSRA.

• Bit 2 – PE: Parity Error

This bit is set if the next character in the receive buffer had a Parity Error when received and the parity checking was enabled at that point (UPM1 = 1). This bit is valid until the receive buffer

(UDR) is read. Always set this bit to zero when writing to UCSRA.

• Bit 1 – U2X: Double the USART transmission speed

This bit only has effect for the asynchronous operation. Write this bit to zero when using synchronous operation.

154

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Writing this bit to one will reduce the divisor of the baud rate divider from 16 to 8 effectively doubling the transfer rate for asynchronous communication.

• Bit 0 – MPCM: Multi-processor Communication Mode

This bit enables the Multi-processor Communication mode. When the MPCM bit is written to one, all the incoming frames received by the USART Receiver that do not contain address information will be ignored. The Transmitter is unaffected by the MPCM setting. For more detailed

information see “Multi-processor Communication Mode” on page 151

.

USART Control and

Status Register B –

UCSRB

Bit

Read/Write

Initial Value

7

RXCIE

R/W

0

6

TXCIE

R/W

0

5

UDRIE

R/W

0

4

RXEN

R/W

0

3

TXEN

R/W

0

2

UCSZ2

R/W

0

1

RXB8

R

0

0

TXB8

R/W

0

UCSRB

• Bit 7 – RXCIE: RX Complete Interrupt Enable

Writing this bit to one enables interrupt on the RXC Flag. A USART Receive Complete interrupt will be generated only if the RXCIE bit is written to one, the Global Interrupt Flag in SREG is written to one and the RXC bit in UCSRA is set.

• Bit 6 – TXCIE: TX Complete Interrupt Enable

Writing this bit to one enables interrupt on the TXC Flag. A USART Transmit Complete interrupt will be generated only if the TXCIE bit is written to one, the Global Interrupt Flag in SREG is written to one and the TXC bit in UCSRA is set.

• Bit 5 – UDRIE: USART Data Register Empty Interrupt Enable

Writing this bit to one enables interrupt on the UDRE Flag. A Data Register Empty interrupt will be generated only if the UDRIE bit is written to one, the Global Interrupt Flag in SREG is written to one and the UDRE bit in UCSRA is set.

• Bit 4 – RXEN: Receiver Enable

Writing this bit to one enables the USART Receiver. The Receiver will override normal port operation for the RxD pin when enabled. Disabling the Receiver will flush the receive buffer invalidating the FE, DOR and PE Flags.

• Bit 3 – TXEN: Transmitter Enable

Writing this bit to one enables the USART Transmitter. The Transmitter will override normal port operation for the TxD pin when enabled. The disabling of the Transmitter (writing TXEN to zero) will not become effective until ongoing and pending transmissions are completed (i.e., when the

Transmit Shift Register and Transmit Buffer Register do not contain data to be transmitted).

When disabled, the Transmitter will no longer override the TxD port.

• Bit 2 – UCSZ2: Character Size

The UCSZ2 bits combined with the UCSZ1:0 bit in UCSRC sets the number of data bits (Character Size) in a frame the Receiver and Transmitter use.

• Bit 1 – RXB8: Receive Data Bit 8

RXB8 is the ninth data bit of the received character when operating with serial frames with nine data bits. Must be read before reading the low bits from UDR.

• Bit 0 – TXB8: Transmit Data Bit 8

TXB8 is the ninth data bit in the character to be transmitted when operating with serial frames with nine data bits. Must be written before writing the low bits to UDR.

155

2486W–AVR–02/10

USART Control and

Status Register C –

UCSRC

Bit

Read/Write

Initial Value

7 6

URSEL UMSEL

R/W

1

R/W

0

5

UPM1

R/W

0

4

UPM0

R/W

0

3

USBS

R/W

0

2

UCSZ1

R/W

1

1

UCSZ0

R/W

1

0

UCPOL

R/W

0

UCSRC

The UCSRC Register shares the same I/O location as the UBRRH Register. See the

“Accessing

UBRRH/UCSRC Registers” on page 152

section which describes how to access this register.

• Bit 7 – URSEL: Register Select

This bit selects between accessing the UCSRC or the UBRRH Register. It is read as one when reading UCSRC. The URSEL must be one when writing the UCSRC.

• Bit 6 – UMSEL: USART Mode Select

This bit selects between Asynchronous and Synchronous mode of operation.

Table 55. UMSEL Bit Settings

UMSEL Mode

0

1

Asynchronous Operation

Synchronous Operation

156

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

• Bit 5:4 – UPM1:0: Parity Mode

These bits enable and set type of Parity Generation and Check. If enabled, the Transmitter will automatically generate and send the parity of the transmitted data bits within each frame. The

Receiver will generate a parity value for the incoming data and compare it to the UPM0 setting.

If a mismatch is detected, the PE Flag in UCSRA will be set.

Table 56. UPM Bits Settings

UPM1 UPM0

1

1

0

0

0

1

0

1

Parity Mode

Disabled

Reserved

Enabled, Even Parity

Enabled, Odd Parity

• Bit 3 – USBS: Stop Bit Select

This bit selects the number of stop bits to be inserted by the trAnsmitter. The Receiver ignores this setting.

Table 57. USBS Bit Settings

USBS

0

1

Stop Bit(s)

1-bit

2-bit

• Bit 2:1 – UCSZ1:0: Character Size

The UCSZ1:0 bits combined with the UCSZ2 bit in UCSRB sets the number of data bits (Character Size) in a frame the Receiver and Transmitter use.

Table 58. UCSZ Bits Settings

UCSZ2 UCSZ1

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

UCSZ0

0

1

0

1

0

1

0

1

Character Size

5-bit

6-bit

7-bit

8-bit

Reserved

Reserved

Reserved

9-bit

• Bit 0 – UCPOL: Clock Polarity

157

This bit is used for Synchronous mode only. Write this bit to zero when Asynchronous mode is used. The UCPOL bit sets the relationship between data output change and data input sample, and the synchronous clock (XCK).

Table 59. UCPOL Bit Settings

UCPOL

0

Transmitted Data Changed (Output of

TxD Pin)

Rising XCK Edge

1 Falling XCK Edge

Received Data Sampled (Input on

RxD Pin)

Falling XCK Edge

Rising XCK Edge

USART Baud Rate

Registers – UBRRL and UBRRHs

Bit

Read/Write

Initial Value

15

URSEL

7

R/W

R/W

0

0

14

6

R

R/W

0

0

13

5

R

R/W

0

0

R

R/W

0

0

12

11

4

UBRR[7:0]

3

R/W

R/W

0

0

10 9

UBRR[11:8]

2

R/W

R/W

0

0

1

R/W

R/W

0

0

8

0

R/W

R/W

0

0

UBRRH

UBRRL

The UBRRH Register shares the same I/O location as the UCSRC Register. See the

“Accessing

UBRRH/UCSRC Registers” on page 152

section which describes how to access this register.

• Bit 15 – URSEL: Register Select

This bit selects between accessing the UBRRH or the UCSRC Register. It is read as zero when reading UBRRH. The URSEL must be zero when writing the UBRRH.

• Bit 14:12 – Reserved Bits

These bits are reserved for future use. For compatibility with future devices, these bit must be written to zero when UBRRH is written.

• Bit 11:0 – UBRR11:0: USART Baud Rate Register

This is a 12-bit register which contains the USART baud rate. The UBRRH contains the four most significant bits, and the UBRRL contains the eight least significant bits of the USART baud rate. Ongoing transmissions by the Transmitter and Receiver will be corrupted if the baud rate is changed. Writing UBRRL will trigger an immediate update of the baud rate prescaler.

158

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Examples of Baud

Rate Setting

For standard crystal and resonator frequencies, the most commonly used baud rates for asyn-

chronous operation can be generated by using the UBRR settings in Table 60

. UBRR values which yield an actual baud rate differing less than 0.5% from the target baud rate, are bold in the table. Higher error ratings are acceptable, but the Receiver will have less noise resistance when the error ratings are high, especially for large serial frames (see

“Asynchronous Operational

Range” on page 149

). The error values are calculated using the following equation:

Error[%]

=

BaudRate

--------------------------------------------------------

BaudRate

1

100%

Table 60. Examples of UBRR Settings for Commonly Used Oscillator Frequencies

f osc

= 1.0000 MHz

U2X = 0 U2X = 1 f osc

= 1.8432 MHz

U2X = 0 U2X = 1

Baud

Rate

(bps)

2400

UBRR

25

Error

0.2%

UBRR

51

Error

0.2%

UBRR

47

Error

0.0%

UBRR

95

Error

0.0%

4800

9600

14.4k

19.2k

28.8k

38.4k

57.6k

76.8k

115.2k

230.4k

250k

Max

(1)

0

1

1

12

6

3

2

62.5 kbps

0.2%

-7.0%

8.5%

8.5%

8.5%

-18.6%

8.5%

1

1

3

2

8

6

25

12

0

8.5%

125 kbps

0.2%

0.2%

-3.5%

-7.0%

8.5%

8.5%

8.5%

-18.6%

1

1

3

2

23

11

7

5

0

0.0%

– –

115.2 kbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

-25.0%

3

2

7

5

47

23

15

11

1

0

0.0%

0.0%

– –

230.4 kbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

1.

UBRR = 0, Error = 0.0%

25

12

8

6

f osc

= 2.0000 MHz

U2X = 0 U2X = 1

UBRR

51

Error

0.2%

UBRR

103

Error

0.2%

0.2%

0.2%

-3.5%

-7.0%

51

25

16

12

0.2%

0.2%

2.1%

0.2%

1

1

3

2

8.5%

8.5%

8.5%

-18.6%

0

8.5%

-

125 kbps

8

6

3

2

1

0

-3.5%

-7.0%

8.5%

8.5%

8.5%

0.0%

250 kbps

159

2486W–AVR–02/10

Table 61. Examples of UBRR Settings for Commonly Used Oscillator Frequencies (Continued)

Baud

Rate

(bps) f osc

= 3.6864 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

= 4.0000 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

= 7.3728 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error

2400

4800

9600

14.4k

19.2k

28.8k

38.4k

57.6k

11

7

5

3

95

47

23

15

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

76.8k

115.2k

230.4k

250k

2

1

0

0

0.0%

0.0%

0.0%

-7.8%

1.

0.5M

1M

Max

(1)

230.4 kbps

UBRR = 0, Error = 0.0%

23

15

11

7

191

95

47

31

1

1

5

3

0.0%

0.0%

0.0%

-7.8%

0

-7.8%

460.8 kbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

12

8

6

3

103

51

25

16

0

0

2

1

8.5%

8.5%

8.5%

0.0%

250 kbps

0.2%

0.2%

0.2%

2.1%

0.2%

-3.5%

-7.0%

8.5%

25

16

12

8

207

103

51

34

1

1

6

3

-7.0%

8.5%

8.5%

0.0%

0

0.0%

0.5 Mbps

0.2%

0.2%

0.2%

-0.8%

0.2%

2.1%

0.2%

-3.5%

23

15

11

7

191

95

47

31

1

1

5

3

0.0%

0.0%

0.0%

-7.8%

0

-7.8%

460.8 kbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

47

31

23

15

383

191

95

63

11

7

3

3

0.0%

0.0%

0.0%

-7.8%

1

0

-7.8%

-7.8%

921.6 kbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

160

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Table 62. Examples of UBRR Settings for Commonly Used Oscillator Frequencies (Continued)

Baud

Rate

(bps) f osc

= 8.0000 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

=

11.0592

MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

= 14.7456 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error

2400

4800

9600

14.4k

19.2k

28.8k

38.4k

57.6k

25

16

12

8

207

103

51

34

0.2%

0.2%

0.2%

-0.8%

0.2%

2.1%

0.2%

-3.5%

76.8k

115.2k

230.4k

250k

6

3

1

1

-7.0%

8.5%

8.5%

0.0%

12

8

3

3

1.

0.5M

1M

Max

(1)

0

0.0%

1

0

0.5 Mbps

UBRR = 0, Error = 0.0%

1 Mbps

51

34

25

16

416

207

103

68

0.2%

-3.5%

8.5%

0.0%

0.0%

0.0%

-0.1%

0.2%

0.2%

0.6%

0.2%

-0.8%

0.2%

2.1%

35

23

17

11

287

143

71

47

2

2

8

5

691.2 kbps

0.0%

0.0%

0.0%

-7.8%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

71

47

35

23

575

287

143

95

17

11

5

5

0.0%

0.0%

0.0%

-7.8%

2

1.3824 Mbps

-7.8%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

47

31

23

15

383

191

95

63

11

7

3

3

0.0%

0.0%

0.0%

-7.8%

1

0

921.6 kbps

-7.8%

-7.8%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

95

63

47

31

767

383

191

127

23

15

7

6

0.0%

0.0%

0.0%

5.3%

3

1

1.8432 Mbps

-7.8%

-7.8%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

161

2486W–AVR–02/10

Table 63. Examples of UBRR Settings for Commonly Used Oscillator Frequencies (Continued)

Baud

Rate

(bps) f osc

= 16.0000 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

= 18.4320 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error f osc

= 20.0000 MHz

U2X = 0 U2X = 1

UBRR Error UBRR Error

2400

4800

9600

14.4k

19.2k

28.8k

38.4k

57.6k

51

34

25

16

416

207

103

68

-0.1%

0.2%

0.2%

0.6%

0.2%

-0.8%

0.2%

2.1%

103

68

51

34

832

416

207

138

76.8k

115.2k

230.4k

250k

12

8

3

3

0.2%

-3.5%

8.5%

0.0%

1.

0.5M

1M

Max

(1)

1

0

0.0%

0.0%

1 Mbps

UBRR = 0, Error = 0.0%

8

7

25

16

0.2%

2.1%

-3.5%

0.0%

3

1

0.0%

0.0%

2 Mbps

0.0%

-0.1%

0.2%

-0.1%

0.2%

0.6%

0.2%

-0.8%

59

39

29

19

479

239

119

79

14

9

4

4

0.0%

0.0%

0.0%

-7.8%

1.152 Mbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

119

79

59

39

959

479

239

159

29

19

9

8

0.0%

0.0%

0.0%

2.4%

4

-7.8%

2.304 Mbps

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

0.0%

64

42

32

21

520

259

129

86

15

10

4

4

1.7%

-1.4%

8.5%

0.0%

1.25 Mbps

0.0%

0.2%

0.2%

-0.2%

0.2%

0.9%

-1.4%

-1.4%

1041

520

259

173

129

86

64

42

32

21

10

9

-1.4%

-1.4%

-1.4%

0.0%

4

2.5 Mbps

0.0%

0.0%

0.0%

0.2%

-0.2%

0.2%

-0.2%

0.2%

0.9%

162

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Two-wire Serial

Interface

Features

Two-wire Serial

Interface Bus

Definition

Simple Yet Powerful and Flexible Communication Interface, only two Bus Lines Needed

Both Master and Slave Operation Supported

Device can Operate as Transmitter or Receiver

7-bit Address Space Allows up to 128 Different Slave Addresses

Multi-master Arbitration Support

Up to 400 kHz Data Transfer Speed

Slew-rate Limited Output Drivers

Noise Suppression Circuitry Rejects Spikes on Bus Lines

Fully Programmable Slave Address with General Call Support

Address Recognition Causes Wake-up When AVR is in Sleep Mode

The Two-wire Serial Interface (TWI) is ideally suited for typical microcontroller applications. The

TWI protocol allows the systems designer to interconnect up to 128 different devices using only two bi-directional bus lines, one for clock (SCL) and one for data (SDA). The only external hardware needed to implement the bus is a single pull-up resistor for each of the TWI bus lines. All devices connected to the bus have individual addresses, and mechanisms for resolving bus contention are inherent in the TWI protocol.

Figure 68. TWI Bus Interconnection

V

CC

Device 1

Device 2

Device 3 ........

Device n R1 R2

TWI Terminology

SDA

SCL

The following definitions are frequently encountered in this section.

Table 64. TWI Terminology

Term Description

Master The device that initiates and terminates a transmission. The Master also generates the SCL clock.

Slave The device addressed by a Master.

Transmitter The device placing data on the bus.

Receiver The device reading data from the bus.

163

2486W–AVR–02/10

Electrical

Interconnection

As depicted in Figure 68 , both bus lines are connected to the positive supply voltage through

pull-up resistors. The bus drivers of all TWI-compliant devices are open-drain or open-collector.

This implements a wired-AND function which is essential to the operation of the interface. A low level on a TWI bus line is generated when one or more TWI devices output a zero. A high level is output when all TWI devices tri-state their outputs, allowing the pull-up resistors to pull the line high. Note that all AVR devices connected to the TWI bus must be powered in order to allow any bus operation.

The number of devices that can be connected to the bus is only limited by the bus capacitance limit of 400 pF and the 7-bit slave address space. A detailed specification of the electrical char-

acteristics of the TWI is given in “Two-wire Serial Interface Characteristics” on page 245

. Two different sets of specifications are presented there, one relevant for bus speeds below 100 kHz, and one valid for bus speeds up to 400 kHz.

Data Transfer and

Frame Format

Transferring Bits

Each data bit transferred on the TWI bus is accompanied by a pulse on the clock line. The level of the data line must be stable when the clock line is high. The only exception to this rule is for generating start and stop conditions.

Figure 69. Data Validity

SDA

START and STOP

Conditions

SCL

Data Stable Data Stable

Data Change

The Master initiates and terminates a data transmission. The transmission is initiated when the

Master issues a START condition on the bus, and it is terminated when the Master issues a

STOP condition. Between a START and a STOP condition, the bus is considered busy, and no other master should try to seize control of the bus. A special case occurs when a new START condition is issued between a START and STOP condition. This is referred to as a REPEATED

START condition, and is used when the Master wishes to initiate a new transfer without relinquishing control of the bus. After a REPEATED START, the bus is considered busy until the next

STOP. This is identical to the START behavior, and therefore START is used to describe both

START and REPEATED START for the remainder of this datasheet, unless otherwise noted. As depicted below, START and STOP conditions are signalled by changing the level of the SDA line when the SCL line is high.

164

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 70. START, REPEATED START and STOP conditions

SDA

Address Packet

Format

SCL

START STOP START REPEATED START STOP

All address packets transmitted on the TWI bus are 9 bits long, consisting of 7 address bits, one

READ/WRITE control bit and an acknowledge bit. If the READ/WRITE bit is set, a read operation is to be performed, otherwise a write operation should be performed. When a Slave recognizes that it is being addressed, it should acknowledge by pulling SDA low in the ninth SCL

(ACK) cycle. If the addressed Slave is busy, or for some other reason can not service the Master’s request, the SDA line should be left high in the ACK clock cycle. The Master can then transmit a STOP condition, or a REPEATED START condition to initiate a new transmission. An address packet consisting of a slave address and a READ or a WRITE bit is called SLA+R or

SLA+W, respectively.

The MSB of the address byte is transmitted first. Slave addresses can freely be allocated by the designer, but the address 0000 000 is reserved for a general call.

When a general call is issued, all slaves should respond by pulling the SDA line low in the ACK cycle. A general call is used when a Master wishes to transmit the same message to several slaves in the system. When the general call address followed by a Write bit is transmitted on the bus, all slaves set up to acknowledge the general call will pull the SDA line low in the ack cycle.

The following data packets will then be received by all the slaves that acknowledged the general call. Note that transmitting the general call address followed by a Read bit is meaningless, as this would cause contention if several slaves started transmitting different data.

All addresses of the format 1111 xxx should be reserved for future purposes.

Figure 71. Address Packet Format

Addr MSB

SDA

Addr LSB R/W ACK

SCL

1 2 7 8 9

START

165

2486W–AVR–02/10

Data Packet Format

All data packets transmitted on the TWI bus are nine bits long, consisting of one data byte and an acknowledge bit. During a data transfer, the Master generates the clock and the START and

STOP conditions, while the Receiver is responsible for acknowledging the reception. An

Acknowledge (ACK) is signalled by the Receiver pulling the SDA line low during the ninth SCL cycle. If the Receiver leaves the SDA line high, a NACK is signalled. When the Receiver has received the last byte, or for some reason cannot receive any more bytes, it should inform the

Transmitter by sending a NACK after the final byte. The MSB of the data byte is transmitted first.

Figure 72. Data Packet Format

Data MSB

Aggregate

SDA

SDA from

Transmitter

SDA from

Receiver

SCL from

Master

1

SLA+R/W

2 7

Data Byte

Data LSB ACK

8 9

STOP, REPEATED

START or Next

Data Byte

Combining Address and Data Packets into a Transmission

A transmission basically consists of a START condition, a SLA+R/W, one or more data packets and a STOP condition. An empty message, consisting of a START followed by a STOP condition, is illegal. Note that the Wired-ANDing of the SCL line can be used to implement handshaking between the Master and the Slave. The Slave can extend the SCL low period by pulling the SCL line low. This is useful if the clock speed set up by the Master is too fast for the

Slave, or the Slave needs extra time for processing between the data transmissions. The Slave extending the SCL low period will not affect the SCL high period, which is determined by the

Master. As a consequence, the Slave can reduce the TWI data transfer speed by prolonging the

SCL duty cycle.

Figure 73 shows a typical data transmission. Note that several data bytes can be transmitted

between the SLA+R/W and the STOP condition, depending on the software protocol implemented by the application software.

Figure 73. Typical Data Transmission

Addr MSB Addr LSB R/W ACK Data MSB Data LSB ACK

SDA

SCL

START

1 2 7

SLA+R/W

8 9 1 2

Data Byte

7 8 9

STOP

166

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Multi-master Bus

Systems,

Arbitration and

Synchronization

The TWI protocol allows bus systems with several masters. Special concerns have been taken in order to ensure that transmissions will proceed as normal, even if two or more masters initiate a transmission at the same time. Two problems arise in multi-master systems:

• An algorithm must be implemented allowing only one of the masters to complete the transmission. All other masters should cease transmission when they discover that they have lost the selection process. This selection process is called arbitration. When a contending master discovers that it has lost the arbitration process, it should immediately switch to Slave mode to check whether it is being addressed by the winning master. The fact that multiple masters have started transmission at the same time should not be detectable to the slaves, i.e. the data being transferred on the bus must not be corrupted.

• Different masters may use different SCL frequencies. A scheme must be devised to synchronize the serial clocks from all masters, in order to let the transmission proceed in a lockstep fashion. This will facilitate the arbitration process.

The wired-ANDing of the bus lines is used to solve both these problems. The serial clocks from all masters will be wired-ANDed, yielding a combined clock with a high period equal to the one from the Master with the shortest high period. The low period of the combined clock is equal to the low period of the Master with the longest low period. Note that all masters listen to the SCL line, effectively starting to count their SCL high and low time-out periods when the combined

SCL line goes high or low, respectively.

Figure 74. SCL Synchronization Between Multiple Masters

TA

low

TA

high

SCL from

Master A

SCL from

Master B

SCL Bus

Line

TB

low

Masters Start

Counting Low Period

TB

high

Masters Start

Counting High Period

Arbitration is carried out by all masters continuously monitoring the SDA line after outputting data. If the value read from the SDA line does not match the value the Master had output, it has lost the arbitration. Note that a Master can only lose arbitration when it outputs a high SDA value while another Master outputs a low value. The losing Master should immediately go to Slave mode, checking if it is being addressed by the winning Master. The SDA line should be left high, but losing masters are allowed to generate a clock signal until the end of the current data or address packet. Arbitration will continue until only one Master remains, and this may take many bits. If several masters are trying to address the same Slave, arbitration will continue into the data packet.

167

2486W–AVR–02/10

Figure 75. Arbitration Between Two Masters

START

SDA from

Master A

SDA from

Master B

SDA Line

Synchronized

SCL Line

Master A Loses

Arbitration, SDA

A

SDA

Note that arbitration is not allowed between:

• A REPEATED START condition and a data bit.

• A STOP condition and a data bit.

• A REPEATED START and a STOP condition.

It is the user software’s responsibility to ensure that these illegal arbitration conditions never occur. This implies that in multi-master systems, all data transfers must use the same composition of SLA+R/W and data packets. In other words: All transmissions must contain the same number of data packets, otherwise the result of the arbitration is undefined.

168

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Overview of the

TWI Module

The TWI module is comprised of several submodules, as shown in

Figure 76 . All registers drawn

in a thick line are accessible through the AVR data bus.

Figure 76. Overview of the TWI Module

SCL

Slew-rate

Control

Spike

Filter

SDA

Slew-rate

Control

Spike

Filter

START / STOP

Control

Bus Interface Unit

Spike Suppression

Arbitration detection

Address/Data Shift

Register (TWDR)

Ack

Address Match Unit

Address Register

(TWAR)

Address Comparator

Bit Rate Generator

Prescaler

Bit Rate Register

(TWBR)

Status Register

(TWSR)

Control Unit

Control Register

(TWCR)

State Machine and

Status control

SCL and SDA Pins

These pins interface the AVR TWI with the rest of the MCU system. The output drivers contain a slew-rate limiter in order to conform to the TWI specification. The input stages contain a spike suppression unit removing spikes shorter than 50 ns. Note that the internal pull-ups in the AVR pads can be enabled by setting the PORT bits corresponding to the SCL and SDA pins, as explained in the I/O Port section. The internal pull-ups can in some systems eliminate the need for external ones.

169

2486W–AVR–02/10

Bit Rate Generator

Unit

Bus Interface Unit

Address Match Unit

Control Unit

170

This unit controls the period of SCL when operating in a Master mode. The SCL period is controlled by settings in the TWI Bit Rate Register (TWBR) and the Prescaler bits in the TWI Status

Register (TWSR). Slave operation does not depend on Bit Rate or Prescaler settings, but the

CPU clock frequency in the Slave must be at least 16 times higher than the SCL frequency. Note that slaves may prolong the SCL low period, thereby reducing the average TWI bus clock period. The SCL frequency is generated according to the following equation:

SCL frequency =

16 + 2(TWBR) 4

TWPS

• TWBR = Value of the TWI Bit Rate Register.

• TWPS = Value of the prescaler bits in the TWI Status Register.

Note: Pull-up resistor values should be selected according to the SCL frequency and the capacitive bus

line load. See Table 101 on page 245 for value of pull-up resistor."

This unit contains the Data and Address Shift Register (TWDR), a START/STOP Controller and

Arbitration detection hardware. The TWDR contains the address or data bytes to be transmitted, or the address or data bytes received. In addition to the 8-bit TWDR, the Bus Interface Unit also contains a register containing the (N)ACK bit to be transmitted or received. This (N)ACK Register is not directly accessible by the application software. However, when receiving, it can be set or cleared by manipulating the TWI Control Register (TWCR). When in Transmitter mode, the value of the received (N)ACK bit can be determined by the value in the TWSR.

The START/STOP Controller is responsible for generation and detection of START, REPEATED

START, and STOP conditions. The START/STOP controller is able to detect START and STOP conditions even when the AVR MCU is in one of the sleep modes, enabling the MCU to wake up if addressed by a Master.

If the TWI has initiated a transmission as Master, the Arbitration Detection hardware continuously monitors the transmission trying to determine if arbitration is in process. If the TWI has lost an arbitration, the Control Unit is informed. Correct action can then be taken and appropriate status codes generated.

The Address Match unit checks if received address bytes match the seven-bit address in the

TWI Address Register (TWAR). If the TWI General Call Recognition Enable (TWGCE) bit in the

TWAR is written to one, all incoming address bits will also be compared against the General Call address. Upon an address match, the Control Unit is informed, allowing correct action to be taken. The TWI may or may not acknowledge its address, depending on settings in the TWCR.

The Address Match unit is able to compare addresses even when the AVR MCU is in sleep mode, enabling the MCU to wake up if addressed by a Master. If another interrupt (e.g., INT0) occurs during TWI Power-down address match and wakes up the CPU, the TWI aborts operation and return to it’s idle state. If this cause any problems, ensure that TWI Address Match is the only enabled interrupt when entering Power-down.

The Control unit monitors the TWI bus and generates responses corresponding to settings in the

TWI Control Register (TWCR). When an event requiring the attention of the application occurs on the TWI bus, the TWI Interrupt Flag (TWINT) is asserted. In the next clock cycle, the TWI Status Register (TWSR) is updated with a status code identifying the event. The TWSR only contains relevant status information when the TWI Interrupt Flag is asserted. At all other times, the TWSR contains a special status code indicating that no relevant status information is available. As long as the TWINT Flag is set, the SCL line is held low. This allows the application software to complete its tasks before allowing the TWI transmission to continue.

The TWINT Flag is set in the following situations:

• After the TWI has transmitted a START/REPEATED START condition.

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

• After the TWI has transmitted SLA+R/W.

• After the TWI has transmitted an address byte.

• After the TWI has lost arbitration.

• After the TWI has been addressed by own slave address or general call.

• After the TWI has received a data byte.

• After a STOP or REPEATED START has been received while still addressed as a Slave.

• When a bus error has occurred due to an illegal START or STOP condition.

TWI Register

Description

TWI Bit Rate Register

– TWBR

Bit

Read/Write

Initial Value

7 6

TWBR7 TWBR6

R/W

0

R/W

0

5 4 3

TWBR5 TWBR4 TWBR3

R/W

0

R/W

0

R/W

0

2 1

TWBR2 TWBR1

R/W

0

R/W

0

0

TWBR0

R/W

0

TWBR

• Bits 7..0 – TWI Bit Rate Register

TWBR selects the division factor for the bit rate generator. The bit rate generator is a frequency divider which generates the SCL clock frequency in the Master modes. See

“Bit Rate Generator

Unit” on page 170 for calculating bit rates.

TWI Control Register –

TWCR

Bit

Read/Write

Initial Value

7

TWINT

R/W

0

6

TWEA

R/W

0

5 4

TWSTA TWSTO

R/W

0

R/W

0

3

TWWC

R

0

2

TWEN

R/W

0

R

0

1

0

TWIE

R/W

0

TWCR

The TWCR is used to control the operation of the TWI. It is used to enable the TWI, to initiate a

Master access by applying a START condition to the bus, to generate a Receiver acknowledge, to generate a stop condition, and to control halting of the bus while the data to be written to the bus are written to the TWDR. It also indicates a write collision if data is attempted written to

TWDR while the register is inaccessible.

• Bit 7 – TWINT: TWI Interrupt Flag

This bit is set by hardware when the TWI has finished its current job and expects application software response. If the I-bit in SREG and TWIE in TWCR are set, the MCU will jump to the

TWI Interrupt Vector. While the TWINT Flag is set, the SCL low period is stretched. The TWINT

Flag must be cleared by software by writing a logic one to it. Note that this flag is not automatically cleared by hardware when executing the interrupt routine. Also note that clearing this flag starts the operation of the TWI, so all accesses to the TWI Address Register (TWAR), TWI Status Register (TWSR), and TWI Data Register (TWDR) must be complete before clearing this flag.

• Bit 6 – TWEA: TWI Enable Acknowledge Bit

The TWEA bit controls the generation of the acknowledge pulse. If the TWEA bit is written to one, the ACK pulse is generated on the TWI bus if the following conditions are met:

1.

The device’s own slave address has been received.

2.

A general call has been received, while the TWGCE bit in the TWAR is set.

3.

A data byte has been received in Master Receiver or Slave Receiver mode.

171

2486W–AVR–02/10

By writing the TWEA bit to zero, the device can be virtually disconnected from the Two-wire

Serial Bus temporarily. Address recognition can then be resumed by writing the TWEA bit to one again.

• Bit 5 – TWSTA: TWI START Condition Bit

The application writes the TWSTA bit to one when it desires to become a Master on the Twowire Serial Bus. The TWI hardware checks if the bus is available, and generates a START condition on the bus if it is free. However, if the bus is not free, the TWI waits until a STOP condition is detected, and then generates a new START condition to claim the bus Master status. TWSTA must be cleared by software when the START condition has been transmitted.

• Bit 4 – TWSTO: TWI STOP Condition Bit

Writing the TWSTO bit to one in Master mode will generate a STOP condition on the Two-wire

Serial Bus. When the STOP condition is executed on the bus, the TWSTO bit is cleared automatically. In Slave mode, setting the TWSTO bit can be used to recover from an error condition.

This will not generate a STOP condition, but the TWI returns to a well-defined unaddressed

Slave mode and releases the SCL and SDA lines to a high impedance state.

• Bit 3 – TWWC: TWI Write Collision Flag

The TWWC bit is set when attempting to write to the TWI Data Register – TWDR when TWINT is low. This flag is cleared by writing the TWDR Register when TWINT is high.

• Bit 2 – TWEN: TWI Enable Bit

The TWEN bit enables TWI operation and activates the TWI interface. When TWEN is written to one, the TWI takes control over the I/O pins connected to the SCL and SDA pins, enabling the slew-rate limiters and spike filters. If this bit is written to zero, the TWI is switched off and all TWI transmissions are terminated, regardless of any ongoing operation.

• Bit 1 – Res: Reserved Bit

This bit is a reserved bit and will always read as zero.

• Bit 0 – TWIE: TWI Interrupt Enable

When this bit is written to one, and the I-bit in SREG is set, the TWI interrupt request will be activated for as long as the TWINT Flag is high.

172

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

TWI Status Register –

TWSR

Bit

Read/Write

Initial Value

7

TWS7

R

1

6

TWS6

R

1

5

TWS5

R

1

4

TWS4

R

1

3

TWS3

R

1

R

0

2

1

TWPS1

R/W

0

0

TWPS0

R/W

0

TWSR

• Bits 7..3 – TWS: TWI Status

These 5 bits reflect the status of the TWI logic and the Two-wire Serial Bus. The different status codes are described later in this section. Note that the value read from TWSR contains both the

5-bit status value and the 2-bit prescaler value. The application designer should mask the prescaler bits to zero when checking the Status bits. This makes status checking independent of prescaler setting. This approach is used in this datasheet, unless otherwise noted.

• Bit 2 – Res: Reserved Bit

This bit is reserved and will always read as zero.

• Bits 1..0 – TWPS: TWI Prescaler Bits

These bits can be read and written, and control the bit rate prescaler.

Table 65. TWI Bit Rate Prescaler

TWPS1

1

1

0

0

TWPS0

0

1

0

1

Prescaler Value

1

4

16

64

To calculate bit rates, see

“Bit Rate Generator Unit” on page 170

. The value of TWPS1..0 is used in the equation.

TWI Data Register –

TWDR

Bit

Read/Write

Initial Value

7

TWD7

R/W

1

6

TWD6

R/W

1

5

TWD5

R/W

1

4

TWD4

R/W

1

3

TWD3

R/W

1

2

TWD2

R/W

1

1

TWD1

R/W

1

0

TWD0

R/W

1

TWDR

In Transmit mode, TWDR contains the next byte to be transmitted. In Receive mode, the TWDR contains the last byte received. It is writable while the TWI is not in the process of shifting a byte.

This occurs when the TWI Interrupt Flag (TWINT) is set by hardware. Note that the Data Register cannot be initialized by the user before the first interrupt occurs. The data in TWDR remains stable as long as TWINT is set. While data is shifted out, data on the bus is simultaneously shifted in. TWDR always contains the last byte present on the bus, except after a wake up from a sleep mode by the TWI interrupt. In this case, the contents of TWDR is undefined. In the case of a lost bus arbitration, no data is lost in the transition from Master to Slave. Handling of the

ACK bit is controlled automatically by the TWI logic, the CPU cannot access the ACK bit directly.

• Bits 7..0 – TWD: TWI Data Register

These eight bits constitute the next data byte to be transmitted, or the latest data byte received on the Two-wire Serial Bus.

173

2486W–AVR–02/10

TWI (Slave) Address

Register – TWAR

Using the TWI

Bit

Read/Write

Initial Value

7

TWA6

R/W

1

6

TWA5

R/W

1

5

TWA4

R/W

1

4

TWA3

R/W

1

3

TWA2

R/W

1

2

TWA1

R/W

1

1

TWA0

R/W

1

0

TWGCE

R/W

0

TWAR

The TWAR should be loaded with the 7-bit Slave address (in the seven most significant bits of

TWAR) to which the TWI will respond when programmed as a Slave Transmitter or Receiver, and not needed in the Master modes. In multimaster systems, TWAR must be set in masters which can be addressed as Slaves by other Masters.

The LSB of TWAR is used to enable recognition of the general call address (0x00). There is an associated address comparator that looks for the slave address (or general call address if enabled) in the received serial address. If a match is found, an interrupt request is generated.

• Bits 7..1 – TWA: TWI (Slave) Address Register

These seven bits constitute the slave address of the TWI unit.

• Bit 0 – TWGCE: TWI General Call Recognition Enable Bit

If set, this bit enables the recognition of a General Call given over the Two-wire Serial Bus.

The AVR TWI is byte-oriented and interrupt based. Interrupts are issued after all bus events, like reception of a byte or transmission of a START condition. Because the TWI is interrupt-based, the application software is free to carry on other operations during a TWI byte transfer. Note that the TWI Interrupt Enable (TWIE) bit in TWCR together with the Global Interrupt Enable bit in

SREG allow the application to decide whether or not assertion of the TWINT Flag should generate an interrupt request. If the TWIE bit is cleared, the application must poll the TWINT Flag in order to detect actions on the TWI bus.

When the TWINT Flag is asserted, the TWI has finished an operation and awaits application response. In this case, the TWI Status Register (TWSR) contains a value indicating the current state of the TWI bus. The application software can then decide how the TWI should behave in the next TWI bus cycle by manipulating the TWCR and TWDR Registers.

Figure 77

is a simple example of how the application can interface to the TWI hardware. In this example, a Master wishes to transmit a single data byte to a Slave. This description is quite abstract, a more detailed explanation follows later in this section. A simple code example implementing the desired behavior is also presented.

174

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 77. Interfacing the Application to the TWI in a Typical Transmission

1. Application writes to TWCR to initiate transmission of

START

3. Check TWSR to see if START was sent. Application loads SLA+W into

TWDR, and loads appropriate control signals into TWCR, makin sure that

TWINT is written to one, and TWSTA is written to zero.

5. Check TWSR to see if SLA+W was sent and ACK received.

Application loads data into TWDR, and loads appropriate control signals into

TWCR, making sure that TWINT is written to one

7. Check TWSR to see if data was sent and ACK received.

Application loads appropriate control signals to send STOP into TWCR, making sure that TWINT is written to one

TWI bus START SLA+W A Data A STOP

2. TWINT set.

Status code indicates

START condition sent

4. TWINT set.

Status code indicates

SLA+W sent, ACK received

6. TWINT set.

Status code indicates data sent, ACK received

Indicates

TWINT set

1.

The first step in a TWI transmission is to transmit a START condition. This is done by writing a specific value into TWCR, instructing the TWI hardware to transmit a START condition. Which value to write is described later on. However, it is important that the

TWINT bit is set in the value written. Writing a one to TWINT clears the flag. The TWI will not start any operation as long as the TWINT bit in TWCR is set. Immediately after the application has cleared TWINT, the TWI will initiate transmission of the START condition.

2.

When the START condition has been transmitted, the TWINT Flag in TWCR is set, and

TWSR is updated with a status code indicating that the START condition has successfully been sent.

3.

The application software should now examine the value of TWSR, to make sure that the

START condition was successfully transmitted. If TWSR indicates otherwise, the application software might take some special action, like calling an error routine. Assuming that the status code is as expected, the application must load SLA+W into TWDR. Remember that TWDR is used both for address and data. After TWDR has been loaded with the desired SLA+W, a specific value must be written to TWCR, instructing the TWI hardware to transmit the SLA+W present in TWDR. Which value to write is described later on.

However, it is important that the TWINT bit is set in the value written. Writing a one to

TWINT clears the flag. The TWI will not start any operation as long as the TWINT bit in

TWCR is set. Immediately after the application has cleared TWINT, the TWI will initiate transmission of the address packet.

4.

When the address packet has been transmitted, the TWINT Flag in TWCR is set, and

TWSR is updated with a status code indicating that the address packet has successfully been sent. The status code will also reflect whether a Slave acknowledged the packet or not.

5.

The application software should now examine the value of TWSR, to make sure that the address packet was successfully transmitted, and that the value of the ACK bit was as expected. If TWSR indicates otherwise, the application software might take some special action, like calling an error routine. Assuming that the status code is as expected, the application must load a data packet into TWDR. Subsequently, a specific value must be written to TWCR, instructing the TWI hardware to transmit the data packet present in

TWDR. Which value to write is described later on. However, it is important that the

TWINT bit is set in the value written. Writing a one to TWINT clears the flag. The TWI will

175

2486W–AVR–02/10

not start any operation as long as the TWINT bit in TWCR is set. Immediately after the application has cleared TWINT, the TWI will initiate transmission of the data packet.

6.

When the data packet has been transmitted, the TWINT Flag in TWCR is set, and TWSR is updated with a status code indicating that the data packet has successfully been sent.

The status code will also reflect whether a Slave acknowledged the packet or not.

7.

The application software should now examine the value of TWSR, to make sure that the data packet was successfully transmitted, and that the value of the ACK bit was as expected. If TWSR indicates otherwise, the application software might take some special action, like calling an error routine. Assuming that the status code is as expected, the application must write a specific value to TWCR, instructing the TWI hardware to transmit a STOP condition. Which value to write is described later on. However, it is important that the TWINT bit is set in the value written. Writing a one to TWINT clears the flag. The TWI will not start any operation as long as the TWINT bit in TWCR is set. Immediately after the application has cleared TWINT, the TWI will initiate transmission of the STOP condition. Note that TWINT is NOT set after a STOP condition has been sent.

Even though this example is simple, it shows the principles involved in all TWI transmissions.

These can be summarized as follows:

• When the TWI has finished an operation and expects application response, the TWINT Flag is set. The SCL line is pulled low until TWINT is cleared.

• When the TWINT Flag is set, the user must update all TWI Registers with the value relevant for the next TWI bus cycle. As an example, TWDR must be loaded with the value to be transmitted in the next bus cycle.

• After all TWI Register updates and other pending application software tasks have been completed, TWCR is written. When writing TWCR, the TWINT bit should be set. Writing a one to TWINT clears the flag. The TWI will then commence executing whatever operation was specified by the TWCR setting.

In the following an assembly and C implementation of the example is given. Note that the code below assumes that several definitions have been made, for example by using include-files.

176

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

1

2

3

4

5

6

7

Assembly Code Example ldi

r16, (1<<TWINT)|(1<<TWSTA)|

(1<<TWEN)

out

TWCR, r16 wait1:

in

r16,TWCR

sbrs

r16,TWINT

rjmp

wait1

in

r16,TWSR

andi

r16, 0xF8

cpi

r16, START

brne

ERROR

ldi

r16, SLA_W

out

TWDR, r16

ldi

r16, (1<<TWINT) | (1<<TWEN)

out

TWCR, r16 wait2:

in

r16,TWCR

sbrs

r16,TWINT

rjmp

wait2

in

r16,TWSR

andi

r16, 0xF8

cpi

r16, MT_SLA_ACK

brne

ERROR

ldi

r16, DATA

out

TWDR, r16

ldi

r16, (1<<TWINT) | (1<<TWEN)

out

TWCR, r16 wait3:

in

r16,TWCR

sbrs

r16,TWINT

rjmp

wait3

in

r16,TWSR

andi

r16, 0xF8

cpi

r16, MT_DATA_ACK

brne

ERROR

ldi

r16, (1<<TWINT)|(1<<TWEN)|

(1<<TWSTO)

out

TWCR, r16

C Example

TWCR = (1<<TWINT)|(1<<TWSTA)|

(1<<TWEN)

while if

(!(TWCR & (1<<TWINT)))

;

((TWSR & 0xF8) != START)

ERROR();

TWDR = SLA_W;

TWCR = (1<<TWINT) | (1<<TWEN);

while if

(!(TWCR & (1<<TWINT)))

;

MT_SLA_ACK)

TWDR = DATA;

TWCR = (1<<TWINT) | (1<<TWEN);

while if

((TWSR & 0xF8) !=

ERROR();

(!(TWCR & (1<<TWINT)))

;

((TWSR & 0xF8) !=

MT_DATA_ACK)

ERROR();

TWCR = (1<<TWINT)|(1<<TWEN)|

(1<<TWSTO);

Comments

Send START condition

Wait for TWINT Flag set. This indicates that the START condition has been transmitted

Check value of TWI Status

Register. Mask prescaler bits. If status different from START go to

ERROR

Load SLA_W into TWDR Register.

Clear TWINT bit in TWCR to start transmission of address

Wait for TWINT Flag set. This indicates that the SLA+W has been transmitted, and ACK/NACK has been received.

Check value of TWI Status

Register. Mask prescaler bits. If status different from MT_SLA_ACK go to ERROR

Load DATA into TWDR Register.

Clear TWINT bit in TWCR to start transmission of data

Wait for TWINT Flag set. This indicates that the DATA has been transmitted, and ACK/NACK has been received.

Check value of TWI Status

Register. Mask prescaler bits. If status different from

MT_DATA_ACK go to ERROR

Transmit STOP condition

177

2486W–AVR–02/10

Transmission

Modes

The TWI can operate in one of four major modes. These are named Master Transmitter (MT),

Master Receiver (MR), Slave Transmitter (ST) and Slave Receiver (SR). Several of these modes can be used in the same application. As an example, the TWI can use MT mode to write data into a TWI EEPROM, MR mode to read the data back from the EEPROM. If other masters are present in the system, some of these might transmit data to the TWI, and then SR mode would be used. It is the application software that decides which modes are legal.

The following sections describe each of these modes. Possible status codes are described along with figures detailing data transmission in each of the modes. These figures contain the following abbreviations:

S: START condition

Rs: REPEATED START condition

R: Read bit (high level at SDA)

W: Write bit (low level at SDA)

A: Acknowledge bit (low level at SDA)

A: Not acknowledge bit (high level at SDA)

Data: 8-bit data byte

P: STOP condition

SLA: Slave Address

In Figure 79 to

Figure 85

, circles are used to indicate that the TWINT Flag is set. The numbers in the circles show the status code held in TWSR, with the prescaler bits masked to zero. At these points, actions must be taken by the application to continue or complete the TWI transfer. The

TWI transfer is suspended until the TWINT Flag is cleared by software.

When the TWINT Flag is set, the status code in TWSR is used to determine the appropriate software action. For each status code, the required software action and details of the following serial transfer are given in

Table 66

to Table 69

. Note that the prescaler bits are masked to zero in these tables.

178

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Master Transmitter

Mode

In the Master Transmitter mode, a number of data bytes are transmitted to a Slave Receiver

(see

Figure 78

). In order to enter a Master mode, a START condition must be transmitted. The format of the following address packet determines whether Master Transmitter or Master

Receiver mode is to be entered. If SLA+W is transmitted, MT mode is entered, if SLA+R is transmitted, MR mode is entered. All the status codes mentioned in this section assume that the prescaler bits are zero or are masked to zero.

Figure 78. Data Transfer in Master Transmitter Mode

V

CC

Device 1

MASTER

TRANSMITTER

Device 2

SLAVE

RECEIVER

Device 3

........

Device n R1 R2

SDA

SCL

A START condition is sent by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

1

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

TWEN must be set to enable the Two-wire Serial Interface, TWSTA must be written to one to transmit a START condition and TWINT must be written to one to clear the TWINT Flag. The

TWI will then test the Two-wire Serial Bus and generate a START condition as soon as the bus becomes free. After a START condition has been transmitted, the TWINT Flag is set by hardware, and the status code in TWSR will be 0x08 (see

Table 66 ). In order to enter MT mode,

SLA+W must be transmitted. This is done by writing SLA+W to TWDR. Thereafter the TWINT bit should be cleared (by writing it to one) to continue the transfer. This is accomplished by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

0

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

When SLA+W have been transmitted and an acknowledgement bit has been received, TWINT is set again and a number of status codes in TWSR are possible. Possible status codes in Master mode are 0x18, 0x20, or 0x38. The appropriate action to be taken for each of these status codes

is detailed in Table 66

.

When SLA+W has been successfully transmitted, a data packet should be transmitted. This is done by writing the data byte to TWDR. TWDR must only be written when TWINT is high. If not, the access will be discarded, and the Write Collision bit (TWWC) will be set in the TWCR Register. After updating TWDR, the TWINT bit should be cleared (by writing it to one) to continue the transfer. This is accomplished by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

0

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

179

2486W–AVR–02/10

This scheme is repeated until the last byte has been sent and the transfer is ended by generating a STOP condition or a repeated START condition. A STOP condition is generated by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

0

TWSTO

1

TWWC

X

TWEN

1

0

TWIE

X

A REPEATED START condition is generated by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

1

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

After a repeated START condition (state 0x10) the Two-wire Serial Interface can access the same Slave again, or a new Slave without transmitting a STOP condition. Repeated START enables the Master to switch between Slaves, Master Transmitter mode and Master Receiver mode without losing control of the bus..

Table 66. Status codes for Master Transmitter Mode

Status Code

(TWSR)

Prescaler Bits are 0

0x08

0x10

Status of the Two-wire Serial

Bus and Two-wire Serial Interface Hardware

A START condition has been transmitted

A repeated START condition has been transmitted

To/from TWDR

Application Software Response

To TWCR

STA STO TWINT TWEA

Load SLA+W 0 0 1 X

Load SLA+W or

Load SLA+R

0

0

0

0

1

1

X

X

0x18

0x20

0x28

0x30

0x38

SLA+W has been transmitted;

ACK has been received

SLA+W has been transmitted;

NOT ACK has been received

Load data byte or

No TWDR action or

No TWDR action or

No TWDR action

Load data byte or

No TWDR action or

No TWDR action or

No TWDR action

Data byte has been transmitted;

ACK has been received

Load data byte or

No TWDR action or

No TWDR action or

No TWDR action

Data byte has been transmitted;

NOT ACK has been received

Load data byte or

No TWDR action or

No TWDR action or

No TWDR action

Arbitration lost in SLA+W or data bytes

No TWDR action or

No TWDR action

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

0

1

1

0

0

1

1

0

0

1

1

0

0

1

1

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Next Action Taken by TWI Hardware

SLA+W will be transmitted;

ACK or NOT ACK will be received

SLA+W will be transmitted;

ACK or NOT ACK will be received

SLA+R will be transmitted;

Logic will switch to Master Receiver mode

Data byte will be transmitted and ACK or NOT ACK will be received

Repeated START will be transmitted

STOP condition will be transmitted and

TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

Data byte will be transmitted and ACK or NOT ACK will be received

Repeated START will be transmitted

STOP condition will be transmitted and

TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

Data byte will be transmitted and ACK or NOT ACK will be received

Repeated START will be transmitted

STOP condition will be transmitted and

TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

Data byte will be transmitted and ACK or NOT ACK will be received

Repeated START will be transmitted

STOP condition will be transmitted and

TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

Two-wire Serial Bus will be released and not addressed

Slave mode entered

A START condition will be transmitted when the bus becomes free

180

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 79. Formats and States in the Master Transmitter Mode

MT

Successfull transmission to a slave receiver

S

$08

Next transfer started with a repeated start condition

SLA W A

$18

DATA A

$28

P

R

S

$10

SLA

Not acknowledge received after the slave address

A

$20

P

Not acknowledge received after a data byte

Arbitration lost in slave address or data byte

Arbitration lost and addressed as slave

A or A

Other master continues

$38

A

Other master continues

$68 $78 $B0

A P

$30

A or A

Other master continues

$38

To corresponding states in slave mode

W

R

MR

From master to slave

From slave to master

DATA n

A

Any number of data bytes and their associated acknowledge bits

This number (contained in TWSR) corresponds to a defined state of the Two-Wire Serial Bus. The prescaler bits are zero or masked to zero

181

Master Receiver Mode

In the Master Receiver mode, a number of data bytes are received from a Slave Transmitter

(see

Figure 80

). In order to enter a Master mode, a START condition must be transmitted. The format of the following address packet determines whether Master Transmitter or Master

Receiver mode is to be entered. If SLA+W is transmitted, MT mode is entered, if SLA+R is transmitted, MR mode is entered. All the status codes mentioned in this section assume that the prescaler bits are zero or are masked to zero.

Figure 80. Data Transfer in Master Receiver Mode

V

CC

Device 1

MASTER

RECEIVER

Device 2

SLAVE

TRANSMITTER

Device 3

........

Device n R1 R2

SDA

SCL

A START condition is sent by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

1

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

TWEN must be written to one to enable the Two-wire Serial Interface, TWSTA must be written to one to transmit a START condition and TWINT must be set to clear the TWINT Flag. The TWI will then test the Two-wire Serial Bus and generate a START condition as soon as the bus becomes free. After a START condition has been transmitted, the TWINT Flag is set by hard-

ware, and the status code in TWSR will be 0x08 (See Table 66

). In order to enter MR mode,

SLA+R must be transmitted. This is done by writing SLA+R to TWDR. Thereafter the TWINT bit should be cleared (by writing it to one) to continue the transfer. This is accomplished by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

0

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

When SLA+R have been transmitted and an acknowledgement bit has been received, TWINT is set again and a number of status codes in TWSR are possible. Possible status codes in Master mode are 0x38, 0x40, or 0x48. The appropriate action to be taken for each of these status codes is detailed in

Table 67

. Received data can be read from the TWDR Register when the TWINT

Flag is set high by hardware. This scheme is repeated until the last byte has been received.

After the last byte has been received, the MR should inform the ST by sending a NACK after the last received data byte. The transfer is ended by generating a STOP condition or a repeated

START condition. A STOP condition is generated by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

0

TWSTO

1

TWWC

X

TWEN

1

0

TWIE

X

A REPEATED START condition is generated by writing the following value to TWCR:

TWCR

value

TWINT

1

TWEA

X

TWSTA

1

TWSTO

0

TWWC

X

TWEN

1

0

TWIE

X

After a repeated START condition (state 0x10) the Two-wire Serial Interface can access the same Slave again, or a new Slave without transmitting a STOP condition. Repeated START

182

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

enables the Master to switch between Slaves, Master Transmitter mode and Master Receiver mode without losing control over the bus.

Table 67. Status codes for Master Receiver Mode

Status Code

(TWSR)

Prescaler Bits are 0

0x08

0x10

Status of the Two-wire Serial

Bus and Two-wire Serial Interface Hardware

A START condition has been transmitted

A repeated START condition has been transmitted

To/from TWDR

Application Software Response

To TWCR

STA STO TWINT TWEA

Load SLA+R 0 0 1 X

Load SLA+R or

Load SLA+W

0

0

0

0

1

1

X

X

0x38

0x40

Arbitration lost in SLA+R or NOT

ACK bit

No TWDR action or

No TWDR action

SLA+R has been transmitted;

ACK has been received

No TWDR action or

No TWDR action

0

0

0

1

0

0

0

0

1

1

1

1

0

1

X

X

Next Action Taken by TWI Hardware

SLA+R will be transmitted

ACK or NOT ACK will be received

SLA+R will be transmitted

ACK or NOT ACK will be received

SLA+W will be transmitted

Logic will switch to Master Transmitter mode

Two-wire Serial Bus will be released and not addressed

Slave mode will be entered

A START condition will be transmitted when the bus becomes free

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

0x48

0x50

0x58

SLA+R has been transmitted;

NOT ACK has been received

Data byte has been received;

ACK has been returned

Data byte has been received;

NOT ACK has been returned

No TWDR action or

No TWDR action or

No TWDR action

Read data byte or

Read data byte

Read data byte or

Read data byte or

Read data byte

0

0

1

0

1

1

0

1

0

0

0

1

1

0

1

1

1

1

1

1

1

1

1

1

0

1

X

X

X

X

X

X

Repeated START will be transmitted

STOP condition will be transmitted and TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Repeated START will be transmitted

STOP condition will be transmitted and TWSTO Flag will be reset

STOP condition followed by a START condition will be transmitted and TWSTO Flag will be reset

183

2486W–AVR–02/10

Figure 81. Formats and States in the Master Receiver Mode

MR

Successfull reception from a slave receiver

S

$08

Next transfer started with a repeated start condition

SLA

Not acknowledge received after the slave address

Arbitration lost in slave address or data byte

Arbitration lost and addressed as slave

R A

$40

DATA

A P

$48

A or A

Other master continues

$38

A

Other master continues

$68 $78 $B0

A DATA A

$50 $58

P

R

S

SLA

$10

A

Other master continues

$38

To corresponding states in slave mode

R

W

MT

Slave Receiver Mode

From master to slave

From slave to master

DATA n

A

Any number of data bytes and their associated acknowledge bits

This number (contained in TWSR) corresponds to a defined state of the Two-Wire Serial Bus. The prescaler bits are zero or masked to zero

In the Slave Receiver mode, a number of data bytes are received from a Master Transmitter

(see

Figure 82 ). All the status codes mentioned in this section assume that the prescaler bits are

zero or are masked to zero.

Figure 82. Data transfer in Slave Receiver mode

V

CC

Device 1

SLAVE

RECEIVER

Device 2

MASTER

TRANSMITTER

Device 3 ........

Device n R1 R2

SDA

SCL

To initiate the Slave Receiver mode, TWAR and TWCR must be initialized as follows:

TWAR

value

TWA6 TWA5 TWA4 TWA3 TWA2

Device’s Own Slave Address

TWA1 TWA0 TWGCE

184

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

The upper 7 bits are the address to which the Two-wire Serial Interface will respond when addressed by a Master. If the LSB is set, the TWI will respond to the general call address (0x00), otherwise it will ignore the general call address.

TWCR

value

TWINT

0

TWEA

1

TWSTA

0

TWSTO

0

TWWC

0

TWEN

1

0

TWIE

X

TWEN must be written to one to enable the TWI. The TWEA bit must be written to one to enable the acknowledgement of the device’s own slave address or the general call address. TWSTA and TWSTO must be written to zero.

When TWAR and TWCR have been initialized, the TWI waits until it is addressed by its own slave address (or the general call address if enabled) followed by the data direction bit. If the direction bit is “0” (write), the TWI will operate in SR mode, otherwise ST mode is entered. After its own slave address and the write bit have been received, the TWINT Flag is set and a valid status code can be read from TWSR. The status code is used to determine the appropriate software action. The appropriate action to be taken for each status code is detailed in

Table 68 . The

Slave Receiver mode may also be entered if arbitration is lost while the TWI is in the Master mode (see states 0x68 and 0x78).

If the TWEA bit is reset during a transfer, the TWI will return a “Not Acknowledge” (“1”) to SDA after the next received data byte. This can be used to indicate that the Slave is not able to receive any more bytes. While TWEA is zero, the TWI does not acknowledge its own slave address. However, the Two-wire Serial Bus is still monitored and address recognition may resume at any time by setting TWEA. This implies that the TWEA bit may be used to temporarily isolate the TWI from the Two-wire Serial Bus.

In all sleep modes other than Idle mode, the clock system to the TWI is turned off. If the TWEA bit is set, the interface can still acknowledge its own slave address or the general call address by using the Two-wire Serial Bus clock as a clock source. The part will then wake up from sleep and the TWI will hold the SCL clock low during the wake up and until the TWINT Flag is cleared

(by writing it to one). Further data reception will be carried out as normal, with the AVR clocks running as normal. Observe that if the AVR is set up with a long start-up time, the SCL line may be held low for a long time, blocking other data transmissions.

Note that the Two-wire Serial Interface Data Register – TWDR does not reflect the last byte present on the bus when waking up from these Sleep modes.

185

Table 68. Status Codes for Slave Receiver Mode

Status Code

(TWSR)

Prescaler Bits are 0

0x60

0x68

0x70

Status of the Two-wire Serial Bus and Two-wire Serial Interface

Hardware

Own SLA+W has been received;

ACK has been returned

Arbitration lost in SLA+R/W as

Master; own SLA+W has been received; ACK has been returned

General call address has been received; ACK has been returned

Application Software Response

To TWCR

To/from TWDR

STA STO TWINT TWEA

No TWDR action or X 0 1 0

No TWDR action

No TWDR action or

No TWDR action

No TWDR action or

X

X

X

X

0

0

0

0

1

1

1

1

1

0

1

0

0x78

No TWDR action

No TWDR action or

X

X

0

0

1

1

1

0

0x80

0x88

Arbitration lost in SLA+R/W as

Master; General call address has been received; ACK has been returned

Previously addressed with own

SLA+W; data has been received;

ACK has been returned

Previously addressed with own

SLA+W; data has been received;

NOT ACK has been returned

No TWDR action

Read data byte or

Read data byte

Read data byte or

Read data byte or

X

X

X

0

0

0

0

0

0

0

1

1

1

1

1

1

0

1

0

1

0x90

0x98

0xA0

Read data byte or

Read data byte

Previously addressed with general call; data has been received; ACK has been returned

Previously addressed with general call; data has been received; NOT ACK has been returned

Read data byte or

Read data byte

Read data byte or

Read data byte or

Read data byte or

Read data byte

A STOP condition or repeated

START condition has been received while still addressed as

Slave

No action

1

1

X

X

0

0

1

1

0

0

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

1

0

1

0

1

0

1

0

1

0

1

Next Action Taken by TWI Hardware

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Switched to the not addressed Slave mode; no recognition of own SLA or GCA

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”

Switched to the not addressed Slave mode; no recognition of own SLA or GCA; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”; a START condition will be transmitted when the bus becomes free

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

Switched to the not addressed Slave mode; no recognition of own SLA or GCA

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”

Switched to the not addressed Slave mode; no recognition of own SLA or GCA; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; no recognition of own SLA or GCA

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”

Switched to the not addressed Slave mode; no recognition of own SLA or GCA; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”; a START condition will be transmitted when the bus becomes free

186

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 83. Formats and States in the Slave Receiver Mode

Reception of the own slave address and one or more data bytes. All are acknowledged

S SLA W A DATA

$60

Last data byte received is not acknowledged

A

$80

DATA A

$80

A

P or S

$A0

P or S

$88

Arbitration lost as master and addressed as slave

A

Reception of the general call address and one or more data bytes

General Call

$68

A DATA A DATA A P or S

Last data byte received is not acknowledged

$70 $90 $90 $A0

A P or S

$98

Arbitration lost as master and addressed as slave by general call

A

$78

From master to slave

From slave to master

DATA n

A

Any number of data bytes and their associated acknowledge bits

This number (contained in TWSR) corresponds to a defined state of the Two-Wire Serial Bus. The prescaler bits are zero or masked to zero

187

Slave Transmitter

Mode

In the Slave Transmitter mode, a number of data bytes are transmitted to a Master Receiver

(see

Figure 84 ). All the status codes mentioned in this section assume that the prescaler bits are

zero or are masked to zero.

Figure 84. Data Transfer in Slave Transmitter Mode

V

CC

Device 1

SLAVE

TRANSMITTER

Device 2

MASTER

RECEIVER

Device 3

........

Device n R1 R2

SDA

SCL

To initiate the Slave Transmitter mode, TWAR and TWCR must be initialized as follows:

TWAR

value

TWA6 TWA5 TWA4 TWA3 TWA2

Device’s Own Slave Address

TWA1 TWA0 TWGCE

The upper seven bits are the address to which the Two-wire Serial Interface will respond when addressed by a Master. If the LSB is set, the TWI will respond to the general call address (0x00), otherwise it will ignore the general call address.

TWCR

value

TWINT

0

TWEA

1

TWSTA

0

TWSTO

0

TWWC

0

TWEN

1

0

TWIE

X

TWEN must be written to one to enable the TWI. The TWEA bit must be written to one to enable the acknowledgement of the device’s own slave address or the general call address. TWSTA and TWSTO must be written to zero.

When TWAR and TWCR have been initialized, the TWI waits until it is addressed by its own slave address (or the general call address if enabled) followed by the data direction bit. If the direction bit is “1” (read), the TWI will operate in ST mode, otherwise SR mode is entered. After its own slave address and the write bit have been received, the TWINT Flag is set and a valid status code can be read from TWSR. The status code is used to determine the appropriate software action. The appropriate action to be taken for each status code is detailed in

Table 69 . The

Slave Transmitter mode may also be entered if arbitration is lost while the TWI is in the Master mode (see state 0xB0).

If the TWEA bit is written to zero during a transfer, the TWI will transmit the last byte of the transfer. State 0xC0 or state 0xC8 will be entered, depending on whether the Master Receiver transmits a NACK or ACK after the final byte. The TWI is switched to the not addressed Slave mode, and will ignore the Master if it continues the transfer. Thus the Master Receiver receives all “1” as serial data. State 0xC8 is entered if the Master demands additional data bytes (by transmitting ACK), even though the Slave has transmitted the last byte (TWEA zero and expecting NACK from the Master).

While TWEA is zero, the TWI does not respond to its own slave address. However, the Two-wire

Serial Bus is still monitored and address recognition may resume at any time by setting TWEA.

This implies that the TWEA bit may be used to temporarily isolate the TWI from the Two-wire

Serial Bus.

188

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

In all sleep modes other than Idle mode, the clock system to the TWI is turned off. If the TWEA bit is set, the interface can still acknowledge its own slave address or the general call address by using the Two-wire Serial Bus clock as a clock source. The part will then wake up from sleep and the TWI will hold the SCL clock will low during the wake up and until the TWINT Flag is cleared (by writing it to one). Further data transmission will be carried out as normal, with the

AVR clocks running as normal. Observe that if the AVR is set up with a long start-up time, the

SCL line may be held low for a long time, blocking other data transmissions.

Note that the Two-wire Serial Interface Data Register – TWDR does not reflect the last byte present on the bus when waking up from these sleep modes.

Table 69. Status Codes for Slave Transmitter Mode

Status Code

(TWSR)

Prescaler Bits are 0

0xA8

Status of the Two-wire Serial Bus and Two-wire Serial Interface

Hardware

Own SLA+R has been received;

ACK has been returned

Application Software Response

To TWCR

To/from TWDR

STA STO TWINT TWEA

Load data byte or X 0 1 0

Load data byte X 0 1 1

0xB0

0xB8

0xC0

0xC8

Arbitration lost in SLA+R/W as

Master; own SLA+R has been received; ACK has been returned

Load data byte or

Load data byte

Data byte in TWDR has been transmitted; ACK has been received

Data byte in TWDR has been transmitted; NOT ACK has been received

Load data byte or

Load data byte

No TWDR action or

No TWDR action or

No TWDR action or

No TWDR action

Last data byte in TWDR has been transmitted (TWEA = “0”); ACK has been received

No TWDR action or

No TWDR action or

No TWDR action or

No TWDR action

0

0

X

X

X

X

1

1

0

0

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

1

0

1

0

1

0

1

0

1

0

1

Next Action Taken by TWI Hardware

Last data byte will be transmitted and NOT ACK should be received

Data byte will be transmitted and ACK should be received

Last data byte will be transmitted and NOT ACK should be received

Data byte will be transmitted and ACK should be received

Last data byte will be transmitted and NOT ACK should be received

Data byte will be transmitted and ACK should be received

Switched to the not addressed Slave mode; no recognition of own SLA or GCA

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”

Switched to the not addressed Slave mode; no recognition of own SLA or GCA; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; no recognition of own SLA or GCA

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”

Switched to the not addressed Slave mode; no recognition of own SLA or GCA; a START condition will be transmitted when the bus becomes free

Switched to the not addressed Slave mode; own SLA will be recognized;

GCA will be recognized if TWGCE = “1”; a START condition will be transmitted when the bus becomes free

189

2486W–AVR–02/10

Figure 85. Formats and States in the Slave Transmitter Mode

Reception of the own slave address and one or more data bytes

S SLA R A DATA A

$A8 $B8

Arbitration lost as master and addressed as slave

A

DATA A

$C0

P or S

$B0

Last data byte transmitted.

Switched to not addressed slave (TWEA = '0')

A All 1's P or S

$C8

From master to slave

From slave to master

DATA n

A

Any number of data bytes and their associated acknowledge bits

This number (contained in TWSR) corresponds to a defined state of the Two-Wire Serial Bus. The prescaler bits are zero or masked to zero

Miscellaneous States

There are two status codes that do not correspond to a defined TWI state, see Table 70

.

Status 0xF8 indicates that no relevant information is available because the TWINT Flag is not set. This occurs between other states, and when the TWI is not involved in a serial transfer.

Status 0x00 indicates that a bus error has occurred during a Two-wire Serial Bus transfer. A bus error occurs when a START or STOP condition occurs at an illegal position in the format frame.

Examples of such illegal positions are during the serial transfer of an address byte, a data byte, or an acknowledge bit. When a bus error occurs, TWINT is set. To recover from a bus error, the

TWSTO Flag must set and TWINT must be cleared by writing a logic one to it. This causes the

TWI to enter the not addressed Slave mode and to clear the TWSTO Flag (no other bits in

TWCR are affected). The SDA and SCL lines are released, and no STOP condition is transmitted.

Table 70. Miscellaneous States

Status Code

(TWSR)

Prescaler Bits are 0

0xF8

0x00

Status of the Two-wire Serial

Bus and Two-wire Serial Interface Hardware

No relevant state information available; TWINT = “0”

Bus error due to an illegal

START or STOP condition

To/from TWDR

Application Software Response

To TWCR

STA STO TWINT TWEA

No TWDR action No TWCR action

No TWDR action 0 1 1 X

Next Action Taken by TWI Hardware

Wait or proceed current transfer

Only the internal hardware is affected, no STOP condition is sent on the bus. In all cases, the bus is released and TWSTO is cleared.

190

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Combining Several

TWI Modes

In some cases, several TWI modes must be combined in order to complete the desired action.

Consider for example reading data from a serial EEPROM. Typically, such a transfer involves the following steps:

1.

The transfer must be initiated.

2.

The EEPROM must be instructed what location should be read.

3.

The reading must be performed.

4.

The transfer must be finished.

Note that data is transmitted both from Master to Slave and vice versa. The Master must instruct the Slave what location it wants to read, requiring the use of the MT mode. Subsequently, data must be read from the Slave, implying the use of the MR mode. Thus, the transfer direction must be changed. The Master must keep control of the bus during all these steps, and the steps should be carried out as an atomical operation. If this principle is violated in a multimaster system, another Master can alter the data pointer in the EEPROM between steps 2 and 3, and the

Master will read the wrong data location. Such a change in transfer direction is accomplished by transmitting a REPEATED START between the transmission of the address byte and reception of the data. After a REPEATED START, the Master keeps ownership of the bus. The following figure shows the flow in this transfer.

Figure 86. Combining Several TWI Modes to Access a Serial EEPROM

Master Transmitter Master Receiver

S SLA+W A ADDRESS

S = START

Transmitted from master to slave

A Rs SLA+R A

Rs = REPEATED START

Transmitted from slave to master

DATA A P

P = STOP

Multi-master

Systems and

Arbitration

If multiple masters are connected to the same bus, transmissions may be initiated simultaneously by one or more of them. The TWI standard ensures that such situations are handled in such a way that one of the masters will be allowed to proceed with the transfer, and that no data will be lost in the process. An example of an arbitration situation is depicted below, where two masters are trying to transmit data to a Slave Receiver.

Figure 87. An Arbitration Example

V

CC

Device 1

MASTER

TRANSMITTER

Device 2

MASTER

TRANSMITTER

Device 3

SLAVE

RECEIVER

........

Device n R1 R2

SDA

SCL

Several different scenarios may arise during arbitration, as described below:

• Two or more masters are performing identical communication with the same Slave. In this case, neither the Slave nor any of the masters will know about the bus contention.

191

2486W–AVR–02/10

• Two or more masters are accessing the same Slave with different data or direction bit. In this case, arbitration will occur, either in the READ/WRITE bit or in the data bits. The masters trying to output a one on SDA while another Master outputs a zero will lose the arbitration.

Losing masters will switch to not addressed Slave mode or wait until the bus is free and transmit a new START condition, depending on application software action.

• Two or more masters are accessing different slaves. In this case, arbitration will occur in the

SLA bits. Masters trying to output a one on SDA while another Master outputs a zero will lose the arbitration. Masters losing arbitration in SLA will switch to Slave mode to check if they are being addressed by the winning Master. If addressed, they will switch to SR or ST mode, depending on the value of the READ/WRITE bit. If they are not being addressed, they will switch to not addressed Slave mode or wait until the bus is free and transmit a new

START condition, depending on application software action.

This is summarized in

Figure 88 . Possible status values are given in circles.

Figure 88. Possible Status Codes Caused by Arbitration

START SLA Data STOP

Arbitration lost in SLA Arbitration lost in Data

Own

Address / General Call received

No

Yes

Direction

Write

Read

38

TWI bus will be released and not addressed slave mode will be entered

A START condition will be transmitted when the bus becomes free

68/78

Data byte will be received and NOT ACK will be returned

Data byte will be received and ACK will be returned

B0

Last data byte will be transmitted and NOT ACK should be received

Data byte will be transmitted and ACK should be received

192

ATmega8(L)

2486W–AVR–02/10

Analog

Comparator

ATmega8(L)

The Analog Comparator compares the input values on the positive pin AIN0 and negative pin

AIN1. When the voltage on the positive pin AIN0 is higher than the voltage on the negative pin

AIN1, the Analog Comparator Output, ACO, is set. The comparator’s output can be set to trigger the Timer/Counter1 Input Capture function. In addition, the comparator can trigger a separate interrupt, exclusive to the Analog Comparator. The user can select Interrupt triggering on comparator output rise, fall or toggle. A block diagram of the comparator and its surrounding logic is shown in

Figure 89

.

Figure 89. Analog Comparator Block Diagram

(2)

BANDGAP

REFERENCE

ACBG

ACME

ADEN

ADC MULTIPLEXER

OUTPUT

(1)

Notes: 1. See

Table 72 on page 195 .

2. Refer to “Pin Configurations” on page 2

and Table 28 on page 63

for Analog Comparator pin placement.

Special Function IO

Register – SFIOR

Bit

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

ACME

R/W

0

2

PUD

R/W

0

1

PSR2

R/W

0

0

PSR10

R/W

0

SFIOR

• Bit 3 – ACME: Analog Comparator Multiplexer Enable

When this bit is written logic one and the ADC is switched off (ADEN in ADCSRA is zero), the

ADC multiplexer selects the negative input to the Analog Comparator. When this bit is written logic zero, AIN1 is applied to the negative input of the Analog Comparator. For a detailed description of this bit, see

“Analog Comparator Multiplexed Input” on page 195 .

193

2486W–AVR–02/10

Analog Comparator

Control and Status

Register – ACSR

Bit

Read/Write

Initial Value

7

ACD

R/W

0

6

ACBG

R/W

0

5

ACO

R

N/A

4

ACI

R/W

0

3

ACIE

R/W

0

2

ACIC

R/W

0

1

ACIS1

R/W

0

0

ACIS0

R/W

0

ACSR

• Bit 7 – ACD: Analog Comparator Disable

When this bit is written logic one, the power to the Analog Comparator is switched off. This bit can be set at any time to turn off the Analog Comparator. This will reduce power consumption in

Active and Idle mode. When changing the ACD bit, the Analog Comparator Interrupt must be disabled by clearing the ACIE bit in ACSR. Otherwise an interrupt can occur when the bit is changed.

• Bit 6 – ACBG: Analog Comparator Bandgap Select

When this bit is set, a fixed bandgap reference voltage replaces the positive input to the Analog

Comparator. When this bit is cleared, AIN0 is applied to the positive input of the Analog Comparator.

See “Internal Voltage Reference” on page 42.

• Bit 5 – ACO: Analog Comparator Output

The output of the Analog Comparator is synchronized and then directly connected to ACO. The synchronization introduces a delay of 1 - 2 clock cycles.

• Bit 4 – ACI: Analog Comparator Interrupt Flag

This bit is set by hardware when a comparator output event triggers the interrupt mode defined by ACIS1 and ACIS0. The Analog Comparator Interrupt routine is executed if the ACIE bit is set and the I-bit in SREG is set. ACI is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, ACI is cleared by writing a logic one to the flag.

• Bit 3 – ACIE: Analog Comparator Interrupt Enable

When the ACIE bit is written logic one and the I-bit in the Status Register is set, the Analog Comparator interrupt is activated. When written logic zero, the interrupt is disabled.

• Bit 2 – ACIC: Analog Comparator Input Capture Enable

When written logic one, this bit enables the Input Capture function in Timer/Counter1 to be triggered by the Analog Comparator. The comparator output is in this case directly connected to the

Input Capture front-end logic, making the comparator utilize the noise canceler and edge select features of the Timer/Counter1 Input Capture interrupt. When written logic zero, no connection between the Analog Comparator and the Input Capture function exists. To make the comparator trigger the Timer/Counter1 Input Capture interrupt, the TICIE1 bit in the Timer Interrupt Mask

Register (TIMSK) must be set.

• Bits 1,0 – ACIS1, ACIS0: Analog Comparator Interrupt Mode Select

These bits determine which comparator events that trigger the Analog Comparator interrupt. The different settings are shown in

Table 71

.

Table 71. ACIS1/ACIS0 Settings

ACIS1 ACIS0 Interrupt Mode

1

1

0

0

0

1

0

1

Comparator Interrupt on Output Toggle

Reserved

Comparator Interrupt on Falling Output Edge

Comparator Interrupt on Rising Output Edge

194

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Analog

Comparator

Multiplexed Input

When changing the ACIS1/ACIS0 bits, the Analog Comparator Interrupt must be disabled by clearing its Interrupt Enable bit in the ACSR Register. Otherwise an interrupt can occur when the bits are changed.

It is possible to select any of the ADC7..0

(1)

pins to replace the negative input to the Analog

Comparator. The ADC multiplexer is used to select this input, and consequently the ADC must be switched off to utilize this feature. If the Analog Comparator Multiplexer Enable bit (ACME in

SFIOR) is set and the ADC is switched off (ADEN in ADCSRA is zero), MUX2..0 in ADMUX

select the input pin to replace the negative input to the Analog Comparator, as shown in Table

72 . If ACME is cleared or ADEN is set, AIN1 is applied to the negative input to the Analog

Comparator.

Table 72. Analog Comparator Multiplexed Input

(1)

ACME ADEN MUX2..0

Analog Comparator Negative Input

1

1

1

1

1

1

1

1

0

1

0

0

0

0

0

0

0

0 x

1

010

011

100

101 xxx xxx

000

001

110

111

AIN1

AIN1

ADC0

ADC1

ADC2

ADC3

ADC4

ADC5

ADC6

ADC7

Note: 1. ADC7..6 are only available in TQFP and QFN/MLF Package.

195

2486W–AVR–02/10

Analog-to-

Digital

Converter

Features

10-bit Resolution

0.5 LSB Integral Non-linearity

± 2 LSB Absolute Accuracy

13 - 260 µs Conversion Time

Up to 15 kSPS at Maximum Resolution

6 Multiplexed Single Ended Input Channels

2 Additional Multiplexed Single Ended Input Channels (TQFP and QFN/MLF Package only)

Optional Left Adjustment for ADC Result Readout

0 - V

CC

ADC Input Voltage Range

Selectable 2.56V ADC Reference Voltage

Free Running or Single Conversion Mode

Interrupt on ADC Conversion Complete

Sleep Mode Noise Canceler

The ATmega8 features a 10-bit successive approximation ADC. The ADC is connected to an 8channel Analog Multiplexer which allows eight single-ended voltage inputs constructed from the pins of Port C. The single-ended voltage inputs refer to 0V (GND).

The ADC contains a Sample and Hold circuit which ensures that the input voltage to the ADC is

held at a constant level during conversion. A block diagram of the ADC is shown in Figure 90

.

The ADC has a separate analog supply voltage pin, AV

0.3V from V

CC

CC

. AV

CC

must not differ more than ±

. See the paragraph

“ADC Noise Canceler” on page 201 on how to connect this

pin.

Internal reference voltages of nominally 2.56V or AV

CC

are provided On-chip. The voltage reference may be externally decoupled at the AREF pin by a capacitor for better noise performance.

196

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 90. Analog to Digital Converter Block Schematic Operation

ADC CONVERSION

COMPLETE IRQ

8-BIT DATA BUS

ADC MULTIPLEXER

SELECT (ADMUX)

ADC CTRL. & STATUS

REGISTER (ADCSRA)

15

ADC DATA REGISTER

(ADCH/ADCL)

0

MUX DECODER

PRESCALER

CONVERSION LOGIC

AVCC

AREF

INTERNAL 2.56V

REFERENCE

10-BIT DAC

SAMPLE & HOLD

COMPARATOR

-

+

GND

ADC7

ADC6

ADC5

ADC4

ADC3

ADC2

ADC1

ADC0

BANDGAP

REFERENCE

INPUT

MUX

ADC MULTIPLEXER

OUTPUT

The ADC converts an analog input voltage to a 10-bit digital value through successive approximation. The minimum value represents GND and the maximum value represents the voltage on the AREF pin minus 1 LSB. Optionally, AV

CC

or an internal 2.56V reference voltage may be connected to the AREF pin by writing to the REFSn bits in the ADMUX Register. The internal voltage reference may thus be decoupled by an external capacitor at the AREF pin to improve noise immunity.

The analog input channel is selected by writing to the MUX bits in ADMUX. Any of the ADC input pins, as well as GND and a fixed bandgap voltage reference, can be selected as single ended inputs to the ADC. The ADC is enabled by setting the ADC Enable bit, ADEN in ADCSRA. Voltage reference and input channel selections will not go into effect until ADEN is set. The ADC does not consume power when ADEN is cleared, so it is recommended to switch off the ADC before entering power saving sleep modes.

The ADC generates a 10-bit result which is presented in the ADC Data Registers, ADCH and

ADCL. By default, the result is presented right adjusted, but can optionally be presented left adjusted by setting the ADLAR bit in ADMUX.

197

If the result is left adjusted and no more than 8-bit precision is required, it is sufficient to read

ADCH. Otherwise, ADCL must be read first, then ADCH, to ensure that the content of the Data

Registers belongs to the same conversion. Once ADCL is read, ADC access to Data Registers is blocked. This means that if ADCL has been read, and a conversion completes before ADCH is read, neither register is updated and the result from the conversion is lost. When ADCH is read,

ADC access to the ADCH and ADCL Registers is re-enabled.

The ADC has its own interrupt which can be triggered when a conversion completes. When ADC access to the Data Registers is prohibited between reading of ADCH and ADCL, the interrupt will trigger even if the result is lost.

Starting a

Conversion

A single conversion is started by writing a logical one to the ADC Start Conversion bit, ADSC.

This bit stays high as long as the conversion is in progress and will be cleared by hardware when the conversion is completed. If a different data channel is selected while a conversion is in progress, the ADC will finish the current conversion before performing the channel change.

In Free Running mode, the ADC is constantly sampling and updating the ADC Data Register.

Free Running mode is selected by writing the ADFR bit in ADCSRA to one. The first conversion must be started by writing a logical one to the ADSC bit in ADCSRA. In this mode the ADC will perform successive conversions independently of whether the ADC Interrupt Flag, ADIF is cleared or not.

Prescaling and

Conversion Timing

Figure 91. ADC Prescaler

ADEN

START

CK

Reset

7-BIT ADC PRESCALER

ADPS0

ADPS1

ADPS2

ADC CLOCK SOURCE

By default, the successive approximation circuitry requires an input clock frequency between 50 kHz and 200 kHz to get maximum resolution. If a lower resolution than 10 bits is needed, the input clock frequency to the ADC can be higher than 200 kHz to get a higher sample rate.

The ADC module contains a prescaler, which generates an acceptable ADC clock frequency from any CPU frequency above 100 kHz. The prescaling is set by the ADPS bits in ADCSRA.

The prescaler starts counting from the moment the ADC is switched on by setting the ADEN bit in ADCSRA. The prescaler keeps running for as long as the ADEN bit is set, and is continuously reset when ADEN is low.

When initiating a single ended conversion by setting the ADSC bit in ADCSRA, the conversion starts at the following rising edge of the ADC clock cycle. A normal conversion takes 13 ADC clock cycles. The first conversion after the ADC is switched on (ADEN in ADCSRA is set) takes

25 ADC clock cycles in order to initialize the analog circuitry.

198

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

The actual sample-and-hold takes place 1.5 ADC clock cycles after the start of a normal conversion and 13.5 ADC clock cycles after the start of an first conversion. When a conversion is complete, the result is written to the ADC Data Registers, and ADIF is set. In single conversion mode, ADSC is cleared simultaneously. The software may then set ADSC again, and a new conversion will be initiated on the first rising ADC clock edge.

In Free Running mode, a new conversion will be started immediately after the conversion completes, while ADSC remains high. For a summary of conversion times, see

Table 73

.

Figure 92. ADC Timing Diagram, First Conversion (Single Conversion Mode)

First Conversion

Next

Conversion

Cycle Number

ADC Clock

ADEN

ADSC

ADIF

ADCH

ADCL

1 2 12 13 14 15 16 17 18 19 20 21 22 23 24 25 1 2 3

MSB of Result

LSB of Result

MUX and REFS

Update

MUX and REFS

Update

Sample & Hold

Conversion

Complete

Figure 93. ADC Timing Diagram, Single Conversion

One Conversion

1 2 3 4 5 6 7 8 9 10 11 12 13

Cycle Number

ADC Clock

ADSC

ADIF

ADCH

ADCL

Sample & Hold

MUX and REFS

Update

Conversion

Complete

Next Conversion

1 2 3

MSB of Result

LSB of Result

MUX and REFS

Update

199

Figure 94. ADC Timing Diagram, Free Running Conversion

One Conversion Next Conversion

Cycle Number

11

ADC Clock

12 13 1

ADSC

ADIF

ADCH

ADCL

2 3

MSB of Result

LSB of Result

4

Conversion

Complete

Sample &Hold

MUX and REFS

Update

Table 73. ADC Conversion Time

Condition

Extended conversion

Normal conversions, single ended

Sample & Hold (Cycles from Start of Conversion)

13.5

1.5

Conversion Time

(Cycles)

25

13

Changing Channel or Reference

Selection

The MUXn and REFS1:0 bits in the ADMUX Register are single buffered through a temporary register to which the CPU has random access. This ensures that the channels and reference selection only takes place at a safe point during the conversion. The channel and reference selection is continuously updated until a conversion is started. Once the conversion starts, the channel and reference selection is locked to ensure a sufficient sampling time for the ADC. Continuous updating resumes in the last ADC clock cycle before the conversion completes (ADIF in

ADCSRA is set). Note that the conversion starts on the following rising ADC clock edge after

ADSC is written. The user is thus advised not to write new channel or reference selection values to ADMUX until one ADC clock cycle after ADSC is written.

If both ADFR and ADEN is written to one, an interrupt event can occur at any time. If the

ADMUX Register is changed in this period, the user cannot tell if the next conversion is based on the old or the new settings. ADMUX can be safely updated in the following ways:

1.

When ADFR or ADEN is cleared.

2.

During conversion, minimum one ADC clock cycle after the trigger event.

3.

After a conversion, before the Interrupt Flag used as trigger source is cleared.

When updating ADMUX in one of these conditions, the new settings will affect the next ADC conversion.

200

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

ADC Input Channels

ADC Voltage

Reference

ADC Noise

Canceler

When changing channel selections, the user should observe the following guidelines to ensure that the correct channel is selected:

In Single Conversion mode, always select the channel before starting the conversion. The channel selection may be changed one ADC clock cycle after writing one to ADSC. However, the simplest method is to wait for the conversion to complete before changing the channel selection.

In Free Running mode, always select the channel before starting the first conversion. The channel selection may be changed one ADC clock cycle after writing one to ADSC. However, the simplest method is to wait for the first conversion to complete, and then change the channel selection. Since the next conversion has already started automatically, the next result will reflect the previous channel selection. Subsequent conversions will reflect the new channel selection.

The reference voltage for the ADC (V

REF

) indicates the conversion range for the ADC. Single ended channels that exceed V

REF

will result in codes close to 0x3FF. V

REF

can be selected as either AV

CC

, internal 2.56V reference, or external AREF pin.

AV

CC

is connected to the ADC through a passive switch. The internal 2.56V reference is generated from the internal bandgap reference (V

BG

) through an internal amplifier. In either case, the external AREF pin is directly connected to the ADC, and the reference voltage can be made more immune to noise by connecting a capacitor between the AREF pin and ground. V

REF

can also be measured at the AREF pin with a high impedant voltmeter. Note that V

REF

is a high impedant source, and only a capacitive load should be connected in a system.

If the user has a fixed voltage source connected to the AREF pin, the user may not use the other reference voltage options in the application, as they will be shorted to the external voltage. If no external voltage is applied to the AREF pin, the user may switch between AV

CC

and 2.56V as reference selection. The first ADC conversion result after switching reference voltage source may be inaccurate, and the user is advised to discard this result.

The ADC features a noise canceler that enables conversion during sleep mode to reduce noise induced from the CPU core and other I/O peripherals. The noise canceler can be used with ADC

Noise Reduction and Idle mode. To make use of this feature, the following procedure should be used:

1.

Make sure that the ADC is enabled and is not busy converting. Single Conversion mode must be selected and the ADC conversion complete interrupt must be enabled.

2.

Enter ADC Noise Reduction mode (or Idle mode). The ADC will start a conversion once the CPU has been halted.

3.

If no other interrupts occur before the ADC conversion completes, the ADC interrupt will wake up the CPU and execute the ADC Conversion Complete interrupt routine. If another interrupt wakes up the CPU before the ADC conversion is complete, that interrupt will be executed, and an ADC Conversion Complete interrupt request will be generated when the ADC conversion completes. The CPU will remain in Active mode until a new sleep command is executed.

Note that the ADC will not be automatically turned off when entering other sleep modes than Idle mode and ADC Noise Reduction mode. The user is advised to write zero to ADEN before entering such sleep modes to avoid excessive power consumption.

201

2486W–AVR–02/10

Analog Input Circuitry

The analog input circuitry for single ended channels is illustrated in Figure 95. An analog source

applied to ADCn is subjected to the pin capacitance and input leakage of that pin, regardless of whether that channel is selected as input for the ADC. When the channel is selected, the source must drive the S/H capacitor through the series resistance (combined resistance in the input path).

The ADC is optimized for analog signals with an output impedance of approximately 10 k

Ω or less. If such a source is used, the sampling time will be negligible. If a source with higher impedance is used, the sampling time will depend on how long time the source needs to charge the

S/H capacitor, with can vary widely. The user is recommended to only use low impedant sources with slowly varying signals, since this minimizes the required charge transfer to the S/H capacitor.

Signal components higher than the Nyquist frequency (f

ADC

/2) should not be present for either kind of channels, to avoid distortion from unpredictable signal convolution. The user is advised to remove high frequency components with a low-pass filter before applying the signals as inputs to the ADC.

Figure 95. Analog Input Circuitry

I

IH

ADCn

1..100 k

Ω

I

IL

C

S/H

= 14 pF

V

CC

/2

Analog Noise

Canceling Techniques

Digital circuitry inside and outside the device generates EMI which might affect the accuracy of analog measurements. If conversion accuracy is critical, the noise level can be reduced by applying the following techniques:

1.

Keep analog signal paths as short as possible. Make sure analog tracks run over the ground plane, and keep them well away from high-speed switching digital tracks.

2.

The AV

CC

pin on the device should be connected to the digital V an LC network as shown in

Figure 96 .

CC

supply voltage via

3.

Use the ADC noise canceler function to reduce induced noise from the CPU.

4.

If any ADC [3..0] port pins are used as digital outputs, it is essential that these do not switch while a conversion is in progress. However, using the Two-wire Interface

(ADC4 and ADC5) will only affect the conversion on ADC4 and ADC5 and not the other ADC channels.

202

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 96. ADC Power Connections

ADC Accuracy

Definitions

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5

An n-bit single-ended ADC converts a voltage linearly between GND and V

(LSBs). The lowest code is read as 0, and the highest code is read as 2 n

-1.

REF

in 2 n

steps

Several parameters describe the deviation from the ideal behavior:

• Offset: The deviation of the first transition (0x000 to 0x001) compared to the ideal transition

(at 0.5 LSB). Ideal value: 0 LSB.

Figure 97. Offset Error

Output Code

Offset

Error

Ideal ADC

Actual ADC

V

REF

Input Voltage

203

2486W–AVR–02/10

• Gain error: After adjusting for offset, the gain error is found as the deviation of the last transition (0x3FE to 0x3FF) compared to the ideal transition (at 1.5 LSB below maximum).

Ideal value: 0 LSB

Figure 98. Gain Error

Output Code Gain

Error

Ideal ADC

Actual ADC

V

REF

Input Voltage

• Integral Non-linearity (INL): After adjusting for offset and gain error, the INL is the maximum deviation of an actual transition compared to an ideal transition for any code. Ideal value: 0

LSB.

Figure 99. Integral Non-linearity (INL)

Output Code

Ideal ADC

Actual ADC

V

REF

Input Voltage

• Differential Non-linearity (DNL): The maximum deviation of the actual code width (the interval between two adjacent transitions) from the ideal code width (1 LSB). Ideal value: 0

LSB.

204

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 100. Differential Non-linearity (DNL)

Output Code

0x3FF

ADC Conversion

Result

1 LSB

DNL

0x000

0

V

REF

Input Voltage

• Quantization Error: Due to the quantization of the input voltage into a finite number of codes, a range of input voltages (1 LSB wide) will code to the same value. Always ±0.5 LSB.

• Absolute accuracy: The maximum deviation of an actual (unadjusted) transition compared to an ideal transition for any code. This is the compound effect of offset, gain error, differential error, non-linearity, and quantization error. Ideal value: ±0.5 LSB.

After the conversion is complete (ADIF is high), the conversion result can be found in the ADC

Result Registers (ADCL, ADCH).

For single ended conversion, the result is

ADC

=

V

V

1024

REF

where V

IN

is the voltage on the selected input pin and V

REF

the selected voltage reference (see

Table 74 on page 205 and

Table 75 on page 206 ). 0x000 represents ground, and 0x3FF repre-

sents the selected reference voltage minus one LSB.

ADC Multiplexer

Selection Register –

ADMUX

Bit

Read/Write

Initial Value

7

REFS1

R/W

0

6

REFS0

R/W

0

5

ADLAR

R/W

0

R

0

4

3

MUX3

R/W

0

2

MUX2

R/W

0

1

MUX1

R/W

0

0

MUX0

R/W

0

ADMUX

• Bit 7:6 – REFS1:0: Reference Selection Bits

These bits select the voltage reference for the ADC, as shown in

Table 74 . If these bits are

changed during a conversion, the change will not go in effect until this conversion is complete

(ADIF in ADCSRA is set). The internal voltage reference options may not be used if an external reference voltage is being applied to the AREF pin.

Table 74. Voltage Reference Selections for ADC

REFS1 REFS0 Voltage Reference Selection

0 0 AREF, Internal V ref

turned off

205

2486W–AVR–02/10

Table 74. Voltage Reference Selections for ADC

REFS1 REFS0 Voltage Reference Selection

0

1

1

0

AV

CC

with external capacitor at AREF pin

Reserved

1 1 Internal 2.56V Voltage Reference with external capacitor at AREF pin

1000

1001

1010

1011

1100

1101

1110

1111

0000

0001

0010

0011

0100

0101

0110

0111

• Bit 5 – ADLAR: ADC Left Adjust Result

The ADLAR bit affects the presentation of the ADC conversion result in the ADC Data Register.

Write one to ADLAR to left adjust the result. Otherwise, the result is right adjusted. Changing the

ADLAR bit will affect the ADC Data Register immediately, regardless of any ongoing conversions. For a complete description of this bit, see

“The ADC Data Register – ADCL and ADCH” on page 208

.

• Bits 3:0 – MUX3:0: Analog Channel Selection Bits

The value of these bits selects which analog inputs are connected to the ADC. See Table 75

for details.

If these bits are changed during a conversion, the change will not go in effect until this conversion is complete (ADIF in ADCSRA is set).

Table 75. Input Channel Selections

MUX3..0

Single Ended Input

ADC0

ADC1

ADC2

ADC3

ADC4

ADC5

ADC6

ADC7

1.30V (V

BG

)

0V (GND)

206

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

ADC Control and

Status Register A –

ADCSRA

Bit

Read/Write

Initial Value

7

ADEN

R/W

0

6

ADSC

R/W

0

5

ADFR

R/W

0

4

ADIF

R/W

0

3

ADIE

R/W

0

2

ADPS2

R/W

0

1

ADPS1

R/W

0

0

ADPS0

R/W

0

ADCSRA

• Bit 7 – ADEN: ADC Enable

Writing this bit to one enables the ADC. By writing it to zero, the ADC is turned off. Turning the

ADC off while a conversion is in progress, will terminate this conversion.

• Bit 6 – ADSC: ADC Start Conversion

In Single Conversion mode, write this bit to one to start each conversion. In Free Running mode, write this bit to one to start the first conversion. The first conversion after ADSC has been written after the ADC has been enabled, or if ADSC is written at the same time as the ADC is enabled, will take 25 ADC clock cycles instead of the normal 13. This first conversion performs initialization of the ADC.

ADSC will read as one as long as a conversion is in progress. When the conversion is complete, it returns to zero. Writing zero to this bit has no effect.

• Bit 5 – ADFR: ADC Free Running Select

When this bit is set (one) the ADC operates in Free Running mode. In this mode, the ADC samples and updates the Data Registers continuously. Clearing this bit (zero) will terminate Free

Running mode.

• Bit 4 – ADIF: ADC Interrupt Flag

This bit is set when an ADC conversion completes and the Data Registers are updated. The

ADC Conversion Complete Interrupt is executed if the ADIE bit and the I-bit in SREG are set.

ADIF is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, ADIF is cleared by writing a logical one to the flag. Beware that if doing a Read-Modify-

Write on ADCSRA, a pending interrupt can be disabled. This also applies if the SBI and CBI instructions are used.

• Bit 3 – ADIE: ADC Interrupt Enable

When this bit is written to one and the I-bit in SREG is set, the ADC Conversion Complete Interrupt is activated.

207

2486W–AVR–02/10

• Bits 2:0 – ADPS2:0: ADC Prescaler Select Bits

These bits determine the division factor between the XTAL frequency and the input clock to the

ADC.

Table 76. ADC Prescaler Selections

ADPS2

0

ADPS1

0

ADPS0

0

Division Factor

2

1

1

1

0

1

0

0

0

1

1

1

0

0

1

1

0

1

1

0

1

0

8

16

2

4

32

64

128

The ADC Data Register – ADCL and ADCH

ADLAR = 0

Bit

Read/Write

Initial Value 0

0

R

R

15

ADC7

7

0

0

R

R

14

ADC6

6

ADLAR = 1

0

0

R

R

13

ADC5

5

0

0

R

R

12

ADC4

4

0

0

R

R

11

ADC3

3

0

0

R

R

10

ADC2

2

0

0

R

R

9

ADC9

ADC1

1

0

0

R

R

8

ADC8

ADC0

0

ADCH

ADCL

Bit

Read/Write

Initial Value 0

0

R

R

15

ADC9

ADC1

7

0

0

R

R

14

ADC8

ADC0

6

0

0

R

R

13

ADC7

5

0

0

R

R

12

ADC6

4

0

0

R

R

11

ADC5

3

0

0

R

R

10

ADC4

2

0

0

R

R

9

ADC3

1

0

0

R

R

8

ADC2

0

ADCH

ADCL

When an ADC conversion is complete, the result is found in these two registers.

When ADCL is read, the ADC Data Register is not updated until ADCH is read. Consequently, if the result is left adjusted and no more than 8-bit precision is required, it is sufficient to read

ADCH. Otherwise, ADCL must be read first, then ADCH.

The ADLAR bit in ADMUX, and the MUXn bits in ADMUX affect the way the result is read from the registers. If ADLAR is set, the result is left adjusted. If ADLAR is cleared (default), the result is right adjusted.

• ADC9:0: ADC Conversion result

These bits represent the result from the conversion, as detailed in

“ADC Conversion Result” on page 205

.

208

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Boot Loader

Support – Read-

While-Write

Self-

Programming

The Boot Loader Support provides a real Read-While-Write Self-Programming mechanism for downloading and uploading program code by the MCU itself. This feature allows flexible application software updates controlled by the MCU using a Flash-resident Boot Loader program. The

Boot Loader program can use any available data interface and associated protocol to read code and write (program) that code into the Flash memory, or read the code from the Program memory. The program code within the Boot Loader section has the capability to write into the entire

Flash, including the Boot Loader Memory. The Boot Loader can thus even modify itself, and it can also erase itself from the code if the feature is not needed anymore. The size of the Boot

Loader Memory is configurable with fuses and the Boot Loader has two separate sets of Boot

Lock Bits which can be set independently. This gives the user a unique flexibility to select different levels of protection.

Boot Loader

Features

Read-While-Write Self-Programming

Flexible Boot Memory Size

High Security (Separate Boot Lock Bits for a Flexible Protection)

Separate Fuse to Select Reset Vector

Optimized Page

(1)

Size

Code Efficient Algorithm

Efficient Read-Modify-Write Support

Note: 1. A page is a section in the Flash consisting of several bytes (see

Table 89 on page 225

)

used during programming. The page organization does not affect normal operation.

Application and

Boot Loader Flash

Sections

The Flash memory is organized in two main sections, the Application section and the Boot loader section (see

Figure 102 ). The size of the different sections is configured by the BOOTSZ

Fuses as shown in

Table 82 on page 220

and Figure 102 . These two sections can have different

level of protection since they have different sets of Lock Bits.

Application Section

BLS – Boot Loader

Section

The application section is the section of the Flash that is used for storing the application code.

The protection level for the application section can be selected by the application boot Lock Bits

(Boot Lock Bits 0), see

Table 78 on page 212 . The application section can never store any Boot

Loader code since the SPM instruction is disabled when executed from the application section.

While the application section is used for storing the application code, the The Boot Loader software must be located in the BLS since the SPM instruction can initiate a programming when executing from the BLS only. The SPM instruction can access the entire Flash, including the

BLS itself. The protection level for the Boot Loader section can be selected by the Boot Loader

Lock Bits (Boot Lock Bits 1), see Table 79 on page 212

.

Read-While-Write and No Read-

While-Write Flash

Sections

Whether the CPU supports Read-While-Write or if the CPU is halted during a Boot Loader software update is dependent on which address that is being programmed. In addition to the two sections that are configurable by the BOOTSZ Fuses as described above, the Flash is also divided into two fixed sections, the Read-While-Write (RWW) section and the No Read-While-

Write (NRWW) section. The limit between the RWW- and NRWW sections is given in

Table 83 on page 221

and Figure 102 on page 211

. The main difference between the two sections is:

• When erasing or writing a page located inside the RWW section, the NRWW section can be read during the operation.

• When erasing or writing a page located inside the NRWW section, the CPU is halted during the entire operation.

Note that the user software can never read any code that is located inside the RWW section during a Boot Loader software operation. The syntax “Read-While-Write section” refers to which section that is being programmed (erased or written), not which section that actually is being read during a Boot Loader software update.

209

2486W–AVR–02/10

RWW – Read-While-

Write Section

NRWW – No Read-

While-Write Section

If a Boot Loader software update is programming a page inside the RWW section, it is possible to read code from the Flash, but only code that is located in the NRWW section. During an ongoing programming, the software must ensure that the RWW section never is being read. If the user software is trying to read code that is located inside the RWW section (i.e. by a call/rjmp/lpm or an interrupt) during programming, the software might end up in an unknown state. To avoid this, the interrupts should either be disabled or moved to the Boot Loader Section. The Boot Loader Section is always located in the NRWW section. The RWW Section Busy bit (RWWSB) in the Store Program memory Control Register (SPMCR) will be read as logical one as long as the RWW section is blocked for reading. After a programming is completed, the

RWWSB must be cleared by software before reading code located in the RWW section.

See

“Store Program Memory Control Register – SPMCR” on page 213.

for details on how to clear

RWWSB.

The code located in the NRWW section can be read when the Boot Loader software is updating a page in the RWW section. When the Boot Loader code updates the NRWW section, the CPU is halted during the entire page erase or page write operation.

Table 77. Read-While-Write Features

Which Section does the Zpointer Address during the

Programming?

RWW section

Which Section Can be

Read during

Programming?

NRWW section

Is the CPU

Halted?

No

Read-While-

Write

Supported?

Yes

NRWW section None Yes No

Figure 101. Read-While-Write vs. No Read-While-Write

Read-While-Write

(RWW) Section

Z-pointer

Addresses RWW section

Code Located in

NRWW Section

Can be Read during the Operation

No Read-While-Write

(NRWW) Section

Z-pointer

Addresses NRWW section

CPU is Halted during the Operation

210

ATmega8(L)

2486W–AVR–02/10

Figure 102. Memory Sections

(1)

Program Memory

BOOTSZ = '11'

$0000

Application Flash Section

ATmega8(L)

Program Memory

BOOTSZ = '10'

$0000

Application Flash Section

End RWW

Start NRWW

Application Flash Section

Boot Loader Flash Section

Program Memory

BOOTSZ = '01'

End Application

Start Boot Loader

Flashend

$0000

Application Flash Section

End RWW

Start NRWW

Application Flash Section

Boot Loader Flash Section

End Application

Start Boot Loader

Flashend

Program Memory

BOOTSZ = '00'

$0000

Application flash Section

Application Flash Section

Boot Loader Flash Section

End RWW

Start NRWW

End Application

Start Boot Loader

Flashend

Boot Loader Flash Section

End RWW, End Application

Start NRWW, Start Boot Loader

Flashend

Note:

1. The parameters in the figure are given in Table 82 on page 220

.

Boot Loader Lock

Bits

If no Boot Loader capability is needed, the entire Flash is available for application code. The

Boot Loader has two separate sets of Boot Lock Bits which can be set independently. This gives the user a unique flexibility to select different levels of protection.

The user can select:

• To protect the entire Flash from a software update by the MCU.

• To protect only the Boot Loader Flash section from a software update by the MCU.

• To protect only the Application Flash section from a software update by the MCU.

• Allow software update in the entire Flash.

See

Table 78 and Table 79

for further details. The Boot Lock Bits can be set in software and in

Serial or Parallel Programming mode, but they can be cleared by a chip erase command only.

The general Write Lock (Lock bit mode 2) does not control the programming of the Flash memory by SPM instruction. Similarly, the general Read/Write Lock (Lock bit mode 3) does not control reading nor writing by LPM/SPM, if it is attempted.

211

2486W–AVR–02/10

Table 78. Boot Lock Bit0 Protection Modes (Application Section)

(1)

BLB0

Mode BLB02 BLB01 Protection

1

2

1

1

1

0

No restrictions for SPM or LPM accessing the Application section.

SPM is not allowed to write to the Application section.

3 0 0

SPM is not allowed to write to the Application section, and LPM executing from the Boot Loader section is not allowed to read from the Application section. If Interrupt Vectors are placed in the Boot Loader section, interrupts are disabled while executing from the Application section.

4 0 1

LPM executing from the Boot Loader section is not allowed to read from the Application section. If Interrupt Vectors are placed in the Boot Loader section, interrupts are disabled while executing from the Application section.

Note: 1. “1” means unprogrammed, “0” means programmed

Table 79. Boot Lock Bit1 Protection Modes (Boot Loader Section)

(1)

BLB1

Mode BLB12 BLB11 Protection

1

2

3

1

1

0

1

0

0

No restrictions for SPM or LPM accessing the Boot Loader section.

SPM is not allowed to write to the Boot Loader section.

SPM is not allowed to write to the Boot Loader section, and LPM executing from the Application section is not allowed to read from the Boot Loader section. If Interrupt Vectors are placed in the Application section, interrupts are disabled while executing from the Boot Loader section.

4 0 1

LPM executing from the Application section is not allowed to read from the Boot Loader section. If Interrupt Vectors are placed in the Application section, interrupts are disabled while executing from the Boot Loader section.

Note: 1. “1” means unprogrammed, “0” means programmed

Entering the Boot

Loader Program

Entering the Boot Loader takes place by a jump or call from the application program. This may be initiated by a trigger such as a command received via USART, or SPI interface. Alternatively, the Boot Reset Fuse can be programmed so that the Reset Vector is pointing to the Boot Flash start address after a reset. In this case, the Boot Loader is started after a reset. After the application code is loaded, the program can start executing the application code. Note that the fuses cannot be changed by the MCU itself. This means that once the Boot Reset Fuse is programmed, the Reset Vector will always point to the Boot Loader Reset and the fuse can only be changed through the serial or parallel programming interface.

212

ATmega8(L)

2486W–AVR–02/10

Store Program

Memory Control

Register – SPMCR

ATmega8(L)

Table 80. Boot Reset Fuse

(1)

BOOTRST Reset Address

1

0

Reset Vector = Application Reset (address 0x0000)

Reset Vector = Boot Loader Reset (see Table 82 on page 220

)

Note: 1. “1” means unprogrammed, “0” means programmed

The Store Program memory Control Register contains the control bits needed to control the Boot

Loader operations.

Bit

Read/Write

Initial Value

7

SPMIE

R/W

0

6

RWWSB

R

0

R

0

5

4

RWWSRE

R/W

0

3

BLBSET

R/W

0

2

PGWRT

R/W

0

1

PGERS

R/W

0

0

SPMEN

R/W

0

SPMCR

• Bit 7 – SPMIE: SPM Interrupt Enable

When the SPMIE bit is written to one, and the I-bit in the Status Register is set (one), the SPM ready interrupt will be enabled. The SPM ready Interrupt will be executed as long as the SPMEN bit in the SPMCR Register is cleared.

• Bit 6 – RWWSB: Read-While-Write Section Busy

When a Self-Programming (page erase or page write) operation to the RWW section is initiated, the RWWSB will be set (one) by hardware. When the RWWSB bit is set, the RWW section cannot be accessed. The RWWSB bit will be cleared if the RWWSRE bit is written to one after a

Self-Programming operation is completed. Alternatively the RWWSB bit will automatically be cleared if a page load operation is initiated.

• Bit 5 – Res: Reserved Bit

This bit is a reserved bit in the ATmega8 and always read as zero.

• Bit 4 – RWWSRE: Read-While-Write Section Read Enable

When programming (page erase or page write) to the RWW section, the RWW section is blocked for reading (the RWWSB will be set by hardware). To re-enable the RWW section, the user software must wait until the programming is completed (SPMEN will be cleared). Then, if the RWWSRE bit is written to one at the same time as SPMEN, the next SPM instruction within four clock cycles re-enables the RWW section. The RWW section cannot be re-enabled while the Flash is busy with a page erase or a page write (SPMEN is set). If the RWWSRE bit is written while the Flash is being loaded, the Flash load operation will abort and the data loaded will be lost (The page buffer will be cleared when the Read-While-Write section is re-enabled).

• Bit 3 – BLBSET: Boot Lock Bit Set

If this bit is written to one at the same time as SPMEN, the next SPM instruction within four clock cycles sets Boot Lock Bits, according to the data in R0. The data in R1 and the address in the Zpointer are ignored. The BLBSET bit will automatically be cleared upon completion of the lock bit set, or if no SPM instruction is executed within four clock cycles.

An LPM instruction within three cycles after BLBSET and SPMEN are set in the SPMCR Register, will read either the Lock Bits or the Fuse Bits (depending on Z0 in the Z-pointer) into the

destination register. See “Reading the Fuse and Lock Bits from Software” on page 217

for details.

213

2486W–AVR–02/10

• Bit 2 – PGWRT: Page Write

If this bit is written to one at the same time as SPMEN, the next SPM instruction within four clock cycles executes page write, with the data stored in the temporary buffer. The page address is taken from the high part of the Z-pointer. The data in R1 and R0 are ignored. The PGWRT bit will auto-clear upon completion of a page write, or if no SPM instruction is executed within four clock cycles. The CPU is halted during the entire page write operation if the NRWW section is addressed.

• Bit 1 – PGERS: Page Erase

If this bit is written to one at the same time as SPMEN, the next SPM instruction within four clock cycles executes page erase. The page address is taken from the high part of the Z-pointer. The data in R1 and R0 are ignored. The PGERS bit will auto-clear upon completion of a page erase, or if no SPM instruction is executed within four clock cycles. The CPU is halted during the entire page write operation if the NRWW section is addressed.

• Bit 0 – SPMEN: Store Program Memory Enable

This bit enables the SPM instruction for the next four clock cycles. If written to one together with either RWWSRE, BLBSET, PGWRT’ or PGERS, the following SPM instruction will have a special meaning, see description above. If only SPMEN is written, the following SPM instruction will store the value in R1:R0 in the temporary page buffer addressed by the Z-pointer. The LSB of the Z-pointer is ignored. The SPMEN bit will auto-clear upon completion of an SPM instruction, or if no SPM instruction is executed within four clock cycles. During page erase and page write, the SPMEN bit remains high until the operation is completed.

Writing any other combination than “10001”, “01001”, “00101”, “00011” or “00001” in the lower five bits will have no effect.

Addressing the

Flash During Self-

Programming

The Z-pointer is used to address the SPM commands.

Bit

ZH (R31)

ZL (R30)

15

Z15

Z7

7

14

Z14

Z6

6

13

Z13

Z5

5

12

Z12

Z4

4

11

Z11

Z3

3

10

Z10

Z2

2

9

Z9

Z1

1

8

Z8

Z0

0

Since the Flash is organized in pages (see

Table 89 on page 225 ), the Program Counter can be

treated as having two different sections. One section, consisting of the least significant bits, is addressing the words within a page, while the most significant bits are addressing the pages.

This is shown in

Figure 103 . Note that the page erase and page write operations are addressed

independently. Therefore it is of major importance that the Boot Loader software addresses the same page in both the page erase and page write operation. Once a programming operation is initiated, the address is latched and the Z-pointer can be used for other operations.

The only SPM operation that does not use the Z-pointer is Setting the Boot Loader Lock Bits.

The content of the Z-pointer is ignored and will have no effect on the operation. The LPM instruction does also use the Z-pointer to store the address. Since this instruction addresses the

Flash byte by byte, also the LSB (bit Z0) of the Z-pointer is used.

214

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 103. Addressing the Flash during SPM

(1)

BIT

Z - REGISTER

15 ZPCMSB ZPAGEMSB 1 0

0

PROGRAM

COUNTER

PCMSB

PCPAGE

PAGE ADDRESS

WITHIN THE FLASH

PROGRAM MEMORY

PAGE

PAGEMSB

PCWORD

WORD ADDRESS

WITHIN A PAGE

PAGE

INSTRUCTION WORD

PCWORD[PAGEMSB:0]:

00

01

02

PAGEEND

Notes:

1. The different variables used in the figure are listed in Table 84 on page 221

.

2. PCPAGE and PCWORD are listed in

Table 89 on page 225 .

Self-Programming the Flash

The Program memory is updated in a page by page fashion. Before programming a page with the data stored in the temporary page buffer, the page must be erased. The temporary page buffer is filled one word at a time using SPM and the buffer can be filled either before the page erase command or between a page erase and a page write operation:

Alternative 1, fill the buffer before a page erase.

• Fill temporary page buffer.

• Perform a page erase.

• Perform a page write.

Alternative 2, fill the buffer after page erase.

• Perform a page erase.

• Fill temporary page buffer.

• Perform a page write.

If only a part of the page needs to be changed, the rest of the page must be stored (for example in the temporary page buffer) before the erase, and then be rewritten. When using alternative 1, the boot loader provides an effective Read-Modify-Write feature which allows the user software to first read the page, do the necessary changes, and then write back the modified data. If alternative 2 is used, it is not possible to read the old data while loading since the page is already erased. The temporary page buffer can be accessed in a random sequence. It is essential that the page address used in both the page erase and page write operation is addressing the same page. See

“Simple Assembly Code Example for a Boot Loader” on page 219 for an assembly

code example.

215

2486W–AVR–02/10

Performing Page

Erase by SPM

To execute page erase, set up the address in the Z-pointer, write “X0000011” to SPMCR and execute SPM within four clock cycles after writing SPMCR. The data in R1 and R0 is ignored.

The page address must be written to PCPAGE in the Z-register. Other bits in the Z-pointer will be ignored during this operation.

• Page Erase to the RWW section: The NRWW section can be read during the page erase.

• Page Erase to the NRWW section: The CPU is halted during the operation.

Filling the Temporary

Buffer (Page Loading)

To write an instruction word, set up the address in the Z-pointer and data in R1:R0, write

“00000001” to SPMCR and execute SPM within four clock cycles after writing SPMCR. The content of PCWORD in the Z-register is used to address the data in the temporary page buffer. The temporary buffer will auto-erase after a page write operation or by writing the RWWSRE bit in

SPMCR. It is also erased after a System Reset. Note that it is not possible to write more than one time to each address without erasing the temporary buffer.

Note: If the EEPROM is written in the middle of an SPM page Load operation, all data loaded will be lost.

Performing a Page

Write

Using the SPM

Interrupt

Consideration While

Updating BLS

Prevent Reading the

RWW Section During

Self-Programming

To execute page write, set up the address in the Z-pointer, write “X0000101” to SPMCR and execute SPM within four clock cycles after writing SPMCR. The data in R1 and R0 is ignored.

The page address must be written to PCPAGE. Other bits in the Z-pointer must be written to zero during this operation.

• Page Write to the RWW section: The NRWW section can be read during the page write.

• Page Write to the NRWW section: The CPU is halted during the operation.

If the SPM interrupt is enabled, the SPM interrupt will generate a constant interrupt when the

SPMEN bit in SPMCR is cleared. This means that the interrupt can be used instead of polling the SPMCR Register in software. When using the SPM interrupt, the Interrupt Vectors should be moved to the BLS section to avoid that an interrupt is accessing the RWW section when it is blocked for reading. How to move the interrupts is described in

“Interrupts” on page 46

.

Special care must be taken if the user allows the Boot Loader section to be updated by leaving

Boot Lock bit11 unprogrammed. An accidental write to the Boot Loader itself can corrupt the entire Boot Loader, and further software updates might be impossible. If it is not necessary to change the Boot Loader software itself, it is recommended to program the Boot Lock bit11 to protect the Boot Loader software from any internal software changes.

During Self-Programming (either page erase or page write), the RWW section is always blocked for reading. The user software itself must prevent that this section is addressed during the self programming operation. The RWWSB in the SPMCR will be set as long as the RWW section is busy. During Self-Programming the Interrupt Vector table should be moved to the BLS as described in

“Interrupts” on page 46

, or the interrupts must be disabled. Before addressing the

RWW section after the programming is completed, the user software must clear the RWWSB by

writing the RWWSRE. See “Simple Assembly Code Example for a Boot Loader” on page 219 for

an example.

216

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Setting the Boot

Loader Lock Bits by

SPM

EEPROM Write

Prevents Writing to

SPMCR

To set the Boot Loader Lock Bits, write the desired data to R0, write “X0001001” to SPMCR and execute SPM within four clock cycles after writing SPMCR. The only accessible Lock Bits are the Boot Lock Bits that may prevent the Application and Boot Loader section from any software update by the MCU.

Bit

R0

7

1

6

1

5

BLB12

4

BLB11

3

BLB02

2

BLB01

1

1

0

1

See Table 78

and

Table 79 for how the different settings of the Boot Loader Bits affect the Flash

access.

If bits 5..2 in R0 are cleared (zero), the corresponding Boot Lock bit will be programmed if an

SPM instruction is executed within four cycles after BLBSET and SPMEN are set in SPMCR.

The Z-pointer is don’t care during this operation, but for future compatibility it is recommended to load the Z-pointer with 0x0001 (same as used for reading the Lock Bits). For future compatibility

It is also recommended to set bits 7, 6, 1, and 0 in R0 to “1” when writing the Lock Bits. When programming the Lock Bits the entire Flash can be read during the operation.

Note that an EEPROM write operation will block all software programming to Flash. Reading the

Fuses and Lock Bits from software will also be prevented during the EEPROM write operation. It is recommended that the user checks the status bit (EEWE) in the EECR Register and verifies that the bit is cleared before writing to the SPMCR Register.

Reading the Fuse and

Lock Bits from

Software

It is possible to read both the Fuse and Lock Bits from software. To read the Lock Bits, load the

Z-pointer with 0x0001 and set the BLBSET and SPMEN bits in SPMCR. When an LPM instruction is executed within three CPU cycles after the BLBSET and SPMEN bits are set in SPMCR, the value of the Lock Bits will be loaded in the destination register. The BLBSET and SPMEN bits will auto-clear upon completion of reading the Lock Bits or if no LPM instruction is executed within three CPU cycles or no SPM instruction is executed within four CPU cycles. When BLB-

SET and SPMEN are cleared, LPM will work as described in the Instruction set Manual.

Bit

Rd

7

6

5

BLB12

4

BLB11

3

BLB02

2

BLB01

1

LB2

0

LB1

The algorithm for reading the Fuse Low bits is similar to the one described above for reading the

Lock Bits. To read the Fuse Low bits, load the Z-pointer with 0x0000 and set the BLBSET and

SPMEN bits in SPMCR. When an LPM instruction is executed within three cycles after the BLB-

SET and SPMEN bits are set in the SPMCR, the value of the Fuse Low bits (FLB) will be loaded in the destination register as shown below. Refer to

Table 88 on page 224 for a detailed descrip-

tion and mapping of the fuse low bits.

Bit

Rd

7

FLB7

6

FLB6

5

FLB5

4

FLB4

3

FLB3

2

FLB2

1

FLB1

0

FLB0

Similarly, when reading the Fuse High bits, load 0x0003 in the Z-pointer. When an LPM instruction is executed within three cycles after the BLBSET and SPMEN bits are set in the SPMCR, the value of the Fuse High bits (FHB) will be loaded in the destination register as shown below.

Refer to Table 87 on page 223 for detailed description and mapping of the fuse high bits.

Bit

Rd

7

FHB7

6

FHB6

5

FHB5

4

FHB4

3

FHB3

2

FHB2

1

FHB1

0

FHB0

Fuse and Lock Bits that are programmed, will be read as zero. Fuse and Lock Bits that are unprogrammed, will be read as one.

Preventing Flash

Corruption

During periods of low V

CC, the Flash program can be corrupted because the supply voltage is too low for the CPU and the Flash to operate properly. These issues are the same as for board level systems using the Flash, and the same design solutions should be applied.

217

2486W–AVR–02/10

A Flash program corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the Flash requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage for executing instructions is too low.

Flash corruption can easily be avoided by following these design recommendations (one is sufficient):

1.

If there is no need for a Boot Loader update in the system, program the Boot Loader Lock

Bits to prevent any Boot Loader software updates.

2.

Keep the AVR RESET active (low) during periods of insufficient power supply voltage.

This can be done by enabling the internal Brown-out Detector (BOD) if the operating voltage matches the detection level. If not, an external low V

CC

Reset Protection circuit can be used. If a reset occurs while a write operation is in progress, the write operation will be completed provided that the power supply voltage is sufficient.

3.

Keep the AVR core in Power-down sleep mode during periods of low V

CC

. This will prevent the CPU from attempting to decode and execute instructions, effectively protecting the SPMCR Register and thus the Flash from unintentional writes.

Programming Time for

Flash when using SPM

The calibrated RC Oscillator is used to time Flash accesses.

Table 81

shows the typical programming time for Flash accesses from the CPU.

Table 81. SPM Programming Time

(1)

Symbol Min Programming Time Max Programming Time

Flash write (page erase, page write, and write Lock Bits by SPM)

3.7 ms

1.Minimum and maximum programming time is per individual operation.

4.5 ms

218

ATmega8(L)

2486W–AVR–02/10

Simple Assembly

Code Example for a

Boot Loader

ATmega8(L)

;-the routine writes one page of data from RAM to Flash

; the first data location in RAM is pointed to by the Y pointer

; the first data location in Flash is pointed to by the Z-pointer

;-error handling is not included

;-the routine must be placed inside the boot space

; (at least the Do_spm sub routine). Only code inside NRWW section can

; be read during self-programming (page erase and page write).

;-registers used: r0, r1, temp1 (r16), temp2 (r17), looplo (r24),

; loophi (r25), spmcrval (r20)

; storing and restoring of registers is not included in the routine

; register usage can be optimized at the expense of code size

;-It is assumed that either the interrupt table is moved to the Boot

; loader section or that the interrupts are disabled.

.equ PAGESIZEB = PAGESIZE*2 ;PAGESIZEB is page size in BYTES, not words

.org SMALLBOOTSTART

Write_page:

; page erase ldi spmcrval, (1<<PGERS) | (1<<SPMEN) rcallDo_spm

; re-enable the RWW section ldi spmcrval, (1<<RWWSRE) | (1<<SPMEN) rcallDo_spm

; transfer data from RAM to Flash page buffer ldi looplo, low(PAGESIZEB) ;init loop variable ldi loophi, high(PAGESIZEB) ;not required for PAGESIZEB<=256

Wrloop: ld r0, Y+ ld r1, Y+ ldi spmcrval, (1<<SPMEN) rcallDo_spm adiw ZH:ZL, 2 sbiw loophi:looplo, 2 brne Wrloop

;use subi for PAGESIZEB<=256

; execute page write subi ZL, low(PAGESIZEB) ;restore pointer sbci ZH, high(PAGESIZEB) ;not required for PAGESIZEB<=256 ldi spmcrval, (1<<PGWRT) | (1<<SPMEN) rcallDo_spm

; re-enable the RWW section ldi spmcrval, (1<<RWWSRE) | (1<<SPMEN) rcallDo_spm

; read back and check, optional ldi looplo, low(PAGESIZEB) ;init loop variable ldi loophi, high(PAGESIZEB) ;not required for PAGESIZEB<=256 subi YL, low(PAGESIZEB) ;restore pointer sbci YH, high(PAGESIZEB)

Rdloop: lpm r0, Z+ ld r1, Y+ cpse r0, r1 rjmp Error sbiw loophi:looplo, 1 brne Rdloop

;use subi for PAGESIZEB<=256

219

2486W–AVR–02/10

; return to RWW section

; verify that RWW section is safe to read

Return: in temp1, SPMCR sbrs temp1, RWWSB ready yet

; If RWWSB is set, the RWW section is not ret

; re-enable the RWW section ldi spmcrval, (1<<RWWSRE) | (1<<SPMEN) rcallDo_spm rjmp Return

Do_spm:

; check for previous SPM complete

Wait_spm: in temp1, SPMCR sbrc temp1, SPMEN rjmp Wait_spm

; input: spmcrval determines SPM action

; disable interrupts if enabled, store status in temp2, SREG cli

; check that no EEPROM write access is present

Wait_ee: sbic EECR, EEWE rjmp Wait_ee

; SPM timed sequence out SPMCR, spmcrval spm

; restore SREG (to enable interrupts if originally enabled) out SREG, temp2 ret

ATmega8 Boot Loader

Parameters

In

Table 82 through

Table 84

, the parameters used in the description of the self programming are given.

Table 82. Boot Size Configuration

BOOTSZ1 BOOTSZ0

1

1

0

0

1

0

1

0

Boot

Size

128 words

256 words

512 words

1024 words

Pages

4

8

16

32

Application

Flash

Section

0x000 -

0xF7F

0x000 -

0xEFF

0x000 -

0xDFF

0x000 -

0xBFF

Boot

Loader

Flash

Section

0xF80 -

0xFFF

0xF00 -

0xFFF

0xE00 -

0xFFF

0xC00 -

0xFFF

End

Application

Section

0xF7F

0xEFF

0xDFF

0xBFF

Boot Reset

Address

(Start Boot

Loader

Section)

0xF80

0xF00

0xE00

0xC00

220

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Note:

The different BOOTSZ Fuse configurations are shown in Figure 102 .

Table 83. Read-While-Write Limit

Section

Read-While-Write section (RWW)

No Read-While-Write section (NRWW)

Pages

96

32

Address

0x000 - 0xBFF

0xC00 - 0xFFF

For details about these two section, see

“NRWW – No Read-While-Write Section” on page 210

and

“RWW – Read-While-Write Section” on page 210

Table 84. Explanation of Different Variables used in

Figure 103 and the Mapping to the Z-

pointer

Variable

PCMSB

PAGEMSB

11

4

Corresponding

Z-value

(1)

Description

Most significant bit in the Program Counter.

(The Program Counter is 12 bits PC[11:0])

Most significant bit which is used to address the words within one page (32 words in a page requires 5 bits PC [4:0]).

ZPCMSB

ZPAGEMSB

PCPAGE PC[11:5]

Z12

Z5

Z12:Z6

Bit in Z-register that is mapped to PCMSB.

Because Z0 is not used, the ZPCMSB equals

PCMSB + 1.

Bit in Z-register that is mapped to PAGEMSB.

Because Z0 is not used, the ZPAGEMSB equals PAGEMSB + 1.

Program counter page address: Page select, for page erase and page write

PCWORD PC[4:0] Z5:Z1 Program counter word address: Word select, for filling temporary buffer (must be zero during page write operation)

Note: 1. Z15:Z13: always ignored

Z0: should be zero for all SPM commands, byte select for the LPM instruction.

See

“Addressing the Flash During Self-Programming” on page 214

for details about the use of

Z-pointer during Self-Programming.

221

Memory

Programming

Program And Data

Memory Lock Bits

The ATmega8 provides six Lock Bits which can be left unprogrammed (“1”) or can be programmed (“0”) to obtain the additional features listed in

Table 86

. The Lock Bits can only be erased to “1” with the Chip Erase command.

Table 85. Lock Bit Byte

Lock Bit Byte Bit No.

7

6

Description

Default Value

(1)

1 (unprogrammed)

1 (unprogrammed)

BLB12

BLB11

BLB02

BLB01

5

4

3

2

Boot lock bit

Boot lock bit

Boot lock bit

Boot lock bit

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

LB2 1 Lock bit 1 (unprogrammed)

LB1 0 Lock bit

Note: 1. “1” means unprogrammed, “0” means programmed

1 (unprogrammed)

Table 86. Lock Bit Protection Modes

(2)

Memory Lock Bits Protection Type

LB Mode

1

LB2

1

LB1

1

2

3

1

0

0

0

No memory lock features enabled.

Further programming of the Flash and EEPROM is disabled in Parallel and Serial Programming mode. The

Fuse Bits are locked in both Serial and Parallel

Programming mode.

(1)

Further programming and verification of the Flash and

EEPROM is disabled in parallel and Serial Programming mode. The Fuse Bits are locked in both Serial and Parallel

Programming modes.

(1)

BLB0 Mode BLB02 BLB01

1

2

3

4

1

1

0

0

1

0

0

1

No restrictions for SPM or LPM accessing the Application section.

SPM is not allowed to write to the Application section.

SPM is not allowed to write to the Application section, and

LPM executing from the Boot Loader section is not allowed to read from the Application section. If Interrupt

Vectors are placed in the Boot Loader section, interrupts are disabled while executing from the Application section.

LPM executing from the Boot Loader section is not allowed to read from the Application section. If Interrupt

Vectors are placed in the Boot Loader section, interrupts are disabled while executing from the Application section.

BLB1 Mode BLB12 BLB11

222

ATmega8(L)

2486W–AVR–02/10

Fuse Bits

ATmega8(L)

Table 86. Lock Bit Protection Modes

(2)

(Continued)

Memory Lock Bits Protection Type

1

2

3

1

1

0

1

0

0

No restrictions for SPM or LPM accessing the Boot Loader section.

SPM is not allowed to write to the Boot Loader section.

SPM is not allowed to write to the Boot Loader section, and LPM executing from the Application section is not allowed to read from the Boot Loader section. If Interrupt

Vectors are placed in the Application section, interrupts are disabled while executing from the Boot Loader section.

4 0 1

LPM executing from the Application section is not allowed to read from the Boot Loader section. If Interrupt Vectors are placed in the Application section, interrupts are disabled while executing from the Boot Loader section.

Notes: 1. Program the Fuse Bits before programming the Lock Bits.

2. “1” means unprogrammed, “0” means programmed

The ATmega8 has two fuse bytes.

Table 87

and

Table 88 describe briefly the functionality of all

the fuses and how they are mapped into the fuse bytes. Note that the fuses are read as logical zero, “0”, if they are programmed.

Table 87. Fuse High Byte

Fuse High

Byte

Bit

No.

Description

RSTDISBL

(4)

7

Select if PC6 is I/O pin or RESET pin

Default Value

1 (unprogrammed, PC6 is

RESET-pin)

WDTON 6

WDT always on

1 (unprogrammed, WDT enabled by WDTCR)

SPIEN

(1)

5

Enable Serial Program and Data

Downloading

0 (programmed, SPI prog. enabled)

CKOPT

(2)

EESAVE

4

3

Oscillator options

EEPROM memory is preserved through the Chip Erase

1 (unprogrammed)

1 (unprogrammed,

EEPROM not preserved)

BOOTSZ1 2

Select Boot Size (see Table 82

for details)

Select Boot Size (see Table 82

for details)

0 (programmed)

(3)

BOOTSZ0 1

0 (programmed)

(3)

BOOTRST 0 Select Reset Vector 1 (unprogrammed)

Notes: 1. The SPIEN Fuse is not accessible in Serial Programming mode.

2. The CKOPT Fuse functionality depends on the setting of the CKSEL bits, see “Clock Sources” on page 26 for details.

3. The default value of BOOTSZ1..0 results in maximum Boot Size. See

Table 82 on page 220 .

4. When programming the RSTDISBL Fuse Parallel Programming has to be used to change fuses or perform further programming.

223

2486W–AVR–02/10

Latching of Fuses

Table 88. Fuse Low Byte

Fuse Low

Byte

BODLEVEL

Bit

No.

7

Description Default Value

Brown out detector trigger level 1 (unprogrammed)

BODEN

SUT1

SUT0

6

5

4

Brown out detector enable

Select start-up time

Select start-up time

1 (unprogrammed, BOD disabled)

1 (unprogrammed)

(1)

0 (programmed)

(1)

CKSEL3

CKSEL2

3

2

Select Clock source

Select Clock source

0 (programmed)

(2)

0 (programmed)

(2)

CKSEL1 1 Select Clock source

0 (programmed)

(2)

CKSEL0 0 Select Clock source 1 (unprogrammed)

(2)

Notes:

1. The default value of SUT1..0 results in maximum start-up time. See Table 10 on page 30 for

details.

2. The default setting of CKSEL3..0 results in internal RC Oscillator @ 1MHz. See

Table 2 on page 26 for details.

The status of the Fuse Bits is not affected by Chip Erase. Note that the Fuse Bits are locked if lock bit1 (LB1) is programmed. Program the Fuse Bits before programming the Lock Bits.

The fuse values are latched when the device enters Programming mode and changes of the fuse values will have no effect until the part leaves Programming mode. This does not apply to the EESAVE Fuse which will take effect once it is programmed. The fuses are also latched on

Power-up in Normal mode.

224

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Signature Bytes

Calibration Byte

All Atmel microcontrollers have a 3-byte signature code which identifies the device. This code can be read in both Serial and Parallel mode, also when the device is locked. The three bytes reside in a separate address space.

For the ATmega8 the signature bytes are:

1.

0x000: 0x1E (indicates manufactured by Atmel).

2.

0x001: 0x93 (indicates 8KB Flash memory).

3.

0x002: 0x07 (indicates ATmega8 device).

The ATmega8 stores four different calibration values for the internal RC Oscillator. These bytes resides in the signature row High byte of the addresses 0x0000, 0x0001, 0x0002, and 0x0003 for 1, 2, 4, and 8 Mhz respectively. During Reset, the 1 MHz value is automatically loaded into the OSCCAL Register. If other frequencies are used, the calibration value has to be loaded

manually, see “Oscillator Calibration Register – OSCCAL” on page 31 for details.

Page Size

Table 89. No. of Words in a Page and no. of Pages in the Flash

Flash Size

4K words (8K bytes)

Page Size PCWORD

32 words PC[4:0]

No. of Pages

128

PCPAGE

PC[11:5]

PCMSB

11

Table 90. No. of Words in a Page and no. of Pages in the EEPROM

EEPROM Size

512 bytes

Page Size

4 bytes

PCWORD

EEA[1:0]

No. of Pages

128

PCPAGE

EEA[8:2]

EEAMSB

8

225

2486W–AVR–02/10

Parallel

Programming

Parameters, Pin

Mapping, and

Commands

Signal Names

This section describes how to parallel program and verify Flash Program memory, EEPROM

Data memory, Memory Lock Bits, and Fuse Bits in the ATmega8. Pulses are assumed to be at least 250 ns unless otherwise noted.

In this section, some pins of the ATmega8 are referenced by signal names describing their func-

tionality during parallel programming, see Figure 104 and Table 91 . Pins not described in the

following table are referenced by pin names.

The XA1/XA0 pins determine the action executed when the XTAL1 pin is given a positive pulse.

The bit coding is shown in Table 93

.

When pulsing WR or OE, the command loaded determines the action executed. The different

Commands are shown in

Table 94 .

Figure 104. Parallel Programming

RDY/BSY

OE

WR

BS1

XA0

XA1

PAGEL

+12 V

BS2

+5V

PD1

PD2

VCC

PD3

AVCC

PD4

PC[1:0]:PB[5:0]

PD5

PD6

PD7

RESET

PC2

XTAL1

GND

+5V

DATA

Table 91. Pin Name Mapping

Signal Name in

Programming Mode Pin Name

RDY/BSY

OE

WR

BS1

XA0

XA1

PD1

PD2

PD3

PD4

PD5

PD6

I/O Function

O

0: Device is busy programming, 1: Device is ready for new command

I Output Enable (Active low)

I

I Write Pulse (Active low)

Byte Select 1 (“0” selects Low byte, “1” selects High byte)

I XTAL Action Bit 0

I XTAL Action Bit 1

226

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Table 91. Pin Name Mapping (Continued)

Signal Name in

Programming Mode

PAGEL

BS2

DATA

Pin Name

PD7

PC2

{PC[1:0]: PB[5:0]}

I/O Function

I

Program memory and EEPROM Data

Page Load

I

I/O

Byte Select 2 (“0” selects Low byte, “1” selects 2’nd High byte)

Bi-directional Data bus (Output when OE is low)

Table 92. Pin Values used to Enter Programming Mode

Pin Symbol

PAGEL

XA1

XA0

BS1

Prog_enable[3]

Prog_enable[2]

Prog_enable[1]

Prog_enable[0]

Value

0

0

0

0

Table 93. XA1 and XA0 Coding

XA1 XA0 Action when XTAL1 is Pulsed

0 0 Load Flash or EEPROM Address (High or low address byte determined by BS1)

0

1

1

1

0

1

Load Data (High or Low data byte for Flash determined by BS1)

Load Command

No Action, Idle

Table 94. Command Byte Bit Coding

Command Byte Command Executed

1000 0000

0100 0000

0010 0000

0001 0000

0001 0001

0000 1000

0000 0100

0000 0010

0000 0011

Chip Erase

Write Fuse Bits

Write Lock Bits

Write Flash

Write EEPROM

Read Signature Bytes and Calibration byte

Read Fuse and Lock Bits

Read Flash

Read EEPROM

227

Parallel

Programming

Enter Programming

Mode

The following algorithm puts the device in Parallel Programming mode:

1.

Apply 4.5 - 5.5V between V

CC

and GND, and wait at least 100 µs.

2.

Set RESET to “0” and toggle XTAL1 at least 6 times

3.

Set the Prog_enable pins listed in Table 92 on page 227 to “0000” and wait at least 100

ns.

4.

Apply 11.5 - 12.5V to RESET. Any activity on Prog_enable pins within 100 ns after +12V has been applied to RESET, will cause the device to fail entering Programming mode.

Note, if the RESET pin is disabled by programming the RSTDISBL Fuse, it may not be possible to follow the proposed algorithm above. The same may apply when External Crystal or External

RC configuration is selected because it is not possible to apply qualified XTAL1 pulses. In such cases, the following algorithm should be followed:

1.

Set Prog_enable pins listed in

Table 92 on page 227 to “0000”.

2.

Apply 4.5 - 5.5V between V

CC

and GND simultaneously as 11.5 - 12.5V is applied to

RESET.

3.

Wait 100 ns.

4.

Re-program the fuses to ensure that External Clock is selected as clock source

(CKSEL3:0 = 0’b0000) and RESET pin is activated (RSTDISBL unprogrammed). If Lock

Bits are programmed, a chip erase command must be executed before changing the fuses.

5.

Exit Programming mode by power the device down or by bringing RESET pin to 0’b0.

6.

Entering Programming mode with the original algorithm, as described above.

Considerations for

Efficient Programming

The loaded command and address are retained in the device during programming. For efficient programming, the following should be considered.

• The command needs only be loaded once when writing or reading multiple memory locations.

• Skip writing the data value 0xFF, that is the contents of the entire EEPROM (unless the

EESAVE Fuse is programmed) and Flash after a Chip Erase.

• Address High byte needs only be loaded before programming or reading a new 256 word window in Flash or 256 byte EEPROM. This consideration also applies to Signature bytes reading.

Chip Erase

The Chip Erase will erase the Flash and EEPROM

(1)

memories plus Lock Bits. The Lock Bits are

not reset until the Program memory has been completely erased. The Fuse Bits are not changed. A Chip Erase must be performed before the Flash and/or the EEPROM are reprogrammed.

Note: 1. The EEPRPOM memory is preserved during chip erase if the EESAVE Fuse is programmed.

Load Command “Chip Erase”

1.

Set XA1, XA0 to “10”. This enables command loading.

2.

Set BS1 to “0”.

3.

Set DATA to “1000 0000”. This is the command for Chip Erase.

4.

Give XTAL1 a positive pulse. This loads the command.

5.

Give WR a negative pulse. This starts the Chip Erase. RDY/BSY goes low.

6.

Wait until RDY/BSY goes high before loading a new command.

228

ATmega8(L)

2486W–AVR–02/10

Programming the

Flash

ATmega8(L)

The Flash is organized in pages, see

Table 89 on page 225 . When programming the Flash, the

program data is latched into a page buffer. This allows one page of program data to be programmed simultaneously. The following procedure describes how to program the entire Flash memory:

A. Load Command “Write Flash”

1.

Set XA1, XA0 to “10”. This enables command loading.

2.

Set BS1 to ”0”.

3.

Set DATA to “0001 0000”. This is the command for Write Flash.

4.

Give XTAL1 a positive pulse. This loads the command.

B. Load Address Low byte

1.

Set XA1, XA0 to “00”. This enables address loading.

2.

Set BS1 to “0”. This selects low address.

3.

Set DATA = Address Low byte (0x00 - 0xFF).

4.

Give XTAL1 a positive pulse. This loads the address Low byte.

C. Load Data Low byte

1.

Set XA1, XA0 to “01”. This enables data loading.

2.

Set DATA = Data Low byte (0x00 - 0xFF).

3.

Give XTAL1 a positive pulse. This loads the data byte.

D. Load Data High byte

1.

Set BS1 to “1”. This selects high data byte.

2.

Set XA1, XA0 to “01”. This enables data loading.

3.

Set DATA = Data High byte (0x00 - 0xFF).

4.

Give XTAL1 a positive pulse. This loads the data byte.

E. Latch Data

1.

Set BS1 to “1”. This selects high data byte.

2.

Give PAGEL a positive pulse. This latches the data bytes. (See

Figure 106 for signal

waveforms)

F. Repeat B through E until the entire buffer is filled or until all data within the page is loaded.

While the lower bits in the address are mapped to words within the page, the higher bits address the pages within the FLASH. This is illustrated in

Figure 105 on page 230 . Note that if less than

eight bits are required to address words in the page (pagesize < 256), the most significant bit(s) in the address Low byte are used to address the page when performing a page write.

G. Load Address High byte

1.

Set XA1, XA0 to “00”. This enables address loading.

2.

Set BS1 to “1”. This selects high address.

3.

Set DATA = Address High byte (0x00 - 0xFF).

4.

Give XTAL1 a positive pulse. This loads the address High byte.

H. Program Page

1.

Set BS1 = “0”

2.

Give WR a negative pulse. This starts programming of the entire page of data. RDY/BSY goes low.

3.

Wait until RDY/BSY goes high. (See

Figure 106

for signal waveforms)

229

2486W–AVR–02/10

I. Repeat B through H until the entire Flash is programmed or until all data has been programmed.

J. End Page Programming

1.

Set XA1, XA0 to “10”. This enables command loading.

2.

Set DATA to “0000 0000”. This is the command for No Operation.

3.

Give XTAL1 a positive pulse. This loads the command, and the internal write signals are reset.

Figure 105. Addressing the Flash which is Organized in Pages

(1)

PROGRAM

COUNTER

PCMSB

PCPAGE

PAGEMSB

PCWORD

PAGE ADDRESS

WITHIN THE FLASH

WORD ADDRESS

WITHIN A PAGE

PROGRAM MEMORY

PAGE

PAGE

INSTRUCTION WORD

PCWORD[PAGEMSB:0]:

00

01

02

PAGEEND

Note: 1. PCPAGE and PCWORD are listed in

Table 89 on page 225 .

230

ATmega8(L)

2486W–AVR–02/10

Programming the

EEPROM

ATmega8(L)

Figure 106. Programming the Flash Waveforms

(1)

F

A

0x10

B C D

ADDR. LOW DATA LOW DATA HIGH

E

XX

B C D

ADDR. LOW DATA LOW DATA HIGH

E

XX

G

ADDR. HIGH

H

XX

DATA

XA1

XA0

BS1

XTAL1

WR

RDY/BSY

RESET +12V

OE

PAGEL

BS2

Note: 1. “XX” is don’t care. The letters refer to the programming description above.

The EEPROM is organized in pages, see

Table 90 on page 225

. When programming the

EEPROM, the program data is latched into a page buffer. This allows one page of data to be programmed simultaneously. The programming algorithm for the EEPROM Data memory is as follows (refer to

“Programming the Flash” on page 229

for details on Command, Address and

Data loading):

1.

A: Load Command “0001 0001”.

2.

G: Load Address High byte (0x00 - 0xFF).

3.

B: Load Address Low byte (0x00 - 0xFF).

4.

C: Load Data (0x00 - 0xFF).

5.

E: Latch data (give PAGEL a positive pulse).

K: Repeat 3 through 5 until the entire buffer is filled.

L: Program EEPROM page.

1.

Set BS1 to “0”.

2.

Give WR a negative pulse. This starts programming of the EEPROM page. RDY/BSY goes low.

3.

Wait until to RDY/BSY goes high before programming the next page.

(See Figure 107

for signal waveforms).

231

2486W–AVR–02/10

Figure 107. Programming the EEPROM Waveforms

K

A

0x11

G B

ADDR. HIGH ADDR. LOW

C E

DATA

XX

B

ADDR. LOW

C

DATA XX

E L

XTAL1

WR

RDY/BSY

RESET +12V

OE

PAGEL

BS2

DATA

XA1

XA0

BS1

Reading the Flash

Reading the EEPROM

The algorithm for reading the EEPROM memory is as follows (refer to

“Programming the Flash” on page 229 for details on Command and Address loading):

1.

A: Load Command “0000 0011”.

2.

G: Load Address High byte (0x00 - 0xFF).

3.

B: Load Address Low byte (0x00 - 0xFF).

4.

Set OE to “0”, and BS1 to “0”. The EEPROM Data byte can now be read at DATA.

5.

Set OE to “1”.

Programming the

Fuse Low Bits

The algorithm for reading the Flash memory is as follows (refer to

“Programming the Flash” on page 229

for details on Command and Address loading):

1.

A: Load Command “0000 0010”.

2.

G: Load Address High byte (0x00 - 0xFF).

3.

B: Load Address Low byte (0x00 - 0xFF).

4.

Set OE to “0”, and BS1 to “0”. The Flash word Low byte can now be read at DATA.

5.

Set BS1 to “1”. The Flash word High byte can now be read at DATA.

6.

Set OE to “1”.

The algorithm for programming the Fuse Low bits is as follows (refer to

“Programming the Flash” on page 229 for details on Command and Data loading):

1.

A: Load Command “0100 0000”.

2.

C: Load Data Low byte. Bit n = “0” programs and bit n = “1” erases the Fuse bit.

3.

Set BS1 and BS2 to “0”.

4.

Give WR a negative pulse and wait for RDY/BSY to go high.

232

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Programming the

Fuse High Bits

The algorithm for programming the Fuse high bits is as follows (refer to

“Programming the Flash” on page 229 for details on Command and Data loading):

1.

A: Load Command “0100 0000”.

2.

C: Load Data Low byte. Bit n = “0” programs and bit n = “1” erases the Fuse bit.

3.

Set BS1 to “1” and BS2 to “0”. This selects high data byte.

4.

Give WR a negative pulse and wait for RDY/BSY to go high.

5.

Set BS1 to “0”. This selects low data byte.

Programming the Lock

Bits

The algorithm for programming the Lock Bits is as follows (refer to “Programming the Flash” on page 229

for details on Command and Data loading):

1.

A: Load Command “0010 0000”.

2.

C: Load Data Low byte. Bit n = “0” programs the Lock bit.

3.

Give WR a negative pulse and wait for RDY/BSY to go high.

The Lock Bits can only be cleared by executing Chip Erase.

Reading the Fuse and

Lock Bits

The algorithm for reading the Fuse and Lock Bits is as follows (refer to “Programming the Flash” on page 229 for details on Command loading):

1.

A: Load Command “0000 0100”.

2.

Set OE to “0”, BS2 to “0”, and BS1 to “0”. The status of the Fuse Low bits can now be read at DATA (“0” means programmed).

3.

Set OE to “0”, BS2 to “1”, and BS1 to “1”. The status of the Fuse High bits can now be read at DATA (“0” means programmed).

4.

Set OE to “0”, BS2 to “0”, and BS1 to “1”. The status of the Lock Bits can now be read at

DATA (“0” means programmed).

5.

Set OE to “1”.

Figure 108. Mapping Between BS1, BS2 and the Fuse- and Lock Bits During Read

Fuse low byte 0

DATA

Lock bits

0

1

Fuse high byte

1

BS2

BS1

233

2486W–AVR–02/10

Reading the Signature

Bytes

The algorithm for reading the Signature bytes is as follows (refer to “Programming the Flash” on page 229

for details on Command and Address loading):

1.

A: Load Command “0000 1000”.

2.

B: Load Address Low byte (0x00 - 0x02).

3.

Set OE to “0”, and BS1 to “0”. The selected Signature byte can now be read at DATA.

4.

Set OE to “1”.

Reading the

Calibration Byte

The algorithm for reading the Calibration bytes is as follows (refer to

“Programming the Flash” on page 229

for details on Command and Address loading):

1.

A: Load Command “0000 1000”.

2.

B: Load Address Low byte, (0x00 - 0x03).

3.

Set OE to “0”, and BS1 to “1”. The Calibration byte can now be read at DATA.

4.

Set OE to “1”.

Parallel Programming

Characteristics

Figure 109. Parallel Programming Timing, Including some General Timing Requirements t

XLWL

XTAL1 t

XHXL t

DVXH t

XLDX

Data & Contol

(DATA, XA0/1, BS1, BS2) t

BVPH t

PLBX t

BVWL t

WLBX

PAGEL t

PHPL t

WL WH

WR t

PLWL

WLRL

RDY/BSY t

WLRH

Figure 110. Parallel Programming Timing, Loading Sequence with Timing Requirements

(1)

LOAD ADDRESS

(LOW BYTE)

LOAD DATA

(LOW BYTE)

LOAD DATA

(HIGH BYTE)

LOAD DATA

LOAD ADDRESS

(LOW BYTE) t

XLXH t

XLPH t

PLXH

XTAL1

BS1

PAGEL

DATA

ADDR0 (Low Byte) DATA (Low Byte) DATA (High Byte) ADDR1 (Low Byte)

XA0

XA1

Note:

1. The timing requirements shown in Figure 109

(i.e., t

DVXH ing operation.

, t

XHXL

, and t

XLDX

) also apply to load-

234

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 111. Parallel Programming Timing, Reading Sequence (within the same Page) with Timing Requirements

(1)

LOAD ADDRESS

(LOW BYTE)

READ DATA

(LOW BYTE)

READ DATA

(HIGH BYTE)

LOAD ADDRESS

(LOW BYTE) t

XLOL

XTAL1 t

BVDV

BS1 t

OLDV

OE t

OHDZ

DATA ADDR0 (Low Byte) DATA (Low Byte) DATA (High Byte)

ADDR1 (Low Byte)

XA0

XA1

Note:

1. The timing requirements shown in Figure 109

(i.e., t

DVXH

, t ing operation.

XHXL

, and t

XLDX

) also apply to read-

Table 95. Parallel Programming Characteristics, V

CC

= 5V ± 10%

Symbol Parameter Min Typ Max Units

t

PLXH t

BVPH t

PHPL t

PLBX t

WLBX t

PLWL t

BVWL t

WLWH

V

PP

I

PP t

DVXH t

XLXH t

XHXL t

XLDX t

XLWL t

XLPH t

WLRL t

WLRH t

WLRH_CE t

XLOL

Programming Enable Voltage

Programming Enable Current

Data and Control Valid before XTAL1 High

XTAL1 Low to XTAL1 High

XTAL1 Pulse Width High

Data and Control Hold after XTAL1 Low

XTAL1 Low to WR Low

XTAL1 Low to PAGEL high

PAGEL low to XTAL1 high

BS1 Valid before PAGEL High

PAGEL Pulse Width High

BS1 Hold after PAGEL Low

BS2/1 Hold after WR Low

PAGEL Low to WR Low

BS1 Valid to WR Low

WR Pulse Width Low

WR Low to RDY/BSY Low

WR Low to RDY/BSY High

(1)

WR Low to RDY/BSY High for Chip Erase

(2)

XTAL1 Low to OE Low

11.5

67

150

0

3.7

150

67

67

67

7.5

0

0

0

150

67

67

200

150

67

12.5

250

1

4.5

9 ns ns ns ns

μs ms ms ns ns ns ns ns ns ns ns ns

V

μA ns ns

235

Table 95. Parallel Programming Characteristics, V

CC

= 5V ± 10% (Continued)

Symbol Parameter Min Typ Max Units

t

BVDV t

OLDV

BS1 Valid to DATA valid

OE Low to DATA Valid

0 250

250 ns ns t

OHDZ

OE High to DATA Tri-stated

Notes: 1. t

WLRH

250 ns is valid for the Write Flash, Write EEPROM, Write Fuse Bits and Write Lock Bits commands.

2. t

WLRH_CE is valid for the Chip Erase command.

236

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Serial

Downloading

Both the Flash and EEPROM memory arrays can be programmed using the serial SPI bus while

RESET is pulled to GND. The serial interface consists of pins SCK, MOSI (input) and MISO (output). After RESET is set low, the Programming Enable instruction needs to be executed first before program/erase operations can be executed. NOTE, in

Table 96 on page 237

, the pin mapping for SPI programming is listed. Not all parts use the SPI pins dedicated for the internal

SPI interface.

Serial

Programming Pin

Mapping

Table 96. Pin Mapping Serial Programming

Symbol Pins I/O

MOSI

MISO

SCK

PB3

PB4

PB5

I

O

I

Figure 112. Serial Programming and Verify

(1)

Description

Serial data in

Serial data out

Serial clock

MOSI

MISO

SCK

PB3

PB4

PB5

XTAL1

+2.7 - 5.5V

VCC

+2.7 - 5.5V

(2)

AVCC

RESET

GND

Notes: 1. If the device is clocked by the Internal Oscillator, it is no need to connect a clock source to the

XTAL1 pin.

2. V

CC

- 0.3 <

AV

CC

< V

CC

+ 0.3, however,

AV

CC

should always be within 2.7 - 5.5V.

When programming the EEPROM, an auto-erase cycle is built into the self-timed programming operation (in the Serial mode ONLY) and there is no need to first execute the Chip Erase instruction. The Chip Erase operation turns the content of every memory location in both the

Program and EEPROM arrays into 0xFF.

Depending on CKSEL Fuses, a valid clock must be present. The minimum low and high periods for the Serial Clock (SCK) input are defined as follows:

Low:> 2 CPU clock cycles for f ck

< 12 MHz, 3 CPU clock cycles for f ck

12 MHz

High:> 2 CPU clock cycles for f ck

< 12 MHz, 3 CPU clock cycles for f ck

12 MHz

237

2486W–AVR–02/10

Serial Programming

Algorithm

When writing serial data to the ATmega8, data is clocked on the rising edge of SCK.

When reading data from the ATmega8, data is clocked on the falling edge of SCK. See

Figure

113 for timing details.

To program and verify the ATmega8 in the Serial Programming mode, the following sequence is

recommended (See four byte instruction formats in Table 98

):

1.

Power-up sequence:

Apply power between V

CC

and GND while RESET and SCK are set to “0”. In some systems, the programmer can not guarantee that SCK is held low during Power-up. In this case, RESET must be given a positive pulse of at least two CPU clock cycles duration after SCK has been set to “0”.

2.

Wait for at least 20 ms and enable Serial Programming by sending the Programming

Enable serial instruction to pin MOSI.

3.

The Serial Programming instructions will not work if the communication is out of synchronization. When in sync. the second byte (0x53), will echo back when issuing the third byte of the Programming Enable instruction. Whether the echo is correct or not, all four bytes of the instruction must be transmitted. If the 0x53 did not echo back, give RESET a positive pulse and issue a new Programming Enable command.

4.

The Flash is programmed one page at a time. The page size is found in

Table 89 on page 225 . The memory page is loaded one byte at a time by supplying the 5 LSB of the

address and data together with the Load Program memory Page instruction. To ensure correct loading of the page, the data Low byte must be loaded before data High byte is applied for a given address. The Program memory Page is stored by loading the Write

Program memory Page instruction with the 7 MSB of the address. If polling is not used, the user must wait at least t

WD_FLASH

before issuing the next page. (See Table 97 ).

Note: If other commands than polling (read) are applied before any write operation (FLASH,

EEPROM, Lock Bits, Fuses) is completed, it may result in incorrect programming.

5.

The EEPROM array is programmed one byte at a time by supplying the address and data together with the appropriate Write instruction. An EEPROM memory location is first automatically erased before new data is written. If polling is not used, the user must wait at least t

WD_EEPROM

before issuing the next byte. (See Table 97 on page 239 ). In a chip

erased device, no 0xFFs in the data file(s) need to be programmed.

6.

Any memory location can be verified by using the Read instruction which returns the content at the selected address at serial output MISO.

7.

At the end of the programming session, RESET can be set high to commence normal operation.

8.

Power-off sequence (if needed):

Set RESET to “1”.

Turn V

CC

power off

Data Polling Flash

When a page is being programmed into the Flash, reading an address location within the page being programmed will give the value 0xFF. At the time the device is ready for a new page, the programmed value will read correctly. This is used to determine when the next page can be written. Note that the entire page is written simultaneously and any address within the page can be used for polling. Data polling of the Flash will not work for the value 0xFF, so when programming this value, the user will have to wait for at least t

WD_FLASH

before programming the next page. As a chip-erased device contains 0xFF in all locations, programming of addresses that are meant to contain 0xFF, can be skipped. See Table 97 for t

WD_FLASH

value.

Data Polling EEPROM

When a new byte has been written and is being programmed into EEPROM, reading the address location being programmed will give the value 0xFF. At the time the device is ready for

238

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

a new byte, the programmed value will read correctly. This is used to determine when the next byte can be written. This will not work for the value 0xFF, but the user should have the following in mind: As a chip-erased device contains 0xFF in all locations, programming of addresses that are meant to contain 0xFF, can be skipped. This does not apply if the EEPROM is Re-programmed without chip-erasing the device. In this case, data polling cannot be used for the value

0xFF, and the user will have to wait at least t

WD_EEPROM

Table 97 for t

WD_EEPROM

value.

before programming the next byte. See

Table 97. Minimum Wait Delay Before Writing the Next Flash or EEPROM Location

Symbol Minimum Wait Delay

t

WD_FUSE t

WD_FLASH t

WD_EEPROM t

WD_ERASE

4.5 ms

4.5 ms

9.0 ms

9.0 ms

Figure 113. Serial Programming Waveforms

SERIAL DATA INPUT

(MOSI)

MSB LSB

SERIAL DATA OUTPUT

(MISO)

SERIAL CLOCK INPUT

(SCK)

SAMPLE

MSB LSB

239

Table 98. Serial Programming Instruction Set

Instruction

Programming Enable

Byte 1

1010 1100

Instruction Format

Byte 2

0101 0011

Byte 3

xxxx xxxx

Chip Erase

Read Program Memory

1010 1100

0010 H000

100x xxxx

0000 aaaa xxxx xxxx

bbbb bbbb

Load Program Memory

Page

Write Program Memory

Page

Read EEPROM Memory

Write EEPROM Memory

Read Lock Bits

Write Lock Bits

Read Signature Byte

Write Fuse Bits

Write Fuse High Bits

Read Fuse Bits

Read Fuse High Bits

0100 H000 0000 xxxx xxxb bbbb

0100 1100

1010 0000

1100 0000

0101 1000

0000 aaaa

00xx xxxa

00xx xxxa

0000 0000

bbbx xxxx

bbbb bbbb bbbb bbbb

xxxx xxxx

1010 1100 111x xxxx xxxx xxxx

0011 0000

1010 1100

00xx xxxx

1010 0000 xxxx xxbb xxxx xxxx

1010 1100 1010 1000 xxxx xxxx

0101 0000 0000 0000 xxxx xxxx

0101 1000 0000 1000 xxxx xxxx

Read Calibration Byte

0011 1000

Note: a = address high bits

b = address low bits

H = 0 – Low byte, 1 – High byte

o = data out

i = data in x = don’t care

00xx xxxx 0000 00bb

Byte4 Operation

xxxx xxxx

Enable Serial Programming after

RESET goes low.

xxxx xxxx

Chip Erase EEPROM and Flash.

oooo oooo

Read H (high or low) data o from

Program memory at word address

a:b.

iiii iiii

Write H (high or low) data i to

Program memory page at word address b. Data Low byte must be loaded before Data High byte is applied within the same address.

xxxx xxxx

Write Program memory Page at address a:b.

oooo oooo

Read data o from EEPROM memory at address a:b.

iiii iiii

Write data i to EEPROM memory at address a:b.

xxoo oooo

Read Lock Bits. “0” = programmed,

“1” = unprogrammed. See

Table

85 on page 222

for details.

11ii iiii

Write Lock Bits. Set bits = “0” to program Lock Bits. See

Table 85 on page 222

for details.

oooo oooo

Read Signature Byte o at address

b.

iiii iiii

Set bits = “0” to program, “1” to unprogram. See

Table 88 on page 224

for details.

iiii iiii

Set bits = “0” to program, “1” to unprogram. See

Table 87 on page 223

for details.

oooo oooo

Read Fuse Bits. “0” = programmed,

“1” = unprogrammed. See

Table

88 on page 224

for details.

oooo oooo

Read Fuse high bits. “0” = programmed, “1” = unprogrammed.

See

Table 87 on page 223

for details.

oooo oooo

Read Calibration Byte

240

ATmega8(L)

2486W–AVR–02/10

SPI Serial

Programming

Characteristics

ATmega8(L)

For characteristics of the SPI module, see

“SPI Timing Characteristics” on page 246

.

2486W–AVR–02/10

241

Electrical Characteristics

Note: Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.

Absolute Maximum Ratings*

Operating Temperature.................................. -55

°C to +125°C

Storage Temperature ..................................... -65°C to +150°C

Voltage on any Pin except RESET with respect to Ground ................................-0.5V to V

CC

+0.5V

Voltage on RESET with respect to Ground......-0.5V to +13.0V

*NOTICE: Stresses beyond those listed under “Absolute

Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Maximum Operating Voltage ............................................ 6.0V

DC Current per I/O Pin ............................................... 40.0 mA

DC Current

V

CC

and GND Pins................................ 300.0 mA

DC Characteristics

T

A

= -40

°C to 85°C, V

CC

= 2.7V to 5.5V (unless otherwise noted)

Symbol Parameter Condition

V

IL

V

IH

V

IL1

V

IH1

V

IL2

V

IH2

V

IL3

V

IH3

V

OL

V

OH

I

IL

I

IH

R

RST

Input Low Voltage except

XTAL1 and RESET pins

Input High Voltage except

XTAL1 and RESET pins

Input Low Voltage

XTAL1 pin

Input High Voltage

XTAL 1 pin

Input Low Voltage

RESET pin

Input High Voltage

RESET pin

Input Low Voltage

RESET pin as I/O

Input High Voltage

RESET pin as I/O

Output Low Voltage

(3)

(Ports B,C,D)

Output High Voltage

(4)

(Ports B,C,D)

Input Leakage

Current I/O Pin

Input Leakage

Current I/O Pin

Reset Pull-up Resistor

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

V

CC

= 2.7V - 5.5V

I

OL

= 20 mA, V

CC

I

OL

= 10 mA, V

CC

= 5V

= 3V

I

I

OH

OH

= -20 mA, V

= -10 mA, V

CC

= 5V

CC

= 3V

Vcc =

5.5

V, pin low

(absolute value)

Vcc =

5.5

V, pin high

(absolute value)

Min

-0.5

0.6 V

CC

(2)

-0.5

Typ Max

0.2 V

CC

(1)

Units

V

V

CC

+ 0.5

V

0.1 V

CC

(1)

V

0.8 V

CC

(2)

V

CC

+ 0.5

V

-0.5

0.9 V

CC

(2)

-0.5

0.6 V

CC

(2)

0.7 V

CC

(2)

4.2

2.2

30

0.2 V

CC

V

V

CC

+ 0.5

V

0.2 V

CC

V

V

CC

+ 0.5

V

0.7

0.5

V

V

V

V

1 µA

1

80

µA k

Ω

242

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

T

A

= -40

°C to 85°C, V

CC

= 2.7V to 5.5V (unless otherwise noted) (Continued)

Symbol Parameter Condition

R pu

I/O Pin Pull-up Resistor

Min

20

Typ Max

50

Units

k

Ω

I

CC

Power Supply Current

Active 4 MHz, V

CC

= 3V

(ATmega8L)

Active 8 MHz, V

CC

= 5V

(ATmega8)

Idle 4 MHz, V

CC

= 3V

(ATmega8L)

Idle 8 MHz, V

CC

= 5V

(ATmega8)

3

11

1

4.5

5

15

2

7 mA mA mA mA

WDT enabled, V

CC

= 3V < 22 28 µA

Power-down mode

(5)

V

ACIO

Analog Comparator

Input Offset Voltage

WDT disabled, V

CC

= 3V

V

CC

= 5V

V in

= V

CC

/2

< 1 3

40

µA mV

I

ACLK

Analog Comparator

Input Leakage Current

V

CC

= 5V

V in

= V

CC

/2

-50 50 nA

Analog Comparator V

CC

= 2.7V

t

ACPD

Propagation Delay V

CC

= 5.0V

Notes: 1. “Max” means the highest value where the pin is guaranteed to be read as low

750

500 ns

2. “Min” means the lowest value where the pin is guaranteed to be read as high

3. Although each I/O port can sink more than the test conditions (20mA at Vcc = 5V, 10mA at Vcc = 3V) under steady state conditions (non-transient), the following must be observed:

PDIP, TQFP, and QFN/MLF Package:

1] The sum of all IOL, for all ports, should not exceed 300 mA.

2] The sum of all IOL, for ports C0 - C5 should not exceed 100 mA.

3] The sum of all IOL, for ports B0 - B7, C6, D0 - D7 and XTAL2, should not exceed 200 mA.

If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed test condition.

4. Although each I/O port can source more than the test conditions (20mA at Vcc = 5V, 10mA at Vcc = 3V) under steady state conditions (non-transient), the following must be observed:

PDIP, TQFP, and QFN/MLF Package:

1] The sum of all IOH, for all ports, should not exceed 300 mA.

2] The sum of all IOH, for port C0 - C5, should not exceed 100 mA.

3] The sum of all IOH, for ports B0 - B7, C6, D0 - D7 and XTAL2, should not exceed 200 mA.

If IOH exceeds the test condition, VOH may exceed the related specification. Pins are not guaranteed to source current greater than the listed test condition.

5. Minimum V

CC

for Power-down is 2.5V.

243

2486W–AVR–02/10

External Clock

Drive Waveforms

Figure 114. External Clock Drive Waveforms

V

IL1

V

IH1

External Clock

Drive

Table 99. External Clock Drive

Symbol Parameter

1/t

CLCL t

CLCL t

CHCX t

CLCX t

CLCH t

CHCL

Oscillator Frequency

Clock Period

High Time

Low Time

Rise Time

Fall Time

Δ t

CLCL

Change in period from one clock cycle to the next

V

CC

= 2.7V to

5.5

V V

CC

= 4.5V to

5.5

V

Min Max Min Max

0 8 0 16

125

50

50

62.5

25

25

1.6

1.6

0.5

0.5

Units

MHz ns ns ns

μs

μs

2 2 %

Table 100. External RC Oscillator, Typical Frequencies

R [k

Ω]

(1)

C [pF]

f

(2)

33 22 650 kHz

10 22 2.0 MHz

Notes: 1. R should be in the range 3 k

Ω - 100 kΩ, and C should be at least 20 pF. The C values given in the table includes pin capacitance. This will vary with package type.

2. The frequency will vary with package type and board layout.

244

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Two-wire Serial Interface Characteristics

Table 101

describes the requirements for devices connected to the Two-wire Serial Bus. The ATmega8 Two-wire Serial

Interface meets or exceeds these requirements under the noted conditions.

Timing symbols refer to Figure 115

.

Table 101. Two-wire Serial Bus Requirements

Symbol Parameter

Condition

V

IL

V

IH

V

hys

(1)

V

OL

(1)

t r

(1)

t of

(1)

t

SP

(1)

I i

C i

(1)

f

SCL

Rp

Input Low-voltage

Input High-voltage

Hysteresis of Schmitt Trigger Inputs

Output Low-voltage

Rise Time for both SDA and SCL

Output Fall Time from V

IHmin

to V

ILmax

Spikes Suppressed by Input Filter

Input Current each I/O Pin

Capacitance for each I/O Pin

SCL Clock Frequency

Value of Pull-up resistor

3 mA sink current

10 pF < C b

< 400 pF

(3)

0.1V

CC

< V i

< 0.9V

CC f

CK

(4)

> max(16f

SCL

, 250kHz)

(5)

f

SCL

≤ 100 kHz f

SCL

> 100 kHz

Min

-0.5

0.7 V

CC

0.05 V

CC

(2)

0

20 + 0.1C

b

(3)(2)

20 + 0.1C

b

(3)(2)

0

-10

0

V

– 0,4V

----------------------------

3mA

V

– 0,4V

----------------------------

3mA

Max

0.3 V

CC

V

CC

+ 0.5

0.4

300

250

50

(2)

10

10

400

C b

Units

V

V

V

V ns ns ns

µA pF kHz

Ω

Ω f

SCL

≤ 100 kHz t

HD;STA

Hold Time (repeated) START Condition f

SCL

> 100 kHz f

SCL

≤ 100 kHz

(6)

t

LOW

Low Period of the SCL Clock f

SCL

> 100 kHz

(7)

f

SCL

≤ 100 kHz t

HIGH

High period of the SCL clock f

SCL

> 100 kHz f

SCL

≤ 100 kHz t

SU;STA

Set-up time for a repeated START condition f

SCL

> 100 kHz f

SCL

≤ 100 kHz t

HD;DAT

Data hold time f

SCL

> 100 kHz f

SCL

≤ 100 kHz t

SU;DAT

Data setup time f

SCL

> 100 kHz f

SCL

≤ 100 kHz t

SU;STO

Setup time for STOP condition f

SCL

> 100 kHz

Bus free time between a STOP and START f

SCL

≤ 100 kHz t

BUF condition f

SCL

> 100 kHz

Notes: 1. In ATmega8, this parameter is characterized and not 100% tested.

2. Required only for f

SCL

> 100 kHz.

3. C b

= capacitance of one bus line in pF.

4. f

CK

= CPU clock frequency

4.0

0.6

4.7

1.3

4.0

0.6

4.7

0.6

0

0

250

100

4.0

0.6

4.7

1.3

3.45

0.9

C b

µs

µs

µs

µs

µs

µs

µs

µs

µs

µs ns ns

µs

µs

µs

µs

245

2486W–AVR–02/10

SPI Timing

Characteristics

5. This requirement applies to all ATmega8 Two-wire Serial Interface operation. Other devices connected to the Two-wire Serial Bus need only obey the general f

SCL

requirement.

6. The actual low period generated by the ATmega8 Two-wire Serial Interface is (1/f

SCL

- 2/f

CK

), thus f

CK

must be greater than 6 MHz for the low time requirement to be strictly met at f

SCL

=

100 kHz.

7. The actual low period generated by the ATmega8 Two-wire Serial Interface is (1/f

SCL

- 2/f

CK

), thus the low time requirement will not be strictly met for f

SCL

> 308 kHz when f

CK

= 8 MHz. Still,

ATmega8 devices connected to the bus may communicate at full speed (400 kHz) with other

ATmega8 devices, as well as any other device with a proper t

LOW acceptance margin.

Figure 115. Two-wire Serial Bus Timing t

HIGH t of t

LOW

SCL t

SU;STA t

HD;STA t

HD;DAT

SDA t

LOW t

SU;DAT t r t

SU;STO t

BUF

See Figure 116 and Figure 117

for details.

Table 102. SPI Timing Parameters

Description Mode

13

14

15

16

9

10

11

12

17

18

7

8

5

6

3

4

1

2

SCK period

SCK high/low

Rise/Fall time

Setup

Hold

Out to SCK

SCK to out

SCK to out high

SS low to out

SCK period

SCK high/low

(1)

Rise/Fall time

Setup

Hold

SCK to out

SCK to SS high

SS high to tri-state

SS low to SCK

Slave

Slave

Slave

Slave

Slave

Slave

Slave

Slave

Slave

Salve

Master

Master

Master

Master

Master

Master

Master

Master

Min

4 • t ck

2 • t ck

10

10

20

2 • t ck

Typ

See

Table 50

50% duty cycle

3.6

10

10

0.5 • t

SCK

10

10

15

15

10

Note: 1. In SPI Programming mode the minimum SCK high/low period is:

- 2t

CLCL

- 3t

CLCL

for f

CK

< 12 MHz

for f

CK

> 12 MHz

Max

1.6

ns

246

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 116. SPI interface timing requirements (Master Mode)

SS

6

SCK

(CPOL = 0)

2

SCK

(CPOL = 1)

4 5

MISO

(Data Input)

MSB ...

7

MOSI

(Data Output)

MSB ...

1

LSB

LSB

2

3

8

Figure 117. SPI interface timing requirements (Slave Mode)

18

SS

9

SCK

(CPOL = 0)

11

SCK

(CPOL = 1)

13 14

MOSI

(Data Input)

MSB ...

15

MISO

(Data Output)

MSB ...

10

LSB

LSB

11

12

16

X

17

247

ADC Characteristics

Table 103. ADC Characteristics

Symbol Parameter

Resolution

Absolute accuracy

(Including INL, DNL,

Quantization Error, Gain, and Offset Error)

Integral Non-linearity (INL)

Differential Non-linearity

(DNL)

Gain Error

Offset Error

Condition

Single Ended Conversion

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 1 MHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Free Running Conversion

Conversion Time

(4)

AV

CC

V

REF

V

IN

Clock Frequency

Analog Supply Voltage

Reference Voltage

Input voltage

Input bandwidth

V

INT

Internal Voltage Reference

R

REF

Reference Input Resistance

R

AIN

Analog Input Resistance

Notes: 1. Values are guidelines only.

2. Minimum for

AV

AV

CC

is 2.7V.

3. Maximum for

CC

is 5.5V.

4. Maximum conversion time is 1/50kHz*25 = 0.5 ms.

Min

(1)

13

50

V

CC

- 0.3

(2)

2.0

GND

2.3

55

Typ

(1)

10

1.75

3

0.75

0.5

1

1

38.5

2.56

32

100

Max

(1)

260

1000

V

CC

+ 0.3

(3)

AV

CC

V

REF

2.9

Units

Bits

LSB

LSB

LSB

LSB

LSB

LSB

µs kHz

V

V

V kHz

V k

Ω

M

Ω

248

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

ATmega8

Typical

Characteristics

The following charts show typical behavior. These figures are not tested during manufacturing.

All current consumption measurements are performed with all I/O pins configured as inputs and with internal pull-ups enabled. A sine wave generator with Rail-to-Rail output is used as clock source.

The power consumption in Power-down mode is independent of clock selection.

The current consumption is a function of several factors such as: operating voltage, operating frequency, loading of I/O pins, switching rate of I/O pins, code executed and ambient temperature. The dominating factors are operating voltage and frequency.

The current drawn from capacitive loaded pins may be estimated (for one pin) as C

L

*

V

CC

*f where

C

L

= load capacitance, V

CC

= operating voltage and f = average switching frequency of I/O pin.

The parts are characterized at frequencies higher than test limits. Parts are not guaranteed to function properly at frequencies higher than the ordering code indicates.

The difference between current consumption in Power-down mode with Watchdog Timer enabled and Power-down mode with Watchdog Timer disabled represents the differential current drawn by the Watchdog Timer.

Active Supply Current

Figure 118. Active Supply Current vs. Frequency (0.1 - 1.0 MHz)

ACTIVE SUPPLY CURRENT vs. FREQUENCY

0.1 - 1.0 MHz

3

2.5

2

1.5

1

0.5

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

249

2486W–AVR–02/10

Figure 119. Active Supply Current vs. Frequency (1 - 20 MHz)

30

25

20

15

10

5

0

0 2 4

ACTIVE SUPPLY CURRENT vs. FREQUENCY

1 - 20 MHz

6

3.3V

3.0V

2.7V

8 10

Frequency (MHz)

12 14 16 18 20

5.5V

5.0V

4.5V

Figure 120. Active Supply Current vs. V

CC

(Internal RC Oscillator, 8 MHz)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 8 MHz

18

16

14

12

10

8

6

4

2

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40

°C

25 °C

85 °C

250

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 121. Active Supply Current vs. V

CC

(Internal RC Oscillator, 4 MHz)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 4 MHz

12

10

8

6

4

2

0

2.5

3 3.5

4

V

CC

(V)

4.5

5

Figure 122. Active Supply Current vs. V

CC

(Internal RC Oscillator, 2 MHz)

5.5

-40 °C

25

°C

85 °C

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 2 MHz

6

5

4

3

2

1

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

25 °C

-40 °C

85 °C

251

Figure 123. Active Supply Current vs. V

CC

(Internal RC Oscillator, 1 MHz)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 1 MHz

3.5

3

2.5

2

1.5

1

0.5

0

2.5

25 °C

-40 °C

85 °C

3 3.5

4

V

CC

(V)

4.5

5

Figure 124. Active Supply Current vs. V

CC

(32 kHz External Oscillator)

5.5

ACTIVE SUPPLY CURRENT vs. V

CC

32kHz EXTERNAL OSCILLATOR

120

100

80

60

40

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

25 °C

252

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Idle Supply Current

Figure 125. Idle Supply Current vs. Frequency (0.1 - 1.0 MHz)

IDLE SUPPLY CURRENT vs. FREQUENCY

0.1 - 1.0 MHz

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

Figure 126. Idle Supply Current vs. Frequency (1 - 20 MHz)

10

8

6

14

12

4

2

0

0 2 4

IDLE SUPPLY CURRENT vs. FREQUENCY

1 - 20 MHz

6

4.0V

3.0V

2.7V

8 10

Frequency (MHz)

12 14

3.3V

16 18 20

5.5V

5.0V

4.5V

253

2486W–AVR–02/10

Figure 127. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 8 MHz)

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 8 MHz

8

7

6

5

4

3

2

1

0

2.5

3 3.5

4

V

CC

(V)

4.5

5

Figure 128. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 4 MHz)

5.5

-40 °C

25 °C

85 °C

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 4 MHz

4

3.5

3

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40 °C

25

°C

85 °C

254

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

Figure 129. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 2 MHz)

ATmega8(L)

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 2 MHz

1.2

1

0.8

0.6

1.8

1.6

1.4

0.4

0.2

0

2.5

3 3.5

4

V

CC

(V)

4.5

5

Figure 130. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 1 MHz)

5.5

-40 °C

85 °C

25 °C

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 1 MHz

1

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

85 °C

25

°C

-40

°C

255

Figure 131. Idle Supply Current vs. V

CC

(32 kHz External Oscillator)

IDLE SUPPLY CURRENT vs. V

CC

32kHz EXTERNAL OSCILLATOR

40

35

30

25

20

15

10

5

0

2.5

25 °C

3 3.5

4

V

CC

(V)

4.5

5 5.5

Power-down Supply

Current

Figure 132. Power-down Supply Current vs. V

CC

(Watchdog Timer Disabled)

POWER-DOWN SUPPLY CURRENT vs. V

CC

WATCHDOG TIMER DISABLED

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

85 °C

-40 °C

25 °C

256

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Figure 133. Power-down Supply Current vs. V

CC

(Watchdog Timer Enabled)

POWER-DOWN SUPPLY CURRENT vs. V

CC

WATCHDOG TIMER ENABLED

60

50

40

30

80

70

20

10

0

2.5

3 3.5

4.5

5 5.5

4

V

CC

(V)

85°C

25°C

-40°C

Power-save Supply

Current

Figure 134. Power-save Supply Current vs. V

CC

(Watchdog Timer Disabled)

POWER-SAVE SUPPLY CURRENT vs. V

CC

WATCHDOG TIMER DISABLED

25

20

15

10

5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

25 °C

257

2486W–AVR–02/10

Standby Supply

Current

Figure 135. Standby Supply Current vs. V

CC

(455 kHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

455 kHz RESONATOR, WATCHDOG TIMER DISABLED

80

70

60

50

40

30

20

10

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 136. Standby Supply Current vs. V

CC

(1 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

1 MHz RESONATOR, WATCHDOG TIMER DISABLED

70

60

50

40

30

20

10

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

258

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 137. Standby Supply Current vs. V

CC

(2 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

2 MHz RESONATOR, WATCHDOG TIMER DISABLED

60

50

40

30

90

80

70

20

10

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 138. Standby Supply Current vs. V

CC

(2 MHz Xtal, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

2 MHz XTAL, WATCHDOG TIMER DISABLED

90

80

70

60

50

40

30

20

10

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

259

Figure 139. Standby Supply Current vs. V

CC

(4 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

4 MHz RESONATOR, WATCHDOG TIMER DISABLED

140

120

100

80

60

40

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 140. Standby Supply Current vs. V

CC

(4 MHz Xtal, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

4 MHz XTAL, WATCHDOG TIMER DISABLED

140

120

100

80

60

40

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

260

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 141. Standby Supply Current vs. V

CC

(6 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

6 MHz RESONATOR, WATCHDOG TIMER DISABLED

160

140

120

100

80

60

40

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 142. Standby Supply Current vs. V

CC

(6 MHz Xtal, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

6 MHz XTAL, WATCHDOG TIMER DISABLED

200

180

160

140

120

100

80

60

40

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

261

Pin Pull-up

Figure 143. I/O Pin Pull-up Resistor Current vs. Input Voltage (V

CC

= 5V)

160

85 °C

140

120

100

-40

°C

25

°C

I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE

Vcc = 5V

80

60

40

20

0

0 1 2 3

V

OP

(V)

4 5

Figure 144. I/O Pin Pull-up Resistor Current vs. Input Voltage (V

CC

= 2.7V)

6

90

85 °C

70

60

-40 °C

25 °C

50

40

I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE

Vcc = 2.7V

30

20

10

0

0 0.5

1 1.5

V

OP

(V)

2 2.5

3

262

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 145. Reset Pull-up Resistor Current vs. Reset Pin Voltage (V

CC

= 5V)

RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE

Vcc = 5V

100

- 40 °C

80

85 °C

25 °C

60

40

20

0

0 1 2

V

RESET

(V)

Figure 146. Reset Pull-up Resistor Current vs. Reset Pin Voltage (V

CC

= 2.7V)

45

-40 °C

40

25 °C

35

30

85 °C

RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE

Vcc = 2.7V

25

20

15

10

5

0

0 0.5

1 1.5

2

V

RESET

(V)

2.5

263

Pin Driver Strength

Figure 147. I/O Pin Source Current vs. Output Voltage (V

CC

= 5V)

60

50

40

30

20

10

0

80

70

I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40

°C

25 °C

85

°C

V

OH

(V)

Figure 148. I/O Pin Source Current vs. Output Voltage (V

CC

= 2.7V)

30

25

20

15

10

5

0

0

I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25 °C

85 °C

0.5

1 1.5

V

OH

(V)

2 2.5

3

264

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 149. I/O Pin Sink Current vs. Output Voltage (V

CC

= 5V)

60

50

40

30

90

80

70

20

10

0

0

I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40 °C

25

°C

85 °C

0.5

1

V

OL

(V)

1.5

2

Figure 150. I/O Pin Sink Current vs. Output Voltage (V

CC

= 2.7V)

2.5

35

30

25

20

15

10

5

0

0 0.5

I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40

°C

25 °C

85 °C

1

V

OL

(V)

1.5

2 2.5

265

Figure 151. Reset Pin as I/O – Pin Source Current vs. Output Voltage (V

CC

= 5V)

4

3.5

3

2.5

2

1.5

1

0.5

0

2

-40 °C

25 °C

85 °C

RESET PIN AS I/O - SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

2.5

3 3.5

4

V

OH

(V)

4.5

Figure 152. Reset Pin as I/O – Pin Source Current vs. Output Voltage (V

CC

= 2.7V)

RESET PIN AS I/O - SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

5

4.5

25

°C

4

-40

3.5

3

2.5

2

1.5

1

0.5

0

0

85 °C

°C

0.5

1 1.5

2

V

OH

(V)

2.5

266

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 153. Reset Pin as I/O – Pin Sink Current vs. Output Voltage (V

CC

= 5V)

14

12

10

8

6

4

2

0

0

RESET PIN AS I/O - SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40 °C

25

°C

85 °C

0.5

1

V

OL

(V)

1.5

2 2.5

Figure 154. Reset Pin as I/O – Pin Sink Current vs. Output Voltage (V

CC

= 2.7V)

4.5

4

3.5

3

2.5

2

1.5

1

0.5

0

0

RESET PIN AS I/O - SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25

°C

85 °C

0.5

1

V

OL

(V)

1.5

2 2.5

267

Pin Thresholds and

Hysteresis

Figure 155. I/O Pin Input Threshold Voltage vs. V

CC

(V

IH

, I/O Pin Read as “1”)

I/O PIN INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, IO PIN READ AS '1'

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40

°C

85

°C

25 °C

Figure 156. I/O Pin Input Threshold Voltage vs. V

CC

(V

IL

, I/O Pin Read as “0”)

I/O PIN INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, IO PIN READ AS '0'

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40 °C

25 °C

85

°C

268

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 157. I/O Pin Input Hysteresis vs. V

CC

I/O PIN INPUT HYSTERESIS vs. V

CC

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2.5

85 °C

-40 °C

25 °C

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 158. Reset Pin as I/O – Input Threshold Voltage vs. V

CC

(V

IH

, I/O Pin Read as “1”)

RESET PIN AS I/O - INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, RESET PIN READ AS '1'

4

3.5

3

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40 °C

85 °C

25 °C

269

Figure 159. Reset Pin as I/O – Input Threshold Voltage vs. V

CC

(V

IL

, I/O Pin Read as “0”)

RESET PIN AS I/O - INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, RESET PIN READ AS '0'

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

Figure 160. Reset Pin as I/O – Pin Hysteresis vs. V

CC

4.5

5 5.5

85 °C

25 °C

-40

°C

RESET PIN AS I/O - PIN HYSTERESIS vs. V

CC

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40 °C

85 °C

25 °C

270

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 161. Reset Input Threshold Voltage vs. V

CC

(V

IH

, Reset Pin Read as “1”)

RESET INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, RESET PIN READ AS '1'

2.5

2

1.5

1

0.5

0

2.5

-40 °C

25 °C

85

°C

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 162. Reset Input Threshold Voltage vs. V

CC

(V

IL

, Reset Pin Read as “0”)

RESET INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, RESET PIN READ AS '0'

2.5

2

1.5

1

0.5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

85 °C

25 °C

-40 °C

271

Figure 163. Reset Input Pin Hysteresis vs. V

CC

RESET INPUT PIN HYSTERESIS vs. V

CC

1

0.8

0.6

0.4

0.2

0

2

-40

°C

25 °C

85

°C

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Bod Thresholds and

Analog Comparator

Offset

Figure 164. BOD Thresholds vs. Temperature (BOD Level is 4.0V)

BOD THRESHOLDS vs. TEMPERATURE

BODLEVEL IS 4.0V

4.3

4.2

4.1

4

3.9

Rising V

Falling V

CC

CC

3.8

3.7

-50 -40 -30 -20 -10 0 10 20 30

Temperature (˚C)

40 50 60 70 80 90 100

272

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 165. BOD Thresholds vs. Temperature (BOD Level is 2.7v)

BOD THRESHOLDS vs. TEMPERATURE

BODLEVEL IS 2.7V

2.8

2.7

Rising V

CC

2.6

2.5

Falling V

CC

2.4

-50 -40 -30 -20 -10 0 10 20 30

Temperature (˚C)

40 50 60 70 80 90 100

Figure 166. Bandgap Voltage vs. V

CC

BANDGAP VOLTAGE vs. V

CC

1.315

1.31

1.305

1.3

1.295

1.29

2.5

3 3.5

4

Vcc (V)

4.5

5 5.5

-40°

85°

25°

273

Figure 167. Analog Comparator Offset Voltage vs. Common Mode Voltage (V

CC

= 5V)

0.003

0.002

0.001

0

-0.001

-0.002

-0.003

-0.004

-0.005

-0.006

0

ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE

V

CC

= 5V

0.5

1 1.5

2 2.5

3

Common Mode Voltage (V)

3.5

4 4.5

5

85°

25°C

-40°

Figure 168. Analog Comparator Offset Voltage vs. Common Mode Voltage (V

CC

= 2.7V)

0.003

0.002

0.001

0

-0.001

-0.002

-0.003

-0.004

-0.005

0

ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE

V

CC

= 2.7V

0.5

1 1.5

Common Mode Voltage (V)

2 2.5

3

85°

25°

-40°

274

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Internal Oscillator

Speed

Figure 169. Watchdog Oscillator Frequency vs. V

CC

WATCHDOG OSCILLATOR FREQUENCY vs. V

CC

1260

1240

1220

1200

1180

1160

1140

1120

1100

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

Figure 170. Calibrated 8 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

8.5

8.3

8.1

7.9

7.7

7.5

7.3

7.1

6.9

6.7

6.5

-60

5.5V

4.0V

2.7V

-40 -20 0 20

Temperature (˚C)

40 60 80 100

-40°C

25°C

85°C

275

2486W–AVR–02/10

Figure 171. Calibrated 8 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. V

CC

8.5

8.3

8.1

7.9

7.7

7.5

7.3

7.1

6.9

6.7

6.5

2.5

3 3.5

4.5

5 4

V

CC

(V)

Figure 172. Calibrated 8 MHz RC Oscillator Frequency vs. Osccal Value

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

16

14

8

6

12

10

4

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

5.5

-40

°C

25

°C

85

°C

276

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 173. Calibrated 4 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

4.2

4.1

4

5.5V

4.0V

3.9

3.8

3.7

3.6

3.5

-60

2.7V

-40 -20 0 20

Temperature (˚C)

40 60 80 100

Figure 174. Calibrated 4 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. V

CC

4.2

4.1

4

3.9

3.8

3.7

3.6

3.5

2.5

3 3.5

4.5

5 4

V

CC

(V)

5.5

-40

°C

25 °C

85

°C

277

Figure 175. Calibrated 4 MHz RC Oscillator Frequency vs. Osccal Value

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

8

7

6

5

4

3

2

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

Figure 176. Calibrated 2 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

2.1

5.5V

2.05

2

4.0V

1.95

1.9

2.7V

1.85

1.8

-60 -40 -20 0 20

Temperature (˚C)

40 60 80 100

278

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 177. Calibrated 2 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. V

CC

2.2

2.1

2

1.9

1.8

1.7

2.5

3 3.5

4

V

CC

(V)

4.5

5

Figure 178. Calibrated 2 MHz RC Oscillator Frequency vs. Osccal Value

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

3.8

3.3

2.8

2.3

1.8

1.3

0.8

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

5.5

-40 °C

25 °C

85 °C

279

Figure 179. Calibrated 1 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 1MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

1.04

5.5V

1.02

1

0.98

0.96

0.94

4.0V

2.7V

0.92

0.9

-60 -40 -20 0 20

Temperature (˚C)

40 60 80 100

Figure 180. Calibrated 1 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 1MHz RC OSCILLATOR FREQUENCY vs. V

CC

1.1

1.05

1

0.95

0.9

2.5

3 3.5

4.5

5 4

V

CC

(V)

5.5

-40 °C

25

°C

85

°C

280

ATmega8(L)

2486W–AVR–02/10

Figure 181. Calibrated 1 MHz RC Oscillator Frequency vs. Osccal Value

ATmega8(L)

CALIBRATED 1MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

1.9

1.7

1.5

1.3

1.1

0.9

0.7

0.5

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

Current Consumption of Peripheral Units

Figure 182. Brown-out Detector Current vs. V

CC

BROWN-OUT DETECTOR CURRENT vs. V

CC

30

15

10

5

25

20

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

-40 °C

25

°C

85 °C

281

2486W–AVR–02/10

Figure 183. ADC Current vs. V

CC

(AREF = AV

CC

)

ADC CURRENT vs. V

CC

AREF = AVCC

450

400

350

300

250

200

150

100

50

0

2.5

3 3.5

4

V

CC

(V)

4.5

-40°C

5

85°C

5.5

25°C

Figure 184. AREF External Reference Current vs. V

CC

AREF EXTERNAL REFERENCE CURRENT vs. V

CC

250

200

150

100

50

0

2.5

3 3.5

4.5

25 °C

-40

°C

4

V

CC

(V)

5 5.5

85 °C

282

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8(L)

Figure 185. 32 kHz TOSC Current vs. V

CC

(Watchdog Timer Disabled)

32 kHz TOSC CURRENT vs. V

CC

WATCHDOG TIMER DISABLED

25

20

15

10

5

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

25°C

Figure 186. Watchdog Timer Current vs. V

CC

WATCHDOG TIMER CURRENT vs. V

CC

80

70

60

50

40

30

20

10

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

85°C

25°C

-40°C

283

Figure 187. Analog Comparator Current vs. V

CC

ANALOG COMPARATOR CURRENT vs. V

CC

100

90

80

70

60

50

40

30

20

10

0

2.5

3 3.5

4.5

4

V

CC

(V)

5

Figure 188. Programming Current vs. V

CC

PROGRAMMING CURRENT vs. V

CC

7

6

5

4

3

2

1

0

2.5

3 3.5

4

V

CC

(V)

4.5

5

5.5

5.5

85 °C

25

°C

-40 °C

-40 °C

25 °C

85 °C

284

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Current Consumption in Reset and Reset

Pulsewidth

Figure 189. Reset Supply Current vs. V

CC

(0.1 - 1.0 MHz, Excluding Current Through The

Reset Pull-up)

RESET SUPPLY CURRENT vs. V

CC

0.1 - 1 MHz, EXCLUDING CURRENT THROUGH THE RESET PULL-UP

4

3.5

3

2.5

2

1.5

1

0.5

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

Figure 190. Reset Supply Current vs. V

CC

(1 - 20 MHz, Excluding Current Through The Reset

Pull-up)

25

20

15

10

5

0

0 2

RESET SUPPLY CURRENT vs. V

CC

1 - 20 MHz, EXCLUDING CURRENT THROUGH THE RESET PULL-UP

4 6

3.0V

2.7V

8 10

Frequency (MHz)

12

3.3V

14 16 18 20

5.5V

5.0V

4.5V

285

2486W–AVR–02/10

Figure 191. Reset Pulse Width vs. V

CC

RESET PULSE WIDTH vs. V

CC

1400

1200

1000

800

600

400

200

0

2.5

3 3.5

4

V

CC

(V)

4.5

5 5.5

85 °C

25 °C

-40 °C

286

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Register Summary

Name

PIND

SPDR

SPSR

SPCR

UDR

UCSRA

UCSRB

UBRRL

ACSR

ADMUX

ADCSRA

ADCH

ADCL

TWDR

TWAR

UCSRC

EEARH

EEARL

EEDR

EECR

Reserved

Reserved

Reserved

PORTB

DDRB

PINB

PORTC

DDRC

PINC

PORTD

DDRD

TCCR1A

TCCR1B

TCNT1H

TCNT1L

OCR1AH

OCR1AL

OCR1BH

OCR1BL

ICR1H

ICR1L

TCCR2

TCNT2

OCR2

ASSR

WDTCR

UBRRH

SREG

SPH

SPL

Reserved

GICR

GIFR

TIMSK

TIFR

SPMCR

TWCR

MCUCR

MCUCSR

TCCR0

TCNT0

OSCCAL

SFIOR

Bit 7

I

SP7

COM1A1

ICNC1

FOC2

SPIF

SPIE

RXC

RXCIE

ACD

REFS1

ADEN

TWA6

0x20

(1) (0x40) (1)

0x10 (0x30)

0x0F (0x2F)

0x0E (0x2E)

0x0D (0x2D)

0x0C (0x2C)

0x0B (0x2B)

0x0A (0x2A)

0x09 (0x29)

0x08 (0x28)

0x07 (0x27)

0x06 (0x26)

0x05 (0x25)

0x04 (0x24)

0x03 (0x23)

0x02 (0x22)

0x1F (0x3F)

0x1E (0x3E)

0x1D (0x3D)

0x1C (0x3C)

0x1B (0x3B)

0x1A (0x3A)

0x19 (0x39)

0x18 (0x38)

0x17 (0x37)

0x16 (0x36)

0x15 (0x35)

0x14 (0x34)

0x13 (0x33)

0x12 (0x32)

0x11 (0x31)

Address

0x2F (0x4F)

0x2E (0x4E)

0x2D (0x4D)

0x2C (0x4C)

0x2B (0x4B)

0x2A (0x4A)

0x29 (0x49)

0x28 (0x48)

0x27 (0x47)

0x26 (0x46)

0x25 (0x45)

0x24 (0x44)

0x23 (0x43)

0x22 (0x42)

0x21 (0x41)

0x3F (0x5F)

0x3E (0x5E)

0x3D (0x5D)

0x3C (0x5C)

0x3B (0x5B)

0x3A (0x5A)

0x39 (0x59)

0x38 (0x58)

0x37 (0x57)

0x36 (0x56)

0x35 (0x55)

0x34 (0x54)

0x33 (0x53)

0x32 (0x52)

0x31 (0x51)

0x30 (0x50)

INT1

INTF1

OCIE2

OCF2

SPMIE

TWINT

SE

URSEL

URSEL

EEAR7

PORTB7

DDB7

PINB7

PORTD7

DDD7

PIND7

COM1A0

ICES1

WGM20

UMSEL

EEAR6

TWA5

PORTB6

DDB6

PINB6

PORTC6

DDC6

PINC6

PORTD6

DDD6

PIND6

WCOL

SPE

TXC

TXCIE

ACBG

REFS0

ADSC

Bit 6

T

SP6

INT0

INTF0

TOIE2

TOV2

RWWSB

TWEA

SM2

Bit 5

H

SP5

Bit 4

S

SP4

Bit 3

V

SP3

Bit 2

N

SP10

SP2

Bit 1

Z

SP9

SP1

TICIE1

ICF1

TWSTA

SM1

OCIE1A

OCF1A

RWWSRE

TWSTO

SM0

OCIE1B

OCF1B

BLBSET

TWWC

ISC11

WDRF

– –

Timer/Counter0 (8 Bits)

Oscillator Calibration Register

– ACME PUD

COM1B1

COM1B0

WGM13

FOC1A

WGM12

Timer/Counter1 – Counter Register High byte

Timer/Counter1 – Counter Register Low byte

FOC1B

CS12

Timer/Counter1 – Output Compare Register A High byte

Timer/Counter1 – Output Compare Register A Low byte

Timer/Counter1 – Output Compare Register B High byte

Timer/Counter1 – Output Compare Register B Low byte

TOIE1

TOV1

PGWRT

TWEN

ISC10

BORF

CS02

PSR2

WGM11

CS11

Timer/Counter1 – Input Capture Register High byte

Timer/Counter1 – Input Capture Register Low byte

COM21 COM20 WGM21

Timer/Counter2 (8 Bits)

CS22

Timer/Counter2 Output Compare Register

UPM1

EEAR5

WDCE

UPM0

USBS

EEAR4 EEAR3

EEPROM Data Register

AS2

WDE

EERIE

TCN2UB

WDP2

UCSZ1

EEAR2

EEMWE

CS21

OCR2UB

WDP1

UBRR[11:8]

UCSZ0

EEAR1

EEWE

IVSEL

PGERS

ISC01

EXTRF

CS01

PORTB5

DDB5

PINB5

PORTC5

DDC5

PINC5

PORTD5

DDD5

PIND5

DORD

UDRE

UDRIE

ACO

ADLAR

ADFR

TWA4

PORTB4

DDB4

PINB4

PORTC4

DDC4

PINC4

PORTD4

DDD4

PORTB3

DDB3

PINB3

PORTC3

DDC3

PINC3

PORTD3

DDD3

PIND4 PIND3

SPI Data Register

MSTR

CPOL

USART I/O Data Register

FE DOR

RXEN TXEN

USART Baud Rate Register Low byte

PORTB2

DDB2

PINB2

PORTC2

DDC2

PINC2

PORTD2

DDD2

PIND2

CPHA

PE

UCSZ2

ACI

ADIF

ACIE

MUX3

ADIE

ADC Data Register High byte

ADC Data Register Low byte

Two-wire Serial Interface Data Register

TWA3 TWA2

ACIC

MUX2

ADPS2

TWA1 TWA0

PORTB1

DDB1

PINB1

PORTC1

DDC1

PINC1

PORTD1

DDD1

PIND1

SPR1

U2X

RXB8

ACIS1

MUX1

ADPS1

PORTB0

DDB0

PINB0

PORTC0

DDC0

PINC0

PORTD0

DDD0

PIND0

SPI2X

SPR0

MPCM

TXB8

ACIS0

MUX0

ADPS0

TWGCE

Bit 0

C

SP8

SP0

IVCE

TOIE0

TOV0

SPMEN

TWIE

ISC00

PORF

CS00

PSR10

WGM10

CS10

CS20

TCR2UB

WDP0

UCPOL

EEAR8

EEAR0

EERE

Page

11

13

13

156

20

20

20

119

119

43

158

20

102

102

117

119

101

101

101

101

49, 67

68

72, 102, 122

73, 102, 122

213

171

33, 66

41

72

72

31

58, 75, 123, 193

96

100

101

101

153

154

155

158

65

131

131

129

65

65

65

65

65

65

65

65

194

205

207

208

208

173

174

287

2486W–AVR–02/10

Register Summary (Continued)

Address

0x01 (0x21)

0x00 (0x20)

Name

TWSR

TWBR

Bit 7

TWS7

Bit 6

TWS6

Bit 5

TWS5

Bit 4 Bit 3

TWS4 TWS3

Two-wire Serial Interface Bit Rate Register

Bit 2

Bit 1

TWPS1

Bit 0

TWPS0

Page

173

171

Notes: 1. Refer to the USART description for details on how to access UBRRH and UCSRC.

2. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

3. Some of the Status Flags are cleared by writing a logical one to them. Note that the CBI and SBI instructions will operate on all bits in the I/O Register, writing a one back into any flag read as set, thus clearing the flag. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

288

ATmega8(L)

2486W–AVR–02/10

Instruction Set Summary

Mnemonics Operands Description

BRSH

BRLO

BRMI

BRPL

BRGE

BRLT

BRHS

BRHC

BRTS

BRTC

BRVS

BRVC

SBIC

SBIS

BRBS

BRBC

BREQ

BRNE

BRCS

BRCC

RET

RETI

CPSE

CP

CPC

CPI

SBRC

SBRS

SBC

SBCI

SBIW

AND

ANDI

OR

ORI

EOR

ARITHMETIC AND LOGIC INSTRUCTIONS

ADD Rd, Rr

ADC

ADIW

SUB

SUBI

Rd, Rr

Rdl,K

Rd, Rr

Rd, K

Rd, Rr

Rd, K

Rdl,K

Rd, Rr

Rd, K

Rd, Rr

Rd, K

Rd, Rr

COM

NEG

SBR

CBR

INC

DEC

TST

CLR

SER

MUL

MULS

MULSU

Rd

Rd, Rr

Rd, Rr

Rd, Rr

FMUL

FMULS

Rd, Rr

Rd, Rr

FMULSU Rd, Rr

BRANCH INSTRUCTIONS

k RJMP

IJMP

RCALL

ICALL k

Rd

Rd

Rd

Rd

Rd

Rd

Rd,K

Rd,K

k

k

k

k

k

k

k

k

k

k

k

k

k

k

k

k

P, b

P, b s, k s, k

Rd,Rr

Rd,Rr

Rd,Rr

Rd,K

Rr, b

Rr, b

Mnemonics Operands

Add two Registers

Add with Carry two Registers

Add Immediate to Word

Subtract two Registers

Subtract Constant from Register

Subtract with Carry two Registers

Subtract with Carry Constant from Reg.

Subtract Immediate from Word

Logical AND Registers

Logical AND Register and Constant

Logical OR Registers

Logical OR Register and Constant

Exclusive OR Registers

One’s Complement

Two’s Complement

Set Bit(s) in Register

Clear Bit(s) in Register

Increment

Decrement

Test for Zero or Minus

Clear Register

Set Register

Multiply Unsigned

Multiply Signed

Multiply Signed with Unsigned

Fractional Multiply Unsigned

Fractional Multiply Signed

Fractional Multiply Signed with Unsigned

Relative Jump

Indirect Jump to (Z)

Relative Subroutine Call

Indirect Call to (Z)

Subroutine Return

Interrupt Return

Compare, Skip if Equal

Compare

Compare with Carry

Compare Register with Immediate

Skip if Bit in Register Cleared

Skip if Bit in Register is Set

Skip if Bit in I/O Register Cleared

Skip if Bit in I/O Register is Set

Branch if Status Flag Set

Branch if Status Flag Cleared

Branch if Equal

Branch if Not Equal

Branch if Carry Set

Branch if Carry Cleared

Branch if Same or Higher

Branch if Lower

Branch if Minus

Branch if Plus

Branch if Greater or Equal, Signed

Branch if Less Than Zero, Signed

Branch if Half Carry Flag Set

Branch if Half Carry Flag Cleared

Branch if T Flag Set

Branch if T Flag Cleared

Branch if Overflow Flag is Set

Branch if Overflow Flag is Cleared

Description

2486W–AVR–02/10

ATmega8(L)

Operation

Rd

← Rd + Rr

Rd

← Rd + Rr + C

Rdh:Rdl

← Rdh:Rdl + K

Rd

← Rd - Rr

Rd

← Rd - K

Rd

← Rd - Rr - C

Rd

← Rd - K - C

Rdh:Rdl

← Rdh:Rdl - K

Rd

← Rd • Rr

Rd

← Rd • K

Rd

← Rd v Rr

Rd

← Rd v K

Rd

← Rd ⊕ Rr

Rd

← 0xFF − Rd

Rd

← 0x00 − Rd

Rd

← Rd v K

Rd

← Rd • (0xFF - K)

Rd

← Rd + 1

Rd

← Rd − 1

Rd

← Rd • Rd

Rd

← Rd ⊕ Rd

Rd

← 0xFF

R1:R0

← Rd x Rr

R1:R0

← Rd x Rr

R1:R0

← Rd x Rr

R1:R0

← (Rd x Rr)

<< 1

R1:R0

← (Rd x Rr)

<< 1

R1:R0

← (Rd x Rr)

<< 1

PC

← PC + k + 1

PC

← Z

PC

← PC + k + 1

PC

← Z

PC

← STACK

PC

← STACK if (Rd = Rr) PC

← PC + 2 or 3

Rd

− Rr

Rd

− Rr − C

Rd

− K if (Rr(b)=0) PC

← PC + 2 or 3 if (Rr(b)=1) PC

← PC + 2 or 3 if (P(b)=0) PC

← PC + 2 or 3 if (P(b)=1) PC

← PC + 2 or 3 if (SREG(s) = 1) then PC

←PC+k + 1 if (SREG(s) = 0) then PC

←PC+k + 1 if (Z = 1) then PC

← PC + k + 1 if (Z = 0) then PC

← PC + k + 1 if (C = 1) then PC

← PC + k + 1 if (C = 0) then PC

← PC + k + 1 if (C = 0) then PC

← PC + k + 1 if (C = 1) then PC

← PC + k + 1 if (N = 1) then PC

← PC + k + 1 if (N = 0) then PC

← PC + k + 1 if (N

⊕ V= 0) then PC ← PC + k + 1 if (N

⊕ V= 1) then PC ← PC + k + 1 if (H = 1) then PC

← PC + k + 1 if (H = 0) then PC

← PC + k + 1 if (T = 1) then PC

← PC + k + 1 if (T = 0) then PC

← PC + k + 1 if (V = 1) then PC

← PC + k + 1 if (V = 0) then PC

← PC + k + 1

Operation

#Clocks

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1 / 2

1

1

1 / 2 / 3

1 / 2 / 3

1 / 2 / 3

1 / 2 / 3

1 / 2

1 / 2

3

3

2

2

4

4

1 / 2 / 3

1

#Clocks

2

2

2

2

2

1

2

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

2

Flags

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

I

None

None

Z, N,V,C,H

Z, N,V,C,H

Z, N,V,C,H

None

None

None

None

None

None

Flags

None

Z,C

Z,C

Z,C

Z,C

Z,C

Z,C

Z,C,N,V

Z,C,N,V,H

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,S

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,S

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

289

Instruction Set Summary (Continued)

ST

ST

STD

ST

ST

ST

STD

STS

ST

ST

ST

ST

LD

LD

LDD

LDS

LD

LD

LD

LD

LD

LD

LDD

LD

BRIE

BRID

k

k

DATA TRANSFER INSTRUCTIONS

MOV Rd, Rr

MOVW

LDI

Rd, Rr

Rd, K

Rd, X

Rd, X+

Rd, - X

Rd, Y

Rd, Y+

Rd, - Y

Rd,Y+q

Rd, Z

Y+, Rr

- Y, Rr

Y+q,Rr

Z, Rr

Z+, Rr

-Z, Rr

Z+q,Rr k, Rr

Rd, Z+

Rd, -Z

Rd, Z+q

Rd, k

X, Rr

X+, Rr

- X, Rr

Y, Rr

CLI

SES

CLS

SEV

CLV

SET

BLD

SEC

CLC

SEN

CLN

SEZ

CLZ

SEI

LSR

ROL

ROR

ASR

SWAP

BSET

BCLR

BST

LPM

LPM

LPM

SPM

IN

OUT

PUSH

POP

Rd, Z

Rd, Z+

Rd, P

P, Rr

Rr

Rd

BIT AND BIT-TEST INSTRUCTIONS

SBI P,b

CBI

LSL

P,b

Rd

Rd

Rd

Rd

Rd

Rd s s

Rr, b

Rd, b

Mnemonics Operands

Branch if Interrupt Enabled

Branch if Interrupt Disabled

Move Between Registers

Copy Register Word

Load Immediate

Load Indirect

Load Indirect and Post-Inc.

Load Indirect and Pre-Dec.

Load Indirect

Load Indirect and Post-Inc.

Load Indirect and Pre-Dec.

Load Indirect with Displacement

Load Indirect

Load Indirect and Post-Inc.

Load Indirect and Pre-Dec.

Load Indirect with Displacement

Load Direct from SRAM

Store Indirect

Store Indirect and Post-Inc.

Store Indirect and Pre-Dec.

Store Indirect

Store Indirect and Post-Inc.

Store Indirect and Pre-Dec.

Store Indirect with Displacement

Store Indirect

Store Indirect and Post-Inc.

Store Indirect and Pre-Dec.

Store Indirect with Displacement

Store Direct to SRAM

Load Program Memory

Load Program Memory

Load Program Memory and Post-Inc

Store Program Memory

In Port

Out Port

Push Register on Stack

Pop Register from Stack

Set Bit in I/O Register

Clear Bit in I/O Register

Logical Shift Left

Logical Shift Right

Rotate Left Through Carry

Rotate Right Through Carry

Arithmetic Shift Right

Swap Nibbles

Flag Set

Flag Clear

Bit Store from Register to T

Bit load from T to Register

Set Carry

Clear Carry

Set Negative Flag

Clear Negative Flag

Set Zero Flag

Clear Zero Flag

Global Interrupt Enable

Global Interrupt Disable

Set Signed Test Flag

Clear Signed Test Flag

Set Twos Complement Overflow.

Clear Twos Complement Overflow

Set T in SREG

Description

290

ATmega8(L)

if ( I = 1) then PC

← PC + k + 1 if ( I = 0) then PC

← PC + k + 1

Rd

← Rr

Rd+1:Rd

← Rr+1:Rr

Rd

← K

Rd

← (X)

Rd

← (X), X ← X + 1

X

← X - 1, Rd ← (X)

Rd

← (Y)

Rd

← (Y), Y ← Y + 1

Y

← Y - 1, Rd ← (Y)

Rd

← (Y + q)

Rd

← (Z)

Rd

← (Z), Z ← Z+1

Z

← Z - 1, Rd ← (Z)

Rd

← (Z + q)

Rd

← (k)

(X)

← Rr

(X)

← Rr, X ← X + 1

X

← X - 1, (X) ← Rr

(Y)

← Rr

(Y)

← Rr, Y ← Y + 1

Y

← Y - 1, (Y) ← Rr

(Y + q)

← Rr

(Z)

← Rr

(Z)

← Rr, Z ← Z + 1

Z

← Z - 1, (Z) ← Rr

(Z + q)

← Rr

(k)

← Rr

R0

← (Z)

Rd

← (Z)

Rd

← (Z), Z ← Z+1

(Z)

← R1:R0

Rd

← P

P

← Rr

STACK

← Rr

Rd

← STACK

N

← 0

Z

← 1

Z

← 0

I

← 1

I

← 0

S

← 1

S

← 0

V

← 1

V

← 0

T

← 1

I/O(P,b)

← 1

I/O(P,b)

← 0

Rd(n+1)

← Rd(n), Rd(0) ← 0

Rd(n)

← Rd(n+1), Rd(7) ← 0

Rd(0)

←C,Rd(n+1)← Rd(n),C←Rd(7)

Rd(7)

←C,Rd(n)← Rd(n+1),C←Rd(0)

Rd(n)

← Rd(n+1), n=0..6

Rd(3..0)

←Rd(7..4),Rd(7..4)←Rd(3..0)

SREG(s)

← 1

SREG(s)

← 0

T

← Rr(b)

Rd(b)

← T

C

← 1

C

← 0

N

← 1

Operation

1 / 2

1 / 2

3

-

3

3

2

2

2

2

2

2

1

1

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

#Clocks

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

Z,C,N,V

Z,C,N,V

Z,C,N,V

Z,C,N,V

Z,C,N,V

None

SREG(s)

SREG(s)

T

C

N

None

C

S

V

I

S

V

T

I

Z

N

Z

Flags

2486W–AVR–02/10

Instruction Set Summary (Continued)

CLT

SEH

CLH

MCU CONTROL INSTRUCTIONS

NOP

SLEEP

WDR

Clear T in SREG

Set Half Carry Flag in SREG

Clear Half Carry Flag in SREG

No Operation

Sleep

Watchdog Reset

ATmega8(L)

T

← 0

H

← 1

H

← 0

(see specific descr. for Sleep function)

(see specific descr. for WDR/timer)

T

H

H

None

None

None

1

1

1

1

1

1

2486W–AVR–02/10

291

Ordering Information

Speed (MHz)

8

16

Power Supply

2.7 - 5.5

4.5 - 5.5

Ordering Code

ATmega8L-8AU

(2)

ATmega8L-8PU

(2)

ATmega8L-8MU

(2)

ATmega8-16AU

(2)

ATmega8-16PU

(2)

ATmega8-16MU

(2)

Package

32A

28P3

32M1-A

32A

28P3

32M1-A

(1)

Operation Range

Industrial

(-40

°

C to 85

Industrial

(-40

°

C to 85

°

°

C)

C)

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information and minimum quantities.

2. Pb-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also

Halide free and fully Green.

32A

28P3

32M1-A

Package Type

32-lead, Thin (1.0 mm) Plastic Quad Flat Package (TQFP)

28-lead, 0.300” Wide, Plastic Dual Inline Package (PDIP)

32-pad, 5 x 5 x 1.0 body, Lead Pitch 0.50 mm Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

292

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

Packaging Information

32A

e

PIN 1

PIN 1 IDENTIFIER

B

E1 E

D1

D

C

0˚~7˚

A1

A2 A

L

Notes: 1. This package conforms to JEDEC reference MS-026, Variation ABA.

2. Dimensions D1 and E1 do not include mold protrusion. Allowable protrusion is 0.25 mm per side. Dimensions D1 and E1 are maximum plastic body size dimensions including mold mismatch.

3. Lead coplanarity is 0.10 mm maximum.

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A –

A1

A2

D

D1

0.05

0.95

8.75

6.90

C

L e

E

E1

8.75

6.90

B 0.30

0.09

0.45

NOM

1.00

9.00

7.00

9.00

7.00

0.80 TYP

MAX NOTE

1.20

0.15

1.05

9.25

7.10

Note 2

9.25

7.10

Note 2

0.45

0.20

0.75

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

32A, 32-lead, 7 x 7 mm Body Size, 1.0 mm Body Thickness,

0.8 mm Lead Pitch, Thin Profile Plastic Quad Flat Package (TQFP)

10/5/2001

DRAWING NO.

REV.

32A B

293

2486W–AVR–02/10

28P3

D

PIN

1

E1

A

SEATING PLANE

L

A1

B2

(4 PLACES)

B1

B e

E

Note:

C

0º ~ 15º REF

1. Dimensions D and E1 do not include mold Flash or Protrusion.

Mold Flash or Protrusion shall not exceed 0.25 mm (0.010").

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

eB

28P3, 28-lead (0.300"/7.62 mm Wide) Plastic Dual

Inline Package (PDIP)

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A –

A1

D

E

0.508

34.544

7.620

E1

B

B1

B2

7.112

0.381

1.143

0.762

NOM

MAX

4.5724

– –

– 34.798 Note 1

8.255

7.493

0.533

1.397

1.143

L

C

3.175

0.203

3.429

0.356

eB – – 10.160

e 2.540 TYP

NOTE

Note 1

09/28/01

DRAWING NO.

REV.

28P3

B

294

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

32M1-A

D

D1

1

2

3

Pin 1 ID

0

E1

E

SIDE VIEW

P

TOP VIEW

K

D2

A2

A

A3

A1

0.08 C

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A

NOM

MAX

0.80 0.90 1.00

A1 – 0.02 0.05

A2 – 0.65 1.00

NOTE

P

Pin #1 Notch

(0.20 R) b

BOTTOM VIEW

e

1

2

3

E2

L

K

Note: JEDEC Standard MO-220, Fig. 2 (Anvil Singulation), VHHD-2.

L

P

0

K

b 0.18

D

D1

4.90

4.70

D2

E

E1

E2

e

2.95

4.90

4.70

2.95

0.23

5.00

4.75

3.10

5.00

4.75

3.10

0.50 BSC

0.30 0.40 0.50

0.60

12 o

0.20

– –

0.30

5.10

4.80

3.25

5.10

4.80

3.25

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

32M1-A, 32-pad, 5 x 5 x 1.0 mm Body, Lead Pitch 0.50 mm,

3.10 mm Exposed Pad, Micro Lead Frame Package (MLF)

5/25/06

DRAWING NO.

REV.

32M1-A E

295

2486W–AVR–02/10

Errata

ATmega8

Rev. D to I, M

The revision letter in this section refers to the revision of the ATmega8 device.

First Analog Comparator conversion may be delayed

Interrupts may be lost when writing the timer registers in the asynchronous timer

Signature may be Erased in Serial Programming Mode

CKOPT Does not Enable Internal Capacitors on XTALn/TOSCn Pins when 32 KHz Oscillator is

Used to Clock the Asynchronous Timer/Counter2

Reading EEPROM by using ST or STS to set EERE bit triggers unexpected interrupt request

1.

First Analog Comparator conversion may be delayed

If the device is powered by a slow rising V take longer than expected on some devices.

CC

, the first Analog Comparator conversion will

Problem Fix / Workaround

When the device has been powered or reset, disable then enable theAnalog Comparator before the first conversion.

2.

Interrupts may be lost when writing the timer registers in the asynchronous timer

The interrupt will be lost if a timer register that is synchronized to the asynchronous timer clock is written when the asynchronous Timer/Counter register(TCNTx) is 0x00.

Problem Fix / Workaround

Always check that the asynchronous Timer/Counter register neither have the value 0xFF nor

0x00 before writing to the asynchronous Timer Control Register(TCCRx), asynchronous

Timer Counter Register(TCNTx), or asynchronous Output Compare Register(OCRx).

3.

Signature may be Erased in Serial Programming Mode

If the signature bytes are read before a chiperase command is completed, the signature may be erased causing the device ID and calibration bytes to disappear. This is critical, especially, if the part is running on internal RC oscillator.

Problem Fix / Workaround:

Ensure that the chiperase command has exceeded before applying the next command.

4.

CKOPT Does not Enable Internal Capacitors on XTALn/TOSCn Pins when 32 KHz

Oscillator is Used to Clock the Asynchronous Timer/Counter2

When the internal RC Oscillator is used as the main clock source, it is possible to run the

Timer/Counter2 asynchronously by connecting a 32 KHz Oscillator between XTAL1/TOSC1 and XTAL2/TOSC2. But when the internal RC Oscillator is selected as the main clock source, the CKOPT Fuse does not control the internal capacitors on XTAL1/TOSC1 and

XTAL2/TOSC2. As long as there are no capacitors connected to XTAL1/TOSC1 and

XTAL2/TOSC2, safe operation of the Oscillator is not guaranteed.

Problem Fix / Workaround

Use external capacitors in the range of 20 - 36 pF on XTAL1/TOSC1 and XTAL2/TOSC2.

This will be fixed in ATmega8 Rev. G where the CKOPT Fuse will control internal capacitors also when internal RC Oscillator is selected as main clock source. For ATmega8 Rev. G,

CKOPT = 0 (programmed) will enable the internal capacitors on XTAL1 and XTAL2. Customers who want compatibility between Rev. G and older revisions, must ensure that

CKOPT is unprogrammed (CKOPT = 1).

296

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

5.

Reading EEPROM by using ST or STS to set EERE bit triggers unexpected interrupt request.

Reading EEPROM by using the ST or STS command to set the EERE bit in the EECR register triggers an unexpected EEPROM interrupt request.

Problem Fix / Workaround

Always use OUT or SBI to set EERE in EECR.

2486W–AVR–02/10

297

Datasheet

Revision

History

Please note that the referring page numbers in this section are referred to this document. The referring revision in this section are referring to the document revision.

Changes from Rev.

2486V- 05/09 to

Rev. 2486W- 02/10

1.

Updated

“ADC Characteristics” on page 248

with V

INT

maximum value (2.9V).

Changes from Rev.

2486U- 08/08 to

Rev. 2486V- 05/09

1.

Updated

“Errata” on page 296 .

2.

Updated the last page with Atmel’s new adresses.

Changes from Rev.

2486T- 05/08 to

Rev. 2486U- 08/08

1.

Updated “DC Characteristics” on page 242

with

I

CC

typical values.

Changes from Rev.

2486S- 08/07 to

Rev. 2486T- 05/08

1.

Updated

Table 98 on page 240

.

2.

Updated

“Ordering Information” on page 292

.

- Commercial Ordering Code removed.

- No Pb-free packaging option removed.

Changes from Rev.

2486R- 07/07 to

Rev. 2486S- 08/07

1.

Updated

“Features” on page 1

.

2.

Added “Data Retention” on page 7

.

3.

Updated

“Errata” on page 296 .

4.

Updated

“Slave Mode” on page 129 .

Changes from Rev.

2486Q- 10/06 to

Rev. 2486R- 07/07

1.

Added text to Table 81 on page 218

.

2.

Fixed typo in “Peripheral Features” on page 1

.

3.

Updated

Table 16 on page 42

.

4.

Updated

Table 75 on page 206

.

5.

Removed redundancy and updated typo in Notes section of “DC Characteristics” on page 242 .

Changes from Rev.

2486P- 02/06 to

Rev. 2486Q- 10/06

1.

Updated

“Timer/Counter Oscillator” on page 32 .

2.

Updated

“Fast PWM Mode” on page 89

.

298

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

3.

Updated code example in “USART Initialization” on page 138 .

4.

Updated

Table 37 on page 97

,

Table 39 on page 98 ,

Table 42 on page 117

,

Table 44 on page 118 , and

Table 98 on page 240 .

5.

Updated

“Errata” on page 296 .

Changes from Rev.

2486O-10/04 to

Rev. 2486P- 02/06

1.

Added “Resources” on page 7

.

2.

Updated

“External Clock” on page 32

.

3.

Updated

“Serial Peripheral Interface – SPI” on page 124

.

4.

Updated Code Example in

“USART Initialization” on page 138 .

5.

Updated Note in

“Bit Rate Generator Unit” on page 170

.

6.

Updated

Table 98 on page 240

.

7.

Updated Note in

Table 103 on page 248 .

8.

Updated

“Errata” on page 296 .

Changes from Rev.

2486N-09/04 to

Rev. 2486O-10/04

1.

Removed to instances of “analog ground”. Replaced by “ground”.

2.

Updated

Table 7 on page 29

, Table 15 on page 38 , and

Table 100 on page 244 .

3.

Updated

“Calibrated Internal RC Oscillator” on page 30 with the 1 MHz default value.

4.

Table 89 on page 225 and Table 90 on page 225

moved to new section

“Page Size” on page 225 .

5.

Updated descripton for bit 4 in “Store Program Memory Control Register – SPMCR” on page 213

.

6.

Updated

“Ordering Information” on page 292

.

Changes from Rev.

2486M-12/03 to

Rev. 2486N-09/04

1.

Added note to MLF package in “Pin Configurations” on page 2

.

2.

Updated

“Internal Voltage Reference Characteristics” on page 42 .

3.

Updated

“DC Characteristics” on page 242 .

4.

ADC4 and ADC5 support 10-bit accuracy. Document updated to reflect this.

Updated features in

“Analog-to-Digital Converter” on page 196

.

Updated

“ADC Characteristics” on page 248

.

5.

Removed reference to “External RC Oscillator application note” from

“External RC

Oscillator” on page 28 .

299

2486W–AVR–02/10

Changes from Rev.

2486L-10/03 to

Rev. 2486M-12/03

1.

Updated

“Calibrated Internal RC Oscillator” on page 30 .

Changes from Rev.

2486K-08/03 to

Rev. 2486L-10/03

1.

Removed “Preliminary” and TBDs from the datasheet.

2.

Renamed ICP to ICP1 in the datasheet.

3.

Removed instructions CALL and JMP from the datasheet.

4.

Updated t

RST

in Table 15 on page 38

, V

BG

in

Table 16 on page 42 ,

Table 100 on page

244 and

Table 102 on page 246 .

5.

Replaced text “XTAL1 and XTAL2 should be left unconnected (NC)” after Table 9

in

“Calibrated Internal RC Oscillator” on page 30

. Added text regarding XTAL1/XTAL2 and CKOPT Fuse in

“Timer/Counter Oscillator” on page 32 .

6.

Updated Watchdog Timer code examples in

“Timed Sequences for Changing the

Configuration of the Watchdog Timer” on page 45

.

7.

Removed bit 4, ADHSM, from “Special Function IO Register – SFIOR” on page 58

.

8.

Added note 2 to Figure 103 on page 215 .

9.

Updated item 4 in the “Serial Programming Algorithm” on page 238 .

10. Added t

WD_FUSE

to

Table 97 on page 239

and updated Read Calibration Byte, Byte 3, in

Table 98 on page 240

.

11. Updated Absolute Maximum Ratings* and DC Characteristics in “Electrical Characteristics” on page 242

.

Changes from Rev.

2486J-02/03 to

Rev. 2486K-08/03

1.

Updated V

BOT

values in Table 15 on page 38 .

2.

Updated

“ADC Characteristics” on page 248

.

3.

Updated

“ATmega8 Typical Characteristics” on page 249

.

4.

Updated

“Errata” on page 296 .

Changes from Rev.

2486I-12/02 to Rev.

2486J-02/03

1.

Improved the description of “Asynchronous Timer Clock – clkASY” on page 26 .

2.

Removed reference to the “Multipurpose Oscillator” application note and the “32 kHz

Crystal Oscillator” application note, which do not exist.

3.

Corrected OCn waveforms in Figure 38 on page 90

.

4.

Various minor Timer 1 corrections.

5.

Various minor TWI corrections.

300

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

6.

Added note under

“Filling the Temporary Buffer (Page Loading)” on page 216

about writing to the EEPROM during an SPM Page load.

7.

Removed ADHSM completely.

8.

Added section “EEPROM Write during Power-down Sleep Mode” on page 23 .

9.

Removed XTAL1 and XTAL2 description on page 5 because they were already described as part of “Port B (PB7..PB0) XTAL1/XTAL2/TOSC1/TOSC2” on page 5 .

10. Improved the table under “SPI Timing Characteristics” on page 246 and removed the

table under “SPI Serial Programming Characteristics” on page 241 .

11. Corrected PC6 in “Alternate Functions of Port C” on page 61

.

12. Corrected PB6 and PB7 in “Alternate Functions of Port B” on page 58

.

13. Corrected 230.4 Mbps to 230.4 kbps under

“Examples of Baud Rate Setting” on page

159 .

14. Added information about PWM symmetry for Timer 2 in

“Phase Correct PWM Mode” on page 113

.

15. Added thick lines around accessible registers in

Figure 76 on page 169

.

16. Changed “will be ignored” to “must be written to zero” for unused Z-pointer bits

under “Performing a Page Write” on page 216

.

17. Added note for RSTDISBL Fuse in Table 87 on page 223 .

18. Updated drawings in “Packaging Information” on page 293 .

Changes from Rev.

2486H-09/02 to

Rev. 2486I-12/02

1.

Added errata for Rev D, E, and F on page 296

.

Changes from Rev.

2486G-09/02 to

Rev. 2486H-09/02

1.

Changed the Endurance on the Flash to 10,000 Write/Erase Cycles.

Changes from Rev.

2486F-07/02 to

Rev. 2486G-09/02

1.

Updated

Table 103, “ADC Characteristics,” on page 248

.

Changes from Rev.

2486E-06/02 to

Rev. 2486F-07/02

1.

Changes in “Digital Input Enable and Sleep Modes” on page 55 .

2.

Addition of OCS2 in “MOSI/OC2 – Port B, Bit 3” on page 59 .

3.

The following tables have been updated:

Table 51, “CPOL and CPHA Functionality,” on page 132

,

Table 59, “UCPOL Bit Settings,” on page 158

,

Table 72, “Analog Comparator Multiplexed Input(1),” on page 195 ,

Table 73,

301

2486W–AVR–02/10

“ADC Conversion Time,” on page 200 ,

Table 75, “Input Channel Selections,” on page 206 ,

and

Table 84, “Explanation of Different Variables used in Figure 103 and the Mapping to the

Z-pointer,” on page 221

.

4.

Changes in “Reading the Calibration Byte” on page 234

.

5.

Corrected Errors in Cross References.

Changes from Rev.

2486D-03/02 to

Rev. 2486E-06/02

1.

Updated Some Preliminary Test Limits and Characterization Data

The following tables have been updated:

Table 15, “Reset Characteristics,” on page 38

,

Table 16, “Internal Voltage Reference Characteristics,” on page 42

, DC Characteristics on

page 242 ,

Table , “ADC Characteristics,” on page 248

.

2.

Changes in External Clock Frequency

Added the description at the end of “External Clock” on page 32

.

Added period changing data in Table 99, “External Clock Drive,” on page 244

.

3.

Updated TWI Chapter

More details regarding use of the TWI bit rate prescaler and a

Table 65, “TWI Bit Rate Prescaler,” on page 173 .

Changes from Rev.

2486C-03/02 to

Rev. 2486D-03/02

1.

Updated Typical Start-up Times.

The following tables has been updated:

Table 5, “Start-up Times for the Crystal Oscillator Clock Selection,” on page 28 , Table 6,

“Start-up Times for the Low-frequency Crystal Oscillator Clock Selection,” on page 28 ,

Table 8, “Start-up Times for the External RC Oscillator Clock Selection,” on page 29

, and

Table 12, “Start-up Times for the External Clock Selection,” on page 32

.

2.

Added “ATmega8 Typical Characteristics” on page 249 .

Changes from Rev.

2486B-12/01 to

Rev. 2486C-03/02

1.

Updated TWI Chapter.

More details regarding use of the TWI Power-down operation and using the TWI as Master with low TWBRR values are added into the datasheet.

Added the note at the end of the

“Bit Rate Generator Unit” on page 170

.

Added the description at the end of “Address Match Unit” on page 170 .

2.

Updated Description of OSCCAL Calibration Byte.

In the datasheet, it was not explained how to take advantage of the calibration bytes for 2, 4, and 8 MHz Oscillator selections. This is now added in the following sections:

Improved description of “Oscillator Calibration Register – OSCCAL” on page 31 and

“Calibration Byte” on page 225

.

3.

Added Some Preliminary Test Limits and Characterization Data.

Removed some of the TBD’s in the following tables and pages:

Table 3 on page 26 ,

Table 15 on page 38 ,

Table 16 on page 42

, Table 17 on page 44

, “TA =

-40°C to 85°C, VCC = 2.7V to 5.5V (unless otherwise noted)” on page 242 ,

Table 99 on page 244

, and Table 102 on page 246 .

302

ATmega8(L)

2486W–AVR–02/10

ATmega8(L)

4.

Updated Programming Figures.

Figure 104 on page 226

and Figure 112 on page 237 are updated to also reflect that AV

CC must be connected during Programming mode.

5.

Added a Description on how to Enter Parallel Programming Mode if RESET Pin is Disabled or if External Oscillators are Selected.

Added a note in section “Enter Programming Mode” on page 228 .

2486W–AVR–02/10

303

304

ATmega8(L)

2486W–AVR–02/10

Table of Contents

Features 1

Pin Configurations 2

Overview 3

Block Diagram 3

Disclaimer 4

Pin Descriptions 5

Resources 7

Data Retention 7

About Code Examples 8

AVR CPU Core 9

Introduction 9

Architectural Overview 9

Arithmetic Logic Unit – ALU 11

Status Register 11

General Purpose Register File 12

Stack Pointer 13

Instruction Execution Timing 13

Reset and Interrupt Handling 14

AVR ATmega8 Memories 17

In-System Reprogrammable Flash Program Memory 17

SRAM Data Memory 18

Data Memory Access Times 19

EEPROM Data Memory 19

I/O Memory 24

System Clock and Clock Options 25

Clock Systems and their Distribution 25

Clock Sources 26

Crystal Oscillator 27

Low-frequency Crystal Oscillator 28

External RC Oscillator 28

Calibrated Internal RC Oscillator 30

External Clock 32

Timer/Counter Oscillator 32

Power Management and Sleep Modes 33

Idle Mode 34

2486W–AVR–02/10

ATmega8(L) i

ii

ADC Noise Reduction Mode 34

Power-down Mode 34

Power-save Mode 34

Standby Mode 35

Minimizing Power Consumption 35

System Control and Reset 37

Internal Voltage Reference 42

Watchdog Timer 43

Timed Sequences for Changing the Configuration of the Watchdog Timer 45

Interrupts 46

Interrupt Vectors in ATmega8 46

I/O Ports 51

Introduction 51

Ports as General Digital I/O 51

Alternate Port Functions 56

Register Description for I/O Ports 65

External Interrupts 66

8-bit Timer/Counter0 69

Overview 69

Timer/Counter Clock Sources 70

Counter Unit 70

Operation 70

Timer/Counter Timing Diagrams 71

8-bit Timer/Counter Register Description 72

Timer/Counter0 and Timer/Counter1 Prescalers 74

16-bit Timer/Counter1 76

Overview 76

Accessing 16-bit Registers 79

Timer/Counter Clock Sources 82

Counter Unit 82

Input Capture Unit 83

Output Compare Units 84

Compare Match Output Unit 87

Modes of Operation 88

Timer/Counter Timing Diagrams 95

16-bit Timer/Counter Register Description 96

8-bit Timer/Counter2 with PWM and Asynchronous Operation 104

Overview 104

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

Timer/Counter Clock Sources 105

Counter Unit 106

Output Compare Unit 107

Compare Match Output Unit 109

Modes of Operation 110

Timer/Counter Timing Diagrams 114

8-bit Timer/Counter Register Description 117

Asynchronous Operation of the Timer/Counter 119

Timer/Counter Prescaler 123

Serial Peripheral Interface – SPI 124

SS Pin Functionality 129

Data Modes 132

USART 133

Overview 133

Clock Generation 134

Frame Formats 137

USART Initialization 138

Data Transmission – The USART Transmitter 140

Data Reception – The USART Receiver 143

Asynchronous Data Reception 147

Multi-processor Communication Mode 151

Accessing UBRRH/UCSRC Registers 152

USART Register Description 153

Examples of Baud Rate Setting 159

Two-wire Serial Interface 163

Features 163

Two-wire Serial Interface Bus Definition 163

Data Transfer and Frame Format 164

Multi-master Bus Systems, Arbitration and Synchronization 167

Overview of the TWI Module 169

TWI Register Description 171

Using the TWI 174

Transmission Modes 178

Multi-master Systems and Arbitration 191

Analog Comparator 193

Analog Comparator Multiplexed Input 195

Analog-to-Digital Converter 196

Features 196

Starting a Conversion 198

Prescaling and Conversion Timing 198

Changing Channel or Reference Selection 200

ATmega8(L) iii

iv

ADC Noise Canceler 201

ADC Conversion Result 205

Boot Loader Support – Read-While-Write Self-Programming 209

Boot Loader Features 209

Application and Boot Loader Flash Sections 209

Read-While-Write and No Read-While-Write Flash Sections 209

Boot Loader Lock Bits 211

Entering the Boot Loader Program 212

Addressing the Flash During Self-Programming 214

Self-Programming the Flash 215

Memory Programming 222

Program And Data Memory Lock Bits 222

Fuse Bits 223

Signature Bytes 225

Calibration Byte 225

Page Size 225

Parallel Programming Parameters, Pin Mapping, and Commands 226

Parallel Programming 228

Serial Downloading 237

Serial Programming Pin Mapping 237

Electrical Characteristics 242

Absolute Maximum Ratings* 242

DC Characteristics 242

External Clock Drive Waveforms 244

External Clock Drive 244

Two-wire Serial Interface Characteristics 245

SPI Timing Characteristics 246

ADC Characteristics 248

ATmega8 Typical Characteristics 249

Register Summary 287

Instruction Set Summary 289

Ordering Information 292

Packaging Information 293

32A 293

28P3 294

32M1-A 295

Errata 296

ATmega8(L)

2486W–AVR–02/10

2486W–AVR–02/10

ATmega8

Rev. D to I, M 296

Datasheet Revision History 298

Changes from Rev. 2486V- 05/09 to Rev. 2486W- 02/10 298

Changes from Rev. 2486U- 08/08 to Rev. 2486V- 05/09 298

Changes from Rev. 2486T- 05/08 to Rev. 2486U- 08/08 298

Changes from Rev. 2486S- 08/07 to Rev. 2486T- 05/08 298

Changes from Rev. 2486R- 07/07 to Rev. 2486S- 08/07 298

Changes from Rev. 2486Q- 10/06 to Rev. 2486R- 07/07 298

Changes from Rev. 2486P- 02/06 to Rev. 2486Q- 10/06 298

Changes from Rev. 2486O-10/04 to Rev. 2486P- 02/06 299

Changes from Rev. 2486N-09/04 to Rev. 2486O-10/04 299

Changes from Rev. 2486M-12/03 to Rev. 2486N-09/04 299

Changes from Rev. 2486L-10/03 to Rev. 2486M-12/03 300

Changes from Rev. 2486K-08/03 to Rev. 2486L-10/03 300

Changes from Rev. 2486J-02/03 to Rev. 2486K-08/03 300

Changes from Rev. 2486I-12/02 to Rev. 2486J-02/03 300

Changes from Rev. 2486H-09/02 to Rev. 2486I-12/02 301

Changes from Rev. 2486G-09/02 to Rev. 2486H-09/02 301

Changes from Rev. 2486F-07/02 to Rev. 2486G-09/02 301

Changes from Rev. 2486E-06/02 to Rev. 2486F-07/02 301

Changes from Rev. 2486D-03/02 to Rev. 2486E-06/02 302

Changes from Rev. 2486C-03/02 to Rev. 2486D-03/02 302

Changes from Rev. 2486B-12/01 to Rev. 2486C-03/02 302

Table of Contents i

ATmega8(L) v

Headquarters

Atmel Corporation

2325 Orchard Parkway

San Jose, CA 95131

USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

International

Atmel Asia

Unit 1-5 & 16, 19/F

BEA Tower, Millennium City 5

418 Kwun Tong Road

Kwun Tong, Kowloon

Hong Kong

Tel: (852) 2245-6100

Fax: (852) 2722-1369

Atmel Europe

Le Krebs

8, Rue Jean-Pierre Timbaud

BP 309

78054 Saint-Quentin-en-

Yvelines Cedex

France

Tel: (33) 1-30-60-70-00

Fax: (33) 1-30-60-71-11

Atmel Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

Product Contact

Web Site

www.atmel.com

Literature Requests

www.atmel.com/literature

Technical Support

[email protected]

Sales Contact

www.atmel.com/contacts

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY

WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN-

TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF

THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

© 2010 Atmel Corporation. All rights reserved. Atmel

®

, Atmel logo and combinations thereof, AVR

®

, AVR

®

logo, and others are the registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.

2486W–AVR–02/10
