May 2008

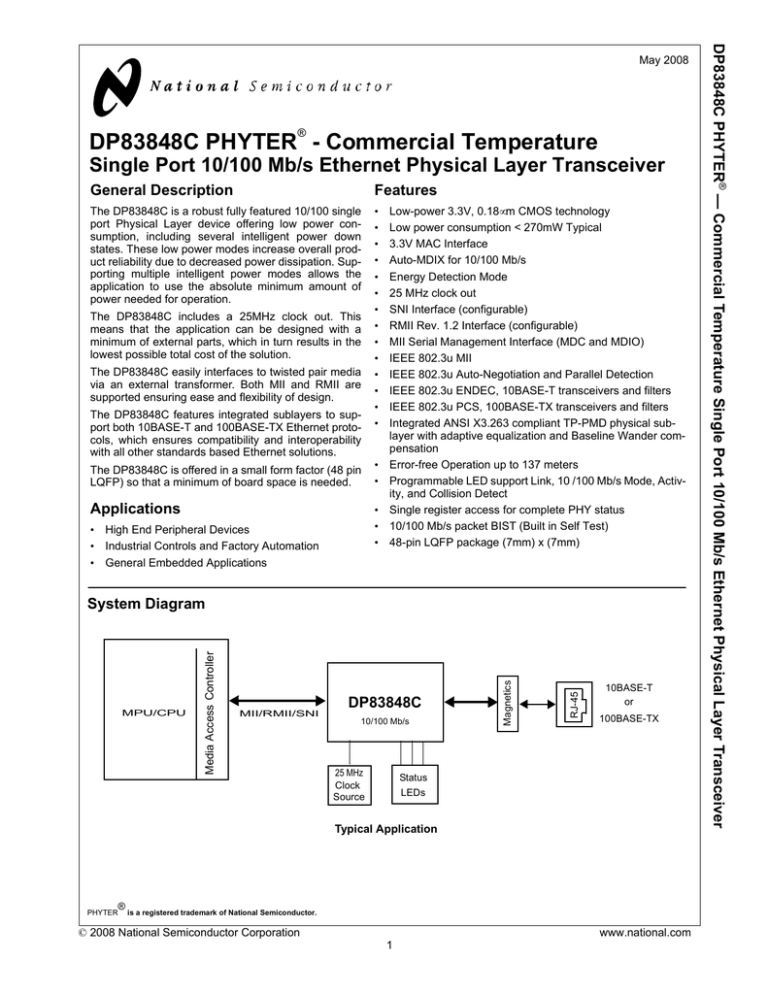

DP83848C PHYTER

®

- Commercial Temperature

Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

General Description Features

The DP83848C is a robust fully featured 10/100 single port Physical Layer device offering low power consumption, including several intelligent power down states. These low power modes increase overall product reliability due to decreased power dissipation. Supporting multiple intelligent power modes allows the application to use the absolute minimum amount of power needed for operation.

The DP83848C includes a 25MHz clock out. This means that the application can be designed with a minimum of external parts, which in turn results in the lowest possible total cost of the solution.

The DP83848C easily interfaces to twisted pair media via an external transformer. Both MII and RMII are supported ensuring ease and flexibility of design.

The DP83848C features integrated sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols, which ensures compatibility and interoperability with all other standards based Ethernet solutions.

The DP83848C is offered in a small form factor (48 pin

LQFP) so that a minimum of board space is needed.

Applications

• High End Peripheral Devices

• Industrial Controls and Factory Automation

• General Embedded Applications

• Low-power 3.3V, 0.18

µ m CMOS technology

• Low power consumption < 270mW Typical

• 3.3V MAC Interface

• Auto-MDIX for 10/100 Mb/s

• Energy Detection Mode

• 25 MHz clock out

• SNI Interface (configurable)

• RMII Rev. 1.2 Interface (configurable)

• MII Serial Management Interface (MDC and MDIO)

• IEEE 802.3u MII

• IEEE 802.3u Auto-Negotiation and Parallel Detection

• IEEE 802.3u ENDEC, 10BASE-T transceivers and filters

• IEEE 802.3u PCS, 100BASE-TX transceivers and filters

• Integrated ANSI X3.263 compliant TP-PMD physical sublayer with adaptive equalization and Baseline Wander compensation

• Error-free Operation up to 137 meters

• Programmable LED support Link, 10 /100 Mb/s Mode, Activity, and Collision Detect

• Single register access for complete PHY status

• 10/100 Mb/s packet BIST (Built in Self Test)

• 48-pin LQFP package (7mm) x (7mm)

System Diagram

10BASE-T or

100BASE-TX

MPU/CPU

MII/RMII/SNI

DP83848C

10/100 Mb/s

25 MHz

Clock

Source

Status

LEDs

Typical Application

PHYTER

®

is a registered trademark of National Semiconductor.

© 2008 National Semiconductor Corporation

1 www.national.com

MII/RMII/SNI

SERIAL

MANAGEMENT

MII/RMII/SNI INTERFACES

TX_DATA TX_CLK

10BASE-T &

100BASE-TX

Transmit

Block

MII

Registers

Auto-Negotiation

State Machine

Clock

Generation

RX_CLK

RX_DATA

10BASE-T &

100BASE-TX

Receive

Block

DAC

ADC

Auto-MDIX

LED

Drivers

www.national.com

TD± RD±

REFERENCE CLOCK

Figure 1. DP83848C Functional Block Diagram

LEDS

2

1.0 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Serial Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1.2 MAC Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1.3 Clock Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1.4 LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1.5 Reset and Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.6 Strap Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.7 10 Mb/s and 100 Mb/s PMD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.8 Special Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.9 Power Supply Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.10 Package Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

2.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1 Auto-Negotiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

2.1.1 Auto-Negotiation Pin Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1.2 Auto-Negotiation Register Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1.3 Auto-Negotiation Parallel Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.4 Auto-Negotiation Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.5 Enabling Auto-Negotiation via Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.6 Auto-Negotiation Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.2 Auto-MDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

2.3 PHY Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

2.3.1 MII Isolate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.4 LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

2.4.1 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.4.2 LED Direct Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.5 Half Duplex vs. Full Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2.6 Internal Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2.7 BIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

3.0 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 MII Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3.1.1 Nibble-wide MII Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1.2 Collision Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1.3 Carrier Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2 Reduced MII Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3.3 10 Mb Serial Network Interface (SNI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

3.4 802.3u MII Serial Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

3.4.1 Serial Management Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4.2 Serial Management Access Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4.3 Serial Management Preamble Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.0 Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1 100BASE-TX TRANSMITTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

4.1.1 Code-group Encoding and Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1.2 Scrambler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1.3 NRZ to NRZI Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1.4 Binary to MLT-3 Convertor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2 100BASE-TX RECEIVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4.2.1 Analog Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.2 Digital Signal Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.2.1 Digital Adaptive Equalization and Gain Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.2.2.2 Base Line Wander Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.3 Signal Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.4 MLT-3 to NRZI Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.5 NRZI to NRZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.6 Serial to Parallel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.7 Descrambler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.8 Code-group Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.9 4B/5B Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.10 100BASE-TX Link Integrity Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.11 Bad SSD Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3 www.national.com

4.3 10BASE-T TRANSCEIVER MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

4.3.1 Operational Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.3.2 Smart Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.3 Collision Detection and SQE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.4 Carrier Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.5 Normal Link Pulse Detection/Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.6 Jabber Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.7 Automatic Link Polarity Detection and Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.8 Transmit and Receive Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.9 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.10 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.0 Design Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.1 TPI Network Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

5.2 ESD Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

5.3 Clock In (X1) Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

5.4 Power Feedback Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

5.5 Power Down/Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

5.5.1 Power Down Control Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.5.2 Interrupt Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.6 Energy Detect Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

6.0 Reset Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.1 Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

6.2 Software Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

7.0 Register Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.1 Register Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.1.1 Basic Mode Control Register (BMCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.1.2 Basic Mode Status Register (BMSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.1.3 PHY Identifier Register #1 (PHYIDR1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.4 PHY Identifier Register #2 (PHYIDR2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.5 Auto-Negotiation Advertisement Register (ANAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.6 Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page) . . . . . . . . . . . . . . . . 47

7.1.7 Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page) . . . . . . . . . . . . . . . . . 48

7.1.8 Auto-Negotiate Expansion Register (ANER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.1.9 Auto-Negotiation Next Page Transmit Register (ANNPTR) . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.2 Extended Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

7.2.1 PHY Status Register (PHYSTS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

7.2.2 MII Interrupt Control Register (MICR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.2.3 MII Interrupt Status and Misc. Control Register (MISR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.2.4 False Carrier Sense Counter Register (FCSCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.5 Receiver Error Counter Register (RECR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.6 100 Mb/s PCS Configuration and Status Register (PCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . 55

7.2.7 RMII and Bypass Register (RBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.8 LED Direct Control Register (LEDCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.9 PHY Control Register (PHYCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

7.2.10 10Base-T Status/Control Register (10BTSCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

7.2.11 CD Test and BIST Extensions Register (CDCTRL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

7.2.12 Energy Detect Control (EDCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

8.0 Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

8.1 DC Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

8.2 AC Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

8.2.1 Power Up Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

8.2.2 Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

8.2.3 MII Serial Management Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

8.2.4 100 Mb/s MII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

8.2.5 100 Mb/s MII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.2.6 100BASE-TX Transmit Packet Latency Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.2.7 100BASE-TX Transmit Packet Deassertion Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

8.2.8 100BASE-TX Transmit Timing (tR/F & Jitter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

8.2.9 100BASE-TX Receive Packet Latency Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

8.2.10 100BASE-TX Receive Packet Deassertion Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

www.national.com

4

8.2.11 10 Mb/s MII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.2.12 10 Mb/s MII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.2.13 10 Mb/s Serial Mode Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.2.14 10 Mb/s Serial Mode Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.2.15 10BASE-T Transmit Timing (Start of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.2.16 10BASE-T Transmit Timing (End of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.2.17 10BASE-T Receive Timing (Start of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.2.18 10BASE-T Receive Timing (End of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.2.19 10 Mb/s Heartbeat Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

8.2.20 10 Mb/s Jabber Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

8.2.21 10BASE-T Normal Link Pulse Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.2.22 Auto-Negotiation Fast Link Pulse (FLP) Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.2.23 100BASE-TX Signal Detect Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.2.24 100 Mb/s Internal Loopback Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.2.25 10 Mb/s Internal Loopback Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

8.2.26 RMII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

8.2.27 RMII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

8.2.28 Isolation Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

8.2.29 25 MHz_OUT Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

8.2.30 100 Mb/s X1 to TX_CLK Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.0 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

5 www.national.com

List of Figures

Figure 1. DP83848C Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Figure 2. PHYAD Strapping Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 3. AN Strapping and LED Loading Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 4. Typical MDC/MDIO Read Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 5. Typical MDC/MDIO Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 6. 100BASE-TX Transmit Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 7. 100BASE-TX Receive Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 8. EIA/TIA Attenuation vs. Frequency for 0, 50, 100, 130 & 150 meters of CAT 5 cable . . . . . . . . . . . 28

Figure 9. 100BASE-TX BLW Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 10. 10BASE-T Twisted Pair Smart Squelch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 11. 10/100 Mb/s Twisted Pair Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 12. Crystal Oscillator Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Figure 13. Power Feeback Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

www.national.com

6

List of Tables

Table 1. Auto-Negotiation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Table 2. PHY Address Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Table 3. LED Mode Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Table 4. Supported packet sizes at +/-50ppm +/-100ppm for each clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Table 5. Typical MDIO Frame Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Table 5. 4B5B Code-Group Encoding/Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Table 6. 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Table 7. 25 MHz Oscillator Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Table 8. 50 MHz Oscillator Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table 9. 25 MHz Crystal Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table 10. Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Table 11. Register Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Table 12. Basic Mode Control Register (BMCR), address 0x00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Table 13. Basic Mode Status Register (BMSR), address 0x01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Table 14. PHY Identifier Register #1 (PHYIDR1), address 0x02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 15. PHY Identifier Register #2 (PHYIDR2), address 0x03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 16. Negotiation Advertisement Register (ANAR), address 0x04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 17. Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page), address 0x05 . . . . . . . .46

Table 18. Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page), address 0x05 . . . . . . . . .48

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Table 20. Auto-Negotiation Next Page Transmit Register (ANNPTR), address 0x07 . . . . . . . . . . . . . . . . . . .49

Table 21. PHY Status Register (PHYSTS), address 0x10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Table 22. MII Interrupt Control Register (MICR), address 0x11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Table 23. MII Interrupt Status and Misc. Control Register (MISR), address 0x12 . . . . . . . . . . . . . . . . . . . . . .53

Table 24. False Carrier Sense Counter Register (FCSCR), address 0x14 . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Table 25. Receiver Error Counter Register (RECR), address 0x15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Table 26. 100 Mb/s PCS Configuration and Status Register (PCSR), address 0x16 . . . . . . . . . . . . . . . . . . . .55

Table 27. RMII and Bypass Register (RBR), addresses 0x17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Table 28. LED Direct Control Register (LEDCR), address 0x18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Table 29. PHY Control Register (PHYCR), address 0x19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Table 31. CD Test and BIST Extensions Register (CDCTRL1), address 0x1B . . . . . . . . . . . . . . . . . . . . . . . . .60

Table 32. Energy Detect Control (EDCR), address 0x1D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

7 www.national.com

Pin Layout

PFBIN2

RX_CLK

RX_DV/MII_MODE

CRS/CRS_DV/LED_CFG

RX_ER/MDIX_EN

COL/PHYAD0

RXD_0/PHYAD1

RXD_1/PHYAD2

RXD_2/PHYAD3

RXD_3/PHYAD4

IOGND

IOVDD33

37

38

39

40

41

42

43

44

45

46

47

48

o

DP83848C

24

23

22

21

20

19

18

17

16

15

14

13

RBIAS

PFBOUT

AVDD33

RESERVED

RESERVED

AGND

PFBIN1

TD +

TD -

AGND

RD +

RD -

Top View

NS Package Number VBH48A

www.national.com

8

1.0 Pin Descriptions

The DP83848C pins are classified into the following interface categories (each interface is described in the sections that follow):

— Serial Management Interface

— MAC Data Interface

— Clock Interface

— LED Interface

— Reset and Power Down

— Strap Options

— 10/100 Mb/s PMD Interface

— Special Connect Pins

— Power and Ground pins

Note: Strapping pin option. Please see Section 1.6 for strap

definitions.

All DP83848C signal pins are I/O cells regardless of the particular use. The definitions below define the functionality of the I/O cells for each pin.

Type: I

Type: O

Type: I/O

Type OD

Input

Output

Input/Output

Open Drain

Type: PD,PU Internal Pulldown/Pullup

Type: S Strapping Pin (All strap pins have weak internal pull-ups or pull-downs. If the default strap value is needed to be changed then an external 2.2 k

resistor should be used.

Please see Section 1.6 for details.)

1.1 Serial Management Interface

MDC

Signal Name Type

I

MDIO I/O

Pin #

31

30

Description

MANAGEMENT DATA CLOCK: Synchronous clock to the MDIO management data input/output serial interface which may be asynchronous to transmit and receive clocks. The maximum clock rate is 25 MHz with no minimum clock rate.

MANAGEMENT DATA I/O: Bi-directional management instruction/data signal that may be sourced by the station management entity or the PHY. This pin requires a 1.5 k

pullup resistor.

1.2 MAC Data Interface

Signal Name

TX_CLK

Type

O

TX_EN

TXD_0

TXD_1

TXD_2

TXD_3

I, PD

I

S, I, PD

5

6

3

4

Pin #

1

2

Description

MII TRANSMIT CLOCK: 25 MHz Transmit clock output in 100

Mb/s mode or 2.5 MHz in 10 Mb/s mode derived from the 25 MHz reference clock.

Unused in RMII mode. The device uses the X1 reference clock input as the 50 MHz reference for both transmit and receive.

SNI TRANSMIT CLOCK: 10 MHz Transmit clock output in 10 Mb

SNI mode. The MAC should source TX_EN and TXD_0 using this clock.

MII TRANSMIT ENABLE: Active high input indicates the presence of valid data inputs on TXD[3:0].

RMII TRANSMIT ENABLE: Active high input indicates the presence of valid data on TXD[1:0].

SNI TRANSMIT ENABLE: Active high input indicates the presence of valid data on TXD_0.

MII TRANSMIT DATA: Transmit data MII input pins, TXD[3:0], that accept data synchronous to the TX_CLK (2.5 MHz in 10 Mb/s mode or 25 MHz in 100 Mb/s mode).

RMII TRANSMIT DATA: Transmit data RMII input pins, TXD[1:0], that accept data synchronous to the 50 MHz reference clock.

SNI TRANSMIT DATA: Transmit data SNI input pin, TXD_0, that accept data synchronous to the TX_CLK (10 MHz in 10 Mb/s SNI mode).

9 www.national.com

Signal Name

RX_CLK

RX_DV

RX_ER

RXD_0

RXD_1

RXD_2

RXD_3

CRS/CRS_DV

COL

Type

O

S, O, PD

S, O, PU

S, O, PD

S, O, PU

S, O, PU

43

44

45

46

Pin #

38

39

41

40

42

Description

MII RECEIVE CLOCK: Provides the 25 MHz recovered receive clocks for 100 Mb/s mode and 2.5 MHz for 10 Mb/s mode.

Unused in RMII mode. The device uses the X1 reference clock input as the 50 MHz reference for both transmit and receive.

SNI RECEIVE CLOCK: Provides the 10 MHz recovered receive clocks for 10 Mb/s SNI mode.

MII RECEIVE DATA VALID: Asserted high to indicate that valid data is present on the corresponding RXD[3:0]. MII mode by default with internal pulldown.

RMII Synchronous Receive Data Valid: This signal provides the

RMII Receive Data Valid indication independent of Carrier Sense.

This pin is not used in SNI mode.

MII RECEIVE ERROR: Asserted high synchronously to RX_CLK to indicate that an invalid symbol has been detected within a received packet in 100 Mb/s mode.

RMII RECEIVE ERROR: Assert high synchronously to X1 whenever it detects a media error and RXDV is asserted in 100 Mb/s mode.

This pin is not required to be used by a MAC, in either MII or RMII mode, since the Phy is required to corrupt data on a receive error.

This pin is not used in SNI mode.

MII RECEIVE DATA: Nibble wide receive data signals driven synchronously to the RX_CLK, 25 MHz for 100 Mb/s mode, 2.5 MHz for 10 Mb/s mode). RXD[3:0] signals contain valid data when

RX_DV is asserted.

RMII RECEIVE DATA: 2-bits receive data signals, RXD[1:0], driven synchronously to the X1 clock, 50 MHz.

SNI RECEIVE DATA: Receive data signal, RXD_0, driven synchronously to the RX_CLK. RXD_0 contains valid data when CRS is asserted. RXD[3:1] are not used in this mode.

MII CARRIER SENSE: Asserted high to indicate the receive medium is non-idle.

RMII CARRIER SENSE/RECEIVE DATA VALID: This signal combines the RMII Carrier and Receive Data Valid indications.

For a detailed description of this signal, see the RMII Specification.

SNI CARRIER SENSE: Asserted high to indicate the receive medium is non-idle. It is used to frame valid receive data on the

RXD_0 signal.

MII COLLISION DETECT: Asserted high to indicate detection of a collision condition (simultaneous transmit and receive activity) in 10 Mb/s and 100 Mb/s Half Duplex Modes.

While in 10BASE-T Half Duplex mode with heartbeat enabled this pin is also asserted for a duration of approximately 1

µ s at the end of transmission to indicate heartbeat (SQE test).

In Full Duplex Mode, for 10 Mb/s or 100 Mb/s operation, this signal is always logic 0. There is no heartbeat function during 10

Mb/s full duplex operation.

RMII COLLISION DETECT: Per the RMII Specification, no COL signal is required. The MAC will recover CRS from the CRS_DV signal and use that along with its TX_EN signal to determine collision.

SNI COLLISION DETECT: Asserted high to indicate detection of a collision condition (simultaneous transmit and receive activity) in 10 Mb/s SNI mode.

www.national.com

10

1.3 Clock Interface

X1

Signal Name

X2

25MHz_OUT

Type

I

O

O

Pin #

34

33

25

Description

CRYSTAL/OSCILLATOR INPUT: This pin is the primary clock reference input for the DP83848C and must be connected to a 25

MHz 0.005% (+50 ppm) clock source. The DP83848C supports either an external crystal resonator connected across pins X1 and

X2, or an external CMOS-level oscillator source connected to pin

X1 only.

RMII REFERENCE CLOCK: This pin is the primary clock reference input for the RMII mode and must be connected to a 50 MHz

0.005% (+50 ppm) CMOS-level oscillator source.

CRYSTAL OUTPUT: This pin is the primary clock reference output to connect to an external 25 MHz crystal resonator device.

This pin must be left unconnected if an external CMOS oscillator clock source is used.

25 MHz CLOCK OUTPUT:

In MII mode, this pin provides a 25 MHz clock output to the system.

In RMII mode, this pin provides a 50 MHz clock output to the system.

This allows other devices to use the reference clock from the

DP83848C without requiring additional clock sources.

1.4 LED Interface

See Table 3 for LED Mode Selection.

Signal Name

LED_LINK

LED_SPEED

LED_ACT/COL

Type

S, O, PU

S, O, PU

S, O, PU

Pin #

28

27

26

Description

LINK LED: In Mode 1, this pin indicates the status of the LINK.

The LED will be ON when Link is good.

LINK/ACT LED: In Mode 2 and Mode 3, this pin indicates transmit and receive activity in addition to the status of the Link. The LED will be ON when Link is good. It will blink when the transmitter or receiver is active.

SPEED LED: The LED is ON when device is in 100 Mb/s and OFF when in 10 Mb/s. Functionality of this LED is independent of mode selected.

ACTIVITY LED: In Mode 1, this pin is the Activity LED which is

ON when activity is present on either Transmit or Receive.

COLLISION/DUPLEX LED: In Mode 2, this pin by default indicates Collision detection. For Mode 3, this LED output may be programmed to indicate Full-duplex status instead of Collision.

11 www.national.com

1.5 Reset and Power Down

Signal Name

RESET_N

PWR_DOWN/INT

Type

I, PU

I, OD, PU

Pin #

29

7

Description

RESET: Active Low input that initializes or re-initializes the

DP83848C. Asserting this pin low for at least 1

µ s will force a reset process to occur. All internal registers will re-initialize to their default states as specified for each bit in the Register Block section.

All strap options are re-initialized as well.

See Section 5.5 for detailed description.

The default function of this pin is POWER DOWN.

POWER DOWN: The pin is an active low input in this mode and should be asserted low to put the device in a Power Down mode.

INTERRUPT: The pin is an open drain output in this mode and will be asserted low when an interrupt condition occurs. Although the pin has a weak internal pull-up, some applications may require an external pull-up resister. Register access is required for the pin to

be used as an interrupt mechanism. See Section 5.5.2 Interrupt

Mechanism for more details on the interrupt mechanisms.

1.6 Strap Options

The DP83848C uses many of the functional pins as strap options. The values of these pins are sampled during reset and used to strap the device into specific modes of operation. The strap option pin assignments are defined below. The functional pin name is indicated in parentheses.

A 2.2 k

resistor should be used for pull-down or pull-up to change the default strap option. If the default option is required, then there is no need for external pull-up or pull down resistors. Since these pins may have alternate functions after reset is deasserted, they should not be connected directly to VCC or GND.

Signal Name

PHYAD0 (COL)

PHYAD1 (RXD_0)

PHYAD2 (RXD_1)

PHYAD3 (RXD_2)

PHYAD4 (RXD_3)

Type

S, O, PU

S, O, PD

Pin #

42

43

44

45

46

Description

PHY ADDRESS [4:0]: The DP83848C provides five PHY address pins, the state of which are latched into the PHYCTRL register at system Hardware-Reset.

The DP83848C supports PHY Address strapping values 0

(<00000>) through 31 (<11111>). A PHY Address of 0 puts the

part into the MII Isolate Mode. The MII isolate mode must be selected by strapping Phy Address 0; changing to Address 0 by register write will not put the Phy in the MII isolate mode. Please refer to section 2.3 for additional information.

PHYAD0 pin has weak internal pull-up resistor.

PHYAD[4:1] pins have weak internal pull-down resistors.

www.national.com

12

Signal Name

AN_EN (LED_ACT/COL)

AN_1 (LED_SPEED)

AN_0 (LED_LINK)

Type

S, O, PU

Pin #

26

27

28

Description

Auto-Negotiation Enable: When high, this enables Auto-Negotiation with the capability set by ANO and AN1 pins. When low, this puts the part into Forced Mode with the capability set by AN0 and

AN1 pins.

AN0 / AN1: These input pins control the forced or advertised operating mode of the DP83848C according to the following table.

The value on these pins is set by connecting the input pins to

GND (0) or V

CC

(1) through 2.2 k

Ω resistors. These pins should

NEVER be connected directly to GND or VCC.

The value set at this input is latched into the DP83848C at Hardware-Reset.

The float/pull-down status of these pins are latched into the Basic

Mode Control Register and the Auto_Negotiation Advertisement

Register during Hardware-Reset.

The default is 111 since these pins have internal pull-ups.

MII_MODE (RX_DV)

SNI_MODE (TXD_3)

LED_CFG (CRS)

MDIX_EN (RX_ER)

S, O, PD

S, O, PU

S, O, PU

39

6

40

41

AN_EN AN1 AN0

0 0 0 10BASE-T, Half-Duplex

0

0

0

1

1

0

10BASE-T, Full-Duplex

100BASE-TX, Half-Duplex

0 1 1 100BASE-TX, Full-Duplex

AN_EN AN1 AN0

1

1

1

0

0

1

0

1

10BASE-T, Half/Full-Duplex

100BASE-TX, Half/Full-Duplex

1 1

0 10BASE-T Half-Duplex

100BASE-TX, Half-Duplex

1 10BASE-T, Half/Full-Duplex

100BASE-TX, Half/Full-Duplex

MII MODE SELECT: This strapping option pair determines the operating mode of the MAC Data Interface. Default operation (No pull-ups) will enable normal MII Mode of operation. Strapping

MII_MODE high will cause the device to be in RMII or SNI mode of operation, determined by the status of the SNI_MODE strap.

Since the pins include internal pull-downs, the default values are

0.

The following table details the configurations:

MII_MODE SNI_MODE

0

1

1

X

0

1

MAC Interface

Mode

MII Mode

RMII Mode

10 Mb SNI Mode

LED CONFIGURATION: This strapping option determines the mode of operation of the LED pins. Default is Mode 1. Mode 1 and

Mode 2 can be controlled via the strap option. All modes are configurable via register access.

SeeTable 3 for LED Mode Selection.

MDIX ENABLE: Default is to enable MDIX. This strapping option disables Auto-MDIX. An external pull-down will disable Auto-

MDIX mode.

13 www.national.com

1.7 10 Mb/s and 100 Mb/s PMD Interface

Signal Name

TD-, TD+

Type

I/O

RD-, RD+ I/O

Pin #

16, 17

13, 14

Description

Differential common driver transmit output (PMD Output Pair).

These differential outputs are automatically configured to either

10BASE-T or 100BASE-TX signaling.

In Auto-MDIX mode of operation, this pair can be used as the Receive Input pair.

These pins require 3.3V bias for operation.

Differential receive input (PMD Input Pair). These differential inputs are automatically configured to accept either 100BASE-TX or 10BASE-T signaling.

In Auto-MDIX mode of operation, this pair can be used as the

Transmit Output pair.

These pins require 3.3V bias for operation.

1.8 Special Connections

RBIAS

Signal Name

PFBOUT

PFBIN1

PFBIN2

RESERVED

RESERVED

Type

I

O

I

I/O

I/O

Pin #

24

23

18

37

Description

Bias Resistor Connection. A 4.87 k

Ω 1% resistor should be connected from RBIAS to GND.

Power Feedback Output. Parallel caps, 10

µ

F (Tantalum preferred) and 0.1

µ

F, should be placed close to the PFBOUT. Connect this pin to PFBIN1 (pin 18) and PFBIN2 (pin 37). See

Section 5.4 for proper placement pin.

Power Feedback Input. These pins are fed with power from

PFBOUT pin. A small capacitor of 0.1

µ

F should be connected close to each pin.

Note: Do not supply power to these pins other than from

PFBOUT.

8, 9, 10, 11,

12

RESERVED: These pins must be left unconnected.

20, 21 RESERVED: These pins must be pulled-up through 2.2 k

Ω resistors to AVDD33 supply.

1.9 Power Supply Pins

Signal Name

IOVDD33

IOGND

DGND

AVDD33

AGND

Pin #

32, 48

35, 47

36

22

15, 19

I/O 3.3V Supply

I/O Ground

Digital Ground

Analog 3.3V Supply

Analog Ground

Description

www.national.com

14

1.10 Package Pin Assignments

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

36

37

38

39

40

32

33

34

35

VBH48A Pin # Pin Name

1 TX_CLK

2

3

TX_EN

TXD_0

6

7

4

5

TXD_1

TXD_2

TXD_3/SNI_MODE

PWR_DOWN/INT

12

13

14

15

10

11

8

9

RESERVED

RESERVED

RESERVED

RESERVED

RESERVED

RD -

RD +

AGND

TD -

TD +

PFBIN1

AGND

RESERVED

RESERVED

AVDD33

PFBOUT

RBIAS

25MHz_OUT

LED_ACT/COL/AN_EN

LED_SPEED/AN1

LED_LINK/AN0

RESET_N

MDIO

MDC

IOVDD33

X2

X1

IOGND

DGND

PFBIN2

RX_CLK

RX_DV/MII_MODE

CRS/CRS_DV/LED_CFG

VBH48A Pin # Pin Name

41

42

RX_ER/MDIX_EN

COL/PHYAD0

43

44

45

46

47

48

RXD_0/PHYAD1

RXD_1/PHYAD2

RXD_2/PHYAD3

RXD_3/PHYAD4

IOGND

IOVDD33

15 www.national.com

2.0 Configuration

This section includes information on the various configuration options available with the DP83848C. The configuration options described below include:

— Auto-Negotiation

— PHY Address and LEDs

— Half Duplex vs. Full Duplex

— Isolate mode

— Loopback mode

— BIST

Table 1. Auto-Negotiation Modes

AN_EN AN1 AN0

0

0

0

0

0

1

Forced Mode

10BASE-T, Half-Duplex

10BASE-T, Full-Duplex

0

0

1

1

0 100BASE-TX, Half-Duplex

1 100BASE-TX, Full-Duplex

AN_EN AN1 AN0

1 0 0

Advertised Mode

10BASE-T, Half/Full-Duplex

1 0 1 100BASE-TX, Half/Full-Duplex

2.1 Auto-Negotiation

1 1 0 10BASE-T Half-Duplex

The Auto-Negotiation function provides a mechanism for exchanging configuration information between two ends of a link segment and automatically selecting the highest performance mode of operation supported by both devices.

Fast Link Pulse (FLP) Bursts provide the signalling used to communicate Auto-Negotiation abilities between two devices at each end of a link segment. For further detail regarding Auto-Negotiation, refer to Clause 28 of the IEEE

1 1 1

100BASE-TX, Half-Duplex

10BASE-T, Half/Full-Duplex

100BASE-TX, Half/Full-Duplex

2.1.2 Auto-Negotiation Register Control

802.3u specification. The DP83848C supports four different Ethernet protocols (10 Mb/s Half Duplex, 10 Mb/s Full

Duplex, 100 Mb/s Half Duplex, and 100 Mb/s Full Duplex), so the inclusion of Auto-Negotiation ensures that the highest performance protocol will be selected based on the advertised ability of the Link Partner. The Auto-Negotiation function within the DP83848C can be controlled either by internal register access or by the use of the AN_EN, AN1 and AN0 pins.

When Auto-Negotiation is enabled, the DP83848C transmits the abilities programmed into the Auto-Negotiation

Advertisement register (ANAR) at address 04h via FLP

Bursts. Any combination of 10 Mb/s, 100 Mb/s, Half-

Duplex, and Full Duplex modes may be selected.

Auto-Negotiation Priority Resolution:

— (1) 100BASE-TX Full Duplex (Highest Priority)

— (2) 100BASE-TX Half Duplex

2.1.1 Auto-Negotiation Pin Control

— (3) 10BASE-T Full Duplex

— (4) 10BASE-T Half Duplex (Lowest Priority)

The state of AN_EN, AN0 and AN1 determines whether the

DP83848C is forced into a specific mode or Auto-Negotiation will advertise a specific ability (or set of abilities) as

given in Table 1. These pins allow configuration options to

be selected without requiring internal register access.

The state of AN_EN, AN0 and AN1, upon power-up/reset, determines the state of bits [8:5] of the ANAR register.

The Basic Mode Control Register (BMCR) at address 00h provides control for enabling, disabling, and restarting the

Auto-Negotiation process. When Auto-Negotiation is disabled, the Speed Selection bit in the BMCR controls switching between 10 Mb/s or 100 Mb/s operation, and the

Duplex Mode bit controls switching between full duplex operation and half duplex operation. The Speed Selection and Duplex Mode bits have no effect on the mode of operation when the Auto-Negotiation Enable bit is set. The Auto-Negotiation function selected at power-up or reset can be changed at any time by writing to the Basic

Mode Control Register (BMCR) at address 0x00h.

The Link Speed can be examined through the PHY Status

Register (PHYSTS) at address 10h after a Link is achieved.

The Basic Mode Status Register (BMSR) indicates the set of available abilities for technology types, Auto-Negotiation ability, and Extended Register Capability. These bits are permanently set to indicate the full functionality of the

DP83848C (only the 100BASE-T4 bit is not set since the

DP83848C does not support that function).

The BMSR also provides status on:

— Whether or not Auto-Negotiation is complete

— Whether or not the Link Partner is advertising that a remote fault has occurred

— Whether or not valid link has been established

— Support for Management Frame Preamble suppression

The Auto-Negotiation Advertisement Register (ANAR) indicates the Auto-Negotiation abilities to be advertised by the DP83848C. All available abilities are transmitted by default, but any ability can be suppressed by writing to the www.national.com

16

ANAR. Updating the ANAR to suppress an ability is one way for a management agent to change (restrict) the technology that is used.

The Auto-Negotiation Link Partner Ability Register

(ANLPAR) at address 05h is used to receive the base link code word as well as all next page code words during the negotiation. Furthermore, the ANLPAR will be updated to either 0081h or 0021h for parallel detection to either 100

Mb/s or 10 Mb/s respectively.

2.1.4 Auto-Negotiation Restart

Once Auto-Negotiation has completed, it may be restarted at any time by setting bit 9 (Restart Auto-Negotiation) of the

BMCR to one. If the mode configured by a successful Auto-

Negotiation loses a valid link, then the Auto-Negotiation process will resume and attempt to determine the configuration for the link. This function ensures that a valid configuration is maintained if the cable becomes disconnected.

The Auto-Negotiation Expansion Register (ANER) indicates additional Auto-Negotiation status. The ANER provides status on:

A renegotiation request from any entity, such as a management agent, will cause the DP83848C to halt any transmit data and link pulse activity until the break_link_timer

— Whether or not a Parallel Detect Fault has occurred expires (~1500 ms). Consequently, the Link Partner will go into link fail and normal Auto-Negotiation resumes. The

DP83848C will resume Auto-Negotiation after the

— Whether or not the Link Partner supports the Next Page function break_link_timer has expired by issuing FLP (Fast Link

Pulse) bursts.

— Whether or not the DP83848C supports the Next Page function

2.1.5 Enabling Auto-Negotiation via Software

— Whether or not the current page being exchanged by

Auto-Negotiation has been received

— Whether or not the Link Partner supports Auto-Negotiation

2.1.3 Auto-Negotiation Parallel Detection

It is important to note that if the DP83848C has been initialized upon power-up as a non-auto-negotiating device

(forced technology), and it is then required that Auto-Negotiation or re-Auto-Negotiation be initiated via software, bit 12 (Auto-Negotiation Enable) of the Basic Mode Control

Register (BMCR) must first be cleared and then set for any

Auto-Negotiation function to take effect.

The DP83848C supports the Parallel Detection function as defined in the IEEE 802.3u specification. Parallel Detection requires both the 10 Mb/s and 100 Mb/s receivers to monitor the receive signal and report link status to the Auto-

Negotiation function. Auto-Negotiation uses this information to configure the correct technology in the event that the

Link Partner does not support Auto-Negotiation but is transmitting link signals that the 100BASE-TX or 10BASE-

T PMAs recognize as valid link signals.

2.1.6 Auto-Negotiation Complete Time

Parallel detection and Auto-Negotiation take approximately

2-3 seconds to complete. In addition, Auto-Negotiation with next page should take approximately 2-3 seconds to complete, depending on the number of next pages sent.

Refer to Clause 28 of the IEEE 802.3u standard for a full description of the individual timers related to Auto-Negotiation.

If the DP83848C completes Auto-Negotiation as a result of

Parallel Detection, bits 5 and 7 within the ANLPAR register will be set to reflect the mode of operation present in the

Link Partner. Note that bits 4:0 of the ANLPAR will also be set to 00001 based on a successful parallel detection to indicate a valid 802.3 selector field. Software may determine that negotiation completed via Parallel Detection by reading a zero in the Link Partner Auto-Negotiation Able bit once the Auto-Negotiation Complete bit is set. If configured for parallel detect mode and any condition other than a single good link occurs then the parallel detect fault bit will be set.

2.2 Auto-MDIX

When enabled, this function utilizes Auto-Negotiation to determine the proper configuration for transmission and reception of data and subsequently selects the appropriate

MDI pair for MDI/MDIX operation. The function uses a random seed to control switching of the crossover circuitry.

This implementation complies with the corresponding IEEE

802.3 Auto-Negotiation and Crossover Specifications.

Auto-MDIX is enabled by default and can be configured via strap or via PHYCR (0x19h) register, bits [15:14].

Neither Auto-Negotiation nor Auto-MDIX is required to be enabled in forcing crossover of the MDI pairs. Forced crossover can be achieved through the FORCE_MDIX bit, bit 14 of PHYCR (0x19h) register.

Note: Auto-MDIX will not work in a forced mode of operation.

17 www.national.com

2.3 PHY Address

The 5 PHY address inputs pins are shared with the

RXD[3:0] pins and COL pin as shown below.

Since the PHYAD[0] pin has weak internal pull-up resistor and PHYAD[4:1] pins have weak internal pull-down resistors, the default setting for the PHY address is 00001

(01h).

Pin #

Table 2. PHY Address Mapping

PHYAD Function RXD Function

Refer to Figure 2 for an example of a PHYAD connection to

external components. In this example, the PHYAD strapping results in address 00011 (03h).

42 PHYAD0 COL

43 PHYAD1 RXD_0

2.3.1 MII Isolate Mode

44

45

46

PHYAD2

PHYAD3

PHYAD4

RXD_1

RXD_2

RXD_3

The DP83848C can be set to respond to any of 32 possible

PHY addresses via strap pins. The information is latched into the PHYCR register (address 19h, bits [4:0]) at device power-up and hardware reset. The PHY Address pins are shared with the RXD and COL pins. Each DP83848C or port sharing an MDIO bus in a system must have a unique physical address.

The DP83848C can be put into MII Isolate mode by writing to bit 10 of the BMCR register or by strapping in Physical

Address 0. It should be noted that selecting Physical

Address 0 via an MDIO write to PHYCR will not put the device in the MII isolate mode.

When in the MII isolate mode, the DP83848C does not respond to packet data present at TXD[3:0], TX_EN inputs and presents a high impedance on the TX_CLK, RX_CLK,

RX_DV, RX_ER, RXD[3:0], COL, and CRS outputs. When in Isolate mode, the DP83848C will continue to respond to all management transactions.

The DP83848C supports PHY Address strapping values 0

(<00000>) through 31 (<11111>). Strapping PHY Address

0 puts the part into Isolate Mode. It should also be noted that selecting PHY Address 0 via an MDIO write to PHYCR

will not put the device in Isolate Mode. See Section 2.3.1for

more information.

For further detail relating to the latch-in timing requirements of the PHY Address pins, as well as the other hardware configuration pins, refer to the Reset summary in

Section 6.0.

While in Isolate mode, the PMD output pair will not transmit packet data but will continue to source 100BASE-TX scrambled idles or 10BASE-T normal link pulses.

The DP83848C can Auto-Negotiate or parallel detect to a specific technology depending on the receive signal at the

PMD input pair. A valid link can be established for the receiver even when the DP83848C is in Isolate mode.

PHYAD4= 0 PHYAD3 = 0 PHYAD2 = 0 PHYAD1 = 1 PHYAD0 = 1

VCC

Figure 2. PHYAD Strapping Example

www.national.com

18

2.4 LED Interface

The DP83848C supports three configurable Light Emitting

Diode (LED) pins. The device supports three LED configurations: Link, Speed, Activity and Collision. Function are multiplexed among the LEDs. The PHY Control Register

(PHYCR) for the LEDs can also be selected through address 19h, bits [6:5].

See Table 3 for LED Mode selection.

Mode

1

2

3

LED_CFG[1]

(bit 6)

don’t care

0

1

LED_CFG[0]

(bit 5) or (pin40)

1

0

0

Table 3. LED Mode Select

LED_LINK

ON for Good Link

OFF for No Link

ON for Good Link

BLINK for Activity

ON for Good Link

BLINK for Activity

LED_SPEED

ON in 100 Mb/s

OFF in 10 Mb/s

ON in 100 Mb/s

OFF in 10 Mb/s

ON in 100 Mb/s

OFF in 10 Mb/s

LED_ACT/COL

ON for Activity

OFF for No Activity

ON for Collision

OFF for No Collision

ON for Full Duplex

OFF for Half Duplex

The LED_LINK pin in Mode 1 indicates the link status of the port. In 100BASE-T mode, link is established as a result of input receive amplitude compliant with the TP-

PMD specifications which will result in internal generation of signal detect. A 10 Mb/s Link is established as a result of the reception of at least seven consecutive normal Link

Pulses or the reception of a valid 10BASE-T packet. This will cause the assertion of LED_LINK. LED_LINK will deassert in accordance with the Link Loss Timer as specified in the IEEE 802.3 specification.

The LED_LINK pin in Mode 1 will be OFF when no LINK is present.

Specifically, when the LED outputs are used to drive LEDs directly, the active state of each output driver is dependent on the logic level sampled by the corresponding AN input upon power-up/reset. For example, if a given AN input is resistively pulled low then the corresponding output will be configured as an active high driver. Conversely, if a given

AN input is resistively pulled high, then the corresponding output will be configured as an active low driver.

Refer to Figure 3 for an example of AN connections to

external components. In this example, the AN strapping results in Auto-Negotiation with 10/100 Half/Full-Duplex advertised.

The LED_LINK pin in Mode 2 and Mode 3 will be ON to indicate Link is good and BLINK to indicate activity is present on either transmit or receive activity.

The adaptive nature of the LED outputs helps to simplify potential implementation issues of these dual purpose pins.

The LED_SPEED pin indicates 10 or 100 Mb/s data rate of the port. The standard CMOS driver goes high when operating in 100 Mb/s operation. The functionality of this LED is independent of mode selected.

The LED_ACT/COL pin in Mode 1 indicates the presence of either transmit or receive activity. The LED will be ON for

Activity and OFF for No Activity. In Mode 2, this pin indicates the Collision status of the port. The LED will be ON for Collision and OFF for No Collision.

AN_EN = 1 AN1 = 1 AN0 = 1

The LED_ACT/COL pin in Mode 3 indicates the presence of Duplex status for 10 Mb/s or 100 Mb/s operation. The

LED will be ON for Full Duplex and OFF for Half Duplex.

In 10 Mb/s half duplex mode, the collision LED is based on the COL signal.

Since these LED pins are also used as strap options, the polarity of the LED is dependent on whether the pin is pulled up or down.

VCC

2.4.1 LEDs

Since the Auto-Negotiation (AN) strap options share the

LED output pins, the external components required for strapping and LED usage must be considered in order to avoid contention.

Figure 3. AN Strapping and LED Loading Example

19 www.national.com

2.4.2 LED Direct Control 2.6 Internal Loopback

The DP83848C provides another option to directly control any or all LED outputs through the LED Direct Control Register (LEDCR), address 18h. The register does not provide read access to LEDs.

2.5 Half Duplex vs. Full Duplex

The DP83848C supports both half and full duplex operation at both 10 Mb/s and 100 Mb/s speeds.

The DP83848C includes a Loopback Test mode for facilitating system diagnostics. The Loopback mode is selected through bit 14 (Loopback) of the Basic Mode Control Register (BMCR). Writing 1 to this bit enables MII transmit data to be routed to the MII receive outputs. Loopback status may be checked in bit 3 of the PHY Status Register

(PHYSTS). While in Loopback mode the data will not be transmitted onto the media. To ensure that the desired operating mode is maintained, Auto-Negotiation should be disabled before selecting the Loopback mode.

Half-duplex relies on the CSMA/CD protocol to handle collisions and network access. In Half-Duplex mode, CRS responds to both transmit and receive activity in order to maintain compliance with the IEEE 802.3 specification.

2.7 BIST

Since the DP83848C is designed to support simultaneous transmit and receive activity it is capable of supporting fullduplex switched applications with a throughput of up to 200

Mb/s per port when operating in 100BASE-TX mode.

Because the CSMA/CD protocol does not apply to fullduplex operation, the DP83848C disables its own internal collision sensing and reporting functions and modifies the behavior of Carrier Sense (CRS) such that it indicates only receive activity. This allows a full-duplex capable MAC to operate properly.

All modes of operation (100BASE-TX and 10BASE-T) can run either half-duplex or full-duplex. Additionally, other than

CRS and Collision reporting, all remaining MII signaling remains the same regardless of the selected duplex mode.

The DP83848C incorporates an internal Built-in Self Test

(BIST) circuit to accommodate in-circuit testing or diagnostics. The BIST circuit can be utilized to test the integrity of the transmit and receive data paths. BIST testing can be performed with the part in the internal loopback mode or externally looped back using a loopback cable fixture.

The BIST is implemented with independent transmit and receive paths, with the transmit block generating a continuous stream of a pseudo random sequence. The user can select a 9 bit or 15 bit pseudo random sequence from the

PSR_15 bit in the PHY Control Register (PHYCR). The received data is compared to the generated pseudo-random data by the BIST Linear Feedback Shift Register

(LFSR) to determine the BIST pass/fail status.

It is important to understand that while Auto-Negotiation with the use of Fast Link Pulse code words can interpret and configure to full-duplex operation, parallel detection can not recognize the difference between full and halfduplex from a fixed 10 Mb/s or 100 Mb/s link partner over twisted pair. As specified in the 802.3u specification, if a far-end link partner is configured to a forced full duplex

100BASE-TX ability, the parallel detection state machine in the partner would be unable to detect the full duplex capability of the far-end link partner. This link segment would negotiate to a half duplex 100BASE-TX configuration

(same scenario for 10 Mb/s).

The pass/fail status of the BIST is stored in the BIST status bit in the PHYCR register. The status bit defaults to 0 (BIST fail) and will transition on a successful comparison. If an error (mis-compare) occurs, the status bit is latched and is cleared upon a subsequent write to the Start/Stop bit.

For transmit VOD testing, the Packet BIST Continuous

Mode can be used to allow continuous data transmission, setting BIST_CONT_MODE, bit 5, of CDCTRL1 (0x1Bh).

The number of BIST errors can be monitored through the

BIST Error Count in the CDCTRL1 (0x1Bh), bits [15:8].

www.national.com

20

3.0 Functional Description

The DP83848C supports several modes of operation using the MII interface pins. The options are defined in the following sections and include:

If the DP83848C is transmitting in 10 Mb/s mode when a collision is detected, the collision is not reported until seven bits have been received while in the collision state. This prevents a collision being reported incorrectly due to noise on the network. The COL signal remains set for the duration of the collision.

— MII Mode

— RMII Mode

— 10 Mb Serial Network Interface (SNI)

3.1 MII Interface

If a collision occurs during a receive operation, it is immediately reported by the COL signal.

The modes of operation can be selected by strap options or register control. For RMII mode, it is required to use the strap option, since it requires a 50 MHz clock instead of the normal 25 MHz.

When heartbeat is enabled (only applicable to 10 Mb/s operation), approximately 1

µ s after the transmission of each packet, a Signal Quality Error (SQE) signal of approximately 10 bit times is generated (internally) to indicate successful transmission. SQE is reported as a pulse on the

COL signal of the MII.

In each of these modes, the IEEE 802.3 serial management interface is operational for device configuration and status. The serial management interface of the MII allows for the configuration and control of multiple PHY devices, gathering of status, error information, and the determination of the type and capabilities of the attached PHY(s).

3.1.3 Carrier Sense

Carrier Sense (CRS) is asserted due to receive activity, once valid data is detected via the squelch function during

10 Mb/s operation. During 100 Mb/s operation CRS is asserted when a valid link (SD) and two non-contiguous zeros are detected on the line.

The DP83848C incorporates the Media Independent Interface (MII) as specified in Clause 22 of the IEEE 802.3u standard. This interface may be used to connect PHY devices to a MAC in 10/100 Mb/s systems. This section describes the nibble wide MII data interface.

For 10 or 100 Mb/s Half Duplex operation, CRS is asserted during either packet transmission or reception.

For 10 or 100 Mb/s Full Duplex operation, CRS is asserted only due to receive activity.

The nibble wide MII data interface consists of a receive bus and a transmit bus each with control signals to facilitate data transfer between the PHY and the upper layer (MAC).

CRS is deasserted following an end of packet.

3.2 Reduced MII Interface

3.1.1 Nibble-wide MII Data Interface

Clause 22 of the IEEE 802.3u specification defines the

Media Independent Interface. This interface includes a dedicated receive bus and a dedicated transmit bus. These two data buses, along with various control and status signals, allow for the simultaneous exchange of data between the DP83848C and the upper layer agent (MAC).

The DP83848C incorporates the Reduced Media Independent Interface (RMII) as specified in the RMII specification

(rev1.2) from the RMII Consortium. This interface may be used to connect PHY devices to a MAC in 10/100 Mb/s systems using a reduced number of pins. In this mode, data is transferred 2-bits at a time using the 50 MHz

RMII_REF clock for both transmit and receive. The following pins are used in RMII mode:

The receive interface consists of a nibble wide data bus

RXD[3:0], a receive error signal RX_ER, a receive data valid flag RX_DV, and a receive clock RX_CLK for synchronous transfer of the data. The receive clock operates at either 2.5 MHz to support 10 Mb/s operation modes or at

25 MHz to support 100 Mb/s operational modes.

— TX_EN

— TXD[1:0]

— RX_ER (optional for Mac)

— CRS_DV

— RXD[1:0]

— X1 (RMII Reference clock is 50 MHz)

The transmit interface consists of a nibble wide data bus

TXD[3:0], a transmit enable control signal TX_EN, and a transmit clock TX_CLK which runs at either 2.5 MHz or 25

MHz.

Additionally, the MII includes the carrier sense signal CRS, as well as a collision detect signal COL. The CRS signal asserts to indicate the reception of data from the network or as a function of transmit data in Half Duplex mode. The

COL signal asserts as an indication of a collision which can occur during half-duplex operation when both a transmit and receive operation occur simultaneously.

In addition, the RMII mode supplies an RX_DV signal which allows for a simpler method of recovering receive data without having to separate RX_DV from the CRS_DV indication. This is especially useful for systems which do not require CRS, such as systems that only support fullduplex operation. This signal is also useful for diagnostic testing where it may be desirable to loop Receive RMII data directly to the transmitter.

3.1.2 Collision Detect

Since the reference clock operates at 10 times the data rate for 10 Mb/s operation, transmit data is sampled every

10 clocks. Likewise, receive data will be generated every

10th clock so that an attached device can sample the data every 10 clocks.

For Half Duplex, a 10BASE-T or 100BASE-TX collision is detected when the receive and transmit channels are active simultaneously. Collisions are reported by the COL signal on the MII.

RMII mode requires a 50 MHz oscillator be connected to the device X1 pin. A 50 MHz crystal is not supported.

21 www.national.com

To tolerate potential frequency differences between the 50

MHz reference clock and the recovered receive clock, the receive RMII function includes a programmable elasticity buffer. The elasticity buffer is programmable to minimize propagation delay based on expected packet size and clock accuracy. This allows for supporting a range of packet sizes including jumbo frames.

The elasticity buffer will force Frame Check Sequence errors for packets which overrun or underrun the FIFO.

Underrun and Overrun conditions can be reported in the

RMII and Bypass Register (RBR). The following table indicates how to program the elasticity buffer fifo (in 4-bit increments) based on expected max packet size and clock accuracy. It assumes both clocks (RMII Reference clock and far-end Transmitter clock) have the same accuracy.

Start Threshold

RBR[1:0]

1 (4-bits)

2 (8-bits)

3 (12-bits)

0 (16-bits)

Table 4. Supported packet sizes at +/-50ppm +/-100ppm for each clock

Latency Tolerance

2 bits

6 bits

10 bits

14 bits

Recommended Packet Size at +/- 50ppm

2400 bytes

7200 bytes

12000 bytes

16800 bytes

Recommended Packet Size at +/- 100ppm

1200 bytes

3600 bytes

6000 bytes

8400 bytes

3.3 10 Mb Serial Network Interface (SNI)

The DP83848C incorporates a 10 Mb Serial Network Interface (SNI) which allows a simple serial data interface for 10

Mb only devices. This is also referred to as a 7-wire interface. While there is no defined standard for this interface, it is based on early 10 Mb physical layer devices. Data is clocked serially at 10 MHz using separate transmit and receive paths. The following pins are used in SNI mode:

The MDIO pin requires a pull-up resistor (1.5 k

) which, during IDLE and turnaround, will pull MDIO high. In order to initialize the MDIO interface, the station management entity sends a sequence of 32 contiguous logic ones on MDIO to provide the DP83848C with a sequence that can be used to establish synchronization. This preamble may be generated either by driving MDIO high for 32 consecutive MDC clock cycles, or by simply allowing the MDIO pull-up resistor to pull the MDIO pin high during which time 32 MDC clock cycles are provided. In addition 32 MDC clock cycles should be used to re-sync the device if an invalid start, opcode, or turnaround bit is detected.

— TX_CLK

— TX_EN

— TXD[0]

— RX_CLK

— RXD[0]

— CRS

— COL

The DP83848C waits until it has received this preamble sequence before responding to any other transaction.

Once the DP83848C serial management port has been initialized no further preamble sequencing is required until after a power-on/reset, invalid Start, invalid Opcode, or invalid turnaround bit has occurred.

The Start code is indicated by a <01> pattern. This assures the MDIO line transitions from the default idle line state.

3.4 802.3u MII Serial Management Interface

3.4.1 Serial Management Register Access

The serial management MII specification defines a set of thirty-two 16-bit status and control registers that are accessible through the management interface pins MDC and

MDIO. The DP83848C implements all the required MII registers as well as several optional registers. These registers

are fully described in Section 7.0. A description of the serial

management access protocol follows.

Turnaround is defined as an idle bit time inserted between the Register Address field and the Data field. To avoid contention during a read transaction, no device shall actively drive the MDIO signal during the first bit of Turnaround.

The addressed DP83848C drives the MDIO with a zero for the second bit of turnaround and follows this with the

required data. Figure 4 shows the timing relationship

between MDC and the MDIO as driven/received by the Station (STA) and the DP83848C (PHY) for a typical register read access.

3.4.2 Serial Management Access Protocol

For write transactions, the station management entity writes data to the addressed DP83848C thus eliminating the requirement for MDIO Turnaround. The Turnaround time is filled by the management entity by inserting <10>.

Figure 5 shows the timing relationship for a typical MII reg-

ister write access.

The serial control interface consists of two pins, Management Data Clock (MDC) and Management Data Input/Output (MDIO). MDC has a maximum clock rate of 25 MHz and no minimum rate. The MDIO line is bi-directional and may be shared by up to 32 devices. The MDIO frame for-

mat is shown below in Table 5.

www.national.com

22

MII Management

Serial Protocol

Read Operation

Write Operation

Table 5. Typical MDIO Frame Format

<idle><start><op code><device addr><reg addr><turnaround><data><idle>

<idle><01><10><AAAAA><RRRRR><Z0><xxxx xxxx xxxx xxxx><idle>

<idle><01><01><AAAAA><RRRRR><10><xxxx xxxx xxxx xxxx><idle>

MDC

MDIO

(STA)

Z

MDIO

(PHY)

Z

Z

Z

Z

Idle

0 1 1

Start

0 0

Opcode

(Read)

1 1 0 0 0 0 0 0 0

PHY Address

(PHYAD = 0Ch)

Register Address

(00h = BMCR)

Z

0 0 0 1 1 0 0 0 1 0 0 0 0 0 0 0 0

Z

TA Register Data Idle

Figure 4. Typical MDC/MDIO Read Operation

MDC

MDIO

(STA)

Z Z

Z

0 1 0 1

Idle Start Opcode

0 1 1 0 0 0 0 0 0 0

PHY Address

(PHYAD = 0Ch)

Register Address

(00h = BMCR)

1

TA

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Register Data

Z

Idle

Figure 5. Typical MDC/MDIO Write Operation

3.4.3 Serial Management Preamble Suppression

The DP83848C supports a Preamble Suppression mode as indicated by a one in bit 6 of the Basic Mode Status

Register (BMSR, address 01h.) If the station management entity (i.e. MAC or other management controller) determines that all PHYs in the system support Preamble Suppression by returning a one in this bit, then the station management entity need not generate preamble for each management transaction.

The DP83848C requires a single initialization sequence of

32 bits of preamble following hardware/software reset. This requirement is generally met by the mandatory pull-up resistor on MDIO in conjunction with a continuous MDC, or the management access made to determine whether Preamble Suppression is supported.

While the DP83848C requires an initial preamble sequence of 32 bits for management initialization, it does not require a full 32-bit sequence between each subsequent transaction. A minimum of one idle bit between man-

agement transactions is required as specified in the IEEE

802.3u specification.

23 www.national.com

4.0 Architecture

This section describes the operations within each transceiver module, 100BASE-TX and 10BASE-T. Each operation consists of several functional blocks and described in the following:

— 100BASE-TX Transmitter

— 100BASE-TX Receiver

— 10BASE-T Transceiver Module

4.1 100BASE-TX TRANSMITTER

The 100BASE-TX transmitter consists of several functional blocks which convert synchronous 4-bit nibble data, as provided by the MII, to a scrambled MLT-3 125 Mb/s serial data stream. Because the 100BASE-TX TP-PMD is integrated, the differential output pins, PMD Output Pair, can be directly routed to the magnetics.

The block diagram in Figure 6. provides an overview of

each functional block within the 100BASE-TX transmit section.

The Transmitter section consists of the following functional blocks:

— Code-group Encoder and Injection block

— Scrambler block (bypass option)

— NRZ to NRZI encoder block

— Binary to MLT-3 converter / Common Driver

The bypass option for the functional blocks within the

100BASE-TX transmitter provides flexibility for applications where data conversion is not always required. The

DP83848C implements the 100BASE-TX transmit state machine diagram as specified in the IEEE 802.3u Standard, Clause 24.

TX_CLK

TXD[3:0] /

TX_EN

DIVIDE

BY 5

4B5B CODE-

GROUP

ENCODER &

5B PARALLEL

TO SERIAL

125MHZ CLOCK

SCRAMBLER

BP_SCR

100BASE-TX

LOOPBACK

MUX

MLT[1:0]

NRZ TO NRZI

ENCODER

BINARY

TO MLT-3 /

COMMON

DRIVER

PMD OUTPUT PAIR

Figure 6. 100BASE-TX Transmit Block Diagram

www.national.com

24

DATA CODES

0

1

4

5

2

3

C

D

A

B

8

9

6

7

10010

10011

10110

10111

11010

11011

11100

11101

11110

01001

10100

10101

01010

01011

01110

01111

1000

1001

1010

1011

1100

1101

1110

1111

0000

0001

0010

0011

0100

0101

0110

0111

E

F

IDLE AND CONTROL CODES

H

I

J

K

T

00100

11111

11000

10001

01101

00111

HALT code-group - Error code

Inter-Packet IDLE - 0000 (

Note 1)

First Start of Packet - 0101 (

Note 1)

Second Start of Packet - 0101 (

Note 1)

First End of Packet - 0000 (

Note 1)

Second End of Packet - 0000 (

Note 1)

R

INVALID CODES

V

V

V

V

V

V

00000

00001

00010

00011

00101

00110

V

V

01000

01100

Note: Control code-groups I, J, K, T and R in data fields will be mapped as invalid codes, together with RX_ER asserted.

25 www.national.com

4.1.1 Code-group Encoding and Injection

The code-group encoder converts 4-bit (4B) nibble data generated by the MAC into 5-bit (5B) code-groups for transmission. This conversion is required to allow control data to be combined with packet data code-groups. Refer

to Table 5 for 4B to 5B code-group mapping details.

transmit transformer primary winding, resulting in a MLT-3 signal.

The 100BASE-TX MLT-3 signal sourced by the PMD Output Pair common driver is slew rate controlled. This should be considered when selecting AC coupling magnetics to ensure TP-PMD Standard compliant transition times (3 ns

< Tr < 5 ns).

The code-group encoder substitutes the first 8-bits of the

MAC preamble with a J/K code-group pair (11000 10001) upon transmission. The code-group encoder continues to replace subsequent 4B preamble and data nibbles with corresponding 5B code-groups. At the end of the transmit packet, upon the deassertion of Transmit Enable signal from the MAC, the code-group encoder injects the T/R code-group pair (01101 00111) indicating the end of the frame.

After the T/R code-group pair, the code-group encoder continuously injects IDLEs into the transmit data stream until the next transmit packet is detected (reassertion of

Transmit Enable).

The 100BASE-TX transmit TP-PMD function within the

DP83848C is capable of sourcing only MLT-3 encoded data. Binary output from the PMD Output Pair is not possible in 100 Mb/s mode.

4.2 100BASE-TX RECEIVER

The 100BASE-TX receiver consists of several functional blocks which convert the scrambled MLT-3 125 Mb/s serial data stream to synchronous 4-bit nibble data that is provided to the MII. Because the 100BASE-TX TP-PMD is integrated, the differential input pins, RD

±

, can be directly routed from the AC coupling magnetics.

4.1.2 Scrambler

The scrambler is required to control the radiated emissions at the media connector and on the twisted pair cable (for

100BASE-TX applications). By scrambling the data, the total energy launched onto the cable is randomly distributed over a wide frequency range. Without the scrambler, energy levels at the PMD and on the cable could peak beyond FCC limitations at frequencies related to repeating

5B sequences (i.e., continuous transmission of IDLEs).

The scrambler is configured as a closed loop linear feedback shift register (LFSR) with an 11-bit polynomial. The output of the closed loop LFSR is X-ORd with the serial

NRZ data from the code-group encoder. The result is a scrambled data stream with sufficient randomization to decrease radiated emissions at certain frequencies by as much as 20 dB. The DP83848C uses the PHY_ID (pins

PHYAD [4:0]) to set a unique seed value.

See Figure 7 for a block diagram of the 100BASE-TX

receive function. This provides an overview of each functional block within the 100BASE-TX receive section.

The Receive section consists of the following functional blocks:

— Analog Front End

— Digital Signal Processor

— Signal Detect

— MLT-3 to Binary Decoder

— NRZI to NRZ Decoder

— Serial to Parallel

— Descrambler

— Code Group Alignment

— 4B/5B Decoder

— Link Integrity Monitor

— Bad SSD Detection

4.1.3 NRZ to NRZI Encoder

After the transmit data stream has been serialized and scrambled, the data must be NRZI encoded in order to comply with the TP-PMD standard for 100BASE-TX transmission over Category-5 Unshielded twisted pair cable.

4.2.1 Analog Front End

In addition to the Digital Equalization and Gain Control, the

DP83848C includes Analog Equalization and Gain Control in the Analog Front End. The Analog Equalization reduces the amount of Digital Equalization required in the DSP.

4.1.4 Binary to MLT-3 Convertor

The Binary to MLT-3 conversion is accomplished by converting the serial binary data stream output from the NRZI encoder into two binary data streams with alternately phased logic one events. These two binary streams are then fed to the twisted pair output driver which converts the voltage to current and alternately drives either side of the

4.2.2 Digital Signal Processor

The Digital Signal Processor includes Adaptive Equalization with Gain Control and Base Line Wander Compensation.

www.national.com

26

RX_DV/CRS RX_CLK

RX_DATA

VALID SSD

DETECT

RXD[3:0] / RX_ER

4B/5B DECODER

SERIAL TO

PARALLEL

CODE GROUP

ALIGNMENT

DESCRAMBLER

NRZI TO NRZ

DECODER

MLT-3 TO BINARY

DECODER

DIGITAL

SIGNAL

PROCESSOR

ANALOG

FRONT

END

RD

+/−

Figure 7. 100BASE-TX Receive Block Diagram

LINK

INTEGRITY

MONITOR

SIGNAL

DETECT

27 www.national.com

4.2.2.1 Digital Adaptive Equalization and Gain Control

ness of the scrambled data stream. This variation in signal attenuation caused by frequency variations must be compensated to ensure the integrity of the transmission.

tive to ensure proper conditioning of the received signal independent of the cable length.

When transmitting data at high speeds over copper twisted pair cable, frequency dependent attenuation becomes a concern. In high-speed twisted pair signalling, the frequency content of the transmitted signal can vary greatly during normal operation based primarily on the random-

The DP83848C utilizes an extremely robust equalization scheme referred as ‘Digital Adaptive Equalization.’

In order to ensure quality transmission when employing

MLT-3 encoding, the compensation must be able to adapt to various cable lengths and cable types depending on the installed environment. The selection of long cable lengths for a given implementation, requires significant compensation which will over-compensate for shorter, less attenuating lengths. Conversely, the selection of short or intermediate cable lengths requiring less compensation will

The curves given in Figure 8 illustrate attenuation at certain

frequencies for given cable lengths. This is derived from the worst case frequency vs. attenuation figures as specified in the EIA/TIA Bulletin TSB-36. These curves indicate the significant variations in signal attenuation that must be compensated for by the receive adaptive equalization circuit.

cause serious under-compensation for longer length cables. The compensation or equalization must be adap-

The Digital Equalizer removes ISI (inter symbol interference) from the receive data stream by continuously adapting to provide a filter with the inverse frequency response of the channel. Equalization is combined with an adaptive gain control stage. This enables the receive 'eye pattern' to be opened sufficiently to allow very reliable data recovery.

www.national.com

Figure 8. EIA/TIA Attenuation vs. Frequency for 0, 50,

100, 130 & 150 meters of CAT 5 cable

28

4.2.2.2 Base Line Wander Compensation

Figure 9. 100BASE-TX BLW Event

The DP83848C is completely ANSI TP-PMD compliant and includes Base Line Wander (BLW) compensation. The

BLW compensation block can successfully recover the TP-

PMD defined “killer” pattern.

PMD Standard as well as the IEEE 802.3 100BASE-TX

Standard for both voltage thresholds and timing parameters.

BLW can generally be defined as the change in the average DC content, relatively short period over time, of an AC coupled digital transmission over a given transmission medium. (i.e., copper wire).

Note that the reception of normal 10BASE-T link pulses and fast link pulses per IEEE 802.3u Auto-Negotiation by the 100BASE-TX receiver do not cause the DP83848C to assert signal detect.

BLW results from the interaction between the low frequency components of a transmitted bit stream and the frequency response of the AC coupling component(s) within the transmission system. If the low frequency content of the digital bit stream goes below the low frequency pole of the AC coupling transformers then the droop characteristics of the transformers will dominate resulting in potentially serious BLW.

4.2.4 MLT-3 to NRZI Decoder

The DP83848C decodes the MLT-3 information from the

Digital Adaptive Equalizer block to binary NRZI data.

4.2.5 NRZI to NRZ

The digital oscilloscope plot provided in Figure 9 illustrates

the severity of the BLW event that can theoretically be generated during 100BASE-TX packet transmission. This event consists of approximately 800 mV of DC offset for a period of 120

µ s. Left uncompensated, events such as this can cause packet loss.

In a typical application, the NRZI to NRZ decoder is required in order to present NRZ formatted data to the descrambler.

4.2.6 Serial to Parallel

4.2.3 Signal Detect

The signal detect function of the DP83848C is incorporated to meet the specifications mandated by the ANSI FDDI TP-

The 100BASE-TX receiver includes a Serial to Parallel converter which supplies 5-bit wide data symbols to the

PCS Rx state machine.

29 www.national.com

4.2.7 Descrambler 4.2.10 100BASE-TX Link Integrity Monitor

A serial descrambler is used to de-scramble the received

NRZ data. The descrambler has to generate an identical data scrambling sequence (N) in order to recover the original unscrambled data (UD) from the scrambled data (SD) as represented in the equations:

SD

UD

=

=

(

(

UD

SD

N

N

)

)

The 100 Base TX Link monitor ensures that a valid and stable link is established before enabling both the Transmit and Receive PCS layer.

Signal detect must be valid for 395us to allow the link monitor to enter the 'Link Up' state, and enable the transmit and receive functions.

Synchronization of the descrambler to the original scrambling sequence (N) is achieved based on the knowledge that the incoming scrambled data stream consists of scrambled IDLE data. After the descrambler has recognized 12 consecutive IDLE code-groups, where an unscrambled IDLE code-group in 5B NRZ is equal to five consecutive ones (11111), it will synchronize to the receive data stream and generate unscrambled data in the form of unaligned 5B code-groups.

4.2.11 Bad SSD Detection

A Bad Start of Stream Delimiter (Bad SSD) is any transition from consecutive idle code-groups to non-idle code-groups which is not prefixed by the code-group pair /J/K.

If this condition is detected, the DP83848C will assert

RX_ER and present RXD[3:0] = 1110 to the MII for the cycles that correspond to received 5B code-groups until at least two IDLE code groups are detected. In addition, the

False Carrier Sense Counter register (FCSCR) will be incremented by one.

In order to maintain synchronization, the descrambler must continuously monitor the validity of the unscrambled data that it generates. To ensure this, a line state monitor and a hold timer are used to constantly monitor the synchronization status. Upon synchronization of the descrambler the hold timer starts a 722

µ s countdown. Upon detection of sufficient IDLE code-groups (58 bit times) within the 722

µ s period, the hold timer will reset and begin a new countdown. This monitoring operation will continue indefinitely given a properly operating network connection with good signal integrity. If the line state monitor does not recognize sufficient unscrambled IDLE code-groups within the 722

µ s period, the entire descrambler will be forced out of the current state of synchronization and reset in order to reacquire synchronization.

Once at least two IDLE code groups are detected, RX_ER and CRS become de-asserted.

4.3 10BASE-T TRANSCEIVER MODULE

The 10BASE-T Transceiver Module is IEEE 802.3 compliant. It includes the receiver, transmitter, collision, heartbeat, loopback, jabber, and link integrity functions, as defined in the standard. An external filter is not required on the 10BASE-T interface since this is integrated inside the

DP83848C. This section focuses on the general 10BASE-T system level operation.

4.2.8 Code-group Alignment

4.3.1 Operational Modes

The code-group alignment module operates on unaligned

5-bit data from the descrambler (or, if the descrambler is bypassed, directly from the NRZI/NRZ decoder) and converts it into 5B code-group data (5 bits). Code-group alignment occurs after the J/K code-group pair is detected.

Once the J/K code-group pair (11000 10001) is detected, subsequent data is aligned on a fixed boundary.

The DP83848C has two basic 10BASE-T operational modes:

— Half Duplex mode

— Full Duplex mode

Half Duplex Mode

4.2.9 4B/5B Decoder

The code-group decoder functions as a look up table that translates incoming 5B code-groups into 4B nibbles. The code-group decoder first detects the J/K code-group pair preceded by IDLE code-groups and replaces the J/K with

MAC preamble. Specifically, the J/K 10-bit code-group pair is replaced by the nibble pair (0101 0101). All subsequent

5B code-groups are converted to the corresponding 4B nibbles for the duration of the entire packet. This conversion ceases upon the detection of the T/R code-group pair denoting the End of Stream Delimiter (ESD) or with the reception of a minimum of two IDLE code-groups.

In Half Duplex mode the DP83848C functions as a standard IEEE 802.3 10BASE-T transceiver supporting the

CSMA/CD protocol.

Full Duplex Mode

In Full Duplex mode the DP83848C is capable of simultaneously transmitting and receiving without asserting the collision signal. The DP83848C's 10 Mb/s ENDEC is designed to encode and decode simultaneously.

www.national.com

30

4.3.2 Smart Squelch

The smart squelch is responsible for determining when valid data is present on the differential receive inputs. The

DP83848C implements an intelligent receive squelch to ensure that impulse noise on the receive inputs will not be mistaken for a valid signal. Smart squelch operation is independent of the 10BASE-T operational mode.

The squelch circuitry employs a combination of amplitude and timing measurements (as specified in the IEEE 802.3

10BSE-T standard) to determine the validity of data on the

twisted pair inputs (refer to Figure 10).

The signal at the start of a packet is checked by the smart squelch and any pulses not exceeding the squelch level

(either positive or negative, depending upon polarity) will be rejected. Once this first squelch level is overcome correctly, the opposite squelch level must then be exceeded within 150 ns. Finally the signal must again exceed the original squelch level within a 150 ns to ensure that the input waveform will not be rejected. This checking procedure results in the loss of typically three preamble bits at the beginning of each packet.

Only after all these conditions have been satisfied will a control signal be generated to indicate to the remainder of the circuitry that valid data is present. At this time, the smart squelch circuitry is reset.

Valid data is considered to be present until the squelch level has not been generated for a time longer than 150 ns, indicating the End of Packet. Once good data has been detected, the squelch levels are reduced to minimize the effect of noise causing premature End of Packet detection.

<150 ns

<150 ns

>150 ns

V

SQ+

V

SQ+(reduced)

V

SQ-(reduced)

V

SQ-

start of packet

Figure 10. 10BASE-T Twisted Pair Smart Squelch Operation

end of packet

4.3.3 Collision Detection and SQE 4.3.4 Carrier Sense

When in Half Duplex, a 10BASE-T collision is detected when the receive and transmit channels are active simultaneously. Collisions are reported by the COL signal on the

MII. Collisions are also reported when a jabber condition is detected.

Carrier Sense (CRS) may be asserted due to receive activity once valid data is detected via the squelch function.

For 10 Mb/s Half Duplex operation, CRS is asserted during either packet transmission or reception.

The COL signal remains set for the duration of the collision.

If the PHY is receiving when a collision is detected it is reported immediately (through the COL pin).

For 10 Mb/s Full Duplex operation, CRS is asserted only during receive activity.

CRS is deasserted following an end of packet.

When heartbeat is enabled, approximately 1

µ s after the transmission of each packet, a Signal Quality Error (SQE) signal of approximately 10-bit times is generated to indicate successful transmission. SQE is reported as a pulse on the COL signal of the MII.

The SQE test is inhibited when the PHY is set in full duplex mode. SQE can also be inhibited by setting the

HEARTBEAT_DIS bit in the 10BTSCR register.

4.3.5 Normal Link Pulse Detection/Generation

The link pulse generator produces pulses as defined in the

IEEE 802.3 10BASE-T standard. Each link pulse is nominally 100 ns in duration and transmitted every 16 ms in the absence of transmit data.

Link pulses are used to check the integrity of the connection with the remote end. If valid link pulses are not received, the link detector disables the 10BASE-T twisted pair transmitter, receiver and collision detection functions.

When the link integrity function is disabled

(FORCE_LINK_10 of the 10BTSCR register), a good link is forced and the 10BASE-T transceiver will operate regardless of the presence of link pulses.

31 www.national.com

4.3.6 Jabber Function 4.3.8 Transmit and Receive Filtering

The jabber function monitors the DP83848C's output and disables the transmitter if it attempts to transmit a packet of longer than legal size. A jabber timer monitors the transmitter and disables the transmission if the transmitter is active for approximately 85 ms.

Once disabled by the Jabber function, the transmitter stays disabled for the entire time that the ENDEC module's internal transmit enable is asserted. This signal has to be deasserted for approximately 500 ms (the “unjab” time) before the Jabber function re-enables the transmit outputs.

External 10BASE-T filters are not required when using the

DP83848C, as the required signal conditioning is integrated into the device.

Only isolation transformers and impedance matching resistors are required for the 10BASE-T transmit and receive interface. The internal transmit filtering ensures that all the harmonics in the transmit signal are attenuated by at least

30 dB.

The Jabber function is only relevant in 10BASE-T mode.

4.3.9 Transmitter

4.3.7 Automatic Link Polarity Detection and Correction

The DP83848C's 10BASE-T transceiver module incorporates an automatic link polarity detection circuit. When three consecutive inverted link pulses are received, bad polarity is reported.

A polarity reversal can be caused by a wiring error at either end of the cable, usually at the Main Distribution Frame

(MDF) or patch panel in the wiring closet.

The encoder begins operation when the Transmit Enable input (TX_EN) goes high and converts NRZ data to preemphasized Manchester data for the transceiver. For the duration of TX_EN, the serialized Transmit Data (TXD) is encoded for the transmit-driver pair (PMD Output Pair).

TXD must be valid on the rising edge of Transmit Clock

(TX_CLK). Transmission ends when TX_EN deasserts.

The last transition is always positive; it occurs at the center of the bit cell if the last bit is a one, or at the end of the bit cell if the last bit is a zero.

The bad polarity condition is latched in the 10BTSCR register. The DP83848C's 10BASE-T transceiver module corrects for this error internally and will continue to decode received data correctly. This eliminates the need to correct the wiring error immediately.

4.3.10 Receiver

The decoder detects the end of a frame when no additional mid-bit transitions are detected. Within one and a half bit times after the last bit, carrier sense is de-asserted.

Receive clock stays active for five more bit times after CRS goes low, to guarantee the receive timings of the controller.

www.national.com

32

5.0 Design Guidelines

5.1 TPI Network Circuit

Figure 11 shows the recommended circuit for a 10/100

Mb/s twisted pair interface. To the right is a partial list of recommended transformers. It is important that the user realize that variations with PCB and component characteristics requires that the application be tested to ensure that the circuit meets the requirements of the intended application.

Pulse H1102

Pulse H2019

Pulse J0011D21

Pulse J0011D21B

RD-

RD+

TD-

TD+

49.9

49.9

49.9

49.9

Vdd

Vdd

0.1

µ

F

0.1

µ

F

Vdd

COMMON MODE CHOKES

MAY BE REQUIRED.

1:1

0.1µF*

0.1µF*

1:1

T1

NOTE: CENTER TAP IS PULLED TO VDD

*PLACE CAPACITORS CLOSE TO THE

TRANSFORMER CENTER TAPS

RD-

RD+

TD-

TD+

RJ45

All values are typical and are +/- 1%

PLACE RESISTORS AND

CAPACITORS CLOSE TO

THE DEVICE.

Figure 11. 10/100 Mb/s Twisted Pair Interface

33 www.national.com

5.2 ESD Protection

Typically, ESD precautions are predominantly in effect when handling the devices or board before being installed in a system. In those cases, strict handling procedures need be implemented during the manufacturing process to greatly reduce the occurrences of catastrophic ESD events. After the system is assembled, internal components are less sensitive from ESD events.

See Section 8.0 for ESD rating.

capacitor values will vary with the crystal vendors; check with the vendor for the recommended loads.

The oscillator circuit is designed to drive a parallel resonance AT cut crystal with a minimum drive level of 100

µ

W and a maximum of 500

µ

W. If a crystal is specified for a lower drive level, a current limiting resistor should be placed in series between X2 and the crystal.

As a starting point for evaluating an oscillator circuit, if the requirements for the crystal are not known, C should be set at 33 pF, and R

1

L1 and C

should be set at 0

Ω.

L2

Specification for 25 MHz crystal are listed in Table 9.

5.3 Clock In (X1) Requirements

The DP83848C supports an external CMOS level oscillator source or a crystal resonator device.

X1

X2

Oscillator

If an external clock source is used, X1 should be tied to the clock source and X2 should be left floating.

Specifications for CMOS oscillators: 25 MHz in MII Mode

and 50 MHz in RMII Mode are listed in Table 6 and Table 8.

R

1

C

L1

C

L2

Crystal

A 25 MHz, parallel, 20 pF load crystal resonator should be

used if a crystal source is desired. Figure 12 shows a typi-

cal connection for a crystal resonator circuit. The load

Figure 12. Crystal Oscillator Circuit

Table 6. 25

Table 7. 25 MHz Oscillator Specification

Parameter

Frequency

Frequency

Tolerance

Min Typ

25

Max

+50

Units

MHz ppm

Condition

Operational Temperature

Frequency

Stability

Rise / Fall Time

Jitter

+50

6

800

1 ppm nsec psec

1 year aging

20% - 80%

Short term

Jitter

800

1 psec Long term

Symmetry 40% 60% Duty Cycle

1

This limit is provided as a guideline for component selection and to guaranteed by production testing.

Refer to AN-1548, “PHYTER 100 Base-TX Reference Clock Jitter Tolerance,“ for details on jitter performance.

www.national.com

34

Table 8. 50 MHz Oscillator Specification

Parameter

Frequency

Frequency

Tolerance

Min Typ

50

Max Units

MHz ppm

Condition

Frequency

Stability

Rise / Fall Time

Jitter

+50

+50

6

800

1 ppm nsec psec

Operational

Temperature

Operational

Temperature

20% - 80%

Short term

Jitter

800

1 psec Long term

Symmetry 40% 60% Duty Cycle

1

This limit is provided as a guideline for component selection and to guaranteed by production testing.

Refer to AN-1548, “PHYTER 100 Base-TX Reference Clock Jitter Tolerance,“ for details on jitter performance.

Parameter

Frequency

Frequency

Tolerance

Frequency

Stability

Load Capacitance

Min

Table 9. 25 MHz Crystal Specification

Typ

25

Max

+50

+50

Units

MHz ppm ppm

Condition

Operational Temperature

1 year aging

25 40 pF

5.4 Power Feedback Circuit

To ensure correct operation for the DP83848C, parallel caps with values of 10

µ

F (Tantalum) and 0.1

µ

F should be placed close to pin 23 (PFBOUT) of the device.

Pin 18 (PFBIN1) and pin 37 (PFBIN2) must be connected to pin 23 (PFBOUT), each pin requires a small capacitor

(.1

µ

F). See Figure 13 below for proper connections.

5.5 Power Down/Interrupt

The Power Down and Interrupt functions are multiplexed on pin 7 of the device. By default, this pin functions as a power down input and the interrupt function is disabled.

Setting bit 0 (INT_OE) of MICR (0x11h) will configure the pin as an active low interrupt output.

Pin 23 (PFBOUT)

Pin 18 (PFBIN1)

Pin 37 (PFBIN2)

.1

µ

F

.1

µ

F

10

µ

F

+

-

.1

µ

F

5.5.1 Power Down Control Mode

The PWR_DOWN/INT pin can be asserted low to put the device in a Power Down mode. This is equivalent to setting bit 11 (Power Down) in the Basic Mode Control Register,

BMCR (0x00h). An external control signal can be used to drive the pin low, overcoming the weak internal pull-up resistor. Alternatively, the device can be configured to initialize into a Power Down state by use of an external pulldown resistor on the PWR_DOWN/INT pin. Since the device will still respond to management register accesses, setting the INT_OE bit in the MICR register will disable the

PWR_DOWN/INT input, allowing the device to exit the

Power Down state.

Figure 13. Power Feeback Connection

35 www.national.com

5.5.2 Interrupt Mechanisms

The interrupt function is controlled via register access. All interrupt sources are disabled by default. Setting bit 1

(INTEN) of MICR (0x11h) will enable interrupts to be output, dependent on the interrupt mask set in the lower byte of the MISR (0x12h). The PWR_DOWN/INT pin is asynchronously asserted low when an interrupt condition occurs. The source of the interrupt can be determined by reading the upper byte of the MISR. One or more bits in the

MISR will be set, denoting all currently pending interrupts.

Reading of the MISR clears ALL pending interrupts.

Example: To generate an interrupt on a change of link status or on a change of energy detect power state, the steps would be:

— Write 0003h to MICR to set INTEN and INT_OE

— Write 0060h to MISR to set ED_INT_EN and

LINK_INT_EN

When PWR_DOWN/INT pin asserts low, user would read the MISR register to see if the ED_INT or LINK_INT bits are set, i.e. which source caused the interrupt. After reading the MISR, the interrupt bits should clear and the

PWR_DOWN/INT pin will deassert.

5.6 Energy Detect Mode

When Energy Detect is enabled and there is no activity on the cable, the DP83848C will remain in a low power mode while monitoring the transmission line. Activity on the line will cause the DP83848C to go through a normal power up sequence. Regardless of cable activity, the DP83848C will occasionally wake up the transmitter to put ED pulses on the line, but will otherwise draw as little power as possible.

Energy detect functionality is controlled via register Energy

Detect Control (EDCR), address 0x1Dh.

— Monitor PWR_DOWN/INT pin www.national.com

36

6.0 Reset Operation

The DP83848C includes an internal power-on reset (POR) function and does not need to be explicitly reset for normal operation after power up. If required during normal operation, the device can be reset by a hardware or software reset.

6.1 Hardware Reset

A hardware reset is accomplished by applying a low pulse

(TTL level), with a duration of at least 1

µ s, to the

RESET_N. This will reset the device such that all registers will be reinitialized to default values and the hardware configuration values will be re-latched into the device (similar to the power-up/reset operation).

6.2 Software Reset

A software reset is accomplished by setting the reset bit

(bit 15) of the Basic Mode Control Register (BMCR). The period from the point in time when the reset bit is set to the point in time when software reset has concluded is approximately 1

µ s.

The software reset will reset the device such that all registers will be reset to default values and the hardware configuration values will be maintained. Software driver code must wait 3

µ s following a software reset before allowing further serial MII operations with the DP83848C.

37 www.national.com

7.0 Register Block

18h

19h

1Ah

1Bh

1Ch

1Dh

1Eh-1Fh

14h

15h

16h

17h

10h

11h

12h

13h

03h

04h

05h

05h

Hex

00h

01h

02h

06h

07h

08h-Fh

Offset

Decimal

0

1

4

5

2

3

5

6

7

8-15

24

25

26

27

28

29

30-31

20

21

22

23

16

17

18

19

RW

RW

RW

RW

RW

RW

RW

RO

RO

RW

RW

RO

RW

RO

RW

Access

RW

RW

RW

RW

RW

RO

RO

RO

RW

RW

Table 10. Register Map

Tag Description

BMCR

BMSR

PHYIDR1

PHYIDR2

Basic Mode Control Register

Basic Mode Status Register

PHY Identifier Register #1

PHY Identifier Register #2

ANAR

ANLPAR

Auto-Negotiation Advertisement Register

Auto-Negotiation Link Partner Ability Register (Base Page)

ANLPARNP Auto-Negotiation Link Partner Ability Register (Next Page)

ANER Auto-Negotiation Expansion Register

ANNPTR Auto-Negotiation Next Page TX

RESERVED RESERVED

Extended Registers

PHYSTS PHY Status Register

MICR

MISR

MII Interrupt Control Register

MII Interrupt Status Register

RESERVED RESERVED

FCSCR False Carrier Sense Counter Register

RECR

PCSR

RBR

LEDCR

Receive Error Counter Register

PCS Sub-Layer Configuration and Status Register

RMII and Bypass Register

LED Direct Control Register

PHYCR

10BTSCR

PHY Control Register

10Base-T Status/Control Register

CDCTRL1 CD Test Control Register and BIST Extensions Register

RESERVED RESERVED

EDCR Energy Detect Control Register

RESERVED RESERVED

www.national.com

38

ase- T ase- T www.national.com

39

40 www.national.com

7.1 Register Definition

In the register definitions under the ‘Default’ heading, the following definitions hold true:

RW=Read Write access

SC

=Register sets on event occurrence and Self-Clears when event ends

RW/SC =Read Write access/Self Clearing bit

RO=Read Only access

COR = Clear on Read

RO/COR=Read Only, Clear on Read

RO/P=Read Only, Permanently set to a default value

LL=Latched Low and held until read, based upon the occurrence of the corresponding event

— LH=Latched High and held until read, based upon the occurrence of the corresponding event

41 www.national.com

7.1.1 Basic Mode Control Register (BMCR)

Bit

15

14

13

12

11

10

9

8

Bit Name

Table 12. Basic Mode Control Register (BMCR), address 0x00

Default Description

Reset 0, RW/SC

Reset:

1 = Initiate software Reset / Reset in Process.

0 = Normal operation.

This bit, which is self-clearing, returns a value of one until the reset process is complete. The configuration is re-strapped.

Loopback 0, RW

Speed Selection Strap, RW

Loopback:

1 = Loopback enabled.

0 = Normal operation.

The loopback function enables MII transmit data to be routed to the MII receive data path.

Setting this bit may cause the descrambler to lose synchronization and produce a 500

µ s “dead time” before any valid data will appear at the

MII receive outputs.

Speed Select:

When auto-negotiation is disabled writing to this bit allows the port speed to be selected.

1 = 100 Mb/s.

0 = 10 Mb/s.

Auto-Negotiation

Enable

Power Down

Strap, RW

0, RW

Auto-Negotiation Enable:

Strap controls initial value at reset.

1 = Auto-Negotiation Enabled - bits 8 and 13 of this register are ignored when this bit is set.

0 = Auto-Negotiation Disabled - bits 8 and 13 determine the port speed and duplex mode.

Power Down:

1 = Power down.

0 = Normal operation.

Setting this bit powers down the PHY. Only the register block is enabled during a power down condition. This bit is OR’d with the input from the PWR_DOWN/INT pin. When the active low

PWR_DOWN/INT pin is asserted, this bit will be set.

Isolate

Restart Auto-

Negotiation

Duplex Mode

0, RW

0, RW/SC

Strap, RW

Isolate:

1 = Isolates the Port from the MII with the exception of the serial management.

0 = Normal operation.

Restart Auto-Negotiation:

1 = Restart Auto-Negotiation. Re-initiates the Auto-Negotiation process. If Auto-Negotiation is disabled (bit 12 = 0), this bit is ignored. This bit is self-clearing and will return a value of 1 until Auto-Negotiation is initiated, whereupon it will self-clear. Operation of the Auto-Negotiation process is not affected by the management entity clearing this bit.

0 = Normal operation.

Duplex Mode:

When auto-negotiation is disabled writing to this bit allows the port Duplex capability to be selected.

1 = Full Duplex operation.

0 = Half Duplex operation.

www.national.com

42

Bit

7

6:0

Table 12. Basic Mode Control Register (BMCR), address 0x00 (Continued)

Bit Name Default Description

Collision Test 0, RW

RESERVED 0, RO

Collision Test:

1 = Collision test enabled.

0 = Normal operation.

When set, this bit will cause the COL signal to be asserted in response to the assertion of TX_EN within 512-bit times. The COL signal will be de-asserted within 4-bit times in response to the de-assertion of

TX_EN.

RESERVED: Write ignored, read as 0.

43 www.national.com

7.1.2 Basic Mode Status Register (BMSR)

Bit

15

14

13

12

11

10:7

6

5

4

3

2

1

0

Bit Name

Table 13. Basic Mode Status Register (BMSR), address 0x01

Default Description

100BASE-T4 0, RO/P

100BASE-T4 Capable:

0 = Device not able to perform 100BASE-T4 mode.

100BASE-TX

Full Duplex

100BASE-TX

Half Duplex

1, RO/P

1, RO/P

100BASE-TX Full Duplex Capable:

1 = Device able to perform 100BASE-TX in full duplex mode.

100BASE-TX Half Duplex Capable:

1 = Device able to perform 100BASE-TX in half duplex mode.

10BASE-T

Full Duplex

10BASE-T

Half Duplex

RESERVED

MF Preamble

Suppression

1, RO/P

1, RO/P

0, RO

10BASE-T Full Duplex Capable:

1 = Device able to perform 10BASE-T in full duplex mode.

10BASE-T Half Duplex Capable:

1 = Device able to perform 10BASE-T in half duplex mode.

RESERVED: Write as 0, read as 0.

1, RO/P

Preamble suppression Capable:

1 = Device able to perform management transaction with preamble suppressed, 32-bits of preamble needed only once after reset, invalid opcode or invalid turnaround.

0 = Normal management operation.

Auto-Negotiation Complete

Remote Fault

Auto-Negotiation Ability

Link Status

Jabber Detect

Extended Capability

0, RO

Auto-Negotiation Complete:

1 = Auto-Negotiation process complete.

0 = Auto-Negotiation process not complete.

0, RO/LH

Remote Fault:

1 = Remote Fault condition detected (cleared on read or by reset).

Fault criteria: Far End Fault Indication or notification from Link Partner of Remote Fault.

0 = No remote fault condition detected.

1, RO/P

Auto Negotiation Ability:

1 = Device is able to perform Auto-Negotiation.

0 = Device is not able to perform Auto-Negotiation.

0, RO/LL

Link Status:

1 = Valid link established (for either 10 or 100 Mb/s operation).

0 = Link not established.

The criteria for link validity is implementation specific. The occurrence of a link failure condition will causes the Link Status bit to clear. Once cleared, this bit may only be set by establishing a good link condition and a read via the management interface.

0, RO/LH Jabber Detect: This bit only has meaning in 10 Mb/s mode.

1 = Jabber condition detected.

0 = No Jabber.

This bit is implemented with a latching function, such that the occurrence of a jabber condition causes it to set until it is cleared by a read to this register by the management interface or by a reset.

1, RO/P

Extended Capability:

1 = Extended register capabilities.

0 = Basic register set capabilities only.

www.national.com

44

The PHY Identifier Registers #1 and #2 together form a unique identifier for the DP83848C. The Identifier consists of a concatenation of the Organizationally Unique Identifier (OUI), the vendor's model number and the model revision number. A PHY may return a value of zero in each of the 32 bits of the PHY Identifier if desired. The PHY Identifier is intended to support network management. National's IEEE assigned OUI is 080017h.

7.1.3 PHY Identifier Register #1 (PHYIDR1)

Bit

15:0

Table 14. PHY Identifier Register #1 (PHYIDR1), address 0x02

Bit Name

OUI_MSB

Default Description

<0010 0000 0000

0000>, RO/P

OUI Most Significant Bits: Bits 3 to 18 of the OUI (080017h) are stored in bits 15 to 0 of this register. The most significant two bits of the OUI are ignored (the IEEE standard refers to these as bits 1 and 2).

7.1.4 PHY Identifier Register #2 (PHYIDR2)

Bit

15:10

9:4

3:0

Table 15. PHY Identifier Register #2 (PHYIDR2), address 0x03

Bit Name

OUI_LSB

VNDR_MDL

MDL_REV

Default Description

<0101 11>, RO/P OUI Least Significant Bits:

Bits 19 to 24 of the OUI (080017h) are mapped from bits 15 to 10 of this register respectively.

<00 1001>, RO/P Vendor Model Number:

The six bits of vendor model number are mapped from bits 9 to 4

(most significant bit to bit 9).

<0000>, RO/P

Model Revision Number:

Four bits of the vendor model revision number are mapped from bits 3 to 0 (most significant bit to bit 3). This field will be incremented for all major device changes.

7.1.5 Auto-Negotiation Advertisement Register (ANAR)

This register contains the advertised abilities of this device as they will be transmitted to its link partner during Auto-Negotiation.

Bit

15

14

13

12

Table 16. Negotiation Advertisement Register (ANAR), address 0x04

Bit Name

NP

RESERVED

RF

RESERVED

Default

0, RW

0, RO/P

0, RW

0, RW

Description

Next Page Indication:

0 = Next Page Transfer not desired.

1 = Next Page Transfer desired.

RESERVED by IEEE: Writes ignored, Read as 0.

Remote Fault:

1 = Advertises that this device has detected a Remote Fault.

0 = No Remote Fault detected.

RESERVED for Future IEEE use: Write as 0, Read as 0

45 www.national.com

Bit

11

10

6

5

4:0

9

8

7

Table 16. Negotiation Advertisement Register (ANAR), address 0x04 (Continued)

Bit Name

ASM_DIR

PAUSE

T4

TX_FD

TX

10_FD

10

Selector

Default

0, RW

0, RW

0, RO/P

Description

Asymmetric PAUSE Support for Full Duplex Links:

The ASM_DIR bit indicates that asymmetric PAUSE is supported.

Encoding and resolution of PAUSE bits is defined in IEEE 802.3

Annex 28B, Tables 28B-2 and 28B-3, respectively. Pause resolution status is reported in PHYCR[13:12].

1 = Advertise that the DTE (MAC) has implemented both the optional MAC control sublayer and the pause function as specified in clause 31 and annex 31B of 802.3u.

0= No MAC based full duplex flow control.

PAUSE Support for Full Duplex Links:

The PAUSE bit indicates that the device is capable of providing the symmetric PAUSE functions as defined in Annex 31B.

Encoding and resolution of PAUSE bits is defined in IEEE 802.3

Annex 28B, Tables 28B-2 and 28B-3, respectively. Pause resolution status is reported in PHYCR[13:12].

1 = Advertise that the DTE (MAC) has implemented both the optional MAC control sublayer and the pause function as specified in clause 31 and annex 31B of 802.3u.

0= No MAC based full duplex flow control.

100BASE-T4 Support:

1= 100BASE-T4 is supported by the local device.

0 = 100BASE-T4 not supported.

Strap, RW

Strap, RW

Strap, RW

Strap, RW

100BASE-TX Full Duplex Support:

1 = 100BASE-TX Full Duplex is supported by the local device.

0 = 100BASE-TX Full Duplex not supported.

100BASE-TX Support:

1 = 100BASE-TX is supported by the local device.

0 = 100BASE-TX not supported.

10BASE-T Full Duplex Support:

1 = 10BASE-T Full Duplex is supported by the local device.

0 = 10BASE-T Full Duplex not supported.

10BASE-T Support:

1 = 10BASE-T is supported by the local device.

0 = 10BASE-T not supported.

<00001>, RW

Protocol Selection Bits:

These bits contain the binary encoded protocol selector supported by this port. <00001> indicates that this device supports IEEE

802.3u.

www.national.com

46

7.1.6 Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page)

This register contains the advertised abilities of the Link Partner as received during Auto-Negotiation. The content changes after the successful auto-negotiation if Next-pages are supported.

Bit

15

14

13

12

11

10

9

8

7

6

5

4:0

Table 17. Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page), address 0x05

Bit Name

NP

ACK

RF

RESERVED

ASM_DIR

PAUSE

T4

TX_FD

TX

10_FD

10

Selector

Default

0, RO

0, RO

0, RO

0, RO

Description

Next Page Indication:

0 = Link Partner does not desire Next Page Transfer.

1 = Link Partner desires Next Page Transfer.

Acknowledge:

1 = Link Partner acknowledges reception of the ability data word.

0 = Not acknowledged.

The Auto-Negotiation state machine will automatically control the this bit based on the incoming FLP bursts.

Remote Fault:

1 = Remote Fault indicated by Link Partner.

0 = No Remote Fault indicated by Link Partner.

RESERVED for Future IEEE use:

Write as 0, read as 0.

0, RO

0, RO

0, RO

ASYMMETRIC PAUSE:

1 = Asymmetric pause is supported by the Link Partner.

0 = Asymmetric pause is not supported by the Link Partner.

PAUSE:

1 = Pause function is supported by the Link Partner.

0 = Pause function is not supported by the Link Partner.

100BASE-T4 Support:

1 = 100BASE-T4 is supported by the Link Partner.

0 = 100BASE-T4 not supported by the Link Partner.

0, RO

0, RO

0, RO

0, RO

100BASE-TX Full Duplex Support:

1 = 100BASE-TX Full Duplex is supported by the Link Partner.

0 = 100BASE-TX Full Duplex not supported by the Link Partner.

100BASE-TX Support:

1 = 100BASE-TX is supported by the Link Partner.

0 = 100BASE-TX not supported by the Link Partner.

10BASE-T Full Duplex Support:

1 = 10BASE-T Full Duplex is supported by the Link Partner.

0 = 10BASE-T Full Duplex not supported by the Link Partner.

10BASE-T Support:

1 = 10BASE-T is supported by the Link Partner.

0 = 10BASE-T not supported by the Link Partner.

<0 0000>, RO

Protocol Selection Bits:

Link Partner’s binary encoded protocol selector.

47 www.national.com

7.1.7 Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page)

Bit

15

14

13

12

11

10:0

Table 18. Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page), address 0x05

Bit Name

NP

ACK

MP

ACK2

Toggle

CODE

Default

0, RO

0, RO

0, RO

Description

Next Page Indication:

1 = Link Partner desires Next Page Transfer.

0 = Link Partner does not desire Next Page Transfer.

Acknowledge:

1 = Link Partner acknowledges reception of the ability data word.

0 = Not acknowledged.

The Auto-Negotiation state machine will automatically control the this bit based on the incoming FLP bursts. Software should not attempt to write to this bit.

Message Page:

1 = Message Page.

0 = Unformatted Page.

0, RO

0, RO

Acknowledge 2:

1 = Link Partner does have the ability to comply to next page message.

0 = Link Partner does not have the ability to comply to next page message.

Toggle:

1 = Previous value of the transmitted Link Code word equalled 0.

0 = Previous value of the transmitted Link Code word equalled 1.

<000 0000 0000>,

RO

Code:

This field represents the code field of the next page transmission.

If the MP bit is set (bit 13 of this register), then the code shall be interpreted as a “Message Page,” as defined in annex 28C of

Clause 28. Otherwise, the code shall be interpreted as an “Unformatted Page,” and the interpretation is application specific.

7.1.8 Auto-Negotiate Expansion Register (ANER)

This register contains additional Local Device and Link Partner status information.

Bit

15:5

4

3

2

1

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06

Bit Name

RESERVED

PDF

LP_NP_ABLE

NP_ABLE

PAGE_RX

Default

0, RO

0, RO

0, RO

1, RO/P

0, RO/COR

Description

RESERVED: Writes ignored, Read as 0.

Parallel Detection Fault:

1 = A fault has been detected via the Parallel Detection function.

0 = A fault has not been detected.

Link Partner Next Page Able:

1 = Link Partner does support Next Page.

0 = Link Partner does not support Next Page.

Next Page Able:

1 = Indicates local device is able to send additional “Next Pages”.

Link Code Word Page Received:

1 = Link Code Word has been received, cleared on a read.

0 = Link Code Word has not been received.

www.national.com

48

Bit

0

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06 (Continued)

Bit Name

LP_AN_ABLE

Default

0, RO

Description

Link Partner Auto-Negotiation Able:

1 = indicates that the Link Partner supports Auto-Negotiation.

0 = indicates that the Link Partner does not support Auto-Negotiation.

7.1.9 Auto-Negotiation Next Page Transmit Register (ANNPTR)

This register contains the next page information sent by this device to its Link Partner during Auto-Negotiation.

Bit

15

14

13

12

11

10:0

Table 20. Auto-Negotiation Next Page Transmit Register (ANNPTR), address 0x07

Bit Name

NP

RESERVED

MP

ACK2

TOG_TX

CODE

Default

0, RW

0, RO

1, RW

0, RW

0, RO

Description

Next Page Indication:

0 = No other Next Page Transfer desired.

1 = Another Next Page desired.

RESERVED: Writes ignored, read as 0.

Message Page:

1 = Message Page.

0 = Unformatted Page.

Acknowledge2:

1 = Will comply with message.

0 = Cannot comply with message.

Acknowledge2 is used by the next page function to indicate that Local Device has the ability to comply with the message received.

Toggle:

1 = Value of toggle bit in previously transmitted Link Code Word was 0.

0 = Value of toggle bit in previously transmitted Link Code Word was 1.

Toggle is used by the Arbitration function within Auto-Negotiation to ensure synchronization with the Link Partner during Next Page exchange. This bit shall always take the opposite value of the Toggle bit in the previously exchanged Link Code Word.

<000 0000 0001>,

RW

This field represents the code field of the next page transmission.

If the MP bit is set (bit 13 of this register), then the code shall be interpreted as a "Message Page”, as defined in annex 28C of IEEE

802.3u. Otherwise, the code shall be interpreted as an "Unformatted Page”, and the interpretation is application specific.

The default value of the CODE represents a Null Page as defined in Annex 28C of IEEE 802.3u.

49 www.national.com

7.2 Extended Registers

7.2.1 PHY Status Register (PHYSTS)

This register provides a single location within the register set for quick access to commonly accessed information.

10

9

8

Bit

15

14

13

12

11

7

6

Bit Name

RESERVED

MDI-X mode

Polarity Status

MII Interrupt

Remote Fault

Table 21. PHY Status Register (PHYSTS), address 0x10

Receive Error Latch

False Carrier Sense

Latch

Signal Detect

Descrambler Lock

Page Received

Default

0, RO

0, RO

0, RO/LH

0, RO

0, RO/LH

0, RO/LL

0, RO/LL

0, RO

0, RO

0, RO

Description

RESERVED: Write ignored, read as 0.

MDI-X mode as reported by the Auto-Negotiation logic:

This bit will be affected by the settings of the MDIX_EN and

FORCE_MDIX bits in the PHYCR register. When MDIX is enabled, but not forced, this bit will update dynamically as the

Auto-MDIX algorithm swaps between MDI and MDI-X configurations.

1 = MDI pairs swapped

(Receive on TPTD pair, Transmit on TPRD pair)

0 = MDI pairs normal

(Receive on TRD pair, Transmit on TPTD pair)

Receive Error Latch:

This bit will be cleared upon a read of the RECR register.

1 = Receive error event has occurred since last read of RXERCNT

(address 0x15, Page 0).

0 = No receive error event has occurred.

Polarity Status:

This bit is a duplication of bit 4 in the 10BTSCR register. This bit will be cleared upon a read of the 10BTSCR register, but not upon a read of the PHYSTS register.

1 = Inverted Polarity detected.

0 = Correct Polarity detected.

False Carrier Sense Latch:

This bit will be cleared upon a read of the FCSR register.

1 = False Carrier event has occurred since last read of FCSCR (address 0x14).

0 = No False Carrier event has occurred.

100Base-TX unconditional Signal Detect from PMD.

100Base-TX Descrambler Lock from PMD.

Link Code Word Page Received:

This is a duplicate of the Page Received bit in the ANER register, but this bit will not be cleared upon a read of the PHYSTS register.

1 = A new Link Code Word Page has been received. Cleared on read of the ANER (address 0x06, bit 1).

0 = Link Code Word Page has not been received.

MII Interrupt Pending:

1 = Indicates that an internal interrupt is pending. Interrupt source can be determined by reading the MISR Register (0x12h). Reading the MISR will clear the Interrupt.

0= No interrupt pending.

Remote Fault:

1 = Remote Fault condition detected (cleared on read of BMSR (address 01h) register or by reset). Fault criteria: notification from Link

Partner of Remote Fault via Auto-Negotiation.

0 = No remote fault condition detected.

www.national.com

50

Bit

5

4

3

2

1

0

Table 21. PHY Status Register (PHYSTS), address 0x10 (Continued)

Bit Name

Jabber Detect

Auto-Neg Complete

Loopback Status

Duplex Status

Speed Status

Link Status

Default

0, RO

0, RO

0, RO

0, RO

0, RO

0, RO

Description

Jabber Detect: This bit only has meaning in 10 Mb/s mode

This bit is a duplicate of the Jabber Detect bit in the BMSR register, except that it is not cleared upon a read of the PHYSTS register.

1 = Jabber condition detected.

0 = No Jabber.

Auto-Negotiation Complete:

1 = Auto-Negotiation complete.

0 = Auto-Negotiation not complete.

Loopback:

1 = Loopback enabled.

0 = Normal operation.

Duplex:

This bit indicates duplex status and is determined from Auto-Negotiation or Forced Modes.

1 = Full duplex mode.

0 = Half duplex mode.

Note: This bit is only valid if Auto-Negotiation is enabled and complete and there is a valid link or if Auto-Negotiation is disabled and there is a valid link.

Speed10:

This bit indicates the status of the speed and is determined from

Auto-Negotiation or Forced Modes.

1 = 10 Mb/s mode.

0 = 100 Mb/s mode.

Note: This bit is only valid if Auto-Negotiation is enabled and complete and there is a valid link or if Auto-Negotiation is disabled and there is a valid link.

Link Status:

This bit is a duplicate of the Link Status bit in the BMSR register, except that it will not be cleared upon a read of the PHYSTS register.

1 = Valid link established (for either 10 or 100 Mb/s operation)

0 = Link not established.

51 www.national.com

7.2.2 MII Interrupt Control Register (MICR)

This register implements the MII Interrupt PHY Specific Control register. Sources for interrupt generation include: Energy

Detect State Change, Link State Change,

Speed Status Change, Duplex Status Change, Auto-Negotiation Complete or any of the counters becoming half-full. The individual interrupt events must be enabled by setting bits in the MII Interrupt Status and Event Control Register (MISR)

.

Bit

15:3

2

1

0

Table 22. MII Interrupt Control Register (MICR), address 0x11

Bit Name

Reserved

TINT

INTEN

INT_OE

Default

0, RO

0, RW

0, RW

0, RW

Description

Reserved: Write ignored, Read as 0

Test Interrupt:

Forces the PHY to generate an interrupt to facilitate interrupt testing. Interrupts will continue to be generated as long as this bit remains set.

1 = Generate an interrupt

0 = Do not generate interrupt

Interrupt Enable:

Enable interrupt dependent on the event enables in the MISR register.

1 = Enable event based interrupts

0 = Disable event based interrupts

Interrupt Output Enable:

Enable interrupt events to signal via the PWR_DOWN/INT pin by configuring the PWR_DOWN/INT pin as an output.

1 = PWR_DOWN/INT is an Interrupt Output

0 = PWR_DOWN/INT is a Power Down Input

www.national.com

52

1

0

3

2

5

4

7

6

7.2.3 MII Interrupt Status and Misc. Control Register (MISR)

This register contains event status and enables for the interrupt function. If an event has occurred since the last read of this register, the corresponding status bit will be set. If the corresponding enable bit in the register is set, an interrupt will be generated if the event occurs. The MICR register controls must also be set to allow interrupts. The status indications in this register will be set even if the interrupt is not enabled

15

14

13

12

11

10

9

8

Table 23. MII Interrupt Status and Misc. Control Register (MISR), address 0x12

Reserved 0, RO RESERVED: Writes ignored, Read as 0

ED_INT 0, RO/COR

LINK_INT

SPD_INT

DUP_INT

ANC_INT

FHF_INT

RHF_INT

0, RO/COR

0, RO/COR

0, RO/COR

0, RO/COR

0, RO/COR

0, RO/COR

Energy Detect interrupt:

1 = Energy detect interrupt is pending and is cleared by the current read.

0 = No energy detect interrupt pending.

Change of Link Status interrupt:

1 = Change of link status interrupt is pending and is cleared by the current read.

0 = No change of link status interrupt pending.

Change of speed status interrupt:

1 = Speed status change interrupt is pending and is cleared by the current read.

0 = No speed status change interrupt pending.

Change of duplex status interrupt:

1 = Duplex status change interrupt is pending and is cleared by the current read.

0 = No duplex status change interrupt pending.

Auto-Negotiation Complete interrupt:

1 = Auto-negotiation complete interrupt is pending and is cleared by the current read.

0 = No Auto-negotiation complete interrupt pending.

False Carrier Counter half-full interrupt:

1 = False carrier counter half-full interrupt is pending and is cleared by the current read.

0 = No false carrier counter half-full interrupt pending.

Receive Error Counter half-full interrupt:

1 = Receive error counter half-full interrupt is pending and is cleared by the current read.

0 = No receive error carrier counter half-full interrupt pending.

RESERVED

ED_INT_EN

LINK_INT_EN

SPD_INT_EN

DUP_INT_EN

ANC_INT_EN

FHF_INT_EN

RHF_INT_EN

0, RO

0, RW

0, RW

0, RW

0, RW

0, RW

0, RW

0, RW

RESERVED: Writes ignored, Read as 0

Enable Interrupt on energy detect event

Enable Interrupt on change of link status

Enable Interrupt on change of speed status

Enable Interrupt on change of duplex status

Enable Interrupt on Auto-negotiation complete event

Enable Interrupt on False Carrier Counter Register half-full event

Enable Interrupt on Receive Error Counter Register half-full event

53 www.national.com

7.2.4 False Carrier Sense Counter Register (FCSCR)

This counter provides information required to implement the “False Carriers” attribute within the MAU managed object class of Clause 30 of the IEEE 802.3u specification.

Bit

15:8

7:0

Table 24. False Carrier Sense Counter Register (FCSCR), address 0x14

Bit Name

RESERVED

FCSCNT[7:0]

Default

0, RO

Description

RESERVED: Writes ignored, Read as 0

0, RO / COR

False Carrier Event Counter:

This 8-bit counter increments on every false carrier event. This counter sticks when it reaches its max count (FFh).

7.2.5 Receiver Error Counter Register (RECR)

This counter provides information required to implement the “Symbol Error During Carrier” attribute within the PHY managed object class of Clause 30 of the IEEE 802.3u specification.

Bit

15:8

7:0

Table 25. Receiver Error Counter Register (RECR), address 0x15

Bit Name

RESERVED

RXERCNT[7:0]

Default

0, RO

Description

RESERVED: Writes ignored, Read as 0

0, RO / COR

RX_ER Counter:

When a valid carrier is present and there is at least one occurrence of an invalid data symbol, this 8-bit counter increments for each receive error detected. This event can increment only once per valid carrier event. If a collision is present, the attribute will not increment. The counter sticks when it reaches its max count.

www.national.com

54

7.2.6 100 Mb/s PCS Configuration and Status Register (PCSR)

Bit

15:13

12

11

10

9

8

7

6

5

4

3

2

1

0

Table 26. 100 Mb/s PCS Configuration and Status Register (PCSR), address 0x16

Bit Name

RESERVED

RESERVED

RESERVED

TQ_EN

SD FORCE PMA

SD_OPTION

DESC_TIME

RESERVED

FORCE_100_OK

RESERVED

RESERVED

NRZI_BYPASS

RESERVED

RESERVED

Default

<00>, RO

0,

0

0

0

RW

, RW

1, RW

0, RW

0

0, RW

0

0

0, RW

0

0

Description

RESERVED: Writes ignored, Read as 0.

RESERVED:

Must be zero.

RESERVED:

Must be zero.

100Mbs True Quiet Mode Enable:

1 = Transmit True Quiet Mode.

0 = Normal Transmit Mode.

Signal Detect Force PMA:

1 = Forces Signal Detection in PMA.

0 = Normal SD operation.

Signal Detect Option:

1 = Enhanced signal detect algorithm.

0 = Reduced signal detect algorithm.

Descrambler Timeout:

Increase the descrambler timeout. When set this should allow the device to receive larger packets (>9k bytes) without loss of synchronization.

1 = 2ms

0 = 722us (per ANSI X3.263: 1995 (TP-PMD) 7.2.3.3e)

RESERVED:

Must be zero.

Force 100Mb/s Good Link:

1 = Forces 100Mb/s Good Link.

0 = Normal 100Mb/s operation.

RESERVED:

Must be zero.

RESERVED:

Must be zero.

NRZI Bypass Enable:

1 = NRZI Bypass Enabled.

0 = NRZI Bypass Disabled.

RESERVED:

Must be zero.

RESERVED:

Must be zero.

55 www.national.com

7.2.7 RMII and Bypass Register (RBR)

This register configures the RMII Mode of operation. When RMII mode is disabled, the RMII functionality is bypassed.

Bit

15:6

5

4

3

2

1:0

Table 27. RMII and Bypass Register (RBR), addresses 0x17

Bit Name

RESERVED

RMII_MODE

RMII_REV1_0

RX_OVF_STS

RX_UNF_STS

ELAST_BUF[1:0]

Default

0, RO

Strap, RW

0, RW

0, RO

0, RO

01, RW

Description

RESERVED: Writes ignored, read as 0.

Reduced MII Mode:

0 = Standard MII Mode

1 = Reduced MII Mode

Reduce MII Revision 1.0:

0 = (RMII revision 1.2) CRS_DV will toggle at the end of a packet to indicate deassertion of CRS.

1 = (RMII revision 1.0) CRS_DV will remain asserted until final data is transferred. CRS_DV will not toggle at the end of a packet.

RX FIFO Over Flow Status:

0 = Normal

1 = Overflow detected

RX FIFO Under Flow Status:

0 = Normal

1 = Underflow detected

Receive Elasticity Buffer. This field controls the Receive Elasticity Buffer which allows for frequency variation tolerance between the 50MHz RMII clock and the recovered data. The following values indicate the tolerance in bits for a single packet. The minimum setting allows for standard Ethernet frame sizes at +/-50ppm accuracy for both RMII and Receive clocks. For greater frequency tolerance the packet lengths may be scaled (i.e. for +/-100ppm, the packet lengths need to be divided by 2).

00 = 14 bit tolerance (up to 16800 byte packets)

01 = 2 bit tolerance (up to 2400 byte packets)

10 = 6 bit tolerance (up to 7200 byte packets)

11 = 10 bit tolerance (up to 12000 byte packets)

7.2.8 LED Direct Control Register (LEDCR)

This register provides the ability to directly control any or all LED outputs. It does not provide read access to LEDs.

Bit

15:6

5

4

3

2

1

0

Table 28. LED Direct Control Register (LEDCR), address 0x18

Bit Name

RESERVED

DRV_SPDLED

DRV_LNKLED

DRV_ACTLED

SPDLED

LNKLED

ACTLED

Default

0, RO

0, RW

0, RW

0, RW

0, RW

0, RW

0, RW

Description

RESERVED: Writes ignored, read as 0.

1 = Drive value of SPDLED bit onto LED_SPD output

0 = Normal operation

1 = Drive value of LNKLED bit onto LED_LNK output

0 = Normal operation

1 = Drive value of ACTLED bit onto LED_ACT/COL output

0 = Normal operation

Value to force on LED_SPD output

Value to force on LED_LNK output

Value to force on LED_ACT/COL output

www.national.com

56

7.2.9 PHY Control Register (PHYCR)

Bit

15

14

13

12

11

10

9

8

7

Bit Name

MDIX_EN

FORCE_MDIX

PAUSE_RX

PAUSE_TX

BIST_FE

PSR_15

BIST_STATUS

BIST_START

BP_STRETCH

Table 29. PHY Control Register (PHYCR), address 0x19

Default

Strap, RW

0, RW

0, RO

0, RO

0, RW/SC

0, RW

0, LL/RO

0, RW

0, RW

Description

Auto-MDIX Enable:

1 = Enable Auto-neg Auto-MDIX capability.

0 = Disable Auto-neg Auto-MDIX capability.

The Auto-MDIX algorithm requires that the Auto-Negotiation Enable bit in the BMCR register to be set. If Auto-Negotiation is not enabled, Auto-MDIX should be disabled as well.

Force MDIX:

1 = Force MDI pairs to cross.

(Receive on TPTD pair, Transmit on TPRD pair)

0 = Normal operation.

Pause Receive Negotiated:

Indicates that pause receive should be enabled in the MAC. Based on ANAR[11:10] and ANLPAR[11:10] settings.

This function shall be enabled according to IEEE 802.3 Annex 28B

Table 28B-3, “Pause Resolution”, only if the Auto-Negotiated Highest Common Denominator is a full duplex technology.

Pause Transmit Negotiated:

Indicates that pause transmit should be enabled in the MAC. Based on ANAR[11:10] and ANLPAR[11:10] settings.

This function shall be enabled according to IEEE 802.3 Annex 28B

Table 28B-3, “Pause Resolution”, only if the Auto-Negotiated Highest Common Denominator is a full duplex technology.

BIST Force Error:

1 = Force BIST Error.

0 = Normal operation.

This bit forces a single error, and is self clearing.

BIST Sequence select:

1 = PSR15 selected.

0 = PSR9 selected.

BIST Test Status:

1 = BIST pass.

0 = BIST fail. Latched, cleared when BIST is stopped.

For a count number of BIST errors, see the BIST Error Count in the

CDCTRL1 register.

BIST Start:

1 = BIST start.

0 = BIST stop.

Bypass LED Stretching:

This will bypass the LED stretching and the LEDs will reflect the internal value.

1 = Bypass LED stretching.

0 = Normal operation.

57 www.national.com

Bit

6

5

4:0

Table 29. PHY Control Register (PHYCR), address 0x19 (Continued)

Bit Name

LED_CNFG[1]

LED_CNFG[0]

Default

0, RW

Strap, RW

Description

LEDs Configuration

LED_CNFG[1] LED_ CNFG[0]

Don’t care

0

1

1

0

0

Mode Description

Mode 1

Mode 2

Mode 3

PHYADDR[4:0] Strap, RW

In Mode 1, LEDs are configured as follows:

LED_LINK = ON for Good Link, OFF for No Link

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Activity, OFF for No Activity

In Mode 2, LEDs are configured as follows:

LED_LINK = ON for good Link, BLINK for Activity

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Collision, OFF for No Collision

Full Duplex, OFF for Half Duplex

In Mode 3, LEDs are configured as follows:

LED_LINK = ON for Good Link, BLINK for Activity

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Full Duplex, OFF for Half Duplex

PHY Address: PHY address for port.

7.2.10 10Base-T Status/Control Register (10BTSCR)

Bit

15

14:12

11:9

8

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A

Bit Name

10BT_SERIAL

RESERVED

SQUELCH

LOOPBACK_10_D

IS

Default

Strap, RW

0, RW

100, RW

0, RW

Description

10Base-T Serial Mode (SNI)

1 = Enables 10Base-T Serial Mode

0 = Normal Operation

Places 10 Mb/s transmit and receive functions in Serial Network

Interface (SNI) Mode of operation. Has no effect on 100 Mb/s operation.

RESERVED:

Must be zero.

Squelch Configuration:

Used to set the Squelch ‘ON’ threshold for the receiver.

Default Squelch ON is 330mV peak.

In half-duplex mode, default 10BASE-T operation loops Transmit data to the Receive data in addition to transmitting the data on the physical medium. This is for consistency with earlier 10BASE2 and

10BASE5 implementations which used a shared medium. Setting this bit disables the loopback function.

This bit does not affect loopback due to setting BMCR[14].

www.national.com

58

5

4

3

2

1

Bit

7

6

0

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A

Bit Name

LP_DIS

FORCE_LINK_10

RESERVED

POLARITY

RESERVED

RESERVED

HEARTBEAT_DIS

JABBER_DIS

Default

0, RW

0, RW

0, RW

RO/LH

0, RW

1, RW

0, RW

0, RW

Description

Normal Link Pulse Disable:

1 = Transmission of NLPs is disabled.

0 = Transmission of NLPs is enabled.

Force 10Mb Good Link:

1 = Forced Good 10Mb Link.

0 = Normal Link Status.

RESERVED:

Must be zero.

10Mb Polarity Status:

This bit is a duplication of bit 12 in the PHYSTS register. Both bits will be cleared upon a read of 10BTSCR register, but not upon a read of the PHYSTS register.

1 = Inverted Polarity detected.

0 = Correct Polarity detected.

RESERVED:

Must be zero.

RESERVED:

Must be set to one.

Heartbeat Disable: This bit only has influence in half-duplex 10Mb mode.

1 = Heartbeat function disabled.

0 = Heartbeat function enabled.

When the device is operating at 100Mb or configured for full duplex operation, this bit will be ignored - the heartbeat function is disabled.

Jabber Disable:

Applicable only in 10BASE-T.

1 = Jabber function disabled.

0 = Jabber function enabled.

59 www.national.com

7.2.11 CD Test and BIST Extensions Register (CDCTRL1)

Bit

15:8

7:6

5

4

3

2

1:0

Table 31. CD Test and BIST Extensions Register (CDCTRL1), address 0x1B

Bit Name

BIST_ERROR_CO

UNT

RESERVED

BIST_CONT_MOD

E

CDPATTEN_10

RESERVED

10MEG_PATT_GA

P

CDPATTSEL[1:0]

Default

0, RO

0, RW

0, RW

0, RW

0, RW

0, RW

00, RW

BIST ERROR Counter:

Description

Counts number of errored data nibbles during Packet BIST. This value will reset when Packet BIST is restarted. The counter sticks when it reaches its max count.

RESERVED:

Must be zero.

Packet BIST Continuous Mode:

Allows continuous pseudo random data transmission without any break in transmission. This can be used for transmit VOD testing.

This is used in conjunction with the BIST controls in the PHYCR

Register (0x19h). For 10Mb operation, jabber function must be disabled, bit 0 of the 10BTSCR (0x1Ah), JABBER_DIS = 1.

CD Pattern Enable for 10Mb:

1 = Enabled.

0 = Disabled.

RESERVED:

Must be zero.

Defines gap between data or NLP test sequences:

1 = 15

µ s.

0 = 10

µ s.

CD Pattern Select[1:0]:

If CDPATTEN_10 = 1:

00 = Data, EOP0 sequence

01 = Data, EOP1 sequence

10 = NLPs

11 = Constant Manchester 1s (10MHz sine wave) for harmonic distortion testing.

www.national.com

60

7.2.12 Energy Detect Control (EDCR)

Bit

15

14

13

12

11

10

9

8

7:4

3:0

Bit Name

ED_EN

ED_AUTO_UP

ED_AUTO_DOWN

ED_MAN

ED_BURST_DIS

ED_PWR_STATE

ED_ERR_MET

Table 32. Energy Detect Control (EDCR), address 0x1D

ED_DATA_MET

ED_ERR_COUNT

ED_DATA_COUNT

Default

0, RW

1, RW

1, RW

0, RW/SC

0, RW

0, RO

0, RO/COR

0, RO/COR

0001, RW

0001, RW

Description

Energy Detect Enable:

Allow Energy Detect Mode.

When Energy Detect is enabled and Auto-Negotiation is disabled via the BMCR register, Auto-MDIX should be disabled via the PHY-

CR register.

Energy Detect Automatic Power Up:

Automatically begin power up sequence when Energy Detect Data

Threshold value (EDCR[3:0]) is reached. Alternatively, device could be powered up manually using the ED_MAN bit (ECDR[12]).

Energy Detect Automatic Power Down:

Automatically begin power down sequence when no energy is detected. Alternatively, device could be powered down using the

ED_MAN bit (EDCR[12]).

Energy Detect Manual Power Up/Down:

Begin power up/down sequence when this bit is asserted. When set, the Energy Detect algorithm will initiate a change of Energy Detect state regardless of threshold (error or data) and timer values.

In managed applications, this bit can be set after clearing the Energy Detect interrupt to control the timing of changing the power state.

Energy Detect Bust Disable:

Disable bursting of energy detect data pulses. By default, Energy

Detect (ED) transmits a burst of 4 ED data pulses each time the CD is powered up. When bursting is disabled, only a single ED data pulse will be send each time the CD is powered up.

Energy Detect Power State:

Indicates current Energy Detect Power state. When set, Energy

Detect is in the powered up state. When cleared, Energy Detect is in the powered down state. This bit is invalid when Energy Detect is not enabled.

Energy Detect Error Threshold Met:

No action is automatically taken upon receipt of error events. This bit is informational only and would be cleared on a read.

Energy Detect Data Threshold Met:

The number of data events that occurred met or surpassed the Energy Detect Data Threshold. This bit is cleared on a read.

Energy Detect Error Threshold:

Threshold to determine the number of energy detect error events that should cause the device to take action. Intended to allow averaging of noise that may be on the line. Counter will reset after approximately 2 seconds without any energy detect data events.

Energy Detect Data Threshold:

Threshold to determine the number of energy detect events that should cause the device to take actions. Intended to allow averaging of noise that may be on the line. Counter will reset after approximately 2 seconds without any energy detect data events.

61 www.national.com

8.0 Electrical Specifications

Note: All parameters are guaranteed by test, statistical analysis or design.

Absolute Maximum Ratings

Supply Voltage (V

CC

)

DC Input Voltage (V

IN

)

DC Output Voltage (V

OUT

)

Storage Temperature (T

STG

)

Max case temp for T

A

= 70°C

Max. die temperature (Tj)

Lead Temp. (TL)

(Soldering, 10 sec.)

ESD Rating

(R

ZAP

= 1.5k, C

ZAP

= 100 pF)

-0.5 V to 4.2 V

-0.5V to V

CC

+ 0.5V

-0.5V to V

CC

+ 0.5V

-65 o

C to 150°C

92 °C

150 °C

260 °C

Recommended Operating Conditions

Supply voltage (V

CC

)

Commercial - Ambient Temperature (T

A

)

Power Dissipation (P

D

)

3.3 Volts + .3V

0 to 70 °C

267 mW

Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the device should be operated at these limits.

4.0 kV

Thermal Characteristic

Theta Junction to Case (T jc

)

Theta Junction to Ambient (T ja

) degrees Celsius/Watt - No Airflow @ 1.0W

Note: This is done with a JEDEC (2 layer 2 oz CU.) thermal test board

8.1 DC Specs

I

I

I

Symbol

IH

IL

V

V

V

V

C

C

OL

OH

OZ

V

TPTD_100

TPTDsym

TPTD_10

IN1

OUT1

SD

THon

Pin Types

I

I/O

I

I/O

O,

I/O

O,

I/O

I/O,

O

PMD Output

Pair

PMD Output

Pair

Parameter

Input High Current V

IN

Input Low Current V

IN

Conditions

= V

CC

= GND

Output Low

Voltage

Output High

Voltage

TRI-STATE

Leakage

I

I

OL

OH

V

100M Transmit

Voltage

100M Transmit

Voltage Symmetry

= 4 mA

= -4 mA

OUT

= V

CC

PMD Output

Pair

I

O

PMD Input

Pair

10M Transmit

Voltage

CMOS Input

Capacitance

CMOS Output

Capacitance

100BASE-TX

Signal detect turnon threshold

Min

Vcc - 0.5

0.95

2.2

Typ

1

2.5

5

5

Max

28.7

83.6

1000

Max

10

10

0.4

+ 10

1.05

+ 2

2.8

Units

°C / W

°C / W

V

%

V

µ

A

V pF

Units

µ

A

µ

A

V pF mV diff pk-pk www.national.com

62

V

TH1

I dd100

I dd10

I dd

Symbol

SD

THoff

Pin Types

PMD Input

Pair

PMD Input

Pair

Supply

Supply

Supply

Parameter

100BASE-TX

Signal detect turnoff threshold

10BASE-T Receive Threshold

100BASE-TX

(Full Duplex)

10BASE-T

(Full Duplex)

Power Down

Mode

Conditions Min

200

81

92

14

Typ Max Units

mV diff pk-pk

585 mV mA mA mA

63 www.national.com

8.2 AC Specs

8.2.1 Power Up Timing

Vcc

X1 clock

T2.1.1

Hardware

RESET_N

32 clocks

MDC

T2.1.2

Latch-In of Hardware

Configuration Pins

Dual Function Pins

Become Enabled As Outputs input

T2.1.3

output

Parameter

T2.1.1

T2.1.2

T2.1.3

Description

Post Power Up Stabilization time prior to MDC preamble for register accesses

Hardware Configuration Latchin Time from power up

Notes

MDIO is pulled high for 32-bit serial management initialization

X1 Clock must be stable for a min. of

167ms at power up.

Hardware Configuration Pins are described in the Pin Description section

X1 Clock must be stable for a min. of

167ms at power up.

Hardware Configuration pins transition to output drivers

Min Typ Max Units

167 ms

167

50 ms ns www.national.com

64

8.2.2 Reset Timing

Vcc

X1 clock

Hardware

RESET_N

MDC

Latch-In of Hardware

Configuration Pins

Dual Function Pins

Become Enabled As Outputs

T2.2.4

T2.2.1

T2.2.2

T2.2.3

input output

32 clocks

Parameter

T2.2.1

T2.2.2

T2.2.3

T2.2.4

Description Notes

Post RESET Stabilization time prior to MDC preamble for register accesses

MDIO is pulled high for 32-bit serial management initialization

Hardware Configuration Latchin Time from the Deassertion of RESET (either soft or hard)

Hardware Configuration Pins are described in the Pin Description section

Hardware Configuration pins transition to output drivers

RESET pulse width X1 Clock must be stable for at min. of 1us during RESET pulse low time.

Min Typ Max Units

3

µ s

1

3

50

µ ns

µ s s

Note: It is important to choose pull-up and/or pull-down resistors for each of the hardware configuration pins that provide fast RC time constants in order to latch-in the proper value prior to the pin transitioning to an output driver.

65 www.national.com

8.2.3 MII Serial Management Timing

MDC

T2.3.1

T2.3.4

MDIO (output)

MDC

MDIO (input)

T2.3.2

T2.3.3

Valid Data

Parameter

T2.3.1

T2.3.2

T2.3.3

T2.3.4

Description

MDC to MDIO (Output) Delay Time

MDIO (Input) to MDC Setup Time

MDIO (Input) to MDC Hold Time

MDC Frequency

8.2.4 100 Mb/s MII Transmit Timing

T2.4.1

TX_CLK

TXD[3:0]

TX_EN

Notes

T2.4.2

T2.4.3

Valid Data

Min

0

10

10

Typ

2.5

T2.4.1

Max

30

25

Units

ns ns ns

MHz

Parameter

T2.4.1

T2.4.2

Description Notes

TX_CLK High/Low Time 100 Mb/s Normal mode

TXD[3:0], TX_EN Data Setup to TX_CLK 100 Mb/s Normal mode

T2.4.3

TXD[3:0], TX_EN Data Hold from TX_CLK 100 Mb/s Normal mode

Min Typ Max Units

16

10

20 24 ns ns

0 ns www.national.com

66

8.2.5 100 Mb/s MII Receive Timing

T2.5.1

RX_CLK

RXD[3:0]

RX_DV

RX_ER

T2.5.2

Valid Data

T2.5.1

Parameter

T2.5.1

T2.5.2

Description

RX_CLK High/Low Time

Notes

100 Mb/s Normal mode

RX_CLK to RXD[3:0], RX_DV, RX_ER Delay 100 Mb/s Normal mode

Min Typ Max Units

16

10

20 24

30 ns ns

Note: RX_CLK may be held low or high for a longer period of time during transition between reference and recovered clocks. Minimum high and low times will not be violated.

8.2.6 100BASE-TX Transmit Packet Latency Timing

TX_CLK

TX_EN

TXD

T2.6.1

PMD Output Pair

IDLE (J/K) DATA

Parameter

T2.6.1

Description

TX_CLK to PMD Output Pair

Latency

Notes

100 Mb/s Normal mode

Min Typ

6

Max Units

bits

Note: For Normal mode, latency is determined by measuring the time from the first rising edge of TX_CLK occurring after the assertion of TX_EN to the first bit of the “J” code group as output from the PMD Output Pair. 1 bit time = 10 ns in 100

Mb/s mode.

67 www.national.com

8.2.7 100BASE-TX Transmit Packet Deassertion Timing

TX_CLK

TX_EN

TXD

T2.7.1

PMD Output Pair

DATA

DATA

(T/R)

(T/R)

IDLE

IDLE

Parameter

T2.7.1

Description

TX_CLK to PMD Output Pair

Deassertion

Notes

100 Mb/s Normal mode

Min Typ

6

Max Units

bits

Note: Deassertion is determined by measuring the time from the first rising edge of TX_CLK occurring after the deassertion of TX_EN to the first bit of the “T” code group as output from the PMD Output Pair. 1 bit time = 10 ns in 100 Mb/s mode.

www.national.com

68

8.2.8 100BASE-TX Transmit Timing (t

R/F

& Jitter)

PMD Output Pair

+1 rise

T2.8.1

90%

10%

10%

+1 fall

T2.8.1

90%

-1 fall

T2.8.1

T2.8.2

PMD Output Pair eye pattern

T2.8.2

T2.8.1

-1 rise

Parameter

T2.8.1

T2.8.2

Description

100 Mb/s PMD Output Pair t

R and t

F

100 Mb/s t

R

and t

F

Mismatch

100 Mb/s PMD Output Pair

Transmit Jitter

Notes Min

3

Typ

4

Note: Normal Mismatch is the difference between the maximum and minimum of all rise and fall times

Note: Rise and fall times taken at 10% and 90% of the +1 or -1 amplitude

Max

5

500

1.4

Units

ns ps ns

69 www.national.com

8.2.9 100BASE-TX Receive Packet Latency Timing

PMD Input Pair IDLE (J/K) Data

CRS

T2.9.1

T2.9.2

RXD[3:0]

RX_DV

RX_ER

Parameter

T2.9.1

T2.9.2

Description

Carrier Sense ON Delay

Receive Data Latency

Notes

100 Mb/s Normal mode

100 Mb/s Normal mode

Min Typ

20

24

Max Units

bits bits

Note: Carrier Sense On Delay is determined by measuring the time from the first bit of the “J” code group to the assertion of Carrier Sense.

Note: 1 bit time = 10 ns in 100 Mb/s mode

Note: PMD Input Pair voltage amplitude is greater than the Signal Detect Turn-On Threshold Value.

8.2.10 100BASE-TX Receive Packet Deassertion Timing

PMD Input Pair DATA (T/R)

T2.10.1

IDLE

CRS

Parameter

T2.10.1

Description

Carrier Sense OFF Delay

Notes

100 Mb/s Normal mode

Min Typ

24

Max Units

bits

Note: Carrier Sense Off Delay is determined by measuring the time from the first bit of the “T” code group to the deassertion of Carrier Sense.

Note: 1 bit time = 10 ns in 100 Mb/s mode www.national.com

70

8.2.11 10 Mb/s MII Transmit Timing

T2.11.1

TX_CLK

T2.11.2

TXD[3:0]

TX_EN

Valid Data

T2.11.1

T2.11.3

Parameter

T2.11.1

T2.11.2

T2.11.3

Description

TX_CLK High/Low Time

TXD[3:0], TX_EN Data Setup to TX_CLK fall

TXD[3:0], TX_EN Data Hold from TX_CLK rise

Notes

10 Mb/s MII mode

10 Mb/s MII mode

10 Mb/s MII mode

Min Typ Max Units

190 200 210 ns

25

0 ns ns

Note: An attached Mac should drive the transmit signals using the positive edge of TX_CLK. As shown above, the MII signals are sampled on the falling edge of TX_CLK.

8.2.12 10 Mb/s MII Receive Timing

T2.12.1

T2.12.1

RX_CLK

RXD[3:0]

RX_DV

T2.12.2

T2.12.3

Valid Data

Parameter

T2.12.1

T2.12.2

T2.12.3

Description

RX_CLK High/Low Time

RX_CLK to RXD[3:0], RX_DV Delay

RX_CLK rising edge delay from RXD[3:0],

RX_DV Valid

Notes

10 Mb/s MII mode

10 Mb/s MII mode

Min

100

100

Typ Max

160 200 240

Units

ns ns ns

Note: RX_CLK may be held low for a longer period of time during transition between reference and recovered clocks.

Minimum high and low times will not be violated.

71 www.national.com

8.2.13 10 Mb/s Serial Mode Transmit Timing

T2.13.1

TX_CLK

T2.13.3

TXD[0]

TX_EN

Valid Data

T2.13.4

T2.13.2

Parameter

T2.13.1

T2.13.2

T2.13.3

T2.13.4

Description

TX_CLK High Time

TX_CLK Low Time

TXD_0, TX_EN Data Setup to TX_CLK rise

TXD_0, TX_EN Data Hold from TX_CLK rise

Notes

10 Mb/s Serial mode

10 Mb/s Serial mode

10 Mb/s Serial mode

10 Mb/s Serial mode

8.2.14 10 Mb/s Serial Mode Receive Timing

Min Typ Max Units

20 25 30 ns

70

25

75 80 ns ns

0 ns

T2.14.1

T2.14.1

RX_CLK

T2.14.2

RXD[0]

RX_DV

Valid Data

Parameter

T2.14.1

T2.14.2

Description

RX_CLK High/Low Time

RX_CLK fall to RXD_0, RX_DV Delay

Notes Min Typ Max Units

35

-10

50 65

10 ns ns 10 Mb/s Serial mode

Note: RX_CLK may be held high for a longer period of time during transition between reference and recovered clocks.

Minimum high and low times will not be violated. www.national.com

72

8.2.15 10BASE-T Transmit Timing (Start of Packet)

TX_CLK

TX_EN

TXD

PMD Output Pair

T2.15.1

Parameter

T2.15.1

T2.15.2

Description

Transmit Output Delay from the

Falling Edge of TX_CLK

Transmit Output Delay from the

Rising Edge of TX_CLK

Note: 1 bit time = 100 ns in 10Mb/s.

8.2.16 10BASE-T Transmit Timing (End of Packet)

Notes

10 Mb/s MII mode

10 Mb/s Serial mode

TX_CLK

TX_EN

PMD Output Pair

0 0

T2.15.2

Min Typ Max

3.5

Units

bits

3.5

bits

T2.16.1

T2.16.2

PMD Output Pair

1 1

Parameter

T2.16.1

T2.16.2

Description

End of Packet High Time

(with ‘0’ ending bit)

End of Packet High Time

(with ‘1’ ending bit)

Notes Min Typ Max Units

250 300 ns

250 300 ns

73 www.national.com

8.2.17 10BASE-T Receive Timing (Start of Packet)

1st SFD bit decoded

1 0 1 0 1 0 1 0 1 0 1 1

TPRD

±

T2.17.1

CRS

RX_CLK

T2.17.2

RX_DV

T2.17.3

RXD[3:0]

0000

Preamble SFD Data

Parameter

T2.17.1

T2.17.2

T2.17.3

Description

Carrier Sense Turn On Delay (PMD

Input Pair to CRS)

RX_DV Latency

Receive Data Latency

Notes

Measurement shown from SFD

Min Typ

630

10

8

Max

1000

Note: 10BASE-T RX_DV Latency is measured from first bit of preamble on the wire to the assertion of RX_DV

Note: 1 bit time = 100 ns in 10 Mb/s mode.

Units

ns bits bits

8.2.18 10BASE-T Receive Timing (End of Packet)

1 0

1

IDLE

PMD Input Pair

RX_CLK

CRS

T2.18.1

Parameter

T2.18.1

Description

Carrier Sense Turn Off Delay

Notes Min Typ Max Units

1.0

µ s www.national.com

74

8.2.19 10 Mb/s Heartbeat Timing

TX_EN

TX_CLK

COL

T2.19.1

T2.19.2

Parameter

T2.19.1

T2.19.2

Description

CD Heartbeat Delay

CD Heartbeat Duration

8.2.20 10 Mb/s Jabber Timing

Notes

All 10 Mb/s modes

All 10 Mb/s modes

Min Typ Max Units

1200

1000 ns ns

TXE

PMD Output Pair

COL

T2.20.1

T2.20.2

Parameter

T2.20.1

T2.20.2

Description

Jabber Activation Time

Jabber Deactivation Time

Notes Min Typ Max Units

85 ms

500 ms

75 www.national.com

8.2.21 10BASE-T Normal Link Pulse Timing

T2.21.1

T2.21.2

Normal Link Pulse(s)

Parameter

T2.21.1

T2.21.2

Description

Pulse Width

Pulse Period

Note: These specifications represent transmit timings.

8.2.22 Auto-Negotiation Fast Link Pulse (FLP) Timing

T2.22.2

T2.22.3

T2.22.1

Fast Link Pulse(s) clock pulse

Notes

data pulse

T2.22.5

clock pulse

T2.22.4

T2.22.1

Min Typ Max Units

100 ns

16 ms

FLP Burst FLP Burst

Parameter

T2.22.1

T2.22.2

T2.22.3

T2.22.4

T2.22.5

Description

Clock, Data Pulse Width

Clock Pulse to Clock Pulse

Period

Clock Pulse to Data Pulse

Period

Burst Width

FLP Burst to FLP Burst Period

Data = 1

Note: These specifications represent transmit timings.

Notes Min Typ Max Units

100

125 ns

µ s

62

µ s

2

16 ms ms www.national.com

76

8.2.23 100BASE-TX Signal Detect Timing

PMD Input Pair

T2.23.1

SD+ internal

Parameter

T2.23.1

T2.23.2

Description

SD Internal Turn-on Time

SD Internal Turn-off Time

Notes

Note: The signal amplitude on PMD Input Pair must be TP-PMD compliant.

8.2.24 100 Mb/s Internal Loopback Timing

TX_CLK

T2.23.2

Min Typ Max Units

1

350 ms

µ s

TX_EN

TXD[3:0]

CRS

RX_CLK

RX_DV

T2.24.1

RXD[3:0]

Parameter

T2.24.1

Description

TX_EN to RX_DV Loopback

Notes

100 Mb/s internal loopback mode

Min Typ Max Units

240 ns

Note1: Due to the nature of the descrambler function, all 100BASE-TX Loopback modes will cause an initial “dead-time” of up to 550

µ s during which time no data will be present at the receive MII outputs. The 100BASE-TX timing specified is based on device delays after the initial 550

µ s “dead-time”.

Note2: Measurement is made from the first rising edge of TX_CLK after assertion of TX_EN.

77 www.national.com

8.2.25 10 Mb/s Internal Loopback Timing

TX_CLK

TX_EN

TXD[3:0]

CRS

RX_CLK

RX_DV

T2.25.1

RXD[3:0]

Parameter

T2.25.1

Description

TX_EN to RX_DV Loopback

Notes

10 Mb/s internal loopback mode

Note: Measurement is made from the first rising edge of TX_CLK after assertion of TX_EN.

Min Typ Max Units

2

µ s www.national.com

78

8.2.26 RMII Transmit Timing

T2.26.1

X1

TXD[1:0]

TX_EN

PMD Output Pair

T2.26.2

Valid Data

T2.26.3

T2.26.4

Symbol

Parameter

T2.26.1

T2.26.2

Description

X1 Clock Period

TXD[1:0], TX_EN, Data Setup to X1 rising

Notes

50 MHz Reference Clock

T2.26.3

T2.26.4

TXD[1:0], TX_EN, Data Hold from X1 rising

X1 Clock to PMD Output Pair

Latency

From X1 Rising edge to first bit of symbol

Min Typ Max Units

4

20 ns ns

2

17 ns bits

79 www.national.com

8.2.27 RMII Receive Timing

PMD Input Pair

IDLE (J/K) Data

T2.27.5

(TR)

T2.27.4

Data

X1

RX_DV

CRS_DV

RXD[1:0]

RX_ER

T2.27.3

T2.27.2

T2.27.2

T2.27.1

T2.27.2

T2.27.2

Parameter

T2.27.1

T2.27.2

T2.27.3

T2.27.4

T2.27.5

Description

X1 Clock Period

Notes

50 MHz Reference Clock

RXD[1:0], CRS_DV, RX_DV, and RX_ER output delay from

X1 rising

CRS ON delay From JK symbol on PMD Receive Pair to initial assertion of CRS_DV

CRS OFF delay From TR symbol on PMD Receive Pair to initial deassertion of CRS_DV

RXD[1:0] and RX_ER latency From symbol on Receive Pair. Elasticity buffer set to default value (01)

Min Typ Max Units

20 ns

2 14 ns

18.5

27

38 bits bits bits

Note: Per the RMII Specification, output delays assume a 25pF load.

Note: CRS_DV is asserted asynchronously in order to minimize latency of control signals through the why. CRS_DV may toggle synchronously at the end of the packet to indicate CRS deassertion.

Note: RX_DV is synchronous to X1. While not part of the RMII specification, this signal is provided to simplify recovery of receive data.

www.national.com

80

8.2.28 Isolation Timing

Clear bit 10 of BMCR

(return to normal operation from Isolate mode)

H/W or S/W Reset

(with PHYAD = 00000)

MODE

Parameter

T2.28.1

T2.28.2

Description

From software clear of bit 10 in the BMCR register to the transition from Isolate to Normal Mode

From Deassertion of S/W or H/W

Reset to transition from Isolate to

Normal mode

8.2.29 25 MHz_OUT Timing

T2.28.1

T2.28.2

ISOLATE

NORMAL

Notes Min Typ Max Units

100

µ s

500

µ s

X1

T2.29.1

T2.29.2

T2.29.1

25 MHz_OUT

Parameter

T2.29.1

T2.29.2

Description

25 MHz_OUT High/Low Time

25 MHz_OUT propagation delay

MII mode

RMII mode

Notes

Relative to X1

Note: 25 MHz_OUT characteristics are dependent upon the X1 input characteristics.

Min Typ Max Units

20

10 ns ns

8 ns

81 www.national.com

8.2.30 100 Mb/s X1 to TX_CLK Timing

X1

TX_CLK

T2.30.1

Parameter

T2.30.1

Description

X1 to TX_CLK delay

Notes

100 Mb/s Normal mode

Min

0

Typ Max

5

Units

ns

Note: X1 to TX_CLK timing is provided to support devices that use X1 instead of TX_CLK as the reference for transmit

Mll data.

www.national.com

82

Notes:

83 www.national.com

9.0 Physical Dimensions

inches (millimeters) unless otherwise noted

Lead Quad Frame Package (LQFP)

NS Package Number VBH48A

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED IN CONNECTION WITH NATIONAL SEMICONDUCTOR CORPORATION

(“NATIONAL”) PROCUCTS. NATIONAL MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE ACCURACY

OR COMPLETENESS OF THE CONTENTS OF THIS PUBLICATION AND RESERVES THE RIGHT TO MAKE CHANGES TO SPEC-

IFICATIONS AND PRODUCT DESCRIPTIONS AT ANY TIME WITHOUT NOTICE. NO LICENSE, WHETHER EXPRESS, IMPLIED,

ARISING BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT.

TESTING AND OTHER QUALITY CONTROLS ARE USED TO THE EXTENT NATIONAL DEEMS NECESSARY TO SUPPORT

NATIONAL’S PRODUCT WARRANT. EXCEPT WHERE MANDATED BY GOVERNMENT REQUIREMENTS, TESTING OF ALL

PARAMETER OF EACH PRODUCT IS NOT NECESSARILY PERFORMED. NATIONAL ASSUMES NO LIABILITY FOR APPLIC-

TIONS ASSISTANCE OR BUYER PRODUCT DESIGN. BUYERS ARE RESPONSIBLE FOR THEIR PROCUCTS AND APPLICA-

TIONS USING NATIONAL COMPONENTS. PRIOR TO USING OR DISTRIBUTING ANY PROCUCTS THAT INCLUDE NATIONAL

COMPONENTS, BUYERS SHOULD PROVIDE ADEQUATE DESIGN, TESTING AND OPERATING SAFEGUARDS.

EXCEPT AS PROVIDED IN NATIONAL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, NATIONAL ASSUMES NO

LIABILITY WHATSOEVER, AND NATIONAL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THE SALE

AND/OR USE OF NATIONAL PRODUCTS INCLUDEDING LIBILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICU-

LAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROP-

ERTY RIGHT.

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT

DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE CHIEF EXECUTIVE OFFICER

AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION.

As used herein:

Life support devices or systems are devices which (a) are intended for surgical implant into the body, or (b) support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in a significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

National Semiconductor and the National Semiconductor logo are registered trademarks of National Semiconductor Corporation. All other brand or product names may be trademarks or registered trademarks of their respective holders.

Copyright

©

2008 National Semiconductor Corporation

For the most current product information visit us at www.national.com

National Semiconductor

Americas Technical

Support Center

Email: [email protected]

Tel: 1-800-272-9959 www.national.com

National Semiconductor Europe

Technical Support Center

Email: [email protected]

German Tel: +49 (0) 180 5010 771

English Tel: +44 (0) 870 850 4288

National Semiconductor Asia

Pacific Technical

Support Center

Email: [email protected]

National Semiconductor Japan

Technical Support Center

Email: [email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
