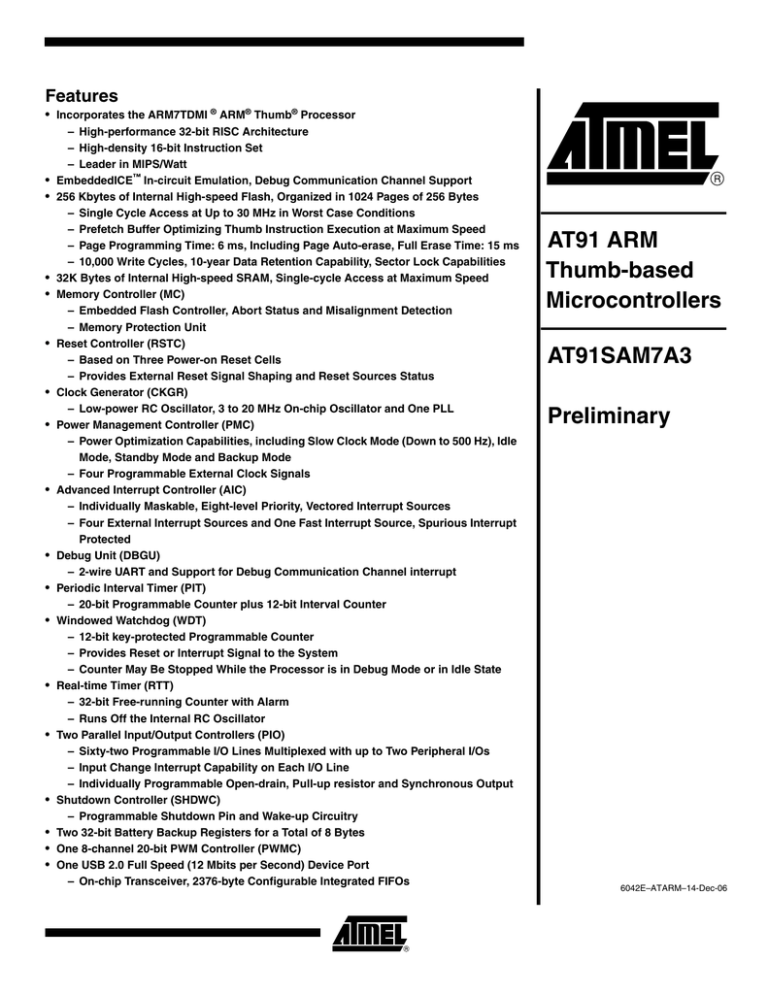

Features

Incorporates the ARM7TDMI

®

ARM

®

Thumb

®

Processor

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

EmbeddedICE

In-circuit Emulation, Debug Communication Channel Support

256 Kbytes of Internal High-speed Flash, Organized in 1024 Pages of 256 Bytes

– Single Cycle Access at Up to 30 MHz in Worst Case Conditions

– Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed

– Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms

– 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities

32K Bytes of Internal High-speed SRAM, Single-cycle Access at Maximum Speed

Memory Controller (MC)

– Embedded Flash Controller, Abort Status and Misalignment Detection

– Memory Protection Unit

Reset Controller (RSTC)

– Based on Three Power-on Reset Cells

– Provides External Reset Signal Shaping and Reset Sources Status

Clock Generator (CKGR)

– Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL

Power Management Controller (PMC)

– Power Optimization Capabilities, including Slow Clock Mode (Down to 500 Hz), Idle

Mode, Standby Mode and Backup Mode

– Four Programmable External Clock Signals

Advanced Interrupt Controller (AIC)

– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources

– Four External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt

Protected

Debug Unit (DBGU)

– 2-wire UART and Support for Debug Communication Channel interrupt

Periodic Interval Timer (PIT)

– 20-bit Programmable Counter plus 12-bit Interval Counter

Windowed Watchdog (WDT)

– 12-bit key-protected Programmable Counter

– Provides Reset or Interrupt Signal to the System

– Counter May Be Stopped While the Processor is in Debug Mode or in Idle State

Real-time Timer (RTT)

– 32-bit Free-running Counter with Alarm

– Runs Off the Internal RC Oscillator

Two Parallel Input/Output Controllers (PIO)

– Sixty-two Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os

– Input Change Interrupt Capability on Each I/O Line

– Individually Programmable Open-drain, Pull-up resistor and Synchronous Output

Shutdown Controller (SHDWC)

– Programmable Shutdown Pin and Wake-up Circuitry

Two 32-bit Battery Backup Registers for a Total of 8 Bytes

One 8-channel 20-bit PWM Controller (PWMC)

One USB 2.0 Full Speed (12 Mbits per Second) Device Port

– On-chip Transceiver, 2376-byte Configurable Integrated FIFOs

AT91 ARM

Thumb-based

Microcontrollers

AT91SAM7A3

Preliminary

6042E–ATARM–14-Dec-06

Nineteen Peripheral DMA Controller (PDC) Channels

Two CAN 2.0B Active Controllers, Supporting 11-bit Standard and 29-bit Extended Identifiers

– 16 Fully Programmable Message Object Mailboxes, 16-bit Time Stamp Counter

Two 8-channel 10-bit Analog-to-Digital Converter

Three Universal Synchronous/Asynchronous Receiver Transmitters (USART)

– Individual Baud Rate Generator, IrDA

®

Infrared Modulation/Demodulation

– Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support

Two Master/Slave Serial Peripheral Interfaces (SPI)

– 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects

Three 3-channel 16-bit Timer/Counters (TC)

– Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel

– Double PWM Generation, Capture/Waveform Mode, Up/Down Capability

Two Synchronous Serial Controllers (SSC)

– Independent Clock and Frame Sync Signals for Each Receiver and Transmitter

– I²S Analog Interface Support, Time Division Multiplex Support

– High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer

One Two-wire Interface (TWI)

– Master Mode Support Only, All Two-wire Atmel EEPROM’s Supported

Multimedia Card Interface (MCI)

– Compliant with Multimedia Cards and SD Cards

– Automatic Protocol Control and Fast Automatic Data Transfers with PDC, MMC and SDCard Compliant

IEEE

®

1149.1 JTAG Boundary Scan on All Digital Pins

Required Power Supplies

– Embedded 1.8V Regulator, Drawing up to 130 mA for the Core and the External Components, Enables 3.3V Single Supply

Mode

– 3.3V VDD3V3 Regulator, I/O Lines and Flash Power Supply

– 1.8V VDD1V8 Output of the Voltage Regulator and Core Power Supply

– 3V to 3.6V VDDANA ADC Power Supply

– 3V to 3.6V VDDBU Backup Power Supply

5V-tolerant I/Os

Fully Static Operation: Up to 60 MHz at 1.65V and 85°C Worst Case Conditions

Available in a 100-lead LQFP Green Package

2

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

1.

Description

The AT91SAM7A3 is a member of a series of 32-bit ARM7

microcontrollers with an integrated CAN controller. It features a 256-Kbyte high-speed Flash and 32-Kbyte SRAM, a large set of peripherals, including two 2.0B full CAN controllers, and a complete set of system functions minimizing the number of external components. The device is an ideal migration path for

8-bit microcontroller users looking for additional performance and extended memory.

The embedded Flash memory can be programmed in-system via the JTAG-ICE interface.

Built-in lock bits protect the firmware from accidental overwrite.

The AT91SAM7A3 integrates a complete set of features facilitating debug, including a JTAG

Embedded ICE interface, misalignment detector, interrupt driven debug communication channel for user configurable trace on a console, and JTAG boundary scan for board level debug and test.

By combining a high-performance 32-bit RISC processor with a high-density 16-bit instruction set, Flash and SRAM memory, a wide range of peripherals including CAN controllers, 10-bit

ADC, Timers and serial communication channels, on a monolithic chip, the AT91SAM7A3 is ideal for many compute-intensive embedded control applications.

3

6042E–ATARM–14-Dec-06

2.

Block Diagram

Figure 2-1.

AT91SAM7A3 Block Diagram

TDI

TDO

TMS

TCK

JTAGSEL

TST

FIQ

IRQ0-IRQ3

DRXD

DTXD

PCK0-PCK3

PLLRC

XIN

XOUT

GND

VDDBU

FWKUP

WKUP0

WKUP1

SHDW

VDDBU

VDD3V3

NRST

JTAG

SCAN

System Controller

AIC

DBGU

PDC

PDC

PLL

OSC

PMC

RCOSC

GPBR

RTT

Shutdown

Controller

POR

POR

VDD1V8 POR

Reset

Controller

PIOA

PIT

WDT

PIOB

MCCK

MCCDA

MCDA0-MCDA3

ADC0_AD0

ADC0_AD1

ADC0_AD2

ADC0_AD3

ADC0_AD4

ADC0_AD5

ADC0_AD6

ADC0_AD7

ADC0_ADTRG

ADVREFP

VDDANA

GND

ADC1_AD0

ADC1_AD1

ADC1_AD2

ADC1_AD3

ADC1_AD4

ADC1_AD5

ADC1_AD6

ADC1_AD7

ADC1_ADTRG

RTS2

CTS2

SPI0_NPCS0

SPI0_NPCS1

SPI0_NPCS2

SPI0_NPCS3

SPI0_MISO

SPI0_MOSI

SPI0_SPCK

SPI1_NPCS0

SPI1_NPCS1

SPI1_NPCS2

SPI1_NPCS3

SPI1_MISO

SPI1_MOSI

SPI1_SPCK

RXD0

TXD0

SCK0

RTS0

CTS0

RXD1

TXD1

SCK1

RTS1

CTS1

RXD2

TXD2

SCK2

ADC1

USART0

USART1

PDC

PDC

PDC

PDC

USART2

PDC

PDC

SPI0

PDC

PDC

SPI1

MCI

PDC

PDC

PDC

ADC0

PDC

ICE

ARM7TDMI

Processor

1.8 V

Voltage

Regulator

FLASH

256K Bytes

SRAM

32K Bytes

Peripheral Bridge

Peripheral Data

Controller

19 channels

APB

Memory

Controller

Embedded

Flash

Controller

Memory

Protection

Unit

Address

Decoder

Abort

Status

Misalignment

Detection

FIFO

USB Device

TWI

CAN0

CAN1

PWMC

PDC

SSC0

PDC

PDC

SSC1

PDC

Timer Counter

TC0

TC1

TC2

Timer Counter

TC3

TC4

TC5

Timer Counter

TC6

TC7

TC8

4

AT91SAM7A3 Preliminary

VDD3V3

GND

VDD1V8

DDM

DDP

TIOA5

TIOB5

TCLK6

TCLK7

TCLK8

TIOA6

TIOB6

TIOA7

TIOB7

TIOA8

TIOB8

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

TIOA2

TIOB2

TCLK3

TCLK4

TCLK5

TIOA3

TIOB3

TIOA4

TIOB4

TWD

TWCK

CANRX0

CANTX0

CANRX1

CANTX1

PWM0

PWM1

PWM2

PWM3

PWM4

PWM5

PWM6

PWM7

TF0

TK0

TD0

RD0

RK0

RF0

TF1

TK1

TD1

RD1

RK1

RF1

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

3.

Signal Description

Table 3-1.

Signal Name

VDD3V3

VDDBU

VDDANA

VDD1V8

VDDPLL

GND

XIN

XOUT

PLLRC

PCK0 - PCK3

SHDW

WKUP0 - WKUP1

FWKUP

Signal Description

Function

Power

1.8V Voltage Regulator, I/O Lines and

Flash Power Supply

Backup I/O Lines Power Supply

Analog Power Supply

1.8V Voltage Regulator Output and Core

Power Supply

Type

Power

Power

Power

Power

1.8V PLL Power Supply

Ground

Power

Ground

Clocks, Oscillators and PLLs

Main Oscillator Input Input

Main Oscillator Output

PLL Filter

Programmable Clock Output

Shut-Down Control

Wake-Up Inputs

Output

Input

Output

Output

Input

Force Wake Up Input

Active

Level Comments

3.0V to 3.6V

3V to 3.6V

3V to 3.6V

1.85V typical

1.65V to 1.95V

Open Drain.

Accept between 0V and VDDBU

Accept between 0V and VDDBU

External pull-up resistor needed.

ICE and JTAG

TCK

TDI

TDO

TMS

JTAGSEL

Test Clock

Test Data In

Test Data Out

Test Mode Select

JTAG Selection

Input

Input

Output

Input

Input

No pull-up resistor

No pull-up resistor

No pull-up resistor

Pull-down resistor

Reset/Test

NRST

TST

Microcontroller Reset

Test Mode Select

I/O

Input

Low

High Pull-down resistor

Debug Unit

DRXD

DTXD

Debug Receive Data

Debug Transmit Data

Input

Output

5

6042E–ATARM–14-Dec-06

Table 3-1.

Signal Name

IRQ0 - IRQ3

FIQ

PA0 - PA31

PB0 - PB29

DDM

DDP

TD0 - TD1

RD0 - RD1

TK0 - TK1

RK0 - RK1

TF0 - TF1

RF0 - RF1

Signal Description (Continued)

MCCK

MCCDA

MCDA0 - MCDA3

SCK0 - SCK1 - SCK2

TXD0 - TXD1 - TXD2

RXD0 - RXD1 - RXD2

RTS0 - RTS1 - RTS2

CTS0 - CTS1 - CTS2

TCLK0 - TCLK8

TIOA0 - TIOA8

TIOB0 - TIOB8

PWM0 - PWM7

Function Type

AIC

External Interrupt Inputs

Fast Interrupt Input

Input

Input

PIO

Parallel IO Controller A I/O

Parallel IO Controller B I/O

Multimedia Card Interface

Multimedia Card Clock

Multimedia Card A Command

Multimedia Card A Data

USB Device Port

Output

I/O

I/O

USB Device Port Data -

USB Device Port Data +

Analog

Analog

USART

Serial Clock

Transmit Data

Receive Data

I/O

I/O

Input

Request To Send

Clear To Send

Transmit Data

Output

Input

Synchronous Serial Controller

Output

Receive Data

Transmit Clock

Receive Clock

Transmit Frame Sync

Receive Frame Sync

Input

I/O

I/O

I/O

I/O

Timer/Counter

External Clock Input

I/O Line A

I/O Line B

Input

I/O

I/O

PWM Controller

PWM Channels Output

Active

Level Comments

Pulled-up input at reset

Pulled-up input at reset

6

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 3-1.

Signal Description (Continued)

Signal Name Function

SPI0_MISO

SPI1_MISO

SPI0_MOSI

SPI1_MOSI

SPI0_SPCK

SPI1_SPCK

SPI0_NPCS0

SPI1_NPCS0

SPI0_NPCS1 - SPI0_NPCS3

SPI1_NPCS1 - SPI1_NPCS3

Master In Slave Out

Master Out Slave In

SPI Serial Clock

SPI Peripheral Chip Select 0

SPI Peripheral Chip Select

TWD

TWCK

I/O

I/O

I/O

I/O

Output

Two-wire Interface

Two-wire Serial Data I/O

Two-wire Serial Clock I/O

Analog-to-Digital Converter

ADC0_AD0 - ADC0_AD7

ADC1_AD0 - ADC1_AD7

ADVREFP

ADC0_ADTRG

ADC1_ADTRG

Analog Inputs

Analog Positive Reference

ADC Trigger

SPI

Analog

Analog

Input

CAN Controller

Type

CANRX0-CANRX1

CANTX0-CANTX1

CAN Inputs

CAN Outputs

Input

Output

Active

Level Comments

Low

Low

Digital pulled-up inputs at reset

7

6042E–ATARM–14-Dec-06

4.

Package

4.1

100-lead LQFP Package Outline

Figure 4-1

shows the orientation of the 100-lead LQFP package. A detailed mechanical description is given in the Mechanical Characteristics section of the full datasheet.

Figure 4-1.

100-lead LQFP Outline (Top View)

75

76

51

50

100

1 25

26

8

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

PB6

PB5

PB4

PB3

VDD3V3

GND

VDD1V8

PB2

TST

PB13

PB12

PB11

PB10

PB9

PB8

PB7

PB1

PB0

PA0

PA1

PA2

PA3

GND

4.2

Pinout

Table 4-1.

Pinout in 100-lead LQFP Package

1

2

GND

NRST

26

27

VDDBU

FWKUP

15

16

17

18

11

12

13

14

7

8

9

10

5

6

3

4

23

24

25

19

20

21

22

40

41

42

43

36

37

38

39

32

33

34

35

28

29

30

31

48

49

50

44

45

46

47

PA8

PA9

VDD3V3

GND

VDD1V8

PA10

PA11

PA12

WKUP0

WKUP1

SHDW

GND

PA4

PA5

PA6

PA7

PA13

PA14

PA15

PA16

PA17

PA18

PA19

VDD1V8

GND

VDD3V3

PA28

PA29

PA30

PA31

JTAGSEL

PA20

PA21

PA22

PA23

PA24

PA25

PA26

PA27

TDI

TMS

TCK

TDO

GND

VDDPLL

XOUT

XIN

GND

63

64

65

66

59

60

61

62

55

56

57

58

51

52

53

54

71

72

73

74

75

67

68

69

70

PLLRC

VDDANA

ADVREFP

GND

PB14/ADC0_AD0

PB15/ADC0_AD1

PB16/ADC0_AD2

PB17/ADC0_AD3

PB18/ADC0_AD4

PB19/ADC0_AD5

PB20/ADC0_AD6

PB21/ADC0_AD7

VDD3V3

PB22/ADC1_AD0

PB23/ADC1_AD1

PB24/ADC1_AD2

PB25/ADC1_AD3

PB26/ADC1_AD4

PB27/ADC1_AD5

PB28/ADC1_AD6

PB29/ADC1_AD7

DDM

DDP

VDD1V8

VDD3V3

88

89

90

91

84

85

86

87

80

81

82

83

76

77

78

79

96

97

98

99

100

92

93

94

95

9

6042E–ATARM–14-Dec-06

5.

Power Considerations

5.1

Power Supplies

The AT91SAM7A3 has five types of power supply pins:

• VDD3V3 pins. They power the voltage regulator, the I/O lines, the Flash and the USB transceivers; voltage ranges from 3.0V to 3.6V, 3.3V nominal.

• VDD1V8 pins. They are the outputs of the 1.8V voltage regulator and they power the logic of the device.

• VDDPLL pin. It powers the PLL; voltage ranges from 1.65V to 1.95V, 1.8V typical. They can be connected to the VDD1V8 pin with decoupling capacitor.

• VDDBU pin. It powers the Slow Clock oscillator and the Real Time Clock, as well as a part of the System Controller; ranges from 3.0V and 3.6V, 3.3V nominal.

• VDDANA pin. It powers the ADC; ranges from 3.0V and 3.6V, 3.3V nominal.

No separate ground pins are provided for the different power supplies. Only GND pins are provided and should be connected as shortly as possible to the system ground plane.

5.2

Voltage Regulator

The AT91SAM7A3 embeds a voltage regulator that consumes less than 120 µA static current and draws up to 130 mA of output current.

Adequate output supply decoupling is mandatory for VDD1V8 (pin 99)to reduce ripple and avoid oscillations. The best way to achieve this is to use two capacitors in parallel: one external 470 pF (or 1 nF) NPO capacitor must be connected between VDD1V8 and GND as close to the chip as possible. One external 3.3 µF (or 4.7 µF) X7R capacitor must be connected between VDD1V8 and GND.

All other VDD1V8 pins must be externally connected and have a proper decoupling capacitor

(at least 100 nF).

Adequate input supply decoupling is mandatory for VDD3V3 (pin 100) in order to improve startup stability and reduce source voltage drop. The input decoupling capacitor should be placed close to the chip. For example, two capacitors can be used in parallel: 100 nF NPO and 4.7 µF

X7R.

All other VDD3V3 pins must be externally connected and have a proper decoupling capacitor

(at least 100 nF).

10

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

5.3

Typical Powering Schematics

5.3.1

3.3V Single Supply

The AT91SAM7A3 supports a 3.3V single supply mode. The internal regulator is connected to

the 3.3V source and its output feeds VDDPLL. Figure 5-1

shows the power schematics to be used for USB bus-powered systems.

Figure 5-1.

3.3V System Single Power Supply Schematics

VDDBU

USB Connector up to 5.5V

DC/DC Converter

3.3V

VDDANA

VDD3V3

VDD1V8

VDDPLL

Voltage

Regulator

6042E–ATARM–14-Dec-06

11

6.

I/O Lines Considerations

6.1

JTAG Port Pins

TMS, TDI and TCK are schmitt trigger inputs. TMS and TCK are 5V-tolerant, TDI is not. TMS,

TDI and TCK do not integrate any resistors and have to be pulled-up externally.

TDO is an output, driven at up to VDD3V3.

The JTAGSEL pin is used to select the JTAG boundary scan when asserted at a high level.

The JTAGSEL pin integrates a permanent pull-down resistor so that it can be left unconnected for normal operations.

6.2

Test Pin

The TST pin is used for manufacturing tests and integrates a pull-down resistor so that it can be left unconnected for normal operations. Driving this line at a high level leads to unpredictable results.

6.3

Reset Pin

The NRST pin is bidirectional. It is handled by the on-chip reset controller and can be driven low to provide a reset signal to the external components or asserted low externally to reset the microcontroller. There is no constraint on the length of the reset pulse, and the reset controller can guarantee a minimum pulse length. This allows connection of a simple push-button on the

NRST pin as system user reset, and the use of the NRST signal to reset all the components of the system.

6.4

PIO Controller A and B Lines

All the I/O lines PA0 to PA31 and PB0 to PB29 are 5V-tolerant and all integrate a programmable pull-up resistor. Programming of this pull-up resistor is performed independently for each

I/O line through the PIO Controllers.

5V-tolerant means that the I/O lines can drive voltage level according to VDD3V3, but can be driven with a voltage at up to 5.5V. However, driving an I/O line with a voltage over VDD3V3 while the programmable pull-up resistor is enabled creates a current path through the pull-up resistor from the I/O line to VDDIO. Care should be taken, especially at reset, as all the I/O lines default as inputs with pull-up resistor enabled at reset.

6.5

Shutdown Logic Pins

The SHDW pin is an open drain output. It can be tied to VDDBU with an external pull-up resistor.

The FWUP, WKUP0 and WKUP1 pins are input-only. They can accept voltages only between

0V and VDDBU. It is recommended to tie these pins either to GND or to VDDBU with an external resistor.

6.6

I/O Line Drive Levels

All the I/O lines can draw up to 2 mA.

12

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

7.

Processor and Architecture

7.1

ARM7TDMI Processor

• RISC Processor Based on ARMv4T Von Neumann Architecture

– Runs at up to 60 MHz, providing 0.9 MIPS/MHz

• Two instruction sets

– ARM high-performance 32-bit Instruction Set

– Thumb high code density 16-bit Instruction Set

• Three-stage pipeline architecture

– Instruction Fetch (F)

– Instruction Decode (D)

– Execute (E)

7.2

Debug and Test Features

• Integrated EmbeddedICE

(embedded in-circuit emulator)

– Two watchpoint units

– Test access port accessible through a JTAG protocol

– Debug communication channel

• Debug Unit

– Two-pin UART

– Debug communication channel interrupt handling

– Chip ID Register

• IEEE1149.1 JTAG Boundary-scan on all digital pins

7.3

Memory Controller

• Bus Arbiter

– Handles requests from the ARM7TDMI and the Peripheral Data Controller

• Address Decoder Provides Selection Signals for

– Three internal 1Mbyte memory areas

– One 256 Mbyte embedded peripheral area

• Abort Status Registers

– Source, Type and all parameters of the access leading to an abort are saved

– Facilitates debug by detection of bad pointers

• Misalignment Detector

– Alignment checking of all data accesses

– Abort generation in case of misalignment

• Remap Command

– Remaps the Internal SRAM in place of the embedded non-volatile memory

– Allows handling of dynamic exception vectors

• 16-area Memory Protection Unit

– Individually programmable size between 1K Bytes and 1M Bytes

13

6042E–ATARM–14-Dec-06

– Individually programmable protection against write and/or user access

– Peripheral protection against write and/or user access

• Embedded Flash Controller

– Embedded Flash interface, up to three programmable wait states

– Read-optimized interface, buffering and anticipating the 16-bit requests, reducing the required wait states

– Password-protected program, erase and lock/unlock sequencer

– Automatic consecutive programming, erasing and locking operations

– Interrupt generation in case of forbidden operation

7.4

Peripheral DMA Controller

• Handles data transfer between peripherals and memories

• Nineteen Channels

– Two for each USART

– Two for the Debug Unit

– Two for each Serial Synchronous Controller

– Two for each Serial Peripheral Interface

– One for the Multimedia Card Interface

– One for each Analog-to-Digital Converter

• Low bus arbitration overhead

– One Master Clock cycle needed for a transfer from memory to peripheral

– Two Master Clock cycles needed for a transfer from peripheral to memory

• Next Pointer management for reducing interrupt latency requirements

14

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

8.

Memory

8.1

Embedded Memories

• 256 Kbytes of Flash Memory

– 1024 pages of 256 bytes.

– Fast access time, 30 MHz single cycle access in worst case conditions.

– Page programming time: 6 ms, including page auto-erase

– Full erase time: 15 ms

– 10,000 write cycles, 10-year data retention capability

– 16 lock bits, each protecting 16 pages

• 32 Kbytes of Fast SRAM

– Single-cycle access at full speed

6042E–ATARM–14-Dec-06

15

Figure 8-1.

AT91SAM7A3 Memory Mapping

0x0000 0000

Internal Memory Mapping

Flash before Remap

SRAM after Remap

1 MBytes

0x000F FFF

0x0010 0000

Internal Flash

1 MBytes

0x001F FFF

0x0020 0000

Internal SRAM

1 MBytes

0x002F FFF

0x0030 0000

252 MBytes

Reserved

0x0FFF FFFF

0x0000 0000

Address Memory Space

Internal Memories

256 MBytes

0x0FFF FFFF

0x1000 0000

0xEFFF FFFF

0xF000 0000

0xFFFF FFFF

Undefined

(Abort)

Internal Peripherals

14 x 256 MBytes

3,584 MBytes

256 MBytes

0xFFFB 7FFF

0xFFFB 8000

0xFFFB BFFF

0xFFFB C000

0xFFFB FFFF

0xFFFC 0000

0xFFFC 3FFF

0xFFFC 4000

0xFFFC 7FFF

0xFFFC 8000

0xFFFC BFFF

0xFFFC C000

0xFFFC FFFF

0xFFFD 0000

0xFFFD 3FFF

0xFFFD 4000

0xFFFD 7FFF

0xFFFD 8000

0xFFFD BFFF

0xFFFD C000

0xF000 0000

Peripheral Mapping

Reserved

0xFFF7 FFFF

0xFFF8 0000

CAN0

0xFFF8 3FFF

0xFFF8 4000

CAN1

0xFFF8 7FFF

0xFFF8 8000

0xFFF9 FFFF

0xFFFA 0000

0xFFFA 3FFF

0xFFFA 4000

0xFFFA 7FFF

0xFFFA 8000

0xFFFA BFFF

0xFFFA C000

0xFFFA FFFF

0xFFFB 0000

0xFFFB 3FFF

0xFFFB 4000

Reserved

TC0, TC1, TC2

TC3, TC4, TC5

TC6, TC7, TC8

MCI

UDP

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

Reserved

TWI

Reserved

USART0

USART1

USART2

PWMC

SSC0

SSC1

ADC0

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

16 Kbytes

ADC1 16 Kbytes

0xFFFD FFFF

0xFFFE 0000

0xFFFE 3FFF

0xFFFE 4000

0xFFFE 7FFF

0xFFFE 8000

0xFFFF EFFF

0xFFFF F000

SPI0

SPI1

Reserved

16 Kbytes

16 Kbytes

SYSC

0xFFFF FFFF

System Controller Mapping

0xFFFF F000

AIC 512 Bytes/128 registers

0xFFFF F1FF

0xFFFF F200

DBGU 512 Bytes/128 registers

0xFFFF F3FF

0xFFFF F400

PIOA 512 Bytes/128 registers

0xFFFF F5FF

0xFFFF F600

PIOB 512 Bytes/128 registers

0xFFFF F7FF

0xFFFF F800

Reserved

0xFFFF FBFF

0xFFFF FC00

PMC 256 Bytes/64 registers

0xFFFF FCFF

0xFFFF FD00

0xFFFF FD0F

0xFFFF FD10

0xFFFF FD1F

0xFFFF FD20

0xFFFF FC2F

0xFFFF FD30

0xFFFF FC3F

0xFFFF FD40

0xFFFF FD4F

0xFFFF FD50

0xFFFF FC58

0xFFFF FD59

0xFFFF FEFF

0xFFFF FF00

RSTC

SHDWC

RTT

PIT

WDT

GPBR

Reserved

16 Bytes/4 registers

16 Bytes/4 registers

16 Bytes/4 registers

16 Bytes/4 registers

8 Bytes/2 registers general purpose backup registers

MC 256 Bytes/64 registers

0xFFFF FFFF

16

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

8.2

Memory Mapping

8.2.1

Internal SRAM

The AT91SAM7A3 embeds a high-speed 32-Kbyte SRAM bank. After reset and until the

Remap Command is performed, the SRAM is only accessible at address 0x0020 0000. After

Remap, the SRAM also becomes available at address 0x0.

8.2.2

Internal Flash

The AT91SAM7A3 features one bank of 256 Kbytes of Flash. The Flash is mapped to address

0x0010 0000. It is also accessible at address 0x0 after the reset and before the Remap

Command.

Figure 8-2.

Internal Memory Mapping

256M Bytes

0x0000 0000

0x000F FFFF

0x0010 0000

0x001F FFFF

0x0020 0000

0x002F FFFF

0x0030 0000

Flash Before Remap

SRAM After Remap

Internal Flash

Internal SRAM

1M Bytes

1M Bytes

1M Bytes

Undefined Areas

(Abort)

253M Bytes

0x0FFF FFFF

8.3

Embedded Flash

8.3.1

Flash Overview

The Flash block of the AT91SAM7A3 is organized in 1024 pages of 256 bytes. It reads as

65,536 32-bit words.

The Flash block contains a 256-byte write buffer, accessible through a 32-bit interface.

When Flash is not used (read or write access), it is automatically put into standby mode.

8.3.2

Embedded Flash Controller

The Embedded Flash Controller (EFC) manages accesses performed by the masters of the system. It enables reading the Flash and writing the write buffer. It also contains a User Interface mapped within the Memory Controller on the APB. The User Interface allows:

• programming of the access parameters of the Flash (number of wait states, timings, etc.)

• starting commands such as full erase, page erase, page program, NVM bit set, NVM bit clear, etc.

• getting the end status of the last command

• getting error status

• programming interrupts on the end of the last commands or on errors

17

6042E–ATARM–14-Dec-06

8.3.3

The Embedded Flash Controller also provides a dual 32-bit Prefetch Buffer that optimizes 16bit access to the Flash. This is particularly efficient when the processor is running in Thumb mode.

Lock Regions

The Embedded Flash Controller manages 16 lock bits to protect 16 regions of the Flash against inadvertent Flash erasing or programming commands.

The AT91SAM7A3 has 16 lock regions. Each lock region contains 16 pages of 256 bytes.

Each lock region has a size of 4 Kbytes, thus only the first 64 Kbytes can be locked.

The 16 NVM bits are software programmable through the EFC User Interface. The command

“Set Lock Bit” activates the protection. The command “Clear Lock Bit” unlocks the lock region.

18

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

9.

System Controller

The System Controller manages all vital blocks of the microcontroller: interrupts, clocks, power, time, debug and reset.

The System Controller peripherals are all mapped to the highest 4K bytes of address space, between addresses 0xFFFF F000 and 0xFFFF FFFF. Each peripheral has an address space of up to 512 Bytes, representing up to 128 registers.

Figure 9-1 on page 20 shows the System Controller Block Diagram.

Figure 8-1 on page 16

shows the mapping of the User Interface of the System Controller peripherals. Note that the Memory Controller configuration user interface is also mapped within this address space.

6042E–ATARM–14-Dec-06

19

Figure 9-1.

System Controller Block Diagram

System Controller irq0-irq1-irq2-irq3 fiq periph_irq[2..27] pit_irq rtt_irq wdt_irq dbgu_irq pmc_irq rstc_irq

MCK periph_nreset dbgu_rxd

Advanced

Interrupt

Controller

NRST

VDD3V3

POR

VDD1V8

POR

SLCK

VDDBU

POR

SLCK periph_nreset ice_nreset jtag_nreset flash_poe

Debug

Unit wdt_fault

WDRPROC dbgu_irq dbgu_txd periph_nreset proc_nreset

Reset

Controller rstc_irq

Real-Time

Timer int

VDD1V8 Powered rtt_irq

FWKUP

WKUP0

WKUP1

SHDW

Shutdown

Controller

RCOSC

VDDBU Powered

SLCK

4 General-Purpose

Backup Regs

XIN

XOUT

PLLRC

MAIN

OSC

MAINCK

Power

Management

Controller periph_clk[2..27] pck[0-3]

PCK

UDPCK

MCK pmc_irq idle

PLL int periph_nreset

PLLCK

MCK debug periph_nreset

SLCK debug idle proc_nreset periph_nreset periph_clk[2..3] dbgu_rxd

Periodic

Interval

Timer

Watchdog

Timer

PIOs

Controller

PA0-PA31

PB0-PB29 pit_irq wdt_irq wdt_fault

WDRPROC periph_irq{2..3] irq0-irq1-irq2-irq3 fiq dbgu_txd jtag_nreset nirq nfiq proc_nreset

PCK debug

Boundary Scan

TAP Controller

ARM7TDMI ice_nreset proc_nreset

Embedded Flash

MCK proc_nreset

Memory

Controller

UDPCK periph_clk[27] periph_nreset periph_irq[27]

USB Device

Port periph_clk[4..26] periph_nreset periph_irq[4..26] in out enable

Embedded

Peripherals

9.1

System Controller Mapping

20

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

9.2

Reset Controller

The Reset Controller is based on three power-on reset cells. It gives the status of the last reset, indicating whether it is a general reset, a wake-up reset, a software reset, a user reset or a watchdog reset. In addition, it controls the internal resets and the NRST pin output. It shapes a signal on the NRST line, guaranteeing that the length of the pulse meets any requirement.

9.3

Clock Generator

The Clock Generator embeds one low-power RC Oscillator, one Main Oscillator and one PLL with the following characteristics:

– RC Oscillator ranges between 22 KHz and 42 KHz

– Main Oscillator frequency ranges between 3 and 20 MHz

– Main Oscillator can be bypassed

– PLL output ranges between 80 and 220 MHz

It provides SLCK, MAINCK and PLLCK.

Figure 9-2.

Clock Generator Block Diagram

Clock Generator

Embedded

RC

Oscillator

XIN

XOUT

Main

Oscillator

Slow Clock

SLCK

Main Clock

MAINCK

PLLRC

PLL and

Divider

Status Control

Power

Management

Controller

PLL Clock

PLLCK

9.4

Power Management Controller

The Power Management Controller uses the Clock Generator outputs to provide:

– the Processor Clock PCK

– the Master Clock MCK

– the USB Clock UDPCK

– all the peripheral clocks, independently controllable

– four programmable clock outputs

The Master Clock (MCK) is programmable from a few hundred Hz to the maximum operating frequency of the device.

The Processor Clock (PCK) switches off when entering processor idle mode, thereby reducing power consumption while waiting an interrupt.

21

6042E–ATARM–14-Dec-06

Figure 9-3.

Power Management Controller Block Diagram

SLCK

MAINCK

PLLCK

Master Clock Controller

Prescaler

/1,/2,/4,...,/64

Processor

Clock

Controller

Idle Mode

Peripherals

Clock Controller

ON/OFF

SLCK

MAINCK

PLLCK

Programmable Clock Controller

Prescaler

/1,/2,/4,...,/64

PCK int

MCK periph_clk[2..26] pck[0..3]

PLLCK

USB Clock Controller

ON/OFF

Divider

/1,/2,/4

UDPCK

9.5

Advanced Interrupt Controller

• Controls the interrupt lines (nIRQ and nFIQ) of the ARM Processor

• Individually maskable and vectored interrupt sources

– Source 0 is reserved for the Fast Interrupt Input (FIQ)

– Source 1 is reserved for system peripherals (ST, PMC, DBGU, etc.)

– Other sources control the peripheral interrupts or external interrupts

– Programmable edge-triggered or level-sensitive internal sources

– Programmable positive/negative edge-triggered or high/low level-sensitive external sources (FIQ, IRQ)

• 8-level Priority Controller

– Drives the normal interrupt nIRQ of the processor

– Handles priority of the interrupt sources

– Higher priority interrupts can be served during service of a lower priority interrupt

• Vectoring

– Optimizes interrupt service routine branch and execution

– One 32-bit vector register per interrupt source

– Interrupt vector register reads the corresponding current interrupt vector

• Protect Mode

– Easy debugging by preventing automatic operations

• Fast Forcing

– Permits redirecting any interrupt source on the fast interrupt

• General Interrupt Mask

– Provides processor synchronization on events without triggering an interrupt

22

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

9.6

Debug Unit

• Comprises

– One two-pin UART

– One interface for the Debug Communication Channel (DCC) support

– One set of chip ID registers

– One interface allowing ICE access prevention

• Two-pin UART

– USART-compatible user interface

– Programmable baud rate generator

– Parity, framing and overrun error

– Automatic Echo, Local Loopback and Remote Loopback Channel Modes

• Debug Communication Channel Support

– Offers visibility of COMMRX and COMMTX signals from the ARM Processor

• Chip ID Registers

– Identification of the device revision, sizes of the embedded memories, set of peripherals

– Chip ID is 0x260A0941 (Version 1)

9.7

Period Interval Timer

• 20-bit programmable counter plus 12-bit interval counter

9.8

Watchdog Timer

• 12-bit key-protected Programmable Counter running on prescaled SLCK

• Provides reset or interrupt signals to the system

• Counter may be stopped while the processor is in debug state or in idle mode

9.9

Real-time Timer

• 32-bit free-running counter with alarm

• Programmable 16-bit prescaler for SCLK accuracy compensation

9.10

Shutdown Controller

• Software programmable assertion of the SHDW open-drain pin

• De-assertion programmable with the pins WKUP0, WKUP1 and FWKUP

9.11

PIO Controllers A and B

• The PIO Controllers A and B respectively control 32 and 30 programmable I/O Lines

• Fully programmable through Set/Clear Registers

• Multiplexing of two peripheral functions per I/O Line

• For each I/O Line (whether assigned to a peripheral or used as general purpose I/O)

– Input change interrupt

– Half a clock period Glitch filter

– Multi-drive option enables driving in open drain

23

6042E–ATARM–14-Dec-06

– Programmable pull up on each I/O line

– Pin data status register, supplies visibility of the level on the pin at any time

• Synchronous output, provides Set and Clear of several I/O lines in a single write

24

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

10. Peripherals

10.1

Peripheral Mapping

Each User Peripheral is allocated 16K bytes of address space.

Figure 10-1. User Peripherals Mapping

Address

0xF000 0000

Peripheral

Reserved

0xFFF7 FFFF

0xFFF8 0000

CAN0

0xFFF8 3FFF

0xFFF8 4000

CAN1

0xFFF8 7FFF

0xFFF8 8000

Reserved

0xFFF9 FFFF

0xFFFA 0000

TC0, TC1, TC2

0xFFFA 3FFF

0xFFFA 4000

TC3, TC4, TC5

0xFFFA 7FFF

0xFFFA 8000

TC6, TC7, TC8

0xFFFA BFFF

0xFFFA C000

MCI

0xFFFA FFFF

0xFFFB 0000

UDP

0xFFFB 3FFF

0xFFFB 4000

Reserved

0xFFFB 7FFF

0xFFFB 8000

TWI

0xFFFB BFFF

0xFFFB C000

Reserved

0xFFFB FFFF

0xFFFC 0000

USART0

0xFFFC 3FFF

0xFFFC 4000

USART1

0xFFFC 7FFF

0xFFFC 8000

USART2

0xFFFC BFFF

0xFFFC C000

PWMC

0xFFFC FFFF

0xFFFD 0000

SSC0

0xFFFD 3FFF

0xFFFD 4000

SSC1

0xFFFD 7FFF

0xFFFD 8000

ADC0

0xFFFD BFFF

0xFFFD C000

ADC1

0xFFFD FFFF

0xFFFE 0000

SPI0

0xFFFE 3FFF

0xFFFE 4000

SPI1

0xFFFE 7FFF

0xFFFE 8000

Reserved

0xFFFE FFFF

Peripheral Name

CAN Controller 0

CAN Controller 1

Timer/Counter 0, 1 and 2

Timer/Counter 3, 4 and 5

Timer/Counter 6, 7 and 8

Multimedia Card Interface

USB Device Port

Two-Wire Interface

Universal Synchronous Asynchronous

Receiver Transmitter 0

Universal Synchronous Asynchronous

Receiver Transmitter 1

Universal Synchronous Asynchronous

Receiver Transmitter 1

PWM Controller

Serial Synchronous Controller 0

Serial Synchronous Controller 1

Analog-to-Digital Converter 0

Analog-to-Digital Converter 1

Serial Peripheral Interface 0

Serial Peripheral Interface 1

Size

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

25

6042E–ATARM–14-Dec-06

10.2

Peripheral Multiplexing on PIO Lines

The AT91SAM7A3 features two PIO controllers, PIOA and PIOB, which multiplex the I/O lines of the peripheral set.

PIO Controllers A and B control respectively 32 and 30 lines. Each line can be assigned to one of two peripheral functions, A or B. Some of them can also be multiplexed with Analog Input of both ADC Controllers.

Table 10-1 on page 27

and

Table 10-2 on page 28 define how the I/O lines of the peripherals

A, B or Analog Input are multiplexed on the PIO Controllers A and B. The two columns “Function” and “Comments” have been inserted for the user’s own comments; they may be used to track how pins are defined in an application.

Note that some peripheral functions that are output only may be duplicated within both tables.

At reset, all I/O lines are automatically configured as input with the programmable pull-up enabled, so that the device is maintained in a static state as soon as a reset occurs.

26

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

10.3

PIO Controller A Multiplexing

Table 10-1.

Multiplexing on PIO Controller A

PIO Controller A

PA23

PA24

PA25

PA26

PA27

PA28

PA29

PA30

PA31

PA15

PA16

PA17

PA18

PA19

PA20

PA21

PA22

PA7

PA8

PA9

PA10

PA11

PA12

PA13

PA14

PA3

PA4

PA5

PA6

I/O Line

PA0

PA1

PA2

Peripheral B

ADC0_ADTRG

ADC1_ADTRG

SPI1_NPSC0

SPI1_NPCS1

SPI1_NPCS2

SPI1_NPCS3

SPI1_MISO

SPI1_MOSI

SPI1_SPCK

TCLK3

TCLK6

TCLK7

TCLK8

PWM5

PWM6

PWM7

CANRX0

CANTX0

CANRX1

CANTX1

DRXD

DTXD

SPI0_MISO

SPI0_MOSI

SPI0_SPCK

PWM0

PWM1

PWM2

PWM3

PWM4

Peripheral A

TWD

TWCK

RXD0

TXD0

SCK0

RTS0

CTS0

RXD1

TXD1

RXD2

TXD2

SPI0_NPCS0

SPI0_NPCS1

SPI0_NPCS2

SPI0_NPCS3

PCK1

PCK2

PCK3

IRQ0

IRQ1

TCLK4

TCLK5

MCDA1

MCDA2

MCDA3

MCDA0

MCCDA

MCCK

PCK0

Comment

Application Usage

Function Comments

27

6042E–ATARM–14-Dec-06

10.4

PIO Controller B Multiplexing

PB23

PB24

PB25

PB26

PB27

PB28

PB29

PB15

PB16

PB17

PB18

PB19

PB20

PB21

PB22

PB7

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB3

PB4

PB5

PB6

I/O Line

PB0

PB1

PB2

TIOB5

TIOA6

TIOB6

TIOA7

TIOB7

TIOA8

TIOB8

TIOB1

TIOA2

TIOB2

TIOA3

TIOB3

TIOA4

TIOB4

TIOA5

RF0

FIQ

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TIOA1

Peripheral A

IRQ2

IRQ3

TF0

TK0

TD0

RD0

RK0

Table 10-2.

Multiplexing on PIO Controller B

PIO Controller B

CANTX1

TF1

TK1

RK1

RF1

TD1

RD1

PWM0

Peripheral B

PWM5

PWM6

PWM7

PCK0

PCK1

PCK2

PCK3

PWM1

PWM2

PWM3

PWM4

SPI1_NPCS1

SPI1_NPCS2

SPI1_NPCS3

RTS1

CTS1

SCK1

RTS2

CTS2

SCK2

Comment

ADC0_AD0

ADC0_AD1

ADC0_AD2

ADC0_AD3

ADC0_AD4

ADC0_AD5

ADC0_AD6

ADC0_AD7

ADC1_AD0

ADC1_AD1

ADC1_AD2

ADC1_AD3

ADC1_AD4

ADC1_AD5

ADC1_AD6

ADC1_AD7

Application Usage

Function Comments

28

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

11. Peripheral Identifiers

The AT91SAM7A3 embeds a wide range of peripherals. Table 11-1 defines the Peripheral

Identifiers of the AT91SAM7A3. Unique peripheral identifiers are defined for both the AIC and the PMC.

Table 11-1.

Peripheral Identifiers

PWMC

UDP

AIC

AIC

AIC

AIC

TC3

TC4

TC5

TC6

SSC1

TC0

TC1

TC2

TC7

TC8

ADC0

(1)

ADC1

(1)

US0

US1

US2

MCI

TWI

SPI0

SPI1

SSC0

Peripheral

Mnemonic

AIC

SYSC

(1)

PIOA

PIOB

CAN0

CAN1

26

27

28

29

22

23

24

25

30

31

18

19

20

21

14

15

16

17

10

11

12

13

8

9

6

7

4

5

2

3

0

1

Peripheral

ID

Peripheral

Name

Advanced Interrupt Controller

Parallel I/O Controller A

Parallel I/O Controller B

CAN Controller 0

CAN Controller 1

USART 0

USART 1

USART 2

Multimedia Card Interface

Two-wire Interface

Serial Peripheral Interface 0

Serial Peripheral Interface 1

Synchronous Serial Controller 0

Synchronous Serial Controller 1

Timer/Counter 0

Timer/Counter 1

Timer/Counter 2

Timer/Counter 3

Timer/Counter 4

Timer/Counter 5

Timer/Counter 6

Timer/Counter 7

Timer/Counter 8

Analog-to Digital Converter 0

Analog-to Digital Converter 1

PWM Controller

USB Device Port

Advanced Interrupt Controller

Advanced Interrupt Controller

Advanced Interrupt Controller

Advanced Interrupt Controller

External

Interrupt

FIQ

IRQ0

IRQ1

IRQ2

IRQ3

Note: 1. Setting SYSC and ADC bits in the clock set/clear registers of the PMC has no effect. The

System Controller and ADC are continuously clocked.

29

6042E–ATARM–14-Dec-06

11.1

Serial Peripheral Interface

• Supports communication with external serial devices

– Four chip selects with external decoder allow communication with up to 15 peripherals

– Serial memories, such as DataFlash

®

and 3-wire EEPROMs

– Serial peripherals, such as ADCs, DACs, LCD Controllers, CAN Controllers and

Sensors

– External co-processors

• Master or slave serial peripheral bus interface

– 8- to 16-bit programmable data length per chip select

– Programmable phase and polarity per chip select

– Programmable transfer delays per chip select between consecutive transfers and between clock and data

– Programmable delay between consecutive transfers

– Selectable mode fault detection

– Maximum frequency at up to Master Clock

11.2

Two-wire Interface

• Master Mode only

• Compatibility with standard two-wire serial memories

• One, two or three bytes for slave address

• Sequential read/write operations

11.3

USART

30

• Programmable Baud Rate Generator

• 5- to 9-bit full-duplex synchronous or asynchronous serial communications

– 1, 1.5 or 2 stop bits in Asynchronous Mode or 1 or 2 stop bits in Synchronous

Mode

– Parity generation and error detection

– Framing error detection, overrun error detection

– MSB- or LSB-first

– Optional break generation and detection

– By 8 or by 16 over-sampling receiver frequency

– Hardware handshaking RTS-CTS

– Receiver time-out and transmitter timeguard

– Optional Multi-drop Mode with address generation and detection

• RS485 with driver control signal

• ISO7816, T = 0 or T = 1 Protocols for interfacing with smart cards

– NACK handling, error counter with repetition and iteration limit

• IrDA modulation and demodulation

– Communication at up to 115.2 Kbps

• Test Modes

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

– Remote Loopback, Local Loopback, Automatic Echo

11.4

Serial Synchronous Controller

• Provides serial synchronous communication links used in audio and telecom applications

• Contains an independent receiver and transmitter and a common clock divider

• Offers a configurable frame sync and data length

• Receiver and transmitter can be programmed to start automatically or on detection of different event on the frame sync signal

• Receiver and transmitter include a data signal, a clock signal and a frame synchronization signal

11.5

Timer Counter

• Three 16-bit Timer Counter Channels

• Wide range of functions including:

– Frequency Measurement

– Event Counting

– Interval Measurement

– Pulse Generation

– Delay Timing

– Pulse Width Modulation

– Up/down Capabilities

• Each channel is user-configurable and contains:

– Three external clock inputs

– Five internal clock inputs as defined in

Table 11-2

.

Table 11-2.

Timer Counter Clock Assignment

TC Clock input

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

Clock

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

– Two multi-purpose input/output signals

– Two global registers that act on all three TC Channels

11.6

PWM Controller

• Eight channels, one 20-bit counter per channel

• Common clock generator, providing thirteen different clocks

– A Modulo n counter providing eleven clocks

– Two independent linear dividers working on modulo n counter outputs

• Independent channel programming

31

6042E–ATARM–14-Dec-06

– Independent enable/disable commands

– Independent clock selection

– Independent period and duty cycle, with double buffering

– Programmable selection of the output waveform polarity

– Programmable center or left aligned output waveform

11.7

USB Device Port

• USB V2.0 full-speed compliant,12 Mbits per second.

• Embedded USB V2.0 full-speed transceiver

• Six endpoints

– Endpoint 0: 8 bytes

– Endpoint 1 and 2: 64 bytes ping-pong

– Endpoint 3: 64 bytes

– Endpoint 4 and 5: 512 bytes ping-pong

• Embedded 2,376-byte dual-port RAM for endpoints

– Ping-pong Mode (two memory banks) for bulk endpoints

• Suspend/resume logic

11.8

Multimedia Card Interface

• Compatibility with MultiMedia card specification version 2.2

• Compatibility with SD Memory card specification version 1.0

• Cards clock rate up to Master Clock divided by 2

• Embeds power management to slow down clock rate when not used

• Supports up to sixteen slots (through multiplexing)

– One slot for one MultiMedia card bus (up to 30 cards) or one SD memory card

• Supports stream, block and multi-block data read and write

• Supports connection to Peripheral Data Controller

– Minimizes processor intervention for large buffer transfers

11.9

CAN Controller

• Fully compliant with CAN 2.0B active controllers

• Bit rates up to 1Mbit/s

• 16 object-oriented mailboxes, each with the following properties:

– CAN specification 2.0 Part A or 2.0 Part B programmable for each message

– Object-configurable as receive (with overwrite or not) or transmit

– Local tag and mask filters up to 29-bit identifier/channel

– 32-bit access to data registers for each mailbox data object

– Uses a 16-bit time stamp on receive and transmit messages

– Hardware concatenation of ID unmasked bit fields to speed up family ID processing

– 16-bit internal timer for Time Stamping and Network synchronization

32

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

– Programmable reception buffer length up to 16 mailbox object

– Priority management between transmission mailboxes

– Autobaud and listening mode

– Low power mode and programmable wake-up on bus activity or by the application

– Data, remote, error and overload frame handling

11.10 Analog-to-Digital Converter

• 8-channel ADC

• 10-bit 384K, or 8-bit 533K, samples/sec Successive Approximation Register ADC

• -3/+3 LSB Integral Non Linearity, -2/+2 LSB Differential Non Linearity

• Integrated 8-to-1 multiplexer, offering eight independent 3.3V analog inputs

• Individual enable and disable of each channel

• External voltage reference for better accuracy on low-voltage inputs

• Multiple trigger sources

– Hardware or software trigger

– External pins: ADTRG0 and ADTRG1

– Timer Counter 0 to 5 outputs: TIOA0 to TIOA5

• Sleep Mode and conversion sequencer

– Automatic wakeup on trigger and back to sleep mode after conversions of all enabled channels

• All analog inputs are shared with digital signals

33

6042E–ATARM–14-Dec-06

34

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

12. ARM7TDMI Processor

12.1

Overview

The ARM7TDMI core executes both the 32-bit ARM and 16-bit Thumb instruction sets, allowing the user to trade off between high performance and high code density. The ARM7TDMI processor implements Von Neuman architecture, using a three-stage pipeline consisting of

Fetch, Decode, and Execute stages.

The main features of the ARM7TDMI processor are:

• ARM7TDMI Based on ARMv4T Architecture

• Two Instruction Sets

– ARM High-performance 32-bit Instruction Set

– Thumb High Code Density 16-bit Instruction Set

• Three-Stage Pipeline Architecture

– Instruction Fetch (F)

– Instruction Decode (D)

– Execute (E)

12.2

ARM7TDMI Processor

For further details on ARM7TDMI, refer to the following ARM documents:

ARM Architecture Reference Manual (DDI 0100E)

ARM7TDMI Technical Reference Manual (DDI 0210B)

12.2.1

Instruction Type

Instructions are either 32 bits long (in ARM state) or 16 bits long (in THUMB state).

12.2.2

12.2.3

Data Type

ARM7TDMI supports byte (8-bit), half-word (16-bit) and word (32-bit) data types. Words must be aligned to four-byte boundaries and half words to two-byte boundaries.

Unaligned data access behavior depends on which instruction is used where.

ARM7TDMI Operating Mode

The ARM7TDMI, based on ARM architecture v4T, supports seven processor modes:

User: The normal ARM program execution state

FIQ: Designed to support high-speed data transfer or channel process

IRQ: Used for general-purpose interrupt handling

Supervisor: Protected mode for the operating system

Abort mode: Implements virtual memory and/or memory protection

System: A privileged user mode for the operating system

Undefined: Supports software emulation of hardware coprocessors

Mode changes may be made under software control, or may be brought about by external interrupts or exception processing. Most application programs execute in User mode. The

35

6042E–ATARM–14-Dec-06

12.2.4

non-user modes, or privileged modes, are entered in order to service interrupts or exceptions, or to access protected resources.

ARM7TDMI Registers

The ARM7TDMI processor has a total of 37 registers:

• 31 general-purpose 32-bit registers

• 6 status registers

These registers are not accessible at the same time. The processor state and operating mode determine which registers are available to the programmer.

At any one time 16 registers are visible to the user. The remainder are synonyms used to speed up exception processing.

Register 15 is the Program Counter (PC) and can be used in all instructions to reference data relative to the current instruction.

R14 holds the return address after a subroutine call.

R13 is used (by software convention) as a stack pointer

Table 12-1.

ARM7TDMI ARM Modes and Registers Layout

User and

System

Mode

Supervisor

Mode Abort Mode

Undefined

Mode

R12

R13

R14

PC

R8

R9

R10

R11

R4

R5

R6

R7

R0

R1

R2

R3

R4

R5

R6

R7

R0

R1

R2

R3

R8

R9

R10

R11

R12

R13_SVC

R14_SVC

PC

R4

R5

R6

R7

R0

R1

R2

R3

R8

R9

R10

R11

R12

R13_ABORT

R14_ABORT

PC

R4

R5

R6

R7

R0

R1

R2

R3

R8

R9

R10

R11

R12

R13_UNDEF

R14_UNDEF

PC

Interrupt

Mode

R8

R9

R10

R11

R12

R13_IRQ

R14_IRQ

PC

R4

R5

R6

R7

R0

R1

R2

R3

Fast

Interrupt

Mode

R8_FIQ

R9_FIQ

R10_FIQ

R11_FIQ

R12_FIQ

R13_FIQ

R14_FIQ

PC

R4

R5

R6

R7

R0

R1

R2

R3

CPSR CPSR

SPSR_SVC

CPSR

SPSR_ABORT

CPSR

SPSR_UNDEF

CPSR

SPSR_IRQ

CPSR

SPSR_FIQ

Mode-specific banked registers

36

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

12.2.4.1

12.2.4.2

12.2.4.3

AT91SAM7A3 Preliminary

Registers R0 to R7 are unbanked registers. This means that each of them refers to the same

32-bit physical register in all processor modes. They are general-purpose registers, with no special uses managed by the architecture, and can be used wherever an instruction allows a general-purpose register to be specified.

Registers R8 to R14 are banked registers. This means that each of them depends on the current mode of the processor.

Modes and Exception Handling

All exceptions have banked registers for R14 and R13.

After an exception, R14 holds the return address for exception processing. This address is used to return after the exception is processed, as well as to address the instruction that caused the exception.

R13 is banked across exception modes to provide each exception handler with a private stack pointer.

The fast interrupt mode also banks registers 8 to 12 so that interrupt processing can begin without having to save these registers.

A seventh processing mode, System Mode, does not have any banked registers. It uses the

User Mode registers. System Mode runs tasks that require a privileged processor mode and allows them to invoke all classes of exceptions.

Status Registers

All other processor states are held in status registers. The current operating processor status is in the Current Program Status Register (CPSR). The CPSR holds:

• four ALU flags (Negative, Zero, Carry, and Overflow)

• two interrupt disable bits (one for each type of interrupt)

• one bit to indicate ARM or Thumb execution

• five bits to encode the current processor mode

All five exception modes also have a Saved Program Status Register (SPSR) that holds the

CPSR of the task immediately preceding the exception.

Exception Types

The ARM7TDMI

supports five types of exception and a privileged processing mode for each type. The types of exceptions are:

• fast interrupt (FIQ)

• normal interrupt (IRQ)

• memory aborts (used to implement memory protection or virtual memory)

• attempted execution of an undefined instruction

• software interrupts (SWIs)

Exceptions are generated by internal and external sources.

More than one exception can occur in the same time.

When an exception occurs, the banked version of R14 and the SPSR for the exception mode are used to save state.

37

6042E–ATARM–14-Dec-06

To return after handling the exception, the SPSR is moved to the CPSR, and R14 is moved to the PC. This can be done in two ways:

• by using a data-processing instruction with the S-bit set, and the PC as the destination

• by using the Load Multiple with Restore CPSR instruction (LDM)

38

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

12.2.5

ARM Instruction Set Overview

The ARM instruction set is divided into:

• Branch instructions

• Data processing instructions

• Status register transfer instructions

• Load and Store instructions

• Coprocessor instructions

• Exception-generating instructions

ARM instructions can be executed conditionally. Every instruction contains a 4-bit condition code field (bit[31:28]).

Table 12-2 gives the ARM instruction mnemonic list.

Table 12-2.

ARM Instruction Mnemonic List

Mnemonic Operation

MOV Move

SMULL

SMLAL

MSR

B

BX

LDR

LDRSH

LDRSB

TST

AND

EOR

MUL

ADD

SUB

RSB

CMP

LDRH

LDRB

LDRBT

LDRT

LDM

SWP

MCR

LDC

Add

Subtract

Reverse Subtract

Compare

Test

Logical AND

Logical Exclusive OR

Multiply

Sign Long Multiply

Signed Long Multiply Accumulate

Move to Status Register

Branch

Branch and Exchange

Load Word

Load Signed Halfword

Load Signed Byte

Load Half Word

Load Byte

Load Register Byte with Translation

Load Register with Translation

Load Multiple

Swap Word

Move To Coprocessor

Load To Coprocessor

Mnemonic Operation

CDP Coprocessor Data Processing

MLA

UMULL

UMLAL

MRS

BL

SWI

STR

STRH

MVN

ADC

SBC

RSC

CMN

TEQ

BIC

ORR

STRB

STRBT

STRT

STM

SWPB

MRC

STC

Move Not

Add with Carry

Subtract with Carry

Reverse Subtract with Carry

Compare Negated

Test Equivalence

Bit Clear

Logical (inclusive) OR

Multiply Accumulate

Unsigned Long Multiply

Unsigned Long Multiply Accumulate

Move From Status Register

Branch and Link

Software Interrupt

Store Word

Store Half Word

Store Byte

Store Register Byte with Translation

Store Register with Translation

Store Multiple

Swap Byte

Move From Coprocessor

Store From Coprocessor

39

6042E–ATARM–14-Dec-06

12.2.6

Thumb Instruction Set Overview

The Thumb instruction set is a re-encoded subset of the ARM instruction set.

The Thumb instruction set is divided into:

• Branch instructions

• Data processing instructions

• Load and Store instructions

• Load and Store Multiple instructions

• Exception-generating instruction

In Thumb mode, eight general-purpose registers, R0 to R7, are available that are the same physical registers as R0 to R7 when executing ARM instructions. Some Thumb instructions also access to the Program Counter (ARM Register 15), the Link Register (ARM Register 14) and the Stack Pointer (ARM Register 13). Further instructions allow limited access to the ARM registers 8 to 15.

Table 12-3 gives the Thumb instruction mnemonic list.

Table 12-3.

Thumb Instruction Mnemonic List

Mnemonic Operation

ASR

MUL

B

BX

LDR

LDRH

LDRB

LDRSH

LDMIA

PUSH

MOV

ADD

SUB

CMP

TST

AND

EOR

LSL

Move

Add

Subtract

Compare

Test

Logical AND

Logical Exclusive OR

Logical Shift Left

Arithmetic Shift Right

Multiply

Branch

Branch and Exchange

Load Word

Load Half Word

Load Byte

Load Signed Halfword

Load Multiple

Push Register to stack

BL

SWI

STR

STRH

STRB

LDRSB

STMIA

POP

Mnemonic

MVN

ADC

SBC

CMN

NEG

BIC

ORR

LSR

ROR

Operation

Move Not

Add with Carry

Subtract with Carry

Compare Negated

Negate

Bit Clear

Logical (inclusive) OR

Logical Shift Right

Rotate Right

Branch and Link

Software Interrupt

Store Word

Store Half Word

Store Byte

Load Signed Byte

Store Multiple

Pop Register from stack

40

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

13. AT91SAM7A3 Debug and Test Features

13.1

Overview

The AT91SAM7A3 features a number of complementary debug and test capabilities. A common JTAG/ICE (Embedded ICE) port is used for standard debugging functions, such as downloading code and single-stepping through programs. The Debug Unit provides a two-pin

UART that can be used to upload an application into internal SRAM. It manages the interrupt handling of the internal COMMTX and COMMRX signals that trace the activity of the Debug

Communication Channel.

A set of dedicated debug and test input/output pins gives direct access to these capabilities from a PC-based test environment.

13.2

Block Diagram

Figure 13-1. Debug and Test Block Diagram

TMS

TCK

TDI

Boundary

TAP

ICE/JTAG

TAP

Reset and

Test

JTAGSEL

TDO

POR

TST

ARM7TDMI

ICE

PDC

DBGU

DTXD

DRXD

41

6042E–ATARM–14-Dec-06

13.3

Application Examples

13.3.1

Debug Environment

Figure 13-2 on page 42 shows a complete debug environment example. The ICE/JTAG inter-

face is used for standard debugging functions, such as downloading code and single-stepping through the program.

Figure 13-2. Application Debug Environment Example

Host Debugger

ICE/JTAG

Interface

ICE/JTAG

Connector

AT91SAM7A3

RS232

Connector

AT91SAM7A3-based Application Board

Terminal

42

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

13.4

Test Environment

Figure 13-3 on page 43 shows a test environment example. Test vectors are sent and inter-

preted by the tester. In this example, the “board in test” is designed using a number of JTAGcompliant devices. These devices can be connected to form a single scan chain.

Figure 13-3. Application Test Environment Example

Test Adaptor

Tester

JTAG

Interface

ICE/JTAG

Connector

Chip n Chip 2

AT91SAM7A3

Chip 1

AT91SAM7A3-based Application Board In Test

13.5

Debug and Test Pin Description

Table 13-1.

Debug and Test Pin List

Pin Name Function

NRST

TST

TCK

TDI

TDO

TMS

JTAGSEL

DRXD

DTXD

Reset/Test

Microcontroller Reset

Test Mode Select

ICE and JTAG

Test Clock

Test Data In

Test Data Out

Test Mode Select

JTAG Selection

Debug Unit

Debug Receive Data

Debug Transmit Data

Type

Input/Output

Input

Active Level

Low

High

Input

Input

Output

Input

Input

Input

Output

43

6042E–ATARM–14-Dec-06

13.6

Functional Description

13.6.1

13.6.2

Test Pin

One dedicated pin, TST, is used to define the device operating mode. The user must make sure that this pin is tied at low level to ensure normal operating conditions. Other values associated with this pin are reserved for manufacturing test.

Embedded ICE

(Embedded In-circuit Emulator)

The ARM7TDMI Embedded ICE is supported via the ICE/JTAG port. The internal state of the

ARM7TDMI is examined through an ICE/JTAG port.

The ARM7TDMI processor contains hardware extensions for advanced debugging features:

• In halt mode, a store-multiple (STM) can be inserted into the instruction pipeline. This exports the contents of the ARM7TDMI registers. This data can be serially shifted out without affecting the rest of the system.

• In monitor mode, the JTAG interface is used to transfer data between the debugger and a simple monitor program running on the ARM7TDMI processor.

There are three scan chains inside the ARM7TDMI processor that support testing, debugging, and programming of the Embedded ICE. The scan chains are controlled by the ICE/JTAG port.

Embedded ICE mode is selected when JTAGSEL is low. It is not possible to switch directly between ICE and JTAG operations. A chip reset must be performed after JTAGSEL is changed.

For further details on the Embedded ICE, see the ARM7TDMI (Rev4) Technical Reference

Manual (DDI0210B).

13.6.3

Debug Unit

The Debug Unit provides a two-pin (DXRD and TXRD) USART that can be used for several debug and trace purposes and offers an ideal means for in-situ programming solutions and debug monitor communication. Moreover, the association with two peripheral data controller channels permits packet handling of these tasks with processor time reduced to a minimum.

The Debug Unit also manages the interrupt handling of the COMMTX and COMMRX signals that come from the ICE and that trace the activity of the Debug Communication Channel.The

Debug Unit allows blockage of access to the system through the ICE interface.

The Debug Unit can be used to upload an application into the internal SRAM. It is activated by the boot program when no valid application is detected. The protocol used to load the application is XMODEM.

A specific register, the Debug Unit Chip ID Register, gives information about the product version and its internal configuration.

The AT91SAM7A3 Debug Unit Chip ID value is 0x260A0941 on 32-bit width.

For further details on the Debug Unit, see the Debug Unit section.

44

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

13.6.4

13.6.4.1

IEEE 1149.1 JTAG Boundary Scan

IEEE 1149.1 JTAG Boundary Scan allows pin-level access independent of the device packaging technology.

IEEE 1149.1 JTAG Boundary Scan is enabled when JTAGSEL is high. The SAMPLE,

EXTEST and BYPASS functions are implemented. In ICE debug mode, the ARM processor responds with a non-JTAG chip ID that identifies the processor to the ICE system. This is not

IEEE 1149.1 JTAG-compliant.

It is not possible to switch directly between JTAG and ICE operations. A chip reset must be performed after JTAGSEL is changed.

A Boundary-scan Descriptor Language (BSDL) file is provided to set up test.

JTAG Boundary-scan Register

The Boundary-scan Register (BSR) contains 186 bits that correspond to active pins and associated control signals.

Each AT91SAM7A3 input/output pin corresponds to a 3-bit register in the BSR. The OUTPUT bit contains data that can be forced on the pad. The INPUT bit facilitates the observability of data applied to the pad. The CONTROL bit selects the direction of the pad.

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register

175

174

173

172

179

178

177

176

Bit Number

185

184

183

182

181

180

171

170

169

168

Pin Name

PB13

PB12

PB11

PB10

PB9

PB8

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

45

6042E–ATARM–14-Dec-06

142

141

140

139

146

145

144

143

138

137

136

135

150

149

148

147

154

153

152

151

Bit Number

167

166

165

164

163

158

157

156

155

162

161

160

159

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Pin Name

PB7

PB6

PB5

PB4

PB3

PB2

PB1

PB0

PA0

PA1

PA2

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

46

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

109

108

107

106

113

112

111

110

105

104

103

102

117

116

115

114

121

120

119

118

Bit Number

134

133

132

131

130

125

124

123

122

129

128

127

126

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Pin Name

PA3

PA4

PA5

PA6

PA7

PA8

PA9

PA10

PA11

PA12

PA13

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

47

76

75

74

73

80

79

78

77

72

71

70

69

84

83

82

81

88

87

86

85

Bit Number

101

100

99

98

97

92

91

90

89

96

95

94

93

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Pin Name

PA14

PA15

PA16

PA17

PA18

PA19

PA20

PA21

PA22

PA23

PA24

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

48

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

43

42

41

40

47

46

45

44

39

38

37

36

51

50

49

48

55

54

53

52

Bit Number

68

67

66

65

64

59

58

57

56

63

62

61

60

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Pin Name

PA25

PA26

PA27

PA28

PA29

PA30

PA31

PB14

PB15

PB16

PB17

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

49

8

7

10

9

14

13

12

11

4

3

6

5

18

17

16

15

22

21

20

19

Bit Number

35

34

33

32

31

26

25

24

23

30

29

28

27

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Pin Name

PB18

PB19

PB20

PB21

PB22

PB23

PB24

PB25

PB26

PB27

PB28

Pin Type

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

OUTPUT

CONTROL

INPUT

50

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 13-2.

AT91SAM7A3 JTAG Boundary Scan Register (Continued)

Bit Number

2

1

0

Pin Name

PB29

Pin Type

IN/OUT

Associated BSR

Cells

INPUT

OUTPUT

CONTROL

6042E–ATARM–14-Dec-06

51

13.6.5

ID Code Register

Access: Read-only

31 30

VERSION

29

23 22 21

15

7

28 27

20

PART NUMBER

19

14

PART NUMBER

13

6

12 11

5 4

MANUFACTURER IDENTITY

3

• VERSION[31:28]: Product Version Number

Set to 0x1.

• PART NUMBER[27:12]: Product Part Number

Product part Number is 0x5B05

• MANUFACTURER IDENTITY[11:1]

Set to 0x01F.

Bit[0] Required by IEEE Std. 1149.1.

Set to 0x1.

JTAG ID Code value is 0x05B0503F

26

PART NUMBER

25

18 17

10 9

MANUFACTURER IDENTITY

2 1

8

0

1

24

16

52

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

14. Reset Controller (RSTC)

14.1

Overview

The Reset Controller (RSTC), based on power-on reset cells, handles all the resets of the system without any external components. It reports which reset occurred last.

The Reset Controller also drives independently or simultaneously the external reset and the peripheral and processor resets.

14.2

Block Diagram

Figure 14-1. Reset Controller Block Diagram

Reset Controller

Main Supply

POR

Backup Supply

POR

Startup

Counter rstc_irq

Reset

State

Manager proc_nreset

NRST user_reset nrst_out

NRST

Manager exter_nreset periph_nreset backup_neset

WDRPROC wd_fault

SLCK

14.3

Functional Description

14.3.1

Reset Controller Overview

The Reset Controller is made up of an NRST Manager, a Startup Counter and a Reset State

Manager. It runs at Slow Clock and generates the following reset signals:

• proc_nreset: Processor reset line. It also resets the Watchdog Timer.

• backup_nreset: Affects all the peripherals powered by VDDBU.

• periph_nreset: Affects the whole set of embedded peripherals.

• nrst_out: Drives the NRST pin.

These reset signals are asserted by the Reset Controller, either on external events or on software action. The Reset State Manager controls the generation of reset signals and provides a signal to the NRST Manager when an assertion of the NRST pin is required.

The NRST Manager shapes the NRST assertion during a programmable time, thus controlling external device resets.

53

6042E–ATARM–14-Dec-06

14.3.2

The startup counter waits for the complete crystal oscillator startup. The wait delay is given by the crystal oscillator startup time maximum value that can be found in the section Crystal

Oscillator Characteristics in the Electrical Characteristics section of the product documentation.

The Reset Controller Mode Register (RSTC_MR), allowing the configuration of the Reset Controller, is powered with VDDBU, so that its configuration is saved as long as VDDBU is on.

NRST Manager

The NRST Manager samples the NRST input pin and drives this pin low when required by the

Reset State Manager.

Figure 14-2 shows the block diagram of the NRST Manager.

Figure 14-2. NRST Manager

RSTC_SR

URSTS

NRSTL

RSTC_MR

URSTEN

RSTC_MR

URSTIEN

Other interrupt sources rstc_irq user_reset

NRST

RSTC_MR

ERSTL nrst_out

External Reset Timer exter_nreset

14.3.2.1

14.3.2.2

NRST Signal or Interrupt

The NRST Manager samples the NRST pin at Slow Clock speed. When the line is detected low, a User Reset is reported to the Reset State Manager.

However, the NRST Manager can be programmed to not trigger a reset when an assertion of

NRST occurs. Writing the bit URSTEN at 0 in RSTC_MR disables the User Reset trigger.

The level of the pin NRST can be read at any time in the bit NRSTL (NRST level) in

RSTC_SR. As soon as the pin NRST is asserted, the bit URSTS in RSTC_SR is set. This bit clears only when RSTC_SR is read.

The Reset Controller can also be programmed to generate an interrupt instead of generating a reset. To do so, the bit URSTIEN in RSTC_MR must be written at 1.

NRST External Reset Control

The Reset State Manager asserts the signal ext_nreset to assert the NRST pin. When this occurs, the “nrst_out” signal is driven low by the NRST Manager for a time programmed by the field ERSTL in RSTC_MR. This assertion duration, named EXTERNAL_RESET_LENGTH, lasts 2

(ERSTL+1)

Slow Clock cycles. This gives the approximate duration of an assertion between 60 µs and 2 seconds. Note that ERSTL at 0 defines a two-cycle duration for the

NRST pulse.

54

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

This feature allows the Reset Controller to shape the NRST pin level, and thus to guarantee that the NRST line is driven low for a time compliant with potential external devices connected on the system reset.

As the field is within RSTC_MR, which is backed-up, this field can be used to shape the system power-up reset for devices requiring a longer startup time than the Slow Clock Oscillator.

14.3.3

14.3.3.1

Reset States

The Reset State Manager handles the different reset sources and generates the internal reset signals. It reports the reset status in the field RSTTYP of the Status Register (RSTC_SR). The update of the field RSTTYP is performed when the processor reset is released.

General Reset

A general reset occurs when VDDBU is powered on. The backup supply POR cell output rises and is filtered with a Startup Counter, which operates at Slow Clock. The purpose of this counter is to make sure the Slow Clock oscillator is stable before starting up the device. The length of startup time is hardcoded to comply with the Slow Clock Oscillator startup time.

After this time, the processor clock is released at Slow Clock and all the other signals remains valid for 3 cycles for proper processor and logic reset. Then, all the reset signals are released and the field RSTTYP in RSTC_SR reports a General Reset. As the RSTC_MR is reset, the

NRST line rises 2 cycles after the backup_nreset, as ERSTL defaults at value 0x0.

When VDDBU is detected low by the Backup Supply POR Cell, all resets signals are immediately asserted, even if the Main Supply POR Cell does not report a Main Supply shut down.

Figure 14-3 shows how the General Reset affects the reset signals.

Figure 14-3. General Reset State

SLCK

MCK

Backup Supply

POR output

Startup Time

Any

Freq.

backup_nreset proc_nreset

RSTTYP periph_nreset

XXX

Processor Startup

= 3 cycles

0x0 = General Reset XXX

NRST

(nrst_out)

EXTERNAL RESET LENGTH

= 2 cycles

55

6042E–ATARM–14-Dec-06

14.3.3.2

Wake-up Reset

The Wake-up Reset occurs when the Main Supply is down. When the Main Supply POR output is active, all the reset signals are asserted except backup_nreset. When the Main Supply powers up, the POR output is resynchronized on Slow Clock. The processor clock is then reenabled during 3 Slow Clock cycles, depending on the requirements of the ARM processor.

At the end of this delay, the processor and other reset signals rise. The field RSTTYP in

RSTC_SR is updated to report a Wake-up Reset.

The “nrst_out” remains asserted for EXTERNAL_RESET_LENGTH cycles. As RSTC_MR is backed-up, the programmed number of cycles is applicable.

When the Main Supply is detected falling, the reset signals are immediately asserted. This transition is synchronous with the output of the Main Supply POR.

Figure 14-4. Wake-up State

SLCK

MCK

Main Supply

POR output

Any

Freq.

backup_nreset proc_nreset

RSTTYP periph_nreset

NRST

(nrst_out)

Resynch.

2 cycles

Processor Startup

= 3 cycles

XXX 0x1 = WakeUp Reset XXX

EXTERNAL RESET LENGTH

= 4 cycles (ERSTL = 1)

14.3.3.3

56

User Reset

The User Reset is entered when a low level is detected on the NRST pin and the bit URSTEN in RSTC_MR is at 1. The NRST input signal is resynchronized with SLCK to insure proper behavior of the system.

The User Reset is entered as soon as a low level is detected on NRST. The Processor Reset and the Peripheral Reset are asserted.

The User Reset is left when NRST rises, after a two-cycle resynchronization time and a threecycle processor startup. The processor clock is re-enabled as soon as NRST is confirmed high.

When the processor reset signal is released, the RSTTYP field of the Status Register

(RSTC_SR) is loaded with the value 0x4, indicating a User Reset.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

T h e N R S T M a n a g e r g u a r a n t e e s t h a t t h e N R S T l i n e i s a s s e r t e d f o r

EXTERNAL_RESET_LENGTH Slow Clock cycles, as programmed in the field ERSTL. However, if NRST does not rise after EXTERNAL_RESET_LENGTH because it is driven low externally, the internal reset lines remain asserted until NRST actually rises.

Figure 14-5. User Reset State

SLCK

MCK

NRST

Any

Freq.

Resynch.

2 cycles

Resynch.

2 cycles

Processor Startup

= 3 cycles proc_nreset

RSTTYP periph_nreset

Any XXX 0x4 = User Reset

NRST

(nrst_out)

>= EXTERNAL RESET LENGTH

14.3.3.4

Software Reset

The Reset Controller offers several commands used to assert the different reset signals.

These commands are performed by writing the Control Register (RSTC_CR) with the following bits at 1:

• PROCRST: Writing PROCRST at 1 resets the processor and the watchdog timer.

• PERRST: Writing PERRST at 1 resets all the embedded peripherals, including the memory system, and, in particular, the Remap Command. The Peripheral Reset is generally used for debug purposes.

• EXTRST: Writing EXTRST at 1 asserts low the NRST pin during a time defined by the field

ERSTL in the Mode Register (RSTC_MR).

The software reset is entered if at least one of these bits is set by the software. All these commands can be performed independently or simultaneously. The software reset lasts 3 Slow

Clock cycles.

The internal reset signals are asserted as soon as the register write is performed. This is detected on the Master Clock (MCK). They are released when the software reset is left, i.e.; synchronously to SLCK.

If EXTRST is set, the nrst_out signal is asserted depending on the programming of the field

ERSTL. However, the resulting falling edge on NRST does not lead to a User Reset.

57

6042E–ATARM–14-Dec-06

If and only if the PROCRST bit is set, the Reset Controller reports the software status in the field RSTTYP of the Status Register (RSTC_SR). Other Software Resets are not reported in

RSTTYP.

As soon as a software operation is detected, the bit SRCMP (Software Reset Command in

Progress) is set in the Status Register (RSTC_SR). It is cleared as soon as the software reset is left. No other software reset can be performed while the SRCMP bit is set, and writing any value in RSTC_CR has no effect.

Figure 14-6. Software Reset

SLCK

MCK

Write RSTC_CR

Any

Freq.

Resynch.

1 cycle

Processor Startup

= 3 cycles proc_nreset if PROCRST=1

RSTTYP periph_nreset if PERRST=1

NRST

(nrst_out) if EXTRST=1

Any

XXX

0x3 = Software Reset

EXTERNAL RESET LENGTH

8 cycles (ERSTL=2)

SRCMP in RSTC_SR

14.3.3.5

Watchdog Reset

The Watchdog Reset is entered when a watchdog fault occurs. This state lasts 3 Slow Clock cycles.

When in Watchdog Reset, assertion of the reset signals depends on the WDRPROC bit in

WDT_MR:

• If WDRPROC is 0, the Processor Reset and the Peripheral Reset are asserted. The NRST line is also asserted, depending on the programming of the field ERSTL. However, the resulting low level on NRST does not result in a User Reset state.

• If WDRPROC = 1, only the processor reset is asserted.

The Watchdog Timer is reset by the proc_nreset signal. As the watchdog fault always causes a processor reset if WDRSTEN is set, the Watchdog Timer is always reset after a Watchdog

Reset, and the Watchdog is enabled by default and with a period set to a maximum.

When the WDRSTEN in WDT_MR bit is reset, the watchdog fault has no impact on the reset controller.

58

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 14-7. Watchdog Reset

SLCK

MCK

Any

Freq.

wd_fault

Processor Startup

= 3 cycles proc_nreset

RSTTYP periph_nreset

Any XXX 0x2 = Watchdog Reset

Only if

WDRPROC = 0

NRST

(nrst_out)

EXTERNAL RESET LENGTH

8 cycles (ERSTL=2)

14.3.4

Reset State Priorities

The Reset State Manager manages the following priorities between the different reset sources, given in descending order:

• Backup Reset

• Wake-up Reset

• Watchdog Reset

• Software Reset

• User Reset

Particular cases are listed below:

• When in User Reset:

– A watchdog event is impossible because the Watchdog Timer is being reset by the proc_nreset signal.

– A software reset is impossible, since the processor reset is being activated.

• When in Software Reset:

– A watchdog event has priority over the current state.

– The NRST has no effect.

• When in Watchdog Reset:

– The processor reset is active and so a Software Reset cannot be programmed.

– A User Reset cannot be entered.

59

6042E–ATARM–14-Dec-06

14.3.5

Reset Controller Status Register

The Reset Controller status register (RSTC_SR) provides several status fields:

• RSTTYP field: This field gives the type of the last reset, as explained in previous sections.

• SRCMP bit: This field indicates that a Software Reset Command is in progress and that no further software reset should be performed until the end of the current one. This bit is automatically cleared at the end of the current software reset.

• NRSTL bit: The NRSTL bit of the Status Register gives the level of the NRST pin sampled on each MCK rising edge.

• URSTS bit: A high-to-low transition of the NRST pin sets the URSTS bit of the RSTC_SR register. This transition is also detected on the Master Clock (MCK) rising edge (see

Figure

14-8 ). If the User Reset is disabled (URSTEN = 0) and if the interruption is enabled by the

URSTIEN bit in the RSTC_MR register, the URSTS bit triggers an interrupt. Reading the

RSTC_SR status register resets the URSTS bit and clears the interrupt.

Figure 14-8. Reset Controller Status and Interrupt

MCK

Peripheral Access read

RSTC_SR

2 cycle resynchronization

2 cycle resynchronization

NRST

NRSTL

URSTS rstc_irq if (URSTEN = 0) and

(URSTIEN = 1)

60

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

14.4

Reset Controller (RSTC) User Interface

Table 14-1.

Reset Controller (RSTC) Register Mapping

Back-up Reset

Offset

0x00

0x04

0x08

Register Name

Control Register

Status Register

Mode Register

RSTC_CR

RSTC_SR

RSTC_MR

Access

Write-only

Read-only

Read/Write

-

0x0000_0001

-

0x0000_0000

0x0000_0000

Note: 1. The reset value of RSTC_SR either reports a General Reset or a Wake-up Reset depending on last rising power supply.

6042E–ATARM–14-Dec-06

61

14.4.1

Reset Controller Control Register

Register Name:

RSTC_CR

Access Type:

31

Write-only

30 29 28 27 26 25

KEY

23

15

7

22

14

6

21

13

5

20

12

4

19

11

3

EXTRST

18

10

2

PERRST

• PROCRST: Processor Reset

0 = No effect.

1 = If KEY is correct, resets the processor.

• PERRST: Peripheral Reset

0 = No effect.

1 = If KEY is correct, resets the peripherals.

• EXTRST: External Reset

0 = No effect.

1 = If KEY is correct, asserts the NRST pin.

• KEY: Password

Should be written at value 0xA5. Writing any other value in this field aborts the write operation.

17

9

1

24

16

8

0

PROCRST

62

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

14.4.2

Reset Controller Status Register

Register Name:

RSTC_SR

Access Type:

31

Read-only

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

26

18

10

2

• URSTS: User Reset Status

0 = No high-to-low edge on NRST happened since the last read of RSTC_SR.

1 = At least one high-to-low transition of NRST has been detected since the last read of RSTC_SR.

• RSTTYP: Reset Type

Reports the cause of the last processor reset. Reading this RSTC_SR does not reset this field.

25

17

SRCMP

9

RSTTYP

1

24

16

NRSTL

8

0

URSTS

0

0

0

0

1

RSTTYP

0

0

1

1

0

0

1

0

1

0

Reset Type

General Reset

Wake Up Reset

Watchdog Reset

Software Reset

User Reset

Comments

Both VDD1V8 and VDDBU rising

VDD1V8 rising

Watchdog fault occurred

Processor reset required by the software

NRST pin detected low

• NRSTL: NRST Pin Level

Registers the NRST Pin Level at Master Clock (MCK).

• SRCMP: Software Reset Command in Progress

0 = No software command is being performed by the reset controller. The reset controller is ready for a software command.

1 = A software reset command is being performed by the reset controller. The reset controller is busy.

63

6042E–ATARM–14-Dec-06

14.4.3

Reset Controller Mode Register

Register Name:

RSTC_MR

Access Type:

31

Read/Write

30 29 28 27 26 25 24

KEY

23

15

7

22

14

6

21

13

5

20

12

4

URSTIEN

19

11

18

10

ERSTL

17

9

16

8

3

2

1

0

URSTEN

• URSTEN: User Reset Enable

0 = The detection of a low level on the pin NRST does not generate a User Reset.

1 = The detection of a low level on the pin NRST triggers a User Reset.

• URSTIEN: User Reset Interrupt Enable

0 = USRTS bit in RSTC_SR at 1 has no effect on rstc_irq.

1 = USRTS bit in RSTC_SR at 1 asserts rstc_irq if URSTEN = 0.

• ERSTL: External Reset Length

This field defines the external reset length. The external reset is asserted during a time of 2

(ERSTL+1)

Slow Clock cycles. This allows assertion duration to be programmed between 60 µs and 2 seconds.

• KEY: Password

Should be written at value 0xA5. Writing any other value in this field aborts the write operation.

64

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

15. Real-time Timer (RTT)

15.1

Overview

The Real-time Timer is built around a 32-bit counter and used to count elapsed seconds. It generates a periodic interrupt or/and triggers an alarm on a programmed value.

15.2

Block Diagram

Figure 15-1. Real-time Timer

RTT_MR

RTTRST

RTT_MR

RTPRES

RTT_MR

RTTINCIEN

SLCK reload

16-bit

Divider

RTT_MR

RTTRST

0

1 0

RTT_SR set

RTTINC reset rtt_int

32-bit

Counter read

RTT_SR

RTT_MR

ALMIEN

RTT_VR CRTV

RTT_SR reset

ALMS set

= rtt_alarm

RTT_AR

ALMV

15.3

Functional Description

The Real-time Timer is used to count elapsed seconds. It is built around a 32-bit counter fed by

Slow Clock divided by a programmable 16-bit value. The value can be programmed in the field

RTPRES of the Real-time Mode Register (RTT_MR).

Programming RTPRES at 0x00008000 corresponds to feeding the real-time counter with a 1 Hz signal (if the Slow Clock is 32.768 Hz). The 32-bit counter can count up to 2

32

seconds, corresponding to more than 136 years, then roll over to 0.

The Real-time Timer can also be used as a free-running timer with a lower time-base. The best accuracy is achieved by writing RTPRES to 3. Programming RTPRES to 1 or 2 is possible, but may result in losing status events because the status register is cleared two Slow Clock cycles after read. Thus if the RTT is configured to trigger an interrupt, the interrupt occurs during 2 Slow

Clock cycles after reading RTT_SR. To prevent several executions of the interrupt handler, the interrupt must be disabled in the interrupt handler and re-enabled when the status register is clear.

65

6042E–ATARM–14-Dec-06

The Real-time Timer value (CRTV) can be read at any time in the register RTT_VR (Real-time

Value Register). As this value can be updated asynchronously from the Master Clock, it is advisable to read this register twice at the same value to improve accuracy of the returned value.

The current value of the counter is compared with the value written in the alarm register

RTT_AR (Real-time Alarm Register). If the counter value matches the alarm, the bit ALMS in

RTT_SR is set. The alarm register is set to its maximum value, corresponding to 0xFFFF_FFFF, after a reset.

The bit RTTINC in RTT_SR is set each time the Real-time Timer counter is incremented. This bit can be used to start a periodic interrupt, the period being one second when the RTPRES is programmed with 0x8000 and Slow Clock equal to 32.768 Hz.

Reading the RTT_SR status register resets the RTTINC and ALMS fields.

Writing the bit RTTRST in RTT_MR immediately reloads and restarts the clock divider with the new programmed value. This also resets the 32-bit counter.

Note: Because of the asynchronism between the Slow Clock (SCLK) and the System Clock (MCK):

1) The restart of the counter and the reset of the RTT_VR current value register is effective only 2 slow clock cycles after the write of the RTTRST bit in the RTT_MR register.

2) The status register flags reset is taken into account only 2 slow clock cycles after the read of the

RTT_SR (Status Register).

Figure 15-2. RTT Counting

APB cycle APB cycle

MCK

RTPRES - 1

Prescaler

0

RTT

RTTINC (RTT_SR)

ALMS (RTT_SR)

APB Interface

0

...

ALMV-1 ALMV ALMV+1 ALMV+2 ALMV+3 read RTT_SR

66

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

15.4

Real-time Timer (RTT) User Interface

Table 15-1.

Real-time Timer (RTT) Register Mapping

Offset Register

0x00

0x04

0x08

0x0C

Mode Register

Alarm Register

Value Register

Status Register

Name

RTT_MR

RTT_AR

RTT_VR

RTT_SR

Access

Read/Write

Read/Write

Read-only

Read-only

Reset Value

0x0000_8000

0xFFFF_FFFF

0x0000_0000

0x0000_0000

6042E–ATARM–14-Dec-06

67

15.4.1

Real-time Timer Mode Register

Register Name:

RTT_MR

Access Type: Read/Write

31

30

29

28

23

15

22

14

21

13

20

12

RTPRES

11

27

19

26

18

RTTRST

10

25

17

RTTINCIEN

9

7 6 5 4

RTPRES

3 2 1

• RTPRES: Real-time Timer Prescaler Value

Defines the number of SLCK periods required to increment the real-time timer. RTPRES is defined as follows:

RTPRES = 0: The Prescaler Period is equal to 2 16

RTPRES

0: The Prescaler Period is equal to RTPRES.

• ALMIEN: Alarm Interrupt Enable

0 = The bit ALMS in RTT_SR has no effect on interrupt.

1 = The bit ALMS in RTT_SR asserts interrupt.

• RTTINCIEN: Real-time Timer Increment Interrupt Enable

0 = The bit RTTINC in RTT_SR has no effect on interrupt.

1 = The bit RTTINC in RTT_SR asserts interrupt.

• RTTRST: Real-time Timer Restart

1 = Reloads and restarts the clock divider with the new programmed value. This also resets the 32-bit counter.

0

24

16

ALMIEN

8

68

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

15.4.2

Real-time Timer Alarm Register

Register Name:

RTT_AR

Access Type:

31

Read/Write

30 29 28 27

ALMV

23 22 21 20 19

ALMV

15 14 13 12 11

ALMV

7 6 5 4 3

ALMV

• ALMV: Alarm Value

Defines the alarm value (ALMV+1) compared with the Real-time Timer.

15.4.3

Real-time Timer Value Register

Register Name:

RTT_VR

Access Type:

31

Read-only

30 29 28

CRTV

27

23 22 21 20 19

CRTV

15 14 13 12 11

CRTV

7 6 5 4 3

CRTV

• CRTV: Current Real-time Value

Returns the current value of the Real-time Timer.

AT91SAM7A3 Preliminary

26

18

10

2

26

18

10

2

25

17

9

1

25

17

9

1

24

16

8

0

24

16

8

0

69

6042E–ATARM–14-Dec-06

15.4.4

Real-time Timer Status Register

Register Name:

RTT_SR

Access Type:

31

Read-only

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

• ALMS: Real-time Alarm Status

0 = The Real-time Alarm has not occurred since the last read of RTT_SR.

1 = The Real-time Alarm occurred since the last read of RTT_SR.

• RTTINC: Real-time Timer Increment

0 = The Real-time Timer has not been incremented since the last read of the RTT_SR.

1 = The Real-time Timer has been incremented since the last read of the RTT_SR.

26

18

10

2

25

17

9

1

RTTINC

24

16

8

0

ALMS

70

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

16. Periodic Interval Timer (PIT)

16.1

Overview

The Periodic Interval Timer (PIT) provides the operating system’s scheduler interrupt. It is designed to offer maximum accuracy and efficient management, even for systems with long response time.

16.2

Block Diagram

Figure 16-1. Periodic Interval Timer

PIT_MR

PIV

= ?

0

0

0 1

PIT_SR set

PITS reset

PIT_MR

PITIEN pit_irq

0 1

12-bit

Adder read PIT_PIVR

MCK

20-bit

Counter

Prescaler

MCK/16

CPIV PIT_PIVR

PICNT

PIT_PIIR

CPIV PICNT

16.3

Functional Description

The Periodic Interval Timer aims at providing periodic interrupts for use by operating systems.

The PIT provides a programmable overflow counter and a reset-on-read feature. It is built around two counters: a 20-bit CPIV counter and a 12-bit PICNT counter. Both counters work at Master Clock /16.

The first 20-bit CPIV counter increments from 0 up to a programmable overflow value set in the field PIV of the Mode Register (PIT_MR). When the counter CPIV reaches this value, it resets to 0 and increments the Periodic Interval Counter, PICNT. The status bit PITS in the

Status Register (PIT_SR) rises and triggers an interrupt, provided the interrupt is enabled

(PITIEN in PIT_MR).

Writing a new PIV value in PIT_MR does not reset/restart the counters.

71

6042E–ATARM–14-Dec-06

When CPIV and PICNT values are obtained by reading the Periodic Interval Value Register

(PIT_PIVR), the overflow counter (PICNT) is reset and the PITS is cleared, thus acknowledging the interrupt. The value of PICNT gives the number of periodic intervals elapsed since the last read of PIT_PIVR.

When CPIV and PICNT values are obtained by reading the Periodic Interval Image Register

(PIT_PIIR), there is no effect on the counters CPIV and PICNT, nor on the bit PITS. For example, a profiler can read PIT_PIIR without clearing any pending interrupt, whereas a timer interrupt clears the interrupt by reading PIT_PIVR.

The PIT may be enabled/disabled using the PITEN bit in the PIT_MR register (disabled on

reset). The PITEN bit only becomes effective when the CPIV value is 0. Figure 16-2 illustrates

the PIT counting. After the PIT Enable bit is reset (PITEN= 0), the CPIV goes on counting until the PIV value is reached, and is then reset. PIT restarts counting, only if the PITEN is set again.

The PIT is stopped when the core enters debug state.

Figure 16-2. Enabling/Disabling PIT with PITEN

APB cycle

15

MCK Prescaler 0

PITEN

CPIV

PICNT

PITS (PIT_SR)

APB Interface

0 1

0

PIV - 1 PIV

MCK

1

0

APB cycle

0 restarts MCK Prescaler

1 read PIT_PIVR

72

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

16.4

Periodic Interval Timer (PIT) User Interface

Table 16-1.

Periodic Interval Timer (PIT) Register Mapping

Offset Register Name

0x00

0x04

0x08

0x0C

Mode Register

Status Register

Periodic Interval Value Register

Periodic Interval Image Register

PIT_MR

PIT_SR

PIT_PIVR

PIT_PIIR

AT91SAM7A3 Preliminary

Access

Read/Write

Read-only

Read-only

Read-only

0x000F_FFFF

0x0000_0000

0x0000_0000

0x0000_0000

16.4.1

Periodic Interval Timer Mode Register

Register Name:

PIT_MR

Access Type:

31

Read/Write

30

29

28

23

15

22

14

21

13

20

12

27

19

11

26

18

10

PIV

25

PITIEN

17

9

24

PITEN

16

8

PIV

7 6 5 4 3 2 1 0

PIV

• PIV: Periodic Interval Value

Defines the value compared with the primary 20-bit counter of the Periodic Interval Timer (CPIV). The period is equal to

(PIV + 1).

• PITEN: Period Interval Timer Enabled

0 = The Periodic Interval Timer is disabled when the PIV value is reached.

1 = The Periodic Interval Timer is enabled.

• PITIEN: Periodic Interval Timer Interrupt Enable

0 = The bit PITS in PIT_SR has no effect on interrupt.

1 = The bit PITS in PIT_SR asserts interrupt.

73

6042E–ATARM–14-Dec-06

16.4.2

Periodic Interval Timer Status Register

Register Name:

PIT_SR

Access Type:

31

Read-only

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

• PITS: Periodic Interval Timer Status

0 = The Periodic Interval timer has not reached PIV since the last read of PIT_PIVR.

1 = The Periodic Interval timer has reached PIV since the last read of PIT_PIVR.

26

18

10

2

25

17

9

1

24

16

8

0

PITS

74

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

16.4.3

Periodic Interval Timer Value Register

Register Name:

PIT_PIVR

Access Type:

31

Read-only

30 29 28 27 26

PICNT

23 22 21 20 19 18

PICNT

15 14 13 12 11 10

CPIV

7 6 5 4 3 2

CPIV

Reading this register clears PITS in PIT_SR.

• CPIV: Current Periodic Interval Value

Returns the current value of the periodic interval timer.

• PICNT: Periodic Interval Counter

Returns the number of occurrences of periodic intervals since the last read of PIT_PIVR.

CPIV

25

17

9

1

24

16

8

0

75

6042E–ATARM–14-Dec-06

16.4.4

Periodic Interval Timer Image Register

Register Name:

PIT_PIIR

Access Type:

31

Read-only

30 29 28 27 26

PICNT

23 22 21 20 19 18

PICNT

15 14 13 12 11 10

CPIV

7 6 5 4 3 2

CPIV

• CPIV: Current Periodic Interval Value

Returns the current value of the periodic interval timer.

• PICNT: Periodic Interval Counter

Returns the number of occurrences of periodic intervals since the last read of PIT_PIVR.

CPIV

25

17

9

1

8

0

24

16

76

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

17. Watchdog Timer (WDT)

17.1

Overview

The Watchdog Timer can be used to prevent system lock-up if the software becomes trapped in a deadlock. It features a 12-bit down counter that allows a watchdog period of up to 16 seconds

(slow clock at 32.768 kHz). It can generate a general reset or a processor reset only. In addition, it can be stopped while the processor is in debug mode or idle mode.

17.2

Block Diagram

Figure 17-1. Watchdog Timer Block Diagram write WDT_MR

WDT_CR

WDRSTT reload

WDT_MR

WDV

1 0

WDT_MR

WDD

<= WDD

12-bit Down

Counter

Current

Value

= 0 set

WDUNF reset read WDT_SR or reset set

WDERR reset reload

1/128

SLCK

WDT_MR

WDRSTEN wdt_fault

(to Reset Controller) wdt_int

WDFIEN

WDT_MR

77

6042E–ATARM–14-Dec-06

17.3

Functional Description

The Watchdog Timer can be used to prevent system lock-up if the software becomes trapped in a deadlock. It is supplied with VDDCORE. It restarts with initial values on processor reset.

The Watchdog is built around a 12-bit down counter, which is loaded with the value defined in the field WDV of the Mode Register (WDT_MR). The Watchdog Timer uses the Slow Clock divided by 128 to establish the maximum Watchdog period to be 16 seconds (with a typical Slow

Clock of 32.768 kHz).

After a Processor Reset, the value of WDV is 0xFFF, corresponding to the maximum value of the counter with the external reset generation enabled (field WDRSTEN at 1 after a Backup

Reset). This means that a default Watchdog is running at reset, i.e., at power-up. The user must either disable it (by setting the WDDIS bit in WDT_MR) if he does not expect to use it or must reprogram it to meet the maximum Watchdog period the application requires.

The Watchdog Mode Register (WDT_MR) can be written only once. Only a processor reset resets it. Writing the WDT_MR register reloads the timer with the newly programmed mode parameters.

In normal operation, the user reloads the Watchdog at regular intervals before the timer underflow occurs, by writing the Control Register (WDT_CR) with the bit WDRSTT to 1. The

Watchdog counter is then immediately reloaded from WDT_MR and restarted, and the Slow

Clock 128 divider is reset and restarted. The WDT_CR register is write-protected. As a result, writing WDT_CR without the correct hard-coded key has no effect. If an underflow does occur, the “wdt_fault” signal to the Reset Controller is asserted if the bit WDRSTEN is set in the Mode

Register (WDT_MR). Moreover, the bit WDUNF is set in the Watchdog Status Register

(WDT_SR).

To prevent a software deadlock that continuously triggers the Watchdog, the reload of the

Watchdog must occur while the Watchdog counter is within a window between 0 and WDD,

WDD is defined in the WatchDog Mode Register WDT_MR.

Any attempt to restart the Watchdog while the Watchdog counter is between WDV and WDD results in a Watchdog error, even if the Watchdog is disabled. The bit WDERR is updated in the

WDT_SR and the “wdt_fault” signal to the Reset Controller is asserted.

Note that this feature can be disabled by programming a WDD value greater than or equal to the

WDV value. In such a configuration, restarting the Watchdog Timer is permitted in the whole range [0; WDV] and does not generate an error. This is the default configuration on reset (the

WDD and WDV values are equal).

The status bits WDUNF (Watchdog Underflow) and WDERR (Watchdog Error) trigger an interrupt, provided the bit WDFIEN is set in the mode register. The signal “wdt_fault” to the reset controller causes a Watchdog reset if the WDRSTEN bit is set as already explained in the reset controller programmer Datasheet. In that case, the processor and the Watchdog Timer are reset, and the WDERR and WDUNF flags are reset.

If a reset is generated or if WDT_SR is read, the status bits are reset, the interrupt is cleared, and the “wdt_fault” signal to the reset controller is deasserted.

Writing the WDT_MR reloads and restarts the down counter.

While the processor is in debug state or in idle mode, the counter may be stopped depending on the value programmed for the bits WDIDLEHLT and WDDBGHLT in the WDT_MR.

78

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

Figure 17-2. Watchdog Behavior

FFF

WDV

Forbidden

Window

WDD

Permitted

Window

0

Watchdog

Fault

Normal behavior

WDT_CR = WDRSTT

AT91SAM7A3 Preliminary

Watchdog Error

Watchdog Underflow if WDRSTEN is 1 if WDRSTEN is 0

79

6042E–ATARM–14-Dec-06

17.4

Watchdog Timer (WDT) User Interface

Table 17-1.

Watchdog Timer (WDT) Register Mapping

Offset Register

0x00

0x04

0x08

Control Register

Mode Register

Status Register

Name

WDT_CR

WDT_MR

WDT_SR

Access

Write-only

Read/Write Once

Read-only

Reset Value

-

0x3FFF_2FFF

0x0000_0000

17.4.1

Watchdog Timer Control Register

Register Name:

Access Type:

WDT_CR

Write-only

31 30 29 28 27 26 25

KEY

23

15

22

14

21

13

20

12

19

11

18

10

7

6

5

4

3

2

• WDRSTT: Watchdog Restart

0: No effect.

1: Restarts the Watchdog.

• KEY: Password

Should be written at value 0xA5. Writing any other value in this field aborts the write operation.

17

9

1

24

16

8

0

WDRSTT

80

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

17.4.2

Watchdog Timer Mode Register

Register Name:

Access Type:

WDT_MR

Read/Write Once

31

30

29

WDIDLEHLT

28

WDDBGHLT

23 22 21 20

WDD

27

19

26

18

WDD

25

17

24

16

15

WDDIS

7

14

WDRPROC

6

13

WDRSTEN

5

12

WDFIEN

4

WDV

11

3

10

2

WDV

9

1

• WDV: Watchdog Counter Value

Defines the value loaded in the 12-bit Watchdog Counter.

• WDFIEN: Watchdog Fault Interrupt Enable

0: A Watchdog fault (underflow or error) has no effect on interrupt.

1: A Watchdog fault (underflow or error) asserts interrupt.

• WDRSTEN: Watchdog Reset Enable

0: A Watchdog fault (underflow or error) has no effect on the resets.

1: A Watchdog fault (underflow or error) triggers a Watchdog reset.

• WDRPROC: Watchdog Reset Processor

0: If WDRSTEN is 1, a Watchdog fault (underflow or error) activates all resets.

1: If WDRSTEN is 1, a Watchdog fault (underflow or error) activates the processor reset.

• WDD: Watchdog Delta Value

Defines the permitted range for reloading the Watchdog Timer.

If the Watchdog Timer value is less than or equal to WDD, writing WDT_CR with WDRSTT = 1 restarts the timer.

If the Watchdog Timer value is greater than WDD, writing WDT_CR with WDRSTT = 1 causes a Watchdog error.

• WDDBGHLT: Watchdog Debug Halt

0: The Watchdog runs when the processor is in debug state.

1: The Watchdog stops when the processor is in debug state.

• WDIDLEHLT: Watchdog Idle Halt

0: The Watchdog runs when the system is in idle mode.

1: The Watchdog stops when the system is in idle state.

• WDDIS: Watchdog Disable

0: Enables the Watchdog Timer.

1: Disables the Watchdog Timer.

8

0

81

6042E–ATARM–14-Dec-06

17.4.3

Watchdog Timer Status Register

Register Name:

Access Type:

WDT_SR

Read-only

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

7

6

5

4

3

• WDUNF: Watchdog Underflow

0: No Watchdog underflow occurred since the last read of WDT_SR.

1: At least one Watchdog underflow occurred since the last read of WDT_SR.

• WDERR: Watchdog Error

0: No Watchdog error occurred since the last read of WDT_SR.

1: At least one Watchdog error occurred since the last read of WDT_SR.

10

2

26

18

25

17

9

1

WDERR

24

16

8

0

WDUNF

82

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

18. Shutdown Controller (SHDWC)

18.1

Overview

The Shutdown Controller controls the power supplies VDD3V3 and VDD1V8 and the wake-up detection on debounced input lines. A dedicated input, Force Wake Up, is also available.

18.2

Block Diagram

Figure 18-1. Shutdown Controller Block Diagram

SLCK

WKUP0

WKUP1

RTT Alarm

Shutdown Controller

SYSC_SHMR

CPTWK0

WKMODE0

CPTWK1

WKMODE1

Event0

Event

Detector read SYSC_SHSR reset

WAKEUP0 set

SYSC_SHSR read SYSC_SHSR reset

WAKEUP1 set

SYSC_SHSR

Event1

RTTWKEN

SYSC_SHMR read SYSC_SHSR reset

RTTWK SYSC_SHSR set

Wake-up

Shutdown

Output

Controller

SYSC_SHCR

SHDW read SYSC_SHSR reset

FWKUP set

SYSC_SHSR

Shutdown

SHDW

FWKUP

83

6042E–ATARM–14-Dec-06

18.3

I/O Lines Description

Table 18-1.

I/O Lines Description

Name

FWKUP

WKUP0

WKUP1

SHDW

Description

Force Wake Up input for the Shutdown Controller

Wake-up 0 input

Wake-up 1input

Shutdown output

Type

Input

Input

Input

Output

18.4

Product Dependencies

18.4.1

Power Management

The Shutdown Controller is continuously clocked by Slow Clock. The Power Management

Controller has no effect on the behavior of the Shutdown Controller.

18.5

Functional Description

The Shutdown Controller manages the main power supply. To do so, it is supplied with

VDDBU and manages wake-up input pins and one output pin, SHDW.

A typical application connects the pin SHDW to the shutdown input of the DC/DC Converter providing the main power supplies of the system, and especially VDD1V8 and/or VDD3V3.

The wake-up inputs (WKUP0, WKUP1, FWKUP) connect to any push-buttons or signal that wake up the system.

The software is able to control the pin SHDW by writing the Shutdown Control Register

(SHDW_CR) with the bit SHDW at 1. This register is password-protected and so the value written should contain the correct key for the command to be taken into account. As a result, the system should be powered down.

A level change on WKUP0 or WKUP1 is used as wake-up. Wake-up is configured in the Shutdown Mode Register (SHDW_MR). The transition detector can be programmed to detect either a positive or negative transition or any level change on WKUP0 and WKUP1. The detection can also be disabled. Programming is performed by defining WKMODE0 and

WKMODE1.

Moreover, a debouncing circuit can be programmed for WKUP0 or WKUP1. The debouncing circuit filters pulses on WKUP0 or WKUP1 shorter than the programmed number of 16 SLCK cycles in CPTWK0 or CPTWK1 of the SHDW_MR register. If the programmed level change is detected on a pin, a counter starts. When the counter reaches the value programmed in the corresponding field, CPTWK0 or CPTWK1, the SHDW pin is released. If a new input change is detected before the counter reaches the corresponding value, the counter is stopped and cleared. WAKEUP0 and/or WAKEUP1 of the Status Register (SHDW_SR) reports the detection of the programmed events on WKUP0 or WKUP1, with a reset after the read of

SHDW_SR.

The Shutdown Controller can be programmed so as to activate the wake-up using the RTT alarm (the detection of the rising edge of the RTT alarm is synchronized with SLCK). This is done by writing the SHDW_MR register using the RTTWKEN fields. When enabled, the detection of the RTT alarm is reported in the RTTWK bit of the SHDW_SR Status register. It is reset

84

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

after the read of SHDW_SR. When using the RTT alarm to wake up the system, the user must ensure that the RTT alarm status flag is cleared before shutting down the system. Otherwise, no rising edge of the status flag may be detected and the wake-up fails.

The pin FWKUP is treated differently and a low level on this pin forces a de-assertion of the

SHDW pin, regardless of the presence of the Slow Clock. The bit FWKUP in the status register reports a Forced Wakeup Event after internal resynchronization of the event with the Slow

Clock.

6042E–ATARM–14-Dec-06

85

18.6

Shutdown Controller (SHDWC) User Interface

18.6.1

Register Mapping

Table 18-2.

Shutdown Controller (SHDWC) Registers

Offset Register Name

0x00

0x04

0x18

Shutdown Control Register

Shutdown Mode Register

Shutdown Status Register

SHDW_CR

SHDW_MR

SHDW_SR

Access

Write-only

Read-Write

Read-only

-

0x0000_0303

0x0000_0000

18.6.2

Shutdown Control Register

Register Name:

SHDW_CR

Access Type:

Write-only

31 30 29 28 27 26 25

KEY

23

15

22

14

21

13

20

12

19

11

18

10

7

6

5

4

3

2

• SHDW: Shut Down Command

0 = No effect.

1 = If KEY is correct, asserts the SHDW pin.

• KEY: Password

Should be written at value 0xA5. Writing any other value in this field aborts the write operation.

17

9

1

24

16

8

0

SHDW

86

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

18.6.3

Shutdown Mode Register

Register Name:

Access Type:

SHDW_MR

Read/Write

31

30

29

23

15

22

21

14

CPTWK1

13

7 6

CPTWK0

5

• WKMODE0: Wake-up Mode 0

• WKMODE1: Wake-up Mode 1

28

20

12

4

11

3

27

19

10

2

26

18

25

17

24

16

RTTWKEN

9

WKMODE1

8

1

WKMODE0

0

1

1

0

0

WKMODE[1:0]

0

1

0

1

Wake-up Input Transition Selection

None. No detection is performed on the wake-up input

Low to high level

High to low level

Both levels change

• CPTWK0: Counter on Wake-up 0

• CPTWK1: Counter on Wake-up 1

Defines the number of 16 Slow Clock cycles, the level detection on the corresponding input pin shall last before the wakeup event occurs. Because of the internal synchronization of WKUP0 and WKUP1, the SHDW pin is released

(CPTWK x 16 + 1) Slow Clock cycles after the event on WKUP.

• RTTWKEN: Real-time Timer Wake-up Enable

0 = The RTT Alarm signal has no effect on the Shutdown Controller.

1 = The RTT Alarm signal forces the de-assertion of the SHDW pin.

87

6042E–ATARM–14-Dec-06

18.6.4

Shutdown Status Register

Register Name:

Access Type:

SHDW_SR

Read-only

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

25

17

9

24

16

RTTWK

8

7

6

5

4

3

2

FWKUP

1

WAKEUP1

0

WAKEUP0

• WAKEUP0: Wake-up 0 Status

• WAKEUP1: Wake-up 1 Status

0 = No wake-up event occurred on the corresponding wake-up input since the last read of SHDW_SR.

1 = At least one wake-up event occurred on the corresponding wake-up input since the last read of SHDW_SR.

• FWKUP: Force Wake Up Status

0 = No wake-up event occurred on the Force Wake Up input since the last read of SHDW_SR.

1 = At least one wake-up event occurred on the Force Wake Up input since the last read of SHDW_SR.

• RTTWK: Real-time Timer Wake-up

0 = No wake-up alarm from the RTT occurred since the last read of SHDW_SR.

1 = At least one wake-up alarm from the RTT occurred since the last read of SHDW_SR.

88

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

19. Memory Controller (MC)

19.1

Overview

The Memory Controller (MC) manages the ASB bus and controls accesses requested by the masters, typically the ARM7TDMI processor and the Peripheral Data Controller. It features a simple bus arbiter, an address decoder, an abort status, a misalignment detector and an

Embedded Flash Controller. In addition, the MC contains a Memory Protection Unit (MPU) consisting of 16 areas that can be protected against write and/or user accesses. Access to peripherals can be protected in the same way.

19.2

Block Diagram

Figure 19-1. Memory Controller Block Diagram

Memory Controller

ASB

ARM7TDMI

Processor

Abort

Abort

Status

Embedded

Flash

Controller

Internal

Flash

Internal

RAM

Address

Decoder

Bus

Arbiter

Misalignment

Detector

Memory

Protection

Unit

User

Interface

Peripheral

Data

Controller

APB

Bridge

Peripheral 0

Peripheral 1

Peripheral N

APB

From Master to Slave

89

6042E–ATARM–14-Dec-06

19.3

Functional Description

The Memory Controller handles the internal ASB bus and arbitrates the accesses of both masters.

It is made up of:

• A bus arbiter

• An address decoder

• An abort status

• A misalignment detector

• A memory protection unit

• An Embedded Flash Controller

The MC handles only little-endian mode accesses. The masters work in little-endian mode only.

19.3.1

19.3.2

Bus Arbiter

The Memory Controller has a simple, hard-wired priority bus arbiter that gives the control of the bus to one of the two masters. The Peripheral Data Controller has the highest priority; the

ARM processor has the lowest one.

Address Decoder

The Memory Controller features an Address Decoder that first decodes the four highest bits of the 32-bit address bus and defines three separate areas:

• One 256-Mbyte address space for the internal memories

• One 256-Mbyte address space reserved for the embedded peripherals

• An undefined address space of 3584M bytes representing fourteen 256-Mbyte areas that return an Abort if accessed

Figure 19-2 shows the assignment of the 256-Mbyte memory areas.

Figure 19-2. Memory Areas

256M Bytes

0x0000 0000

0x0FFF FFFF

0x1000 0000

Internal Memories

14 x 256MBytes

3,584 Mbytes

Undefined

(Abort)

256M Bytes

90

AT91SAM7A3 Preliminary

0xEFFF FFFF

0xF000 0000

0xFFFF FFFF

Peripherals

6042E–ATARM–14-Dec-06

19.3.2.1

AT91SAM7A3 Preliminary

Internal Memory Mapping

Within the Internal Memory address space, the Address Decoder of the Memory Controller decodes eight more address bits to allocate 1-Mbyte address spaces for the embedded memories.

The allocated memories are accessed all along the 1-Mbyte address space and so are repeated n times within this address space, n equaling 1M bytes divided by the size of the memory.

When the address of the access is undefined within the internal memory area, the Address

Decoder returns an Abort to the master.

Figure 19-3. Internal Memory Mapping

0x0000 0000

Internal Memory Area 0

0x000F FFFF

0x0010 0000

Internal Memory Area 1

Internal Flash

0x001F FFFF

0x0020 0000

256M Bytes

Internal Memory Area 2

Internal SRAM

0x002F FFFF

0x0030 0000

1M Bytes

1M Bytes

1M Bytes

Undefined Areas

(Abort)

253M bytes

0x0FFF FFFF

19.3.2.2

19.3.3

Internal Memory

Area 0

The first 32 bytes of Internal Memory Area 0 contain the ARM processor exception vectors, in particular, the Reset Vector at address 0x0.

Before execution of the remap command, the on-chip Flash is mapped into Internal Memory

Area 0, so that the ARM7TDMI reaches an executable instruction contained in Flash. After the remap command, the internal SRAM at address 0x0020 0000 is mapped into Internal Memory

Area 0. The memory mapped into Internal Memory Area 0 is accessible in both its original location and at address 0x0.

Remap Command

After execution, the Remap Command causes the Internal SRAM to be accessed through the

Internal Memory Area 0.

As the ARM vectors (Reset, Abort, Data Abort, Prefetch Abort, Undefined Instruction, Interrupt, and Fast Interrupt) are mapped from address 0x0 to address 0x20, the Remap

Command allows the user to redefine dynamically these vectors under software control.

The Remap Command is accessible through the Memory Controller User Interface by writing the MC_RCR (Remap Control Register) RCB field to one.

The Remap Command can be cancelled by writing the MC_RCR RCB field to one, which acts as a toggling command. This allows easy debug of the user-defined boot sequence by offering a simple way to put the chip in the same configuration as after a reset.

91

6042E–ATARM–14-Dec-06

19.3.4

19.3.5

Abort Status

There are three reasons for an abort to occur:

• access to an undefined address

• access to a protected area without the permitted state

• an access to a misaligned address.

When an abort occurs, a signal is sent back to all the masters, regardless of which one has generated the access. However, only the ARM7TDMI can take an abort signal into account, and only under the condition that it was generating an access. The Peripheral Data Controller

does not handle the abort input signal. Note that the connection is not represented in Figure

19-1 .

To facilitate debug or for fault analysis by an operating system, the Memory Controller integrates an Abort Status register set.

The full 32-bit wide abort address is saved in MC_AASR. Parameters of the access are saved in MC_ASR and include:

• the size of the request (field ABTSZ)

• the type of the access, whether it is a data read or write, or a code fetch (field ABTTYP)

• whether the access is due to accessing an undefined address (bit UNDADD), a misaligned address (bit MISADD) or a protection violation (bit MPU)

• the source of the access leading to the last abort (bits MST0 and MST1)

• whether or not an abort occurred for each master since the last read of the register (bit

SVMST0 and SVMST1) unless this information is loaded in MST bits

In the case of a Data Abort from the processor, the address of the data access is stored. This is useful, as searching for which address generated the abort would require disassembling the instructions and full knowledge of the processor context.

In the case of a Prefetch Abort, the address may have changed, as the prefetch abort is pipelined in the ARM processor. The ARM processor takes the prefetch abort into account only if the read instruction is executed and it is probable that several aborts have occurred during this time. Thus, in this case, it is preferable to use the content of the Abort Link register of the ARM processor.

Memory Protection Unit

The Memory Protection Unit allows definition of up to 16 memory spaces within the internal memories.

After reset, the Memory Protection Unit is disabled. Enabling it requires writing the Protection

Unit Enable Register (MC_PUER) with the PUEB at 1.

Programming of the 16 memory spaces is done in the registers MC_PUIA0 to MC_PUIA15.

The size of each of the memory spaces is programmable by a power of 2 between 1K bytes and 4M bytes. The base address is also programmable on a number of bits according to the size.

The Memory Protection Unit also allows the protection of the peripherals by programming the

Protection Unit Peripheral Register (MC_PUP) with the field PROT at the appropriate value.

92

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

19.3.6

19.3.7

The peripheral address space and each internal memory area can be protected against write and non-privileged access of one of the masters. When one of the masters performs a forbidden access, an Abort is generated and the Abort Status traces what has happened.

There is no priority in the protection of the memory spaces. In case of overlap between several memory spaces, the strongest protection is taken into account. If an access is performed to an address which is not contained in any of the 16 memory spaces, the Memory Protection Unit generates an abort. To prevent this, the user can define a memory space of 4M bytes starting at 0 and authorizing any access.

Embedded Flash Controller

The Embedded Flash Controller is added to the Memory Controller and ensures the interface of the flash block with the 32-bit internal bus. It allows an increase of performance in Thumb

Mode for Code Fetch with its system of 32-bit buffers. It also manages with the programming, erasing, locking and unlocking sequences thanks to a full set of commands.

Misalignment Detector

The Memory Controller features a Misalignment Detector that checks the consistency of the accesses.

For each access, regardless of the master, the size of the access and the bits 0 and 1 of the address bus are checked. If the type of access is a word (32-bit) and the bits 0 and 1 are not 0, or if the type of the access is a half-word (16-bit) and the bit 0 is not 0, an abort is returned to the master and the access is cancelled. Note that the accesses of the ARM processor when it is fetching instructions are not checked.

The misalignments are generally due to software bugs leading to wrong pointer handling.

These bugs are particularly difficult to detect in the debug phase.

As the requested address is saved in the Abort Status Register and the address of the instruction generating the misalignment is saved in the Abort Link Register of the processor, detection and fix of this kind of software bugs is simplified.

93

6042E–ATARM–14-Dec-06

19.4

Memory Controller (MC) User Interface

Base Address: 0xFFFFFF00

Table 19-1.

Memory Controller (MC) Memory Mapping

Offset

0x00

Register

MC Remap Control Register

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x40

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

0x44

0x48

0x4C

0x50

0x54

0x60

MC Abort Status Register

MC Abort Address Status Register

Reserved

MC Protection Unit Area 0

MC Protection Unit Area 1

MC Protection Unit Area 2

MC Protection Unit Area 3

MC Protection Unit Area 4

MC Protection Unit Area 5

MC Protection Unit Area 6

MC Protection Unit Area 7

MC Protection Unit Area 8

MC Protection Unit Area 9

MC Protection Unit Area 10

MC Protection Unit Area 11

MC Protection Unit Area 12

MC Protection Unit Area 13

MC Protection Unit Area 14

MC Protection Unit Area 15

MC Protection Unit Peripherals

MC Protection Unit Enable Register

EFC Configuration Registers

Name

MC_RCR

MC_ASR

MC_AASR

MC_PUIA0

MC_PUIA1

MC_PUIA2

MC_PUIA3

MC_PUIA4

MC_PUIA5

MC_PUIA6

MC_PUIA7

MC_PUIA8

MC_PUIA9

MC_PUIA10

MC_PUIA11

MC_PUIA12

MC_PUIA13

MC_PUIA14

MC_PUIA15

MC_PUP

MC_PUER

Access

Write-only

Read-only

Read-only

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

See EFC Part

Reset State

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

94

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

19.4.1

MC Remap Control Register

Register Name:

Access Type:

MC_RCR

Write-only

Absolute Address: 0xFFFF FF00

31

30

29

23

15

7

22

14

6

21

13

5

12

4

28

20

11

3

27

19

10

2

26

18

1

9

25

17

8

0

RCB

24

16

• RCB: Remap Command Bit

0: No effect.

1: This Command Bit acts on a toggle basis: writing a 1 alternatively cancels and restores the remapping of the page zero memory devices.

95

6042E–ATARM–14-Dec-06

19.4.2

MC Abort Status Register

Register Name:

Access Type:

MC_ASR

Read-only

Reset Value: 0x0

Absolute Address: 0xFFFF FF04

31

30

29

23

15

7

22

14

6

21

13

5

12

4

28

20

27

19

11

ABTTYP

26

18

10

3

2

MPU

• UNDADD: Undefined Address Abort Status

0: The last abort was not due to the access of an undefined address in the address space.

1: The last abort was due to the access of an undefined address in the address space.

• MISADD: Misaligned Address Abort Status

0: The last aborted access was not due to an address misalignment.

1: The last aborted access was due to an address misalignment.

• MPU: Memory Protection Unit Abort Status

0: The last aborted access was not due to the Memory Protection Unit.

1: The last aborted access was due to the Memory Protection Unit.

• ABTSZ: Abort Size Status

ABTSZ

0

0

1

1

• ABTTYP: Abort Type Status

0

1

0

1

Abort Size

Byte

Half-word

Word

Reserved

25

SVMST1

17

MST1

9

ABTSZ

24

SVMST0

16

MST0

8

1

MISADD

0

UNDADD

1

1

0

0

0

1

0

1

Data Read

Data Write

Code Fetch

Reserved

• MST0: PDC Abort Source

0: The last aborted access was not due to the PDC.

1: The last aborted access was due to the PDC.

96

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

• MST1: ARM7TDMI Abort Source

0: The last aborted access was not due to the ARM7TDMI.

1: The last aborted access was due to the ARM7TDMI.

• SVMST0: Saved PDC Abort Source

0: No abort due to the PDC occurred.

1: At least one abort due to the PDC occurred.

• SVMST1: Saved ARM7TDMI Abort Source

0: No abort due to the ARM7TDMI occurred.

1: At least one abort due to the ARM7TDMI occurred.

19.4.3

MC Abort Address Status Register

Register Name:

Access Type:

MC_AASR

Read-only

Reset Value: 0x0

Absolute Address: 0xFFFF FF08

31 30 29 28

ABTADD

23 22 21 20

ABTADD

15 14 13 12

ABTADD

7 6 5 4

• ABTADD: Abort Address

This field contains the address of the last aborted access.

ABTADD

27

19

11

3

AT91SAM7A3 Preliminary

10

2

26

18

9

1

25

17

8

0

24

16

97

6042E–ATARM–14-Dec-06

19.4.4

MC Protection Unit Area 0 to 15 Registers

Register Name:

Access Type:

MC_PUIA0 - MC_PUIA15

Read/Write

Reset Value: 0x0

Absolute Address: 0xFFFFFF10 - 0xFFFFFF4C

31

30

29

28

21 20 23

15

22

14 13 12

BA

7 6 5 4

SIZE

• PROT: Protection:

1

1

0

0

PROT

0

1

0

1

Processor Mode

Privilege User

No access

Read/Write

No access

No access

Read/Write

Read/Write

Read-only

Read/Write

27

19

11

3

BA

26

18

10

2

9

1

25

17

PROT

8

0

24

16

• SIZE: Internal Area Size

SIZE

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

1

1

1

0

0

1

1

0

0

1

1

0

0

0

0

1

0

1

0

1

0

1

0

1

0

1

1

Area Size

1 KB

2 KB

4 KB

8 KB

16 KB

32 KB

64 KB

128 KB

256 KB

512 KB

1 MB

2 MB

4 MB

20

21

22

16

17

18

19

LSB of BA

10

11

12

13

14

15

• BA: Internal Area Base Address

These bits define the Base Address of the area. Note that only the most significant bits of BA are significant. The number of significant bits are in respect with the size of the area.

98

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

19.4.5

MC Protection Unit Peripheral

Register Name:

Access Type:

MC_PUP

Read/Write

Reset Value: 0x000000000

Absolute Address: 0xFFFFFF50

31

30

29

23

15

7

22

14

6

21

13

5

• PROT: Protection

0

0

1

1

PROT

0

1

0

1

Processor Mode

Privilege

Read/Write

User

No access

Read/Write

Read/Write

Read/Write

No access

Read-only

Read/Write

12

4

28

20

11

3

27

19

AT91SAM7A3 Preliminary

10

2

26

18

9

1

25

17

PROT

8

0

24

16

99

6042E–ATARM–14-Dec-06

19.4.6

MC Protection Unit Enable Register

Register Name:

Access Type:

MC_PUER

Read/Write

Reset Value: 0x000000000

Absolute Address: 0xFFFFFF54

31

30

29

23

15

7

22

14

6

21

13

5

• PUEB: Protection Unit Enable Bit

0: The Memory Controller Protection Unit is disabled.

1: The Memory Controller Protection Unit is enabled.

12

4

28

20

11

3

27

19

10

2

26

18

1

9

25

17

24

16

8

0

PUEB

100

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

20. Embedded Flash Controller (EFC)

20.1

Overview

The Embedded Flash Controller is added to the Memory Controller and ensures the interface of the Flash block with the 32-bit internal bus. It increases performance in Thumb Mode for

Code Fetch with its system of 32-bit buffers. It also manages the programming, erasing, locking and unlocking sequences using a full set of commands.

20.2

Functional Description

20.2.1

Embedded Flash Organization

The Embedded Flash interfaces directly to the 32-bit internal bus. It is composed of several interfaces:

• One memory plane organized in several pages of the same size.

• Two 32-bit read buffers used for code read optimization (see ”Read Operations” on page

102 ).

• One write buffer that manages page programming. The write buffer size is equal to the page size. This buffer is write-only and accessible all along the 1 MByte address space, so

that each word can be written to its final address (see ”Write Operations” on page 104 ).

• Several lock bits used to protect write and erase operations on lock regions. A lock region is composed of several consecutive pages, and each lock region has its associated lock bit.

The Embedded Flash size, the page size and the lock region organization are described in the product definition section.

101

6042E–ATARM–14-Dec-06

Figure 20-1. Embedded Flash Memory Mapping

Start Address

Flash Memory

Locked Region Area

Lock Region 0

Lock Region 1

Page 0

Lock Bit 0

Lock Bit 1

Page (m-1)

Unlockable Area

Lock Region (n-1)

Lock Bit n-1

Page ( (n-1)*m )

Start Address + Flash Size -1

Page (n*m-1)

32 bits wide

20.2.2

Read Operations

An optimized controller manages embedded Flash reads. A system of 2 x 32-bit buffers is added in order to start access at following address during the second read, thus increasing performance when the processor is running in Thumb mode (16-bit instruction set). See

Figure 20-2 , Figure 20-3

and Figure 20-4 .

This optimization concerns only Code Fetch and not Data.

The read operations can be performed with or without wait state. Up to 3 wait states can be programmed in the field FWS (Flash Wait State) in the Flash Mode Register MC_FMR (see

”MC Flash Mode Register” on page 110

). Defining FWS to be 0 enables the single-cycle access of the embedded Flash.

The Flash memory is accessible through 8-, 16- and 32-bit reads.

As the Flash block size is smaller than the address space reserved for the internal memory area, the embedded Flash wraps around the address space and appears to be repeated within it.

102

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 20-2. Code Read Optimization in Thumb Mode for FWS = 0

Master Clock

ARM Request (16-bit)

Code Fetch

@Byte 0

Flash Access

@Byte 2 @Byte 4

Bytes 0-3 Bytes 4-7

@Byte 6 @Byte 8

@Byte 10 @Byte 12

Bytes 8-11 Bytes 12-15

@Byte 14 @Byte 16

Bytes 16-19

Buffer (32 bits)

Bytes 0-3

Bytes 4-7 Bytes 8-11 Bytes 12-15

Data To ARM

Bytes 0-1

Bytes 2-3 Bytes 4-5 Bytes 6-7

Bytes 8-9 Bytes 10-11 Bytes 12-13

Bytes 14-15

Note: When FWS is equal to 0, all accesses are performed in a single-cycle access .

Figure 20-3. Code Read Optimization in Thumb Mode for FWS = 1

1 Wait State Cycle

1 Wait State Cycle 1 Wait State Cycle

Master Clock

1 Wait State Cycle

ARM Request (16-bit)

Code Fetch

@Byte 0

Flash Access

@Byte 2

Bytes 0-3

@Byte 4 @Byte 6

Bytes 4-7

@Byte 8 @Byte 10

Bytes 8-11

@Byte 12 @Byte 14

Bytes 12-15

Buffer (32 bits)

Bytes 0-3

Bytes 4-7 Bytes 8-11

Data To ARM

Bytes 0-1 Bytes 2-3

Bytes 4-5

Bytes 6-7

Bytes 8-9 Bytes 10-11 Bytes 12-13

Note: When FWS is equal to 1, in case of sequential reads, all the accesses are performed in a single-cycle access (except for the first one).

103

6042E–ATARM–14-Dec-06

Figure 20-4. Code Read Optimization in Thumb Mode for FWS = 3

3 Wait State Cycles 3 Wait State Cycles

Master Clock

3 Wait State Cycles 3 Wait State Cycles

ARM Request (16-bit)

Code Fetch

@Byte 0

Flash Access

Buffer (32 bits)

Bytes 0-3

@2 @4

Bytes 4-7

Bytes 0-3

@6

@8

Bytes 8-11

Bytes 4-7

@10 @12

Bytes 12-15

Bytes 8-11

Data To ARM

0-1 2-3 4-5

6-7

8-9 10-11 12-13

Note: When FWS is equal to 2 or 3, in case of sequential reads, the first access takes FWS cycles, the second access one cycle, the third access FWS cycles, the fourth access one cycle, etc.

20.2.3

Write Operations

The internal memory area reserved for the Embedded Flash can also be written through a write-only latch buffer. Write operations take into account only the 8 lowest address bits and thus wrap around within the internal memory area address space and appear to be repeated

1024 times within it.

Write operations might be prevented by programming the Memory Protection Unit of the product.

Writing of 8-bit and 16-bit data is not allowed and may lead to unpredictable data corruption.

Write operations are performed in the number of wait states equal to the number of wait states for read operations + 1, except for FWS = 3 (see

”MC Flash Mode Register” on page 110

).

20.2.4

Flash Commands

The Embedded Flash Controller offers a command set to manage programming the memory flash, locking and unlocking lock regions, consecutive programming and locking, and full Flash erasing.

Table 20-1.

Set of Commands

Command

Write page

Set Lock Bit

Write Page and Lock

Clear Lock Bit

Erase all

Value

0x01

0x02

0x03

0x04

0x08

Mnemonic

WP

SLB

WPL

CLB

EA

In order to perform one of these commands, the Flash Command Register (MC_FCR) has to

be written with the correct command using to the field FCMD (see ”MC Flash Command Register” on page 112 ).

104

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

20.2.4.1

AT91SAM7A3 Preliminary

All the commands are protected by the same keyword, which has to be written in the eight highest bits of the MC_FCR register.

Writing MC_FCR with data that does not contain the correct key and/or with an invalid command has no effect on the memory plane; however, the PROGE flag is set in the MC_FSR register. This flag is automatically cleared by a read access to the MC_FSR register.

When the current command writes or erases a page in a locked region, the command has no effect on the whole memory plane; however, the LOCKE flag is set in the MC_FSR register.

This flag is automatically cleared by a read access to the MC_FSR register.

In order to guarantee valid operations on the Flash memory, the field Flash Microsecond Cycle

Number (FMCN) in the Flash Mode Register MC_FMR must be correctly programmed (see

”MC Flash Mode Register” on page 110

).

Programming

The programming is done by writing data into the latch buffer and then triggering a programming command that corresponds to the Write Page Command (WP) in the Flash Command

Register MC_FCR. The sequence is as follows:

• Write the full page, at any page address, within the internal memory area address space using only 32-bit access.

• If not already done, set the bit EOP (End of Programming) in the Flash Mode Register, depending on whether an interrupt is required or not at the end of programming.

• Write in the field PAGEN of the Flash Command Register (MC_FCR) the Page Number to be programmed.

• Clear the bit NEBP (No Erase Before Programming) in MC_FMR, if an erase before programming is required.

• Start the programming by writing the Flash Command Register with the Write Page

Command.

• The page defined by PAGEN is first erased if the bit NEBP is set to 0 and then programmed with the data written in the buffer.

• When the programming completes, the bit EOP in the Flash Programming Status Register raises. If an interrupt has been enabled by setting the bit EOP in MC_FMR, the interrupt line of the Memory Controller is activated.

Figure 20-5. State of the EOP Bit in MC_FSR

Write the MC_FCR with WP or WPL command Read the MC_FSR

6042E–ATARM–14-Dec-06

EOP

Programming Time

When the software reads the Flash Status Register (MC_FSR), the EOP bit is automatically cleared and the interrupt line is deactivated.

105

Two errors can be detected in the MC_FSR register after a programming sequence:

• Programming Error: A bad keyword and/or an invalid command have been written in the

MC_FCR register.

• Lock Error: The page to be programmed belongs to a locked region. A command must be previously run to unlock the corresponding region.

The Flash technology requires that an erase must be done before programming. The entire memory plane can be erased at the same time, or a page can be automatically erased by clearing the NEBP bit in the MC_FMR register before writing the command in the MC_FCR register.

By setting the NEBP bit in the MC_FMR register, a page can be programmed in several steps

if it has been erased before (see Figure 20-6 ).

Figure 20-6. Example of Partial Page Programming:

32 bits wide

32 bits wide 32 bits wide

16 words

16 words

16 words

16 words

20.2.4.2

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

FF FF FF FF

FF FF FF FF

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

Step 1.

Erase All Flash

Page 7 erased

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

CA FE CA FE

...

CA FE CA FE

CA FE CA FE

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

CA FE CA FE

...

CA FE CA FE

CA FE CA FE

DE CA DE CA

...

DE CA DE CA

DE CA DE CA

FF FF FF FF

...

FF FF FF FF

FF FF FF FF

Step 2.

Step 3.

Programming of the second part of Page 7 Programming of the third part of Page 7

(NEBP = 1) (NEBP = 1)

Lock and Unlock Operations

Lock bits are associated with several pages in the embedded Flash memory plane. This defines lock regions in the embedded Flash memory plane. They prevent writing/erasing protected pages.

Each lock region has its own lock bit that is readable in the highest bits of the Flash Status

Register (MC_FSR).

After production, the device may have some embedded Flash lock regions locked. These locked regions are reserved for a default application. Refer to the product definition section for the default embedded Flash mapping. Locked lock regions can be unlocked to be erased and then programmed with another application or other data.

The lock and unlock commands are performed by defining the PAGEN field and by writing the appropriate command (Set Lock Bit Command (SLB) or Clear Lock Bit Command (CLB)) in the Flash Command Register (MC_FCR). PAGEN defines one page number of the lock region to be locked or unlocked. Writing in all the other bits of PAGEN has no effect.

106

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The Clear Lock Bit command programs the lock bit to 1; the corresponding bit LOCKSx in

MC_FSR reads 0. The Set Lock Bit command programs the lock bit to 0; the corresponding bit

LOCKSx in MC_FSR reads 1.

When the Set Lock Bit or Clear Lock Bit command is triggered, the programming or erasing operation of the lock bit is performed. When it completes, the bit EOL is set.

No access to the Flash is permitted when a Set Lock Bit or Clear Lock Bit command is performed.

A programming error, where a bad keyword and/or an invalid command have been written in the MC_FCR register, may be detected in the MC_FSR register after a programming sequence.

Figure 20-7. State of the EOL Bit in MC_FSR

Write the MC_FCR with SLB, CLB or WPL command

Read the MC_FSR

EOL

20.2.4.3

20.2.4.4

20.2.4.5

Locking or unlocking Time Sequence

Lock Protection

When a programming command is performed with PAGEN defining a locked lock region, the bit LOCKE in MC_FSR rises. If the bit LOCKE has been written at 1 in MC_FMR, the interrupt line rises. Reading MC_FSR automatically clears the bit LOCKE in MC_FSR and thus deactivates the interrupt line.

Write Page and Lock

The user can perform consecutively the programming of the page and the lock of the lock region (Write Page and Lock Command (WPL) in the FCMD field of the Flash Command

Register MC_FCR), both defined by PAGEN.

Only one or both end of programming or end of lock interrupts may be enabled to trigger an interrupt when the operations completes.

Erase All Flash

The entire memory can be erased if the Erase All Command (EA) in the Flash Command

Register MC_FCR is written.

Erase All operation is allowed only if there are no lock bits set. Thus, if at least one lock region is locked, the bit LOCKE in MC_FSR rises and the command is cancelled. If the bit LOCKE

has been written at 1 in MC_FMR, the interrupt line rises (see ”Lock Protection” on page 107 ).

If not already done, set the bit EOP (End of Programming) in the Flash Mode Register, depending on whether an interrupt is required or not at the end of the erase.

When the Flash erase is complete, the bit EOP in the Flash Programming Status Register rises. If an interrupt has been enabled by setting the bit EOP in MC_FMR, the interrupt line of the Memory Controller is activated.

107

6042E–ATARM–14-Dec-06

When the software reads the Flash Status Register (MC_FSR), the EOP bit is automatically cleared and the interrupt line is deactivated.

Two errors can be detected in the MC_FSR register after a programming sequence:

• Programming Error: A bad keyword and/or an invalid command have been written in the

MC_FCR register.

• Lock Error: At least one lock region to be erased is protected. The erase command has been refused and no page has been erased. A Clear Lock Bit command must be executed previously to unlock the corresponding lock regions.

108

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

20.3

Embedded Flash Controller (EFC) User Interface

The User Interface of the Embedded Flash Controller is integrated within the Memory Controller with Base Address:

0xFFFF FF00.

Table 20-2.

Embedded Flash Controller (EFC) Register Mapping

Offset

0x60

Register

MC Flash Mode Register

Name

MC_FMR

0x64

0x68

0x6C

MC Flash Command Register

MC Flash Status Register

Reserved

MC_FCR

MC_FSR

Access

Read/Write

Write-only

Read-only

Reset State

0x0

6042E–ATARM–14-Dec-06

109

20.3.1

Register Name:

Access Type:

Offset:

MC Flash Mode Register

MC_FMR

Read/Write

0x60

31

30

29

23 22 21

28

20

27

19

26

18

25

17

FMCN

15

14

13

12

11

10

7

NEBP

6

5

4

3

PROGE

2

LOCKE

• EOP: End of Programming Interrupt Enable

0: End of Programming (page programming or erase all flash) does not generate an interrupt.

1: End of Programming (page programming or erase all flash) generates an interrupt.

• EOL: End of Lock/Unlock Interrupt Enable

0: End of Lock or End of Unlock does not generate an interrupt.

1: End of Lock or End of Unlock generates an interrupt.

• LOCKE: Lock Error Interrupt Enable

0: Lock Error does not generate an interrupt.

1: Lock Error generates an interrupt.

• PROGE: Programming Error Interrupt Enable

0: Programming Error does not generate an interrupt.

1: Programming Error generates an interrupt.

• NEBP: No Erase Before Programming

0: A page erase is performed before programming.

1: No erase is performed before programming.

• FWS: Flash Wait State

This field defines the number of wait states for read and write operations:

9

1

EOL

FWS

8

0

EOP

24

16

FWS

0

1

2

3

Read Operations

1 cycle

2 cycles

3 cycles

4 cycles

Write Operations

2 cycles

3 cycles

4 cycles

4 cycles

110

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• FMCN: Flash Microsecond Cycle Number

Before writing Lock bits, this field must be set to the number of Master Clock cycles in one hundred nanoseconds.

When writing the rest of the Flash, this field defines the number of Master Clock cycles in 1.5 microseconds. This number must be rounded up.

Warning: The value 0 is only allowed for a Master Clock period superior to 30 microseconds.

Warning: In order to guarantee valid operations on the Flash memory, the field Flash Microsecond Cycle Number (FMCN)

must be correctly programmed.

6042E–ATARM–14-Dec-06

111

20.3.2

Register Name:

Access Type:

Offset:

MC Flash Command Register

MC_FCR

Write only

0x64

31 30 29

23

15

22

14

21

13

28 27

KEY

20

4

19

12

PAGEN

11

3

26

18

10

25 24

17

PAGEN

16

9 8

7

6

5

• FCMD: Flash Command

This field defines the Flash commands:

FCMD

0000

0001

0010

0011

0100

1000

Others

2

FCMD

1 0

Operations

No command.

Does not raise the Programming Error Status flag in the Flash Status Register MC_FSR.

Write Page Command (WP):

Starts the programming of the page specified in the PAGEN field.

Set Lock Bit Command (SLB):

Starts a set lock bit sequence of the lock region specified in the PAGEN field.

Write Page and Lock Command (WPL):

The lock sequence of the lock region associated with the page specified in the field PAGEN occurs automatically after completion of the programming sequence.

Clear Lock Bit Command (CLB):

Starts a clear lock bit sequence of the lock region specified in the PAGEN field.

Erase All Command (EA):

Starts the erase of the entire Flash.

If at least one page is locked, the command is cancelled.

Reserved.

Raises the Programming Error Status flag in the Flash Status Register MC_FSR.

112

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• PAGEN: Page Number

Command

Write Page Command

Write Page and Lock Command

Erase All Command

Set/Clear Lock Bit Command

PAGEN Description

PAGEN defines the page number to be written.

PAGEN defines the page number to be written and its associated lock region.

This field is meaningless

PAGEN defines one page number of the lock region to be locked or unlocked.

Note: Depending on the command, all the possible unused bits of PAGEN are meaningless.

• KEY: Writing Protection Key

This field should be written with the value 0x5A to enable the command defined by the bits of the register. If the field is written with a different value, the write is actually not performed and no action is started.

6042E–ATARM–14-Dec-06

113

20.3.3

Register Name:

Access Type:

Offset:

MC Flash Status Register

MC_FSR

Read only

0x68

31 30 29 28 27

LOCKS15 LOCKS14 LOCKS13 LOCKS12 LOCKS11

23 22 21 20 19 18 17

LOCKS7 LOCKS6 LOCKS5 LOCKS4 LOCKS3 LOCKS2 LOCKS1

15

14

13

12

11

26 25 24

LOCKS10 LOCKS9 LOCKS8

10

9

16

LOCKS0

8

7

6

5

4

3

PROGE

2

LOCKE

1

EOL

0

EOP

• EOP: End of Programming Status

0: The programming sequence (page programming or erase all Flash) triggered by the last write in MC_FCR is not yet completed, or FMC_FSR has been read.

1: The programming sequence (page programming or erase all Flash) triggered by the last write in MC_FCR is completed and MC_FSR has not been read yet.

• EOL: End of Lock Status

0: The lock or unlock sequence triggered by the last write in MC_FCR is not yet completed, or FMC_FSR has been read.

1: The lock or unlock sequence triggered by the last write in MC_FCR is completed and MC_FSR has not been read yet.

• LOCKE: Lock Error Status

0: No programming of at least one locked lock region has happened since the last read of MC_FSR.

1: Programming of at least one locked lock region has happened since the last read of MC_FSR.

• PROGE: Programming Error Status

0: No invalid commands and no bad key-words were written in the Flash Command Register MC_FCR.

1: An invalid command and/or a bad key-word was/were written in the Flash Command Register MC_FCR.

• LOCKSx: Lock Region x Lock Status

0: The corresponding lock region is not locked.

1: The corresponding lock region is locked.

114

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

21. Peripheral DMA Controller (PDC)

21.1

Overview

The Peripheral DMA Controller (PDC) transfers data between on-chip serial peripherals such as the UART, USART, SSC, SPI, MCI and the on- and off-chip memories. Using the Peripheral DMA Controller avoids processor intervention and removes the processor interrupthandling overhead. This significantly reduces the number of clock cycles required for a data transfer and, as a result, improves the performance of the microcontroller and makes it more power efficient.

The PDC channels are implemented in pairs, each pair being dedicated to a particular peripheral. One channel in the pair is dedicated to the receiving channel and one to the transmitting channel of each UART, USART, SSC and SPI.

The user interface of a PDC channel is integrated in the memory space of each peripheral. It contains:

• two 32-bit memory pointer registers (send and receive)

• two 16-bit transfer count registers (send and receive)

• two 32-bit registers for next memory pointer (send and receive)

• two 16-bit registers for next transfer count (send and receive)

The peripheral triggers PDC transfers using transmit and receive signals. When the programmed data is transferred, an end of transfer interrupt is generated by the corresponding peripheral.

21.2

Block Diagram

Figure 21-1. Block Diagram

Peripheral

Peripheral DMA Controller

THR PDC Channel 0

RHR

PDC Channel 1 Control

Memory

Controller

Status & Control

Control

115

6042E–ATARM–14-Dec-06

21.3

Functional Description

21.3.1

Configuration

21.3.2

21.3.3

116

The PDC channels user interface enables the user to configure and control the data transfers for each channel. The user interface of a PDC channel is integrated into the user interface of the peripheral (offset 0x100), which it is related to.

Per peripheral, it contains four 32-bit Pointer Registers (RPR, RNPR, TPR, and TNPR) and four 16-bit Counter Registers (RCR, RNCR, TCR, and TNCR).

The size of the buffer (number of transfers) is configured in an internal 16-bit transfer counter register, and it is possible, at any moment, to read the number of transfers left for each channel.

The memory base address is configured in a 32-bit memory pointer by defining the location of the first address to access in the memory. It is possible, at any moment, to read the location in memory of the next transfer and the number of remaining transfers. The PDC has dedicated status registers which indicate if the transfer is enabled or disabled for each channel. The status for each channel is located in the peripheral status register. Transfers can be enabled and/or disabled by setting TXTEN/TXTDIS and RXTEN/RXTDIS in PDC Transfer Control

Register. These control bits enable reading the pointer and counter registers safely without any risk of their changing between both reads.

The PDC sends status flags to the peripheral visible in its status-register (ENDRX, ENDTX,

RXBUFF, and TXBUFE).

ENDRX flag is set when the PERIPH_RCR register reaches zero.

RXBUFF flag is set when both PERIPH_RCR and PERIPH_RNCR reach zero.

ENDTX flag is set when the PERIPH_TCR register reaches zero.

TXBUFE flag is set when both PERIPH_TCR and PERIPH_TNCR reach zero.

These status flags are described in the peripheral status register.

Memory Pointers

Each peripheral is connected to the PDC by a receiver data channel and a transmitter data channel. Each channel has an internal 32-bit memory pointer. Each memory pointer points to a location anywhere in the memory space (on-chip memory or external bus interface memory).

Depending on the type of transfer (byte, half-word or word), the memory pointer is incremented by 1, 2 or 4, respectively for peripheral transfers.

If a memory pointer is reprogrammed while the PDC is in operation, the transfer address is changed, and the PDC performs transfers using the new address.

Transfer Counters

There is one internal 16-bit transfer counter for each channel used to count the size of the block already transferred by its associated channel. These counters are decremented after each data transfer. When the counter reaches zero, the transfer is complete and the PDC stops transferring data.

If the Next Counter Register is equal to zero, the PDC disables the trigger while activating the related peripheral end flag.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

21.3.4

21.3.5

If the counter is reprogrammed while the PDC is operating, the number of transfers is updated and the PDC counts transfers from the new value.

Programming the Next Counter/Pointer registers chains the buffers. The counters are decremented after each data transfer as stated above, but when the transfer counter reaches zero, the values of the Next Counter/Pointer are loaded into the Counter/Pointer registers in order to re-enable the triggers.

For each channel, two status bits indicate the end of the current buffer (ENDRX, ENDTX) and the end of both current and next buffer (RXBUFF, TXBUFE). These bits are directly mapped to the peripheral status register and can trigger an interrupt request to the AIC.

The peripheral end flag is automatically cleared when one of the counter-registers (Counter or

Next Counter Register) is written.

Note: When the Next Counter Register is loaded into the Counter Register, it is set to zero.

Data Transfers

The peripheral triggers PDC transfers using transmit (TXRDY) and receive (RXRDY) signals.

When the peripheral receives an external character, it sends a Receive Ready signal to the

PDC which then requests access to the system bus. When access is granted, the PDC starts a read of the peripheral Receive Holding Register (RHR) and then triggers a write in the memory.

After each transfer, the relevant PDC memory pointer is incremented and the number of transfers left is decremented. When the memory block size is reached, a signal is sent to the peripheral and the transfer stops.

The same procedure is followed, in reverse, for transmit transfers.

Priority of PDC Transfer Requests

The Peripheral DMA Controller handles transfer requests from the channel according to priorities fixed for each product.These priorities are defined in the product datasheet.

If simultaneous requests of the same type (receiver or transmitter) occur on identical peripherals, the priority is determined by the numbering of the peripherals.

If transfer requests are not simultaneous, they are treated in the order they occurred.

Requests from the receivers are handled first and then followed by transmitter requests.

117

6042E–ATARM–14-Dec-06

21.4

Peripheral DMA Controller (PDC) User Interface

Table 21-1.

Register Mapping

Offset

0x100

0x104

0x108

0x10C

0x110

0x114

0x118

0x11C

Register

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Receive Next Pointer Register

Receive Next Counter Register

Transmit Next Pointer Register

Transmit Next Counter Register

Register Name

PERIPH

(1)

_RPR

PERIPH_RCR

PERIPH_TPR

PERIPH_TCR

PERIPH_RNPR

PERIPH_RNCR

PERIPH_TNPR

PERIPH_TNCR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Reset

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x120 PDC Transfer Control Register PERIPH_PTCR Write-only -

0x124 PDC Transfer Status Register PERIPH_PTSR Read-only 0x0

Note: 1. PERIPH: Ten registers are mapped in the peripheral memory space at the same offset. These can be defined by the user according to the function and the peripheral desired (DBGU, USART, SSC, SPI, MCI etc).

118

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

21.4.1

PDC Receive Pointer Register

Register Name:

PERIPH_RPR

Access Type:

Read/Write

31 30 29

23 22 21

15

7

14

6

13

5

• RXPTR: Receive Pointer Address

Address of the next receive transfer.

28

RXPTR

27

20 19

RXPTR

12 11

RXPTR

4 3

RXPTR

21.4.2

PDC Receive Counter Register

Register Name:

PERIPH_RCR

Access Type:

Read/Write

31 30 29

23 22 21

15

7

14

6

13

5

• RXCTR: Receive Counter Value

Number of receive transfers to be performed.

28 27

--

20 19

--

12

RXCTR

11

4 3

RXCTR

AT91SAM7A3 Preliminary

10

2

26

18

10

2

26

18

9

1

25

17

9

1

25

17

8

0

24

16

8

0

24

16

119

6042E–ATARM–14-Dec-06

21.4.3

PDC Transmit Pointer Register

Register Name:

PERIPH_TPR

Access Type:

Read/Write

31 30 29

23 22 21

15

7

14

6

13

5

• TXPTR: Transmit Pointer Address

Address of the transmit buffer.

28

TXPTR

27

20 19

TXPTR

12 11

TXPTR

4 3

TXPTR

10

2

26

18

9

1

25

17

21.4.4

PDC Transmit Counter Register

Register Name:

PERIPH_TCR

Access Type:

Read/Write

31 30 29 28 27 26 25

--

23 22 21 20 19 18 17

--

15 14 13 12 11 10 9

TXCTR

7 6 5 4 3 2 1

TXCTR

• TXCTR: Transmit Counter Value

TXCTR is the size of the transmit transfer to be performed. At zero, the peripheral data transfer is stopped.

8

0

24

16

8

0

24

16

120

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

21.4.5

PDC Receive Next Pointer Register

Register Name:

PERIPH_RNPR

Access Type:

Read/Write

31 30 29

23

15

7

22

14

6

21

13

5

28

RXNPTR

20

RXNPTR

12

27

19

11

RXNPTR

4 3

RXNPTR

26

18

10

2

• RXNPTR: Receive Next Pointer Address

RXNPTR is the address of the next buffer to fill with received data when the current buffer is full.

25

17

9

1

24

16

8

0

21.4.6

PDC Receive Next Counter Register

Register Name:

PERIPH_RNCR

Access Type:

Read/Write

31 30 29 28

23

15

7

22

14

6

21

13

5

27

--

20 19

--

12

RXNCR

11

4 3

RXNCR

• RXNCR: Receive Next Counter Value

RXNCR is the size of the next buffer to receive.

10

2

26

18

9

1

25

17

8

0

24

16

121

6042E–ATARM–14-Dec-06

21.4.7

PDC Transmit Next Pointer Register

Register Name:

PERIPH_TNPR

Access Type:

Read/Write

31 30 29

23

15

7

22

14

6

21

13

5

28

TXNPTR

27

20 19

TXNPTR

12 11

TXNPTR

4 3

TXNPTR

26

18

10

2

• TXNPTR: Transmit Next Pointer Address

TXNPTR is the address of the next buffer to transmit when the current buffer is empty.

21.4.8

PDC Transmit Next Counter Register

Register Name:

PERIPH_TNCR

Access Type:

Read/Write

31 30 29 28

23

15

7

22

14

6

21

13

5

27

--

20 19

--

12

TXNCR

11

4 3

TXNCR

• TXNCR: Transmit Next Counter Value

TXNCR is the size of the next buffer to transmit.

10

2

26

18

9

1

25

17

9

1

25

17

8

0

24

16

8

0

24

16

122

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

21.4.9

PDC Transfer Control Register

Register Name:

PERIPH_PTCR

Access Type:

Write

only

31

23

15

7

30

22

14

6

29

21

13

5

12

4

28

20

• RXTEN: Receiver Transfer Enable

0 = No effect.

1 = Enables the receiver PDC transfer requests if RXTDIS is not set.

• RXTDIS: Receiver Transfer Disable

0 = No effect.

1 = Disables the receiver PDC transfer requests.

• TXTEN: Transmitter Transfer Enable

0 = No effect.

1 = Enables the transmitter PDC transfer requests.

• TXTDIS: Transmitter Transfer Disable

0 = No effect.

1 = Disables the transmitter PDC transfer requests

11

3

27

19

AT91SAM7A3 Preliminary

10

2

26

18

25

17

9

TXTDIS

1

RXTDIS

24

16

8

TXTEN

0

RXTEN

123

6042E–ATARM–14-Dec-06

21.4.10

PDC Transfer Status Register

Register Name:

PERIPH_PTSR

Access Type:

Read-only

31

23

30

22

29

21

15

7

14

6

13

5

• RXTEN: Receiver Transfer Enable

0 = Receiver PDC transfer requests are disabled.

1 = Receiver PDC transfer requests are enabled.

• TXTEN: Transmitter Transfer Enable

0 = Transmitter PDC transfer requests are disabled.

1 = Transmitter PDC transfer requests are enabled.

12

4

28

20

11

3

27

19

10

2

26

18

1

9

25

17

24

16

8

TXTEN

0

RXTEN

124

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22. Advanced Interrupt Controller (AIC)

22.1

Overview

The Advanced Interrupt Controller (AIC) is an 8-level priority, individually maskable, vectored interrupt controller, providing handling of up to thirty-two interrupt sources. It is designed to substantially reduce the software and real-time overhead in handling internal and external interrupts.

The AIC drives the nFIQ (fast interrupt request) and the nIRQ (standard interrupt request) inputs of an ARM processor. Inputs of the AIC are either internal peripheral interrupts or external interrupts coming from the product's pins.

The 8-level Priority Controller allows the user to define the priority for each interrupt source, thus permitting higher priority interrupts to be serviced even if a lower priority interrupt is being treated.

Internal interrupt sources can be programmed to be level sensitive or edge triggered. External interrupt sources can be programmed to be positive-edge or negative-edge triggered or highlevel or low-level sensitive.

The fast forcing feature redirects any internal or external interrupt source to provide a fast interrupt rather than a normal interrupt.

22.2

Block Diagram

Figure 22-1. Block Diagram

FIQ

IRQ0-IRQn

Embedded

AIC

Up to

Thirty-two

Sources

ARM

Processor nFIQ nIRQ

Peripheral

APB

125

6042E–ATARM–14-Dec-06

22.3

Application Block Diagram

Figure 22-2. Description of the Application Block

OS-based Applications

Standalone

Applications

OS Drivers RTOS Drivers

Hard Real Time Tasks

General OS Interrupt Handler

Advanced Interrupt Controller

Embedded Peripherals

External Peripherals

(External Interrupts)

22.4

AIC Detailed Block Diagram

Figure 22-3. AIC Detailed Block Diagram

FIQ

PIO

Controller

External

Source

Input

Stage

Advanced Interrupt Controller

Fast

Interrupt

Controller

IRQ0-IRQn

PIOIRQ

Fast

Forcing

Interrupt

Priority

Controller

Embedded

Peripherals

Internal

Source

Input

Stage

User Interface

ARM

Processor nFIQ nIRQ

Processor

Clock

Power

Management

Controller

Wake Up

APB

22.5

I/O Line Description

Table 22-1.

I/O Line Description

Pin Name

FIQ

IRQ0 - IRQn

Pin Description

Fast Interrupt

Interrupt 0 - Interrupt n

Type

Input

Input

126

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.6

Product Dependencies

22.6.1

I/O Lines

The interrupt signals FIQ and IRQ0 to IRQn are normally multiplexed through the PIO controllers. Depending on the features of the PIO controller used in the product, the pins must be programmed in accordance with their assigned interrupt function. This is not applicable when the PIO controller used in the product is transparent on the input path.

22.6.2

22.6.3

Power Management

The Advanced Interrupt Controller is continuously clocked. The Power Management Controller has no effect on the Advanced Interrupt Controller behavior.

The assertion of the Advanced Interrupt Controller outputs, either nIRQ or nFIQ, wakes up the

ARM processor while it is in Idle Mode. The General Interrupt Mask feature enables the AIC to wake up the processor without asserting the interrupt line of the processor, thus providing synchronization of the processor on an event.

Interrupt Sources

The Interrupt Source 0 is always located at FIQ. If the product does not feature an FIQ pin, the

Interrupt Source 0 cannot be used.

The Interrupt Source 1 is always located at System Interrupt. This is the result of the OR-wiring of the system peripheral interrupt lines, such as the System Timer, the Real Time Clock, the Power Management Controller and the Memory Controller. When a system interrupt occurs, the service routine must first distinguish the cause of the interrupt. This is performed by reading successively the status registers of the above mentioned system peripherals.

The interrupt sources 2 to 31 can either be connected to the interrupt outputs of an embedded user peripheral or to external interrupt lines. The external interrupt lines can be connected directly, or through the PIO Controller.

The PIO Controllers are considered as user peripherals in the scope of interrupt handling.

Accordingly, the PIO Controller interrupt lines are connected to the Interrupt Sources 2 to 31.

The peripheral identification defined at the product level corresponds to the interrupt source number (as well as the bit number controlling the clock of the peripheral). Consequently, to simplify the description of the functional operations and the user interface, the interrupt sources are named FIQ, SYS, and PID2 to PID31.

127

6042E–ATARM–14-Dec-06

22.7

Functional Description

22.7.1

22.7.1.1

Interrupt Source Control

Interrupt Source Mode

The Advanced Interrupt Controller independently programs each interrupt source. The SRC-

TYPE field of the corresponding AIC_SMR (Source Mode Register) selects the interrupt condition of each source.

The internal interrupt sources wired on the interrupt outputs of the embedded peripherals can be programmed either in level-sensitive mode or in edge-triggered mode. The active level of the internal interrupts is not important for the user.

The external interrupt sources can be programmed either in high level-sensitive or low levelsensitive modes, or in positive edge-triggered or negative edge-triggered modes.

22.7.1.2

Interrupt Source Enabling

Each interrupt source, including the FIQ in source 0, can be enabled or disabled by using the command registers; AIC_IECR (Interrupt Enable Command Register) and AIC_IDCR (Interrupt Disable Command Register). This set of registers conducts enabling or disabling in one instruction. The interrupt mask can be read in the AIC_IMR register. A disabled interrupt does not affect servicing of other interrupts.

22.7.1.3

22.7.1.4

Interrupt Clearing and Setting

All interrupt sources programmed to be edge-triggered (including the FIQ in source 0) can be individually set or cleared by writing respectively the AIC_ISCR and AIC_ICCR registers.

Clearing or setting interrupt sources programmed in level-sensitive mode has no effect.

The clear operation is perfunctory, as the software must perform an action to reinitialize the

“memorization” circuitry activated when the source is programmed in edge-triggered mode.

However, the set operation is available for auto-test or software debug purposes. It can also be used to execute an AIC-implementation of a software interrupt.

The AIC features an automatic clear of the current interrupt when the AIC_IVR (Interrupt Vector Register) is read. Only the interrupt source being detected by the AIC as the current

interrupt is affected by this operation. ( See “Priority Controller” on page 132.

) The automatic

clear reduces the operations required by the interrupt service routine entry code to reading the

AIC_IVR. Note that the automatic interrupt clear is disabled if the interrupt source has the Fast

Forcing feature enabled as it is considered uniquely as a FIQ source. (For further details, See

“Fast Forcing” on page 136.

)

The automatic clear of the interrupt source 0 is performed when AIC_FVR is read.

Interrupt Status

For each interrupt, the AIC operation originates in AIC_IPR (Interrupt Pending Register) and its mask in AIC_IMR (Interrupt Mask Register). AIC_IPR enables the actual activity of the sources, whether masked or not.

The AIC_ISR register reads the number of the current interrupt (see

”Priority Controller” on page 132 ) and the register AIC_CISR gives an image of the signals nIRQ and nFIQ driven on

the processor.

Each status referred to above can be used to optimize the interrupt handling of the systems.

128

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

22.7.1.5

22.7.1.6

AT91SAM7A3 Preliminary

Internal Interrupt Source Input Stage

Figure 22-4. Internal Interrupt Source Input Stage

Source i

AIC_SMRI

(SRCTYPE)

Level/

Edge

AIC_IPR

AIC_IMR

Edge

Detector

Set Clear

Fast Interrupt Controller or

Priority Controller

AIC_IECR

FF

AIC_ISCR

AIC_ICCR

AIC_IDCR

External Interrupt Source Input Stage

Figure 22-5. External Interrupt Source Input Stage

High/Low

AIC_SMRi

SRCTYPE

Level/

Edge

AIC_IPR

Source i

AIC_IMR

Fast Interrupt Controller or

Priority Controller

AIC_IECR

Pos./Neg.

Edge

Detector

Set Clear

FF

AIC_ISCR

AIC_ICCR

AIC_IDCR

129

6042E–ATARM–14-Dec-06

22.7.2

22.7.2.1

Interrupt Latencies

Global interrupt latencies depend on several parameters, including:

• The time the software masks the interrupts.

• Occurrence, either at the processor level or at the AIC level.

• The execution time of the instruction in progress when the interrupt occurs.

• The treatment of higher priority interrupts and the resynchronization of the hardware signals.

This section addresses only the hardware resynchronizations. It gives details of the latency times between the event on an external interrupt leading in a valid interrupt (edge or level) or the assertion of an internal interrupt source and the assertion of the nIRQ or nFIQ line on the processor. The resynchronization time depends on the programming of the interrupt source and on its type (internal or external). For the standard interrupt, resynchronization times are given assuming there is no higher priority in progress.

The PIO Controller multiplexing has no effect on the interrupt latencies of the external interrupt sources.

External Interrupt Edge Triggered Source

Figure 22-6. External Interrupt Edge Triggered Source

MCK

IRQ or FIQ

(Positive Edge)

IRQ or FIQ

(Negative Edge) nIRQ

Maximum IRQ Latency = 4 Cycles nFIQ

Maximum FIQ Latency = 4 Cycles

130

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

22.7.2.2

22.7.2.3

AT91SAM7A3 Preliminary

External Interrupt Level Sensitive Source

Figure 22-7. External Interrupt Level Sensitive Source

MCK

IRQ or FIQ

(High Level)

IRQ or FIQ

(Low Level) nIRQ

Maximum IRQ

Latency = 3 Cycles nFIQ

Maximum FIQ

Latency = 3 cycles

Internal Interrupt Edge Triggered Source

Figure 22-8. Internal Interrupt Edge Triggered Source

MCK nIRQ

22.7.2.4

Maximum IRQ Latency = 4.5 Cycles

Peripheral Interrupt

Becomes Active

Internal Interrupt Level Sensitive Source

Figure 22-9. Internal Interrupt Level Sensitive Source

MCK nIRQ

Maximum IRQ Latency = 3.5 Cycles

Peripheral Interrupt

Becomes Active

131

6042E–ATARM–14-Dec-06

22.7.3

22.7.3.1

Normal Interrupt

Priority Controller

An 8-level priority controller drives the nIRQ line of the processor, depending on the interrupt conditions occurring on the interrupt sources 1 to 31 (except for those programmed in Fast

Forcing).

Each interrupt source has a programmable priority level of 7 to 0, which is user-definable by writing the PRIOR field of the corresponding AIC_SMR (Source Mode Register). Level 7 is the highest priority and level 0 the lowest.

As soon as an interrupt condition occurs, as defined by the SRCTYPE field of the AIC_SMR

(Source Mode Register), the nIRQ line is asserted. As a new interrupt condition might have happened on other interrupt sources since the nIRQ has been asserted, the priority controller determines the current interrupt at the time the AIC_IVR (Interrupt Vector Register) is read.

The read of AIC_IVR is the entry point of the interrupt handling which allows the AIC to consider that the interrupt has been taken into account by the software.

The current priority level is defined as the priority level of the current interrupt.

If several interrupt sources of equal priority are pending and enabled when the AIC_IVR is read, the interrupt with the lowest interrupt source number is serviced first.

The nIRQ line can be asserted only if an interrupt condition occurs on an interrupt source with a higher priority. If an interrupt condition happens (or is pending) during the interrupt treatment in progress, it is delayed until the software indicates to the AIC the end of the current service by writing the AIC_EOICR (End of Interrupt Command Register). The write of AIC_EOICR is

the exit point of the interrupt handling.

22.7.3.2

Interrupt Nesting

The priority controller utilizes interrupt nesting in order for the high priority interrupt to be handled during the service of lower priority interrupts. This requires the interrupt service routines of the lower interrupts to re-enable the interrupt at the processor level.

When an interrupt of a higher priority happens during an already occurring interrupt service routine, the nIRQ line is re-asserted. If the interrupt is enabled at the core level, the current execution is interrupted and the new interrupt service routine should read the AIC_IVR. At this time, the current interrupt number and its priority level are pushed into an embedded hardware stack, so that they are saved and restored when the higher priority interrupt servicing is finished and the AIC_EOICR is written.

The AIC is equipped with an 8-level wide hardware stack in order to support up to eight interrupt nestings pursuant to having eight priority levels.

22.7.3.3

Interrupt Vectoring

The interrupt handler addresses corresponding to each interrupt source can be stored in the registers AIC_SVR1 to AIC_SVR31 (Source Vector Register 1 to 31). When the processor reads AIC_IVR (Interrupt Vector Register), the value written into AIC_SVR corresponding to the current interrupt is returned.

This feature offers a way to branch in one single instruction to the handler corresponding to the current interrupt, as AIC_IVR is mapped at the absolute address 0xFFFF F100 and thus accessible from the ARM interrupt vector at address 0x0000 0018 through the following instruction:

132

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

22.7.3.4

AT91SAM7A3 Preliminary

LDR PC,[PC,# -&F20]

When the processor executes this instruction, it loads the read value in AIC_IVR in its program counter, thus branching the execution on the correct interrupt handler.

This feature is often not used when the application is based on an operating system (either real time or not). Operating systems often have a single entry point for all the interrupts and the first task performed is to discern the source of the interrupt.

However, it is strongly recommended to port the operating system on AT91 products by supporting the interrupt vectoring. This can be performed by defining all the AIC_SVR of the interrupt source to be handled by the operating system at the address of its interrupt handler.

When doing so, the interrupt vectoring permits a critical interrupt to transfer the execution on a specific very fast handler and not onto the operating system’s general interrupt handler. This facilitates the support of hard real-time tasks (input/outputs of voice/audio buffers and software peripheral handling) to be handled efficiently and independently of the application running under an operating system.

Interrupt Handlers

This section gives an overview of the fast interrupt handling sequence when using the AIC. It is assumed that the programmer understands the architecture of the ARM processor, and especially the processor interrupt modes and the associated status bits.

It is assumed that:

1.

The Advanced Interrupt Controller has been programmed, AIC_SVR registers are loaded with corresponding interrupt service routine addresses and interrupts are enabled.

2.

The instruction at the ARM interrupt exception vector address is required to work with the vectoring

LDR PC, [PC, # -&F20]

When nIRQ is asserted, if the bit “I” of CPSR is 0, the sequence is as follows:

1.

The CPSR is stored in SPSR_irq, the current value of the Program Counter is loaded in the Interrupt link register (R14_irq) and the Program Counter (R15) is loaded with

0x18. In the following cycle during fetch at address 0x1C, the ARM core adjusts

R14_irq, decrementing it by four.

2.

The ARM core enters Interrupt mode, if it has not already done so.

3.

When the instruction loaded at address 0x18 is executed, the program counter is loaded with the value read in AIC_IVR. Reading the AIC_IVR has the following effects:

– Sets the current interrupt to be the pending and enabled interrupt with the highest priority. The current level is the priority level of the current interrupt.

– De-asserts the nIRQ line on the processor. Even if vectoring is not used, AIC_IVR must be read in order to de-assert nIRQ.

– Automatically clears the interrupt, if it has been programmed to be edge-triggered.

– Pushes the current level and the current interrupt number on to the stack.

– Returns the value written in the AIC_SVR corresponding to the current interrupt.

4.

The previous step has the effect of branching to the corresponding interrupt service routine. This should start by saving the link register (R14_irq) and SPSR_IRQ. The link register must be decremented by four when it is saved if it is to be restored

133

6042E–ATARM–14-Dec-06

directly into the program counter at the end of the interrupt. For example, the instruction

SUB PC, LR, #4

may be used.

5.

Further interrupts can then be unmasked by clearing the “I” bit in CPSR, allowing reassertion of the nIRQ to be taken into account by the core. This can happen if an interrupt with a higher priority than the current interrupt occurs.

6.

The interrupt handler can then proceed as required, saving the registers that will be used and restoring them at the end. During this phase, an interrupt of higher priority than the current level will restart the sequence from step 1.

Note: If the interrupt is programmed to be level sensitive, the source of the interrupt must be cleared during this phase.

7.

The “I” bit in CPSR must be set in order to mask interrupts before exiting to ensure that the interrupt is completed in an orderly manner.

8.

The End of Interrupt Command Register (AIC_EOICR) must be written in order to indicate to the AIC that the current interrupt is finished. This causes the current level to be popped from the stack, restoring the previous current level if one exists on the stack. If another interrupt is pending, with lower or equal priority than the old current level but with higher priority than the new current level, the nIRQ line is re-asserted, but the interrupt sequence does not immediately start because the “I” bit is set in the core. SPSR_irq is restored. Finally, the saved value of the link register is restored directly into the PC. This has the effect of returning from the interrupt to whatever was being executed before, and of loading the CPSR with the stored SPSR, masking or unmasking the interrupts depending on the state saved in SPSR_irq.

Note: The “I” bit in SPSR is significant. If it is set, it indicates that the ARM core was on the verge of masking an interrupt when the mask instruction was interrupted. Hence, when SPSR is restored, the mask instruction is completed (interrupt is masked).

134

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.7.4

22.7.4.1

Fast Interrupt

Fast Interrupt Source

The interrupt source 0 is the only source which can raise a fast interrupt request to the processor except if fast forcing is used. The interrupt source 0 is generally connected to a FIQ pin of the product, either directly or through a PIO Controller.

22.7.4.2

22.7.4.3

22.7.4.4

Fast Interrupt Control

The fast interrupt logic of the AIC has no priority controller. The mode of interrupt source 0 is programmed with the AIC_SMR0 and the field PRIOR of this register is not used even if it reads what has been written. The field SRCTYPE of AIC_SMR0 enables programming the fast interrupt source to be positive-edge triggered or negative-edge triggered or high-level sensitive or low-level sensitive

Writing 0x1 in the AIC_IECR (Interrupt Enable Command Register) and AIC_IDCR (Interrupt

Disable Command Register) respectively enables and disables the fast interrupt. The bit 0 of

AIC_IMR (Interrupt Mask Register) indicates whether the fast interrupt is enabled or disabled.

Fast Interrupt Vectoring

The fast interrupt handler address can be stored in AIC_SVR0 (Source Vector Register 0).

The value written into this register is returned when the processor reads AIC_FVR (Fast Vector Register). This offers a way to branch in one single instruction to the interrupt handler, as

AIC_FVR is mapped at the absolute address 0xFFFF F104 and thus accessible from the ARM fast interrupt vector at address 0x0000 001C through the following instruction:

LDR PC,[PC,# -&F20]

When the processor executes this instruction it loads the value read in AIC_FVR in its program counter, thus branching the execution on the fast interrupt handler. It also automatically performs the clear of the fast interrupt source if it is programmed in edge-triggered mode.

Fast Interrupt Handlers

This section gives an overview of the fast interrupt handling sequence when using the AIC. It is assumed that the programmer understands the architecture of the ARM processor, and especially the processor interrupt modes and associated status bits.

Assuming that:

1.

The Advanced Interrupt Controller has been programmed, AIC_SVR0 is loaded with the fast interrupt service routine address, and the interrupt source 0 is enabled.

2.

The Instruction at address 0x1C (FIQ exception vector address) is required to vector the fast interrupt:

LDR PC, [PC, # -&F20]

3.

The user does not need nested fast interrupts.

When nFIQ is asserted, if the bit “F” of CPSR is 0, the sequence is:

1.

The CPSR is stored in SPSR_fiq, the current value of the program counter is loaded in the FIQ link register (R14_FIQ) and the program counter (R15) is loaded with

0x1C. In the following cycle, during fetch at address 0x20, the ARM core adjusts

R14_fiq, decrementing it by four.

2.

The ARM core enters FIQ mode.

3.

When the instruction loaded at address 0x1C is executed, the program counter is loaded with the value read in AIC_FVR. Reading the AIC_FVR has effect of automat-

135

6042E–ATARM–14-Dec-06

22.7.4.5

ically clearing the fast interrupt, if it has been programmed to be edge triggered. In this case only, it de-asserts the nFIQ line on the processor.

4.

The previous step enables branching to the corresponding interrupt service routine. It is not necessary to save the link register R14_fiq and SPSR_fiq if nested fast interrupts are not needed.

5.

The Interrupt Handler can then proceed as required. It is not necessary to save registers R8 to R13 because FIQ mode has its own dedicated registers and the user R8 to

R13 are banked. The other registers, R0 to R7, must be saved before being used, and restored at the end (before the next step). Note that if the fast interrupt is programmed to be level sensitive, the source of the interrupt must be cleared during this phase in order to de-assert the interrupt source 0.

6.

Finally, the Link Register R14_fiq is restored into the PC after decrementing it by four

(with instruction

SUB PC, LR, #4

for example). This has the effect of returning from the interrupt to whatever was being executed before, loading the CPSR with the

SPSR and masking or unmasking the fast interrupt depending on the state saved in the SPSR.

Note: The “F” bit in SPSR is significant. If it is set, it indicates that the ARM core was just about to mask FIQ interrupts when the mask instruction was interrupted. Hence when the SPSR is restored, the interrupted instruction is completed (FIQ is masked).

Another way to handle the fast interrupt is to map the interrupt service routine at the address of the ARM vector 0x1C. This method does not use the vectoring, so that reading AIC_FVR must be performed at the very beginning of the handler operation. However, this method saves the execution of a branch instruction.

Fast Forcing

The Fast Forcing feature of the advanced interrupt controller provides redirection of any normal Interrupt source on the fast interrupt controller.

Fast Forcing is enabled or disabled by writing to the Fast Forcing Enable Register

(AIC_FFER) and the Fast Forcing Disable Register (AIC_FFDR). Writing to these registers results in an update of the Fast Forcing Status Register (AIC_FFSR) that controls the feature for each internal or external interrupt source.

When Fast Forcing is disabled, the interrupt sources are handled as described in the previous pages.

When Fast Forcing is enabled, the edge/level programming and, in certain cases, edge detection of the interrupt source is still active but the source cannot trigger a normal interrupt to the processor and is not seen by the priority handler.

If the interrupt source is programmed in level-sensitive mode and an active level is sampled,

Fast Forcing results in the assertion of the nFIQ line to the core.

If the interrupt source is programmed in edge-triggered mode and an active edge is detected,

Fast Forcing results in the assertion of the nFIQ line to the core.

The Fast Forcing feature does not affect the Source 0 pending bit in the Interrupt Pending

Register (AIC_IPR).

The FIQ Vector Register (AIC_FVR) reads the contents of the Source Vector Register 0

(AIC_SVR0), whatever the source of the fast interrupt may be. The read of the FVR does not clear the Source 0 when the fast forcing feature is used and the interrupt source should be cleared by writing to the Interrupt Clear Command Register (AIC_ICCR).

136

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

All enabled and pending interrupt sources that have the fast forcing feature enabled and that are programmed in edge-triggered mode must be cleared by writing to the Interrupt Clear

Command Register. In doing so, they are cleared independently and thus lost interrupts are prevented.

The read of AIC_IVR does not clear the source that has the fast forcing feature enabled.

The source 0, reserved to the fast interrupt, continues operating normally and becomes one of the Fast Interrupt sources.

Figure 22-10. Fast Forcing

Source 0

_

FIQ

Input Stage

Automatic Clear

AIC_IPR

AIC_IMR nFIQ

Source n

Input Stage

Read FVR if Fast Forcing is disabled on Sources 1 to 31.

AIC_FFSR

AIC_IPR

Automatic Clear

AIC_IMR

Priority

Manager nIRQ

Read IVR if Source n is the current interrupt and if Fast Forcing is disabled on Source n.

137

6042E–ATARM–14-Dec-06

22.7.5

22.7.6

Protect Mode

The Protect Mode permits reading the Interrupt Vector Register without performing the associated automatic operations. This is necessary when working with a debug system. When a debugger, working either with a Debug Monitor or the ARM processor's ICE, stops the applications and updates the opened windows, it might read the AIC User Interface and thus the IVR.

This has undesirable consequences:

• If an enabled interrupt with a higher priority than the current one is pending, it is stacked.

• If there is no enabled pending interrupt, the spurious vector is returned.

In either case, an End of Interrupt command is necessary to acknowledge and to restore the context of the AIC. This operation is generally not performed by the debug system as the debug system would become strongly intrusive and cause the application to enter an undesired state.

This is avoided by using the Protect Mode. Writing DBGM in AIC_DCR (Debug Control Register) at 0x1 enables the Protect Mode.

When the Protect Mode is enabled, the AIC performs interrupt stacking only when a write access is performed on the AIC_IVR. Therefore, the Interrupt Service Routines must write

(arbitrary data) to the AIC_IVR just after reading it. The new context of the AIC, including the value of the Interrupt Status Register (AIC_ISR), is updated with the current interrupt only when AIC_IVR is written.

An AIC_IVR read on its own (e.g., by a debugger), modifies neither the AIC context nor the

AIC_ISR. Extra AIC_IVR reads perform the same operations. However, it is recommended to not stop the processor between the read and the write of AIC_IVR of the interrupt service routine to make sure the debugger does not modify the AIC context.

To summarize, in normal operating mode, the read of AIC_IVR performs the following operations within the AIC:

1. Calculates active interrupt (higher than current or spurious).

2. Determines and returns the vector of the active interrupt.

3. Memorizes the interrupt.

4. Pushes the current priority level onto the internal stack.

5. Acknowledges the interrupt.

However, while the Protect Mode is activated, only operations 1 to 3 are performed when

AIC_IVR is read. Operations 4 and 5 are only performed by the AIC when AIC_IVR is written.

Software that has been written and debugged using the Protect Mode runs correctly in Normal

Mode without modification. However, in Normal Mode the AIC_IVR write has no effect and can be removed to optimize the code.

Spurious Interrupt

The Advanced Interrupt Controller features protection against spurious interrupts. A spurious interrupt is defined as being the assertion of an interrupt source long enough for the AIC to assert the nIRQ, but no longer present when AIC_IVR is read. This is most prone to occur when:

• An external interrupt source is programmed in level-sensitive mode and an active level occurs for only a short time.

138

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.7.7

• An internal interrupt source is programmed in level sensitive and the output signal of the corresponding embedded peripheral is activated for a short time. (As in the case for the

Watchdog.)

• An interrupt occurs just a few cycles before the software begins to mask it, thus resulting in a pulse on the interrupt source.

The AIC detects a spurious interrupt at the time the AIC_IVR is read while no enabled interrupt source is pending. When this happens, the AIC returns the value stored by the programmer in

AIC_SPU (Spurious Vector Register). The programmer must store the address of a spurious interrupt handler in AIC_SPU as part of the application, to enable an as fast as possible return to the normal execution flow. This handler writes in AIC_EOICR and performs a return from interrupt.

General Interrupt Mask

The AIC features a General Interrupt Mask bit to prevent interrupts from reaching the processor. Both the nIRQ and the nFIQ lines are driven to their inactive state if the bit GMSK in

AIC_DCR (Debug Control Register) is set. However, this mask does not prevent waking up the processor if it has entered Idle Mode. This function facilitates synchronizing the processor on a next event and, as soon as the event occurs, performs subsequent operations without having to handle an interrupt. It is strongly recommended to use this mask with caution.

139

6042E–ATARM–14-Dec-06

22.8

Advanced Interrupt Controller (AIC) User Interface

22.8.1

Base Address

The AIC is mapped at the address 0xFFFF F000. It has a total 4-Kbyte addressing space. This permits the vectoring feature, as the PC-relative load/store instructions of the ARM processor support only a ± 4-Kbyte offset.

22.8.2

Register Mapping

Table 22-2.

Register Mapping

Offset

0000

0x104

0x108

0x10C

0x110

0x114

0x118

0x11C

0x120

0x04

---

0x7C

0x80

0x84

---

0xFC

0x100

0x124

0x128

0x12C

0x130

0x134

0x138

0x13C

0x140

0x144

0x148

Register

Source Mode Register 0

Source Mode Register 1

---

Source Mode Register 31

Source Vector Register 0

Source Vector Register 1

---

Source Vector Register 31

Interrupt Vector Register

FIQ Interrupt Vector Register

Interrupt Status Register

Interrupt Pending Register

(2)

Interrupt Mask Register

(2)

Core Interrupt Status Register

Reserved

Reserved

Interrupt Enable Command Register

(2)

Interrupt Disable Command Register

(2)

Interrupt Clear Command Register

(2)

Interrupt Set Command Register

Spurious Interrupt Vector Register

Debug Control Register

Reserved

Fast Forcing Enable Register

(2)

Fast Forcing Disable Register

(2)

Fast Forcing Status Register

(2)

(2)

End of Interrupt Command Register

---

AIC_IECR

AIC_IDCR

AIC_ICCR

AIC_ISCR

AIC_EOICR

AIC_SPU

AIC_DCR

---

AIC_FFER

AIC_FFDR

AIC_FFSR

Name

AIC_SMR0

AIC_SMR1

---

AIC_SMR31

AIC_SVR0

AIC_SVR1

---

AIC_SVR31

AIC_IVR

AIC_FVR

AIC_ISR

AIC_IPR

AIC_IMR

AIC_CISR

---

Access

Read/Write

Read/Write

---

Read/Write

Read/Write

Read/Write

---

Read/Write

Read-only

Read-only

Read-only

Read-only

Read-only

Read-only

---

---

Write-only

Write-only

Write-only

Write-only

Write-only

Read/Write

Read/Write

---

Write-only

Write-only

Read-only

0x0

0x0

---

---

---

0x0

---

---

---

---

0x0

---

---

---

Reset Value

0x0

0x0

---

0x0

0x0

0x0

---

0x0

0x0

0x0

0x0

0x0

(1)

0x0

Notes: 1. The reset value of this register depends on the level of the external interrupt source. All other sources are cleared at reset, thus not pending.

2. PID2...PID31 bit fields refer to the identifiers as defined in the Peripheral Identifiers Section of the product datasheet.

140

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.8.3

AIC Source Mode Register

Register Name: AIC_SMR0..AIC_SMR31

Access Type:

Read/Write

Reset Value: 0x0

15

7

31

23

14

6

30

22

SRCTYPE

13

5

29

21

12

4

28

20

11

3

27

19

• PRIOR: Priority Level

Programs the priority level for all sources except FIQ source (source 0).

The priority level can be between 0 (lowest) and 7 (highest).

The priority level is not used for the FIQ in the related SMR register AIC_SMRx.

• SRCTYPE: Interrupt Source Type

The active level or edge is not programmable for the internal interrupt sources.

10

2

26

18

25

17

9

1

PRIOR

8

0

24

16

0

0

1

1

SRCTYPE

0

1

0

1

Internal Interrupt Sources

High level Sensitive

Positive edge triggered

High level Sensitive

Positive edge triggered

External Interrupt Sources

Low level Sensitive

Negative edge triggered

High level Sensitive

Positive edge triggered

141

6042E–ATARM–14-Dec-06

22.8.4

AIC Source Vector Register

Register Name:

AIC_SVR0..AIC_SVR31

Access Type:

Reset Value:

Read/Write

0x0

31 30 29 28 27 26 25

VECTOR

23 22 21 20 19 18 17

VECTOR

15 14 13 12 11 10 9

VECTOR

7 6 5 4 3 2 1

VECTOR

• VECTOR: Source Vector

The user may store in these registers the addresses of the corresponding handler for each interrupt source.

8

0

24

16

22.8.5

AIC Interrupt Vector Register

Register Name: AIC_IVR

Access Type:

Read-only

Reset Value: 0x0

31 30 29 28 27 26 25 24

IRQV

23 22 21 20 19 18 17 16

IRQV

15 14 13 12 11 10 9 8

IRQV

7 6 5 4 3 2 1 0

IRQV

• IRQV: Interrupt Vector Register

The Interrupt Vector Register contains the vector programmed by the user in the Source Vector Register corresponding to the current interrupt.

The Source Vector Register is indexed using the current interrupt number when the Interrupt Vector Register is read.

When there is no current interrupt, the Interrupt Vector Register reads the value stored in AIC_SPU.

142

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.8.6

AIC FIQ Vector Register

Register Name: AIC_FVR

Access Type:

Reset Value:

Read-only

0 x0

31 30 29 28 27 26 25 24

FIQV

23 22 21 20 19 18 17 16

FIQV

15 14 13 12 11 10 9 8

FIQV

7 6 5 4 3 2 1 0

FIQV

• FIQV: FIQ Vector Register

The FIQ Vector Register contains the vector programmed by the user in the Source Vector Register 0. When there is no fast interrupt, the FIQ Vector Register reads the value stored in AIC_SPU.

22.8.7

AIC Interrupt Status Register

Register Name: AIC_ISR

Access Type:

Reset Value:

Read-only

0x0

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

• IRQID: Current Interrupt Identifier

The Interrupt Status Register returns the current interrupt source number.

11

3

27

19

26

18

10

2

IRQID

9

1

25

17

8

0

24

16

143

6042E–ATARM–14-Dec-06

22.8.8

AIC Interrupt Pending Register

Register Name: AIC_IPR

Access Type:

Reset Value:

Read-only

0x0

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

• FIQ, SYS, PID2-PID31: Interrupt Pending

0 = Corresponding interrupt is not pending.

1 = Corresponding interrupt is pending.

28

PID28

20

PID20

12

PID12

4

PID4

22.8.9

AIC Interrupt Mask Register

Register Name: AIC_IMR

Access Type:

Reset Value:

Read-only

0x0

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

• FIQ, SYS, PID2-PID31: Interrupt Mask

0 = Corresponding interrupt is disabled.

1 = Corresponding interrupt is enabled.

28

PID28

20

PID20

12

PID12

4

PID4

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

144

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.8.10

AIC Core Interrupt Status Register

Register Name: AIC_CISR

Access Type:

Reset Value:

Read-only

0x0

15

7

31

23

14

6

30

22

13

5

29

21

• NFIQ: NFIQ Status

0 = nFIQ line is deactivated.

1 = nFIQ line is active.

• NIRQ: NIRQ Status

0 = nIRQ line is deactivated.

1 = nIRQ line is active.

12

4

28

20

22.8.11

AIC Interrupt Enable Command Register

Register Name: AIC_IECR

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• FIQ, SYS, PID2-PID3: Interrupt Enable

0 = No effect.

1 = Enables corresponding interrupt.

11

3

27

19

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

10

2

26

18

9

1

NIRQ

25

17

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

8

0

NIFQ

24

16

145

6042E–ATARM–14-Dec-06

22.8.12

AIC Interrupt Disable Command Register

Register Name: AIC_IDCR

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• FIQ, SYS, PID2-PID31: Interrupt Disable

0 = No effect.

1 = Disables corresponding interrupt.

22.8.13

AIC Interrupt Clear Command Register

Register Name: AIC_ICCR

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• FIQ, SYS, PID2-PID31: Interrupt Clear

0 = No effect.

1 = Clears corresponding interrupt.

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

146

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.8.14

AIC Interrupt Set Command Register

Register Name: AIC_ISCR

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• FIQ, SYS, PID2-PID31: Interrupt Set

0 = No effect.

1 = Sets corresponding interrupt.

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

FIQ

22.8.15

AIC End of Interrupt Command Register

Register Name: AIC_EOICR

Access Type: Write-only

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

1

9

25

17

0

8

24

16

The End of Interrupt Command Register is used by the interrupt routine to indicate that the interrupt treatment is complete.

Any value can be written because it is only necessary to make a write to this register location to signal the end of interrupt treatment.

147

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

22.8.16

AIC Spurious Interrupt Vector Register

Register Name: AIC_SPU

Access Type:

Reset Value:

Read/Write

0x0

31 30 29 28 27 26 25 24

SIQV

23 22 21 20 19 18 17 16

SIQV

15 14 13 12 11 10 9 8

SIQV

7 6 5 4 3 2 1 0

SIQV

• SIQV: Spurious Interrupt Vector Register

The user may store the address of a spurious interrupt handler in this register. The written value is returned in AIC_IVR in case of a spurious interrupt and in AIC_FVR in case of a spurious fast interrupt.

22.8.17

AIC Debug Control Register

Register Name: AIC_DEBUG

Access Type:

Reset Value:

Read/Write

0x0

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

• PROT: Protection Mode

0 = The Protection Mode is disabled.

1 = The Protection Mode is enabled.

• GMSK: General Mask

0 = The nIRQ and nFIQ lines are normally controlled by the AIC.

1 = The nIRQ and nFIQ lines are tied to their inactive state.

11

3

27

19

10

2

26

18

25

17

9

1

GMSK

24

16

8

0

PROT

148

6042E–ATARM–14-Dec-06

22.8.18

AIC Fast Forcing Enable Register

Register Name: AIC_FFER

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• SYS, PID2-PID31: Fast Forcing Enable

0 = No effect.

1 = Enables the fast forcing feature on the corresponding interrupt.

27

PID27

19

PID19

11

PID11

3

PID3

AT91SAM7A3 Preliminary

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

22.8.19

AIC Fast Forcing Disable Register

Register Name: AIC_FFDR

Access Type: Write-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

• SYS, PID2-PID31: Fast Forcing Disable

0 = No effect.

1 = Disables the Fast Forcing feature on the corresponding interrupt.

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

149

6042E–ATARM–14-Dec-06

22.8.20

AIC Fast Forcing Status Register

Register Name: AIC_FFSR

Access Type: Read-only

31

PID31

23

PID23

15

PID15

7

PID7

30

PID30

22

PID22

14

PID14

6

PID6

29

PID29

21

PID21

13

PID13

5

PID5

28

PID28

20

PID20

12

PID12

4

PID4

27

PID27

19

PID19

11

PID11

3

PID3

• SYS, PID2-PID31: Fast Forcing Status

0 = The Fast Forcing feature is disabled on the corresponding interrupt.

1 = The Fast Forcing feature is enabled on the corresponding interrupt.

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

SYS

24

PID24

16

PID16

8

PID8

0

150

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

23. Clock Generator

23.1

Description

The Clock Generator is made up of 1 PLL, a Main Oscillator, as well as an RC Oscillator .

It provides the following clocks:

• SLCK, the Slow Clock, which is the only permanent clock within the system

• MAINCK is the output of the Main Oscillator

• PLLCK is the output of the Divider and PLL block

The Clock Generator User Interface is embedded within the Power Management Controller one and is described in

Section 24.9

. However, the Clock Generator registers are named CKGR_.

23.2

Slow Clock RC Oscillator

The user has to take into account the possible drifts of the RC Oscillator. More details are given in the section “DC Characteristics” of the product datasheet.

23.3

Main Oscillator

Figure 23-1

shows the Main Oscillator block diagram.

Figure 23-1. Main Oscillator Block Diagram

MOSCEN

XIN

XOUT

Main

Oscillator

MAINCK

Main Clock

SLCK

Slow Clock

OSCOUNT

Main

Oscillator

Counter

Main Clock

Frequency

Counter

MOSCS

MAINF

MAINRDY

23.3.1

Main Oscillator Connections

The Clock Generator integrates a Main Oscillator that is designed for a 3 to 20 MHz fundamental crystal. The typical crystal connection is illustrated in

Figure 23-2

. The 1 k

resistor is only required for crystals with frequencies lower than 8 MHz. For further details on the electrical characteristics of the Main Oscillator, see the section “DC Characteristics” of the product datasheet.

151

6042E–ATARM–14-Dec-06

Figure 23-2. Typical Crystal Connection

XIN XOUT

1K

GND

C

L1

C

L2

23.3.2

23.3.3

23.3.4

Main Oscillator Startup Time

The startup time of the Main Oscillator is given in the DC Characteristics section of the product datasheet. The startup time depends on the crystal frequency and decreases when the frequency rises.

Main Oscillator Control

To minimize the power required to start up the system, the main oscillator is disabled after reset and slow clock is selected.

The software enables or disables the main oscillator so as to reduce power consumption by clearing the MOSCEN bit in the Main Oscillator Register (CKGR_MOR).

When disabling the main oscillator by clearing the MOSCEN bit in CKGR_MOR, the MOSCS bit in PMC_SR is automatically cleared, indicating the main clock is off.

When enabling the main oscillator, the user must initiate the main oscillator counter with a value corresponding to the startup time of the oscillator. This startup time depends on the crystal frequency connected to the main oscillator.

When the MOSCEN bit and the OSCOUNT are written in CKGR_MOR to enable the main oscillator, the MOSCS bit in PMC_SR (Status Register) is cleared and the counter starts counting down on the slow clock divided by 8 from the OSCOUNT value. Since the OSCOUNT value is coded with 8 bits, the maximum startup time is about 62 ms.

When the counter reaches 0, the MOSCS bit is set, indicating that the main clock is valid. Setting the MOSCS bit in PMC_IMR can trigger an interrupt to the processor.

Main Clock Frequency Counter

The Main Oscillator features a Main Clock frequency counter that provides the quartz frequency connected to the Main Oscillator. Generally, this value is known by the system designer; however, it is useful for the boot program to configure the device with the correct clock speed, independently of the application.

The Main Clock frequency counter starts incrementing at the Main Clock speed after the next rising edge of the Slow Clock as soon as the Main Oscillator is stable, i.e., as soon as the MOSCS bit is set. Then, at the 16th falling edge of Slow Clock, the MAINRDY bit in CKGR_MCFR (Main

Clock Frequency Register) is set and the counter stops counting. Its value can be read in the

MAINF field of CKGR_MCFR and gives the number of Main Clock cycles during 16 periods of

Slow Clock, so that the frequency of the crystal connected on the Main Oscillator can be determined.

152

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

23.3.5

Main Oscillator Bypass

The user can input a clock on the device instead of connecting a crystal. In this case, the user has to provide the external clock signal on the XIN pin. The input characteristics of the XIN pin under these conditions are given in the product electrical characteristics section. The programmer has to be sure to set the OSCBYPASS bit to 1 and the MOSCEN bit to 0 in the Main OSC register (CKGR_MOR) for the external clock to operate properly.

23.4

Divider and PLL Block

The PLL embeds an input divider to increase the accuracy of the resulting clock signals. However, the user must respect the PLL minimum input frequency when programming the divider.

Figure 23-3

shows the block diagram of the divider and PLL block.

Figure 23-3. Divider and PLL Block Diagram

DIV MUL OUT

Divider

MAINCK

PLL PLLCK

SLCK

PLLRC

PLLCOUNT

PLL

Counter

LOCK

23.4.1

PLL Filter

The PLL requires connection to an external second-order filter through the PLLRC pin.

Figure

23-4

shows a schematic of these filters.

Figure 23-4. PLL Capacitors and Resistors

PLLRC

PLL

R

C2

C1

GND

Values of R, C1 and C2 to be connected to the PLLRC pin must be calculated as a function of the PLL input frequency, the PLL output frequency and the phase margin. A trade-off has to be found between output signal overshoot and startup time.

153

6042E–ATARM–14-Dec-06

23.4.2

Divider and Phase Lock Loop Programming

The divider can be set between 1 and 255 in steps of 1. When a divider field (DIV) is set to 0, the output of the corresponding divider and the PLL output is a continuous signal at level 0. On reset, each DIV field is set to 0, thus the corresponding PLL input clock is set to 0.

The PLL allows multiplication of the divider’s outputs. The PLL clock signal has a frequency that depends on the respective source signal frequency and on the parameters DIV and MUL. The factor applied to the source signal frequency is (MUL + 1)/DIV. When MUL is written to 0, the corresponding PLL is disabled and its power consumption is saved. Re-enabling the PLL can be performed by writing a value higher than 0 in the MUL field.

Whenever the PLL is re-enabled or one of its parameters is changed, the LOCK bit in PMC_SR is automatically cleared. The values written in the PLLCOUNT field in CKGR_PLLR are loaded in the PLL counter. The PLL counter then decrements at the speed of the Slow Clock until it reaches 0. At this time, the LOCK bit is set in PMC_SR and can trigger an interrupt to the processor. The user has to load the number of Slow Clock cycles required to cover the PLL transient time into the PLLCOUNT field. The transient time depends on the PLL filter. The initial state of the PLL and its target frequency can be calculated using a specific tool provided by

Atmel.

154

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24. Power Management Controller (PMC)

24.1

Description

The Power Management Controller (PMC) optimizes power consumption by controlling all system and user peripheral clocks. The PMC enables/disables the clock inputs to many of the peripherals and the ARM Processor.

The Power Management Controller provides the following clocks:

• MCK, the Master Clock, programmable from a few hundred Hz to the maximum operating frequency of the device. It is available to the modules running permanently, such as the AIC and the Memory Controller.

• Processor Clock (PCK), switched off when entering processor in idle mode.

• Peripheral Clocks, typically MCK, provided to the embedded peripherals (USART, SSC, SPI,

TWI, TC, MCI, etc.) and independently controllable. In order to reduce the number of clock names in a product, the Peripheral Clocks are named MCK in the product datasheet.

• UDP Clock (UDPCK), required by USB Device Port operations.

• Programmable Clock Outputs can be selected from the clocks provided by the clock generator and driven on the PCKx pins.

24.2

Master Clock Controller

The Master Clock Controller provides selection and division of the Master Clock (MCK). MCK is the clock provided to all the peripherals and the memory controller.

The Master Clock is selected from one of the clocks provided by the Clock Generator. Selecting the Slow Clock provides a Slow Clock signal to the whole device. Selecting the Main Clock saves power consumption of the PLL.

The Master Clock Controller is made up of a clock selector and a prescaler.

The Master Clock selection is made by writing the CSS field (Clock Source Selection) in

PMC_MCKR (Master Clock Register). The prescaler supports the division by a power of 2 of the selected clock between 1 and 64. The PRES field in PMC_MCKR programs the prescaler.

Each time PMC_MCKR is written to define a new Master Clock, the MCKRDY bit is cleared in

PMC_SR. It reads 0 until the Master Clock is established. Then, the MCKRDY bit is set and can trigger an interrupt to the processor. This feature is useful when switching from a high-speed clock to a lower one to inform the software when the change is actually done.

Figure 24-1. Master Clock Controller

PMC_MCKR

CSS

PMC_MCKR

PRES

SLCK

MAINCK

PLLCK

Master Clock

Prescaler

MCK

To the Processor

Clock Controller (PCK)

155

6042E–ATARM–14-Dec-06

24.3

Processor Clock Controller

The PMC features a Processor Clock Controller (PCK) that implements the Processor Idle

Mode. The Processor Clock can be enabled and disabled by writing the System Clock Enable

(PMC_SCER) and System Clock Disable Registers (PMC_SCDR). The status of this clock (at least for debug purpose) can be read in the System Clock Status Register (PMC_SCSR).

The Processor Clock PCK is enabled after a reset and is automatically re-enabled by any enabled interrupt. The Processor Idle Mode is achieved by disabling the Processor Clock, which is automatically re-enabled by any enabled fast or normal interrupt, or by the reset of the product.

When the Processor Clock is disabled, the current instruction is finished before the clock is stopped, but this does not prevent data transfers from other masters of the system bus.

24.4

USB Clock Controller

The USB Source Clock is the PLL output. If using the USB, the user must program the PLL to generate a 48 MHz, a 96 MHz or a 192 MHz signal with an accuracy of ± 0.25% depending on the USBDIV bit in CKGR_PLLR.

When the PLL output is stable, i.e., the LOCK bit is set:

• The USB device clock can be enabled by setting the UDP bit in PMC_SCER. To save power on this peripheral when it is not used, the user can set the UDP bit in PMC_SCDR. The UDP bit in PMC_SCSR gives the activity of this clock. The USB device port require both the 48

MHz signal and the Master Clock. The Master Clock may be controlled via the Peripheral

Clock Controller.

Figure 24-2. USB Clock Controller

USBDIV

USB

Source

Clock

Divider

/1,/2,/4

UDP

UDP Clock (UDPCK)

24.5

Peripheral Clock Controller

The Power Management Controller controls the clocks of each embedded peripheral by the way of the Peripheral Clock Controller. The user can individually enable and disable the Master

Clock on the peripherals by writing into the Peripheral Clock Enable (PMC_PCER) and Peripheral Clock Disable (PMC_PCDR) registers. The status of the peripheral clock activity can be read in the Peripheral Clock Status Register (PMC_PCSR).

When a peripheral clock is disabled, the clock is immediately stopped. The peripheral clocks are automatically disabled after a reset.

In order to stop a peripheral, it is recommended that the system software wait until the peripheral has executed its last programmed operation before disabling the clock. This is to avoid data corruption or erroneous behavior of the system.

156

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The bit number within the Peripheral Clock Control registers (PMC_PCER, PMC_PCDR, and

PMC_PCSR) is the Peripheral Identifier defined at the product level. Generally, the bit number corresponds to the interrupt source number assigned to the peripheral.

24.6

Programmable Clock Output Controller

The PMC controls 4 signals to be output on external pins PCKx. Each signal can be independently programmed via the PMC_PCKx registers.

PCKx can be independently selected between the Slow clock, the PLL output and the main clock by writing the CSS field in PMC_PCKx. Each output signal can also be divided by a power of 2 between 1 and 64 by writing the PRES (Prescaler) field in PMC_PCKx.

Each output signal can be enabled and disabled by writing 1 in the corresponding bit, PCKx of

PMC_SCER and PMC_SCDR, respectively. Status of the active programmable output clocks are given in the PCKx bits of PMC_SCSR (System Clock Status Register).

Moreover, like the PCK, a status bitin PMC_SR indicates that the Programmable Clock is actually what has been programmed in the Programmable Clock registers.

As the Programmable Clock Controller does not manage with glitch prevention when switching clocks, it is strongly recommended to disable the Programmable Clock before any configuration change and to re-enable it after the change is actually performed.

24.7

Programming Sequence

1.

Enabling the Main Oscillator:

The main oscillator is enabled by setting the MOSCEN field in the CKGR_MOR register. In some cases it may be advantageous to define a start-up time. This can be achieved by writing a value in the OSCOUNT field in the CKGR_MOR register.

Once this register has been correctly configured, the user must wait for MOSCS field in the

PMC_SR register to be set. This can be done either by polling the status register or by waiting the interrupt line to be raised if the associated interrupt to MOSCS has been enabled in the PMC_IER register.

Code Example: write_register(CKGR_MOR,0x00000701)

Start Up Time = 8 * OSCOUNT / SLCK = 56 Slow Clock Cycles.

So, the main oscillator will be enabled (MOSCS bit set) after 56 Slow Clock Cycles.

2.

Checking the Main Oscillator Frequency (Optional):

In some situations the user may need an accurate measure of the main oscillator frequency.

This measure can be accomplished via the CKGR_MCFR register.

Once the MAINRDY field is set in CKGR_MCFR register, the user may read the MAINF field in CKGR_MCFR register. This provides the number of main clock cycles within sixteen slow clock cycles.

3.

Setting PLL and divider:

157

6042E–ATARM–14-Dec-06

All parameters needed to configure PLL and the divider are located in the CKGR_PLLR register.

The DIV field is used to control divider itself. A value between 0 and 255 can be programmed.

Divider output is divider input divided by DIV parameter. By default DIV parameter is set to 0 which means that divider is turned off.

The OUT field is used to select the PLL B output frequency range.

The MUL field is the PLL multiplier factor. This parameter can be programmed between 0 and 2047. If MUL is set to 0, PLL will be turned off, otherwise the PLL output frequency is

PLL input frequency multiplied by (MUL + 1).

The PLLCOUNT field specifies the number of slow clock cycles before LOCK bit is set in the

PMC_SR register after CKGR_PLLR register has been written.

Once the PMC_PLL register has been written, the user must wait for the LOCK bit to be set in the PMC_SR register. This can be done either by polling the status register or by waiting the interrupt line to be raised if the associated interrupt to LOCK has been enabled in the

PMC_IER register. All parameters in CKGR_PLLR can be programmed in a single write operation. If at some stage one of the following parameters, MUL, DIV is modified, LOCK bit will go low to indicate that PLL is not ready yet. When PLL is locked, LOCK will be set again.

The user is constrained to wait for LOCK bit to be set before using the PLL output clock.

The USBDIV field is used to control the additional divider by 1, 2 or 4, which generates the

USB clock(s).

Code Example: write_register(CKGR_PLLR,0x00040805)

If PLL and divider are enabled, the PLL input clock is the main clock. PLL output clock is PLL input clock multiplied by 5. Once CKGR_PLLR has been written, LOCK bit will be set after eight slow clock cycles.

158

4.

Selection of Master Clock and Processor Clock

The Master Clock and the Processor Clock are configurable via the PMC_MCKR register.

The CSS field is used to select the Master Clock divider source. By default, the selected clock source is slow clock.

The PRES field is used to control the Master Clock prescaler. The user can choose between different values (1, 2, 4, 8, 16, 32, 64). Master Clock output is prescaler input divided by

PRES parameter. By default, PRES parameter is set to 1 which means that master clock is equal to slow clock.

Once the PMC_MCKR register has been written, the user must wait for the MCKRDY bit to be set in the PMC_SR register. This can be done either by polling the status register or by waiting for the interrupt line to be raised if the associated interrupt to MCKRDY has been enabled in the PMC_IER register.

The PMC_MCKR register must not be programmed in a single write operation. The preferred programming sequence for the PMC_MCKR register is as follows:

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• If a new value for CSS field corresponds to PLL Clock,

– Program the PRES field in the PMC_MCKR register.

– Wait for the MCKRDY bit to be set in the PMC_SR register.

– Program the CSS field in the PMC_MCKR register.

– Wait for the MCKRDY bit to be set in the PMC_SR register.

• If a new value for CSS field corresponds to Main Clock or Slow Clock,

– Program the CSS field in the PMC_MCKR register.

– Wait for the MCKRDY bit to be set in the PMC_SR register.

– Program the PRES field in the PMC_MCKR register.

– Wait for the MCKRDY bit to be set in the PMC_SR register.

If at some stage one of the following parameters, CSS or PRES, is modified, the MCKRDY bit will go low to indicate that the Master Clock and the Processor Clock are not ready yet.

The user must wait for MCKRDY bit to be set again before using the Master and Processor

Clocks.

Note: IF PLLx clock was selected as the Master Clock and the user decides to modify it by writing in

CKGR_PLLR, the MCKRDY flag will go low while PLL is unlocked. Once PLL is locked again,

LOCK goes high and MCKRDY is set.

While PLL is unlocked, the Master Clock selection is automatically changed to Main Clock. For fur-

ther information, see Section 24.8.2

.

”Clock Switching Waveforms” on page 161 .

Code Example: write_register(PMC_MCKR,0x00000001) wait (MCKRDY=1) write_register(PMC_MCKR,0x00000011) wait (MCKRDY=1)

The Master Clock is main clock divided by 16.

The Processor Clock is the Master Clock.

5.

Selection of Programmable clocks

Programmable clocks are controlled via registers; PMC_SCER, PMC_SCDR and

PMC_SCSR.

Programmable clocks can be enabled and/or disabled via the PMC_SCER and PMC_SCDR registers. Depending on the system used, 4 Programmable clocks can be enabled or disabled. The PMC_SCSR provides a clear indication as to which Programmable clock is enabled. By default all Programmable clocks are disabled.

PMC_PCKx registers are used to configure Programmable clocks.

The CSS field is used to select the Programmable clock divider source. Four clock options are available: main clock, slow clock, PLLCK. By default, the clock source selected is slow clock.

The PRES field is used to control the Programmable clock prescaler. It is possible to choose between different values (1, 2, 4, 8, 16, 32, 64). Programmable clock output is prescaler input divided by PRES parameter. By default, the PRES parameter is set to 1 which means that master clock is equal to slow clock.

159

Once the PMC_PCKx register has been programmed, The corresponding Programmable clock must be enabled and the user is constrained to wait for the PCKRDYx bit to be set in the PMC_SR register. This can be done either by polling the status register or by waiting the interrupt line to be raised if the associated interrupt to PCKRDYx has been enabled in the

PMC_IER register. All parameters in PMC_PCKx can be programmed in a single write operation.

If the CSS and PRES parameters are to be modified, the corresponding Programmable clock must be disabled first. The parameters can then be modified. Once this has been done, the user must re-enable the Programmable clock and wait for the PCKRDYx bit to be set.

Code Example: write_register(PMC_PCK0,0x00000015)

Programmable clock 0 is main clock divided by 32.

6.

Enabling Peripheral Clocks

Once all of the previous steps have been completed, the peripheral clocks can be enabled and/or disabled via registers PMC_PCER and PMC_PCDR.

Depending on the system used, 26 peripheral clocks can be enabled or disabled. The

PMC_PCSR provides a clear view as to which peripheral clock is enabled.

Note: Each enabled peripheral clock corresponds to Master Clock.

Code Examples: write_register(PMC_PCER,0x00000110)

Peripheral clocks 4 and 8 are enabled. write_register(PMC_PCDR,0x00000010)

Peripheral clock 4 is disabled.

160

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24.8

Clock Switching Details

24.8.1

Master Clock Switching Timings

Table 24-1

gives the worst case timings required for the Master Clock to switch from one selected clock to another one. This is in the event that the prescaler is de-activated. When the prescaler is activated, an additional time of 64 clock cycles of the new selected clock has to be added.

Table 24-1.

Clock Switching Timings (Worst Case)

From Main Clock SLCK

To

PLL Clock

Main Clock

SLCK

4 x SLCK +

2.5 x Main Clock

3 x PLL Clock +

4 x SLCK +

1 x Main Clock

3 x PLL Clock +

5 x SLCK

PLL Clock

0.5 x Main Clock +

4.5 x SLCK

0.5 x Main Clock +

4 x SLCK +

PLLCOUNT x SLCK +

2.5 x PLLx Clock

2.5 x PLL Clock +

5 x SLCK +

PLLCOUNT x SLCK

2.5 x PLL Clock +

4 x SLCK +

PLLCOUNT x SLCK

24.8.2

Clock Switching Waveforms

Figure 24-3. Switch Master Clock from Slow Clock to PLL Clock

Slow Clock

PLL Clock

LOCK

MCKRDY

Master Clock

Write PMC_MCKR

161

6042E–ATARM–14-Dec-06

Figure 24-4. Switch Master Clock from Main Clock to Slow Clock

Slow Clock

Main Clock

MCKRDY

Master Clock

Write PMC_MCKR

Figure 24-5. Change PLL Programming

Main Clock

PLL Clock

LOCK

MCKRDY

Master Clock

Write CKGR_PLLR

Main Clock

162

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 24-6. Programmable Clock Output Programming

PLL Clock

PCKRDY

PCKx Output

Write PMC_PCKx

Write PMC_SCER

PLL Clock is selected

PCKx is enabled

Write PMC_SCDR

PCKx is disabled

163

24.9

Power Management Controller (PMC) User Interface

Table 24-2.

Register Mapping

Offset Register

0x0024

0x0028

0x002C

0x0030

0x0038

0x003C

0x0040

0x0044

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x0020

System Clock Enable Register

System Clock Disable Register

System Clock Status Register

Reserved

Peripheral Clock Enable Register

Peripheral Clock Disable Register

Peripheral Clock Status Register

Main Oscillator Register

Main Clock Frequency Register

Reserved

PLL Register

Master Clock Register

Reserved

Reserved

Programmable Clock 0 Register

Programmable Clock 1 Register

...

0x0060

0x0064

0x0068

...

Interrupt Enable Register

Interrupt Disable Register

Status Register

0x006C Interrupt Mask Register

0x0070 - 0x007C Reserved

Name

PMC_SCER

PMC_SCDR

PMC _SCSR

PMC _PCER

PMC_PCDR

PMC_PCSR

CKGR_MOR

CKGR_MCFR

CKGR_PLLR

PMC_MCKR

PMC_PCK0

PMC_PCK1

...

PMC_IER

PMC_IDR

PMC_SR

PMC_IMR

...

Access

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read/Write

Read-only

Read/Write

Read/Write

Read/Write

Read/Write

Write-only

Write-only

Read-only

Read-only

...

Reset Value

0x01

0x0

0x0

0x0

0x3F00

0x0

0x0

0x0

--

--

0x08

0x0

164

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

24.9.1

PMC System Clock Enable Register

Register Name:

PMC_SCER

Access Type:

Write-only

31

30

29

23

15

7

UDP

22

14

6

21

13

5

• PCK: Processor Clock Enable

0 = No effect.

1 = Enables the Processor clock.

• UDP: USB Device Port Clock Enable

0 = No effect.

1 = Enables the 48 MHz clock of the USB Device Port.

28

20

12

4

• PCKx: Programmable Clock x Output Enable

0 = No effect.

1 = Enables the corresponding Programmable Clock output.

27

19

11

PCK3

3

AT91SAM7A3 Preliminary

26

18

10

PCK2

2

25

17

9

PCK1

1

24

16

8

PCK0

0

PCK

165

6042E–ATARM–14-Dec-06

24.9.2

PMC System Clock Disable Register

Register Name:

Access Type:

PMC_SCDR

Write-only

31

23

15

7

UDP

30

22

14

6

29

21

13

5

28

20

12

4

• PCK: Processor Clock Disable

0 = No effect.

1 = Disables the Processor clock. This is used to enter the processor in Idle Mode.

• UDP: USB Device Port Clock Disable

0 = No effect.

1 = Disables the 48 MHz clock of the USB Device Port.

• PCKx: Programmable Clock x Output Disable

0 = No effect.

1 = Disables the corresponding Programmable Clock output.

27

19

11

PCK3

3

26

18

10

PCK2

2

25

17

9

PCK1

1

24

16

8

PCK0

0

PCK

166

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

24.9.3

PMC System Clock Status Register

Register Name:

PMC_SCSR

Access Type:

Read-only

31

30

29

23

15

7

UDP

22

14

6

21

13

5

28

20

12

4

• PCK: Processor Clock Status

0 = The Processor clock is disabled.

1 = The Processor clock is enabled.

• UDP: USB Device Port Clock Status

0 = The 48 MHz clock (UDPCK) of the USB Device Port is disabled.

1 = The 48 MHz clock (UDPCK) of the USB Device Port is enabled.

• PCKx: Programmable Clock x Output Status

0 = The corresponding Programmable Clock output is disabled.

1 = The corresponding Programmable Clock output is enabled.

27

19

11

PCK3

3

AT91SAM7A3 Preliminary

26

18

10

PCK2

2

25

17

9

PCK1

1

24

16

8

PCK0

0

PCK

167

6042E–ATARM–14-Dec-06

24.9.4

PMC Peripheral Clock Enable Register

Register Name:

PMC_PCER

Access Type:

Write-only

31

PID31

30

PID30

29

PID29

28

PID28

23

PID23

15

PID15

7

PID7

22

PID22

14

PID14

6

PID6

21

PID21

13

PID13

5

PID5

20

PID20

12

PID12

4

PID4

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

-

• PIDx: Peripheral Clock x Enable

0 = No effect.

1 = Enables the corresponding peripheral clock.

Note: PID2 to PID31 refer to identifiers as defined in the section “Peripheral Identifiers” in the product datasheet.

Note: Programming the control bits of the Peripheral ID that are not implemented has no effect on the behavior of the PMC.

24

PID24

16

PID16

8

PID8

0

-

168

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24.9.5

PMC Peripheral Clock Disable Register

Register Name:

PMC_PCDR

Access Type:

Write-only

31

PID31

30

PID30

29

PID29

28

PID28

23

PID23

15

PID15

7

PID7

22

PID22

14

PID14

6

PID6

21

PID21

13

PID13

5

PID5

20

PID20

12

PID12

4

PID4

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

-

• PIDx: Peripheral Clock x Disable

0 = No effect.

1 = Disables the corresponding peripheral clock.

Note: PID2 to PID31 refer to identifiers as defined in the section “Peripheral Identifiers” in the product datasheet.

24

PID24

16

PID16

8

PID8

0

-

169

6042E–ATARM–14-Dec-06

24.9.6

PMC Peripheral Clock Status Register

Register Name:

PMC_PCSR

Access Type:

Read-only

31

PID31

30

PID30

29

PID29

28

PID28

23

PID23

15

PID15

7

PID7

22

PID22

14

PID14

6

PID6

21

PID21

13

PID13

5

PID5

20

PID20

12

PID12

4

PID4

27

PID27

19

PID19

11

PID11

3

PID3

26

PID26

18

PID18

10

PID10

2

PID2

25

PID25

17

PID17

9

PID9

1

• PIDx: Peripheral Clock x Status

0 = The corresponding peripheral clock is disabled.

1 = The corresponding peripheral clock is enabled.

Note: PID2 to PID31 refer to identifiers as defined in the section “Peripheral Identifiers” in the product datasheet.

24

PID24

16

PID16

8

PID8

0

170

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24.9.7

PMC Clock Generator Main Oscillator Register

Register Name:

CKGR_MOR

Access Type:

31

Read/Write

30

29

28

23

15

22

14

21

13

20

12

OSCOUNT

11

27

19

26

18

10

25

17

9

7

6

5

4

3

2

1

OSCBYPASS

• MOSCEN: Main Oscillator Enable

A crystal must be connected between XIN and XOUT.

0 = The Main Oscillator is disabled.

1 = The Main Oscillator is enabled. OSCBYPASS must be set to 0.

When MOSCEN is set, the MOSCS flag is set once the Main Oscillator startup time is achieved.

• OSCBYPASS: Oscillator Bypass

0 = No effect.

1 = The Main Oscillator is bypassed. MOSCEN must be set to 0. An external clock must be connected on XIN.

When OSCBYPASS is set, the MOSCS flag in PMC_SR is automatically set.

Clearing MOSCEN and OSCBYPASS bits allows resetting the MOSCS flag.

• OSCOUNT: Main Oscillator Start-up Time

Specifies the number of Slow Clock cycles multiplied by 8 for the Main Oscillator start-up time.

0

MOSCEN

24

16

8

171

6042E–ATARM–14-Dec-06

24.9.8

PMC Clock Generator Main Clock Frequency Register

Register Name:

CKGR_MCFR

Access Type:

31

Read-only

30

29

28

27

23

15

22

14

21

13

20

12

19

11

MAINF

7 6 5 4 3

MAINF

• MAINF: Main Clock Frequency

Gives the number of Main Clock cycles within 16 Slow Clock periods.

• MAINRDY: Main Clock Ready

0 = MAINF value is not valid or the Main Oscillator is disabled.

1 = The Main Oscillator has been enabled previously and MAINF value is available.

2

26

18

10

25

17

9

1

24

16

MAINRDY

8

0

172

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24.9.9

PMC Clock Generator PLL Register

Register Name:

CKGR_PLLR

Access Type:

31

Read/Write

30

29

USBDIV

28

23 22 21 20

27

19

26

18

25

MUL

17

MUL

15

OUT

14 13 12 11

PLLCOUNT

10 9

7 6 5 4 3 2 1

DIV

Possible limitations on PLL input frequencies and multiplier factors should be checked before using the PMC.

• DIV: Divider

24

16

8

0

DIV

0

1

2 - 255

Divider Selected

Divider output is 0

Divider is bypassed

Divider output is the selected clock divided by DIV.

• PLLCOUNT: PLL Counter

Specifies the number of slow clock cycles before the LOCK bit is set in PMC_SR after CKGR_PLLR is written.

• OUT: PLL Clock Frequency Range

To optimize clock performance, this field must be programmed as specified in “PLL Characteristics” in the Electrical Characteristics section of the product datasheet.

• MUL: PLL Multiplier

0 = The PLL is deactivated.

1 up to 2047 = The PLL Clock frequency is the PLL input frequency multiplied by MUL+ 1.

• USBDIV: Divider for USB Clock

USBDIV

1

1

0

0

0

1

0

1

Divider for USB Clock(s)

Divider output is PLL clock output.

Divider output is PLL clock output divided by 2.

Divider output is PLL clock output divided by 4.

Reserved.

173

6042E–ATARM–14-Dec-06

24.9.10

PMC Master Clock Register

Register Name:

PMC_MCKR

Access Type:

Read/Write

31

30

29

23

15

7

22

14

6

21

13

5

• CSS: Master Clock Selection

1

1

0

0

• PRES: Processor Clock Prescaler

CSS

1

1

0

1

1

0

0

0

0

1

1

0

1

PRES

0

0

1

28

20

12

4

0

1

0

1

27

19

11

3

PRES

1

0

1

0

1

0

1

0

10

2

26

18

25

17

9 8

1

CSS

0

24

16

Clock Source Selection

Slow Clock is selected

Main Clock is selected

Reserved

PLL Clock is selected.

Processor Clock

Selected clock

Selected clock divided by 2

Selected clock divided by 4

Selected clock divided by 8

Selected clock divided by 16

Selected clock divided by 32

Selected clock divided by 64

Reserved

174

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

24.9.11

PMC Programmable Clock Register

Register Name:

PMC_PCKx

Access Type:

Read/Write

31

30

29

23

15

7

22

14

6

21

13

5

• CSS: Master Clock Selection

28

20

12

4

CSS

1

1

0

0

• PRES: Programmable Clock Prescaler

0

1

0

1

1

1

0

1

1

0

0

0

0

1

1

0

1

PRES

0

0

1

27

19

11

3

PRES

Clock Source Selection

Slow Clock is selected

Main Clock is selected

Reserved

PLL Clock is selected

1

0

1

0

1

0

1

0

10

2

26

18

25

17

9

1

CSS

8

0

24

16

Programmable Clock

Selected clock

Selected clock divided by 2

Selected clock divided by 4

Selected clock divided by 8

Selected clock divided by 16

Selected clock divided by 32

Selected clock divided by 64

Reserved

175

6042E–ATARM–14-Dec-06

24.9.12

PMC Interrupt Enable Register

Register Name:

PMC_IER

Access Type:

Write-only

31

30

29

23

15

7

22

14

6

21

13

5

• MOSCS: Main Oscillator Status Interrupt Enable

• LOCK: PLL Lock Interrupt Enable

28

20

12

4

• MCKRDY: Master Clock Ready Interrupt Enable

• PCKRDYx: Programmable Clock Ready x Interrupt Enable

0 = No effect.

1 = Enables the corresponding interrupt.

27

19

11

3

MCKRDY

26

18

10

PCKRDY2

2

LOCK

25

17

9

PCKRDY1

1

24

16

8

PCKRDY0

0

MOSCS

176

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

24.9.13

PMC Interrupt Disable Register

Register Name:

PMC_IDR

Access Type:

Write-only

31

30

29

23

15

7

22

14

6

21

13

5

• MOSCS: Main Oscillator Status Interrupt Disable

• LOCK: PLL Lock Interrupt Disable

28

20

12

4

• MCKRDY: Master Clock Ready Interrupt Disable

• PCKRDYx: Programmable Clock Ready x Interrupt Disable

0 = No effect.

1 = Disables the corresponding interrupt.

27

19

11

3

MCKRDY

AT91SAM7A3 Preliminary

26

18

10

PCKRDY2

2

LOCK

25

17

9

PCKRDY1

1

24

16

8

PCKRDY0

0

MOSCS

177

6042E–ATARM–14-Dec-06

24.9.14

PMC Status Register

Register Name:

PMC_SR

Access Type:

Read-only

31

30

23

15

7

22

14

6

29

21

13

5

• MOSCS: MOSCS Flag Status

0 = Main oscillator is not stabilized.

1 = Main oscillator is stabilized.

• LOCK: PLL Lock Status

0 = PLL is not locked

1 = PLL is locked.

• MCKRDY: Master Clock Status

0 = Master Clock is not ready.

1 = Master Clock is ready.

• PCKRDYx: Programmable Clock Ready Status

0 = Programmable Clock x is not ready.

1 = Programmable Clock x is ready.

28

20

12

4

27

19

11

3

MCKRDY

26

18

10

PCKRDY2

2

LOCK

25

17

9

PCKRDY1

1

24

16

8

PCKRDY0

0

MOSCS

178

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

24.9.15

PMC Interrupt Mask Register

Register Name:

Access Type:

PMC_IMR

Read-only

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

• MOSCS: Main Oscillator Status Interrupt Mask

• LOCK: PLL Lock Interrupt Mask

• MCKRDY: Master Clock Ready Interrupt Mask

• PCKRDYx: Programmable Clock Ready x Interrupt Mask

0 = The corresponding interrupt is enabled.

1 = The corresponding interrupt is disabled.

27

19

11

3

MCKRDY

AT91SAM7A3 Preliminary

26

18

10

PCKRDY2

2

LOCK

25

17

9

PCKRDY1

1

24

16

8

PCKRDY0

0

MOSCS

179

6042E–ATARM–14-Dec-06

180

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

25. Debug Unit (DBGU

25.1

Overview

The Debug Unit provides a single entry point from the processor for access to all the debug capabilities of Atmel’s ARM-based systems.

The Debug Unit features a two-pin UART that can be used for several debug and trace purposes and offers an ideal medium for in-situ programming solutions and debug monitor communications. Moreover, the association with two peripheral data controller channels permits packet handling for these tasks with processor time reduced to a minimum.

The Debug Unit also makes the Debug Communication Channel (DCC) signals provided by the In-circuit Emulator of the ARM processor visible to the software. These signals indicate the status of the DCC read and write registers and generate an interrupt to the ARM processor, making possible the handling of the DCC under interrupt control.

Chip Identifier registers permit recognition of the device and its revision. These registers inform as to the sizes and types of the on-chip memories, as well as the set of embedded peripherals.

181

6042E–ATARM–14-Dec-06

25.2

Block Diagram

Figure 25-1. Debug Unit Functional Block Diagram

Peripheral

Bridge

Peripheral DMA Controller

APB

Debug Unit

Transmit

Power

Management

Controller

MCK

Baud Rate

Generator

Receive

ARM

Processor nTRST

COMMRX

COMMTX

DCC

Handler

Interrupt

Control

Chip ID

Parallel

Input/

Output dbgu_irq

Power-on

Reset

Table 25-1.

Debug Unit Pin Description

Pin Name

DRXD

DTXD

Description

Debug Receive Data

Debug Transmit Data

Type

Input

Output

Figure 25-2. Debug Unit Application Example

Boot Program Debug Monitor Trace Manager

Debug Unit

Programming Tool

RS232 Drivers

Debug Console Trace Console

DTXD

DRXD

182

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

25.3

Product Dependencies

25.3.1

I/O Lines

Depending on product integration, the Debug Unit pins may be multiplexed with PIO lines. In this case, the programmer must first configure the corresponding PIO Controller to enable I/O lines operations of the Debug Unit.

25.3.2

25.3.3

Power Management

Depending on product integration, the Debug Unit clock may be controllable through the

Power Management Controller. In this case, the programmer must first configure the PMC to enable the Debug Unit clock. Usually, the peripheral identifier used for this purpose is 1.

Interrupt Source

Depending on product integration, the Debug Unit interrupt line is connected to one of the interrupt sources of the Advanced Interrupt Controller. Interrupt handling requires programming of the AIC before configuring the Debug Unit. Usually, the Debug Unit interrupt line connects to the interrupt source 1 of the AIC, which may be shared with the real-time clock, the system timer interrupt lines and other system peripheral interrupts, as shown in

Figure 25-

1 . This sharing requires the programmer to determine the source of the interrupt when the

source 1 is triggered.

25.4

UART Operations

The Debug Unit operates as a UART, (asynchronous mode only) and supports only 8-bit character handling (with parity). It has no clock pin.

The Debug Unit's UART is made up of a receiver and a transmitter that operate independently, and a common baud rate generator. Receiver timeout and transmitter time guard are not implemented. However, all the implemented features are compatible with those of a standard

USART.

25.4.1

Baud Rate Generator

The baud rate generator provides the bit period clock named baud rate clock to both the receiver and the transmitter.

The baud rate clock is the master clock divided by 16 times the value (CD) written in

DBGU_BRGR (Baud Rate Generator Register). If DBGU_BRGR is set to 0, the baud rate clock is disabled and the Debug Unit's UART remains inactive. The maximum allowable baud rate is Master Clock divided by 16. The minimum allowable baud rate is Master Clock divided by (16 x 65536).

Baud Rate = ---------------------

16

×

CD

183

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 25-3. Baud Rate Generator

CD

MCK

CD

16-bit Counter

OUT

0

>1

1

0

Divide by 16

Baud Rate

Clock

Receiver

Sampling Clock

25.4.2

25.4.2.1

Receiver

Receiver Reset, Enable and Disable

After device reset, the Debug Unit receiver is disabled and must be enabled before being used. The receiver can be enabled by writing the control register DBGU_CR with the bit RXEN at 1. At this command, the receiver starts looking for a start bit.

The programmer can disable the receiver by writing DBGU_CR with the bit RXDIS at 1. If the receiver is waiting for a start bit, it is immediately stopped. However, if the receiver has already detected a start bit and is receiving the data, it waits for the stop bit before actually stopping its operation.

The programmer can also put the receiver in its reset state by writing DBGU_CR with the bit

RSTRX at 1. In doing so, the receiver immediately stops its current operations and is disabled, whatever its current state. If RSTRX is applied when data is being processed, this data is lost.

25.4.2.2

Start Detection and Data Sampling

The Debug Unit only supports asynchronous operations, and this affects only its receiver. The

Debug Unit receiver detects the start of a received character by sampling the DRXD signal until it detects a valid start bit. A low level (space) on DRXD is interpreted as a valid start bit if it is detected for more than 7 cycles of the sampling clock, which is 16 times the baud rate.

Hence, a space that is longer than 7/16 of the bit period is detected as a valid start bit. A space which is 7/16 of a bit period or shorter is ignored and the receiver continues to wait for a valid start bit.

When a valid start bit has been detected, the receiver samples the DRXD at the theoretical midpoint of each bit. It is assumed that each bit lasts 16 cycles of the sampling clock (1-bit period) so the bit sampling point is eight cycles (0.5-bit period) after the start of the bit. The first sampling point is therefore 24 cycles (1.5-bit periods) after the falling edge of the start bit was detected.

Each subsequent bit is sampled 16 cycles (1-bit period) after the previous one.

184

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 25-4. Start Bit Detection

Sampling Clock

DRXD

25.4.2.3

True Start

Detection

D0

Baud Rate

Clock

Figure 25-5. Character Reception

Example: 8-bit, parity enabled 1 stop

0.5 bit period

1 bit period

DRXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

Receiver Ready

When a complete character is received, it is transferred to the DBGU_RHR and the RXRDY status bit in DBGU_SR (Status Register) is set. The bit RXRDY is automatically cleared when the receive holding register DBGU_RHR is read.

Figure 25-6. Receiver Ready

DRXD S D0 D1 D2 D3 D4 D5 D6 D7 P S D0 D1 D2 D3 D4 D5 D6 D7 P

RXRDY

25.4.2.4

25.4.2.5

Read DBGU_RHR

Receiver Overrun

If DBGU_RHR has not been read by the software (or the Peripheral Data Controller) since the last transfer, the RXRDY bit is still set and a new character is received, the OVRE status bit in

DBGU_SR is set. OVRE is cleared when the software writes the control register DBGU_CR with the bit RSTSTA (Reset Status) at 1.

Figure 25-7. Receiver Overrun

DRXD S D0 D1 D2 D3 D4 D5 D6 D7 P stop

S D0 D1 D2 D3 D4 D5 D6 D7 P stop

RXRDY

OVRE

RSTSTA

Parity Error

Each time a character is received, the receiver calculates the parity of the received data bits, in accordance with the field PAR in DBGU_MR. It then compares the result with the received

185

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

parity bit. If different, the parity error bit PARE in DBGU_SR is set at the same time the

RXRDY is set. The parity bit is cleared when the control register DBGU_CR is written with the bit RSTSTA (Reset Status) at 1. If a new character is received before the reset status command is written, the PARE bit remains at 1.

Figure 25-8. Parity Error

DRXD

S D0 D1 D2 D3 D4 D5 D6 D7 P stop

RXRDY

PARE

Wrong Parity Bit

RSTSTA

25.4.2.6

Receiver Framing Error

When a start bit is detected, it generates a character reception when all the data bits have been sampled. The stop bit is also sampled and when it is detected at 0, the FRAME (Framing

Error) bit in DBGU_SR is set at the same time the RXRDY bit is set. The bit FRAME remains high until the control register DBGU_CR is written with the bit RSTSTA at 1.

Figure 25-9. Receiver Framing Error

DRXD S D0 D1 D2 D3 D4 D5 D6 D7 P stop

RXRDY

FRAME

Stop Bit

Detected at 0

RSTSTA

25.4.3

25.4.3.1

Transmitter

Transmitter Reset, Enable and Disable

After device reset, the Debug Unit transmitter is disabled and it must be enabled before being used. The transmitter is enabled by writing the control register DBGU_CR with the bit TXEN at

1. From this command, the transmitter waits for a character to be written in the Transmit Holding Register DBGU_THR before actually starting the transmission.

The programmer can disable the transmitter by writing DBGU_CR with the bit TXDIS at 1. If the transmitter is not operating, it is immediately stopped. However, if a character is being processed into the Shift Register and/or a character has been written in the Transmit Holding

Register, the characters are completed before the transmitter is actually stopped.

The programmer can also put the transmitter in its reset state by writing the DBGU_CR with the bit RSTTX at 1. This immediately stops the transmitter, whether or not it is processing characters.

25.4.3.2

Transmit Format

The Debug Unit transmitter drives the pin DTXD at the baud rate clock speed. The line is driven depending on the format defined in the Mode Register and the data stored in the Shift

Register. One start bit at level 0, then the 8 data bits, from the lowest to the highest bit, one optional parity bit and one stop bit at 1 are consecutively shifted out as shown on the following

186

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

figure. The field PARE in the mode register DBGU_MR defines whether or not a parity bit is shifted out. When a parity bit is enabled, it can be selected between an odd parity, an even parity, or a fixed space or mark bit.

Figure 25-10. Character Transmission

Example: Parity enabled

Baud Rate

Clock

DTXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7 Parity

Bit

Stop

Bit

25.4.3.3

Transmitter Control

When the transmitter is enabled, the bit TXRDY (Transmitter Ready) is set in the status register DBGU_SR. The transmission starts when the programmer writes in the Transmit Holding

Register DBGU_THR, and after the written character is transferred from DBGU_THR to the

Shift Register. The bit TXRDY remains high until a second character is written in DBGU_THR.

As soon as the first character is completed, the last character written in DBGU_THR is transferred into the shift register and TXRDY rises again, showing that the holding register is empty.

When both the Shift Register and the DBGU_THR are empty, i.e., all the characters written in

DBGU_THR have been processed, the bit TXEMPTY rises after the last stop bit has been completed.

Figure 25-11. Transmitter Control

DBGU_THR

Data 0 Data 1

Shift Register

Data 0 Data 1

DTXD

S

Data 0

P stop

S

Data 1 P stop

TXRDY

TXEMPTY

Write Data 0 in DBGU_THR

Write Data 1 in DBGU_THR

25.4.4

Peripheral Data Controller

Both the receiver and the transmitter of the Debug Unit's UART are generally connected to a

Peripheral Data Controller (PDC) channel.

The peripheral data controller channels are programmed via registers that are mapped within the Debug Unit user interface from the offset 0x100. The status bits are reported in the Debug

Unit status register DBGU_SR and can generate an interrupt.

187

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The RXRDY bit triggers the PDC channel data transfer of the receiver. This results in a read of the data in DBGU_RHR. The TXRDY bit triggers the PDC channel data transfer of the transmitter. This results in a write of a data in DBGU_THR.

25.4.5

Test Modes

The Debug Unit supports three tests modes. These modes of operation are programmed by using the field CHMODE (Channel Mode) in the mode register DBGU_MR.

The Automatic Echo mode allows bit-by-bit retransmission. When a bit is received on the

DRXD line, it is sent to the DTXD line. The transmitter operates normally, but has no effect on the DTXD line.

The Local Loopback mode allows the transmitted characters to be received. DTXD and DRXD pins are not used and the output of the transmitter is internally connected to the input of the receiver. The DRXD pin level has no effect and the DTXD line is held high, as in idle state.

The Remote Loopback mode directly connects the DRXD pin to the DTXD line. The transmitter and the receiver are disabled and have no effect. This mode allows a bit-by-bit retransmission.

Figure 25-12. Test Modes

Automatic Echo

Receiver RXD

Transmitter

Disabled

TXD

Local Loopback

Receiver

Transmitter

Remote Loopback

Receiver

V

DD

Disabled

Disabled

RXD

Disabled

V

DD

TXD

RXD

Transmitter

Disabled

TXD

25.4.6

Debug Communication Channel Support

The Debug Unit handles the signals COMMRX and COMMTX that come from the Debug

Communication Channel of the ARM Processor and are driven by the In-circuit Emulator.

188

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The Debug Communication Channel contains two registers that are accessible through the

ICE Breaker on the JTAG side and through the coprocessor 0 on the ARM Processor side.

As a reminder, the following instructions are used to read and write the Debug Communication

Channel:

MRC p14, 0, Rd, c1, c0, 0

Returns the debug communication data read register into Rd

25.4.7

MCR p14, 0, Rd, c1, c0, 0

Writes the value in Rd to the debug communication data write register.

The bits COMMRX and COMMTX, which indicate, respectively, that the read register has been written by the debugger but not yet read by the processor, and that the write register has been written by the processor and not yet read by the debugger, are wired on the two highest bits of the status register DBGU_SR. These bits can generate an interrupt. This feature permits handling under interrupt a debug link between a debug monitor running on the target system and a debugger.

Chip Identifier

The Debug Unit features two chip identifier registers, DBGU_CIDR (Chip ID Register) and

DBGU_EXID (Extension ID). Both registers contain a hard-wired value that is read-only. The first register contains the following fields:

• EXT - shows the use of the extension identifier register

• NVPTYP and NVPSIZ - identifies the type of embedded non-volatile memory and its size

• ARCH - identifies the set of embedded peripheral

• SRAMSIZ - indicates the size of the embedded SRAM

• EPROC - indicates the embedded ARM processor

• VERSION - gives the revision of the silicon

The second register is device-dependent and reads 0 if the bit EXT is 0.

189

6042E–ATARM–14-Dec-06

25.5

Debug Unit User Interface

Table 25-2.

Debug Unit Memory Map

Offset Register

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

Control Register

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Status Register

Receive Holding Register

Transmit Holding Register

0x0020 Baud Rate Generator Register

0x0024 - 0x003C Reserved

0x0040

0x0044

Chip ID Register

Chip ID Extension Register

0x0048 Reserved

0x004C - 0x00FC Reserved

0x0100 - 0x0124 PDC Area

AT91SAM7A3 Preliminary

Name

DBGU_CR

DBGU_MR

DBGU_IER

DBGU_IDR

DBGU_IMR

DBGU_SR

DBGU_RHR

DBGU_THR

DBGU_BRGR

DBGU_CIDR

DBGU_EXID

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Read/Write

Read-only

Read-only

0x0

0x0

0x0

0x0

190

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

25.5.1

Debug Unit Control Register

Name:

Access Type:

DBGU_CR

Write-only

31

30

29

23

15

7

TXDIS

22

14

6

TXEN

21

13

5

RXDIS

28

20

12

4

RXEN

27

19

11

3

RSTTX

26

18

10

2

RSTRX

25

17

9

1

24

16

8

RSTSTA

0

• RSTRX: Reset Receiver

0 = No effect.

1 = The receiver logic is reset and disabled. If a character is being received, the reception is aborted.

• RSTTX: Reset Transmitter

0 = No effect.

1 = The transmitter logic is reset and disabled. If a character is being transmitted, the transmission is aborted.

• RXEN: Receiver Enable

0 = No effect.

1 = The receiver is enabled if RXDIS is 0.

• RXDIS: Receiver Disable

0 = No effect.

1 = The receiver is disabled. If a character is being processed and RSTRX is not set, the character is completed before the receiver is stopped.

• TXEN: Transmitter Enable

0 = No effect.

1 = The transmitter is enabled if TXDIS is 0.

• TXDIS: Transmitter Disable

0 = No effect.

1 = The transmitter is disabled. If a character is being processed and a character has been written the DBGU_THR and

RSTTX is not set, both characters are completed before the transmitter is stopped.

• RSTSTA: Reset Status Bits

0 = No effect.

1 = Resets the status bits PARE, FRAME and OVRE in the DBGU_SR.

191

6042E–ATARM–14-Dec-06

25.5.2

Debug Unit Mode Register

Name:

Access Type:

DBGU_MR

Read/Write

31

30

29

23

15

22

14

7

CHMODE

6

21

13

5

• PAR: Parity Type

0

0

0

0

1

1

1 x

PAR

0

0

• CHMODE: Channel Mode

CHMODE

1

1

0

0

0

1

0

1

0

1

0

1 x

Mode Description

Normal Mode

Automatic Echo

Local Loopback

Remote Loopback

28

20

12

4

27

19

11

3

Parity Type

Even parity

Odd parity

Space: parity forced to 0

Mark: parity forced to 1

No parity

AT91SAM7A3 Preliminary

26

18

10

PAR

2

25

17

9

1

24

16

8

0

192

6042E–ATARM–14-Dec-06

25.5.3

Debug Unit Interrupt Enable Register

Name:

Access Type:

DBGU_IER

Write-only

31

COMMRX

30

COMMTX

29

28

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

20

12

RXBUFF

4

ENDTX

• RXRDY: Enable RXRDY Interrupt

• TXRDY: Enable TXRDY Interrupt

• ENDRX: Enable End of Receive Transfer Interrupt

• ENDTX: Enable End of Transmit Interrupt

• OVRE: Enable Overrun Error Interrupt

• FRAME: Enable Framing Error Interrupt

• PARE: Enable Parity Error Interrupt

• TXEMPTY: Enable TXEMPTY Interrupt

• TXBUFE: Enable Buffer Empty Interrupt

• RXBUFF: Enable Buffer Full Interrupt

• COMMTX: Enable COMMTX (from ARM) Interrupt

• COMMRX: Enable COMMRX (from ARM) Interrupt

0 = No effect.

1 = Enables the corresponding interrupt.

27

19

11

TXBUFE

3

ENDRX

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

TXEMPTY

1

TXRDY

24

16

8

0

RXRDY

193

6042E–ATARM–14-Dec-06

25.5.4

Debug Unit Interrupt Disable Register

Name:

Access Type:

DBGU_IDR

Write-only

31

COMMRX

30

COMMTX

29

28

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

20

12

RXBUFF

4

ENDTX

• RXRDY: Disable RXRDY Interrupt

• TXRDY: Disable TXRDY Interrupt

• ENDRX: Disable End of Receive Transfer Interrupt

• ENDTX: Disable End of Transmit Interrupt

• OVRE: Disable Overrun Error Interrupt

• FRAME: Disable Framing Error Interrupt

• PARE: Disable Parity Error Interrupt

• TXEMPTY: Disable TXEMPTY Interrupt

• TXBUFE: Disable Buffer Empty Interrupt

• RXBUFF: Disable Buffer Full Interrupt

• COMMTX: Disable COMMTX (from ARM) Interrupt

• COMMRX: Disable COMMRX (from ARM) Interrupt

0 = No effect.

1 = Disables the corresponding interrupt.

27

19

11

TXBUFE

3

ENDRX

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

TXEMPTY

1

TXRDY

24

16

8

0

RXRDY

194

6042E–ATARM–14-Dec-06

25.5.5

Debug Unit Interrupt Mask Register

Name:

Access Type:

DBGU_IMR

Read-only

31

COMMRX

30

COMMTX

29

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

28

20

12

RXBUFF

4

ENDTX

• RXRDY: Mask RXRDY Interrupt

• TXRDY: Disable TXRDY Interrupt

• ENDRX: Mask End of Receive Transfer Interrupt

• ENDTX: Mask End of Transmit Interrupt

• OVRE: Mask Overrun Error Interrupt

• FRAME: Mask Framing Error Interrupt

• PARE: Mask Parity Error Interrupt

• TXEMPTY: Mask TXEMPTY Interrupt

• TXBUFE: Mask TXBUFE Interrupt

• RXBUFF: Mask RXBUFF Interrupt

• COMMTX: Mask COMMTX Interrupt

• COMMRX: Mask COMMRX Interrupt

0 = The corresponding interrupt is disabled.

1 = The corresponding interrupt is enabled.

27

19

11

TXBUFE

3

ENDRX

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

TXEMPTY

1

TXRDY

24

16

8

0

RXRDY

195

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

25.5.6

Debug Unit Status Register

Name:

Access Type:

DBGU_SR

Read-only

31

COMMRX

30

COMMTX

29

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

28

20

12

RXBUFF

4

ENDTX

27

19

11

TXBUFE

3

ENDRX

26

18

10

2

25

17

9

TXEMPTY

1

TXRDY

24

16

8

0

RXRDY

• RXRDY: Receiver Ready

0 = No character has been received since the last read of the DBGU_RHR or the receiver is disabled.

1 = At least one complete character has been received, transferred to DBGU_RHR and not yet read.

• TXRDY: Transmitter Ready

0 = A character has been written to DBGU_THR and not yet transferred to the Shift Register, or the transmitter is disabled.

1 = There is no character written to DBGU_THR not yet transferred to the Shift Register.

• ENDRX: End of Receiver Transfer

0 = The End of Transfer signal from the receiver Peripheral Data Controller channel is inactive.

1 = The End of Transfer signal from the receiver Peripheral Data Controller channel is active.

• ENDTX: End of Transmitter Transfer

0 = The End of Transfer signal from the transmitter Peripheral Data Controller channel is inactive.

1 = The End of Transfer signal from the transmitter Peripheral Data Controller channel is active.

• OVRE: Overrun Error

0 = No overrun error has occurred since the last RSTSTA.

1 = At least one overrun error has occurred since the last RSTSTA.

• FRAME: Framing Error

0 = No framing error has occurred since the last RSTSTA.

1 = At least one framing error has occurred since the last RSTSTA.

• PARE: Parity Error

0 = No parity error has occurred since the last RSTSTA.

1 = At least one parity error has occurred since the last RSTSTA.

• TXEMPTY: Transmitter Empty

0 = There are characters in DBGU_THR, or characters being processed by the transmitter, or the transmitter is disabled.

1 = There are no characters in DBGU_THR and there are no characters being processed by the transmitter.

• TXBUFE: Transmission Buffer Empty

0 = The buffer empty signal from the transmitter PDC channel is inactive.

1 = The buffer empty signal from the transmitter PDC channel is active.

• RXBUFF: Receive Buffer Full

0 = The buffer full signal from the receiver PDC channel is inactive.

1 = The buffer full signal from the receiver PDC channel is active.

196

6042E–ATARM–14-Dec-06

• COMMTX: Debug Communication Channel Write Status

0 = COMMTX from the ARM processor is inactive.

1 = COMMTX from the ARM processor is active.

• COMMRX: Debug Communication Channel Read Status

0 = COMMRX from the ARM processor is inactive.

1 = COMMRX from the ARM processor is active.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

197

25.5.7

Debug Unit Receiver Holding Register

Name:

Access Type:

DBGU_RHR

Read-only

31

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

RXCHR

27

19

11

3

• RXCHR: Received Character

Last received character if RXRDY is set.

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

6042E–ATARM–14-Dec-06

198

AT91SAM7A3 Preliminary

25.5.8

Debug Unit Transmit Holding Register

Name:

Access Type:

DBGU_THR

Write-only

31

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

TXCHR

• TXCHR: Character to be Transmitted

Next character to be transmitted after the current character if TXRDY is not set.

26

18

10

2

25

17

9

1

24

16

8

0

6042E–ATARM–14-Dec-06

199

25.5.9

Debug Unit Baud Rate Generator Register

Name:

Access Type:

DBGU_BRGR

Read/Write

31

30

29

28

23

15

22

14

21

13

20

12

7 6 5 4

CD

CD

• CD: Clock Divisor

CD

0

1

2 to 65535

Baud Rate Clock

Disabled

MCK

MCK / (CD x 16)

27

19

11

3

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

200

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

25.5.10

Debug Unit Chip ID Register

Name:

Access Type:

DBGU_CIDR

Read-only

30 31

EXT

23 22

29

NVPTYP

21

ARCH

15 14 13

NVPSIZ2

7 6

EPROC

5

• VERSION: Version of the Device

• EPROC: Embedded Processor

28

20

12

4

0

0

1

1

EPROC

0

1

0

0

1

0

0

1

• NVPSIZ: Nonvolatile Program Memory Size

Processor

ARM946ES

ARM7TDMI

®

ARM920T

ARM926EJS

NVPSIZ

1

1

1

1

0

0

0

0

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

1

1

0

0

1

1

0

0

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

27

19

11

3

Size

None

8K bytes

16K bytes

32K bytes

Reserved

64K bytes

Reserved

128K bytes

Reserved

256K bytes

512K bytes

Reserved

1024K bytes

Reserved

2048K bytes

Reserved

26

ARCH

18

SRAMSIZ

10

2

VERSION

NVPSIZ

25

17

9

1

24

16

8

0

201

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

1

1

1

1

1

1

1

0

1

0

0

0

0

0

0

0

• NVPSIZ2 Second Nonvolatile Program Memory Size

NVPSIZ2

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

• SRAMSIZ: Internal SRAM Size

1

1

1

1

0

0

0

0

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

1

1

0

0

1

1

0

0

SRAMSIZ

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

1

1

0

1

1

0

0

1

0

1

1

0

1

0

0

0

0

1

1

0

1

0

1

1

0

0

1

1

0

0

0

1

1

0

1

0

1

1

0

1

0

1

0

1

0

0

1

0

Size

None

8K bytes

16K bytes

32K bytes

Reserved

64K bytes

Reserved

128K bytes

Reserved

256K bytes

512K bytes

Reserved

1024K bytes

Reserved

2048K bytes

Reserved

Size

Reserved

1K bytes

2K bytes

Reserved

112K bytes

4K bytes

80K bytes

160K bytes

8K bytes

16K bytes

32K bytes

64K bytes

128K bytes

256K bytes

96K bytes

512K bytes

202

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• ARCH: Architecture Identifier

ARCH

0x60

0x63

0x70

0x71

0x72

0x73

0x75

0x92

0xF0

Hex

0x19

0x29

0x34

0x39

0x40

0x42

0x55

• NVPTYP: Nonvolatile Program Memory Type

Bin

0001 1001

0010 1001

0011 0100

0011 1001

0100 0000

0100 0010

0101 0101

0101 0000

0110 0011

0111 0000

0111 0001

0111 0010

0111 0011

0111 0101

1001 0010

1111 0001

Architecture

AT91SAM9xx Series

AT91SAM9XExx Series

AT91x34 Series

CAP9 Series

AT91x40 Series

AT91x42 Series

AT91x55 Series

AT91SAM7Axx Series

AT91x63 Series

AT91SAM7Sxx Series

AT91SAM7XCxx Series

AT91SAM7SExx Series

AT91SAM7Lxx Series

AT91SAM7Xxx Series

AT91x92 Series

AT75Cxx Series

1

0

0

0

0

NVPTYP

0

0

0

1

1

0

0

0

1

1

Memory

ROM

ROMless or on-chip Flash

SRAM emulating ROM

Embedded Flash Memory

ROM and Embedded Flash Memory

NVPSIZ is ROM size

NVPSIZ2 is Flash size

• EXT: Extension Flag

0 = Chip ID has a single register definition without extension

1 = An extended Chip ID exists.

203

6042E–ATARM–14-Dec-06

25.5.11

Debug Unit Chip ID Extension Register

Name:

Access Type:

DBGU_EXID

Read-only

31 30 29 28

23

15

7

22

14

6

21

13

5

20

12

4

EXID

27

19

EXID

11

EXID

3

EXID

• EXID: Chip ID Extension

Reads 0 if the bit EXT in DBGU_CIDR is 0.

10

2

26

18

9

1

25

17

8

0

24

16

204

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26. Parallel Input Output Controller (PIO)

26.1

Overview

The Parallel Input/Output Controller (PIO) manages up to 32 fully programmable input/output lines. Each I/O line may be dedicated as a general-purpose I/O or be assigned to a function of an embedded peripheral. This assures effective optimization of the pins of a product.

Each I/O line is associated with a bit number in all of the 32-bit registers of the 32-bit wide User

Interface.

Each I/O line of the PIO Controller features:

• An input change interrupt enabling level change detection on any I/O line.

• A glitch filter providing rejection of pulses lower than one-half of clock cycle.

• Multi-drive capability similar to an open drain I/O line.

• Control of the pull-up of the I/O line.

• Input visibility and output control.

The PIO Controller also features a synchronous output providing up to 32 bits of data output in a single write operation.

205

6042E–ATARM–14-Dec-06

26.2

Block Diagram

Figure 26-1. Block Diagram

AIC

PIO Interrupt

PIO Controller

PIO Clock

PMC

Data, Enable

Embedded

Peripheral

Data, Enable

Up to 32 peripheral IOs

Up to 32 peripheral IOs

Embedded

Peripheral

APB

Figure 26-2. Application Block Diagram

Keyboard Driver Control & Command

Driver

Keyboard Driver

PIO Controller

General Purpose I/Os

On-Chip Peripheral Drivers

On-Chip Peripherals

External Devices

PIN 0

PIN 1

Up to 32 pins

PIN 31

206

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.3

Product Dependencies

26.3.1

Pin Multiplexing

Each pin is configurable, according to product definition as either a general-purpose I/O line only, or as an I/O line multiplexed with one or two peripheral I/Os. As the multiplexing is hardware-defined and thus product-dependent, the hardware designer and programmer must carefully determine the configuration of the PIO controllers required by their application. When an I/O line is general-purpose only, i.e. not multiplexed with any peripheral I/O, programming of the PIO Controller regarding the assignment to a peripheral has no effect and only the PIO Controller can control how the pin is driven by the product.

26.3.2

26.3.3

26.3.4

External Interrupt Lines

The interrupt signals FIQ and IRQ0 to IRQn are most generally multiplexed through the PIO

Controllers. However, it is not necessary to assign the I/O line to the interrupt function as the

PIO Controller has no effect on inputs and the interrupt lines (FIQ or IRQs) are used only as inputs.

Power Management

The Power Management Controller controls the PIO Controller clock in order to save power.

Writing any of the registers of the user interface does not require the PIO Controller clock to be enabled. This means that the configuration of the I/O lines does not require the PIO Controller clock to be enabled.

However, when the clock is disabled, not all of the features of the PIO Controller are available.

Note that the Input Change Interrupt and the read of the pin level require the clock to be validated.

After a hardware reset, the PIO clock is disabled by default.

The user must configure the Power Management Controller before any access to the input line information.

Interrupt Generation

For interrupt handling, the PIO Controllers are considered as user peripherals. This means that the PIO Controller interrupt lines are connected among the interrupt sources 2 to 31. Refer to the

PIO Controller peripheral identifier in the product description to identify the interrupt sources dedicated to the PIO Controllers.

The PIO Controller interrupt can be generated only if the PIO Controller clock is enabled.

207

6042E–ATARM–14-Dec-06

26.4

Functional Description

The PIO Controller features up to 32 fully-programmable I/O lines. Most of the control logic associated to each I/O is represented in

Figure 26-3 . In this description each signal shown

represents but one of up to 32 possible indexes.

Figure 26-3. I/O Line Control Logic

PIO_OER[0]

PIO_OSR[0]

PIO_ODR[0]

PIO_PUER[0]

PIO_PUSR[0]

PIO_PUDR[0]

1

Peripheral A

Output Enable 0

Peripheral B

Output Enable

PIO_ASR[0]

PIO_ABSR[0]

PIO_BSR[0]

Peripheral A

Output

1

0

Peripheral B

Output

1

PIO_PER[0]

PIO_PSR[0]

PIO_PDR[0]

PIO_SODR[0]

PIO_ODSR[0]

PIO_CODR[0]

0

0

1

PIO_MDER[0]

PIO_MDSR[0]

PIO_MDDR[0]

0

1

0

1

Pad

Glitch

Filter

PIO_IFER[0]

PIO_IFSR[0]

PIO_IFDR[0]

1

PIO_PDSR[0]

0

Edge

Detector

PIO_IER[0]

PIO_ISR[0]

PIO_IMR[0]

PIO_IDR[0]

PIO_ISR[31]

PIO_IER[31]

PIO_IMR[31]

PIO_IDR[31]

Peripheral A

Input

Peripheral B

Input

(Up to 32 possible inputs)

PIO Interrupt

208

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.4.1

26.4.2

26.4.3

26.4.4

Pull-up Resistor Control

Each I/O line is designed with an embedded pull-up resistor. The pull-up resistor can be enabled or disabled by writing respectively PIO_PUER (Pull-up Enable Register) and PIO_PUDR (Pullup Disable Resistor). Writing in these registers results in setting or clearing the corresponding bit in PIO_PUSR (Pull-up Status Register). Reading a 1 in PIO_PUSR means the pull-up is disabled and reading a 0 means the pull-up is enabled.

Control of the pull-up resistor is possible regardless of the configuration of the I/O line.

After reset, all of the pull-ups are enabled, i.e. PIO_PUSR resets at the value 0x0.

I/O Line or Peripheral Function Selection

When a pin is multiplexed with one or two peripheral functions, the selection is controlled with the registers PIO_PER (PIO Enable Register) and PIO_PDR (PIO Disable Register). The register PIO_PSR (PIO Status Register) is the result of the set and clear registers and indicates whether the pin is controlled by the corresponding peripheral or by the PIO Controller. A value of

0 indicates that the pin is controlled by the corresponding on-chip peripheral selected in the

PIO_ABSR (AB Select Status Register). A value of 1 indicates the pin is controlled by the PIO controller.

If a pin is used as a general purpose I/O line (not multiplexed with an on-chip peripheral),

PIO_PER and PIO_PDR have no effect and PIO_PSR returns 1 for the corresponding bit.

After reset, most generally, the I/O lines are controlled by the PIO controller, i.e. PIO_PSR resets at 1. However, in some events, it is important that PIO lines are controlled by the peripheral (as in the case of memory chip select lines that must be driven inactive after reset or for address lines that must be driven low for booting out of an external memory). Thus, the reset value of PIO_PSR is defined at the product level, depending on the multiplexing of the device.

Peripheral A or B Selection

The PIO Controller provides multiplexing of up to two peripheral functions on a single pin. The selection is performed by writing PIO_ASR (A Select Register) and PIO_BSR (Select B Register). PIO_ABSR (AB Select Status Register) indicates which peripheral line is currently selected.

For each pin, the corresponding bit at level 0 means peripheral A is selected whereas the corresponding bit at level 1 indicates that peripheral B is selected.

Note that multiplexing of peripheral lines A and B only affects the output line. The peripheral input lines are always connected to the pin input.

After reset, PIO_ABSR is 0, thus indicating that all the PIO lines are configured on peripheral A.

However, peripheral A generally does not drive the pin as the PIO Controller resets in I/O line mode.

Writing in PIO_ASR and PIO_BSR manages PIO_ABSR regardless of the configuration of the pin. However, assignment of a pin to a peripheral function requires a write in the corresponding peripheral selection register (PIO_ASR or PIO_BSR) in addition to a write in PIO_PDR.

Output Control

When the I/0 line is assigned to a peripheral function, i.e. the corresponding bit in PIO_PSR is at

0, the drive of the I/O line is controlled by the peripheral. Peripheral A or B, depending on the value in PIO_ABSR, determines whether the pin is driven or not.

209

6042E–ATARM–14-Dec-06

26.4.5

26.4.6

26.4.7

When the I/O line is controlled by the PIO controller, the pin can be configured to be driven. This is done by writing PIO_OER (Output Enable Register) and PIO_ODR (Output Disable Register).

The results of these write operations are detected in PIO_OSR (Output Status Register). When a bit in this register is at 0, the corresponding I/O line is used as an input only. When the bit is at

1, the corresponding I/O line is driven by the PIO controller.

The level driven on an I/O line can be determined by writing in PIO_SODR (Set Output Data

Register) and PIO_CODR (Clear Output Data Register). These write operations respectively set and clear PIO_ODSR (Output Data Status Register), which represents the data driven on the I/O lines. Writing in PIO_OER and PIO_ODR manages PIO_OSR whether the pin is configured to be controlled by the PIO controller or assigned to a peripheral function. This enables configuration of the I/O line prior to setting it to be managed by the PIO Controller.

Similarly, writing in PIO_SODR and PIO_CODR effects PIO_ODSR. This is important as it defines the first level driven on the I/O line.

Synchronous Data Output

Controlling all parallel busses using several PIOs requires two successive write operations in the

PIO_SODR and PIO_CODR registers. This may lead to unexpected transient values. The PIO controller offers a direct control of PIO outputs by single write access to PIO_ODSR (Output

Data Status Register). Only bits unmasked by PIO_OSWSR (Output Write Status Register) are written. The mask bits in the PIO_OWSR are set by writing to PIO_OWER (Output Write Enable

Register) and cleared by writing to PIO_OWDR (Output Write Disable Register).

After reset, the synchronous data output is disabled on all the I/O lines as PIO_OWSR resets at

0x0.

Multi Drive Control (Open Drain)

Each I/O can be independently programmed in Open Drain by using the Multi Drive feature. This feature permits several drivers to be connected on the I/O line which is driven low only by each device. An external pull-up resistor (or enabling of the internal one) is generally required to guarantee a high level on the line.

The Multi Drive feature is controlled by PIO_MDER (Multi-driver Enable Register) and

PIO_MDDR (Multi-driver Disable Register). The Multi Drive can be selected whether the I/O line is controlled by the PIO controller or assigned to a peripheral function. PIO_MDSR (Multi-driver

Status Register) indicates the pins that are configured to support external drivers.

After reset, the Multi Drive feature is disabled on all pins, i.e. PIO_MDSR resets at value 0x0.

Output Line Timings

Figure 26-4

shows how the outputs are driven either by writing PIO_SODR or PIO_CODR, or by directly writing PIO_ODSR. This last case is valid only if the corresponding bit in PIO_OWSR is set.

Figure 26-4 also shows when the feedback in PIO_PDSR is available.

210

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 26-4. Output Line Timings

MCK

Write PIO_SODR

Write PIO_ODSR at 1

Write PIO_CODR

Write PIO_ODSR at 0

PIO_ODSR

APB Access

2 cycles

PIO_PDSR

APB Access

2 cycles

26.4.8

26.4.9

Inputs

The level on each I/O line can be read through PIO_PDSR (Pin Data Status Register). This register indicates the level of the I/O lines regardless of their configuration, whether uniquely as an input or driven by the PIO controller or driven by a peripheral.

Reading the I/O line levels requires the clock of the PIO controller to be enabled, otherwise

PIO_PDSR reads the levels present on the I/O line at the time the clock was disabled.

Input Glitch Filtering

Optional input glitch filters are independently programmable on each I/O line. When the glitch filter is enabled, a glitch with a duration of less than 1/2 Master Clock (MCK) cycle is automatically rejected, while a pulse with a duration of 1 Master Clock cycle or more is accepted. For pulse durations between 1/2 Master Clock cycle and 1 Master Clock cycle the pulse may or may not be taken into account, depending on the precise timing of its occurrence. Thus for a pulse to be visible it must exceed 1 Master Clock cycle, whereas for a glitch to be reliably filtered out, its duration must not exceed 1/2 Master Clock cycle. The filter introduces one Master Clock cycle latency if the pin level change occurs before a rising edge. However, this latency does not appear if the pin level change occurs before a falling edge. This is illustrated in

Figure 26-5

.

The glitch filters are controlled by the register set; PIO_IFER (Input Filter Enable Register),

PIO_IFDR (Input Filter Disable Register) and PIO_IFSR (Input Filter Status Register). Writing

PIO_IFER and PIO_IFDR respectively sets and clears bits in PIO_IFSR. This last register enables the glitch filter on the I/O lines.

When the glitch filter is enabled, it does not modify the behavior of the inputs on the peripherals.

It acts only on the value read in PIO_PDSR and on the input change interrupt detection. The glitch filters require that the PIO Controller clock is enabled.

211

6042E–ATARM–14-Dec-06

Figure 26-5. Input Glitch Filter Timing

MCK up to 1.5 cycles

Pin Level

PIO_PDSR if PIO_IFSR = 0

PIO_PDSR if PIO_IFSR = 1

1 cycle 1 cycle 1 cycle

2 cycles up to 2.5 cycles

1 cycle

1 cycle up to 2 cycles

26.4.10

Input Change Interrupt

The PIO Controller can be programmed to generate an interrupt when it detects an input change on an I/O line. The Input Change Interrupt is controlled by writing PIO_IER (Interrupt Enable

Register) and PIO_IDR (Interrupt Disable Register), which respectively enable and disable the input change interrupt by setting and clearing the corresponding bit in PIO_IMR (Interrupt Mask

Register). As Input change detection is possible only by comparing two successive samplings of the input of the I/O line, the PIO Controller clock must be enabled. The Input Change Interrupt is available, regardless of the configuration of the I/O line, i.e. configured as an input only, controlled by the PIO Controller or assigned to a peripheral function.

When an input change is detected on an I/O line, the corresponding bit in PIO_ISR (Interrupt

Status Register) is set. If the corresponding bit in PIO_IMR is set, the PIO Controller interrupt line is asserted. The interrupt signals of the thirty-two channels are ORed-wired together to generate a single interrupt signal to the Advanced Interrupt Controller.

When the software reads PIO_ISR, all the interrupts are automatically cleared. This signifies that all the interrupts that are pending when PIO_ISR is read must be handled.

Figure 26-6. Input Change Interrupt Timings

MCK

Pin Level

PIO_ISR

Read PIO_ISR APB Access

APB Access

212

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.5

I/O Lines Programming Example

The programing example as shown in

Table 26-1 below is used to define the following

configuration.

• 4-bit output port on I/O lines 0 to 3, (should be written in a single write operation), open-drain, with pull-up resistor

• Four output signals on I/O lines 4 to 7 (to drive LEDs for example), driven high and low, no pull-up resistor

• Four input signals on I/O lines 8 to 11 (to read push-button states for example), with pull-up resistors, glitch filters and input change interrupts

• Four input signals on I/O line 12 to 15 to read an external device status (polled, thus no input change interrupt), no pull-up resistor, no glitch filter

• I/O lines 16 to 19 assigned to peripheral A functions with pull-up resistor

• I/O lines 20 to 23 assigned to peripheral B functions, no pull-up resistor

• I/O line 24 to 27 assigned to peripheral A with Input Change Interrupt and pull-up resistor

Table 26-1.

Programming Example

Register

PIO_PER

PIO_PDR

PIO_OER

PIO_ODR

PIO_IFER

PIO_IFDR

PIO_SODR

PIO_CODR

PIO_IER

PIO_IDR

PIO_MDER

PIO_MDDR

PIO_PUDR

PIO_PUER

PIO_ASR

PIO_BSR

PIO_OWER

PIO_OWDR

Value to be Written

0x0000 FFFF

0x0FFF 0000

0x0000 00FF

0x0FFF FF00

0x0000 0F00

0x0FFF F0FF

0x0000 0000

0x0FFF FFFF

0x0F00 0F00

0x00FF F0FF

0x0000 000F

0x0FFF FFF0

0x00F0 00F0

0x0F0F FF0F

0x0F0F 0000

0x00F0 0000

0x0000 000F

0x0FFF FFF0

213

6042E–ATARM–14-Dec-06

26.6

User Interface

Each I/O line controlled by the PIO Controller is associated with a bit in each of the PIO Controller User Interface registers. Each register is 32 bits wide. If a parallel I/O line is not defined, writing to the corresponding bits has no effect. Undefined bits read zero. If the I/O line is not multiplexed with any peripheral, the I/O line is controlled by the PIO Controller and PIO_PSR returns

1 systematically.

0x0044

0x0048

0x004C

0x0050

0x0054

0x0058

0x005C

0x0060

0x0064

0x0068

0x006C

0x0024

0x0028

0x002C

0x0030

0x0034

0x0038

0x003C

0x0040

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

Table 26-2.

Register Mapping

Offset

0x0000

Register

PIO Enable Register

PIO Disable Register

PIO Status Register

(1)

Reserved

Output Enable Register

Output Disable Register

Output Status Register

Reserved

Glitch Input Filter Enable Register

Glitch Input Filter Disable Register

Glitch Input Filter Status Register

Reserved

Set Output Data Register

Clear Output Data Register

Output Data Status Register

(2)

Pin Data Status Register

(3)

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Interrupt Status Register

(4)

Multi-driver Enable Register

Multi-driver Disable Register

Multi-driver Status Register

Reserved

Pull-up Disable Register

Pull-up Enable Register

Pad Pull-up Status Register

Reserved

Name

PIO_PER

PIO_PDR

PIO_PSR

PIO_OER

PIO_ODR

PIO_OSR

PIO_IFER

PIO_IFDR

PIO_IFSR

PIO_SODR

PIO_CODR

PIO_ODSR

PIO_PDSR

PIO_IER

PIO_IDR

PIO_IMR

PIO_ISR

PIO_MDER

PIO_MDDR

PIO_MDSR

PIO_PUDR

PIO_PUER

PIO_PUSR

Access

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Reset Value

0x0000 0000

0x0000 0000

0x0000 0000

0x0000 0000

0x00000000

0x00000000

0x00000000

0x00000000

214

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 26-2.

Register Mapping (Continued)

Offset

0x0070

0x0074

Register

Peripheral A Select Register

(5)

Peripheral B Select Register

(5)

AB Status Register

(5)

0x0078

0x007C to

0x009C

Reserved

Name

PIO_ASR

PIO_BSR

PIO_ABSR

Access

Write-only

Write-only

Read-only

Reset Value

0x00000000

0x00A0

0x00A4

Output Write Enable

Output Write Disable

PIO_OWER

PIO_OWDR

Write-only

Write-only

0x00A8 Output Write Status Register PIO_OWSR Read-only 0x00000000

0x00AC Reserved

Notes: 1. Reset value of PIO_PSR depends on the product implementation.

2. PIO_ODSR is Read-only or Read/Write depending on PIO_OWSR I/O lines.

3. Reset value of PIO_PDSR depends on the level of the I/O lines.

4. PIO_ISR is reset at 0x0. However, the first read of the register may read a different value as input changes may have occurred.

5. Only this set of registers clears the status by writing 1 in the first register and sets the status by writing 1 in the second register.

215

6042E–ATARM–14-Dec-06

26.6.1

Name:

PIO Controller PIO Enable Register

Access Type:

PIO_PER

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

• P0-P31: PIO Enable

0 = No effect.

1 = Enables the PIO to control the corresponding pin (disables peripheral control of the pin).

26.6.2

Name:

PIO Controller PIO Disable Register

Access Type:

PIO_PDR

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

• P0-P31: PIO Disable

0 = No effect.

1 = Disables the PIO from controlling the corresponding pin (enables peripheral control of the pin).

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

216

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

26.6.3

Name:

PIO Controller PIO Status Register

Access Type:

PIO_PSR

Read-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

28

P28

20

P20

12

P12

4

P4

• P0-P31: PIO Status

0 = PIO is inactive on the corresponding I/O line (peripheral is active).

1 = PIO is active on the corresponding I/O line (peripheral is inactive).

27

P27

19

P19

11

P11

3

P3

26.6.4

Name:

PIO Controller Output Enable Register

Access Type:

PIO_OER

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Output Enable

0 = No effect.

1 = Enables the output on the I/O line.

27

P27

19

P19

11

P11

3

P3

AT91SAM7A3 Preliminary

26

P26

18

P18

10

P10

2

P2

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

217

6042E–ATARM–14-Dec-06

26.6.5

Name:

PIO Controller Output Disable Register

Access Type:

PIO_ODR

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Output Disable

0 = No effect.

1 = Disables the output on the I/O line.

26.6.6

Name:

PIO Controller Output Status Register

Access Type:

PIO_OSR

Read-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Output Status

0 = The I/O line is a pure input.

1 = The I/O line is enabled in output.

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

218

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

26.6.7

Name:

PIO Controller Input Filter Enable Register

Access Type:

PIO_IFER

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Filter Enable

0 = No effect.

1 = Enables the input glitch filter on the I/O line.

26.6.8

Name:

PIO Controller Input Filter Disable Register

Access Type:

PIO_IFDR

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Filter Disable

0 = No effect.

1 = Disables the input glitch filter on the I/O line.

27

P27

19

P19

11

P11

3

P3

27

P27

19

P19

11

P11

3

P3

AT91SAM7A3 Preliminary

26

P26

18

P18

10

P10

2

P2

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

219

6042E–ATARM–14-Dec-06

26.6.9

Name:

PIO Controller Input Filter Status Register

Access Type:

PIO_IFSR

Read-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Filer Status

0 = The input glitch filter is disabled on the I/O line.

1 = The input glitch filter is enabled on the I/O line.

26.6.10

PIO Controller Set Output Data Register

Name:

PIO_SODR

Access Type:

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Set Output Data

0 = No effect.

1 = Sets the data to be driven on the I/O line.

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

220

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

26.6.11

PIO Controller Clear Output Data Register

Name:

PIO_CODR

Access Type:

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Set Output Data

0 = No effect.

1 = Clears the data to be driven on the I/O line.

26.6.12

PIO Controller Output Data Status Register

Name:

PIO_ODSR

Access Type:

Read-only or Read/Write

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Output Data Status

0 = The data to be driven on the I/O line is 0.

1 = The data to be driven on the I/O line is 1.

27

P27

19

P19

11

P11

3

P3

27

P27

19

P19

11

P11

3

P3

AT91SAM7A3 Preliminary

26

P26

18

P18

10

P10

2

P2

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

221

6042E–ATARM–14-Dec-06

26.6.13

PIO Controller Pin Data Status Register

Name:

PIO_PDSR

Access Type:

Read-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Output Data Status

0 = The I/O line is at level 0.

1 = The I/O line is at level 1.

26.6.14

PIO Controller Interrupt Enable Register

Name:

PIO_IER

Access Type:

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Change Interrupt Enable

0 = No effect.

1 = Enables the Input Change Interrupt on the I/O line.

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

222

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.6.15

PIO Controller Interrupt Disable Register

Name:

PIO_IDR

Access Type:

Write-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Change Interrupt Disable

0 = No effect.

1 = Disables the Input Change Interrupt on the I/O line.

26.6.16

PIO Controller Interrupt Mask Register

Name:

PIO_IMR

Access Type:

Read-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

• P0-P31: Input Change Interrupt Mask

0 = Input Change Interrupt is disabled on the I/O line.

1 = Input Change Interrupt is enabled on the I/O line.

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

223

6042E–ATARM–14-Dec-06

26.6.17

PIO Controller Interrupt Status Register

Name:

PIO_ISR

Access Type:

Read-only

31

P31

30

P30

29

P29

28

P28

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

• P0-P31: Input Change Interrupt Status

0 = No Input Change has been detected on the I/O line since PIO_ISR was last read or since reset.

1 = At least one Input Change has been detected on the I/O line since PIO_ISR was last read or since reset.

26.6.18

PIO Multi-driver Enable Register

Name:

PIO_MDER

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Multi Drive Enable.

0 = No effect.

1 = Enables Multi Drive on the I/O line.

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

224

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.6.19

PIO Multi-driver Disable Register

Name:

PIO_MDDR

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Multi Drive Disable.

0 = No effect.

1 = Disables Multi Drive on the I/O line.

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26.6.20

PIO Multi-driver Status Register

Name:

PIO_MDSR

Access Type:

Read-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

• P0-P31: Multi Drive Status.

0 = The Multi Drive is disabled on the I/O line. The pin is driven at high and low level.

1 = The Multi Drive is enabled on the I/O line. The pin is driven at low level only.

26

P26

18

P18

10

P10

2

P2

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

225

6042E–ATARM–14-Dec-06

26.6.21

PIO Pull Up Disable Register

Name:

PIO_PUDR

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Pull Up Disable.

0 = No effect.

1 = Disables the pull up resistor on the I/O line.

26.6.22

PIO Pull Up Enable Register

Name:

PIO_PUER

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Pull Up Enable.

0 = No effect.

1 = Enables the pull up resistor on the I/O line.

28

P28

20

P20

12

P12

4

P4

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

226

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.6.23

PIO Pull Up Status Register

Name:

PIO_PUSR

Access Type:

Read-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Pull Up Status.

0 = Pull Up resistor is enabled on the I/O line.

1 = Pull Up resistor is disabled on the I/O line.

26.6.24

PIO Peripheral A Select Register

Name:

PIO_ASR

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Peripheral A Select.

0 = No effect.

1 = Assigns the I/O line to the Peripheral A function.

28

P28

20

P20

12

P12

4

P4

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

227

6042E–ATARM–14-Dec-06

26.6.25

PIO Peripheral B Select Register

Name:

PIO_BSR

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Peripheral B Select.

0 = No effect.

1 = Assigns the I/O line to the peripheral B function.

28

P28

20

P20

12

P12

4

P4

26.6.26

PIO Peripheral A B Status Register

Name:

PIO_ABSR

Access Type:

Read-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Peripheral A B Status.

0 = The I/O line is assigned to the Peripheral A.

1 = The I/O line is assigned to the Peripheral B.

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

228

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

26.6.27

PIO Output Write Enable Register

Name:

PIO_OWER

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Output Write Enable.

0 = No effect.

1 = Enables writing PIO_ODSR for the I/O line.

26.6.28

PIO Output Write Disable Register

Name:

PIO_OWDR

Access Type:

Write-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Output Write Disable.

0 = No effect.

1 = Disables writing PIO_ODSR for the I/O line.

28

P28

20

P20

12

P12

4

P4

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

229

6042E–ATARM–14-Dec-06

26.6.29

PIO Output Write Status Register

Name:

PIO_OWSR

Access Type:

Read-only

31

P31

30

P30

29

P29

23

P23

15

P15

7

P7

22

P22

14

P14

6

P6

21

P21

13

P13

5

P5

• P0-P31: Output Write Status.

0 = Writing PIO_ODSR does not affect the I/O line.

1 = Writing PIO_ODSR affects the I/O line.

28

P28

20

P20

12

P12

4

P4

27

P27

19

P19

11

P11

3

P3

26

P26

18

P18

10

P10

2

P2

25

P25

17

P17

9

P9

1

P1

24

P24

16

P16

8

P8

0

P0

230

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27. Serial Peripheral Interface (SPI)

27.1

Overview

The Serial Peripheral Interface (SPI) circuit is a synchronous serial data link that provides communication with external devices in Master or Slave Mode. It also enables communication between processors if an external processor is connected to the system.

The Serial Peripheral Interface is essentially a shift register that serially transmits data bits to other SPIs. During a data transfer, one SPI system acts as the “master”' which controls the data flow, while the other devices act as “slaves'' which have data shifted into and out by the master.

Different CPUs can take turn being masters (Multiple Master Protocol opposite to Single Master

Protocol where one CPU is always the master while all of the others are always slaves) and one master may simultaneously shift data into multiple slaves. However, only one slave may drive its output to write data back to the master at any given time.

A slave device is selected when the master asserts its NSS signal. If multiple slave devices exist, the master generates a separate slave select signal for each slave (NPCS).

The SPI system consists of two data lines and two control lines:

• Master Out Slave In (MOSI): This data line supplies the output data from the master shifted into the input(s) of the slave(s).

• Master In Slave Out (MISO): This data line supplies the output data from a slave to the input of the master. There may be no more than one slave transmitting data during any particular transfer.

• Serial Clock (SPCK): This control line is driven by the master and regulates the flow of the data bits. The master may transmit data at a variety of baud rates; the SPCK line cycles once for each bit that is transmitted.

• Slave Select (NSS): This control line allows slaves to be turned on and off by hardware.

231

6042E–ATARM–14-Dec-06

27.2

Block Diagram

Figure 27-1. Block Diagram

PDC

APB

PMC

MCK

SPI Interface

Interrupt Control

SPI Interrupt

PIO

SPCK

MISO

MOSI

NPCS0/NSS

NPCS1

NPCS2

NPCS3

232

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.3

Application Block Diagram

Figure 27-2. Application Block Diagram: Single Master/Multiple Slave Implementation

SPI Master

SPCK

MISO

MOSI

NPCS0

NPCS1

NPCS2

NPCS3

NC

MISO

MOSI

NSS

SPCK

MISO

MOSI

NSS

SPCK

MISO

MOSI

NSS

SPCK

Slave 0

Slave 1

Slave 2

233

6042E–ATARM–14-Dec-06

27.4

Signal Description

Table 27-1.

Signal Description

Pin Name

MISO

MOSI

SPCK

NPCS1-NPCS3

NPCS0/NSS

Pin Description

Master In Slave Out

Master Out Slave In

Serial Clock

Peripheral Chip Selects

Peripheral Chip Select/Slave Select

Master

Input

Output

Output

Output

Output

Type

Slave

Output

Input

Input

Unused

Input

27.5

Product Dependencies

27.5.1

I/O Lines

The pins used for interfacing the compliant external devices may be multiplexed with PIO lines.

The programmer must first program the PIO controllers to assign the SPI pins to their peripheral functions.

27.5.2

27.5.3

Power Management

The SPI may be clocked through the Power Management Controller (PMC), thus the programmer must first configure the PMC to enable the SPI clock.

Interrupt

The SPI interface has an interrupt line connected to the Advanced Interrupt Controller (AIC).

Handling the SPI interrupt requires programming the AIC before configuring the SPI.

234

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.6

Functional Description

27.6.1

Modes of Operation

The SPI operates in Master Mode or in Slave Mode.

Operation in Master Mode is programmed by writing at 1 the MSTR bit in the Mode Register.

The pins NPCS0 to NPCS3 are all configured as outputs, the SPCK pin is driven, the MISO line is wired on the receiver input and the MOSI line driven as an output by the transmitter.

If the MSTR bit is written at 0, the SPI operates in Slave Mode. The MISO line is driven by the transmitter output, the MOSI line is wired on the receiver input, the SPCK pin is driven by the transmitter to synchronize the receiver. The NPCS0 pin becomes an input, and is used as a

Slave Select signal (NSS). The pins NPCS1 to NPCS3 are not driven and can be used for other purposes.

The data transfers are identically programmable for both modes of operations. The baud rate generator is activated only in Master Mode.

27.6.2

Data Transfer

Four combinations of polarity and phase are available for data transfers. The clock polarity is programmed with the CPOL bit in the Chip Select Register. The clock phase is programmed with the NCPHA bit. These two parameters determine the edges of the clock signal on which data is driven and sampled. Each of the two parameters has two possible states, resulting in four possible combinations that are incompatible with one another. Thus, a master/slave pair must use the same parameter pair values to communicate. If multiple slaves are used and fixed in different configurations, the master must reconfigure itself each time it needs to communicate with a different slave.

Table 27-2

shows the four modes and corresponding parameter settings.

Table 27-2.

SPI Bus Protocol Mode

SPI Mode

0

1

2

3

CPOL

0

0

1

1

NCPHA

1

0

1

0

Figure 27-3 and Figure 27-4

show examples of data transfers.

235

6042E–ATARM–14-Dec-06

Figure 27-3. SPI Transfer Format (NCPHA = 1, 8 bits per transfer)

SPCK cycle (for reference)

1 2 3 4 5

SPCK

(CPOL = 0)

SPCK

(CPOL = 1)

MOSI

(from master)

MISO

(from slave)

MSB 6

MSB 6

5

5

4

4

3

3

NSS

(to slave)

2

7

2 1

* Not defined, but normally MSB of previous character received.

8

1 LSB

LSB

*

Figure 27-4. SPI Transfer Format (NCPHA = 0, 8 bits per transfer)

1 2 3 4

SPCK cycle (for reference)

SPCK

(CPOL = 0)

5 6 7 8

SPCK

(CPOL = 1)

MOSI

(from master)

MISO

(from slave)

NSS

(to slave)

MSB 6

*

MSB 6

5

5

4

4

3

3

* Not defined but normally LSB of previous character transmitted.

2

2 1

1 LSB

LSB

236

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.6.3

Master Mode Operations

When configured in Master Mode, the SPI operates on the clock generated by the internal programmable baud rate generator. It fully controls the data transfers to and from the slave(s) connected to the SPI bus. The SPI drives the chip select line to the slave and the serial clock signal (SPCK).

The SPI features two holding registers, the Transmit Data Register and the Receive Data Register, and a single Shift Register. The holding registers maintain the data flow at a constant rate.

After enabling the SPI, a data transfer begins when the processor writes to the SPI_TDR (Transmit Data Register). The written data is immediately transferred in the Shift Register and transfer on the SPI bus starts. While the data in the Shift Register is shifted on the MOSI line, the MISO line is sampled and shifted in the Shift Register. Transmission cannot occur without reception.

Before writing the TDR, the PCS field must be set in order to select a slave.

If new data is written in SPI_TDR during the transfer, it stays in it until the current transfer is completed. Then, the received data is transferred from the Shift Register to SPI_RDR, the data in SPI_TDR is loaded in the Shift Register and a new transfer starts.

The transfer of a data written in SPI_TDR in the Shift Register is indicated by the TDRE bit

(Transmit Data Register Empty) in the Status Register (SPI_SR). When new data is written in

SPI_TDR, this bit is cleared. The TDRE bit is used to trigger the Transmit PDC channel.

The end of transfer is indicated by the TXEMPTY flag in the SPI_SR register. If a transfer delay

(DLYBCT) is greater than 0 for the last transfer, TXEMPTY is set after the completion of said delay. The master clock (MCK) can be switched off at this time.

The transfer of received data from the Shift Register in SPI_RDR is indicated by the RDRF bit

(Receive Data Register Full) in the Status Register (SPI_SR). When the received data is read, the RDRF bit is cleared.

If the SPI_RDR (Receive Data Register) has not been read before new data is received, the

Overrun Error bit (OVRES) in SPI_SR is set. As long as this flag is set, data is loaded in

SPI_RDR. The user has to read the status register to clear the OVRES bit.

Figure 27-5 on page 238

shows a block diagram of the SPI when operating in Master Mode. Figure 27-6 on page 239 shows a flow chart describing how transfers are handled.

237

6042E–ATARM–14-Dec-06

27.6.3.1

Master Mode Block Diagram

Figure 27-5. Master Mode Block Diagram

SPI_CSR0..3

SCBR

MCK

Baud Rate Generator

MISO

SPI

Clock

SPI_CSR0..3

BITS

NCPHA

CPOL

LSB

SPI_RDR

Shift Register

RD

MSB

RDRF

OVRES

SPI_MR

PCS

PS

0

SPI_TDR

TD

SPI_CSR0..3

CSAAT

TDRE

SPI_RDR

PCS

PCSDEC

Current

Peripheral

SPI_TDR

PCS

1

SPCK

MOSI

NPCS3

NPCS2

NPCS1

NPCS0

MSTR

MODF

NPCS0

MODFDIS

238

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

27.6.3.2

AT91SAM7A3 Preliminary

Master Mode Flow Diagram

Figure 27-6. Master Mode Flow Diagram

SPI Enable

- NPCS defines the current Chip Select

- CSAAT, DLYBS, DLYBCT refer to the fields of the

Chip Select Register corresponding to the Current Chip Select

- When NPCS is 0xF, CSAAT is 0.

1

TDRE ?

0

1

CSAAT ?

0

PS ?

1

Variable peripheral

NPCS = SPI_TDR(PCS)

0

Fixed

peripheral

NPCS = SPI_MR(PCS)

PS ?

1

Variable peripheral

0

Fixed

peripheral yes

SPI_TDR(PCS)

= NPCS ?

no

NPCS = 0xF

SPI_MR(PCS)

= NPCS ?

no

NPCS = 0xF

Delay DLYBCS

NPCS = SPI_TDR(PCS)

Delay DLYBCS

NPCS = SPI_MR(PCS),

SPI_TDR(PCS)

Delay DLYBS

Serializer = SPI_TDR(TD)

TDRE = 1

Data Transfer

SPI_RDR(RD) = Serializer

RDRF = 1

Delay DLYBCT

1

TDRE ?

1

CSAAT ?

0

NPCS = 0xF

Delay DLYBCS

0

239

6042E–ATARM–14-Dec-06

27.6.3.3

Clock Generation

The SPI Baud rate clock is generated by dividing the Master Clock (MCK), by a value between 1 and 255.

This allows a maximum operating baud rate at up to Master Clock and a minimum operating baud rate of MCK divided by 255.

Programming the SCBR field at 0 is forbidden. Triggering a transfer while SCBR is at 0 can lead to unpredictable results.

At reset, SCBR is 0 and the user has to program it at a valid value before performing the first transfer.

The divisor can be defined independently for each chip select, as it has to be programmed in the

SCBR field of the Chip Select Registers. This allows the SPI to automatically adapt the baud rate for each interfaced peripheral without reprogramming.

27.6.3.4

Transfer Delays

Figure 27-7 shows a chip select transfer change and consecutive transfers on the same chip

select. Three delays can be programmed to modify the transfer waveforms:

• The delay between chip selects, programmable only once for all the chip selects by writing the DLYBCS field in the Mode Register. Allows insertion of a delay between release of one chip select and before assertion of a new one.

• The delay before SPCK, independently programmable for each chip select by writing the field

DLYBS. Allows the start of SPCK to be delayed after the chip select has been asserted.

• The delay between consecutive transfers, independently programmable for each chip select by writing the DLYBCT field. Allows insertion of a delay between two transfers occurring on the same chip select

These delays allow the SPI to be adapted to the interfaced peripherals and their speed and bus release time.

Figure 27-7. Programmable Delays

Chip Select 1

Chip Select 2

SPCK

DLYBCS DLYBS DLYBCT DLYBCT

27.6.3.5

Peripheral Selection

The serial peripherals are selected through the assertion of the NPCS0 to NPCS3 signals. By default, all the NPCS signals are high before and after each transfer.

The peripheral selection can be performed in two different ways:

240

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

27.6.3.6

27.6.3.7

AT91SAM7A3 Preliminary

• Fixed Peripheral Select: SPI exchanges data with only one peripheral

• Variable Peripheral Select: Data can be exchanged with more than one peripheral

Fixed Peripheral Select is activated by writing the PS bit to zero in SPI_MR (Mode Register). In this case, the current peripheral is defined by the PCS field in SPI_MR and the PCS field in the

SPI_TDR has no effect.

Variable Peripheral Select is activated by setting PS bit to one. The PCS field in SPI_TDR is used to select the current peripheral. This means that the peripheral selection can be defined for each new data.

The Fixed Peripheral Selection allows buffer transfers with a single peripheral. Using the PDC is an optimal means, as the size of the data transfer between the memory and the SPI is either 8 bits or 16 bits. However, changing the peripheral selection requires the Mode Register to be reprogrammed.

The Variable Peripheral Selection allows buffer transfers with multiple peripherals without reprogramming the Mode Register. Data written in SPI_TDR is 32 bits wide and defines the real data to be transmitted and the peripheral it is destined to. Using the PDC in this mode requires 32-bit wide buffers, with the data in the LSBs and the PCS and LASTXFER fields in the MSBs, however the SPI still controls the number of bits (8 to16) to be transferred through MISO and MOSI lines with the chip select configuration registers. This is not the optimal means in term of memory size for the buffers, but it provides a very effective means to exchange data with several peripherals without any intervention of the processor.

Peripheral Chip Select Decoding

The user can program the SPI to operate with up to 15 peripherals by decoding the four Chip

Select lines, NPCS0 to NPCS3 with an external logic. This can be enabled by writing the PCS-

DEC bit at 1 in the Mode Register (SPI_MR).

When operating without decoding, the SPI makes sure that in any case only one chip select line is activated, i.e. driven low at a time. If two bits are defined low in a PCS field, only the lowest numbered chip select is driven low.

When operating with decoding, the SPI directly outputs the value defined by the PCS field of either the Mode Register or the Transmit Data Register (depending on PS).

As the SPI sets a default value of 0xF on the chip select lines (i.e. all chip select lines at 1) when not processing any transfer, only 15 peripherals can be decoded.

The SPI has only four Chip Select Registers, not 15. As a result, when decoding is activated, each chip select defines the characteristics of up to four peripherals. As an example, SPI_CRS0 defines the characteristics of the externally decoded peripherals 0 to 3, corresponding to the

PCS values 0x0 to 0x3. Thus, the user has to make sure to connect compatible peripherals on the decoded chip select lines 0 to 3, 4 to 7, 8 to 11 and 12 to 14.

Peripheral Deselection

When operating normally, as soon as the transfer of the last data written in SPI_TDR is completed, the NPCS lines all rise. This might lead to runtime error if the processor is too long in responding to an interrupt, and thus might lead to difficulties for interfacing with some serial peripherals requiring the chip select line to remain active during a full set of transfers.

241

6042E–ATARM–14-Dec-06

To facilitate interfacing with such devices, the Chip Select Register can be programmed with the

CSAAT bit (Chip Select Active After Transfer) at 1. This allows the chip select lines to remain in their current state (low = active) until transfer to another peripheral is required.

Figure 27-8

shows different peripheral deselection cases and the effect of the CSAAT bit.

Figure 27-8. Peripheral Deselection

CSAAT = 0 CSAAT = 1

TDRE

NPCS[0..3] A

DLYBCT

DLYBCS

PCS = A

A A

DLYBCT

A

DLYBCS

PCS = A

A

Write SPI_TDR

TDRE

NPCS[0..3] A

DLYBCT

DLYBCS

PCS=A

A

Write SPI_TDR

A

DLYBCT

A

DLYBCS

PCS = A

A

TDRE

NPCS[0..3]

DLYBCT DLYBCT

A B A B

DLYBCS

PCS = B PCS = B

DLYBCS

Write SPI_TDR

27.6.3.8

Mode Fault Detection

A mode fault is detected when the SPI is programmed in Master Mode and a low level is driven by an external master on the NPCS0/NSS signal. NPCS0, MOSI, MISO and SPCK must be configured in open drain through the PIO controller, so that external pull up resistors are needed to guarantee high level.

When a mode fault is detected, the MODF bit in the SPI_SR is set until the SPI_SR is read and the SPI is automatically disabled until re-enabled by writing the SPIEN bit in the SPI_CR (Control Register) at 1.

By default, the Mode Fault detection circuitry is enabled. The user can disable Mode Fault detection by setting the MODFDIS bit in the SPI Mode Register (SPI_MR).

242

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.6.4

SPI Slave Mode

When operating in Slave Mode, the SPI processes data bits on the clock provided on the SPI clock pin (SPCK).

The SPI waits for NSS to go active before receiving the serial clock from an external master.

When NSS falls, the clock is validated on the serializer, which processes the number of bits defined by the BITS field of the Chip Select Register 0 (SPI_CSR0). These bits are processed following a phase and a polarity defined respectively by the NCPHA and CPOL bits of the

SPI_CSR0. Note that BITS, CPOL and NCPHA of the other Chip Select Registers have no effect when the SPI is programmed in Slave Mode.

The bits are shifted out on the MISO line and sampled on the MOSI line.

When all the bits are processed, the received data is transferred in the Receive Data Register and the RDRF bit rises. If RDRF is already high when the data is transferred, the Overrun bit rises and the data transfer to SPI_RDR is aborted.

When a transfer starts, the data shifted out is the data present in the Shift Register. If no data has been written in the Transmit Data Register (SPI_TDR), the last data received is transferred.

If no data has been received since the last reset, all bits are transmitted low, as the Shift Register resets at 0.

When a first data is written in SPI_TDR, it is transferred immediately in the Shift Register and the

TDRE bit rises. If new data is written, it remains in SPI_TDR until a transfer occurs, i.e. NSS falls and there is a valid clock on the SPCK pin. When the transfer occurs, the last data written in

SPI_TDR is transferred in the Shift Register and the TDRE bit rises. This enables frequent updates of critical variables with single transfers.

Then, a new data is loaded in the Shift Register from the Transmit Data Register. In case no character is ready to be transmitted, i.e. no character has been written in SPI_TDR since the last load from SPI_TDR to the Shift Register, the Shift Register is not modified and the last received character is retransmitted.

Figure 27-9

shows a block diagram of the SPI when operating in Slave Mode.

Figure 27-9. Slave Mode Functional Block Diagram

SPCK

NSS

SPI

Clock

MOSI

SPIEN

SPIENS

SPIDIS

SPI_CSR0

BITS

NCPHA

CPOL

LSB

SPI_RDR

Shift Register

RD

MSB

RDRF

OVRES

MISO

SPI_TDR

TD

TDRE

243

6042E–ATARM–14-Dec-06

27.7

Serial Peripheral Interface (SPI) User Interface

Table 27-3.

SPI Register Mapping

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Control Register

Mode Register

Receive Data Register

Transmit Data Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

0x20 - 0x2C

0x30

0x34

0x38

Reserved

Chip Select Register 0

Chip Select Register 1

Chip Select Register 2

0x3C

0x004C - 0x00F8

Chip Select Register 3

Reserved

0x004C - 0x00FC Reserved

0x100 - 0x124 Reserved for the PDC

SPI_CR

SPI_MR

SPI_RDR

SPI_TDR

SPI_SR

SPI_IER

SPI_IDR

SPI_IMR

SPI_CSR0

SPI_CSR1

SPI_CSR2

SPI_CSR3

Write-only

Read/Write

Read-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read/Write

Read/Write

Read/Write

Read/Write

Reset

---

0x0

0x0

---

0x000000F0

---

---

0x0

0x0

0x0

0x0

0x0

244

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.7.1

SPI Control Register

Name: SPI_CR

Access Type: Write-only

31

30

23

15

7

SWRST

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

SPIDIS

24

LASTXFER

16

8

0

SPIEN

• SPIEN: SPI Enable

0 = No effect.

1 = Enables the SPI to transfer and receive data.

• SPIDIS: SPI Disable

0 = No effect.

1 = Disables the SPI.

As soon as SPIDIS is set, SPI finishes its transfer.

All pins are set in input mode and no data is received or transmitted.

If a transfer is in progress, the transfer is finished before the SPI is disabled.

If both SPIEN and SPIDIS are equal to one when the control register is written, the SPI is disabled.

• SWRST: SPI Software Reset

0 = No effect.

1 = Reset the SPI. A software-triggered hardware reset of the SPI interface is performed.

The SPI is in slave mode after software reset.

PDC channels are not affected by software reset.

• LASTXFER: Last Transfer

0 = No effect.

1 = The current NPCS will be deasserted after the character written in TD has been transferred. When CSAAT is set, this allows to close the communication with the current serial peripheral by raising the corresponding NPCS line as soon as TD transfer has completed.

245

6042E–ATARM–14-Dec-06

27.7.2

SPI Mode Register

Name: SPI_MR

Access Type: Read/Write

31 30 29

23

15

7

LLB

22

14

6

21

13

5

28

DLYBCS

20

12

4

MODFDIS

27

19

11

3

26

18

10

2

PCSDEC

PCS

25

17

9

1

PS

24

16

8

0

MSTR

• MSTR: Master/Slave Mode

0 = SPI is in Slave mode.

1 = SPI is in Master mode.

• PS: Peripheral Select

0 = Fixed Peripheral Select.

1 = Variable Peripheral Select.

• PCSDEC: Chip Select Decode

0 = The chip selects are directly connected to a peripheral device.

1 = The four chip select lines are connected to a 4- to 16-bit decoder.

When PCSDEC equals one, up to 15 Chip Select signals can be generated with the four lines using an external 4- to 16-bit decoder. The Chip Select Registers define the characteristics of the 15 chip selects according to the following rules:

SPI_CSR0 defines peripheral chip select signals 0 to 3.

SPI_CSR1 defines peripheral chip select signals 4 to 7.

SPI_CSR2 defines peripheral chip select signals 8 to 11.

SPI_CSR3 defines peripheral chip select signals 12 to 14.

• MODFDIS: Mode Fault Detection

0 = Mode fault detection is enabled.

1 = Mode fault detection is disabled.

• LLB: Local Loopback Enable

0 = Local loopback path disabled.

1 = Local loopback path enabled.

LLB controls the local loopback on the data serializer for testing in Master Mode only. (MISO is internally connected on

MOSI.)

246

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• PCS: Peripheral Chip Select

This field is only used if Fixed Peripheral Select is active (PS = 0).

If PCSDEC = 0:

PCS = xxx0

PCS = xx01

PCS = x011

PCS = 0111

PCS = 1111

NPCS[3:0] = 1110

NPCS[3:0] = 1101

NPCS[3:0] = 1011

NPCS[3:0] = 0111 forbidden (no peripheral is selected)

(x = don’t care)

If PCSDEC = 1:

NPCS[3:0] output signals = PCS.

• DLYBCS: Delay Between Chip Selects

This field defines the delay from NPCS inactive to the activation of another NPCS. The DLYBCS time guarantees non-overlapping chip selects and solves bus contentions in case of peripherals having long data float times.

If DLYBCS is less than or equal to six, six MCK periods will be inserted by default.

Otherwise, the following equation determines the delay:

Delay Between Chip Selects

=

MCK

247

6042E–ATARM–14-Dec-06

27.7.3

SPI Receive Data Register

Name: SPI_RDR

Access Type: Read-only

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

16

8

RD

7 6 5 4 3 2 1 0

RD

• RD: Receive Data

Data received by the SPI Interface is stored in this register right-justified. Unused bits read zero.

• PCS: Peripheral Chip Select

In Master Mode only, these bits indicate the value on the NPCS pins at the end of a transfer. Otherwise, these bits read zero.

248

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.7.4

SPI Transmit Data Register

Name: SPI_TDR

Access Type: Write-only

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

LASTXFER

16

8

TD

7 6 5 4 3 2 1 0

TD

• TD: Transmit Data

Data to be transmitted by the SPI Interface is stored in this register. Information to be transmitted must be written to the transmit data register in a right-justified format.

PCS: Peripheral Chip Select

This field is only used if Variable Peripheral Select is active (PS = 1).

If PCSDEC = 0:

PCS = xxx0

PCS = xx01

PCS = x011

PCS = 0111

PCS = 1111

NPCS[3:0] = 1110

NPCS[3:0] = 1101

NPCS[3:0] = 1011

NPCS[3:0] = 0111 forbidden (no peripheral is selected)

(x = don’t care)

If PCSDEC = 1:

NPCS[3:0] output signals = PCS

• LASTXFER: Last Transfer

0 = No effect.

1 = The current NPCS will be deasserted after the character written in TD has been transferred. When CSAAT is set, this allows to close the communication with the current serial peripheral by raising the corresponding NPCS line as soon as TD transfer has completed.

This field is only used if Variable Peripheral Select is active (PS = 1).

249

6042E–ATARM–14-Dec-06

27.7.5

SPI Status Register

Name: SPI_SR

Access Type: Read-only

31

23

15

7

TXBUFE

30

22

14

6

RXBUFF

29

21

13

5

ENDTX

28

20

12

4

ENDRX

27

19

11

3

OVRES

26

18

10

2

MODF

25

17

9

TXEMPTY

1

TDRE

24

16

SPIENS

8

NSSR

0

RDRF

• RDRF: Receive Data Register Full

0 = No data has been received since the last read of SPI_RDR

1 = Data has been received and the received data has been transferred from the serializer to SPI_RDR since the last read of SPI_RDR.

• TDRE: Transmit Data Register Empty

0 = Data has been written to SPI_TDR and not yet transferred to the serializer.

1 = The last data written in the Transmit Data Register has been transferred to the serializer.

TDRE equals zero when the SPI is disabled or at reset. The SPI enable command sets this bit to one.

• MODF: Mode Fault Error

0 = No Mode Fault has been detected since the last read of SPI_SR.

1 = A Mode Fault occurred since the last read of the SPI_SR.

• OVRES: Overrun Error Status

0 = No overrun has been detected since the last read of SPI_SR.

1 = An overrun has occurred since the last read of SPI_SR.

An overrun occurs when SPI_RDR is loaded at least twice from the serializer since the last read of the SPI_RDR.

• ENDRX: End of RX buffer

0 = The Receive Counter Register has not reached 0 since the last write in SPI_RCR

(1)

or SPI_RNCR

(1)

.

1 = The Receive Counter Register has reached 0 since the last write in SPI_RCR

(1)

or SPI_RNCR

(1)

.

• ENDTX: End of TX buffer

0 = The Transmit Counter Register has not reached 0 since the last write in SPI_TCR

(1)

or SPI_TNCR

(1)

.

1 = The Transmit Counter Register has reached 0 since the last write in SPI_TCR

(1)

or SPI_TNCR

(1)

.

• RXBUFF: RX Buffer Full

0 = SPI_RCR

(1)

or SPI_RNCR

(1)

has a value other than 0.

1 = Both SPI_RCR

(1)

and SPI_RNCR

(1)

have a value of 0.

250

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• TXBUFE: TX Buffer Empty

0 = SPI_TCR

(1)

or SPI_TNCR

(1)

has a value other than 0.

1 = Both SPI_TCR

(1)

and SPI_TNCR

(1)

have a value of 0.

• NSSR: NSS Rising

0 = No rising edge detected on NSS pin since last read.

1 = A rising edge occurred on NSS pin since last read.

• TXEMPTY: Transmission Registers Empty

0 = As soon as data is written in SPI_TDR.

1 = SPI_TDR and internal shifter are empty. If a transfer delay has been defined, TXEMPTY is set after the completion of such delay.

• SPIENS: SPI Enable Status

0 = SPI is disabled.

1 = SPI is enabled.

Note: 1.

SPI_RCR, SPI_RNCR, SPI_TCR, SPI_TNCR are physically located in the PDC.

251

6042E–ATARM–14-Dec-06

27.7.6

SPI Interrupt Enable Register

Name: SPI_IER

Access Type: Write-only

31

23

15

7

TXBUFE

30

22

14

6

RXBUFF

29

21

13

5

ENDTX

28

20

12

4

ENDRX

• RDRF: Receive Data Register Full Interrupt Enable

• TDRE: SPI Transmit Data Register Empty Interrupt Enable

• MODF: Mode Fault Error Interrupt Enable

• OVRES: Overrun Error Interrupt Enable

• ENDRX: End of Receive Buffer Interrupt Enable

• ENDTX: End of Transmit Buffer Interrupt Enable

• RXBUFF: Receive Buffer Full Interrupt Enable

• TXBUFE: Transmit Buffer Empty Interrupt Enable

• TXEMPTY: Transmission Registers Empty Enable

• NSSR: NSS Rising Interrupt Enable

0 = No effect.

1 = Enables the corresponding interrupt.

27

19

11

3

OVRES

26

18

10

2

MODF

25

17

9

TXEMPTY

1

TDRE

24

16

8

NSSR

0

RDRF

252

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

27.7.7

SPI Interrupt Disable Register

Name: SPI_IDR

Access Type: Write-only

31

23

15

7

TXBUFE

30

22

14

6

RXBUFF

29

21

13

5

ENDTX

28

20

12

4

ENDRX

• RDRF: Receive Data Register Full Interrupt Disable

• TDRE: SPI Transmit Data Register Empty Interrupt Disable

• MODF: Mode Fault Error Interrupt Disable

• OVRES: Overrun Error Interrupt Disable

• ENDRX: End of Receive Buffer Interrupt Disable

• ENDTX: End of Transmit Buffer Interrupt Disable

• RXBUFF: Receive Buffer Full Interrupt Disable

• TXBUFE: Transmit Buffer Empty Interrupt Disable

• TXEMPTY: Transmission Registers Empty Disable

• NSSR: NSS Rising Interrupt Disable

0 = No effect.

1 = Disables the corresponding interrupt.

27

19

11

3

OVRES

AT91SAM7A3 Preliminary

26

18

10

2

MODF

25

17

9

TXEMPTY

1

TDRE

24

16

8

NSSR

0

RDRF

253

6042E–ATARM–14-Dec-06

27.7.8

SPI Interrupt Mask Register

Name: SPI_IMR

Access Type: Read-only

31

23

15

7

TXBUFE

30

22

14

6

RXBUFF

29

21

13

5

ENDTX

28

20

12

4

ENDRX

• RDRF: Receive Data Register Full Interrupt Mask

• TDRE: SPI Transmit Data Register Empty Interrupt Mask

• MODF: Mode Fault Error Interrupt Mask

• OVRES: Overrun Error Interrupt Mask

• ENDRX: End of Receive Buffer Interrupt Mask

• ENDTX: End of Transmit Buffer Interrupt Mask

• RXBUFF: Receive Buffer Full Interrupt Mask

• TXBUFE: Transmit Buffer Empty Interrupt Mask

• TXEMPTY: Transmission Registers Empty Mask

• NSSR: NSS Rising Interrupt Mask

0 = The corresponding interrupt is not enabled.

1 = The corresponding interrupt is enabled.

27

19

11

3

OVRES

26

18

10

2

MODF

25

17

9

TXEMPTY

1

TDRE

24

16

8

NSSR

0

RDRF

254

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

27.7.9

SPI Chip Select Register

Access Type: Read/Write

31 30 29 28 27 26 25 24

DLYBCT

23 22 21 20 19 18 17 16

DLYBS

15 14 13 12 11 10 9 8

SCBR

7 6

BITS

5 4 3

CSAAT

2

1

NCPHA

0

CPOL

• CPOL: Clock Polarity

0 = The inactive state value of SPCK is logic level zero.

1 = The inactive state value of SPCK is logic level one.

CPOL is used to determine the inactive state value of the serial clock (SPCK). It is used with NCPHA to produce the required clock/data relationship between master and slave devices.

• NCPHA: Clock Phase

0 = Data is changed on the leading edge of SPCK and captured on the following edge of SPCK.

1 = Data is captured on the leading edge of SPCK and changed on the following edge of SPCK.

NCPHA determines which edge of SPCK causes data to change and which edge causes data to be captured. NCPHA is used with CPOL to produce the required clock/data relationship between master and slave devices.

• CSAAT: Chip Select Active After Transfer

0 = The Peripheral Chip Select Line rises as soon as the last transfer is achieved.

1 = The Peripheral Chip Select does not rise after the last transfer is achieved. It remains active until a new transfer is requested on a different chip select.

• BITS: Bits Per Transfer

The BITS field determines the number of data bits transferred. Reserved values should not be used.

0111

1000

1001

1010

1011

1100

1101

1110

1111

BITS

0000

0001

0010

0011

0100

0101

0110

Bits Per Transfer

8

9

10

11

12

13

14

15

16

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

255

6042E–ATARM–14-Dec-06

• SCBR: Serial Clock Baud Rate

In Master Mode, the SPI Interface uses a modulus counter to derive the SPCK baud rate from the Master Clock MCK. The

Baud rate is selected by writing a value from 1 to 255 in the SCBR field. The following equations determine the SPCK baud rate:

SPCK Baudrate

=

SCBR

Programming the SCBR field at 0 is forbidden. Triggering a transfer while SCBR is at 0 can lead to unpredictable results.

At reset, SCBR is 0 and the user has to program it at a valid value before performing the first transfer.

• DLYBS: Delay Before SPCK

This field defines the delay from NPCS valid to the first valid SPCK transition.

When DLYBS equals zero, the NPCS valid to SPCK transition is 1/2 the SPCK clock period.

Otherwise, the following equations determine the delay:

Delay Before SPCK =

MCK

• DLYBCT: Delay Between Consecutive Transfers

This field defines the delay between two consecutive transfers with the same peripheral without removing the chip select.

The delay is always inserted after each transfer and before removing the chip select if needed.

When DLYBCT equals zero, no delay between consecutive transfers is inserted and the clock keeps its duty cycle over the character transfers.

Otherwise, the following equation determines the delay:

Delay Between Consecutive Transfers =

32

×

DLYBCT

MCK

256

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

28. Two-wire Interface (TWI)

28.1

Overview

The Two-wire Interface (TWI) interconnects components on a unique two-wire bus, made up of one clock line and one data line with speeds of up to 400 Kbits per second, based on a byte-oriented transfer format. It can be used with any Atmel two-wire bus Serial EEPROM. The TWI is programmable as a master with sequential or single-byte access. A configurable baud rate generator permits the output data rate to be adapted to a wide range of core clock frequencies.

28.2

Block Diagram

Figure 28-1. Block Diagram

APB Bridge

PIO

PMC

MCK

Two-wire

Interface

TWI

Interrupt

AIC

28.3

Application Block Diagram

Figure 28-2. Application Block Diagram

Host with

TWI

Interface

TWD

TWCK

AT24LC16

U1

Slave 1

AT24LC16

U2

Slave 2

LCD Controller

U3

Slave 3

R

TWCK

TWD

R

VDD

257

6042E–ATARM–14-Dec-06

28.4

Product Dependencies

28.4.1

I/O Lines Description

28.4.2

28.4.3

Table 28-1.

I/O Lines Description

Pin Name

TWD

TWCK

Pin Description

Two-wire Serial Data

Two-wire Serial Clock

Type

Input/Output

Input/Output

Both TWD and TWCK are bidirectional lines, connected to a positive supply voltage via a current source or pull-up resistor (see

Figure 28-2 on page 257 ). When the bus is free, both lines are

high. The output stages of devices connected to the bus must have an open-drain or open-collector to perform the wired-AND function.

TWD and TWCK pins may be multiplexed with PIO lines. To enable the TWI, the programmer must perform the following steps:

• Program the PIO controller to:

– Dedicate TWD and TWCK as peripheral lines.

– Define TWD and TWCK as open-drain.

Power Management

• Enable the peripheral clock.

The TWI interface may be clocked through the Power Management Controller (PMC), thus the programmer must first configure the PMC to enable the TWI clock.

Interrupt

The TWI interface has an interrupt line connected to the Advanced Interrupt Controller (AIC). In order to handle interrupts, the AIC must be programmed before configuring the TWI.

258

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

28.5

Functional Description

28.5.1

Transfer Format

The data put on the TWD line must be 8 bits long. Data is transferred MSB first; each byte must

be followed by an acknowledgement. The number of bytes per transfer is unlimited (see Figure

28-4 on page 259

).

Each transfer begins with a START condition and terminates with a STOP condition (see

Figure

28-3 on page 259

).

• A high-to-low transition on the TWD line while TWCK is high defines the START condition.

• A low-to-high transition on the TWD line while TWCK is high defines a STOP condition.

Figure 28-3. START and STOP Conditions

TWD

TWCK

Start Stop

Figure 28-4. Transfer Format

TWD

TWCK

28.5.2

28.5.3

Start Address R/W Ack Data Ack Data Ack Stop

Modes of Operation

The TWI has two modes of operation:

• Master transmitter mode

• Master receiver mode

The TWI Control Register (TWI_CR) allows configuration of the interface in Master Mode. In this mode, it generates the clock according to the value programmed in the Clock Waveform Generator Register (TWI_CWGR). This register defines the TWCK signal completely, enabling the interface to be adapted to a wide range of clocks.

Transmitting Data

After the master initiates a Start condition, it sends a 7-bit slave address, configured in the Master Mode register (DADR in TWI_MMR), to notify the slave device. The bit following the slave address indicates the transfer direction (write or read). If this bit is 0, it indicates a write operation

(transmit operation). If the bit is 1, it indicates a request for data read (receive operation).

The TWI transfers require the slave to acknowledge each received byte. During the acknowledge clock pulse, the master releases the data line (HIGH), enabling the slave to pull it down in order to generate the acknowledge. The master polls the data line during this clock pulse and

259

6042E–ATARM–14-Dec-06

sets the NAK bit in the status register if the slave does not acknowledge the byte. As with the other status bits, an interrupt can be generated if enabled in the interrupt enable register

(TWI_IER). After writing in the transmit-holding register (TWI_THR), setting the START bit in the control register starts the transmission. The data is shifted in the internal shifter and when an acknowledge is detected, the TXRDY bit is set until a new write in the TWI_THR (see

Figure 28-

6 below). The master generates a stop condition to end the transfer.

The read sequence begins by setting the START bit. When the RXRDY bit is set in the status register, a character has been received in the receive-holding register (TWI_RHR). The RXRDY bit is reset when reading the TWI_RHR.

The TWI interface performs various transfer formats (7-bit slave address, 10-bit slave address).

The three internal address bytes are configurable through the Master Mode register

(TWI_MMR). If the slave device supports only a 7-bit address, IADRSZ must be set to 0. For a slave address higher than 7 bits, the user must configure the address size (IADRSZ) and set the other slave address bits in the internal address register (TWI_IADR).

Figure 28-5. Master Write with One, Two or Three Bytes Internal Address and One Data Byte

WD

Three bytes internal address

S DADR W A IADR(23:16) A IADR(15:8) A IADR(7:0) A

WD

Two bytes internal address

S DADR W

WD

One byte internal address

S DADR W

A

A

IADR(15:8)

IADR(7:0)

A

A

IADR(7:0)

DATA

A

A P

DATA A

P

DATA A P

Figure 28-6. Master Write with One Byte Internal Address and Multiple Data Bytes

TWD S DADR W

A IADR(7:0) A

DATA A

DATA

TXCOMP

Write THR

TXRDY

Write THR

Write THR

A

Write THR

DATA A

P

Figure 28-7. Master Read with One, Two or Three Bytes Internal Address and One Data Byte

TWD

Three bytes internal address

S DADR

W

A IADR(23:16) A

IADR(15:8)

A

IADR(7:0) A S DADR

DATA

TWD

Two bytes internal address

S DADR W

TWD

One byte internal address

S DADR W

A IADR(15:8)

A

A IADR(7:0) A

IADR(7:0) A

S DADR R

S

A

DADR

DATA

R A

N P

DATA

R A

N P

N P

260

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 28-8. Master Read with One Byte Internal Address and Multiple Data Bytes

TWD

S DADR W A IADR(7:0) A S DADR R A DATA A

DATA N P

TXCOMP

Write START Bit

Write STOP Bit

RXRDY

Read RHR Read RHR

• S = Start

• P = Stop

• W = Write

• R = Read

• A = Acknowledge

• N = Not Acknowledge

• DADR = Device Address

• IADR = Internal Address

Figure 28-9 below shows a byte write to an Atmel AT24LC512 EEPROM. This demonstrates the

use of internal addresses to access the device.

Figure 28-9. Internal Address Usage

S

T

A

R

T

Device

Address

0

W

R

I

T

E

FIRST

WORD ADDRESS

SECOND

WORD ADDRESS

M

S

B

L

S

B

R

/

W

A

C

K

M

S

B

A

C

K

L

S

B

A

C

K

DATA

A

C

K

S

T

O

P

28.5.4

Read/Write Flowcharts

The following flowcharts shown in Figure 28-10 on page 262

and in Figure 28-11 on page 263

give examples for read and write operations in Master Mode. A polling or interrupt method can be used to check the status bits. The interrupt method requires that the interrupt enable register

(TWI_IER) be configured first.

261

6042E–ATARM–14-Dec-06

Figure 28-10. TWI Write in Master Mode

START

Set TWI clock:

TWI_CWGR = clock

Set the control register:

- Master enable

TWI_CR = MSEN

Set the Master Mode register:

- Device slave address

- Internal address size

- Transfer direction bit

Write ==> bit MREAD = 0

Internal address size = 0?

Yes

Load transmit register

TWI_THR = Data to send

Start the transfer

TWI_CR = START

Read status register

TWI_THR = data to send

TXRDY = 0?

Yes

Data to send?

Stop the transfer

TWI_CR = STOP

Read status register

TXCOMP = 0?

END

Yes

Yes

Set theinternal address

TWI_IADR = address

262

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

Figure 28-11. TWI Read in Master Mode

START

AT91SAM7A3 Preliminary

Set TWI clock:

TWI_CWGR = clock

Set the control register:

- Master enable

- Slave disable

TWI_CR = MSEN

Set the Master Mode register:

- Device slave address

- Internal address size

- Transfer direction bit

Read ==> bit MREAD = 0

Internal address size = 0?

Yes

Start the transfer

TWI_CR = START

Read status register

Set the internal address

TWI_IADR = address

RXRDY = 0?

Yes

Yes

Data to read?

Stop the transfer

TWI_CR = STOP

Read status register

Yes

TXCOMP = 0?

END

263

28.6

Two-wire Interface (TWI) User Interface

Table 28-2.

Two-wire Interface (TWI) Register Mapping

Offset Register

0x0000

0x0004

0x0008

0x000C

0x0010

0x0020

0x0024

0x0028

0x002C

0x0030

0x0034

0x0038-0x00FC

Control Register

Master Mode Register

Reserved

Internal Address Register

Clock Waveform Generator Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Receive Holding Register

Transmit Holding Register

Reserved

Name

TWI_CR

TWI_MMR

TWI_IADR

TWI_CWGR

TWI_SR

TWI_IER

TWI_IDR

TWI_IMR

TWI_RHR

TWI_THR

Access

Write-only

Read/Write

Read/Write

Read/Write

Read-only

Write-only

Write-only

Read-only

Read-only

Read/Write

Reset Value

N/A

0x0000

0x0000

0x0000

0x0008

N/A

N/A

0x0000

0x0000

0x0000

264

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

28.6.1

TWI Control Register

Register Name: TWI_CR

Access Type:

31

Write-only

30

23

15

7

SWRST

22

14

6

13

5

29

21

12

4

28

20

27

19

11

3

MSDIS

26

18

10

2

MSEN

25

17

9

1

STOP

24

16

8

0

START

• START: Send a START Condition

0 = No effect.

1 = A frame beginning with a START bit is transmitted according to the features defined in the mode register.

This action is necessary when the TWI peripheral wants to read data from a slave. When configured in Master Mode with a write operation, a frame is sent with the mode register as soon as the user writes a character in the holding register.

• STOP: Send a STOP Condition

0 = No effect.

1 = STOP Condition is sent just after completing the current byte transmission in master read or write mode.

In single data byte master read or write, the START and STOP must both be set.

In multiple data bytes master read or write, the STOP must be set before ACK/NACK bit transmission.

In master read mode, if a NACK bit is received, the STOP is automatically performed.

In multiple data write operation, when both THR and shift register are empty, a STOP condition is automatically sent.

• MSEN: TWI Master Transfer Enabled

0 = No effect.

1 = If MSDIS = 0, the master data transfer is enabled.

• MSDIS: TWI Master Transfer Disabled

0 = No effect.

1 = The master data transfer is disabled, all pending data is transmitted. The shifter and holding characters (if they contain data) are transmitted in case of write operation. In read operation, the character being transferred must be completely received before disabling.

• SWRST: Software Reset

0 = No effect.

1 = Equivalent to a system reset.

265

6042E–ATARM–14-Dec-06

28.6.2

TWI Master Mode Register

Register Name: TWI_MMR

Address Type:

31

Read/Write

30

29

22 21 23

15

7

14

6

13

5

• IADRSZ: Internal Device Address Size

28

20

12

MREAD

4

27

19

DADR

11

3

10

2

26

18

1

1

0

0

IADRSZ[9:8]

0

1

0

1

No internal device address (Byte command protocol)

One-byte internal device address

Two-byte internal device address

Three-byte internal device address

• MREAD: Master Read Direction

0 = Master write direction.

1 = Master read direction.

• DADR: Device Address

The device address is used in Master Mode to access slave devices in read or write mode.

25

17

1

9

IADRSZ

8

0

24

16

266

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

28.6.3

TWI Internal Address Register

Register Name: TWI_IADR

Access Type:

31

Read/Write

30

29

23 22 21

28

20

IADR

15 14 13 12 11

IADR

7 6 5 4 3

IADR

• IADR: Internal Address

0, 1, 2 or 3 bytes depending on IADRSZ.

– Low significant byte address in 10-bit mode addresses.

28.6.4

TWI Clock Waveform Generator Register

Register Name: TWI_CWGR

Access Type:

31

Read/Write

30

29

28

23

15

22

14

21

13

20

12

CHDIV

7 6 5 4

CLDIV

27

19

11

3

• CLDIV: Clock Low Divider

The SCL low period is defined as follows:

27

19

T low

=

( (

CLDIV

×

2

CKDIV

)

+

3

) ×

T

MCK

• CHDIV: Clock High Divider

The SCL high period is defined as follows:

T high

=

( (

CHDIV

×

2

CKDIV

)

+

3

) ×

T

MCK

• CKDIV: Clock Divider

The CKDIV is used to increase both SCL high and low periods.

AT91SAM7A3 Preliminary

10

2

26

18

10

2

26

18

9

1

25

17

25

17

CKDIV

9

1

8

0

24

16

8

0

24

16

267

6042E–ATARM–14-Dec-06

28.6.5

TWI Status Register

Register Name: TWI_SR

Access Type:

31

Read-only

30

23

15

7

22

14

6

13

5

29

21

12

4

28

20

11

3

27

19

26

18

10

2

TXRDY

25

17

9

1

RXRDY

24

16

8

NACK

0

TXCOMP

• TXCOMP: Transmission Completed

0 = In master, during the length of the current frame. In slave, from START received to STOP received.

1 = When both holding and shift registers are empty and STOP condition has been sent (in Master) or when MSEN is set

(enable TWI).

• RXRDY: Receive Holding Register Ready

0 = No character has been received since the last TWI_RHR read operation.

1 = A byte has been received in the TWI_RHR since the last read.

• TXRDY: Transmit Holding Register Ready

0 = The transmit holding register has not been transferred into shift register. Set to 0 when writing into TWI_THR register.

1 = As soon as data byte is transferred from TWI_THR to internal shifter or if a NACK error is detected, TXRDY is set at the same time as TXCOMP and NACK. TXRDY is also set when MSEN is set (enable TWI).

• NACK: Not Acknowledged

0 = Each data byte has been correctly received by the far-end side TWI slave component.

1 = A data byte has not been acknowledged by the slave component. Set at the same time as TXCOMP. Reset after read.

268

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

28.6.6

TWI Interrupt Enable Register

Register Name: TWI_IER

Access Type:

31

Write-only

30

29

23

15

7

22

14

6

21

13

5

• TXCOMP: Transmission Completed

• RXRDY: Receive Holding Register Ready

• TXRDY: Transmit Holding Register Ready

• NACK: Not Acknowledge

0 = No effect.

1 = Enables the corresponding interrupt.

12

4

28

20

11

3

27

19

26

18

10

2

TXRDY

25

17

9

1

RXRDY

24

16

8

NACK

0

TXCOMP

269

6042E–ATARM–14-Dec-06

28.6.7

TWI Interrupt Disable Register

Register Name: TWI_IDR

Access Type:

31

Write-only

30

29

23

15

7

22

14

6

21

13

5

• TXCOMP: Transmission Completed

• RXRDY: Receive Holding Register Ready

• TXRDY: Transmit Holding Register Ready

• NACK: Not Acknowledge

0 = No effect.

1 = Disables the corresponding interrupt.

12

4

28

20

11

3

27

19

26

18

10

2

TXRDY

25

17

9

1

RXRDY

24

16

8

NACK

0

TXCOMP

270

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

28.6.8

TWI Interrupt Mask Register

Register Name: TWI_IMR

Access Type:

31

Read-only

30

29

23

15

7

22

14

6

21

13

5

• TXCOMP: Transmission Completed

• RXRDY: Receive Holding Register Ready

• TXRDY: Transmit Holding Register Ready

• NACK: Not Acknowledge

0 = The corresponding interrupt is disabled.

1 = The corresponding interrupt is enabled.

12

4

28

20

11

3

27

19

26

18

10

2

TXRDY

25

17

9

1

RXRDY

24

16

8

NACK

0

TXCOMP

271

6042E–ATARM–14-Dec-06

28.6.9

TWI Receive Holding Register

Register Name: TWI_RHR

Access Type:

31

Read-only

30

29

23

15

7

22

14

6

21

13

5

12

4

28

20

RXDATA

11

3

27

19

• RXDATA: Master or Slave Receive Holding Data

28.6.10

TWI Transmit Holding Register

Register Name: TWI_THR

Access Type:

31

Read/Write

30

29

23

15

7

22

14

6

21

13

5

12

4

28

20

TXDATA

11

3

27

19

• TXDATA: Master or Slave Transmit Holding Data

10

2

26

18

10

2

26

18

9

1

25

17

8

0

24

16

9

1

25

17

8

0

24

16

272

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29. Universal Synchronous Asynchronous Receiver Transceiver (USART)

29.0.1

Overview

The Universal Synchronous Asynchronous Receiver Transceiver (USART) provides one full duplex universal synchronous asynchronous serial link. Data frame format is widely programmable (data length, parity, number of stop bits) to support a maximum of standards. The receiver implements parity error, framing error and overrun error detection. The receiver timeout enables handling variable-length frames and the transmitter timeguard facilitates communications with slow remote devices. Multidrop communications are also supported through address bit handling in reception and transmission.

The USART features three test modes: remote loopback, local loopback and automatic echo.

The USART supports specific operating modes providing interfaces on RS485 buses, with

ISO7816 T = 0 or T = 1 smart card slots and infrared transceivers. The hardware handshaking feature enables an out-of-band flow control by automatic management of the pins RTS and

CTS.

The USART supports the connection to the Peripheral DMA Controller, which enables data transfers to the transmitter and from the receiver. The PDC provides chained buffer management without any intervention of the processor.

273

6042E–ATARM–14-Dec-06

29.1

Block Diagram

Figure 29-1. USART Block Diagram

Peripheral DMA

Controller

Channel Channel

USART

AIC USART

Interrupt

Receiver

Transmitter

PMC

MCK

DIV

MCK/DIV

SLCK

APB

Baud Rate

Generator

User Interface

PIO

Controller

RXD

RTS

TXD

CTS

SCK

274

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

29.2

Application Block Diagram

Figure 29-2. Application Block Diagram

PPP

Serial

Driver

Field Bus

Driver

AT91SAM7A3 Preliminary

EMV

Driver

IrLAP

IrDA

Driver

USART

RS232

Drivers

RS485

Drivers

Serial

Port

Differential

Bus

Smart

Card

Slot

IrDA

Transceivers

29.3

I/O Lines Description

Table 29-1.

I/O Line Description

Name

SCK

Description

Serial Clock

TXD

RXD

CTS

RTS

Transmit Serial Data

Receive Serial Data

Clear to Send

Request to Send

Type

I/O

I/O

Input

Input

Output

Active Level

Low

Low

275

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.4

Product Dependencies

29.4.1

I/O Lines

The pins used for interfacing the USART may be multiplexed with the PIO lines. The programmer must first program the PIO controller to assign the desired USART pins to their peripheral function. If I/O lines of the USART are not used by the application, they can be used for other purposes by the PIO Controller.

To prevent the TXD line from falling when the USART is disabled, the use of an internal pull up is mandatory.

29.4.2

Power Management

The USART is not continuously clocked. The programmer must first enable the USART Clock in the Power Management Controller (PMC) before using the USART. However, if the application does not require USART operations, the USART clock can be stopped when not needed and be restarted later. In this case, the USART will resume its operations where it left off.

Configuring the USART does not require the USART clock to be enabled.

29.4.3

Interrupt

The USART interrupt line is connected on one of the internal sources of the Advanced Interrupt Controller. Using the USART interrupt requires the AIC to be programmed first. Note that it is not recommended to use the USART interrupt line in edge sensitive mode.

276

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5

Functional Description

The USART is capable of managing several types of serial synchronous or asynchronous communications.

It supports the following communication modes:

• 5- to 9-bit full-duplex asynchronous serial communication

– MSB- or LSB-first

– 1, 1.5 or 2 stop bits

– Parity even, odd, marked, space or none

– By 8 or by 16 over-sampling receiver frequency

– Optional hardware handshaking

– Optional break management

– Optional multidrop serial communication

• High-speed 5- to 9-bit full-duplex synchronous serial communication

– MSB- or LSB-first

– 1 or 2 stop bits

– Parity even, odd, marked, space or none

– By 8 or by 16 over-sampling frequency

– Optional hardware handshaking

– Optional break management

– Optional multidrop serial communication

• RS485 with driver control signal

• ISO7816, T0 or T1 protocols for interfacing with smart cards

– NACK handling, error counter with repetition and iteration limit

• InfraRed IrDA Modulation and Demodulation

• Test modes

– Remote loopback, local loopback, automatic echo

29.5.1

Baud Rate Generator

The Baud Rate Generator provides the bit period clock named the Baud Rate Clock to both the receiver and the transmitter.

The Baud Rate Generator clock source can be selected by setting the USCLKS field in the

Mode Register (US_MR) between:

• the Master Clock MCK

• a division of the Master Clock, the divider being product dependent, but generally set to 8

• the external clock, available on the SCK pin

The Baud Rate Generator is based upon a 16-bit divider, which is programmed with the CD field of the Baud Rate Generator Register (US_BRGR). If CD is programmed at 0, the Baud

Rate Generator does not generate any clock. If CD is programmed at 1, the divider is bypassed and becomes inactive.

If the external SCK clock is selected, the duration of the low and high levels of the signal provided on the SCK pin must be longer than a Master Clock (MCK) period. The frequency of the signal provided on SCK must be at least 4.5 times lower than MCK.

277

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 29-3. Baud Rate Generator

USCLKS

CD

MCK

MCK/DIV

SCK

Reserved

2

3

0

1

16-bit Counter

CD

SCK

0

>1

1

0

0

OVER

FIDI

Sampling

Divider

0

SYNC

1

Baud Rate

Clock

1

SYNC

USCLKS = 3

Sampling

Clock

29.5.1.1

Baud Rate in Asynchronous Mode

If the USART is programmed to operate in asynchronous mode, the selected clock is first divided by CD, which is field programmed in the Baud Rate Generator Register (US_BRGR).

The resulting clock is provided to the receiver as a sampling clock and then divided by 16 or 8, depending on the programming of the OVER bit in US_MR.

If OVER is set to 1, the receiver sampling is 8 times higher than the baud rate clock. If OVER is cleared, the sampling is performed at 16 times the baud rate clock.

The following formula performs the calculation of the Baud Rate.

Baudrate

=

( (

Over

)CD )

This gives a maximum baud rate of MCK divided by 8, assuming that MCK is the highest possible clock and that OVER is programmed at 1.

29.5.1.2

Baud Rate Calculation Example

Table 29-2 shows calculations of CD to obtain a baud rate at 38400 bauds for different source

clock frequencies. This table also shows the actual resulting baud rate and the error.

Table 29-2.

Baud Rate Example (OVER = 0)

Source Clock

MHz

Expected Baud

Rate

Bit/s

Calculation Result

3 686 400

4 915 200

5 000 000

7 372 800

8 000 000

12 000 000

12 288 000

38 400

38 400

38 400

38 400

38 400

38 400

38 400

6.00

8.00

8.14

12.00

13.02

19.53

20.00

CD

13

20

20

8

12

6

8

Actual Baud Rate

Bit/s

38 400.00

38 400.00

39 062.50

38 400.00

38 461.54

37 500.00

38 400.00

Error

0.00%

0.00%

1.70%

0.00%

0.16%

2.40%

0.00%

278

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 29-2.

Baud Rate Example (OVER = 0) (Continued)

Source Clock

14 318 180

14 745 600

18 432 000

24 000 000

24 576 000

25 000 000

32 000 000

32 768 000

33 000 000

40 000 000

50 000 000

Expected Baud

Rate

38 400

38 400

38 400

38 400

38 400

38 400

38 400

38 400

38 400

38 400

38 400

Calculation Result

23.30

24.00

30.00

39.06

40.00

40.69

52.08

53.33

53.71

65.10

81.38

40

52

53

54

65

81

CD

23

24

30

39

40

Actual Baud Rate

38 908.10

38 400.00

38 400.00

38 461.54

38 400.00

38 109.76

38 461.54

38 641.51

38 194.44

38 461.54

38 580.25

0.76%

0.16%

0.63%

0.54%

0.16%

0.47%

Error

1.31%

0.00%

0.00%

0.16%

0.00%

The baud rate is calculated with the following formula:

BaudRate

=

⁄ ×

16

The baud rate error is calculated with the following formula. It is not recommended to work with an error higher than 5%.

Error

=

1

ExpectedBaudRate

ActualBaudRate

29.5.1.3

Baud Rate in Synchronous Mode

If the USART is programmed to operate in synchronous mode, the selected clock is simply divided by the field CD in US_BRGR.

BaudRate

=

CD

In synchronous mode, if the external clock is selected (USCLKS = 3), the clock is provided directly by the signal on the USART SCK pin. No division is active. The value written in

US_BRGR has no effect. The external clock frequency must be at least 4.5 times lower than the system clock.

When either the external clock SCK or the internal clock divided (MCK/DIV) is selected, the value programmed in CD must be even if the user has to ensure a 50:50 mark/space ratio on the SCK pin. If the internal clock MCK is selected, the Baud Rate Generator ensures a 50:50 duty cycle on the SCK pin, even if the value programmed in CD is odd.

279

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5.1.4

Baud Rate in ISO 7816 Mode

The ISO7816 specification defines the bit rate with the following formula:

B

=

Di f

Fi

× where:

• B is the bit rate

• Di is the bit-rate adjustment factor

• Fi is the clock frequency division factor

• f is the ISO7816 clock frequency (Hz)

Di is a binary value encoded on a 4-bit field, named DI, as represented in Table 29-3 .

Table 29-3.

Binary and Decimal Values for Di

DI field

Di (decimal)

0001

1

0010

2

0011

4

0100

8

0101

16

0110

32

1000

12

1001

20

Fi is a binary value encoded on a 4-bit field, named FI, as represented in

Table 29-4 .

Table 29-4.

Binary and Decimal Values for Fi

FI field

Fi (decimal

0000

372

0001

372

0010

558

0011

744

0100

1116

0101

1488

0110

1860

1001

512

1010

768

1011

1024

1100

1536

1101

2048

Table 29-5

shows the resulting Fi/Di Ratio, which is the ratio between the ISO7816 clock and the baud rate clock.

Table 29-5.

Possible Values for the Fi/Di Ratio

Fi/Di 372 558 774 1116

16

32

12

20

4

8

1

2

372

186

93

46.5

23.25

11.62

31

18.6

558

279

139.5

69.75

34.87

17.43

744

372

186

93

46.5

23.25

1116

558

279

139.5

69.75

34.87

1488

1488

744

372

186

93

46.5

1806

1860

930

465

232.5

116.2

58.13

512

512

256

128

64

32

16

768

768

384

192

96

48

24

1024

1024

512

256

128

64

32

1536

1536

768

384

192

96

48

2048

2048

1024

512

256

128

64

46.5

62 93 124 155 42.66

64 85.33

128 170.6

27.9

37.2

55.8

74.4

93 25.6

38.4

51.2

76.8

102.4

If the USART is configured in ISO7816 Mode, the clock selected by the USCLKS field in the

Mode Register (US_MR) is first divided by the value programmed in the field CD in the Baud

Rate Generator Register (US_BRGR). The resulting clock can be provided to the SCK pin to feed the smart card clock inputs. This means that the CLKO bit can be set in US_MR.

This clock is then divided by the value programmed in the FI_DI_RATIO field in the

FI_DI_Ratio register (US_FIDI). This is performed by the Sampling Divider, which performs a division by up to 2047 in ISO7816 Mode. The non-integer values of the Fi/Di Ratio are not supported and the user must program the FI_DI_RATIO field to a value as close as possible to the expected value.

280

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The FI_DI_RATIO field resets to the value 0x174 (372 in decimal) and is the most common divider between the ISO7816 clock and the bit rate (Fi = 372, Di = 1).

Figure 29-4

shows the relation between the Elementary Time Unit, corresponding to a bit time, and the ISO 7816 clock.

Figure 29-4. Elementary Time Unit (ETU)

FI_DI_RATIO

ISO7816 Clock Cycles

ISO7816 Clock on SCK

ISO7816 I/O Line on TXD

1 ETU

29.5.2

Receiver and Transmitter Control

After reset, the receiver is disabled. The user must enable the receiver by setting the RXEN bit in the Control Register (US_CR). However, the receiver registers can be programmed before the receiver clock is enabled.

After reset, the transmitter is disabled. The user must enable it by setting the TXEN bit in the

Control Register (US_CR). However, the transmitter registers can be programmed before being enabled.

The Receiver and the Transmitter can be enabled together or independently.

At any time, the software can perform a reset on the receiver or the transmitter of the USART by setting the corresponding bit, RSTRX and RSTTX respectively, in the Control Register

(US_CR). The reset commands have the same effect as a hardware reset on the corresponding logic. Regardless of what the receiver or the transmitter is performing, the communication is immediately stopped.

The user can also independently disable the receiver or the transmitter by setting RXDIS and

TXDIS respectively in US_CR. If the receiver is disabled during a character reception, the

USART waits until the end of reception of the current character, then the reception is stopped.

If the transmitter is disabled while it is operating, the USART waits the end of transmission of both the current character and character being stored in the Transmit Holding Register

(US_THR). If a timeguard is programmed, it is handled normally.

29.5.3

29.5.3.1

Synchronous and Asynchronous Modes

Transmitter Operations

The transmitter performs the same in both synchronous and asynchronous operating modes

(SYNC = 0 or SYNC = 1). One start bit, up to 9 data bits, one optional parity bit and up to two stop bits are successively shifted out on the TXD pin at each falling edge of the programmed serial clock.

The number of data bits is selected by the CHRL field and the MODE 9 bit in the Mode Register (US_MR). Nine bits are selected by setting the MODE 9 bit regardless of the CHRL field.

The parity bit is set according to the PAR field in US_MR. The even, odd, space, marked or

281

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

none parity bit can be configured. The MSBF field in US_MR configures which data bit is sent first. If written at 1, the most significant bit is sent first. At 0, the less significant bit is sent first.

The number of stop bits is selected by the NBSTOP field in US_MR. The 1.5 stop bit is supported in asynchronous mode only.

Figure 29-5. Character Transmit

Example: 8-bit, Parity Enabled One Stop

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7 Parity

Bit

Stop

Bit

The characters are sent by writing in the Transmit Holding Register (US_THR). The transmitter reports two status bits in the Channel Status Register (US_CSR): TXRDY (Transmitter

Ready), which indicates that US_THR is empty and TXEMPTY, which indicates that all the characters written in US_THR have been processed. When the current character processing is completed, the last character written in US_THR is transferred into the Shift Register of the transmitter and US_THR becomes empty, thus TXRDY raises.

Both TXRDY and TXEMPTY bits are low since the transmitter is disabled. Writing a character in US_THR while TXRDY is active has no effect and the written character is lost.

Figure 29-6. Transmitter Status

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop Start

Bit Bit Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

Write

US_THR

TXRDY

TXEMPTY

29.5.3.2

Asynchronous Receiver

If the USART is programmed in asynchronous operating mode (SYNC = 0), the receiver oversamples the RXD input line. The oversampling is either 16 or 8 times the Baud Rate clock, depending on the OVER bit in the Mode Register (US_MR).

The receiver samples the RXD line. If the line is sampled during one half of a bit time at 0, a start bit is detected and data, parity and stop bits are successively sampled on the bit rate clock.

If the oversampling is 16, (OVER at 0), a start is detected at the eighth sample at 0. Then, data bits, parity bit and stop bit are sampled on each 16 sampling clock cycle. If the oversampling is

282

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

8 (OVER at 1), a start bit is detected at the fourth sample at 0. Then, data bits, parity bit and stop bit are sampled on each 8 sampling clock cycle.

The number of data bits, first bit sent and parity mode are selected by the same fields and bits as the transmitter, i.e. respectively CHRL, MODE9, MSBF and PAR. For the synchronization mechanism only, the number of stop bits has no effect on the receiver as it considers only one stop bit, regardless of the field NBSTOP, so that resynchronization between the receiver and the transmitter can occur. Moreover, as soon as the stop bit is sampled, the receiver starts looking for a new start bit so that resynchronization can also be accomplished when the transmitter is operating with one stop bit.

Figure 29-7 and Figure 29-8 illustrate start detection and character reception when USART

operates in asynchronous mode.

Figure 29-7. Asynchronous Start Detection

Baud Rate

Clock

Sampling

Clock (x16)

RXD

Sampling

1 2 3 4 5 6 7 8

Start

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

D0

Sampling

Detection

RXD

Sampling

1 2 3 4 5 6 7 0 1 2 3 4

Start

Rejection

Figure 29-8. Asynchronous Character Reception

Example: 8-bit, Parity Enabled

Baud Rate

Clock

RXD

Start

Detection

16 samples

16 samples

16 samples

16 samples

16 samples

16 samples

16 samples

16 samples

16 samples

16 samples

D0 D1 D2 D3 D4 D5 D6 D7

Parity

Bit

Stop

Bit

283

29.5.3.3

AT91SAM7A3 Preliminary

Synchronous Receiver

In synchronous mode (SYNC = 1), the receiver samples the RXD signal on each rising edge of the Baud Rate Clock. If a low level is detected, it is considered as a start. All data bits, the parity bit and the stop bits are sampled and the receiver waits for the next start bit. Synchronous mode operations provide a high speed transfer capability.

Configuration fields and bits are the same as in asynchronous mode.

Figure 29-9 illustrates a character reception in synchronous mode.

Figure 29-9. Synchronous Mode Character Reception

Example: 8-bit, Parity Enabled 1 Stop

Baud Rate

Clock

RXD

Sampling

Start D0 D1 D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

29.5.3.4

Receiver Operations

When a character reception is completed, it is transferred to the Receive Holding Register

(US_RHR) and the RXRDY bit in the Status Register (US_CSR) rises. If a character is completed while the RXRDY is set, the OVRE (Overrun Error) bit is set. The last character is transferred into US_RHR and overwrites the previous one. The OVRE bit is cleared by writing the Control Register (US_CR) with the RSTSTA (Reset Status) bit at 1.

Figure 29-10. Receiver Status

Baud Rate

Clock

RXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop Start

Bit Bit Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

RSTSTA = 1

Write

US_CR

Read

US_RHR

RXRDY

OVRE

284

6042E–ATARM–14-Dec-06

29.5.3.5

Parity

AT91SAM7A3 Preliminary

The USART supports five parity modes selected by programming the PAR field in the Mode

Register (US_MR). The PAR field also enables the Multidrop mode, see

”Multidrop Mode” on page 286 . Even and odd parity bit generation and error detection are supported.

If even parity is selected, the parity generator of the transmitter drives the parity bit at 0 if a number of 1s in the character data bit is even, and at 1 if the number of 1s is odd. Accordingly, the receiver parity checker counts the number of received 1s and reports a parity error if the sampled parity bit does not correspond. If odd parity is selected, the parity generator of the transmitter drives the parity bit at 1 if a number of 1s in the character data bit is even, and at 0 if the number of 1s is odd. Accordingly, the receiver parity checker counts the number of received 1s and reports a parity error if the sampled parity bit does not correspond. If the mark parity is used, the parity generator of the transmitter drives the parity bit at 1 for all characters.

The receiver parity checker reports an error if the parity bit is sampled at 0. If the space parity is used, the parity generator of the transmitter drives the parity bit at 0 for all characters. The receiver parity checker reports an error if the parity bit is sampled at 1. If parity is disabled, the transmitter does not generate any parity bit and the receiver does not report any parity error.

Table 29-6

shows an example of the parity bit for the character 0x41 (character ASCII “A”) depending on the configuration of the USART. Because there are two bits at 1, 1 bit is added when a parity is odd, or 0 is added when a parity is even.

Table 29-6.

Parity Bit Examples

Character

A

Hexa

0x41

A

A

A

A

0x41

0x41

0x41

0x41

Binary

0100 0001

0100 0001

0100 0001

0100 0001

0100 0001

Parity Bit

1

0

1

0

None

Parity Mode

Odd

Even

Mark

Space

None

When the receiver detects a parity error, it sets the PARE (Parity Error) bit in the Channel Status Register (US_CSR). The PARE bit can be cleared by writing the Control Register (US_CR) with the RSTSTA bit at 1.

Figure 29-11

illustrates the parity bit status setting and clearing.

285

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 29-11. Parity Error

Baud Rate

Clock

RXD

Write

US_CR

PARE

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Bad

Parity

Bit

Stop

Bit

RXRDY

RSTSTA = 1

29.5.3.6

29.5.3.7

Multidrop Mode

If the PAR field in the Mode Register (US_MR) is programmed to the value 0x6 or 0x07, the

USART runs in Multidrop Mode. This mode differentiates the data characters and the address characters. Data is transmitted with the parity bit at 0 and addresses are transmitted with the parity bit at 1.

If the USART is configured in multidrop mode, the receiver sets the PARE parity error bit when the parity bit is high and the transmitter is able to send a character with the parity bit high when the Control Register is written with the SENDA bit at 1.

To handle parity error, the PARE bit is cleared when the Control Register is written with the bit

RSTSTA at 1.

The transmitter sends an address byte (parity bit set) when SENDA is written to US_CR. In this case, the next byte written to US_THR is transmitted as an address. Any character written in US_THR without having written the command SENDA is transmitted normally with the parity at 0.

Transmitter Timeguard

The timeguard feature enables the USART interface with slow remote devices.

The timeguard function enables the transmitter to insert an idle state on the TXD line between two characters. This idle state actually acts as a long stop bit.

The duration of the idle state is programmed in the TG field of the Transmitter Timeguard Register (US_TTGR). When this field is programmed at zero no timeguard is generated.

Otherwise, the transmitter holds a high level on TXD after each transmitted byte during the number of bit periods programmed in TG in addition to the number of stop bits.

As illustrated in Figure 29-12 , the behavior of TXRDY and TXEMPTY status bits is modified by

the programming of a timeguard. TXRDY rises only when the start bit of the next character is sent, and thus remains at 0 during the timeguard transmission if a character has been written in US_THR. TXEMPTY remains low until the timeguard transmission is completed as the timeguard is part of the current character being transmitted.

286

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 29-12. Timeguard Operations

TG = 4

TG = 4

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

Write

US_THR

TXRDY

TXEMPTY

29.5.3.8

Table 29-7

indicates the maximum length of a timeguard period that the transmitter can handle in relation to the function of the Baud Rate.

Table 29-7.

Maximum Timeguard Length Depending on Baud Rate

Baud Rate Bit time

Bit/sec

1 200

µs

833

9 600 104

14400 69.4

19200

28800

33400

56000

57600

115200

17.4

8.7

52.1

34.7

29.9

17.9

Timeguard

ms

212.50

26.56

17.71

13.28

8.85

7.63

4.55

4.43

2.21

Receiver Time-out

The Receiver Time-out provides support in handling variable-length frames. This feature detects an idle condition on the RXD line. When a time-out is detected, the bit TIMEOUT in the

Channel Status Register (US_CSR) rises and can generate an interrupt, thus indicating to the driver an end of frame.

The time-out delay period (during which the receiver waits for a new character) is programmed in the TO field of the Receiver Time-out Register (US_RTOR). If the TO field is programmed at

0, the Receiver Time-out is disabled and no time-out is detected. The TIMEOUT bit in

US_CSR remains at 0. Otherwise, the receiver loads a 16-bit counter with the value programmed in TO. This counter is decremented at each bit period and reloaded each time a new character is received. If the counter reaches 0, the TIMEOUT bit in the Status Register rises.

The user can either:

• Stop the counter clock until a new character is received. This is performed by writing the

Control Register (US_CR) with the STTTO (Start Time-out) bit at 1. In this case, the idle

287

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

state on RXD before a new character is received will not provide a time-out. This prevents having to handle an interrupt before a character is received and allows waiting for the next idle state on RXD after a frame is received.

• Obtain an interrupt while no character is received. This is performed by writing US_CR with the RETTO (Reload and Start Time-out) bit at 1. If RETTO is performed, the counter starts counting down immediately from the value TO. This enables generation of a periodic interrupt so that a user time-out can be handled, for example when no key is pressed on a keyboard.

If STTTO is performed, the counter clock is stopped until a first character is received. The idle state on RXD before the start of the frame does not provide a time-out. This prevents having to obtain a periodic interrupt and enables a wait of the end of frame when the idle state on RXD is detected.

If RETTO is performed, the counter starts counting down immediately from the value TO. This enables generation of a periodic interrupt so that a user time-out can be handled, for example when no key is pressed on a keyboard.

Figure 29-13 shows the block diagram of the Receiver Time-out feature.

Figure 29-13. Receiver Time-out Block Diagram

Baud Rate

Clock

TO

16-bit

Value

STTTO

1

D Q

Clock 16-bit Time-out

Counter

= TIMEOUT

Load 0

Clear

Character

Received

RETTO

Table 29-8 gives the maximum time-out period for some standard baud rates.

Table 29-8.

Maximum Time-out Period

Baud Rate Bit Time

bit/sec

600

1 200

2 400

4 800

9 600

14400

19200

28800

33400

µs

1 667

833

417

208

104

69

52

35

30

Time-out

ms

109 225

54 613

27 306

13 653

6 827

4 551

3 413

2 276

1 962

288

29.5.3.9

AT91SAM7A3 Preliminary

Table 29-8.

Maximum Time-out Period (Continued)

Baud Rate Bit Time

56000

57600

200000

18

17

5

Time-out

1 170

1 138

328

Framing Error

The receiver is capable of detecting framing errors. A framing error happens when the stop bit of a received character is detected at level 0. This can occur if the receiver and the transmitter are fully desynchronized.

A framing error is reported on the FRAME bit of the Channel Status Register (US_CSR). The

FRAME bit is asserted in the middle of the stop bit as soon as the framing error is detected. It is cleared by writing the Control Register (US_CR) with the RSTSTA bit at 1.

Figure 29-14. Framing Error Status

Baud Rate

Clock

RXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

RSTSTA = 1

Write

US_CR

FRAME

RXRDY

29.5.3.10

Transmit Break

The user can request the transmitter to generate a break condition on the TXD line. A break condition drives the TXD line low during at least one complete character. It appears the same as a 0x00 character sent with the parity and the stop bits at 0. However, the transmitter holds the TXD line at least during one character until the user requests the break condition to be removed.

A break is transmitted by writing the Control Register (US_CR) with the STTBRK bit at 1. This can be performed at any time, either while the transmitter is empty (no character in either the

Shift Register or in US_THR) or when a character is being transmitted. If a break is requested while a character is being shifted out, the character is first completed before the TXD line is held low.

Once STTBRK command is requested further STTBRK commands are ignored until the end of the break is completed.

The break condition is removed by writing US_CR with the STPBRK bit at 1. If the STPBRK is requested before the end of the minimum break duration (one character, including start, data, parity and stop bits), the transmitter ensures that the break condition completes.

289

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The transmitter considers the break as though it is a character, i.e. the STTBRK and STPBRK commands are taken into account only if the TXRDY bit in US_CSR is at 1 and the start of the break condition clears the TXRDY and TXEMPTY bits as if a character is processed.

Writing US_CR with the both STTBRK and STPBRK bits at 1 can lead to an unpredictable result. All STPBRK commands requested without a previous STTBRK command are ignored.

A byte written into the Transmit Holding Register while a break is pending, but not started, is ignored.

After the break condition, the transmitter returns the TXD line to 1 for a minimum of 12 bit times. Thus, the transmitter ensures that the remote receiver detects correctly the end of break and the start of the next character. If the timeguard is programmed with a value higher than 12, the TXD line is held high for the timeguard period.

After holding the TXD line for this period, the transmitter resumes normal operations.

Figure 29-15 illustrates the effect of both the Start Break (STTBRK) and Stop Break (STP-

BRK) commands on the TXD line.

Figure 29-15. Break Transmission

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

STTBRK = 1

Break Transmission

STPBRK = 1

End of Break

Write

US_CR

TXRDY

TXEMPTY

29.5.3.11

29.5.3.12

Receive Break

The receiver detects a break condition when all data, parity and stop bits are low. This corresponds to detecting a framing error with data at 0x00, but FRAME remains low.

When the low stop bit is detected, the receiver asserts the RXBRK bit in US_CSR. This bit may be cleared by writing the Control Register (US_CR) with the bit RSTSTA at 1.

An end of receive break is detected by a high level for at least 2/16 of a bit period in asynchronous operating mode or one sample at high level in synchronous operating mode. The end of break detection also asserts the RXBRK bit.

Hardware Handshaking

The USART features a hardware handshaking out-of-band flow control. The RTS and CTS

pins are used to connect with the remote device, as shown in Figure 29-16

.

290

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 29-16. Connection with a Remote Device for Hardware Handshaking

USART

TXD

RXD

CTS

RTS

Remote

Device

RXD

TXD

RTS

CTS

Setting the USART to operate with hardware handshaking is performed by writing the

USART_MODE field in the Mode Register (US_MR) to the value 0x2.

The USART behavior when hardware handshaking is enabled is the same as the behavior in standard synchronous or asynchronous mode, except that the receiver drives the RTS pin as described below and the level on the CTS pin modifies the behavior of the transmitter as described below. Using this mode requires using the PDC channel for reception. The transmitter can handle hardware handshaking in any case.

Figure 29-17

shows how the receiver operates if hardware handshaking is enabled. The RTS pin is driven high if the receiver is disabled and if the status RXBUFF (Receive Buffer Full) coming from the PDC channel is high. Normally, the remote device does not start transmitting while its CTS pin (driven by RTS) is high. As soon as the Receiver is enabled, the RTS falls, indicating to the remote device that it can start transmitting. Defining a new buffer to the PDC clears the status bit RXBUFF and, as a result, asserts the pin RTS low.

Figure 29-17. Receiver Behavior when Operating with Hardware Handshaking

RXD

Write

US_CR

RXEN = 1

RXDIS = 1

RTS

RXBUFF

Figure 29-18 shows how the transmitter operates if hardware handshaking is enabled. The

CTS pin disables the transmitter. If a character is being processing, the transmitter is disabled only after the completion of the current character and transmission of the next character happens as soon as the pin CTS falls.

Figure 29-18. Transmitter Behavior when Operating with Hardware Handshaking

CTS

TXD

291

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5.4

29.5.4.1

ISO7816 Mode

The USART features an ISO7816-compatible operating mode. This mode permits interfacing with smart cards and Security Access Modules (SAM) communicating through an ISO7816 link. Both T = 0 and T = 1 protocols defined by the ISO7816 specification are supported.

Setting the USART in ISO7816 mode is performed by writing the USART_MODE field in the

Mode Register (US_MR) to the value 0x4 for protocol T = 0 and to the value 0x5 for protocol T

= 1.

ISO7816 Mode Overview

The ISO7816 is a half duplex communication on only one bidirectional line. The baud rate is

determined by a division of the clock provided to the remote device (see ”Baud Rate Generator” on page 277 ).

The USART connects to a smart card as shown in Figure 29-19 . The TXD line becomes bidi-

rectional and the Baud Rate Generator feeds the ISO7816 clock on the SCK pin. As the TXD pin becomes bidirectional, its output remains driven by the output of the transmitter but only when the transmitter is active while its input is directed to the input of the receiver. The USART is considered as the master of the communication as it generates the clock.

Figure 29-19. Connection of a Smart Card to the USART

USART

CLK

SCK

I/O

TXD

Smart

Card

29.5.4.2

When operating in ISO7816, either in T = 0 or T = 1 modes, the character format is fixed. The configuration is 8 data bits, even parity and 1 or 2 stop bits, regardless of the values programmed in the CHRL, MODE9, PAR and CHMODE fields. MSBF can be used to transmit

LSB or MSB first. Parity Bit (PAR) can be used to transmit in normal or inverse mode. Refer to

”USART Mode Register” on page 303

and ”PAR: Parity Type” on page 304 .

The USART cannot operate concurrently in both receiver and transmitter modes as the communication is unidirectional at a time. It has to be configured according to the required mode by enabling or disabling either the receiver or the transmitter as desired. Enabling both the receiver and the transmitter at the same time in ISO7816 mode may lead to unpredictable results.

The ISO7816 specification defines an inverse transmission format. Data bits of the character must be transmitted on the I/O line at their negative value. The USART does not support this format and the user has to perform an exclusive OR on the data before writing it in the Transmit Holding Register (US_THR) or after reading it in the Receive Holding Register (US_RHR).

Protocol T = 0

In T = 0 protocol, a character is made up of one start bit, eight data bits, one parity bit and one guard time, which lasts two bit times. The transmitter shifts out the bits and does not drive the

I/O line during the guard time.

292

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

If no parity error is detected, the I/O line remains at 1 during the guard time and the transmitter can continue with the transmission of the next character, as shown in

Figure 29-20 .

If a parity error is detected by the receiver, it drives the I/O line at 0 during the guard time, as

shown in Figure 29-21

. This error bit is also named NACK, for Non Acknowledge. In this case, the character lasts 1 bit time more, as the guard time length is the same and is added to the error bit time which lasts 1 bit time.

When the USART is the receiver and it detects an error, it does not load the erroneous character in the Receive Holding Register (US_RHR). It appropriately sets the PARE bit in the Status

Register (US_SR) so that the software can handle the error.

Figure 29-20. T = 0 Protocol without Parity Error

Baud Rate

Clock

RXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity

Bit

Guard

Time 1

Guard

Time 2

Next

Start

Bit

Figure 29-21. T = 0 Protocol with Parity Error

Baud Rate

Clock

I/O

Start

Bit

D0 D1 D2 D3

29.5.4.3

29.5.4.4

29.5.4.5

D4 D5 D6 D7

Error

Parity

Bit

Guard

Time 1

Guard

Time 2

Start

Bit

D0

Repetition

D1

Receive Error Counter

The USART receiver also records the total number of errors. This can be read in the Number of Error (US_NER) register. The NB_ERRORS field can record up to 255 errors. Reading

US_NER automatically clears the NB_ERRORS field.

Receive NACK Inhibit

The USART can also be configured to inhibit an error. This can be achieved by setting the

INACK bit in the Mode Register (US_MR). If INACK is at 1, no error signal is driven on the I/O line even if a parity bit is detected, but the INACK bit is set in the Status Register (US_SR).

The INACK bit can be cleared by writing the Control Register (US_CR) with the RSTNACK bit at 1.

Moreover, if INACK is set, the erroneous received character is stored in the Receive Holding

Register, as if no error occurred. However, the RXRDY bit does not raise.

Transmit Character Repetition

When the USART is transmitting a character and gets a NACK, it can automatically repeat the character before moving on to the next one. Repetition is enabled by writing the

MAX_ITERATION field in the Mode Register (US_MR) at a value higher than 0. Each character can be transmitted up to eight times; the first transmission plus seven repetitions.

293

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5.4.6

29.5.4.7

29.5.5

Disable Successive Receive NACK

The receiver can limit the number of successive NACKs sent back to the remote transmitter.

This is programmed by setting the bit DSNACK in the Mode Register (US_MR). The maximum number of NACK transmitted is programmed in the MAX_ITERATION field. As soon as

MAX_ITERATION is reached, the character is considered as correct, an acknowledge is sent on the line and the ITERATION bit in the Channel Status Register is set.

Protocol T = 1

When operating in ISO7816 protocol T = 1, the transmission is similar to an asynchronous format with only one stop bit. The parity is generated when transmitting and checked when receiving. Parity error detection sets the PARE bit in the Channel Status Register (US_CSR).

IrDA Mode

If MAX_ITERATION does not equal zero, the USART repeats the character as many times as the value loaded in MAX_ITERATION.

When the USART repetition number reaches MAX_ITERATION, the ITERATION bit is set in the Channel Status Register (US_CSR). If the repetition of the character is acknowledged by the receiver, the repetitions are stopped and the iteration counter is cleared.

The ITERATION bit in US_CSR can be cleared by writing the Control Register with the RSIT bit at 1.

The USART features an IrDA mode supplying half-duplex point-to-point wireless communication. It embeds the modulator and demodulator which allows a glueless connection to the infrared transceivers, as shown in

Figure 29-22 . The modulator and demodulator are compli-

ant with the IrDA specification version 1.1 and support data transfer speeds ranging from 2.4

Kb/s to 115.2 Kb/s.

The USART IrDA mode is enabled by setting the USART_MODE field in the Mode Register

(US_MR) to the value 0x8. The IrDA Filter Register (US_IF) allows configuring the demodulator filter. The USART transmitter and receiver operate in a normal asynchronous mode and all parameters are accessible. Note that the modulator and the demodulator are activated.

Figure 29-22. Connection to IrDA Transceivers

Receiver

USART

Demodulator

RXD RX

IrDA

Transceivers

TX

Transmitter

Modulator

TXD

6042E–ATARM–14-Dec-06

The receiver and the transmitter must be enabled or disabled according to the direction of the transmission to be managed.

294

29.5.5.1

AT91SAM7A3 Preliminary

IrDA Modulation

For baud rates up to and including 115.2 Kbits/sec, the RZI modulation scheme is used. “0” is represented by a light pulse of 3/16th of a bit time. Some examples of signal pulse duration

are shown in Table 29-9 .

Table 29-9.

IrDA Pulse Duration

Baud Rate

2.4 Kb/s

9.6 Kb/s

19.2 Kb/s

38.4 Kb/s

57.6 Kb/s

115.2 Kb/s

Pulse Duration (3/16)

78.13 µs

19.53 µs

9.77 µs

4.88 µs

3.26 µs

1.63 µs

Figure 29-23 shows an example of character transmission.

Figure 29-23. IrDA Modulation

Transmitter

Output

Start

Bit

0

1

0

1

Data Bits

0

0

1 1

0

Stop

Bit

1

TXD

29.5.5.2

Bit Period

3

16

Bit Period

IrDA Baud Rate

Table 29-10 gives some examples of CD values, baud rate error and pulse duration. Note that

the requirement on the maximum acceptable error of ±1.87% must be met.

Table 29-10. IrDA Baud Rate Error

Peripheral Clock Baud Rate

3 686 400

20 000 000

32 768 000

40 000 000

3 686 400

20 000 000

32 768 000

40 000 000

3 686 400

20 000 000

115 200

115 200

115 200

115 200

57 600

57 600

57 600

57 600

38 400

38 400

18

22

4

22

CD

2

11

36

43

6

33

Baud Rate Error

0.00%

1.38%

1.25%

1.38%

0.00%

1.38%

1.25%

0.93%

0.00%

1.38%

Pulse Time

1.63

1.63

1.63

1.63

3.26

3.26

3.26

3.26

4.88

4.88

295

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 29-10. IrDA Baud Rate Error (Continued)

Peripheral Clock Baud Rate CD

32 768 000

40 000 000

3 686 400

20 000 000

32 768 000

40 000 000

3 686 400

20 000 000

32 768 000

40 000 000

3 686 400

20 000 000

32 768 000

38 400

38 400

19 200

19 200

19 200

19 200

9 600

9 600

9 600

9 600

2 400

2 400

2 400

107

130

24

130

53

65

12

65

213

260

96

521

853

Baud Rate Error

0.63%

0.16%

0.00%

0.16%

0.31%

0.16%

0.00%

0.16%

0.16%

0.16%

0.00%

0.03%

0.04%

Pulse Time

4.88

4.88

9.77

9.77

9.77

9.77

19.53

19.53

19.53

19.53

78.13

78.13

78.13

29.5.5.3

IrDA Demodulator

The demodulator is based on the IrDA Receive filter comprised of an 8-bit down counter which is loaded with the value programmed in US_IF. When a falling edge is detected on the RXD pin, the Filter Counter starts counting down at the Master Clock (MCK) speed. If a rising edge is detected on the RXD pin, the counter stops and is reloaded with US_IF. If no rising edge is detected when the counter reaches 0, the input of the receiver is driven low during one bit time.

Figure 29-24 illustrates the operations of the IrDA demodulator.

Figure 29-24. IrDA Demodulator Operations

MCK

RXD

Counter

Value

Receiver

Input

6 5 4 3 2 6

Pulse

Rejected

6 5 4 3 2

Pulse

Accepted

1 0

As the IrDA mode uses the same logic as the ISO7816, note that the FI_DI_RATIO field in

US_FIDI must be set to a value higher than 0 in order to assure IrDA communications operate correctly.

296

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5.6

RS485 Mode

The USART features the RS485 mode to enable line driver control. While operating in RS485 mode, the USART behaves as though in asynchronous or synchronous mode and configuration of all the parameters is possible. The difference is that the RTS pin is driven high when the transmitter is operating. The behavior of the RTS pin is controlled by the TXEMPTY bit. A typical connection of the USART to a RS485 bus is shown in

Figure 29-25 .

Figure 29-25. Typical Connection to a RS485 Bus

USART

RXD

TXD

RTS

Differential

Bus

The USART is set in RS485 mode by programming the USART_MODE field in the Mode Register (US_MR) to the value 0x1.

The RTS pin is at a level inverse to the TXEMPTY bit. Significantly, the RTS pin remains high when a timeguard is programmed so that the line can remain driven after the last character completion.

Figure 29-26 gives an example of the RTS waveform during a character transmis-

sion when the timeguard is enabled.

Figure 29-26. Example of RTS Drive with Timeguard

TG = 4

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7

Parity Stop

Bit Bit

Write

US_THR

TXRDY

TXEMPTY

RTS

297

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.5.7

29.5.7.1

Test Modes

The USART can be programmed to operate in three different test modes. The internal loopback capability allows on-board diagnostics. In the loopback mode the USART interface pins are disconnected or not and reconfigured for loopback internally or externally.

Normal Mode

Normal mode connects the RXD pin on the receiver input and the transmitter output on the

TXD pin.

Figure 29-27. Normal Mode Configuration

RXD

Receiver

TXD

Transmitter

29.5.7.2

Automatic Echo Mode

Automatic echo mode allows bit-by-bit retransmission. When a bit is received on the RXD pin,

it is sent to the TXD pin, as shown in Figure 29-28

. Programming the transmitter has no effect on the TXD pin. The RXD pin is still connected to the receiver input, thus the receiver remains active.

Figure 29-28. Automatic Echo Mode Configuration

RXD

Receiver

TXD

Transmitter

29.5.7.3

Local Loopback Mode

Local loopback mode connects the output of the transmitter directly to the input of the receiver, as shown in

Figure 29-29

. The TXD and RXD pins are not used. The RXD pin has no effect on the receiver and the TXD pin is continuously driven high, as in idle state.

Figure 29-29. Local Loopback Mode Configuration

RXD

Receiver

TXD

Transmitter

1

298

6042E–ATARM–14-Dec-06

29.5.7.4

AT91SAM7A3 Preliminary

Remote Loopback Mode

Remote loopback mode directly connects the RXD pin to the TXD pin, as shown in

Figure 29-

30 . The transmitter and the receiver are disabled and have no effect. This mode allows bit-by-

bit retransmission.

Figure 29-30. Remote Loopback Mode Configuration

RXD

Receiver

1

TXD

Transmitter

6042E–ATARM–14-Dec-06

299

29.6

USART User Interface

Table 29-11. USART Memory Map

Offset Register

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

0x0024

0x0028

0x2C - 0x3C

0x0040

0x0044

0x0048

0x004C

0x5C - 0xFC

0x100 - 0x128

Control Register

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Channel Status Register

Receiver Holding Register

Transmitter Holding Register

Baud Rate Generator Register

Receiver Time-out Register

Transmitter Timeguard Register

Reserved

FI DI Ratio Register

Number of Errors Register

Reserved

IrDA Filter Register

Reserved

Reserved for PDC Registers

AT91SAM7A3 Preliminary

Name

US_CR

US_MR

US_IER

US_IDR

US_IMR

US_CSR

US_RHR

US_THR

US_BRGR

US_RTOR

US_TTGR

US_FIDI

US_NER

US_IF

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Read/Write

0x0

0x0

0x0

0x174

0x0

0x0

0x0

300

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.1

USART Control Register

Name:

Access Type:

US_CR

Write-only

31

30

29

23

15

RETTO

22

14

RSTNACK

21

13

RSTIT

28

20

12

SENDA

27

19

RTSDIS

11

STTTO

26

18

RTSEN

10

STPBRK

25

17

9

STTBRK

24

16

8

RSTSTA

7

TXDIS

6

TXEN

5

RXDIS

4

RXEN

3

RSTTX

2

RSTRX

1

0

• RSTRX: Reset Receiver

0: No effect.

1: Resets the receiver.

• RSTTX: Reset Transmitter

0: No effect.

1: Resets the transmitter.

• RXEN: Receiver Enable

0: No effect.

1: Enables the receiver, if RXDIS is 0.

• RXDIS: Receiver Disable

0: No effect.

1: Disables the receiver.

• TXEN: Transmitter Enable

0: No effect.

1: Enables the transmitter if TXDIS is 0.

• TXDIS: Transmitter Disable

0: No effect.

1: Disables the transmitter.

• RSTSTA: Reset Status Bits

0: No effect.

1: Resets the status bits PARE, FRAME, OVRE, and RXBRK in US_CSR.

• STTBRK: Start Break

0: No effect.

1: Starts transmission of a break after the characters present in US_THR and the Transmit Shift Register have been transmitted. No effect if a break is already being transmitted.

301

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• STPBRK: Stop Break

0: No effect.

1: Stops transmission of the break after a minimum of one character length and transmits a high level during 12-bit periods.

No effect if no break is being transmitted.

• STTTO: Start Time-out

0: No effect.

1: Starts waiting for a character before clocking the time-out counter. Resets the status bit TIMEOUT in US_CSR.

• SENDA: Send Address

0: No effect.

1: In Multidrop Mode only, the next character written to the US_THR is sent with the address bit set.

• RSTIT: Reset Iterations

0: No effect.

1: Resets ITERATION in US_CSR. No effect if the ISO7816 is not enabled.

• RSTNACK: Reset Non Acknowledge

0: No effect

1: Resets NACK in US_CSR.

• RETTO: Rearm Time-out

0: No effect

1: Restart Time-out

• RTSEN: Request to Send Enable

0: No effect.

1: Drives the pin RTS to 0.

• RTSDIS: Request to Send Disable

0: No effect.

1: Drives the pin RTS to 1.

302

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.2

USART Mode Register

Name:

Access Type:

US_MR

Read/Write

31

30

23

22

15

CHMODE

14

29

21

DSNACK

28

FILTER

20

INACK

13

NBSTOP

12

7

CHRL

• USART_MODE

6 5

USCLKS

4

0

0

0

0

0

0

0

0

1

1

• USCLKS: Clock Selection

1

1

0

1

0

0

0

1

0

1

USART_MODE

0

1

1

0

0

0

1

1

0 x

1

1

0

0

USCLKS

0

1

0

1

Selected Clock

MCK

MCK / DIV

Reserved

SCK

1

0

1

0

0

1

0

1

0 x

27

19

OVER

11

3

26 25

MAX_ITERATION

18

CLKO

10

PAR

17

MODE9

9

2

USART_MODE

1

24

16

MSBF

8

SYNC

0

Mode of the USART

Normal

RS485

Hardware Handshaking

Reserved

IS07816 Protocol: T = 0

Reserved

IS07816 Protocol: T = 1

Reserved

IrDA

Reserved

303

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• CHRL: Character Length.

1

1

0

0

CHRL

0

1

0

1

Character Length

5 bits

6 bits

7 bits

8 bits

• SYNC: Synchronous Mode Select

0: USART operates in Asynchronous Mode.

1: USART operates in Synchronous Mode.

• PAR: Parity Type

0

1

1

0

0

0

1

0

1

PAR

0

0

1

• NBSTOP: Number of Stop Bits

1 x x

0

1

0

Parity Type

Even parity

Odd parity

Parity forced to 0 (Space)

Parity forced to 1 (Mark)

No parity

Multidrop mode

1

1

0

0

NBSTOP

0

1

0

1

Asynchronous (SYNC = 0)

1 stop bit

1.5 stop bits

2 stop bits

Reserved

• CHMODE: Channel Mode

Synchronous (SYNC = 1)

1 stop bit

Reserved

2 stop bits

Reserved

0

0

1

1

CHMODE

0

1

0

1

Mode Description

Normal Mode

Automatic Echo. Receiver input is connected to the TXD pin.

Local Loopback. Transmitter output is connected to the Receiver Input..

Remote Loopback. RXD pin is internally connected to the TXD pin.

• MSBF: Bit Order

0: Least Significant Bit is sent/received first.

1: Most Significant Bit is sent/received first.

304

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• MODE9: 9-bit Character Length

0: CHRL defines character length.

1: 9-bit character length.

• CLKO: Clock Output Select

0: The USART does not drive the SCK pin.

1: The USART drives the SCK pin if USCLKS does not select the external clock SCK.

• OVER: Oversampling Mode

0: 16x Oversampling.

1: 8x Oversampling.

• INACK: Inhibit Non Acknowledge

0: The NACK is generated.

1: The NACK is not generated.

• DSNACK: Disable Successive NACK

0: NACK is sent on the ISO line as soon as a parity error occurs in the received character (unless INACK is set).

1: Successive parity errors are counted up to the value specified in the MAX_ITERATION field. These parity errors generate a NACK on the ISO line. As soon as this value is reached, no additional NACK is sent on the ISO line. The flag

ITERATION is asserted.

• MAX_ITERATION

Defines the maximum number of iterations in mode ISO7816, protocol T= 0.

• FILTER: Infrared Receive Line Filter

0: The USART does not filter the receive line.

1: The USART filters the receive line using a three-sample filter (1/16-bit clock) (2 over 3 majority).

305

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.3

USART Interrupt Enable Register

Name:

Access Type:

US_IER

Write-only

31

30

29

23

15

22

14

21

13

NACK

28

20

12

RXBUFF

7

PARE

6

FRAME

5

OVRE

4

ENDTX

• RXRDY: RXRDY Interrupt Enable

• TXRDY: TXRDY Interrupt Enable

• RXBRK: Receiver Break Interrupt Enable

• ENDRX: End of Receive Transfer Interrupt Enable

• ENDTX: End of Transmit Interrupt Enable

• OVRE: Overrun Error Interrupt Enable

• FRAME: Framing Error Interrupt Enable

• PARE: Parity Error Interrupt Enable

• TIMEOUT: Time-out Interrupt Enable

• TXEMPTY: TXEMPTY Interrupt Enable

• ITERATION: Iteration Interrupt Enable

• TXBUFE: Buffer Empty Interrupt Enable

• RXBUFF: Buffer Full Interrupt Enable

• NACK: Non Acknowledge Interrupt Enable

• CTSIC: Clear to Send Input Change Interrupt Enable

27

19

CTSIC

11

TXBUFE

3

ENDRX

26

18

10

ITERATION

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

306

6042E–ATARM–14-Dec-06

29.6.4

USART Interrupt Disable Register

Name:

Access Type:

US_IDR

Write-only

31

30

29

23

15

22

14

21

13

NACK

28

20

12

RXBUFF

7

PARE

6

FRAME

5

OVRE

4

ENDTX

• RXRDY: RXRDY Interrupt Disable

• TXRDY: TXRDY Interrupt Disable

• RXBRK: Receiver Break Interrupt Disable

• ENDRX: End of Receive Transfer Interrupt Disable

• ENDTX: End of Transmit Interrupt Disable

• OVRE: Overrun Error Interrupt Disable

• FRAME: Framing Error Interrupt Disable

• PARE: Parity Error Interrupt Disable

• TIMEOUT: Time-out Interrupt Disable

• TXEMPTY: TXEMPTY Interrupt Disable

• ITERATION: Iteration Interrupt Disable

• TXBUFE: Buffer Empty Interrupt Disable

• RXBUFF: Buffer Full Interrupt Disable

• NACK: Non Acknowledge Interrupt Disable

• CTSIC: Clear to Send Input Change Interrupt Disable

27

19

CTSIC

11

TXBUFE

3

ENDRX

AT91SAM7A3 Preliminary

26

18

10

ITERATION

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

307

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.5

USART Interrupt Mask Register

Name:

Access Type:

US_IMR

Read-only

31

30

29

23

15

22

14

21

13

NACK

28

20

12

RXBUFF

7

PARE

6

FRAME

5

OVRE

4

ENDTX

• RXRDY: RXRDY Interrupt Mask

• TXRDY: TXRDY Interrupt Mask

• RXBRK: Receiver Break Interrupt Mask

• ENDRX: End of Receive Transfer Interrupt Mask

• ENDTX: End of Transmit Interrupt Mask

• OVRE: Overrun Error Interrupt Mask

• FRAME: Framing Error Interrupt Mask

• PARE: Parity Error Interrupt Mask

• TIMEOUT: Time-out Interrupt Mask

• TXEMPTY: TXEMPTY Interrupt Mask

• ITERATION: Iteration Interrupt Mask

• TXBUFE: Buffer Empty Interrupt Mask

• RXBUFF: Buffer Full Interrupt Mask

• NACK: Non Acknowledge Interrupt Mask

• CTSIC: Clear to Send Input Change Interrupt Mask

27

19

CTSIC

11

TXBUFE

3

ENDRX

26

18

10

ITERATION

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

308

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.6

USART Channel Status Register

Name:

Access Type:

US_CSR

Read-only

31

30

29

23

CTS

15

22

14

21

13

NACK

28

20

12

RXBUFF

27

19

CTSIC

11

TXBUFE

26

18

10

ITERATION

25

17

9

TXEMPTY

24

16

8

TIMEOUT

7

PARE

6

FRAME

5

OVRE

4

ENDTX

3

ENDRX

2

RXBRK

1

TXRDY

0

RXRDY

• RXRDY: Receiver Ready

0: No complete character has been received since the last read of US_RHR or the receiver is disabled. If characters were being received when the receiver was disabled, RXRDY changes to 1 when the receiver is enabled.

1: At least one complete character has been received and US_RHR has not yet been read.

• TXRDY: Transmitter Ready

0: A character is in the US_THR waiting to be transferred to the Transmit Shift Register, or an STTBRK command has been requested, or the transmitter is disabled. As soon as the transmitter is enabled, TXRDY becomes 1.

1: There is no character in the US_THR.

• RXBRK: Break Received/End of Break

0: No Break received or End of Break detected since the last RSTSTA.

1: Break Received or End of Break detected since the last RSTSTA.

• ENDRX: End of Receiver Transfer

0: The End of Transfer signal from the Receive PDC channel is inactive.

1: The End of Transfer signal from the Receive PDC channel is active.

• ENDTX: End of Transmitter Transfer

0: The End of Transfer signal from the Transmit PDC channel is inactive.

1: The End of Transfer signal from the Transmit PDC channel is active.

• OVRE: Overrun Error

0: No overrun error has occurred since the last RSTSTA.

1: At least one overrun error has occurred since the last RSTSTA.

• FRAME: Framing Error

0: No stop bit has been detected low since the last RSTSTA.

1: At least one stop bit has been detected low since the last RSTSTA.

• PARE: Parity Error

0: No parity error has been detected since the last RSTSTA.

1: At least one parity error has been detected since the last RSTSTA.

309

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• TIMEOUT: Receiver Time-out

0: There has not been a time-out since the last Start Time-out command (STTTO in US_CR) or the Time-out Register is 0.

1: There has been a time-out since the last Start Time-out command (STTTO in US_CR).

• TXEMPTY: Transmitter Empty

0: There are characters in either US_THR or the Transmit Shift Register, or the transmitter is disabled.

1: There is at least one character in either US_THR or the Transmit Shift Register.

• ITERATION: Max number of Repetitions Reached

0: Maximum number of repetitions has not been reached since the last RSIT.

1: Maximum number of repetitions has been reached since the last RSIT.

• TXBUFE: Transmission Buffer Empty

0: The signal Buffer Empty from the Transmit PDC channel is inactive.

1: The signal Buffer Empty from the Transmit PDC channel is active.

• RXBUFF: Reception Buffer Full

0: The signal Buffer Full from the Receive PDC channel is inactive.

1: The signal Buffer Full from the Receive PDC channel is active.

• NACK: Non Acknowledge

0: No Non Acknowledge has not been detected since the last RSTNACK.

1: At least one Non Acknowledge has been detected since the last RSTNACK.

• CTSIC: Clear to Send Input Change Flag

0: No input change has been detected on the CTS pin since the last read of US_CSR.

1: At least one input change has been detected on the CTS pin since the last read of US_CSR.

• CTS: Image of CTS Input

0: CTS is at 0.

1: CTS is at 1.

310

6042E–ATARM–14-Dec-06

29.6.7

USART Receive Holding Register

Name:

Access Type:

US_RHR

Read-only

31

30

29

23

15

RXSYNH

7

22

14

6

21

13

5

28

20

12

4

RXCHR

11

3

27

19

• RXCHR: Received Character

Last character received if RXRDY is set.

• RXSYNH: Received Sync

0: Last Character received is a Data.

1: Last Character received is a Command.

AT91SAM7A3 Preliminary

10

2

26

18

9

1

25

17

24

16

8

RXCHR

0

311

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.8

USART Transmit Holding Register

Name:

Access Type:

US_THR

Write-only

31

30

29

23

15

TXSYNH

22

14

21

13

28

20

12

27

19

11

26

18

10

7 6 5 4 3 2

TXCHR

• TXCHR: Character to be Transmitted

Next character to be transmitted after the current character if TXRDY is not set.

• TXSYNH: Sync Field to be transmitted

0: The next character sent is encoded as a data. Start Frame Delimiter is DATA SYNC.

1: The next character sent is encoded as a command. Start Frame Delimiter is COMMAND SYNC.

1

25

17

9

24

16

8

TXCHR

0

312

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.9

USART Baud Rate Generator Register

Name:

Access Type:

US_BRGR

Read/Write

31

30

29

28

23

15

22

14

21

13

20

12

27

19

11

26

18

10

CD

7 6 5 4 3 2

CD

• CD: Clock Divider

CD

0

1 to 65535

OVER = 0

Baud Rate =

Selected Clock/16/CD

USART_MODE

ISO7816

SYNC = 0

SYNC = 1

OVER = 1

Baud Rate Clock Disabled

Baud Rate =

Selected Clock/8/CD

Baud Rate =

Selected Clock /CD

25

17

9

1

24

16

8

0

USART_MODE =

ISO7816

Baud Rate = Selected

Clock/CD/FI_DI_RATIO

313

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.10

USART Receiver Time-out Register

Name:

Access Type:

US_RTOR

Read/Write

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

TO

7 6 5 4 3 2

TO

• TO: Time-out Value

0: The Receiver Time-out is disabled.

1 - 65535: The Receiver Time-out is enabled and the Time-out delay is TO x Bit Period.

26

18

10

25

17

9

1

24

16

8

0

29.6.11

USART Transmitter Timeguard Register

Name:

US_TTGR

Access Type:

Read/Write

31

30

29

28

23

15

22

14

21

13

20

12

27

19

11

26

18

10

7 6 5 4 3 2

TG

• TG: Timeguard Value

0: The Transmitter Timeguard is disabled.

1 - 255: The Transmitter timeguard is enabled and the timeguard delay is TG x Bit Period.

25

17

9

1

24

16

8

0

314

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

29.6.12

USART FI DI RATIO Register

Name:

Access Type:

Reset Value :

US_FIDI

Read/Write

0x174

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

25

17

9

FI_DI_RATIO

7 6 5 4

FI_DI_RATIO

3 2 1

• FI_DI_RATIO: FI Over DI Ratio Value

0: If ISO7816 mode is selected, the Baud Rate Generator generates no signal.

1 - 2047: If ISO7816 mode is selected, the Baud Rate is the clock provided on SCK divided by FI_DI_RATIO.

24

16

8

0

29.6.13

USART Number of Errors Register

Name:

Access Type:

US_NER

Read-only

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

26

18

10

25

17

9

7 6 5 4

NB_ERRORS

3 2 1

• NB_ERRORS: Number of Errors

Total number of errors that occurred during an ISO7816 transfer. This register automatically clears when read.

0

24

16

8

315

6042E–ATARM–14-Dec-06

29.6.14

USART IrDA FILTER Register

Name:

Access Type:

US_IF

Read/Write

31

30

29

23

15

7

22

14

6

21

13

5

• IRDA_FILTER: IrDA Filter

Sets the filter of the IrDA demodulator.

28

20

12

11

4

IRDA_FILTER

3

27

19

AT91SAM7A3 Preliminary

10

2

26

18

9

1

25

17

8

0

24

16

6042E–ATARM–14-Dec-06

316

AT91SAM7A3 Preliminary

30. Synchronous Serial Controller (SSC)

30.1

Overview

The Atmel Synchronous Serial Controller (SSC) provides a synchronous communication link with external devices. It supports many serial synchronous communication protocols generally used in audio and telecom applications such as I2S, Short Frame Sync, Long Frame Sync, etc.

The SSC contains an independent receiver and transmitter and a common clock divider. The receiver and the transmitter each interface with three signals: the TD/RD signal for data, the

TK/RK signal for the clock and the TF/RF signal for the Frame Sync. The transfers can be programmed to start automatically or on different events detected on the Frame Sync signal.

The SSC’s high-level of programmability and its two dedicated PDC channels of up to 32 bits permit a continuous high bit rate data transfer without processor intervention.

Featuring connection to two PDC channels, the SSC permits interfacing with low processor overhead to the following:

• CODEC’s in master or slave mode

• DAC through dedicated serial interface, particularly I2S

• Magnetic card reader

317

6042E–ATARM–14-Dec-06

30.2

Block Diagram

Figure 30-1. Block Diagram

ASB

APB Bridge

PDC

APB

PMC

MCK

SSC Interface

PIO

Interrupt Control

SSC Interrupt

30.3

Application Block Diagram

Figure 30-2. Application Block Diagram

OS or RTOS Driver

Serial AUDIO Codec

Power

Management

Interrupt

Management

Test

Management

SSC

Time Slot

Management

Frame

Management

Line Interface

RF

RK

RD

TF

TK

TD

318

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.4

Pin Name List

Table 30-1.

I/O Lines Description

Pin Name Pin Description

RF

RK

RD

TF

TK

TD

Receiver Frame Synchro

Receiver Clock

Receiver Data

Transmitter Frame Synchro

Transmitter Clock

Transmitter Data

Type

Input/Output

Input/Output

Input

Input/Output

Input/Output

Output

30.5

Product Dependencies

30.5.1

I/O Lines

The pins used for interfacing the compliant external devices may be multiplexed with PIO lines.

Before using the SSC receiver, the PIO controller must be configured to dedicate the SSC receiver I/O lines to the SSC peripheral mode.

Before using the SSC transmitter, the PIO controller must be configured to dedicate the SSC transmitter I/O lines to the SSC peripheral mode.

30.5.2

30.5.3

Power Management

The SSC is not continuously clocked. The SSC interface may be clocked through the Power

Management Controller (PMC), therefore the programmer must first configure the PMC to enable the SSC clock.

Interrupt

The SSC interface has an interrupt line connected to the Advanced Interrupt Controller (AIC).

Handling interrupts requires programming the AIC before configuring the SSC.

All SSC interrupts can be enabled/disabled configuring the SSC Interrupt mask register. Each pending and unmasked SSC interrupt will assert the SSC interrupt line. The SSC interrupt service routine can get the interrupt origin by reading the SSC interrupt status register.

30.6

Functional Description

This chapter contains the functional description of the following: SSC Functional Block, Clock

Management, Data format, Start, Transmitter, Receiver and Frame Sync.

The receiver and transmitter operate separately. However, they can work synchronously by programming the receiver to use the transmit clock and/or to start a data transfer when transmission starts. Alternatively, this can be done by programming the transmitter to use the receive clock and/or to start a data transfer when reception starts. The transmitter and the receiver can be programmed to operate with the clock signals provided on either the TK or RK pins. This allows the SSC to support many slave-mode data transfers. The maximum clock speed allowed on the TK and RK pins is the master clock divided by 2.

319

6042E–ATARM–14-Dec-06

Figure 30-3. SSC Functional Block Diagram

MCK

Clock

Divider

APB

Transmitter

Clock Output

Controller

TK Input

Transmit Clock

Controller

TX clock

Frame Sync

Controller

RX clock

TF

RF

Start

Selector

TX PDC

Transmit Shift Register

Transmit Holding

Register

Load Shift

Transmit Sync

Holding Register

TK

TF

TD

User

Interface

PDC

Interrupt Control

Receiver

Clock Output

Controller

RK Input

Receive Clock

Controller

RX Clock

Frame Sync

Controller

TX Clock

RF

TF

Start

Selector

Receive Shift Register

RX PDC

Receive Holding

Register

Load Shift

Receive Sync

Holding Register

RK

RF

RD

AIC

30.6.1

Clock Management

The transmitter clock can be generated by:

• an external clock received on the TK I/O pad

• the receiver clock

• the internal clock divider

The receiver clock can be generated by:

• an external clock received on the RK I/O pad

• the transmitter clock

• the internal clock divider

Furthermore, the transmitter block can generate an external clock on the TK I/O pad, and the receiver block can generate an external clock on the RK I/O pad.

This allows the SSC to support many Master and Slave Mode data transfers.

320

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

30.6.1.1

AT91SAM7A3 Preliminary

Clock Divider

Figure 30-4. Divided Clock Block Diagram

Clock Divider

SSC_CMR

MCK

/ 2

12-bit Counter

Divided Clock

The Master Clock divider is determined by the 12-bit field DIV counter and comparator (so its maximal value is 4095) in the Clock Mode Register SSC_CMR, allowing a Master Clock division by up to 8190. The Divided Clock is provided to both the Receiver and Transmitter. When this field is programmed to 0, the Clock Divider is not used and remains inactive.

When DIV is set to a value equal to or greater than 1, the Divided Clock has a frequency of

Master Clock divided by 2 times DIV. Each level of the Divided Clock has a duration of the

Master Clock multiplied by DIV. This ensures a 50% duty cycle for the Divided Clock regardless of whether the DIV value is even or odd.

Figure 30-5. Divided Clock Generation

Master Clock

Divided Clock

DIV = 1

Divided Clock Frequency = MCK/2

Master Clock

Divided Clock

DIV = 3

Divided Clock Frequency = MCK/6

30.6.1.2

Maximum

MCK / 2

Minimum

MCK / 8190

Transmitter Clock Management

The transmitter clock is generated from the receiver clock or the divider clock or an external clock scanned on the TK I/O pad. The transmitter clock is selected by the CKS field in

SSC_TCMR (Transmit Clock Mode Register). Transmit Clock can be inverted independently by the CKI bits in SSC_TCMR.

The transmitter can also drive the TK I/O pad continuously or be limited to the actual data transfer. The clock output is configured by the SSC_TCMR register. The Transmit Clock Inver-

321

6042E–ATARM–14-Dec-06

sion (CKI) bits have no effect on the clock outputs. Programming the TCMR register to select

TK pin (CKS field) and at the same time Continuous Transmit Clock (CKO field) might lead to unpredictable results.

Figure 30-6. Transmitter Clock Management

TK (pin)

MUX

Tri_state

Controller

Clock

Output

Receiver

Clock

Divider

Clock

CKO

Data Transfer

CKS

INV

MUX

Tri-state

Controller

Transmitter

Clock

CKI

CKG

30.6.1.3

Receiver Clock Management

The receiver clock is generated from the transmitter clock or the divider clock or an external clock scanned on the RK I/O pad. The Receive Clock is selected by the CKS field in

SSC_RCMR (Receive Clock Mode Register). Receive Clocks can be inverted independently by the CKI bits in SSC_RCMR.

The receiver can also drive the RK I/O pad continuously or be limited to the actual data transfer. The clock output is configured by the SSC_RCMR register. The Receive Clock Inversion

(CKI) bits have no effect on the clock outputs. Programming the RCMR register to select RK pin (CKS field) and at the same time Continuous Receive Clock (CKO field) can lead to unpredictable results.

322

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 30-7. Receiver Clock Management

RK (pin)

MUX

Tri-state

Controller

Transmitter

Clock

Clock

Output

Divider

Clock

Data Transfer

CKO

CKS INV

MUX

Tri-state

Controller

Receiver

Clock

CKI

CKG

30.6.1.4

30.6.2

Serial Clock Ratio Considerations

The Transmitter and the Receiver can be programmed to operate with the clock signals provided on either the TK or RK pins. This allows the SSC to support many slave-mode data transfers. In this case, the maximum clock speed allowed on the RK pin is:

– Master Clock divided by 2 if Receiver Frame Synchro is input

– Master Clock divided by 3 if Receiver Frame Synchro is output

In addition, the maximum clock speed allowed on the TK pin is:

– Master Clock divided by 6 if Transmit Frame Synchro is input

– Master Clock divided by 2 if Transmit Frame Synchro is output

Transmitter Operations

A transmitted frame is triggered by a start event and can be followed by synchronization data before data transmission.

The start event is configured by setting the Transmit Clock Mode Register (SSC_TCMR). See

“Start” on page 325.

The frame synchronization is configured setting the Transmit Frame Mode Register

(SSC_TFMR). See “Frame Sync” on page 327.

To transmit data, the transmitter uses a shift register clocked by the transmitter clock signal and the start mode selected in the SSC_TCMR. Data is written by the application to the

SSC_THR register then transferred to the shift register according to the data format selected.

When both the SSC_THR and the transmit shift register are empty, the status flag TXEMPTY is set in SSC_SR. When the Transmit Holding register is transferred in the Transmit shift register, the status flag TXRDY is set in SSC_SR and additional data can be loaded in the holding register.

323

6042E–ATARM–14-Dec-06

Figure 30-8. Transmitter Block Diagram

SSC_CR.TXEN

SSC_SR.TXEN

SSC_CR.TXDIS

SSC_TFMR.DATDEF

RF

TF

Transmitter Clock

Start

Selector

SSC_TFMR.MSBF

Transmit Shift Register

1

0

SSC_TFMR.FSDEN

SSC_TCMR.STTDLY

0 1

SSC_TFMR.DATLEN

SSC_THR SSC_TSHR

SSC_TCMR.STTDLY

SSC_TFMR.FSDEN

SSC_TFMR.DATNB

SSC_TFMR.FSLEN

TD

30.6.3

Receiver Operations

A received frame is triggered by a start event and can be followed by synchronization data before data transmission.

The start event is configured setting the Receive Clock Mode Register (SSC_RCMR).

See

“Start” on page 325.

The frame synchronization is configured setting the Receive Frame Mode Register

(SSC_RFMR).

See “Frame Sync” on page 327.

The receiver uses a shift register clocked by the receiver clock signal and the start mode selected in the SSC_RCMR. The data is transferred from the shift register depending on the data format selected.

When the receiver shift register is full, the SSC transfers this data in the holding register, the status flag RXRDY is set in SSC_SR and the data can be read in the receiver holding register.

If another transfer occurs before read of the RHR register, the status flag OVERUN is set in

SSC_SR and the receiver shift register is transferred in the RHR register.

324

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

Figure 30-9. Receiver Block Diagram

RF TF

Receiver Clock

Start

Selector

SSC_RFMR.MSBF

SSC_RFMR.DATNB

Receive Shift Register

AT91SAM7A3 Preliminary

SSC_CR.RXEN

SSC_SR.RXEN

SSC_CR.RXDIS

RD

30.6.4

SSC_RCMR.STTDLY

Start

SSC_RSHR SSC_RHR

SSC_RFMR.FSLEN

SSC_RFMR.DATLEN

The transmitter and receiver can both be programmed to start their operations when an event occurs, respectively in the Transmit Start Selection (START) field of SSC_TCMR and in the

Receive Start Selection (START) field of SSC_RCMR.

Under the following conditions the start event is independently programmable:

• Continuous. In this case, the transmission starts as soon as a word is written in SSC_THR and the reception starts as soon as the Receiver is enabled.

• Synchronously with the transmitter/receiver

• On detection of a falling/rising edge on TF/RF

• On detection of a low level/high level on TF/RF

• On detection of a level change or an edge on TF/RF

A start can be programmed in the same manner on either side of the Transmit/Receive Clock

Register (RCMR/TCMR). Thus, the start could be on TF (Transmit) or RF (Receive).

Moreover, the Receiver can start when data is detected in the bit stream with the Compare

Functions.

Detection on TF/RF input/output is done by the field FSOS of the Transmit/Receive Frame

Mode Register (TFMR/RFMR).

325

6042E–ATARM–14-Dec-06

Figure 30-10. Transmit Start Mode

TK

TF

(Input)

Start = Low Level on TF

TD

(Output)

Start = Falling Edge on TF

TD

(Output)

Start = High Level on TF

TD

(Output)

Start = Rising Edge on TF TD

(Output)

Start = Level Change on TF

TD

(Output)

Start = Any Edge on TF

TD

(Output)

X BO B1

STTDLY

X

X

X

BO B1

X

BO

X

BO

B1

BO

B1

BO

STTDLY

BO B1

STTDLY

B1

BO

STTDLY

B1

STTDLY

B1

STTDLY

Figure 30-11. Receive Pulse/Edge Start Modes

RK

RF

(Input)

Start = Low Level on RF

RD

(Input)

Start = Falling Edge on RF

RD

(Input)

Start = High Level on RF

Start = Rising Edge on RF

RD

(Input)

RD

(Input)

Start = Level Change on RF

RD

(Input)

Start = Any Edge on RF

RD

(Input)

X

X

X

X

BO

X

BO

X

BO

B1

BO

B1

B1

BO

B1

BO

STTDLY

STTDLY

BO B1

STTDLY

B1

BO

STTDLY

B1

STTDLY

B1

STTDLY

326

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.6.5

30.6.5.1

30.6.5.2

Frame Sync

The Transmitter and Receiver Frame Sync pins, TF and RF, can be programmed to generate different kinds of frame synchronization signals. The Frame Sync Output Selection (FSOS) field in the Receive Frame Mode Register (SSC_RFMR) and in the Transmit Frame Mode

Register (SSC_TFMR) are used to select the required waveform.

• Programmable low or high levels during data transfer are supported.

• Programmable high levels before the start of data transfers or toggling are also supported.

If a pulse waveform is selected, the Frame Sync Length (FSLEN) field in SSC_RFMR and

SSC_TFMR programs the length of the pulse, from 1 bit time up to 16 bit time.

The periodicity of the Receive and Transmit Frame Sync pulse output can be programmed through the Period Divider Selection (PERIOD) field in SSC_RCMR and SSC_TCMR.

Frame Sync Data

Frame Sync Data transmits or receives a specific tag during the Frame Sync signal.

During the Frame Sync signal, the Receiver can sample the RD line and store the data in the

Receive Sync Holding Register and the transmitter can transfer Transmit Sync Holding Register in the Shifter Register. The data length to be sampled/shifted out during the Frame Sync signal is programmed by the FSLEN field in SSC_RFMR/SSC_TFMR.

Concerning the Receive Frame Sync Data operation, if the Frame Sync Length is equal to or lower than the delay between the start event and the actual data reception, the data sampling operation is performed in the Receive Sync Holding Register through the Receive Shift

Register.

The Transmit Frame Sync Operation is performed by the transmitter only if the bit Frame Sync

Data Enable (FSDEN) in SSC_TFMR is set. If the Frame Sync length is equal to or lower than the delay between the start event and the actual data transmission, the normal transmission has priority and the data contained in the Transmit Sync Holding Register is transferred in the

Transmit Register, then shifted out.

Frame Sync Edge Detection

T h e F r a m e S y n c E d g e d e t e c t i o n i s p r o g r a m m e d b y t h e F S E D G E f i e l d i n

SSC_RFMR/SSC_TFMR. This sets the corresponding flags RXSYN/TXSYN in the SSC Status Register (SSC_SR) on frame synchro edge detection (signals RF/TF).

30.6.6

Receive Compare Modes

Figure 30-12. Receive Compare Modes

RK

RD

(Input)

B0 B1 B2 CMP0 CMP1 CMP2 CMP3

Start

FSLEN

Up to 16 Bits

(4 in This Example)

Ignored

STDLY DATLEN

327

6042E–ATARM–14-Dec-06

30.6.6.1

30.6.7

Compare Functions

Compare 0 can be one start event of the Receiver. In this case, the receiver compares at each new sample the last FSLEN bits received at the FSLEN lower bit of the data contained in the

Compare 0 Register (SSC_RC0R). When this start event is selected, the user can program the Receiver to start a new data transfer either by writing a new Compare 0, or by receiving continuously until Compare 1 occurs. This selection is done with the bit (STOP) in

SSC_RCMR.

Data Format

The data framing format of both the transmitter and the receiver are programmable through the Transmitter Frame Mode Register (SSC_TFMR) and the Receiver Frame Mode Register

(SSC_RFMR). In either case, the user can independently select:

• the event that starts the data transfer (START)

• the delay in number of bit periods between the start event and the first data bit (

STTDLY

)

• the length of the data (DATLEN)

• the number of data to be transferred for each start event (DATNB).

• the length of synchronization transferred for each start event (FSLEN)

• the bit sense: most or lowest significant bit first (MSBF).

Additionally, the transmitter can be used to transfer synchronization and select the level driven on the TD pin while not in data transfer operation. This is done respectively by the Frame Sync

Data Enable (FSDEN) and by the Data Default Value (DATDEF) bits in SSC_TFMR.

328

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 30-2.

Data Frame Registers

Transmitter Receiver

SSC_TFMR

SSC_TFMR

SSC_TFMR

SSC_TFMR

SSC_TFMR

SSC_TFMR

SSC_TCMR

SSC_TCMR

SSC_RFMR

SSC_RFMR

SSC_RFMR

SSC_RFMR

SSC_RCMR

SSC_RCMR

Field

DATLEN

DATNB

MSBF

FSLEN

DATDEF

FSDEN

PERIOD

STTDLY

Length

Up to 32

Up to 16

Up to 16

0 or 1

Up to 512

Up to 255

Comment

Size of word

Number of words transmitted in frame

Most significant bit first

Size of Synchro data register

Data default value ended

Enable send SSC_TSHR

Frame size

Size of transmit start delay

Figure 30-13. Transmit and Receive Frame Format in Edge/Pulse Start Modes

Start

PERIOD

TF/RF

(1)

FSLEN

TD

(If FSDEN = 1)

Sync Data Default

From SSC_TSHR FromDATDEF

TD

(If FSDEN = 0)

RD

Default

From DATDEF

Ignored

Sync Data

To SSC_RSHR

Data

From SSC_THR

Data

From SSC_THR

Data

To SSC_RHR

STTDLY DATLEN

Start

Data

From SSC_THR

Data

From SSC_THR

Data

To SSC_RHR

DATLEN

Default

FromDATDEF

Sync Data

Default

From DATDEF

Ignored

Sync Data

DATNB

Note: 1. Example of input on falling edge of TF/RF.

329

6042E–ATARM–14-Dec-06

Figure 30-14. Transmit Frame Format in Continuous Mode

Start

TD

Data

From SSC_THR

DATLEN

Start: 1. TXEMPTY set to 1

2. Write into the SSC_THR

Data

From SSC_THR

DATLEN

Default

Note: 1. STTDLY is set to 0. In this example, SSC_THR is loaded twice. FSDEN value has no effect on the transmission. SyncData cannot be output in continuous mode.

Figure 30-15. Receive Frame Format in Continuous Mode

Start = Enable Receiver

RD Data

To SSC_RHR

DATLEN

Data

To SSC_RHR

DATLEN

30.6.8

Loop Mode

Note: 1. STTDLY is set to 0.

The receiver can be programmed to receive transmissions from the transmitter. This is done by setting the Loop Mode (LOOP) bit in SSC_RFMR. In this case, RD is connected to TD, RF is connected to TF and RK is connected to TK.

30.6.9

Interrupt

Most bits in SSC_SR have a corresponding bit in interrupt management registers.

The SSC can be programmed to generate an interrupt when it detects an event. The interrupt is controlled by writing SSC_IER (Interrupt Enable Register) and SSC_IDR (Interrupt Disable

Register) These registers enable and disable, respectively, the corresponding interrupt by setting and clearing the corresponding bit in SSC_IMR (Interrupt Mask Register), which controls the generation of interrupts by asserting the SSC interrupt line connected to the AIC.

330

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

Figure 30-16. Interrupt Block Diagram

AT91SAM7A3 Preliminary

SSC_IMR

SSC_IER

Set

SSC_IDR

Clear

PDC

TXBUFE

ENDTX

Transmitter

TXRDY

TXEMPTY

TXSYNC

Interrupt

Control

SSC Interrupt

RXBUFF

ENDRX

Receiver

RXRDY

OVRUN

RXSYNC

331

AT91SAM7A3 Preliminary

30.7

SSC Application Examples

The SSC can support several serial communication modes used in audio or high speed serial links. Some standard applications are shown in the following figures. All serial link applications supported by the SSC are not listed here.

Figure 30-17. Audio Application Block Diagram

Clock SCK

TK

Word Select WS

TF

Data SD

TD

SSC

RD

Clock SCK

RF

Word Select WS

RK

Data SD

I2S

RECEIVER

MSB

Left Channel

LSB

MSB

Right Channel

Figure 30-18. Codec Application Block Diagram

Serial Data Clock (SCLK)

TK

Frame sync (FSYNC)

TF

Serial Data Out

TD

SSC

Serial Data In

RD

RF

RK

Serial Data Clock (SCLK)

Frame sync (FSYNC)

Serial Data Out

Serial Data In

CODEC

First Time Slot

Dstart Dend

332

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 30-19. Time Slot Application Block Diagram

SCLK

TK

FSYNC

TF

Data Out

TD

SSC

Data in

RD

RF

RK

CODEC

First

Time Slot

CODEC

Second

Time Slot

Serial Data Clock (SCLK)

Frame sync (FSYNC)

Serial Data Out

Serial Data in

First Time Slot

Dstart

Second Time Slot

Dend

333

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8

Synchronous Serial Controller (SSC) User Interface

Table 30-3.

Register Mapping

Offset

0x0

0x4

Register

Control Register

Clock Mode Register

0x28

0x2C

0x30

0x34

0x38

0x3C

0x40

0x44

0x8

0xC

0x10

0x14

0x18

0x1C

0x20

0x24

Reserved

Reserved

Receive Clock Mode Register

Receive Frame Mode Register

Transmit Clock Mode Register

Transmit Frame Mode Register

Receive Holding Register

Transmit Holding Register

Reserved

Reserved

Receive Sync. Holding Register

Transmit Sync. Holding Register

Receive Compare 0 Register

Receive Compare 1 Register

Status Register

Interrupt Enable Register

0x48

0x4C

Interrupt Disable Register

Interrupt Mask Register

0x50-0xFC Reserved

0x100- 0x124 Reserved for Peripheral Data Controller (PDC)

Register Name

SSC_CR

SSC_CMR

SSC_RCMR

SSC_RFMR

SSC_TCMR

SSC_TFMR

SSC_RHR

SSC_THR

SSC_RSHR

SSC_TSHR

SSC_RC0R

SSC_RC1R

SSC_SR

SSC_IER

SSC_IDR

SSC_IMR

Access

Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read

Write

Read

Read/Write

Read/Write

Read/Write

Read

Write

Write

Read

0x0

0x0

0x0

0x0

0x0

Reset

0x0

0x0

0x0

0x0

0x0

0x000000CC

0x0

334

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8.1

SSC Control Register

Name:

Access Type:

SSC_CR

Write-only

31

30

29

23

15

SWRST

22

14

21

13

28

20

12

27

19

11

26

18

10

25

17

9

TXDIS

7

6

5

4

3

2

1

RXDIS

0

RXEN

• RXEN: Receive Enable

0: No effect.

1: Enables Receive if RXDIS is not set.

• RXDIS: Receive Disable

0: No effect.

1: Disables Receive. If a character is currently being received, disables at end of current character reception.

• TXEN: Transmit Enable

0: No effect.

1: Enables Transmit if TXDIS is not set.

• TXDIS: Transmit Disable

0: No effect.

1: Disables Transmit. If a character is currently being transmitted, disables at end of current character transmission.

• SWRST: Software Reset

0: No effect.

1: Performs a software reset. Has priority on any other bit in SSC_CR.

24

16

8

TXEN

335

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8.2

SSC Clock Mode Register

Name:

Access Type:

SSC_CMR

Read/Write

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

26

18

10

25

17

9

24

16

8

DIV

7 6 5 4 3 2 1 0

DIV

• DIV: Clock Divider

0: The Clock Divider is not active.

Any Other Value: The Divided Clock equals the Master Clock divided by 2 times DIV. The maximum bit rate is MCK/2. The minimum bit rate is MCK/2 x 4095 = MCK/8190.

336

6042E–ATARM–14-Dec-06

30.8.3

SSC Receive Clock Mode Register

Name:

Access Type:

SSC_RCMR

Read/Write

31 30 29

23

15

22

14

21

13

28

PERIOD

27

20

STDDLY

19

11 12

STOP

4 3

CKO

7

CKG

6 5

CKI

• CKS: Receive Clock Selection

CKS

0x0

0x1

0x2

0x3

Selected Receive Clock

Divided Clock

TK Clock signal

RK pin

Reserved

AT91SAM7A3 Preliminary

26

18

25

17

10

START

9

2 1

CKS

24

16

8

0

• CKO: Receive Clock Output Mode Selection

CKO Receive Clock Output Mode

0x0

0x1

0x2

0x3-0x7

None

Continuous Receive Clock

Receive Clock only during data transfers

Reserved

RK pin

Input-only

Output

Output

• CKI: Receive Clock Inversion

0: The data inputs (Data and Frame Sync signals) are sampled on Receive Clock falling edge. The Frame Sync signal output is shifted out on Receive Clock rising edge.

1: The data inputs (Data and Frame Sync signals) are sampled on Receive Clock rising edge. The Frame Sync signal output is shifted out on Receive Clock falling edge.

CKI affects only the Receive Clock and not the output clock signal.

337

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• CKG: Receive Clock Gating Selection

CKG

0x0

0x1

0x2

0x3

Receive Clock Gating

None, continuous clock

Receive Clock enabled only if RF Low

Receive Clock enabled only if RF High

Reserved

• START: Receive Start Selection

START

0x0

0x1

0x2

0x3

0x4

0x5

0x6

0x7

0x8

Receive Start

Continuous, as soon as the receiver is enabled, and immediately after the end of transfer of the previous data.

Transmit start

Detection of a low level on RF signal

Detection of a high level on RF signal

Detection of a falling edge on RF signal

Detection of a rising edge on RF signal

Detection of any level change on RF signal

Detection of any edge on RF signal

Compare 0

0x9-0xF Reserved

• STOP: Receive Stop Selection

0: After completion of a data transfer when starting with a Compare 0, the receiver stops the data transfer and waits for a new compare 0.

1: After starting a receive with a Compare 0, the receiver operates in a continuous mode until a Compare 1 is detected.

• STTDLY: Receive Start Delay

If STTDLY is not 0, a delay of STTDLY clock cycles is inserted between the start event and the actual start of reception.

When the Receiver is programmed to start synchronously with the Transmitter, the delay is also applied.

Note: It is very important that STTDLY be set carefully. If STTDLY must be set, it should be done in relation to TAG

(Receive Sync Data) reception.

• PERIOD: Receive Period Divider Selection

This field selects the divider to apply to the selected Receive Clock in order to generate a new Frame Sync Signal. If 0, no

PERIOD signal is generated. If not 0, a PERIOD signal is generated each 2 x (PERIOD+1) Receive Clock.

338

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8.4

SSC Receive Frame Mode Register

Name:

Access Type:

SSC_RFMR

Read/Write

31

30

29

22 23

15

14

21

FSOS

13

28

20

27

19

26

18

FSLEN

25

17

24

FSEDGE

16

12

11 10

DATNB

9 8

7

MSBF

6

5

LOOP

4 3 2

DATLEN

1 0

• DATLEN: Data Length

0: Forbidden value (1-bit data length not supported).

Any other value: The bit stream contains DATLEN + 1 data bits. Moreover, it defines the transfer size performed by the

PDC2 assigned to the Receiver. If DATLEN is lower or equal to 7, data transfers are in bytes. If DATLEN is between 8 and

15 (included), half-words are transferred, and for any other value, 32-bit words are transferred.

• LOOP: Loop Mode

0: Normal operating mode.

1: RD is driven by TD, RF is driven by TF and TK drives RK.

• MSBF: Most Significant Bit First

0: The lowest significant bit of the data register is sampled first in the bit stream.

1: The most significant bit of the data register is sampled first in the bit stream.

• DATNB: Data Number per Frame

This field defines the number of data words to be received after each transfer start, which is equal to (DATNB + 1).

• FSLEN: Receive Frame Sync Length

This field defines the length of the Receive Frame Sync Signal and the number of bits sampled and stored in the Receive

Sync Data Register. When this mode is selected by the START field in the Receive Clock Mode Register, it also determines the length of the sampled data to be compared to the Compare 0 or Compare 1 register.

Pulse length is equal to (FSLEN + 1) Receive Clock periods. Thus, if FSLEN is 0, the Receive Frame Sync signal is generated during one Receive Clock period.

339

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• FSOS: Receive Frame Sync Output Selection

FSOS

0x0

0x1

0x2

0x3

0x4

0x5

0x6-0x7

Selected Receive Frame Sync Signal

None

Negative Pulse

Positive Pulse

Driven Low during data transfer

Driven High during data transfer

Toggling at each start of data transfer

Reserved

• FSEDGE: Frame Sync Edge Detection

Determines which edge on Frame Sync will generate the interrupt RXSYN in the SSC Status Register.

FSEDGE Frame Sync Edge Detection

0x0 Positive Edge Detection

0x1 Negative Edge Detection

RF Pin

Input-only

Output

Output

Output

Output

Output

Undefined

340

6042E–ATARM–14-Dec-06

30.8.5

SSC Transmit Clock Mode Register

Name:

Access Type:

SSC_TCMR

Read/Write

31 30 29

23

15

22

14

21

13

7

CKG

6 5

CKI

• CKS: Transmit Clock Selection

CKS Selected Transmit Clock

0x0

0x1

0x2

0x3

Divided Clock

RK Clock signal

TK Pin

Reserved

4

28

PERIOD

27

20

STTDLY

19

12

11

3

CKO

AT91SAM7A3 Preliminary

26

18

25

17

10

START

9

2 1

CKS

24

16

8

0

• CKO: Transmit Clock Output Mode Selection

CKO Transmit Clock Output Mode

0x0

0x1

0x2

0x3-0x7

None

Continuous Transmit Clock

Transmit Clock only during data transfers

Reserved

TK pin

Input-only

Output

Output

• CKI: Transmit Clock Inversion

0: The data outputs (Data and Frame Sync signals) are shifted out on Transmit Clock falling edge. The Frame sync signal input is sampled on Transmit clock rising edge.

1: The data outputs (Data and Frame Sync signals) are shifted out on Transmit Clock rising edge. The Frame sync signal input is sampled on Transmit clock falling edge.

CKI affects only the Transmit Clock and not the output clock signal.

• CKG: Transmit Clock Gating Selection

CKG

0x0

0x1

0x2

0x3

Transmit Clock Gating

None, continuous clock

Transmit Clock enabled only if TF Low

Transmit Clock enabled only if TF High

Reserved

341

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• START: Transmit Start Selection

START

0x0

0x1

0x2

0x3

0x4

0x5

0x6

0x7

0x8 - 0xF

Transmit Start

Continuous, as soon as a word is written in the SSC_THR Register (if Transmit is enabled), and immediately after the end of transfer of the previous data.

Receive start

Detection of a low level on TF signal

Detection of a high level on TF signal

Detection of a falling edge on TF signal

Detection of a rising edge on TF signal

Detection of any level change on TF signal

Detection of any edge on TF signal

Reserved

• STTDLY: Transmit Start Delay

If STTDLY is not 0, a delay of STTDLY clock cycles is inserted between the start event and the actual start of transmission of data. When the Transmitter is programmed to start synchronously with the Receiver, the delay is also applied.

Note: STTDLY must be set carefully. If STTDLY is too short in respect to TAG (Transmit Sync Data) emission, data is emitted instead of the end of TAG.

• PERIOD: Transmit Period Divider Selection

This field selects the divider to apply to the selected Transmit Clock to generate a new Frame Sync Signal. If 0, no period signal is generated. If not 0, a period signal is generated at each 2 x (PERIOD+1) Transmit Clock.

342

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8.6

SSC Transmit Frame Mode Register

Name:

Access Type:

SSC_TFMR

Read/Write

31

30

29

28

22 20 23

FSDEN

15

14

21

FSOS

13

12

27

19

11

26

18

10

FSLEN

25

17

9

24

FSEDGE

16

8

DATNB

7

MSBF

6

5

DATDEF

4 3 2

DATLEN

1 0

• DATLEN: Data Length

0: Forbidden value (1-bit data length not supported).

Any other value: The bit stream contains DATLEN + 1 data bits. Moreover, it defines the transfer size performed by the

PDC2 assigned to the Transmit. If DATLEN is lower or equal to 7, data transfers are bytes, if DATLEN is between 8 and 15

(included), half-words are transferred, and for any other value, 32-bit words are transferred.

• DATDEF: Data Default Value

This bit defines the level driven on the TD pin while out of transmission. Note that if the pin is defined as multi-drive by the

PIO Controller, the pin is enabled only if the SCC TD output is 1.

• MSBF: Most Significant Bit First

0: The lowest significant bit of the data register is shifted out first in the bit stream.

1: The most significant bit of the data register is shifted out first in the bit stream.

• DATNB: Data Number per frame

This field defines the number of data words to be transferred after each transfer start, which is equal to (DATNB +1).

• FSLEN: Transmit Frame Sync Length

This field defines the length of the Transmit Frame Sync signal and the number of bits shifted out from the Transmit Sync

Data Register if FSDEN is 1.

Pulse length is equal to (FSLEN + 1) Transmit Clock periods, i.e., the pulse length can range from 1 to 16 Transmit Clock periods. If FSLEN is 0, the Transmit Frame Sync signal is generated during one Transmit Clock period.

343

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• FSOS: Transmit Frame Sync Output Selection

FSOS

0x0

0x1

0x2

0x3

0x4

0x5

0x6-0x7

Selected Transmit Frame Sync Signal

None

Negative Pulse

Positive Pulse

Driven Low during data transfer

Driven High during data transfer

Toggling at each start of data transfer

Reserved

• FSDEN: Frame Sync Data Enable

0: The TD line is driven with the default value during the Transmit Frame Sync signal.

1: SSC_TSHR value is shifted out during the transmission of the Transmit Frame Sync signal.

• FSEDGE: Frame Sync Edge Detection

Determines which edge on frame sync will generate the interrupt TXSYN (Status Register).

FSEDGE Frame Sync Edge Detection

0x0 Positive Edge Detection

0x1 Negative Edge Detection

TF Pin

Input-only

Output

Output

Output

Output

Output

Undefined

344

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

30.8.7

SSC Receive Holding Register

Name:

Access Type:

SSC_RHR

Read-only

31 30 29 28 27 26

RDAT

23 22 21 20 19 18

RDAT

15 14 13 12 11 10

RDAT

7 6 5 4 3 2

RDAT

• RDAT: Receive Data

Right aligned regardless of the number of data bits defined by DATLEN in SSC_RFMR.

25

17

9

1

24

16

8

0

30.8.8

Name:

SSC Transmit Holding Register

Access Type:

SSC_THR

Write-only

31 30 29 28 27 26

TDAT

23 22 21 20 19 18

TDAT

15 14 13 12 11 10

TDAT

7 6 5 4 3 2

TDAT

• TDAT: Transmit Data

Right aligned regardless of the number of data bits defined by DATLEN in SSC_TFMR.

25

17

9

1

24

16

8

0

345

6042E–ATARM–14-Dec-06

30.8.9

SSC Receive Synchronization Holding Register

Name:

Access Type:

SSC_RSHR

Read-only

31

30

29

28

23

15

22

14

21

13

20

12

RSDAT

27

19

11

7 6 5 4 3

RSDAT

• RSDAT: Receive Synchronization Data

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

30.8.10

SSC Transmit Synchronization Holding Register

Name:

SSC_TSHR

Access Type:

Read/Write

31

30

29

28

23

15

22

14

21

13

20

12

TSDAT

27

19

11

7 6 5 4 3

TSDAT

• TSDAT: Transmit Synchronization Data

26

18

10

2

25

17

9

1

24

16

8

0

346

6042E–ATARM–14-Dec-06

30.8.11

SSC Receive Compare 0 Register

Name:

Access Type:

SSC_RC0R

Read/Write

31

30

29

23

15

22

14

21

13

7 6 5

28

20

12

CP0

4

CP0

27

19

11

3

• CP0: Receive Compare Data 0

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

6042E–ATARM–14-Dec-06

347

30.8.12

SSC Receive Compare 1 Register

Name:

Access Type:

SSC_RC1R

Read/Write

31

30

29

23

15

22

14

21

13

7 6 5

28

20

12

CP1

4

CP1

27

19

11

3

• CP1: Receive Compare Data 1

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

6042E–ATARM–14-Dec-06

348

AT91SAM7A3 Preliminary

30.8.13

SSC Status Register

Name:

Access Type:

SSC_SR

Read-only

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

RXSYN

26

18

10

TXSYN

25

17

RXEN

9

CP1

24

16

TXEN

8

CP0

7

RXBUFF

6

ENDRX

5

OVRUN

4

RXRDY

3

TXBUFE

2

ENDTX

1

TXEMPTY

0

TXRDY

• TXRDY: Transmit Ready

0: Data has been loaded in SSC_THR and is waiting to be loaded in the Transmit Shift Register (TSR).

1: SSC_THR is empty.

• TXEMPTY: Transmit Empty

0: Data remains in SSC_THR or is currently transmitted from TSR.

1: Last data written in SSC_THR has been loaded in TSR and last data loaded in TSR has been transmitted.

• ENDTX: End of Transmission

0: The register SSC_TCR has not reached 0 since the last write in SSC_TCR or SSC_TNCR.

1: The register SSC_TCR has reached 0 since the last write in SSC_TCR or SSC_TNCR.

• TXBUFE: Transmit Buffer Empty

0: SSC_TCR or SSC_TNCR have a value other than 0.

1: Both SSC_TCR and SSC_TNCR have a value of 0.

• RXRDY: Receive Ready

0: SSC_RHR is empty.

1: Data has been received and loaded in SSC_RHR.

• OVRUN: Receive Overrun

0: No data has been loaded in SSC_RHR while previous data has not been read since the last read of the Status Register.

1: Data has been loaded in SSC_RHR while previous data has not yet been read since the last read of the Status Register.

• ENDRX: End of Reception

0: Data is written on the Receive Counter Register or Receive Next Counter Register.

1: End of PDC transfer when Receive Counter Register has arrived at zero.

• RXBUFF: Receive Buffer Full

0: SSC_RCR or SSC_RNCR have a value other than 0.

1: Both SSC_RCR and SSC_RNCR have a value of 0.

• CP0: Compare 0

0: A compare 0 has not occurred since the last read of the Status Register.

1: A compare 0 has occurred since the last read of the Status Register.

• CP1: Compare 1

0: A compare 1 has not occurred since the last read of the Status Register.

1: A compare 1 has occurred since the last read of the Status Register.

349

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• TXSYN: Transmit Sync

0: A Tx Sync has not occurred since the last read of the Status Register.

1: A Tx Sync has occurred since the last read of the Status Register.

• RXSYN: Receive Sync

0: An Rx Sync has not occurred since the last read of the Status Register.

1: An Rx Sync has occurred since the last read of the Status Register.

• TXEN: Transmit Enable

0: Transmit is disabled.

1: Transmit is enabled.

• RXEN: Receive Enable

0: Receive is disabled.

1: Receive is enabled.

6042E–ATARM–14-Dec-06

350

AT91SAM7A3 Preliminary

30.8.14

SSC Interrupt Enable Register

Name:

Access Type:

SSC_IER

Write-only

31

30

29

23

15

22

14

21

13

7

RXBUFF

6

ENDRX

5

OVRUN

4

RXRDY

• TXRDY: Transmit Ready Interrupt Enable

0: No effect.

1: Enables the Transmit Ready Interrupt.

• TXEMPTY: Transmit Empty Interrupt Enable

0: No effect.

1: Enables the Transmit Empty Interrupt.

• ENDTX: End of Transmission Interrupt Enable

0: No effect.

1: Enables the End of Transmission Interrupt.

• TXBUFE: Transmit Buffer Empty Interrupt Enable

0: No effect.

1: Enables the Transmit Buffer Empty Interrupt

• RXRDY: Receive Ready Interrupt Enable

0: No effect.

1: Enables the Receive Ready Interrupt.

• OVRUN: Receive Overrun Interrupt Enable

0: No effect.

1: Enables the Receive Overrun Interrupt.

• ENDRX: End of Reception Interrupt Enable

0: No effect.

1: Enables the End of Reception Interrupt.

• RXBUFF: Receive Buffer Full Interrupt Enable

0: No effect.

1: Enables the Receive Buffer Full Interrupt.

• CP0: Compare 0 Interrupt Enable

0: No effect.

1: Enables the Compare 0 Interrupt.

• CP1: Compare 1 Interrupt Enable

0: No effect.

1: Enables the Compare 1 Interrupt.

28

20

12

27

19

11

RXSYN

3

TXBUFE

26

18

10

TXSYN

2

ENDTX

25

17

9

CP1

1

TXEMPTY

24

16

8

CP0

0

TXRDY

351

6042E–ATARM–14-Dec-06

• TXSYN: Tx Sync Interrupt Enable

0: No effect.

1: Enables the Tx Sync Interrupt.

• RXSYN: Rx Sync Interrupt Enable

0: No effect.

1: Enables the Rx Sync Interrupt.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

352

AT91SAM7A3 Preliminary

30.8.15

SSC Interrupt Disable Register

Name:

Access Type:

SSC_IDR

Write-only

31

30

29

23

15

22

14

21

13

7

RXBUFF

6

ENDRX

5

OVRUN

4

RXRDY

• TXRDY: Transmit Ready Interrupt Disable

0: No effect.

1: Disables the Transmit Ready Interrupt.

• TXEMPTY: Transmit Empty Interrupt Disable

0: No effect.

1: Disables the Transmit Empty Interrupt.

• ENDTX: End of Transmission Interrupt Disable

0: No effect.

1: Disables the End of Transmission Interrupt.

• TXBUFE: Transmit Buffer Empty Interrupt Disable

0: No effect.

1: Disables the Transmit Buffer Empty Interrupt.

• RXRDY: Receive Ready Interrupt Disable

0: No effect.

1: Disables the Receive Ready Interrupt.

• OVRUN: Receive Overrun Interrupt Disable

0: No effect.

1: Disables the Receive Overrun Interrupt.

• ENDRX: End of Reception Interrupt Disable

0: No effect.

1: Disables the End of Reception Interrupt.

• RXBUFF: Receive Buffer Full Interrupt Disable

0: No effect.

1: Disables the Receive Buffer Full Interrupt.

• CP0: Compare 0 Interrupt Disable

0: No effect.

1: Disables the Compare 0 Interrupt.

• CP1: Compare 1 Interrupt Disable

0: No effect.

1: Disables the Compare 1 Interrupt.

28

20

12

27

19

11

RXSYN

3

TXBUFE

26

18

10

TXSYN

2

ENDTX

25

17

9

CP1

1

TXEMPTY

24

16

8

CP0

0

TXRDY

353

6042E–ATARM–14-Dec-06

• TXSYN: Tx Sync Interrupt Enable

0: No effect.

1: Disables the Tx Sync Interrupt.

• RXSYN: Rx Sync Interrupt Enable

0: No effect.

1: Disables the Rx Sync Interrupt.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

354

AT91SAM7A3 Preliminary

30.8.16

SSC Interrupt Mask Register

Name:

Access Type:

SSC_IMR

Read-only

31

30

29

23

15

22

14

21

13

7

RXBUF

6

ENDRX

5

OVRUN

4

RXRDY

• TXRDY: Transmit Ready Interrupt Mask

0: The Transmit Ready Interrupt is disabled.

1: The Transmit Ready Interrupt is enabled.

• TXEMPTY: Transmit Empty Interrupt Mask

0: The Transmit Empty Interrupt is disabled.

1: The Transmit Empty Interrupt is enabled.

• ENDTX: End of Transmission Interrupt Mask

0: The End of Transmission Interrupt is disabled.

1: The End of Transmission Interrupt is enabled.

• TXBUFE: Transmit Buffer Empty Interrupt Mask

0: The Transmit Buffer Empty Interrupt is disabled.

1: The Transmit Buffer Empty Interrupt is enabled.

• RXRDY: Receive Ready Interrupt Mask

0: The Receive Ready Interrupt is disabled.

1: The Receive Ready Interrupt is enabled.

• OVRUN: Receive Overrun Interrupt Mask

0: The Receive Overrun Interrupt is disabled.

1: The Receive Overrun Interrupt is enabled.

• ENDRX: End of Reception Interrupt Mask

0: The End of Reception Interrupt is disabled.

1: The End of Reception Interrupt is enabled.

• RXBUFF: Receive Buffer Full Interrupt Mask

0: The Receive Buffer Full Interrupt is disabled.

1: The Receive Buffer Full Interrupt is enabled.

• CP0: Compare 0 Interrupt Mask

0: The Compare 0 Interrupt is disabled.

1: The Compare 0 Interrupt is enabled.

• CP1: Compare 1 Interrupt Mask

0: The Compare 1 Interrupt is disabled.

1: The Compare 1 Interrupt is enabled.

28

20

12

27

19

11

RXSYN

3

TXBUFE

26

18

10

TXSYN

2

ENDTX

25

17

9

CP1

1

TXEMPTY

24

16

8

CP0

0

TXRDY

355

6042E–ATARM–14-Dec-06

• TXSYN: Tx Sync Interrupt Mask

0: The Tx Sync Interrupt is disabled.

1: The Tx Sync Interrupt is enabled.

• RXSYN: Rx Sync Interrupt Mask

0: The Rx Sync Interrupt is disabled.

1: The Rx Sync Interrupt is enabled.

356

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31. Timer/Counter (TC)

31.1

Overview

The Timer Counter (TC) includes three identical 16-bit Timer Counter channels.

Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse width modulation.

Each channel has three external clock inputs, five internal clock inputs and two multi-purpose input/output signals which can be configured by the user. Each channel drives an internal interrupt signal which can be programmed to generate processor interrupts.

The Timer Counter block has two global registers which act upon all three TC channels.

The Block Control Register allows the three channels to be started simultaneously with the same instruction.

The Block Mode Register defines the external clock inputs for each channel, allowing them to be chained.

Table 31-1 gives the assignment of the device Timer Counter clock inputs common to Timer

Counter 0 to 2.

Table 31-1.

Timer Counter Clock Assignment

Name Definition

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

357

6042E–ATARM–14-Dec-06

31.2

Block Diagram

Figure 31-1. Timer/Counter Block Diagram

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

TCLK0

TCLK1

TCLK2

TIOA1

TIOA2

TCLK0

TCLK1

TIOA0

TIOA2

TCLK2

XC0

XC1

XC2

TC0XC0S

TCLK0

TCLK1

TCLK2

TIOA0

TIOA1

XC0

XC1

XC2

TC1XC1S

XC0

XC1

XC2

TC2XC2S

Timer/Counter

Channel 0

TIOA

TIOB

TIOA0

TIOB0

SYNC

INT0

Timer/Counter

Channel 1

TIOA

TIOB

TIOA1

TIOB1

SYNC

INT1

Timer/Counter

Channel 2

TIOA

TIOB

TIOA2

TIOB2

SYNC

INT2

Timer Counter

Advanced

Interrupt

Controller

Parallel I/O

Controller

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

TIOA2

TIOB2

Table 31-2.

Signal Name Description

Channel Signal

XC0, XC1, XC2

TIOA

TIOB

INT

SYNC

Description

External Clock Inputs

Capture Mode: Timer/Counter Input

Waveform Mode: Timer/Counter Output

Capture Mode: Timer/Counter Input

Waveform Mode: Timer/Counter Input/output

Interrupt Signal Output

Synchronization Input Signal

358

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.3

Pin Name List

Table 31-3.

TC pin list

Pin Name

TCLK0-TCLK2

TIOA0-TIOA2

TIOB0-TIOB2

Description

External Clock Input

I/O Line A

I/O Line B

Type

Input

I/O

I/O

31.4

Product Dependencies

31.4.1

I/O Lines

The pins used for interfacing the compliant external devices may be multiplexed with PIO lines. The programmer must first program the PIO controllers to assign the TC pins to their peripheral functions.

31.4.2

31.4.3

Power Management

The TC is clocked through the Power Management Controller (PMC), thus the programmer must first configure the PMC to enable the Timer/Counter clock.

Interrupt

The TC has an interrupt line connected to the Advanced Interrupt Controller (AIC). Handling the TC interrupt requires programming the AIC before configuring the TC.

359

6042E–ATARM–14-Dec-06

31.5

Functional Description

31.5.1

TC Description

The three channels of the Timer/Counter are independent and identical in operation. The registers for channel programming are listed in

Table 31-5 on page 373 .

31.5.1.1

16-bit Counter

Each channel is organized around a 16-bit counter. The value of the counter is incremented at each positive edge of the selected clock. When the counter has reached the value 0xFFFF and passes to 0x0000, an overflow occurs and the COVFS bit in TC_SR (Status Register) is set.

The current value of the counter is accessible in real time by reading the Counter Value Register, TC_CV. The counter can be reset by a trigger. In this case, the counter value passes to

0x0000 on the next valid edge of the selected clock.

31.5.1.2

Clock Selection

At block level, input clock signals of each channel can either be connected to the external inputs TCLK0, TCLK1 or TCLK2, or be connected to the configurable internal signals TIOA0,

TIOA1 or TIOA2 for chaining by programming the TC_BMR (Block Mode). See

Figure 31-2 .

Each channel can independently select an internal or external clock source for its counter:

• Internal clock signals: TIMER_CLOCK1, TIMER_CLOCK2, TIMER_CLOCK3,

TIMER_CLOCK4, TIMER_CLOCK5

• External clock signals: XC0, XC1 or XC2

This selection is made by the TCCLKS bits in the TC Channel Mode Register.

The selected clock can be inverted with the CLKI bit in TC_CMR. This allows counting on the opposite edges of the clock.

The burst function allows the clock to be validated when an external signal is high. The

BURST parameter in the Mode Register defines this signal (none, XC0, XC1, XC2). See Figure 31-3

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the master clock period. The external clock frequency must be at least 2.5 times lower than the master clock

360

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

Figure 31-2. Clock Chaining Selection

TC0XC0S

TCLK0

TIOA1

TIOA2

AT91SAM7A3 Preliminary

Timer/Counter

Channel 0

TIOA0 XC0

XC1 = TCLK1

XC2 = TCLK2 TIOB0

SYNC

TC1XC1S

TCLK1

TIOA0

TIOA2

Timer/Counter

Channel 1

XC0 = TCLK2

TIOA1

XC1

XC2 = TCLK2 TIOB1

SYNC

TCLK2

TIOA0

TIOA1

TC2XC2S

Timer/Counter

Channel 2

XC0 = TCLK0

XC1 = TCLK1

XC2

TIOA2

TIOB2

SYNC

Figure 31-3. Clock Selection

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

XC0

XC1

XC2

TCCLKS

BURST

1

CLKI

Selected

Clock

361

31.5.1.3

Clock Control

The clock of each counter can be controlled in two different ways: it can be enabled/disabled and started/stopped. See

Figure 31-4

.

• The clock can be enabled or disabled by the user with the CLKEN and the CLKDIS commands in the Control Register. In Capture Mode it can be disabled by an RB load event if LDBDIS is set to 1 in TC_CMR. In Waveform Mode, it can be disabled by an RC Compare event if CPCDIS is set to 1 in TC_CMR. When disabled, the start or the stop actions have no effect: only a CLKEN command in the Control Register can re-enable the clock. When the clock is enabled, the CLKSTA bit is set in the Status Register.

• The clock can also be started or stopped: a trigger (software, synchro, external or compare) always starts the clock. The clock can be stopped by an RB load event in

Capture Mode (LDBSTOP = 1 in TC_CMR) or a RC compare event in Waveform Mode

(CPCSTOP = 1 in TC_CMR). The start and the stop commands have effect only if the clock is enabled.

Figure 31-4. Clock Control

Selected

Clock

Trigger

CLKSTA CLKEN CLKDIS

Q S

R

Q S

R

31.5.1.4

31.5.1.5

Stop

Event

Disable

Event

Counter

Clock

TC Operating Modes

Each channel can independently operate in two different modes:

• Capture Mode provides measurement on signals.

• Waveform Mode provides wave generation.

The TC Operating Mode is programmed with the WAVE bit in the TC Channel Mode Register.

In Capture Mode, TIOA and TIOB are configured as inputs.

In Waveform Mode, TIOA is always configured to be an output and TIOB is an output if it is not selected to be the external trigger.

Trigger

A trigger resets the counter and starts the counter clock. Three types of triggers are common to both modes, and a fourth external trigger is available to each mode.

362

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.5.2

31.5.2.1

31.5.2.2

The following triggers are common to both modes:

• Software Trigger: Each channel has a software trigger, available by setting SWTRG in

TC_CCR.

• SYNC: Each channel has a synchronization signal SYNC. When asserted, this signal has the same effect as a software trigger. The SYNC signals of all channels are asserted simultaneously by writing TC_BCR (Block Control) with SYNC set.

• Compare RC Trigger: RC is implemented in each channel and can provide a trigger when the counter value matches the RC value if CPCTRG is set in TC_CMR.

The channel can also be configured to have an external trigger. In Capture Mode, the external trigger signal can be selected between TIOA and TIOB. In Waveform Mode, an external event can be programmed on one of the following signals: TIOB, XC0, XC1 or XC2. This external event can then be programmed to perform a trigger by setting ENETRG in TC_CMR.

If an external trigger is used, the duration of the pulses must be longer than the master clock period in order to be detected.

Regardless of the trigger used, it will be taken into account at the following active edge of the selected clock. This means that the counter value can be read differently from zero just after a trigger, especially when a low frequency signal is selected as the clock.

Capture Operating Mode

This mode is entered by clearing the WAVE parameter in TC_CMR (Channel Mode Register).

Capture Mode allows the TC channel to perform measurements such as pulse timing, frequency, period, duty cycle and phase on TIOA and TIOB signals which are considered as inputs.

Figure 31-5 shows the configuration of the TC channel when programmed in Capture Mode.

Capture Registers A and B

Registers A and B (RA and RB) are used as capture registers. This means that they can be loaded with the counter value when a programmable event occurs on the signal TIOA.

The LDRA parameter in TC_CMR defines the TIOA edge for the loading of register A, and the

LDRB parameter defines the TIOA edge for the loading of Register B.

RA is loaded only if it has not been loaded since the last trigger or if RB has been loaded since the last loading of RA.

RB is loaded only if RA has been loaded since the last trigger or the last loading of RB.

Loading RA or RB before the read of the last value loaded sets the Overrun Error Flag

(LOVRS) in TC_SR (Status Register). In this case, the old value is overwritten.

Trigger Conditions

In addition to the SYNC signal, the software trigger and the RC compare trigger, an external trigger can be defined.

The ABETRG bit in TC_CMR selects TIOA or TIOB input signal as an external trigger. The

ETRGEDG parameter defines the edge (rising, falling or both) detected to generate an external trigger. If ETRGEDG = 0 (none), the external trigger is disabled.

363

6042E–ATARM–14-Dec-06

Figure 31-5. Capture Mode

CPCS

LOVRS

COVFS

LDRBS

LDRAS

ETRGS

TC1_SR TC1_IMR

364

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.5.3

31.5.3.1

Waveform Operating Mode

Waveform operating mode is entered by setting the WAVE parameter in TC_CMR (Channel

Mode Register).

In Waveform Operating Mode the TC channel generates 1 or 2 PWM signals with the same frequency and independently programmable duty cycles, or generates different types of oneshot or repetitive pulses.

In this mode, TIOA is configured as an output and TIOB is defined as an output if it is not used as an external event (EEVT parameter in TC_CMR).

Figure 31-6 shows the configuration of the TC channel when programmed in Waveform Oper-

ating Mode.

Waveform Selection

Depending on the WAVSEL parameter in TC_CMR (Channel Mode Register), the behavior of

TC_CV varies.

With any selection, RA, RB and RC can all be used as compare registers.

RA Compare is used to control the TIOA output, RB Compare is used to control the TIOB output (if correctly configured) and RC Compare is used to control TIOA and/or TIOB outputs.

365

6042E–ATARM–14-Dec-06

Figure 31-6. Waveform Mode

Output Controller Output Controller

CPCS

CPBS

CPAS

COVFS

ETRGS

TC1_SR TC1_IMR

366

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

31.5.3.2

AT91SAM7A3 Preliminary

WAVSEL = 00

When WAVSEL = 00, the value of TC_CV is incremented from 0 to 0xFFFF. Once 0xFFFF has been reached, the value of TC_CV is reset. Incrementation of TC_CV starts again and the cycle continues. See

Figure 31-7

.

An external event trigger or a software trigger can reset the value of TC_CV. It is important to note that the trigger may occur at any time. See

Figure 31-8 .

RC Compare cannot be programmed to generate a trigger in this configuration. At the same time, RC Compare can stop the counter clock (CPCSTOP = 1 in TC_CMR) and/or disable the counter clock (CPCDIS = 1 in TC_CMR).

Figure 31-7. WAVSEL= 00 without trigger

Counter Value Counter cleared by compare match with 0xFFFF

0xFFFF

R

C

R

B

R

A

Time

Waveform Examples

TIOB

TIOA

367

6042E–ATARM–14-Dec-06

Figure 31-8. WAVSEL= 00 with trigger

Counter Value

0xFFFF

R

C

R

B

R

A

Counter cleared by compare match with 0xFFFF

Counter cleared by trigger

Time

Waveform Examples

TIOB

TIOA

31.5.3.3

WAVSEL = 10

When WAVSEL = 10, the value of TC_CV is incremented from 0 to the value of RC, then automatically reset on a RC Compare. Once the value of TC_CV has been reset, it is then incremented and so on. See

Figure 31-9

.

It is important to note that TC_CV can be reset at any time by an external event or a software

trigger if both are programmed correctly. See Figure 31-10

.

In addition, RC Compare can stop the counter clock (CPCSTOP = 1 in TC_CMR) and/or disable the counter clock (CPCDIS = 1 in TC_CMR).

368

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 31-9. WAVSEL = 10 Without Trigger

Counter Value

0xFFFF

Counter cleared by compare match with RC

R

C

R

B

R

A

Time

Waveform Examples

TIOB

TIOA

Figure 31-10. WAVSEL = 10 With Trigger

Counter Value

0xFFFF

Counter cleared by compare match with RC

R

C

Counter cleared by trigger

R

B

R

A

Time

Waveform Examples

TIOB

TIOA

31.5.3.4

WAVSEL = 01

When WAVSEL = 01, the value of TC_CV is incremented from 0 to 0xFFFF. Once 0xFFFF is reached, the value of TC_CV is decremented to 0, then re-incremented to 0xFFFF and so on.

See

Figure 31-11 .

A trigger such as an external event or a software trigger can modify TC_CV at any time. If a trigger occurs while TC_CV is incrementing, TC_CV then decrements. If a trigger is received while TC_CV is decrementing, TC_CV then increments. See

Figure 31-12 .

369

6042E–ATARM–14-Dec-06

RC Compare cannot be programmed to generate a trigger in this configuration.

At the same time, RC Compare can stop the counter clock (CPCSTOP = 1) and/or disable the counter clock (CPCDIS = 1).

Figure 31-11. WAVSEL = 01 Without Trigger

Counter Value Counter decremented by compare match with 0xFFFF

0xFFFF

R

C

R

B

R

A

Time

Waveform Examples

TIOB

TIOA

Figure 31-12. WAVSEL = 01 With Trigger

Counter Value Counter decremented by compare match with 0xFFFF

0xFFFF

Counter decremented by trigger

R

C

R

B

Counter incremented by trigger

R

A

Time

Waveform Examples

TIOB

31.5.3.5

TIOA

WAVSEL = 11

When WAVSEL = 11, the value of TC_CV is incremented from 0 to RC. Once RC is reached, the value of TC_CV is decremented to 0, then re-incremented to RC and so on. See

Figure

31-13

.

370

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

A trigger such as an external event or a software trigger can modify TC_CV at any time. If a trigger occurs while TC_CV is incrementing, TC_CV then decrements. If a trigger is received while TC_CV is decrementing, TC_CV then increments. See

Figure 31-14 .

RC Compare can stop the counter clock (CPCSTOP = 1) and/or disable the counter clock

(CPCDIS = 1).

Figure 31-13. WAVSEL = 11 Without Trigger

Counter Value

0xFFFF

Counter decremented by compare match with RC

R

C

R

B

R

A

Time

Waveform Examples

TIOB

TIOA

Figure 31-14. WAVSEL = 11 With Trigger

Counter Value

0xFFFF

Counter decremented by compare match with RC

R

C

Counter decremented by trigger

R

B

Counter incremented by trigger

R

A

Waveform Examples

TIOB

Time

TIOA

371

6042E–ATARM–14-Dec-06

31.5.4

31.5.5

External Event/Trigger Conditions

An external event can be programmed to be detected on one of the clock sources (XC0, XC1,

XC2) or TIOB. The external event selected can then be used as a trigger.

The EEVT parameter in TC_CMR selects the external trigger. The EEVTEDG parameter defines the trigger edge for each of the possible external triggers (rising, falling or both). If

EEVTEDG is cleared (none), no external event is defined.

If TIOB is defined as an external event signal (EEVT = 0), TIOB is no longer used as an output and the compare register B is not used to generate waveforms and subsequently no IRQs. In this case the TC channel can only generate a waveform on TIOA.

When an external event is defined, it can be used as a trigger by setting bit ENETRG in

TC_CMR.

As in Capture Mode, the SYNC signal and the software trigger are also available as triggers.

RC Compare can also be used as a trigger depending on the parameter WAVSEL.

Output Controller

The output controller defines the output level changes on TIOA and TIOB following an event.

TIOB control is used only if TIOB is defined as output (not as an external event).

The following events control TIOA and TIOB: software trigger, external event and RC compare. RA compare controls TIOA and RB compare controls TIOB. Each of these events can be programmed to set, clear or toggle the output as defined in the corresponding parameter in

TC_CMR.

372

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.6

Timer/Counter (TC) User Interface

31.6.1

Global Register Mapping

Table 31-4.

Timer/Counter (TC) Global Register Map

Offset Channel/Register

0x00

0x40

0x80

0xC0

0xC4

TC Channel 0

TC Channel 1

TC Channel 2

TC Block Control Register

TC Block Mode Register

Name

TC_BCR

TC_BMR

Name

TC_CCR

TC_CMR

TC_CV

TC_RA

TC_RB

TC_RC

TC_SR

TC_IER

TC_IDR

TC_IMR

Access

See Table 31-5

See Table 31-5

See Table 31-5

Write-only

Read/Write

Write-only

Read/Write

Read-only

Read/Write

(1)

Read/Write

(1)

Read/Write

Read-only

Write-only

Write-only

Read-only

Reset Value

0

0

0

0

0

0

0

0

31.6.2

TC_BCR (Block Control Register) and TC_BMR (Block Mode Register) control the whole TC

block. TC channels are controlled by the registers listed in

Table 31-5

. The offset of each of the channel registers in

Table 31-5

is in relation to the offset of the corresponding channel as men-

tioned in

Table 31-5

.

Channel Memory Mapping

Table 31-5.

TC Channel Memory Map

Offset Register

0x00

0x04

0x08

0x0C

0x10

0x14

Channel Control Register

Channel Mode Register

Reserved

Reserved

Counter Value

Register A

0x18

0x1C

0x20

0x24

0x28

Register B

Register C

Status Register

Interrupt Enable Register

Interrupt Disable Register

0x2C Interrupt Mask Register

0xFC Reserved

Notes: 1. Read-only if WAVE = 0

373

6042E–ATARM–14-Dec-06

31.6.3

TC Block Control Register

Register Name:

TC_BCR

Access Type:

Write-only

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

1

9

25

17

• SYNC: Synchro Command

0 = No effect.

1 = Asserts the SYNC signal which generates a software trigger simultaneously for each of the channels.

24

16

8

0

SYNC

374

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.6.4

TC Block Mode Register

Register Name:

TC_BMR

Access Type:

Read/Write

15

7

31

23

14

6

30

22

13

5

29

21

TC2XC2S

12

4

28

20

• TC0XC0S: External Clock Signal 0 Selection

1

1

0

0

TC0XC0S

0

1

0

1

Signal Connected to XC0

TCLK0 none

TIOA1

TIOA2

• TC1XC1S: External Clock Signal 1 Selection

11

3

27

19

TCXC1S

10

2

26

18

0

0

1

1

TC1XC1S

0

1

0

1

Signal Connected to XC1

TCLK1 none

TIOA0

TIOA2

• TC2XC2S: External Clock Signal 2 Selection

1

1

0

0

TC2XC2S

0

1

0

1

Signal Connected to XC2

TCLK2 none

TIOA0

TIOA1

9

1

25

17

TC0XC0S

8

0

24

16

375

6042E–ATARM–14-Dec-06

31.6.5

TC Channel Control Register

Register Name:

TC_CCR

Access Type:

Write-only

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

• CLKEN: Counter Clock Enable Command

0 = No effect.

1 = Enables the clock if CLKDIS is not 1.

• CLKDIS: Counter Clock Disable Command

0 = No effect.

1 = Disables the clock.

• SWTRG: Software Trigger Command

0 = No effect.

1 = A software trigger is performed: the counter is reset and the clock is started.

26

18

10

2

SWTRG

25

17

9

1

CLKDIS

24

16

8

0

CLKEN

376

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.6.6

TC Channel Mode Register: Capture Mode

Register Name:

TC_CMR

Access Type:

Read/Write

31

23

15

WAVE = 0

7

LDBDIS

30

22

14

CPCTRG

6

LDBSTOP

13

5

29

21

BURST

12

4

28

20

• TCCLKS: Clock Selection

27

19

11

3

CLKI

26

18

LDRB

10

ABETRG

2

25

17

LDRA

9

ETRGEDG

1

TCCLKS

24

16

8

0

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

0

1

0

1

0

1

0

1

• CLKI: Clock Invert

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

XC0

XC1

XC2

BURST

1

1

0

0

0

1

0

1

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

• LDBSTOP: Counter Clock Stopped with RB Loading

0 = Counter clock is not stopped when RB loading occurs.

1 = Counter clock is stopped when RB loading occurs.

• LDBDIS: Counter Clock Disable with RB Loading

0 = Counter clock is not disabled when RB loading occurs.

1 = Counter clock is disabled when RB loading occurs.

377

6042E–ATARM–14-Dec-06

• ETRGEDG: External Trigger Edge Selection

1

1

0

0

ETRGEDG

0

1

0

1

Edge

none rising edge falling edge each edge

• ABETRG: TIOA or TIOB External Trigger Selection

0 = TIOB is used as an external trigger.

1 = TIOA is used as an external trigger.

• CPCTRG: RC Compare Trigger Enable

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE

0 = Capture Mode is enabled.

1 = Capture Mode is disabled (Waveform Mode is enabled).

• LDRA: RA Loading Selection

LDRA

1

1

0

0

0

1

0

1

• LDRB: RB Loading Selection

Edge

none rising edge of TIOA falling edge of TIOA each edge of TIOA

0

0

1

1

LDRB

0

1

0

1

Edge

none rising edge of TIOA falling edge of TIOA each edge of TIOA

378

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.6.7

TC Channel Mode Register: Waveform Mode

Register Name:

TC_CMR

Access Type:

Read/Write

29 31 30

BSWTRG

23

15

WAVE = 1

ASWTRG

7

CPCDIS

22

14

6

CPCSTOP

WAVSEL

21

13

5

28

BEEVT

20

AEEVT

BURST

12

ENETRG

4

• TCCLKS: Clock Selection

1

1

1

1

0

0

0

0

TCCLKS

0

0

0

0

1

1

1

1

0

1

0

1

0

1

0

1

• CLKI: Clock Invert

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

Clock Selected

TIMER_CLOCK1

TIMER_CLOCK2

TIMER_CLOCK3

TIMER_CLOCK4

TIMER_CLOCK5

XC0

XC1

XC2

27

19

11

3

CLKI

BCPC

ACPC

EEVT

26

18

10

2

BURST

1

1

0

0

0

1

0

1

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

• CPCSTOP: Counter Clock Stopped with RC Compare

0 = Counter clock is not stopped when counter reaches RC.

1 = Counter clock is stopped when counter reaches RC.

• CPCDIS: Counter Clock Disable with RC Compare

0 = Counter clock is not disabled when counter reaches RC.

1 = Counter clock is disabled when counter reaches RC.

25 24

BCPB

17

ACPA

9

1

TCCLKS

EEVTEDG

16

8

0

379

6042E–ATARM–14-Dec-06

• EEVTEDG: External Event Edge Selection

EEVTEDG

1

1

0

0

0

1

0

1

• EEVT: External Event Selection

Edge

none rising edge falling edge each edge

0

0

1

EEVT

0

1

0

Signal selected as external event

TIOB

XC0

XC1

TIOB Direction

input

(1)

output output

1 1 XC2 output

Note: 1. If TIOB is chosen as the external event signal, it is configured as an input and no longer generates waveforms and subse-

quently no IRQs.

• ENETRG: External Event Trigger Enable

0 = The external event has no effect on the counter and its clock. In this case, the selected external event only controls the

TIOA output.

1 = The external event resets the counter and starts the counter clock.

• WAVSEL: Waveform Selection

0

1

0

1

WAVSEL

1

1

0

0

Effect

UP mode without automatic trigger on RC Compare

UP mode with automatic trigger on RC Compare

UPDOWN mode without automatic trigger on RC Compare

UPDOWN mode with automatic trigger on RC Compare

• WAVE = 1

0 = Waveform Mode is disabled (Capture Mode is enabled).

1 = Waveform Mode is enabled.

• ACPA: RA Compare Effect on TIOA

1

1

0

0

ACPA

0

1

0

1

Effect

none set clear toggle

380

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

• ACPC: RC Compare Effect on TIOA

1

1

0

0

ACPC

0

1

0

1

Effect

none set clear toggle

• AEEVT: External Event Effect on TIOA

0

0

1

1

AEEVT

0

1

0

1

Effect

none set clear toggle

• ASWTRG: Software Trigger Effect on TIOA

ASWTRG

1

1

0

0

0

1

0

1

• BCPB: RB Compare Effect on TIOB

Effect

none set clear toggle

BCPB

0

0

1

1

0

1

0

1

• BCPC: RC Compare Effect on TIOB

Effect

none set clear toggle

1

1

0

0

BCPC

0

1

0

1

Effect

none set clear toggle

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

381

• BEEVT: External Event Effect on TIOB

1

1

0

0

BEEVT

0

1

0

1

Effect

none set clear toggle

• BSWTRG: Software Trigger Effect on TIOB

0

0

1

1

BSWTRG

0

1

0

1

Effect

none set clear toggle

382

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

31.6.8

TC Counter Value Register

Register Name:

TC_CV

Access Type:

Read-only

31

23

15

30

22

14

29

21

13

28

20

12

7 6 5 4

CV

CV

27

19

11

3

• CV: Counter Value

CV contains the counter value in real time.

AT91SAM7A3 Preliminary

26

18

10

2

25

17

9

1

24

16

8

0

6042E–ATARM–14-Dec-06

383

31.6.9

TC Register A

Register Name:

Access Type:

31

23

15

7

30

22

14

6

29

21

13

TC_RA

Read-only if WAVE = 0, Read/Write if WAVE = 1

28

20

12

27

19

11

26

18

10

RA

5 4 3 2

RA

• RA: Register A

RA contains the Register A value in real time.

25

17

9

1

24

16

8

0

384

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

31.6.10

TC Register B

Register Name:

Access Type:

31

23

15

7

30

22

14

6

29

21

13

TC_RB

Read-only if WAVE = 0, Read/Write if WAVE = 1

28

20

12

27

19

11

26

18

10

RB

5 4 3 2

RB

• RB: Register B

RB contains the Register B value in real time.

25

17

9

1

24

16

8

0

31.6.11

TC Register C

Register Name:

Access Type:

31

23

15

7

30

22

14

6

29

21

13

TC_RC

Read/Write

28

20

12

5 4

RC

RC

• RC: Register C

RC contains the Register C value in real time.

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

385

6042E–ATARM–14-Dec-06

31.6.12

TC Status Register

Register Name:

Access Type:

31

23

15

7

ETRGS

30

22

14

6

LDRBS

TC_SR

Read-only

29

21

13

5

LDRAS

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

MTIOB

10

2

CPAS

25

17

MTIOA

9

1

LOVRS

24

16

CLKSTA

8

0

COVFS

• COVFS: Counter Overflow Status

0 = No counter overflow has occurred since the last read of the Status Register.

1 = A counter overflow has occurred since the last read of the Status Register.

• LOVRS: Load Overrun Status

0 = Load overrun has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA or RB have been loaded at least twice without any read of the corresponding register since the last read of the Status Register, if WAVE = 0.

• CPAS: RA Compare Status

0 = RA Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RA Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPBS: RB Compare Status

0 = RB Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RB Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPCS: RC Compare Status

0 = RC Compare has not occurred since the last read of the Status Register.

1 = RC Compare has occurred since the last read of the Status Register.

• LDRAS: RA Loading Status

0 = RA Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA Load has occurred since the last read of the Status Register, if WAVE = 0.

• LDRBS: RB Loading Status

0 = RB Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RB Load has occurred since the last read of the Status Register, if WAVE = 0.

• ETRGS: External Trigger Status

0 = External trigger has not occurred since the last read of the Status Register.

1 = External trigger has occurred since the last read of the Status Register.

386

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• CLKSTA: Clock Enabling Status

0 = Clock is disabled.

1 = Clock is enabled.

• MTIOA: TIOA Mirror

0 = TIOA is low. If WAVE = 0, this means that TIOA pin is low. If WAVE = 1, this means that TIOA is driven low.

1 = TIOA is high. If WAVE = 0, this means that TIOA pin is high. If WAVE = 1, this means that TIOA is driven high.

• MTIOB: TIOB Mirror

0 = TIOB is low. If WAVE = 0, this means that TIOB pin is low. If WAVE = 1, this means that TIOB is driven low.

1 = TIOB is high. If WAVE = 0, this means that TIOB pin is high. If WAVE = 1, this means that TIOB is driven high.

6042E–ATARM–14-Dec-06

387

31.6.13

TC Interrupt Enable Register

Register Name:

TC_IER

Access Type:

Write-only

31

23

15

7

ETRGS

30

22

14

6

LDRBS

29

21

13

5

LDRAS

28

20

12

4

CPCS

• COVFS: Counter Overflow

0 = No effect.

1 = Enables the Counter Overflow Interrupt.

• LOVRS: Load Overrun

0 = No effect.

1 = Enables the Load Overrun Interrupt.

• CPAS: RA Compare

0 = No effect.

1 = Enables the RA Compare Interrupt.

• CPBS: RB Compare

0 = No effect.

1 = Enables the RB Compare Interrupt.

• CPCS: RC Compare

0 = No effect.

1 = Enables the RC Compare Interrupt.

• LDRAS: RA Loading

0 = No effect.

1 = Enables the RA Load Interrupt.

• LDRBS: RB Loading

0 = No effect.

1 = Enables the RB Load Interrupt.

• ETRGS: External Trigger

0 = No effect.

1 = Enables the External Trigger Interrupt.

27

19

11

3

CPBS

10

2

CPAS

26

18

25

17

9

1

LOVRS

24

16

8

0

COVFS

388

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

31.6.14

TC Interrupt Disable Register

Register Name:

TC_IDR

Access Type:

Write-only

31

30

29

28

23

15

22

14

21

13

7

ETRGS

6

LDRBS

5

LDRAS

4

CPCS

• COVFS: Counter Overflow

0 = No effect.

1 = Disables the Counter Overflow Interrupt.

• LOVRS: Load Overrun

0 = No effect.

1 = Disables the Load Overrun Interrupt (if WAVE = 0).

• CPAS: RA Compare

0 = No effect.

1 = Disables the RA Compare Interrupt (if WAVE = 1).

• CPBS: RB Compare

0 = No effect.

1 = Disables the RB Compare Interrupt (if WAVE = 1).

• CPCS: RC Compare

0 = No effect.

1 = Disables the RC Compare Interrupt.

• LDRAS: RA Loading

0 = No effect.

1 = Disables the RA Load Interrupt (if WAVE = 0).

• LDRBS: RB Loading

0 = No effect.

1 = Disables the RB Load Interrupt (if WAVE = 0).

• ETRGS: External Trigger

0 = No effect.

1 = Disables the External Trigger Interrupt.

20

12

11

3

CPBS

27

19

AT91SAM7A3 Preliminary

10

2

CPAS

26

18

25

17

9

1

LOVRS

24

16

8

0

COVFS

389

6042E–ATARM–14-Dec-06

31.6.15

TC Interrupt Mask Register

Register Name:

TC_IMR

Access Type:

Read-only

31

23

15

7

ETRGS

30

22

14

6

LDRBS

29

21

13

5

LDRAS

28

20

12

4

CPCS

• COVFS: Counter Overflow

0 = The Counter Overflow Interrupt is disabled.

1 = The Counter Overflow Interrupt is enabled.

• LOVRS: Load Overrun

0 = The Load Overrun Interrupt is disabled.

1 = The Load Overrun Interrupt is enabled.

• CPAS: RA Compare

0 = The RA Compare Interrupt is disabled.

1 = The RA Compare Interrupt is enabled.

• CPBS: RB Compare

0 = The RB Compare Interrupt is disabled.

1 = The RB Compare Interrupt is enabled.

• CPCS: RC Compare

0 = The RC Compare Interrupt is disabled.

1 = The RC Compare Interrupt is enabled.

• LDRAS: RA Loading

0 = The Load RA Interrupt is disabled.

1 = The Load RA Interrupt is enabled.

• LDRBS: RB Loading

0 = The Load RB Interrupt is disabled.

1 = The Load RB Interrupt is enabled.

• ETRGS: External Trigger

0 = The External Trigger Interrupt is disabled.

1 = The External Trigger Interrupt is enabled.

27

19

11

3

CPBS

10

2

CPAS

26

18

25

17

9

1

LOVRS

24

16

8

0

COVFS

390

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

32. Pulse WIdth Modulation Controller (PWM)

32.1

Overview

The PWM macrocell controls several channels independently. Each channel controls one square output waveform. Characteristics of the output waveform such as period, duty-cycle and polarity are configurable through the user interface. Each channel selects and uses one of the clocks provided by the clock generator. The clock generator provides several clocks resulting from the division of the PWM macrocell master clock.

All PWM macrocell accesses are made through APB mapped registers.

Channels can be synchronized, to generate non overlapped waveforms. All channels integrate a double buffering system in order to prevent an unexpected output waveform while modifying the period or the duty-cycle.

32.2

Block Diagram

Figure 32-1. Pulse Width Modulation Controller Block Diagram

PWM

Controller

PWMx

Channel

Clock

Selector

Period

Update

Duty Cycle

Counter

Comparator

PWMx

PWMx

PIO

PMC

MCK

PWM0

Channel

Clock

Selector

Period

Update

Duty Cycle

Counter

Comparator

Clock Generator APB Interface Interrupt Generator

APB

AIC

PWM0

PWM0

391

6042E–ATARM–14-Dec-06

32.3

I/O Lines Description

Each channel outputs one waveform on one external I/O line.

Table 32-1.

I/O Line Description

Name Description

PWMx PWM Waveform Output for channel x

Type

Output

32.4

Product Dependencies

32.4.1

I/O Lines

The pins used for interfacing the PWM may be multiplexed with PIO lines. The programmer must first program the PIO controller to assign the desired PWM pins to their peripheral function. If I/O lines of the PWM are not used by the application, they can be used for other purposes by the PIO controller.

All of the PWM outputs may or may not be enabled. If an application requires only four channels, then only four PIO lines will be assigned to PWM outputs.

32.4.2

Power Management

The PWM is not continuously clocked. The programmer must first enable the PWM clock in the Power Management Controller (PMC) before using the PWM. However, if the application does not require PWM operations, the PWM clock can be stopped when not needed and be restarted later. In this case, the PWM will resume its operations where it left off.

Configuring the PWM does not require the PWM clock to be enabled.

32.4.3

Interrupt Sources

The PWM interrupt line is connected on one of the internal sources of the Advanced Interrupt

Controller. Using the PWM interrupt requires the AIC to be programmed first. Note that it is not recommended to use the PWM interrupt line in edge sensitive mode.

32.5

Functional Description

The PWM macrocell is primarily composed of a clock generator module and 8 channels.

– Clocked by the system clock, MCK, the clock generator module provides 13 clocks.

– Each channel can independently choose one of the clock generator outputs.

– Each channel generates an output waveform with attributes that can be defined independently for each channel through the user interface registers.

392

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

32.5.1

PWM Clock Generator

Figure 32-2. Functional View of the Clock Generator Block Diagram

MCK modulo n counter

MCK

MCK/2

MCK/4

MCK/8

MCK/16

MCK/32

MCK/64

MCK/128

MCK/256

MCK/512

MCK/1024

Divider A clkA

PREA DIVA

PWM_MR

Divider B clkB

6042E–ATARM–14-Dec-06

PREB DIVB

PWM_MR

Caution: Before using the PWM macrocell, the programmer must first enable the PWM clock in the Power Management Controller (PMC).

The PWM macrocell master clock, MCK, is divided in the clock generator module to provide different clocks available for all channels. Each channel can independently select one of the divided clocks.

The clock generator is divided in three blocks:

– a modulo n counter which provides 11 clocks: F

MCK

, F

MCK

/2, F

MCK

/4, F

MCK

/8,

F

MCK

/16, F

MCK

/32, F

MCK

/64, F

MCK

/128, F

MCK

/256, F

MCK

/512, F

MCK

/1024

– two linear dividers (1, 1/2, 1/3, ... 1/255) that provide two separate clocks: clkA and clkB

Each linear divider can independently divide one of the clocks of the modulo n counter. The selection of the clock to be divided is made according to the PREA (PREB) field of the PWM

Mode register (PWM_MR). The resulting clock clkA (clkB) is the clock selected divided by

DIVA (DIVB) field value in the PWM Mode register (PWM_MR).

After a reset of the PWM controller, DIVA (DIVB) and PREA (PREB) in the PWM Mode register are set to 0. This implies that after reset clkA (clkB) are turned off.

393

At reset, all clocks provided by the modulo n counter are turned off except clock “clk”. This situation is also true when the PWM master clock is turned off through the Power Management

Controller.

32.5.2

32.5.2.1

PWM Channel

Block Diagram

Figure 32-3. Functional View of the Channel Block Diagram inputs from clock generator

Channel

Clock

Selector

Internal

Counter

Comparator

PWMx output waveform

32.5.2.2

inputs from

APB bus

Each of the 8 channels is composed of three blocks:

• A clock selector which selects one of the clocks provided by the clock generator described

in Section 32.5.1

”PWM Clock Generator” on page 393 .

• An internal counter clocked by the output of the clock selector. This internal counter is incremented or decremented according to the channel configuration and comparators events. The size of the internal counter is 20 bits.

• A comparator used to generate events according to the internal counter value. It also computes the PWMx output waveform according to the configuration.

Waveform Properties

The different properties of output waveforms are:

• the internal clock selection. The internal channel counter is clocked by one of the clocks provided by the clock generator described in the previous section. This channel parameter is defined in the CPRE field of the PWM_CMRx register. This field is reset at 0.

• the waveform period. This channel parameter is defined in the CPRD field of the

PWM_CPRDx register.

- If the waveform is left aligned, then the output waveform period depends on the counter source clock and can be calculated:

By using the Master Clock (MCK) divided by an X given prescaler value

(with X being 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, or 1024), the resulting period formula will be:

(

X

×

CPRD

MCK

)

By using a Master Clock divided by one of both DIVA or DIVB divider, the formula becomes, respectively:

(

CRPD

×

DIVA

MCK

)

or

(

CRPD

×

DIVAB

MCK

)

If the waveform is center aligned then the output waveform period depends on the counter

394

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

source clock and can be calculated:

By using the Master Clock (MCK) divided by an X given prescaler value

(with X being 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, or 1024). The resulting period formula

( will be:

2

X

×

CPRD

)

MCK

(

By using a Master Clock divided by one of both DIVA or DIVB divider, the formula becomes, respectively:

2

CPRD

×

DIVA

)

or

(

2

×

CPRD

× )

MCK MCK

• the waveform duty cycle. This channel parameter is defined in the CDTY field of the

PWM_CDTYx register.

If the waveform is left aligned then: duty cycle =

(

period

1 fchannel_x_clock

period

If the waveform is center aligned, then:

×

CDTY

) duty cycle =

(

period

2

)

⁄ ×

CDTY

(

period

2

)

) )

• the waveform polarity. At the beginning of the period, the signal can be at high or low level. This property is defined in the CPOL field of the PWM_CMRx register. By default the signal starts by a low level.

• the waveform alignment. The output waveform can be left or center aligned. Center aligned waveforms can be used to generate non overlapped waveforms. This property is defined in the CALG field of the PWM_CMRx register. The default mode is left aligned.

Figure 32-4. Non Overlapped Center Aligned Waveforms

No overlap

PWM0

PWM1

Period

Note:

1. See Figure 32-5 on page 397 for a detailed description of center aligned waveforms.

When center aligned, the internal channel counter increases up to CPRD and.decreases down to 0. This ends the period.

When left aligned, the internal channel counter increases up to CPRD and is reset. This ends the period.

Thus, for the same CPRD value, the period for a center aligned channel is twice the period for a left aligned channel.

395

Waveforms are fixed at 0 when:

• CDTY = CPRD and CPOL = 0

• CDTY = 0 and CPOL = 1

Waveforms are fixed at 1 (once the channel is enabled) when:

• CDTY = 0 and CPOL = 0

• CDTY = CPRD and CPOL = 1

The waveform polarity must be set before enabling the channel. This immediately affects the channel output level. Changes on channel polarity are not taken into account while the channel is enabled.

396

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 32-5. Waveform Properties

PWM_MCKx

CHIDx(PWM_SR)

CHIDx(PWM_ENA)

CHIDx(PWM_DIS)

PWM_CCNTx

CPRD(PWM_CPRDx)

CDTY(PWM_CDTYx)

Period

Output Waveform PWMx

CPOL(PWM_CMRx) = 0

Output Waveform PWMx

CPOL(PWM_CMRx) = 1

CHIDx(PWM_ISR)

PWM_CCNTx

CPRD(PWM_CPRDx)

CDTY(PWM_CDTYx)

Period

Output Waveform PWMx

CPOL(PWM_CMRx) = 0

Output Waveform PWMx

CPOL(PWM_CMRx) = 1

CHIDx(PWM_ISR)

Center Aligned

CALG(PWM_CMRx) = 1

Left Aligned

CALG(PWM_CMRx) = 0

397

6042E–ATARM–14-Dec-06

32.5.3

32.5.3.1

PWM Controller Operations

Initialization

Before enabling the output channel, this channel must have been configured by the software application:

• Configuration of the clock generator if DIVA and DIVB are required

• Selection of the clock for each channel (CPRE field in the PWM_CMRx register)

• Configuration of the waveform alignment for each channel (CALG field in the PWM_CMRx register)

• Configuration of the period for each channel (CPRD in the PWM_CPRDx register). Writing in PWM_CPRDx Register is possible while the channel is disabled. After validation of the channel, the user must use PWM_CUPDx Register to update PWM_CPRDx as explained below.

• Configuration of the duty cycle for each channel (CDTY in the PWM_CDTYx register).

Writing in PWM_CDTYx Register is possible while the channel is disabled. After validation of the channel, the user must use PWM_CUPDx Register to update PWM_CDTYx as explained below.

• Configuration of the output waveform polarity for each channel (CPOL in the PWM_CMRx register)

• Enable Interrupts (Writing CHIDx in the PWM_IER register)

• Enable the PWM channel (Writing CHIDx in the PWM_ENA register)

It is possible to synchronize different channels by enabling them at the same time by means of writing simultaneously several CHIDx bits in the PWM_ENA register.

• In such a situation, all channels may have the same clock selector configuration and the same period specified.

32.5.3.2

32.5.3.3

Source Clock Selection Criteria

The large number of source clocks can make selection difficult. The relationship between the value in the Period Register (PWM_CPRDx) and the Duty Cycle Register (PWM_CDTYx) can help the user in choosing. The event number written in the Period Register gives the PWM accuracy. The Duty Cycle quantum cannot be lower than 1/PWM_CPRDx value. The higher the value of PWM_CPRDx, the greater the PWM accuracy.

For example, if the user sets 15 (in decimal) in PWM_CPRDx, the user is able to set a value between 1 up to 14 in PWM_CDTYx Register. The resulting duty cycle quantum cannot be lower than 1/15 of the PWM period.

Changing the Duty Cycle or the Period

It is possible to modulate the output waveform duty cycle or period.

To prevent unexpected output waveform, the user must use the update register

(PWM_CUPDx) to change waveform parameters while the channel is still enabled. The user can write a new period value or duty cycle value in the update register (PWM_CUPDx). This register holds the new value until the end of the current cycle and updates the value for the next cycle. Depending on the CPD field in the PWM_CMRx register, PWM_CUPDx either updates PWM_CPRDx or PWM_CDTYx. Note that even if the update register is used, the period must not be smaller than the duty cycle.

398

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 32-6. Synchronized Period or Duty Cycle Update

User's Writing

PWM_CUPDx Value

1

0

PWM_CMRx. CPD

PWM_CPRDx PWM_CDTYx

End of Cycle

To prevent overwriting the PWM_CUPDx by software, the user can use status events in order to synchronize his software. Two methods are possible. In both, the user must enable the dedicated interrupt in PWM_IER at PWM Controller level.

The first method (polling method) consists of reading the relevant status bit in PWM_ISR Reg-

ister according to the enabled channel(s). See Figure 32-7 .

The second method uses an Interrupt Service Routine associated with the PWM channel.

Note: Reading the PWM_ISR register automatically clears CHIDx flags.

Figure 32-7. Polling Method

PWM_ISR Read

Acknowledgement and clear previous register state

Writing in CPD field

Update of the Period or Duty Cycle

CHIDx = 1

YES

Writing in PWM_CUPDx

The last write has been taken into account

Note: Polarity and alignment can be modified only when the channel is disabled.

399

32.5.3.4

Interrupts

Depending on the interrupt mask in the PWM_IMR register, an interrupt is generated at the end of the corresponding channel period. The interrupt remains active until a read operation in the PWM_ISR register occurs.

A channel interrupt is enabled by setting the corresponding bit in the PWM_IER register. A channel interrupt is disabled by setting the corresponding bit in the PWM_IDR register.

400

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

...

0x220

0x224

0x228

0x22C

0x230

...

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x4C - 0xFC

0x100 - 0x1FC

0x200

0x204

0x208

0x20C

0x210

AT91SAM7A3 Preliminary

32.6

Pulse Width Modulation (PWM) Controller User Interface

Table 32-2.

PWM Controller Registers

Register Name

PWM Mode Register PWM_MR

PWM Enable Register

PWM Disable Register

PWM_ENA

PWM_DIS

PWM Status Register

PWM Interrupt Enable Register

PWM Interrupt Disable Register

PWM Interrupt Mask Register

PWM_SR

PWM_IER

PWM_IDR

PWM_IMR

PWM_ISR

PWM Interrupt Status Register

Reserved

Reserved

Channel 0 Mode Register

Channel 0 Duty Cycle Register

Channel 0 Period Register

Channel 0 Counter Register

Channel 0 Update Register

PWM_CMR0

PWM_CDTY0

PWM_CPRD0

PWM_CCNT0

PWM_CUPD0

Reserved

Channel 1 Mode Register

Channel 1 Duty Cycle Register

Channel 1 Period Register

Channel 1 Counter Register

Channel 1 Update Register

...

PWM_CMR1

PWM_CDTY1

PWM_CPRD1

PWM_CCNT1

PWM_CUPD1

...

Access

Read/Write

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read-only

Read/Write

Read/Write

Read/Write

Read-only

Write-only

Read/Write

Read/Write

Read/Write

Read-only

Write-only

...

Peripheral

Reset Value

0

0

-

-

-

0

-

0

0x0

0x0

0x0

0x0

-

...

0x0

0x0

0x0

0x0

-

401

6042E–ATARM–14-Dec-06

32.6.1

PWM Mode Register

Register Name:

Access Type:

PWM_MR

Read/Write

31

30

29

23 22 21

28

20

27

19

26

18

PREB

25

17

24

16

DIVB

15

7

14

6

13

5

12

4

11

3

10

2

PREA

9

1

8

0

DIVA

• DIVA, DIVB: CLKA, CLKB Divide Factor

DIVA, DIVB

0

1

2-255

CLKA, CLKB

CLKA, CLKB clock is turned off

CLKA, CLKB clock is clock selected by PREA, PREB

CLKA, CLKB clock is clock selected by PREA, PREB divided by DIVA, DIVB factor.

0

0

0

0

0

0

0

0

1

1

1

• PREA, PREB

0

0

1

1

0

1

1

0

0

PREA, PREB

0

0

0

0

0

0

1

1

0

0

1

1

1

Other

0

1

0

1

0

1

0

1

0

1

0

MCK.

MCK/2

MCK/4

MCK/8

MCK/16

MCK/32

MCK/64

MCK/128

MCK/256

MCK/512

MCK/1024

Reserved

Divider Input Clock

402

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

32.6.2

PWM Enable Register

Register Name:

Access Type:

PWM_ENA

Write-only

31

30

29

23

15

22

14

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID

0 = No effect.

1 = Enable PWM output for channel x.

21

13

32.6.3

PWM Disable Register

Register Name:

Access Type:

PWM_DIS

Write-only

31

30

29

23

15

22

14

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID

0 = No effect.

1 = Disable PWM output for channel x.

21

13

12

4

CHID4

28

20

11

3

CHID3

27

19

12

4

CHID4

28

20

11

3

CHID3

27

19

AT91SAM7A3 Preliminary

26

18

10

2

CHID2

9

1

CHID1

25

17

8

0

CHID0

24

16

26

18

10

2

CHID2

9

1

CHID1

25

17

8

0

CHID0

24

16

403

6042E–ATARM–14-Dec-06

32.6.4

PWM Status Register

Register Name:

Access Type:

PWM_SR

Read-only

31

30

29

23

15

22

14

21

13

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID

0 = PWM output for channel x is disabled.

1 = PWM output for channel x is enabled.

12

4

CHID4

28

20

11

3

CHID3

27

19

26

18

10

2

CHID2

9

1

CHID1

25

17

8

0

CHID0

24

16

404

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

32.6.5

PWM Interrupt Enable Register

Register Name:

Access Type:

PWM_IER

Write-only

31

30

29

23

15

22

14

21

13

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID.

0 = No effect.

1 = Enable interrupt for PWM channel x.

32.6.6

PWM Interrupt Disable Register

Register Name:

PWM_IDR

Access Type:

Write-only

31

30

29

23

15

22

14

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID.

0 = No effect.

1 = Disable interrupt for PWM channel x.

21

13

12

4

CHID4

28

20

28

20

12

4

CHID4

11

3

CHID3

27

19

27

19

11

3

CHID3

AT91SAM7A3 Preliminary

26

18

10

2

CHID2

9

1

CHID1

25

17

8

0

CHID0

24

16

26

18

10

2

CHID2

25

17

9

1

CHID1

24

16

8

0

CHID0

405

6042E–ATARM–14-Dec-06

32.6.7

PWM Interrupt Mask Register

Register Name:

Access Type:

PWM_IMR

Read-only

31

30

29

23

15

22

14

21

13

7

CHID7

6

CHID6

5

CHID5

• CHIDx: Channel ID.

0 = Interrupt for PWM channel x is disabled.

1 = Interrupt for PWM channel x is enabled.

32.6.8

PWM Interrupt Status Register

Register Name:

PWM_ISR

Access Type:

Read-only

31

30

29

12

4

CHID4

28

20

11

3

CHID3

27

19

26

18

10

2

CHID2

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

7

CHID7

6

CHID6

5

CHID5

4

CHID4

3

CHID3

2

CHID2

1

CHID1

• CHIDx: Channel ID

0 = No new channel period has been achieved since the last read of the PWM_ISR register.

1 = At least one new channel period has been achieved since the last read of the PWM_ISR register.

25

17

9

9

1

CHID1

25

17

Note: Reading PWM_ISR automatically clears CHIDx flags.

8

0

CHID0

24

16

24

16

8

0

CHID0

406

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

32.6.9

PWM Channel Mode Register

Register Name:

Access Type:

PWM_CMRx

Read/Write

31

30

29

23

15

22

14

7

6

• CPRE: Channel Pre-scaler

21

13

5

12

4

28

20

11

3

27

19

26

18

10

CPD

2

CPRE

9

CPOL

1

25

17

CPRE Channel Pre-scaler

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

1

1

1

0

0

1

1

0

0

1

1

0

0

0

0

1

0

1

0

1

0

1

0

1

0

1

0

MCK

MCK/2

MCK/4

MCK/8

MCK/16

MCK/32

MCK/64

MCK/128

MCK/256

MCK/512

MCK/1024

CLKA

CLKB

Reserved Other

• CALG: Channel Alignment

0 = The period is left aligned.

1 = The period is center aligned.

• CPOL: Channel Polarity

0 = The output waveform starts at a low level.

1 = The output waveform starts at a high level.

• CPD: Channel Update Period

0 = Writing to the PWM_CUPDx will modify the duty cycle at the next period start event.

1 = Writing to the PWM_CUPDx will modify the period at the next period start event.

24

16

8

CALG

0

407

6042E–ATARM–14-Dec-06

32.6.10

PWM Channel Duty Cycle Register

Register Name:

Access Type:

PWM_CDTYx

Read/Write

31 30 29 28 27 26 25

CDTY

23 22 21 20 19 18 17

CDTY

15 14 13 12 11 10 9

CDTY

7 6 5 4 3 2

CDTY

Only the first 20 bits (internal channel counter size) are significant.

• CDTY: Channel Duty Cycle

Defines the waveform duty cycle. This value must be defined between 0 and CPRD (PWM_CPRx).

1

24

16

8

0

408

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

32.6.11

PWM Channel Period Register

Register Name:

Access Type:

PWM_CPRDx

Read/Write

31 30 29 28 27 26 25 24

CPRD

23 22 21 20 19 18 17 16

CPRD

15 14 13 12 11 10 9 8

CPRD

7 6 5 4 3 2 1 0

CPRD

Only the first 20 bits (internal channel counter size) are significant.

• CPRD: Channel Period

If the waveform is left-aligned, then the output waveform period depends on the counter source clock and can be calculated:

– By using the Master Clock (MCK) divided by an X given prescaler value (with X being 1, 2, 4, 8, 16, 32, 64, 128,

256, 512, or 1024). The resulting period formula will be:

(

X

×

CPRD

MCK

)

– By using a Master Clock divided by one of both DIVA or DIVB divider, the formula becomes, respectively:

(

CRPD

×

DIVA

MCK

)

or

(

CRPD

×

DIVAB

MCK

)

If the waveform is center-aligned, then the output waveform period depends on the counter source clock and can be calculated:

– By using the Master Clock (MCK) divided by an X given prescaler value (with X being 1, 2, 4, 8, 16, 32, 64, 128,

256, 512, or 1024). The resulting period formula will be:

(

2

X

×

CPRD

)

MCK

– By using a Master Clock divided by one of both DIVA or DIVB divider, the formula becomes, respectively:

(

2

CPRD

×

DIVA

)

or

(

2

×

CPRD

× )

MCK MCK

409

6042E–ATARM–14-Dec-06

32.6.12

PWM Channel Counter Register

Register Name:

Access Type:

PWM_CCNTx

Read-only

31 30 29 28 27 26 25 24

CNT

23 22 21 20 19 18 17 16

CNT

15 14 13 12 11 10 9

CNT

7 6 5 4 3 2 1

CNT

• CNT: Channel Counter Register

Internal counter value. This register is reset when:

• the channel is enabled (writing CHIDx in the PWM_ENA register).

• the counter reaches CPRD value defined in the PWM_CPRDx register if the waveform is left aligned.

32.6.13

PWM Channel Update Register

Register Name:

Access Type:

PWM_CUPDx

Write-only

31 30 29 28 27 26 25

CUPD

23 22 21 20 19 18 17

CUPD

8

0

24

16

15 14 13 12 11 10 9 8

CUPD

7 6 5 4 3 2 1 0

CUPD

This register acts as a double buffer for the period or the duty cycle. This prevents an unexpected waveform when modifying the waveform period or duty-cycle.

Only the first 20 bits (internal channel counter size) are significant.

CPD (PWM_CMRx Register)

0

1

The duty-cycle (CDTC in the PWM_CDRx register) is updated with the CUPD value at the beginning of the next period.

The period (CPRD in the PWM_CPRx register) is updated with the CUPD value at the beginning of the next period.

410

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33. USB Device Port (UDP)

33.1

Overview

The USB Device Port (UDP) is compliant with the Universal Serial Bus (USB) V2.0 full-speed device specification.

Each endpoint can be configured in one of several USB transfer types. It can be associated with one or two banks of a dual-port RAM used to store the current data payload. If two banks are used, one DPR bank is read or written by the processor, while the other is read or written by the

USB device peripheral. This feature is mandatory for isochronous endpoints. Thus the device maintains the maximum bandwidth (1M bytes/s) by working with endpoints with two banks of

DPR.

Table 33-1.

USB Endpoint Description

Endpoint Number Mnemonic

2

3

0

1

4

5

EP0

EP1

EP2

EP3

EP4

EP5

Dual-Bank

No

Yes

Yes

No

Yes

Yes

Max. Endpoint Size

8

64

64

64

512

512

Endpoint Type

Control/Bulk/Interrupt

Bulk/Iso/Interrupt

Bulk/Iso/Interrupt

Control/Bulk/Interrupt

Bulk/Iso/Interrupt

Bulk/Iso/Interrupt

Suspend and resume are automatically detected by the USB device, which notifies the processor by raising an interrupt. Depending on the product, an external signal can be used to send a wake up to the USB host controller.

411

6042E–ATARM–14-Dec-06

33.2

Block Diagram

Figure 33-1. Block Diagram

Atmel Bridge

MCK

UDPCK

APB to

MCU

Bus udp_int external_resume

USB Device f r a t e c e

U s

I e r n

W r a p p e r

Dual

Port

RAM

FIFO e r p p

W r a

12 MHz

Serial

Interface

Engine

SIE txoen eopn txd rxdm rxd rxdp

Embedded

USB

Transceiver

DP

DM

Master Clock

Domain

Suspend/Resume Logic

Recovered 12 MHz

Domain

Access to the UDP is via the APB bus interface. Read and write to the data FIFO are done by reading and writing 8-bit values to APB registers.

The UDP peripheral requires two clocks: one peripheral clock used by the MCK domain and a

48 MHz clock used by the 12 MHz domain.

A USB 2.0 full-speed pad is embedded and controlled by the Serial Interface Engine (SIE).

The signal external_resume is optional. It allows the UDP peripheral to wake up once in system mode. The host is then notified that the device asks for a resume. This optional feature must be also negotiated with the host during the enumeration.

412

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.3

Product Dependencies

For further details on the USB Device hardware implementation, see the specific Product Properties document.

The USB physical transceiver is integrated into the product. The bidirectional differential signals

DP and DM are available from the product boundary.

Two I/O lines may be used by the application:

• One to check that VBUS is still available from the host. Self-powered devices may use this entry to be notified that the host has been powered off. In this case, the board pullup on DP must be disabled in order to prevent feeding current to the host.

• One to control the board pullup on DP. Thus, when the device is ready to communicate with the host, it activates its DP pullup through this control line.

33.3.1

33.3.2

33.3.3

I/O Lines

Power Management

The USB device peripheral requires a 48 MHz clock. This clock must be generated by a PLL with an accuracy of ± 0.25%.

Thus, the USB device receives two clocks from the Power Management Controller (PMC): the master clock, MCK, used to drive the peripheral user interface, and the UDPCK, used to interface with the bus USB signals (recovered 12 MHz domain).

WARNING: The UDP peripheral clock in the Power Management Controller (PMC) must be enabled before any read/write operations to the UDP registers including the UDP_TXCV register.

Interrupt

DP and DM are not controlled by any PIO controllers. The embedded USB physical transceiver is controlled by the USB device peripheral.

To reserve an I/O line to check VBUS, the programmer must first program the PIO controller to assign this I/O in input PIO mode.

To reserve an I/O line to control the board pullup, the programmer must first program the PIO controller to assign this I/O in output PIO mode.

The USB device interface has an interrupt line connected to the Advanced Interrupt Controller

(AIC).

Handling the USB device interrupt requires programming the AIC before configuring the UDP.

413

6042E–ATARM–14-Dec-06

33.4

Typical Connection

Figure 33-2. Board Schematic to Interface USB Device Peripheral

27 K

PIO

5V Bus Monitoring

47 K

3V3

PIO

Pullup Control

0: Enable

1: Disable

R

EXT

1.5K

2

DDM

DDP

R

EXT

1

3

Type B

Connector

4

330 K 330 K

33.4.1

33.4.2

USB Device Transceiver

The USB device transceiver is embedded in the product. A few discrete components are required as follows:

• the application detects all device states as defined in chapter 9 of the USB specification;

– pullup enable/disable

– VBUS monitoring

• to reduce power consumption the host is disconnected

• for line termination.

Pullup enable/disable is done through a MOSFET controlled by a PIO. The pullup is enabled when the PIO drives a 0. Thus PIO default state to 1 corresponds to a pullup disable. Once the pullup is enabled, the host will force a device reset 100 ms later. Bus powered devices must connect the pullup within 100 ms.

VBUS Monitoring

VBUS monitoring is required to detect host connection. VBUS monitoring is done using a standard PIO with internal pullup disabled. When the host is switched off, it should be considered as a disconnect, the pullup must be disabled in order to prevent powering the host through the pullup resistor.

When the host is disconnected and the transceiver is enabled, then DDP and DDM are floating.

This may lead to over consumption. A solution is to connect 330 K

pulldowns on DP and DM.

These pulldowns do not alter DDP and DDM signal integrity.

414

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

A termination serial resistor must be connected to DP and DM. The resistor value is defined in the electrical specification of the product (R

EXT

).

33.5

Functional Description

33.5.1

USB V2.0 Full-speed Introduction

The USB V2.0 full-speed provides communication services between host and attached USB devices. Each device is offered with a collection of communication flows (pipes) associated with each endpoint. Software on the host communicates with a USB device through a set of communication flows.

Figure 33-3. Example of USB V2.0 Full-speed Communication Control

USB Host V2.0

Software Client 1 Software Client 2

Data Flow: Control Transfer

Data Flow: Isochronous In Transfer

Data Flow: Isochronous Out Transfer

EP0

EP1

USB Device 2.0

Block 1

EP2

Data Flow: Control Transfer

Data Flow: Bulk In Transfer

Data Flow: Bulk Out Transfer

EP0

EP4

USB Device 2.0

Block 2

EP5

USB Device endpoint configuration requires that in the first instance Control Transfer must be EP0.

The Control Transfer endpoint EP0 is always used when a USB device is first configured (USB v. 2.0 specifications).

33.5.1.1

USB V2.0 Full-speed Transfer Types

A communication flow is carried over one of four transfer types defined by the USB device.

Table 33-2.

USB Communication Flow

Transfer Direction Bandwidth

Control

Isochronous

Interrupt

Bulk

Bidirectional

Unidirectional

Unidirectional

Unidirectional

Not guaranteed

Guaranteed

Not guaranteed

Not guaranteed

Supported Endpoint Size

8, 16, 32, 64

512

8, 16, 32, 64

8, 16, 32, 64

Error Detection

Yes

Yes

Yes

Yes

Retrying

Automatic

No

Yes

Yes

415

6042E–ATARM–14-Dec-06

33.5.1.2

33.5.1.3

USB Bus Transactions

Each transfer results in one or more transactions over the USB bus. There are three kinds of transactions flowing across the bus in packets:

1.

Setup Transaction

2.

Data IN Transaction

3.

Data OUT Transaction

USB Transfer Event Definitions

As indicated below, transfers are sequential events carried out on the USB bus.

Table 33-3.

USB Transfer Events

Control Transfers

(1) (3)

• Setup transaction > Data IN transactions > Status

OUT transaction

• Setup transaction > Data OUT transactions > Status

IN transaction

• Setup transaction > Status IN transaction

• Data IN transaction > Data IN transaction

Interrupt IN Transfer

(device toward host)

Interrupt OUT Transfer

(host toward device)

Isochronous IN Transfer

(2)

(device toward host)

Isochronous OUT Transfer

(2)

(host toward device)

• Data OUT transaction > Data OUT transaction

• Data IN transaction > Data IN transaction

• Data OUT transaction > Data OUT transaction

Bulk IN Transfer

(device toward host)

Bulk OUT Transfer

(host toward device)

• Data IN transaction > Data IN transaction

• Data OUT transaction > Data OUT transaction

Notes: 1. Control transfer must use endpoints with no ping-pong attributes.

2. Isochronous transfers must use endpoints with ping-pong attributes.

3. Control transfers can be aborted using a stall handshake.

A status transaction is a special type of host-to-device transaction used only in a control transfer.

The control transfer must be performed using endpoints with no ping-pong attributes. According to the control sequence (read or write), the USB device sends or receives a status transaction.

416

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 33-4. Control Read and Write Sequences

Setup Stage Data Stage Status Stage

Control Read

Setup TX

Setup Stage

Data OUT TX Data OUT TX

Data Stage

Status IN TX

Status Stage

Control Write

Setup TX

Setup Stage

Data IN TX

Status Stage

Data IN TX

Status OUT TX

No Data

Control

Setup TX Status IN TX

Notes: 1. During the Status IN stage, the host waits for a zero length packet (Data IN transaction with no data) from the device using

DATA1 PID. Refer to Chapter 8 of the Universal Serial Bus Specification, Rev. 2.0, for more information on the protocol layer.

2. During the Status OUT stage, the host emits a zero length packet to the device (Data OUT transaction with no data).

33.5.2

33.5.2.1

Handling Transactions with USB V2.0 Device Peripheral

Setup Transaction

Setup is a special type of host-to-device transaction used during control transfers. Control transfers must be performed using endpoints with no ping-pong attributes. A setup transaction needs to be handled as soon as possible by the firmware. It is used to transmit requests from the host to the device. These requests are then handled by the USB device and may require more arguments. The arguments are sent to the device by a Data OUT transaction which follows the setup transaction. These requests may also return data. The data is carried out to the host by the next

Data IN transaction which follows the setup transaction. A status transaction ends the control transfer.

When a setup transfer is received by the USB endpoint:

• The USB device automatically acknowledges the setup packet

,

• RXSETUP is set in the UDP_ CSRx register

,

• An endpoint interrupt is generated while the RXSETUP is not cleared. This interrupt is carried out to the microcontroller if interrupts are enabled for this endpoint.

Thus, firmware must detect the RXSETUP polling the UDP_ CSRx or catching an interrupt, read the setup packet in the FIFO, then clear the RXSETUP. RXSETUP cannot be cleared before the setup packet has been read in the FIFO. Otherwise, the USB device would accept the next Data

OUT transfer and overwrite the setup packet in the FIFO.

417

6042E–ATARM–14-Dec-06

Figure 33-5. Setup Transaction Followed by a Data OUT Transaction

Setup Received Setup Handled by Firmware

USB

Bus Packets

Setup

PID

Data Out Received

Data Setup

ACK

PID

Data OUT

PID

Data OUT

NAK

PID

Data OUT

PID

Data OUT

ACK

PID

RXSETUP Flag

Interrupt Pending

Set by USB Device Cleared by Firmware

Set by USB

Device Peripheral

RX_Data_BKO

(UDP_CSRx)

FIFO (DPR)

Content

33.5.2.2

33.5.2.3

XX Data Setup XX Data OUT

Data IN Transaction

Data IN transactions are used in control, isochronous, bulk and interrupt transfers and conduct the transfer of data from the device to the host. Data IN transactions in isochronous transfer must be done using endpoints with ping-pong attributes.

Using Endpoints Without Ping-pong Attributes

To perform a Data IN transaction using a non ping-pong endpoint:

1.

The application checks if it is possible to write in the FIFO by polling TXPKTRDY in the endpoint’s UDP_ CSRx register (TXPKTRDY must be cleared).

2.

The application writes the first packet of data to be sent in the endpoint’s FIFO, writing zero or more byte values in the endpoint’s UDP_ FDRx register,

3.

The application notifies the USB peripheral it has finished by setting the TXPKTRDY in the endpoint’s UDP_ CSRx register.

4.

The application is notified that the endpoint’s FIFO has been released by the USB device when TXCOMP in the endpoint’s UDP_ CSRx register has been set. Then an interrupt for the corresponding endpoint is pending while TXCOMP is set.

5.

The microcontroller writes the second packet of data to be sent in the endpoint’s FIFO, writing zero or more byte values in the endpoint’s UDP_ FDRx register,

6.

The microcontroller notifies the USB peripheral it has finished by setting the TXPK-

TRDY in the endpoint’s UDP_ CSRx register.

7.

The application clears the TXCOMP in the endpoint’s UDP_ CSRx.

After the last packet has been sent, the application must clear TXCOMP once this has been set.

TXCOMP is set by the USB device when it has received an ACK PID signal for the Data IN packet. An interrupt is pending while TXCOMP is set.

Warning: TX_COMP must be cleared after TX_PKTRDY has been set.

Note: Refer to Chapter 8 of the Universal Serial Bus Specification, Rev 2.0, for more information on the

Data IN protocol layer.

418

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 33-6. Data IN Transfer for Non Ping-pong Endpoint

Prevous Data IN TX Microcontroller Load Data in FIFO Data is Sent on USB Bus

USB Bus Packets

Data IN

PID

Data IN 1

ACK

PID

Data IN

PID

NAK

PID

Data IN

PID

Data IN 2

ACK

PID

TXPKTRDY Flag

(UDP_CSRx)

Set by the firmware

Cleared by Hw

Interrupt Pending

TXCOMP Flag

(UDP_CSRx)

Set by the firmware

Cleared by Hw

DPR access by the firmware

Payload in FIFO

Cleared by Firmware

DPR access by the hardware

FIFO (DPR)

Content

Data IN 1 Load In Progress Data IN 2

Interrupt

Pending

Cleared by

Firmware

33.5.2.4

Using Endpoints With Ping-pong Attribute

The use of an endpoint with ping-pong attributes is necessary during isochronous transfer. This also allows handling the maximum bandwidth defined in the USB specification during bulk transfer. To be able to guarantee a constant or the maximum bandwidth, the microcontroller must prepare the next data payload to be sent while the current one is being sent by the USB device.

Thus two banks of memory are used. While one is available for the microcontroller, the other one is locked by the USB device.

Figure 33-7. Bank Swapping Data IN Transfer for Ping-pong Endpoints

Microcontroller

USB Device USB Bus

1st Data Payload

Write

Bank 0

Endpoint 1

Read

Read and Write at the Same Time

2nd Data Payload

Bank 1

Endpoint 1

Bank 0

Endpoint 1

Data IN Packet

1st Data Payload

3rd Data Payload

Bank 0

Endpoint 1

Bank 1

Endpoint 1

Data IN Packet

2nd Data Payload

Bank 0

Endpoint 1

Data IN Packet

3rd Data Payload

419

6042E–ATARM–14-Dec-06

When using a ping-pong endpoint, the following procedures are required to perform Data IN transactions:

1.

The microcontroller checks if it is possible to write in the FIFO by polling TXPKTRDY to be cleared in the endpoint’s UDP_ CSRx register.

2.

The microcontroller writes the first data payload to be sent in the FIFO (Bank 0), writing zero or more byte values in the endpoint’s UDP_ FDRx register.

3.

The microcontroller notifies the USB peripheral it has finished writing in Bank 0 of the

FIFO by setting the TXPKTRDY in the endpoint’s UDP_ CSRx register.

4.

Without waiting for TXPKTRDY to be cleared, the microcontroller writes the second data payload to be sent in the FIFO (Bank 1), writing zero or more byte values in the endpoint’s UDP_ FDRx register.

5.

The microcontroller is notified that the first Bank has been released by the USB device when TXCOMP in the endpoint’s UDP_ CSRx register is set. An interrupt is pending while TXCOMP is being set.

6.

Once the microcontroller has received TXCOMP for the first Bank, it notifies the USB device that it has prepared the second Bank to be sent rising TXPKTRDY in the endpoint’s UDP_ CSRx register.

7.

At this step, Bank 0 is available and the microcontroller can prepare a third data payload to be sent

.

Figure 33-8. Data IN Transfer for Ping-pong Endpoint

Microcontroller

Load Data IN Bank 0

Microcontroller Load Data IN Bank 1

USB Device Send Bank 0

Microcontroller Load Data IN Bank 0

USB Device Send Bank 1

USB Bus

Packets

Data IN

PID

Data IN

ACK

PID

Data IN

PID

Data IN

ACK

PID

TXPKTRDY Flag

(UDP_MCSRx)

TXCOMP Flag

(UDP_CSRx)

Cleared by USB Device,

Data Payload Fully Transmitted

Set by Firmware,

Data Payload Written in FIFO Bank 0

Set by USB

Device

Set by Firmware,

Data Payload Written in FIFO Bank 1

Interrupt Pending

Interrupt Cleared by Firmware

Set by USB Device

FIFO (DPR)

Bank 0

Written by

Microcontroller

Read by USB Device

Written by

Microcontroller

FIFO (DPR)

Bank 1

Written by

Microcontroller

Read by USB Device

Warning: There is software critical path due to the fact that once the second bank is filled, the driver has to wait for TX_COMP to set TX_PKTRDY. If the delay between receiving TX_COMP is set and TX_PKTRDY is set is too long, some Data IN packets may be NACKed, reducing the bandwidth.

Warning: TX_COMP must be cleared after TX_PKTRDY has been set.

420

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.5.2.5

Data OUT Transaction

Data OUT transactions are used in control, isochronous, bulk and interrupt transfers and conduct the transfer of data from the host to the device. Data OUT transactions in isochronous transfers must be done using endpoints with ping-pong attributes.

33.5.2.6

Data OUT Transaction Without Ping-pong Attributes

To perform a Data OUT transaction, using a non ping-pong endpoint:

1.

The host generates a Data OUT packet.

2.

This packet is received by the USB device endpoint. While the FIFO associated to this endpoint is being used by the microcontroller, a NAK PID is returned to the host. Once the FIFO is available, data are written to the FIFO by the USB device and an ACK is automatically carried out to the host.

3.

The microcontroller is notified that the USB device has received a data payload polling

RX_DATA_BK0 in the endpoint’s UDP_ CSRx register. An interrupt is pending for this endpoint while RX_DATA_BK0 is set.

4.

The number of bytes available in the FIFO is made available by reading RXBYTECNT in the endpoint’s UDP_ CSRx register.

5.

The microcontroller carries out data received from the endpoint’s memory to its memory. Data received is available by reading the endpoint’s UDP_ FDRx register.

6.

The microcontroller notifies the USB device that it has finished the transfer by clearing

RX_DATA_BK0 in the endpoint’s UDP_ CSRx register.

7.

A new Data OUT packet can be accepted by the USB device.

Figure 33-9. Data OUT Transfer for Non Ping-pong Endpoints

Host Sends Data Payload

Microcontroller Transfers Data

Host Sends the Next Data Payload Host Resends the Next Data Payload

USB Bus

Packets

Data OUT

PID

Data OUT 1

ACK

PID

Data OUT2

PID

Data OUT2

NAK

PID

Data OUT

PID

Data OUT2

ACK

PID

RX_DATA_BK0

(UDP_CSRx)

FIFO (DPR)

Content

Data OUT 1

Written by USB Device

Interrupt Pending

Set by USB Device

Data OUT 1

Microcontroller Read

Cleared by Firmware,

Data Payload Written in FIFO

Data OUT 2

Written by USB Device

An interrupt is pending while the flag RX_DATA_BK0 is set. Memory transfer between the USB device, the FIFO and microcontroller memory can not be done after RX_DATA_BK0 has been cleared. Otherwise, the USB device would accept the next Data OUT transfer and overwrite the current Data OUT packet in the FIFO.

421

6042E–ATARM–14-Dec-06

33.5.2.7

Using Endpoints With Ping-pong Attributes

During isochronous transfer, using an endpoint with ping-pong attributes is obligatory. To be able to guarantee a constant bandwidth, the microcontroller must read the previous data payload sent by the host, while the current data payload is received by the USB device. Thus two banks of memory are used. While one is available for the microcontroller, the other one is locked by the USB device.

Figure 33-10. Bank Swapping in Data OUT Transfers for Ping-pong Endpoints

Microcontroller

Write

USB Device

Write and Read at the Same Time

Read

Bank 0

Endpoint 1

1st Data Payload

Bank 0

Endpoint 1

Bank 1

Endpoint 1

2nd Data Payload

Bank 1

Endpoint 1

Bank 0

Endpoint 1

3rd Data Payload

Bank 0

Endpoint 1

USB Bus

Data IN Packet

1st Data Payload

Data IN Packet

2nd Data Payload

Data IN Packet

3rd Data Payload

When using a ping-pong endpoint, the following procedures are required to perform Data OUT transactions:

1.

The host generates a Data OUT packet.

2.

This packet is received by the USB device endpoint. It is written in the endpoint’s FIFO

Bank 0.

3.

The USB device sends an ACK PID packet to the host. The host can immediately send a second Data OUT packet. It is accepted by the device and copied to FIFO Bank 1.

4.

The microcontroller is notified that the USB device has received a data payload, polling

RX_DATA_BK0 in the endpoint’s UDP_ CSRx register. An interrupt is pending for this endpoint while RX_DATA_BK0 is set.

5.

The number of bytes available in the FIFO is made available by reading RXBYTECNT in the endpoint’s UDP_ CSRx register.

6.

The microcontroller transfers out data received from the endpoint’s memory to the microcontroller’s memory. Data received is made available by reading the endpoint’s

UDP_ FDRx register.

7.

The microcontroller notifies the USB peripheral device that it has finished the transfer by clearing RX_DATA_BK0 in the endpoint’s UDP_ CSRx register.

8.

A third Data OUT packet can be accepted by the USB peripheral device and copied in the FIFO Bank 0.

9.

If a second Data OUT packet has been received, the microcontroller is notified by the flag RX_DATA_BK1 set in the endpoint’s UDP_ CSRx register. An interrupt is pending for this endpoint while RX_DATA_BK1 is set.

422

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

10. The microcontroller transfers out data received from the endpoint’s memory to the microcontroller’s memory. Data received is available by reading the endpoint’s UDP_

FDRx register.

11. The microcontroller notifies the USB device it has finished the transfer by clearing

RX_DATA_BK1 in the endpoint’s UDP_ CSRx register.

12. A fourth Data OUT packet can be accepted by the USB device and copied in the FIFO

Bank 0.

Figure 33-11. Data OUT Transfer for Ping-pong Endpoint

Host Sends First Data Payload

Microcontroller Reads Data 1 in Bank 0,

Host Sends Second Data Payload

Microcontroller Reads Data2 in Bank 1,

Host Sends Third Data Payload

USB Bus

Packets

Data OUT

PID

Data OUT 1

ACK

PID

Data OUT

PID

Data OUT 2

ACK

PID

Data OUT

PID

Data OUT 3

A

P

Cleared by Firmware

RX_DATA_BK0 Flag

(UDP_CSRx)

Set by USB Device,

Data Payload Written in FIFO Endpoint Bank 0

RX_DATA_BK1 Flag

(UDP_CSRx)

Interrupt Pending

Set by USB Device,

Data Payload Written in FIFO Endpoint Bank 1

Interrupt Pending

Cleared by Firmware

FIFO (DPR)

Bank 0

Data OUT1

Write by USB Device

Data OUT 1

Read By Microcontroller

FIFO (DPR)

Bank 1

Data OUT 2

Write by USB Device

Note: An interrupt is pending while the RX_DATA_BK0 or RX_DATA_BK1 flag is set.

Data OUT 3

Write In Progress

Data OUT 2

Read By Microcontroller

33.5.2.8

Warning: When RX_DATA_BK0 and RX_DATA_BK1 are both set, there is no way to determine which one to clear first. Thus the software must keep an internal counter to be sure to clear alternatively RX_DATA_BK0 then RX_DATA_BK1. This situation may occur when the software application is busy elsewhere and the two banks are filled by the USB host. Once the application comes back to the USB driver, the two flags are set.

Stall Handshake

A stall handshake can be used in one of two distinct occasions. (For more information on the stall handshake, refer to Chapter 8 of the Universal Serial Bus Specification, Rev 2.0.)

• A functional stall is used when the halt feature associated with the endpoint is set. (Refer to

Chapter 9 of the Universal Serial Bus Specification, Rev 2.0, for more information on the halt feature.)

• To abort the current request, a protocol stall is used, but uniquely with control transfer.

The following procedure generates a stall packet:

423

6042E–ATARM–14-Dec-06

1.

The microcontroller sets the FORCESTALL flag in the UDP_ CSRx endpoint’s register.

2.

The host receives the stall packet.

3.

The microcontroller is notified that the device has sent the stall by polling the

STALLSENT to be set. An endpoint interrupt is pending while STALLSENT is set. The microcontroller must clear STALLSENT to clear the interrupt.

When a setup transaction is received after a stall handshake, STALLSENT must be cleared in order to prevent interrupts due to STALLSENT being set.

Figure 33-12. Stall Handshake (Data IN Transfer)

USB Bus

Packets

Data IN PID Stall PID

FORCESTALL

STALLSENT

Set by Firmware

Cleared by Firmware

Interrupt Pending

Cleared by Firmware

Set by

USB Device

Figure 33-13. Stall Handshake (Data OUT Transfer)

USB Bus

Packets

Data OUT PID Data OUT Stall PID

FORCESTALL

Set by Firmware

Interrupt Pending

STALLSENT

Set by USB Device

Cleared by Firmware

424

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.5.3

Controlling Device States

A USB device has several possible states. Refer to Chapter 9 of the Universal Serial Bus Speci-

fication, Rev 2.0.

Figure 33-14. USB Device State Diagram

Attached

Hub Reset or

Deconfigured

Hub

Configured

Bus Inactive

Powered

Bus Activity

Power

Interruption

Reset

Reset

Bus Inactive

Default

Bus Activity

Address

Assigned

Bus Inactive

Address

Bus Activity

Device

Deconfigured

Device

Configured

Bus Inactive

Configured

Bus Activity

Suspended

Suspended

Suspended

Suspended

6042E–ATARM–14-Dec-06

Movement from one state to another depends on the USB bus state or on standard requests sent through control transactions via the default endpoint (endpoint 0).

After a period of bus inactivity, the USB device enters Suspend Mode. Accepting Suspend/Resume requests from the USB host is mandatory. Constraints in Suspend Mode are very strict for bus-powered applications; devices may not consume more than 500 µA on the USB bus.

While in Suspend Mode, the host may wake up a device by sending a resume signal (bus activity) or a USB device may send a wake up request to the host, e.g., waking up a PC by moving a

USB mouse.

The wake up feature is not mandatory for all devices and must be negotiated with the host.

425

33.5.3.1

33.5.3.2

33.5.3.3

33.5.3.4

33.5.3.5

Not Powered State

Self powered devices can detect 5V VBUS using a PIO as described in the typical connection section. When the device is not connected to a host, device power consumption can be reduced by disabling MCK for the UDP, disabling UDPCK and disabling the transceiver. DDP and DDM lines are pulled down by 330 K

resistors.

Entering Attached State

When no device is connected, the USB DP and DM signals are tied to GND by 15 K

pull-down resistors integrated in the hub downstream ports. When a device is attached to a hub downstream port, the device connects a 1.5 K

pull-up resistor on DP. The USB bus line goes into

IDLE state, DP is pulled up by the device 1.5 K

resistor to 3.3V and DM is pulled down by the

15 K

resistor of the host.

After pullup connection, the device enters the powered state. In this state, the UDPCK and MCK must be enabled in the Power Management Controller. The transceiver can remain disabled.

From Powered State to Default State

After its connection to a USB host, the USB device waits for an end-of-bus reset. The unmaskable flag ENDBUSRES is set in the register UDP_ISR and an interrupt is triggered.

Once the ENDBUSRES interrupt has been triggered, the device enters Default State. In this state, the UDP software must:

• Enable the default endpoint, setting the EPEDS flag in the UDP_CSR[0] register and, optionally, enabling the interrupt for endpoint 0 by writing 1 to the UDP_IER register. The enumeration then begins by a control transfer.

• Configure the interrupt mask register which has been reset by the USB reset detection

• Enable the transceiver clearing the TXVDIS flag in the UDP_TXVC register.

In this state UDPCK and MCK must be enabled.

Warning: Each time an ENDBUSRES interrupt is triggered, the Interrupt Mask Register and

UDP_CSR registers have been reset.

From Default State to Address State

After a set address standard device request, the USB host peripheral enters the address state.

Warning: Before the device enters in address state, it must achieve the Status IN transaction of the control transfer, i.e., the UDP device sets its new address once the TXCOMP flag in the

UDP_CSR[0] register has been received and cleared.

To move to address state, the driver software sets the FADDEN flag in the UDP_GLB_STAT register, sets its new address, and sets the FEN bit in the UDP_FADDR register.

From Address State to Configured State

Once a valid Set Configuration standard request has been received and acknowledged, the device enables endpoints corresponding to the current configuration. This is done by setting the

EPEDS and EPTYPE fields in the UDP_CSRx registers and, optionally, enabling corresponding interrupts in the UDP_IER register.

426

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

33.5.3.6

33.5.3.7

33.5.3.8

AT91SAM7A3 Preliminary

Entering in Suspend State

When a Suspend (no bus activity on the USB bus) is detected, the RXSUSP signal in the

UDP_ISR register is set. This triggers an interrupt if the corresponding bit is set in the UDP_IMR register.This flag is cleared by writing to the UDP_ICR register. Then the device enters Suspend

Mode.

In this state bus powered devices must drain less than 500uA from the 5V VBUS. As an example, the microcontroller switches to slow clock, disables the PLL and main oscillator, and goes into Idle Mode. It may also switch off other devices on the board.

The USB device peripheral clocks can be switched off. Resume event is asynchronously detected. MCK and UDPCK can be switched off in the Power Management controller and the

USB transceiver can be disabled by setting the TXVDIS field in the UDP_TXVC register.

Warning: Read, write operations to the UDP registers are allowed only if MCK is enabled for the

UDP peripheral. Switching off MCK for the UDP peripheral must be one of the last operations after writing to the UDP_TXVC and acknowledging the RXSUSP.

Receiving a Host Resume

In suspend mode, a resume event on the USB bus line is detected asynchronously, transceiver and clocks are disabled (however the pullup shall not be removed).

Once the resume is detected on the bus, the WAKEUP signal in the UDP_ISR is set. It may generate an interrupt if the corresponding bit in the UDP_IMR register is set. This interrupt may be used to wake up the core, enable PLL and main oscillators and configure clocks.

Warning: Read, write operations to the UDP registers are allowed only if MCK is enabled for the

UDP peripheral. MCK for the UDP must be enabled before clearing the WAKEUP bit in the

UDP_ICR register and clearing TXVDIS in the UDP_TXVC register.

Sending a Device Remote Wakeup

In Suspend state it is possible to wake up the host sending an external resume.

• The device must wait at least 5 ms after being entered in suspend before sending an external resume.

• The device has 10 ms from the moment it starts to drain current and it forces a K state to resume the host.

• The device must force a K state from 1 to 15 ms to resume the host

To force a K state to the bus (DM at 3.3V and DP tied to GND), it is possible to use a transistor to connect a pullup on DM. The K state is obtained by disabling the pullup on DP and enabling the pullup on DM. This should be under the control of the application.

427

6042E–ATARM–14-Dec-06

Figure 33-15. Board Schematic to Drive a K State

PIO

0: Force Wake UP (K State)

1: Normal Mode

DM

3V3

1.5 K

428

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6

USB Device Port (UDP) User Interface

WARNING: The UDP peripheral clock in the Power Management Controller (PMC) must be enabled before any read/write operations to the UDP registers including the UDP_TXCV register.

Table 33-4.

UDP Memory Map

Offset

0x000

0x004

0x008

0x00C

0x010

0x014

0x018

0x01C

0x020

0x024

0x028

0x02C

0x030

.

.

.

See Note:

(1)

0x050

Register

Frame Number Register

Global State Register

Function Address Register

Reserved

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Interrupt Status Register

Interrupt Clear Register

Reserved

Reset Endpoint Register

Reserved

.

.

.

Endpoint 0 Control and Status Register

Endpoint 5 Control and Status Register

Endpoint 0 FIFO Data Register

Name

UDP_ FRM_NUM

UDP_ GLB_STAT

UDP_ FADDR

UDP_ IER

UDP_ IDR

UDP_ IMR

UDP_ ISR

UDP_ ICR

UDP_ RST_EP

UDP_CSR0

Access

Read

Read/Write

Read/Write

Write

Write

Read

Read

Write

Read/Write

Read/Write

UDP_CSR5

UDP_ FDR0

Read/Write

Read/Write

.

.

.

See Note:

(2)

0x070

0x074

.

.

.

Endpoint 5 FIFO Data Register

Reserved

Transceiver Control Register

UDP_ FDR5

UDP_ TXVC

(3)

Read/Write

Read/Write

0x078 - 0xFC Reserved – –

Notes: 1. The addresses of the UDP_ CSRx registers are calculated as: 0x030 + 4(Endpoint Number - 1).

2. The addresses of the UDP_ FDRx registers are calculated as: 0x050 + 4(Endpoint Number - 1).

3. See Warning above the ”UDP Memory Map” on this page.

Reset State

0x0000_0000

0x0000_0000

0x0000_0100

0x0000_1200

0x0000_XX00

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

429

6042E–ATARM–14-Dec-06

33.6.1

UDP Frame Number Register

Register Name:

UDP_ FRM_NUM

Access Type:

31

---

Read-only

30

---

29

---

23

15

22

14

21

13

28

---

20

12

27

---

19

11

26

---

18

10

25

---

17

FRM_OK

9

FRM_NUM

24

---

16

FRM_ERR

8

7 6 5 4

FRM_NUM

3 2 1 0

• FRM_NUM[10:0]: Frame Number as Defined in the Packet Field Formats

This 11-bit value is incremented by the host on a per frame basis. This value is updated at each start of frame.

Value Updated at the SOF_EOP (Start of Frame End of Packet).

• FRM_ERR: Frame Error

This bit is set at SOF_EOP when the SOF packet is received containing an error.

This bit is reset upon receipt of SOF_PID.

• FRM_OK: Frame OK

This bit is set at SOF_EOP when the SOF packet is received without any error.

This bit is reset upon receipt of SOF_PID (Packet Identification).

In the Interrupt Status Register, the SOF interrupt is updated upon receiving SOF_PID. This bit is set without waiting for

EOP.

Note: In the 8-bit Register Interface, FRM_OK is bit 4 of FRM_NUM_H and FRM_ERR is bit 3 of FRM_NUM_L.

430

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6.2

UDP Global State Register

Register Name:

UDP_ GLB_STAT

Access Type:

31

Read/Write

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

7

14

6

13

5

12

4

11

3

10

2

9

1

CONFG

8

0

FADDEN

This register is used to get and set the device state as specified in Chapter 9 of the USB Serial Bus Specification, Rev.2.0.

• FADDEN: Function Address Enable

Read:

0 = Device is not in address state.

1 = Device is in address state.

Write:

0 = No effect, only a reset can bring back a device to the default state.

1 = Sets device in address state. This occurs after a successful Set Address request. Beforehand, the UDP_ FADDR register must have been initialized with Set Address parameters. Set Address must complete the Status Stage before setting

FADDEN. Refer to chapter 9 of the Universal Serial Bus Specification, Rev. 2.0 for more details.

• CONFG: Configured

Read:

0 = Device is not in configured state.

1 = Device is in configured state.

Write:

0 = Sets device in a non configured state

1 = Sets device in configured state.

The device is set in configured state when it is in address state and receives a successful Set Configuration request. Refer to Chapter 9 of the Universal Serial Bus Specification, Rev. 2.0 for more details.

431

6042E–ATARM–14-Dec-06

33.6.3

UDP Function Address Register

Register Name:

UDP_ FADDR

Access Type:

31

Read/Write

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

14

13

12

11

10

9

1

8

FEN

0 7

6 5 4 3

FADD

2

• FADD[6:0]: Function Address Value

The Function Address Value must be programmed by firmware once the device receives a set address request from the host, and has achieved the status stage of the no-data control sequence. Refer to the Universal Serial Bus Specification,

Rev. 2.0 for more information. After power up or reset, the function address value is set to 0.

• FEN: Function Enable

Read:

0 = Function endpoint disabled.

1 = Function endpoint enabled.

Write:

0 = Disables function endpoint.

1 = Default value.

The Function Enable bit (FEN) allows the microcontroller to enable or disable the function endpoints. The microcontroller sets this bit after receipt of a reset from the host. Once this bit is set, the USB device is able to accept and transfer data packets from and to the host.

432

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6.4

UDP Interrupt Enable Register

Register Name:

UDP_ IER

Access Type:

31

Write-only

30

29

23

15

22

14

21

13

WAKEUP

7 6 5

EP5INT

• EP0INT: Enable Endpoint 0 Interrupt

• EP1INT: Enable Endpoint 1 Interrupt

• EP2INT: Enable Endpoint 2Interrupt

• EP3INT: Enable Endpoint 3 Interrupt

• EP4INT: Enable Endpoint 4 Interrupt

• EP5INT: Enable Endpoint 5 Interrupt

0 = No effect.

1 = Enables corresponding Endpoint Interrupt.

• RXSUSP: Enable UDP Suspend Interrupt

0 = No effect.

1 = Enables UDP Suspend Interrupt.

• RXRSM: Enable UDP Resume Interrupt

0 = No effect.

1 = Enables UDP Resume Interrupt.

• SOFINT: Enable Start Of Frame Interrupt

0 = No effect.

1 = Enables Start Of Frame Interrupt.

• WAKEUP: Enable UDP bus Wakeup Interrupt

0 = No effect.

1 = Enables USB bus Interrupt.

4

EP4INT

28

20

12

27

19

11

SOFINT

3

EP3INT

26

18

10

2

EP2INT

25

17

9

RXRSM

1

EP1INT

24

16

8

RXSUSP

0

EP0INT

433

6042E–ATARM–14-Dec-06

33.6.5

UDP Interrupt Disable Register

Register Name:

UDP_ IDR

Access Type:

31

Write-only

30

29

23

15

22

14

21

13

WAKEUP

7 6 5

EP5INT

• EP0INT: Disable Endpoint 0 Interrupt

• EP1INT: Disable Endpoint 1 Interrupt

• EP2INT: Disable Endpoint 2 Interrupt

• EP3INT: Disable Endpoint 3 Interrupt

• EP4INT: Disable Endpoint 4 Interrupt

• EP5INT: Disable Endpoint 5 Interrupt

0 = No effect.

1 = Disables corresponding Endpoint Interrupt.

• RXSUSP: Disable UDP Suspend Interrupt

0 = No effect.

1 = Disables UDP Suspend Interrupt.

• RXRSM: Disable UDP Resume Interrupt

0 = No effect.

1 = Disables UDP Resume Interrupt.

• SOFINT: Disable Start Of Frame Interrupt

0 = No effect.

1 = Disables Start Of Frame Interrupt

• WAKEUP: Disable USB Bus Interrupt

0 = No effect.

1 = Disables USB Bus Wakeup Interrupt.

4

EP4INT

28

20

12

27

19

11

SOFINT

3

EP3INT

26

18

10

2

EP2INT

25

17

9

RXRSM

1

EP1INT

24

16

8

RXSUSP

0

EP0INT

434

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

33.6.6

UDP Interrupt Mask Register

Register Name:

UDP_ IMR

Access Type:

31

Read-only

30

29

23

15

22

14

21

13

WAKEUP

28

20

12

(1)

27

19

11

SOFINT

7 6 5

EP5INT

4

EP4INT

3

EP3INT

Note: 1. Bit 12 of UDP_IMR cannot be masked and is always read at 1.

• EP0INT: Mask Endpoint 0 Interrupt

• EP1INT: Mask Endpoint 1 Interrupt

• EP2INT: Mask Endpoint 2 Interrupt

• EP3INT: Mask Endpoint 3 Interrupt

• EP4INT: Mask Endpoint 4 Interrupt

• EP5INT: Mask Endpoint 5 Interrupt

0 = Corresponding Endpoint Interrupt is disabled.

1 = Corresponding Endpoint Interrupt is enabled.

• RXSUSP: Mask UDP Suspend Interrupt

0 = UDP Suspend Interrupt is disabled.

1 = UDP Suspend Interrupt is enabled.

• RXRSM: Mask UDP Resume Interrupt.

0 = UDP Resume Interrupt is disabled.

1 = UDP Resume Interrupt is enabled.

• SOFINT: Mask Start Of Frame Interrupt

0 = Start of Frame Interrupt is disabled.

1 = Start of Frame Interrupt is enabled.

AT91SAM7A3 Preliminary

26

18

10

2

EP2INT

25

17

9

RXRSM

1

EP1INT

24

16

8

RXSUSP

0

EP0INT

435

6042E–ATARM–14-Dec-06

• WAKEUP: USB Bus WAKEUP Interrupt

0 = USB Bus Wakeup Interrupt is disabled.

1 = USB Bus Wakeup Interrupt is enabled.

Note: When the USB block is in suspend mode, the application may power down the USB logic. In this case, any USB HOST resume request that is made must be taken into account and, thus, the reset value of the RXRSM bit of the register UDP_ IMR is enabled.

436

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6.7

UDP Interrupt Status Register

Register Name:

UDP_ ISR

Access Type:

31

Read-only

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

7

14

6

13

WAKEUP

5

EP5INT

12

ENDBUSRES

4

EP4INT

11

SOFINT

3

EP3INT

10

2

EP2INT

9

RXRSM

1

EP1INT

8

RXSUSP

0

EP0INT

• EP0INT: Endpoint 0 Interrupt Status

• EP1INT: Endpoint 1 Interrupt Status

• EP2INT: Endpoint 2 Interrupt Status

• EP3INT: Endpoint 3 Interrupt Status

• EP4INT: Endpoint 4 Interrupt Status

• EP5INT: Endpoint 5 Interrupt Status

0 = No Endpoint0 Interrupt pending.

1 = Endpoint0 Interrupt has been raised.

Several signals can generate this interrupt. The reason can be found by reading UDP_ CSR0:

RXSETUP set to 1

RX_DATA_BK0 set to 1

RX_DATA_BK1 set to 1

TXCOMP set to 1

STALLSENT set to 1

EP0INT is a sticky bit. Interrupt remains valid until EP0INT is cleared by writing in the corresponding UDP_ CSR0 bit.

• RXSUSP: UDP Suspend Interrupt Status

0 = No UDP Suspend Interrupt pending.

1 = UDP Suspend Interrupt has been raised.

The USB device sets this bit when it detects no activity for 3ms. The USB device enters Suspend mode.

• RXRSM: UDP Resume Interrupt Status

0 = No UDP Resume Interrupt pending.

1 =UDP Resume Interrupt has been raised.

The USB device sets this bit when a UDP resume signal is detected at its port.

437

6042E–ATARM–14-Dec-06

After reset, the state of this bit is undefined, the application must clear this bit by setting the RXRSM flag in the UDP_ ICR register.

• SOFINT: Start of Frame Interrupt Status

0 = No Start of Frame Interrupt pending.

1 = Start of Frame Interrupt has been raised.

This interrupt is raised each time a SOF token has been detected. It can be used as a synchronization signal by using isochronous endpoints.

• ENDBUSRES: End of BUS Reset Interrupt Status

0 = No End of Bus Reset Interrupt pending.

1 = End of Bus Reset Interrupt has been raised.

This interrupt is raised at the end of a UDP reset sequence. The USB device must prepare to receive requests on the endpoint 0. The host starts the enumeration, then performs the configuration.

• WAKEUP: UDP Resume Interrupt Status

0 = No Wakeup Interrupt pending.

1 = A Wakeup Interrupt (USB Host Sent a RESUME or RESET) occurred since the last clear.

After reset the state of this bit is undefined, the application must clear this bit by setting the WAKEUP flag in the UDP_ ICR register.

438

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

33.6.8

UDP Interrupt Clear Register

Register Name:

UDP_ ICR

Access Type:

31

Write-only

30

29

23

15

22

14

21

13

WAKEUP

28

20

12

ENDBUSRES

7

6

5

• RXSUSP: Clear UDP Suspend Interrupt

0 = No effect.

1 = Clears UDP Suspend Interrupt.

• RXRSM: Clear UDP Resume Interrupt

0 = No effect.

1 = Clears UDP Resume Interrupt.

• SOFINT: Clear Start Of Frame Interrupt

0 = No effect.

1 = Clears Start Of Frame Interrupt.

• ENDBUSRES: Clear End of Bus Reset Interrupt

0 = No effect.

1 = Clears End of Bus Reset Interrupt.

• WAKEUP: Clear Wakeup Interrupt

0 = No effect.

1 = Clears Wakeup Interrupt.

4

27

19

11

SOFINT

3

AT91SAM7A3 Preliminary

10

2

26

18

25

17

9

RXRSM

1

24

16

8

RXSUSP

0

439

6042E–ATARM–14-Dec-06

33.6.9

UDP Reset Endpoint Register

Register Name:

UDP_ RST_EP

Access Type:

31

Read/Write

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

7

14

6

13

5

EP5

12

4

EP4

11

3

EP3

10

2

EP2

9

1

EP1

8

0

EP0

• EP0: Reset Endpoint 0

• EP1: Reset Endpoint 1

• EP2: Reset Endpoint 2

• EP3: Reset Endpoint 3

• EP4: Reset Endpoint 4

• EP5: Reset Endpoint 5

This flag is used to reset the FIFO associated with the endpoint and the bit RXBYTECOUNT in the register UDP_CSRx.It also resets the data toggle to DATA0. It is useful after removing a HALT condition on a BULK endpoint. Refer to Chapter

5.8.5 in the USB Serial Bus Specification, Rev.2.0.

Warning: This flag must be cleared at the end of the reset. It does not clear UDP_ CSRx flags.

0 = No reset.

1 = Forces the corresponding endpoint FIF0 pointers to 0, therefore RXBYTECNT field is read at 0 in UDP_ CSRx register.

440

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6.10

UDP Endpoint Control and Status Register

Register Name:

UDP_ CSRx [x = 0..5]

Access Type:

31

Read/Write

30

29

28

23

15

EPEDS

22

14

21

13

27

20

RXBYTECNT

19

12

11

DTGLE

26

18

25

RXBYTECNT

17

24

16

10 9

EPTYPE

8

7

DIR

6

RX_DATA_

BK1

5

FORCE

STALL

4

TXPKTRDY

3

STALLSENT

ISOERROR

2

RXSETUP

1

RX_DATA_

BK0

0

TXCOMP

WARNING: Due to synchronization between MCK and UDPCK, the software application must wait for the end of the write operation before executing another write by polling the bits which must be set/cleared.

//! Clear flags of UDP UDP_CSR register and waits for synchronization

#define Udp_ep_clr_flag(pInterface, endpoint, flags) { \ while (pInterface->UDP_CSR[endpoint] & (flags)) \ pInterface->UDP_CSR[endpoint] &= ~(flags); \

}

//! Set flags of UDP UDP_CSR register and waits for synchronization

#define Udp_ep_set_flag(pInterface, endpoint, flags) { \ while ( (pInterface->UDP_CSR[endpoint] & (flags)) != (flags) ) \ pInterface->UDP_CSR[endpoint] |= (flags); \

}

• TXCOMP: Generates an IN Packet with Data Previously Written in the DPR

This flag generates an interrupt while it is set to one.

Write (Cleared by the firmware):

0 = Clear the flag, clear the interrupt.

1 = No effect.

Read (Set by the USB peripheral):

0 = Data IN transaction has not been acknowledged by the Host.

1 = Data IN transaction is achieved, acknowledged by the Host.

After having issued a Data IN transaction setting TXPKTRDY, the device firmware waits for TXCOMP to be sure that the host has acknowledged the transaction.

• RX_DATA_BK0: Receive Data Bank 0

This flag generates an interrupt while it is set to one.

Write (Cleared by the firmware):

0 = Notify USB peripheral device that data have been read in the FIFO's Bank 0.

441

6042E–ATARM–14-Dec-06

1 = No effect.

Read (Set by the USB peripheral):

0 = No data packet has been received in the FIFO's Bank 0.

1 = A data packet has been received, it has been stored in the FIFO's Bank 0.

When the device firmware has polled this bit or has been interrupted by this signal, it must transfer data from the FIFO to the microcontroller memory. The number of bytes received is available in RXBYTCENT field. Bank 0 FIFO values are read through the UDP_ FDRx register. Once a transfer is done, the device firmware must release Bank 0 to the USB peripheral device by clearing RX_DATA_BK0.

• RXSETUP: Received Setup

This flag generates an interrupt while it is set to one.

Read:

0 = No setup packet available.

1 = A setup data packet has been sent by the host and is available in the FIFO.

Write:

0 = Device firmware notifies the USB peripheral device that it has read the setup data in the FIFO.

1 = No effect.

This flag is used to notify the USB device firmware that a valid Setup data packet has been sent by the host and successfully received by the USB device. The USB device firmware may transfer Setup data from the FIFO by reading the UDP_

FDRx register to the microcontroller memory. Once a transfer has been done, RXSETUP must be cleared by the device firmware.

Ensuing Data OUT transaction is not accepted while RXSETUP is set.

• STALLSENT: Stall Sent (Control, Bulk Interrupt Endpoints) / ISOERROR (Isochronous Endpoints)

This flag generates an interrupt while it is set to one.

STALLSENT: This ends a STALL handshake.

Read:

0 = The host has not acknowledged a STALL.

1 = Host has acknowledged the stall.

Write:

0 = Resets the STALLSENT flag, clears the interrupt.

1 = No effect.

This is mandatory for the device firmware to clear this flag. Otherwise the interrupt remains.

Refer to chapters 8.4.5 and 9.4.5 of the Universal Serial Bus Specification, Rev. 2.0 for more information on the STALL handshake.

ISOERROR: A CRC error has been detected in an isochronous transfer.

Read:

0 = No error in the previous isochronous transfer.

1 = CRC error has been detected, data available in the FIFO are corrupted.

Write:

442

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

0 = Resets the ISOERROR flag, clears the interrupt.

1 = No effect.

• TXPKTRDY: Transmit Packet Ready

This flag is cleared by the USB device.

This flag is set by the USB device firmware.

Read:

0 = Can be set to one to send the FIFO data.

1 = The data is waiting to be sent upon reception of token IN.

Write:

0 = No effect.

1 = A new data payload is has been written in the FIFO by the firmware and is ready to be sent.

This flag is used to generate a Data IN transaction (device to host). Device firmware checks that it can write a data payload in the FIFO, checking that TXPKTRDY is cleared. Transfer to the FIFO is done by writing in the UDP_ FDRx register. Once the data payload has been transferred to the FIFO, the firmware notifies the USB device setting TXPKTRDY to one. USB bus transactions can start. TXCOMP is set once the data payload has been received by the host.

• FORCESTALL: Force Stall (used by Control, Bulk and Isochronous Endpoints)

Read:

0 = Normal state.

1 = Stall state.

Write:

0 = Return to normal state.

1 = Send STALL to the host.

Refer to chapters 8.4.5 and 9.4.5 of the Universal Serial Bus Specification, Rev. 2.0 for more information on the STALL handshake.

Control endpoints: During the data stage and status stage, this bit indicates that the microcontroller cannot complete the request.

Bulk and interrupt endpoints: This bit notifies the host that the endpoint is halted.

The host acknowledges the STALL, device firmware is notified by the STALLSENT flag.

• RX_DATA_BK1: Receive Data Bank 1 (only used by endpoints with ping-pong attributes)

This flag generates an interrupt while it is set to one.

Write (Cleared by the firmware):

0 = Notifies USB device that data have been read in the FIFO’s Bank 1.

1 = No effect.

Read (Set by the USB peripheral):

0 = No data packet has been received in the FIFO's Bank 1.

1 = A data packet has been received, it has been stored in FIFO's Bank 1.

443

6042E–ATARM–14-Dec-06

When the device firmware has polled this bit or has been interrupted by this signal, it must transfer data from the FIFO to microcontroller memory. The number of bytes received is available in RXBYTECNT field. Bank 1 FIFO values are read through UDP_ FDRx register. Once a transfer is done, the device firmware must release Bank 1 to the USB device by clearing RX_DATA_BK1.

• DIR: Transfer Direction (only available for control endpoints)

Read/Write

0 = Allows Data OUT transactions in the control data stage.

1 = Enables Data IN transactions in the control data stage.

Refer to Chapter 8.5.3 of the Universal Serial Bus Specification, Rev. 2.0 for more information on the control data stage.

This bit must be set before UDP_ CSRx/RXSETUP is cleared at the end of the setup stage. According to the request sent in the setup data packet, the data stage is either a device to host (DIR = 1) or host to device (DIR = 0) data transfer. It is not necessary to check this bit to reverse direction for the status stage.

• EPTYPE[2:0]: Endpoint Type

Read/Write

000

001

101

010

110

011

111

Control

Isochronous OUT

Isochronous IN

Bulk OUT

Bulk IN

Interrupt OUT

Interrupt IN

• DTGLE: Data Toggle

Read-only

0 = Identifies DATA0 packet.

1 = Identifies DATA1 packet.

Refer to Chapter 8 of the Universal Serial Bus Specification, Rev. 2.0 for more information on DATA0, DATA1 packet definitions.

• EPEDS: Endpoint Enable Disable

Read:

0 = Endpoint disabled.

1 = Endpoint enabled.

Write:

0 = Disables endpoint.

1 = Enables endpoint.

• RXBYTECNT[10:0]: Number of Bytes Available in the FIFO

Read-only

When the host sends a data packet to the device, the USB device stores the data in the FIFO and notifies the microcontroller. The microcontroller can load the data from the FIFO by reading RXBYTECENT bytes in the UDP_ FDRx register.

444

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

33.6.11

UDP FIFO Data Register

Register Name:

UDP_ FDRx [x = 0..5]

Access Type:

31

Read/Write

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

14

13

12

11

10

9

1

8

0 7 6 5 4

FIFO_DATA

3 2

• FIFO_DATA[7:0]: FIFO Data Value

The microcontroller can push or pop values in the FIFO through this register.

RXBYTECNT in the corresponding UDP_ CSRx register is the number of bytes to be read from the FIFO (sent by the host).

The maximum number of bytes to write is fixed by the Max Packet Size in the Standard Endpoint Descriptor. It can not be more than the physical memory size associated to the endpoint. Refer to the Universal Serial Bus Specification, Rev. 2.0 for more information.

445

6042E–ATARM–14-Dec-06

33.6.12

UDP Transceiver Control Register

Register Name:

UDP_ TXVC

Access Type:

31

Read/Write

30

29

23

22

21

28

20

27

19

26

18

25

17

24

16

15

14

13

12

11

10

9

8

TXVDIS

7

6

5

4

3

2

1

0

WARNING: The UDP peripheral clock in the Power Management Controller (PMC) must be enabled before any read/write operations to the UDP registers including the UDP_TXCV register.

• TXVDIS: Transceiver Disable

When UDP is disabled, power consumption can be reduced significantly by disabling the embedded transceiver. This can be done by setting TXVDIS field.

To enable the transceiver, TXVDIS must be cleared.

NOTE: If the USB pullup is not connected on DP, the user should not write in any UDP register other than the UDP_ TXVC register. This is because if DP and DM are floating at 0, or pulled down, then SE0 is received by the device with the consequence of a USB Reset.

446

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34. MultiMedia Card Interface (MCI)

34.1

Overview

The MultiMedia Card Interface (MCI) supports the MultiMediaCard (MMC) Specification V2.2 and the SD Memory Card Specification V1.0.

The MCI includes a command register, response registers, data registers, timeout counters and error detection logic that automatically handle the transmission of commands and, when required, the reception of the associated responses and data with a limited processor overhead.

The MCI supports stream, block and multi-block data read and write, and is compatible with the Peripheral DMA Controller (PDC) channels, minimizing processor intervention for large buffer transfers.

The MCI operates at a rate of up to Master Clock divided by 2 and supports the interfacing of

1 slot(s). Each slot may be used to interface with a MultiMediaCard bus (up to 30 Cards) or with a SD Memory Card. Only one slot can be selected at a time (slots are multiplexed). A bit field in the SD Card Register performs this selection.

The SD Memory Card communication is based on a 9-pin interface (clock, command, four data and three power lines) and the MultiMediaCard on a 7-pin interface (clock, command, one data, three power lines and one reserved for future use).

The SD Memory Card interface also supports MultiMediaCard operations. The main differences between SD and MultiMedia Cards are the initialization process and the bus topology.

447

6042E–ATARM–14-Dec-06

34.2

Block Diagram

Figure 34-1. Block Diagram

APB Bridge

PDC

APB

MCI Interface

PMC

MCK

Interrupt Control

MCI Interrupt

34.3

Application Block Diagram

Figure 34-2. Application Block Diagram

Application Layer ex: File System, Audio, Security, etc.

PIO

MCCK

(1)

MCCDA

(1)

MCDA0

(1)

MCDA1

(1)

MCDA2

(1)

MCDA3

(1)

Physical Layer

MCI Interface

1 2 3 4 5 6 7

MMC

9

1 2 3 4 5 6 7 8

SDCard

448

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.4

Pin Name List

Table 34-1.

I/O Lines Description

Pin Name

MCCDA

MCCK

MCDA0 - MCDA3

Pin Description

Command/response

Clock

Data 0..3 of Slot A

Type

(1)

Comments

I/O/PP/OD CMD of an MMC or SD Card

I/O CLK of an MMC or SD Card

I/O/PP DAT0 of an MMC

DAT[0..3] of an SD Card

Note: 1. I: Input, O: Output, PP: Push/Pull, OD: Open Drain.

34.5

Product Dependencies

34.5.1

I/O Lines

The pins used for interfacing the MultiMedia Cards or SD Cards may be multiplexed with PIO lines. The programmer must first program the PIO controllers to assign the peripheral functions to MCI pins.

34.5.2

34.5.3

Power Management

The MCI may be clocked through the Power Management Controller (PMC), so the programmer must first configure the PMC to enable the MCI clock.

Interrupt

The MCI interface has an interrupt line connected to the Advanced Interrupt Controller (AIC).

Handling the MCI interrupt requires programming the AIC before configuring the MCI.

34.6

Bus Topology

Figure 34-3. Multimedia Memory Card Bus Topology

1 2 3 4 5 6 7

MMC

449

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The MultiMedia Card communication is based on a 7-pin serial bus interface. It has three communication lines and four supply lines.

Table 34-2.

Bus Topology

5

6

7

3

4

1

2

Pin

Number Name

RSV

CMD

VSS1

VDD

CLK

VSS2

DAT[0]

Type

(1)

NC

I/O/PP/OD

S

S

I/O

S

I/O/PP

Description

Not connected

Command/response

Supply voltage ground

Supply voltage

Clock

Supply voltage ground

Data 0

Note: 1. I: Input, O: Output, PP: Push/Pull, OD: Open Drain.

MCI Pin Name

(Slot z)

-

MCCDz

VSS

VDD

MCCK

VSS

MCDz0

Figure 34-4. MMC Bus Connections (One Slot)

MCI

MCDA0

MCCDA

MCCK

1 2 3 4 5 6 7

MMC1

1 2 3 4 5 6 7

MMC2

1 2 3 4 5 6 7

MMC3

Figure 34-5. SD Memory Card Bus Topology

9

1 2 3 4 5 6 7 8

SD CARD

The SD Memory Card bus includes the signals listed in Table 34-3 .

450

AT91SAM7A3 Preliminary

Table 34-3.

SD Memory Card Bus Signals

6

7

4

5

8

9

2

3

Pin Number Name

1 CD/DAT[3]

CMD

VSS1

VDD

CLK

VSS2

DAT[0]

DAT[1]

DAT[2]

Type

(1)

I/O/PP

PP

S

S

I/O

S

I/O/PP

I/O/PP

I/O/PP

Description

Card detect/ Data line Bit 3

Command/response

Supply voltage ground

Supply voltage

Clock

Supply voltage ground

Data line Bit 0

Data line Bit 1

Data line Bit 2

Note: 1. I: input, O: output, PP: Push Pull, OD: Open Drain.

Figure 34-6. SD Card Bus Connections with One Slot

MCDA0 - MCDA3

MCCK

MCCDA

SD CARD

MCI Pin Name

(Slot z)

MCDz3

MCCDz

VSS

VDD

MCCK

VSS

MCDz0

MCDz1

MCDz2

When the MCI is configured to operate with SD memory cards, the width of the data bus can be selected in the MCI_SDCR register. Clearing the SDCBUS bit in this register means that the width is one bit; setting it means that the width is four bits. In the case of multimedia cards, only the data line 0 is used. The other data lines can be used as independent PIOs.

34.7

MultiMedia Card Operations

After a power-on reset, the cards are initialized by a special message-based MultiMedia Card bus protocol. Each message is represented by one of the following tokens:

• Command: A command is a token that starts an operation. A command is sent from the host either to a single card (addressed command) or to all connected cards (broadcast command). A command is transferred serially on the CMD line.

• Response: A response is a token which is sent from an addressed card or (synchronously) from all connected cards to the host as an answer to a previously received command. A response is transferred serially on the CMD line.

• Data: Data can be transferred from the card to the host or vice versa. Data is transferred via the data line.

Card addressing is implemented using a session address assigned during the initialization phase by the bus controller to all currently connected cards. Their unique CID number identifies individual cards.

451

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.7.1

The structure of commands, responses and data blocks is described in the MultiMedia-Card

System Specification. See also Table 34-4 on page 452

.

MultiMediaCard bus data transfers are composed of these tokens.

There are different types of operations. Addressed operations always contain a command and a response token. In addition, some operations have a data token; the others transfer their information directly within the command or response structure. In this case, no data token is present in an operation. The bits on the DAT and the CMD lines are transferred synchronous to the clock MCI Clock.

Two types of data transfer commands are defined:

• Sequential commands: These commands initiate a continuous data stream. They are terminated only when a stop command follows on the CMD line. This mode reduces the command overhead to an absolute minimum.

• Block-oriented commands: These commands send a data block succeeded by CRC bits.

Both read and write operations allow either single or multiple block transmission. A multiple block transmission is terminated when a stop command follows on the CMD line similarly to the sequential read.

The MCI provides a set of registers to perform the entire range of MultiMedia Card operations.

Command - Response Operation

After reset, the MCI is disabled and becomes valid after setting the MCIEN bit in the MCI_CR

Control Register.

The PWSEN bit saves power by dividing the MCI clock by 2

PWSDIV

+ 1 when the bus is inactive.

The command and the response of the card are clocked out with the rising edge of the MCI

Clock.

All the timings for MultiMedia Card are defined in the MultiMediaCard System Specification.

The two bus modes (open drain and push/pull) needed to process all the operations are defined in the MCI command register. The MCI_CMDR allows a command to be carried out.

For example, to perform an ALL_SEND_CID command:

Host Command N

ID

Cycles CID

CMD S T Content CRC E Z ****** Z S T Content

The command ALL_SEND_CID and the fields and values for the MCI_CMDR Control Register are described in

Table 34-4 and

Table 34-5

.

Table 34-4.

ALL_SEND_CID Command Description

CMD Index

CMD2

Type

bcr

(1)

Argument

[31:0] stuff bits

Resp Abbreviation

R2 ALL_SEND_CID

Command

Description

Asks all cards to send their CID numbers on the CMD line

Note: 1. bcr means broadcast command with response..

Z Z Z

452

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Table 34-5.

Fields and Values for MCI_CMDR Command Register

Field Value

CMDNB (command number)

RSPTYP (response type)

SPCMD (special command)

OPCMD (open drain command)

2 (CMD2)

2 (R2: 136 bits response)

0 (not a special command)

1

MAXLAT (max latency for command to response) 0 (NID cycles ==> 5 cycles)

TRCMD (transfer command) 0 (No transfer)

TRDIR (transfer direction)

TRTYP (transfer type)

X (available only in transfer command)

X (available only in transfer command)

The MCI_ARGR contains the argument field of the command.

To send a command, the user must perform the following steps:

• Fill the argument register (MCI_ARGR) with the command argument.

• Set the command register (MCI_CMDR) (see

Table 34-5

).

The command is sent immediately after writing the command register. The status bit

CMDRDY in the status register (MCI_SR) is asserted when the command is completed. If the command requires a response, it can be read in the MCI response register (MCI_RSPR). The response size can be from 48 bits up to 136 bits depending on the command. The MCI embeds an error detection to prevent any corrupted data during the transfer.

The following flowchart shows how to send a command to the card and read the response if needed. In this example, the status register bits are polled but setting the appropriate bits in the interrupt enable register (MCI_IER) allows using an interrupt method.

453

AT91SAM7A3 Preliminary

Figure 34-7. Command/Response Functional Flow Diagram

Set the command argument

MCI_ARGR = Argument

(1)

Set the command

MCI_CMDR = Command

Read MCI_SR

0

Wait for command ready status flag

Check error bits in the status register

(1)

CMDRDY

1

Status error flags?

Yes

Read response if required

RETURN ERROR

(1)

RETURN OK

34.7.2

34.7.3

Note: 1. If the command is SEND_OP_COND, the CRC error flag is always present (refer to R3 response in the MultiMedia Card specification).

Data Transfer Operation

The MultiMedia Card allows several read/write operations (single block, multiple blocks, stream, etc.). These kind of transfers can be selected setting the Transfer Type (TRTYP) field in the MCI Command Register (MCI_CMDR).

These operations can be done using the features of the Peripheral DMA Controller (PDC). If the PDCMODE bit is set in MCI_MR, then all reads and writes use the PDC facilities.

In all cases, the block length (BLKLEN field) must be defined in the mode register MCI_MR.

This field determines the size of the data block.

Read Operation

The following flowchart shows how to read a single block with or without use of PDC facilities.

In this example (see Figure 34-8

), a polling method is used to wait for the end of read. Simi-

454

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

larly, the user can configure the interrupt enable register (MCI_IER) to trigger an interrupt at the end of read.

Figure 34-8. Read Functional Flow Diagram

Send SELECT/DESELECT_CARD command

(1)

to select the card

Send SET_BLOCKLEN command

(1)

No Yes

Read with PDC

Reset the PDCMODE bit

MCI_MR &= ~PDCMODE

Set the block length (in bytes)

MCI_MR |= (BlockLenght <<16)

Send READ_SINGLE_BLOCK command

(1)

Set the PDCMODE bit

MCI_MR |= PDCMODE

Set the block length (in bytes)

MCI_MR |= (BlockLength << 16)

Configure the PDC channel

MCI_RPR = Data Buffer Address

MCI_RCR = BlockLength/4

MCI_PTCR = RXTEN

Number of words to read = BlockLength/4

Send READ_SINGLE_BLOCK command

(1)

Yes

Number of words to read = 0 ?

No

Read status register MCI_SR

Read status register MCI_SR

Poll the bit

ENDRX = 0?

Poll the bit

RXRDY = 0?

No

Read data = MCI_RDR

Number of words to read =

Number of words to read -1

Yes

No

RETURN

RETURN

Note: 1. It is assumed that this command has been correctly sent (see

Figure 34-7 ).

Yes

455

AT91SAM7A3 Preliminary

34.7.4

Write Operation

In write operation, the MCI Mode Register (MCI_MR) is used to define the padding value when writing non-multiple block size. If the bit PDCPADV is 0, then 0x00 value is used when padding data, otherwise 0xFF is used.

If set, the bit PDCMODE enables PDC transfer.

The following flowchart shows how to write a single block with or without use of PDC facilities

(see

Figure 34-9 ). Polling or interrupt method can be used to wait for the end of write accord-

ing to the contents of the Interrupt Mask Register (MCI_IMR).

6042E–ATARM–14-Dec-06

456

AT91SAM7A3 Preliminary

Figure 34-9. Write Functional Flow Diagram

Send SELECT/DESELECT_CARD command

(1)

to select the card

Send SET_BLOCKLEN command

(1)

No

Reset the PDCMODE bit

MCI_MR &= ~PDCMODE

Set the block length

MCI_MR |= (BlockLenght <<16)

Send WRITE_SINGLE_BLOCK command

(1)

Write using PDC

Yes

Set the PDCMODE bit

MCI_MR |= PDCMODE

Set the block length

MCI_MR |= (BlockLength << 16)

Configure the PDC channel

MCI_TPR = Data Buffer Address to write

MCI_TCR = BlockLength/4

Number of words to write = BlockLength/4

Send WRITE_SINGLE_BLOCK command

(1)

MCI_PTCR = TXTEN

Yes

Number of words to write = 0 ?

No

Read status register MCI_SR

Read status register MCI_SR

Poll the bit

NOTBUSY= 0?

Poll the bit

TXRDY = 0?

No

MCI_TDR = Data to write

Number of words to write =

Number of words to write -1

Yes

RETURN

Note: 1. It is assumed that this command has been correctly sent (see

Figure 34-7 ).

No

RETURN

Yes

457

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The following flowchart shows how to manage a multiple write block transfer with the PDC

(see Figure 34-10

). Polling or interrupt method can be used to wait for the end of write according to the contents of the Interrupt Mask Register (MCI_IMR).

Figure 34-10. Multiple Write Functional Flow Diagram

Send SELECT/DESELECT_CARD command

(1)

to select the card

Send SET_BLOCKLEN command

(1)

Set the PDCMODE bit

MCI_MR |= PDCMODE

Set the block length

MCI_MR |= (BlockLength << 16)

Configure the PDC channel

MCI_TPR = Data Buffer Address to write

MCI_TCR = BlockLength/4

Send WRITE_MULTIPLE_BLOCK command

(1)

MCI_PTCR = TXTEN

Read status register MCI_SR

Poll the bit

BLKE = 0?

No

Send STOP_TRANSMISSION command

(1)

Yes

Poll the bit

NOTBUSY = 0?

Yes

No

RETURN

Note: 1. It is assumed that this command has been correctly sent (see

Figure 34-7 ).

458

AT91SAM7A3 Preliminary

34.8

SD Card Operations

The MultiMedia Card Interface allows processing of SD Memory (Secure Digital Memory

Card) Card commands.

SD cards are based on the Multi Media Card (MMC) format, but are physically slightly thicker and feature higher data transfer rates, a lock switch on the side to prevent accidental overwriting and security features. The physical form factor, pin assignment and data transfer protocol are forward-compatible with the MultiMedia Card with some additions. SD is covered by numerous patents and trademarks, and licensing is only available through the Secure Digital

Card Association.

The SD Card communication is based on a 9-pin interface (Clock, Command, 4 x Data and 3 x

Power lines). The communication protocol is defined as a part of this specification. The main difference between the SD Card and the MultiMedia Card is the initialization process.

The SD Card Register (MCI_SDCR) allows selection of the Card Slot and the data bus width.

The SD Card bus allows dynamic configuration of the number of data lines. After power up, by default, the SD Card uses only DAT0 for data transfer. After initialization, the host can change the bus width (number of active data lines).

459

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9

MultiMedia Card Interface (MCI) User Interface

Table 34-6.

Register Mapping

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18 - 0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38 - 0x3C

0x40

0x44

Control Register

Mode Register

Data Timeout Register

SD Card Register

Argument Register

Command Register

Reserved

Response Register

(1)

Response Register

(1)

Response Register

(1)

Response Register

(1)

Receive Data Register

Transmit Data Register

Reserved

Status Register

Interrupt Enable Register

MCI_CR

MCI_MR

MCI_DTOR

MCI_SDCR

MCI_ARGR

MCI_CMDR

MCI_RSPR

MCI_RSPR

MCI_RSPR

MCI_RSPR

MCI_RDR

MCI_TDR

MCI_SR

MCI_IER

Write

Read/write

Read/write

Read/write

Read/write

Write

Read

Read

Read

Read

Read

Write

Read

Write

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0x0

0xC0E5

0x48

0x4C

Interrupt Disable Register

Interrupt Mask Register

MCI_IDR

MCI_IMR

Write

Read

0x0

0x50-0xFC Reserved – – –

0x100-0x124 Reserved for the PDC – – –

Note: 1. The response register can be read by N accesses at the same MCI_RSPR or at consecutive addresses (0x20 to 0x2C).

N depends on the size of the response.

460

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.1

MCI Control Register

Name: MCI_CR

Access Type: Write-only

31

23

30

22

15

7

SWRST

14

6

13

5

29

21

12

4

28

20

27

19

11

3

PWSDIS

26

18

10

2

PWSEN

25

17

9

1

MCIDIS

24

16

8

0

MCIEN

• MCIEN: Multi-Media Interface Enable

0 = No effect.

1 = Enables the Multi-Media Interface if MCDIS is 0.

• MCIDIS: Multi-Media Interface Disable

0 = No effect.

1 = Disables the Multi-Media Interface.

• PWSEN: Power Save Mode Enable

0 = No effect.

1 = Enables the Power Saving Mode if PWSDIS is 0.

Warning: Before enabling this mode, the user must set a value different from 0 in the PWSDIV field (Mode Register

MCI_MR).

• PWSDIS: Power Save Mode Disable

0 = No effect.

1 = Disables the Power Saving Mode.

• SWRST: Software Reset

0 = No effect.

1 = Resets the MCI. A software triggered hardware reset of the MCI interface is performed.

461

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.2

MCI Mode Register

Name: MCI_MR

Access Type: Read/write

29 31

23

30

22 21

BLKLEN

15

PDCMODE

7

14

PDCPADV

6

13

5

28

20

12

4

27

19

11

3

BLKLEN

26

18

10

2

25

17

0

9

PWSDIV

1

24

16

0

8

0

CLKDIV

• CLKDIV: Clock Divider

MultiMedia Card Interface clock (MCCK or MCI_CK) is Master Clock (MCK) divided by (2*(CLKDIV+1)).

• PWSDIV: Power Saving Divider

MultiMedia Card Interface clock is divided by 2

(PWSDIV)

+ 1 when entering Power Saving Mode.

Warning: This value must be different from 0 before enabling the Power Save Mode in the MCI_CR (MCI_PWSEN bit).

• PDCPADV: PDC Padding Value

0 = 0x00 value is used when padding data in write transfer (not only PDC transfer).

1 = 0xFF value is used when padding data in write transfer (not only PDC transfer).

• PDCMODE: PDC-oriented Mode

0 = Disables PDC transfer

1 = Enables PDC transfer. In this case, UNRE and OVRE flags in the MCI Mode Register (MCI_SR) are deactivated after the PDC transfer has been completed.

• BLKLEN: Data Block Length

This field determines the size of the data block.

Bits 16 and 17 must be set to 0

462

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.3

MCI Data Timeout Register

Name: MCI_DTOR

Access Type: Read/write

31

23

30

22

29

21

15

7

14

6

13

5

DTOMUL

12

4

28

20

11

3

27

19

10

2

26

18

DTOCYC

9

1

25

17

8

0

24

16

• DTOCYC: Data Timeout Cycle Number

• DTOMUL: Data Timeout Multiplier

These fields determine the maximum number of Master Clock cycles that the MCI waits between two data block transfers.

It equals (DTOCYC x Multiplier).

Multiplier is defined by DTOMUL as shown in the following table:

1

1

1

1

0

0

0

0

DTOMUL

0

0

0

0

1

1

1

1

0

1

0

1

0

1

0

1

Multiplier

1

16

128

256

1024

4096

65536

1048576

If the data time-out set by DTOCYC and DTOMUL has been exceeded, the Data Time-out Error flag (DTOE) in the MCI

Status Register (MCI_SR) raises.

463

6042E–ATARM–14-Dec-06

34.9.4

MCI SDCard Register

Name: MCI_SDCR

Access Type: Read/write

31

23

30

22

29

21

15

7

SDCBUS

14

6

13

5

12

4

28

20

• SDCSEL: SDCard Slot

1

1

0

0

SDCSEL

0

1

0

1

• SDCBUS: SDCard Bus Width

0 = 1-bit data bus

1 = 4-bit data bus

SDCard Slot

Slot A is selected

.

11

3

27

19

AT91SAM7A3 Preliminary

10

2

26

18

9

1

25

17

SDCSEL

8

0

24

16

464

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.5

MCI Argument Register

Name: MCI_ARGR

Access Type: Read/write

31 30 29

23 22 21

15

14

13

7 6 5

• ARG: Command Argument

28

20

ARG

ARG

12

ARG

4

ARG

27

19

11

3

10

2

26

18

9

1

25

17

8

0

24

16

6042E–ATARM–14-Dec-06

465

AT91SAM7A3 Preliminary

34.9.6

MCI Command Register

Name: MCI_CMDR

Access Type: Write-only

31

23

30

22

15

7

RSPTYP

14

6

13

5

29

21

28

20

12

MAXLAT

4

TRTYP

27

19

11

OPDCMD

3

CMDNB

26

18

TRDIR

10

2

25

17

9

SPCMD

1

TRCMD

24

16

8

0

This register is write-protected while CMDRDY is 0 in MCI_SR. If an Interrupt command is sent, this register is only writeable by an interrupt response (field SPCMD). This means that the current command execution cannot be interrupted or modified.

• CMDNB: Command Number

• RSPTYP: Response Type

RSP

0

0

1

1

0

1

0

1

• SPCMD: Special Command

0

0

SPCMD

0

0

0

0

1

1

1

1

0

0

Response Type

No response.

48-bit response.

136-bit response.

Reserved.

1

0

0

1

0

1

Command

Not a special CMD.

Initialization CMD:

74 clock cycles for initialization sequence.

Synchronized CMD:

Wait for the end of the current data block transfer before sending the pending command.

Reserved.

Interrupt command:

Corresponds to the Interrupt Mode (CMD40).

Interrupt response:

Corresponds to the Interrupt Mode (CMD40).

• OPDCMD: Open Drain Command

0 = Push pull command

1 = Open drain command

466

6042E–ATARM–14-Dec-06

• MAXLAT: Max Latency for Command to Response

0 = 5-cycle max latency

1 = 64-cycle max latency

• TRCMD: Transfer Command

TRCMD

1

1

0

0

• TRDIR: Transfer Direction

0 = Write

1 = Read

• TRTYP: Transfer Type

0

0

0

0

TRTYP

0

0

1

1

0

1

0

1

0

1

0

1

AT91SAM7A3 Preliminary

Transfer Type

No data transfer

Start data transfer

Stop data transfer

Reserved

Transfer Type

MMC/SDCard Single Block

MMC/SDCard Multiple Block

MMC Stream

Reserved

467

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.7

MCI Response Register

Name: MCI_RSPR

Access Type: Read-only

31 30 29 28 27 26 25 24

RSP

23 22 21 20 19 18 17 16

RSP

15 14 13 12 11 10 9 8

RSP

7 6 5 4 3 2 1 0

• RSP: Response

Note: 1. The response register can be read by N accesses at the same MCI_RSPR or at consecutive addresses (0x20 to 0x2C).

N depends on the size of the response.

34.9.8

MCI Receive Data Register

Name: MCI_RDR

Access Type: Read-only

31 30 29 28 27 26 25 24

DATA

23 22 21 20 19 18 17 16

DATA

15 14 13 12 11 10 9 8

DATA

7 6 5 4 3 2 1 0

DATA

• DATA: Data to Read

34.9.9

MCI Transmit Data Register

Name: MCI_TDR

Access Type: Write-only

31 30 29 28

RSP

27 26 25 24

DATA

23 22 21 20 19 18 17 16

DATA

15 14 13 12 11 10 9 8

DATA

7 6 5 4 3 2 1 0

DATA

• DATA: Data to Write

468

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.10

MCI Status Register

Name: MCI_SR

Access Type: Read-only

31

UNRE

23

15

TXBUFE

7

ENDTX

30

OVRE

22

DTOE

14

RXBUFF

6

ENDRX

29

21

DCRCE

13

5

NOTBUSY

28

20

RTOE

12

4

DTIP

27

19

RENDE

11

3

BLKE

26

18

RCRCE

10

2

TXRDY

25

17

RDIRE

9

1

RXRDY

24

16

RINDE

8

0

CMDRDY

• CMDRDY: Command Ready

0 = A command is in progress.

1 = The last command has been sent. Cleared when writing in the MCI_CMDR.

• RXRDY: Receiver Ready

0 = Data has not yet been received since the last read of MCI_RDR.

1 = Data has been received since the last read of MCI_RDR.

• TXRDY: Transmit Ready

0= The last data written in MCI_TDR has not yet been transferred in the Shift Register.

1= The last data written in MCI_TDR has been transferred in the Shift Register.

• BLKE: Data Block Ended

This flag must be used only for Write Operations.

0 = A data block transfer is not yet finished. Cleared when reading the MCI_SR.

1 = A data block transfer has ended, including the CRC16 Status transmission.

In PDC mode (PDCMODE=1), the flag is set when the CRC Status of the last block has been transmitted (TXBUFE already set).

Otherwise (PDCMODE=0), the flag is set for each transmitted CRC Status.

Refer to the MMC or SD Specification for more details concerning the CRC Status.

• DTIP: Data Transfer in Progress

0 = No data transfer in progress.

1 = The current data transfer is still in progress, including CRC16 calculation. Cleared at the end of the CRC16 calculation.

• NOTBUSY: MCI Not Busy

This flag must be used only for Write Operations.

A block write operation uses a simple busy signalling of the write operation duration on the data (DAT0) line: during a data transfer block, if the card does not have a free data receive buffer, the card indicates this condition by pulling down the data line (DAT0) to LOW. The card stops pulling down the data line as soon as at least one receive buffer for the defined data transfer block length becomes free.

The NOTBUSY flag allows to deal with these different states.

469

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

0 = The MCI is not ready for new data transfer. Cleared at the end of the card response.

1 = The MCI is ready for new data transfer. Set when the busy state on the data line has ended. This corresponds to a free internal data receive buffer of the card.

Refer to the MMC or SD Specification for more details concerning the busy behavior.

• ENDRX: End of RX Buffer

0 = The Receive Counter Register has not reached 0 since the last write in MCI_RCR or MCI_RNCR.

1 = The Receive Counter Register has reached 0 since the last write in MCI_RCR or MCI_RNCR.

• ENDTX: End of TX Buffer

0 = The Transmit Counter Register has not reached 0 since the last write in MCI_TCR or MCI_TNCR.

1 = The Transmit Counter Register has reached 0 since the last write in MCI_TCR or MCI_TNCR.

Note: BLKE and NOTBUSY flags can be used to check that the data has been successfully transmitted on the data lines and not only transferred from the PDC to the MCI Controller.

• RXBUFF: RX Buffer Full

0 = MCI_RCR or MCI_RNCR has a value other than 0.

1 = Both MCI_RCR and MCI_RNCR have a value of 0.

• TXBUFE: TX Buffer Empty

0 = MCI_TCR or MCI_TNCR has a value other than 0.

1 = Both MCI_TCR and MCI_TNCR have a value of 0.

Note: BLKE and NOTBUSY flags can be used to check that the data has been successfully transmitted on the data lines and not only transferred from the PDC to the MCI Controller.

• RINDE: Response Index Error

0 = No error.

1 = A mismatch is detected between the command index sent and the response index received. Cleared when writing in the MCI_CMDR.

• RDIRE: Response Direction Error

0 = No error.

1 = The direction bit from card to host in the response has not been detected.

• RCRCE: Response CRC Error

0 = No error.

1 = A CRC7 error has been detected in the response. Cleared when writing in the MCI_CMDR.

• RENDE: Response End Bit Error

0 = No error.

1 = The end bit of the response has not been detected. Cleared when writing in the MCI_CMDR.

• RTOE: Response Time-out Error

0 = No error.

1 = The response time-out set by MAXLAT in the MCI_CMDR has been exceeded. Cleared when writing in the

MCI_CMDR.

470

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• DCRCE: Data CRC Error

0 = No error.

1 = A CRC16 error has been detected in the last data block. Cleared by reading in the MCI_SR register.

• DTOE: Data Time-out Error

0 = No error.

1 = The data time-out set by DTOCYC and DTOMUL in MCI_DTOR has been exceeded. Cleared by reading in the

MCI_SR register.

• OVRE: Overrun

0 = No error.

1 = At least one 8-bit received data has been lost (not read). Cleared when sending a new data transfer command.

• UNRE: Underrun

0 = No error.

1 = At least one 8-bit data has been sent without valid information (not written). Cleared when sending a new data transfer command.

• RXBUFF: RX Buffer Full

0 = MCI_RCR or MCI_RNCR has a value other than 0.

1 = Both MCI_RCR and MCI_RNCR have a value of 0.

• TXBUFE: TX Buffer Empty

0 = MCI_TCR or MCI_TNCR has a value other than 0.

1 = Both MCI_TCR and MCI_TNCR have a value of 0.

471

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.11

MCI Interrupt Enable Register

Name: MCI_IER

Access Type: Write-only

31

UNRE

23

15

TXBUFE

7

ENDTX

30

OVRE

22

DTOE

14

RXBUFF

6

ENDRX

29

21

DCRCE

13

5

NOTBUSY

• CMDRDY: Command Ready Interrupt Enable

• RXRDY: Receiver Ready Interrupt Enable

• TXRDY: Transmit Ready Interrupt Enable

• BLKE: Data Block Ended Interrupt Enable

• DTIP: Data Transfer in Progress Interrupt Enable

• NOTBUSY: Data Not Busy Interrupt Enable

• ENDRX: End of Receive Buffer Interrupt Enable

• ENDTX: End of Transmit Buffer Interrupt Enable

• RXBUFF: Receive Buffer Full Interrupt Enable

• TXBUFE: Transmit Buffer Empty Interrupt Enable

• RINDE: Response Index Error Interrupt Enable

• RDIRE: Response Direction Error Interrupt Enable

• RCRCE: Response CRC Error Interrupt Enable

• RENDE: Response End Bit Error Interrupt Enable

• RTOE: Response Time-out Error Interrupt Enable

• DCRCE: Data CRC Error Interrupt Enable

• DTOE: Data Time-out Error Interrupt Enable

• OVRE: Overrun Interrupt Enable

• UNRE: UnderRun Interrupt Enable

0 = No effect.

1 = Enables the corresponding interrupt.

28

20

RTOE

12

4

DTIP

27

19

RENDE

11

3

BLKE

26

18

RCRCE

10

2

TXRDY

25

17

RDIRE

9

1

RXRDY

24

16

RINDE

8

0

CMDRDY

472

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

34.9.12

MCI Interrupt Disable Register

Name: MCI_IDR

Access Type: Write-only

31

UNRE

23

15

TXBUFE

7

ENDTX

30

OVRE

22

DTOE

14

RXBUFF

6

ENDRX

29

21

DCRCE

13

5

NOTBUSY

• CMDRDY: Command Ready Interrupt Disable

• RXRDY: Receiver Ready Interrupt Disable

• TXRDY: Transmit Ready Interrupt Disable

• BLKE: Data Block Ended Interrupt Disable

• DTIP: Data Transfer in Progress Interrupt Disable

• NOTBUSY: Data Not Busy Interrupt Disable

• ENDRX: End of Receive Buffer Interrupt Disable

• ENDTX: End of Transmit Buffer Interrupt Disable

• RXBUFF: Receive Buffer Full Interrupt Disable

• TXBUFE: Transmit Buffer Empty Interrupt Disable

• RINDE: Response Index Error Interrupt Disable

• RDIRE: Response Direction Error Interrupt Disable

• RCRCE: Response CRC Error Interrupt Disable

• RENDE: Response End Bit Error Interrupt Disable

• RTOE: Response Time-out Error Interrupt Disable

• DCRCE: Data CRC Error Interrupt Disable

• DTOE: Data Time-out Error Interrupt Disable

• OVRE: Overrun Interrupt Disable

• UNRE: UnderRun Interrupt Disable

0 = No effect.

1 = Disables the corresponding interrupt.

28

20

RTOE

12

4

DTIP

27

19

RENDE

11

3

BLKE

26

18

RCRCE

10

2

TXRDY

25

17

RDIRE

9

1

RXRDY

24

16

RINDE

8

0

CMDRDY

473

6042E–ATARM–14-Dec-06

34.9.13

MCI Interrupt Mask Register

Name: MCI_IMR

Access Type: Read-only

31

UNRE

23

15

TXBUFE

7

ENDTX

30

OVRE

22

DTOE

14

RXBUFF

6

ENDRX

29

21

DCRCE

13

5

NOTBUSY

• CMDRDY: Command Ready Interrupt Mask

• RXRDY: Receiver Ready Interrupt Mask

• TXRDY: Transmit Ready Interrupt Mask

• BLKE: Data Block Ended Interrupt Mask

• DTIP: Data Transfer in Progress Interrupt Mask

• NOTBUSY: Data Not Busy Interrupt Mask

• ENDRX: End of Receive Buffer Interrupt Mask

• ENDTX: End of Transmit Buffer Interrupt Mask

• RXBUFF: Receive Buffer Full Interrupt Mask

• TXBUFE: Transmit Buffer Empty Interrupt Mask

• RINDE: Response Index Error Interrupt Mask

• RDIRE: Response Direction Error Interrupt Mask

• RCRCE: Response CRC Error Interrupt Mask

• RENDE: Response End Bit Error Interrupt Mask

• RTOE: Response Time-out Error Interrupt Mask

• DCRCE: Data CRC Error Interrupt Mask

• DTOE: Data Time-out Error Interrupt Mask

• OVRE: Overrun Interrupt Mask

• UNRE: UnderRun Interrupt Mask

0 = The corresponding interrupt is not enabled.

1 = The corresponding interrupt is enabled.

28

20

RTOE

12

4

DTIP

27

19

RENDE

11

3

BLKE

26

18

RCRCE

10

2

TXRDY

25

17

RDIRE

9

1

RXRDY

24

16

RINDE

8

0

CMDRDY

474

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35. Analog-to-Digital Converter (ADC)

35.1

Overview

The ADC is based on a Successive Approximation Register (SAR) 10-bit Analog-to-Digital

Converter (ADC). It also integrates an 8-to-1 analog multiplexer, making possible the analogto-digital conversions of 8 analog lines. The conversions extend from 0V to ADVREF.

The ADC supports an 8-bit or 10-bit resolution mode, and conversion results are reported in a common register for all channels, as well as in a channel-dedicated register. Software trigger, external trigger on rising edge of the ADTRG pin or internal triggers from Timer Counter output(s) are configurable.

The ADC also integrates a Sleep Mode and a conversion sequencer and connects with a PDC channel. These features reduce both power consumption and processor intervention.

Finally, the user can configure ADC timings, such as Startup Time and Sample & Hold Time.

35.2

Block Diagram

Figure 35-1. Analog-to-Digital Converter Block Diagram

Timer

Counter

Channels

ADC

ADTRG

Trigger

Selection

Control

Logic

VDDANA

ADVREF

Dedicated

Analog

Inputs

AD-

AD-

AD-

Analog Inputs

Multiplexed with I/O lines

AD-

AD-

AD-

PIO

Successive

Approximation

Register

Analog-to-Digital

Converter

User

Interface

ADC Interrupt

PDC

AIC

ASB

Peripheral Bridge

APB

GND

475

6042E–ATARM–14-Dec-06

35.3

Signal Description

Table 35-1.

ADC Pin Description

Pin Name

VDDANA

ADVREF

AD0 - AD 7

ADTRG

Description

Analog power supply

Reference voltage

Analog input channels

External trigger

35.4

Product Dependencies

35.4.1

Power Management

The ADC is automatically clocked after the first conversion in Normal Mode. In Sleep Mode, the ADC clock is automatically stopped after each conversion. As the logic is small and the

ADC cell can be put into Sleep Mode, the Power Management Controller has no effect on the

ADC behavior.

35.4.2

35.4.3

35.4.4

35.4.5

35.4.6

Interrupt Sources

The ADC interrupt line is connected on one of the internal sources of the Advanced Interrupt

Controller. Using the ADC interrupt requires the AIC to be programmed first.

Analog Inputs

The analog input pins can be multiplexed with PIO lines. In this case, the assignment of the

ADC input is automatically done as soon as the corresponding channel is enabled by writing the register ADC_CHER. By default, after reset, the PIO line is configured as input with its pullup enabled and the ADC input is connected to the GND.

I/O Lines

The pin ADTRG may be shared with other peripheral functions through the PIO Controller. In this case, the PIO Controller should be set accordingly to assign the pin ADTRG to the ADC function.

Timer Triggers

Timer Counters may or may not be used as hardware triggers depending on user requirements. Thus, some or all of the timer counters may be non-connected.

Conversion Performances

For performance and electrical characteristics of the ADC, see the DC Characteristics section.

476

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.5

Functional Description

35.5.1

Analog-to-digital Conversion

The ADC uses the ADC Clock to perform conversions. Converting a single analog value to a

10-bit digital data requires Sample and Hold Clock cycles as defined in the field SHTIM of the

”ADC Mode Register” on page 484

and 10 ADC Clock cycles. The ADC Clock frequency is selected in the PRESCAL field of the Mode Register (ADC_MR).

The ADC clock range is between MCK/2, if PRESCAL is 0, and MCK/128, if PRESCAL is set to 63 (0x3F). PRESCAL must be programmed in order to provide an ADC clock frequency according to the parameters given in the Product definition section.

35.5.2

35.5.3

Conversion Reference

The conversion is performed on a full range between 0V and the reference voltage pin

ADVREF. Analog inputs between these voltages convert to values based on a linear conversion.

Conversion Resolution

The ADC supports 8-bit or 10-bit resolutions. The 8-bit selection is performed by setting the bit

LOWRES in the ADC Mode Register (ADC_MR). By default, after a reset, the resolution is the highest and the DATA field in the data registers is fully used. By setting the bit LOWRES, the

ADC switches in the lowest resolution and the conversion results can be read in the eight lowest significant bits of the data registers. The two highest bits of the DATA field in the corresponding ADC_CDR register and of the LDATA field in the ADC_LCDR register read 0.

Moreover, when a PDC channel is connected to the ADC, 10-bit resolution sets the transfer request sizes to 16-bit. Setting the bit LOWRES automatically switches to 8-bit data transfers.

In this case, the destination buffers are optimized.

477

6042E–ATARM–14-Dec-06

35.5.4

Conversion Results

When a conversion is completed, the resulting 10-bit digital value is stored in the Channel

Data Register (ADC_CDR) of the current channel and in the ADC Last Converted Data Register (ADC_LCDR).

The channel EOC bit in the Status Register (ADC_SR) is set and the DRDY is set. In the case of a connected PDC channel, DRDY rising triggers a data transfer request. In any case, either

EOC and DRDY can trigger an interrupt.

Reading one of the ADC_CDR registers clears the corresponding EOC bit. Reading

ADC_LCDR clears the DRDY bit and the EOC bit corresponding to the last converted channel.

Figure 35-2. EOCx and DRDY Flag Behavior

Write the ADC_CR

with START = 1

Read the ADC_CDRx

Write the ADC_CR

with START = 1

Read the ADC_LCDR

CHx

(ADC_CHSR)

EOCx

(ADC_SR)

Conversion Time

Conversion Time

DRDY

(ADC_SR)

478

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

If the ADC_CDR is not read before further incoming data is converted, the corresponding

Overrun Error (OVRE) flag is set in the Status Register (ADC_SR).

In the same way, new data converted when DRDY is high sets the bit GOVRE (General Overrun Error) in ADC_SR.

The OVRE and GOVRE flags are automatically cleared when ADC_SR is read.

Figure 35-3. GOVRE and OVREx Flag Behavior

Read ADC_SR

ADTRG

CH0

(ADC_CHSR)

CH1

(ADC_CHSR)

ADC_LCDR

Undefined Data Data A

Data B Data C

ADC_CDR0

Undefined Data

Data A

Data C

ADC_CDR1

Undefined Data Data B

Conversion

EOC0

(ADC_SR)

Conversion

Read ADC_CDR0

EOC1

(ADC_SR)

Conversion

Read ADC_CDR1

GOVRE

(ADC_SR)

DRDY

(ADC_SR)

OVRE0

(ADC_SR)

Warning: If the corresponding channel is disabled during a conversion or if it is disabled and then reenabled during a conversion, its associated data and its corresponding EOC and

OVRE flags in ADC_SR are unpredictable.

479

6042E–ATARM–14-Dec-06

35.5.5

35.5.6

Conversion Triggers

Conversions of the active analog channels are started with a software or a hardware trigger.

The software trigger is provided by writing the Control Register (ADC_CR) with the bit START at 1.

The hardware trigger can be one of the TIOA outputs of the Timer Counter channels, or the external trigger input of the ADC (ADTRG). The hardware trigger is selected with the field

TRGSEL in the Mode Register (ADC_MR). The selected hardware trigger is enabled with the bit TRGEN in the Mode Register (ADC_MR).

If a hardware trigger is selected, the start of a conversion is detected at each rising edge of the selected signal. If one of the TIOA outputs is selected, the corresponding Timer Counter channel must be programmed in Waveform Mode.

Only one start command is necessary to initiate a conversion sequence on all the channels.

The ADC hardware logic automatically performs the conversions on the active channels, then waits for a new request. The Channel Enable (ADC_CHER) and Channel Disable

(ADC_CHDR) Registers enable the analog channels to be enabled or disabled independently.

If the ADC is used with a PDC, only the transfers of converted data from enabled channels are performed and the resulting data buffers should be interpreted accordingly.

Warning: Enabling hardware triggers does not disable the software trigger functionality. Thus, if a hardware trigger is selected, the start of a conversion can be initiated either by the hardware or the software trigger.

Sleep Mode and Conversion Sequencer

The ADC Sleep Mode maximizes power saving by automatically deactivating the ADC when it is not being used for conversions. Sleep Mode is selected by setting the bit SLEEP in the

Mode Register ADC_MR.

The SLEEP mode is automatically managed by a conversion sequencer, which can automatically process the conversions of all channels at lowest power consumption.

When a start conversion request occurs, the ADC is automatically activated. As the analog cell requires a start-up time, the logic waits during this time and starts the conversion on the enabled channels. When all conversions are complete, the ADC is deactivated until the next trigger. Triggers occurring during the sequence are not taken into account.

The conversion sequencer allows automatic processing with minimum processor intervention and optimized power consumption. Conversion sequences can be performed periodically using a Timer/Counter output. The periodic acquisition of several samples can be processed automatically without any intervention of the processor thanks to the PDC.

Note: The reference voltage pins always remain connected in normal mode as in sleep mode.

480

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.5.7

ADC Timings

Each ADC has its own minimal Startup Time that is programmed through the field STARTUP in the Mode Register ADC_MR.

In the same way, a minimal Sample and Hold Time is necessary for the ADC to guarantee the best converted final value between two channels selection. This time has to be programmed through the bitfield SHTIM in the Mode Register ADC_MR.

Warning: No input buffer amplifier to isolate the source is included in the ADC. This must be taken into consideration to program a precise value in the SHTIM field. See the section ADC

Characteristics in the product datasheet.

6042E–ATARM–14-Dec-06

481

35.6

Analog-to-digital Converter (ADC) User Interface

Table 35-2.

ADC Register Mapping

Offset Register

0x20

0x24

0x28

0x2C

0x30

0x34

...

0x4C

0x50 - 0xFC

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Control Register

Mode Register

Reserved

Reserved

Channel Enable Register

Channel Disable Register

Channel Status Register

Status Register

Last Converted Data Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Channel Data Register 0

Channel Data Register 1

...

Channel Data Register 7

Reserved

Name

ADC_CR

ADC_MR

ADC_CHER

ADC_CHDR

ADC_CHSR

ADC_SR

ADC_LCDR

ADC_IER

ADC_IDR

ADC_IMR

ADC_CDR0

ADC_CDR1

...

ADC_CDR7

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Read-only

...

Read-only

0x00000000

0x00000000

0x000C0000

0x00000000

0x00000000

0x00000000

0x00000000

...

0x00000000

482

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.1

ADC Control Register

Register Name:

Access Type:

ADC_CR

Write-only

31

30

23

15

7

22

14

6

29

21

13

5

• SWRST: Software Reset

0 = No effect.

1 = Resets the ADC simulating a hardware reset.

• START: Start Conversion

0 = No effect.

1 = Begins analog-to-digital conversion.

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

START

24

16

8

0

SWRST

483

6042E–ATARM–14-Dec-06

35.6.2

ADC Mode Register

Register Name:

Access Type:

ADC_MR

Read/Write

31

30

23

15

7

22

14

6

5

SLEEP

29

21

13

• TRGEN: Trigger Enable

1

0

1

0

1

0

1

0

28

20

12

4

LOWRES

27 26

19 18

STARTUP

11

PRESCAL

10

SHTIM

3 2

TRGSEL

25

17

9

1

TRGEN

0

1

Selected TRGEN

Hardware triggers are disabled. Starting a conversion is only possible by software.

Hardware trigger selected by TRGSEL field is enabled.

• TRGSEL: Trigger Selection

1

1

0

1

1

0

0

0

• LOWRES: Resolution

TRGSEL

0

0

1

0

1

1

0

1

Selected TRGSEL

TIOA Ouput of the Timer Counter Channel 0

TIOA Ouput of the Timer Counter Channel 1

TIOA Ouput of the Timer Counter Channel 2

TIOA Ouput of the Timer Counter Channel 3

TIOA Ouput of the Timer Counter Channel 4

TIOA Ouput of the Timer Counter Channel 5

External trigger

Reserved

LOWRES

0

1

Selected Resolution

10-bit resolution

8-bit resolution

• SLEEP: Sleep Mode

SLEEP

0

1

Selected Mode

Normal Mode

Sleep Mode

24

16

8

0

TRGEN

484

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

• PRESCAL: Prescaler Rate Selection

ADCClock = MCK / ( (PRESCAL+1) * 2 )

• STARTUP: Start Up Time

Startup Time = (STARTUP+1) * 8 / ADCClock

• SHTIM: Sample & Hold Time

Sample & Hold Time = (SHTIM+1) / ADCClock

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

485

AT91SAM7A3 Preliminary

35.6.3

ADC Channel Enable Register

Register Name:

Access Type:

ADC_CHER

Write-only

31

30

29

23

15

7

CH7

22

14

6

CH6

21

13

5

CH5

• CHx: Channel x Enable

0 = No effect.

1 = Enables the corresponding channel.

28

20

12

4

CH4

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

35.6.4

ADC Channel Disable Register

Register Name:

Access Type:

ADC_CHDR

Write-only

31

30

29

23

15

7

CH7

22

14

6

CH6

21

13

5

CH5

28

20

12

4

CH4

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

• CHx: Channel x Disable

0 = No effect.

1 = Disables the corresponding channel.

Warning: If the corresponding channel is disabled during a conversion or if it is disabled then reenabled during a conversion, its associated data and its corresponding EOC and OVRE flags in ADC_SR are unpredictable.

486

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.5

ADC Channel Status Register

Register Name:

Access Type:

ADC_CHSR

Read-only

31

30

29

23

15

7

CH7

22

14

6

CH6

21

13

5

CH5

• CHx: Channel x Status

0 = Corresponding channel is disabled.

1 = Corresponding channel is enabled.

28

20

12

4

CH4

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

6042E–ATARM–14-Dec-06

487

AT91SAM7A3 Preliminary

35.6.6

ADC Status Register

Register Name:

Access Type:

ADC_SR

Read-only

31

30

23

15

OVRE7

7

EOC7

22

14

OVRE6

6

EOC6

29

21

13

OVRE5

5

EOC5

28

20

12

OVRE4

4

EOC4

27

19

RXBUFF

11

OVRE3

3

EOC3

26

18

ENDRX

10

OVRE2

2

EOC2

• EOCx: End of Conversion x

0 = Corresponding analog channel is disabled, or the conversion is not finished.

1 = Corresponding analog channel is enabled and conversion is complete.

• OVREx: Overrun Error x

0 = No overrun error on the corresponding channel since the last read of ADC_SR.

1 = There has been an overrun error on the corresponding channel since the last read of ADC_SR.

• DRDY: Data Ready

0 = No data has been converted since the last read of ADC_LCDR.

1 = At least one data has been converted and is available in ADC_LCDR.

• GOVRE: General Overrun Error

0 = No General Overrun Error occurred since the last read of ADC_SR.

1 = At least one General Overrun Error has occurred since the last read of ADC_SR.

• ENDRX: End of RX Buffer

0 = The Receive Counter Register has not reached 0 since the last write in ADC_RCR or ADC_RNCR.

1 = The Receive Counter Register has reached 0 since the last write in ADC_RCR or ADC_RNCR.

• RXBUFF: RX Buffer Full

0 = ADC_RCR or ADC_RNCR have a value other than 0.

1 = Both ADC_RCR and ADC_RNCR have a value of 0.

25

17

GOVRE

9

OVRE1

1

EOC1

24

16

DRDY

8

OVRE0

0

EOC0

488

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.7

ADC Last Converted Data Register

Register Name:

Access Type:

ADC_LCDR

Read-only

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

LDATA

24

16

8

0

LDATA

• LDATA: Last Data Converted

The analog-to-digital conversion data is placed into this register at the end of a conversion and remains until a new conversion is completed.

35.6.8

ADC Interrupt Enable Register

Register Name:

Access Type:

ADC_IER

Write-only

31

30

29

23

15

OVRE7

7

EOC7

22

14

OVRE6

6

EOC6

21

13

OVRE5

5

EOC5

• EOCx: End of Conversion Interrupt Enable x

• OVREx: Overrun Error Interrupt Enable x

• DRDY: Data Ready Interrupt Enable

• GOVRE: General Overrun Error Interrupt Enable

• ENDRX: End of Receive Buffer Interrupt Enable

• RXBUFF: Receive Buffer Full Interrupt Enable

0 = No effect.

1 = Enables the corresponding interrupt.

28

20

12

OVRE4

4

EOC4

27

19

RXBUFF

11

OVRE3

3

EOC3

26

18

ENDRX

10

OVRE2

2

EOC2

25

17

GOVRE

9

OVRE1

1

EOC1

24

16

DRDY

8

OVRE0

0

EOC0

489

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.9

ADC Interrupt Disable Register

Register Name:

Access Type:

ADC_IDR

Write-only

31

30

29

23

15

OVRE7

7

EOC7

22

14

OVRE6

6

EOC6

21

13

OVRE5

5

EOC5

• EOCx: End of Conversion Interrupt Disable x

• OVREx: Overrun Error Interrupt Disable x

• DRDY: Data Ready Interrupt Disable

• GOVRE: General Overrun Error Interrupt Disable

• ENDRX: End of Receive Buffer Interrupt Disable

• RXBUFF: Receive Buffer Full Interrupt Disable

0 = No effect.

1 = Disables the corresponding interrupt.

28

20

12

OVRE4

4

EOC4

27

19

RXBUFF

11

OVRE3

3

EOC3

26

18

ENDRX

10

OVRE2

2

EOC2

25

17

GOVRE

9

OVRE1

1

EOC1

24

16

DRDY

8

OVRE0

0

EOC0

490

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.10

ADC Interrupt Mask Register

Register Name:

Access Type:

ADC_IMR

Read-only

31

30

29

23

15

OVRE7

7

EOC7

22

14

OVRE6

6

EOC6

21

13

OVRE5

5

EOC5

• EOCx: End of Conversion Interrupt Mask x

• OVREx: Overrun Error Interrupt Mask x

• DRDY: Data Ready Interrupt Mask

• GOVRE: General Overrun Error Interrupt Mask

• ENDRX: End of Receive Buffer Interrupt Mask

• RXBUFF: Receive Buffer Full Interrupt Mask

0 = The corresponding interrupt is disabled.

1 = The corresponding interrupt is enabled.

28

20

12

OVRE4

4

EOC4

27

19

RXBUFF

11

OVRE3

3

EOC3

26

18

ENDRX

10

OVRE2

2

EOC2

25

17

GOVRE

9

OVRE1

1

EOC1

24

16

DRDY

8

OVRE0

0

EOC0

491

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

35.6.11

ADC Channel Data Register

Register Name:

Access Type:

ADC_CDRx

Read-only

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

DATA

24

16

8

0

DATA

• DATA: Converted Data

The analog-to-digital conversion data is placed into this register at the end of a conversion and remains until a new conversion is completed. The Convert Data Register (CDR) is only loaded if the corresponding analog channel is enabled.

6042E–ATARM–14-Dec-06

492

AT91SAM7A3 Preliminary

36. Controller Area Network (CAN)

36.1

Overview

The CAN controller provides all the features required to implement the serial communication protocol CAN defined by Robert Bosch GmbH, the CAN specification as referred to by

ISO/11898A (2.0 Part A and 2.0 Part B) for high speeds and ISO/11519-2 for low speeds. The

CAN Controller is able to handle all types of frames (Data, Remote, Error and Overload) and achieves a bitrate of 1 Mbit/sec.

CAN controller accesses are made through configuration registers. 16 independent message objects (mailboxes) are implemented.

Any mailbox can be programmed as a reception buffer block (even non-consecutive buffers).

For the reception of defined messages, one or several message objects can be masked without participating in the buffer feature. An interrupt is generated when the buffer is full.

According to the mailbox configuration, the first message received can be locked in the CAN controller registers until the application acknowledges it, or this message can be discarded by new received messages.

Any mailbox can be programmed for transmission. Several transmission mailboxes can be enabled in the same time. A priority can be defined for each mailbox independently.

An internal 16-bit timer is used to stamp each received and sent message. This timer starts counting as soon as the CAN controller is enabled. This counter can be reset by the application or automatically after a reception in the last mailbox in Time Triggered Mode.

The CAN controller offers optimized features to support the Time Triggered Communication

(TTC) protocol.

493

6042E–ATARM–14-Dec-06

36.2

Block Diagram

Figure 36-1. CAN Block Diagram

Controller Area Network

CAN Protocol Controller

PIO

Control

&

Status

Error Counter

Mailbox

Priority

Encoder

MB0

MB1

MCK

PMC

MBx

(x = number of mailboxes - 1)

User Interface

CAN Interrupt

CANRX

CANTX

Internal Bus

36.3

Application Block Diagram

Figure 36-2. Application Block Diagram

Layers

CAN-based Profiles

CAN-based Application Layer

CAN Data Link Layer

CAN Physical Layer

Implementation

Software

Software

CAN Controller

Transceiver

494

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.4

I/O Lines Description

Table 36-1.

I/O Lines Description

Name Description

CANRX

CANTX

CAN Receive Serial Data

CAN Transmit Serial Data

Type

Input

Output

36.5

Product Dependencies

36.5.1

I/O Lines

The pins used for interfacing the CAN may be multiplexed with the PIO lines. The programmer must first program the PIO controller to assign the desired CAN pins to their peripheral function. If I/O lines of the CAN are not used by the application, they can be used for other purposes by the PIO Controller.

36.5.2

Power Management

The programmer must first enable the CAN clock in the Power Management Controller (PMC) before using the CAN.

A Low-power Mode is defined for the CAN controller: If the application does not require CAN operations, the CAN clock can be stopped when not needed and be restarted later. Before stopping the clock, the CAN Controller must be in Low-power Mode to complete the current transfer. After restarting the clock, the application must disable the Low-power Mode of the

CAN controller.

36.5.3

Interrupt

The CAN interrupt line is connected on one of the internal sources of the Advanced Interrupt

Controller. Using the CAN interrupt requires the AIC to be programmed first. Note that it is not recommended to use the CAN interrupt line in edge-sensitive mode.

495

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.6

CAN Controller Features

36.6.1

CAN Protocol Overview

The Controller Area Network (CAN) is a multi-master serial communication protocol that efficiently supports real-time control with a very high level of security with bit rates up to 1 Mbit/s.

The CAN protocol supports four different frame types:

• Data frames: They carry data from a transmitter node to the receiver nodes. The overall maximum data frame length is 108 bits for a standard frame and 128 bits for an extended frame.

• Remote frames: A destination node can request data from the source by sending a remote frame with an identifier that matches the identifier of the required data frame. The appropriate data source node then sends a data frame as a response to this node request.

• Error frames: An error frame is generated by any node that detects a bus error.

• Overload frames: They provide an extra delay between the preceding and the successive data frames or remote frames.

The Atmel CAN controller provides the CPU with full functionality of the CAN protocol V2.0

Part A and V2.0 Part B. It minimizes the CPU load in communication overhead. The Data Link

Layer and part of the physical layer are automatically handled by the CAN controller itself.

The CPU reads or writes data or messages via the CAN controller mailboxes. An identifier is assigned to each mailbox. The CAN controller encapsulates or decodes data messages to build or to decode bus data frames. Remote frames, error frames and overload frames are automatically handled by the CAN controller under supervision of the software application.

36.6.2

36.6.2.1

Mailbox Organization

The CAN module has 16 buffers, also called channels or mailboxes. An identifier that corresponds to the CAN identifier is defined for each active mailbox. Message identifiers can match the standard frame identifier or the extended frame identifier. This identifier is defined for the first time during the CAN initialization, but can be dynamically reconfigured later so that the mailbox can handle a new message family. Several mailboxes can be configured with the same ID.

Each mailbox can be configured in receive or in transmit mode independently. The mailbox object type is defined in the MOT field of the CAN_MMRx register.

Message Acceptance Procedure

If the MIDE field in the CAN_MIDx register is set, the mailbox can handle the extended format identifier; otherwise, the mailbox handles the standard format identifier. Once a new message is received, its ID is masked with the CAN_MAMx value and compared with the CAN_MIDx value. If accepted, the message ID is copied to the CAN_MIDx register.

496

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-3. Message Acceptance Procedure

CAN_MIDx

CAN_MAMx

Message Received

& &

==

Message Accepted

Yes

CAN_MFIDx

No

Message Refused

If a mailbox is dedicated to receiving several messages (a family of messages) with different

IDs, the acceptance mask defined in the CAN_MAMx register must mask the variable part of the ID family. Once a message is received, the application must decode the masked bits in the

CAN_MIDx. To speed up the decoding, masked bits are grouped in the family ID register

(CAN_MFIDx).

For example, if the following message IDs are handled by the same mailbox:

ID0 101000100100010010000100 0 11 00b

ID1 101000100100010010000100 0 11 01b

ID2 101000100100010010000100 0 11 10b

ID3 101000100100010010000100 0 11 11b

ID4 101000100100010010000100 1 11 00b

ID5 101000100100010010000100 1 11 01b

ID6 101000100100010010000100 1 11 10b

ID7 101000100100010010000100 1 11 11b

The CAN_MIDx and CAN_MAMx of Mailbox x must be initialized to the corresponding values:

CAN_MIDx = 001 101000100100010010000100 x 11 xxb

CAN_MAMx = 001 111111111111111111111111 0 11 00b

If Mailbox x receives a message with ID6, then CAN_MIDx and CAN_MFIDx are set:

CAN_MIDx = 001 101000100100010010000100 1 11 10b

CAN_MFIDx = 00000000000000000000000000000110b

If the application associates a handler for each message ID, it may define an array of pointers to functions: void (*pHandler[8])(void);

When a message is received, the corresponding handler can be invoked using CAN_MFIDx register and there is no need to check masked bits: unsigned int MFID0_register;

MFID0_register = Get_CAN_MFID0_Register();

// Get_CAN_MFID0_Register() returns the value of the CAN_MFID0 register pHandler[MFID0_register]();

497

AT91SAM7A3 Preliminary

36.6.2.2

Receive Mailbox

When the CAN module receives a message, it looks for the first available mailbox with the lowest number and compares the received message ID with the mailbox ID. If such a mailbox is found, then the message is stored in its data registers. Depending on the configuration, the mailbox is disabled as long as the message has not been acknowledged by the application

(Receive only), or, if new messages with the same ID are received, then they overwrite the previous ones (Receive with overwrite).

It is also possible to configure a mailbox in Consumer Mode. In this mode, after each transfer request, a remote frame is automatically sent. The first answer received is stored in the corresponding mailbox data registers.

Several mailboxes can be chained to receive a buffer. They must be configured with the same

ID in Receive Mode, except for the last one, which can be configured in Receive with Overwrite Mode. The last mailbox can be used to detect a buffer overflow.

Table 36-2.

Mailbox Object Type

Receive

Receive with overwrite

Consumer

Description

The first message received is stored in mailbox data registers. Data remain available until the next transfer request.

The last message received is stored in mailbox data register. The next message always overwrites the previous one. The application has to check whether a new message has not overwritten the current one while reading the data registers.

A remote frame is sent by the mailbox. The answer received is stored in mailbox data register.

This extends Receive mailbox features. Data remain available until the next transfer request.

36.6.2.3

Transmit Mailbox

When transmitting a message, the message length and data are written to the transmit mailbox with the correct identifier. For each transmit mailbox, a priority is assigned. The controller automatically sends the message with the highest priority first (set with the field PRIOR in

CAN_MMRx register).

It is also possible to configure a mailbox in Producer Mode. In this mode, when a remote frame is received, the mailbox data are sent automatically. By enabling this mode, a producer can be done using only one mailbox instead of two: one to detect the remote frame and one to send the answer.

Table 36-3.

Mailbox Object Type

Transmit

Producer

Description

The message stored in the mailbox data registers will try to win the bus arbitration immediately

or later according to or not the Time Management Unit configuration (see Section 36.6.3

).

The application is notified that the message has been sent or aborted.

The message prepared in the mailbox data registers will be sent after receiving the next remote frame. This extends transmit mailbox features.

498

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.6.3

Time Management Unit

The CAN Controller integrates a free-running 16-bit internal timer. The counter is driven by the bit clock of the CAN bus line. It is enabled when the CAN controller is enabled (CANEN set in the CAN_MR register). It is automatically cleared in the following cases:

• after a reset

• when the CAN controller is in Low-power Mode is enabled (LPM bit set in the CAN_MR and

SLEEP bit set in the CAN_SR)

• after a reset of the CAN controller (CANEN bit in the CAN_MR register)

• in Time-triggered Mode, when a message is accepted by the last mailbox (rising edge of the MRDY signal in the CAN_MSR last_mailbox_number

register).

The application can also reset the internal timer by setting TIMRST in the CAN_TCR register.

The current value of the internal timer is always accessible by reading the CAN_TIM register.

When the timer rolls-over from FFFFh to 0000h, TOVF (Timer Overflow) signal in the CAN_SR register is set. TOVF bit in the CAN_SR register is cleared by reading the CAN_SR register.

Depending on the corresponding interrupt mask in the CAN_IMR register, an interrupt is generated while TOVF is set.

In a CAN network, some CAN devices may have a larger counter. In this case, the application can also decide to freeze the internal counter when the timer reaches FFFFh and to wait for a restart condition from another device. This feature is enabled by setting TIMFRZ in the

CAN_MR register. The CAN_TIM register is frozen to the FFFFh value. A clear condition described above restarts the timer. A timer overflow (TOVF) interrupt is triggered.

To monitor the CAN bus activity, the CAN_TIM register is copied to the CAN _TIMESTP register after each start of frame or end of frame and a TSTP interrupt is triggered. If TEOF bit in the CAN_MR register is set, the value is captured at each End Of Frame, else it is captured at each Start Of Frame. Depending on the corresponding mask in the CAN_IMR register, an interrupt is generated while TSTP is set in the CAN_SR. TSTP bit is cleared by reading the

CAN_SR register.

The time management unit can operate in one of the two following modes:

• Timestamping mode: The value of the internal timer is captured at each Start Of Frame or each End Of Frame

• Time Triggered mode: A mailbox transfer operation is triggered when the internal timer reaches the mailbox trigger.

Timestamping Mode is enabled by clearing TTM field in the CAN_MR register. Time Triggered

Mode is enabled by setting TTM field in the CAN_MR register.

499

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.6.4

36.6.4.1

CAN 2.0 Standard Features

CAN Bit Timing Configuration

All controllers on a CAN bus must have the same bit rate and bit length. At different clock frequencies of the individual controllers, the bit rate has to be adjusted by the time segments.

The CAN protocol specification partitions the nominal bit time into four different segments:

Figure 36-4. Partition of the CAN Bit Time

NOMINAL BIT TIME

PROP_SEG

PHASE_SEG1

PHASE_SEG2

SYNC_SEG

Sample Point

TIME QUANTUM:

The TIME QUANTUM (TQ) is a fixed unit of time derived from the MCK period. The total number of TIME QUANTA in a bit time is programmable from 8 to 25.

SYNC SEG: SYNChronization Segment.

This part of the bit time is used to synchronize the various nodes on the bus. An edge is expected to lie within this segment. It is 1 TQ long.

PROP SEG: PROPagation Segment.

This part of the bit time is used to compensate for the physical delay times within the network.

It is twice the sum of the signal’s propagation time on the bus line, the input comparator delay, and the output driver delay. It is programmable to be 1,2,..., 8 TQ long.

This parameter is defined in the PROPAG field of the

”CAN Baudrate Register”

.

PHASE SEG1, PHASE SEG2: PHASE Segment 1 and 2.

The Phase-Buffer-Segments are used to compensate for edge phase errors. These segments can be lengthened (PHASE SEG1) or shortened (PHASE SEG2) by resynchronization.

Phase Segment 1 is programmable to be 1,2,..., 8 TQ long.

Phase Segment 2 length has to be at least as long as the Information Processing Time (IPT) and may not be more than the length of Phase Segment 1.

These parameters are defined in the PHASE1 and PHASE2 fields of the

”CAN Baudrate

Register” .

INFORMATION PROCESSING TIME:

The Information Processing Time (IPT) is the time required for the logic to determine the bit level of a sampled bit. The IPT begins at the sample point, is measured in TQ and is fixed at

2 TQ for the Atmel CAN. Since Phase Segment 2 also begins at the sample point and is the last segment in the bit time, PHASE SEG2 shall not be less than the IPT.

500

6042E–ATARM–14-Dec-06

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

SAMPLE POINT:

The SAMPLE POINT is the point in time at which the bus level is read and interpreted as the value of that respective bit. Its location is at the end of PHASE_SEG1.

SJW: ReSynchronization Jump Width.

The ReSynchronization Jump Width defines the limit to the amount of lengthening or shortening of the Phase Segments.

SJW is programmable to be the minimum of PHASE SEG1 and 4 TQ.

If the SMP field in the CAN_BR register is set, then the incoming bit stream is sampled three times with a period of half a CAN clock period, centered on sample point.

In the CAN controller, the length of a bit on the CAN bus is determined by the parameters

(BRP, PROPAG, PHASE1 and PHASE2).

t

BIT

= t

CSC

+ t

PRS

+ t

PHS1

+ t

PHS2

The time quantum is calculated as follows: t

CSC

=

(

BRP

+

1

) ⁄

MCK

Note: The BRP field must be within the range [1, 0x7F], i.e., BRP = 0 is not authorized.

t

PRS t

PHS1 t

PHS2

=

=

= t

CSC

× (

PROPAG

+

1

) t

CSC

× (

PHASE1 + 1

) t

CSC

× (

PHASE2

+

1

)

To compensate for phase shifts between clock oscillators of different controllers on the bus, the CAN controller must resynchronize on any relevant signal edge of the current transmission. The resynchronization shortens or lengthens the bit time so that the position of the sample point is shifted with regard to the detected edge. The resynchronization jump width

(SJW) defines the maximum of time by which a bit period may be shortened or lengthened by resynchronization.

t

SJW

= t

CSC

× (

SJW + 1

)

501

AT91SAM7A3 Preliminary

Figure 36-5. CAN Bit Timing

MCK

CAN Clock t

CSC t

PRS t

PHS1 t

PHS2

SYNC_

SEG

NOMINAL BIT TIME

PHASE_SEG1 PROP_SEG PHASE_SEG2

Sample Point

Example of bit timing determination for CAN baudrate of 500 Kbit/s:

MCK = 48MHz

CAN baudrate= 500kbit/s => bit time= 2us

Delay of the bus driver: 50 ns

Delay of the receiver: 30ns

Delay of the bus line (20m): 110ns

Transmission Point

The total number of time quanta in a bit time must be comprised between 8 and 25. If we fix the bit time to 16 time quanta:

Tcsc = 1 time quanta = bit time / 16 = 125 ns

=> BRP = (Tcsc x MCK) - 1 = 5

The propagation segment time is equal to twice the sum of the signal’s propagation time on the bus line, the receiver delay and the output driver delay:

Tprs = 2 * (50+30+110) ns = 380 ns = 3 Tcsc

=> PROPAG = Tprs/Tcsc - 1 = 2

The remaining time for the two phase segments is:

Tphs1 + Tphs2 = bit time - Tcsc - Tprs = (16 - 1 - 3)Tcsc

Tphs1 + Tphs2 = 12 Tcsc

Because this number is even, we choose Tphs2 = Tphs1 (else we would choose

Tphs2 = Tphs1 + Tcsc)

Tphs1 = Tphs2 = (12/2) Tcsc = 6 Tcsc

=> PHASE1 = PHASE2 = Tphs1/Tcsc - 1 = 5

The resynchronization jump width must be comprised between 1 Tcsc and the minimum of 4 Tcsc and Tphs1. We choose its maximum value:

Tsjw = Min(4 Tcsc,Tphs1) = 4 Tcsc

=> SJW = Tsjw/Tcsc - 1 = 3

Finally: CAN_BR = 0x00053255

502

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

CAN Bus Synchronization

Two types of synchronization are distinguished: “hard synchronization” at the start of a frame and “resynchronization” inside a frame. After a hard synchronization, the bit time is restarted with the end of the SYNC_SEG segment, regardless of the phase error. Resynchronization causes a reduction or increase in the bit time so that the position of the sample point is shifted with respect to the detected edge.

The effect of resynchronization is the same as that of hard synchronization when the magnitude of the phase error of the edge causing the resynchronization is less than or equal to the programmed value of the resynchronization jump width (t

SJW

).

When the magnitude of the phase error is larger than the resynchronization jump width and

• the phase error is positive, then PHASE_SEG1 is lengthened by an amount equal to the resynchronization jump width.

• the phase error is negative, then PHASE_SEG2 is shortened by an amount equal to the resynchronization jump width.

Figure 36-6. CAN Resynchronization

THE PHASE ERROR IS POSITIVE

(the transmitter is slower than the receiver)

Received data bit

Nominal

Sample point

Sample point after resynchronization

Nominal bit time

(before resynchronization)

SYNC_

SEG

PROP_SEG PHASE_SEG1 PHASE_SEG2

SYNC_

SEG

Phase error (max Tsjw)

Bit time with resynchronization

SYNC_

SEG

Phase error

PROP_SEG PHASE_SEG1 PHASE_SEG2

SYNC_

SEG

Received data bit

Nominal bit time

(before resynchronization)

THE PHASE ERROR IS NEGATIVE

(the transmitter is faster than the receiver)

PHASE_SEG2

SYNC_

SEG after resynchronization

PROP_SEG

Sample point

PHASE_SEG1

Nominal

Sample point

PHASE_SEG2

SYNC_

SEG

Bit time with resynchronization

Phase error

PHASE_

SEG2

SYNC_

SEG

PROP_SEG PHASE_SEG1 PHASE_SEG2

SYNC_

SEG

Phase error (max Tsjw)

Autobaud Mode

The autobaud feature is enabled by setting the ABM field in the CAN_MR register. In this mode, the CAN controller is only listening to the line without acknowledging the received messages. It can not send any message. The errors flags are updated. The bit timing can be adjusted until no error occurs (good configuration found). In this mode, the error counters are frozen. To go back to the standard mode, the ABM bit must be cleared in the CAN_MR register.

503

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.6.4.2

Error Detection

There are five different error types that are not mutually exclusive. Each error concerns only specific fields of the CAN data frame (refer to the Bosch CAN specification for their correspondence):

• CRC error (CERR bit in the CAN_SR register): With the CRC, the transmitter calculates a checksum for the CRC bit sequence from the Start of Frame bit until the end of the Data

Field. This CRC sequence is transmitted in the CRC field of the Data or Remote Frame.

• Bit-stuffing error (SERR bit in the CAN_SR register): If a node detects a sixth consecutive equal bit level during the bit-stuffing area of a frame, it generates an Error Frame starting with the next bit-time.

• Bit error (BERR bit in CAN_SR register): A bit error occurs if a transmitter sends a dominant bit but detects a recessive bit on the bus line, or if it sends a recessive bit but detects a dominant bit on the bus line. An error frame is generated and starts with the next bit time.

• Form Error (FERR bit in the CAN_SR register): If a transmitter detects a dominant bit in one of the fix-formatted segments CRC Delimiter, ACK Delimiter or End of Frame, a form error has occurred and an error frame is generated.

• Acknowledgment error (AERR bit in the CAN_SR register): The transmitter checks the

Acknowledge Slot, which is transmitted by the transmitting node as a recessive bit, contains a dominant bit. If this is the case, at least one other node has received the frame correctly. If not, an Acknowledge Error has occurred and the transmitter will start in the next bit-time an Error Frame transmission.

Fault Confinement

To distinguish between temporary and permanent failures, every CAN controller has two error counters: REC (Receive Error Counter) and TEC (Transmit Error Counter). The counters are incremented upon detected errors and respectively are decremented upon correct transmissions or receptions. Depending on the counter values, the state of the node changes: the initial state of the CAN controller is Error Active, meaning that the controller can send Error

Active flags. The controller changes to the Error Passive state if there is an accumulation of errors. If the CAN controller fails or if there is an extreme accumulation of errors, there is a state transition to Bus Off.

Figure 36-7. Line Error Mode

Init

TEC > 127 or

REC > 127

ERROR

PASSIVE

ERROR

ACTIVE

128 occurences of 11 consecutive recessive bits or

CAN controller reset

TEC < 127 and

REC < 127

BUS OFF

TEC > 255

504

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

An error active unit takes part in bus communication and sends an active error frame when the

CAN controller detects an error.

An error passive unit cannot send an active error frame. It takes part in bus communication, but when an error is detected, a passive error frame is sent. Also, after a transmission, an error passive unit waits before initiating further transmission.

A bus off unit is not allowed to have any influence on the bus.

For fault confinement, two errors counters (TEC and REC) are implemented. These counters are accessible via the CAN_ECR register. The state of the CAN controller is automatically updated according to these counter values. If the CAN controller is in Error Active state, then the ERRA bit is set in the CAN_SR register. The corresponding interrupt is pending while the interrupt is not masked in the CAN_IMR register. If the CAN controller is in Error Passive

Mode, then the ERRP bit is set in the CAN_SR register and an interrupt remains pending while the ERRP bit is set in the CAN_IMR register. If the CAN is in Bus-off Mode, then the BOFF bit is set in the CAN_SR register. As for ERRP and ERRA, an interrupt is pending while the BOFF bit is set in the CAN_IMR register.

When one of the error counters values exceeds 96, an increased error rate is indicated to the controller through the WARN bit in CAN_SR register, but the node remains error active. The corresponding interrupt is pending while the interrupt is set in the CAN_IMR register.

Refer to the Bosch CAN specification v2.0 for details on fault confinement.

36.6.4.3

36.6.5

Overload

The overload frame is provided to request a delay of the next data or remote frame by the receiver node (“Request overload frame”) or to signal certain error conditions (“Reactive overload frame”) related to the intermission field respectively.

Reactive overload frames are transmitted after detection of the following error conditions:

• Detection of a dominant bit during the first two bits of the intermission field

• Detection of a dominant bit in the last bit of EOF by a receiver, or detection of a dominant bit by a receiver or a transmitter at the last bit of an error or overload frame delimiter

The CAN controller can generate a request overload frame automatically after each message sent to one of the CAN controller mailboxes. This feature is enabled by setting the OVL bit in the CAN_MR register.

Reactive overload frames are automatically handled by the CAN controller even if the OVL bit in the CAN_MR register is not set. An overload flag is generated in the same way as an error flag, but error counters do not increment.

Low-power Mode

In Low-power Mode, the CAN controller cannot send or receive messages. All mailboxes are inactive.

In Low-power Mode, the SLEEP signal in the CAN_SR register is set; otherwise, the WAKEUP signal in the CAN_SR register is set. These two fields are exclusive except after a CAN controller reset (WAKEUP and SLEEP are stuck at 0 after a reset). After power-up reset, the Lowpower Mode is disabled and the WAKEUP bit is set in the CAN_SR register only after detection of 11 consecutive recessive bits on the bus.

505

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.6.5.1

Enabling Low-power Mode

A software application can enable Low-power Mode by setting the LPM bit in the CAN_MR global register. The CAN controller enters Low-power Mode once all pending transmit messages are sent.

When the CAN controller enters Low-power Mode, the SLEEP signal in the CAN_SR register is set. Depending on the corresponding mask in the CAN_IMR register, an interrupt is generated while SLEEP is set.

The SLEEP signal in the CAN_SR register is automatically cleared once WAKEUP is set. The

WAKEUP signal is automatically cleared once SLEEP is set.

Reception is disabled while the SLEEP signal is set to one in the CAN_SR register. It is important to note that those messages with higher priority than the last message transmitted can be received between the LPM command and entry in Low-power Mode.

Once in Low-power Mode, the CAN controller clock can be switched off by programming the chip’s Power Management Controller (PMC). The CAN controller drains only the static current.

Error counters are disabled while the SLEEP signal is set to one.

Thus, to enter Low-power Mode, the software application must:

– Set LPM field in the CAN_MR register

– Wait for SLEEP signal rising

Now the CAN Controller clock can be disabled. This is done by programming the Power Management Controller (PMC).

Figure 36-8. Enabling Low-power Mode

Arbitration lost

Mailbox 1

CAN BUS

LPM

(CAN_MR)

SLEEP

(CAN_SR)

LPEN= 1

WAKEUP

(CAN_SR)

MRDY

(CAN_MSR1)

MRDY

(CAN_MSR3)

CAN_TIM

Mailbox 3

0x0

36.6.5.2

Disabling Low-power Mode

The CAN controller can be awake after detecting a CAN bus activity. Bus activity detection is done by an external module that may be embedded in the chip. When it is notified of a CAN bus activity, the software application disables Low-power Mode by programming the CAN controller.

506

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

To disable Low-power Mode, the software application must:

– Enable the CAN Controller clock. This is done by programming the Power

Management Controller (PMC).

– Clear the LPM field in the CAN_MR register

The CAN controller synchronizes itself with the bus activity by checking for eleven consecutive

“recessive” bits. Once synchronized, the WAKEUP signal in the CAN_SR register is set.

Depending on the corresponding mask in the CAN_IMR register, an interrupt is generated while WAKEUP is set. The SLEEP signal in the CAN_SR register is automatically cleared once WAKEUP is set. WAKEUP signal is automatically cleared once SLEEP is set.

If no message is being sent on the bus, then the CAN controller is able to send a message eleven bit times after disabling Low-power Mode.

If there is bus activity when Low-power mode is disabled, the CAN controller is synchronized with the bus activity in the next interframe. The previous message is lost (see

Figure 36-9 ).

Figure 36-9. Disabling Low-power Mode

Bus Activity Detected

Message lost

Message x

Interframe synchronization

CAN BUS

LPM

(CAN_MR)

SLEEP

(CAN_SR)

WAKEUP

(CAN_SR)

MRDY

(CAN_MSRx)

507

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.7

Functional Description

36.7.1

CAN Controller Initialization

After power-up reset, the CAN controller is disabled. The CAN controller clock must be activated by the Power Management Controller (PMC) and the CAN controller interrupt line must be enabled by the interrupt controller (AIC).

The CAN controller must be initialized with the CAN network parameters. The CAN_BR register defines the sampling point in the bit time period. CAN_BR must be set before the CAN controller is enabled by setting the CANEN field in the CAN_MR register.

The CAN controller is enabled by setting the CANEN flag in the CAN_MR register. At this stage, the internal CAN controller state machine is reset, error counters are reset to 0, error flags are reset to 0.

Once the CAN controller is enabled, bus synchronization is done automatically by scanning eleven recessive bits. The WAKEUP bit in the CAN_SR register is automatically set to 1 when the CAN controller is synchronized (WAKEUP and SLEEP are stuck at 0 after a reset).

The CAN controller can start listening to the network in Autobaud Mode. In this case, the error counters are locked and a mailbox may be configured in Receive Mode. By scanning error flags, the CAN_BR register values synchronized with the network. Once no error has been detected, the application disables the Autobaud Mode, clearing the ABM field in the CAN_MR register.

Figure 36-10. Possible Initialization Procedure

Enable CAN Controller Clock

(PMC)

Enable CAN Controller Interrupt Line

(AIC)

Configure a Mailbox in Reception Mode

Change CAN_BR value

(ABM == 1 and CANEN == 1)

Errors ?

(CAN_SR or CAN_MSRx)

Yes

No

ABM = 0 and CANEN = 0

CANEN = 1 (ABM == 0)

End of Initialization

508

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.7.2

CAN Controller Interrupt Handling

There are two different types of interrupts. One type of interrupt is a message-object related interrupt, the other is a system interrupt that handles errors or system-related interrupt sources.

All interrupt sources can be masked by writing the corresponding field in the CAN_IDR register. They can be unmasked by writing to the CAN_IER register. After a power-up reset, all interrupt sources are disabled (masked). The current mask status can be checked by reading the CAN_IMR register.

The CAN_SR register gives all interrupt source states.

The following events may initiate one of the two interrupts:

• Message object interrupt

– Data registers in the mailbox object are available to the application. In Receive

Mode, a new message was received. In Transmit Mode, a message was transmitted successfully.

– A sent transmission was aborted.

• System interrupts

– Bus-off interrupt: The CAN module enters the bus-off state.

– Error-passive interrupt: The CAN module enters Error Passive Mode.

– Error-active Mode: The CAN module is neither in Error Passive Mode nor in Busoff mode.

– Warn Limit interrupt: The CAN module is in Error-active Mode, but at least one of its error counter value exceeds 96.

– Wake-up interrupt: This interrupt is generated after a wake-up and a bus synchronization.

– Sleep interrupt: This interrupt is generated after a Low-power Mode enable once all pending messages in transmission have been sent.

– Internal timer counter overflow interrupt: This interrupt is generated when the internal timer rolls over.

– Timestamp interrupt: This interrupt is generated after the reception or the transmission of a start of frame or an end of frame. The value of the internal counter is copied in the CAN_TIMESTP register.

All interrupts are cleared by clearing the interrupt source except for the internal timer counter overflow interrupt and the timestamp interrupt. These interrupts are cleared by reading the

CAN_SR register.

509

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.7.3

CAN Controller Message Handling

36.7.3.1

Receive Handling

Two modes are available to configure a mailbox to receive messages. In Receive Mode, the first message received is stored in the mailbox data register. In Receive with Overwrite

Mode, the last message received is stored in the mailbox.

Simple Receive Mailbox

A mailbox is in Receive Mode once the MOT field in the CAN_MMRx register has been configured. Message ID and Message Acceptance Mask must be set before the Receive Mode is enabled.

After Receive Mode is enabled, the MRDY flag in the CAN_MSR register is automatically cleared until the first message is received. When the first message has been accepted by the mailbox, the MRDY flag is set. An interrupt is pending for the mailbox while the MRDY flag is set. This interrupt can be masked depending on the mailbox flag in the CAN_IMR global register.

Message data are stored in the mailbox data register until the software application notifies that data processing has ended. This is done by asking for a new transfer command, setting the

MTCR flag in the CAN_MCRx register. This automatically clears the MRDY signal.

The MMI flag in the CAN_MSRx register notifies the software that a message has been lost by the mailbox. This flag is set when messages are received while MRDY is set in the

CAN_MSRx register. This flag is cleared by reading the CAN_MSRs register. A receive mailbox prevents from overwriting the first message by new ones while MRDY flag is set in the

CAN_MSRx register. See Figure 36-11

.

Figure 36-11. Receive Mailbox

Message ID = CAN_MIDx

CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

Message 1 Message 2 lost Message 3

(CAN_MDLx

CAN_MDHx)

MTCR

(CAN_MCRx)

Message 1

Reading CAN_MDHx & CAN_MDLx

Reading CAN_MSRx

Writing CAN_MCRx

Message 3

Note: In the case of ARM architecture, CAN_MSRx, CAN_MDLx, CAN_MDHx can be read using an optimized ldm assembler instruction.

510

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Receive with Overwrite Mailbox

A mailbox is in Receive with Overwrite Mode once the MOT field in the CAN_MMRx register has been configured. Message ID and Message Acceptance masks must be set before

Receive Mode is enabled.

After Receive Mode is enabled, the MRDY flag in the CAN_MSR register is automatically cleared until the first message is received. When the first message has been accepted by the mailbox, the MRDY flag is set. An interrupt is pending for the mailbox while the MRDY flag is set. This interrupt is masked depending on the mailbox flag in the CAN_IMR global register.

If a new message is received while the MRDY flag is set, this new message is stored in the mailbox data register, overwriting the previous message. The MMI flag in the CAN_MSRx register notifies the software that a message has been dropped by the mailbox. This flag is cleared when reading the CAN_MSRx register.

The CAN controller may store a new message in the CAN data registers while the application reads them. To check that CAN_MDHx and CAN_MDLx do not belong to different messages, the application must check the MMI field in the CAN_MSRx register before and after reading

CAN_MDHx and CAN_MDLx. If the MMI flag is set again after the data registers have been

read, the software application has to re-read CAN_MDHx and CAN_MDLx (see Figure 36-12 ).

Figure 36-12. Receive with Overwrite Mailbox

Message ID = CAN_MIDx

CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

(CAN_MDLx

CAN_MDHx)

MTCR

(CAN_MCRx)

Message 1 Message 2

Message 1

Message 3 Message 4

Message 2 Message 3 Message 4

Reading CAN_MSRx

Reading CAN_MDHx & CAN_MDLx

Writing CAN_MCRx

Chaining Mailboxes

Several mailboxes may be used to receive a buffer split into several messages with the same

ID. In this case, the mailbox with the lowest number is serviced first. In the receive and receive with overwrite modes, the field PRIOR in the CAN_MMRx register has no effect. If Mailbox 0 and Mailbox 5 accept messages with the same ID, the first message is received by Mailbox 0 and the second message is received by Mailbox 5. Mailbox 0 must be configured in Receive

Mode (i.e., the first message received is considered) and Mailbox 5 must be configured in

Receive with Overwrite Mode. Mailbox 0 cannot be configured in Receive with Overwrite

Mode; otherwise, all messages are accepted by this mailbox and Mailbox 5 is never serviced.

511

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

If several mailboxes are chained to receive a buffer split into several messages, all mailboxes except the last one (with the highest number) must be configured in Receive Mode. The first message received is handled by the first mailbox, the second one is refused by the first mailbox and accepted by the second mailbox, the last message is accepted by the last mailbox

and refused by previous ones (see Figure 36-13

).

Figure 36-13. Chaining Three Mailboxes to Receive a Buffer Split into Three Messages

Buffer split in 3 messages

CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

MRDY

(CAN_MSRy)

MMI

(CAN_MSRy)

MRDY

(CAN_MSRz)

MMI

(CAN_MSRz)

Message s1 Message s2 Message s3

Reading CAN_MSRx, CAN_MSRy and CAN_MSRz

Reading CAN_MDH & CAN_MDL for mailboxes x, y and z

Writing MBx MBy MBz in CAN_TCR

If the number of mailboxes is not sufficient (the MMI flag of the last mailbox raises), the user must read each data received on the last mailbox in order to retrieve all the messages of the buffer split (see

Figure 36-14 ).

512

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-14. Chaining Three Mailboxes to Receive a Buffer Split into Four Messages

Buffer split in 4 messages

CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

MRDY

(CAN_MSRy)

MMI

(CAN_MSRy)

MRDY

(CAN_MSRz)

MMI

(CAN_MSRz)

36.7.3.2

Message s1 Message s2 Message s3

Message s4

Reading CAN_MSRx, CAN_MSRy and CAN_MSRz

Reading CAN_MDH & CAN_MDL for mailboxes x, y and z

Writing MBx MBy MBz in CAN_TCR

Transmission Handling

A mailbox is in Transmit Mode once the MOT field in the CAN_MMRx register has been configured. Message ID and Message Acceptance mask must be set before Receive Mode is enabled.

After Transmit Mode is enabled, the MRDY flag in the CAN_MSR register is automatically set until the first command is sent. When the MRDY flag is set, the software application can prepare a message to be sent by writing to the CAN_MDx registers. The message is sent once the software asks for a transfer command setting the MTCR bit and the message data length in the CAN_MCRx register.

The MRDY flag remains at zero as long as the message has not been sent or aborted. It is important to note that no access to the mailbox data register is allowed while the MRDY flag is cleared. An interrupt is pending for the mailbox while the MRDY flag is set. This interrupt can be masked depending on the mailbox flag in the CAN_IMR global register.

It is also possible to send a remote frame setting the MRTR bit instead of setting the MDLC field. The answer to the remote frame is handled by another reception mailbox. In this case, the device acts as a consumer but with the help of two mailboxes. It is possible to handle the remote frame emission and the answer reception using only one mailbox configured in Consumer Mode. Refer to the section

”Remote Frame Handling” on page 514 .

Several messages can try to win the bus arbitration in the same time. The message with the highest priority is sent first. Several transfer request commands can be generated at the same time by setting MBx bits in the CAN_TCR register. The priority is set in the PRIOR field of the

CAN_MMRx register. Priority 0 is the highest priority, priority 15 is the lowest priority. Thus it is possible to use a part of the message ID to set the PRIOR field. If two mailboxes have the same priority, the message of the mailbox with the lowest number is sent first. Thus if mailbox

513

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

0 and mailbox 5 have the same priority and have a message to send at the same time, then the message of the mailbox 0 is sent first.

Setting the MACR bit in the CAN_MCRx register aborts the transmission. Transmission for several mailboxes can be aborted by writing MBx fields in the CAN_MACR register. If the message is being sent when the abort command is set, then the application is notified by the

MRDY bit set and not the MABT in the CAN_MSRx register. Otherwise, if the message has not been sent, then the MRDY and the MABT are set in the CAN_MSR register.

When the bus arbitration is lost by a mailbox message, the CAN controller tries to win the next bus arbitration with the same message if this one still has the highest priority. Messages to be sent are re-tried automatically until they win the bus arbitration. This feature can be disabled by setting the bit DRPT in the CAN_MR register. In this case if the message was not sent the first time it was transmitted to the CAN transceiver, it is automatically aborted. The MABT flag is set in the CAN_MSRx register until the next transfer command.

Figure 36-15 shows three MBx message attempts being made (MRDY of MBx set to 0).

The first MBx message is sent, the second is aborted and the last one is trying to be aborted but too late because it has already been transmitted to the CAN transceiver.

Figure 36-15. Transmitting Messages

CAN BUS

MRDY

(CAN_MSRx)

MABT

(CAN_MSRx)

MTCR

(CAN_MCRx)

MACR

(CAN_MCRx)

Reading CAN_MSRx

Writing CAN_MDHx &

CAN_MDLx

MBx message

Abort MBx message

MBx message

Try to Abort MBx message

36.7.3.3

Remote Frame Handling

Producer/consumer model is an efficient means of handling broadcasted messages. The push model allows a producer to broadcast messages; the pull model allows a customer to ask for messages.

514

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-16. Producer / Consumer Model

PUSH MODEL

Producer Consumer

Indication(s)

Request

CAN Data Frame

PULL MODEL

Producer

Indications

CAN Remote Frame

Consumer

Request(s)

Response

CAN Data Frame

Confirmation(s)

Producer Configuration

In Pull Mode, a consumer transmits a remote frame to the producer. When the producer receives a remote frame, it sends the answer accepted by one or many consumers. Using transmit and receive mailboxes, a consumer must dedicate two mailboxes, one in Transmit

Mode to send remote frames, and at least one in Receive Mode to capture the producer’s answer. The same structure is applicable to a producer: one reception mailbox is required to get the remote frame and one transmit mailbox to answer.

Mailboxes can be configured in Producer or Consumer Mode. A lonely mailbox can handle the remote frame and the answer. With 16 mailboxes, the CAN controller can handle 16 independent producers/consumers.

A mailbox is in Producer Mode once the MOT field in the CAN_MMRx register has been configured. Message ID and Message Acceptance masks must be set before Receive Mode is enabled.

After Producer Mode is enabled, the MRDY flag in the CAN_MSR register is automatically set until the first transfer command. The software application prepares data to be sent by writing to the CAN_MDHx and the CAN_MDLx registers, then by setting the MTCR bit in the

CAN_MCRx register. Data is sent after the reception of a remote frame as soon as it wins the bus arbitration.

The MRDY flag remains at zero as long as the message has not been sent or aborted. No access to the mailbox data register can be done while MRDY flag is cleared. An interrupt is pending for the mailbox while the MRDY flag is set. This interrupt can be masked according to the mailbox flag in the CAN_IMR global register.

If a remote frame is received while no data are ready to be sent (signal MRDY set in the

CAN_MSRx register), then the MMI signal is set in the CAN_MSRx register. This bit is cleared by reading the CAN_MSRx register.

515

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

The MRTR field in the CAN_MSRx register has no meaning. This field is used only when using

Receive and Receive with Overwrite modes.

After a remote frame has been received, the mailbox functions like a transmit mailbox. The message with the highest priority is sent first. The transmitted message may be aborted by

setting the MACR bit in the CAN_MCR register. Please refer to the section ”Transmission

Handling” on page 513 .

Figure 36-17. Producer Handling

Remote Frame CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

MTCR

(CAN_MCRx)

Message 1 Remote Frame

Reading CAN_MSRx

Remote Frame

Message 2

(CAN_MDLx

CAN_MDHx)

Message 1 Message 2

Consumer Configuration

A mailbox is in Consumer Mode once the MOT field in the CAN_MMRx register has been configured. Message ID and Message Acceptance masks must be set before Receive Mode is enabled.

After Consumer Mode is enabled, the MRDY flag in the CAN_MSR register is automatically cleared until the first transfer request command. The software application sends a remote frame by setting the MTCR bit in the CAN_MCRx register or the MBx bit in the global

CAN_TCR register. The application is notified of the answer by the MRDY flag set in the

CAN_MSRx register. The application can read the data contents in the CAN_MDHx and

CAN_MDLx registers. An interrupt is pending for the mailbox while the MRDY flag is set. This interrupt can be masked according to the mailbox flag in the CAN_IMR global register.

The MRTR bit in the CAN_MCRx register has no effect. This field is used only when using

Transmit Mode.

After a remote frame has been sent, the consumer mailbox functions as a reception mailbox.

The first message received is stored in the mailbox data registers. If other messages intended for this mailbox have been sent while the MRDY flag is set in the CAN_MSRx register, they will be lost. The application is notified by reading the MMI field in the CAN_MSRx register. The read operation automatically clears the MMI flag.

If several messages are answered by the Producer, the CAN controller may have one mailbox in consumer configuration, zero or several mailboxes in Receive Mode and one mailbox in

Receive with Overwrite Mode. In this case, the consumer mailbox must have a lower number than the Receive with Overwrite mailbox. The transfer command can be triggered for all mailboxes at the same time by setting several MBx fields in the CAN_TCR register.

516

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-18. Consumer Handling

Remote Frame

CAN BUS

MRDY

(CAN_MSRx)

MMI

(CAN_MSRx)

MTCR

(CAN_MCRx)

(CAN_MDLx

CAN_MDHx)

Message x

Remote Frame

Message y

Message x Message y

6042E–ATARM–14-Dec-06

517

AT91SAM7A3 Preliminary

36.7.4

36.7.4.1

CAN Controller Timing Modes

Using the free running 16-bit internal timer, the CAN controller can be set in one of the two following timing modes:

• Timestamping Mode: The value of the internal timer is captured at each Start Of Frame or each End Of Frame.

• Time Triggered Mode: The mailbox transfer operation is triggered when the internal timer reaches the mailbox trigger.

Timestamping Mode is enabled by clearing the TTM bit in the CAN_MR register. Time Triggered Mode is enabled by setting the TTM bit in the CAN_MR register.

Timestamping Mode

Each mailbox has its own timestamp value. Each time a message is sent or received by a mailbox, the 16-bit value MTIMESTAMP of the CAN_TIMESTP register is transferred to the

LSB bits of the CAN_MSRx register. The value read in the CAN_MSRx register corresponds to the internal timer value at the Start Of Frame or the End Of Frame of the message handled by the mailbox.

Figure 36-19. Mailbox Timestamp

Start of Frame

End of Frame

CAN BUS

CAN_TIM

TEOF

(CAN_MR)

TIMESTAMP

(CAN_TSTP)

MTIMESTAMP

(CAN_MSRx)

MTIMESTAMP

(CAN_MSRy)

Message 1

Timestamp 1

Timestamp 1

Message 2

Timestamp 2

Timestamp 2

36.7.4.2

Time Triggered Mode

In Time Triggered Mode, basic cycles can be split into several time windows. A basic cycle starts with a reference message. Each time a window is defined from the reference message, a transmit operation should occur within a pre-defined time window. A mailbox must not win the arbitration in a previous time window, and it must not be retried if the arbitration is lost in the time window.

518

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-20. Time Triggered Principle

Time Cycle

Reference

Message

Reference

Message

Time Windows for Messages

Global Time

Time Trigger Mode is enabled by setting the TTM field in the CAN_MR register. In Time Triggered Mode, as in Timestamp Mode, the CAN_TIMESTP field captures the values of the internal counter, but the MTIMESTAMP fields in the CAN_MSRx registers are not active and are read at 0.

Synchronization by a Reference Message

In Time Triggered Mode, the internal timer counter is automatically reset when a new message is received in the last mailbox. This reset occurs after the reception of the End Of Frame on the rising edge of the MRDY signal in the CAN_MSRx register. This allows synchronization of the internal timer counter with the reception of a reference message and the start a new time window.

Transmitting within a Time Window

A time mark is defined for each mailbox. It is defined in the 16-bit MTIMEMARK field of the

CAN_MMRx register. At each internal timer clock cycle, the value of the CAN_TIM is compared with each mailbox time mark. When the internal timer counter reaches the

MTIMEMARK value, an internal timer event for the mailbox is generated for the mailbox.

In Time Triggered Mode, transmit operations are delayed until the internal timer event for the mailbox. The application prepares a message to be sent by setting the MTCR in the

CAN_MCRx register. The message is not sent until the CAN_TIM value is less than the

MTIMEMARK value defined in the CAN_MMRx register.

If the transmit operation is failed, i.e., the message loses the bus arbitration and the next transmit attempt is delayed until the next internal time trigger event. This prevents overlapping the next time window, but the message is still pending and is retried in the next time window when

CAN_TIM value equals the MTIMEMARK value. It is also possible to prevent a retry by setting the DRPT field in the CAN_MR register.

Freezing the Internal Timer Counter

The internal counter can be frozen by setting TIMFRZ in the CAN_MR register. This prevents an unexpected roll-over when the counter reaches FFFFh. When this occurs, it automatically freezes until a new reset is issued, either due to a message received in the last mailbox or any other reset counter operations. The TOVF bit in the CAN_SR register is set when the counter is frozen. The TOVF bit in the CAN_SR register is cleared by reading the CAN_SR register.

Depending on the corresponding interrupt mask in the CAN_IMR register, an interrupt is generated when TOVF is set.

519

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

Figure 36-21. Time Triggered Operations

CAN BUS

CAN_TIM

Reference

Message

End of Frame

Message x

Arbitration Lost

Message y

Internal Counter Reset

Cleared by software

MRDY

(CAN_MSRlast_mailbox_number)

Timer Event x

MRDY

(CAN_MSRx)

MTIMEMARKx == CAN_TIM

Message y

Arbitration Win

MTIMEMARKy == CAN_TIM

Timer Event y

MRDY

(CAN_MSRy)

Time Window

Basic Cycle

CAN BUS

CAN_TIM

Reference

Message

End of Frame

Internal Counter Reset

Message x

Message x

Arbitration Win

Cleared by software

MRDY

(CAN_MSRlast_mailbox_number)

Timer Event x

MRDY

(CAN_MSRx)

MTIMEMARKx == CAN_TIM

Time Window

Basic Cycle

520

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8

Controller Area Network (CAN) User Interface

Table 36-4.

CAN Memory Map

Offset Register

0x0210

0x0214

0x0218

0x021C

0x0220

0x0224

0x0228

0x022C

0x0230

0x0234

0x0238

0x023C

...

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Status Register

Baudrate Register

Timer Register

Timestamp Register

0x0020

0x0024

Error Counter Register

Transfer Command Register

0x0028 Abort Command Register

0x0100 - 0x01FC Reserved

0x0200

0x0204

0x0208

0x020C

Mailbox 0 Mode Register

Mailbox 0 Acceptance Mask Register

Mailbox 0 ID Register

Mailbox 0 Family ID Register

Mailbox 0 Status Register

Mailbox 0 Data Low Register

Mailbox 0 Data High Register

Mailbox 0 Control Register

Mailbox 1 Mode Register

Mailbox 1 Acceptance Mask Register

Mailbox 1 ID register

Mailbox 1 Family ID Register

Mailbox 1 Status Register

Mailbox 1 Data Low Register

Mailbox 1 Data High Register

Mailbox 1 Control Register

...

CAN_MID0

CAN_MFID0

CAN_MSR0

CAN_MDL0

CAN_MDH0

CAN_MCR0

CAN_MMR1

CAN_MAM1

CAN_MID1

CAN_MFID1

CAN_MSR1

CAN_MDL1

CAN_MDH1

CAN_MCR1

...

Name

CAN_MR

CAN_IER

CAN_IDR

CAN_IMR

CAN_SR

CAN_BR

CAN_TIM

CAN_TIMESTP

CAN_ECR

CAN_TCR

CAN_ACR

CAN_MMR0

CAN_MAM0

Read-only

Read/Write

Read/Write

Write-only

Read/Write

Read/Write

Read/Write

Read-only

Read-only

Read/Write

Read/Write

Write-only

...

Read-Write

Write-only

Write-only

Read-only

Read-only

Read/Write

Read-only

Read-only

Read-only

Write-only

Write-only

Read/Write

Read/Write

Read/Write

Read-only

0x0

0x0

0x0

0x0

0x0

0x0

0x0

-

0x0

0x0

0x0

-

-

0x0

0x0

0x0

0x0

0x0

-

-

0x0

0x0

0x0

0x0

0x0

-

-

0x0

521

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.1

CAN Mode Register

Name:

Access Type:

CAN_MR

Read/Write

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

25

17

9

24

16

8

7

DRPT

6

TIMFRZ

5

TTM

4

TEOF

3

OVL

2

ABM

1

LPM

0

CANEN

• CANEN: CAN Controller Enable

0 = The CAN Controller is disabled.

1 = The CAN Controller is enabled.

• LPM: Disable/Enable Low Power Mode

0 = Disable w Power Mode.

1 = Enable Low Power Mo

CAN controller enters Low Power Mode once all pending messages have been transmitted.

• ABM: Disable/Enable Autobaud/Listen mode

0 = Disable Autobaud/listen mode.

1 = Enable Autobaud/listen mode.

• OVL: Disable/Enable Overload Frame

0 = No overload frame is generated.

1 = An overload frame is generated after each successful reception for mailboxes configured in Receive with/without overwrite Mode, Producer and Consumer.

• TEOF: Timestamp messages at each end of Frame

0 = The value of CAN_TIM is captured in the CAN_TIMESTP register at each Start Of Frame.

1 = The value of CAN_TIM is captured in the CAN_TIMESTP register at each End Of Frame.

• TTM: Disable/Enable Time Triggered Mode

0 = Time Triggered Mode is disabled.

1 = Time Triggered Mode is enabled.

• TIMFRZ: Enable Timer Freeze

0 = The internal timer continues to be incremented after it reached 0xFFFF.

1 = The internal timer stops incrementing after reaching 0xFFFF. It is restarted after a timer reset. See ”Freezing the Internal Timer Counter” on page 519

.

• DRPT: Disable Repeat

0 = When a transmit mailbox loses the bus arbitration, the transfer request remains pending.

1 = When a transmit mailbox lose the bus arbitration, the transfer request is automatically aborted. It automatically raises the MABT and MRDT flags in the corresponding CAN_MSRx.

522

6042E–ATARM–14-Dec-06

36.8.2

CAN Interrupt Enable Register

Name:

Access Type:

CAN_IER

Write-only

31

30

29

23

TSTP

15

MB15

22

TOVF

14

MB14

21

WAKEUP

13

MB13

7

MB7

6

MB6

5

MB5

• MBx: Mailbox x Interrupt Enable

0 = No effect.

1 = Enable Mailbox x interrupt.

• ERRA: Error Active mode Interrupt Enable

0 = No effect.

1 = Enable ERRA interrupt.

• WARN: Warning Limit Interrupt Enable

0 = No effect.

1 = Enable WARN interrupt.

• ERRP: Error Passive mode Interrupt Enable

0 = No effect.

1 = Enable ERRP interrupt.

• BOFF: Bus-off mode Interrupt Enable

0 = No effect.

1 = Enable BOFF interrupt.

• SLEEP: Sleep Interrupt Enable

0 = No effect.

1 = Enable SLEEP interrupt.

• WAKEUP: Wakeup Interrupt Enable

0 = No effect.

1 = Enable SLEEP interrupt.

• TOVF: Timer Overflow Interrupt Enable

0 = No effect.

1 = Enable TOVF interrupt.

• TSTP: TimeStamp Interrupt Enable

0 = No effect.

1 = Enable TSTP interrupt.

• CERR: CRC Error Interrupt Enable

0 = No effect.

1 = Enable CRC Error interrupt.

4

MB4

28

BERR

20

SLEEP

12

MB12

6042E–ATARM–14-Dec-06

27

FERR

19

BOFF

11

MB11

3

MB3

AT91SAM7A3 Preliminary

26

AERR

18

ERRP

10

MB10

2

MB2

25

SERR

17

WARN

9

MB9

1

MB1

24

CERR

16

ERRA

8

MB8

0

MB0

523

• SERR: Stuffing Error Interrupt Enable

0 = No effect.

1 = Enable Stuffing Error interrupt.

• AERR: Acknowledgment Error Interrupt Enable

0 = No effect.

1 = Enable Acknowledgment Error interrupt.

• FERR: Form Error Interrupt Enable

0 = No effect.

1 = Enable Form Error interrupt.

• BERR: Bit Error Interrupt Enable

0 = No effect.

1 = Enable Bit Error interrupt.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

524

36.8.3

CAN Interrupt Disable Register

Name:

Access Type:

CAN_IDR

Write-only

31

30

29

23

TSTP

15

MB15

22

TOVF

14

MB14

21

WAKEUP

13

MB13

7

MB7

6

MB6

5

MB5

• MBx: Mailbox x Interrupt Disable

0 = No effect.

1 = Disable Mailbox x interrupt.

• ERRA: Error Active Mode Interrupt Disable

0 = No effect.

1 = Disable ERRA interrupt.

• WARN: Warning Limit Interrupt Disable

0 = No effect.

1 = Disable WARN interrupt.

• ERRP: Error Passive mode Interrupt Disable

0 = No effect.

1 = Disable ERRP interrupt.

• BOFF: Bus-off mode Interrupt Disable

0 = No effect.

1 = Disable BOFF interrupt.

• SLEEP: Sleep Interrupt Disable

0 = No effect.

1 = Disable SLEEP interrupt.

• WAKEUP: Wakeup Interrupt Disable

0 = No effect.

1 = Disable WAKEUP interrupt.

• TOVF: Timer Overflow Interrupt

0 = No effect.

1 = Disable TOVF interrupt.

• TSTP: TimeStamp Interrupt Disable

0 = No effect.

1 = Disable TSTP interrupt.

• CERR: CRC Error Interrupt Disable

0 = No effect.

1 = Disable CRC Error interrupt.

4

MB4

28

BERR

20

SLEEP

12

MB12

6042E–ATARM–14-Dec-06

27

FERR

19

BOFF

11

MB11

3

MB3

AT91SAM7A3 Preliminary

26

AERR

18

ERRP

10

MB10

2

MB2

25

SERR

17

WARN

9

MB9

1

MB1

24

CERR

16

ERRA

8

MB8

0

MB0

525

• SERR: Stuffing Error Interrupt Disable

0 = No effect.

1 = Disable Stuffing Error interrupt.

• AERR: Acknowledgment Error Interrupt Disable

0 = No effect.

1 = Disable Acknowledgment Error interrupt.

• FERR: Form Error Interrupt Disable

0 = No effect.

1 = Disable Form Error interrupt.

• BERR: Bit Error Interrupt Disable

0 = No effect.

1 = Disable Bit Error interrupt.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

526

36.8.4

CAN Interrupt Mask Register

Name:

Access Type:

CAN_IMR

Read-only

31

23

TSTP

15

MB15

30

22

TOVF

14

MB14

29

21

WAKEUP

13

MB13

7

MB7

6

MB6

5

MB5

• MBx: Mailbox x Interrupt Mask

0 = Mailbox x interrupt is disabled.

1 = Mailbox x interrupt is enabled.

• ERRA: Error Active mode Interrupt Mask

0 = ERRA interrupt is disabled.

1 = ERRA interrupt is enabled.

• WARN: Warning Limit Interrupt Mask

0 = Warning Limit interrupt is disabled.

1 = Warning Limit interrupt is enabled.

• ERRP: Error Passive Mode Interrupt Mask

0 = ERRP interrupt is disabled.

1 = ERRP interrupt is enabled.

• BOFF: Bus-off Mode Interrupt Mask

0 = BOFF interrupt is disabled.

1 = BOFF interrupt is enabled.

• SLEEP: Sleep Interrupt Mask

0 = SLEEP interrupt is disabled.

1 = SLEEP interrupt is enabled.

• WAKEUP: Wakeup Interrupt Mask

0 = WAKEUP interrupt is disabled.

1 = WAKEUP interrupt is enabled.

• TOVF: Timer Overflow Interrupt Mask

0 = TOVF interrupt is disabled.

1 = TOVF interrupt is enabled.

• TSTP: Timestamp Interrupt Mask

0 = TSTP interrupt is disabled.

1 = TSTP interrupt is enabled.

• CERR: CRC Error Interrupt Mask

0 = CRC Error interrupt is disabled.

1 = CRC Error interrupt is enabled.

28

BERR

20

SLEEP

12

MB12

4

MB4

6042E–ATARM–14-Dec-06

27

FERR

19

BOFF

11

MB11

3

MB3

AT91SAM7A3 Preliminary

26

AERR

18

ERRP

10

MB10

2

MB2

25

SERR

17

WARN

9

MB9

1

MB1

24

CERR

16

ERRA

8

MB8

0

MB0

527

• SERR: Stuffing Error Interrupt Mask

0 = Bit Stuffing Error interrupt is disabled.

1 = Bit Stuffing Error interrupt is enabled.

• AERR: Acknowledgment Error Interrupt Mask

0 = Acknowledgment Error interrupt is disabled.

1 = Acknowledgment Error interrupt is enabled.

• FERR: Form Error Interrupt Mask

0 = Form Error interrupt is disabled.

1 = Form Error interrupt is enabled.

• BERR: Bit Error Interrupt Mask

0 = Bit Error interrupt is disabled.

1 = Bit Error interrupt is enabled.

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

528

AT91SAM7A3 Preliminary

36.8.5

CAN Status Register

Name:

Access Type:

CAN_SR

Read-only

31

OVLSY

30

TBSY

29

RBSY

23

TSTP

15

MB15

22

TOVF

14

MB14

21

WAKEUP

13

MB13

28

BERR

20

SLEEP

12

MB12

27

FERR

19

BOFF

11

MB11

26

AERR

18

ERRP

10

MB10

25

SERR

17

WARN

9

MB9

24

CERR

16

ERRA

8

MB8

7

MB7

6

MB6

5

MB5

4

MB4

3

MB3

2

MB2

1

MB1

0

MB0

• MBx: Mailbox x Event

0 = No event occurred on Mailbox x.

1 = An event occurred on Mailbox x.

An event corresponds to MRDY, MABT fields in the CAN_MSRx register.

• ERRA: Error Active mode

0 = CAN controller is not in error active mode

1 = CAN controller is in error active mode

This flag is set depending on TEC and REC counter values. It is set when node is neither in error passive mode nor in bus off mode.

This flag is automatically reset when above condition is not satisfied.

• WARN: Warning Limit

0 = CAN controller Warning Limit is not reached.

1 = CAN controller Warning Limit is reached.

This flag is set depending on TEC and REC counters values. It is set when at least one of the counters values exceeds 96.

This flag is automatically reset when above condition is not satisfied.

• ERRP: Error Passive mode

0 = CAN controller is not in error passive mode

1 = CAN controller is in error passive mode

This flag is set depending on TEC and REC counters values.

A node is error passive when TEC counter is greater or equal to 128 (decimal) or when the REC counter is greater or equal to 128 (decimal) and less than 256.

This flag is automatically reset when above condition is not satisfied.

• BOFF: Bus Off mode

0 = CAN controller is not in bus-off mode

1 = CAN controller is in bus-off mode

This flag is set depending on TEC counter value. A node is bus off when TEC counter is greater or equal to 256 (decimal).

This flag is automatically reset when above condition is not satisfied.

529

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• SLEEP: CAN controller in Low power Mode

0 = CAN controller is not in low power mode.

1 = CAN controller is in low power mode.

This flag is automatically reset when Low power mode is disabled

• WAKEUP: CAN controller is not in Low power Mode

0 = CAN controller is in low power mode.

1 = CAN controller is not in low power mode.

When a WAKEUP event occurs, the CAN controller is synchronized with the bus activity. Messages can be transmitted or received. The CAN controller clock must be available when a WAKEUP event occurs. This flag is automatically reset when the CAN Controller enters Low Power mode.

• TOVF: Timer Overflow

0 = The timer has not rolled-over FFFFh to 0000h.

1 = The timer rolls-over FFFFh to 0000h.

This flag is automatically cleared by reading CAN_SR register.

• TSTP Timestamp

0 = No bus activity has been detected.

1 = A start of frame or an end of frame has been detected (according to the TEOF field in the CAN_MR register).

This flag is automatically cleared by reading the CAN_SR register.

• CERR: Mailbox CRC Error

0 = No CRC error occurred during a previous transfer.

1 = A CRC error occurred during a previous transfer.

A CRC error has been detected during last reception.

This flag is automatically cleared by reading CAN_SR register.

• SERR: Mailbox Stuffing Error

0 = No stuffing error occurred during a previous transfer.

1 = A stuffing error occurred during a previous transfer.

A form error results from the detection of more than five consecutive bit with the same polarity.

This flag is automatically cleared by reading CAN_SR register.

• AERR: Acknowledgment Error

0 = No acknowledgment error occurred during a previous transfer.

1 = An acknowledgment error occurred during a previous transfer.

An acknowledgment error is detected when no detection of the dominant bit in the acknowledge slot occurs.

This flag is automatically cleared by reading CAN_SR register.

• FERR: Form Error

0 = No form error occurred during a previous transfer

1 = A form error occurred during a previous transfer

A form error results from violations on one or more of the fixed form of the following bit fields:

– CRC delimiter

– ACK delimiter

– End of frame

– Error delimiter

– Overload delimiter

This flag is automatically cleared by reading CAN_SR register.

530

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• BERR: Bit Error

0 = No bit error occurred during a previous transfer.

1 = A bit error occurred during a previous transfer.

A bit error is set when the bit value monitored on the line is different from the bit value sent.

This flag is automatically cleared by reading CAN_SR register.

• RBSY: Receiver busy

0 = CAN receiver is not receiving a frame.

1 = CAN receiver is receiving a frame.

Receiver busy. This status bit is set by hardware while CAN receiver is acquiring or monitoring a frame (remote, data, overload or error frame). It is automatically reset when CAN is not receiving.

• TBSY: Transmitter busy

0 = CAN transmitter is not transmitting a frame.

1 = CAN transmitter is transmitting a frame.

Transmitter busy. This status bit is set by hardware while CAN transmitter is generating a frame (remote, data, overload or error frame). It is automatically reset when CAN is not transmitting.

• OVLSY: Overload busy

0 = CAN transmitter is not transmitting an overload frame.

1 = CAN transmitter is transmitting a overload frame.

It is automatically reset when the bus is not transmitting an overload frame.

531

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.6

CAN Baudrate Register

Name:

Access Type:

CAN_BR

Read/Write

31

30

29

22 21 23

15

14

13

28

20

27

19

BRP

11

26

18

25

17

24

SMP

16

SJW

12 10 9

PROPAG

8

7

6 5

PHASE1

4 3

2 1

PHASE2

0

Any modification on one of the fields of the CANBR register must be done while CAN module is disabled.

To compute the different Bit Timings, please refer to the Section 36.6.4.1 ”CAN Bit Timing Configuration” on page 500 .

• PHASE2: Phase 2 segment

This phase is used to compensate the edge phase error.

t

PHS2

= t

CSC

× (

PHASE2 + 1

)

Warning: PHASE2 value must be different from 0.

• PHASE1: Phase 1 segment

This phase is used to compensate for edge phase error.

t

PHS1

= t

CSC

× (

PHASE1 + 1

)

• PROPAG: Programming time segment

This part of the bit time is used to compensate for the physical delay times within the network.

t

PRS

= t

CSC

× (

PROPAG

+

1

)

• SJW: Re-synchronization jump width

To compensate for phase shifts between clock oscillators of different controllers on bus. The controller must re-synchronize on any relevant signal edge of the current transmission. The synchronization jump width defines the maximum of clock cycles a bit period may be shortened or lengthened by re-synchronization.

t

SJW

= t

CSC

×

• BRP: Baudrate Prescaler.

(

SJW + 1

)

This field allows user to program the period of the CAN system clock to determine the individual bit timing.

t

CSC

=

(

BRP

+

1

) ⁄

MCK

The BRP field must be within the range [1, 0x7F], i.e., BRP = 0 is not authorized.

• SMP: Sampling Mode

0 = The incoming bit stream is sampled once at sample point.

1 = The incoming bit stream is sampled three times with a period of a MCK clock period, centered on sample point.

SMP Sampling Mode is automatically disabled if BRP = 0.

532

6042E–ATARM–14-Dec-06

36.8.7

CAN Timer Register

Name:

Access Type:

CAN_TIM

Read-only

31

30

23

15

TIMER15

22

14

TIMER14

29

21

13

TIMER13

28

20

12

TIMER12

27

19

11

TIMER11

7

TIMER7

6

TIMER6

5

TIMER5

4

TIMER4

• TIMERx: Timer

This field represents the internal CAN controller 16-bit timer value.

3

TIMER3

AT91SAM7A3 Preliminary

26

18

10

TIMER10

2

TIMER2

25

17

9

TIMER9

1

TIMER1

24

16

8

TIMER8

0

TIMER0

6042E–ATARM–14-Dec-06

533

AT91SAM7A3 Preliminary

36.8.8

CAN Timestamp Register

Name:

Access Type:

CAN_TIMESTP

Read-only

31

23

30

22

29

21

28

20

27

19

26

18

25

17

24

16

15

MTIMESTAMP

15

14

MTIMESTAMP

14

13

MTIMESTAMP

13

12

MTIMESTAMP

12

11

MTIMESTAMP

11

10

MTIMESTAMP

10

9

MTIMESTAMP

9

8

MTIMESTAMP

8

7

MTIMESTAMP

7

6

MTIMESTAMP

6

5

MTIMESTAMP

5

4

MTIMESTAMP

4

3

MTIMESTAMP

3

2

MTIMESTAMP

2

1

MTIMESTAMP

1

0

MTIMESTAMP

0

• MTIMESTAMPx: Timestamp

This field represents the internal CAN controller 16-bit timer value.

If the TEOF bit is cleared in the CAN_MR register, the internal Timer Counter value is captured in the MTIMESTAMP field at each start of frame. Else the value is captured at each end of frame. When the value is captured, the TSTP flag is set in the CAN_SR register. If the TSTP mask in the CAN_IMR register is set, an interrupt is generated while TSTP flag is set in the CAN_SR register. This flag is cleared by reading the CAN_SR register.

Note: The CAN_TIMESTP register is reset when the CAN is disabled then enabled thanks to the CANEN bit in the CAN_MR.

534

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.9

CAN Error Counter Register

Name:

Access Type:

CAN_ECR

Read-only

31

30

29

23 22 21

28

20

27

19

26

18

25

17

24

16

TEC

15

14

13

12

11

10

9

8

7 6 5 4 3 2 1 0

REC

• REC: Receive Error Counter

When a receiver detects an error, REC will be increased by one, except when the detected error is a BIT ERROR while sending an ACTIVE ERROR FLAG or an OVERLOAD FLAG.

When a receiver detects a dominant bit as the first bit after sending an ERROR FLAG, REC is increased by 8.

When a receiver detects a BIT ERROR while sending an ACTIVE ERROR FLAG, REC is increased by 8.

Any node tolerates up to 7 consecutive dominant bits after sending an ACTIVE ERROR FLAG, PASSIVE ERROR FLAG or

OVERLOAD FLAG. After detecting the 14th consecutive dominant bit (in case of an ACTIVE ERROR FLAG or an OVER-

LOAD FLAG) or after detecting the 8th consecutive dominant bit following a PASSIVE ERROR FLAG, and after each sequence of additional eight consecutive dominant bits, each receiver increases its REC by 8.

After successful reception of a message, REC is decreased by 1 if it was between 1 and 127. If REC was 0, it stays 0, and if it was greater than 127, then it is set to a value between 119 and 127.

• TEC: Transmit Error Counter

When a transmitter sends an ERROR FLAG, TEC is increased by 8 except when

– the transmitter is error passive and detects an ACKNOWLEDGMENT ERROR because of not detecting a dominant ACK and does not detect a dominant bit while sending its PASSIVE ERROR FLAG.

– the transmitter sends an ERROR FLAG because a STUFF ERROR occurred during arbitration and should have been recessive and has been sent as recessive but monitored as dominant.

When a transmitter detects a BIT ERROR while sending an ACTIVE ERROR FLAG or an OVERLOAD FLAG, the TEC will be increased by 8.

Any node tolerates up to 7 consecutive dominant bits after sending an ACTIVE ERROR FLAG, PASSIVE ERROR FLAG or

OVERLOAD FLAG. After detecting the 14th consecutive dominant bit (in case of an ACTIVE ERROR FLAG or an OVER-

LOAD FLAG) or after detecting the 8th consecutive dominant bit following a PASSIVE ERROR FLAG, and after each sequence of additional eight consecutive dominant bits every transmitter increases its TEC by 8.

After a successful transmission the TEC is decreased by 1 unless it was already 0.

535

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.10

CAN Transfer Command Register

Name:

Access Type:

CAN_TCR

Write-only

31

TIMRST

30

29

23

15

MB15

22

14

MB14

21

13

MB13

28

20

12

MB12

7

MB7

6

MB6

5

MB5

4

MB4

This register initializes several transfer requests at the same time.

• MBx: Transfer Request for Mailbox x

3

MB3

27

19

11

MB11

10

MB10

2

MB2

26

18

9

MB9

1

MB1

25

17

8

MB8

0

MB0

24

16

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

It receives the next message.

This triggers a new reception.

Sends data prepared in the mailbox as soon as possible.

Sends a remote frame.

Sends data prepared in the mailbox after receiving a remote frame from a consumer.

This flag clears the MRDY and MABT flags in the corresponding CAN_MSRx register.

When several mailboxes are requested to be transmitted simultaneously, they are transmitted in turn, starting with the mailbox with the highest priority. If several mailboxes have the same priority, then the mailbox with the lowest number is sent first (i.e., MB0 will be transferred before MB1).

• TIMRST: Timer Reset

Resets the internal timer counter. If the internal timer counter is frozen, this command automatically re-enables it. This command is useful in Time Triggered mode.

536

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.11

CAN Abort Command Register

Name:

Access Type:

CAN_ACR

Write-only

31

30

29

23

15

MB15

22

14

MB14

21

13

MB13

28

20

12

MB12

7

MB7

6

MB6

5

MB5

4

MB4

This register initializes several abort requests at the same time.

• MBx: Abort Request for Mailbox x

3

MB3

27

19

11

MB11

10

MB10

2

MB2

26

18

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

No action

No action

Cancels transfer request if the message has not been transmitted to the

CAN transceiver.

Cancels the current transfer before the remote frame has been sent.

Cancels the current transfer. The next remote frame is not serviced.

It is possible to set MACR field (in the CAN_MCRx register) for each mailbox.

9

MB9

1

MB1

25

17

8

MB8

0

MB0

24

16

537

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.12

CAN Message Mode Register

Name:

Access Type:

CAN_MMRx

Read/Write

31

23

30

22

29

21

28

20

27

19

26

18

PRIOR

25

MOT

17

24

16

15 14 13 12 11 10 9 8

MTIMEMARK15 MTIMEMARK14 MTIMEMARK13 MTIMEMARK12 MTIMEMARK11 MTIMEMARK10

MTIMEMARK9 MTIMEMARK8

7

MTIMEMARK7

6

MTIMEMARK6

5

MTIMEMARK5

4

MTIMEMARK4

3

MTIMEMARK3

2

MTIMEMARK2

1

MTIMEMARK1

0

MTIMEMARK0

• MTIMEMARK: Mailbox Timemark

This field is active in Time Triggered Mode. Transmit operations are allowed when the internal timer counter reaches the

Mailbox Timemark. See

”Transmitting within a Time Window” on page 519 .

In Timestamp Mode, MTIMEMARK is set to 0.

• PRIOR: Mailbox Priority

This field has no effect in receive and receive with overwrite modes. In these modes, the mailbox with the lowest number is serviced first.

When several mailboxes try to transmit a message at the same time, the mailbox with the highest priority is serviced first. If several mailboxes have the same priority, the mailbox with the lowest number is serviced first (i.e., MBx0 is serviced before

MBx 15 if they have the same priority).

• MOT: Mailbox Object Type

This field allows the user to define the type of the mailbox. All mailboxes are independently configurable. Five different types are possible for each mailbox:

0

0

0

0

1

1

1

MOT

0

0

1

1

0

0

1

0

1

0

1

0

1

X

Mailbox Object Type

Mailbox is disabled. This prevents receiving or transmitting any messages with this mailbox.

Reception Mailbox. Mailbox is configured for reception. If a message is received while the mailbox data register is full, it is discarded.

Reception mailbox with overwrite. Mailbox is configured for reception. If a message is received while the mailbox is full, it overwrites the previous message.

Transmit mailbox. Mailbox is configured for transmission.

Consumer Mailbox. Mailbox is configured in reception but behaves as a

Transmit Mailbox, i.e., it sends a remote frame and waits for an answer.

Producer Mailbox. Mailbox is configured in transmission but also behaves like a reception mailbox, i.e., it waits to receive a Remote Frame before sending its contents.

Reserved

538

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.13

CAN Message Acceptance Mask Register

Name:

Access Type:

CAN_MAMx

Read/Write

31

30

29

MIDE

28

23 22 21 20

MIDvA

27

19

26

MIDvA

18

25

17

MIDvB

24

16

15 14 13 12 11 10 9 8

MIDvB

7 6 5 4 3 2 1 0

MIDvB

To prevent concurrent access with the internal CAN core, the application must disable the mailbox before writing to

CAN_MAMx registers.

• MIDvB: Complementary bits for identifier in extended frame mode

Acceptance mask for corresponding field of the message IDvB register of the mailbox.

• MIDvA: Identifier for standard frame mode

Acceptance mask for corresponding field of the message IDvA register of the mailbox.

• MIDE: Identifier Version

0= Compares IDvA from the received frame with the CAN_MIDx register masked with CAN_MAMx register.

1= Compares IDvA and IDvB from the received frame with the CAN_MIDx register masked with CAN_MAMx register.

539

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.14

CAN Message ID Register

Name:

Access Type:

CAN_MIDx

Read/Write

31

30

29

MIDE

23 22 21

MIDvA

28

20

27

19

26

MIDvA

18

25

17

MIDvB

24

16

15 14 13 12 11 10 9 8

MIDvB

7 6 5 4 3 2 1 0

MIDvB

To prevent concurrent access with the internal CAN core, the application must disable the mailbox before writing to

CAN_MIDx registers.

• MIDvB: Complementary bits for identifier in extended frame mode

If MIDE is cleared, MIDvB value is 0.

• MIDE: Identifier Version

This bit allows the user to define the version of messages processed by the mailbox. If set, mailbox is dealing with version

2.0 Part B messages; otherwise, mailbox is dealing with version 2.0 Part A messages.

• MIDvA: Identifier for standard frame mode

540

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.15

CAN Message Family ID Register

Name:

Access Type:

CAN_MFIDx

Read-only

31

30

29

23 22 21

28

20

27

19

26

MFID

18

25

17

24

16

MFID

15 14 13 12 11 10 9 8

MFID

7 6 5 4 3 2 1 0

MFID

• MFID: Family ID

This field contains the concatenation of CAN_MIDx register bits masked by the CAN_MAMx register. This field is useful to speed up message ID decoding. The message acceptance procedure is described below.

As an example:

CAN_MIDx = 0x305A4321

CAN_MAMx = 0x3FF0F0FF

CAN_MFIDx = 0x000000A3

541

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.16

CAN Message Status Register

Name:

Access Type:

CAN_MSRx

Read only

31

30

29

28

20

MRTR

27

19

26

18

25

17

24

MMI

16 23

MRDY

22

MABT

21

– MDLC

15

MTIMESTAMP

15

14

MTIMESTAMP

14

13

MTIMESTAMP

13

12

MTIMESTAMP

12

11

MTIMESTAMP

11

10

MTIMESTAMP

10

9

MTIMESTAMP

9

8

MTIMESTAMP

8

7

MTIMESTAMP

7

6

MTIMESTAMP

6

5

MTIMESTAMP

5

4

MTIMESTAMP

4

3

MTIMESTAMP

3

2

MTIMESTAMP

2

1

MTIMESTAMP

1

0

MTIMESTAMP

0

These register fields are updated each time a message transfer is received or aborted.

MMI is cleared by reading the CAN_MSRx register.

MRDY, MABT are cleared by writing MTCR or MACR in the CAN_MCRx register.

Warning: MRTR and MDLC state depends partly on the mailbox object type.

• MTIMESTAMP: Timer value

This field is updated only when time-triggered operations are disabled (TTM cleared in CAN_MR register). If the TEOF field in the CAN_MR register is cleared, TIMESTAMP is the internal timer value at the start of frame of the last message received or sent by the mailbox. If the TEOF field in the CAN_MR register is set, TIMESTAMP is the internal timer value at the end of frame of the last message received or sent by the mailbox.

In Time Triggered Mode, MTIMESTAMP is set to 0.

• MDLC: Mailbox Data Length Code

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

Length of the first mailbox message received

Length of the last mailbox message received

No action

Length of the mailbox message received

Length of the mailbox message to be sent after the remote frame reception

542

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• MRTR: Mailbox Remote Transmission Request

Mailbox Object Type Description

Receive The first frame received has the RTR bit set.

Receive with overwrite The last frame received has the RTR bit set.

Transmit

Consumer

Producer

Reserved

Reserved. After setting the MOT field in the CAN_MMR, MRTR is reset to 1.

Reserved. After setting the MOT field in the CAN_MMR, MRTR is reset to 0.

• MABT: Mailbox Message Abort

An interrupt is triggered when MABT is set.

0 = Previous transfer is not aborted.

1 = Previous transfer has been aborted.

This flag is cleared by writing to CAN_MCRx register

Mailbox Object Type Description

Receive Reserved

Receive with overwrite Reserved

Transmit

Consumer

Producer

Previous transfer has been aborted

The remote frame transfer request has been aborted.

The response to the remote frame transfer has been aborted.

543

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

• MRDY: Mailbox Ready

An interrupt is triggered when MRDY is set.

0 = Mailbox data registers can not be read/written by the software application. CAN_MDx are locked by the CAN_MDx.

1 = Mailbox data registers can be read/written by the software application.

This flag is cleared by writing to CAN_MCRx register.

Mailbox Object Type Description

Receive

Receive with overwrite

Transmit

At least one message has been received since the last mailbox transfer order. Data from the first frame received can be read in the CAN_MDxx registers.

After setting the MOT field in the CAN_MMR, MRDY is reset to 0.

At least one frame has been received since the last mailbox transfer order. Data from the last frame received can be read in the CAN_MDxx registers.

After setting the MOT field in the CAN_MMR, MRDY is reset to 0.

Mailbox data have been transmitted.

After setting the MOT field in the CAN_MMR, MRDY is reset to 1.

Consumer

Producer

At least one message has been received since the last mailbox transfer order. Data from the first message received can be read in the CAN_MDxx registers.

After setting the MOT field in the CAN_MMR, MRDY is reset to 0.

A remote frame has been received, mailbox data have been transmitted.

After setting the MOT field in the CAN_MMR, MRDY is reset to 1.

• MMI: Mailbox Message Ignored

0 = No message has been ignored during the previous transfer

1 = At least one message has been ignored during the previous transfer

Cleared by reading the CAN_MSRx register.

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

Set when at least two messages intended for the mailbox have been sent. The first one is available in the mailbox data register. Others have been ignored. A mailbox with a lower priority may have accepted the message.

Set when at least two messages intended for the mailbox have been sent. The last one is available in the mailbox data register. Previous ones have been lost.

Reserved

A remote frame has been sent by the mailbox but several messages have been received. The first one is available in the mailbox data register. Others have been ignored. Another mailbox with a lower priority may have accepted the message.

A remote frame has been received, but no data are available to be sent.

544

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.17

CAN Message Data Low Register

Name:

Access Type:

CAN_MDLx

Read/Write

31 30 29 28 27 26 25 24

MDL

23 22 21 20 19 18 17 16

MDL

15 14 13 12 11 10 9 8

MDL

7 6 5 4 3 2 1 0

MDL

• MDL: Message Data Low Value

When MRDY field is set in the CAN_MSRx register, the lower 32 bits of a received message can be read or written by the software application. Otherwise, the MDL value is locked by the CAN controller to send/receive a new message.

In Receive with overwrite, the CAN controller may modify MDL value while the software application reads MDH and MDL registers. To check that MDH and MDL do not belong to different messages, the application has to check the MMI field in the CAN_MSRx register. In this mode, the software application must re-read CAN_MDH and CAN_MDL, while the MMI bit in the CAN_MSRx register is set.

Bytes are received/sent on the bus in the following order:

1.

CAN_MDL[7:0]

2.

CAN_MDL[15:8]

3.

CAN_MDL[23:16]

4.

CAN_MDL[31:24]

5.

CAN_MDH[7:0]

6.

CAN_MDH[15:8]

7.

CAN_MDH[23:16]

8.

CAN_MDH[31:24]

545

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.18

CAN Message Data High Register

Name:

Access Type:

CAN_MDHx

Read/Write

31 30 29 28 27 26 25 24

MDH

23 22 21 20 19 18 17 16

MDH

15 14 13 12 11 10 9 8

MDH

7 6 5 4 3 2 1 0

MDH

• MDH: Message Data High Value

When MRDY field is set in the CAN_MSRx register, the upper 32 bits of a received message are read or written by the software application. Otherwise, the MDH value is locked by the CAN controller to send/receive a new message.

In Receive with overwrite, the CAN controller may modify MDH value while the software application reads MDH and MDL registers. To check that MDH and MDL do not belong to different messages, the application has to check the MMI field in the CAN_MSRx register. In this mode, the software application must re-read CAN_MDH and CAN_MDL, while the MMI bit in the CAN_MSRx register is set.

Bytes are received/sent on the bus in the following order:

1.

CAN_MDL[7:0]

2.

CAN_MDL[15:8]

3.

CAN_MDL[23:16]

4.

CAN_MDL[31:24]

5.

CAN_MDH[7:0]

6.

CAN_MDH[15:8]

7.

CAN_MDH[23:16]

8.

CAN_MDH[31:24]

546

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

36.8.19

CAN Message Control Register

Name:

Access Type:

CAN_MCRx

Write-only

31

30

29

23

MTCR

22

MACR

21

15

14

13

7

6

5

• MDLC: Mailbox Data Length Code

28

20

MRTR

12

4

11

3

27

19

26

18

10

2

MDLC

9

1

25

17

0

8

24

16

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

No action.

No action.

Length of the mailbox message.

No action.

Length of the mailbox message to be sent after the remote frame reception.

• MRTR: Mailbox Remote Transmission Request

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

No action

No action

Set the RTR bit in the sent frame

No action, the RTR bit in the sent frame is set automatically

No action

Consumer situations can be handled automatically by setting the mailbox object type in Consumer. This requires only one mailbox.

It can also be handled using two mailboxes, one in reception, the other in transmission. The MRTR and the MTCR bits must be set in the same time.

547

6042E–ATARM–14-Dec-06

• MACR: Abort Request for Mailbox x

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

No action

No action

Cancels transfer request if the message has not been transmitted to the

CAN transceiver.

Cancels the current transfer before the remote frame has been sent.

Cancels the current transfer. The next remote frame will not be serviced.

It is possible to set MACR field for several mailboxes in the same time, setting several bits to the CAN_ACR register.

• MTCR: Mailbox Transfer Command

Mailbox Object Type

Receive

Receive with overwrite

Transmit

Consumer

Producer

Description

Allows the reception of the next message.

Triggers a new reception.

Sends data prepared in the mailbox as soon as possible.

Sends a remote transmission frame.

Sends data prepared in the mailbox after receiving a remote frame from a

Consumer.

This flag clears the MRDY and MABT flags in the CAN_MSRx register.

When several mailboxes are requested to be transmitted simultaneously, they are transmitted in turn. The mailbox with the highest priority is serviced first. If several mailboxes have the same priority, the mailbox with the lowest number is serviced first (i.e., MBx0 will be serviced before MBx 15 if they have the same priority).

It is possible to set MTCR for several mailboxes at the same time by writing to the CAN_TCR register.

548

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37. AT91SAM7A3 Electrical Characteristics

37.1

Absolute Maximum Ratings

Table 37-1.

Absolute Maximum Ratings*

Operating Temperature (Industrial)...... -40

°

C to +85

°

C

Storage Temperature ......................... -60°C to +150°C

Voltage on Input Pins with Respect to Ground .........................-0.3V to +5.5V

Maximum Operating Voltage

(VDD1V8 and VDDPLL) ..................................... 1.95V

Maximum Operating Voltage

(VDD3V3, VDDBU and VDDANA) ........................ 3.6V

Total DC Output Current on all I/O lines .......... 200 mA

*NOTICE: Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

37.2

DC Characteristics

The following characteristics are applicable to the operating temperature range: T

A

= -40°C to 85°C, unless otherwise specified and are certified for a junction temperature up to T

J

= 100°C and for VDD3V3 between 3.0 and 3.6V.

Table 37-2.

DC Characteristics

Symbol Parameter

V

VDD1V8

V

VDDPLL

V

VDD3V3

V

VDDBU

V

VDDANA

V

IL

V

IH

V

OL

DC Supply Core

DC Supply PLL

DC Supply I/Os and Flash

DC Supply Backup I/O

Lines

DC Supply Analog

Input Low-level Voltage

Input High-level Voltage

Output Low-level Voltage

Conditions

I

O

= 2 mA

Min

1.65

1.65

3.0

3.0

3.0

-0.3

2.0

Typ

3.6

3.6

0.8

5.5

0.4

Max

1.95

1.95

3.6

V

V

V

V

Units

V

V

V

V

V

OH

Output High-level Voltage I

O

= 2 mA

V

DD3V3

-

0.4

V

I

LEAK

I

PULLUP

Input Leakage Current

Input Pull-up Current

Pullup resistors disabled (Typ: T

A

= 25°C,

Max: T

A

= 85°C)

PA0-PA31 PB0-PB29

Connected to ground

143

20

321

200

600 nA

µA

I

PULLDOWN

C

IN

Input Pull-down Current,

(TST, JTAGSEL)

Input Capacitance

Pins connected to V

VDD3V3

100-pin LQFP Package

135 295 550

14.1

µA pF

549

6042E–ATARM–14-Dec-06

Table 37-2.

DC Characteristics (Continued)

Symbol Parameter Conditions

I

SC

I

O

Static Current

Output Current

On V

VDD3V3

= 3.3V,

MCK = 500 Hz

All inputs driven at 1(including

TMS, TDI, TCK, NRST)

Flash in standby mode

All peripherals off

On V

VDDBU

= 3.6V

All inputs driven FWKUP,

WKUP0, WKUP1 = 0

PA0-PA31,PB0-PB29, NRST

T

A

= 25°C

T

A

= 85°C

T

A

= 25°C

T

A

= 85°C

Min Typ

175

750

8.2

50

Table 37-3.

1.8V Voltage Regulator Characteristics

Symbol Parameter Conditions

V

DD3V3

V

DD1V8

I

VDD3V3

T

START

I

O

Supply Voltage

Output Voltage

Current Consumption

Startup Time

Maximum DC Output Current

After startup, no load

C load

= 2.2 µF, after V

DD3V3

> 3.0V

V

DD3V3

= 3.3V

Min

3.0

1.65

Typ

3.3

1.8

70

Max

650

3200

30

150

2

Units

µA

µA mA

Max

3.6

1.95

120

150

130

Units

V

V

µA

µS mA

Table 37-4.

DC Flash Characteristics

Symbol Parameter

I

SB

I

CC

Standby current

Active current

Conditions

@ 25°C onto VDD1V8 = 1.8V

onto VDD3V3 = 3.3V

Random Read @ 35MHz onto VDD1V8 = 1.8V

onto VDD3V3 = 3.3V

Write onto VDD1V8 = 1.8V

onto VDD3V3 = 3.3V

Min Max

10

20

3.0

0.8

400

5.5

Units

µA mA

µA mA

550

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37.3

Power Consumption

• Typical power consumption of PLLs, Slow Clock and Main Oscillator.

• Power consumption of power supply in three different modes: Active, Ultra Low-power and

Backup.

• Power consumption by peripheral: calculated as the difference in current measurement after having enabled then disabled the corresponding clock.

37.3.1

Power Consumption versus Modes

The values in Table 37-5 and Table 37-6 on page 552

are measured values of the power consumption with operating conditions as follows:

• V

DD3V3

= V

DDBU

= V

DDANA

= 3.3V

• V

DD1V8

= V

DDPLL

= 1.8V (internal regulator output)

• T

A

= 25

°

C

• USB Pads deactivated

• There is no consumption on the I/Os of the device

Figure 37-1. Measures Schematics

VDDBU

AMP1

VDDANA

VDD3V3

3.3V

AMP2

Voltage

Regulator

VDD1V8

1.8V

VDDPLL

These figures represent the power consumption typically measured on the power supplies.

551

6042E–ATARM–14-Dec-06

Table 37-5.

Typical Power Consumption for Different Modes

Mode Conditions

Active

Ultra low power

Backup

Flash is read.

ARM Core clock is 60 MHz.

Analog-to-Digital Converter activated.

All peripheral clocks activated.

USB transceiver enabled onto AMP2

Flash is in standby mode.

ARM Core in idle mode.

MCK @ 500 Hz

Analog-to-Digital Converter de-activated.

All peripheral clocks de-activated.

USB transceiver disabled.

onto AMP2

Device only V

DDBU

powered onto AMP1

Consumption

70

175

8.2

Unit

mA

µA

µA

Table 37-6.

Typical Power Consumption by Peripheral in Active Mode

Peripheral

PIO Controller

Consumption

7.5

USART

UDP

PWM

CAN

TWI

SPI

MCI

SSC

Timer Counter Channels

ARM7 and System Peripherals

2

16

35

35

27

27

34

145

2

510

Note: V

VDD3V3

= 3.3V, T

A

= 25°C, MCK = 48 MHz

Unit

NA/MHz

552

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37.4

Crystal Oscillator Characteristics

The following characteristics are applicable to the operating temperature range: T

A

= -40°C to 85°C and worst case of power supply, unless otherwise specified.

37.4.1

RC Oscillator Characteristics

Table 37-7.

RC Oscillator Characteristics

Symbol

1/(t

CPRC

)

Parameter

RC Oscillator Frequency

Duty Cycle

Startup Time t

ST

I

OSC

Current Consumption

Conditions

V

DDBU

= 3V

V

DDBU

= 3V

After Startup Time

Min

22

45

Typ

32

50

37.4.2

Main Oscillator Characteristics

Table 37-8.

Main Oscillator Characteristics

Symbol

1/(t

CPMAIN

)

Parameter

Crystal Oscillator Frequency

Conditions Min

3

Typ

16

Max

20

C

C

L1

L

, C

L2

Internal Load Capacitance (C

Equivalent Load Capacitance

L1

= C

L2

)

Integrated Load Capacitance

((XIN or XOUT))

Integrated Load Capacitance

(XIN and XOUT in series)

34

17

40

20

46

23

Duty Cycle 30 50 70 t

ST

Startup Time

V

DDPLL

= 1.2 to 2V

C

S

= 3 pF

(1)

1/(t

CPMAIN

) = 3 MHz

C

S

= 7 pF

(1)

1/(t

CPMAIN

) = 16 MHz

C

S

= 7 pF

(1)

1/(t

CPMAIN

) = 20 MHz

Standby mode

14.5

1.4

1

I

DDST

Standby Current Consumption 1

I

P

ON

DD ON

Drive level

Current dissipation

@3 MHz

@8 MHz

@16 MHz

@20 MHz

@3 MHz

(2)

@8 MHz

(3)

@16 MHz

(4)

@20 MHz

(5)

150

150

300

400

250

250

450

550

C

LEXT

Maximum external capacitor on XIN and XOUT

10

Notes: 1. C

2. R

3. R

4. R

S

S

S

S

5. R

S

is the shunt capacitance.

= 100-200

Ω;

C

SHUNT

= 2.0 - 2.5 pF; C

M

= 2 – 1.5 fF (typ, worst case) using 1 K ohm serial resistor on xout.

= 50-100

Ω;

C

SHUNT

= 2.0 - 2.5 pF; C

M

= 4 - 3 fF (typ, worst case).

= 25-50

Ω;

C

SHUNT

= 2.5 - 3.0 pF; C

M

= 7 -5 fF (typ, worst case).

= 20-50

Ω;

C

SHUNT

= 3.2 - 4.0 pF; C

M

= 10 - 8 fF (typ, worst case).

15

30

50

50

Max

42

55

75

2.5

Unit

KHz

%

µs

µA

Unit

MHz pF pF

% ms

µA

µW

µA pF

553

6042E–ATARM–14-Dec-06

37.4.3

Crystal Characteristics

Table 37-9.

Crystal Characteristics

Symbol Parameter

ESR

C

M

C

SHUNT

Equivalent Series Resistor Rs

Motional capacitance

Shunt capacitance

Conditions

Fundamental @3 MHz

Fundamental @8 MHz

Fundamental @16 MHz

Fundamental @20 MHz

Min Typ Max

200

100

80

50

8

7

Unit

Ω fF pF

37.4.4

XIN Clock Characteristics

Table 37-10. XIN Clock Electrical Characteristics

Symbol Parameter Conditions Min Max Units

1/(t

CPXIN

) XIN Clock Frequency

(1)

50.0

MHz t

CPXIN

XIN Clock Period

(1)

20.0

ns t

CHXIN

XIN Clock High Half-period

(1)

0.4 x t

CPXIN

0.6 x t

CPXIN t

CLXIN

XIN Clock Low Half-period

(1)

0.4 x t

CPXIN

0.6 x t

CPXIN

C

IN

XIN Input Capacitance

(1)

46 pF

R

IN

XIN Pull-down Resistor

(1)

500 k

V

XIN_IL

V

XIN

Input Low-level Voltage

(1)

-0.3

0.2 x V

DDPLL

V

V

XIN_IH

V

XIN

Input High-level Voltage

(1)

0.8 x V

DDPLL

1.95

V

I

DDBP

Bypass Current Consumption

(1)

15 µW/MHz

Note: 1. These characteristics apply only when the Main Oscillator is in bypass mode (i.e., when MOSCEN = 0 and OSCBYPASS = 1 in the CKGR_MOR register, see the Clock Generator Main Oscillator Register

554

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37.4.4.1

Table 37-11. XIN Clock Electrical Characteristics

Symbol

1/(t

CPXIN

) t

CPXIN t

CHXIN t

CLXIN

C

IN

R

IN

V

XIN_IL

V

XIN_IH

XIN Clock Characteristics

Parameter

XIN Clock Frequency

XIN Clock Period

XIN Clock High Half-period

XIN Clock Low Half-period

XIN Input Capacitance

XIN Pull-down Resistor

V

XIN

Input Low-level Voltage

V

XIN

Input High-level Voltage

Conditions

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

Min Max

50.0

Units

MHz ns 20.0

0.4 x t

0.4 x t

CPXIN

CPXIN

-0.3

0.8 x V

DDPLL

0.6 x t

CPXIN

0.6 x t

CPXIN

25

500

0.2 x V

DDPLL

1.95

pF k

V

V

Note: 1. These characteristics apply only when the Main Oscillator is in bypass mode (i.e., when MOSCEN = 0 and OSCBYPASS =

1 in the CKGR_MOR register. (Refer to the “PMC Clock Generator Main CLock Frequency Register”.)

6042E–ATARM–14-Dec-06

555

37.5

PLL Characteristics

Table 37-12. Phase Lock Loop Characteristics

Symbol Parameter Conditions

F

OUT

Output Frequency

Field OUT of CKGR_PLL is 00

Field OUT of CKGR_PLL is 10

F

IN

Input Frequency

I

PLL

Current Consumption

Active mode

Standby mode

Note: Startup time depends on PLL RC filter. A calculation tool is provided by Atmel.

Min

80

150

1

Typ Max

160

200

32

4

1

Unit

MHz

MHz

MHz mA

µA

556

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

V

IL

V

IH

V

DI

V

CM

I

C

IN

R

EXT

37.6

USB Transceiver Characteristics

37.6.1

Electrical Characteristics

Table 37-13. Electrical Parameters

Symbol Parameter Conditions

Input Levels

Low Level

High Level

Differential Input Sensitivity

Differential Input Common

Mode Range

Transceiver capacitance

Hi-Z State Data Line Leakage

Recommended External USB

Series Resistor

|(D+) - (D-)|

V

OL

V

OH

V

CRS

Low Level Output

High Level Output

Output Signal Crossover

Voltage

Capacitance to ground on each line

0V < V

IN

< 3.3V

In series with each USB pin with ±5%

Output Levels

Measured with R

L to 3.6V

of 1.425 kOhm tied

Measured with R

L to GND

of 14.25 kOhm tied

Measure conditions described in

Figure 37-2

Consumption

Transceiver enabled in input mode

DDP=1 and DDM=0

I

VDD3V3

I

VDD1V8

Current Consumption

Current Consumption

37.6.2

Switching Characteristics

Table 37-14. In Full Speed

Symbol

t

FR t

FE t

FRFM

Parameter

Transition Rise Time

Transition Fall Time

Rise/Fall time Matching

Conditions

C

LOAD

= 50 pF

C

LOAD

= 50 pF

Min

-10

0.0

2.8

1.3

Min

4

4

90

2.0

0.2

0.8

Typ

27

105

80

Typ

Max

0.8

2.5

9.18

+10

0.3

3.6

2.0

200

150

Max

20

20

111.11

Unit

V

V

V

µA

µA

Unit

ns ns

%

V

V

V

V pF

µA

557

6042E–ATARM–14-Dec-06

Figure 37-2. USB Data Signal Rise and Fall Times

Rise Time

V

CRS

90%

10%

Differential

Data Lines t

R

(a)

R

EXT

=27 ohms

Fosc = 6MHz/750kHz

Fall Time t

F

Buffer

C load

10%

(b)

558

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37.7

Analog-to-Digital Converter Characteristics

Table 37-15. Channel Conversion Time and ADC CLock

Parameter

ADC Clock Frequency

ADC Clock Frequency

Startup Time

Track and Hold Acquisition Time

Conditions

10-bit resolution mode

8-bit resolution mode

Return from Idle Mode

Min Typ Max

5

8

20

Units

MHz

MHz

600

µs ns

Conversion Time ADC Clock = 5 MHz 2 µs

Conversion Time

Throughput Rate

ADC Clock = 8 MHz

ADC Clock = 5 MHz

1.25

384

(1)

µs kSPS

Throughput Rate ADC Clock = 8 MHz 533

(2)

kSPS

Notes: 1. Corresponds to 13 clock cycles at 5 MHz: 3 clock cycles for track and hold acquisition time and 10 clock cycles for conversion.

2. Corresponds to 15 clock cycles at 8 MHz: 5 clock cycles for track and hold acquisition time and 10 clock cycles for conversion.

Table 37-16. External Voltage Reference Input

Parameter Conditions

ADVREF Input Voltage Range

ADVREF Average Current

Current Consumption on VDD3V3

On 13 samples with ADC Clock = 5 MHz

Table 37-17. Analog Inputs

Parameter

Input Voltage Range

Input Leakage Current

Input Capacitance

Min

2.6

Min

0

Typ

200

0.55

Typ

1

12

Max

V

VDD3V3

250

1

Max

V

ADVREF

14

Units

V

µA mA

Units

µA pF

The user can drive ADC input with impedance up to:

• Z

OUT

(SHTIM -470) x 10 in 8-bit resolution mode

• Z

OUT

(SHTIM -589) x 7.69 in 10-bit resolution mode with SHTIM (Sample and Hold Time register) expressed in ns and Z

OUT expressed in ohms.

Table 37-18. Transfer Characteristics

Parameter

Resolution

Integral Non-linearity

Differential Non-linearity

Offset Error

Gain Error

Min Typ

10

±1

±0.5

±1

±0.5

Max

±3

±2

±2

±2

Units

Bit

LSB

LSB

LSB

LSB

559

6042E–ATARM–14-Dec-06

37.8

AC Characteristics

37.8.1

Master Clock Characteristics

Table 37-19. Master Clock Waveform Parameters

Symbol Parameter

1/(t

CPMCK

) Master Clock Frequency

Conditions

37.8.2

I/O Characteristics

Criteria used to define the maximum frequency of the I/Os:

• output duty cycle (30%-70%)

• minimum output swing: 100 mV to VDD3V3 - 100 mV

• Addition of rising and falling time inferior to 75% of the period

Table 37-20. I/O Characteristics

Symbol Parameter

FreqMax

I01

PulseminH

I01

PulseminL

I01

FreqMax

I02

Pin Group 1

Pin Group 1

Pin Group 1

Pin Group 2

(1)

(1)

(1)

(2)

frequency

High Level Pulse Width

Low Level Pulse Width

frequency

PulseminH

I02

PulseminL

I02

Pin Group 2

Pin Group 2

(2)

(2)

High Level Pulse Width

Low Level Pulse Width

Notes: 1. Pin Group 1 = PA0 to PA31 and PB0-PB13

2. Pin Group 2 = PB14 to PB29

Conditions

load: 20 pF load: 20 pF load: 20 pF load: 20 pF load: 20 pF load: 20 pF

Min Max

60

Units

MHz

Min

32

32

27

27

Max

16

18

Units

MHz ns ns

MHz ns ns

560

AT91SAM7A3 Preliminary

6042E–ATARM–14-Dec-06

AT91SAM7A3 Preliminary

37.8.3

SPI Characteristics

Figure 37-3. SPI Master Mode with (CPOL = NCPHA = 0) or (CPOL= NCPHA = 1)

SPCK

SPI

1

SPI

0

MISO

SPI

2

MOSI

Figure 37-4. SPI Master Mode with (CPOL=0 and NCPHA=1) or (CPOL=1 and NCPHA=0)

SPCK

SPI

3

SPI

4

MISO

SPI

5

MOSI

Figure 37-5. SPI Slave Mode with (CPO =0 and NCPH =1) or (CPOL=1 and NCPHA=0)

SPCK

SPI

6

MISO

SPI

7

SPI

8

MOSI

561

6042E–ATARM–14-Dec-06

Figure 37-6. SPI Slave Mode with (CPOL = NCPHA = 0) or (CPOL = NCPHA = 1)

SPCK

SPI

9

MISO

SPI

10

SPI

11

MOSI

Table 37-21. SPI Timings

Symbol Parameter

SPI

4

SPI

5

SPI

6

SPI

7

SPI

0

SPI

1

SPI

2

SPI

3

MISO Setup time before SPCK rises (master)

MISO Hold time after SPCK rises (master)

SPCK rising to MOSI Delay (master)

MISO Setup time before SPCK falls (master)

MISO Hold time after SPCK falls (master)

SPCK falling to MOSI Delay (master)

SPCK falling to MISO Delay (slave)

MOSI Setup time before SPCK rises (slave)

SPI

8

SPI

9

MOSI Hold time after SPCK rises (slave)

SPCK rising to MISO Delay (slave)

SPI

10

MOSI Setup time before SPCK falls (slave)

SPI

11

MOSI Hold time after SPCK falls (slave)

Note: 1. Maximum external capacitor = 20 pF.

2. t

CPMCK

: Master Clock period in ns.

Conditions

(1)

(1)

Min

28.5 + (t

CPMCK

)/2

(2)

0

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

26.5 + (t

CPMCK

0

2

3</
