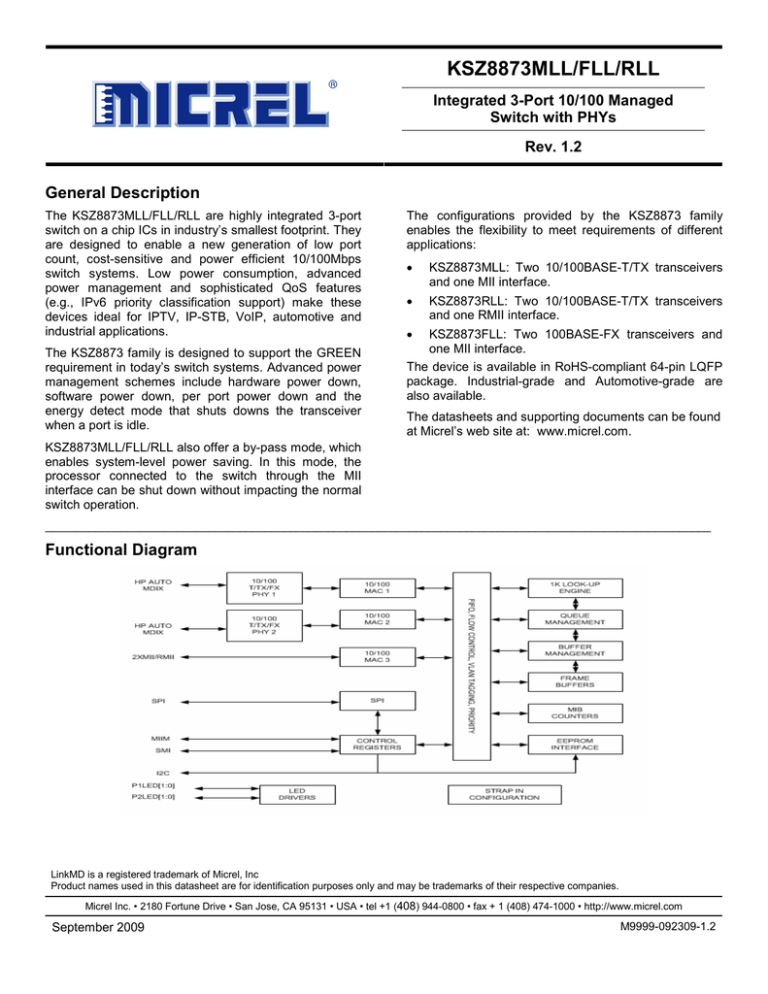

KSZ8873MLL/FLL/RLL

Integrated 3-Port 10/100 Managed

Switch with PHYs

Rev. 1.2

General Description

The KSZ8873MLL/FLL/RLL are highly integrated 3-port switch on a chip ICs in industry’s smallest footprint. They are designed to enable a new generation of low port count, cost-sensitive and power efficient 10/100Mbps switch systems. Low power consumption, advanced power management and sophisticated QoS features

(e.g., IPv6 priority classification support) make these devices ideal for IPTV, IP-STB, VoIP, automotive and industrial applications.

The KSZ8873 family is designed to support the GREEN requirement in today’s switch systems. Advanced power management schemes include hardware power down, software power down, per port power down and the energy detect mode that shuts downs the transceiver when a port is idle.

KSZ8873MLL/FLL/RLL also offer a by-pass mode, which enables system-level power saving. In this mode, the processor connected to the switch through the MII interface can be shut down without impacting the normal switch operation.

The configurations provided by the KSZ8873 family enables the flexibility to meet requirements of different applications:

• KSZ8873MLL: Two 10/100BASE-T/TX transceivers and one MII interface.

• KSZ8873RLL: Two 10/100BASE-T/TX transceivers and one RMII interface.

• KSZ8873FLL: Two 100BASE-FX transceivers and one MII interface.

The device is available in RoHS-compliant 64-pin LQFP package. Industrial-grade and Automotive-grade are also available.

The datasheets and supporting documents can be found at Micrel’s web site at: www.micrel.com.

__________________________________________________________________________________________________________

Functional Diagram

LinkMD is a registered trademark of Micrel, Inc

Product names used in this datasheet are for identification purposes only and may be trademarks of their respective companies.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (

408

) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com

September 2009 M9999-092309-1.2

Micrel, Inc.

Features

Advanced Switch Features

– IEEE 802.1q VLAN support for up to 16 groups (full-range of

VLAN IDs)

– VLAN ID tag/untag options, per port basis

– IEEE 802.1p/q tag insertion or removal on a per port basis

(egress)

– Programmable rate limiting at the ingress and egress on a per port basis

– Broadcast storm protection with % control (global and per port basis)

– IEEE 802.1d rapid spanning tree protocol support

– tail tag mode (1 byte added before FCS) support at port3 to inform the processor which ingress port receives the packet and its priority

– Bypass feature which Automatically sustains the switch function between Port1 and Port2 when CPU (Port 3 interface) goes to the sleep mode

– Self-address filtering

– Individual MAC address for port1 and port2

– Support RMII interface and 50 MHz reference clock output

– MII interface supports both MAC mode and PHY mode with

200Mbps Turbo MII mode option

– IGMP snooping (Ipv4) support for multicast packet Filtering

– IPv4/IPv6 QoS support.

– MAC filtering function to forward unknown unicast packets to specified port

– Double-tagging support

Comprehensive Configuration Register Access

– Serial management interface (SMI) to all internal registers

– MII management (MIIM) interface to PHY registers

– High speed SPI and I

2

C Interface to all internal registers

– I/0 pins strapping and EEPROM to program selective registers in unmanaged switch mode

– Control registers configurable on the fly (port-priority,

802.1p/d/q, AN…)

QoS/CoS Packet Prioritization Support

– Per port, 802.1p and DiffServ-based

– Re-mapping of 802.1p priority field per port basis Four priority levels

Proven Integrated 3-Port 10/100 Ethernet Switch

– 3rd generation switch with three MACs and two

PHYs fully compliant with IEEE 802.3u standard

– Non-blocking switch fabric assures fast packet delivery by utilizing an 1K MAC address lookup table and a store-andforward architecture

KSZ8873MLL/FLL/RLL

– Full duplex IEEE 802.3x flow control (PAUSE) with force mode option

– Half-duplex back pressure flow control

– HP Auto MDI-X for reliable detection of and correction for straight-through and crossover cables with disable and enable option

– Micrel LinkMD

®

TDR-based cable diagnostics permit

identification of faulty copper cabling on Port 2

– Comprehensive LED Indicator support for link, activity, full/half duplex and 10/100 speed

– HBM ESD Rating 6kV

Switch Monitoring Features

– Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII

– MIB counters for fully compliant statistics gathering 34 MIB counters per port

– Loopback modes for remote diagnostic of failure

Low Power Dissipation:

– Full-chip hardware power-down (register configuration not saved)

– Full-chip software power-down (register configuration not saved)

– Energy-detect mode support

– Dynamic clock tree shutdown feature

– Per port based software power-save on PHY (idle link detection, register configuration preserved)

– Voltages: Single 3.3V or 2.5V supply with internal 1.8V LDO and optional 3.3V, 2.5V and 1.8V VDDIO

• Industrial Temperature Range: –40 o

C to +85 o

C

• Available in 64-Pin LQFP, Lead-free package

Applications

Typical

– VoIP Phone

– Set-top/Game Box

– Automotive

– Industrial Control

– IPTV POF

– SOHO Residential Gateway

– Broadband Gateway / Firewall / VPN

– Integrated DSL/Cable Modem

– Wireless LAN access point + gateway

– Standalone 10/100 switch

September 2009 2 M9999-092309-1.2

Micrel, Inc.

Ordering Information

Part Number

KSZ8873MLL

KSZ8873MLLI

KSZ8873MLL AM

KSZ8873FLL

KSZ8873FLLI

KSZ8873RLL

KSZ8873RLLI

Revision History

Junction

Temperature Range

0ºC to 70ºC

–40ºC to +85ºC

-40 o

C to +85 o

C

0ºC to 70ºC

–40ºC to +85ºC

0ºC to 70ºC

–40ºC to +85ºC

64-Pin LQFP Pb-Free/Commercial

64-Pin LQFP Pb-Free/Industrial

64-Pin PQFP Automotive grade

64-Pin LQFP Pb-Free/Commercial

64-Pin LQFP Pb-Free/Industrial

64-Pin LQFP Pb-Free/Commercial

64-Pin LQFP Pb-Free/Industrial

Revision Date Summary of Changes

1.0 03/25/08 release

1.1

1.2

06/26/09

09/08/09

09/23/09

Combined Register Description to initial release.

Remove LinkMD feature.

Update the Electrical Characteristics.

Add LinkMD feature on Port 2.

Fix the typo on register 194

KSZ8873MLL/FLL/RLL

September 2009 3

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Contents

Pin Description and I/O Assignment ................................................................................................................................. 11

Pin Configuration ................................................................................................................................................................ 16

Functional Description ....................................................................................................................................................... 17

Functional Overview: Physical Layer Transceiver .......................................................................................................... 17

100BASE-TX Transmit ..................................................................................................................................................... 17

100BASE-TX Receive ...................................................................................................................................................... 17

PLL Clock Synthesizer...................................................................................................................................................... 17

Scrambler/De-scrambler (100BASE-TX Only) ................................................................................................................. 17

100BASE-FX Operation.................................................................................................................................................... 17

100BASE-FX Signal Detection ......................................................................................................................................... 18

100BASE-FX Far-End Fault ............................................................................................................................................. 18

10BASE-T Transmit.......................................................................................................................................................... 18

10BASE-T Receive ........................................................................................................................................................... 18

MDI/MDI-X Auto Crossover .............................................................................................................................................. 18

Straight Cable ............................................................................................................................................................ 19

Crossover Cable ........................................................................................................................................................ 20

Auto-Negotiation ............................................................................................................................................................... 21

LinkMD

®

Cable Diagnostics.............................................................................................................................................. 22

Access ....................................................................................................................................................................... 22

Usage......................................................................................................................................................................... 22

Functional Overview: Power Management....................................................................................................................... 22

Normal Operation Mode ..................................................................................................................................................... 23

Energy Detect Mode .......................................................................................................................................................... 23

Soft Power Down Mode ..................................................................................................................................................... 23

Power Saving Mode.......................................................................................................................................................... 23

Port based Power Down Mode ......................................................................................................................................... 23

Functional Overview: MAC and Switch ............................................................................................................................ 24

Address Lookup ................................................................................................................................................................ 24

Learning ............................................................................................................................................................................ 24

Migration ........................................................................................................................................................................... 24

Aging................................................................................................................................................................................. 24

Forwarding ........................................................................................................................................................................ 24

Switching Engine .............................................................................................................................................................. 27

MAC Operation ................................................................................................................................................................. 27

Inter Packet Gap (IPG) .............................................................................................................................................. 27

Back-Off Algorithm..................................................................................................................................................... 27

Late Collision ............................................................................................................................................................. 27

Illegal Frames ............................................................................................................................................................ 27

Full Duplex Flow Control............................................................................................................................................ 27

Half-Duplex Backpressure ......................................................................................................................................... 27

Broadcast Storm Protection....................................................................................................................................... 28

Port Individual MAC address and Source Port Filtering ............................................................................................ 28

MII Interface Operation ..................................................................................................................................................... 28

Turbo MII Interface Operation........................................................................................................................................... 29

RMII Interface Operation .................................................................................................................................................. 29

MII Management (MIIM) Interface .................................................................................................................................... 31

Serial Management Interface (SMI).................................................................................................................................. 31

Advanced Switch Functions .............................................................................................................................................. 32

Bypass Mode .................................................................................................................................................................... 32

IEEE 802.1Q VLAN Support............................................................................................................................................. 32

QoS Priority Support ......................................................................................................................................................... 33

Port-Based Priority..................................................................................................................................................... 33

802.1p-Based Priority ................................................................................................................................................ 33

DiffServ-Based Priority .............................................................................................................................................. 34

September 2009 4

M9999-092309-1.2

Micrel, Inc.

Spanning Tree Support..................................................................................................................................................... 34

Rapid Spanning Tree Support .......................................................................................................................................... 35

Tail Tagging Mode ............................................................................................................................................................ 35

IGMP Support ................................................................................................................................................................... 36

IGMP Snooping ......................................................................................................................................................... 36

Multicast Address Insertion in the Static MAC Table ................................................................................................ 36

Port Mirroring Support ...................................................................................................................................................... 36

Rate Limiting Support ....................................................................................................................................................... 37

Unicast MAC Address Filtering......................................................................................................................................... 37

Configuration Interface ..................................................................................................................................................... 37

I

2

C Master Serial Bus Configuration .......................................................................................................................... 37

I2C Slave Serial Bus Configuration ........................................................................................................................... 38

SPI Slave Serial Bus Configuration ........................................................................................................................... 39

Loopback Support............................................................................................................................................................. 42

Far-end Loopback...................................................................................................................................................... 42

Near-end (Remote) Loopback ................................................................................................................................... 43

MII Management (MIIM) Registers ..................................................................................................................................... 44

PHY1 Register 0 (PHYAD = 0x1, REGAD = 0x0): MII Basic Control........................................................................ 45

PHY2 Register 0 (PHYAD = 0x2, REGAD = 0x0): MII Basic Control........................................................................ 45

PHY1 Register 1 (PHYAD = 0x1, REGAD = 0x1): MII Basic Status ......................................................................... 46

PHY2 Register 1 (PHYAD = 0x2, REGAD = 0x1): MII Basic Status ......................................................................... 46

PHY1 Register 2 (PHYAD = 0x1, REGAD = 0x2): PHYID High................................................................................ 46

PHY2 Register 2 (PHYAD = 0x2, REGAD = 0x2): PHYID High................................................................................ 46

PHY1 Register 3 (PHYAD = 0x1, REGAD = 0x3): PHYID Low................................................................................. 46

PHY2 Register 3 (PHYAD = 0x2, REGAD = 0x3): PHYID Low................................................................................. 46

PHY1 Register 4 (PHYAD = 0x1, REGAD = 0x4): Auto-Negotiation Advertisement Ability ..................................... 47

PHY2 Register 4 (PHYAD = 0x2, REGAD = 0x4): Auto-Negotiation Advertisement Ability ..................................... 47

PHY1 Register 5 (PHYAD = 0x1, REGAD = 0x5): Auto-Negotiation Link Partner Ability ......................................... 47

PHY2 Register 5 (PHYAD = 0x2, REGAD = 0x5): Auto-Negotiation Link Partner Ability ......................................... 47

PHY1 Register 29 (PHYAD = 0x1, REGAD = 0x1D): Not supported ........................................................................ 48

PHY2 Register 29 (PHYAD = 0x2, REGAD = 0x1D): LinkMD Control/Status .......................................................... 48

PHY1 Register 31 (PHYAD = 0x1, REGAD = 0x1F): PHY Special Control/Status................................................... 48

PHY2 Register 31 (PHYAD = 0x2, REGAD = 0x1F): PHY Special Control/Status................................................... 48

Memory Map (8-bit Registers)............................................................................................................................................ 49

Global Registers ............................................................................................................................................................... 49

Port Registers ................................................................................................................................................................... 49

Advanced Control Registers ............................................................................................................................................. 49

Register Description ........................................................................................................................................................... 50

Global Registers (Registers 0 – 15) ................................................................................................................................. 50

Register 0 (0x00): Chip ID0 ....................................................................................................................................... 50

Register 1 (0x01): Chip ID1 / Start Switch................................................................................................................. 50

Register 2 (0x02): Global Control 0 ........................................................................................................................... 50

Register 3 (0x03): Global Control 1 ........................................................................................................................... 51

Register 4 (0x04): Global Control 2 ........................................................................................................................... 51

Register 5 (0x05): Global Control 3 ........................................................................................................................... 52

Register 6 (0x06): Global Control 4 ........................................................................................................................... 53

Register 7 (0x07): Global Control 5 ........................................................................................................................... 53

Register 8 (0x08): Global Control 6 ........................................................................................................................... 54

Register 9 (0x09): Global Control 7 ........................................................................................................................... 54

Register 10 (0x0A): Global Control 8......................................................................................................................... 54

Register 11 (0x0B): Global Control 9......................................................................................................................... 54

Register 12 (0x0C): Global Control 10 ...................................................................................................................... 54

Register 13 (0x0D): Global Control 11 ...................................................................................................................... 54

Register 14 (0x0E): Global Control 12....................................................................................................................... 55

Register 15 (0x0F): Global Control 13 ....................................................................................................................... 55

Port Registers (Registers 16 – 95) ................................................................................................................................... 56

Register 16 (0x10): Port 1 Control 0 .......................................................................................................................... 56

September 2009 5

KSZ8873MLL/FLL/RLL

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Register 32 (0x20): Port 2 Control 0 .......................................................................................................................... 56

Register 48 (0x30): Port 3 Control 0 .......................................................................................................................... 56

Register 17 (0x11): Port 1 Control 1 .......................................................................................................................... 57

Register 33 (0x21): Port 2 Control 1 .......................................................................................................................... 57

Register 49 (0x31): Port 3 Control 1 .......................................................................................................................... 57

Register 18 (0x12): Port 1 Control 2 .......................................................................................................................... 57

Register 34 (0x22): Port 2 Control 2 .......................................................................................................................... 57

Register 50 (0x32): Port 3 Control 2 .......................................................................................................................... 57

Register 19 (0x13): Port 1 Control 3 .......................................................................................................................... 58

Register 35 (0x23): Port 2 Control 3 .......................................................................................................................... 58

Register 51 (0x33): Port 3 Control 3 .......................................................................................................................... 58

Register 20 (0x14): Port 1 Control 4 .......................................................................................................................... 58

Register 36 (0x24): Port 2 Control 4 .......................................................................................................................... 58

Register 52 (0x34): Port 3 Control 4 .......................................................................................................................... 58

Register 21 (0x15): Port 1 Control 5 .......................................................................................................................... 58

Register 37 (0x25): Port 2 Control 5 .......................................................................................................................... 58

Register 53 (0x35): Port 3 Control 5 .......................................................................................................................... 58

Register 22[6:0] (0x16): Port 1 Q0 ingress data rate limit ......................................................................................... 59

Register 38[6:0] (0x26): Port 2 Q0 ingress data rate limit ......................................................................................... 59

Register 54[6:0] (0x36): Port 3 Q0 ingress data rate limit ......................................................................................... 59

Register 23[6:0] (0x17): Port 1 Q1 ingress data rate limit ......................................................................................... 60

Register 39[6:0] (0x27): Port 2 Q1 ingress data rate limit ......................................................................................... 60

Register 55[6:0] (0x37): Port 3 Q1 ingress data rate limit ......................................................................................... 60

Register 24[6:0] (0x18): Port 1 Q2 ingress data rate limit ......................................................................................... 60

Register 40[6:0] (0x28): Port 2 Q2 ingress data rate limit ......................................................................................... 60

Register 56[6:0] (0x38): Port 3 Q2 ingress data rate limit ......................................................................................... 60

Register 25[6:0] (0x19): Port 1 Q3 ingress data rate limit ......................................................................................... 60

Register 41[6:0] (0x29): Port 2 Q3 ingress data rate limit ......................................................................................... 60

Register 57[6:0] (0x39): Port 3 Q3 ingress data rate limit ......................................................................................... 60

Register 26 (0x1A): Port 1 PHY Special Control/Status............................................................................................ 62

Register 42 (0x2A): Port 2 PHY Special Control/Status............................................................................................ 62

Register 58 (0x3A): Reserved, not applied to port 3 ................................................................................................. 62

Register 27 (0x1B): Port 1 Not Support..................................................................................................................... 62

Register 43 (0x2B): LinkMD Result ........................................................................................................................... 62

Register 59 (0x3B): Reserved, not applied to port 3 ................................................................................................. 62

Register 28 (0x1C): Port 1 Control 12 ....................................................................................................................... 63

Register 44 (0x2C): Port 2 Control 12 ....................................................................................................................... 63

Register 60 (0x3C): Reserved, not applied to port 3 ................................................................................................. 63

Register 29 (0x1D): Port 1 Control 13 ....................................................................................................................... 63

Register 45 (0x2D): Port 2 Control 13 ....................................................................................................................... 63

Register 61 (0x3D): Reserved, not applied to port 3 ................................................................................................. 63

Register 30 (0x1E): Port 1 Status 0........................................................................................................................... 64

Register 46 (0x2E): Port 2 Status 0........................................................................................................................... 64

Register 62 (0x3E): Reserved, not applied to port 3 ................................................................................................. 64

Register 31 (0x1F): Port 1 Status 1 ........................................................................................................................... 65

Register 47 (0x2F): Port 2 Status 1 ........................................................................................................................... 65

Register 63 (0x3F): Port 3 Status 1 ........................................................................................................................... 65

Register 67 (0x43): Reset.......................................................................................................................................... 65

Advanced Control Registers (Registers 96-198) .............................................................................................................. 66

Register 96 (0x60): TOS Priority Control Register 0 ................................................................................................. 66

Register 97 (0x61): TOS Priority Control Register 1 ................................................................................................. 66

Register 98 (0x62): TOS Priority Control Register 2 ................................................................................................. 66

Register 99 (0x63): TOS Priority Control Register 3 ................................................................................................. 67

Register 100 (0x64): TOS Priority Control Register 4 ............................................................................................... 67

Register 101 (0x65): TOS Priority Control Register 5 ............................................................................................... 67

Register 102 (0x66): TOS Priority Control Register 6 ............................................................................................... 68

Register 103 (0x67): TOS Priority Control Register 7 ............................................................................................... 68

September 2009 6

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Register 104 (0x68): TOS Priority Control Register 8 ............................................................................................... 68

Register 105 (0x69): TOS Priority Control Register 9 ............................................................................................... 69

Register 106 (0x6A): TOS Priority Control Register 10 ............................................................................................. 69

Register 107 (0x6B): TOS Priority Control Register 11 ............................................................................................. 69

Register 108 (0x6C): TOS Priority Control Register 12............................................................................................. 70

Register 109 (0x6D): TOS Priority Control Register 13............................................................................................. 70

Register 111 (0x6F): TOS Priority Control Register 15 ............................................................................................. 71

Registers 112 to 117.................................................................................................................................................. 71

Register 112 (0x70): MAC Address Register 0 ......................................................................................................... 71

Register 113 (0x71): MAC Address Register 1 ......................................................................................................... 71

Register 114 (0x72): MAC Address Register 2 ......................................................................................................... 71

Register 115 (0x73): MAC Address Register 3 ......................................................................................................... 71

Register 116 (0x74): MAC Address Register 4 ......................................................................................................... 71

Register 117 (0x75): MAC Address Register 5 ......................................................................................................... 71

Registers 118 to 120.................................................................................................................................................. 72

Register 118 (0x76): User Defined Register 1........................................................................................................... 72

Register 119 (0x77): User Defined Register 2........................................................................................................... 72

Register 120 (0x78): User Defined Register 3........................................................................................................... 72

Registers 121 to 131.................................................................................................................................................. 72

Register 121 (0x79): Indirect Access Control 0 ......................................................................................................... 72

Register 122 (0x7A): Indirect Access Control 1 ........................................................................................................ 72

Register 123 (0x7B): Indirect Data Register 8........................................................................................................... 72

Register 124 (0x7C): Indirect Data Register 7........................................................................................................... 72

Register 125 (0x7D): Indirect Data Register 6........................................................................................................... 73

Register 126 (0x7E): Indirect Data Register 5........................................................................................................... 73

Register 127 (0x7F): Indirect Data Register 4 ........................................................................................................... 73

Register 128 (0x80): Indirect Data Register 3 ........................................................................................................... 73

Register 129 (0x81): Indirect Data Register 2 ........................................................................................................... 73

Register 130 (0x82): Indirect Data Register 1 ........................................................................................................... 73

Register 131 (0x83): Indirect Data Register 0 ........................................................................................................... 73

Register 147~142(0x93~0x8E): Station Address 1 and 2 ......................................................................................... 73

Register 153~148 (0x99~0x94): Station Address 1 and 2 ........................................................................................ 73

Register 154[6:0] (0x9A): Port 1 Q0 Egress data rate limit ....................................................................................... 74

Register 158[6:0] (0x9E): Port 2 Q0 Egress data rate limit ....................................................................................... 74

Register 162[6:0] (0xA2): Port 3 Q0 Egress data rate limit ....................................................................................... 74

Register 155[6:0] (0x9B): Port 1 Q1 Egress data rate limit ....................................................................................... 74

Register 159[6:0] (0x9F): Port 2 Q1 Egress data rate limit ....................................................................................... 74

Register 163[6:0] (0xA3): Port 3 Q1 Egress data rate limit ....................................................................................... 74

Register 156[6:0] (0x9C): Port 1 Q2 Egress data rate limit ....................................................................................... 74

Register 160[6:0] (0xA0): Port 2 Q2 Egress data rate limit ....................................................................................... 74

Register 164[6:0] (0xA4): Port 3 Q2 Egress data rate limit ....................................................................................... 74

Register 157[6:0] (0x9D): Port 1 Q3 Egress data rate limit ....................................................................................... 74

Register 161[6:0] (0xA1): Port 2 Q3 Egress data rate limit ....................................................................................... 74

Register 165[6:0] (0xA5): Port 3 Q3 Egress data rate limit ....................................................................................... 74

Register 166 (0xA6): KSZ8873 mode indicator ......................................................................................................... 75

Register 167 (0xA7): High Priority Packet Buffer Reserved for Q0........................................................................... 75

Register 168 (0xA8): High Priority Packet Buffer Reserved for Q1........................................................................... 75

Register 169 (0xA9): High Priority Packet Buffer Reserved for Q2........................................................................... 75

Register 170 (0xAA): High Priority Packet Buffer Reserved for Q3 .......................................................................... 75

Register 171 (0xAB): PM Usage Flow Control Select Mode 1 .................................................................................. 75

Register 172 (0xAC): PM Usage Flow Control Select Mode 2.................................................................................. 75

Register 173 (0xAD): PM Usage Flow Control Select Mode 3.................................................................................. 75

Register 174 (0xAE): PM Usage Flow Control Select Mode 4 .................................................................................. 76

Register 175 (0xAF): TXQ Split for Q0 in Port 1........................................................................................................ 76

Register 176 (0xB0): TXQ Split for Q1 in Port 1........................................................................................................ 76

Register 177 (0xB1): TXQ Split for Q2 in Port 1........................................................................................................ 76

Register 178 (0xB2): TXQ Split for Q3 in Port 1........................................................................................................ 76

September 2009 7

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Register 179 (0xB3): TXQ Split for Q0 in Port 2........................................................................................................ 76

Register 180 (0xB4): TXQ Split for Q1 in Port 2........................................................................................................ 76

Register 181 (0xB5): TXQ Split for Q2 in Port 2........................................................................................................ 77

Register 182 (0xB6): TXQ Split for Q3 in Port 2........................................................................................................ 77

Register 183 (0xB7): TXQ Split for Q0 Port 3............................................................................................................ 77

Register 184 (0xB8): TXQ Split for Q1 Port 3............................................................................................................ 77

Register 185 (0xB9): TXQ Split for Q2 in Port 3........................................................................................................ 77

Register 186 (0xBA): TXQ Split for Q3 in Port 3 ....................................................................................................... 77

Register 187 (0xBB): Interrupt enable register .......................................................................................................... 77

Register 188 (0xBC): Link Change Interrupt ............................................................................................................. 78

Register 189 (0xBD): Force Pause Off Iteration Limit Enable................................................................................... 78

Register 192 (0xC0): Fiber Signal Threshold ............................................................................................................ 78

Register 194 (0xC2): Insert SRC PVID ..................................................................................................................... 79

Register 195 (0xC3): Power Management and LED Mode ....................................................................................... 79

Register 196(0xC4): Sleep Mode .............................................................................................................................. 80

Register 198 (0xC6): Forward Invalid VID Frame and Host Mode............................................................................ 80

Static MAC Address Table ................................................................................................................................................. 81

VLAN Table .......................................................................................................................................................................... 83

Dynamic MAC Address Table ............................................................................................................................................ 84

MIB (Management Information Base) Counters............................................................................................................... 85

Additional MIB Counter Information........................................................................................................................... 87

Absolute Maximum Ratings ............................................................................................................................................... 88

Operating Ratings ............................................................................................................................................................... 88

Electrical Characteristics ................................................................................................................................................... 88

EEPROM Timing .............................................................................................................................................................. 90

MII Timing ......................................................................................................................................................................... 91

I

RMII Timing....................................................................................................................................................................... 93

2

C Slave Mode Timing ..................................................................................................................................................... 94

SPI Timing ........................................................................................................................................................................ 96

Auto-Negotiation Timing ................................................................................................................................................... 98

Reset Timing..................................................................................................................................................................... 99

Reset Circuit ................................................................................................................................................................... 100

Selection of Isolation Transformers................................................................................................................................ 101

Selection of Reference Crystal ........................................................................................................................................ 101

Package Information ......................................................................................................................................................... 102

September 2009 8

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

List of Figures

Figure 1. Typical Straight Cable Connection .................................................................................................................19

Figure 2. Typical Crossover Cable Connection .............................................................................................................20

Figure 3. Auto-Negotiation and Parallel Operation ........................................................................................................21

Figure 4. Destination Address Lookup Flow Chart, Stage 1 ..........................................................................................25

Figure 5. Destination Address Resolution Flow Chart, Stage 2.....................................................................................26

Figure 6. 802.1p Priority Field Format ...........................................................................................................................33

Figure 7. Tail Tag Frame Format ...................................................................................................................................35

Figure 8. Tail Tag Rules.................................................................................................................................................36

Figure 9. EEPROM Configuration Timing Diagram .......................................................................................................38

Figure 10. SPI Write Data Cycle ....................................................................................................................................40

Figure 11. SPI Read Data Cycle ....................................................................................................................................40

Figure 12. SPI Multiple Write .........................................................................................................................................40

Figure 13. SPI Multiple Read .........................................................................................................................................41

Figure 14. Far-End Loopback Path ................................................................................................................................42

Figure 15. Near-end (Remote) Loopback Path..............................................................................................................43

Figure 16. EEPROM Interface Input Timing Diagram....................................................................................................90

Figure 17. EEPROM Interface Output Timing Diagram .................................................................................................90

Figure 18. MAC Mode MII Timing – Data Received from MII ........................................................................................91

Figure 19. MAC Mode MII Timing – Data Transmitted to MII .......................................................................................91

Figure 20. PHY Mode MII Timing – Data Received from MII.........................................................................................92

Figure 21. PHY Mode MII Timing – Data Transmitted to MII .........................................................................................92

Figure 22. RMII Timing – Data Received from RMII ......................................................................................................93

Figure 23. RMII Timing – Data Transmitted to RMII ......................................................................................................93

Figure 24. I2C Input Timing............................................................................................................................................94

Figure 25. I2C Start Bit Timing.......................................................................................................................................94

Figure 26. I2C Stop Bit Timing .......................................................................................................................................94

Figure 27. I2C Output Timing.........................................................................................................................................94

Figure 28. SPI Input Timing ...........................................................................................................................................96

Figure 29. SPI Output Timing.........................................................................................................................................97

Figure 30. Auto-Negotiation Timing ...............................................................................................................................98

Figure 31. Reset Timing.................................................................................................................................................99

Figure 32. Recommended Reset Circuit ......................................................................................................................100

Figure 33. Recommended Reset Circuit for interfacing with CPU/FPGA Reset Output..............................................100

Figure 34. 64-Pin LQFP Package ................................................................................................................................103

September 2009 9

M9999-092309-1.2

Micrel, Inc.

List of Tables

KSZ8873MLL/FLL/RLL

Table 1. FX Signal Threshold.........................................................................................................................................18

Table 2. MDI/MDI-X Pin Definitions ...............................................................................................................................18

Table 3. Internal Function Block Status ..........................................................................................................................23

Table 4. MII Signals .......................................................................................................................................................28

Table 5. RMII Clock Setting ............................................................................................................................................29

Table 6. RMII Signal Description....................................................................................................................................30

Table 7. RMII Signal Connections..................................................................................................................................30

Table 8. MII Management Interface Frame Format .......................................................................................................31

Table 9. Serial Management Interface (SMI) Frame Format .........................................................................................31

Table 10. FID+DA Lookup in VLAN Mode .....................................................................................................................32

Table 11. FID+SA Lookup in VLAN Mode .....................................................................................................................32

Table 12. Spanning Tree States ....................................................................................................................................34

Table 13. SPI Connections ............................................................................................................................................39

Table 14. Data Rate Limit Table ....................................................................................................................................61

Table 15. Format of Static MAC Table (8 Entries) .........................................................................................................81

Table 16. Format of Static VLAN Table (16 Entries)......................................................................................................83

Table 17. Format of Dynamic MAC Address Table (1K Entries) ...................................................................................84

Table 18. Format of “Per Port” MIB Counters ................................................................................................................85

Table 19. Port 1’s “Per Port” MIB Counters Indirect Memory Offsets............................................................................86

Table 20. Format of “All Port Dropped Packet” MIB Counters.......................................................................................86

Table 21. “All Port Dropped Packet” MIB Counters Indirect Memory Offsets................................................................87

Table 22. EEPROM Timing Parameters ........................................................................................................................90

Table 23. MAC Mode MII Timing Parameters................................................................................................................91

Table 24. PHY Mode MII Timing Parameters ................................................................................................................92

Table 25. RMII Timing Parameters ................................................................................................................................93

Table 26. I2C Timing Parameters ..................................................................................................................................95

Table 27. SPI Input Timing Parameters.........................................................................................................................96

Table 28. SPI Output Timing Parameters ......................................................................................................................97

Table 29. Auto-Negotiation Timing Parameters.............................................................................................................98

Table 30. Reset Timing Parameters ..............................................................................................................................99

Table 31. Transformer Selection Criteria .....................................................................................................................101

Table 32. Qualified Single Port Magnetics...................................................................................................................101

Table 33. Typical Reference Crystal Characteristics ...................................................................................................101

September 2009 10

M9999-092309-1.2

Micrel, Inc.

Pin Description and I/O Assignment

Pin Number Pin Name Type

(1)

Description

KSZ8873MLL/FLL/RLL

1

2

RXM1

RXP1

I/O

I/O

Physical receive or transmit signal (– differential)

Physical receive or transmit signal (+ differential)

3 AGND Gnd ground

4 TXM1 I/O Physical transmit or receive signal (– differential)

5 TXP1 I/O Physical transmit or receive signal (+ differential)

6 VDDA_3.3 P 3.3V analog V

DD

7 AGND Gnd ground.

8 ISET O

9

10

11

VDDA_1.8

RXM2

RXP2

P

I/O

I/O

Set physical transmit output current.

Pull-down this pin with a 11.8K 1% resistor to ground.

1.8 analog VDD input power supply from VDDCO (pin 56) through external Ferrite bead and capacitor.

Physical receive or transmit signal (– differential)

Physical receive or transmit signal (+ differential)

13

14

15

16 PWRND

17 X1

TXM2

TXP2

FXSD2

18 X2

19 SMTXEN3

EN_REFCLKO_3

I/O

I/O

I

Physical transmit or receive signal (– differential)

Physical transmit or receive signal (+ differential)

MLL/RLL: connect to analog ground.

FLL: Fiber signal detect / factory test pin

Chip power down input (active low). Ipu

I 25 or 50MHz crystal/oscillator clock connections.

Pins (X1, X2) connect to a crystal. If an oscillator is used, X1 connects to a 3.3V tolerant oscillator and X2 is a no connect.

O

Note: Clock is +/- 50ppm for both crystal and oscillator.

I Switch MII transmit enable

MLL/FLL: Switch MII transmit data bit 3

RLL: Strap option: RMII mode Clock selection

PU = Enable REFCLKO_3 output

PD = Disable REFCLKO_3 output

22

NC

SMTXD31 I

MLL/FLL: Switch MII transmit data bit 2

RLL: No connection

Switch MII transmit data bit 1

23

25

SMTXD30

VDDIO

I

P

Switch MII transmit data bit 0

24 GND Gnd ground

3.3V, 2.5V or 1.8V digital VDD input power supply for IO with well decoupling capacitors.

REFCLKI_3

MII_LINK_3

MLL/FLL: Switch MII transmit clock (MII modes only)

Output in PHY MII mode and SNI mode

Input in MAC MII and RMII mode.

RLL: Reference clock input

Note: pull up or down is needed if internal reference clock is used in RLL.

Switch MII transmit error in MII MAC mode

MII link indicator from host in MII PHY mode. High = No link.

September 2009 11

M9999-092309-1.2

Micrel, Inc.

Pin Number

28

30

31

33

38

39

40

September 2009

KSZ8873MLL/FLL/RLL

Pin Name

SMRXDV3

REFCLKO_3

SMRXD32

SMRXD31

SMRXD30

NC

NC

NC

Type

(1)

Description

lpu/O Switch MII receive data valid

Strap option: MII mode selection

PU = PHY mode.

PD = MAC mode

MLL/FLL: Switch MII receive data bit 3/

RLL: Output reference clock in RMII mode.

Strap option: enable auto-negotiation on port 2 (P2ANEN)

PU = enable

PD = disable

Ipu/O

Ipu/O

Switch MII receive data bit 2

Strap option: Force the speed on port 2 (P2SPD)

PU = force port 2 to 100BT if P2ANEN = 0

PD = force port 2 to 10BT if P2ANEN = 0

Switch MII receive data bit 1

Strap option: Force duplex mode (P2DPX)

PU = port 2 default to full duplex mode if P2ANEN = 1 and autonegotiation fails. Force port 2 in full duplex mode if P2ANEN = 0.

PD (default) = Port 2 default to half duplex mode if P2ANEN = 1 and auto-negotiation fails. Force port 2 in half duplex mode if P2ANEN = 0. lpu/O Switch MII receive data bit 0

Strap option: Force flow control on port 2 (P2FFC)

PU = always enable (force) port 2 flow control feature.

PD = port 2 flow control feature enable is determined by auto- negotiation result.

MLL/FLL: Switch MII carrier sense

RLL: No connection, Internal pull up.

MLL/FLL: Switch MII collision detect

RLL: No connection, Internal pull up.

MLL/FLL: Switch MII receive clock.

Output in PHY MII mode

Input in MAC MII mode

RLL: No Connection.

VDDC

SPIQ

P lpu/O

SPISN I

1.8 digital VDD input power supply from VDDCO (pin 58) through external

Ferrite bead and capacitor.

SPI slave mode: serial data output

Note: an external pull-up is needed on this pin when it is in use.

Strap option: XCLK Frequency Selection

PU = 25 MHz

PD = 50 MHz

SPI slave mode: chip select (active low)

When SPISN is high, the KSZ8873MLL/FLL/RLL is deselected and SPIQ is held in high impedance state.

A high-to-low transition is used to initiate SPI data transfer.

Note: an external pull-up is needed on this pin when it is in use.

12

M9999-092309-1.2

Micrel, Inc.

Pin Number

43

44

45

46

47

49

50

51

52

53

54

56

57

KSZ8873MLL/FLL/RLL

Pin Name Type

(1)

Description

SDA_MDIO

NC

P1ANEN

P1SPD

P1DPX

I/O

NC

Ipu/O

Ipu/O

Ipu/O

Active Low signal to host CPU to indicate an interrupt status bit is set when lost link. Refer to register 187 and 188.

SPI slave mode / I

2

C slave mode: clock input

I

2

C master mode: clock output

MIIM clock input

SPI slave mode: serial data input

I

2

C master/slave mode: serial data input/output

MIIM: data input/out

Note: an external pull-up is needed on this pin when it is in use.

Unused pin. No external connection.

PU = enable auto-negotiation on port 1

PD = disable auto-negotiation on port 1

PU = force port 1 to 100BT if P1ANEN = 0

PD = force port 1 to 10BT if P1ANEN = 0

PU = port 1 default to full duplex mode if P1ANEN = 1 and auto- negotiation fails. Force port 1 in full-duplex mode if P1ANEN = 0.

PD = port 1 default to half duplex mode if P1ANEN = 1 and auto- negotiation fails. Force port 1 in half duplex mode if P1ANEN = 0.

VDDC

P1FFC

P

Ipu/O

P3SPD

NC

NC

VDDIO

VDDCO

NC

Ipd/O

NC

NC

P

P

NC

1.8 digital VDD input power supply from VDDCO (pin 56) through external

Ferrite bead and capacitor.

PU = always enable (force) port 1 flow control feature

PD = port 1 flow control feature enable is determined by auto negotiation result.

PU = force port 3 to 10BT

PD = force port 3 to 100BT

Unused pin. No external connection.

Unused pin. No external connection.

3.3V, 2.5V or 1.8V digital VDD input power supply for IO with well decoupling capacitors.

1.8V digital core voltage output (internal 1.8V LDO regulator output), this

1.8V output pin provides power to both VDDA_1.8 and VDDC pins. These

1.8V input pins directly connect to external 1.8V when VDDIO is 1.8V.

Note: Internally LDO regulator input is from VDDIO. Do not connect an external power supply to this pin. This pin is used for connecting external filter (Ferrite bead and capacitors).

Unused pin. No external connection.

Default: Speed (refer to register 195 bit[5:4])

Strap option: Port 3 flow control selection(P3FFC)

PU = always enable (force) port 3 flow control feature

PD = disable

September 2009 13

M9999-092309-1.2

Micrel, Inc.

Pin Number

KSZ8873MLL/FLL/RLL

Pin Name Type

(1)

Description

Default: Link/Act. (refer to register 195 bit[5:4])

Strap option: Port 3 duplex mode selection(P3DPX)

PU = port 3 default to half duplex mode

PD = port 3 default to full duplex mode

Default: Speed (refer to register 195 bit[5:4])

Strap option: Serial bus configuration

Port 2 LED Indicators:

Default: Link/Act. (refer to register 195 bit[5:4])

Strap option: Serial bus configuration

Serial bus configuration pins to select mode of access to

KSZ8873MLL/FLL/RLL internal registers.

[P2LED1, P2LED0] = [0, 0] — I

2

C master (EEPROM) mode

(If EEPROM is not detected, the KSZ8873MLL/FLL/RLL will be configured with the default values of its internal registers and the values of its strap-in pins.)

Interface Signals Type Description

SPIQ O Not used (tri-stated)

2

C data I/O

[P2LED1, P2LED0] = [0, 1] — I

2

C slave mode

The external I

2

C master will drive the SCL_MDC clock.

The KSZ8873MLL/FLL/RLL device addresses are:

1011_1111 <read>

1011_1110 <write>

Interface Signals Type Description

SPIQ O Not used (tri-stated)

2

C clock

2

C data I/O

[P2LED1, P2LED0] = [1, 0] — SPI slave mode

Interface Signals Type Description

SPIQ O SPI data out

SPISN I SPI chip select

[P2LED1, P2LED0] = [1, 1] – SMI/MIIM-mode

In SMI mode, the KSZ8873MLL/FLL/RLL provides access to all its internal 8-bit registers through its SCL_MDC and SDA_MDIO pins.

In MIIM mode, the KSZ8873MLL/FLL/RLL provides access to its 16-bit

MIIM registers through its SDC_MDC and SDA_MDIO pins.

September 2009 14

M9999-092309-1.2

Micrel, Inc.

Pin Number

KSZ8873MLL/FLL/RLL

Pin Name Type

(1)

Description

62 RSTN Ipu Hardware reset pin (active low)

64 VDDA_1.8 P

FLL: Fiber signal detect

1.8 analog VDD input power supply from VDDCO (pin 56) through external Ferrite bead and capacitor.

Note:

1. Speed : Low (100BASE-TX), High (10BASE-T)

Full duplex : Low (full duplex), High (half duplex)

Act : Toggle (transmit / receive activity)

Link : Low (link), High (no link)

2. P = Power supply.

Gnd = Ground.

I = Input.

Ipu/O = Input with internal pull-up during reset, output pin otherwise.

Ipu = Input w/ internal pull-up.

Ipd = Input w/ internal pull-down.

Opu = Output w/ internal pull-up.

Opd = Output w/ internal pull-down.

September 2009 15

M9999-092309-1.2

Micrel, Inc.

Pin Configuration

KSZ8873MLL/FLL/RLL

64-Pin LQFP

(Top View)

September 2009 16

M9999-092309-1.2

Micrel, Inc.

Functional Description

KSZ8873MLL/FLL/RLL

The KSZ8873MLL/FLL/RLL contains two 10/100 physical layer transceivers and three MAC units with an integrated Layer

2 managed switch.

The KSZ8873MLL/FLL/RLL has the flexibility to reside in either a managed or unmanaged design. In a managed design,

I the host processor has complete control of the KSZ8873MLL/FLL/RLL via the SMI interface, MIIM interface, SPI bus, or

2

C bus. An unmanaged design is achieved through I/O strapping and/or EEPROM programming at system reset time.

On the media side, the KSZ8873MLL/FLL/RLL supports IEEE 802.3 10BASE-T and 100BASE-TX on both PHY ports.

Physical signal transmission and reception are enhanced through the use of patented analog circuitries that make the design more efficient and allow for lower power consumption and smaller chip die size.

Functional Overview: Physical Layer Transceiver

100BASE-TX Transmit

The 100BASE-TX transmit function performs parallel-to-serial conversion, 4B/5B coding, scrambling, NRZ-to-NRZI conversion, and MLT3 encoding and transmission.

The circuitry starts with a parallel-to-serial conversion, which converts the MII data from the MAC into a 125MHz serial bit stream. The data and control stream is then converted into 4B/5B coding, followed by a scrambler. The serialized data is further converted from NRZ-to-NRZI format, and then transmitted in MLT3 current output. The output current is set by an external1% 11.8K

Ω resistor for the 1:1 transformer ratio.

The output signal has a typical rise/fall time of 4ns and complies with the ANSI TP-PMD standard regarding amplitude balance, overshoot, and timing jitter. The wave-shaped 10BASE-T output is also incorporated into the 100BASE-TX transmitter.

100BASE-TX Receive

The 100BASE-TX receiver function performs adaptive equalization, DC restoration, MLT3-to-NRZI conversion, data and clock recovery, NRZI-to-NRZ conversion, de-scrambling, 4B/5B decoding, and serial-to-parallel conversion.

The receiving side starts with the equalization filter to compensate for inter-symbol interference (ISI) over the twisted pair cable. Since the amplitude loss and phase distortion is a function of the cable length, the equalizer must adjust its characteristics to optimize performance. In this design, the variable equalizer makes an initial estimation based on comparisons of incoming signal strength against some known cable characteristics, and then tunes itself for optimization.

This is an ongoing process and self-adjusts against environmental changes such as temperature variations.

Next, the equalized signal goes through a DC restoration and data conversion block. The DC restoration circuit is used to compensate for the effect of baseline wander and to improve the dynamic range. The differential data conversion circuit converts the MLT3 format back to NRZI. The slicing threshold is also adaptive.

The clock recovery circuit extracts the 125MHz clock from the edges of the NRZI signal. This recovered clock is then used to convert the NRZI signal into the NRZ format. This signal is sent through the de-scrambler followed by the 4B/5B decoder. Finally, the NRZ serial data is converted to the MII format and provided as the input data to the MAC.

PLL Clock Synthesizer

The KSZ8873MLL/FLL/RLL generates 125MHz, 62.5MHz, and 31.25MHz clocks for system timing. Internal clocks are generated from an external 25MHz or 50MHz crystal or oscillator. KSZ8873RLL can generates a 50MHz reference clock for the RMII interface

Scrambler/De-scrambler (100BASE-TX Only)

The purpose of the scrambler is to spread the power spectrum of the signal to reduce electromagnetic interference (EMI) and baseline wander. Transmitted data is scrambled through the use of an 11-bit wide linear feedback shift register

(LFSR). The scrambler generates a 2047-bit non-repetitive sequence, and the receiver then de-scrambles the incoming data stream using the same sequence as at the transmitter.

100BASE-FX Operation

100BASE-FX operation is similar to 100BASE-TX operation with the differences being that the scrambler/de-scrambler and MLT3 encoder/decoder are bypassed on transmission and reception. In addition, auto-negotiation is bypassed and auto MDI/MDI-X is disabled.

September 2009 17

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

100BASE-FX Signal Detection

In 100BASE-FX operation, FXSD (fiber signal detect), input pin 15 and 63, is usually connected to the fiber transceiver SD (signal detect) output pin. The fiber signal threshold can be selected by register 192 bit 7 and 6 respectively for port 2 and port 1 , When

FXSD is less than the threshold, no fiber signal is detected and a far-end fault (FEF) is generated. When FXSD is over the threshold, the fiber signal is detected.

Alternatively, the designer may choose not to implement the FEF feature. In this case, the FXSD input pin is tied high to force

100BASE-FX mode.

100BASE-FX signal detection is summarized in the following table:

Register 192 bit 7 (port 2), bit 6 (port 1) Fiber Signal Threshold at FXSD

1 2.0V

0 1.2V

Table 1. FX Signal Threshold

To ensure proper operation, a resistive voltage divider is recommended to adjust the fiber transceiver SD output voltage swing to match the FXSD pin’s input voltage threshold.

100BASE-FX Far-End Fault

A far-end fault (FEF) occurs when the signal detection is logically false on the receive side of the fiber transceiver. The KSZ8873FLL detects a FEF when its FXSD input is Fiber Signal Threshold. When a FEF is detected, the KSZ8873FLL signals its fiber link partner that a FEF has occurred by sending 84 1’s followed by a zero in the idle period between frames.

By default, FEF is enabled. FEF can be disabled through register setting.

10BASE-T Transmit

The 10BASE-T driver is incorporated with the 100BASE-TX driver to allow for transmission using the same magnetics. They are internally wave-shaped and pre-emphasized into outputs with a typical 2.3V amplitude. The harmonic contents are at least 27dB below the fundamental frequency when driven by an all-ones Manchester-encoded signal.

10BASE-T Receive

On the receive side, input buffers and level detecting squelch circuits are employed. A differential input receiver circuit and a phaselocked loop (PLL) perform the decoding function. The Manchester-encoded data stream is separated into clock signal and NRZ data.

A squelch circuit rejects signals with levels less than 400mV or with short pulse widths to prevent noise at the RXP-or-RXM input from falsely triggering the decoder. When the input exceeds the squelch limit, the PLL locks onto the incoming signal and the

KSZ8873MLL/FLL/RLL decodes a data frame. The receiver clock is maintained active during idle periods in between data reception.

MDI/MDI-X Auto Crossover

To eliminate the need for crossover cables between similar devices, the KSZ8873MLL/FLL/RLL supports HP Auto MDI/MDI-X and

IEEE 802.3u standard MDI/MDI-X auto crossover. HP Auto MDI/MDI-X is the default.

The auto-sense function detects remote transmit and receive pairs and correctly assigns transmit and receive pairs for the

KSZ8873MLL/FLL/RLL device. This feature is extremely useful when end users are unaware of cable types, and also, saves on an additional uplink configuration connection. The auto-crossover feature can be disabled through the port control registers, or MIIM PHY registers.

The IEEE 802.3u standard MDI and MDI-X definitions are:

MDI MDI-X

RJ-45 Pins Signals RJ-45 Pins Signals

1 TD+ 1 RD+

2 TD- 2 RD-

3 RD+ 3 TD+

6 RD- 6 TD-

Table 2. MDI/MDI-X Pin Definitions

September 2009 18

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Straight Cable

A straight cable connects an MDI device to an MDI-X device, or an MDI-X device to an MDI device. The following diagram depicts a typical straight cable connection between a NIC card (MDI) and a switch, or hub (MDI-X).

10/100 Ethernet

Media Dependent Interface

Transmit Pair

Receive Pair

3

4

5

1

2

6

7

8

Modular Connector

(RJ-45)

NIC

Straight

Cable

10/100 Ethernet

Media Dependent Interface

3

4

5

1

2

6

7

8

Receive Pair

Transmit Pair

Modular Connector

(RJ-45)

HUB

(Repeater or Switch)

Figure 1. Typical Straight Cable Connection

September 2009 19

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Crossover Cable

A crossover cable connects an MDI device to another MDI device, or an MDI-X device to another MDI-X device. The following diagram shows a typical crossover cable connection between two switches or hubs (two MDI-X devices).

10/100 Ethernet

Media Dependent Interface

10/100 Ethernet

Media Dependent Interface

Receive Pair

Transmit Pair

3

4

1

2

5

6

7

8

Modular Connector (RJ-45)

HUB

(Repeater or Switch)

Crossover

Cable

3

4

1

2

5

6

7

8

Receive Pair

Transmit Pair

Modular Connector (RJ-45)

HUB

(Repeater or Switch)

Figure 2. Typical Crossover Cable Connection

September 2009 20

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Auto-Negotiation

The KSZ8873MLL/FLL/RLL conforms to the auto-negotiation protocol, defined in Clause 28 of the IEEE 802.3u specification.

Auto-negotiation allows unshielded twisted pair (UTP) link partners to select the best common mode of operation. In autonegotiation, link partners advertise their capabilities across the link to each other. If auto-negotiation is not supported or the KSZ8873MLL/FLL/RLL link partner is forced to bypass auto-negotiation, the KSZ8873MLL/FLL/RLL sets its operating mode by observing the signal at its receiver. This is known as parallel detection, and allows the KSZ8873MLL/FLL/RLL to establish link by listening for a fixed signal protocol in the absence of auto-negotiation advertisement protocol.

The link up process is shown in the following flow diagram.

Start Auto Negotiation

Force Link Setting

Yes

Bypass Auto Negotiation and Set Link Mode

N o

Parallel

Operation

Attempt Auto

Negotiation

Listen for 100BASE-TX

Idles

Listen for 10BASE-T

Link Pulses

No

Join

Flow

September 2009

Link Mode Set ?

Yes

Link Mode Set

Figure 3. Auto-Negotiation and Parallel Operation

21

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

LinkMD

®

Cable Diagnostics

Port 2 of KSZ8873MLL/FLL/RLL supports the LinkMD

®.

The LinkMD

®

feature utilizes time domain reflectometry (TDR) to analyze the cabling plant for common cabling problems such as open circuits, short circuits and impedance mismatches.

LinkMD

®

works by sending a pulse of known amplitude and duration down the MDI and MDI-X pairs and then analyzes the shape of the reflected signal. Timing the pulse duration gives an indication of the distance to the cabling fault with maximum distance of 200m and accuracy of ±2m. Internal circuitry displays the TDR information in a user-readable digital format.

Note: Cable diagnostics are only valid for copper connections and do not support fiber optic operation.

Access

LinkMD

®

is initiated by accessing registers {42,43}, the LinkMD

®

Control/Status registers for port 2, and in conjunction with registers 45, Port Control Register 13.

Alternatively, the MIIM PHY registers 0 and 29 can be used for LinkMD

®

access.

Usage

The following is a sample procedure for using LinkMD

®

with registers {42,43,45} on port 2.

1. Disable auto MDI/MDI-X by writing a ‘1’ to register 45, bit [2] to enable manual control over the differential pair used to transmit the LinkMD

®

pulse.

2. Start cable diagnostic test by writing a ‘1’ to register 42, bit [4]. This enable bit is self-clearing.

3. Wait (poll) for register 42, bit [4] to return a ‘0’, indicating cable diagnostic test is completed.

4. Read cable diagnostic test results in register 42, bits [6:5]. The results are as follows:

00 = normal condition (valid test)

01 = open condition detected in cable (valid test)

10 = short condition detected in cable (valid test)

11 = cable diagnostic test failed (invalid test)

The ‘11’ case, invalid test, occurs when the KSZ8873MLL/FLL/RLL is unable to shut down the link partner. In this instance, the test is not run, since it would be impossible for the KSZ8873MLL/FLL/RLL to determine if the detected signal is a reflection of the signal generated or a signal from another source.

5. Get distance to fault by concatenating register 42, bit [0] and register 43, bits [7:0]; and multiplying the result by a constant of 0.4. The distance to the cable fault can be determined by the following formula:

D (distance to cable fault) = 0.4 x {(register 26, bit [0]),(register 27, bits [7:0])}

D (distance to cable fault) is expressed in meters.

Concatenated value of registers 42 and 43 is converted to decimal before multiplying by 0.4.

The constant (0.4) may be calibrated for different cabling conditions, including cables with a velocity of propagation that varies significantly from the norm.

Functional Overview: Power Management

The KSZ8873MLL/FLL/RLL supports a full chip hardware power down mode. When activated (pin PWRDN =0), the entire chip is powered down.

The KSZ8873MLL/FLL/RLL can also use a single 2.5V power supply instead of 3.3V. It will save about 30% of the power compared to 3.3V power supply.

The KSZ8873MLL/FLL/RLL supports enhanced power management feature in low power state with energy detection to ensure low-power dissipation during device idle periods. There are five operation modes under the power management function which is controlled by two bits in Register 195 (0xC3) and one bit in Register 29 (0x1D),45(0x2D) as shown below:

Register 195 bit[5:4] = 00 Normal Operation Mode

Register 195 bit[5:4] = 01 Energy Detect Mode

September 2009 22

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Register 195 bit[5:4] = 10 Soft Power Down Mode

Register 195 bit[5:4] = 11 Power Saving Mode

Register 29,45 bit 3 =1 Port Based Power Down Mode

Table 1 indicates all internal function blocks status under four different power management operation modes.

KSZ8873MLL/FLL/RL

L

Function Blocks

Power Management Operation Modes

Normal Mode Power Saving Mode Energy Detect Mode Soft Power Down Mode

Internal PLL Clock

Tx/Rx PHY

Enabled

Enabled

Enabled

Rx unused block disabled

MAC Enabled Enabled

Host Interface Enabled Enabled

Disabled

Energy detect at Rx

Disabled

Disabled

Disabled

Disabled

Disabled

Disabled

Table 3. Internal Function Block Status

Normal Operation Mode

This is the default setting bit[5:4]=00 in register 195 after the chip power-up or hardware reset . When KSZ8873MLL/FLL/RLL is in this normal operation mode, all PLL clocks are running, PHY and MAC are on and the host interface is ready for CPU read or write.

During the normal operation mode, the host CPU can set the bit[5:4] in register 195 to transit the current normal operation mode to any one of the other three power management operation modes.

Energy Detect Mode

The energy detect mode provides a mechanism to save more power than in the normal operation mode when the

KSZ8873MLL/FLL/RLL is not connected to an active link partner. In this mode, the device will save up to 50% of the power. If the cable is not plugged, the KSZ8873MLL/FLL/RLL can automatically enter to a low power state, a.k.a., the energy detect mode. In this mode, KSZ8873MLL/FLL/RLL will keep transmitting 120ns width pulses at 1 pulse/s rate. Once activity resumes due to plugging a cable or attempting by the far end to establish link, the KSZ8873MLL/FLL/RLL can automatically power up to normal power state in energy detect mode.

Energy detect mode consists of two states, normal power state and low power state. While in low power state, the

KSZ8873MLL/FLL/RLL reduces power consumption by disabling all circuitry except the energy detect circuitry of the receiver.

The energy detect mode is entered by setting bit[5:4]=01 in register 195. When the KSZ8873MLL/FLL/RLL is in this mode, it will monitor the cable energy. If there is no energy on the cable for a time longer than pre-configured value at bit[7:0] Go-Sleep time in register 196, KSZ8873MLL/FLL/RLL will go into a low power state. When KSZ8873MLL/FLL/RLL is in low power state, it will keep monitoring the cable energy. Once the energy is detected from the cable, KSZ8873MLL/FLL/RLL will enter normal power state. When KSZ8873MLL/FLL/RLL is at normal power state, it is able to transmit or receive packet from the cable.

Soft Power Down Mode

The soft power down mode is entered by setting bit[1:0]=10 in register 195. When KSZ8873MLL/FLL/RLL is in this mode, all

PLL clocks are disabled, the PHY and the MAC are off, all internal registers value will not change. Any dummy host access will wake-up this device from current soft power down mode to normal operation mode.

Power Saving Mode

The power saving mode is entered when auto-negotiation mode is enabled, cable is disconnected, and by setting bit[1:0]=11 in register 195. When KSZ8873MLL/FLL/RLL is in this mode, all PLL clocks are enabled, MAC is on, all internal registers value will not change, and host interface is ready for CPU read or write. In this mode, it mainly controls the PHY transceiver on or off based on line status to achieve power saving. The PHY remains transmitting and only turns off the unused receiver block. Once activity resumes due to plugging a cable or attempting by the far end to establish link, the KSZ8873MLL/FLL/RLL can automatically enabled the PHY power up to normal power state from power saving mode.

During this power saving mode, the host CPU can set bit[1:0] =0 in register 195 to transit the current power saving mode to any one of the other three power management operation modes.

The KSZ8873MLL/FLL/RLL also features a per-port power down mode. To save power, a PHY port that is not in use can be powered down via port control register, or MIIM PHY register.

Port based Power Down Mode

September 2009 23

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

In addition, the KSZ8873MLL/FLL/RLL features a per-port power down mode. To save power, a PHY port that is not in use can be powered down via port control register 29 or 45 bit 3, or MIIM PHY register.

Functional Overview: MAC and Switch

Address Lookup

The internal lookup table stores MAC addresses and their associated information. It contains a 1K unicast address table plus switching information.

The KSZ8873MLL/FLL/RLL is guaranteed to learn 1K addresses and distinguishes itself from hash-based lookup tables, which depending on the operating environment and probabilities, may not guarantee the absolute number of addresses it can learn.

Learning

The internal lookup engine updates its table with a new entry if the following conditions are met:

1. The received packet's Source Address (SA) does not exist in the lookup table.

2. The received packet is good; the packet has no receiving errors, and is of legal length.

The lookup engine inserts the qualified SA into the table, along with the port number and time stamp. If the table is full, the last entry of the table is deleted to make room for the new entry.

Migration

The internal lookup engine also monitors whether a station has moved. If a station has moved, it will update the table accordingly. Migration happens when the following conditions are met:

1. The received packet's SA is in the table but the associated source port information is different.

2. The received packet is good; the packet has no receiving errors, and is of legal length.

The lookup engine will update the existing record in the table with the new source port information.

Aging

The lookup engine updates the time stamp information of a record whenever the corresponding SA appears. The time stamp is used in the aging process. If a record is not updated for a period of time, the lookup engine removes the record from the table. The lookup engine constantly performs the aging process and will continuously remove aging records. The aging period is about 200 seconds. This feature can be enabled or disabled through register 3 (0x03) bit [2].

Forwarding

The KSZ8873MLL/FLL/RLL forwards packets using the algorithm that is depicted in the following flowcharts. Figure 4 shows stage one of the forwarding algorithm where the search engine looks up the VLAN ID, static table, and dynamic table for the destination address, and comes up with “port to forward 1” (PTF1). PTF1 is then further modified by spanning tree, IGMP snooping, port mirroring, and port VLAN processes to come up with “port to forward 2” (PTF2), as shown in Figure 5. The packet is sent to PTF2.

September 2009 24

M9999-092309-1.2

Micrel, Inc.

Start

PTF1= NULL

NO

VLAN ID

Valid?

- Search VLAN table

- Ingress VLAN filtering

- Discard NPVID check

YES

Search complete.

Get PTF1 from

Static MAC Table

FOUND

Search Static

Table

NOT

FOUND

This search is based on

DA or DA+FID

Search complete.

Get PTF1 from

Dynamic MAC

Table

FOUND

Dynamic Table

Search

NOT

FOUND

This search is based on

DA+FID

Search complete.

Get PTF1 from

VLAN Table

KSZ8873MLL/FLL/RLL

PTF1

Figure 4. Destination Address Lookup Flow Chart, Stage 1

September 2009 25

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

PTF1

Spanning Tree

Process

- Check receiving port's receive enable bit

- Check destination port's transmit enable bit

- Check whether packets are special (BPDU

or specified)

IGMP Process

- Applied to MAC #1 and MAC #2

- MAC #3 is reserved for

microprocessor

- IGMP will be forwarded to port 3

Port Mirror

Process

- RX Mirror

- TX Mirror

- RX or TX Mirror

- RX and TX Mirror

Port VLAN

Membership

Check

PTF2

Figure 5. Destination Address Resolution Flow Chart, Stage 2

The KSZ8873MLL/FLL/RLL will not forward the following packets:

These include framing errors, Frame Check Sequence (FCS) errors, alignment errors, and illegal size

KSZ8873MLL/FLL/RLL intercepts these packets and performs full duplex flow control accordingly.

3. "Local" packets

Based on destination address (DA) lookup. If the destination port from the lookup table matches the port from which the packet originated, the packet is defined as "local."

September 2009 26

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Switching Engine

The KSZ8873MLL/FLL/RLL features a high-performance switching engine to move data to and from the MACs’ packet buffers. It operates in store and forward mode, while the efficient switching mechanism reduces overall latency.

The switching engine has a 32kB internal frame buffer. This buffer pool is shared between all three ports. There are a total of 256 buffers available. Each buffer is sized at 128 bytes.

MAC Operation

The KSZ8873MLL/FLL/RLL strictly abides by IEEE 802.3 standards to maximize compatibility.

Inter Packet Gap (IPG)

If a frame is successfully transmitted, the 96 bits time IPG is measured between the two consecutive MTXEN. If the current packet is experiencing collision, the 96 bits time IPG is measured from MCRS and the next MTXEN.

Back-Off Algorithm

The KSZ8873MLL/FLL/RLL implements the IEEE 802.3 standard for the binary exponential back-off algorithm, and optional "aggressive mode" back-off. After 16 collisions, the packet is optionally dropped depending on the switch configuration for register 4 (0x04) bit [3].

Late Collision

If a transmit packet experiences collisions after 512 bit times of the transmission, the packet is dropped.

Illegal Frames

The KSZ8873MLL/FLL/RLL discards frames less than 64 bytes, and can be programmed to accept frames up to1518 bytes, 1536 bytes or 1916 bytes. These maximum frame size settings are programmed in register 4 (0x04). Since the

KSZ8873MLL/FLL/RLL supports VLAN tags, the maximum sizing is adjusted when these tags are present.

Full Duplex Flow Control

The KSZ8873MLL/FLL/RLL supports standard IEEE 802.3x flow control frames on both transmit and receive sides.

On the receive side, if the KSZ8873MLL/FLL/RLL receives a pause control frame, the KSZ8873MLL/FLL/RLL will not transmit the next normal frame until the timer, specified in the pause control frame, expires. If another pause frame is received before the current timer expires, the timer will be updated with the new value in the second pause frame. During this period (while it is flow controlled), only flow control packets from the KSZ8873MLL/FLL/RLL are transmitted.

On the transmit side, the KSZ8873MLL/FLL/RLL has intelligent and efficient ways to determine when to invoke flow control. The flow control is based on availability of the system resources, including available buffers, available transmit queues and available receive queues.

The KSZ8873MLL/FLL/RLL will flow control a port that has just received a packet if the destination port resource is busy.

The KSZ8873MLL/FLL/RLL issues a flow control frame (XOFF), containing the maximum pause time defined by the IEEE

802.3x standard. Once the resource is freed up, the KSZ8873MLL/FLL/RLL sends out the other flow control frame (XON) with zero pause time to turn off the flow control (turn on transmission to the port). A hysteresis feature is provided to prevent the flow control mechanism from being constantly activated and deactivated.

The KSZ8873MLL/FLL/RLL flow controls all ports if the receive queue becomes full.

Half-Duplex Backpressure

A half-duplex backpressure option (not in IEEE 802.3 standards) is also provided. The activation and deactivation conditions are the same as full duplex flow control. If backpressure is required, the KSZ8873MLL/FLL/RLL sends preambles to defer the other stations' transmission (carrier sense deference).

To avoid jabber and excessive deference (as defined in the 802.3 standard), after a certain time, the

KSZ8873MLL/FLL/RLL discontinues the carrier sense and then raises it again quickly. This short silent time (no carrier sense) prevents other stations from sending out packets thus keeping other stations in a carrier sense deferred state. If the port has packets to send during a backpressure situation, the carrier sense type backpressure is interrupted and those packets are transmitted instead. If there are no additional packets to send, carrier sense type backpressure is reactivated again until switch resources free up. If a collision occurs, the binary exponential back-off algorithm is skipped and carrier sense is generated immediately, thus reducing the chance of further collisions and carrier sense is maintained to prevent packet reception.

September 2009 27

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

To ensure no packet loss in 10 BASE-T or 100 BASE-TX half duplex modes, the user must enable the following:

1. Aggressive back-off (register 3 (0x03), bit [0])

2. No excessive collision drop (register 4 (0x04), bit [3])

Note: These bits are not set as defaults, as this is not the IEEE standard.

Broadcast Storm Protection

The KSZ8873MLL/FLL/RLL has an intelligent option to protect the switch system from receiving too many broadcast packets. As the broadcast packets are forwarded to all ports except the source port, an excessive number of switch resources (bandwidth and available space in transmit queues) may be utilized. The KSZ8873MLL/FLL/RLL has the option to include “multicast packets” for storm control. The broadcast storm rate parameters are programmed globally, and can be enabled or disabled on a per port basis. The rate is based on a 67ms interval for 100BT and a 500ms interval for 10BT.

At the beginning of each interval, the counter is cleared to zero, and the rate limit mechanism starts to count the number of bytes during the interval. The rate definition is described in register 6 (0x06) and 7 (0x07). The default setting is 0x63

(99 decimal). This is equal to a rate of 1%, calculated as follows:

148,800 frames/sec * 67ms/interval * 1% = 99 frames/interval (approx.) = 0x63

Note: 148,800 frames/sec is based on 64-byte block of packets in 100BASE-TX with 12 bytes of IPG and 8 bytes of preamble between two packets.

Port Individual MAC address and Source Port Filtering

The KSZ8873MLL/FLL/RLL provide individual MAC address for port 1 and port 2 respectively. They can be set at register

142-147 and 148-153. With this feature, the CPU connected to the port 3 can receive the packets from two internet subnets which has their own MAC address.

The packet will be filtered if its source address matches the MAC address of port 1 or port 2 when the register 21 and 37 bit 6 is set to 1 respectively. For example, the packet will be dropped after it completes the loop of a ring network.

MII Interface Operation

The Media Independent Interface (MII) is specified in Clause 22 of the IEEE 802.3u Standard. It provides a common interface between physical layer and MAC layer devices. The MII provided by the KSZ8873MLL/FLL is connected to the device’s third MAC. The interface contains two distinct groups of signals: one for transmission and the other for reception.

The following table describes the signals used by the MII bus.

PHY-Mode Connections

External MAC

Controller Signals

MTXEN

MTXER

MTXD3

MTXD2

MTXD1

MTXD0

MTXC

MCOL

MCRS

MRXDV

MRXER

MRXD3

MRXD2

MRXD1

MRXD0

MRXC

KSZ8873MLL/FLL

PHY Signals

SMTXD33

SMTXD32

SMTXD31

SMTXD30

(not used)

SMRXD33

SMRXD32

SMRXD31

SMRXD30

Pin

Descriptions

Transmit data bit 3

Transmit data bit 2

Transmit data bit 1

Transmit data bit 0

Receive error

Receive data bit 3

Receive data bit 2

Receive data bit 1

Receive data bit 0

Table 4. MII Signals

MAC-Mode Connections

External

PHY Signals

KSZ8873MLL/FLL

MAC Signals

MTXD3

MTXD2

MTXD1

MTXD0

MRXER

MRXD3

MRXD2

MRXD1

MRXD0

SMRXD33

SMRXD32

SMRXD31

SMRXD30

SMTXER3

SMTXD33

SMTXD32

SMTXD31

SMTXD30

September 2009 28

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

The MII operates in either PHY mode or MAC mode. The data interface is a nibble wide and runs at ¼ the network bit rate

(not encoded). Additional signals on the transmit side indicate when data is valid or when an error occurs during transmission. Similarly, the receive side has signals that convey when the data is valid and without physical layer errors.

For half duplex operation, the SCOL signal indicates if a collision has occurred during transmission.

The KSZ8873MLL/FLL does not provide the MRXER signal for PHY mode operation and the MTXER signal for MAC mode operation. Normally, MRXER indicates a receive error coming from the physical layer device and MTXER indicates a transmit error from the MAC device. Since the switch filters error frames, these MII error signals are not used by the

KSZ8873MLL/FLL. So, for PHY mode operation, if the device interfacing with the KSZ8873MLL/FLL has an MRXER input pin, it needs to be tied low. And, for MAC mode operation, if the device interfacing with the KSZ8873MLL/FLL has an

MTXER input pin, it also needs to be tied low.

The KSZ8873MLL/FLL provides a bypass feature in the MII PHY mode. Pin SMTXER3/MII_LINK is used for MII link status. If the host is power down, pin MII_LINK will go to high. In this case, no new ingress frames from port1 or port 2 will be sent out through port 3, and the frames for port 3 already in packet memory will be flushed out.

Turbo MII Interface Operation

The switch MII interface also supports the turbo MII mode with 200Mbps rate (200Base-TX) by setting the register 2 bit[6]=1. When use the Turbo MII mode, the other side of the MII should also support 200Mbps rate. The Turbo MII can be configured to PHY mode or MAC mode by the configuration pins. In PHY mode, the pins SMTXC and SMRXC will be 50

MHz clock output. In MAC mode, the pins SMTXC and SMRXC should be 50 MHz clock input.

RMII Interface Operation

The Reduced Media Independent Interface (RMII) specifies a low pin count Media Independent Interface (MII). RMII provides a common interface between physical layer and MAC layer devices, and has the following key characteristics:

1. ports 10Mbps and 100Mbps data rates.

2. Uses a single 50 MHz clock reference (provided internally or externally).

3. Provides independent 2-bit wide (di-bit) transmit and receive data paths.

4. Contains two distinct groups of signals: one for transmission and the other for reception

When EN_REFCLKO_3 is high, KSZ8873RLL will output a 50MHz in REFCLKO_3. Register 198 bit[3] is used to select internal or external reference clock. Internal reference clock means that the clock for the RMII of KSZ8873RLL will be provided by the KSZ8873RLL internally and the REFCLKI_3 pin is unconnected. For the external reference clock, the clock will provide to KSZ8873RLL via REFCLKI_3.

Note: If the reference clock is not provided by the KSZ8873RLL, this 50MHz reference clock has to be used in X1 pin instead of the 25MHz crystal since the clock skew of these two clock sources will impact on the RMII timing. The SPIQ clock selection strapping option pin is connected to low to select the 50MHz input.

0 0 External 50MHz OSC input to REFCLKI_3

Note

EN_REFCLKO_3 = 0 to Disable

REFCLKO_3 for better

EMI

0 1

1 1

1 0

Feedback to

REFCLKI_3

Internal Clock Source

REFCLKI_3 is unconnected to Enable

REFCLKO_3

EN_REFCLKO_3 = 1 to Enable

REFCLKO_3

Table 5. RMII Clock Setting

The RMII provided by the KSZ8873RLL is connected to the device’s third MAC. It complies with the RMII Specification.

The following table describes the signals used by the RMII bus. Refer to RMII Specification for full detail on the signal description.

September 2009 29

M9999-092309-1.2

Micrel, Inc.

RMII

Signal Name

Direction

(with respect to the PHY)

Direction

(with respect to the MAC)

RMII

Signal Description

REF_CLK Input

Input or

Output

CRS_DV Output Input

RXD1

RXD0

Output

Output

Input

Input

Synchronous 50 MHz clock reference for receive, transmit and control interface

Carrier sense/

Receive data valid

Receive data bit 1

Receive data bit 0

TXD1

TXD0

Input

Input

Output

Output

Input

RX_ER Output

(not required)

Transmit data bit 1

Transmit data bit 0

Receive error

KSZ8873MLL/FLL/RLL

KSZ8873RLL

RMII Signal (direction)

REFCLKI_3 (input)

SMRXDV3 (output)

SMRXD31 (output)

SMRXD30 (output)

SMTXEN3 (input)

SMTXD31 (input)

SMTXD30 (input)

(not used)

SMTXER3* (input)

* Connects to RX_ER signal of RMII PHY device

Table 6. RMII Signal Description

The KSZ8873RLL filters error frames, and thus does not implement the RX_ER output signal. To detect error frames from

RMII PHY devices, the SMTXER3 input signal of the KSZ8873RLL is connected to the RXER output signal of the RMII

PHY device.

Collision detection is implemented in accordance with the RMII Specification.

In RMII mode, tie MII signals, SMTXD3[3:2] and SMTXER3, to ground if they are not used.

The KSZ8873RLL RMII can interface with RMII PHY and RMII MAC devices. The latter allows two KSZ8873RLL devices to be connected back-to-back. The following table shows the KSZ8873RLL RMII pin connections with an external RMII

PHY and an external RMII MAC, such as another KSZ8873RLL device.

KSZ8873RLL

PHY-MAC Connections

External

PHY Signals

KSZ8873RLL

MAC Signals

REF_CLK

TX_EN

TXD1

TXD0

Pin

Descriptions

KSZ8873RLL

MAC-MAC Connections

KSZ8873RLL

MAC Signals

External

MAC Signals

REFCLKI_3 Reference REFCLKI_3 REF_CLK

SMRXDV3

SMRXD31

SMRXD30

Carrier sense/

Receive data valid

Receive data bit 1

Receive data bit 0

SMRXDV3 CRS_DV

SMRXD31 RXD1

SMRXD30 RXD0

CRS_DV

RXD1

RXD0

RX_ER

SMTXEN3 Transmit SMTXEN3 TX_EN

SMTXD31

SMTXD30

Transmit data bit 1

Transmit data bit 0

SMTXD31 TXD1

SMTXD30 TXD0

(not used) (not used)

Table 7. RMII Signal Connections

September 2009 30

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

MII Management (MIIM) Interface

The KSZ8873MLL/FLL/RLL supports the IEEE 802.3 MII Management Interface, also known as the Management Data

Input/Output (MDIO) Interface. This interface allows upper-layer devices to monitor and control the states of the

KSZ8873MLL/FLL/RLL. An external device with MDC/MDIO capability is used to read the PHY status or configure the

PHY settings. Further detail on the MIIM interface is found in Clause 22.2.4.5 of the IEEE 802.3u Specification.

The MIIM interface consists of the following:

ƒ A physical connection that incorporates the data line (SDA_MDIO) and the clock line (SCL_MDC).

ƒ A specific protocol that operates across the aforementioned physical connection that allows an external controller to communicate with the KSZ8873MLL/FLL/RLL device.

ƒ Access to a set of eight 16-bit registers, consisting of six standard MIIM registers [0:5] and two custom MIIM registers [29, 31].

The MIIM Interface can operate up to a maximum clock speed of 5MHz.

The following table depicts the MII Management Interface frame format.

Read

Write

32 1’s

32 1’s

Frame

01

01

OP Code

10

01

PHY

Address

Bits [4:0]

AAAAA

AAAAA

REG

Address

Bits [4:0]

RRRRR

RRRRR

TA

Z0

10

Data Bits [15:0]

DDDDDDDD_DDDDDDDD

DDDDDDDD_DDDDDDDD

Table 8. MII Management Interface Frame Format

Idle

Z

Z

Serial Management Interface (SMI)

The SMI is the KSZ8873MLL/FLL/RLL non-standard MIIM interface that provides access to all KSZ8873MLL/FLL/RLL configuration registers. This interface allows an external device to completely monitor and control the states of the

KSZ8873MLL/FLL/RLL.

The SMI interface consists of the following:

ƒ A physical connection that incorporates the data line (SDA_MDIO) and the clock line (SCL_MDC).

ƒ A specific protocol that operates across the aforementioned physical connection that allows an external controller to communicate with the KSZ8873MLL/FLL/RLL device.

ƒ Access to all KSZ8873MLL/FLL/RLL configuration registers. Register access includes the Global, Port and

Advanced Control Registers 0-198 (0x00 – 0xC6), and indirect access to the standard MIIM registers [0:5] and custom MIIM registers [29, 31].

The following table depicts the SMI frame format.

Read

Write

32 1’s

32 1’s

Frame OP Code

PHY

Address

Bits [4:0]

REG

Address

Bits [4:0]

TA Data Bits [15:0]

01

01

00

00 0xRRR RRRRR 10 xxxx_xxxx_DDDD_DDDD

Table 9. Serial Management Interface (SMI) Frame Format

Idle

Z

SMI register read access is selected when OP Code is set to “00” and bit 4 of the PHY address is set to ‘1’. SMI register write access is selected when OP Code is set to “00” and bit 4 of the PHY address is set to ‘0’. PHY address bit[3] is undefined for SMI register access, and hence can be set to either ‘0’ or ‘1’ in read/write operations.

To access the KSZ8873MLL/FLL/RLL registers 0-196 (0x00 – 0xC6), the following applies:

ƒ PHYAD[2:0] and REGAD[4:0] are concatenated to form the 8-bit address; that is, {PHYAD[2:0], REGAD[4:0]} = bits [7:0] of the 8-bit address.

September 2009 31

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

ƒ Registers are 8 data bits wide.

For read operation, data bits [15:8] are read back as 0’s.

For write operation, data bits [15:8] are not defined, and hence can be set to either ‘0’ or ‘1’.

SMI register access is the same as the MIIM register access, except for the register access requirements presented in this section.

Advanced Switch Functions

Bypass Mode

The KSZ8873MLL/FLL/RLL also offer a by-pass mode, which enables system-level power saving. When the CPU

(connected to Port 3) enters a power saving mode, the KSZ8873MLL/FLL/RLL automatically switches to the bypass mode in which the switch function between Port1 and Port2 is sustained.

IEEE 802.1Q VLAN Support

The KSZ8873MLL/FLL/RLL supports 16 active VLANs out of the 4096 possible VLANs specified in the IEEE 802.1Q specification. KSZ8873MLL/FLL/RLL provides a 16-entries VLAN Table, which converts the 12-bits VLAN ID (VID) to the

4-bits Filter ID (FID) for address lookup. If a non-tagged or null-VID-tagged packet is received, the ingress port default VID is used for lookup. In VLAN mode, the lookup process starts with VLAN Table lookup to determine whether the VID is valid. If the VID is not valid, the packet is dropped and its address is not learned. If the VID is valid, the FID is retrieved for further lookup. The FID + Destination Address (FID+DA) are used to determine the destination port. The FID + Source

Address (FID+SA) are used for address learning.

DA found in

Static MAC

Table?

Use FID flag? FID match?

DA+FID found in

Dynamic

MAC Table?

Action

No Don’t care Don’t care No

Broadcast to the membership ports defined in the VLAN Table bits [18:16]

No Don’t care Don’t care Yes

Send to the destination port defined in the

Dynamic MAC Address Table bits [53:52]

Send to the destination port(s) defined in the Static MAC Address Table bits [50:48]

Broadcast to the membership ports defined in the VLAN Table bits [18:16]

Yes

Send to the destination port defined in the

Dynamic MAC Address Table bits [53:52]

Send to the destination port(s) defined in care the Static MAC Address Table bits [50:48]

Table 10. FID+DA Lookup in VLAN Mode

FID+SA found in Dynamic MAC Table? Action

No

Yes

Learn and add FID+SA to the Dynamic MAC Address Table

Update time stamp

Table 11. FID+SA Lookup in VLAN Mode

Advanced VLAN features, such as “Ingress VLAN filtering” and “Discard Non PVID packets” are also supported by the

KSZ8873MLL/FLL/RLL. These features can be set on a per port basis, and are defined in register 18, 34 and 50 for ports

1, 2 and 3, respectively.

September 2009 32

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

QoS Priority Support

The KSZ8873MLL/FLL/RLL provides Quality of Service (QoS) for applications such as VoIP and video conferencing.

Offering four priority queues per port, the per-port transmit queue can be split into four priority queues: Queue 3 is the highest priority queue and Queue 0 is the lowest priority queue. Bit [0] of registers 16, 32 and 48 is used to enable split transmit queues for ports 1, 2 and 3, respectively. If a port's transmit queue is not split, high priority and low priority packets have equal priority in the transmit queue.

There is an additional option to either always deliver high priority packets first or use weighted fair queuing for the four priority queues. This global option is set and explained in bit [3] of register 5.

Port-Based Priority

With port-based priority, each ingress port is individually classified as a high priority receiving port. All packets received at the high priority receiving port are marked as high priority and are sent to the high-priority transmit queue if the corresponding transmit queue is split. Bits [4:3] of registers 16, 32 and 48 are used to enable port-based priority for ports

1, 2 and 3, respectively.

802.1p-Based Priority

For 802.1p-based priority, the KSZ8873MLL/FLL/RLL examines the ingress (incoming) packets to determine whether they are tagged. If tagged, the 3-bit priority field in the VLAN tag is retrieved and compared against the “priority mapping” value, as specified by the registers 12 and 13. The “priority mapping” value is programmable.

The following figure illustrates how the 802.1p priority field is embedded in the 802.1Q VLAN tag.

Bytes 8

Preamble

6

DA

6

SA

2

VPID

2

TCI

2 length LLC

46-1500

Data

4

FCS

Bits

802.1q VLAN Tag

16

Tagged Packet Type

(8100 for Ethernet)

3

802.1p

1 12

VLAN ID

Figure 6. 802.1p Priority Field Format

802.1p-based priority is enabled by bit [5] of registers 16, 32 and 48 for ports 1, 2 and 3, respectively.

The KSZ8873MLL/FLL/RLL provides the option to insert or remove the priority tagged frame's header at each individual egress port. This header, consisting of the 2 bytes VLAN Protocol ID (VPID) and the 2-byte Tag Control Information field

(TCI), is also referred to as the IEEE 802.1Q VLAN tag.

Tag Insertion is enabled by bit [2] of registers 16, 32 and 48 for ports 1, 2 and 3, respectively. At the egress port, untagged packets are tagged with the ingress port’s default tag. The default tags are programmed in register sets {19,20},

{35,36} and {51,52} for ports 1, 2 and 3, respectively and the source port VID has to be inserted at selected egress ports by bit[5:0] of register 194. The KSZ8873MLL/FLL/RLL will not add tags to already tagged packets.

Tag Removal is enabled by bit [1] of registers 16, 32 and 48 for ports 1, 2 and 3, respectively. At the egress port, tagged packets will have their 802.1Q VLAN Tags removed. The KSZ8873MLL/FLL/RLL will not modify untagged packets.

The CRC is recalculated for both tag insertion and tag removal.

802.1p Priority Field Re-mapping is a QoS feature that allows the KSZ8873MLL/FLL/RLL to set the “User Priority

Ceiling” at any ingress port. If the ingress packet’s priority field has a higher priority value than the default tag’s priority field of the ingress port, the packet’s priority field is replaced with the default tag’s priority field.

September 2009 33

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

DiffServ-Based Priority

DiffServ-based priority uses the ToS registers (registers 96 to 111) in the Advanced Control Registers section. The ToS priority control registers implement a fully decoded, 64-bit Differentiated Services Code Point (DSCP) register to determine packet priority from the 6-bit ToS field in the IP header. When the most significant 6 bits of the ToS field are fully decoded, the resultant of the 64 possibilities is compared with the corresponding bits in the DSCP register to determine priority.

Spanning Tree Support

To support spanning tree, port 3 is designated as the processor port.

The other ports (port 1 and port 2) can be configured in one of the five spanning tree states via “transmit enable”, “receive enable” and “learning disable” register settings in registers 18 and 34 for ports 1 and 2, respectively. The following table shows the port setting and software actions taken for each of the five spanning tree states.

Disable State Port Setting Software Action

The port should not forward or receive any packets. Learning is disabled.

Blocking State

Only packets to the processor are forwarded.

Learning is disabled.

Listening State

Only packets to and from the processor are forwarded.

Learning is disabled.

Learning State

Only packets to and from the processor are forwarded.

Learning is enabled.

“transmit enable = 0, receive enable = 0, learning disable =1”

Port Setting

“transmit enable = 0, receive enable = 0, learning disable =1”

Port Setting

“transmit enable = 0, receive enable = 0, learning disable =1”

Port Setting

“transmit enable = 0, receive enable = 0, learning disable = 0”

The processor should not send any packets to the port. The switch may still send specific packets to the processor (packets that match some entries in the “static MAC table” with “overriding bit” set) and the processor should discard those packets. Address learning is disabled on the port in this state.

Software Action

The processor should not send any packets to the port(s) in this state. The processor should program the “Static MAC table” with the entries that it needs to receive (for example, BPDU packets). The “overriding” bit should also be set so that the switch will forward those specific packets to the processor. Address learning is disabled on the port in this state.

Software Action

The processor should program the “Static MAC table” with the entries that it needs to receive (for example, BPDU packets). The “overriding” bit should be set so that the switch will forward those specific packets to the processor. The processor may send packets to the port(s) in this state. See

“Tail Tagging Mode” for details. Address learning is disabled on the port in this state.

Software Action

The processor should program the “Static MAC table” with the entries that it needs to receive (for example, BPDU packets). The “overriding” bit should be set so that the switch will forward those specific packets to the processor. The processor may send packets to the port(s) in this state. See

“Tail Tagging Mode” for details. Address learning is enabled on the port in this state.

Forwarding

State

Port Setting Software Action

Packets are forwarded and received normally.

Learning is enabled.

“transmit enable = 1, receive enable = 1, learning disable = 0”

The processor programs the “Static MAC table” with the entries that it needs to receive (for example, BPDU packets). The “overriding” bit is set so that the switch forwards those specific packets to the processor. The processor can send packets to the port(s) in this state. See “Tail Tagging

Mode” for details. Address learning is enabled on the port in this state.

Table 12. Spanning Tree States

September 2009 34

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Rapid Spanning Tree Support

There are three operational states of the Discarding, Learning, and Forwarding assigned to each port for RSTP:

Discarding ports do not participate in the active topology and do not learn MAC addresses.

Discarding state: the state includs three states of the disable, blocking and listening of STP.

Port setting: "transmit enable = 0, receive enable = 0, learning disable = 1."

Software action: the processor should not send any packets to the port. The switch may still send specific packets to the processor (packets that match some entries in the static table with “overriding bit” set) and the processor should discard those packets. When disable the port’s learning capability (learning disable=’1’), set the register 2 bit 5 and bit 4 will flush rapidly the port related entries in the dynamic MAC table and static MAC table.

Note: processor is connected to port 3 via MII interface. Address learning is disabled on the port in this state.

Ports in Learning states learn MAC addresses, but do not forward user traffic.

Learning state: only packets to and from the processor are forwarded. Learning is enabled.

Port setting: “transmit enable = 0, receive enable = 0, learning disable = 0.”

Software action: The processor should program the static MAC table with the entries that it needs to receive (e.g., BPDU packets). The “overriding” bit should be set so that the switch will forward those specific packets to the processor. The processor may send packets to the port(s) in this state, see “Tail Tagging Mode” section for details. Address learning is enabled on the port in this state.

Ports in Forwarding states fully participate in both data forwarding and MAC learning.

Forwarding state: packets are forwarded and received normally. Learning is enabled.

Port setting: “transmit enable = 1, receive enable = 1, learning disable = 0.”

Software action: The processor should program the static MAC table with the entries that it needs to receive (e.g., BPDU packets). The “overriding” bit should be set so that the switch will forward those specific packets to the processor. The processor may send packets to the port(s) in this state, see “Tail Tagging Mode” section for details. Address learning is enabled on the port in this state.

RSTP uses only one type of BPDU called RSTP BPDUs. They are similar to STP Configuration BPDUs with the exception of a type field set to “version 2” for RSTP and “version 0” for STP, and a flag field carrying additional information.

Tail Tagging Mode

The Tail Tag is only seen and used by the port 3 interface, which should be connected to a processor. It is an effective way to retrieve the ingress port information for spanning tree protocol IGMP snooping and other applications. The Bit 1 and bit 0 in the one byte tail tagging is used to indicate the source/destination port in port 3. Bit 3 and bit 2 are used for the priority setting of the ingress frame in port 3. Other bits are not used. The Tail Tag feature is enable by setting register 3 bit 6.

Figure 7. Tail Tag Frame Format

September 2009 35

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Ingress to Port 3 (Host -> KSZ8873MML)

Bit [1,0] Destination Port

0,0 Normal (Address Look up)

1,1

Bit [3,2]

Port 1 and 2

Frame Priority

Egress from Port 3 (KSZ8873MML->Host)

Bit [0] Source Port

Figure 8. Tail Tag Rules

IGMP Support

For Internet Group Management Protocol (IGMP) support in layer 2, the KSZ8873MLL/FLL/RLL provides two components:

IGMP Snooping

The KSZ8873MLL/FLL/RLL traps IGMP packets and forwards them only to the processor (port 3). The IGMP packets are identified as IP packets (either Ethernet IP packets, or IEEE 802.3 SNAP IP packets) with IP version = 0x4 and protocol version number = 0x2.

Multicast Address Insertion in the Static MAC Table

Once the multicast address is programmed in the Static MAC Table, the multicast session is trimmed to the subscribed ports, instead of broadcasting to all ports.

To enable IGMP support, set register 5 bit [6] to ‘1’. Also, Tail Tagging Mode needs to be enabled, so that the processor knows which port the IGMP packet was received on. This is achieved by setting both register 3 bit [6] and register 48 bit

[2] to ‘1’.

Port Mirroring Support

KSZ8873MLL/FLL/RLL supports “Port Mirroring” comprehensively as:

“receive only” mirror on a port

All the packets received on the port are mirrored on the sniffer port. For example, port 1 is programmed to be

“receive sniff” and port 3 is programmed to be the “sniffer port”. A packet received on port 1 is destined to port 2 after the internal lookup. The KSZ8873MLL/FLL/RLL forwards the packet to both port 2 and port 3. The

KSZ8873MLL/FLL/RLL can optionally even forward “bad” received packets to the “sniffer port”.

“transmit only” mirror on a port

All the packets transmitted on the port are mirrored on the sniffer port. For example, port 1 is programmed to be

“transmit sniff” and port 3 is programmed to be the “sniffer port”. A packet received on port 2 is destined to port 1 after the internal lookup. The KSZ8873MLL/FLL/RLL forwards the packet to both port 1 and port 3.

“receive and transmit” mirror on two ports

All the packets received on port A and transmitted on port B are mirrored on the sniffer port. To turn on the “AND” feature, set register 5 bit [0] to ‘1’. For example, port 1 is programmed to be “receive sniff”, port 2 is programmed to be “transmit sniff”, and port 3 is programmed to be the “sniffer port”. A packet received on port 1 is destined to port 2 after the internal lookup. The KSZ8873MLL/FLL/RLL forwards the packet to both port 2 and port 3.

September 2009 36

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Multiple ports can be selected as “receive sniff” or “transmit sniff”. In addition, any port can be selected as the “sniffer port”.

All these per port features can be selected through registers 17, 33 and 49 for ports 1, 2 and 3, respectively.

Rate Limiting Support

The KSZ8873MLL/FLL/RLL provides a fine resolution hardware rate limiting from 64Kbps to 99Mbps. The rate step is

64Kbps when the rate range is from 64Kbps to 960Kbps and 1Mbps for 1Mbps to 100Mbps(100BT) or to 10Mbps(10BT)

(refer to Data Rate Limit Table). The rate limit is independently on the “receive side” and on the “transmit side” on a per port basis. For 10BASE-T, a rate setting above 10 Mbps means the rate is not limited. On the receive side, the data receive rate for each priority at each port can be limited by setting up Ingress Rate Control Registers. On the transmit side, the data transmit rate for each priority queue at each port can be limited by setting up Egress Rate Control Registers. The size of each frame has options to include minimum IFG (Inter Frame Gap) or Preamble byte, in addition to the data field

(from packet DA to FCS).

For ingress rate limiting, KSZ8873MLL/FLL/RLL provides options to selectively choose frames from all types, multicast, broadcast, and flooded unicast frames. The KSZ8873MLL/FLL/RLL counts the data rate from those selected type of frames. Packets are dropped at the ingress port when the data rate exceeds the specified rate limit.

For egress rate limiting, the Leaky Bucket algorithm is applied to each output priority queue for shaping output traffic. Inter frame gap is stretched on a per frame base to generate smooth, non-burst egress traffic. The throughput of each output priority queue is limited by the egress rate specified.

If any egress queue receives more traffic than the specified egress rate throughput, packets may be accumulated in the output queue and packet memory. After the memory of the queue or the port is used up, packet dropping or flow control will be triggered. As a result of congestion, the actual egress rate may be dominated by flow control/dropping at the ingress end, and may be therefore slightly less than the specified egress rate.

To reduce congestion, it is a good practice to make sure the egress bandwidth exceeds the ingress bandwidth.

Unicast MAC Address Filtering

The unicast MAC address filtering function works in conjunction with the static MAC address table. First, the static MAC address table is used to assign a dedicated MAC address to a specific port. If a unicast MAC address is not recorded in the static table, it is also not learned in the dynamic MAC table. The KSZ8873MLL/FLL/RLL is then configured with the option to either filter or forward unicast packets for an unknown MAC address. This option is enabled and configured in register 14.

This function is useful in preventing the broadcast of unicast packets that could degrade the quality of the port in applications such as voice over Internet Protocol (VoIP).

Configuration Interface

The KSZ8873MLL/FLL/RLL can operate as both a managed switch and an unmanaged switch.

In unmanaged mode, the KSZ8873MLL/FLL/RLL is typically programmed using an EEPROM. If no EEPROM is present, the KSZ8873MLL/FLL/RLL is configured using its default register settings. Some default settings are configured via strapin pin options. The strap-in pins are indicated in the “Pin Description and I/O Assignment” table.

I

2

C Master Serial Bus Configuration

With an additional I

2

C (“2-wire”) EEPROM, the KSZ8873MLL/FLL/RLL can perform more advanced switch features like

“broadcast storm protection” and “rate control” without the need of an external processor.

For KSZ8873MLL/FLL/RLL I

2

C Master configuration, the EEPROM stores the configuration data for register 0 to register

120 (as defined in the KSZ8873MLL/FLL/RLL register map) with the exception of the “Read Only” status registers. After the de-assertion of reset, the KSZ8873MLL/FLL/RLL sequentially reads in the configuration data for all 121 registers, starting from register 0.

September 2009 37

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

RST_N

SCL

SDA

....

....

....

t prgm

<15 ms

Figure 9. EEPROM Configuration Timing Diagram

The following is a sample procedure for programming the KSZ8873MLL/FLL/RLL with a pre-configured EEPROM:

1. Connect the KSZ8873MLL/FLL/RLL to the EEPROM by joining the SCL and SDA signals of the respective devices.

2. Enable C master mode by setting the KSZ8873MLL/FLL/RLL strap-in pins, PS[1:0] to “00”.

3. Check to ensure that the KSZ8873MLL/FLL/RLL reset signal input, RSTN, is properly connected to the external reset source at the board level.

4. Program the desired configuration data into the EEPROM.

5. Place the EEPROM on the board and power up the board.

6. Assert an active-low reset to the RSTN pin of the KSZ8873MLL/FLL/RLL. After reset is de-asserted, the

KSZ8873MLL/FLL/RLL begins reading the configuration data from the EEPROM. The KSZ8873MLL/FLL/RLL checks that the first byte read from the EEPROM is “88”. If this value is correct, EEPROM configuration continues. If not,

EEPROM configuration access is denied and all other data sent from the EEPROM is ignored by the

KSZ8873MLL/FLL/RLL.

Note: For proper operation, check to ensure that the KSZ8873MLL/FLL/RLL PWRDN input signal is not asserted during the reset operation. The PWRDN input is active low.

I2C Slave Serial Bus Configuration

In managed mode, the KSZ8873MLL/FLL/RLL can be configured as an I

2

C slave device. In this mode, an I

2

C master device (external controller/CPU) has complete programming access to the KSZ8873MLL/FLL/RLL’s 198 registers.

Programming access includes the Global Registers, Port Registers, Advanced Control Registers and indirect access to the “Static MAC Table”, “VLAN Table”, “Dynamic MAC Table,” and “MIB Counters.” The tables and counters are indirectly accessed via registers 121 to 131.

In I

2

C slave mode, the KSZ8873MLL/FLL/RLL operates like other I

2

C slave devices. Addressing the

I

KSZ8873MLL/FLL/RLL’s 8-bit registers is similar to addressing Atmel’s AT24C02 EEPROM’s memory locations. Details of

2

C read/write operations and related timing information can be found in the AT24C02 Datasheet.

Two fixed 8-bit device addresses are used to address the KSZ8873MLL/FLL/RLL in I

2

C slave mode. One is for read; the other is for write. The addresses are as follow:

1011_1111 <read>

1011_1110 <write>

The following is a sample procedure for programming the KSZ8873MLL/FLL/RLL using the I

2

C slave serial bus:

1. Enable C slave mode by setting the KSZ8873MLL/FLL/RLL strap-in pins PS[1:0] to “01”.

2. Power up the board and assert reset to the KSZ8873MLL/FLL/RLL. Configure the desired register settings in the

KSZ8873MLL/FLL/RLL, using the I

2

C write operation.

3. Read back and verify the register settings in the KSZ8873MLL/FLL/RLL, using the I

2

C read operation.

Some of the configuration settings, such as “Aging enable”, “Auto Negotiation Enable”, “Force Speed” and “Power down” can be programmed after the switch has been started.

September 2009 38

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

SPI Slave Serial Bus Configuration

In managed mode, the KSZ8873MLL/FLL/RLL can be configured as a SPI slave device. In this mode, a SPI master device (external controller/CPU) has complete programming access to the KSZ8873MLL/FLL/RLL’s 198 registers.

Programming access includes the Global Registers, Port Registers, Advanced Control Registers and indirect access to the “Static MAC Table”, “VLAN Table”, “Dynamic MAC Table” and “MIB Counters”. The tables and counters are indirectly accessed via registers 121 to 131.

The KSZ8873MLL/FLL/RLL supports two standard SPI commands: ‘0000_0011’ for data read and ‘0000_0010’ for data write. SPI multiple read and multiple write are also supported by the KSZ8873MLL/FLL/RLL to expedite register read back and register configuration, respectively.

SPI multiple read is initiated when the master device continues to drive the KSZ8873MLL/FLL/RLL SPISN input pin (SPI

Slave Select signal) low after a byte (a register) is read. The KSZ8873MLL/FLL/RLL internal address counter increments automatically to the next byte (next register) after the read. The next byte at the next register address is shifted out onto the KSZ8873MLL/FLL/RLL SPIQ output pin. SPI multiple read continues until the SPI master device terminates it by deasserting the SPISN signal to the KSZ8873MLL/FLL/RLL.

Similarly, SPI multiple write is initiated when the master device continues to drive the KSZ8873MLL/FLL/RLL SPISN input pin low after a byte (a register) is written. The KSZ8873MLL/FLL/RLL internal address counter increments automatically to the next byte (next register) after the write. The next byte that is sent from the master device to the KSZ8873MLL/FLL/RLL

SDA input pin is written to the next register address. SPI multiple write continues until the SPI master device terminates it by de-asserting the SPISN signal to the KSZ8873MLL/FLL/RLL.

For both SPI multiple read and multiple write, the KSZ8873MLL/FLL/RLL internal address counter wraps back to register address zero once the highest register address is reached. This feature allows all 198 KSZ8873MLL/FLL/RLL registers to be read, or written with a single SPI command from any initial register address.

The KSZ8873MLL/FLL/RLL is capable of supporting a SPI bus.

The following is a sample procedure for programming the KSZ8873MLL/FLL/RLL using the SPI bus:

1. At the board level, connect the KSZ8873MLL/FLL/RLL pins as follows:

KSZ8873MLL/FLL/RLL Pin # KSZ8873MLL/FLL/RLL Signal Name External Processor Signal Description

40

42

SPISN

SCL

(SPIC)

SPI Slave Select

SPI Clock

43

SDA

(SPID)

39 SPIQ

SPI Data

(Master output; Slave input)

SPI Data

(Master input; Slave output)

Table 13. SPI Connections

2. Enable SPI slave mode by setting the KSZ8873MLL/FLL/RLL strap-in pins PS[1:0] to “10”.

3. Power up the board and assert reset to the KSZ8873MLL/FLL/RLL.

4. Configure the desired register settings in the KSZ8873MLL/FLL/RLL, using the SPI write or multiple write command.

5. Read back and verify the register settings in the KSZ8873MLL/FLL/RLL, using the SPI read or multiple read command.

Some of the configuration settings, such as “Aging enable”, “Auto Negotiation Enable”, “Force Speed” and “Power down” can be programmed after the switch has been started.

The following four figures illustrate the SPI data cycles for “Write”, “Read”, “Multiple Write” and “Multiple Read”. The read data is registered out of SPIQ on the falling edge of SPIC, and the data input on SPID is registered on the rising edge of SPIC.

September 2009 39

M9999-092309-1.2

Micrel, Inc.

SPIS_N

SPIC

SPID

SPIQ

KSZ8873MLL/FLL/RLL

X 0 0 0 0 0 0 1 0 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0

WRITE COMMAND WRITE ADDRESS

Figure 10. SPI Write Data Cycle

WRITE DATA

SPIS_N

SPIC

SPID

SPIQ

X 0 0 0 0 0 0 1 1 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0

READ COMMAND READ ADDRESS READ DATA

Figure 11. SPI Read Data Cycle

SPIS_N

SPIC

SPID

SPIQ

X 0 0 0 0 0 0 1 0 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0

WRITE COMMAND WRITE ADDRESS

SPIS_N

SPIC

SPID

SPIQ

D7 D6 D5 D4 D4 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

Byte 2 Byte 3 ...

Figure 12. SPI Multiple Write

Byte 1

D7 D6 D5 D4 D3 D2 D1 D0

Byte N

September 2009 40

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

SPIS_N

SPIC

SPID

SPIQ

X 0 0 0 0 0 0 1 1 A7 A6 A5 A4 A3 A2 A1

A0 X X X X X X X X

D7 D6 D5 D4 D3 D2 D1 D0

READ COMMAND READ ADDRESS Byte 1

SPIS_N

SPIC

SPID

SPIQ

X X X X X X X X X X X X X X X X

D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

Byte 2 Byte 3

X X X X

Byte N

X X X X

D7 D6 D5 D4 D3 D2 D1 D0

Figure 13. SPI Multiple Read

September 2009 41

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Loopback Support

The KSZ8873MLL/FLL/RLL provides loopback support for remote diagnostic of failure. In loopback mode, the speed at both PHY ports needs to be set to 100BASE-TX. Two types of loopback are supported: Far-end Loopback and Near-end

(Remote) Loopback.

Far-end Loopback

Far-end loopback is conducted between the KSZ8873MLL/FLL/RLL’s two PHY ports. The loopback is limited to few package a time for diagnosis purpose and can not support large traffic. The loopback path starts at the “Originating.” PHY port’s receive inputs (RXP/RXM), wraps around at the “loopback” PHY port’s PMD/PMA, and ends at the “Originating”

PHY port’s transmit outputs (TXP/TXM).

Bit [0] of registers 29 and 45 is used to enable far-end loopback for ports 1 and 2, respectively. Alternatively, the MII

Management register 0, bit [14] can be used to enable far-end loopback.

The far-end loopback path is illustrated in the following figure.

R X P /

R X M

T X P /

T X M

O rig ina ting

P H Y P o rt

P M D /P M A

PC S

M A C

S w itch

M A C

PC S

PM D /PM A

L o o p B ac k

P H Y P o rt

Figure 14. Far-End Loopback Path

September 2009 42

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Near-end (Remote) Loopback

Near-end (Remote) loopback is conducted at either PHY port 1 or PHY port 2.of the KSZ8873MLL/FLL/RLL. The loopback path starts at the PHY port’s receive inputs (RXPx/RXMx), wraps around at the same PHY port’s PMD/PMA, and ends at the PHY port’s transmit outputs (TXPx/TXMx).

Bit [1] of registers 26 and 42 is used to enable near-end loopback for ports 1 and 2, respectively. Alternatively, the MII

Management register 31, bit [1] can be used to enable near-end loopback.

The near-end loopback paths are illustrated in the following figure.

RXP1 /

RXM 1

PHY

Port 1

TXP1 /

TXM 1

PMD/PMA

PCS

MAC

Switch

MAC

PCS

PMD/PMA

RXP2 /

RXM 2

PHY

Port 2

TXP2 /

TXM 2

Figure 15. Near-end (Remote) Loopback Path

September 2009 43

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

MII Management (MIIM) Registers

The MIIM interface is used to access the MII PHY registers defined in this section. The SPI, I

2

C, and SMI interfaces can also be used to access some of these registers. The latter three interfaces use a different mapping mechanism than the

MIIM interface.

The “PHYADs” by defaults are assigned “0x1” for PHY1 (port 1) and “0x2” for PHY2 (port 2). Additionally, these

“PHYADs” can be programmed to the PHY addresses specified in bits[7:3] of Register 15 (0x0F): Global Control 13.

The “REGAD” supported are 0x0-0x5, 0x1D and 0x1F.

Register Number Description

PHYAD = 0x1, REGAD = 0x0 PHY1 Basic Control Register

PHYAD = 0x1, REGAD = 0x1

PHYAD = 0x1, REGAD = 0x2

PHYAD = 0x1, REGAD = 0x3

PHYAD = 0x1, REGAD = 0x4

PHYAD = 0x1, REGAD = 0x5

PHYAD = 0x1, 0x6 – 0x1C

PHYAD = 0x1, 0x1D

PHYAD = 0x1, 0x1E

PHYAD = 0x1, 0x1F

PHYAD = 0x2, REGAD = 0x0

PHYAD = 0x2, REGAD = 0x1

PHYAD = 0x2, REGAD = 0x2

PHYAD = 0x2, REGAD = 0x3

PHYAD = 0x2, REGAD = 0x4

PHYAD = 0x2, REGAD = 0x5

PHYAD = 0x2, 0x6 – 0x1C

PHYAD = 0x2, 0x1D

PHYAD = 0x2, 0x1E

PHYAD = 0x2, 0x1F

PHY1 Basic Status Register

PHY1 Physical Identifier I

PHY1 Physical Identifier II

PHY1 Auto-Negotiation Advertisement Register

PHY1 Auto-Negotiation Link Partner Ability Register

PHY1 Not supported

PHY1 Not supported

PHY1 Not supported

PHY1 Special Control/Status

PHY2 Basic Control Register

PHY2 Basic Status Register

PHY2 Physical Identifier I

PHY2 Physical Identifier II

PHY2 Auto-Negotiation Advertisement Register

PHY2 Auto-Negotiation Link Partner Ability Register

PHY2 Not supported

PHY2 LinkMD Control/Status

PHY2 Not supported

PHY2 Special Control/Status

September 2009 44

M9999-092309-1.2

Micrel, Inc.

PHY1 Register 0 (PHYAD = 0x1, REGAD = 0x0): MII Basic Control

PHY2 Register 0 (PHYAD = 0x2, REGAD = 0x0): MII Basic Control

Bit Name

15

14

13

12

11

Soft reset

Loopback

Force 100

AN enable

Power down

RO NOT SUPPORTED

R/W =1, Perform loopback, as indicated:

Port 1 Loopback (reg. 29, bit 0 = ‘1’)

Start: RXP2/RXM2 (port 2)

Loopback: PMD/PMA of port 1’s PHY

End: TXP2/TXM2 (port 2)

Port 2 Loopback (reg. 45, bit 0 = ‘1’)

Start: RXP1/RXM1 (port 1)

Loopback: PMD/PMA of port 2’s PHY

End: TXP1/TXM1 (port 1)

=0, Normal operation

R/W =1, 100 Mbps

=0, 10 Mbps

R/W =1, Auto-negotiation enabled

=0, Auto-negotiation disabled

R/W =1, Power down

=0, Normal operation

10 Isolate

9 Restart AN duplex

7 Collision test RO NOT SUPPORTED

6 Reserved RO

5 Hp_mdix R/W =1, HP Auto MDI/MDI-X mode

=0, Micrel Auto MDI/MDI-X mode

4 Force MDI

R/W =1, Restart auto-negotiation

=0, Normal operation

R/W =1, Full duplex

=0, Half duplex

3 Disable MDIX

R/W =1, Force MDI (transmit on RXP / RXM pins)

=0, Normal operation (transmit on TXP / TXM pins)

R/W =1, Disable auto MDI-X

=0, Enable auto MDI-X fault far-end =1, Disable far-end fault detection

=0, Normal operation

1 Disable transmit

R/W =1, Disable transmit

=0, Normal operation

0 Disable LED R/W =1, Disable LED

=0, Normal operation

0

0

0

0

KSZ8873MLL/FLL/RLL

Reg. 29, bit 0

Reg. 45, bit 0

0

1

Reg. 28, bit 6

Reg. 44, bit 6

Reg. 28, bit 7

Reg. 44, bit 7

0 Reg. 29, bit 3

Reg. 45, bit 3

0

0 Reg. 29, bit 5

0

Reg. 45, bit 5

Reg. 28, bit 5

Reg. 44, bit 5

0

0

1 Reg. 31, bit 7

Reg. 47, bit 7

0

0

Reg. 29, bit 1

Reg. 45, bit 1

Reg. 29, bit 2

Reg. 45, bit 2

0 Reg. 29, bit 4

Reg. 29, bit 6

Reg. 45, bit 6

Reg. 29, bit 7

Reg. 45, bit 7

September 2009 45

M9999-092309-1.2

Micrel, Inc.

PHY1 Register 1 (PHYAD = 0x1, REGAD = 0x1): MII Basic Status

PHY2 Register 1 (PHYAD = 0x2, REGAD = 0x1): MII Basic Status

Bit Name

15

14

T4 capable

100 Full capable capable capable capable

RO

RO

RO

RO

RO

=0, Not 100 BASE-T4 capable

=1, 100BASE-TX full duplex capable

=0, Not capable of 100BASE-TX full duplex

=1, 100BASE-TX half duplex capable

=0, Not 100BASE-TX half duplex capable

=1, 10BASE-T full duplex capable

=0, Not 10BASE-T full duplex capable

=1, 10BASE-T half duplex capable

=0, Not 10BASE-T half duplex capable

10-7 Reserved RO

5

4

3

2

1 suppressed

AN complete

Far-end fault

AN capable

Link status

Jabber test

RO

RO

RO

RO

RO

=1, Auto-negotiation complete

=0, Auto-negotiation not completed

=1, Far-end fault detected

=0, No far-end fault detected

=1, Auto-negotiation capable

=0, Not auto-negotiation capable

=1, Link is up

=0, Link is down

NOT SUPPORTED

=0, Not extended register capable capable

PHY1 Register 2 (PHYAD = 0x1, REGAD = 0x2): PHYID High

PHY2 Register 2 (PHYAD = 0x2, REGAD = 0x2): PHYID High

Bit Name R/W

15-0 PHYID high RO High order PHYID bits

PHY1 Register 3 (PHYAD = 0x1, REGAD = 0x3): PHYID Low

PHY2 Register 3 (PHYAD = 0x2, REGAD = 0x3): PHYID Low

Bit Name R/W

15-0 PHYID low RO Low order PHYID bits

0

Default

0x0022

Default

0x1430

KSZ8873MLL/FLL/RLL

0000

0

0

0

1

0

0

0

Reg. 30, bit 6

Reg. 46, bit 6

Reg. 31, bit 0

Reg. 28, bit 7

Reg. 44, bit 7

Reg. 30, bit 5

Reg. 46, bit 5

September 2009 46

M9999-092309-1.2

Micrel, Inc.

PHY1 Register 4 (PHYAD = 0x1, REGAD = 0x4): Auto-Negotiation Advertisement Ability

KSZ8873MLL/FLL/RLL

PHY2 Register 4 (PHYAD = 0x2, REGAD = 0x4): Auto-Negotiation Advertisement Ability

Bit Name R/W

15 Next page RO NOT SUPPORTED

14 Reserved RO

13 Remote fault RO NOT SUPPORTED

12-11 Reserved RO

10 Pause R/W =1, Advertise pause ability

=0, Do not advertise pause ability

8

7

6

5

Adv 100 Full R/W =1, Advertise 100 full duplex ability

=0, Do not advertise 100 full duplex ability

Adv 100 Half R/W =1, Advertise 100 half duplex ability

=0, Do not advertise 100 half duplex ability

Adv 10 Full R/W =1, Advertise 10 full duplex ability

=0, Do not advertise 10 full duplex ability

Adv 10 Half R/W =1, Advertise 10 half duplex ability

=0, Do not advertise 10 half duplex ability

0

0

0

00

1 Reg. 28, bit 4

Reg. 44, bit 4

0

1 Reg. 28, bit 3

1

Reg. 44, bit 3

Reg. 28, bit 2

1

1

Reg. 44, bit 2

Reg. 28, bit 1

Reg. 44, bit 1

Reg. 28, bit 0

Reg. 44, bit 0

00001

PHY1 Register 5 (PHYAD = 0x1, REGAD = 0x5): Auto-Negotiation Link Partner Ability

PHY2 Register 5 (PHYAD = 0x2, REGAD = 0x5): Auto-Negotiation Link Partner Ability

Bit Name

15 Next page RO NOT SUPPORTED

14

13

LP ACK

Remote fault

RO

RO

NOT SUPPORTED

NOT SUPPORTED

12-11 Reserved RO

10 Pause RO Link partner pause capability

9 Reserved RO

8 Adv 100 Full RO Link partner 100 full capability

7

6

5

Adv 100 Half

Adv 10 Full

Adv 10 Half

RO

RO

RO

Link partner 100 half capability

Link partner 10 full capability

Link partner 10 half capability

4-0 Reserved RO

Default Reference

0

0

0

00

0 Reg. 30, bit 4

Reg. 46, bit 4

0

0

0

Reg. 30, bit 3

Reg. 46, bit 3

Reg. 30, bit 2

Reg. 46, bit 2

0

0

Reg. 30, bit 1

Reg. 46, bit 1

Reg. 30, bit 0

Reg. 46, bit 0

00000

September 2009 47

M9999-092309-1.2

Micrel, Inc.

PHY1 Register 29 (PHYAD = 0x1, REGAD = 0x1D): Not supported

KSZ8873MLL/FLL/RLL

PHY2 Register 29 (PHYAD = 0x2, REGAD = 0x1D): LinkMD Control/Status

Bit Name Default Reference

0 Reg. 42, bit 4

14-13 Vct_result

(SC)

RO test has completed, this bit will be selfcleared.

=0, Indicate cable diagnostic test (if enabled) has completed and the status information is valid for read.

=00, Normal condition

=01, Open condition detected in cable

=10, Short condition detected in cable

12 Vct 10M Short RO

11-9 Reserved

=11, Cable diagnostic test has failed

=1, Less than 10 meter short

RO Reserved

8-0 Vct_fault_count RO Distance to the fault.

It’s approximately

0.4m*vct_fault_count[8:0]

0 Reg. 42, bit 7

000

{0, (0x00)} {(Reg. 42, bit 0),

(Reg. 43, bit[7:0])}

PHY1 Register 31 (PHYAD = 0x1, REGAD = 0x1F): PHY Special Control/Status

PHY2 Register 31 (PHYAD = 0x2, REGAD = 0x1F): PHY Special Control/Status

Bit Name R/W

15-6 Reserved RO Reserved

5 Polrvs RO =1, Polarity is reversed

=0, Polarity is not reversed

4

3

MDI-X status

Force_lnk

RO =1, MDI-X

=0, MDI

R/W =1, Force link pass

=0, Normal Operation

2 Pwrsave R/W =0, Enable power saving

=1, Disable power saving

1 Remote

Loopback

R/W =1, Perform Remote loopback, as follows:

Port 1 (reg. 26, bit 1 = ‘1’)

Start: RXP1/RXM1 (port 1)

Loopback: PMD/PMA of port 1’s PHY

End: TXP1/TXM1 (port 1)

Port 2 (reg. 42, bit 1 = ‘1’)

Start: RXP2/RXM2 (port 2)

Loopback: PMD/PMA of port 2’s PHY

End: TXP2/TXM2 (port 2)

=0, Normal Operation

Default Reference

{(0x00),00}

0 Reg. 31, bit 5

Reg. 47, bit 5

Note: This bit is only valid for 10BT

0

0

1

0

Reg. 30, bit 7

Reg. 46, bit 7

Reg. 26, bit 3

Reg. 42, bit 3

Reg. 26, bit 2

Reg. 42, bit 2

Reg. 26, bit 1

Reg. 42, bit 1

0

Do not change the default value.

September 2009 48

M9999-092309-1.2

Micrel, Inc.

Memory Map (8-bit Registers)

Global Registers

Register (Decimal) Register (Hex)

0-1 0x00-0x01

2-15 0x02-0x0F

Port Registers

Register (Decimal) Register (Hex)

16-29 0x10-0x1D

30-31

32-45

46-47

48-57

0x1E-0x1F

0x20-0x2D

0x2E-0x2F

0x30-0x39

Description

Chip ID Registers

Global Control Registers

Description

Port 1 Control Registers, including MII PHY Registers

Port 1 Status Registers, including MII PHY Registers

Port 2 Control Registers, including MII PHY Registers

Port 2 Status Registers, including MII PHY Registers

Port 3 Control Registers

Port 3 Status Register 63 0x3F

Advanced Control Registers

Register (Decimal) Register (Hex)

96-111 0x60-0x6F

Description

TOS Priority Control Registers

118-120

121-122

123-131

0x76-0x78

0x79-0x7A

0x7B-0x83

User Defined Registers

Indirect Access Control Registers

Indirect Data Registers

KSZ8873MLL/FLL/RLL

Fiber Signal Threshold

September 2009 49

M9999-092309-1.2

Micrel, Inc.

Register Description

KSZ8873MLL/FLL/RLL

Global Registers (Registers 0 – 15)

Register 0 (0x00): Chip ID0

Bit Name R/W

7-0 Family ID RO Chip family

Register 1 (0x01): Chip ID1 / Start Switch

Bit Name R/W

7-4

3-1

0

Chip ID

Revision ID

Start Switch

RO

RO

RW

0x3 is assigned to M series. (73M)

Revision ID

=1, start the chip when external pins

Register 2 (0x02): Global Control 0

Bit Name R/W

Back-off New back-off algorithm designed for UNH

Enable =1, Enable

=0, Disable

6 Port 1 Turbo

MII Mode

R/W =1, Port 1 is Turbo MII mode

=0, Port 1 is MII mode

Dynamic =1, Enable flush dynamic MAC table for spanning tree application

MAC Table

=0, Disable

Static =1, Enable flush static MAC table for spanning tree application

MAC Table

=0, Disable

Flow =1, Switch will not filter 802.1x “flow control” packets

Control Packet

=0, Switch will pass 802.1x “flow control” packets

Default

0x88

Default

0x3

-

1

Default

0

0

0

0

0

0

Do not change the default value.

0

Do not change the default value.

Age

Change =1, Link change from “link” to “no link” will cause fast aging

(<800us) to age address table faster. After an age cycle is complete, the age logic will return to normal aging (about 200 sec).

Note: If any port is unplugged, all addresses will be automatically aged out.

0

September 2009 50

M9999-092309-1.2

Micrel, Inc.

Register 3 (0x03): Global Control 1

Bit Name R/W

6

2

Frames

Port 3 Tail Tag

Mode Enable

R/W =1, Switch all packets including bad ones. Used solely for debugging purposes. Works in conjunction with sniffer mode only.

R/W =1, Enable port 3 tail tag mode.

=0, Disable.

802.3x =1, Will enable transmit direction flow control feature.

Transmit

Direction Flow

Control Enable

=0, Will not enable transmit direction flow control feature. Switch will not generate any flow control (PAUSE) frame.

802.3x =1, Will enable receive direction flow control feature.

Receive

Direction Flow

Control Enable

=0, Will not enable receive direction flow control feature. Switch will not react to any flow control (PAUSE) frame it receives.

Length =1, Will check frame length field in the IEEE packets. If the actual

Field Check length does not match, the packet will be dropped (for Length/Type field < 1500).

Aging Enable

=0, Not check

R/W =1, Enable age function in the chip

=0, Disable age function in the chip

Age R/W =1, Turn on fast age (800us)

Enable

0 Aggressive =1, Enable more aggressive back off algorithm in half duplex mode

Back-off to enhance performance. This is not an IEEE standard.

Enable

KSZ8873MLL/FLL/RLL

Default

0

0

1

1

1

0

0

0

Register 4 (0x04): Global Control 2

Bit Name R/W

7 Unicast

Port-VLAN

Mismatch

Discard

R/W This feature is used with port-VLAN (described in reg. 17, reg. 33,

…)

=1, All packets can not cross VLAN boundary

=0, Unicast packets (excluding unkown/multicast/ broadcast) can cross VLAN boundary

Note: Port mirroring is not supported if this bit is set to “0”.

6 Multicast R/W =1, “Broadcast Storm Protection” does not include multicast packets.

Storm

Protection

Only DA = FF-FF-FF-FF-FF-FF packets will be regulated.

Disable

=0, “Broadcast Storm Protection” includes DA = FF-FF-FF-

FF-FF-FF and DA[40] = 1 packets.

Pressure =1, Carrier sense based backpressure is selected

Mode =0, Collision based backpressure is selected

Control =1, Fair mode is selected. In this mode, if a flow control port and a and Back non-flow control port talk to the same destination port, packets from

Pressure Fair

Mode the non-flow control port may be dropped. This is to prevent the flow control port from being flow controlled for an extended period of time.

=0, In this mode, if a flow control port and a non-flow control port talk to the same destination port, the flow control port will be flow controlled. This may not be “fair” to the flow control port.

Excessive =1, The switch will not drop packets when 16 or more collisions

Collision Drop occur.

=0, The switch will drop packets when 16 or more collisions occur.

Default

1

1

1

1

0

September 2009 51

M9999-092309-1.2

Micrel, Inc.

Bit Name R/W

Packet =1, Will accept packet sizes up to 1916 bytes (inclusive). This bit

Support setting will override setting from bit 1 of this register.

=0, The max packet size will be determined by bit 1 of this register.

1 Legal

Maximum

Packet Size

Check Enable

R/W =0, Will accept packet sizes up to 1536 bytes (inclusive).

=1, 1522 bytes for tagged packets, 1518 bytes for untagged packets. Any packets larger than the specified value will be dropped.

KSZ8873MLL/FLL/RLL

Default

0

0

0

Do not change the default value.

Register 5 (0x05): Global Control 3

Bit Name R/W

5

4

Enable

VLAN =1, 802.1Q VLAN mode is turned on. VLAN table needs to set up before the operation.

=0, 802.1Q VLAN is disabled.

Snoop =1, IGMP snoop is enabled. All IGMP packets will be forwarded to

Enable on

Switch MII the Switch MII port.

=0, IGMP snoop is disabled.

Interface

Reserved R/W Reserved

Do not change the default values.

Reserved

3

2

1

Weighted

Fair Queue

Enable

Indicate that the Current

Priority Queue is depleted.

Reserved

R/W Reserved

Do not change the default values.

R/W =0, Always transmit higher priority packets first

=1, Weighted Fair Queueing enabled. When all four queues have packets waiting to transmit, the bandwidth allocation is q3:q2:q1:q0

= 8:4:2:1.

If any queues are empty, the highest non-empty queue gets one more weighting. For example, if q2 is empty, q3:q2:q1:q0 becomes

(8+1):0:2:1.

RO =1, Indicate the current priority queue is depleted in the specified cpu_txq_rate before transfer packet from next lower priority queue.

=0, Rotate transmit between four queues.

0 Sniff Mode

Select

R/W Reserved

Do not change the default values.

R/W =1, Will do RX AND TX sniff (both source port and destination port need to match)

=0, Will do RX OR TX sniff (either source port or destination port needs to match). This is the mode used to implement RX only sniff.

Default

0

0

0

0

0

0

0

0

September 2009 52

M9999-092309-1.2

Micrel, Inc.

Register 6 (0x06): Global Control 4

Bit Name R/W

KSZ8873MLL/FLL/RLL

Default

0

6 Switch MII Half

Duplex Mode

Do not change the default values.

R/W =1, Enable MII interface half-duplex mode.

=0, Enable MII interface full-duplex mode.

MII =1, Enable full duplex flow control on Switch MII interface.

Flow Control

=0, Disable full duplex flow control on Switch MII interface.

Enable

10BT

MII =1, The switch interface is in 10Mbps mode

=0, The switch interface is in 100Mbps mode

VID R/W =1, Will replace NULL VID with port VID (12 bits)

Replacement

=0, No replacement for NULL VID

2-0 Broadcast R/W This register along with the next register determines how many “64

Storm

Protection

Rate

(1) byte blocks” of packet data are allowed on an input port in a preset period. The period is 67ms for 100BT or 500ms for 10BT. The default is 1%.

Bit [10:8]

Register 7 (0x07): Global Control 5

Bit Name R/W

7-0 Broadcast R/W This register along with the previous register determines how many

Storm

Protection

Rate

(1)

“64 byte blocks” of packet data are allowed on an input port in a preset period. The period is 67ms for 100BT or 500ms for 10BT.

The default is 1%.

Bit [7:0]

Note:

(1)

100BT Rate: 148,800 frames/sec * 67 ms/interval * 1% = 99 frames/interval (approx.) = 0x63

Pin P1LED0 strap option.

Pull-up(1): Half -duplex mode

Pull-down(0): Fullduplex mode

Note: P1LED0 has internal pull-up.

Pin P1LED1 strap option.

Pull- up(1): Enable flow control

Pull-down(0): Disable flow control

Note: P1LED1 has internal pull-up.

Pin P3SPD strap option.

Pull-up(1): Enable

10Mbps

Pull-down(0): Enable

100Mbps

Note: P3SPD has internal pull-up.

0

000

Default

0x63

September 2009 53

M9999-092309-1.2

Micrel, Inc.

Register 8 (0x08): Global Control 6

Bit Name R/W

7-0 Factory

Testing

R/W Reserved

Do not change the default values.

Register 9 (0x09): Global Control 7

Bit Name R/W

7-0 Factory

Testing

R/W Reserved

Do not change the default values.

Register 10 (0x0A): Global Control 8

Bit Name R/W

7-0 Factory

Testing

R/W Reserved

Do not change the default values.

Register 11 (0x0B): Global Control 9

Bit Name R/W

KSZ8873MLL/FLL/RLL

Default

0x00

Default

0x24

Default

0x35

Default

10

Clock

Selection

=01, 62.5MHz

=10, 125MHz

Clock =00, No force, 31.25MHz

Selection

=01, Force to 62.5MHz

00

10

1 LEDSEL

Do not change the default values.

R/W LED mode select 1

0

Do not change the default values.

Register 12 (0x0C): Global Control 10

7-6

5-4

3-2

1-0

Tag_0x3 R/W

Tag_0x2 R/W

Tag_0x1 R/W

Tag_0x0 R/W

IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x3.

IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x2.

IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x1.

IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x0.

Register 13 (0x0D): Global Control 11

Default

01

01

00

00

7-6

Default

11

5-4

3-2

1-0

Tag_0x7 R/W IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x7.

Tag_0x6 R/W IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x6.

Tag_0x5 R/W IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x5.

Tag_0x4 R/W IEEE 802.1p mapping. The value in this field is used as the frame’s priority when its IEEE 802.1p tag has a value of 0x4.

11

10

10

September 2009 54

M9999-092309-1.2

Micrel, Inc.

Register 14 (0x0E): Global Control 12

7 Unknown Send packets with unknown destination MAC addresses to specified

Packet

Default port(s) in bits [2:0] of this register.

=0, Disable

Port

Enable

=1, Enable

Strength of I/O Pad

=0, 8mA

Do not change the default values.

4 P3

SMTXC invert for

Turbo MII

R/W =1, P3 smtxc inverted

=0, Not inverted

Do not change the default values.

2-0 Unknown Specify which port(s) to send packets with unknown destination MAC

Packet

Default addresses. This feature is enabled by bit [7] of this register.

Bit 2 stands for port 3.

Port

Bit 1 stands for port 2.

Bit 0 stands for port 1.

An ‘1’ includes a port.

An ‘0’ excludes a port.

Register 15 (0x0F): Global Control 13

7-3 PHY

Address

R/W 00000 : N/A

00001 : Port 1 PHY address is 0x1

00010 : Port 1 PHY address is 0x2

11101 : Port 1 PHY address is 0x29

11110 : N/A

11111 : N/A

Note:

Port 2 PHY address = (Port 1 PHY address) + 1

Do not change the default values.

KSZ8873MLL/FLL/RLL

Default

0

1

0

0

0

111

Default

00001

000

September 2009 55

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Port Registers (Registers 16 – 95)

The following registers are used to enable features that are assigned on a per port basis. The register bit assignments are the same for all ports, but the address for each port is different, as indicated.

Register 16 (0x10): Port 1 Control 0

Register 32 (0x20): Port 2 Control 0

Register 48 (0x30): Port 3 Control 0

Default

0

Storm

Protection

Enable

=0, Disable broadcast storm protection

0

Priority

Classification

Enable port

=0, Disable DiffServ function

0

Priority

Classification

Enable

=0, Disable 802.1p

00

Priority

Classification classified as priority 0 queue if “Diffserv” or “802.1p” classification is not enabled or fails to classify.

=01, Ingress packets on port will be classified as priority 1 queue if “Diffserv” or “802.1p” classification is not enabled or fails to classify.

=10, Ingress packets on port will be classified as priority 2 queue if “Diffserv” or “802.1p” classification is not enabled or fails to classify.

=11, Ingress packets on port will be classified as priority 3 queue if “Diffserv” or “802.1p” classification is not enabled or fails to classify.

2

Note: “DiffServ”, “802.1p” and port priority can be enabled at the same time. The OR’ed result of 802.1p and DSCP overwrites the port priority.

Tag Insertion R/W =1, When packets are output on the port, the switch will add 802.1p/q tags to packets without 802.1p/q tags when received. The switch will not add tags to packets already tagged. The tag inserted is the ingress port’s “port VID”.

=0, Disable tag insertion

1 Tag

Removal

R/W =1, When packets are output on the port, the switch will remove

802.1p/q tags from packets with 802.1p/q tags when received. The switch will not modify packets received without tags.

=0, Disable tag removal

0

0

1

Enable time with split 2 queue at register 18, 34,50 bit 7.

=0, No split, treated as 1 queue configuration

September 2009 56

M9999-092309-1.2

Micrel, Inc.

Register 17 (0x11): Port 1 Control 1

Register 33 (0x21): Port 2 Control 1

Register 49 (0x31): Port 3 Control 1

KSZ8873MLL/FLL/RLL

7 Sniffer Port R/W =1, Port is designated as sniffer port and will transmit packets that are monitored.

=0, Port is a normal port

Default

0

0

Sniff packets” and forwarded to the designated “sniffer port”

=0, No receive monitoring

0

4

Sniff packets” and forwarded to the designated “sniffer port”

=0, No transmit monitoring

Double Tag R/W =1, All packets will be tagged with port default tag of ingress port regardless of the original packets are tagged or not

=0, Do not double tagged on all packets

0

0

Ceiling field” in the port default tag register, replace the packet’s “user priority field” with the “user priority field” in the port default tag register.

=0, Do not compare and replace the packet’s ‘user priority field”

111 membership communicate within the membership. Bit 2 stands for port 3, bit 1 stands for port 2, bit 0 stands for port 1.

An ‘1’ includes a port in the membership.

An ‘0’ excludes a port from membership.

Register 18 (0x12): Port 1 Control 2

Register 34 (0x22): Port 2 Control 2

Register 50 (0x32): Port 3 Control 2

Default

0

Queue Split of Tx Queue

It cannot be enable at the same time with split 4 queue at register 16,32 and 48 bit 0.

=0, Disable

6 Ingress =1,Tthe switch will discard packets whose VID port membership in

VLAN

Filtering

VLAN table bits [18:16] does not include the ingress port.

=0, No ingress VLAN filtering.

5 Discard =1, The switch will discard packets whose VID does not match ingress

PVID

Packets port default VID.

=0, No packets will be discarded

Flow =1, Will always enable full duplex flow control on the port, regardless of

Control AN result.

=0, Full duplex flow control is enabled based on AN result.

0

0

Pin value during reset:

For port 1, P1FFC pin

For port 2,

SMRXD30 pin

For port 3, this bit has no meaning.

Flow control is set by Reg. 6 bit 5.

September 2009 57

M9999-092309-1.2

Micrel, Inc.

3 Back

Pressure

Enable

R/W =1, Enable port’s half duplex back pressure

=0, Disable port’s half duplex back pressure

2 Transmit =1, Enable packet transmission on the port

Enable

=0, Disable packet transmission on the port

1 Receive =1, Enable packet reception on the port

Enable

=0, Disable packet reception on the port

0 Learning =1, Disable switch address learning capability

Disable

=0, Enable switch address learning

Note: Bits [2:0] are used for spanning tree support.

Register 19 (0x13): Port 1 Control 3

Register 35 (0x23): Port 2 Control 3

Register 51 (0x33): Port 3 Control 3

[15:8]

Tag Port’s default tag, containing

7-5 : User priority bits

4 : CFI bit

3-0 : VID[11:8]

Register 20 (0x14): Port 1 Control 4

Register 36 (0x24): Port 2 Control 4

Register 52 (0x34): Port 3 Control 4

Tag Port’s default tag, containing

[7:0]

Note: Registers 19 and 20 (and those corresponding to other ports) serve two purposes:

Associated with the ingress untagged packets, and used for egress tagging.

Default VID for the ingress untagged or null-VID-tagged packets, and used for address lookup.

Register 21 (0x15): Port 1 Control 5

Register 37 (0x25): Port 2 Control 5

Register 53 (0x35): Port 3 Control 5

7 Port 3 MII mode

Selection

R/W =1, Port 3 MII MAC mode

=0, Port 3 MII PHY mode

Note: when port 3 is in MAC mode, this bit is used to enable

SMTXER3 pin.

6 Self-address =1, Enable port 1 self-address filtering MACA1 filtering enable

=0, Disable

MACA1

(not for

0x35)

5 Self-address R/W =1, Enable port 2 Self-address filtering MACA2

September 2009 58

1

1

0

KSZ8873MLL/FLL/RLL

Default

0

Default

0x00

Default

0x01

Default

Inversion of power strapped value of

SMRXDV3.

0

0

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Default

filtering enable

MACA2

(not for

0x35)

=0, Disable

0

Tagged

Frame

=0, Disable

00

These bits determine what kinds of frames are limited and counted against ingress rate limiting.

=00, Limit and count all frames

=01, Limit and count Broadcast, Multicast, and flooded unicast frames

=10, Limit and count Broadcast and Multicast frames only

=11, Limit and count Broadcast frames only

1 Count

Count IFG bytes

=1, Each frame’s minimum inter frame gap

(IFG) bytes (12 per frame) are included in Ingress and Egress rate limiting calculations.

=0, IFG bytes are not counted.

0 Count

Count Preamble bytes

=1, Each frame’s preamble bytes (8 per frame) are included in Ingress and Egress rate limiting calculations.

=0, Preamble bytes are not counted.

Register 22[6:0] (0x16): Port 1 Q0 ingress data rate limit

Register 38[6:0] (0x26): Port 2 Q0 ingress data rate limit

Register 54[6:0] (0x36): Port 3 Q0 ingress data rate limit

0

0

7 RMII

REFCLK

INVERT

R/W

=1, Port 3 inverted refclk selected

=0, Port 3 original refclk selected

Ingress

Ingress data rate limit for priority 0 frames

Data Rate

Ingress traffic from this priority queue is shaped according to the limit ingress Data Rate Limit Table.

Default

0

Note: Not

Applied to

Reg.38(Port

2)

0

September 2009 59

M9999-092309-1.2

Micrel, Inc.

Register 23[6:0] (0x17): Port 1 Q1 ingress data rate limit

Register 39[6:0] (0x27): Port 2 Q1 ingress data rate limit

Register 55[6:0] (0x37): Port 3 Q1 ingress data rate limit

Bit Name R/W

KSZ8873MLL/FLL/RLL

Default

0

Do not change the default values.

Ingress R/W

Ingress data rate limit for priority 1 frames

data Rate limit

Ingress traffic from this priority queue is shaped according to the ingress Data Rate Limit Table.

Register 24[6:0] (0x18): Port 1 Q2 ingress data rate limit

0

Register 40[6:0] (0x28): Port 2 Q2 ingress data rate limit

Register 56[6:0] (0x38): Port 3 Q2 ingress data rate limit

Bit Name R/W Default

0

Do not change the default values.

Ingress R/W

Ingress data rate limit for priority 2 frames

Data Rate limit

Ingress traffic from this priority queue is shaped according to ingress

Data Rate Limit Table.

Register 25[6:0] (0x19): Port 1 Q3 ingress data rate limit

0

Register 41[6:0] (0x29): Port 2 Q3 ingress data rate limit

Register 57[6:0] (0x39): Port 3 Q3 ingress data rate limit

Bit Name R/W Default

0

Do not change the default values.

Ingress R/W

Ingress data rate limit for priority 3 frames

Data Rate limit

Ingress traffic from this priority queue is shaped according to ingress

Data Rate Limit Table.

0

Note: Most of the contents in registers 26-31 and registers 42-47 for ports 1 and 2, respectively, can also be accessed with the MIIM PHY registers.

September 2009 60

M9999-092309-1.2

Micrel, Inc.

64 Kbps

128 Kbps

192 Kbps

256 Kbps

320 Kbps

384 Kbps

448 Kbps

512 Kbps

576 Kbps

640 Kbps

704 Kbps

768 Kbps

832 Kbps

896 Kbps

960 Kbps

Data Rate Limit for ingress or egress

100BT

Register bit[6:0], Q=0..3

1 to 0x63 for the Rate

1Mpbs to 99Mpbs.

0 or 0x64 for the rate

100Mpbs

0x6D

0x6E

0x6F

0x70

0x71

0x72

0x73

0x65

0x66

0x67

0x68

0x69

0x6A

0x6B

0x6C

Table 14. Data Rate Limit Table

KSZ8873MLL/FLL/RLL

10BT

Register bit[6:0], Q=0..3

1 to 0x09 for the rate

1Mpbs to 9Mpbs

0 or 0x0A for the rate

10Mpbs

September 2009 61

M9999-092309-1.2

Micrel, Inc.

Register 26 (0x1A): Port 1 PHY Special Control/Status

Register 42 (0x2A): Port 2 PHY Special Control/Status

Register 58 (0x3A): Reserved, not applied to port 3

Bit Name

7 Vct 10M Short

6-5 Vct_result

RO

RO

=1, Less than 10 meter short

=00, Normal condition

=01, Open condition detected in cable

=10, Short condition detected in cable

=11, Cable diagnostic test has failed

4 Vct_en

3 Force_lnk

(SC) this bit will be self-cleared.

=0, Indicate cable diagnostic test (if enabled) has completed and the status information is valid for read.

R/W =1, Force link pass

=0, Normal Operation

KSZ8873MLL/FLL/RLL

Default

0

00

0

0

0

1

Do not change the default value.

Remote Loopback R/W =1, Perform Remote loopback, as follows:

Port 1 (reg. 26, bit 1 = ‘1’)

Start: RXP1/RXM1 (port 1)

Loopback: PMD/PMA of port 1’s PHY

End: TXP1/TXM1 (port 1)

Port 2 (reg. 42, bit 1 = ‘1’)

Start: RXP2/RXM2 (port 2)

Loopback: PMD/PMA of port 2’s PHY

End: TXP2/TXM2 (port 2)

=0, Normal Operation

0

0

Distance to the fault.

It’s approximately 0.4m*vct_fault_count[8:0]

Register 27 (0x1B): Port 1 Not Support

Register 43 (0x2B): LinkMD Result

Register 59 (0x3B): Reserved, not applied to port 3

Bit Name

7-0 Vct_fault_count[7:

0]

RO

Bits[7:0] of VCT fault count

Distance to the fault.

It’s approximately 0.4m*Vct_fault_count[8:0]

Default

0x00

September 2009 62

M9999-092309-1.2

Micrel, Inc.

Register 28 (0x1C): Port 1 Control 12

Register 44 (0x2C): Port 2 Control 12

Register 60 (0x3C): Reserved, not applied to port 3

Bit Name R/W

7 Auto

Negotiation

Enable

R/W =1, Auto negotiation is on

=0, Disable auto negotiation; speed and duplex are determined by bits 6 and 5 of this register.

6 Force Speed R/W =1, Forced 100BT if AN is disabled (bit 7)

=0, Forced 10BT if AN is disabled (bit 7)

5 Force Duplex R/W =1, Forced full duplex if (1) AN is disabled or (2) AN is enabled but failed.

=0, Forced half duplex if (1) AN is disabled or (2) AN is enabled but failed.

4 Advertise =1, Advertise flow control (pause) capability

Control capability

=0, Suppress flow control (pause) capability from transmission to link partner

3 Advertise =1, Advertise 100BT full duplex capability

100BT Full

Duplex

Capability

=0, Suppress 100BT full duplex capability from transmission to link partner

2 Advertise =1, Advertise 100BT half duplex capability

100BT Half

Duplex

Capability

=0, Suppress 100BT half duplex capability from transmission to link partner

1 Advertise =1, Advertise 10BT full duplex capability

10BT Full

Duplex

Capability

=0, Suppress 10BT full duplex capability from transmission to link partner

0 Advertise =1, Advertise 10BT half duplex capability

10BT Half

Duplex

Capability

=0, Suppress 10BT half duplex capability from transmission to link partner

Register 29 (0x1D): Port 1 Control 13

Register 45 (0x2D): Port 2 Control 13

Register 61 (0x3D): Reserved, not applied to port 3

Bit Name R/W

7

6

5

LED Off

Txdis

R/W =1, Turn off all port’s LEDs (LEDx_1, LEDx_0, where “x” is the port number). These pins will be driven high if this bit is set to one.

=0, Normal operation

R/W =1, Disable the port’s transmitter

=0, Normal operation

Restart AN R/W =1, Restart auto-negotiation

=0, Normal operation

Far- =1, Disable far-end fault detection and pattern transmission. end Fault

=0, Enable far-end fault detection and pattern transmission

1

1

1

1

0

0

0

KSZ8873MLL/FLL/RLL

Default

For port 1, P1ANEN pin value during reset.

For port 2, SMRXD33 pin value during reset

For port 1, P1SPD pin value during reset.

For port 2, SMRXD32 pin value during reset.

For port 1, P1DPX pin value during reset.

For port 2, SMRXD31 pin value during reset.

1

Default

0

September 2009 63

M9999-092309-1.2

Micrel, Inc.

Bit Name R/W

3

1

0

Power Down R/W =1, Power down

=0, Normal operation

Auto =1, Disable auto MDI/MDI-X function

MDI/MDI-X

=0, Enable auto MDI/MDI-X function

Force MDI R/W If auto MDI/MDI-X is disabled,

=1, Force PHY into MDI mode (transmit on RXP/RXM pins)

=0, Force PHY into MDI-X mode (transmit on TXP/TXM pins)

Loopback R/W =1, Perform loopback, as indicated:

Port 1 Loopback (reg. 29, bit 0 = ‘1’)

Start: RXP2/RXM2 (port 2)

Loopback: PMD/PMA of port 1’s PHY

End: TXP2/TXM2 (port 2)

Port 2 Loopback (reg. 45, bit 0 = ‘1’)

Start: RXP1/RXM1 (port 1)

Loopback: PMD/PMA of port 2’s PHY

End: TXP1/TXM1 (port 1)

=0, Normal operation

Register 30 (0x1E): Port 1 Status 0

Register 46 (0x2E): Port 2 Status 0

Register 62 (0x3E): Reserved, not applied to port 3

Bit Name R/W

7 MDI-X Status RO =1, MDI-X

=0, MDI

6 AN Done RO =1, Auto-negotiation completed

=0, Auto-negotiation not completed

KSZ8873MLL/FLL/RLL

Default

0

0

0

0

Default

0

0

0

Control

Capability

Full Duplex

Capability

Half Duplex

Capability

Full Duplex

Capability

Half Duplex

Capability

=0, Link not good

=1, Link partner flow control (pause) capable

=0, Link partner not flow control (pause) capable

=1, Link partner 100BT full duplex capable

=0, Link partner not 100BT full duplex capable

=1, Link partner 100BT half duplex capable

=0, Link partner not 100BT half duplex capable

=1, Link partner 10BT full duplex capable

=0, Link partner not 10BT full duplex capable

=1, Link partner 10BT half duplex capable

=0, Link partner not 10BT half duplex capable

0

0

0

0

0

September 2009 64

M9999-092309-1.2

Micrel, Inc.

Register 31 (0x1F): Port 1 Status 1

Register 47 (0x2F): Port 2 Status 1

Register 63 (0x3F): Port 3 Status 1

Bit Name R/W

7 Hp_mdix R/W =1, HP Auto MDI/MDI-X mode

=0, Micrel Auto MDI/MDI-X mode

5 Polrvs RO

Do not change the default value.

=1, Polarity is reversed

=0, Polarity is not reversed

4 Transmit RO

0

Control Enable

3 Receive RO

Control Enable

Speed

Duplex

Far-end Fault RO

=1, Transmit flow control feature is active

=0, Transmit flow control feature is inactive

=1, Receive flow control feature is active

=0, Receive flow control feature is inactive

=1, Link speed is 100Mbps

=0, Link speed is 10Mbps

=1, Link duplex is full

=0, Link duplex is half

=1, Far-end fault status detected

=0, No Far-end fault status detected

Register 67 (0x43): Reset

Bit Name R/W

4 Software =1, Software reset

Reset

=0, Clear

0 PCS Reset R/W =1, PCS reset

=0, Clear

KSZ8873MLL/FLL/RLL

0

0

Default

1

Note: Only ports 1 and 2 are PHY ports.

This bit is not applicable to port 3 (MII).

0

0

Note: This bit is not applicable to port 3 (MII).

This bit is only valid for 10BT

0

0

0

This bit is applicable to port 1 only.

Default

0

0

September 2009 65

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Advanced Control Registers (Registers 96-198)

The IPv4/IPv6 TOS Priority Control Registers implement a fully decoded, 128-bit DSCP (Differentiated Services Code

Point) register set that is used to determine priority from the ToS (Type of Service) field in the IP header. The most significant 6 bits of the ToS field are fully decoded into 64 possibilities, and the singular code that results is compared against the corresponding bits in the DSCP register to determine the priority.

Register 96 (0x60): TOS Priority Control Register 0

Bit Name R/W

7-6 DSCP[7:6] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x0C.

5-4 DSCP[5:4] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x08.

3-2

1-0

DSCP[3:2]

DSCP[1:0]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x04.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x00.

Default

00

00

00

00

Register 97 (0x61): TOS Priority Control Register 1

Bit Name R/W

7-6

5-4

3-2

DSCP[15:14]

DSCP[13:12]

DSCP[11:10]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x1C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x18.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x14.

1-0 DSCP[9:8] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x10.

Register 98 (0x62): TOS Priority Control Register 2

Bit Name R/W

7-6 DSCP[23:22] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x2C.

5-4 DSCP[21:20]

3-2

1-0

DSCP[19:18]

DSCP[17:16]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x28.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x24.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x20.

Default

00

00

00

00

Default

00

00

00

00

September 2009 66

M9999-092309-1.2

Micrel, Inc.

Register 99 (0x63): TOS Priority Control Register 3

Bit Name R/W

7-6 DSCP[31:30]

5-4

3-2

1-0

DSCP[29:28]

DSCP[27:26]

DSCP[25:24]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x3C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x38.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x34.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x30.

Register 100 (0x64): TOS Priority Control Register 4

Bit Name R/W

7-6 DSCP[39:38] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x4C.

5-4 DSCP[37:36]

3-2

1-0

DSCP[35:34]

DSCP[33:32]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x48.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x44.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x40.

Register 101 (0x65): TOS Priority Control Register 5

Bit Name R/W

7-6 DSCP[47:46]

5-4

3-2

1-0

DSCP[45:44]

DSCP[43:42]

DSCP[41:40]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x5C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x58.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x54.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x50.

KSZ8873MLL/FLL/RLL

Default

00

00

00

00

Default

00

00

00

00

Default

00

00

00

00

September 2009 67

M9999-092309-1.2

Micrel, Inc.

Register 102 (0x66): TOS Priority Control Register 6

Bit Name R/W

7-6 DSCP[55:54]

5-4

3-2

1-0

DSCP[53:52]

DSCP[51:50]

DSCP[49:48]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x6C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x68.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x64.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x60.

Register 103 (0x67): TOS Priority Control Register 7

Bit Name R/W

7-6 DSCP[63:62] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x7C.

5-4 DSCP[61:60]

3-2

1-0

DSCP[59:58]

DSCP[57:56]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x78.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x74.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x70.

Register 104 (0x68): TOS Priority Control Register 8

Bit Name R/W

7-6 DSCP[71:70]

5-4

3-2

1-0

DSCP[69:68]

DSCP[67:66]

DSCP[65:64]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x8C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x88.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x84.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x80.

KSZ8873MLL/FLL/RLL

Default

00

00

00

00

Default

00

00

00

00

Default

00

00

00

00

September 2009 68

M9999-092309-1.2

Micrel, Inc.

Register 105 (0x69): TOS Priority Control Register 9

Bit Name R/W

7-6 DSCP[79:78]

5-4

3-2

1-0

DSCP[77:76]

DSCP[75:74]

DSCP[73:72]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x9C.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x98.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x94.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0x90.

Register 106 (0x6A): TOS Priority Control Register 10

Bit Name R/W

7-6 DSCP[87:86] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xAC.

5-4 DSCP[85:84]

3-2

1-0

DSCP[83:82]

DSCP[81:80]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xA8.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xA4.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xA0.

Register 107 (0x6B): TOS Priority Control Register 11

Bit Name

7-6 DSCP[95:94] R/W

5-4

3-2

1-0

DSCP[93:92]

DSCP[91:90]

DSCP[89:88]

R/W

R/W

R/W

The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xBC.

The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xB8.

The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xB4.

The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xB0.

KSZ8873MLL/FLL/RLL

Default

00

00

00

00

Default

00

00

00

00

Default

00

00

00

00

September 2009 69

M9999-092309-1.2

Micrel, Inc.

Register 108 (0x6C): TOS Priority Control Register 12

Bit Name

7-6

5-4

3-2

1-0

DSCP[103:102] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xCC.

DSCP[101:100] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xC8.

DSCP[99:98]

DSCP[97:96]

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xC4.

R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xC0.

Register 109 (0x6D): TOS Priority Control Register 13

Bit Name

7-6 DSCP[111:110] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xDC.

5-4

3-2

1-0

DSCP[109:108] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xD8.

DSCP[107:106] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xD4.

DSCP[105:104] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xD0.

KSZ8873MLL/FLL/RLL

Default

00

00

00

00

Default

00

00

00

00

Register 110 (0x6E): TOS Priority Control Register 14

Bit Name

7-6

5-4

3-2

DSCP[119:118] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xEC.

DSCP[117:116] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xE8.

DSCP[115:114] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xE4.

1-0 DSCP[113:112] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xE0.

Default

00

00

00

00

September 2009 70

M9999-092309-1.2

Micrel, Inc.

Register 111 (0x6F): TOS Priority Control Register 15

Bit Name

7-6

5-4

3-2

1-0

DSCP[127:126] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xFC.

DSCP[125:124] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xF8.

DSCP[123:122] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xF4.

DSCP[121:120] R/W The value in this field is used as the frame’s priority when bits [7:2] of the frame’s IP TOS/DiffServ/Traffic Class value is 0xF0.

Default

00

00

00

00

KSZ8873MLL/FLL/RLL

Registers 112 to 117

Registers 112 to 117 contain the switch engine’s MAC address. This 48-bit address is used as the Source Address for the

MAC’s full duplex flow control (PAUSE) frame.

Register 112 (0x70): MAC Address Register 0

Bit Name R/W Default

0x00

Register 113 (0x71): MAC Address Register 1

Bit Name R/W Default

0x10

Register 114 (0x72): MAC Address Register 2

Bit Name R/W Default

0xA1

Register 115 (0x73): MAC Address Register 3

Bit Name R/W Default

0xFF

Register 116 (0x74): MAC Address Register 4

Bit Name R/W Default

0xFF

Register 117 (0x75): MAC Address Register 5

Bit Name R/W

7-0 MACA[7:0] R/W

Default

0xFF

September 2009 71

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Registers 118 to 120

Registers 118 to 120 are User Defined Registers (UDRs). These are general purpose read/write registers that can be used to pass user defined control and status information between the KSZ8873 and the external processor.

Register 118 (0x76): User Defined Register 1

Bit Name R/W

7-0 UDR1 R/W

Register 119 (0x77): User Defined Register 2

Bit Name R/W

7-0 UDR2 R/W

Register 120 (0x78): User Defined Register 3

Bit Name R/W

7-0 UDR3 R/W

Default

0x00

Default

0x00

Default

0x00

Registers 121 to 131

Registers 121 to 131 provide read and write access to the static MAC address table, VLAN table, dynamic MAC address table, and MIB counters.

Register 121 (0x79): Indirect Access Control 0

Bit Name R/W Default

000

4 Read High /

Write Low

1-0 Indirect

Address High

Do not change the default values.

R/W =1, Read cycle

=0, Write cycle

R/W

=01, VLAN table selected

=10, Dynamic MAC address table selected

=11, MIB counter selected

R/W Bits [9:8] of indirect address

Register 124 (0x7C): Indirect Data Register 7

Bit Name R/W

[63:56]

Data Bits [63:56] of indirect data

0

00

00

Register 122 (0x7A): Indirect Access Control 1

Bit Name R/W

7-0 Indirect

Address Low

R/W Bits [7:0] of indirect address

Default

0000_0000

Note: A write to register 122 triggers the read/write command. Read or write access is determined by register 121 bit 4.

Register 123 (0x7B): Indirect Data Register 8

Bit Name R/W Default

Status

This bit is applicable only for dynamic MAC address table and MIB counter reads.

=1, Read is still in progress

=0, Read has completed

0

Bits [66:64] of indirect data

0000

000

[66:64]

Default

0000_0000

September 2009 72

M9999-092309-1.2

Micrel, Inc.

Register 125 (0x7D): Indirect Data Register 6

Bit Name R/W

[55:48]

Data Bits [55:48] of indirect data

Register 126 (0x7E): Indirect Data Register 5

Bit Name R/W

[47:40]

Data Bits [47:40] of indirect data

Register 127 (0x7F): Indirect Data Register 4

Bit Name R/W

[39:32]

Data Bits [39:32] of indirect data

Register 128 (0x80): Indirect Data Register 3

Bit Name R/W

[31:24]

Data Bits [31:24] of indirect data

Register 129 (0x81): Indirect Data Register 2

Bit Name R/W

[23:16]

Data Bits [23:16] of indirect data

Register 130 (0x82): Indirect Data Register 1

Bit Name R/W

Data Bits [15:8] of indirect data

[15:8]

Register 131 (0x83): Indirect Data Register 0

Bit Name R/W

Data Bits [7:0] of indirect data

[7:0]

Register 147~142(0x93~0x8E): Station Address 1 and 2

Register 153~148 (0x99~0x94): Station Address 1 and 2

Bit Name R/W

48-0 Station address

R/W 48 bit Station address MACA1 and MACA2.

KSZ8873MLL/FLL/RLL

Default

0000_0000

Default

0000_0000

Default

0000_0000

Default

0000_0000

Default

0000_0000

Default

0000_0000

Default

0000_0000

Default

48’h0

Note: the MSB of the

MAC is the MSB of register 147 and 150. The

LSB of MAC is the LSB of register 142 and 148.

September 2009 73

M9999-092309-1.2

Micrel, Inc.

Register 154[6:0] (0x9A): Port 1 Q0 Egress data rate limit

Register 158[6:0] (0x9E): Port 2 Q0 Egress data rate limit

Register 162[6:0] (0xA2): Port 3 Q0 Egress data rate limit

Bit Name R/W

Rate

=1, Enable egress rate limit flow control.

Limit Flow

=0, Disable

Control Enable

Egress R/W

Egress data rate limit for priority 0 frames

Data Rate limit

Egress traffic from this priority queue is shaped according to the Data Rate Limit Table.

Register 155[6:0] (0x9B): Port 1 Q1 Egress data rate limit

Register 159[6:0] (0x9F): Port 2 Q1 Egress data rate limit

Register 163[6:0] (0xA3): Port 3 Q1 Egress data rate limit

Bit Name R/W

Default

0

0

KSZ8873MLL/FLL/RLL

Default

0

Do not change the default values.

Egress R/W

Egress data rate limit for priority 1 frames

data Rate limit

Egress traffic from this priority queue is shaped according to the Data Rate Limit Table.

Register 156[6:0] (0x9C): Port 1 Q2 Egress data rate limit

Register 160[6:0] (0xA0): Port 2 Q2 Egress data rate limit

Register 164[6:0] (0xA4): Port 3 Q2 Egress data rate limit

Bit Name R/W

0

Default

0

Do not change the default values.

Egress R/W

Egress data rate limit for priority 2 frames

Data Rate limit

Egress traffic from this priority queue is shaped according to the Data Rate Limit Table.

Register 157[6:0] (0x9D): Port 1 Q3 Egress data rate limit

Register 161[6:0] (0xA1): Port 2 Q3 Egress data rate limit

Register 165[6:0] (0xA5): Port 3 Q3 Egress data rate limit

Bit Name R/W

0

Default

0

Do not change the default values.

Egress R/W

Egress data rate limit for priority 3 frames

Data Rate limit

Egress traffic from this priority queue is shaped according to the Data Rate Limit Table.

0

September 2009 74

M9999-092309-1.2

Micrel, Inc.

Register 166 (0xA6): KSZ8873 mode indicator

Bit Name RO

7-0 KSZ8873

Mode Indicator

RO bit7: 1: 2 MII mode bit6: 1: 48P pkg of 2 PHY mode bit5: 1: Port 3 RMII 0: Port 3 MII bit4: 1: Port 1 RMII 0: Port 1 MII bit3: 1: Port 3 MAC MII 0: Port 3 PHY MII bit2: 1: Port 1 MAC MII 0: Port 1 PHY MII bit1: 1: Port 1 Copper 0: Port 1 Fiber bit0: 1: Port 2 Copper 0: Port 2 Fiber

Register 167 (0xA7): High Priority Packet Buffer Reserved for Q0

Bit Name RW

Do not change the default values.

Register 168 (0xA8): High Priority Packet Buffer Reserved for Q1

Bit Name RW

Do not change the default values.

Register 169 (0xA9): High Priority Packet Buffer Reserved for Q2

Bit Name RW

Do not change the default values.

Register 170 (0xAA): High Priority Packet Buffer Reserved for Q3

Bit Name RW

Do not change the default values.

Register 171 (0xAB): PM Usage Flow Control Select Mode 1

Bit Name R/W

Do not change the default values.

Do not change the default values.

Do not change the default values.

Register 172 (0xAC): PM Usage Flow Control Select Mode 2

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 173 (0xAD): PM Usage Flow Control Select Mode 3

Bit Name R/W

September 2009

Do not change the default values.

Do not change the default values.

75

KSZ8873MLL/FLL/RLL

Default

3

Default

0x69

Default

0x53

Default

0x37

Default

0x21

Default

0

1

0x18

Default

0

0x10

Default

00

0x08

M9999-092309-1.2

Micrel, Inc.

Register 174 (0xAE): PM Usage Flow Control Select Mode 4

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 175 (0xAF): TXQ Split for Q0 in Port 1

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 176 (0xB0): TXQ Split for Q1 in Port 1

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 177 (0xB1): TXQ Split for Q2 in Port 1

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 178 (0xB2): TXQ Split for Q3 in Port 1

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 179 (0xB3): TXQ Split for Q0 in Port 2

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 180 (0xB4): TXQ Split for Q1 in Port 2

Bit Name R/W

Do not change the default values.

Do not change the default values.

September 2009 76

KSZ8873MLL/FLL/RLL

Default

0

0x05

Default

1

8

Default

1

4

Default

1

2

Default

1

1

Default

1

8

Default

1

4

M9999-092309-1.2

Micrel, Inc.

Register 181 (0xB5): TXQ Split for Q2 in Port 2

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 182 (0xB6): TXQ Split for Q3 in Port 2

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 183 (0xB7): TXQ Split for Q0 Port 3

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 184 (0xB8): TXQ Split for Q1 Port 3

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 185 (0xB9): TXQ Split for Q2 in Port 3

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 186 (0xBA): TXQ Split for Q3 in Port 3

Bit Name R/W

Do not change the default values.

Do not change the default values.

Register 187 (0xBB): Interrupt enable register

Bit Name R/W

7-0 Interrupt

Enable

Register

R/W

Interrupt enable register corresponding to bits in Register

188

KSZ8873MLL/FLL/RLL

Default

1

2

Default

1

1

Default

1

8

Default

1

4

Default

1

2

Default

1

1

Default

0x00

September 2009 77

M9999-092309-1.2

Micrel, Inc.

Register 188 (0xBC): Link Change Interrupt

Bit Name R/W

7 P1 or P2 Link

Change (LC)

Interrupt

R/W

Set to 1 when P1 or P2 link changes in analog interface

(W1C).

KSZ8873MLL/FLL/RLL

Default

0

0

R/W

Do not change the default values.

Set to 1 when P3 link changes in MII interface (W1C).

Change (LC)

Interrupt

0

Change (LC)

Interrupt

P1 MII Link

Change (LC)

Interrupt

R/W

R/W

Set to 1 when P2 link changes in analog interface (W1C).

Set to 1 when P1 link changes in analog interface or MII interface (W1C).

Register 189 (0xBD): Force Pause Off Iteration Limit Enable

Bit Name R/W

Pause

=1, Enable, It is 160ms before requesting to invalidate flow

Off Iteration control.

Limit Enable

=0, Disable

Register 192 (0xC0): Fiber Signal Threshold

Bit Name R/W

7 Port 2 Fiber

Signal

Threshold

R/W

=1, Threshold is 2.0V

=0, Threshold is 1.2V

6 Port 1 Fiber

Signal

Threshold

R/W

=1, Threshold is 2.0V

=0, Threshold is 1.2V

0

0

0

Default

0

Default

0

0

0

Do not change the default value.

September 2009 78

M9999-092309-1.2

Micrel, Inc.

Register 194 (0xC2): Insert SRC PVID

Bit Name R/W

KSZ8873MLL/FLL/RLL

Default

00

Do not change the default value. insert SRC port 1 PVID for untagged frame at egress port 2 port 1 PVID at

Port 2 port 2 PVID at

Port 3 insert SRC port 1 PVID for untagged frame at egress port 3 port 1 PVID at

Port 3

SRC insert SRC port 2 PVID for untagged frame at egress port 1 port 2 PVID at

Port 1 insert SRC port 2 PVID for untagged frame at egress port 3 port 3 PVID at

Port 1 insert SRC port 3 PVID for untagged frame at egress port 1

SRC insert SRC port 3 PVID for untagged frame at egress port 2 port 3 PVID at

Port 2

Register 195 (0xC3): Power Management and LED Mode

Bit Name R/W

interface CPU interface clock tree power down enable.

Power Down

=1, Enable

=0, Disable

Power Switch clock tree power down enable.

Down

=1, Enable

Mode

Selection

R/W

=0, Disable

=00, LED0 -> Link/ACT, LED1-> Speed

=01, LED0 -> Link, LED1 -> ACT

=10, LED0 -> Link/ACT, LED1 -> Duplex

=11, LED0 -> Link, LED1 -> Duplex

2 output

=1, The internal stretched energy signal from the analog mode module will be negated and output to LED1 and the internal device ready signal will be negated and output to LED0.

=0, The LED1/LED0 pins will indicate the regular LED outputs.

(Note. This is for debugging purpose.)

PLL Off Enable R/W

=1, PLL power down enable

=0, Disable

1-0 Power

Management

Mode

R/W

Power management mode

=00, Normal Mode

=01, Energy Detection Mode

=10, Software Power Down Mode

=11, Power Saving Mode

0

0

0

0

0

0

Default

0

0

00

0

0

00

September 2009 79

M9999-092309-1.2

Micrel, Inc.

Register 196(0xC4): Sleep Mode

Bit Name R/W

KSZ8873MLL/FLL/RLL energy event has to be detected consecutively before the device enters the low power state when the ED mode is on.

The unit is 20 ms. The default go sleep time is 1.6 seconds.

Default

0x50

Register 198 (0xC6): Forward Invalid VID Frame and Host Mode

Bit Name R/W

3

2

VID Frame

P3 RMII Clock

Selection

P1 RMII Clock

Selection

R/W

R/W

Mode

Do not change the default value.

Forwarding ports for frame with invalid VID

=1, Internal

=0, External

=1, Internal

=0, External

=00, I2C master mode

=01, I2C slave mode

=10, SPI slave mode

=11, SMI mode

0

0

Default

0

3b’0

Strapped value of P2LED1,

P2LED0.

September 2009 80

M9999-092309-1.2

Micrel, Inc.

Static MAC Address Table

KSZ8873MLL/FLL/RLL

The KSZ8873 supports both a static and a dynamic MAC address table. In response to a Destination Address (DA) look up, the KSZ8873 searches both tables to make a packet forwarding decision. In response to a Source Address (SA) look up, only the dynamic table is searched for aging, migration and learning purposes.

The static DA look up result takes precedence over the dynamic DA look up result. If there is a DA match in both tables, the result from the static table is used. The entries in the static table will not be aged out by the KSZ8873.

The static table is accessed by a external processor via the SMI, SPI or I2C interfaces. The external processor performs all addition, modification and deletion of static MAC table entries.

Bit Name R/W

57-54

53

FID

Use FID

R/W

R/W

Filter VLAN ID – identifies one of the 16 active VLANs

=1, Use (FID+MAC) for static table look ups

=0, Use MAC only for static table look ups

Default

0000

0

52 Override R/W =1, Override port setting “transmit enable=0” or

“receive enable=0” setting

51 Valid R/W

=0, No override

=1, This entry is valid, the lookup result will be used

=0, This entry is not valid

50-48 Forwarding

Ports

R/W These 3 bits control the forwarding port(s):

001, forward to port 1

010, forward to port 2

100, forward to port 3

011, forward to port 1 and port 2

110, forward to port 2 and port 3

101, forward to port 1 and port 3

111, broadcasting (excluding the

0

0

000

0x0000_0

000_0000

Table 15. Format of Static MAC Table (8 Entries)

Examples:

1. Static Address Table Read (Read the 2 nd

Entry)

Write to reg. 121 (0x79) with 0x10

Write to reg. 122 (0x7A) with 0x01

Then,

Read reg. 124 (0x7C), static table bits [57:56]

Read reg. 125 (0x7D), static table bits [55:48]

Read reg. 126 (0x7E), static table bits [47:40]

Read reg. 127 (0x7F), static table bits [39:32]

Read reg. 128 (0x80), static table bits [31:24]

Read reg. 129 (0x81), static table bits [23:16]

Read reg. 130 (0x82), static table bits [15:8]

Read reg. 131 (0x83), static table bits [7:0]

September 2009 81

// Read static table selected

// Trigger the read operation

M9999-092309-1.2

Micrel, Inc.

2. Static Address Table Write (Write the 8 th

Entry)

Write to reg. 124 (0x7C), static table bits [57:56]

Write to reg. 125 (0x7D), static table bits [55:48]

Write to reg. 126 (0x7E), static table bits [47:40]

Write to reg. 127 (0x7F), static table bits [39:32]

Write to reg. 128 (0x80), static table bits [31:24]

Write to reg. 129 (0x81), static table bits [23:16]

Write to reg. 130 (0x82), static table bits [15:8]

Write to reg. 131 (0x83), static table bits [7:0]

Write to reg. 121 (0x79) with 0x00

Write to reg. 122 (0x7A) with 0x07

// Write static table selected

// Trigger the write operation

KSZ8873MLL/FLL/RLL

September 2009 82

M9999-092309-1.2

Micrel, Inc.

VLAN Table

KSZ8873MLL/FLL/RLL

The KSZ8873 uses the VLAN table to perform look ups. If 802.1Q VLAN mode is enabled (register 5, bit 7 = 1), this table will be used to retrieve the VLAN information that is associated with the ingress packet. This information includes FID

(filter ID), VID (VLAN ID), and VLAN membership as described in the following table.

Bit Name R/W

19 Valid R/W

= 0, entry is invalid

18-16 Membership R/W Specify which ports are members of the VLAN. If a DA lookup fails (no match in both static and dynamic tables), the packet associated with this

VLAN will be forwarded to ports specified in this field. For example, 101 means port 3 and 1 are in this VLAN.

15-12 FID

11-0 VID

R/W Filter ID. KSZ8873 supports 16 active VLANs represented by these four bit fields. FID is the mapped ID. If 802.1Q VLAN is enabled, the look up will be based on FID+DA and FID+SA.

R/W IEEE 802.1Q 12 bits VLAN ID

Default

1

111

0x0

0x001

Table 16. Format of Static VLAN Table (16 Entries)

If 802.1Q VLAN mode is enabled, KSZ8873 will assign a VID to every ingress packet. If the packet is untagged or tagged with a null VID, the packet is assigned with the default port VID of the ingress port. If the packet is tagged with non null

VID, the VID in the tag will be used. The look up process will start from the VLAN table look up. If the VID is not valid, the packet will be dropped and no address learning will take place. If the VID is valid, the FID is retrieved. The FID+DA and

FID+SA lookups are performed. The FID+DA look up determines the forwarding ports. If FID+DA fails, the packet will be broadcast to all the members (excluding the ingress port) of the VLAN. If FID+SA fails, the FID+SA will be learned.

Examples:

1. VLAN Table Read (read the 3 rd

entry)

Write to reg. 121 (0x79) with 0x14

Write to reg. 122 (0x7A) with 0x02

Then,

Read reg. 129 (0x81), VLAN table bits [19:16]

Read reg. 130 (0x82), VLAN table bits [15:8]

Read reg. 131 (0x83), VLAN table bits [7:0]

// Read VLAN table selected

// Trigger the read operation

2. VLAN Table Write (write the 7 th

entry)

Write to reg. 129 (0x81), VLAN table bits [19:16]

Write to reg. 130 (0x82), VLAN table bits [15:8]

Write to reg. 131 (0x83), VLAN table bits [7:0]

Write to reg. 121 (0x79) with 0x04

Write to reg. 122 (0x7A) with 0x06

// Write VLAN table selected

// Trigger the write operation

September 2009 83

M9999-092309-1.2

Micrel, Inc.

Dynamic MAC Address Table

The KSZ8873 maintains the dynamic MAC address table. Read access is allowed only.

KSZ8873MLL/FLL/RLL

70-67

66

65-56

55-54

53-52

Ready

Reserved

MAC Empty

No of Valid

Entries

Time Stamp

Source Port

51-48 FID

Default

RO

RO

RO

RO

RO

= 1, entry is not ready, continue retrying until this bit is set to 0

= 0, entry is ready

Reserved

= 1, there is no valid entry in the table

= 0, there are valid entries in the table

Indicates how many valid entries in the table

0x3ff means 1K entries

0x001 means 2 entries

0x000 and bit 66 = 0 means 1 entry

0x000 and bit 66 = 1 means 0 entry

2 bits counter for internal aging

The source port where FID+MAC is learned

00 : port 1

01 : port 2

10 : port 3

1

00_0000_0000

00

0x0

0x0000_0000_0000

Table 17. Format of Dynamic MAC Address Table (1K Entries)

Example:

Dynamic MAC Address Table Read (read the 1 st

entry and retrieve the MAC table size)

Write to reg. 121 (0x79) with 0x18

Write to reg. 122 (0x7A) with 0x00

// Read dynamic table selected

// Trigger the read operation

Then,

Read reg. 123 (0x7B), bit [7]

dynamic table bits [66:64]

// if bit 7 = 1, restart (reread) from this register

Read reg. 124 (0x7C), dynamic table bits [63:56]

Read reg. 125 (0x7D), dynamic table bits [55:48]

Read reg. 126 (0x7E), dynamic table bits [47:40]

Read reg. 127 (0x7F), dynamic table bits [39:32]

Read reg. 128 (0x80), dynamic table bits [31:24]

Read reg. 129 (0x81), dynamic table bits [23:16]

Read reg. 130 (0x82), dynamic table bits [15:8]

Read reg. 131 (0x83), dynamic table bits [7:0]

September 2009 84

M9999-092309-1.2

Micrel, Inc.

MIB (Management Information Base) Counters

KSZ8873MLL/FLL/RLL

The KSZ8873 provides 34 MIB counters per port. These counters are used to monitor the port activity for network management. The MIB counters have two format groups: “Per Port” and “All Port Dropped Packet.”

Bit Name Default

0

= 0, no counter overflow

0

29-0 Counter values RO

= 0, counter value is not valid

Counter value

Table 18. Format of “Per Port” MIB Counters

0

0x0

0x1

0x2

0x3

0x4

0x5

0xD

0xE

0xF

0x10

0x11

0x12

0x13

“Per Port” MIB counters are read using indirect memory access. The base address offsets and address ranges for all three ports are:

Port 1, base is 0x00 and range is (0x00-0x1f)

Port 2, base is 0x20 and range is (0x20-0x3f)

Port 3, base is 0x40 and range is (0x40-0x5f)

Port 1 MIB counters are read using the indirect memory offsets in the following table.

0x6

0x7

0x8

0x9

0xA

0xB

0xC

0x14

0x15

RxLoPriorityByte

RxHiPriorityByte

RxUndersizePkt

RxFragments

RxOversize

RxJabbers

RxSymbolError

RxCRCError

RxAlignmentError

RxControl8808Pkts

RxPausePkts

RxBroadcast

RxMulticast

Description

Rx lo-priority (default) octet count including bad packets

Rx hi-priority octet count including bad packets

Rx undersize packets w/ good CRC

Rx fragment packets w/ bad CRC, symbol errors or alignment errors

Rx oversize packets w/ good CRC (max: 1536 or 1522 bytes)

Rx packets longer than 1522 bytes w/ either CRC errors, alignment errors, or symbol errors (depends on max packet size setting)

Rx packets w/ invalid data symbol and legal packet size.

Rx packets within (64,1522) bytes w/ an integral number of bytes and a bad CRC (upper limit depends on max packet size setting)

Rx packets within (64,1522) bytes w/ a non-integral number of bytes and a bad CRC

(upper limit depends on max packet size setting)

Number of MAC control frames received by a port with 88-08h in EtherType field

Number of PAUSE frames received by a port. PAUSE frame is qualified with EtherType

(88-08h), DA, control opcode (00-01), data length (64B min), and a valid CRC

Rx good broadcast packets (not including error broadcast packets or valid multicast packets)

Rx good multicast packets (not including MAC control frames, error multicast packets or valid broadcast packets)

RxUnicast

Rx64Octets

Rx65to127Octets

Rx128to255Octets

Rx good unicast packets

Total Rx packets (bad packets included) that were 64 octets in length

Total Rx packets (bad packets included) that are between 65 and 127 octets in length

Total Rx packets (bad packets included) that are between 128 and 255 octets in length

Rx256to511Octets

Rx512to1023Octets

Total Rx packets (bad packets included) that are between 256 and 511 octets in length

Total Rx packets (bad packets included) that are between 512 and 1023 octets in length

Rx1024to1522Octets Total Rx packets (bad packets included) that are between 1024 and 1522 octets in length (upper limit depends on max packet size setting)

TxLoPriorityByte

TxHiPriorityByte

Tx lo-priority good octet count, including PAUSE packets

Tx hi-priority good octet count, including PAUSE packets

September 2009 85

M9999-092309-1.2

Micrel, Inc.

0x16

0x17

0x18

0x19

0x1A

0x1B

0x1C

0x1D

0x1E

0x1F

KSZ8873MLL/FLL/RLL

TxLateCollision

Description

The number of times a collision is detected later than 512 bit-times into the Tx of a packet

TxPausePkts

TxBroadcastPkts

TxMulticastPkts

TxUnicastPkts

TxDeferred

TxTotalCollision

Number of PAUSE frames transmitted by a port

Tx good broadcast packets (not including error broadcast or valid multicast packets)

Tx good multicast packets (not including error multicast packets or valid broadcast packets)

Tx good unicast packets

Tx packets by a port for which the 1st Tx attempt is delayed due to the busy medium

Tx total collision, half duplex only

TxExcessiveCollision A count of frames for which Tx fails due to excessive collisions

TxSingleCollision Successfully Tx frames on a port for which Tx is inhibited by exactly one collision

TxMultipleCollision Successfully Tx frames on a port for which Tx is inhibited by more than one collision

Table 19. Port 1’s “Per Port” MIB Counters Indirect Memory Offsets

Bit Name

30-16 Reserved

15-0 Counter Value RO Counter Value

Table 20. Format of “All Port Dropped Packet” MIB Counters

Default

N/A

0

September 2009 86

M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

“All Port Dropped Packet” MIB counters are read using indirect memory access. The address offsets for these counters are shown in the following table:

0x100

0x101

0x102

0x103

0x104

0x105

Port1 TX Drop Packets

Port2 TX Drop Packets

Port3 TX Drop Packets

Port1 RX Drop Packets

Port2 RX Drop Packets

Port3 RX Drop Packets

Description

TX packets dropped due to lack of resources

TX packets dropped due to lack of resources

TX packets dropped due to lack of resources

RX packets dropped due to lack of resources

RX packets dropped due to lack of resources

RX packets dropped due to lack of resources

Table 21. “All Port Dropped Packet” MIB Counters Indirect Memory Offsets

Examples:

1. MIB Counter Read (Read port 1 “Rx64Octets” Counter)

Write to reg. 121 (0x79) with 0x1c

Write to reg. 122 (0x7A) with 0x0e

Then

// Read MIB counters selected

// Trigger the read operation

Read reg. 128 (0x80), overflow bit [31] valid bit [30] counter bits [29:24]

// If bit 31 = 1, there was a counter overflow

// If bit 30 = 0, restart (reread) from this register

Read reg. 129 (0x81), counter bits [23:16]

Read reg. 130 (0x82), counter bits [15:8]

Read reg. 131 (0x83), counter bits [7:0]

2. MIB Counter Read (Read port 2 “Rx64Octets” Counter)

Write to reg. 121 (0x79) with 0x1c

Write to reg. 122 (0x7A) with 0x2e

Then,

// Read MIB counter selected

// Trigger the read operation

Read reg. 128 (0x80), overflow bit [31] valid bit [30] counter bits [29:24]

// If bit 31 = 1, there was a counter overflow

// If bit 30 = 0, restart (reread) from this register

Read reg. 129 (0x81), counter bits [23:16]

Read reg. 130 (0x82), counter bits [15:8]

Read reg. 131 (0x83), counter bits [7:0]

3. MIB Counter Read (Read “Port1 TX Drop Packets” Counter)

Write to reg. 121 (0x79) with 0x1d // Read MIB counter selected

Write to reg. 122 (0x7A) with 0x00

Then

Read reg. 130 (0x82), counter bits [15:8]

Read reg. 131 (0x83), counter bits [7:0]

// Trigger the read operation

Additional MIB Counter Information

“Per Port” MIB counters are designed as “read clear.” These counters will be cleared after they are read.

“All Port Dropped Packet” MIB counters are not cleared after they are accessed and do not indicate overflow or validity; therefore, the application must keep track of overflow and valid conditions.

To read out all the counters, the best performance over the SPI bus is (160+3)*8*200 = 260ms, where there are 160 registers, 3 overheads, 8 clocks per access, at 5MHz. In the heaviest condition, the counters will overflow in 2 minutes. It is recommended that the software read all the counters at least every 30 seconds.

A high performance SPI master is also recommended to prevent counters overflow.

September 2009 87

M9999-092309-1.2

Micrel, Inc.

Absolute Maximum Ratings

(1)

Operating Ratings

(2)

6.5 mA

35 mA

2.0/2.

0/1.3

KSZ8873MLL/FLL/RLL

Supply Voltage

(V

DDA

_1.8, V

DDC

)....................................... –0.5V to 2.4V

(V

DDA

_3.3V, V

DDIO

) ................................... –0.5V to 4.0V

Input Voltage ................................................. –0.5V to 4.0V

Output Voltage .............................................. –0.5V to 4.0V

Lead Temperature (soldering, 10sec.) ....................... 270°C

Storage Temperature (T s

) ..........................–55°C to 150°C

HBM ESD Rating .......................................................... 6KV

Supply Voltage

(V

DDA

_1.8, V

DDC

) ............................1.710V to 1.890V

(V

DDA

_3.3)......................................2.375V to 3.465V

(V

DDIO

) ..............................................1.71V to 3.465V

Ambient Temperature (T

A

)

Commercial ........................................... 0°C to 70°C

Junction Temperature (T

J

) .....................................125°C

Junction Thermal Resistance

(3)

JA

) ................................................. 42.3°C/W

Electrical Characteristics

(4)

Current consumption is for the single 3.3V supply device only, and includes the 1.8V supply voltages (V

DDA

, V

DDC

) that are provided via power output pin 56(V

DDCO

).

Each PHY port’s transformer consumes an additional 45mA @ 3.3V for 100BASE-TX and 70mA @ 3.3V for 10BASE-T at fully traffic.

Symbol Parameter Condition

100BASE-TX Operation (All Ports @ 100% Utilization)

I dd1

100BASE-TX

(transceiver + digital I/O)

VDDA_3.3, VDDIO = 3.3V

10BASE-T Operation (All Ports @ 100% Utilization)

VDDA_3.3, VDDIO = 3.3V I dd2

10BASE-T

(transceiver + digital I/O)

Power Management Mode

I dd3

Power Saving Mode

I dd4

I dd5

Soft Power Down Mode

Energy Detect Mode

Ethernet cable disconnected & Auto-Neg

Set Register 195 bit[1,0] to [1,1]

Set Register 195 bit[1,0] to [1,0]

Unplug Port 1 and Port 2

Set Register 195 bit[1,0] to [0,1]

TTL Inputs (VDD_IO = 3.3V/2.5V/1.8V)

V

IH

Input High Voltage

Min Typ Max Units

123

88 mA mA

90 mA

V

V

IL

-10

0.8/0.

6/0.3

10

V

µA I

IN

TTL Outputs (VDD_IO = 3.3V/2.5V/1.8V)

V

OH

Output High Voltage

V

IN

= GND ~ VDD_IO

I

OH

= -8mA 2.4/1.

9/1.5

V

V

OL

Output Low Voltage

I

OL

= 8mA

0.4/0.

4/0.2

10

V

µA |I

OZ

| Output Tri-State Leakage

100BASE-TX Transmit (measured differentially after 1:1 transformer)

V

V

O

IMB

T r

/T f

Peak Differential Output Voltage

100

Ω termination across differential output.

Output Voltage Imbalance

100

Ω termination across differential output

Rise/Fall Time

Rise/Fall Time Imbalance

Duty Cycle Distortion

Overshoot

Peak-to-peak

10BASE-T Receive

V

SQ

Squelch Threshold

Symbol Parameter

5MHz square wave

Condition

0.95 1.05 V

3

0

5

0.5

±0.5 ns ns ns

400 mV

Min Typ Max Units

September 2009 88 M9999-092309-1.2

Micrel, Inc.

10BASE-T Transmit (measured differentially after 1:1 transformer)

V

P

Peak Differential Output Voltage

100

Ω termination across differential output

Peak-to-peak

Notes:

1. Exceeding the absolute maximum rating may damage the device.

2. The device is not guaranteed to function outside its operating rating.

3. No (HS) heat spreader in this package.

4. T

A

= 25°C. Specification for packaged product only.

KSZ8873MLL/FLL/RLL

2.4 V

1.4 ns

September 2009 89 M9999-092309-1.2

Micrel, Inc.

Timing Specifications

EEPROM Timing

KSZ8873MLL/FLL/RLL

Figure 16. EEPROM Interface Input Timing Diagram

Figure 17. EEPROM Interface Output Timing Diagram

Symbols Parameters

Clock cycle t cyc1 t s1 t h1 t ov1

Setup time

Hold time

Output valid

Min Typ Max Unit

20

20

4096

16384

4112

Table 22. EEPROM Timing Parameters

4128 ns ns ns ns

September 2009 90 M9999-092309-1.2

Micrel, Inc.

MII Timing

KSZ8873MLL/FLL/RLL

Figure 18. MAC Mode MII Timing – Data Received from MII

Figure 19. MAC Mode MII Timing – Data Transmitted to MII

September 2009

10Base-T/100Base-TX

200Base-TX

Symbol Parameter Min Typ Max Units Min Typ Max t

CYC3 t

S3 t

H3 t

OV3

Clock

Cycle

Set-Up

Time

4

400/40 ns ns

5

20

Hold Time 2

Output

Valid ns

3

7 11 16 ns 3 8

Units

ns ns ns ns

Table 23. MAC Mode MII Timing Parameters

91 M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Figure 20. PHY Mode MII Timing – Data Received from MII

Figure 21. PHY Mode MII Timing – Data Transmitted to MII

10BaseT/100BaseT

Symbol t

CYC4 t

S4 t

H4

Parameter

Clock Cycle

Set-Up Time

Hold Time

200BaseT

Min Typ Max

Unit s

Min Typ Max

400/40 ns

10

0 ns

10 ns

0

20

Units

ns ns ns t

OV4

Output Valid 18 19 ns 7 8 ns

Table 24. PHY Mode MII Timing Parameters

September 2009 92 M9999-092309-1.2

Micrel, Inc.

RMII Timing

T ra n s m it

T im in g

R E F C L K

M T X D [1 :0 ]

M T X E N tc y c t

1 t

2

R ec e iv e

T im in g

R E F C L K

M R X D [1: 0]

M R X D V

Figure 22. RMII Timing – Data Received from RMII tcyc t o d

Figure 23. RMII Timing – Data Transmitted to RMII

KSZ8873MLL/FLL/RLL

Symbols Parameters Min Typ Max Unit

20 ns

4 ns

2

6 ns

Table 25. RMII Timing Parameters

September 2009 93 M9999-092309-1.2

Micrel, Inc.

I

2

C Slave Mode Timing

Figure 24. I2C Input Timing

Figure 25. I2C Start Bit Timing

Figure 26. I2C Stop Bit Timing

KSZ8873MLL/FLL/RLL

Figure 27.

I2C Output Timing

September 2009 94 M9999-092309-1.2

Micrel, Inc.

Symbols Parameters

t

CYC t

S

Setup t

H t

TBS t

TBH

Start bit setup time

Start bit hold time t

SBS t

SBH

Stop bit setup time

Stop bit hold time t

OV

Output

KSZ8873MLL/FLL/RLL

Min Typ

400

Max Unit

ns

33 ns

0 ns

33 ns

33 ns

2

33 ns ns

64 96 ns

Table 26. I2C Timing Parameters

Note: Data is only allowed to change during SCL low time except start and stop bits.

September 2009 95 M9999-092309-1.2

Micrel, Inc.

SPI Timing

KSZ8873MLL/FLL/RLL

Figure 28. SPI Input Timing

t

Symbols Parameters

f

C t

CHSL

SLCH t

CHSH

SPISN inactive hold time

SPISN active setup time

SPISN active old time t

SHCH t

SHSL t

DVCH t

CHDX t

CLCH t

CHCL t

DLDH t

DHDL

SPISN inactive setup time

SPISN deselect time

Data input setup time

Data input hold time

Clock rise time

Clock fall time

Data input rise time

Data input fall time

Min

90

90

90

90

100

20

30

Table 27. SPI Input Timing Parameters

Max

1

1

1

1

Units

ns ns ns ns ns ns ns us us us us

September 2009 96 M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Figure 29. SPI Output Timing

Symbols Parameters

f

C

Clock t

CLQX t

CLQV t

CH t

CL t

QLQH t

QHQL

SPIQ hold time

Clock low to SPIQ valid

Clock high time

Clock low time

SPIQ rise time

SPIQ fall time t

SHQZ time

Min Max Units

0

90

90

0

60

50

50 ns ns ns ns ns

100 ns

Table 28. SPI Output Timing Parameters

September 2009 97 M9999-092309-1.2

Micrel, Inc.

Auto-Negotiation Timing

A u to -N ego tia tion - F ast L in k P u lse T im in g

F L P

B u r st

F L P

B u rst

T X + /T X -

t

F L P W t

B T B

T X + /T X -

C lock

P u lse

D ata

P u lse

t

P W t

P W t

C T D t

C T C

Figure 30. Auto-Negotiation Timing

C lock

P u lse

KSZ8873MLL/FLL/RLL

D a ta

P u lse

Symbols Parameters

t

BTB

FLP burst to FLP burst t

FLPW

FLP burst width t

PW

Clock/Data pulse width t

CTD

Clock pulse to Data pulse t

CTC

Clock pulse to Clock pulse

Number of Clock/Data pulse per burst

Min Typ Max Units

8 16 24 ms

2

100 ms ns

55.5

111

64

128

69.5

139

µs

µs

17 33

Table 29. Auto-Negotiation Timing Parameters

September 2009 98 M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Reset Timing

The KSZ8873MLL/FLL/RLL reset timing requirement is summarized in the following figure and table.

Figure 31. Reset Timing

t t

Symbols Parameters

sr

Stable supply voltages to reset High

Configuration setup time t cs t ch rc

Reset to strap-in pin output

Table 30. Reset Timing Parameters

Min Max Units

10 ms

50 ns

50

50 ns us

After the de-assertion of reset, it is recommended to wait a minimum of 100 us before starting programming on the managed interface (I2C slave, SPI slave, SMI, MIIM).

September 2009 99 M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Reset Circuit

The reset circuit in Figure 32 is recommended for powering up the KSZ8873MLL/FLL/RLL if reset is triggered only by the power supply.

Figure 32. Recommended Reset Circuit

The reset circuit in Figure 33 is recommended for applications where reset is driven by another device (e.g., CPU, FPGA, etc),. At power-on-reset, R, C and D1 provide the necessary ramp rise time to reset the KSZ8873MLL/FLL/RLL device.

The RST_OUT_n from CPU/FPGA provides the warm reset after power up.

Figure 33. Recommended Reset Circuit for interfacing with CPU/FPGA Reset Output

September 2009 100 M9999-092309-1.2

Micrel, Inc.

Selection of Isolation Transformers

KSZ8873MLL/FLL/RLL

An 1:1 isolation transformer is required at the line interface. An isolation transformer with integrated common-mode choke is recommended for exceeding FCC requirements.

The following table gives recommended transformer characteristics.

Turns ratio

Open-circuit inductance (min.)

Leakage inductance (max.)

Inter-winding capacitance (max.)

D.C. resistance (max.)

Insertion loss (max.)

HIPOT (min.)

1 CT : 1 CT

350

μH

0.4

μH

12pF

0.9

Ω

1.0dB

1500Vrms

Table 31. Transformer Selection Criteria

100mV, 100kHz, 8mA

1MHz (min.)

0MHz – 65MHz

Magnetic Manufacturer

Bel Fuse

Bel Fuse (MagJack)

Bel Fuse (MagJack)

Part Number

S558-5999-U7

SI-46001

SI-50170

Auto MDI-X

Yes

Yes

Yes

Number of Port

1

1

1

Pulse (low cost) H1260 Yes 1

Transpower HB726 Yes 1

1 TDK (Mag Jack) TLA-6T718 Yes

Table 32. Qualified Single Port Magnetics

Selection of Reference Crystal

Frequency tolerance (max)

Load capacitance (max)

Series resistance

±50

20

25 ppm pF

Ω

Table 33. Typical Reference Crystal Characteristics

September 2009 101 M9999-092309-1.2

Micrel, Inc.

Package Information

KSZ8873MLL/FLL/RLL

September 2009 102 M9999-092309-1.2

Micrel, Inc. KSZ8873MLL/FLL/RLL

Figure 34. 64-Pin LQFP Package

MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA

TEL +1 (408) 944-0800 FAX +1 (408) 474-1000 WEB http://www.micrel.com

The information furnished by Micrel in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use. Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.

Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A

Purchaser’s use or sale of Micrel Products for use in life support appliances, devices or systems is a Purchaser’s own risk and Purchaser agrees to fully indemnify Micrel for any damages resulting from such use or sale.

© 2009 Micrel, Incorporated.

September 2009 103 M9999-092309-1.2

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
