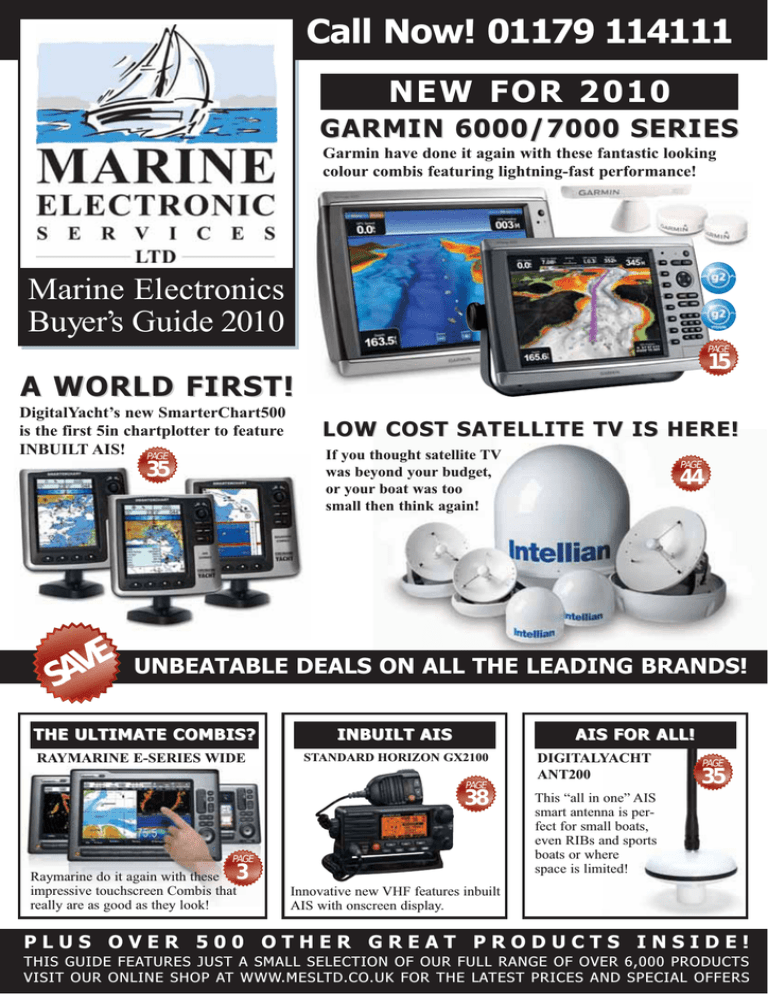

NEW FOR 2010
GARMIN 6000/7000 SERIES
Garmin have done it again with these fantastic looking
colour combis featuring lightning-fast performance!
Marine Electronics
Buyer’s Guide 2010
PAGE
15
A WORLD FIRST!
DigitalYacht’s new SmarterChart500
is the first 5in chartplotter to feature
INBUILT AIS! PAGE
35
E
V
SA
LOW COST SATELLITE TV IS HERE!
If you thought satellite TV
was beyond your budget,
or your boat was too
small then think again!
PAGE
44
UNBEATABLE DEALS ON ALL THE LEADING BRANDS!
THE ULTIMATE COMBIS?
INBUILT AIS
AIS FOR ALL!
RAYMARINE E-SERIES WIDE
STANDARD HORIZON GX2100
PAGE
38
PAGE
3
Raymarine do it again with these
impressive touchscreen Combis that
really are as good as they look!
DIGITALYACHT
ANT200
PAGE
35
This “all in one” AIS
smart antenna is perfect for small boats,
even RIBs and sports
boats or where
space is limited!
Innovative new VHF features inbuilt
AIS with onscreen display.
PLUS OVER 500 OTHER GREAT PRODUCTS INSIDE!
THIS GUIDE FEATURES JUST A SMALL SELECTION OF OUR FULL RANGE OF OVER 6,000 PRODUCTS
VISIT OUR ONLINE SHOP AT WWW.MESLTD.CO.UK FOR THE LATEST PRICES AND SPECIAL OFFERS
Welcome to MES
2
Index
THE MARINE ELECTRONICS BUYER’S GUIDE 2010
Welcome to our latest Buyer’s Guide with hundreds of exciting new products including
radars, plotters, autopilots, instruments and satellite communications. Over the past 22
years, Marine Electronic Services Ltd has grown to become Europe’s leading specialist
marine electronics supplier. Our philosophy of expert advice, a passion for customer
service and competitive prices offers a winning combination – unmatched by any of our
competitors. Our specialist advice and an unbiased selection make choosing the right
electronics for your application even easier. Plus, our well stocked showrooms offer the
biggest selection ever and the ability to compare products from the world’s leading
manufacturers. Most importantly, our team don’t just answer the phone – they provide
solutions and expert knowledge
Plus, with installation and service facilities in the UK and Europe, we’re your first choice
for a professional installation. Our office in Poole will look after all your S Coast
installation needs and if you can’t find an office close to you, take advantage of our mail
order and export facilities - fast despatch to anywhere in the world at globally
competitive prices. The choice is yours - call in, call up or click on our online store
www.mesltd.co.uk - your route to a better marine electronics solution.
Finally, remember that what you see here is just a selection of our 6000+ product line if it works on wires and fits on boats, then we like to think we do it!!
Good Boating!
NICHOLAS HEYES
Managing Director
© 2010 Marine Electronic Services Ltd. The information in this catalogue is correct at the time of going to press, using specifications
supplied by the manufacturers. However, products are constantly being updated, hence MES can accept no responsibility for any
errors in the description of any of the products featured in this catalogue.
By Manufacturer
Jeppesen Marine (C-Map)
Digitalyacht
EasyAIS
Echopilot
Echomax
Furuno
Garmin
Geonav
Humminbird
Icom
Intellian
Iridium
KVH
Lowrance
Marine Pod
MB Quart
McMurdo
Moerer
NASA
Navionics
Northstar
Raymarine
Scanstrut
SeaMe
Simrad
Standard Horizon
Tacktick
Thrane & Thrane
Thuraya
Vesper Marine
V’Tronix
30-31
34-35
37
27
37
24
11-17
19
18-19
40-41
44
45
46
20-21
28
29
36
37
25
32-33
26
3-10
43
29
22
38-39
23
45
45
37
42
By Product
Active Radar Reflector
29, 37
AIS
3, 17, 22, 25, 35, 37, 40
Antenna Mounts
43
Autopilots - Cockpit
6, 22
Autopilots - Inboard
6, 7, 17
Battery Monitors
25
Cameras
5, 14,
Cartography
12-13, 30-33
Chartplotters 3-5, 11, 13-15, 18-22, 24, 26, 39
Combi Units
3-5, 13-15, 19-22, 24, 26, 39
Entertainment
5, 26, 29
EPIRBs
36
Fishfinders
3-5, 13-16, 18-22, 24, 26-27, 39
Forward Looking Sounders
27
GPS - Fixed
11,
GPS - Handheld
11, 19, 21
Instruments
9, 16, 23, 25, 27
Loudspeakers
29, 42
Marine Monitors
5, 46
Marine Pods & Mounting Accys
28, 42-43
Navtex
24-25, 37
PC Software
10, 25, 30, 33, 35
PC Systems & Peripherals 25, 30, 33-35, 37, 40
PLBs & SARTS
36
Radars
3-5, 14-15, 20, 22, 24, 26, 39
Satcoms/Satellite Internet
44-46
Satellite Compass
24
Satellite TV
8, 44, 46
Satnav
11
SSB Radios
25, 41
VHF - Fixed
8, 17, 21, 26, 38, 41
VHF - Handheld
21, 38, 40
VHF Antennas
42
Weather Receivers
3, 24-25
WiFi
34
CALL NOW! 01179 114111 • [email protected] • www.mesltd.co.uk
Raymarine
3
E Series Combi Displays
RAYMARINE E SERIES WIDESCREEN
RAYMARINE AIS500
9, 12 & 14in Colour Touch Screen Combi Displays
NEW FOR
2010
Black Box Class B AIS Transceiver
See and be seen with the AIS500 which receives AIS
targets and transmit your vessel information to other
AIS receivers. The AIS500 easily interfaces to
Raymarine multifunction displays allowing AIS targets
to be graphically overlaid in both chartplotter and
radar modes.
NEW FOR
2010
KEY FEATURES
• Dual channel AIS monitoring
• Inbuilt antenna splitter and NMEA multiplexer
• Dedicated external 16 channel GPS antenna
• NMEA 0183 output - compatible with other makes
• Targets displayed on chart and radar screens
Touch screen or keypad operation? Now users have a choice of flexibility of operation with Raymarine’s new widescreen combi displays. E
Series Widescreen is the most flexible, technically advanced, and easy to
use multi-function navigation display to date. It also raises the bar with its bold
new styling, offering the maximum ultra-bright image and size for its footprint.
RAYMARINE AIS250
Black Box AIS Receiver
Touch screen operation has the advantage of being quick and easy, but it can be challenging to use in rough
weather or when moving at speed. HybridTouch™ offers the choice of operating options giving users the flexibility of touch screen control alongside traditional hard keys - a seamless mix of both methods.
KEY FEATURES
• Network up to 5 E Series displays via SeaTalkhs
• Optically bonded super high resolution displays
• Completely new user interface allows users to
easily personalise their home screen
• Inbuilt tutorial guides you through the features
• Full ‘qwerty’ on-screen keyboard for editing routes
and waypoints etc
• Intuitive touch-by-touch manual route building
• Unicontrol™ integrates OK, Cursor & Rotary controls
• Softkeys for essential navigation functions
• Anti-collision alarm uses boat draught, height and
beam data to safely navigate shallow water and
help avoid chart hazards
• 48rpm high speed radar scanning
• Bird Mode helps fishermen detect and track fish
shoals by tracking sea bird movement
• Fully customisable screens - see everything at a
glance, fishfinder, HD radar, charting, engine data,
fuel levels and more
• Low profile flush mounting
• Rugged IPX6 waterproof housing
• On board graphics accelerator
• Smoother 3D graphics and video
PRODUCT
• Composite Video In
• Optional on board cameras
• Smartpilot X Series autopilot control
• Compatible with Digital Radar, Digital Sounder
Module, AIS and SIRIUS Weather Module
HOT
The Raymarine AIS250 interfaces with A, C, E or
G Series systems,
allowing AIS targets to
be graphically overlaid
in both chartplotter
and radar modes.
KEY FEATURES
• Receives Class A
and B AIS broadcasts
• Displays target name,
course, speed and status
• Reconcile AIS and radar targets for added safety
• Inbuilt antenna splitter and NMEA multiplexer
• Two NMEA 0183 inputs, two NMEA 0183 outputs
Tech info
SUPPLIED WITH
Power & interface lead, mounting bracket
Raymarine Echosounder Transducers
Suitable for the Digital Sounder Modules
and most Raymarine stand-alone fishfinders
(except A Series).
RAYMARINE SR100
RAYMARINE DSM30 & DSM300
P319
Sirius Weather Receiver (US Only)
HD Digital Sounder Module
Graphically display up to the minute animated weather forecasts on your Raymarine system. The SR100
delivers state-of-the-art weather forecast information.
A monthly Sirius Marine Weather subscription is
required.
Add HD Digital sounder technology to the C and E
Series with the DSM30 (600W) and DSM300
(1000W) 50/200kHz dual frequency digital sounder
modules. See table
on right for
transducers
available.
KEY FEATURES
• Compatible with A, C, E and G Series systems
• WSI NowRad® Weather Radar
• Lightning and Storm Tracks
• Sea Surface Temperature
• Warnings, observations and buoy reports
• Surface Pressure, Wind and Wave forecast and more
Plastic thru hull
600W, 50/200kHz
Depth only
B744V Bronze thru hull
600W, 50/200kHz
Depth, speed, temp
Also available with long
stem B744VL (shown)
P66
High speed transom mount
600W, 50/200kHz
Depth, speed, temp
KEY FEATURES
• Submersible to IPX7 standard
• hsb2 networking compatible
• HD Digital technology virtually eliminates clutter
• Auto Adaptive Gain control - no adjustment required
• Digitally Adaptive Transmitter Receiver with infinite
receiver bandwidth settings and digital filter
• A-Scope (Real-Time Display): Split second real time
representation of fish and bottom features
• Auto or manual zoom (x2, x4 or x6)
• Bottom lock and white line
P79
Adjustable in-hull
600W, 50/200kHz
Depth only
SS555
Stainless steel thru hull
600W, 50/200kHz
Depth only
B256
Bronze thru hull high perf’
1000W, 50/200kHz
Depth, temp
SUPPLIED WITH
Transducers must be specified. If fitting to an E Series
a SeaTalkhs crossover coupler or SeaTalkhs Network
Switch is required
B260
Bronze thru hull v high perf’
1000W, 50/200kHz
Depth, temp
Turn to the back page for pricing and ordering info NOW!
Raymarine
4
C Series & A Series Displays
RAYMARINE C SERIES WIDESCREEN
RAYMARINE HD & SHD DIGITAL
9, 12 & 14in Colour Combi Displays
Radar Scanners
HOT
PRODUCT
The C Series Widescreen expands the capabilities of the original multifunction display with larger, brilliant displays, increased performance, expanded networking and video integration. Available in 9, 12 and 14in display
sizes the new C Series now offers dual station networking capability, a high sensitivity internal GPS receiver and
high quality embedded charts. The optically bonded LCD display dramatically improves contrast, eliminates
condensation and improves readability.
KEY FEATURES
• Highly customisable user interface with multiple
• Internal high sensitivity GPS sensor eliminates need
page and split window combinations
for an external antenna for most installations
• Processors are 2.5 times faster
• Embedded chart options: Europe, Coastal US,
• Faster pans & screen refresh
Latin America-Asia-Oceania
• On board graphics accelerator
• Also compatible with Navionics Gold and Platinum
• Smoother 3D graphics and video
• Low profile flush mounting
• Composite Video In
• Rugged IPX6 waterproof housing
• Optional on board cameras
• Dual display networking via SeaTalkhs
• Smartpilot X Series autopilot control
• Sunlight viewable, super high resolution displays :
• Compatible with Digital Radar, Digital Sounder
C90W: WXGA resolution (800x480)
Module, AIS and SIRIUS Weather Module
C120W: WXGA resolution (1280x800)
C140W: WXGA resolution (1280x800)
• Intuitive softkeys for essential navigation functions
SUPPLIED WITH
• Unicontrol™ integrates ‘OK’, Cursor & Rotary
Power & interface lead, mounting bracket.
controls into one
RAYMARINE A SERIES
5, 5.7 & 6.4in Colour Chartplotter & Chartplotter/Fishfinder Displays
Raymarine’s exclusive Super HD Digital technology
gives amazingly clear radar images with unmatched
target separation and lifelike presentation that virtually
eliminates noise, clutter and false echoes. Super HD
Digital processing delivers a radar image that can’t be
matched by similar analogue or digital radar systems,
with a level of performance that rivals that of systems
of more than twice the size and power output.
RADOME KEY FEATURES
• Narrow horizontal beam angle - 4.9° for 18in and
3.9° for 24in
• Custom designed LNC (Low Noise Converter)
• Lowest noise on the front end of the system,
superior sensitivity and weak target acquisition
• Greatest number of pulse lengths, pulse repetition
frequencies and IF bandwidths
• Optimises range discrimination and target
detection performance over the entire range scale
• Quieter belt drive operation
• Superior auto functions
• Thin interconnect cable (12.3mm)
OPEN ARRAY KEY FEATURES
• Twice the performance of analogue radar systems
• Reduces the effective horizontal beam width giving
the target resolution of a much larger radar array
• Adaptive digital receiver automatically adjusts to
changing environmental and sea conditions for a
dramatically clearer picture
• Fast digital receiver processor
• 256 color target levels
• Dual range capable
• Thin interconnect cable (12.3mm)
• 12 or 24 volt operation
Tech info
Raymarine Radar Scanners
When ordering your radar system you’ll
need to specify the antenna you require -
The feature-packed A-Series are available as standalone chartplotters or combination chart/fishfinders with a
powerful inbuilt 500W 50/200kHz HD Digital sounder. All are available with preloaded with Navionics charts
and can be further expanded with optional Navionics Hotmaps, Gold or Platinum cartography on compact
flash. Each A Series features a high sensitivity internal WAAS GPS receiver providing pinpoint chartplotter accuracy, or add a RayStar 125 GPS antenna for situations where an external GPS antenna is needed.
KEY FEATURES
• A50 - 5in Chartplotter
• A50D - 5in Chartplotter/Fishfinder
• A57D - 5.7in Chartplotter/Fishfinder
• A70 - 6.4in Chartplotter
• A70D - 6.4in Chartplotter/Fishfinder
• Embedded chart options: Europe, Coastal US,
Latin America-Asia-Oceania
• Rugged IPX6 waterproof housing
•
•
•
•
•
•
•
•
Sunlight viewable, high resolution VGA displays
Intuitive softkeys for essential navigation functions
Create customisable pagesvia NMEA2000/SeaTalkng
Two NMEA0183 In/Outputs
High speed chart redraw
Compatible with SIRIUS Weather Module
AIS target tracking (with optional AIS250 module)
Smartpilot X Series autopilot control
Part No.
RD418D
RD424D
RD418HD
RD424HD
A1048HD
A1048SHD
A1072HD
Size
18in
24in
18in
24in
48in
48in
72in
Power
4kW
4kW
4kW
4kW
4kW
4kW
4kW
Type
RD
RD
RD
RD
OA
OA
OA
Range
48nm
48nm
48nm
48nm
72nm
72nm
72nm
A1072SHD
A3048HD
A3072HD
72in
48in
72in
4kW
12kW
12kW
OA
OA
OA
72nm
72nm
72nm
RD - Radome Antenna (enclosed)
OA - Open Array
Digital and HD Domes are only compatible with
C Wide, E Wide and G Series systems
We accept most major credit and debit cards
Raymarine
5
G Series Navigation System
RAYMARINE G120/G150/G170/G190
RAYMARINE GB150 & GB170
Marine Monitors
15 & 17in Glass Bridge Monitors
These monitors not only integrate perfectly with the rest of the G Series System,
they can also be used with PCs, CCTV cameras, satellite TV, DVD, game consoles anything with a VGA or DVI output. All navigation, security and entertainment
needs can now be centralised via one set of displays. The impact resistant glass
fascia bonded to the LCD prevents
condensation and ensures
reliability both
inside and out.
Combining the latest advanced technology in a stylish, edge-to-edge black glass
screen, these large, ultra-bright sunlight viewable colour displays offer multiple
display combinations for
every navigational scenario
with ultra-sophisticated
styling. The monitors can
be low profile mounted
without requiring a bezel,
which facilitates a clean
and unobtrusive installation
with maximum display size
in a small footprint.
KEY FEATURES
• 12, 15, 17 & 19in 1024x768 pixels XGA, wide viewing angle and sharp contrast
• 9 video inputs (3 Analogue VGA, 2 DVI, 3 Composite Video,1 S-Video)
• Direct access keys provide quick access to each video source and major controls
• On Screen Display (OSD) menu and Picture In Picture (PIP)
• Sunlight viewable display with anti-reflective filter
• Low profile, thin bezel for unobstrusive installation
KEY FEATURES
• 150 degree viewing angle
• Control from G-Series keyboard
• Impact resistant glass bonded to the LCD to
improve contrast, minimise reflections and prevent condensation
• On screen display (OSD) menu and Picture In Picture (PIP)
• Night mode feature dims to red for optimum visibility in low light
• Anti-reflective glass filter reduces reflection and optimizes visibility
• Three VGA, two DVI, composite video and S-video inputs
• Aluminium chassis provides superior strength and durability
• Rated to IPX-6, can be exterior mounted if required
NEW FOR
2010
RAYMARINE COMMAND CTR
RAYMARINE COMMAND CTR
RAYMARINE GPM400 (Europe)
G Series Command Centre Keyboard
G Series Compact Keyboard
G Series Processor Module
The control point for the G-Series Navigation System,
the Command Centre Keyboard can be dash fitted
or wireless mounted and offers simple, intuitive control of all system features and functions. A single
keyboard can be used to control anything from a single GPM400/G-Series Monitor combination on a
smaller vessel right up to multiple monitors and
processors on a superyacht.
Ideal for installations where space is limited, the
Compact Keyboard provides access to the powerful
G Series navigation system without sacrificing core
functionality. Designed exclusively for flush mounting,
the G Series Compact Keyboard provides a clean,
unobtrusive appearance that compliments today’s
modern helm designs.
The core of the G Series system, with a super fast
processor, high performance graphics hardware and
an inbuilt shock resistant, high capacity hard drive.
The rugged aluminum
housing is designed
for cool, quiet,
trouble-free
operation
under any
conditions.
KEY FEATURES
• Control multiple GPM400 processor
modules and display combinations
• LCD identifies each nav station and display in use
• Full remote control of each G-Series display
• Optional wireless kit
• Intuitive softkey interface and alphanumeric keypad
• Inbuilt autopilot control
• Optional wireless upgrade kit and base station
KEY FEATURES
• Control up to four GPM400 processors and four G
Series displays
• Full G Series control with reduced footprint
• LED indicators identify which display is in use as
well as the current radar status
• Intuitive colour coded softkey interface
• Mix and match the Compact Keyboard with the
Command Center Keyboard in either a wired or
wireless configuration in your G Series system
KEY FEATURES
• Pre-loaded with Navionics
Platinum charts for the whole of
Europe (no unlock codes required)
• Up to 10 times faster than other embedded marine
navigation systems
• Compact Flash card reader for card-based charts
• Two high performance DVI/VGA video output ports
• 3000 waypoints/45,000 trackpoints
• Can be used with DSM300/400 sounder module
• Connections for SeaTalkNG, SeaTalkhs, SeaTalk,
NMEA2000, NMEA 0183
• Multiple GPM400 module support via SeaTalkhs
RAYMARINE GVM400
RAYMARINE CAM100 (PAL)
RAYMARINE CAM50 (PAL)
G Series Audio-Video Module
Day and Night Vision Video Camera
Dome Camera
Video server for interfacing up to 4 external video
devices to the G Series System. SeaTalkhs networking
eliminates the need to route
multiple video signal cables
throughout the system.
Transforms the G & E Series into a powerful onboard
video observation systems. Improve docking safety by
monitoring blind spots
or keep track of the
engine room and crew.
Use multiple cameras
for a total view of your
vessel’s surroundings.
Reverse image version also available.
Ideal for interior installations, the unobtrusive dome
design is perfect for mounting in the saloon, wheel
house or engine room. Ceiling or wall mounted.
KEY FEATURES
• Plug & Play with G and E Series
• Automatic switching between true colour (day) and
black & white (night) use
• Up to 15m total darkness visibility in night mode.
KEY FEATURES
• Plug and play with Raymarine G & E Series
• Manually adjustable pan and tilt
• High quality imager, excellent colour reproduction
• Reverse image version also available
KEY FEATURES
• Integrated video
observation system
• 4 composite inputs or 3
composite + 1 S-Video with stereo audio
• View up four video streams simultaneously
• Two GVM400 video modules can be added for up
to eight video streams on the network
• Compatible with Raymarine CAM50 and CAM100
marine cameras
Turn to the back page for pricing and ordering info NOW!
Raymarine
6
Cockpit & Wireless Autopilots
VALUE BUNDLE PACKS
RAYMARINE ST1000+/ST2000+
Get everything you need to install your system & save money
Cockpit Tiller Autopilot
Using our extensive knowledge of marine electronics we have put together a
series of special bundles aimed at particular types of boating. In these packs
you will find absolutely everything you need to install your dream system, right
down to every cable and bracket.
Raymarine’s range of tiller autopilots are suitable for most tiller-steered sailboats.
Easy to use and install they feature a useful backlit display.
As well as ensuring you have everything need, there is a significant saving on the
cost of all the kit.
Details of all the systems can be found online, but examples include:
KEY FEATURES
• ST1000+ suitable for sailboats up to 2,500kg
• ST2000+ suitable for sailboats up to 4,500kg
• Inbuilt SeaTalk and NMEA interface
• Autopilot and navigation info display
• Weatherproof design, 2-stage pushrod seal
• Low power consumption
• Intelligent course holding software
Instrument Pack
x 3 Instruments
ALSO CONSIDER
• Eagle ETP10, ETP22, ETP33
8in / 9in MultiFunction
Plotter with GPS
Optional Extras
Add second station
control to your
ST1000, ST2000 and
SPX5 Cockpit Pilots by
adding the wireless
S100 controller.
RAYMARINE SPX5/SPX5GP TILLER PILOT
High Performance Cockpit Tiller Autopilot
UK/Eire Chart
The ultimate tiller autopilots, with a fixed control head and compass unit and two
very powerful drive unit options but still with low power consumption.
2kw / 4kw Radome
with 10m Cable
Mast Platform
Chart Table VHF
KEY FEATURES
• For sailboats up to 6,000kg (SPX5) and 7,500kg (SPX5-GP)
• Inbuilt SeaTalk and NMEA interface
• Weatherproof design with two stage pushrod seal
• Intelligent course holding software
RAYMARINE SPX5 WHEEL PILOT
Cockpit Wheel Autopilot
Cockpit Speaker /
Remote Station
DigitalYacht ANT200
AIS Receiver
Masthead Antenna with Hawk
ALL
THIS FOR
ONE SPECIAL
LOW PRICE!
See website
for details
Fully enclosed wheel mounted
autopilot - no belts or untidy
trailing wires. Features wheel
mounted drive and a fixed
control unit with large backlit
display. The convenience of
an inboard pilot at the cost of
a cockpit pilot.
KEY FEATURES
• Low power consumption
• Backlit display and keypad
• SeaTalk and NMEA interface
• Navigational information repeater
• Intelligent course holding software
• Suitable for sailboats up to 7,500kg
• Can be used on hydraulically steered boats
(with optional rudder feedback)
SUPPLIED WITH
Control unit, drive/gearbox unit,
fluxgate compass and cabling
... Plus Installation Kit
Optional Extras
Add second station
control to your
ST1000, ST2000 and
SPX Cockpit Pilots
by adding the wireless SmartController.
We accept most major credit and debit cards
Raymarine
7
Inboard Autopilots
RAYMARINE SMARTPILOT X SERIES
Inboard Autopilot System
Raymarine’s new Smartpilot X range of inboard autopilots offer more power and greater steering accuracy with
advanced steering software and powerful new features. The new ST70 autopilot control enables you to take
full advantage of the SmartPilot X Series capabilities and performance. Each system must include at least one
ST70 autopilot control, but additional ST6002, ST7002 or ST8002 control heads can also be added for multistation control. The pilot can also be engaged directly from a Raymarine combi display.
SMARTPILOT X KEY FEATURES
• Complete all in one autopilot options
• Linear, hydraulic and sterndrive options
• Inbuilt rate gyro sensor
• AST (Advanced Steering Technology) and SmartSteer
gives superior steering in all conditions and speeds
• Smart Rudder Sense eliminates rudder feedback unit
• SeaTalkng compatibility with ST70 instruments
• Control the pilot from your Raymarine combi display
• New automatic fishing patterns
ST70 AUTOPILOT CONTROL KEY FEATURES
• Primary control head for SmartPilot X Series autopilots
• Unlock the full functionality of the SmartPilot X system
• 3.5in sunlight viewable colour display
• SeaTalkng and NMEA2000 interface
• Digital, compass or 3D isometric displays
• Extra heads can be added for multi-station installations
• Simple intuitive setup and calibration
• Surface or flush mount
• Intuitive dodge function
SUPPLIED WITH
Control, course computer, gyro compass, drive. See box on this page for package infomation and call us for
more details
RAYMARINE ST6002
Second Station Control Head
The ST6002 is a basic optional secondary control
unit that can be used alongside the main ST70
control head. It features a large clear display with an
analogue rudder angle indicator.
KEY FEATURES
• Large display with analogue rudder angle indicator
• Inbuilt SeaTalk & NMEA interface
• Autopilot, navigation and instrument displays
• Multi station control options
• Remote control ST60/ST60+ instruments
RAYMARINE ST7002
Second Station Control Head
Optional secondary control head takes all the features
and performance of the ST6002 and adds a multifunction control unit with large, clear LCD display.
KEY FEATURES
• All the features of the ST6002
• Large display with analogue rudder angle indicator
• Inbuilt SeaTalk & NMEA interface
• Autopilot, navigation and instrument displays
• Multi station control options
• Remote control ST60/ST60+ instruments
Tech info
Selecting your Smartpilot X Series
The Raymarine Smartpilots are designed to
suit virtually any kind of boat that is afloat up to
35,000kg (77,000lb) displacement. The flexible
modular system allows you to build up a package
of drive, electronics core pack and control unit to
suit your unique requirements 1. Drive Selection
Raymarine offer a selection of drives to suit the
size and steering type of your boat Linear
Type
1*
2S
2L
2
3
Drives 12 & 24v (specify)
Drive Stroke
Displacement
Mech
12in
11,000kg (24,000lb)
Mech
12in
15,000kg (33,000lb)
Mech
16in
20,000kg (44,000lb)
Hyd
10in
22,000kg (48,000lb)
Hyd
12in
35,000kg (77,000lb)
Reversing Pumps 12 & 24v (specify)
Type
Ram Capacity (Min-Max)
0.5*
50-110cc (3.1-6.7in3)
1
80-230cc (4.9-14in3)
2
230-350cc (14-21in3)
3
350-500cc (21-30.5in3)
Rotary Drive 12 & 24v (specify)
Type
Displacement
1*
11,000kg (24,000lb)
2
20,000kg (44,000lb)
* 12v only
2. Core Pack Selection
The core pack is the electronics package for the
autopilot which includes the course computer,
compass and feedback unit (X-30 & X-SOL only).
There are three core packs available, and these
are specified depending on the drive unit type
selected in stage 1 Core Packs
Type
Voltage
X-10
12/24v
X-30
12/24v
X-SOL 12/24v
Drive Current
Drives
10amps
Type 1
30amps
Type 2 & 3
Solenoid
3. Additional Control Unit Selection
If required, choose additional control units ST70
ST6002
ST7002
ST8002
Full function control unit
Compact control unit
Large screen control unit
Large screen unit with rotary control
Please call us to discuss your requirements and
to ensure you select the correct package for your
boat.
RAYMARINE ST8002
Second Station Rotary Control Head
Optional secondary control head with all the features
of the ST7002, but with a large, easy to use rotary
control knob and power steer option.
KEY FEATURES
• Large display with analogue rudder angle indicator
• Inbuilt SeaTalk & NMEA interface
• Autopilot, navigation and instrument displays
• Multi station control options
• Remote control ST60/ST60+ instruments
Turn to the back page for pricing and ordering info NOW!
Raymarine
8
Communications
RAYMARINE RAY49
RAYMARINE RAY55E
DSC VHF Radio
DSC VHF Radio
The new Ray49 is a compact, rugged, submersible (IPX7) VHF radio with easy-touse rotary controls for volume, squelch and menu operation, a large 7-segment,
backlight LCD display and the fistmike includes integrated channel controls
and an inbuilt speaker. The receiver offers excellent noise rejection and best-in-class
audio output. Features four scan modes modes and programmable scanning.
The Ray55E features rotary controls for volume, squelch and menu operation and
an extra large LCD display. The fistmike includes integrated channel controls and
an inbuilt speaker. The Ray55E is also
expandable to 2 stations with full duplex
intercom capability using
the optional Raymic Full
Function Handset.
KEY FEATURES
• Class D DSC - distress key transmits GPS position and a digital mayday
• NMEA0183 input for chartplotter position polling
• Programmable Scanning, dual and Tri Watch
• Quick Access channel 16/9 Key
• NOAA Weather Alert (US only)
• External loudspeaker option
• Available in gray or white
• Optional flush mount kit
KEY FEATURES
• Position, COG & SOG
display via NMEA input
• Chartplotter position polling
• Favourite channel softkeys
• Dual Channel Display shows active and stand by channel simultaneously
• All Scan, Saved (Memory) Scan, Priority All Scan and Priority Saved Scan
• Submersible (IPX7) rugged housing
• Low profile bezel, optional flush mount kit
ALSO AVAILABLE
• Ray218 - Adds an inbuilt 30 Watt Hailer
with “Listen Back” capability and automatic
foghorn to the features of the Ray55E
SUPPLIED WITH
Radio, microphone,
sun cover, mounting bracket,
power/speaker/data cable
SUPPLIED WITH
Radio, microphone, sun cover, mounting bracket, power/speaker/data cable
RAYMARINE RAY240E
RAYMARINE RAYMIC
Modular DSC VHF Radio
Remote Station Handset
Modular multi-station system with separate transceiver unit that can
be mounted out of sight, with only the waterproof handset and
remote loudpeaker on show. Each handset provides full VHF
and DSC functionality plus intercom facility between stations.
Add full function remote control of the Raymarine Ray55 and
Ray218 VHF radios with the Raymic remote station handset.
KEY FEATURES
• Full function alphanumeric keypad
• Programmable scan and tri-watch
• Loudspeaker with on/off switch and volume control
• Optional fog horn/loudhailer
KEY FEATURES
• Full control of all features and functions of the Ray55
and Ray218 VHF radios
• Extra large dot matrix LCD
• Speaker microphone
• Submersible (IPX7 Standard)
• Full duplex intercom between stations
SUPPLIED WITH
One handset, loudspeaker, transceiver unit, cables
SUPPLIED WITH
Handset, cradle
RAYMARINE 33STV
RAYMARINE 37STV
RAYMARINE 45STV & 60STV
Satellite TV Antenna System
Satellite TV Antenna System
Satellite TV Antenna System
The 33STV makes satellite TV
NEW FOR
reception available to
boats as small as 20ft in
length. 33STV is HD
compatible and comes
standard with the new
Multi-satellite Interface
Module which conveniently switches the
system across 3 satellites automatically, providing uninterrupted
channel surfing just like a home satellite TV system.
The antenna control unit can connect with up to 6
onboard satellite receivers via USB.
2010
KEY FEATURES
• High performance compact antenna
• Only 14in diameter, weighs less than 4.5kg
• Channel Surf without Delay - Fast Tracking
• Built-in HD Module
• Wide Power Supply Range: DC 9V~ 31V
• Easy & Simple Installation
• NMEA 0183 GPS Interface
If you want the benefits of satellite TV onboard, but
you’ve always thought your boat was too small, then
the 37STV system is the solution, which will fit on
most boats 25-40ft in length.
KEY FEATURES
• All the key features in a small boat package
• Footprint of only 14.5in, weighs only 8.6kg
• Watch on TV, monitor, G Series or E Series display
• Engineered for the harshest marine environments
• Quickly acquires signals from all DVB compatible
service providers
For DVB satellite TV receivers, the compact, fully automatic stabilised antenna provides uninterrupted
reception in almost any conditions. It quickly identifies compatible DVB satellites
using a unique Wide Range
Search algorithm. Highly
accurate satellite tracking
at sea is achieved
using Dynamic
Beam Tilting
technology,
ensuring a clear
picture in the
most challenging conditions.
KEY FEATURES
• 45STV footprint only 19.2in, weight is only14kg
• 23.5in 60STV for vessels of 50ft and above offers
greater signal range and improved reception
• Watch on TV, monitor, G Series or E Series display
• Dual LNB Design - watch the weather at the helm
while others watch TV down below
• Supports multiple receivers
ALL MODELS SUPPLIED WITH
Antenna, Antenna Control Unit. You will need to purchase and activate a DVB compatible satellite TV receiver with the provider of your choice and provide a television
monitor or other suitable video display
We accept most major credit and debit cards
Raymarine
9
Instruments
RAYMARINE ST70
RAYMARINE ST70+
Instrument System
Instrument System
The ST70 Multifunction Colour display offers a different way of visualising instrumentation and navigation data.
Designed for simple setup and extensive user customisation, ST70’s capabilities include depth, speed, wind,
navigation data, autopilot status, engine monitoring and more.
The ST70+ system is designed primarily for sail and
powerboats over 12m (40ft). The 6.5in wide angle,
high-visibility displays are ideal where information is
viewed at a distance, such as on the mast or on a
large bridge, or if you simply want to view information in a larger format at the nav station or helm.
HOT
PRODUCT
ST70 systems use Raymarine’s SeaTalkng Next Generation data bus which enables simple interconnection of
multiple ST70 instruments, transducers and NMEA2000 compatible devices as well as existing Raymarine
SeaTalk and SeaTalk2 systems.
The sunlight-viewable displays are operated by dedicated keypads - there's a push-button only pilot keypad for sailboats, a rotary pilot for powerboats and a
combination push button and rotary instrument keypad for complete control of all instrument features.
To build a complete ST70 instrument system choose from the complete line of ST70 transducer pods and
SeaTalkng networking components (sold separately.)
KEY FEATURES
• Fully customisable displays for depth, speed, wind,
navigation data, engine data and more
• Full colour graphical displays, virtual analogue
displays and histograms
• 8 user defined instrument data pages
• 16 screen layout options for each data page
• Eleven languages available
• High contrast sunlight viewable TFT colour display
with wide viewing angles
• Day and Night mode colour palettes
SUPPLIED WITH
• Snap-on sun cover, surface and flush mounting kits,
SeaTalkng backbone cable, SeaTalk adapter cable
KEY FEATURES
• Superior visibility with high quality graphics
• Night and Inverse modes for low light conditions
• Create a system with SeaTalkng sensors for wind,
speed, depth and NMEA2000 engine systems
• User defined instrument pages
• 25 screen layout options with analogue, digital
and historical displays
• Configure as an instrument or autopilot display
RAYMARINE ST60+ GRAPHIC
RAYMARINE ST60+ SPEED
RAYMARINE ST60+ TRIDATA
Multifunction Dot-Matrix Display
Speed/Log System
Combi System
Versatile multifunction dot matrix display that can
show any data on the SeaTalk network bus.
KEY FEATURES
• Boat speed 0-60kts
• Log & Resettable Trip
• Sea temperature
• Pilot Status display*
• Max & avg speed, VMG*
• Speed over ground*
• Stopwatch/lap timer
• Race start timer
KEY FEATURES
• Combined Speed and
Depth multi-line display
• Boat speed 0-60kts
• Water depth 0.8-180m
• Speed over ground
• Automatically switches
depth sensors when depth
sounder module is detected, to avoid interference
RAYMARINE ST60+ DEPTH
RAYMARINE ST40
Depth System
Entry Level Instrument System
KEY FEATURES
• Intuitive Chapter and Page control keys
• Up to seven user configurable favourites pages
• View and control multiple data sources
• Large digit, graphical or multi-line format displays
• Single, split or quad screen displays
KEY FEATURES
• Water depth 0.8-180m
• Depth trend indicator
• Transducer, waterline or
keel offset
• Pilot status display*
• Shallow, deep & anchor
alarms
Simple and elegant,
with large digit LCD
displays. Optional
snap-on bezels, three
levels of back lighting
and waterproof to
USCG-CFR 46. SeaTalk
Speed
compatible, all necessary transducers are included.
RAYMARINE ST60+ COMPASS
RAYMARINE ST60+ WIND
• Fully waterproof to CFR-46 standard
• Easily retrofitted to ST60 surface mount installations
• Compatible with SeaTalk, SeaTalk2, SeaTalkng and
NMEA 2000 devices
• Intelligently converts first-generation SeaTalk data to
SeaTalkng
Compass System
Wind System
KEY FEATURES
• Heading
• Average course
• Course Over Ground*
• Man overboard display
• Keypad heading
alignment
KEY FEATURES
• Apparent wind speed
• True wind speed*
• True wind direction*
• Max wind speed alarm
• Beaufort, knots, m/sec
• Master or repeater
*Requires relevant data present on SeaTalk
Depth
Bidata
Wind
Compass
Turn to the back page for pricing and ordering info NOW!
Raymarine
10
Raytech PC Software
RAYMARINE RAYTECH RNS 6.1
PC Navigation Software Suite
Raytech RNS V6.1 is a powerful PC based electronic charting system supporting raster, vector and aerial photo cartography. Plan waypoints and routes, transferring them
between your PC and Raymarine plotters and combi displays. With a customisable user interface, SeaTalkhs network support, an inbuilt worldwide tides and currents database and the option to download weather forecasts from raymarine.com just some of the features of this system you can unlock the real potential of your onboard PC.
NEW IN V6.1 FEATURES
• Seamless integration with Raymarine E-Series and
G-Series displays via SeaTalkhs and Ethernet access charts, transfer waypoints and routes
• 3D Chartplotting using Navionics Platinum and
Platinum+ Multidimensional charts
• Navionics Silver, Gold, Gold + and HotMaps
Premium chart compatibility
• Support for Navionics USB Multicard Reader for
access to Navionics charts on CompactFlash
• AIS Target tracking via NMEA0183 or SeaTalkhs
• Support for DSM400 HD Digital Sounder Module
• HD and Super HD Digital Radar Compatibility
• Record, pause and play-back HD Digital fishfinder
display from your networked sounder module
RAYMARINE RAYTECH PLANNER
KEY FEATURES
• Customisable user interface - organise navigation
data into easy to use pages
• Download and animate weather forecasts from the
Raymarine website
• Navigation and tactical tools - monitor wind, lay
lines, other vessels and weather to enable you to
make better decisions on the race course
• DataTrak time-based graphs - monitor wind trends
and compare instrument data and the boat’s
performance
• Polar data collection and analysis - calculate your
optimum speed and heading under varying
conditions
• Route optimisation - identify the ideal route based
on ocean current, wind speed and direction and
your boat’s polar characteristics
KEY FEATURES
• PC navigation software for the “at home” navigator
• Create and plan routes with a simple point and
click interface
• Features built in planning charts for the entire
world
• Compatible with a wide range of chart formats
including, Navionics Gold, Platinum, C-MAP NT+,
and raster charts
• Based on the powerful RayTechRNS 6.1 software
MINIMUM SYSTEM REQUIREMENTS
• Pentium 4 processor (or equivalent)
• 512Mb RAM
• Windows XP/Vista
• CD-ROM drive (if installing software from CD-ROM)
• Monitor capable of displaying 1024 x 768
resolution, 16 bit colour
OPTIMUM SYSTEM REQUIREMENTS
• Intel Core 2 Duo processor (or equivalent)
• 2Gb RAM or higher.
• NVIDIA GeForce FX graphics card or greater
• Windows XP/Vista
PC Navigation Planner Software
Limited version of RayTechRNS 6.1 software
designed for planning and transferring waypoints and
routes, between your PC and Raymarine chartplotters and multifunction displays
NAVIONICS CARD READER
Multichart Card Reader
Radar/Chart Overlay
Use in conjunction with
your RayTech RNS 6.1
or RayTech Planner
Software to read your
Gold, Gold+, Platinum
or Hot Maps Premium
charts on your PC.
Transfer waypoint and
route data between your
PC and compatible navigation systems like the A65,
C Series, E Series and G Series.
RAYMARINE KEYBOARD
USB Navigation Keyboard
ALSO REQUIRED (DEPENDING ON SYSTEM)
• Serial port - if connecting to NMEA or SeaTalk.
• Ethernet port - if using SeaTalkhs
• PCMCIA port - if connecting to a Pathfinder hsb2
system using a PCMCIA to hsb2 adaptor
• USB2 port - if connecting to a Pathfinder system
using a USB2/PCMCIA adaptor
COMPATIBLE CHARTS
• Navionics Gold, Platinum and Hot Maps
• C-Map NT+ C-Cards (requires USB C-Card reader)
• C-Map NT+ PC charts
• MapTech raster charts
• Softchart raster charts
• NDI Canadian charts
SUPPLIED WITH
RayTech RNS v6.1 Software on CD-ROM, Software
License Key, Handbook and Installation Guide,
Navionics Multicard Chart Reader, Complete USA
Raster Charts on DVD-ROM, SoftChart Coastal
Planning Charts on CD-ROM, C-MAP NT+ Worldwide
Planning Charts (Charts install automatically with
RayTech RNS v6.1)
AIS Targets
3D Chart Display
The USB Navigation Keyboard takes advantage of
the powerful RayTech RNS interface through dedicated navigation buttons and intuitive softkeys. A built
in cursor and rotary knob are standard, along with a
convenient alphanumeric keypad. Designed to be
both "built-in" and handheld, the USB Navigation
Keyboard's mounting cradle mounts flush in the
dash and allows the keyboard to be removed for
convenient hand held operation.
KEY FEATURES
• Full control of Raytech software
• Dedicated control keys, alphanumeric keypad,
rotary control, cursor pad and softkeys
• Can be used as a fixed or handheld unit
We accept most major credit and debit cards
Garmin
11
Handheld Navigation
GARMIN eTREX H
GARMIN GPS72H
Handheld GPS
Handheld GPS
Waterproof WAAS handheld
with an ultra-accurate, high
sensitivity receiver in a
100x50mm package that
weighs only 170g. Up to
18hrs battery life.
A new, improved version of
the popular GPS72, this
rugged GPS features a high
sensitivity receiver for faster signal acquisition. WAAS enabled,
waterproof and it floats!
KEY FEATURES
• 500 waypoints with
graphic icons
• TracBack™
• Animated graphics
KEY FEATURES
• 500 waypoints, 50 routes
• Alarms
• Trip computer
• Auto track log, 10 saved tracks
• Course and speed filtering
• Built-in celestial tables
• Available as marine bundle
pack with marine mounting
bracket, 12v cigarette lighter
cable and carrying case
ALSO AVAILABLE
• eTrex - basic model
• eTrex Summit - altimeter and electronic compass
• eTrex Legend - World city database, 1Mb internal
memory, chartsource compatible
GARMIN GPSMap76Cx & 76CSx
Colour Handheld GPS
NEW FOR
2010
•
•
•
•
•
•
115Mb memory
Autoroute basemap
Marine Point database
Chartsource compatible
Up to 30 hours battery life
Barometric altimeter and electronic
compass (GPSMap76CSx)
GARMIN GPSMap60Cx & 60CSx
Handheld GPS Chartplotter
•
•
•
•
•
•
Rugged design, serial and USB interfaces
Inbuilt international basemap
Auto-routing capabilities
56Mb memory
Up to 30 hours battery life
Barometric altimeter and electronic
compass (GPSMap60CSx only)
GARMIN DAKOTA 10 & 20
GARMIN OREGON 450 & 550
2.6in Handheld Touchscreen Chartplotter
3in Handheld Touchscreen Chartplotter
Entry-level touchscreen handheld with high-sensitivity GPS
with HotFix™ satellite prediction, and a worldwide
basemap. Dakota makes outdoor navigation
easy with a tough, sunlight-readable, 2.6 inch
colour touchscreen display and an easy to use
interface. Durable and waterproof, Dakota is
built to withstand the elements.
Rugged, lightweight and waterproof to IPX7,
the Oregon range features a high sensitivity
WAAS GPS, an easy-to-use interface and is
ideal for both marine and land use with turn
by turn routing on roads, a barometric
altimeter and a tilt-compensated 3-axis
electronic compass.
KEY FEATURES
• 20hrs battery life (2 x AA)
• 850Mb memory
• USB interface
• 1000 waypoints, 50 routes
• 10,000 track points, 200 saved tracks
• Automatic turn by turn routing on roads
• Internal basemap
• Optional mapping for detailed roads
• Chartsource and BlueChard g2 Vision compatible
• Supports geocaching GPX files
• Inbuilt hunting/fishing calendar, sun and moon information
• Custom points of interest
• Dakota 20 - microSD™ card slot, tilt compensated 3-axis compass, barometric
altimeter, wireless data transfer, also accepts OS mapping
KEY FEATURES
• 16hrs battery life (2 x AA)
• 850Mb memory
• USB and NMEA0183 compatible
• Wireless data transfer
• NEW Oregon450 - 1000 waypoints, 50 routes
• Oregon550 - 2000 waypoints, 200 routes
• 10,000 track points, 20 saved tracks
• Internal basemap
• Chartsource and BlueChard g2 Vision compatible
• Supports geocaching GPX files
• Inbuilt hunting/fishing calendar, sun and moon information and tide tables
• Oregon450t & 550t - Preloaded with topographic charts
• Oregon550/550t - 3.2 megapixel camera with autofocus, 4x digital zoom
GARMIN NUVI 550
GARMIN GPSMap620
Colour Touchscreen Multi-Purpose Navigator
5.2in Colour Touchscreen Marine/Automotive Chartplotter
Combination in-car sat-nav and handheld GPS/Chartplotter. Intuitive touchscreen
user interface offers four user modes with customised features for driving, boating,
walking and cycling. Ideal for the occasional boating enthusiast who wants one
navigational device for all uses, it fits in your pocket with a rechargeable li-ion
battery that packs in 8 hours of
power. Comes with sophisticated
NAVTEQ™ mapping data and a
waterproof card slot to load
different types of mapping.
Full-featured marine chartplotter has a high resolution 800x400 pixel WVGA
touchscreen and features an automotive mode when loaded with optional City
Navigator NT road charts. Comes preloaded with a worldwide satellite basemap
of shorelines and other surface features. In marine mode provides 3D “mariner’s
eye view” above the waterline, “fish eye view” below the waterline and Auto
Guidance technology that searches chart data to suggest the best passage with
optional BlueChart g2 Vision data.
KEY FEATURES
• Rugged and waterproof
• High-sensitivity GPS and HotFix™
satellite prediction
• European street maps with
topographic shaded contours
• Wherigo™/geocaching player
• European speed camera database
• Optional live traffic alerts
• Plug in optional topographic mapping
• Voice-prompted directions via Bluetooth
• Garmin Lock™ anti-theft protection system
• Built-in compass
• Third-party travel guides
• World clock, currency and measurement converter, calculator, picture viewer
NEW FOR
2010
KEY FEATURES
• Turn-by-turn voice prompts
• 1500 waypoints, 50 routes
(marine mode)
• 1000 waypoints, 10 routes
(automotive mode)
• 10,000-point auto track log
• AIS and DSC compatible
• Optional remote antenna
• Serial and USB interfaces
• Inbuilt tide and celestial tables
• Optional flush mount kit
SUPPLIED WITH
Preloaded worldwide satellite basemap, marine mount with integrated vehicle
power cable, lithium-ion battery pack, AC charger, USB cable, protective cover
Turn to the back page for pricing and ordering info NOW!
Garmin
12
Electronic Cartography
BLUECHART g2 & g2 VISION
BLUECHART g2 & g2 VISION
BLUECHART g2 & g2 VISION
UK, Ireland, France Large
USA West Coast Large
Caribbean Regular
BLUECHART g2 & g2 VISION
Australia Regular
BLUECHART g2 & g2 VISION
Mediterranean Large
BLUECHART g2 & g2 VISION
USA East Coast Large
BLUECHART g2 & g2 VISION
BLUECHART g2 & g2 VISION
Nordic Large
New Zealand Regular
BLUECHART g2 & g2 VISION
USA Gulf of Mexico Large
BLUECHART g2 & g2 VISION
Canada West Large
BLUECHART g2 & g2 VISION
USA Alaska Large
BLUECHART g2 & g2 VISION
Asia East Regular
BLUECHART g2 & g2 VISION
Canada East Large
BLUECHART g2 & g2 VISION
USA Great Lakes Large
Please note that this is just a small selection of
the full Bluechart coverage - please call us for
assistance if the cruising area you require is not
shown here.
We accept most major credit and debit cards
Garmin
13
Cartography, Chartplotters & Chartsounders
BLUECHART g2 & g2 VISION
GARMIN GPSMap4x1/4x1S
UK, Ireland, France Regular
4in Colour Chartplotter/Fishfinder
Available as a chartplotter (Map4x1) or a combination chartplotter/fishfinder
(Map4x1S), this unit features an ultra-bright 4in colour QVGA display. The
GPSMap4x1s comes with powerful dual frequency or dual beam sonar to clearly
paint depth contours, fish targets, structure, etc. It’s also CANet capable, allowing
sounder data to be shared with other plotter displays on your boat.
NEW FOR
2010
BLUECHART g2 & g2 VISION
Europe South Atlantic Coast Regular
KEY FEATURES
• GPSMap421 - Satellite-enhanced 3D worldwide basemap
• GPSMap431 - Also preloaded with US inland lakes maps
• GPSMap441 - Also preloaded with US coastal maps
• GPSMap451 - Also preloaded with UK coastal maps
• S models include dual frequency or dual beam sounder
• Upgradeable to BlueChart g2 Vision cartography with optional plug in card
• Simple user interface for easy operation
• Simplify navigation with Auto Guidance
• Now NMEA2000 compatible
GARMIN GPSMap5x1/5x1S
5in Colour Chartplotter/Fishfinder
This chartplotter (Map5x1) or combination chartplotter/fishfinder (Map5x1S)
offers all the features of the GPSMap4x1 series, but with a larger ultra-bright 5in
colour QVGA display.
BLUECHART g2 & g2 VISION
Mediterranean Regular
NEW FOR
2010
KEY FEATURES
• GPSMap521 - Satellite-enhanced 3D worldwide basemap
• GPSMap531 - Also preloaded with US inland lakes maps
• GPSMap541 - Also preloaded with US coastal maps
• GPSMap551 - Also preloaded with UK coastal maps
• S models include dual frequency or dual beam sounder
ALL MODELS SUPPLIED WITH
Internal GPS antenna (optional external antenna), unit cover, tilt/swivel mount,
cables, transducers sold separately
Turn to the back page for pricing and ordering info NOW!
Garmin
14
Combi Displays
GARMIN GPSMap4000 SERIES
GARMIN HD DIGITAL RADAR
8.4in, 10.4in & 12.1in Colour Combination Displays
High Definition Digital Radar
These powerful combi displays combine video-quality
resolution and luminous colour with the latest sensor
and data options. Worldwide satellite imagery
enhances the standard vector basemap format, add
the optional BlueChart Vision card for high-resolution
aerial reference photos which help in navigating tricky
harbours and channels or locating places such as
marinas, fuel barges or restaurants. The g2 Vision
plugin data card also allows the units to graphically
depict a true 3D “mariner’s eye” topside view or “fish
eye” underwater navigation perspective.
HOT
PRODUCT
Self-contained signal
processing provides a more precise, easy to read signature. Data is transmitted over the Garmin Marine
Network to any compatible Garmin display.
KEY FEATURES
• Narrow beamwidth
• MARPA target tracking (10 targets)
• 24/30rpm dual rotation on open array antennas
• Minimum range - 20m
KEY FEATURES
• GPSMap4008/4208 - 8.4in 640x480 pixel VGA
• GPSMap4010/4210 - 10.4in 800x600 pixel SVGA
• GPSMap4012/4212 - 12.1in 1024x768 pixel XGA
• Worldwide satellite basemap
• GPSMap4208, 4210 & 4212 - preloaded with US
coastal maps
• Auto Guidance searches all the chart features to
suggest the best known charted route for navigation
• Dual Bluechart g2 card slots
• 4000 waypoints, 50 outes, 300 waypoints/route
• GPSMap4012/4212 - 2 video inputs for onboard
cameras, 1 SVGA PC monitor output
• Anchor drag, arrival, off-course, shallow water, deep
water, proximity waypoint, clock and battery alarms
• Inbuilt celestial tables for sun and moon calculations
• Add radar with optional GMR series digital antennas
• Radar/chart overlay and split screen modes
• MARPA target tracking
• Add sonar with optional GSD21 analogue or
GSD22 digital remote sounder
Tech info
Garmin Radar Scanners
When ordering your radar system you’ll
need to specify the antenna you require -
SUPPLIED WITH
GPS 17 WAAS sensor, A/V cable, power/data cable, mounting bracket, unit cover, flush mount, bail mount
GARMIN GPSMap5000 SERIES
8.4in, 12.1in & 15in Touchscreen Colour Combination Displays
The GPSMap 5000 series features a radical touchscreen interface that makes navigation as easy as
pointing your finger. The units are supplied with a
worldwide basemap with high-quality satellite images
in place of more traditional charts. For even more
detail, you can add charts easily using the SD card
slots. Keep watch on your engine room or other
areas of your vessel by connecting a live video feed
using the video input/output.
BlueChart g2 Vision charts add a whole new dimension of exceptional feature - 3D mariner's eye view or
fish eye view provides you with a 3D perspective of
map information, both above and below the waterline. High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
Auto Guidance creates a route that avoids shallow
water, buoys and other obstacles.
The Garmin HD digital radomes and open array
antennas offer high-powered Digital Signal Processing
for sharper radar imagery and improved target separation. Automatic pulse optimisation matches pulse
width and repetition rate with the selected range.
Part No.
GMR 18
GMR 18HD
GMR 24HD
GMR 404
GMR 406
GMR 604xHD
GMR 606xHD
GMR 1204xHD
GMR 1206xHD
Size
18in
18in
24in
48in
72in
48in
72in
48in
72in
Power Beam Type Range
4kW
RD 36nm
4kW
5º
RD 36nm
4kW 3.6º
RD 48nm
4kW 1.8º
OA 72nm
4kW
1.1º
OA 72nm
6kW 1.8º
OA 72nm
6kW
1.1º
OA 72nm
12kW 1.8º
OA 72nm
12kW 1.1º
OA 72nm
RD - Radome Antenna (enclosed)
OA - Open Array
HD - High Definition
GMR404 & 406 require pedestal unit (sold separately)
GARMIN GC10
Marine Camera
Durable and waterproof, the Garmin GC 10 was built
to brave the elements. With a
small and unobtrusive design
in a rugged housing that makes
it easy to mount almost
anywhere on your boat.
EDITOR’S
CHOICE
KEY FEATURES
• All the features of the 4000 series combi displays
• Innovative touch-screen design
• Dual Bluechart g2 card slots
• Add radar with optional GMR series digital antennas
• Add sonar with optional GSD21 analogue or
GSD22 digital remote sounder
• GPSMap5008/5208 - 8.4in 640x480 pixel VGA
• GPSMap5012/5212 - 12.1in 1024x768 pixel XGA
• GPSMap5015/5215 - 15in 1024x768 pixel XGA
• GPSMap5208, 5212 & 5215 - preloaded with US
coastal maps
SUPPLIED WITH
GPS 17 WAAS sensor, A/V cable, power cable, mounting bracket, unit cover, flush mount, marine grommet kit,
NMEA2000 drop cable, NMEA2000 T-connector & terminator kit, NMEA2000 power cable, NMEA0183 cable
KEY FEATURES
• Can be used with on-board TV,
video monitors or chartplotters with video input
• No need to add separate hardware to view feed
• Standard-image and reverse-image models
• Automatic infra-red functionality
GARMIN GFS10
Fuel Sensor
Add fuel tracking to your Garmin
combi and optimise your
fuel economy.
KEY FEATURES
• 10-22v
• Unlike other fuel sensors
it will measure fuel level when connected to an
existing analogue fuel gauge or resistive fuel tank
sensor
• Flow rate 2 - 50 Gallons per hour per engine
• Data transfer via CANet or NMEA 2000
We accept most major credit and debit cards
Garmin
15
Touchscreen Combi Displays
GARMIN GPSMap6000 SERIES
8.4 & 12.1in Colour Combination Displays
The next evolution in Garmin’s series of full-featured marine products, the 6000
series brings unprecedented speed to your vessel with Garmin G Motion™ technology - blazing-fast map redraw and refresh rates offers near real-time data to guide
you. Whether you’re in a crowded harbour or in uncertain weather, you’ll have the
confidence to navigate with the 6000 series as your guide. Compatible with an
optional remote for added flexibility and with a sleek and stylish design that was
built to brave the elements, they look great in any position on the boat.
NEW FOR
2010 HOT
PRODUCT
The 6000 series features a worldwide basemap with high quality satellite images
in place of more traditional charts, plus you can easily add charts with the dual
card slots. Optional BlueChart g2 Vision charts add a whole new dimension of
exceptional features to your chartplotter - MarinerEye view and FishEye view provide you a 3-dimensional perspective of map information, both above and below
the waterline. High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas. Auto Guidance technology searches through all
relevant charts to create a route you can actually follow - one that avoids obstacles,
shallow water, buoys and other obstructions.
Keep tabs on your engine room or other area of your boat with a live video feed
using the video input and output options. The 6000 series easily connects to
your network so you can interface with additional displays and add remote sensors, cameras and more. Once connected, you can share information between
the 6000 series and other chartplotters on your boat. You can also add high-powered radar, sonar and XM satellite weather and radio to your system.
KEY FEATURES
• GPSMap6008/6208 - 12.1in 1024x768 pixel XGA
• GPSMap6012/6212 - 15in 1024x768 pixel XGA
• Worldwide satellite basemap
• GPSMap6208 & 6212 preloaded with US coastal maps
• Add radar with optional GMR series digital antennas
• Radar/chart overlay and split screen modes
• MARPA target tracking
• Add sonar with optional GSD21 analogue or GSD22 digital remote sounder
• 5000 waypoints, 100 routes, 50,000 track points, 50 saved tracks
• 4 NMEA 0183 inputs, 2 NMEA 0183 outputs, 2 video inputs for onboard
cameras, 1 PC monitor video output
• Anchor drag, arrival, off-course, shallow water, deep water, proximity waypoint,
clock and battery alarms
• Inbuilt celestial tables for sun and moon calculations
• Tide tables
• AIS compatible
SUPPLIED WITH
GPS 17x NMEA 2000 with pole, flush and under deck mount adapters, front cover,
power cable, video cable, NMEA 0183 cable, NMEA 2000 drop cable, 10m NMEA
2000 backbone cable, NMEA 2000 power cable, NMEA 2000 T-connector and
terminator kit, bail mount, flush mount kit, marine grommet kit
GARMIN GPSMap7000 SERIES
12.1 and 15.5in Touchscreen Colour Combination Display
Put the power of Garmin’s next-generation marine navigator right at your fingertips with the GPSMap7000 Series.
The 7000 series brings all the features, all the power and speed of the 6000 series but with innovative touchscreen
control and the choice of larger displays. The 7000 Series comes standard with a worldwide, satellite-enhanced
basemap as well as video-quality resolution on an impressive 12.1in or 15.5in XGA display. The 7000 Series also
provides total system integration – allowing support for the addition of sonar, radar, weather and more. For additional enhanced features, you can add the optional BlueChart g2 Vision card.
NEW FOR
2010
KEY FEATURES
• GPSMap7012/7212 - 12.1in 1024x768 pixel XGA
• GPSMap7015/7215 - 15in 1024x768 pixel XGA
• Dual Bluechart g2 card slots
• Worldwide satellite basemap
• GPSMap7212 & 7215 preloaded with US coastal maps
• Auto Guidance searches all the chart features to suggest the best known charted
route for navigation
• AIS compatible
• Add radar with optional GMR series digital antennas
• Radar/chart overlay and split screen modes plus MARPA target tracking
• Add sonar with optional GSD21 analogue or GSD22 digital remote sounder
• 5000 waypoints, 100 routes, 50,000 track points, 50 saved tracks
• 4 NMEA 0183 inputs, 2 NMEA 0183 outputs
• GPSMap7012/7212 - 2 video inputs for onboard cameras,
1 PC monitor video output
• GPSMap7015/7215 - 4 video inputs for onboard cameras,
1 PC monitor video output, 1 PC monitor video input
• Anchor drag, arrival, off-course, shallow water, deep water, proximity waypoint,
clock and battery alarms
• Inbuilt tide tables and celestial tables for sun and moon calculations
SUPPLIED WITH
GPS 17x NMEA 2000 with pole, flush and under deck mount adapters, front cover, power cable, video cable, NMEA 0183 cable, NMEA 2000 drop cable, 10m NMEA
2000 backbone cable, NMEA 2000 power cable, NMEA 2000 T-connector and terminator kit, bail mount, flush mount kit, marine grommet kit
Turn to the back page for pricing and ordering info NOW!
Garmin
16
Fishfinders & Instruments
GARMIN Fishfinder90
GARMIN Fishfinder300C
4in Mono Fishfinder
3.5in Colour Fishfinder
Compact dual beam
fishfinder combines
ease of use with
Garmin’s exclusive
fishfinder technology.
The 45º beam angle
gives a greater field
of view.
Ideal for recreational anglers who fish primarily in freshwater lakes. With
improved user interface plus UltraScroll™ for fast screen updates. Dual
beam transducer provides excellent coverage in shallow waters.
KEY FEATURES
• Super bright, 240x320 pixel QVGA colour display
• 150 watts (RMS) 1200 watts (peak to peak)
• Auto Gain adjusts sonar sensitivity automatically
• See-Thru® technology shows weak and strong returns simultaneously
• Round flasher display mode
• White line
• 2X and 4X automatic and manual zoom
• Battery voltage indicator
• NMEA0183 output
KEY FEATURES
• 80/200kHz
• Max depth 200m (600ft)
• 100 watts RMS
• See-Thru function separates fish from thermoclines
• Alarms for fish size and shallow water
• Fish ID with optional fish depth numbers
SUPPLIED WITH
80/200kHz transom transducer, power/data cable, mounting bracket, flush mount hardware
GARMIN Fishfinder140
GARMIN Fishfinder160C
GARMIN Fishfinder400C
4.75in Mono Fishfinder
4.75in Colour Fishfinder
4in Colour Fishfinder
The Fishfinder140 adds a 8.4 x 8.4cm (4.75in diagonal) 4-level greyscale display to the features of the
Fishfinder 90. The keypad layout is simple and intuitive and the unit is easy to operate.
Dual beam fishfinder with a sunlight-viewable colour
display. With all the features of the Fishfinder140,
the 160C has a higher power output (150w RMS)
giving a maximum depth of up to 300m (900ft).
High performance with an ultra-bright QVGA colour
display and a simple interface making it easy to locate
fish in both freshwater and saltwater. Available with a
choice of dual beam or dual frequency transducers.
KEY FEATURES
• 80/200kHz, max depth 200m (600ft)
• 100 watts RMS
• See-Thru function separates fish from thermoclines
• Alarms for fish size and shallow water
• Fish ID with optional fish depth numbers
KEY FEATURES
• 80/200kHz, max depth 300m (900ft)
• 150 watts RMS
• See-Thru function separates fish from thermoclines
• Alarms for fish size and shallow water
• Fish ID with optional fish depth numbers
FF90 & FF140 SUPPLIED WITH
80/200kHz transom transducer, quick release mount
SUPPLIED WITH
80/200kHz transom transducer, quick release mount
KEY FEATURES
• 400 watt (RMS) dual beam, max depth 300m
• 500 watt (RMS) dual frequency, max depth 500m
• CANet compatible - share sonar data with
compatible Garmin combi displays
• UltraScroll™ screen updates at live-action speeds
SUPPLIED WITH
Swivel mounting bracket, power/data cable, dual
beam or dual frequency transducer, protective cover
GARMIN GMI 10
Digital Marine Instrument Display
Radical colour multifunction display that integrates
with the Garmin Marine Network and other sensors
via NMEA2000 and NMEA0183. By showing data
from multiple remote sensors on one display, the
GMI 10 offers a streamlined approach to marine
instrumentation. Display data such as depth, speed,
water and air temperature, wind speed/direction, fuel
flow rate, engine data, fuel level and more, depending
upon what sensors are connected. The GMI 10 supports more than two dozen standard NMEA2000 and
more than 20 NMEA0183 data sentences and can
also connect to any Garmin Marine Network chartplotters with an NMEA 2000 port.
KEY FEATURES
• Clear, bright 320 x 240 pixel colour QVGA display
• Flexible, expandable system suits all boat sizes
• GWS 10 wind sensor with barometric pressure and
air temperature
• GPS 17x 12-channel WAAS GPS sensor
• GFS 10 fuel sensor
• NMEA2000 and NMEA0183 compatible
• Waterproof
• Flush mountable
HOT
PRODUCT
SUPPLIED WITH
Display, mounting hardware, sun cover, power/NMEA 0183 cable, NMEA 2000 power cable, NMEA 2000 drop
cable, NMEA 2000 tee & terminator kit
GWS 10 Wind Sensor
GPS 17x GPS Sensor
GFS 10 Fuel Sensor
We accept most major credit and debit cards
Garmin
17
Autopilot, AIS & VHF Radios
GARMIN GHP 10
GARMIN VHF 100i & VHF 200i
Powerboat Autopilot System
Fixed DSC VHF Radios
The GHP 10 marine autopilot adds a whole new
level of versatility to the Garmin marine line. This
breakthrough unit gives power boat users an easy to
use autopilot system to rely upon for auto-guided
navigation.
The Garmin VHF 100i and 200i range of VHF radios feature a large backlit 3.2in display, rotary knobs for volume, squelch and channel selection, up to 25W transmission power and provide full Class D DSC capability.
The GHP 10 is controlled using the GHC 10. This
control unit communicates with the autopilot system
via a NMEA2000 bus, so autopilot heading data can
easily be shared with other devices. Up to three GHC
10 controllers can be interfaced with a single GHP
10, ideal for boats with multiple helm stations.
The simple, intuitive interface of the GHC 10 gives
boaters the confidence and security of controlling the
heading of the boat at the press of a key. And as a
safeguard, a dedicated “Standby” key allows you to
instantly place the autopilot in standby to keep it from
re-engaging.
The GHC 10 communicates with the GHP 10 autopilot system via a NMEA2000 bus, so autopilot heading
data can easily be shared with other devices. It can
also communicate with a chartplotter for GPSenabled route guidance over NMEA2000 or
NMEA0183.
KEY FEATURES
• Locate and monitor up to three other boats with position tracking capability
• 200i - Two-way hailer functionality when connected to compatible horn speaker
• 200i - Automatic and manual foghorn signals and adjustable base fog frequencies
• LOCAL receiver mode improves performance in busy port environments
• Ergonomic fist mic with built-in speaker
• Programmable international channels
• ATIS support and private channel
customisation options
• 200i - Multi-language user interface
• 200i - Supports GHS 10i full-function
wired second station
• Automatic power-on when boat starts
• Waterproof to IPX7 standard
• Easy front flush-mounting option
• NMEA 0183 compatible
• 200i - NMEA 2000 compatible
SUPPLIED WITH
Fistmike, power cable, hailer/NMEA cable (200i), mounting bracket, flush mount gasket, protective cover
GARMIN VHF 300i & VHF 300i AIS
Fixed DSC VHF Radios
Multi-station Class D DSC VHF transceiver gives you flexibility and convenience of operation and
installation. Comes with a two-way hailer system and a patent-pending voicemail feature that lets
you pre-record a 15-second message and deliver the message to any DSC radio. Replay the last
90 seconds of any incoming voice transmission at the touch of
a button. Listen via the supplied 4in active speaker with
NEW FOR
volume control, the handset’s inbuilt speaker or third-party
passive speakers. The VHF 300i AIS also features an
inbuilt dual channel AIS receiver which simultaneously
receives Class A and Class B AIS signals for additional
safety when at sea. NMEA 0183 and 2000 compatible.
2010
KEY FEATURES
• Space-saving black box configuration
• 30w hailer when connected to compatible horn speaker
• GHS 10i handset microphone with 2in LCD display
• Rotary key and three soft buttons for dynamic controls
• Multi station support with intercom facility
• Locate and monitor up to three other boats with position
tracking capability
• VHF 300i AIS - display AIS ship information - position,
course and speed of AIS equipped vessels within range
• Waterproof to IPX7 standard
SUPPLIED WITH
GHS 10i handset microphone, active speaker, power
cable, 10m deck cable, mounting hardware
KEY FEATURES
• Suitable for all types of hydraulically steered power
boats - inboard, outboard, stern-drive, diesels
• No rudder feedback unit required
• Gyro-stabilised compass
• Patented Shadow Drive™ technology automatically
disengages autopilot if the helm is turned and
re-engages when a steady course is held
• Hold position against wind, waves or hcurrent
• Can steer in reverse
• Bright 320 x 240 pixel QVGA colour LCD display
GARMIN AIS600
Black Box Class B AIS Transceiver
Black box AIS transceiver allows you to receive AIS target data as well as transmit your own vessel information to
other AIS receivers in your area. The inbuilt active splitter allows one VHF antenna to serve both the AIS 600
and VHF radio with minimal signal loss. Whether you’re keeping in touch with mariners in the area or tracking
other boats on a similar course, you’ll be able to share information between vessels for improved safety and
greater confidence on the open waters. The AIS 600 is easily added to your existing Garmin marine network
and is controlled via the chartplotter, so you'll have all the information you need right at your fingertips.
HYDRAULIC REVERSING PUMPS AVAILABLE
• 1.2L (up to 160cc, 10in3)
• 2.0L (160-400cc, 10-24in3)
• 2.1L (160-400cc, 10-24in3), engine size 400hp+
KEY FEATURES
• ClearTrack™ technology ensures no interruption of AIS
traffic position while the VHF radio is in use
• Integrates with chartplotters and VHF via NMEA200
• Call With Radio function - initiate a call to any MMSI
target directly from the chartplotter
SUPPLIED WITH
GHC 10, Course Computer, Gyro Compass, Shadow
drive, CCU/ECU interconnect cable, buzzer, ECU
power cable, NMEA2000 drop cable, NMEA2000 Tconnector
SUPPLIED WITH
GA 30 GPS antenna with pole and surface mount, power
cable, safety related message (SRM) cable, 2m NMEA 2000
drop cable, NMEA 2000 T-connector, USB cable, 2m VHF
interconnect cable, mounting hardware, PC/Software CD
HOT
PRODUCT
NEW FOR
2010
Turn to the back page for pricing and ordering info NOW!
Humminbird
18
Fishfinders & Chartsonars
HUMMINBIRD 550
HUMMINBIRD 570
5in Mono Fishfinder
5in Dual Beam Mono Fishfinder
Outstanding performance and incredible value come together in the Humminbird
550. See everything on the 5in monochrome displays with up to 640 vertical
pixels for a crystal clear view. With a screen that size, it’s easy to take advantage of
the features and clarity of the
Humminbird 550, with fish echoes
being clearly displayed onscreen.
You can also enable Humminbird’s
Fish ID+ target identification system to convert sonar returns into
easy-to-read icons. In-dash mount,
or use the Tilt & Swivel Disconnect
Mounting System.
The 570 takes the winning design and features of the 550, adds a dual frequency
transducer and couples it with a more powerful transmitter. Take advantage of the
versatile DualBeam Sonar with exclusive Humminbird SwitchFire technology, sensitive enough to track a jig down
to 70 feet and separate fish as
close as 2.5in apart. You can
also enable Humminbird’s Fish
ID+ target identification system
to convert sonar returns into
easy-to-read icons. In-dash
mount, or use the Tilt & Swivel
Disconnect Mounting System.
KEY FEATURES
• Display: 5in 640x320,
FSTN LCD 16 Level Grayscale
• Sonar: Single Beam 200kHz
• Power: 1600W PTP, 200W RMS
• Depth: 800ft/250m
KEY FEATURES
• Display: 5in 240x240,
FSTN LCD 12 Level Grayscale
• Sonar: Dual Beam 200/83kHz
• Power: 2000W PTP, 250W RMS
• Depth: 800ft/250m
NEW FOR
2010
NEW FOR
2010
HUMMINBIRD PIRANHAMAX 160 & 190C
HUMMINBIRD 385CI
3.5in & 4in Ultra-Compact Fishfinders
3.5in Combination Chartplotter and Sonar
With one touch you can take advantage
of the advanced PiranhaMAX Series
fishfinders. Unlock the power of Fish ID+,
fish alarms, depth alarms and zoom. You
won’t believe how easy it is to put the
high-performance sonar to work for you.
Simply mount your PiranhaMAX in-dash,
and let the Transflective Color TFT or
contrast enhanced, Clear Edge Grayscale
display show you everything, even in
direct sunlight!
KEY FEATURES PIRANHAMAX 160
• Display: 4in 160x128, FSTN LCD 4 Level Grayscale
• Sonar: DualBeam 200kHz/83kHz
• Power Output: 800W PTP 100W RMS
• Depth: 600ft/180m
The Humminbird 385CI is designed for those who demand top-of-the-line technology, but don’t have space for a bigger fishfinder. With oceans of new features,
the 300 Series performs way beyond its size, and is right at home in the most
extreme fi shing situations. With
exclusive SwitchFire™ technology
you’ll get the most out of the
DualBeam Sonar that gives you
wide coverage with the best picture of the bottom. It’s powerful
sonar technology built into a pintsize package. With internal GPS
and built-in UniMap™ you’ll be
able to pinpoint your position with
ease. A built-in card slot allows
you to upgrade with a Navionics
chart card for enhanced navigation
and map detail.
KEY FEATURES PIRANHAMAX 190C
• Display: 3.5in 320x240, 256 colour TFT
• Sonar: SingleBeam 200kHz
• Power Output: 1600W PTP 200W RMS
• Depth: 800ft/250m
KEY FEATURES
• Display: 3.5in 320x240 256 colour TFT
• Sonar: DualBeam 200kHz/83kHz
• Power Output: 2400W PTP, 300W RMS
• Depth: 1000ft/300m
HUMMINBIRD 788C
HUMMINBIRD 798C
5in Combination Chartplotter and Sonar
5in Combination Chartplotter and Sonar
The 788c Combo features a brilliant colour, ultra-high resolution 640V x 640H
5in display, DualBeam PLUS sonar with 4000 Watts PTP power output, GPS
Chartplotting with built-in UniMap, and advanced Fishing System capabilities. In
addition, it includes dual card slots for maps and saving waypoints, as well as 3
programmable preset buttons to save your favorite views. Maximize your angling
experience with the Humminbird 788c fishfinder GPS system.
This powerful fishfinder is packed with professional technology. With exclusive
Humminbird SwitchFire, Side Imaging and Down Imaging and DualBeam PLUS
dual frequency technology, you have more fishfinding options than ever. It’s the
first sonar that adapts with your fishing conditions. Detail explodes off the 5in
display, with amazing 640V x 640H pixel clarity, unbeatable colour and contrast.
Programmable preset buttons put your favorite views at your fingertips. Mount it
in-dash, or use the Tilt & Swivel
Quick Disconnect Mounting
System. Add Navionics Gold or
Hotmaps cartography using the
dual SD card slots.
KEY FEATURES
• 5in 640x640 256 colour TFT
• DualBeam PLUS 200/83kHz
• 4000W PTP, 500W RMS
• Depth 1500ft/45m
• 50 channel GPS
• Trackplotting, chartplotting
• Humminbird Unimap
• 3000 waypoints, 50 routes
• 50 tracks with 20,000 points each
• Dual SD Card Slots
• Upgradeable Software
• Navionics Gold & HotMaps compatible
• Optional Weathersense, Wireless Sonar
link, CannonLink & InterLink
network modules
KEY FEATURES
• 5in 640x6640 colour TFT display
• DualBeam PLUS™ 200/83kHz
• Side Imaging and Down Imaging
455kHz, 180° total coverage
• 4000W PTP, 500W RMS
• Depth 100ft/30m (SI),1500ft/450m
• Memory: Dual SD Card Slots
• Upgradeable Software
• Navionics Gold & HotMaps compatible
We accept most major credit and debit cards
NEW FOR
2010
Humminbird, Geonav
19
Chartsonars and Chartplotters
HUMMINBIRD 858C & 898C SI SERIES
HUMMINBIRD 958C & 998C SI SERIES
7in Widescreen Combination Chartplotter and Sonar
8in Widescreen Combination Chartplotter and Sonar
These impressive combi units are a blend of form and function, with a generous
7in screen, featuring a 16:9 aspect ratio and incredibly clear picture quality. With
Humminbird Side Imaging, Down Imaging and SwitchFire Sonar, the 800 Series
puts you in control of the
most versatile fishfinding
system on the water.
Exclusive Humminbird
ContourXD cartography,
GPS track and chartplotting and any of the
Humminbird network
modules.
With the screen’s 16:9 aspect ratio, crystal-clear pixel resolution, and Humminbird
Side Imaging, Down Imaging and SwitchFire Sonar systems, these high-performance units give serious anglers a huge on-the-water advantage. The widescreen
display makes for easy-toread split screen viewing
of sonar displays or the
incredibly detailed optional
cartography. Add on the
powerful HumminbirdPC
software, and you’ve got
an all-in-one tool to
dominate the competition.
KEY FEATURES
• 7in 800x480 colour TFT display
• DualBeam PLUS™ 200/83kHz
NEW FOR
• 898C only - HD Side Imaging and Down Imaging 455/800kHz,
180° total coverage
• Optional 200/50kHz transducer
• 8000 Watts (PTP), 1000 Watts (RMS)
• 150ft/45m (SI),1500ft/450m, 3000ft/900m with optional 50kHz transducer
• Memory: Dual SD Card Slots
• Upgradeable Software
KEY FEATURES
• 8in 800x480 colour TFT display
• DualBeam PLUS™ 200/83kHz
NEW FOR
• 998C only - HD Side Imaging and Down Imaging 455/800kHz,
180° total coverage
• Optional 200/50kHz transducer
• 8000 Watts (PTP), 1000 Watts (RMS)
• 150ft/45m (SI),1500ft/450m, 3000ft/900m with optional 50kHz transducer
• Memory: Dual SD Card Slots
• Upgradeable Software
2010
2010
GEONAV 4 GIPSY
Colour Handheld Chartplotter
The world’s first Navionics Platinum handheld chartplotter! Weighing less than 300g and with a 9hr battery life, the Geonav 4 Gipsy is designed to use Navionics Land&Sea charts. This versatile and powerful unit is
equipped with a 12 channel WAAS-EGNOS GPS, world basemap and a transflective TFT 3.5in backlit LCD that
offers outstanding graphical performance under all visibility conditions.
Also available is the Geonav 4CXS, which includes land and marine charts at maximum detail on a single cartridge, with voice prompted road navigation - ideal for both onboard and in-car use.
KEY FEATURES
• Compatible with Navionics Land&Sea, Platinum and
Land&Sea Platinum charts
• Optional external antenna
• Waterproof (IPX7)
• Visual and acoustic Anchor Alarm
• Save unlimited markers, routes and waypoints on
CompactFlash cartridge
•
•
•
•
•
•
Autozoom™
Easy View
Runway display
Tide & currents data
Overzoom
Chart rotation
OPTIONAL ACCESSORIES
Bike mount bracket, car mount bracket, boat mount bracket, earphone, cigarette lighter power cable,
mains adapter, speaker with cigarette lighter plug cradle, carrying case
GEONAV 7 WIDE
GEONAV 5 TOURING
7in Colour Chartplotter/Fishfinder
5in Colour Navigator/Fishfinder
Featuring a sunlight view transflective TFT LCD display guaranteed against fogging
and condensation and an inbuilt 12 channel GPS. Data windows are optimised
for intuitive control and the split screen function enables chart and fishfinder data
to be displayed simultaneously. The unit can be linked to the Geonav F170 black
box fishfinder. Unlimited markers, routes and waypoints can be saved on
CompactFlash cartridges.
An innovative unit which combines
a chartplotter, fishfinder and in-car
navigator in one package. Features
an inbuilt 12 channel WAAS-EGNOS
GPS and world map, just add the
F170 black box sounder for
fishfinder functionality.
KEY FEATURES
• 2D or 3D cartography, built-in world map
• Waterproof (IPX6), panel, bracket or flush mounting
• Acoustic Anchor Alarm
• Autozoom™, Easy View
• EBL/VRM
• Runway display
• Overzoom
• Screen Amplifier™
KEY FEATURES
• Marine chartplotter, fishfinder and in-car satnav
• Compatible with F170 black box fishfinder
• Navionics Land&Sea, Platinum and Land & Sea Platinum chart compatible
• Save unlimited markers, routes and waypoints on CompactFlash cartridge
SUPPLIED WITH
NMEA power supply cable, Quick-mount bracket with snap-on socket, sun cover
SUPPLIED WITH
NMEA power supply cable, Quick-mount bracket with snap-on socket, sun cover
Turn to the back page for pricing and ordering info NOW!
Lowrance
20
Chart Plotters, Combi Displays
LOWRANCE HDS
LOWRANCE BROADBAND RADAR
5, 7, 8 & 10in HD Chartplotters, Fishfinders & Chart/Fishfinders
Networked Radar System
The revolutionary new advanced Broadband Radar is
available for the HDS navigation system, integrating
superior radar performance with state-of-the-art charting, echosounding and entertainment displays. It provides amazing target resolution, even at 1/32nm
range. Docks, channel markers, moored vessels and
other targets are displayed with clarity and separation,
for added confidence in close quarters. Broadband
technology also eliminates the "main bang" of a
pulse radar - the obscured "dead zone" immediately
around the vessel - which interferes with close target
detection.
HOT
PRODUCT
Lowrance’s range of HDS chartplotters, fishfinders and combination chartplotter/fishfinders offer High Definition
fishfinding and Insight charting which delivers unprecedented inland mapping and coastal charting detail with
lightning-fast screen display updates. Amazing contour shading lends life-like perspectives to bottom structure
as well as topography below and above the water. The new, more versatile and flexible HDS operating system
presents a whole new way to view and select Lowrance features with much smoother moves. This new menu
format is both easy to grasp and thoughtfully functional, so you can fly through keypad functions control with
the greatest of ease and speed. The 8 and 10in models feature a unique new FlyWheel™ scroll dial, as soft
command keys for the fastest access to functions. The inbuilt high-sensitivity 16-channel GPS+WAAS antenna
makes installation easy - no external antenna to place, no mess, no fuss.
Incredible and award-winning, exclusive Broadband Sounder digital technologies are now inside all HDS sonar
models for the best Lowrance fishfinding ever! As the vital link between the transducer and your HDS display,
Broadband is proven to find more fish with greater sensitivity, higher definition and more display clarity with
superior target separation in all cover, in thermoclines and in all water conditions.
KEY FEATURES
• Range of chartplotter only, fishfinder only or chartplotter/fishfinders with a choice of 5, 7, 8 or 10in displays
• Retrofit Ready - compatible with late-model Lowrance transducers, plus yellow Ethernetworks and
NMEA 2000® network connectors
• Preloaded with Insight High Definition mapping (US) or Navionics world background map (rest of world)
• Compatible with Navionics Gold, Platinum, FreedomMaps, Fishing Hotspots, Elite, LakeMaster Pro and more
• SolarMAX™ PLUS display for the best detail in bright sunlight, the best wide-angle viewing ever achieved
• Multi station networking
• Add Digital Radar, Sirius Marine Weather, AIS, instrumentation and more via NMEA2000
LOWRANCE STRUCTURESCAN
Because Lowrance Broadband Radar transmits at
1/2000th the power of typical pulse radars (emitting
10 times less energy than an average cell phone), the
radome is safe to mount in locations never before
possible. No more waiting 2-3 minutes for a magnetron to warm up - 100% solid-state design provides InstantOn™ capability.
KEY FEATURES
• 19in radome, 5.2º beamwidth
• Crystal clear image of your immediate surroundings
• Easy to use for both novice and experienced users
• First radar with no radiation hazard
• InstantOn™ with no tuning required
• Low power consumption, ideal for yachts
Find out more...
Broadband Sounder
The Lowrance Broadband Sounder
is built into the new HDS series and it allows
them to see fish in, around and through structure, while operating at high speeds in challenging conditions, even in extraordinary depths.
When fishing in shallow water, the Lowrance
Broadband Sounder reduces clutter in the water
column and presents a much clearer picture.
Sonar Imaging For HDS
Designed for all HDS displays, StructureScan is the first to give you the full picture, with phenomenal panoramic underwater sonar imaging. Scans left... scans right... AND for the first time scans straight down. Plug and
Play, it’s easy to install - the LSS-1 imaging transducer is a low-profile, low-drag unit designed for multiple
mounting locations - transom, transom step, jackNEW FOR
plate, even trolling motors (with a simple,
inexpensive adapter option).
2010
KEY FEATURES
• DownScan high detail sonar imaging
up to 90m (300ft)
• Side Scan imaging to at least 45m (150ft)
• Fully Networkable
• View DownScan imaging with HDS Broadband
Radar in split screen mode
• Transducer includes water temperature sensor
• Simple plug and play installation
SUPPLIED WITH
LSS-1 fully-waterproof module, LSS-1 imaging transducer
It also allows a standard Lowrance 200kHz single-frequency transducer to operate at 83kHz,
resulting in a full 120º wide angle coverage. With
a wider scanning area, targets remain in the
cone’s angle for a longer period of time, resulting
in more detailed readings.
It also offers the ultimate in resolution and target
discrimination, resulting in an unparalleled look at
the depths below. Now anglers can find targets in
grass, weed beds and other fish - holding structure like never before.
We accept most major credit and debit cards
Lowrance
21
Chartplotters, VHF Radio
LOWRANCE ELITE-5X, ELITE-5M & ELITE-5
5in Colour Echosounder, Chartplotter and Combi Chart Sounder
The new colour Elite Series brings high performance without a high price. Whether
echosounder, chartplotter, or combination unit, Elite provides any vessel with
incredible precision and functionality, with a high-definition, high–detail 480x480
pixel, 5in enhanced SolarMAX™ sunlight viewable colour display with wide viewing
angle. An uncomplicated new keypad design enhances one-hand control and
new, simpler menu text + icon design makes intuitive operation simple.
NEW FOR
HOT
2010
PRODUCT
KEY FEATURES
Elite-5X - Dual frequency Echosounder
Elite-5M - GPS+EGNOS+MSAS Chartplotter
Elite-5 & Elite-5X - Combination dual frequency Echosounder/Chartplotter
• Easy-to-install low-profile base with convenient cable routing access
• Easy one-hand tilt/swivel viewing adjustment, removal for stow and re-install
ECHOSOUNDER FEATURES (ELITE-5X & ELITE-5)
• 500W RMS, 4000W PTP, depth to 305 m/1,000 ft
• Dual-frequency 83/200 kHz, 20/60 degree Skimmer® transom-mount
transducer with internal temp sensor and up to 120º of wider sonar coverage
CHARTPLOTTER FEATURES (ELITE-5M & ELITE-5)
• Internal 16-channel GPS+EGNOS+MSAS antenna, plus external antenna option
• Built-in worldwide reference basemap
• Navionics Gold compatible (micro SD card format)
• Up to 3,000 waypoints, 100 routes, 100 retraceable plot trails
• Overlay Data
• Multi-Zoom Choices
• High-Speed Updates
• Back-up Memory
LOWRANCE LVR-250
LOWRANCE LHR-80
Fixed DSC VHF Radio
Handheld VHF
Solid reliability and attractive features without the high price in a new, high-quality 25W/1W fixed-mount VHF
marine radio with DSC facilities.
KEY FEATURES
• 1 x 1.8in LCD channel/function display with backlighting
• 25 watts transmit power / 1 watt low power mode
• Full DSC Class D/SC-101 automatic distress operation
• 6 tactile microphone keys
• Rotary Channel control with press-to-enter
• Super-large 16/9 calling channel key
• 3 favourite channel mode with scan
• 3W external speaker and GPS interface
• Display GPS boat position and time when
connected to a compatible GPS chartplotter
• Rotary Channel control with press-to-enter
• Local/Distant feature eliminates interference
• Case and mic waterproof (JIS 7 submersible)
NEW FOR
2010
LOWRANCE LVR-880
Fixed DSC VHF Radio
Solid reliable 25W/1W DSC marine radio - the first to feature an FM radio receiver and NMEA2000 interface
for Track-Your-Buddy. Plus other premium features in a new and exceptional 25W/1W DSC marine radio.
KEY FEATURES
• NMEA0183 and NMEA2000 DSC integration
• Navigation to waypoint with transfer capability to plotters
• 200 waypoints with up to 6 character naming
• Display boat position and time when connected
to a compatible GPS chartplotter
• Intercom with talkback plus built-in
22w hailer-horn
• Extra-large and bright FSTN full-matrix screen
• Large 57mm speaker for great audio output
when running at high speed
• Rotary Channel control with press-to-enter
• Instant "GO" and MOB key
• 3W external speaker jack
• Case and mic waterproof (JIS 7 submersible)
NEW FOR
2010
Enhanced with a built-in GPS receiver, the
Lowrance LHR-80 is a full-featured, 1/5W
handheld VHF marine radio with the
added convenience of a simple plotter
with Great Circle waypoint navigation, Man
Over Board functionality and storage for
up to 500 waypoints. It’s waterproof and
it floats too!
KEY FEATURES
• Built-in GPS receiver with unique new
trackplotter screen feature
• Great Circle waypoint navigation
• Storage of up to 500 waypoints
• Man Over Board functionality
• "Track-Your-Buddy" allows boaters to
pinpoint and display the exact location
of other vessels using LL position polling
• "Get Buddy" transmits
radio's position at the
push of a button
• Save a buddy list of up
to 20 people
• Large LCD display with
adjustable contrast
settings and backlighting
• 1400mAh Li-Ion battery
• Signal Strength Indicator
• NOAA Wx 1050Hz tone
alert for weather/storm
warnings (US only)
• Lat, long position and
time display
• Distress call button
NEW FOR
• Up to 13hrs battery life
2010
SUPPLIED WITH
Rubber Duck antenna, desktop charger with wall
adapter, wrist strap and belt clip
Turn to the back page for pricing and ordering info NOW!
Simrad
22
Navigation Equipment
SIMRAD NSE8 & NSE12
SIMRAD TP10, TP22 & TP32
8in & 12in Combi Displays
Cockpit Tillerpilots
The new Simrad NSE is engineered for anyone who is serious about performance navigation. The NSE8 and
NSE12 displays are feature-rich network displays outfitted with a lighting fast processor, high bright LED backlight display and intuitive control interface. Equipped with the optional BSM-1 broadband sounder module and
BR24 Broadband Radar or HD digital Radar, the NSE range offers the best in class multifunctional performance.
Simrad’s legendary Tillerpilots offer unparalleled
reliability, power and low current consumption along
with supreme course keeping ability
and quiet operation.
HOT
PRODUCT
KEY FEATURES
• Powerful, low current consumption
• Waterproof double sealed design
• NMEA interfacing to GPS & windvane (TP22/32)
• SimNet compatible (TP22/32)
• Optional external fluxgate sensor (TP22/32)
• Hand remote option (TP22/32)
HOT
PRODUCT
KEY FEATURES
• Lighting Fast Chartplotter pre-loaded with complete
European Navionics Platinum charts for Europe
• Award winning echosounder and radar technology
• Single, Dual or multi-station configurations
• Network NMEA0183, NMEA2000 or Simnet data
•
•
•
•
•
NEW FOR
2010
Input and output of video or navigation data
New Intuitive control interface for easy operation
Elegant Design, Brutally Strong Simrad Construction
Brilliant Low Power LED Display Technology
Bracket or flush mount
MODELS AVAILABLE
• TP10 (Up to 10m) - Budget standalone Tillerpilot.
• TP22 (Up to 11m) - Faster hard over time plus
SimNet and NMEA compatibility.
• TP32 (Up to 12m) - Top spec high performance
pilot with 85kg thrust and ultra-fast hard over time.
SUPPLIED WITH
Mounting kit, deck socket (TP22/32 only)
SIMRAD HD RADARS
SIMRAD NAIS300 & AI50
High Definition Digital Radar
AIS Transceiver Units
Simrad HD Radars combine high performance scanners with the latest developments in digital radar processing. Exceptional detection of small or distant targets with virtually no screen clutter displays the full picture of
your surroundings. Radomes are compact and lightweight, making them ideal for sail boats and small powerboats where space and power supply are limited. New HD digital radomes deliver superior performance in a
easy to rig package. Mariners seeking ultimate range
and detail will select an Open Array antenna. The
radars deliver outstanding performance with higher
power output and narrow beam widths. Larger
yachts and professional vessels will benefit from
these larger, more powerful systems.
Class B Transceiver available as either a Blackbox
(NAIS-300) or standalone unit with inbuilt display
(AI50). Supplied with integrated GPS receiver
KEY FEATURES
• DX42S 2kW 18in Radome, 24nm, 5.3º beamwidth
• DX64S 4kW 24in Radome, 48nm, 4º beamwidth
• TX06S 6kW 4ft Open Array, 64nm, 1.8º beamwidth
• TX10S 10kW 6ft Open Array, 72nm, 1.2º beamwidth
• TX25S 25kW 8ft Open Array, 96nm, 1º beamwidth
SIMRAD BSM-1
Broadband Sounder Module
Add the NEW award winning BSM-1
Sounder Module to either NSE or GB40
navigation system. Choose from a wide
range of transducers.
NEW FOR
2010
AI50 AIS Transceiver
KEY FEATURES
• See and be seen!
• AIS Class B transmit receive function
• Simple Plug and Play installation via NMEA0183 or
Simnet interfaces
• Both models can be integrated with a compatible
chart display or PC via NMEA0183 or Simnet
KEY FEATURES
• Tri-frequency capability for optimal
water column performance
• Deep water performance of over
3000ft (with appropriate transducer)
• Low Power and Low-noise Sonar
• High Resolution Linear receiver providing superior
clarity in shallow and mid water
We accept most major credit and debit cards
NAIS300 Black
Box Transceiver
Tacktick
23
Wireless Instruments
TACKTICK T035 SPEED SYSTEM
TACKTICK T037 SPEED/DEPTH
Entry Level Speed System
Entry Level Speed & Depth System
The brand new T035 Speed system is the ideal solution for all yachts 35ft or under. A large, wireless
38mm (15in) display shows speed. There are no
cables to pull through headlinings
or bulkheads, the only
requirement is a 12v
connection to power
the display.
The brand new T037 Speed and Depth system is
the ideal solution for all yachts 35ft or under. A
large, wireless 38mm (15in) display shows speed
and depth. There are no cables
to pull through headlinings
or bulkheads, the only
requirement is a 12v
connection to
power the
display.
KEY FEATURES
• Boat Speed and Log
• Large clear backlit digital display
• Completely waterproof to 10 metres
• Simple installation, easy calibration
• Show depth on the same display simply add a T912 Depth Transducer
NEW FOR
2010
KEY FEATURES
• Depth & Sea Temp
• Boat Speed and Log
• Cost effective solution
• Large clear backlit digital displays
• Completely waterproof to 10 metres
• Simple installation, easy calibration
Find out more...
Tacktick Wireless Instruments
BREAK
FREE!
EASY TO INSTALL - a typical installation can be
done in just a few hours, with no need to drill
holes in bulkheads, run cables through headlining or down the mast.
PERFORMANCE ADVANTAGE - with no mast
cable, spar weight is reduced and the boat’s centre of gravity is lowered.
DATA WHERE YOU NEED IT - with clip in cradles,
displays can be positioned anywhere on the boat.
NEW FOR
2010
SEALED FOR LIFE - all Tacktick products are
totally waterproof (submersible to 10m), which
also eliminates condensation. Reliability also
increases since wiring faults typically account for
80% of system problems on boats.
SUPPLIED WITH
Speed transducer, hull transmitter and display unit
SUPPLIED WITH
Two digital display units, hull transmitter, triducer
TACKTICK T034 DEPTH SYSTEM
TACKTICK T033 WIND SYSTEM
TACKTICK T106 REMOTE DISPLAY
Entry Level Depth System
Entry Level Wind System
Handheld Wireless Remote Display
The brand new T034 Depth system is the ideal solution for all yachts 35ft or under. A large, wireless
38mm (15in) display shows depth. There are no
cables to pull through headlinings
or bulkheads, the only
requirement is a 12v
connection to power
the display.
The T033 wind system is the ideal solution for cruising yachts 35ft or under. Wind speed and direction
information is delivered wirelessly from the wind
transmitter, whilst the display itself is powered by
your boat’s 12-volt battery.
Not just a remote control, this is an independent
Micronet wireless palm sized display which shows all
system data and also incorporates
a rolling road and performance
pages for displaying uploads
from tactical software, and it
can function as a remote control for Micronet displays. Add
as many handsets as needed
for key crew members.
KEY FEATURES
• Depth & Sea Temp
• Large clear backlit digital display
• Completely waterproof to 10 metres
• Simple installation, easy calibration
• Show speed on the same display simply add a T911 Speed Transducer
NEW FOR
2010
SUPPLIED WITH
Depth transducer, hull transmitter and display unit
KEY FEATURES
• True and apparent wind speed and
direction (true wind requires boat speed)
• Large clear backlit analogue display
• Completely waterproof to 10 metres
• Simple installation, easy calibration
SUPPLIED WITH
Wind transmitter and display unit
KEY FEATURES
• Repeats a wide range of data
• Palm sized, easy to hold
• Totally multifunction
• Graphic multi-line display
• Solar powered with integrated
lithium batery
• Can be used with other
manufacturers’ equipment
HOT
PRODUCT
SUPPLIED WITH
Remote display, universal wireless NMEA interface
TACKTICK T100 SPEED/DEPTH
TACKTICK T101 WIND
TACKTICK T108 CRUISE PACK
Bidata System
Wind System
Wireless Speed, Depth, Wind System
The Tacktick Speed/Depth system is a compact solution for those on a budget or where space is limited.
The single display shows
boat speed, depth and
distance travelled.
The wireless T101 Wind System does away with all
the inconvenience of installing a traditional wind
system - with no mast cable the mast doesn’t need
to be stepped, plus the weight saved improves the
yacht’s performance. The display shows wind
direction (360º and close hauled) and wind speed.
This great value package is ideal for sailboats of all
sizes, coming complete with a ‘digital analogue’ and
a dual digital
display.
SEEN IT
FOR LESS?
WE WON’T BE
BEATEN ON
PRICE!
KEY FEATURES
• Speed, Depth and Distance
• Solar powered with integrated lithium battery
• Efficient power consumption - units can run
autonomously for up to 300 hours
• Easy to expand system
SUPPLIED WITH
Dual digital display, through hull speed and depth
transducers, hull transmitter
KEY FEATURES
• Large clear ‘analogue’ display
• Solar powered with integrated lithium battery
• Efficient power consumption - units can run
autonomously for up to 300 hours
SUPPLIED WITH
Wind transmitter and display unit
EDITOR’S
CHOICE
KEY FEATURES
• Speed, Depth, Distance
• Wind Speed and Direction
• Calculated functions
• Compatible with other manufacturers via NMEA
• Solar powered with integrated lithium batteries
• Efficient power consumption - units can run
autonomously for up to 300 hours
SUPPLIED WITH
Dual Digital Display, Analogue Display, Speed and
Depth transducers, Wind Transmitter, Hull Transmitter
Turn to the back page for pricing and ordering info NOW!
Furuno
24
Navigation Equipment
FURUNO MFD8 & MFD12
FURUNO M1623
NavNet 3D 8.4in & 12.1in Combi Displays
6in 2.2kW Mono LCD Radar
Choose between 8.4in or 12.1in colour sunlight-viewable displays with high
brightness and anti-reflective glass coating that allows use even in direct sunlight.
The low profile design is ideal for flush mounting or can be bracket mounted.
A great value low power consumption LCD radar which gives detailed images at
short ranges thanks to narrow pulselengths and dual IF bandwidths. In Watchman
mode, the antenna is stopped and the screen displays
nav data only. The radar wakes up at a specified time
interval and operates for 1 minute. If a target enters
the guard zone, an alarm sounds and the radar goes
into its normal operating mode. The alarm may also
be set to trigger if a target leaves the guard zone.
HOT
PRODUCT
KEY FEATURES
• 15in 2.2kW radome, max range 16nm
• Normal, Off-Centre & Watchman operating modes
• 12 range scales
• EBL, VRM, TLL output (Target Lat/Long)
• Cursor Lat/Long input/output, Echo Trail, Guard Zone Alarm
SELLER
• Automatic receiver tuning, sensitivity and anti-clutter controls
• Interface with GPS and chart plotter, waypoints displayed as “lollipop” marks
• Excellent screen clarity, high contrast, day and night modes
• Waterproof display, ideal for cockpit or flybridge installation
BEST
SUPPLIED WITH
2.2kW 15in radome antenna & 10m cable
KEY FEATURES
• 8.4in TFT 640x480 pixel or 12in TFT 800x600 pixel displays
• Up to 2,000 waypoints, 200 routes, 100 waypoints per route
• Head up, course up, North up, relative motion or true motion display modes
• True 3D environment for a more instinctive chart presentation
• Simple, intuitive operation using the Rotokey and Scrollpad controls
• Dedicated 3D button - toggle between 2D perspective and favourite 3D angle
• High-resolution satellite photography can be fused with raster or vector chart
information, viewable in 2D or 3D
• No preset chart scales - zoom to the exact magnification level you wish
• New Ultra High Definition (UHD) Digital Radar
• 3D chart-radar overlay (requires SC30 or SC50 satellite compass input)
• Furuno Digital Filter (FDF) Fish Finder
FURUNO NAVNET 3D BB
NavNet 3D Black Box Navigation Systems
The NavNet 3D BB system offers all the features of the MFD8/MFD12, linking a
powerful NavNet3D black box processor
with a range of LCD displays, from
12.1in up to 17in.
FURUNO GP7000 & GP7000F
Colour 7in Widescreen Chartplotter and Chartsounder
Chartplotter (GP7000) or Chartsounder
(GP7000F) with Course Plot, Nav Data,
Steering and Highway display modes. The
echo-sounder can be displayed as full or
split screen with the course plot mode.
KEY FEATURES
• Dual chart slots
• North up, course up or auto course up
• User friendly operation with rotary control and softkeys
• 5000 waypoints, 200 routes, 12,000 trackpoints
• 600W or 1kW dual frequency 50/200kHz echosounder
• Max depth 1200m
• Bottom-lock, Bottom-zoom, Marker-zoom, A-scope
FURUNO NX300D
Dual Mode Navtex Receiver
One of our most popular products, this compact dual frequency (518/490kHz)
unit has a high contrast 4.5in display and receives current and early warning
weather reports and navigation alerts
worldwide, within 200-400nm of shore.
KEY FEATURES
• Printout available via PC
• Can be used as a Nav data repeater
• Low power consumption
SUPPLIED WITH
Antenna
KEY FEATURES
• 12.1in TFT Display Control Unit with integral keypad
• 12.1in SVGA marine monitor, 800x600 pixels
• 15in XGA marine monitor, 1024x768 pixels
• 17in SXGA marine monitor, 1280x1024 pixels
• Dedicated control keyboard
FURUNO NAVNET 3D
Upgrade Modules
Add powerful features to your NavNet 3D
system with these optional modules.
MODULES AVAILABLE
• DFF3 Digital Sounder Module
• FA30 AIS Receiver
• FA50 Class A & B AIS Transponder
• SC30, SC50 & SC110 Satellite compasses
• FAX30 Weatherfax & Navtex Receiver
• BBWX1 Sirius Satellite Weather Receiver (US only)
FURUNO FCV620 & FCV585
5.6in & 8.4in LCD Colour Fishfinders
High performance 50/200kHz dual frequency fishfinders with wide angle sunlight
viewable displays. Digital filter adjusts gain, STC and output power for outstanding
detection in shallow and deep water. Swivel mount bracket or flush mountable.
KEY FEATURES
• FCV585 - 8.4in display, up to 1kW output (requires MB-1100 matching box)
• FCV620 - 5.6in display, 600W output
• Single, dual, zoom and Nav data modes
• Cruising and fishing auto modes
• Fast pulse transmission rate for
outstanding shallow water performance
• TLL output for GPS plotter display
• 8/16/64 colour echo presentation for
displaying subtle echo images
• Customised nav data display when
interfaced with appropriate sensors
We accept most major credit and debit cards
NASA Marine
25
Navigation Equipment
NASA PC NAVTEX PRO
NASA CLIPPER NAVTEX
NASA METEOMAN
Dual Frequency PC Navtex Receiver
Dual Frequency LCD Navtex Receiver
Digital Barometer
Precision high resolution barograph. Easy to use and
reliable with low power consumption.
KEY FEATURES
• Receives messages even without PC connected
• Supports selected message filtering and printing
• Low current consumption - can be left on 24/7
SUPPLIED WITH
Compact stub antenna, software, cable
This dual frequency Navtex offers an ideal solution
for those looking for an easy to fit, flush mount unit.
KEY FEATURES
• Ultra clear 16 line LCD with white backlighting
• Dual frequency (490 & 518kHz)
• Low power consumption (50mA)
SUPPLIED WITH
Compact stub antenna
KEY FEATURES
• Wind speed and direction, ambient temperature
and barometric pressure
• Chronometer, stop watch, race countdown timer,
internal temperature display and battery monitor
• Optional NMEA Wind sensor
NASA AIS ENGINE 3
NASA AIS RADAR
NASA WEATHERMAN
2 Channel AIS Receiver
AIS Receiver
RTTY Telex Receiver
View Navtex messages on your PC! Instantly get the
latest weather forecast from your local station or any
other message stored in the unit's memory.
Turn your PC or compatible chart plotter into an AIS
display! Windows 95, 98, ME, XP, 2000, NT and
Vista compatible, the software includes a world map
on which vessels are plotted.
KEY FEATURES
• Optional GPS input
• Display vessel name,
MMSI number, position,
call sign, destination etc
• Works with all plotters,
radars, PCs or other
equipment with an AIS input
• Super sensitive receiver with GPS multiplexer
• Receives all class A and class B messages
HOT
PRODUCT
Standalone AIS receiver that shows AIS equipped vessels in a radar-style format. A trail of previous positions clearly shows the relative track of all the targets
on the screen. Requires standard VHF antenna.
SUPPLIED WITH
Software, 9-pin serial data cable, 12 volt power cable
KEY FEATURES
• 1, 2, 4, 8, 16 and 32nm ranges
• SOG, vessel’s name, MMSI and current Lat/Long
• Low power consumption
NASA HF3/W
NASA MOBi
MF/HF Receiver
Man Overboard Indicator
Compact Radioteletype weather forecast receiver.
Memory can store several thousand lines of text.
KEY FEATURES
• High contrast 16 lines x 40 character display
• Power save auto timer on backlight
• Spectrum screen for simple signal analysis
SUPPLIED WITH
Active micro antenna
Keep your crew safe with this state of the art man overboard
system, consisting of a base unit and up to eight waterproof
active transponder tags, each of can be individually named.
Covering 30Khz - 30Mhz, this compact MF/HF
receiver includes a weatherfax interface.
KEY FEATURES
• Failsafe transponder technology
• Base unit alarm if crewmember falls overboard
• Each tag is individually identified on the display
• 3 x AAA batteries will power each transponder for several
weeks’ continuous use
SUPPLIED WITH
Antenna, PC cable, power supply, Meteoscan lite software to download weatherfax pictures, RTTY weather
forecasts and navtex messages.
SUPPLIED WITH
Base unit, three tags
NASA CLIPPER
NASA BM-1
NASA BM-1 COMPACT
Instrument System
Battery Monitor
Battery Monitor
Budget 110mm instrument system with large clear
displays. Supplied with transducers and cabling.
Monitors the performance of 12v lead acid battery
systems with up to
600Ah capacities. It
shows voltage, current
(charge or discharge),
the battery’s state of
charge and the time
to charge or discharge.
This compact 12v lead acid battery system monitor
displays the voltage, current (charge or discharge),
state of charge and the time to charge or discharge.
KEY FEATURES
• Supply current 3mA
• Battery capacities 5-600Ah
• Load current 100A maximum
• 110mm case with high contrast LCD
• 24v version also available
NEW FOR
KEY FEATURES
• Supply current 1.5mA
• Battery capacities 5-600Ah
• Load current 100A maximum
• Compact - 125x62x23mm with high contrast LCD
KEY FEATURES
• Log - log, trip log and trend indicator, kts/mph
• Depth - keel/waterline offset, deep/shallow
alarms, trend indicator, feet or metres
• Wind - “digital analogue”, selectable pointer style
• Duet - combines the Clipper Speed and Depth
• Compass - true or magnetic display, steering
function, off-course alarm
• GPS Repeater - COG, SOG, Lat/Long, BTW, DTW,
XTE, rolling road display
HOT
PRODUCT
2010
BM-1 & BM-1 COMPACT SUPPLIED WITH
Display, precision shunt and prefabricated cables for simple DIY installation
Turn to the back page for pricing and ordering info NOW!
Northstar
26
Combi Displays & Fixed VHF Radio
NORTHSTAR 8100i
15in Colour Touchscreen Combi
Wow! What A Deal! A £6,500 Integrated Nav System Now Reduced To Just £1,500. And Exclusively From Us. The Northstar 8000i is a powerful 15in multi
function chart plotter with sounder, entertainment and radar options. It comprises of black box processor, remote keypad and sunlight viewable IP65 15in
touch screen display. The system gives you the best of both worlds with a choice of either keypad data entry and control or touch screen and you can even
plug in an optional USB mouse or trackerball to control the system.
Why Is It So Cheap? To be frank, the global recession has really hit the market for top end marine electronics and sales for this system at its normal price have effectively dropped off a cliff! So take advantage now of this incredible deal to get some of the world’s most advanced electronics at an unbeatable price.
DISPLAY FEATURES
• High performance sunlight viewable waterproof 15in touch screen display
• Accepts separate inputs from other devices
• DVI input, VGA input, two S video inputs, 2 composite inputs and USB input
• Multiple 8000i systems can be linked and share data throughout the system
MEGA
DEAL
OFFER!
NAVIGATION FEATURES
• Embedded C Map Max Pro charts - unlock region simply by purchasing a licence
• Chart updates easily transferred from PC over the internet in real time
• Head up, course up or north up display
• Split screen - show up to 4 functions at the same time in individual panes
• Chart layers - turn on and off detail such as buoyage, lights, chart text, depth etc
• View 3D chart to see a panoramic view of the area as if you were flying over it
• Synchronised 2D and 3D view of the same chart side by side
• Built in hard drive offers virtually unlimited waypoints, marks, routes and tracks
• Waypoints can be named and given a full set of notes via onscreen keyboard
See website
for details
SOUNDER OPTION
• 1kW high performance dual frequency 50/200kHz network sounder available
• Can also support lower power 600W transducers already fitted on the boat
RADAR OPTION
• Compatible with the digital scanner range from Northstar/Navico
• Compatible with latest broadband radar technology available from Navico
ENTERTAINMENT OPTIONS
• Features standard USB connections to connect a DVD, CD or memory sticks etc
• On screen interface allows easy playback of sources
• Video camera input either directly to the display or via a network connection
OPTIONAL ADDONS
BR24 Broadband Radar
2kW Digital Radome
4kW Digital Radome
6kW Digital Open Array
1kW Network Sounder
SUPPLIED WITH
Black box processor, remote keypad, 15in touchscreen monitor, gps antenna, sun cover, power cable & fuses, utility cable, ethernet loopback, audio cable, USB dash
mount connector, chart license key & holder, manuals, quick start, all fixings, cleaning cloth
NORTHSTAR EXPLORER 725E WITH SECOND STATION
Fixed DSC VHF
The Explorer 725 includes a built in barometric pressure sensor which provides prediction of weather and fish activity displayed as a digital
graph on the display. The wireless second station (the Explorer 705) features the same large LCD as the radio and offers complete control
of all DSC and radio functions, plus you can have up to two second stations per radio, so simply add another Explorer 705 for a three station radio with intercom facility! The Track-Your-Buddy feature allows you to combine your Explorer 725’s DSC position polling with
Track-Your-Buddy enabled Chartplotter or Combo units to show the location of up to three other
boats on the chart display. The wireless second station handset is fully waterproof (JIS7)
to withstand the tough marine environment.
KEY FEATURES
• Fistmic with channel, power and priority channel buttons
• Optional full function second station handset
• Up to two second station handsets per radio
• Super large, clear FSTN display with amber backlighting on both units
• Instant access to up to 3 of your favourite channels with easy user programming
• Select from several scanning modes such as All-Scan and Favourite Channel
• Automatic GPS boat position and time when connected to a GPS receiver
• Local/Distant feature eliminates unwanted interference in high traffic areas
• Call logs with instant call back capability
SUPPLIED WITH
Fistmic, flush and bracket mounts, dust cover
We accept most major credit and debit cards
HOT
PRODUCT
Echopilot
27
Forward Looking Sonar
ECHOPILOT PLATINUM FLS
ECHOPILOT PLATINUM VIDEO FLS
Colour Forward Looking Sonar
Black Box Colour Forward Looking Sonar
A colour FLS with the best range and performance yet. Developed with all the
expertise gathered by Echopilot over 13 years of manufacturing Forward Looking
Sonar. With greater resolution than previous models, the large transflective colour
LCD can be seen in the brightest sunlight. The use of colour enables enhanced
seabed interpretation - the colour of the target depends on its hardness and the
strength of echo that it returns. The Platinum is NMEA compatible and can display GPS data. Flush mount or optional bracket for wheelhouse use.
Turn your combi display into a colour FLS repeater! Black box colour forward
sonar which links with third party combi displays with a composite or S-Video input.
Available in two versions - a video interface box to connect an FLS Platinum to a
combi display, or a complete black box solution comprising transducer, skin fitting,
cables, electronics box and control keypad which can be connected to any colour
display or monitor with composite or S-Video input (display not supplied)
SUPPLIED WITH
200kHz professional transducer with 12m cable
KEY FEATURES
• Compatible with Raymarine E series, Garmin 4000/5000 series, Furuno 10in
NavNet, Simrad CX and Navman 8000 series and others - call for advice
• 200m forward range
• Improved performance
• Forward Alarm
• Digital Depth
EXPERT
• Speed Option
ADVICE
• Built in GPS Repeater
• NMEA Compatible
ECHOPILOT SILVER III & GOLD III FLS
ECHOPILOT BRONZE FLS
Forward Looking Sonar
Forward Looking Sonar
Now with even better performance! Real time forward looking 200kHz sonar with
enhanced processing software. See underwater obstructions ahead of the vessel
rather than just the depth below.
The range is 20-150m ahead,
10-75m down.
If you’re stuck for space but still want to
fit an FLS, the Echopilot Bronze is ideal,
contained in a standard 110x110mm
instrument-sized case with the latest
transflective LCD technology.
KEY FEATURES
• Manual or Autogain
• Manual or auto range change
• New enhanced processing software
• History display of sea bed
• Optional log transducer
• Gold - Display GPS info via NMEA - position, BTW, DTW, XTE and waypoint name
• Gold - Output log and depth info via NMEA
KEY FEATURES
• Simple two key operation
• Forward range 100m, depth range 50m
• Forward alarm
• Optional professional transducer for
long keel boats over 35ft
KEY FEATURES
• Large colour sunlight-viewable display
• 200m forward range
• Optional wireless link between transducer and instrument for ease of installation
• Optional computer output for interfacing with on board computers
SUPPLIED WITH
200kHz standard or professional transducer with 12m cable
Find out more...
Real Time Forward Looking Technology Explained
Real Time means that the FLS doesn’t gradually build up a picture,
instead it scans the whole forward view and updates the screen several times
a second. An obstruction ahead of the boat will be shown immediately.
The FLS displays a 2D profile of the seabed below and 3-5 times that depth
ahead of the vessel on a flat muddy bottom. This increases to 8 or 9 times if the
seabed shoals upward and more than this for a large target. Rocky bottoms give
especially strong reflections and hard vertical surfaces like quay walls or reefs will
often be seen at 150m or more.
In the vertical plane the FLS
scans through 90º from straight
ahead to straight down.
The FLS is not designed to be a
fishfinder, it is a collision
avoidance device. In reality it
does pick up larger fish and
sometimes shoals of smaller fish.
SUPPLIED WITH
200kHz standard or professional transducer with 12m cable
ECHOPILOT BRONZE TRIO
Combination Instrument Display
Versatility instrument with simple, intuitive menu driven operation with transflective
backlit, high definition dot matrix LCD for maximum visibility. The Trio is a combination log and depth unit, but is also a fully functional NMEA repeater and feature
an innovative steering screen displays course to Waypoint on a simulated compass
card and has an off course arrow
showing course over ground.
As the Trio will work with a wide range of
third party transducers it’s ideal as a
replacement if you don’t want the cost
and hassle of lifting your boat out of the
water to change the existing transducers
EDITOR’S
KEY FEATURES
CHOICE
• Combined Log and Depth
• NMEA repeater
• NMEA input accepted from any other NMEA compatible depth or log units
• Compatible with many old 150kHz or 200kHz depth transducers
• Compatible with many old paddlewheels
• Also available - Bronze Plus Log and Bronze Plus Depth
Turn to the back page for pricing and ordering info NOW!
Marine Pod
28
Equipment Mounting Pods
MARINEPOD
MARINEPOD MSP5-A
Mounting Solutions
MarinePod is a range of waterproof electronic equipment
housings designed to fit Whitlock and Edson steering
gear, both 9.5in and 12in wide rail systems. Its
unique design allows any pod to fit either system
with a template supplied for easy fitting.
Manufactured in the UK using a highly UV
resistant, acrylic capped ABS plastic and
specialist seal system, the pods fit to the
binnacle rail with heavy duty stainless steel
clamps which are included as
standard. The system can be
adapted to fit 7/8in, 1in and
1.25in diameter rail systems
or you can custom drill the
reinforced rear case to suit a
specific installation.
Single Instrument Pod
The MSP5-A is designed for mounting a single 110x110mm instrument. The rear
of the case has an extrusion with flat horizontal mounting point which can be used
to attach the pod to a bulkhead or other fixing point. The MSP5-A is supplied as
standard with a stainless steel mounting clamp which is suitable for attaching to a
pedestal guard rail.
KEY FEATURES
• Maximum useable face area 150x155mm
• Maximum depth 75mm
• Also available without the mounting clamp (MSP5)
KEY FEATURES
• Mount instruments, radar, chartplotters and more at the helm
• Option to factory pre-cut pods to fit most popular makes and products
• Custom colour moulding option
• UV resistant mouldings
• Specialist seal system protects the back of the equipment from water ingress
SUPPLIED WITH
Stainless steel mounting clamp, fixings
MARINEPOD MSP1
MARINEPOD MSP6
Mounting Pod
Custom Pod for SC500
The MSP1 is a large 420x330mm pod suitable for bigger combi displays and
chart plotters with a display size of over 10in. It can also be used to mount
several smaller displays together such as instruments, autopilot control etc.
There's no better place than the helm to
view chart and AIS information. The MSP6
is a custom made rail mount pod suitable
for the DigitalYacht SmarterChart 500
series 5in combi displays.
KEY FEATURES
• Designed for large multifunction
displays over 10in screen size
• Also can be used with a smaller 8in
display plus additional instruments
• Maximum useable face area 420x330mm
• Maximum depth 160mm
SUPPLIED WITH
4 stainless steel clamp brackets, fixings
KEY FEATURES
• Custom pod for DigitalYacht SC500
• Easy binnacle, rail or steering hoop
mounting using an adjustable clamp
MARINEPOD MSP2
MARINEPOD MSP1-P & MSP2-P
Mounting Pod
Power Pods With Deck Base
The MSP2 has a 370x290mm face making it ideal for medium-sized chartplotters,
radars and combi displays with 7-8in displays. It is the same width as the MSP3
instrument pod and so can be mounted together as a single pedestal installation.
The MSP1P is a mounting pod designed for large multi function displays with
screen sizes over 10in. It can also be used with a smaller 8in display plus additional instruments. The smaller MSP2P is designed for medium size multi function displays with screen sizes between 7-8in.
KEY FEATURES
• Designed for medium size multifunction
displays between 7-8in screen size
• Width matches MSP3
• Maximum useable face area 370x290mm
• Maximum depth 160mm
SUPPLIED WITH
Adjustable 1-1.25in clamp
Both feature a deck-mounted swivel base which allows easy rotation of the pod
to suit a range of viewing angles, making them ideal for power boat applications.
They fix easily to the deck or cockpit using just four screws.
SUPPLIED WITH
4 stainless steel clamp brackets, fixings
MARINEPOD MSP3 & MSP4
Instrument Pods
The MSP3 and MSP4 instrument pods are designed to fit three or four standard
110x110mm displays respectively, but are also suitable for engine controls, wider
multi-function instrument displays and autopilot
control heads (eg Raymarine ST7002+ etc).
KEY FEATURES
• Designed for mounting 110mm
instruments from manufacturers
such as Raymarine, Garmin, Nasa,
Tacktick, Furuno etc
• Can also be used for engine
instruments and controls
• Maximum depth 60mm
SUPPLIED WITH
2 plastic clamp brackets, fixings
NEW FOR
2010
KEY FEATURES
• Deck-mounted swivel base
• MSP1P - Maximum useable face area 420x330mm
• MSP1P - Maximum depth 160mm
• MSP2P - Maximum useable face area 370x290mm
• MSP2P - Maximum depth 160mm
We accept most major credit and debit cards
HOT
PRODUCT
MB Quart/SeaMe
29
Entertainment, Radar Enhancer
MB QUART WR1-USB
MB QUART WM1
MB QUART WRC-S1 & S2
Marine AM/FM/Media Receiver
Marine CD/DVD Head Unit
Secondary Control Units
Combined AM/FM radio and digital media player.
Features a large multicolour LCD display and the
fixed front panel and no CD mechanism enhances
the durability of this product, making it ideal for the
demands of marine onboard use.
Multi-region DVD, DVD-R/RW, CD, CD-R/RW head
unit with easy-to-read text display. Includes waterproof credit card remote. Video out also allows you
to view iPod and satellite radio displays on your TV.
Remotely control your system and iPod! Compatible
with all current MB Quart nautic head units with
large, easy to read backlit display. Includes 6m cable.
KEY FEATURES
• AM/FM tuner with 12 AM/18 FM presets
• Multi media - CD/CDRW/MP3/WMA compatible
• 4x 40 watt output
• RCA audio output
NEW FOR
• 3.5mm AUX input
• USB and SD card input
• PA input with optional PA microphone
• iPod ready with full text display to control
iPod from your deck using the optional cable
KEY FEATURES
• AM/FM tuner with 12 AM/18 FM presets
• SIRIUS Satellite Radio and iPod control
• USB input plays MP3 and WMA formats
• 50 watts x 4
• 5 preset EQ settings
• 3 RCA pre-outs
PRODUCT
• Subwoofer/CD changer control
• IPX5 construction, anti-shock CD buffer, J11171
marine ignition protection, salt/UV resistant
• Also available as a CD only version (CD, CD-R/RW)
MB QUART iPOD DOCK
MB QUART WR1
Marine CD Head Unit
Marine CD Head Unit
Control your iPod from your MB Quart system - works
with iPod Classic, Nano, Touch and iPhone, connects
to any cable with 30-pin iPod dock connector. Dash
or surface mounts for
horizontal or vertical
installation.
AM/FM/CD player with CD changer control function.
iPod input with text display - control your iPod when
within range of the optional remote control. This
practical unit is moisture resistant and designed to
withstand UV exposure and extreme heat conditions.
2010
HOT
HOT
PRODUCT
KEY FEATURES
• Splashproof to IPX7 standard
• Designed to withstand salt and UV exposure
MB QUART SPEAKERS
Marine Midrange Loudspeakers
A range of high quality marine loudspeakers designed
to withstand salt and UV exposure with corrosion
resistant connectors and sealed solder joints.
Titanium tweeters, 4 ohm impedance, 3-year warranty
NKA116 KEY FEATURES
• 6.5in with 0.5in tweeter
• 70W RMS, 140W peak
• 40Hz to 32,000KHz
frequency response
• 4500Hz tweeter crossover
NKF692 KEY FEATURES
• 6 x 9in with 1in tweeter
• 60W RMS, 130W peak
• 50Hz to 25,000kHz
frequency response
• 3900Hz tweeter crossover
MB QUART NWF254
10in Marine Subwoofer
KEY FEATURES
• Interchangeable adaptors and
inserts create perfect, single iPod dock
• Black bezel (without MB Quart Logo) and Chrome
bezel (with MB Quart Logo) versions available
KEY FEATURES
• AM/FM tuner with 12 AM/18 FM presets
• SIRIUS Satellite Radio and iPod capabilities
• 40 watts x 4.5
• Preset EQ settings
• 2 RCA pre-outs
• Antishock CD buffer, J1171 marine ignition protection
• Subwoofer/CD changer control
SEA-ME
SEA-ME DUAL BAND
Active Radar Target Enhancer
Active Radar Target Enhancer
Increase the probability that your boat will
be seen by other ships on their radar with
this affordable active device. Unlike
traditional passive radar reflectors which
merely attempt to create a larger radar
echo, Sea-me is an active system which
receives a radar signal, amplifies it and
re-transmits it. This ensures a stronger
return signal and a more even strength
around the full 360° azimuth.
Designed to meet all the requirements of
ISO 8729-2:2009 the Sea-Me Dual Band
responds to radar pulses at both X and S
bands. All ships over 3000 tons are
required by law to carry both types of
radar and many prefer to monitor S Band
when in open waters because it is more
tolerant of heavy rain and sea clutter
KEY FEATURES
• Creates radar image equivalent to an
object of 632m max (342m average)
• Up to 6 times the performance of
standard passive radar reflectors
• Performance is less affected by heel
than standard passive radar reflectors
• Operates at X Band (9.32-9.5GHz)
• Indicates when your vessel is struck
by a radar pulse
• Small, light (410g) and easy to install
• Low power consumption
KEY FEATURES
• Enhances X and S Band radar signals
• Meets the applicable requirements of
the Radio and Telecommunications
Terminal Equipment Directive and of
ETSI Standard 302 752
• Up to 6 times the performance of
standard passive radar reflectors
• Performance is less affected by heel
than standard passive radar reflectors
• Indicates when your vessel is struck
by a radar pulse
• Small, light (410g) and easy to install
• Low power consumption
SUPPLIED WITH
Antenna, 24m cable, control box
SUPPLIED WITH
Antenna, 24m cable, control box
•
•
•
•
•
•
100W RMS, 200W peak
30Hz to 300Hz response
4 ohm impedance
Sensitivity: 86 dB
Polypropylene cone
Nautic crossover with
protective sealing lacquer
• Gold-plated terminals and sealed solder joints
Tech info
Why Fit an Active Radar Target
Enhancer?
At night, the range of the masthead light of
a sailing yacht of less than 20m is only 3nm and
of a sailing yacht of less than 12m only 2nm - a
ship making 20kts will cover 3nm in only 9 mins.
As they get bigger, travel faster and have lower
manning on the bridge, the risk of collision or a
close encounter increases. Therefore it’s vital
that small craft return a strong radar signal if they
are to be seen in plenty of time for avoiding
action to be taken by ships.
Consistency is also important since most ships
today are fitted with ARPA (Automatic Radar
Plotting Aid) which needs to obtain a return of
50% of scans if it is to acquire the target
Performance of the radar cross-section area of Sea-me
Turn to the back page for pricing and ordering info NOW!
Jeppesen Marine (C-Map)
30
Electronic Cartography
A closer look...
C-MAP MAX
Electronic Charting System
MAX is C-Map's dynamic and interactive chart technology that has revolutionised the way electronic charts look
and behave. MAX brings new life to the electronic chart, combining unparalleled levels of chart accuracy and
detail, striking presentation and a huge collection of new value added data.
KEY FEATURES
Embedded photos & coastal land mapping
Fully animated worldwide tide & current database
Aerial photography of ports and marinas
Perspective view - “rolling road” chart display
We accept most major credit and debit cards
Jeppesen Marine (C-Map)
31
Electronic Cartography
C-MAP MAX WORLDWIDE CHART COVERAGE
Atlantic European Coasts Megawide
Baltic & Scandinavia Megawide
USA Continental
USA Megawide
West European Coasts Megawide
Australasia Megawide
Mediterranean & Black Sea Megawide
Australasia Wide
Europe Inland Waters Megawide
USA Lakes
USA Fishing
Please note that this is just a small selection of the
most popular cruising areas covered by C-Map. If
you are looking for a region not shown here, please
call us for more details or check our website.
Turn to the back page for pricing and ordering info NOW!
Navionics
32
Electronic Cartography
NAVIONICS
Electronic Cartography
Navionics offers two main chart types, the popular and established Gold and the multi-award winning top of the range Platinum+. Both based on Navionics exclusive
vectorised fully Seamless technology, providing clearly legible charts without clutter, holes or gaps. Gold charts are available in huge XL9-size coverage areas, while the
Platinum+ is available in the great value XL3-size. All plotters compatible with Navionics charts will accept standard and expandable cartridge formats, such as Compact
Flash or Secure Digital. Visit the Navionics website at www.navionics.com to access the list of compatible plotters with corresponding product line and media.
NAVIONICS PLATINUM+
NEW FOR
Electronic Cartography
2D or Multi-D? From detailed 2D base charts to top-down satellite photo overlays and 3D view, Platinum+
allows you to navigate in multiple dimensions for the ultimate in situational awareness. And now Platinum+™
driven by Navionics TurboView™ Technology offers you the most powerful multi-dimensional charting experience since Platinum’s introduction in 2005. Experience total immersion in the multi-dimensional world of
Platinum+ on TurboView Certified Plotters. The embedded Navionics TurboView Charting Engine dramatically
increases the functionality and display capabilities of GeoNav G12, Simrad NSE, Lowrance HDS and Raymarine
E-Series Widescreen plotters to provide boaters with the ultimate charting experience.
TURBOVIEW FEATURES
• Seamless, fluid pan and zoom, rotation and pitch
functionality, much like a flight simulator!
• Seamless transition between 2D and 3D views
• Real-time overlay of navigation data on 3D profiles
• Depth and elevation shadowing
• High-speed flythrough, detailed aerial photo overlay
KEY FEATURES
• Topdown photo overlay, highest resolution available
• 3D bathymetric views
• Exclusive high-definition fishing detail for US waters
• Panoramic port photography in full-view XGA
• Selectable colour shaded contours
• Full seamless & intelligent clarity technology™
• Complete geo-referenced coast pilot book
• Points of interest including enhanced port services,
hazards, wrecks and much more
2010
Platinum+ XL - Americas
Platinum+ Shaded Contours with TurboView
Platinum+ XL3 - Americas
Panoramic Port Photographs
Platinum+ XL3 - Atlantic
Platinum+ XL - Oceania
Platinum+ High Res Aerial Pictures with TurboView
Platinum+ XL3 - Mediterranean
Improved 3D bathymetric views
Platinum+ XL3 - Scandinavia
Platinum+ XL3 - Oceania
TurboView high-speed fly-through with detailed
aerial photo overlay
We accept most major credit and debit cards
Navionics
33
Electronic Cartography
NAVIONICS XL9 GOLD
NAVIONICS NAVPLANNER
Electronic Cartography
PC-Based Chart Viewing System
Gold charts bring electronic cartography a step closer to the official paper charts.
Bathymetries are easily distinguishable thanks to the different colour shadings,
light sectors of lighthouses and real forms and colours of buoys. The boater can
select the contour colours to differentiate and identify shallow and hazardous
areas as well as difficult-to-anchor, deeper water.
An easy-to-use software package that allows you to plan your navigation on a PC
at home and transfer it to your chartplotter on your chart card. Plan your route
on PC using NavPlanner's easy-to-use navigational
tools with Navionics HotMaps, Silver, Gold or
Platinum Charts.
KEY FEATURES
• Animated Tide & Current database.
• Best fishing & cruising detail
• Comprehensive database of wrecks for fishermen, only with Navionics charts
• Huge coverage for yachtsmen and power-boaters
• Paper like chart detail
• 18 zoom levels
• User selectable safety contours
• Spot soundings
• Port plans and services
• Full Seamless Technology
KEY FEATURES
• View the chart on your PC
• Load, create and edit routes, saving
them to your chart card
• Transfer data directly from the card
to the plotter
• 16 zoom levels, measures distance
and bearing, go-to-port function,
and many other features
SUPPLIED WITH
Navionics USB chart card reader
Gold XL9 - Worldwide Coverage
Chart Code Title
Description
20XG
GREENLAND & ICELAND
Greenland West, Greenland South, Iceland. From Northumberland Oe to Kap Farvel to Nathorst Fjord. Including Scoresby Sund, Disko Bugt, Melville Bugt, Nuuk in Greenland and Faroe Islands, Shetland Islands, Orkney Islands, Hebrides and North West Scotland
from Kyle Rhea to Helmsdale.
23XG
MEDIT. & BLACK SEA
Entire Mediterranean Sea, Black Sea and Dnieper River.
28XG
UK-IRELAND & HOLLAND United Kingdom, Ireland, English Channel, Belgium and The Netherlands.
30XG
AFRICA & M. EAST
Western Sahara, Mauritania, Senegal, Gambia, Guinea Bissau, Guinea, Sierra Leone, Liberia, Ivory Coast, Ghana, Benin, Nigeria, Cameroon, Gabon, Congo, Angola, Namibia, South Africa, Tanzania, Kenya, Somalia, Madagascar, Comoros, Aldabra Islands, Seychelles,
Socotra, Lake Kariba, Red Sea, Persian Gulf. Including Cape Verde Islands, Gulf of Guinea, Gough Island, Tristan da Cunha, Gulf of Oman, Gulf of Aden, Victoria, Albert & Kivu Lakes.
37XG
UPPER VOLGA RIVER
Saint Petersburg to Upper Volga River. Including Lake Onega and Lake Ladoga.
38XG
MOSCOW AREA
Rybinsk waterstorage, Volga river, Moscow-Volga Canal, Oka and Moskva rivers.
39XG
LOWER VOLGA RIVER
Volga river from Samara, Tolyatti to Eysk in Sea of Azov, Volgograd to Astrakhan and total Caspian sea.
40XG
CENTRAL VOLGA RIVER
Volga river from Nizhny to south side up to Balakovo. Kama river from Kazan to north side up to Solikamsk and Belaya river from Agidel to Ufa.
44XG
BALTIC SEA
Entire Baltic Sea, Gulf of Bothnia, Gulf of Finland. Peipsi lake, Berlin Lakes. Entire Sweden including Lakes, Norway South up to Flekkefjord. Finnish Lakes including Inarijarvi, Porttipahdan Tekojarvi, Lokan Tekojarvi, Miekojarvi, Emijarvi,Vahonselka, Mourujarvi, Yli Kitka,
Kiantajarvi, Vuokkijarvi, Oulujarvi, Nuasjarvi, Ontojarvi, Lentua, Pielinen, Koitere, Hoytiainen, Viinijarvi, Pyhaselka, Orivesi, Puruvesi, Pihlajavesi, Haukivesi, Kallavesi, Suvasvesi, Juojarvi, Puula, Kyyvesi, Onkivesi, Pyhajarvi near Sortavala City, Saimaa, Puruvesi, Pihlajavesi,
Peilavesi, Nilakka, Pyhajarvi near Iisalmi city, Konnevesi,Kolima, Kivijarvi, Keitele, Paijanne, Vuohijarvi, Langelmavesi, Vanajavesi, Lappajarvi, Pyhajarvi near Rauma City, Lohjanjarvi-Vihti. Excluding Bornholm.
45XG
SKAGERRAK & KATTEGAT Denmark, Germany (From Delfzijl to Kolobrzeg in Poland), Norway from Flekkefjord to Oland south in Sweden. Including Skagerrak, Kattegat, Oslo, Copenhagen, Goteborg, Bornholm, Sjaelland, Lolland, Fyn and German Lakes
46XG
EUROPE WEST
Iberian Peninsula, France, English Channel and Sardinia. European inland waters (French and Holland canals, Switzerland/Italian lakes, Lake Balaton, Valence, Tisza, River Rheine/Main, Berlin Lakes, Mittellandkanal, Dortmund-Ems-Kanal, Austrian Danube River)
49XG
NORWAY
Norway including Svalbard Islands, Shetland Islands, Sweden West from Strömstad to Varberg. Vättern, Vänern and Mjøsa Lakes.
31XG
INDIAN O-S CHINA SEA
Pakistan, India, Sri Lanka, Bangladesh, Burma, Thailand, Malaysia, Singapore, Cambodia, Vietnam, Maldives, Solomon Islands, Diego Garcia, Philippines, Brunei, Indonesia. Including Selat Sunda, Strait of Malacca, Gulf of Thailand, Andaman and Nicobar Islands, Bay of
Bengal and Arabian Sea.
32XG
AUSTRALIA
Australia, including Norfolk Islands.
33XG
NEW ZEALAND
New Zealand including Kermadec Islands and Norfolk Islands.
34XG
PACIFIC IS. & JAPAN
Ryukyu Islands, Sakishima gunto, Kita-Io Shima, Io Shima, Minami-Io Shima, Mariana Islands, Caroline Islands, Babel Thuap, Helen Channel, Merir Island, Pulo Anna, Sonsorol Islands, Marshall Islands, Nauru, New Caledonia, New Hebrides, Fiji, Tonga, Samoa, Wallis &
Futuna, American Samoa, Niue, Tokelau Islands, Kiribati, Cook Islands, French Polynesia, Pitcairn Island, Iles Loyaute, Santa Cruz Islands, Phoenix Islands, Line Islands, Norfolk Islands, Solomon Islands, New Britain, Admiralty Island, Papua, New Guinea, Doberai Pen,
entire Islands of Hawaii, Maui, Kahoolawe, Lanai, Molokai, Oahu, Kauai, Niihau, Nihoa, Necker I., Gardner Pinnacles, Laysan Island, Neva Shoal, Pearl and Hermes Atoll, Midway Islands, Kure Atoll, Johnston Atoll, Kingman Reef, Palmyra Atoll, Maro Reef, French Frigate
Shoals, Kholmsk in Russia and Japan.
35XG
S. CHINA SEA - JAPAN
South China Sea, East China Sea, Yellow Sea, Sarawak, Philippines, Vietnam, China, Taiwan, North Korea, South Korea, Japan, Vladivostok in Russia.
Turn to the back page for pricing and ordering info NOW!
DigitalYacht
34
Marine PC Systems
DIGITALYACHT AQUA STANDARD PC
DIGITALYACHT WL50
Compact 12v Marine PC
WiFi Booster
Aqua Standard is designed as a general purpose, great value on board PC. With the latest ultra low power,
fanless, Intel Atom N270 processor (2.5W) the complete Aqua PC system typically consumes just 20W but provides all of the performance needed to run navigation software, e-mail, surf the web, etc. All Aqua PCs can be
connected directly to the boat’s 12v or 24v DC supply with no inverter and all models can be switched on/off
either from the front panel switch or from a remote push button switch (not supplied). Can be supplied with
optional built-in Hi-Power Wi-Fi adaptor or built-in NMEA 2000 Gateway.
Compact all-in-one system with a 60cm
antenna which should boost your Wi-Fi
range to over 0.5 mile in perfect conditions. Quick and easy to install with four
suction cups, the WL50 is an ideal temporary mount Wi-Fi solution for boats, caravans, RVs, etc. Simple "plug and play"
connection to a PC with 5m USB cable
and comes with all software and drivers
for Windows XP, Windows Vista, Mac OS X
10.3 (and higher) and LINUX.
KEY FEATURES
• 12/24v DC, ultra rugged, fanless marine PC
• Compact - measures just 30 x 27 x 7cm!
• Easy mounting and installation
• Fitted with CD/DVD RW
• Supplied with Windows 7 (on UK versions) Linux version also available
• 2 x NMEA Ports and 3 x USB Ports
• Intel Atom N270 processor for low power consumption and fast computing
• 160GB hard drive fitted in Anti-Vibration mount
• All electronics conformally coated for added protection against salt water
HOT
PRODUCT
NEW FOR
2010
AQUAMEDIA PC
All the core features of the Aqua Standard PC but designed as a powerful
marine Media Centre PC, with BluRay drive, True HD 1080P movie playback,
Digital TV Tuner, 8 USB ports, 250GB hard drive and 4GB of RAM. Featuring the latest low power Intel Atom
330 dual core processor the complete system typically consumes just 35W but provides all of the performance you need for a full function HD Media Centre PC.
AQUANAV PC
Based on the Aqua Standard PC and with all its core features, the AquaNav PC is designed as a powerful
marine navigation PC, with two NMEA ports, a super fast 64GB solid state hard drive, 2GB of RAM, inbuilt dual
channel AIS receiver, dedicated GPS Antenna and CD/DVD RW drive. Standard interfaces include three USB
ports, a VGA and DVI port allowing the system to drive up to two compatible LCD monitors. The PC is pre-configured and interfaced so the GPS and AIS work straight out of the box.
KEY FEATURES
• Ideal solution for temporary installation
• Simple Plug and Play USB connection
• 30mW Wi-Fi modem and high gain
(8dBm) omni-directional antenna
• 4 x Suction Cup mount
NEW FOR
• USB Bus Powered
2010
SUPPLIED WITH
Mounting Suction Cups,
Mounting brackets, 5m USB cable, Driver CD
DIGITALYACHT WL400
High Power WiFI System
Ideal for anyone with a dedicated chartplotter using Navionics Gold, Platinum or Platinum+ chart cartridges or is
new to electronic charting and wants simple to use PC navigation software with good AIS support. SmarterTrack
turns your PC in to an invaluable navigation tool that overlays your position and AIS targets on the accurate and
detailed Navionics electronic charts. AIS support includes Colour Coded Targets, User selectable labelling of targets, fully configurable CPA and TCPA alarms, visual indication of CPA, AIS targets drawn to scale and many other
other settings and features. Entering the route you wish to sail, checking the tides, confirming depths or navaids on the chart and a whole host of other routine navigational
tasks can be performed simply and effortlessly.
Internet on board lets you download the latest
weather or chart updates as well as having a
mobile office, but in general if you’re using an
internal Wi-Fi adaptor typically found on a
notebook, you’ll be lucky to find the signal at
the end of the dock! Wi-Fi range depends on
many local factors but we have seen ranges of
up to 3-4 miles with this low cost system, so if
you plan to access the internet whilst on
board, the WL400 could be the solution for
you! The all-in-one system features a 1m
antenna and connects to your PC via USB
using a plug ‘n’ play driver disk supplied for
Windows XP/Vista/7, Mac OS X 10.3 (and
higher) and LINUX operating systems. It supports 802.11b/g protocols as well as WEP and
WPA encryption. Even if your system already
has Wi-Fi access, this can be disabled and you
can take advantage of the superior range and
speed that this system can offer you.
KEY FEATURES
NEW FOR
• Simple yet powerful PC Navigation software
• Excellent AIS support
• Full set of configurable Alarms
• Displays Tidal Height and Tidal Flow data
• All route and waypoint data created on SmarterTrack
can be transferred to your dedicated chart plotter
• Displays all NMEA instrument data
• Can be used on any PC running Windows XP/Vista/7.
KEY FEATURES
• Ideal for semi-permanent installation
• Simple Plug and Play USB connection
• 200mW Wi-Fi modem and high gain
(12dBm) omni-directional antenna
• Industry standard 1" x 14 TPI thread mount
• Integrated 5m USB cable - can be extended
with optional 5m USB Active Extender
• USB Bus Powered
SUPPLIED WITH
Navionics USB cartridge reader, installation CD-ROM and manual
SUPPLIED WITH
5m USB cable, Driver CD
DIGITALYACHT WL500
DIGITALYACHT GPS105/110
On Board Wi-Fi Access System
12 Channel GPS Sensor
WiFi range depends on many local factors but we’ve seen ranges of up to 6 miles with this low cost system!
The WL500 has a compact, DC powered below deck mounted booster/modem and external hi-gain antenna.
Even if your system already has WiFi access, this can be disabled and you can
take advantage of the superior range and speed this system will offer!
KEY FEATURES
• Ideal solution for permanent installation and new builds
• Powerful 500mW (1w erp) output (check local licensing conditions)
• Plug‘n’play setup automatically detects WiFi points within range
• Supports 802.11b/g protocols as well as WEP and WPA encryption
• Windows XP / Vista / 7, Mac OS X and LINUX compatible
SUPPLIED WITH
2m USB cable, 10m coax cable, driver CD and antenna
High performance active
WAAS/EGNOS GPS antennas.
Ideal for use with Digitalyacht
PCs, these antennas can be
used with any system where
position input is required.
SUPPLIED WITH
0.75m power/IO cable, bulkhead and desktop mounting brackets, Mini USB Keyboard with integral 2 port USB
hub, Driver CD. Aqua Nav PC also includes a navigation IO cable and GPS smart antenna
DIGITALYACHT SMARTERTRACK
Navigation Software
2010
KEY FEATURES
• GPS105 with NMEA output
• GPS110 with USB connection
• Typical accuracy less than 5m
We accept most major credit and debit cards
DigitalYacht
35
Chartplotters, AIS
DIGITALYACHT ANT200
DIGITALYACHT AIS200/AIS200PRO
AIS Receiver
Black Box AIS Receivers
All in one AIS Smart Antenna for RIBs, sports boats and small yachts, or
where dry space is limited. Connect 12v or 24v and the ANT200 will
receive AIS targets up to 10 miles your boat. Ideal for use with existing
AIS compatible chart plotters - connect the GPS NMEA0183 output to the
ANT200 and it will automatically multiplex the slower GPS data with the
high speed AIS data and transmit everything on one high speed NMEA
output, ideal for use with chartplotters with only one NMEA input.
Entry level AIS receivers for use with existing AIS compatible
chart plotters. Connect to an existing VHF antenna via a
splitter or to a dedicated AIS antenna to receive all AIS
targets within 20 miles of your boat. The AIS200PRO
offers plug and play PC connection via USB using
standard Windows XP/Vista/7 drivers. Also
compatible with Mac OS X and LINUX Kernels since V2.4.20.
KEY FEATURES
• High performance dual channel AIS receiver for
use with existing plotter and radar systems
• Multiplexed NMEA input to single NMEA GPS+AIS output
• Simple to install, industry standard 1in x 14 TPI thread mount
SUPPLIED WITH
15m Power/Data cable
NEW FOR
KEY FEATURES
• Compact black box solution
• High Speed NMEA output (38,400 baud)
• Requires VHF antenna or dedicated AIS antenna (available as optional accessory)
• Multiplexed NMEA input for single NMEA GPS+AIS data output at 38,400 baud
SUPPLIED WITH
Mounting brackets, 1m Power/Data cable, 1m USB cable (AIS200PRO only)
2010
NEW FOR
2010
DIGITALYACHT SPL250
DIGITALYACHT AIS400
AIS Antenna Splitter
Black Box AIS Receiver & GPS
Removes the need for a separate VHF antenna for an AIS transponder and allows
a single antenna to be shared with a VHF radio. This is the only VHF antenna
splitter suitable for use with two transmitting devices.
Compatible with all Class B AIS transponders
and AIS receivers.
KEY FEATURES
• Saves installation time and cost
• Guarantees priority to VHF voice and DSC radio
operation even if the splitter power supply fails
• Additional output for FM radio antenna connection
Powerful dual-channel AIS receiver with an integral high
performance GPS antenna. Plug and Play USB interface
to a PC, it is supplied with Windows ProAIS software
allowing it to be configured and tested after installation.
SUPPLIED WITH
RF leads for connection with AIS transponder, VHF radio and a power lead
KEY FEATURES
• All the features of the AIS200PRO
• High Speed NMEA output (38,400 baud)
• Requires VHF antenna or dedicated AIS antenna
• Upgrade available to an AIT1000 Transponder
NEW FOR
2010
SUPPLIED WITH
Mounting brackets, 0.75m Power/Data cable,
0.75m USB cable, GPS Antenna with 7.5m cable, ProAIS software on CD
DIGITALYACHT SMARTERCHART 500 SERIES
DIGITALYACHT AIT1000
5in Chartplotter, Chart Sounder & Combination Chartplotter / AIS
Black Box AIS Class B Transponder
The SmarterChart 500 Chart Plotter features an internal 50 channel GPS receiver and all the features and
functions you need for making fast and effective navigation decisions from the helm. With a 320 x 240 pixel
5in sunlight viewable LCD display, it’s fully compatible with C-Map MAX charts and supports advanced features
such as free downloadable weather overlays and forecasts, 3D perspective view, photos, tidal heights and currents, as well as the powerful Guardian Alarm, which checks your route for potential charted dangers.
Ultra-slim Class B Transponder with dual NMEA and
USB connection, the AIT1000 is an ideal solution for
all light marine vessels up to 300 tons. Configuration
of your vessel’s fixed data is made easy with the
Windows proAIS software supplied. The unit can be
connected to a PC running suitable navigation software or a chartplotter and will receive data from all
AIS targets within range as well as transmitting your
own AIS data, so other AIS equipped vessels know
where you are. Simple plug and play USB connection to a PC using standard Windows XP/Vista/7
drivers. Also compatible
with Mac OS X and all
NEW FOR
LINUX Kernels since
V2.4.20. The AIT1000
outputs AIS and GPS
data together on
both the USB and
NMEA ports - perfect for connection to a chart
plotter with
only one
NMEA input.
The SmarterChart 500 Sounder Combo adds a built-in 200Khz/50Khz dual frequency sounder to the chartplotting features of the SmarterChart 500 Chart Plotter and provides all of the depth and seabed information
you could need for Fish/Wreck Finding, Anchoring or simply navigating safely in shallow waters.
The SmarterChart 500 AIS Combo is the world's first 5in chart plotter to feature a built-in AIS receiver.
Coupled with an internal 50 channel GPS receiver, it effortlessly plots your position on the electronic chart and
overlays all AIS targets within range of your boat.
NEW FOR
2010
HOT
PRODUCT
KEY FEATURES
• Fully C-Map MAX compatible (single C-Card slot)
• Ultra fast chart redraw, pan and zooming
• Can be connected to 12v or 24v DC supply
• Inbuilt worldwide chart down to 2nm detail
• 50 channel internal GPS (external GPS option)
• Flush, bracket and helm pod mounting options
• IP56 rated water resistant
• AIS Combo - High sensitivity, dual channel AIS
receiver
• Sounder Combo - 200Khz/50Khz dual frequency
transom mount speed/depth/temp transducer
SUPPLIED WITH
Mounting brackets, 1m Power/Data cable, Sun Cover
2010
KEY FEATURES
• High-performance Class B AIS Transponder
• Remote silence button option
• Built-in GPS receiver (ideal as a backup GPS)
• Plug and Play USB interface to a PC
• High Speed NMEA output (38,400 baud)
• Comes complete with low profile GPS antenna
• Requires VHF antenna or dedicated AIS antenna
(available as optional accessory)
SUPPLIED WITH
Mounting brackets, 0.75m Power/Data cable, 0.75m
USB cable, GPS Antenna with 7.5m cable, ProAIS
software on CD
Turn to the back page for pricing and ordering info NOW!
McMurdo
36
Safety Equipment
McMURDO SMARTFIND E5
McMURDO SMARTFIND G5
406MHz EPIRB
406MHz GPS EPIRB
The Smartfind E5 is an ultra-compact 406MHz EPIRB. Once
removed from its Carrysafe mounting bracket, the unit can be
activated either manually or automatically by immersion in water.
A hydrostatic release casing is also available.
Ultra-compact 406MHz EPIRB with an inbuilt 12 channel GPS giving
location accuracy of less than 30m. Supplied with a Carrysafe
mounting bracket, the G5 can be activated manually or automatically
by immersion in water. A hydrostatic release casing is also available.
Smartfind EPIRBs are programmed with a unique serial
number which must be registered with the national
authorities. Where permitted by these authorities,
beacons can be re-programmed with the vessel's
MMSI or Radio Call Sign.
Smartfind EPIRBs are programmed with a unique serial
number which must be registered with the national
authorities. Where permitted by these authorities,
beacons can be re-programmed with the vessel's
MMSI or Radio Call Sign.
SEEN IT
KEY FEATURES
FOR LESS?
• Stylish and compact
WE WON’T BE
BEATEN ON
• GMDSS compliant
PRICE!
• 121.5MHz homing transmitter
• Non hazardous battery for safe and easy transportation
• High brightness LED flashing locator lights
• Comprehensive diagnostic and self-test facilities
• 6 year battery life
KEY FEATURES
EDITOR’S
• Inbuilt 12 channel GPS
CHOICE
• GMDSS compliant
• 121.5MHz homing transmitter
• Non hazardous battery for safe and easy transportation
• High brightness LED flashing locator lights
• Comprehensive diagnostic and self-test facilities
• 6 year battery life
McMURDO FAST FIND 210
McMURDO FASTFIND MAX G
406MHz GPS PLB
406MHz GPS PLB
Extremely compact and powerful PLB with a built in
50 channel GPS for additional pinpoint accuracy, further speeding up time of location. Once activated,
Fast Find will continue to transmit for at least 24 hrs
at a powerful 5W output, the 406 MHz transmission
ensures that a call for help gets through whatever
the conditions. Fast Find also includes a unique SOS
LED flash light facility which is manually activated to further assist in
speeding up recovery during night
time rescues.
Handheld PLB with integral GPS featuring the same
advanced technology found in the award winning
Precision EPIRB. Designed using miniature
components to fit into an erogonomically styled
compact casing, it employs a simple 3 stage manual
operation and features user replaceable battery
packs. It is ideal for alerting the rescue services of an
emergency during maritime,
light aircraft and outdoor
activities (where licensing
allows).
KEY FEATURES
• Extremely compact and lightweight
• 406 MHz international messaging
and 121.5 MHz homing signal
• 50 channel integral GPS
• 5 year replaceable battery
• SOS Morse LED flash light
• Simple three-stage activation
• Minimum 24hrs continuous operation
KEY FEATURES
• Compact and lightweight
• 406MHz transmitter,
121.5MHz homing frequency
• Integral GPS receiver
• Battery life 5 years,
transmission
life 48 hrs
McMURDO FAST FIND 200
McMURDO FASTFIND MAX
406Mhz PLB
406Mhz PLB
All the features of the Fast Find 210, but without the
internal GPS. Alert signal to rescue services within
90 mins, typical positional accuracy to within 3nm
All the features of the Fastfind Max G, but without the
internal GPS. Alert signal to rescue services within 90
mins, typical positional accuracy to within 3nm.
WE CAN PROGRAM
INTERNATIONAL VERSIONS
OF ALL THESE EPIRBS VISIT OUR WEBSITE,
PART NO. ZMCMPROG
BOTH MODELS SUPPLIED WITH
Battery pack, case and lanyard
McMURDO S4 RESCUE
SART
A 9GHz X-Band Radar transceiver
for assisting air/sea ship or
survival craft rescue operations in
accordance with IMO GMDSS
requirements.
KEY FEATURES
• Ship or survival craft use
• 96hr operation (standby mode)
• 5 year long life
replaceable battery pack
• Audio/visual alarm
• Inbuilt test facility
• Internal/external mounting
options
SUPPLIED WITH
Mounting bracket, lithium battery
Find out more...
What is an EPIRB?
An Emergency Position Indicating
Radio Beacon (EPIRB) is used to alert the
Search And Rescue services in the event of an
emergency. It transmits a coded message on
the 406MHz distress frequency, which is
detected by the COSPAS-SARSAT satellites.
Emergency alerts are relayed to the closest
Local User Terminal, which then forwards the
information to the Mission Control Centre where
the message is decoded. The distress details
and vessel details (taken from the registration
details) are then passed to the appropriate
Rescue Coordination Centre who co-ordinate
the relevant Search And Rescue authorities.
What’s the difference between an EPIRB
and a PLB?
Once the Search And Rescue service are in the
area, they need to pinpoint your position directly.
McMurdo’s Smartfind E5 and G5 EPIRBs contain
a 121.5MHz location transmitter for this purpose.
That’s fine if you’re with the EPIRB, but if you’re
in the water or have become separated from the
vessel, you’ll still want the rescue services to find
you quickly and easily. A Personal Locator
Beacon (PLB) transmits on the same 121.5MHz
frequency, but is designed to be carried on your
person - many quality foul weather jackets have
a pocket on the sleeve for this purpose.
And what’s a SART?
Generally deployed in the liferaft on a long pole,
a Search And Rescue Transponder (SART)
performs a similar function to a PLB, the difference being that a SART sends out a 9GHz signal
which is detected by a ship’s radar, appearing as
a dotted line pointing to your position.
We accept most major credit and debit cards
Moerer, Vesper, EasyAIS, Echomax
37
Navtex, AIS, Active Radar Reflector
MOERER WIB2 & WIB2B
VESPER AIS WATCHMATE
PC Navtex Receiver
AIS Information Repeater
Innovative dual frequency 490kHz and 518kHz Navtex module with internal antenna no separate antenna required. No software installation is necessary, simply plug
into a spare USB port to display the Navtex messages on your
PC or laptop. The messages are stored in HTML
format and can be viewed via web browser.
Compatible with Windows ME, 2000, XP,
Mac OS and Linux systems.
Compact AIS repeater with 5in 320x240 pixel backlit display. The AISWatchMate is
a valuable tool to help avoid collisions at sea, displaying data from all AIS equipped
vessels in your vicinity. It can simultaneously track up to 128 targets and audibly
warn if a potentially dangerous situation exists. Note: This is not an AIS receiver,
an AIS receiver/transceiver is required to work in conjunction with this product.
KEY FEATURES
• Simultaneous reception on both frequencies
• WIB2B includes inbuilt barograph
• Compact - only 90x57x23 mm
• Internal battery will power the unit for approx 3 days without PC
• The battery is recharged via the PC
• Non volatile memory for 762,000 characters
• Optional 12/24V or 230V charger
MOERER WIB2BX
PC Navtex Receiver
Navtex receiver with PC connection supplied with either a
balun antenna adaptor (allowing a long wire or insulated stay
to act as the antenna) or a dedicated compact active antenna.
Sail boat owners will appreciate the ability to use a stay as an
antenna without more masthead antenna clutter.
KEY FEATURES
• Connect to PC via USB interface
• True dual channel receiver - simultaneous
reception of both frequencies
• Inbuilt highly accurate (to 0.1hPa)
barograph with 7 day log
MOERER WIBE
PC Navtex/Weatherfax Decoder
Black box Navtex and Weatherfax receiver
with USB PC connection that enables you
to display Navtex messages and synoptic
weather charts on your PC or laptop.
KEY FEATURES
• Receives HF Fax, NAVTEX (490 & 518KHz),
SYNOP and sea weather forecasts
• Europe-wide weather information from
Northwood and DWD
• Built in electronic barograph
• No software to install - works through your web browser
• Memory card slot to store images for viewing on PDAs or monitor
• Low power consumption
• Requires connection to external active antenna (optional) or insulated backstay
MOERER WIB2D
Navtex Receiver & Barograph
Smaller than a pack of cigarettes, the WIB2D incorporates a sophisticated dual
channel Navtex receiver and built-in LCD display to show weather and navigation
information. There is no need for an external antenna and it has a built-in
rechargeable battery which can last up to
three days. It can also be connected to
a PC and the data viewed on screen
or printed out. Its portable format
is ideal for charterers or grabbing
the latest weather and nav
information whilst at home or in
the office prior to setting sail.
KEY FEATURES
• Simultaneously monitors 490kHz & 518kHz
• Display of air pressure trends over the past 48 hrs
• Automatic message decoding
• Charge battery via USB lead, 12V DC cable or optional 230V charger
• Compact - only 103 x 62 x 26.5mm
• Supplied with USB connection/charge cable (optional 12 v and 220v chargers)
and software for Windows 2000, XP, VISTA
KEY FEATURES
• Graphical radar style display
• Ultra low power consumption
• Unique CPA plot shows whether target
will pass ahead or behind to determine
the best collision avoidance strategy
• Organises targets by priority for
operation in high traffic areas
PRODUCT
• Filters eliminate false alarms when
navigating in crowded shipping areas
• Customisable profiles (anchored, harbour, coastal
and offshore) tailor alarm settings to your situation
• Handles all types of AIS (class A and B,
aids to navigation and safety messages)
• Two NMEA0183/RS232 inputs and one output
• AIS data can be output to PCs and chartplotters/
combi displays
• External alarm output
• Waterproof to IP67/CFR46
HOT
Unique CPA plot
EASY AIS2
Black Box Dual Frequency AIS Receiver
Easy AIS2 is a dual frequency black box AIS receiver
that makes integrating AIS with your plotter, combi
display, PC or laptop simple. Improved drivers
and matching allows cable lengths of
up to 15m between the Easy AIS and
chartplotter/PC without data loss.
KEY FEATURES
• Very low power consumption
• NMEA compatible
• GPS data in and out
• Robust metal case, only 140 x 140 x 36 mm
EASY SPLIT2
VHF Antenna Splitter
The EasySplit2 removes the need for a separate VHF
antenna for an AIS transponder and allows a single
antenna to be shared with a VHF radio.
KEY FEATURES
• Simplifies installation - no need for two VHF antennas
• VHF antenna input, VHF radio output, AIS output,
FM radio output
• Same dimensions as EasyAIS2
ECHOMAX ACTIVE-X
X Band Radar Target Enhancer
New active radar reflector offering excellent performance. The unit
receives a signal from a transmitting radar, amplifies it and returns a
stronger signal. This increases the likelihood of detection reducing the
risk of collision and helps to alert oncoming vessels of your position.
KEY FEATURES
• Reception frequency: X band 9.3 - 9.5GHz
• Exceeds ISO 8729-2 X band performance requirements
• Stand by current consumption: <15mA
• Typical 24 hour period 10 radar in the area: <.75Ah
• Performance response: 0º 111.36m2*,
+/-10º of heel 78.96m2*,
+/-20º of heel 20.80m2*
• Weight 327g excluding cable
• External alarm relay
HOT
PRODUCT
* Size of boosted radar signal generated
Turn to the back page for pricing and ordering info NOW!
Standard Horizon
38
VHF Radios
STANDARD HORIZON GX1100E
STANDARD HORIZON GX2000E & GX2100E
Fixed DSC VHF Radio
Fixed DSC VHF Radio
Affordable ultra compact Class D DSC VHF Radio with an advanced die-cast chassis
puts allthe information you need right at your fingertips. Channel naming allows
you greater ease of use and better channel recognition.
Position, date and time are also displayed when interfaced
with a GPS receiver. Submersible JIS7 / IPX7
Compact AIS enabled DSC VHFs with large, clear 1.8in dot-matrix displays. The
GX2000E accepts data from an external AIS receiver via NMEA, the GX2100E has
its own built-in dual channel AIS receiver. When
connected to an external GPS, both models
NEW FOR
can store up to 100 waypoints, which can be
selected and navigated to using a
unique compass display. The
display will also give all the
usual GPS information
about speed, course and
bearing to a waypoint.
Both models feature a
powerful 30 Watt PA/loud
hailer that is pre-programmed
with fog signals. Both models
are compatible with the
CMP30 remote access mic.
KEY FEATURES
• Large clear dot matrix display
• Programmable Scan, Priority
Scan, Dual Watch
• ATIS compatible
• NMEA in and out connections
STANDARD HORIZON GX1500E
Fixed DSC VHF Radio
Compact VHF with one of the largest displays in a radio of this size.
Add optional CMP25B or VH-310 remote mic to become a complete
dual station radio with the option to communicate and
send a DSC distress call from two onboard locations.
KEY FEATURES
• Priority scan and dual watch
• Customisable channel naming
• Versatile user-programmable scanning
• Privately poll and display another
vessel’s position
• Waterproof front panel (IPX7)
• Position, date and time displayed when interfaced with a GPS or chart plotter
2010
HOT
PRODUCT
KEY FEATURES
• AIS targets displayed in a radar style format*
• AIS info - MMSI, call sign, ship name, bearing, distance, speed and course*
• Closest Point of Approach (CPA) alarm
• Make a DSC call to a specific AIS vessel simply by selecting the target and
pressing the call button - no need to enter the MMSI number
• Position polling, ideal for flotillas and fishing fleets
• Output AIS data to chartplotters etc via NMEA
• ClearVoice noise cancelling speaker microphone
• Rugged die cast chassis, waterproof to JIS7 / IPX7
*Requires an external AIS input with the GX2000E
STANDARD HORIZON CMP30
STANDARD HORIZON VH310
STANDARD HORIZON HX500E
RAM3 Second Station Mic
Second Station Telephone Handset
Waterproof Handheld VHF Radio
This submersible remote has
an oversized LCD display and
backlit keys. It operates as a
second station to the radio
allowing full control of the
VHF at the flybridge, in the
cockpit, tower or location of
your choice.
Submersible telephone handset capable of remotely
controlling all radio and DSC functions of the fixed
VHF, including remote control PA and fog signalling.
Submersible handheld VHF that has all the features
of the HX280E with the option of using external
speaker microphones and
headsets via the waterproof
accessory socket. Now with
Lithium Ion battery pack for
longer life.
KEY FEATURES
• Control all VHF functions
including PA, foghorn, DSC
• Inbuilt distress alert button
• Display shows channel names
and repeats GPS information
• Also controls AIS and waypoint
functions when used with the
GX2000E and GX2100E
KEY FEATURES
• Complete control of radio
functions
• Intercom facility between radio
and other remote stations
• CT-100 7m extension cable
available
SUPPLIED WITH
Bulkhead socket assembly, mounting clip
SUPPLIED WITH
Wall mount cradle, routing cable, waterproof panel
mount connector
KEY FEATURES
• Selectable transmit power
• 700mW loud audio
• VOX hands-free operation
with optional VC-24 headset
SUPPLIED WITH
Li-Ion battery pack, 12v overnight charger, cigarette
lighter cable, belt clip
STANDARD HORIZON HX280E
STANDARD HORIZON HX750E & HX760E
Waterproof Handheld VHF Radio
Waterproof Floating Handheld VHF Radio
Compact, rugged submersible handheld featuring all International,
USA and Canadian channels and a highly legible LCD display with
automatic backlight. The preset key allows you to recall the 10
most frequently used channels. Standard Horizon are so
confident of the HX280E’s waterproof integrity and reliability
that they are offering a three year no quibble free of charge
“repair or replace” guarantee if it fails for any reason.
Rugged handhelds with an inbuilt thermometer, SOS strobe light
and 6W transmit power. Features programmable scan, priority
scan, dual watch and an external speaker mic connector.
Can be powered using standard AAA drycell batteries in an
emergency using the optional FBA-38 adaptor. The HX-760E
can also be used with an optional BlueTooth headset.
KEY FEATURES
• Dual Watch
• Battery charge level indicator
• 16hr duty cycle from 1650mAh Li-Ion battery
• Standard three year guarantee
SUPPLIED WITH
1650mAh Li-Ion battery pack, belt clip
NEW FOR
2010
KEY FEATURES
• Waterproof and floats
• External speaker mic jack
• Preset key (10 channels)
• 700mW audio output
HX-760E with
optional BH2
BlueTooth headset
SUPPLIED WITH
1150mAh li-Ion battery pack, mains charger and belt clip
We accept most major credit and debit cards
Standard Horizon
39
Chartplotters
STANDARD HORIZON CP180 & CPF180
STANDARD HORIZON FF525
5in Chartplotter and Chart Sounder
Dual Frequency Fishfinder Module
These superb 5in colour units set new standards for small chartplotters. Available as a chartplotter or a combination chart sounder with inbuilt 600W dual frequency fishfinder, both models are packed with features normally
reserved for much bigger, more expensive units including AIS integration - connect an AIS receiver to display
position, speed and course of commercial vessels directly on the chart screen!
NEW FOR
2010
Black box 50/200kHz fishfinder module for the
CP180, CP300 or CP500 chartplotters.
KEY FEATURES
• Dual frequency 50/200kHz
• Fish symbols or coloured echo
• Up to 4 x zoom
• White line distinguishes between fish and seabed
• Sensitivity time control reduces surface clutter
• Fish alarms
• Choice of transducers - Xducer ID detection system
automatically selects the power output and
configures the parameters to suit the transducer
SUPPLIED WITH
Transducer supplied separately and must be specified
Tech info
KEY FEATURES
• CP180 - colour chartplotter
• CPF180 - inbuilt 600W 50/200kHz fishfinder
• External or internal 50 channel GPS antenna
• 3000 waypoints, 50 routes, 10,000 marks
• 2nm worldwide basemap
• 1 NMEA input and 2 outputs
Sitex Radar Scanners
To add radar functionality on your Standard
Horizon chartplotter, you simply need to add a
Sitex radar scanner • Dual chart window with independent zoom
• VHF DSC polling capability
• Route Check reviews and alerts to hazards that may
affect navigation along the way
• Radar integration
• AIS integration
SUPPLIED WITH
50 channel GPS, mounting bracket, flush mount kit
Part No.
Size
Power
Type
Range
ZSITMDS1
ZSITMDS8
ZSITMDS9
ZSITMDS10
12in
20in
24in
48in
2kW
2kW
4kW
4kW
RD
RD
RD
OA
24nm
24nm
36nm
48nm
RD - Radome Antenna (enclosed)
OA - Open Array
STANDARD HORIZON CP500
STANDARD HORIZON CP300 & CPF300
12in Chartplotter
7in Widescreen Chartplotter and Chart Sounder
With a big, bold, 12in sunlight-viewable screen, the CP500 offers all the features of
the CP300 with the addition of an alphanumeric keypad and radar compatibility.
Available as a chartplotter or combination dual frequency chart sounder with a
large, high resolution 800x480 pixel display and 6 customisable quick keys. An
easy-to-follow menu page allows quick access to the various navigational screens,
whilst all data windows are fully customisable. Working in conjunction with either
C-Map MAX or NT+ cartridges, there is an amazing degree of information available.
NEW FOR
2010
KEY FEATURES
• 12in 800x600 pixel sunlight viewable TFT colour display
• Radar and AIS integration
• 5 NMEA outputs, 2 NMEA inputs, 2 video inputs for security cams, DVD etc
• VGA output for repeaters/second stations
KEY FEATURES
• External or internal 50-channel
WAAS/EGNOS GPS antenna
• CP300 - colour chartplotter
• CPF300 - inbuilt 600W 50/200kHz fishfinder
• 2nm worldwide background map included
• Radar and AIS integration
• 3000 marks/waypoints, 50 routes
• 5 NMEA outputs, 2 NMEA inputs, video input
• VHF DSC position polling
SUPPLIED WITH
12 channel GPS, mounting bracket, flush mount kit
SUPPLIED WITH
50 channel GPS, swivel mounting bracket, flush mount kit
EDITOR’S
CHOICE
Turn to the back page for pricing and ordering info NOW!
Icom
40
ICOM VHF FOREIGN FLAG & PRIVATE CHANNEL
PROGRAMMING VISIT OUR WEBSITE, PART NO. ZICOPPC
Handheld VHF Radios & AIS
ICOM IC-M35
ICOM MA-500TR
Buoyant Handheld VHF Radio
Class B AIS Transponder
Imagine a radio that’s smart enough to adjust its own volume level to account for the
surrounding noise level. Icom’s new IC-M35 buoyant VHF marine handheld radio
does just that with its Clear Voice Boost technology. This measures the ambient sound
pressure level so that during a sudden burst of noise the IC-M35 not only automatically adjusts the volume but also the transmit level as well so your conversation is sent
and received as clearly as possible no matter how noisy the background is. The
inbuilt noise cancelling microphone further enhances the audio quality.
Designed for non-SOLAS vessels such as pleasure
craft and fishing boats, the MA-500TR AIS transponder not only receives information from AIS vessels
within range, it also transmits your vessel’s information as well, so you will be seen by other vessels. It
features a full dot-matrix display and visually shows
real-time vessel traffic information.
KEY FEATURES
• 6W output power
• Buoyant and waterproof to IPX7
• Clear Voice Boost override button
• Lightweight Lithium-Ion battery
• Up to 8 hours use on a single charge
• Optional waterproof speaker microphone
The MA-500TR can operate as a stand alone unit or
it can be connected via NMEA to a PC or compatible
chartplotters, radars etc allowing AIS data to be overlayed in real time onto chart and radar displays. It
can also be integrated with the Icom IC-M505 and
IC-M603 fixed VHF radios which allows you to send
DSC individual calls to a selected vessel instantly
without the need to manually enter the vessel’s
MMSI number (requires firmware upgrade).
SUPPLIED WITH
Li-Ion battery pack, charger, belt clip and lanyard
ICOM IC-M33
Buoyant Handheld VHF Radio
This revolutionary 5W floating radio is waterproof to IPX7 and has been designed to be
easy to use. The ergonomic design of the case means it’s easy to hold and use, even
with gloved hands. As with all Icom handhelds, it features a large, easy to read backlit
LCD and the 980mAh Li-Ion battery pack provides 9 hours of operating time. Another
innovative feature is the “AquaQuake” draining function - a vibrating sound from the
loudspeaker clears water away from the speaker grille.
KEY FEATURES
• Quick channel selection with Favourite channel function
• Dual/Tri-watch and Auto scan functions
• 4-step battery life indicator, 2-step power saver
• 70 programmable channels
• Optional HM-165 waterproof speaker-microphone
• Optional alkaline cell battery case
SUPPLIED WITH
980mAh Li-Ion battery pack, charger, belt clip and lanyard
NEW FOR
2010
HOT
PRODUCT
ICOM IC-M71
Handheld VHF Radio
The IC-M71 sets the standard for handheld VHF radios in design, waterproofing and
battery technology. The durable and rugged body is waterproof to IPX8 standard and
it was the first VHF marine handheld to feature output power of 6 Watts. Its internal
speaker uses a bridge-tied load (BTL) audio amplifier to increase the audio output and
it delivers a loud 600mW audio output for clear sound, even in noisy environments.
The AquaQuake function ejects water from the speaker grille with low frequency sound.
KEY FEATURES
• Standard high capacity 2000mAh Li-Ion battery pack - up to 16 hours operation
• 2-step power saver
• 70 programmable channels
• Voice scrambler version available
EDITOR’S
• Hands-free operation with optional headset
CHOICE
• Optional speaker mic
KEY FEATURES
• Dual channel receive capability
• 3 lines of NMEA0183 Input/Output
PRODUCT
• IPX7 waterproof protection - 1 metre
depth for 30 minutes
• Features collision-risk management functions
including CPA (Closest Point of Approach), TCPA
(Time to CPA), Target list and dangerous list and
collision alarm
• External alarm connection
HOT
SUPPLIED WITH
Comes complete with the MXG-5000 GPS
ICOM MXA-5000
Dual Channel AIS Receiver
This black box dual channel AIS receiver allows boat
owners to receive AIS info (both Class A and Class B
signals) on two channels simultaneously and output
the information onto compatible PCs, combi displays,
chartplotters or radars, aiding navigation and collision
avoidance.
SUPPLIED WITH
2000mAh Li-Ion battery pack, “Smart” battery charger, belt clip, lanyard
ICOM IC-M87
Handheld VHF/PMR Radio
Tough, waterproof 22 channel PMR radio with large, backlit LCD and 5 Watts output
power. Simple to operate, even when wearing gloves. Self check function monitors
unit temperature and battery voltage.
KEY FEATURES
• Simple add/delete TAG scanning operation
• Automatic scan function
• 2 step power saver
• Key lock function
• Wide range of accessories including optional speaker mic and AA battery case
SUPPLIED WITH
Li-Ion battery pack, charger, belt clip and hand strap
KEY FEATURES
• Data input port for multiplexing GPS and AIS data
• AIS data output via NMEA0183
• Full Class A and B duplex receiver
• Inbuilt antenna splitter
We accept most major credit and debit cards
Icom
41
ICOM VHF FOREIGN FLAG & PRIVATE CHANNEL
PROGRAMMING VISIT OUR WEBSITE, PART NO. ZICOPPC
Fixed VHF/SSB Radios
ICOM IC-M505E
Fixed DSC VHF Radio
New all-in-one DSC VHF with large dot matrix LCD, rotary volume,
squelch and channel select knobs and fistmic. The IC-M505 is
compatible with new HM-162 Commandmic enabling full function
dual station control of its DSC functions, intercom and other remote
functionality including foghorn and a loudhailer.
HOT
PRODUCT
KEY FEATURES
• Advanced IPX8 waterproof protection
• Large backlit dot matrix LCD display
• Full function Class D DSC
• NMEA GPS input/output
• Dual / Tri Watch
• Fast Scan
• 25w hailer and auto fog horn facility
SUPPLIED WITH
Fistmic, power cable
ICOM IC-M603E
ICOM HM-162 COMMANDMIC III
Fixed DSC VHF Radio
Full Function Remote Fistmic
The IC-M603E is compatible with up to two HM-162 Commandmic’s, allowing full
remote control of all the built-in Class D DSC functions, as well as providing intercom capabilities and other remote functionality including foghorn and a loud hailer.
Handheld fistmic with LCD display and multi jog dial giving
full control of the IC-M505 and IC-M603 radios including
DSC functions, intercom and other functions such as
foghorn or loudhailer etc.
This allows the user to operate the transceiver from
many areas of the vessel such as the deck or fly
bridge with ease. The Commandmic fits in the
palm of your hand comfortably and the multi
jog dial enables easy and intuitive operation.
KEY FEATURES
• High resolution LCD with clear, easy to read characters.
• IPX7 Waterproof construction (1m depth for 30 minutes)
• Innovative AquaQuake draining function emits a vibrating sound to clear water
away from the speaker grille
• Front and rear microphone connection
• Inbuilt 30 Watt 2-way hailer with listen back capability
SUPPLIED WITH
Fistmic, power cable
ICOM IC-M411E
Fixed DSC VHF Radio
A compact waterproof VHF/DSC radio ideal for small boats or where space is at a
premium. The large speaker grille gives excellent audio quality. The buttons and
display are easy to see in poor lighting conditions. The
Aquaquake draining function emits a buzzing sound which
sheds any water that gets into the speaker system, ensuring
sharp, clear audio even in the worst conditions.
KEY FEATURES
• Dual/Tri watch & multiple scan
• Up to 70 programmable channels
• Programmable channel comment
• External speaker connection
• 100 MMSI directory and up to 40 received DSC messages
• Low voltage indicator and 2-step power saver function
SUPPLIED WITH
Fistmic, power cable
HOT
PRODUCT
KEY FEATURES
• Large backlit dot matrix LCD display
• Distress Alert button on rear of unit
• Large 45mm speaker give loud,
clear sound
• Compatible with IC-M505
• Waterproof to IPX8
ICOM IC-M801 & IC-M802
SSB Transceiver
Powerful SSB radio system which meets Class E (IC-M801E) and GMDSS Class A
(IC-M801GMDSS) specifications and features inbuilt DSC facilities. The main
transceiver unit can be installed out of sight, while operation is via a compact
remote control panel with a large, easy to read display.
Two large bank and channel dials make channel selection fast and easy. 1355 ITU
channels, up to 16 banks of user channels, 17 banks of ITU channels - each with
up to 20 channels per bank Inbuilt modem for email and data services. NMEA in
for GPS, RS-232C port for PC input. The remote control can be integrated with
the IC-M601 or IC-M505 VHF radio to form a complete MF/HF/VHF communications station.
EU
01
8
M
IC-
K
P
AP
E
P
TY
!
ED
V
RO
KEY FEATURES
• Digital signal processor
• 125W (PEP) output
• VFO mode option
• Wide band receive coverage (0.5 – 29.9999MHz)
• Headphone jack, RS-232C/NMEA input, GPS input, printer output and D-SUB
connector for NBDP/FSK terminal
• Available with telephone handset or fistmike
• IC-M801GMDSS meets MED96/98/EC wheelmark requirements for SOLAS
• Icom M802 for non-UK vessels also available
Turn to the back page for pricing and ordering info NOW!
V-Tronix & Shakespeare
42
Antennas & Accessories
V-TRONIX ANTENNAS & FITTINGS
You’ve bought a new radio, but is your antenna past it? Remember - a poor antenna = poor performance!
YHK HAWK
HA156C HELIFLEX
YRR RAIDER
Stainless Steel Whip & Hawk Stainless Steel Whip
Wind Indicator
YWX WHIPFLEX
Stub Antenna
RIB Antenna
RV120-P
RV120
RV240
1.5m GRP Antenna with
polycarbonate ferrule
1.5m GRP Antenna with
stainless steel ferrule
2.4m GRP Antenna
ARMNT-P
ARMNT
ARMRM-S
Ratchet Mount, Nylon
Ratchet Mount, Stainless Steel
Ratchet Rail Mount, Stainless Steel Ratchet Rail Mount, Nylon
ARM-S
ARM-P
ALDHM
ALDHM-P
Economy Rail Mount, S/Steel
Fixed Rail Mount, Nylon
Fixed Base Mount, Stainless Steel
Flange Mount, Nylon
AA20
AAX1
AAX5
Active Antenna
Power Supply
Power Supply/Splitter
WS200-P
ACC105
ACC108
Extension Loudspeaker
Deck Plug & Socket
Through Deck Gland
390
410-R
5300
7m HF/SSB Antenna
HF/SSB Mounting Kit
8.6m HF/SSB Antenna
ARMRM-P
Remember...
A radio is only as good
as its antenna!
No matter how much you
pay for a radio, its performance will
be directly proportional to the quality
and performance capabilities of the
antenna. Don’t compromise - insist
on V-Tronix and Shakespeare!
We accept most major credit and debit cards
Scanstrut
43
Marine Electronics Mounts
Scanstrut offers a comprehensive range of installation solutions to maximise the performance on your marine electronics. All major antenna brands and models
are catered for, with options for mounting radar, satcom, GPS, VHF and TV aerials and nav lights. For further product information visit www.scanstrut.com.
MAST PLATFORMS
DECK SEAL
Mast Mounts
Waterproof Cable Routing
For 2kW and 4kW radomes or 30cm
and 40cm satcom antennas.
Provides waterproof cable routing with options for 16mm to 40mm connectors.
All models have passed IPX6 and IPX7 waterproofing tests.
KEY FEATURES
• Attach to any mast with four swivel feet
• 12 point fixing using high quality monel rivets
• Easy & quick to install with all fastenings supplied
• NEW for 40cm satcom antennas and FLIR Navigator camera
SELF-LEVELLING RADAR MOUNT
Radar Mounts
For 2kW and 4kW radomes - ensures radar is level with horizon at all times,
preventing target loss for best possible picture. Hydraulic damping
eliminates minor oscillations. Single GPS / VHF accessory available
BACKSTAY MOUNTED
• Options to mount fore or aft of backstay,
suitable for single and split backstays
MAST MOUNTED
• Weighs only 3.4kg, easy upgrade - same
mounting footprint as M92722 and SC20
KEY FEATURES
• Aesthetic dome-shaped profile provides a
stronger, impact-resistant design
• Split-seal option does not require
connector removal during install
• Tapered bung forms watertight seal
• Supplied with both pre-drilled and blank inner seals
• Long life stainless fastenings with captive nuts
• Outer dome provides additional water shield
• Available in 30% Glass-filled Nylon or 316 stainless steel
NEW FOR
2010
POWERTOWER® RANGE
Antenna Mounts
POWERTOWER®
For 2kW & 4kW radomes and small satcom antenna.
HOT
PRODUCT
EDITOR’S
POLE MOUNTED
• Universal pole, can be deck or transom mounted
• Option to install satcom antennas above radar
CHOICE
PROFILE
HEIGHTS
FOOTPRINT
MATERIAL
COMPOSITE
30º aft lean
150 / 350mm
200mm
Single piece
composite moulding
For 2kW & 4kW radomes and 30 & 40cm satcom antennas
STAINLESS
30º aft lean
150mm
150mm2
316 Stainless Steel
KEY FEATURES
• NEW Carbon and Stainless Steel versions
• Universal adjustable base, fits angled
decks and sloping transoms
• Supplied with two support modules,
providing maximum fore/aft support
• Easily removed for racing or winter storage
ALUMINIUM
25º fwd lean
(radomes)
30º aft lean
(open array)
130/ 250mm
180mm2
6082 aluminium,
polyester powder
coated
TYPE
POLE MOUNTS
2
SC100 Pole Mount
DUAL POWERTOWER®
For radomes or open-array antenna and 30cm, 40cm or 60cm
satcom antennas
• Installs satcom antenna above the radar - eliminates antenna
interference and ensures maximum performance
• Compact option available for 30cm satcom - lightweight
mount and low profile, ideal installation for smaller boats
ALSO AVAILABLE
SC2 Pole Mount for larger radomes, open array and satcoms
ACCESSORIES
Lifting Crane, Deck Flood Light, Light and GPS/VHF Antenna Mounts
SCANPOD
Instrument Mounting Pods
For mounting chartplotters, radar displays, instruments and autopilot controls,
manufactured from acrylic capped ABS plastic in high gloss silver or white.
HELM PODS
• NEW System Pod - install displays and instruments in one mounting
• Universal fit to both 9.5in and 12in centre pedestal guards
NEW FOR
2010
FLEX-MOUNT SYSTEM
• Tilt display forward / back and
side to side for best viewing angle
• Clamp onto existing rail or steering
binnacle - install Helm Pod as normal
MAST PODS
• Universal mounting system fits a wide
range of mast sizes (76 - 223mm)
• NEW Lightweight Carbon Mast Pod
to fit 3 or 4 maxi instruments
DECK PODS
• Deck Pod models can be overhead mounted
• Quick release lever to alter the angle of the screen quickly
• Adjustable base allows a range of movement and multiple mounting angles
SATCOM POWERTOWER®
For 30cm, 40cm and 60cm satcom antennas
• Raises antenna by 300mm for maximum performance
• Two models available – 30° aft leaning Stainless and
vertical profile Aluminum
POWERTOWER® ACCESSORIES
Gantry Mount, Light GPS & VHF Antenna Mounts and 4° Base Wedge.
NEW - Powered or Unpowered Hinge System, lower electronics installation to
reduce height for passing under bridges, winter storage, etc.
SATCOM ANTENNA MOUNTS
Satcom Dome Mounts
For 30cm, 40cm and 60cm satcom/tv antenna.
KEY FEATURES
• Reduce antenna footprint by up to 60%,
providing greater choice of antenna position
• Adapter mount fixings hidden internally
• Watertight installation, watertight seal and
gland systems
ACCESSORIES
Adjustable Base Wedge (provides level mounting
platform for antenna)
Turn to the back page for pricing and ordering info NOW!
Intellian
44
Satellite TV & Communications
INTELLIAN
Satellite TV & Satellite Communication Systems
The advanced technology of Intellian’s satellite antennas has long delivered the
sharpest, most reliable satellite television reception at sea. In fact, Intellian’s
proven satellite television antenna systems can be found today on some of the
finest yachts and vessels in more than 40 countries around the world.
Exclusive Intellian satellite TV antenna system features include patent-pending
Wide Range Search (WRS) algorithm for faster signal acquisition, Advanced
Dynamic Beam Tilting (DBT) for optimum signal stability in heavy seas, an innovative built-in GPS on Intellian i3, i4, i6 and i9 series which automatically uploads
data and Auto Skew Angle Control System (i4P version only). The complete system includes Antenna, Radome and Antenna Control Unit (ACU) for simple installation and easy control.
For 2010, Intellian brings boaters a full line of high-performance satellite systems
for a range of power and sailboats worldwide including Fleet Broadband communications systems, so now Intellian can fulfill all your Sat TV AND Satcom needs.
INTELLIAN i1
INTELLIAN i2
11in Satellite TV Antenna System
13in Satellite TV Antenna System
The Intellian i1 system has the world’s smallest in-motion marine satellite TV
antenna ever, perfect for small boats. It brings the boaters an affordable, yet luxurious entertainment system to access their favourite satellite TV channels freely
whether in port or cruising coastal waters. Wide Range Search (WRS) and
Dynamic Beam Tilting (DBT) technologies make fragile motion sensors unnecessary with the most precise tracking capability and superior satellite signal reception
at high speed or in rough sea conditions. The more up-to-date design of the i1
has an intelligent, built-in TriSat module in its control unit that offers boaters satellite TV broadcasts automatically without any extra conversion boxes and wiring.
The Intellian i2 is the world’s first high-performance and compact satellite TV system with integrated HD and TriSat modules. The i2 is an absolute choice for
boats as small as 25ft with its small, simple and powerful designs. WRS and DBT
technologies maintain the highest signal strength available for crystal-clear TV
reception even in rough conditions. The new intelligent Antenna Control Unit
(ACU) offers a complete turnkey solution designed for simplicity and ease. To
enjoy as many as three different satellites, the ACU supports automatic satellite
switching right from your remote control just like home.
KEY FEATURES
• High quality antenna with 2-axis step motor
• Fully automated satellite search
• LHCP/RHCP or Horizontal/Vertical polarisation
• Superior dynamic tracking
• Fastest Wide Range Search (WRS) algorithm
• DVB signal identification
• Inbuilt NMEA 0183 GPS interface
• Easy satellite information change and update
• Easy antenna status check and automatic diagnosis
• Easy antenna control using PC interface
• Reliable power supply to the antenna
• Embedded TriSat function
• Easy installation - single cable from the ACU to the antenna
HOT
PRODUCT
KEY FEATURES
• High quality antenna with 2-axis step motor
• Fully automated satellite search
• LHCP/RHCP or Horizontal/Vertical polarisation
• Antenna weighs less than 10lbs (4.5kg)
• DVB signal identification
• Inbuilt GPS system for fast satellite acquisition
• Inbuilt NMEA 0183 GPS interface
• Easy satellite information change and update
• Antenna status check and automatic diagnosis
• Easy antenna control using PC interface
• Built-in MIM (Multi-satellite Interface Module)
• Up to six receivers can be connected to ACU directly
• Every receiver connected to ACU can be a master receiver which can change
the satellite freely by TV remote control
INTELLIAN i3
INTELLIAN i4
15in Satellite TV Antenna System
18in Satellite TV Antenna System
The Intellian i3 gives superior tracking performance and efficiency over systems of
a similar size and is ideal for boats over 25ft whether crusing in coastal waters or
offshore. The i3 offers the highest signal strength available - its innovations in
Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies meaning there is no compromise in reception quality even in rough seas. Integrated
smart HD and TriSat modules allow access to HDTV channels just like at home.
Its single cable design between the antenna and the control unit means troublefree installation and operation.
With its rugged, reliable and durable design, the Intellian i4 provides outstanding
performance while the vessels cruising at high speed or in rough sea conditions.
The i4 offers all the features of the i3 system and is ideal for boats over 50ft.
EXPERT
ADVICE
SEEN IT
FOR LESS?
WE WON’T BE
BEATEN ON
PRICE!
KEY FEATURES
• 15in antenna with 2-axis step motor
• Fully automated satellite search
• LHCP/RHCP or Horizontal/Vertical
polarisation
• DVB signal identification
• Inbuilt GPS for fast satellite acquisition
• Inbuilt NMEA 0183 GPS interface
• Easy satellite change and update
• Antenna status check and
automatic diagnosis
• Easy antenna control using PC interface
We accept most major credit and debit cards
T&T/Thuraya/Iridium
45
Satcoms
THRANE & THRANE SAILOR FLEETBROADBAND 250 & 500
THURAYA SO-2510
Voice & Broadband Internet Access
Satellite Phone
Sailor FleetBroadband is the new benchmark for broadband Internet at
sea and standard IP applications. Reliable high-speed IP communication is now available to all vessels, providing broadband data and
voice simultaneously on the latest generation of Inmarsat satellites.
The world’s smallest satphone!
At only 130g, this lightweight pocket
sized phone is designed to be highly
portable and user friendly.
These unique solutions give you faster, more cost-effective access
to data services than ever before. Simultaneously having access
to voice and high-speed data services on a global basis will
revolutionise data access on vessels. Sea chart information,
online weather data, route planning and crew calling can all
be undertaken at the same time.
KEY FEATURES
• 1.5in 128x128 pixel display
• SMS, polyphonic ring tones
• Enhanced GPS Services
• Internal memory - up to 32Mb
• Connectivity - USB
• GmPRS equipped - up to 60kbps
• Fax and Data at 9.6kbps
(Circuit Switched)
• Talk time up to 2.4 hrs
KEY FEATURES
• IP connection for e-mail and internet/intranet
access including secure VPN
• Streaming IP, guaranteed bandwidth
• ISDN (Sailor 500 FleetBroadband only)
• Sailor 250 - data up to 284Kbps
• Sailor 500 - data up to 432Kbps
• Voice and data simultaneously
• Compact hardware
• Sailor 250 dome 33cm diameter,
• Sailor 500 60.5cm diameter
THRANE & THRANE TT-3026D
Mini-C System
The world's first Inmarsat Mini-C system, comprising transceiver, antenna,
and 12-channel GPS receiver in a single unit. The compact design and
power conserving features make it very attractive for tracking and e-mail
applications. It ensures fast and reliable transfer of vital information, e.g.
position reporting, data monitoring, messaging, loading and unloading
information, route planning, etc. It also features an advanced sleep
mode function and includes a number of port options supporting
interfacing requirements as well as six configurable I/O pins which
can be connected to remote sensors, relays, or switches.
KEY FEATURES
• Extremely low power consumption
• Send and receive internet, e-mail, telex, Inmarsat-C,
X-25, SMS(depending on applications)
• Optional message terminals available if no PC used
• Type approved for maritime applications
• Receives Enhanced Group Call (EGC) messages for
SafetyNet and FleetNet
SUPPLIED WITH
EasyMail communication software for Windows
THURAYA SG-2520
Triband Smartphone
Satphone, GSM phone and
GPS in one handset with a
177x200 pixel colour display
and 1.3 megapixel camera
with 5x digital zoom.
The SG-2520 is the only
satellite tri-band phone in the
market that allows operation
on three different types of
GSM networks: 900, 1800
and 1900MHz offering greater
flexibility in high traffic GSM
environments with increased
phone usability and voice
quality in Asia, Africa, Australia,
Europe and North America.
KEY FEATURES
• World’s smallest dual mode satellite phone
• Enhanced GPS Services
• Internal memory - up to 128Mb
• External memory - SD memory card
• GmPRS equipped - up to 85.6kbps (GSM),
up to 60kbps satellite mode
• Fax and data at 9.6kbps (Circuit Switched)
• Talk time up to 2.4hrs (satellite) up to 4hrs (GSM)
IRIDIUM 9555
IRIDIUM SAILOR SC4000
Iridium Satellite Phone
Fixed Iridium Satellite Phone
The smallest and most powerful phone Iridium has ever made. Its compact, light
and easy to use, featuring a brighter screen, a speaker phone, improved Short
Messaging Service (SMS) and email capabilities and an upgraded mini-USB data
port. The new phone is engineered to withstand and perform well in the world's
most rugged, remote and industrial environment, including being water and
shock-resistant. Combined with the only communications network offering truely
global coverage, the 9555 delivers the reliable, secure, real-time, mission-critical
communications service that Iridium users have come to expect.
Suitable for any size of vessel, comprises transceiver,
intelligent handset and small marinised antenna. Ideal
for crew calling use with pre-paid scratch cards.
KEY FEATURES
• 27% lighter and 30% smaller than the old 9505A handset
• Retractable antenna for compact carrying
• Illuminated, weather-resistant keypad redesigned for ease-of-use
• Menu configurable in any of 21 languages
• Additional address book fields forphone numbers, email addresses and notes
• Programmable international codes for automatic dialling
• Built-in help function
• Integrated speakerphone
EXPERT
• Mini-USB data port
ADVICE
Standby time up to 30 hours, talk time up to 4 hours
KEY FEATURES
• True global coverage - voice and data
• Data rate 9.6kps when compressed
• Rugged construction, lightweight waterproof antenna
• Flexible installation - up to 50m between handset
and transceiver, up to 30m coax cable available
• RJ11 port for secondary analogue telephone
SUPPLIED WITH
Battery, AC charger, DC car charger, holster, handsfree kit, external antenna
SUPPLIED WITH
Transceiver, antenna, handset. Antenna cable sold
separately (10, 15, 20 & 30m sizes)
Turn to the back page for pricing and ordering info NOW!
KVH, Nauticomp
46
Satcoms, Sat TV & LCD Displays
KVH TRACPHONE FB150
KVH TRACPHONE V7
KVH TRACPHONE FB250/FB500
Broadband Internet Access
Broadband Internet Access
Voice and Broadband Internet Access
Now, even small vessel owners can afford to have
access to weather data, sea conditions, chart updates,
as well as communication with
family, friends, and the
office when at sea! Low
cost airtime packages
and affordable
hardware/airtime
bundles.
The perfect solution if you’re looking for data-only
communications at broadband speeds. Consistent,
high quality data connections, crystal clear multiple
VoIP telephone lines and reasonable always-on, fixed
price or per-Mb subscription
plans.
The perfect solution for boat owners who want the
same Internet speeds they enjoy at home, with
“always on” broadband access to email, the internet
and Virtual Private Networks (VPNs) as well as simultaneous, reliable
telephone service
at an affordable
PRODUCT
rate.
HOT
NEW FOR
2010
KEY FEATURES
• Designed for the harsh marine environment
• Always-available 150 Kbps data connection with
outstanding quality voice and text messaging
• Rugged, compact antenna is reliable, simple to
install, and easy to integrate with your computer or
phone network
• Global coverage via Inmarsat’s I-4 satellite network
KEY FEATURES
• Seamless regional roaming
• Ideal for heavy data use
• 85% smaller, 75% lighter than standard VSAT
antennas, with dynamic, gyro-stabilised tracking
• Integrated WiFi and Ethernet hub
• Up to 512Kbps for ship-to-shore transmissions
• Up to 2Mbps for shore-to-ship downloads
• Military-grade modem for outstanding performance
KEY FEATURES
• Fully automatic operation and dynamic stabilisation,
even in the roughest seas
• No monthly fees, affordable pay-as-you-go service
• Convenient shipwide integration with PABX systems
• FB250 up to 284Kbps standard, 128Kbps streaming
• FB500 up to 432Kbps standard, 256Kbps streaming
KVH TRACVISION M2
KVH TRACVISION M3DX
KVH TRACVISION M5, M7 & M9
“At Anchor” Satellite TV System
Compact Satellite TV System
HDTV Satellite TV Systems
A great choice for those who want to watch Satellite
TV while at anchor or at the dock, offering the highest
signal strength available for "at-anchor" systems. The
high-efficiency antenna features Ring
Fire™ technology, which
offers reception and signal
gain previously only
available in 18in diameter systems! Enjoy
KVH’s award-winning
quality and reliability at
an affordable price
thanks to this fully
automatic system.
If you thought your boat was too small for satellite TV then think again! The world’s smallest, fully
stabilised mobile satellite television antenna system
is ideal for boats as small as 25ft! The ultra-compact
40cm antenna weighs only
8.6kg and gives crystalclear reception and
coverage comparable
to the larger sat TV
antennas. Supports
multiple receiver/TV
installations.
Enjoy HD programming from any leading provider
with automatic satellite switching directly from the
remote control! Unsurpassed
High-Performance
DVB® tracking.
HOT
PRODUCT
KEY FEATURES
• Ideal for use on boats as small as 25 feet
• Fully automatic satellite acquisition and satellite
• Ultra-quiet motors, no cable wrap, single-cable
install, and exclusive, user-friendly onscreen system
set-up and control
• Height 45cm, diameter 40cm
SUPPLIED WITH
Deluxe integrated 12V mobile receiver, backlit RF/IR
remote control, 15m Antenna cable. Requires a digibox or satellite decoder (eg Sky box)
KEY FEATURES
• Great offshore coverage (100-200 miles)
• Fast, powerful, ultra-quiet motors
• Fully automatic satellite acquisition
• Single LNB - simple single cable installation
• Voltage 9-16V DC, power consumption 50W
• Height 45cm, diameter 40cm
SUPPLIED WITH
Deluxe integrated 12V mobile receiver, backlit RF/IR
remote control, 15m Antenna cable. Requires a digibox or satellite decoder (eg Sky box)
KEY FEATURES
• Tracvision M5 - 45cm system ideal for 40-60ft
boats, weight 13.6Kg, power consumption 50W
• Tracvision M7 - 60cm system ideal for 60-80ft
boats, weight 25Kg, power consumption 55W
• Tracvision M9 - 82cm system with integral Gyro/
GPS and Remote Service Modem ideal for 80ft+
boats, weight 38.5Kg, power consumption 120W
• RingFire technology gives 30% greater reception
and range than any other comparably sized system
• Superior offshore performance
• M5 & M7 - optional GyroTrac gyrocompass upgrade
• Supports multiple TVs and receivers
SUPPLIED WITH
Tri-Sat controller, remote service modem (M7/M9)
Requires a digibox or satellite decoder (eg Sky box)
NAUTICOMP INFINITY II
NAUTICOMP INFINITY PRO
15in & 19in LCD Displays
15in & 19in LCD Displays
The new cost effective Infinity II has arrived! With highly efficient CCFL or LED
backlight technology, it combines the
best cutting edge technology with
ease of use and a slim case design.
With the smallest chassis frame and user friendly controls, all functions are easily
accessed via the compact external keypad allowing the user
to quickly and easily switch between inputs,
and even switch between auto or manual
input selection. Up to 3 inputs per screen.
KEY FEATURES
• Sunlight viewable
NEW FOR
• Waterproof to IP67
• Bonded glass - optically
enhanced for clarity
• Deep dimming - 0 to 100%
• Superior image - scalable
resolution up to SXGA
• Extended temperature range
• DVI, VGA and composite (optional) inputs
• Picture in Picture - designed to display all inputs (requires composite input)
2010
KEY FEATURES
• Sunlight viewable
NEW FOR
• Waterproof to IP67
• Bonded glass - optically
enhanced for clarity
• Deep dimming - 0 to 100%
• Extended temperature range
• Superior image - scalable resolution up to SXGA
• DVI, VGA and composite (optional) inputs
• Picture in Picture - designed to display all inputs (requires composite input)
2010
We accept most major credit and debit cards
MES Ltd
Information
HOW WE DO BUSINESS
WHY NO PRICES?
People often ask why we don’t print prices in our Buyer’s Guide, the reason is simple • The Buyer’s Guide comes out once a year, but prices change daily.
• At any one time there will be a number of special offers or mega deals on particular items.
• Some of our suppliers don't like us advertising low prices as it upsets the other dealers who don't have our volume and can't compete!
If you want to find out our latest prices why not visit our online store www.mesltd.co.uk where you can shop securely online, 24hrs a day.
Getting an account is easy and free of charge - simply visit our site, register and you can immediately benefit from our megadeals, bundle
package specials and other great offers - it even remembers what you’ve put in your basket for when you return next time!
If you wish we can also provide you with our complete price list as PDF file on request -
HOW W
- email us on [email protected],
- call us on 01179 114111 or
- fax us on 01179 556289
PAYMENT
We accept the following methods of payment - cash, cheque and most credit and debit cards -
• MES will not charge your credit/debit card until the goods are shipped unless it is a highly specialised item, in which case we may ask for a
small deposit at the time of order.
• MES also accept Euro and US Dollar payments and bank transfers.
EXPERT INSTALLATION & SUPPORT
Whilst all of the products we offer come with detailed installation instructions, you can't beat the performance you will get from a professional
installation. Ocean Install - a sister company of MES - provides specialist marine electronics design, consultancy, installation and service.
• With installation bases in Southampton, Poole, Bristol, London, Falmouth, Palma and Antibes, we offer a pan European service at
extremely competitive prices. Our team of highly trained technicians offer an unrivalled degree of quality, know-how and craftsmanship.
• Ocean Install's services start at the outset of any project. Our design and consultancy division will put together a detailed electronic system
design - ideal for large scale projects where equipment is to be installed by 3rd parties or by a boat builder.
• Our unique Kre-8! design solution gives you a single document to allow a sophisticated electrical and electronics system to be implemented
in a cost effective manner - and to deliver the required technology effectively. The Kre-8! package can including kitting and tendering lists
allowing you to shop for the best value solution.
• Our engineers are all factory trained electronic technicians as well as having intimate knowledge of boats. This winning combination of
knowledge and practical experience means you'll get a truly professional installation and get the most out of your equipment. Whether it is a
simple radar system or a complex computer network, we'll be happy to offer a competitive quote.
• If you prefer to fit yourself, then you may like to take advantage of our commissioning service - our team will pick up where you leave off,
carrying out final connections and setting up the system. You may also be able to take advantage of extended warranty options where we
commission the equipment.
• Service - we also offer on board and bench service repair for electronic equipment.
• Support & Training - a few hours spent on professional training can really reap rewards in terms of product operation and usability. Ocean
Install has a team of people happy to offer friendly and easy to understand product training and help you get the best out of your system.
• Sophisticated products need sophisticated and specialist support. We're here to provide the support you need by phone, fax and e-mail.
The fastest route to a support solution is to e-mail our team of technicians at [email protected] with your customer reference
number and details of your query and we'll have you up and running in no time.
• We offer a range of extended warranty packages with onboard and world wide support
PROFESSIONAL TRAINING
With loads of extra functionality and a whole host of new features built
into the latest electronic products, it makes sense to get up to speed
on your system and get professional training.
Our training facility at our Bristol office runs a series of short, 1 day
intensive courses on some of the most popular systems we sell. They
aim to provide you with the techniques to get the best from your system
and can also cover installation and interfacing for DIY installers.
Courses are endorsed by the manufacturers and are designed around
small user groups to get the best possible knowledge transfer. Book
today by calling 01179 114111 or email [email protected]
CALL NOW! 01179 114111 • [email protected] • www.mesltd.co.uk
47
UK Head Office Marine Electronic Services Ltd
Marine House
Unit 10, City Business Park
Easton Road
Bristol BS5 0SP
Tel 01179 114111
Fax: 01179 556289
Email: [email protected]
Web www.mesltd.co.uk
Poole Sales Office Unit 2
Vitrage Technical Park
Nuffield Industrial Estate
Witney Rd
Poole BH17 0GL
Tel 01202 666066
HUMMINBIRD 800 & 900 SERIES
New 7 & 8in widescreen colour combi chartplotter/fishfinders
Please call for European offices
PAGE
19
UNMISSABLE DEAL!
This superb black box 15in TOUCHSCREEN
combi display was £6500, you can get it from
us for only £1500!*
PAGE
NEW MARINE PCs
DigitalYacht’s powerful new Aqua range of PCs
are designed for onboard use
PAGE
34
26
* While stocks last
©2010 Marine Electronic Services Ltd
Created by
Avalyn Design avalyn.co.uk
01179 114111 • www.mesltd.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
