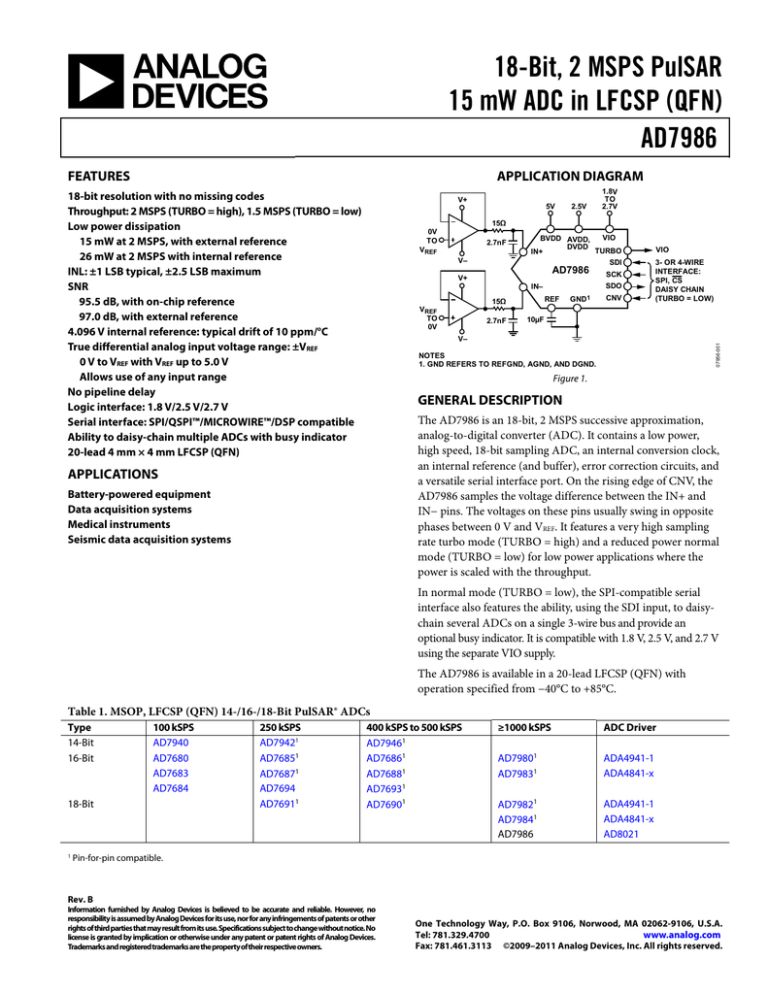

18-Bit, 2 MSPS PulSAR

15 mW ADC in LFCSP (QFN)

FEATURES

18-bit resolution with no missing codes

Throughput: 2 MSPS (TURBO = high), 1.5 MSPS (TURBO = low)

Low power dissipation

15 mW at 2 MSPS, with external reference

26 mW at 2 MSPS with internal reference

INL: ±1 LSB typical, ±2.5 LSB maximum

SNR

95.5 dB, with on-chip reference

97.0 dB, with external reference

4.096 V internal reference: typical drift of 10 ppm/°C

True differential analog input voltage range: ±V

REF

0 V to V

REF

with V

REF

up to 5.0 V

Allows use of any input range

No pipeline delay

Logic interface: 1.8 V/2.5 V/2.7 V

Serial interface: SPI/QSPI™/MICROWIRE™/DSP compatible

Ability to daisy-chain multiple ADCs with busy indicator

20-lead 4 mm × 4 mm LFCSP (QFN)

APPLICATIONS

Battery-powered equipment

Data acquisition systems

Medical instruments

Seismic data acquisition systems

AD7986

V+

APPLICATION DIAGRAM

5V 2.5V

1.8V

TO

2.7V

15Ω

0V

TO

V

REF

V–

V+

2.7nF

IN+

IN–

BVDD

REF

AVDD,

DVDD

AD7986

GND

1

VIO

TURBO

SDI

SCK

SDO

CNV

V

REF

TO

0V

15Ω

2.7nF

10µF

V–

NOTES

1. GND REFERS TO REFGND, AGND, AND DGND.

Figure 1.

VIO

3- OR 4-WIRE

INTERFACE:

SPI, CS

DAISY CHAIN

(TURBO = LOW)

GENERAL DESCRIPTION

The AD7986 is an 18-bit, 2 MSPS successive approximation, analog-to-digital converter (ADC). It contains a low power, high speed, 18-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and a versatile serial interface port. On the rising edge of CNV, the

AD7986 samples the voltage difference between the IN+ and

IN− pins. The voltages on these pins usually swing in opposite phases between 0 V and V

REF

. It features a very high sampling rate turbo mode (TURBO = high) and a reduced power normal mode (TURBO = low) for low power applications where the power is scaled with the throughput.

In normal mode (TURBO = low), the SPI-compatible serial interface also features the ability, using the SDI input, to daisychain several ADCs on a single 3-wire bus and provide an optional busy indicator. It is compatible with 1.8 V, 2.5 V, and 2.7 V using the separate VIO supply.

The AD7986 is available in a 20-lead LFCSP (QFN) with operation specified from −40°C to +85°C.

Table 1. MSOP, LFCSP (QFN) 14-/16-/18-Bit PulSAR® ADCs

Type 100 kSPS 250 kSPS 400 kSPS to 500 kSPS

14-Bit

16-Bit

AD7940 AD7942

AD7680

AD7683

1

AD7685

1

AD7687

1

AD7946

1

AD7686

AD7688

1

1

AD7684 AD7694 AD7693 1

18-Bit AD7691

1

AD7690

1

1 Pin-for-pin compatible.

≥1000 kSPS

AD7980

1

AD7983

1

AD7982

1

AD7984

1

ADC Driver

ADA4941-1

ADA4841-x

ADA4941-1

ADA4841-x

Rev. B

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700 www.analog.com

Fax: 781.461.3113 ©2009–2011 Analog Devices, Inc. All rights reserved.

AD7986

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications ....................................................................................... 1

Application Diagram ........................................................................ 1

General Description ......................................................................... 1

Revision History ............................................................................... 2

Specifications ..................................................................................... 3

Timing Specifications .................................................................. 5

Absolute Maximum Ratings ............................................................ 6

ESD Caution .................................................................................. 6

Pin Configuration and Function Descriptions ............................. 7

Typical Performance Characteristics ............................................. 9

Terminology .................................................................................... 12

Theory of Operation ...................................................................... 13

Circuit Information .................................................................... 13

Converter Operation .................................................................. 13

Conversion Modes of Operation .............................................. 13

Typical Connection Diagram.................................................... 14

REVISION HISTORY

3/11—Rev. A to Rev. B

Added Common-Mode Input Range Parameter, Table 2 ........... 3

8/10—Rev. 0 to Rev. A

Changes to Conversion Time: CNV Rising Edge to Data

Available (Turbo Mode/Normal Mode) Parameter, Table 4 ....... 5

Changes to Figure 32 ...................................................................... 22

4/09—Revision 0: Initial Version

Analog Inputs.............................................................................. 15

Driver Amplifier Choice ........................................................... 15

Voltage Reference Input ............................................................ 16

Power Supply ............................................................................... 16

Digital Interface .............................................................................. 17

Data Reading Options ............................................................... 18

CS Mode, 3-Wire Without Busy Indicator ............................. 19

CS Mode, 3-Wire with Busy Indicator .................................... 20

CS Mode, 4-Wire Without Busy Indicator ............................. 21

CS Mode, 4-Wire with Busy Indicator .................................... 22

Chain Mode Without Busy Indicator ...................................... 23

Chain Mode with Busy Indicator ............................................. 24

Application Hints ........................................................................... 25

Layout .......................................................................................... 25

Evaluating the AD7986 Performance ...................................... 25

Outline Dimensions ....................................................................... 27

Ordering Guide .......................................................................... 27

Rev. B | Page 2 of 28

SPECIFICATIONS

AVDD = DVDD = 2.5 V, BVDD = 5 V, VIO = 1.8 V to 2.7 V, V

REF

= 4.096 V, T

A

= −40°C to +85°C, unless otherwise noted.

AD7986

Table 2.

Parameter

RESOLUTION

ANALOG INPUT

Voltage Range

Absolute Input Voltage

Common-Mode Input Range

Analog Input CMRR

Leakage Current at 25°C

Input Impedance

ACCURACY

No Missing Codes

Differential Linearity Error

Integral Linearity Error

Transition Noise

Gain Error, T

MIN

to T

MAX

3

Gain Error Temperature Drift

Zero Error, T

MIN

to T

MAX

3

Zero Temperature Drift

Power Supply Sensitivity

THROUGHPUT

Conversion Rate

Transient Response

Conditions

(IN+) − (IN−)

IN+, IN−

IN+, IN− f

IN

= 500 kHz

Acquisition phase

AVDD = 2.5 V ± 5%

Full-scale step

0

Min

18

18

−0.95

−2.50

−20

−0.8

Typ Max

−V

REF

−0.1

+V

REF

V

REF

+ 0.1

V

V

V

REF

× 0.475 V

REF

× 0.5 V

REF

× 0.525 V

100

dB

1

250 nA

See the Analog Inputs section

±0.60

±1.00

2.0

±2.4

±0.5

±0.3

±4

+1.50

+2.50

+20

+0.8

2.00

100

Unit

Bits

Bits

LSB

2

LSB 2

LSB 2

LSB

2

ppm/°C mV ppm/°C

LSB

2

MSPS ns

AC ACCURACY

Dynamic Range

Signal-to-Noise Ratio, SNR

Spurious-Free Dynamic Range, SFDR

Total Harmonic Distortion

4

, THD

V

REF

= 4.096 V, internal reference

V

REF

= 5.0 V, external reference f

IN

= 20 kHz, V

REF

= 4.096 V, internal reference f

IN

= 20 kHz, V

REF

= 5.0 V, external reference f

IN

= 20 kHz f

IN

= 20 kHz, V

REF

= 4.096 V, internal reference f

IN

= 20 kHz, V

REF

= 5.0 V, external reference

95.5

97

94.5

96.5

96.5

98

95.5

97.0

−115

−113

−114

dB

1 dB 1 dB

1 dB 1 dB

1 dB 1

Signal-to-(Noise + Distortion), SINAD

SAMPLING DYNAMICS

−3 dB Input Bandwidth

Aperture Delay f

IN

= 20 kHz, V

REF

= 4.096 V 94.5 95.5

19

0.7

dB

1

MHz ns

1

2

All specifications expressed in decibels are referred to a full-scale input FSR and tested with an input signal at 0.5 dB below full scale, unless otherwise specified.

3

LSB means least significant bit. With the ±4.096 V input range, one LSB is 31.25 µV.

4

See the Terminology section. These specifications include full temperature range variation but not the error contribution from the external reference.

Tested fully in production at f

IN

= 1 kHz.

Rev. B | Page 3 of 28

AD7986

AVDD = DVDD = 2.5 V, BVDD = 5 V, VIO = 1.8 V to 2.7 V, V

REF

= 4.096 V, T

A

= −40°C to +85°C, unless otherwise noted.

Table 3.

Parameter

INTERNAL REFERENCE

Output Voltage

Temperature Drift

Line Regulation

Turn-On Settling Time

REFIN Output Voltage

REFIN Output Resistance

Conditions

PDREF = low

T

A

= 25°C

−40°C to +85°C

AVDD = 2.5 V ± 5%

C

REF

= 10 μF, C

REFBUFIN

= 0.1 μF

REFIN @ 25°C

Min

4.081

Typ

4.096

±10

±50

220

1.2

7.5

Max

4.111

EXTERNAL REFERENCE

Voltage Range

Current Drain

REFERENCE BUFFER

REFIN Input Voltage Range

REFIN Input Current

DIGITAL INPUTS

Logic Levels

V

IL

V

IH

I

IL

I

IH

DIGITAL OUTPUTS

Data Format

Pipeline Delay

V

OL

V

OH

POWER SUPPLIES

AVDD, DVDD

BVDD

VIO

VIO Range

Standby Current

1, 2

Power Dissipation

With Internal Reference

Without Internal Reference

With Internal Reference

Without Internal Reference

TEMPERATURE RANGE 3

PDREF = high, REFIN = low

2 MSPS, V

REF

= 5.0 V

2.4

500

5.1

1.2

160

−0.3

+0.9 × VIO

−1

−1

+0.1 × VIO

VIO + 0.3

+1

+1

I

SINK

= +500 µA

I

SOURCE

= −500 µA

2.375

4.75

Specified performance

AVDD = DVDD = VIO = 2.5 V, BVDD = 5.0 V

1.8

Serial, 18 bits, twos complement

Conversion results available immediately after completed conversion

VIO − 0.3

2.5

5.0

2.5

2.25

0.4

2.625

5.25

2.7

2 MSPS throughput

2 MSPS throughput

1.5 MSPS throughput

1.5 MSPS throughput

−40

29

15

26

11.5

34

16.5

30

13

+85 Specified Performance T

MIN

to T

MAX

1

2

3

With all digital inputs forced to VIO or GND as required.

During acquisition phase.

Contact an Analog Devices, Inc., sales representative for the extended temperature range.

V

µA

V

µA

Unit

V ppm/°C ppm/V ms

V kΩ

V

V

µA

µA

V

V

V

V

V

µA mW mW mW mW

°C

Rev. B | Page 4 of 28

TIMING SPECIFICATIONS

AVDD = DVDD = 2.5 V, BVDD = 5 V, VIO = 1.8 V to 2.7 V, V

REF

= 4.096 V, T

A

= −40°C to +85°C, unless otherwise noted.

1

Table 4.

Parameter

Conversion Time: CNV Rising Edge to Data Available (Turbo Mode/Normal Mode)

Acquisition Time

Time Between Conversions (Turbo Mode/Normal Mode)

CNV Pulse Width (CS Mode)

Data Read During Conversion (Turbo Mode/Normal Mode)

Quiet Time During Acquisition from Last SCK Falling Edge to CNV Rising Edge

SCK Period (CS Mode)

SCK Period (Chain Mode)

SCK Low Time

SCK High Time

SCK Falling Edge to Data Remains Valid

SCK Falling Edge to Data Valid Delay

CNV or SDI Low to SDO D17 MSB Valid (CS Mode)

CNV or SDI High or Last SCK Falling Edge to SDO High Impedance (CS Mode)

SDI Valid Setup Time from CNV Rising Edge

SDI Valid Hold Time from CNV Rising Edge (CS Mode)

SDI Valid Hold Time from CNV Rising Edge (Chain Mode)

SCK Valid Setup Time from CNV Rising Edge (Chain Mode)

SCK Valid Hold Time from CNV Rising Edge (Chain Mode)

SDI Valid Setup Time from SCK Falling Edge (Chain Mode)

SDI Valid Hold Time from SCK Falling Edge (Chain Mode)

SDI High to SDO High (Chain Mode with Busy Indicator)

1

See Figure 2 and Figure 3 for load conditions.

Symbol

t

CONV t

ACQ t

CYC t

CNVH t

DATA t

QUIET t

SCK t

SCK t

SCKL t

SCKH t

HSDO t

DSDO t

EN t

DIS t

SSDICNV t

HSDICNV t

HSDICNV t

SSCKCNV t

HSCKCNV t

SSDISCK t

HSDISCK t

DSDOSDI

4

0

0

5

5

2

3

20

9

11

3.5

3.5

2

Min

100

500/660

10

Typ

AD7986

8

5

Max Unit

400/500 ns ns ns ns

200/300 ns ns ns

6

10 ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns

500µA I

OL

TO SDO

C

L

20pF

1.4V

500µA I

OH

Figure 2. Load Circuit for Digital Interface Timing

10% VIO

90% VIO t

DELAY

V

V

IH

1

IL

1 t

DELAY

V

V

IH

1

IL

1

1

MINIMUM V

IH

AND MAXIMUM V

IL

USED. SEE DIGITAL INPUTS

SPECIFICATIONS IN TABLE 3.

Figure 3. Voltage Levels for Timing

Rev. B | Page 5 of 28

AD7986

ABSOLUTE MAXIMUM RATINGS

Table 5.

Parameter Rating

Analog Inputs

IN+, IN− to GND

1

Supply Voltage

REF, BVDD to GND, REFGND

AVDD, DVDD, VIO to GND

AVDD and DVDD to VIO

Digital Inputs to GND

Digital Outputs to GND

Storage Temperature Range

Junction Temperature

θ

JA

Thermal Impedance

20-Lead LFCSP (QFN)

Lead Temperatures

Vapor Phase (60 sec)

Infrared (15 sec) 220°C

1

See the Analog Inputs section for an explanation of IN+ and IN−.

−0.3 V to V

REF or ±130 mA

+ 0.3 V

−0.3 V to +6.0 V

−0.3 V to +2.7 V

+3 V to −6 V

−0.3 V to VIO + 0.3 V

−0.3 V to VIO + 0.3 V

−65°C to +150°C

150°C

30.4°C/W

215°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ESD CAUTION

Rev. B | Page 6 of 28

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

REF

REF

REFGND

REFGND

IN–

3

4

5

1

2

PIN 1

INDICATOR

AD7986

TOP VIEW

(Not to Scale)

15 TURBO

14 SDI

13 CNV

12 SCK

11 DVDD

AD7986

NOTES

1. THE EXPOSED PAD IS NOT CONNECTED

INTERNALLY. FOR INCREASED

RELIABILITY OF THE SOLDER JOINTS, IT

IS RECOMMENDED THAT THE PAD BE

SOLDERED TO THE SYSTEM

GROUND PLANE.

Figure 4. Pin Configuration

Table 6. Pin Function Descriptions

Pin No. Mnemonic

Type 1 Description

1, 2

9

10

11

12

13

3, 4

5

6

7

8

14

15

REF

REFGND

IN−

IN+

PDREF

VIO

SDO

DGND

DVDD

SCK

CNV

SDI

TURBO

AI

DO

P

P

DI

DI

AI

AI

AI

DI

P

DI

DI

Reference Output/Input Voltage.

When PDREF = low, the internal reference and buffer are enabled, producing 4.096 V on this pin.

When PDREF = high, the internal reference and buffer are disabled, allowing an externally supplied voltage reference up to 5.0 V.

Decoupling is required with or without the internal reference and buffer. This pin is referred to the

REFGND pins and should be decoupled closely to the REFGND pins with a 10 µF capacitor.

Reference Input Analog Ground.

Differential Negative Analog Input.

Differential Positive Analog Input.

Internal Reference Power-Down Input.

When low, the internal reference is enabled.

When high, the internal reference is powered down and an external reference must be used.

Input/Output Interface Digital Power. Nominally at the same supply as the host interface

(1.8 V, 2.5 V, or 2.7 V).

Serial Data Output. The conversion result is output on this pin. It is synchronized to SCK.

Digital Power Ground.

Digital Power. Nominally at 2.5 V.

Serial Data Clock Input. When the part is selected, the conversion result is shifted out by this clock.

Convert Input. This input has multiple functions. On its leading edge, it initiates the conversions and selects the interface mode of the part: chain mode or CS mode. In CS mode, the SDO pin is enabled when CNV is low. In chain mode, the data should be read when CNV is high.

Serial Data Input. This input provides multiple features. It selects the interface mode of the ADC as follows:

Chain mode is selected if SDI is low during the CNV rising edge. In this mode, SDI is used as a data input to daisy-chain the conversion results of two or more ADCs onto a single SDO line. The digital data level on SDI is output on SDO with a delay of 18 SCK cycles.

CS mode is selected if SDI is high during the CNV rising edge. In this mode, either SDI or CNV can enable the serial output signals when low. If SDI or CNV is low when the conversion is complete, the busy indicator feature is enabled.

Conversion Mode Selection.

When TURBO = high, the maximum throughput (2 MSPS) is achieved. The ADC does not power down between conversions.

When TURBO = low, the maximum throughput is lower (1.5 MSPS). The ADC powers down between conversions.

Rev. B | Page 7 of 28

AD7986

Pin No.

16

17,18

19

20

Mnemonic

Type

1

Description

AVDD

AGND

BVDD

P

P

P

Input Analog Power. Nominally at 2.5 V.

Analog Power Ground.

Reference buffer power. Nominally 5.0 V.

If an external reference buffer is used to achieve the maximum SNR performance with 5 V reference, the reference buffer must be powered down by connecting the REFIN pin to ground. The external reference buffer must be connected to the BVDD pin.

REFIN AI/O Internal Reference Output/Reference Buffer Input.

When PDREF = low, the internal band gap reference produces a 1.2 V (typical) voltage on this pin, which needs external decoupling (0.1 µF typical).

When PDREF = high, use an external reference to provide a 1.2 V (typical) to this pin.

21 (EPAD) Exposed Pad EP

When PDREF = high, and REFIN = low, the on-chip reference buffer and band gap are powered down.

An external reference must be connected to REF and BVDD.

The exposed pad is not connected internally. For increased reliability of the solder joints, it is recommended that the pad be soldered to the system ground plane.

1 AI = analog input, AI/O = bidirectional analog; DI = digital input, DO = digital output, and P = power.

Rev. B | Page 8 of 28

AD7986

TYPICAL PERFORMANCE CHARACTERISTICS

AVDD = DVDD = VIO = 2.5 V, BVDD = 5.0 V, V

REF

= 5.0 V, external reference (PDREF = high, REFIN = low), unless otherwise noted.

2.5

2.0

2.0

POSITIVE INL = +1.57LSB

NEGATIVE INL = –1.25LSB

POSITIVE DNL = +0.54LSB

NEGATIVE DNL = –0.60LSB

1.5

1.5

1.0

1.0

0.5

0.5

0

0

–0.5

–1.0

–0.5

–1.0

–1.5

–2.0

–1.5

–2.5

0

–2.0

0 65,536 131,072

CODE

196,608

Figure 5. Integral Nonlinearity vs. Code

262,144 65,536 131,072

CODE

196,608

Figure 8. Differential Nonlinearity vs. Code

262,144

45,000

40,000

35,000

30,000

25,000

20,000

41,811

35,204

34,894

15,000

10,000

8250

7662

5000

0 101

1661

1418

68 3 0

0

3FF6 3FF8 3FFA 3FFC 3FFE 0

CODE IN HEX

Figure 6. Histogram of DC Input at Code Center (External Reference)

45,000

40,000

35,000

30,000

25,000

20,000

41,434

38,665

30,897

15,000

10,211

10,000

6399

5000

2283

1002

0 4

142 34

1 0

0

3FF5 3FF7 3FF9 3FFB 3FFD 3FFF 1

CODE IN HEX

Figure 9. Histogram of DC Input at Code Transition (External Reference)

45,000

40,000

35,000

30,000

25,000

20,000

15,000

10,000

31,020

29,138

12,773

39,395

11,107

5000 3662

0 1

55

547

0

3FFEC 3FFEE 3FF0

2932

407 35

0

3FF2 3FF4

CODE IN HEX

3FF6 3FF8

Figure 7. Histogram of DC Input at Code Center (Internal Reference)

Rev. B | Page 9 of 28

40,000

35,000

30,000

25,000

20,000

15,000

37,385

36,210

18,953

22,077

10,000

6513

6879

5000

0

0 1

3 150

1282

3FFEB 3FFED 3FFEF 3FF1 3FF3

CODE IN HEX

1438

165 16

0

3FF5 3FF7 3FF9

Figure 10. Histogram of DC Input at Code Transition (Internal Reference)

AD7986

0

–20

–40

–60

–80

–100

–120

–140

–160

–180

–200

0 f

S

= 2MSPS f

IN

= 20kHz

SNR = 97.0dB

THD = –114.0dB

SINAD = 97.0dB

200k 400k 600k

FREQUENCY (Hz)

800k

Figure 11. FFT Plot (External Reference)

1M

100 18

SNR

95 17

SINAD

ENOB

90 16

85 15

80

2.5

3.0

3.5

4.0

REFERENCE VOLTAGE (V)

4.5

5.0

14

Figure 12. SNR, SINAD, and ENOB vs. Reference Voltage

100

95

90

85

80

1k 10k 100k

FREQUENCY (Hz)

Figure 13. SINAD vs. Frequency

1M

–105

–110

–115

–120

–95

–100

0

–20

–40

–60

–80

–100

–120

–140

–160

–180

0 f f

S

= 2MSPS

IN

= 20kHz

SNR = 95.5dB

THD = –113.0dB

SINAD = 95.5dB

200k 400k 600k

FREQUENCY (Hz)

800k

Figure 14. FFT Plot (Internal Reference)

1M

125

120

SFDR

THD

115

110

105

100

–125

2.5

–80

–85

–90

–95

–100

–105

–110

–115

–120

–125

1k

3.0

3.5

4.0

REFERENCE VOLTAGE (V)

4.5

Figure 15. THD and SFDR vs. Reference Voltage

5.0

95

10k

FREQUENCY (Hz)

100k

Figure 16. THD vs. Frequency

1M

Rev. B | Page 10 of 28

95

94

93

92

91

90

–10

100

99

98

97

96

–9 –8 –7 –6 –5 –4

INPUT LEVEL (dB)

–3

Figure 17. SNR vs. Input Level

–2 –1

3.0

I

REF

2.5

0

2.0

I

AVDD

1.5

I

DVDD

1.0

0.5

I

BVDD

I

VIO

0

2.375

2.425

2.475

2.525

AVDD AND DVDD VOLTAGE (V)

2.575

Figure 18. Operating Currents vs. Supply Voltage

2.625

AD7986

2.0

1.5

3.0

2.5

I

REF

I

AVDD

1.0

8

6

4

2

12

10

0.5

I

BVDD

14

0

–55 –35 –15 5 25 45 65 85 105

TEMPERATURE (C)

Figure 19. Operating Currents vs. Temperature

125

I

AVDD

+ I

DVDD

+ I

VIO

0

–55 –35 –15 5 25 45 65

TEMPERATURE (°C)

85 105

Figure 20. Power-Down Currents vs. Temperature

125

Rev. B | Page 11 of 28

AD7986

TERMINOLOGY

Integral Nonlinearity Error (INL)

INL refers to the deviation of each individual code from a line drawn from negative full scale through positive full scale. The point used as negative full scale occurs ½ LSB before the first code transition. Positive full scale is defined as a level 1½ LSB beyond the last code transition. The deviation is measured from

the middle of each code to the true straight line (see Figure 22).

Differential Nonlinearity Error (DNL)

In an ideal ADC, code transitions are 1 LSB apart. DNL is the maximum deviation from this ideal value. It is often specified in terms of resolution for which no missing codes are guaranteed.

Zero Error

Zero error is the difference between the ideal midscale voltage, that is, 0 V, from the actual voltage producing the midscale output code, that is, 0 LSB.

Gain Error

The first transition (from 100 ... 00 to 100 ... 01) should occur at a level ½ LSB above nominal negative full scale (−4.095984 V for the ±4.096 V range). The last transition (from 011 … 10 to

011 … 11) should occur for an analog voltage 1½ LSB below the nominal full scale (+4.095953 V for the ±5 V range). The gain error is the deviation of the difference between the actual level of the last transition and the actual level of the first transition from the difference between the ideal levels.

Spurious-Free Dynamic Range (SFDR)

SFDR is the difference, in decibels (dB), between the rms amplitude of the input signal and the peak spurious signal.

Effective Number of Bits (ENOB)

ENOB is a measurement of the resolution with a sine wave input. It is related to SINAD as follows:

ENOB = (SINAD

dB

− 1.76)/6.02 and is expressed in bits.

Noise-Free Code Resolution

Noise-free code resolution is the number of bits beyond which it is impossible to distinctly resolve individual codes. It is calculated as

Noise-Free Code Resolution = log

2

(2

N

/Peak-to-Peak Noise) and is expressed in bits.

Effective Resolution

Effective resolution is calculated as

Effective Resolution = log

2

(2

N

/RMS Input Noise) and is expressed in bits.

Total Harmonic Distortion (THD)

THD is the ratio of the rms sum of the first five harmonic components to the rms value of a full-scale input signal and is expressed in decibels.

Dynamic Range

Dynamic range is the ratio of the rms value of the full scale to the total rms noise measured with the inputs shorted together.

The value for dynamic range is expressed in decibels. It is measured with a signal at −60 dBF so that it includes all noise sources and DNL artifacts.

Signal-to-Noise Ratio (SNR)

SNR is the ratio of the rms value of the actual input signal to the rms sum of all other spectral components below the Nyquist frequency, excluding harmonics and dc. The value for SNR is expressed in decibels.

Signal-to-(Noise + Distortion) (SINAD)

SINAD is the ratio of the rms value of the actual input signal to the rms sum of all other spectral components that are less than the Nyquist frequency, including harmonics but excluding dc.

The value of SINAD is expressed in decibels.

Aperture Delay

Aperture delay is the measure of the acquisition performance and is the time between the rising edge of the CNV input and when the input signal is held for a conversion.

Transient Response

Transient response is the time required for the ADC to accurately acquire its input after a full-scale step function is applied.

Rev. B | Page 12 of 28

THEORY OF OPERATION

IN+

AD7986

REF

REFGND

MSB

131,072C 65,536C

131,072C 65,536C

MSB

4C

4C

2C

2C

C

C

C

C

LSB SW+

SWITCHES CONTROL

COMP

CONTROL

LOGIC

BUSY

OUTPUT CODE

LSB SW–

CNV

IN–

Figure 21. ADC Simplified Schematic

CIRCUIT INFORMATION

The AD7986 is a fast, low power, single-supply, precise, 18-bit

ADC using a successive approximation architecture. The AD7986 features different modes to optimize performance according to the application. In turbo mode, the AD7986 is capable of converting 2,000,000 samples per second (2 MSPS).

The AD7986 provides the user with an on-chip track-and-hold and does not exhibit any pipeline delay or latency, making it ideal for multiple multiplexed channel applications.

The AD7986 can be interfaced to any 1.8 V to 2.7 V digital logic family. It is available in a 20-lead LFCSP (QFN) that allows space savings and flexible configurations.

CONVERTER OPERATION

The AD7986 is a successive approximation ADC based on a

charge redistribution DAC. Figure 21 shows the simplified

schematic of the ADC. The capacitive DAC consists of two identical arrays of 18 binary-weighted capacitors that are connected to the two comparator inputs.

During the acquisition phase, terminals of the array tied to the input of the comparator are connected to AGND via SW+ and

SW−. All independent switches are connected to the analog inputs. Therefore, the capacitor arrays are used as sampling capacitors and acquire the analog signal on the IN+ and IN− inputs. When the acquisition phase is complete and the CNV input goes high, a conversion phase is initiated. When the conversion phase begins, SW+ and SW− are opened first. The two capacitor arrays are then disconnected from the analog inputs and connected to the REFGND input. Therefore, the differential voltage between Input IN+ and Input IN− captured at the end of the acquisition phase is applied to the comparator inputs, causing the comparator to become unbalanced. By switching each element of the capacitor array between

REFGND and REF, the comparator input varies by binaryweighted voltage steps (V

REF

/2, V

REF

/4 … V

REF

/262,144). The control logic toggles these switches, starting with the MSB, to bring the comparator back into a balanced condition. After the completion of this process, the part returns to the acquisition phase, and the control logic generates the ADC output code and a busy signal indicator.

Because the AD7986 has an on-board conversion clock, the serial clock, SCK, is not required for the conversion process.

CONVERSION MODES OF OPERATION

The AD7986 features two conversion modes of operation: turbo and normal. Turbo conversion mode (TURBO = high) allows the fastest conversion rate of up to 2 MSPS, and does not power down between conversions. The first conversion in turbo mode should be ignored because it contains meaningless data. For applications that require lower power and slightly slower sampling rates, the normal mode (TURBO = low) allows a maximum conversion rate of 1.5 MSPS, and powers down between conversion. The first conversion in normal mode does contain meaningful data.

Rev. B | Page 13 of 28

AD7986

Transfer Functions

The ideal transfer characteristic for the AD7986 is shown in

Figure 22 and Table 7.

011 ... 111

011 ... 110

011 ... 101

Table 7. Output Codes and Ideal Input Voltages

Description

FSR − 1 LSB

Midscale + 1 LSB

Midscale

Midscale − 1 LSB

Analog Input

V

REF

= 5 V

+4.095969 V

+31.25 µV

0 V

−31.25 µV

Digital Output

Code (Hex)

0x1FFFF

1

0x00001

0x00000

0x3FFFF

−FSR + 1 LSB −4.095969 V 0x20001

−FSR −4.096 V

0x20000

2

1

This is also the code for an overranged analog input (V

IN+

− V

IN−

above V

REF

2

REFGND).

This is also the code for an underranged analog input (V

IN+

− V

IN−

below REFGND).

TYPICAL CONNECTION DIAGRAM

Figure 23 shows an example of the recommended connection

diagram for the AD7986 when multiple supplies are available.

100 ... 010

100 ... 001

100 ... 000

–FSR

–FSR + 1 LSB

–FSR + 0.5 LSB

+FSR – 1 LSB

+FSR – 1.5 LSB

ANALOG INPUT

Figure 22. ADC Ideal Transfer Function

5V 2.5V

1.8V TO 2.7V

V+

0V TO V

REF

V

REF

TO 0V

V–

V+

15

2.7nF

15

2.7nF

IN+

IN–

BVDD

AVDD,

VIO

DVDD

TURBO

SDI

AD7986 SCLK

SDO

CNV

REF GND

1

10µF

VIO

3- OR 4-WIRE

INTERFACE:

SPI, CS

DAISY CHAIN (TURBO = LOW)

V–

NOTES

1. GND REFERS TO REFGND, AGND, AND DGND.

Figure 23. Typical Application Diagram with Multiple Supplies

Rev. B | Page 14 of 28

ANALOG INPUTS

Figure 24 shows an equivalent circuit of the input structure of

the AD7986.

The two diodes, D1 and D2, provide ESD protection for the analog inputs, IN+ and IN−. Care must be taken to ensure that the analog input signal does not exceed the reference input voltage (REF) by more than 0.3 V. If the analog input signal exceeds this level, the diodes become forward-biased and start conducting current. These diodes can handle a forward-biased current of 130 mA maximum. However, if the supplies of the input buffer (for example, the V+ and V− supplies of the buffer

amplifier in Figure 23) are different from those of REF, the

analog input signal may eventually exceed the supply rails by more than 0.3 V. In such a case (for example, an input buffer with a short circuit), the current limitation can be used to protect the part.

REF

D1

R

IN

C

IN

IN+ OR IN–

C

PIN

D2

GND

Figure 24. Equivalent Analog Input Circuit

The analog input structure allows the sampling of the true differential signal between IN+ and IN−. By using these differential inputs, signals common to both inputs are rejected.

During the acquisition phase, the impedance of the analog inputs (IN+ or IN−) can be modeled as a parallel combination of Capacitor C of R

IN

and C

IN

PIN

. C

and the network formed by the series connection

PIN

is primarily the pin capacitance. R

IN

is typically

400 Ω and is a lumped component composed of serial resistors and the on resistance of the switches. C

IN is mainly the ADC sampling capacitor.

is typically 30 pF and

During the sampling phase, where the switches are closed, the input impedance is limited to C

PIN

. R

IN

and C

IN

make a one-pole, low-pass filter that reduces undesirable aliasing effects and limits noise.

When the source impedance of the driving circuit is low, the

AD7986 can be driven directly. Large source impedances significantly affect the ac performance, especially THD. The dc performances are less sensitive to the input impedance. The maximum source impedance depends on the amount of THD that can be tolerated. The THD degrades as a function of the source impedance and the maximum input frequency.

AD7986

DRIVER AMPLIFIER CHOICE

Although the AD7986 is easy to drive, the driver amplifier must meet the following requirements:

The noise generated by the driver amplifier must be kept as low as possible to preserve the SNR and transition noise performance of the AD7986. The noise from the driver is filtered by the AD7986 analog input circuit’s one-pole, lowpass filter, made by R

IN

and C

IN

or by the external filter, if one is used. Because the typical noise of the AD7986 is

62.5 µV rms, the SNR degradation due to the amplifier is

SNR

LOSS

=

20 log

3 4 .4

2

+

π

2

62.5

f

3dB

(

Ne

N

)

2

f

where:

–3dB

is the input bandwidth, in megahertz, of the AD7986

(20 MHz) or the cutoff frequency of the input filter, if one is used.

N is the noise gain of the amplifier (for example, 1 in buffer configuration).

e

N

is the equivalent input noise voltage of the op amp, in nV/√Hz.

• For ac applications, the driver should have a THD performance commensurate with the AD7986.

• For multichannel multiplexed applications, the driver amplifier and the AD7986 analog input circuit must settle for a full-scale step onto the capacitor array at an 18-bit level

(0.0004%, 4 ppm). In the data sheet of the driver amplifier, settling at 0.1% to 0.01% is more commonly specified. This may differ significantly from the settling time at an 18-bit level and should be verified prior to driver selection.

Table 8. Recommended Driver Amplifiers

Amplifier Typical Application

AD8021

AD8022

ADA4899-1

AD8014

Very low noise and high frequency

Low noise and high frequency

Ultralow noise and high frequency

Low power and high frequency

Rev. B | Page 15 of 28

AD7986

VOLTAGE REFERENCE INPUT

The AD7986 allows the choice of a very low temperature drift internal voltage reference, an external reference, or an external buffered reference.

The internal reference of the AD7986 provides excellent performance and can be used in almost all applications.

Internal Reference, REF = 4.096V (PDREF = Low)

To use the internal reference, the PDREF input must be low.

This enables the on-chip band gap reference and buffer, resulting in a 4.096 V reference on the REF pin (1.2 V on REFIN).

The internal reference is temperature compensated to 4.096 V ±

15 mV. The reference is trimmed to provide a typical drift of

10 ppm/°C.

The output resistance of REFIN is 6 kΩ when the internal reference is enabled. It is necessary to decouple this pin with a ceramic capacitor of at least 100 nF. The output resistance of

REFIN and the decoupling capacitor form an RC filter, which helps to reduce noise.

Because the output impedance of REFIN is typically 6 kΩ, relative humidity (among other industrial contaminants) can directly affect the drift characteristics of the reference. A guard ring is typically used to reduce the effects of drift under such circumstances. However, the fine pitch of the AD7986 makes this difficult to implement. One solution, in these industrial and other types of applications, is to use a conformal coating, such as

Dow Corning® 1-2577 or HumiSeal® 1B73.

External 1.2 V Reference and Internal Buffer (PDREF = High)

To use an external reference along with the internal buffer, PDREF should be high. This powers down the internal reference and allows the 1.2 V reference to be applied to REFIN, producing

4.096 V (typically) on the REF pin.

External Reference (PDREF = High, REFIN = Low)

To apply an external reference voltage directly to the REF pin,

PDREF should be tied high, and REFIN should be tied low.

BVDD should also be driven to the same potential as REF. For example, if REF = 2.5 V, BVDD should be tied to 2.5 V.

The advantages of directly using the external voltage reference are:

• The SNR and dynamic range improvement (about 1.7 dB) resulting from the use of a larger reference voltage (5 V) instead of a typical 4.096 V reference when the internal reference is used. This is calculated by

SNR

=

20 log

4 .

096

5 .

0

• The power savings when the internal reference is powered down (PDREF high).

Reference Decoupling

The AD7986 voltage reference input, REF, has a dynamic input impedance that requires careful decoupling between the REF

and REFGND pins. The Layout section describes how this can

be done.

When using an external reference, a very low impedance source

(for example, a reference buffer using the AD8031 or the

AD8605), and a 10 µF (X5R, 0805 size) ceramic chip capacitor are appropriate for optimum performance.

If an unbuffered reference voltage is used, the decoupling value depends on the reference used. For instance, a 22 µF (X5R,

1206 size) ceramic chip capacitor is appropriate for optimum performance using a low temperature drift ADR43x reference.

If desired, a reference decoupling capacitor with values as small as 2.2 µF can be used with minimal impact on performance, especially DNL.

Regardless, there is no need for an additional lower value ceramic decoupling capacitor (for example, 100 nF) between the REF and REFGND pins.

POWER SUPPLY

The AD7986 uses four power supply pins: an analog supply

(AVDD), a buffer supply (BVDD), a digital supply (DVDD), and a digital input/output interface supply (VIO). VIO allows direct interface with any logic between 1.8 V and 2.7 V. To reduce the number of supplies needed, VIO, DVDD, and AVDD can be tied together. The AD7986 is independent of power supply sequencing among all of its supplies. Additionally, it is very insensitive to power supply variations over a wide frequency range.

Rev. B | Page 16 of 28

DIGITAL INTERFACE

Although the AD7986 has a reduced number of pins, it offers flexibility in its serial interface modes.

When in CS mode, the AD7986 is compatible with SPI,

MICROWIRE™, QSPI™, and digital hosts. In this mode, the

AD7986 can use either a 3-wire or a 4-wire interface. A 3-wire interface using the CNV, SCK, and SDO signals minimizes wiring connections, which is useful, for instance, in isolated applications. A 4-wire interface using the SDI, CNV, SCK, and

SDO signals allows CNV, which initiates conversions, to be independent of the readback timing (SDI). This is useful in low jitter sampling or simultaneous sampling applications.

When in chain mode, the AD7986 provides a daisy-chain feature using the SDI input for cascading multiple ADCs on a single data line similar to a shift register. Chain mode is only available in normal mode (TURBO = low).

The mode in which the part operates depends on the SDI level when the CNV rising edge occurs. The CS mode is selected if

SDI is high, and the chain mode is selected if SDI is low. The

SDI hold time is such that when SDI and CNV are connected together, the chain mode is always selected.

In normal mode operation, the AD7986 offers the option of forcing a start bit in front of the data bits. This start bit can be used as a busy signal indicator to interrupt the digital host and trigger the data reading. Otherwise, without a busy indicator, the user must time out the maximum conversion time prior to readback.

AD7986

The busy indicator feature is enabled in CS mode if CNV or

SDI is low when the ADC conversion ends (see Figure 28 and

Figure 32), and TURBO must be kept low for both digital

interfaces.

When CNV is low, reading can occur during conversion and acquisition, and when split across acquisition and conversion, as detailed in the following sections.

A discontinuous SCK is recommended because the part is selected with CNV low, and SCK activity begins to clock out data.

Note that in the following sections, the timing diagrams indicate digital activity (SCK, CNV, SDI, and SDO) during the conversion. However, due to the possibility of performance degradation, digital activity should occur only prior to the safe data reading time, t

DATA

, because the AD7986 provides error correction circuitry that can correct for an incorrect bit decision during this time. From t

DATA

to t

CONV

, there is no error correction, and conversion results may be corrupted. Similarly, t

QUIET

, the time from the last falling edge of SCK to the rising edge of CNV, must remain free of digital activity. The user should configure the AD7986 and initiate the busy indicator (if desired in normal mode) prior to t

DATA

. It is also possible to corrupt the sample by having SCK near the sampling instant. Therefore, it is recommended to keep the digital pins quiet for approximately 20 ns before and 10 ns after the rising edge of CNV, using a discontinuous SCK whenever possible to avoid any potential performance degradation.

Rev. B | Page 17 of 28

AD7986

DATA READING OPTIONS

There are three different data reading options for the AD7986.

There is the option to read during conversion, to split the read

across acquisition and conversion (see Figure 27 and Figure 28),

and in normal mode, to read during acquisition. The desired

SCK frequency largely determines which reading option to pursue.

Reading During Conversion, Fast Hosts (Turbo or

Normal Mode)

When reading during conversion (n), conversion results are for the previous (n − 1) conversion. Reading should only occur up to t

DATA

and, because this time is limited, the host must use a fast SCK.

The required SCK frequency is calculated by

f

SCK

Number

_

SCK t

DATA

_

Edges

To determine the SCK frequency, follow these examples to read data from conversion (n − 1).

Turbo mode (2 MSPS):

Number_SCK_Edges = 18; t

DATA

= 200 ns

f

SCK

= 18/200 ns = 90 MHz

Normal mode (1.5 MSPS):

Number_SCK_Edges = 18; t

DATA

= 300 ns

f

SCK

= 18/300 ns = 60 MHz

The time between t be corrupt.

DATA

and t

CONV

is an I/O quiet time where digital activity should not occur, or sensitive bit decisions may

Split-Reading, Any Speed Host (Turbo or Normal Mode)

To allow for slower SCK, there is the option of a split read where data access starts at the current acquisition (n) and spans into the conversion (n). Conversion results are for the previous (n − 1) conversion.

Similar to reading during conversion, split-reading should only occur up to t

DATA

. For the maximum throughput, the only time restriction is that split-reading take place during the t

ACQ

− t

QUIET

(minimum) + t

DATA

time. The time between the falling edge of SCK and CNV rising is an acquisition quiet time, t

QUIET

.

To determine how to split the read for a particular SCK frequency, follow these examples to read data from conversion (n − 1).

For turbo mode (2 MSPS),

f

SCK

= 65 MHz; t

DATA

= 200 ns

Number_SCK_Edges = 65 MHz × 200 ns = 13

Thirteen bits are read during conversion (n), and five bits are read during acquisition (n).

For normal mode (1.5 MSPS),

f

SCK

= 50 MHz; t

DATA

= 300 ns

Number_SCK_Edges = 50 MHz × 300 ns = 15

Fifteen bits are read during conversion (n), and three bits are read during acquisition (n).

For slow throughputs, the time restriction is dictated by the user’s required throughput, and the host is free to run at any speed. Similar to the reading during acquisition, for slow hosts, the data access must take place during the acquisition phase with additional time into the conversion.

Note that data access spanning conversion requires the CNV to be driven high to initiate a new conversion, and data access is not allowed when CNV is high. Thus, the host must perform two bursts of data access when using this method.

Reading During Acquisition, Any Speed Hosts (Turbo or

Normal Mode)

When reading during acquisition (n), conversion results are for the previous (n − 1) conversion. Maximum throughput is achievable in normal mode (1.5 MSPS); however, in turbo mode, 2 MSPS throughput is not achievable.

For the maximum throughput, the only time restriction is that the reading takes place during the t

ACQ

(minimum) time. For slow throughputs, the time restriction is dictated by throughput required by the user, and the host is free to run at any speed.

Thus for slow hosts, data access must take place during the acquisition phase.

Rev. B | Page 18 of 28

CS MODE, 3-WIRE WITHOUT BUSY INDICATOR

This mode is usually used when a single AD7986 is connected to an SPI-compatible digital host. The connection diagram is

shown in Figure 25, and the corresponding timing is given in

Figure 26.

With SDI tied to VIO, a rising edge on CNV initiates a conversion, selects the CS mode, and forces SDO to high impedance. Once a conversion is initiated, it continues until completion irrespective of the state of CNV. This can be useful, for instance, to bring

CNV low to select other SPI devices, such as analog multiplexers; however, CNV must be returned high before the minimum

AD7986

conversion time elapses and then held high for the maximum possible conversion time to avoid the generation of the busy signal indicator. When the conversion is complete, the AD7986 enters the acquisition phase and powers down. When CNV goes low, the MSB is output onto SDO. The remaining data bits are clocked by subsequent SCK falling edges. The data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the SCK falling edge allows a faster reading rate, provided that it has an acceptable hold time. After the 18 th SCK falling edge or when CNV goes high

(whichever occurs first), SDO returns to high impedance.

VIO

CNV

SDI

AD7986

SDO

CONVERT

DIGITAL HOST

DATA IN

SCK

CLK

Figure 25. CS Mode, 3-Wire Without Busy Indicator Connection Diagram (SDI High)

t

CYC t

DATA

> t

CONV t

CONV t

CNVH t

CONV t

DATA

SDI = 1

CNV

ACQUISITION

(n - 1)

SCK

SDO t

ACQ

CONVERSION (n – 1)

(I/O QUIET

TIME)

ACQUISITION (n)

(QUIET

TIME)

CONVERSION (n) t

DIS t

QUIET

16 17 18

1

2 16 17 18 t

SCK t

EN t

EN t

HSDO t

DSDO

2 1

END DATA (n – 2)

0 t

DIS

17 16 15

BEGIN DATA (n – 1)

2 1 t

DIS

END DATA (n – 1)

0

Figure 26. CS Mode, 3-Wire Without Busy Indicator Serial Interface Timing (SDI High)

(I/O QUIET

TIME)

ACQUISITION

(n + 1) t

DIS

Rev. B | Page 19 of 28

AD7986

CS MODE, 3-WIRE WITH BUSY INDICATOR

This mode is usually used when a single AD7986 is connected to an SPI-compatible digital host having an interrupt input.

It is only available in normal conversion mode (TURBO = low).

The connection diagram is shown in Figure 27, and the corresponding timing is given in Figure 28.

With SDI tied to VIO, a rising edge on CNV initiates a conversion, selects the CS mode, and forces SDO to high impedance. SDO is maintained in high impedance until the completion of the conversion irrespective of the state of CNV. Prior to the minimum conversion time, CNV can be used to select other SPI devices, such as analog multiplexers, but CNV must be returned low before the minimum conversion time elapses and then held low for the maximum possible conversion time to guarantee the generation of the busy signal indicator.

VIO

SDI

When the conversion is complete, SDO goes from high impedance to low impedance. With a pull-up on the SDO line, this transition can be used as an interrupt signal to initiate the data reading controlled by the digital host. The AD7986 then enters the acquisition phase and powers down. The data bits are then clocked out, MSB first, by subsequent SCK falling edges. The data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the SCK falling edge allows a faster reading rate, provided that it has an acceptable hold time. After the optional 19 th SCK falling edge, SDO returns to high impedance.

If multiple AD7986 devices are selected at the same time, the

SDO output pin handles this contention without damage or induced latch-up. Meanwhile, it is recommended to keep this contention as short as possible to limit extra power dissipation.

CNV

AD7986

SDO

CONVERT

VIO

47k

DIGITAL HOST

DATA IN

IRQ

SCK TURBO

CLK

Figure 27. CS Mode, 3-Wire with Busy Indicator Connection Diagram (SDI High)

TURBO = 0

SDI = 1 t

CYC

CNV t

CNVH

ACQUISITION t

CONV

CONVERSION t

ACQ

ACQUISITION

(QUIET

TIME) t

SCK t

SCKL t

QUIET

SCK

1 t

HSDO

2 3 17 t

SCKH

18 19 t

DSDO

D16 t

DIS

SDO

D17 D1 D0

Figure 28. CS Mode, 3-Wire with Busy Indicator Serial Interface Timing (SDI High)

Rev. B | Page 20 of 28

CS MODE, 4-WIRE WITHOUT BUSY INDICATOR

This mode is usually used when multiple AD7986 devices are connected to an SPI-compatible digital host.

A connection diagram example using two AD7986 devices is

shown in Figure 29, and the corresponding timing is given in

Figure 30.

With SDI high, a rising edge on CNV initiates a conversion, selects the CS mode, and forces SDO to high impedance. In this mode,

CNV must be held high during the conversion phase and the subsequent data readback. (If SDI and CNV are low, SDO is driven low.) Prior to the minimum conversion time, SDI can be used to select other SPI devices, such as analog multiplexers,

AD7986

but SDI must be returned high before the minimum conversion time elapses and then held high for the maximum possible conversion time to avoid the generation of the busy signal indicator. When the conversion is complete, the AD7986 enters the acquisition phase and powers down. Each ADC result can be read by bringing its SDI input low, which consequently outputs the MSB onto SDO. The remaining data bits are then clocked by subsequent SCK falling edges. The data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the SCK falling edge allows a faster reading rate, provided that it has an acceptable hold time. After the 18 th

SCK falling edge, SDO returns to high impedance and another AD7986 can be read.

CS2

CS1

CONVERT

CNV

SDI

AD7986

SDO

CNV

SDI

AD7986

SDO

DIGITAL HOST

SCK

SCK

DATA IN

CLK

Figure 29. CS Mode, 4-Wire Without Busy Indicator Connection Diagram

t

CYC t

DATA t

CONV t

CONV t

DATA

CNV

ACQUISITION

(n – 1)

CONVERSION (n – 1) t

HSDICNV

(I/O QUIET

TIME) t

ACQ

ACQUISITION (n)

(QUIET

TIME)

CONVERSION (n)

(I/O QUIET

TIME)

ACQUISITION

(n + 1)

SDI

SCK

SDO t

SSDICNV t

EN

16

2

17

1

END DATA (n – 2) t

QUIET

18 1 2 16 17 18 t

SCK t

EN t

HSDO t

DSDO

0 17 16 15 2 1 t

HSDO

BEGIN DATA (n – 1) t

DIS

END DATA (n – 1)

Figure 30. CS Mode, 4-Wire Without Busy Indicator Serial Interface Timing

0 t

DIS

Rev. B | Page 21 of 28

AD7986

CS MODE, 4-WIRE WITH BUSY INDICATOR

This mode is usually used when a single AD7986 is connected to an SPI-compatible digital host with an interrupt input and when it is desired to keep CNV, which is used to sample the analog input, independent of the signal used to select the data reading. This independence is particularly important in applications where low jitter on CNV is desired. This mode is only available in normal conversion mode (TURBO = low).

The connection diagram is shown in Figure 31, and the corresponding timing is given in Figure 32.

With SDI high, a rising edge on CNV initiates a conversion, selects the CS mode, and forces SDO to high impedance. In this mode, CNV must be held high during the conversion phase and the subsequent data readback. (If SDI and CNV are low, SDO is driven low.) Prior to the minimum conversion time, SDI can be used to select other SPI devices, such as analog multiplexers, but SDI must be returned low before the minimum conversion time elapses and then held low for the maximum possible conversion time to guarantee the generation of the busy signal indicator. When the conversion is complete, SDO goes from high impedance to low impedance. With a pull-up on the SDO line, this transition can be used as an interrupt signal to initiate the data readback controlled by the digital host. The AD7986 then enters the acquisition phase and powers down. The data bits are then clocked out, MSB first, by subsequent SCK falling edges. The data is valid on both SCK edges. Although the rising edge can be used to capture the data, a digital host using the

SCK falling edge allows a faster reading rate, provided that it has an acceptable hold time. After the optional 19 high impedance. th SCK falling edge or SDI going high (whichever occurs first), SDO returns to

SDI

CNV

AD7986

SCK

SDO

CS1

CONVERT

VIO

47k

DIGITAL HOST

DATA IN

IRQ

TURBO

CLK

Figure 31. CS Mode, 4-Wire with Busy Indicator Connection Diagram

TURBO = 0 t

CYC

CNV t

CONV t

ACQ

ACQUISITION CONVERSION ACQUISITION

(I/O QUIET

TIME) t

SSDICNV

SDI t

HSDICNV

SCK

SDO t

SCK t

EN

1 2 t

HSDO t

DSDO

D17

3 t

SCKL

17 t

SCKH

18

D16 D1

Figure 32. CS Mode, 4-Wire with Busy Indicator Serial Interface Timing

19

D0 t

DIS t

QUIET

Rev. B | Page 22 of 28

CHAIN MODE WITHOUT BUSY INDICATOR

This mode can be used to daisy-chain multiple AD7986 devices on a 3-wire serial interface. It is only available in normal conversion mode (TURBO = low). This feature is useful for reducing component count and wiring connections, for example, in isolated multiconverter applications or for systems with a limited interfacing capacity. Data readback is analogous to clocking a shift register.

A connection diagram example using two AD7986 devices is

shown in Figure 33, and the corresponding timing is given in

Figure 34.

When SDI and CNV are low, SDO is driven low. With SCK low, a rising edge on CNV initiates a conversion, selects the chain mode, and disables the busy indicator. In this mode, CNV is

AD7986

held high during the conversion phase and the subsequent data readback. When the conversion is complete, the MSB is output onto SDO, and the AD7986 enters the acquisition phase and powers down. The remaining data bits stored in the internal shift register are clocked by subsequent SCK falling edges. For each ADC, SDI feeds the input of the internal shift register and is clocked by the SCK falling edge. Each ADC in the chain outputs its data MSB first, and 18 × N clocks are required to read back the N ADCs. The data is valid on both SCK edges.

Although the rising edge can be used to capture the data, a digital host using the SCK falling edge allows a faster reading rate and consequently more AD7986 devices in the chain, provided that the digital host has an acceptable hold time. The maximum conversion rate may be reduced due to the total readback time.

CONVERT

CNV

SDI

AD7986

A

SCK

SDO

TURBO

CNV

SDI

AD7986

B

SCK

SDO

TURBO

DIGITAL HOST

DATA IN

CLK

Figure 33. Chain Mode Without Busy Indicator Connection Diagram

TURBO= 0

CNV = SDI

A

ACQUISITION

SCK t

HSCKCNV

SDO

A

= SDI

B

SDO

B

= SDI

C

SDO

C t

CYC

CONVERSION t t

CONV t t

SSCKCNV

EN

DSDOSDI t

DSDOSDI t

ACQ

ACQUISITION t

SCK t

SCKH

4 1 t

SSDISCK

2 3 t

HSDISCK t t

HSDO

DSDO

D

A

17 D

A

16 D

A

15

D

B

17 D

B

16 D

B

15

17 18

D

A

1 t

19

SCKL

D

A

0

20 21

D

B

1 D

B

0 D

A

17 D

A

16

D

C

17 D

C

16 D

C

15 D

C

1 D

C

0 D

B

17 D

B

16

35 36 37

D

A

1 D

A

0

38 39

D

B

1 D

B

0 D

A

17 D

A

16

Figure 34. Chain Mode Without Busy Indicator Serial Interface Timing

53 54 t

DSDOSDI

55 t

DSDOSDI t

DSDOSDI

D

A

1 D

A

0

Rev. B | Page 23 of 28

AD7986

CHAIN MODE WITH BUSY INDICATOR

This mode can also be used to daisy-chain multiple AD7986 devices on a 3-wire serial interface while providing a busy indicator. This feature is useful for reducing component count and wiring connections, for example, in isolated multiconverter applications or for systems with a limited interfacing capacity.

Data readback is analogous to clocking a shift register. A connection diagram example using three AD7986 devices is

shown in Figure 35, and the corresponding timing is given in

Figure 36.

When SDI and CNV are low, SDO is driven low. With SCK high, a rising edge on CNV initiates a conversion, selects the chain mode, and enables the busy indicator feature. In this mode, CNV is held high during the conversion phase and the subsequent data readback. When all ADCs in the chain have completed their conversions, the SDO pin of the ADC closest to

the digital host (see the AD7986 ADC labeled C in Figure 35) is

driven high. This transition on SDO can be used as a busy indicator to trigger the data readback controlled by the digital host. The

AD7986 then enters the acquisition phase and powers down.

The data bits stored in the internal shift register are clocked out,

MSB first, by subsequent SCK falling edges. For each ADC, SDI feeds the input of the internal shift register and is clocked by the

SCK falling edge. Each ADC in the chain outputs its data MSB first, and 18 × N + 1 clocks are required to read back the N ADCs.

Although the rising edge can be used to capture the data, a digital host using the SCK falling edge allows a faster reading rate and consequently more AD7986 devices in the chain, provided that the digital host has an acceptable hold time.

CNV

SDI

AD7986

A

SCK

SDO

TURBO

CNV

SDI

AD7986

B

SCK

SDO

TURBO

CNV

SDI

AD7986

C

SCK

SDO

TURBO

Figure 35. Chain Mode with Busy Indicator Connection Diagram

CONVERT

DIGITAL HOST

DATA IN

IRQ

CLK

TURBO = 0

CNV = SDI

A

ACQUISITION

SCK t

HSCKCNV

SDO

A

= SDI

B

SDO

B

= SDI

C t

CONV

CONVERSION t t

QUIET

EN t

DSDOSDI t

DSDOSDI t

ACQ

ACQUISITION t

SCK t

SCKH

4 1 t

SSDISCK

2 3 t

HSDISCK t

HSDO t

DSDO

D

A

17 D

A

16 D

A

15

D

B

17 D

B

16 D

B

15

17 18

D

A

1 t

19

SCKL

D

A

0

20 21

D

B

1 D

B

0 D

A

17 D

A

16

35

SDO

C t

CYC

36 37

D

A

1 D

A

0

38 39

D

C

17 D

C

16 D

C

15 D

C

1 D

C

0 D

B

17 D

B

16 D

B

1 D

B

0 D

A

17 D

A

16

Figure 36. Chain Mode with Busy Indicator Serial Interface Timing

53 54 t

DSDOSDI

55 t

DSDOSDI t

DSDOSDI

D

A

1 D

A

0

Rev. B | Page 24 of 28

APPLICATION HINTS

LAYOUT

The printed circuit board (PCB) that houses the AD7986 should be designed so that the analog and digital sections are separated and confined to certain areas of the board. The pinout of the

AD7986, with its analog signals on the left side and its digital signals on the right side, eases this task.

Avoid running digital lines under the device because these couple noise onto the die, unless a ground plane under the AD7986 is used as a shield. Fast switching signals, such as CNV or clocks, should not run near analog signal paths. Crossover of digital and analog signals should be avoided.

At least one ground plane should be used. It can be common or split between the digital and analog sections. In the latter case, the planes should be joined underneath the AD7986 devices.

AD7986

The AD7986 voltage reference input, REF, has a dynamic input impedance and should be decoupled with minimal parasitic inductances. This is done by placing the reference decoupling ceramic capacitor close to, ideally right up against, the REF and REFGND pins and connecting them with wide, low impedance traces.

Finally, the power supplies, VDD and VIO of the AD7986, should be decoupled with ceramic capacitors, typically 100 nF, placed close to the AD7986 and connected using short, wide traces to provide low impedance paths and to reduce the effect of glitches on the power supply lines.

EVALUATING THE AD7986 PERFORMANCE

The evaluation board package for the AD7986 (EVAL-AD7986EB) includes a fully assembled and tested evaluation board and software for controlling the board from a PC via the converter evaluation and development board, EVAL-CED1Z .

Rev. B | Page 25 of 28

AD7986

BVDD AVDD

REF

REF REF

1

2

4

3

5

PADDLE

GND GND

GND GND

6

GND GND GND

VIO

Figure 37. Example Layout of the AD7986 (Top Layer)

DVDD

5V

EXTERNAL

REFERENCE

(ADR435 OR ADR445)

REF REF

REF

CREF

CBVDD

BVDD AVDD CAVDD

GND

GND GND

GND GND

CDVDD

DVDD

GND GND GND

VIO

CVIO

VIO

Figure 38. Example Layout of the AD7986 (Bottom Layer)

Rev. B | Page 26 of 28

OUTLINE DIMENSIONS

AD7986

0.60 MAX

4.00

BSC SQ

0.60 MAX

PIN 1

INDICATOR

3.75

BSC SQ

0.50

BSC

15

16

EXPOSED

PAD

(BOTTOM VIEW)

20

1

5

11

10 6

PIN 1

INDICATOR

2.65

2.50 SQ

2.35

TOP VIEW

0.50

0.40

0.30

0.25 MIN

1.00

0.85

0.80

12° MAX

SEATING

PLANE

0.80 MAX

0.65 TYP

0.05 MAX

0.02 NOM

COPLANARITY

0.08

0.20 REF

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.30

0.23

0.18

COMPLIANT

TO

JEDEC STANDARDS MO-220-VGGD-1

Figure 39. 20-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

4 mm × 4 mm Body, Very Thin Quad

(CP-20-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model 1, 2, 3

AD7986BCPZ

Temperature Range Package Description

−40°C to +85°C 20-Lead Lead Frame Chip Scale Package [LFCSP_VQ], Tray

Package

Option

Ordering

Quantity

CP-20-4 490

AD7986BCPZ-RL7 −40°C to +85°C

EVAL-AD7986EBZ

EVAL-CED1Z

20-Lead Lead Frame Chip Scale Package [LFCSP_VQ], 7” Tape and Reel CP-20-4 1,500

Evaluation Board

Converter Evaluation and Development Board

1

2

3

Z = RoHS Compliant Part.

The EVAL-AD7986EBZ can be used as a standalone evaluation board or in conjunction with the EVAL-CED1Z for evaluation/demonstration purposes.

The EVAL-CED1Z allows a PC to control and communicate with all Analog Devices evaluation boards ending in the EB designator.

Rev. B | Page 27 of 28

AD7986

NOTES

©2009–2011 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

D07956-0-3/11(B)

Rev. B | Page 28 of 28

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
