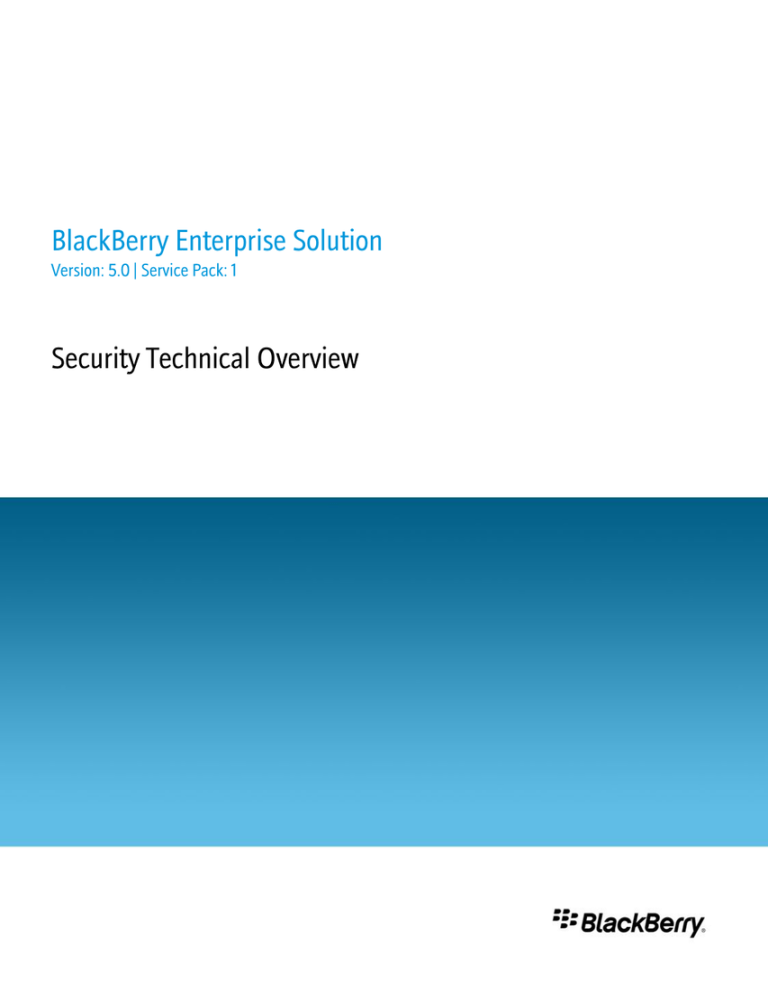

BlackBerry Enterprise Solution
Version: 5.0 | Service Pack: 1
Security Technical Overview
SWD-847262-1028044248-001
Contents
1
Overview.......................................................................................................................................................................................
BlackBerry Enterprise Solution security.......................................................................................................................................
Security features of the BlackBerry Enterprise Solution............................................................................................................
Architecture: BlackBerry Enterprise Solution..............................................................................................................................
9
9
10
11
2 New in this release......................................................................................................................................................................
16
3 Keys on a BlackBerry device......................................................................................................................................................
Device transport keys.....................................................................................................................................................................
States for device transport keys............................................................................................................................................
Where the BlackBerry Enterprise Solution stores device transport keys.........................................................................
Generating device transport keys........................................................................................................................................
Process flow: Generating a device transport key using BlackBerry Desktop Software version 4.0 or later...............
Process flow: Generating a device transport key using a BlackBerry Desktop Software version or BlackBerry
Enterprise Server version that is earlier than version 4.0.................................................................................................
Message keys...................................................................................................................................................................................
Process flow: Generating a message key on a BlackBerry Enterprise Server.................................................................
Process flow: Generating a message key on a BlackBerry device....................................................................................
Content protection keys.................................................................................................................................................................
Process flow: Turning on content protection using a BlackBerry Enterprise Server......................................................
Process flow: Generating a content protection key on a BlackBerry device...................................................................
Process flow: Deriving an ephemeral key that protects a content protection key and ECC private key.....................
Principal encryption keys...............................................................................................................................................................
Process flow: Generating a principal encryption key.........................................................................................................
PIN encryption keys........................................................................................................................................................................
17
18
18
19
20
22
23
24
24
25
25
26
26
27
27
28
28
4 Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other...........................
Algorithms that the BlackBerry Enterprise Solution uses to encrypt data...............................................................................
How the BlackBerry Enterprise Solution uses AES to encrypt data.................................................................................
How the BlackBerry Enterprise Solution uses Triple DES to encrypt data......................................................................
Process flow: Sending an email message to a BlackBerry device using BlackBerry transport layer encryption.................
Process flow: Sending an email message from a BlackBerry device using BlackBerry transport layer encryption............
29
29
29
31
31
32
5 Managing BlackBerry Enterprise Solution security...............................................................................................................
Using an IT policy to manage BlackBerry Enterprise Solution security...................................................................................
33
33
Using IT policy rules to manage BlackBerry Enterprise Solution security.......................................................................
Sending an IT policy over the wireless network..................................................................................................................
Using IT administration commands to protect a lost or stolen BlackBerry device.................................................................
Process flow: Sending the Specify new device password and lock device IT administration command when content
protection is turned on..........................................................................................................................................................
Managing BlackBerry device access to the BlackBerry Enterprise Server...............................................................................
Using a segmented network architecture to prevent the spread of malware.........................................................................
Moving a BlackBerry device to a BlackBerry Enterprise Server that uses a different BlackBerry Configuration Database
...........................................................................................................................................................................................................
Best practice: Controlling which applications can use the GPS feature on a BlackBerry device.........................................
33
34
34
35
36
37
37
37
6 BlackBerry device memory.........................................................................................................................................................
Changing when a BlackBerry device cleans the BlackBerry device memory..........................................................................
When a BlackBerry device overwrites data in the BlackBerry device memory........................................................................
Deleting all device data from the BlackBerry device memory...................................................................................................
When a BlackBerry device deletes device data...................................................................................................................
Using IT policy rules to specify when a BlackBerry device must delete device data.....................................................
Resetting a BlackBerry device to factory default settings.................................................................................................
Process flow: Deleting all device data from a BlackBerry device.....................................................................................
Scrubbing the memory of a BlackBerry device when deleting all BlackBerry device data....................................................
Scrubbing the BlackBerry device heap in RAM when deleting all BlackBerry device data...........................................
Scrubbing the flash memory on a BlackBerry device when deleting all BlackBerry device data.................................
Scrubbing the user files on a BlackBerry device when deleting all BlackBerry device data.........................................
39
39
40
41
41
42
42
43
43
44
44
45
7 Protecting data on a BlackBerry device...................................................................................................................................
Encrypting user data on a locked BlackBerry device..................................................................................................................
Configuring the encryption of BlackBerry device data on a locked BlackBerry device.................................................
Process flow: Encrypting user data on a locked BlackBerry device..................................................................................
Process flow: Decrypting user data on an unlocked BlackBerry device..........................................................................
Encrypting the device transport key on a locked BlackBerry device........................................................................................
What happens when a user resets a BlackBerry device after you turn on content protection for the device transport
key............................................................................................................................................................................................
Resetting a BlackBerry device password when content protection is turned on....................................................................
Process flow: Resetting a BlackBerry device password when content protection is turned on....................................
Protecting passwords that a BlackBerry device stores...............................................................................................................
Protecting data that a BlackBerry device stores on a media card............................................................................................
46
46
46
47
47
48
48
49
49
50
51
Process flow: Generating an encryption key for a media card.........................................................................................
How the BlackBerry Attachment Service protects data on a BlackBerry device.....................................................................
Best practice: Protecting the BlackBerry Attachment Service..........................................................................................
How a BlackBerry device protects its operating system and the BlackBerry Device Software.............................................
How a BlackBerry device authenticates the boot ROM code and binds the BlackBerry device processor when the
BlackBerry device turns on............................................................................................................................................................
51
52
52
52
8 Protecting the data that the BlackBerry Enterprise Solution stores in your organization's environment....................
Where the BlackBerry Enterprise Server stores messages and user data in the messaging environment..........................
Data that the BlackBerry Configuration Database stores..........................................................................................................
Best practice: Protecting the data that the BlackBerry Configuration Database stores...............................................
How the BlackBerry Enterprise Solution protects IT policies....................................................................................................
54
54
54
55
57
9 Protecting communication with a BlackBerry device............................................................................................................
Opening a direct connection between a BlackBerry device and a BlackBerry Router...........................................................
Process flow: Authenticating a BlackBerry device with the BlackBerry Enterprise Server using the BlackBerry Router
protocol....................................................................................................................................................................................
Closing a direct connection between a BlackBerry device and BlackBerry Router........................................................
Impersonation attacks that the BlackBerry Router protocol is designed to prevent.....................................................
How the BlackBerry Router protocol uses the Schnorr identification scheme to open an authenticated connection
..................................................................................................................................................................................................
Process flow: Using the BlackBerry Router protocol to close an authenticated connection........................................
Process flow: Using the BlackBerry Router protocol to open an authenticated connection........................................
Cryptosystem parameters that the BlackBerry Router protocol uses..............................................................................
Best practice: Protecting unsecured wireless messaging on the BlackBerry device..............................................................
How the BlackBerry Enterprise Solution protects connections between a BlackBerry device and the Internet or intranet
...........................................................................................................................................................................................................
Authenticating data that a BlackBerry device sends to the BlackBerry MDS Integration Service.......................................
Using SSL to connect to web services..................................................................................................................................
Process flow: Registering a BlackBerry device with a BlackBerry MDS Integration Service........................................
How a BlackBerry device protects a connection to a WAP gateway........................................................................................
Protecting HTTP connections from a BlackBerry device to content servers and application servers using HTTPS...........
What happens to data that is not delivered to a BlackBerry device.........................................................................................
What happens to data that is not delivered because the connection between a BlackBerry Enterprise Server and
the BlackBerry Infrastructure closes....................................................................................................................................
58
58
52
58
59
59
59
60
60
62
63
64
64
65
65
66
66
67
67
What happens to data that is not delivered because a BlackBerry device is not available on the wireless network
..................................................................................................................................................................................................
10 Protecting BlackBerry Enterprise Solution communications in your organization's environment.................................
How a BlackBerry Enterprise Server and the BlackBerry Infrastructure authenticate with each other...............................
What happens when a BlackBerry Enterprise Server and the BlackBerry Infrastructure open an initial connection
..................................................................................................................................................................................................
How the BlackBerry Enterprise Solution protects a TCP/IP connection between a BlackBerry Enterprise Server and
the BlackBerry Infrastructure................................................................................................................................................
Process flow: Authenticating a BlackBerry Enterprise Server with the BlackBerry Infrastructure...............................
How a BlackBerry Enterprise Server and messaging server protect a connection to each other.........................................
How the BlackBerry Enterprise Server components and the BlackBerry MVS protect communication..............................
How the BlackBerry Desktop Manager protects communication using the BlackBerry inter-process protocol.................
Process flow: Authenticating the application loader tool or Roxio Media Manager with the BlackBerry Desktop
Software using the BlackBerry inter-process protocol......................................................................................................
How the BlackBerry Collaboration Service protects the connections between the BlackBerry Collaboration Service and
instant messaging server...............................................................................................................................................................
67
68
68
68
69
69
70
71
71
72
72
11 Activating a BlackBerry device..................................................................................................................................................
Activating a BlackBerry device over the wireless network.........................................................................................................
Process flow: Activating a BlackBerry device over the wireless network.................................................................................
73
73
73
12 Enrolling certificates on a BlackBerry device over the wireless network...........................................................................
Process flow: Enrolling a certificate when the certification authority approves certificate requests automatically..........
Process flow: Enrolling a certificate when a certification authority administrator approves certificate requests..............
Process flow: Enrolling a certificate using an RSA certification authority...............................................................................
75
75
76
77
13 Protecting BlackBerry Device Software updates....................................................................................................................
Protecting BlackBerry Device Software updates over the wireless network...........................................................................
How the BlackBerry Enterprise Solution protects BlackBerry Device Software updates over the wireless network
using encryption.....................................................................................................................................................................
How the BlackBerry Enterprise Solution protects BlackBerry Device Software updates over the wireless network
using IT policies and content protection.............................................................................................................................
Battery power requirements for BlackBerry Device Software updates over the wireless network...............................
Process flow: Preparing to send a BlackBerry Device Software update over the wireless network.............................
How a BlackBerry device validates a BlackBerry Device Software update over the wireless network........................
79
79
79
79
80
80
80
Updating the BlackBerry Device Software from an update web site.......................................................................................
Protecting cryptographic services data when updating the BlackBerry Device Software from an update web site
..................................................................................................................................................................................................
Process flow: Generating a BlackBerry services key that protects cryptographic services data..................................
Process flow: Backing up cryptographic services data using the BlackBerry Desktop Manager.................................
Process flow: Restoring cryptographic services data using the BlackBerry Desktop Manager or BlackBerry
Application Web Loader.........................................................................................................................................................
80
14 Extending messaging security to a BlackBerry device..........................................................................................................
Extending messaging security using PGP encryption................................................................................................................
PGP public keys and PGP private keys................................................................................................................................
Retrieving PGP keys from a PGP Universal Server, LDAP servers, or DSML certificate servers...................................
Encryption algorithms that the BlackBerry device supports for PGP encryption...........................................................
Process flow: Sending an email message using PGP encryption.....................................................................................
Process flow: Receiving a PGP encrypted message...........................................................................................................
Extending messaging security using S/MIME encryption.........................................................................................................
S/MIME certificates and S/MIME private keys..................................................................................................................
Retrieving S/MIME certificates and checking certificate status......................................................................................
S/MIME encryption algorithms............................................................................................................................................
Process flow: Sending an email message using S/MIME encryption..............................................................................
Process flow: Receiving an S/MIME-encrypted email message.......................................................................................
Extending messaging security using IBM Lotus Notes encryption...........................................................................................
Protecting the password for an IBM Lotus Notes .id file...................................................................................................
Process flow: Sending an email message using IBM Lotus Notes encryption................................................................
Process flow: Receiving an IBM Lotus Notes encrypted message...................................................................................
Extending messaging security to attachments...........................................................................................................................
Process flow: Viewing an attachment in a PGP encrypted message or S/MIME-encrypted message.......................
Process flow: Viewing an attachment that is encrypted using S/MIME encryption, PGP/MIME encryption, or
OpenPGP encryption.............................................................................................................................................................
84
84
84
85
85
86
87
87
88
89
89
90
91
91
92
93
94
94
95
15 Configuring two-factor authentication and protecting Bluetooth connections...............................................................
BlackBerry Smart Card Reader......................................................................................................................................................
Advanced Security SD cards..........................................................................................................................................................
Two-factor authentication.............................................................................................................................................................
Verifying that a BlackBerry device is bound to a smart card............................................................................................
Process flow: Turning on two-factor authentication using a smart card.........................................................................
96
96
96
97
97
98
81
82
82
83
95
Creating two-factor authentication methods..................................................................................................................... 98
Two-factor content protection...................................................................................................................................................... 99
Unbinding a smart card from a BlackBerry device..................................................................................................................... 99
Protecting Bluetooth connections on a BlackBerry device........................................................................................................ 100
Using CHAP to open a Bluetooth connection between the BlackBerry Desktop Software and a BlackBerry device
.................................................................................................................................................................................................. 100
16 Wi-Fi enabled BlackBerry devices.............................................................................................................................................
Types of Wi-Fi networks.................................................................................................................................................................
Security features of a Wi-Fi enabled BlackBerry device.............................................................................................................
Protecting a connection between a Wi-Fi enabled BlackBerry device and an enterprise Wi-Fi network............................
How a Wi-Fi enabled BlackBerry device can connect to the BlackBerry Infrastructure.........................................................
How an SSL connection between a Wi-Fi enabled BlackBerry device and the BlackBerry Infrastructure protects
data..........................................................................................................................................................................................
Process flow: Opening an SSL connection between the BlackBerry Infrastructure and a Wi-Fi enabled BlackBerry
device.......................................................................................................................................................................................
Cipher suites that a Wi-Fi enabled BlackBerry device supports for opening SSL connections and TLS connections
..................................................................................................................................................................................................
Managing how a BlackBerry device connects to an enterprise Wi-Fi network.......................................................................
How the BlackBerry Enterprise Solution protects sensitive Wi-Fi information.......................................................................
Using a VPN with a Wi-Fi enabled BlackBerry device................................................................................................................
Permitting a Wi-Fi enabled BlackBerry device to log in to a VPN concentrator............................................................
Using a segmented network to reduce the spread of malware on an enterprise Wi-Fi network that uses a VPN
..................................................................................................................................................................................................
Using a captive portal to connect to an enterprise Wi-Fi network or Wi-Fi hotspot..............................................................
Protecting a connection between a Wi-Fi enabled BlackBerry device and an enterprise Wi-Fi network using RSA
authentication.................................................................................................................................................................................
Process flow: Generating a token code for a software token............................................................................................
17 Layer 2 security methods that a Wi-Fi enabled BlackBerry device supports.....................................................................
WEP encryption...............................................................................................................................................................................
PSK protocol....................................................................................................................................................................................
IEEE 802.1X standard.....................................................................................................................................................................
Caching a PMK when using the IEEE 802.1X standard.....................................................................................................
Process flow: Authenticating a Wi-Fi enabled BlackBerry device with an enterprise Wi-Fi network using the IEEE
802.1X standard......................................................................................................................................................................
101
101
102
104
104
105
105
105
107
107
107
108
108
109
109
109
111
111
112
112
112
113
EAP authentication methods that a Wi-Fi enabled BlackBerry device supports.....................................................................
LEAP authentication...............................................................................................................................................................
PEAP authentication..............................................................................................................................................................
EAP-TLS authentication.........................................................................................................................................................
EAP-TTLS authentication.......................................................................................................................................................
EAP-FAST authentication......................................................................................................................................................
EAP-SIM authentication........................................................................................................................................................
Encryption keys that a Wi-Fi enabled BlackBerry device supports for use with layer 2 security methods..........................
EAP authentication methods that a BlackBerry device supports the use of CCKM with.......................................................
Using certificates with PEAP authentication, EAP-TLS authentication, or EAP-TTLS authentication.................................
113
113
114
114
114
115
115
115
116
116
18 Protecting a third-party application on a BlackBerry device...............................................................................................
Creating a third-party application for a BlackBerry device.......................................................................................................
Specifying the resources third-party applications can access on a BlackBerry device..........................................................
Managing third-party applications on a BlackBerry device using application control policy rules.............................
Managing BlackBerry Java Applications on a BlackBerry device using code signing...................................................
Permitting a third-party application to encode data on a BlackBerry device.........................................................................
Removing third-party applications when a user deletes all BlackBerry device data..............................................................
117
117
117
117
118
119
119
19 RIM Cryptographic API............................................................................................................................................................... 120
Cryptographic algorithms and cryptographic codes that the RIM Cryptographic API supports.......................................... 120
Symmetric block algorithms that the RIM Cryptographic API supports.......................................................................... 120
Stream encryption algorithms that the RIM Cryptographic API supports...................................................................... 120
Asymmetric encryption algorithms that the RIM Cryptographic API supports.............................................................. 121
Key agreement scheme algorithms that the RIM Cryptographic API supports............................................................. 121
Signature scheme algorithms that the RIM Cryptographic API supports....................................................................... 121
Key generation algorithms that the RIM Cryptographic API supports............................................................................ 122
Message authentication codes that the RIM Cryptographic API supports..................................................................... 122
Message digest codes that the RIM Cryptographic API supports.................................................................................... 122
TLS and WTLS protocols that the RIM Cryptographic API supports......................................................................................... 122
Cipher suites for the key establishment algorithm that the RIM Cryptographic API supports.................................... 123
Symmetric algorithms that the RIM Cryptographic API supports.................................................................................... 123
Hash algorithms that the RIM Cryptographic API supports............................................................................................. 123
Limitations of RIM Cryptographic API support for cipher suites for the key establishment algorithm................................ 124
20 Related resources........................................................................................................................................................................
125
21 Glossary.........................................................................................................................................................................................
127
22 Provide feedback......................................................................................................................................................................... 139
23 Legal notice.................................................................................................................................................................................. 140
Overview
Security Technical Overview
Overview
1
BlackBerry Enterprise Solution security
The BlackBerry® Enterprise Solution consists of various products and components that are designed to extend your organization’s
communication methods to BlackBerry devices. The BlackBerry Enterprise Solution is designed to protect data that is in transit
at all points between a BlackBerry device and BlackBerry® Enterprise Server. To protect data that is in transit over the wireless
network, the BlackBerry Enterprise Server and BlackBerry device use symmetric key cryptography to encrypt the data. Only the
BlackBerry Enterprise Server and BlackBerry device can decrypt the data that they send between each other. The BlackBerry
Enterprise Server is designed to prevent third parties, including wireless service providers, from accessing your organization's
potentially sensitive information in a decrypted format.
The BlackBerry Enterprise Solution uses confidentiality, integrity, and authenticity, which are principles for information security,
to help protect your organization from data loss or alteration.
Principles
Description
confidentiality
The BlackBerry Enterprise Solution uses symmetric key cryptography to help make
sure that only intended recipients can view the contents of email messages.
The BlackBerry Enterprise Solution uses symmetric key cryptography to help protect
every email message that the BlackBerry device sends and to help prevent third
parties from decrypting or altering the message data.
integrity
authenticity
Only the BlackBerry Enterprise Server and BlackBerry device know the value of the
keys that they use to encrypt messages and recognize the format of a decrypted
and decompressed message. The BlackBerry Enterprise Server or BlackBerry device
reject a message automatically that is not encrypted with keys that they recognize
as valid.
Before the BlackBerry Enterprise Server sends data to the BlackBerry device, the
BlackBerry device authenticates with the BlackBerry Enterprise Server to prove that
the BlackBerry device knows the device transport key that is used to encrypt data.
9
Security features of the BlackBerry Enterprise Solution
Security Technical Overview
Security features of the BlackBerry Enterprise Solution
Feature
Description
data protection
The BlackBerry® Enterprise Solution is designed to protect data that is in transit
between the BlackBerry® Enterprise Server and a BlackBerry device and data that
is in transit between your organization’s messaging server and the email application
on the user’s computer. The BlackBerry Enterprise Solution encrypts data that is
stored on the BlackBerry device and in the BlackBerry Configuration Database. To
help protect data that is stored on the BlackBerry device, you can require a user to
authenticate to the BlackBerry device using a password, a smart card, or both.
The BlackBerry device is designed to protect the encryption keys that are stored on
the BlackBerry device. The BlackBerry device encrypts the encryption keys when
the BlackBerry device is locked.
The BlackBerry Enterprise Solution is designed to control the following connections:
•
connections using Bluetooth® technology to and from the BlackBerry device
•
connections from a Wi-Fi® enabled BlackBerry device to enterprise Wi-Fi
networks
encryption key protection
control of BlackBerry device
connections
The BlackBerry Enterprise Solution is designed to control which BlackBerry devices
can connect to the BlackBerry Enterprise Server.
control of the behavior of the BlackBerry To control the behavior of the BlackBerry device and BlackBerry Desktop Software,
device and BlackBerry® Desktop
you can send IT administration commands, IT policies, and application control
Software
policies to the BlackBerry device. You can use IT administration commands, IT
policies, and application control policies to perform the following actions:
•
You can send IT administration commands to delete application data from the
BlackBerry device and to lock the BlackBerry device.
•
You can send an IT policy to a BlackBerry device to change security settings.
You can use the IT policy to enforce the BlackBerry device password and
BlackBerry® Smart Card Reader password.
•
You can send an application control policy to a BlackBerry device to control
whether third-party applications are available and can connect to the
BlackBerry device.
10
Security Technical Overview
Architecture: BlackBerry Enterprise Solution
Architecture: BlackBerry Enterprise Solution
The BlackBerry® Enterprise Solution consists of various components that permit you to extend your organization’s communication
methods to BlackBerry devices.
11
Architecture: BlackBerry Enterprise Solution
Security Technical Overview
Component
Description
BlackBerry Administration Service
The BlackBerry Administration Service is a BlackBerry® Enterprise Server
component that connects to the BlackBerry Configuration Database. You can use
the BlackBerry Administration Service to manage BlackBerry Enterprise Server
components, user accounts, and features for a BlackBerry device.
The BlackBerry Attachment Service is a BlackBerry Enterprise Server component
that converts supported message attachments into a format that the user can view
on a BlackBerry device.
The BlackBerry Collaboration Service is a BlackBerry Enterprise Server component
that provides a connection between your organization's instant messaging server
and the collaboration client on a BlackBerry device.
The BlackBerry Configuration Database is a relational database that contains
configuration information that BlackBerry Enterprise Server components use. The
BlackBerry Configuration Database stores the following information:
•
details about the connection from a BlackBerry Enterprise Server to the
wireless network
•
contact list
•
address mappings between PINs and email addresses for BlackBerry MDS
Connection Service push features
•
read-only copies of device transport keys, which encrypt the message keys
that encrypt data that the BlackBerry Enterprise Server and BlackBerry device
send between each other
BlackBerry Attachment Service
BlackBerry Collaboration Service
BlackBerry Configuration Database
BlackBerry Controller
BlackBerry® Desktop Software
BlackBerry device
12
The BlackBerry Controller is a BlackBerry Enterprise Server component that
monitors other BlackBerry Enterprise Server components and restarts them if they
stop responding.
The BlackBerry Desktop Software is an integrated suite of applications that a user
installs on the user's computer. It manages the association between a BlackBerry
device and the email account, synchronizes organizer data, calendar entries, and
inboxes, and permits the user to download applications and BlackBerry® Device
Software updates to a BlackBerry device.
A BlackBerry device provides the user with access to BlackBerry services such as
messaging and browsing.
Architecture: BlackBerry Enterprise Solution
Security Technical Overview
Component
Description
BlackBerry Device Software
The BlackBerry Device Software consists of applications on a BlackBerry device that
permit the user to send and receive email messages, PIN messages, and text
messages; manage calendar entries; and so on.
The BlackBerry Dispatcher is a BlackBerry Enterprise Server component that
compresses and encrypts all data that a BlackBerry device sends and receives. The
BlackBerry Dispatcher sends the data through the BlackBerry Router, to and from
the wireless network.
The BlackBerry Enterprise Server consists of various components that process, route,
compress, encrypt, and send data over the wireless network to a BlackBerry device.
The BlackBerry Enterprise Server is designed to open a two-way connection that is
highly secure between the user's email account and the BlackBerry device. The
BlackBerry Enterprise Server uses the connection to send email messages inside
your organization's firewall.
The BlackBerry Infrastructure is designed to manage the wireless transport of
messages between the wireless network and a BlackBerry device.
The BlackBerry Internet Service provides a subscriber with messaging service and
access to Internet content on a BlackBerry device.
The BlackBerry Mail Store Service connects to the messaging servers in your
organization's environment and retrieves the contact information that the
BlackBerry Administration Service requires to search for user accounts on the
messaging servers.
The BlackBerry MDS Connection Service is a BlackBerry Enterprise Server
component that permits the user to access web content, the Internet, or your
organization's intranet from a BlackBerry device. The BlackBerry MDS Connection
Service also permits applications on a BlackBerry device to connect to your
organization's application servers or content servers to retrieve application data
and updates.
The BlackBerry MDS Integration Service is a BlackBerry Enterprise Server
component that provides application-level integration for BlackBerry® MDS
Runtime Applications and BlackBerry® Browser Applications on BlackBerry devices.
You can use the BlackBerry MDS Integration Service to install BlackBerry MDS
Runtime Applications and BlackBerry Browser Applications on a BlackBerry device.
The BlackBerry MDS Integration Service database stores application data for the
BlackBerry MDS Integration Service.
BlackBerry Dispatcher
BlackBerry Enterprise Server
BlackBerry® Infrastructure
BlackBerry® Internet Service
BlackBerry Mail Store Service
BlackBerry MDS Connection Service
BlackBerry MDS Integration Service
BlackBerry MDS Integration Service
database
13
Architecture: BlackBerry Enterprise Solution
Security Technical Overview
Component
Description
BlackBerry® MDS Studio
The BlackBerry MDS Studio can be used by your organization's developers to create
BlackBerry MDS Runtime Applications and to publish the applications to the
BlackBerry MDS Application Repository.
The BlackBerry Messaging Agent is a BlackBerry Enterprise Server component that
connects to your organization's messaging server to provide messaging services,
calendar management, contact lookups, attachment viewing, and attachment
downloading. The BlackBerry Messaging Agent also generates device transport
keys and acts as a gateway for the BlackBerry Synchronization Service to access
organizer data on the messaging server. The BlackBerry Messaging Agent
synchronizes configuration data between the BlackBerry Configuration Database
and user mailboxes.
The BlackBerry MVS integrates your organization's PBX phone system with the
BlackBerry Enterprise Server to extend desk phone features to a BlackBerry device.
The BlackBerry Monitoring Service is a BlackBerry Enterprise Server component
that is designed to help you monitor your organization's BlackBerry Domain. You
can use the BlackBerry Monitoring Service to troubleshoot issues and monitor the
health of your organization's BlackBerry Domain proactively.
The BlackBerry Policy Service is a BlackBerry Enterprise Server component that
sends IT policies and IT administration commands and provisions service books. The
BlackBerry Policy Service sends service books to configure settings for features and
components on a BlackBerry device.
The BlackBerry profiles database is an IBM® Lotus® Domino® database that the
BlackBerry® Enterprise Server for IBM® Lotus® Domino® uses to store configuration
data for the user account.
The BlackBerry Provisioning System is designed to permit wireless service providers
to configure and manage BlackBerry services for their subscribers. A wireless service
provider can assign, activate, deactivate, suspend, and resume BlackBerry services
and check the current status of service requests for a BlackBerry device on the
wireless network.
The BlackBerry Router is a BlackBerry Enterprise Server component that connects
to the wireless network to send data to and from a BlackBerry device. The BlackBerry
Router also sends data over your organization's network to a BlackBerry device that
is connected to a computer that hosts the BlackBerry® Device Manager.
BlackBerry Messaging Agent
BlackBerry® Mobile Voice System
BlackBerry Monitoring Service
BlackBerry Policy Service
BlackBerry profiles database
BlackBerry® Provisioning System
BlackBerry Router
14
Architecture: BlackBerry Enterprise Solution
Security Technical Overview
Component
Description
BlackBerry® Smart Card Reader
The BlackBerry Smart Card Reader controls access to your organization's sensitive
communications using Bluetooth® technology and the latest encryption
technologies. The BlackBerry Smart Card Reader permits an organization to use
two-factor authentication.
The BlackBerry state databases are Lotus Domino databases that the BlackBerry
Enterprise Server for IBM Lotus Domino uses to store data that associates email
messages that a BlackBerry device sends or receives to corresponding messages in
the user's email application. The data in the BlackBerry state databases supports
features such as email message reconciliation, email message forwarding, email
message filing, and replying with text.
The BlackBerry Synchronization Service is a BlackBerry Enterprise Server
component that synchronizes organizer data between a BlackBerry device and your
organization's messaging server over the wireless network.
The instant messaging server stores instant messaging accounts.
The messaging server receives, sends, and stores all email messages.
Your organization's application server or content server provides push applications
and intranet content that the BlackBerry MDS Services use to install on a BlackBerry
device.
BlackBerry state databases
BlackBerry Synchronization Service
instant messaging server
messaging server
organization's application server or
content server
15
New in this release
Security Technical Overview
New in this release
2
This document describes the security features that the BlackBerry® Enterprise Server version 5.0 SP1, BlackBerry® Desktop
Software version 5.0, BlackBerry® Device Software version 5.0, and BlackBerry® Smart Card Reader version 2.0 support, unless
otherwise stated.
Feature
Description
Advanced Security SD card support
Similar to the BlackBerry® Smart Card Reader, an Advanced Security SD card
permits a user to use what the user has (smart card) and what the user knows (smart
card password) to prove the user’s identity to the BlackBerry device. The BlackBerry®
Enterprise Solution supports Advanced Security SD cards that use the MCEX smart
card security system.
You can configure the BlackBerry MDS Connection Service to use DSML to search
for and retrieve certificates from DSML certificate servers for BlackBerry devices
that are running BlackBerry Device Software versions 5.0 and later.
BlackBerry Enterprise Server version 5.0 SP1 and BlackBerry Device Software
version 5.0 support using NTLMv2 to authenticate to content servers.
Proximity authentication is an authentication method that permits a user to unlock
a BlackBerry device using a BlackBerry device password and BlackBerry Smart Card
Reader when the BlackBerry Smart Card Reader is located within Bluetooth®
technology range of the BlackBerry device. Proximity authentication does not
require the user to have a smart card. You can use proximity authentication with
BlackBerry Smart Card Reader version 2.0.
Two-factor content protection requires a BlackBerry device password, a smart card,
and an authentication certificate that is stored on a BlackBerry device to protect
the content protection key. You can use two-factor content protection with
BlackBerry Smart Card Reader version 2.0 or an Advanced Security SD card.
BlackBerry® Java® Development Environment version 5.0 includes the User
Authenticator API that developers can use to create two-factor authentication
methods that a user can use with the BlackBerry device password to unlock a
BlackBerry device.
DSML support
NTLMv2 support
proximity authentication
two-factor content protection
User Authenticator API
16
Keys on a BlackBerry device
Security Technical Overview
Keys on a BlackBerry device
3
The BlackBerry® Enterprise Solution generates keys that are designed to protect the data that is stored on a BlackBerry device
and the data that the BlackBerry device and BlackBerry® Enterprise Server send between each other.
Key
Description
content protection key
The content protection key encrypts user data on the BlackBerry device when the
BlackBerry device is locked.
The device transport key encrypts the message keys.
The ECC private key decrypts data when the user unlocks the BlackBerry device.
device transport key
ECC private key
17
Device transport keys
Security Technical Overview
Key
Description
ECC public key
The ECC public key encrypts the stored data that the BlackBerry device receives
when the BlackBerry device is locked.
The ephemeral key encrypts the ECC public key, ECC private key, and content
protection key on the BlackBerry device.
The PIN encryption key scrambles PIN messages.
If you or a user turns on content protection, the principal encryption key encrypts
the device transport key and PIN encryption key that is specific to your organization
when the BlackBerry device is locked.
The message keys (also known as session keys) encrypt data sent to and from the
BlackBerry device.
ephemeral key
PIN encryption key
principal encryption key
message keys
Device transport keys
The device transport key encrypts the message keys that help protect the data sent between a BlackBerry® Enterprise Server
and BlackBerry device. The BlackBerry Enterprise Server and BlackBerry device generate the device transport key when a user
activates the BlackBerry device.
The BlackBerry Enterprise Server and BlackBerry device do not send the device transport key over the wireless network when
they generate the device transport key or when they exchange messages.
The BlackBerry® Enterprise Solution is designed so that only the BlackBerry Enterprise Server and BlackBerry device know the
value of the device transport key. The BlackBerry Enterprise Server and BlackBerry device reject a data packet if they do not
recognize the format of a data packet or do not recognize the device transport key that protects the data packet.
States for device transport keys
The BlackBerry® Enterprise Solution generates device transport keys on a regular basis so that a potentially malicious user cannot
access all data sent between a BlackBerry® Enterprise Server and BlackBerry device if that user compromises a device transport
key. As the BlackBerry Enterprise Solution generates device transport keys, the device transport keys change state from pending
to current to previous.
18
Device transport keys
Security Technical Overview
State
Description
pending
A pending device transport key is the device transport key that the BlackBerry
Enterprise Solution generates to replace the current device transport key. If the user
generates the device transport key using the BlackBerry® Desktop Software, the
BlackBerry Desktop Software sends the pending device transport key to the
BlackBerry device when the user connects the BlackBerry device to the computer.
current
previous
The messaging environment and BlackBerry Configuration Database store the
pending device transport key.
A current device transport key is the device transport key that the BlackBerry device
currently uses to encrypt and decrypt message keys.
A previous device transport key is the device transport key that the BlackBerry device
used before the BlackBerry Enterprise Solution generated the current device
transport key.
The BlackBerry device stores previous device transport keys in flash memory for 7
days. The BlackBerry device stores previous device transport keys so that a user can
decrypt messages even after the user generates a new device transport key while
messages are queued.
The messaging server and BlackBerry Configuration Database store the previous
device transport key that the BlackBerry Enterprise Server and BlackBerry device
used most recently.
A potentially malicious user cannot use the previous device transport key to learn
the currrent device transport key. The BlackBerry Enterprise Server and BlackBerry
device discard the key pair after they generate the device transport key. If a
potentially malicious user compromises both the static private key and ephemeral
private key for a device transport key, other device transport keys that the BlackBerry
Enterprise Server and BlackBerry device generate are not compromised.
Where the BlackBerry Enterprise Solution stores device transport keys
The BlackBerry® Enterprise Solution stores current, pending, and previous device transport keys in the BlackBerry Configuration
Database, in the messaging environment, and on each BlackBerry device.
19
Device transport keys
Security Technical Overview
A BlackBerry device stores the device transport keys in a key store database in flash memory. The key store database is designed
to prevent a potentially malicious user from copying the device transport keys to a computer by trying to back up the device
transport keys. A potentially malicious user cannot extract key data from flash memory.
To avoid compromising the device transport keys that are stored in the BlackBerry Configuration Database or in the messaging
environment, you must protect the BlackBerry Configuration Database and the storage location of the device transport key in
the messaging environment.
Messaging environment
Storage location on the messaging environment
IBM® Lotus® Domino®
Microsoft® Exchange
Novell® GroupWise®
BlackBerry profiles database
mailbox of the email application on the user’s computer
—
Where the BlackBerry Enterprise Solution stores device transport keys in a Microsoft Exchange environment
In a Microsoft® Exchange environment, the BlackBerry® Enterprise Solution stores the device transport keys in a hidden folder
that is named BlackBerryHandheldInfo. The BlackBerryHandheldInfo folder is located in a root folder of the mailbox for the user
account on the Microsoft Exchange Server®. The BlackBerryHandheldInfo folder stores the following data:
•
message of class RIM.BlackBerry.Handheld.Config that contains the user's configuration information, including
the device transport key
•
device transport keys in binary form with tags that indicate whether the status of the device transport keys is pending
(0x6002 tag), current (0x6003 tag), or previous (0x6004 tag)
Where the BlackBerry Enterprise Solution stores the device transport keys in an IBM Lotus Domino
environment
In an IBM® Lotus® Domino® environment, the BlackBerry® Enterprise Solution stores the device transport keys in a Lotus Domino
database that is named BlackBerryProfiles.nsf. The BlackBerry profiles database contains configuration information for every
user account that exists in the Data directory. The BlackBerry profiles database stores an account record that contains the
RIMCurrentEncryptionKeyText field, RIMPendingEncryptionKeyText field, and RIMPreviousEncryptionKeyText field. The fields
stores the device transport keys for every user account in a hexadecimal string using alphanumeric characters.
Generating device transport keys
Generating the first device transport key for a BlackBerry device during the activation process
If a user connects a BlackBerry® device to a computer for the first time and activates the BlackBerry device, the BlackBerry®
Desktop Software generates the device transport key and sends it to the BlackBerry device and messaging server.
20
Device transport keys
Security Technical Overview
If a user activates the BlackBerry device over the wireless network, the BlackBerry® Enterprise Server and BlackBerry device
negotiate to select the strongest algorithm that they both support (either AES or Triple DES) and use that algorithm to generate
a device transport key. To generate public keys for key rollover on the BlackBerry device and create a strong, cryptographically
protected connection between the BlackBerry Enterprise Server and BlackBerry device, the BlackBerry® Enterprise Solution uses
the SPEKE authentication method and the activation password for the BlackBerry device.
For more information about the SPEKE authentication method, visit http://standards.ieee.org/ to read Password-Based Public
Key Cryptography (P1363.2).
Security characteristics for generating the first device transport key
Characteristics
Description
authentication and integrity
The wireless activation process verifies that only a user with the correct activation
password can activate a BlackBerry® device that you associate with a BlackBerry®
Enterprise Server.
The wireless activation process is designed so that a potentially malicious user
cannot determine a user's password by viewing the protocol packets that the
BlackBerry Enterprise Server and BlackBerry device send between each other.
The wireless activation process is designed so that the BlackBerry Enterprise Server
prevents a potentially malicious user from activating a BlackBerry device if that user
types an incorrect activation password more than five times.
The wireless activation process verifies that the BlackBerry Enterprise Server and
BlackBerry device can exchange the device transport key in a manner that is
designed to be highly secure when they generate a new device transport key.
prevention of offline dictionary attacks
prevention of online dictionary attacks
long-term public keys exchanged
Generating subsequent device transport keys for a BlackBerry device
By default, the BlackBerry® Enterprise Server and BlackBerry device generate subsequent device transport keys every 30 days.
If a pending device transport key exists and a user connects a BlackBerry device to a computer, the current device transport key
on the BlackBerry device becomes the previous device transport key and the pending device transport key becomes the current
device transport key. If no pending device transport key exists, you, the user, or the BlackBerry® Desktop Software can generate
a device transport key.
The BlackBerry Enterprise Server and BlackBerry device generate the device transport key using existing long-term public keys
and the ECMQV key exchange algorithm to negotiate a device transport key. This method is designed so that a potentially
malicious user is unable to calculate the device transport key. The BlackBerry Enterprise Server and BlackBerry device discard
the key pair after they generate the device transport key.
21
Device transport keys
Security Technical Overview
For more information about the ECMQV key exchange algorithm, see NIST: Special Publication 800-56: Recommendation on
Key Establishment schemes, Draft 2.0 and the Guide to Elliptic Curve Cryptography.
Security characteristics for generating subsequent device transport keys
Characteristics
Description
authentication
Authentication means that only a BlackBerry® device that a user authenticates with
or a BlackBerry® Enterprise Server can generate subsequent device transport keys.
Authentication is designed so that a potentially malicious user cannot use another
device to impersonate an activated BlackBerry device and generate a device
transport key.
Password independent means that the user does not require an activation password
and you do not have to perform any actions when you or a user generates a
subsequent device transport key.
Flexible initiation means that you or a user can generate a subsequent device
transport key at any time.
PFS means that subsequent device transport keys are independent of previous
device transport keys. A device transport key does not help the potentially malicious
user decrypt data that another device transport key protects.
password independent
flexible initiation
PFS
Generating a device transport key manually
To generate a device transport key on an activated BlackBerry® device, a user can click Regenerate Encryption Key, in the
BlackBerry device options, in the security options. The BlackBerry device sends the request to generate a device transport key to
the BlackBerry® Enterprise Server over the wireless network.
A user can also generate a device transport key using the BlackBerry® Desktop Manager. By default, the BlackBerry Enterprise
Server sends a request to the BlackBerry Desktop Manager every 30 days to prompt the user to generate a new device transport
key on the BlackBerry device, even if the user chooses to generate the device transport key manually using the BlackBerry Desktop
Manager.
You can use the BlackBerry Administration Service to start the process to generate a new device transport key.
Process flow: Generating a device transport key using BlackBerry Desktop Software version
4.0 or later
In BlackBerry® Desktop Software version 4.0 or later, the process to generate a device transport key uses the current time and
cursor movements as the seeds to generate random data.
22
Security Technical Overview
Device transport keys
To generate the device transport key, the BlackBerry Desktop Software performs the following actions:
1.
2.
3.
4.
5.
6.
7.
8.
prompts the user to move the cursor
uses the srand function of the C programming language to examine the lowest 12 bits of the x and y co-ordinates of the
new cursor location
If the bits are different from the previous sample, the BlackBerry Desktop Software stores the bits, which generates 3 bytes
of randomness. If the bits are the same as the bits in the previous sample, the BlackBerry Desktop Software does not store
any bits.
uses the srand function to examine the next bits, after the srand function waited for a random interval between 50
milliseconds and 150 milliseconds
The srand function continues to wait for random intervals and examine bits until the BlackBerry Desktop Software stores
384 bytes of randomness.
retrieves 384 bytes of randomness from the Microsoft® Cryptographic API, for a total of 768 bytes
hashes the 384 bytes of randomness from the cursor co-ordinates and the 384 bytes of randomness from the Microsoft
Cryptographic API with SHA-512 to produce 512 bits of data
frees the computer memory that is associated with the unused bits
generates the device transport key using the first 256 bits of data if the BlackBerry Desktop Software supports AES
encryption, or the first 128 bits of data if the BlackBerry Desktop Software supports Triple DES encryption
deletes any bits of data that it does not use to generate the device transport key
Process flow: Generating a device transport key using a BlackBerry Desktop Software version
or BlackBerry Enterprise Server version that is earlier than version 4.0
In BlackBerry® Enterprise Server or BlackBerry® Desktop Software versions that are earlier than version 4.0, the process that
generates a device transport key uses the current time and the cursor movements as the seeds to generate random data.
1.
2.
3.
4.
The BlackBerry Desktop Software prompts the user to move the cursor.
The BlackBerry Enterprise Server or BlackBerry Desktop Software generates 2 bits or 4 bits when the user moves the cursor,
depending on whether the cursor movement changed one or both of the x and y axes. The BlackBerry Enterprise Server or
BlackBerry Desktop Software generates bit samples in this way until it accumulates at least 8 bits.
The srand function of the C programming language generates a random integer.
The BlackBerry Enterprise Server or BlackBerry Desktop Software performs the following actions:
a. examines the least significant bit of the integer.
If the bit is a 1, the BlackBerry Enterprise Server or BlackBerry Desktop Software stores the complement of 1 bit of the
accumulated 8 bits. Otherwise, the BlackBerry Enterprise Server or BlackBerry Desktop Software stores the unmodified
accumulated 8 bits. This process is designed to make sure that, even if a user can replicate a previous user's cursor
movements, the resulting value is still unique.
b. generates a sample of 256 random bits from the cursor movements of the user
23
Security Technical Overview
c.
d.
Message keys
uses the SHA-1 function to hash the 256 bits
generates the device transport key of the BlackBerry device using the first 128 bits of the hash
Message keys
A BlackBerry® Enterprise Server and BlackBerry device generate one or more message keys that are designed to protect the
integrity of the data (for example, short keys or large messages) that the BlackBerry Enterprise Server and BlackBerry device
send between each other. If a message exceeds 2 KB and consists of several data packets, the BlackBerry Enterprise Server and
BlackBerry device generate a unique message key for each data packet.
Each message key consists of random data that is designed to make it difficult for a third party to decrypt, re-create, or duplicate
the message key.
The message key is a type of session key. The BlackBerry Enterprise Server and BlackBerry device do not store the message keys
but they free the memory that is associated with the message keys after the BlackBerry Enterprise Server or BlackBerry device
uses the message keys to decrypt the message.
Process flow: Generating a message key on a BlackBerry Enterprise Server
A BlackBerry® Enterprise Server is designed to use the DSA PRNG function to generate a message key.
To generate a message key, the BlackBerry Enterprise Server performs the following actions:
1.
2.
3.
4.
5.
6.
7.
24
retrieves random data from multiple sources for the seed, using a technique that the BlackBerry Enterprise Server derives
from the initialization function of the ARC4 encryption algorithm
uses the random data to reorder the contents of a 256-byte state array (also known as a 2048-bit state array)
If the Microsoft® Cryptographic API exists on the computer that hosts the BlackBerry Enterprise Server, the BlackBerry
Enterprise Server requests 512 bits of randomness from the Microsoft Cryptographic API to increase the randomness of the
data.
adds the 256-byte state array into the ARC4 algorithm to further randomize the 256-byte state array
draws 521 bytes from the 256-byte state array
The BlackBerry Enterprise Server draws an additional 9 bytes for the 256-byte state array, for a total of 521 bits (512 + 9 =
521) to make sure that the pointers before and after the generation process are not in the same place, and in case the first
few bytes of the 256-byte state array are not random.
uses SHA-512 to hash the 521-byte value to 64 bytes
uses the 64-byte value to seed the DSA PRNG function
The BlackBerry Enterprise Server stores a copy of the seed in a file. When the BlackBerry Enterprise Server restarts, it reads
the seed from the file and uses the XOR function to compare the stored seed with the new seed.
uses the DSA PRNG function to generate 256 pseudo-random bits for use with AES encryption and 128 pseudo-random
bits for use with Triple DES encryption
Security Technical Overview
8.
Content protection keys
uses the pseudo-random bits with AES encryption or Triple DES encryption to generate the message key
For more information about the DSA PRNG function, see Federal Information Processing Standard - FIPS PUB 186-2.
Process flow: Generating a message key on a BlackBerry device
A BlackBerry® device is designed to use the DSA PRNG function to generate a message key.
To generate a message key, the BlackBerry device performs the following actions:
1.
2.
3.
4.
5.
6.
7.
8.
retrieves random data from multiple sources to generate the seed using a technique that the BlackBerry device derives from
the initialization function of the ARC4 encryption algorithm
uses the random data to reorder the contents of a 256-byte state array (also known as a 2048-bit state array)
adds the 256-byte state array into the ARC4 encryption algorithm to further randomize the 256-byte state array
draws 521 bytes from the ARC4 state array
The BlackBerry device draws an additional 9 bytes for the 256-byte state array, for a total of 521 bytes (512 + 9 = 521) to
make sure that the pointers before and after the call are not in the same place, and in case the first few bytes of the ARC4
state array are not random.
uses SHA-512 to hash the 521-byte value to 64 bytes
uses the 64-byte value to seed the DSA PRNG function
The BlackBerry device stores a copy of the seed in a file. When the BlackBerry device restarts, it reads the seed from the file
and uses the XOR function to compare the stored seed with the new seed.
uses the DSA PRNG function to generate 128 pseudo-random bits for use with Triple DES encryption and 256 pseudorandom bits for use with AES encryption
uses the pseudo-random bits with Triple DES encryption or AES encryption to generate the message key
For more information about the DSA PRNG function, see Federal Information Processing Standard - FIPS PUB 186-2.
Content protection keys
When you or a user turns on content protection for a BlackBerry® device, the BlackBerry device generates a content protection
key. The content protection key is designed to encrypt user data on the BlackBerry device when it is locked.
When the BlackBerry device is locked, an encryption process begins. The BlackBerry device frees the memory that it associates
with the content protection key and ECC private key that it stores in RAM. The BlackBerry device then uses the ECC public key
to encrypt new data that it receives.
When a user unlocks a BlackBerry device, the BlackBerry device decrypts the content protection key and ECC private key in flash
memory. When the user wants to view data, the BlackBerry device uses the content protection key or ECC private key to decrypt
the data before the BlackBerry device displays it. An unlocked BlackBerry device uses the content protection key to encrypt new
data that the user types or adds to the BlackBerry device, or that the BlackBerry device receives.
25
Security Technical Overview
Content protection keys
Process flow: Turning on content protection using a BlackBerry Enterprise Server
You can turn on content protection using a BlackBerry® Enterprise Server when you configure the Content Protection Strength
IT policy rule.
1.
The BlackBerry Enterprise Server performs the following actions:
a. selects b randomly
b. calculates B = bP
c. stores b in the BlackBerry Configuration Database
d. sends B in the IT policy to the BlackBerry device
2.
The BlackBerry device performs the following actions:
a. verifies that B is a valid public key
b. selects d randomly
c. calculates D = dP
d. stores D in flash memory
e. calculates K = dB
f. uses K to encrypt the current BlackBerry device password
g. uses the encrypted BlackBerry device password to encrypt the content protection key
h. permanently deletes d and K
When the BlackBerry device permanently deletes d, the BlackBerry device is designed so that a potentially malicious user cannot
use the data that remains on the BlackBerry device to recover K. Only the BlackBerry Enterprise Server knows b and can recalculate
K = dB = dbP = bD if it is provided with d.
Process flow: Generating a content protection key on a BlackBerry device
When you or a user turns on content protection on the BlackBerry® device for the first time, the BlackBerry device performs the
following actions:
1. uses a DSA PRNG function to randomly generate a content protection key
2. generates an ECC key pair with a bit length that you or the user determines
3. prompts the user to type the BlackBerry device password
4. derives an ephemeral key that uses AES-256 encryption from the BlackBerry device password, using PKCS #5
5. uses the ephemeral key to encrypt the content protection key and ECC private key
6. stores the encrypted content protection key, encrypted ECC private key, and ECC public key in flash memory
26
Security Technical Overview
Principal encryption keys
The content protection key is a semi-permanent key that uses AES-256 encryption. If the user changes the BlackBerry device
password, the BlackBerry device uses the new password to derive a new ephemeral key. The BlackBerry device uses the new
ephemeral key to re-encrypt the versions of the content protection key and ECC private key that are in flash memory.
For more information about the DSA PRNG function, see Federal Information Processing Standard - FIPS PUB 186-2. For more
information about PKCS #5, visit www.rsa.com to see PKCS #5: Password-Based Cryptography Standard.
Process flow: Deriving an ephemeral key that protects a content protection key and ECC
private key
A BlackBerry® device uses an ephemeral key to encrypt a content protection key and ECC private key. The BlackBerry device
derives the ephemeral key, which is an AES-256 encryption key, from the BlackBerry device password using PKCS #5.
To derive an ephemeral key, the BlackBerry device performs the following actions:
1. selects a 64-bit salt (which is random data that the BlackBerry device mixes with the BlackBerry device password)
The salt prevents two identical passwords from turning into the same key.
2. concatenates the salt, password, and salt again into a byte array (for example, Salt|Password|Salt)
3. hashes the byte array with SHA-256
4. stores the resulting hash in a byte array that is called a key
(key) =
SHA256(Salt|Password|Salt)
5.
hashes the key 18 more times and stores the result in the key each time
For example, for i=0 to 18, the BlackBerry device performs the following actions:
(key) = SHA256(key)
i++
done
The final hash creates the ephemeral key.
For more information, visit www.rsa.com to see PKCS #5: Password-Based Cryptography Standard.
Principal encryption keys
When you or a user turns on content protection for device transport keys, a BlackBerry® device generates a principal encryption
key and stores it in flash memory. The BlackBerry device uses the principal encryption key to encrypt the device transport keys
that are stored on the BlackBerry device in flash memory and the PIN encryption key that is specific to your organization. The
BlackBerry device encrypts the principal encryption key using the content protection key. When the BlackBerry device receives
data that the device transport key encrypts while the BlackBerry device is locked, the BlackBerry device uses the principal
encryption key to decrypt the device transport key that is in flash memory.
27
Security Technical Overview
PIN encryption keys
Process flow: Generating a principal encryption key
When you or a user turns on content protection for device transport keys on a BlackBerry® device for the first time, the BlackBerry
device performs the following actions:
1. generates a principal encryption key, which is an AES-256 encryption key
2. stores the decrypted principal encryption key in RAM
3. uses the existing content protection key to encrypt the principal encryption key
4. stores the encrypted principal encryption key in flash memory
When the BlackBerry device locks, the BlackBerry device uses the decrypted principal encryption key to encrypt the device
transport keys that are stored in the flash memory of the BlackBerry device.
PIN encryption keys
A PIN identifies each BlackBerry® device and BlackBerry enabled device on the wireless network. If a user knows the PIN of
another BlackBerry device, the user can send a PIN message to the BlackBerry device. Unlike a message that a user sends to an
email address, a PIN message bypasses the BlackBerry® Enterprise Server and your organization’s network.
The BlackBerry device scrambles PIN messages using the PIN encryption key. By default, each BlackBerry device uses a global
PIN encryption key, which allows the BlackBerry device to decrypt every PIN message that the BlackBerry device receives. Your
organization can use a global PIN encryption key, a PIN encryption key that is specific to your organization, or both.
During the manufacturing process, Research In Motion adds a global PIN encryption key to the BlackBerry device. To permit a
BlackBerry device to receive and decrypt PIN messages in your organization only, you can generate a PIN encryption key that is
specific to your organization. A BlackBerry device that has a PIN encryption key that is specific to your organization can send
and receive PIN messages with other BlackBerry devices on your organization’s network that use the same PIN encryption key.
The BlackBerry device scrambles the PIN messages using a PIN encryption key that is specific to your organization instead of
using the global PIN encryption key.
You can configure the Firewall Block Incoming Messages IT policy rule to limit the number of BlackBerry devices in your
organization that can receive PIN messages that use the PIN encryption key that is specific to your organization, the global PIN
encryption key, or both.
You can generate a new PIN encryption key using the BlackBerry Administration Service if you know that the current PIN
encryption key is compromised. You can update the PIN encryption key and send it to user accounts using the BlackBerry
Administration Service.
28
Security Technical Overview
Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other
Encrypting data that the BlackBerry Enterprise Server and
a BlackBerry device send to each other
4
To encrypt data that is in transit between the BlackBerry® Enterprise Server and a BlackBerry device in your organization, the
BlackBerry® Enterprise Solution uses BlackBerry transport layer encryption. BlackBerry transport layer encryption is designed to
encrypt data from the time that a BlackBerry device user sends a message from the BlackBerry device to when the BlackBerry
Enterprise Server receives the message, and from the time that the BlackBerry Enterprise Server sends a message to when the
BlackBerry device receives the message.
Before the BlackBerry device sends a message, it compresses and encrypts the message using the device transport key. When
the BlackBerry Enterprise Server receives a message from the BlackBerry device, the BlackBerry Dispatcher decrypts the message
using the device transport key, and then decompresses the message.
Algorithms that the BlackBerry Enterprise Solution uses to encrypt data
The BlackBerry® Enterprise Solution uses AES or Triple DES as the symmetric key cryptographic algorithm for encrypting data.
By default, the BlackBerry® Enterprise Server uses the strongest algorithm that both the BlackBerry Enterprise Server and the
BlackBerry device support for BlackBerry transport layer encryption.
If you configure the BlackBerry Enterprise Server to support AES and Triple DES, by default, the BlackBerry Enterprise Solution
generates device transport keys using AES encryption. If a BlackBerry device uses BlackBerry® Device Software version 3.7 or
earlier or BlackBerry® Desktop Software version 3.7 or earlier, the BlackBerry Enterprise Solution generates the device transport
keys of the BlackBerry device using Triple DES.
How the BlackBerry Enterprise Solution uses AES to encrypt data
By default, when a BlackBerry® device supports AES, the BlackBerry® Enterprise Solution uses AES for BlackBerry transport layer
encryption. The BlackBerry Enterprise Solution uses AES in CBC mode to generate the message keys and device transport keys.
The keys consist of 256 bits of data.
BlackBerry® Enterprise Server version 4.0 or later, BlackBerry® Device Software version 4.0 or later, and BlackBerry® Desktop
Software version 4.0 or later support AES.
For more information about how the BlackBerry Enterprise Server uses AES for BlackBerry transport layer encryption to
communicate with BlackBerry devices, visit www.blackberry.com/support to read article KB05429.
How a BlackBerry device uses the AES algorithm to help protect user data and keys
The BlackBerry® device implementation of the AES algorithm is designed to help protect user data and keys (such as the device
transport key and ephemeral key) from traditional attacks and side-channel attacks.
29
Security Technical Overview
Algorithms that the BlackBerry Enterprise Solution uses to encrypt data
A traditional attack tries to exploit data that a cryptographic system stores or transmits. The potentially malicious user tries to
determine the key or the plain-text data by exploiting a weakness in the design of the cryptographic algorithm or protocol.
The potentially malicious user uses a side-channel attack to try to exploit the physical properties of the BlackBerry device
implementation of the AES algorithm using power analysis (for example, SPA and DPA) and electromagnetic analysis (for example,
SEMA and DEMA). A potentially malicious user tries to determine the keys that the BlackBerry device uses by measuring and
analyzing the power consumption or the electromagnetic radiation that the BlackBerry device emits during cryptographic
operations. The BlackBerry device uses a masking operation, table splitting, and a random mask application to help protect the
keys and plain-text data against side-channel attacks at all points during the encryption and decryption operations.
Process flow: Running a masking operation during the first AES calculation when content protection is turned on
During the first AES calculation, the BlackBerry® device performs the following actions if you or a user turned on content
protection:
1. runs a masking operation by performing the following actions:
a. creates a mask table (M), where each table entry is a random value
b. creates a masked version of the S-Box table (S') that is used within AES
c. periodically and randomly changes the order of all table entries
2.
3.
4.
runs the result of step 1 as the input through both M and S'
combines the output of step 2 from M and S'
deletes the mask and produces the AES output
Process flow: Running a masking operation during subsequent AES calculations when content protection is turned
on
A BlackBerry® device performs the following actions:
1. performs the masking operation by periodically and randomly permuting all table entries in every calculation
2. runs the input through both M and S'
3. combines the output from M and S'
4. deletes the mask and produces the AES output
Process flow: Running a masking operation when a BlackBerry device does not use content protection
If you or a user did not turn on content protection, aBlackBerry® device performs the following actions during an AES calculation:
1. masks the output from the round key
2. masks the AES S-Box input
3. masks the AES S-Box output
How the AES algorithm creates S-Box tables and uses round keys and masks
A BlackBerry® device permutes each AES S-Box entry at random and masks each entry with a random value.
30
Security Technical Overview
Process flow: Sending an email message to a BlackBerry device using BlackBerry transport layer encryption
The BlackBerry device masks the round keys with random values and any S-Box masks that the AES algorithm requires to work.
Round keys are subkeys that the key schedule calculates for each round of encryption.
The BlackBerry device changes the random masks periodically and uses extra S-Box data to make identification of the S-Box
table difficult, whether the BlackBerry device uses the S-Box table in the encryption process, decryption process, or key schedule
process.
How the BlackBerry Enterprise Solution uses Triple DES to encrypt data
The BlackBerry® Enterprise Solution uses a two-key Triple DES encryption algorithm to generate message keys and device
transport keys. In the three iterations of the DES algorithm, the first 56-bit key in outer CBC mode encrypts the data, the second
56-bit key decrypts the data, and the first key encrypts the data again.
The BlackBerry Enterprise Solution stores the message keys and device transport keys as 128-bit binary strings with each parity
bit in the least significant bit of each of the 8 bytes of key data. The message keys and device transport keys have overall key
lengths of 112 bits and include 16 bits of parity data.
All versions of the BlackBerry® Enterprise Server, BlackBerry® Device Software, and BlackBerry® Desktop Software support Triple
DES.
For more information about Triple DES, see Federal Information Processing Standard - FIPS PUB 81 [3].
Process flow: Sending an email message to a BlackBerry device using
BlackBerry transport layer encryption
1.
2.
A sender sends an email message to a BlackBerry® device user.
The BlackBerry® Enterprise Server performs the following actions:
a. compresses the email message
b. encrypts the email message using the message key
c. encrypts the message key using the device transport key of the BlackBerry device
d. sends the encrypted email message and encrypted message key to the BlackBerry device
3.
4.
The BlackBerry device user clicks on the email message on the BlackBerry device to open it.
The BlackBerry device performs the following actions:
a. decrypts the message key using the device transport key
31
Security Technical Overview
b.
c.
d.
Process flow: Sending an email message from a BlackBerry device using BlackBerry transport layer encryption
decrypts the email message using the message key
decompresses the email message
displays the email message to the user
Process flow: Sending an email message from a BlackBerry device using
BlackBerry transport layer encryption
1.
2.
A sender sends an email message from a BlackBerry® device to a recipient.
The BlackBerry device performs the following actions:
a. compresses the email message
b. encrypts the compressed email message using the message key
c. encrypts the message key using the device transport key of the BlackBerry device
d. sends the encrypted message key and encrypted email message to the BlackBerry® Enterprise Server
3.
The BlackBerry Enterprise Server performs the following actions:
a. decrypts the message key using the device transport key
b. decrypts the email message using the message key
c. decompresses the email message
d. forwards the email message to the recipient
32
Security Technical Overview
Managing BlackBerry Enterprise Solution security
Managing BlackBerry Enterprise Solution security
5
Using an IT policy to manage BlackBerry Enterprise Solution security
You can use an IT policy to control a BlackBerry® device, a BlackBerry enabled device, the BlackBerry® Desktop Software, and
the BlackBerry® Web Desktop Manager in your organization's environment. An IT policy consists of multiple IT policy rules that
manage the security and behavior of the BlackBerry® Enterprise Solution. For example, you can use IT policy rules to manage
the following security features and behaviors of the BlackBerry device:
•
encryption (for example, encryption of user data and messages that the BlackBerry® Enterprise Server forwards to message
recipients) and encryption strength
•
use of a password or pass phrase
•
connections that use Bluetooth® wireless technology
•
protection of user data and device transport keys on the BlackBerry device
•
control of BlackBerry device resources, such as the camera or GPS, that are available to third-party applications
The BlackBerry Enterprise Server includes preconfigured IT policies that you can use to manage the security of the BlackBerry
Enterprise Solution. The Default IT policy includes IT policy rules that are configured to indicate the default behavior of the
BlackBerry device or BlackBerry Desktop Software.
After a BlackBerry device user activates a BlackBerry device, the BlackBerry Enterprise Server automatically sends to the
BlackBerry device the IT policy that you assigned to the user account or group. By default, if you do not assign an IT policy to the
user account or group, the BlackBerry Enterprise Server sends the Default IT policy. If you delete an IT policy that you assigned
to the user account or group, the BlackBerry Enterprise Server automatically re-assigns the Default IT policy to the user account
and resends the Default IT policy to the BlackBerry device.
For more information, see the BlackBerry Enterprise Server Policy Reference Guide.
Using IT policy rules to manage BlackBerry Enterprise Solution security
You can use IT policy rules to customize and control the actions that the BlackBerry® Enterprise Solution can perform.
To use an IT policy rule on a BlackBerry device, you must verify that the BlackBerry® Device Software version supports the IT
policy rule. For example, you cannot use the Disable Camera IT policy rule to control whether a BlackBerry device user can access
the camera on the BlackBerry device if the BlackBerry Device Software version does not support the IT policy rule. For information
about the BlackBerry Device Software version that is required for a specific IT policy rule, see the BlackBerry Enterprise Server
Policy Reference Guide.
The BlackBerry Administration Service groups the IT policy rules by common properties or by application. Most IT policy rules are
designed so that you can assign them to multiple user accounts and groups.
33
Using IT administration commands to protect a lost or stolen BlackBerry device
Security Technical Overview
Sending an IT policy over the wireless network
If your organization's environment includes C++ based BlackBerry® devices that are running BlackBerry® Device Software version
2.5 or later or Java® based BlackBerry devices that are running BlackBerry Device Software version 3.6 or later, the BlackBerry®
Enterprise Server can send changes to IT policies to a BlackBerry device over the wireless network automatically. When the
BlackBerry device receives an updated IT policy or a new IT policy, the BlackBerry device, BlackBerry® Desktop Software, and
BlackBerry® Web Desktop Manager apply the configuration changes immediately.
By default, the BlackBerry Enterprise Server is designed to resend an IT policy to the BlackBerry device within a short period of
time after you update the IT policy using the BlackBerry Administration Service. You can also resend an IT policy to a specific
BlackBerry device manually. You can configure the BlackBerry Enterprise Server to resend the IT policy to the BlackBerry device
at scheduled intervals regardless of whether you changed the IT policy.
Using IT administration commands to protect a lost or stolen BlackBerry
device
The BlackBerry® Enterprise Server includes IT administration commands that you can send over the wireless network to protect
sensitive data on a BlackBerry device. You can use these commands to lock the BlackBerry device, permanently delete user
information and application data, and return the BlackBerry device settings to the default values.
IT administration command
Description
Specify new device password and lock
device
This command creates a new password and locks a BlackBerry device over the
wireless network. You can communicate the new password to the user verbally when
the BlackBerry device user locates the BlackBerry device. When the BlackBerry
device user unlocks the BlackBerry device, the BlackBerry device prompts the user
to accept or reject the new password.
You can use this command if the BlackBerry device is lost. If you or a user turned
on content protection and a BlackBerry device is running BlackBerry® Device
Software version 4.3.1 or earlier, you cannot use this command.
Delete all device data and disable device This command permanently deletes all user information and application data that
the BlackBerry device stores. You can configure the following options when you use
this command:
•
specify a delay, in hours, before the BlackBerry device starts to delete all the
user information and application data
34
Using IT administration commands to protect a lost or stolen BlackBerry device
Security Technical Overview
IT administration command
Description
•
•
require the BlackBerry device to return to its factory default settings when it
receives this command
specify whether to permit the BlackBerry device user to stop permanently
deleting data from the BlackBerry device and making the BlackBerry device
unavailable during the delay period
You can send this command to a BlackBerry device that you want to distribute to
another BlackBerry device user in your organization, or to a BlackBerry device that
is lost and that the BlackBerry device user might recover.
Process flow: Sending the Specify new device password and lock device IT administration
command when content protection is turned on
1.
2.
The BlackBerry® Enterprise Server sends the Specify new device password and lock device IT administration command and
the new BlackBerry device password to the BlackBerry device.
The BlackBerry device performs the following actions:
a. selects r randomly
b. stores r in RAM
c. calculates D' = rD = rdP
d. calculates h = SHA-1( B )
e. sends D' and h to the BlackBerry Enterprise Server
3.
The BlackBerry Enterprise Server performs the following actions:
a. uses h to determine which B the BlackBerry device used and which b to use
b. verifies that D' is a valid public key
c. calculates K' = bD' = brdP = rdB = rK (the BlackBerry Enterprise Server knows only rK and cannot calculate K without
r)
d. calculates h = SHA-1( D' )
e. sends the new BlackBerry device password, K', and h to the BlackBerry device
4.
The BlackBerry device performs the following actions:
a. uses h to verify that K' is associated with D' and r
b. verifies that K' is a valid public key
c. calculates r-1K' = r-1rK = K
d.
permanently deletes r
35
Security Technical Overview
e.
f.
5.
Managing BlackBerry device access to the BlackBerry Enterprise Server
uses K to decrypt the content protection key
permanently deletes K
The BlackBerry device performs the following actions:
a. selects d randomly
b. calculates D = dP
c. stores D in flash memory
d. calculates K = dB
e. uses K to encrypt the new BlackBerry device password
f. uses the encrypted new password to encrypt the content protection key
Managing BlackBerry device access to the BlackBerry Enterprise Server
You can use the Enterprise Service Policy to control which BlackBerry® devices can connect to a BlackBerry® Enterprise Server.
By default, after you turn on the Enterprise Service Policy, the BlackBerry Enterprise Server permits connections from any
BlackBerry device or BlackBerry enabled device that you previously associated with the BlackBerry Enterprise Server. The
BlackBerry Enterprise Server also prevents connections from any BlackBerry device that you associate with the BlackBerry
Enterprise Server after you turn on the Enterprise Service Policy.
You can configure an allowed list to determine which BlackBerry devices can access a BlackBerry Enterprise Server. A BlackBerry
device that meets the criteria that you specify in the allowed list can associate with the BlackBerry Enterprise Server when the
BlackBerry device activates over the wireless network.
You can define the following types of criteria:
•
specific BlackBerry device PINs
•
range of BlackBerry device PINs
•
specific manufacturers
•
specific BlackBerry device models
The BlackBerry Administration Service includes lists of permitted manufacturers and models of BlackBerry devices that you
associated with the BlackBerry Enterprise Server previously.
You can permit a user to override the Enterprise Service Policy so that a BlackBerry device or BlackBerry enabled device can
connect to the BlackBerry Enterprise Server even if you configure the allowed list with criteria that exclude that BlackBerry device
or BlackBerry enabled device.
For more information, see the BlackBerry Enterprise Server Administration Guide.
36
Security Technical Overview
Using a segmented network architecture to prevent the spread of malware
Using a segmented network architecture to prevent the spread of malware
To help prevent the spread of malware in your organization’s network, you can use firewalls to divide your organization’s network
or LAN into segments and create a segmented network architecture. Each segment can manage the network traffic for a specific
BlackBerry® Enterprise Solution component. A segmented network architecture is designed to improve the security and
performance of a segment by filtering out data that is not destined for the segment.
To configure the BlackBerry Enterprise Solution in a segmented network architecture, you must install each BlackBerry Enterprise
Solution component on a computer that is separate from the computers that host other components and then place each computer
in its own network segment. When you configure the BlackBerry Enterprise Solution in a segmented network architecture, you
create an architecture that is designed to prevent the spread of potential attacks from one computer that hosts a BlackBerry
Enterprise Solution component to another computer within your organization’s LAN. A segmented network architecture is
designed to isolate and contain attacks on one computer. When you install each BlackBerry Enterprise Solution component in
its own segment, you must permit communications with other components by opening only the port numbers that the BlackBerry
Enterprise Solution components use.
For more information about the port numbers that the BlackBerry Enterprise Solution components use, see the BlackBerry
Enterprise Server Administration Guide.
Moving a BlackBerry device to a BlackBerry Enterprise Server that uses a
different BlackBerry Configuration Database
If you move a BlackBerry® device to a BlackBerry® Enterprise Server that uses a different BlackBerry Configuration Database
without using the BlackBerry Enterprise Transporter, you or a user must permanently delete all user data and application data,
the device transport key, and the IT policy public key from the BlackBerry device.
You or the user must reactivate the BlackBerry device to generate a new device transport key. The BlackBerry® Enterprise Server
that you move the BlackBerry device to must generate an IT policy key pair and digitally sign and send the IT policy and the IT
policy public key to the BlackBerry device before the BlackBerry device can communicate with the BlackBerry Enterprise Server.
The BlackBerry Configuration Database that you migrated the BlackBerry device to stores the BlackBerry Enterprise Server name,
the device transport key, and the IT policy private key.
Best practice: Controlling which applications can use the GPS feature on a
BlackBerry device
By default, if a third-party application or a preloaded BlackBerry® Application on a BlackBerry device supports the GPS feature,
the application can use the GPS feature. For example, BlackBerry® Maps is a preloaded BlackBerry Application that uses the
GPS feature to permit a user to locate a global position.
37
Security Technical Overview
Best practice: Controlling which applications can use the GPS feature on a BlackBerry device
Best practice
Description
Control which application on the
BlackBerry device can use the GPS
feature.
Consider preventing a third-party application or preloaded BlackBerry Application
from accessing the global position of the BlackBerry device.
Control when the BlackBerry device
reports its location to the BlackBerry®
Enterprise Server.
By default, the BlackBerry device does not use the GPS feature to report its location
to the BlackBerry Enterprise Server. If you change the value for the Enable Enterprise
Location Tracking IT policy rule to Yes, consider configuring the interval after which
a BlackBerry device reports its location to the BlackBerry Enterprise Server.
To apply this best practice, you can use one of the following methods:
•
To prevent the BlackBerry device from permitting all third-party applications
and preloaded BlackBerry Applications from accessing the GPS feature,
change the value of the Disable GPS IT policy rule to Yes.
•
To prevent a third-party application from using the GPS feature, change the
value of the Is Access to the GPS API Allowed application control policy rule
to Not Permitted. Assign the application control policy to the software
configuration.
To apply this best practice, you can use the Enterprise Location Tracking Interval IT
policy rule. You can also use the Enterprise Location Tracking User Prompt Message
IT policy rule to create a message that the BlackBerry device displays to notify the
user that you turned on the ability of the BlackBerry device to report its location to
the BlackBerry Enterprise Server.
38
BlackBerry device memory
Security Technical Overview
BlackBerry device memory
6
The BlackBerry® device memory consists of various sections that store user data and sensitive information such as keys. Thirdparty applications on a BlackBerry device cannot write to or access the sections that store sensitive information.
Section
Description
flash memory
The flash memory is a file system that is internal to the BlackBerry device. The flash
memory stores application data and user data. You cannot physically remove the
flash memory from the BlackBerry device. Sections of flash memory can store files
that a user downloads or saves.
The on-board device memory stores files that a user saves on a BlackBerry device.
The BlackBerry device uses and exposes the on-board device memory similar to the
way that the BlackBerry device uses and exposes a media card.
on-board device memory
NV store
media card
When you or a user permanently deletes all device data, the BlackBerry device
deletes the files from the on-board device memory, except for the system memory
partition, which includes sample pictures and sample tunes.
The NV store persists in flash memory, and only the operating system of the
BlackBerry device can write to it. Third-party application code cannot write to the
NV store.
The media card stores files that a user saves using a BlackBerry device.
You or a user can save, access, and encrypt files on the media card from the
BlackBerry device. When you or a user permanently deletes device data, the
BlackBerry device does not delete the files from the media card unless the
BlackBerry device is running BlackBerry® Device Software version 5.0 or later.
Changing when a BlackBerry device cleans the BlackBerry device memory
By default, the memory cleaner application runs on a BlackBerry® device when the BlackBerry device is inactive for a specified
period of time. You or a BlackBerry device user can change when the memory cleaner application runs when any the following
conditions exist:
•
The BlackBerry device user synchronizes the BlackBerry device with a computer.
•
The BlackBerry device user locks the BlackBerry device.
•
The BlackBerry device locks after it is inactive for a specified period of time.
•
The BlackBerry device user changes the time or time zone on the BlackBerry device.
39
Security Technical Overview
When a BlackBerry device overwrites data in the BlackBerry device memory
To change when the memory cleaner application runs, you can use IT policies or the BlackBerry device user can turn on or turn
off the memory cleaner application in the Security options on the BlackBerry device.
You or the BlackBerry device user cannot turn off the memory cleaner application on the BlackBerry device if any of the following
conditions exist:
•
You or the BlackBerry device user turns on content protection on the BlackBerry device.
•
An application uses the RIM® Cryptographic API to create a private key or symmetric key.
•
An application that registers with the memory cleaner application requires that memory cleaning application be turned on.
•
The BlackBerry device user installs the S/MIME Support Package for BlackBerry® smartphones on the BlackBerry device
and a private key exists on the BlackBerry device.
•
The BlackBerry device user installs the PGP® Support Package for BlackBerry® smartphones on the BlackBerry device and
a private key exists on the BlackBerry device.
If you or the BlackBerry device user turns on the the memory cleaner application, Java® based garbage collection process uses
the memory cleaner application automatically. The garbage collection process overwrites data that the BlackBerry device no
longer uses.
For more information about the IT policy rules that you can use to change when the memory cleaner application runs, see the
BlackBerry Enterprise Server Policy Reference Guide.
When a BlackBerry device overwrites data in the BlackBerry device memory
A BlackBerry® device continually runs the memory cleaner application during the Java® based garbage collection process to
overwrite data in the BlackBerry device memory that the BlackBerry device no longer uses.
The BlackBerry device runs the garbage collection process when any of the following conditions exist:
•
You or a BlackBerry device user turns on content protection for the BlackBerry device.
•
An application uses the RIM® Cryptographic API to create a private key or symmetric key.
•
A third-party application turns on the garbage collection process by registering with the memory cleaner application on
the BlackBerry device. The memory cleaner application instructs applications to empty caches and to free the BlackBerry
device memory that is associated with sensitive application data that the applications no longer use.
•
A BlackBerry device user installs the S/MIME Support Package for BlackBerry® smartphones on the BlackBerry device.
•
A BlackBerry device user installs the PGP® Support Package for BlackBerry® smartphones on the BlackBerry device.
When the BlackBerry device runs the garbage collection process, the garbage collection process overwrites the data that the
BlackBerry device no longer uses with zeroes, periodically runs the memory cleaner application, and overwrites the memory that
the memory cleaner application frees.
40
Security Technical Overview
Deleting all device data from the BlackBerry device memory
Deleting all device data from the BlackBerry device memory
A BlackBerry® device is designed to permanently delete the following data from the NV store, flash memory, and on-board device
memory:
•
all user data
•
any references to your organization’s PIN encryption key
•
any references to the device transport key
•
if applicable, authentication information (for example, the binding information of the smart card)
•
IT policy public key
•
if you are resetting the BlackBerry device to the factory default settings, any references to past hashes of the BlackBerry
device password
•
record of time elapsed since the BlackBerry device was last turned on
•
if you are resetting the BlackBerry device to the factory default settings, stored IT policy
•
If specified, all third-party applications and application data
If you or a user turns on content protection, the BlackBerry device uses a memory-scrubbing process to overwrite the flash memory
on the BlackBerry device and the on-board BlackBerry device memory. The memory-scrubbing process complies with United
States government requirements for deleting sensitive user data, including US Department of Defense Directive 5220.22-M and
NIST Special Publication 800-88.
For BlackBerry® Device Software versions 5.0 and later, if you configure the Media Card Format on Device Wipe IT policy rule
the BlackBerry device can also delete all user data from a media card. By default, the user can choose to delete third-party
applications and the user data on the media card when the user permanently deletes all deivce data.
For more information, visit www.blackberry.com/go/serverdocs to read Erasing File Systems on BlackBerry Devices Technical
Overview.
When a BlackBerry device deletes device data
The BlackBerry® device is designed to delete device data from the BlackBerry device memory when any of the following events
occurs:
•
The user clicks Wipe Device, Wipe Handheld, or Security Wipe in the security options on the BlackBerry device.
•
The user types the BlackBerry device password incorrectly more times than the Set Maximum Password Attempts IT policy
rule or the associated BlackBerry device option permits. The default value is ten attempts.
•
The user runs the application loader tool and types the BlackBerry device password incorrectly more times than the Set
Maximum Password Attempts IT policy rule permits.
•
The user uses the application loader tool to delete all user data and application data on the BlackBerry device. The user can
choose to not delete the BlackBerry device applications.
•
You send the Delete all device data and disable device IT administration command to the BlackBerry device with or without
a delay (in hours), to the BlackBerry device. The maximum delay is 168 hours (7 days).
41
Deleting all device data from the BlackBerry device memory
Security Technical Overview
•
You click the Remove user data from current device option in the BlackBerry Administration Service after you connect the
BlackBerry device to the BlackBerry Administration Service. This option deletes all data and applications from the BlackBerry
device even if service books do not exist on the BlackBerry device.
Using IT policy rules to specify when a BlackBerry device must delete device data
You can configure the following IT policy rules to require that a BlackBerry® device that runs BlackBerry® Device Software version
4.5 or later automatically deletes device data after a specific time or during specific conditions.
IT policy rule
Description
Secure Wipe Delay After IT Policy
Received
This rule specifies the length of time (in hours) that can elapse after receiving an
IT policy update or an IT administration command that a BlackBerry device deletes
all user data.
This rule specifies the length of time (in hours) after a BlackBerry device locks that
the device deletes all user data.
This rule specifies whether a BlackBerry device deletes all user data if the battery
power level is too low.
Secure Wipe Delay After Lock
Secure Wipe if Low Battery
For more information, see the BlackBerry Enterprise Server Policy Reference Guide.
Resetting a BlackBerry device to factory default settings
You can use the Reset to Factory Defaults on Wipe IT policy rule to require that a BlackBerry® device reset to the factory default
settings when the BlackBerry device receives the Delete all device data and disable device IT administration command over the
wireless network. When you change the value for the IT policy rule to Yes and send the IT administration command to the
BlackBerry device, the BlackBerry device resets to the factory default settings and permanently deletes all device data. If the
BlackBerry device is running BlackBerry® Device Software versions 5.0 and later, the BlackBerry device also deletes the IT policy
and removes third-party applications.
If the BlackBerry device is running BlackBerry Device Software version 5.0 and later and you change the value for the IT policy
rule to Yes, the BlackBerry device resets to factory default settings when you send the IT administration command, when a user
permanently deletes BlackBerry device data, or when the user exceeds the maximum number of password attempts.
When the BlackBerry device resets to the factory default settings, the BlackBerry device overwrites the BlackBerry device memory.
If you or a user turned on content protection, the BlackBerry device also scrubs the BlackBerry device memory. When the BlackBerry
device scrubs the BlackBerry device memory, it deletes any residual unmapped data.
42
Security Technical Overview
Scrubbing the memory of a BlackBerry device when deleting all BlackBerry device data
Process flow: Deleting all device data from a BlackBerry device
The following actions occur when you or a user delete all device data.
1.
The BlackBerry® device adds a Device Under Attack flag to the NV store. If a user removes the battery or the battery power
drops to zero before the process ends, when the user replaces the battery, the process continues because the Device Under
Attack flag is still present.
2. The BlackBerry device deletes the IT policy public key from the NV store to remove its binding with the BlackBerry® Enterprise
Server. The BlackBerry device can bind to another BlackBerry Enterprise Server at a later time. The BlackBerry device does
not use the memory-scrubbing process to overwrite the IT policy public key because it is not a protected or hidden value.
3. If applicable, the BlackBerry device deletes authentication information (for example, the binding information for the smart
card) from the NV store. The BlackBerry device can bind to another smart card at a later time.
4. The BlackBerry device turns off the wireless transceiver.
5. The BlackBerry device deletes data in the persistent store in flash memory, including references to the device transport key
and the copy of the principal encryption key.
6. If applicable, the BlackBerry device formats the on-board device memory on the BlackBerry device.
7. The BlackBerry device overwrites the flash memory with zeroes.
8. The BlackBerry device deletes the BlackBerry device password from the NV store.
9. If you or a user turned on content protection, the memory-scrub process overwrites the file system of the BlackBerry device
flash memory and on-board BlackBerry device memory. The memory-scrub process overwrites the BlackBerry device heap
in RAM, changing the state of each bit four times.
10. If you or a user specified that the data on the media card must be deleted, the memory scrub process overwrites the media
card.
11. The BlackBerry device deletes the Device Under Attack flag from the NV store.
12. The BlackBerry device restarts.
Scrubbing the memory of a BlackBerry device when deleting all BlackBerry
device data
When you or a user deletes all BlackBerry® device data for a BlackBerry device when content protection is turned on, the BlackBerry
device runs the memory scrub process to overwrite the BlackBerry device heap that is in RAM, the flash memory, and the files
that a user saved on the BlackBerry device.
43
Security Technical Overview
Scrubbing the memory of a BlackBerry device when deleting all BlackBerry device data
Scrubbing the BlackBerry device heap in RAM when deleting all BlackBerry device data
To overwrite the BlackBerry® device heap that is in RAM for a BlackBerry device when content protection is turned on, the
BlackBerry device changes the state of each bit four times. The memory scrub process for a BlackBerry device performs the
following actions:
1. writes 0x33 to each byte (0011 00112)
2.
deletes all bytes to 0x00 (0000 00002)
3.
writes 0xCC to each byte (1100 11002)
4.
deletes all bytes to 0x00 (0000 00002)
5.
writes 0x55 to each byte (0101 01012)
6.
deletes all bytes to 0x00 (0000 00002)
7.
writes 0xAA to each byte (1010 10102)
Scrubbing the flash memory on a BlackBerry device when deleting all BlackBerry device data
For a BlackBerry® device that is running BlackBerry® Device Software version 4.6 or later and that has content protection turned
on, the memory scrub process overwrites the NAND flash memory by writing a single character before it deletes the data. The
memory scrub process writes 0x00 to each byte (0000 00002). The memory scrub process deletes all blocks and changes all
bytes to 0xFF (1111 11112).
For a BlackBerry device that is running a version of BlackBerry Device Software that is earlier than version 4.6 and that has
content protection turned on, the memory scrub process overwrites the NOR flash memory by changing the state of each bit
four times. The memory scrub process performs the following actions:
1. writes 0x33 to each byte (0011 00112)
2.
deletes all bytes to 0xFF to each byte (1111 11112)
3.
writes 0xCC to each byte (0x1100 11002)
4.
deletes all bytes to 0xFF (1111 11112)
5.
writes 0x55 to each byte (0x0101 01012)
6.
deletes all bytes to 0xFF (1111 11112)
7.
writes 0xAA to each byte (0x1010 10102)
8.
deletes all bytes to 0xFF (1111 11112)
44
Security Technical Overview
Scrubbing the memory of a BlackBerry device when deleting all BlackBerry device data
Scrubbing the user files on a BlackBerry device when deleting all BlackBerry device data
If a BlackBerry® device supports a partition of flash memory to store files that a user saved to the on-board device memory and
you or a user turned on content protection, the memory scrub process overwrites that section of the BlackBerry device memory
by writing a single character before the memory scrub process deletes the data. The memory scrub process performs the following
actions:
1. writes 0x55 to each byte (0101 01012)
2.
writes 0xAA to each byte (1010 10102)
3.
deletes all blocks, and changes all bytes to 0xFF (1111 11112) or 0x00 (0000 00002)
45
Security Technical Overview
Protecting data on a BlackBerry device
Protecting data on a BlackBerry device
7
Encrypting user data on a locked BlackBerry device
If you or a BlackBerry® device user turns on content protection, you or the user can configure a locked BlackBerry device to
encrypt stored user data and data that the locked BlackBerry device receives. When you or a user turns on content protection, a
locked BlackBerry device is designed to use AES-256 encryption to encrypt stored data and an ECC public key to encrypt data
that the locked BlackBerry device receives.
For example, the locked BlackBerry device uses content protection to encrypt the following items:
•
subject, location, meeting organizer, attendees, and any notes in all appointments or meeting requests
•
all contact information in the contact list except for the contact title and category
•
subject, email addresses of intended recipients, message body, and attachments in all email messages
•
title and information that is included in the body of a note for all memos
•
subject and all information that is included in the body of tasks
•
if you use software tokens, contents of the .sdtid file seed that is stored in flash memory
•
all data that is associated with third-party applications that a user installs on the BlackBerry device
•
in the BlackBerry® Browser, content that web sites or third-party applications push to the BlackBerry device, any web sites
that the user saves on the BlackBerry device, and the browser cache
•
all text that replaces the text automatically that the user types on the BlackBerry device
You can change the Content Protection of Contact List IT policy rule to Required to prevent the user from turning off content
protection for the contact list on the BlackBerry device. If you change the Content Protection of Contact List IT policy rule to
Required, the BlackBerry device does not permit call display and does not share contacts over a Bluetooth® connection when
the BlackBerry device is locked.
Configuring the encryption of BlackBerry device data on a locked BlackBerry device
You can turn on content protection of BlackBerry® device data on a locked BlackBerry device using the Content Protection
Strength IT policy rule. You can choose a strength level that corresponds to the ECC key strength that your organization requires.
A user can turn on content protection on the BlackBerry device, in the BlackBerry device options, in the security options. The user
can change the content protection strength to the same level that you specify using the IT policy rule or to a higher level.
After you or a user configures content protection, a BlackBerry device uses the ECC private key to decrypt a message that it
received when it was locked. The longer the ECC private key, the more time the BlackBerry device requires to decrypt messages.
You must choose a strength level that optimizes the encryption strength or that optimizes the decryption process.
46
Security Technical Overview
Encrypting user data on a locked BlackBerry device
The BlackBerry device uses the BlackBerry device password to generate an ephemeral key that the BlackBerry device uses to
encrypt the content protection key and the ECC private key. If you change the content protection strength to Stronger so that
the BlackBerry device uses a 283-bit ECC private key, you can consider changing the Minimum Password Length IT policy rule
to enforce a minimum password length of 12 characters for the BlackBerry device password. If you change the content protection
strength to Strongest so that the BlackBerry device uses a 571-bit ECC private key, you can consider changing the Minimum
Password Length IT policy rule to enforce a minimum password length of 21 characters for the BlackBerry device password. These
password lengths maximize the encryption strength that the longer ECC private keys are designed to provide. A smaller password
length produces a weaker ephemeral key.
Process flow: Encrypting user data on a locked BlackBerry device
When a BlackBerry® device locks for the first time after you or a user turns on content protection, the BlackBerry device performs
the following actions:
1.
2.
3.
uses the content protection key to automatically encrypt the bulk of its stored user data and application data
frees the BlackBerry device memory that is associated with the decrypted content protection key and the decrypted ECC
private key that is stored in RAM
uses the ECC public key to encrypt data that it receives
Process flow: Decrypting user data on an unlocked BlackBerry device
1.
2.
A user types the correct BlackBerry® device password to unlock a BlackBerry device.
The BlackBerry device performs the following actions:
a. uses the password to derive the ephemeral key
b. uses the ephemeral key to decrypt the encrypted content protection key and ECC private key that are stored in flash
memory
c. stores the decrypted content protection key and ECC private key in RAM
d. uses the decrypted content protection key to decrypt the user data when the user tries to access user data (for example,
an email message) that the BlackBerry device received and encrypted while it was locked
e. uses the decrypted ECC private key to decrypt the user data and access the ECC-encrypted items (for example, the
message body, subject, or recipient) when the user tries to access user data that the BlackBerry device encrypted while
it was locked
When the BlackBerry device opens ECC-128 encrypted items (usually less than 40 messages), the BlackBerry device uses the
ECC private key to decrypt the ECC-encrypted items. The BlackBerry device re-encrypts the items with the content protection
key the next time that the BlackBerry device locks. If the BlackBerry device does not complete the re-encryption process before
the user unlocks the BlackBerry device, the BlackBerry device resumes re-encryption when it locks again.
47
Security Technical Overview
Encrypting the device transport key on a locked BlackBerry device
Encrypting the device transport key on a locked BlackBerry device
If you turn on content protection for device transport keys, a BlackBerry® device uses the principal encryption key to encrypt the
device transport keys that are stored in flash memory. The BlackBerry device encrypts the principal encryption key using the
content protection key. When a locked BlackBerry device receives data that is encrypted using the device transport key, it uses
the decrypted principal encryption key to decrypt the device transport key in flash memory and then uses the decrypted device
transport key to decrypt data.
When you, a user, or a password timeout locks the BlackBerry device, the wireless transceiver remains on and the BlackBerry
device does not delete the memory that is associated with the principal encryption key or device transport key. The BlackBerry
device is designed to prevent the decrypted principal encryption key and the decrypted device transport key from appearing in
flash memory.
You can turn on content protection for device transport keys on the BlackBerry device when you configure the Force Content
Protection of Master Keys IT policy rule. When you turn on content protection of device transport keys, the BlackBerry device
uses the ECC key strength that you specified in the Content Protection Strength IT policy rule to encrypt the device transport keys.
What happens when a user resets a BlackBerry device after you turn on content protection
for the device transport key
If you turn on content protection of device transport keys, a BlackBerry® device performs the following actions when a user resets
the BlackBerry device by removing and reinserting the battery:
•
turns off the data connection over the wireless network
•
suspends serial bypass connections if your organization's environment includes an enterprise Wi-Fi® network and the
BlackBerry device can connect directly to a BlackBerry Router
•
frees the memory that is associated with all data and keys, including the decrypted principal encryption key
•
locks itself
The BlackBerry device is designed to turn off the data connection and serial bypass connection while the content protection key
is unavailable to decrypt the principal encryption key in flash memory. Until a user unlocks the BlackBerry device, the BlackBerry
device cannot receive and decrypt data. The BlackBerry device does not turn off the wireless transceiver and can still receive
phone calls, SMS text messages, and MMS messages.
When the user unlocks the BlackBerry device after resetting it, the BlackBerry device performs the following actions:
•
uses the content protection key to decrypt the principal encryption key in flash memory
•
stores the decrypted principal encryption key in flash memory
•
connects to the BlackBerry® Infrastructure
•
resumes serial bypass connections
•
receives data from the BlackBerry® Enterprise Server
48
Security Technical Overview
Resetting a BlackBerry device password when content protection is turned on
Resetting a BlackBerry device password when content protection is turned
on
If you or a user turns on content protection for a BlackBerry® device that is running BlackBerry® Device Software version 4.3 or
later, you can reset the BlackBerry device password using a BlackBerry® Enterprise Server version 4.1 SP5 or later. The BlackBerry®
Enterprise Solution uses the remote password reset cryptographic protocol to reset the BlackBerry device password when content
protection is turned on. The BlackBerry device does not prompt the user for the old BlackBerry device password.
The remote password reset cryptographic protocol is designed to provide the following features:
•
permit the BlackBerry device to encrypt the content protection key again with the new password, without the old password
being available
•
prevent a hardware-based attack on the BlackBerry device from recovering the content protection key without knowing
either the BlackBerry device password or the IT policy private key that the BlackBerry Enterprise Server generates for the
BlackBerry device
•
prevent the BlackBerry Enterprise Server from accessing any data that a potentially malicious user could use to recover the
content protection key
To reset the BlackBerry device password, you send the Specify new device password and lock device IT administration command
to the BlackBerry device. You should send the IT administration command to a content-protected BlackBerry device that is in
the possession of the BlackBerry device user only. If you send the IT administration command to a BlackBerry device that is in
the possession of a potentially malicious user, that user can use a hardware-based attack to recover the key pair that the BlackBerry
device created when it received the IT policy. The potentially malicious user can use the key pair to decrypt all the data on the
BlackBerry device.
Process flow: Resetting a BlackBerry device password when content protection is turned on
The process flow is designed so that the BlackBerry® Enterprise Server cannot reconstruct the encryption key at a later time.
The BlackBerry Enterprise Server performs the following actions when you send the Specify new device password and lock device
IT administration command to a BlackBerry device when content protection is turned on:
1.
2.
3.
generates an encryption key using the IT policy public key and the NIST recommended 521-bit elliptic curve over a prime field
encrypts the content protection key using the encryption key and the new BlackBerry device password (which is also
encrypted)
sends the data required to reconstruct the encryption key to the BlackBerry device
Cryptosystem parameters that the remote password reset cryptographic protocol uses
The BlackBerry® Enterprise Server and BlackBerry device are designed to share the following cryptosystem parameters when
they use the remote password reset cryptographic protocol.
49
Protecting passwords that a BlackBerry device stores
Security Technical Overview
Uppercase parameters represent elliptic curve points. Lowercase parameters represent scalars. The elliptic curve group operations
are additive.
Parameter
Description
E(Fq)
This parameter represents the NIST approved 521-bit random elliptic curve over Fq, which
has a cofactor of 1.
This parameter represents a finite field of prime order q.
This parameter represents a point of E that generates a prime subgroup of E(Fq) of order
p.
This parameter represents the long-term IT policy public key and IT policy private key pair
that the BlackBerry Enterprise Server generates for the BlackBerry device. The BlackBerry
Enterprise Server stores b in the BlackBerry Configuration Database and sends B to the
BlackBerry device in the IT policy.
This parameter represents the key pair that the BlackBerry device creates when it receives
B. The BlackBerry device stores D, but it deletes d to prevent a hardware-based attack
from recovering d and B and then calculating K = dB.
This parameter represents the encryption key that the BlackBerry device uses to encrypt
the content protection key.
This parameter represents a short-term random number that the BlackBerry device stores
in RAM.
This parameter represents a blinded version of D.
This parameter represents a blinded version of K.
Fq
P
B = bP
D = dP
K = dB
r
D' = rD
K' = bD' = brD = rK
Protecting passwords that a BlackBerry device stores
A user can use the password keeper to store all passwords that the user uses to access applications and web sites from a
BlackBerry® device. The password keeper is designed to protect the passwords with a password keeper password. The user is
required to remember only the password keeper password.
The first time that the user opens the password keeper on the BlackBerry device, the user must create the password keeper
password. The password keeper encrypts the information that it stores using AES-256 encryption, and uses the password keeper
password to decrypt the information when the user types the password keeper password. The BlackBerry device deletes all device
data if a user types the password keeper password incorrectly 10 times.
In the password keeper, a user can perform the following actions:
•
type a password and its identifying information (for example, which application the user can access using the password),
and save the information
50
Security Technical Overview
•
•
Protecting data that a BlackBerry device stores on a media card
generate random passwords that are designed to improve password strength
copy passwords and paste them into an application or password prompt for a web site
Protecting data that a BlackBerry device stores on a media card
To protect the data that a BlackBerry® device stores on a media card, you can configure the External File System Encryption Level
IT policy rule, or a user can configure the corresponding option on the BlackBerry device. You can use this rule or option to
configure whether the BlackBerry device encrypts the data using a password that a user provides, a BlackBerry device key that
is randomly generated and stored in the NV store, or both.
A media card can store a master key and the code-signing keys that are included in the header information of encrypted files.
The code-signing keys permit only applications that signed the files to access the files. A BlackBerry device is designed to use
the master key that is stored on the media card to decrypt and encrypt files on the media card. The master key and code-signing
keys use AES encryption. The BlackBerry device is designed to check the code-signing keys when the BlackBerry device opens
the input streams or output streams of an encrypted file and to use code-signing with RSA-1024 encryption to control access to
objects on the media card.
When a user stores a file on a media card for the first time after you or the user turns on encryption of media cards, the BlackBerry
device decrypts the encryption key for the media card file and uses it to encrypt the stored file. The BlackBerry device does not
encrypt files that a user transfers to the media card using a USB mass storage device.
The BlackBerry device, a computer, and other devices that use the media card can modify encrypted files (for example, truncate
files) on the media card. The BlackBerry device is not designed to perform integrity checks on data in encrypted files.
For more information, visit www.blackberry.com/go/serverdocs to read Enforcing Encryption of Internal and External File Systems
on BlackBerry Devices Technical Overview.
Process flow: Generating an encryption key for a media card
When you or a user turns on encryption of media cards for the first time, a BlackBerry® device generates an encryption key (also
known as a session key) for a media card.
To generate an encryption key, the BlackBerry device performs the following actions:
1.
2.
3.
4.
5.
generates an AES-256 encryption key
stores the encryption key in the NV store in RAM on the BlackBerry device
XORs the AES-256 encryption key with another AES-256 encryption key that is encrypted with a password to generate the
encryption key for the media card
encrypts the encryption key for the media card using the AES-256 encryption key
stores the encrypted encryption key for media cards on the media card
51
Security Technical Overview
How the BlackBerry Attachment Service protects data on a BlackBerry device
How the BlackBerry Attachment Service protects data on a BlackBerry device
A BlackBerry® device uses the BlackBerry Attachment Service to process an attachment in an email message or calendar entry
so that the user can view the attachment on the BlackBerry device. The BlackBerry Attachment Service is designed to prevent a
potentially malicious application from accessing data on the BlackBerry device by using binary format parsing to open the
attachment and process it.
After the BlackBerry Attachment Service processes the attachment, the BlackBerry Router sends the attachment to the BlackBerry
device for rendering. If the attachment in the email message or calendar entry is an application, the BlackBerry device does not
run the application.
For more information about the attachment file formats that the BlackBerry® Enterprise Server supports, see the BlackBerry
Enterprise Server Feature and Technical Overview.
Best practice: Protecting the BlackBerry Attachment Service
To help prevent the spread of potential attacks from the computer that hosts the BlackBerry® Attachment Service to other
computers in your organization’s network, consider the following guidelines:
•
Install the BlackBerry Attachment Service on a computer that is separate from the computer that hosts the BlackBerry®
Enterprise Server.
•
Place the computer that hosts the BlackBerry Attachment Service in its own network segment.
How a BlackBerry device protects its operating system and the BlackBerry
Device Software
Each time a user turns on a BlackBerry® device, specific components on the BlackBerry device automatically check the authenticity
of the BlackBerry device operating system and the integrity of the BlackBerry® Device Software. The BlackBerry Device Software
must pass these security checks before the user can run the BlackBerry Device Software and before the user can update the
BlackBerry Device Software over the wireless network.
How a BlackBerry device authenticates the boot ROM code and binds the
BlackBerry device processor when the BlackBerry device turns on
A BlackBerry® device processor provides an authentication method that is designed to verify that the boot ROM code is permitted
to run on a BlackBerry device. The manufacturing process installs the boot ROM code in flash memory on the BlackBerry device.
The boot ROM code is the root of trust on BlackBerry devices. The RIM® signing authority system, which signs the boot ROM
52
Security Technical Overview
How a BlackBerry device authenticates the boot ROM code and binds the BlackBerry device processor when the BlackBerry
device turns on
code for a BlackBerry device during the manufacturing process, uses an RSA® public key to sign the boot ROM code. The processor
is configured during the manufacturing process to store information that the processor can use to verify the digital signature of
the boot ROM code.
When a user turns on a BlackBerry device, the processor runs internal ROM code that reads the boot ROM from flash memory
and verifies the digital signature of the boot ROM code using the RSA public key. If the verification process is successful, the
boot ROM is permitted to run on the BlackBerry device. If the verification process is not successful, the processor stops running.
The process of binding a processor to a boot ROM can occur when the processor is manufactured, the BlackBerry device is
manufactured, or the BlackBerry® Device Software is configured, depending on the manufacturer and model number of the
processor.
53
Security Technical Overview
Protecting the data that the BlackBerry Enterprise Solution stores in your organization's environment
Protecting the data that the BlackBerry Enterprise Solution
stores in your organization's environment
8
Where the BlackBerry Enterprise Server stores messages and user data in
the messaging environment
The BlackBerry® Enterprise Server stores the messages and user data for a BlackBerry device in the messaging environment so
that the BlackBerry Enterprise Server can maintain a connection between a user’s email account and the BlackBerry device. To
avoid compromising the user data that is stored in the messaging environment, you must protect the storage location in the
messaging environment.
Messaging environment
Storage location
IBM® Lotus® Domino®
The following Lotus Domino databases store data for the BlackBerry Enterprise
Server:
•
The BlackBerry state database stores an entry that opens a connection
between each original email message in a user’s IBM® Lotus Notes® Inbox
and the same email message on the user’s BlackBerry device. Each user
account has a uniquely named BlackBerry state database.
•
The BlackBerry profiles database stores configuration information for each
user account, including the identification information for the BlackBerry device
and the device transport key. The BlackBerry profiles database stores a link to
a BlackBerry state database and stores other information that the BlackBerry
Enterprise Server uses to manage how email messages are sent to and from
the BlackBerry device.
Microsoft® Exchange
The BlackBerry Enterprise Server stores user data in hidden folders in the Microsoft
Exchange mailbox for the user.
The BlackBerry Enterprise Server stores user data in the POA where the user account
is located.
Novell® GroupWise®
Data that the BlackBerry Configuration Database stores
The BlackBerry® Configuration Database stores the following information:
54
Data that the BlackBerry Configuration Database stores
Security Technical Overview
•
•
•
•
•
•
•
name of each BlackBerry® Enterprise Server
unique SRP authentication keys and unique SRP IDs, or UIDs, that each BlackBerry Enterprise Server uses in the SRP
authentication process to open a connection to the wireless network
IT policy private keys of the IT policy key pairs that the BlackBerry Enterprise Server generates for each BlackBerry device
PIN of each BlackBerry device
read-only copies of each device transport key
copy of your organization’s user directory
a semi-permanent reference to user data using the Novell® GroupWise® MessageID in the database synchronization tables
that are named MBMailSync, MBCalendarSync, MBPIMSync, and MBFolderSync (BlackBerry® Enterprise Server for Novell®
GroupWise® only)
The BlackBerry Enterprise Server components that do not connect to a messaging server can access the information that the
BlackBerry Configuration Database stores.
Best practice: Protecting the data that the BlackBerry Configuration Database stores
Best practice
Description
Audit connections to the Microsoft®
SQL Server®.
Consider the following guidelines:
•
At a minimum, write failed connection attempts to the Microsoft SQL Server
log file and review the log file regularly.
•
When possible, save log files to a different hard disk drive than the one that
the data files are stored on.
Delete unsecured, old setup files.
Consider deleting Microsoft SQL Server setup files that might contain plaintext,
credentials encrypted with weak public keys, or sensitive information that the
Microsoft SQL Server logged to a Microsoft SQL Server version-dependent location
during the Microsoft SQL Server installation process.
Limit the permission level of the
Microsoft SQL Server.
Microsoft distributes the Killpwd tool, which is designed to locate and delete
passwords from unsecured, old setup files in your organization’s environment. For
more information, visit support.microsoft.com to read article KB263968.
Consider associating each Microsoft SQL Server service with a Windows® account
that the service derives its security context from.
55
Data that the BlackBerry Configuration Database stores
Security Technical Overview
Best practice
Description
Microsoft SQL Server permits the sa account and, in some cases, other user accounts
to access operating system calls based on the security context of the account that
runs the Microsoft SQL Server service. If you do not limit the permission level of the
Microsoft SQL Server, a potentially malicious user might use these operating system
calls to attack any other resource that the account has access to.
Consider configuring your organization’s firewall to filter packets that are addressed
to TCP port 1433, addressed to UDP port 1434, or associated with named instances.
Make the Microsoft SQL Server port
numbers that are monitored by default
on your organization’s firewall
unavailable.
Protect the sa account using a password. Consider assigning a password to the sa account on the Microsoft SQL Server, even
on servers that require Windows authentication. The password is designed to
prevent an empty or weak password for the sa account from being exposed if an
administrator of the database resets the Microsoft SQL Server for mixed mode
authentication.
Protect the Microsoft SQL Server
Consider the following guidelines:
installation from Internet-based
•
Require Windows Authentication Mode for connections to the Microsoft SQL
attacks.
Server to restrict connections to Windows user accounts and domain user
accounts, and turn on credentials delegation. Windows Authentication Mode
does not require you to store passwords on the computer.
•
Use stronger authentication protocols, required password complexity, and
required expiration times.
Use a secure file system.
Consider the following guidelines:
•
Use NTFS for the Microsoft SQL Server because it is more stable and
recoverable than FAT file systems, and NTFS permits security options such as
file and directory ACLs and EFS.
•
Do not change the permissions that the Microsoft SQL Server specifies during
the Microsoft SQL Server installation process. The Microsoft SQL Server
creates appropriate ACLs on registry keys and files if it detects NTFS.
•
If you must change the account that runs the Microsoft SQL Server, decrypt
the files that you could access using the old account and encrypt them again
for access using the new account.
Use Microsoft SQL Server Management Consider the following guidelines:
Studio.
56
How the BlackBerry Enterprise Solution protects IT policies
Security Technical Overview
Best practice
Description
•
•
Use Microsoft SQL Server Management Studio to change the account that is
associated with a Microsoft SQL Server service, if required. Microsoft SQL
Server Management Studio configures the appropriate permissions on the
files and registry keys that the Microsoft SQL Server uses.
Do not use the Microsoft Management Console Services applet to change the
account that is associated with a Microsoft SQL Server service. To use this
applet, you must manually change the Windows registry, the permissions for
the NTFS file system, and Windows user rights.
For more information, visit support.microsoft.com to read article KB283811.
How the BlackBerry Enterprise Solution protects IT policies
After the BlackBerry® Enterprise Server installation process creates the BlackBerry Configuration Database, the BlackBerry
Enterprise Server generates an IT policy key pair that it can use to authenticate and protect the IT policy. When you assign a
BlackBerry device to the user account and activate the BlackBerry device, the BlackBerry Enterprise Server sends the IT policy
and the IT policy public key to the BlackBerry device.
The BlackBerry Enterprise Server stores the IT policy private key in the BlackBerry Configuration Database. The BlackBerry
Enterprise Server uses the IT policy private key to digitally sign all data packets that include IT policy data when the BlackBerry
Enterprise Server sends the IT policy to the BlackBerry device. The BlackBerry device uses the IT policy public key in the NV store
to authenticate the digital signature on the IT policy.
A BlackBerry device stores the digitally signed IT policy and the IT policy public key in the NV store in flash memory. When the
BlackBerry device stores the IT policy and IT policy public key, the BlackBerry device binds the IT policy to itself so that the
BlackBerry device can use the IT policy to control its behavior.
57
Security Technical Overview
Protecting communication with a BlackBerry device
Protecting communication with a BlackBerry device
9
Opening a direct connection between a BlackBerry device and a BlackBerry
Router
A BlackBerry® Router and a BlackBerry device can use the BlackBerry Router protocol to bypass the SRP authenticated connection
to the BlackBerry® Infrastructure and open a direct connection to each other. The BlackBerry Router can open a direct connection
to a BlackBerry device that a user connects to a computer that hosts the BlackBerry® Device Manager. The BlackBerry Router
can also open a direct connection to a BlackBerry device over an enterprise Wi-Fi® network using port 4101.
Before the BlackBerry® Enterprise Server or BlackBerry device send any data to each other, the BlackBerry device must
authenticate with the BlackBerry Enterprise Server by verifying the device transport key. The BlackBerry Router opens an
authenticated connection after the BlackBerry device authenticates with the BlackBerry Enterprise Server. The BlackBerry Router
does not know the value of the device transport key that the BlackBerry Enterprise Server and BlackBerry device share.
If the BlackBerry device connects to the BlackBerry Router over the enterprise Wi-Fi network, after the BlackBerry Router opens
an authenticated connection, the BlackBerry Router sends the Internet content requests or intranet content requests from the
BlackBerry device to the enterprise Wi-Fi network over port 4101. The BlackBerry Router verifies that the PIN belongs to a
BlackBerry device that is registered with the wireless network.
If you want the BlackBerry Router and BlackBerry device to use the BlackBerry Router protocol, you can consider installing the
BlackBerry Router on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server to prevent direct
access to the computer that hosts the BlackBerry Enterprise Server.
Process flow: Authenticating a BlackBerry device with the BlackBerry Enterprise Server using
the BlackBerry Router protocol
1.
2.
3.
4.
58
A user connects a BlackBerry® device to a computer that hosts the BlackBerry® Device Manager or connects a BlackBerry
device to an enterprise Wi-Fi® network.
The BlackBerry® Enterprise Server and BlackBerry device use the BlackBerry Router protocol to verify that the BlackBerry
device knows the device transport key.
The BlackBerry Router protocol uses two runs of the elliptic curve version of the Schnorr identification scheme to provide
mutual authentication between the BlackBerry Enterprise Server and BlackBerry device.
The BlackBerry Enterprise Server and BlackBerry device authenticate with each other using the same SRP authentication
information that the BlackBerry Enterprise Server uses to authenticate with the BlackBerry® Infrastructure.
The BlackBerry Router opens an authenticated connection.
Security Technical Overview
Opening a direct connection between a BlackBerry device and a BlackBerry Router
Closing a direct connection between a BlackBerry device and BlackBerry Router
If a user disconnects a BlackBerry® device from a computer that hosts the BlackBerry® Device Manager, closes the BlackBerry
Device Manager, or disconnects the BlackBerry device from an enterprise Wi-Fi® network, the BlackBerry device restores the
connection to the BlackBerry® Infrastructure over the wireless network automatically. The BlackBerry® Enterprise Server and
BlackBerry Router use the BlackBerry Router protocol to close the authenticated connection to the BlackBerry device. The
BlackBerry Router protocol is designed to permit only an authenticated party to close the connection. The BlackBerry Router
uses a single execution of the Schnorr identification scheme to authenticate the close command that the BlackBerry Enterprise
Server sends to the BlackBerry Router.
Impersonation attacks that the BlackBerry Router protocol is designed to prevent
The BlackBerry® Router protocol is designed to prevent a potentially malicious user from impersonating a BlackBerry device or
a BlackBerry® Enterprise Server.
To impersonate the BlackBerry device, the potentially malicious user sends messages to the BlackBerry Enterprise Server so that
the BlackBerry Enterprise Server believes it is communicating with the BlackBerry device. To impersonate the BlackBerry
Enterprise Server, the potentially malicious user sends messages to the BlackBerry device so that the BlackBerry device believes
it is communicating with the BlackBerry Enterprise Server.
To perform either of these impersonation attacks, the potentially malicious user must send the device transport key value (also
known as s) to the BlackBerry Enterprise Server or BlackBerry device, which requires the potentially malicious user to solve the
discrete log problem to determine s or the hash of s.
How the BlackBerry Router protocol uses the Schnorr identification scheme to open an
authenticated connection
The implementation of the Schnorr identification scheme in the BlackBerry® Router protocol uses a group of large prime order,
which is the additive group of elliptic curve points for a prime p.
The BlackBerry Router protocol is designed to perform the following actions:
•
use the NIST recommended 521-bit elliptic curve group
•
verify that the points supplied by the parties involved in the communication are members of the elliptic curve group
•
verify that RD does not equal RB, to prevent the recovery of h by a potentially malicious user
•
verify that e does not equal 0, to prevent the recovery of h by a potentially malicious user
•
verify that R does not equal the point at infinity, to verify that R is a valid public key
•
verify that R does not equal the point at infinity, to verify that R is a valid public key
•
reset any corrupted data that it finds to a random value so that the BlackBerry Router protocol can proceed past the point
that it detects corrupted data
59
Security Technical Overview
Opening a direct connection between a BlackBerry device and a BlackBerry Router
Because the BlackBerry Router protocol can proceed past the point that it detects corrupted data, the BlackBerry Router protocol
is unsuccessful at completion only. This measure is designed to prevent various timing attacks.
Process flow: Using the BlackBerry Router protocol to close an authenticated connection
1.
2.
3.
4.
The BlackBerry® Enterprise Server performs the following actions:
a. selects a random value rC, where 1 < rc < p - 1
b.
calculates RC = rCP
c.
calculates another RC value if RC = RB, or RC = RD
d.
sends the value RC to the BlackBerry Router
The BlackBerry Router performs the following actions:
a. verifies that the value RC is random when the value RC approaches the point at infinity
b.
verifies that the value RC is random when the value RC = RB, or RC = RD
c.
selects a random value eC, where 1 < ec < p - 1
d.
calculates another eC value if eC = eD, or ec = eB
e.
sends the value eC to the BlackBerry Enterprise Server
The BlackBerry Enterprise Server performs the following actions:
a. verifies that the value eC is random when the value eC = 0
b.
verifies that the value eC is random when the value eC = eB, or eC = eD
c.
calculates yC = h - eCrC mod p
d.
sends the value yC to the BlackBerry Router
The BlackBerry Router performs one of the following actions:
•
The BlackBerry Router closes the authenticated connection to the BlackBerry device on behalf of the BlackBerry
Enterprise Server if the BlackBerry Router accepts yC.
•
The BlackBerry Router does not close the authenticated connection to the BlackBerry device if the BlackBerry Router
calculates the following:
yCP + eCRC ≠ yDP + e DRD
Process flow: Using the BlackBerry Router protocol to open an authenticated connection
1.
2.
60
The BlackBerry® device and BlackBerry® Enterprise Server hash the current device transport key using SHA-512.
The BlackBerry device performs the following actions:
a. selects a random value rD, where 1 < rD < p - 1 and calculates RD = rDP
Security Technical Overview
b.
3.
4.
5.
6.
7.
sends RD and a device transport key identifier (KeyID) to the BlackBerry Enterprise Server
The BlackBerry Router performs the following actions:
a. observes the data that the BlackBerry device sends and verifies that the value RD is not the point at infinity
b.
if RD is the point at infinity, the BlackBerry Router configures RD to a random value
c.
sends RD and KeyID to the BlackBerry Enterprise Server
The BlackBerry Enterprise Server performs the following actions:
a. calculates that as RD approaches the point at infinity, RD is random
b.
selects a random value rB, where 1 < rB < p - 1 and calculates RB = rBP
c.
if RD = RB, calculates another value of RB
d.
selects a random value eD, where 1 < eD < p - 1
e.
sends RB, eD, and KeyID to the BlackBerry device
The BlackBerry Router performs the following actions:
a. observes the data that the BlackBerry Enterprise Server sends
b. verifies that the value RB is random when the value RB approaches the point at infinity or when RD = RB
c.
verifies that the value eD is random when the value eD = 0
d.
sends RB, eD, and KeyID to the BlackBerry device
The BlackBerry device performs the following actions:
a. verifies that the value RB is random when the value RB approaches the point at infinity or when RD = RB
b.
verifies that the value eD is random when the value eD = 0
c.
calculates yD = h - eDrD mod p
d.
selects a random value eB, where 1 < eB < p - 1
e.
sends yD and eB to the BlackBerry Enterprise Server
The BlackBerry Router performs the following actions:
a. observes the data that the BlackBerry device sends
b. verifies that the value eB is random if eB = 0 or eB = eD
c.
8.
Opening a direct connection between a BlackBerry device and a BlackBerry Router
forwards yD and eB to the BlackBerry Enterprise Server
The BlackBerry Enterprise Server performs the following actions:
a. verifies that the value eB is random when the value eD = eB
b.
verifies that the value eD is random when the value eD = 0
c.
computes yB = h - eBrB (mod p)
61
Security Technical Overview
d.
9.
sends yB to the BlackBerry device
One of the following actions occurs:
•
The BlackBerry Enterprise Server and BlackBerry device open an authenticated connection to each other if the
BlackBerry device accepts yB.
•
The BlackBerry device does not accept the connection request, and the BlackBerry Enterprise Server and BlackBerry
device do not open an authenticated connection to each other, if the BlackBerry device calculates the following:
•
•
•
yBP + eBRB ≠ hP
The BlackBerry Router does not accept the connection request if the BlackBerry Router calculates the following:
yBP + eBRB ≠ yDP + eDRD
The BlackBerry Enterprise Server does not accept the connection request if the BlackBerry Enterprise Server calculates
the following:
yDP + eDRD ≠ hP
The BlackBerry Router stores RD, RB, yDP + eDRD, eD, and eB if the BlackBerry device accepts yB.
10. The BlackBerry Enterprise Server stores RD, RB, eD, eB, and h.
11.
The BlackBerry Router overwrites yB and yD in memory with zeroes.
12. The BlackBerry Enterprise Server overwrites yB, yD, and rB in memory with zeroes.
13. The BlackBerry device overwrites yB, yD, and rD in memory with zeroes.
Cryptosystem parameters that the BlackBerry Router protocol uses
The BlackBerry® Router, BlackBerry® Enterprise Server, and BlackBerry device are designed to share the following cryptosystem
parameters when they use the BlackBerry Router protocol.
Parameter
Description
E(Fq)
This parameter represents the NIST approved 521-bit random elliptic curve over Fq, which has a
cofactor of 1. The BlackBerry Router protocol does all math operations in the groups E(Fq) and Zp.
Fq
P
xR
This parameter represents a finite field of prime order q.
This parameter represents a point of E that generates a prime subgroup of E(Fq) of order p.
This parameter represents the elliptic curve scalar multiplication, where x is the scalar and R is a
point on E(Fq).
This parameter represents the value of the device transport key.
This parameter represents the SHA-512 hash of s.
s
h
62
Best practice: Protecting unsecured wireless messaging on the BlackBerry device
Security Technical Overview
Best practice: Protecting unsecured wireless messaging on the BlackBerry
device
Unsecured wireless messaging includes SMS text messages, MMS messages, and PIN messages. A BlackBerry® device can send
SMS text messages and MMS messages over a wireless TCP/IP connection.
Best practice
Description
Prevent a user from sending, forwarding, Consider the following guidelines:
or replying to specific types of messages •
Prevent a user from forwarding or replying to a message using a BlackBerry®
from the BlackBerry device.
Enterprise Server that did not deliver the original message.
•
Prevent a user from using an email account to forward or reply to a PIN
message or reply to an email message with a PIN message.
Prevent external connections to a
BlackBerry device.
Prevent plain-text PIN messages.
Prevent a BlackBerry device from using
the global PIN encryption key.
To apply this best practice, you can use the Disable Forwarding Between Services
IT policy rule.
Consider preventing applications on a BlackBerry device from opening external
connections (for example, to WAP, SMS, MMS, or other public gateways).
To apply this best practice, you can use the Allow External Connections IT policy rule.
Consider preventing a user from sending plain-text PIN messages if your
organization uses a highly secure messaging solution such as the S/MIME Support
Package for BlackBerry® smartphones or the PGP® Support Package for
BlackBerry® smartphones.
To apply this best practice, you can use the Disable Peer-to-Peer Normal Send IT
policy rule.
Consider limiting the number of BlackBerry devices in your organization’s
environment that can receive SMS text messages, MMS messages, BlackBerry®
Internet Service messages, PIN messages that use scrambling that is specific to
your organization, and PIN messages that use the global PIN encryption key.
To apply this best practice, you can use the Firewall Block Incoming Messages IT
policy rule.
63
Security Technical Overview
How the BlackBerry Enterprise Solution protects connections between a BlackBerry device and the Internet or intranet
Best practice
Description
Require a user to verify whether the user Consider configuring the BlackBerry device so that the user must verify whether
wants to send a message.
the user wants to send an email message, SMS text message, MMS message, or
PIN message.
Turn off unsecured messaging on the
BlackBerry device.
To apply this best practice, you can use the Confirm on Send IT policy rule.
Consider turning off unsecured messaging to make sure that all communication for
the BlackBerry device that starts in your organization travels through your
organization’s messaging environment.
To turn off SMS text messaging, you can use the Allow SMS IT policy rule.
To turn off MMS messaging, you can use the Disable MMS IT policy rule.
To turn off PIN messaging, you can use the Allow Peer-to-Peer Messages IT policy
rule. When you turn off PIN messaging, a user can receive PIN messages on the
BlackBerry device but cannot send PIN messages from the BlackBerry device.
How the BlackBerry Enterprise Solution protects connections between a
BlackBerry device and the Internet or intranet
A user can use the BlackBerry® Browser and BlackBerry Java® Applications on a BlackBerry device to access the Internet and
your organization’s intranet. The BlackBerry Browser and BlackBerry Java Applications can accept and respond to push requests
from push applications. The BlackBerry Browser and BlackBerry Java Applications use the BlackBerry MDS Connection Service
to access the Internet and your organization's intranet.
To access data on the Internet or your organization’s intranet, the BlackBerry MDS Connection Service uses HTTP, TCP/IP, and
the BlackBerry MDS security protocol. The BlackBerry MDS security protocol is a Research In Motion® proprietary protocol that
is designed to protect messages that the BlackBerry device sends using the BlackBerry MDS Connection Service. The BlackBerry
MDS Connection Service and BlackBerry device use BlackBerry transport layer encryption to help protect your organization’s
applications and the Internet data that a user receives on the BlackBerry device.
Authenticating data that a BlackBerry device sends to the BlackBerry MDS
Integration Service
When a BlackBerry® device sends data to the BlackBerry MDS Integration Service, the BlackBerry MDS security protocol uses
HMAC to authenticate part of each message header and message content, and to encrypt the MAC of each BlackBerry MDS
message header. If necessary, the BlackBerry MDS security protocol also encrypts the content of each message.
64
Security Technical Overview
Authenticating data that a BlackBerry device sends to the BlackBerry MDS Integration Service
The BlackBerry MDS security protocol uses a session key to authenticate data that the BlackBerry device sends to the BlackBerry
MDS Integration Service. The BlackBerry device and BlackBerry MDS Integration Service share the same session key. The session
key is stored in the BlackBerry Configuration Database. The BlackBerry MDS security protocol uses AES-128 in CBC mode with
PKCS #5 padding to encrypt the session key using the database access key of the database server. The BlackBerry MDS security
protocol also uses AES-128 in CBC mode with PKCS #5 padding to encrypt and decrypt data that the BlackBerry device and
BlackBerry MDS Integration Service send between each other using the session key.
Using SSL to connect to web services
The BlackBerry® MDS Integration Service uses a certificate to permit client authentication between the BlackBerry MDS
Integration Service and web services. By default, the BlackBerry MDS Integration Service generates a self-signed certificate when
it starts after the BlackBerry MDS Integration Service installation process completes or when it cannot locate a certificate in the
BlackBerry MDS Integration Service key store. You can replace the self-signed certificate with a signed certificate if the security
policies in your organization require it.
If the BlackBerry MDS Integration Service must use SSL to connect to web services, you must export the certificate to the web
services to authenticate communication with the web services. If a BlackBerry® MDS Runtime Application must use SSL to connect
to web services, you can configure the BlackBerry® Enterprise Server to verify that the certificate chain for the certificate is strong
enough. You can use the Weak Digest Algorithms IT policy rule to identify algorithms that the BlackBerry device and BlackBerry
Enterprise Server should consider to be weak. After you configure authentication between the BlackBerry MDS Integration Service
and web services, you can configure the BlackBerry device to install only BlackBerry MDS Runtime Applications that use SSL.
For more information, see the BlackBerry Enterprise Server Administration Guide.
Process flow: Registering a BlackBerry device with a BlackBerry MDS Integration Service
1.
A BlackBerry® device performs the following actions:
•
generates an AES-128 session key
•
uses RSA-1024 with PKCS #1 padding to encrypt the AES session key
•
sends the AES-128 session key to the BlackBerry MDS Integration Service
•
stores the AES-128 session key in flash memory
2.
The BlackBerry MDS security protocol on the BlackBerry MDS Integration Service uses AES-128 in CBC mode with PKCS
#5 padding to encrypt a AES-128 session key using an AES-128 database access key.
The BlackBerry MDS Integration Service stores the encrypted AES-128 session key in the BlackBerry MDS Integration Service
database and stores the AES-128 database access key in the database key store.
The BlackBerry MDS security protocol on the BlackBerry MDS Integration Service and BlackBerry device uses HMAC with
a SHA-1 hash function and the 128-bit shared secret key to authenticate data that the BlackBerry device and BlackBerry
MDS Integration Service send between each other.
3.
4.
65
Security Technical Overview
How a BlackBerry device protects a connection to a WAP gateway
The BlackBerry MDS security protocol uses AES-128 in CBC mode with PKCS #5 padding to encrypt and decrypt data that a
BlackBerry device and BlackBerry MDS Integration Service send between each other.
How a BlackBerry device protects a connection to a WAP gateway
BlackBerry® Device Software versions 3.2 SP1 and later supports WTLS, which is designed to provide additional security when a
BlackBerry device connects to a WAP gateway. A BlackBerry device can connect to a WAP gateway to access services that are
provided by your organization's wireless service provider or to access a web site. WTLS encrypts and decrypts information,
authenticates users, and provides data integrity.
For more information about WAP gateways, see your organization’s wireless service provider.
Protecting HTTP connections from a BlackBerry device to content servers
and application servers using HTTPS
If a third-party application on a BlackBerry® device can access servers on the Internet, you can configure the BlackBerry MDS
Connection Service to use HTTPS to provide additional authentication and security for the connection. The BlackBerry device
supports HTTPS in proxy mode using a proxy server or in direct mode using TLS.
If you configure HTTPS using a proxy server, the BlackBerry MDS Connection Service uses cipher suite components of Sun® JSSE
version 1.4.1 to open the connection for the BlackBerry device. Typically, HTTP connections open faster using a proxy server than
TLS.
If you configure HTTPS using TLS, the BlackBerry MDS Connection Service uses the TLS and WTLS key establishment algorithms,
symmetric algorithms, and hash algorithms that the RIM® Cryptographic API supports to open the connection for the BlackBerry
device. The BlackBerry device uses TLS to encrypt data that an application sends to content servers. The BlackBerry MDS
Connection Service does not decrypt data that it sends over the wireless network. You can use TLS when only the end points of
the transaction are trusted (for example, with banking services). A BlackBerry device that is running BlackBerry® Device Software
version 3.6.1 or later supports TLS for connections.
66
Security Technical Overview
What happens to data that is not delivered to a BlackBerry device
What happens to data that is not delivered to a BlackBerry device
What happens to data that is not delivered because the connection between a BlackBerry
Enterprise Server and the BlackBerry Infrastructure closes
Ten minutes after the connection between a BlackBerry® Enterprise Server and the BlackBerry® Infrastructure closes, the
BlackBerry Infrastructure notifies the sender’s BlackBerry device and deletes the message that is not delivered. The wireless
network can queue up to 5 undelivered messages for up to 7 days. If more than 5 undelivered messages exist in the queue, the
BlackBerry Enterprise Server stores the messages in the BlackBerry Configuration Database. The BlackBerry Infrastructure does
not store data to send to BlackBerry devices.
If the BlackBerry Infrastructure is not responding and the connection closes unexpectedly, the wireless network deletes the
undelivered messages. The BlackBerry device does not receive the messages and it does not send acknowledgment packets to
the BlackBerry Enterprise Server. When the BlackBerry Infrastructure becomes available again, the BlackBerry Enterprise Server
resends messages that it did not receive acknowledgment packets for.
What happens to data that is not delivered because a BlackBerry device is not available on
the wireless network
When a user sends a message from a BlackBerry® device, the BlackBerry® Infrastructure might not be able to deliver the message
to a BlackBerry device immediately if the BlackBerry device is not available on the wireless network. A BlackBerry device might
not be available if it is outside a wireless coverage area or if the BlackBerry device is turned off.
If the BlackBerry Infrastructure cannot deliver a message after 10 minutes, the BlackBerry Infrastructure notifies the BlackBerry®
Enterprise Server and deletes the message. The BlackBerry Enterprise Server requests a notification message from the BlackBerry
Infrastructure when the BlackBerry device becomes available over the wireless network. When the BlackBerry device becomes
available over the wireless network, the BlackBerry Infrastructure notifies the BlackBerry Enterprise Server. The BlackBerry
Enterprise Server sends the message to the BlackBerry device.
If the message is not delivered after 7 days, the BlackBerry Infrastructure notifies the sender’s BlackBerry device that it cannot
deliver the message.
67
Security Technical Overview
Protecting BlackBerry Enterprise Solution communications in your organization's environment
Protecting BlackBerry Enterprise Solution
communications in your organization's environment
10
How a BlackBerry Enterprise Server and the BlackBerry Infrastructure
authenticate with each other
The BlackBerry® Infrastructure and BlackBerry® Enterprise Server must authenticate with each other before they can transfer
data. The BlackBerry Enterprise Server uses SRP to authenticate with and connect to the BlackBerry Infrastructure.
SRP is a point-to-point protocol that runs over TCP/IP. The BlackBerry Enterprise Server uses SRP to contact the BlackBerry
Infrastructure and open a connection. When the BlackBerry Enterprise Server and BlackBerry Infrastructure open a connection,
they perform the following actions:
•
authenticate with each other
•
exchange configuration information
•
send and receive data
The BlackBerry Enterprise Server and BlackBerry Infrastructure use the SRP authentication key when they authenticate with each
other. The SRP authentication key is a 20-byte encryption key that the BlackBerry Enterprise Server and BlackBerry Infrastructure
share.
The BlackBerry Enterprise Server sends only outgoing traffic to a BlackBerry device using an authenticated connection to the
BlackBerry Infrastructure.
What happens when a BlackBerry Enterprise Server and the BlackBerry Infrastructure open
an initial connection
After a BlackBerry® Enterprise Server and the BlackBerry® Infrastructure open an initial connection over the Internet, the
BlackBerry Enterprise Server is designed to send a basic information packet to the BlackBerry Infrastructure immediately. A basic
information packet includes version information, SRP identifiers, and other information that is required to open an SRP connection.
Both the BlackBerry Enterprise Server and BlackBerry Infrastructure can recognize the basic information packet. The BlackBerry
Enterprise Server and BlackBerry Infrastructure can use the basic information packet to configure the parameters of the SRP
implementation.
The BlackBerry Infrastructure does not send basic information packets to the BlackBerry Enterprise Server until after the
BlackBerry Enterprise Server sends a packet to the BlackBerry Infrastructure. This process permits the BlackBerry Infrastructure
to be backward compatible with previous BlackBerry Enterprise Server versions, which close the SRP connection if they receive
unrecognized basic information packets.
68
Security Technical Overview
How a BlackBerry Enterprise Server and the BlackBerry Infrastructure authenticate with each other
How the BlackBerry Enterprise Solution protects a TCP/IP connection between a BlackBerry
Enterprise Server and the BlackBerry Infrastructure
After a BlackBerry® Enterprise Server and the BlackBerry® Infrastructure open an SRP connection, the BlackBerry Enterprise
Server uses a persistent TCP/IP connection to send data to the BlackBerry Infrastructure. The BlackBerry Infrastructure uses
wireless network protocols (for example, GSM® or EDGE) to send data to the BlackBerry device. The TCP/IP connection between
the BlackBerry Enterprise Server and BlackBerry Infrastructure is designed to be highly secure in the following ways:
•
The BlackBerry Enterprise Server deletes data traffic that it receives from any source other than the messaging server, or
from the BlackBerry device through the BlackBerry Infrastructure or BlackBerry® Desktop Software.
•
The BlackBerry Enterprise Server and BlackBerry device use BlackBerry transport layer encryption to encrypt the data that
they send to each other. No intermediate point decrypts and encrypts the data again.
•
No data traffic of any kind can occur between the BlackBerry Enterprise Server and either the wireless network or the
BlackBerry device unless the BlackBerry Enterprise Server can decrypt the data using a valid device transport key. Only the
BlackBerry Enterprise Server and BlackBerry device have the correct device transport key.
You must configure your organization’s firewall or proxy server to permit the BlackBerry Enterprise Server to start and maintain
an outgoing connection to the BlackBerry Infrastructure over TCP port 3101.
Process flow: Authenticating a BlackBerry Enterprise Server with the BlackBerry
Infrastructure
1.
2.
3.
4.
5.
6.
The BlackBerry® Enterprise Server sends a data packet that contains its unique SRP identifier to the BlackBerry®
Infrastructure to claim the SRP identifier.
The BlackBerry Infrastructure sends a random challenge string to the BlackBerry Enterprise Server.
The BlackBerry Enterprise Server sends a challenge string to the BlackBerry Infrastructure.
The BlackBerry Infrastructure hashes the challenge string with the SRP authentication key using HMAC with the SHA-1
algorithm. The BlackBerry Infrastructure sends the resulting 20-byte value to the BlackBerry Enterprise Server as a challenge
string.
The BlackBerry Enterprise Server hashes the challenge string with the SRP authentication key, and sends a challenge
response to the BlackBerry Infrastructure.
The BlackBerry Infrastructure performs one of the following actions:
•
accepts the challenge response and sends a confirmation to the BlackBerry Enterprise Server to complete the
authentication process and configure an authenticated SRP connection
•
rejects the challenge response
69
Security Technical Overview
How a BlackBerry Enterprise Server and messaging server protect a connection to each other
If the BlackBerry Infrastructure rejects the challenge response, the authentication process is not successful. The BlackBerry
Infrastructure and BlackBerry Enterprise Server close the SRP connection. If a BlackBerry Enterprise Server uses the same
SRP authentication key and SRP identifier to connect to (and then disconnect from) the BlackBerry Infrastructure 5 times
in 1 minute, the BlackBerry Infrastructure deactivates the SRP identifier to help prevent a potentially malicious user from
using the SRP identifier to create conditions for a DoS attack.
How a BlackBerry Enterprise Server and messaging server protect a
connection to each other
A BlackBerry® Enterprise Server is designed to connect to the following messaging servers in a highly secure manner.
Messaging server
Description
IBM® Lotus® Domino®
The BlackBerry Enterprise Server and the Lotus Domino server communicate using
the IBM® Lotus Notes® RPC protocol.
A user who activates a BlackBerry device when the BlackBerry device is connected
to a computer can encrypt data that is in transit between the Lotus Domino server
and a Lotus Notes Inbox.
Microsoft® Exchange
For more information, see the online help for Lotus Domino.
The BlackBerry Enterprise Server and Microsoft Exchange Server® communicate
using the Microsoft Exchange Server RPC protocol.
A user can use 128-bit encryption to encrypt RPC communication over the MAPI
connection between the Microsoft Exchange server and Microsoft® Outlook®.
Novell® GroupWise®
70
For more information about turning on encryption, see the documentation for
Microsoft Exchange.
The BlackBerry Enterprise Server is designed to use a trusted application key to
open a connection to the Novell GroupWise server. To generate the trusted
application key, an administrator of Novell GroupWise runs the trusted application
key generator, specifies the location of the primary domain of Novell GroupWise,
and specifies the application name that the BlackBerry Enterprise Server can use
to connect to the Novell GroupWise server. The trusted application key is a 64-byte
ASCII string.
Security Technical Overview
Messaging server
How the BlackBerry Enterprise Server components and the BlackBerry MVS protect communication
Description
The BlackBerry Enterprise Server connects to a user’s mailbox in a highly secure
manner using the trusted application key. The Novell GroupWise server verifies the
trusted application key and permits the BlackBerry Enterprise Server to open a
connection to the Novell GroupWise database for the user.
How the BlackBerry Enterprise Server components and the BlackBerry MVS
protect communication
BlackBerry® Enterprise Server components and the BlackBerry® Mobile Voice System use the BlackBerry inter-process protocol
to help protect the data that the components send to each other. The BlackBerry inter-process protocol uses a communication
password to generate a session key that encrypts the data that the components send to each other. The BlackBerry Collaboration
Service, BlackBerry MDS Connection Service, BlackBerry Policy Service, BlackBerry Synchronization Service, and BlackBerry MVS
share a communication password. The BlackBerry Messaging Agent and BlackBerry Dispatcher share a different communication
password. The communication passwords are designed to prevent a potentially malicious user from viewing data that the the
BlackBerry Enterprise Server components and the BlackBerry MVS send to each other.
When a BlackBerry Enterprise Server component or the BlackBerry MVS opens a connection to the BlackBerry Dispatcher, the
BlackBerry inter-process protocol is designed to use SPEKE to generate the session key. The key generation process uses the
communication password of the BlackBerry Enterprise Server component or BlackBerry MVS and generates an AES-256
encryption key, which is the session key. The BlackBerry Enterprise Server components and BlackBerry MVS use the session key
to encrypt the data that the BlackBerry Enterprise Server components and BlackBerry MVS sends to other BlackBerry Enterprise
Server components that share the same communication password.
How the BlackBerry Desktop Manager protects communication using the
BlackBerry inter-process protocol
The application loader tool of the BlackBerry® Desktop Manager or the Roxio® Media Manager for BlackBerry® smartphones
can prompt BlackBerry Desktop Manager version 4.2 or later for the BlackBerry device password.
To protect the BlackBerry device password, when the application loader tool or Roxio Media Manager for BlackBerry smartphones
connects to the BlackBerry Desktop Manager, the BlackBerry Desktop Manager uses the BlackBerry inter-process protocol.
The application loader tool and Roxio Media Manager for BlackBerry smartphones share a communication password with the
BlackBerry Desktop Manager. The BlackBerry inter-process protocol is designed to use the communication password to protect
any communication between the BlackBerry Desktop Manager and the application loader tool or Roxio Media Manager for
BlackBerry smartphones.
71
Security Technical Overview
How the BlackBerry Collaboration Service protects the connections between the BlackBerry Collaboration Service and
instant messaging server
Process flow: Authenticating the application loader tool or Roxio Media Manager with the
BlackBerry Desktop Software using the BlackBerry inter-process protocol
1.
2.
The application loader tool of the BlackBerry® Desktop Software or Roxio® Media Manager opens a connection to BlackBerry
Desktop Software version 4.2 or later.
The BlackBerry Desktop Software implementation of the BlackBerry inter-process protocol performs the following actions:
a. uses a shared secret password (also known as the secure communication password) and the ECDH protocol with a
521-bit curve to create a device transport key
b. uses the device transport key to create two encryption keys and two HMAC-SHA-256 keys
c. uses one encryption key and one HMAC key to encrypt and authenticate data that BlackBerry Desktop Software version
4.2 or later sends over the communication channel to the BlackBerry® Enterprise Solution components that share the
secure communication password
The BlackBerry inter-process protocol uses one encryption key and one HMAC key to encrypt and authenticate data that
BlackBerry Desktop Software version 4.2 receives over the communication channel from the application loader tool or Roxio
Media Manager.
How the BlackBerry Collaboration Service protects the connections between
the BlackBerry Collaboration Service and instant messaging server
The BlackBerry® Collaboration Service is designed to connect to an instant messaging server and the collaboration clients on
BlackBerry devices. If your organization’s instant messaging server is Microsoft® Office Live Communications Server 2005 or
Microsoft® Office Communications Server 2007, the BlackBerry Collaboration Service connects to the Microsoft® Office
Communicator Web Access server using HTTPS or HTTP.
72
Security Technical Overview
Activating a BlackBerry device
Activating a BlackBerry device
11
When a user activates a BlackBerry® device, the BlackBerry® Enterprise Solution authenticates the user and associates the
BlackBerry device with a BlackBerry® Enterprise Server. During the activation process, the BlackBerry Enterprise Solution
generates a device transport key.
A user can activate the BlackBerry device over the wireless network, when the BlackBerry device is connected to a computer that
is running the BlackBerry® Desktop Software, or when the BlackBerry device is connected to a computer and the user is logged
in to the BlackBerry® Web Desktop Manager or BlackBerry Administration Service. The user must have a valid email address so
that the user can activate the BlackBerry device and register the BlackBerry device with the wireless network.
Activating a BlackBerry device over the wireless network
If a user activates a BlackBerry® device over the wireless network, the user must authenticate with the BlackBerry device using
an activation password that you provide. You can create an activation password using the BlackBerry Administration Service and
communicate it to the user. You can also use IT policy rules to configure password requirements (such as duration, length, and
strength), to specify password patterns, and to prevent specific passwords. For more information, see the BlackBerry Enterprise
Server Policy Reference Guide.
The BlackBerry device uses the activation password to generate the device transport key. The device transport key authenticates
the user and is designed to secure communication between the BlackBerry® Enterprise Server and BlackBerry device.
An activation password has the following characteristics:
•
applies to the user’s email account
•
is not valid after five unsuccessful attempts to activate the BlackBerry device
•
expires if the user does not activate the BlackBerry device within the default period of time (48 hours), or a period of up to
720 hours that you can specify when you create the activation password
After the user activates the BlackBerry device, the BlackBerry Enterprise Server deletes the activation password. The user cannot
use the same activation password to activate other BlackBerry devices.
Process flow: Activating a BlackBerry device over the wireless network
1.
2.
3.
A user opens the activation application on the BlackBerry® device, and types the appropriate email address and activation
password.
The BlackBerry device sends an activation request to the BlackBerry® Infrastructure using standard BlackBerry protocols.
The BlackBerry Infrastructure uses SMTP to send an activation message to the user’s email account. The activation message
contains routing information for the BlackBerry device and public keys.
The BlackBerry® Enterprise Server sends an activation response to the BlackBerry device. The activation response contains
routing information for the BlackBerry Enterprise Server and the long-term public keys of the BlackBerry Enterprise Server.
73
Security Technical Overview
4.
5.
Process flow: Activating a BlackBerry device over the wireless network
The BlackBerry Enterprise Server and BlackBerry device use the initial key establishment protocol to generate a device
transport key and verify it. If the BlackBerry Enterprise Server and BlackBerry device mutually verify the device transport
key, the activation process proceeds. The BlackBerry Enterprise Server and BlackBerry device use the device transport key
to encrypt further communication between each other without sending the device transport key over the wireless network.
The BlackBerry Enterprise Server performs the following actions:
•
sends the appropriate service books to the BlackBerry device so that the user can send messages from and receive
messages on the BlackBerry device
•
sends data (such as calendar entries, contacts, tasks, memos, and BlackBerry device options) to the BlackBerry device,
if you turn on wireless organizer data synchronization and wireless backup
For more information about the activation process, see the BlackBerry Wireless Enterprise Activation Technical Overview.
74
Security Technical Overview
Enrolling certificates on a BlackBerry device over the wireless network
Enrolling certificates on a BlackBerry device over the
wireless network
12
You can configure the BlackBerry® Enterprise Server to permit a BlackBerry device to enroll certificates over the wireless network.
You can permit the BlackBerry device to enroll certificates over the wireless network so that you do not have to instruct the user
to send the certificates in an email message or to use the certificate synchronization tool in the BlackBerry® Desktop Manager.
You can enroll certificates from one of the following certification authorities:
•
RSA® certification authority
•
Microsoft® standalone certification authority
•
Microsoft enterprise certification authority
For more information about configuring the BlackBerry Enterprise Server to permit the BlackBerry device to enroll certificates
over the wireless network, see the BlackBerry Enterprise Server Administration Guide.
Process flow: Enrolling a certificate when the certification authority approves
certificate requests automatically
After a BlackBerry® device receives an IT policy that includes a certification authority profile, the enrollment process can start
automatically, or you can instruct a user to start it. This process flow assumes that the certification authority in your organization's
environment is a Microsoft® enterprise certification authority.
1.
2.
3.
4.
5.
6.
7.
8.
The CA Profile Manager on the BlackBerry device generates the key pair for the certificate.
The BlackBerry MDS Connection Service authenticates the user.
The BlackBerry device requests the user's distinguished name from the BlackBerry® Enterprise Server.
The BlackBerry Enterprise Server retrieves the user's distinguished name from the messaging server and sends the
distinguished name to the BlackBerry device.
The BlackBerry device encrypts the key pair, and stores the key pair, distinguished name, and profile ID for the certification
authority in the persistent store in flash memory.
The CA Profile Manager creates the PKCS #10 certificate request, and signs it with the private key.
The BlackBerry device sends the certificate request, profile ID for the certification authority, and Windows® login information
to the BlackBerry MDS Connection Service.
The BlackBerry MDS Connection Service performs one of the following actions:
•
sends the certificate chain to the BlackBerry Enterprise Server if the certificate chain is in the BlackBerry MDS
Connection Service cache
•
retrieves the certificate chain from the certification authority and sends it to the BlackBerry Enterprise Server if the
certificate chain is not in the BlackBerry MDS Connection Service cache
75
Security Technical Overview
Process flow: Enrolling a certificate when a certification authority administrator approves certificate requests
9. The BlackBerry Enterprise Server sends the certificate chain to the BlackBerry device.
10. The BlackBerry MDS Connection Service sends a status update to the BlackBerry device and sends the certificate request
to the certification authority that is associated with the profile ID.
11. The certification authority issues the certificate, publishes it to the LDAP server, and notifies the BlackBerry MDS Connection
Service that the certificate is available.
12. The BlackBerry MDS Connection Service performs the following actions:
a. retrieves the certificate from the LDAP server that the certification authority publishes the certificate to
b. sends the certificate to the BlackBerry Enterprise Server
13. The BlackBerry Enterprise Server performs the following actions:
a. verifies the certificate by checking whether the public key matches the public key that is stored in the BlackBerry
Configuration Database
b. sends the certificate to the BlackBerry device over the wireless network
14. The BlackBerry device adds the certificate and private key to the key store.
Process flow: Enrolling a certificate when a certification authority
administrator approves certificate requests
After a BlackBerry® device receives an IT policy that includes a certification authority profile, the enrollment process can start
automatically or you can instruct a user to start it. This process flow assumes that the certification authority in your organization's
environment is a Microsoft® enterprise certification authority.
1.
2.
3.
4.
5.
6.
7.
8.
76
The CA Profile Manager on the BlackBerry device generates the key pair for the certificate.
The BlackBerry MDS Connection Service authenticates the user.
The BlackBerry device requests the user's distinguished name from the BlackBerry® Enterprise Server.
The BlackBerry Enterprise Server retrieves the user's distinguished name from the messaging server and sends the
distinguished name to the BlackBerry device.
The BlackBerry device encrypts the key pair, and stores the key pair, distinguished name, and profile ID for the certification
authority in the persistent store in flash memory.
The CA Profile Manager creates the PKCS #10 certificate request and signs it with the private key.
The BlackBerry device sends the certificate request, profile ID for the certification authority, and Windows® login information
to the BlackBerry MDS Connection Service.
The BlackBerry MDS Connection Service performs one of the following actions:
•
sends the certificate chain to the BlackBerry Enterprise Server if the certificate chain is in the BlackBerry MDS
Connection Service cache
•
retrieves the certificate chain from the certification authority and sends it to the BlackBerry Enterprise Server if the
certificate chain is not in the BlackBerry MDS Connection Service cache
Security Technical Overview
Process flow: Enrolling a certificate using an RSA certification authority
9. The BlackBerry Enterprise Server sends the certificate chain to the BlackBerry device.
10. The BlackBerry MDS Connection Service sends a status update to the BlackBerry device and sends the certification request
to the certification authority that is associated with the profile ID.
11. The certification authority performs the following actions:
a. waits for the certification authority administrator to approve the certificate request
b. after the certification authority administrator approves the certificate request, issues the certificate, and sends the
certificate to the user in an email message
12. The BlackBerry MDS Connection Service performs the following actions:
a. polls the user's mailbox on the messaging server, at specified intervals, for the certificate
b. sends the certificate to the BlackBerry Enterprise Server after the BlackBerry MDS Connection Service retrieves the
certificate
13. The BlackBerry Enterprise Server performs the following actions:
a. verifies the certificate by checking whether the public key matches the public key that is stored in the BlackBerry
Configuration Database
b. sends the certificate to the BlackBerry device over the wireless network
14. The BlackBerry device adds the certificate and private key to the key store.
Process flow: Enrolling a certificate using an RSA certification authority
After a BlackBerry® device receives an IT policy that includes a certification authority profile, the enrollment process can start
automatically or you can instruct a user to start it.
1.
2.
3.
4.
5.
6.
7.
The CA Profile Manager on the BlackBerry device generates the key pair for the certificate.
The BlackBerry device requests the user's distinguished name from the BlackBerry® Enterprise Server.
The BlackBerry Enterprise Server retrieves the user's distinguished name from the messaging server and sends the
distinguished name to the BlackBerry device.
The BlackBerry device encrypts the key pair, and stores the key pair, distinguished name, and profile ID for the certification
authority in the persistent store in flash memory.
The CA Profile Manager creates the PKCS #10 certificate request and signs it with the private key.
The BlackBerry device sends the certificate request and the name of the certification authority profile to the BlackBerry
MDS Connection Service.
The BlackBerry MDS Connection Service performs one of the following actions:
•
sends the certificate chain to the BlackBerry Enterprise Server if the certificate chain is in the BlackBerry MDS
Connection Service cache
•
retrieves the certificate chain from the certification authority and sends it to the BlackBerry Enterprise Server if the
certificate chain is not in the BlackBerry MDS Connection Service cache
77
Security Technical Overview
Process flow: Enrolling a certificate using an RSA certification authority
8.
9.
The BlackBerry Enterprise Server sends the certificate chain to the BlackBerry device.
The BlackBerry MDS Connection Service sends a status update to the BlackBerry device and sends the certificate request
to the certification authority that is associated with the name of the certification authority profile.
10. The certification authority performs the following actions:
a. waits for the certification authority administrator to approve the certificate request
b. after the certification authority administrator approves the certificate request, issues the certificate, and sends the
URL for the certificate in an email message to the user
11.
The BlackBerry Messaging Agent receives the email message and extracts the issue ID of the message from the URL and
stores it in the BlackBerry Configuration Database.
12. The BlackBerry MDS Connection Service performs the following actions:
a. polls the BlackBerry Configuration Database every 5 minutes for the issue ID of the message, reconstructs the URL,
and sends the URL to the certification authority to retrieve the certificate
b. sends the certificate to the BlackBerry Enterprise Server after retrieving the certificate
13. The BlackBerry Enterprise Server perfoms the following actions:
a. verifies the certificate by checking whether the public key matches the public key that is stored in the BlackBerry
Configuration Database
b. sends the certificate to the BlackBerry device over the wireless network
14. The BlackBerry device adds the certificate and private key to the key store.
78
Security Technical Overview
Protecting BlackBerry Device Software updates
Protecting BlackBerry Device Software updates
13
Protecting BlackBerry Device Software updates over the wireless network
You can update the BlackBerry® Device Software on a BlackBerry device over the wireless network. You can use the BlackBerry
Administration Service to search for updates that match the BlackBerry device and wireless service provider, and send the updates.
You can also permit your organization's wireless service provider to send the BlackBerry Device Software updates.
The BlackBerry® Enterprise Solution protects the BlackBerry Device Software updates using encryption, IT policies, content
protection, and battery power requirements.
For more information about BlackBerry Device Software updates, see the BlackBerry Device Software Update Guide.
How the BlackBerry Enterprise Solution protects BlackBerry Device Software updates over
the wireless network using encryption
The BlackBerry® Enterprise Server, BlackBerry® Infrastructure, BlackBerry® Provisioning System administration web site, and
BlackBerry device protect data for BlackBerry® Device Software updates over the wireless network. You can use the BlackBerry
Provisioning System administration web site when you want to permit your organization’s wireless service provider to update the
BlackBerry Device Software.
The BlackBerry Enterprise Server and BlackBerry device encrypt all data that they send between each other, including BlackBerry
Device Software updates, using BlackBerry transport layer encryption.
The BlackBerry device validates the digital signatures of the following information to verify integrity:
•
control messages that the BlackBerry device receives from the BlackBerry Infrastructure or BlackBerry Provisioning System
administration web site
•
BlackBerry Device Software update instructions that the BlackBerry device requests and receives from the BlackBerry
Infrastructure or BlackBerry Provisioning System administration web site
How the BlackBerry Enterprise Solution protects BlackBerry Device Software updates over
the wireless network using IT policies and content protection
The default values for the Default IT policy determine that only the BlackBerry® Enterprise Server can send available BlackBerry®
Device Software updates and request a BlackBerry device to update the BlackBerry Device Software. A wireless service provider
cannot send available BlackBerry Device Software updates to the BlackBerry device unless you change the value for the Allow
Non Enterprise Upgrade IT policy rule to Yes.
When you or a user turns on the content protection feature on a BlackBerry device, the BlackBerry device protects user data in
the following ways:
79
Security Technical Overview
•
•
Updating the BlackBerry Device Software from an update web site
requires the user to type the BlackBerry device password before the BlackBerry Device Software update process can back
up or restore user data
requires the BlackBerry device to encrypt stored user data during the BlackBerry Device Software update process
Battery power requirements for BlackBerry Device Software updates over the wireless
network
The battery power level on a BlackBerry® device must be 50% or greater for the BlackBerry device to retrieve an update package
over the wireless network. If the battery power level is below the minimum requirement, the update process suspends. The
BlackBerry device prompts the user to recharge the battery and start the update process again. If the battery power level returns
to 50%, the BlackBerry device resumes retrieving the update package from the BlackBerry® Infrastructure.
The battery power requirement is designed to protect the BlackBerry device against attacks from a potentially malicious user
who might try to take advantage of low battery power during a BlackBerry Device Software update.
Process flow: Preparing to send a BlackBerry Device Software update over the wireless
network
Before the BlackBerry® Infrastructure sends a BlackBerry® Device Software update to a BlackBerry device, the BlackBerry
Infrastructure performs the following actions:
1.
2.
3.
generates an ECDSA key periodically using ECC over a 521-bit curve
signs the ECDSA key using a stored root certificate
signs the BlackBerry Device Software update that it sends to the BlackBerry device using the digitally signed ECDSA key
How a BlackBerry device validates a BlackBerry Device Software update over the wireless
network
When a BlackBerry® device receives a BlackBerry® Device Software update from the BlackBerry® Infrastructure, it verifies that
the ECDSA key uses a public key that is shared by all BlackBerry devices that support BlackBerry Device Software updates over
the wireless network. The BlackBerry device verifies the digital signature on the ECDSA key using a stored root certificate.
Updating the BlackBerry Device Software from an update web site
You can configure the IT policy rules that are included in the Wired Software Updates policy group to permit a user to update
the BlackBerry® Device Software from an update web site using the BlackBerry® Desktop Manager or BlackBerry Application
Web Loader. The user can use the update process to update the BlackBerry Device Software from a computer that is outside your
organization’s network (for example, from home).
80
Security Technical Overview
Updating the BlackBerry Device Software from an update web site
During the update process, a BlackBerry device activates itself automatically over the wireless network so that the user can use
a computer that is outside your organization’s network to update the BlackBerry Device Software. When a user who does not use
the BlackBerry Desktop Manager visits the update web site, the user must download and install Microsoft® ActiveX® components
on the computer before the user can update the BlackBerry Device Software. The update process can take from 15 minutes to 2
hours, depending on the type of update, amount of BlackBerry device data, and number of applications that are installed on the
BlackBerry device. A user cannot use the BlackBerry device or make emergency calls during the update process.
BlackBerry Device Software versions 5.0 and later, BlackBerry Desktop Manager versions 5.0.1 and later, and BlackBerry
Application Web Loader versions 1.1.0 and later support BlackBerry Device Software updates from an update web site.
For more information about the IT policy rules that are included in the Wired Software Updates policy group, see the BlackBerry
Enterprise Server Policy Reference Guide. For more information about the BlackBerry Application Web Loader, see the BlackBerry
Application Web Loader Developer Guide.
Protecting cryptographic services data when updating the BlackBerry Device Software from
an update web site
When a user updates the BlackBerry® Device Software from an update web site, the BlackBerry® Enterprise Solution backs up
cryptographic services data (for example, cryptographic keys and service books) from a BlackBerry device to the user’s computer.
To protect the cryptographic services data, the BlackBerry device encrypts the cryptographic services data using a BlackBerry
services key.
The BlackBerry device stores the BlackBerry services key in the NV store in flash memory. Neither the user nor third-party
applications can access the location in the NV store where the BlackBerry device stores the BlackBerry services key. If you or a
user turns on content protection, the BlackBerry device also encrypts the BlackBerry services key using the content protection key.
After the BlackBerry device encrypts the cryptographic services data, the BlackBerry® Desktop Manager or BlackBerry Application
Web Loader backs up the encrypted cryptographic services data to a database and stores the database on the user’s computer
as an .ipd file.
When the update process completes, the BlackBerry Desktop Manager or BlackBerry Application Web Loader restores the
cryptographic services data to the BlackBerry device. Only the BlackBerry device that encrypted the cryptographic services data
can decrypt the cryptographic services data. The BlackBerry device can decrypt the cryptographic services data only once. The
BlackBerry device deletes the BlackBerry services key from the NV store after the BlackBerry device decrypts the cryptographic
services data.
The BlackBerry® Enterprise Solution does not back up or restore cryptographic services data except during the BlackBerry Device
Software update process from an update web site. When the user backs up or restores BlackBerry device data by selecting the
backup and restore options in the BlackBerry Desktop Manager, the back up and restore processes do not access cryptographic
services data.
81
Security Technical Overview
Updating the BlackBerry Device Software from an update web site
Process flow: Generating a BlackBerry services key that protects cryptographic services data
The BlackBerry® device uses an ephemeral AES-256 encryption key (called the BlackBerry services key) to encrypt the
cryptographic services data. To generate the BlackBerry services key, the BlackBerry device performs the following actions:
1.
2.
3.
4.
5.
generates a random password from a random source of 32 bytes
generates a random salt from a random source of 8 bytes
concatenates the salt, password, and salt again into a byte array (for example, Salt|Password|Salt)
hashes the byte array using SHA-256
stores the resulting hash in a byte array that is called a key
(key) =
SHA256(Salt|Password|Salt)
6.
hashes the key 18 more times and stores the result in a key each time
For example, for i=0 to 18, the BlackBerry device performs the following actions:
(key) = SHA256(key)
i++
done
7.
The final hash creates the BlackBerry services key.
stores the BlackBerry services key in a location of the NV store that third-party applications and the user cannot access
Process flow: Backing up cryptographic services data using the BlackBerry Desktop Manager
1.
2.
3.
4.
82
A user connects a BlackBerry® device to the BlackBerry® Desktop Manager and selects the option to update the BlackBerry®
Device Software.
The BlackBerry Desktop Manager determines that cryptographic services data require backup during the update process.
It sends the BlackBerry device a command to encrypt the cryptographic services data.
The BlackBerry device performs the following actions:
a. generates a BlackBerry services key and stores the BlackBerry services key in the NV store
b. encrypts the cryptographic services data using the BlackBerry services key
c. encrypts the BlackBerry services key using the content protection key if you or the user turns on content protection
The BlackBerry Desktop Manager backs up the encrypted cryptographic services data in a database on the user’s computer
as an .ipd file.
Security Technical Overview
Updating the BlackBerry Device Software from an update web site
Process flow: Restoring cryptographic services data using the BlackBerry Desktop Manager
or BlackBerry Application Web Loader
1.
2.
3.
4.
After the update process completes, the BlackBerry® Desktop Manager or BlackBerry Application Web Loader determines
that cryptographic services data must be restored to the BlackBerry device. The BlackBerry Desktop Manager or BlackBerry
Application Web Loader sends a BlackBerry device a command to restore the cryptographic services data.
The BlackBerry device performs the following actions:
a. retrieves the BlackBerry services key and verifies that the BlackBerry services key was not used previously
b. decrypts the BlackBerry services key if you or a user turn on content protection
The BlackBerry Desktop Manager restores the encrypted cryptographic services data to the BlackBerry device.
The BlackBerry device performs the following actions:
a. decrypts the encrypted cryptographic services data using the BlackBerry services key
b. restores the decrypted cryptographic data
c. deletes the BlackBerry services key from the NV store
83
Security Technical Overview
Extending messaging security to a BlackBerry device
Extending messaging security to a BlackBerry device
14
If your organization's messaging environment supports highly secure messaging technology such as PGP® encryption or S/MIME
encryption, you can configure the BlackBerry® Enterprise Solution to encrypt a message using PGP encryption or S/MIME
encryption so that the message remains encrypted when the BlackBerry® Enterprise Server forwards the message to the email
applications of recipients. To extend messaging security, the sender and recipient must install highly secure messaging technology
on the computers that host the email applications and on their BlackBerry devices, and you must configure the BlackBerry devices
to use the highly secure messaging technology.
Extending messaging security using PGP encryption
You can extend messaging security for the BlackBerry® Enterprise Solution and permit a BlackBerry device user to send and
receive PGP® protected email messages and PGP protected PIN messages on a BlackBerry device. The BlackBerry Enterprise
Solution supports the OpenPGP format and PGP/MIME format on the BlackBerry device.
To extend messaging security, you must instruct the BlackBerry device user to install the PGP® Support Package for BlackBerry®
smartphones on the BlackBerry device and to transfer the PGP private key of the BlackBerry device user to the BlackBerry device.
The BlackBerry device user can use the PGP private key to digitally sign, encrypt, and send PGP protected messages from the
BlackBerry device. If a BlackBerry device user does not install the PGP Support Package for BlackBerry smartphones, the
BlackBerry device receives PGP protected messages as unreadable ciphertext.
To require the BlackBerry device user to use PGP encryption when forwarding or replying to messages, you can configure the
PGP Force Digital Signature IT policy rule and the PGP Force Encrypted Messages IT policy rule.
The PGP Support Package for BlackBerry smartphones is designed to support encoding and decoding Unicode messages and
permits PGP encryption using keys or passwords. The PGP Support Package for BlackBerry smartphones permits the BlackBerry
device to encrypt PGP protected email messages or PGP protected PIN messages using a password that the sender and recipient
both know .
For more information about the OpenPGP format, see RFC 2440. For more information about the PGP/MIME format, see RFC 3156.
For more information about the PGP Support Package for BlackBerry smartphones, see the PGP Support Package for BlackBerry
Devices Security Technical Overview.
PGP public keys and PGP private keys
The PGP® Support Package for BlackBerry® smartphones uses public key cryptography with PGP public keys and PGP private keys.
84
Extending messaging security using PGP encryption
Security Technical Overview
Key
Description
PGP public key
The PGP Support Package for BlackBerry smartphones uses the PGP public key of
the recipient to encrypt outgoing email messages and the PGP public key of the
sender to verify digital signatures on incoming email messages.
PGP private key
The PGP public key is designed so that recipients and senders can distribute and
access the key without compromising it. The PGP public key is stored typically on
the PGP® Universal Server, an LDAP server, or a DSML certificate server.
The PGP Support Package for BlackBerry smartphones uses the PGP private key of
the sender to digitally sign outgoing email messages and the PGP private key of
the recipient to decrypt incoming email messages.
To make sure that security is not compromised, you must make sure that private
key information remains private to the key owner. The BlackBerry device stores the
PGP private key.
Retrieving PGP keys from a PGP Universal Server, LDAP servers, or DSML certificate servers
If your organization’s environment includes a PGP® Universal Server, the administrator of the PGP Universal Server can configure
the email policy of the PGP Universal Server. After a user installs the PGP® Support Package for BlackBerry® smartphones, a
BlackBerry device can retrieve and enforce the email policy of the PGP Universal Server for all email messages that the user sends.
The BlackBerry device is designed to use the BlackBerry MDS Connection Service to connect to the PGP Universal Server and
to any LDAP server or DSML certificate server that a user specifies on the BlackBerry device or that you specify using the BlackBerry
Administration Service. The BlackBerry MDS Connection Service uses standard protocols, such as HTTP and TCP/IP, to permit
the BlackBerry device to retrieve PGP public keys, PGP key status, and X.509 certificate status from the PGP Universal Server,
an LDAP server, or a DSML certificate server over the wireless network. The BlackBerry MDS Connection Service can connect to
LDAP servers using LDAPS.
Only BlackBerry® Device Software versions 5.0 and later support DSML certificate servers.
Encryption algorithms that the BlackBerry device supports for PGP encryption
When you turn on PGP® encryption, the default value of the PGP Allowed Content Ciphers IT policy rule specifies that a
BlackBerry® device can use any of the following encryption algorithms to encrypt email messages and PIN messages: AES-256,
AES-192, AES-128, CAST-128, or Triple DES-168. You can change the value to use a subset of the encryption algorithms if your
organization’s security policies require it.
85
Security Technical Overview
Extending messaging security using PGP encryption
The PGP public key of the recipient indicates which encryption algorithm the recipient’s email application supports, and the
BlackBerry device is designed to use that encryption algorithm. By default, if the PGP public key of the recipient does not include
a list of encryption algorithms, the BlackBerry device encrypts the email message or PIN message using Triple DES.
Process flow: Sending an email message using PGP encryption
If a sender installs the PGP® Support Package for BlackBerry® smartphones on a BlackBerry device, the BlackBerry device encrypts
outgoing email messages.
1.
The BlackBerry device performs the following actions:
a. uses the BlackBerry MDS Connection Service to retrieve the PGP public key of the recipient from the PGP® Universal
Server, LDAP server, or DSML certificate server
b. encrypts the email message using the PGP public key of the recipient
c. uses BlackBerry transport layer encryption to encrypt the PGP encrypted message
d. sends the message that is encrypted using BlackBerry transport layer encryption and PGP encryption to the BlackBerry®
Enterprise Server
2.
The BlackBerry Enterprise Server removes the BlackBerry transport layer encryption and sends the PGP encrypted message
to the recipient.
86
Security Technical Overview
Extending messaging security using S/MIME encryption
Process flow: Receiving a PGP encrypted message
If a recipient installs the PGP® Support Package for BlackBerry® smartphones on a BlackBerry device, the BlackBerry device
decrypts incoming PGP encrypted messages.
1.
2.
3.
A sender uses the PGP technology on the email application to encrypt an email message using the PGP public key of the
recipient.
The BlackBerry® Enterprise Server performs the following actions:
a. retrieves the email message from the messaging server
b. uses BlackBerry transport layer encryption to encrypt the PGP encrypted message
c. sends the email message encrypted using BlackBerry transport layer encryption and PGP encryption to the BlackBerry
device
The BlackBerry device performs the following actions:
a. decrypts the BlackBerry transport layer encryption and stores the PGP encrypted message in the flash memory of the
BlackBerry device
b. decrypts the PGP encrypted message using the PGP private key of the recipient and displays the contents of the email
message when the recipient opens the email message on the BlackBerry device
Extending messaging security using S/MIME encryption
You can extend messaging security for the BlackBerry® Enterprise Solution and permit a BlackBerry device user to send and
receive S/MIME-protected email messages and S/MIME-protected PIN messages on a BlackBerry device.
To extend messaging security, you must instruct the BlackBerry device user to install the S/MIME Support Package for BlackBerry®
smartphones on the BlackBerry device and to transfer the S/MIME private key of the BlackBerry device user to the BlackBerry
device. The S/MIME Support Package for BlackBerry smartphones is designed to work with email applications such as Microsoft®
Outlook®, Microsoft Outlook Express, and IBM® Lotus Notes®, and with PKIs such as Netscape®, Entrust Authority™ Security
Manager version 5 and later, and Microsoft certification authorities.
87
Extending messaging security using S/MIME encryption
Security Technical Overview
The BlackBerry device user uses the S/MIME private key to decrypt S/MIME-protected messages on the BlackBerry device and
to sign, encrypt, and send S/MIME-protected messages from the BlackBerry device. If the BlackBerry® Enterprise Server receives
an S/MIME-protected message but the BlackBerry device user did not install the S/MIME Support Package for BlackBerry
smartphones, the BlackBerry Enterprise Server sends a message to the BlackBerry device to indicate that the BlackBerry device
does not support S/MIME-protected messages.
After the BlackBerry device user installs the S/MIME Support Package for BlackBerry smartphones, the BlackBerry device user
can synchronize and manage S/MIME certificates and S/MIME private keys using the certificate synchronization tool of the
BlackBerry® Desktop Manager. The BlackBerry Enterprise Server does not apply an appended disclaimer to S/MIME-protected
messages that the BlackBerry device user sends from the BlackBerry device. Digital signatures on S/MIME-protected messages
that the BlackBerry device sends are not valid if disclaimers are appended to the messages.
To require the BlackBerry device user to use S/MIME encryption when forwarding or replying to messages, you can configure
the S/MIME Force Digital Signature IT policy rule and the S/MIME Force Encrypted Messages IT policy rule.
The S/MIME Support Package for BlackBerry smartphones is also designed to support the following features:
•
encoding and decoding of Unicode messages
•
ability to use a password, which the sender and recipient each know, to encrypt S/MIME-protected email messages or PIN
messages
•
ability to read S/MIME certificates that are stored on a smart card
For more information, see the S/MIME Support Package for BlackBerry Devices Security Technical Overview.
S/MIME certificates and S/MIME private keys
The S/MIME Support Package for BlackBerry® smartphones uses public key cryptography with S/MIME certificates and S/MIME
private keys to encrypt and decrypt email messages and PIN messages. The S/MIME Support Package for BlackBerry smartphones
use PKI protocols to search for and retrieve S/MIME certificates and certificate status over the wireless network.
Item
Description
S/MIME certificate
When a user sends an email message or PIN message from a BlackBerry device, the
BlackBerry device uses the S/MIME certificate of the recipient to encrypt the
message.
When a user receives a signed email message or signed PIN message on a
BlackBerry device, the BlackBerry device uses the S/MIME certificate of the sender
to verify the message signature. S/MIME certificates are stored on LDAP servers or
DSML certificate servers.
88
Extending messaging security using S/MIME encryption
Security Technical Overview
Item
Description
S/MIME private key
When a user sends a signed email message or signed PIN message from a BlackBerry
device, the BlackBerry device hashes the message using SHA-1, SHA-256,
SHA-384, SHA-512, or MD5. The BlackBerry device then uses the S/MIME private
key of the user to digitally sign the message hash.
When a user receives an encrypted email message or encrypted PIN message on a
BlackBerry device, the BlackBerry device uses the private key of the user to decrypt
the message. The BlackBerry device stores the private key.
Retrieving S/MIME certificates and checking certificate status
The S/MIME Support Package for BlackBerry® smartphones is designed so that the BlackBerry device and the certificate
synchronization tool of the BlackBerry® Desktop Manager can perform the following actions:
•
use LDAP, LDAPS, or DSML to search for and retrieve S/MIME certificates of recipients from LDAP servers or DSML certificate
servers
•
use OCSP to check the revocation status of S/MIME certificates
•
retrieve the revocation status of S/MIME certificates from a certificate revocation list
S/MIME encryption algorithms
When you turn on S/MIME encryption, the default value of the S/MIME Allowed Content Ciphers IT policy rule specifies that a
BlackBerry® device can use any of the following encryption algorithms to encrypt messages: AES-256, AES-192, AES-128,
CAST-128, RC2-128, or Triple DES. By default, the BlackBerry device cannot use the RC2-64 algorithm and RC2-40 algorithm to
encrypt S/MIME messages. You can change the value of the S/MIME Allowed Content Ciphers IT policy rule to use a subset of
the encryption algorithms if your organization’s security policies require it.
If a BlackBerry device user wants to send an email message to a recipient that the user previously received an email message
from, the BlackBerry device is designed to store the encryption algorithms that the recipient’s email application can support, and
use one of those encryption algorithms. By default, if the BlackBerry device cannot determine the encryption algorithms that the
recipient’s email application can support, the BlackBerry device encrypts the email message using Triple DES.
You can use the Weak Digest Algorithms IT policy rule to specify the algorithms that your organization considers to be weak. The
BlackBerry device uses the list of weak algorithms in the Weak Digest Algorithms IT policy rule when the BlackBerry device verifies
the following information:
•
•
An S/MIME-enabled application did not use a weak algorithm to generate the digital signatures on the email messages
that the BlackBerry device receives.
The certificate chains for the certificates that an S/MIME-enabled application used to digitally sign email messages that
the BlackBerry device receives do not contain hash values generated using a weak algorithm.
89
Security Technical Overview
Extending messaging security using S/MIME encryption
Process flow: Sending an email message using S/MIME encryption
If a sender installs the S/MIME Support Package for BlackBerry® smartphones on a BlackBerry device, the BlackBerry device
encrypts outgoing email messages.
1.
The BlackBerry device performs the following actions:
a. uses the BlackBerry MDS Connection Service to retrieve the S/MIME certificate of the recipient from the LDAP server
or DSML certificate server and verify the certificate status
b. encrypts the email message with the S/MIME certificate of the recipient or a password that the sender specifies
c. if the sender specifies a password, combines the password with random bytes to generate an encryption key that is
specific to S/MIME encryption
d. uses BlackBerry transport layer encryption to encrypt the S/MIME-encrypted message
e. sends the message that is encrypted using BlackBerry transport layer encryption and S/MIME encryption to the
BlackBerry® Enterprise Server
2.
The BlackBerry Enterprise Server decrypts the BlackBerry transport layer encryption and sends the S/MIME-encrypted
message to the recipient.
The recipient decrypts the S/MIME-encrypted message using the S/MIME private key.
3.
90
Security Technical Overview
Extending messaging security using IBM Lotus Notes encryption
Process flow: Receiving an S/MIME-encrypted email message
If a recipient installs the S/MIME Support Package for BlackBerry® smartphones, the BlackBerry device decrypts incoming email
messages.
1.
2.
3.
4.
The sender uses the S/MIME technology on the email application to encrypt the email message using the S/MIME certificate
of the recipient.
The BlackBerry® Enterprise Server performs the following actions:
a. retrieves the S/MIME-encrypted message from the messaging server
b. encrypts the email message a second time with S/MIME encryption if the email message is signed-only or weakly
encrypted and if you turned on the Turn on S/MIME encryption on signed and weakly encrypted messages option in
the BlackBerry Administration Service
c. uses BlackBerry transport layer encryption to encrypt the S/MIME-encrypted message
d. sends the email message that is encrypted using BlackBerry transport layer encryption and S/MIME encryption to the
BlackBerry device
The BlackBerry device decrypts the BlackBerry transport layer encryption and stores the S/MIME-encrypted message in
BlackBerry device memory.
When the recipient opens the email message on the BlackBerry device, the BlackBerry device decrypts the S/MIMEencrypted message using the S/MIME private key of the recipient and displays the message contents. If the email message
is encrypted with a password, the recipient types the password to decrypt the S/MIME-encrypted message.
Extending messaging security using IBM Lotus Notes encryption
By default, if your organization's environment includes BlackBerry® Enterprise Server version 4.1 or later for IBM® Lotus® Domino®
and IBM® Lotus Notes® API version 7.0 or later, a BlackBerry device can decrypt messages that are encrypted using Lotus Notes
encryption.
91
Security Technical Overview
Extending messaging security using IBM Lotus Notes encryption
In BlackBerry Enterprise Server version 5.0 or later and BlackBerry® Device Software version 5.0 or later, a BlackBerry device
user can encrypt messages using Lotus Notes encryption. When the BlackBerry device user creates, forwards, or replies to a
message, the BlackBerry device user can indicate whether the BlackBerry Enterprise Server must encrypt the message before it
sends the message to the recipients.
To use Lotus Notes encryption on the BlackBerry device, the BlackBerry device user must import a copy of the Lotus Notes .id
file into the user's message database using the BlackBerry Desktop Software or Lotus® iNotes®. If your organization's environment
includes Lotus Domino version 8.5.1 or later and BlackBerry Enterprise Server version 4.1 or later, the BlackBerry Enterprise Server
can automatically synchronize the copy of the Lotus Notes .id file on the BlackBerry device with the latest copy that is in the
Lotus Notes ID vault. If your organization's environment includes Lotus Domino version 8.5 SP1 or later and BlackBerry Enterprise
Server version 5.0 SP1 or later, you can configure the BlackBerry Enterprise Server to import the Lotus Notes .id file automatically
into the BlackBerry device from the Lotus Notes ID vault.
To require the BlackBerry device user to use Lotus Notes encryption when forwarding or replying to messages, you can configure
the Require Notes Native Encryption For Outgoing Messages IT policy rule. To prevent a BlackBerry device user from forwarding
or replying to Lotus Notes protected messages, you can configure the Disable Notes Native Encryption Forward And Reply IT
policy rule.
Protecting the password for an IBM Lotus Notes .id file
How a BlackBerry device protects the password for an IBM Lotus Notes .id file
After a user imports an IBM® Lotus Notes® .id file and password for the Lotus Notes .id file to a BlackBerry® device, the BlackBerry
device encrypts the password in BlackBerry device memory using AES encryption and the device transport key. The BlackBerry
device decrypts the password before it calls the required security functions in the Lotus Notes API.
The BlackBerry device deletes the Lotus Notes .id file and plain-text password from the BlackBerry device memory when it receives
a notification from the BlackBerry® Enterprise Server that the BlackBerry Enterprise Server cannot decrypt a message, when the
BlackBerry device resets, or when the Lotus Notes password expires. (The default expiration period is 24 hours.) You can use the
Native Encryption Password Timeout IT policy rule to specify the maximum duration (in minutes) that the BlackBerry device stores
the plain-text password for the Lotus Notes .id file.
You can change the timeout value to 0 to require the user to type the password to decrypt each Lotus Notes encrypted email
message that the user receives on the BlackBerry device.
When Lotus Notes encryption is not available, the user can turn on Lotus Notes encryption manually by importing the Lotus
Notes .id file or by changing the password using the BlackBerry® Desktop Software or IBM® Lotus® Domino® Web Access client.
How the BlackBerry Messaging Agent protects the password for an IBM Lotus Notes .id file
After a user imports an IBM® Lotus Notes® .id file and the password for the Lotus Notes .id file to a BlackBerry® device, the
BlackBerry Messaging Agent encrypts the Lotus Notes .id file and password in the BlackBerry Messaging Agent memory cache
using AES encryption and the device transport key.
92
Security Technical Overview
Extending messaging security using IBM Lotus Notes encryption
The BlackBerry Messaging Agent deletes the Lotus Notes .id file and the plain-text password when the BlackBerry® Enterprise
Server cannot decrypt a message, when the BlackBerry Enterprise Server restarts, or when the password expires. (The default
timeout value is 24 hours.)
The BlackBerry Messaging Agent does not delete the encrypted password in the BlackBerry Messaging Agent memory cache.
You can change the duration that the BlackBerry Messaging Agent caches the password for. For information about changing
the duration that the BlackBerry Messaging Agent caches the password for, visit www.blackberry.com/support to read article
KB12420.
If the user types a password incorrectly more than 10 times consecutively within 1 hour, the BlackBerry Messaging Agent makes
secure messaging unavailable for 1 hour. This period increases each time that the user exceeds the maximum number of
unsuccessful password attempts. The period increases by 10-minute increments to a maximum of 24 hours. When the user types
the password correctly, the BlackBerry Messaging Agent restores the default value of 1 hour.
Process flow: Sending an email message using IBM Lotus Notes encryption
1.
2.
A user indicates, using the menu in the messages application, that the BlackBerry® device must encrypt the email message.
The BlackBerry device performs the following actions:
a. prompts the user for the password for the IBM® Lotus Notes® .id file
b. configures the email message for Lotus Notes encryption
c. encrypts the email message using BlackBerry transport layer encryption
d. sends the email message and password to the BlackBerry® Enterprise Server
3.
4.
The BlackBerry Enterprise Server decrypts the email message using BlackBerry transport layer encryption.
The BlackBerry Messaging Agent on the BlackBerry Enterprise Server decrypts the cached password for the Lotus Notes .id
file and validates the password that the BlackBerry device sent. If the BlackBerry Messaging Agent can verify the password,
the BlackBerry Messaging Agent uses the password to encrypt the message using Lotus Notes encryption.
The BlackBerry Enterprise Server sends the encrypted email message to the messaging server so that the messaging server
can deliver it to the recipient.
5.
93
Security Technical Overview
Extending messaging security to attachments
Process flow: Receiving an IBM Lotus Notes encrypted message
1.
A user uses the IBM® Lotus Notes® application on the user’s computer to encrypt a message using the password for the
Lotus Notes .id file.
2.
The BlackBerry® Enterprise Server performs the following actions:
a. retrieves the Lotus Notes encrypted message from the messaging server
b. encrypts the Lotus Notes encrypted message using BlackBerry transport layer encryption
c. sends the encrypted message to the BlackBerry device
3.
The BlackBerry device decrypts the message using BlackBerry transport layer encryption and stores the message without
decrypting the Lotus Notes encryption.
The user tries to open the Lotus Notes encrypted message on the BlackBerry device.
The BlackBerry Messaging Agent on the BlackBerry Enterprise Server decrypts the cached password for the Lotus Notes .id
file and uses the password to decrypt the message. If the BlackBerry Messaging Agent does not have the password, from
the menu in the messages application, the user must select More, More All, or Open Attachment to send the decrypted
message to the BlackBerry device.
The BlackBerry Enterprise Server deletes the decrypted password from the BlackBerry Messaging Agent memory cache and
sends the decrypted message to the BlackBerry device.
4.
5.
6.
Extending messaging security to attachments
The BlackBerry® Enterprise Server supports attachments in PGP® encrypted messages and S/MIME-encrypted messages. It also
permits a user to view encrypted attachments on a BlackBerry device. You can use the S/MIME Allowed Encrypted Attachment
Mode IT policy rule and the PGP Allowed Encrypted Attachment Mode IT policy rule to specify the least restrictive mode that a
BlackBerry device can use to retrieve attachment information that is PGP encrypted or S/MIME encrypted. The BlackBerry device
supports OpenPGP format and PGP/MIME format for PGP encryption.
When a user receives an OpenPGP encrypted message that includes an attachment, the BlackBerry Enterprise Server checks the
data in the attachment header. The BlackBerry Enterprise Server is designed to send the email message and the encrypted
message key to the BlackBerry device automatically.
94
Security Technical Overview
Extending messaging security to attachments
Process flow: Viewing an attachment in a PGP encrypted message or S/MIME-encrypted
message
The S/MIME Allowed Encrypted Attachment Mode IT policy rule or PGP® Allowed Encrypted Attachment Mode IT policy rule
determines how a BlackBerry® device responds when it receives a PGP/MIME encrypted message or S/MIME-encrypted message
that contains an attachment. These rules determine whether the following actions occur automatically when the user opens the
email message, or whether the user must request the actions manually.
1.
2.
3.
A BlackBerry device sends the message key and a request for the data in the attachment header to the BlackBerry® Enterprise
Server.
The BlackBerry Enterprise Server uses the message key to decrypt the email message and access the data in the attachment
header. The BlackBerry Enterprise Server sends the data in the attachment header to the BlackBerry device.
The BlackBerry device processes the data in the attachment header with the email message and displays the associated
attachment information so that the user can select the attachment for viewing.
Process flow: Viewing an attachment that is encrypted using S/MIME encryption, PGP/MIME
encryption, or OpenPGP encryption
1.
2.
3.
The BlackBerry® device sends the message key and a request for the attachment data to the BlackBerry® Enterprise Server.
The BlackBerry Enterprise Server uses the message key to decrypt the email message and access the attachment data that
corresponds to the data in the attachment header. The BlackBerry Enterprise Server decrypts the attachment and sends
the rendered attachment data to the BlackBerry device.
The BlackBerry device displays the attachment.
To protect the decrypted attachment data that the BlackBerry device stores, you can turn on content protection.
95
Security Technical Overview
Configuring two-factor authentication and protecting Bluetooth connections
Configuring two-factor authentication and protecting
Bluetooth connections
15
BlackBerry Smart Card Reader
The BlackBerry® Smart Card Reader is an accessory that, when used in proximity to a Bluetooth® enabled BlackBerry device or
a Bluetooth enabled computer, permits a user to authenticate with a smart card and log in to the BlackBerry device or computer.
The BlackBerry Smart Card Reader is designed to perform the following actions:
•
communicate with BlackBerry devices and computers using Bluetooth technology version 1.1 or later and, by default, use
AES-256 encryption on the application layer
•
permit a user to use two-factor authentication to access BlackBerry services and PKI applications
•
permit a user to digitally sign and encrypt email messages and receive encrypted messages on the BlackBerry device when
the user installs the S/MIME Support Package for BlackBerry® smartphones
•
store all encryption keys in RAM only and never write the keys to flash memory
The BlackBerry Smart Card Reader permits a user to use what the user has (smart card) and what the user knows (smart card
password) to prove the user’s identity to the BlackBerry device or a computer.
For more information, see the BlackBerry Smart Card Reader Security Technical Overview.
Advanced Security SD cards
Similar to the BlackBerry® Smart Card Reader, an Advanced Security SD card permits a user to use what the user has (smart
card) and what the user knows (smart card password) to prove the user’s identity to the BlackBerry device. The BlackBerry®
Enterprise Solution supports Advanced Security SD cards that use the security system for the MCEX smart card.
You can configure a BlackBerry device to require that a user uses an Advanced Security SD card to perform the following actions:
•
unlock the BlackBerry device and access BlackBerry services and PKI applications using two-factor authentication
•
digitally sign and encrypt email messages and PIN messages using S/MIME encryption when the user installs the S/MIME
Support Package for BlackBerry® smartphones on the BlackBerry device
•
decrypt S/MIME-encrypted email messages and PIN messages
•
import certificates that are stored on the Advanced Security SD card into the NV store of the BlackBerry device flash memory
•
open SSL connections
To configure the BlackBerry device to support an Advanced Security SD card, a user must insert the Advanced Security SD card
into the BlackBerry device and install the smart card driver of the Advanced Security SD card on the BlackBerry device using the
BlackBerry® Desktop Manager. After the user installs the smart card driver on the BlackBerry device, the user can configure the
driver settings in the security options, on the Smart Card screen.
96
Security Technical Overview
Two-factor authentication
To control how a BlackBerry device can use an Advanced Security SD card, you can use the Force Smart Card Two-Factor
Authentication IT policy rule, Force Smart Card Two Factor Challenge Response IT policy rule, or Disable Certificate or Key Import
From External Memory IT policy rule.
To permit third-party applications on the BlackBerry device to access the Advanced Security SD card, a developer can use the
SmartCard API in the BlackBerry® Java® Development Environment.
BlackBerry® Device Software versions 5.0 and later support Advanced Security SD cards.
For more information about configuring the BlackBerry device to support an Advanced Security SD card, see the user guide for
the BlackBerry device. For more information about using IT policy rules, see the BlackBerry Enterprise Server Policy Reference
Guide.
Related topics
Managing BlackBerry Java Applications on a BlackBerry device using code signing, 118
Two-factor authentication
You can use the BlackBerry® Smart Card Reader or an Advanced Security SD card to require a user to use a smart card and the
smart card password to prove the user’s identity before the BlackBerry device unlocks. If a user installs a smart card authenticator,
smart card driver, and smart card reader driver on the BlackBerry device, you or the user can configure two-factor authentication
on the BlackBerry device to bind the BlackBerry device to the installed smart card. After the BlackBerry device binds to the smart
card, the BlackBerry device requires the user to use the smart card to authenticate before the BlackBerry device unlocks.
To require that a user authenticate with the BlackBerry device using the smart card, you can configure the Force Smart Card
Two-Factor Authentication IT policy rule in the BlackBerry Administration Service. If you do not require the user to authenticate
with the BlackBerry device using a smart card, the user can turn on or turn off two-factor authentication in the BlackBerry device
options, in the security options, in the User Authenticator field.
Verifying that a BlackBerry device is bound to a smart card
After a user turns on two-factor authentication, the BlackBerry® device prompts the user to insert the smart card into the
BlackBerry® Smart Card Reader. The BlackBerry device displays the label and card type of the bound smart card.
If the BlackBerry device is running BlackBerry® Device Software version 3.6, the smart card information that the BlackBerry
device displays when it prompts the user to insert the smart card into the BlackBerry Smart Card Reader is the only indication
that a smart card is bound to the BlackBerry device.
If the BlackBerry device is running BlackBerry Device Software version 4.0 or later, the BlackBerry device displays the smart card
information when it prompts the user to insert the smart card. The user can view the smart card information in the BlackBerry
device options, in the security options. The Initialized field specifies whether the BlackBerry device authenticated with and is
bound to the smart card.
97
Security Technical Overview
Two-factor authentication
Process flow: Turning on two-factor authentication using a smart card
When you or a user turns on two-factor authentication with the BlackBerry® Smart Card Reader, the BlackBerry device performs
the following actions:
1. locks
2. prompts the user to type the BlackBerry device password when the user tries to unlock the BlackBerry device
3. requires the user to specify a BlackBerry device password, if the user has not yet specified one
4. prompts the user to type the smart card password to turn on two-factor authentication using the smart card
5. binds to the smart card by storing the following binding information in the NV store in the BlackBerry device memory that
the user cannot access:
•
name of a Java® class that the BlackBerry Smart Card Reader requires
•
binding information format for the smart card type (for example, the type for CAC is GSA CAC)
•
name of a Java class that the smart card code requires
•
unique 64-bit identifier that the smart card provides
•
smart card label that the smart card provides (for example, HISLOP.GREG.1234567890)
6.
pushes the current IT policy to the BlackBerry Smart Card Reader
Creating two-factor authentication methods
The BlackBerry® Java® Development Environment version 5.0 includes the User Authenticator API that a developer can use to
create two-factor authentication methods. A user can use the two-factor authentication methods with the BlackBerry device
password to unlock a BlackBerry device. After the developer creates an authentication method using the User Authenticator API,
you can install the authentication method on the BlackBerry device using a software configuration.
To configure the BlackBerry device so that the user must provide the BlackBerry device password and authenticate using a twofactor authentication method before the BlackBerry device unlocks, you change the Allowed Authentication Mechanisms IT policy
rule to Other and configure the Is Access to the User Authenticator API Allowed application control policy rule.
The User Authenticator API permits a developer to add a field to the password dialog box on the BlackBerry device for the
authentication method. You can create as many two-factor authentication methods as the security policies of your organization
require.
BlackBerry® Device Software versions 5.0 and later support the User Authenticator API.
For more information about the User Authenticator API, see the BlackBerry Java Development Environment Fundamentals Guide.
98
Security Technical Overview
Two-factor content protection
Two-factor content protection
Content protection is designed to encrypt data on a BlackBerry® device when the BlackBerry device is locked. When you configure
two-factor content protection, the BlackBerry device performs the following actions:
•
encrypts the user data on the BlackBerry device using the content encryption key
•
generates a key using the BlackBerry device password that encrypts the content encryption key
•
encrypts the key that the BlackBerry device generates using the private key that is stored on the smart card
You can use either a smart card with the BlackBerry® Smart Card Reader or a microSD smart card to store the private key. The
content encryption key is not transferred from the BlackBerry device to the BlackBerry Smart Card Reader or to the microSD
smart card.
Two-factor content protection requires the BlackBerry device password, a smart card, and an authentication certificate that is
stored on the BlackBerry device. The authentication certificate must contain the public key for the private key that is stored on
the smart card. If the authentication certificate expires or is revoked before a user can replace it, the user must delete all BlackBerry
device data from the BlackBerry device before the BlackBerry device can recover. This feature is designed to protect the user
data on the BlackBerry device if the BlackBerry device is lost or stolen.
You or a user can configure two-factor content protection. By default, if a user has a smart card and an authentication certificate
on the BlackBerry device, the user can turn on two-factor content protection. To make two-factor content protection mandatory
or optional, or to prevent a user from configuring it, you can use the Two-factor Content Protection Usage IT policy rule. After
you or a user turns on two-factor content protection, to unlock the BlackBerry device, the user must type the BlackBerry device
password and smart card PIN on the login screen in the appropriate fields.
If you or a user turns on two-factor content protection, you cannot change the BlackBerry device password using the BlackBerry
Administration Service. Only the user can change the BlackBerry device password on the BlackBerry device.
BlackBerry® Device Software versions 5.0 and later and BlackBerry Smart Card Reader versions 2.0 and later support two-factor
content protection. You must verify that the IT policies that you can use to manage two-factor content protection are available
on your organization’s BlackBerry® Enterprise Server. BlackBerry Enterprise Server versions 5.0 SP1 and later include the IT
policies that you require to manage two-factor content protection.
Unbinding a smart card from a BlackBerry device
When you or a user turns off two-factor authentication, the BlackBerry® device turns off two-factor authentication with the
installed smart card. The BlackBerry device also permanently deletes the binding information for the smart card from the
BlackBerry device.
When you or the user deletes all BlackBerry device data, the BlackBerry device permanently deletes the smart card binding
information from the NV store in flash memory so that a user can authenticate with the BlackBerry device using a new smart
card. You can permanently delete the binding information for the smart card from the BlackBerry device by sending the Delete
all device data and disable device IT administration command to the BlackBerry device.
99
Security Technical Overview
Protecting Bluetooth connections on a BlackBerry device
Protecting Bluetooth connections on a BlackBerry device
Bluetooth® wireless technology permits a Bluetooth enabled BlackBerry® device to open a wireless connection with other
Bluetooth devices that are within a 10-meter range (for example, a hands-free car kit or wireless headset).
The BlackBerry device creates a Bluetooth profile, which specifies how applications on the BlackBerry device and on other
Bluetooth devices connect and communicate. The BlackBerry device uses the Bluetooth profile to open serial connections to
Bluetooth enabled devices using virtual serial ports.
You can use IT policies to manage a Bluetooth enabled BlackBerry device. By default, a Bluetooth enabled BlackBerry device that
runs BlackBerry® Desktop Software version 4.0 or later includes the following security measures:
•
You or a user can turn off the Bluetooth wireless technology for the BlackBerry device.
•
The user must request a connection or pairing on the BlackBerry device with another Bluetooth device and type a passkey
(also known as a shared secret key) to complete the pairing.
•
The user can specify whether to encrypt data sent to and from the BlackBerry device over a Bluetooth connection. The
BlackBerry® Enterprise Solution uses the passkey to generate encryption keys.
•
The BlackBerry device prompts the user each time a Bluetooth device tries to connect to the BlackBerry device.
For more information, see Security for BlackBerry Devices with Bluetooth Wireless Technology.
Using CHAP to open a Bluetooth connection between the BlackBerry Desktop Software and
a BlackBerry device
A Bluetooth® enabled BlackBerry® device can use CHAP to open a Bluetooth connection to the BlackBerry® Desktop Software.
To open a Bluetooth connection, the BlackBerry device or BlackBerry Desktop Software can use CHAP to send a challenge. The
BlackBerry device or BlackBerry Desktop Software can subsequently use the SHA-1 algorithm to calculate a response to the
challenge or to validate the response of the other party, depending on which party started the process to open the Bluetooth
connection.
When the BlackBerry device uses CHAP, the BlackBerry device never sends the BlackBerry device password over an unprotected
connection. The BlackBerry device combines the challenge with the BlackBerry device password to authenticate with the
BlackBerry Desktop Software.
For more information about CHAP, see RFC 1994.
100
Wi-Fi enabled BlackBerry devices
Security Technical Overview
Wi-Fi enabled BlackBerry devices
16
Wi-Fi® enabled BlackBerry® devices permit users with qualifying data plans to access BlackBerry services over a mobile network,
Wi-Fi network, or both networks simultaneously.
When users can access a mobile network and Wi-Fi network simulaneously, users can perform multiple tasks over both networks.
For example, a user with a BlackBerry® 8820 smartphone can send messages over a Wi-Fi network and can make a call over the
mobile network at the same time.
If users' mobile network providers make UMA technology (GAN technology) available, and users have subscribed to the UMA
feature, Wi-Fi enabled BlackBerry devices can access the mobile network providers' voice services and data services over a mobile
network or a Wi-Fi network.
Wi-Fi enabled BlackBerry devices can open a Wi-Fi connection from an enterprise Wi-Fi network or, with a VPN session, from a
home Wi-Fi network or Wi-Fi hotspot to connect directly to the BlackBerry Router.
Wi-Fi enabled BlackBerry devices are designed to open a connection to the BlackBerry® Internet Service to access the BlackBerry
MDS Connection Service, BlackBerry® Messenger, and other BlackBerry devices for PIN messaging. You can verify with your
organization's wireless service provider whether your organization's service plan provides access to these services over a Wi-Fi
network.
Types of Wi-Fi networks
Wi-Fi® enabled BlackBerry® devices can access BlackBerry services using enterprise Wi-Fi networks, home Wi-Fi networks, or
hotspots.
Type
Description
enterprise Wi-Fi networks
An enterprise Wi-Fi network has multiple wireless access points to provide
ubiquitous coverage, hotspot coverage, or ubiquitous and hotspot coverage. You
can use a Wi-Fi enabled BlackBerry device in any coverage area.
You can configure an enterprise Wi-Fi network to require layer 2 authentication. An
organization might consider an enterprise Wi-Fi network to be untrusted and require
that all Wi-Fi connections to the organization's network occur through a VPN
concentrator. You must configure Wi-Fi enabled BlackBerry devices to support the
authentication type that your organization uses.
An enterprise Wi-Fi network permits optimized access to the BlackBerry® Enterprise
Server over a direct IP connection to the BlackBerry Router.
101
Security features of a Wi-Fi enabled BlackBerry device
Security Technical Overview
Type
Description
home Wi-Fi networks
A home Wi-Fi network uses a single access point to provide Internet access through
a broadband gateway. The broadband gateway can implement NAT and permit VPN
connections through the firewall. You can configure a home Wi-Fi network with
layer 2 security and password authentication. You must configure BlackBerry
devices to support the authentication that the home Wi-Fi network requires.
hotspots
A home Wi-Fi network permits users to access all BlackBerry services from Wi-Fi
enabled BlackBerry devices using the BlackBerry® Infrastructure.
A hotspot offered by an ISP, a mobile network provider, or a property owner can
provide a Wi-Fi connection in public and semipublic areas. The network can be an
open network without layer 2 security and use a captive portal for authentication.
The captive portal blocks all network traffic except traffic that uses HTTP and it
redirects HTTP requests to a login page.
After a user logs in to the hotspot, the captive portal permits the user to access
wireless network services.
Hotspots can use a firewall and they can permit VPN connections. A hotspot permits
users to access all BlackBerry services from their Wi-Fi enabled BlackBerry devices
using the BlackBerry Infrastructure.
Security features of a Wi-Fi enabled BlackBerry device
Feature
Description
activation of BlackBerry® devices over
an enterprise Wi-Fi® network
authenticated connection with
BlackBerry Router
Activation of BlackBerry devices over an enterprise Wi-Fi network is designed to
simplify the actions of activating or updating BlackBerry devices.
An authenticated connection with a BlackBerry Router permits BlackBerry devices
to open a direct connection to the BlackBerry® Enterprise Server after they
authenticate with the BlackBerry Router.
BlackBerry devices connected to an enterprise Wi-Fi network do not use an SRP
connection to send data to the BlackBerry Enterprise Server.
102
Security features of a Wi-Fi enabled BlackBerry device
Security Technical Overview
Feature
Description
BlackBerry transport layer encryption
BlackBerry transport layer encryption is designed to encrypt messages that the
BlackBerry device and the BlackBerry Enterprise Server send between each other
after they open an authenticated connection.
Direct access to the BlackBerry Infrastructure over a Wi-Fi connection permits WiFi enabled BlackBerry devices to access BlackBerry services over the Internet, even
if UMA is not available.
direct access to the BlackBerry®
Infrastructure over a Wi-Fi connection
encrypted communication over the WiFi network
expanded groups of Wi-Fi and VPN
configuration settings
limited connections
multiple Wi-Fi and VPN profiles
proxy server
software token provisioning
You can verify with your organization's wireless service provider that your
organization's service plan supports access to BlackBerry services over a Wi-Fi
connection.
BlackBerry devices support multiple security methods that are designed to encrypt
communication over the enterprise Wi-Fi network between the BlackBerry device
and wireless access points or a network firewall on the enterprise Wi-Fi network.
Expanded groups of Wi-Fi and VPN configuration settings permit you to control WiFi connections from BlackBerry devices.
Wi-Fi enabled BlackBerry devices are designed to reject incoming connections, to
support limited connections in infrastructure mode only, and to prevent ad-hoc
mode (also known as peer-to-peer) connections.
Multiple Wi-Fi and VPN profiles are designed to address user requirements in a
variety of different environments.
The BlackBerry device supports the use of a transparent proxy server that you can
configure between the enterprise Wi-Fi network and the BlackBerry device.
Software token provisioning is designed to permit you to provision and manage the
seed for software token authentication (for example, for VPN connections) centrally
on BlackBerry devices.
The BlackBerry Enterprise Server is designed to work with the RSA® Authentication
Manager to provide software token support for use with layer 2 and layer 3
authentication on supported BlackBerry devices.
user-specific configuration settings and User-specific configuration settings and IT policy rules are designed to simplify the
IT policy rules
configuration of user-specific Wi-Fi and VPN information (such as user IDs and
passwords).
wireless backup of Wi-Fi and VPN
Wireless backup of Wi-Fi and VPN profiles on BlackBerry devices over a Wi-Fi
profiles
connection permits users to restore the profiles, if necessary.
103
Security Technical Overview
Protecting a connection between a Wi-Fi enabled BlackBerry device and an enterprise Wi-Fi network
Feature
Description
wireless software updates
Wireless software updates permits users to update the BlackBerry® Device Software
without using the BlackBerry® Desktop Manager or first downloading the software
update to a computer.
Protecting a connection between a Wi-Fi enabled BlackBerry device and an
enterprise Wi-Fi network
A Wi-Fi® enabled BlackBerry® device is designed to connect to enterprise Wi-Fi networks that use the IEEE® 802.11® standard.
The IEEE® 802.11i™ standard uses the IEEE® 802.1X™ standard for authentication and key management to protect enterprise
Wi-Fi networks. The IEEE 802.11i standard specifies that organizations must use the PSK protocol or the IEEE 802.1X standard
as the access control methods for Wi-Fi networks.
When you configure a Wi-Fi enabled BlackBerry device to use an enterprise Wi-Fi network, you must configure the enterprise WiFi network and BlackBerry device to protect all message data and application data that the BlackBerry® Enterprise Server and
BlackBerry device send to each other. For example, to help protect data, you can configure the BlackBerry device to authenticate
with the enterprise Wi-Fi network before the BlackBerry device can access the enterprise Wi-Fi network. You can also configure
the BlackBerry device and the enterprise Wi-Fi network to encrypt any communication that they send to each other.
For more information about protecting an enterprise Wi-Fi network, see the documentation from your organization’s Wi-Fi solution
provider.
How a Wi-Fi enabled BlackBerry device can connect to the BlackBerry
Infrastructure
A Wi-Fi® enabled BlackBerry® device can connect directly to the BlackBerry® Infrastructure over the Internet to access the data
services that a wireless service provider offers, even if UMA is not available. If UMA is available, the BlackBerry device can also
access the voice services. A direct connection from the BlackBerry device to the BlackBerry Infrastructure is an alternative to the
connection from the BlackBerry device to the BlackBerry Infrastructure over the mobile network. If a user’s wireless service
provider makes UMA technology (also known as GAN technology) available, and the user subscribes to the UMA feature, the
BlackBerry device is designed to open an SSL connection to the GANC using an IPSec VPN tunnel over an enterprise Wi-Fi network.
The BlackBerry device and BlackBerry Infrastructure send all data to each other over an SSL connection. The SSL connection is
designed to encrypt the data that the BlackBerry device and BlackBerry Infrastructure send between each other.
104
Security Technical Overview
How a Wi-Fi enabled BlackBerry device can connect to the BlackBerry Infrastructure
How an SSL connection between a Wi-Fi enabled BlackBerry device and the BlackBerry
Infrastructure protects data
An SSL connection between a Wi-Fi® enabled BlackBerry® device and the BlackBerry® Infrastructure is designed to provide the
same protection that an SRP connection between the BlackBerry® Enterprise Server and BlackBerry Infrastructure provides. It
is designed so that a potentially malicious user cannot use the SSL connection to send data to or receive data from the BlackBerry
device.
If a potentially malicious user tries to impersonate the BlackBerry Infrastructure, the BlackBerry device is designed to prevent
the connection. The BlackBerry device verifies whether the public key of the SSL certificate of the BlackBerry Infrastructure
matches the private key of the root certificate that is preloaded on the BlackBerry device during the manufacturing process. If a
user accepts a certificate that is not valid, the connection cannot open unless the BlackBerry device can also authenticate with
a valid BlackBerry Enterprise Server or valid BlackBerry® Internet Service.
Process flow: Opening an SSL connection between the BlackBerry Infrastructure and a WiFi enabled BlackBerry device
1.
2.
3.
4.
A Wi-Fi® enabled BlackBerry® device sends a request to the BlackBerry® Infrastructure to open an SSL connection.
The BlackBerry Infrastructure sends its SSL certificate to the BlackBerry device.
The BlackBerry device uses a root certificate that is preloaded on the BlackBerry device to verify the SSL certificate. If the
user deleted the root certificate, the BlackBerry device prompts the user to trust the SSL certificate.
The BlackBerry device opens the SSL connection.
Cipher suites that a Wi-Fi enabled BlackBerry device supports for opening SSL connections
and TLS connections
A Wi-Fi® enabled BlackBerry® device supports various cipher suites for direct mode SSL/TLS when the BlackBerry device opens
SSL connections or TLS connections to the BlackBerry® Infrastructure or to web servers that are external to your organization.
The BlackBerry device supports the following cipher suites, in order, when it opens SSL connections:
•
SSL_RSA_WITH_RC4_128_SHA
•
SSL_RSA_WITH_RC4_128_MD5
•
SSL_DHE_RSA_WITH_3DES_EDE_CBC_SHA
•
SSL_DHE_DSS_WITH_3DES_EDE_CBC_SHA
•
SSL_RSA_WITH_3DES_EDE_CBC_SHA
•
SSL_DHE_RSA_WITH_DES_CBC_SHA
•
SSL_DH_anon_WITH_RC4_128_MD5
•
SSL_DHE_DSS_WITH_DES_CBC_SHA
•
SSL_RSA_WITH_DES_CBC_SHA
105
Security Technical Overview
•
•
•
•
•
•
•
•
SSL_DH_anon_WITH_3DES_EDE_CBC_SHA
SSL_RSA_EXPORT_WITH_RC4_40_MD5
SSL_DH_RSA_EXPORT_WITH_DES40_CBC_SHA
SSL_DHE_DSS_EXPORT_WITH_DES40_CBC_SHA
SSL_RSA_EXPORT_WITH_DES40_CBC_SHA
SSL_DH_anon_WITH_DES_CBC_SHA
SSL_DH_anon_EXPORT_WITH_RC4_40_MD5
SSL_DH_anon_EXPORT_WITH_DES40_CBC_SHA
The BlackBerry device supports the following cipher suites, in order, when it opens TLS connections:
•
TLS_DHE_RSA_WITH_AES_128_CBC_SHA
•
TLS_DHE_DSS_WITH_AES_128_CBC_SHA
•
TLS_RSA_WITH_AES_128_CBC_SHA
•
TLS_DHE_RSA_WITH_AES_256_CBC_SHA
•
TLS_DHE_DSS_WITH_AES_256_CBC_SHA
•
TLS_RSA_WITH_AES_256_CBC_SHA
•
TLS_RSA_WITH_RC4_128_SHA
•
TLS_RSA_WITH_RC4_128_MD5
•
TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA
•
TLS_DHE_DSS_WITH_3DES_EDE_CBC_SHA
•
TLS_RSA_WITH_3DES_EDE_CBC_SHA
•
TLS_DH_anon_WITH_AES_128_CBC_SHA
•
TLS_DH_anon_WITH_AES_256_CBC_SHA
•
TLS_DH_anon_WITH_RC4_128_MD5
•
TLS_DH_anon_WITH_3DES_EDE_CBC_SHA
•
TLS_DHE_RSA_WITH_DES_CBC_SHA
•
TLS_DHE_DSS_WITH_DES_CBC_SHA
•
TLS_RSA_WITH_DES_CBC_SHA
•
TLS_RSA_EXPORT_WITH_RC4_40_MD5
•
TLS_DHE_RSA_EXPORT_WITH_DES40_CBC_SHA
•
TLS_DHE_DSS_EXPORT_WITH_DES40_CBC_SHA
•
TLS_RSA_EXPORT_WITH_DES40_CBC_SHA
•
TLS_DH_anon_WITH_DES_CBC_SHA
•
TLS_DH_anon_EXPORT_WITH_RC4_40_MD5
•
TLS_DH_anon_EXPORT_WITH_DES40_CBC_SHA
106
Security Technical Overview
Managing how a BlackBerry device connects to an enterprise Wi-Fi network
Managing how a BlackBerry device connects to an enterprise Wi-Fi network
To manage how a Wi-Fi® enabled BlackBerry® device connects to an enterprise Wi-Fi network, you can use IT administration
commands, IT policy rules, and configuration settings. You can turn on or turn off Wi-Fi access for the BlackBerry device in
BlackBerry® Enterprise Server version 4.1 SP3 or later, and manage Wi-Fi configuration settings and VPN configuration settings
for user accounts in BlackBerry Enterprise Server version 4.1 SP2 or later.
When you configure an IT policy or configuration setting, a user cannot override the value on the BlackBerry device.
At an application level, you can specify the types of connections that an application can make. When you configure application
control policies, you can control whether the application can access the enterprise Wi-Fi network.
For more information about specifying whether an application can access an enterprise Wi-Fi network, see Protecting the
BlackBerry Device Platform Against Malware. For more information about using IT policy rules and configuration settings, see
the BlackBerry Enterprise Server Administration Guide and the BlackBerry Enterprise Server Policy Reference Guide .
How the BlackBerry Enterprise Solution protects sensitive Wi-Fi information
To permit a Wi-Fi® enabled BlackBerry® device to access a Wi-Fi network, you must send sensitive Wi-Fi information such as
encryption keys and passwords to the BlackBerry device using Wi-Fi profiles, VPN profiles, and IT policy rules. After the BlackBerry
device receives the sensitive Wi-Fi information, the BlackBerry device encrypts the encryption keys and passwords and stores
them in flash memory in an area that third-party applications cannot access.
The BlackBerry® Enterprise Server encrypts the sensitive Wi-Fi information that it sends to the BlackBerry device and stores the
sensitive Wi-Fi information in the BlackBerry Configuration Database. You can help protect the sensitive Wi-Fi information in the
BlackBerry Configuration Database using access controls and configuration settings.
Using a VPN with a Wi-Fi enabled BlackBerry device
If your organization’s environment includes VPNs, such as IPSec VPNs, you can configure a Wi-Fi® enabled BlackBerry® device
to authenticate with the VPN so that it can access an enterprise Wi-Fi network. A VPN provides an encrypted tunnel between a
BlackBerry device and your organization’s network. VPN is the only layer 3 security method that the BlackBerry device supports.
A VPN solution consists of a VPN client on the BlackBerry device and a VPN concentrator. The BlackBerry device can use the
VPN client to authenticate with a VPN concentrator, which acts as the gateway to the enterprise Wi-Fi network. Each BlackBerry
device includes a built-in VPN client that supports several VPN concentrators. The VPN client on the BlackBerry device is designed
to use strong encryption to authenticate itself with the VPN concentrator. It creates an encrypted tunnel between the BlackBerry
device and VPN concentrator that the BlackBerry device and enterprise Wi-Fi network can use to communicate.
107
Security Technical Overview
Using a VPN with a Wi-Fi enabled BlackBerry device
After you configure a VPN, the BlackBerry device can use a layer 2 security method to connect to the enterprise Wi-Fi network,
and use the VPN to provide authentication with the enterprise Wi-Fi network. In this scenario, you can configure the enterprise
Wi-Fi network as an untrusted network, and specify that only a VPN concentrator can connect to the enterprise Wi-Fi network.
Unlike other supported security methods for enterprise Wi-Fi networks, a VPN does not use the wireless access point during data
encryption.
For a list of supported VPN concentrators, visit www.blackberry.com/support to read article KB13354.
Permitting a Wi-Fi enabled BlackBerry device to log in to a VPN concentrator
To permit a Wi-Fi® enabled BlackBerry® device to log in to a VPN concentrator automatically after it connects to an enterprise
Wi-Fi network, you or a user can configure a VPN profile that includes a user name and password for authentication with the
VPN concentrator. Depending on your organization’s security policy, you or the user can save the user name and password for
authentication with the VPN concentrator on the BlackBerry device. When you or the user saves the user name and password,
the BlackBerry device does not prompt the user for the user name and password the first time or each time that the BlackBerry
device connects to the enterprise Wi-Fi network.
The BlackBerry device is also compatible with VPN environments that use two-factor authentication using hardware tokens or
software tokens for credentials. When the BlackBerry device tries to log in to the VPN, the BlackBerry device uses credentials
that the token generates or that the user provides.
For more information about configuring VPN profiles, see the BlackBerry Enterprise Server Administration Guide.
Using a segmented network to reduce the spread of malware on an enterprise Wi-Fi network
that uses a VPN
When a Wi-Fi® enabled BlackBerry® device connects to an enterprise Wi-Fi network that uses a VPN, the BlackBerry device might
permit the VPN concentrator to send data directly to a BlackBerry® Enterprise Server over your organization's network. The VPN
concentrator sends data over port 4101. In this scenario, only the VPN concentrator connects to the enterprise Wi-Fi network.
To configure your organization’s VPN concentrator to prevent it from opening unnecessary connections to your organization’s
network, you can configure a segmented network. In a segmented network, you can divide components of your organization’s
network using firewalls to reduce the spread of malware.
For more information about reducing the spread of malware, see Protecting the BlackBerry device platform against malware.
108
Security Technical Overview
Using a captive portal to connect to an enterprise Wi-Fi network or Wi-Fi hotspot
Using a captive portal to connect to an enterprise Wi-Fi network or Wi-Fi
hotspot
A captive portal uses web-based authentication to permit a Wi-Fi® enabled BlackBerry® device to connect to an enterprise WiFi network or Wi-Fi hotspot. The BlackBerry device can use a captive portal to access an IP segment of the enterprise Wi-Fi
network or Wi-Fi hotspot. After the BlackBerry device connects to the enterprise Wi-Fi network or Wi-Fi hotspot, the user can
browse to an HTML login page for a web site that permits the enterprise Wi-Fi network or Wi-Fi hotspot to authenticate with the
BlackBerry device before the BlackBerry device can access the web site.
If your organization uses a captive portal, you can permit a user to access the captive portal using the WLAN Login browser on
the BlackBerry device. The user must authenticate with the WLAN Login browser using the login information that you provide.
When the BlackBerry device authenticates with the captive portal, the user can use the BlackBerry® Browser on the BlackBerry
device to access other web sites and data services that are available on the enterprise Wi-Fi network or Wi-Fi hotspot.
Protecting a connection between a Wi-Fi enabled BlackBerry device and an
enterprise Wi-Fi network using RSA authentication
You can use software tokens to provide layer 2 authentication or layer 3 authentication on a Wi-Fi® enabled BlackBerry® device.
When you configure a software token for a user, the BlackBerry device is designed to use the passcode to authenticate the user
to the Wi-Fi network using PEAP authentication, EAP-GTC authentication, EAP-FAST authentication, EAP-TTLS authentication,
or a VPN.
The RSA SecurID® Library on the BlackBerry device permits the BlackBerry device to periodically generate token codes for a
software token. The BlackBerry device imports a seed, which consists of random data, and uses the seed to initialize the software
token algorithm. The software token algorithm generates the token code on the BlackBerry device.
When the user opens a Wi-Fi connection or VPN connection that requires two-factor authentication on the BlackBerry device,
the BlackBerry device prompts the user to type the software token PIN. The RSA SecurID Library adds the software token PIN to
the beginning of the token code to create a passcode that the BlackBerry device can use with a two-factor authentication process.
BlackBerry transport layer encryption is designed to protect the seed when the BlackBerry® Enterprise Server sends it over the
transport layer. The BlackBerry device uses Research In Motion® proprietary protocols that are designed to be highly secure to
perform all communication necessary to retrieve the seed on behalf of the RSA SecurID Library.
Process flow: Generating a token code for a software token
1.
An administrator of the RSA SecurID® uses the RSA® Authentication Manager to import a seed as a soft token file in .asc
format to a software token database and issue the software token file in .sdtid format. If necessary, the administrator can
perform one or more of the following actions:
109
Security Technical Overview
•
•
•
•
•
2.
3.
Protecting a connection between a Wi-Fi enabled BlackBerry device and an enterprise Wi-Fi network using RSA
authentication
permit the user to specify the software token PIN
configure the RSA SecurID to automatically generate and send a software token PIN to a Wi-Fi® enabled BlackBerry®
device
require the user to specify the software token PIN the first time that the user tries to complete RSA authentication on
the BlackBerry device
bind the seed to a specific BlackBerry device PIN
specify a password to encrypt the .sdtid file seed
You assign the .sdtid file seed for the BlackBerry device to the user account in the BlackBerry Administration Service. If
required, you can type the password to decrypt the seed to use it on the BlackBerry device.
The BlackBerry® Enterprise Server performs the following actions:
a. The BlackBerry Enterprise Server stores the .sdtid file seed in the BlackBerry Configuration Database.
b. The BlackBerry Enterprise Server pushes the .sdtid file seed (and the password, if the administrator of the RSA SecurID
specified one) to the BlackBerry device during the BlackBerry device activation process and each time the administrator
of the RSA SecurID changes the .sdtid file seed for the BlackBerry device.
4.
The BlackBerry device performs the following actions:
a. The BlackBerry device imports the .sdtid file seed. If the administrator of the RSA SecurID specified a password in the
RSA Authentication Manager to encrypt the .sdtid file seed, the BlackBerry device uses the password to decrypt
the .sdtid file seed. If the administrator of the RSA SecurID specified that the .sdtid file seed must bind to a specific
BlackBerry device PIN, only the BlackBerry device with the specific PIN can import the seed.
b. The BlackBerry device stores the .sdtid file seed in flash memory.
c. The BlackBerry device imports a copy of the .sdtid file seed into the RSA SecurID on the BlackBerry device. When the
BlackBerry device imports the .sdtid file seed into the RSA SecurID, the RSA SecurID randomly generates a password
to encrypt the .sdtid file seed.
5.
The RSA SecurID library on the BlackBerry device authenticates with the RSA® Authentication Agent and initializes the
software token algorithm one time each minute.
Each time the user tries to open a Wi-Fi connection or VPN connection that requires RSA authentication, the BlackBerry
device uses the initialized algorithm to combine the .sdtid file seed with random data that is based on the BlackBerry device
time and generate a new token code for the software token.
The administrator of the RSA SecurID can use RSA Authentication Manager version 6.1 or later to configure an optional
password to issue an encrypted .sdtid file seed to the user. The RSA SecurID library on the BlackBerry device can decrypt
the .sdtid file seed using an optional password. The RSA SecurID library uses code signing to help prevent third-party
applications from changing or reading the information that the RSA SecurID library stores on the BlackBerry device.
6.
110
Security Technical Overview
Layer 2 security methods that a Wi-Fi enabled BlackBerry device supports
Layer 2 security methods that a Wi-Fi enabled BlackBerry
device supports
17
You can configure a Wi-Fi® enabled BlackBerry® device to use security methods for layer 2 (also known as the IEEE® 802.11™
link layer) so that the BlackBerry device and a wireless access point can encrypt data that they send between them and
authenticate the user. The BlackBerry device supports the following layer 2 security methods:
•
open (no security method) WEP encryption (64-bit and 128-bit)
•
PSK protocol
•
IEEE® 802.1X™ standard and EAP authentication using EAP-FAST, EAP-SIM, EAP-TLS EAP-TTLS, LEAP, and PEAP
•
TKIP and AES-CCMP encryption for WPA™-Personal, WPA2™-Personal, WPA™-Enterprise, and WPA2™-Enterprise
To support layer 2 security methods, the BlackBerry device has a built-in IEEE 802.1X supplicant.
If your organization’s enterprise Wi-Fi network uses EAP authentication, you can permit and deny BlackBerry device access to
the enterprise Wi-Fi network by updating your organization’s central authentication server. You are not required to update the
configuration of each access point.
For more information about IEEE 802.11 and IEEE 802.1X, see www.ieee.org/portal/site. For more information about EAP
authentication, see RFC 3748.
WEP encryption
WEP encryption requires a matching encryption key at a wireless access point and on a Wi-Fi® enabled BlackBerry® device to
protect the connection to the enterprise Wi-Fi network. The encryption key can be 40 bits in length (for 64-bit WEP encryption)
or 104 bits in length (for 128-bit WEP encryption).
By current industry standards, WEP encryption is not a cryptographically strong security solution. WEP encryption weaknesses
include the following scenarios:
•
A potentially malicious user might capture transmissions over the wireless network and might deduce WEP encryption keys
in very little time.
•
A potentially malicious user might use a man-in-the-middle attack to change packets that are encrypted using WEP
encryption.
You can use a VPN to provide data confidentially if your organization uses WEP encryption. A VPN can authenticate and encrypt
access to your organization’s network. To configure a BlackBerry device to use WEP encryption, you must send WEP encryption
keys to the BlackBerry device using IT policy rules or configuration settings.
For more information about configuring WEP encryption, see the BlackBerry Enterprise Server Administration Guide.
111
Security Technical Overview
PSK protocol
PSK protocol
The IEEE® 802.1X™ standard specifies the PSK protocol as an access control method for enterprise Wi-Fi® networks. You can
also use the PSK protocol in small-office environments and home environments where it is not feasible to configure server-based
authentication.
To configure the PSK protocol, you must send a passphrase that matches the key or passphrase for the wireless access points to
a Wi-Fi enabled BlackBerry® device. The access points and BlackBerry device use a passphrase to generate layer 2 encryption
keys. The passphrase can be up to 256 bits. All access points and each BlackBerry device in your organization must share the
same passphrase.
The PSK protocol is designed to use TKIP keys or AES-CCMP keys to protect communications over the enterprise Wi-Fi network.
The PSK protocol relies on the passphrase to control whether a Wi-Fi enabled device (such as a computer or BlackBerry device)
can access the enterprise Wi-Fi network.
The BlackBerry device is compatible with the WPA™-Personal and WPA2™-Personal specifications.
For more information about configuring the BlackBerry device to support the PSK protocol, see the BlackBerry Enterprise Server
Administration Guide.
IEEE 802.1X standard
The IEEE® 802.1X™ standard defines a generic authentication framework that a Wi-Fi® enabled BlackBerry® device and an
enterprise Wi-Fi network can use to authenticate with each other.
The IEEE 802.1X standard uses EAP authentication methods to provide mutual authentication between the BlackBerry device
and enterprise Wi-Fi network. To act as a Wi-Fi supplicant, the BlackBerry device uses EAP authentication methods that are
specified in RFC 3748 and that meet the requirements of RFC 4017. The BlackBerry device uses an EAP authentication method
(for example, EAP-TLS, EAP-TTLS, EAP-FAST, or PEAP) and credentials to provide mutual authentication with the enterprise WiFi network, as defined in the WPA™-Enterprise and WPA2™-Enterprise specifications.
Caching a PMK when using the IEEE 802.1X standard
When a Wi-Fi® enabled device (such as a computer or BlackBerry® device) uses the IEEE® 802.11i™ standard with the IEEE®
802.1X™ standard, the key exchange that occurs during EAP authentication generates keying material. A Wi-Fi enabled device
and a wireless access point use the keying material when they create the PMK.
A Wi-Fi enabled BlackBerry device and an access point can cache the PMK. The PMK caching process reuses previously generated
keying material to skip EAP authentication during subsequent connections and permits the BlackBerry device and an access
point to generate session keys. PMK caching helps reduce the roaming latency for the BlackBerry device between access points
in an enterprise Wi-Fi network.
112
Security Technical Overview
EAP authentication methods that a Wi-Fi enabled BlackBerry device supports
Process flow: Authenticating a Wi-Fi enabled BlackBerry device with an enterprise Wi-Fi
network using the IEEE 802.1X standard
If you configured a wireless access point to use the IEEE® 802.1X™ standard, the access point permits communication using EAP
authentication only. This process flow assumes that you configured a Wi-Fi® enabled BlackBerry® device to use an EAP
authentication method to communicate with the access point.
1.
2.
3.
4.
The Wi-Fi enabled BlackBerry device associates itself with the access point that you configured to use the IEEE 802.1X
standard. The BlackBerry device sends its credentials (typically a user name and password) to the access point.
The access point sends the credentials to the authentication server.
The authentication server performs the following actions:
a. authenticates the BlackBerry device on behalf of the access point
b. instructs the access point to permit access to the enterprise Wi-Fi network
c. sends Wi-Fi credentials to the BlackBerry device to permit it to authenticate with the access point
The access point and BlackBerry device use EAPoL-Key messages to generate encryption keys (for example, WEP, TKIP, or
AES-CCMP, depending on the EAP authentication method that the BlackBerry device uses).
When the BlackBerry device sends EAPoL messages, the BlackBerry device uses the encryption and integrity requirements
that the EAP authentication method specifies. When the BlackBerry device sends EAPoL-Key messages, the BlackBerry
device uses the ARC4 algorithm or AES algorithm to provide integrity and encryption.
After the access point and BlackBerry device generate the encryption key, the BlackBerry device can access the enterprise WiFi network.
EAP authentication methods that a Wi-Fi enabled BlackBerry device supports
LEAP authentication
LEAP authentication uses the IEEE® 802.1X™ standard and is designed to improve WEP authentication. You can use this
authentication method to authenticate a Wi-Fi® enabled BlackBerry® device with an enterprise Wi-Fi network, generate WEP
encryption keys that are unique to the BlackBerry device, and configure the enterprise Wi-Fi network to update the WEP encryption
keys automatically during a session with the BlackBerry device.
The BlackBerry device supports using LEAP authentication with a user name and password. The BlackBerry device uses a oneway function to encrypt the password before it sends the password to the authentication server on the enterprise Wi-Fi network.
LEAP authentication does not provide mutual authentication between the BlackBerry device and enterprise Wi-Fi network. You
can configure password policies on an enterprise Wi-Fi network that require the BlackBerry device to use LEAP authentication
to connect to the enterprise Wi-Fi network.
113
Security Technical Overview
EAP authentication methods that a Wi-Fi enabled BlackBerry device supports
PEAP authentication
PEAP authentication permits a Wi-Fi® enabled BlackBerry® device to authenticate with an authentication server and access an
enterprise Wi-Fi network. PEAP authentication uses TLS to create an encrypted tunnel between the BlackBerry device and the
authentication server. It uses the TLS tunnel to send the authentication credentials of the BlackBerry device to the authentication
server.
The BlackBerry device supports PEAPv0 and PEAPv1 for PEAP authentication. The BlackBerry device also supports EAP-MSCHAPv2 and EAP-GTC as second-phase protocols during PEAP authentication so that the BlackBerry device can exchange
credentials with the enterprise Wi-Fi network.
To configure PEAP authentication, you must install a root certificate on the BlackBerry device that corresponds to the
authentication server certificate.
For more information, see the BlackBerry Enterprise Server Administration Guide.
EAP-TLS authentication
EAP-TLS authentication uses a PKI to permit a Wi-Fi® enabled BlackBerry® device to authenticate with an authentication server
and access an enterprise Wi-Fi network. EAP-TLS authentication uses TLS to create an encrypted tunnel between the BlackBerry
device and the authentication server. EAP-TLS authentication uses the TLS encrypted tunnel and a client certificate to send the
credentials of the BlackBerry device to the authentication server.
The BlackBerry device supports EAP-TLS authentication when your organization uses certificates that meet specific requirements
on the authentication server and the client for authentication. To configure EAP-TLS authentication, you must install a client
certificate and a root certificate on the BlackBerry device that corresponds to the certificate of the authentication server. For
more information, see the BlackBerry Enterprise Server Administration Guide.
For more information about EAP-TLS authentication, see RFC 2716.
EAP-TTLS authentication
EAP-TTLS authentication can extend EAP-TLS authentication to permit a Wi-Fi® enabled BlackBerry® device to authenticate
with the authentication server and access an enterprise Wi-Fi network. When the authentication server uses its certificate to
authenticate with the BlackBerry device and open a protected connection to the BlackBerry device, the authentication server
uses an authentication protocol over the protected connection to authenticate the BlackBerry device.
The BlackBerry device supports EAP-MS-CHAPv2 and MS-CHAPv2 as second-phase protocols during EAP-TTLS authentication
so that the BlackBerry device can exchange credentials with the enterprise Wi-Fi network.
To configure EAP-TTLS authentication, you must install the root certificate on the BlackBerry device that corresponds to the
certificate of the authentication server. For more information, see the BlackBerry Enterprise Server Administration Guide.
114
Security Technical Overview
Encryption keys that a Wi-Fi enabled BlackBerry device supports for use with layer 2 security methods
EAP-FAST authentication
EAP-FAST authentication uses PAC to open a TLS connection to a Wi-Fi® enabled BlackBerry® device and verify the supplicant
credentials of the BlackBerry device over the TLS connection.
The BlackBerry device supports EAP-MS-CHAPv2 and EAP-GTC as second-phase protocols during EAP-FAST authentication so
that the BlackBerry device can exchange authentication credentials with the enterprise Wi-Fi network. The BlackBerry device
supports using automatic PAC provisioning with EAP-FAST authentication only.
For more information about EAP-FAST authentication, see RFC 4851.
EAP-SIM authentication
EAP-SIM authentication uses a GSM® SIM card to authenticate a Wi-Fi® enabled BlackBerry® device with an enterprise Wi-Fi
network and distribute session keys. EAP-SIM authentication uses a challenge-response method without mutual authentication.
The BlackBerry device supports using EAP-SIM authentication with the credentials on the GSM SIM card only. The user is not
required to type or select credentials on the BlackBerry device.
The user identity that EAP-SIM uses for authentication on the BlackBerry device is built from IMSI using the 3GPP® technical
specification 3GPP-TS-23.003.
The BlackBerry device can receive at least two challenges from the authentication server to provide stronger authentication.
For more information about EAP-SIM authentication, see RFC 4186.
Encryption keys that a Wi-Fi enabled BlackBerry device supports for use with
layer 2 security methods
A Wi-Fi® enabled BlackBerry device supports AES-CCMP encryption keys, TKIP encryption keys, and WEP encryption keys.
The BlackBerry device supports the use of AES-CCMP with the following authentication methods:
•
EAP-FAST authentication
•
EAP-TLS authentication
•
EAP-TTLS authentication
•
PEAP authentication
•
PSK authentication
The BlackBerry device supports the use of TKIP with the following authentication methods:
•
EAP-FAST authentication
•
EAP-TLS authentication
115
Security Technical Overview
•
•
•
EAP authentication methods that a BlackBerry device supports the use of CCKM with
EAP-TTLS authentication
PEAP authentication
PSK authentication
For more information about AES-CCMP and TKIP, visit www.ieee.org/portal/site.
EAP authentication methods that a BlackBerry device supports the use of
CCKM with
A Wi-Fi® enabled BlackBerry® device supports the use of CCKM with all supported EAP authentication methods to improve
roaming between wireless access points. The BlackBerry device does not support the use of CCKM with the Cisco® CKIP encryption
algorithm or the AES-CCMP encryption algorithm.
Using certificates with PEAP authentication, EAP-TLS authentication, or
EAP-TTLS authentication
If your organization uses PEAP authentication, EAP-TLS authentication, or EAP-TTLS authentication to protect the wireless access
points for your organization’s enterprise Wi-Fi® network, a Wi-Fi enabled BlackBerry® device must authenticate mutually with
an access point using an authentication server. To generate the certificates that the BlackBerry device and authentication server
use to authenticate with each other, you require a certification authority.
For PEAP authentication, EAP-TLS authentication, or EAP-TTLS authentication to be successful, the BlackBerry device must trust
the certificate of the authentication server. The BlackBerry device does not trust the certificate of the authentication server
automatically. Before you can configure the BlackBerry device to trust the certificate of the authentication server, the following
conditions must exist:
•
A certification authority that the BlackBerry device and authentication server mutually trust must generate the certificate
of the authentication server and a certificate for the BlackBerry device.
•
The BlackBerry device must store the root certificates in the certificate chain for the certificate of the authentication server.
Each BlackBerry device stores a list of root certificates that are issued by certification authorities that it explicitly trusts.
116
Security Technical Overview
Protecting a third-party application on a BlackBerry device
Protecting a third-party application on a BlackBerry device
18
Creating a third-party application for a BlackBerry device
A developer can create a third-party application for a Java® based BlackBerry® device using the BlackBerry® Java® Development
Environment. A third-party application can perform the following actions on a BlackBerry device:
•
communicate and share persistent storage with other applications
•
access user data such as calendar entries, email messages, and contacts
By default, a user can download a third-party application to a BlackBerry device over the wireless network using the BlackBerry®
Browser. You can also send a third-party application to the BlackBerry device over the wireless network so that a user can install
it on the BlackBerry device.
Specifying the resources third-party applications can access on a BlackBerry
device
You can specify which applications a user can download and install on a BlackBerry® device and the resources on the BlackBerry
device that the applications can access. When you control the applications that a user can install and limit the resources that
the applications can access, you can help protect the BlackBerry device from malware. You can also help prevent damage to the
BlackBerry device, applications, BlackBerry device data, or your organization’s network.
You can use application control policy rules and code signing to control application access to the resources and to help prevent
malware on the BlackBerry device.
For more information, see Protecting the BlackBerry Device Platform Against Malware.
Managing third-party applications on a BlackBerry device using application control policy
rules
You can use application control policy rules to specify whether a user can install a third-party application on a BlackBerry® device
and to specify the permissions of the application.
You can use application control policy rules to specify whether an application can access the following items on the BlackBerry
device the following items:
•
data or applications (for example, messaging, phone)
•
BlackBerry device key store
117
Security Technical Overview
•
Specifying the resources third-party applications can access on a BlackBerry device
User Authenticator API, which permits the registration of drivers so that a user can unlock the BlackBerry device using twofactor authentication
You can also use application control policy rules to specify the types of connections that the application that is running on the
BlackBerry device can open (for example, local, internal, and external connections).
For example, you can create an application control policy rule that prevents an application from opening connections to internal
servers. When you assign an application control policy to a software configuration and assign the software configuration to a
user account or group, the user might not be able to use all of the features of a third-party application that is included in the
software configuration. When you assign the application control policy rule to a software configuration and assign the software
configuration to a group, the BlackBerry® Enterprise Server limits permitted application behavior to a subset of user accounts
that it trusts.
The BlackBerry device revokes the application control policy and resets itself if the permissions for an application that the
application control policy is applied to become more restrictive. A BlackBerry device that is running BlackBerry® Device Software
version 4.1 or later permits the user to make permissions more restrictive, but never less restrictive than, the permissions that
you specify.
Managing BlackBerry Java Applications on a BlackBerry device using code signing
Before a BlackBerry® Java® Application can use BlackBerry device APIs that include sensitive packages, classes, or methods,
Research In Motion requires that the RIM® signing authority system digitally sign the application. Sensitive packages, classes,
or methods are APIs that impact device data or permit an application to communicate with another application.
The RIM signing authority system uses public key cryptography to authorize and authenticate the application code. The developer
must visit www.blackberry.com/developers/downloads/jde/api.shtml to register the application with the RIM signing authority
system so that the application can access the controlled APIs and use the BlackBerry® Signing Authority Tool. The BlackBerry
Signing Authority Tool is a component of the BlackBerry® Java® Development Environment that permits an application to request,
receive, and verify a digital signature from RIM.
If a developer creates a third-party API that controls access to resources and applications on the BlackBerry device, the developer
can act as a signing authority for the third-party API. The developer can download and install the BlackBerry Signing Authority
Tool and permit other developers to register with the BlackBerry Signing Authority Tool so that the applications that other
developers create can access the third-party API. Developers who register with the RIM signing authority system can use the
BlackBerry Signing Authority Tool to request, receive, and verify digital signatures for applications.
MIDlets (also known as applications that use standard MIDP APIs and CLDC APIs only) cannot write to the BlackBerry device
memory, access the memory of other applications, or access the persistent data of other MIDlets unless the RIM signing authority
system digitally signed them.
For more information about code signing and third-party applications, see the BlackBerry Signing Authority Tool Administration
Guide.
118
Security Technical Overview
Permitting a third-party application to encode data on a BlackBerry device
Permitting a third-party application to encode data on a BlackBerry device
A developer can use the Transcoder API to create an encoding scheme for data that is sent between a BlackBerry® Enterprise
Server and BlackBerry device. The Transcoder API is part of the BlackBerry® Java® Development Environment. The BlackBerry
Enterprise Server and BlackBerry device can use the encoding scheme to encode and decode all gateway message envelope
packets that the BlackBerry Enterprise Server and BlackBerry device send between each other. The encoding scheme prepends
a transcoder ID to the encoded data. The BlackBerry® Enterprise Solution encrypts the encoded data using BlackBerry transport
layer encryption.
Before an application can access the Transcoder API, the BlackBerry® Signing Authority Tool must digitally sign the .cod file.
The BlackBerry Signing Authority Tool uses the key of the RIM® Cryptographic API to authorize and authenticate the Transcoder
implementation code.
If the RIM Cryptographic API does not support an algorithm, the developer can use the Transcoder API to add the algorithm to
the encoding schemes. The BlackBerry Enterprise Solution applies the encoding schemes to any outgoing data that the BlackBerry
transport layer encryption applies to. By default, the Transcoder API supports all algorithms that the RIM Cryptographic API
supports.
If you permit the application to use the Transcoder API on the BlackBerry device, and if the application is not working correctly,
the application might affect the security, usability, and performance of the BlackBerry Enterprise Solution. It might also cause
the loss of BlackBerry device data.
To permit the BlackBerry Enterprise Server and BlackBerry device to use the encoding scheme, you must specify the hash of
the .cod file of the application in the Security Transcoder Cod File Hashes IT policy rule. For more information about using this
IT policy rule, see the BlackBerry Enterprise Server Policy Reference Guide.
Removing third-party applications when a user deletes all BlackBerry device
data
If a user clicks Wipe Device, Wipe Handheld, or Security Wipe in the security options on a BlackBerry® device, the user can select
the Include third party applications option or the User Installation Application option at the same time. If the user selects this
option, when the BlackBerry device permanently deletes its stored user data, it also removes all applications and application data.
119
RIM Cryptographic API
Security Technical Overview
RIM Cryptographic API
19
The RIM® Cryptographic API that is on a BlackBerry® device and in the BlackBerry® Java® Development Environment consists
of a Java interface that includes an encryption algorithm, a key agreement scheme, a signature scheme algorithm, a key generation
algorithm, a message authentication code, cipher suites, a message digest, and a hash code.
A developer can use the BlackBerry JDE to access the RIM Cryptographic API to create an application that can run on the
BlackBerry device. The developer is not required to change or access the encryption code directly because all calls to the native
C++ encryption code are sent through the Java code.
Research In Motion uses code signing to authorize and authenticate an application and permit it to run on the BlackBerry device.
Code signing is also used to control the ability of the application to access the RIM Cryptographic API.
Related topics
Advanced Security SD cards, 96
Cryptographic algorithms and cryptographic codes that the RIM
Cryptographic API supports
Symmetric block algorithms that the RIM Cryptographic API supports
Symmetric block algorithms use PKCS #5 for padding. The RIM® Cryptographic API supports the CBC, CFB, ECB, OFB, and X
modes for all algorithms. The RIM Cryptographic API implements the modes separately from the symmetric block algorithms.
Algorithm
Key length (bits)
AES
CAST5
DES
RC2
RC5®
Skipjack
Triple DES
128, 192, and 256
128
56
8 to 1024
0 to 2040
80
112 and 168
Stream encryption algorithms that the RIM Cryptographic API supports
The RIM® Cryptographic API supports the ARC4 algorithm, with an unlimited key length, as the symmetric stream encryption
algorithm.
120
Security Technical Overview
Cryptographic algorithms and cryptographic codes that the RIM Cryptographic API supports
The RIM Cryptographic API supports the ECIES algorithm, with an unlimited key length (160 bits to 571 bits for seeding), as the
asymmetric stream encryption algorithm.
Asymmetric encryption algorithms that the RIM Cryptographic API supports
Algorithm
Key length (bits)
Type
El Gamal
RSA® raw
RSA with OAEP formatting
RSA with PKCS #1 formatting (versions
1.5 and 2.0)
512 to 4096
512 to 4096
512 to 4096
512 to 4096
discrete logarithm
integer factorization
integer factorization
integer factorization
Key agreement scheme algorithms that the RIM Cryptographic API supports
Algorithm
Key length (bits)
Type
Diffie-Hellman
ECDH
ECMQV
KEA
512 to 4096
160 to 571
160 to 571
1024
discrete logarithm
(Elliptic Curve) discrete logarithm
(Elliptic Curve) discrete logarithm
discrete logarithm
Signature scheme algorithms that the RIM Cryptographic API supports
If the signature scheme algorithm that a developer wants to use is the RSA® algorithm using ANSI® X9.31, ANSI X9.31 uses one
of the following algorithms for the required message digest code: SHA-1, SHA-256, SHA-384, SHA-512, or RIPEMD-160.
Algorithm
Key length (bits)
Type
DSA
ECDSA
ECNR
RSA® using ANSI X9.31
RSA using PKCS #1 (versions 1.5 and 2.0)
RSA using PSS
512 to 1024
160 to 571
160 to 571
512 to 4096
512 to 4096
512 to 4096
discrete logarithm
(Elliptic Curve) discrete logarithm
(Elliptic Curve) discrete logarithm
integer factorization
integer factorization
integer factorization
121
TLS and WTLS protocols that the RIM Cryptographic API supports
Security Technical Overview
Key generation algorithms that the RIM Cryptographic API supports
Algorithm
Key length (bits)
Type
Diffie-Hellman
DSA
Elliptic Curve
RSA®
512 to 4096
512 to 1024
160 to 571
512 to 2048
discrete logarithm
discrete logarithm
(Elliptic Curve) discrete logarithm
integer factorization
Message authentication codes that the RIM Cryptographic API supports
Code
Key length (bits)
CBC-MAC
HMAC
variable (block cipher key length)
variable
Message digest codes that the RIM Cryptographic API supports
Code
Digest length (bits)
MD2
MD4
MD5
RIPEMD
SHA
128
128
128
128, 160
160, 224, 256, 384, 512
TLS and WTLS protocols that the RIM Cryptographic API supports
The RIM® Cryptographic API supports the cipher suite components for the TLS protocol and WTLS protocol that apply only to
direct mode SSL/TLS and WTLS.
122
TLS and WTLS protocols that the RIM Cryptographic API supports
Security Technical Overview
Cipher suites for the key establishment algorithm that the RIM Cryptographic API supports
Direct mode SSL
Direct mode TLS
WTLS
DH_anon
DH_anon
DH_anon_EXPORT
DHE_DSS
DHE_DSS_EXPORT
RSA
RSA_EXPORT
DH_anon_EXPORT
DHE_DSS
DHE_DSS_EXPORT
RSA
RSA_EXPORT
RSA® _768, DH_anon, DH_anon_512,
DH_anon_768
RSA_anon_512
RSA_512
RSA_anon_768
RSA
RSA_anon
Symmetric algorithms that the RIM Cryptographic API supports
Direct mode SSL
Direct mode TLS
WTLS
DES
DES-40
ARC4-128
ARC4-128
ARC4-128
ARC4-128
ARC4-40
Triple DES
ARC4-128
ARC4-56
DES
Triple DES
AES-128
AES-256, ARC4-128
ARC4-40
DES-40
RC5® -64
RC5-56
RC5-128
DES-40
DES
Triple DES
RC5-40
RC5
Hash algorithms that the RIM Cryptographic API supports
Direct mode SSL
Direct mode TLS
WTLS
MD5
SHA-1
MD5
SHA-1
SHA
SHA-40, SHA-80, MD5, MD5-40,
MD5-80
123
Limitations of RIM Cryptographic API support for cipher suites for the key establishment algorithm
Security Technical Overview
Limitations of RIM Cryptographic API support for cipher suites for the key
establishment algorithm
The RIM® Cryptographic API implementation of the TLS protocol and WTLS protocol supports the use of the RSA® public key
algorithm, DSA public key algorithm, and Diffie-Hellman key exchange algorithm, with the following limitations.
Cipher suite type
Typical component limitation
export
•
•
RSA and Diffie-Hellman: 1024 bytes or less
elliptic curve: 163 bytes or less
non-export
•
•
non elliptic curve operations: 4096 bytes
elliptic curve operations: 571 bytes
Limitations to non-export cipher suite types are due to the computational constraints of a BlackBerry® device.
124
Related resources
Security Technical Overview
Related resources
20
Resource
Information
BlackBerry Enterprise Server Feature
and Technical Overview
BlackBerry Enterprise Server
Installation Guide
•
understanding BlackBerry® Enterprise Server architecture
•
•
•
understanding system requirements
performing preinstallation tasks
installing the BlackBerry Enterprise Server
BlackBerry Enterprise Server
Administration Guide
•
•
•
•
generating and changing device transport keys
configuring extended messaging encryption
managing security
protecting lost or stolen BlackBerry devices
BlackBerry Enterprise Server Policy
Reference Guide
•
understanding BlackBerry Enterprise Server IT policy rules and application
control policy rules
using IT policies and application control policies
•
BlackBerry Signing Authority Tool
Administrator Guide
•
•
•
BlackBerry Java Development
Environment Fundamentals Guide
•
understanding the BlackBerry® Signing Authority Tool implementation of
public key cryptography
installing, configuring, and managing the BlackBerry Signing Authority Tool
restricting access to APIs
•
•
•
•
understanding BlackBerry APIs in the BlackBerry® Java® Development
Environment
understanding APIs, classes, and methods with limited access
retrieving custom IT policy rules from the IT policy API
installing applications using the BlackBerry® Desktop Software
publishing applications over the wireless network
BlackBerry Java Development
Environment Development Guide
•
•
using controlled APIs
using code signatures
BlackBerry Smart Card Reader Security
Technical Overview
•
understanding highly secure pairings between the BlackBerry device and
BlackBerry® Smart Card Reader
understanding how the initial key establishment protocol works
understanding how the connection key establishment protocol works
•
•
125
Related resources
Security Technical Overview
Resource
Information
Enforcing Encryption of Internal and
External File Systems on BlackBerry
Devices Technical Overview
•
•
understanding which data items BlackBerry devices encrypt by default
using encryption to protect stored files in the on-board device memory and
media cards
Erasing File Systems on BlackBerry
Devices Technical Overview
•
understanding which data items are deleted from BlackBerry device memory
when you or a user deletes the BlackBerry device memory
understanding the different methods of permanently deleting BlackBerry
device memory
•
PGP Support Package for BlackBerry
Devices Security Technical Overview
•
•
•
•
understanding PGP® security and encryption
using PGP® Universal Server to store and manage PGP keys
searching for and validating PGP keys
sending and receiving PGP messages
Protecting the BlackBerry Device
Platform Against Malware
•
•
•
•
understanding the default behavior of the BlackBerry device platform
understanding malware vulnerabilities on the BlackBerry device
managing the risk of malware attacks
using BlackBerry® Enterprise Solution tools to contain malware on the
BlackBerry device
S/MIME Support Package for
BlackBerry Devices Technical Overview
•
•
understanding S/MIME security and encryption
managing S/MIME certificates on the BlackBerry device and a computer
Security for BlackBerry Devices with
Bluetooth Wireless Technology
•
•
•
Bluetooth® wireless technology overview
using and protecting Bluetooth enabled BlackBerry devices
risks of using Bluetooth wireless technology on mobile devices
www.blackberry.com/security
•
understanding BlackBerry Enterprise Solution security
126
Security Technical Overview
Glossary
Glossary
21
3GPP
Third Generation Partnership Project
AES
Advanced Encryption Standard
AES-CCMP
Advanced Encryption Standard Counter Mode CBCMAC Protocol
ANSI
American National Standards Institute
API
application programming interface
ARC4
alleged RC4 (algorithm)
ASCII
American Standard Code for Information Interchange
BlackBerry device key
The BlackBerry device key is a randomly generated key that a BlackBerry device uses to encrypt data on media cards.
BlackBerry device key store
The BlackBerry device key store stores certificates, key pairs, and PGP® keys that a BlackBerry device can use to help protect
messages, access web sites, and connect to an enterprise Wi-Fi® network. To access the items in the key store, the user must
type a key store password.
BlackBerry device memory
The BlackBerry device memory consists of the NV store, flash memory, RAM, on-board device memory, and BlackBerry device
key store.
BlackBerry inter-process protocol
The BlackBerry inter-process protocol is a Research In Motion® proprietary protocol that generates the session key that
BlackBerry® Enterprise Solution components such as the BlackBerry® Enterprise Server and BlackBerry® Mobile Voice System
can use to communicate in a highly securely manner with each other. The BlackBerry inter-process protocol generates the
session key based on the secure communication password.
BlackBerry inter-process protocol encryption
127
Security Technical Overview
Glossary
BlackBerry inter-process protocol encryption encrypts communication between BlackBerry® Enterprise Solution components
to prevent other parties from viewing the data that the components send between each other.
BlackBerry MDS
BlackBerry® Mobile Data System
BlackBerry MDS security protocol
The BlackBerry MDS security protocol is a Research In Motion® proprietary protocol that helps protect the data that a
BlackBerry device, the BlackBerry MDS Connection Service, and the BlackBerry MDS Integration Service send between each
other.
BlackBerry MVS
BlackBerry® Mobile Voice System
BlackBerry transport layer encryption
BlackBerry transport layer encryption (formerly known as standard BlackBerry encryption) uses a symmetric key encryption
algorithm to help protect data that is in transit between a BlackBerry device and the BlackBerry® Enterprise Server when
the data is outside an organization's firewall.
CA
certification authority
CAC
Common Access Card
CAST
Computer Assisted Seriation Test
CBC
cipher block chaining
CCKM
Cisco® Centralized Key Management
CFB
cipher feedback
CHAP
Challenge Handshake Authentication Protocol
CKIP
Cisco® Key Integrity Protocol
CLDC
Connected Limited Device Configuration
128
Security Technical Overview
Glossary
code-signing keys
Code-signing keys are the keys that are stored on media cards that sign files so that a user can install and run the files on
a BlackBerry device.
content protection
Content protection protects user data on a locked BlackBerry device by encrypting the user data using the content protection
key and ECC private key.
content protection key
The device transport key (formerly known as the master encryption key) is unique to a BlackBerry device. The BlackBerry
device and BlackBerry® Enterprise Server use the device transport key to encrypt the message keys.
DEMA
Differential Electromagnetic Analysis
DES
Data Encryption Standard
device transport key
The device transport key (formerly known as the master encryption key) is unique to a BlackBerry device. The BlackBerry
device and BlackBerry® Enterprise Server use the device transport key to encrypt the message keys.
DH
Diffie-Hellman
DHE
Diffie-Hellman Ephemeral
DoS
denial of service
DPA
Differential Power Analysis
DSA
Digital Signature Algorithm
DSML
Directory Service Markup Language
DSML certificate server
A BlackBerry® device uses a DSML certificate server to search for and download certificates.
DSS
Digital Signature Standard
129
Security Technical Overview
EAP
Extensible Authentication Protocol
EAPoL
Extensible Authentication Protocol over LAN
EAP-FAST
Extensible Authentication Protocol Flexible Authentication via Secure Tunneling
EAP-GTC
Extensible Authentication Protocol Generic Token Card
EAP-MS-CHAP
Extensible Authentication Protocol Microsoft® Challenge Handshake Authentication Protocol
EAP-SIM
Extensible Authentication Protocol Subscriber Identity Module
EAP-TLS
Extensible Authentication Protocol Transport Layer Security
EAP-TTLS
Extensible Authentication Protocol Tunneled Transport Layer Security
ECB
electronic code book
ECC
Elliptic Curve Cryptography
ECC private key
The ECC private key decrypts the data that a BlackBerry device received when the BlackBerry device was locked.
ECC public key
The ECC public key encrypts the data that a BlackBerry device receives when the BlackBerry device is locked.
ECDH
Elliptic Curve Diffie-Hellman
ECDSA
Elliptic Curve Digital Signature Algorithm
ECIES
Elliptic Curve Integrated Encryption Standard
130
Glossary
Security Technical Overview
Glossary
ECMQV
Elliptic Curve Menezes-Qu-Vanstone
ECNR
Elliptic Curve Nyberg Rueppel
EDE
Encryption-Decryption-Encryption
EDGE
Enhanced Data Rates for Global Evolution
Enterprise Service Policy
The Enterprise Service Policy controls which BlackBerry devices can connect to a BlackBerry® Enterprise Server.
ephemeral key
The ephemeral key encrypts the ECC public key, ECC private key, and content protection key.
FIPS
Federal Information Processing Standards
flash memory
The flash memory is an internal file system on a BlackBerry device that stores application data and user data.
GAN
generic access network
GANC
generic access network controller
global PIN encryption key
The global PIN encryption key is a key that is added to all BlackBerry devices during the manufacturing process. The global
PIN encryption key permits BlackBerry devices to encrypt and send PIN messages to each other.
GME
The gateway message envelope (GME) protocol is a Research In Motion proprietary protocol that allows the transfer of
compressed and encrypted data between the wireless network and BlackBerry devices. The protocol defines a routing layer
that specifies the types of message contents allowed and the addressing information for the data. Gateways and routing
components use this information to identify the type and source of the BlackBerry device data, and the appropriate destination
service to route the data to.
GPS
Global Positioning System
GSA
131
Security Technical Overview
Glossary
General Services Administration
GSM
Global System for Mobile communications®
HMAC
keyed-hash message authentication code
HTTP
Hypertext Transfer Protocol
HTTPS
Hypertext Transfer Protocol over Secure Sockets Layer
IEEE
Institute of Electrical and Electronics Engineers
IMSI
International Mobile Subscriber Identity
initial key establishment protocol
The initial key establishment protocol is a Research In Motion® proprietary protocol that the BlackBerry® Enterprise Solution
uses to generate the first device transport key for a BlackBerry device.
IT administration command
An IT administration command is a command that you can send over the wireless network to protect sensitive information
on a BlackBerry device or delete all BlackBerry device data.
IP
Internet Protocol
IPSec
Internet Protocol Security
IT policy
An IT policy consists of various IT policy rules that control the security features and behavior of BlackBerry devices, BlackBerry
enabled devices, the BlackBerry® Desktop Software, and the BlackBerry® Web Desktop Manager.
IT policy private key
The IT policy private key is a key that the BlackBerry® Enterprise Server uses to sign an IT policy before the BlackBerry
Enterprise Server sends the IT policy to a BlackBerry device.
IT policy public key
The IT policy public key is a key that a BlackBerry device uses to authenticate the IT policy that the BlackBerry® Enterprise
Server sends.
132
Security Technical Overview
Glossary
IT policy rule
An IT policy rule permits you to customize and control the actions that BlackBerry devices, BlackBerry enabled devices, the
BlackBerry® Desktop Software, and the BlackBerry® Web Desktop Manager can perform.
JSSE
Java® Secure Socket Extension
KEA
Key Exchange Algorithm
key rollover protocol
The key rollover protocol is a Research In Motion® proprietary protocol that the BlackBerry® Enterprise Solution uses to
generate subsequent device transport keys for a BlackBerry device.
LAN
local area network
LDAP
Lightweight Directory Access Protocol
LDAPS
Lightweight Directory Access Protocol over SSL
LEAP
Lightweight Extensible Authentication Protocol
MAC
message authentication code
MAPI
Messaging Application Programming Interface
MCEX
Mobile Commerce Extension
MD5
Message-Digest Algorithm, version 5
message keys
The message keys encrypt the data that is sent to and from a BlackBerry device.
messaging server
A messaging server sends and processes messages and provides collaboration services, such as updating and communicating
calendar and address book information.
133
Security Technical Overview
Glossary
MIDP
Mobile Information Device Profile
MMS
Multimedia Messaging Service
MS-CHAP
Microsoft Challenge Handshake Authentication Protocol
NAT
network address translation
NIST
National Institute of Standards and Technology
NTFS
New Technology File System
NTLM
NT LAN Manager
NV
nonvolatile
NV store
The NV store is a nonvolatile store that persists in flash memory on a BlackBerry device. Only the operating system of the
BlackBerry device can write to it. Third-party applications cannot write to the NV store.
OAEP
Optimal Asymmetric Encryption Padding
OCSP
Online Certificate Status Protocol
OFB
output feedback
PAC
proxy auto-configuration
PBX
Private Branch Exchange
PEAP
Protected Extensible Authentication Protocol
134
Security Technical Overview
Glossary
PFS
Perfect Forward Secrecy
persistent store in flash memory
The persistent store in flash memory stores data for a BlackBerry device. By default, third-party applications cannot access
the persistent store. When it deletes all device data, the BlackBerry device deletes the data in the persistent store.
PGP/MIME
PGP® Multipurpose Internet Mail Extensions
PIN
personal identification number
PKCS
Public-Key Cryptography Standards
PKI
Public Key Infrastructure
PMK
pairwise master key
POA
Post Office Agent
principal encryption key
The principal encryption key (formerly known as the grand master key) encrypts the device transport key when a BlackBerry
device is locked.
PRNG
pseudo-random number generator
PSK
pre-shared key
PSS
Probabilistic Signature Scheme
RC
Rivest's Cipher
remote password reset cryptographic protocol
The remote password reset cryptographic protocol is a Research In Motion® proprietary protocol that permits you to reset
the BlackBerry device password when content protection is turned on.
135
Security Technical Overview
Glossary
RFC
Request for Comments
RIM signing authority system
The RIM® signing authority system is a collection of servers that sign the boot ROM code for a BlackBerry device during the
manufacturing process.
RIPEMD
RACE Integrity Primitives Evaluation Message Digest
RPC
remote procedure call
S/MIME
Secure Multipurpose Internet Mail Extensions
secure communication password
The secure communication password is a password that BlackBerry® Enterprise Solution components use for the BlackBerry
inter-process protocol. The secure communication password is designed to prevent a potentially malicious user from viewing
the data that the components send to each other.
SEMA
Simple Electromagnetic Analysis
SHA
Secure Hash Algorithm
SIM
Subscriber Identity Module
SMS
Short Message Service
SMTP
Simple Mail Transfer Protocol
SPA
Simple Power Analysis
SPEKE
Simple Password-authenticated Exponential Key Exchange
SRP
Server Routing Protocol
136
Security Technical Overview
Glossary
SRP authentication
SRP authentication is an authentication method that the BlackBerry® Enterprise Server and BlackBerry® Infrastructure use
to authenticate with each other.
SRP authentication key
The SRP authentication key is a 20-byte shared encryption key that the BlackBerry® Enterprise Server and BlackBerry®
Infrastructure use to authenticate with each other during SRP authentication.
SRP ID
The SRP ID is a unique identifier for the BlackBerry® Enterprise Server that the BlackBerry Enterprise Server uses to identify
itself to the BlackBerry® Infrastructure during SRP authentication.
SSL
Secure Sockets Layer
TCP
Transmission Control Protocol
TCP/IP
Transmission Control Protocol
TKIP
Temporal Key Integrity Protocol
TLS
Transport Layer Security
Triple DES
Triple Data Encryption Standard
UID
unique identifier
UMA
Unlicensed Mobile Access
VPN
virtual private network
WAP
Wireless Application Protocol
WEP
Wired Equivalent Privacy
137
Security Technical Overview
WLAN
wireless local area network
WPA
Wi-Fi Protected Access
WTLS
Wireless Transport Layer Security
138
Glossary
Security Technical Overview
Provide feedback
Provide feedback
22
To provide feedback on this deliverable, visit www.blackberry.com/docsfeedback.
139
Security Technical Overview
Legal notice
Legal notice
23
©2009 Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, SureType®, SurePress™ and
related trademarks, names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S.
and countries around the world.
3GPP is a trademark of 3GPP. Bluetooth is a trademark of Bluetooth SIG. ANSI is a trademark of the American National Standards
Institute. Cisco is a trademark of Cisco Systems, Inc. Entrust Authority is a trademark of Entrust, Inc. GSM (Global System for
Mobile communications) is a trademark of the GSM MOU Association. IBM, Domino, Lotus, Lotus iNotes, and Lotus Notes are
trademarks of International Business Machines Corporation. IEEE 802.11, IEEE 802.11i, IEEE 802.1X, and IEEE are trademarks of
the Institute of Electrical and Electronics Engineers, Inc. Microsoft, Outlook, and Windows are trademarks of Microsoft Corporation.
Netscape is a trademark of Netscape Communication Corporation. Novell and GroupWise are trademarks of Novell, Inc. PGP is
a trademark of PGP Corporation. Roxio is a trademark of Sonic Solutions. RC4, RC5, RSA, and RSA SecurID are trademarks of
RSA Security. Sun and Java are trademarks of Sun Microsystems, Inc. Wi-Fi Wi-Fi Protected Access, WPA, and WPA2 are trademarks
of the Wi-Fi Alliance. All other trademarks are the property of their respective owners.
The BlackBerry smartphone and other devices and/or associated software are protected by copyright, international treaties, and
various patents, including one or more of the following U.S. patents: 6,278,442; 6,271,605; 6,219,694; 6,075,470; 6,073,318;
D445,428; D433,460; D416,256. Other patents are registered or pending in the U.S. and in various countries around the world.
Visit www.rim.com/patents for a list of RIM (as hereinafter defined) patents.
This documentation including all documentation incorporated by reference herein such as documentation provided or made
available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition,
endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies
("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this
documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation may
describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information that
is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates, enhancements,
or other additions to this documentation to you in a timely manner or at all.
This documentation might contain references to third-party sources of information, hardware or software, products or services
including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third
Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including,
without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency,
links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services
in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any way.
EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS,
ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF
DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NONINFRINGEMENT, SATISFACTORY QUALITY, OR TITLE, OR ARISING FROM A STATUTE OR CUSTOM OR A COURSE OF DEALING
OR USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE
OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE
140
Security Technical Overview
Legal notice
HEREBY EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS
MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT
PERMITTED BY LAW, ANY IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT
THEY CANNOT BE EXCLUDED AS SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM
THE DATE YOU FIRST ACQUIRED THE DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE
FOR ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NONPERFORMANCE OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED
HEREIN INCLUDING WITHOUT LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY,
INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR AGGRAVATED DAMAGES, DAMAGES FOR LOSS OF PROFITS OR REVENUES,
FAILURE TO REALIZE ANY EXPECTED SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF
BUSINESS OPPORTUNITY, OR CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE ANY DATA, PROBLEMS
ASSOCIATED WITH ANY APPLICATIONS USED IN CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS,
LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF
SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY
LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER
OBLIGATION, DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY
FOR NEGLIGENCE OR STRICT LIABILITY.
THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE
CAUSE OF ACTION, DEMAND, OR ACTION BY YOU INCLUDING BUT NOT LIMITED TO BREACH OF CONTRACT, NEGLIGENCE,
TORT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES
OR THE FAILURE OF THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B)
TO RIM AND ITS AFFILIATED COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME
SERVICE PROVIDERS), AUTHORIZED RIM DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR
RESPECTIVE DIRECTORS, EMPLOYEES, AND INDEPENDENT CONTRACTORS.
IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE,
AGENT, DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY
ARISING FROM OR RELATED TO THE DOCUMENTATION.
Prior to subscribing for, installing, or using any Third Party Products and Services, it is your responsibility to ensure that your
airtime service provider has agreed to support all of their features. Some airtime service providers might not offer Internet browsing
functionality with a subscription to the BlackBerry® Internet Service. Check with your service provider for availability, roaming
arrangements, service plans and features. Installation or use of Third Party Products and Services with RIM's products and services
may require one or more patent, trademark, copyright, or other licenses in order to avoid infringement or violation of third party
rights. You are solely responsible for determining whether to use Third Party Products and Services and if any third party licenses
are required to do so. If required you are responsible for acquiring them. You should not install or use Third Party Products and
Services until all necessary licenses have been acquired. Any Third Party Products and Services that are provided with RIM's
products and services are provided as a convenience to you and are provided "AS IS" with no express or implied conditions,
endorsements, guarantees, representations, or warranties of any kind by RIM and RIM assumes no liability whatsoever, in relation
141
Security Technical Overview
Legal notice
thereto. Your use of Third Party Products and Services shall be governed by and subject to you agreeing to the terms of separate
licenses and other agreements applicable thereto with third parties, except to the extent expressly covered by a license or other
agreement with RIM.
Certain features outlined in this documentation require a minimum version of BlackBerry® Enterprise Server, BlackBerry® Desktop
Software, and/or BlackBerry® Device Software.
The terms of use of any RIM product or service are set out in a separate license or other agreement with RIM applicable thereto.
NOTHING IN THIS DOCUMENTATION IS INTENDED TO SUPERSEDE ANY EXPRESS WRITTEN AGREEMENTS OR WARRANTIES
PROVIDED BY RIM FOR PORTIONS OF ANY RIM PRODUCT OR SERVICE OTHER THAN THIS DOCUMENTATION.
Certain features outlined in this documentation might require additional development or Third Party Products and Services for
access to corporate applications.
Research In Motion Limited
295 Phillip Street
Waterloo, ON N2L 3W8
Canada
Research In Motion UK Limited
Centrum House
36 Station Road
Egham, Surrey TW20 9LF
United Kingdom
Published in Canada
142
