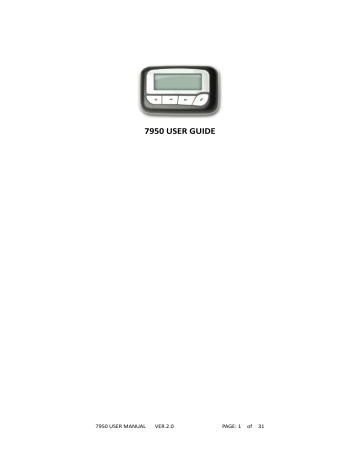

7950 USER GUIDE
7950 USER MANUAL
VER.2.0
PAGE: 1
of
31
Contents
1. Introduction
1.1 Control buttons
1.2 Turning Your Pager On
1.3 Turning Your Pager Off
2. Getting Started
2.1 Using the Function Menu
2.2 Message-Status Screen
2.3 Receiving/Reading Personal Messages
2.3.1 Reading an Incoming Message
2.3.2 Reading a Stored Message
2.3.3 Message Reading Features
2.3.4 Message Preview
7950 USER MANUAL
VER.2.0
PAGE: 2
of
31
2.4 Display Zoom
2.5 Setting the Time and Date
2.6 Setting Message Alert
2.6.1 Setting the Audible Alert
2.6.2 Setting the Alert Pattern
2.6.3 Setting a Silent (Vibrate) Alert
2.7. Locking/Unlocking Message
2.7.1 Lock or Unlock a Message
2.8 Deleting Message
2.8.1 Delete a Single Message
2.8.2 Delete all Unlock, Un-alarmed and Read Messages
2.9 Pager Alarm
2.9.1 Set a One-Time Alarm
2.9.2 Set the Alarm to Alert Daily
7950 USER MANUAL
VER.2.0
PAGE: 3
of
31
2.10 Message Alarm
2.10.1 Set a One-Time Message Alarm
2.10.2 Set Daily Message Alarm
2.11. Private Time
2.11.1 Set Private Time
2.11.2 Disable Private Time
3. Notebook
3.1 Storing Personal in Your Notebook
3.2 Deleting Message from your Notebook
3.3 Message Storage
3.4 Automatic Message Deletion
4. Duplicate Message
5. Backlight
6. Low Battery Indication
7950 USER MANUAL
VER.2.0
PAGE: 4
of
31
1. Introduction
1.1 Control Buttons
Left Directional Button
Read/Select Button
Function/Escape Button
Right Directional Button
7950 USER MANUAL
VER.2.0
PAGE: 5
of
31
/
Left/Right Directional Buttons
Used to navigate through the Function menu
and scroll through your messages
Function/Escape Button
Used to display the Function menu and escape out of
menus
Read/Select Button
Used to read messages, to activate your selection and
turn on your pager.
Pager Icons
Choose Alert
Set Time and Alarm
■
Private Time Enabled
Private Time Disabled
Set Display Zoom 1
Set Display Zoom 2
Set Display Zoom 3
Set Audible alert
7950 USER MANUAL
VER.2.0
PAGE: 6
of
31
Audio Alert
Vibration Alert
Audio and Vibration Alert
Turn Pager Off
Delete Message
Delete All Messages
Lock Message
Alarmed Message
Notebook
7950 USER MANUAL
VER.2.0
PAGE: 7
of
31
Other Symbols
Power On
Inputted
Function, Received Call No Warning
Out of Range
Audio or Melody Alert
Vibration Alert
Alarm Enabled
Received Message
Set Message Alarm
Add to Notebook
7950 USER MANUAL
VER.2.0
PAGE: 8
of
31
Message Continues On Next Page
24hr 24 Hour Time
AM
PM
AM Time
PM Time
Enable Alarm
Disable Alarm
Low battery Indicator
¼ Battery Indicator
½ Battery Indicator
¾ Battery Indicator
Full Battery Indicator
7950 USER MANUAL
VER.2.0
PAGE: 9
of
31
1.2 Turning Your Pager On
Press
for 3 seconds. A start-up screen is momentarily displayed and your pager activates the
currently selected alert.
Note: Press any button to stop the alert.
When the pager is on and no activity is taking place, the Standby screen is displayed. The Standby
screen displays the power-indicator
and may display other pager status indicators.
1.3 Turning Your Pager Off
(1) Press
to display the Function menu.
(2) Press
to move the cursor to ( ).
(3) Press
and TURN PAGER OFF? is displayed.
(4) Press
again to turn the pager off.
Your pager is now off and the screen will go blank.
7950 USER MANUAL
VER.2.0
PAGE: 10
of
31
2. Getting Started
2.1 Using the Function Menu
The Function menu provides access to the many features of your pager through the use of symbols
and prompts.
(1) Press
to display the Function menu. When the Function menu is initially displayed,
flashes to indicate the location of the cursor.
ESCAPE
Example of Fully Displayed Function Menu
,
to move the cursor within the Function menu. As you move through the
(2) Press
Function menu, the pager function symbols flash to indicate the location of the cursor. To exit
from the Function menu without making any changes press
.
Note: Some symbols may not be displayed on your pager, depending upon your pager’s enabled
features and whether it has any stored messages.
7950 USER MANUAL
VER.2.0
PAGE: 11
of
31
2.2 Message-Status Screen
The Message-status screen shows the current status of your messages. For example, unread
messages are indicated by a flashing symbol, locked messages are indicated by
.
The Messages-status screen also displays the time and date and any activated pager settings. The
or
from the standby screen.
message-status screen can be accessed by pressing
3:15PM
12/12/2008
Example of the Message-Status Screen
2.3 Receiving/Reading Personal Messages
Your pager can receive up to 50 personal messages. When a message is received, your pager alerts
according to the current alert setting (audible, vibrate, no vibrate or no audio alert). A new
message is indicated by a flashing symbol. When a message is selected, the symbol changes to
.
7950 USER MANUAL
VER.2.0
PAGE: 12
of
31
2.3.1 Reading an Incoming Message
(1) The message will be displayed on the screen. Press any button to stop the alert.
Note: A flashing
in the right corner of the screen indicates the message is continued on an
to display the rest of the message.
additional screen (s). Press
(2) Press
to exit.
2.3.2 Reading a Stored Message
(1) From the Message-status screen press
to read.
(2) Press
to read the message.
or
to move the cursor to the message you want
2.3.3 Message Reading Features
Press
or
while reading a message to read the previous or next message.
Note: When an unread message exists, your pager gives a periodic reminder alert until all unread
messages are read. A flashing
on the Standby screen also indicates that you have unread
messages.
7950 USER MANUAL
VER.2.0
PAGE: 13
of
31
2.3.4 Message Preview
This feature allows you to scan the first line of your messages.
(1) Use the
or
buttons to move the cursor through your messages.
Note: Previewing an unread message does not remove the unread message status from the
message.
2.4 Display Zoom
When this feature is enabled, the standard 4-line display is converted to a 2-line display. The
characters are enlarged vertically for increased message readability.
(1) From the Function menu, press
to move the cursor to
(Zoom 2) or
(Zoom 3) or
(Zoom 1)
(2) Press
, and display zoom is now active.
All new and stored messages including notebook messages are displayed in the new format.
2.5 Setting the Time and Date
(1) From the Function menu, press
to move the cursor to
(2) Press
to display the Set-time-and-alarm screen.
(3) Press
.
to move the cursor to the hour digit.
7950 USER MANUAL
VER.2.0
PAGE: 14
of
31
(4) Press
adjust the hour.
(5) Repeat steps 3 and 4 to adjust the minutes, AM/PM/24 Hr., month, day and year.
(6) Press
to activate the time and date setting.
Example of Set-Time Screen
If you move the cursor past the last symbol in the row (far right), it automatically wraps around to
the first symbol in the beginning of the same row (far left).
2.6 Setting Message Alert
2.6.1 Setting the Audible Alert
(1) From the Function menu, press
(2) Press
.
(3) Press
When
or
to move the cursor to
to move the cursor to
and press
.
is displayed on the Standby screen, your pager is in the audible alert mode.
7950 USER MANUAL
VER.2.0
PAGE: 15
of
31
2.6.2 Setting the Alert Pattern
You can set your pager to alert audible with a standard alert (1), one of seven pleasing alerts (2-8),
a chirp alert ( ), or a chirp and vibrate alert ( ).
Your pager must be in the audible alert mode (
displayed in the Standby screen) to select an
alert pattern.
(1) From the Function menu, press
to move the cursor to .
to display the choose alert menu.
(2) Press
(3) Press
or
to move the cursor to the desired alert. The pager gives a sample of each alert
as you move through the selections.
(4) Press
to activate your selection. The pager gives a sample of the alert to confirm your
selection.
7950 USER MANUAL
VER.2.0
PAGE: 16
of
31
2.6.3 Setting a Silent (Vibrate) Alert
Note: If
is displayed in the Standby screen, your pager is already in the vibrate alert mode.
(1) From the Function menu, press
(2) Press
or
to move the cursor to
to move the cursor to
then press
and then press
.
to confirm.
2.7 Locking/Unlocking Message
Up to 16 messages can be locked to prevent them from being deleted or from being replaced when
the pagers memory is full.
When a message is locked, the symbol is replaced by the
locked.
7950 USER MANUAL
VER.2.0
symbol indicating the message is
PAGE: 17
of
31
2.7.1 Lock or Unlock a Message
(1) From the Message-status screen, press
or
to select the message you want to lock or
unlock.
(2) Press
.
(3) Press
to move the cursor to
to lock the message, or
to unlock the message.
.
(4) Press
To lock or unlock a message while reading it, follow steps 2 through 4 above while the message is
displayed.
2.8 Deleting Message
This feature allows you to delete unlocked and un-alarmed messages.
2.8.1 Delete a Single Message
(1) From the Message-status screen, Press
or
to select the message you want to delete.
(2) Press
.
(3) Press
(4) Press
to move the cursor to .
DELETE MESSAGE? is displayed.
(5) Press
again to delete the message.
7950 USER MANUAL
VER.2.0
PAGE: 18
of
31
2.8.2 Delete All Unlocked, Un-alarmed and Read Messages
(1) From the Function menu, Press
to move the cursor to .
(2) Press
, DELETE ALL MESSAGES? is displayed.
(3) Press
, all unlocked, un-alarmed and read message are deleted.
Note: Notebook messages are not deleted with this feature.
2.9 Pager Alarm
Your pager has an alarm that can be set for a specific time and date, or a specific time on a daily
basis.
At the selected alarm time, your pager alerts. If the alarm passes without being acknowledged
flashes until any button is pressed.
7950 USER MANUAL
VER.2.0
PAGE: 19
of
31
2.9.1 Set a One-Time Alarm
(1) From the Function menu, press
to move the cursor to
. The Set-time-alarm screen is displayed.
(2) Press
(3) Press
. The Set-alarm screen is displayed.
.
3:15PM 12/12/08
3:16PM 12/12/08
SET ALARM
Example of Set-Alarm screen for a Specific Time and Date
The alarm symbol shows the current alarm status.
displayed if the alarm is disabled.
to move the cursor to the alarm symbol.
(4) Press
(5)
(6)
(7)
(8)
Press
Press
until
is displayed.
to move the cursor to the hour digits.
Press
adjust the hour digits.
is displayed if the alarm is enabled,
Repeat steps 6 and 7 to adjust the minutes, AM/PM/24 hr, and date.
(9) Press
to activate the alarm. The
7950 USER MANUAL
symbol is displayed on the Standby screen.
VER.2.0
PAGE: 20
of
31
is
2.9.2 Set the Alarm to Alert Daily
(1) Follow steps 1 through 8 in “To Set a One-Time Alarm” to set the alarm time.
(2) When setting the date in step 8, press
year (--/--/--).
until you see double dashes for the month, day, and
3:15PM 12/12/08
3:15PM - -/- -/- SET TIME
Example of Set-Alarm Screen for a Daily Alert
(3) Press
to activate the alarm. The alarm is now set to alarm every day at the specified time.
is displayed on the Standby screen.
2.10 Message Alarm
This feature allows you to set a one-time or daily alarm for a selected personal message. You can
set an alarm for up to five personal messages. When a message alarm is set,
replaces in the
Message-status screen. At the time the alarm sounds, is again displayed unless the alarm is set
to display the message for which the alarm is set. If the alarm times passes
to alert daily. Press
without being acknowledged,
flashes until the message is read.
7950 USER MANUAL
VER.2.0
PAGE: 21
of
31
2.10.1 Set a One-time Message Alarm
(1) From the Message-status screen, press
(2) Press
(3) Press
(4) Press
or
to select the message you want to alarm.
.
to move the cursor to
.
. The Set-message-alarm screen is displayed.
Example of Set-Message-Alarm Screen
The alarm symbol shows the current alarm status.
is displayed if the message alarm is
enabled,
is displayed if the message alarm is disabled.
(5) Press
until
is displayed.
to move the cursor to the hour digits.
(6) Press
(7) Press
to adjust the hour digits.
(8) Repeat steps 6 and 7 to adjust the minutes, AM/PM/24 hr, and date.
(9) Press
to activate your selection.
You can also set a message alarm while reading the message by following steps 2 through 9 above.
7950 USER MANUAL
VER.2.0
PAGE: 22
of
31
2.10.2 Set Daily Message Alarm
(1) Follow steps 1 through 8 to set the message alarm time.
(2) When setting the date in step 8, press
until you see double dashes for the month, day and
year (--/--/--).
(3) Press
to activate your selection. The alarm is now set to alert every day at this specified
time.
2.11 Private Time
You can select a time period during which your pager is completely silent. Your pager still receives
messages but is does not alert. The pager alerts only if an alarm expires or a priority message is
received.
7950 USER MANUAL
VER.2.0
PAGE: 23
of
31
2.11.1 Set Private Time
(1) From the Function menu, press
(2) Press
.
to move the cursor to
.
When the Private-time screen is first displayed, the cursor is at the flashing symbol on the far left,
indicates private time is enabled, g indicates private time is disabled.
Example of Set Private-Time Screen
(3) Press
(3) Press
(4) Press
until
is displayed.
to move the cursor to the hour digit.
to adjust the hour digit.
7950 USER MANUAL
VER.2.0
PAGE: 24
of
31
(5) Repeat steps 4 and 5 to adjust the on and off time setting.
(6) Press
to activate you selection.
The symbol
is displayed in the Standby screen when private time is enabled.
Note: If the on time is equal to the off time, private time is not enabled.
2.11.2 Disable Private Time
(1) Press .
(2) Press
(3) Press
to move the cursor to
.
.
(4) Press and release
until g is displayed.
to disable private time.
(5) Press
7950 USER MANUAL
VER.2.0
PAGE: 25
of
31
3. Notebook
Your pager has a personal notebook for storing personal messages. Notebook messages are
indicated by
3:15PM
, Personal messages are indicated on the first row of the display.
12/12/2008
Example of Notebook Locations
3.1 Storing Personal in Your Notebook
(1) From the Message-status screen, press
you want to move into the notebook.
(2) Press .
(3) Press
(4) Press
to move the cursor to
or
to move the cursor to the personal message
.
. The message is now in the notebook.
7950 USER MANUAL
VER.2.0
PAGE: 26
of
31
3.2 Deleting Messages from Your Notebooks
(1) From the Message-status screen, press
or
to move the cursor to the notebook from
where you want to delete a message.
(2) Press
to display a list of the notebook messages.
(3) Press
or
to scroll through the list until h
is displayed at the beginning of the
notebook message you want to delete.
Example of Notebook Screen in Delete Mode
(4) Press
to display the Function menu.
7950 USER MANUAL
VER.2.0
PAGE: 27
of
31
(5) Press
to move the cursor to .
DELETE MESSAGE? is displayed.
(6) Press
(7) Press
to delete the message.
(8) Repeat steps 3 through 7 for each message you want to delete.
Note: Notebook messages are deleted one at a time. If all messages are deleted from a notebook,
the
symbol is removed from the display.
3.3 Message Storage
Your pager can store up to 50 personal messages in memory.
Note: Stored message differ from locked messages. They can be deleted or overwritten when the
pagers memory is full and a new message is received.
7950 USER MANUAL
VER.2.0
PAGE: 28
of
31
3.4 Automatic Message Deletion
If all 50 messages slots are full and a new message is received, the oldest, unlocked, un-alarmed,
and previously read message is automatically deleted when a new message is received.
MEMORY FULL
Note: To prevent specific messages from being deleted, you can lock them. Then you can delete all
other messages you no longer need to prevent the pagers memory from becoming full.
4. Duplicate Message
If the same message is received more than once, DUPLICATE MESSAGE is displayed at the
beginning of the new message. The new duplicate message replaces the older duplicate message
and contains the latest time and date stamp.
DUPLICATE MESSAGE
19:THANK YOU [B]
3:15PM
12/12/2008
7950 USER MANUAL
VER.2.0
PAGE: 29
of
31
5. Backlight
You can manually turn the backlight on or off at any time by pressing and holding any key for two
seconds. The backlight automatically turns off when the pager returns to the standby screen or
when holding any key for two seconds again.
6. Low Battery Indication
When the energy level of the battery is low, the battery icon will change from
audio alert sounds every 4 minutes.
7950 USER MANUAL
VER.2.0
PAGE: 30
of
31
to
. An
www.amcomsoftware.com
7950 USER MANUAL
VER.2.0
PAGE: 31
of
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
