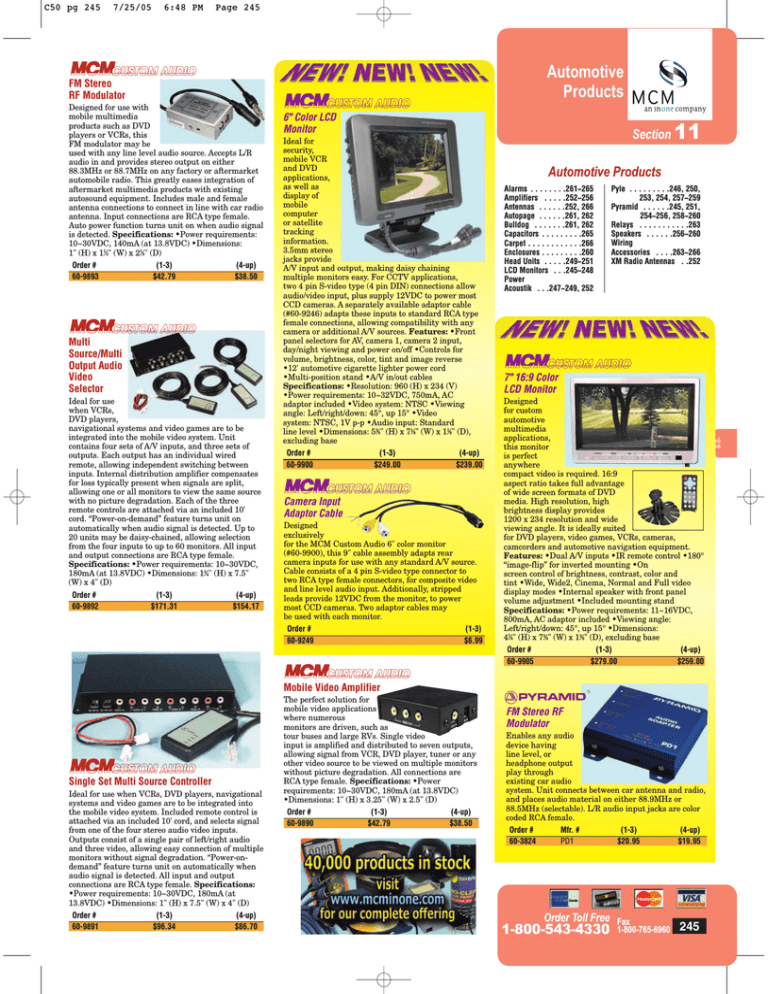

C50 pg 245
7/25/05
6:48 PM
Page 245
Automotive
Products
FM Stereo
RF Modulator
Designed for use with
mobile multimedia
products such as DVD
players or VCRs, this
FM modulator may be
used with any line level audio source. Accepts L/R
audio in and provides stereo output on either
88.3MHz or 88.7MHz on any factory or aftermarket
automobile radio. This greatly eases integration of
aftermarket multimedia products with existing
autosound equipment. Includes male and female
antenna connections to connect in line with car radio
antenna. Input connections are RCA type female.
Auto power function turns unit on when audio signal
is detected. Specifications: •Power requirements:
10~30VDC, 140mA (at 13.8VDC) •Dimensions:
1" (H) x 11⁄3" (W) x 21⁄8" (D)
Order #
60-9893
(1-3)
$42.79
(4-up)
$38.50
Multi
Source/Multi
Output Audio
Video
Selector
Order #
60-9892
(1-3)
$171.31
(4-up)
$154.17
Ideal for
security,
mobile VCR
and DVD
applications,
as well as
display of
mobile
computer
or satellite
tracking
information.
3.5mm stereo
jacks provide
A/V input and output, making daisy chaining
multiple monitors easy. For CCTV applications,
two 4 pin S-video type (4 pin DIN) connections allow
audio/video input, plus supply 12VDC to power most
CCD cameras. A separately available adaptor cable
(#60-9246) adapts these inputs to standard RCA type
female connections, allowing compatibility with any
camera or additional A/V sources. Features: •Front
panel selectors for AV, camera 1, camera 2 input,
day/night viewing and power on/off •Controls for
volume, brightness, color, tint and image reverse
•12' automotive cigarette lighter power cord
•Multi-position stand •A/V in/out cables
Specifications: •Resolution: 960 (H) x 234 (V)
•Power requirements: 10~32VDC, 750mA, AC
adaptor included •Video system: NTSC •Viewing
angle: Left/right/down: 45°, up 15° •Video
system: NTSC, 1V p-p •Audio input: Standard
line level •Dimensions: 53⁄8" (H) x 71⁄8" (W) x 11⁄8" (D),
excluding base
Order #
60-9900
(1-3)
$249.00
(4-up)
$239.00
Camera Input
Adaptor Cable
Designed
exclusively
for the MCM Custom Audio 6" color monitor
(#60-9900), this 9" cable assembly adapts rear
camera inputs for use with any standard A/V source.
Cable consists of a 4 pin S-video type connector to
two RCA type female connectors, for composite video
and line level audio input. Additionally, stripped
leads provide 12VDC from the monitor, to power
most CCD cameras. Two adaptor cables may
be used with each monitor.
Order #
60-9249
(1-3)
$6.99
Section 11
Automotive Products
Alarms . . . . . . . .261~265
Amplifiers . . . . .252~256
Antennas . . . . . .252, 266
Autopage . . . . . .261, 262
Bulldog . . . . . . .261, 262
Capacitors . . . . . . . . .265
Carpet . . . . . . . . . . . .266
Enclosures . . . . . . . . .260
Head Units . . . . .249~251
LCD Monitors . . .245~248
Power
Acoustik . . .247~249, 252
Pyle . . . . . . . . .246, 250,
253, 254, 257~259
Pyramid . . . . . .245, 251,
254~256, 258~260
Relays . . . . . . . . . . .263
Speakers . . . . . .256~260
Wiring
Accessories . . . .263~266
XM Radio Antennas . .252
7" 16:9 Color
LCD Monitor
Designed
for custom
automotive
multimedia
applications,
this monitor
is perfect
anywhere
compact video is required. 16:9
aspect ratio takes full advantage
of wide screen formats of DVD
media. High resolution, high
brightness display provides
1200 x 234 resolution and wide
viewing angle. It is ideally suited
for DVD players, video games, VCRs, cameras,
camcorders and automotive navigation equipment.
Features: •Dual A/V inputs •IR remote control •180°
“image-flip” for inverted mounting •On
screen control of brightness, contrast, color and
tint •Wide, Wide2, Cinema, Normal and Full video
display modes •Internal speaker with front panel
volume adjustment •Included mounting stand
Specifications: •Power requirements: 11~16VDC,
800mA, AC adaptor included •Viewing angle:
Left/right/down: 45°, up 15° •Dimensions:
47⁄8" (H) x 73⁄8" (W) x 13⁄8" (D), excluding base
Order #
60-9905
(1-3)
$279.00
(4-up)
$259.00
Mobile Video Amplifier
Single Set Multi Source Controller
Ideal for use when VCRs, DVD players, navigational
systems and video games are to be integrated into
the mobile video system. Included remote control is
attached via an included 10' cord, and selects signal
from one of the four stereo audio video inputs.
Outputs consist of a single pair of left/right audio
and three video, allowing easy connection of multiple
monitors without signal degradation. “Power-ondemand” feature turns unit on automatically when
audio signal is detected. All input and output
connections are RCA type female. Specifications:
•Power requirements: 10~30VDC, 180mA (at
13.8VDC) •Dimensions: 1" (H) x 7.5" (W) x 4" (D)
Order #
60-9891
(1-3)
$96.34
(4-up)
$86.70
The perfect solution for
mobile video applications
where numerous
monitors are driven, such as
tour buses and large RVs. Single video
input is amplified and distributed to seven outputs,
allowing signal from VCR, DVD player, tuner or any
other video source to be viewed on multiple monitors
without picture degradation. All connections are
RCA type female. Specifications: •Power
requirements: 10~30VDC, 180mA (at 13.8VDC)
•Dimensions: 1" (H) x 3.25" (W) x 2.5" (D)
Order #
60-9890
(1-3)
$42.79
(4-up)
$38.50
FM Stereo RF
Modulator
Enables any audio
device having
line level, or
headphone output
play through
existing car audio
system. Unit connects between car antenna and radio,
and places audio material on either 88.9MHz or
88.5MHz (selectable). L/R audio input jacks are color
coded RCA female.
Order #
60-3824
Mfr. #
PD1
(1-3)
$20.95
OrderToll
Toll
Free
Order
Free
(4-up)
$19.95
Fax
FAX
245
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
11
Ideal for use
when VCRs,
DVD players,
navigational systems and video games are to be
integrated into the mobile video system. Unit
contains four sets of A/V inputs, and three sets of
outputs. Each output has an individual wired
remote, allowing independent switching between
inputs. Internal distribution amplifier compensates
for loss typically present when signals are split,
allowing one or all monitors to view the same source
with no picture degradation. Each of the three
remote controls are attached via an included 10'
cord. “Power-on-demand” feature turns unit on
automatically when audio signal is detected. Up to
20 units may be daisy-chained, allowing selection
from the four inputs to up to 60 monitors. All input
and output connections are RCA type female.
Specifications: •Power requirements: 10~30VDC,
180mA (at 13.8VDC) •Dimensions: 13⁄4" (H) x 7.5"
(W) x 4" (D)
6" Color LCD
Monitor
C50 pg 246
7/25/05
6:47 PM
Page 246
Automotive
Products
Section 11
4" Color LCD
Monitor Module
Designed for the custom
autosound installer or
for special design
applications. This
compact module is an
open circuit board with
no case or housing. It
may be incorporated into
automotive seat backs, custom
panels, rack panels and other enclosures.
Specifications: •Resolution: 383 (H) x 234 (V)
•Power requirements: 12VDC, 500mA •Video
system: NTSC •Overall dimensions: 31⁄2" (H) x
5" (W) x 11⁄2" (D)
Order #
60-9855
Description
LCD Monitor
Order #
24-655
Description
36" cable 3.5mm to
(2) RCA male
(1-3)
$99.99
(4-up)
$97.50
(ea.)
$3.19
(2-4)
$2.99
11
Composite
Video to
CAT5 Balun
Compact
adaptor converts
composite
video signal for
transmission over Cat5, 5E or Cat6 cable. It
also provides path for 12VDC power supply when
used with compact LCD video monitors or security
cameras. Uses one pair for video signal, and two
additional pairs to pass 12VDC power (pairs are
paralleled to increase current handling). Video in/out
is female RCA, power connection is 6" color coded
pigtail. Cat5 connection is female RJ-45. Male
RJ-45 to single pair screw terminal adaptor is
included for use with unterminated cable, making it
ideal in retrofit applications where unused Cat5 pairs
exist. Passive device passes signal in either direction,
and requires no power. Max distance: •Video only,
1000' •Video and power: 300' •Sold individually,
must be used in pairs
Order #
50-7355
(1–3)
$19.95
(4–up)
$18.95
Overhead Flip–Down
5.6" Monitor
•Universal ceiling mount is compatible with most
vehicles •Internal dome light allows replacement
of existing vehicle dome light •Internal speaker
•Dual A/V inputs •Resolution: 960 x 234
Order #
60-5160
Model #
PLVWR5600
(1–3)
$215.25
(4–up)
$193.73
NET 30
Terms
246
Order Online
www.mcminone.com
10.2" Color LCD
16:9 Monitor
Module
Designed
for custom
applications, this open frame monitor includes no
housing, allowing easy incorporation into existing
equipment, wall displays, custom rack panels or
anywhere compact video monitoring is required. Its
ability to accept SVGA as well as composite input
enables tremendous application flexibility. This
module comes in three pieces allowing separate
mounting of the drive board for greater mounting
flexibility. Features: •S–video, SVGA and two
auto–sensing NTSC/PAL video inputs •Two L/R stereo
audio inputs •Independent feed–through audio and
video outputs, for each input (except SVGA) •On
board 2W x 2 channel audio amplifier •External tact
switch PC board with six momentary switches for
power and on–screen menu functions •On screen
control of video input, contrast, brightness, color tint,
sharpness, volume, bass and treble •Included IR
remote control Specifications: •Power requirements:
10.8~13.2VDC, 12W (1A @12VDC) •Power input
connector: Standard barrel jack, 1.2mm (I.D), 3.5mm
(O.D.) •Resolution 800 x 480 •Dot pitch: 0.1905 x
0.1905 •Viewing angle: Left/right/down 60°, up 50°
•Display type: RGB stripe •Video 1 and video 2
inputs: NTSC/PAL auto sensing, female BNC (four
BNC to RCA female adaptors included) •Video 3
input: S–video, female •Video 4 input: SVGA, female
HD15 attached to 7" pigtail •Audio 1 and audio 2
inputs: L/R RCA female pairs, color coded red/white
•All feed through outputs match input connection
•Audio outputs: 3.5mm jack and 12" pigtail leads
•Video display dimensions: 5.75" (H) x 9.25" (W) x
0.25" (D) •Drive board dimensions (including
connectors): 1.25" (H) x 8.25" (W) x 4.25" (D)
•Function PC board dimensions (including
buttons): 0.75" (H) x 6.88" (W) x 0.63" (D)
Order #
60-9897
(1–3)
$375.00
(4–up)
$362.50
Designed for custom applications, these open frame
monitors include no housing, allowing easy
incorporation into existing equipment, wall displays,
custom rack panels or anywhere compact video
monitoring is required. Their ability to accept SVGA
as well as composite input enables tremendous
application flexibility. Assemblies come in three pieces
allowing separate mounting of the drive board for
greater flexibility. Features: •S–video, SVGA and two
auto–sensing NTSC/PAL video inputs •Two L/R stereo
audio inputs •Independent feed–through audio and
video outputs, for each input (except SVGA) •On
board 2W x 2 channel audio amplifier •External tact
switch PC board with six momentary switches for
power and on–screen menu functions •On screen
control of video input, contrast, brightness, color tint,
sharpness, volume, bass and treble •Included IR
remote control Specifications: •Requires 12VDC,
1.5A (2.5A for 17" model) •Includes AC adaptor
with universal 90~260VAC input •Display type:
RGB stripe •Video 1 and video 2 inputs:
NTSC/PAL/SECAM auto sensing, female BNC
•Video 3 input: S–video, female •Video 4 input:
SVGA, female HD15 attached to 7" pigtail •Audio 1
and audio 2 inputs: L/R RCA female pairs, color coded
red/white •All feed through outputs match input
connection •Audio outputs: 3.5mm jack and 12"
pigtail leads •Drive board dimensions (including
connectors): 1.25" (H) x 8.25" (W) x 4.25" (D)
•Function PC board dimensions (including buttons):
0.75" (H) x 6.88" (W) x 0.63" (D)
Display Dimensions
Order # Size (H) x (W) x (D) Resolution (1–3) (4–up)
60-9898 15" 10.3"x12.4"x0.67" 1024x768 $479.00$455.00
60-9899 17" 11.7"x14.1"x0.67" 1280x1024 549.00 521.00
7" 16:9
Color LCD
Monitor
Module
4" High
Resolution
Color LCD
Monitor
Module
Intended
for video
applications
requiring
improved picture quality over commonly available
4" LCD modules. This ultra-compact device is an
open circuit board with no case or housing, and
may be incorporated into enclosures, custom panels,
automotive seat backs and even vehicle sun visors.
Overall dimensions are only 31⁄8" (H) x 4" (W) x 1"
(D), yet the 4" diagonal measure screen provides
incredible 480 x 234 resolution. Specifications:
•Video input: RCA type female jack •Video system:
NTSC composite •Power requirements: 12VDC,
500mA •Power connection: Barrel type connector,
5.0mm O.D., 2.0mm I.D., positive tip •Optional
12VDC, 500mA AC adaptor available
Order #
60-9857
82-3950
Large Color LCD Monitor Modules
Diameter
LCD monitor
AC adaptor
(1-3)
$254.00
5.99
(4-up)
$229.00
-
Designed
for custom
automotive
multimedia
applications,
this module
may be incorporated into wall displays, equipment
rack panels or anywhere compact video monitoring
is required. Open PC board module includes no rear
housing, allowing easy incorporation into existing
equipment. Tact switch PC board has six momentary
switches for selecting power and menu functions.
Switch connections are readily accessible for
incorporation into custom systems.
Features: •Three selectable video inputs •External
input #3 override •External display dim control
•Capability for automatic disable when vehicle in use
•On screen display •Selectable 16:9 and 4:3 formats
•Selectable mirror image •On screen control of
brightness, contrast, color, sharpness and input
selection Specifications: •Power requirements:
8~15VDC, 9W (650mA @13.8VDC) •Resolution 800 x
480 •Viewing angle: Left/right/down: 45°, Up: 15°
•Display type: RGB stripe •Video system: NTSC/PAL
auto sensing •Dimensions: 4.17" (H) x 6.50" (W) x
0.73" (D) •Note: This module does not provide audio
Order #
60-9895
(1–3)
$249.00
(4–up)
$239.00
C50 pg 247
7/25/05
6:45 PM
Page 247
Automotive
Products
7.2" LCD 16:9
Ceiling Mount
Monitor
7.2" LCD
16:9 Monitor w/Universal Headrest Mount
Compact monitor is ideal for viewing DVD media, as
well as all other standard video formats. Included
headrest mount is compatible with most post type
auto headrests. Features: •Two video inputs
•Standard NTSC composite video input •On screen
menu display •Built in speaker •Black background
during signal absence •Image reverse for rear view
•Image flip for inverted mounting •Requires
13.8VDC, 720mA •Dimensions: 5.9" (H) x 8.66" (W) x
1.37" (D) •Includes IR remote control
Order #
60-3822
Mfr. #
MV72TFT
(1-3)
$149.00
Compact monitor
is ideal for
viewing DVD
media, as well as
all other standard
video formats.
Universal ceiling
mount is
compatible with most automotive interiors. Measures
only 1.37" thick when closed. Features: •NTSC/PAL
compatible •Provides audio output through single
headphone jack •Requires 13.8VDC, 520mA
•Dimensions: 1.37" (H) x 9.4" (W) x 9.44" (D) closed
•Includes IR remote control
Order #
60-3832
Mfr. #
MV7RM
(1-3)
$139.00
(4-up)
$132.25
(4-up)
$142.00
7.2" 16:9 Color LCD TV/Monitor
7" LCD 16:9 Monitor with
Universal Headrest Mount
Versatile compact color monitor provides the correct
wide screen aspect ratio for viewing today’s DVD
media. It may be attached to most standard LCD
monitor stands, and includes a universal headrest
mount, making installation into most vehicles a snap.
Accepts NTSC standard composite video input from
any DVD player, VCR, camcorder, video game or
camera. Includes multi function remote control
•Requires 12VDC, 600mA
Order #
60-5235
(1–3)
$169.00
Model #
MV7SC
(1–3)
$154.00
(4–up)
$139.00
(4–up)
$160.00
11
Designed for custom automotive multimedia applications, this completely self
contained television includes an off–air and cable ready tuner for stand alone
use. Complete kit includes: •Fused 12VDC wiring harness for automotive
use •12VDC/1.5A AC adaptor for home use •Coiled cigarette lighter cord
•Compact stereo earbuds •24 button IR remote control •Universal mounting
base Features: 3.5mm A/V input, with adaptor cable to dual RCA female
•3.5mm antenna input with included “F” female adaptor •Full NTSC, PAL,
SECAM compatibility •On screen control of brightness, contrast, color and tint
•Normal, full and zoom video display modes •Internal speaker with front panel
volume adjustment Specifications: •Power
Order #
requirements: 12VDC, 850mA •Resolution: 1440 x 234
•Dimensions: 5" (H) x 7" (W) x 11⁄4" (D), excluding base
60-3826
Section 11
Power Acoustik
8" Pull Down
Ceiling Monitor
w/DVD Player
10.4" Pull
Down Ceiling
Monitor
8" Pull Down
Ceiling
Monitor
Slim compact roof
mount LCD monitor includes built-in DVD player,
and will accept signal from standard A/V sources.
DVD features: •Compatible with DVD, DVD-R,
VCD, SVCD, CD-DA, CD-R/RW, MP3•Vacuum loader
•Dolby Pro-Logic/DTS compatible •Speed control
for x2, x4, x8 and x16 forward/reverse •Electronic
digital anti-shock Overall features: •NTSC/PAL
auto selection •On screen display •IR remote control
•Swivel screen •Rear panel A/V input •Line level
A/V output •640 x 480 resolution (4:3) •Built-in IR
transmitter for use with external wireless headphones
(available separately) •Dome light •Mfr. #PMD-83CM
Slim compact
roof mount LCD
monitor is ideal
for use with all
standard mobile
video sources.
Features:
•Swivel screen
•Amorphous active matrix TFT/LCD display •1600 x
320 resolution (4:3) •NTSC/PAL auto selection •On
screen display •IR remote control •Single A/V input
•Built–in IR transmitter for use with external
wireless headphones (available separately)
•Dome light •Mfr. #PT-109CM
Slim compact roof mount LCD monitor is ideal for use
with all standard mobile video sources. Features:
•Swivel screen •Amorphous active matrix TFT/LCD
display •1440 x 234 resolution (16:9) •Four screen
modes: Full, cinema, wide and zoom •NTSC/PAL
compatible •On screen display •IR remote control
•Single A/V input •Dome light •Mfr. #PT-804CM
Order #
60-5445
(1-3)
$529.00
(4-up)
$477.00
Order #
60-5450
(1–3)
$529.00
7" Pull Down
Ceiling Monitor
Slim compact
design is easily
mounted in
a variety of
locations, and
is specially designed for headrest mounting.
Features: •Amorphous active matrix TFT/LCD
display •1440 x 234 resolution (16:9) •Four screen
modes: Full, cinema, wide and zoom •NTSC/PAL
compatible •On screen display •IR remote control
•Single A/V input •Front panel controls and
headphone jack •Mfr. #PT-716HRS
Slim compact
roof mount LCD
monitor is ideal
for use with all
standard mobile
video sources.
Features: •Swivel screen •Amorphous active
matrix TFT/LCD display •1440 x 234 resolution
(16:9) •Four screen modes: Full, cinema, wide and
zoom •NTSC/PAL compatible •On screen display
•IR remote control •Single A/V input •LED dome
lights •Mfr. #PT-702CM
(1–3)
$219.00
(4–up)
$198.00
Order #
60-5460
(1–3)
$209.00
(1–3)
$249.00
(4–up)
$189.00
(4–up)
$225.00
7.3" Pull
Down Ceiling
Monitor
(4–up)
$477.00
7" Headrest
Monitor
Order #
60-5470
Order #
60-5455
Slim compact
roof mount LCD
monitor is ideal
for use with all
standard mobile
video sources.
Features:
•Swivel screen
•Amorphous active matrix TFT/LCD display •1440 x
234 resolution (16:9) •Four screen modes: Full,
cinema, wide and zoom •NTSC/PAL compatible •On
screen display •IR remote control •Single A/V input
•Built-in dome lights •Mfr. #PT-722CM
Order #
60-5465
(1-3)
$175.00
OrderToll
Toll
Free
Order
Free
(4-up)
$158.00
Fax
FAX
247
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 248
7/25/05
6:43 PM
Page 248
Automotive
Products
Power Acoustik
Section 11
7" Headrest
Monitor
Slim compact
design is
easily
mounted in
a variety of
locations,
and is specially designed for headrest mounting.
Features: •Included pre–curved head rest adaptor
•Adjustable depth headrest shroud •Amorphous
active matrix TFT/LCD display •1440 x 234 resolution
(16:9) •Four screen modes: Full, cinema, wide and
zoom •NTSC/PAL compatible •On screen display •IR
remote control •Single A/V input •Mfr. #PT-700MHR
Order #
60-5475
(1–3)
$195.00
(4–up)
$176.00
11
A/V 4 x 4 Matrix
Controller with IR Remote
Allows connection of four A/V sources, and four
monitors, and allows independent selection of
sources on any monitor. All control is accomplished
via the included IR remote control. Features:
•Accommodates L/R stereo audio •All in/output
connections RCA female •Remote eye with 18' cord
•Four 12V output triggers •Mfr. #AVIR5
Order #
60-5490
(1-3)
$119.00
(4-up)
$109.00
Slim compact
design is easily
mounted in a
variety of locations, and is specially designed for
headrest mounting. Features: •Amorphous active
matrix TFT/LCD display •1200 x 234 resolution (16:9)
•Five screen modes: Full, cinema, stretch, wide and
zoom •NTSC/PAL compatible •On screen display •IR
remote control •Single A/V input •Mfr. #PT-951MH
Order #
60-5480
(1–3)
$279.00
(4–up)
$252.00
5" Headrest Monitor
Slim compact design
is easily mounted in a
variety of locations, and
is specially designed
for headrest mounting.
Features: •Amorphous active matrix TFT/LCD
display •960 x 234 resolution (4:3) •NTSC compatible
•Auto signal sensing •On screen display •IR remote
control •Single A/V input •Mfr. #PT-501MHN
Order #
60-5485
(1–3)
$199.00
(4–up)
$179.00
#60-5515
LCD Monitor Gooseneck Mount
#60-5516
Compatible with all Power Acoustik and many other
free standing LCD color monitors. Also works with
many CCTV cameras. Heavy duty adjustable
mounting pole includes bracket for securing under
automotive seat bolt. Available in two lengths.
Length
22"
16"
Ideal for use
with LCD color
monitors in
mobile video
applications,
this tuner is
compatible with
any composite video input. Features: •Provides A/V
input for two additional sources •Accommodates L/R
stereo audio •All in/output connections RCA female
•Remote eye with 18' cord •3.5mm inputs for two
external antennas (available separately)
•Mfr. #TUNER42R
Order #
60-5500
(1–3)
$52.95
45.95
(1–3)
$94.95
(4–up)
$86.00
69 Channel
Universal TV
Tuner with FM
Transmitter
(1–3)
$119.00
(4–up)
$109.00
(4–up)
$47.95
41.95
248
Order Online
www.mcminone.com
RCA type L/R line level inputs accept signals
from any conventional source including DVD
players, televisions, portable MP3 players VCRs and
camcorders. PLL tuning and full band control allows
selection of any frequency on the FM broadcast
band. Antenna in/out connections allow incorporation
between vehicle head unit and antenna. Digital
display clearly indicates transmitting frequency.
Mfr. #EFM-100.
Order #
60-5520
(1–3)
$63.95
(4–up)
$57.95
Use with all Power Acoustik
and many other IR wireless
headphone systems. Single
headphone sold without
transmitter. •Mfr. #WLHP-1S
Order #
60-5505
(1–3)
$25.95
(4–up)
$23.50
FM Stereo RF
Modulator
RCA type L/R
line level inputs accept signal from any conventional
source including DVD players, televisions, portable
MP3 players VCRs and camcorders. PLL tuning
allows selection of seven preset frequencies on the FM
broadcast band. Antenna in/out connections allow
incorporation between vehicle head unit and antenna.
•Mfr. #EFM-04
(1-3)
$20.95
(4-up)
$18.95
FM Stereo
RF Modulator
RCA type L/R line
level inputs accept
signal from any convention source including DVD
players, televisions, portable MP3 players VCRs and
camcorders. Flexible tuning allows selection of eight
preset frequencies on the FM broadcast band.
Wireless transmitter allows easy installation
without the need to access vehicle head unit
antenna connection. Mfr. #FMT-8.
Order #
60-5525
(1–3)
$31.95
(4–up)
$28.79
FM Stereo
RF Modulator
FM Stereo
RF Modulator
NET 30
Terms
Order #
60-5510
Order #
60-5521
Ideal for use
with LCD color
monitors in
mobile video
applications,
this tuner is compatible with any composite video
input. Features: •Provides A/V input for two
additional sources •Accommodates L/R stereo audio
•All in/output connections RCA female •Input for
accessory back–up camera •Remote eye with 18'
cord •Four 3.5mm inputs for connection of diversity
antenna (available separately) •Mfr. #TUNER5R
Order #
60-5501
Self contained set connects to the line level stereo
output of any audio source, and provides wireless
connection to the two included headphones. Additional
headphones are available separately. Features: •IR
operation is immune to all types of RF interference
•Independent volume control on each headphone
•Infinite number of headphones may be used
with a single transmitter (within visible range)
•Set includes one transmitter and two headphones
•Mfr. #WLHP-2IR
Single Wireless
Headphone
69 Channel
Universal
TV Tuner
6.5" Headrest
Monitor
Order #
60-5515
60-5516
Add–On Wireless
Headphone System
(1–3)
$43.95
(4–up)
$39.95
RCA type L/R line
level inputs accept
signal from any convention source including DVD
players, televisions, portable MP3 players VCRs
and camcorders. PLL tuning allows selection from
40 preset frequencies on the FM broadcast band.
Wireless transmitter allows easy installation
without the need to access vehicle head unit antenna
connection. LED display clearly displays transmitting
frequency. Mfr. #FMT-40D.
Order #
60-5526
(1–3)
$36.95
(4–up)
$33.29
C50 pg 249
7/25/05
6:42 PM
Page 249
Automotive
Products
Power Acoustik
Automotive DVD/CD/MP3 Player
Provides the full audio/video benefits of DVDs, music CDs and CD-R recorded MP3s.
Features include: •DTS compatible Dolby Pro–Logic output •500 line high–resolution
output •Coaxial digital output •S-video output •NTSC and PAL compatibility •30 button
I.R. remote •Front panel, plus remote mount IR receiver eye •Front panel A/V auxiliary
inputs •Variable line level audio output •Auxiliary switched headphone output
•Switched 12VDC output (500mA max) •Digital anti shock mechanism •Compact
size, measures only 2.7" (H) x
Order #
Model #
(ea.)
(2–up)
7.8" (W) x 10.5" (D) •Requires
60-4785
PADVD-50
$147.00
$136.00
12VDC, 1.25A
Section 11
AM/FM/CD/DVD Player
AM/FM/CD/MP3 Player
Single DIN head unit plays standard CDs, CDRs and
CDs recorded in compressed MP3 format. Features:
•Drop door fully electronic detachable face •Power
loading CD mechanism •AM/FM PLL synthesized
tuning with 30 station presets •Store/scan/seek
tuning modes •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Internal 40W x 4 channel amplifier •Front/rear line
level RCA outputs •Line level RCA input •Jumbo
multicolor backlit LCD display •Anti-theft LED
•Clock •Mfr. #PAMP3-826R
(1-3)
$115.00
(4-up)
$104.00
Order #
60-5410
(1–3)
$85.95
(4–up)
$78.00
Order #
60-5425
(1–3)
$205.00
(4–up)
$185.00
11
Order #
60-5400
AM/FM/CD Player
•Single DIN head unit plays standard CDs and CDRs
Features: •Fully electronic detachable face •Power
loading CD mechanism •AM/FM PLL synthesized
tuning with 30 station presets •Store/scan/seek
tuning modes •Electronic control of volume, balance,
fader, bass and treble •Internal 40W x 4 channel
amplifier •Line level RCA output •Jumbo multicolor
backlit LCD display •Anti–theft LED •Clock
•Mfr. #PACD-875
Single DIN head unit plays standard DVDs, CDs,
CDRs and CDs recorded in compressed MP3 format.
It is an ideal video source unit for any mobile video
system. Features: •Fully detachable face •Slot
loading mechanism supports multiple angle mounting
•On screen display •Dolby Pro–Logic/DTS compatible
•NTSC/PAL switchable •AM/FM PLL synthesized
tuning with 30 station presets •Store/scan/seek
tuning modes •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Last position memory •Internal 40W x 4 channel
amplifier •Front/rear line level RCA outputs
•Jumbo multicolor backlit LCD display
•Clock •Mfr. #PADVD-130
AM/FM/CD/DVD Player
AM/FM/CD Player
•Single DIN head unit plays standard CDs
and CDRs Features: •Drop door fully electronic
detachable face •Power loading CD mechanism
•AM/FM PLL synthesized tuning with 30 station
presets •Store/scan/seek tuning modes •Included IR
remote control •Electronic control of volume, balance,
fader, bass and treble •Internal 40W x 4 channel
amplifier •Front/rear line level RCA outputs •Line
level RCA input •Jumbo multicolor backlit LCD
display •Anti–theft LED •Clock •Mfr. #PACD-825R
Order #
60-5405
(1–3)
$97.95
(4–up)
$89.00
AM/FM/CD Player
•Single DIN head unit plays standard CDs and CDRs
Features: •Fully detachable face •Power loading
CD mechanism •AM/FM PLL synthesized tuning
•Electronic control of volume, balance, fader, bass
and treble •Internal 40W x 4 channel amplifier
•Line level RCA output •Multicolor backlit LCD
display •Anti–theft LED •Clock •Mfr. #PACD-507
Order #
60-5415
(1–3)
$74.95
(4–up)
$68.00
Order #
60-5420
(1–3)
$77.95
(4–up)
$71.00
Single DIN head unit plays standard DVDs, CDs,
CDRs and CDs recorded in compressed MP3 format.
It is an ideal video source unit for any mobile video
system. Features: •Fully detachable face •Slot
loading mechanism supports multiple angle mounting
•On screen display •Dolby Pro–Logic/DTS compatible
•NTSC/PAL switchable •AM/FM PLL synthesized
tuning •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Internal 40W x 4 channel amplifier •Front/rear
line level RCA outputs •Line level subwoofer output
•A/V input •Jumbo multicolor backlit LCD display
•Clock •Mfr. #PADVD-750R
Order #
60-5430
(1–3)
$149.00
(4–up)
$135.00
AM/FM/CD Player
•Single DIN head unit plays standard
CDs and CDRs Features: •Fully detachable face •Power
loading CD mechanism •AM/FM PLL synthesized tuning
•Electronic control of volume, balance, fader, bass and
treble •Internal 40W x 4 channel amplifier •Line level
RCA output •Multicolor backlit LCD display •Anti–theft
LED •Clock •Mfr. #PACD-506
Automotive
Diversity
TV Antenna
System
Perfect for
mobile video
systems with
tuners that
utilize diversity antenna inputs. For independent
antennas, on two mounting brackets, provides the
required four 3.5mm antenna connections. 75ohm
cable is 12' long. Mfr. #ANT-1.
Order #
60-5530
(1–3)
$15.79
(4–up)
$14.25
Automotive
TV Antenna
System
Perfect for
mobile video
systems with
DVD players
or VCRs with built–in tuners having standard
75ohm coax input. 75ohm cable is 12' long.
Mfr. #ANT-4VCR.
Order #
60-5535
(1–3)
$15.79
Single DIN CD/DVD Player
Single DIN head unit plays standard DVDs, CDs,
CDRs and CDs recorded in compressed MP3 format.
It is an ideal video source unit for any mobile video
system. Features: •Slot loading mechanism supports
multiple angle mounting •On screen display •Dolby
Pro-Logic/DTS compatible •Last position memory
•Digital anti shock •NTSC/PAL switchable •Included
IR remote control •Remote eye •Front panel line level
A/V inputs •Rear connections for line level AV inputs
and outputs •Multicolor backlit LCD display •Clock
•Floor and under-dash mounting brackets
•Mfr. #PADVD-610
Order #
60-5435
(4–up)
$14.25
(1-3)
$129.00
OrderToll
Toll
Free
Order
Free
(4-up)
$117.00
Fax
FAX
249
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 250
7/25/05
6:39 PM
Page 250
Automotive
Products
Power Acoustik
Section 11
Single DIN CD/DVD Player with TV Tuner
Single DIN head unit plays standard DVDs, CDs, CDRs and CDs recorded in compressed MP3
format. It is an ideal video source unit for any mobile video system. Features: •125 channel UHF/VHF TV tuner
•Slot loading mechanism supports multiple angle mounting •On screen display •Dolby Pro–Logic/DTS compatible
•Last position memory •Digital anti shock •NTSC/PAL switchable •Included IR remote control •Remote eye
•Front panel line level A/V inputs •Rear connections for line level AV inputs and outputs •Multicolor backlit LCD
display •Clock •Floor and under–dash mounting brackets Order #
(1–3)
(4–up)
•Mfr. #PADVD-630T
60-5440
$169.00
$153.00
Pyle
11
Single DIN head unit plays standard CDs, CDRs
and CDs recorded in compressed MP3 format.
Additionally, the front-panel USB input allows access
to files on laptops, portable MP3 players and similar
devices. Features: •Motorized slide-down detachable
face •Multi color LED display with white digits
•AM/FM PLL synthesized tuning with 30 station
presets •ID3 tag information •Preset EQ
•Store/scan/seek tuning modes •Included IR remote
control •Electronic control of volume, balance, fader,
bass and treble •Internal 40W x 4 channel amplifier
•Front/rear line level RCA outputs •Clock
•Mfr. #PLCDUSB78MP3
Order #
60-5300
(1-3)
$145.00
Automotive VCR with TV Tuner
AM/FM/CD/MP3 Player
with USB Port
AM/FM/CD/MP3 Player
with USB Port
(4-up)
$130.50
Single DIN head unit plays standard CDs, CDRs
and CDs recorded in compressed MP3 format.
Additionally, the front-panel USB input allows access
to files on laptops, portable MP3 players and similar
devices. Features: •Detachable face •Multi color
LED display with white digits •AM/FM PLL
synthesized tuning with 30 station presets •ID3 tag
information •Preset EQ •Store/scan/seek tuning
modes •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Internal 40W x 4 channel amplifier •Line level
RCA outputs •Clock •Mfr. #PLCD63WMU
Order #
60-5310
(1-3)
$139.00
(4-up)
$125.50
Full function VCR provides all of the features
of standard home units, for the automotive
environment. 125 channel tuning allows off air
viewing in and mobile video system, plus VHS
Hi–Fi recording from the tuner or external A/V
sources. Features: •VHS Hi–Fi playback •Cable
compatibility •Digital audio tracking •Full function
IR remote •Remote IR sensor with 16' cable •On
screen display •Back lit function buttons •Auto
replay •Direct power–on and auto start function
•Auto detect SP/EP modes •Auto head cleaning
•Includes vehicle mounting hardware •Requires
12VDC •Mfr. #PLTVCP85
Order #
60-5150
(1–3)
$179.00
(4–up)
$159.00
AM/FM/Cassette/CD Player
AM/FM/CD/MP3 Player
with USB Port
Single DIN head unit plays standard CDs, CDRs
and CDs recorded in compressed MP3 format.
Additionally, the front-panel USB input allows access
to files on laptops, portable MP3 players and similar
devices. Features: •XM compatibility •Detachable
face •Multi color LED display with white digits
•AM/FM PLL synthesized tuning with 30 station
presets •ID3 tag information •Preset EQ
•Store/scan/seek tuning modes •Included IR remote
control •Electronic control of volume, balance, fader,
bass and treble •Internal 40W x 4 channel amplifier
•Front/rear line level RCA outputs •Clock
•Mfr. #PLCD65WXMU
Order #
60-5305
(1-3)
$165.00
(4-up)
$148.50
AM/FM/CD/MP3 Player
Single DIN head unit plays
standard CDs, CDRs and CDs recorded in
compressed MP3 format. Features: •Motorized
slide-down detachable face •Multi color LED display
with white digits •AM/FM PLL synthesized tuning
with 30 station presets •ID3 tag information •Preset
EQ •Store/scan/seek tuning modes •Included IR
remote control •Electronic control of volume, balance,
fader, bass and treble •Internal 40W x 4 channel
amplifier •Line level RCA inputs and outputs •Clock
•Mfr. #PLCD65MP
Order #
60-5315
(1-3)
$129.00
Single DIN head unit combines
an AM/FM tuner and full logic
cassette player, with a CD-RW ready CD player.
Features: •Fully detachable face •PLL synthesized
AM/FM tuner •30 station presets •Auto–reverse
cassette mechanism •Scan/random/repeat CD
modes •Electronic volume/bass/treble/fader
control •Loudness control •Full night illumination
•Subwoofer level control •RCA line outputs 100W x
2 channel max output •Mfr. #PLCDCS90
Order #
60-5165
(1–3)
$236.25
(4–up)
$212.63
(4-up)
$116.50
AM/FM/CD/MP3 Player
NET 30
Terms
250
Order Online
www.mcminone.com
•Single DIN in-dash unit
features an attractive die-cast metal face and is
compatible with most vehicles •Fully compatible
with MP3 format disks •Fully detachable front panel
•One bit D/A convertor •Three-beam laser pick-up
•8x oversampling •18FM/12AM station presets
•Anti-skip mechanism with electronic loading
•Electronic control of volume, bass, treble, fader
and balance •Digital clock •160W total maximum
output power •RCA preamp output •Includes
multi-function IR remote control
Order #
60-4685
Model #
PLCD45MP3
(1-3)
$149.00
(4-up)
$144.00
AM/FM/CD Player
Single DIN head unit includes an AM/FM tuner
and a CD-RW ready CD player with an attractive
die cast aluminum front panel. Features: •PLL
synthesized tuning with 30 station memory •US
and European frequency compatibility •Digital
clock •Scan/repeat/random CD modes •Electronic
volume/bass/treble/balance/fader control •Loudness
control •Full night illumination •RCA line output
jacks •40W x 4 channel output •Mfr. #PLCD39
Order #
60-5175
(1–3)
$114.00
(4–up)
$103.16
C50 pg 251
7/25/05
6:38 PM
Page 251
Automotive
Products
Pyramid
Section 11
AM/FM/CD/DVD Player
Single DIN head unit plays standard DVDs, CDs,
CDRs and CDs recorded in compressed MP3 format.
It is an ideal video source unit for any mobile video
system. Features: •Fully detachable face •Slot
loading mechanism •On screen display •Dolby
Pro-Logic/DTS compatible •NTSC/PAL switchable
•AM/FM PLL synthesized tuning •Store/scan/seek
tuning modes •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Last position memory •Internal 40W x 4 channel
amplifier •Line level L/R and subwoofer
RCA outputs •Composite video output •Coaxial
digital output •L/R audio and video input
•Jumbo multicolor backlit LCD display
•Clock •Mfr. #PDVD78
Order #
60-3820
(1-3)
$139.00
AM/FM/CD/MP3 Player
Single DIN head unit plays standard CDs, CDRs and
CDs recorded in compressed MP3 format. Features:
•Fully detachable face •Power loading mechanism
•AM/FM PLL synthesized tuning •Store/scan/seek
tuning modes •Included IR remote control •Electronic
control of volume, balance, fader, bass and treble
•Internal 40W x 4 channel amplifier •Line level
L/R RCA output •Line level L/R RCA input •Jumbo
multicolor backlit LCD display •Clock
•Mfr. #CDR79MP
Order #
60-3834
(1-3)
$99.95
(4-up)
$94.95
Order #
60-3828
(1-3)
$99.95
(4-up)
$94.95
Incredibly compact player includes hardware for
free standing mount, plus hardware for conventional
in–dash single DIN mounting. In addition to
conventional DVD functions, this unit also includes a
125 channel TV tuner. It is capable of playing DVDs,
CDs, CDRs and CDs recorded in compressed MP3
format. Features: •Compact size: 2" (H) x 6" (W) x
51⁄2" (D) •Slot loading mechanism supports multiple
angle mounting •40 button IR remote control with
remote mounted eye •On screen display •Dolby
Pro–Logic/DTS compatible with coaxial digital output
•A/V inputs and outputs accept 3.5mm plug, and RCA
female adaptors are included •Fused wiring
harness for 12VDC automotive installation
•Cigarette ligter plug •Adaptor harness for
AC adaptor use •Mfr. #PTVD44
Order #
60-3830
(1–3)
$129.00
AM/FM/CD/ Player
Order #
60-3838
(1–3)
$59.95
(4–up)
$122.50
(4–up)
$56.95
Mfr. #
CDR83MP3
(1–3)
$156.45
(4–up)
$141.75
Single DIN player is the perfect low cost unit for
the work truck, occasionally driven vehicles, or
for downgrading systems for vehicle resale.
Features: •Auto loading CD deck •Rotary tune
AM/FM radio with analog dial •Rotary balance
tone and volume control •Internal 80W x 2 channel
amplifier •Line level output •Mfr. #CDR35FD
Order #
60-3836
(1–3)
$34.95
(4–up)
$33.25
AM/FM Signal Amplifier
•Maximize your AM/FM reception •Works with
vehicle’s standard antenna •Increases signal by
20dB •Red LED indicator lamp •Convenient
mounting bracket for in or under dash installation
•Requires 12VDC
Order #
60-1670
(ea.)
$10.17
(2-9)
$9.44
Flexible electronic
crossover provides
single or dual
(front/rear) input,
plus separate
subwoofer output
with boost function.
Features:
•Independent gain controls for front, rear and sub
channels •Independent front and rear channel high
pass filters •Daisy chain preamp out •12dB/octave
slope •Continuously variable crossover settings
•Subwoofer: 20Hz~500Hz •Midrange: 100Hz~8KHz
•High pass: 1KHz~15KHz •Mfr. #CR74G
Order #
60-4645
(1-3 prs.)
$41.95
(10-up)
$8.68
(4 prs.-up)
$37.75
Sub Woofer Electronic
Crossover Network
•Remote turn on/off
•Selectable crossover
points at 50, 90 and 180Hz
•Accepts either speaker wire
inputs or dual RCA inputs •Input
level adjustment to RCA outputs •Sub
woofer 12dB bass boost at 45, 80 and 120Hz
•Power, ground and remote hook-up terminal
•Power on LED indicator •Dimensions: 35⁄8" (W)
x 7⁄8" (H) x 5" (D)
Order #
60-1245
AM/FM/CD/ Player
Single DIN player is the perfect low cost unit for
the work truck, occasionally driven vehicles, or for
downgrading systems for vehicle resale. Features:
•Fully detachable front panel •Auto loading CD deck
•Repeat/intro CD function •Manual tune AM/FM
radio with digital display •Internal 80W x 2 channel
amplifier •Mfr. #CDR42DX
Order #
60-5215
(1-3)
$11.50
(4-up)
$10.34
Three Way
ActiveCrossover
•Provides low,
midrange and high pass,
plus flat outputs, with
independent level
control •Separate full
range and subwoofer inputs •Subwoofer input
may be switched off •0/180° subwoofer phase shift
•Selectable low pass: 45/80/150/200Hz •Selectable
high pass: 2.5/3.5/5.0/7.0KHz •Dimensions:
1.5" (H) x 8.25" (W) x 5.5" (D)
Order #
60-5220
Mfr. #
CR82
(1–3)
$41.95
OrderToll
Toll
Free
Order
Free
(4–up)
$37.75
Fax
FAX
251
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
11
Single DIN CD/DVD Player w/TV Tuner
AM/FM/CD/DVD Player
•Plays standard CDs plus CDs recorded in
compressed MP3 format •Compatible with CD-RW
recorded discs •8x oversampling •One bit D/A
convertor •Standard single DIN size •Fully
detachable face •Auto power loading CD mechanism
•Digital PLL AM/FM tuner with 30 station presets
•US/European frequency compatibility •Electronic
volume, balance, fader, bass and treble control •Power
level meter •4 x 40W maximum output •Loudness
and mute controls •Clock •RCA line outs
Three Way
Electronic
Crossover
(4-up)
$132.00
Single DIN head unit plays standard DVDs, CDs,
CDRs and CDs recorded in compressed MP3 format.
It is an ideal video source unit for any mobile video
system. Features: •Multi function IR remote control
•Dolby coaxial digital output •Variable pre-amp
volume from remote control •Remote mount infrared
eye •Composite video and line level audio outputs
•Horizontal or vertical mount •Mounts free standing
•Includes dash kit for single DIN mounting •Includes
cigarette lighter cord •Dimensions: 1.88" (H) x
5.7" (W) x 6.1" (D) •Mfr. #PDVD42
AM/FM/CD/MP3 Player
C50 pg 252
7/25/05
6:36 PM
Page 252
Automotive
Products
Amplifiers
Section 11
Class D Series Monoblock Amplifiers
Single channel monoblock amplifiers are ideal for
multi-amp autosound systems, especially for powering subwoofers.
Features: •Remote dash-mount level control with cable •Variable
50Hz~150Hz low pass filter •Variable 15Hz~40Hz subsonic filter •Variable
45Hz subwoofer EQ •0°/180° phase selector •High speed digital circuitry
•Fully regulated pulse-width modulated (PWM) power supply •Four-way
protection circuit •System distress indicator •1ohm output stability (2ohm in
model A1000DB) •Bridging synchronization •Gold plated heavy-duty speaker
and power terminals •Dual mono speaker output connectors Specifications: •Frequency response: 15Hz~30KHz
•S/N ratio: 100dB •THD: 0.5% •Input sensitivity: 200mV~8V •Dimensions: 2.3" (H) x 11" (W) x see chart (L)
XM Antennas
Constellation™
Ultra Flat Roof
Mount Antenna
Convenient peel–and–stick antenna provides simple,
quick and permanent installation, while meeting all
XM radio specifications for mobile applications.
Ultra sleek, low profile design is only 5⁄8" high,
and 4" diameter, making this ideal where antenna
damage, or appearance is a concern. Includes
attached 14' of dual RG-178/U cable (satellite and
terrestrial), which is terminated with standard
FAKRA/SMB connectors.
11
Order #
61-510
Mfr. #
XM20/CP
(ea.)
$52.45
(2–up)
$47.21
Constellation™ In–Home
Antenna System
Perfect for using XM
receiver in home or small
office environments. Unit
is easily wall mounted or
attached to a southern
exposure windowpane for
conventional satellite reception. In some areas
where terrestrial repeaters are in use, unit may
even be located inside. Internal amplifier is powered
via the signal cable eliminating the need to connect a
separate power source. Includes attached 35' of dual
RG-174/U cable (satellite and terrestrial), which is
terminated with standard SMA connector.
Order #
50-6910
Mfr. #
XM9150PNP
(ea.)
$125.00
(2–up)
$112.50
Order #
60-5350
60-5351
60-5352
60-5353
Model
A1000DB
A1800DB
A2400DB
A3000DB
4ohm
450W
600W
900W
1100W
RMS Power Output
2ohm
800W
1100W
1400W
1800W
1ohm
N/A
1400W
1800W
2300W
Max
Output
1000W
1800W
2400W
3000W
Length
10.5"
12.6"
15"
16.8"
(1-3)
$229.00
339.00
379.00
445.00
(4-up)
$205.00
305.00
342.00
405.00
Class A/B Series Amplifiers
These amplifiers are an aesthetic match to
the Power Acoustik Class D Series monoblock amplifiers, and are
ideal for powering component speaker systems. Their high power
output, bridging capability and selectable internal crossover also
makes them ideal for full range or subwoofer applications.
Features: •Full selectable crossover for high pass, low pass or
full range operation •Variable 40Hz~120Hz low pass •Variable
150Hz~1500Hz high pass •18db bass boost at 40Hz •2ohm output
stability (4ohm bridged) •Full MOSFET power supply with PWM
circuitry •Three–way protection circuit •System distress indicator
•High level inputs with floating ground •Low level inputs with feed through
low level outputs •4AWG power and ground connections Specifications: •Frequency response:
10Hz~30KHz •S/N ratio: 97dB •THD: 0.02% •Dimensions: 2.3" (H) x 11" (W) x 11.25" (L)
Order #
60-5354
60-5355
Model
A520-2HP
A600-4HP
RMS Power output
4ohm
2ohm
125W x 2
150W x 2
70W x 4
85W x 4
Max
Bridged 4ohm
300W x 1
170W x 2
Output
520W x 1
300W x 2
(1–3)
$89.95
109.00
(4–up)
$81.00
99.00
LT Series Stereo and Four Channel Amplifiers
Ideal for single or multi-amp autosound systems, for powering subwoofers or
satellite speakers. Sleek extruded aluminum housing is augmented by
attractive blue lighting in the side panels Features: •Normal or bridged
mono operation •Full selectable crossover for high pass, low pass or full
range operation •Variable 30Hz~500Hz low pass •Variable 50Hz~500Hz high
pass •Variable 24dB bass boost •Variable 60Hz~200Hz subsonic filter •2ohm
output stability (4ohm bridged) •Full MOSFET power supply with PWM circuitry
•Three-way protection circuit •System distress indicator •Low level inputs with feed
through low level outputs •4AWG power and ground connections Specifications:
•Frequency response: 10Hz~30KHz •S/N ratio: 98dB •THD: 0.02% •Dimensions:
2.25" (H) x 11" (W) x see chart (L)
RMS Power Output
Order #
60-5360
60-5361
60-5362
60-5363
60-5364
60-5365
60-5366
Constellation™
Retail/Commercial
Building Antenna
System
Perfect for using XM
receiver in retail display
applications or in commercial office buildings.
Provides retailers, automotive dealers and car
stereo installers with uninterrupted XM coverate
for listening stations, service demos or vehicle
installation testing. Kit contains: External
amplified antenna with mounting bracket, feed
cable assemblies and distribution amplifier
(dual receiver models). Includes pre assembled
RG-58/U cable assemblies.
Order # Mfr. #
50-6920 XM911
50-6921 XM913
50-6926 XM923
Description
(ea.)
(2–up)
Single receiver,
$299.00 $269.10
100' cable lead
Single receiver,
549.00 494.10
300' cable lead (each)
Dual receiver,
599.00 539.10
300' cable lead (each)
NET 30
Terms
252
Order Online
www.mcminone.com
Model
LT480/2
LT620/2
LT980/2
LT1440/2
LT1920/2
LT720/4
LT960/4
4ohm
100W x 2
150W x 2
220W x 2
300W x 2
370W x 2
85W x 4
100W x 4
2ohm
125W x 2
180W x 2
280W x 2
360W x 2
440W x 2
100W x 4
125W x 4
Bridged
4ohm
250W x 1
360W x 1
560W x 1
720W x 1
880W x 1
200W x 2
250W x 2
Max
Output
480W
620W
980W
1440W
1920W
360W x 2
480W x 2
Length
8.5"
11.25"
14"
20.5"
22"
11.25"
14"
(1-3)
$94.50
109.00
139.00
189.00
215.00
129.00
149.00
(4-up)
$85.25
98.25
125.00
171.00
194.00
117.00
135.00
Gothic Series Stereo and Four Channel Amplifiers
This is an ideal amplifier for single or multi–amp autosound
systems, for powering subwoofers or satellite speakers. Features: •Standard or
bridged operation •Full selectable crossover for high pass, low pass or full
range operation •Variable 40Hz~120Hz low pass •Variable
150Hz~1500Hz high pass •18dB bass boost at 40Hz •2ohm
output stability (4ohm bridged) •Full MOSFET power
supply with PWM circuitry •Three–way protection circuit
•System distress indicator •High level inputs with floating
ground •Low level inputs with feed through low level outputs
•4AWG power and ground connections Specifications:
•Frequency response: 10Hz~30KHz •S/N ratio: 97dB •THD:
0.02% •Dimensions: 2.25" (H) x 11.25" (W) x see chart (L)
Order #
60-5370
60-5371
60-5372
60-5373
60-5374
60-5375
60-5376
60-5377
Model
OV2-300
OV2-400
OV2-520
OV2-820
OV2-1200
OV2-1600
OV4-600
OV4-800
RMS Power output
4ohm
70W x 2
85W x 2
125W x 2
180W x 2
250W x 2
310W x 2
70W x 4
85W x 4
Max
2ohm
85W x 2
105W x 2
150W x 2
230W x 2
300W x 2
370W x 2
85W x 4
105W x 4
Bridged 4ohm
170W x 1
210W x 1
300W x 1
460W x 1
600W x 1
740W x 1
170W x 2
210W x 2
Output
300W
400W
520W
820W
1200W
1600W
300W x 2
400W x 2
Length
7.25"
8.5"
11.25"
14"
20.5"
22"
11.25"
14"
(1–3)
$74.95
83.95
99.95
135.00
185.00
205.00
109.00
135.00
(4–up)
$67.95
75.95
89.95
122.00
167.00
185.00
99.00
122.00
C50 pg 253
7/25/05
6:35 PM
Page 253
Automotive
Products
Amplifiers
Section 11
Power Series Stereo and
Four Channel Amplifiers
The Power Series is designed to provide one of the best cost/performance
values on the market, and is the undisputed choice when clean sound
and high output are the priority. Available in two or four channel
configurations, these are perfect in moderate full range systems as well
as large multi amp installations. Features: •Normal or bridged operation
(except PS2-120 and PS4-240) Full selectable crossover for high pass, low
pass or full range operation •Variable 40Hz~120Hz low pass •Variable
150Hz~1500Hz high pass 18dB bass boost at 40Hz •2ohm output stability
•Full MOSFET power supply with PWM circuitry •Three–way protection
circuit •System distress indicator •High level inputs with floating ground
•Low level inputs with feed through low level outputs •4AWG power and
ground connections Specifications: •Frequency response: 10Hz~30KHz •S/N
ratio: 97dB •THD: 0.02% •Dimensions: 2.25" (H) x 11.25" (W) x see chart (L)
Order #
60-5380
60-5381
60-5382
60-5383
60-5384
60-5385
60-5386
60-5387
50-5388
50-5389
Model
PS2-120
PS2-300
PS2-400
PS2-520
PS2-820
PS2-1200
PS2-1600
PS4-240
PS4-600
PS4-800
RMS Power output
4ohm
35W x 2
70W x 2
85W x 2
125W x 2
180W x 2
250W x 2
310W x 2
35W x 4
70W x 4
85W x 4
Max
2ohm
45W x 2
85W x 2
105W x 2
150W x 2
230W x 2
300W x 2
370W x 2
45W x 4
85W x 4
105W x 4
Bridged 4ohm
N/A
170W x 1
210W x 1
300W x 1
460W x 1
600W x 1
740W x 1
N/A
170W x 2
210W x 2
7 Band Graphic
Equalizer/Pre–Amp
Output
N/A
300W
400W
520W
820W
1200W
1600W x 1
N/A
300W x 2
400W x 2
Length
5"
7.25"
8.25"
11.25"
14"
20.5"
22"
7"
11.25"
14"
(1–3)
$33.95
65.95
73.95
91.95
119.00
165.00
185.00
47.95
99.95
119.00
(4–up)
$30.75
59.50
66.75
82.95
108.00
149.00
167.00
44.00
89.95
108.00
Dryver Series High Current Amplifiers
Order #
60-5320
60-5321
60-5322
60-5323
60-5324
60-5325
60-5326
Model #
PLAD212
PLAD213
PLAD214
PLAD215
PLAD412
PLAD413
PLAD618
RMS @4ohm
100W x 2 CH
150W x 2 CH
250W x 2 CH
500W x 2 CH
100W x 4 CH
200W x 4 CH
100W x 4 CH
plus
250W x 2 CH
Power Output
Peak @4ohm Bridged peak @4ohm
200W x 2 CH
400W x 1 CH
300W x 2 CH
600W x 1 CH
400W x 2 CH
900W x 1 CH
1000W x 2 CH
1300W x 1 CH
200W x 4 CH
400W x 2 CH
400W x 4 CH
800W x 2 CH
200W x 4 CH
400W x 2 CH
plus
plus
500W x 2 CH
900W x 1CH
RMS @2ohm
175W x 2 CH
250W x 2 CH
400W x 2 CH
700W x 2 CH
150W x 4 CH
350W x 2 CH
175W x 4 CH
plus
400W x 2 CH
Length
7"
8.7"
9.8"
17. 7"
11.4"
12.6"
19.7"
(1–3)
$84.95
109.00
139.00
209.00
129.00
159.00
265.00
(4–up)
$76.50
98.50
125.00
189.00
117.00
145.00
239.00
Elite Red Label Series Amplifiers
With models available in two and four channel configurations,
this amplifier series will meet a wide variety of needs. Features:
•Bridging capability •Variable high and low pass crossovers
•Dual crossovers in four channel models •Variable bass boost
at 60Hz with dash mount remote control (except on #60-5330
and #60-5336) •Gold plated line level inputs •Speaker level
inputs •Variable gain control •Remote turn–on •Soft start
•Overload/thermal/short circuit protection Specifications:
•THD: <0.04% •S/N ratio: >95dB •Frequency response:
15Hz~30KHz •Dimensions: 2.7" (H) x see chart (W) x 10.9" (D)
Order #
60-5330
60-5331
60-5332
60-5333
60-5334
60-5335
60-5336
60-5337
60-5338
Model #
PLA2180
PLA2280
PLA2380
PLA2480
PLA2580
PLA2680
PLA4180
PLA4280
PLA4380
Power Output
Peak x 2 CH
Peak Bridged
300W x 2 CH
600W x 1 CH
500W x 2 CH
1000W x 1 CH
700W x 2 CH
1400W x 1 CH
800W x 2 CH
1600W x 1 CH
900W x 2 CH
1800W x 1 CH
1200W x 2 CH
2400W x 1 CH
250W x 4 CH
500W x 2 CH
350W x 4 CH
700W x 2 CH
500W x 4 CH
1000W x 2 CH
Length
8.25"
12"
13.5"
15"
17"
19"
12"
15"
17"
(1–3)
$81.95
115.00
135.00
149.00
169.00
199.00
235.00
149.00
185.00
(4–up)
$74.95
105.00
125.00
135.00
155.00
179.00
212.00
135.00
167.00
Order #
60-8700
(1–3)
$42.37
(4–up)
$36.32
Dryver
Monoblock
Amplifiers
Essential for
driving that
earth moving
subwoofer to its
fullest potential. This massive single channel
amplifier is stable to 1.3ohm, enabling it to power
multiple drivers with ease. Features: •Pulse width
modulated power supply •Variable 24dB/octave low
pass filter, 50Hz~150Hz •Variable 24dB/octave
subsonic filter, 15Hz~40Hz •Variable bass boost
at with dash mount remote control •Continuously
variable phase adjustment, 0~180° •Gold plated line
level inputs •Variable gain control •Remote turn–on
•Soft start •Overload/thermal/short circuit protection
Specifications: •Power output: 600W RMS @4ohm,
1200W RMS @2ohm, 3600W peak @1.3ohm •THD:
<0.1% •S/N ratio: >90dB •Dimensions: 2.74" (H) x 15"
(W) x 8.6" (D)
Order #
60-5327
Model #
PLAD3300D
(1–3)
$279.00
(4–up)
$252.00
Red Label
Elite Series
Monoblock
Amplifier
One ohm stable amplifier is designed to drive single or
multiple subs to their fullest potential. This massive
single channel amplifier is stable to 1ohm, enabling it
to power multiple drivers with ease. Features: •Pulse
width modulated power supply •Variable 24dB/octave
subsonic filter •Variable bass boost at with dash
mount remote control •Continuously variable phase
adjustment, 0~180° •Gold plated line level inputs
•Variable gain control •Remote turn-on •Soft
start •Overload/thermal/short circuit protection
Specifications: •Power output: 2400W peak @1ohm
•S/N ratio: >90dB •Dimensions: 2.7" (H) x 15" (W) x
10.9" (D)
Order #
60-5339
Model #
PLA3000D
(1-3)
$235.00
OrderToll
Toll
Free
Order
Free
(4-up)
$215.00
Fax
FAX
253
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
11
This is the ideal series of amplifiers for individual or multi amp
systems, for street listening or competition use. Models available in
two, four and six channel configurations, all bridgeable, ensure
that a unit is available to suit your needs. Features: •2ohm
stable, 4ohm bridged •Variable high and low pass crossovers
•Dual crossovers in four channel models •Variable bass boost
at 60Hz with dash mount remote control •Gold plated line
level inputs •Speaker level inputs •Variable gain control
•Remote turn–on •Soft start •Overload/thermal/short circuit
protection Specifications: •THD: <0.04% •S/N ratio: >90dB
•Channel separation: >65dB •Dimensions: 2.74" (H) x see chart (W)
x 8.6" (D)
1
⁄2 DIN size equalizer provides precise control of the
following frequency ranges, 60Hz, 150Hz, 400Hz,
1KHz, 2.5KHz, 6KHz and 15KHz. Boost/cut range
of each band is +/- 12dB. Features include:
•Subwoofer crossover with RCA outputs
•Selectable subwoofer crossover point 80Hz/150Hz
•Front/rear RCA line outputs •Front/rear fader
•LED level indicator •Full night illumination
•Hi/low level inputs •Mfr. #PEQ-70
C50 pg 254
7/25/05
6:34 PM
Page 254
Automotive
Products
Amplifiers
Section 11
Blue Wave Series Amplifiers
Wave Series Seven Band
Equalizer/Amplifier
Combination EQ/amplifier provides 100W x 2
channels output max. Rotary control equalizer
provides 12dB gain/cut adjustment to the following
frequencies: 65Hz, 150Hz, 400Hz, 1.4KHz, 2.4KHz,
6KHz and 15KHz. Subwoofer preamp output
controls include 40~100Hz adjustable crossover, with
gain adjustment from 0~18dB. Subwoofer line
outputs provide signal to separate subwoofer
amplifier. Other features include: •18 segment
LED bargraph display •2/4 speaker hook-up
with front/rear fader control •Line level inputs
•Mfr. #PLE702B
Order #
60-4131
(1-3)
$58.85
(4-up)
$53.01
With models available in two, four
and five channel configurations, this amplifier series
will meet a wide variety of needs. Features: •Bridging
capability •Variable high and low pass crossovers •Dual
crossovers in four channel models •Variable bass boost
at 60Hz with dash mount remote control (select model #s
ending in “R” for those including remote) •Gold plated line
level inputs •Speaker level inputs •Variable gain control
•Remote turn-on •Soft start •Overload/thermal/short
circuit protection Specifications: •THD: <0.04% •S/N
ratio: >95dB •Frequency response: 15Hz~30KHz
•Dimensions: 2.7" (H) x see chart (W) x 10.9" (D)
Order #
60-5340
60-5341
60-5342
60-5343
60-5344
60-5345
60-5346
60-5347
60-5348
Power Output
Peak x 2 CH
Peak Bridged
300W x 2 CH
600W x 1 CH
350W x 2 CH
700W x 1 CH
400W x 2 CH
800W x 1 CH
250W x 4 CH
500W x 2 CH
500W x 2 CH
1000W x 1 CH
350W x 4 CH
700W x 2 CH
700W x 2 CH
1400W x 1 CH
400W x 4 CH
800W x 2 CH
250W x 4 CH
500W x 2 CH
plus 400W x 1 CH
plus 400W x 1 CH
Model #
PLA485
PLA585R
PLA785
PLA885
PLA985R
PLA1085
PLA1285
PLA1485R
PLA1585
Length
8.25"
12"
13.5"
15"
17"
19"
12"
15"
17"
(1-3)
$79.95
109.00
94.95
119.00
115.00
145.00
129.00
159.00
169.00
(4-up)
$71.95
99.00
86.00
109.00
105.00
131.00
117.00
145.00
155.00
11
Royal Blue Series
Two and Four Channel Amplifiers
Plus Series Five Band
Parametric Equalizer
Rotary control equalizer/preamplifier features six
channel RCA outputs for front, rear and subwoofer
amplifier connections. Parametric design allows
center frequencies of five separate bands to be
adjusted to suite various types of music and
personal taste. Four position slide switches allow
12dB boost/cut in the following frequency ranges:
•Band 1: 25~80Hz •Band 2: 150~300Hz •Band 3:
600~1200Hz •Band 4: 2.1~4.2KHz •Band 5:
7~15KHz subwoofer output controls include
40~100Hz adjustable crossover, with gain
adjustment from 0~12dB. 18 segment LED bargraph
display shows relative level output. Other features
include: •Input selection from two sources •Input
gain adjustment •Remote power on/off
Specifications: •S/N ratio: >90dB •Frequency
response: 15Hz~30KHz •Mfr. #PLE520P
Order #
60-4121
(1-3)
$69.56
(4-up)
$62.65
12 Band Pre-Amp Equalizer
with Subwoofer Out
•5 band front equalizer settings •7 band rear
equalizer settings •Fader slider/sub-woofer boost
control with active electronics adjustable crossover
•Compact 1⁄2 DIN chasis size •2 RCA radio signal
inputs •6 RCA signal outputs •Electronic crossover
adjustable to 80, 120 or 180Hz @ 12db •Octave slope
2nd order butterworth circuit front frequency control
with 10db boost at: 150, 400, 1K, 2K, 4K, 10KHz
•Rear frequency controls with 12db boost at: 60,
150, 400, 1, 2, 6, 15Hz •Remote start output for
amp activation •Frequency responsive:
20Hz~20KHz •S/N ratio: >90db (A-wtd)
•Dimension: 7" (W) x 6" (D) x 1" (H)
Order #
LEQ12A
(1-3)
$72.06
(4-up)
$64.17
NET 30
Terms
254
Order Online
www.mcminone.com
This extensive series of amplifiers features attractive blue
light top cover illumination, for looks to match their performance.
They are ideal in stand alone and multi amp systems. Features:
•Bridging capability •Variable high and low pass crossovers
(excluding #60-3890 and #60-3891) •Dual crossovers in four
channel models •Variable 0~18dB bass boost at 60Hz (excluding
#60-3890 and #60-3891) •Remote dash mounted bass boost
control on select models •Gold plated line level inputs
•Speaker level inputs •Variable gain control •Remote
turn-on •Overload/thermal/short circuit protection •Power
on LED Specifications: •THD: <0.04% •S/N ratio: >95dB
•Dimensions: .3.5" (H) x see chart (W) x 10.9" (D)
Order #
60-3890
60-3891
60-3892
60-3893
60-3894
60-3895
60-3896
60-3897
60-3898
60-3899
60-3900
Model #
PB136GX
PB236GX
PB336GX
PB536GX
PB636GX
PB736GX
PB836GX
PB936GX
PB1036GX
PB1236GX
PB1836GX
Power Output
Max Bridged
Max Per Channel
N/A
120W x 2 CH
N/A
100W x 4 CH
600W x 1 CH
300W x 2 CH
800W x 1 CH
400W x 2 Ch
500W x 2 CH
250W x 4CH
1000 x 1 CH
500W x 2 CH
800W x 2 CH
400W x 4 CH
1200W x 1 CH
600W x 2 CH
1000W x 2 CH
500W x 4 CH
1600W x 1 CH
800W x 2 CH
2400W x 1 CH
1200W x 2 CH
Remote Bass Boost
No
No
No
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Length
8.25"
9.25"
8.25"
9.25"
12"
13.5"
15"
13.5"
17"
15"
17"
(1-3)
$39.95
49.95
74.95
84.95
109.00
99.95
129.00
119.00
159.00
129.00
159.00
(4-up)
$37.95
47.50
71.25
80.75
103.50
94.95
122.50
113.25
151.25
122.75
151.25
Royal Red Series Two and Four Channel Amplifiers
These amplifiers feature attractive chrome and red design, with Plexiglas cover
plate, providing looks that are as attractive as the performance. Full MOSFET two
or four channel amplifiers are ideal in stand alone and multi amp systems.
Features: •Built in crossover with full range, low pass and high pass operation
•Dual crossovers in four channel models •Continuously variable 35~350Hz low pass
•Continuously variable 60Hz~2.5KHz high pass •Variable 0~18dB bass boost at
60Hz •Remote dash mounted bass boost control (not included on PB445X and
PB645X) •Output stable to 2ohm •Bridging capability •Gold plated line level
inputs •Speaker level inputs •Variable gain control •Remote turn–on
•Overload/thermal/short circuit protection •Power on LED
Specifications: •Frequency response: 15Hz~30KHz
•Dimensions: 2.5" (H) x see chart (W) x 11.8" (D)
Order #
60-3910
60-3911
60-3912
60-3913
60-3914
60-3915
60-3916
Model #
PB445X
PB545X
PB645X
PB845X
PB945X
PB1045X
PB1845X
Power Output
Max Bridged
600W
800W
500W x 2 CH
600W x 2 CH
1000W
800W x 2 CH
1000W x 2 CH
Power Output
Max Per Channel
300W x 2 CH
400W x 2 CH
250W x 4 CH
300W x 4 CH
500W x 2 CH
400W x 4 CH
500W x 4 CH
Power Output
RMS @ 2ohm
60W x 2 CH
80W x 2 CH
55W x 4 CH
60W x 4 CH
120W x 2 CH
110W x 2 CH
200W x 4 CH
Power Output
RMS @ 4ohm
40W x 2 CH
50W x 2 CH
35W x 4 CH
50W x 4 CH
80W x 2 CH
75W x 4 CH
125W x 4 CH
Length
10.2"
11.6"
13.9"
14.9"
13.9"
18.7"
19.6"
(1–3)
$74.95
84.95
105.00
125.00
99.95
139.00
159.00
(4–up)
$71.25
80.75
99.95
118.75
94.95
132.25
151.25
C50 pg 255
7/25/05
6:32 PM
Page 255
Automotive
Products
Amplifiers
Section 11
Power Series MOSFET Amplifiers
Two and four channel amplifiers are ideal for single and multi amp systems,
especially when separate subwoofer is used. Features: •MOSFET power supply
•Bridging capability •2ohm stability •Variable gain control •Remote turn–on
•Switchable subwoofer crossover, adjustable from 50~150Hz (PB-612X has two
crossovers, fixed at 200Hz) •Gold plated line inputs •Overload/thermal/short
circuit protection •Power on LED •LED diagnostic condition indicator
Specifications: •S/N ratio: >90dB •Frequency response: 15Hz~30KHz
•THD: >0.04% •Dimensions: 2.17" (H) x see chart (L) x 8.35" (D)
Order #
60-3920
60-3921
60-3922
60-3923
Model #
PB-412X
PB-612X
PB-712X
PB-1212X
Power Output (4ohm)
Max
RMS
Bridged
300W x 2 CH 45W x 2 CH
90W
250W x 4 CH 50W x 4 CH 100W x 2 CH
500W x 2 CH 75W x 2 CH
150W
800W x 2 CH 100W x 2 CH
200W
Length
8.27"
13.78"
9.85"
12.6"
Subwoofer Crossover
Versatile compact unit
accepts line or speaker
level input, and
provides line level,
low pass output, suitable for driving a dedicated
subwoofer amplifier. High impedance speaker level
input (100ohm) allows connection to existing systems
without additional measurable load on the amplifier.
Features: •Floating ground speaker level inputs
•Gold plated line level inputs and outputs •Selectable
low–pass frequency of 60Hz, 120Hz or 180Hz
•Selectable 12dB bass boost at 50Hz, 80Hz or 120Hz
•Independent left/right gain adjustment •Remote
turn–on •Dimensions: 7⁄8" (H) x 5.5" (W) x 3" (D)
(1–3)
(4–up)
$54.95 $52.25
99.95 94.95
64.95 61.75
91.95 87.50
America Series MOSFET Amplifiers
Order #
60-3950
Ideal as a stand alone full range amplifier, or to drive a subwoofer in
multi amp systems, these rugged, well built amplifiers are available
in two and four channel configurations, to suit a variety of needs.
Features: •MOSFET power supply •Output stable to 2ohm •Bridgeable
•Selectable full range, low pass or high pass operation •Continuously
variable 80Hz~2.5KHz high pass crossover •Continuously variable
40~350Hz low pass crossover •0~12dB bass boost at 60Hz •Speaker level
inputs •Gold plated line level inputs •Variable gain control •Remote turn–on •Overload/thermal/short
circuit protection •Power on LED Specifications: •Frequency response: 10Hz~30KHz
•Dimensions: 2.28" (H) x see chart (W) x 10.23" (D)
Model #
PB360
PB460
PB560
PB760
PB1860
Power Output
Max Bridged
200W
600W
800W
600W x 2 CH
900W x 2 CH
Power Output
Max Per Channel
200W x 2 CH
300W x 2 CH
400W x 2 CH
300W x 4 CH
450W x 4 CH
Power Output
RMS @ 2ohm
100W x 2 CH
150W x 2 CH
200W x 2 CH
150W x 4 CH
270W x 4 CH
Power Output
RMS @ 4ohm
70W x 2 CH
100W x 2 CH
140W x 2 CH
100W x 4 CH
140W x 4 CH
Pro Plus Series Amplifiers
Simple compact amplifiers are ideal for driving single or two pairs of speakers,
or subwoofers. They are perfect for compact, low–cost systems, or when adding
pairs of speakers to an existing system. Features: •Speaker level inputs (except
PB450PX) •Gold plated line level inputs •Adjustable gain control Remote turn-on
•Overload/thermal/short circuit protection •Power on LED Specifications: •S/N
ratio: >85dB •Frequency response: 20Hz~30KHz •THD: <0.5%
Order #
60-3945
60-3946
60-3947
60-3948
Model #
PB-110PX
PB-180Px
PB-230PX
PB-450PX
Max Power Output
120W x 2 CH
75W x 4 CH
50W x 2CH + 100W x 2 CH
125W x 4 CH
Dimensions
(H) x (W) x (D)
2" x 5.25" x 7.9"
2" x 8" x 7.9"
2" x 6.75" x 7.9"
2.5" x 10" x 9.4"
(1–3)
(4–up)
$29.95 $28.50
39.95 37.95
44.95 42.75
69.95 66.50
Length
5.63"
8.27"
9.84"
14.76"
19.01"
(1–3)
$59.95
69.95
75.95
109.00
149.00
(4–up)
$56.95
66.50
72.25
104.00
142.00
(1–3)
$11.95
(4–up)
$11.50
Three–Way
Crossover with
Remote Subwoofer
Control
11
Order #
60-3930
60-3931
60-3932
60-3933
60-3934
Model #
CR65
Versatile three–way crossover provides complete low
pass, band pass and high pass control of high–end
automotive systems utilizing at least six amplifier
channels. Independent line level inputs for low pass,
front and rear, allow full advantage of head units
having six output channels. Low pass mix/direct
selector enables use with head units having no
subwoofer output. Remote dash mount control allows
remote control of subwoofer Q and level. Features:
Low pass output: •Selectable mix/direct mode
•Continuously variable 40Hz~4.2KHz crossover
frequency •Adjustable 0~18dB bass boost •Adjustable
25~250Hz boost frequency •Continuously variable
0~180° phase adjustment •Gain control
Rear output : •Selectable high pass/band pass
modes •Continuously variable 65Hz~4.5KHz high
pass crossover frequency •Continuously variable
300Hz~4.6KHz low pass crossover frequency
•Gain control Front output: •Continuously
variable 65Hz~4.5KHz high pass crossover
frequency •Gain control
Order #
60-3955
Model #
CR-71
(1–3)
$47.95
(4–up)
$45.50
Wave Series Subwoofer Crossover
Super Blue Series Amplifiers
Ideal when cost conscious performance is a must. Features: •MOSFET power
supply •Bridging capability on noted models •2ohm stability on noted models
•Variable gain control •Remote turn–on •Built–in bass and treble control
•Gold plated line inputs •Overload/thermal/short circuit protection •Power on
LED •LED diagnostic condition indicator Specifications: •S/N ratio: >90dB
•Frequency response: 15Hz~30KHz •THD: >0.04% •Dimensions: 21⁄4" (H) x
see chart (W) x 101⁄2" (D)
Order #
60-4770
60-4771
60-4772
60-4773
60-4774
60-4775
60-4776
60-4777
Max Power 2ohm Bridged
Model #
Output
Stable Output
Length
PB440X 120W x 2 CH
N
–
9"
PB442X
75W x 4 CH
N
–
9"
PB444X 200W x 2 CH
Y
400W
9"
PB446X 300W x 2 CH
Y
600W
12"
PB448X 250W x 4 CH
Y 500W x 2 CH 155⁄16"
PB449X 500W x 2 CH
Y
1000W
151⁄4"
PB559X 800W x 2 CH
Y
1600W
161⁄4"
PB779X 1000W x 2 CH Y
2000W
171⁄2"
(1–3)
$32.99
49.99
59.99
69.99
99.99
84.99
64.95
119.00
(4–up)
$29.50
47.50
54.50
67.50
97.50
79.50
61.75
114.00
The perfect addition
to your multi channel
amp installation when
a subwoofer is utilized.
Features include: •High
and low level inputs •Low
level outputs •Selectable
crossover points of 50Hz, 90Hz
and 180Hz •Switchable 12dB
bass boost at 45Hz, 80Hz
or 120Hz •Variable gain
adjustment •Remote
turn-on with LED power indicator •Mfr. #PLXR2
Order #
60-4135
(1-3)
$16.75
OrderToll
Toll
Free
Order
Free
(4-up)
$15.23
Fax
FAX
255
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 256
7/25/05
6:31 PM
Page 256
Automotive
Products
Amplifiers
Section 11
Two Channel 600
Watt Amplifier
Four Channel 1000 Watt Amplifier
•300W x 2 channel
maximum output
•600W bridged
mono •MOSFET
power supply
•Variable hi/lo
electronic crossover
•Variable 0~18dB bass
boost at 60Hz •Variable input gain
•Remote tourn on •Gold plated RCA line level
inputs •Molex type high level inputs •S/N ratio:
95dB •THD: < 0.04% •Overload/thermal/short
circuit protection •Power on LED indicator
11
Order #
60-5227
Model #
PB481X
(1–3)
$83.95
Two Channel 1000 Watt Amplifier
•500W x 2 channel maximum output •1000W
bridged mono •MOSFET power supply •Variable
hi/lo electronic crossover •Variable 0~18dB bass
boost at 60Hz •Variable input gain •Remote turn
on •Gold plated RCA line level inputs •Molex type
high level inputs •S/N ratio: 95dB •THD: < 0.04%
•Overload/thermal/short circuit protection
•Power on LED indicator
Order #
60-5229
Model #
PB781X
(1–3)
$99.70
(4–up)
$89.78
•Tri–mode configurable 2/3/4 channel •250W x
4 channel maximum output •500W x 2 channels
bridged •MOSFET power supply •Dual variable
hi/lo electronic crossovers •Dual variable 0~18dB
bass boost at 60Hz •Variable input gain •Remote
turn on •Gold plated RCA line level inputs •Molex
type high level inputs •S/N ratio: 95dB •THD:
< 0.04% •Overload/thermal/short circuit protection
•Soft start turn–on •Power on LED indicator
Order #
60-5228
Model #
PB681X
(1–3)
$124.95
(4–up)
$112.35
(4–up)
$75.55
Two Channel
1600 Watt
Amplifier
•800W x 2
channel
maximum
output •1600W
bridged mono
•Remote bass
boost control •MOSFET power supply •Variable
hi/lo electronic crossover •Variable 0~18dB bass
boost at 60Hz •Variable input gain •Remote turn
on •Gold plated RCA line level inputs •Molex type
high level inputs •S/N ratio: 95dB •THD: < 0.04%
•Overload/thermal/short circuit protection •Power
on LED indicator
Order #
60-5225
Model #
PB1281X
(1–3)
$131.25
(4–up)
$118.13
Four Channel 1800 Watt Amplifier
Four Channel 1200 Watt Amplifier
•Tri–mode configurable 2/3/4 channel •250W x 4
channel maximum output •500W x 2 channels
bridged •MOSFET power supply •Dual variable hi/lo
electronic crossovers •Dual variable 0~18dB bass
boost at 60Hz •Variable input gain •Remote turn
on •Gold plated RCA line level inputs •Molex type
high level inputs •S/N ratio: 95dB •THD: < 0.04%
•Overload/thermal/short circuit protection •Soft
start turn–on •Power on LED indicator
Order #
60-5230
Model #
PB881X
(1–3)
$141.75
(4–up)
$127.58
•Tri–mode configurable 2/3/4 channel •Remote bass
boost control •450W x 4 channel maximum output
•900W x 2 channels bridged •MOSFET power supply
•Dual variable hi/lo electronic crossovers •Dual
variable 0~18dB bass boost at 60Hz •Variable input
gain •Remote turn on •Gold plated RCA line level
inputs •Molex type high level inputs •S/N ratio:
95dB •THD: < 0.04% •Overload/thermal/short
circuit protection •Soft start turn–on •Power
on LED indicator
Order #
60-5226
Model #
PB1881X
(1–3)
$173.25
(4–up)
$156.45
Automotive Speakers
XP2K Series
Automotive Speaker Pairs
31⁄2" Two–Way
Speaker Pair
Part of Power
Acoustik’s XP2K
Series, this speaker
pair is designed to provide extremely smooth,
natural sound at a tremendous price. Compact size
is popular in door and dash installations. Designed
for replacement/upgrade of original factory speakers,
grills and mounting hardware are not included.
Features: •Stamped frame with black chrome
plating •Gray metallic four layer cotton fiber
cone with poly resin coating •Rubber surround
•Rubber boot magnet cover •Mylar dome tweeter
Specifications: •Power capacity: 100W max
•Frequency response: 90Hz~20KHz •Impedance:
4ohm •0.75" aluminum voice coil (woofer)
•6 oz. magnet •SPL: 90B (W/M) •Mfr. #XP2K-32
Order #
51-1207
(1–3 prs.)
$14.95
(4 prs.–up)
$13.95
NET 30
Terms
256
Order Online
www.mcminone.com
Designed to provide extremely
smooth, natural sound at a
tremendous price, these complete
kits include the speaker pair, grills and
all required mounting hardware for most installations.
Features: •Stamped frame with black chrome plating •Gray metallic four layer cotton fiber cone with poly resin
coating •Rubber surround •High temperature 4ohm aluminum voice coils •Rubber boot magnet cover •Polymide
dome midrange •Mylar dome tweeter •Piezo super tweeter (four way models) •For additional details, and
individual photos, see www.mcminone.com
Order #
51-1200
51-1201
51-1202
51-1203
51-1204
51-1205
51-1206
51-1208
51-1209
Mfr. #
XP2K-694
XP2K-693
XP2K-691
XP2K-653
XP2K-652
XP2K-52
XP2K-42
XP2K-573
XP2K-4102
Description
Power Capacity (max)
6" x 9" four–way
320W
6" x 9" three–way
300W
6" x 9" three–way
250W
61⁄2" three–way
200W
1
6 ⁄2" two–way
160W
1
5 ⁄4" two–way
140W
4" two–way
110W
5" x 7" two–way
160W
4" x 10" two–way
250W
Frequency Response
45Hz~18KHz
45Hz~20KHz
50Hz~20KHz
60Hz~20KHz
70Hz~20KHz
75Hz~20KHz
90Hz~20KHz
70Hz~20KHz
45Hz~18KHz
(1–3 prs.)
$46.95
45.95
39.95
32.95
27.95
24.95
19.95
31.95
32.95
(4 prs.–up)
$42.50
41.50
35.99
30.79
25.25
22.50
17.95
28.79
30.79
C50 pg 257
7/25/05
6:29 PM
Page 257
Automotive
Products
Automotive Speakers
Section 11
Blue Label
Automotive
Speaker Pairs
These two, three and four way speaker
pairs are designed for direct factory
replacement in common OEM locations.
The attractive blue poly cone provides
enhanced appearance with superior
performance and resistance to the elements.
Features: •Rubber surround •High temperature 4ohm aluminum voice coils •Neodymium film dome midrange
(applicable models) •Neodymium film dome tweeter (two-way models) •Piezo super tweeter (three and four
way models) •All models include grills, mounting hardware and speaker wire •Sold in pairs
Order #
51-1100
51-1101
51-1102
51-1103
51-1104
51-1105
51-1106
Mfr. #
PL42BL
PL53BL
PL463BL
PL63BL
PL573BL
PL683BL
PL6984BL
Description
4" 2-way
51⁄8" 3-way
4" x 6" 3-way
61⁄2" 3-way
5" x 7" 3-way
6" x 8" 3-way
6" x 9" 4-way
Power Capacity (max)
180W
200W
240W
360W
300W
360W
400W
Frequency Response
110Hz~20KHz
100Hz~20KHz
95Hz~20KHz
90Hz~20KHz
80Hz~20KHz
70Hz~20KHz
50Hz~20KHz
(1-3 prs.)
$15.99
17.59
17.59
19.95
22.49
29.95
31.90
(4 prs.-up)
$14.39
15.95
15.95
17.95
20.50
26.95
28.71
Blue Label Automotive
Speaker Pairs
Order #
51-1110
51-1111
51-1112
51-1113
51-1114
51-1115
Mfr. #
PLRL42
PLRL52
PLRL462
PLRL62
PLRL572
PLRL693
Description
4" 2-way
51⁄8" 2-way
4" x 6" 2-way
61⁄2" 2-way
5" x 7" 2-way
6" x 9" 3-way
Power Capacity (max)
140W
160W
180W
200W
200W
400W
Frequency Response
50Hz~20KHz
56Hz~20KHz
66Hz~20KHz
66Hz~20KHz
50Hz~20KHz
45Hz~20KHz
(1-3 prs.) (4 prs.-up)
$13.50
$12.25
15.95
14.50
16.95
15.26
17.99
16.19
23.99
21.59
26.99
24.29
Eternal Series
Automotive
Speaker Pairs
These two and three
way speaker pairs
feature a specially designed
poly/mica composite cone
and non-fatiguing butyl rubber
surround. Standard sizes are direct replacement for most OEM vehicle locations. Features: •High temperature
4ohm aluminum voice coil •High density barium ferrite magnet •Film dome midrange (applicable models)
•Mylar dome tweeter •All models include grills, mounting hardware and speaker wire •Sold in pairs
Order #
51-1130
51-1131
51-1132
51-1133
51-1134
51-1135
51-1136
Mfr. #
PLE4.2
PLE46.2
PLE5.2
PLE6.2
PLE68.2
PLE69.2
PLE69.3
Description
4" 2-way
4" x 6" 2-way
51⁄4" 2-way
61⁄2" 2-way
6" x 8" 2-way
6" x 9" 2-way
6" x 9" 3-way
Power Capacity (max)
180W
240W
200W
360W
360W
400W
480W
Frequency Response
85Hz~20KHz
55Hz~23KHz
80Hz~20KHz
55Hz~20KHz
55Hz~23KHz
45Hz~23KHz
45Hz~25KHz
(1-3 prs.)
$29.95
34.95
29.95
34.95
39.95
49.95
51.95
Part of Power
Acoustik’s XP2K
Series, this
speaker is
designed to provide extremely smooth, natural sound
at a tremendous price. This high-end two way design
incorporates features typically found in home theater
systems. Designed for replacement/upgrade of
original factory speakers, this unit does not include a
grill or mounting hardware. Features: •1" pivoting
soft dome tweeter •Gray metallic four layer cotton
fiber cone woofer with poly resin coating •6dB/octave
crossover •Rubber surround •Rubber boot magnet
cover Specifications: •Power capacity: 140W max
•Frequency response: 200Hz~22KHz •Impedance:
4ohm •0.75" aluminum voice coil (woofer) •8 oz.
magnet •SPL: 91B (W/M) •Mfr. #XP2K-465P
Order #
51-1211
(1-3 prs.)
$32.95
(4 prs.-up)
$30.79
11
These two, three and four way
speaker pairs are designed for
direct factory replacement in
common OEM locations. The
attractive blue poly cone provides
enhanced appearance with superior
performance and resistance to the
elements. Features: •Rubber surround •High temperature 4ohm aluminum voice coils •Neodymium film dome
midrange (applicable models) •Neodymium film dome tweeter (two-way models) •Piezo super tweeter (three and
four way models) •All models include grills, mounting hardware and speaker wire •Sold in pairs
4" x 6"
Two-Way
Component
Speaker Pair
4" x 6"
Two-Way
Speaker
Part of Power
Acoustik’s XP2K
Series, this
speaker is designed to provide extremely smooth,
natural sound at a tremendous price. Designed for
replacement/upgrade of original factory speakers, this
unit does not include a grill or mounting hardware.
Features: •Stamped frame with black chrome
plating •Gray metallic four layer cotton fiber cone
with poly resin coating •Rubber surround •Rubber
boot magnet cover •Mylar dome tweeter
Specifications: •Power capacity: 120W max
•Frequency response: 75Hz~20KHz •Impedance:
4ohm •0.75" aluminum voice coil (woofer) •8 oz.
magnet •SPL: 90B (W/M) •Mfr. #XP2K-462
•Sold individually
Order #
51-1210
(1-3)
$10.95
(4-up)
$9.89
(4 prs.-up)
$26.95
31.50
27.00
31.50
36.00
45.00
46.95
6" x 9" Ultra Slim OEM
Replacement Three–Way Speaker Pair
6.5" OEM
Replacement
Two–Way
Speaker Pair
4" OEM
Replacement
Two–Way
Speaker Pair
•Ultra thin
magnet structure allows direct drop–in replacement
for most factory speakers •Includes all mounting
hardware and grills •Poly mica coated woofer cone
•1" high temperature voice coil •Neodymium tweeter
with mylar dome •Power capacity: 140W/280W
RMS/peak •Impedance: 4ohm •Frequency
response: 50Hz~22KHz •Sold in pairs
•Ultra thin
magnet structure allows direct drop–in replacement
for most factory speakers •Includes all mounting
hardware and grills •Poly mica coated woofer cone
•1" high temperature voice coil •Neodymium tweeter
with mylar dome •Power capacity: 75W/150W
RMS/peak •Impedance: 4ohm •Frequency
response: 60Hz~20KHz •Sold in pairs
Order #
51-1033
Model #
PLS60
(1–3 prs.)
$31.24
(4 prs. –up)
$28.09
Order #
51-1030
Model #
PLS40
(1–3 prs.)
$23.89
(4 prs. –up)
$21.53
•Ultra thin magnet structure allows direct drop–in
replacement for most factory speakers •Includes
all mounting hardware and grills •Poly mica
coated woofer cone •Film cone midrange •1" high
temperature voice coil •Neodymium tweeter with
mylar dome •Power capacity: 225W/450W RMS/peak
•Impedance: 4ohm •Frequency response:
41Hz~22KHz •Sold in pairs
Order #
51-1034
Model #
PLS690
(1–3 prs.)
$46.99
OrderToll
Toll
Free
Order
Free
(4 prs. –up)
$42.26
Fax
FAX
257
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 258
7/25/05
6:27 PM
Page 258
Automotive
Products
Automotive Speakers
Section 11
Gear-X Automotive
Speaker Pairs
These two, three and four way
speaker pairs feature attractive
yellow poly injected cone woofers
in a variety of sizes. Standard
sizes are direct replacement for
most OEM vehicle locations. Features: •High temperature 4ohm
aluminum voice coil •Film dome midrange (applicable models) •Mylar
dome tweeter •All models include grills, mounting hardware and speaker wire •Sold in pairs
11
Dryver Series Component Speaker Pair
Two way component system is ideal for door mount
installations, with pillar mounted tweeter. The 61⁄2"
woofer features a specially designed die cast basket,
glass fiber/foam composite cone, rubber surround and
a 1" kapton voice coil. Available as a complete system,
woofers are also available separately, allowing use
with existing factory crossover and pillar mounted
tweeter. System includes: •Pair of 61⁄2" woofers •Pair
of 1" soft dome tweeters •Pair of 12dB/octave passive
two–way crossovers •Mounting template •Mounting
hardware •Speaker wire Specifications woofer:
•Power capacity: 200W/400W RMS/peak •Frequency
response: 55Hz~6KHz •Impedance: 4ohm Tweeter:
•Power capacity: 80W/160W RMS/peak •Frequency
response: 1400Hz~24KHz •Impedance: 4ohm
Order # Mfr. #
51-1126 PLD64
51-1127 PLD6C
Order #
51-1140
51-1141
51-1142
51-1143
51-1144
51-1145
51-1146
51-1147
51-1148
51-1149
51-1150
51-1151
51-1152
51-1153
51-1154
51-1155
51-1156
51-1157
Mfr. #
PLG3.2
PLG4.2
PLG46.2
PLG46.3
PLG5.2
PLG5.3
PLG57.2
PLG57.3
PLG6.2
PLG6.3
PLG6.4
PLG69.3
PLG69.4
PLG69.5
PLG69.8
PLG41.3
PLG71.4
PLG8.3
Description
31⁄2" 2-way
4" 2-way
4" x 6" 2-way
4" x 6" 3-way
51⁄4" 2-way
51⁄4" 3-way
5" X 7" 2-way
5" X 7" 3-way
61⁄2" 2-way
61⁄2" 3-way
61⁄2" 4-way
6" x 9" 3-way
6" x 9" 4-way
6" x 9" 4-way
6" x 9" 4-way
4" x 10" 3-way
7" x 10" 4-way
8" dia. 3-way
Power Capacity (max)
120W
140W
180W
180W
140W
140W
240W
240W
240W
280W
300W
360W
400W
450W
500W
300W
450W
400W
Frequency Response
100Hz~20KHz
90Hz~20KHz
70Hz~20KHz
70Hz~20KHz
80Hz~20KHz
80Hz~20KHz
70Hz~20KHz
75Hz~22KHz
65Hz~20KHz
60Hz~20KHz
60Hz~20KHz
45Hz~22KHz
45Hz~22KHz
45Hz~22KHz
45Hz~22KHz
60Hz~22KHz
40Hz~22KHz
37Hz~22KHz
(1-3 prs.)
$13.95
17.95
21.95
22.95
19.95
21.95
26.95
29.95
24.95
26.95
30.95
39.95
42.95
39.95
45.95
34.95
49.95
45.95
(4 prs.-up)
$12.75
16.25
19.95
20.75
17.95
19.95
24.29
26.99
22.50
24.50
27.95
36.00
39.00
36.00
42.00
31.50
45.00
41.50
Description
(1–3 prs.) (4 prs.–up)
Woofer pair
$91.95
$82.79
Component System145.00
131.00
Wave Series
Automotive Speaker Pairs
These two and three way
speaker pairs are designed for
direct factory replacement in
common OEM locations. The poly cone with foam surround provides solid
performance, making these ideal upgrades for factory units. Features: •High
temperature 4ohm aluminum voice coils •Mylar dome tweeter •Mylar dome
midranges (three–way models) •Ferrofluid cooled voice coils •Rubber boot
magnet cover •Grills, mounting hardware and speaker wire •Sold in pairs
Order #
51-1170
51-1171
51-1172
51-1173
51-1174
51-1175
51-1176
51-1177
51-1178
Mfr. #
PLX32
PLX42
PLX462
PLX52
PLX572
PLX62
PLX63
PLX693
PLX4102
Description
3.5" 2–way
4" 2–way
4" x 6" 2–way
5.25" 2–way
5" x 7" 2–way
6.5" 2–way
6.5" 3–way
6" x 9" 3–way
4" x 10" 2–way
Power Capacity (max)
80W
100W
160W
120W
180W
150W
180W
300W
200W
Frequency Response
65Hz~20KHz
65Hz~20KHz
50Hz~20KHz
55Hz~20KHz
50Hz~20KHz
50Hz~20KHz
50Hz~20KHz
60Hz~20KHz
50Hz~20KHz
(1–3 prs.)
$8.49
14.95
16.95
15.95
22.95
17.95
22.95
25.95
26.95
(4 prs.–up)
$7.69
13.50
15.29
14.50
20.75
16.50
20.79
23.50
24.50
Gear-X Series Component Speaker Pairs
Two-way component systems are ideal for door
mount installations, with pillar mounted tweeter.
Available with either 51⁄4" or 61⁄2" woofers, which
are compatible with most OEM door installations.
System includes: •Pair of woofers •Pair of 1" silk
dome tweeters •Pair of 12dB/octave passive two-way
crossovers •Mounting template •Custom grills
•Mounting hardware •Speaker wire Specifications
51⁄4" woofer: •Power capacity: 150W/300W RMS/peak
•Frequency response: 60Hz~6KHz •Impedance: 4ohm
•Magnet: 30 oz. 61⁄2" woofer: •Power capacity:
200W/400W RMS/peak •Frequency response:
50Hz~5KHz •Impedance: 4ohm •Magnet: 40 oz.
Tweeter: •Power capacity: 50W/100W RMS/peak
•Frequency response: 1400Hz~24KHz •Impedance:
4ohm •Neodymium magnet
Order # Mfr. #
51-1160 PLG5C
51-1161 PLG6C
Description
51⁄4" system
61⁄2" system
(1-3 prs.) (4 prs.-up)
$42.95
$39.00
49.95
45.00
NET 30
Terms
258
Order Online
www.mcminone.com
Crystal Series Automotive Speaker Pairs
Two, three and four–way speakers provide unique design
and great looks for solid performance in any installation.
Features: •Transparent blue polypropylene cone •Non fatiguing
butyl rubber surround •High temperature kapton voice coils
•Polymer dome midranges (appropriate models) •Film dome
tweeters (appropriate models) •Piezo super tweeters (appropriate
models) •Unique molded polycarbonate frame •All models 4ohm
•Included grills, mounting hardware and speaker wire •Sold in pairs
Order #
51-1070
51-1071
51-1072
51-1073
51-1074
51-1075
Mfr. #
490X
590X
685X
659X
698X
699X
Size
4"
51⁄4"
61⁄2"
61⁄2"
6" x 9"
6" x 9"
Type
2–Way
2–Way
2–Way
3–Way
3–Way
4–Way
Power Capacity (max)
180W
240W
280W
300W
480W
500W
Frequency Response
90Hz~20KHz
80Hz~20KHz
65Hz~20KHz
65Hz~20KHz
50Hz~20KHz
45Hz~20KHz
(1–3 prs.)
$19.95
21.95
25.95
26.95
35.95
37.95
(4 prs.–up)
$18.95
20.95
24.95
25.75
34.15
36.25
C50 pg 259
7/25/05
6:26 PM
Page 259
Automotive
Products
Automotive Speakers
Section 11
Imperial Series Automotive Speaker Pairs
Exclusively designed speakers are bound to turn
heads in any installation. Highly polished gold
finish is augmented by the bolted–on magnet
back plate, gold cone and rubber surround. 6" x 9"
#51-1081
#51-1080
remains the industry standard for read deck
mounting in most cars, while 6.5" is used in many rear
decks and doors. Features: •Gold injection poly cone •Rubber surround •High temperature 4ohm aluminum
voice coils •Polymer film midranges •Mylar dome tweeters •Includes grills, mounting hardware and
speaker wire •Sold in pairs
Order #
51-1080
51-1081
Mfr. #
6390
6490
Description
61⁄2" 3–way
6" x 9" 4–way
Power Capacity (max)
240W
480W
Frequency Response
55Hz~20KHz
45Hz~20KHz
(1–3 prs.)
$22.95
31.95
(4 prs.–up)
$21.95
30.50
Super Blue
Series Automotive
Speaker Pairs
Two and three-way
speakers provide solid
performance at a value
price, with sizes to suit
virtually any installation.
Features: •Blue injected polypropylene cone •Non fatiguing butyl rubber surround •High temperature
aluminum voice coils •Polymer dome midranges (appropriate models) •Piezo tweeters •Stamped steel
frame •All models 4ohm •Included grills, mounting hardware and speaker wire •Sold in pairs
Mfr. #
6991
6591
6091
5091
5791
4691
4091
Size
6" x 9"
61⁄2"
61⁄2"
51⁄4"
5" x 7"
4" x 6"
4"
Type
3-way
3-way
3-way
3-way
3-way
3-way
2-way
Power Capacity (max)
600W
300W
300W
240W
300W
300W
200W
4" x 6" OEM Replacement
Two–Way Speaker Pair
•Ultra thin magnet structure allows direct drop–in
replacement for most factory speakers •Includes all
mounting hardware and grills •Poly mica coated
woofer cone •1" high temperature voice coil
•Neodymium tweeter with mylar dome •Power
capacity: 90W/180W RMS/peak •Impedance: 4ohm
•Frequency response: 66Hz~22KHz •Sold in pairs
Order #
51-1032
Model #
PLS460
(1–3 prs.)
$25.46
(4 prs. –up)
$22.84
Frequency Response
30Hz~32KHz
55Hz~30KHz
55Hz~23KHz
65Hz~20KHz
60Hz~20KHz
70Hz~20KHz
75Hz~20KHz
(1-3 prs.)
$30.95
21.95
16.95
14.25
19.95
14.95
12.95
Order #
53-695
(4 prs.-up)
$29.50
20.95
16.25
13.50
18.95
14.25
12.50
5.25" OEM Replacement
Two–Way Speaker Pair
•Ultra thin magnet structure allows direct drop–in
replacement for most factory speakers •Includes
all mounting hardware and grills •Poly mica
coated woofer cone •1" high temperature voice coil
•Neodymium tweeter with mylar dome •Power
capacity: 90W/180W RMS/peak •Impedance: 4ohm
•Frequency response: 55Hz~20KHz •Sold in pairs
Order #
51-1031
Model #
PLS50
(1–3 prs.)
$24.94
The perfect solution
for enhanced high
frequency response
in any vehicle where
added durability is
critical. Mylar cone
material is especially
resilient against
moisture and
humidity. Tweeters
may be flush or surface
mounted for added
versatility. Ferro fluid cooled voice coil, and
neodymium magnets provide outstanding power
handling characteristics, and 1⁄2" dome delivers
accurate smooth high frequency response.
Specifications: •Power capacity: 75W/150W
RMS/peak (with supplied crossover capacitor)
•Response: 1.3KHz~22KHz •Impedance: 4ohm
•SPL: 92dB (1W/1M) •13⁄4" outside diameter
•Flush mount configuration requires 15⁄8" cutout
•Sold in pairs •Mfr. #PLST6
(4 prs. –up)
$22.58
•Perfect for factory upgrade or replacement •Black
poly resin coated woofer cone provides improved low
frequency response and high immunity to moisture
•Includes sleek black mesh grills and hardware
•2.75" pole mounted poly midrange •13⁄4" piezo tweeter
•Power capacity: 300W peak •Impedance: 4ohm
•Frequency response: 70Hz~20KHz •Mounting depth:
3.75" •Sold in pairs
4" x 10" OEM Replacement
Two–Way Speaker Pair
Order #
51-1053
Model #
6908GS
(1–3 prs.)
$26.20
(4 prs. –up)
$23.63
•Ultra thin magnet structure allows direct drop–in
replacement for most factory speakers •Includes
all mounting hardware and grills •Poly mica
coated woofer cone •1" high temperature voice coil
•Neodymium tweeter with mylar dome •Power
capacity: 140W/280W RMS/peak •Impedance: 4ohm
•Frequency response: 55Hz~22KHz •Sold in pairs
Order #
51-1035
Model #
PLS410
(1–3 prs.)
$38.06
(4 prs. –up)
$34.39
(4-up)
$8.93
Poly Cone
Automotive
Tweeter Pair
Niobium rare earth
ferro-electric magnet
tweeters provide
extended high
frequency response
in demanding
automotive
applications.
Features:
•Polypropylene
diaphragm •100W
RMS power capacity •5KHz~25KHz frequency
response •4ohm impedance •Two-way surface/angle
mount •Built-in crossover •SPL 97dB •Sold in pairs
•Mfr. #NB-1
Order #
60-8765
(1-3 prs.)
$23.63
(4 prs.-up)
$20.74
Acoustic Baffles
•Eliminates
water damage
•Reduces road
noise •Improves
door acoustics •Increases
power handling •Baffles compress to fit most doors
•Sold in pairs
Order #
60-275
60-280
60-285
60-290
6" x 9" Three–Way Speaker Pair
(1-3)
$9.98
11
Order #
51-1090
51-1091
51-1092
51-1093
51-1094
51-1095
51-1096
Mylar Dome
Tweeter Pair
Size
Shallow 5"
61⁄2"
6" x 9"
8"
(pr.)
$5.29
7.94
7.94
10.06
Automotive woofers can
be found in Speaker
Components, Section 5.
OrderToll
Toll
Free
Order
Free
Fax
FAX
259
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 260
7/25/05
6:25 PM
Page 260
Automotive
Products
Automotive Speakers
Silk Dome
Tweeter Pair
Section 11
6" x 9" Three-Way Speaker Pair
•Low cost pair is perfect for factory upgrade or
replacement •Includes hardware, speaker wire and
grills •Red foam surround •Durable and efficient
piezo midrange and tweeter •Power capacity:
150W peak •Impedance: 4ohm •Frequency
response: 80Hz~16KHz •Mounting depth: 2.75"
•Sold in pairs
Order #
51-1054
Model #
697SX
Quoobz® Cube Style
Bandpass Subwoofer
(1–3 prs.)
$14.65
The perfect solution
for enhanced high
frequency response
in any vehicle. Tweeter pair includes versatile
mounting hardware that allows flat surface or
angled mounting. Ferro fluid cooled aluminum voice
coil, and neodymium magnet provides outstanding
power handling characteristics, and 1" silk dome
delivers extremely accurate and smooth high
frequency response. Specifications: •Power
capacity: 50W/100W RMS/peak (with supplied
crossover capacitor) •Response: 2KHz~20KHz
•Impedance: 4ohm •SPL: 92dB (1W/1M) •11⁄4"
outside diameter •Sold in pairs •Mfr. #TW22N
Order #
53-700
(pr.)
$13.13
(2 prs.-up)
$11.81
5.25" Water
Proof Marine
Speaker Pair
11
•Perfect for
factory upgrade
or replacement
in door and kick
panels •Includes hardware, grills and speaker
wire •Black poly resin coated woofer cone •1" high
temperature ferrofluid cooled voice coil •13⁄4" pole
mounted aluminum film tweeter •Power capacity:
160W peak •Impedance: 4ohm •Frequency
response: 90Hz~18KHz •Mounting depth: 1.75"
•Sold in pairs
Order #
51-1052
Model #
438G
(1–3 prs.)
$11.50
Order #
60-4145
60-4146
60-4147
Mfr. #
PLQB8
PLQB10
PLQB12
Woofer Size
8"
10"
12"
Peak Power
Capacity
(1-3)
300W
$47.20
350W
62.95
400W
83.95
Hatchback Speaker Systems
(4 prs.–up)
$13.22
4" Two–Way
Speaker Pair
Single channel
bandpass speaker
system is perfect
for adding high levels
of low frequency
response to any
vehicle system. Use
with single channel
amplifiers, or multi
channel models in
bridged mode.
Features include:
•Clear Plexiglas cover •High quality
carpeted construction •Tuned bass reflex
port •Available in three sizes
•Completely
waterproof
when securely
mounted •Ideal for boats and harsh environments
•Full range dual cone air suspension speaker •One
piece design includes built–in white grill •Includes
mounting hardware and speaker wire •Power
capacity: 100W peak •Impedance: 4ohm •Frequency
response: 100Hz~18KHz •Mounting depth:
1.5" •Sold in pairs
Order #
51-1060
Model #
MDC6
(1–3 prs.)
$10.45
(4 prs.–up)
$9.44
(4 prs.–up)
$10.38
Complete
carpeted
enclosure
speaker
systems
make
adding
pounding
bass, with
sizzling
highs, quick and easy.
Dual woofers, in a sealed angled box,
provide solid low frequency response. Piezoelectric
horn tweeters provide outstanding efficiency and
very high durability, perfect in demanding
autosound applications. Available in two sizes,
each channel is 4ohm.
Order # Mfr. #
51-986 PLHB10
51-987 PLHB12
Size
10"
12"
Peak Power Capacity (1-3)
700W
$104.95
900W
135.45
6.5" Water
Proof Marine
Speaker Pair
4" x 10" Three–Way Speaker Pair
•Low cost pair is perfect for factory upgrade or
replacement •Includes hardware, speaker wire and
grills •Red foam surround •Durable and efficient
piezo midrange and tweeter •Power capacity: 200W
peak •Impedance: 4ohm •Frequency response:
80Hz~18KHz •Mounting depth: 2.5" •Sold in pairs
Order #
51-1050
Model #
4103SX
(1–3 prs.)
$17.33
(4 prs.–up)
$15.63
•Perfect for
factory upgrade or
replacement in many dashboards •Includes
hardware and speaker wire •Black poly resin coated
woofer cone •3⁄4" high temperature ferrofluid cooled
voice coil •13⁄4" pole mounted aluminum film tweeter
•Power capacity: 120W peak •Impedance: 4ohm
•Mounting depth: 1.75" •Sold in pairs
Model #
328GS
(1–3 prs.)
$7.34
(4 prs.–up)
$6.60
NET 30
Terms
260
Order #
51-1061
Model #
MDC7
(1–3 prs.)
$14.18
(4 prs.–up)
$12.80
6" x 9" Enclosure Pair
Order #
60-2910
(W) x (H) x (TD) x (BD)
111⁄2" x 81⁄4" x 51⁄2" x 6"
(1-3 prs.) (4 prs.-up)
$24.49 $22.06
A
4" Round Replacement
Automotive Speakers
31⁄2" Two–Way
Speaker Pair
Order #
51-1051
•Completely
waterproof
when securely
mounted •Ideal for boats and harsh environments
•Full range dual cone air suspension speaker
•1" high temperature voice coil •One piece design
includes built–in white grill •Includes mounting
hardware and speaker wire •Power capacity: 120W
peak •Impedance: 4ohm •Frequency response:
45Hz~16KHz •Mounting depth: 2.5" •Sold in pairs
Order Online
www.mcminone.com
Ideal for direct factory
replacement. Use when
existing speakers become
worn or damaged, or when
downgrading autosound
system to resell the vehicle.
All models feature paper
cones with weather resistant foam surround, and a
“wizzer” cone for extended high frequency response.
Intended for direct replacement, these models
include no mounting hardware, grills or speaker
wire. Sold individually. Specifications:
•Power capacity: 10W RMS •Impedance: 4ohm
•Connections: Male tab 3⁄16" positive, 1⁄8" negative
•Fequency response: 130Hz~8KHz •SPL: 78.6dB
•fs: 155Hz •Magnet weight: 4 oz. •Mounting
depth: 13⁄4"
Order #
60-9240
(1-9)
$3.24
(10-24)
$2.72
(25-up)
$2.61
B
The Classic Series
•Glued and stapled for a solid air tight seam
•Heavy duty charcoal carpet for a finished look
•Woofer openings and quick release terminal cups
for ease of installation
Order #/
Speaker/Fig.
60-2940
10"/A
60-2945
12"/A
60-2955
12"/B
(W) x (H) x (TD) x (BD)
35" x 121⁄2" x 83⁄4" x 111⁄4"
(1-3)
(4-up)
$55.43 $51.12
35" x 12 ⁄2" x 13 ⁄4" x 15 ⁄4"
66.45
62.15
49" x 14 ⁄4" x 5" x 8"
66.45
62.15
1
1
1
3
C50 pg 261
7/25/05
6:23 PM
Page 261
Automotive
Products
Remote Start “T” Harnesses
All Models Only $20.95
Greatly simplifies the installation of the #60-4750 and
#60-4760 remote start systems. Custom manufactured for
compatibility with most vehicles on the road today, these
harnesses connect directly to the vehicles existing steering
wheel harness. This eliminates any need for cutting or
splicing existing vehicle wiring.
Order #
60-4714
60-4716
60-4712
60-4716
60-4712
60-4712
60-4714
60-4716
60-4716
60-4714
60-4716
60-4714
60-4712
60-4714
60-4716
60-4716
60-4712
60-4716
60-4716
60-4712
60-4716
60-4716
60-4712
60-4716
60-4716
60-4712
60-4714
60-4720
60-4720
60-4720
60-4718
60-4720
60-4718
60-4720
60-4718
60-4718
60-4720
60-4720
60-4718
60-4720
60-4720
60-4720
60-4718
60-4720
60-4720
60-4718
60-4720
60-4718
60-4720
60-4720
60-4718
60-4720
60-4720
60-4720
60-4718
60-4720
60-4720
60-4718
60-4720
60-4720
60-4708
60-4710
Vehicle/Model
General Motors
APV
Astro
Astro
Aurora
Beretta
Blazer
Bonneville
Bravada
Bravada
Camaro/Firebird
Caprice
Cavalier
Cavalier
Century
Century
Century
Concours
Corsica
Cutlass (FWD)
Cutlass Calais
Cutlass Ciera
Cutlass Cruiser
Cutlass Supreme
De Ville
Eighty-Eight
El Camino
Eldorado
Fleetwood
Full Size Blazer
Full Size Jimmy
Full Size Pick-up
Full Size Pick-up
Full Size Van
Full Size Van
GMC Pick-up
Grand Am
Grand Am
Grand Prix
Grand Prix
Impala
Intrique
Jimmy
Lesabre
Lesabre
LSS
Lumina
Malibu
Montana
Monte Carlo
Monte Carlo
Ninety-Eight
Park Avenue
Regal
Regal
Regency
Riviera
Riviera
Roadmaster
S-10 Pick-up
S-15 Jimmy
Safari
Safari
Savanna Van
Seville
Silhouette
Order #
90-96
85-95
96-00
95-99
88-96
95-00
87-99
88-94
95-00
81-92
81-96
82-90
91-00
85-89
91-96
97-99
95-98
88-96
97-99
88-95
91-96
88-95
85-97
91-99
93-99
82-87
98-99
95-96
88-94
74-94
78-94
95-99
83-95
96-00
95-99
95-98
99-00
94-96
97-00
81-96
97-00
95-00
82-88
89-99
97-99
90-99
97-99
98-00
87-89
90-98
93-96
96
94-96
97-99
97-99
87-93
95-99
91-96
95-00
99-00
85-95
96-00
96-00
95
90-96
60-4700
60-4700
60-4721
60-4721
60-4700
60-4721
60-4704
60-4700
60-4721
60-4700
60-4700
60-4700
60-4708
60-4700
60-4704
60-4721
60-4704
60-4700
60-4710
60-4700
60-4704
60-4700
60-4704
60-4704
60-4704
60-4700
60-4704
60-4700
60-4700
60-4700
60-4700
60-4721
60-4700
60-4721
60-4721
60-4708
60-4710
60-4704
60-4721
60-4700
60-4710
60-4721
60-4700
60-4704
60-4704
60-4704
60-4710
60-4721
60-4700
60-4704
60-4704
60-4704
60-4704
60-4721
60-4704
60-4700
60-4721
60-4700
60-4721
60-4721
60-4700
60-4721
60-4721
60-4704
60-4700
Vehicle/Model
Silhouette
Skylark
General Motors
Skylark
Sonoma
S-Series Blazer
Suburban
Suburban
Sunfire
Tahoe
Tornado
Transport
Transport
Venture
Yukon/Denali
Honda
Civic
Del Sol
Integra
Isuzu
Hombre
Jeep
Cherokee
Cherokee
Grand Cherokee
Wrangler
Lexus
ES300
GS300/400
LS400
RX300
Mazda
Navajo
Pickup
Nissan
200SX
200SX
240SX
Altima
Altima
Frontier
Maxima
Pathfinder
Pickup
Sentra
Stanza
Xterra
Saturn
All models
Toyota
4-Runner
4-Runner
Avalon
Camry
Camry
Corolla
Land Cruiser
Paseo
Previa
Rav 4
Sienna
Solara
SR5
T-100
Tercel
Tundra
Year
97-00
85-91
Order #
60-4721
60-4700
92-98
95-98
91-94
88-94
95-00
94-00
95-00
89
90-96
97-98
97-00
95-00
60-4708
60-4721
60-4700
60-4700
60-4721
60-4708
60-4721
60-4704
60-4700
60-4721
60-4721
60-4721
96-00
92-97
98-00
60-4722
60-4722
60-4722
96-97
60-4721
95-96
97-00
95-00
97-00
60-4716
60-4712
60-4716
60-4712
98-00
2000
98
2000
60-4732
60-4732
60-4732
60-4732
92-95
94
60-4718
60-4718
91
95-99
94-99
93-94
95-99
98-00
94-00
92-95
92-95
95-99
96-98
2001
60-4728
60-4726
60-4726
60-4728
60-4726
60-4726
60-4726
60-4728
60-4728
60-4726
60-4726
60-4726
95-01
60-4730
92-95
96-00
95-00
92-96
97-00
98-01
99-01
95-99
92-97
96-00
98-00
99-01
92-95
94-98
95-99
2000
60-4734
60-4732
60-4732
60-4736
60-4732
60-4732
60-4732
60-4732
60-4736
60-4732
60-4732
60-4732
60-4734
60-4734
60-4732
60-4732
Invisiguard Intrusion Sensor
Untouchable
Shock Sensor
•Ultra-miniature doppler radar
intrusion sensor •Designed
to detect any unauthorized
entry within its adjustable RF
field •Completely immune to
temperature changes, noise wind
or vibration •Perfect for cars equipped
with T-Tops, convertible tops and sun roofs
•Fully electronic “no
moving parts” •Super
sensitive •Adjustable
sensitivity •LED
sensitivity test light
•3 wire installation
Order #
60-1855
Year
(1-3)
$8.47
(4-up)
$7.94
Order #
60-1860
(1-3)
$25.15
Do-It-Yourself Remote Start Systems
Nine on-board relays greatly ease the incorporation
into most vehicles, even for first time installers.
When combined with separately available Bulldog
“T-Harness” wiring kits, they install into many
vehicles with absolutely no wire splicing
Features: •Four-button extended range remote
(only one remote included) •Dedicated start and
stop buttons •Keyless entry •Remote trunk release
•Programmable automatic cold start •Parking light
confirmation •Dome light supervision •5/10/15
minute programmable run time •Tach or tachless
compatibility •800' extended range operation
#60-4760 Additional features: •One four-button
extended range remotes •Programmable automatic
start every three hours with 5/10/15/20/25 minute
selectable run time •Ignition switch door lock
actuation •Programmable automatic hot weather
start (in addition to cold) •Horn or siren hook-up
•Door trigger protection •Starter immobilizer
output •Sensor protection output
Order #
60-4750
60-4760
(1-3)
$83.95
104.95
(4-up)
$79.75
99.70
Two Channel Alarm
with Pager
Complete two channel automotive security system
includes a compact pager/receiver, which is
integrated into one of the two-button remotes. This
alerts the owner that the car has been violated for
range of up to one mile from the vehicle. A second
two-button remote is included to operate all other
standard alarm features. System also includes a
five-stage status LED and 120dB single tone siren.
Features: •Full 4W paging transmitter
•Lock/unlock outputs •Valet override switch
•Selectable passive/manual arming •Positive and
negative trigger inputs •Additional negative trigger
input •Breach warning •Auto rearm and reset
Order #
60-4015
(4-up)
$22.84
Model #
RS1100E
RS1300E
Mfr. #
AP5500
(1-3)
$136.80
OrderToll
Toll
Free
Order
Free
(4-up)
$122.00
Fax
FAX
261
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
11
Vehicle/Model
Year
Chrysler
300M
99-00
Acclaim
94-95
Breeze
96-00
Caravan
88-95
Caravan
96-00
Cirrus
95-00
Concorde
94-00
Dakota
94-02
Durango
98-02
Intrepid
94-00
LeBaron
90-95
LHS
94-00
Neon
95-99
New Yorker
95-96
Ram Pickup
95-02
Ram Van
95-02
Sebring Convertible 96-00
Shadow
94
Spirit
95
Stratus
95-00
Sundance
94
Town & Country
94-95
Town & Country
96-00
Viper
96
Voyager
95
Voyager
96-00
Eagle
Vision
94-97
Ford/Lincoln/Mercury
Aerostar
94-97
Bronco
93-96
Continental
94-02
Cougar
81-93
Cougar
94-97
Crown Victoria
83-89
Crown Victoria
90-02
Econoline
95-02
Escort
82-87
Excursion
2000
Expedition
97-02
Explorer
92-97
Explorer
98-02
F-250 Super
99-02
F-Series
94-02
Grand Marquis
83-89
Grand Marquis
90-02
Mark VII
93-96
Mountaineer
96-97
Mountaineer
98-02
Mustang
80-93
Mustang
94-02
Navigator
98-02
Ranger
84-94
Ranger
95-02
Sable
92-02
Taurus
92-02
Thunderbird
81-93
Thunderbird
94-98
Town Car
94-99
Tracer
82-87
Villager
94-02
Windstar
94-02
General Motors
Achieva
91-98
Alero
99
Section 11
C50 pg 262
7/25/05
6:22 PM
Page 262
Automotive
Products
Section 11
Keyless Entry System
Remote Car
Starter with Two Channel Alarm
11
Pro Full Featured Alarm System
Designed to provide the ultimate in automobile
protection and convenience, the Bulldog Model
5002 Pro offers the most often requested features in
an automobile alarm. Features include: •Open or
defective zone by-pass with audible alert •Silent
arming/disarming •Arm/disarm conformation chirp
•Three chirp conformation if system was violated
•Flashing light conformation (with on-board relay)
•Two-way positive/negative door lock outputs
•Turn-on headlights or parking lights (for 30
seconds when disarmed) •Automatic car starter
bypass (shock and current) •Automatic re-arm
•Dual zone trigger circuit •Progressive door pins
•Progressive shock sensor input (negative) •Keyless
entry •“E-Square” memory back-up chip •Dome
light supervision •Override switch •Full time
instant panic •Computer controlled fan sensor
override •Remote car finder •Remote control
programming •Scan deterrent •Code learning
•Passive or active arming •Pre-arming chirp prior
to passive arming •Distracted entry •Automatic
annoyance override (if alarm is activated three
times consecutively by the same trigger, that trigger
is deactivated, all others remain armed) •Six
function LED status indicator •Six tone 126dB siren
•Six separate input triggers •Negative/positive door
pin input trigger •Five negative output triggers for
door lock/unlock, trunk pop, window roll up, remote
start etc. •Starter disable output •Remote sensor
elimination •(2) four button extended range remote
controls Model 6002Pro provides all of the above
listed features, plus the following: •On board
remotely adjustable shock sensor •9V battery
back-up •Included started kill relay •Passive shock
lock •Passive alarming Model 7002Pro provides
all of the above listed features, plus: •Extended
range key-chain remote •Plug-in automatic anti
car-jacking •All include a limited lifetime warranty,
and are made in the USA
Order #
60-8495
60-2345
60-2350
Mfr. #
5002Pro
6002Pro
7002Pro
(1-3)
$57.70
73.45
90.09
(4-up)
$53.50
68.20
79.49
Door Lock Actuator
Converts manual door lock mechanism to electronic
operation. Fits most cars.
Order #
60-8570
Mfr. #
PRO1080
(1-3 kits)
$4.08
(4 kits-up)
$3.77
NET 30
Terms
262
Order Online
www.mcminone.com
Four–in–one remote starter may be used as a
stand–alone unit with or without keyless entry, or
as an add–on unit to an existing aftermarket or
original factory security system. Features: •Two,
five–button remote transmitters •66 bit random
code hopping •Code learning, anti–scan receiver
•Shift function for second car operation •Five
onboard relays for ignition 1, ignition 2, starter,
accessory and parking light •Plug–in dual channel
shock sensor •Starter disable with relay •Dome
light illuminated entry •One positive and four
negative inputs •Error bypass reporting
•120dB electronic siren •Horn output
•Ground–when–armed output •Third ignition
output •Remote control panic •Car locator •Second
channel auxiliary output •Dual polarity (+/-) door
lock outputs •Valet override switch •Diesel fuel
compatibility •Hood pin switch input •Selectable
voltage/RPM start sensing. Specifications:
•Remote operating frequency: 433.92MHz •Range:
750' •Run time: 5/10/20/30 minutes programmable
Order #
60-4024
Mfr. #
RS650
(1–3)
$114.45
(4–up)
$103.95
This is a perfect low-cost unit for situation were only
keyless entry is desired. System includes (2)
five-button remotes, and has a remote panic output
which may be connected to an optional horn.
Features: •56 bit random code hopping •Second car
operation •Dual polarity door lock outputs •Second
channel auxiliary output •Starter disable output
•On-board relay for parking light flash •Dome light
illuminated entry •Programmable ignition control
lock/unlock •Programmable active/passive system
control •Selectable extended lock pulse time
•Single/double pulse door unlock
Order #
60-4025
Mfr. #
RF-105KE
(1-3)
$42.41
(4-up)
$38.21
Battery Back-Up Siren
This loud 120dB siren
provides the added security
of an internal battery
back-up. Attached red/black
power leads are connected to
a continuous 12VDC source,
with separate positive and
negative trigger inputs, making this
compatible with any conventional automotive or
residential security systems. Built-in charging
circuit maintains a full charge on the internal
battery, and the siren is triggered if either power
lead is removed. Requires 12VDC, 1A.
Order #
60-4450
(1-3)
$19.23
(4-11)
$17.41
(12-up)
$15.37
Automotive Six Tone Siren
Loud 117dB siren produces six
different tones, and alternates
them every six seconds. 12VDC, 1A
operation is compatible with virtually
all automotive and residential
alarm systems.
Two Channel Remote
Start with Keyless Entry
This high performance remote start system may be
configured as a stand–alone system, with or with out
keyless entry, or as an add–on to an existing vehicle
security system. System includes two remote
transmitters. Keyless entry features: •66 bit
random code hopping •Code learning/anti–scan
receiver •Second car operation •Extended range
(500~750') window mount antenna •Memory
back–up system •Dedicated remote panic and car
locator •Passive arming bypass from the remote
•Parking light flash with on–board relay •Second
channel auxiliary output •Valet override •Plug–in
super bright LED •Starter disable output (optional)
•Horn honk output •Ground–when–armed output
•Dual polarity door lock outputs •Pathway
illumination •Drivers door priority two–step unlock
•Dome supervision output •All programmable
features are programmed via the remote transmitter
Remote start features: •Five on–board relays
(ignition 1, ignition 2, starter, accessory, parking
light •Third ignition output) •Ground–when–start
output •Diesel fuel compatibility •Hood pin
switch input •Selectable voltage/RPM start
sensing/timer–start •Timer–start (0.6 seconds~4.0
seconds) •Temporary stop feature •Factory
security disarm/rearm outputs •Programmable
three–hour/24–hour timer start •Sensor control
output during start •OEM alarm output •Selectable
run timer •Ignition control lock bypass during
remote start Programmable features: •Chirp
delete •Ignition control door locks •5, 10, 20 and 30
minute run timer •RPM and voltage high/low
level checking
Order #
60-4018
Mfr. #
RS-610 plus
(1–3)
$83.95
(4–up)
$75.56
Order #
60-4440
(1-3)
$9.59
(4-11)
$8.66
(12-up)
$7.65
Mini Piezo Siren
Compact piercing 100dB siren
is ideal for use inside the
vehicle as a “first-stage” or
“pre-alert” alarm. 12VDC, 220mA
operation is compatible with virtually all automotive
and residential alarm systems.
Order #
60-4445
(1-3)
$3.94
(4-11)
$3.55
(12-up)
$3.15
Flashing LED
•Prewired 5mm
LED in metal
housing •36" red
and black lead
wires •Use for
arming indicator or in dummy alarms •12VDC
Order #
25-460
(ea.)
$2.11
BOSCH Original
Bosch Relay
Commonly used in automotive
security, lighting and audio
applications. SPDT contacts
handle 30A. Compatible
with standard 5 pin relay
sockets. Bosch #0-332-209-150.
Order #
26-534B
(1-9)
$2.09
(10-up)
$1.98
C50 pg 263
7/25/05
6:20 PM
A
Automotive
Pin Switches
Page 263
D
C
B
This wide assortment of
switches allows custom
installation of security
equipment in virtually
any automotive
application.
#60-4460~4463 feature
adjustable mounting
depths and include
mounting nuts.
#60-4464 has self taping threads for insertion into a
1
⁄4" hole. #60-4465 is attached to a 11⁄4" x 5⁄8" mounting
flange. #60-4465 and #60-4463 may be connected
via a standard 1⁄4" female quick disconnect, all
others utilize 4mm male bullet connector,
such as #28-6084.
Fig.
A
B
C
D
Order #
60-4460
60-4461
60-4462
60-4463
Description
(1-11)
Large
$0.50
Small
0.50
Large Right angle 0.53
Large plastic
0.85
(12-25)
$0.45
0.45
0.48
0.74
(26-up)
$0.41
0.41
0.42
0.67
Pin Switch Bracket
•Universal bracket for
most pin switches
•Available in either flat or right angle
Order #
60-7030
60-7035
Style
Flat
Right angle
(1-3)
$0.41
0.41
(4-up)
$0.37
0.37
Automotive
Products
Section 11
Sound Deadening Material
Sound deadening mats are the
most cost effective way of improving the performance
of any autosound system. Often, focus is placed
primarily on total SPL output, while true
performance is actually based on the SPL over road
noise. By lowering the noise floor, sound system
quality is greatly improved, an especially important
requirement with mobile video systems. Installed
inside door panels, between trunk and roof liner and
body, and under carpet, these self-adhesive pads
easily contour to any shape and are easily cut to size.
#60-4840 is a rubber mat with silver fiber and is
specially designed for sound and heat insulation in the
interior floor, transmission tunnel or trunk.
#60-4845 is specially designed rubberized material for
superior sound absorption in door panels, headliner,
transmission tunnel and trunk. #60-4850 is a
rubberized material with a chrome reflective layer, for
sound insulation in high heat areas such as
the firewall.
Order #
60-4840
60-4845
60-4850
Dimensions
18" x 30"
22" x 22"
18" x 30"
(1-3)
$23.63
20.95
24.10
2
(4-9 sets)
$5.84
(10 sets -up)
$5.25
Window and Door Clip Remover/lnstaller
•Allows user to easily remove and install door
handle and window crank clips on GM, Ford and
many other automobiles •Made in USA
Order #
22-1135
(1-3)
$6.86
(4-up)
$6.24
Car Aerial
Plug-Solderless
(1-24)
$1.03
(25-up)
$0.93
Car Aerial Socket
Mfr. #
OB1
(ea.)
$35.50
Metal
Back Straps
•Used by auto installers for securing the rear of
dash head units •Heavy gauge perforated metal
strap is easily formed to desired shape
Length
9"
163⁄8"
(1-9)
$1.05
1.56
(10-up)
$0.84
1.25
(1-24)
$0.93
(25-up)
$0.83
Order #
60-135
60-190
Length
20"
8'
(1-9)
$1.30
6.35
(10-up)
$1.08
5.82
Motorola to
“F” Connector
36" Cable
•8" color-coded
leads •Keyed for correct hook-up every time
•Perfect for multi-radio displays where a single
external antenna is used.
(1-9)
$2.25
(10-49)
$1.85
(50-99)
$1.43
(1-9) (10-24) (25-up)
$0.99 $0.91 $0.81
0.99 0.91
0.81
Five Wire
Relay Socket
Order #
60-6975
(ea.)
$0.89
Double Relay Socket
Order #
60-6935
(ea.)
$1.49
31⁄2 Digit
LCD
Panel Meter
Monitor DC voltage
for any 12V system,
especially high
power car audio
system where good voltage output is essential.
Features include: Auto polarity, single 9~12VDC
operation, decimal point and selectance, 13mm
figure height, high impedance 200mV full scale
input sensitivity. Dimensions: 25⁄8" x 13⁄4".
Order #
60-2960
(1-3)
$14.18
(4-up)
$11.81
•Simply plug into lighter
socket to test electrical
system •Checks battery and
regulator •Tests 12V
negative ground battery system •Display packaged
Antenna Extensions
for Auto Radio
Two-Way Flat
Connector
Order #
27-615
Pins
Four
Five
Car Battery Analyzer
•Motorola type plug and
jack •Made of highquality, shielded cable
Solderless in-line
socket. Black
plastic body.
Order #
AV00035
Order #
72-6593
Contact Contact
Order # Type Current
26-533 SPST
40A
26-534 SPDT
30A
•Three 14 gauge and two
16 gauge wires
•9" length
•On-board style mounts
near the battery,
hardware included •Fully automatic can be left on
the battery indefinitely •Easily keeps batteries
charged in stored vehicles, turns on and off
automatically •Can be used with any type lead acid
battery, including conventional, maintenance free,
deep cycle, gelled-type, valve regulated batteries
•Indicator lights, green-on and red-charge
•Reverse polarity protected •Convenient short
leads for battery connection and to AC extension
cord •1.5A, 12V •Power requirements: 120VAC,
60Hz •Dimensions: 4.75" (W) x 3.5" (H) x
1.75" (D) •Weight: 2.5 lbs.
Order #
60-580
60-581
Solderless plug
with plastic body.
Order #
AV00034
YEAR LIMITED
WARRANTY
1.5 Amp On-Board
Automatic
Battery Charger
•Specially designed tool
saves time and removes
factory installed stereos
with ease •Ideal for
Ford, Lincoln and
Mercury automobiles •Four rings per set
(1-3 sets)
$6.31
(9-up)
$16.75
15.23
17.80
These high current relays
are commonly used for
switching high current
autosound, security, lighting and other
custom applications. Mounting tab
allows easy installation any place
in the vehicle, even under the hood.
1
⁄4" tabs accept standard female
quick-disconnects or commonly used
four and five pin OEM relay sockets.
Specifications: •Coil voltage: 12VDC
•Coil resistance: 85ohm •Current
consumption: 145mA •Minimum pull-in
voltage: 8.4VDC •Max release voltage:
1.2VDC •Dimensions: 1" (H) x 1" (W) x 1" (D)
(less mounting tab)
11
Factory Radio
Removal Tool Set
Order #
60-1675
(4-8)
$21.26
18.85
21.72
Automotive
12 Volt Relays
Order #
28-2145
Order #
28-1380
Original Kenwood Radio Trim
•Kenwood
#B07-2067-02
Order #
32-11325
(1-3)
$2.18
(4-up)
$1.52
(ea.)
$4.23
(1-9)
$2.34
OrderToll
Toll
Free
Order
Free
Fax
FAX
263
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
C50 pg 264
7/25/05
6:19 PM
Page 264
Automotive
Products
The new Window Mount series from Panavise is perfect for secure, but temporary,
installations of a variety of mobile electronics! Mount GPS units, satellite radio
receivers, MP3 players, even cameras-almost anything weighing up to three
pounds-onto flat, smooth, non-porous surfaces (windows, windshields, etc.).
Powerful suction pad attaches quickly, easily, and securely. These state-of-the-art
window mounts emphasize both safety and convenience!
Section 11
Maxi Style Fuse Holder
Designed specifically to
house high-current Maxi
style blade fuses. Gold
plated brass terminal
block is housed in a clear
polycarbonate housing, which
facilitates easy mounting and connection of 4AWG or
8AWG cable. Intended for use with current loads up to
120A. •Dimensions: 11⁄4" (H) x 2" (W) x 33⁄8" (D) •Fuses
sold separately
Order #
60-1697
(1-3 pkgs.)
$4.99
(4 pkgs. -up)
$4.25
CCTV Camera
Window Mount
•Holds up to 3 lbs.
•Use with mobile
electronics with
1
⁄4-20 stud or CCTV
cameras for in-car
video and/or
surveillance
•Secures to flat,
smooth, non-porous
surfaces (windows, windshields, etc.) •Mfr. #809
Order #
106-305
24K Gold
Distribution Block
Satellite, GPS,
MP3 Player
Window Mount
•Holds up to 3 lbs.
•Use with all mobile
electronics with
AMPS mounting
•Secures to flat, smooth, non-porous surfaces
(windows, windshields, etc.) •Mfr. #809-AMP
Order #
106-310
(ea.)
$34.95
(ea.)
$34.95
•1 input up to 4AWG
•4 outputs up to 8AWG
Order #
60-7385
(1-3)
$3.77
(4-up)
$3.44
11
24K ANL Economy
Fuse Holder
•1 input up to 0AWG
•1 output up to 0AWG
Order #
60-7415
(1-3)
$8.86
(4-up)
$7.99
LCD Monitor
Window Mount
GPS and MP3
Player Window
Mount
•Holds up to 3 lbs.
•Use with all mobile
electronics with
T-slot mounting
•Secures to flat,
smooth, non-porous
surfaces (windows,
windshields, etc.)
•Mfr. #809-TS
•Holds up to 3 lbs.
•Use with MP3
players including
I-POD, GPS, and
other hand held
electronics •Secures
to flat, smooth,
non-porous surfaces (windows,
windshields, etc.) •Mfr. #809-PG
Order #
106-315
(ea.)
$34.95
Order #
106-320
(ea.)
$49.95
Gold Battery Terminal
•Two 4AWG out and two
8AWG out
Order #
60-7485
(1-3)
$7.89
A
(4-up)
$7.35
Gold Plated Fuse Holders
•Gold finished common supply fuse block •Enclosed in high-impact clear plastic
•Input: 4~8AWG wires •Output: 8~12AWG wires •Current rated at up to 75A per fuse
•Voltage rating: 32VDC •Display packaged for resale
Multi-Feed
Battery Connectors
Fig. Order #
A
60-780
B
60-1695
Multi-connection battery
terminals accept a single
2AWG, a single 4AWG and
two 8AWG cables. Ideal for
multi accessory connections.
Units are marked for use on
either positive or negative battery post.
Order
60-3840
Battery Post
Positive
(1-9)
$10.20
(10-49)
$9.75
(50-up)
$8.99
(4-up)
$5.26
5.26
•Popular battery tap for side
mount batteries •Accessory
leads can be connected
easily •Made of corrosion
resistant brass
(1-3)
$2.26
(4-9)
$1.94
(10-up)
$1.72
NET 30
Terms
264
# of
Fuses
4
1
Supply
Common
Wire Gauge
Input
Max Output
4~8 AWG
8~12AWG
2~10AWG
2~10AWG
Order Online
www.mcminone.com
Holder
Current
300A
75A
Type
Block
Inline
(1-3)
$11.72
7.01
(4-up)
$6.16
Gold Plated
Spade Terminals
Order #
60-4920
60-4921
60-4922
60-4924
GM Type Car Battery Tap
Order #
60-1065
Fuse
Type
AGUAUE
AGUAUE
High quality
insulated spade
connectors are
ideal for terminating larger gauge wire in auto sound
and related applications. Color coded insulators slide
easily over the crimp barrel. Package of eight
terminals includes four red and four black.
Gold Wing Nut Battery
Terminal
Description
Order #
(1-3)
Positive
60-7425
$5.70
Negative
60-7430
5.70
B
Wire Gauge (1-3 pkgs.) (4-9 pkgs.) (10 pkgs.-up)
18AWG
$1.19
$0.99
$0.85
14~16AWG
1.39
1.19
0.99
12AWG
1.79
1.49
1.35
8AWG
2.49
2.09
1.85
Auto Circuit Breaker
•70A /100A/140A circuit
breaker with reset button
Order #
60-3760
60-3765
Amp
100A
140A
(1-9)
$20.01
20.01
Heavy-Duty
Gold Plated
Ring Terminals
•Available for 4 or
8AWG wire •7⁄16"
hole diameter
•Four pieces per package (two black and two red)
Order #
S4PRG
S8PRG
Description
4 AWG
8 AWG
(pkg.)
$2.54
1.43
Circuit Breaker Cover
•Silicon/rubber
insulation cover
Order #
60-3770
(1-9)
$3.39
(10-49)
$2.96
(10-49)
$17.25
17.25
(50-up)
$15.69
15.69
C50 pg 265
7/26/05
4:21 PM
Page 265
Deluxe
In-Line
Noise Filter
•Line level
filter isolated
ground between amp and radio •Eliminates noise
due to signal path ground loops •Gold plated
RCA connectors
Order #
60-405
(ea.)
$9.44
Line Output
Convertor
•Converts speaker
level outputs to
line level
•Converts
common ground or
floating ground
outputs to low
level outputs to drive “pre-amp” type EQs and amps
Order #
60-410
(ea.)
$3.17
Automotive
Products
High Current
Amplifier
Battery Leads
Designed for
installation of high
power car amplifiers,
these fused battery leads are perfect for any high
current automotive accessory. The pre-assembled
lead consists of an insulated gold plated ring
terminal, an inline AGU style fuse holder with fuse,
16.5' of high strand count red primary wire, and an
insulated gold plated spade terminal. Available in
8AWG sizes, a model is available to suit
most applications.
Order #
60-9656
Wire
Gauge
8AWG
Fuse
Size
40A
(1-3)
18.37
(4-up)
15.68
High Current
Fused Battery Lead
Greatly eases the
connection of high
current automotive
accessories such as car
amplifiers, to the car battery. Pre-assembled lead
consists of an insulated gold plated ring terminal,
1' of high strand count red primary wire and an
inline AGU style fuse holder with fuse.
Line Output
Convertor/
Balancer
•Same as #60-410
plus it has an
adjustable level
for perfect channel
balancing
Order #
60-415
(ea.)
$4.13
Order #
60-9659
Wire
Gauge
8AWG
Fuse
Size
40A
(1-3)
$9.01
(4-up)
$7.68
•Ensure that your autosound
amplifier receives much needed
current for demanding peak bass
passages •Low ESR ensures
maximum discharge capability
•Available in two colors •Gold
plated screw terminal posts •Includes clear
ABS mounting hardware •Voltage: 20VDC •Max
temperature: 105° C •Effective series resistance
(ESR): 0.0016Ω •Diameter: 3" •Length: 8.66" (9.65"
with display)
•Converts speaker outputs
to line level outputs •Allows
any car stereo to drive
amplifiers having line
level inputs •Features
full DC isolation and
adjustable attenuation
•10ohm impedance
Order #
60-480
(ea.)
$9.28
Universal Flexible
Mounting Arm
Color
White
LED Display
Yes
(1–3 prs.)
$89.20
(4 prs.–up)
$80.33
Automotive
Noise Filters
Easy-to-install mounting
assembly includes both a
three-way floor/console
mounting block and a seat bolt
mounting bracket. Either
attach directly to the floor or
console by drilling three holes
or loosen seat bolt and slide
bracket underneath and
re-tighten. Flexible shaft is 13"
in length and can be bent into
any convenient angle. Top plate
accepts all phone holders and
hands free kits that utilize
standard four-hole
mounting pattern.
Order #
110-1955
Order #
60-5206
•For use with
radios, equalizers,
tape players and
compact disc
players to filter out
engine noise •Perfect for automobiles, boats,
motorcycles, etc. •Heavy-duty double wound coil
•Built-in provision for easy mounting with screws or
wire ties •Mounted to heavy-duty circuit boards for
maximum strength and quality •Made in USA
Order #
60-1050
60-1055
60-1060
(1-3)
$18.13
(4-up)
$16.11
Voltage
10A/150 watt
15A/250 watt
25A/350 watt
(1-3)
$8.37
13.19
21.20
(4-9)
$8.16
12.86
20.66
(10-up)
$7.73
12.64
20.14
10A
Order #
60-1220
60-1225
60-1235
Order #
60-1230
Dimensions
4" x 12"
6" x 12"
24" x 24"
Dimensions
12" x 12"
Noise Suppressors
(1-3)
$2.47
3.00
14.52
(4-9)
$2.14
2.57
13.98
(1-9)
$4.84
(10-up)
$1.49
2.14
13.44
(10-up)
$4.31
•Heavy-duty car stereo protection from engine noise
interference •Compatible with receivers, equalizers
and amplifiers •Easily installed
Order #
60-1260
60-1270
Voltage
10A
35A
(1-3)
$6.35
18.83
Primary
Order #
Wire
60-5390 2AWG
60-5391 4AWG
60-5392 8AWG
60-5393 10AWG
Speaker
Wire
12AWG
12AWG
16AWG
18AWG
Fuse
80A
60A
40A
30A
(1–3 kits) (4 kits–up)
$32.95
$29.75
25.95
23.50
15.95
14.50
12.95
11.75
Amplifier
Wiring Kits
Greatly eases
installation of
autosound
amplifiers.
Kits include
primary wire,
speaker wire,
#60-5181
#60-5180
audio cable and
most additional hardware to professionally install
amplifiers in the rear of most vehicles. Kit includes:
•20' of high flex clear red power cable •4' of high flex
clear black ground cable •20' stereo RCA interconnect
audio cable with gold plated RCA connectors •20'
blue 16AWG remote turn–on wire •In–line AGU
fuse holder with included fuse •Assorted ring,
butt and spade terminals •20 black cable ties
•Firewall grommet
Order #
60-5180
60-5181
Wire Gauge Fuse Size
8AWG
60A AGU
4AWG
80A AGU
(1–3 kits) (4 kits–up)
$12.55
$11.29
23.36
20.95
Gold Plated
Spade Lug Set
This heavy-duty spade lug
is made in two pieces so
soldering is not necessary.
The two piece design provides
a tight pressure fit grip to the
speaker wire. They will accept binding post sizes
from 1⁄8"~1⁄4" and wire sizes from 10~14 gauge. Color
coded red and black.
35A
ABS Textured
Plastic
•Excellent for
custom installations
of automobile radios
and speakers •Easy
to cut •1⁄8" thick
sheet •Black
Amplifier Wiring Kits
Essential for safely and reliably getting the current
you need to drive single or multiple amplifiers. Kits
include primary wire with sufficient length to run
directly from the battery to the trunk compartment.
It also includes audio cable and remote turn–on
wire lead, to run from the dash area to the trunk
compartment. Package includes: •20' red primary
lead •3' black power ground •17' blue remote
turn–on cable •Clear blue shielded (dual) RCA
male-male cable, 17' •AGU fuse holder with
appropriate fuse •33' speaker cable •Four heavy
gauge wire crimp connectors •Assorted wire ties
(4-9)
$6.14
18.29
(10-up)
$5.82
17.77
Order #
50-2145
(1-9 sets)
$2.55
(10-49 sets)
$2.14
OrderToll
Toll
Free
Order
Free
(50 sets-up)
$1.94
Fax
FAX
265
1-800-543-4330 1-800-765-6960
1-800-543-4330,
1-800-765-6960
11
One Farad Power
Reinforcement Capacitors
Adjustable
Line Output Convertor
Section 11
C50 pg 266
7/25/05
6:15 PM
Page 266
In-Line Fuseholder
Screw Type
Automotive
Products
•Electrical: Rated for
currents up to 80A
•Insulating body: PVC
•Contacts: Brass
Section 11
Order #
60-3705
Automatic Power Antenna
•Fully automatic antenna
provides optimum AM/FM
reception •Includes six
mounting heads to fit a
variety of vehicle styles
•Black anodized
telescopic mast
Order #
60-3710
11
Order #
60-8945
60-8946
60-8950
60-8955
60-8960
60-8965
Color
Pewter
Burgundy
Buckskin
Medium graphite
Dark graphite
Medium
parchment
(1-3)
$29.35
(4-up)
$26.20
(1-9)
$1.06
Quality
non-backed
carpet is
perfect for
cutting,
molding and
shaping into
any desired shape or size. It has very durable
construction that stands up to heavy use. The
colors are a solution-dyed polypropylene for good
colorfastness resistant to soil, molds and mildews.
Roll size: 54" wide by five linear yards.
Order #
60-3715
(1-9)
$0.87
Order #
60-3740
(10-49)
$0.43
(50-up)
$0.28
Order #
60-3745
(10-49)
$0.54
(1-3)
$25.40
25.40
25.40
25.40
(4-up)
$22.22
22.22
22.22
22.22
Diameter
1
⁄4"
3
⁄8"
1
⁄2"
3
⁄4"
1"
1
⁄2"
3
⁄4"
1"
Color
Black
Black
Black
Black
Black
White
White
White
•Filters out engine noise
through power lead •Use
with car stereos, power
amps, CBs, marine
radios and tape players
(5-9 pkgs.)
$1.85
(10 pkgs.-up)
$1.64
NET 30
Terms
Order Online
www.mcminone.com
Order #
28-116
(1-3)
$9.75
12.55
16.75
25.15
31.45
16.75
25.15
31.45
(4-up)
$8.28
10.70
14.27
21.30
26.76
14.27
21.30
26.76
(1-9)
$2.50
(1-19)
$7.12
7.12
(10-49)
$0.70
(50-up)
$0.53
•For fuse types AGC,
SEF, JSO and MFA
•Electrical: Rated for
currents up to 20A, when
proper spring is installed for size •Insulating body:
Nylon •Contacts: Brass
Order #
60-3750
(1-9)
$0.54
(10-49)
$0.43
(20-199)
$6.57
6.57
(200-up)
$6.03
6.03
(50-up)
$0.33
150 Piece Auto
Fuse Set
•Set contains the
most commonly
replaced fuses
•Chip-type fuses
meet or exceed
OEM specifications
•Keep in glove box
for fast repairs
Set includes:
•Fifteen each of
the following popular fuses: 5A, 10A, 15A, 20A, 25A,
and 30A •Nine each of mini fuses: 5A, 25A, 30A
•Ten each of mini fuses: 10A, 15A, 20A •Auto tester
•Alligator clip •Neon tweezer
(10-up)
$2.08
•32VDC
•Gold finish
Current
Rating
100A
200A
(1-9)
$0.86
Order #
22-5105
ANL Fuses
Order #
28-2500
28-2505
(50-up)
$1.85
In-Line, Fuseholder
for 6.3 x 30mm and
6.3 x 32mm Fuses
Perfect for
bundling
multiple
cables in
audio,
computer and automotive applications. White color is
especially useful in home theater installations, as it
blends easily with walls. Heavy convoluted
construction is split on one side, allowing easy
insertion of cables. All rolls are 100' length.
Order #
60-4400
60-4401
60-4402
60-4403
60-4405
60-4417
60-4416
60-4415
(10-49)
$2.08
•For fuse type AGC, SFE,
JSO and MFA •Rated for
currents up to 40A
•Insulating body: Nylon
with glass fiber •Contacts: Brass
•Rated for currents up to
30A •Insulating body:
PVC •Contacts: Brass
(1-9)
$0.64
(1-9)
$2.29
Heavy Duty
In-Line Fuseholder
Bayonet Type
(10-49)
$0.76
In-Line Fuseholder for
ATC Fuses
Order #
60-3720
(1-9)
$0.54
•8~16AWG
•Electrical: Rated for
currents up to 30A
•Insulating body: PVC
•Contacts: Brass
3A Noise Choke
266
(50-up)
$0.53
In-Line Fuseholder
In-Line Fuseholder for
ATS Fuses
Ideal for use on all
equipment with RCA
type female connectors.
Similar to those often
included with new
autosound equipment, these covers protect
connectors and internal components from dust and
dirt. Ideal for unused connectors on autosound, home
theater, PA and other professional equipment.
Package contains ten covers, all red color.
(1-4 pkgs.)
$2.18
(10-49)
$0.64
(10-49)
$0.91
RCA Jack Covers
Order #
60-8469
Order #
60-3735
Split Loom
Tubing
OEM Style
Automotive
Trunk Liner
Color
Black
Silver
Heather Charcoal
Charcoal
(1-9)
$0.75
•Rated for currents up to
20A •Insulating body:
PVC •Contacts: Brass
•Rated for currents up to
30A •Insulating body:
PVC •Contacts: Brass
High quality non
latex backed carpet
perfect for cutting,
fitting or molding
into any desired
shape or size. Its
very durable
construction stands up to heavy use. Texture is a
plush high-profile nature with a random, non-linear
pattern that will not “grin”, fray or unravel. The
colors are a solution-dyed polypropylene for good
colorfastness resistant to soil, molds and mildews.
Roll size: 40" by five linear yards.
Order #
60-8956
60-8961
60-8966
60-8971
Order #
60-3730
(10-49)
$2.26
In-Line Fuseholder
Multipile™
Automotive
Trim Carpet
Color
Medium gray
Charcoal gray
Black
Scarlet
Mocha
Medium almond
(1-9)
$2.36
In-Line Fuseholder for
ATC Fuses
Order # Model # (1–3) (4–up)
61-420 EA48
$37.75 $34.13
Order #
60-8901
60-8906
60-8916
60-8920
60-8935
60-8940
•For fuse type AGC, SFE,
JSO and MFA •Rated for
currents up to 20A, when
proper spring is installed
for fuse size •Insulating
body: Bakelite •Contacts: Brass
In-Line Fuseholder for
Maxi Fuses
(set)
$13.09
Scotch Mount
Double Face Tape
•Designed attachment of automotive
body trim, moldings and emblems
•Also commonly used for vibration
noise reduction •Packaged in rolls
with peel–off adhesive backing •0.50"
wide •60' long •0.030" thick
Order #
60-2100
(1-4)
$34.37
(5-9)
$32.63
(10-up)
$31.44
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
