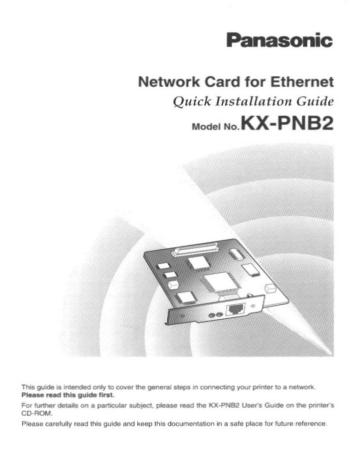

Panasonic
Network Card for Ethernet
Quick Installation Guide
Model no. KX-PNB2
This guide is imended only to cover the general steps in connecting your printer to a network.
Please read this guide first.
For further details on a particular subject, please read the KX-PNB2 User's Guide on the printer's
CD-ROM.
Please carefully read this guide and keep this documentation in a safe place for future reference.
Thank you for purchasing the Panasonic Network Card for Ethernet, KX-PNB2.
This Network Card for Ethernet (hereafter Network Card) KX-PNB2 is designed for using with the
Panasonic Laser Printer KX-P7500 Series.
, N
и you purchased the Network Card as an option, the serial number is located on the label on the
Network Card. For your convenience, record this number below and keep this book along with
your proof of purchase, in the event of a theft or for future reference.
MODEL NO. KX-PNB2 NAME OF RESELLER
SERIAL NO. DATE OF PURCHASE
N _/
You can set up the Network Card by using printer's operator panel display or Network Setup
Tool. And also you can set it up by using a web browser such as Netscape Navigator or
Microsoft Internet Explorer since the Network Card supports the HTTP server.
For instructions on how to set up the Network Card using Network Setup Tool or the web
browser, refer to Appendix on page 31.
* Microsoft, MS-DOS, Windows and Windows NT are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
» NetWare® is a registered trademark of Novell, Inc, in the United States and other countries.
Netscape Navigator is a trademark of Netscape Communications Corporation.
|РХтм апа IPX/SPX:m are trademarks of Novell, Inc.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Macintosh® is a trademark of Apple Computer, Inc.
Acrobat is a trademark of Adobe Systems Incorporated.
All other acknowledgments are trademarks or registered trademarks of their respective
holders.
Screen Shot(s) reprinted with permission from Microsoft Corporation.
The instructions are subject to change without notice.
© Kyushu Matsushita Electric Co., Ltd. 2000
Contents
Before You Start
Features ---------------7-7---"-7-7----7-7-7--------- 4
Instructions on the CD-ROM ----------------------- 4
Unpacking - -----------------------------c0000 0 5
Installation
Installing the Network Card ------------------------ 5
Selecting the Network Print Method - - - --------—-—----- 11
Printing Directly from a Computer------------------- 13
Printing through the Shared Computer (Server) - -- - - - - - - 25
Appendix
By Using the Network Setup Tool------------------- 31
By Using the Web Browser ----------------------- 31
NC ENTE
3
7
[mil
A
D
=
O
=
Features
* Supports 100Base-TX and 10Base-T
* Supports the following operating systems
— Windowse 95*!/Windows 98*27Windows МТ 4.0*3
— NetWare 3.x/NetWare 4.x/NetWare 5.0
— Generic Unix System V Release 3.x, Generic Unix System V Release 4.x, SCO Unix 5.x, SUN
OS 5 (System V, Solaris 2.x), HP-UX (Rel 9.x & Rel 10.x), SUN OS 4 (BSD, Solaris 1.x), Linux
— Macintosh 7.5x, 7.6x, 8.x, 9.0
* Supports the following print protocols
— Windows IP Peer-to-Peer Printing
— Windows IPX Peer-to-Peer Printing
— Windows DLC Peer-to-Peer Printing
— LPR
— PSERVER
— NetWare Printing (PSERVER/APRINTER in NDS and/or Bindery Mode)
* Supports the following network protocols
— TCP/IP —IPX/SPX
— DLC/LLC — Apple Talk
— DHCP -BOOTP
— RARP —SNMP/MIB
— HTTP
*1 Microsoft® Windows® 95 operating system (hereafter Windows 95)
*2 Microsoft® Windows® 98 operating system (hereafter Windows 98)
*3 Microsoft® Windows NT® Workstation operating system and Microsoft® Windows NT®
Server network operating system Version 4.0 (hereafter Windows NT 4.0)
Instructions on the CD-ROM
This Quick Installation Guide describes how to set up the network in Windows 95/Windows 98/
Windows NT 4.0.
Please refer to the KX-PNB2 User's Guide on the printer's CD-ROM for detailed information on
other network environment setup, troubleshooting, etc.
To open the file, perform the following steps after installing the Acrobat Reader program by referring
to the printer's Setup Guide.
(1) Insert the CD-ROM in your CD-ROM drive.
(2) Double-click the Manual folder and English folder.
(3) Double-click the pnb2.pdf.
Unpacking
If you purchased the Network Card as an option, make sure that the following items are included.
Report damage or shortages to the reseller from where the Network Card was purchased.
91)
Ф
—
=
LI Network Card Q Quick Installation Guide <
(this guide) e,
C
о
a
as
IMPORTANT
* Save the original carton and packing materials for future shipping and transporting of
the Network Card.
=]
mn
mir
A
NM
=
=;
=
Installing the Network Card
~
(IMPORTANT
* To prevent damage, be sure to turn OFF the printer when installing/uninstalling the
Network Card.
+ Before installing the Network Card you should discharge any static electricity by
touching any exposed metal surface on the printer, while the printer is still plugged
in to a grounded AC outlet.
* Do not touch any electrical components on the surface of the board to avoid static
electricity.
* Use a shielded cable when using a 100 Base-TX/10 Base-T (RJ-45 type) port to
ensure emission compliance.
* Do not remove the components which are not indicated.
\. J
To remove the printer cover
See the “IMPORTANT” on page 5.
1st cassette
2 Unplug the power cord and disconnect any cables connected to the
connectors on the back of the printer.
J a) Open the rear cover.
b)Remove the two screws from the back of the printer.
=. A A
b e | + + Rear cover
A NT
| pa
NS N
Screw N
NX
2
=
4 a) Pull tab to release the printer cover.
b) Slide printer cover towards back of the printer.
Printer cover —+
5 a) Rotate the printer cover away from the printer.
b)Lift the printer cover away.
ПОРН ыы
\
DE >
E |
=m
ZN =>
Printer cover
6 Remove the five screws from the metal plate covering the control
board, then remove the plate.
=]
М
a
A
y
=
©
5
To install the Network Card
1 Remove the two screws from the metal plate covering the opening for
the cable connector.
2 Remove the plate.
Plate
3 Insert the connector on the Network Card into the network card
connector on the printer control board until it is completely in place
The two connectors should fit snugly together.
Network card
connector on
the printer
Connector
on the
Network Card
4 Gently tighten the two screws to secure the Network Card to the
printer control board.
To install the printer cover
5 a) Replace the top screw loosely and hang the plate on it.
b) Tighten the other four screws.
c¢) Tighten the top screw.
-
-
tres
mr a"
-
ar
am"
+
oo a DOS 9.9. % = = Mar
> = TL че o
= 2 o 07070 ë a
To screw aa o aa ota oe
en te ata" Bo qa taa -
0707075 aa a ave q 070707075 4
pu o aafata?e? a =
ела o
И
-
-
mmm”
3
wn
Cama
A
D
=
О
5
6 stand the clips on the connector to avoid hiding them behind the
printer cover.
Clips <|
7 Set the bottom of the printer cover onto the printer. Make sure the
bottom tabs on the printer cover fit into the corresponding slots in the
printer.
Rotate the cover up towards the printer.
Slide the cover toward the front of the printer until it clicks into place.
Printer cover —
10
8 a) Gently tighten the two screws.
b)Close the rear cover.
Rear cover
9 Replace the 1st cassette, then reconnect any interface cables and
power cord.
10 Connect a twisted-pair network cable (not supplied) to the RJ-45
port.
A twisted pair
network cable
RJ-45 port
11 Turn ON the printer.
КО NN
NOTES
* The top green LED comes on when the cable is connected to the port on the Network
Card.
*e After booting, the bottom green LED should blink irregularly and the top green LED
should come on continuously,
N A
Selecting the Network Print Method
There are two ways of network printing. You may need to contact your network administrator to
select it.
e Printing directly from a computer
e Printing through the shared computer (server) (page 12)
Printing directly from a computer
A print job of a computer is transferred directly to the Network Card (printer). This method is
recommended for a small network and has the advantage of fewer setup steps. However, as the
network gets larger, there will be more network traffic causing longer waiting status for the print jobs
to be printed.
Firstiy, select a network protocol which you are using or want to use.
Secondly, select the printing method.
When using TCP/IP protocol:
* |P Peer-to-Peer Printing
(Windows 95/Windows 98/Windows NT 4.0) See page 13.
vn aAaCacCaca momo ODHOOTO ON NO 25 с с
=]
©
ps
2
o
=
e,
=
0 * LPR Printing (Windows NT 4.0) û
. О
I When using IPX/SPX protocol: 1
и IPX Peer-to-Peer Printi o
. eer-to- rinting &
0 & See the KX-PNB2
N (Windows 95/Windows 98) >” Users Guide on the
0 When using DLC protocol: 0 printer's CD-ROM.
1 * DLC Peer-to-Peer Printing (Windows 95/Windows 98) 0
CSooooooomoooooooomooo oo?
Print job >
y Printer
% Print job
-
Computer B
Computer C
POYISW JULId MIOMISN 34) Bunoajas
11
Printing through the shared computer (server)
A print job of a computer (client) is transferred to the Network Card (printer) by the shared computer
(server). This method requires a server and is recommended for a larger networks because it lets
the server manage the flow of print data and provides faster printing. In addition, the setup will be
easy with more computers connected in the future.
Firstly, select a network protocol! which you are using or want to use on the shared computer (server).
Secondly, select the printing method.
When using TCP/IP protocol:
+ {P Peer-to-Peer Printing
(Server: Windows 95/Windows 98/Windows NT 4.0) See page 25.
Oo GOOCOTIODOOOOONO0ODOOOODODODOO00O08OSCO
0 « LPR Printing (Server: Windows NT 4.0)
1 When using IPX/SPX protocol:
« IPX Peer-to-Peer Printing
(Server: Windows 95/Windows 98)
* NetWare Printing (PSERVER/RPRINTER) Vo See the KX-PNB2
(Server: NetWare 3.x, NetWare 4.x, NetWare 5.0) User's Guide on the
printer's CD-ROM.
DE ooo
When using DLC protocol:
» DLC Peer-to-Peer Printing
(Server: Windows 95/Windows 98)
Oooooo oo oooo oo oo oo ooo0o9oœone
Print job › 5) Print job » EZ
Computer A Shared computer Ye... | Prmter
(client) (server) *,
conogoaseo
== == == 1
Print job? Print job
Computer B Computer C
(client) (client)
12
Printing Directly from a Computer
The network printing is configured in the following outline order.
Step 1 setting up the TCP/IP protocol on the Network Card (page 14)
Pa
—
Step 2 Setting up the TCP/IP protocoi on the computer (page 19)
Step 3 installing and setting up IP Peer-to-Peer printer port on the
computer (page 20) (Setting up to transfer the print job)
Print job
crues D»
181ndu10”) e wou Agoang Бчичиа
POoyISW JULId MHOMISN ay; Bunodajes
Computer A Y Printer
(Windows 95/Windows 98/Windows NT 4.0) „06 4
4%
+
+
>
+
+
+
+
< Print job
Computer B Computer C
(Windows 95/Windows 98/ (Windows 95/Windows 98/
Windows NT 4.0) Windows NT 4.0)
J
When setting up direct printing on another computer:
Y
Repeat steps 2 and 3
13
Step 1: Setting up the TCP/IP protocol on the Network Card
The setting up of IP address, Subnet Mask and Default Gateway are required for the Network Card.
Normally there are two ways to set up these addresses. You may need to ask your network
administrator about the set up of these addresses.
e By using the DHCP server
e By using the printers operator pane! display
E By using the DHCP server
This Network Card supports DHCP server. Therefore, it is possible to assign the IP address, etc.
automatically from the DHCP server.
r
NOTES
In case of the factory default, once the IP address, etc. is assigned, it will be kept in
the printer's memory. When the printer is turned on again, the Network Card attempts
to obtain the same IP address, etc. But if the DHCP server has already lent this
address to other device, a different IP address, etc. will be assigned.
* The IP address assigned from a DHCP server has either limited or infinite lease term.
It is recommended to use Infinite lease with this Network Card. The Network Card
does not ask for an extension of the lease even if its IP address has a limited lease
term. If the infinite IP address is assigned, the lease term is terminated when the
printer is turned off.
E By using the printer's operator panel display
If the administrator manages the IP address, ask your network administrator for the values. If not,
decide the value by referring to the example below.
The IP address must be unique on every network computer and device. The Subnet Mask must be
the same on all network computers and devices.
Example: Assigning the IP address, Subnet Mask and Default Gateway.
IP Address: 10.x.x.x (For x, you can choose any number from 0 - 255 except 0.0.0.0
and 255.255.255.255)
Subnet Mask: 255.000.000.000
Default Gateway: Not required.
NOTE
« |t is recommended to select “DLC Peer-to -Peer printing” if you use Windows 95/
Windows 98 and you have trouble setting up the IP address values. lts settings are
comparatively easy.
14
Make sure “READY” appears on the printer's operator panel display.
READY |
Press ON LINE/CONTINUE button.
OFFLINE |
Press MENU O button until “NETWORK MENU” appears.
NETWORK |
MENU
Press ITEM О button until “CFG NET NO x” appears.
CFG NET
NO X
зерупашо:) в шоду Адоэла бунчиа
Press VALUE Ó button, then ENTER/CANCEL button.
CFG NET
YES X
Press ITEM O button until “CFG TCP NO *” appears.
CFG TCP
NO X
Press VALUE Ó button, then ENTER/CANCEL button.
CFG TCP
YES X
Press ITEM O button.
DHCP
x
15
16
9 11 “YES” appears, press VALUE O button, then ENTER/CANCEL
button.
DHCP
we
10 Press ITEM O button.
CFG ADRS
NO X
11 it “NO” appears, press VALUE O button, then ENTER/CANCEL
button.
CFG ADRS
YES X
12 Press ITEM Ô button.
wp BYTE |
0 X
13 Enter the leading 3 digits of the IP Address. (To decide the value, see
the Example on page 14.)
* Pressing the VALUE O button once will increase the value by one.
(if you keep pressing the button, the value will continue to increase.)
* Pressing the O VALUE button once will decrease the value by one.
The value is set at 255 after O.
(If you keep pressing the button, the value will continue to decrease.)
IP BYTE?
XXX
14 Press ENTER/CANCEL button.
IP BYTE!
XXX X
15 Repeat steps 12 to 14 three times to finish entering value of the IP
address.
y BYTE4
XXX
16 Press ENTER/CANCEL button.
IP BYTE4
XXX X
1 7 Press ITEM О button.
SM BYTE!
0 X
18 Enter the leading 3 digits of the Subnet Mask. (To decide the value,
see the Example on page 14.)
* Pressing the VALUE О button once will increase the value by one.
(if you keep pressing the button, the value will continue to increase.)
1e)ndwo9 e wo Aj19911G Bunulig
* Pressing the О VALUE button once will decrease the value by one.
The value is set at 255 after O.
(if you keep pressing the button, the value will continue to decrease.)
SM BYTE1
XXX
19 Press ENTER/CANCEL button.
SM BYTE |
XXX X
20 Repeat steps 17 to 19 three times to finish entering value of the
Subnet Mask.
SM BYTE4
XXX
17
18
21 Press ENTER/CANCEL button.
SM BYTE4
XXX X
22 Press ITEM О button.
ой ВУТЕ
1
X
23 Enter the leading 3 digits of the Default Gateway. (To decide the
value, see the Example on page 14.)
* Pressing the VALUE О button once will increase the value by one.
(if you keep pressing the button, the value will continue to increase.)
* Pressing the () VALUE button once will decrease the value by one.
The value is set at 255 after O.
(if you keep pressing the button, the value will continue to decrease.)
GW BYTE1
XXX
24 Press ENTER/CANCEL button.
GW BYTE1
XXX X
25 Repeat steps 22 to 24 three times to finish entering value of the
Default Gateway.
Fr BYTES
XXX
26 Press ENTER/CANCEL button.
GW BYTES
XXX X
27 Press ON LINE/CONTINUE button.
Step 2: Setting up the TCP/IP protocol on the computer
To use IP Peer-to-Peer printing directly from the computer, the TCP/IP protocol must be installed
and set up on the computer.
If the TCP/IP protocol is used on the computer, proceed to “Step 3: Installing and setting up IP Peer-
to-Peer printer port on the computer” on page 20.
If not, install the TCP/IP protocol by referring to the Help menu for Windows 95, Windows 98 or
Windows NT 4.0. The IP Address, Subnet Mask and the Default Gateway must be assigned when
installing it. Set them using one of the following two ways.
If the TCP/IP protocol setting in the Network Card is set from the DHCP server, proceed to “Setting
from the DHCP server” below. If it is done by using printer's operator panel display, proceed to
“Setting by direct entering” below.
E Setting up from the DHCP server:
If the administrator manages the network at the DHCP server, each address is automatically
assigned from the DHCP server.
M Setting up by direct entering:
If the administrator manages the IP address, ask your network administrator to confirm the values,
and then enter them, If not, decide the value by referring to the example on page 14, and then enter
them.
1aIndwo9 e Wo ÁNSa1Ig Bunuiid
4 в
NOTE
* Make sure step 1 and step 2 (page 14 to 19) are set correctly.
(1) On Windows 95/Windows 98/Windows NT 4.0, click | Start |, select Programs and
click MS-DOS Prompt.
(2) Type ping, press the space key, then enter the IP address.
[Example] >ping 179.40.0.5
(3) Press [Enter |.
If “Reply from XXXXXXXXXX” message is displayed on the screen, the
addresses have been set correctly. If not, those are not set correctly, and you
should go back to “Installing the Network Card” on page 5.
19
Step 3: Installing and setting up IP Peer-to-Peer printer port on
the computer
Hl Installing the printer driver
If the printer driver has not been installed, install it by the CD-ROM supplied with the printer. For
detailed instructions, see the printer's Operating Instructions on the CD-ROM.
NOTE
* If installing the PostScript printer driver, select “Local printer” when a message to
select local printer or network printer appears. And select LPT1 when available port
list appears.
HB Installing IP Peer-to-Peer printer port
7 Insert the CD-ROM in your CD-ROM drive.
2 Click English and click Network Utilities.
3 Selecta printer model and click [Select].
4 Click three times.
If installing the Network Setup Tool as the same time, click Full.
E tup HE E3
Ciick tha type of Setup you prefer, then click
Next,
rDexcription —
through network.
i
|
i
|
i
!
= —_— ay
Installation only port monitor for printing |
5 Click [Next>]
6 Quit all applications and click [Finish].
Your computer will be restarted.
20
E Setting up IP Peer-to-Peer printer port
<When the computer is Windows 95/Windows 98>
The following windows are for Windows 98.
1 Click (Start), select Settings, and click Printers.
Core Tx]
[Be Ea Ven Go Favoies > Е
. A. À
; ch Ford Up | Cu
| eo Printers 3
| Add Piinter: Panasonic
; KX-P7500...
2obeca) TA
2 Click the printer with the Network Card installed and right-click.
3 Click Properties.
Joyndulo”7 € WIOJ; Ap19311G Bunquiig
[REV FART FEE NC TEA TE е3
© Genera "1 os Ts TN "TF Y |
; > Pansearic KX#7500 Sens PCLE
|,
I eee a
|
|? Senator page fine] e] 1 Brows. |
4 Click the Details tab.
21
5 Click[Add Port... |.
PARC HE
: Select the type of port you want to add:
Speciy the network path to the prices: j
| | | Hi Browse... |
(C2 Qther
| Chek the type of port pou want to add
[JN |= Pos TREN = oR ET =
o o
ui ны se ные o нс
6 Click on the Other button.
7 Click KX-PNB2 Network Printer Port and click [OK].
r
Printer Name | MAC Address | IP Address f
: [C5K<P00000a047ed 0000F 0A047CD 179.40.15.220
Ч — IE SE ES)
| Enter Port Name. | |
_ — же - ——— + ео“!
[ AddNewPintSenerToLin | Heip || 0K | | Cancel |
|
}
!
!
|
i
|
]
!
i
|
8 Click the printer with the Network Card from the list and click [OK].
Pandront EX-P500 Sener PCi6 Properties
1 SB Feo, 1.3 Рен |. Clover | 8) Went =
y med Dels | shemo | Bares | fisher
; <A Panatoric C-P7500 Serre PCLE
] : Prin to té toScweng poil:
" F<P000003047cd [KXPHB2 Network. Pr + | ME: |
: Pini yong he infowng dover =
1: [Panasonic KX-P7500 Series PCLG =] | Мен Эту. f
| — ComePriaPal | рабов |
i -Timeoul retira -— —. -.. __.
i Nol yelected [mons
; Tranche y | _— records
e TT 1000
oot barge |. Faisons. |
de
же
9 Click[OK].
<When the computer is Windows NT 4.0>
1 click [Start], select Settings, and click Printers.
2 Click the printer with the Network Card installed and right-click.
3 Click Properties.
4 Click the Ports tab.
#7 Panasonic KX 12/500 Series PÈLE Properties
Îtoreral" Ports |'écreduira | hara] ecu] Y Aria] ‚ о
CE Ручасск KX-P7SOO Series POS
3 .
3 Part ta the todovers] pots} Documents will Diet to thes frst free
; checked por.
|
J: Prine i.
Panasonic EX-P7S.. +
M Crea ea ar mm e
1aIndwo9 e wo) Aoal1q Bunuid
— E
ATA ELA eT ESPERÓ Aa ¡PAJA BE
ео Fr - TES a. e 14 EA - 1
a Printer Ports Ва Е |
dira | peer | EogreFor. |
From Senna appt
+ [i €pable printer pooling
Astor ” 65SAN
23
6 Click KX-PNB2 Network Printer Port from the [Available Printer
Ports:], and click | New Port... |.
Printer Warr 7 [IP Address
!
POOF od CONCFGAD4TCO 179 4015 220
1 | a ALLE ad a ar has oda laa (Tressreszen]
. Enter Por H ame: | |
"Add New Pırd Server Tat | Hep {[ к $e Cara |
\
N
Click the printer with the Network Card from the list and click {OK |.
Click [Close].
©
[PEA EE LT
¿Gen Pot | Scheduing | Благо | бесы] < Бен
ü
© Panasonic FX PTH Serias POLE
1 Piro he two pois) Documenta wd pari 10 he Et bee
checked por
Рой ET PE a]
. [CD com: Local Port Zi
3; |Lcomz Local Port й
ir FO coma Local Par ;
{ [Cl coma Local Por
;, (re Local Port :
| XAO ed kx PNE2 Hatwork _ =
© femePot | CorgasPor. |
CE Gh OF wen gp
: [Ti Epatie porter pooling
9 Click [OK].
Printing through the Shared Computer (Server)
The network printing is configured in the following outline order.
Perform steps 1 to 3 in the “Printing Directly from
a Computer’ (page 14 to 24).
4 = 4 Change the word “computer” to “server” in the sentence
m when reading the steps 1 to 3.
AE EERN EE NONENENDEEEGEENOREBENRBOEEGESN
N
Step 1 Setting up the TCP/IP protocol on the Network Card
e (page 14) Л
‚m ``
a
„Step 2 Setting up the TCP/IP protocoi on the server (page 19)
=
a
%
m
Hu
%
El
a
я
E
я
a
q
“u
Step 3 Installing and setting up IP Peer-to-Peer printer port on the
" server (page 20)
Step 4 Sharing the printer port on the server (page 26)
U
=
=
=
=
o
=p
=
==
e
o
= 3
> =
3
Po
on =
(D
Ф ©
a =
os
O =
3 0
= 3
= »
28
wn
o
ss
2
If using the separator page on the server (Windows NT 4.0):
Step 5 Setting up the separator page on the server (page 28)
‘eu „
| Print job Print job
| coco} ............. >
= y
Computer A (client) Shared computer ”, Printer
(Windows 95/Windows 98/ (server) “+ Print job
Windows NT 4.0) 3 %
a*
+
=
Print job « и
Computer B (client),
{Windows 95/Windows 98/
Windows NT 4.0)
ww.
«+
Computer C (client)
(Windows 95/Windows 98/
Windows NT 4.0)
Step 6 setting up the printer port on When setting up another
the client (page 29) computer:
Repeat step 6
25
Step 4: Sharing the printer port on the server
~
NOTE
* |f the Sharing tab does not appear during the setup, click Network Computer and in
the Properties window, set up printer as shared. For more information, refer to Help
menu for Windows 95/ Windows 98/ Windows NT 4.0.
<When the server is Windows 95/Windows 98>
The following windows are for Windows 98.
1 Click [Start], select Settings, and click Printers.
Click the printer with the Network Card installed and right-click.
Click Properties.
Click the Sharing tab.
Or WN
Click on the Shared As: button, then enter the Share Name and if
needed, enter Comment and Password.
Panasonic KX-P7500 Senes PCLE Properties
|
[Bras [pnl Moser] rm”
Fr 1 Details 5 Shating
| C) Nat Shared
| [Oy shmedas
|
|. Share Name. [KXP7500 |
vr dr a nme =F
a
[| me |
2 — pia ra
Го = "а (Гон |
26
6 a) If you do not enter the password, click [OK].
b) If you enter the password, perform the following step.
Please reenter your password to confirm it is correct.
Password: | [Cancel |
+
1
|
/ Enter the password again, then click [OK].
<When the server is Windows NT 4.0>
You must logon into the server using the supervisor privilege to perform the following steps.
1 Click [Start], select Settings, and click Printers.
Click the printer with the Network Card installed and right-click.
(190485) 1a3ndwio9 paueys ayy ybnouayy bunuud
Click Properties.
Click the Sharing tab.
a Hh WN
Click on the Shared button, then enter the Shared Name.
Г Panasonic EX-P/500 Series PCLE Properties
E Panasonic KX-P7500 Serias PCLE
"1 CH Nat Shared
, E Shared
Shue Name: |[KXP7500
=
You may instal atemate divers 50 that users on he folowing Systems can
download them automaticaly when they connect.
Alemate Drivers:
: Windows 95
Pu Pamdows NT 4.0 286 [Instaled)
IPS
[Windows NT 4.0PPC 3
Е Widows NT 3500351 «86 _
1
[lua ariel tas es "
| To modily the permissions on the printer, go to the Security tab.
|
|
[ok | Cara |" Hep |
6 Click to close the printer properties window.
27
B If using the separator раде оп the server (Windows NT 4.0), proceed to step
5 below. If not, proceed to step 6 on page 29.
Step 5: Setting up the separator page on the server
1 Click [Start], select Settings, and click Printers.
2 Click the printer with the Network Card installed and right-click.
3 Click Properties.
4 Click the General tab.
e ET A AT AE Te
| own fra | schedaro| hara E Secar] $ Pira]
> Pardatres CE. FTE) Sass PCLE
Comment
1
1
!
1
1
= uty
Locator | i
Dra [Panaronic KP7500 Soves PELE =] - Howe Dem, |
Abat aL A
1% guano Pa |! Fmfrceno. | Arleinao |
Dre |
5 Click | Separator Page... |.
ET 77]
E Segarator pages ara uted at the begreing of sach
documen lo make € £asy to nd a document among
| other at lhe porta.
Separalor Paga
6 Click | Browse... |
а берага!о: Раде
28
/ Select pcl.sep, then click [Open].
* |f the PS SIMM is installed in your printer, select pscript.sep.
Click [OK].
Click to close the printer properties window.
© ©
Step 6: Setting up the printer port on the client
HE Installing the printer driver
If the printer driver has not been installed, install it by the CD-ROM supplied with the printer. For
detailed instructions, see the printer's Operating Instructions on the CD-ROM.
Note
+ If installing the PostScript printer driver, select “Local printer” when a message to
select local printer or network printer appears. And select LPT1 when available port
list appears.
VD
=.
=
=
3
O
—
3
=
o
©
o
=>
—
=
®
N
=
D
==
Ф
Q
O
©
3
D
Е
—
D
=
—
wn
3
©
==
“—
E Setting up the printer port
-
NOTE
» Confirm whether you can operate sever’s files from a client as indicated below.
Write down the server name and printer name because you need to enter them in
step 7 on page 30.
(1) Double-click the Network Neighborhood icon.
(2) Double-click the objective server.
(3) Shared printer should be displayed on the screen.
If not, set up the Network by referring to Windows Help.
<When the client is Windows 95/Windows 98>
1 Click | Start], select Settings, and click Printers.
Click the printer with the Network Card installed and right-click.
Click the Properties.
Click the Details tab.
Click! Add Port... |
HG AR WN
Click on the Network button.
29
/ Click | Browse... |.
8
9
Double-click the server to display the printer and select the printer.
Click three times.
<When client is Windows NT 4.0>
30
NN Dd US WN —
© ©
Click [Start], select Settings, and click Printers.
Click the printer with the Network Card installed and right-click.
Click Properties.
Click the Ports tab.
Click [Add Port... |
Click Local Port from the [Available Printer Ports:], and click
|New Port... |.
Enter the printer path name connected to the server in the following
manner, then click | OK |.
\\server name*\printer name”
* The names written down on page 29 “NOTE”.
Click
Click to close the printer properties window.
By Using the Network Setup Tool
x
NOTE
+ To install the Network Setup Tool, see “Installing IP Peer-to-Peer printer port” on
page 20. )
1 Click [Start], select Programs, Panasonic, Panasonic KX-xxxx
Series, Network Setup Tool, and click Panasonic KX-xxxx Series
Network Setup Tool.
Briers Vew Seira Mantenenco _Нер me
O = -———-——— o ——— .—
(191195) JaInduo9 paíeys 84] YBnoJ1U) Bunuitg
an 4)
2 Click Network Interface from the Setting menu.
By Using the Web Browser
1 Set up the IP address and Subnet Mask on the Network Card. See
page 14. If setting up it beyond a router, the Default Gateway needs
to be set up.
If there is the printer in the intranet area, bypass the proxy server.
<. -. 85 à 2
am +
3 Click Admin.
31
p=
al di ‚ i ©
pT Fn ©
2 - > 3
pen AO REIN TE x
| General Information | = 0
Prater Status SEP. O
Who a protejo? Тед reves ade o с
7 TT ` = — = - TT > o о.
Prater Nat RXPOO00RS05 | -
ос
Preter Descnpaca =
es = о =
MAG Address DOOCECADSLAF о A
FX Addn O FOADSIAF <
PP Addresr 17940 15226 o
бабой Мы 25575500 =
Defi Guar 0000 =
AgeTak Press Harse =]
Bl . E T - Lie y y
{D
=i
&
uv
=
O
O
=
FOR USERS IN UNITED STATES
( ON
Technical Support Calls
If you have read this manual and tried the troubleshooting procedures and you are still having
difficulty, please contact the reseller from which the unit was purchased. You may also call the
end user technical support telephone number which is operational during East Coast business
hours (9:00 AM to 7:00 PM). The end user technical support number is 1-800-PANASYS.
This number is availabte within the U.S. only.
Helpful Phone Numbers
To locate your nearest sales dealer CALL 1-800-742-8086
To order consumables CALL 1-800-833-9626
To order operating instructions/CD's CALL 1-800-833-9626
To tocate your nearest authorized service center CALL 1-800-726-2797
For technical support CALL 1-800-PANASYS
Automated 24-hour support via Fax back CALL 1-800-PANASYS
World Wide Web Technicai & Driver Support http://www.panasonic.com/office/printer
\ y
Panasonic Document Imaging Company
Division of Matsushita Electric Corporation of America
Two Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico, Inc.
San Gabriel Industrial Park, 65th Infantry Avenue KM. 9.5
Carolina, Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3
Matsushita Electric industrial Co., Ltd.
Central P.O.Box 288, Osaka 530-91, Japan
Printed in Korea | JC68-00359A Ko100WO
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
