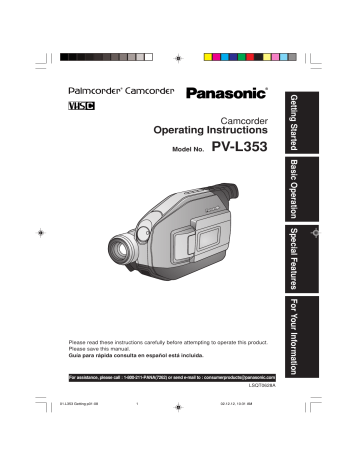

Operating Instructions
Model No.
PV-L353
Getting Started
Camcorder
Basic Operation
Special Features
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
LSQT0628A
01.L353 Getting p01-08
1
02.12.12, 10:31 AM
For Your Information
Please read these instructions carefully before attempting to operate this product.
Please save this manual.
Guía para rápida consulta en español está incluida.
Things You Should Know
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you years of enjoyment. Please take time
to fill in the information to the right.
The serial number is on the tag located on
the rear side of your Camcorder. Be sure
to retain this manual as your convenient
Camcorder information source.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
Unpack your Camcorder
These accessories are provided in order to set up or use your Camcorder.
1 pc. AC Adaptor (PV-A20)
with DC Power Cable
(page 10)
1 pc. Audio/Video Cable
(LSJA0390) (pages 21, 22)
1 pc. Shoulder Strap
(LSFC0012) (page 12)
1 pc. CR2025 Clock Battery
(installed in Camcorder)
(page 35)
1 pc. Lens Cap (LSKM0937)
with Lens Cap Strap
(LSGQ0049) (page 12)
2
1 pc. Battery Pack
(PV-BP15/LSSB0007)
(pages 9, 10)
Battery Charging
Confirmation
Marker
Use this marker as a
reminder to yourself when
the battery is fully charged
or in need of a charge.
This marker performs no
function and is for your
reference only.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L353 Getting p01-08
2
02.12.12, 10:31 AM
Things You Should Know
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP)
and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder
recording on your VHS VCR using the supplied VHS PlayPak.
This Camcorder is equipped with the HQ System to provide excellent video pictures, and
is compatible with standard VHS equipment.
It is recommended that only cassette tapes that have been tested and inspected for use in
VCR machines with the
and/or
mark be used.
This symbol warns the user that
uninsulated voltage within the unit may
have sufficient magnitude to cause
electric shock. Therefore, it is dangerous
to make any kind of contact with any
inside part of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.
The above markings are located on the appliance’s bottom cover.
FCC Warning : Any unauthorized changes or modifications to this equipment would
void the users authority to operate.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with Part 15 and part 18 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when operated in a residential environment.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, use the equipment in another location
and/or utilize an electrical outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. You may
find the booklet, ‘Something About Interference’ available from FCC local regional offices
helpful.
This product may cause interference to radio equipment and should not be installed near
maritime safety communications equipment or other critical navigation or communication
equipment operating between 0.45-30 MHz.
3
01.L353 Getting p01-08
3
02.12.12, 10:31 AM
Getting Started
Safety Precautions
Important Safeguards
1. Read Instructions – All the safety and
operating instructions should be read before
the unit is operated.
2. Retain Instructions – The safety and
operating instructions should be retained for
future reference.
3. Heed Warnings – All warnings on the unit
and in the operating instructions should be
adhered to.
4. Follow Instructions – All operating and
maintenance instructions should be followed.
5. Cleaning – Unplug this video unit from the
wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a dry cloth for
cleaning.
6. Attachments – Do not use attachments not
recommended by the video product
manufacturer as they may be hazardous.
7. Water and Moisture – Do not use this video
unit near water – for example near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, and
the like.
8. Accessories – Do not place this video unit
on an unstable cart, stand, tripod, bracket, or
table. The video unit may fall, causing serious
injury to a child or adult, and serious damage
to the unit. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the video unit. Any
mounting of the unit should follow the
manufacturer’s instructions and should use a
mounting accessory recommended by the
manufacturer. An appliance and cart
combination should be moved
with care. Quick stops,
excessive force, and uneven
surfaces may cause the
appliance and cart combination
to overturn.
9. Ventilation – Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the video unit
and to protect it from overheating. These
openings must not be blocked or covered.
Never place the video unit on a bed, sofa,
rug, or other similar surface, or near or over a
radiator or heat register. This video unit
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.
10. Power Sources – This video unit should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your
home, consult your appliance dealer or local
power company. For video units intended to
be operated from battery power, or other
sources, refer to the operating instructions.
4
11. Grounding or Polarization – This video unit
may be equipped with either a polarized
2-wire AC (Alternating Current) line plug (a
plug having one blade wider than the other)
or 3-wire grounding type plug, a plug having a
third (grounding) pin.
The 2-wire polarized plug will fit into the
power outlet only one way. This is a safety
feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician
to replace your obsolete outlet.
Do not defeat the safety purpose of the
polarized plug.
The 3-wire grounding type plug will fit into a
grounding type power outlet. This is a safety
feature. If you are unable to insert the plug
into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat
the safety purpose of the grounding type plug.
12. Power-Cord Protection – Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them. Paying
particular attention to cords of plugs,
convenience receptacles, and the point where
they exit from the unit.
13. Outdoor Antenna Grounding – If an outside
antenna or cable system is connected to the
video unit, be sure the antenna or cable
system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Part 1 of the Canadian
Electrical Code, in USA Section 810 of the
National Electrical Code, provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the
grounding electrode.
14. Lightning – For added protection of this
video unit receiver during a lightning storm, or
when it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the video unit due
to lightning and power-line surges.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L353 Getting p01-08
4
02.12.12, 10:31 AM
Important Safeguards
b. If any liquid has been spilled into, or
objects have fallen onto, the video unit.
c. If the video unit has been exposed to rain
or water.
d. If the video unit does not operate normally
by following the operating instructions.
Adjust only those controls that are covered
by the operating instructions, as an improper
adjustment of other controls may result in
damage and will often require extensive
work by a qualified technician to restore the
video unit to its normal operation.
e. If the video unit has been dropped or the
cabinet has been damaged.
f. When the video unit exhibits a distinct
change in performance – this indicates a
need for service.
20. Replacement Parts – When replacement
parts are required, be sure the service
technician has used replacement parts
specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
21. Safety Check – Upon completion of any
service or repairs to this video unit, ask the
service technician to perform safety checks
to determine that the video unit is in safe
operating order.
Precautions
USE & LOCATION
• TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture.
Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for
outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct
splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your
Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your
Camcorder from the power supply before cleaning.
• DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS.
• DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE
DAMAGE TO THE INTERNAL PARTS OF THE EVF.
• DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight,
inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your
Camcorder.
• AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm
place, moisture may form on the tape and inside the unit.
• DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
• STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to
unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which
could be damaged by improper handling or storage.
CARE
• TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder
body.
• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder
lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.
• TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands
and face are free from any chemical products, such as suntan lotion, as it may damage the finish.
5
01.L353 Getting p01-08
5
02.12.12, 10:31 AM
Getting Started
15. Power Lines – An outside antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such power
lines or circuits. When installing an outside
antenna system, extreme care should be taken
to keep from touching such power lines or
circuits as contact with them might be fatal.
16. Overloading – Do not overload wall outlets
and extension cords as this can result in a
risk of fire or electric shock.
17. Objects and Liquids – Never push objects
of any kind into this video unit through
openings as they may touch dangerous
voltage points or short out parts that could
result in a fire or electric shock. Never spill
liquid of any kind onto the video unit.
18. Servicing – Do not attempt to service this
video unit yourself as opening or removing
covers may expose you to dangerous voltage
or other hazards. Refer all servicing to
qualified service personnel.
19. Damage Requiring Service – Unplug this
video unit from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is
damaged.
Table of Contents
Getting Started
Things You Should Know ............................................................................. 2~3
Important Safeguards ................................................................................... 4~5
Precautions ........................................................................................................ 5
Self Demo Mode ................................................................................................ 7
Quick Operation Guide ..................................................................................... 8
Supplying Power (Battery Charge/Use/Refresh/Care, AC Adaptor, Car Battery Cord) .... 9~10
Cassette Information ...................................................................................... 11
Before Using (Remove the Sensor tag, Using the Shoulder and Hand Straps, Lens Cap) ...... 12
Using MENU Mode .......................................................................................... 13
Setting the Clock (Time Zone, Auto Daylight Saving Time) ................................... 14~15
AccuBrite™ Built-in Light (Using the Light, Replacing the Bulb) ............................... 16
Basic Operation
Camera Recording (Basic, Stand-by, Programmed Recording) .............................17~19
Playing Back Recordings
(Basic Playback, Visual Search, Still Picture, Tracking, TV/VCR Playback) ................. 20~21
Copying your Tapes (dubbing) ...................................................................... 22
Special Features
Four-Speed Power Zoom................................................................................ 23
Backlight .......................................................................................................... 23
Focus (Auto/Manual Focus) .................................................................................... 24
High Speed Shutter (Auto/Manual Shutter) ............................................................ 25
Auto Fade ......................................................................................................... 26
Color Digital Fade ........................................................................................... 27
Digital Zoom .................................................................................................... 28
Digital Electronic Image Stabilization (E.I.S.) ............................................... 29
MotionSensor .................................................................................................. 30
For Your Information
Viewfinder/LCD Monitor Indications ....................................................... 31~33
Notes On Operations ...................................................................................... 34
Replacing Clock Battery ................................................................................. 35
Palmcorder Accessory System ..................................................................... 36
Palmcorder Accessory Order Form .............................................................. 37
Specifications .................................................................................................. 38
Before Requesting Service (Video Head Cleaning) .............................................. 39
Request for Service Notice ............................................................................ 40
Limited Warranty ............................................................................................. 41
Customer Services Directory ......................................................................... 42
Spanish Quick Use Guide/Guía Para Uso Rápido ........................................ 43
Index ................................................................................................................. 44
6
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L353 Getting p01-08
6
02.12.12, 10:31 AM
Self Demo Mode
Before you begin...
Getting Started
Self Demo mode is on when the screen
below appears. To turn it off, follow
steps 1-4 below.
• Connect Camcorder to power source.
EVF or LCD Monitor
1
2
2, 3, 4
1
3
4
Set POWER to CAMERA.
Press MENU for
MENU mode.
Press UP or
DOWN to select
SELF DEMO .
Press M.FOCUS to select OFF.
Press MENU to exit.
Note:
• Self Demo stops automatically if battery
is attached (page 9) and cassette tape is
inserted (page 11).
• Inserting a tape alone (or attaching a
partially charged battery) only temporarily
stops Self Demo.
• Self Demo stops for 30 seconds when the
Back Light is pressed.
To turn Self Demo back on:
• Set to SELF DEMO : ON in MENU screen.
7
01.L353 Getting p01-08
7
02.12.12, 10:31 AM
Quick Operation Guide
Charging the Battery Pack
Charge Battery Pack fully before operation
(page 9).
1
2
Plug in AC Adaptor.
Insert Battery. CHARGE Lamp flashes,
then stays lit when charging is complete.
Insert Cassette
1
2
3
4
Attach fully charged Battery (page 9).
Slide TAPE EJECT to open door.
Insert cassette (page 11).
Press here to close door.
Camera Recording
See page 17.
1
2
3
Press LCD-OPEN to unlock the LCD monitor.
Swing it fully open and adjust the angle.
Set POWER to CAMERA.
Press RECORD/PAUSE to start recording.
Press RECORD/PAUSE again to pause
recording.
Playback using the LCD Monitor
See page 20.
1
2
3
4
5
8
Press LCD-OPEN to unlock the LCD monitor.
Swing it fully open and adjust the angle.
Set POWER to VCR.
Press
(REWIND/SEARCH) to rewind tape.
Press
(PLAY/STILL) to start playback.
Press
(STOP) to stop playback.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L353 Getting p01-08
8
02.12.12, 10:31 AM
Supplying Power
Charge Battery Pack fully before use.
2
3
POWER
Lamp
1
2
1
3
Plug in AC Adaptor.
POWER Lamp lights.
Insert Battery.
A Align left side of Battery with left edge of
AC Adaptor.
B Press Battery down and slide in direction
of arrow.
The CHARGE Lamp flashes, then stays lit
when charging is complete.
Remove Battery.
Slide Battery to the left and lift off.
Note:
CHARGE
Lamp
• Charging takes about 1 hour.
• While the DC Power Cable (supplied) is connected
to the AC Adaptor, the Battery cannot be charged.
• After charging 5 times, use Battery Refresh feature
as explained below.
• Battery life gradually decreases after repeated use
and recharging. If operation time becomes very
short even after a sufficient charge, discard Battery
properly (pages 10, 34).
A
B
(Top View)
Using the Battery Pack
A fully charged Battery provides a maximum of about 1 hour 10 minutes of continuous use
(LCD monitor off) or about 55 minutes (LCD monitor on). Actual time may vary due to
operating conditions. Using the Built-in Light decreases operating time.
A
a
A
B
B
b
Battery Refresh
This feature completely discharges
Battery before recharging begins.
Use after every 5 charges for optimum
Battery performance.
Lift up EVF and attach Battery.
a Insert top of Battery into top of mounting
surface.
b Press and snap into place.
Remove Battery.
Slide BATTERY RELEASE and remove
Battery.
To use battery refresh, insert Battery on AC
Adaptor (see steps 1~2 above), then press
BATTERY REFRESH.
The REFRESH Lamp lights, then goes out when
discharge is complete. Battery charging will then
start automatically.
If BATTERY REFRESH is pressed by mistake,
remove Battery from AC Adaptor and reinsert it
for normal charging.
Note:
• Charging takes about 5 hours when Battery
Refresh is used.
• Battery will not operate in extremely high
temperatures.
REFRESH
Lamp
BATTERY
REFRESH
9
02.L353 Getting p09-16
9
02.12.12, 10:31 AM
Getting Started
Charging the Battery Pack
Supplying Power
Battery Care
Caution:
To avoid Battery damage:
• Charge only with specified charger.
• Battery can be charged within a temperature range of
10 °C (50 °F) and 35 °C (95 °F).
• Battery is normally warm after charging or just after use.
• Do not use an insufficiently charged or worn-out Battery.
• Do not drop or jar Battery.
• Use Battery with specified units only.
• If Battery is used in extremely high
temperatures, a safety device will
automatically prevent operation.
Safety precautions:
To prolong Battery life:
• Do not get Battery near, or dispose of in, fire.
• Do not directly connect (short circuit) the positive (+)
and negative (–) terminals.
• Never attempt to disassemble or reassemble Battery.
• While not in use, remove Battery from
the Camcorder and AC Adaptor, and
store in a cool, dark, dry place.
• Keep Battery terminals clean.
AC Adaptor
1
2
DC Power Cable
POWER Lamp
DC IN
Connector
DC OUT Connector
Connect AC Adaptor DC OUT to
Camcorder DC IN with supplied DC
Power Cable.
Plug in AC Adaptor.
POWER Lamp lights.
Note:
• While the DC Power Cable (supplied) is
connected to the AC Adaptor, the Battery
cannot be charged.
• When not in use, unplug AC Adaptor from
AC outlet. (Adaptor uses 1.2 W of electricity
while plugged in.)
CAUTION:
This unit will operate on 110/120/220/240 V AC 50/60 Hz. An AC plug adaptor may be required
for voltages other than 120 V AC. Please contact either a local or foreign electrical parts
distributor for assistance in selecting an alternate AC plug. We recommend using the accessory
power plug adaptor (VJSS0070/K2DB42E00001) in an area which has special AC outlets.
Car Battery Cord (Optional)
Cigarette
Lighter
Socket (12 V)
DC IN
Connector
Car Battery Cord
(optional)
10
Cigarette
Lighter Plug
1
2
Connect PV-C16 Car Battery Cord
(optional) to Camcorder DC IN.
A Start engine first.
B Plug Car Battery Cord into
Cigarette lighter socket.
• If Car Battery cord fuse needs replacing,
use exact current rating (in amps).
Note:
• This cord only works in vehicles equipped
with DC 12 V (negative ground) battery.
Check with your car/truck dealer. Use only
specified car battery cord.
• To avoid blowing the car battery cord fuse,
do step 2 in the proper order.
• Running vehicles must be well ventilated.
• When not in use, disconnect cigarette
lighter plug.
• For personal safety the driver of the vehicle
should not attempt to operate the
camcorder while driving.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L353 Getting p09-16
10
02.12.12, 10:31 AM
Cassette Information
1
1
3
2
5
4
2
3
4
5
Turn Tape Wheel in direction of arrow
until there is no slack.
Attach Battery (page 9).
Slide TAPE EJECT to open door.
Insert cassette as shown.
Press here to close door.
• To remove the cassette, slide the TAPE
EJECT switch.
Record/Playback Time
Use tapes with the
Tape Speed
Selector Position
SP
(Standard Play)
SLP
(Super Long Play)
mark in this unit.
Cassette type
TC-20
TC-30
TC-40
20 minutes 30 minutes 40 minutes
1 hour
1 hour
30 minutes
2 hours
• SLP playback may contain more picture noise.
Erase Protection Tab
Protects tapes from being accidentally
erased.
1
1
2
2
Slide tab type
To prevent accidental erasing,
break off tab with screwdriver.
(Or, slide tab open.)
To record again,
cover hole with adhesive tape.
(Or, slide tab closed.)
11
02.L353 Getting p09-16
11
02.12.12, 10:31 AM
Getting Started
Cassette Insertion/Removal
Before Using
How to remove the Sensor tag
Hand Strap
1
Open the Hand Strap as illustrated
at left.
2
Remove the Sensor tag.
Then, replace the Hand Strap.
Sensor tag
Attaching Shoulder Strap
Remove Battery Pack before completing
the following steps:
1
2
Adjust the Length of the
Shoulder Strap
Undo strap ends
from buckles.
Thread strap ends through Strap
Rings on Camcorder.
Pull a loop of strap from buckle, then pull
strap tight to shorten or lengthen.
Hand Strap
3
Re-insert the strap
ends into buckles.
3
2
1
min. 25.4 mm (1 inch)
Adjust Hand Strap length to fit your hand as
shown.
Lens Cap
Attaching the Lens Cap Strap:
Thread the Strap through the
Lens Cap attachment ring as
illustrated at left.
Attaching the Lens Cap Cord to the Hand Strap:
Remove the Hand Strap from the front clasp and thread
the Strap through the loop in the Lens Cap Cord.
Reattach the Hand Strap.
12
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L353 Getting p09-16
12
02.12.12, 10:31 AM
Using MENU Mode
• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.
1
2
3
4
1, 2, 3, 4
Press MENU for MENU mode.
The CAMERA or VCR MENU screen (see below
left) appears when Menu mode is entered.
Press UP or DOWN to highlight the
desired menu item.
Press M.FOCUS to set selection.
Press MENU to exit.
Note:
• The Menu mode is canceled if UP/DOWN, M.FOCUS,
or MENU are not pressed within 5 minutes when Self
Demo mode is off with no cassette tape and/or battery
inserted.
• The Menu mode is canceled if UP/DOWN, M.FOCUS,
or MENU are not pressed within 30 seconds when
Self Demo mode is on with no cassette tape and/or
battery inserted.
Camera Mode Menu Screen
1 REC MODE (page 17).
1
2
3
4
5
6
Change to desired tape speed, SP/SLP.
2 SHUTTER (page 25).
Select desired shutter speed.
3 LCD BRIGHT (pages 17, 20).
7
8
9
10
VCR Mode Menu Screen
3
6
7
LCD BRIGHT SETTING sub menu is displayed.
Adjust LCD monitor brightness level.
4 DIGITAL EFFECTS (pages 26~28, 30).
DIGITAL EFFECTS sub menu is displayed.
To select DIGITAL ZOOM, MOTIONSENSOR,
or FADE.
5 PROGRAMMED REC (page 19).
Camcorder starts and stops recording at a
preset time.
6 DISPLAY SET (pages 31, 32).
DISPLAY SET sub menu is displayed.
To select DISPLAY or MODE SELECT.
7 CLOCK SET (pages 14, 15).
CLOCK SET sub menu is displayed.
Set the Date and Time.
8 STAND-BY RELEASE (page 18).
ON : Enables quick resumption of recording
from Stand-by mode.
9 LIGHT MODE (page 16).
OFF/ON
: Light can be set ON or OFF.
OFF/ON/AUTO : Light can be set ON, OFF, or AUTO.
10 SELF DEMO (page 7).
ON : SELF DEMO screen is displayed.
13
02.L353 Getting p09-16
13
02.12.12, 10:31 AM
Getting Started
Before you begin...
Setting the Clock
Set the following items in order: Time
Zone, Daylight Saving Time, Date,
and Time.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.
1
Press MENU for MENU mode.
Press UP or DOWN to select CLOCK SET .
1, 2, 3, 4
[ CAMERA MODE ]
2
3
[ VCR MODE ]
Press M.FOCUS for
CLOCK SET menu.
Press UP or DOWN to
select TIME ZONE, DST,
or DATE/TIME.
Press M.FOCUS for menu of item selected
in step 2.
To change the setting:
TIME ZONE ➔ Go to step 3a on page 15.
D.S.T.
➔ Go to step 3b on page 15.
DATE/TIME ➔ Go to step 3c on page 15.
4
14
Press MENU twice to exit.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L353 Getting p09-16
14
02.12.12, 10:31 AM
Setting the Clock
Setting the Time Zone
The Camcorder is preset to Eastern time.
[ Time Zone chart ]
Press UP or DOWN to
select local time zone.
Press M.FOCUS to
confirm entry.
• When traveling, repeat this operation and
select one of the 8 listed time zones to
set the clock to local time.
Note :
• Clock may lose or gain up to 2 minutes
per month.
• When traveling outside the listed time
zones, set clock to local time manually.
• To adjust or set clock, see “Setting Date
and Time” (below).
3b Auto Daylight Saving Time
Clock will auto-adjust to daylight saving time (DST).
DST: AUTO
Spring (First Sunday in April) :
ahead one hour.
Autumn (Last Sunday in October) :
back one hour.
The Camcorder is preset to DST: AUTO .
If DST is not observed in your area, set
to OFF by doing the following.
Press UP or DOWN to
select OFF or AUTO.
Press M.FOCUS to
confirm entry.
Note:
• Auto DST does not function if time zone
is set to Hawaii or Samoa (see “Setting
the Time Zone” above).
3c
Setting Date and Time
Date and time including leap year are
calculated up to DEC 31, 2099.
EXAMPLE :
Press or hold down UP or
DOWN to select hour, then
press M.FOCUS to fix.
Repeat for minute, month, day,
and year.
Clock starts when year is
entered and M.FOCUS is
pressed.
15
02.L353 Getting p09-16
15
02.12.12, 10:31 AM
Getting Started
3a
AccuBrite™ Built-in Light
Before you begin...
Using the Light
• Connect Camcorder to power source.
• Set POWER to CAMERA.
For recording in dim lighting.
1
1, 2
3
Note:
• Using Light reduces battery operating time.
• Provide proper ventilation when using
Light extensively in a hot environment.
• Using Light when the Camcorder is
powered by a car battery may shorten
bulb life.
• Set Light to OFF when not in use.
2
3
Press M.FOCUS to set OFF/ON or
OFF/ON/AUTO. Press MENU to exit.
Press LIGHT repeatedly for Light ON,
AUTO, or OFF.
• In AUTO, light turns itself on/off
according to lighting conditions.
EVF or LCD Monitor
CAUTION:
mark is indicated that light
becomes hot.
Never cover Light while on.
Replacing the Bulb
Press MENU for
MENU mode. Press
UP or DOWN to
select LIGHT MODE .
A
: Light is on.
A
: Light mode is auto.
Before you begin...
• Order Part No. VLLW0015 for replacement bulb.
• Set POWER to OFF.
B
1
A
2
1
2
3
4
3
Slightly raise portion A of lens cover
to unhook, and slide portion B
forward to remove.
Using Tweezers or needle-nose pliers,
carefully remove bulb.
• Take unit to service center if you need
assistance.
Replace bulb using a clean cloth or
tissue. (Do not touch with fingers.)
Replace lens cover.
Note:
• Handle bulb gently. Excessive force may
cause bulb to crack.
DANGER:
Use only replacement bulb (PART NO. VLLW0015) supplied by Panasonic to reduce risk
of fire. Handle new bulb with cloth or tissue as skin oils will decrease bulb life.
Remove lens cover and allow bulb to cool before replacing to avoid possible burn hazard.
16
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L353 Getting p09-16
16
02.12.12, 10:31 AM
Camera Recording
Recording via EVF or LCD
Monitor
View recording scene on EVF (Electronic
Viewer Finder) or LCD (Liquid Crystal
Display) monitor.
1
Before you begin...
• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).
1
2
4, A, B
3
Built-in
Microphone
2, 6
5
3 VISION
ADJUSTMENT
To adjust LCD BRIGHT
A
B
4
5
6
Set POWER to
CAMERA.
• Be sure POWER
is fully turned to
EVF or LCD Monitor
CAMERA position. (Record/Pause mode)
• EVF or LCD monitor
turns on/off by the POWER switch.
• Both EVF and LCD monitor turn on
when LCD is at 180° (see above left).
This allows both you and the subject
to view the recording.
LCD : Adjust LCD monitor brightness
level.
See To adjust LCD BRIGHT below.
EVF : Look into EVF and adjust
VISION ADJUSTMENT to your
eyesight.
Set REC MODE to “SP” or “SLP” in
the CAMERA MODE Menu (page 13).
Press RECORD/PAUSE to start or
pause recording.
Set POWER to OFF when finished.
• To remove the cassette, slide the
TAPE EJECT switch (page 11).
Press MENU for
MENU mode.
Press UP or DOWN
to select
LCD BRIGHT .
Note:
• When Camcorder is aimed at excessively
bright objects, or bright lights, a vertical
bar may appear in the picture. This is
normal for the CCD pick-up. Try to avoid
this when possible.
• Using LCD monitor reduces battery
operation time. Return LCD monitor to
locked position when not in use.
Press M.FOCUS for
LCD BRIGHT
SETTING menu.
Press UP or DOWN
to adjust LCD monitor
brightness level.
17
03.L353 Basic p17-19
17
02.12.12, 10:31 AM
Basic Operation
CAUTION :
Rotating partially open LCD monitor may block
cassette door and damage Camcorder body.
Press LCD-OPEN to unlock the LCD
monitor. Swing LCD monitor fully
open and adjust viewing angle.
Camera Recording
Before you begin...
• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).
B
a
b c
2, 3, 4
Stand-by Quick Release
If left in RECORD/PAUSE mode for 5
minutes, Camcorder switches to Stand-by
mode to conserve battery. When set to
ON, Stand-by Quick Release lets you
resume recording by pressing RECORD/
PAUSE two times. Stand-by Quick Release
is set to OFF at the factory.
1
2
3
1, A, C,
b, c
D,
a, d
4
Manual Easy Editing
For proper continuity when taping from Stop
mode or after attaching a new Battery.
A
B
C
D
18
Set POWER to VCR.
a Press
(REWIND/SEARCH) to
rewind a few seconds of tape.
b Press
(PLAY/STILL) to review
recording.
c Press
(PLAY/STILL) where
you want to continue recording.
Set POWER to CAMERA.
Press RECORD/PAUSE to resume
recording.
Set POWER to
CAMERA.
Press MENU for
MENU mode.
Press UP or DOWN to select
STAND-BY RELEASE .
Press M.FOCUS to select ON or OFF.
ON : From Stand-by mode, press
RECORD/PAUSE two times to
resume recording.
OFF : From Stand-by mode, set
POWER to OFF, then to
CAMERA. Press RECORD/
PAUSE to record.
Press MENU to exit.
Easy Edit Stand-by
For a smooth transition between scenes if
recording is stopped, and then started
within 24 hours.
a
b
c
d
Press RECORD/PAUSE to stop
recording.
Set POWER to OFF and leave
cassette in Camcorder.
To resume recording, set POWER to
CAMERA.
Press RECORD/PAUSE to resume
recording.
Note:
• Use Manual Easy Edit (left) if more than
24 hours before recording is resumed.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
03.L353 Basic p17-19
18
02.12.12, 10:31 AM
Camera Recording
Before you begin...
Programmed Recording
Set a recording start and stop time. Or,
set a 5 or 10 second interval recording
to be done each minute.
• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.
• Insert cassette with record tab (page 11).
• Set POWER to CAMERA.
1
1, 2, 3
3
4
Basic Operation
2
Press MENU for MENU
mode. Press UP or
DOWN to select
PROGRAMMED REC .
Press M.FOCUS.
(Current time is
displayed.)
Each additional press
of M.FOCUS increases
start time by 30 minutes.
Press DOWN to select
REC TIME .
Press M.FOCUS
repeatedly to select one
of the options shown at
left.
To cancel the setup, press MENU twice.
4
REC TIME :
Press RECORD/PAUSE
to place Camcorder in
stand-by mode.
Recording will be done as scheduled.
*1 Record 5 seconds each minute.
*2 Record 10 seconds each minute.
Note:
• Start time may not be set over 24 hours from
current time.
• Camcorder shuts off at tape end, or 12 hours
after Interval Recording starts.
• To cancel, set POWER to OFF.
19
03.L353 Basic p17-19
19
02.12.12, 10:31 AM
Playing Back Recordings
Before you begin...
• Connect Camcorder to power source.
• Insert recorded tape.
Playback on EVF or LCD Monitor
1
2
1
3
Speaker
D
A
B
C
3
E
Press LCD-OPEN and swing LCD
monitor fully open.
Set POWER to VCR.
• If tape has no record tab, auto playback
begins.
• EVF or LCD monitor turns on/off by the
POWER switch.
Playback function buttons.
(REWIND/SEARCH) : Rewind tape.
A
(PLAY/STILL) : Play tape.
B
(FAST FORWARD/SEARCH) :
C
Fast Forward tape.
D (STOP) : Stop tape.
E VOLUME : During playback, adjust
volume of speaker.
Press “W” :
Volume down.
Press “T” :
Volume up.
Note:
2
• Using LCD monitor reduces battery operating time.
Return LCD monitor to locked position when not in
use.
• During playback, press MENU to adjust LCD
monitor brightness (page 17).
Special Effects
Quick Visual Search
Search Speed
• SP (Standard Play) : 3 times normal.
• SLP (Super Long Play) : 9 times normal.
Tracking Control
During playback, press:
•
(FAST FORWARD/SEARCH) :
fast forward search
•
(REWIND/SEARCH) : rewind search
Press again or press
(PLAY/STILL) for
normal play.
Auto Tracking
Continuously analyzes each recording for
optimum picture quality.
Manual Tracking
Some recordings require manual
adjustment to reduce noise.
Press UP or DOWN until Playback
picture clears up.
Press M.FOCUS to return to Auto
Tracking.
20
Still Picture
Press
(PLAY/STILL) to freeze picture.
Press again for normal play.
This feature works best in SLP mode (page 11).
Note:
• During search, horizontal noise bars will appear.
Audio is muted.
• To protect video heads and tape, operating modes
will revert as follows after 5 minutes:
Still
Stand-by
Stand-by Power off (when Battery Pack is used).
• Tape auto-rewinds if played or fast forwarded to end.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
04.L353 Basic p20-22
20
02.12.12, 10:31 AM
Playing Back Recordings
Before you begin...
TV Playback or Viewing
• Connect Camcorder to power source.
• Make all TV-Camcorder connections.
Connect Camcorder to a TV to view
playback or recordings in progress.
Connections
1
Audio/
Video Out
Turn TV ON and set to LINE INPUT.
See TV owner’s manual.
Begin playback or recording.
VCR Playback using PlayPak (Optional)
Load Battery in PlayPak
Remove Battery lid and insert AA battery.
• Do not reverse polarity.
• Replace battery when tape loading/unloading takes longer
than usual.
Insert
Cassette in PlayPak
1
2
3
1
2
3
Remove
1
Turn
cassette Tape Wheel in direction of
arrow to take up any slack.
Slide RELEASE to open cassette lid.
Insert the
cassette with the window up and on
the left, then snap lid shut.
• Do not obstruct cassette
reel while loading.
• Allow PlayPak Load
Detector to fully retract
before using in VHS VCR.
Load Detector
Cassette
2
1
2
Slide RELEASE and wait for lid to open.
Push cassette out through hole in bottom of
PlayPak with your finger.
21
04.L353 Basic p20-22
21
02.12.12, 10:31 AM
Basic Operation
2
3
Set POWER to:
VCR
➞ view playback.
CAMERA ➞ view picture as it is
recorded.
Copying your Tapes (dubbing)
Before you begin...
Connections
5
• Make Camcorder-VCR connections (see left).
• Turn both units on.
• Set VCR input signal to LINE.
Please see VCR owner’s manual.
• Set Camcorder POWER to VCR.
2, 4
Source
(Playing)
Camcorder
1
2
3
4
Audio/
Video Out
5
Insert a pre-recorded tape
into Camcorder and a blank tape with
record tab into VCR.
Press
(PLAY/STILL) on
Camcorder, then press again at
starting point.
Press REC, then STILL/PAUSE on
VCR.
Press
(PLAY/STILL) on
Camcorder and STILL/PAUSE on VCR
to start copying.
Press (STOP) on both units to
stop copying.
Note:
• Camcorder will only playback tapes
recorded in SP or SLP mode.
• Dubbing may reduce picture quality.
CAUTION:
Unauthorized exchanging and/or copying
of copyrighted recordings may be
copyright infringement.
Monitor with your TV
• Turn TV on and tune to VCR channel
(CH3 or CH4).
• Set TV/VCR Selector on VCR to VCR.
22
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
04.L353 Basic p20-22
22
02.12.12, 10:31 AM
Four-Speed Power Zoom
Zoom in (close up) and out (wide angle) in
one of four speeds ranging from slow (16
seconds) to fast (2 seconds).
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Zoom In (“T”)
POWER
ZOOM
Zoom Out (“W”)
• Zoom slowly:
Lightly press “T” (telephoto) or “W” (wide
angle) POWER ZOOM button.
• Zoom quickly:
Apply more pressure to the button.
Backlight
BACK
LIGHT
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Press (BACK LIGHT) while recording to
select the level of backlight compensation.
In normal lighting, press (BACK LIGHT)
repeatedly until no indicator is displayed.
EVF or LCD Monitor
23
05.L353 Special p23-30
23
02.12.12, 10:32 AM
Special Features
Use when subject is darker than
surroundings, in shadowed area, or in front
of the light source.
Focus
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Auto Focus
Camcorder automatically focuses on subject even during zooming.
Auto Focus is on when “MF” is not displayed in EVF or LCD monitor.
Press M.FOCUS to remove “MF” in EVF or LCD monitor if necessary.
Manual Focus
Use Manual Focus (MF) when :
• recording through glass.
• lighting is poor.
• subject is far away with objects in foreground.
• subject has distinct horizontal lines.
• subject is not centered in EVF or LCD monitor.
• subject has a shiny surface.
• subject is slanted.
• subject is bright and flat, like a white wall.
• subject has fast motion, like a golf swing.
1
3
2, 4
1
2
3
4
EVF or LCD Monitor
Press M.FOCUS so “MF” (Manual Focus)
appears in EVF or LCD monitor.
Press “T” (telephoto) on POWER ZOOM
to maximum zoom in.
Press UP (FAR) or DOWN (NEAR) until
subject is in focus.
• Back away from subject if necessary.
Press “W” (wide angle) on POWER
ZOOM as desired.
• Refocus as needed when aiming at new
scenes.
Macro Focus (close-ups)
Auto Focus functions up to 12.7 mm (1/2 inch) from subject.
Press “W” on POWER ZOOM to maximum wide angle.
Bring Camcorder up close to the subject.
24
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L353 Special p23-30
24
02.12.12, 10:32 AM
High Speed Shutter
Improves Still or Slow Motion playback
picture of high speed subjects (e.g. a tennis
stroke), when viewed on Camcorder or 3 or
4 head VCR.
Before you begin...
• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).
• Set POWER to CAMERA.
Auto Shutter
In AUTO mode (no indication in EVF or LCD Monitor), shutter speed is auto-adjusted from
1/60 to 1/350 according to subject brightness.
• AUTO mode is selected each time POWER is set to CAMERA.
Manual Selection
The faster the shutter speed, the more light is needed for proper picture and color quality.
High Speed Shutter indication flashes if light is inadequate. Provide additional light.
1
2
1, 2, 3
Press M.FOCUS repeatedly to select
shutter speed.
Special Features
3
Press MENU for MENU mode.
Press UP or DOWN to select SHUTTER .
Press MENU to exit.
Note:
• Shutter speed cannot be set to 1/60 if Digital
E.I.S. feature is set to ON.
• Provide additional halogen or tungsten light
for use indoors or in poor light. Fluorescent
light degrades picture.
• Auto Focus may not function properly if high
speed shutter is used in inadequate light.
• Setting reverts to AUTO each time POWER is
set to CAMERA.
25
05.L353 Special p23-30
25
02.12.12, 10:32 AM
Auto Fade
An interesting way to open and close
scenes.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
FADE
1, 2, 3, 4, 5
2
3
RECORD/
PAUSE
4
5
Fade In
Press MENU for
MENU mode.
Press UP or DOWN
to select
DIGITAL EFFECTS .
Press M.FOCUS for
DIGITAL EFFECTS
menu. Press UP or
DOWN to select
FADE .
Press M.FOCUS for
FADE menu.
Press UP or DOWN
to select
AUTO FADE .
Press M.FOCUS for
AUTO FADE ;
COLOR menu.
Press UP or DOWN
to select BLACK or
WHITE.
Press M.FOCUS to confirm entry.
Press MENU twice to exit.
Fade In:
In RECORD/PAUSE mode, press
(FADE) so “FADE” flashes in EVF or
LCD monitor.
Press RECORD/PAUSE.
Recording starts as picture and sound
gradually fade in.
Fade Out:
While recording, press
(FADE) so
“FADE” flashes in EVF or LCD monitor.
Press RECORD/PAUSE.
Picture and sound gradually fade out, and
recording is paused.
WHITE
26
BLACK
Fade Out
(FADE) is pressed accidentally, press
If
again so “FADE” disappears in EVF or LCD
monitor.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L353 Special p23-30
26
02.12.12, 10:32 AM
Color Digital Fade
Choose from 7 fade effects in 8
different colors.
8
1, 2, 3,
4, 5, 6
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
3
4
7
Press MENU for MENU
mode. Press UP or
DOWN to select
DIGITAL EFFECTS .
Press M.FOCUS for
DIGITAL EFFECTS menu.
Press UP or DOWN to
select FADE .
Press M.FOCUS for
FADE menu.
Press UP or DOWN to
select DIGITAL FADE .
EVF or LCD monitor
5
■ For more effects, stop fade in or fade
out at any time (except RANDOM
mode) by pressing
(FADE).
(FADE) to resume
Then, press
fade.
Note:
• Audio is not affected by fade.
• To cancel Digital Fade, do steps 1-3
and 6. In step 3, select AUTO FADE.
6
7
8
Press M.FOCUS for DIGITAL FADE menu.
Press UP or DOWN to select COLOR .
Press M.FOCUS for COLOR menu.
Press UP or DOWN to select from 8 colors.
• A preview of each color is displayed as it
is selected.
Press M.FOCUS to confirm entry.
Press MENU three times to exit.
Start recording (page 17).
Press
(FADE) for about 2 seconds to
fade out during recording (selected fade
(FADE) again to
type flashes). Press
fade in.
27
05.L353 Special p23-30
27
02.12.12, 10:32 AM
Special Features
Press M.FOCUS for
DIGITAL FADE menu.
Press UP or DOWN to select TYPE .
Press M.FOCUS for TYPE menu.
Press UP or DOWN to select from 7
different fade types.
• A preview of each fade type is displayed
as it is selected.
Digital Zoom
Power Zoom magnification is digitally
increased.
1, 2, 3, 4, 5
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
3
Press MENU for
MENU mode. Press
UP or DOWN to select
DIGITAL EFFECTS .
Press M.FOCUS for
DIGITAL EFFECTS
menu.
Press UP or DOWN to
select DIGITAL ZOOM .
Press M.FOCUS repeatedly to select
D.ZOOM1, D.ZOOM2, or OFF.
D.ZOOM 1 : 150× maximum
D.ZOOM 2 : 700x maximum
OFF
: Turn off D.ZOOM
The Higher digital magnification levels
may cause picture distortion.
4
5
6
28
Press MENU twice to exit.
Press “T” on POWER ZOOM.
Digital Zoom starts when normal zoom
reaches maximum (20×).
• Zoom level appears in EVF or LCD
monitor.
• POWER ZOOM switch controls digital
zoom level.
• Normal zoom resumes when level falls
to 20×.
Repeat steps 2~3 to select OFF to cancel
this feature.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L353 Special p23-30
28
02.12.12, 10:32 AM
Digital Electronic Image Stabilization (E.I.S.)
Helps stabilize picture when recording in
unstable situations.
1, 2
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
Press
(EIS) to display “EIS” in the EVF
or LCD monitor.
• Image becomes slightly enlarged and
shutter speed auto-adjusts from 1/80 to
1/350 according to brightness.
• Use High Speed Shutter (page 25) if
needed. Shutter speed setting remains
after EIS is canceled.
Press
in use.
(EIS) again to cancel when not
NORMAL
Digital EIS ON
29
05.L353 Special p23-30
29
02.12.12, 10:32 AM
Special Features
E.I.S. may not function during...
• extreme Camcorder movement.
• recording of subjects with distinct horizontal
or vertical stripes.
• low light situations (EIS indicator flashes).
• intense fluorescent lighting situations.
• recording of very fast motion.
MotionSensor
Recording starts automatically if motion
is detected.
Before you begin...
• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.
• Insert cassette with record tab (page 11).
• Set POWER to CAMERA.
• Securely position and aim Camcorder.
1
1, 2, 3, 4
2
MotionSensor may mistakenly start
when:
• background is plain, like a white wall,
or has distinct vertical, horizontal, or
slanted stripes, like a venetian blind.
• brightness suddenly changes.
MotionSensor may not start when:
• motion is very slow or fast.
• moving object is very small.
• motion occurs only in 1 corner of
viewing area.
• in poor lighting (in this case,
MOTIONSENSOR flashes).
• background is plain, like a white wall,
or has distinct horizontal or vertical
stripes.
3
4
Press MENU for
MENU mode. Press
UP or DOWN to select
DIGITAL EFFECTS .
Press M.FOCUS for
DIGITAL EFFECTS
menu.
Press UP or DOWN to
select
MOTIONSENSOR .
Press M.FOCUS to select ON.
Press MENU twice for MotionSensor
stand-by mode. (If cassette is not
inserted, “
” will flash.)
• Recording will start about 3 seconds
after motion is detected.
• Date and time are recorded if displayed
in EVF or LCD monitor (page 15).
• Recording stops about 30 seconds after
motion ceases.
To cancel MotionSensor Mode, set POWER
to OFF.
Note:
• MotionSensor recording starts if Camcorder
is bumped or repositioned.
• This feature is not available during normal
recording.
• While in MotionSensor stand-by, the
following functions are not available: Record/
Pause, Stand-by mode, Digital E.I.S., Video
Effects (Auto/Digital Fade).
30
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L353 Special p23-30
30
02.12.12, 10:32 AM
Viewfinder/LCD Monitor Indications
Tape remaining and battery charge level
can be displayed.
Before you begin...
• Connect Camcorder to power source.
1
2
2, 3, 4, 5, 6
3
1
4
5
Set POWER to CAMERA.
Press MENU for
MENU mode.
Press UP or DOWN
to select
DISPLAY SET .
Press M.FOCUS for
DISPLAY SET menu.
Press UP or DOWN
to select
MODE SELECT .
Press M.FOCUS for MODE SELECT
menu.
Press M.FOCUS repeatedly to select
the following displays.
Battery Remaining: Tape Remaining:
FULL
FULL
EMPTY
EMPTY
Press MENU three times to exit.
• Tape remaining indicator operates a few
seconds after tape starts moving.
31
06.L353 Infor p31-37
31
02.12.12, 10:32 AM
For Your Information
6
Viewfinder/LCD Monitor Indications
Recording the Date and Time
1
Repeat steps 1-5 on page 31 to select
time/date, date only, or no display.
1, B, C, D
2
Start a recording (page 17).
• Only the Date and/or Time are recorded.
Display-Off Mode
A
2
A
B
Set POWER to CAMERA or VCR.
Press MENU for MENU mode.
Press UP or DOWN to select
DISPLAY SET .
[CAMERA MODE]
C
D
[VCR MODE]
Press M.FOCUS for
DISPLAY SET menu.
Press UP or DOWN to
select DISPLAY .
Press M.FOCUS to select OFF.
Press MENU twice to exit.
Indications are restored the
next time Camcorder is
turned on.
32
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L353 Infor p31-37
32
02.12.12, 10:32 AM
Viewfinder/LCD Monitor Indications
CAMERA/VCR mode
1
2
3
4
5
12
13
14
15
16
6
7
8, 9, 10
17
18
11
1 Zoom Magnification level (pages 23, 28).
2 Battery Remaining
(page 31).
(return to 0:00 and continue)
5 TAPE SPEED (pages 11, 17).
(SP=standard play,
SLP=super long play).
9
10
11
12
13
14
15
16
17
18
“VCR-MODE” appears for 1 minute when
POWER is set to VCR or if RECORD/
PAUSE is pressed in VCR mode.
DEW
If moisture condensation occurs in
unit, “WARNING DEW DETECTED”
appears, and Camcorder will shut off in
15 seconds. Wait until “WARNING” no
longer indicates when Camcorder is
turned on to use.
MotionSensor (page 30).
Date and Time (pages 14, 15).
Operating Mode
• REC (record)
• PAUSE
• FF (fast forward) • PLAY
• REW (rewind)
Backlight (page 23).
Manual Focus (page 24).
Light ON/OFF/AUTO (page 16).
High Speed Shutter (page 25).
Fade (page 26).
Color Digital Fade (page 27).
33
06.L353 Infor p31-37
33
02.12.12, 10:32 AM
For Your Information
“WARNING LOW BATTERY” appears
and Camcorder shuts off after 15
seconds.
3 Tape Remaining (page 31).
“ ” flashes and “TAPE END”
appears for 5 seconds when:
• End of tape is reached.
“ ” flashes for 1 minute and “CHECK
TAPE” appears for 5 seconds when:
• RECORD/PAUSE is pressed with no
cassette, or cassette has no record tab
in Camera (RECORD) mode.
• PLAY, FF or REW is pressed with no
cassette inserted in VCR mode.
4 10-Second Reminder
Each time a recording is started, a 10
second incremental display (up to 59:50)
lets you monitor how long one scene is
recorded.
0:00 0:10 0:20 . . . . . 59:50
6 Digital E.I.S. (page 29).
7 Digital Zoom (page 28).
8 VCR-MODE
Notes On Operations
Notice
This product has a fluorescent lamp that contains a small amount of mercury. It also
contains lead in some components. Disposal of these materials may be regulated in
your community due to environmental considerations. For disposal or recycling
information please contact your local authorities, or the Electronics Industries Alliance:
<http://www.eiae.org.>
U.S.A. CONSUMERS: ATTENTION :
A nickel cadmium battery that is recyclable powers the product you have
purchased. At the end of its useful life, under various state and local laws, it
is illegal to dispose of this battery into your municipal waste stream. Please
call 1-800-8-BATTERY for information on how to recycle this battery.
34
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L353 Infor p31-37
34
02.12.12, 10:32 AM
Replacing Clock Battery
The clock battery is pre-installed. Follow the steps below if replacement becomes
necessary.
WARNING:
Replace battery with Panasonic or Newsun type CR2025 only. Use of another battery
may present a risk of fire or explosion.
Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep
away from children. Do not recharge, disassemble or dispose of in fire.
Clock Battery
Tripod Mounting Hole
1
Underside View
1
2
3
4
4
2
While pinching the 2 tabs, pull
Battery Tray out.
Bend middle tab out and remove
Battery.
Snap new Battery (⊕ mark down) into
Battery Tray.
• Do not reverse the polarity.
Insert Battery Tray so the triangle
marks meet.
Note:
• Keep Battery out of children’s reach.
Swallowing it may be harmful.
• Improper installation, discharge, or
missing battery causes “CLOCK
BATTERY” to appear.
• Battery life is approximately 5 years.
3
For Your Information
35
06.L353 Infor p31-37
35
02.12.12, 10:32 AM
Palmcorder Accessory System
To order instructions, see the Accessory Order Form page.
• The listed standard battery use times are based on continuous recording using this Palmcorder.
Accessory #
Figure
Description
AC Adaptor with
DC Power Cable
(Charging of the Nickel
Cadmium Battery or Nickel
Metal Hydride Battery)
PV-A20
Price
Call For
Pricing
Up to 6 hr Battery Pack
HHR-V60A/1B
(Rechargeable Nickel
Metal Hydride Battery)
$119.95
Up to 4 hr Battery Pack
HHR-V40A/1B
(Rechargeable Nickel
Metal Hydride Battery)
$69.95
Up to 2 hr Battery Pack
HHR-V20A/1B
(Rechargeable Nickel
Metal Hydride Battery)
$59.95
PV-AA6
"AA" Battery Case
$20.00
PV-C16
Car Battery Cord
$70.00
PV-P1
VHS PlayPak
$39.95
PV-H18A
Carrying Case
$49.95
Note:
• Prices subject to change without notice.
36
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L353 Infor p31-37
36
02.12.12, 10:32 AM
Palmcorder Accessory Order Form
Please photocopy this form when placing an order.
1. Palmcorder Model #
2. Items Ordered
Accessory #
Description
Price Each
Quantity
Total Price
Subtotal
Your State & Local Sales Tax
Shipping & Handling
6.95
Total Enclosed
3. Method of payment (check one)
Check or Money Order enclosed (NO C.O.D.SHIPMENTS)
VISA
Credit Card #
MasterCard
Expiration Date
Discover
Customer Signature
Make Check or Money Order to: PANASONIC ACCESSORIES
(Please do not send cash)
4. Shipping information (UPS delivery requires complete street address)
Ship To:
Mr.
Mrs.
Ms.
First
Phone #:
Last
(
)
Night
(
)
For Your Information
Day
Street Address
City
State
Zip
TO OBTAIN ANY OF OUR PALMCORDER ACCESSORIES YOU CAN DO ANY OF THE
FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY
ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
37
06.L353 Infor p31-37
37
02.12.12, 10:32 AM
Specifications
Power Source:
Compact VHS Camcorder: DC 6 V
AC Adaptor: 110/120/220/240 V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6 V
Power Consumption:
Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)
AC Adaptor: 19 W
1.2 W (when not in use.)
Video Signal:
EIA Standard (525 lines, 60 fields) NTSC color signal
Video Recording System:
2 rotary heads plus flying erase head
Helical scanning system
Audio:
1 track
Pick-Up System:
Sequential color difference field reverse system
Pick-Up Device:
One integral color filter Charge Coupled Device (CCD)
Lens:
20:1 zoom lens, F1:1.7 with auto iris control
Focal length: 2.8 mm - 56.0 mm
4 speed power zoom function
Viewfinder:
8.4 mm (0.33 inch) Electronic Viewfinder
LCD Monitor:
63.5 mm (2.5 inch) Liquid Crystal Display
Minimum Illumination Required: 1.6 lx (F1:1.7) 0.16 footcandles
Operating Temperature:
0 °C~40 °C (32 °F~104 °F)
Operating Humidity:
10 %~75 %
Weight:
Compact VHS Camcorder: 0.874 kg
1.93 Ibs.
AC Adaptor:
0.3 kg
0.66 Ibs.
Dimensions:
Compact VHS Camcorder:
87.2 (W) × 123 (H) × 226 (D) mm
3-3/8 (W) × 4-7/8 (H) × 8-7/8 (D) inch
AC Adaptor:
68 (W) × 41 (H) × 140 (D) mm
2-11/16 (W) × 1-5/8 (H) × 5-1/2 (D) inch
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
38
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L353 Infor p38-44
38
02.12.12, 10:32 AM
Before Requesting Service
If a problem arises, you may be able to correct it yourself.
See Symptom and Correction list below.
Symptom
Correction
No picture in EVF or LCD monitor ... • Connect Power Source. (pp. 9, 10)
• Set POWER to VCR or CAMERA. (pp. 17, 20)
• Check for Dew Indication. (p. 33)
• Use fully charged Battery. (p. 9)
• Firmly connect all needed cables. (p. 10)
Video cassette cannot be inserted ... • Connect Power Source. (pp. 9, 10)
• Insert cassette, window side facing out. (p. 11)
Video cassette cannot be removed ... • Connect Power Source. (pp. 9, 10)
Operation buttons do not work ...
• Check for Dew Indication. (p. 33)
Recording cannot be done ...
• Make sure record tab is intact. (p. 11)
• Check Battery Indicator. (p. 31)
• Check for Dew Indication. (p. 33)
Auto Focus does not operate ...
• Set FOCUS to AUTO. (p. 24)
• Set POWER to CAMERA. (p. 17)
Sound from microphone can’t be
monitored ...
• Set unit to REC or Record/Pause mode.
Camera picture is too dark ...
• Set HIGH SPEED SHUTTER to AUTO. (p. 25)
No playback picture, or the playback • Press UP/DOWN button during playback
picture is noisy or contains streaks ... (Tracking Control). (p.20)
“Panasonic ITS TAPES CAN PLAY • Set POWER to CAMERA, then set SELF DEMO :
IN YOUR VCR ...” appears in EVF or OFF in MENU screen to cancel Demo mode. (p. 7)
LCD Monitor ...
Top of playback picture waves back
and forth excessively ...
Video Head Cleaning
While head cleaning is normally not needed, playing old or
damaged tapes may clog the heads. When playback picture
resembles example at the left, head cleaning is required.
Clogged Video Head
Ideally, head cleaning should be performed by a qualified
service technician. When this is not possible, purchase a
head cleaning cassette. Be sure to follow cleaning cassette
instructions exactly and only use when symptoms occur.
39
07.L353 Infor p38-44
39
02.12.12, 10:32 AM
For Your Information
• A playback signal is not as stable as an off the air
TV signal, so the top of your TV screen may
appear bent or unstable during playback. This is
called, “Horizontal AFC time constant change.” To
correct, slowly turn the TV horizontal hold control.
If your TV does not have this control, or adjusting
it does not help, contact your TV service center.
(Some nominal service charges may be required.)
Request for Service Notice
Please photocopy this form when making a request for service notice.
Request for Service Notice:
In the unlikely event this product needs service.
• Please include your proof of purchase.
(Failure to due so will delay your repair.)
• To further speed your repair please provide
an explanation of what is wrong with the unit
and any symptom it is exhibiting.
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Services Company
1705 N. Randall Road
Elgin, IL. 60123-7847
Attn: Camcorder Repair
40
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L353 Infor p38-44
40
02.12.12, 10:32 AM
Limited Warranty
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF MATSUSHITA ELECTRIC
CORPORATION OF AMERICA
One Panasonic Way Secaucus, New Jersey 07094
Limited Warranty Coverage
PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Panasonic/Quasar Video Products
Limited Warranty
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company
or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.
Product
Camcorder
DVD/VCR Deck,
A/V Mixer
TV/VCR, TV/DVD,
TV/DVD/VCR
Combination
TV/HDR
Combination
Rechargeable
Batteries
(in exchange for
defective item)
Tape
(in exchange for
defective item)
Memory Cards
(in exchange for
defective item)
Parts
Labor
Service
Contact Number
One (1) Year (except CCD
Ninety (90) Days
Carry-In or Mail-In
Image Sensor)
CCD Image Sensor - 6 (Six) Months Ninety (90) Days
1-800-211-PANA(7262)
One (1) Year
Ninety (90) Days Carry-In or Mail-In
1-800-211-PANA(7262)
One (1) Year (except CRT)
CRT - Two (2) Years
One (1) Year (except CRT)
CRT - Two (2) Years
Ninety (90) Days Carry-In: 21” CRT and Smaller
1-800-211-PANA(7262)
In-Home or Carry-In: 22”
Ninety (90) Days CRT and Larger
Ninety (90) Days In-Home or Carry-In
1-888-843-9788
Ninety (90) Days
Ten (10) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
Five (5) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
Ninety (90) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
For Your Information
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no
charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty
period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product
which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.
Carry-In, Mail-in or In-Home Service
For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not
include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed inhome, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing
fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3
pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service
by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for
lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of
media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED
TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a
problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the
problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses
listed for the warrantor.
PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE
NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
41
07.L353 Infor p38-44
41
02.12.12, 10:32 AM
Customer Services Directory
For Product Information, Operating Assistance, Literature Request, Dealer Locations,
and all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm, EST.
or send e-mail : [email protected]
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your
nearest servicenter by visiting our Web Site.
Accessory Purchases:
1-800-332-5368 (Customer Orders Only )
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Product Repairs
Centralized Factory Servicenter
Panasonic Services Company
1705 N. Randall Road,
Elgin, IL 60123-7847
Attention: Camcorder Repair
Please carefully pack and ship, prepaid and insured, to the Elgin Centralized Factory Servicenter.
Customer’s in Puerto Rico, please ship or carry in to location below (“Service in Puerto Rico”).
MAIL TO :
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:
Ave. 65 de Infanteria. Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
As of August 2002
42
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L353 Infor p38-44
42
02.12.12, 10:32 AM
Spanish Quick Use Guide/Guía Para Uso Rápido
Antes de comenzar...
• Inserte un casete con lengüeta para
prevención del grabado.
Cargue la batería
Cargue completamente la batería antes de usarla.
1
2
Enchufe el adaptador de CA.
Instale la batería. El indicador de carga (CHARGE)
parpadea, luego queda encendido si ha terminado
la carga. Desmonte la batería.
Inserte el casete
1
2
3
4
Coloque la batería cargada.
Deslice TAPE EJECT para abrir la compuerta.
Inserte el casete.
Presione aquí para cerrar la compuerta.
Grabación con la videocámara
1
2
3
Presione LCD-OPEN para abrir el monitor LCD.
Abralo completamente y ajuste el ángulo.
Ajuste POWER a CAMERA.
Presione RECORD/PAUSE para comenzar la
grabación.
Presione RECORD/PAUSE otra vez para hacer
una pausa en la grabación.
Reproduzca usando el monitor LCD
Presione LCD-OPEN para abrir el monitor LCD.
Abralo completamente y ajuste el ángulo.
Ajuste POWER a VCR.
Presione
la cinta.
(REWIND/SEARCH) para rebobinar
Presione
(PLAY/STILL) para comenzar la
reproducción.
Presione
(STOP) para finalizar la reproducción.
Reproduccion con efectos especiales
Para localizar rapidamente una escena especifica
• Oprimir el botón de localización (SEARCH).
Para congelar una imagen
• Oprimir el botón de pausa/imagen fija (PAUSE/STILL).
• Oprimir nuevamente el botón cuando se desea
continuar reproduciendo.
43
07.L353 Infor p38-44
43
02.12.12, 10:32 AM
For Your Information
1
2
3
4
5
Index
A
AC Adaptor ..................... 10
Accessories (Optional) ... 36
Accessories (Supplied) .... 2
AccuBrite™ Built-in Light 16
Audio/Video Cable ... 21, 22
Audio/Video Out ....... 21, 22
Auto Daylight Saving Time
.................................... 15
B
Backlight ......................... 23
BACK LIGHT Button ...... 23
Battery Pack ............... 9, 10
BATTERY RELEASE
Button ........................... 9
Before Requesting Service
.................................... 39
Built-in Microphone ........ 17
C
Camera Recording ... 17~19
Car Battery Cord ............ 10
Cassette Information ....... 11
Charging Battery .............. 9
Clock Battery .................. 35
Clock Set .................. 14, 15
Copying your Tapes ....... 22
Customer Servicenter
Directory ..................... 42
D
DC IN .............................
DC Power Cable ............
Digital E.I.S. ...................
Digital Zoom ...................
Display-off Mode ............
10
10
29
28
32
F
Fade ......................... 26, 27
FADE Button ............ 26, 27
FAST FORWARD/
SEARCH Button ......... 20
Focus ............................. 24
H
Hand Strap ..................... 12
High Speed Shutter ........ 25
L
LCD BRIGHT ........... 17, 20
LCD Monitor ............. 17, 20
LCD-OPEN Button ... 17, 20
Lens Cap ........................ 12
LIGHT Switch ................. 16
Limited Warranty ............ 41
M
MENU Button ................. 13
MENU Mode ................... 13
M.FOCUS Button
.................. 13, 20, 24, 31
MotionSensor ................. 30
P
PLAY/STILL Button ........ 20
Playback ................... 20, 21
PlayPak (Optional) ......... 21
Power Supply ............. 9, 10
POWER Switch .... 7, 17, 20
POWER ZOOM Button
........................ 23, 24, 28
Programmed Recording . 19
Q
Quick Operation Guide .... 8
E
EIS Button ...................... 29
R
RECORD/PAUSE Button
.................................... 17
Record/Playback Time .... 11
Replacing Clock Battery . 35
Request for Service Notice
.................................... 40
REWIND/SEARCH
Button ......................... 20
S
Safety Precautions ........... 3
Self Demo Mode .............. 7
Shoulder Strap ............... 12
Speaker .......................... 20
Special Effects ............... 20
Specifications ................. 38
Still Picture ..................... 20
STOP Button .................. 20
T
Tab .................................. 11
TAPE EJECT Switch . 11, 17
Tracking Control ............. 20
Tripod Mounting Hole ..... 35
U
UP (FAR) / DOWN (NEAR)
Button ............. 13, 20, 24
V
VHF Connecting Cable .. 22
Video Cassettes (tapes) .. 11
Video Head Cleaning ..... 39
Viewfinder/LCD Monitor
Indications ............ 31~33
Viewing (TV/VCR) .......... 21
VISION ADJUSTMENT .. 17
VOLUME ........................ 20
Z
Zoom ........................ 23, 28
