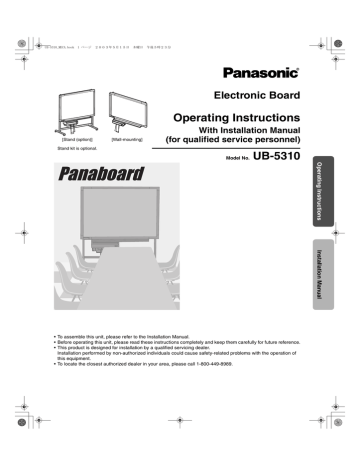

UB-5310_MECA.book 1 ページ
2003年5月15日 木曜日 午後5時23分
Electronic Board
Operating Instructions
[Stand (option)]
[Wall-mounting]
With Installation Manual
(for qualified service personnel)
Stand kit is optional.
Model No.
UB-5310
Operating Instructions
Installation Manual
• To assemble this unit, please refer to the Installation Manual.
• Before operating this unit, please read these instructions completely and keep them carefully for future reference.
• This product is designed for installation by a qualified servicing dealer.
Installation performed by non-authorized individuals could cause safety-related problems with the operation of
this equipment.
• To locate the closest authorized dealer in your area, please call 1-800-449-8989.
Cover_MECA.fm
2 ページ
2003年5月15日 木曜日 午後7時22分
Thank you for purchasing the Panasonic Electronic Board.
For optimum performance and safety, please read these instructions carefully.
Accessories
•
•
•
•
Markers (red, black, and blue)
Operating Instructions . . . .
Eraser . . . . . . . . . . . . .
Power cord . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q’ty
1 each
. . .1
. . .1
. . .1
•
•
•
•
Letter size copy paper roll [10 m (32.8 ft.)]
Software CD-ROM . . . . . . . . . . . .
Software License Agreement . . . . . . .
Warranty card . . . . . . . . . . . . . . .
.
.
.
.
Q’ty
. .1
. .1
. .1
. .1
* The stand is optional. By way of example, this manual describes an Electronic Board which is used with the stand.
* USB cable is not included.
Things you should keep a record of
Attach your sales receipt here
For your future reference
Date of purchase: _________________________
Serial number: ____________________________
Dealer’s name and address: ______________________________________________________________
Tel:
Dealer’s address: ______________________________________________________________________
Federal Communications Commission Requirements
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
FCC Warning: To assure continued FCC compliance, the user must use only the provided power supply cord.
Also, any unauthorized changes or modifications to this equipment would void the user’s authority
to operate this device.
• Microsoft, Windows and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
Windows® is Microsoft® Windows® operating system.
Screen shots reprinted with permission from Microsoft Corporation.
• IBM is a registered trademark of International Business Machines Corporation.
• Pentium is a registered trademark of Intel Corporation in the U.S. and other countries.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• All trademarks referred to in this manual are property of their respective companies.
The information given in this Operating Instructions is subject to change without notice.
2
UB-5310_MECA.book 3 ページ
2003年5月15日 木曜日 午後5時23分
Table of Contents
Page
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before
You Start
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading Copy Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Copy types and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Screen Height Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using
Computer Interfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•
•
•
•
•
•
•
•
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the unit to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the driver and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the driver and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panaboard Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
16
17
23
23
24
25
Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
• Cleaning the screen and the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
• Caring for the eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
• Cleaning the printer head and paper feed roller. . . . . . . . . . . . . . . . . . . . . . . 26
Help
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
• Meanings of error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
• Option and Separately available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warning about saving data
When the system storage device or any of its optional storage device is adversely effected by operational
errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction,
repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a
point of reading the precautionary notes in the Operating Instructions and the help information, and observe
them during operation.
Please observe carefully the following precaution:
• Make absolutely sure that all important data is saved by back-up or the original is saved.
The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data
stored on floppy disks, hard disks, optical disks, or other memory devices.
3
UB-5310_MECA.book 4 ページ
2003年5月15日 木曜日 午後5時23分
For Your Safety
CAUTION:
TO PREVENT RISK OF ELECTRIC SHOCK HAZARD, DO NOT REMOVE THE COVER OF
THIS PRODUCT, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
ANY TYPE OF MOISTURE.
THE SOCKET-OUTLET MUST BE NEAR THIS EQUIPMENT AND MUST BE EASILY
ACCESSIBLE.
The product should be used only with the power cord that is supplied by the manufacturer.
CLASS 1 LED PRODUCT
4
UB-5310_MECA.book 5 ページ
2003年5月15日 木曜日 午後5時23分
Precautions
Do not position the electronic board in a location where
it is unstable.
Do not put drinks, other liquids or heavy items on the
tray or screen.
After installing or moving the electronic board, lock the
casters and set the fall-prevention extension legs.
Operating Instructions
Never remove the cover, take apart or modify the
product. This will void the warranty.
Push to lock
Locking the casters
(Push this side)
Do not use the electronic board in an excessively
humid or dusty location.
If the electronic board is not going to be used for an
extended period of time (e.g., during extended
holidays), turn off the power and remove the plug from
the wall outlet.
5
UB-5310_MECA.book 6 ページ
2003年5月15日 木曜日 午後5時23分
Precautions
Do not lean against the screen or on the cover (lower),
even if the electronic board is mounted on the wall.
Adjust the screen height with two persons after
installation.
Confirm both sides of the screen are hung in the same
height slots.
Make sure to tighten the height adjustment handles
after adjusting the screen height.
Slot 3
Slot 3
Slot 2
Slot 2
Slot 1
Tighten
the height
adjustment
handles
Tighten
the height
adjustment
handles
Slot 1
■ CD-ROM
To prevent the CD-ROMs from accidental damages:
6
Do not touch or write on the surface
of the disc.
Do not leave the disc out of the
protective case.
Do not place heavy objects on the
disc case or drop the case.
To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.
Do not leave the disc in direct
sunlight or near heat sources.
UB-5310_MECA.book 7 ページ
2003年5月15日 木曜日 午後5時23分
Precautions
Installation
• Do not install the unit where it may be exposed to direct sunlight, near heating
equipment, or near air-conditioning vents as this may cause stretching and/or
discoloration of the screen.
• Do not install the unit in strong sunlight or strong lighting. Proper copying may
become impossible.
• Do not install the unit in locations where the temperature may change suddenly as
this may disable the unit’s ability to make copies.
Screen Film
• Make thick and dark lines inside the copying
area. Note that any writing inside the shaded
area (on right) cannot be copied.
0 mm
Copying area
Operating Instructions
• Do not allow writing to remain on the screen for
an extended period of time as it will become
harder to erase.
25 mm (1" )
12.5 mm
(1/2" )
25 mm (1" )
• Do not touch the screen, write with markers, or
erase while the screen is moving as this may result in damage to the unit.
Markers,
Erasers and
Copy Paper
• Use only the included or designated markers, erasers and copy paper.
(See page 30.)
Use of accessories other than those included or designated (such as oil-based
markers) may damage the screen or result in hard-to-erase markings.
• Store markers horizontally as vertical storage may stop the ink from coming out.
• Store a copy paper roll in a cool, dark, moisture free location.
• Do not store printed copies exposed to direct sunlight or hifh humidity, or inside
vinyl chloride (plastic) files.
• For long-term storage, make another copy with an ordinary paper copier machine.
Power Cord
• When moving the unit, disconnect the power cord from the electrical power socket
and from the printer’s power connector and coil it for transportation as stepping on
the power cord or having it catch on something during movement may result in
damage to the cord.
USB Cable
• Use a shielded USB cable that is certified as logo by USB-IF.
• If you connect the electronic board to a USB hub, it is not guaranteed to work.
7
UB-5310_MECA.book 8 ページ
2003年5月15日 木曜日 午後5時23分
Part Names and Functions
Scanner
Screen Film
Printer
Tray
Stand
The stand is optional.
Output Port
Control Panel
(See page 9 for details.)
Power Switch
ON
USB Connector
(See page 16.)
OFF
AC Inlet
Printer Door
Open this door to load
copy paper or to remove
jammed paper.
(See pages 10, 13.)
PUSH
OPEN
Power Cord
Copied Paper Holder
Door Open
Button
This holder holds up to 5
sheets of output paper.
Push this button to open
the printer door.
PUSH
8
OPEN
UB-5310_MECA.book 9 ページ
2003年5月15日 木曜日 午後5時23分
Part Names and Functions
■ Control panel
Advance Key
Contrast Indicator
Copy Key
Contrast Key
2-Screen Copy Key
Name
Description
Contrast
Indicator
This lamp indicator displays the printing contrast used during
copying.
Indicator off: Normal printing contrast
Indicator on: Darker than normal printing contrast
Contrast
Key
Each time this key is pressed, the unit will alternate between
normal and dark contrast modes (Normal/Dark).
2-Screen
Copy Key
This key causes the front and back of the screen to be copied on
a single sheet of paper.
Multi-Copy/
Error
Indicator
Multi-Copy/
Stop Key
Operating Instructions
Panel
Multi-Copy/Stop Key
Multi-Copy/Error Indicator
This indicator displays the number of copies to be made. The
display changes each time the Multi-Copy/Stop Key is pressed.
Example: 1 → 2 → ··· → 9 → 1 → ···
When an error occurred, a flashing symbol will appear in this display to
indicate the error status. (See page 29.)
When making multiple copies, press this key until the desired
number of copies is displayed on the Multi-Copy/Error Indicator.
This key can also be pressed while multiple copies are being
made to stop the copying process. The display indication
changes while multiple copies are being made as shown below.
After reaching 0, the display will reset to 1.
Example: 5 → 4 → 3 → 2 → 1 → 0 → 1
(countdown display during copying)
Copy Key
This key causes the screen to be copied.
Advance
Key
This key advances the screen from right to left.
9
Using_MECA.fm
10 ページ 2003年5月16日 金曜日 午前10時22分
Loading Copy Paper
1
Turn the power switch on by pressing the “ I ” side
of the power switch.
Power
Switch
• The unit is ready for use when “ ” is displayed on the
multi-copy/error indicator.
• The screen will move to home position and stop.
PUSH
OPEN
2
Push the door open button and open the printer
door.
Door
Open
Button
PUSH
• If there is any copy paper remaining in the copy paper
compartment, remove it.
OPEN
Copy paper
compartment
3
Load the copy paper roll with smooth side facing up.
Open the printer door to position B and load it, then
move the printer door to position A to prevent
paper roll from falling.
Loosen about
15 cm (529/32")
as shown and
load it.
A
B
Note
Smooth side
Wrong direction
About
15 cm (529/32")
• Use copy paper roll with a core diameter of 25.4 mm
(1 inch) or more. Using a copy paper roll with a smaller
core could cause paper jams.
4
Pass the paper over the paper feed roller and
under the cutter cover, then through the output port
about 4 cm (11/2 inches).
Paper feed
roller
Cutter cover
About 4 cm (11/2")
5
Close the printer door securely, using two hands.
Note
• Once the door is closed, paper will feed and
automatically cut. Remove and discard the small piece
of paper.
Load a new roll when:
• Red bands become visible at the edge of the copy paper.
• The ERROR indicator “ ” goes on and off even after the printer door is closed properly.
10
UB-5310_MECA.book 11 ページ
2003年5月15日 木曜日 午後5時23分
Making Copies
This section describes how to copy text and illustrations drawn on the screen.
1
Turn the power switch on by pressing the “ I ” side
of the power switch.
Power
Switch
PUSH
OPEN
• The unit is ready for use when “ ” is displayed on the
multi-copy/error indicator.
• The screen will move to home position and stop.
Notes
2
Press the Copy Key
PUSH
OPEN
Output paper
Operating Instructions
• Confirm the ERROR Indicator “ ” is off.
(If not, refer to “Loading the copy paper”.)
• When not in use, be sure to turn the power off.
.
• Text and illustrations on the screen will be copied and
copies emerge from the output port.
• The copied paper holder can hold up to 5 copies.
(Note that exceeding the copied paper holder’s
capacity may result in paper jams.)
• For details on making multiple copies, 2-screen copies
and so on, see page 12.
Notes
• While copying, do not touch the paper, otherwise the
paper may jam.
• Text or images in shades of yellow will not copy.
11
UB-5310_MECA.book 12 ページ
2003年5月15日 木曜日 午後5時23分
Making Copies
■ Copy types and procedures
Copy Type
Copying the front of
the screen
Procedure
Press
.
Copying the back of
the screen
Press
Press
to move the screen to be copied to the front.
.
Making multiple
copies (up to 9)
Select the number of copies (1 to 9) by pressing
necessary.
Press
.
• Press
Making 2-screen
copies
Press
as
to stop copying in mid-operation.
.
• Copying the front and
back of the screen on a
single sheet of paper
Copying chart
paper
Chart paper can be attached to the screen as shown in the figure
and copied. (Be sure to take the chart off the screen soon after
copying is finished.)
• Wrinkles, slackness or folds in the chart when attached to the screen will show
up in copies as dark shadows.
• Affix it to the screen with drafting tape made by 3M® or other similar tape with
medium adhesive.
3M® is a registered trademark of 3M Corporation.
12
UB-5310_MECA.book 13 ページ
2003年5月15日 木曜日 午後5時23分
Paper Jams
To release jammed paper:
1
Push the door open button and open the printer
door.
Door
Open
Button
PUSH
OPEN
2
Operating Instructions
Remove the jammed paper by pulling the paper roll
to the direction A. If the jammed paper is still in the
cutter cover, remove it using tweezers from slot B.
A
Cutter cover
Slot B
3
Cut the paper straight as shown in the figure.
Cut
4
Paper feed
roller
Cutter cover
5
Pass the paper over the paper feed roller and under
the cutter cover, then through the output port about
4 cm (11/2 inches). (Refer to step 4 on page 10.)
In case paper cannot go through, just put the paper
on the paper feed roller and insert the top of the
paper in the cutter cover as shown in the figure.
Close the printer door securely, using two hands.
Notes
• Use copy paper roll with a core diameter of 25.4 mm
(1 inch) or more. Using a copy paper roll with a smaller
core could cause paper jams.
• Once the door is closed, paper will feed and
automatically cut. Remove and discard the small piece
of paper.
13
UB-5310_MECA.book 14 ページ
2003年5月15日 木曜日 午後5時23分
Screen Height Adjustment
The screen can be adjusted at 3 levels except for the lowest level. The lowest level of the board attachment frame is
designed for installation of the screen, so the printer cannot be attached at this level. Adjust the level of the screen
unit as follows.
Please lock the casters when you adjust the screen height. (Refer to page 5.)
1
Loosen the height adjustment handles.
Height
adjustment
handles
Height
adjustment
handles
2
Board attachment
(lower)
Hang the step frame on the reinforce pipe.
Slide
groove
Down
Lift the board attachment (lower) by stepping on
the step frame.
Slide along the slide groove.
Lift
Do not handle the tray.
Step frame
Reinforce pipe
3
Adjust the screen height with two persons after
installation.
Hang the screen in the desired slots of the slide
plates.
Slot 4
Slot
Adjustment
Screen Height
Slot 1
Available
2000 mm (6' 63/4" )
Slot 2
Available
1875 mm (6' 113/16" )
Slot 3
Available
1750 mm (5' 87/8" )
Slot 4
Cannot be used
–
Slot 3
14
Slot 2
Do not use slot 4.
Slot 4 cannot be used for screen height adjustment.
Slot 1
Confirm both sides of the screen are hung in the
same height slots securely.
UB-5310_MECA.book 15 ページ
2003年5月15日 木曜日 午後5時23分
Screen Height Adjustment
4
Tighten the height adjustment handles.
Height
adjustment
handles
Height
adjustment
handles
Operating Instructions
5
Step frame
Be sure to tighten the height adjustment handles
firmly after adjusting the level of the screen.
Store the step frame by hanging it on the board
attachment (upper).
Board attachment
(upper)
15
UB-5310_MECA.book 16 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
• Panasonic Document Management System (hereafter Panasonic-DMS) uses the TWAIN driver to scan images
drawn on the screen.
• The Panasonic-DMS has a capability of managing documents (image files).
• The printer driver allows the printer to print documents from your computer.
■ System requirements
Computer
CPU
Interface
OS
Memory
HD
IBM® PC/AT or compatible machine with a CD-ROM drive
Pentium® II or higher processor
USB 1.1 (B connector)
Windows® 98 / Windows® Millennium Edition / Windows® 2000 / Windows® XP
64 MB or more (Windows 98/Me)
128 MB or more (Windows 2000)
256 MB or more (Windows XP)
At least 40 MB free space (except saving space for image file)
* The computer interfacing function of the UB-5310 is not available in Windows NT® 4.0.
* If you connect the electronic board to a USB hub, it is not guaranteed to work.
* Please note that if more than one Panasonic electronic boards are connected in a USB tree, only one of those electronic
boards will perform the computer interfacing.
■ Contents of CD-ROM
The provided CD-ROM includes the following items.
• USB driver
• Printer driver
• Panasonic-DMS software
• TWAIN driver
• View Manuals
• Adobe® Acrobat® Reader
■ Connecting the unit to a computer
Power on the electronic board, and connect the unit and your computer with a USB cable.
Caution:
* Use a shielded USB cable that is certified as logo by USB-IF.
USB cable
To your computer
When you connect the unit for the first time, install the USB and Printer driver to your computer.
•
•
•
•
Windows 98 → Page 17
Windows Me → Page 18
Windows 2000 → Page 20
Windows XP → Page 21
* When using Windows 98 or Windows Me, a floppy disk or CD-ROM for installing the operating system will also
be necessary. (See page 19.)
16
UB-5310_MECA.book 17 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
■ Installing the driver and software
Installing the USB and Printer driver
Windows 98
1 Power on your computer and start
Windows.
2 Power on the electronic board, and
3 When “USB Composite Device” is
detected, click the [Next] button.
4 Click on the “Search for the best
driver for your device.
(Recommended).” check button and
click the [Next] button.
5 Insert the CD-ROM into the CD-ROM
drive. When the Setup window appears,
click the
(close button) to close it.
6 Select the “Specify a location:” only,
then specify “D (CD-ROM drive letter):
\UB-5xxx\UsbDrv\Win98-Me” in the
text box, and click the [Next] button.
• Do not select the CD-ROM drive. It may
cause installing a wrong USB driver.
for your device. (Recommended).”
check button and click the [Next] button.
11 Confirm that the “Specify a location:”
is the same as step 6, click the [Next]
button.
12 When the driver is found, click the
[Next] button.
13 When the installation of “USB Printing
Operating Instructions
connect the unit and your computer
with a USB cable.
10 Click on the “Search for the best driver
Support” is completed, click the
[Finish] button.
14 When “Unknown Device”**
is
detected again, repeat steps 9 to 13 to
install “Panaboard-UB5 USB Device
Driver”.
15 When “PanasonicPanaboard-UB5
USB Printer (Letter)” is detected, click
the [Next] button.
16 Click on the “Search for the best driver
for your device. (Recommended).”
check button and click the [Next] button.
17 Confirm that the “Specify a location:”
is the same as step 6, click the [Next]
button.
18 When the driver is found, click the
[Next] button.
19 Follow the on-screen instructions when
the “Add Printer Wizard” executes.
20 When the installation of “PanaboardUB5 USB Printer (Letter)” driver is
completed, click the [Finish] button.
7 When the driver is found, click the
[Next] button.
8 When the installation of “USB
Composite Device” driver is
completed, click the [Finish] button.
* In the case of Windows 98 Second Edition,
“USB Printing Support” is detected.
** In the case of Windows 98 Second Edition,
“Panaboard-UB5 USB Device” is detected.
• A floppy disk or CD-ROM for installing the operating
system will also be necessary. (See page 19.)
9 When “Unknown Device”* is
detected, click the [Next] button.
17
UB-5310_MECA.book 18 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Windows Me
1 Power on your computer and start
Windows.
2 Power on the electronic board, and
connect the unit and your computer
with a USB cable.
3 When “Panaboard-UB5 USB Device”
is detected, click on the “Specify the
location of the driver (Advanced)”
check button and click the [Next]
button.
4 Insert the CD-ROM into the CD-ROM
drive. When the Setup window appears,
click the
(close button) to close it.
5 Select the “Specify a location:” only,
9 Confirm that the “Specify a location:”
is the same as step 5, click the [Next]
button.
10 When the driver is found, click the
[Next] button.
11 When the installation of “USB Printing
Support” is completed, click the
[Finish] button.
12 When “PanasonicPanaboard-UB5
USB Printer (Letter)” is detected, click
on the “Specify the location of the
driver (Advanced)” check button and
click the [Next] button.
13 Confirm that the “Specify a location:”
is the same as step 5, click the [Next]
button.
then specify “D (CD-ROM drive letter):
\UB-5xxx\UsbDrv\Win98-Me” in the
text box, and click the [Next] button.
14 When the driver is found, click the
• Do not select the CD-ROM drive. It may
cause installing a wrong USB driver.
15 Follow the on-screen instructions when
[Next] button.
the “Add Printer Wizard” executes.
16 When the installation of “PanaboardUB5 USB Printer (Letter)” driver is
completed, click the [Finish] button.
• A floppy disk or CD-ROM for installing the operating
system will also be necessary. (See page 19.)
6 When the driver is found, click the
[Next] button.
7 When the installation of “PanaboardUB5 USB Device Driver” is
completed, click the [Finish] button.
8 When “Panaboard-UB5 USB Printer”
is detected, click on the “Specify the
location of the driver (Advanced)”
check button and click the [Next]
button.
18
UB-5310_MECA.book 19 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Note
Special Note for Windows 98/Me
If your computer had Windows 98/Me pre-installed
and the original Windows 98/Me CD-ROM or diskettes
were not included. In this situation, please try to locate
the necessary files by following the methods
described below or refer to your computer’s User’s
Guide for more details.
Generally, the Windows 98/Me backup files are
located in the “WINDOWS\OPTIONS\CABS” folder.
Type “C:\WINDOWS\OPTIONS\CABS” in the [Copy
files from:] box on the “Copying Files...” dialog box,
where “C:” is your Windows 98/Me boot drive and
then click the [OK] button.
If the necessary files are found, the installation will
proceed.
Otherwise, click the [Details...] button, a dialog box
appears as shown below including the cabinet file
name (*.CAB listed under the Description File) that
contains the necessary file.
1 Click the [Start] button on the Task Bar
and then click on [Find]–[Files or
Folders...] (Windows 98) or [Search]–
[For Files or Folders...] (Windows Me).
2 A dialog box appears prompting for a
file name to be searched, type
“DRIVER*.CAB” in the [Named:]
(Windows 98) or [Search for files or
folders named:] (Windows Me) box,
choose “C:” in the [Look in:] box and
check the box for [Include subfolders]
(only for Windows 98).
Operating Instructions
Method-1:
Specify the Windows 98/Me backup file location in
the hard disk of your computer.
To search for the file in your computer
3 Click the [Find Now] (Windows 98) or
[Search Now] (Windows Me) button.
When the cabinet file is found, make a
note of the folder name where the file is
located.
4 Return to the “Copying Files...” dialog
box and type the folder name in the
[Copy files from:] box. For example,
type “C:\WINDOWS\OPTIONS\CABS”.
Then click the [OK] button.
Method-2:
Create the Windows 98/Me backup diskettes and
then specify the diskettes.
In this example, the cabinet file name is
“DRIVER20.CAB”. (Note that the cabinet file name
may vary depending on your computer.)
Depending on the computer, there is usually a tool
from the manufacturer to create the Windows 98/Me
backup diskettes in a Windows 98/Me pre-installed
system. Please refer to your PC’s User’s Guide for
more details on this tool.
Create the Window 98/Me backup diskettes by using
this tool, and then install the USB and Printer driver by
following the procedures from Step 1.
19
UB-5310_MECA.book 20 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Windows 2000
1 Power on your computer and start
Windows.
• Log on as an administrator.
2 Power on the electronic board, and
connect the unit and your computer
with a USB cable.
3 When “Welcome to the Found New
Hardware Wizard” dialog box appears,
click the [Next] button.
4 When “Panaboard-UB5 USB Device”
is detected, click on the “Search for a
suitable driver for my device
(Recommended)” check button and
click the [Next] button.
5 Insert the CD-ROM into the CD-ROM
drive. When the Setup window appears,
click the
(close button) to close it.
6 Select the “Specify a location” only,
then click the [Next] button.
• Do not select the CD-ROM drive. It may
cause installing a wrong USB driver.
9 Although “Digital Signature Not
Found” dialog box appears, click the
[Yes] button to continue the installation.
10 When the installation of “PanaboardUB5 USB Device Driver” is
completed, click the [Finish] button.
11 When “Welcome to the Found New
Hardware Wizard” dialog box appears
again, click the [Next] button.
12 When “Unknown” is detected, click on
the “Search for a suitable driver for
my device (recommended)” check
button and click the [Next] button.
13 Select the “Specify a location” only,
then click the [Next] button.
• Do not select the CD-ROM drive. It may
cause installing a wrong USB driver.
14 Confirm that the “Copy
manufacturer’s files from:” is the
same as step 7, click the [OK] button.
15 When the driver is found, click the
[Next] button.
16 Although “Digital Signature Not
Found” dialog box appears, click the
[Yes] button to continue the installation.
17 When the installation of “PanaboardUB5 USB Printer (Letter)” driver is
completed, click the [Finish] button.
• The standard printer name is “Panaboard-UB5 USB
Printer (Letter)”.
7 Specify “E (CD-ROM drive letter):
\UB-5xxx\UsbDrv\Win2K-XP” in the
text box, and click the [OK] button.
8 When the driver is found, click the
[Next] button.
20
UB-5310_MECA.book 21 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Windows XP
1 Power on your computer and start
Windows.
• Log on as an administrator.
2 Power on the electronic board, and
connect the unit and your computer
with a USB cable.
8 When “Panasonic Panaboard-UB5
USB Printer (A4/Letter)*” is detected,
click on the “Install from a list or
specific location (Advanced)” check
button and click the [Next] button.
9 Confirm that the “Include this location
in the search:” is the same as step 5,
click the [Next] button.
10 Although the “Hardware Installation”
is detected, click on the “Install from a
list or specific location (Advanced)”
check button and click the [Next]
button.
dialog box appears, click the [Continue
Anyway] button to continue the
installation.
4 Insert the CD-ROM into the CD-ROM
drive. When the Setup window appears,
click the
(close button) to close it.
Operating Instructions
3 When “Panaboard-UB5 USB Device”
11 When the installation of “PanaboardUB5 USB Printer (Letter)” driver is
completed, click the [Finish] button.
5 Select the “Include this location in
the search:” only, then specify
“E (CD-ROM drive letter):
\UB-5xxx\UsbDrv\Win2K-XP” in the
text box, and click the [Next] button.
• Do not select the CD-ROM drive. It may
cause installing a wrong USB driver.
• The standard printer name is “Panaboard-UB5 USB
Printer (Letter)”.
6 Although the “Hardware Installation”
dialog box appears, click the [Continue
Anyway] button to continue the
installation.
7 When the installation of “PanaboardUB5 USB Device Driver” is
completed, click the [Finish] button.
21
UB-5310_MECA.book 22 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Installing Panasonic-DMS software and
TWAIN driver
When an old version of Panasonic-DMS is already
installed, remove it and install the new version of
the software in the same folder.
6 Click the [Install Panasonic-DMS
Software] button.
1 Power on your computer and start
Windows.
• Log on as an administrator for Windows
2000 or Windows XP.
2 Insert the CD-ROM into the CD-ROM
drive. The Setup window will appear
automatically.
• Depending on the operating system or the
settings that you are using, the Setup
window may not appear automatically.
In such a case, execute “menu.exe” in the
CD-ROM from the Explorer.
3 Click on the desired language.
• Even when French, Spanish or Italian is
chosen, the TWAIN driver of the English
version is installed.
4 When “Welcome” dialog box appear,
click the [Next] button.
5 Click the [Panasonic-DMS] button.
• Click [Adobe Acrobat Reader 5.0] to install
the Acrobat Reader. To read the operating
instructions, the Acrobat Reader must be
installed in your computer.
7 Enter the installation destination and
click the [Next] button.
8 Enter the data folder and click the
[Next] button.
9 Select “UB-5xxx” and click the [>>]
button. Select and add other products
that use Panasonic-DMS software.
Then, click the [Next] button.
10 When “Select Setup Type” dialog box
appear, click the [Typical] button.
11 Enter the program folder name and
click the [Next] button.
12 Follow the on-screen instructions when
other messages are displayed.
13 When the setup process is completed
and a message is displayed prompting
you to restart your computer, restart
Windows.
• Log on as an administrator for Windows
2000 or Windows XP.
• About the Document Manager, refer to the
Document Manager System operating
instructions in the CD-ROM.
22
UB-5310_MECA.book 23 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
■ Removing the driver and software
4 Click the [File] menu, then click
Removing Panasonic-DMS software
and TWAIN driver
[Acquire Image...], or click the
(scanner) icon on the Toolbar.
If you need to remove the Panasonic-DMS
software and TWAIN driver, perform the following
steps.
• The Panaboard Operation Panel will
appear.
1 Power on your computer and start
Windows.
• Log on as an administrator for Windows
2000 or Windows XP.
Operating Instructions
2 Click [Start], move the pointer to
[Programs]–[Panasonic]–[Panasonic
Document Management System]–
[Uninstall].
(For Windows XP, [All Programs]
instead of [Programs].)
3 Select the [Remove] check button and
click the [Next] button.
4 Follow the instructions on the screen.
5 After uninstalling, restart your
computer.
■ Scanning
You can scan images on the screen to your
computer by operating Panasonic-DMS.
1 Click [Start], move the pointer to
[Programs]–[Panasonic]–[Panasonic
Document Management System]–
[Document Manager].
(For Windows XP, [All Programs]
instead of [Programs].)
Note
• When the Panaboard Operation Panel is
not displayed, check the USB cable
connection or the condition of the
electronic board.
5 Click the
(Scan) button or the
(2-Screen Scan) button.
• Scanning starts and the scanned image
will be displayed on the screen of the
computer. It is also possible to start
scanning using the Copy Key or 2-Screen
Copy Key on the electronic board.
6 Click [Close] on the Panaboard
Operation Panel to finish scanning.
• About the Document Manager, refer to the
Document Manager System operating
instructions in the CD-ROM.
Note
• Dragging the Panaboard Operation Panel or
activating other software programs may
cause scanning troubles.
• The Panasonic-DMS software runs.
2 Click the [File] menu, then click [Select
Source...].
3 Select [Panaboard-UB5 USB TWAIN
Driver] and click the [Select] button.
23
UB-5310_MECA.book 24 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
■ Panaboard Operation Panel
It is possible to perform the same operations as with the electronic board control panel (page 9) from the following
Panaboard Operation buttons.
Note: While the Panaboard Operation Panel is displayed, the Copy Key and 2-Screen Copy Key on the electronic
board control panel are used for scanning images into the computer.
Panel
Name
Description
Contrast
Indicator
This lamp indicator displays the contrast used during scanning or
copying.
Indicator off: Normal scanning or copying contrast
Indicator on: Darker than normal scanning or copying contrast
Contrast
Button
Each time this button is pressed, the unit will alternate between
normal and dark contrast modes (Normal/Dark).
2-Screen
Scan Button
This button scans the front and back of the screen on a single
page.
Multi-Copy/
Error
Indicator
Multi-Copy/
Stop Button
This indicator displays the number of copies to be made. The
display changes each time the Multi-Copy/Stop Button is
pressed.
Example: 1 → 2 → ··· → 9 → 1 → ···
When an error occurs, a flashing symbol will appear in this display to indicate
the error status. (See page 29.)
When making multiple copies, press this button until the desired
number of copies is displayed on the Multi-Copy/Error Indicator.
This button can also be pressed while multiple copies are being
made to stop the copying process.
* During scanning, the setting 1 to 9 for the number of copies is ignored.
24
Scan Button
This button scans the screen.
Advance
Button
This button advances the screen from right to left.
2-Screen
Copy Button
This button causes the front and back of the screen to be copied
on a single sheet of paper.
Copy Button
This button causes the screen to be copied.
UB-5310_MECA.book 25 ページ
2003年5月15日 木曜日 午後5時23分
Computer Interfacing
Status Box
The status box displays the status of the TWAIN driver
and the electronic board.
Stand by:
About Button
Click to display information about the TWAIN driver.
Close Button
Click to close the Panaboard Operation Panel.
To print documents from the computer to the
printer, select the Print menu of the application
software and select the printer name set when
installing.
The standard printer name is “Panaboard-UB5
USB Printer (Letter)”.
Notes
• The Multi-Copy/Error Indicator flashes when
printing.
After printing, all the panel keys are disabled
until the Multi-Copy/Error Indicator lights.
• When the operation panel of the TWAIN driver
is displayed, printing is not available.
• You cannot stop printing after printing starts.
Do not attempt to stop printing.
• Do not turn off the power of the electronic
board or unplug the USB cable before printing
finishes. It may cause the computer operation
to become unstable.
• A maximum 9 copies are available.
• The copied paper holder can hold up to 5
sheets of copied paper. (Note that exceeding
the copied paper holder’s capacity may result
in paper jams.)
• The Contrast Key is not effective for adjusting
the contrast of print.
• When printing almost black pages
continuously uniform color density and light
line streaks may appear. In such a case, try
again after waiting a while.
• When the unit falls in abnormal condition
during printing, printing jobs (jobs in the
spooler) may be lost. In such a case, print
again.
Operating Instructions
The electronic board is stand by.
Both of the Panaboard Operation Panel
and the electronic board control panel are
operational.
Rotating: The electronic board is rotating the
screen.
Copying: The electronic board is copying the
screen.
Scanning: The electronic board is now scanning the
images on the screen.
Converting: Indicates that the image data is being
converted so that the computer will be
able to display the scanned data.
Busy:
The electronic board is processing jobs.
Error:
An error has occurred with the electronic
board.
■ Printing
25
UB-5310_MECA.book 26 ページ
2003年5月15日 木曜日 午後5時23分
Daily Care and Maintenance
Always turn off the power switch and unplug the power plug when cleaning outside and inside the unit.
■ Cleaning the screen and the unit
Gently wipe the screen film and unit with a waterdampened cloth that has been thoroughly wrung.
• Use a kitchen cleaner diluted with water for hard-toclean stains.
• If you accidentally write on the board with an oil-based
marker, wipe with a small amount of ethyl alcohol.
Notes
• Use a neutral kitchen cleaner diluted with water for
hard-to-clean stains. (If you accidentally write on the
screen with an oil-based marker, wipe with a small
amount of ethyl alcohol.)
• Do not use thinner, benzine or cleaners containing
abrasives as this may result in discoloration.
• Do not wipe the screen film with a dry cloth as this may
generate a static charge.
■ Caring for the eraser
When the erasing surface of the eraser becomes
dirty, hold down the sheet under the top sheet with
your finger and peel off the dirty sheet by pulling in
the direction of the arrow.
Note
• When the eraser becomes thin, make sure that the
corners of the eraser do not strike the screen during
erasing as this may damage the screen.
■ Cleaning the printer head and paper feed roller
If black streaks appear on the copy, clean the printer head and the paper feed roller.
1
Push the door open button and open the printer
door.
Door
Open
Button
PUSH
OPEN
26
UB-5310_MECA.book 27 ページ
2003年5月15日 木曜日 午後5時23分
Daily Care and Maintenance
2
Clean the Printer Head
Dampen the tip of a cotton swab in ethyl alcohol
and gently wipe the printer head.
Note
• Never touch the printer head or the surrounding area
with your hands as this may disable copying.
Printer head (Gold)
3
Clean the Paper Feed Roller
Wipe any dirt or stains off the paper feed roller.
Paper feed
roller
4
Operating Instructions
Cotton swab
• Dampen a soft cloth with neutral kitchen cleaner
diluted in water, wring the cloth thoroughly, and wipe
the entire surface of the roller while rotating it. If this
does not remove all dirt, wipe with a cloth dampened
with ethyl alcohol.
Load the copy paper and close the printer door
securely, using two hands.
• For details on loading the copy paper, see page 10.
27
UB-5310_MECA.book 28 ページ
2003年5月15日 木曜日 午後5時23分
Troubleshooting
Treat problems according to the information given in the table below. If problems still persist, call your dealer for
service.
Symptom
Power switch is on but the
indicator is off.
See
Page
Care and Remedy
Check that the power plug is securely plugged in.
(If the indicator still does not light, turn the power off and on again.)
The unit is out of copy paper. (The Error Indicator flashes “
Load new paper.
The printer door is open. (The Error Indicator flashes “
Close the printer door firmly until a click is heard.
Copied copy paper will not
come out.
Nothing is printed on the
paper or copies are faint or
blurred.
”.)
Paper is jammed in the printer.
Remove the jammed paper and cut off the wrinkled portion, then
load paper again.
10
13
26–27
Confirm the paper is loaded correctly, smooth side face up.
10
The writing on the screen is too thin or light.
Make thicker, darker lines or change to a new marker.
–
The printer door is slightly open.
Close the printer door firmly, using two hands until a click is heard.
10
The printer head or paper feed roller is dirty.
Open the printer door and clean any dirt off the printer head and
paper feed roller.
A black or white horizontal
line appears, or the page
prints in black or blank.
The unit is in strong sunlight or strong lighting.
Change the direction of the screen or block the light.
The USB driver or printer
driver does not work properly
immediately after the
installation of the software.
The Panaboard has not been registered in [Control Panel]–[Scanners
and Cameras] and [Printers].
Run “UB-5xxx\Uninstall\UB5Uninst.exe” in the CD-ROM to
uninstall the drivers from the computer. Then, install the drivers.
The screen does not
advance when the Copy or
Advance Key is pressed.
10
The paper feed roller is dirty.
Open the printer door and wipe the paper feed roller to clean it.
Black streaks or blank
(unprinted) spots appear on
the copy (copy paper is dirty).
The computer does not
recognize the electronic
board.
28
”.)
–
Check that the electronic board is in the condition that enables
operation or that the USB cable is connected properly.
26–27
–
17–21
–
The electronic board is connected via a USB hub.
Do not connect via a USB hub.
–
Static electricity was generated when the screen film was wiped.
Turn off the power and slowly move the screen by hand.
–
UB-5310_MECA.book 29 ページ
2003年5月15日 木曜日 午後5時23分
Troubleshooting
■ Meanings of error codes
The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error
Indicator.
Indication
Cause
Remedy
See
Page
Data transfer error
Connect the USB cable securely.
16
The screen will not move.
Remove any chart paper attached to
the screen and slowly move the screen
by hand.
–
No paper
Load the copy paper roll.
10
The printer door is not closed securely.
Close the printer door securely.
10
Printer can not cut the paper.
Open the printer door and clear the
jammed paper.
13
The scanner or screen is in strong
sunlight or strong lighting.
Change the direction of the screen or
block the light.
–
(Error)
(Paper)
Operating Instructions
(Screen)
(Cut)
(Scanner Failure)
If other indications such as “
” appear, call your dealer.
29
Help_MECA.fm 30 ページ
2003年5月16日 金曜日 午前10時21分
Specifications
Model No.
General
Input Block
Output
Block
UB-5310
Power supply
AC 100 –120 V, 50/60 Hz
Power consumption
(Operational/Standby)
1.4 A
External dimensions
(Height × Width × Depth,
without stand)
1440 mm × 1372 mm × 233 mm
(4' 811/16" × 4' 6" × 93/16" )
Mass (without stand/
with board attachment)
23 kg (50.7 lbs.)
Ambient operating conditions
Temperature: 10–35° C (50–95°F)
Humidity: 30–80% RH
Writing implements
Dry erase felt-tipped markers (black, red, and blue)
Panel dimensions (Height × Width)
900 mm × 1262 mm (2' 117/16" × 4' 111/16" )
Panel surfaces
2
Panel advance system
Endless scroll type
Copying area (Height × Width)
850 mm × 1250 mm (2' 915/32" × 4' 17/32" )
Scanning system
Image sensors
Printing system
Thermal type
Copy paper
Heat-sensitive roll paper
Paper thickness: 65 ©m
Core diameter: 25.4 mm or more*
Copy paper size
Letter
Copy density
8 dots/mm (203 dots/inch)
Copy colour
Black
Contrast adjustment
Two levels: Normal/Dark
2-screen compressed copying
Yes
Time required for copying
15 s/sheet
Continuous copies
1 to 9 sheets
Paper empty indication
Yes
■ Option and Separately available
Option
Stand: UE-608005
Markers:
Separately
Available
KX-B031 (set of 10 black markers),
KX-B032 (set of 10 red markers),
KX-B033 (set of 10 blue markers)
Erasers:
KX-B042 (set of 6 erasers)
Marker and eraser set: KX-B035 (contains one black, one red, and one blue markers and
one eraser)
* Using a copy paper roll with a smaller core could cause paper jam.
30
UB-5310_MECA.book 31 ページ
2003年5月15日 木曜日 午後5時23分
Table of Contents
page
Assembling the Electronic Board . . . . . . . . . . . . . . . . . . . . . . 32
●
●
Accessories for assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electronic Board Operations Check. . . . . . . . . . . . . . . . . . . . 40
Repacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Assembling the Optional Stand (UE-608005) . . . . . . . . . . . . 42
●
●
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Wall-mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
●
●
●
Wall-mounting fixture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Wall-mounting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Attaching the wall-mounting fixtures . . . . . . . . . . . . . . . . . . . . . . . 48
Before installing this set, please read this manual completely.
Installation Manual
CLASS 1 LED PRODUCT
WARNING
DO NOT INSTALL THIS OPTION EXCEPT
QUALIFIED SERVICE PERSONNEL.
CAUTION
SAFETY CHECK MUST BE DONE BY
QUALIFIED SERVICE PERSONNEL AFTER
INSTALLING THIS OPTION.
31
Installation_MECA.fm 32 ページ
2003年5月15日 木曜日 午後7時16分
Assembling the Electronic Board
■ Accessories for assembling
The package includes the parts for setting up the electronic board shown below. Make sure that all of these parts
are included in the package before proceeding.
Part Name
Illustration/Quantity
Q’ty
Board attachment
(upper)
[*Wall-mounting
fixture (upper)]
1
Board attachment
(lower)
[*Wall-mounting
fixture (lower)]
1
Remarks
1
Cover (upper)
1
Cover (lower)
6
1
6
(Long)
(Short)
For screen
For printer
and screen
For cover
For screen
6
6 Screen
Page 35, Step 11
Printer
Page 37, Step 17
Cover (lower)
Page 39, Step 22
Screws and spacers
For screen
1
Paper holder A
1
Paper holder B
Wrench
1
1
Power cord
1 Use the Wall-mounting
Wall-mounting
template
template1 and 2 by
pasting them together.
* These names [Wall-mounting fixture (upper)/Wall-mounting fixture (lower)] are used for installing on the wall.
32
UB-5310_MECA.book 33 ページ
2003年5月15日 木曜日 午後5時23分
■ Assembly
1
Assemble the optional stand or wall-mounting fixture.
2
Remove the electronic board from the shipping box.
■ If you are using a stand, refer to page 42.
■ If you are using a wall-mounting fixture, refer to page 46.
Remove the joints, then remove the electronic board from the shipping box.
Board attachment (lower)
Board attachment (upper)
Cover (upper)
Paper holder A ï·ïB
Manuals, CD-ROM
Copy paper roll
Power cord
Screws and spacers
Eraser
Installation Manual
Cover (lower)
Markers
Screen unit
Joint
Printer unit
Caution
• When removing the screen unit, grasp the side cover on either side of screen.
Do not grasp the screen film surface, as this may scratch it.
• The shipping box, cushioning material, and other packing material will be necessary if you ever need to
repackage the electronic board, so do not throw them away.
33
UB-5310_MECA.book 34 ページ
3
2003年5月15日 木曜日 午後5時23分
Collapse the carton box.
Remove the tape and the staples on
the unopened side of the carton box,
then collapse the box.
6
Hold the side covers of the screen unit
and hang two hooks of the screen unit
on the left side of the board
attachment (upper).
Shift the screen unit to the left until it
stops. Confirm the left hook is inserted
into the groove of the board
attachment (upper).
Remove the tape and the staples.
Top
• When hanging the screen unit, set the board
attachment frame at the lowest level.
• Be careful not to catch the screen film on the
board attachment frame.
Bottom
Carton
4
Remove the protective plastic bags.
Hang the screen unit to the board
attachment (upper).
Board attachment
(upper)
Cover (left)
Remove the protective plastic bag
from the screen unit and printer unit.
Set those units on the top of collapsed
shipping box and remove the
cushions.
Board
attachment
Frame
Cover (right)
Protective
plastic bag
Cushions
Screen unit
7
Remove the shipping screws.
Remove the lower and upper shipping
screws on the folded screen.
Cushions
Caution
• Touch the screen film surface gently to avoid
any damage.
5
Attach the screen unit to the
optional stand or wall mounting
fixture.
■ If you are using the stand, refer to
page 42.
■ If you are using the wall mounting
fixture, refer to page 46.
34
Caution
• Remove the lower shipping screw first.
UB-5310_MECA.book 35 ページ
8
2003年5月15日 木曜日 午後5時23分
Extend the screen unit.
Open the center and right panels of
the screen unit as shown below and
remove the cushion.
the screen unit.
10 Extend
Hang the right hook of the screen unit
on the board attachment (upper).
Right hook
Cushion
Caution
• Touch the screen film surface gently when
opening the screen unit.
Caution
• Touch the screen film surface gently when
opening the screen unit.
9
Unlock the hook.
the screen unit.
11 Fix
Fix the left, center and right panels
with the screws and spacers supplied.
To tighten the screws, use the
supplied wrench.
Installation Manual
Unlock the hook connected to the
center and right panels. Extend the
screen unit and remove the cushion
behind the screen.
Washer
Hook
Screws (short)
Lift the right
panel slightly
and extend it.
Screws
(long)
Spacers
Washer
Cushion
Caution
• Touch the screen film surface gently when
opening the screen unit.
35
UB-5310_MECA.book 36 ページ
2003年5月15日 木曜日 午後5時23分
■ Adjusting the level of the screen
unit (Step 12–15: only for use of
the optional stand)
the screen in the desired slots
14 Hang
of the slide plates and tighten the
handles.
At the lowest level of the board attachment frame,
the printer cannot be installed. Raise the level of
the screen unit as follows.
• Please lock the casters when you adjustment the
screen height. Refer to Operating Instructions
page 5.
Slots for
height
adjustment
the height adjustment
12 Loosen
handles on the board attachment
Slot for installing
the screen
(The printer cannot
be attached at this
position.)
frame.
Height
adjustment
handles
Height
adjustment
handles
the step frame on the center
13 Hang
of the reinforce pipe.
Hold the center of the board attachment
(lower) of the board attachment frame from
the back of the screen unit and lift the board
attachment frame by stepping on the step
frame to lift the board attachment frame
smoothly.
When lifting the board attachment frame, be
sure to hold the handle in the center of the
frame.
Board
attachment
(lower)
Reinforce pipe
Step frame
36
Caution
The screen can be adjusted at 4 levels.
• The lowest level of the board attachment frame
is designed for the installation of the screen, so
the printer cannot be attached at that level. Use
the electronic board at upper 3 levels.
• Make sure to tighten the height adjustment
handles firmly after adjusting the level of the
screen.
• Confirm both of the screws are hung in the same
height slots.
• Store the step frame by hanging it on the board
attachment (upper).
Step frame
Installation_MECA.fm 37 ページ
2003年5月16日 金曜日 午前10時24分
hanging the screen, fix the
15 After
stopper screw (left side only).
This prevents the user from adjusting
the screen height at the lowest level by
mistake.
the screws for the printer
17 Tighten
unit.
Use four screws for the optional stand
and two screws for the wall mounting.
■ Optional stand
Stopper screw
[ Screw (short)
See page 42.]
the printer unit.
16 Attach
Hang the hooks of the printer unit on
Installation Manual
the square holes of the board
attachment (lower).
Board attachment
(lower)
Printer unit
■ Wall-mounting
Caution
• When attaching the printer unit, make sure the
cable is not caught between the metallic frame
and the printer unit.
37
UB-5310_MECA.book 38 ページ
2003年5月15日 木曜日 午後5時23分
the cables (2) to the screen
18 Connect
panel connectors.
the cover (upper).
20 Attach
Hook the cover with the projections on
both sides, then cover the top of the
board attachment (upper).
Board attachment (upper)
the folding support screw
19 Remove
on the front side of the screen unit,
Cover (upper)
then store the folding support on
the back side.
Folding support screw
the shipping screws for fixing
21 Store
the screen panels, the screw for the
folding frame and the wrench in the
tool box on the top of the printer
unit.
Tool box
Folding support
Wrench
Shipping screws
38
Folding support screw
Installation_MECA.fm
39 ページ
2003年5月15日 木曜日 午後7時18分
the cover (lower).
22 Attach
(1) Push the cover in the direction of
the rear cover. (only for use
25 Attach
of the optional stand)
the arrow until it clicks.
(2) Fix the cover with the wing bolt.
Adhesive
tape
Rivets
the power cord.
23 Attach
Securely fit the supplied power cord
into the AC inlet on the printer unit.
the screen film surface.
26 Wipe
Soak a soft cloth with water, wring
Installation Manual
Power cord
• After peeling off the cover sheets of the
adhesive tapes, attach the rear cover to the
board attachments (upper/lower) while
matching the top edges of them. Then install
the rivets.
• The rear cover and rivets are supplied with
the optional stand.
well, and wipe the screen film surface.
AC inlet
the paper holders.
24 Attach
Attach the paper holders to the printer
section in numerical order of the
arrows (1), (2), (3) and (4).
Hole for B
Hole for A
Hole for B
Caution
• Do not wipe the screen film surface with paint
thinner, benzene, or cleaners that contain
abrasives. Doing so may cause discoloration.
• Do not wipe the screen film surface with a dry
cloth. Doing so may create static electricity.
Paper holder A
Install first.
Paper holder B
Install second on top of first.
the operations.
27 Check
Refer to “Electronic Board Operations
Check” on page 40.
39
UB-5310_MECA.book 40 ページ
2003年5月15日 木曜日 午後5時23分
Electronic Board Operations Check
After assembling the electronic board, perform the procedures presented in the following table to make sure it
functions properly.
Points to Check
Step
Symptom
1
2
3
Turn on the power switch.
“ ” flashes after “ ” lights up.
(Normal operation)
(If not)
Check power cord and
cables.
(See step 23 on page 39
and step 18 on page 38.)
Open the printer door and load the
copy paper, then close the printer door.
• loading the copy paper procedure
(refer to the Operating Instructions
page 10)
“ ” lights up after the copy paper
is fed and automatically cut.
(Normal operation)
(If not)
Check the condition of
printer door or copy
paper roll.
Press
Screen is fed.
(Normal operation)
The screen film surface is not fed
smoothly.
Contact the store or
dealer from which the
unit was purchased.
.
There are strange noises.
4
Use the accessory marker to draw
a large
“ ” lights up and three copies
are made.
(Normal operation)
Three copies are not made.
Contact the store or
dealer from which the
unit was purchased.
filling the entire
copyable area of the screen film
surface.
• Copying area (refer to the
Operating Instructions page 7)
Press
twice.
Press
5
Solutions
.
Press
to move the screen film
surface.
Write letters, etc. with the marker.
Press
once.
Press
.
The entire readable area is not
printed.
There are strange noises or
paper jams during the copying
process.
The Contrast indicator light is
turned on and copy is made.
(Normal operation)
The Contrast indicator light is
not turned on.
Contact the store or
dealer from which the
unit was purchased.
The image is not copied properly.
There are strange markings on
the copy sheet (e.g., stripes or
lines).
40
6
Press
once.
The Contrast indicator light is
not turned off.
Contact the store or
dealer from which the
unit was purchased.
7
Press
.
Two screens are not copied
properly.
Contact the store or
dealer from which the
unit was purchased.
UB-5310_MECA.book 41 ページ
2003年5月15日 木曜日 午後5時23分
Repacking
Perform Assembly Steps 2 through 24 in reverse to repack the electronic board and accessories. Use the joints to
fasten the shipping box to the lower box.
Board attachment (lower)
Board attachment (upper)
Cover (upper)
Paper holder A ï·ïB
Manuals, CD-ROM
Copy paper roll
Power cord
Screws and spacers
Eraser
Cover (lower)
Markers
Screen unit
Joint
Installation Manual
Printer unit
Caution
• When handling the screen unit, grasp the side cover on either side of screen.
Do not grasp the screen film surface, as this may scratch it.
41
UB-5310_MECA.book 42 ページ
2003年5月15日 木曜日 午後5時23分
Assembling the Optional Stand (UE-608005)
■ Accessories
The package box for the optional stand includes the parts noted below; please confirm that all parts are present
before beginning installation
.
No.
Part name
Illustration
Q’ty
No.
Part name
Illustration
Q’ty
Base pipe
2
Screw
2
Reinforce pipe
1
Height
adjustment
handle
4
Extension pipe
S
1
Nut
4
Extension pipe
L
(not use)
1
Cap
2
Side pipe
2
Step frame
1
Slide plate
(Left)
1
Fall-prevention extension
leg
4
Slide plate
(Right)
1
Wrench
(for stand)
1
Fixing plate
2
Rear cover
1
Screw (long)
12
Rivet
6
Screw (short)
11*1
Washer
8
The accessory Wrench is required when disassembling the electronic board; please store it carefully for future use.
*1 A screw (short)
is used for the stopper screw of step 15 on page 37.
● Before assembly, be sure to lock the casters.
Locking the casters
(Push this side)
Releasing the lock
42
UB-5310_MECA.book 43 ページ
2003年5月15日 木曜日 午後5時23分
■ Assembly
1
Assembling the stand
■ Assembling the fall-prevention extension legs
The fall-prevention extension legs are effective in increasing the safety of the electronic
board.
Fall-prevention extension legs
• Caster locks are attached
to the back side.
Caution
• Install and always set the fall-prevention legs when using the stand.
• When tightening the screws , hold the nut
with pliers.
■ Assembling the stand
Installation Manual
Slide sheet
Side pipe
Reinforce pipe
Slide sheet
Base pipe
Extension pipe S
Base pipe
• Assemble the side pipes with the slide sheets facing inside.
43
UB-5310_MECA.book 44 ページ
2
2003年5月15日 木曜日 午後5時23分
Assembling the board attachment frame
Stamp “UL”
Board attachment (upper)
Stamp “UR”
Slide plate
(left)
Stamp “LL”
Stamp “LR”
Slide plate
(right)
Board attachment (lower)
• The board attachments (upper and lower) are supplied with the electronic board.
• Place the board attachments and the slide plates with their stamps facing up and assemble them matching
their same stamps.
3
Attach the board attachment frame to the stand.
Step E
Step D
Cap
Step B
Height
adjustment
handle
Step D
Step A
Side pipe
Screw
Slide
plate
Step A
Fixing
plate
Height
adjustment
handle
Side pipe
Step C
The caster locks
are attached to
the back side.
Fixing plate
Step C
Details of the procedures are as follows.
Step A
44
Attach the fixing plate
to the board attachment frame.
The wider side is front.
UB-5310_MECA.book 45 ページ
Step B
2003年5月15日 木曜日 午後5時23分
Place the screws with the board attachment frame in the grooves of the side
pipes.
Board attachment frame
Side pipe
Step C Insert the screws
into the side pipes from the inside.
Fixing plate
Side pipe
Screw
Step E
Fix the caps
.
Installation Manual
Step D Install and secure the height adjustment handles
to the side pipes.
4
Assemble and install the electronic board.
5
Insert and keep the wrench in the holder on the cover lower.
Refer to pages 33 to 39.
Wrench (for stand)
Cover (lower)
45
UB-5310_MECA.book 46 ページ
2003年5月15日 木曜日 午後5時23分
Wall-mounting
■ Wall-mounting fixture
The wall-mounting fixture includes the board attachment (upper and lower) supplied with the unit.
Before attempting installation of this wall-mounting fixture, we strongly recommend consulting with the building
manager, engineer, or architect. The installer needs to know the type of construction used for the wall intended for
this installation and the location of wall studs. Selection of hardware is critical for safe wall-mounting, and
depends on the nature of wall construction. Installation should not occur until this consultation takes place.
Caution
• Do not attach the electronic board to mortared walls. Accidental electric leakage from the wall-mounting
fixture bolts to metal laths or wire laths can cause heat, smoke or a fire.
I. Tools required:
A minimum of four (4) pieces of appropriate wall-support hardware (molley, toggle, etc.)
NOTE: THIS HARDWARE MUST BE LOCALLY PROCURED, IT IS NOT INCLUDED IN THE PRODUCT.
Drill (and drill bit of correct size) for hardware installation
Screw driver (Both phillips (+) and slotted (–) will be required.)
Tape measure
Tape or thumb-tacks (2 pcs)
Bubble type level
II. Pre-requisites
1. Before installation, make sure that the wall intended for installation is capable of supporting flushmounted.
80 kgf (176 lbs.).
2. The position of the intended installation is of adequate size for the selected Panaboard.
1,440 mm (H) × 1,372 mm (W) [56.7" (H) × 54.0" (W)].
3. An outlet is within 3 m (118.1" ), and not located behind the Panaboard.
46
Installation_MECA.fm 47 ページ
2003年5月15日 木曜日 午後8時26分
■ Wall-mounting procedure
1
Confirm that the wall is strong enough to support the weight of the electronic board.
2
1) Assemble the wall-mounting template by taping the Wall-mounting template 1
(TOP) to Wall-mounting template 2 (BOTTOM).
2) Tape the wall-mounting template on the wall.
Caution
The wall must be capable of supporting at least
784N [80 kgf (176 lbs.)].
• When taping the template on the wall, make sure it is level.
3
1) Drill holes in the wall at the 4 spots indicated by
wall-mounting fixtures.
A
and
C
, or
B
and
C
for the
• Holes on the wall-mounting fixture are 1/4" in diameter.
2) After removing the wall-mounting template, attach the wall-mounting fixtures
with the appropriate wall-mounting hardware.
900 mm (2
A
B
812 mm (2
' 8" )
Wall-mounting hardware
A
C
B
C
Board attachment (lower)
(Wall-mounting fixture lower)
Wall-mounting
template
Installation Manual
Board attachment (upper)
(Wall-mounting fixture upper)
' 11 7/16" )
A
940 mm
(3' 11" )
B
C
Remove the
edge cover.
A
B
Remove the
edge cover.
C
Wall-mounting hardware
• Refer to the section “Attaching the wall-mounting fixtures” (page 48) for drilling in the wall and attaching the
mounting fixtures.
• Refer to steps 2 to 23 on pages 33 to 39 for attaching the printer and the screen.
47
UB-5310_MECA.book 48 ページ
2003年5月15日 木曜日 午後5時23分
■ Attaching the wall-mounting fixtures
The electronic board must be mounted with the method most suited to the material of the wall.
Three methods are presented here.
(Other options may be available in your area.)
● Attaching
to metal or concrete walls
Stud plugs (sold in stores) are needed.
Drill bit
Drill four holes in the wall.
For the correct hole size, refer
to the instructions for the
particular stud plugs used.
Metal or concrete
wall
Stud plug
Insert a stud plug in each hole.
Wall-mounting
fixture
Bolt
● Attaching
Insert each bolt through a hole
in the wall-mounting fixture and
tighten until the wall-mounting
fixture is securely fixed to the
wall.
to plasterboard walls
Split-wing toggles (sold in stores) are needed.
Plasterboard
Split-wing toggle
Wall-mounting
fixture
Bolt
Arms
Arms
Insert each bolt through a hole
in the wall-mounting fixture and
into the hole in the wall beneath
so that the arms of the splitwing toggle are horizontal. For
the correct hole size, refer to the
instructions for the particular
split-wing toggles used.
After the arms expand, pull the
wall-mounting fixture out until
the arms of the split-wing toggle
grip firmly into the wall.
Tighten each bolt until the wallmounting fixture is securely
fixed to the wall.
48
UB-5310_MECA.book 49 ページ
● Attaching
2003年5月15日 木曜日 午後5時23分
to wooden walls
Use wood screws (sold in stores).
Wall-mounting fixture
Wood screw
For the correct hole size, refer
to the instructions for the
particular wood screws used.
Wooden wall
Installation Manual
49
UB-5310_MECA.book 50 ページ
2003年5月15日 木曜日 午後5時23分
Panasonic Digital Document Company
A Unit of Matsushita Electric Corporation of America
Two Panasonic Way, Secaucus, New Jersey 07094
© 2002-2003 Panasonic Communications Co., Ltd.
Printed in Japan
PJQXB0050ZA K0503M0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
