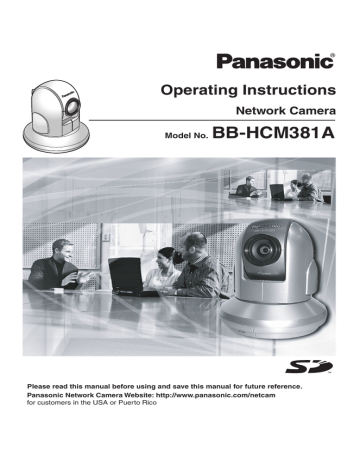

Operating Instructions

Network Camera

Model No.

BB-HCM381A

Please read this manual before using and save this manual for future reference.

Panasonic Network Camera Website: http://www.panasonic.com/netcam

for customers in the USA or Puerto Rico

Operating Instructions

Main Features

IPv6

*1

Network Camera

Your Panasonic Network Camera supports IPv6 (Internet Protocol Version 6), IPv6 was created to address the additional IP addresses that will be needed as the

Internet continues to expand. Since the camera also supports IPv4 that's currently used, it is "dual stack" design will seamlessly operate while IPv6 is phased in. For

more information in IPv6 you wish to visit http://www.ipv6.org/. See page 15 for

more information.

Audio 2-way Communication

*2

(Walkie-talkie Type)

2-way audio communication is now possible between your Network Camera and

PC. By connecting a user-supplied microphone and speaker

*3

to both the camera and to the PC, you will be able to speak to and hear anyone within range of the camera.

For example, the camera can be used in the following various locations:

• In the baby's room, to hear if the baby is crying.

• At the front door, to see and hear who is at the door.

• In the children's play room, to see and hear if they are safe.

Note

PLEASE NOTE that under certain circumstances, audio/video recording may be PROHIBITED by law. This device should be used only in compliance with all applicable federal, state and local statutes.

Better Image Quality

The CCD sensor and the color night view mode provides better image quality and low light performance.

• The CCD sensor gives you clear image.

• You can monitor live video (Motion JPEG) that refreshes its image 30 frames per second.

• Color night view mode allows you to monitor the camera in low illuminance.

2

*1

*2

*3

To connect in IPv6, subscribe to the ISP's "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service. The camera does not work in IPv6-only network.

Audio feature does not work well on cell phones. Talk button and Listen button cannot be used simultaneously. In consequence of traffic and network environments, the audio may be delayed or may break up.

The speaker connected to the camera requires a built-in amplifier.

Operating Instructions

Remote Pan/Tilt/Zoom/Focus

The following features allow you to operate Network Camera from web browser on your PC. High speed Pan/Tilt operation can move the lens horizontally from -175° to +175° and vertically from -120° to 0° in mounting on the table and from 0° to +90° in mounting on the ceiling. This movable lens allows you to view a wide range of perspective from a distant place. Network Camera has a 42x magnifying capacity: a 21x optical zoom and a 2x digital zoom. Automatic and Manual Focusing features provide you with detailed and distinct images. Additionally, the following control features are available to easily and quickly monitor the camera.

Click to Center ......... When you click a certain point on the camera image, the point is centered on the image.

Preset Position ......... You can register 8 preset positions. When you click each button, the image switches to its position.

Output Control ......... You can control the external devices (Open or Short to

GND) (E.g., turning the light on or ringing a buzzer).

Video Output

Network Camera has an analog composite output terminal. You can view images from Network Camera on TV and record them on videotapes.

SD Memory Card

*1

Recording

The camera has an SD memory card slot. You can record camera images to the

SD memory card. If you enable alarm buffer/transfer, you can record the image at the timing of signal detection of door sensor or light. About 58,000 images (320 x

240 resolution and standard quality) can be recorded to 1 GB SD memory card. If you enable 1-minute interval timer buffer/transfer, you can record the images for about 41 days.

Enhanced Multi-Camera Page

Multi-Camera page displays up to 4 cameras while supporting each audio 2-way communication. The previous model displays only 4 cameras, but this camera can switch 3 sets of 4 cameras. Additionally, the camera can displays maximum 12 cameras on a page in a static image.

Supporting Viewnetcam.com service

Viewnetcam.com service allows you to access the camera over the Internet with your favorite domain name (e.g. bob.viewnetcam.com) instead of a global IP address.

*1

SD memory card is sold separately. The camera supports 1 GB, 512 MB, 256 MB, 128 MB or

64 MB Panasonic SD memory card.

[For assistance, please call: 1-800-272-7033] 3

4

Operating Instructions

Multi-Language Display

Top page, Single Camera and Multi-Camera page can be displayed in English,

French, German, Italian, Spanish, Russian, Simplified Chinese or Japanese. The

Setup, Maintenance and Support pages are displayed only in English or Japanese.

Operating Instructions

How to Use This Documentation

The camera includes the following 2 manual types.

Installation/Troubleshooting

Installation/Troubleshooting provides explanations for accessories included with the camera, the initial configuration, and troubleshooting tips. The

Installation/Troubleshooting helps you to easily configure the camera.

Operating Instructions (This manual)

Operating Instructions explains about operations, settings, features and the cleaning method when using the camera.

Abbreviations

• UPnP is the abbreviation for Universal Plug and Play.

• "Network Camera" is called "Camera" in this Operating Instructions.

Trademarks

• Adobe, Acrobat and Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

• Microsoft, Windows, Hotmail and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.

• SD mark is a trademark of the SD Card Association.

• Screen shots reprinted with permission from Microsoft Corporation.

• All other trademarks identified herein are the property of their respective owners.

[For assistance, please call: 1-800-272-7033] 5

6

Operating Instructions

System Requirements for your PC

Your PC (Personal Computer) and network must meet the following technical specifications for the camera to work properly.

For IPv4 Connection

Item

Operating

System

CPU

Description

Microsoft

®

Windows

®

XP, Microsoft

®

Windows

®

2000

Microsoft

®

Windows

®

Me, Microsoft

®

Windows

®

98SE

Protocol

Interface

For viewing single camera

Pentium

®

III (800 MHz or greater is recommended.)

For viewing multiple cameras

Pentium 4 (1.8 GHz or greater is recommended.)

TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)

10/100 Mbps network card installed

Web Browser

Internet Explorer 6.0 or later (Not included on the Setup CD-

ROM)

Audio

Audio input/output feature (Microphone or speaker)

Operating Instructions

For IPv6 Connection

Item

Operating

System

CPU

Microsoft

®

Windows

®

Description

XP Service Pack 1 or later

For viewing single camera

Pentium III (800 MHz or greater is recommended.)

For viewing multiple cameras

Pentium 4 (1.8 GHz or greater is recommended.)

Protocol

Interface

TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6, NDP)

10/100 Mbps network card installed

Web Browser

Internet Explorer 6.0 or later (Not included on the Setup CD-

ROM)

Audio

Audio input/output feature (Microphone or speaker)

Note

See Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the latest information about web browser.

[For assistance, please call: 1-800-272-7033] 7

8

Operating Instructions

IMPORTANT SAFETY INSTRUCTIONS

When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury.

1.

Read and understand all instructions.

2.

Keep these instructions.

3.

Heed all warnings.

4.

Follow all instructions.

5.

After taking away the sand or the dust on the lens, wipe the lens with lens cleaning paper.

6.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

7.

Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.

8.

Protect the AC adaptor cord and AC cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit.

9.

The AC cord is used as the main disconnect device, ensure that the socketoutlet is located/installed near the equipment and is easily accessible.

10.

Only use attachments/accessories such as stand specified by the manufacturer.

11.

Do not touch the unit or the AC adaptor cord and AC cord during lightning storms.

12.

Unplug the unit when unused for long periods of time.

13.

Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as the AC adaptor cord, AC cord or plug is damaged, the unit does not operate normally, or has been dropped.

14.

The attached AC adaptor and AC cord is intended for indoor use only. Both AC adaptor and AC cord must be waterproofed for outside use.

15.

Keep the SD memory card (customer-provided) out of reach of children to prevent swallowing.

SAVE THESE INSTRUCTIONS

Operating Instructions

User Name and Password Protection

The use of a unique User Name and secret Password is an important tool that will help limit unauthorized individuals from accessing the camera. If you choose to disable this tool, and choose not to limit access by use of a User

Name and Password, this may result in access to the camera by

unauthorized individuals. (see page 77)

[For assistance, please call: 1-800-272-7033] 9

10

Operating Instructions

Table of Contents

1

Camera Monitoring .....................................................13

1.1

Accessing the Camera................................................................. 13

1.1.1

To Access the Camera in IPv6................................................................. 15

1.2

Viewing Single Camera page....................................................... 17

1.2.1

Auto Centering the Image (Click to Center) ............................................. 21

1.2.2

Capturing a Still Image ............................................................................ 22

1.2.3

Using Operation Bar ................................................................................ 23

1.2.4

Zooming In and Out ................................................................................. 25

1.2.5

Automatic and Manual Focusing.............................................................. 26

1.2.6

Setting Home Position/Alarm Position/Preset Button .............................. 28

1.3

Listening to Camera Audio—Talking to the Camera .................... 32

1.4

Viewing Multi-Camera page ......................................................... 34

1.5

Viewing Buffered Image page ...................................................... 36

1.5.1

Deleting Buffered Images ........................................................................ 38

1.6

Viewing Still Images on Your Cell Phone ..................................... 39

2

Various Camera Features ...........................................41

2.1

Using Camera Features ............................................................... 41

2.2

Connecting the Camera to Your IPv4 Network ............................ 44

2.3

Connecting the Camera to Your IPv6 Network ............................ 49

2.4

What is IPsec? ............................................................................. 53

2.5

Encrypt the Camera Image in Transport Mode ............................ 56

2.6

Encrypt the Camera Image in Tunnel Mode................................. 59

2.7

Using UPnP™ (Universal Plug and Play) .................................... 63

2.8

Registering with the Viewnetcam.com service ............................ 65

2.9

Setting Date and Time ................................................................. 67

2.10

Changing Camera Settings.......................................................... 69

2.11

Adjusting Audio ............................................................................ 75

2.12

Changing Authentication Setting and Administrator User Name and

Password ..................................................................................... 77

2.13

Logging in to the Camera............................................................. 80

2.14

Creating, Modifying or Deleting General Users ........................... 81

Operating Instructions

2.15

Changing Initial Settings on the Single Camera page or the Multi-

Camera page ............................................................................... 84

2.16

Configuring Multiple Cameras...................................................... 87

2.17

Format the SD memory card........................................................ 89

2.18

Stop the SD Memory Recording .................................................. 90

2.19

Buffering or Transferring Images by Timer ................................... 91

2.20

Buffering or Transferring Images by Alarm Signal...................... 100

2.21

Transfer the Camera Image in Transport Mode.......................... 111

2.22

Transfer the Camera Image in Tunnel Mode .............................. 112

2.23

Specifying Operation Time......................................................... 113

2.24

Controlling External Output Terminal ......................................... 115

2.25

Changing Indicator Display ........................................................ 116

3

Camera Maintenance ................................................117

3.1

Maintenance page ..................................................................... 117

3.1.1

Confirming the Status............................................................................ 118

3.1.2

Confirming Session Status .................................................................... 118

3.1.3

Restarting the Camera .......................................................................... 119

3.1.4

Updating the Camera Firmware ............................................................ 120

3.1.5

Creating Configuration File.................................................................... 123

3.1.6

Loading Settings from a Configuration File ........................................... 124

3.1.7

Resetting the Camera to Factory Default .............................................. 125

3.2

Support page ............................................................................. 126

3.2.1

Seeing Help page .................................................................................. 126

3.2.2

Seeing Product Information ................................................................... 126

3.2.3

Seeing Support Information................................................................... 127

3.3

External I/O ................................................................................ 128

3.4

FACTORY DEFAULT RESET Button.......................................... 130

3.5

Default Setting List ..................................................................... 131

3.6

Cleaning ..................................................................................... 140

3.6.1

Cleaning the Main Unit .......................................................................... 140

3.7

Setting an IP Address on Your PC ............................................. 141

3.8

Using Setup Program................................................................. 142

3.9

Setting Your PC.......................................................................... 146

3.9.1

Setting the Proxy Server Settings on Web Browser .............................. 146

3.9.2

Setting UPnP™ to Display Camera Shortcut in My Network Places..... 149

[For assistance, please call: 1-800-272-7033] 11

12

Operating Instructions

3.9.3 Setting the Internet Temporary File Setting on Web Browser .... 149

3.10

ASCII Character Table ............................................................... 150

3.11

File Size and Number of Buffered Images ................................. 151

3.12

Number of Images on the SD Memory Card ............................. 152

3.13

Specifications............................................................................. 153

Index..................................................................................157

Operating Instructions

1 Camera Monitoring

1.1

Accessing the Camera

1.

Start up the web browser on your PC.

2.

Enter "http://IPv4 Address (or URL):Port Number" on the address bar, and press [Enter] on the keyboard.

• When port number is 80 (default), you do not need to enter port number.

See page 46 for details about port number.

For IPv6 connection, see page 15 and page 16, and prepare the

requirements. Enter the "http://(IPv6-registered URL):Port Number" on the address bar.

• If the camera image is not displayed, see page 48 and page 49 of the

Installation/Troubleshooting.

E.g. http://192.168.0.253:50000 (in IPv4) http://XXXXX.viewnetcam.com:50000 (in IPv6)

3.

The Enter Network Password window is displayed, and enter the user name and password that were set, and click [OK].

Note

When [Permit access from guest users] is set on the Security: Administrator page, authentication window will not be displayed.

[For assistance, please call: 1-800-272-7033] 13

14

Operating Instructions

4.

Click the following tabs to display each page.

A B C D E F

Top Single Multi Buffered Image Setup Maintenance Support

G

Login

Version Number

Network Camera

BB-HCM381A

Version

∗.∗∗

Running in IPv4 mode.

Select a language to display

Display IPv4, IPv6 or IPsec connection.

A To Single Camera page (page 17)

B To Multi-Camera page (page 34)

C To Buffered Image page (page 36)

D To Setup page (page 41)

E To Maintenance page (page 117)

G To log in to the camera (page 80)

F To Support page (page 126)

Note

• When users other than an administrator are accessing the camera,

[Setup] and [Maintenance] tab will not be displayed. Additionally, When

[Do not permit access from guest users] is set on the Security:

Administrator page, [Login] tab will not be displayed.

• If [View Multi-Camera page] or [View Buffered Image page] is not permitted on the General User page, [Multi-Camera] or [Buffered Image] tab will not be displayed.

5.

Close the web browser.

1.1.1

To Access the Camera in IPv6

You need to prepare the followings to access the camera in IPv6.

Operating Instructions

PC Requirements

Operating System: Windows XP Service Pack 1 or later

Web Browser: Internet Explorer 6.0 or later

An IPv6 Router

An IPv6 Connection Service

To connect in IPv6, subscribe to the ISP's "IPv4/IPv6 Dual-Stack" or "IPv6 over

IPv4 Tunneling" service. The camera does not work in IPv6-only network.

IPv6 Domain Name Service

In Windows XP, you cannot access the camera entering IP address on the web browser. You need to enter IPv6 URL registered in the domain name service. We recommend Viewnetcam.com service (see page 25 of the Installation/

Troubleshooting) as a domain name service. Ask your ISP about other IPv6 domain name service.

What is IPv6?

• IPv6 is short for "Internet Protocol Version 6".

• IPv6 was created to address the additional IP addresses that will be needed as the Internet continues to expand.

• IPv6 is expected to gradually replace IPv4, with the 2 coexisting for a number of years during a transition period.

• Though most ISPs (Internet Service Providers) do not yet support IPv6, many local networks already use it. When your ISP supports IPv6, your

Panasonic Network Camera will be ready!

• For more information you wish to visit http://www.ipv6.org/.

[For assistance, please call: 1-800-272-7033] 15

16

Operating Instructions

Setting up the IPv6 Router, your PC, and the Camera

Setting up the IPv6 Router

Set up the router as you subscribe to the IPv6 service. If the access from WAN side is disabled on the router, enable the TCP packets from WAN side in the packet filtering. See the Panasonic Network Camera support website at http://

panasonic.co.jp/pcc/products/en/netwkcam/ for information about the recommended routers.

Setting up your PC

1.

Click [Start] [All Programs] [Accessories] [Command Prompt].

• Command Prompt window is displayed.

2.

Enter "ipv6 install".

• "Succeeded" is displayed.

Note

If Windows XP Service Pack 1 or later is not installed, "Succeeded" will not be displayed. Install it on your PC.

3.

Enter "ipconfig".

• If the IPv6 address is properly assigned to your PC, IPv6 address will be displayed on the window.

Setting up the Camera

Usually, IPv6 address is automatically assigned. If you assign a static IPv6

address, see page 49. To access the camera in IPv6, you need to subscribe to the

domain name service such as Viewnetcam.com, and register the URL.

Confirming that You Can Access the Camera

Confirm that the image is properly displayed (see page 13).

Operating Instructions

1.2

Viewing Single Camera page

1.

Access the camera (see page 13).

• The Top page is displayed.

2.

Click the [Single] tab at the top of the page.

When Security Warning window is displayed, click [Yes] (see page 18).

See page 19 for Security Warning window when using Microsoft Windows

XP Service Pack 2.

Capture Image

Button

(see page 22)

Operation Bar

(see page 23)

Pan / Tilt

Scan

Zoom

Focus

Preset Program

Network Camera

Audio Control

Bar (Talk

Button, Listen

Button and

Adjustment

Bar)

(see page 32)

Click to Center

(see page 21)

Refresh Interval

(see page 23)

Alarm1

Alarm2

Brightness

-

STD

Output

Open

+

Short

Refresh Interval

Motion

Resolution

640

X

480

Please click here when gray color screen is displayed

In case of no audio, please click here.

http://panasonic.co.jp/pcc/products/en/netwkcam/technic/sound/index.html

Running in IPv4 mode.

Camera Image

The banner is displayed.

(see page 20)

3.

Close the web browser.

Note

• Refresh interval is [Motion] by default. You can change it on the operation

bar (see page 23).

• Refresh interval may change depending on the network condition, PC performance and what object you view. SD memory recording or IPsec will also slow refresh interval.

• When displaying video (Motion JPEG), the camera allows up to 30 simultaneous accesses. When trying more than 30 accesses, the 31st user will see a gray screen. (Maximum 30 accesses for a Buffered Image page too.)

• To reduce the data traffic, the video can be automatically changed to

refreshing still images on the General User page (see page 81).

• To display the Single Camera page directly, add it to the [Favorites] on the web browser.

• When you view a dark image, enable the color night view mode on the

Camera Setup page (see page 69). The image will be brighter, but the

refresh interval may slow down and image quality may decrease in a dark place.

[For assistance, please call: 1-800-272-7033] 17

Operating Instructions

Security Warning window

To view a video (Motion JPEG) or to use audio feature, ActiveX

®

Controls must be installed. When trying to display a video for the first time, Security Warning window will be displayed. When using Windows XP or Windows 2000, log in as an administrator to install it.

18

If you cannot install ActiveX Controls or you cannot see the video in the

Internet Explorer

• Click [Tools] [Internet Options] [Security] tab and click [Custom level] on the web browser.

(1) Check "Prompt" in "Download signed ActiveX Controls".

(2) Check "Enable" in "Run ActiveX Controls and plug-ins".

• ActiveX Controls can be installed from the file on the Setup CD-ROM.

(1) Restart the PC.

(2) Confirm that Internet Explorer is closed.

(3) Double-click"ocx\ActiveXInst.exe" on the Setup CD-ROM.

Note

• When the IP address was changed for the camera, enter it on the address bar.

• Video may not be displayed quickly or audio may not be listened immediately.

Wait for a while.

• If you use a proxy server, set the web browser not to access the proxy server

(see page 146).

• In some corporate network environments a firewall may be used for security purposes. It is possible that this may prevent motion video from being displayed. In this situation we suggest:

• Contact your network administrator.

• Try using regularly refreshed images.

Operating Instructions

Security Warning window on Microsoft Windows XP Service Pack 2

To view a video (Motion JPEG) or to use audio feature, ActiveX Controls must be installed.

Follow the steps shown below to install ActiveX Controls.

1.

Click the warning displayed above the tabs, and click [Install ActiveX

Control...].

2.

Click [Install].

[For assistance, please call: 1-800-272-7033] 19

20

Operating Instructions

The Banner

When the camera accesses the Internet, the banner displays product information about cameras or announcements about the latest firmware, etc. from Panasonic.

Whether or not to display the banner can be set at Banner Display (see page 84).

Note

• The banner is displayed when [Yes] is checked for Allow Access from the

Internet on the Automatic Setup page, or when [Enable] is checked for Auto

Port Forwarding on the UPnP page for the Connection Mode of Static or

DHCP.

• Even if [Yes] is checked for Allow Access from the Internet on the Automatic

Setup page, or [Enable] is checked for Auto Port Forwarding on the UPnP page for the Connection Mode of Static or DHCP, when the camera is not connected to the Internet, is displayed.

Operating Instructions

1.2.1

Auto Centering the Image (Click to Center)

Using your mouse, click any portion of the camera image. As long as it is within the pan/tilt range of the camera, the image will automatically move to place the selected point in the center of the screen.

1.

Move the cursor to the desired point.

Cursor

2.

Click it.

• The clicked point is centered.

See page 24 for the pan/tilt operation.

Note

• When End Display appears on the operation bar, Click to Center does not

work beyond the pan/tilt end (see page 23).

• The clicked position may slightly miss the center depending on the lens direction.

If Click to Center is not permitted on the General User page (see page 81),

Click to Center does not work.

[For assistance, please call: 1-800-272-7033] 21

22

Operating Instructions

1.2.2

Capturing a Still Image

A still image can be saved on your PC.

1.

Operate pan/tilt and select a resolution to display an image.

2.

Click the capture image button.

Capture Image Button

• The camera image opens in another window.

3.

Right-click the image, and select [Save Picture As...].

• Save as dialog box is displayed.

4.

Specify the location, and click [Save].

• Camera image is saved at that location.

5.

Click [Close].

Operating Instructions

1.2.3

Using Operation Bar

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Alarm1

Alarm2

Brightness

-

STD

Output

Open

+

(9)

(10)

Short

Refresh Interval

Motion

(11)

(12)

Resolution

640

X

480

320

X

240

Image Quality

Favor Clarity

Standard

Favor Motion

Left End

Pan / Tilt

Scan

Zoom

Focus

Preset Program

(1) End Display and Preset Display: When the pan/tilt has reached the end (Left End, Right End, Up End and Down

End), End Display appears. When the zoom or focus operation has reached the end, Wide End, Tele End, Near

End, or Far End appears. When clicking a preset button, the preset name appears.

(2) Pan Scan/Tilt Scan: Moves the lens throughout the horizontal ( ) or vertical ( ) range, and returns to the original position.

(3) Pan/Tilt/Home Position: Controls lens direction.

Pan ( : Left, : Right), Tilt ( : Up, : Down) and

Home Position ( : Center [Default])

(4) Zoom Buttons: Zooms in or out on the camera image.

(5) Focus Buttons: Used to adjust the focus.

(6) Preset Button: Applies the camera direction to a preset

position. You can preset 8 positions (see page 28—page 31).

(7) Alarm Position: When the External I/O detects a signal, the camera can be set up to turn to this position. Only an

administrator can operate it (see page 28).

(8) Brightness: Changes brightness in 9 steps including

[STD] (Standard). Clicking [-] or [+] changes the image brightness.

(9) Output Control: Controls the output signals of the

External I/O.

(10) Refresh Interval: Sets a refresh interval. (Motion—60second interval)

(11) Resolution: Selects [640 x 480] or [320 x 240] (default) pixels.

(12) Image Quality: Selects the image quality.

• [Favor Clarity] optimizes the image for good clarity.

• [Standard] keeps the standard quality. (default)

• [Favor Motion] optimizes the image for motion display.

Note

When the camera image is not displayed correctly, click [Refresh] at the tool bar on the web browser. The image will be refreshed.

[For assistance, please call: 1-800-272-7033] 23

24

Operating Instructions

Pan/Tilt Operation

The pan scan and tilt scan buttons automatically move the lens horizontally from

-175° to +175° and vertically from -120° to 0° in mounting on the table and from 0° to +90° in mounting on the ceiling, and the lens returns to the current position. Use Click to

Center feature to stop scanning. Each pan/tilt arrow moves the lens Up, Down, Right, Left, and the home position button moves it to

Home Position.

Pan Scan/

Tilt Scan

Pan/Tilt

Pan/Tilt range when the camera is on a table

Tilt

Pan/Tilt range when the camera is mounted on a ceiling

+175˚

Pan

-175˚

+90˚

+175˚

-175˚

Pan

-120˚

Tilt

Note

• When the power is on, do not manually pan or tilt the camera. Doing so may damage the Pan/Tilt operation, or cause the Preset buttons to pan or tilt the camera to the wrong position. If you accidentally pan or tilt the camera manually, restart the camera.

Operating Instructions

1.2.4

Zooming In and Out

Network Camera has a 42x magnifying capacity: the 21x magnifying capacity of the optical zoom and 2x magnifying capacity of the digital zoom. Zoom button increases or decreases the size of the object on the Single Camera screen. Tele button zooms in, and Wide button zooms out. The zooming feature has 12 steps

(10 steps of Optical Zoom and 2 steps of Digital Zoom).

Wide button

Tele button

Note

• The optical zoom automatically switches to the digital zoom.

• The definition in the image may decrease when using the digital zoom.

• The position you click may considerably deviate from the center of the image when using the Click to Center feature on a large zoom scale.

[For assistance, please call: 1-800-272-7033] 25

Operating Instructions

1.2.5

Automatic and Manual Focusing

Focus button adjusts the focus. Network Camera has Automatic and Manual

Focusing features. AF (Automatic Focus) button automatically allows the lens to focus on objects. Manual focusing starts by pressing Near or Far button. Near button enables the lens to shorten the focal distance, and Far button lengthens it, manually. Manual focusing feature has 40 steps.

26

Near button

Far button

AF (Automatic Focus) button

Note

• Some objects are difficult to focus on by auto focusing. In the objects shown below, it may take a while to focus on, or may not focus on them.

Press the AF button and put it into operation again. When the objects are still out of focus, adjust the focus using manual focusing, or change the objects using Pan/Tilt operation or Zooming features. Manual focusing starts by pressing Near or Far button. Press AF button for turning it into

Automatic Focusing.

The objects that are difficult to focus on by AF button

Objects without contrast

(e.g., White wall)

Horizontally striped objects

High-luminance objects

(e.g., fluorescent lights)

Light-dotted object in the dark (e.g., night view)

Objects viewed through glass

Objects moving fast

Operating Instructions

• When positioning the camera in front of a window to view images on the other side of the glass, set the Automatic Focus Range setting to "Normal"

(page 69).

• When positioning the camera within 1 m (40 inches) of the object you wish

to view, set the Automatic Focus Range setting to "Macro" (page 69).

• Fingerprints, dust, stains, etc. on the lens can degrade the performance of the Automatic Focusing feature. Wipe the lens with lens cleaning paper.

• The image may be out of focus, if it is too near, or depending on the zoom position. Move the object, or adjust the zoom position.

Minimum object distance

During maximum zoom in (Tele)

1 m

(40 inches)

During maximum zoom out (Wide)

5 mm

(0.2 inches)

[For assistance, please call: 1-800-272-7033] 27

28

Operating Instructions

1.2.6

Setting Home Position/Alarm Position/Preset Button

Registering Home Position/Alarm Position

A home position or 2 alarm positions can be registered. When restarted, the camera takes a home position. If the Lens Position When Triggered setting is set

(see page 102), the camera takes a alarm position after the External I/O detects a

signal. See page 128 for the External I/O.

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position.

3.

Zoom to the desired position.

4.

Adjust the focusing if necessary.

5.

Click the home position button or the alarm position button.

6.

Click [Save] to register, or click [Back] and [Cancel] to cancel.

• If "Success!" is displayed, click

[Back].

Home

Position

Pan/Tilt

Zoom

Focus

Program

Alarm

Position

Pan / Tilt

Scan

Zoom

Focus

Preset Program

Alarm1

Alarm2

+

Operating Instructions

Registering a Preset Button

8 camera positions can be stored as presets. These buttons can be changed (see

page 31).

• Registered buttons are shown in blue.

• Unregistered buttons are shown in white.

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position.

3.

Zoom to the desired position.

4.

Adjust the focusing if necessary.

5.

Click a preset button (1—8) to register.

E.g.:

Setting "UpperLeft" for the preset 1.

6.

Enter the preset name.

• Maximum 15 characters.

• Enter ASCII characters (see page

150) or characters in each

language. But [Space], ["], ['], [&], [<] and [>] are not available.

7.

Click [Save] to register, or click [Back] and [Cancel] to cancel.

• If "Success!" is displayed, click

[Back].

Note

• When registering preset buttons, the camera also saves brightness and white balance settings.

• Only an administrator can register preset buttons.

Pan/Tilt

Zoom

Focus

Preset

Preset number

Setting a name

Pan / Tilt

Scan

Zoom

Focus

Preset Program

Alarm1

Al 2

-

Preset Name

+

Preset (1) Name

UpperLeft

Save

Back

The button turns blue.

Preset

1

Program

[For assistance, please call: 1-800-272-7033] 29

+

30

Operating Instructions

Viewing the Image

1.

Click the home position, alarm position or registered preset button.

• The camera takes each position, and the image is displayed.

Home

Position

Pan/Tilt

Pan / Tilt

Scan

Zoom

Focus

Putting the cursor displays the preset name.

Preset Program

UpperLeft

Alarm

Position

Alarm1

Al 2

+

Operating Instructions

Changing or Deleting the Settings

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position, or skip to step 5 if deleting a preset.

3.

Zoom to the desired position.

4.

Adjust the focusing if necessary.

5.

Click the home position, alarm position or a preset button (1—8).

6.

Click [Save] after setting the preset name or click [Delete].

• If you quit to change or delete settings, click [Back], and then

[Cancel].

• If "Success!" is displayed, click

[Back].

Home

Position

Pan/Tilt

Zoom

Focus

Preset

Alarm

Position

Preset number

Note

The home position or the alarm position cannot be deleted, and these position names cannot be changed either.

Changing the name

Pan / Tilt

Scan

Zoom

Focus

Preset Program

Alarm1

Al 2

Preset Name

+

Preset (1) Name

UpperLeft

Save

Delete

Back

The deleted button turns white.

Preset Program

+

[For assistance, please call: 1-800-272-7033] 31

32

Operating Instructions

1.3

Listening to Camera Audio—Talking to the

Camera

1.

Access the camera (see page 13).

• The Top page is displayed.

2.

Click the [Single] tab at the top of the page.

3.

The Audio Control Bar (Talk Button, Listen Button and Adjustment Bar) is displayed at the top of the screen. Listening or Talking is selected using the 2 icons. For general users, the feature must be enabled, otherwise it will not be displayed.

Audio Feature

Listen Button

Talk Button

: You can talk from the camera using the PC's microphone. Clicking the button stops temporarily stops the audio.

: The audio is stopped.

Clicking the button again starts the Talk feature.

: You can listen to the audio around the camera.

Clicking the button temporarily stops the audio.

: The audio is stopped.

Adjustment Bar

(Volume adjustment only for listening)

This slider adjusts the volume. To the right side, the volume is larger. To the left side, the volume is smaller.

Note

• An external microphone and speaker must be connected to the camera (via the Audio/Video Cable) in order to use the Listen and Talk buttons.

• Talk button and Listen button cannot be used simultaneously. Talk feature is stopped during listening. Talk feature can be used only for a user. Listen feature can be used for maximum 10 users. If the audio is interrupted, reduce

Operating Instructions

the max. bandwidth (see page 44 and page 49). In this case, the number of

users for listening are reduced.

• Audio features such as camera microphone sensitivity and mute during pan/tilt

can be set up on the Audio page (see page 75).

• If you are running other applications or opening multiple windows, the audio may be interrupted or delayed.

• When the image is refreshed during any operation such as preset registration or a web browser refresh, the volume is reset to the default (midrange) position. Audio that was muted is enabled.

• The audio may be interrupted due to your PC's performance or network

environment. Reduce the max. bandwidth (see page 44 and page 49).

• If the camera is accessed while the PC user visits other websites, the active microphone may pick up audio from the PC's speakers. Be careful with it.

• Talk feature cannot be used from a PC when the camera is accessed via a proxy server.

• If you cannot listen to the audio or talk from your PC, see 2.5 Audio Problems in the Troubleshooting section of the Installation/Troubleshooting.

[For assistance, please call: 1-800-272-7033] 33

Operating Instructions

1.4

Viewing Multi-Camera page

To view multiple cameras on the Multi-Camera page, you need to configure each

camera on the Multi-Camera Setup page (see page 87).

1.

Access the camera (see page 13).

• The Top page is displayed.

2.

Click the [Multi] tab at the top of the page.

• Multi-Camera page can display up to 12 camera images.

Capture Image Button (see page 22)

Switches cameras to display. If you select [All] at the View Type, video

(Motion JPEG) or audio buttons cannot be displayed.

Selects [320 x 240]

(default) or [160 x 120] pixels resolution.

Selects a refresh interval

(Motion—60-second interval).

When clicking the camera name, the Single Camera page is displayed on another window.

34

Audio Control Bar (Talk button, Listen button and Adjustment Bar) (see

page 32)

3.

Close the web browser.

Note

• When selecting [All] at the View Type, all images are displayed in 160 x

120 pixels resolution and the audio features (Talk and Listen) cannot be used.

Operating Instructions

• 640 x 480 pixels image cannot be displayed on the Multi-Camera page.

• When viewing video (Motion JPEG), we recommend using an Ethernet switching hub instead of the repeater hub to prevent degradation in video display.

• Due to the network congestion or the number of accesses, the refresh interval may slow down.

• When the refresh interval is slow, restrict the bandwidth on the Network

page (see page 47 and page 52). The refresh interval may be improved.

• To reduce the data traffic, the video can be automatically changed to

refreshing still images on the General User page (see page 81).

• When viewing 4 cameras on the Multi-Camera page, you may need 3 to

4 Mbps bandwidth. If the bandwidth is not enough, the refresh interval may slow down.

When the image is not displayed on the Multi-Camera page

• Confirm that the Internet IP address is specified for each camera and that each camera is connected to the Internet. For Internet access, local IP addresses

(192.168.xxx.xxx) cannot be used.

Confirm the settings on the Multi-Camera Setup page (see page 87).

• Confirm that the web browser is not accessing the proxy server (see page

146).

When setting [Do not permit access from guest users] on the

Security: Administrator page

• An authentication window is displayed in camera access. Enter the administrator's or the general user's user name and password.

• When you view the images on the Multi-Camera page, all authentication windows of the configured cameras are displayed. Enter the administrator's or the general user's user name and password registered for each camera.

[For assistance, please call: 1-800-272-7033] 35

36

Operating Instructions

1.5

Viewing Buffered Image page

To buffer the images on the internal memory, you need to set up image transfer

settings (see page 91 or page 100). You can view buffered images on this Buffered

Image page.

Note

• Sound cannot be buffered on the Buffered Image page.

1.

Access the camera (see page 13).

• The Top page is displayed.

2.

Click the [Buffered Image] tab at the top of the page.

3.

Click the trigger number.

The trigger number is displayed (see page 91 or page 100).

The trigger is displayed

(see page 91 or page

100).

Operating Instructions

4.

Display images clicking buttons below.

Date and time of the day when the images were buffered are displayed.

Date, time and frame number are displayed.

[Play]:

The buffered images are displayed continuously.

[<Prev] or [Next>]:

The previous or next image is displayed.

[<First], [<1000], [<100], [<10] or [10>], [100>], [1000>], [Last]:

First, 10th, 100th, 1000th image before or last, 10th, 100th, 1000th image after of the displayed image appears.

Note

• Date, Time and frame number are not displayed in play mode.

• A still image can be saved on the Buffered Image page, if you are not playing images on it. Put the cursor on the image, and right-click it. Then select [Save

Picture As...].

• Maximum number of buffered images change depending on resolution, image quality and what object the camera buffers. At the 320 x 240 pixels resolution and the standard quality, the camera buffers about 125 frames.

(If 3 triggers are enabled [maximum 5 triggers], the internal memory or the SD memory card capacity is divided into 3 sections. In this case, each trigger can

buffer about 40 images.) See page 151 for the internal memory capacity. See

page 152 for the SD memory card capacity.

[For assistance, please call: 1-800-272-7033] 37

38

Operating Instructions

1.5.1

Deleting Buffered Images

If you intend to delete images for each transfer condition, click [Delete Buffered

Images] on the Image Buffer/Transfer page (see page 91 or page 100).

Note

• If you click [Save] on the Image Buffer/Transfer page, all buffered images on the SD memory card are deleted.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

• Turning off the camera.

• Saving the Date and Time page.

• Restarting, updating firmware or resetting the camera to factory default.

Changing the setting for [Enable Image Buffer/Transfer] (see page 91 or

100).

Operating Instructions

1.6

Viewing Still Images on Your Cell Phone

You can view still images over the Internet from a compatible cell phone.

Enter "http://IP address (or URL):Port Number/Mobile" on a cell phone and press [OK].

• When the port number is set to 80 (default), it is not required.

E.g. http://202.208.167.XXX:50000/Mobile

(or XXXXX.viewnetcam.com:50000/Mobile)

• The camera must be allowed the Internet access for cell phone access.

• When an authentication window is displayed, enter the administrator's or the general user's user name and password.

• A still image is displayed. (Video [Motion JPEG] cannot be displayed.)

Pressing 2, 4, 6 or 8 on the cell phones allows you to pan or tilt the camera in four directions:

Left, Up, Down or Right.

Pressing allows you to zoom in, and pressing

# allows you to zoom out.

(4) L (2) U (8) D (6) R

Tele (#) Wide

(5) Refresh

(0) Resolution

Home Position

(1) "Office"

(3) "Door1"

(7) "Door2"

(9) "Desk"

"Preset5"

"Preset6"

"Preset7"

"Preset8"

Pressing 5 will refresh the image.

160 x 120 resolution is displayed at the first access. Pressing 0 switches the resolution to

320 x 240.

Executing [Home Position] moves the lens to the home position.

Pressing 1, 3, 7 or 9 on the keypad allows you to use the first four registered preset buttons.

Registered presets 5—8 are available by activating the link on the cell phone page.

Note

• Audio feature does not work on cell phones.

If the features are not permitted on the General User page (see page 81), the

buttons related with the features are not displayed.

[For assistance, please call: 1-800-272-7033] 39

40

Operating Instructions

• If the image is not displayed properly, try the following 2 URLs.

1. http:// IP address(or URL):Port Number/MobileH for HTML.

(or XXXXX.viewnetcam.com:50000/MobileH)

2. http:// IP address(or URL):Port Number/MobileX for XHTML.

(or XXXXX.viewnetcam.com:50000/MobileX)

• When pan, tilt, or zoom reaches the end, the keypad number and character disappear.

E.g.: The pan reaches the left end.

(4) L (2) U (8) D (6) R

( ) Tele (#) Wide

"(4)L" disappears.

(2) U (8) D (6) R

( ) Tele (#) Wide

• Some cell phones are not compatible with Panasonic Network Cameras.

Some phones may allow viewing only on port 80, and some may not support password authentication. See the Panasonic Network Camera support website at http://panasonic.co.jp/pcc/products/en/netwkcam/ for a cell phone model list, and the compatibility level which has been verified with the

Panasonic Network Camera.

• Some cell phones display images not at the specified resolution but at a decreased size.

Operating Instructions

2 Various Camera Features

2.1

Using Camera Features

1.

Access the camera (see page 13).

• The Top page is displayed.

Note

• When [Permit access from guest users] is set on the Security:

Administrator page, click [login] button and log in as an administrator.

• When users other than an administrator are accessing the camera, the

[Setup] and [Maintenance] tabs are not displayed.

• If [View Multi-Camera page] or [View Buffered Image page] is not permitted on the General User page, [Multi-Camera] or [Buffered Image] tab will not be displayed.

2.

Click [Setup] tab at the top of the page.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

[For assistance, please call: 1-800-272-7033] 41

42

Operating Instructions

Basic

(1) Network (IPv4)

Configures the IPv4 network settings to connect the

camera to the network (see page 44).

(2) Network (IPv6)

Configures the IPv6 network settings to connect the

camera to the network (see page 49).

(3) IPsec

(4) UPnP

Enables IPsec (Transport or Tunnel mode) (see page 53).

Enables automatic port forwarding or shortcut to the

camera (see page 63).

(5) Viewnetcam.

com

Registers with the Viewnetcam.com service (see page 65).

(6) Date and Time

Sets the date and time, automatic time adjustment and

adjust clock for daylight saving time settings (see page 67).

(7) Camera

Sets camera name, white balance, AC power source frequency, automatic focus range, mounting type, pan/tilt range, return to specified position, color night view, and

vertical resolution settings (see page 69).

(8) Audio

Sets output, volume, PC audio input timeout, input, camera microphone sensitivity and mute during pan/tilt settings

(see page 75).

Account

(9) Administrator

*1

Sets authentication setting and administrator security (user

name and password) (see page 77).

(10) General User

*1

Sets general user security (user name and password) and

general user's access level (see page 81).

Advanced

(11) Image Display

Sets resolution, image quality and refresh interval of Single

Camera and Multi-Camera page, time stamp setting, and

language (see page 84).

(12) Multi-Camera

*1

Sets the camera IP address or host name, camera name on the Multi-Camera page (maximum 12 cameras) (see page

87).

*1

If you change [Administrator], [General User], or [Multi-Camera Setup page] settings, changes will not be applied to the video (Motion JPEG) viewers. Restart the camera to make changes applied to all video viewers.

Operating Instructions

(13)

Buffer/Transfer Sets image buffer or transfer by timer or alarm. (see page

91 or page 100).

(14) Operation

Time

Sets time period to display camera images (see page 113).

(15)

(16)

External

Output

Indicator

Control

Sets the digital output terminal of the External I/O (see

page 115).

Sets indicator display (see page 116).

[For assistance, please call: 1-800-272-7033] 43

Operating Instructions

2.2

Connecting the Camera to Your IPv4 Network

The Network page offers three options to configure the camera in IPv4.

• [Automatic Setup] automatically assigns an unused IP address to the camera, and uses UPnP

TM

(Universal Plug and Play) to configure your router.

• [Static] allows the user to use a specific IP address.

• [DHCP] is offered for ISPs who require this option.

1.

Click [Network (IPv4)] on the Setup page.

2.

Click a connection mode.

Normally sets Automatic Setup.

Uses a static IP address.

Uses ISP DHCP server function.

Each page is displayed (see page 44—page 45).

3.

Enter each parameter in the proper data field.

Automatic Setup

The camera automatically obtains the network settings (subnet mask, default gateway and DNS server address) utilizing a DHCP feature on the router. The camera also automatically searches the unused IP address on your network.

If you select [Yes] at the Allow Access from the Internet, the camera automatically enables port forwarding by using UPnP

TM

. In this case, the camera automatically searches the unused port number on your network in the order from 50000 to 50050.

44

• Clicking [Cancel] takes you back to the previous page without saving changes.

DHCP Setup Static Setup

Operating Instructions

• Clicking [Cancel] takes you back to the previous page without saving changes.

4.

Click [Save] when finished.

• New settings are saved.

• When finished, the following page is displayed.

Note

The current network settings are shown on the Status page in the Maintenance

section (see page 118).

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

Note

• When you do not know the camera IP address while setting [Automatic

Setup] or [DHCP Setup], you can search it by using the Setup Program

(see page 142).

[For assistance, please call: 1-800-272-7033] 45

46

Operating Instructions

• Checking [Yes] for [Allow Access from the Internet] on [Automatic Setup] may not display the Top page, because the port number may change. Use the Setup Program to access the camera.

• If the camera is restarted, all buffered images on the internal memory are deleted. The buffered images on the SD memory card are not deleted.

Setting Description

Allow Access from the Internet

(Automatic Setup

Only)

• Allow Access from the Internet setting automatically configures the router's Port Forwarding setting (some routers call it "Address Translation", "Static IP

Masquerade", "Virtual Server" or "Port Mapping"). To enable Internet access to the camera, check [Yes]. In this case, the camera automatically searches the unused port number on your network in the order from 50000 to 50050.

To disable Internet access to the camera, check [No].

Network

Configuration from

Setup Program

(Static/DHCP Only)

• If you prohibit the Setup Program from changing the network settings, clear the check box.

Port Number

(Static/DHCP Only)

• The port number is 80 by default. When you use multiple cameras with a router on your network, each camera must be assigned its own port number (see page 28 "1.10

Connecting the Camera to a Router Not Supporting

UPnP™ (IPv4 Only)" in the Installation/Troubleshooting).

• Do not set the following port numbers.

E.g., FTP: 20 and 21, Telnet: 23, SMTP: 25, DNS: 53,

POP3: 110, HTTPS: 443, ICQ: 4000 and IRC: 6661—

6667.

• Enter only the number (1—65535).

• Some ISPs do not allow you to use port 80. Ask your ISP or network administrator about the accessible port number over the Internet.

• IP address

• Subnet Mask

(Static Only)

• If your ISP or network administrator specifies the IP address and subnet mask, enter them in each data field.

• If you use the camera on the LAN, set the IP address in the

same class as your PC (see page 141).

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

Operating Instructions

Setting

Host Name

(DHCP Only)

Description

• If your ISP uses the DHCP function which automatically assigns the IP address to the camera, enter the ISPassigned host name. (Host name may be used as an authentication.)

Enter ASCII characters for the host name (see page 150).

But [Space], ["], ['], [&], [<] and [>] are not available.

Default Gateway

*1

(Static/DHCP Only)

• If you have the assigned Default Gateway address by your

ISP or network administrator, enter it in this data field.

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

DNS Server

Address

*1

(Static/DHCP Only)

• DNS server address is required in the following conditions.

• Transferring camera images by E-mail or FTP

• Setting cameras by their host names on the Multi-

Camera Setup page

• Using the Viewnetcam.com service

• If you have the assigned DNS server addresses by your

ISP or network administrator, enter them in this data field.

They usually have two addresses.

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

Max. Bandwidth

Usage

• The bandwidth can be restricted.

• Select the maximum bandwidth usage from [Unlimited] to

[0.1 Mbps].

• This setting is valid in both IPv4/IPv6.

Note

Set the maximum bandwidth usage seeing the following file sizes. These are examples for a JPEG file with a standard image quality. File sizes may change depending on the image quality or how bright the object is.

160 x 120 pixels: About 5 KB (40 Kbit)

320 x 240 pixels: About 16 KB (128 Kbit)

640 x 480 pixels: About 33 KB (264 Kbit)

[For assistance, please call: 1-800-272-7033] 47

48

Operating Instructions

Setting

Connection Type

Description

• Select [Auto Negotiation] normally. If you cannot access the camera, see page 48 "The Top page is not displayed." in the Installation/Troubleshooting.

• This setting is valid in both IPv4/IPv6.

*1

If you automatically obtain the IP address from the DHCP server, you do not need to set it.

Operating Instructions

2.3

Connecting the Camera to Your IPv6 Network

The Network page offers two options to configure the camera in IPv6.

• [Automatic Setup] automatically assigns an IPv6 address to the camera.

• [Static] allows the user to use a specific IPv6 address.

Note

IPv6 is the expanded protocol created for future Internet expansion. Your network and your ISP must support IPv6 before you can use this feature.

1.

Click [Network (IPv6)] on the Setup page.

2.

Click a connection mode.

Normally sets Automatic Setup.

Uses a static IP address.

3.

Enter each parameter in the proper data field.

Automatic Setup

The camera is automatically assigned an IPv6 prefix from the IPv6 router, and produces the original IPv6 address from the IPv6 prefix. If you select [No] at the Allow Access from the Internet, the camera can be accessed only from the

LAN that has an same IPv6 prefix as the camera.

• Clicking [Cancel] takes you back to the previous page without saving changes.

[For assistance, please call: 1-800-272-7033] 49

Operating Instructions

Static Setup

You can assign a static IPv6 address to the camera. If you select [No] at the

Allow Access from the Internet, the camera can be accessed only from the

LAN that has an same IPv6 prefix as the camera.

50

• Clicking [Cancel] takes you back to the previous page without saving changes.

4.

Click [Save] when finished.

• New settings are saved.

• When finished, the following page is displayed.

Note

The current network settings are shown on the Status page in the Maintenance

section (see page 118).

Operating Instructions

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

Note

• When you do not know the camera IP address while setting [Automatic

Setup], you can search it by using the Setup Program (see page 142). Or

you can search it on the Status page (see page 118) after accessing the

camera in IPv4.

• If the camera is restarted, all buffered images on the internal memory are deleted. The buffered images on the SD memory card are not deleted.

Setting

Allow Access from the Internet

(Automatic Setup

Only)

Description

• If [Yes] is selected at the Allow Access from the Internet, you can access the camera from the Internet. If [No] is selected, the camera can be accessed only from the LAN that has an same IPv6 prefix as the camera.

Port Number (Static

Only)

• The port number is 80 by default. The port number must be unique for each terminal on your network.

• Do not set the following port numbers.

E.g., FTP: 20 and 21, Telnet: 23, SMTP: 25, DNS: 53,

POP3: 110, HTTPS: 443, ICQ: 4000 and IRC: 6661—

6667.

• Enter only the number (1—65535).

• Some ISPs do not allow you to use port 80. Ask your ISP or network administrator about the accessible port number over the Internet.

IP address

(Static Only)

Default Gateway

(Static Only)

• Enter a global address. You do not need to enter prefix length.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

• If you have the assigned Default Gateway IPv6 address by your ISP or network administrator, enter it in this data field.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

[For assistance, please call: 1-800-272-7033] 51

52

Operating Instructions

Setting

DNS Server

Address

Max. Bandwidth

Usage

Connection Type

Description

• DNS server address is required in the following conditions.

• Transferring camera images by E-mail or FTP

• Setting cameras by their host names on the Multi-

Camera Setup page

• Using the Viewnetcam.com service

• If you have the assigned DNS server IPv6 addresses by your ISP or network administrator, enter them in this data field. They usually have two addresses.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

• The bandwidth can be restricted.

• Select the maximum bandwidth usage from [Unlimited] to

[0.1 Mbps].

• This setting is valid in both IPv4/IPv6.

Note

Set the maximum bandwidth usage seeing the following file sizes. These are examples for a JPEG file with a standard image quality. File sizes may change depending on the image quality or how bright the object is.

160 x 120 pixels: About 5 KB (40 Kbit)

320 x 240 pixels: About 16 KB (128 Kbit)

640 x 480 pixels: About 33 KB (264 Kbit)

• Select [Auto Negotiation] normally. If you cannot access the camera, see page 48 "The Top page is not displayed." in the Installation/Troubleshooting.

• This setting is valid in both IPv4/IPv6.

Operating Instructions

2.4

What is IPsec?

IPsec provides security for the transmission of sensitive information over unprotected networks such as the Internet. IPsec authenticates IP packets between participating IPsec devices.

Unreadable

Malicious User


Allowed User

Internet

Readable

Camera's IPsec Feature

The camera can use IPsec in both IPv4/IPv6. The camera supports the following

IPsec feature.

IKEv1

IPsec

Item Supported Feature

Pre-shared Key Method

Phase 1 mode

Phase 2 mode

Cipher Algorithm

Message-Digest

Algorithm

: Main mode

*1

: Quick mode

: DES-CBC, 3DES-CBC, AES-CBC (128,

192, 256 bits)

: HMAC-MD5, HMAC-SHA-1

ESP (Encapsulating Security Payload)

*2

Transport mode, Tunnel mode

Cipher Algorithm

Message-Digest

Algorithm

:DES-CBC, 3DES-CBC, AES-CBC (128,

192, 256 bits)

:HMAC-MD5-96, HMAC-SHA-1-96

*1

*2

The camera does not support aggressive mode.

The camera does not support authentication header (AH).

[For assistance, please call: 1-800-272-7033] 53

54

Operating Instructions

IPsec Mode Selection

Select transport mode or tunnel mode to access the camera.

Transport Mode (IPv4 Only)

The image is encrypted in the whole way between the camera and your PC. In the environment of Windows XP Service Pack 1 or later, transport mode is available only in IPv4.

Transport Mode

PC

Encrypted

Prepare the following requirements.

Item

Camera

Supported Feature

Operating System

Web Browser

ISP Service

: Windows XP Service Pack 1 or later

: Internet Explorer 6.0 or later

: Services for multiple global addresses (A global address must be set up on your

PC.)

Note

To use IPsec, you need to set up your operating system.

See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the setup.

ISP Service : Services for multiple global addresses (A global address must be set up to the camera.)

Operating Instructions

Tunnel Mode (IPv4/IPv6)

An IPsec mode of operation where the entire IP packet including IP header is authenticated and encrypted. A new IP header is added (protecting the entire original packet). Both VPN clients and VPN gateways can use this mode.

Note

The camera can be accessed only from the PCs under the VPN router. Other

PCs cannot access the camera.

LAN WAN

Tunnel Mode

PC

Not Encrypted

Prepare the following requirements.

Item

Router

Camera

Encrypted

ISP Service

(in IPv6)

Supported Feature

Operating System

Web Browser

: Windows XP, Windows 2000, Windows

Me, Windows 98SE (in IPv4)

: Windows XP Service Pack 1 or later (in

IPv6)

: Internet Explorer 6.0 or later

ISP Service

(in IPv4)

: Static global address service (A global address must be set up to the WAN side of the router.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

Note

See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the recommended router.

ISP Service

(in IPv4)

ISP Service

(in IPv6)

: Services for multiple global addresses (A global address must be set up to the camera.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

[For assistance, please call: 1-800-272-7033] 55

56

Operating Instructions

2.5

Encrypt the Camera Image in Transport Mode

The camera can encrypt the image using IPsec transport mode.

Note

If you use IPsec, refresh interval slows down.

1.

Click [IPsec] on the Setup page.

2.

Click Camera in the Transport column.

• If you use transport mode in E-mail or FTP transfer, click No. in the Buffer/

Transfer column.

The display shows that the communication is in

HTTP and any people can access the camera if they have the pre-shared key

(see page 57).

Set up these settings to transfer images in transport mode (see page 111).

3.

Enter each parameter in the data field.

Operating Instructions

Status

Setting

Pre-Shared Key

Description

• Check the box to use this encryption method.

• It is the key to use in the authentication of communications.

Enter the same pre-shared key as your PC.

Enter ASCII characters for the host name (see page 150).

But [Space], ["], ['], [&], [<] and [>] are not available.

Note

If the pre-shared key leaks to a third party, it may lead to illegal access, private information leak or interference. To protect your security and privacy, pay attention to the following points.

• Make it known only to the specified people.

• Set it as many characters as possible.

• Change the password regularly.

4.

Click [Save] when finished.

• New settings are saved.

5.

Click [Cancel].

• The IPsec page is displayed.

6.

Check [Use] in the IPsec column, check encoding strength, and click [Save].

IPsec

Setting Description

• Check the box to enable IPsec features. If you clear the box, whole IPsec features will be invalid.

Encoding strength • Encoding strength for IPsec can be selected. If you select

[Standard], DES or NULL is valid as an algorithm, and then the data will become easier to be decrypted.

[For assistance, please call: 1-800-272-7033] 57

58

Operating Instructions

7.

Click [Restart].

8.

Set up your PC as it fits to the requirements on page 54.

• Set the FTP server or E-mail server to transfer images.

9.

Access the camera (see page 13).

• If you can access the camera, the IPsec setup is complete.

Note

• In IPsec communications, "IPsec" is displayed on the Top page or the

Single Camera page.

• If you cannot communicate using IPsec, see 2.9 IPsec in the

Troubleshooting section of the Installation/Troubleshooting.

• See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the IPsec features.

Operating Instructions

2.6

Encrypt the Camera Image in Tunnel Mode

The camera can encrypt the image using IPsec tunnel mode.

Note

• Do not set IPsec on the PCs under the VPN router. Communications may be blocked.

• If you use IPsec, refresh interval slows down.

• The camera can be accessed only from the PCs under the VPN router.

Other PCs cannot access the camera.

1.

Click [IPsec] on the Setup page.

2.

Click Add in the Tunnel column.

3.

Enter each parameter in the data field.

[For assistance, please call: 1-800-272-7033] 59

60

Operating Instructions

Status

Setting

Pre-Shared Key

Network address

Router address

Description

• Check the box to use this encryption method.

• It is the key to use in the authentication of communications.

Enter the same pre-shared key as your VPN router.

Enter ASCII characters for the host name (see page 150).

But [Space], ["], ['], [&], [<] and [>] are not available.

Note

If the pre-shared key leaks to a third party, it may lead to illegal access, private information leak or interference. To protect your security and privacy, pay attention to the following points.

• Make it known only to the specified people.

• Set it as many characters as possible.

• Change the password regularly.

• Enter the destination network address.

• Enter "IP address/Prefix length" in the data field.

• Enter the WAN IP address of the VPN router on a destination network.

Note

• IPv6 link-local address is not available.

• The camera can be accessed only from the PCs under the VPN router. Other PCs cannot access the camera.

4.

Click [Save] when finished.

• New settings are saved.

5.

Click [Cancel].

• The IPsec page is displayed.

6.

Check [Use] in the IPsec column, check encoding strength, and click [Save].

Operating Instructions

IPsec

Setting Description

• Check the box to enable IPsec features. If you clear the box, whole IPsec features will be invalid.

Encoding strength • Encoding strength for IPsec can be selected. If you select

[Standard], DES or NULL is valid as an algorithm, and then the data will become easier to be decrypted.

7.

Click [Restart].

8.

Set up your VPN router as shown below.

• To use tunnel mode, you need to set up your VPN router.

Phase 1

IKE Items

Authentication

Method

ID

Mode

Diffie-Hellman

MODP Group

Cipher Algorithm

Settings

Pre-shared Key Method

Specifies by address.

Main mode

*1

Specifies 1 or 2.

Select from DES-CBC, 3DES-CBC or

AES-CBC (128, 192, 256 bits). (Multiple selections are available.)

HMAC-MD5, HMAC-SHA-1 Message-Digest

Algorithm

Lifetime Specifies by 28800 s (Byte setting is not supported.)

[For assistance, please call: 1-800-272-7033] 61

62

Operating Instructions

Phase 2

IKE Items

Mode

PFS

Cipher Algorithm

Settings

Quick mode

Specifies either of Off, D-H Group 1 or D-

H Group 2.

Select from DES-CBC, 3DES-CBC,

AES-CBC (128, 192, 256 bits) or NULL.

(Multiple selections are available.)

HMAC-MD5-96, HMAC-SHA-1-96 Message-Digest

Algorithm

Lifetime Specifies by 28800 s (Byte setting is not supported.)

*1

The camera does not support aggressive mode.

• Set up the IPsec policy as the following.

Items

Protocol

Source Network

ANY

Settings

Network address and subnet mask on the LAN side of the

VPN router

A global address on the WAN side of the VPN router Source IP address

Destination Network A global address of the camera

Destination IP address A global address of the camera

9.

Access the camera (see page 13).

• If you can access the camera, the IPsec setup is complete.

Note

• In IPsec communications, "IPsec" is displayed on the Top page or the

Single Camera page.

• If you cannot communicate using IPsec, see 2.9 IPsec in the

Troubleshooting section of the Installation/Troubleshooting.

• See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the IPsec features.

Operating Instructions

2.7

Using UPnP™ (Universal Plug and Play)

UPnP

TM

can automatically configure your router to be accessed from the Internet.

In order to use this feature, your router needs to support this feature and it must be enabled. Most router manufacturers disable this feature as the default setting. See

http://panasonic.co.jp/pcc/products/en/netwkcam/technic/rtr_setup/ for details and see your router manual for how to enable UPnP

TM

. After the UPnP

TM

is enabled on the router, set [Enable] for auto port forwarding.

Note

The camera's UPnP

TM

does not support IPv6. Use this feature in IPv4.

1.

Click [UPnP] on the Setup page.

2.

Set up UPnP.

Setting

Auto Port

Forwarding

Description

• If the network setting is [Static] or [DHCP], enabling auto port forwarding allows you to access the camera from the

Internet.

Note

If the network setting is [Automatic Setup], enable [Allow

Access from the Internet] on the Network page (see page

46).

Display Shortcut

Icon in My

Network Places

• Enabling it displays a shortcut to the camera in the My

Network Places folder.

Note

If you use Windows XP or Windows Me, this feature is available. Enable UPnP

TM

Windows component before

using this feature (see page 149).

[For assistance, please call: 1-800-272-7033] 63

64

Operating Instructions

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to UPnP page].

• The UPnP page is displayed.

Operating Instructions

2.8

Registering with the Viewnetcam.com service

Viewnetcam.com is a free service (dynamic DNS service) that allows you to assign an easy to remember name to the camera, similar to your favorite web site.

Viewnetcam.com also allows you to easily access the camera, even when your ISP changes the IP address. Panasonic Communications recommends you to register with it for the Internet access to the camera. See http://www.viewnetcam.com for details about the Viewnetcam.com service.

1.

Click [Viewnetcam.com] on the Setup page.

2.

Check [Enable].

• Clicking [Cancel] cancels your settings without saving changes.

Setting

Enable

Personal

(Camera) URL

Your Account

Link

Description

• Check [Enable] to register with the Viewnetcam.com service. If you clear the box, the Viewnetcam.com service stops.

• The camera's personal URL will be displayed after you register with the Viewnetcam.com service.

• The URL is displayed to register with the Viewnetcam.com service. Clicking [Your Account Link] item name displays the Viewnetcam.com registration website.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Viewnetcam.com page].

• The Viewnetcam.com page is displayed.

5.

Click [Your Account Link].

• The Viewnetcam.com registration website is displayed.

[For assistance, please call: 1-800-272-7033] 65

66

Operating Instructions

Note

• When the Viewnetcam.com registration website is not displayed, confirm that the URL is displayed in the right column of the Your Account Link. If the URL is not displayed, follow the procedures below.

1. Wait for a while, and click [Refresh] on the web browser.

2. Confirm that your network (your PC and camera) is connected to the

Internet.

• Personal (Camera) URL is available after you registered with the

Viewnetcam.com service.

• If port forwarding is not enabled or your network is not connected to the

Internet, the Viewnetcam.com service is not available.

6.

Register with the Viewnetcam.com service following the website.

• The Viewnetcam.com page is displayed.

7.

Access the camera with a registered URL from the Internet (see page 13).

• When the Top page is displayed, the Viewnetcam.com registration is complete.

Note

• It may take a maximum of 30 minutes for the registered URL to work.

• If "Expired" is displayed at the Personal (Camera) URL on the

Viewnetcam.com page or at the Camera URL in the DDNS on the Status page, restart the camera. After that, confirm that your registered URL is displayed on their pages.

Confirming the Internet access

Due to the router specifications, the image may not be displayed even if you access the camera from your PC on the same LAN as the camera. In this case, access the camera following procedures.

Accessing from the PC on another network (see page 13)

Accessing from your cell phone (see page 39)

Operating Instructions

2.9

Setting Date and Time

The Date and Time page allows you to set date and time. Date and time are used for image buffer/transfer, operation time and time stamps on the buffered image.

Note

Saving the date and time settings deletes all buffered images on the internal memory. The buffered images on the SD memory card are not deleted.

1.

Click [Date and Time] on the Setup page.

2.

Set each parameter.

• Set [Automatic Time Adjustment] to synchronize the time automatically with an NTP server.

• Clicking [Cancel] cancels your settings without saving changes.

[For assistance, please call: 1-800-272-7033] 67

68

Operating Instructions

Setting

Time Setting

Description

• Select date and format (AM/PM or 24 H). These settings are used for image buffer/transfer, operation time and time stamps on the buffered image. But E-mail subject and file name by E-mail or FTP transfer uses only 24 h format.

Automatic Time

Adjustment

• NTP (Network Time Protocol) server synchronizes the camera's internal clock. It adjusts automatically every day.

Check the box to enable it.

• Set the NTP server IP address. In IPv4, set 4 digits (0—

255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available. In IPv6, set 8 hexadecimal digits divided with ":". Consecutive 0s can be abbreviated as "::". Or set a host name (1—255 characters).

• Select your time zone.

Note

The camera will not synchronize to the NTP server if the time setting from the NTP server moves forward or backward more than 1 hour at a time. This is to protect the camera's time setting from fraudulent NTP server tampering, incorrect time information, etc.

Adjust Clock for

Daylight Saving

Time

• During the daylight saving time, the internal clock is turned forward an hour. The clock will shift one hour forward at the set time on the Start Day, and move back one hour at the set time on the End Day. Check the box to enable it.

Note

An "s" is put between date and time of time stamp when enabling this feature. The time stamp will be attached to the transferred images by the Image Transfer feature.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Date and Time page].

• The Date and Time page is displayed.

Note

Date and time settings become incorrect depending on the length of power-on time or the internal temperature. Using the Automatic Time Adjustment is recommended.

Operating Instructions

2.10 Changing Camera Settings

The Camera page allows you to set the camera name, white balance, AC power source frequency, automatic focus range, mounting type, pan/tilt range, return to specified position, color night view, and vertical resolution settings.

1.

Click [Camera] on the Setup page.

2.

Set each parameter.

NetworkCamera

Auto

Macro

-175

-120

0 +175

-90 0

Do not move

Home Position

• Clicking [Cancel] cancels your settings without saving changes.

[For assistance, please call: 1-800-272-7033] 69

70

Operating Instructions

Setting Description

Camera Name • The camera name is displayed on the Single Camera page.

Enter ASCII characters (see page 150) or characters in

each language (1—15 characters for a 1-byte character and 1—7 characters for a 2-byte character). But [Space],

["], ['], [&], [<], and [>] are not available.

White Balance Select from the following options.

• Auto (default) — Automatic adjustment

• Fixed Indoor — Electric bulb (2800 K)

• Fixed Fluorescent

(White)

— White (3600 K)

• Fixed Fluorescent

(Daylight)

— Daylight (4000 K)

• Fixed Outdoor

• Hold

— Solar light (6000 K)

— Setting [Hold] keeps the current white balance.

Note

White balance is also saved in the home position, alarm position and preset buttons.

AC Power

Source

Frequency

Automatic

Focus Range

It can select Flicker Correction by power line frequency.

• 60 Hz (default)

• 50 Hz

Select 60 Hz in the United States.

Set to "Macro" when viewing objects that are within 1 m (40 inches) of the camera. Set to "Normal" when viewing objects that are 1 m (40 inches) or further from the camera.

• When positioning the camera in front of a window to view images on the other side of the window, set the Automatic

Focus Range to "Normal".

Mounting Type Set to match the installation method used to mount the camera.

• When set to "On the ceiling", the available tilt range is 0 to

+90 degrees.

• When set to "On the table", the available tilt range is -120 to 0 degrees.

Setting

Pan Range

*1

Tilt Range

*1

Return to

Specified

Position

Operating Instructions

Description

Select from the following options.

• Minimum — Current settings, -175—+175

• Home Position

*2

• Maximum

— Current settings, -175—+175

— Current settings, -175—+175

The values must be selected as minimum home position maximum.

Note

If you wrongly set the range, your privacy may be seen.

Check the range after the setup.

Select from the following options.

When the camera is mounted on a ceiling

• Minimum

• Home Position

*2

— Current settings, 0—+90

— Current settings, 0—+90

• Maximum — Current settings, 0—+90

When the camera is mounted on a table

• Minimum — Current settings, -120—0

• Home Position

*2

• Maximum

— Current settings, -120—0

— Current settings, -120—0

The values must be selected as minimum home position maximum.

Note

If you wrongly set the range, your privacy may be seen.

Confirm the range after the setup.

• If the camera is not operated during the specified period, the camera turns to the specified position.

Note

If you did not set any presets, the camera cannot turn to the preset position.

[For assistance, please call: 1-800-272-7033] 71

72

Operating Instructions

Setting

Color Night

View

Description

• In the color night view mode, the camera image becomes brighter in a low illuminance. The camera image returns normal operation in a bright location.

• In color night view mode, the following may be experienced:

• Image refresh rate may slow down.

• Images may blur when viewing moving objects or using Pan/Tilt/Zoom in low illuminance.

• It may take a while to focus on some objects by auto focusing.

• Images may not be displayed correctly on a TV.

Note

In the color night view mode, the image may have white or colored circles around the object. This is not a problem, since it is a CCD sensor characteristic.

Vertical

Resolution (for

640 x 480 mode)

When viewing motion images in 640 x 480 resolution, scan lines may appear when objects pass horizontally in front of the camera or when the camera pans horizontally. Set to "240" to remove the scan lines.

*1

*2

See page 73 for details about pan/tilt range settings.

These home position settings are displayed as you set on page 28.

3.

Click [Save] when finished.

• New settings are saved. If the home position is changed, the camera turns to the home position.

• When finished, "Success!" is displayed.

4.

Click [Go to Camera page].

• The Camera page is displayed.

Operating Instructions

Specifying Pan/Tilt Range

1.

Access the camera (see page 13), and click [Single] at the top of the Top page.

2.

Open another web browser, and display the Camera page (see page 69).

3.

Align the Single Camera page and the Camera page side to side.

Network Camera

Pan / Tilt

Scan

NetworkCamera

Auto

Zoom

Focus

Preset Program

Macro

Alarm1

Alarm2

Brightness

-

STD

Output

Open

+

Short

Please click here when gray color screen is displayed

In case of no audio, please click here.

http://panasonic.co.jp/pcc/products/en/netwkcam/technic/sound/index.html

Running in IPv4 mode.

-175

-120

0 +175

-90 0

Do not move

Home Position

4.

Set the pan/tilt range.

• Selecting [Current Settings] displays the current angle of the camera.

Select each value while adjusting the pan/tilt on the Single Camera page.

Note

The values must be selected as minimum home position maximum.

[For assistance, please call: 1-800-272-7033] 73

74

Operating Instructions

When the camera is mounted on a table

Max.: 0 ˚

Max.: +175 ˚

When the camera is mounted on a ceiling

Max.: +90 ˚

Min.: -175 ˚ Min.: -175 ˚ Max.: +175 ˚

Min.: -120 ˚ Min.: 0 ˚

5.

Click [Save] on the Camera page.

• New settings are saved. The camera turns to the home position.

Operating Instructions

2.11 Adjusting Audio

The Audio page allows you to adjust the microphone, the use of external speaker, microphone sensitivity and external speaker volume.

1.

Click [Audio] on the Setup page.

2.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

[For assistance, please call: 1-800-272-7033] 75

76

Operating Instructions

Output

Volume

PC Audio Input

Timeout

Input

Setting Description

• It controls audio output for external speaker connected to the camera.

• It controls the volume to output to external speaker.

• You can set the time to consecutively perceive the audio from your PC. (1—60 minutes)

• It controls audio input from the external microphone connected to the camera.

Camera

Microphone

Sensitivity

• You can select the microphone sensitivity.

Minimum: Decreased sensitivity

Standard: Standard setting (default)

Maximum: Enhanced sensitivity

Mute during Pan/Tilt • You can temporarily stop listening (audio input) when the camera pans or tilts.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Audio page].

• The Audio page is displayed.

Operating Instructions

2.12 Changing Authentication Setting and

Administrator User Name and Password

The Security: Administrator page allows you to change authentication, administrator user name and password. The authentication window is displayed, and allows the registered users to access the camera.

Note

• If you access the camera for the first time, the window to set administrator user name and password is displayed. Make a note of the user name and password so that you will not forget them.

• The user name and password should be secured at your own responsibility.

Pay attention to the following points.

• Set the user name and password as many characters as possible.

• Change the password regularly.

IMPORTANT

• It is important to limit access to the camera by use of a unique User Name and a secret Password. Because the camera is accessed through the Internet it is possible that the camera could be accessed by unknown individuals, including those who are commonly known as "hackers," to whom you do not want to allow access. The use of a unique User Name and a Password known only to you will help insure that only authorized individuals are given access to the camera. You have the option of proceeding without a User Name and

Password, but it is strongly recommended that you utilize these protections.

1.

Click [Administrator] on the Setup page.

2.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

[For assistance, please call: 1-800-272-7033] 77

78

Operating Instructions

Setting

General

Authentication

Description

Authentication has 2 phases.

• If you set [Permit access from guest users], the camera does not display the authentication window in camera access. All guest users can view the image without user name and password.

Note

If you set [Permit access from guest users], [Login] is displayed at the top of the page. After you log in as an

administrator (see page 80), you can access the Setup

page and the Maintenance page.

User Name/

Password

• If you set [Do not permit access from guest users], the camera displays authentication window in camera access.

Users must enter the user name and password.

• User Name (6 to 15 characters): Enter the user name.

• Password (6 to 15 characters): Enter the password.

Note

The password must be different from the user name.

• Retype Password: Reenter the password.

Enter ASCII characters (see page 150). But [Space], ["], ['],

[&], [<], [>] and [:] are not available.

Note

• When setting [General Authentication], set the user name and password.

• When users other than an administrator are accessing the camera,

[Setup] and [Maintenance] tab will not be displayed.

• The user name and password are case sensitive.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

Operating Instructions

4.

Click [Go to Security: Administrator page].

• The Security: Administrator page is displayed.

Note

• When the user name and password have been changed, the camera displays an authentication window. Enter the user name and password, and click [OK].

Administrator/General Users/Guest Users

The camera has 3 user levels (administrator, general users and guest users).

Items

User Name and

Password

Number of Users

Accessible Pages

Access Level

Administrator

Required

General Users

Required

Guest Users

Not Required

1

All Pages

All Operations

50 —

Pages Except For

Setup and

Maintenance page

Pages Except For

Setup and

Maintenance page

Access level can be set for each general user (see

page 81).

Access level can be set for guest users (see page

81).

Note

Guest users mean unregistered users. Set [Permit access from guest users]

on the Security: Administrator page (see page 77).

[For assistance, please call: 1-800-272-7033] 79

80

Operating Instructions

2.13 Logging in to the Camera

If you set [Permit access from guest users] on the Security: Administrator page,

[Login] is displayed at the top of the page. After you log in as an administrator, you can access the Setup page and the Maintenance page.

1.

Click [Login] at the top of the page.

2.

Check the login mode, and click [Login].

Note

The authentication window is displayed. Enter the user name and password.

3.

Enter a valid user name and password according to the Login mode selected in step 2, and click [OK] to log in to the camera.

Operating Instructions

2.14 Creating, Modifying or Deleting General Users

The General User page allows you to create, modify or delete general users. Up to

50 general users can be registered. The access level is set for each general user.

If you set [Permit access from guest users] on the Security: Administrator page, the access level can be set for guest users.

Note

• For general users, the Setup and Maintenance tabs are not displayed.

1.

Click [General Users] on the Setup page.

2.

If you create a general user, click [Create].

• When setting [Do not permit access from guest users]

• When setting [Permit access from guest users]

• If you change the settings of general users or guest users, select their name and click [Modify]. The modification page is displayed.

• If you delete a general user, select the name and click [Delete]. The confirmation page is displayed.

3.

Set each parameter.

• Settings for a general user • Settings for guest users

• Clicking [Cancel] takes you back to the previous page without saving changes.

[For assistance, please call: 1-800-272-7033] 81

82

Operating Instructions

Setting

User ID List

User Name/

Password

Access Level

Description

• Up to 50 general users can be registered.

• The list is used to modify or delete general user settings.

• User Name (6 to 15 characters): Enter the user name.

• Password (6 to 15 characters): Enter the password.

Note

The password must be different from the user name.

• Retype Password: Reenter the password.

Enter ASCII characters (see page 150). But [Space], ["], ['],

[&], [<], [>] and [:] are not available.

Access level is set for each general user. Check the feature to enable.

• In the limit time of continuous Motion JPEG, set the time to change the video (Motion JPEG) to still images for each user. (Not permitted, Unlimited, 10 seconds—60 minutes)

In the refresh interval, set the refresh interval after the video changes to still images. (3—60 seconds)

• See each page for the following features.

Pan/Tilt Control (see page 24)

Zoom Control (see page 25)

Focus Control (see page 26)

Preset Control (see page 23)

Click to Center Control (see page 21)

Brightness Control (see page 23)

External Output Control (see page 23)

Change Refresh Interval (see page 23)

Change Resolution (see page 23)

Change Quality (see page 23)

Capture Image Button (see page 22)

Listen (see page 32)

Talk (see page 32)

View Multi-Camera page (see page 34)

View Buffered Image page (see page 36)

4.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

5.

Click [Go to General User page].

Operating Instructions

[For assistance, please call: 1-800-272-7033] 83

Operating Instructions

2.15 Changing Initial Settings on the Single

Camera page or the Multi-Camera page

The Image Display page allows you to change initial settings (display settings when a user accesses the camera) of image resolution, image quality and refresh interval. You can display a time stamp on the image. The initial language can be selected from eight languages. The banner can be displayed for administrator or general users or both.

1.

Click [Image Display] at the top of the page.

2.

Set each parameter.

84

• Clicking [Cancel] cancels your settings without saving changes.

Operating Instructions

Setting Description

Image Resolution • Select the image resolution.

640 x 480 pixels (Only for the Single Camera page)

320 x 240 pixels (default)

160 x 120 pixels (Only for the Multi-Camera page)

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality.

[Favor Motion] optimizes for enhanced motion.

Refresh Interval • Select a refresh interval.

(Motion—60-second interval)

Time stamp setting • You can display a time stamp on the upper left side of the image. Select from [Not used], [AM/PM format] or

[24H format].

Language

Banner Display

Note

If you enable this feature, the time is also stamped on the buffered image.

• Select the initial language from English, French,

German, Italian, Spanish, Russian, Simplified Chinese or Japanese. The selected language is displayed as the initial language on the Top, Single Camera, Multi-

Camera and Buffered Image pages. If you select

English or Japanese, all pages can be changed. But if you select other language, the Setup, Maintenance and

Support pages are displayed only in English.

• When the camera accesses the Internet, the banner displays product information about cameras or announcements about the latest firmware, etc. from

Panasonic. Checking [Display] for Administrator is particularly recommended.

• When checked, the banner is displayed for administrator or general users or both.

• The banner is displayed only on the Single Camera

page (see page 17).

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

[For assistance, please call: 1-800-272-7033] 85

86

Operating Instructions

4.

Click [Go to Image Display page].

• The Image Display page is displayed.

Operating Instructions

2.16 Configuring Multiple Cameras

The Multi-Camera Setup page allows you to configure the camera IP addresses and camera names to view multiple images on the Multi-Camera page. These configurations are required to use the Multi-Camera page. Up to 12 cameras can be configured.

1.

Click [Multi-Camera] on the Setup page.

2.

Click [Add].

Note

• If you click the camera number, the modification page is displayed. The camera setting can be modified or deleted on it.

• If you configured multiple cameras, you can change the camera number.

Select the number, and click [Move].

3.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

Note

If the cameras will be accessed from the Internet, be sure to use the global IP address. In this situation, local IP addresses such as 192.168. x.x cannot be used.

[For assistance, please call: 1-800-272-7033] 87

88

Operating Instructions

Setting

Display

Description

• Check the box to enable the camera.

IP Address

*1

or

Host Name

*2

Port No.

• Set the IP address or the host name to enable the camera.

• Set the port number (1—65535).

Camera Name

*3

• This camera name is displayed only on the Multi-Camera page.

*1

*2

*3

In IPv4, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But

"0.0.0.0" and "255.255.255.255" are not available.

In IPv6, set the host name.

Enter ASCII characters for the host name (see page 150). But [Space], ["], ['],

[#], [&], [%], [=], [+], [?], [<] and [>] are not available.

Enter 1—255 characters.

Enter ASCII characters (see page 150) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [#], [&], [%], [=], [+], [?], [:], [<], and [>] are not available.

Note

• Set the local IP address and port number for the camera on the same

LAN.

• If the cameras will be accessed from the Internet, be sure to use the global

IP address. In this situation, local IP addresses such as 192.168. x.x cannot be used.

4.

Click [Save] when finished.

• New settings are saved.

• The Multi-Camera Setup page is displayed.

Operating Instructions

2.17 Format the SD memory card

Before you record the camera image, you need to format the SD memory card.

Note

• You can confirm the SD memory capacity on the Status page (see page

118).

1.

Insert the SD memory card (see page 36 of the Installation/Troubleshooting).

2.

Click [Buffer/Transfer] on the Setup page.

3.

Click [Format].

4.

Click [OK] on the confirmation window.

• Format is complete.

5.

Click [Go to Image Buffer/Transfer page].

• The Image Buffer/Transfer page is displayed.

[For assistance, please call: 1-800-272-7033] 89

90

Operating Instructions

2.18 Stop the SD Memory Recording

After you stop the SD memory recording, remove the SD memory card.

Note

• You can confirm the SD memory capacity on the Status page (see page

118).

1.

Click [Buffer/Transfer] on the Setup page.

2.

Click [SD video recording stop].

3.

Click [OK] on the confirmation window.

• The SD memory recording is stopped.

4.

Click [Go to Image Buffer/Transfer page].

• The Image Buffer/Transfer page is displayed.

Note

If the camera is restarted (see page 119), the SD memory recording starts

again.

• If you remove the SD memory card and insert it again, the SD memory recording starts again (see page 36 of the Installation/Troubleshooting).

• Ensure that recording has been stopped, before removing the SD memory card. If the SD memory card is removed while recording, the image file will most likely become unreadable. In this case, format the SD memory card again. (Files will be deleted.)

Operating Instructions

2.19 Buffering or Transferring Images by Timer

The Image Buffer/Transfer page allows you to enable image buffer/transfer by Email or FTP.

Note

If you are recording images to the SD memory card, refresh interval slows down.

1.

Click [Buffer/Transfer] on the Setup page.

2.

Click [No.] to enable buffer/transfer.

3.

Check [Enable Image Buffer/Transfer], select [Timer] for trigger, and click

[Next>].

Note

If you click [Save], all buffered images on the SD memory card are deleted.

• Click [Delete Buffered Images] to delete this buffered images.

• Click [Save] to save the settings.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

[For assistance, please call: 1-800-272-7033] 91

Operating Instructions

Setting

Enable Image

Buffer/Transfer

Trigger

Description

• Check the box to enable the buffer/transfer. Clear the box to disable it.

• Selecting [Timer] enables the camera to buffer/transfer the image by timer.

• Selecting [Alarm 1 or 2] enables the camera to buffer/ transfer the image by alarm signal.

4.

Set the time, and click [Next>].

Note

The timer works by an internal clock. Set the date and time before using timer

buffer/transfer (see page 67).

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting

A day of the week

Active Time of

Trigger

Description

• Check the box to enable the day. Clear the box to disable it.

• Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

5.

Set the image settings, and click [Next>].

92

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Operating Instructions

Setting


Resolution

Description

• Select image resolution (640 x 480, 320 x 240 (default) or

160 x 120 pixels) to buffer or transfer.

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality.

[Favor Motion] optimizes for enhanced motion.

[Mobile Phone] is for a transfer to a cell phone.

Note

640 x 480 pixels cannot be set for a transfer to a cell phone.

6.

Set the image buffer frequencies, and click [Next>].

Note

Due to the network environment, object, number of accesses, enabling IPsec,

SD memory recording, the camera may not record the numbers of images as you set. In this case, set the image buffer frequencies longer.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting

Image Buffer

Frequency

Description

• Select the image buffer frequency to buffer or transfer the image. (1 image per hour—30 images per second)

[For assistance, please call: 1-800-272-7033] 93

94

Operating Instructions

7.

Select the transfer method, and click [Next>].

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Note

If you transfer image by E-mail or FTP, confirm that the default gateway and

DNS server addresses are assigned correctly (see page 44 and page 49).

Setting Description

No Transfer, No

Memory

Overwrite

• If the internal memory or the SD memory card is full, the camera stops the buffer.

No Transfer,

Memory

Overwrite

FTP

• If the internal memory or the SD memory card is full, the camera deletes the old images, and continues to buffer the image.

E-mail

• The camera transfers the image to an FTP server (see

page 95).

The camera transfers the image by E-mail (see page 97).

Operating Instructions

When you set [FTP] for Transfer Method

Select [FTP], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

[For assistance, please call: 1-800-272-7033] 95

96

Operating Instructions

Setting Description

Server IP

Address or

Host Name

*1

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name (1—

255 characters).

• You can set IPv6 address.

Port No.

• Enter the number (1—65535). Usually set to 21.

Login ID

*2

• If your ISP requires a login ID, set it (0—63 characters).

Password

*2

• If your ISP requires a password, set it (0—63 characters).

Login Timing • Select the login timing to an FTP server. If you set [One Time] during 1-minute transfer, the camera logs in to the server only once, and can reduce the time to log in or log out.

Upload File

Name

*1

• Set the file name to save on an FTP server. Enter 1—234 characters. Entering "\" creates directories for a file. (E.g.

NetworkCamera\image.jpg)

Overwrite

Setting

Data

Transfer

Method

• Selecting [Overwrite File] saves and overwrites the image on the server. Selecting [Save as New File with Time Stamp] saves the image attaching time stamps on the file name, and the images are not overwritten.

• Select [Passive Mode] normally. If FTP does not work, select

[Active Mode] and check the operation.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

When you set [E-mail] for Transfer Method

Select [E-mail], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Note

The camera works only with an SMTP (Simple Mail Transfer Protocol) server.

It does not work with mail servers like "Hotmail

®

" using a web browser.

[For assistance, please call: 1-800-272-7033] 97

98

Operating Instructions

Setting Description

SMTP Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

• Enter the number (1—65535). Usually set to 25.

POP3 Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

Login ID

*2

• Enter the number (1—65535). Usually set to 110.

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

Password

*2

Reply E-mail

Address

Destination Email Address

*2

1—3

Subject

*2

*2

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

• Set the destination E-mail address (up to 3).

Enter a subject with ASCII characters (see page 150) or

characters in each language (0—44 characters for a 1-byte character and 0—22 characters for a 2-byte character).

Text •

Enter text with ASCII characters (see page 150) or

characters in each language (0—63 characters for a 1-byte character and 0—31 characters for a 2-byte character). But

["] and [end-of-line] key are not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

8.

Confirm the settings, and click [Save].

• New settings are saved.

• When finished, "Success!" is displayed.

9.

Click [Go to Image Buffer/Transfer page].

• The Image Buffer/Transfer page is displayed.

Note

• If you click [Save] on the Image Buffer/Transfer page, all buffered images on the SD memory card are deleted.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

• Turning off the camera.

• Saving the Date and Time page.

• Restarting, updating firmware or resetting the camera to factory default.

[For assistance, please call: 1-800-272-7033] 99

100

Operating Instructions

2.20 Buffering or Transferring Images by Alarm

Signal

The Image Buffer/Transfer page allows you to enable image buffer/transfer by Email or FTP.

Note

If you are recording images to the SD memory card, refresh interval slows down.

1.

Click [Buffer/Transfer] on the Setup page.

2.

Click [No.] to enable buffer/transfer.

3.

Check [Enable Image Buffer/Transfer], select [Alarm 1 or 2] for trigger, select

[Rising: GND to Open (High).] or [Falling: Open (High) to GND.] and click

[Next>].

Note

If you click [Save], all buffered images on the SD memory card are deleted.

• Click [Delete Buffered Images] to delete this buffered images.

• Click [Save] to save the settings.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Operating Instructions

Setting

Enable Image

Buffer/Transfer

Trigger

Alarm enable condition

Description

• Check the box to enable the buffer/transfer. Clear the box to disable it.

• Selecting [Timer] enables the camera to buffer/transfer the image by timer.

• Selecting [Alarm 1 or 2] enables the camera to buffer/ transfer the image by alarm signal.

• Select [Rising: GND to Open (High).] or [Falling: Open

(High) to GND.]. [Rising: GND to Open (High).] is the state that GND pin and pin 1 or pin 2 is left open.

[Falling: Open (High) to GND.] is the state that GND pin

and pin 1 or pin 2 is short-circuited. (see page 128)

4.

Set the time, and click [Next>].

Note

The timer works by an internal clock. Set the date and time before using timer

buffer/transfer (see page 67).

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting

A day of the week

Active Time of

Trigger

Description

• Check the box to enable the day. Clear the box to disable it.

• Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

[For assistance, please call: 1-800-272-7033] 101

Operating Instructions

5.

Set the Lens Position When Triggered setting, and click [Next>].

Note

If you enable the Lens Position When Triggered setting, buffer/transfer starts after the camera turns to the alarm position.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting Description

Lens Position

When Triggered

• Set [Move to alarm position] to move the lens to the alarm

position (see page 28) when the alarm signal is detected.

6.

Set the image settings, and click [Next>].

102

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting


Resolution

Description

• Select image resolution (640 x 480, 320 x 240 (default) or

160 x 120 pixels) to buffer or transfer.

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality.

[Favor Motion] optimizes for enhanced motion.

[Mobile Phone] is for a transfer to a cell phone.

Note

640 x 480 pixels cannot be set for a transfer to a cell phone.

7.

Set the image buffer frequencies, and click [Next>].

Operating Instructions

Note

Due to the network environment, object, number of accesses, enabling IPsec,

SD memory recording, the camera may not record the numbers of images as you set. In this case, set the image buffer frequencies longer. For the SD memory recording, 1 image per second setting is recommended.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Setting

Enable Pretrigger Image

Buffer

Enable Posttrigger Image

Buffer

Description

• Check the box to enable the setting. The camera buffers or transfers the image right before the alarm signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

• Check the box to enable the setting. The camera buffers or transfers the image right after the alarm signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

[For assistance, please call: 1-800-272-7033] 103

104

Operating Instructions

8.

Select the transfer method, and click [Next>].

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Note

If you transfer image by E-mail or FTP, confirm that the default gateway and

DNS server addresses are assigned correctly (see page 44 and page 49).

Setting Description

No Transfer, No

Memory

Overwrite

• If the internal memory or the SD memory card is full, the camera stops the buffer.

No Transfer,

Memory

Overwrite

FTP

E-mail

• If the internal memory or the SD memory card is full, the camera deletes the old images, and continues to buffer the image.

• The camera transfers the image to an FTP server (see

page 105).

The camera transfers the image by E-mail (see page 107).

Operating Instructions

When you set [FTP] for Transfer Method

Select [FTP], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

[For assistance, please call: 1-800-272-7033] 105

106

Operating Instructions

Setting Description

Server IP

Address or

Host Name

*1

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name (1—

255 characters).

• You can set IPv6 address.

Port No.

• Enter the number (1—65535). Usually set to 21.

Login ID

*2

• If your ISP requires a login ID, set it (0—63 characters).

Password

*2

• If your ISP requires a password, set it (0—63 characters).

Login Timing • Select the login timing to an FTP server. If you set [One Time] during 1-minute transfer, the camera logs in to the server only once, and can reduce the time to log in or log out.

Upload File

Name

*1

• Set the file name to save on an FTP server. Enter 1—234 characters. Entering "\" creates directories for a file. (E.g.

NetworkCamera\image.jpg)

Overwrite

Setting

Data

Transfer

Method

• Selecting [Overwrite File] saves and overwrites the image on the server. Selecting [Save as New File with Time Stamp] saves the image attaching time stamps on the file name, and the images are not overwritten.

• Select [Passive Mode] normally. If FTP does not work, select

[Active Mode] and check the operation.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

When you set [E-mail] for Transfer Method

Select [E-mail], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Image Buffer/Transfer page without saving changes.

Note

The camera works only with an SMTP (Simple Mail Transfer Protocol) server.

It does not work with mail servers like "Hotmail" using a web browser.

[For assistance, please call: 1-800-272-7033] 107

108

Operating Instructions

Setting Description

SMTP Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

• Enter the number (1—65535). Usually set to 25.

POP3 Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

Login ID

*2

• Enter the number (1—65535). Usually set to 110.

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

Password

*2

Reply E-mail

Address

Destination Email Address

*2

1—3

Subject

*2

*2

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

• Set the destination E-mail address (up to 3).

Enter a subject with ASCII characters (see page 150) or

characters in each language (0—44 characters for a 1-byte character and 0—22 characters for a 2-byte character).

Text •

Enter text with ASCII characters (see page 150) or

characters in each language (0—63 characters for a 1-byte character and 0—31 characters for a 2-byte character). But

["] and [end-of-line] key are not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

9.

After you confirm the settings and click [Next>], set E-mail notification and click

[Next>].

• If you select [Enable], the E-mail Notification When Triggered page is

displayed. Enter the settings seeing page 107 and page 108. When

finished, click [Next>] and go to step 10.

Setting

Disable

Enable

Description

• The camera does not send an E-mail notification when buffering or transferring image.

• The camera sends an E-mail notification (up to 3 destinations) when buffering or transferring image.

10.

Click [Save] after confirming the settings.

• New settings are saved.

• When finished, "Success!" is displayed.

Note

If you click [Save], all buffered images on the SD memory card are deleted.

[For assistance, please call: 1-800-272-7033] 109

110

Operating Instructions

11.

Click [Go to Image Buffer/Transfer page].

• The Image Buffer/Transfer page is displayed.

Note

• If you set a short interval to transfer image to a cell phone, many E-mails may be sent to it leading to a large phone bill. Therefore, we recommend you to set a long interval. 1 image per second frequency is recommended.

• Alarm transfer stops its operations until the camera finishes all transfers.

For example, if the camera transfers 3 images per minute and 6 images in total, the alarm detection will be in the following operation.

120 seconds

1st 2nd 3rd 4th 5th 6th

Detectable Undetectable Detectable

An alarm signal is detected.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

• Turning off the camera.

• Saving the Date and Time page.

• Restarting, updating firmware or resetting the camera to factory default.

Operating Instructions

2.21 Transfer the Camera Image in Transport Mode

The camera can transfer the image in transport mode by E-mail or FTP.

Transport Mode

E-mail or FTP

Server

Encrypted

Prepare the following requirements.

E-mail or FTP

Server

Camera

Item

Operating

System

ISP Service

ISP Service

Supported Feature

: IPsec supported

: Services for multiple static global addresses (A global address must be set up to the server.)

: Services for multiple static global addresses (A global address must be set up to the camera.)

See page 56 and set up the E-mail or FTP server.

[For assistance, please call: 1-800-272-7033] 111

112

Operating Instructions

2.22 Transfer the Camera Image in Tunnel Mode

The camera can transfer the image in tunnel mode by E-mail or FTP.

VPN Router

LAN WAN

Tunnel Mode

Not Encrypted

Prepare the following requirements.

Encrypted

Camera

Item

VPN Router ISP Service

(in IPv4)

ISP Service

(in IPv6)

ISP Service

(in IPv4)

ISP Service

(in IPv6)

Supported Feature

: Services for static global addresses (A global address must be set up to the WAN side.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

: Services for multiple static global addresses (A global address must be set up to the camera.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

See page 59 and set up the E-mail or FTP server.

Operating Instructions

2.23 Specifying Operation Time

The Operation Time page allows you to limit the operation time. The camera image turns to a gray screen outside the operation time.

Note

• If you wrongly set the time period, your privacy may be seen. Confirm the time period after the setup.

• If you access the camera as an administrator, you can view the image outside the time period.

1.

Click [Operation Time] on the Setup page.

2.

Click [No.] to set the operation time.

Note

If No. 1—7 are disabled, the camera can always be operated.

3.

Check [Enable], set the time, and click [Save]

• Clicking [Cancel] takes you back to the previous page.

[For assistance, please call: 1-800-272-7033] 113

114

Operating Instructions

Setting

Enable

Description

• Check the box to enable the setting. Clear the box to disable it.

• Check the box to enable the day. Clear the box to disable it.

A day of the week

Operation Time • Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

4.

Click [Save] when finished.

• New settings are saved.

• The Operation Time page is displayed.

About Operation Time

In the operation time settings, the enabled settings take priority over the disabled settings. Therefore, if Monday or Tuesday is disabled in a setting but enabled in other settings, the camera can be operated on both Monday and Tuesday.

Note

An administrator can view images anytime regardless of the setting for the operation time.

Operating Instructions

2.24 Controlling External Output Terminal

The digital output terminal allows you to control the external devices. You can change the initial status of the output signal.

1.

Click [External Output] on the Setup page.

2.

Click [Save] when finished.

• Clicking [Cancel] cancels your settings without saving changes.

• New settings are saved.

• When finished, "Success!" is displayed.

Setting Description

External Device

Control Output

• If you check [Open], the internal transistor turns off and the external output terminal gets high impedance (open collector) when the camera powers up. If you check [Short to GND], the internal transistor turns on and is electrically short-circuited to GND pin when the camera powers up.

The external output terminal gets low impedance (0 V).

Button name modification

• You can change the output control button names on the operation bar. You can name the button depending on your external devices.

3.

Click [Go to External Output Control page].

• The External Output Control page is displayed.

[For assistance, please call: 1-800-272-7033] 115

116

Operating Instructions

2.25 Changing Indicator Display

The Indicator Control page allows you to select Indicator operation. Indicator has three options.

• Always on

• Turn the indicator on when the camera is accessed.

• Always off

1.

Click [Indicator Control] on the Setup page.

2.

Select indicator option.

• Clicking [Cancel] cancels your settings without saving changes.

Note

• See page 11 in the Installation/Troubleshooting for indicator display.

• Selecting [Never turn indicator on] keeps indicator always off.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Indicator Control page].

• The Indicator Control page is displayed.

Operating Instructions

3 Camera Maintenance

3.1

Maintenance page

(5)

(6)

(7)

(1)

(2)

(3)

(4)

Maintenance

Status

Session Status

Restart

Update Firmware

Save Settings

Load Settings

Reset to Factory Default

Maintenance

(1)

(2)

Status

Session Status

Displays the camera settings and status (see page 118).

Displays information on access to the camera (see page

118).

(3) Restart

Restarts the camera (see page 119).

(4) Update Firmware

Updates the camera firmware (see page 120).

(5) Save Settings

Creates a configuration file (see page 123).

(6) Load Settings

(7) Reset to Factory

Default

Loads settings from a configuration file (see page 124).

Resets the camera to its default settings (see page 125).

[For assistance, please call: 1-800-272-7033] 117

118

Operating Instructions

3.1.1

Confirming the Status

The Status page allows you to check the status of the camera. The status information provides support for troubleshooting.

Clicking [Status] displays the following page.

Note

See Panasonic Network Camera support website at http://panasonic.co.jp/

pcc/products/en/netwkcam/ for details about status information.

3.1.2

Confirming Session Status

Displays client information connecting to camera.

Clicking [Session Status] displays the following page.

Number of sessions

Show number of motion and audio sessions.

div motion audio

List of sessions

Display max 40 tables connecting now.

max sessions

30

10

Connect time Access to Addr:Port now sessions

4

1

User

Operating Instructions

3.1.3

Restarting the Camera

The Restart page can restart the camera. The camera can also be restarted by pressing the RESTART button or by disconnecting the power cord from the outlet and reconnecting it again.

Note

When the camera restarts, the buffered images will be deleted. The buffered images on the SD memory card are not deleted.

1.

Click [Restart] on the Maintenance page.

2.

Click [Restart].

• Restarting takes about 1 minute. The Top page is displayed when finished.

[For assistance, please call: 1-800-272-7033] 119

120

Operating Instructions

3.1.4

Updating the Camera Firmware

The Update Firmware page allows you to update the camera firmware. If the new firmware is available, install it into the camera.

Note

• Do not turn off the power during firmware update.

• All buffered images on the internal memory will be deleted after the firmware update. The buffered images on the SD memory card are not deleted.

• The firmware version is displayed on the Top page and the Status page.

1.

Download the new firmware on the Panasonic Network Camera support website at http://panasonic.co.jp/pcc/products/en/netwkcam/, and save it on your PC.

2.

Click [Update Firmware] on the Maintenance page.

3.

Click [Update Firmware].

• The camera restarts.

• The Update page is displayed in about 1 minute.

Operating Instructions

4.

Click [Browse...].

• A dialog box is displayed to select the firmware.

5.

Select the firmware (including directory information) and click [Open].

• The firmware file name is displayed.

6.

Confirm the firmware file name, and click [Update Firmware].

• Clicking [Cancel] takes you back to the Top page without firmware update.

• The next message is displayed during update.

• The camera restarts automatically after update.

• The Top page is displayed in about 1 minute.

[For assistance, please call: 1-800-272-7033] 121

122

Operating Instructions

7.

Confirm that the version number on the Top page is updated.

Network Camera

BB-HCM381A

Version

∗.∗∗

Running in IPv4 mode.

Updated version

• If the version number is updated, the firmware update is complete.

Operating Instructions

3.1.5

Creating Configuration File

A configuration file can be saved on your PC. You can load the camera settings

from the configuration file on the Load Settings page (see page 124).

Note

The saved image has privacy information. Prevent private information leaks.

1.

Click [Save Settings] on the Maintenance page.

2.

Click [Save].

3.

Click [Save] on the File Download dialog box.

4.

Specify the location, and click [Save] on the Save As dialog box.

• The configuration file is saved in the location.

Note

• The file extension (.dat) cannot be changed. If you change it, the settings cannot be loaded.

• If you try to updating the camera, create a configuration file after updating the firmware. If there is a firmware version difference between the camera that you create a configuration file from and the camera that you try to load settings to, the settings may not be loaded to the camera.

[For assistance, please call: 1-800-272-7033] 123

Operating Instructions

3.1.6

Loading Settings from a Configuration File

The settings can be loaded from a configuration file. If you reset the camera to factory default, the camera can load its settings from the configuration file.

Note

• The configuration file has network settings. When the settings are loaded, the network settings are also loaded as they were saved.

• If you try to update the camera, create a configuration file after updating the firmware. If there is a firmware version difference between the camera that you create a configuration file from and the camera that you try to load settings to, the settings may not be loaded to the camera. Save settings after updating the firmware.

1.

Click [Load Settings] on the Maintenance page.

2.

Click [Browse...].

3.

Select the configuration file on the Choose file dialog box, and click [Open].

124

• The file name is displayed in the data field.

4.

Confirm the file name, and click [Load].

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

Operating Instructions

3.1.7

Resetting the Camera to Factory Default

All camera settings are reset to factory default directly after the Execute button is clicked.

1.

Click [Reset to Factory Default] on the Maintenance page.

2.

Click [Execute].

• The indicator blinks orange, and then turns off for 10 seconds.

• All camera settings (user name, password, IP address, subnet mask etc.) are reset to factory default.

• If the camera is reset to factory default, the network connection mode changes to [Automatic Setup]. Reconfigure the camera refer to the

Installation/Troubleshooting if necessary.

Note

• The internal clock will not be reset, but the time format will return to AM/

PM mode (see page 67). Set it again.

See page 131—page 139 for default settings.

• Pressing the FACTORY DEFAULT RESET button resets the camera to the

factory default (see page 130).

• All buffered images on the internal memory are deleted when resetting the camera to factory default. The buffered images on the SD memory card are not deleted.

• The reset operation takes about 1 minute.

• Do not turn off the camera during the reset operation.

[For assistance, please call: 1-800-272-7033] 125

Operating Instructions

3.2

Support page

(1)

(2)

(3)

Support

(1) Help

(2) Product

Information

(3) Support

Information

Displays the Help page (see page 126).

Displays product information website (see page 126).

Displays support information website (see page 127).

3.2.1

Seeing Help page

The Help page displays explanations for each feature about the following 1. to 6. items.

Clicking [Help] on the Support page displays the next page.

126

3.2.2

Seeing Product Information

You can see product information on the Panasonic Network Camera support website.

Clicking [Product Information] on the Support page displays the URL, click it.

Note

If the camera is not connected to the Internet, the website cannot be displayed.

Operating Instructions

3.2.3

Seeing Support Information

You can see support information on the Panasonic Network Camera support website.

Clicking [Support Information] on the Support page displays the URL, click it.

Note

If the camera is not connected to the Internet, the website cannot be displayed.

[For assistance, please call: 1-800-272-7033] 127

128

Operating Instructions

3.3

External I/O

If you connect the external devices such as sensors to the External I/O and image buffer/transfer by alarm signal is set, the camera image is transferred by the alarm detection.

Explanation of the External I/O

Pin

G

1

G

2

3

4

Features

GND pin

External Sensor Input 1

• Use it by opening or GND short-circuit.

GND pin

External Sensor Input 2

• Use it by opening or GND short-circuit.

External Device Control Output

You can control it on the External Output page (see page 115).

• It is an open collector circuit, and the maximum drawing-in current is the same as pin 4. Do not exceed the voltage of DC power output terminal (pin 4).

DC Power Output Terminal

• 10.5—13.5 V DC

• Maximum of 100 mA load drive is possible.

Note

The External I/O (Input/Output) are independent. Output terminal is controlled

only by External Output Control page on page 115.

Operating Instructions

Circuit Diagram Example

Camera

12 V

Relay Light

G

1

G

4

3

2

Door Sensor 2 (Alarm 2)

Door Sensor 1 (Alarm 1)

DC10.5 V–13.5 V

CAUTION

The external I/O is not capable of connecting directly to devices that require large amounts of current. In some case, a custom interface circuit (customer-provided) may have to be used. Serious damage to the camera may result if a device is connected to the external I/O that

exceeds its electrical capability (see page 128).

The low voltage/current circuits and high voltage/current circuits are in the camera circuit. The qualified electrician should do the wiring not by yourself. Incorrect wiring could damage the camera. You could receive the fatal electric shock.

[For assistance, please call: 1-800-272-7033] 129

130

Operating Instructions

3.4

FACTORY DEFAULT RESET Button

The camera has a FACTORY DEFAULT RESET button.

FACTORY DEFAULT RESET button

(Press the button with a pointed object)

Pressing the FACTORY DEFAULT RESET button resets the camera to factory default. If you lose your user name and password, use this button to reset the camera.

• Press the FACTORY DEFAULT RESET button for 1 second when the camera is on.

• The indicator blinks orange, and then turns off for 5 seconds.

• Do not turn off the camera until the indicator lights green.

Note

• The internal clock will not be reset, but the time format will return to AM/

PM mode (see page 67). Set it again.

See page 131—page 139 for default settings.

• All buffered images on the internal memory are deleted when resetting the camera to factory default. The buffered images on the SD memory card are not deleted.

• The reset operation takes about 1 minute.

Operating Instructions

3.5

Default Setting List

Basic

Items

Network

(IPv4)

Connection Mode

Allow Access from the

Internet (Automatic

Setup only)

Network Configuration from Setup Program

(Static/DHCP only)

Port No.

(Static/DHCP only)

IP address

(Static only)

Subnet Mask

(Static only)

Host Name

(DHCP only)

Default

Automatic

Setup

No

Enable

80

192.168.0.

253

255.255.

255.0

[Blank]

Default Gateway

(Static/DHCP only)

DNS Server 1

DNS Server 2

(Static/DHCP only)

Max. Bandwidth Usage

(Mbps)

Connection Type

[Blank]

[Blank]

Unlimited

Auto

Negotiation

Required

-

-

-

Note

Automatic Setup/

Static/DHCP

-

-

-

When setting Static

20, 21, 25 and 110 is not available*2.

*1

When setting Static

When setting

DHCP (Not always required)

*1

0—63 characters

*4

When using

Gateway

When using

DNS

*1

*1

-

0.1, 0.2, 0.3, 0.5, 1 or Unlimited

-

[For assistance, please call: 1-800-272-7033] 131

132

Operating Instructions

Network

(IPv6)

IPsec

Items

Connection Mode

Default

Automatic

Setup

No

Required

-

Note

Automatic Setup/

Static

Allow Access from the

Internet (Automatic

Setup only)

Port No.

(Static only)

IP address

(Static only)

Default Gateway (Static only)

DNS Server 1

DNS Server 2

Max. Bandwidth Usage

(Mbps)

Connection Type

Use

Encoding strength

Transport

-

80

[Blank]

[Blank]

[Blank]

Unlimited

Auto

Negotiation

No check

Standard

(AES, 3DES,

DES, NULL)

[Blank]

-

When setting Static

20, 21, 25 and 110 is not available.

*1

When using

Gateway

When using

DNS

-

*1

*1

0.1, 0.2, 0.3, 0.5, 1 or Unlimited

-

-

-

-

-

Standard/High

-

UPnP

Tunnel

Auto Port Forwarding

Display Shortcut Icon in

My Network Places

Viewnet cam.com

Enable

[Blank]

Disable

Enable

No check -

-

-

-

-

-

-

-

Operating Instructions

Items

Date and

Time

Time Setting

Automatic Time

Adjustment

Time Zone

Adjust Clock for

Daylight Saving Time

Start Day

Camera

End Day

Camera Name

White Balance

AC Power Source

Frequency

Automatic Focus

Range

Mounting Type

Default

AM/PM -

No check When using

NTP

GMT -05:00

No check

Apr,

First Sunday,

2 AM

Oct,

Last Sunday,

2 AM

Network

Camera

Auto

60 Hz

-

-

-

-

Required 1—15 characters

*6

Auto/Fixed Indoor/

Fixed Fluorescent

(White)/Fixed

Fluorescent

(Daylight)/Fixed

Outdoor/Hold

60 Hz, 50 Hz

Macro

On the table

Required

-

-

-

-

Note

-

-

-

-

Macro, Normal

Pan Range (Minimum)

(Home Position)

(Maximum)

-175 degrees

0 degrees

+175 degrees

-

-

-

On the table, On the ceiling

-175 — +175 degrees, current

-175 — +175 degrees, current

-175 — +175 degrees, current

[For assistance, please call: 1-800-272-7033] 133

134

Operating Instructions

Items

Tilt Range (On the table)

(Minimum)

(Home Position)

(Maximum)

Default

Selected

-120 degrees

-90 degrees

0 degrees

Not-selected

Required

-

-

-

-

-

Note

-

-120 — 0 degrees, current

-120 — 0 degrees, current

-120 — 0 degrees, current

Tilt Range (On the ceiling)

(Minimum) 0 degrees

+90 degrees (Home Position)

(Maximum) +90 degrees

Do not move Return to Specified

Position (Time)

(Specified Position) Home

Position

Color Night View

Vertical Resolution (for

640 x 480 mode)

Disable

480

-

-

-

-

-

-

-

0 — +90 degrees, current

0 — +90 degrees, current

0 — +90 degrees, current

Do not move, 10,

30 (min), 1 h

Home Position/

Preset No. 1—8/

Alarm No. 1, 2

480, 240

-

Operating Instructions

Audio

Items

Output

Volume

PC Audio Input Timeout

Input

Camera Microphone

Sensitivity

Mute during Pan/Tilt

Default

Enabled

Standard

1 min

Enable

Standard

Enable

Required

-

-

-

-

-

-

Note

-

Minimum/

Standard/

Maximum

1, 2, 3, 5, 10, 20,

30, 60 (min)

-

Minimum/

Standard/

Maximum

-

Account

Security:

Administrator

Items Default

General

Authentication

User Name

Do not permit access from guest users

[Blank]

Password

Retype

Password

[Blank]

[Blank]

Required

-

Note

-

When setting administrator

6—15 characters

*3

When setting administrator

6—15 characters

*3

When setting administrator

6—15 characters

*3

[For assistance, please call: 1-800-272-7033] 135

136

Operating Instructions

Items

General User User ID List

User Name

Password

Retype

Password

Limit time of

Continuous

Motion JPEG

Refresh

Interval

Access Level

Default

[Blank]

[Blank]

[Blank]

[Blank]

Not permitted

3 s

Required Note

-

When setting general user

6—15 characters

*3

When setting general user

6—15 characters

*3

When setting general user

6—15 characters

*3

-

-

Not permitted,

Unlimited, 10, 30

(s), 1, 5, 10, 30, 60

(min)

3, 5, 10, 30, 60 (s)

No checks -

Operating Instructions

Advanced


Display

Items

Single Camera Image

Resolution

Single Camera Image

Quality

Default

320 x 240

Standard

Single Camera

Refresh Interval

Multi-Camera Image

Resolution

Multi-Camera Image

Quality

Motion

320 x 240

Standard

Multi-Camera Refresh

Interval

Time stamp setting

Motion

Not used

Language

Banner Display

(Administrator)

(General User)

English

Checked

Checked

Required

-

-

-

-

-

Note

320 x 240 or 640 x 480

Favor Clarity,

Standard or

Favor Motion

3, 5, 10, 30, 60

(s) or Motion

160 x 120 or 320 x 240

Favor Clarity,

Standard or

Favor Motion

3, 5, 10, 30, 60

(s) or Motion

When reducing traffic

-

-

Not used/AM/PM format/24H format

English/

Japanese/

French/German/

Italian/Spanish/

Simplified

Chinese/Russian

-

-

-

-

[For assistance, please call: 1-800-272-7033] 137

138

Operating Instructions

Multi-

Camera

Buffer/

Transfer

Items

Multi-Camera

Display

IP Address or Host

Name

Port No.

Camera Name

Status

Trigger

Active Time of Trigger

Image Setting

(Image Resolution)

(Image Quality)

Image Buffer

Frequency

Transfer Method

Notify

Operation

Time

Operation Time

External

Output

External Device

Control Output

Button name modification

Default

[Blank]

Checked

[Blank]

[Blank]

[Blank]

Off

Timer

Always

320 x 240

Standard

Every 1 s, buffer 1 image.

No Transfer,

No Memory

Overwrite

-

Always

Required

-

-

-

Note

-

When setting

Multi-Camera

-

-

When setting

Multi-Camera

IP address*1

Host name*5 is

1—255 characters.

When setting

Multi-Camera

20, 21, 25 and

110 are not available*2.

When setting

Multi-Camera

1—15 characters

*7

-

-

-

-

-

-

160 x 120, 320 x

240, 640 x 480

Favor Clarity,

Standard, Favor

Motion, Mobile

Phone

1 image per hour—30 images per second

-

-

-

-

-

Open

Open/Short -

Open/Short to

GND

-

Indicator

Control

Items

Indicator Control

Default

Turn indicator on when camera is on

Required

-

Operating Instructions

Note

-

*1 In IPv4, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But

"0.0.0.0" and "255.255.255.255" are not available.

In IPv6, set 8 hexadecimal digits divided with ":". Consecutive 0s can be abbreviated as "::".

*2 Set the number of 1—65535.

*3 Enter ASCII characters (see page 150). But [Space], ["], ['], [&], [<], [>] and [:]

are not available.

*4 Enter ASCII characters for the host name (see page 150). But [Space], ["], ['],

[&], [<], and [>] are not available.

*5 Enter ASCII characters for the host name (see page 150). But [Space], ["], ['],

[#], [&], [%], [=], [+], [?], [<], and [>] are not available.

*6 Enter ASCII characters (see page 150) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [&], [<], and [>] are not available.

*7 Enter ASCII characters (see page 150) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [#], [&], [%], [=], [+], [?], [<], and [>] are not available.

[For assistance, please call: 1-800-272-7033] 139

140

Operating Instructions

3.6

Cleaning

After the camera is turned off by disconnecting the AC plug, clean the camera.

3.6.1

Cleaning the Main Unit

If the lens has the sand or the dust, image quality may decrease. After taking away the sand or the dust on it, wipe it with lens cleaning paper.

Lens cleaning paper

Lens

Note

• Do not use alcohol, polishing powder, cleanser, benzine, thinner, wax, petroleum products or hot water to wipe the camera. Also avoid glass cleaner, pesticide or hair spray. They may cause change in the shape or color.

• Do not directly touch the lens. Your fingerprints can cause the image to be out of focus.

Operating Instructions

3.7

Setting an IP Address on Your PC

Your PC's IP address can be assigned by the following procedures.

1.

Display the TCP/IP Properties window.

• The steps are different depending on your OS. The steps are shown below.

OS Steps

Windows XP [Start] ( [Settings]) [Control Panel] [Network and

Internet Connections] [Network Connections] [Local Area

Connection] in use [Properties] Select Internet Protocol

[TCP/IP] [Properties] [Use the following IP address]

Windows 2000 [Start] [Settings] [Control Panel] [Network and Dial-up

Connections] [Local Area Connection] in use

[Properties] Select Internet Protocol [TCP/IP]

[Properties] [Use the following IP address]

Windows Me,

Windows 98SE

[Start] [Settings] [Control Panel] [Network] Select

[TCP/IP] with adaptor in use [Properties] [IP Address]

[Specify an IP address]

• When using Windows XP and Windows 2000, log in as an administrator to access the TCP/IP Properties window.

2.

Enter IP address and subnet mask.

3.

Click [OK].

• In Windows Me or Windows 98SE, the PC needs to be restarted to enable the settings.

Local IP Address

Local IP address is the network ID that is not used on the Internet. They are classified into Class A, Class B and Class C, as shown below. Set the IP address in the range of the number specified in the class corresponding to your local network scale.

Class

Class A

Class B

Class C

Subnet Mask

255. 0. 0. 0

Local IP Address

10. 0. 0. 1 — 10. 255. 255. 254

255. 255. 0. 0 172. 16. 0. 1

255. 255. 255. 0 192. 168. 0. 1

172. 31. 255. 254

192. 168. 0. 254

[For assistance, please call: 1-800-272-7033] 141

142

Operating Instructions

3.8

Using Setup Program

The Setup Program can be used for the following purposes.

• Finding the IP address and port number of the camera connected to your network.

• Setting up the camera automatically.

• Setting up the camera manually to a Static or a DHCP setting.

• Disabling IPsec.

• Displaying the Setup page.

Finding the camera

1.

Insert the Setup CD-ROM into the CD-ROM drive of your PC.

• If the Panasonic Network Camera Setup window does not appear, click

"setup.exe" on the Setup CD-ROM.

2.

Click [Camera Setup].

Displays version information about this program.

Sets up the camera.

Displays the camera manuals.

If your PC does not have Adobe

®

Acrobat

®

Reader

®

, install it from the Adobe Reader website.

Installs Network Camera

Recorder trial version.

Closes the Setup Program.

Operating Instructions

• When the following dialog box is displayed, click [Unblock].

• You can find the camera IP address and port number by looking up the

MAC address of your camera.

MAC

Address

Port

IP

No.

Address

Camera

Status

Camera

List window

Displays IPv4 or

IPv6 information.

IPv6 Information

Note

• If you try to find multiple cameras, each MAC address beside the Ethernet

(LAN) port verifies which camera you are setting up.

• See page 29 in the Installation/Troubleshooting for the setup from the

MAC address.

[For assistance, please call: 1-800-272-7033] 143

144

Operating Instructions

Automatic Setup (Local or Internet Access) or Manual Setup

1.

Click [Execute] on the Camera List window shown on page 143.

2.

Click each button to execute the program.

Sets up the camera to view on the LAN.

Sets up the Internet access to the camera.

Manually sets up the camera.

Disables IPsec. If disabled, the button is displayed gray.

Displays the Setup page (see

page 41).

Note

• For the first time installation or after pressing the FACTORY DEFAULT

RESET button, you must select [Automatic Setup (Local Access Only)]. To start the Manual Setup, execute Automatic Setup (Local Access Only) first, and then start the Setup Program to execute the Manual Setup.

• See the Installation/Troubleshooting for the local and Internet access setup.

Manual Setup window

Set up each parameter seeing page 46—page 48.

• If more than 20 minutes have passed since the camera was turned on, the camera cannot be set up from the Setup Program. If the camera cannot be set up, restart the camera.

Operating Instructions

• If "Camera setup completed" is displayed, click [Close] to finish the

Manual Setup.

3.

Close all Setup windows.

[For assistance, please call: 1-800-272-7033] 145

146

Operating Instructions

3.9

Setting Your PC

3.9.1

Setting the Proxy Server Settings on Web Browser

If the proxy server is not used, the settings are not required. If you are using the proxy server, the following settings are required.

• To communicate with a camera installed inside a LAN, changing the web browser settings is recommended.

• A firewall of a proxy server in a corporate environment may prevent access to the camera. Consult your network administrator.

Note

• A proxy server is used to protect your network connected to the Internet.

• If the camera is accessed via a proxy server, problems may occur. Consult your network administrator before installing the camera.

• If the camera is accessed via a proxy server, the refresh interval may be slow.

How to Set the Proxy Server Settings

1.

Start up Internet Explorer. (The example is Internet Explorer 6.0.)

2.

Click [Tools] [Internet Options...].

3.

Click the [Connections] tab, and click [LAN Settings].

Operating Instructions

4.

See if the Use a proxy server check box is checked or not. If checked, click

[Advanced...].

See if the check box is checked or not.

If checked, click [Advanced...].

• If not checked, click [Cancel]. Proxy settings are not required.

[For assistance, please call: 1-800-272-7033] 147

148

Operating Instructions

5.

Enter the camera IP address into the Do not use proxy server for addresses beginning with data field.

6.

Click [OK].

Note

• When accessing the camera via a proxy server, the Talk Button is displayed gray. Talk feature cannot be used.

Operating Instructions

3.9.2

Setting UPnP™ to Display Camera Shortcut in My

Network Places

To display the camera shortcut in the My Network Places folder, Windows component should be added. Enable UPnP

TM

(Universal Plug and Play) following the steps below.

OS

Windows XP

Windows XP

Service Pack 2

Windows Me

Steps

[Start] ( [Settings]) [Control Panel] [Programs]

[Windows Components] Select [Network Service]

[Properties] Check [UPnP] [OK]

[Next] Complete

[Start] ( [Settings]) [Control Panel] [Programs]

[Windows Components] Select [Network Service]

[Details...] Check [Internet Gateway Device Discovery and Control Client] Check [UPnP User Interface]

[OK] Complete

[Start] [Settings] [Control Panel] [Application]

[Windows File] tab Select [Communication]

[Detail] Check [UPnP] [OK] [OK]

[Restart] Complete

Note

This feature is available only when Windows XP or Windows Me is being used.

3.9.3

Setting the Internet Temporary File Setting on Web

Browser

The old image may be displayed. In this case, set the web browser following the steps below.

[Tools] [Internet Options] [General] tab [Settings] in the Temporary Internet files Check [Every visit to the page] in the Check for newer versions of stored pages [OK] [OK] Complete

[For assistance, please call: 1-800-272-7033] 149

150

Operating Instructions

3.10 ASCII Character Table

(space)

!

"

#

$

%

&

(

)

'

*

/

.

-

+

,

;

<

8

9

:

5

6

7

=

>

?

2

3

4

0

1

ASCII Character Table

H

I

J

K

L

M

N

O

@

A

B

C

D

E

F

G

P

Q

X

Y

Z

U

V

W

\

[

]

^

_

R

S

T h i j k l m n o

` a b c d e f g v w x y z

{

|

}

~ r s t u p q

Operating Instructions

3.11 File Size and Number of Buffered Images

The following table shows the relationship between the file size of the image and the maximum number of buffered images.

Note

The following file sizes were shown at the largest value.

Resolution Items Capture

640 x 480

(pixels)

File Size About 60 KB

Buffered

Images

-

Favor

Clarity

Standard Favor

Motion

About

50 KB

About

40

About

33 KB

About 60

About

20 KB

About

100

320 x 240

(pixels)

160 x 120

(pixels)

File Size About 30 KB

Buffered

Images

-

File Size About 10 KB

Buffered

Images

-

About

25 KB

About

80

About

7 KB

About

290

About

16 KB

About

125

About

5 KB

About

400

About

8 KB

About

250

About

3 KB

About

675

Mobile

Phone

-

-

About

8 KB

About

250

About

3 KB

About

675

[For assistance, please call: 1-800-272-7033] 151

152

Operating Instructions

3.12 Number of Images on the SD Memory Card

The camera supports the Panasonic SD memory card.

• 1 GB: RP-SDH01GU1A

• 512 MB: RP-SDH512U1A

• 256 MB: RP-SD256U1A

• 128 MB: RP-SD128BU1A

• 64 MB: RP-SD064BPPA

Resolution/

Image Quality

160 x

120

(pixels)

Favor

Motion

Standard

320 x

240

(pixels)

Favor

Clarity

Favor

Motion

Standard

Favor

Clarity

640 x

480

(pixels)

Favor

Motion

Standard

Favor

Clarity

1 GB

About

300,000

About

180,000

About

130,000

About

110,000

About

58,000

About

37,000

About

47,000

About

28,000

About

18,000

512 MB

About

157,000

About

94,000

About

67,000

About

58,000

About

29,000

About

18,000

About

23,000

About

14,000

About

9,000

256 MB 128 MB 64 MB

About

78,000

About

47,000

About

33,000

About

29,000

About

14,000

About

9,000

About

11,000

About

7,000

About

4,000

About

19,000

About

11,000

About

8,000

About

7,000

About

3,000

About

2,000

About

2,000

About

1,000

About

1,000

About

39,000

About

23,000

About

16,000

About

14,000

About

7,000

About

4,000

About

5,000

About

3,000

About

2,000

Operating Instructions

3.13 Specifications

Network Camera

Items

Zoom

Pan/Tilt Angle

Sensor Type

Illumination

White Balance

Focus

Minimum Object Distance

Caliber Ratio (F No.)

Horizontal Viewing Angle

Exposure

Specifications

12 steps, 42x (21x Optical Zoom, 2x Digital Zoom)

Pan: -175° to +175°,

Tilt: -120° to 0° (On the table)/

0° to +90° (On the ceiling)

1/4-inch CCD (Interlace type), 380,000 pixels

(Effective Pixels)

3—100,000 lx (0.09—100,000 lx when in color night view mode)

Auto/Manual/Hold

Auto/Manual (40 steps)

Wide: 5 mm (0.2 inches)

Tele: 1 m (40 inches)

Tele: F1.6—Wide: F3.6

Tele: 2.6° (Optical)/1.3° (Digital), Wide: 51°

Auto

Other Specifications

Items

Video Compression

Video Resolution

Buffered Image

*1

Audio Communication

Audio Bandwidth

Audio Play Method

Input Encoding Method

Specifications

JPEG (3 Levels)

640 x 480, 320 x 240 (default), 160 x 120

About 125 frames (320 x 240) with time display

(SD memory card is not inserted.)

2-way Half Duplex

300 Hz—3.4 KHz

Play with ActiveX

Encoding with ActiveX

[For assistance, please call: 1-800-272-7033] 153

154

Operating Instructions

Other Specifications

Items Specifications

Audio Input

*2

Audio Output

Video Output

Frame rate

*3

*2

*2

Supported Protocols

IPsec Feature

3.5 mm Mini Jack

3.5 mm Stereo Mini Jack (output is mono), Line

Level

Analog Composite (NTSC)

Max. 12 frames/second (640 x 480)

Max. 30 frames/second (320 x 240 or 160 x 120)

IPv4/IPv6 Dual-Stack

• IPv4:

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,

ARP, ICMP, POP3, NTP, IPsec, UPnP

• IPv6:

TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6,

POP3, NDP, NTP, IPsec

ESP Encryption, ESP Authentication

Transport mode/Tunnel mode

IKE (Internet Key Exchange)

IKE (Internet Key Exchange) Pre-Shared Key

Cipher Algorithm DES-CBC, 3DES-CBC, AES-CBC

Message-Digest Algorithm HMAC-MD5, HMAC-SHA-1

Message Transfer Condition Alarm or Timer

Image Transfer Method SMTP, FTP

Interface

Indicator Display

10Base-T/100Base-TX Ethernet RJ-45 connector x

1

Power/Network Communication/Camera operation/

Ethernet link

External I/O

SD Memory Card Slot

Dimension (HWD)

External Sensor Input x 2

External Sensor Output x 1

Full Size

140 mm (5.51 inches) x 123 mm (4.84 inches) x

123 mm (4.84 inches)

Operating Instructions

Other Specifications

Weight

Items

Power Supply

Temperature

Humidity

Setting Angle

Specifications

640 (1.41 lb.) (Only the unit)

AC adaptor: Input 120 V AC, 60 Hz

Output 12 V DC, 1A

Consumption: About 12 W

Operation: 0 °C (+32 °F) to +40 °C (+104 °F)

Storage: 0 °C (+32 °F) to +50 °C (+122 °F)

Operation: 20 %—80 % (No Condensation)

Storage: 20 %—80 % (No Condensation)

Available between 15° based on level line for mounting both on the table and on the ceiling.

*1

*2

*3

The maximum number of frames changes depending on the image quality and what object you buffer.

Use only the included Audio/Video Cable when connecting an external microphone, speaker, or TV.

Frame rate may slow down depending on the network environment, the PC performance, the image quality, enabling IPsec, SD memory recording or what object you view.

[For assistance, please call: 1-800-272-7033] 155

156

Operating Instructions

Index

Operating Instructions

157

158

Operating Instructions

A

Abbreviations

5

ActiveX Controls

18

Administrator/General Users/Guest Users

79

Alarm Image Buffer/Transfer

100

Alarm Position

28

ASCII Character Table

150

Audio page

75

Automatic Focus Range

70

H

Help page

126

Home Position

28

How to Use This Documentation

5

I

Image Display page

84

Indicator Control page

116

IPsec

53

IPv6 Domain Name Service

15

B

Buffered Image page

36

C

Camera Access

13

Camera page

69

Capture Image Button

22

Cell Phone

39

Cleaning

140

Click to Center

21

Confirming the Internet access

66

CPU

6

,

7

L

Listen

32

Load Settings page

124

Login

80

M

Maintenance page

117

Multi-Camera page

34

Multi-Camera Setup page

87

D

Date and Time page

67

Default Setting List

131

E

Explanation of the External I/O

128

External I/O

128

External Output page

115

F

FACTORY DEFAULT RESET Button

130

Focus

26

For IPv4 Connection

6

For IPv6 Connection

7

G

General User page

81

N

Network (IPv4) page

44

Network (IPv6) page

49

O

Operating System

6

,

7

Operation Bar

23

Operation Time page

113

P

Pan/Tilt Range

24

,

73

Preset Button

28

Product Information page

126

Protocol

6

,

7

R

Reset to Factory Default page

125

Restart page

119

Operating Instructions

S

Save Settings page

123

SD memory card

89

,

90

Security: Administrator page

77

Setup page

41

Setup Program

142

Single Camera page

17

Specifications

153

Status page

118

Support Information page

127

Support page

126

System Requirements for your PC

6

T

Talk

32

Timer Image Buffer/Transfer

91

Top page

14

Trademarks

5

Transport mode

56

,

111

Tunnel mode

59

,

112

U

Update Firmware page

120

UPnP page

63

V

Vertical Resolution

72

Viewnetcam.com Service

65

W

Web Browser

6

,

7

Z

Zooming In and Out

25

[For assistance, please call: 1-800-272-7033] 159

For product service

Panasonic Servicenters are listed in the servicenter directory.

Call 1-800-272-7033 for the location of an authorized servicenter.

This Network Camera is designed for use in the United States of America.

Sale or use of this product in other countries/areas may violate local laws.

When you ship the product

Carefully pack your unit, preferably in the original carton.

Attach a letter, detailing the symptom, to the outside of the carton.

Symptom

Send the unit to an authorized servicenter, prepaid and adequately insured.

Do not send your unit to the Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products.

The information in this document is subject to change without notice.

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

Panasonic Puerto Rico, Inc.

Copyright:

This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.

2004 Panasonic Communications Co., Ltd. All Rights Reserved.

Printed in Japan

PSQX3510ZA

KK1204CH0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
