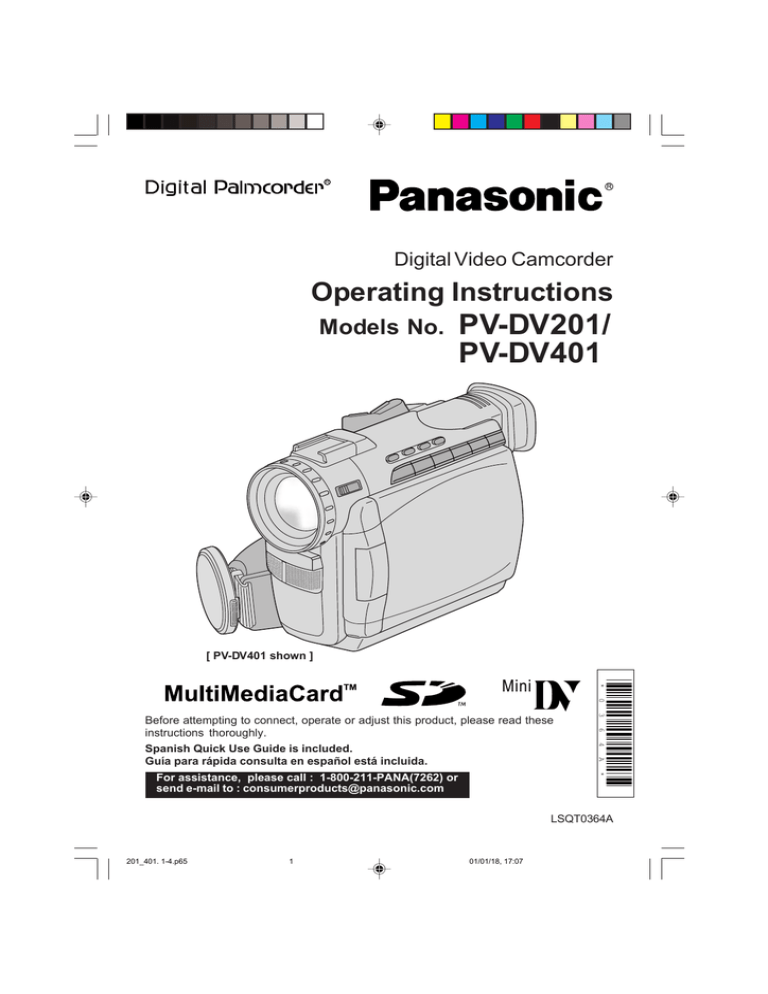

Panasonic PV-DV401 Instructions

Digital Video Camcorder

Operating Instructions

Models No.

PV-DV201/

PV-DV401

[ PV-DV401 shown ]

Mini

Before attempting to connect, operate or adjust this product, please read these instructions thoroughly.

Spanish Quick Use Guide is included.

Guía para rápida consulta en español está incluida.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

LSQT0364A

201_401. 1-4.p65

1 01/01/18, 17:07

Thank you for choosing

Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information below. The serial number is on the tag located on the underside of your Palmcorder. Be sure to retain this manual as your convenient Palmcorder information source.

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Safety Precautions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

Your Mini Palmcorder is designed to record and play back in Standard Play (SP) mode and Long (LP) mode.

It is recommended that only cassette tapes that have been tested and inspected for use in

VCR machines with the

Mini

mark be used.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included.

Therefore, it should be read carefully in order to avoid any problems.

The above markings are located on the appliance bottom cover.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, ‘Something About Interference’ available from FCC local regional offices helpful.

FCC Warning: To assure continued FCC compliance, use only the provided shielded interface cable when connecting digital video camera to computer in accordance with instruction herein. Also, any unauthorized changes or modifications to this equipment could void the user’s authority to operate.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401. 1-4.p65

2 01/01/18, 17:07

1. Read Instructions — All the safety and operating instructions should be read before the unit is operated.

2. Retain Instructions — The safety and operating instructions should be retained for future reference.

3. Heed Warnings — All warnings on the unit and in the operating instructions should be adhered to.

4. Follow Instructions — All operating and maintenance instructions should be followed.

5. Cleaning — Unplug this video unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth for cleaning.

6. Attachments — Do not use attachments not recommended by the video product manufacturer as they may be hazardous.

7. Water and Moisture — Do not use this video unit near water — for example near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories — Do not place this video unit on an unstable cart, stand, tripod, bracket, or table. The video unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video unit. Any mounting of the unit should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video unit and to protect it from overheating. These openings must not be blocked or covered. Never place the video unit on a bed, sofa, rug, or other similar surface, or near or over a radiator or heat register. This video unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. Power Sources — This video unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video units intended to be operated from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization — This video unit may be equipped with either a polarized 2-wire AC

(Alternating Current) line plug (a plug having one blade wider than the other) or 3-wire grounding type plug, a plug having a third (grounding) pin.

The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

The 3-wire grounding type plug will fit into a grounding type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

12. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords of plugs, convenience receptacles, and the point where they exit from the unit.

13. Outdoor Antenna Grounding — If an outside antenna or cable system is connected to the video unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Part 1 of the Canadian Electrical Code, in USA Section 810 of the National Electrical Code, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

ANTENNA

LEAD IN

WIRE

GROUND

CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC

SERVICE

EQUIPMENT

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC

NATIONAL ELECTRICAL CODE

14. Lightning — For added protection of this video unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video unit due to lightning and power-line surges.

201_401. 1-4.p65

3 01/01/18, 17:07

Important Safeguards

15. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Objects and Liquids — Never push objects of any kind into this video unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind onto the video unit.

18. Servicing — Do not attempt to service this video unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service — Unplug this video unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged.

b. If any liquid has been spilled into, or objects have fallen onto, the video unit.

c. If the video unit has been exposed to rain or water.

d. If the video unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video unit to its normal operation.

e. If the video unit has been dropped or the cabinet has been damaged.

f. When the video unit exhibits a distinct change in performance — this indicates a need for service.

20. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check— Upon completion of any service or repairs to this video unit, ask the service technician to perform safety checks to determine that the video unit is in safe operating order.

Precautions

USE & LOCATION

TO AVOID SHOCK HAZARD ... Your Palmcorder and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your Palmcorder if it gets wet. Your Palmcorder has been designed for outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your

Palmcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your

Palmcorder from the power supply before cleaning.

DO NOT AIM YOUR PALMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS

DO NOT LEAVE THE PALMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE

DAMAGE TO THE INTERNAL PARTS OF THE EVF

DO NOT EXPOSE YOUR PALMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight, inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your

Palmcorder.

AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm place, moisture may form on the tape and inside the unit.

DO NOT LEAVE YOUR PALMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.

STORAGE OF YOUR PALMCORDER ... Store and handle your Palmcorder in a manner that will not subject it to unnecessary movement (avoid shaking and striking). Your Palmcorder contains a sensitive pick-up device which could be damaged by improper handling or storage.

CARE

TO CLEAN YOUR PALMCORDER ... Do not use strong or abrasive detergents when cleaning your Palmcorder body.

TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial Palmcorder lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.

TO PROTECT THE FINISH OF YOUR PALMCORDER ... Before handling your Palmcorder, make sure your hands and face are free from any chemical products, such as suntan lotion, as it may damage the finish.

Getting Started

Things You Should Know .................................................................................................. 2

Important Safeguards ....................................................................................................... 3

Precautions ....................................................................................................................... 4

Before Using ..................................................................................................................... 6

Quick Guide ...................................................................................................................... 9

Supplying Power ............................................................................................................. 11

Setting the Clock ............................................................................................................. 13

Using the Palmcorder Menu ........................................................................................... 14

MENU OSD ..................................................................................................................... 15

Electronic Viewfinder/LCD Monitor Indications .............................................................. 19

Basic Operation

Camera Recording .......................................................................................................... 22

Remote Control (Optional) .............................................................................................. 26

Playback Your Recordings .............................................................................................. 27

Special Features

Card Features ................................................................................................................. 32

Dual Digital Electronic Image Stabilization System (D.E.I.S.) ........................................ 39

Digital Zoom .................................................................................................................... 4 0

Digital PhotoShot ............................................................................................................ 41

Index Search ................................................................................................................... 41

White Balance ................................................................................................................ 42

Recording Still Pictures .................................................................................................. 42

MAGICVU/0LUX (PV-DV401 only) .................................................................................. 42

Program AE .................................................................................................................... 43

Other Digital Functions ................................................................................................... 44

Picture in Picture (PinP) ................................................................................................. 45

Strobe Multi Mode ........................................................................................................... 46

Focus .............................................................................................................................. 47

Backlight ......................................................................................................................... 47

Audio/Video Fade In/Out ................................................................................................. 48

High Speed Shutter ........................................................................................................ 48

Audio Dubbing using the External or Built-in Microphone .............................................. 49

Memory-Stop Editing ...................................................................................................... 50

Copying your Tapes to S-VHS or VHS Cassette ............................................................ 51

Copying from Digital Equipment (dubbing) ..................................................................... 52

Transferring Your Images ................................................................................................ 53

Transferring Your Images (i.LINK) ................................................................................... 62

For Your Information

Palmcorder Accessory System ...................................................................................... 64

Palmcorder Accessory Order Form ................................................................................ 66

Notes On Operations ...................................................................................................... 67

Specifications ................................................................................................................. 68

Before Requesting Service ............................................................................................. 69

Request for Service Notice ............................................................................................. 71

Index of Controls ............................................................................................................. 72

Limited Warranty ............................................................................................................. 76

Servicenter List ............................................................................................................... 77

Spanish Quick Use Guide/Guía Para Uso Rápido ......................................................... 78

Index ................................................................................................................ Back Cover

201_401. 5-8.p65

5 01/01/18, 17:07

This operating Instructions book is designed for use with models PV-DV201 and

PV-DV401. The PV-DV401 is the model used for illustrative purposes.

Features may vary, so please read carefully.

Differences between models

Model Number

LCD Monitor

Viewfinder

MAGICVU/0LUX

MIC IN EXTERNAL

PV-DV201

63.5 mm (2.5 inch) Liquid

Crystal Display

Black and White

PV-DV401

76.2 mm (3.0 inch) Liquid

Crystal Display

Color

Yes

Unpack your Palmcorder

1 pc. AC Adaptor

(PV-DAC11) with AC Cable and DC Cable

1 pc. Battery Pack

(PV-DBP8A)

1 pc. 8 MB

MultiMediaCard

(LSFT0198A)

1 pc. A/V Cable

(LSJA0280)

1 pc. Lens Cap

(LSYF0478)

1 pc. USB Cable

(LSJA0354)

1 pc. Shoulder

Strap (LSFC0013)

1 pc. CD-ROM of Driver Software for

Windows 98/Me / Palmcorder USB Device

Driver for Windows 98/Me/ CARD LINK (for

USB) for Windows 98/Me / PHOTOVU

LINK/Movie Messenger for Windows 98/

Me/ ArcSoft Software for Windows 98/Me

(LSFT0247)

Microsoft

and Windows

are registered trademarks of Microsoft in the United

States and other countries.

Intel ® Pentium ® is a registered trademark.

i.LINK and are trademarks.

PHOTOVU LINK/Movie Messenger is a registered trademark.

IBM is a registered trademark of IBM

Company.

MultiMediaCard is a registered trademark.

SD is a trademark.

Record Speed/Playback Time

Use only those tapes having the

Mini logo indicating the 6.35 mm digital standard.

Cassette type

Record Speed/

Playback time

AY-DVM30EA

AY-DVM60EA

30 minutes

60 minutes

45 minutes

90 minutes

AY-DVM80EA 80 minutes 120 minutes

Erase Protection

Cassettes have a sliding record tab to ensure recordings are not accidentally erased.

To prevent accidental erasure:

Slide the tab to the left (open).

record tab

To record again:

Slide the tab to the right (close).

201_401. 5-8.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

6 01/01/18, 17:07

Cassette Insertion/Removal

• If the Palmcorder is connected to a power source, the cassette can be inserted and ejected without turning the Palmcorder on.

TAPE EJECT

Switch

PUSH TO

CLOSE mark

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

Cassette Compartment Cover

Slide TAPE EJECT to open the

Cassette Compartment Cover.

Insert a cassette record tab up, window side facing out.

Press PUSH TO CLOSE mark to close the Cassette Compartment

Cover.

• To remove the cassette...

Slide TAPE EJECT to open the Cassette

Compartment Cover and pull the cassette tape straight out.

Hint to locate recording position when inserting cassette

• When you insert a partially recorded cassette, use the Edit Search Function (see page

24) to visually confirm the point at which you want to start a new recording. Especially advisable when you want to add a recording to a tape that is already full.

Note

• If hand strap is tight it may prevent Cassette Compartment Cover from fully opening for tape insertion or ejection. Loosen hand strap if necessary.

• When inserting the cassette, make sure it faces in the right direction and then push in completely.

Using the Light (Optional)

To brighten the natural colors in a scene.

Built-in Light Mount

Note

• Using the light will reduce battery operating time.

• Be sure to provide adequate ventilation if using Light in a hot environment for an extended period.

• Be sure LIGHT is set to OFF when not in use.

• Do not attempt to lift or carry the

Palmcorder by holding the Enhancement

Light.

• If light bulb needs to be replaced, take

Light to your nearest authorized servicenter.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to CAMERA or M-CARD.

Slide Light into the Built-in Light

Mount.

Be sure it locks into place.

Press LIGHT to turn

ON or OFF.

LIGHT Button

LIGHT RELEASE Button

To remove the Light:

Press LIGHT RELEASE and slide the

Light out of the mount.

Caution

This light becomes hot during operation.

Make sure nothing covers the Light during operation.

201_401. 5-8.p65

7 01/01/18, 17:07

Attaching the Shoulder Strap

Undo the two strap ends from their buckles.

Thread the strap ends through the

Strap Attachment Rings.

Remove the buckle from one end of the strap.

Thread the strap (with no buckle)

through the Light Holder so that it faces outward. Then, reinsert the buckle.

Reinsert the strap ends through their buckles.

• Make sure the straps are not twisted.

Adjust the Length

Loosen the strap from the Buckle and create a loop.

Pull the strap firmly through the

Buckle to shorten or lengthen the strap.

Hand Strap

Adjust the length of the Hand Strap to the size of your hand as illustrated.

1 2

Hand Strap

Attach the Light (Optional)

Insert the Light into the Light Holder for

Storage.

To remove the Light, press LIGHT

RELEASE and slide Light out of the holder.

Lens Cap

Attaching the Lens Cap Cord to the Hand

Strap

Remove the Hand Strap from the front clasp and thread the Strap through the loop in the Lens Cap Cord.

Reattach the Hand Strap.

LIGHT RELEASE

Button

201_401. 5-8.p65

Light Holder

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

8 01/01/18, 17:07

Insert the Battery Pack

Before you begin

• Charge the Battery. (See page 11.)

Slide the Viewfinder backward to its fully expanded position and then tilt it upward. (For model PV-DV201, tilt

Viewfinder upward.)

Insert the Battery Pack and slide it down until it locks with a click.

Insert Cassette

Set POWER Switch to

VCR or CAMERA.

VCR

OFF

CAMERA

M-CARD

Press PUSH TO CLOSE

mark to close the Cassette

Compartment Cover.

Slide TAPE EJECT Switch to open the Cassette Compartment Cover.

Insert a cassette record tab up, window side facing out.

• Make sure the record tab is closed. (See page 6.)

Protection Film

Note

• Remove the Protection Film before use.

Camera Recording

When the LCD monitor is fully open, the

Viewfinder automatically turns OFF.

Viewfinder

Adjust the Vision Adjustment

Control to your eyesight.

180°

90°

[PV-DV401] [PV-DV201]

Set POWER Switch to

CAMERA.

VCR

OFF

CAMERA

M-CARD

LCD Monitor

Press LCD-OPEN Button to unlock the LCD monitor. Swing

it fully open and adjust the angle.

Press REC/PAUSE Button to start recording.

Press REC/PAUSE Button again to pause recording.

201_401. 9-13.p65

9 01/01/18, 17:07

Insert Memory Card*

Before you begin

• Charge the Battery. (See page 11.)

*Memory Card: MultiMediaCard or SD Memory Card (See page 64.)

• Be sure to insert the Memory Card before using the Card PhotoShot. (See page 32.)

Below is a list of memory cards which can be used in this Palmcorder.

Memory Card Capacity

MultiMediaCard (LSFT0198A) (supplied)

MultiMediaCard (SanDisk brand)

SD Memory Card (optional) (See page 64.)

8 MB

8 MB, 16 MB

16 MB, 32 MB, 64 MB

SD Memory Card write protection switch

LOCK

A write protection switch is located on the SD Memory Card. Sliding the switch to the “LOCK” position prevents writing on or formatting the card.

Write protection switch

M-CARD Door

M-CARD Lock Switch

LCD Monitor

180°

90°

Press LCD-OPEN Button

to unlock the LCD monitor.

Swing it fully open and adjust the angle.

To Watch Playback in the LCD

(Liquid Crystal Display)

When the LCD monitor is fully open, the

Viewfinder automatically turns OFF.

Set POWER

Switch to OFF.

VCR

OFF

CAMERA

M-CARD

Slide CARD EJECT Switch to open

M-CARD door.

Insert the Memory Card.

Close the M-CARD Door.

Before you begin

• Charge the Battery. (See page 11.)

Set POWER Switch to VCR.

180°

90°

VCR

OFF

CAMERA

M-CARD

Press LCD-OPEN Button to unlock the LCD monitor. Swing it

fully open and adjust the angle.

Press REW Button to rewind the tape.

Press PLAY Button to start playback.

Press STOP Button

to stop playback.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401. 9-13.p65

10 01/01/18, 17:07

Charge the Battery Pack on the AC Adaptor

POWER Lamp

Connect and plug in the Power Cord

as shown.

• POWER Lamp will light.

• Remove the DC Cable, if attached, from the adaptor.

Attach the Battery as shown to charge.

• CHARGE Lamp lights up. It goes out when charging is complete (approx.

1 hour). Expect approx. 1 hour

30 minutes of operation (EVF usage) when fully charged.

Remove the Battery.

Slide the Battery out and then lift up.

CHARGE Lamp

Note

About the Flashing of the CHARGE Lamp

• Charge the Battery within an ambient temperature range of 10 °C and 30 °C.

• If charging is done in extreme low or high temperatures, Battery charge time increases.

CHARGE Lamp flashes when...

• The Battery is being charged, but charging is taking longer than normal.

• Charging is not possible. Remove the Battery once, wait a short time, then re-attach it for charging.

Insert the Battery Pack

Remove the Battery Pack

BATTERY

RELEASE

Switch

Slide the Viewfinder backward to its fully extended position and then tilt it upward. (For model PV-DV201, tilt

Viewfinder upward.)

Insert the Battery Pack and slide it down until it locks with a click.

To remove the Battery Pack:

Slide the Battery upward while sliding the

BATTERY RELEASE Switch.

201_401. 9-13.p65

11 01/01/18, 17:07

Battery Care

Caution:

• Charge only with specified charger.

• Charge the Battery within an ambient temperature range of 32° F (0° C) and

104° F (40° C).

• The Battery may be warm after charging or just after use. This is normal.

• Do not use an insufficiently charged or worn out Battery.

• If charging is done in extreme low or high temperatures, Battery charge time increases.

Safety precautions:

• Do not get the Battery near, or dispose of in fire.

• Do not directly connect (short circuit) the positive (+) and negative (–) terminals.

• Never attempt to disassemble or reassemble the Battery.

Use AC Adaptor

To avoid damage to the Battery:

• Do not drop or jar the Battery.

• Use the Battery with specified models only.

• If the Battery is used in extremely high temperatures, a safety device will automatically prevent operation.

To insure longer battery life:

• While not in use, remove Battery from

the Palmcorder and AC Adaptor and

store in a cool, dark, dry place. If you leave the Battery in the Palmcorder or on the AC Adaptor, the Battery will no longer be rechargeable.

• Keep the Battery terminals clean.

BATTERY

RELEASE

Switch

Slide the Battery upward while sliding the BATTERY RELEASE Switch to

remove the Battery Pack.

(See page 11.)

Insert the DC Cable into the DC IN

Terminal.

Connect the other end of the DC

Cable to the AC Adaptor as shown.

Plug in the AC Adaptor.

• The POWER Lamp on the AC

Adaptor lights up.

DC IN Terminal

POWER

Lamp

DC Cable

(Supplied)

Note

• When not in use, unplug the AC Adaptor from the AC outlet. (AC Adaptor consumes 1 W of electric power when plugged into an AC outlet even when not in use.)

DC Output Connector

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401. 9-13.p65

12 01/01/18, 17:07

Set the Date and Time

The date and time is calculated, including leap year, up to DEC 31 2089.

2, 3, 4

JOG KEY

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12).

• Set POWER to CAMERA or VCR.

Press MENU to display the Camera or

VCR mode menu screen.

(See page 14.)

[ CAMERA MENU ]

[ VCR MENU ]

Button

EXAMPLE:

YEAR : 2001

PUSH

Push

MONTH

: JAN

PUSH

Rotate

MONTH : FEB

Rotate JOG KEY to select

DISPLAY

SETTING

, and then press JOG KEY to display the DISPLAY SETTING menu screen.

Rotate JOG KEY to select

CLOCK-

SET

, and then press JOG KEY to set to ON. (See pages 16, 18.)

• The DATE/TIME SETTING menu is displayed.

Rotate JOG KEY to select YEAR, then

press JOG KEY to fix and move to the next item. Likewise, set the month, day, hour, and minutes.

Note

• To make corrections,

Press JOG KEY repeatedly to move back to an item and correct.

• A built-in Battery maintains clock operation. If the Palmcorder is not connected to a power source for a few months, the built-in battery may discharge and “CLOCK BATTERY” indication appears. (See page 21.)

When DATE/TIME setting is completed, press MENU three times to start the clock and exit.

201_401. 9-13.p65

13 01/01/18, 17:07

The Palmcorder features two menu displays: one for CAMERA mode

(recording) and the other for VCR mode

(Playback). (See pages 15~18.)

• While the Menu screen is displayed, you cannot record on or play a tape.

• While recording, the Menu screen cannot be displayed.

• During playback, the Menu screen can be displayed.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to CAMERA or VCR.

Displaying the MENU

Press MENU to display the CAMERA or VCR menu (according to the

POWER setting).

Rotate JOG KEY to select a menu item.

Setting the MENU Items

(EX. VCR Mode menu)

2, A, B, C

JOG KEY

Press JOG KEY to set your selection.

Rotate JOG KEY to select a menu item.

1, D

Button

Press JOG KEY to set your selection.

• The “

●

” mark indicates selection.

Press MENU twice to exit the menu.

CAMERA Main menu

1 : D. FUNCTION

CAMERA FUNCTION menu is displayed. To select one of the 10 digital functions

(MIRROR, STROBE, MOSAIC, SLIM, TRAIL,

STRETCH, GAIN-UP, WIPE, MIX, PinP).

2 : ADJUST

CAMERA ADJUST menu is displayed.

To select PROG. AE, W. BALANCE, or

H.S.S. (High Speed Shutter).

3 : REC MODE

CAMERA REC-MODE menu is displayed. To select REC-SPEED, AUDIO-REC, INDEX,

SHUTTER, SELF-REC, or WIND-CUT.

4 : SET-UP

CAMERA SET-UP menu is displayed. To select REMOTE, BEEP, or MAGICVU (PV-

DV401 only).

5 : DISPLAY SETTING

DISPLAY SETTING menu is displayed. To select DISPLAY, C.RESET, DATE/TIME, or

CLOCK-SET.

6 : LCD/EVF SETTING

LCD/EVF SETTING menu is displayed. To select LCD BRIGHTNESS, LCD COLOR or EVF BRIGHTNESS.

7 : PHOTO TITLE

PHOTO TITLE menu is displayed. To select

TITLE or MODE.

VCR Main menu

1 : PLAY FUNCTION

VCR PLAY FUNCTION menu is displayed. To select D. FUNCTION or D.EFFECT.

2 : REC MODE

VCR REC MODE menu is displayed. To select REC-SPEED.

3 : PLAY MODE

VCR PLAY MODE menu is displayed.

To select INDEX, AUDIO, REMOTE, or

B.SEARCH.

4 : MULTI SETTING

MULTI SETTING menu is displayed.

To select SPEED.

5 : DISPLAY SETTING

DISPLAY SETTING menu is displayed. To select DISPLAY, C.RESET, DATE/TIME, or

CLOCK-SET.

6 : LCD/EVF SETTING

LCD/EVF SETTING menu is displayed. To select LCD BRIGHTNESS, LCD COLOR or EVF BRIGHTNESS.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.14-16.p65

14 01/01/18, 17:07

2

3

4

5

6

7

8

9

10 Camera Mode Menu Screen

1

201_401.14-16.p65

1

2

3

4

5

6

7

8

9

10

DIGITAL FUNCTION (See page 44.)

To select one of the 10 digital functions.

Setting to OFF cancels the previously selected digital function.

PROG. AE (See page 43.)

To select one of the 5 Program AE modes. Setting to OFF cancels the previously selected Program AE mode.

W.BALANCE (See page 42.)

To select one of the 3 White Balance modes.

H. S. S. (High Speed Shutter)

(See page 48.)

To select a desired shutter speed.

REC-SPEED (See page 6.)

SP: Normal recording speed mode.

LP: Recording time is 1.5 times as long as in the SP mode. For example, 120 minutes of recording is possible on a

80 minute tape.

AUDIO-REC (See page 49.)

12 bit: The sound is recorded in the

12 bit/32 kHz mode.

16 bit: The sound is recorded in the

16 bit/48 kHz high-quality mode.

INDEX (See page 30.)

DAY:

An index signal is recorded when recording is restarted after the date has changed since the last recording.

2 HOUR:An index signal is recorded when recording is restarted after a lapse of more than

2 hours.

SHUTTER (See page 41.)

When set to ON, still pictures taken in the PhotoShot mode are recorded with a visual shutter effect and click sound.

SELF-REC (See page 23.)

NORMAL: During self-recording, the picture on the LCD Monitor is the same as it will be recorded.

MIRROR:

During self-recording, the picture on the LCD Monitor is horizontally reversed.

WIND-CUT (See page 22.)

To reduce sound distortion caused by wind hitting the microphone.

However, this slightly deteriorates the sound reproduction in the bass range.

01/01/18, 17:07

11

12

13

14

15

16

17

18

19

20

11

12

13

14

15

16

17

18

19

20

REMOTE (See page 26.)

VCR1: To receive signals from the

Remote Control, set to VCR1.

VCR2: To receive signals from the Remote Control, set to

VCR2.

OFF:

To prevent reception of signals from the Remote

Control.

BEEP

Set to ON to hear beep when starting and stopping camera recording or when unusual conditions occur. To cancel the beep, set to OFF.

Palmcorder will beep:

Once when you start recording

Twice when you stop recording

Repeatedly when warning of unusual conditions.

(See page 21.)

MAGICVU (PV-DV401 only)

(See page 42.)

To select one of the 3 MAGICVU modes slide MAGICVU/0LUX Switch to ON.

DISPLAY (See page 19.)

To select the desired type of display and counter indication displayed on the LCD Monitor or in the viewfinder.

C.RESET (See page 19.)

Setting to ON resets the counter to zero.

DATE/TIME (See page 20.)

The date and time can be set and displayed on the screen.

CLOCK-SET (See page 13.)

When set to ON, the date and time can be set on the screen.

LCD/EVF SETTING (See page 23.)

Setting to ON displays the menu for adjusting the LCD brightness, color level, and the EVF brightness.

TITLE (See page 38.)

Photo Title is recorded.

MODE (See page 38.)

To select one of the 2 Photo Title modes.

201_401.14-16.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

16 01/01/18, 17:07

4

5

6

7 VCR Mode Menu Screen

1

2

3

1

2

3

4

5

6

7

DIGITAL FUNCTION (See page 44.)

To select one of the 6 digital functions.

Setting to OFF cancels the previously selected digital function.

D. EFFECT (See page 44.)

To select one of the 2 digital picture effects for playback. Setting to OFF cancels the previously selected digital effect.

REC-SPEED (See page 6.)

SP: Normal recording speed mode.

LP: Recording time is 1.5 times as long as in the SP mode. For example, 120 minutes of recording is possible on an

80 minute tape.

INDEX (See page 30.)

To select the desired Index Search function.

PHOTO: To search for Photo shot pictures.

SCENE: To search for scenes marked with Index signal.

AUDIO (See page 50.)

To select the desired audio playback mode after performing audio dubbing in the 12 bit mode (SP mode only).

ST1 : The original sound alone is played back.

ST2 : The dubbed sound alone is played back.

MIX : The original sound and the dubbed sound are played back together.

REMOTE (See page 26.)

VCR1 : To receive signals from the

Remote Control, set to VCR1.

VCR2 : To receive signals from the

Remote Control, set to VCR2.

OFF : To prevent reception of signals from the Remote Control.

B.SEARCH (Blank Search)

(See page 25.)

Select ON to go directly to a blank portion of the tape.

201_401.17-18.p65

17 01/01/18, 17:07

9

10

11

12

13

8

9

10

11

12

13

SPEED (See page 46.)

In Strobe Multi mode, used to select the interval at which a succession of still screens are captured from the playback picture.

FAST : Every 0.3 seconds

NORM : Every 0.6 seconds

SLOW : Every 1.0 seconds

DISPLAY (See page 19.)

To select the desired type of display and counter indication displayed on the

LCD Monitor or in the viewfinder.

C.RESET (See page 19.)

Setting to ON resets the counter to zero.

DATE/TIME (See page 19.)

The date and time can be set and displayed on the screen.

CLOCK-SET (See page 13.)

When set to ON, the date and time can be set on the screen.

LCD/EVF SETTING (See page 23.)

Setting to ON displays the menu for adjusting the LCD brightness, color level, and the EVF brightness.

M-CARD Menu Screen

[ Photo Rec Mode Menu Screen ]

1 [ Photo Play Mode Menu Screen ]

2

3

1

2

3

REC MODE (See page 32.)

To select Photo Rec Mode.

DISPLAY (See page 34.)

Select to OFF to cancel all Displays on the screen.

DCF (See page 34.)

Select to OFF to cancel DCF No. on the screen.

201_401.17-18.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

18 01/01/18, 17:07

Here are some of the basic indications which will appear on the Palmcorder EVF and LCD

Monitor. Only Date and Time indications will be recorded onto the tape.

e f a b c d a

Battery Remaining

FULL f Display ON/OFF and Counter/Time Code

The indication switches as shown below when the desired “DISPLAY” mode is selected from the menu.

(See pages 16, 18.)

• When OFF is selected, all displays are turned off.

Linear Time Counter Memory Counter

EMPTY b

Tape Remaining

(AY-DVM30EA) (AY-DVM60EA)

R0:30 R1:00

R0:00 R0:00

• It will take several seconds for the tape remaining indicator to operate after the tape starts moving.

c d e

Digital Zoom and other Digital

Functions (See page 40.)

This display appears when the digital zoom function has been activated.

Playback Effect (See page 44.)

This display appears when SEPIA or

MONO is selected in VCR menu.

Tape Speed Indication (See page 15.)

Indicates the tape speed (SP or LP).

Time Code

Memory Counter M 0:00:00

The Palmcorder will stop whenever it reaches the point where the counter was previously set to M 0:00:00 during audio dub, fast forward, or rewind.

Time Code 0h00m00s00f

The Palmcorder calculates and displays exactly where you are on any tape in terms of hours, minutes, seconds, and frames

(30 frames = 1 second).

• This display can not be reset.

IMPORTANT NOTE:

• Display must be set to ON for MF, AE,

W.BALANCE or BACK LIGHT indications to be displayed on the EVF or LCD Panel when selected.

• C.RESET does not work when DISPLAY is set to OFF and T.CODE.

201_401.19-21.p65

19 01/01/18, 17:07

i k l m n o s p q r g h j g h

Volume Display (See page 27.)

The volume bar appears when the volume of the built-in speaker is being adjusted.

Date and Time Indication

(See pages 16, 18.)

As shown below, the date and time indication changes each time DATE/TIME is selected from the Palmcorder’s MENU

(see pages 16, 18) or the DATE/TIME

Button is pressed on the remote (optional).

j i

DATE/TIME

OFF

DATE

WARNING indication

(See page 21.)

The warning displays appear in the

EVF and the LCD monitor.

WIND-CUT indication

(See page 15.)

l Tape Mode Indications

REC

Recording.


PAUSE

PLAY

CHK

REW

PhotoShot recording.

Paused during recording.

Playback.

Repeat Playback.

Recording Check.

Fast forward.

Rewind.

FF Search.

BLANK

REW Search.

Blank Search.

SEARCH

Index Search.

m n o p q r s

Digital EIS Indications

(See page 39.)

Zoom Magnification Level

(See page 40.)

Manual Focus Indication

(See page 47.)

White Balance Indication

(See page 42.)

PROGRAM-AE Indication

(See page 43.)

Backlight Indication

(See page 47.)

Shutter Mode indication

(See page 48.)

MAGICVU (PV-DV401 only)

(See page 16.)

This display appears when MAGICVU is set to ON.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.19-21.p65

20 01/01/18, 17:07

The following warning displays appear in the EVF and the LCD monitor.

Indications Condition

If the Palmcorder is in CAMERA mode without a cassette inserted,

“ ” will flash and “TAPE NOT INSERTED” will appear for

5 seconds. Recording will not start.

If the Palmcorder is in CAMERA mode with the cassette sliding record tab opened, “ ” will flash and “CHECK REC TAB” will appear for 5 seconds. Recording will not start.

When Audio dub is performed and the sliding record tab is open, or a blank portion of tape is detected, “ ” will flash and

“CANNOT REC” will appear for 5 seconds.

When the tape is about to end in REC mode, “ END” will flash and “TAPE END” will appear for 5 seconds.

When an incompatible tape is detected, “INCOMPATIBLE

TAPE” will appear for 5 seconds.

If the video heads require cleaning, “NEED HEAD CLEANING” will appear for 5 seconds.

When the Palmcorder and remote are not set to the same mode

(VCR1 or VCR2), “CHECK REMOTE MODE” appears for 5 seconds. Also appears when the Palmcorder is first turned on.

When an AUDIO DUB is attempted on a pre-recorded LP tape,

“CANNOT REC LP-MODE” will appear for 5 seconds.

If excessive moisture condenses in the unit, “WARNING” will flash, “DEW DETECTED” will appear, and the Palmcorder will automatically turn OFF in 15 seconds.

In this case, wait until the indicator no longer flashes when your

Palmcorder is turned ON again.

When a battery recharge is necessary, “WARNING” will flash, “LOW BATTERY” will appear, and the Palmcorder will automatically turn OFF in 15 seconds. (See page 19.)

When the built-in lithium clock battery is discharged, “CLOCK

BATTERY” will appear. To re-charge the lithium clock battery, connect the AC Adaptor to the Palmcorder. Recharging takes approx. 4 hours. Reset the clock after charging.

If you play tape recorded in a format other than NTSC or you try to copy a copy-protected data. “INCOMPATIBLE DATA” will appear.

When a still image is transferred from a tape to an already full

Memory Card, “NO SPACE LEFT” appears.

If the Palmcorder is in M-CARD mode or Photo Title (CAMERA mode) and the DV Interface Cable (i.LINK) is connected,

“DISCONNECT DV CABLE” appears. In this case, remove the DV

Interface Cable (i.LINK) from the Palmcorder.

201_401.19-21.p65

21 01/01/18, 17:08

Simple Recording

Remove the lens cap and clip it to the hand strap.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Insert a cassette with record tab closed.

(See page 6.)

Set POWER to CAMERA.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

EVF

Clip here

POWER ZOOM Switch

Vision

Adjustment

Control

POWER

Lamp

POWER

Switch

REC/PAUSE Button

WARNING:

• Do not leave the Palmcorder with the

EVF aimed directly at the sun as this may cause damage to the internal parts of the EVF.

• Do not lift, or carry, the Palmcorder by the EVF or the LCD Monitor.

REC/PAUSE mode

With the Viewfinder Eye Cup up to your eye, adjust the Vision

Adjustment Control to your eyesight.

(See page 9.)

Press REC/PAUSE to start recording.

• “REC” is displayed on the screen.

Press REC/PAUSE again to pause recording.

• To reduce microphone wind noise, set the WIND-CUT to ON. (See

WIND- CUT on page 15.)

• When the Palmcorder is aimed at excessively bright objects, or bright lights, a vertical bar may appear in the picture.

This is a normal characteristic of the CCD pick-up device. Try to avoid this whenever possible.

To conserve power

After 5 minutes, the Record/Pause mode will automatically change to Standby mode.

To resume recording, set POWER to OFF and then ON again.

Zoom

You can gradually zoom in for close ups or zoom out for wide angle shots.

Zoom slowly : by lightly pressing the “T” (Telephoto) or the “W” (Wide Angle) side of the

POWER ZOOM Switch.

Zoom quickly : by applying more pressure.

Note

• The zooming speed ranges from a slow 22 seconds to a fast 2 seconds according to the amount of pressure applied to the POWER ZOOM Switch.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.22-24.p65

22 01/01/18, 17:08

Using the LCD Monitor

The LCD (Liquid Crystal Display) monitor can be used while recording.

180°

90°

LCD-OPEN

Button

To adjust the LCD BRIGHTNESS or COLOR

A

Press MENU to display the main menu screen.

B

Rotate JOG KEY to select

LCD/EVF

SETTING

from the main menu screen.

(See pages 16, 18.)

C

Press JOG KEY to display the LCD/

EVF SETTING screen.

D

Press JOG KEY to select

LCD BRIGHTNESS or LCD COLOR, then rotate JOG KEY to adjust.

E

Press MENU twice to exit this mode.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Insert a cassette with record tab closed.

(See page 6.)

Press LCD-OPEN to unlock the LCD monitor.

Swing the LCD monitor fully open and adjust the viewing angle.

• The LCD monitor will automatically turn on.

• When the LCD monitor is completely closed, it will shut off automatically to save power.

• Adjust the LCD Brightness and/or color of the LCD monitor if necessary.

Please refer to “To adjust the LCD

BRIGHTNESS or COLOR” below.

Start recording. (See page 22.)

Note

• Using the LCD monitor will reduce battery operating time.

• Close the LCD monitor completely when not in use.

Self Recording

180°

Rotate the LCD monitor 180 degrees so it faces the same direction as the lens to record yourself (CAMERA mode).

The picture in the LCD monitor will appear reversed.

Set SELF-REC

to MIRROR (see page 15) in the Camera mode menu screen to see the picture as it is actually being recorded.

01/01/18, 17:08 201_401.22-24.p65

Recording Check

To playback the final few seconds of the last recorded scene in the REC/PAUSE mode.

EDIT SEARCH

Press EDIT SEARCH

briefly in the

REC/PAUSE mode.

The [CHK] indication appears.

After checking, the Palmcorder returns to the REC/PAUSE mode.

• For Recording Check, the Palmcorder must be in the same mode (SP or LP) as was used for recording, otherwise the playback picture is distorted.

CHK

Edit Search

You can visually search for scenes in

CAMERA mode to maintain proper continuity when taping.

POWER Switch

2, 3

REC/

PAUSE Button

EDIT SEARCH

EDIT

Set POWER to CAMERA.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

In REC/PAUSE mode, hold down

EDIT SEARCH

to perform a forward visual search or EDIT

SEARCH

to perform a reverse visual search. Releasing the button stops the search.

Press REC/PAUSE to continue recording.

Note

• During Edit Search, the picture will become mosaic in both and search, the sound will be muted in reverse visual search.

• Make sure the SP/LP tape speed setting is the same as the recording to eliminate distortion during edit search.

201_401.22-24.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

24 01/01/18, 17:08

Blank Search

You can go directly to a blank portion of tape and start recording exactly where you left off.

Button

3, 4, 5

JOG KEY

POWER Switch

Set the POWER to VCR.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press MENU to display the VCR mode menu screen.

Rotate JOG KEY to select

PLAY

MODE

, then press JOG KEY to display the VCR PLAY MODE menu screen.

Rotate JOG KEY to select

B.SEARCH

in the VCR PLAY MODE menu.

(See page 17.)

Press JOG KEY to select ON.

• “BLANK” will appear on the screen.

Remote Control (Optional, page 64)

You can operate the major functions of your Palmcorder from up to approximately 16 feet

(5 m) away (indoors). Aim the IR Remote Control toward the front of the Palmcorder and press the desired buttons (Remote Sensor is located under the lens).

To operate Camera functions:

Set POWER to CAMERA.

To operate VCR functions:

Set POWER to VCR.

○

Remote Sensor

Controlled Functions

Rec/Pause (See page 22.)

Tele (Zoom) (See page 22.)

Wide (Zoom) (See page 22.)

Date/Time (See page 20.)

Reset (See page 50.)

PhotoShot (See page 41.)

Display On TV (See page 31.)

Counter/Time Code (See page 19.)

Audio Dubbing (See page 49.)

Record (See page 52.)

Menu (See page 14.)

Play (See page 27.)

FF/Search (See page 28.)

REW/Search (See page 28.)

Pause/Select (See pages 14, 28.)

Stop/Set (See pages 14, 27.)

Slow/Frame Advance (Forward) (See pages 28, 29.)

Slow/Frame Advance (Backward) (See pages 28, 29.)

Index Search (Forward) (See page 30.)

Index Search (Backward) (See page 30.)

Speaker Volume (See page 27.)

201_401.25-27.p65

25 01/01/18, 17:08

Remote Controlling Two

Palmcorders

You can control any two Panasonic

Palmcorders with one Remote control

(Optional, page 64). In order for the remote to distinguish between the two units, it is necessary to set one of the Palmcorders to

VCR 2. On the remote, press VCR 1 or

VCR 2 to control the desired Palmcorder.

Optional

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

For VCR 2 :

Press these buttons at the same time.

MENU REW / PLAY

FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

For VCR 1 :

Press these buttons at the same time.

Note

• When the Palmcorder and remote are not set to the same mode (VCR1 or

VCR2), “CHECK REMOTE MODE

(REMOTE)” will appear.

Set the POWER to VCR or CAMERA.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to

VCR or CAMERA position.

Press MENU to display the VCR or

CAMERA mode menu screen.

Rotate JOG KEY to select

CAMERA

SET-UP

in the CAMERA mode menu screen or

VCR PLAY MODE

in the

VCR mode menu screen, then press

JOG KEY to display the CAMERA

SET-UP or VCR PLAY MODE menu screen.

Rotate JOG KEY to select

REMOTE

, and then press JOG KEY to select

VCR 2. (See pages 16, 17). Leave the other Palmcorder set to VCR1.

Set the Remote Control (Optional,

page 64) to VCR 1 or VCR 2 to correspond with the Palmcorder you wish to control. (See above left.)

• After replacing the Remote Control

Battery, the remote will default to VCR 1.

Replace the Battery

Optional

Insert a slender pointed object, such as the tip of a ballpoint pen into the slot so that it fits into the hole (as shown

A). Then, while sliding to the right, pull the Battery Tray out with your fingernail.

Insert the battery into the Battery Tray with the

+

mark facing down.

Do not reverse the polarity.

Insert the Battery Tray.

Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another battery may present a risk of fire or explosion.

Caution: battery may explode if mistreated. Dispose of used battery properly. Keep away from children. Do not recharge, disassemble or dispose of in fire.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.25-27.p65

26 01/01/18, 17:08

Playback using the LCD Monitor

You can also use the LCD monitor to playback your recording.

VOLUME KEY

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Insert a recorded cassette.

• Set POWER to VCR.

LCD-OPEN

Button

180°

STOP

Button

REWIND

Button

PLAY Button

90°

Built-in

Speaker

You can place the Palmcorder on a table, etc. for viewing. Rotate the LCD Monitor

180° and swing it up against the

Palmcorder body as shown.

Press LCD-OPEN to unlock the LCD monitor and swing open.

Press REWIND/SEARCH to rewind the tape.

Press PLAY to start playback.

To adjust the volume:

Hold down VOLUME KEY until the volume setting screen appears.

(See page 20).

Rotate VOLUME KEY to adjust the volume of the built-in speaker. To remove the volume setting screen, hold

down VOLUME KEY again.

• Adjust the picture on the LCD monitor if needed. (See page 23.)

Press STOP to stop playback.

• When the tape reaches its beginning during rewind or rewind search, it will stop automatically.

• If you press PLAY for more than 5 seconds, the Palmcorder will go into

Repeat Playback mode when the tape reaches its end. The letter “R ” will appear in the EVF and LCD monitor. To exit the Repeat Playback mode, turn the Palmcorder OFF.

PHONE

Jack

Note

• When a tape recorded in LP mode on another digital video camera is played back on this unit, the picture may appear mosaic.

• Using the LCD monitor reduces battery operating time.

• You can connect earphones (not supplied) to the PHONE Jack.

201_401.25-27.p65

27 01/01/18, 17:08

Special Effect Features

During Playback

Note

• Sound is muted during all special effects.

PLAY Button

A, B

REWIND/

SEARCH Button

PAUSE Button

A, B

FAST FORWARD/

SEARCH Button

Rapid Visual Search

A

During playback, hold down FAST

FORWARD/SEARCH or REWIND/

SEARCH.

The search will continue for as long as the button is held down.

B

Press FAST FORWARD/SEARCH

or REWIND/SEARCH once for a continuous rapid visual search.

Press PLAY to release.

Note

• When executing a rapid visual search, the picture may become bluish for an instant or mosaic. This is normal during this mode.

Optional

REWIND/

Button

SLOW/

F.ADV Button

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU

REW / PLAY FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

PAUSE Button

PLAY Button

FAST

FORWARD/

Button

SLOW/

F.ADV

STILL Picture

Press PAUSE during playback.

Press PLAY or PAUSE to release.

Note

• To protect the tape and video heads, your

Palmcorder’s operating modes will revert as follows:

STILL STOP (after 3 minutes.)

Fast Forward/Rewind Check

Monitor normal picture playback during fast forward or rewind.

• Hold down FAST FORWARD/SEARCH during fast forward.

• Hold down REWIND/SEARCH during rewind.

• The picture will appear for as long as the button is held down.

Slow Motion Playback

Optional Remote Control Only

(See page 64)

Forward Slow = Press

SLOW/F.ADV

during play.

Reverse Slow = Press

SLOW/F.ADV

during play.

Press PLAY to release. (During reverse slow motion playback, time code indication may not change regularly.)

Note

• Palmcorder will automatically STOP when in slow motion for more than 10 minutes.

• During slow motion playback, picture may move up and down. This is normal.

• When you start or stop slow motion playback, the picture may become bluish for an instant.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.28-31.p65

28 01/01/18, 17:08

Special Effect Features

During Playback (Continued)

Note

• Sound is muted during all special effects.

Optional

SLOW/

F.ADV

Button

PAUSE Button

PLAY Button

JOG KEY

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU REW / PLAY

FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

Variable Speed Search

Press PLAY to start playback.

Press PLAY again.

Rotate JOG KEY to adjust the playback speed.

• Rotate JOG KEY downward for forward playback.

• Rotate JOG KEY upward for reverse playback.

To return to normal playback:

Press PLAY. Playback will continue at normal speed.

Note

• The Variable Speed Search function offers a choice of six playback speeds (1/5X, 1X,

2X, 5X, 10X, 20X) both in forward and reverse directions.

• The review playback at the 1X speed is playback in reverse direction.

• During the Variable Speed Search (at a speed other than 1X), mosaic-like patterns will appear in the picture.

• During the Variable Speed Search, sound is muted.

Jog Frame by Frame Search

(Palmcorder only)

During Still mode, rotate JOG KEY to advance or reverse the picture one frame at a time.

SLOW/

F.ADV

Button

Frame by Frame Advance

Optional Remote Control Only

(See page 64)

Press PAUSE during playback.

Press

SLOW/F.ADV to do a frame by frame advance.

Press

SLOW/F.ADV to do a frame by frame reverse.

Press PLAY to release.

Note

• If you hold down SLOW/F.ADV, you can see a continuous series of still images at a slower speed than normal slow mode.

• During frame by frame advance, a few frames may move automatically, and the picture may become bluish for an instant.

201_401.28-31.p65

29 01/01/18, 17:08

Special Effect Features

During Playback (Continued)

Note

• Sound is muted during all special effects.

3, 4

JOG KEY

Button

Optional

POWER Switch

Index Forward/Reverse Search

Optional Remote Control Only

(See page 64)

Search for a particular scene by using the

electronic index marks placed at the

beginning of each recording.

Set the POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press MENU to display the VCR mode menu screen.

Rotate JOG KEY to select

PLAY

MODE

, then press JOG KEY to display the VCR PLAY MODE menu screen.

Rotate JOG KEY to select

INDEX

, and then press JOG KEY to select

PHOTO or SCENE. (See page 17.)

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

INDEX SEARCH

(rewind) Button

Top Scan

If you hold down INDEX SEARCH more than 2 seconds, the Palmcorder will scan for scenes (or PhotoShots) and playback the first few seconds of each.

To cancel this function, press PLAY or

STOP.

Note

MENU REW /

SLOW /

F.ADV

INDEX

SEARCH

PLAY

PAUSE /

SEL

STOP /

SET

FF /

SLOW /

F.ADV

INDEX

SEARCH

A

Place the Palmcorder in the VCR

INDEX SEARCH

(fast forward) Button

STOP mode.

B

Press INDEX SEARCH fast forward or

rewind the number of recordings

(indexes) forward or back you want to view. The Palmcorder will advance or

• Search will not work if there is a succession of PhotoShots.

rewind to the desired recording and automatically start playback.

• The number of times you pressed the button is displayed in the EVF and the

LCD monitor if you set INDEX on the VCR menu to SCENE. (See page 17.)

(Ex., if you press the button three times,

“S3” will appear.)

• If the interval between scenes is less than

1 minute, index search may not operate properly.

• Response time from pressing the button and change in the scene number is quite slow. Do not press INDEX SEARCH rapidly and continuously.

• During Reverse Index Search mode, playback will not begin when a tape rewinds all the way to the beginning.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.28-31.p65

30 01/01/18, 17:08

View Recording/Playback on your TV

[ TV with AUDIO/VIDEO IN Jacks ]

A/V OUT

Back of TV

Audio In Video In

Set POWER to CAMERA or VCR.

To view what the Palmcorder is recording or to playback a tape on your

TV.

Turn your TV ON and set it to LINE

INPUT or S-VIDEO.

Check your TV operating instructions for further information.

Start playback or begin a recording.

Note

• Make sure the Palmcorder and TV are turned off while connecting.

• Please connect the A/V Cable securely.

A/V Cable

(Supplied)

To Audio

[ TV with S-VIDEO IN Jacks ]

For best Chrominance and Luminance, use the S-Video connection if available on your

TV.

A/V OUT

S-VIDEO

OUT

To Video

Optional Remote Control Only

(See page 64)

You can display the various EVF and LCD indications on your TV by pressing

DISPLAY ON TV on remote control. Press again to remove the indications.

DISPLAY

ON TV

Button

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU REW / PLAY

FF /

Optional

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

Back of TV

S-Video Cable

(Not supplied)

AV Cable

To Audio In

(Supplied)

Audio In Video In

To S-Video In

CATV System Installer

This reminder is provided to call the

CATV system installer’s attention to

Article 820-40 of the NEC in USA (and to the Canadian Electrical code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

201_401.28-31.p65

31 01/01/18, 17:08

Card PhotoShot

You can record still images to a Memory

Card.

Warning

• Memory Card will not work when DV interface Cable (i.LINK) is connected.

JOG KEY

PHOTOSHOT

Button

M-CARD Lock

Switch

POWER

Switch

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a

Memory Card. (See page 10.)

Slide the M-CARD Lock Switch to unlock, then set POWER to M-CARD.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

M-CARD position.

• “PLAY: PUSH PLAY KEY” is displayed for 10 seconds.

(See page 33.)

Press MENU to display CARD

SETTING menu, then press JOG KEY to select

NORMAL

FINE

Image Resolution and Capacity

(supplied 8 MB MultiMediaCard)

REC

Mode


Resolution

Capacity

FINE 640 x 480 Approx. 60 images

• Press MENU to exit this menu.

Press PHOTOSHOT to record an image.

NORMAL 320 x 240 Approx. 240 images

• The number of images given for each mode applies when all images are taken in same mode.

• You can change recording modes at any time before capturing an image.

• The number of images that can be captured may differ depending on the subject. After capturing an image, the number may not decrease, or it may decrease by two. This is normal.

Warning

• While “PROCESSING” is displayed, DO

NOT turn off the Palmcorder or unplug

the AC Adaptor (supplied) because this will cause irreversible damage to the memory.

• The PhotoShot image is recorded to the Memory Card.

• When SHUTTER is set to ON (see page 15), still pictures are recorded with a visual shutter effect and click sound. If set to OFF, the still image will be displayed only.

Cautions for the Memory Card

• While Memory Card data is being read, do not remove it, turn off the power, or subject unit to vibrations and shocks.

• Do not leave the Memory Card in a place with high temperature, exposed to direct sunlight, or where electromagnetic waves and static electricity can be generated.

• Electromagnetic waves, static electricity, malfunction of the Palmcorder or of the

Memory Card itself could erase the data recorded on it. To prevent the loss of picture data, we recommend that you make a backup copy on the computer.

• Do not bend or drop the Memory Card as this could damage it or the captured contents.

• Do not touch the connector on the rear edge of the Memory Card with your fingers and take care that no dirt, dust or water enters it.

• Do not affix other labels to the Memory Card face or back as Card insertion/removal may become impossible.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.32-35.p65

32 01/01/18, 17:08

Recording images From a

Tape

You can record still images from a cassette tape to a Memory Card.

Warning

• Memory Card will not work when DV interface Cable (i.LINK) is connected.

JOG KEY

PHOTOSHOT

Button

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a

Memory Card. (See page 10.)

Repeat steps 1 and 2 on page 32.

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press PLAY to start playback of the cassette tape. And then, press PAUSE to select an image.

Press PHOTOSHOT to record the desired image to the Memory Card.

M-CARD Lock

Switch

POWER Switch

PLAY Button

PAUSE

Button

Playback Still Images

You can view the images on the Memory

Card.

M-CARD Lock Switch

• When PHOTOSHOT is pressed in

PLAY or SLOW mode, the screen goes to STOP mode.

• To playback the images of the

Memory Card, see pages 33~34.

• When Variable Speed Search is done (see page 29), this feature can not be used.

Repeat steps 3~4 to record another image to the Memory Card.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

Slide the M-CARD Lock Switch to unlock, then set POWER to M-CARD.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

M-CARD position.

• “PLAY: PUSH PLAY KEY” is displayed for 10 seconds.

201_401.32-35.p65

POWER Switch

(Continued on next page.)

01/01/18, 17:08

Button

3, 4

JOG KEY

Press M-PLAY to display the Multi playback screen.

• “PLEASE WAIT” appears on-screen.

• Rotate JOG KEY to scroll through

Multi image screen pages

(6 images per page) and select an image.

• The selected image is underlined in green.

M-STOP Button

M-PLAY Button

“PLEASE WAIT” is displayed.

• Press MENU to display CARD

SETTING menu screen.

• Press M-STOP to return to the Card

PhotoShot REC Mode.

(See page 32.)

Press JOG KEY to display the selected image as a full-size screen.

• “PLEASE WAIT” appears on-screen.

Rotate JOG KEY to select BACK

(previous image), MULTI (Multi Image screen), or NEXT (next image).

DISPLAY : Select OFF to remove all displays from the screen.

DCF (Design rule for Camera File system)

: Select OFF to cancel DCF No.

on the screen.

Note

• If the file number is changed, the

Palmcorder cannot read the file data.

• This product is compliant with DCF

(Design rule for Camera File System).

Images saved on the Memory Card using other Digital Still Cameras that are compliant with DCF can be viewed on this product.

• Press M-STOP to return to the Multi

Playback screen.

Warning

• While “PLEASE WAIT” is displayed, DO

NOT turn off the Palmcorder or unplug

the AC Adaptor (supplied) because this will cause irreversible damage to the memory.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.32-35.p65

34 01/01/18, 17:08

Delete Specific Images

You can delete unwanted images and increase the remaining image memory.

Warning:

Once deleted, images cannot be restored.

DELETE PAGE

Delete specific images from a page.

DELETE ALL

Delete all images. (See page 36.)

FORMAT

Delete all data. (See page 37.)

4, 5

JOG KEY

M-CARD Lock

Switch

POWER

Switch

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

Slide the M-CARD Lock Switch to unlock, then set POWER to M-CARD.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

M-CARD position.

• “PLAY: PUSH PLAY KEY” is displayed for 10 seconds.

Press M-PLAY to display the Multi playback screen.

• “PLEASE WAIT” appears on-screen.

Press M-DEL to display the DELETE menu, then rotate and press JOG

KEY to select

PAGE

M-STOP

Button

M-PLAY

Button

M-DEL Button

• DELETE PAGE menu is displayed.

Rotate and press JOG KEY to select and set the image to be deleted.

• The selected image is underlined in pink.

Warning

• While deleting image, DO NOT turn off

the Palmcorder or unplug the AC

Adaptor (supplied) because this will cause irreversible damage to the memory, resulting in reduced image storage capacity.

Rotate JOG KEY to select

YES

, and

press JOG KEY to delete the selected image.

• To cancel delete, press M-STOP or rotate and press JOG KEY to select

NO.

• “PLEASE WAIT” appears on-screen.

• To delete other images, repeat steps 4~5.

201_401.32-35.p65

35 01/01/18, 17:08

Delete All Image Pages

You can delete all images from the Memory

Card easily with this operation.

Warning:

Once deleted, images cannot be restored.

2, 3

JOG KEY

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

Do steps 1 and 2 on page 35.

Press M-DEL to display the DELETE menu. Then, rotate and press JOG

KEY to select

ALL

POWER

Switch

M-STOP Button

M-DEL Button

• The screen below is displayed.

• To cancel delete, press M-STOP or rotate and press JOG KEY to select

NO.

Rotate and press JOG KEY to select

YES

• “PLEASE WAIT” is displayed on the screen, and then “NO PICTURE” is displayed.

• Press M-STOP to return to the Card

PhotoShot REC Mode screen.

(See page 32.)

Warning

• While deleting image, DO NOT turn off

the Palmcorder or unplug the AC

Adaptor (supplied) because this will cause irreversible damage to the memory, resulting in reduced image storage capacity.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.36-38.p65

36 01/01/18, 17:08

Format the Memory Card

You can easily format your Memory Card using this operation.

Warning:

Formatting permanently removes all image data.

2, 3

JOG KEY

M-STOP Button

POWER

Switch

M-DEL Button

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

Do steps 1 and 2 on page 35.

Press M-DEL to display the DELETE menu, then rotate and press JOG

KEY to select

FORMAT

D E L E T E

PAG E

A L L

FORMAT

S E L E C T

S E T

CANCEL

R OTAT E

PUSH

JOG KEY

JOG

STOP

KEY

• The screen below is displayed.

• To cancel format, press M-STOP or rotate and press JOG KEY to select

NO.

1 2

FORMAT CARD

ARE YOU SURE ?

YES

S E T :

PUSH

JOG KEY

JOG

E X I T

KEY

S TO P

Rotate and press JOG KEY to select

YES

• “PLEASE WAIT” is displayed on the screen as all image data is deleted from Memory Card. Deletion is complete when “NO PICTURE” is displayed.

Warning

• While deleting image, DO NOT turn off

the Palmcorder or unplug the AC

Adaptor (supplied) because this will cause irreversible damage to the memory, resulting in reduced image storage capacity.

• Press M-STOP to return to the Card

PhotoShot REC Mode screen.

(See page 32).

201_401.36-38.p65

37 01/01/18, 17:08

Photo Title

You can record PhotoShot images from a

Memory Card to a cassette to be used as a WIPE or MIX effect.

Note

When Photo Title is set to ON, the selected image and Title will appear before each recording is made.

WIPE : The Photo title is replaced with the current scene in a wiping motion.

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press MENU to display the CAMERA menu screen. Then rotate and press

JOG KEY to select

PHOTO TITLE

MIX

: The photo title is replaced with the current scene in a gradual mixing effect.

Rotate and press JOG KEY to select and set

MODE

and then

TITLE

1st : Select and set MODE (WIPE or

MIX).

2nd : Select and set TITLE to “SET”.

2, 3, 4

JOG KEY

• “PLEASE WAIT” appears on-screen.

• The Multi image screen is displayed.

Button

REC/PAUSE

Button

POWER Switch

Rotate and press JOG KEY to select and set an image.

• “PLEASE WAIT” is displayed while image is processed. Then, “PHOTO

TITLE SET” is displayed for approx.

3 seconds, and the screen goes back to the Camera mode screen.

• After Photo Title is performed, Digital

Function turns off.

• There are 12 pre-installed files.

Press REC/PAUSE to start recording with Photo Title.

• WIPE or MIX screen is displayed at beginning of the recording. Then the

Photo Title setting will be cleared automatically.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

38 01/01/18, 17:08 201_401.36-38.p65

Dual Digital Electronic Image

Stabilization System (D.E.I.S.)

This feature helps compensate for any unintentional hand or body movement. It can be used in both the Recording and

Playback (VCR) modes.

NORMAL

REC/PAUSE Button

2, 4, C, D

EIS Button

EIS ON

1, A

POWER

Switch

PLAY Button

Note

• Other Digital Functions are turned off automatically when the EIS and Digital

Zoom are selected.

EIS

CAMERA mode

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press EIS to stabilize the picture.

• Picture flicker may be observed when taping under fluorescent lighting conditions.

• The EIS indicator flashes when the light level is inadequate.

• Turn D.E.I.S. OFF during recording when using a tripod.

Press REC/PAUSE to start recording.

Press EIS again to cancel.

• Be sure that D.E.I.S. is turned off when not needed.

D.E.I.S. may not function when...

• Palmcorder movement is too extreme.

• Recording a subject with distinct horizontal or vertical stripes.

• Recording in low light situations.

• Recording a subject under a great amount of fluorescent light.

• Recording a scene with very fast motions.

VCR mode

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press PLAY to start playback.

Press EIS to stabilize the picture.

Press EIS again to cancel.

• Be sure that D.E.I.S. is turned off when not needed.

Note

• When using D.E.I.S in VCR mode, the image size is slightly larger.

201_401.39-42.p65

39 01/01/18, 17:08

Digital Zoom

POWER ZOOM

Switch

REC/PAUSE Button

2, 4, C, D

D. ZOOM Button

Zoom In (“T”)

1, A

POWER

Switch

PLAY Button

CAMERA mode

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press D. ZOOM to select D.ZOOM1 or

D.ZOOM2.

once : D.ZOOM1 (from 20X to 40X)

twice : D.ZOOM2 (from 20X to 300X)

three times : Turn off D.ZOOM

Press REC/PAUSE to start recording and press POWER ZOOM to zoom in or zoom out.

• The magnification level is always displayed in the EVF or the LCD monitor when DISPLAY is set to ON.

(See pages 16, 18.)

Press D.ZOOM to turn off Digital

Zoom so that no indication appears.

Note

• The normal optical zoom functions from

1X to 20X.

• Because the image is enlarged digitally, the picture may become distorted when higher magnification levels are used.

• When the level falls below 20X, the normal zooming function will resume.

• Focus distance becomes 4 feet (1.2 m) if the lens is in full telephoto.

D.ZOOM

VCR mode

Zoom Out (“W”)

Note

• Other Digital Functions are turned off automatically when the EIS and Digital

Zoom are selected.

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press PLAY to start playback.

Press D.ZOOM.

• The center portion of the image doubles in size.

Press D.ZOOM again for normal image size.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.39-42.p65

40 01/01/18, 17:08

Digital PhotoShot

Use this feature to record a seven second

(approx.) still image from the current camera picture. Audio is also recorded for on-thespot narration. Or, you can add narration later with the Audio Dubbing feature to make an interesting slide show, etc.

(See page 49.)

C, D

JOG KEY

PHOTOSHOT

Button

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press PHOTOSHOT in Record/Pause mode. “PHOTO” will appear in the

EVF or the

LCD monitor.

P H OTO

Button

1, A

POWER

Switch

• If SHUTTER on the menu screen is set to

ON, a sound effect similar to the shutter of a film camera will be heard when

PHOTOSHOT is pressed.

• When PHOTOSHOT is pressed, the playback image takes approx. 7 seconds to process. After that, the Camera mode screen will be displayed.

Index Search (Photo/Scene)

Optional Remote Control Only

(See page 64)

Optional

COUNTER /

A.DUB

INDEX SEARCH

(rewind Button)

Note

DISPLAY

ON TV

RESET

MENU

DATE /

TIME

REW /

SLOW /

F.ADV

INDEX

SEARCH

REC

CAMCORDER

CAMERA


SHOT

PLAY

PAUSE /

SEL

STOP /

SET

REC /

PAUSE

FF /

SLOW /

F.ADV

INDEX

SEARCH

INDEX SEARCH

(fast forward Button)

• The picture quality will deteriorate slightly.

• The tape remaining indicator will not appear while the PHOTOSHOT feature is used.

• In the Photo/Scene Index Search mode, the shutter sound effect may not be able to be heard even when SHUTTER is set to ON.

• Photo Index Search may fail to detect a recorded PhotoShot image if the image is

3 seconds or less.

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press MENU to display the VCR mode menu screen.

Rotate JOG KEY to select

PLAY

MODE

, and press JOG KEY to display the VCR PLAY MODE menu screen.

Rotate JOG KEY to select

INDEX

, and press JOG KEY to select

PHOTO or SCENE.

• Press MENU twice to exit.

Press INDEX SEARCH fast forward

or rewind on the remote control

(Optional, page 64) to advance or rewind the tape to playback a

PhotoShot scene. To view the next

PhotoShot, INDEX SEARCH must be pressed again.

201_401.39-42.p65

41 01/01/18, 17:08

White Balance

Auto White Balance automatically maintains optimum color balance in most lighting conditions. However, when using Digital

Functions, etc., you may get better results using the manual adjustment.

Button

3, 4

JOG KEY

POWER Switch

Recording Still Pictures

You can record still pictures of any desired duration together with sound.

1, 2

STILL Button

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press MENU to display the menu screen.

Rotate JOG KEY to select

ADJUST

, and then press JOG KEY to display the CAMERA ADJUST menu screen.

Rotate JOG KEY to select

W.BALANCE

, and then press JOG

KEY repeatedly to select AUTO,

Indoor halogen lamp “ ”, or Outdoors

“ ”.

: When the source illumination is a halogen lamp.

: When shooting outdoors on a sunny day.

AUTO : Automatically maintains optimum color balance in most lighting conditions.

While in RECORD mode, press STILL

and hold for 2 seconds to capture a still picture. The captured still picture will be recorded together with sound.

Press STILL once again to release the still picture. The camera will resume recording real-time pictures.

MAGICVU/0LUX

(PV-DV401 only)

MAGICVU allows you to record subjects in comparatively dark places.

MAGICVU/

0LUX Switch

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Slide MAGICVU/0LUX to ON.

• A black and white image appears.

• You can select the color of image:

B/W, green, or blue. (See page 16.)

• To cancel this feature, slide

MAGICVU/0LUX to OFF.

Note

• The subject can be up to 3 m (9 feet) away.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.39-42.p65

42 01/01/18, 17:08

Program AE

The Auto Exposure feature can be used to make quality recordings in a variety of scene situations.

Note

• When MAGICVU is ON, Program AE and H.S.S. cannot be set in the menu.

3, 4

JOG KEY

Button

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press MENU to display the menu screen.

Rotate JOG KEY to select

ADJUST

, and then press JOG KEY to display the CAMERA ADJUST menu screen.

Rotate JOG KEY to select

PROG.AE

, then press JOG KEY

repeatedly to select one of the five modes shown below.

Repeat steps 2~4 to select OFF to cancel this feature.

POWER Switch

(No display)

SPORTS

PORTRAIT

LOW-LIGHT

SPOT-LIGHT

SURF&SNOW

Mode

Indication

For recording fast action scenes.

For recording only subjects in the foreground, while ignoring subjects in the background.

For recording in extreme low light conditions.

Recording in situations where subjects are under a spotlight(s).

For recording in locations with a high degree of “Dazzle,” such as snow slopes and the seashore.

Note

SPORTS mode

• The recorded images will not be so blurred when they are viewed later using slow or still picture playback.

• When playing back a sports mode

recording, the movement may appear

slightly jerky.

• Do not use this mode when recording under fluorescent, mercury, or sodium lighting. These types of lights will affect the color and brightness of the images.

• A vertical band of light might appear when recording objects that are brightly illuminated or which are highly reflective.

• If the amount of light is insufficient, the

SPORTS “ ” indicator will flash in the

EVF or the LCD monitor.

• The image may flicker if this mode is used indoors.

PORTRAIT mode

• The image may flicker if this mode is used indoors.

LOW-LIGHT mode

• Scenes recorded in extremely low light levels may not come out properly.

SPOT-LIGHT mode

• If the recorded subject is extremely bright, the picture may appear whitish.

SURF&SNOW mode

• If the recorded subject is extremely bright, the picture may appear whitish.

• It is not possible to select the SPORTS mode or PORTRAIT mode together with the GAIN UP in the Digital function camera menu.

201_401.43-45.p65

43 01/01/18, 17:08

Other Digital Functions

Use the following features to add interest and professionalism to your recordings or playback. Select from eleven special effects.

3, 4, 5

JOG KEY

Set POWER to CAMERA or VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA or VCR position.

Press MENU to display the menu screen.

Rotate JOG KEY to select

D.FUNCTION

in the CAMERA mode menu screen or

PLAY FUNCTION

in the VCR mode menu screen, then

Button press JOG KEY to display the

CAMERA FUNCTION or VCR PLAY

POWER Switch

FUNCTION menu screen.

Rotate JOG KEY to select

D.FUNCTION

, and then press JOG

KEY repeatedly to select one of the

Types of Digital Functions

Digital Functions listed on the left.

To cancel the Digital Function, press

JOG KEY repeatedly to select OFF.

MIRROR

Symmetrical image from the current camera picture.

STROBE

The recording appears as a sequence of still frames.

MOSAIC

The picture appears in a mosaic pattern.

SLIM

The picture is expanded vertically.

TRAIL

The subject being recorded creates a trail when in motion.

STRETCH

The picture is expanded horizontally.

GAIN UP (Not available during playback)

Picture sensitivity is increased.

• Only Manual Focus is available.

WIPE

Successive scenes are separated in a way which simulates the drawing of a curtain.

MIX

The current scene is mixed in with the following scene during scene changes.

PinP

PinP (Still image) is displayed on the

Main Picture.

SEPIA (Only available during playback)

The picture is played back in sepia, a brownish color, giving it an antique look.

MONO (Monotone) (Only available during playback)

The picture is played back in black-andwhite.

Note

• The EIS and Digital Zoom features are turned off automatically when one of the

Digital Functions listed at left is selected.

To use the WIPE function

a. In Camera mode, set the “D.FUNCTION” item in the main menu screen to “WIPE”.

(See page 15.)

b.Press REC/PAUSE to start recording.

c. Press REC/PAUSE to pause the recording. The last scene will be memorized.

d.Press RECORD/PAUSE to start recording again. The new scene will take the place of the memorized scene.

To use the MIX function

a. In Camera mode, set the “D.FUNCTION” item in the main menu screen to “MIX”

(see page 15). Then, perform steps b-d above.

The memorized scene and the new scene will appear mixed as the scene changes from one to the other.

Note

• When Photo Title is set, WIPE/MIX mode becomes Photo Title. When Photo Title is finished, Digital Function turns OFF.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.43-45.p65

44 01/01/18, 17:08

Picture in Picture (PinP)

You can display a PinP (still image) screen on the Main Picture.

Note

• PinP position is fixed at the bottom right of the screen.

Button

Main Picture

Picture in Picture

(PinP still image)

3, 4

JOG KEY

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press MENU to display the menu screen.

PHOTOSHOT

Button

Rotate JOG KEY repeatedly to select

D.FUNCTION

, then press JOG KEY to display the CAMERA FUNCTION menu screen.

Press JOG KEY to select

PinP

• Press MENU twice to exit this menu.

POWER Switch

5, 6, 7

CAMERA STILL Button

Aim at the scene you wish to place as

PinP, then press CAMERA STILL to freeze the image.

Press CAMERA STILL again to place the frozen image as PinP.

Press REC/PAUSE to record a scene with PinP image.

• Press PHOTOSHOT to record a scene with PinP image in PhotoShot mode.

• Press CAMERA STILL again to remove PinP image.

201_401.43-45.p65

45 01/01/18, 17:08

Strobe Multi Mode

In Strobe Multi Mode, you can select the rate at which a succession of still screens are captured from the playback picture.

3, 4

JOG KEY

Button

POWER Switch

PLAY Button

MULTI Button

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

Press MENU to display the menu screen.

Rotate and press JOG KEY to select and set

MULTI SETTING

Press JOG KEY to select

SPEED

, then press repeatedly to set desired

speed.

Strobe Speeds

Strobe Speeds 9 screen capture time

FAST

Every 0.3 seconds

NORM

Every 0.6 seconds

SLOW

Every 1.0 seconds

• Press MENU twice to exit.

Press PLAY to start playback. Press

MULTI at the point you want to start capturing.

• A succession of 9 screens will be captured, and playback will stop.

Note

• A Multi Image Playback screen cannot be output from the DV terminal or Digital Still

Image terminal.

• A Multi screen will have slightly lower image quality.

• Press MULTI to return to the normal

STILL screen.

Press PLAY to start playback.

Press STOP to stop playback.

201_401.46-48.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

46 01/01/18, 17:08

Auto Focus

The Palmcorder automatically adjusts the focus over the entire zoom range.

Manual Focus

Use Manual Focus (MF) when recording ...

• a subject through glass.

• a scene where the subject is far from the

Palmcorder and there are objects in the foreground.

• a subject with distinct horizontal stripes.

• a subject not centered in the Viewfinder.

• subjects with shiny surfaces.

• an obliquely angled subject.

• a bright, flat subject such as a white wall.

• in low light situations.

• a scene with fast motions, like a golf swing.

Re-focusing may be required

• when your Palmcorder is aimed at a new scene.

2, 4

M.FOCUS

DIAL

3, 5

POWER

ZOOM Switch

POWER Switch

Set POWER to CAMERA.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

CAMERA position.

Press M.FOCUS DIAL so that “MF”

(Manual Focus) appears in the EVF or the LCD monitor.

Press and hold POWER ZOOM “T”

side (Telephoto) until the lens is at maximum zoom in.

Turn M.FOCUS DIAL until the picture is in focus.

• It may be necessary to back away from the subject to focus the image properly.

Press POWER ZOOM to “W” or “T” as desired.

• The subject will remain in focus over the entire zooming range.

• It may be necessary to back away from the subject to focus the image

properly.

Note

• DISPLAY must be set to on for MF, AE,

W.BALANCE, or BACK LIGHT to be displayed on the LCD or EVF.

Macro Focus (for close-ups)

Press the “W” side of POWER ZOOM to the maximum wide angle position.

Auto Focus will function with the subject as close as 1 inch (25 mm) in front of the lens.

Backlight

Use when recording a subject that is darker than the surrounding scene, in a shadowed area, or when the light source is in back of your subject.

BACK LIGHT Button

Press BACK LIGHT in Record mode to activate the Backlight feature.

The Indicator “ ” will appear in the EVF or

LCD monitor.

Press BACK LIGHT again to cancel the Backlight feature.

EVF or LCD monitor indication.

Note

• The Indicator “ ” will not appear in the

EVF or LCD monitor when OFF is selected in the DISPLAY menu.

201_401.46-48.p65

47 01/01/18, 17:08

High Speed Shutter

To record high speed motion (e.g. tennis stroke) for improved STILL or SLOW

MOTION playback when watching the tape on this Palmcorder.

Auto Shutter

Before you begin

• Connect the Palmcorder to a power source. (See pages 11, 12.)

• Set POWER Switch to CAMERA.

• Insert a cassette with record tab.

(See page 6.)

In the AUTO mode (no indication in the EVF and LCD monitor), the Palmcorder will automatically adjust the shutter speed (up to 1/350).

• AUTO mode is automatically selected whenever the POWER Switch is set to CAMERA.

Manual Selection

Button

2, 3, 4

JOG KEY

Press MENU to display the Camera mode menu in the EVF or the LCD monitor.

Rotate and press JOG KEY to select

ADJUST , then rotate and press

JOG KEY to select

H.S.S.

Press JOG KEY to select

SET

• SHUTTER SPEED menu is displayed.

Note

• For proper color reproduction, it is recommended that you use this feature outdoors. For indoor

High Speed Shutter recording, additional halogen or tungsten light should be provided.

Fluorescent light will degrade the picture quality.

• This feature requires ample light. More light is required for the fastest shutter speeds.

• The Auto Focus system may not operate properly in insufficient light when using the High

Speed Shutter.

• When PROG.AE is ON, you cannot manually select the shutter speed.

• When MAGICVU is ON, Program AE and

H.S.S. cannot be set in the menu.

E X I T

S H U T T E R S P E E D

: PUSH

JOG KEY

MENU KEY

Rotate JOG KEY to choose one of the following shutter speeds.

1/100

1/250

1/60

1/500

AUTO

S H U T T E R

1/1000

1/8000

1 / 4 0 0 0

1/2000

1/4000

• Press MENU three times to exit.

Audio/Video Fade In/Out

You can make smoother scene transitions for a more professional look.

Fade In

Starting the first scene with “fade in” is very effective.

1, A

FADE Button

2, B

REC/PAUSE

Button

In REC/PAUSE mode, hold down

FADE until the picture fades out.

Press REC/PAUSE to start recording.

Release FADE and the picture will gradually fade in.

Fade In

Fade Out

Fade Out

Use to create a soft ending or (together with fade in) for a soft transition from one scene to the next.

During recording, hold down FADE

until the picture fades out.

Press REC/PAUSE to pause the recording.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.46-48.p65

48 01/01/18, 17:08

Audio Dubbing using the

External or Built-in Microphone

The original sound can be replaced with new sound using the built-in Palmcorder microphone or an external microphone

(PV-DV401 only).

External Microphone with M3 connector (not supplied)

External

Microphone Jack

(PV-DV401 only)

Built-in

Microphone

POWER Switch

A.DUB Button

PLAY Button

PAUSE

Button

Before you begin

• Connect the external Microphone

(if used) (PV-DV401 only).

• Turn on the Palmcorder.

• Insert a pre-recorded tape to be dubbed.

The AUDIO-REC setting in CAMERA

MENU mode should be as follows:

12 bit

16 bit

The original sound is recorded on ST (Stereo) 1, and the new sound will be recorded on ST

(Stereo) 2.

The original sound is replaced with the new sound.

• Select 12 bit if you do not want the original sound to be completely replaced during an audio dub.

• If you dub over a tape which has both

12 bit and 16 bit audio recordings on it, keep in mind that the original 16 bit audio portion will be completely replaced.

Set POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

VCR position.

• If you have the Optional Remote

Control, you can set the Palmcorder to stop automatically at a specified point on the tape. See “Memory-Stop

Editing” on page 50.

Press PLAY.

Then press PAUSE where you want dubbing to begin.

Press A.DUB on this unit (for 3 seconds) or on the remote control

(optional, page 64) to put the

Palmcorder in the Audio Dub mode.

• “A.DUB” flashes in the EVF or the

LCD monitor.

A.DUB

Optional

A.DUB

Button

CAMCORDER

CAMERA

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU REW / PLAY

FF /

INDEX

SEARCH

INDEX

SEARCH

201_401.49-52.p65

49 01/01/18, 17:08

4, 5

PAUSE

Button

Press PAUSE to start Audio Dubbing.

• Connect the Palmcorder to the TV in order to monitor the sound.

(See page 31.)

To listen to the desired audio sound, set the AUDIO setting of the VCR mode MENU

(see page 17) as follows:

AUDIO:The following selections are available for 12 bit AUDIO dubbed recordings only (sound recorded in SP mode only).

ST 1

ST 2

MIX

Set this position to listen to the original sound.

Set this position to listen to the audio dubbed sound.

Set this position to listen to both the original sound and the audio dubbed sound.

RESET

Button

Only NTSC (National Television Standards

Committee) recorded tapes can be audio dubbed. The following screen appears if the tape was not recorded in NTSC format.

Press PAUSE to stop Audio Dubbing.

• If the microphone used for dubbing gets too near the speaker of your TV, a howling noise (feedback) may occur.

• If the tape position is in or was started in in a blank section, you cannot use the

A.DUB feature.

Note

• 16 bit dubbed sound completely erases the original 16 bit recorded sound.

• If you dubbed using 12 bit AUDIO recording and then selected AUDIO-MIX in the menu for playback, the sound will be stereo regardless of the AUDIO-OUT setting.

• If you recorded in LP mode, you cannot use the A.DUB feature.

Memory-Stop Editing (Optional

Remote Control Only, page 64)

You can set an automatic Dubbing stop point.

Optional

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU REW / PLAY

FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

Press MENU to display the VCR menu screen.

Rotate JOG KEY to select

DISPLAY

SETTING

, and then press JOG KEY to display the DISPLAY SETTING menu.

Rotate JOG KEY to select

DISPLAY

, and then press JOG KEY to set to

MEMORY.

Press MENU two times to exit MENU mode. Then, press RESET on the

remote control to reset the Counter

Memory to M 0:00:00.

Now, rewind to the editing start point, and continue with steps 2-5. The tape will now stop automatically at “M 0:00:00”.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.49-52.p65

50 01/01/18, 17:08

Copying your Tapes to

S-VHS or VHS Cassette

Source (Playing)

Palmcorder

A/V OUT

S-VIDEO OUT

Before you begin

• Connect both Palmcorder and VCR to their power sources.

• Connect the Palmcorder to a VCR as illustrated left.

• Turn ON both units.

• Set the recording VCR’s Input Signal

Selector to LINE.

• Set the Palmcorder POWER Switch to

VCR.

Insert a pre-recorded tape

into the source (playing) Palmcorder and a blank tape, with record tab in place, into the target VCR (Recorder).

A/V Cable

(Supplied)

(To View)

Press PLAY on the Palmcorder. When the tape reaches the point you want to start dubbing, press PAUSE.

S-Video

Cable (not supplied)

VHF Connecting

Cable (not supplied)

Audio In

Video In

Place the VCR into REC/PAUSE

mode. (See VCR manual.)

To Audio In

Recording:

Simultaneously, press PAUSE on both units to begin copying.

VCR (Rear)

Press STOP on both units when copying is completed.

S-Video In

To Video In

To S-Video In

(If there is S-Video In)

Monitor with your TV

• Turn the TV ON and select its VCR channel (either CH3 or CH4).

• Set the VCR/TV Selector on the recording VCR to VCR.

Note

• For technical reasons, dubbing a tape may reduce its quality.

• Press DISPLAY on the Palmcorder remote control (optional, page 64) to eliminate EVF/LCD Monitor indications.

• If the Time Code is displayed in the EVF or LCD monitor, it cannot be reset.

• Only the DATE/TIME, when displayed, will be recorded on the tape.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

201_401.49-52.p65

51 01/01/18, 17:08

Copying from Digital

Equipment (dubbing)

High quality digital-to-digital copying can be accomplished if both Palmcorders incorporate the DV Input/Output (i.LINK)

Connector (DV interface cable (i.LINK) is not supplied).

Source (Playing)

Palmcorder

STOP

Button

Optional

3, 4, 5

PAUSE

Button

DV Input/Output

Connector

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU

REW / PLAY FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

Recording

Palmcorder

DV Interface Cable (i.LINK)

(optional)

3, 4

PLAY Button

3, 4, 5

PAUSE Button

REC

Button

REC

Button

3, 4

PLAY

Button

Before you begin

• Connect both Palmcorders to their power sources.

• Connect the two Palmcorders using the

DV interface cable (i.LINK)

(4-pin to 4-pin).

• Turn both Palmcorders ON.

Insert a pre-recorded tape into the source (playing) Palmcorder, and set

POWER to VCR.

Insert a blank tape with the record

tab closed into the target (recording)

Palmcorder and set POWER to VCR.

Press PLAY on the source

Palmcorder. When the tape reaches the point you want to start dubbing,

press PAUSE.

Hold down REC and press PLAY on the target (recording) Palmcorder or on the remote control (optional, page 64).

Press PAUSE to pause the tape at the

starting point of the dub.

Simultaneously, press PAUSE on both units to begin dubbing.

Press STOP on the recording unit, and then press STOP on the playing unit to end dubbing.

Note

• When two Palmcorders are used for dubbing, it is recommended that the remote control VCR1 or VCR2 setting be used to avoid improper-operation.

• When two Palmcorders are connected using the DV interface cable (i.LINK) (not supplied), a Video Editing Controller cannot be used.

• Do not connect both an S-Video Cable or

A/V Cable and a DV Interface Cable

(i.LINK).

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.49-52.p65

52 01/01/18, 17:08

You can transfer images from your Palmcorder tape to your PC (Personal Computer).

System Requirements:

• IBM PC/AT or compatible

• Intel Pentium ll Processor: 266 MHz or more

• Windows 98/Me preinstalled PC with USB port

• RAM: 64 MB or more

• High color (16 bit) or more

• Resolution 800 x 600 (SVGA) or more

• 220 MB minimum available hard disk space (for

ArcSoft Software)

• 15 MB minimum available hard disk space (for

CARDLINK (for USB) or PHOTOVU LINK/Movie

Messenger)

• 120 MB minimum available hard disk space (for

USB Motion image capture)

• CD-ROM drive (for installation)

• Mouse or other pointing device

Palmcorder USB Device Driver

: Software to connect your Palmcorder and your PC using USB Cable.

PHOTOVU LINK/Movie Messenger : Software to transfer images from your Palmcorder

CARD LINK (for USB)

ArcSoft Software*

to your PC.

: This software to transfer images between the

Memory Card and your PC.

: Following software is included: PhotoPrinter 2000

Pro, PhotoImpression 2000, Panorama Maker 2000.

* For information on ArcSoft Software:

TEL : 1-510-440-9901

FAX : 1-510-440-1270

Web Site : www.arcsoft.com

E-mail : [email protected]

Note

• The Windows 2000 driver is currently not available, but will be available in the future on our website at www.panasonic.com/video.

Software Installation (Windows 98/Me)

Caution

• Please install Palmcorder USB Device Driver first before connecting the Palmcorder and your PC using USB Cable. Once Palmcorder USB Device Driver is installed, you must restart your computer for installation to take effect.

Turn on the PC (Personal Computer) and start up Windows 98/Me.

Insert the supplied Software CD-ROM into the CD-ROM drive.

Select and click the icon you want to install.

Palmcorder USB Device Driver : Click

PHOTOVU LINK/Movie Messenger : Click

CARD LINK (for USB) : Click

: Click ArcSoft Software

Follow the instructions as they appear on your PC screen.

Note

• If a window does not appear automatically, click the “Start” button on your desktop and then click

“Run”. When the Run box is open, type in “D:\InstMenu.exe” where “D:” is the drive letter of your CD; then click “OK”.

• If you attempt to install the next Software before the previous Software installation is completed, “Error” may appear. In this case, click [OK] and install the next Software from the menu.

201_401.53-57.p65

53 01/01/18, 17:08

Notes on PHOTOVU LINK/Movie Messenger and CARD LINK operation

• For PHOTOVU LINK/Movie Messenger, do not connect the i.LINK and USB terminals to the Palmcorder at the same time.

• Make sure Palmcorder power is not shut off during use, your PC system may become unstable, therefore it is recommended that the AC Adaptor be used as the power source. (Be especially careful when recording in M-CARD or CAMERA mode as the power eventually shuts off automatically if a tape is inserted.)

• For PHOTOVU LINK/Movie Messenger, if the play, stop, fast forward, and rewind functions are operated using the Palmcorder buttons, the image may not be captured properly. Use Palmcorder Operation Buttons displayed on the PC screen.

Uninstalling Application Software

Click “Start,” “Settings,” and “Control Panel.”

Double-click on “Add/Remove Programs” in the “Control Panel.”

Select the application software you want to remove, and then click [Add/Remove].

Note

• Before uninstalling CARD LINK (for USB), right-click on the

CARD LINK (for USB) Monitor, then left-click on “Exit” to close CARD LINK (for USB) Monitor.

• If the “Locked File Detected” dialog box appears while unistalling the CARD LINK (for USB), close CARD LINK (for

USB) Monitor as described above, then click on [Retry].

Connection

USB Terminal

USB Cable

(supplied)

Turn on your PC.

Set the Palmcorder POWER to VCR.

Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

Note

• For extended use, it is recommended to use the AC Adaptor as a power source.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.53-57.p65

54 01/01/18, 17:08

One Touch Transfer

The images stored on the Memory Card can easily be transferred to the PC by pressing the TRANSFER Button.

Note

• Before using this feature, make sure the

CARD LINK (for USB) monitor icon is displayed.

• Double clicking the CARD LINK Monitor icon displays a dialog box in which the save location for the collective transfer can be changed.

TRANSFER Button

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

• Turn your PC on.

Set Palmcorder POWER to CAMERA or slide M-CARD Lock Switch to unlock and set to M-CARD.

(See pages 9, 10.)

Connect the Palmcorder to your PC

(Windows) using the USB Cable

(supplied). (See page 54.)

• “CONNECT WITH PC” is displayed on the LCD monitor.

Press TRANSFER.

• CARD LINK (for USB) application is run automatically and images stored on the memory card are transferred to your PC and saved. (If an image to be transferred already exists, that image will be skipped over and not transferred.)

Note

• JPEG image format (only image data that can be played back on Palmcorder) can be transferred from the PC to the

Palmcorder.

Running the CARD LINK

(for USB)

You can transfer images between the

Memory Card and your PC.

Repeat steps 1 and 2 above.

Click on Start, “Programs,”

“Panasonic,” “Palmcorder,” then

“CARD LINK (for USB).”

“CARD LINK (for USB)” is opened.

Note

Refer to Help for information about application operations and Error messages.

While CARD LINK is running, do not perform the following operations...

The PC system may become unstable.

• Change the screen area or color pallet in the Display Properties window.

• Turn the Palmcorder power switch ON or OFF while connecting the Palmcorder to your

PC using the USB Cable.

• Connect/disconnect the USB Cable.

• Insert/remove a Memory Card.

201_401.53-57.p65

55 01/01/18, 17:08

Using Memory Card Image

Data (CARD LINK (for USB))

Pictures captured with Palmcorder can be transferred to your PC.

(for USB)

Note

• If, while transferring the image to your PC, the displayed picture appears abnormal, restart the PC application and turn

Palmcorder POWER off, and then back on.

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card.

(See pages 32, 33.)

• Make Palmcorder-PC connections.

(See page 54.)

• Turn your PC on. (See page 54.)

• Set Palmcorder POWER to M-CARD.

(See page 10.)

• Repeat steps 1 and 2 to run the CARD

LINK (for USB). (See “Running the

CARD LINK (for USB)” on page 55.)

Select the image data you want to transfer to your PC.

• The selected image will be underlined in green.

Click on:

Transfer

• The picture image is transferred to your PC and displayed. Transfer Dialog will appear on the PC. The image is captured when the full screen image appears on the PC.

Delete

• Confirmation Dialog will appear on the

PC. Click “OK”. The selected images of the Memory Card are deleted.

Save

• The picture image is transferred to your

PC and displayed. [Save as] dialog box will appear.

Using PC Image Data

(CARD LINK (for USB))

You can use JPEG or Bitmap files from your computer for Photo Title (see page

38) by transferring them to the

Palmcorder via PC connection.

(for USB)

Click on “File,” then Click on

“Open.”

• At your PC, please select and open the data (. jpg or .bmp) you want to transfer to the Palmcorder.

Click on “File,” select “Data out to camera,” then select Fine or

Normal mode.

• Your computer image data is transferred to the Palmcorder.

201_401.53-57.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

56 01/01/18, 17:08

Running the PHOTOVU

LINK/Movie Messenger

You can transfer Motion images and Still images from your Palmcorder tape to a PC.

Before you begin

• Insert a recorded tape. (See page 9.)

Set Palmcorder POWER to VCR.

Connect the Palmcorder to your PC using the USB Cable (supplied) or

DV interface Cable (i.LINK).

(See pages 54, 62.)

Click on “Start,” “Programs,”

“Panasonic,” “Palmcorder,” then

“Movie Messenger.”

“PHOTOVU LINK/Movie Messenger”

is opened.

Note

Refer to Help for information about application operations and Error messages.

How to insert the USB Cable or

DV Interface Cable (i.LINK)

Set Palmcorder POWER to VCR.

Connect the Palmcorder to your PC using the USB Cable (supplied) or

DV interface Cable (i.LINK).

Start up the PHOTOVU LINK/Movie

Messenger.

How to remove the USB Cable or DV Interface Cable (i.LINK)

Close the PHOTOVU LINK/Movie

Messenger.

Remove the USB Cable or DV

Interface Cable (i.LINK) from the

Palmcorder.

Set Palmcorder POWER to OFF.

While PHOTOVU LINK/Movie Messenger is running, do not perform the following operations...

The PC system may become unstable.

• Change the screen area or color pallet in the Display Properties window.

• Turn the Palmcorder power switch ON or OFF while connecting the Palmcorder to your

PC using the USB Cable or DV Interface Cable (i.LINK).

• Change the Palmcorder mode (VCR/CAMERA).

*Close the application before changing the Palmcorder power switch.

• Connect/disconnect the DV Interface Cable (i.LINK).

• Connect/disconnect the USB Cable.

201_401.53-57.p65

57 01/01/18, 17:08

Using Tape Image Data

(PHOTOVU LINK/Movie

Messenger) (USB)

STILL

CAPTURE

PLAY Button

MOVIE

CAPTURE

To capture Still images

Click on [STILL CAPTURE] at the point you wish to capture an image.

• Repeat step

to continue capturing images.

• Captured Still images are saved to the

PC, and you can playback the saved images on the Image Browser. (See page 59.)

Before you begin

• Insert a recorded tape. (See page 9.)

• Make Palmcorder-PC connections.

(See page 54.)

• Turn your PC on. (See page 54.)

• Set Palmcorder POWER to VCR.

By connecting the Palmcorder and PC with the USB Cable, you can transfer Motion images and Still images saved on the DV

Tape directly to your PC.

Repeat steps 1~4 on page 57 to run the PHOTOVU LINK/Movie

Messenger.

Note

• When the USB Cable is connected, the input display will automatically become USB. If it is not USB, please confirm the connection. Then, close and restart the software.

Click

(PLAY) on PC screen to playback the DV tape.

• The playback screen cannot be viewed on the PC. Please use the

LCD monitor on the Palmcorder for confirmation.

To capture Motion images

Click on [MOVIE CAPTURE] at the start point you wish to capture a Motion image.

Click [MOVIE CAPTURE] or [STOP] to end capture.

• “Now Searching” is displayed.

• The DV Tape is rewound to the point at which the capture was started. The

Motion image is then transferred to the

PC.

• “Data transfer is now in progress” is displayed on the PC screen.

• The maximum capture time is approx.

30 seconds. Capture stops automatically at the end of 30 seconds.

Note

• Motion images cannot be captured if data contains the following...

• A change between 12 bit and 16 bit.

• A change between SP and LP mode.

• During transfer to the PC, the Motion images will not be displayed on the PC screen.

• Transfer takes from about 30 to 50 seconds for every 1 second of the Motion image.

To capture other Motion images, repeat steps 3~4.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.58-61.p65

58 01/01/18, 17:08

Playing back the saved Motion and Still images (PHOTOVU LINK/Movie Messenger)

You can playback the saved Motion images and Still images (see page 58) for confirmation.

Repeat steps 1~4 on page 57 to run the PHOTOVU LINK/Movie

Messenger.

Click [IMAGE BROWSER] to display the Image Browser screen.

To view Motion images

Click on [Movies].

• The first part of each Motion image will be displayed as a list.

IMAGE BROWSER

Pictures

Movies

Double click on the desired Motion

image to display the playback screen.

• Click to start Motion image playback.

To view Still images

Click on [Pictures] to display the Still image list.

Double Click on the desired image to open it.

Note

• If the image cannot be opened, please refer to the software Help menu.

201_401.58-61.p65

59 01/01/18, 17:08

To select the e-mail Software

(PHOTOVU LINK/Movie Messenger

You can transfer and compress your

Motion images and Still images as attachments to your e-mail easily.

Note

The e-mail Software must support MAPI

(Messaging Application Programming

Interface).

Below are some e-mail Software which support MAPI:

Microsoft Outlook, Microsoft Outlook

Express, Netscape Messenger:

• Outlook(R) Express 5x, Outlook97,

Outlook98

• Outlook Express 4x

• Othere MAPI applications [Netscape(R)

Messenger 4.5x and so on]

Before you begin

• Insert a recorded tape. (See page 9.)

• Make Palmcorder-PC connections.

(See page 54.)

• Turn your PC on. (See page 54.)

• Set Palmcorder POWER to VCR.

Repeat steps 1~4 on page 57 to

run the PHOTOVU LINK/Movie

Messenger. (See Note below.)

Click [IMAGE BROWSER] to display the Image Browser screen.

IMAGE BROWSER

Select “E-mail Settings” from

“Settings”.

Select the e-mail software you are using, then click [OK].

Note

• If the e-mail software does not support

MAPI, clicking on [E-mail] of Movie

Messenger will not automatically run the e-mail software. Please run the e-mail software before doing step 1 above.

201_401.58-61.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

60 01/01/18, 17:08

Attaching captured Motion and Still images to your e-mail

IMAGE BROWSER

Compress

E-mail

Before you begin

• Insert a recorded tape. (See page 9.)

• Make Palmcorder-PC connections.

(See page 54.)

• Turn your PC on. (See page 54.)

• Set Palmcorder POWER to VCR.

Repeat steps 1~4 on page 57 to run the PHOTOVU LINK/Movie

Messenger.

Click [IMAGE BROWSER] to display the Image Browser screen.

Attaching Motion images to e-mail

Click on [Movies] to display a Motion image list.

Select the Motion image to be attached, then click on [Compress].

• Follow the menu to perform the compression settings.

Clicking on [Compress] will compress the selected image.

• “Successfully Done” is displayed on the PC screen.

• Click [Play] to open the Movie

Messenger Player screen. You can confirm the compressed Motion image by clicking on [Play].

Clicking on [E-Mail] will automatically attach the compressed Motion image to your e-mail. (See Note below.)

• When the recipient opens the file you sent, this Movie Messenger Player screen appears. By clicking [Play], they can view the Motion Image.

Compress

Play

E-Mail

Movie Messenger

Player screen

Attaching Still images to e-mail

Click on [Pictures] to display the Still image list.

Select the image to be attached, then click on [E-mail].

• The e-mail software will be run automatically and the selected image will be attached to the e-mail. (See

Note right.)

Note

• Movie Messenger Player works with

Windows 95, 98, or Me only.

• If your e-mail software is not supported by MAPI, pressing the

[E-Mail] button will automatically open the folder containing the compressed file. To attach, drag and drop the file into your e-mail.

201_401.58-61.p65

61 01/01/18, 17:08

PC Connection with DV Interface Cable (i.LINK)

A live image can be transferred directly to your PC (Personal Computer) via a DV

Interface Cable (i.LINK) (not supplied) using products and software from a number of editing software companies including Digital Origin, Canopus, and Pinnacle.

Using Products from these companies allows you to capture and edit live images onto your PC using the DV interface (i.LINK).

For more detailed information regarding editing software products from these companies, please visit their websites at:

www.digitalorigin.com

www.justedit.com

www.pinnaclesys.com

PC Connector

DV Input/Output

(i.LINK “ ”)

Connector

DV Interface Cable (i.LINK)

(6-to-4 pin) (not supplied)

Note

• PC must be equipped with an i.LINK terminal.

• During Palmcorder playback, do not disconnect the DV Interface Cable (i.LINK) or turn the Palmcorder off as this may cause PC hang-up error to occur.

• For PHOTOVU LINK/Movie Messenger, do not use 2 i.LINK terminals on your PC at the same time.

• PHOTOVU LINK/Movie Messenger i.LINK (DV) operates normally with Windows 98SE or later operating system.

• PHOTOVU LINK/Movie Messenger i.LINK connection may not work with some DV

Interface boards. In this case, use the software included with the board.

• 1394 (i.LINK) interface must conform to OHCI (Open Host Controller Interface

Specification).

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.62-63.p65

62 01/01/18, 17:09

Using Tape Image Data

(PHOTOVU LINK/Movie

Messenger)

By connecting the Palmcorder and PC with the DV Interface Cable (i.LINK), you can transfer Motion images and still images saved on the DV Tape directly to your PC.

Note

• If PHOTOVU LINK/Movie Messenger does not work, please refer to page 62.

STILL

CAPTURE

MOVIE

PLAY Button

CAPTURE

Before you begin

• Insert a recorded Tape. (See page 9.)

• Make Palmcorder-PC connections.

(See page 62.)

• Turn your PC on.

• Set Palmcorder POWER to VCR.

• Run the Software after the DV

Interface Cable (i.LINK) has been connected to the Palmcorder.

Repeat steps 1~4 on page 57 to run the PHOTOVU LINK/Movie

Messenger.

Note

• When the DV Interface Cable (i.LINK) is connected, the input display will automatically become DV. If it is not

DV, please confirm the connection.

Then, close and restart the software.

Click PLAY button on PC screen to playback the DV tape.

• Please use the LCD monitor on the

Palmcorder or PC screen for confirmation.

To capture Motion images

Click on [MOVIE CAPTURE] at the point you wish to capture a Motion image. Click on [STOP] to end capture.

• The image is recorded to the PC in real time.

• The maximum capture time is approx.

3 minutes.

• When capturing data containing changes between 12 bit and 16 bit and/or between SP and LP mode, a separate file will be made for each mode.

• Please refer to pages 59~61 for other functions.

To capture Still images

Click on [STILL CAPTURE] at the point you wish to capture an image.

• Repeat step

to continue capturing images.

• Captured Still images are saved to the

PC, and you can playback the saved images on the Image Browser.

201_401.62-63.p65

63 01/01/18, 17:09

Accessory #

PV-DAC11

CGR-D08A/1B

(Replaces CGR-

D120A/1B)

CGR-D16A

(Replaces CGR-

D220A/1B)

CGP-D28A1B

CGR-D53A/1K

(Replaces CGR-

D815A/1B)

PV-DDC9

PV-DLT9

PV-DRC9

PV-H150

PR-SD064

PR-SD032

PR-SD016

BN-SDCAPU/1B

Figure

BN-SDABPU/1B

Description

Price

AC Adaptor with AC Cable and

DC Cable

$120.00

800mAH / 1 h 30 min, Battery

Pack

$69.95

1600mAH / 3 h, Battery Pack

$99.95

2800mAH/ 5 h, Battery Pack

$129.95

5300mAH / 9 h, Battery Pack

$229.95

DV Interface Cable (i.LINK)

(4-pin to 4-pin)

Color Enhancement Light

IR Remote Control

$55.00

$39.95

$29.95

Carrying Case

64 MB SD Memory Card

32 MB SD Memory Card

16 MB SD Memory Card

SD USB Reader/Writer

(compatible with

MultiMediaCard)

SD PCMCIA Adaptor

(compatible with

MultiMediaCard)

$49.95

$179.95

$119.95

$79.95

201_401.64-67.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

64 01/01/18, 17:09

Concerning the MultiMediaCard and SD Memory Card

MultiMediaCard

The MultiMediaCard is a compact, lightweight and removable external memory card. A great many fun-filed titles

(preset titles) have been recorded on the supplied MultiMediaCard.

These preset titles will also be erased when the Card is formatted.

SD Memory Card

The SD Memory Card (optional), which is the same size as the MultiMediaCard, is an external memory card with an even bigger memory capacity. It has a write protect switch to prevent the data writing and card formatting, and it comes with a copyright protection function that complies with the

SDMI (Secure Digital Music Initiative) standard. Music play is possible only with an SD Memory Card.

• SD Logo is a trademark.

• Portions of this product are protected under copyright law and are provided under license by ARIS/SOLANA/4C.

201_401.64-67.p65

65 01/01/18, 17:09

Please photocopy this form when placing an order.

1. Palmcorder Model #

2. Items Ordered

Accessory # Description Price Each Quantity

Total Price

Subtotal

Your State & Local Sales Tax

Shipping & Handling

6.95

Total Enclosed

3. Method of payment (check one)

Check of Money Order enclosed (NO C.O.D.SHIPMENTS)

VISA

MasterCard

Credit Card #

Expiration Date

Discover Customer Signature

(Please do not send cash)

4. Shipping information (UPS delivery requires complete street address)

Ship To:

Mr.

Mrs.

Ms.

First

Make Check or Money Order to: PANASONIC ACCESSORIES

Last

Phone #:

Day ( )

Street Address

Night ( )

City State Zip

TO OBTAIN ANY OF OUR PALMCORDER ACCESSORIES YOU CAN DO ANY OF

THE FOLLOWING:

VISIT YOUR LOCAL PANASONIC DEALER

CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368

[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]

MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY ORDER OFFICE

20421 84th Avenue South Kent, WA. 98032

201_401.64-67.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

66 01/01/18, 17:09

Cleaning EVF (Electronic Viewfinder)

[ PV-DV201 ] [ PV-DV401 ]

1

Turn the Eyepiece counterclockwise 1/8 of a turn.

2

Pull the Eyepiece free.

Remove any lint or dust particles with a soft, clean cloth being careful not to scratch the glass surfaces.

3

To re-install the Eyepiece

Line up the marks on the

Eyepiece with the grooves inside the EVF shaft and attach. Turn it clockwise 1/8 of a turn to lock in place.

1

Slide the Viewfinder backward to its fully expanded position and then tilt it upward.

2

Remove the 2 screws from the EVF Eyepiece with a screwdriver (+).

3

Turn the Eyepiece counterclockwise 1/8 of a turn.

4

Pull the Eyepiece free. Remove any lint or dust particles with a soft clean cloth being careful not to scratch the glass surfaces.

5

To re-install the Eyepiece

Line up the marks on the Eyepiece with the grooves inside the EVF shaft and attach. Turn it clockwise 1/8 of a turn to lock in place.

6

Replace the EVF Eyepiece screws and tighten with a screwdriver.

• If you lose an EVF Eyepiece screw, order Part

No.XQN2+BJ5FXK.

Approximate Brightness Values

Your Palmcorder has been designed for normal scene illumination of 150 footcandles

(1500 lx). However, the Palmcorder may be used at F1:1.6, if illumination is more than

0.5 footcandles (5 lx).

The table below shows the color temperature for reference.

PALMCORDER

SETTINGS

NATURAL LIGHT

CONDITIONS

KELVIN COLOR

TEMPERATURE

ARTIFICIAL LIGHT SOURCE COLOR TINT

MIXTURE

(Amber Filter

Range)

- - - - - - - - - - - - -

• Fair weather, blue sky

• Slightly cloudy sky

• Cloudy or rainy sky

- - “OUTDOOR”

“AUTO”

• Sunlight in clear weather at midday

• Average sunlight in clear weather

• Sunlight 2 hours after sunrise and before sunset

• Sunlight 40 min. after sunrise

and before sunset

— 10,000

— 8,000

— 7,000

— 6,500

— 6,000

— 5,500

— 5,000

— 4,500

— 4,000

— 3,500

— 3,200

• Color television

• Fluorescent lamp (Daylight)

• Camera flash bulb

• Blue lamp for photography

• Fluorescent lamp (White)

• Normal flash bulb

• Fluorescent lamp (Off-white)

• Tungsten lamp for photography

Bluish

Whitish

• Sunlight 30 min. after sunrise

and before sunset

• Sunlight 20 min. after sunrise

and before sunset

— 2,800

— 2,000

• Halogen lamp

• Iodine lamp

• Tungsten lamp

• Acetylene lamp

• Kerosene lamp

• Candlelight

Yellowish

Reddish

201_401.64-67.p65

67 01/01/18, 17:09

Power Source:

Power Consumption:

Digital Interface

Video Signal:

Video Recording System:

Audio:

Pick-Up System and Device:

Lens:

Palmcorder: 7.2 V DC (Battery)

7.8 V DC (AC Adaptor)

AC Adaptor: 110/120/220/240 V AC, 50/60 Hz

Battery: Lithium-Ion Type DC 7.2 V

Palmcorder: 7.2 V DC 6.5 W (Max. 9.5 W)

AC Adaptor: 18 W

1 W (when not in use.)

USB/i.Link (IEEE1394)

EIA Standard (525 lines, 60 fields) NTSC color signal

2 rotary heads. helical scanning system

12 bit (32 kHz) 4 tracks

16 bit (48 kHz) 2 tracks

One integral color filter Charge Coupled Device (CCD)

20:1 zoom lens, F1:1.6 with auto iris control

Focal length: 3.6 mm - 72 mm

Power zoom function

Lens filter diameter: 43 mm

Viewfinder:

LCD Monitor:

2.5 inch (63.5 mm) Liquid Crystal Display (PV-DV201)

3.0 inch (76.2mm) Liquid Crystal Display (PV-DV401)

Minimum Illumination Required: 5 lx (F1:1.6) 0.5 footcandles

0 lx (MAGICVU/0LUX ON) (PV-DV401 only)

Image Storage (supplied

8 MB MultiMediaCard)

0.4 inch (10.2 mm) Electronic Viewfinder (PV-DV201)

0.44 inch (12.7 mm) Liquid Crystal Electronic

Viewfinder (PV-DV401)

Image Format

Operating Temperature:

Operating Humidity:

Weight:

320 x 240 pixels (NORMAL mode)

640 x 480 pixels (FINE mode)

Approx. 240 images (NORMAL mode)

Approx. 60 images (FINE mode)

JPEG (Design Rule for Camera File System)

32 °F~104 °F (0 °C~40 °C)

10 %~75 %

Dimensions:

Palmcorder:

(PV-DV201)

(PV-DV401)

AC Adaptor:

1.50 Ibs.

0.68 k g

1.45 Ibs.

0.66 k g

0.35 Ibs.

0.16 k g

Palmcorder:

(PV-DV201) 3-3/8 (W) x 4-1/4 (H) x 7-1/2 (D) inch

85 (W) x 107.5 (H) x 191 (D) mm

(PV-DV401) 3-3/8 (W) x 4-1/4 (H) x 6-1/2 (D) inch

85 (W) x 107.5 (H) x 166 (D) mm

AC Adaptor:

2-3/4 (W) x 1-3/4 (H) x 4-1/2 (D) inch

70 (W) x 45 (H) x 115 (D) mm

Weight and dimensions shown are approximate.

Designs and specifications are subject to change without notice.

201_401.68-71.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

68 01/01/18, 17:09

Cleaning Care for Video Heads

Clogged Video Head

(a) Video Head Cleaning: Normally, your Palmcorder will not require head cleaning. However, it is possible that the heads may become clogged due to dust in the air, playing damaged tapes, long term use, etc. If “NEED HEAD CLEANING” appears for 5 seconds in the EVF or LCD monitor, the heads may require cleaning.

(b) Cleaning the Heads: It is recommended that head cleaning be performed by a qualified service technician. Please contact your nearest Panasonic Servicenter. An alternate solution is to obtain a head cleaning cassette. Please use Panasonic cleaning cassette (AY-DVMCL). Be sure to follow the cleaning instructions carefully. Excessive use of the head cleaning cassette could shorten video head life.

Use this cassette only when a head clogging symptoms occur.

Refer servicing to qualified service personnel.

Tape Operations Caution

• When you go from function to function (PLAY, FF, REW etc.), please note that the unit will not accept a new function operation until the previous operation is complete.

• The POWER Button and all function buttons, (PLAY, FF, REW, etc.) are only operational after the tape has been completely loaded.

Lens Hood Area Operation Caution

When the following accessories are attached and the zoom is set to maximum wide angle, the four corners of the sceen may appear darker:

• Wide or Telephoto conversion lens (optional).

• A filter (optional), etc. and then the lens hood.

• Two filters (optional).

Self Diagnostic System

If any of the following numbers appear on-screen, the Palmcorder may need service. Do not remove the battery (if attached) and write down the displayed number on page 71.

Then, take the Palmcorder to a servicenter for repair.

Error No.

Description

U11

Card Error

U12

U13

U14

U15

U16

U17

U30

Card Error

Card/Palmcorder Dialogue Error

No Card Memory

Captured image limit exceeded

Error other than above

201_401.68-71.p65

69 01/01/18, 17:09

If you have a problem with your Palmcorder, it may be something you can correct yourself.

Check the list below for symptoms and corrections.

Symptom

No picture in the EVF or LCD Monitor...

Video cassette cannot be inserted...

Video cassette cannot be removed...

No operation starts when operation buttons are pressed...

Recording cannot be done...

Correction

• Make sure the Power Source is connected.

(pp. 11, 12)

• Make sure the POWER switch is set to VCR or CAMERA. (pp. 22, 27)

• Check the Dew Indicator. (p. 21)

• Make sure the Battery is fully charged.

(p. 11)

• Make sure all necessary cables are connected correctly and firmly. (p. 12)

• Make sure the Lens Cap is removed. (p. 22)

• Make sure the Power Source is connected.

(pp. 11, 12)

• Insert the cassette record tab up, window side facing out. (p. 9)

• Make sure the Power source is connected.

(pp. 11, 12)

• Check the Dew Indicator. (p. 21)

Auto Focus does not operate...

Sound from microphone cannot be monitored...

Sound cannot be heard...

• Make sure the record tab is closed. (p. 6)

• Check the Battery Indication. (p. 19)

• Make sure FOCUS is set to AUTO.

(p. 47)

• Make sure the unit is ON and set to

CAMERA mode. (p. 22)

• Make sure the unit is set to REC or REC/

PAUSE mode.

• Make sure the Audio on the VCR MENU is set to ST1. (pp. 17, 50)

201_401.68-71.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

70 01/01/18, 17:09

Please photocopy this form when making a request for service notice.

Request for Service Notice:

I n the unlikely event this product needs service.

• Please include your proof of purchase.

(Failure to due so will delay your repair.)

• To further speed your repair, please provide an explanation of what is wrong with the unit and any symptom it is exhibiting.

Mail this completed form and your Proof of Purchase along with your unit to:

Panasonic Services Company

1705 N. Randall Road

Elgin, IL. 60123-7847

Attn: Camcorder Repair

Please write the displayed Self Diagnostic number here. (See page 69.)

201_401.68-71.p65

71 01/01/18, 17:09

Front View

D.ZOOM Button

See page 40.

EIS Button

See page 39.

TRANSFER Button

See page 55.

MAGICVU/0LUX

Switch

(PV-DV401 only)

See page 42.

Lens

Built-in Twin

Capsule 2-Way

Microphone

System

Lens Cap

See page 8.

Side View

PHOTOSHOT

Button

See pages 32, 33, 41.

Cassette

Compartment

Cover

See page 7.

TAPE EJECT

Switch

See pages 7, 9.

Hand Strap

See page 8.

BACK LIGHT

Button

See page 47.

MULTI Button

See page 46.

FADE Button

See page 48.

A.DUB Button

See page 49.

Remote Sensor

See page 25.

Built-in Light Mount

See page 7.

PHONE Jack

See page 27.

DV Input/Output

(i.LINK “ ”)

Connector

See pages 52, 62.

External

Microphone Jack

(PV-DV401 only)

See page 49.

A/V Output

Connector

See pages 31, 51.

S-VIDEO Output

Connector

See pages 31, 51.

201_401.72-75.p65

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

72 01/01/18, 17:09

Rear View

Electronic

Viewfinder (EVF)

See page 9.

Vision Adjustment

Control

See pages 9, 22.

Menu Button

See pages 13, 14.

Battery Release

Button

See pages 11, 12.

POWER Lamp

See page 22.

REC/PAUSE

Button

See pages 9, 22.

Shoulder Strap

Attachment Ring

See page 8.

Rear View

LCD (Liquid Crystal

Display) Monitor

See pages 9, 10, 23,

27.

JOG KEY

See pages 13, 14.

VOLUME KEY

See page 27.

M.FOCUS DIAL

See page 47.

POWER ZOOM

Button

See pages 22, 40.

Shoulder Strap

Attachment Ring

See page 8.

M-CARD Lock

Switch

See page 10.

POWER Switch

(CAMERA•VCR•

OFF•M-CARD)

See pages 9, 10.

M-CARD Door

See page 10.

Built-in Speaker

See page 27.

LCD-OPEN Button

See pages 9, 10, 23, 27.

201_401.72-75.p65

DC IN Terminal

See page 12.

CARD EJECT Switch

See page 10.

USB Terminal

See page 54.

01/01/18, 17:09

Side View

REW Button

See pages 10, 27.

EDIT SEARCH

Button

See pages 24.

STOP Button

See pages 10, 27.

M-STOP Button

See pages 34, 35, 36,

37.

PLAY Button

See pages 10, 27.

M-PLAY Button

See pages 34, 35.

Underside View

FF Button

See page 28.

EDIT

SEARCH Button

See page 24.

PAUSE Button

See pages 28, 29,

49, 50, 51, 52.

CAMERA STILL

Button

See pages 45.

REC Button

See page 52.

M-DEL Button

See pages 35,

36, 37.

Tripod

Receptacle

AC Adaptor

POWER Lamp

See pages 11, 12.

CHARGE Lamp

See page 11.

AC Power Cord

See pages 11, 12.

VCR DC Output

Connector

See page 12.

CAUTION:

This unit will operate on 110/

120/220/240 V AC. An AC plug adaptor may be required for voltages other than 120V AC.

Please contact either a local or foreign electrical parts distributor for assistance in selecting an alternate AC plug.

We recommend using the accessory power plug adaptor

(VJSS0070) in an area which has special AC outlets.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.72-75.p65

74 01/01/18, 17:09

Color Enhancement Light (Optional)

LIGHT RELEASE

Button

See page 7.

Remote Control (Optional)

DATE/TIME Button

See pages 20, 25.

DISPLAY ON TV Button

See pages 25, 31.

A.DUB Button

See pages 25, 49.

COUNTER/TC Button

See pages 19, 25.

RESET Button

See pages 25, 50.

REWIND/SEARCH

Button

See pages 25, 28.

MENU Button

See pages 13, 14, 50.

REVERSE SLOW/

F. ADV Button

See pages 25, 28, 29.

REVERSE INDEX

SEARCH Button

See pages 25, 30, 41.

STOP Button

See pages 25, 27.

SET Button

See pages 13, 14, 25.

CAMCORDER

CAMERA

DISPLAY

ON TV

DATE /

TIME


SHOT

REC /

PAUSE

COUNTER /

A.DUB

RESET

REC

MENU REW / PLAY

FF /

SLOW /

F.ADV

PAUSE /

SEL

SLOW /

F.ADV

INDEX

SEARCH

STOP /

SET

INDEX

SEARCH

LIGHT Button

See page 7.

PHOTOSHOT Button

See pages 25, 41.

REC/PAUSE Button

See pages 22, 25.

POWER ZOOM Switch

See pages 22, 25.

SPKR VOL +/–

See pages 25, 27.

VIDEO REC Button

See pages 25, 52.

FAST FORWARD/

SEARCH Button

See pages 25, 28.

PLAY Button

See pages 25, 27, 52.

FORWARD SLOW/

F. ADV Button

See pages 25, 28, 29.

FORWARD INDEX

SEARCH Button

See pages 25, 30, 41.

PAUSE Button

See pages 25, 28, 52.

SEL Button

See pages 13, 14, 25.

201_401.72-75.p65

75 01/01/18, 17:09

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America, One Panasonic Way

Secaucus, New Jersey 07094

Panasonic Sales Company,

Division of Matsushita Electric of Puerto Rico, Inc.

AVE. 65 de Infantería, Km. 9.5 San Gabriel

Industrial Park Carolina, Puerto Rico 00985

PANASONIC Video Products

Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the

Warrantor”) will repair this product with new or refurbished parts, free of charge, in the USA or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of the original purchase):

PRODUCT

CAMCORDER

VCR

A/V MIXER

MONITOR-

VCR

Combination

PARTS

ONE (1) YEAR, EXCEPT

CCD IMAGE SENSOR

- SIX (6) MONTHS

ONE (1) YEAR

LABOR

NINETY (90) DAYS

SERVICE

Carry-In or Mail In

CONTACT NUMBER

1-800-211-PANA(7262)

ONE (1) YEAR

NINETY (90) DAYS

Carry-In or Mail In 1-800-211-PANA(7262)

ONE (1) YEAR, EXCEPT CRT

CRT - TWO (2) YEARS

NINETY (90) DAYS

CRT - NINETY (90) DAYS

Carry-In: 21” CRT and Smaller

In-home or carry-in:

22” CRT and Larger

1-800-211-PANA(7262)

Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for ten

(10) days. Non-rechargeable batteries are not warranted.

Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days.

In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period by contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Service Directory. Or call toll free contact number listed above, to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales Company telephone number listed in the Servicenter Directory.

This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of the original purchase is requires before warranty service is rendered.

This warranty only covers failures due to defects in materials and workmanship which occur during normal use and does not cover normal maintenance, including, but not limited to, video and audio head cleaning.

The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized

Servicenter, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, WITHOUT LIMITATION, DAMAGE TO RECORDING MEDIA) RESULTING FROM THE

USE OF THIS PRODUCTS, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS

AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH

ABOVE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

If a problem with this product develops during or after the warranty period, you may contact your dealer or

Servicenter. If the problem is not handled to your satisfaction, then write to the Consumer Affairs

Department at the Panasonic Consumer Electronics Company address above.

SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS

DETERMINED BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED. COSTS OF

SUCH SERVICE CALLS ARE THE RESPONSIBILITY OF THE PURCHASER.

warvid 8/8/2000

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.76-80.p65

76 01/01/18, 17:09

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquires please contact:

1-800-211-PANA(7262)

Monday-Friday 9am-9pm Saturday-Sunday 9am-7am, EST.

or send e-mail : [email protected]

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST)

(Visa, Master Card, Discover Card, American Express, Check)

Product Repairs

Centralized Factory Servicenter

Panasonic Services Company

MAIL TO :

1705 N. Randall Road,

Elgin, IL 60123-7847

Attention: Digital Camera Repair

Please carefully pack and ship, prepaid and insured, to the Elgin centralized repair Factory

Servicenter. While there will be added handling delays, you may bring your unit to one of the following locations who will then forward the unit to Elgin for repair.

Customer’s in Puerto Rico, please ship or carry in to location below (“Service in Puerto Rico”).

Factory Service Center Locations

CALIFORNIA

6550 Katella Avenue

Cypress, CA 90630

800 Dubuque Avenue

S. San Francisco,

CA 94080

3878 Ruffin Road

Suite A

San Diego, CA 92123

COLORADO

1640 South Abilene

Street Suite D

Aurora, CO 80012

FLORIDA

3700 North 29th Avenue

Suite 102

Hollywood, FL 33020

GEORGIA

8655 Roswell Road

Suite 100

Atlanta, GA 30350

ILLINOIS

9060 Golf Road

Niles, IL 60714

1703 North Randall Road

Elgin, IL 60123

(Pick-up / Drop-off only)

MARYLAND

62 Mountain Road

Glen Burnie MD 21061

MASSACHUSETTS

60 Glacier Drive,

Suite G

Westwood, MA 02090

MINNESOTA

7850-12th Avenue South

Airport Business Center

Bloomington, MN 55425

OHIO

2236 Waycross Road

Civic Center Plaza

Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Blvd. West

Suite B

Langhorne, PA 19047

TEXAS

13615 Welch Road

Suite 101

Farmers Branch,

TX 75244

WASHINGTON

20425-84th Avenue

South

Kent, WA 98032

HAWAII

99-859 Iwaiwa Street

Aiea, Hawaii 96701

Phone (808) 488-1996

Fax (808) 486-4369

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:

Ave. 65 de Infanteria. Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Phone (787) 750-4300 Fax (787) 768-2910

As of January 2001

201_401.76-80.p65

77 01/01/18, 17:09

Inserte de la batería

Antes de comenzar

• Cargue la battería. (Página 11.)

Deslice el visor hacia atrás, haste la posición de totalmente extendido, y luego inclínelo hacia arriba.

(PV-DV201: Incline el visor hacia

arriba.)

Coloque la batería y deslicela hacia abajo hasata que quede bloqueada con un clic.

Inserte el Cassette

Ajuste el interruptor de alimentación (POWER) a la posición VCR o CAMERA.

VCR

OFF

CAMERA

M-CARD

Presione la marca PUSH TO

CLOSE (EMPUJAR PARA

CERRAR) para cerrar la tapa del compartimiento del cassette.

Grabación con la cámara

Cuando el monitor LCD se enchuentra totalmente abjerto, el visor se DESACTIVA automàticamente.

Visor

Deslice el interruptor de expulsión

de cinta (TAPE EJECT) para abrir la tapa del compartimento del cassette.

Introduzca un cassette con la parte de la ventana hacia arriba.

• Asegúrese de que la lengüeta de grabación esté cerrada.

(Página 6.)

Film de protección

Nota

• Retire la película protectora antes de utilizarlo.

Ajuste el control lde ajuste de visión según lo desee.

180°

90°

[PV-DV401]

[PV-DV201]

VCR

OFF

CAMERA

M-CARD

Ajuste el interruptor de alimentación (POWER) a la posición CAMERA.

Monitor LCD

Presione el botón de apertura del LCD

(LCD-OPEN) para des bloquear el monitor LCD. Balancée abriéndolo

completamente y ajuste el àngulo.

Presione el botón de grabación/

pausa (REC/PAUSE) para iniciar la grabación.

Vuelva a pulsar el botón de

grabación/pausa (REC/PAUSE) para hacer una pausa en la grabación.

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.76-80.p65

78 01/01/18, 17:09

Introducir la Tarjeta de memoria*

Antes de comenzar

• Cargue la battería. (Pàgina 11.)

*Tarjeta de Memoria: Tarjeta MultiMedia o Tarjeta de Memoria SD (Pàgina 64.)

• Asegúrese de introducir la Tarjeta de memoria antes de utilizar la tarjeta PhotoShot.

(Página 32.)

A continuación se indican una lista de Tarjetas de Memoria soportadas por esta unidad.

Tarjeta de memoria Capacidad

Tarjeta MultiMedia (LSFT0198A) (suministrado)

Tarjeta MultiMedia (Marca de fábrica SanDisk)

Tarjeta de Memoria SD (opcional) ( Página 64.)

8 MB

8 MB, 16 MB

16 MB, 32 MB, 64 MB

Monitor LCD

180°

90°

Presione el botón de apertura del LCD (LCD-

OPEN) para desbloquear el monitor LCD. Balancée

abriéndolo completamente y ajuste el àngulo.

Puerta de M-CARD

VCR

OFF

CAMERA

M-CARD

Botón para interrumpir el cambio al M-CARD

Ajuste el interruptor de alimentación

(POWER) a la posición OFF.

Deslice el CARD EJECT Switch

(interruptor de EJECUCIÓN DE TARJETA)

para abrir la puerta de M-CARD.

Introducir la Tarjeta de memoria.

Cierre la puerta de M-CARD.

Para ver la reproducción en el LCD (pantalla de visualización de cristal líquido)

Cuando el monitor LCD se enchuentra totalmente abierto, el visor se DESACTIVA automáticamente.

Antes de comenzar

• Cargue la battería. (Pàgina 11.)

180°

90°

VCR

OFF

CAMERA

M-CARD

Ajuste el interruptor de alimentación

(POWER) a la posición VCR.

Presione el botón de apertura del

LCD (LCD-OPEN) para des bloquear el monitor LCD. Balancée abriéndolo

completamente y ajuste el ángulo.

Presione el botón de parada (STOP)

para detener la reproducción.

Presione el botón de

rebobinado (REW) para rebobinar la cinta.

Presione el botón de reproducción (PLAY)

para reproducir la cinta.

201_401.76-80.p65

79 01/01/18, 17:09

AC Adaptor

Accessories (Optional)

Accessories (Supplied)

A/V Cable

Audio/Video Fade In/Out

Auto Focus

Backlight

Battery Pack

Battery Remaining Indication

Battery Warning

Before Requesting Service

Blank Search

6, 11, 12, 64

6, 9, 11, 64

69, 70

CARD EJECT Switch 10

Camera Recording 22, 23, 24, 25

Cleaning Care for Video Heads 70

Clock Battery

Clock Set

Color Enhancement Light

Copying from Digital Equipment

Copying your Tapes

7, 64

Date and Time Indication

DC Power Cable

DEW Indication

Digital E.I.S.

Digital Functions

Digital PhotoShot

Digital Video Cassette Tape

6, 12, 64

Digital Zoom 40

Dubbing over Audio (Microphone) 49, 50

DV Interface Cable (i.LINK) 52, 62, 64

Edit Search 24

Erase Protection Tab 6

EVF/LCD Monitor Indications 19, 20, 21

Hand Strap

High Speed Shutter

Jog Search

Lens Cap

Limited Warranty

Macro Focus

MAGICVU/0LUX Switch

Manual Focus

Memory Counter

MENU OSD

Memory Card

M-CARD Door

14, 15, 16, 17, 18

6, 10, 64

PC Cable

PC Connection

Picture in Picture (PinP)

PLAY Indicator

Playback

Power Supply

Program AE

6, 54

54, 62

27, 28, 29, 30, 31

11, 12

REC Indicator

Recording Still Pictures

Remote Control

Request for Service Notice

Safety Precautions

Servicenter List

Set the Date and Time

Shoulder Strap

Special Effects Playback

Specifications

STILL Picture

Strobe Multi Mode

Tape Remaining Indications

Tape Speed

Tape Warning

VHF Connecting Cable

Volume Display

White Balance

Zoom In/Out

25, 26, 64

6, 8

28, 29, 30

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way Secaucus,

New Jersey 07094

Panasonic Sales Company (“PSC”),

Division of Matsushita Electric of

Puerto Rico, Inc.

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

For assistance, please call : 1-800-211-PANA(7262) or send e -mail to : [email protected]

201_401.76-80.p65

80 01/01/18, 17:09

Printed in Japan

LSQT0364A

S1200A0
