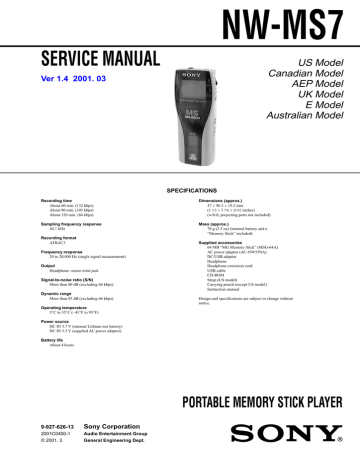

NW-MS7 SERVICE MANUAL US Model Canadian Model

NW-MS7 SERVICE MANUAL US Model Canadian Model

SERVICE MANUAL

Ver 1.4 2001. 03

NW-MS7

US Model

Canadian Model

AEP Model

UK Model

E Model

Australian Model

Recording time

About 60 min. (132 kbps)

About 80 min. (105 kbps)

About 120 min. (66 kbps)

Sampling frequency response

44.1 kHz

Recording format

ATRAC3

Frequency response

20 to 20,000 Hz (single signal measurement)

Output

Headphone: stereo mini-jack

Signal-to-noise ratio (S/N)

More than 80 dB (excluding 66 kbps)

Dynamic range

More than 85 dB (excluding 66 kbps)

Operating temperature

5°C to 35°C (–41°F to 95°F)

Power source

DC IN 3.7 V (internal Lithium-ion battery)

DC IN 5.5 V (supplied AC power adaptor)

Battery life

About 4 hours

SPECIFICATIONS

Dimensions (approx.)

37

×

96.3

×

19.2 mm

(1

1/2

×

3

7/8

×

25/32

inches)

(w/h/d, projecting parts not included)

Mass (approx.)

70 g (2.5 oz) (internal battery and a

“Memory Stick” included)

Supplied accessories

64 MB “MG Memory Stick” (MSG-64A)

AC power adaptor (AC-NW55NA)

DC/USB adaptor

Headphone

Headphone extension cord

USB cable

CD-ROM

Strap (US model)

Carrying pouch (except US model)

Instruction manual

Design and specifications are subject to change without notice.

9-927-626-13

2001C0400-1

© 2001. 3

Sony Corporation

Audio Entertainment Group

General Engineering Dept.

PORTABLE MEMORY STICK PLAYER

– 1 –

TABLE OF CONTENTS

1. GENERAL

Looking at the controls ............................................................ 3

Installing the OpenMG Jukebox software ............................... 4

Transferring music data from the computer to the

Memory Stick Walkman .......................................................... 4

Listening to music with the Memory Stick Walkman ............. 5

Playing in Various Modes ........................................................ 5

Changing the Display Mode .................................................... 6

Locking the Controls (HOLD) ................................................ 6

Changing the Settings of Memory Stick Walkman ................. 6

Names and Functions of the OpenMG Jukebox Window ....... 7

2. DISASSEMBLY

2-1. Lid, Battery Case ................................................................. 8

2-2. Lid Assy (Service), Upper ................................................... 9

2-3. Main Board ....................................................................... 10

2-4. LCD Block ........................................................................ 11

2-5. HP Board, CN Board ........................................................ 11

3. TEST MODE

3-1. General Information .......................................................... 12

3-2. Tools .................................................................................. 12

3-3. Setting the TEST MODE .................................................. 12

3-4. Releasing the TEST MODE .............................................. 12

3-5. Operations in the TEST MODE ........................................ 12

3-6. Creating the Memory Stick for Operational Check .......... 14

4. DIAGRAMS

4-1. IC Pin Description ............................................................. 16

4-2. Block Diagram –Audio Section (1/2)– ............................. 19

4-3. Block Diagram –Audio Section (2/2)– ............................. 21

4-4. Block Diagram –Power Supply Section– .......................... 23

4-5. Printed Wiring Board –Main Board– ................................ 25

4-6. Schematic Diagram –Main Board (1/4)– .......................... 29

4-7. Schematic Diagram –Main Board (2/4)– .......................... 31

4-8. Schematic Diagram –Main Board (3/4)– .......................... 33

4-9. Schematic Diagram –Main Board (4/4)– .......................... 35

4-10. Printed Wiring Boards –CN Board, HP Board– ................ 37

4-11. Schematic Diagrams –CN Board, HP Board– .................. 39

4-12. IC Block Diagrams ............................................................ 41

5. EXPLODED VIEWS

....................................................... 45

6. ELECTRICAL PARTS LIST

........................................ 46

IC Repairing

Replacement of HD64F7198RVBP16 (IC701), MG IC ASSY

(IC702) and CXD1858GA (IC703) on main board used in this set requires a special tool. Therefore, they cannot be replaced.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK

0

OR DOTTED LINE

WITH MARK

0

ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

– 2 –

Flexible Circuit Board Repairing

Keep the temperature of the soldering iron around 270°C during repairing.

Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

Notes on Chip Component Replacement

Never reuse a disconnected chip component.

Notice that the minus side of a tantalum capacitor may be damaged by heat.

Looking at the controls

Memory Stick Walkman

(front)

(rear)

SECTION 1

GENERAL

7

This section is extracted from instruction manual.

DC/USB adaptor

(front)

40

1 i (Headphones) jack (page 16)

2 Display (page 17, 20)

3 VOLUME +/- button (page 16)

4 Jog lever (page 16 - 25)

5

x (stop) button (page 16)

6 HOLD switch (page 21)

7

Strap hole for attaching the strap

(supplied with U.S.A. model only)

8 RESET button (page 32)

9 MENU button (page 18 - 25)

0 DISPLAY button (page 20) qa EJECT lever (page 17) qs DC/USB adaptor plug (page 10) qd Memory Stick slot (page 13, 16)

Display

1 Mega-bass (page 18)

2 AVLS (page 20)

3 Playback mode (page 19)

4 Battery remain indication (page 10)

5 Information

Track name, track number, counter, menu items, error messages, etc., are displayed.

(page 17, 20)

1 BATTERY CHARGE lamp (page 10)

2 Connector (page 10)

3 DC IN 5.5 V jack (page 10, 13)

(rear)

4 Release button (page 10)

5 USB jack (for the supplied USB cable)

(page 13)

41

– 3 –

Step 3: Installing the OpenMG Jukebox software

This section describes how to install the OpenMG Jukebox software to your computer. Before installation, turn on your computer, and start Windows 98.

Note

Be sure to install the software before connecting with the supplied USB cable. Do not install the software while connecting the USB cable. Connect the USB cable only after you have restarted the computer after installation.

1

Insert the supplied CD-ROM into the CD-ROM drive of your computer.

The Setup program automatically starts and the following window appears. If the program does not start, double-click [setup.exe].

Notes on EMD (Electronic Music Distribution) services

To use OpenMG-enabled EMD services on the Internet, the following conditions are required.

• You need Internet access from your computer. (Sign up an Internet service provider.)

• You need to download several programs (e.g., EMD key installer).

To download these programs, double-click the “OpenMG Registration” icon, then follow the displayed instructions.

• You need to register yourself with the EMD service provider you are going to use. Consult the provider for details.

For current OpenMG Jukebox users

1 In order to update your OpenMG Jukebox software, your current software must be registered.

If your software is not registered, please register your current software now. If you are a registered user, proceed to step 2.

2 Insert the CD-ROM supplied with your new product. This will automatically run. If the program does not start, double-click [Setup.exe].

Please follow the on-screen instructions to retain all existing music files and update your software.

3 After your update is completed, restart the computer.

Then double-click the “OpenMG(NW-MS7) Registration” icon on your desktop and follow the instructions to register.

Notes

• If the OpenMG Jukebox icon is displayed on the task tray, right-click the icon to choose [Remove from the task tray], then proceed with the installation.

• Be sure to input the CD keys of the CD-ROM you are going to install. If an error message appears in the display, check if the CD keys are of the correct CD-ROM case label.

2

Follow the instructions in the Installer window to complete the installation.

When the Input window for the CD key appears, input the CD key written on the CD-ROM case label .

When the installation is finished, the following dialog box appears in the display.

Click Finish to restart the computer.

Note

Do not delete, move or modify the installed folder.

About the “OpenMG Registration” icon on the desktop

When you restart the computer after installing the software, the “OpenMG(NW-MS7)

Registration” icon will appear on the desktop. Make sure that you can connect to Internet, then double-click this icon to start customer registration for this product (Memory Stick Walkman) and for the EMD services.

For details on registration, refer to the supplied leaflet.

continued

11 12

Basic Operations

Transferring music data from the computer to Memory Stick Walkman

This section describes how to record the contents of a compact disc onto the hard drive of your computer, and then how to transfer it to Memory Stick Walkman (Check-Out).

You can also download by using EMD Services, or convert MP3 files and WAV format audio files. Please refer to the online help for more information.

1

Connect Memory Stick Walkman to your computer.

1

Insert “MagicGate Memory Stick.”

“MagicGate

Memory

Stick“

Notes

• When connecting Memory Stick Walkman to your computer, make sure the erasure prevention switch of the “Memory Stick”

(page 30) is OFF .

• Do not start your computer while Memory

Stick Walkman is connected.

Memory Stick slot

2

Connect the AC power adaptor.

Connect the supplied AC power adaptor to an AC wall outlet, then into the DC IN 5.5V

jack on the right side of the DC/USB adaptor.

3

Connect Memory Stick Walkman to your computer.

Connect the small connector of the supplied

USB cable into the USB jack on the left side of the DC/USB adaptor, then the large connector to the USB jack of your computer.

“PC CONNECT” appears in the display.

to to DC IN 5.5V

USB cable

(supplied) to to AC wall outlet

DC/USB adaptor

AC power adaptor

(supplied)

Notes

• Do not connect more than two USB devices to your computer. Normal operation will not be guaranteed.

• Use of this player with a USB hub or a USB extension cable is not guaranteed.

• A malfunction may occur depending on the USB devices connected at any one time.

• Be sure to connect the player to an AC wall outlet when connecting it to your computer.

• When connecting Memory Stick Walkman to your computer for the first time, the USB driver Installer window appears. Please follow the instructions in the Installer window.

continued

13

– 4 –

14

Transferring music data from the computer to

Memory Stick Walkman (continued)

2

Start the OpenMG Jukebox software.

Double click the OpenMG Jukebox icon on the desktop or click [Start]–[Programs]–

[OpenMG Jukebox]–[OpenMG Jukebox]

The OpenMG Jukebox window appears.

Portable Player window

(the music files inside the

“Memory Stick” appear) z

If the Start-Up function is ON

The OpenMG Jukebox software automatically starts when Memory Stick Walkman is connected to your computer. (Please refer to the online help for more information.)

3

Start recording.

You can record music from a compact disc onto the hard drive of your computer, using the

OpenMG CD Recorder software.

1

Insert the compact disc you want to record into the CD-ROM drive of your computer. If the OpenMG CD Recorder automatically starts, go to 3.

2

Click the [Recorder] button in the OpenMG Jukebox window.

The OpenMG CD Recorder window appears showing the contents of the compact disc.

If the message “Do you want to check your CD Drive to optimize for recording ?” appears in the display

This message appears when you use the OpenMG CD Recorder for the first time. We recommend you to choose “Yes.” You can optimize the CD drive later, too. Please refer to the online help for more information. (It may take maximum 20 minutes to optimize the CD drive.)

3

Click z.

bit rate z button

The recording begins. When recording is finished, the recorded music will appear in the

OpenMG Jukebox window as a new album.

To stop the recording

Click x. The recording will be interrupted.

Click z again to continue the recording.

z

To select only certain items

Click the check box of the contents you do not want to record to remove the check, then click z.

z

On the bit rate

You can choose the bit rate among 132kbps, 105kbps, 66kbps. If you choose a higher bit rate, recording will have better sound quality, however the recordable time will be shorter. If you choose a lower bit rate, you can record longer, however the sound will not be as good. See below for the recording time according to the bit rate when using the supplied 64MB “Memory Stick.”

• 132kbps: maximum 60 min.

• 105kbps: maximum 80 min.

• 66kbps: maximum 120 min.

(The recording time differs according to the number of songs you are recording.)

To choose the bit rate, click [Control]-[Settings]. The Settings window appears. Click the Recording

Setup tab and choose from the ATARC3 Bit rate list. Please refer to the online help for more information.

z

To name a new album or song

You can enter the name using the keyboard or bring the name from the Internet database.

Please refer to the online help for more information.

4

Transfer the music file to the “Memory Stick” (Check-Out).

1

Check that the Portable Player window (page 14) is displayed on the right side of the

OpenMG Jukebox window.

2

Click the album which contains the songs you want to Check-Out.

The contents of the album appear.

3

Click the music item you want to Check-Out.

Click the music item while pressing the Ctrl key to choose more than one music item.

4

Click the button.

The desired music item appears in the Portable Player window as Check-Out candidate.

Click here

To cancel the song added as Check-Out candidate, click the respective song in the

Portable Player window, then click the button.

5 Click the START button.

The desired music item is Checked-Out to Memory Stick Walkman.

During Check-Out the STOP button flashes. When Check-Out is finished, the indication changes to .

To quit Check-Out

Click the STOP button.

To Check-In

See page 28.

15

On other operations

Jog lever

Press upwards

Press

Press downwards

To take out the “Memory Stick”

Slide the EJECT lever in the direction of the arrow as shown below.

EJECT lever l

To

Pause

1)

Go to the beginning of the actual track

Go to previous tracks

Go to the beginning of the next track

Go to the beginning of the succeding tracks

Go backward 2)

Go forward 2)

Operation of the Jog lever

Press while in playback mode.

Press upwards once.

Press upwards continuously.

Press downwards once.

Press downwards continuously.

While playback, press up and hold still.

While playback, press down and hold still.

1) If you do not operate the player for 10 seconds while in pause mode, the player automatically switches to stop mode.

2)

To go backward or forward without listening to the sound, press upwards or downwards and hold while in pause mode.

To select by track name

While in stop mode, press the Jog lever up or down and hold it still. Three track names are displayed.

Press the Jog lever upwards or downwards to select the track, then press the Jog lever to playback.

On the display

Press the DISPLAY button to change the display mode. See “Changing the display mode” (page 20) for more information.

Track number

Song title*

MY FAVOU

001 0

RIT E

02: 01

Album title*

Elapsed time

Bit rate

: songs recorded at 132kbps

: songs recorded at 105kbps

: songs recorded at 66kbps

* Song title and album title are displayed when information is recorded on the “Memory Stick.”

3 CC C

1 TRACKAA A

2 BB B

17

Listening to music with Memory Stick

Walkman

Please charge the battery before use (see page 10).

Note

When using Memory Stick Walkman, be sure to disonnect it from the computer.

1

Insert a recorded “MagicGate Memory Stick” into Memory Stick Walkman.

“MagicGate

Memory

Stick“

2

Connect the headphones.

to i jack

Memory Stick slot

To use the headphones extension cord

to i jack

Headphones extension cord

– 5 –

16

3

Start playback.

2

Press the VOLUME

+/- button up or down to adjust the volume.

1 Press the Jog lever.

Playback stops automatically when the music reaches the end (only when REPEAT OFF is selected).

x button

HOLD switch

If playback does not start

The HOLD switch may be switched down. Please release it up (page 21).

To stop playback

Press the x button.

Tip

If you do not operate the player for 10 seconds while in stop mode, the display automatically turns off.

18

Advanced Operations

(Memory Stick Walkman)

Playing in various modes

Jog lever

MENU button

Emphasizing the bass sound (BASS)

Mega Bass function intensifies low frequency sound for richer quality audio reproduction.

Menu

OFF

ON-1

ON-2

Sound quality

normal play

Mega Bass

(moderate effect)

Mega Bass

(strong effect)

Display indication

none

BASS

BASS

1

Press the MENU button.

The menu is displayed.

Check that “BASS” is selected.

[RETURN]

BASS OFF

REPEAT OFF

2

Press the Jog lever.

Display indication

BASS

OFF

O -

3

Select ON-1 or ON-2 using the Jog lever.

4

Press the Jog lever.

5

Press the MENU button.

The display returns to normal.

Note

If the sound becomes distorted when emphasizing the bass, turn down the volume.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To cancel the MEGA BASS effect

Select OFF in step 3.

Playing tracks repeatedly

(REPEAT)

You can play tracks repeatedly in three waysall repeat, single repeat and shuffle repeat.

Menu

OFF

ALL

1

Playback mode

normal all tracks repeatedly current track repeatedly

Display indication*

none

F

F 1

SHUF all tracks repeatedly in random order

F SHUF

* The display indication appears after step 5.

1

Press the MENU button.

The menu is displayed.

2

Select “REPEAT” using the Jog lever.

BASS OFF

REPEAT OFF

AVLS NO RM

6

Press the MENU button.

The display returns to normal.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To cancel the REPEAT mode

Select OFF in step 4.

Note

If there is no “Memory Stick” inserted, “REPEAT

----” appears in the display, and repeat mode cannot be selected.

3

Press the Jog lever.

4

Select “ALL,” “1” or “SHUF” using the Jog lever.

REPEAT

OFF

A L L

1

5

Press the Jog lever.

The selected playback mode is displayed.

Display indication

BASS OFF

REPEAT ALL

V O

continued

19 20

Playing in various modes

(continued)

Protecting your hearing

(AVLS)

The AVLS (Automatic Volume Limiter

System) function keeps down the maximum volume to protect your ears.

1

Press the MENU button.

The menu is displayed.

2

Select “AVLS” using the Jog lever.

REPEAT OFF

AVLS NO RM

BEEP OFF

3

Press the Jog lever.

4

Select “LIMIT” using the Jog lever.

AVLS

NORM

LIMIT

Changing the display mode

You can change the display mode and display the track number, the remaining time, etc.

while in playback or stop mode.

DISPLAY button

Press the DISPLAY button.

Each time you press the DISPLAY button, the display changes as shown below.

Track number

Song title

MY FAVOU

0

RIT E

001 02: 01

Album title

Elapsed time

Bit rate

5

Press the Jog lever.

The AVLS indication is displayed.

AVLS indication

REPEAT OFF

AVLS LIMIT

BEEP OFF

The volume is kept to a moderate level.

6

Press the MENU button.

The display returns to normal.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To cancel AVLS

Select NORM in step 4.

MY FAVOU

0

RIT

001 04: 18

E

R EM A IN

Remaining time of the current track

Number of remaining tracks*

MY FAVOU RIT E

008

ALL

0 54: 11

A

Total time remaining *

HAPP Y B RT HD

Song title*

(only while in play / pause mode)

When playing in repeat mode, “-----” appears instead of the number of remaining tracks and the total time remaining.

Locking the controls (Hold)

To prevent the controls from being accidentally operated when you carry the player, use this function.

Changing the settings of Memory Stick

Walkman

Jog lever

MENU button

HOLD switch

L

Slide the HOLD switch in the direction of the arrow.

No controls will be able to operate. (except the EJECT lever)

If you press buttons other than the Jog lever or the EJECT lever while the HOLD switch is

ON, HOLD appears in the display.

The current time appears in the display when you press the Jog lever while the HOLD switch is ON. (See page 24)

To release the Hold function

Slide the HOLD switch in the opposite direction of the arrow.

To turn off the beep sound (BEEP)

BEEP ON: a beep will sound to indicate that operation has been accepted.

BEEP OFF: no beep sound will be heard.

1

Press the MENU button.

The menu is displayed.

2

Select “BEEP” using the Jog lever.

AVLS NO RM

BEEP ON

LIGHT OFF

3

Press the Jog lever.

4

Select “OFF” using the Jog lever.

BEEP OFF

ON

5

Press the Jog lever.

6

Press the MENU button.

The display returns to normal.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To cancel the Beep function

Select ON in step 4.

continued

21

– 6 –

22

Changing the settings of Memory Stick

Walkman (continued)

To change the display backlight setting (LIGHT)

You can select from the following 3 settings.

Menu

OFF

Backlight mode

always off

ON

OPR turns on during operation* turns on for three seconds after each operation

* The battery life is shorter if ON is selected.

1

Press the MENU button.

The menu is displayed.

2

Select “LIGHT” using the Jog lever.

BEEP OFF

LIGHT OFF

CONTRAST

3

Press the Jog lever.

4

Select a backlight mode using the

Jog lever.

To adjust the LCD contrast (CONTRAST)

1

Press the MENU button.

The menu is displayed.

2

Select “CONTRAST” using the Jog lever.

LIGHT OFF

CONTRAST

TITLE JPN

3

Press the Jog lever.

4

Select the contrast using the Jog lever.

You can adjust between -5 and +5

5

CONTRAST

+1

Press the Jog lever.

6

Press the MENU button.

The display returns to normal.

OFF

LIGHT ON

OPR

5

Press the Jog lever.

6

Press the MENU button.

The display returns to normal.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To format the “Memory

Stick” (FORMAT)

If you need to format the “Memory Stick,” use this player.

If formatted, all data previously recorded on the “Memory Stick” will be erased. Be sure to check the data of the “Memory Stick” before formatting (data recorded using other devices will also be erased).

A commercially available “Memory Stick” is already formatted at the factory.

The supplied “Memory Stick” is also formatted.

Notes

• Be sure to connect the player to a power source with the AC power adaptor.

• You cannot use a “Memory Stick” that has been formatted using the computer.

1

Press the MENU button.

The menu is displayed.

2

Select “FORMAT” using the Jog lever.

TITLE JPN

FORMAT

DATE&TIME

3

Press the Jog lever.

4

Select “YES” using the Jog lever.

6

Press the Jog lever.

“FORMATTING” appears in the display, and the formatting of the “Memory

Stick” begins.

FORMAT TI NG

When formatting is finished,

“COMPLETE” appears in the display, and returns to the menu in step 2.

7

Press the MENU button.

The display returns to normal.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To cancel the formatting

Select “NO” in step 4 or press any button other than the Jog lever in step 5.

Notes

• You cannot format while playback or in pause

(“FORMAT” will not be displayed).

• If the erasure prevention switch of the “Memory

Stick” is ON, “LOCKED” appears in the display, and you cannot format the “Memory Stick.”

• Do not take out the “Memory Stick” or unplug the

AC power adaptor when “FORMATTING” is displayed.

FORMAT

N O

YE S

5

Press the Jog lever.

“FORMAT OK?” appears in the display.

FORMAT OK ?

continued

23 24

Changing the settings of Memory Stick

Walkman (continued)

To set the date and time

(DATE & TIME)

You can set the current date and time and display it. To play a music item with a playback period restriction (page 5), you need to set the date and time.

1

Press the MENU button.

The menu is displayed.

2

Select “DATE&TIME” using the Jog lever.

FORMAT

DATE&TIME

To switch between 24 hour display and

12 hour display

Press the DISPLAY button during the setting.

To exit from the Menu mode

Select [RETURN] in the menu or press the MENU button.

To display the current time

You can display the current time by any of the following ways.

• Press the Jog lever while the display is OFF and the HOLD switch is ON.

t

The current time is displayed for 3 seconds while the Jog lever is being pressed.

• Press the Jog lever while the display is ON and the

HOLD switch is ON.

t

The current time is displayed while the Jog lever is being pressed.

• Press the DISPLAY button for a while when the

HOLD switch is OFF.

t

The current time is displayed while the

DISPLAY button is being pressed.

3

Press the Jog lever.

A cursor appears under the year.

DATE&TIME

20 00

Y

1

M

1

0:00

D

4

Set the year using the Jog lever.

5

Press the Jog lever.

The cursor moves to the month.

DATE&TIME

20 00

Y

1

M

1

D

0:00

6

Do the same to set the month, day, hour and minutes, and then press the Jog lever.

7

Press the MENU button.

The display returns to normal.

qa

0

9

8

Advanced Operations

(OpenMG Jukebox)

Names and functions of the OpenMG

Jukebox window

1 2

3

4

5

7

6

1 Menu bar: for details on each menu items, see page 28.

2 Operation buttons: you can play or adjust the volume, etc.

3 Close button: quits the OpenMG Jukebox software. (You can also quit by clicking

[File]–[Quit])

4

Portable Player: opens the Portable Player window (page 27)

5 Edit My Select: opens the My Select window.

6 Song title list: displays the song titles listed in the selected album/Filter

7 Album title list: displays the album/Filter titles in the OpenMG Jukebox

8 You can choose to display the album list, the Filter, etc.

9 Internet: for using EMD services

0 Recorder: opens the OpenMG CD

Recorder window qa Playback mode buttons: you can set the shuffle mode, repeat mode, etc.

Portable Player window

When you connect Memory Stick Walkman to the computer, the Portable Player window appears in the display on the right side of the OpenMG Jukebox.

qs qd qf qg qh qj qk ql qs You can use these buttons to operate the

OpenMG Jukebox software (see page 26 for more information).

qd CHECK IN/OUT START (STOP) button: starts or stops the Check-In/Out qf Name of the connected portable player

(such as Memory Stick Walkman) qg

Memory space on the “Memory Stick” or memory used for audio files, and total memory capacity* qh RETURN button: closes the Portable

Player window qj Album title of the “Memory Stick” qk Displays the song titles recorded on the

“Memory Stick” ql

Check-In/Out buttons (to start Check-In/

Out, click the START button next)

* When using a 64MB “Memory Stick,” “61.8MB” appears in the display as the total memory capacity. This number is a result of subtracting memory for the system operation of Memory Stick

Walkman.

26 27

– 7 –

SECTION 2

DISASSEMBLY

Note : This set can be disassemble according to the following sequence.

Set

Lid, Battery Case Case Assy Main Board

LCD Block

HP Board, CN Board

Note : Follow the disassembly procedure in the numerical order given.

2-1. LID, BATTERY CASE

1

Move the stopper in the direction of

the arrow with a screwdriver or other means,

then push in the claw.

case

LCD unit

Note:Do not push the stopper downward.

The LCD unit may be damaged.

3

claw lid, battery case

5

claw

2

claw

4

claw

2 – 5

Use your fingernail to push the “lid, battery case” up.

8

lid, battery case

7

CN501

6

claws

– 8 –

2-2. LID ASSY (SERVICE), UPPER

Note : When removing the “lid assy (service), upper”, remove the parts in the following order as the claws are easy to be broken.

1

CN701

2

B1.7x9

9

Use your fingernail to push the “lid assy (service), upper” up.

Push the “lid assy (service), upper” or spread the case to detach the claw.

lid assy (service), upper case

4

Push the case.

8

claw

7

claw

6

claw

5

claw

4 – 7

Use your fingernail to push the “lid assy (service), upper” up.

– 9 –

3

Use your fingernail to

push the “lid assy (service), upper” up.

Note for installation

OK

LCD unit flexiblecable

LCD unit

LCD unit

LCD unit

Place the slag in the flexible cable under the LCD unit.

NG

Insert the memory stick and check for opening and closing of the shutter.

If NG, the memory stick shutter cannot be fully closed, which disallows the connector shutter to be opened.

When installing, adjust the knob (EJECT) to the claw on the eject mechanism.

2-3. MAIN BOARD

Note : When installing, fit the knob (HOLD) and switch (S806).

1

M 1.4

Note: Be careful no to damage

the claw of switch S806.

Push out a little.

3

5

CN706

6

MAIN board

4

CN707 knob (HOLD)

2

Spread a little.

knob

(EJECT)

MAIN BOARD

– 10 –

2-4. LCD BLOCK

4

claw

3

claw

7

LCD block assy

2

claw

6

5

CN702

8

MAIN board

1

Removal the solders.

2-5. HP BOARD, CN BOARD

1

screw

2

HP board

3

screw

4

CN board

– 11 –

SECTION 3

TEST MODE

3-1. GENERAL INFORMATION

In this set, the functions and audio capabilities can be checked by entering the TEST MODE.

3-5. OPERATIONS IN THE TEST MODE

Once the Test Mode is entered from the normal mode, the system will present the displays below.

3-2. TOOLS

1. Memory stick player NW-MS7

2. Test memory stick

Note: This test requires the memory stick for operational check.

Once created, the memory stick for test may be used for each test.

For information on how to create this stick, see

“3-6. Creating the Memory Stick for Operational Check.”

3-3. SETTING THE TEST MODE

1. Insert the MG memory stick into the main unit.

2. While holding down the x (STOP) key and the B (PLAY) key, push the RESET button. (Release the RESET button first.)

3-4. RELEASING THE TEST MODE

1. When the test mode is completed, push the RESET button.

BASSwa31SHUFu

The system will proceed to the next step each time the x (STOP) key is pressed.

test No. display test item display

STEP Test item

Test No.

Display

Test item display

6

7

8

9

A

B

2

3

4

0

1

5

-1 RAM test

LCDs all ON/all OFF

BEEP generation

Destination setting

Test ¢1

Test ¢1

1.¢1b

(Ver. No.)

Test ¢2 SEL SIMUKE

Test ¢3 E2P WRITE

Test ¢4 E2P CHECK

EEPROM check

Reference signal level

Test ¢5 SoundTest

Frequency characteristic

20 Hz (XP)

Frequency characteristic

20 kHz (XP)

Frequency characteristic

20 Hz (SP)

Frequency characteristic

20 kHz (SP)

Test ¢6

Test ¢7

Test ¢8

Test ¢9

SoundTest

SoundTest

SoundTest

SoundTest

De-Emphasis 5 kHz (XP)

Test ¢A SoundTest

De-Emphasis 16 kHz (XP)

Test ¢B SoundTest

Description of the test

Test MS playback track

The address and data buses are tested by reading/writing

32-bit data. (The ROM checksum is also checked in this step.)

The backlight turns on to indicate that this test is OK.

Check for unusual condition in any LCD segments and common signal. Visually check.

Continuously sounds BEEPs.

The destination is set by pressing the B (PLAY) KEY. (For example, For A t

B KEY t

For B t

B KEY t

For C)

(Do not operate)

(Do not operate)

The backlight turns off, 1 kHz (0 dB) reference in the test memory stick is played back, and the headphone output is 001 set to the reference output value (Vol. 23).

SP/20 Hz (0 dB) in the test memory stick is played back.

002

SP/20 kHz (0 dB) in the test memory stick is played back.

XP/20 Hz (0 dB) in the test memory stick is played back.

003

004

XP/20 kHz (0 dB) in the test memory stick is played back.

5 kHz (–4.53 dB) emphasis off in the test memory stick is played back.

16 kHz (–9.04 dB) emphasis off in the test memory stick is played back.

005

006

007

– 12 –

STEP Test item

Test No.

Display

Test item display

Description of the test

C

D

Channel balance (XP)

Channel separation

(L) IN > (R) OUT

Channel separation

Test ¢C

Test ¢D

SoundTest

SoundTest

1 kHz (0 dB) in the test memory stick is played back.

L: 1 kHz (0 dB) reference/R: mute in the test memory stick is played back (XP mode).

L: mute/R: 1 kHz (0 dB) reference in the test memory stick

E

F

(R) IN > (L) OUT

Noise level (XP)

Test ¢E SoundTest

Test ¢F SoundTest is played back (XP mode).

Mute signal in the test memory stick is played back.

10 Distortion factor (XP)

Test 1¢ SoundTest

1 kHz (0 dB) reference in the test memory stick is played back.

11 Maximum output (XP)

12 AVLS LEVEL (XP)

Test 11

Test 12

VOL MAX

AVLS ON

Vol. is set to MAX. (0 dB)

AVLS is set ON.

13 AVLS releasing (XP)

Test 13 AVLS OFF

AVLS is set OFF.

100 Hz reference in the test memory stick is played back

14 Vol. setting (XP)

Test 14 VOL

4¢dB and the headphone output is set to –40 dB (Vol. 03).

15 MEGA BASS 1 (XP)

Test 15 MEGA BASS 1

The mode is set to MEGA BASS 1 mode.

16 MEGA BASS 2 (XP)

Test 16 MEGA BASS 2

The mode is set to MEGA BASS 2 mode.

17 MEGA BASS releasing (XP)

Test 17 MEGA BASS OF

MEGA BASS is set OFF.

18

19

1A

BATT low voltage detection

BATT Reference voltage detection

Lo DC IN detection

1B Hi DC IN detection

Test 18

Test 18

Test 1A

Wait LowBatt

Wait Batt2

Wait LowDC

Test 1B Wait HighDC

When a low voltage (3.35 V or Less) condition is detected

(BATT), the backlight turns on.

1

Backlight off t

2

When the BATT voltage is at the reference voltage, the backlight turns on.

1

Backlight off t

2

When the AC adaptor voltage is found to be lower (4.65 V or Less), the backlight turns on.

1

Backlight off t

2

When the AC adaptor voltage is found to be lower, the backlight turns on. When the AC adaptor

1C

1D

1E

1F

20

STOP current

PLAY current (XP)

USB response check

Standby current

Setting initialization

Test 1C

Test 1D

Test 1E

Test 1F

Test 2¢

STOP

PLAY

USB

E2P INIT voltage is found to be higher (6.0 V or more), the backlight turns on.

1

Backlight off t

2

STOPPED state

The set is in PLAY mode 0.1 mW (Approx. 0.08 mW for vol.

11 and approx. 0.12 mW for vol. 12)

5 V is applied to Vbus and potential variations at D+/D– or crystal oscillations are verified for this check.

Forces the set to be in the sleeping state.

The destination information is set again and the volume,

BASS and other equipment setting information are initialized.

Returns to step 0.

Notes: 1. The RAM test in STEP-1 is performed just when the TEST MODE is entered.

2. SP mode: 105 kbps, XP mode: 132 kbps

3. Each track is played back once to playback the test MS in each step. The data is not played back continuously.

Test MS playback track

008

009

010

011

001

001

001

001

012

012

012

012

001

– 13 –

3-6. CREATING THE MEMORY STICK FOR

OPERATIONAL CHECK

Note: Once created, the memory stick for test may be used for each test.

3-6-1. TOOLS

1. MG memory stick MSG-32A or MSG-64A

2. Connecting adapter (1-418-764-21)

3. USB cable (1-791-785-11)

4. Open MG Jukebox CD ROM

5. Test CD YEDS-18 (3-702-101-01)

3-6-2. Activating the software

1. Mount the Open MG Jukebox CD ROM in the drive of a computer and install the software. (For more information, refer to This manual "Setup 3: Installing the OpenMG Jukebox software" on page 4.)

2. Connect the memory stick player NW-MS7 to the computer.

3-6-3. Recording the CD (to enter music data into the computer)

4. Mount the TEST CD (YEDS-18) in the CD-ROM drive.

5. Click the Recorder button at the upper left of the Open MG

Jukebox window. The MG CD Recorder screen appears to display the contents of the TEST CD. Press the Clear All button at the lower right of the window to uncheck all the track numbers.

Control bit rate

z

button to

USB cable

(supplied) to

3. Activate the Open MG Jukebox software.

(Double click the icon in the desktop.)

Recorder button Portable Player button

Clear All button

6. Setting the bit rate: Click Control and then Settings at the upper left section of the window. Click the Recording Setup tab in the setup dialog and select 132kbps from the dropdown list of ATRAC3 bit rates.

7. Enter the disc name and the artist name.

Disc: YEDS-18 132kbps-1

Artist: SONY

8. To select the recording track, check the following track numbers:

2, 3, 4, 6, 7, 8, 10, 12, 13

9. Press the z (record) button at the upper right of the window to record data.

10. Repeat the steps 5 through 9 with the following settings:

Bit rate: 132kbps

Disc: YEDS-18 132kbps-2

Artist: SONY

Recording track number: 2

11. Repeat the steps 5 through 9 with the following settings:

Bit rate: 105kbps

Disc: YEDS-18 105kbps

Artist: SONY

Recording track number: 3, 6

12. The following recording was made:

Album title Recorded TEST CD track numbers

YEDS-18 132kbps-1 2, 3, 4, 6, 7, 8, 10, 12, 13

YEDS-18 132kbps-2 2

YEDS-18 105kbps 3, 6

Note: Any music content on the same track can be checked out only once onto one memory stick in accordance with the

SDMI (Secure Digital Music Initiative) standard.

Therefore, record the data twice for the following settings: bit rate of 132kbps and recording track number of 2.

13. Once the recording is complete, terminate the Open MG CD

Recorder. ( Control and then Open MG CD Recorder Quit )

– 14 –

3-6-4. Checkout (to load music data to the memory stick)

14. Verify that the Portable Player screen is displayed at the right side of the Open MG Jukebox screen. (If not displayed, click

Portable Player .)

15. Click Original on the Open MG Jukebox screen to display the recorded contents of the CD.

Original button START button button

Portable Player window

(the music files inside the“Memory Stick” appear)

16. Repeat the following operations in the order of checkout:

Click the title.

r

Click button.

r

Click START button.

Checkout order

1

4

5

2

3

6

7

8

9

10

11

12

17. Complete.

13

2

8

10

7

4

TEST CD

Track number

2

3

6

3

6

12

Contents of test signals

1kHz, 0dB, L&R, 132kbps

20Hz, 0dB, L&R, 132kbps

20kHz, 0dB, L&R, 132kbps

1kHz, 0dB, L&R, 132kbps

20Hz, 0dB, L&R, 105kbps

5kHz, –4.53dB, L&R w/emphasis 132kbps

16kHz, –9.04dB, L&R w/emphasis 132kbps

1kHz, 0dB, L, 132kbps

1kHz, 0dB, L&R, 132kbps

1kHz, 0dB, R, 132kbps

Infinity Zero w/o emphasis, L&R, 132kbps

100Hz, 0dB, L&R, 132kbps

– 15 –

SECTION 4

DIAGRAMS

4-1. IC PIN DESCRIPTION

• IC701 HD64F7198RVDP16 (SYSTEM CONTROL)

Pin No.

Pin Name I/O

1

2

3

XCS5 F_XCS

XCS4 LCD_XCS

VCC

Pin Description

O

O

EEPROM chip select signal output terminal

LCD chip select signal output terminal

— Power supply terminal

XCS3 U_XCS

XCS2 SRAM_XCS

XCS1 S_XCS

CHARGE_LED

VSS

PA19 MS_INS

XRD

MS_BS

MS_DIO

MS_CLK

XWRLH S_XWRH

XWRLL S_XWRL

PA12 XWAIT

PA8 RTC_CE

PA4 RTC_CLK

PA0 RTC_SIO

TXD1

RXD1

VCC

VSS

TXD0 LCD_SDA

RXD0 LCD_SDA

VSS

VCC

PB17 G_XLAT

PB16

PB13

PB7 G_SCLK

PB6 G_SWDT

VSS

PC25 AU_PWR

PC24 PCON

PC23

PC22 S_CLKOFF

PC21 S_PWR

VCC

PC20

PC19

PC18 MS_PWR

VSS

A17 – A11

VSS

A10

VCC

A9 – A4

VCC

VSS

A3 – A0

32

33

34

35

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

8

9

10

11

6

7

4

5

44 – 50

51

52

53

54 – 59

60

61

62 – 65

40

41

42

43

36

37

38

39

O

O

O

O

USB chip select signal output terminal

S-RAM chip select signal output terminal

MG IC chip select signal output terminal

Battery charge LED signal output terminal

— Ground

I Memory stick insertion signal input terminal

O

O

Read signal output terminal

Memory stick interface byte cycle signal output terminal

I/O Memory stick interface data signal input/output terminal

O Memory stick interface clock signal output terminal

O

O

H side write signal output terminal

L side write signal output terminal

I

O

Wait signal input terminal

Real time clock chip enable signal output terminal

O Real time clock signal output terminal

I/O Real time clock serial data signal input/output terminal

O

I

Transceiver data signal output terminal Not used. (Open)

Receive data signal input terminal Not used. (Open)

— Power supply terminal

— Ground

O

I

LCD transceiver IIC data signal output terminal

LCD receive IIC data signal input terminal

— Ground

— Power supply terminal

O

O

O

O

ATRAC3 IC serial latch signal output terminal

Output port terminal Not used. (Open)

Output port terminal Not used. (Open)

ATRAC3 IC system clock signal output terminal

O ATRAC3 IC watch dog timer signal output terminal

— Ground

O

O

Audio power signal output terminal

System power control signal output terminal

O

O

Output port terminal Not used. (Open)

MG IC clock off signal output terminal

O MG IC power signal output terminal

— Power supply terminal

O

O

Output port terminal Not used. (Open)

Output port terminal Not used. (Open)

O Memory stick interface power signal output terminal

— Ground

O Address bus signal output terminal

— Ground

O Address bus signal output terminal

— Power supply terminal

O Address bus signal output terminal

— Power supply terminal

— Ground

O Address bus signal output terminal

– 16 –

D10 – D4

VSS

VCC

D3 – D0

VSS

MD0, MD1

VCC

EXTAL

VSS

XTAL

VCC

MD2, MD3

FWE

NMI

XRES

VSS

CKIO

VCC

XHSTBY

XWDTOVF

MD4, MD5

PLLVSS

PLLCAP1, 2

PLLVCC

RXD2 ST_DO

VSS

Pin Name

VCC

VSS

PD31 F_SO

PD30 F_SI

PD29 F_CLK

PD28 U_XRST

PD27 G_XRST

PD26 F_RST

PD25

VSS

PD24 LCD_XRST

SCK1

PD22 LCD_CLK

VCC

PD21 DA_XRST

PD20 FWE_CTRL

VSS

VCC

PD19 HP_MUTING

PD18 HP_BEEP

VSS

PD17 WKUP_MSK

PD16 S_XRST

D15 – D12

VCC

D11

VSS

96 – 102

103

104

105 – 108

109

110, 111

112

113

114

115

116

117, 118

119

120

121

122

123

124

125

126

127, 128

129

130, 131

132

133

134

85

86

87

88

89 – 92

93

94

95

81

82

83

84

77

78

79

80

Pin No.

66

67

68

73

74

75

76

69

70

71

72

I/O Pin Description

— Power supply terminal

— Ground

I EEPROM serial data signal input terminal

O EEPROM serial data signal output terminal

O EEPROM clock signal output terminal

O USB reset signal output terminal

O ATRAC3 IC reset signal output terminal

O EEPROM reset signal output terminal

O Output port terminal Not used. (Open)

— Ground

O LCD reset signal output terminal

O System clock signal output terminal Not used. (Open)

O LCD clock signal output terminal

— Power supply terminal

O DA reset signal output terminal

O Flash write enable control signal output terminal

— Ground

— Power supply terminal

O Headphone mutting signal output terminal

O Headphone beep signal output terminal

— Ground

O Wake up maskable signal output terminal

O MG IC reset signal output terminal

I/O Data bus signal input/output terminal

— Power supply terminal

I/O Data bus signal input/output terminal

— Ground

I/O Data bus signal input/output terminal

— Ground

— Power supply terminal

I/O Data bus signal input/output terminal

— Ground

I Mode setting input terminal

— Power supply terminal

I External clock signal input terminal

— Ground

O Crystal signal output terminal

— Power supply terminal

I Mode setting input terminal

I

I Flash write enable signal input terminal

Nonmaskable interruption signal input terminal

I Power on reset signal input terminal

— Ground

I

I

I

I

I/O System clock signal input/output terminal Not used. (Open)

— Power supply terminal

I Hardware standby signal input terminal

O Watch dog timer over flow signal output terminal Not used. (Open)

Mode setting input terminal

PLL ground

PLL capacitor input terminal

PLL power supply terminal

I ST Receive data signal input terminal RXD2: Not used.

— Ground

– 17 –

Pin Name

XTAL32

EXTAL32

VCC

TXD2 ST_DI

SCK2

VSS

CK

VCC

VSS

PE12 DA_ML

PE13 DA_MC

XIRQ6

PE15 DA_MD

XIRQ0 S_XIRQ

PE17 HP_BBON

PE18 U_PWR

XIRQ3 MS_EJ

VSS

XIRQ4

XIRQ5

PE22 LCD_BL

XIRQ7 U_XIRQ

U_XDACK

PF2 BATTSW_OPEN

U_XDREQ

S_XDACK

VCC

PF6 HP_BB1/2

S_XDREQ

VSS

AVSS

PI7 STOP

PI6

PI5

PI4 HIDC

AN3 AN_DCV

PI2 BATT

AN1 AN_KEY

PI0 AN_BATTV

PH1 JOG

PH0 HOLD

AVCC

158

159

160

161

154

155

156

157

150

151

152

153

146

147

148

149

Pin No.

135

136

137

142

143

144

145

138

139

140

141

170

171

172

173

174

175

176

166

167

168

169

162

163

164

165

I/O Pin Description

O

I

Sub clock signal output terminal Not used. (Open)

Sub clock signal input terminal

— Power supply terminal

O

O

ST transceiver data signal output terminal TXD2: Not used.

System clock signal output terminal Not used. (Open)

— Ground

O System clock signal output terminal

— Power supply terminal

— Ground

O

O

DA latch signal output terminal

DA clock signal output terminal

I

O

I

O

Interruption request signal input terminal Not used. (Open)

DA data signal output terminal

MG IC Interruption request signal input terminal

Headphone bus boost ON signal output terminal

O

I

USB power signal output terminal

Memory stick eject signal input terminal

— Ground

I Interruption request signal input terminal Not used. (Open)

I

O

I

I Interruption request signal input terminal Not used. (Open)

LCD back light signal input terminal

USB interruption request signal input terminal

USB DMAC transfer strobe signal output terminal

O

I

Battery open signal output terminal

USB DMAC transfer request signal input terminal

O MG IC DMAC transfer strobe signal output terminal

— Power supply terminal

I

I

I

I

I

I

I

I

I

I

I

O

I

Headphone bus boost 1/2 switch signal output terminal

MG IC DMAC transfer request signal input terminal

— Ground

— Analog ground

STOP key signal input terminal

Input port terminal

Input port terminal

HIGH DC input detection signal input terminal

DC voltage signal input terminal

Battery signal input terminal

Key signal input terminal

Battery voltage signal input terminal

JOG PLAY/PAUSE key signal input terminal

HOLD key signal input terminal

Analog power supply input terminal

– 18 –

NW-MS7

4-2. BLOCK DIAGRAM — AUDIO SECTION (1/2) —

BATTERY

CHARGER

(1/2)

USB D-

USB D+

3

D-

4

D+

USB

TRANSCEIVER

USB VCC

+3.3V

X704

12MHz

6

5

TR ON

VBUS

14

13

XIN

XOUT

USB

PERIPHERAL

CIRCUIT

CLOCK

CONTROL

(OSCILLATOR/

PLL)

UNIVERSAL SERIAL BUS DEVICE CONTROL

IC704

SERIAL

INTERFACE

ENGINE

DEVICE

CONTROL

UNIT

END POINT

BUFFER

(3k BYTE FIFO)

TRST

8

RESET

46

D0-D15

A1-A6

CPU

REGISTER

DACK

48

DREQ

47

CS

45

INT

42

RD

43

WR

44

D0-D15

16

A1-A6

6

A0-A16

25-18,8-1,48

A1-A17

17

S-RAM

IC708

R/W

11

XLB 15

4

OUT

INVERTER

IC711

XWRL

XWRH

2

1

4

OUT

INVERTER

IC712

XWRL

XRD

2

1

4

OUT

INVERTER

IC713

XWRH

XRD

2

1

I/O1-I/O16

29-36,38-45

D0-D15

16

XCE1 XOE

26 28

XUB

14

EJECT

MECHANISM

BLOCK

BS

DIO

INS

SCLK

04

18

A0-A17

65-62,59-54,52,50-44

A0-A17

11 MS BS

12

MS DIO

9

13

PA19 MS INS

MS CLK

115 XTAL

X701

4MHz

113 EXTAL

D0-D15

16

108-105,102-96,94,92-89

D0-D15

5 10

SYSTEM CONTROL

IC701(1/3)

14 15 156 4 159 157 71 1 70 73 69

1

2

6

XCS

XSCK

RESET

3

DI

INSTRUCTION

REGISTER

INSTRUCTION

DECODE

CONTROL

&

CLOCK

GENERATION

EEPROM

IC705

ADD

BUFFER

/DECODER

EEPROM

DATA

REGISTER

DO

4

68

8

16

1

2

3

4

5

1

(Page

21)

• SIGNAL PATH

: DIGITAL

– 19 – – 20 –

NW-MS7

4-3. BLOCK DIAGRAM — AUDIO SECTION (2/2) —

MAGIC GATE IC

IC702

DES

CONTROL

FIFO0

FIFO1

16

ATRAC

INTERFACE

16

48 49 45 43

X702

22.5792MHz

CLOCK

GENERATOR

FS512F

65

LRCK

51

XBCK

52

ACLK

58

ACDO

62

XABS

61

ACDI

59

XARQ

64

CPU INTERFACE

1

(Page

20)

1

2

3

4

5

5 2 3

AB0-AB7

108,107,105,104,

102,101,99,98

A0-A7

8

97

DB0-DB15

93,92,90,89,87,86,82,

80,77,76,74,73,71-68

D0-D15

16

6 8 9 11 13

37 6 163 160 148 88

15

EXTAL

33

DODT

38

LRCK

BCK

36

AUDIO

INTERFACE

25

ACLK

ACDI

28

XABS

29

ACDO

31

XARQ

32

ATRAC

DATA

INTERFACE

MICRO

COMPUTER

INTERFACE

ATRAC3 ENCODER/DECODER

IC703

CLOCK

GENERATOR

&

RESET

CIRCUIT

DSP CORE

PROGRAM

ROM

DATA

RAM

&

ROM

20 23 24 19

31 32 28

X706

32.768kHz

2

XIN

3

XOUT

OSCILLATION

CIRCUIT

REALTIME CLOCK

IC706

FREQUENCY

DIVISION,

TIMING

PRODUCTION

INT

REGISTER

1

XINT

COMPARATOR

SERIAL

INTERFACE

SIO

7

XSCK

CS

6

5

72

D/A CONVERTOR PROCESSOR

IC301

1

XTI

CLOCK

MANAGER

6

5

4

BCKIN

DIN

LRCIN

SERIAL

INPUT

INTERFACE

MODE

CONTROL

18 17 16

8-TIMES

OVER •

SAMPLING

DIGITAL

FILTER

(MULTI

FUNCTION)

MULTI-LEVEL

MODULATOR

CR LPF

AMP

VOUTL

12

VOUTR

9

RESET

15

144 145 147 80 84 149

HEADPHONE AMP

IC302

22

21

17

INA

INB

MTSW

16

BSTSW

ADD

VREF

PWA

VREF

12

LPF1

BSTNF1

11

10

LPF2

9

BST

OUTA

2

OUTB

4

PWB

BSTNF2

8

MT

SW

BST

SW

BEEPOUTA

BEEPOUTB

24

23

BEEP

BEEPIN

15

J303 i

BB1/2

SWITCH

Q301

BEEP

SWITCH

Q304

85

162

17 18 19

SYSTEM CONTROL

IC701(2/3)

04

• SIGNAL PATH

: DIGITAL

: ANALOG

– 21 – – 22 –

4-4. BLOCK DIAGRAM — POWER SUPPLY SECTION —

XIRQ3 MS EJ 151

PH0 HOLD 175

PH1 JOG 174

PI7 STOP 166

AN1 AN KEY 172

S806

HOLD

EJECT

DETECTOR

Q709

D801 D802

PD17 WKUP MSK 87

NMI 120

PE18 U PWR 150

PC24 PCON 35

VOLUME

S801,802

DISPLAY/

MENU

S803,804 x

S805

WAKE UP MASK SWITCH

Q803

KEY

SWITCH

Q801

WAKE UP

SWITCH

Q802

5

2

PWM/PFM CONTROL,SWITCHING REGULATOR

IC506

EXT

VOUT

PWM

CONTROL

CIRCUIT

SOFT

START

CIRCUIT

ON/OFF

1

PI0 AN BATTV 173

AN3 AN DCV 170

SYSTEM CONTROL

IC701 (3/3)

VCC

+3.3V

HPVCC

+3V

RIPPLE

FILTER

Q302,303

PC25 AU PWR 34

+3.3V

3

VOUT

RESET

IC714

VIN

2

AU-POWER

SWITCH

Q305

IC703 POWER

SWITCH

Q705,715

D704

XRES 121

PI2 BATT 171

PC18 MS PWR 42

+3.3V

MS-POWER

SWITCH

Q703,713

PF2 BATTSW OPEN 158

PC21 S PWR

38

PI4 HIDC

169

PD24 LCD XRST 76

XCS4 LCD XCS 2

PD22 LCD CLK 78

TXD0 LCD SDA

24

RXD0 LCD SDA 25

PE22 LCD BL 155

CHARGE LED 7

TXD2 ST DI 138

RXD2 133

+3.3V

IC702 POWER

SWITCH

Q701,711

RST

CS

SCL

SDA

LIQUID

CRYSTAL

DISPLAY

PANEL

LCD701

BACK LIGHT

ON/OFF SWITCH

Q601

READY

DATA O2S

DATA S2O

BATTERY

CHARGER

(2/2)

DC IN

USB VCC

VCC

VCI

LCD BACK LIGHT UNIT

S701

(EJECT)

Q804

JOG PLAY/PAUSE

WAKE UP

SWITCH

D807

JOG +

T

1

JOG -

4

C

S807

(FUNCTION)

D703

2

VIN

+3.3V REGULATOR

IC707

VOLTAGE

REFERENCE

OUTPUT

CONTROL

CURRENT

LIMIT

CE

3

VOUT

5

S702

(RESET)

4

EXT

3

VOUT

5

VIN

PWM CONTROL,SWITCHING REGULATOR

IC505

PWM CONTROL,

PWM/PFM SWITCH

CONTROL CIRCUIT

REFERENCE

VOLTAGE

SUPPLY

(SOFT START)

ON/XOFF

1

D509

D508

PCON

SWITCH

Q511

L502

PCON

SWITCH

Q512

SWITCHING

Q506-508

SWITCHING

Q505

L501

SWITCHING

Q504

D503 D512

DC IN/BATTERY

DETECT SWITCH

Q509

3.2V VOLTAGE DETECTOR

IC507

1

OUT VDD

2

D502

3.5V VOLTAGE DETECTOR

IC508

1

OUT VDD

2

3

+3V REGULATOR

VOUT

AVCC

+3V

IC710

VIN

2

D702

D701

USB

POWER

SWITCH

Q702,708

+3.3V

USB VCC

+3.3V

+3.3V REGULATOR

IC502

VOLTAGE

REFERENCE

3

CE

5

VOUT

OUTPUT

CONTROL

2

CURRENT

LIMIT

D506

BATTERY

OPEN

SWITCH

Q503

D507

CHARGE

SWITCH

Q502

CHARGE

RECHARGEABLE

BATTERY

(LITHIUM-ION)

DC IN 3.7V

D505

D504

CHARGE

CONTROL

Q501

7

8

LITHIUM-ION BATTERY CHARGE CONTROL

IC503

CEL EXT

CONSTANT

VOLTAGE

CONTROL

CS

CONSTANT

CURRENT

CONTROL

6

LOW

VOLTAGE

DETECTION

3

SW2

4

5

SW1

VCC

5.6V VOLTAGE DETECTOR

IC504

2

VDD OUT

1

HIDC

SWITCH

Q510

04

– 23 – – 24 –

NW-MS7

NW-MS7

4-5. PRINTED WIRING BOARD — MAIN BOARD —

1 2 3

Lead layout of conventional IC CSP (chip size package)

– 25 –

4 5

A

B

C

CN

BOARD

CN901

(Page 37)

1

D

E

R739

04

MAIN BOARD (COMPONENT SIDE)

5

IC706

R744

C757

R725

R737

8

4

1

R721

CN706

24

23

20

19

16

15

6

2

10

9

5

1

R715

R742

R741

R735

JC703

C746

JC711

C732

C729

C761

IC702

12

13

15

10

20

24

25

5 1

48

45

IC704

30

C721

40

37

35 36

IC701

R734

F

Comon note on Printed Wiring Boards:

• f

: internal component.

: Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:

Pattern face side: Parts on the pattern face side seen from

(Conductor Side) the pattern face are indicated.

Parts face side: Parts on the parts face side seen from

(Component Side) the parts face are indicated.

• Note for replacing the parts of the main board:

IC702 and IC705 should be replaced at the same time.

Main board is six-layer printed board.

However, the patterns of layers 2 to 5 have not been included in this diagrams.

*

IC701, 702 and 703 on main board are not replaceable.

• Lead Layouts

surface

6 7 8 9 10 11 12 13

HP

BOARD

CN705

(Page 37)

2

R732

C717

JC769

C772

C774

R704

IC703

C716

1

CN501

5 7

RECHARGEABLE

BATTERY

(LITHIUM-ION)

DC IN 3.7V

R722

C700

JC757

4

IC504

3

C752

C750

C745

JC758

1 2

4

IC503

1

5 8

R705 R703

10

20

1

C303

CN701

5 1

5

15

IC301

C304

C102

C302

C109

11 R101

10

R736 R109

R201 R209

C209

L301

G

Q508

S

D510

B

C

E

C504

3 2 1

IC505

4

D

5

R511

C104

C202

C204

C

Q506

B

R518

E

R519

10

6

2

CN707

20

16

C

B

19

15

9

5

1

C

E

B

Q507

E

R551

C

C

G

R552

R553

D

S

B

E

B

C

Q705

B E

R727

R757

D

Q715

G S

L707

C726

C550

C551

C409

R708

B

E

1

2

3

5

4

C

C728

C802

C406 C407

C801

R818

C405 C410

C

C800

C402 C404

C401 C403

R813

R812

B

E

D801

E

B

C

C

E

B

R809

R808

R816

C808

D511

C

D802

R821

R819

C806

R811

E

B

D807

1-675-321- 11

EJECT

MECHANISM

BLOCK

• Semiconductor Location

Ref. No.

D503

D510

D511

D801

D802

D807

IC301

IC503

IC504

IC505

IC701

IC702

IC703

IC704

IC706

Location

D-7

D-10

E-10

D-13

E-12

E-13

B-8

E-7

E-7

E-9

E-4

C-4

C-6

E-3

B-4

Ref. No.

Location

IC710 C-12

Q302

Q303

Q305

Q504

Q506

Q507

Q508

Q601

Q705

Q715

Q801

Q802

Q803

Q804

C-12

B-12

B-12

D-13

C-13

C-13

E-12

B-11

B-11

B-11

D-9

D-10

D-11

E-9

Comon note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in

and 1 /

4

W or less unless otherwise specified.

• % : indicates tolerance.

• f

: internal component.

C

: panel designation.

U

: B+ Line.

• Power voltage is dc 5.5 V and fed with regulated dc power supply from external power voltage jack.

• Voltages and waveforms are dc with respect to ground in playback mode.

: Impossible to measure

• Voltages are taken with a VOM (Input impedance 10 M

).

Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F

: ANALOG

J

: DIGITAL

*

IC701, 702 and 703 on main board are not replaceable.

• The voltages and Waveform of CSP (chip size package) cannot be measured, because its lead layout is different from that of conventional IC.

– 26 –

NW-MS7

• Refer to page 25 for Comon note on Printed Wiring Board.

14 13 12 11 10 9 8 7 6 5 4 3 2

LCD

BACK

LIGHT

UNIT

VOLUME

LCD701

LIQUID

CRYSTAL

DISPLAY

PANEL

S802

S801

04

MAIN BOARD (CONDUCTOR SIDE)

S802

R802 R803

S801

S804

MENU S804

C703

C741

5

IC705

8

4

1

CN702

R805

5

1

22

20

15

10

L703

IC508

3 2

4 1

R502

C513

C506

R517 R520

5

1 2

4

3

IC506

S803

C510

S805 x

S806

HOLD

OFF ON

S805

S G

Q709

D

S701

(EJECT)

D501

R523

R525

C

C509

E

B

L501

E

C

C508

B

C505

R516

C501

D

Q509

G S

S

D

G

FB502

R709

R740

D

Q713

G S

R550

C

Q703

B E

R707

L705

C701

R512

TP501

D507

TP502

1

2

4

3

C512

R510

4

5

D

R505

3

2

1

C

D512

E

B

S

G

1 2 3

R501

Q501

6 5 4

Q502

1 2 3

R508

6 5 4

C502

JC721

JC720

X701

JC759 C718

JC791

S803

DISPLAY

C705

C704

X706

C901

25

30

35

40

45

48

C748

R746

JC809

JC790

C758

IC708

FB701

C707

R701

R717

24

20

C756

C714

R731

5

R756

1

2

3 4

3

C737

2 1

3 2

R710

1

4

IC712

4

5

L708

IC711

5

C

E

B

R745

D

D702

S

G

C766

15

10

5

1

C706

C762

D701

D703

R706

1

2

3

C747

D704

1

B

5

4

E

D

Q708

G S

R714

R716

C

4

2 3

C731

1-675-321- 11

1

A

B

C

D

E

F

– 27 –

• Semiconductor Location

Ref. No.

D501

D502

D504

D505

D506

D507

D508

D509

D512

D701

D702

D703

D704

IC502

IC506

IC507

IC508

IC705

IC707

IC708

Location

C-9

D-7

D-2

C-2

D-2

E-3

C-10

C-7

E-6

D-7

D-7

C-8

C-6

D-7

D-11

C-7

C-11

B-12

D-2

D-5

Ref. No.

Location

IC711

IC712

IC713

IC714

C-3

C-3

C-3

E-2

Q501

Q502

Q503

Q505

Q509

Q510

Q511

Q512

Q701

Q702

Q703

Q708

Q709

Q711

Q713

B-2

D-2

B-6

E-2

B-8

C-2

B-7

E-7

E-7

D-7

E-10

B-9

D-7

C-10

C-9

– 28 –

NW-MS7

4-6. SCHEMATIC DIAGRAM — MAIN BOARD (1/4) — • Refer to page 41 for IC Block Diagrams and page 36 for Waveforms. • Refer to page 26 for Comon note on Schematic Diagram.

CSP (Chip Size Package)

(Page

39)

(Page 33)

CSP (Chip Size Package)

(Page 31)

– 29 –

• Note for replacing the parts of the main board:

IC702 and IC705 should be replaced at the same time.

– 30 –

(Page 35)

4-7. SCHEMATIC DIAGRAM — MAIN BOARD (2/4) — • Refer to page 41 for IC Block Diagrams and page 36 for Waveforms. • Refer to page 26 for Comon note on Schematic Diagram.

NW-MS7

(Page 35)

(Page 33)

(Page 30)

CSP (Chip Size Package)

– 31 – – 32 –

NW-MS7

4-8. SCHEMATIC DIAGRAM — MAIN BOARD (3/4) — • Refer to page 42 for IC Block Diagrams. • Refer to page 26 for Comon note on Schematic Diagram.

(Page 32)

(Page 35)

(Page 29)

– 33 – – 34 –

NW-MS7

4-9. SCHEMATIC DIAGRAM — MAIN BOARD (4/4) — • Refer to page 43 for IC Block Diagrams. • Refer to page 26 for Comon note on Schematic Diagram.

(Page 32)

(Page 30)

(Page 33)

(Page 32)

– 35 – – 36 –

(Page 39)

• Waveforms (MODE:PLAY)

1 20mV/div 50nsec/div

740mVp-p

12MHz

IC704 qf

(XIN)

2

20mV/div 20nsec/div

760mVp-p

3

22.5792MHz

IC702 rd (XTLI)

20mV/div 0.1

µ sec/div

780mVp-p

4

4MHz

IC701

<zzc>

(EXTAL)

20mV/div 20

µ sec/div

780mVp-p

32.768kHz

IC706

2

(XIN)

NW-MS7

4-10. PRINTED WIRING BOARDS — CN BOARD, HP BOARD —

1 2 3 4

A

CN BOARD (COMPONENT SIDE)

1 5 9 15 19 23

B

CN901

2 6 10 16 20 24

LF901

5 6 7

S807

(FUNCTION)

.

B X

M^

8

CN BOARD (CONDUCTOR SIDE)

9

S807

(PUSH)

C

T

3

4

2

1

C323

C324

C322

10

C

1

MAIN

BOARD

CN706

(Page 25)

04

1-675-323- 11

04

D

HP BOARD (COMPONENT SIDE)

E

J303 i

F

G

H

I

3

2

1

LF902

4

5

6

C301

E B

Q301

C

C316

R208 R108

C309

C306

7

6 5 1

24

10

12

IC302

13 15 18

20

19

C314

R105

R104

R204

R103

R203

C315

R222

1 5 9 15 19

CN705

B

E

C

R318

R317

2 6 10 16 20

1-675-32211

2

MAIN

BOARD

CN707

(Page 26)

FB912 FB911 FB909

22 20 15

CN902

10 5 1

BATTERY

CHARGER

04

1-675-323- 11

HP BOARD (CONDUCTOR SIDE)

R303

R304 R306

– 37 –

11

Note:When repair or replacing the

CN board, replace it with the

CN board, complete.

– 38 –

C310

12

S702

(RESET)

C313

1-675-32211

4-11. SCHEMATIC DIAGRAMS — CN BOARD, HP BOARD — • Refer to page 44 for IC Block Diagrams.

(Page 29)

(Page 36)

– 39 –

Note: When repair or replacing the

CN board, replace it with the

CN board, complete.

– 40 –

NW-MS7

4-12. IC BLOCK DIAGRAMS

IC703 CXD1858GA

DB4

DB3

DB2

DB1

DB0

TEST

VDD

VSS

XIRQ1

XIRQ0 10

XSLEEP 11

8

9

5

6

7

3

4

1

2

XSTOP 12

QO 13

QMON 14

EXTAL 15

XTAL 16

VDD 17

VSS 18

XRST

19

SCLK 20

VDD 21

VSS

SWDT

22

23

XLAT 24

ACLK 25

ACLK

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76

PROGRAM ROM DATA RAM & ROM

CLOCK GENERATOR

&

RESET CIRCUIT

MICRO-COMPUTER

INTERFACE

ATRAC DATA

INTERFACE

DSP CORE

AUDIO

INTERFACE

26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

75 VDD

74 VSS

73 XIORD

72 XDWR

71 XDRD

70

69

ADR0

ADR1

68

ADR2

67

ADR3

66

ADR4

65

ADR5

64 ADR6

63

ADR7

62

ADR8

61 VDD

60

VDD

59 VSS

58

VSS

57 ADR9

56 ADR10

55

54

53

ADR11

ADR12

ADR13

52

ADR14

51

ADR15

IN B 1

IN A 2

GND 3

IC711 – 713

TC7SH08FU-TE85R

5 VCC

4 OUT Y

IC704 M66290FP

48 47 46 45 44 43 42 41 40 39 38 37

VCC

GND

D

D+

VBUS

TR_ON

TEST1 7

TRST

TCK

TMS 10

8

9

5

6

3

4

TDI 11

TDO 12

1

2

USB

TRANSCEIVER

USB

PERIPHERAL

CIRCUIT

CLOCK

CONTROL

(OSCILLATOR/

PLL)

SERIAL

INTERFACE

ENGINE

DEVICE

CONTROL

UNIT

END POINT

BUFFER

(3k BYTE FIFO)

CPU

REGISTER

13 14 15 16 17 18 19 20 21 22 23 24

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

36 GND

35 VCC

34 D11

33 D10

32 D9

31 D8

30 D7

29 D6

28

D5

27

D4

26

D3

25 D2

IC710 S-81230SGUP-DQB-T1

1

REFERENCE

VOLTAGE

2 3

– 41 –

IC705 AK6417AM-E2

XCS 1 VREF

VPP

GENERATOR

XSCK 2

DI

3

INSTRUCTION

REGISTER

INSTRUCTION

DECODE

CONTROL

&

CLOCK

GENERATION

VPP SW

ADD

BUFFERS

DECODER

DATA

REGISTER

16

R/W AMPS

&

AUTO ERASE

16

EEPROM

16384BIT

1024 X 16

DO

4

8 VCC

7

RDY

6

5

RESET

GND

IC502, 707 XC62GR3312MR

VSS 1

VIN

2

CE 3

5 V OUT

CURRENT

LIMIT

VOLTAGE

REFERENCE

OUTPUT

CONTROL

4 NC

IC706 S-3511AE-FS

XINT

1

XIN

XOUT

2

3

VSS 4

SEC.

MIN.

HOUR WEEK DAY MONTH YEAR

COMPARATOR

CLOCK

PRODUCTION

CIRCUIT

OSCILLATION

CIRCUIT

INT

REGISTER

FREQUENCY

DIVISION,

TIMING

PRODUCTION

STATUS

REGISTER

POWER

SUPPLY

VOLTAGE

DETECTION

CIRCUIT

CONSTANT

VOLTAGE

CIRCUIT

SHIFT

REGISTER

SERIAL

INTERFACE

8

VDD

7

6

5

SIO

XSCK

CS

VSS 4

NC 3

IC714 PST3427UL

VREF

2 VIN

IC503 MM1438BWLE

8 7 6 5

CONSTANT

VOLTAGE

CONTROL

CONSTANT

CURRENT

CONTROL

LOW

VOLTAGE

DETECTION

1 2 3 4

1 OUT

– 42 –

IC504 S-80856ALNP-EEL-T2

NC 3 VREF

VSS 4

2 VDD

1 OUT

IC505 S-8520F33MC-BNS-T2

EXT 4

OSCILLATION

CIRCUIT

PWM CONTROL,

PWM/PFM SWITCH

CONTROL CIRCUIT

REFERENCE VOLTAGE

SUPPLY (SOFT START)

3 VOUT

2 VSS

VIN 5 1

ON/XOFF

IC506 S-8328B33MC-EWN-T2

VSS 4 3 NC

VREF

2 VOUT

EXT 5

PWM

CONTROL

CIRCUIT

SOFT

START

CIRCUIT

1 ON/XOFF

NC

3

VSS 4

IC507 PST3432UL

VREF 2 VDD

1 OUT

IC508 PST3346UL

NC

3 VREF 2 VDD

VSS 4 1 OUT

IC301 PCM1717T/2K

XTI

DGND

VDD

ZERO

1

LRCIN

DIN

BCKIN 6

2

3

4

5

7

OPEN DRAIN

D/C_R

8

VOUTR

9

AGND

10

BPZ-CONTROL

CR LPF

+AMP

DAC

POWER

SUPPLY

CLOCK/OSC MANAGER

SERIAL

INPUT

INTERFACE

MODE

CONTROL

20 XTO

19 CLKO

RESET

18 ML/MUTE

17 MC/DM1

16 MD/DM0

15 RSTB

14 MODE

8-TIMES OVER • SAMPLING

DIGITAL FILTER

(MULTI-FUNCTION)

MULTI-LEVEL

MODULATOR

MULTI-LEVEL

MODULATOR

DAC

CR LPF

+AMP

13 D/C_L

12 VOUTL

11 VCC

– 43 –

IC302 TA2131FL (EL)

MTTC

19

VCC

20

INB

21

18

PW

SW

17

MT

SW

16

BST

SW

15

BEEP

14 13

V REF

ADD

12

VREF

11 LPF1

10 BSTNF1

BST1

INA

22

9 LPF2

BEEPOUTB 23

BEEPOUTA 24

PW

A

PW

B

1 2 3 4

BST2

5

BST

AGC

6

8

7

BSTNF2

BSTOUT

– 44 –

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• Abbreviation

FR: French model.

26

6

27

8

5

SECTION 5

EXPLODED VIEWS

• Color Indication of Appearance Parts

Example :

KNOB, BALANCE (WHITE) ... (RED)

R R

Parts Color Cabinet’s Color

• Accessories and packing materials are given in the last of this parts list.

9

12

24

11

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

10

15

28

13

(including

22

)

14

3

2

4

30

8

16 17

20

31

19

18

23

22

1

25

29

8

21

7

5

6

7

8

9

Ref. No.

Part No.

1

1

2

3

4

Description Remark

X-3378-990-1 LID ASSY (SERVICE), UPPER (BLUE) (US)

X-3378-924-1 LID ASSY (SERVICE), UPPER (SILVER)

A-3328-732-A MECHANISM BLOCK ASSY, EJECT

4-225-880-01 SHEET, BLIND

3-375-114-91 SCREW

(EXCEPT US)

9

10

11

12

13

13

14

15

15

1-418-774-11 LCD UNIT

1-418-715-11 LIGHT UNIT, BACK

3-043-735-01 SHEET, INSULATING

3-348-998-91 SCREW (M1.4)

A-3323-395-A HP BOARD, COMPLETE (EXCEPT FR)

A-3323-524-A HP BOARD, COMPLETE (FR)

A-3323-397-A MAIN BOARD, COMPLETE

4-225-833-01 BUTTON (MENU)

4-225-828-01 BUTTON (VOL)

X-3378-991-1 CASE ASSY (SILVER) (EXCEPT US)

X-3378-993-1 CASE ASSY (BLUE) (US)

3-318-203-91 SCREW (B1.7X9), TAPPING

4-225-832-01 STOPPER (BATTERY CASE LID) (SILVER)

(EXCEPT US)

4-225-832-11 STOPPER (BATTERY CASE LID) (BLUE) (US)

– 45 –

29

30

31

24

25

26

27

28

20

21

22

22

23

Ref. No.

Part No.

16

17

18

19

19

Description

4-225-829-01 KNOB (EJECT)

4-225-834-01 BUTTON (STOP)

4-225-830-01 KNOB (HOLD)

Remark

4-225-831-01 SHUTTER (CONNECTOR) (SILVER) (EXCEPT US)

4-225-831-11 SHUTTER (CONNECTOR) (BLUE) (US)

4-226-063-01 SPRING (CONNECTOR), TORSION

A-3323-396-A CN BOARD, COMPLETE

4-225-826-01 LID, BATTERY CASE (SILVER) (EXCEPT US)

4-225-826-11 LID, BATTERY CASE (BLUE) (US)

1-756-046-11 BATTERY, LITHIUM ION

3-044-453-01 PACKING

3-044-454-01 CUSHION

3-045-987-01 SHEET (S), INSULATING

3-047-188-01 SPACER (1.4)

3-047-239-01 SPACER (0.6)

3-047-382-01 SHEET, ELECTROSTATIC

3-046-612-01 SPACER

3-047-824-01 SHEET, BRIDGE PREVENTION

CN HP

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS

All resistors are in ohms.

METAL:Metal-film resistor.

METAL OXIDE: Metal oxide-film resistor.

F:nonflammable

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

SECTION 6

ELECTRICAL PARTS LIST

• SEMICONDUCTORS

In each case, u : µ, for example: uA.. : µA..

uPA.. : µPA..

uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

• Abbreviation

HK : Hong Kong model

FR : French model

AUS : Australian model

CND : Canadian model

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

Ref. No.

Part No.

Description Remark Ref. No.

Part No.

A-3323-396-A CN BOARD, COMPLETE (When repair or replacing the CN board, replace it with the CN board, complete.)

*******************

*************************************************************

L401

L402

L403

Description

< JUMPER RESISTOR >

1-216-295-00 SHORT

1-216-295-00 SHORT

1-216-295-00 SHORT

0

0

0

< FILTER > A-3323-395-A HP BOARD, COMPLETE (EXCEPT FR)

A-3323-524-A HP BOARD, COMPLETE (FR)

*******************

< CAPACITOR >

LF902 1-239-996-11 FILTER, EMI

< TRANSISTOR >

C101

C103

C108

C201

1-127-569-11 TANTAL. CHIP

1-127-569-11 TANTAL. CHIP

1-115-467-11 CERAMIC CHIP

1-127-569-11 TANTAL. CHIP

100uF

100uF

0.22uF

100uF

C203 1-127-569-11 TANTAL. CHIP 100uF

C208 1-115-467-11 CERAMIC CHIP 0.22uF

C301 1-107-826-11 CERAMIC CHIP 0.1uF

C305 1-107-826-11 CERAMIC CHIP 0.1uF

C306 1-107-826-11 CERAMIC CHIP 0.1uF

C307 1-125-838-11 CERAMIC CHIP 2.2uF

20%

20%

10%

20%

20%

4V

4V

10V

4V

4V

10% 10V

10% 16V

10% 16V

10% 16V

10% 6.3V

Q301 8-729-048-04 FET 3LN01S-TL

Q304 8-729-928-34 TRANSISTOR DTA124EE-TL

< RESISTOR >

R103

R104

R104

1-218-965-11 RES-CHIP

1-218-956-11 RES-CHIP

1-208-671-11 METAL

10K

1.8K

330

C309

C310

C311

C312

1-109-935-11 TANTAL. CHIP

1-127-574-11 TANTAL. CHIP

1-127-574-11 TANTAL. CHIP

1-107-826-11 CERAMIC CHIP

4.7uF

22uF

22uF

0.1uF

C313 1-117-920-11 TANTAL. CHIP 10uF

C314 1-109-935-11 TANTAL. CHIP 4.7uF

C315 1-125-837-11 CERAMIC CHIP 1uF

C316 1-165-112-11 CERAMIC CHIP 0.33uF

C322 1-164-360-11 CERAMIC CHIP 0.1uF

C323 1-164-360-11 CERAMIC CHIP 0.1uF

20%

20%

20%

10%

20%

4V

6.3V

6.3V

16V

6.3V

20% 6.3V

10% 6.3V

20% 10V

16V

16V

R105 1-218-969-11 RES-CHIP

R108 1-218-929-11 RES-CHIP

R122 1-218-961-11 RES-CHIP

R203 1-218-965-11 RES-CHIP

R204 1-218-956-11 RES-CHIP

R204

R205

1-208-671-11 METAL

1-218-969-11 RES-CHIP

22K

10

4.7K

10K

1.8K

330

22K

C324 1-164-360-11 CERAMIC CHIP 0.1uF

C374 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C376

* CN705

J303

1-162-964-11 CERAMIC CHIP

< CONNECTOR >

0.001uF

10%

1-793-753-21 CONNECTOR, BOARD TO BOARD 20P

< IC >

IC302 8-759-598-15 IC TA2131FL-EL

< JACK >

1-779-881-11 JACK (i)

16V

50V

R208 1-218-929-11 RES-CHIP

R222 1-218-961-11 RES-CHIP

R302 1-218-969-11 RES-CHIP

R303 1-218-981-11 RES-CHIP

R304 1-218-953-11 RES-CHIP

R306 1-218-953-11 RES-CHIP

R307 1-218-990-11 SHORT

R317 1-218-977-11 RES-CHIP

R318 1-218-965-11 RES-CHIP

< SWITCH >

S702

S807

1-762-526-11 SWITCH (RESET)

10

4.7K

22K

220K

1K

1K

0

100K

10K

5%

5%

5%

Remark

1/16W

1/16W

1/16W

1-771-568-21 SWITCH, LEVER SLIDE (.•N X•>)

*************************************************************

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

(EXCEPT FR)

0.5% 1/16W

5%

5%

(FR)

1/16W

1/16W

5%

5%

5%

1/16W

1/16W

1/16W

(EXCEPT FR)

0.5% 1/16W

(FR)

5% 1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

– 46 –

MAIN

Ref. No.

Part No.

Description

A-3323-397-A MAIN BOARD, COMPLETE

*********************

< CAPACITOR >

Remark

C102 1-117-920-11 TANTAL. CHIP 10uF

C104 1-109-935-11 TANTAL. CHIP 4.7uF

20% 6.3V

20% 4V

C109 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V

C202 1-117-920-11 TANTAL. CHIP 10uF 20% 6.3V

C204 1-109-935-11 TANTAL. CHIP 4.7uF

20% 4V

C209 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V

C302 1-117-920-11 TANTAL. CHIP 10uF 20% 6.3V

C303 1-164-360-11 CERAMIC CHIP 0.1uF

C304 1-117-920-11 TANTAL. CHIP 10uF

C308 1-164-360-11 CERAMIC CHIP 0.1uF

20%

16V

6.3V

16V

C370 1-107-826-11 CERAMIC CHIP 0.1uF

C401 1-107-826-11 CERAMIC CHIP 0.1uF

C402 1-107-826-11 CERAMIC CHIP 0.1uF

C403 1-107-826-11 CERAMIC CHIP 0.1uF

C404 1-107-826-11 CERAMIC CHIP 0.1uF

C405 1-107-826-11 CERAMIC CHIP 0.1uF

C406 1-125-837-11 CERAMIC CHIP 1uF

C407 1-125-837-11 CERAMIC CHIP 1uF

C408 1-115-156-11 CERAMIC CHIP 1uF

C409 1-115-156-11 CERAMIC CHIP 1uF

C410 1-125-837-11 CERAMIC CHIP 1uF

C501 1-113-642-11 TANTAL. CHIP 47uF

C502 1-125-839-11 TANTAL. CHIP 47uF

C503 1-117-920-11 TANTAL. CHIP 10uF

C504 1-162-960-11 CERAMIC CHIP 220PF

C505 1-115-467-11 CERAMIC CHIP 0.22uF

C506 1-162-960-11 CERAMIC CHIP 220PF

C507 1-127-574-11 TANTAL. CHIP 22uF

C508 1-164-360-11 CERAMIC CHIP 0.1uF

C509 1-164-505-11 CERAMIC CHIP 2.2uF

10% 16V

10% 16V

10% 16V

10% 16V

10% 16V

10% 16V

10% 6.3V

10% 6.3V

10V

10V

10% 6.3V

20% 10V

20% 6.3V

20% 6.3V

10% 50V

10% 10V

10% 50V

20% 6.3V

16V

16V

C510 1-127-574-11 TANTAL. CHIP 22uF

C511 1-109-935-11 TANTAL. CHIP 4.7uF

C512 1-117-920-11 TANTAL. CHIP 10uF

C513 1-115-467-11 CERAMIC CHIP 0.22uF

C550 1-117-920-11 TANTAL. CHIP 10uF

C551 1-162-970-11 CERAMIC CHIP 0.01uF

C700 1-162-927-11 CERAMIC CHIP 100PF

C701 1-162-970-11 CERAMIC CHIP 0.01uF

C702 1-117-920-11 TANTAL. CHIP 10uF

C703 1-127-574-11 TANTAL. CHIP 22uF

C704 1-162-909-11 CERAMIC CHIP 4PF

C705 1-162-910-11 CERAMIC CHIP 5PF

C706 1-127-574-11 TANTAL. CHIP 22uF

C707 1-162-970-11 CERAMIC CHIP 0.01uF

C710 1-125-837-11 CERAMIC CHIP 1uF

C711 1-162-910-11 CERAMIC CHIP 5PF

C712 1-162-910-11 CERAMIC CHIP 5PF

C713 1-125-839-11 TANTAL. CHIP 47uF

C714 1-164-360-11 CERAMIC CHIP 0.1uF

C715 1-164-360-11 CERAMIC CHIP 0.1uF

20%

20%

20%

10%

20%

5%

20%

6.3V

6.3V

6.3V

10V

6.3V

10% 25V

50V

10% 25V

20% 6.3V

6.3V

0.25PF 50V

0.25PF 50V

20%

10%

10%

6.3V

25V

6.3V

0.25PF 50V

0.25PF 50V

20% 6.3V

16V

16V

C716 1-162-962-11 CERAMIC CHIP 470PF

C717 1-162-962-11 CERAMIC CHIP 470PF

10% 50V

10% 50V

C718 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C720 1-115-156-11 CERAMIC CHIP 1uF 10V

C721 1-115-156-11 CERAMIC CHIP 1uF 10V

Ref. No.

Part No.

Description

C723 1-164-360-11 CERAMIC CHIP 0.1uF

C724 1-107-826-11 CERAMIC CHIP 0.1uF

C726 1-125-839-11 TANTAL. CHIP 47uF

C728 1-164-360-11 CERAMIC CHIP 0.1uF

C729 1-107-826-11 CERAMIC CHIP 0.1uF

C730 1-117-920-11 TANTAL. CHIP 10uF

C731 1-125-839-11 TANTAL. CHIP 47uF

C732 1-164-360-11 CERAMIC CHIP 0.1uF

C735 1-164-360-11 CERAMIC CHIP 0.1uF

C736 1-164-360-11 CERAMIC CHIP 0.1uF

C737 1-164-360-11 CERAMIC CHIP 0.1uF

C741 1-125-837-11 CERAMIC CHIP 1uF

C742 1-162-970-11 CERAMIC CHIP 0.01uF

C743 1-125-839-11 TANTAL. CHIP 47uF

C745 1-115-156-11 CERAMIC CHIP 1uF

C746 1-164-360-11 CERAMIC CHIP 0.1uF

C747 1-117-920-11 TANTAL. CHIP 10uF

16V

20% 6.3V

C748 1-117-920-11 TANTAL. CHIP 10uF 20% 6.3V

C749 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C750 1-162-970-11 CERAMIC CHIP 0.01uF

10% 10V

C751 1-115-156-11 CERAMIC CHIP 1uF

C752 1-162-970-11 CERAMIC CHIP 0.01uF

C753 1-115-156-11 CERAMIC CHIP 1uF

C754 1-115-156-11 CERAMIC CHIP 1uF

C755 1-115-156-11 CERAMIC CHIP 1uF

10%

10V

10V

10V

10V

10V

C756 1-115-156-11 CERAMIC CHIP 1uF

C757 1-115-156-11 CERAMIC CHIP 1uF

C758 1-115-156-11 CERAMIC CHIP 1uF

C759 1-115-156-11 CERAMIC CHIP 1uF

C761 1-115-156-11 CERAMIC CHIP 1uF

C762 1-115-156-11 CERAMIC CHIP 1uF

C764 1-162-927-11 CERAMIC CHIP 100PF

C765 1-115-156-11 CERAMIC CHIP 1uF

C766 1-115-156-11 CERAMIC CHIP 1uF

C767 1-162-927-11 CERAMIC CHIP 100PF

5%

5%

10V

50V

10V

10V

50V

10V

10V

10V

10V

10V

Remark

16V

10% 16V

20% 6.3V

16V

10% 16V

20% 6.3V

20% 6.3V

16V

16V

16V

16V

10% 6.3V

10% 25V

20% 6.3V

10V

C770 1-115-156-11 CERAMIC CHIP 1uF

C771 1-117-720-11 CERAMIC CHIP 4.7uF

C772 1-115-156-11 CERAMIC CHIP 1uF

C773 1-115-156-11 CERAMIC CHIP 1uF

C774 1-115-156-11 CERAMIC CHIP 1uF

C778 1-107-826-11 CERAMIC CHIP 0.1uF

C779 1-162-919-11 CERAMIC CHIP 22PF

C780 1-162-919-11 CERAMIC CHIP 22PF

C800 1-107-826-11 CERAMIC CHIP 0.1uF

C801 1-125-837-11 CERAMIC CHIP 1uF

10V

10V

10V

10V

10V

10% 16V

5% 50V

5% 50V

10% 16V

10% 6.3V

C802 1-125-837-11 CERAMIC CHIP 1uF

C803 1-125-837-11 CERAMIC CHIP 1uF

C804 1-125-837-11 CERAMIC CHIP 1uF

C806 1-125-837-11 CERAMIC CHIP 1uF

C807 1-125-837-11 CERAMIC CHIP 1uF

10% 6.3V

10% 6.3V

10% 6.3V

10% 6.3V

10% 6.3V

C808 1-125-837-11 CERAMIC CHIP 1uF

C810 1-125-837-11 CERAMIC CHIP 1uF

10% 6.3V

10% 6.3V

C901 1-694-698-21 TERMINAL (ON BOARD CONTACT)

C902 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

C903 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

< CONNECTOR >

* CN501 1-793-749-21 CONNECTOR, FFC (LIF(NON-ZIF)) 7P

– 47 –

MAIN

Ref. No.

Part No.

Description

* CN701 1-793-751-21 CONNECTOR, FPC (ZIF) 10P

* CN702

1-793-750-21 CONNECTOR, FPC (ZIF) 22P

CN706 1-793-754-21 CONNECTOR, BOARD TO BOARD 24P

* CN707 1-793-752-21 CONNECTOR, BOARD TO BOARD 20P

< DIODE >

Remark Ref. No.

Part No.

JC702

JC703

Description

< JUMPER RESISTOR >

1-218-990-11 SHORT

1-218-990-11 SHORT

JC707 1-218-990-11 SHORT

JC711 1-218-990-11 SHORT

JC720 1-218-990-11 SHORT

0

0

0

0

0

D501 8-719-988-61 DIODE 1SS355TE-17

D502 8-719-988-82 DIODE RB715F

D503 8-719-988-61 DIODE 1SS355TE-17

D504 8-719-076-80 DIODE SBS004-TL

D505 8-719-988-61 DIODE 1SS355TE-17

JC721

JC742

JC754

JC757

1-218-965-11 RES-CHIP

1-218-929-11 RES-CHIP

1-218-990-11 SHORT

1-218-990-11 SHORT

JC758 1-218-977-11 RES-CHIP

10K

10

0

0

100K

D506 8-719-988-61 DIODE 1SS355TE-17

D507 8-719-076-80 DIODE SBS004-TL

D508 8-719-045-67 DIODE RB731U-T108

D509 8-719-988-61 DIODE 1SS355TE-17

D510 8-719-076-80 DIODE SBS004-TL

JC759

JC768

JC769

JC790

1-218-990-11 SHORT

1-218-953-11 RES-CHIP

1-218-990-11 SHORT

1-218-990-11 SHORT

JC791 1-218-990-11 SHORT

0

1K

0

0

0

D511 8-719-076-80 DIODE SBS004-TL

D512 8-719-076-80 DIODE SBS004-TL

D701 8-719-076-80 DIODE SBS004-TL

D702 8-719-076-80 DIODE SBS004-TL

D703 8-719-988-61 DIODE 1SS355TE-17

JC805

JC806

JC808

JC809

1-218-990-11 SHORT

1-218-990-11 SHORT

1-218-990-11 SHORT

1-218-990-11 SHORT

0

0

0

0

D704 8-719-988-61 DIODE 1SS355TE-17

D801 8-719-045-67 DIODE RB731U-T108

D802 8-719-045-67 DIODE RB731U-T108

D807 8-719-989-00 DIODE DA221

< JUMPER RESISTOR >

FB501 1-216-864-11 METAL CHIP

FB502 1-216-864-11 METAL CHIP

< IC >

0

0

FB701 1-414-760-21 FERRITE, EMI (SMD)

5%

5%

1/16W

1/16W

L301

L501

L502

L701

L702

L703

L705

L707

L708

< COIL >

1-469-535-21 INDUCTOR

1-419-384-21 INDUCTOR

1-412-030-11 INDUCTOR CHIP 22uH

1-469-535-21 INDUCTOR 10uH

1-469-535-21 INDUCTOR

1-469-535-21 INDUCTOR

1-469-535-21 INDUCTOR

1-469-535-21 INDUCTOR

1-469-535-21 INDUCTOR

< TRANSISTOR >

10uH

47uH

10uH

10uH

10uH

10uH

10uH

IC301 8-759-656-17 IC PCM1717T/2K

IC502 8-759-653-54 IC XC62GR3312MR

IC503 8-759-653-56 IC MM1438BWLE

IC504 8-759-658-23 IC S-80856ALNP-EEL-T2

IC505 8-759-653-58 IC S-8520F33MC-BNS-T2

IC506 8-759-653-57 IC S-8328B33MC-EWN-T2

IC507 8-759-658-25 IC PST3432UL

IC508 8-759-658-24 IC PST3335UL

@ IC701 8-759-677-59 IC HD64F7198RVBP16

@ IC702 X-3378-994-1 MG IC ASSY

Q302

Q303

Q305

Q501

Q502

8-729-051-23 TRANSISTOR 2SA2018TL

8-729-429-44 TRANSISTOR XP1501

8-729-048-04 FET 3LN01S-TL

8-729-051-22 TRANSISTOR CPH6351-TL

8-729-049-15 TRANSISTOR CPH6403-TL

Q503 8-729-048-04 FET 3LN01S-TL

5%

5%

5%

5%

Q504 8-729-043-94 TRANSISTOR CPH3106-PM-TL

Q505 8-729-043-94 TRANSISTOR CPH3106-PM-TL

Q506 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6 @ IC703 8-752-400-14 IC CXD1858GA

IC704 8-759-653-83 IC M66290FP

IC705 X-3378-994-1 MG IC ASSY

IC706 8-759-639-44 IC S-3511AE-FS

IC707 8-759-653-54 IC XC62GR3312MR

IC708 8-759-653-55 IC TC55V200FT1(YEL)

IC710 8-759-198-63 IC S-81230SG-QB-T1

IC711 8-759-196-96 IC TC7SH08FU-TE85R

IC712 8-759-196-96 IC TC7SH08FU-TE85R

IC713 8-759-196-96 IC TC7SH08FU-TE85R

IC714 8-759-658-22 IC PST3427UL

Q508

Q509

Q510

Q511

Q512

8-729-044-26 FET CPH3404-TL

8-729-048-04 FET 3LN01S-TL

8-729-928-81 TRANSISTOR DTC144EE

8-729-043-94 TRANSISTOR CPH3106-PM-TL

8-729-048-04 FET 3LN01S-TL

Q601 8-729-929-26 TRANSISTOR DTC114TE

Q701 8-729-051-23 TRANSISTOR 2SA2018TL

Q702 8-729-051-23 TRANSISTOR 2SA2018TL

Q703 8-729-051-23 TRANSISTOR 2SA2018TL

Q705 8-729-051-23 TRANSISTOR 2SA2018TL

Remark

1/16W

1/16W

1/16W

1/16W

Note for replacing the parts of the main board:

CXD3450GG (IC702) and AK6417AM-E2 (IC705) should be replaced at the same time.

– 48 –

@ Replacement of HD64F7198RVBP16 (IC701),

MG IC ASSY (IC702), CXD1858GA (IC703) used in this set requires a special tool. Therefore, it cannot be replaced.

Ref. No.

Part No.

Description

Q708 8-729-048-04 FET 3LN01S-TL

Q709 8-729-048-04 FET 3LN01S-TL

Q711 8-729-048-04 FET 3LN01S-TL

Q713 8-729-048-04 FET 3LN01S-TL

Q715 8-729-048-04 FET 3LN01S-TL

Q801 8-729-420-24 TRANSISTOR 2SB1218A-QRS

Q802 8-729-928-81 TRANSISTOR DTC144EE

Q803 8-729-928-81 TRANSISTOR DTC144EE

Q804 8-729-928-81 TRANSISTOR DTC144EE

< RESISTOR >

5%

5%

R101 1-218-953-11 RES-CHIP

R109 1-218-990-11 SHORT

R201 1-218-953-11 RES-CHIP

R209 1-218-990-11 SHORT

R301 1-218-929-11 RES-CHIP

R372 1-218-953-11 RES-CHIP

R404 1-218-943-11 RES-CHIP

R406 1-218-985-11 RES-CHIP

R501 1-218-977-11 RES-CHIP

R502 1-218-977-11 RES-CHIP

1K

0

1K

0

10

1K

150

470K

100K

100K

5%

5%

5%

5%

5%

5%

R503 1-208-931-11 METAL CHIP

R504 1-218-970-11 METAL CHIP

R505 1-218-943-11 RES-CHIP

R506 1-218-965-11 RES-CHIP

R508 1-218-965-11 RES-CHIP

R509 1-218-969-11 RES-CHIP

R510 1-218-965-11 RES-CHIP

R511 1-208-933-11 METAL CHIP

R512 1-218-978-11 METAL CHIP

R513 1-218-951-11 RES-CHIP

R514 1-208-671-11 METAL CHIP

R515 1-208-912-11 METAL CHIP

R516 1-218-956-11 RES-CHIP

R517 1-218-965-11 RES-CHIP

R518 1-218-961-11 RES-CHIP

R519 1-218-965-11 RES-CHIP

R520 1-218-961-11 RES-CHIP

R521 1-218-965-11 RES-CHIP

R523 1-218-977-11 RES-CHIP

R525 1-218-955-11 RES-CHIP

330

11K

1.8K

10K

4.7K

10K

4.7K

10K

100K

1.5K

68K

27K

150

10K

10K

22K

10K

82K

120K

680

Remark

0.5% 1/16W

0.5% 1/16W

5%

5%

5%

1/16W

1/16W

1/16W

5%

5%

1/16W

1/16W

0.5% 1/16W

0.5% 1/16W

5% 1/16W

5%

5%

5%

5%

5%

0.5% 1/16W

0.5% 1/16W

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

R526 1-243-227-11 RES-CHIP

R550 1-218-965-11 RES-CHIP

R551 1-218-965-11 RES-CHIP

R552 1-218-957-11 RES-CHIP

R553 1-218-981-11 RES-CHIP

R554 1-218-957-11 RES-CHIP

R700 1-218-953-11 RES-CHIP

R701 1-218-990-11 SHORT

R703 1-469-083-21 INDUCTOR

R704 1-218-990-11 SHORT

R705 1-469-083-21 INDUCTOR

R706 1-218-977-11 RES-CHIP

R707 1-218-977-11 RES-CHIP

0.33

10K

10K

2.2K

220K

2.2K

1K

0

600uH

0

600uH

100K

100K

1%

5%

5%

5%

5%

5%

5%

5%

5%

1/8W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Ref. No.

Part No.

Description

R708 1-218-965-11 RES-CHIP

R709 1-218-985-11 RES-CHIP

R710 1-218-977-11 RES-CHIP

R712 1-218-965-11 RES-CHIP

R713 1-218-989-11 RES-CHIP

R714 1-218-955-11 RES-CHIP

R715 1-218-951-11 RES-CHIP

R716 1-218-965-11 RES-CHIP

R717 1-218-977-11 RES-CHIP

R718 1-218-990-11 SHORT

R719 1-218-973-11 RES-CHIP

R720 1-218-977-11 RES-CHIP

R721 1-218-965-11 RES-CHIP

R722 1-220-803-81 RES-CHIP

R723 1-218-977-11 RES-CHIP

R724 1-218-965-11 RES-CHIP

R725 1-218-941-11 RES-CHIP

R726 1-218-965-11 RES-CHIP

R727 1-218-977-11 RES-CHIP

R729 1-218-985-11 RES-CHIP

R731 1-218-977-11 RES-CHIP

R732 1-218-929-11 RES-CHIP

R733 1-218-989-11 RES-CHIP

R734 1-218-953-11 RES-CHIP

R735 1-218-955-11 RES-CHIP

R736 1-218-953-11 RES-CHIP

R737 1-218-941-11 RES-CHIP

R739 1-218-965-11 RES-CHIP

R740 1-218-977-11 RES-CHIP

R741 1-218-934-11 RES-CHIP

R742 1-218-934-11 RES-CHIP

R743 1-218-990-11 SHORT

R744 1-218-977-11 RES-CHIP

R745 1-218-977-11 RES-CHIP

R746 1-218-929-11 RES-CHIP

R747 1-218-977-11 RES-CHIP

R748 1-218-977-11 RES-CHIP

R749 1-218-977-11 RES-CHIP

R754 1-218-965-11 RES-CHIP

R756 1-218-955-11 RES-CHIP

R757 1-218-955-11 RES-CHIP

R758 1-218-955-11 RES-CHIP

R771 1-218-965-11 RES-CHIP

R772 1-218-965-11 RES-CHIP

R801 1-218-965-11 RES-CHIP

R802 1-218-957-11 RES-CHIP

R803 1-218-953-11 RES-CHIP

R804 1-218-955-11 RES-CHIP

R805 1-218-957-11 RES-CHIP

R806 1-218-957-11 RES-CHIP

R807 1-218-985-11 RES-CHIP

R808 1-218-965-11 RES-CHIP

R809 1-218-965-11 RES-CHIP

27

0

100K

100K

10

100K

100K

100K

10K

1.5K

100K

10

1M

1K

1.5K

1K

100

10K

100K

27

47K

100K

10K

4.7

100K

10K

100

10K

100K

470K

10K

470K

100K

10K

1M

1.5K

680

10K

100K

0

1.5K

1.5K

10K

10K

10K

2.2K

1K

1.5K

2.2K

2.2K

470K

10K

10K

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

MAIN

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

– 49 –

NW-MS7

MAIN

Ref. No.

Part No.

Description

R810 1-218-985-11 RES-CHIP

R811 1-218-965-11 RES-CHIP

R812 1-218-977-11 RES-CHIP

R813 1-218-985-11 RES-CHIP

R814 1-218-965-11 RES-CHIP

R815 1-218-977-11 RES-CHIP

R816 1-218-977-11 RES-CHIP

R817 1-218-977-11 RES-CHIP

R818 1-218-977-11 RES-CHIP

R819 1-218-977-11 RES-CHIP

R820 1-218-977-11 RES-CHIP

R821 1-218-977-11 RES-CHIP

R826 1-218-977-11 RES-CHIP

R902 1-218-977-11 RES-CHIP

R999 1-218-965-11 RES-CHIP

< SWITCH >

S701 1-771-819-21 SWITCH, DETECTION (EJECT)

S801 1-692-088-11 SWITCH, TACTILE (VOLUME –)

S802 1-692-088-11 SWITCH, TACTILE (VOLUME +)

S803 1-692-088-11 SWITCH, TACTILE (DISPLAY)

S804 1-692-088-11 SWITCH, TACTILE (MENU)

S805 1-692-088-11 SWITCH, TACTILE (x)

S806 1-572-922-11 SWITCH, SLIDE (HOLD)

< VIBRATOR >

470K

10K

100K

470K

10K

100K

100K

100K

100K

100K

100K

100K

100K

100K

10K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

X701 1-781-646-21 VIBRATOR, CERAMIC (4MHz)

X702 1-781-755-21 VIBRATOR, CRYSTAL (22.5792MHz)

X704 1-781-651-21 VIBRATOR, CRYSTAL (12MHz)

X706 1-781-647-21 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

MISCELLANEOUS

***************

5

6

23

1-418-774-11 LCD UNIT

1-418-715-11 LIGHT UNIT, BACK

1-756-046-11 BATTERY, LITHIUM ION

*************************************************************

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Ref. No.

Part No.

Description

ACCESSORIES & PACKING MATERIALS

********************************

0 51

0 51

0

0

0

1-418-764-12 ADAPTOR, CONNECTION (EXCEPT US)

1-418-764-22 ADAPTOR, CONNECTION (US)

1-418-795-11 ADAPTOR, AC (AC-NW55NA) (US,CND)

1-418-796-11 ADAPTOR, AC (AEP,UK,FR,E,HK,AUS)

1-555-074-21 CORD, POWER (AUS)

Remark

0

0

52

53

1-769-608-11 CORD, POWER (AEP,FR,E)

1-783-374-11 CORD, POWER (UK,HK)

1-790-035-11 CORD (WITH PLUG) (EXTENSION)

1-792-440-11 CORD, CONNECTION (USB CABLE)

3-042-514-01 STRAP, NECK (US)

3-042-515-01 POUCH, CARRYING (EXCEPT US)

3-043-280-12 MANUAL, INSTRUCTION (ENGLISH) (EXCEPT FR)

3-043-280-21 MANUAL, INSTRUCTION (FRENCH) (CND,AEP,FR)

3-043-280-31 MANUAL, INSTRUCTION (GERMAN) (AEP)

3-043-280-41 MANUAL, INSTRUCTION

(TRADITIONAL CHINESE) (HK)

54

54

8-953-218-92 RECEIVER, EAR MDR-E838SP (EXCEPT US)

8-953-218-93 RECEIVER, EAR MDR-E838LP (US)

X-3378-704-1 SOFT ASSY, APPLICATION (US)

X-3379-284-1 SOFT ASSY, APPLICATION (AEP,UK,FR)

X-3379-285-1 SOFT ASSY, APPLICATION (E,HK,KR,AUS)

51

• DC/USB adaptor (1)

52

• Headphones extension cord (1)

53

• USB cable (1)

54

• Headphones (1)

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

Note) The designations of the parts in the figure are just as described in the instruction manual.

– 50 –

SERVICE MANUAL

Ver 1.2 2000. 09

NW-MS7

US Model

Canadian Model

AEP Model

UK Model

E Model

Australian Model

SUPPLEMENT-1

File this supplement with the service manual.

Subject : 1. Korean model Addition

2. Correction

1. Korean model addition

Korean model is added to the NW-MS7.

This supplement-1 describes only differences from the NW-MS7 E model.

When repairing NW-MS7 Korean model, please refer to NW-MS7 service manual (9-927-626-S) previously issued.

ACCESSORIES & PACKING MATERIALS

Page

50

E model

Ref. No.

Part No.

0

0

Description

1-418-796-11 ADAPTOR, AC (AC-NW55ML)

1-769-608-11 CORD, POWER

Remark

Korean model

Part No.

Description

1-418-796-21 ADAPTOR, AC (AC-NW55ML)

1-776-985-11 CORD, POWER

Remark

2. Correction

ACCESSORIES & PACKING MATERIALS

Page

50

INCORRECT

Ref. No.

Part No.

Description Remark

X-3378-704-1 SOFT ASSY, APPLICATION (US)

X-3379-284-1 SOFT ASSY, APPLICATION (EXCEPT US)

CORRECT

Part No.

Description

X-3378-704-1 SOFT ASSY, APPLICATION (US)

X-3379-284-1 SOFT ASSY, APPLICATION (AEP,UK,FR)

X-3379-285-1 SOFT ASSY, APPLICATION (E,HK,KR,AUS)

Remark

• Abbreviation

HK : Hong Kong model

FR : French model

KR : Korean model

AUS : Australian model

The components identified by mark 0 or dotted line with mark.

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

9-927-626-81

2000I0467-1

© 2000. 9

Sony Corporation

Audio Entertainment Group

General Engineering Dept.

SERVICE MANUAL

Ver 1.3 2000. 11

NW-MS7

US Model

Canadian Model

AEP Model

UK Model

E Model

Australian Model

SUPPLEMENT-2

File this supplement with the service manual.

Subject : 1. Correction

2. Change of Main Board

3. Change of Exploded View

4. Change of Electrical Parts List

(ECN-IRB00236)

Printed wiring board and schematic diagram of new type, and changed parts list are described in this supplement-2.

Refer to original service manual (9-927-626-S) previously issued for the other information.

When performing service and inspection, check the suffix of the part number of the main boards.

1. Correction

TEST MODE

Page

14

INCORRECT

3-6-1. TOOLS

2. Connecting adaptor (1-418-764-21)

3. USB cable (1-791-785-11)

• DISCRIMINATION

– MAIN BOARD (CONDUCTOR SIDE) –

CORRECT

2. Connecting adaptor (1-418-764-12 EXCEPT US)

2. Connecting adaptor (1-418-764-22 US)

3. USB cable (1-792-440-11)

IC708

MAIN Board Part No.

Former type : 1-675-321-11

New type : 1-675-321-12

9-927-626-84

2000K0466-1

© 2000. 11

Sony Corporation

Audio Entertainment Group

General Engineering Dept.

– 2 –

NW-MS7

2. PRINTED WIRING BOARD — MAIN BOARD —

1 2 3 4 5

A

B

C

CN

BOARD

CN901

(Page 37)

1

D

E

R739

04

MAIN BOARD (COMPONENT SIDE)

CN706

10

6

2

24

23

20

19

16

15

9

5

1

R715

R913

R910

B

E

E

C

R912

B

C

R742

R741

R735

JC703

C746

JC711

C732

C729

C761

5

IC706

R725

R737

8

4

1

*

IC702

12

13

15

10

20

24

25

5 1

48

45

IC704

30

C721

40

37

35 36

*

IC701

R734

F

Comon note on Printed Wiring Boards:

• f

: internal component.

: Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:

Pattern face side: Parts on the pattern face side seen from

(Conductor Side) the pattern face are indicated.

Parts face side: Parts on the parts face side seen from

(Component Side) the parts face are indicated.

• Note for replacing the parts of the main board:

IC702 and IC705 should be replaced at the same time.

• Main board is six-layer printed board.

However, the patterns of layers 2 to 5 have not been included in this diagrams.

*

Replacement of IC701, 702 and 703 on main board requires a special tool.

Lead Layouts

surface

Lead layout of conventional IC CSP (chip size package)

• ( ) : Page of service manual

– 3 –

6 7 8 9 10

(Page 37)

HP

BOARD

CN705

2

11 12 13

R732

C717

JC769

C772

C774

R704

*

C716

1

IC703

C700

JC757

CN501

5

RECHARGEABLE

BATTERY

7

(LITHIUM-ION)

DC IN 3.7V

R722

4

IC504

1 2

4

IC503

5

3

C752

C750

C745

JC758

R705

10

1

8

20

1

C303

R703

CN701

5 1

5

15

IC301

C304

C102

C302

C109

11 R101

10

R736 R109

R201 R209

C209

L301

G

Q508

S

D510

B

C

E

C504

3 2 1

IC505

4

D

5

R511

C104

C202

C204

C

Q506

B

R518

E

R519

D511

10

6

2

CN703

20

16

C

B

19

15

9

5

1

C

E

B

Q507

E

R551

C

C

G

R552

R553

D

S

B

E

B

C

Q705

B E

R727

D

R757

Q715

G S

L707

C726

C550

C551

C409

R708

B

E

1

2

3

5

4

C

C728

C802

C406 C407

C801

R818

C405 C410

C800

C402 C404

C401 C403

C

R813

B

R812

E

D801

E

B

C

C

E

B

R809

R808

R816

C808

D802

R821

R819

C806

R811

E

C

B

D807

1-675-321-

12

(12)

EJECT

MECHANISM

BLOCK

• Semiconductor Location

Ref. No.

Location

D503

D510

D511

D801

D802

D807

D-7

D-10

E-10

D-13

E-12

E-13

IC301

IC503

IC504

IC505

IC701

IC702

IC703

IC704

IC706

IC710

B-8

E-7

E-7

E-9

E-4

C-4

C-6

E-3

B-4

C-12

Ref. No.

Location

Q302

Q303

Q305

Q504

Q506

Q507

Q508

Q601

Q705

Q715

Q801

Q802

Q803

Q804

Q910

Q911

C-12

B-12

B-12

D-13

C-13

C-13

E-12

B-3

B-3

B-11

B-11

B-11

D-9

D-10

D-11

E-9

Comon note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in

and

1

/

4

W or less unless otherwise specified.

• % : indicates tolerance.

• f

: internal component.

C

: panel designation.

U

: B+ Line.

• Power voltage is dc 5.5 V and fed with regulated dc power supply from external power voltage jack.

• Voltages and waveforms are dc with respect to ground in playback mode.

: Impossible to measure

• Voltages are taken with a VOM (Input impedance 10 M

).

Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F

: ANALOG

J

: DIGITAL

*

Replacement of IC701, 702 and 703 on main board requires a special tool.

• The voltages and Waveform of CSP (chip size package) cannot be measured, because its lead layout is different from that of conventional IC.

• ( ) : Page of service manual

(( )) : Page of service manual supplement-2

– 4 –

NW-MS7

• Refer to page 3 for Comon note on Printed Wiring Board.

14 13 12 11 10 9 8 7 6 5 4 3 2

LCD

BACK

LIGHT

UNIT

VOLUME

LCD701

LIQUID

CRYSTAL

DISPLAY

PANEL

S802

S801

04

MAIN BOARD (CONDUCTOR SIDE)

S802

R802 R803

S801

S804

MENU S804

C703

C741

5

IC705

8

4

1

CN702

R805

5

1

22

20

15

10

L703

IC508

3 2

4 1

R502

C513

C506

R517 R520

5

1 2

4

3

IC506

S803

C510

S805 x

S806

HOLD

OFF ON

D910

S G

Q709

D

S701

(EJECT)

S805

D501

R523

R525

C

C509

E

B

L501

E

C

C508

B

C505

R516

C501

D

Q509

G S

S

D

G

R911

FB502

R512

C701

R709

R740

D

Q713

G S

R550

C

Q703

B E

R707

L705

TP501

D507

TP502

1

2

4

3

C512

R510

4

5

D

R505

3

2

1

C

D512

E

B

S

G

1 2 3

R501

Q501

6 5 4

Q502

1 2 3

R508

6 5 4

C502

JC721

JC720

X701

JC759

C718

S803

DISPLAY

C705

C704

X706

25

30

R782

C758

R746

JC809

C748

C901

RB701

C707

R783

FB701

R780

R717

RB702

R700

R701

R781

24

20

C756

RB703

C714

R731

1

2

3

5

R756

4

3

C737

2 1

3 2

R710

1

4

IC712

4

5

L708

IC711

5

C

E

B

R745

D

D702

S

G

35

40

45

48

JC790

IC708

C766

15

10

5

1

C706

C762

1

2

3

D701

D703

C747

D704

D

Q702

5

4

G S

D

Q708

G

S

R714

R716

1 4

2 3

1-675-321-

12

(12)

C731

1

A

B

C

D

E

F

– 5 – – 6 –

• Semiconductor Location

Ref. No.

D501

D502

D504

D505

D506

D507

D508

D509

D512

D701

D702

D703

D704

D910

IC502

IC506

IC507

IC508

IC705

IC707

Location

D-7

D-2

C-2

D-2

E-3

B-9

C-10

C-7

E-6

D-7

D-7

C-8

C-6

C-9

D-7

D-11

C-7

C-11

B-12

D-2

Ref. No.

Location

IC708

IC711

IC712

IC713

IC714

D-5

C-3

C-3

C-3

E-2

Q501

Q502

Q503

Q505

Q509

Q510

Q511

Q512

Q701

Q702

Q703

Q708

Q709

Q711

Q713

B-2

D-2

B-6

E-2

B-8

C-2

B-7

E-7

E-7

D-7

E-10

B-9

D-7

C-10

C-9

NW-MS7

3. SCHEMATIC DIAGRAM — MAIN BOARD (1/4) — • Refer to page 14 for Waveforms. • Refer to page 4 for Comon note on Schematic Diagram.

(Page

39)

((Page 11))

((Page 9))

• ( ) : Page of service manual

(( )) : Page of service manual supplement-2

– 7 –

((Page 13))

– 8 –

• Note for replacing the parts of the main board:

IC702 and IC705 should be replaced at the same time.

4. SCHEMATIC DIAGRAM — MAIN BOARD (2/4) — • Refer to page 14 for Waveforms. • Refer to page 4 for Comon note on Schematic Diagram.

NW-MS7

((Page 13))

((Page 11))

((Page

8))

• (( )) : Page of service manual supplement-2

– 9 – – 10 –

NW-MS7

5. SCHEMATIC DIAGRAM — MAIN BOARD (3/4) — • Refer to page 4 for Comon note on Schematic Diagram.

((Page

10))

((Page

13))

((Page 7))

• (( )) : Page of service manual supplement-2

– 11 – – 12 –

NW-MS7

6. SCHEMATIC DIAGRAM — MAIN BOARD (4/4) — • Refer to page 4 for Comon note on Schematic Diagram.

((Page 10))

((Page 8))

((Page 11))

((Page 10))

• ( ) : Page of service manual

(( )) : Page of service manual supplement-2

– 13 – – 14 –

(Page 39)

• Waveforms (MODE:PLAY)

1

20mV/div

50nsec/div

740mVp-p

12MHz

IC704 qf

(XIN)

2

20mV/div

20nsec/div

760mVp-p

3

22.5792MHz

IC702 rd

(XTLI)

20mV/div 0.1

µ sec/div

780mVp-p

4

20mV/div

4MHz

IC701

<zzc>

(EXTAL)

20

µ sec/div

780mVp-p

32.768kHz

IC706

2

(XIN)

7. EXPLODED VIEW

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• Abbreviation

FR: French model.

26

6

27

8

5

• Color Indication of Appearance Parts

Example :

KNOB, BALANCE (WHITE) ... (RED)

R R

Parts Color Cabinet’s Color

• Accessories and packing materials are given in the last of this parts list.

9

12

11

10

15

28

24

13

(including

22

)

14

3

2

4

30

8

16 17

20

31

19

18

23

22

1

25

29

8

21

7

7

8

5

6

9

Ref. No.

Part No.

1

1

2

3

4

Description

X-3378-924-1 LID ASSY (SERVICE), UPPER (SILVER)

Remark

X-3378-990-1 LID ASSY (SERVICE), UPPER (BLUE) (US)

A-3328-732-A MECHANISM BLOCK ASSY, EJECT

4-225-880-01 SHEET, BLIND

3-375-114-91 SCREW

(EXCEPT US)

Ref. No.

Part No.

16

17

18

19

19

Description

4-225-829-01 KNOB (EJECT)

4-225-834-01 BUTTON (STOP)

4-225-830-01 KNOB (HOLD)

Remark

4-225-831-01 SHUTTER (CONNECTOR) (SILVER) (EXCEPT US)

4-225-831-11 SHUTTER (CONNECTOR) (BLUE) (US)

1-418-774-11 LCD UNIT

1-418-715-11 LIGHT UNIT, BACK

3-043-735-01 SHEET, INSULATING

3-348-998-41 SCREW (M1.4X3), TAPPING, PAN

A-3323-395-A HP BOARD, COMPLETE (EXCEPT FR)

20

21

22

22

23

4-226-063-01 SPRING (CONNECTOR), TORSION

A-3323-396-A CN BOARD, COMPLETE

4-225-826-01 LID, BATTERY CASE (SILVER) (EXCEPT US)

4-225-826-11 LID, BATTERY CASE (BLUE) (US)

1-756-046-11 BATTERY, LITHIUM ION

9

10

11

12

13

A-3323-524-A HP BOARD, COMPLETE (FR)

A-3323-397-A MAIN BOARD, COMPLETE

4-225-833-01 BUTTON (MENU)

4-225-828-01 BUTTON (VOL)

X-3378-991-1 CASE ASSY (SILVER) (EXCEPT US)

24

25

26

27

28

3-044-452-01 PACKING

3-044-454-01 CUSHION

3-045-987-01 SHEET (S), INSULATING

3-047-188-01 SPACER (1.4)

3-047-239-01 SPACER (0.6)

13

14

15

15

X-3378-993-1 CASE ASSY (BLUE) (US)

3-318-203-91 SCREW (B1.7X9), TAPPING

4-225-832-01 STOPPER (BATTERY CASE LID) (SILVER)

(EXCEPT US)

4-225-832-11 STOPPER (BATTERY CASE LID) (BLUE) (US)

29

30

31

3-047-382-01 SHEET, ELECTROSTATIC

3-046-612-01 SPACER

3-047-824-01 SHEET, BRIDGE PREVENTIOH

– 15 –

MAIN

8. ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS

All resistors are in ohms.

METAL:Metal-film resistor.

METAL OXIDE: Metal oxide-film resistor.

F:nonflammable

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

Ref. No.

Part No.

Description

A-3323-397-A MAIN BOARD, COMPLETE

*********************

3-046-570-01 SHEET, SHIELD

• SEMICONDUCTORS

In each case, u : µ, for example: uA.. : µA..

uPA.. : µPA..

uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

• Abbreviation

HK : Hong Kong model

FR : French model

AUS : Australian model

CND : Canadian model

Remark Ref. No.

C703

C704

C705

C706

C707

Part No.

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

Description

1-127-574-11 TANTAL. CHIP

1-162-909-11 CERAMIC CHIP

1-162-910-11 CERAMIC CHIP

1-127-574-11 TANTAL. CHIP

1-162-970-11 CERAMIC CHIP

22uF

4PF

5PF

22uF

0.01uF

Remark

20% 6.3V

0.25PF 50V

0.25PF 50V

20% 6.3V

10% 25V

< CAPACITOR >

C102

C104

C109

C202

1-117-920-11 TANTAL. CHIP

1-109-935-11 TANTAL. CHIP

1-162-977-11 CERAMIC CHIP

1-117-920-11 TANTAL. CHIP

C204 1-109-935-11 TANTAL. CHIP

10uF

4.7uF

0.0018uF 10%

10uF

4.7uF

20%

20%

20%

6.3V

4V

50V

6.3V

20% 4V

C710

C711

C712

C713

C714

1-125-837-11 CERAMIC CHIP 1uF

1-162-910-11 CERAMIC CHIP 5PF

1-162-919-11 CERAMIC CHIP 22PF

1-125-839-11 TANTAL. CHIP 47uF

1-164-360-11 CERAMIC CHIP 0.1uF

10% 6.3V

0.25PF 50V

5% 50V

20% 6.3V

16V

C209

C302

1-162-977-11 CERAMIC CHIP

1-117-920-11 TANTAL. CHIP

0.0018uF 10%

10uF

C303 1-164-360-11 CERAMIC CHIP 0.1uF

C304 1-117-920-11 TANTAL. CHIP 10uF

C308 1-164-360-11 CERAMIC CHIP 0.1uF

20%

20%

50V

6.3V

16V

6.3V

16V

C715

C716

C717

C718

C720

1-164-360-11 CERAMIC CHIP 0.1uF

1-162-962-11 CERAMIC CHIP 470PF

16V

10% 50V

1-162-962-11 CERAMIC CHIP 470PF 10% 50V

1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

1-115-156-11 CERAMIC CHIP 1uF 10V

C370

C401

C402

C403

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

0.1uF

0.1uF

0.1uF

0.1uF

C404 1-107-826-11 CERAMIC CHIP 0.1uF

10%

10%

10%

10%

10%

16V

16V

16V

16V

16V

C721

C723

C724

C726

C728

1-115-156-11 CERAMIC CHIP 1uF

1-164-360-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-125-839-11 TANTAL. CHIP 47uF

1-164-360-11 CERAMIC CHIP 0.1uF

10V

16V

10% 16V

20% 6.3V

16V

C405

C406

C407

C408

1-107-826-11 CERAMIC CHIP

1-125-837-11 CERAMIC CHIP

1-125-837-11 CERAMIC CHIP

1-115-156-11 CERAMIC CHIP

0.1uF

1uF

1uF

1uF

C409 1-115-156-11 CERAMIC CHIP 1uF

10%

10%

10%

16V

6.3V

6.3V

10V

10V

C729

C730

C731

C732

C735

1-107-826-11 CERAMIC CHIP 0.1uF

1-117-920-11 TANTAL. CHIP 10uF

1-125-839-11 TANTAL. CHIP 47uF

1-164-360-11 CERAMIC CHIP 0.1uF

1-164-360-11 CERAMIC CHIP 0.1uF

10% 16V

20% 6.3V

20% 6.3V

16V

16V

C410 1-125-837-11 CERAMIC CHIP 1uF

C501 1-113-642-11 TANTAL. CHIP

C502 1-125-839-11 TANTAL. CHIP

C503 1-117-920-11 TANTAL. CHIP

47uF

47uF

10uF

C504 1-162-960-11 CERAMIC CHIP 220PF

10%

20%

20%

20%

10%

6.3V

10V

6.3V

6.3V

50V

C736

C737

C741

C742

C743

1-164-360-11 CERAMIC CHIP 0.1uF

1-164-360-11 CERAMIC CHIP 0.1uF

1-125-837-11 CERAMIC CHIP 1uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-125-839-11 TANTAL. CHIP 47uF

16V

16V

10% 6.3V

10% 25V

20% 6.3V

C505

C506

C507

C508

1-115-467-11 CERAMIC CHIP

1-162-960-11 CERAMIC CHIP

1-127-574-11 TANTAL. CHIP

1-164-360-11 CERAMIC CHIP

0.22uF

220PF

22uF

0.1uF

C509 1-164-505-11 CERAMIC CHIP 2.2uF

10%

10%

20%

10V

50V

6.3V

16V

16V

C745

C746

C747

C748

C749

1-115-156-11 CERAMIC CHIP 1uF

1-164-360-11 CERAMIC CHIP 0.1uF

1-117-920-11 TANTAL. CHIP 10uF

1-117-920-11 TANTAL. CHIP 10uF

20%

20%

10V

16V

6.3V

6.3V

1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C510

C511

C512

C513

1-127-574-11 TANTAL. CHIP

1-109-935-11 TANTAL. CHIP

1-117-920-11 TANTAL. CHIP

1-115-467-11 CERAMIC CHIP

C550 1-117-920-11 TANTAL. CHIP

22uF

4.7uF

10uF

0.22uF

10uF

20%

20%

20%

10%

20%

6.3V

6.3V

6.3V

10V

6.3V

C750

C751

C752

C753

C754

1-162-970-11 CERAMIC CHIP 0.01uF

1-115-156-11 CERAMIC CHIP 1uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-115-156-11 CERAMIC CHIP 1uF

1-115-156-11 CERAMIC CHIP 1uF

10% 25V

10V

10% 25V

10V

10V

C551

C700

C701

C702

1-162-970-11 CERAMIC CHIP

1-162-927-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-117-920-11 TANTAL. CHIP

0.01uF

100PF

0.01uF

10uF

10%

5%

25V

50V

10% 25V

20% 6.3V

C755

C756

C757

C758

C759

1-115-156-11 CERAMIC CHIP 1uF

1-115-156-11 CERAMIC CHIP 1uF

1-115-156-11 CERAMIC CHIP 1uF

1-115-156-11 CERAMIC CHIP 1uF

1-115-156-11 CERAMIC CHIP 1uF

10V

10V

10V

10V

10V

– 16 –

MAIN

Ref. No.

Part No.

Description

C761 1-115-156-11 CERAMIC CHIP 1uF

C762 1-115-156-11 CERAMIC CHIP 1uF

C764 1-162-927-11 CERAMIC CHIP 100PF

C765 1-115-156-11 CERAMIC CHIP 1uF

C766 1-115-156-11 CERAMIC CHIP 1uF

C767 1-162-927-11 CERAMIC CHIP 100PF

C770 1-115-156-11 CERAMIC CHIP 1uF

C771 1-117-720-11 CERAMIC CHIP 4.7uF

C772 1-115-156-11 CERAMIC CHIP 1uF

C773 1-115-156-11 CERAMIC CHIP 1uF

C774 1-115-156-11 CERAMIC CHIP 1uF

C778 1-107-826-11 CERAMIC CHIP 0.1uF

C779 1-162-919-11 CERAMIC CHIP 22PF

C780 1-162-919-11 CERAMIC CHIP 22PF

C800 1-107-826-11 CERAMIC CHIP 0.1uF

< CONNECTOR >

* CN501

1-793-749-21 CONNECTOR, FFC (LIF(NON-ZIF)) 7P

* CN701

1-793-751-21 CONNECTOR, FPC (ZIF) 10P

* CN702

1-793-750-21 CONNECTOR, FPC (ZIF) 22P

* CN703

1-793-752-21 CONNECTOR, BOARD TO BOARD 20P

* CN706

1-793-754-21 CONNECTOR, BOARD TO BOARD 24P

< DIODE >

5%

5%

10V

10% 16V

5%

5%

50V

50V

10% 16V

50V

10V

10V

10V

10V

Remark Ref. No.

Part No.

10V

10V

50V

10V

10V

D802

D807

D910

Description

8-719-045-67 DIODE RB731U-T108

8-719-989-00 DIODE DA221

8-719-045-67 DIODE RB731U-T108

< FERRITE BEAD >

FB501 1-216-864-11 METAL CHIP

FB502 1-216-864-11 METAL CHIP

0

0

FB701 1-414-760-21 INDUCTOR, FERRITE BEAD

5%

5%

< IC >

IC301 8-759-656-17 IC PCM1717T/2K

IC502 8-759-653-54 IC XC62GR3312MR

IC503 8-759-653-56 IC MM1438BWLE

IC504 8-759-658-23 IC S-80856ALNP-EEL-T-2

IC505 8-759-653-58 IC S-8520F33MC-BNS-T-2

C801 1-125-837-11 CERAMIC CHIP 1uF

C802 1-125-837-11 CERAMIC CHIP 1uF

C803 1-125-837-11 CERAMIC CHIP 1uF

C804 1-125-837-11 CERAMIC CHIP 1uF

C806 1-125-837-11 CERAMIC CHIP 1uF

10% 6.3V

10% 6.3V

10% 6.3V

10% 6.3V

10% 6.3V

C807 1-125-837-11 CERAMIC CHIP 1uF

C808 1-125-837-11 CERAMIC CHIP 1uF

10% 6.3V

10% 6.3V

C810 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V

C901 1-694-698-21 TERMINAL (ONBOARD CONTACT)

C902 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

C903 1-107-826-11 CERAMIC CHIP 0.1uF

C910 1-125-837-11 CERAMIC CHIP 1uF

10% 16V

10% 6.3V

IC506 8-759-653-57 IC S-8328B33MC-EWN-T-2

IC507 8-759-658-25 IC PST3432UL

IC508 8-759-658-24 IC PST3335UL

@ IC701 8-759-686-71 IC HD64F7198RVBP16-OMEGAV107

@ IC702 X-3378-994-1 MG IC ASSY

@ IC703 8-752-400-14 IC CXD1858GA

IC704 8-759-695-09 IC M66290AFP

IC705 X-3378-994-1 MG IC ASSY

IC706 8-759-639-44 IC S-3511A

IC707 8-759-653-54 IC XC62GR3312MR

IC708 8-759-653-55 IC TC55V200FT1(YEL)

IC710 8-759-198-63 IC S-81230SG-QB-T1

IC711 8-759-196-96 IC TC7SH08FU-TE85R

IC712 8-759-196-96 IC TC7SH08FU-TE85R

IC713 8-759-196-96 IC TC7SH08FU-TE85R

IC714 8-759-658-22 IC PST3427UL

< JUMPER RESISTOR >

D501

D502

D503

D504

D505

D510

D703

D704

8-719-988-61 DIODE 1SS355TE-17

8-719-988-82 DIODE RB715F

8-719-988-61 DIODE 1SS355TE-17

8-719-076-80 DIODE SBS004-TL

8-719-988-61 DIODE 1SS355TE-17

D506 8-719-988-61 DIODE 1SS355TE-17

D507 8-719-076-80 DIODE SBS004-TL

D508 8-719-045-67 DIODE RB731U-T108

D509 8-719-988-61 DIODE 1SS355TE-17

8-719-076-80 DIODE SBS004-TL

D511 8-719-076-80 DIODE SBS004-TL

D512 8-719-076-80 DIODE SBS004-TL

D701 8-719-076-80 DIODE SBS004-TL

D702 8-719-076-80 DIODE SBS004-TL

8-719-988-61 DIODE 1SS355TE-17

8-719-988-61 DIODE 1SS355TE-17

D801 8-719-045-67 DIODE RB731U-T108

JC702 1-218-990-11 SHORT

JC703 1-218-990-11 SHORT

JC707 1-218-990-11 SHORT

JC711 1-218-990-11 SHORT

JC720 1-218-990-11 SHORT

JC721 1-218-965-11 RES-CHIP

JC742 1-218-929-11 RES-CHIP

JC754 1-218-990-11 SHORT

JC757 1-218-990-11 SHORT

JC758 1-218-977-11 RES-CHIP

JC759 1-218-990-11 SHORT

JC768 1-218-953-11 RES-CHIP

JC769 1-218-990-11 SHORT

JC790 1-218-990-11 SHORT

JC791 1-218-965-11 RES-CHIP

JC805 1-218-990-11 SHORT

JC806 1-218-990-11 SHORT

JC808 1-218-990-11 SHORT

JC809 1-218-990-11 SHORT

0

0

0

0

0

0

0

1K

10K

0

0

0

0

0

0

0

10K

10

100K

5%

5%

5%

5%

5%

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Note for replacing the parts of the main board:

IC702 and IC705 should be replaced at the same time.

– 17 –

@ Replacement of HD64F7198RVBP16-OMEGAV107 (IC701),

MG IC ASSY (IC702), CXD1858GA (IC703) on main board requires a special tool.

MAIN

Ref. No.

Part No.

Description

< COIL >

L301 1-469-535-21 INDUCTOR

L501 1-419-384-21 INDUCTOR

10uH

47uH

L502 1-412-030-11 INDUCTOR CHIP 22uH

L701 1-469-535-21 INDUCTOR 10uH

L702 1-469-535-21 INDUCTOR 10uH

L703 1-469-535-21 INDUCTOR

L705 1-469-535-21 INDUCTOR

L707 1-469-535-21 INDUCTOR

L708 1-469-535-21 INDUCTOR

< TRANSISTOR >

10uH

10uH

10uH

10uH

Q302 8-729-051-23 TRANSISTOR 2SA2018TL

Q303 8-729-429-44 TRANSISTOR XP1501

Q305 8-729-048-04 FET 3LN01S-TL

Q501 8-729-051-22 TRANSISTOR CPH6351-T

Q502 8-729-049-15 TRANSISTOR CPH6403-TL

Q503 8-729-048-04 FET 3LN01S-TL

Q504 8-729-043-94 TRANSISTOR CPH3106-PM-TL

Q505 8-729-043-94 TRANSISTOR CPH3106-PM-TL

Q506 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q508 8-729-044-26 FET CPH3404-TL

Q509 8-729-048-04 FET 3LN01S-TL

Q510 8-729-928-81 TRANSISTOR DTC144EE

Q511 8-729-043-94 TRANSISTOR CPH3106-PM-TL

Q512 8-729-048-04 FET 3LN01S-TL

Q601 8-729-929-26 TRANSISTOR DTC114TE

Q701 8-729-051-23 TRANSISTOR 2SA2018TL

Q702 8-729-048-40 TRANSISTOR 3LP02M

Q703 8-729-051-23 TRANSISTOR 2SA2018TL

Q705 8-729-051-23 TRANSISTOR 2SA2018TL

Q708 8-729-048-04 FET 3LN01S-TL

Q709 8-729-048-04 FET 3LN01S-TL

Q711 8-729-048-04 FET 3LN01S-TL

Q713 8-729-048-04 FET 3LN01S-TL

Q715 8-729-048-04 FET 3LN01S-TL

Q801 8-729-420-24 TRANSISTOR 2SB1218A-QRS

Q802 8-729-928-81 TRANSISTOR DTC144EE

Q803 8-729-928-81 TRANSISTOR DTC144EE

Q804 8-729-928-81 TRANSISTOR DTC144EE

Q910 8-729-420-24 TRANSISTOR 2SB1218A-QRS

Q911 8-729-928-81 TRANSISTOR DTC144EE

< RESISTOR >

R101 1-218-953-11 RES-CHIP

R109 1-218-990-11 SHORT

R201 1-218-953-11 RES-CHIP

R209 1-218-990-11 SHORT

R301 1-218-929-11 RES-CHIP

R372 1-218-953-11 RES-CHIP

R404 1-218-943-11 RES-CHIP

1K

0

1K

0

10

1K

150

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

Remark

R713

R714

R715

R716

R717

R718

R719

R720

R721

R722

R701

R703

R704

R705

R706

R707

R708

R709

R710

R712

Ref. No.

Part No.

R406

R501

R502

R503

R504

R516

R517

R518

R519

R520

R521

R523

R525

R526

R550

R505

R506

R508

R509

R510

R511

R512

R513

R514

R515

R551

R552

R553

R554

R700

Description

1-218-985-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-977-11 RES-CHIP

1-208-931-11 METAL CHIP

1-218-970-11 METAL CHIP

1-218-943-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-969-11 RES-CHIP

1-218-965-11 RES-CHIP

1-208-933-11 METAL CHIP

1-218-978-11 METAL CHIP

1-218-951-11 RES-CHIP

1-208-671-11 METAL CHIP

1-208-912-11 METAL CHIP

1-218-956-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-961-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-961-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-955-11 RES-CHIP

1-243-227-91 RES-CHIP

1-218-965-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-957-11 RES-CHIP

1-218-981-11 RES-CHIP

1-218-957-11 RES-CHIP

1-218-953-11 RES-CHIP

470K

100K

100K

68K

27K

150

10K

10K

22K

10K

82K

120K

680

330

11K

1.8K

10K

4.7K

10K

4.7K

10K

100K

1.5K

0.33

10K

10K

2.2K

220K

2.2K

1K

5%

5%

5% 1/16W

0.5% 1/16W

0.5% 1/16W

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1%

5%

5%

5%

5%

5%

5%

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

0.5% 1/16W

0.5% 1/16W

5% 1/16W

0.5% 1/16W

0.5% 1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1-218-990-11 SHORT 0

1-469-083-21 INDUCTOR, FERRITE BEAD 600uH

1-218-990-11 SHORT 0

1-469-083-21 INDUCTOR, FERRITE BEAD 600uH

1-218-977-11 RES-CHIP 100K 5% 1/16W

1-218-977-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-985-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-989-11 RES-CHIP

1-218-955-11 RES-CHIP

1-218-951-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-977-11 RES-CHIP

100K

10K

470K

100K

10K

1M

1.5K

680

10K

100K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/8W

1/16W

R723

R724

R725

1-218-990-11 SHORT

1-218-985-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-990-11 SHORT

1-218-977-11 RES-CHIP

1-218-965-11 RES-CHIP

1-218-941-11 RES-CHIP

0

470K

100K

10K

0

100K

10K

100

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

– 18 –

Ref. No.

Part No.

Description

R726 1-218-973-11 RES-CHIP

R727 1-218-977-11 RES-CHIP

R729 1-218-985-11 RES-CHIP

R731 1-218-977-11 RES-CHIP

R732 1-218-929-11 RES-CHIP

R733 1-218-989-11 RES-CHIP

R734 1-218-953-11 RES-CHIP

R735 1-218-955-11 RES-CHIP

R736 1-218-953-11 RES-CHIP

R737 1-218-941-11 RES-CHIP

R739 1-218-965-11 RES-CHIP

R740 1-218-977-11 RES-CHIP

R741 1-218-934-11 RES-CHIP

R742 1-218-934-11 RES-CHIP

R743 1-218-990-11 SHORT

R744 1-218-977-11 RES-CHIP

R745 1-218-977-11 RES-CHIP

R746 1-218-929-11 RES-CHIP

R747 1-218-977-11 RES-CHIP

R748 1-218-977-11 RES-CHIP

R749 1-218-977-11 RES-CHIP

R754 1-218-965-11 RES-CHIP

R756 1-218-955-11 RES-CHIP

R757 1-218-955-11 RES-CHIP

R758 1-218-955-11 RES-CHIP

R771 1-218-965-11 RES-CHIP

R772 1-218-965-11 RES-CHIP

R780 1-218-981-11 RES-CHIP

R781 1-218-981-11 RES-CHIP

R782 1-218-981-11 RES-CHIP

R783 1-218-981-11 RES-CHIP

R801 1-218-965-11 RES-CHIP

R802 1-218-957-11 RES-CHIP

R803 1-218-953-11 RES-CHIP

R804 1-218-955-11 RES-CHIP

R805 1-218-957-11 RES-CHIP

R806 1-218-957-11 RES-CHIP

R807 1-218-985-11 RES-CHIP

R808 1-218-965-11 RES-CHIP

R809 1-218-965-11 RES-CHIP

R810 1-218-985-11 RES-CHIP

R811 1-218-965-11 RES-CHIP

R812 1-218-977-11 RES-CHIP

R813 1-218-985-11 RES-CHIP

R814 1-218-965-11 RES-CHIP

R815 1-218-977-11 RES-CHIP

R816 1-218-977-11 RES-CHIP

R817 1-218-977-11 RES-CHIP

R818 1-218-977-11 RES-CHIP

R819 1-218-977-11 RES-CHIP

R820 1-218-977-11 RES-CHIP

R821 1-218-977-11 RES-CHIP

R826 1-218-977-11 RES-CHIP

10K

100K

27

27

0

100K

100K

10

100K

100K

47K

100K

470K

100K

10

1M

1K

1.5K

1K

100

100K

10K

1.5K

1.5K

1.5K

10K

10K

220K

220K

220K

470K

10K

100K

470K

10K

100K

100K

100K

100K

100K

220K

10K

2.2K

1K

1.5K

2.2K

2.2K

470K

10K

10K

100K

100K

100K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

MAIN

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Remark Ref. No.

Part No.

1/16W

1/16W

1/16W

1/16W

1/16W

R902

R910

R911

R912

R913

Description

1-218-977-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-977-11 RES-CHIP

1-218-985-11 RES-CHIP

100K

100K

100K

100K

470K

R999 1-218-965-11 RES-CHIP 10K

< NETWORK RESISTOR >

5%

5%

5%

5%

5%

5%

RB701 1-233-873-21 RES, NETWORK (CHIP TYPE) 220K (3216)

RB702 1-233-873-21 RES, NETWORK (CHIP TYPE) 220K (3216)

RB703 1-233-873-21 RES, NETWORK (CHIP TYPE) 220K (3216)

< SWITCH >

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

S701 1-771-819-21 SWITCH, PUSH (EJECT)

S801 1-692-088-11 SWITCH, TACTILE (VOLUME –)

S802 1-692-088-11 SWITCH, TACTILE (VOLUME +)

S803 1-692-088-11 SWITCH, TACTILE (DISPLAY)

S804 1-692-088-11 SWITCH, TACTILE (MENU)

S805

S806

1-692-088-11 SWITCH, TACTILE (x)

1-572-922-11 SWITCH, SLIDE (HOLD)

< VIBRATOR >

1/16W

1/16W

1/16W

1/16W

1/16W

X701 1-781-646-21 VIBRATOR, CERAMIC (4MHz)

X702 1-781-755-21 VIBRATOR, CRYSTAL (22.5792MHz)

X704 1-781-651-21 VIBRATOR, CRYSTAL (12MHz)

X706 1-781-647-21 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

MISCELLANEOUS

***************

5

6

23

1-418-774-11 LCD UNIT

1-418-715-11 LIGHT UNIT, BACK

1-756-046-11 BATTERY, LITHIUM ION

*************************************************************

– 19 –

NW-MS7

Ver 1.4 2001. 03

MAIN

0 51

0 51

52

53

54

54

0

0

0

0

0

Ref. No.

Part No.

Description

ACCESSORIES & PACKING MATERIALS

********************************

1-418-795-11 ADAPTOR, AC (AC-NW55NA) (US,CND)

1-418-796-11 ADAPTOR, AC (AC-NW55ML)

1-555-074-21 CORD, POWER (AUS)

1-769-608-11 CORD, POWER (AEP,FR,E)

Remark Ref. No.

Part No.

(EXCEPT US,CND,KR)

1-418-796-21 ADAPTOR, AC (AC-NW55ML) (KR)

Description

51

• DC/USB adaptor (1)

52

• Headphones extension cord (1)

0

0

1-776-985-11 CORD, POWER (KR)

1-783-374-11 CORD, POWER (UK,HK)

3-042-514-01 STRAP, NECK (US,CND)

3-042-515-01 POUCH, CARRYING (EXCEPT US,CND)

3-043-280-11 MANUAL, INSTRUCTION (ENGLISH)

(EXCEPT FR)

3-043-280-21 MANUAL, INSTRUCTION (FRENCH)

(CND,AEP,FR)

3-043-280-31 MANUAL, INSTRUCTION (GERMAN) (AEP)

3-043-280-41 MANUAL, INSTRUCTION

(TRADITIONAL CHINESE) (HK)

3-228-657-02 INSTRUCTION (JAPANESE,ENGLISH,FRENCH,

GERMAN)

X-3378-704-1 SOFT ASSY, APPLICATION (US,CND)

X-3379-284-1 SOFT ASSY, APPLICATION (AEP,UK,FR)

X-3379-285-1 SOFT ASSY, APPLICATION (E,HK,KR,AUS)

1-418-764-11 ADAPTOR, CONNECTION (EXCEPT US)

1-418-764-21 ADAPTOR, CONNECTION (US)

1-790-035-11 CORD (WITH PLUG) (EXTENSION)

53

54

• USB cable (1)

• Headphones (1)

1-792-440-11 CORD, CONNECTION (USB)

8-953-218-92 RECEIVER, EAR MDR-E838SP/SK1 SET

(EXCEPT US)

8-953-218-93 RECEIVER, EAR MDR-E838LP/LK SET (US)

Note) The designations of the parts in the figure are just as described in the instruction manual.

Remark

– 20 –

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

MEMO

NW-MS7

– 21 –

NW-MS7

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver.

1.4

1.3

1.2

1.1

1.0

Date

2001. 03

2000. 11

2000. 09

2000. 03

1999. 12

Description of Revision

INSTRUCTION addition

(SPM-01008)

Change of Main Board, Exploded View and Electrical Part List.

(ECN-IRB00236)

Korean model has been added.

Canadian, AEP, UK, E and Australian model has been added.

New

– 22 –

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
