HSR-X200 HSR-X200P SERVICE MANUAL Volume 2 1st Edition (Revised 1)

HSR-X200 HSR-X200P SERVICE MANUAL Volume 2 1st Edition (Revised 1)

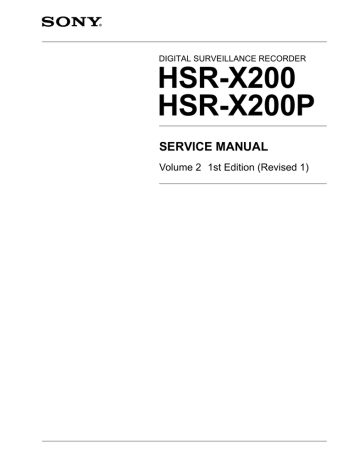

DIGITAL SURVEILLANCE RECORDER

HSR-X200

HSR-X200P

SERVICE MANUAL

Volume 2 1st Edition (Revised 1)

2

!

WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

!

WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung dazu besitzen.

!

AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

HSR-X200/X200P

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

Vorsicht!

Explosionsgefahr bei unsachgemäßem Austausch der Batterie.

Ersatz nur durch denselben oder einen vom

Hersteller empfohlenen ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des

Herstellers.

ATTENTION

Il y a danger d’explosion s’il y a remplacement incorrect de la batterie.

Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux instructions du fabricant.

ADVARSEL!

Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Lithiumbatteri - Eksplosjonsfare.

Ved utskifting benyttes kun batteri som anbefalt av apparatfabrikanten.

Brukt batteri returneres apparatleverandøren.

VARNING

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en likvärdig typ som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt gällande föreskrifter.

VAROITUS

Paristo voi räjähtää jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.

Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

HSR-X200/X200P

3

4

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch circuit

When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.

2. Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

4. Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

5. Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the specifications of the Operation Manual.

6. When performing the installation, keep the rear of the unit 5 cm (2 inches) or more away from walls in order to obtain proper exhaust and radiation of heat.

For the customers in the Netherlands

Voor de klanten in Nederland

Dit apparaat bevat een (CF) n

-Li batterij voor memory back-up.

Raadpleeg uw leverancier over de verwijdering van de batterij op het moment dat u het apparaat bij einde levensduur afdankt.

Gooi de batterij niet weg. maar lever hem in als KCA.

Bij dit produkt zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

HSR-X200/X200P

HSR-X200/X200P

/ Table of Contents

............................................................................................................ 3 (J)

..................................................................................................... 3 (J)

....................................................................................................................... 3 (J)

........................................................................................................ 3 (J)

Manual Structure

Purpose of this manual ........................................................................................ 3 (E)

Related manuals ................................................................................................... 3 (E)

Contents ............................................................................................................... 3 (E)

Trademark ............................................................................................................ 3 (E)

4. Semiconductor Pin Assignments

5. Spare Parts

5-1.

........................................................................................ 5-1

5-1.

Notes on Repair Parts .................................................................................. 5-1

5-2.

Exploded Views .......................................................................................... 5-2

5-3.

Electrical Parts List ..................................................................................... 5-6

5-4.

Packing Materials and Accessories ........................................................... 5-23

6. Block Diagrams

6-1.

................................................................................................ 6-1 (J)

6-1.

Circuit Description ................................................................................ 6-1 (E)

6-2.

Overall ......................................................................................................... 6-5

CD-1 ............................................................................................................ 6-6

1

2

7. Board Layouts

CD-1 ............................................................................................................ 7-2

PC-1 ............................................................................................................. 7-4

OP-1 ............................................................................................................ 7-4

OP-2 ............................................................................................................ 7-4

TB-1 ............................................................................................................ 7-5

TB-2 ............................................................................................................ 7-5

TB-3 ............................................................................................................ 7-5

TB-4 ............................................................................................................ 7-5

PW-1 ........................................................................................................... 7-6

8. Schematic Diagrams

CD-1 (DM-A) .............................................................................................. 8-3

CD-1 (DM-B) .............................................................................................. 8-9

CD-1 (DM-C) ............................................................................................ 8-15

OP-1 .......................................................................................................... 8-18

OP-2 .......................................................................................................... 8-19

TB-2 .......................................................................................................... 8-19

TB-3 .......................................................................................................... 8-19

TB-4 .......................................................................................................... 8-19

TB-1 .......................................................................................................... 8-20

PW-1 ......................................................................................................... 8-21

PC-1 ........................................................................................................... 8-22

HSR-X200/X200P

HSR-X200/X200P

3 (J)

Manual Structure

Purpose of this manual

This manual is the Service manual volume 2 of Digital Surveillance recorder HSR-

X200/X200P.

This manual describes semiconductor pin assignments, detailed parts list, block diagrams, board layouts, and schematic diagrams.

Related manuals

In addition to this Service Manual Volume 2, the following manuals are provided.

.....

Operating Instructions

HSR-X200/X200P (Supplied with equipment)

Parts number : 3-206-603-1X (UC)

3-206-603-2X (CE)

.....

Service Manual Vol. 1 (Available on request)

Part number : 9-955-344-1X

Contains the maintenance information of this equipment, and servicing information necessary for parts replacement and adjustments.

Contents

Trademark

The sections covered in the manual are summarized below to give you a general understanding of the manual.

Section 4 Semiconductor Pin Assignments

Describes information on semiconductors used for unit.

Section 5 Spare Parts

Describes the exploded views, the mechanical parts list, and the electrical parts list.

Section 6 Block Diagrams

Describes the circuit description and the block diagrams of overall.

Section 7 Board Layouts

Describes the board layouts for the unit.

Section 8 Schematic Diagrams

Describes the schematic diagrams for the unit.

Trademarks and registered trademarks used in this manual are follows.

. Windows is a registered trademark of Microsoft Corporation.

HSR-X200/X200P

3 (E)

[|DIODE|]

1.5KE150A

AP01C-V0

ERC81-004J11

HZS9.1NB2

MTZJ20B-T-77

MTZJ-T-77-12B

MTZJ-T-77-5.6B

MTZJ-T-77-6.2B

MTZJ-T-77-9.1B

RD6.2ES-B2

RZ1250

CATHODE

ANODE

10E2(RECTI)

1SS244-T-77

1SS83

ERA15-02A-V5

CATHODE

1SS355

ANODE

ANODE

CATHODE

D1NL20U

CATHODE

ANODE

Section 4

Semiconductor

D3SB60

+

~

~

_

+

~

~

_

01

DA204U-T106

3

1

1

2

2

3

MA728

ANODE

YG912S2R

CATHODE

[|LED|]

SEL2210SM

SEL2415EMTP6-C

SEL2915AM-TP6-C

ANODE

CATHODE

SML-010LT

ANODE

CATHODE

SML1216C

1

1

2 3

2

3

CATHODE

ANODE

Diode, LED

HSR-X200/X200P

4-1

Transistor, IC

[|TRANSISTOR|]

2SA1037AK-Q

2SC2412K-T-146-R

C

B

E

2SC1740S-DCTP-Q

2SC2785-HFE

DTC114ESA(TP)

DTC114ESA-TP

DTC144EKA

LETTER SIDE

E

C

B

2SC3668-Y

2SC4483-S-AN

E

C

B

FS14KM-12A

G

D S

[|IC|]

74LCX157MTCX

BU2090F

C6013BTD

MAX202CSE

MC74HC4053F

TC74HC4053AF

1

TOP VIEW

74LCX245MTCX

1

TOP VIEW

74LCX32MTCX

1

TOP VIEW

74LVX3245MTCX

1

TOP VIEW

BR24C08F

MAX3082CSA

NJM2274R

SI-3025LSA-TL

SI3050LSA-TL

1

TOP VIEW

FA3641P

1

TOP VIEW

MBM29LV160TE90PT-M19

48

25

1

24

MD1222N

1

TOP VIEW

MM1031XMR

MM1041XMR

1

NC7WZ04P6X

1

PST9127N

PST9227N

PST9244N

1

SFH615AGRX16

1

TOP VIEW

4-2

HSR-X200/X200P

SI-3090F-LF1113N

2

1

3

5

4

TC59SM716AFT-80

1

VPX3226E

TOP VIEW

1

TOP VIEW

HSR-X200/X200P

4-3

IC

Section 5

Spare Parts

5-1. Notes on Repair Parts

1. Safety Related Components Warning

w

Components marked

! are critical to safe operation.

Therefore, specified parts should be used in the case of replacement.

2. Standardization of Parts

Some repair parts supplied by Sony differ from those used for the unit. These are because of parts commonality and improvement.

Parts list has the present standardized repair parts.

3. Stock of Parts

Parts marked with “o” at SP (Supply Code) column of the spare parts list may not be stocked. Therefore, the delivery date will be delayed.

4. Harness

Harnesses with no part number are not registered as spare parts.

In need of repair, get components shown in the list and repair using them.

5-1.

HSR-X200/X200P

5-1

Overall

5-2. Exploded Views

2

5-2

9

BVTP

3 x

6

8

7

5

6

1

3

3

4

4

2

BVTP

3 x

6

HSR-X200/X200P

No. Part No. SP Description

1 A-8344-531-A s CABINET ASSY, FRONT (for CE)

A-8344-685-A s CABINET ASSY, FRONT (for J,UC)

2 3-204-722-01 s SCREW (3X6A)

3 3-206-757-01 s SCREW (3 X 8)

4 3-206-762-01 s SPECIAL SCREW (3.5X4.5)

5 3-206-763-01 s HOLDER

6 3-206-771-01 s DOOR

7 3-206-777-01 s KNOB, SHUTTLE

8 3-206-778-01 s KNOB, JOG

9 4-942-568-01 s EMBLEM (N0.5),SONY

SCREW

Part No. SP Description

7-685-645-79 s SCREW +BVTP 3X6

Overall

HSR-X200/X200P

5-3

Chassis

104

126

126

114

102

114

101

BVTP

3 x

6

106

114

112

116

121

126

124

BVTP

3 x

6

111

122

107

103

118 127

W4,

SMALL

119

125

114

108

123

113

119

BVTP

3 x

6

119

105

BVTP

3 x

6

110

117

115

117

109

120

115

5-4

HSR-X200/X200P

Chassis

No. Part No. SP Description

101 A-8344-532-A s MOUNTED CIRCUIT BOARD, OP-1 (for CE)

A-8344-690-A s MOUNTED CIRCUIT BOARD, OP-1 (for J)

A-8344-736-A s MOUNTED CIRCUIT BOARD, OP-1 (for UC)

102 A-8344-533-A s MOUNTED CIRCUIT BOARD, OP-2 (for CE)

A-8344-691-A s MOUNTED CIRCUIT BOARD, OP-2 (for J)

A-8344-737-A s MOUNTED CIRCUIT BOARD, OP-2 (for UC)

103 A-8344-534-A s MOUNTED CIRCUIT BOARD, TB-1

104 A-8344-536-A s MOUNTED CIRCUIT BOARD, TB-3

105 A-8344-537-A s MOUNTED CIRCUIT BOARD, PC-1 (for CE)

A-8344-689-A s MOUNTED CIRCUIT BOARD, PC-1 (for J)

A-8344-735-A s MOUNTED CIRCUIT BOARD, PC-1 (for UC)

106 A-8344-541-B s MOUNTED CIRCUIT BOARD, PW-1 (for CE)

A-8344-687-B s MOUNTED CIRCUIT BOARD, PW-1 (for J)

A-8344-741-B s MOUNTED CIRCUIT BOARD, PW-1 (for UC)

107 A-8344-542-A s MOUNTED CIRCUIT BOARD, TB-4

108 A-8344-544-B s MOUNTED CIRCUIT BOARD, CD-1 (for CE)

A-8344-688-B s MOUNTED CIRCUIT BOARD, CD-1 (for J)

A-8344-734-B s MOUNTED CIRCUIT BOARD, CD-1 (for UC)

109

!

1-528-594-11 s BATTERY

110 1-763-826-11 s MOTOR, DC 1.2W FAN

111 1-824-002-11 s CABLE, FLEXIBLE FLAT

112 1-824-019-11 s CABLE, FLEXIBLE FLAT

113 1-824-020-11 s CABLE, FLEXIBLE FLAT

114 3-200-323-01 s SCREW (3X8)

115 3-200-355-01 o STAND

116 3-204-113-01 s SCREW (4X6)

117 3-204-151-01 s SPACER

118

!

3-204-901-01 s WIRE ASSY

119 3-206-758-01 s SCREW (3X10)

120 3-206-760-01 s SCREW (4X22)

121 3-206-761-01 s SCREW (3X6)

122 3-206-803-01 s GROUND

123 3-206-844-01 s SCREW (2X8)

124 3-747-604-01 s SPRING (PLATE) (ST)

125 3-951-423-01 s WASHER (SPR3)

126 3-964-185-01 o HOLDER

127

!

3-207-370-01 s WIRE ASSY (POWER SWITCH) (for J)

Screw/Washer

Part No. SP Description

7-685-645-79 s SCREW +BVTP 3X6

7-688-004-01 s W4, SMALL

HSR-X200/X200P

5-5

5-3. Electrical Parts List

----------

CD-1 BOARD

----------

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

*CE:[HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

1pc *CE A-8344-544-B s MOUNTED CIRCUIT BOARD, CD-1

1pc *J A-8344-688-B s MOUNTED CIRCUIT BOARD, CD-1

1pc *UC A-8344-734-B s MOUNTED CIRCUIT BOARD, CD-1

The CD-1 board includes the DM-A, DM-B and DM-C board.

5-6

----------

DM-A BOARD

----------

Ref. No.

or Q'ty Part No. SP Description

C2001 1-126-916-11 s CAPACITOR,ELECT 1000MF/6.3V

C2002 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2011 1-165-969-11 s TA-SOLID 22MF 16V

C2012 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2013 1-165-969-11 s TA-SOLID 22MF 16V

C2014 1-162-921-11 s CAPACITOR,CERAMIC 33PF/50V CH

C2015 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2016 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2018 1-102-945-00 s CAPACITOR,CERAMIC;50V/8PF(SL)

C2019 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2021 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2022 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2023 1-165-969-11 s TA-SOLID 22MF 16V

C2024 1-162-921-11 s CAPACITOR,CERAMIC 33PF/50V CH

C2025 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2026 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2028 1-102-945-00 s CAPACITOR,CERAMIC;50V/8PF(SL)

C2029 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2031 1-165-969-11 s TA-SOLID 22MF 16V

C2032 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2033 1-165-969-11 s TA-SOLID 22MF 16V

C2034 1-162-921-11 s CAPACITOR,CERAMIC 33PF/50V CH

C2035 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2036 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2038 1-102-945-00 s CAPACITOR,CERAMIC;50V/8PF(SL)

C2039 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2042 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2048 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2049 1-165-969-11 s TA-SOLID 22MF 16V

C2050 1-165-969-11 s TA-SOLID 22MF 16V

C2051 1-165-969-11 s TA-SOLID 22MF 16V

C2052 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2053 1-126-916-11 s CAPACITOR,ELECT 1000MF/6.3V

C2054 1-165-969-11 s TA-SOLID 22MF 16V

C2055 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2056 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2057 1-165-969-11 s TA-SOLID 22MF 16V

C2058 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2059 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2061 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2063 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2065 1-165-969-11 s TA-SOLID 22MF 16V

C2070 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2071 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2072 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2073 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2074 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2075 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2076 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2077 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2078 1-165-969-11 s TA-SOLID 22MF 16V

C2079 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2081 1-165-924-11 s CAPACITOR,CERAMIC 3300P 50V

C2082 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2083 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2084 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2085 1-165-924-11 s CAPACITOR,CERAMIC 3300P 50V

C2086 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2091 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

HSR-X200/X200P

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

C2092 1-165-969-11 s TA-SOLID 22MF 16V

C2093 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C2094 1-162-921-11 s CAPACITOR,CERAMIC 33PF/50V CH

C2095 1-162-921-11 s CAPACITOR,CERAMIC 33PF/50V CH

C2096 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2097 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2099 1-102-945-00 s CAPACITOR,CERAMIC;50V/8PF(SL)

C2100 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2107 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH

C2108 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH

C2110 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH

C2111 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH

C2131 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2132 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2133 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2134 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2135 1-165-969-11 s TA-SOLID 22MF 16V

C2138 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2139 1-165-969-11 s TA-SOLID 22MF 16V

C2140 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2142 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2143 1-165-969-11 s TA-SOLID 22MF 16V

C2145 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2146 1-165-969-11 s TA-SOLID 22MF 16V

C2151 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2152 1-162-966-11 s CAPACITOR,CERAMIC 2200PF/50V B

C2153 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2171 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2172 1-162-966-11 s CAPACITOR,CERAMIC 2200PF/50V B

C2173 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2174 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2177 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C2178 1-165-969-11 s TA-SOLID 22MF 16V

C2181 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2182 1-165-969-11 s TA-SOLID 22MF 16V

C2183 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2184 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C2185 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2186 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2187 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2188 1-124-589-11 s CAPACITOR,ELECT 47MF/16V

C2189 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2190 1-165-966-11 s TA-SOLID 10MF

C2191 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2192 1-126-935-11 s CAPACITOR,ELECT 470MF/16V

C2193 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2194 1-165-966-11 s TA-SOLID 10MF

C2195 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2196 1-126-935-11 s CAPACITOR,ELECT 470MF/16V

C2197 1-126-392-11 s CAPACITOR,CHIP ELECT100MF/6.3V

C2198 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2951 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2952 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2953 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2955 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2956 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2957 1-125-904-11 s CAPACITOR,TANTALUM 10MF 16V

C2958 1-165-969-11 s TA-SOLID 22MF 16V

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

IC202 8-759-504-44 s IC MM1031XMR

IC203 1-804-717-11 s IC NJM2274R

IC204 1-804-714-11 s IC MM1041XMR

IC206 1-810-497-11 s IC LA7285M-TRM

IC207 1-804-744-11 s IC LA6458M-TE-L

IC208 1-810-497-11 s IC LA7285M-TRM

IC209 1-804-728-11 s IC SI3050LSA-TL

IC215 1-804-726-11 s IC VPX3226E

JK201 1-417-276-11 s SOCKET, DIN 4P

JK202 1-417-276-11 s SOCKET, DIN 4P

JK203 1-417-286-11 s SOCKET DIN 4P

JK204 1-417-275-11 s SOCKET, BNC 3P-3

L2003 1-400-230-11 s INDUCTOR 750 OHM

L2004 1-400-230-11 s INDUCTOR 750 OHM

L2005 1-400-230-11 s INDUCTOR 750 OHM

L2006 1-400-230-11 s INDUCTOR 750 OHM

L2007 1-400-230-11 s INDUCTOR 750 OHM

L2008 1-400-230-11 s INDUCTOR 750 OHM

L2011 1-400-222-11 s INDUCTOR 47MF

L2012 1-400-224-11 s INDUCTOR 27MF

L2013 1-400-224-11 s INDUCTOR 27MF

L2021 1-400-222-11 s INDUCTOR 47MF

L2022 1-400-224-11 s INDUCTOR 27MF

L2023 1-400-224-11 s INDUCTOR 27MF

L2031 1-400-222-11 s INDUCTOR 47MF

L2032 1-400-224-11 s INDUCTOR 27MF

L2033 1-400-224-11 s INDUCTOR 27MF

L2041 1-400-222-11 s INDUCTOR 47MF

L2042 1-400-223-11 s INDUCTOR 22MF

L2043 1-400-223-11 s INDUCTOR 22MF

L2051 1-400-223-11 s INDUCTOR 22MF

L2061 1-400-222-11 s INDUCTOR 47MF

L2062 1-400-224-11 s INDUCTOR 27MF

L2063 1-400-224-11 s INDUCTOR 27MF

L2082 1-400-234-11 s BEAT CORE

L2083 1-400-234-11 s BEAT CORE

L2084 1-400-234-11 s BEAT CORE

L2131 1-400-220-11 s INDUCTOR 10MF

L2132 1-400-220-11 s INDUCTOR 10MF

L2133 1-400-228-11 s INDUCTOR 240 OHM

L2134 1-400-220-11 s INDUCTOR 10MF

L2136 1-400-230-11 s INDUCTOR 750 OHM

L2137 1-400-230-11 s INDUCTOR 750 OHM

L2138 1-400-230-11 s INDUCTOR 750 OHM

L2140 1-400-228-11 s INDUCTOR 240 OHM

L2141 1-400-228-11 s INDUCTOR 240 OHM

L2142 1-400-228-11 s INDUCTOR 240 OHM

L2143 1-400-228-11 s INDUCTOR 240 OHM

L2144 1-400-228-11 s INDUCTOR 240 OHM

L2145 1-400-228-11 s INDUCTOR 240 OHM

L2146 1-400-228-11 s INDUCTOR 240 OHM

L2147 1-400-228-11 s INDUCTOR 240 OHM

L2148 1-400-228-11 s INDUCTOR 240 OHM

L2149 1-400-228-11 s INDUCTOR 240 OHM

Q2011 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2012 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2013 1-804-730-11 s TR 2SA1037AK-Q

Q2014 1-804-730-11 s TR 2SA1037AK-Q

HSR-X200/X200P

5-7

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

Q2021 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2022 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2023 1-804-730-11 s TR 2SA1037AK-Q

Q2025 1-804-730-11 s TR 2SA1037AK-Q

Q2031 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2032 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2033 1-804-730-11 s TR 2SA1037AK-Q

Q2034 1-804-730-11 s TR 2SA1037AK-Q

Q2041 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2042 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2043 1-804-730-11 s TR 2SA1037AK-Q

Q2044 1-804-730-11 s TR 2SA1037AK-Q

Q2045 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2046 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2052 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

Q2053 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

Q2061 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2062 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2063 1-804-730-11 s TR 2SA1037AK-Q

Q2064 1-804-730-11 s TR 2SA1037AK-Q

Q2065 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2151 1-804-730-11 s TR 2SA1037AK-Q

Q2152 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2171 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2172 1-804-730-11 s TR 2SA1037AK-Q

Q2952 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

R2001 1-245-337-11 s RESISTOR,CHIP 75

R2002 1-245-337-11 s RESISTOR,CHIP 75

R2003 1-245-337-11 s RESISTOR,CHIP 75

R2004 1-245-337-11 s RESISTOR,CHIP 75

R2005 1-245-337-11 s RESISTOR,CHIP 75

R2006 1-245-337-11 s RESISTOR,CHIP 75

R2007 1-245-334-11 s RESISTOR,CHIP 1.5K

R2010 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2011 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2012 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2013 1-243-968-11 s RESISTOR,CHIP 1K

R2014 1-245-330-11 s RESISTOR,CHIP 330

R2015 1-245-327-11 s RESISTOR,CHIP 150

R2016 1-243-968-11 s RESISTOR,CHIP 1K

R2017 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2018 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2019 1-245-332-11 s RESISTOR,CHIP 560

R2020 1-245-331-11 s RESISTOR,CHIP 470

R2021 1-245-326-11 s RESISTOR,CHIP 120

R2022 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2023 1-245-317-11 s RESISTOR,CHIP 3.3

R2024 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2025 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2026 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2027 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2028 1-243-968-11 s RESISTOR,CHIP 1K

R2029 1-245-330-11 s RESISTOR,CHIP 330

R2030 1-245-327-11 s RESISTOR,CHIP 150

R2031 1-243-968-11 s RESISTOR,CHIP 1K

R2032 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2033 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2034 1-245-332-11 s RESISTOR,CHIP 560

5-8

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2035 1-245-331-11 s RESISTOR,CHIP 470

R2036 1-245-326-11 s RESISTOR,CHIP 120

R2038 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2039 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2040 1-245-317-11 s RESISTOR,CHIP 3.3

R2041 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2042 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2043 1-243-968-11 s RESISTOR,CHIP 1K

R2044 1-245-330-11 s RESISTOR,CHIP 330

R2045 1-245-327-11 s RESISTOR,CHIP 150

R2046 1-243-968-11 s RESISTOR,CHIP 1K

R2047 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2048 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2049 1-245-332-11 s RESISTOR,CHIP 560

R2050 1-245-331-11 s RESISTOR,CHIP 470

R2051 1-245-326-11 s RESISTOR,CHIP 120

R2052 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2053 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2056 1-245-317-11 s RESISTOR,CHIP 3.3

R2057 1-245-317-11 s RESISTOR,CHIP 3.3

R2058 1-245-317-11 s RESISTOR,CHIP 3.3

R2059 1-245-317-11 s RESISTOR,CHIP 3.3

R2060 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2061 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2062 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2063 1-243-968-11 s RESISTOR,CHIP 1K

R2064 1-245-330-11 s RESISTOR,CHIP 330

R2065 1-245-327-11 s RESISTOR,CHIP 150

R2066 1-243-968-11 s RESISTOR,CHIP 1K

R2067 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2068 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2069 1-245-332-11 s RESISTOR,CHIP 560

R2070 1-245-331-11 s RESISTOR,CHIP 470

R2071 1-245-326-11 s RESISTOR,CHIP 120

R2072 1-165-961-11 s CAPACITOR,ELECT 100

R2073 1-245-331-11 s RESISTOR,CHIP 470

R2074 1-245-332-11 s RESISTOR,CHIP 560

R2075 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2078 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2079 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2080 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2081 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2082 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2083 1-243-968-11 s RESISTOR,CHIP 1K

R2084 1-245-330-11 s RESISTOR,CHIP 330

R2085 1-245-327-11 s RESISTOR,CHIP 150

R2086 1-243-968-11 s RESISTOR,CHIP 1K

R2087 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2088 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2089 1-245-332-11 s RESISTOR,CHIP 560

R2090 1-245-331-11 s RESISTOR,CHIP 470

R2091 1-245-327-11 s RESISTOR,CHIP 150

R2092 1-165-961-11 s CAPACITOR,ELECT 100

R2093 1-245-331-11 s RESISTOR,CHIP 470

R2094 1-245-332-11 s RESISTOR,CHIP 560

R2095 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2096 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2097 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2098 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

HSR-X200/X200P

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2139 1-216-807-11 s RESISTOR, CHIP 68 1/16W 1608

R2140 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2141 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2142 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2143 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2144 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2145 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2146 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2147 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2148 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2149 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2154 1-218-867-11 s RESISTOR,CHIP 6.8K 1/10W(1608)

R2155 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2156 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2157 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2158 1-243-846-11 s RESISTOR,CHIP 1.2K

R2159 1-243-846-11 s RESISTOR,CHIP 1.2K

R2171 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2172 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2173 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2176 1-243-846-11 s RESISTOR,CHIP 1.2K

R2177 1-243-846-11 s RESISTOR,CHIP 1.2K

R2178 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2179 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2180 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2181 1-218-867-11 s RESISTOR,CHIP 6.8K 1/10W(1608)

R2182 1-245-318-11 s RESISTOR,CHIP 120K

R2183 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2184 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2185 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2189 1-218-867-11 s RESISTOR,CHIP 6.8K 1/10W(1608)

R2199 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2349 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2350 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2359 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2360 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2370 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2379 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2380 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2405 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2406 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2407 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2951 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2952 1-216-857-11 s RESISTOR,CHIP 1M 1/10W(1608)

R2953 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2955 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2956 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2957 1-216-835-11 s RESISTOR,CHIP 15K 1/10W

R2958 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2959 1-216-823-11 s RESISTOR, CHIP 1.5K 1/10W

R2963 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2971 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2972 1-216-857-11 s RESISTOR,CHIP 1M 1/10W(1608)

R2973 1-227-525-11 s RESISTOR, CHIP 56K 1/16W

R2974 1-227-526-11 s RESISTOR, CHIP 22K 1/16W

R2975 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2977 1-227-527-11 s RESISTOR, CHIP 10K 1/16W

R2978 1-227-528-11 s RESISTOR, CHIP 6.8K 1/16W

R2981 1-243-969-11 s RES, CHIP 1.2K

HSR-X200/X200P

(DM-A BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2982 1-227-529-11 s RESISTOR, CHIP 8.2K 1/16W

R2983 1-243-969-11 s RES, CHIP 1.2K

R2984 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2985 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2986 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2987 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2988 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2989 1-216-838-11 s RESISTOR CHIP 27K 1/10W(1608)

R2990 1-216-840-11 s RESISTOR,CHIP 39K 1/10W 1608

R2991 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2992 1-245-431-11 s RESISTOR, CHIP 12K 1/16W

R2993 1-245-318-11 s RESISTOR,CHIP 120K

R2994 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2995 1-245-318-11 s RESISTOR,CHIP 120K

R2996 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2997 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2998 1-216-818-11 s RESISTOR, CHIP 560 1/10W 1608

R2999 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

X2131 1-795-593-11 s CRYSTAL, OSC 20.25MHZ

5-9

----------

DM-B BOARD

----------

*N: [HSR-X200]

*P: [HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

C2211 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2221 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2231 1-165-966-11 s TA-SOLID 10MF

C2232 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2241 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2251 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2261 1-165-966-11 s TA-SOLID 10MF

C2262 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2266 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2267 1-165-966-11 s TA-SOLID 10MF

C2291 1-165-966-11 s TA-SOLID 10MF

C2292 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2301 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2302 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2321 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2331 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2341 1-165-966-11 s TA-SOLID 10MF

C2342 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2351 1-165-966-11 s TA-SOLID 10MF

C2352 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2361 1-165-966-11 s TA-SOLID 10MF

C2362 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2363 1-135-210-11 s CAPACITOR,TANTALUM 4.7MF/10V

C2364 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2371 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2372 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2381 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2391 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2411 1-165-966-11 s TA-SOLID 10MF

C2412 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2413 1-135-210-11 s CAPACITOR,TANTALUM 4.7MF/10V

C2414 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2421 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2422 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2431 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2432 1-165-966-11 s TA-SOLID 10MF

C2433 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2441 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2452 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2453 *P 1-165-964-11 s CAPACITOR,CERAMIC 1PF 50V

C2454 *P 1-165-964-11 s CAPACITOR,CERAMIC 1PF 50V

C2455 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH

C2456 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2457 1-165-966-11 s TA-SOLID 10MF

C2458 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2459 1-165-966-11 s TA-SOLID 10MF

C2460 1-165-931-11 s CAPACITOR,CERAMIC 0.01MF 50V

C2461 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2462 1-165-966-11 s TA-SOLID 10MF

C2463 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2464 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2465 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2466 1-165-966-11 s TA-SOLID 10MF

C2467 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2468 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

C2471 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2473 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2474 1-165-966-11 s TA-SOLID 10MF

C2475 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2476 1-165-966-11 s TA-SOLID 10MF

C2477 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2478 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2479 1-165-966-11 s TA-SOLID 10MF

C2480 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2481 1-165-966-11 s TA-SOLID 10MF

C2482 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2491 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2492 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2493 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2494 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2501 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2502 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2503 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2504 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2505 1-165-966-11 s TA-SOLID 10MF

C2506 1-165-966-11 s TA-SOLID 10MF

C2507 1-165-966-11 s TA-SOLID 10MF

C2508 1-165-966-11 s TA-SOLID 10MF

C2509 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2510 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2511 1-165-969-11 s TA-SOLID 22MF 16V

C2512 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2513 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2514 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2515 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2516 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2521 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2522 1-165-967-11 s CAPACITOR,CERAMIC 1MF 6.3V

C2523 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2524 1-165-969-11 s TA-SOLID 22MF 16V

C2525 *P 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

*N 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH

C2526 *P 1-102-945-00 s CAPACITOR,CERAMIC;50V/8PF(SL)

C2527 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2528 *P 1-165-965-11 s CAPACITOR,CERAMIC 2PF 50V

C2529 *P 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

*N 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH

C2530 *N 1-100-004-11 s CAPACITOR,CERAMIC 5PF 50V

*P 1-165-965-11 s CAPACITOR,CERAMIC 2PF 50V

D2462 1-804-732-11 s DIODE MA728

D2463 1-804-732-11 s DIODE MA728

D2501 1-804-732-11 s DIODE MA728

D2502 1-804-735-11 s LED SML-010LT

IC221 1-804-721-11 s IC 74LCX32MTCX

IC222 1-804-722-11 s IC 74LCX245MTCX

IC223 1-804-722-11 s IC 74LCX245MTCX

IC224 1-804-722-11 s IC 74LCX245MTCX

IC225 1-804-722-11 s IC 74LCX245MTCX

IC226 1-804-722-11 s IC 74LCX245MTCX

IC227 1-804-724-12 s IC MBM29LV160TE90PT-M19

IC229 1-804-722-11 s IC 74LCX245MTCX

IC231 1-804-756-11 s IC NC7WZO4P6X

IC232 1-804-722-11 s IC 74LCX245MTCX

5-10

HSR-X200/X200P

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

IC233 1-804-722-11 s IC 74LCX245MTCX

IC234 1-804-722-11 s IC 74LCX245MTCX

IC235 1-804-722-11 s IC 74LCX245MTCX

IC236 1-804-723-11 s IC 74LVX3245MTCX

IC237 1-804-723-11 s IC 74LVX3245MTCX

IC238 1-804-757-11 s IC 74LCX157MTCX

IC239 1-804-721-11 s IC 74LCX32MTCX

IC241 1-804-723-11 s IC 74LVX3245MTCX

IC242 1-804-723-11 s IC 74LVX3245MTCX

IC243 1-804-722-11 s IC 74LCX245MTCX

IC244 1-804-722-11 s IC 74LCX245MTCX

IC245 1-804-722-11 s IC 74LCX245MTCX

IC246 1-804-727-11 s IC C6013BTD

IC247 1-804-718-11 s IC PST9227N

IC252 1-804-719-11 s IC TC59SM716AFT-80

IC253 1-804-719-11 s IC TC59SM716AFT-80

L2201 1-400-220-11 s INDUCTOR 10MF

L2202 1-400-220-11 s INDUCTOR 10MF

L2221 1-400-226-11 s INDUCTOR 1500 OHM

L2222 1-400-226-11 s INDUCTOR 1500 OHM

L2223 1-400-226-11 s INDUCTOR 1500 OHM

L2224 1-400-226-11 s INDUCTOR 1500 OHM

L2225 1-400-226-11 s INDUCTOR 1500 OHM

L2226 1-400-226-11 s INDUCTOR 1500 OHM

L2227 1-400-226-11 s INDUCTOR 1500 OHM

L2228 1-400-226-11 s INDUCTOR 1500 OHM

L2231 1-400-226-11 s INDUCTOR 1500 OHM

L2232 1-400-226-11 s INDUCTOR 1500 OHM

L2233 1-400-226-11 s INDUCTOR 1500 OHM

L2234 1-400-226-11 s INDUCTOR 1500 OHM

L2235 1-400-226-11 s INDUCTOR 1500 OHM

L2236 1-400-226-11 s INDUCTOR 1500 OHM

L2237 1-400-226-11 s INDUCTOR 1500 OHM

L2238 1-400-226-11 s INDUCTOR 1500 OHM

L2251 1-400-226-11 s INDUCTOR 1500 OHM

L2252 1-400-226-11 s INDUCTOR 1500 OHM

L2253 1-400-226-11 s INDUCTOR 1500 OHM

L2254 1-400-226-11 s INDUCTOR 1500 OHM

L2255 1-400-226-11 s INDUCTOR 1500 OHM

L2256 1-400-226-11 s INDUCTOR 1500 OHM

L2257 1-400-226-11 s INDUCTOR 1500 OHM

L2261 1-400-226-11 s INDUCTOR 1500 OHM

L2262 1-400-226-11 s INDUCTOR 1500 OHM

L2263 1-400-226-11 s INDUCTOR 1500 OHM

L2264 1-400-226-11 s INDUCTOR 1500 OHM

L2265 1-400-226-11 s INDUCTOR 1500 OHM

L2266 1-400-226-11 s INDUCTOR 1500 OHM

L2267 1-400-226-11 s INDUCTOR 1500 OHM

L2268 1-400-226-11 s INDUCTOR 1500 OHM

L2291 1-400-226-11 s INDUCTOR 1500 OHM

L2292 1-400-226-11 s INDUCTOR 1500 OHM

L2293 1-400-226-11 s INDUCTOR 1500 OHM

L2294 1-400-226-11 s INDUCTOR 1500 OHM

L2295 1-400-226-11 s INDUCTOR 1500 OHM

L2296 1-400-226-11 s INDUCTOR 1500 OHM

L2297 1-400-226-11 s INDUCTOR 1500 OHM

L2298 1-400-226-11 s INDUCTOR 1500 OHM

L2301 1-400-220-11 s INDUCTOR 10MF

HSR-X200/X200P

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

L2302 1-400-220-11 s INDUCTOR 10MF

L2321 1-400-226-11 s INDUCTOR 1500 OHM

L2322 1-400-226-11 s INDUCTOR 1500 OHM

L2323 1-400-226-11 s INDUCTOR 1500 OHM

L2324 1-400-226-11 s INDUCTOR 1500 OHM

L2325 1-400-226-11 s INDUCTOR 1500 OHM

L2326 1-400-226-11 s INDUCTOR 1500 OHM

L2327 1-400-226-11 s INDUCTOR 1500 OHM

L2328 1-400-226-11 s INDUCTOR 1500 OHM

L2331 1-400-226-11 s INDUCTOR 1500 OHM

L2332 1-400-226-11 s INDUCTOR 1500 OHM

L2333 1-400-226-11 s INDUCTOR 1500 OHM

L2334 1-400-226-11 s INDUCTOR 1500 OHM

L2335 1-400-226-11 s INDUCTOR 1500 OHM

L2336 1-400-226-11 s INDUCTOR 1500 OHM

L2337 1-400-226-11 s INDUCTOR 1500 OHM

L2341 1-400-226-11 s INDUCTOR 1500 OHM

L2342 1-400-226-11 s INDUCTOR 1500 OHM

L2343 1-400-226-11 s INDUCTOR 1500 OHM

L2344 1-400-226-11 s INDUCTOR 1500 OHM

L2345 1-400-226-11 s INDUCTOR 1500 OHM

L2346 1-400-226-11 s INDUCTOR 1500 OHM

L2347 1-400-226-11 s INDUCTOR 1500 OHM

L2348 1-400-226-11 s INDUCTOR 1500 OHM

L2361 1-400-226-11 s INDUCTOR 1500 OHM

L2362 1-400-226-11 s INDUCTOR 1500 OHM

L2363 1-400-226-11 s INDUCTOR 1500 OHM

L2364 1-400-226-11 s INDUCTOR 1500 OHM

L2365 1-400-226-11 s INDUCTOR 1500 OHM

L2366 1-400-226-11 s INDUCTOR 1500 OHM

L2367 1-400-226-11 s INDUCTOR 1500 OHM

L2368 1-400-226-11 s INDUCTOR 1500 OHM

L2371 1-400-226-11 s INDUCTOR 1500 OHM

L2372 1-400-226-11 s INDUCTOR 1500 OHM

L2373 1-400-226-11 s INDUCTOR 1500 OHM

L2374 1-400-226-11 s INDUCTOR 1500 OHM

L2375 1-400-226-11 s INDUCTOR 1500 OHM

L2376 1-400-226-11 s INDUCTOR 1500 OHM

L2377 1-400-226-11 s INDUCTOR 1500 OHM

L2378 1-400-226-11 s INDUCTOR 1500 OHM

L2401 1-400-220-11 s INDUCTOR 10MF

L2402 1-400-220-11 s INDUCTOR 10MF

L2451 1-400-228-11 s INDUCTOR 240 OHM

L2452 1-400-227-11 s INDUCTOR 120 OHM

L2453 1-400-220-11 s INDUCTOR 10MF

L2454 1-400-229-11 s INDUCTOR 240 OHM

L2461 1-400-220-11 s INDUCTOR 10MF

L2471 1-400-232-11 s INDUCTOR 1MF

L2472 1-400-220-11 s INDUCTOR 10MF

L2473 1-400-220-11 s INDUCTOR 10MF

L2474 1-400-225-11 s INDUCTOR 33MF

L2475 1-400-225-11 s INDUCTOR 33MF

L2645 *N 1-469-813-11 s INDUCTOR 750 0HM

Q2501 1-804-730-11 s TR 2SA1037AK-Q

Q2502 1-804-730-11 s TR 2SA1037AK-Q

Q2503 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2504 1-804-730-11 s TR 2SA1037AK-Q

Q2505 1-804-730-11 s TR 2SA1037AK-Q

5-11

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2201 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2202 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2203 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2204 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2205 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2206 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2207 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2208 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2209 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2210 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2211 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2212 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2213 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2214 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2215 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2216 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2217 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2218 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2219 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2220 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2221 1-245-322-11 s RESISTOR,CHIP 390

R2222 1-245-322-11 s RESISTOR,CHIP 390

R2223 1-245-322-11 s RESISTOR,CHIP 390

R2224 1-245-322-11 s RESISTOR,CHIP 390

R2225 1-245-322-11 s RESISTOR,CHIP 390

R2226 1-245-322-11 s RESISTOR,CHIP 390

R2227 1-245-322-11 s RESISTOR,CHIP 390

R2228 1-245-322-11 s RESISTOR,CHIP 390

R2230 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2231 1-245-322-11 s RESISTOR,CHIP 390

R2232 1-245-322-11 s RESISTOR,CHIP 390

R2233 1-245-322-11 s RESISTOR,CHIP 390

R2234 1-245-322-11 s RESISTOR,CHIP 390

R2235 1-245-322-11 s RESISTOR,CHIP 390

R2236 1-245-322-11 s RESISTOR,CHIP 390

R2237 1-245-322-11 s RESISTOR,CHIP 390

R2238 1-245-322-11 s RESISTOR,CHIP 390

R2239 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2240 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2241 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2242 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2243 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2244 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2245 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2246 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2247 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2248 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2249 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2250 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2251 1-245-322-11 s RESISTOR,CHIP 390

R2252 1-245-322-11 s RESISTOR,CHIP 390

R2253 1-245-322-11 s RESISTOR,CHIP 390

R2254 1-245-322-11 s RESISTOR,CHIP 390

R2255 1-245-322-11 s RESISTOR,CHIP 390

R2256 1-245-322-11 s RESISTOR,CHIP 390

R2257 1-245-322-11 s RESISTOR,CHIP 390

R2258 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2259 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2260 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

5-12

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2261 1-245-322-11 s RESISTOR,CHIP 390

R2262 1-245-322-11 s RESISTOR,CHIP 390

R2263 1-245-322-11 s RESISTOR,CHIP 390

R2264 1-245-322-11 s RESISTOR,CHIP 390

R2265 1-245-322-11 s RESISTOR,CHIP 390

R2266 1-245-322-11 s RESISTOR,CHIP 390

R2267 1-245-322-11 s RESISTOR,CHIP 390

R2268 1-245-322-11 s RESISTOR,CHIP 390

R2269 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2270 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2271 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2272 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2273 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2275 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2276 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2277 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2278 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2280 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2281 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2282 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2286 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2287 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2288 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2289 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2290 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2291 1-245-322-11 s RESISTOR,CHIP 390

R2292 1-245-322-11 s RESISTOR,CHIP 390

R2293 1-245-322-11 s RESISTOR,CHIP 390

R2294 1-245-322-11 s RESISTOR,CHIP 390

R2295 1-245-322-11 s RESISTOR,CHIP 390

R2296 1-245-322-11 s RESISTOR,CHIP 390

R2297 1-245-322-11 s RESISTOR,CHIP 390

R2298 1-245-322-11 s RESISTOR,CHIP 390

R2299 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2300 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2301 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2302 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2303 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2304 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2305 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2306 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2307 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2308 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2309 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2310 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2311 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2312 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2313 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2314 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2315 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2316 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2317 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2318 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2319 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2320 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2321 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2322 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2323 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2324 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

HSR-X200/X200P

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2325 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2326 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2327 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2328 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2329 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2330 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2331 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2332 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2333 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2334 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2335 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2336 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2337 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2338 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2339 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2340 *N 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2341 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2342 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2343 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2344 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2345 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2346 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2347 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2348 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2351 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2352 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2353 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2354 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2355 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2356 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2357 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2358 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2361 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2362 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2363 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2364 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2365 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2366 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2367 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2368 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2371 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2372 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2373 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2374 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2375 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2376 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2377 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2378 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2391 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2392 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2393 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2394 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2395 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2396 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2397 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2398 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2399 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2400 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608

R2401 1-216-864-11 s CONDUCTOR, CHIP (1608)

HSR-X200/X200P

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2402 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2404 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2408 1-245-339-11 s RESISTOR,CHIP 10

R2409 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2410 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2411 1-245-321-11 s RESISTOR,CHIP 33

R2412 1-245-321-11 s RESISTOR,CHIP 33

R2413 1-245-321-11 s RESISTOR,CHIP 33

R2414 1-245-321-11 s RESISTOR,CHIP 33

R2415 1-245-321-11 s RESISTOR,CHIP 33

R2416 1-245-321-11 s RESISTOR,CHIP 33

R2417 1-245-321-11 s RESISTOR,CHIP 33

R2418 1-245-321-11 s RESISTOR,CHIP 33

R2421 1-245-321-11 s RESISTOR,CHIP 33

R2422 1-245-321-11 s RESISTOR,CHIP 33

R2423 1-245-321-11 s RESISTOR,CHIP 33

R2424 1-245-321-11 s RESISTOR,CHIP 33

R2425 1-245-321-11 s RESISTOR,CHIP 33

R2426 1-245-321-11 s RESISTOR,CHIP 33

R2427 1-245-321-11 s RESISTOR,CHIP 33

R2428 1-245-321-11 s RESISTOR,CHIP 33

R2431 1-245-321-11 s RESISTOR,CHIP 33

R2432 1-245-321-11 s RESISTOR,CHIP 33

R2433 1-245-321-11 s RESISTOR,CHIP 33

R2434 1-245-321-11 s RESISTOR,CHIP 33

R2435 1-245-321-11 s RESISTOR,CHIP 33

R2436 1-245-320-11 s RESISTOR,CHIP 22

R2437 1-245-320-11 s RESISTOR,CHIP 22

R2438 1-245-320-11 s RESISTOR,CHIP 22

R2439 1-245-321-11 s RESISTOR,CHIP 33

R2441 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2442 1-245-321-11 s RESISTOR,CHIP 33

R2443 1-245-321-11 s RESISTOR,CHIP 33

R2444 1-245-321-11 s RESISTOR,CHIP 33

R2445 1-243-818-11 s RESISTOR,CHIP 5.6K 16W

R2446 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2447 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2448 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2450 *P 1-216-864-11 s CONDUCTOR, CHIP (1608)

*N 1-243-998-11 s RES, CHIP 82

R2452 *N 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2453 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2454 *P 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2456 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2458 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2459 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2462 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2465 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2466 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2467 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2469 1-216-807-11 s RESISTOR, CHIP 68 1/16W 1608

R2470 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2471 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2472 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2473 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2474 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2475 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2476 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2477 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

5-13

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2478 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2479 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2480 1-216-804-11 s RESISTOR,CHIP 39 1/16W 1608

R2482 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2483 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2484 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2485 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2486 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2487 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2488 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2489 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2490 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2491 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2492 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2493 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2494 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2495 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2496 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2497 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2498 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2499 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2500 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2501 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2502 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2503 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2504 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2505 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2506 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2507 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2508 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2509 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2510 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2511 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2512 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2513 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2514 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2515 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2516 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2517 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2518 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2519 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2520 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2521 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2522 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2523 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2524 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2525 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2530 *N 1-216-818-11 s RESISTOR, CHIP 560 1/10W 1608

*P 1-243-819-11 s RESISTOR,CHIP 680

R2532 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2533 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2534 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2535 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2536 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2537 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2538 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2539 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2540 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2541 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

5-14

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2542 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2543 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2544 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2545 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2546 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2547 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2548 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2549 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2550 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2551 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2552 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2553 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2554 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2555 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2556 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2557 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2558 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2559 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2560 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2562 1-216-825-11 s RESISTOR,CHIP 2.2K 1/10W 1608

R2563 1-216-825-11 s RESISTOR,CHIP 2.2K 1/10W 1608

R2564 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2566 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2567 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2570 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2571 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2572 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2573 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2574 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2575 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2579 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2580 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2581 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2591 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2592 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2593 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2594 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2595 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2596 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2597 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2598 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2599 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2600 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2601 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2603 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2604 1-245-319-11 s RESISTOR,CHIP 180

R2605 1-245-319-11 s RESISTOR,CHIP 180

R2606 1-245-319-11 s RESISTOR,CHIP 180

R2607 1-245-319-11 s RESISTOR,CHIP 180

R2608 1-245-319-11 s RESISTOR,CHIP 180

R2609 1-245-319-11 s RESISTOR,CHIP 180

R2610 1-245-319-11 s RESISTOR,CHIP 180

R2611 1-245-319-11 s RESISTOR,CHIP 180

R2612 1-245-319-11 s RESISTOR,CHIP 180

R2613 1-245-319-11 s RESISTOR,CHIP 180

R2614 1-245-319-11 s RESISTOR,CHIP 180

R2615 1-245-319-11 s RESISTOR,CHIP 180

R2616 1-245-319-11 s RESISTOR,CHIP 180

R2617 1-245-319-11 s RESISTOR,CHIP 180

HSR-X200/X200P

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2618 1-245-319-11 s RESISTOR,CHIP 180

R2619 1-245-319-11 s RESISTOR,CHIP 180

R2620 1-245-319-11 s RESISTOR,CHIP 180

R2621 1-245-319-11 s RESISTOR,CHIP 180

R2622 1-245-319-11 s RESISTOR,CHIP 180

R2623 1-245-319-11 s RESISTOR,CHIP 180

R2624 1-245-319-11 s RESISTOR,CHIP 180

R2625 1-245-319-11 s RESISTOR,CHIP 180

R2626 1-245-319-11 s RESISTOR,CHIP 180

R2627 1-245-319-11 s RESISTOR,CHIP 180

R2628 1-245-319-11 s RESISTOR,CHIP 180

R2629 1-245-319-11 s RESISTOR,CHIP 180

R2630 1-245-319-11 s RESISTOR,CHIP 180

R2631 1-245-319-11 s RESISTOR,CHIP 180

R2632 1-245-319-11 s RESISTOR,CHIP 180

R2633 1-245-319-11 s RESISTOR,CHIP 180

R2634 1-245-319-11 s RESISTOR,CHIP 180

R2635 1-245-319-11 s RESISTOR,CHIP 180

R2636 1-245-319-11 s RESISTOR,CHIP 180

R2637 1-245-319-11 s RESISTOR,CHIP 180

R2638 1-245-319-11 s RESISTOR,CHIP 180

R2639 1-245-319-11 s RESISTOR,CHIP 180

R2640 1-245-319-11 s RESISTOR,CHIP 180

R2641 1-245-319-11 s RESISTOR,CHIP 180

R2642 1-245-319-11 s RESISTOR,CHIP 180

R2645 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2654 1-216-805-11 s RESISTOR,CHIP 47 1/10W 1608

R2655 *N 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2656 *N 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2663 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2664 1-243-971-11 s RESISTOR,CHIP 100K

R2665 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2666 1-243-971-11 s RESISTOR,CHIP 100K

R2667 1-245-333-11 s RESISTOR,CHIP 820

R2668 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2669 1-245-335-11 s RESISTOR,CHIP 2.7K

R2670 1-216-823-11 s RESISTOR, CHIP 1.5K 1/10W

R2671 1-245-336-11 s RESISTOR,CHIP 200

R2672 1-245-334-11 s RESISTOR,CHIP 1.5K

R2673 1-243-969-11 s RES, CHIP 1.2K

R2674 1-245-328-11 s RESISTOR,CHIP 180

R2675 1-245-322-11 s RESISTOR,CHIP 390

R2681 1-245-323-11 s RESISTOR,CHIP 56

R2682 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2683 1-243-819-11 s RESISTOR,CHIP 680

R2684 1-243-966-11 s RES, CHIP 2.2K

R2685 1-243-968-11 s RESISTOR,CHIP 1K

R2686 1-243-968-11 s RESISTOR,CHIP 1K

R2687 1-216-813-11 s RESISTOR, CHIP 220 1/10W 1608

R2688 1-245-317-11 s RESISTOR,CHIP 3.3

R2689 *P 1-243-969-11 s RES, CHIP 1.2K

R2691 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2692 1-243-819-11 s RESISTOR,CHIP 680

R2693 1-216-836-11 s RESISTOR, CHIP 18K 1/10W 1608

R2694 1-216-836-11 s RESISTOR, CHIP 18K 1/10W 1608

R2695 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2696 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2697 1-245-329-11 s RESISTOR,CHIP 220

(DM-B BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2699 *P 1-245-329-11 s RESISTOR,CHIP 220

*N 1-245-330-11 s RESISTOR,CHIP 330

R2759 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2760 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2766 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2767 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2768 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2769 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2770 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2776 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2777 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2778 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2779 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2780 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2786 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2787 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2788 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2789 *N 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2794 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2816 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2817 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2818 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2819 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2820 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2823 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2824 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2825 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2826 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2827 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2828 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2829 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2830 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2838 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2839 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2840 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2847 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2848 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2849 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2850 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2870 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2894 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2895 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2896 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2897 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2898 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2899 1-216-864-11 s CONDUCTOR, CHIP (1608)

X2401 *P 1-795-592-11 s CRYSTAL, OSC 17.734476MHZ

*N 1-795-607-11 s OSCILLATOR,CRYSTAL 14.31818MHZ

HSR-X200/X200P

5-15

----------

DM-C BOARD

----------

*N: [HSR-X200]

*P: [HSR-X200P]

*UC:[HSR-X200 (UC)]

Ref. No.

or Q'ty Part No. SP Description

C2701 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2702 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2703 1-102-951-00 s CAPACITOR,CERAMIC;50V/15PF

C2704 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH

C2705 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2706 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C2761 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2762 1-165-966-11 s TA-SOLID 10MF

C2763 1-165-966-11 s TA-SOLID 10MF

C2764 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2771 1-165-931-11 s CAPACITOR,CERAMIC 0.01MF 50V

C2772 1-165-966-11 s TA-SOLID 10MF

C2773 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2774 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2775 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C2781 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2782 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2791 1-126-392-11 s CAPACITOR,CHIP ELECT100MF/6.3V

C2801 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2802 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2803 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2804 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2805 1-165-969-11 s TA-SOLID 22MF 16V

C2806 1-165-969-11 s TA-SOLID 22MF 16V

C2807 1-135-923-11 s CAPACITOR,TANTALUM 2.2M 16V

C2808 1-135-923-11 s CAPACITOR,TANTALUM 2.2M 16V

C2821 1-124-589-11 s CAPACITOR,ELECT 47MF/16V

C2822 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2841 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2842 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2843 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2844 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH

C2851 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C2852 1-135-923-11 s CAPACITOR,TANTALUM 2.2M 16V

C2871 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)

C2872 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

D2772 1-804-751-11 s DIODE 1SS355

D2791 1-804-023-11 s DIODE SB05-05CP

D2792 1-804-023-11 s DIODE SB05-05CP

D2801 1-804-025-11 s DIODE DA204U-T106

D2802 1-804-025-11 s DIODE DA204U-T106

D2851 1-804-751-11 s DIODE 1SS355

D2852 1-804-751-11 s DIODE 1SS355

D2871 1-804-751-11 s DIODE 1SS355

IC271 1-804-752-12 s IC LC87F5064AU-QIP

IC272 1-804-753-11 s IC PST9127N

IC273 1-804-755-11 s IC PST9244N

IC274 8-759-671-94 s IC MC74HC4053AFEL

IC275 1-803-882-11 s IC MAX3082CSA

IC276 8-759-252-59 s IC MAX202CSE

IC281 1-804-754-11 s IC BR24CO8F

L2801 1-400-221-11 s INDUCTOR 100MF

5-16

(DM-C BOARD)

Ref. No.

or Q'ty Part No. SP Description

L2821 1-400-220-11 s INDUCTOR 10MF

L2841 1-400-221-11 s INDUCTOR 100MF

L2851 1-400-228-11 s INDUCTOR 240 OHM

L2852 1-400-228-11 s INDUCTOR 240 OHM

L2853 1-400-228-11 s INDUCTOR 240 OHM

L2854 1-400-228-11 s INDUCTOR 240 OHM

L2855 1-400-228-11 s INDUCTOR 240 OHM

L2856 1-400-228-11 s INDUCTOR 240 OHM

L2857 1-400-228-11 s INDUCTOR 240 OHM

L2858 1-400-228-11 s INDUCTOR 240 OHM

L2859 1-400-228-11 s INDUCTOR 240 OHM

L2860 1-400-228-11 s INDUCTOR 240 OHM

L2861 1-400-228-11 s INDUCTOR 240 OHM

L2862 1-400-228-11 s INDUCTOR 240 OHM

L2863 1-400-228-11 s INDUCTOR 240 OHM

L2864 1-400-228-11 s INDUCTOR 240 OHM

L2865 1-400-220-11 s INDUCTOR 10MF

L2871 1-400-221-11 s INDUCTOR 100MF

Q2751 1-804-021-11 s TR 2SK1847

Q2871 1-804-730-11 s TR 2SA1037AK-Q

Q2872 8-729-901-81 s TRANSISTOR 2SC2412K-T-146-R

Q2873 1-804-730-11 s TR 2SA1037AK-Q

Q2874 1-804-730-11 s TR 2SA1037AK-Q

Q2875 1-804-730-11 s TR 2SA1037AK-Q

R2701 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2702 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2703 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2704 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2705 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2706 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2707 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2708 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2709 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2710 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2711 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2712 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2714 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2716 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2717 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2718 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2720 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2722 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2724 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2725 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2726 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2727 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2728 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2729 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2730 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2731 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2732 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2733 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2734 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2735 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2736 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2737 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2738 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2739 1-216-864-11 s CONDUCTOR, CHIP (1608)

HSR-X200/X200P

(DM-C BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2740 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2741 *N 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2742 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2743 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2744 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2745 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2746 1-219-570-11 s RESISTOR,CHIP 10M 1/16W

R2747 1-216-849-11 s RESISTOR,CHIP 220K 1/16W 1608

R2748 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2749 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2750 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2751 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2752 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2753 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2754 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2755 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2756 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2757 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2758 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2762 1-216-823-11 s RESISTOR, CHIP 1.5K 1/10W

R2763 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2772 1-216-823-11 s RESISTOR, CHIP 1.5K 1/10W

R2773 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2774 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2775 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2781 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2782 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2783 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2784 1-216-824-11 s RESISTOR, CHIP 1.8K 1/10W 1608

R2785 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2791 1-243-820-11 s RESISTOR,CHIP 300

R2793 1-216-807-11 s RESISTOR, CHIP 68 1/16W 1608

R2795 1-216-807-11 s RESISTOR, CHIP 68 1/16W 1608

R2797 *P*UC

1-216-864-11 s CONDUCTOR, CHIP (1608)

R2801 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2802 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2803 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2804 1-216-845-11 s RESISTOR,CHIP 100K 1/10W(1608)

R2805 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2806 1-216-845-11 s RESISTOR,CHIP 100K 1/10W(1608)

R2807 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2811 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2812 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2814 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2821 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2822 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2837 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608

R2842 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2843 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2844 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2845 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2846 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2851 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2852 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2853 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2854 1-216-809-11 s RESISTOR,CHIP 100 1/10W 1608

R2855 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2856 1-216-864-11 s CONDUCTOR, CHIP (1608)

HSR-X200/X200P

(DM-C BOARD)

Ref. No.

or Q'ty Part No. SP Description

R2857 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2858 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2859 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2860 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2861 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2862 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2863 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2864 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2865 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2866 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2867 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2868 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2869 1-216-817-11 s RESISTOR,CHIP 470 1/10W 1608

R2871 1-216-864-11 s CONDUCTOR, CHIP (1608)

R2872 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2873 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2874 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2875 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2876 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2877 1-216-845-11 s RESISTOR,CHIP 100K 1/10W(1608)

R2878 1-216-829-11 s RESISTOR,CHIP 4.7K 1/10W(1608)

R2880 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2881 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2882 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2883 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2885 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2886 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2887 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2888 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2889 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2890 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2891 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)

R2892 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608)

R2893 1-216-864-11 s CONDUCTOR, CHIP (1608)

S2701 3-206-819-01 s SWITCH, PUSH

X2701 1-579-220-11 s CRYSTAL,OSC 32KHZ

X2702 1-781-722-11 s OSCILLATOR, CERAMIC 10MHZ OSC

XF271 1-234-519-11 s FILTER EMI 47PF

XF272 1-234-519-11 s FILTER EMI 47PF

XF273 1-234-519-11 s FILTER EMI 47PF

5-17

----------

OP-1 BOARD

----------

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

*CE:[HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

1pc *CE A-8344-532-A s MOUNTED CIRCUIT BOARD, OP-1

1pc *J A-8344-690-A s MOUNTED CIRCUIT BOARD, OP-1

1pc *UC A-8344-736-A s MOUNTED CIRCUIT BOARD, OP-1

C6001 1-135-210-11 s CAPACITOR,TANTALUM 4.7MF/10V

C6002 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

D6002 1-804-743-11 s LED SEL2415EMTP6-C

D6003 1-804-743-11 s LED SEL2415EMTP6-C

D6004 1-804-741-11 s LED SEL 2210SM

D6007 1-804-743-11 s LED SEL2415EMTP6-C

D6008 1-804-741-11 s LED SEL 2210SM

D6009 1-804-743-11 s LED SEL2415EMTP6-C

D6010 1-804-733-11 s LED SEL 2915AM-TP6-C

D6011 1-804-743-11 s LED SEL2415EMTP6-C

D6012 1-804-741-11 s LED SEL 2210SM

IC601 1-804-033-11 s IC BU2090F

L6001 1-400-221-11 s INDUCTOR 100MF

Q6001 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

R6001 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6002 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6003 1-243-820-11 s RESISTOR,CHIP 300

R6004 1-245-324-11 s RESISTOR,CHIP 360 JA1/16W

R6005 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608

R6006 1-243-819-11 s RESISTOR,CHIP 680

R6007 1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608

R6008 1-243-846-11 s RESISTOR,CHIP 1.2K

R6009 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608

R6010 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608

R6011 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608

R6012 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6013 1-245-325-11 s RESISTOR,CHIP 7.5K

R6014 1-216-994-11 s RESISTOR,CHIP 13K 1/16W(1608)

R6015 1-216-838-11 s RESISTOR CHIP 27K 1/16W(1608)

R6016 1-216-843-11 s RESISTOR,CHIP 68K 1/16W (1608)

R6022 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6023 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6024 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6027 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6028 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6029 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608

R6030 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608

R6031 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6033 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6041 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6042 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6043 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6044 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6045 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6046 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608

R6047 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6048 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6049 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6050 1-216-864-11 s CONDUCTOR, CHIP (1608)

5-18

(OP-1 BOARD)

Ref. No.

or Q'ty Part No. SP Description

R6051 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6052 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6053 1-216-864-11 s CONDUCTOR, CHIP (1608)

R6054 1-216-864-11 s CONDUCTOR, CHIP (1608)

S6001 1-771-288-11 s SWITCH, PUSH 1P-1T

S6002 1-771-288-11 s SWITCH, PUSH 1P-1T

S6003 1-771-288-11 s SWITCH, PUSH 1P-1T

S6004 1-771-288-11 s SWITCH, PUSH 1P-1T

S6005 1-771-288-11 s SWITCH, PUSH 1P-1T

S6006 1-771-288-11 s SWITCH, PUSH 1P-1T

S6007 1-771-288-11 s SWITCH, PUSH 1P-1T

S6008 1-771-288-11 s SWITCH, PUSH 1P-1T

S6009 1-771-288-11 s SWITCH, PUSH 1P-1T

S6010 1-771-288-11 s SWITCH, PUSH 1P-1T

S6011 1-771-288-11 s SWITCH, PUSH 1P-1T

S6012 1-771-288-11 s SWITCH, PUSH 1P-1T

S6013 1-771-288-11 s SWITCH, PUSH 1P-1T

S6014 1-771-288-11 s SWITCH, PUSH 1P-1T

S6015 1-771-288-11 s SWITCH, PUSH 1P-1T

S6016 1-771-288-11 s SWITCH, PUSH 1P-1T

HSR-X200/X200P

----------

OP-2 BOARD

----------

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

*CE:[HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

1pc *CE A-8344-533-A s MOUNTED CIRCUIT BOARD, OP-2

1pc *J A-8344-691-A s MOUNTED CIRCUIT BOARD, OP-2

1pc *UC A-8344-737-A s MOUNTED CIRCUIT BOARD, OP-2

BZ611 3-204-116-00 s BUZZER

C6101 1-135-210-11 s CAPACITOR,TANTALUM 4.7MF/10V

C6102 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C6103 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C6121 1-135-210-11 s CAPACITOR,TANTALUM 4.7MF/10V

C6122 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

D6101 1-804-741-11 s LED SEL 2210SM

D6102 1-804-741-11 s LED SEL 2210SM

D6103 1-804-741-11 s LED SEL 2210SM

D6104 1-804-740-11 s LED SML 1216C

L6101 1-400-221-11 s INDUCTOR 100MF

L6121 1-400-221-11 s INDUCTOR 100MF

Q6101 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

Q6102 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

Q6103 8-729-027-59 s TRANSISTOR DTC144EKA (T146)

Q6104 1-804-730-11 s TR 2SA1037AK-Q

Q6105 1-804-730-11 s TR 2SA1037AK-Q

Q6121 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

R6101 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6102 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6103 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6104 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6105 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)

R6106 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608

R6107 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6108 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)

R6109 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608

R6113 1-216-864-11 s CONDUCTOR, CHIP (1608)

R6121 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6122 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)

R6123 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)

R6124 1-216-864-11 s CONDUCTOR, CHIP (1608)

----------

PC-1 BOARD

----------

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

*CE:[HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

1pc *CE A-8344-537-A s MOUNTED CIRCUIT BOARD, PC-1

1pc *J A-8344-689-A s MOUNTED CIRCUIT BOARD, PC-1

1pc *UC A-8344-735-A s MOUNTED CIRCUIT BOARD, PC-1

C2901 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

R2902 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2903 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2904 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2905 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2906 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2907 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R2908 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

HSR-X200/X200P

5-19

----------

PW-1 BOARD

----------

*N: [HSR-X200]

*P: [HSR-X200P]

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

Ref. No.

or Q'ty Part No. SP Description

1pc *P A-8344-541-B s MOUNTED CIRCUIT BOARD, PW-1

1pc *J A-8344-687-B s MOUNTED CIRCUIT BOARD, PW-1

1pc *UC A-8344-741-B s MOUNTED CIRCUIT BOARD, PW-1

C5001

!

1-165-977-11 s CAPACITOR,FILM 0.22MF

C5002

!

1-165-976-11 s CAPACITOR,CERAMIC 3300P

C5003

!

1-165-977-11 s CAPACITOR,FILM 0.22MF

C5009 *J

!

1-165-976-11 s CAPACITOR,CERAMIC 3300P

C5011 *N 1-100-007-11 s CAPACITOR,ELECT 470MF 200V

*P 1-165-975-11 s CAPACITOR,ELECT 100MF 400V

C5014 1-165-962-11 s CAPACITOR,FILM 0.1MF

C5015 *P 1-119-664-11 s CAPACITOR,ELECT 10MF/50V

C5016 1-126-965-11 s CAPACITOR,ELECT 22MF/50V

C5017 1-110-974-11 s CAPACITOR,CERAMIC 3300PF 500V

C5018 *N 1-115-193-11 s CAPACITOR,CERAMIC 470PF 1KV

*P 1-165-963-11 s CAPACITOR,CERAMIC 220PF

C5019 1-124-464-11 s CAPACITOR,ELECT 0.22MF/50V

C5020 1-130-495-11 s CAPACITOR,FILM 0.1MF/50V

C5021 1-161-772-11 s CAPACITOR,CERAMIC 0.1MF/25V

C5022 1-102-973-00 s CAPACITOR,CERAMIC 100PF/50V

C5023

!

1-115-383-11 s CAPACITOR, CERAMIC 1000PF/400V

C5024 1-124-259-11 s CAPACITOR,ELECT 4.7MF/50V

C5101 1-165-974-11 s CAPACITOR,ELECT 820MF 25V

C5102 1-165-974-11 s CAPACITOR,ELECT 820MF 25V

C5103 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C5105 1-165-974-11 s CAPACITOR,ELECT 820MF 25V

C5106 1-130-495-11 s CAPACITOR,FILM 0.1MF/50V

C5107 1-104-570-11 s CAPCITOR,CERAMIC 1000PF/2KVDC

C5108 1-104-570-11 s CAPCITOR,CERAMIC 1000PF/2KVDC

C5131 1-162-294-31 s CAPACITOR,CERAMIC 1000PF/50V

C5132 1-161-379-00 s CAPACITOR,CERAMIC;25V/0.01MF

C5133 1-165-970-11 s CAPACITOR,ELECT 470MF 25V

C5134 1-102-129-00 s CAPACITOR,CERAMIC;50V/0.01MF

C5135 1-163-009-11 s CAPACITOR,CERAMIC 1000PF/50V

C5136 1-119-864-11 s POLYESTER 0.047UH50V

C5137 1-165-968-11 s CAPACITOR,ELECT 1000MF 16V

C5138 1-165-968-11 s CAPACITOR,ELECT 1000MF 16V

C5141 1-162-294-31 s CAPACITOR,CERAMIC 1000PF/50V

C5151 1-162-294-31 s CAPACITOR,CERAMIC 1000PF/50V

C5152 1-161-379-00 s CAPACITOR,CERAMIC;25V/0.01MF

C5153 1-165-970-11 s CAPACITOR,ELECT 470MF 25V

C5154 1-102-129-00 s CAPACITOR,CERAMIC;50V/0.01MF

C5155 1-163-009-11 s CAPACITOR,CERAMIC 1000PF/50V

C5156 1-119-864-11 s POLYESTER 0.047UH50V

C5157 1-165-968-11 s CAPACITOR,ELECT 1000MF 16V

C5158 1-165-968-11 s CAPACITOR,ELECT 1000MF 16V

C5161 1-162-294-31 s CAPACITOR,CERAMIC 1000PF/50V

C5181 *P 1-124-259-11 s CAPACITOR,ELECT 4.7MF/50V

C5182 1-102-129-00 s CAPACITOR,CERAMIC;50V/0.01MF

C5183 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C5184 1-165-971-11 s CAPACITOR,ELECT 1000MF 10V

C5185 1-126-154-11 s CAPACITOR,ELECT 47MF/6.3V(105)

C5186 1-130-495-11 s CAPACITOR,FILM 0.1MF/50V

5-20

(PW-1 BOARD)

Ref. No.

or Q'ty Part No. SP Description

C5187 1-100-006-11 s CAPACITOR,ELECT 10MF 16V

C5188 1-165-972-11 s CAPACITOR,ELECT 470MF

C5189 1-165-970-11 s CAPACITOR,ELECT 470MF 25V

C5190 1-130-495-11 s CAPACITOR,FILM 0.1MF/50V

C5191 1-124-589-11 s CAPACITOR,ELECT 47MF/16V

D5001 1-804-750-11 s DIODE D3SB60

D5011 8-719-200-02 s DIODE 10E2 (RECTI)

D5012 8-719-200-02 s DIODE 10E2 (RECTI)

D5013 8-719-109-89 s DIODE RD5.6ES-B2

D5014

!

1-804-738-11 s PHOTO COUPLER, SFH615AGRX16

D5015 1-804-736-11 s DIODE D1NL20U

D5016 1-803-877-11 s DIODE 1.5KE 150A

D5017 1-808-898-11 s DIODE AP01C-V0

D5018 8-719-901-83 s DIODE 1SS83

D5019

!

1-804-738-11 s PHOTO COUPLER, SFH615AGRX16

D5020 *N 1-801-535-11 s DIODE RZ1250

D5021 8-719-110-31 s DIODE RD12ESB2

D5101 1-804-734-11 s DIODE YG912S2R

D5102 1-804-736-11 s DIODE D1NL20U

D5103 8-719-929-15 s DIODE HZS9.1NB2

D5104 1-809-610-11 s DIODE MTZJ20B-T-77

D5131 8-719-901-83 s DIODE 1SS83

D5132 1-804-742-11 s DIODE ERC81-004J11

D5151 8-719-901-83 s DIODE 1SS83

D5152 1-804-742-11 s DIODE ERC81-004J11

D5181 8-719-109-93 s DIODE RD6.2ES-B2

D5184 8-719-901-83 s DIODE 1SS83

F5001 *N

!

1-576-639-11 s FUSE 125V 2A

*P

!

1-576-634-11 s FUSE 250V

IC501 1-804-716-11 s IC FA3641P

IC512 1-810-060-11 s IC L5431-AA

IC531 1-804-720-11 s IC MD1222N

IC551 1-804-720-11 s IC MD1222N

IC581 1-804-725-11 s IC SI-3025LSA-TL

IC582 1-804-715-11 s IC SI-3090F-LF1113N

L5001

!

1-234-765-11 s FILTER, LINE

L5004 1-414-540-11 s INDUCTOR 1.1UH

L5012 1-414-540-11 s INDUCTOR 1.1UH

L5013 1-414-540-11 s INDUCTOR 1.1UH

L5101 1-410-509-11 s MICRO INDUCTOR 10UH

L5102 1-414-540-11 s INDUCTOR 1.1UH

L5103 1-500-225-11 s CORE, BEAD

L5104 1-414-540-11 s INDUCTOR 1.1UH

L5105 1-500-225-11 s CORE, BEAD

L5106 1-414-540-11 s INDUCTOR 1.1UH

L5131 1-400-233-11 s INDUCTOR 22MF

L5151 1-400-233-11 s INDUCTOR 22MF

Q5010 1-804-731-11 s TRANSISTOR FS14KM-12A

Q5011 8-729-119-78 s TRANSISTOR 2SC2785-HFE

Q5181 8-729-029-66 s TRANSISTOR DTC114ESA

Q5182 8-729-205-97 s TRANSISTOR 2SC3668-Y

R5002 1-240-219-11 s RESISTOR ,SOLID 2.7M

R5011 1-247-885-00 s RES.CARBON 180K 1/4W

HSR-X200/X200P

(PW-1 BOARD)

Ref. No.

or Q'ty Part No. SP Description

R5012 *J 1-249-434-11 s RESISTOR,CARBON 27K 1/4W

*P*UC

1-249-437-11 s RESISTOR,CARBON 47K 1/4W SMALL

R5013 1-249-405-11 s RES,CARBON 100 1/4W SMALL

R5014 1-249-405-11 s RES,CARBON 100 1/4W SMALL

R5015 1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)

R5016 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)

R5017 1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)

R5018

!

1-245-345-11 s FUSIBLE RESISTOR 0.1K

R5019 1-216-045-00 s RESISTOR,CHIP 680 1/10W(2012)

R5020 1-216-105-00 s RESISTOR,CHIP 220K 1/10W(2012)

R5021 1-216-689-11 s RESISTOR,CHIP 39K 1/10W(2012)

R5023 *P 1-247-883-00 s RESISTOR,CARBON 150K 1/4W

*N 1-249-438-11 s RES,CARBON 56K 1/4W

R5024 *P 1-247-883-00 s RESISTOR,CARBON 150K 1/4W

*N 1-249-438-11 s RES,CARBON 56K 1/4W

R5025 1-247-885-00 s RES.CARBON 180K 1/4W

R5026 *N 1-249-435-11 s RESISTOR CARBON 33K 1/4W

*P 1-249-440-11 s RES,CARBON 82K 1/4W

R5027 *N 1-249-435-11 s RESISTOR CARBON 33K 1/4W

*P 1-249-440-11 s RES,CARBON 82K 1/4W

R5028 *N 1-249-435-11 s RESISTOR CARBON 33K 1/4W

*P 1-249-440-11 s RES,CARBON 82K 1/4W

R5029 *N 1-249-435-11 s RESISTOR CARBON 33K 1/4W

*P 1-249-440-11 s RES,CARBON 82K 1/4W

R5030 *P 1-247-883-00 s RESISTOR,CARBON 150K 1/4W

*N 1-249-438-11 s RES,CARBON 56K 1/4W

R5031 *P 1-247-883-00 s RESISTOR,CARBON 150K 1/4W

*N 1-249-438-11 s RES,CARBON 56K 1/4W

R5102 1-249-421-11 s RESISTOR,CARBON 2.2K 1/4W

R5103 1-216-085-00 s RESISTOR CHIP 33K 1/10W(2012)

R5104 1-216-047-00 s RESISTOR, CHIP 820 1/10W(2012)

R5105 1-249-428-11 s RESISTOR,CARBON 8.2K 1/4W

R5106 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R5107 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)

R5131 1-216-097-00 s RESISTOR CHIP 100K 1/10W(2012)

R5132 1-216-121-00 s RESISTOR CHIP 1M 1/10W(2012)

R5133

!

1-245-345-11 s FUSIBLE RESISTOR 0.1K

R5134

!

1-245-345-11 s FUSIBLE RESISTOR 0.1K

R5137 1-216-055-00 s RESISTOR CHIP 1.8K 1/10W(2012)

R5138 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)

R5141 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)

R5143 1-249-413-11 s RESISTOR,CARBON 470 1/4W SMALL

R5144 1-249-393-11 s RES,CARBON 10 1/4W

R5151 1-216-097-00 s RESISTOR CHIP 100K 1/10W(2012)

R5152 1-216-121-00 s RESISTOR CHIP 1M 1/10W(2012)

R5153

!

1-245-345-11 s FUSIBLE RESISTOR 0.1K

R5154

!

1-245-345-11 s FUSIBLE RESISTOR 0.1K

R5157 1-216-043-00 s RESISTOR, CHIP 560 1/10W(2012)

R5158 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)

R5161 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)

R5164 1-249-393-11 s RES,CARBON 10 1/4W

R5181 1-208-810-11 s RESISTOR,CHIP 15K 1/10W (2012)

R5183 1-216-295-00 s CONDUCTOR, CHIP (2012)

R5184 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R5185 1-249-417-11 s RESISTOR,CARBON 1K 1/4W(SMALL)

R5186 1-249-422-11 s RES,CARBON 2.7K 1/4W SMALL

T5001

!

1-437-768-11 s TRANSFORMER, POWER PULSE

TH501 1-804-739-11 s THERMISTOR NTPDB100LD7B0

HSR-X200/X200P

(PW-1 BOARD)

Ref. No.

or Q'ty Part No. SP Description

VA501

!

1-804-737-11 s VARISTOR, ENE471D-14A

VA502

!

1-804-737-11 s VARISTOR, ENE471D-14A

VA503

!

1-804-745-11 s VARISTOR

VR551 1-228-989-00 s CESISTOR,ADJ,METAL GLAZE 470

Y5003 1-533-583-11 s FUSE,HOLDER

Y5004 1-533-583-11 s FUSE,HOLDER

Y5017 7-682-949-09 s SCREW +PSW 3X10(EP-FE/ZNBK/CM2

Y5108 7-685-646-79 s SCREW +BVTP 3X8

Y5120 3-206-802-01 s GROUND

5-21

----------

TB-1 BOARD

----------

Ref. No.

or Q'ty Part No. SP Description

1pc A-8344-534-A s MOUNTED CIRCUIT BOARD, TB-1

C6201 1-126-154-11 s CAPACITOR,ELECT 47MF/6.3V(105)

C6202 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

C6203 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6204 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6209 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6210 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6211 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6215 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6216 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6217 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C6218 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6219 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6220 1-165-935-11 s CAPACITOR,CERAMIC 0.1MF 16V

C6221 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6222 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6223 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

L6201 1-400-229-11 s INDUCTOR 240 OHM

L6202 1-400-229-11 s INDUCTOR 240 OHM

L6203 1-400-229-11 s INDUCTOR 240 OHM

L6204 1-400-229-11 s INDUCTOR 240 OHM

L6205 1-400-229-11 s INDUCTOR 240 OHM

L6206 1-400-229-11 s INDUCTOR 240 OHM

L6207 1-400-229-11 s INDUCTOR 240 OHM

L6208 1-400-229-11 s INDUCTOR 240 OHM

L6209 1-400-229-11 s INDUCTOR 240 OHM

L6210 1-400-229-11 s INDUCTOR 240 OHM

L6211 1-400-229-11 s INDUCTOR 240 OHM

L6221 1-400-229-11 s INDUCTOR 240 OHM

L6222 1-400-229-11 s INDUCTOR 240 OHM

L6223 1-400-229-11 s INDUCTOR 240 OHM

L6224 1-400-229-11 s INDUCTOR 240 OHM

L6225 1-400-229-11 s INDUCTOR 240 OHM

L6226 1-400-229-11 s INDUCTOR 240 OHM

L6227 1-400-229-11 s INDUCTOR 240 OHM

L6228 1-400-229-11 s INDUCTOR 240 OHM

L6229 1-400-229-11 s INDUCTOR 240 OHM

L6230 1-400-229-11 s INDUCTOR 240 OHM

L6231 1-400-229-11 s INDUCTOR 240 OHM

Q6201 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6211 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6213 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6214 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6217 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6218 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

Q6219 8-729-120-28 s TRANSISTOR 2SC1623-L5L6

R6201 1-216-810-11 s RESISTOR, CHIP 120 1/16W 1608

R6202 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6203 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6204 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6205 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6206 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6207 1-216-864-11 s CONDUCTOR, CHIP (1608)

R6208 1-216-864-11 s CONDUCTOR, CHIP (1608)

R6209 1-216-065-00 s RESISTOR CHIP 4.7K 1/10W(2012)

R6211 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

(TB-1 BOARD)

Ref. No.

or Q'ty Part No. SP Description

R6212 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6213 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6214 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6221 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6222 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6223 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6224 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6225 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6226 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6227 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6228 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6237 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6238 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6239 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6240 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6241 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6242 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6243 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6244 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6245 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6246 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6247 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6248 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)

R6249 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)

R6250 1-216-065-00 s RESISTOR CHIP 4.7K 1/10W(2012)

R6251 1-216-065-00 s RESISTOR CHIP 4.7K 1/10W(2012)

R6252 1-216-065-00 s RESISTOR CHIP 4.7K 1/10W(2012)

S6201 1-762-484-11 s SWITCH, SLIDE (1P-2T)

S6202 1-771-288-11 s SWITCH, PUSH 1P-1T

----------

TB-2 BOARD

----------

Ref. No.

or Q'ty Part No. SP Description

Z6301

!

1-528-594-11 s BATTERY,RECHARGEABLE (LITHIUM)

----------

TB-3 BOARD

----------

Ref. No.

or Q'ty Part No. SP Description

1pc A-8344-536-A s MOUNTED CIRCUIT BOARD, TB-3

CN643 1-417-270-11 s SOCKET, PWB-PWB 8P

JK651 1-816-523-11 s JACK, D3.6 HOON

JK652 1-816-524-11 s JACK, RCA-2

L6401 1-414-540-11 s INDUCTOR 1.1UH

L6402 1-414-540-11 s INDUCTOR 1.1UH

L6403 1-414-540-11 s INDUCTOR 1.1UH

R6401 1-216-864-11 s CONDUCTOR, CHIP (1608)

5-22

HSR-X200/X200P

----------

TB-4 BOARD

----------

Ref. No.

or Q'ty Part No. SP Description

1pc A-8344-542-A s MOUNTED CIRCUIT BOARD, TB-4

C6501 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B

C6503 1-137-643-11 s CAPACITOR,ELECT 10MF 16V

C6504 1-137-643-11 s CAPACITOR,ELECT 10MF 16V

C6505 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH

C6506 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH

C6507 1-137-643-11 s CAPACITOR,ELECT 10MF 16V

C6508 1-137-643-11 s CAPACITOR,ELECT 10MF 16V

C6509 1-124-589-11 s CAPACITOR,ELECT 47MF/16V

C6510 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F

IC651 1-804-744-11 s IC LA6458M-TE-L

JK651 1-816-523-11 s JACK, D3.6 HOON

JK652 1-816-524-11 s JACK, RCA-2

L6501 1-400-230-11 s INDUCTOR 750 OHM

L6502 1-400-230-11 s INDUCTOR 750 OHM

L6504 1-400-231-11 s INDUCTOR 1500 OHM

L6505 1-400-231-11 s INDUCTOR 1500 OHM

R6501 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608

R6502 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608

R6504 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608

R6505 1-216-840-11 s RESISTOR,CHIP 39K 1/16W 1608

R6506 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6507 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)

R6508 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6509 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)

R6511 1-216-864-11 s CONDUCTOR, CHIP (1608)

5-4. Packing Materials and Accessories

----------------------------------------

PACKING MATERIALS & SUPPLIED ACCESSORIES

----------------------------------------

*J: [HSR-X200 (J)]

*UC:[HSR-X200 (UC)]

*CE:[HSR-X200P]

Ref. No.

or Q'ty Part No. SP Description

1pc *J 1-476-413-11 s ADAPTOR, AC CONVERSION

1pc *CE 1-500-738-11 s CORE, CLAMP

1pc *J 1-500-741-11 s CORE, FERRITE

1pc *CE

!

1-534-827-14 s CORD,POWER (3P)(UL/CSA)

1pc *J

!

1-792-971-11 s CORD, 2MK POWER

1pc *UC

!

1-824-109-11 s CORD, POWER

1pc 3-200-317-01 s WASHER (SPR4)

1pc 3-200-318-01 s WASHER (4X10X0.8)

1pc 3-204-114-01 s BOLT (HEX 4X15E)

1pc 3-204-142-01 o MOUNT, RACK

1pc *J 3-206-603-01 s MANUAL, INSTRUCTION

1pc *UC

*CE 3-206-603-12 s MANUAL, INSTRUCTION

1pc *CE 3-206-603-22 s MANUAL, INSTRUCTION

1pc 7-684-024-04 s NUT M4 TYPE2 (EP-FE/ZN/CM2)

HSR-X200/X200P

5-23

Section 6

Block Diagrams

HSR-X200/X200P

6-1 (J)

6-2 (J)

HSR-X200/X200P

HSR-X200/X200P

6-3 (J)

Section 6

Block Diagrams

6-1. Circuit Description

[1] Power Supply Processing System

(PW-1 Board)

1.

Introduction

The power supply circuits are mainly formed by the following blocks.

. Power supply switching: FET Q5010 and control IC IC501

. 12 V(HDD) power supply output

. 5 V power supply output: IC531

. 3.3 V power supply output:

. 2.5 V power supply output:

IC551

IC581

. 12 V (AD) power supply output: IC582

2.

Switching power supply control IC

IC501 (FA3641) is an 8-pin PWM switching control

IC that can directly drive the power MOSFET.

The oscillation frequency is decided by pin 1, secondary side feedback is provided by pin 2, controlling output of the secondary side. Overcurrent detection is done by pin 3 (overcurrent protection operation), and an overvoltage protection function is established at the pin 6 VCC lead.

When these overcurrent and overvoltage movements begin to work, they generate latch-up movement as circuits.

3.

12 V(HDD) Power Supply Output

12 V output (for the hard disk). Feedback from this 12

V goes to IC501, enabling PWM control.

4.

5 V Power Supply Output

5 V output. The 5 V is produced by IC531 (MD1222N), a 32-pin surface mount SSOP DC/DC converter

(chopper control).

The DC/DC converter can set output voltage by discretion, according to external resistance.

Input leads are pins 18~21, output leads are 11~14.

5.

3.3 V Power Supply Output

3.3 V output. The 3.3 V is produced by IC551

(MD1222N), a 32-pin surface mount SSOP DC/DC converter (chopper control).

The DC/DC converter can set output voltage by discretion, according to external resistance.

Input leads are pins 18~21, output leads are 11~14.

6.

2.5 V Power Supply Output

2.5 V output. IC581 (SI-3025LSA) is an 8-pin surface mount IC.

Input leads are pins 1 and 3, output leads are 7 and 8.

7.

12 V Power Supply Output

12 V output (for the audio circuits). 12 V is produced by the TO-220 package regulator of the 5-pin IC582

(SI-3090F).

Input leads are pins 2 and 5, output lead is pin 3.

[2] Hard Disk Processing System

(CD-1 (DM-A, DM-B, DM-C), OP-1, OP-2, TB-1, TB-2,

TB-3 and TB-4)

1.

Introduction

(1) DM-A a.

Input/Output Video Filter: Q2011, 12, 13, 14, 21,

22, 23, 25, 31, 32, 33, 34, 41, 42, 43, 44, 45, 46,

48, 61, 62, 63, 65, IC202, 203, 204

Cuts frequencies above a sample frequency of the input signal and eliminates entry of return noise.

Amplifies to match the decoder input levels.

Eliminates noise that is included in the encoder video signal, and mixes brilliance and color signals then outputs them. (Composite Out)

Brilliance and color signals are output separately.

(S-Out) b.

DECODER video IC215

Converts the received video signal to digital, separates the brilliance and color signals and makes them both 8 bit signals.

c.

Audio Input/Output audio IC206, 207, 208

Adds AGC to the Line input signal and passes it to the buffer for input to the audio A/D converter of the ASIC.

Sound output from the ASIC D/A out is passed through a filter and output through playback AGC.

When a microphone is connected, the sound output goes through the microphone amplifier and input is automatically connected to the microphone side.

d.

Serializer IC212

Serializes parallel digital data. Uses differential method.

e.

Deserializer IC211

Converts serial differential data to parallel.

HSR-X200/X200P

6-1 (E)

(2) DM-B a.

ASIC Operations IC251

Audio A/D, D/A.

Single channel audio signal digital conversion/ analog conversion.

8 bit sample frequency 8 kHz

MJPEG Coder

Functionality for compression/expansion of motion JPEG images and for simultaneous compression/expansion.

Video Encoder

Forms chroma signal according to digital chrominance signals. (NTSC/PAL)

Video D/A

Converts digital brilliance signal and outputs it as analog.

Converts digital chroma signal and outputs it as analog.

Digital I/F

Interface circuit for digital data of MPX and

HDR.

IDE I/F

Interface circuit for IDE hard disk.

BUS Arbitration SDRAM CTL

Control circuit for arbitration of bus and exter-

I/F nal SDRAM.

Interface circuit for Flash Memory, PC Card, and CF Card.

UART

Port for servicing.

When overwriting of firmware by CF fails, firmware is overwritten by connecting this port to the RS-232-C port of a PC with an adapter.

SIO

Interface serial data for sub-processor.

CPU

Controls all ASIC circuits.

Thumbnails

Pixel conversion circuit for formation of thumbnails.

b.

SDRAM IC252, 253

128 Mbit x 2 short-term image storing region for non-compressed images and compressed images.

c.

PLL

Forms 4 Fsc (14.4MHz) into 108 MHz by multiplying it 7.5 times.

6-2 (E)

d.

Flash ROM IC227

Stores the program for ASIC drive in the Flash

ROM.

When the power is turned on, the program is loaded to ASIC from this Flash ROM.

e.

CF Interface Circuit IC221, 222, 223, 224, 225,

226, 229, 231

Buffer circuit for I/O to CF card.

I/O through buffer using LCX245.

f.

PC Card Interface Circuit IC232, 233, 234, 235,

236, 237, 238, 239

Buffer circuit for I/O to PC Card.

Converts 3.3 V to 5 V level using translating tranceiver LVX3245 and performs buffering.

This Flash ROM and CF interface is on the same bus with the PC Card interface.

g.

HDD Interface Circuit IC241, 242, 243, 244, 245

I/O buffer circuit for 3.5 inch IDE hard disk.

Converts 3.3 V to 5 V level using translating tranceiver LVX3245 and performs buffering.

h.

RESET IC247

ASIC external reset circuit.

i.

Synch Insertion Circuit Q2501, 2502, 2503

Circuit for inserting the synch signal into the D/A converted brilliance signal.

(3) DM-C a.

Sub-processor IC271

Control of KEY input, external device input, LED,

ASIC, DECODER, EEPROM, RS-232-C, and RS-

485.

b.

EEPROM IC281

Save data circuit. Non-volatile memory.

c.

RESET IC272

External reset circuit.

d.

Power outage detection circuit. IC273 e.

RS-232-C communications circuit. IC274, 275, 276

Interface for sending/receiving external RS-232-C signals.

f.

RS-485 communications circuit. IC278, 279, 280,

281

Interface for sending/receiving external RS-485 signals.

(4) PC-1 CF Adapter Circuit

(5) OP-1 Front Right IC601

Circuit for front KEY input, JOG and SHUTTLE.

LED activation circuit. (LED lights when serial data is being converted to parallel.)

HSR-X200/X200P

(6) OP-2 Front Left

LED activation circuit.

(7) TB-1 All Input/Output for Rear Panel Connections

RS-485, REMOCON, SERIES, IN/OUT, SWOUT,

ALARM IN/OUT, NON REC OUT, CLOCK SET IN,

WARNING OUT, FULL OUT, ALARM FULL OUT.

(8) TB-2 Lithium battery circuit.

(9) TB-3 Relay PWB, RS-232-C connection.

(10)TB-4 Terminal for microphone amplifier circuit and audio input, and for audio input switching.

2.

Description of Operation

When power is turned on, the sub-processor and ASIC are reset, the programs in the flash ROM are loaded to the ASIC, and the ASIC start functioning.

(1) When Operated Independently

The video input signal passes through the filter, eliminating high end noise, and then enters the decoder.

The video signal is digitized at the decoder, the brilliance signal is separated from the chroma signal, and from there the chroma signal is separated into chrominance signals.

The data for the separated brilliance and chrominance signals is input to the ASIC.

Once stored in the SDRAM, the data is converted to

JPEG in order, and the converted data is stored in

SDRAM. The stored compressed data is written to the hard disk at suitable times.

UART is used for writing data needed for service, and the PC Card and CF Card are written through the I/F.

The playback images are read from the hard disk, and once stored on the SDRAM, they are expanded in order.

The image data enters the Video Encoder from the bus, and then is combined with the image signal.

The analog brilliance and chroma signals are made by

D/A and then output from ASIC.

The Y signal output from ASIC is passed through the filter along with the chroma signal with the synch signal attached, converted to VIDEO signal by the YC mix circuit, and then output.

HSR-X200/X200P

6-3 (E)

6-2. Overall

Overall Overall

HSR-X200/X200P

6-5 6-5

Overall

CD-1 CD-1

DM-B

IDE

HDD

Through Out

Video in

S-in

Through Out

IC241~IC245

Buffer

Q2031~Q2034

LPF & AMP

LPF & AMP

Q2011~Q2014

Q2021~Q2025

Moving Sensor

Detect

MJPEG

Codec

IDE/IF

DM-A

IC215

Video decoder

(NTSC PAL) clk27

H,V

8

D I/F

Thumbnail &

Change the number of PIXEL

IC251

4fsc

IC252,IC253

128M

SDRAM

PLL

GEN

108M

4fsc

IC246

Flash Memory

IC227

Clock

GEN

SEL

BUS Arbitrate

SDRAM CTL

I/F

Buffer

IC232~IC237

Buffer

IC222~IC229

PC Card

PC Card

CF Card

UART

Video encorder

(NTSC/PAL)

SIO

IC206

AGC

IC207

LPF & Buffer

IC651

AMP

5V

MIC in

IC206

REG

Audio in

POWER

Audio A/D(1ch)

Audio D/A(1ch)

IC208

AMP&Driver

IC207

LPF & Buffer

Audio out

DM-A

DI I/F OUT

Video D/A(2ch)

CPU

C sync

IC203

Buffer

Buffer

Y

Sout

IC204

C

CVBS

Y/C MIX

IC203

IC274,IC275

Buffer RS485

IC276

Driver

Receiver

IC271

8bit sub uCON

RS232C

SENSOR IN/OUT

REMOCON in

Key in

Operation keys E

2

PROM

IC281

DM-C

6-6 6-6

CD-1

HSR-X200/X200P

Index

Board

CD-1

OP-1

OP-2

PC-1

PW-1

TB-1

TB-2

TB-3

TB-4

Section 7

Board Layouts

Page

7-2

7-4

7-4

7-4

7-6

7-5

7-5

7-5

7-5

HSR-X200/X200P

7-1 7-1

CD-1 CD-1

PWB,CD-1 1AC4B10E8301AC

R2786

R2788

R2786

R2788

R2789

R2789

R2787

R2779

R2778

L2367

R2787

R2780

R2779

R2778

R2777

R2777

L2368

L2368

L2367

L2365

L2364

L2363

L2362

R2368

R2368

R2367

R2366

L2366

L2365

L2364

L2363

L2362

R2364

R2363

R2363

R2362

IC235

IC236

L2361

L2361

L2348

L2347

L2347

L2346

L2345

L2344

L2343

L2342

L2341

L2341

R2361

R2361

R2348

R2348

R2346

R2345

R2345

R2344

R2343

R2343

R2342

R2341

R2341

IC234

L2378

L2377

L2378

L2377

L2376 L2376

R2375

R2378

R2377

R2376

R2378

R2376

R2377

R2375

IC237

R2374

R2373

R2372

R2371

R2374

R2373

R2372

R2371

R2400

R2399

R2398

R2397

R2396

R2395

R2394

R2393

R2400

R2399

R2398

R2397

R2396

R2395

R2394

R2393

L2301

L2301

L2303

L2303

R2318

R2318

R2358

R2357

R2356

R2355

R2354

R2353

R2352

R2351

L2335

L2334

R2358

R2357

R2356

R2355

R2354

R2353

R2352

R2351

R2328

R2328

R2326

R2326

R2324

R2324

R2322

R2322

R2327

R2327

R2325

R2325

R2323

R2323

R2321

R2321

L2336

L2336

L2337

L2337

L2335

R2336

R2337

R2337

R2336

R2334

R2335

L2334

R2334

R2332

R2332

R2335

R2333

R2333

R2331

R2331

TP206

TP206

2.5V

IC232

IC233

Q2021

C2021

R2025

R2030

R2025

R2030

C2021

C2024

R2029

Q2021

C2024

R2029

C2100

C2100

C2026

C2026

C2029

C2029

C2180

C2180

L2064

R2962

R2962

L2064

Q2066

Q2066

IC204

R2037

R2037

L2062

L2062

C2070

C2070

R2082

R2082

Q2041

C2107

C2107

C2952

C2952

R2084

R2084

R2085

C2023

C2023

Q2011

Q2011

R2012

R2012

+

L2014

L2014

R2100

R2100

L2021

L2021

L2011

L2011

C2019

C2019

R2059

R2040

R2023

R2023

R2057

R2058

+

Q2047

R2053

R2053

R2194

R2194

R2191

R2191

L2065

C2087

C2087 R2195

L2065

R2075

R2075

R2054

R2054

C2089

C2089

C2048

C2048

C2051

R2997

C2051

R2997

Q2045

Q2045

R2130

R2130

R2195

IC202

C2076

C2076

IC206

R2995

R2995

C2079

C2079

R2992

R2992

IC207

DM-A

W2703

J2009

J2009

C2146

C2145

C2146

C2145

44

40

34

33 30

IC215

23

C2134

1

C2134

C2135

C2135

+

11

C2139

+

C2139

R2007

R2007

C2039

C2039

C2040

C2040

C2053

Q2050

Q2050

Q2051

Q2051

R2359

R2359

IC203

J2005

J2005

J2006

J2006

J2007

J2007

J2008

J2008

C2036

C2036

R2056

R2056 C2035

C2035

R2124

R2124

R2125 R2125

L2101

L2101

R2104

R2104

C2833

R2119

R2119

L2122

L2122

R2676

R2676

R2677

R2677

C2103

C2103

R2174

R2174

IC211

R2128

R2128

L2111

R2120

C2106

L2111

R2120

R2107

R2107

R2110

L2102

L2104

R2110

L2107

L2108L2107

L2102

R2112

R2112

L2110

L2110

R2114

R2114

L2112

L2112

IC212

R2129

R2129

IC280

R2833

R2833

IC282

IC278

IC278

R2175

L2121

L2121

R2175

R2381

R2390

R2389

R2390

R2389

R2388

R2388

R2386

R2386

R2382

R2381

R2387

R2387

R2385

R2385

R2382

IC279

4

IC282

1

5 8

L2831

L2831

R2717

R2718

R2719

R2720

R2721

R2722

R2724

R2725

R2726

R2727

R2728

R2729

R2717

R2718

R2719

R2720

R2721

R2722

R2724

R2725

R2726

R2727

R2728

R2729

C2841

L2841

L2841

L2588

TP201

TP201

AUDIO12V

R2585

R2585

R2208

R2208

R2216

R2217

R2218

R2218

R2217

R2216

L2588

R2588

R2588

R2589

R2589

R2207

R2207

R2213

R2213

8 5

X2131

22

IC254

R2657

R2657

R2691

R2691 L2475

L2475

193

Q2505

Q2505

Q2504

200

R2271

R2272

R2273

R2275

R2276

R2277

R2278

R2280

R2281

R2271

R2272

R2273

R2275

R2276

R2277

R2278

R2280

R2281

R2698

R2698

D2501

D2501

L2644

L2644

R2644

R2644

R2648

R2651

R2648

R2651

R2646

220

R2649

R2653

R2646

R2649

230

R2653

240

R2655

R2655

R2675

R2675

L2473

L2473

250

256

L2271

L2271

L2472

L2472

20

12

L2132

R2745

R2798

R2798

R2743

NTSC

R2797

R2741

R2741

R2797

R2742

R2742

C2761

C2761

IC272

R2745

X2701

R2744

R2744

R2743

+

C2763

C2763

R2171

R2171

J2013

J2013

C2198

C2198

IC209

IC276

R2815

R2815

IC274

R2802

R2802

L2801

L2801

R2842

R2842

1

IC281

4

DM-C

R2773

R2773

IC273

C2775

R2752

X2702

R2755

R2755

C2773

C2773

D2792

+

C2807

C2807

R2871

R2871

R2440

R2440

D2802

D2801

CN276

L2871

L2871

C2871

CN275

Q2873

Q2873

C2872

C2872

Q2874

Q2874

CN275

C2873

C2873

R2866

R2866

R2865

R2865

R2864

R2864

R2863

R2863

R2862

R2862

R2861

R2861

W2701

IC252

C2197

CN201

C2197

IC251

C2468

C2468

L2082

C2188

R2316

R2316

IC231

IC238

CN222

IC239

C2232

C2232

R2229

R2229

C2221

C2221

IC223 IC222

CN221

C2241

C2241

IC224 IC225

C2262

C2262

L2261 L2262

L2261

R2262

R2262

L2263

L2263

R2264

L2264

L2264

R2264

IC226

128

X2401

X2401

C2456

16

C2456

9

120

R2568

IC246

110

L2452

100

R2560

R2560

1

C2452

R2553 R2554

R2553

R2554

90

80

70

R2550 R2551

R2550

R2547

R2547

R2544 R2545

R2544

R2541

R2541

R2538

R2538

R2548

R2548

R2545

R2542

R2542

R2539

R2539

8

R2555

R2552

R2552

R2549

R2549

R2546

R2546

R2543

R2543

R2540

R2540

65

R2241 R2242 R2243 R2244

R2248

R2248

R2245

R2246

R2245

R2246

R2247

R2247

TP202

TP202

5V

TP205

TP205

3.3V

IC248

L2453

L2453

L2454

L2454

C2446

C2446

R2460

R2460

C2460

C2460

IC247

R2448

R2448

R2468

R2468

10 8

IC221

L2265

L2266

L2267

L2268

L2265

L2266

L2267

L2268

R2265

R2266

R2267

R2268

R2265

R2266

R2267

R2268

TP204

TP204

TP203

TP203

GND

CN223

FAN12V

L2821

L2821

R2289

R2270

CN223

R2289

R2270

R2287

R2260

R2260

R2299

R2287

R2330

R2339

R2339

R2299

R2330

R2320

R2320

L2292

L2293

L2293

L2292

R2291

R2291

R2293

R2293

R2292

R2292 R2296

R2296

IC229

S2701

S2701

IC227

DM-B

IC243

L2401

L2401

L2402

L2402

R2812

R2812

R2811

R2811

12 10

C2781

IC245 IC244 IC242 IC241

IC253

R2446

R2446 R2441

R2441

W2702

C2190

C2190

C2192

C2196

CN202

C2194

C2194

CN274

CN274

D2791

C2791

C2791

2 1

CN271

CD-1

-A SIDE-

7-2 7-2

HSR-X200/X200P

HSR-X200/X200P

CD-1 CD-1

L2254

L2254

L2256 L2257

R2822

R2822

R2251

R2252

R2252

R2251

Y2004

R2255

R2256

R2255 R2256

C2261

C2261

C2822

C2822

L2295

L2295

L2294

L2294

C2267

C2267

C2266

C2266

+

R2338

R2329

R2300

R2290

R2288

R2286

R2269

R2259

R2338

R2329

R2300

R2290

R2288

R2286

R2269

R2259

CN221

C2412

C2412

C2414

C2414

R2419

R2419

R2408

R2408

R2409

R2409

C2411

C2411

C2783

C2421

C2421

C2413

C2413

C2422

C2422

R2814

R2781

R2782

R2783

R2784

C2785

C2784

R2814

R2781

R2782

R2783

R2784

C2785

C2784

C2783

C2782

C2782

C2432

C2432

C2433

C2433

R2464

R2464

R2459

R2447

D2463

R2459

R2447

D2463

DM-B

C2431

C2431

C2441

C2441

R2870

R2870

R2849

R2849

CN271

1

2

R2401

R2401

R2403

R2403

C2494

C2494

R2458

R2458

R2455

R2455

C2451

C2451 R2451

R2451 R2562

R2562

+

C2493

C2493

C2505

C2505

C2492

C2492

C2507

C2507

C2491

C2491

Y2007

CN222

C2465

C2465

+

R2467

R2467

C2195

C2193

C2193

C2195

C2192

C2196

CN202

C2189

C2189

C2191 C2191

W2702

L2082

L2087

L2087

C2188

R2304

R2304

+

L2328

L2327

L2326

L2325

L2324

L2323

L2322

L2321

L2328

L2327

L2326

L2325

L2324

L2323

L2322

L2321

L2332

L2331

L2333

L2332

L2331

L2333

+

R2369

R2369

L2374

L2375

L2374

L2375

R2305 R2305

R2302

R2306

R2313

R2314

R2315

R2307

R2308

R2309

R2301

R2301

C2301

R2302

R2306

R2313

R2314

R2315

R2307

R2308

R2309

C2301

R2310

R2311

R2303

R2312

R2310

R2311

C2302

R2303

R2312

C2302

R2963

Q2951

R2963

Q2952

24 20

IC208

1

13

C2958

10

12

Y2008

C2511

C2504

C2504

C2512

C2512

R2667

R2667

R2671

C2516

R2671

C2516

C2509

C2509

C2474

C2474

C2476

C2476

C2510

C2510

Q2501 Q2503

Q2501 Q2502

L2482

C2517

C2517

L2482

R2643

R2647

R2647

R2650

R2650

L2652

L2652

R2645

R2645

L2647 L2647

L2650

L2650

R2654

R2654

Q2502

R2681

R2681

L2645 L2645

L2646

L2646

Q2503

C2524

C2461

C2461

C2463

C2463

R2834

R2834

R2158

R2158

Q2152

C2152

R2156

R2160

R2160

R2155

C2151

R2155

R2154

R2154

C2151

R2157

Q2151

R2157

Q2151

C2078

Q2071

L2004

L2004

R2274

R2274

+

R2284

R2284

R2210

R2210

R2285

R2285

C2275

C2275

C2142

R2900

L2136

R2900

L2136

C2138

C2138

L2144

L2144

C2142

C2132

C2132

C2133

R2183

R2183

Q2172

C2171

C2171

R2993

Q2172

R2993

R2180

R2180 C2174

R2181 R2179

C2173

R2181 R2179

C2173

C2172

C2174

C2172

C2133

DM-A

W2703

R2062

R2061

R2061

R2062

R2973

R2973

Q2065

Q2065

R2093

R2093

R2094

R2094

R2089

R2089

Q2063

Q2062

Q2062

Q2063

Q2064

Q2064

R2088

R2088

C2065

C2065

C2002

C2002

R2005

R2005

R2026

R2026

R2027

R2027

R2028

R2028

R2039

R2039

R2034

R2034

R2038

R2038

R2035

R2035

R2036

R2036

R2033

R2033

R2032

R2032

R2031

R2031

C2022

C2022

L2003

L2003

R2063

R2063

R2066

L2044

C2061

C2061

R2196 Q2048

R2197

R2196 Q2048

R2197

C2088

C2088

R2069

R2069

Q2043

Q2043

Q2044

R2074

R2074

R2073

R2073

R2072

R2072

Q2046

L2051

R2070

R2070

L2066

L2066

Q2046

L2051

C2062 C2062

C2179

C2179

R2999

R2999

R2097

Q2053

R2097

C2012

C2012

Q2012

Q2012

R2016

R2016

R2011

R2011

R2017

R2017

R2018

R2018

R2021

R2021

R2020

R2020

R2019

R2013

R2022

R2019

R2013

R2022

R2002

R2002

R2001

R2001

R2004

R2004

L2006

L2006

L2005

L2005

L2007

L2007

+

CN201

+

X2131

C2136

C2137

C2136

C2137

R2775

R2775

R2893

R2893

Y2006

X2702

C2704

C2704

C2703

C2703

X2701

R2748

R2748

R2754

R2754

R2750

R2750

R2764

R2764

R2757

R2757

R2749

R2753

R2753

R2749

R2747

R2747

Q2751

C2764

C2764

R2756

R2756

Q2752

R2774

R2774

DM-C

R2410

R2410

Q2049

R2796

R2796

W2701

Y2005

R2076

R2076

R2716

R2716

R2723

R2723

L2872

L2872

+

C2835

C2835

C2832

C2832

C2836

C2836

R2080

R2080 Q2052

Q2052

C2054

C2054

C2053

C2032

R2047

R2047

R2051

R2051

R2050

R2050

R2046

Q2033

Q2033

R2041

R2042

R2042

R2041

R2049

R2049

R2052

R2052

R2043

R2043

R2360

R2360

L2106

L2106

Q2035

L2103

R2108

R2106

R2106

L2103

R2109

+

R2152

R2152

R2116

R2116

R2103

R2103

Y2009

R2102

R2102

R2111

R2113

R2115

R2113

R2115

R2127 R2127

C2122

C2122

C2121

C2123

C2121

C2123

C2125

C2125

C2124

C2124

C2102

C2102

Y2003

R2836

L2163

C2163

R2163

C2163

R2163

C2834

C2834

L2165

L2165

C2165 C2165

R2166

L2166

L2166

R2166

R2165

R2165

C2166

C2166

R2003

R2003

L2161

C2161

L2161

C2161

R2161

R2161

R2800

R2800

R2806

R2806

R2803

R2803

R2807

R2807

R2813

R2813

D2872

D2872

D2871

D2871

R2872

R2872

Q2871

Q2871

R2873

R2873

Q2872

R2879

R2879

Q2872

R2884

R2884

R2869

R2869

Q2875

Q2875

R2891

R2891

R2892

R2892

R2890

L2865

R2186

R2186

R2187

R2187

Q2181

CN276

C2127

C2127

R2117

R2117

R2118

R2118

C2168

C2168

R2168

R2168

L2168

L2168

R2167

R2167

L2164

L2170

L2170

R2170

R2170

C2170

C2170

R2162

L2162

L2162

L2164

C2162

C2164

C2164

R2162

C2162

7-3 7-3

CD-1

-B SIDE-

CN293

CN293

11

13

16

15

CN292

2

1

30

29

1AC4B10E8300BG

SIDE-A

CN291

PWB,PC-1

1

2

PC-1, OP-1, OP-2 PC-1, OP-1, OP-2

Y2901

PC-1

-A SIDE-

Y2903

R2901

R2901

R2920

R2920

Y2902

R2943

R2917

R2940

R2914

R2937

R2911

R2934

R2943

R2917

R2940

R2914

R2937

R2911

R2934

R2968

R2968

R2966

R2966

R2950

R2950

R2948

R2948

R2946

R2946

R2967

R2967

R2965

R2965

R2949

R2949

R2947

R2947

R2945

R2945

R2918

R2918

R2941

R2941

R2915

R2915

R2938

R2938

R2912

R2935

R2935

R2932

R2932

R2944

R2944

R2942

R2916

R2939

R2942

R2916

R2939

R2913

R2912 R2913

R2933

R2933

R2930

R2930

R2928

R2926

R2926

R2931

R2931

R2929

R2929

R2927

R2927

R2925

R2925

R2923

R2923

R2921

R2921

R2919

R2919

R2924

R2924

R2922

R2922

R2936

R2936

R2909

R2909

R2904 R2904

R2905

R2905

R2903

R2902

R2903

R2902

R2906

R2906

R2907

R2908

R2907

R2908

PWB,PC-1

SIDE-B

1AC4B10E8300BG

CN291

1

2

C2901

29

C2901

30

1

2

CN292

15

16

PC-1

-B SIDE-

1

CN602

19

R6054

R6053

R6051

R6050

R6052

D6011

S6011

R6031

1AC4B10E9600AC

S6005

R6006

(SEARCH)

S6006

D6007

R6007

OP-1

S6041

R6011

(SHUTTLE LOCK)

J6020

(EXIT/OSD)

J6019

(MENU)

R6002

S6001

D6002

J6015

R6022

R6003

S6002

D6003

(ZOOM)

R6023

J6016

S6013 S6012

R6013

R6012

(ALARM >>) (<< ALARM)

J6005

IC601

IC601

J6004 J6002

R6033

J6003

Q6001

(LOCK)

D6012

(PRE REVERSE

PLAY/PLAY)

S6009

D6009

(STOP)

S6015

D6010

(PAUSE)

S6010

R6030

R6004

S6004

(REC)

D6004

R6024

S6016

(REC STOP)

R6015

R6008

(TIMER)

S6014

(MENU RESET)

S6007

(COPY)

S6003

(CHANNEL)

OP-1

-A SIDE-

7-4 7-4

BZ611

C6102

C6101

Q6104

(POWER)

J6103

D6101

(ALARM)

R6101

R6109

R6111

R6102

D6102

(ALARM FULL)

R6103

R6107

R6108

C6103

D6103

(FULL)

OP-2

-A SIDE-

HSR-X200/X200P

HSR-X200/X200P

TB-1, TB-2, TB-3, TB-4 TB-1, TB-2, TB-3, TB-4

Y6201

R6224

R6228

R6249

C6223

CN621

J6211

J6212

L6225 L6224

C6216

C6215

Y6202

L6230

R6245

R6241

L6211

C6222

L6229

C6221

L6228 L6227

C6220

R6252

R6237

L6226

CN623

J6229 J6230

L6223

R6251

L6222

R6250

CN622

L6201

L6209

L6210 L6208

J6210

R6259

R6255

Q6213

R6222

J6223

J6217

J6227

Q6214

R6226

J6220 J6219 J6218

Q6219 Q6218

R6247 R6243

Q6211

R6209

J6222

Q6217

C6210

R6213

485_ON

R6238 R6239

C6206

L6203

C6205

R6208

R6260

R6201

ALL RESET

Q6201

R6203

R6205

8

C6226

CN624

1

S6201 485_OFF

J6206

TB-1

-A SIDE-

TB-3

1AC4B10E9600EC

8

CN643

1

TB-3

-A SIDE-

2 1

Z6301

CN631

TB-2

-A SIDE-

JK652

L6501

R6512

1

6

CN651

TB-4

1AC4B10E9600FC

Y6501

C6503

C6509

JK651

C6504

C6510

L6505

C6506

R6509

R6506

R6507 R6508

TB-4

-A SIDE-

7-5 7-5

PW-1 PW-1

RISK OF FIRE REPLACE FUSE AS MARKED

C5009

J5005

T2A L 250V

CAUTION

Y5007

W5003

Y5120

C5002

Y5123

Y5004

1

F5001

VA501

C5004

J5009

Y5003

L5012

2A 125V

R5002

TH501

C5001

Q5010

D5020

R5018

C5013

R5016

J5003

C5017

C5012

C5011

R5015 J5050

D5022

C5014

J5013

C5024

D5012

R5027

R5031

8

J5002

C5016

D5015

J5021

IC501

C5003

L5005

D5013

J5008

D5001

D5021

L5011

J5006

D5011

ATTENTION

RISQUE D INCENDIE NE REMPLACER UNIQUEMENT

'

'

C5015

C5008

C5025

J5022

J5023

4

J5004

1

R5021

C5019

D5019

C5020

D5014

T5001

C5023

C5107

Y5101

C5134

D5101

L5102

J5108

D5104

J5130

L5133

IC531

R5138

J5112

J5111

D5131

C5132

W5102

C5133

IC531

J5165

C5137

L5132

R5102

R5105

D5105

D5102

C5108

D5103

C5104

J5102

J5119

C5131

R5140

J5189

C5142

D5132

J5135

R5144

J5107

J5106

J5185

C5153

C5154

J5122

R5158

J5121

D5151

C5152

L5101

L5151

IC512

D5181

J5101

C5187

R5181

J5150

L5153

J5166

IC551

L5152

C5162

D5152

C5151

J5155

R5164

1AC4B10E9001AC

Loc.No.5000-

R5161

R5157

R5163

D5184

W5104

L5131

R5141

R5137

J5131

R5135

R5139

J5116

L5106

R5143

R5136

J5132

C5183

W5105

C5190

J5114

R5155

J5151

R5159

J5120

L5105

J5125

J5124

J5152 R5156

W5101

IC582

C5191

1

C5185

PW-1

-A SIDE-

7-6 7-6

HSR-X200/X200P

Index

Board

PW-1

TB-1

TB-2

TB-3

TB-4

CD-1 (DM-A)

CD-1 (DM-B)

CD-1 (DM-C)

OP-1

OP-2

PC-1

Section 8

Schematic Diagrams

Page

8-3

8-9

8-15

8-18

8-19

8-22

8-21

8-20

8-19

8-19

8-19

HSR-X200/X200P

8-1 8-1

CD-1 (DM-A) CD-1 (DM-A)

CN203

AD_12V

GND

AD_IN

GND

GND

AD_OUT

TO TB-4

CN651

5

6

3

4

1

1AV4J10AU060N

2

Y IN

C IN

JK201

1AV4J11B5390N

1

2

3

4

5 7 9

6 8 10

MONITOR

OUT

JK202

1AV4J11B5390N

1

2

3

4

5 7 9

6 8 10

Y OUT

C OUT

JK203

1AV4J11B5380N

1

2

3

4

V IN

MONITOR

OUT

V OUT

JK204

1AV4J11B5260N

1

2

6

7

3

4

5

L2003

1AV4L26B1340G

L2004

1AV4L26B1340G

L2005

1AV4L26B1340G

R2004

75 (D)

L2006

1AV4L26B1340G

R2005

75 (D)

L2007

1AV4L26B1340G

L2008

1AV4L26B1340G

R2006

75 (D)

C2011

22;16-T

Q2011

2SC2412K

L2012

27;J

C2018

8P;CH

L2013

27;J

Q2012

2SC2412K

R2018

100

Q2013

2SA1037K

Q2014

2SA1037K

L2011

47;K

R2023

3.3

C2001

1000;6.3

C2021

0.1;B

Q2021

2SC2412K

L2022

27;J

C2028

8P;CH

L2023

27;J

Q2022

2SC2412K

R2033

100

Q2023

2SA1037K

R2038

100

Q2025

2SA1037K

L2021

47;K

R2040

3.3

C2031

22;16-T

Q2031

2SC2412K

L2032

27;J

C2038

8P;CH

L2033

27;J

Q2032

2SC2412K

R2048

100

Q2033

2SA1037K

Q2034

2SA1037K

L2031

47;K

R2056

3.3

Q2046

2SC2412K

R2997

470

Q2045

2SC2412K

R2998

560

Q2053

DTC144EK

1

IC202

MM1031XM

4

2

3

C2042

1;B

1

IC204

MM1041XM

4

2

3

C2063

0.1;B

Q2043

2SA1037K

Q2044

2SA1037K

YTRAP

R2053

0

R2199

0

C2052

1;B

C2053

1000;6.3

C2054

22;16-T

IC203

NJM2274

1 YIN

2

GND

3

VOUT

CIN 8

CMUTE

7

PWRCTL

6

4

VSAG

Y/C MIX AMP

VCC

5

C2055

0.1;B

R2096

1K

R2068

100

Q2042

2SC2412K

L2041

47;K

R2057

3.3

R2058

3.3

C2110

10P;CH

L2043

22;J

L2042

22;J

Q2041

2SC2412K

C2050

22;16-T

Q2052

DTC144EK

Q2065

2SC2412K

Q2064

2SA1037K

Q2063

2SA1037K

Q2062

2SC2412K

R2088

100

C2099

8P;CH

L2063

27;J

L2062

27;J

L2061

47;K

R2059

3.3

Q2061

2SC2412K

C2070

0.1;B

LVI4

LVI5

LVI6

LVI7

LVI8

LVI9

LVI0

LVI1

LVI2

LVI3

1

YOUT

COUT TO DM-B

AD_MUTE

TO DM-C

C2073

10;16-T

R2972

1M

C2071

0.1;B

R2971

10K

C2074

0.1;B

IC206

LA7285M

1

2

3

REC/EE

MUTE

ON/OFF

LINE/

TU/PB

4

5

6

7

11

12

8

9

10

TU

PB

EQ

AMP

RIPPLE

FILTER

21

VCC

12V

20

19

MUTE

PB

ALC

18

REC

AMP

MUTE

SP

17

LP

EP

16

REC

15

14

ALC

DET

13

24

23

22

R2975

10K

C2075

10;16-T

C2078

22;16-T

DRIVER AMP

R2993

120K

C2081

3300P;B

R2985

27K

R2986

27K

LPF

IC207

LA6458M

1

2

3

4

GND

VCC 8

7

6

5

R2994

0

C2085

3300P;B

R2988

27K

R2989

27K

C2952

0.1;B

C2953

10;16-T

R2952

1M

C2951

0.1;B

R2951

10K

IC208

LA7285M

6

7

1

2

3

4

5

8

9

10

TU

11

PB

12

EQ

AMP

REC/EE

MUTE

ON/OFF

LINE/

TU/PB

22

EP/

LP/SP

21

VCC

12V

20

19

18

REC

AMP

MUTE

SP

17

LP

EP

16

24

23

MUTE

PB

ALC

REC

LINE

AMP

ALC

DET

13

15

14

R2953

10K

C2955

10;16-T

C2958

22;16-T

DRIVER AMP

TP202

*

5V

R2185

1K

5

6

7

8

GND

GND

OUT

OUT

IC209

REG.

VC

IN

NC

IN

2

1

4

3

SI-3050LSA

L2082

CORE

Q2952

DTC144EK

TP205

*

TP206

*

L2083

CORE

Q2152

2SC2412K

R2157

22K

C2152

2200P;B

R2156

10K

R2155

22K

C2151

1000P;B

R2154

6.8K

C2153

1000P;B

Q2151

2SA1037K

R2182

120K

R2181

6.8K

Q2172

2SA1037K

C2171

1;B

TP201

*

Q2171

2SC2412K

R2180

22K

C2172

2200P;B

R2178

10K

R2184

39K

C2174

1000P;B

R2179

22K

C2173

1000P;B

ADIN

TO DM-B

ADOUT

L2084

CORE

AL5V

AL5VPC

TO DM-B,C

TO DM-B

PFAIL TO DM-C

TP203

*

10

11

8

9

6

7

4

5

1

2

3

TP204

AL12V

CN201

POWER FAIL

GND

AL5VPC

AL5.6V

GND

GND

GND

AL5.4V

GND

AL12V(AD)

AL12V(FAN)

TO PW-1 CN512

*

AL5.4V

AL3.3V

AL2.5V

*

7

8

5

6

3

4

1

2

11

12

9

10

TO DM-B,C

CN202

AL2.5V

AL2.5V

AL2.5V

AL2.5V

GND

GND

GND

GND

AL3.3V

AL3.3V

AL3.3V

AL3.3V

TO PW-1 CN513

*

2

3

4

DM-A

D1-81010/L8HAA-USSY

L2136

BK2125LM751

C2131

C2132

C2133

1;B

1;B

0.1;B

L2131

10;K

L2137

BK2125LM751

X2131 20.25MHz

1AV4V10B4250N

L2132

10;K

C2139

22;16-T

6

7

4

5

1

2

3

10

11

8

9

VSS

RES

SCL

SDA

VIN1

AVSS

CIN

AVDD

XTAL1

XTAL2

VDD

44 43 42 41 40 39 38 37 36 35 34

IC215

VPX3226E

DECODER

A7 33

A6

A5

32

31

A4 30

PVDD 29

PIXCLK

PVSS

28

27

A3

A2

A1

A0

26

25

24

23

R2147

R2146

R2145

R2144

R2143

R2142

R2141

R2140

100 L2147

100

100

100

L2146

L2145

L2144

C2143

22;16-T

L2134

10;K

100

100

100

L2143

L2142

L2141

100 L2140

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

L2138

DY7

DY6

DY5

DY4

BK2125LM751

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

DY3

DY2

DY1

DY0

12 13 14 15 16 17 18 19 20 21 22

*

R2139 68 L2133

BK1608LL241

CLK27

HSR-X200/X200P

A B C D

8-3 8-3

E F G

YTRAP

DHS

DVS

S_IN_H

SCL_D

SDA_D

RESET

DY[0..7]

TO DM-C

TO DM-B

TO DM-C

CLK27

TO DM-B

LVI[0..9]

TO DM-B

CD-1 (DM-A)

H

5

LEFT UPPER

CD-1 (DM-A) CD-1 (DM-A)

LEFT UPPER

1

2

CN203

AD_12V

GND

AD_IN

GND

GND

AD_OUT

TO TB-4

CN651

4

5

6

2

3

1

1AV4J10AU060N

Y IN

C IN

JK201

1AV4J11B5390N

1

2

3

4

5 7 9

6 8 10

MONITOR

OUT

JK202

1AV4J11B5390N

1

2

3

4

5 7 9

6 8 10

3

4

Y OUT

C OUT

JK203

1AV4J11B5380N

1

2

3

4

V IN

MONITOR

OUT

V OUT

JK204

1AV4J11B5260N

1

2

3

4

5

6

7

L2003

1AV4L26B1340G

L2004

1AV4L26B1340G

L2005

1AV4L26B1340G

R2004

75 (D)

L2006

1AV4L26B1340G

R2005

75 (D)

L2007

1AV4L26B1340G

L2008

1AV4L26B1340G

R2006

75 (D)

C2011

22;16-T

Q2011

2SC2412K

L2012

27;J

C2018

8P;CH

L2013

27;J

Q2012

2SC2412K

R2018

100

Q2013

2SA1037K

Q2014

2SA1037K

L2011

47;K

R2023

3.3

C2001

1000;6.3

C2021

0.1;B

Q2021

2SC2412K

L2022

27;J

C2028

8P;CH

L2023

27;J

Q2022

2SC2412K

R2033

100

Q2023

2SA1037K

R2038

100

Q2025

2SA1037K

L2021

47;K

R2040

3.3

C2031

22;16-T

Q2031

2SC2412K

L2032

27;J

C2038

8P;CH

L2033

27;J

Q2032

2SC2412K

R2048

100

Q2033

2SA1037K

Q2034

2SA1037K

L2031

47;K

R2056

3.3

5

Q2046

2SC2412K

R2997

470

Q2045

2SC2412K

R2998

560

Q2053

DTC144EK

1

IC202

MM1031XM

4

2

3

C2042

1;B

Q2043

2SA1037K

Q2044

2SA1037K

YTRAP

R2053

0

R2199

0

C2052

1;B

C2053

1000;6.3

C2054

22;16-T

1

YIN

IC203

NJM2274

CIN

8

2

GND

3

VOUT

4

VSAG

CMUTE

7

PWRCTL

6

VCC

5

Y/C MIX AMP

C2055

0.1;B

R2096

1K

1

IC204

MM1041XM

4

2

3

C2063

0.1;B

Q206

2SC24

A B C

8-4

D

8-4

E F G

HSR-X200/X200P

H

RIGHT UPPER

CD-1 (DM-A) CD-1 (DM-A)

RIGHT UPPER

1

Q2043

2SA1037K

R2053

0

R2199

0

52

53

.3

54

T

1

YIN

IC203

NJM2274

CIN

8

2

GND

3

VOUT

4

VSAG

CMUTE

7

PWRCTL

6

VCC

5

Y/C MIX AMP

C2055

0.1;B

R2096

1K

R2068

100

Q2052

DTC144EK

Q2042

2SC2412K

L2041

47;K

R2057

3.3

R2058

3.3

C2110

10P;CH

L2043

22;J

L2042

22;J

Q2041

2SC2412K

C2050

22;16-T

HSR-X200/X200P

I

Q2065

2SC2412K

Q2064

2SA1037K

Q2063

2SA1037K

Q2062

2SC2412K

R2088

100

C2099

8P;CH

L2063

27;J

L2062

27;J

L2061

47;K

R2059

3.3

Q2061

2SC2412K

C2070

0.1;B

J K L

8-5

C2073

10;16-T

R2972

1M

C2071

0.1;B

R2971

10K

C2074

0.1;B

11

12

3

4

1

2

7

8

5

6

9

10

TU

PB

EQ

AMP

IC206

LA7285M

REC/EE

MUTE

ON/OFF

LINE/

TU/PB

22

EP/

LP/SP

RIPPLE

FILTER

21

VCC

12V

20

19

24

23

R2975

10K

C2075

10;16-T

MUTE

PB

MUTE

18

REC

AMP

SP

17

LP

EP

16

REC

15

ALC

LINE

AMP

14

ALC

DET

13

C2078

22;16-T

DRIVER AMP

R2993

120K

C2081

3300P;B

R2985

27K

R2986

27K

LPF

1

2

3

4

GND

IC207

LA6458M

VCC

8

7

6

5

R2994

0

C2085

3300P;B

R2988 R2989

27K 27K

8-5

M

IC

N

YOUT

COUT TO DM-B

AD_MUTE

TO DM-C

2

Q2152

2SC2412K

R2157

22K

C2152

2200P;B

R2156

10K

R2155

22K

C2151

1000P;B

R2154

6.8K

C2153

1000P;B

Q2151

2SA1037K

R2182

120K

R2181

6.8K

Q2172

2SA1037K

C2171

1;B

TP201

*

Q2171

2SC2412K

R2180

22K

C2172

2200P;B

R2178

10K

R2184

39K

C2174

1000P;B

R2179

22K

C2173

1000P;B

ADIN

TO DM-B

ADOUT

3

4

TP202

*

5V

R2185

1K

7

8

5

6

IC209

REG.

GND

GND

VC

IN

OUT

OUT

4

3

NC 2

IN 1

O

AL5V TO DM-B,C

AL5VPC

PFAIL

TO DM-B

TO DM-C

TP203

*

3

4

1

2

CN201

POWER FAIL

GND

AL5VPC

AL5.6V

*

P

5

LEFT LOWER

CD-1 (DM-A) CD-1 (DM-A)

LEFT LOWER

1

4

5

2

3

DM-A

D1-81010/L8HAA-USSY

LVI0

LVI1

LVI2

LVI3

LVI4

LVI5

LVI6

LVI7

LVI8

LVI9

L2136

BK2125LM751

C2131

C2132

C2133

1;B

1;B

0.1;B

L2131

10;K

L2137

BK2125LM751

X2131 20.25MHz

1AV4V10B4250N

L2132

10;K

C2139

22;16-T

1

2

3

4

VIN1

AVSS

5

6

7

8

9

VDD

VSS

10

11

RES

SCL

SDA

CIN

AVDD

XTAL1

XTAL2

44 43 42 41 40 39 38 37 36 35 34

*

IC215

VPX3226E

DECODER

A7

A6

33

32

A5

A4

31

30

PVDD 29

PIXCLK 28

PVSS 27

A3 26

A2 25

A1

A0

24

23

12 13 14 15 16 17 18 19 20 21 22

*

R2139 68

A B C

8-6

D

8-6

E F G

HSR-X200/X200P

H

1

2

3

4

VIN1

AVSS

5

6

7

8

9

VDD

VSS

10

11

RES

SCL

SDA

CIN

AVDD

XTAL1

XTAL2

44 43 42 41 40 39 38 37 36 35 34

*

IC215

VPX3226E

DECODER

A7 33

A6 32

A5

A4

31

30

PVDD 29

PIXCLK 28

PVSS 27

A3 26

A2 25

A1

A0

24

23

R2147

R2146

R2145

R2144

R2143

R2142

R2141

R2140

100

100

100

100

L2147

L2146

L2145

L2144

C2143

22;16-T

L2134

10;K

100

100

100

100

L2143

L2142

L2141

L2140

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

L2138

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

DY7

DY6

DY5

DY4

BK2125LM751

DY3

DY2

DY1

DY0

12 13 14 15 16 17 18 19 20 21 22

*

R2139 68 L2133

BK1608LL241

CLK27

HSR-X200/X200P

I J K

RIGHT LOWER

CD-1 (DM-A) CD-1 (DM-A)

RIGHT LOWER

C2952

0.1;B

C2953

10;16-T

R2952

1M

C2951

0.1;B

R2951

10K

IC208

LA7285M

1

REC/EE

24

R2953

10K

2

3

MUTE

ON/OFF

LINE/

TU/PB

11

12

7

8

4

5

6

9

10

TU

PB

EQ

AMP

EP/

LP/SP

21

VCC

12V

20

RIPPLE

FILTER

19

MUTE

PB

MUTE

18

REC

AMP

SP

17

LP

EP

16

REC

15

ALC

LINE

AMP

14

ALC

DET

13

23

22

C2955

10;16-T

C2958

22;16-T

DRIVER AMP

5V

1K

5

6

7

8

IC209

REG.

GND VC

GND

OUT

OUT

IN

NC

IN

2

1

4

3

SI-3050LSA

L2082

CORE

Q2952

DTC144EK

TP205

*

TP206

*

L2083

CORE

L2084

CORE

PFAIL TO DM-C

TP203

*

TP204

1

2

3

4

5

6

7

8

9

10

11

AL12V

CN201

POWER FAIL

GND

AL5VPC

AL5.6V

GND

GND

GND

AL5.4V

GND

AL12V(AD)

AL12V(FAN)

TO PW-1 CN512

*

AL5.4V

AL3.3V

AL2.5V

*

6

7

4

5

1

2

3

8

9

10

11

12

TO DM-B,C

CN202

AL2.5V

AL2.5V

AL2.5V

AL2.5V

GND

GND

GND

GND

AL3.3V

AL3.3V

AL3.3V

AL3.3V

TO PW-1 CN513

*

1

2

3

L

8-7 8-7

M N O

4

YTRAP

DHS

DVS

S_IN_H

SCL_D

SDA_D

RESET

DY[0..7]

TO DM-C

TO DM-B

TO DM-C

CLK27

TO DM-B

LVI[0..9]

TO DM-B

5

P

PC CARD (TO PC-1)

1AV4J10B1820M

CD-1 (DM-B) CD-1 (DM-B)

PC CARD SOCKET HDD SOCKET

DM-B

D2-81010/L8HAA-USSY

*N:HSR-X200 ONLY

*P:HSR-X200P ONLY

AL3.3V

L2201

10;K

TO DM-A

AL5VPC

AL3.3V

R2318

R2319 0

0

L2301

10;K

L2302

10;K

3

4

5

6

7

1

2

GND

IC221

74LCX32

VCC 14

13

9

8

12

11

10

EXTDIR

R2219

PD7

PD6

R2220

R2230

PD5

R2239

PD4

PD3

R2240

R2249

PD2

PD1

PD0

R2250

R2258

270

270

270

270

270

270

270

270

1

2

3

4

T/R

A0

A1

5

6

7

A2

A3

A4

8

9

A5

A6

A7

10 GND

IC222

74LCX245

VCC 20

OE 19

B0 18

B1 17

B2

B3

16

15

B4 14

B5

B6

13

12

B7 11

BIDIR BUFFER

C2221

0.1;F

R2221

R2222

R2223

R2224

R2225

R2226

R2227

R2228

390

390

390

390

390

390

390

390

L2221

L2222

L2223

L2224

L2225

L2226

L2227

L2228

BK1608LM152

BK1608LM152

BK1608LM152

CFD7

CFD6

BK1608LM152

BK1608LM152

CFD5

CFD4

CFD3

BK1608LM152

BK1608LM152

BK1608LM152

CFD2

CFD1

CFD0

EXTDIR

R2241

PD15

PD14

R2242

R2243

PD13

R2244

PD12

PD11

R2245

R2246

PD10

PD9

PD8

R2247

R2248

270

270

270

270

270

270

270

270

1

2

3

4

5

6

A3

A4

A5 7

8

9

A6

A7

10 GND

T/R

A0

A1

A2

IC223

74LCX245

VCC 20

OE 19

B0 18

B1 17

B2

B3

16

15

B4 14

B5

B6

13

12

B7 11

BIDIR BUFFER

C2232

0.1;F

R2231

R2232

R2233

R2234

R2235

R2236

R2237

R2238

390

390

390

390

390

390

390

390

L2231

L2232

L2233

L2234

L2235

L2236

L2237

L2238

BK1608LM152

BK1608LM152

CFD15

CFD14

BK1608LM152

CFD13

BK1608LM152

BK1608LM152

CFD12

BK1608LM152

BK1608LM152

CFD11

BK1608LM152

CFD10

CFD9

CFD8

PRST

REG1

WE1

OE1

IOWR1

IORD1

1

2

3

4

5

A1

A2

A3

6

7

8

A4

A5

9

10

A6

A7

GND

IC224

74LCX245

T/R

A0

C2241

0.1;F

VCC 20

OE 19

B0

B1

B2

B3

B4

B5

B6

B7

18

17

*1

R2759

*1 R2760

16

*1 R2766

*1 R2767

15

14

*1 R2768

13

*1

R2769

*1

R2770

12

11

*1 R2776

BIDIR BUFFER

100

100

100

100

100

100

100

100

CFCEB1

CFCEA1

CFRST

CFREG

CFWE

CFOE

CFIOWR

CFIORD

PA0

PA1

PA2

PA3

PA4

PA5

PA6

IC225

74LCX245

1

2

3

4

T/R

A0

A1

A2

A3 5

6

7

A4

A5

A6 8

9

10

A7

GND

VCC 20

OE 19

B0

B1

18

17

B2 16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

C2251

0.1;F

R2251

R2252

R2253

R2254

R2255

R2256

R2257

390

390

390

390

390

390

390

L2251

L2252

L2253

L2254

L2255

L2256

L2257

BK1608LM152

BK1608LM152

CFA0

CFA1

BK1608LM152

CFA2

BK1608LM152

BK1608LM152

CFA3

CFA4

BK1608LM152

BK1608LM152

CFA5

CFA6

PA11

PA12

PA13

PA14

PA7

PA8

PA9

PA10

IC226

74LCX245

3

4

5

1

2

T/R

A0

A1

A2

A3

6

7

8

A4

A5

9

10

A6

A7

GND

VCC 20

OE 19

B0

B1

18

17

B2 16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2261

R2262

R2263

R2264

R2265

R2266

R2267

R2268

C2261

10;10-T

C2262

0.1;F

390

390

390

390

390

390

390

390

L2261

L2262

L2263

L2264

L2265

L2266

L2267

L2268

BK1608LM152

BK1608LM152

CFA7

CFA8

BK1608LM152

BK1608LM152

BK1608LM152

CFA9

BK1608LM152

BK1608LM152

BK1608LM152

CFA10

CFA11

CFA12

CFA13

CFA14

R2317

0

IC231

NC7W04

1

2

3

GND

6

VCC 5

4

R2316

0

PA19

PA20

PA21

PA22

PA15

PA16

PA17

PA18

IC229

74LCX245

1

2

3

4

T/R

A0

A1

A2

A3 5

6

7

A4

A5

A6 8

9

10

A7

GND

VCC 20

OE 19

B0

B1

18

17

B2 16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2291

R2292

R2293

R2294

R2295

R2296

R2297

R2298

C2291

10;10-T

C2292

0.1;F

390

390

390

390

390

390

390

390

L2291

L2292

L2293

L2294

L2295

L2296

L2297

L2298

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

CFA16

BK1608LM152

CFA17

CFA18

CFA19

BK1608LM152

CFA15

CFA20

BK1608LM152

BK1608LM152

CFA21

CFA22

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

IC232

74LCX245

1

2

3

4

5

6

A3

A4

A5 7

8

9

A6

A7

10 GND

T/R

A0

A1

A2

VCC 20

OE 19

B0 18

B1 17

B2

B3

16

15

B4 14

B5

B6

13

12

B7 11

BIDIR BUFFER

R2321

R2322

R2323

R2324

R2325

R2326

R2327

R2328

470

470

470

470

470

470

470

470

L2321

L2322

L2323

L2324

L2325

L2326

L2327

L2328

BK1608LM152

BK1608LM152

BK1608LM152

PCA7

PCA6

BK1608LM152

BK1608LM152

PCA5

PCA4

PCA3

BK1608LM152

BK1608LM152

BK1608LM152

PCA2

PCA1

PCA0

PA14

PA13

PA12

PA8

PA9

PA11

PA10

IC233

74LCX245

3

4

5

1

2

T/R

A0

A1

A2

A3

6

7

8

A4

A5

9

10

A6

A7

GND

VCC 20

OE 19

B0

B1

18

17

B2 16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2331

R2332

R2333

R2334

R2335

R2336

R2337

470

470

470

470

470

470

470

L2331

L2332

L2333

L2334

L2335

L2336

L2337

BK1608LM152

BK1608LM152

PCA14

PCA13

BK1608LM152

PCA12

BK1608LM152

BK1608LM152

PCA8

PCA9

BK1608LM152

PCA11

BK1608LM152

PCA10

NOTE:*1

REF No.

C2453,C2454

C2525

C2526

C2528

C2529

C2530

L2645

R2340

R2450

R2452

R2454

R2530

R2645

R2655,R2656

R2689

R2699

R2759,R2760,R2766

R2767,R2768,R2769

R2770,R2776,R2777

R2778,R2779,R2780

R2786,R2787,R2788

R2789

X2401

HSR-X200(J)

A-8344-693-A

NO MOUNT

56PF

NO MOUNT

NO MOUNT

47PF

5PF

750

0

82

1k

NO MOUNT

560

100

0

NO MOUNT

330

100

100

100

14.31818MHZ

HSR-X200(UC)

A-8344-739-A

NO MOUNT

56PF

NO MOUNT

NO MOUNT

47PF

5PF

750

0

82

1k

NO MOUNT

560

100

0

NO MOUNT

330

100

100

100

14.3181MHZ

HSR-X200P(CE)

A-8344-539-A

1PF

27PF

8PF

2PF

27PF

2PF

NO MOUNT

NO MOUNT

0

NO MOUNT

1k

680

NO MOUNT

NO MOUNT

1.2k

220

NO MOUNT

NO MOUNT

NO MOUNT

17.734476MHZ

TO DM-A

CLK27

TO DM-A

LVI[0..9]

TO DM-C

LV02

RESET

TO DM-A

YOUT

COUT

ADIN

ADOUT

DHS

DVS

DY[0..7]

HSR-X200/X200P

A

PA19

PA18

PA8

PA7

PA6

PA5

PA4

PA3

PA2

PA16

PA15

PA14

PA13

PA12

PA11

PA10

PA9

PA20

FWR

4

5

6

1

2

3

7

8

9

A9

A8

A19

10

11

NC

WE

A12

A11

A10

A15

A14

A13

12

13

RESET

NC

14

15

NC

RY/BY

16 A18

17

18

A17

A7

19 A6

20

21

A5

A4

22 A3

23

24

A2

A1

IC227

MBM29LV160T

A16

BYTE

48

47

VSS 46

DQ15

DQ7

45

44

DQ14 43

DQ6

DQ13

42

41

DQ5 40

DQ12

DQ4

39

38

VCC 37

DQ11 36

DQ3

DQ10

35

34

DQ2 33

DQ9

DQ1

32

31

DQ8 30

DQ0 29

OE 28

VSS 27

CE

A0

26

25

FLASH ROM

PA17

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

R2259

R2260

R2269

R2270

R2286

R2287

R2288

R2289

R2290

R2299

R2300

R2320

R2329

R2330

R2338

R2339

PD11

PD3

PD10

PD2

PD9

PD1

PD8

PD0

FRD

PD15

PD7

PD14

PD6

PD13

PD5

PD12

PD4

FCS

PA1

DVS

DHS

DY7

DY6

DY5

AL2.5V

AL3.3V

L2471

1;M

L2472

10;K

L2473

10;K

L2202

10;K

AL3.3V

C2521

1;B

ADOUT

ADIN

AL3.3V

YOUT

COUT

R2691

100

Q2505

2SA1037K

C2522

1;B

R2681

56

R2682

100

C2527

0.1;B

*1

R2530

560

680

*N

*P

*1 C2529

*1

2P;CH

*1

C2530

5P;CH

*N

2P;CH

*P

*1

C2525

*1

33;J

56P;CH

*N

*1 C2526

8P;CH

27P;CH

*P

*1

R2699

R2695

0

220

330

*P

(D)

*N

(D)

Q2502

2SA1037K

Q2504

2SA1037K

R2687

220

R2207

100

R2208

100

R2213

100

R2216

100

FPVS

C2511

22;16-T

192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129

R2672

1.5K

C2514

0.1;B

(D)

R2663

0

FPHS

FPVS

FP0

FP1

FP2

FP3

FP4

FP5

FP6

FP7

LVI3

LVI2

LVI1

LVI0

LVI9

LVI8

LVI7

LVI6

LVI5

LVI4

R2665

Q2501

0

2SA1037K

BK1608LM751

LVO2

*1

L2645

C2516

0.1;F

*1

R2656

0

C2512

1;B

R2667

R2668

C2513

R2671

D2501

*1

C2510

0.1;F

R2655

0

820

MA728

0

(D)

0.1;B

200 (D)

*1

R2645 100

C2509

0.1;F

R2654 47

233

234

D1VIN1

D1ADIN10

235 D1ADIN11

236

237

D1ADIN12

D1ADIN13

238 D1ADIN14

239

240

241

D1ADIN15

VDD25

VSS

242

243

244

D1ADIN16

D1ADIN17

DCK27IN2

245

246

247

D1HIN2

D1VIN2

D1ADIN20

248

249

250

D1ADIN21

D1ADIN22

D1ADIN23

251

252

253

D1ADIN24

D1ADIN25

D1ADIN26

254

255

256

D1ADIN27

PP5

VSS

193

194

VSS

ADOUT

195 DAVRH

196

197

DAVRL

ADVRH

198 ADIN

199

200

ADVDD25

ADVRL

201 ADVSS

202

203

204

VIREF

YOUT

VCOMP

205

206

207

VIOB

COUT

VREFIN

208

209

210

VDD25

VSS

CSYNC

211

212

213

PPCS0

PPCS1

PP0

214

215

216

PP1

PP2

PP3

217 PP4

CK27OUT

218

219

220

221

222

D1HOUT

D1VOUT

D1DAOUT0

D1DAOUT1

223

224

225

D1DAOUT2

VDD33

VSS

226 D1DAOUT3

D1DAOUT4

227

228

229

D1DAOUT5

D1DAOUT6

230

231

D1DAOUT7

DCK27IN1

232 D1HIN1

IC251

LC27312BF-VJ1

ASIC

ZSREQ 119

SDO

118

SDI 117

SCLK 116

FSC4

115

JTAGSEL 114

VSS 113

VDD33

112

CLK108M 111

JTAG3 110

JTAG2

109

VDD25 128

ZIOWR1 127

ZIORD1 126

ZWAIT1 125

ZRTS1 124

UARXD1 123

UATXD1 122

UARXD2 121

UATXD2 120

JTAG1 108

JTAG0 107

TEST2

106

TEST1 105

TEST0 104

ZRESET

103

IDEEN 102

IDEDIR

IDEA2

IDEA1

101

100

99

IDEA0

VSS

98

97

IDED06 86

IDED05

IDED04

85

84

IDED03 83

IDED02

VSS

82

81

VDD33 80

IDED01

IDED00

79

78

IDECS1 77

IDECS0 76

HRESET 75

VDD25 96

IDED15

IDED14

95

94

IDED13 93

IDED12 92

IDED11

IDED10

91

90

IDED09 89

IDED08

IDED07

88

87

INTRQ 74

DMARQ 73

DMACK 72

ZIOWR 71

ZIORD

IORDY

70

69

SDA14 68

SDA13

SDA12

67

66

VSS 65

C2494

0.1;F

R2580

R2579

100

100

IOWR1

IORD1

WAIT1

*1

R2340

0

R2574

R2573

R2572

R2571

R2570

R2575 100

100

100

100

100

100

UARX2

UATX2

SREQ

SDO

SDI

SCLK

C2493

0.1;F

R2567

R2566

R2564

R2563

10K

10K

10K

2.2K

R2560

R2559

R2558

R2557

R2556

C2492

0.1;F

R2555

R2554

R2553

R2546

R2545

R2544

R2543

R2542

C2491

R2552

R2551

R2550

R2549

R2548

R2547

0.1;F

R2541

R2540

R2539

R2538

R2537

R2562 2.2K

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

R2536

R2535

R2534

R2533

R2532

100

100

0

47

47

IEN

IDIR

IA2

IA1

IA0

ID15

ID14

ID13

ID12

ID11

ID10

ID9

ID8

ID7

ID6

ID5

ID4

ID3

ID2

ID1

ID0

ICS1

ICS0

IRST

INTRQ

IMARQ

IMACK

IWR

IRD

IRDY

SDA14

SDA13

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B C D

8-9 8-9

E

CEB1

CEA1

PRST

REG1

WE1

OE1

IOWR1

IORD1

PA15

PA22

PA16

PA21

PA20

PA19

PA18

PA17

IC234

74LCX245

1

2

3

4

T/R

A0

A1

5

6

7

A2

A3

A4

8

9

A5

A6

A7

10 GND

VCC 20

OE

B0

19

18

B1 17

B2

B3

16

15

B4 14

B5

B6

13

12

B7 11

BIDIR BUFFER

C2342

0.1;F

R2341

R2342

R2343

R2344

R2345

R2346

R2347

R2348

470

470

470

470

470

470

470

470

L2341

L2342

L2343

L2344

L2345

L2346

L2347

L2348

BK1608LM152

BK1608LM152

BK1608LM152

PCA15

PCA22

BK1608LM152

BK1608LM152

PCA16

PCA21

PCA20

BK1608LM152

BK1608LM152

BK1608LM152

PCA19

PCA18

PCA17

5

6

7

8

9

10

1

2

3

4

A1

A2

A3

A4

A5

A6

IC235

74LCX245

T/R

A0

A7

GND

C2351

10;10-T

C2352

0.1;F

VCC 20

OE 19

B0

B1

B2

B3

B4

B5

B6

B7

18

17

*1 R2777

16

*1 R2779

15

14

*1

*1 R2780

*1

R2778

R2786

13

12

11

*1 R2787

*1 R2788

*1 R2789

BIDIR BUFFER

100

100

100

100

100

100

100

100

PCCEB1

PCCEA1

PCRST

PCREG

PCWE

PCOE

PCIOWR

PCIORD

EXTDIR

R2351

PD13

PD12

R2352

R2353

PD11

R2354

PD7

PD6

R2355

R2356

PD5

PD4

PD3

R2357

R2358

C2361

10;10-T

C2362

0.1;F

IC236

74LVX3245

270

270

270

270

270

270

270

270

5

6

7

8

9

10

1

2

3

4

11

12

GND

GND

3.3V

T/R

A0

A1

A2

A3

A4

A5

A6

A7

5V 24

NC 23

OE 22

B0 21

B1 20

B2

B3

19

18

B4 17

B5

B6

16

15

B7 14

GND 13

R2361

R2362

R2363

R2364

R2365

R2366

R2367

R2368

C2363

4.7;10-T

C2364

0.1;F

470

470

470

470

470

470

470

470

L2361

L2362

L2363

L2364

L2365

L2366

L2367

L2368

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

PCD12

BK1608LM152

PCD11

PCD7

PCD6

BK1608LM152

PCD13

BK1608LM152

BK1608LM152

PCD5

PCD4

PCD3

BIDIR BUFFER

EXTDIR

PD0

R2393

PD1

PD2

R2394

R2395

R2396

PD15

PD14

PD10

R2397

R2398

PD9

PD8

R2399

R2400

IC237

74LVX3245

C2371

0.1;F

270

270

270

270

270

270

270

270

4

5

6

1

2

3

7

8

9

A4

A5

A6

10

11

A7

GND

12 GND

A1

A2

A3

3.3V

T/R

A0

B3

B4

18

17

B5 16

B6

B7

15

14

GND 13

5V 24

NC 23

OE 22

B0

B1

21

20

B2 19

BIDIR BUFFER

C2372

0.1;F

R2371

R2372

R2373

R2374

R2375

R2376

R2377

R2378

470

470

470

470

470

470

470

470

L2371

L2372

L2373

L2374

L2375

L2376

L2377

L2378

BK1608LM152

BK1608LM152

PCD0

PCD1

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

PCD2

PCD15

PCD14

BK1608LM152

PCD10

PCD9

PCD8

WAIT1

IREQ1

WP1

IC238

74LCX157

2A

2B

2Y

GND

SEL

1A

1B

1Y

7

8

5

6

1

2

3

4

BIDIR BUFFER

VCC 16

EN

3A

15

14

3B 13

3Y

4A

12

11

4B

4Y

10

9

CD1

3

4

5

1

2

6

7 GND

IC239

74LCX32

VCC 14

13

12

11

10

9

8

AL3.3V

L2451

BK1608LL241

L2452

BK1608LL121

R2469

68

*1

R2452

1K

1K

*1

NTSC

PAL

FS1

H

L

IC246

C6013BTD

CLK3

CLK2

VSS

NC

VDD

FS1

FS2

CLK1

4

5

6

7

8

1

2

3

XOUT 16

XIN

VSS

15

14

VDD 13

REFCLK 12

VSS 11

VDD 10

FS3 9

CLOCK GEN.

R2456

100

FS2

H

H

*1 R2450

82

0

FS3

L

L

*1

C2453

1P;CH

*1

C2454

1P;CH

1AV4V10B2680G

14.31818MHz *N

L2453

10;K

R2448

0

C2460

0.01;B

IC247

PST9227

VCC 5 1 TC

2

3

SUB

GND OUT 4

R2465

100

RESET

R2391

R2392

1K;1/16J

1K;1/16J

IRDY

IMARQ

INTRQ

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

4

5

6

1

2

3

9

10

7

8

IC245

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3 15

B4

B5

14

13

B6 12

B7 11

BIDIR BUFFER

L2454

1AV4L26B1330G

AL3.3V

AL5V

AL3.3V

L2401

10;K

L2402

10;K

R2442

R2443

R2444

33

33

33

IDRDY

IDMARQ

DINTRQ

ID8

ID7

ID6

ID5

ID4

IDIR

ID11

ID10

ID9

C2411

10;10-T

C2412

0.1;F

IC241

74LVX3245

3

4

5

1

2

6

7

8

A3

A4

A5

9

10

A6

A7

3.3V

T/R

A0

A1

A2

11

12

GND

GND

5V 24

NC 23

OE

B0

22

21

B1 20

B2

B3

19

18

B4 17

B5

B6

16

15

B7 14

GND 13

BIDIR BUFFER

C2413

4.7;10-T

C2414

0.1;F

R2411

R2412

R2413

R2414

R2415

R2416

R2417

R2418

IEN

33

33

33

33

33

33

33

33

IDD7

IDD6

IDD5

IDD4

IDD11

IDD10

IDD9

IDD8

ID13

ID1

ID14

ID0

ID15

IDIR

ID3

ID12

ID2

IEN

IC242

74LVX3245

3

4

5

1

2

6

7

8

9

10

11

A6

A7

GND

12 GND

3.3V

T/R

A0

A1

A2

A3

A4

A5

BIDIR BUFFER

5V

NC

24

23

OE 22

B0

B1

21

20

B2 19

B3

B4

18

17

B5 16

B6

B7

15

14

GND 13

R2421

R2422

R2423

R2424

R2425

R2426

R2427

R2428

33

33

33

33

33

33

33

33

IDD3

IDD12

IDD2

IDD13

IDD1

IDD14

IDD0

IDD15

ICS1

ICS0

IA2

IA0

IA1

IC243

74LCX245

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

4

5

6

1

2

3

9

10

7

8

VCC

OE

20

19

B0 18

B1

B2

17

16

B3 15

B4

B5

14

13

B6

B7

12

11

BIDIR BUFFER

R2431

R2432

R2433

R2434

R2435

33

33

33

33

33

IDCS1

IDCS0

IDA2

IDA0

IDA1

IRST

IMACK

IWR

IRD

IC244

74LCX245

1

2

T/R

A0

A1 3

4

5

A2

A3

A4 6

7

8

9

10

A5

A6

A7

GND

BIDIR BUFFER

VCC

OE

20

19

B0 18

B1

B2

17

16

B3 15

B4

B5

14

13

B6

B7

12

11

C2432

10;10-T

C2433

0.1;F

R2436

R2437

R2438

R2439

22

22

22

33

IDRST

IDMACK

IDWR

IDRD

D2463

MA728

R2408

10

R2409

0

R2410

0

V_MUTE_H

TO DM-C

R2462

100

D2462

MA728

ASRST

F

SDD5

SDD6

SDD7

SDDQM0

SDWE

SDCAS

SDRAS

SDCS

SDA14

SDA13

SDA10

SDA0

SDA1

SDA2

SDA3

SDD0

SDD1

SDD2

SDD3

SDD4

AL3.3V

L2461

10;K

16 WE

17

18

CAS

RAS

19 CS

20

21

A13

A12

22 A10

23

24

A0

A1

25 A2

26

27

A3

VDD

1

2

3

4

5

6

7

8

9

DQ3

DQ4

VDDQ

10 DQ5

11

12

DQ6

VSSQ

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

13 DQ7

14

15

VDD

LDQM

IC252

TC59SM716AFT-80

VSS 41

NC 40

UDQM 39

CLK

CLKE

38

37

NC 36

A11

A9

35

34

A8 33

A7

A6

32

31

A5 30

A4

VSS

29

28

VSS 54

DQ15 53

VSSQ 52

DQ14 51

DQ13 50

VDDQ 49

DQ12 48

DQ11 47

VSSQ 46

DQ10 45

DQ9 44

VDDQ 43

DQ8 42

SDRAM

SDDQM1

SDCLK

SDCKE

SDA11

SDA9

SDA8

SDA7

SDA6

SDA5

SDA4

SDD15

SDD14

SDD13

SDD12

SDD11

SDD10

SDD9

SDD8

SDD16

SDD17

SDD18

SDD19

SDD20

SDD21

SDD22

SDD23

SDDQM2

SDWE

SDCAS

SDRAS

SDCS

SDA14

SDA13

SDA10

SDA0

SDA1

SDA2

SDA3

17

18

CAS

RAS

19 CS

20

21

A13

A12

22 A10

23

24

A0

A1

25 A2

26

27

A3

VDD

5

6

7

1

2

3

4

8

9

DQ4

VDDQ

10 DQ5

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

11

12

DQ6

VSSQ

13 DQ7

14

15

VDD

LDQM

16 WE

IC253

TC59SM716AFT-80

DQ9

VDDQ

44

43

DQ8 42

VSS

NC

41

40

UDQM 39

CLK

CLKE

38

37

NC 36

A11

A9

35

34

A8 33

A7

A6

32

31

A5 30

A4

VSS

29

28

VSS 54

DQ15

VSSQ

53

52

DQ14 51

DQ13

VDDQ

50

49

DQ12 48

DQ11

VSSQ

47

46

DQ10 45

SDRAM

SDDQM3

SDCLK

SDCKE

SDA11

SDA9

SDA8

SDA7

SDA6

SDA5

SDA4

SDD31

SDD30

SDD29

SDD28

SDD27

SDD26

SDD25

SDD24

G

SCLK

SDI

SDO

SREQ

UARX2

UATX2

SWOUT

ASBOOT

TO DM-C

CD-1 (DM-B)

H

1

2

3

4

5

LEFT UPPER

CD-1 (DM-B) CD-1 (DM-B)

LEFT UPPER

PC CARD (TO PC-1)

1AV4J10B1820M

1

2

3

4

5

A

DM-B

D2-81010/L8HAA-USSY

*N:HSR-X200 ONLY

*P:HSR-X200P ONLY

AL3.3V

L2201

10;K

TO DM-A

AL5VPC

AL3.3V

R2318

R2319

0

0

L2301

10;K

L2302

10;K

5

6

7

1

2

3

4

GND

IC221

74LCX32

VCC 14

13

12

11

10

9

8

EXTDIR

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

R2219

R2220

R2230

R2239

R2240

R2249

R2250

R2258

270

270

270

270

270

270

270

270

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

9

10

7

8

3

4

5

6

1

2

IC222

74LCX245

VCC 20

OE 19

B0

B1

18

17

B4

B5

B6

B7

B2

B3

16

15

12

11

14

13

BIDIR BUFFER

C2221

0.1;F

R2221

R2222

R2223

R2224

R2225

R2226

R2227

R2228

390

390

390

390

390

390

390

390

L2221

L2222

L2223

L2224

L2225

L2226

L2227

L2228

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

CFD7

CFD6

CFD5

CFD4

CFD3

CFD2

CFD1

CFD0

EXTDIR

PD15

PD14

PD13

PD12

PD11

PD10

PD9

PD8

R2241

R2242

R2243

R2244

R2245

R2246

R2247

R2248

270

270

270

270

270

270

270

270

A5

A6

A7

GND

T/R

A0

A1

A2

A3

A4

1

2

3

4

7

8

9

10

5

6

IC223

74LCX245

VCC 20

OE 19

B0

B1

18

17

B4

B5

B6

B7

B2

B3

16

15

14

13

12

11

BIDIR BUFFER

R2231

R2232

R2233

R2234

R2235

R2236

R2237

R2238

C2231

10;10-T

C2232

0.1;F

390

390

390

390

390

390

390

390

L2231

L2232

L2233

L2234

L2235

L2236

L2237

L2238

BK1608LM152

BK1608LM152

CFD15

CFD14

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

CFD12

BK1608LM152

CFD11

CFD10

CFD9

BK1608LM152

CFD13

CFD8

IC231

NC7W04

1

2

3

GND

R2317

0

6

VCC 5

4

PRST

REG1

WE1

OE1

IOWR1

IORD1

3

4

5

1

2

6

7

8

9

10

A2

A3

A4

T/R

A0

A1

A5

A6

A7

GND

IC224

74LCX245

C2241

0.1;F

VCC 20

OE 19

B0 18

*1 R2759

*1 R2760

B1

B2

17

16

*1 R2766

*1 R2767

B3

B4

B5

B6

B7

15

14

13

*1 R2768

*1

R2769

*1

R2770

12

11

*1

R2776

BIDIR BUFFER

100

100

100

100

100

100

100

100

CFCEB1

CFCEA1

CFRST

CFREG

CFWE

CFOE

CFIOWR

CFIORD

PA0

PA1

PA2

PA3

PA4

PA5

PA6

7

8

9

10

4

5

6

1

2

3

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

IC225

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3 15

B4

B5

14

13

B6

B7

12

11

BIDIR BUFFER

C2251

0.1;F

R2251

R2252

R2253

R2254

R2255

R2256

R2257

390

390

390

390

390

390

390

L2251

L2252

L2253

L2254

L2255

L2256

L2257

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

CFA0

CFA1

CFA2

CFA3

CFA4

CFA5

CFA6

PA11

PA12

PA13

PA14

PA7

PA8

PA9

PA10

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

3

4

5

1

2

6

7

8

9

10

IC226

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2261

R2262

R2263

R2264

R2265

R2266

R2267

R2268

C2261

10;10-T

C2262

0.1;F

390

390

390

390

390

390

390

390

L2261

L2262

L2263

L2264

L2265

L2266

L2267

L2268

BK1608LM152

CFA7

BK1608LM152

CFA8

BK1608LM152

BK1608LM152

BK1608LM152

CFA9

BK1608LM152

CFA10

CFA11

CFA12

BK1608LM152

CFA13

BK1608LM152

CFA14

PA19

PA20

PA21

PA22

PA15

PA16

PA17

PA18

9

10

7

8

4

5

6

1

2

3

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

IC229

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3 15

B4

B5

14

13

B6

B7

12

11

BIDIR BUFFER

R2291

R2292

R2293

R2294

R2295

R2296

R2297

R2298

C2291

10;10-T

C2292

0.1;F

390

390

390

390

390

390

390

390

L2291

L2292

L2293

L2294

L2295

L2296

L2297

L2298

BK1608LM152

BK1608LM152

CFA15

BK1608LM152

BK1608LM152

CFA16

CFA17

BK1608LM152

BK1608LM152

CFA18

BK1608LM152

BK1608LM152

CFA19

CFA20

CFA21

CFA22

R2316

0

PA14

PA13

PA12

PA8

PA9

PA11

PA10

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

A5

A6

A7

GND

T/R

A0

A1

A2

A3

A4

1

2

3

4

7

8

5

6

9

10

IC232

74LCX245

VCC 20

OE 19

B0

B1

18

17

B4

B5

B6

B7

B2

B3

16

15

14

13

12

11

BIDIR BUFFER

R2321

R2322

R2323

R2324

R2325

R2326

R2327

R2328

470

470

470

470

470

470

470

470

L2321

L2322

L2323

L2324

L2325

L2326

L2327

L2328

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

PCA7

PCA6

PCA5

PCA4

PCA3

PCA2

PCA1

PCA0

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

3

4

5

1

2

6

7

8

9

10

IC233

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2331

R2332

R2333

R2334

R2335

R2336

R2337

470

470

470

470

470

470

470

L2331

L2332

L2333

L2334

L2335

L2336

L2337

BK1608LM152

PCA14

BK1608LM152

PCA13

BK1608LM152

PCA12

BK1608LM152

BK1608LM152

BK1608LM152

PCA8

PCA9

PCA11

BK1608LM152

PCA10

B

PA12

PA11

PA10

PA9

PA20

PA16

PA15

PA14

PA13

FWR

A11

A10

A9

A8

A19

A15

A14

A13

A12

NC

WE

RESET

NC

NC

5

6

7

8

9

3

4

1

2

10

11

12

13

14

IC227

MBM29LV160T

A16

BYTE

48

47

VSS

DQ15

46

45

DQ7 44

DQ14

DQ6

43

42

DQ13 41

DQ5 40

DQ12 39

DQ4

VCC

38

37

DQ11 36

DQ3 35

PA17

R2259

R2260

R2269

R2270

R2286

R2287

R2288

R2289

R2290

R2299

47

47

47

47

47

47

47

47

47

47

PD15

PD7

PD14

PD6

PD13

PD5

PD12

PD4

PD11

PD3

C

L2202

10;K

AL3.3V

8-10

D

AL2.5V

AL3.3V

L2471

1;M

L2472

10;K

L2473

10;K

8-10

E

C2511

22;16-T

F

192 191 190 189 188 18 186 18 184 183 182 181 180 1 9 1 8 1 1 6 1 1 4 1 3 1 2 1 1 1 0 169 168 16 166 16 164 163 162 161 160 1 9 1 8 1 1 6 1 1 4 1 3 1 2 1 1 1 0

G

HSR-X200/X200P

H

RIGHT UPPER

CD-1 (DM-B) CD-1 (DM-B)

RIGHT UPPER

PC CARD SOCKET HDD SOCKET

1

2

5

CC 20

OE 19

B0

B1

18

17

B4

B5

B6

B7

B2

B3

16

15

14

13

12

11

R2321

R2322

R2323

R2324

R2325

R2326

R2327

R2328

470

470

470

470

470

470

470

470

L2321

L2322

L2323

L2324

L2325

L2326

L2327

L2328

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

BK1608LM152

PCA7

PCA6

PCA5

PCA4

PCA3

PCA2

PCA1

PCA0

5

CC 20

OE 19

B0 18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

R2331

R2332

R2333

R2334

R2335

R2336

R2337

470

470

470

470

470

470

470

L2331

L2332

L2333

L2334

L2335

L2336

L2337

BK1608LM152

BK1608LM152

PCA14

BK1608LM152

BK1608LM152

PCA13

PCA12

BK1608LM152

BK1608LM152

PCA8

PCA9

PCA11

BK1608LM152

PCA10

CEB1

CEA1

PRST

REG1

WE1

OE1

IOWR1

IORD1

PA15

PA22

PA16

PA21

PA20

PA19

PA18

PA17

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

9

10

7

8

3

4

5

6

1

2

IC234

74LCX245

VCC 20

OE 19

B0

B1

18

17

B4

B5

B6

B7

B2

B3

16

15

12

11

14

13

BIDIR BUFFER

R2341

R2342

R2343

R2344

R2345

R2346

R2347

R2348

C2341

10;10-T

C2342

0.1;F

470

470

470

470

470

470

470

470

L2341

L2342

L2343

L2344

L2345

L2346

L2347

L2348

BK1608LM152

BK1608LM152

BK1608LM152

PCA22

PCA16

BK1608LM152

PCA15

PCA21

BK1608LM152

PCA20

BK1608LM152

BK1608LM152

PCA19

PCA18

BK1608LM152

PCA17

9

10

7

8

4

5

6

1

2

3

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

IC235

74LCX245

C2351

10;10-T

C2352

0.1;F

VCC 20

OE 19

B0 18

*1

R2777

*1

R2778

B1

B2

B3

B4

B5

B6

B7

17

16

15

*1 R2779

*1 R2780

*1

R2786

14

13

*1

R2787

*1 R2788

12

11

*1 R2789

BIDIR BUFFER

100

100

100

100

100

100

100

100

PCCEB1

PCCEA1

PCRST

PCREG

PCWE

PCOE

PCIOWR

PCIORD

EXTDIR

PD13

PD12

PD11

PD7

PD6

PD5

PD4

PD3

R2351

R2352

R2353

R2354

R2355

R2356

R2357

R2358

C2361

10;10-T IC236

74LVX3245

C2362

0.1;F

270

270

270

270

270

270

270

270

A1

A2

A3

A4

A5

3.3V

T/R

A0

A6

A7

GND

GND

6

7

8

4

5

1

2

3

9

10

11

12

5V

NC

24

23

OE 22

B0

B1

21

20

B2

B3

19

18

B4 17

B5

B6

16

15

B7

GND

14

13

R2361

R2362

R2363

R2364

R2365

R2366

R2367

R2368

C2363

4.7;10-T

C2364

0.1;F

470

470

470

470

470

470

470

470

L2361

L2362

L2363

L2364

L2365

L2366

L2367

L2368

BK1608LM152

BK1608LM152

PCD13

BK1608LM152

BK1608LM152

PCD11

PCD7

BK1608LM152

PCD12

PCD6

BK1608LM152

BK1608LM152

PCD5

PCD4

BK1608LM152

PCD3

BIDIR BUFFER

EXTDIR

PD0

PD1

PD2

PD15

PD14

PD10

PD9

PD8

R2393

R2394

R2395

R2396

R2397

R2398

R2399

R2400

IC237

74LVX3245

C2371

0.1;F

270

270

270

270

270

270

270

270

A4

A5

A6

A7

GND

GND

3.3V

T/R

A0

A1

A2

A3

9

10

11

12

7

8

3

4

5

6

1

2

5V 24

NC 23

OE 22

B0 21

B1

B2

20

19

B3

B4

18

17

B5 16

B6

B7

15

14

GND 13

BIDIR BUFFER

C2372

0.1;F

R2371

R2372

R2373

R2374

R2375

R2376

R2377

R2378

470

470

470

470

470

470

470

470

L2371

L2372

L2373

L2374

L2375

L2376

L2377

L2378

BK1608LM152

PCD0

BK1608LM152

BK1608LM152

PCD1

PCD2

BK1608LM152

PCD15

BK1608LM152

BK1608LM152

PCD14

BK1608LM152

PCD10

BK1608LM152

PCD9

PCD8

163 162 161 160 1 9 1 8 1 1 6 1 1 4 1 3 1 2 1 1 1 0 149 148 14 146 14 144 143 142 141 140 139 138 13 136 13 134 133 132 131 130 129

HSR-X200/X200P

I J K L

8-11

WAIT1

IREQ1

WP1

CD1

8-11

M

SEL

1A

1B

1Y

2A

2B

2Y

GND

3

4

5

6

1

2

7

8

IC238

74LCX157

VCC 16

EN

3A

15

14

3B 13

3Y

4A

12

11

4B

4Y

10

9

BIDIR BUFFER

1

2

3

4

5

6

7 GND

IC239

74LCX32

VCC 14

13

10

9

8

12

11

R2391

R2392

1K;1/16J

1K;1/16J

IRDY

IMARQ

INTRQ

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

3

4

5

1

2

6

7

8

9

10

IC245

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

N

AL5V

AL3.3V

L2401

10;K

L2402

10;K

R2442

R2443

R2444

33

33

33

IDRDY

IDMARQ

DINTRQ

ID8

ID7

ID6

ID5

ID4

IDIR

ID11

ID10

ID9

C2411

10;10-T

C2412

0.1;F

A2

A3

A4

A5

A6

3.3V

T/R

A0

A1

A7

GND

GND

5

6

7

8

9

10

11

12

3

4

1

2

IC241

74LVX3245

5V

NC

24

23

OE 22

B0

B1

21

20

B2

B3

19

18

B4

B5

17

16

B6 15

B7

GND

14

13

BIDIR BUFFER

IEN

C2413

4.7;10-T

C2414

0.1;F

R2411

R2412

R2413

R2414

R2415

R2416

R2417

R2418

33

33

33

33

33

33

33

33

IDD11

IDD10

IDD9

IDD8

IDD7

IDD6

IDD5

IDD4

IDIR

ID3

ID12

ID2

ID13

ID1

ID14

ID0

ID15

IEN

A2

A3

A4

3.3V

T/R

A0

A1

A5

A6

A7

GND

GND

1

2

3

4

5

6

7

10

11

12

8

9

IC242

74LVX3245

5V 24

NC 23

OE 22

B0 21

B1

B2

20

19

B3 18

B4

B5

17

16

B6

B7

15

14

GND 13

BIDIR BUFFER

R2421

R2422

R2423

R2424

R2425

R2426

R2427

R2428

33

33

33

33

33

33

33

33

IDD3

IDD12

IDD2

IDD13

IDD1

IDD14

IDD0

IDD15

O

ICS1

ICS0

IA2

IA0

IA1

T/R

A0

A1

A2

A3

A4

A5

A6

A7

GND

3

4

5

1

2

6

7

8

9

10

IC243

74LCX245

VCC 20

OE 19

B0 18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

R2431

R2432

R2433

R2434

R2435

33

33

33

33

33

IDCS1

IDCS0

IDA2

IDA0

IDA1

C2432

P

3

4

5

LEFT LOWER

CD-1 (DM-B) CD-1 (DM-B)

LEFT LOWER

1

2

3

4

5

NOTE:*1

REF No.

C2453,C2454

C2525

C2526

C2528

C2529

C2530

L2645

R2340

R2450

R2452

R2454

R2530

R2645

R2655,R2656

R2689

R2699

R2759,R2760,R2766

R2767,R2768,R2769

R2770,R2776,R2777

R2778,R2779,R2780

R2786,R2787,R2788

R2789

X2401

HSR-X200(J)

A-8344-693-A

NO MOUNT

56PF

NO MOUNT

NO MOUNT

47PF

5PF

750

0

82

1k

NO MOUNT

560

100

0

NO MOUNT

330

100

100

100

14.31818MHZ

HSR-X200(UC)

A-8344-739-A

NO MOUNT

56PF

NO MOUNT

NO MOUNT

47PF

5PF

750

0

82

1k

NO MOUNT

560

100

0

NO MOUNT

330

100

100

100

14.3181MHZ

HSR-X200P(CE)

A-8344-539-A

1PF

27PF

8PF

2PF

27PF

2PF

NO MOUNT

NO MOUNT

0

NO MOUNT

1k

680

NO MOUNT

NO MOUNT

1.2k

220

NO MOUNT

NO MOUNT

NO MOUNT

17.734476MHZ

TO DM-A

CLK27

TO DM-A

LVI[0..9]

TO DM-C

LV02

RESET

TO DM-A

YOUT

COUT

ADIN

ADOUT

DHS

DVS

DY[0..7]

A B

PA6

PA5

PA4

PA3

PA2

PA19

PA18

PA8

PA7

FWR

A17

A7

A6

A5

A4

A3

A2

A1

NC

WE

RESET

NC

NC

RY/BY

A18

17

18

19

20

21

22

23

24

12

13

14

10

11

15

16

FLASH ROM

DQ12 39

DQ4 38

VCC 37

DQ11

DQ3

36

35

DQ10 34

DQ2 33

DQ9 32

DQ1

DQ8

31

30

DQ0 29

OE 28

VSS

CE

27

26

A0 25

R2288

R2289

R2290

R2299

R2300

R2320

R2329

R2330

R2338

R2339

47

47

47

47

47

47

47

47

47

47

PD12

PD4

PD11

PD3

PD10

PD2

PD9

PD1

PD8

PD0

FRD

FCS

PA1

DVS

DHS

DY7

DY6

DY5

L2202

10;K

AL3.3V

C2521

1;B

ADOUT

ADIN

AL3.3V

YOUT

COUT

R2691

100

Q2505

2SA1037K

C2522

1;B

R2681

56

R2682

100

Q2503

2SC2412K

R2685

1K (D)

Q2502

2SA1037K

C2527

0.1;B

*1

R2530

560

680

*N

*P

5P;CH

*N

*1

C2530

2P;CH

*P

*1 C2529

47P;CH

27P;CH

*N

*P

*1

C2528

2P;CH

*1

C2525

L2475

33;J

56P;CH

*N

*1 C2526

8P;CH

27P;CH

*P

*1

R2699

*1

L2474

33;J

R2695

0

220

330

(D)

*P

(D)

*N

Q2504

2SA1037K

R2687

220

R2207

100

R2208

100

R2213

100

R2215

100

R2216

100

FPVS

C2511

22;16-T

192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150

R2672

1.5K

C2514

0.1;B

(D)

R2663

0

FPHS

FPVS

FP0

FP1

FP2

FP3

FP4

FP5

FP6

FP7

LVI3

LVI2

LVI1

LVI0

LVI9

LVI8

LVI7

LVI6

LVI5

LVI4

R2665

Q2501

0

2SA1037K

BK1608LM751

LVO2

*1

L2645

C2516

0.1;F

D2502

SML-010LT

*1

R2656

0

C2512

1;B

R2667

R2668

C2513

R2671

D2501

*1

C2510

0.1;F

R2655

0

820

0

0.1;B

200

MA728

R2675

390

*1

R2645 100

C2509

0.1;F

R2654

(D)

(D)

47

249

250

251

252

246

247

248

253

254

255

256

235

236

237

238

232

233

234

225

226

227

228

229

230

231

239

240

241

242

243

244

245

212

213

214

215

209

210

211

202

203

204

205

206

207

208

193

194

195

196

197

198

199

200

201

216

217

218

219

220

221

222

223

224

VREFIN

VDD25

VSS

CSYNC

PPCS0

PPCS1

PP0

PP1

PP2

PP3

PP4

CK27OUT

D1HOUT

D1VOUT

D1DAOUT0

D1DAOUT1

VSS

ADOUT

DAVRH

DAVRL

ADVRH

ADIN

ADVDD25

ADVRL

ADVSS

VIREF

YOUT

VCOMP

VIOB

COUT

D1DAOUT2

VDD33

VSS

D1DAOUT3

D1DAOUT4

D1DAOUT5

D1DAOUT6

D1DAOUT7

DCK27IN1

D1HIN1

D1VIN1

D1ADIN10

D1ADIN11

D1ADIN12

D1VIN2

D1ADIN20

D1ADIN21

D1ADIN22

D1ADIN23

D1ADIN24

D1ADIN25

D1ADIN26

D1ADIN27

PP5

VSS

D1ADIN13

D1ADIN14

D1ADIN15

VDD25

VSS

D1ADIN16

D1ADIN17

DCK27IN2

D1HIN2

IC251

LC27312BF-VJ1

ASIC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43

C

8-12

D

8-12

E F G

HSR-X200/X200P

H

163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129

C251

C27312BF-VJ1

ASIC

IDED06

IDED05

IDED04

86

85

IDED03

IDED02 82

VSS

VDD33

81

80

84

83

IDED01

IDED00

IDECS1

IDECS0

77

76

HRESET 75

79

78

INTRQ 74

DMARQ 73

DMACK 72

ZIOWR 71

ZIORD 70

IORDY 69

SDA14 68

SDA13

SDA12

67

66

VSS 65

TEST2 106

TEST1 105

TEST0 104

ZRESET

103

IDEEN

102

IDEDIR 101

IDEA2

IDEA1

100

99

IDEA0

VSS

98

97

VDD25 96

IDED15

IDED14

IDED13

95

94

IDED12

IDED11

93

92

IDED10

IDED09

91

90

89

IDED08

IDED07

88

87

VDD25 128

ZIOWR1 127

ZIORD1

126

ZWAIT1

125

ZRTS1 124

UARXD1 123

UATXD1

122

UARXD2

121

UATXD2 120

ZSREQ 119

SDO 118

SDI

117

SCLK

116

FSC4 115

JTAGSEL 114

VSS 113

VDD33

112

CLK108M

111

JTAG3 110

JTAG2 109

JTAG1

108

JTAG0

107

C2494

0.1;F

R2580

R2579

100

100

IOWR1

IORD1

WAIT1

C2493

0.1;F

R2567

R2566

*1

R2340

0

R2574

R2575 100

100

R2573

R2572

100

100

R2571

R2570

100

100

UARX2

UATX2

SREQ

SDO

SDI

SCLK

10K

10K

R2564

R2563

10K

2.2K

R2560

R2559

R2558

R2557

R2556

C2492

0.1;F

R2555

R2554

R2553

R2552

R2551

R2550

R2549

R2548

R2547

R2546

R2545

R2544

R2543

R2542

C2491

0.1;F

R2541

R2540

R2539

R2538

R2537

R2562 2.2K

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

100

R2536

R2535

R2534

R2533

R2532

100

100

0

47

47

IEN

IDIR

IA2

IA1

IA0

ID6

ID5

ID4

ID3

ID2

ID10

ID9

ID8

ID7

ID15

ID14

ID13

ID12

ID11

ID1

ID0

ICS1

ICS0

IRST

INTRQ

IMARQ

IMACK

IWR

IRD

IRDY

SDA14

SDA13

30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

RIGHT LOWER

CD-1 (DM-B) CD-1 (DM-B)

RIGHT LOWER

AL3.3V

L2451

BK1608LL241

L2452

BK1608LL121

R2469

68

*1

R2452

1K

R2453

1K

*1

R2454

1K

NTSC

PAL

FS1

H

L

IC246

C6013BTD

CLK3

CLK2

VSS

NC

VDD

FS1

FS2

CLK1

1

2

3

4

7

8

5

6

XOUT 16

XIN

VSS

15

14

VDD 13

REFCLK

VSS

12

11

VDD 10

FS3 9

CLOCK GEN.

R2456

100

FS2

H

H

FS3

L

L

*1 R2450

82

0

*1 X2401

*1

C2453

1P;CH

*1

C2454

1P;CH

1AV4V10B2680G

14.31818MHz *N

1AV4V10B2760G

17.734476MHz *P

L2453

10;K

R2448

0

C2460

0.01;B

IC247

PST9227

VCC 5 1 TC

2

3

SUB

GND OUT 4

R2465

100

RESET

SDD0

SDD1

SDD2

SDD3

SDD4

SDD5

SDD6

SDD7

SDDQM0

SDWE

SDCAS

SDRAS

SDCS

SDA14

SDA13

SDA10

SDA0

SDA1

SDA2

SDA3

AL3.3V

L2461

10;K

VDD

LDQM

WE

CAS

RAS

CS

A13

A12

A10

A0

A1

A2

A3

VDD

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

14

15

16

17

18

19

20

23

24

25

26

27

21

22

9

10

11

12

13

7

8

1

2

3

4

5

6

IC252

TC59SM716AFT-80

CLK 38

CLKE

NC

37

36

A11

A9

35

A8

A7

A6

32

31

34

33

A5 30

A4

VSS

29

28

VSS

DQ15

54

53

VSSQ 52

DQ14

DQ13

51

50

VDDQ 49

DQ12

DQ11

48

47

VSSQ

DQ10

46

45

DQ9 44

VDDQ 43

DQ8 42

VSS

NC

41

40

UDQM 39

SDRAM

R2466

0

SDDQM1

SDCLK

SDCKE

SDA11

SDA9

SDA8

SDA7

SDA6

SDA5

SDA4

SDD15

SDD14

SDD13

SDD12

SDD11

SDD10

SDD9

SDD8

L2454

1AV4L26B1330G

AL3.3V

SDD16

SDD17

SDD18

SDD19

SDD20

SDD21

SDD22

SDD23

SDDQM2

SDWE

SDCAS

SDRAS

SDCS

SDA14

SDA13

SDA10

SDA0

SDA1

SDA2

SDA3

DQ4

VDDQ

DQ5

DQ6

VSSQ

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ7

VDD

LDQM

WE

CAS

RAS

CS

A13

A12

A10

A0

A1

A2

A3

VDD

8

9

10

11

12

3

4

5

1

2

6

7

16

17

18

19

13

14

15

22

23

24

20

21

25

26

27

IC253

TC59SM716AFT-80

VSS 54

DQ15 53

VSSQ 52

DQ14

DQ13

51

50

VDDQ 49

DQ12 48

DQ11 47

VSSQ 46

DQ10 45

DQ9 44

VDDQ 43

DQ8 42

VSS 41

NC 40

UDQM 39

CLK 38

CLKE 37

NC 36

A11 35

A9 34

A8 33

A7

A6

32

31

A5 30

A4 29

VSS 28

SDRAM

R2467

0

SDD31

SDD30

SDD29

SDD28

SDD27

SDD26

SDD25

SDD24

SDDQM3

SDCLK

SDCKE

SDA11

SDA9

SDA8

SDA7

SDA6

SDA5

SDA4

IRST

IMACK

IWR

IRD

IC244

74LCX245

A2

A3

A4

A5

T/R

A0

A1

A6

A7

GND

6

7

8

9

10

4

5

1

2

3

VCC 20

OE

B0

19

18

B1

B2

17

16

B3

B4

15

14

B5 13

B6

B7

12

11

BIDIR BUFFER

C2432

10;10-T

C2433

0.1;F

R2436

R2437

R2438

R2439

22

22

22

33

IDRST

IDMACK

IDWR

IDRD

D2463

MA728

R2408

10

R2409

0

R2410

0

V_MUTE_H

TO DM-C

R2462

100

D2462

MA728

ASRST

SCLK

SDI

SDO

SREQ

UARX2

UATX2

SWOUT

ASBOOT

TO DM-C

1

2

3

4

5

HSR-X200/X200P

I J K L

8-13 8-13

M N O P

HSR-X200/X200P

A

CD-1 (DM-C) CD-1 (DM-C)

DM-C

D3-81010/L8HAA-USSY

NOTE:*1

REF No.

R2741

R2797

HSR-X200(J)

A-8344-694-A

0

NO MOUNT

HSR-X200(UC)

A-8344-740-A

0

0

HSR-X200P(CE)

A-8344-540-A

NO MOUNT

0

AL5V

L2871

100;K

R2872

1K;1/16J

Q2871

2SA1037AK

RECIEVER

R2874

1K;1/16J

Q2872

2SC2412K

DRIVER

R2880

1K;1/16J

Q2873

2SA1037AK

RECIEVER

R2882

1K;1/16J

R2885

1K;1/16J

Q2874

2SA1037AK

RECIEVER

R2887

1K;1/16J

D2871

1SS355

TO DM-A

YTRAP

LVO2

TO DM-B

TO DM-B

SWOUT

TO DM-A

AL3.3V

TO DM-B

SREQ

SDO

SDI

SCLK

TO DM-A

PFAIL

CN271

+BATTERY

-BATTERY

TO TB-2

CN631

R2785

0;1/16Z

1

2

DESTINATION

NTSC

PAL

JAPAN

CHINA

OPT2

H

H

H

H

R2893

0;1/16Z

OPT1

H

H

L

L

RESET

IC272

PST9127N

1 2 3 4 5

TB1RST

R2762

1.5K;1/16J

OPT0

L

H

L

H

*

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

KEY_IN0

AL12V

REMOCON_IN

SDI

SDO

R2755

Q2751

2SK1847

1K;1/16J

LVO2

JOG1

JOG2

SREQ

C2703

15P;50CH

R2742

R2743

R2744

R2745

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

X2701

1AC4V10A04000

220K;1/16J

R2747 R2746

10M

C2704

12P;50CH

X2702

1AV4V11B1050J

R2749

1K;1/16J

R2748

0;1/16Z

C2705

1000P;B

R2750

R2751

R2752

1K;1/16J

100;1/16J

100;1/16J

READ VD IN

JOG1

JOG2

S.REQ

RESET

32kHz IN

32kHz OUT

GND

10MHz IN

10MHz OUT

5V

KEY_IN0

MENU_H

REMOCON_IN

ASIC SO

ASIC SI

SUB u-COM

LC87F5064A

IC271

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

D_OUT RESET

V_MUTE_H

D_IN RESET

DIGITAL THROUGH H

SERIES_OUT

CONTROL SELECT1

CONTROL SELECT0

AUDIO_MUTE

SERIES_IN

DEC_RESET

*

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

E2PROM

IC281

A0

A1

A2

Vss

Vcc

TEST

SCL

SDA

BR24C08F

R2729

R2728

R2727

R2726

R2725

R2724

R2722

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

L2841

100;K

R2720 100;1/16J

R2718

R2717

R2716

0;1/16Z

0;1/16Z

0;1/16Z

R2846

R2845

470;1/16J

470;1/16J

SCL_D

SDA_D

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

V_MUTE_H

CONTROL SELECT0

AD_MUTE

R2791

300;1/16J

R2793

68;1/16J

SREQ

SDO

SDI

SCLK

D2792

SB05-05CP

1 2 3 4 5

IC273

PST9244N

R2772

1.5K;1/16J

POWER FAIL DET.

D2772

1SS355

R2889

1K;1/16J

Q2875

2SA1037AK

RECIEVER

R2891

1K;1/16J

TO DM-A

AL5.4V

TO DM-B

ASBOOT

ASRST

TO DM-B

UATX2

UARX2

AL5V

L2801

100;K

16 15 14 13 12 11 10

*

9

IC274

74HC4053BF

BUFFER

1 2 3 4 5 6 7 8

R2801

0;1/16Z

IC275

Vcc

R

RE

DE

D

B

A

GND

MAX3082CSA

TRANSCEIVER

485B

485A

AL5V

RS232C_RD

RS232C_RTS

RS232C_TD

TB1RST

485A

485B

AL5V

AL12V

R2851

R2852

R2853

R2854

R2855

R2856

0;1/16Z

0;1/16Z

0;1/16Z

100;1/16J

0;1/16Z

0;1/16Z

L2865

10;K

REMOCON_IN

SENSOR ALARM OUT

NON REC OUT

ALARM FULL OUT

HDD FULL OUT

WARNING OUT

SWOUT

R2861

R2862

R2863

R2864

R2865

R2866

R2867

R2857

R2858

R2859

R2860

R2868

R2869

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

0;1/16Z

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

LOCK LED

AL5V

ALARM LED

EXPDATA

EXPCLK1

KEY_IN0

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

L2852

L2851

L2853

L2854

L2855

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

L2856

L2857

L2858

L2859

L2860

L2861

L2862

L2863

L2864

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

AL12V

L2821

10;K

R2807

10K;1/16J

R2806 100K;1/16J

16 15 14 13 12 11 10 9

*

R T T

R

1 2 3 4 5 6 7 8

R2805

1K;1/16J

3

1

2

3

1

2

TRANSCEIVER

FAN IN

R2821

1K;1/16J

XF273

1AV4F34A3470G

RS232C_RTS

RS232C_TD

RS232C_RD

XF271

1AV4F34A3470G

1

2

3

R2822

10K;1/16J

S_IN_H

TO DM-A

V_MUTE_H TO DM-B

AD_MUTE

TO DM-A

CN273

GND

FAN 12V

SENSOR

TO FAN

AL5V

TO DM-A

TB1RST

ASBOOT

UARX2

UATX2

R2812

1K;1/16J

R2811

1K;1/16J

AL3.3V

R2814

10K;1/16J

AL5V

1

2

3

4

5

6

TEST POINT

CN272

TB1RST

ASBOOT

AL5V

UARXD2

UATXD2

GND

S2701

SKQGAB

11

12

13

14

15

16

17

18

19

7

8

9

10

3

4

1

2

5

6

CN274

LOCK LED

AL5V

ALARM LED

AL5V

EXPDATA

EXPCLK1

KEY_IN0

GND

GND

GND

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

TO OP-1

CN602

6

5

8

7

10

9

2

1

4

3

7

8

9

10

3

4

1

2

5

6

11

12

13

14

15

CN276

GND

RS232C_RD

RS232C_RTS

RS232C_TD

RESET

485A

485B

AL5V

AL5V

AL12V

TO TB-3

CN641

CN275

GND

GND

ALARM IN

ALARM RESET IN

CLOCK SET IN

CLOCK SET OUT

SERIES IN

SERIES OUT

REMOCON_IN

SENSOR ALARM OUT

NON REC OUT

ALARM FULL OUT

FULL OUT

WARNING OUT

SW OUT

TO TB-1

CN621

SCL_D

SDA_D

TO DM-A

B C D

8-15 8-15

E F G

CD-1 (DM-C)

H

1

2

3

4

5

UPPER

CD-1 (DM-C) CD-1 (DM-C)

UPPER

1

DM-C

D3-81010/L8HAA-USSY

2

3

4

5

NOTE:*1

REF No.

R2741

R2797

HSR-X200(J)

A-8344-694-A

0

NO MOUNT

HSR-X200(UC)

A-8344-740-A

0

0

HSR-X200P(CE)

A-8344-540-A

NO MOUNT

0

AL5V

L2871

100;K

R2872

1K;1/16J

Q2871

2SA1037AK

RECIEVER

R2874

1K;1/16J

Q2872

2SC2412K

DRIVER

R2880

1K;1/16J

Q2873

2SA1037AK

RECIEVER

R2882

1K;1/16J

R2885

1K;1/16J

Q2874

2SA1037AK

RECIEVER

R2887

1K;1/16J

D2871

1SS355

TO DM-A

YTRAP

LVO2

TO DM-B

TO DM-B

SWOUT

AL3.3V

TO DM-A

TO DM-B

SREQ

SDO

SDI

SCLK

R2785

0;1/16Z

TO DM-A

PFAIL

CN271

BATTERY

1

A

DESTINATION

NTSC

PAL

JAPAN

CHINA

OPT2

H

H

H

H

R2893

0;1/16Z

OPT1

L

L

H

H

RESET

IC272

PST9127N

1 2 3 4 5

TB1RST

R2762

1.5K;1/16J

OPT0

L

H

L

H

*

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

KEY_IN0

AL12V

REMOCON_IN

SDI

SDO

R2755

Q2751

2SK1847

1K;1/16J

LVO2

JOG1

R2742

R2743

R2744

R2745

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

JOG2

SREQ

C2703

15P;50CH

X2701

1AC4V10A04000

220K;1/16J

R2747 R2746

10M

C2704

12P;50CH

X2702

1AV4V11B1050J

R2749

1K;1/16J

R2748

0;1/16Z

C2705

1000P;B

R2750

R2751

R2752

1K;1/16J

100;1/16J

100;1/16J

READ VD IN

JOG1

JOG2

S.REQ

RESET

32kHz IN

32kHz OUT

GND

10MHz IN

10MHz OUT

5V

KEY_IN0

MENU_H

REMOCON_IN

ASIC SO

ASIC SI

SUB u-COM

LC87F5064A

IC271

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

D_OUT RESET

V_MUTE_H

D_IN RESET

DIGITAL THROUGH H

SERIES_OUT

CONTROL SELECT1

CONTROL SELECT0

AUDIO_MUTE

SERIES_IN

DEC_RESET

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

*

E2PROM

IC281

A0

A1

A2

Vss

Vcc

TEST

SCL

SDA

BR24C08F

L2841

100;K

R2729

R2728

R2727

R2726

R2725

R2724

R2722

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

R2720

R2718

R2717

R2716

100;1/16J

0;1/16Z

0;1/16Z

0;1/16Z

R2846

R2845

470;1/16J

470;1/16J

SCL_D

SDA_D

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

V_MUTE_H

CONTROL SELECT0

AD_MUTE

R2791

SREQ

SDO

SDI

SCLK

B

1 2 3 4 5

IC273

PST9244N

R2772

1.5K;1/16J

POWER FAIL DET.

D2772

1SS355

C

8-16

D

8-16

E

R2889

1K;1/16J

Q2875

2SA1037AK

RECIEVER

R2891

1K;1/16J

F

AL5V

RS232C_RD

RS232C_RTS

RS232C_TD

TB1RST

485A

485B

AL5V

AL12V

R2851

R2852

R2853

R2854

R2855

R2856

0;1/16Z

0;1/16Z

0;1/16Z

100;1/16J

0;1/16Z

0;1/16Z

L2865

10;K

REMOCON_IN

SENSOR ALARM OUT

NON REC OUT

ALARM FULL OUT

HDD FULL OUT

WARNING OUT

SWOUT

R2857

R2858

R2859

R2860

R2868

R2869

R2861

R2862

R2863

R2864

R2865

R2866

R2867

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

0;1/16Z

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

470;1/16J

LOCK LED

AL5V

ALARM LED

EXPDATA

EXPCLK1

KEY_IN0

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

L2852

L2851

L2853

L2854

L2855

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

L2856

L2857

L2858

L2859

L2860

L2861

L2862

L2863

L2864

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

10

11

12

13

8

9

6

7

3

4

5

1

2

16

17

14

15

18

19

CN274

LOCK LED

AL5V

ALARM LED

AL5V

EXPDATA

EXPCLK1

KEY_IN0

GND

GND

GND

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

TO OP-1

CN602

8

7

6

5

10

9

2

1

4

3

10

11

12

13

14

15

8

9

6

7

3

4

5

1

2

CN276

GND

RS232C_RD

RS232C_RTS

RS232C_TD

RESET

485A

485B

AL5V

AL5V

AL12V

TO TB-3

CN641

CN275

GND

GND

ALARM IN

ALARM RESET IN

CLOCK SET IN

CLOCK SET OUT

SERIES IN

SERIES OUT

REMOCON_IN

SENSOR ALARM OUT

NON REC OUT

ALARM FULL OUT

FULL OUT

WARNING OUT

SW OUT

TO TB-1

CN621

SCL_D

SDA_D

TO DM-A

G

S_IN_H

TO DM-A

V_MUTE_H

AD_MUTE

TO DM-B

HSR-X200/X200P

H

LOWER

CD-1 (DM-C) CD-1 (DM-C)

LOWER

AL5.4V

TO DM-A

ASBOOT

ASRST

TO DM-B

TO DM-B

UATX2

UARX2

TO DM-A

YTRAP

LVO2

TO DM-B

TO DM-B

SWOUT

AL3.3V

TO DM-A

TO DM-B

SREQ

SDO

SDI

SCLK

TO DM-A

PFAIL

CN271

+BATTERY

-BATTERY

TO TB-2

CN631

R2785

0;1/16Z

1

2

R2845 470;1/16J

SDA_D Vss SDA

BR24C08F

DESTINATION

NTSC

PAL

JAPAN

CHINA

OPT2

H

H

H

H

R2893

0;1/16Z

OPT1

L

L

H

H

RESET

IC272

PST9127N

1 2 3 4 5

TB1RST

R2762

1.5K;1/16J

OPT0

L

H

L

H

*

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

KEY_IN0

AL12V

REMOCON_IN

SDI

SDO

R2755

Q2751

2SK1847

1K;1/16J

LVO2

JOG1

JOG2

SREQ

C2703

15P;50CH

R2742

R2743

R2744

R2745

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

X2701

1AC4V10A04000

220K;1/16J

R2747 R2746

10M

C2704

12P;50CH

X2702

1AV4V11B1050J

R2749

1K;1/16J

R2748

0;1/16Z

C2705

1000P;B

R2750

R2751

R2752

1K;1/16J

100;1/16J

100;1/16J

READ VD IN

JOG1

JOG2

S.REQ

RESET

32kHz IN

32kHz OUT

GND

10MHz IN

10MHz OUT

5V

KEY_IN0

MENU_H

REMOCON_IN

ASIC SO

ASIC SI

SUB u-COM

LC87F5064A

IC271

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

D_OUT RESET

V_MUTE_H

D_IN RESET

DIGITAL THROUGH H

SERIES_OUT

CONTROL SELECT1

CONTROL SELECT0

AUDIO_MUTE

SERIES_IN

DEC_RESET

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

*

R2729

R2728

R2727

R2726

R2725

R2724

R2722

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

0;1/16Z

R2720

R2718

R2717

R2716

100;1/16J

0;1/16Z

0;1/16Z

0;1/16Z

EXPDATA

EXPCLK1

ALARM LED

LOCK LED

ALARM FULL LED

FULL LED

V_MUTE_H

CONTROL SELECT0

AD_MUTE

R2791

300;1/16J

R2793

68;1/16J

SREQ

SDO

SDI

SCLK

D2792

SB05-05CP

1 2 3 4 5

IC273

PST9244N

R2772

1.5K;1/16J

POWER FAIL DET.

D2772

1SS355

AL5V

L2801

100;K

16 15 14 13 12 11 10

*

9

IC274

74HC4053BF

BUFFER

1 2 3 4 5 6 7 8

R2801

0;1/16Z

IC275

Vcc

R

RE

DE

D

B

A

GND

MAX3082CSA

TRANSCEIVER

485B

485A

HSR-X200/X200P

I J K L

8-17 8-17

M

KEY_IN0

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

L2855 BK1608LL241

L2856

L2857

L2858

L2859

L2860

L2861

L2862

L2863

L2864

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

BK1608LL241

13

14

15

11

12

9

10

7

8

18

19

16

17

KEY_IN0

GND

GND

GND

SHUTTLE1

SHUTTLE2

SHUTTLE3

SHUTTLE4

JOG2

JOG1

ALARM FULL LED

FULL LED

BUZZER

TO OP-1

CN602

SCL_D

SDA_D

TO DM-A

1

2

3

N

AL12V

L2821

10;K

FAN IN

1

2

3

R2822

10K;1/16J

TO DM-A

S_IN_H

V_MUTE_H TO DM-B

AD_MUTE

TO DM-A

CN273

GND

FAN 12V

SENSOR

TO FAN

AL5V

TO DM-A

R2807

10K;1/16J

R2806 100K;1/16J

16 15 14 13 12 11 10 9

*

R T T

R

1 2 3 4 5 6 7 8

R2805

1K;1/16J

3

1

2

3

1

2

TRANSCEIVER

TB1RST

ASBOOT

UARX2

UATX2

R2812

1K;1/16J

R2811

1K;1/16J

AL3.3V

R2814

10K;1/16J

AL5V

XF273

1AV4F34A3470G

XF272

1AV4F34A3470G

RS232C_RTS

RS232C_TD

RS232C_RD

XF271

1AV4F34A3470G

3

4

1

2

5

6

TEST POINT

CN272

TB1RST

ASBOOT

AL5V

UARXD2

UATXD2

GND

S2701

SKQGAB

O P

4

5

OP-1 OP-1

1

4

5

2

3

A B C

8-18

D

8-18

E F G

OP-1

HSR-X200/X200P

H

OP-2, TB-2, TB-3, TB-4 OP-2, TB-2, TB-3, TB-4

!

HSR-X200/X200P

A B C D

8-19 8-19

E F

1

4

G

OP-2

TB-2

TB-3

TB-4

H

5

2

3

TB-1 TB-1

1

4

5

2

3

A B C

8-20

D

8-20

E F G

TB-1

HSR-X200/X200P

H

PW-1 PW-1

1

W5104

FG

FG

*1

CN502

AC(L)

AC(N)

AC SWITCH

CN501

AC(L)

AC(N)

AC IN

FG

W5001

FG

1

1

2

PW-1

P1-81011/L8HAA-JPSY

1

2

*1

F5001

2A 125V

*1

C5009

3300P

L5012

B.C.

TH501

NTPDB100LD7B0 L5001

SS28V-K10410

L5013

B.C.

D5001

D3SB60

-

4 2 1

+

3

J5006

5

D5011

ERA15-02A

D5012

*1

R5026

33K

ERA15-02A

*1

R5027

33K

*1

R5028

33K

*1

R5029

33K

D5013

MTZJ5.6B

1

2

*1

R5023

56K

*1

R5024

56K

*1

R5030

56K

*1

R5031

56K

*1

C5015

D5019

SFH615

4

3

REF

7

*

FB

2

*

IC501

SWITCHING OSC

FA3641P

5V VCC

ENB

5V REF

+

-

+

-

CS

*

8

VCC

6

*

+

UVLO

-

+

-

+

-

+

-

RM

OSC

RT

RT

1

-

-

-

+

PWM

-

+

3

*

IS+

C5022

R

FF

QB

S

Q

4

*

ENB

OUTUPUT

5

*

OUT

GND

R5021

100P

39K

R5015

10

2

3

1

Q5010

FS14KM-12A

D5015

D1NL20U

AG01

1

2

3

6

5

4

T5001

L51B4380N

C5107

1000P;500B

10

D5101

YG911S2R

L5102

B.C.

9

11

7

D5102

D1NL20U

C5108

1000P;500B

8

1

D5019

SFH615

2

R5103

33K C5106

0.1

3

IC512

2

L5431

REG

Q5182

2SC4483

J5150

5

R5185

1K

J5130

5

C5131

D5131

1SS244

IC531

MD1222N

C5132

1000P

Vboot

8

*

VDD

18

VDD

19

VDD

20

VDD

21

VCC

6 ampOUT

30

VB

25

*

CONTROL

7 9 10 15 17 22 23 24 27 28 29 31

0.01

VOUT

11

VOUT

12

13

VOUT

VOUT

14

*

2

*

3

OCL+

F/B OCLamp-

32

*

S/S

1 4

*

GND

26

*

GND

5

*

R/C

16

*

P.GND

R5133

0.1

L5131

22UH

R5134

0.1

L5101

10UF

R5138

10K

L5106

B.C.

3

4

1

2

7

8

9

5

6

3

4

1

2

10

11

12

CN514

AL12V

GND

GND

AL5V

TO IDE_HDD

*

CN513

AL2.5V

AL2.5V

AL2.5V

AL2.5V

GND

GND

GND

GND

AL3.3V

AL3.3V

AL3.3V

AL3.3V

*

TO CD-1(DM-A)

CN202

IC581

REGULATOR

SI-3025LSA

8

*

VOUT

*

7 6

*

GND

5

*

C5151

1000P;B

D5151

1SS244

IC551

MD1222N

C5152

0.01

VDD

18

*

VDD

19

*

VDD

20

*

VDD

21

*

VCC

6

* ampOUT

30

*

Vboot

8

*

7

VB

25

*

CONTROL

9 10 15 17 22 23 24 27 28 29 31

VOUT

11

*

VOUT

12

*

VOUT

13

*

14

*

VOUT

2

*

3

*

OCL+

F/B OCLamp-

32

*

S/S

1

*

4 26

*

GND GND

5

*

R/C

16

*

P.GND

IN(PTr)

1

*

2

IN(MIC)

3

*

4

*

VC

R5184

1K

L5151

22UH

R5153

0.1

R5154

0.1

R5158

10K

L5105

B.C.

R5186

2.7K

C5191

47;16

IN

OUT

5

*

3

*

REGULATOR

4

*

OUT

1

IN

2

*

IC582

SI-3090F

6

7

4

5

1

2

3

8

9

10

11

CN512

Power Fail

GND

AL5V

AL 5.6V

GND

GND

GND

AL 5.4V

GND

AL12V(AD)

AL12V(FAN)

TO CD-1(DM-A)

CN201

*

C5023

1000P AC250V

NOTE:*1

REF No.

C5009

C5011

C5015

C5018

C5181

CN502

D5020

F5001

R5012

R5023,R5024,R5030,R5031

R5026,R5027,R5028,R5029

HSR-X200(J)

A-8344-687-B

3300p

470uF

470PF

2P

RZ1250

125V 2A

27k

56k

33k

HSR-X200(UC)

A-8344-741-B

JP5005 10

470uF

470PF

NO MOUNT

RZ1250

125V 2A

47k

56k

33k

HSR-X200P(CE)

A-8344-541-B

JP5005 10

100uF

220PF

NO MOUNT

NO MOUNT

250V

47k

150k

82k

Q5181

DTC114ES

D5014

4

3

C5182

0.01;B

*1

C5181

R5183

0

D5184

1SS244

HSR-X200/X200P

A B C D

8-21 8-21

E F G

PW-1

H

1

2

3

4

5

PC-1 PC-1

1

4

5

2

3

A B C

8-22

D

8-22

E F G

PC-1

HSR-X200/X200P

H

The material contained in this manual consists of information that is the property of Sony Corporation.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.

Le matériel contenu dans ce manuel consiste en informations qui sont la propriété de Sony Corporation.

Sony Corporation interdit formellement la copie de quelque partie que ce soit de ce manuel ou son emploi pour tout autre but que des opérations ou entretiens de l’équipement à moins d’une permission écrite de Sony

Corporation.

Das in dieser Anleitung enthaltene Material besteht aus

Informationen, die Eigentum der Sony Corporation sind.

Die Sony Corporation untersagt ausdrücklich die

Vervielfältigung jeglicher Teile dieser Anleitung oder den

Gebrauch derselben für irgendeinen anderen Zweck als die Bedienung oder Wartung der in dieser Anleitung beschriebenen Ausrüstung ohne ausdrückliche schriftliche Erlaubnis der Sony Corporation.

For the U.S.A. and Canada

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer :

Check the metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 3.5 mA. Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the

Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments.

2. A battery-operated AC milliammeter. The

Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 5.25 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa

SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 20 V AC range are suitable. (See Fig. A)

To Exposed Metal

Parts on Set

0.15

µ

F 1.5 k

Z

AC voltmeter

(5.25V)

Earth Ground

Fig A. Using an AC voltmeter to check AC leakage.

HSR-X200/X200P

HSR-X200 (J, UC)

HSR-X200P (CE) J, E

9-955-344-22

Sony Corporation

B&P Company

Printed in Japan

2002. 12 08

©2002

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
