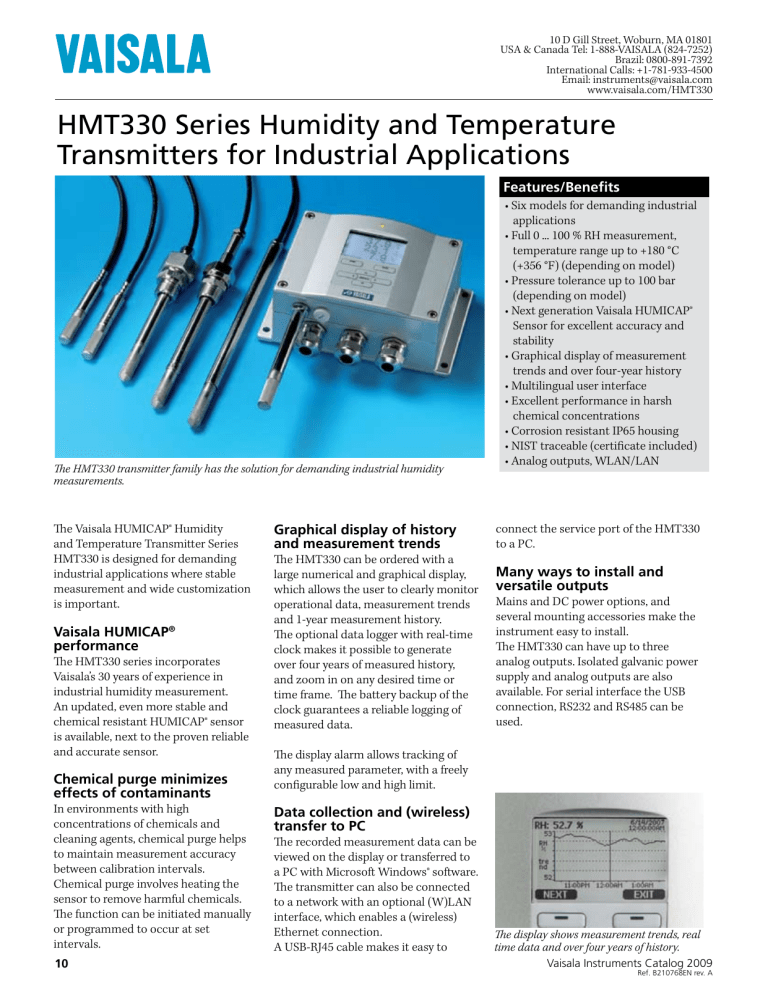

HMT330 Series Humidity and Temperature
Transmitters for Industrial Applications
Features/Benefits
The HMT330 transmitter family has the solution for demanding industrial humidity
measurements.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter Series
HMT330 is designed for demanding
industrial applications where stable
measurement and wide customization
is important.
Vaisala HUMICAP®
performance
The HMT330 series incorporates
Vaisala’s 30 years of experience in
industrial humidity measurement.
An updated, even more stable and
chemical resistant HUMICAP® sensor
is available, next to the proven reliable
and accurate sensor.
Chemical purge minimizes
effects of contaminants
In environments with high
concentrations of chemicals and
cleaning agents, chemical purge helps
to maintain measurement accuracy
between calibration intervals.
Chemical purge involves heating the
sensor to remove harmful chemicals.
The function can be initiated manually
or programmed to occur at set
intervals.
10
Graphical display of history
and measurement trends
The HMT330 can be ordered with a
large numerical and graphical display,
which allows the user to clearly monitor
operational data, measurement trends
and 1-year measurement history.
The optional data logger with real-time
clock makes it possible to generate
over four years of measured history,
and zoom in on any desired time or
time frame. The battery backup of the
clock guarantees a reliable logging of
measured data.
• Six models for demanding industrial
applications
• Full 0 ... 100 % RH measurement,
temperature range up to +180 °C
(+356 °F) (depending on model)
• Pressure tolerance up to 100 bar
(depending on model)
• Next generation Vaisala HUMICAP®
Sensor for excellent accuracy and
stability
• Graphical display of measurement
trends and over four-year history
• Multilingual user interface
• Excellent performance in harsh
chemical concentrations
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
• Analog outputs, WLAN/LAN
connect the service port of the HMT330
to a PC.
Many ways to install and
versatile outputs
Mains and DC power options, and
several mounting accessories make the
instrument easy to install.
The HMT330 can have up to three
analog outputs. Isolated galvanic power
supply and analog outputs are also
available. For serial interface the USB
connection, RS232 and RS485 can be
used.
The display alarm allows tracking of
any measured parameter, with a freely
configurable low and high limit.
Data collection and (wireless)
transfer to PC
The recorded measurement data can be
viewed on the display or transferred to
a PC with Microsoft Windows® software.
The transmitter can also be connected
to a network with an optional (W)LAN
interface, which enables a (wireless)
Ethernet connection.
A USB-RJ45 cable makes it easy to
The display shows measurement trends, real
time data and over four years of history.
Vaisala Instruments Catalog 2009
Ref. B210768EN rev. A
HMT330 SERIES
HUMIDITY
DEWPOINT
Flexible calibration
The HMT330 instruments are calibrated
at six humidity points at the factory.
A quick, one-point field calibration can
be performed with the hand-held HM70
meter. A two-point calibration can be
performed with the HMK15 salt bath
calibrator in a controlled environment.
The transmitter can be sent to Vaisala
for recalibration. Accredited calibrations
and maintenance contracts are also
available.
The Vaisala HUMICAP® Hand-Held Humidity
and Temperature Meter HM70 is ideal for
field checking HMT330 transmitters.
Technical Data
Performance
Relative humidity
Measurement range
0 ... 100 % RH
Accuracy (including non-linearity, hysteresis, and repeatability)
with Vaisala HUMICAP® 180 or 180R
for typical applications
with Vaisala HUMICAP® 180C or 180RC
for applications with
chemical purge/warmed probe
at +15 ... +25 °C (59 ... +77 °F)
±1 %RH (0 ... 90 %)
±1.7 %RH (90 ... 100 %RH)
at -20 ... +40 °C (-4 ... +104 °F)
±(1.0 + 0.008 x reading) %RH
at -40 ... +180 °C (-40 ... +356 °F) ±(1.5 + 0.015 x reading) %RH
Factory calibration uncertainty (+20 °C)
± 0.6 % RH (0 ... 40 %RH)
± 1.0 % RH (40 ... 97 %RH)
(Defined as ±2 standard deviation limits. Small
variations possible, see also calibration certificate.)
Response time (90 %) at +20 °C (+68 °F) in still air
8 s / 17 s* with grid filter
20 s / 50 s* with grid + steel netting filter
40 s / 60 s* with sintered filter
*
with HUMICAP® 180R or 180RC sensor
Temperature
Measurement range
HMT331
HMT333
Inputs and outputs
Operating voltage
10 ... 35 VDC, 24 VAC
with optional power supply module
100 ... 240 VAC, 50/60 HZ
Power consumption at +20 °C (Uin 24 VDC)
RS-232
max. 25 mA
max. 25 mA
Uout 2 x 0 ... 1 V/0 ... 5 V/0 ... 10 V
max. 60 mA
Iout 2 x 0 ... 20 mA
display and backlight
+ 20 mA
during chemical purge
max. 110 mA
during probe heating (HMT337)
+ 120 mA
Analog outputs (2 standard, 3rd optional)
current output
0 ... 20 mA, 4 ... 20 mA
voltage output
0...1 V, 0...5 V, 0...10 V
Accuracy of analog outputs at +20 °C
±0.05% full scale
Temperature dependence
of the analog outputs
±0.005%/°C full scale
External loads
current outputs
RL < 500 ohm
0 ... 1 V output
RL > 2 kohm
0 ... 5 V and 0 ... 10 V outputs
RL > 10 kohm
Max. wire size
0.5 mm2 (AWG 20)
stranded wires recommended
Digital outputs
RS-232, RS-485 (optional)
Service connection
RS-232, USB
Relay outputs (optional)
0.5 A, 250 VAC
Ethernet interface (optional)
Supported standards
10/100Base-T
Connector
RJ45
Protocols
Telnet
Software support
Vaisala MI70 link
WLAN interface (optional)
Supported standards
802.11b, 802.11g
Antenna connector type
RP-SMA
Protocols
Telnet
Security
WEP 64/128,WPA
Software support
Vaisala MI70 link
Authentication / Encryption
Open / no encryption
Open / WEP
WPA Pre shared key / TKIP
WPA Pre shared key / CCMP (a.k.a. WPA2)
Optional data logger with real-time clock
Logged parameters
max. three with trend/min/max values
Logging interval
10 sec ( fixed)
Max. logging period
4 years 5 months
Logged points
13.7 million points per parameter
Battery lifetime
min. 5 years
Display
LCD with backlight,
graphic trend display of any parameter
Menu languages
English, Chinese, Japanese, Spanish,
German, French, Swedish, Russian, Finnish
-40 ... +60 °C (-40 ... +140 °F)
-40 ... +80 °C or -40 ... +120 °C
(-40 ... +176 °F or -40 ... +248 °F)
HMT334, HMT335, HMT337,
HMT338
Accuracy at +20 °C (+68 °F)
Accuracy over temperature range
-70 ... +180 °C (-94 ... +356°F)
± 0.2 °C (± 0.36 °F)
°C
0.7
0.6
0.5
0.4
0.3
0.2
0.1
°C
0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Temperature sensor
PT 100 RTD 1/3 Class B IEC 751
Other variables available (depends on model)
dewpoint temperature, mixing ratio, absolute humidity, wet bulb
temperature, enthalpy, water vapor pressure
Vaisala Instruments Catalog 2009
Ref. B210768EN rev. A
11
HMT330 SERIES
HUMIDITY
DEWPOINT
Technical Data
Mechanics
Operating environment
Operating temperature
for probe
for transmitter body
with display
Operating pressure
HMT334
HMT338
HMT335, HMT337
Electromagnetic compatibility
same as measurement range
-40 ... +60 °C (-40 ... 140 °F)
0 ... +60 °C (32 ... 140 °F)
0 ... 10 MPa (0 ... 100 bar)
0 ... 4 MPa (0 ... 40 bar)
vapor tight
Complies with EMC standard
EN61326-1, Industrial Environment
106 (4.17)
183 (7.20)
116 (4.57)
M20 x 1.5 for cable diameter
8 ... 11 mm/0.31 ... 0.43”
Conduit fitting
1/2” NPT
User cable connector (optional)
M12 series 8-pin (male)
option 1
female plug with 5 m (16.4 ft) black cable
option 2
female plug with screw terminals
Probe cable diameter
HMT333 (+80 °C)
6.0 mm
other probes
5.5 mm
Housing material
G-AlSi 10 Mg (DIN1725)
Housing classification
IP 65 (NEMA4)
Transmitter with WLAN antenna
Cable bushing
Dimensions
dimensions in mm (inches)
HUMICAP® is a registered trademark of Vaisala.
Specifications are subject to change without prior notice.
©Vaisala Oyj
12
Vaisala Instruments Catalog 2009
Ref. B210768EN rev. A
P.O. Box 26, FI-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com/HMT330
HMT331 Humidity and Temperature Transmitter
for Demanding Wall-Mounted Applications
Features/Benefits
• For temperatures -40 ... +60 °C
(-40 ... +140 °F)
• Vaisala HUMICAP® Sensor for
excellent accuracy and stability
• High tolerance of chemicals
• Graphical display of measurement
trends and over four-year history
• Corrosion resistant metal IP65
housing
• NIST traceable (certificate included)
• Application examples: cleanrooms,
pharmaceutical processes,
greenhouses, swimming halls,
museums and archives
The HMT331 is the state-of-the-art wall-mount humidity instrument.
PRICE:
Order Guide: Page 138
The Vaisala HUMICAP® Humidity and
Temperature Transmitter HMT331
is the top-of-the-line wall-mounted
transmitter for demanding HVAC and
condition monitoring applications.
Technical Data
Temperature measurement range
-40 ... +60 °C (-40 ... +140 °F)
Accessories
PC software + cable
215005
USB-RJ45 Serial Connection Cable 219685
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
DIN rail installation set
215094
Dimensions
Dimensions in mm (inches)
Compared to regular wall-mounted
transmitters, the HMT331 offers:
• Higher measurement performance
• Better chemical tolerance
• Advanced graphical display
features
• More powering options
• More output options
• A wider variety of output humidity
parameters
Graphical display of history
and measurement trends
The HMT330 series features a large
numerical and graphical display,
allowing users to easily monitor
operational data, measurement trends
and one-year measurement history.
The optional data logger with real-time
clock makes it possible to generate over
four years of measured history, and
zoom in on any desired time or time
frame.
Vaisala Instruments Catalog 2009
Ref. B210768EN rev. A
The display shows measurement trends and
over four-year real time measurement history.
The battery backup of the real-time
clock guarantees a reliable logging of
measured data.
Outputs and power supply
options for every need
The output options include three analog
outputs, RS-232, RS-485, and alarm
relays.
The voltage supply range is from 10 to
35 VDC. With an additional module,
the transmitter can be connected to
all universal mains AC supplies. The
input/output cable can be fed through
the back of the transmitter, which is a
useful feature, especially for installations
in cleanrooms.
13
HMT331 Humidity and Temperature Transmitter
For wall mounting
1
2
3
4
5
6
7
8
9
10
11
1 2 3 4 5 6
Vaisala HUMICAP® Humidity and Temperature Transmitter
HMT330
1 A 0
Transmitter type
HMT331
1
Cable length
Wall probe
A
No additional temperature probe
0
Parameters
RH+T
A
RH+T+Td+Tdf+a+x+Tw+ppm+pw+pws+h+dT
B
Display
No display
0
Graphic display with keypad
1
Power supply
10...35 VDC , 24 VAC
(HMT300PWS)
0
Galvanic isolation for outputs 10...35 VDC, 24 VAC
(DcDc-1)
1
Universal AC -power (100....240 VAC)
(Power-1)
2
Universal AC -power (100....240 VAC) + US power cord
(Power-1 and 215991)
3
External US AC-adapter (for LAN/WLAN interface in USA and Canada)
Not IP65
9
Analog Output Signal
4... 20 mA
for Ch1&Ch2(&Ch3)
0... 20 mA
0... 1 V
0... 5 V
0... 10 V
+ Serial interface RS232 or optional communication module
Analog output signals
No 3rd analog output
for Ch1 , Ch2 and Ch3
RH
(0...100%RH)
RH=relative humidity
T
(range: see below)
T=temperature
Td (-20...100°C)
(-4...+212 °F)
Td=dewpoint
Tdf (-20...100°C)
(-4...+212 °F)
Tdf = dewpoint/ frost point temperature
a=absolute humidity
a (0...600g/m3)
(0...262 gr/ft3)
Tw (0...100°C)
(+32...+212°F)
Tw=wet bulb temperature
x=mixing ratio
x (0...500g/kg d.a)
(0...3500gr/lb)
h (-40...1500 kJ/kg)
(-9.5...+652.6 Btu/lb)
h=enthalpy
ppm (0…5000)
(0…5000)
ppm=parts per million
pw=water vapor pressure
pw (0…1000 hPa)
(0…14.5psi)
pws (0…1000 hPa)
(0…14.5psi)
pws=saturation water vapor pressure
dT (-10...+50 °C)
(14...+122 °F)
dT=(temperature-dewpoint temperature)
SPECIAL Define quantity Ch1:_______________ Ch2:________________ Optional Ch3:______________
Define scale
Ch1:_______________ Ch2:________________ Optional Ch3:______________
Channel 1
Channel 2
Channel 3, choose A if not needed
Analog output range
No temperature output
(-40...+140°F)
for temperature
-40...+60°C
(-4...+140°F)
Note:
-20...+60°C
- Choose option A, if no
(+32...+140°F)
0...+60°C
T output is desired
Special
:_______________________
12
Output units
13
Option for module slot 1
14
Option for module slot 2
15
Cable bushings
16
Transmitter installation
17
Humidity sensor type
18
Sensor protection
19
20
21
No probe installation kit
Operating manual
language
PC Accessories
22
23
Calibration
For future use
No manual
English
No
Service cable for PC, RS232
MI70LINK software for Windows® with RS232 service cable
Service cable for PC, USB with software driver
MI70LINK software for Windows® with USB service cable
ISO9001 compliant calibration with NIST traceable certificate
Vaisala Instruments Catalog 2009
PRICE
$1,120
$360
$320
$80
$200
$210
$60
1
2
3
4
5
B
C
D
E
F
G
H
J
K
L
M
N
X
B
C
D
E
F
G
H
J
K
L
M
N
X
A
B
C
D
E
F
G
H
J
K
L
M
N
X
Metric
Non-metric
No module
Relay output
(Relay-1)
RS-485 serial interface (galvanically isolated)
(RS485-1)
Not with universal AC power
LAN (Ethernet) interface + 2 m cable (RJ45)
Data logger module
No module
Relay output
(Relay-1)
3rd Analog output
Choose also analog output signal for Ch3
(AOUT-1)
Data logger module
Not possible if the data logger module has already been chosen in item 11
Cable gland (for 8...11mm cable)
(for 0.315...0.433 inch cable)
(214728SP)
Conduit fitting for wire conduit (NPT1/2")
(214780SP)
8-pole connector with 5 m cable (not possible with universal AC power option)
(212142)
(212416)
8-pole counter connector equipped with screw terminals (not possible with universal AC power option)
Standard wall mounting
(214829)
Adapter plate (for replacing the HMP230's)
(215108)
Pole installation kit
DIN rail kit
(215094)
General purpose
HUMICAP180
Chemical purge
HUMICAP180C
General purpose and high chemical concentrations
HUMICAP180R
Chemical purge
HUMICAP180RC
PPS plastic grid & stainless steel netting
(DRW010281SP)
PPS plastic grid
(DRW010276SP)
Sintered stainless steel filter
(HM47280SP)
Selections in bold are included in the prices of the basic versions.
Selections in italic are available at an extra price.
Shaded sections indicate typical selections.
Ref. B210768EN rev. A
7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
A 1
(M210566EN)
(19446ZZ)
(215005)
(219685)
(219916)
A
B
F
K
X
1
2
0
1
2
4
6
0
1
3
6
$180
$160
$260
$350
A
B
C
D
$180
$160
$350
0
1
2
4
$60
$60
1
4
A
C
$90
$100
$90
$60
A
B
C
$60
A
A
B
A
B
C
D
E
A
$40
$60
$90
$90
1
TOTAL
QTY
TOTAL VALUE
Example of order code with typical settings:
HMT330
1 A 0 A 1 0 1 B C A B 2 0 0 A 0 A A A B A A 1
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
