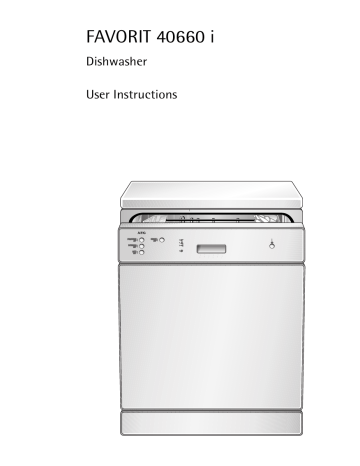

FAVORIT 40660 i Dishwasher User Instructions

FAVORIT 40660 i Dishwasher User Instructions

FAVORIT 40660 i

Dishwasher

User Instructions

Dear customer,

Please read these user instructions carefully.

Please observe the safety instructions on the first few pages of these user instructions! Please keep these user instructions for later reference.

Pass them on to any subsequent owner of the appliance.

1

The warning triangle and/or specific words (

Warning!

,

Caution!

,

Important!

) are used to highlight instructions that are important for your safety or for the function of the appliance. It is imperative that these instructions are observed.

0

This symbol or numbered instruction steps lead you step by step through the operation of the appliance.

3

Next to this symbol you receive additional information and practical tips on using the appliance.

2

Tips and instructions for the economical and environmentally conscious use of the appliance are marked with a clover leaf.

In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section.

If these instructions are insufficient, please contact your AEG Service

Force Centre.

In this respect please read the chapter "Service & Spare Parts".

2

Printed on paper manufactured with environmentally sound processes.

He who thinks ecologically acts accordingly ...

Contents

CONTENTS

Operating Instructions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Safety Instructions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Disposal

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

Economical and Ecological Dishwashing

. . . . . . . . . . . . . . . . . . . . . . . . . .

7

Appliance Features and Control Panel

. . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Prior to using for the first time

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adjusting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Filling with Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

In Daily Use

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . . 17

Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . . 18

Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . . 20

Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . . 21

Start the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Interrupting or stopping the wash programme . . . . . . . . . . . . . . . . . . . 22

Pause function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Care and Cleaning

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

What to do, if ...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

...Fault warnings are displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

...there are problems operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . 27

...the wash results are unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Technical Data

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Notes for Test Institutes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3

4

Contents

Installation and Connection Instructions

. . . . . . . . . . . . . . . . 30

Installing the Dishwasher

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting the Dishwasher

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Guarantee Conditions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Service & Spare parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Operating Instructions

OPERATING INSTRUCTIONS

1

Safety Instructions

The safety aspects of AEG electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information:

Installation, Connection and Placing into Operation

• The dishwasher may only be transported upright.

• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage, please contact your retailer.

• Before installing the appliance, ensure that the nominal voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate.

• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors and extension cables must not be used.

Child Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

• Keep all packaging away from children.

• Keep all detergents in a safe place out of children’s reach.

• The water in your dishwasher is not suitable for drinking. If there are still remnants of detergent in the appliance, there is a risk of burns!

• When disposing of an old appliance, cut off the power supply cable and remove any door catches, to prevent young children being trapped inside.

General Safety

• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your local

AEG Service Force Centre.

5

6

Operating Instructions

• Never place the dishwasher in operation if the mains cable, water inlet or drain hose is damaged; or the control panel, work top or plinth area is damaged such that the inside of the appliance is freely accessible.

• If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from AEG Service Force) must be replaced by a service engineer authorised by AEG.

• Never unplug the appliance by pulling on the cable, always pull the plug.

• Additions or modifications to the dishwasher are not permitted for safety reasons.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

• Long bladed knives stored in an upright position are a potential hazard.

• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

• When finished loading or unloading, close the door as an open door can be a hazard.

Correct Use

• Only wash household dishes using the dishwasher. If the appliance is used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.

• Only use detergents specifically designed for use in domestic dishwashers.

• Do not put any solvents in the dishwasher. There is a risk of an explosion!

• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following preconditions must be met:

– The appliance must remain connected to the mains even when it is switched off.

– The dishwasher must be correctly installed.

– Always shut off the water supply at the tap when the dishwasher is not to be used for longer periods, e.g. when you are away on holiday.

• Do not sit or stand on the open door, the appliance may tip over.

Operating Instructions

• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently wired to the mains: remove the fuse.

2

Disposal

Disposing of the Packaging Material

Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.

• Plastic parts are marked with standard international abbreviations:

– >PE< for polyethylene, e.g. sheet wrapping material

– >PS< for polystyrene, e.g. padding material (always CFC-free)

– >POM< for polyoxymethylene, e.g. plastic clips

• Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling.

Disposal of Old Appliances

When disposing of old appliances, remove the plug and ensure that any locks or catches are removed to prevent young children becoming trapped inside.

Use an authorised disposal site.

2

Economical and Ecological Dishwashing

• Ensure that the water softener is correctly adjusted.

• Do not pre-rinse dishes under running water.

• Select the wash programme to suit the nature and degree of the soiling on the dishes.

• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.

7

8

Operating Instructions

Appliance Features and Control Panel

Top Spray

Nozzle

Rubber Seal for

Connecting the

Water Feed to the Upper Spray

Arm

Spray Arms

Container for

Salt

Container for Rinse Aid

Detergent

Dispenser

Rating

Plate

Filters

Operating Instructions

Control panel

Water softener button

Function button

Multi-display

Wash programme buttons Control indicator Door handle

ON / OFF button

Water softener and function button:

In addition to the wash programme marked, it is also possible to adjust the dishwasher's water softener using a combination of these buttons.

The 3 lights of the

multi-display

can display:

– the current stage of the selected wash programme.

– which fault has occurred in the dishwasher.

: Upper light

: Middle light

: Lower light

The control indicator

indicates the following:

J

Refill with salt

3

The control indicator does not illuminate while a wash programme is running.

9

10

Operating Instructions

Prior to using for the first time

Prior to using for the first time, remove all the clips with which the dish racks are secured for transport.

Then perform the following steps:

0

1.

Adjust the water softener

2.

Fill with Salt for the Water Softener

3.

Fill with Rinse Aid

Adjusting the water softener

To avoid scale deposits on the dishes and in the dishwasher, the dishes must be washed with soft water i.e. low lime content. The dishwasher therefore has a built-in water softener, in which tap water from a hardness of 4 °d (German degree) is softened with the aid of special salt.

3

Your water supplier will be able to inform you about the hardness range of the water in your area.

The water softener can be set to any of 5 settings: in °d

1

)

Water hardness

in PPM

2

)

Range

Adjust

to hardness setting

Number of

flashes

41 - 50

30 - 40

19 - 29

730 - 900

530 - 720

330 - 520

IV

IV

III/IV

5

4

3 *

4 - 18 under 4

70 - 320 under 70

I/II/III

I

2

1 no salt

necessary

1)(°d) German degree, measure of the hardness of water

2)PPM, parts per million, international units of water hardness

*factory setting

5

4

3

2

1

Adjust the water softener in accordance with the table to suit the water hardness in your area:

Operating Instructions

1

The hardness range cannot be set if a programme is running. If you have inadvertently started a programme (an LED indicator is constantly illuminated) the programme must be cancelled by pressing the appropriate button.

1.

The appliance must be switched off.

2.

Press the water softener button and the function button simultaneously and hold them down.

3.

In addition press the ON/OFF button.

4.

At first the LED indicator for the water softener button will light up continuously for 5 seconds and then begin to flash.

– The number of flashes corresponds to the hardness setting.

– The sequence of flashes is repeated several times after a 5 second pause.

5.

Each time you press the water softener button the hardness setting will go up by 1.

(Exception: Hardness setting 1 follows after hardness setting 5.)

6.

If the hardness setting is changed, the LED indicator for the water softener button will confirm the change by staying alight continuously for

5 seconds and then flashing again.

7.

The number of flashes corresponds to the new hardness setting.

8.

The sequence of flashes is repeated several times after a 5 second pause.

9.

Once the hardness setting is correct, press the ON/OFF switch.

The hardness setting is then saved.

11

12

Operating Instructions

Filling with Salt for the Water Softener

1

Use only salt designed for dishwashers. Never fill the salt container with any another type of salt (e.g. culinary salt) or dishwasher detergent as this would irreparably damage the water softener.

Prior to filling with salt, please check each time that you really do have a packet of dishwasher salt in your hand.

Fill with dishwasher salt:

– Prior to using the dishwasher for the first time

– When the SALT indicator

J

on the control panel is illuminated.

3

If the water hardness in your area is less than 4 °d, you do not need to use dishwasher salt. The SALT indicator

J

on the control panel will remain illuminated.

0

1.

Open the door, remove the lower rack.

2.

Undo the lid on the salt container by turning it anticlockwise.

SALE

SAL

T

SALZ

SEL

3. When using for the first time:

fill the salt container with water.

4.

Place the funnel supplied on the container opening.

Fill the container with salt through the funnel; the capacity of the container is approx. 1.0-1.5 kg depending on the grain size. Do not overfill the salt container with salt.

3

The water expelled by filling the salt container with salt runs out of the salt container onto the base of the washing compartment. This is not a cause for concern, the water will be pumped out at the start of the next wash programme.

5.

Clean any salt remnants on the container opening.

6.

Turn the lid clockwise to the stop, otherwise dishwasher salt will leak into the wash water, this could lead to poor wash results. To avoid this run a rinse programme after filling the salt container with special salt.

This will wash away salt water and any salt crystals that have been spilt.

3

Depending on the size of the salt grains, it can take several hours for the salt to dissolve in the water and the special salt indicator

J

to extinguish. The setting of the water softener and the consumption of salt are dependent on the hardness of the local water.

Operating Instructions

Filling with Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.

1

Only use rinse aid specifically designed for domestic dishwashers. Never fill the rinse aid container with any other substance as this would damage the appliance.

Fill with rinse aid:

– Prior to using the dishwasher for the first time

– When the window indicator has a dark centre surrounded by a light ring. If there is sufficient rinse aid in the container, the indicator window is completely dark.

The rinse aid compartment is on the inside of the dishwasher door.

0

1.

Open the door.

2.

Press the rinse aid compartment release button with your finger.

3.

Fully open the rinse aid compartment lid.

4.

Fill with rinse aid exactly up to the level marked “max”; this corresponds to a quantity of approx. 140 ml.

5.

Close the lid and press until it locks into place.

6.

Wipe up any spilt rinse aid with a cloth. Otherwise too much foam will be formed during the wash.

13

14

Operating Instructions

Adjusting Rinse Aid Dosing

3

As the dishes are washed rinse aid is released from the dispenser into the wash water. The dose is factory set at 4, and can be adjusted from

1 to 6. Only change the setting if streaks, milky spots or dried on water marks are visible on glasses or crockery.

0

1.

Open the door of the dishwasher.

2.

Press the rinse aid compartment release button with your finger.

3.

Fully open the rinse aid compartment lid.

4.

Set the dose level.

5.

Close the lid and press until it locks into place.

6.

If rinse aid has run out, wipe up with a cloth.

Operating Instructions

In Daily Use

• Check the salt and rinse aid levels.

• Load cutlery and dishes into the dishwasher

• Fill with dishwasher detergent

• Select a wash programme suitable for the cutlery and dishes

• Start the wash programme

Loading Cutlery and Dishes

1

Sponges, household cloths and any object that can absorb water should not be washed in the dishwasher

.

For washing in the dishwasher the following cutlery/dishes are not suitable: are of limited suitability:

• Cutlery with wooden, horn, china or mother of pearl handles

• Plastic items that are not heat resistant

• Older cutlery with glued parts that is not temperature resistant

• Bonded cutlery items or dishes

• Pewter or copper items

• Lead crystal glass

• Steel items subject to rusting

• Wooden platters

• Items made from synthetic fibres

• Only wash stoneware in the dishwasher if it is specifically marked as being dishwashersafe by the manufacturer.

• Glazed patterns may fade if machine washed frequently.

• Silver and aluminium parts have a tendency to discolour during washing. Left-overs, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver.

Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

• Some types of glass can become dull after a large number of washes.

• Before loading the dishes, you should:

– Remove all scraps of food.

– Soften remnants of burnt food in pans.

• When loading the dishes and cutlery, please note:

– Dishes and cutlery must not impede the rotation of the spray arms.

– Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.

– Dishes and items of cutlery must not lie inside one another, or cover each other

15

16

Operating Instructions

– To avoid damage to glasses, they must not touch

– Do not lay small objects (e.g. lids) in the cutlery rack

Loading Cutlery

1

Long bladed knives stored in an upright position are a potential hazard.

1

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

1

Take care when loading or unloading sharp items such as knives.

To ensure that all items of cutlery are completely washed, you should

1.

Place the grid insert on the cutlery rack

2.

Place short knives, forks and spoons in the grid insert with their handles pointing downwards.

Loading Pans, Frying Pans and Large Plates

Load large and heavily soiled dishes in the lower rack.

Operating Instructions

3

To ease the loading of large items

at some dishwasher-models

the two rows of prongs for the right-hand plate insert can be folded down:

0

1.

Slightly lift the right plate insert.

2.

Fold the plate insert to the left.

17

18

Operating Instructions

Loading Cups, Glasses and

Coffee Services

Load small, delicate items and long pointed cutlery in the upper rack.

• Arrange items of crockery on the folding cups racks so that they are offset from each other and water can reach all items.

• The cup racks can be folded up out of the way for tall items.

• Lay or hang wine, champagne, and brandy glasses in the cut outs on the cup racks.

• Glasses, beakers, etc. can also be placed on the two rows of prongs on the left of the upper rack.

Operating Instructions

Filling with Detergent

1

Only use dishwasher detergent.

Fill with detergent:

– Prior to the start of a wash programme (not for the pre wash programme). The detergent is released into the wash water during the programme.

2

Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.

The detergent compartment is on the inside of the dishwasher door.

0

1.

If the lid is closed: press release button (1).

The lid springs open.

2.

Fill the detergent dispenser with detergent. The markings indicate the dosing levels:

“20” corresponds to approx. 20 ml of detergent,

“30” corresponds to approx. 30 ml of detergent.

3.

Close the lid and press until it locks into place.

3

If the dishes are very heavily soiled put additional detergent into the adjacent chamber (2). This detergent will take effect during the pre wash.

19

20

Operating Instructions

Bio Wash Programmes and Concentrated Detergents

Based on their chemical composition, dishwasher detergents can be split into two basic types:

– Conventional, alkaline detergents with caustic components

– Weak alkaline concentrated detergents with natural enzymes.

2

The use of BIO wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes; the BIO wash programmes are specially matched to the soil dissolving properties of the enzymes in the concentrated detergent. It is for this reason that

BIO wash programmes can achieve the same results at 50 °C that can otherwise only be achieved using 65 °C programmes.

3

Detergent tablets

from different manufacturers dissolve at different rates. For this reason some detergent tablets cannot develop their full cleaning power during short programmes. Therefore please use normal programmes with pre wash when using detergent tablets.

Detergent Recommendations

For best results we recommend the use of Finish detergent, rinse aid and salt.

Operating Instructions

Selecting the Wash Programme (Programme Table)

Choose the most suitable wash programme with the aid of this table:

Type of dishes in addition

Dinner service and cooking utensils

Type of soiling

-

• heavily soiled

• dried on leftovers, particularly egg white and thickeners

-

• normally soiled

• dried left-overs

-

• normally soiled

Dessert dishes and coffee service

with fragile glasses

• lightly soiled particularly suited to the use of concentrated detergents.

Suitable wash programme:

ò

INTENSIVE

65°C

Programme sequence

1)

Pre wash

Main wash

2x Intermediate rinses

Final rinse

Drying

Consumption levels:

2)

ò

Duration

Energy

Water

100 - 110 min.

1.55 kWh

18 litres

ò

NORMAL

50 °C

3)

Pre wash

Main wash

Intermediate rinse

Final rinse

Drying

ò

84 - 94 min.

1.24 kWh

16 litres

ò

ECO

50 °C

-

Main wash

Intermediate rinse

Final rinse

Drying

ò

85 - 95 min.

1.24 kWh

12 litres

ò

QUICK

50 °C

-

Main wash

Intermediate rinse

Final rinse

-

ò

35 - 45 min.

0.8 kWh

12 litres

1)

The noise level varies during different stages of the wash programme as at some stages the dishes are washed more energetically for a short period for better cleaning.

2)

The consumption levels were tested under standardised conditions. They are dependent on how the racks are loaded. Variations from these figures are possible in practice.

3)

Test programme

21

22

Operating Instructions

Start the wash programme

0

1.

Check that when the dishes and cutlery are loaded in the dishwasher the spray arms are free to rotate.

2.

Open the water tap fully.

3.

Shut the door.

4.

Press the ON/OFF button. ON/OFF button indicator comes on.

5.

Press the button for the programme required (see “Programme Table“).

The programme indicator lights up. One or two lights will flash in the multidisplay. During this time it is possible to reselect the programme.

The selected washing programme begins after approx. 6 seconds. The current wash programme stage will always be shown in the multi-display.

3

If the top light and/or the middle light in the multi-display flash after the programme has started please read the section “What to do, if...“.

Interrupting or stopping the wash programme

3

Only interrupt a wash programme in progress if it is absolutely necessary. After the appliance door has been closed again the air that has entered will be quickly heated and expand. As a result water may penetrate the base of the appliance and trigger the anti-flood system.

Interrupting the wash programme by opening the door of the dishwasher

1

Hot steam can escape from the appliance when the door is opened.

Open the door carefully.

0

1.

Open the door of the dishwasher. The wash programme will stop.

2.

Lights are flashing in the multi-display.

3.

Shut the door. The wash programme will continue.

Cancelling the wash programme

0

1.

Press the button for the wash programme that is running and hold it down until the programme indicator for the wash programme goes out.

2.

Release the programme button; the wash programme has been cancelled.

3

Switching off the dishwasher interrupts a selected wash programme; it does not cancel it. The wash programme will continue when the appliance is switched on again.

Operating Instructions

Pause function

Using the pause function the dishwasher can be temporarily stopped:

0

1.

Press the ON/OFF button. The wash programme will stop.

2.

All indicators will go out.

3.

After a short time when the wash programme is to continue, press the

ON/OFF button again. The wash programme will continue.

2

The wash programme should not be stopped for a prolonged period or the cooled water will need to be reheated resulting in increased energy consumption.

Switching Off the Dishwasher

Switch off the dishwasher when

L

is illuminated on the programme progress display.

0

1.

Press the ON/OFF button

M

. The ON/OFF button

M

indicator extinguishes.

1

Hot steam may escape from the appliance when opening the door immediately after the end of the programme.

2.

Open the door carefully.

Emptying the Dishwasher

3

• The dishes should therefore be allowed to cool down before removing them from the appliance, as hot dishes may be sensitive to knocks.

• Leave the dishes in the dishwasher for approx. 15 minutes after the end of the programme so that they dry better and can cool down.

• First empty the lower rack, and then the upper rack. This will avoid any water that may be remaining in the upper rack, dripping onto the dishes in the lower rack and leaving water marks.

23

24

Operating Instructions

Care and Cleaning

1

Do not under any circumstances use furniture care products or aggressive cleaners.

• If necessary, clean the controls only with a soft cloth and pure warm water.

• The spray arms do not need cleaning.

• Occasionally check the internal containers, door seal, and water inlet for soiling, clean if necessary.

Cleaning the Filter

3

The filters should be checked and cleaned regularly. Blocked filters will give poor wash results.

0

1.

Open the door, remove the lower rack.

2.

The dishwasher filter system comprises a coarse/fine filter, microfilter and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.

3.

Turn the handle about ¼ a turn anticlockwise and remove.

4.

Take hold of the coarse/fine filter (1) by the handle with the hole and remove from the microfilter (2)

5.

Clean all filters thoroughly under running water.

6.

Remove the flat filter (3) from the base of the washing compartment and clean both faces thoroughly

7.

Put the flat filter back in the base of the washing compartment

8.

Place the coarse/fine filter in the microfilter and press together.

9.

Put the filter combination in place and lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

1

The dishwasher must not be used without filters under any circumstances.

Operating Instructions

25

26

Operating Instructions

What to do, if ...

Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call an engineer to resolve a of fault listed here, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is in guarantee.

...Fault warnings are displayed.

• If the top or middle light in the display is flashing you can probably rectify the fault yourself.

Once the fault has been rectified press the ON/OFF button. The wash programme will continue. If the fault is displayed again, contact your local AEG Service Force Centre.

• If other lights flash in the multi-display, please contact your local

AEG Service Force Centre stating which fault indicator is flashing.

Symptom: Possible Cause

There is no water entering the dishwasher.

The water inlet hose is not correctly laid.

The middle light is flashing in the multi-display.

The sink outlet is blocked.

Solution

The top light in the multidisplay is flashing.

Tap is blocked or furred with lime-scale.

The filter (where present) in the threaded hose fitting is blocked.

Clean tap.

Clean the filter in the threaded hose fitting.

Check hose installation.

Clean the sink outlet.

The water drain hose is not correctly laid.

Check hose installation.

The top and the middle light are flashing in the multi-display.

The anti-flood system has been triggered.

Close the tap and contact your local AEG

Sevice Force Centre.

Operating Instructions

...there are problems operating the dishwasher.

Symptom Possible Cause Solution

The programme does not start.

The dishwasher door has not been closed properly.

Shut the door.

Mains plug is not plugged in.

House fuse is faulty.

Insert mains plug.

Replace fuse.

For dishwasher models with delay start timer:

Delay start has been selected.

If dishes are to be washed immediately cancel delay start timer.

Spots of rust are visible in the washing compartment.

The washing compartment is made of anticorrosive stainless steel. Rust spots in the washing compartment are from particles from outside the appliance (rust particles from the water pipe, from pans, cutlery, etc.). Remove such spots with a commercially available stainless steel cleaner.

Only wash cutlery and dishes that are suitable for dishwasher use.

Close the salt dispenser lid securely.

There is a whistling noise during washing.

The whistling is not a cause for concern.

Use a different brand of detergent.

...the wash results are unsatisfactory.

The dishes are still dirty.

– The wrong wash programme was selected.

– The dishes were arranged in such a way as to stop the water reaching all parts of the surface. The dish racks must not be overloaded.

– The filters in the base of the washing compartment are dirty or incorrectly positioned.

– Too little or no detergent was used.

– Where there are limescale deposits on the dishes: the special salt container is empty or the water softener is incorrectly adjusted.

– The drain hose is connected wrongly.

The dishes are wet and dull.

– Rinse aid was not used.

– The rinse aid container is empty.

27

28

Operating Instructions

There are streaks, milky spots or a bluish coating on glasses and dishes.

– Decrease rinse aid dosing.

There are dried water drops on the glasses and dishes.

– Increase rinse aid dosing.

– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.

Technical Data

Capacity:

Permitted Water

Pressure:

12 place settings including serving dishes

1-10 bar (=10-100 N/cm

2

= 0.1-1.0 MPa)

Electrical Connection:

Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door on the right.

Dishwasher: Free-Standing Appliances

Dimensions:

Max. Weight:

850 x 600 x 600 (H x W x D in mm)

54 Kg

Dishwashers that Can Be Integrated, Built-In Dishwashers

Dimensions: 820 – 880 x 596 x 570 (H x W x D in mm)

Max. Weight: 50 Kg

Dishwashers that Can Be Fully Integrated

Dimensions:

Max. Weight:

820 – 880 x 596 x 546 - 550 (H x W x D in mm)

50 Kg

;

This appliance conforms with the following EU Directives:

– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive

– 89/336/EWG dated 03. 05. 1989

(including Directive Amendment 92/31/EWG) – EMC Directive

Operating Instructions

Notes for Test Institutes

Testing in accordance with EN 60704

must be carried out with the appliance fully loaded and using the test programme (see Programme

Table).

Tests in accordance with EN 50242

must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see Programme Table).

Detergent Dosing:

Rinse Aid Setting:

Full Load:

12 place settings incl. serving dishes

5g + 25g (Type B)

4 (Type III)

Sample loading arrangements:

Upper basket

Half Load:

6 place settings incl. serving, leaving alternate positions free

20g (Type B)

4 (Type III)

Lower basket with cutlery basket Cutlery basket

29

30

Installation and Connection Instructions

INSTALLATION AND CONNECTION

INSTRUCTIONS

Installing the Dishwasher

• The dishwasher must be installed on a firm floor and adjusted such that it is stable and level.

• To compensate for unevenness in the floor and to match the height of the appliance to that of surrounding units extend the threaded feet by unscrewing:

– use a screwdriver.

• For built-in, integrated and fully integrated dishwashers, the rear feet should be adjusted from the front of the appliance using a screwdriver.

• The drain hose, inlet hose and mains cable must be laid such that they are free to move in the rear of the plinth recess, so that they cannot be kinked or crushed.

• The dishwasher must also be screwed on tightly to the work surface or to the adjoining units. This is absolutely necessary so that its stability is guaranteed according to VDE regulations.

Installation and Connection Instructions

Dishwashers That Can Be Integrated

(see installation template supplied)

3

The door of the appliance can be fitted with a wooden/facing panel with the following dimensions:

Width: 591 – 594 mm

Thickness: 16 – 24 mm

Height:

(variable)

Weight: dependent on

– Aperture height

– Plinth height

– The adjustment so that the unit matches the height of the adjoining units

The exact height of the adjoining units must be measured at the place of installation.

max. 8 kg

31

32

Installation and Connection Instructions

Connecting the Dishwasher

Water Connection

The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations.

• The dishwasher can be connected to cold and hot water supplies up to max. 60 °C.

• The dishwasher

must not

be connected to open hot water appliances or instantaneous water heaters.

Permitted water pressure

Lowest permitted water pressure:

1 bar (=10 N/cm

2

=100 kPa)

Highest permitted water pressure:

10 bar (=100 N/cm

2

=1 MPa)

Consult your installer if the water pressure is less than 1 bar.

In the case of a water pressure greater than 10 bar, a pressure reduction valve must be used (available from your dealer).

Connect the inlet hose

1

The water inlet hose must not be kinked, crushed or entangled when it is being connected up.

0 Connect the threaded hose fitting (DIN 259) on the water inlet hose to a tap with an external thread (¾ inch). Tighten the threaded hose fitting

hand tight only

.

3

• In order that access to the tap in the kitchen is not limited by the use of the dishwasher, we recommend the installation of an additional tap, or fitting a two way adapter to the existing tap.

• If you need a longer water inlet hose than that supplied, VDE approved complete hose sets are to be used. These are available from your local Service Force Centre.

Installation and Connection Instructions

Water drain

Drain hose

1

The drain hose must not be kinked, crushed or entangled.

• Connecting the drain hose:

– Maximum permitted height: 1 metre.

– Minimum required height 30 cm above the lower edge of the machine.

Extension hoses

• Extension hoses are available from

AEG Service Force. The internal diameter of the extension hoses must be 19 mm to ensure that the function of the appliance is not impeded.

• Hoses may be laid a maximum of

3 metres horizontally; the maximum permitted height for the connection for the drain hose is then

85 cm.

Sink outlet connection

• The outlet of the drain hose (ø 19 mm) fits all commonly available sink outlet spigot types. The outer diameter of the spigot connection must be at least 15 mm.

• The drain hose must be fixed to the sink outlet connection using the hose clamp supplied.

Discharging into a standpipe

When discharging into a standpipe, the upright standpipe should have a minimum, length of 30 cm (12“) from the bottom of the elbow to the top of the pipe (see diagram). Make sure that it is designed in such a way that the end of the drain hose cannot be covered with water.

33

34

Installation and Connection Instructions

Leak Prevention System

For protection from damage due to water leaks, the dishwasher is equipped with a leak prevention system, the AQUA CONTROL SYSTEM.

In the event of a fault, the safety valve immediately interrupts the supply of water to the appliance and the drain pump switches on. By this means water can neither escape nor overflow. The remaining water in the appliance is automatically pumped out.

1

The AQUA CONTROL SYSTEM also works when the appliance is switched off – the appliance must however

not

be disconnected from the mains.

Installation and Connection Instructions

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

1

WARNING - This appliance must be earthed.

The manufacturer declines any responsibility should these safety measures not be observed.

Before switching on make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

To isolate the dishwasher from the mains, remove the mains plug.

Important:

The plug must still be accessible after the appliance has been installed.

Changing a fuse

The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved

(BS 1363A) fuse must be used.

Should the plug need to be replaced for any reason, proceed as described below.

The wires on the mains lead are coloured in accordance with the following code.

Green

& Yellow

Blue Brown

Green and Yellow : Earth

Blue : Neutral

Brown : Live

Cord Clamp

• The wire coloured green and yellow must be connected to the terminal marked with the letter “E“ or by the earth symbol or coloured green and yellow.

• The wire coloured blue must be connected to the terminal “N“ or coloured black.

• The wire coloured brown must be connected to the terminal marked

“L“ or coloured red.

• Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

1

WARNING! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that, if it is necessary to cut off the plug, it is disposed of safely and not retained.

35

36

Installation and Connection Instructions

Connections

The water inlet and drain hoses, as well as the mains cable must be connected beside the dishwasher as there is insufficient space behind the appliance.

The plumbing and electrical installation example given below can only be regarded as a recommendation.

Two 45° or Straight Connections,

Outer ø 19 mm, Length 30 mm

Double tap Water drain Water inlet

Water inlet

Mains cable

Water drain

Mains socket Mains cable

Guarantee Conditions

GUARANTEE CONDITIONS

Guarantee Conditions

AEG offer the following guarantee to the first purchaser of this appliance.

1.

The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.

The guarantee does not cover commercial use.

2.

The guarantee covers all parts or components which fail due to faulty workmanship or faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation, unauthorised modification or attempted repair, commercial use or failure to observe requirements and recommendations set out in the instruction book.

This guarantee does not cover such parts as light bulbs, removable glassware or plastic, dust bags or filters.

3.

Should guarantee repairs be necessary the purchaser must inform the nearest customer service office (manufacturer´s service or authorised agent). AEG reserves the right to stipulate the place of the repair (i. e. the customer´s home, place of installation or AEG workshop).

4.

The guarantee or free replacement includes both labour and materials.

5.

Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.

6.

The purchaser´s statutory rights are not affected by this guarantee.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

– The guarantee starts from the date you first purchased your product.

– The guarantee is for the same period and to the same extent for labour and parts as exist in the new country of use for this brand or range of products.

– This guarantee relates to you and connot be transferred to another user.

– Your new home is within the European Community (EC) or European Free Trade Area.

– The product is installed and used in accordance with our instructions and is only used domestically, i. e. a normal household.

– The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service

Organisation is aware of your move and able to look after you and your appliances.

France

Germany

Italy

Sweden

UK

Senlis

Nürnberg

Pordenone

Stockholm

Slough

+33 (0) 44 62 29 29

+49 (0) 911 323 2600

+39 (0) 1678 47053

+46 (0) 8 738 7910

+44 (0) 1753 219899

37

38

Service & Spare parts

SERVICE & SPARE PARTS

If you wish to purchase spare parts or require an engineer, contact your local AEG Service Force Centre by telephoning:

08705 929 929

Your telephone call will be automatically routed to the Service Centre covering your post code area.

When you contact the Service Centre they will need the following information:

1.

Your name & address, including post code.

2.

Your telephone number

3.

Clear and concise details of the fault.

4.

The model, serial and production number. This information can be found on the rating plate. The rating plate is on the inner edge of the door on the right.

5.

Date of purchase. Please note that it will be necessary to provide proof of purchase for any in guarantee service call.

In-guarantee customers should ensure that the chapter headed “What to do if ...“ has been read, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Customer Care

For general enquiries concerning your AEG appliance or for further information on AEG products please contact our Customer Care

Department by letter or telephone at the address below or visit our website at www.aeghome.co.uk.

Customer Care Department

AEG Domestic Appliances

55-77 High Street

Slough

Berkshire, SL1 1DZ

Tel. 08705 350350 (*)

(*) Calls may be recorded for training purposes

39

AEG Hausgeräte GmbH

Postfach 1036

D-90327 Nürnberg http://www.aeg.hausgeraete.de

© Copyright by AEG

822 946 238 - 00 - 0801 Subject to change without notice

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
