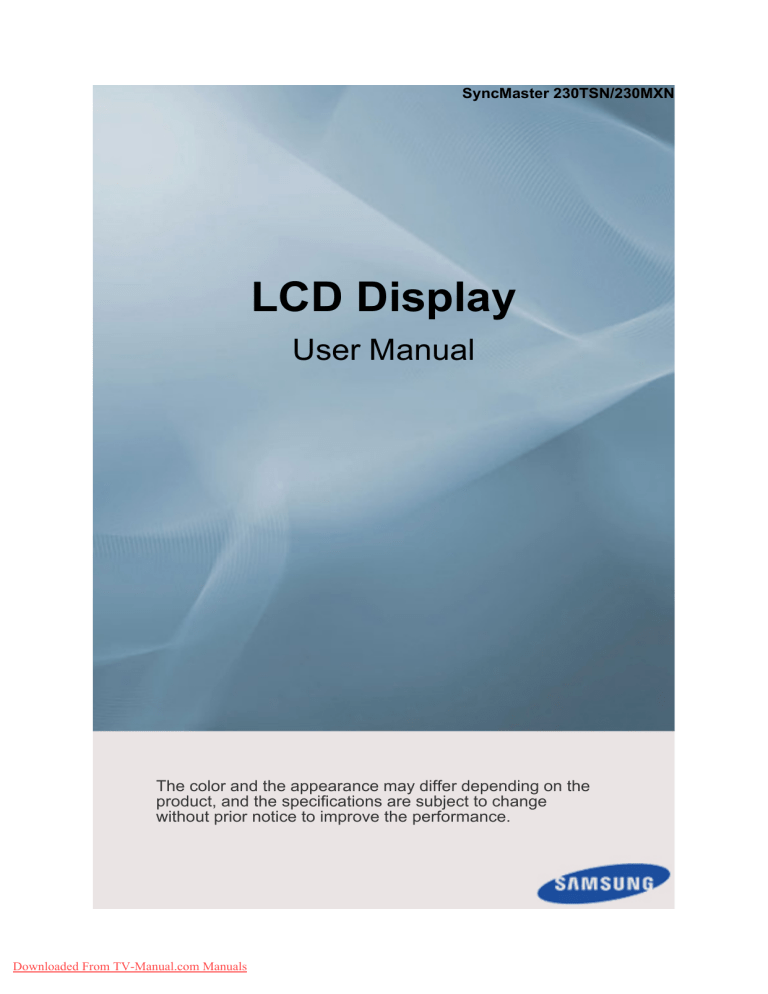

SyncMaster 230TSN/230MXN

LCD Display

User Manual

The c

olor

and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

Downloaded From TV-Manual.com Manuals

Safety Instructions

Notational

Note

These safety instructions must be followed to ensure your safety and prevent property damage.

Make sure to read the instructions carefully and use the product in the correct manner.

Warning / Caution

Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.

Note

Prohibited

Do not disassemble

Do not touch

Important to read and understand at all times

Disconnect the plug from the outlet

Ground to prevent an electric shock

Power

When not used for extended period of time, set your computer to DPM.

If using a screen saver, set it to active screen mode.

The images here are for reference only, and are not applicable in all cases

(or countries).

Shortcut to Anti-Afterimage Instructions

Do not use a damaged power cord or plug or a damaged or loose power outlet.

• Otherwise, this may result in electric shock or fire.

Do not touch the power plug with wet hands when removing or plugging the plug into the outlet.

• Otherwise, this may result in electric shock.

Make sure to connect the power cord to a grounded power outlet.

• Otherwise, it may result in electric shock or personal injury.

Downloaded From TV-Manual.com Manuals

Safety Instructions

Ensure that the power plug is plugged into the power outlet firmly and correctly.

• Otherwise, this may result in fire.

Do not forcefully bend or pull the power plug and do not place any heavy material on it.

• Otherwise, this may result in fire.

Do not connect multiple appliances to the same power outlet.

• Otherwise, this may cause fire due to overheating.

Do not disconnect the power cord while using the product.

• Otherwise, this may result in damage to the product due to electric shock.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Otherwise, this may cause electric shock or fire.

Use only the power cord provided by our company. Do not use the provided power cord of another product.

• Otherwise, this may result in fire or electric shock.

Installation

Be sure to contact an authorized Service Center when installing your monitor in a location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc.

Failure to do so may cause serious damage to your monitor.

Do not drop the monitor when moving it.

• This may cause damage to the product or the person carrying it.

When installing the product in a cabinet or rack, make sure that the front end of the bottom of the product does not project out.

• Otherwise, it may fall or cause personal injury.

• Use a cabinet or rack of a size appropriate to the product.

DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIG-

ARETTES AND ANY HEATING APPLIANCES NEAR THE

PRODUCT.

• Otherwise, this may result in fire.

Downloaded From TV-Manual.com Manuals

Clean

Safety Instructions

Keep heating appliances as far away from the power cord or the product as possible.

• Otherwise, this may result in electric shock or fire.

Do not install it in a badly ventilated location such as a bookcase or closet.

• Otherwise, this may result in fire due to an increase in the internal temperature.

When putting the product down, make sure to put it down softly.

• Otherwise, this may result in damage to the screen display.

Do not place the front of the product on the floor.

• Otherwise, this may result in damage to the screen display.

Ensure that an authorized installation company installs the wall mount.

• Otherwise, it may fall and cause personal injury.

• Make sure to install the specified wall mount.

Install your product in a well ventilated location. Ensure that there is a clearance of more than 4 inches (10 cm) from the wall.

• Otherwise, it may result in fire due to an increase in the internal temperature.

Ensure that the packaging vinyl is kept away from children.

• Otherwise, it may result in serious harm (suffocation) if children play with it.

If the height of your monitor is adjustable, do not place any object or part of your body on the stand when lowering it.

• This may cause damage to the product or the person carrying it.

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

Do not spray cleaner directly onto the surface of the product.

• Otherwise, this may result in the discoloration and distortion of the structure and the screen surface may peel off.

Clean the product using a soft cloth with a monitor cleaner only.

If you must use a cleaner other than the monitor cleaner, dilute it with water at a ratio of 1:10.

Downloaded From TV-Manual.com Manuals

Others

Safety Instructions

When cleaning the power plug pins or dusting the power outlet, clean it with a dry cloth.

• Otherwise, it may result in fire.

When cleaning the product, make sure to disconnect the power cord.

• Otherwise, it may result in electric shock or fire.

When cleaning the product, disconnect the power cord and clean it softly with a dry cloth.

• Do not use chemicals such as wax, benzene, alcohol, thinner, mosquito repellant, lubricant, or cleaner. These may change the appearance of the product surface and peel off the indication labels on the product.

Since the product housing is easily scratched, make sure to use the specified cloth only.

• Use the specified cloth adding only a little water. As the product may be scratched if there is any foreign material on the cloth, make sure to shake it thoroughly before using it.

When cleaning the product, do not spray water directly onto the main body of the product.

• Ensure that water does not enter the product and that it is not wet.

• Otherwise, this may result in electric shock, fire or a malfunction.

The product is a high voltage product. Do not disassemble, repair or modify the product yourself.

• Otherwise, this may result in electric shock or fire. If the product needs to be repaired, contact a Service Center.

If there is a strange smell or a strange sound or smoke is coming from the product, disconnect the power plug immediately and contact a Service Center.

• Otherwise, this may result in electric shock or fire.

Do not place this product in a location exposed to moisture, dust, smoke, water, or in a car.

• Otherwise, this may result in electric shock or fire.

When you drop the product or the case is broken, turn the power off and disconnect the power cord. Contact a Service Center.

• Otherwise, this may result in electric shock or fire.

Downloaded From TV-Manual.com Manuals

Downloaded From TV-Manual.com Manuals

Safety Instructions

If thunder or lightning is occurring, do not touch the power cord or antenna cable.

• Otherwise, this may result in electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

• Otherwise, it may fall and result in electric shock, damage to the product or fire due to damage to the cable.

Do not lift or move the product back and forwards or right and left while only holding the power cord or signal cables.

• Otherwise, it may fall and result in electric shock, damage to the product or fire due to damage to the cable.

Make sure that the ventilating opening is not blocked by a table or curtain.

• Otherwise, it may result in fire due to an increase in the internal temperature.

Do not place any containers containing water, vases, flowerpots, medicines as well as any metal on the product.

• If water or a foreign material enters the product, disconnect the power cord and contact a Service Center.

• This may result in a product malfunction, electric shock, or fire.

Do not use or keep combustible spray or flammable material near the product.

• Otherwise, this may result in an explosion or fire.

Do not insert any metal, such as chopsticks, coins, pins and steel, or flammable objects, such as matches or paper, inside the product (through the ventilating openings, input and output terminals, etc).

• If water or foreign material enters the product, disconnect the power cord and contact a Service Center.

• Otherwise, this may result in electric shock or fire.

When using a fixed screen for a long time, an afterimage or stain may occur.

• If you are not using your product for a long period of time, put it into sleep mode or use a moving screen saver.

Set a resolution and frequency appropriate to the product.

• Otherwise, your eyesight may be damaged.

When using headphones or earphones, do not turn the volume too high.

• Having the sound too loud may damage your hearing.

Downloaded From TV-Manual.com Manuals

Safety Instructions

To avoid eyestrain, do not sit too close to the product.

Take a rest for at least five (5) minutes after using the monitor for one (1) hour.

This reduces eye fatigue.

Do not install it in an unstable location such as an unstable rack or uneven surface or a location exposed to vibrations.

• Otherwise, it may fall and cause personal injury and/or damage the product.

• If you use the product in a location exposed to vibrations, it may damage the product and result in fire.

When moving the product, turn the power off and disconnect the power plug, antenna cable, and all the cables connected to the product.

• Otherwise, it may result in electric shock or fire.

Ensure that children do not hang onto the product or climb up onto the product.

• The product may fall and cause personal injury or death.

If you do not use the product for a long period of time, disconnect the power cord from the power outlet.

• Otherwise, this may result in overheating or fire due to dust, and may result in fire due to electric shock or leakage.

Do not place any heavy items or toys or confectionery, such as cookies etc. that may attract the attention of children and to the product.

• Your children may hang onto the product causing it to fall and this may result in personal injury or death.

Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

• If children have had the battery in their mouths, consult your doctor immediately.

When replacing the battery, insert it with the right polarity (+, -).

• Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.

Use only the specified standardized batteries, and do not use a new battery and a used battery at the same time.

• Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage of the internal liquid.

Safety Instructions

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

• The customer can return used or rechargeable batteries to a nearby public recycling center or to a store selling the same type of the battery or rechargeable battery.

Do not place the product in a location exposed to direct sunlight or near any heat such as a fire or heater.

• This may reduce the lifetime of the product, and may result in fire.

Do not drop any objects onto the product or cause any impact to the product.

• Otherwise, this may result in electric shock or fire.

Do not use a humidifier near the product.

• Otherwise, this may result in electric shock or fire.

When there is a gas leak, do not touch the product or the power plug; ventilate immediately.

• If a spark occurs, it may cause an explosion or fire.

If the product has been turned on for a long time, the display panel becomes hot. Do not touch it.

• Keep the small accessories in a location out of the reach of children.

Be careful when adjusting the angle of the product or the height of the stand.

• This may result in personal injury as your hand or fingers may become caught.

• Also, if you tilt the product too far, it may fall and cause personal injury.

Do not install the product in a location low enough for children to reach.

• Otherwise, it may fall and result in personal injury.

• Since the front part of the product is heavy, install the product on a level and stable surface.

Do not put any heavy objects on the product.

• This may result in personal injury and/or damage to the product.

Good Postures When Using the Monitor

Downloaded From TV-Manual.com Manuals

Downloaded From TV-Manual.com Manuals

Safety Instructions uct.

Maintain the correct posture when using this prod-

• Straighten your back.

• Keep a distance of 45~50 cm(18~ 20inches) from your eyes to the screen. Look down at the screen and face the screen forwards.

• Maintain the correct posture when using this product.

• Adjust the angle of the product so that light is not reflected onto the screen.

• Keep your elbow at a right angle and keep your arm level with the back of your hand.

• Keep your elbow at a right angle.

• Place your heels flat on the ground while keeping your knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart.

Introduction

Package Contents

Note

Please make sure the items below are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy items that are sold separately.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all locations)

MagicInfo

Software DVD /

User manual

Cables

Power Cord D-Sub Cable

Downloaded From TV-Manual.com Manuals

Others

Introduction

Remote Control Batteries (AAA X 2)

(Not available in all locations)

Ferrite Core for LAN cable

Sold separately - Not included with the monitor.

Wall Mount KIT LAN Cable USB Cable

HDMI Cable RS232C Cable

Ferrite Core

• The ferrite cores are used to shield the cables from interference.

• When connecting a cable, open the ferrite core and clip it around the cable near the plug.

Installing a Wall Mount

This product is compatible with a 100 mm x 100 mm VESA compliant wall mount.

Above: A 100 mm x 100 mm VESA compliant wall mount.

A. Wall Mount Base

Downloaded From TV-Manual.com Manuals

Introduction

B. Wall Mount Kit (Optional)

To attach a wall mount to your monitor, follow these steps:

1.

Turn the product off, and then unplug the power cord from the wall outlet.

2.

Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.

3.

Remove the stand as described previously.

4.

Align the groove of the Monitor's wall mount base with the groove in the wall mount kit and firmly fix the wall mount kit by fastening the screws.

Note

• If you use a screw that is longer than the standard specifications, the inside of the product may be damaged.

• For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending on the corresponding specifications.

• Do not use screws that are incompatible with the standard VESA specifications and do not screw them in using excessive force.

This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any damage or injury.

• Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount that is not compatible with the specified specifications or due to an installation not performed by an authorized installation engineer.

• When installing the product using a wall mount, purchase a wall mount that provides at least 4 inches (10 cm) of clearance from the wall.

• Samsung shall not be held liable for any problems caused by using a stand that is not compatible with the specified specifications.

• Use a wall mount according to specifications of your country.

Your LCD Display

Front

SOURCE/[ ] button

When the OSD menu is not on the screen, switches from PC mode to Video mode. Selects the input source that an external device is connected to in the order below:

Downloaded From TV-Manual.com Manuals

Introduction

[

PC

] → [

HDMI

] → [

MagicInfo

]

When the OSD Menu is displayed, activates a highlighted menu item.

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

- VOL +

Moves from one menu item to another horizontally or adjusts selected menu values. When OSD is not on the screen, press the button to adjust volume.

SEL

Moves from one menu item to another vertically or adjusts selected menu values.

Power button [ ]

Use this button to turn your LCD Display on and off.

Brightness Sensor

Automatically detects the ambient brightness and adjusts the brightness of the monitor accordingly.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display 's configuration at the back may vary slightly depending on the model.

Downloaded From TV-Manual.com Manuals

Introduction

POWER S/W ON [ │ ] / OFF [O]

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display and the wall outlet.

RGB IN

Connect the RGB IN terminal at the back of your product to your computer.

VIDEO OUT

Connect the [VIDEO OUT] port on the product and the D-Sub port on your monitor using a D-Sub cable.

HDMI IN

Connect the HDMI terminal at the back of your LCD Display to the HDMI terminal of your digital output device using a HDMI cable.

AUDIO OUT

Headphone/External speaker output terminal.

LAN

LAN Connection Terminal

USB Keyboard / Mouse, Mass Storage Device Compatible.

Downloaded From TV-Manual.com Manuals

Introduction

AUDIO IN

Connect the audio cable for your product to the audio port on the back of your computer.

RS232C IN

MDC(Multiple Display Control) Program Port

Kensington Lock Slot

A Kensington Lock is a device used to physically fix your monitor when you use it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington

Lock for proper use. The locking device has to be purchased separately.

Note

The location of the Kensington Lock slot may be different depending on the model.

Using the Anti-Theft Kensington

Lock

1.

Insert the locking device into the Kensington slot on the Monitor and turn it in the locking direction .

2.

Connect the Kensington Lock cable.

3.

Fix the Kensington Lock to a desk or a heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device operating near the LCD Display due to interference with the remote's operating frequency.

Downloaded From TV-Manual.com Manuals

Introduction

POWER

OFF

Number Buttons

1. POWER

2. OFF

3. Number Buttons

4. DEL ton

5. + VOL -

6. SOURCE

7. D.MENU

/ GUIDE but-

DEL

+ VOL -

/ GUIDE button

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

COLOR BUTTONS

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

TV

MENU

RETURN

EXIT

MagicInfo

Turns the product On.

Turns the product Off.

Used to enter the password during the OSD adjustment or to use

MagicInfo

.

The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

* This function does not work for this LCD Display.

Adjusts the audio volume.

Press this button to change the input signal SOURCE.

You can only change to sources that have external devices connected them.

DTV menu display

* This function does not work for this LCD Display.

Downloaded From TV-Manual.com Manuals

Introduction

8. TOOLS

9. Up-Down Left-Right buttons

10. INFO

11. COLOR BUTTONS

12. TTX/MIX

Use to quickly select frequently used functions.

* This function does not work for this LCD Display.

Moves from one menu item to another horizontally or vertically, or adjusts selected menu values.

Displays current picture information on the upper left corner of the screen.

Press to add or delete channels and to store channels to the favorites channel list in the “Channel List” menu.

* This function does not work for this LCD Display.

TV channels provide written information services via teletext.

- Teletext Buttons

13. MTS/DUAL

14.

15.

17. TV

ENTER/PRE-CH

MUTE

16. CH/P

* This function does not work for this LCD Display.

* This function does not work for this LCD Display.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

FM Stereo

Audio Type MTS/S_Mode Default

Mono

Stereo

Mono

Mono ↔ Stereo

Manual

Change

SAP Mono ↔ SAP Mono

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the broadcasting type by using the DUAL button on the remote control while watching TV.

This button is used to return to the immediately previous channel.

* This function does not work for this LCD Display.

Pauses (mutes) the audio output temporarily. The audio comes back on if MUTE or - VOL + is pressed in the Mute mode.

In

TV

mode, selects TV channels.

* This function does not work for this LCD Display.

Selects the TV mode directly.

* This function does not work for this LCD Display.

Downloaded From TV-Manual.com Manuals

18. MENU

19. RETURN

20. EXIT

21. MagicInfo

Introduction

Opens the on-screen menu and exits from the menu or closes the adjustment menu.

Returns to the previous menu.

Exits from the menu screen.

MagicInfo Quick Launch Button.

Downloaded From TV-Manual.com Manuals

Connections

Connecting a Computer

Connect the power cord for your LCD Display to the power port on the back of the LCD Display. Turn the power switch on the back of the LCD Display on.

Connect the D-sub cable the 15-pin, RGB port on the back of your LCD

Display and the 15 pin D-sub Port on the computer.

Connect the audio cable for your LCD Display to the audio port on the back of your computer.

Notes

• Turn on both your computer and the LCD Display.

• Contact a local SAMSUNG Electronics Service Center to buy optional items.

Connecting to Other Devices

Note

You can connect AV output devices such as DVD players, VCRs, or camcorders as well as your computer to the LCD Display. For detailed information on connecting AV output devices, refer to the contents under Adjusting Your LCD Display.

Downloaded From TV-Manual.com Manuals

Connecting a HDMI Cable

Connections

Notes

• Connect input devices such as a Blu-Ray/DVD player to the HDMI IN terminal of the LCD

Display using an HDMI cable.

• You cannot connect a PC to the HDMI terminal.

Connecting a DVI to HDMI Cable

Notes

• Connect the DVI output terminal of a digital output device to the HDMI terminal of the LCD

Display using a DVI to HDMI cable.

• Connect the red and white plugs of an RCA to stereo mini-plug cable (for PC) to the red and white audio output terminals of the digital output device. Connect the mini-plug side of the cable to the to the AUDIO IN terminal of the LCD Display.

Connecting to another Monitor

Connect a D-Sub cable between the [VIDEO OUT] port on the product and the D-Sub in port on the other monitor.

Downloaded From TV-Manual.com Manuals

Connections

Note

• Connect to the [VIDEO OUT] port to display the same picture on another monitor.

(For presentation purposes)

Connecting to an Audio System

Note

• Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYSTEM and

[AUDIO OUT] on LCD Display.

Downloaded From TV-Manual.com Manuals

Connecting a LAN Cable

Connections

Note

Connect the LAN cable.

Connecting a USB device

You can connect USB devices such as a mouse or keyboard.

Downloaded From TV-Manual.com Manuals

Using the Software

Monitor Driver

Note

When prompted by the operating system for the monitor driver, insert the CD-

ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

If you have lost or misplaced the CD, you can download the monitor driver by clicking Support > Downloads at http://www.samsung.com/, and then following the directions on the web site After you have downloaded the file, double click the file, and then follow the directions that appear on your screen.

Installing the Monitor Driver Automatically - All Windows Operating Systems

1.

Insert the CD into the CD-ROM drive.

2.

Click "Windows".

3.

Choose your monitor model from the model list, and then click the "OK" button.

4.

If you have Windows XP or Windows 2000 and you see the following message window, click the "Continue Anyway" button. On the next window, click the "OK" button.

Downloaded From TV-Manual.com Manuals

Using the Software

Note

This monitor driver is certified by Microsoft, and installing it will not damage your system.

If you see the window above, you may have an older install disk. To get the certified driver, please access the download page for your monitor.

To access the download page, go to http://www.samsung.com/, click Support, and then

Downloads.

Installing the Monitor Driver Manually

Microsoft

®

Windows Vista™ Operating System

1.

Insert your CD into your CD-ROM drive.

2.

Click Start > "Control Panel". Then, double-click on "Appearance and Personalization".

3.

Click "Personalization", and then "Display Settings".

4.

Click "Advanced Settings...".

5.

Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

Downloaded From TV-Manual.com Manuals

Using the Software

If the message "Windows needs..." is displayed, as shown in the figure below, click

"Continue".

Note

This monitor driver is certified by Microsoft, and installing it will not damage your system.

If you see the window above, you may have an older install disk. To get the certified driver, please access the download page for your monitor.

To access the download page, go to http://www.samsung.com/, click Support, and then

Downloads.

6.

Click "Update Driver..." in the "Driver" tab.

7.

Check the "Browse my computer for driver software" checkbox, and then click "Let me pick from a list of device drivers on my computer".

8.

Click "Have Disk...” and select the CD or DVD drive (for example, D:\) where the driver setup file is located, and then click "OK".

Downloaded From TV-Manual.com Manuals

Using the Software

9.

Select the model that matches your monitor from the list of monitor models on the screen, and click "Next".

10. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Microsoft

®

Windows

®

XP Operating System

Downloaded From TV-Manual.com Manuals

Using the Software

1.

Insert the CD the CD-ROM drive.

2.

Click Start > Control Panel, and then click the Appearance and Themes icon.

3.

Click the "Display" icon and choose the "Settings" tab, and then click "Advanced...".

4.

Click the "Properties" button on the "Monitor" tab, and then select "Driver" tab.

5.

Click "Update Driver..." and, select "Install from a list or...", and then click the "Next" button.

6.

Select "Don't search, I will...", click "Next", and then click "Have disk".

Downloaded From TV-Manual.com Manuals

Using the Software

7.

Click the "Browse" button, and then choose the driver disk location (for example, D:\).

Choose your monitor model in the model list, and then click the "Next" button.

8.

If you see can see following message window, click the "Continue Anyway" button. Then click "OK" button.

Note

This monitor driver is certified by Microsoft, and installing it will not damage your system.

If you see the window above, you may have an older install disk. To get the certified driver, please access the download page for your monitor.

To access the download page, go to http://www.samsung.com/, click Support, and then

Downloads.

9.

Click the "Close" button, then click the "OK" button continually.

Downloaded From TV-Manual.com Manuals

Using the Software

10. Monitor driver installation is completed.

Microsoft

®

Windows

®

2000 Operating System

If you can see "Digital Signature Not Found" on your monitor, follow these steps.

1.

Choose the "OK" button on the "Insert disk" window.

2.

Click the "Browse" button on the "File Needed" window.

3.

Choose A:(D:\Driver), click the "Open" button, and then click the "OK" button.

How to install

1.

Click Start > Setting > Control Panel.

2.

Double click the "Display" icon.

3.

Select the "Settings" tab, and then click the "Advanced Properties" button.

4.

Choose "Monitor".

Case1 : If the "Properties" button is inactive, it means your monitor is properly configured.

Please stop installation.

Case2 : If the "Properties" button is active, click the "Properties" button, and then follow the next steps.

5.

Click "Driver", click on "Update Driver...", and then click on the "Next" button.

6.

Choose "Display a list of the known drivers for this device so that I can choose a specific driver" , click "Next", and then click "Have disk".

7.

Click the "Browse" button, and then choose A:(D:\Driver).

8.

Click the "Open" button, and then click "OK" button.

9.

Choose your monitor model, and then click the "Next" button. Then, click "Next" button.

10. Click the "Finish" button, and then the "Close" button.

Downloaded From TV-Manual.com Manuals

Using the Software

If you can see the "Digital Signature Not Found" window, Then click the "Yes" button.

Then click the "Finish" button and the "Close" button.

Microsoft

®

Windows

®

Millennium Operating System

1.

Click Start>Setting>Control Panel.

2.

Double click the "Display" icon.

3.

Select the "Settings" tab, and then click the "Advanced Properties" button.

4.

Select the "Monitor" tab.

5.

Click the "Change" button in the "Monitor Type" area.

6.

Choose "Specify the location of the driver".

7.

Choose "Display a list of all the drivers in a specific location...", and then click "Next" button.

8.

Click the "Have Disk" button.

9.

Specify A:\(D:\driver), and then click the "OK" button.

10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer, and then click "OK".

11. Continue choosing the "Close" button and the "OK" button until you close the Display

Properties dialogue box.

Microsoft

®

Windows

®

NT Operating System

1.

Click Start>Setting>Control Panel, and then double-click "Display" icon.

2.

In the Display Registration Information window, click Settings Tab, and then click "All

Display Modes".

3.

Select a mode that you wish to use (Resolution, Number of colors, and Vertical frequency) and then click "OK".

4.

Click "Test". If you see the screen working normally, click the “Apply” button. If the screen is not normal, change to a different mode (lower mode of resolution, colors, or frequency).

Note

If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1.

Press "Enter" at the first and the second screen after executing the X86Config file.

2.

The third screen is for setting your mouse.

3.

Set a mouse for your computer.

4.

The next screen is for selecting a keyboard.

Downloaded From TV-Manual.com Manuals

Using the Software

5.

Set a Keyboard for your computer.

6.

The next screen is for setting your monitor.

7.

Set a horizontal frequency for your monitor. (You can enter the frequency directly.)

8.

Set a vertical frequency for your monitor. (You can enter the frequency directly.)

9.

Enter the model name of your monitor. This information will not affect the actual execution of X-Window.

10. You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

MDC (Multi-Display Channel)

Installation

1.

Insert the installation CD into the CD-ROM drive.

2.

Click the MDC installation file.

Note

If the installation window does not appear, access the CD using Windows Explorer, and then double click the MDC executable file on the CD to launch the installation.

3.

When the Installation Shield Wizard window appears, click "Next".

4.

Select "I agree to the terms of the license agreement" to accept the terms of use.

5.

Click "Install".

6.

The "Installation Status" window appears.

7.

Click "Finish".

8.

When the installation is complete, the MDC executable icon appears on your desktop.

Double-click the icon to start the program.

The MDC execution icon may not appear depending on the specifications of your computer system or monitor. If this happens, press the F5 Key.

Installation Problems

Uninstall

The installation of MDC can be affected by such factors as the video card, motherboard and the network environment.

To uninstall the MDC program, use the "Add or Remove Programs" option in the Windows

®

Control Panel.

Downloaded From TV-Manual.com Manuals

Using the Software

Uninstall

To uninstall the MDC program, use the "Add or Remove Programs" option in the Windows

®

Control Panel.

To uninstall MDC, follow these steps:

1.

Select "Setting/Control Panel" on the "Start" menu, and then double-click "Add/Delete a program".

2.

Select MDC from the program list, and then click the "Add/Delete" button.

Using MDC

Downloaded From TV-Manual.com Manuals

Introduction

A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneously operated on a PC. RS-232C, a standard of serial communication, is used for the communication between a PC and a display. Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a display.

Main Screen

Click Start > Program > Samsung > MDC System to start the program.

Select a set to see the volume of the selected set within the slider.

Downloaded From TV-Manual.com Manuals

Main Icons

Remocon

Safety Lock

Port Selection

Select Button

Info Grid

Display Selection

Control Tools

1. Use the main icons to switch into each screen.

2. Allows you to enable or disable the remote control signal receiving function of the display unit.

3. Set the Safety Lock function.

When setting the Lock function, you can only operate power and lock buttons on the remote control and set.

4. The setting for the PC Serial Port can change. The original value is COM1.

5. Click Select all or Clear to select or clear all displays.

6. Use Grid to view brief information on selected display.

7. Select a display from Display Selection.

8. Use Control Tools to control displays.

<Note>

The remote control Enable/Disable function operates whether or not the power is On/Off, and this applies to all displays connected to the MDC. However, regardless of the status at the time the MDC is shut down, the remote control signal receiving function of all displays is initialized to Enable when the

MDC is closed.

Port Selection

Downloaded From TV-Manual.com Manuals

1. The Multiple Display Control is originally set to COM1.

2. If any port other than COM1 is used, COM1 through COM4 can be selected in the Port Selection Menu.

3. If the exact port name that is connected to the LCD Display using a serial cable is not selected, communication will be unavailable.

4. The selected port is stored in the program and used for the next program as well.

Power Control

1. Click Power Control of the main icons and the Power Control screen appears.

Downloaded From TV-Manual.com Manuals

Info Grid shows some basic information necessary to Power Control.

5) Off Timer

2. Use the Select All button or Check Box to choose a display to control.

Downloaded From TV-Manual.com Manuals

Power Control allows controlling some of the functions of the selected display.

1) Power On/Off

- Turns the power of the selected display On/Off.

2) Volume

- Controls the volume level of the selected display.

It receives the volume value of the selected display from the sets and displays it in the slider.

(When you cancel the selection or choose Select All, the value returns to the default value 10)

3)

(Mute On/Off)

- Turns on/off the Mute function of the selected display.

When selecting one set at a time, turn on the Mute function for the selected set.

The Mute function is disabled automatically when you adjust the volume level.

(The values return to the default settings when you undo the selections or choose "Select All".)

The Power Control feature is available for all displays.

The Volume Control and Mute features are available only for the displays whose power status is ON.

Input Source

1. Click Input Source of the main icons and the Input Source control screen appears.

Click Select All or use Check Box to select a display to control.

• TV Mode

Downloaded From TV-Manual.com Manuals

PC Mode

1)

2)

Info Grid shows some basic information necessary to Input Source Control.

PC

- Changes the Input Source of the selected display to PC.

BNC

- Changes the Input Source of the selected display to BNC.

Downloaded From TV-Manual.com Manuals

3)

4)

5)

6)

7)

8)

9)

DVI

- Changes the Input Source of the selected display to DVI.

TV

- Changes the Input Source of the selected display to TV.

DTV

- Changes the Input Source of the selected display to DTV.

AV

- Changes the Input Source of the selected display to AV.

S-Video

- Changes the Input Source of the selected display to S-Video.

Component

- Changes the Input Source of the selected display to Component.

MagicInfo

- The Input source of MagicInfo works only on MagicInfo model.

10) HDMI

- Changes the Input Source of the selected display to HDMI.

11) Channel

- Channel arrow appears when the Input Source is TV.

TV Source can be selected only in products with TV and controlling channels is allowed only when

Input Source is TV.

The Input Source Control feature is available only for the displays whose power status is ON.

Image Size

PC, BNC, DVI

1. Click Image Size of the main icons and the Image Size control screen appears.

1)

Info Grid shows some basic information necessary to Image Size Control.

( Power Status)

- Shows the power status of the current display.

Downloaded From TV-Manual.com Manuals

2) Image Size

- Shows the current Image Size of the display in use.

3) Input

- Info Grid displays only the displays whose Input Source is PC, BNC, DVI.

4) PC Source

- When you click Image Size, the PC Source tab first appear.

- The Image Size Control button controls Image Size available for PC, BNC, DVI.

5) Video Source

- Click the Video Source tab to control Image Size for respective Input Source.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

Image Size Control is available only for the displays for which power status is ON.

Image Size

TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV

1. Click Image Size of the main icons and the Image Size control screen appears.

Info Grid shows some basic information necessary to Image Size Control.

1) Click the Video Source tab to adjust Image Size for TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV.

Click Select All or use Check Box to select a display to control.

2) Info Grid displays only the display having TV, AV, S-Video, Component or DVI(HDCP) as input source.

3) Switch Image Size of the selected display randomly.

Note: Auto Wide, Zoom1 and Zoom2 are not available for selection when the input signal type for

Component and DVI (HDCP) is 720p or 1080i.

(The Auto Wide mode is available only for TV, AV, and S-Video.)

4) The screen modes can only be adjusted when a TV (PAL only) is connected and the Image Size item is set to Auto

Wide.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

The Image Size Control feature is available only for the displays whose power status is ON.

Downloaded From TV-Manual.com Manuals

Time

1. Click Time of the main icons and the Time Control screen appears.

Info Grid shows some basic information necessary to Time Control.

1) Current Time

- Set the current time for the selected display (PC Time).

- To change the current time, first change the PC Time.

2) On Time Setup

- Set the Hour, Minute, AM/PM of On Time Setup, Status, Source, Volume of the selected display.

3) Off Time Setup

- Set the Hour, Minute, and AM/PM, Status for Off Time Setup of the selected display.

4) Shows the On Time settings.

5) Shows the Off Time settings.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

Time Control is available only for the displays for which the power status is ON.

At On Time Setup, TV Source functions only for TV Model.

At On Time Setup, MagicInfo Source functions only for MagicInfo Model.

PIP

PIP Size

Downloaded From TV-Manual.com Manuals

1. Click PIP of the main icons and the PIP control screen appears.

Click Select All or use Check Box to select a display to control.

Info Grid shows some basic information necessary to PIP Size Control.

1) PIP Size

- Shows the current PIP Size of the display in use.

2) OFF

- Turns off the PIP of the selected display.

3) Large

- Turns on the PIP of the selected display and changes the size to Large.

4) Small

- Turns on the PIP of the selected display and changes the size to Small.

5) Double 1

- Turns on the PIP of the selected display and changes the size to Double 1.

6) Double 2

- Turns on the PIP of the selected display and changes the size to Double 2.

7) Double 3 (Picture By Picture)

- Turns on the PBP of the selected display and changes the size to Double 3.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

PIP Size can be controlled with turning on the LCD Display power.

PIP

PIP Source

1. Click PIP of the main icons and the PIP control screen appears.

Downloaded From TV-Manual.com Manuals

Info Grid shows some basic information necessary to PIP Source Control.

1) PIP Source

- PIP Source can be controlled with turning on the LCD Display power.

2) PC

- Changes the source of the PIP of the selected display to PC.

3) BNC

- Changes the source of the PIP of the selected display to BNC.

4) DVI

- Changes the source of the PIP of the selected display to DVI.

5) AV

- Changes the source of the PIP of the selected display to AV.

6) S-Video

- Changes the source of the PIP of the selected display to S-Video.

7) Component

- Changes the source of the PIP of the selected display to Component.

8) HDMI

- Changes the source of the PIP of the selected display to HDMI.

Note: Some of the PIP Sources may not be available for selection, depending on the input source type of the Main Screen.

The Input source of MagicInfo works only on MagicInfo model.

The PIP Control feature is available only for the displays whose power status is ON and the PIP function is set to ON.

Settings


1. Click Settings of the main icons and the Settings Control screen appears.

Downloaded From TV-Manual.com Manuals

Info Grid shows some basic information necessary to Settings Control.

When each function is selected, the set value of the selected function is displayed in the slide.When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."

1) Picture

- Available only for TV, AV, S-Video, Component, HDMI, DTV.

2) Contrast

- Adjusts Contrast of the selected display.

3) Brightness

- Adjusts Brightness of the selected display.

4) Sharpness

- Adjusts Sharpness of the selected display.

5) Color

- Adjusts Color of the selected display.

6) Tint

- Adjusts Tint of the selected display.

- Available only for NT.

7) Color Tone

- Adjusts the Color Tone for the selected display.

8) Color Temp

- Adjusts the Color Temp for the selected display.

9) Brightness Sensor

- Adjusts the Brightness Sensor for the selected display.

10) Dynamic Contrast

- Adjusts the Dynamic Contrast for the selected display.

The Input source of MagicInfo works only on MagicInfo model.

Color Temp is only enabled if the Color Tone is set to Off.

The Input source of TV works only on TV model.

This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.

Downloaded From TV-Manual.com Manuals

Settings

Picture PC

1. Click Settings of the main icons and the Settings Control screen appears.

Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."

1) Picture PC

- Available only for PC, BNC, DVI.

2) Contrast

- Adjusts Contrast of the selected display.

3) Brightness

- Adjusts Brightness for the selected display.

4) Red

- Adjusts red Color of the selected display.

- Available only for NT.

5) Green

- Adjusts green Color of the selected display.

- Available only for NT.

6) Blue

- Adjusts blue Color of the selected display.

- Available only for NT.

7) Color Tone

- Adjusts the Color Tone for the selected display.

8) Color Temp

- Adjusts the Color Temp for the selected display.

9) Brightness Sensor

- Adjusts the Brightness Sensor for the selected display.

10) Dynamic Contrast

- Adjusts the Dynamic Contrast for the selected display.

Downloaded From TV-Manual.com Manuals

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

Color Temp is only enabled if the Color Tone is set to Off.

This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.

Settings

Audio

1. Click Settings of the main icons and the Settings Control screen appears.

Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."

1) Audio

- Controls audio settings for all input sources.

2) Bass

- Adjusts Bass of the selected display.

3) Treble

- Adjusts Treble of the selected display.

4) Balance

- Adjusts Balance of the selected display.

5) SRS TS XT

- SRS TS XT Sound ON/OFF of the selected display.

6) Sound Select

- Select either Main or Sub when PIP is On.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.

Downloaded From TV-Manual.com Manuals

Settings

Image Lock

1. Click Settings of the main icons and the Settings Control screen appears.

Info Grid shows some basic information necessary to Settings Control.

1) Image Lock

- Available only for PC, BNC.

2) Coarse

- Adjusts Coarse of the selected display.

3) Fine

- Adjusts Fine of the selected display.

4) Position

- Adjusts Position of the selected display.

5) Auto Adjustment

- Self-Adjust to the incoming PC signal.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

Settings Control is available only for the displays for which the power status is ON.

Maintenance

Lamp Control

1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.

Downloaded From TV-Manual.com Manuals

An "Info Grid" showing several basic data items appears.

1) Maintenance

- Allows the Maintenance Control function for all input sources.

2) Auto Lamp Control

- Automatically adjusts the backlight of the selected display at a specified time.

The Manual Lamp Control automatically turns off if you adjust using the Auto Lamp Control.

3) Manual Lamp Control

- Allows you to adjust the backlight of the selected display regardless of the time.

The Auto Lamp Control automatically turns off if you adjust using the Manual Lamp Control.

The Maintenance Control feature is available only for the displays whose power status is ON.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

Maintenance

Scroll

1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.

Downloaded From TV-Manual.com Manuals

1) Scroll

- This function is used to remove the afterimages that occur when a still screen is displayed on the selected display for a long time.

2) Pixel Shift

- This allows the screen to be moved finely at the specified time interval.

3) Safety Screen

- The Safety Screen function is used to prevent afterimages from occurring when a still screen is displayed on the monitor for a long time. The Interval item is used to set the repetition cycle in hour units and the Time item is used to set the time when the Safety Screen function must be performed.

The Type item can be set to Scroll, Pixel, Bar, Eraser, All White, or Pattern.

4) Safety Screen2

- This function is used to prevent afterimages from occurring. There are five (5) types that you can select and control with this function.

For the Scroll type, the Time item can be set to 1, 2, 3, 4 or 5. For the Bar and Eraser types, it can be set to 10, 20, 30, 40 or 50. For the All White and Pattern type, it can be set to 1, 5, 10, 20 or 30.

The Input source of MagicInfo works only on MagicInfo model.

The Input source of TV works only on TV model.

The Maintenance Control feature is available only for the displays whose power status is ON.

Maintenance

Video Wall

1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.

Downloaded From TV-Manual.com Manuals

1) Video Wall

- A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole picture or so that the same picture is repeated on each screen.

2) Video Wall (Screen divider)

- The screen can be divided into.

You can select a number of screens with a different layout when dividing. z

Select a mode from Screen divider. z

Select a display from Display Selection. z

The place will be set up by pressing a number in the selected mode. z

The MDC program supplied by Samsung supports up to 5x5 LCD Displayes.

3) On / Off

- Turns on/off the Video Wall function of the selected display.

4) Format

- The format can be selected to see a divided screen. z

Full z

Natural

You may not operate this function in MagicInfo.

The Input source of TV works only on TV model.

The Maintenance Control function is available only for the displays where the power status is ON.

Downloaded From TV-Manual.com Manuals

Troubleshooting

1. The display you wish to control does not appear on the Power Control Info Grid

- Check the connection of RS232C. (Check if it is properly connected to the Com1 port)

- Check the displays to see if any of the other displays connected have the same ID. If more than one displays have the same ID, those displays are not properly detected by the program due to data conflict.

- Check if the Display Set ID is a number between 0 and

25

. (Adjust using the Display menu)

Note :

A Display Set ID must be a value between 0 and

25

.

2. The display you wish to control does not appear on the other Control Info Grids

- Check to see if the display power is ON. (You can check this in Power Control Info Grid)

- Check if you can change the input source of the display.

3. The dialogue box appears repeatedly.

- Check to see if the display you wish to control is selected.

4. Both On Timer and Off Timer have been set but different time is showing.

- Apply current time to synchronize the display clocks.

5. The remote may not function properly when you turn off the remote Function, disconnect the RS-232C cable, or exit the program in an Irregular manner. Rerun the program and turn the remote function again to Restore normal functions.

<Note>

This program may malfunction due to problems in communication circuits or interference from electronic appliances nearby.

Settings Value Display In Multiple Display Mode

When there are more than one displays connected, the settings values are displayed as follows.

1. No selection: Displays the Factory Default Value.

2. Selected one display: Fetches and displays the settings value for the selected display.

3. Selected one display (ID1) and add another display (ID3): The program, which was displaying the settings value of

ID 1, fetches and displays the value of ID3.

4. Selected all sets using Select All: Returns to the Factory Default Value.

Downloaded From TV-Manual.com Manuals

Software Control Panel (230TSN)

Main Tab

This tab covers touch sensor calibration as well as basic support information.

Calibration

The calibration process aligns the touch sensor with the underlying video. Specifically, calibration defines the dimensions of the active area of the sensor and locates the center of the sensor. If the sensor is not calibrated, the active area of the sensor may not be aligned properly or may be unnecessarily small.

You should calibrate the touch sensor in the following cases:

• Any time you change the size and position of the video image by adjusting the horizontal and vertical controls on your display.

• Any time the cursor does not follow the movement of your finger, or does not reach the edges of the touch sensor. If you continue to need additional accuracy along the edges, use the

Edge Adjustment

tab.

Calibrating the Touch Sensor

1.

Select the

Main

tab.

2.

Click the

Calibrate

button.

Note

If you are using a stylus (pen) and you are in Pen/Finger mode, a dialog will ask whether you wish to calibrate using Pen or Finger. Calibrate using each option separately and when you are done, MT 7 will restore your touch mode to Pen/Finger.

3.

A calibration target appears in the lower left corner of the touch sensor.

Downloaded From TV-Manual.com Manuals

Using the Software

Note

If you press Escape or do not touch the sensor within twenty seconds, the system automatically cancels the calibration process with no change to the current settings.

4.

Touch the sensor positioning your fingertip to completely cover the green target. This position is calculated upon liftoff and when you remove your finger, the target should turn red.

When touching the calibration target, make sure to:

• Perform the calibration in the position (sitting or standing) you expect to normally use the touch sensor.

• Touch the calibration target firmly and precisely with your fingertip. During

Calibration

, be careful to keep your fingernails and other fingers away from the touch sensor as you touch the target.

5.

Repeat these instructions for additional calibration targets.

6.

Once you have calibrated the touch sensor, a dialog box will appear to ask if you wish to test, accept or cancel this calibration.

• If you select

Accept

, then the new calibration settings are automatically accepted.

• If you select

Test

, then a Draw (refer to the Tools tab for more details) screen appears.

When you exit Draw mode, a dialog will prompt, “

Are you satisfied with the results?

• Selecting

Yes

will keep the new calibration settings.

• Selecting

No

will restore the original (pre-calibration) settings.

• If you select

Cancel

, the original settings will be restored without change.

Testing the Calibration

If you accidentally liftoff from the sensor in the wrong place during calibration, you will distort the touch sensor calibration. Test by touching several points on the sensor to make sure you are satisfied with the calibration results. The cursor should be located underneath your finger or pen when you touch the sensor. Repeat the Calibration process until you are satisfied.

Recalibrate the touch sensor if any of the following tests fail.

• Touch random points on the sensor. The cursor should be located underneath your finger or pen when you touch the sensor.

• Drag your finger across the sensor and check that the cursor follows your movements.

Downloaded From TV-Manual.com Manuals

Using the Software

• Touch each corner and along the edges of the sensor. Verify that the cursor reaches the full image area of the sensor. Be sure you can touch and activate all icons and menus across the entire sensor.

• If you are using a pen stylus, be sure to perform the calibration procedure using the pen.

• If you need to recalibrate the sensor, make sure to touch the targets carefully. It is possible that one of your touches did not register properly or you accidentally touched the sensor in the wrong place during calibration. For example, if you touch beyond the targets or into the non-image area, you will distort the sensor calibration.

Support Information

This information helps identify your system setup for troubleshooting purposes. If for any reason you need to call Technical Support, this information will be useful.

Controller ID

On the

Main

tab, this is an information-only field in a single controller situation - if you have more than one controller you can select the specific controller you want to adjust.

Controller Type

This field displays the type of controller currently attached to your system. This data may be useful for Technical Support issues.

Firmware Version

These digits represent the version number and revision level of the touch controller firmware.

Touch Screen Status

Touch Screen Status

refers to whether or not the sensor has been found and is operational.

Touch Settings Tab

The

Touch Settings

tab enables you to customize the response of your touch sensor. You can change the way the system responds to your touch, add a right-click tool to your desktop, tell your system to beep on touch, and define the double-click speed and area of your touch.

Touch Modes

The available

Touch Modes

options are

Drawing

,

Touchdown

, and

Liftoff

.

Drawing Mode (Default Value)

Drawing Mode is most useful for draw, paint, illustration, and graphics applications. In Drawing Mode, a touch is equivalent to pressing and

Downloaded From TV-Manual.com Manuals

Using the Software

holding down the mouse button. This is considered the easiest mode to use with an immediate reaction to touch. Lifting off is equivalent to releasing the mouse button.

• To click, touch the object. Lift off the sensor.

• To double-click; touch the object twice quickly at the same location.

• To drag, touch the object. Slide your finger to the new location. Lift off the sensor

Touchdown Mode

Touchdown

Mode enables you to create an immediate button action as soon as you touch the sensor. In

Touchdown

Mode, you cause a button down at the cursor location, with a short pause and then a button up. You can leave your finger on the sensor but only a single touch is registered until you lift your finger off the sensor and touch down again.

Touching the sensor is equivalent to pressing and releasing the mouse button. The action occurs as soon as you touch the sensor. This mode is best for button-based applications (like a calculator). Drawing or dragging is not supported in this mode.

Liftoff Mode

Liftoff

Mode enables you to position the cursor where you want before creating a button action. In

Liftoff

Mode, the cursor will follow your finger for a more accurate touch.When you want to select an item, lifting your finger off the sensor will cause a button down, short pause, and then a button up to occur.

Touching the sensor is equivalent to moving the mouse position. The button down/button up action occurs when you remove your finger from the sensor. This mode is useful for applications requiring greater accuracy because it lets you carefully position the cursor before acting on it. Drawing or dragging is not supported in this mode.

Right-Click Tool (not available on Linux)

This option places an icon on the desktop (always on top of your application) that allows you to select which mouse button to activate on touch. Note that this works for the next click action only. Control returns to the left mouse button as soon as you are done.

You can position this icon anywhere on your desktop by selecting it, pausing until the fourpointed arrow appears, and dragging it wherever you want.

Left button is typically used for normal select and normal drag. Right button is typically used for applet properties such as context menu and special drag.

Double-Click Speed (not available on Windows® CE or Linux®)

Double-click speed defines how quickly you must touch the sensor for the system to interpret your actions as a double-click. Set the double-click speed in the slow to medium range for optimum performance with a touch sensor.

Touch the globe twice to test the double-click speed and area settings. If the globe begins to spin, the sensor recognized your touch as a double-click.

Note

Changing this setting will affect the double-click setting of the mouse.

Downloaded From TV-Manual.com Manuals

Using the Software

Double-Click Area (not available on Windows® CE or Linux®)

Double-click area defines the space in which you must touch the sensor for the system to interpret your actions as a double-click. Set the double-click area in the medium to high range for optimum performance with a touch sensor.

Touch the globe twice to test the double-click speed and area settings. If the globe begins to spin, the sensor recognized your touch as a double-click.

Note

Changing this setting will affect the double-click setting of the mouse.

Edge Adjustment Tab

Once you calibrate the touch sensor, the cursor should be located directly beneath your finger when you touch the sensor. However, this may make it difficult to touch items at the very edges of the sensor. The

Edge Adjustment

tab enables you to define an offset area in which the cursor moves closer to the edges of the sensor so you can easily and more precisely select small items, such as single words, the Windows™ Start button, check boxes, or radio buttons.

For example, if you have a row of buttons along the left edge of your touch sensor, you may want to set an edge adjustment to enable users to easily activate these buttons.Because

each edge is independent of the other, you only need to adjust the left margin to accommodate this row of buttons.

Edge Adjustment Setting

To set the

Edge Adjustment

, move the sliders inward to define the offset area. These changes take effect immediately. Click

Test

to preview your choices. The area you have defined appears as a colored area as shown below. Within this colored area, the cursor will automatically move ahead of your finger so you can more easily touch items closer to the edge.

Determine if the area you have defined is sufficient for your needs. Can you touch into the corners and along the edges of the sensor? Click

Escape

,

End Test

, or Return to go back to the

Edge Adjustment

tab. If you are satisfied with the selections you have made - you are done. If not, adjust the sliders to better accommodate your needs.

Downloaded From TV-Manual.com Manuals

Tools Tab

Using the Software

The

Tools

tab enables you to perform a variety of diagnostics to optimize the performance of your touch sensor. This tab is also the gateway to advanced touch options.

Component Versions

This is an informational screen for diagnostic purposes that details the building blocks of MT

7 and its version numbers.

Draw Test

Note

You must be in

Draw

mode for this to work properly.

The Draw program lets you test the operation of the touch sensor and pen by checking the accuracy and speed with which the system responds to your touch. To draw, simply touch the sensor and drag your finger or pen.

The following options will help you use the draw program more effectively:

• Press B (blank) to clear the screen and display a blank drawing canvas.

Downloaded From TV-Manual.com Manuals

Using the Software

• Press G (grid) to clear the screen and display a grid that you can use as a drawing guide

(default setting).

• Press L (line) to draw solid lines on the screen (default setting).

• Press D (dots) to draw dotted lines on the screen, where each dot represents a point reported by the touch sensor.

• Press the Space Bar to clear the screen.

Restore Factory Settings

Software

The Reset Software option is useful if you have reconfigured the MT 7 software and need to get back to a working state. This option will restore supplier factory configuration settings. If none exist, it will reset to 3M Touch System defaults.

Controller

The Restore Controller option is useful if you have reconfigured the controller and need to get back to a working state. Pressing this button restores 3M Touch System factory-set system defaults.

If after restoring controller factory defaults, you lose touch, you will need to reboot in order to restore touch.

Note

You must perform a calibration after restoring controller defaults.

Reset Controller

Use this only at the direction of Technical Support. This command initializes the hardware and the firmware, causes the controller to stop sending data, and recalculates the environmental conditions (for example, stray and offset values). The Reset command also cancels existing commands and returns the controller to normal operation.

Advanced Touch Options

Note

Important Note: Executing the

Advanced Options

may alter the performance of your touch sensor or render it inoperable. You should be aware of expected results before executing any option. If you are not familiar with the outcome of these settings, you should not be using these options.

Downloaded From TV-Manual.com Manuals

Using the Software

This option controls certain advanced functions for your controller. Depending on the options you have selected and the availability of that function for your given controller, you can choose certain

Advanced Options

from this screen.

• Enable manual linearization

• Enable frequency selection

Refer to the

Controller

Tab for a discussion of the various options associated with these

Advanced Options

settings.

Controller Tab

The

Controller

tab contains different choices depending on the type of touch controller(s) you have attached to your system and which options you selected from the

Advanced Options

from the

Tools

tab.

Controller Type

If you have more than one controller attached to your system, this field displays the controller currently selected on the

Main

tab. This data may be useful for Technical Support issues.

Linearization

With certain controllers, you can perform a linearization to fine-tune your touch sensor. It should be performed only at the direction of 3M Touch Systems, Inc. Technical Support.Linearization consists of touching 25 targets on the screen followed by 16 additional points to determine specific point accuracy over the face of the display.

The EX, CX, and some RX series touch controllers support Linearization:

To perform a 25-point linearization of the touch sensor:

1.

Make sure the video image is centered in the screen area using the horizontal and vertical controls.

2.

Open the touch control panel and select the

Controller

tab.

Downloaded From TV-Manual.com Manuals

Using the Software

3.

Click

Linearize

. This will bring up, one at a time, 25 linearization targets on the screen.

Note

If you press Escape or do not touch the sensor within 20 seconds, the system automatically cancels the linearization process with no change to the current settings.

4.

Touch the sensor and position your fingertip to completely cover the green target.

When touching the target, make sure you:

• Face the display directly.

• Perform the linearization in the position (sitting or standing) you expect to use the touch sensor.

• Touch the target firmly and precisely with your fingertip. Be careful to keep your other fingers away from the sensor as you touch the target. Hold a steady touch over the target until you hear a beep or until the target turns red.

5.

Repeat these instructions until all 25 targets have been touched.

• Face the display directly.

A dialog will appear asking if you wish to “

Test

,

Accept

, or

Cancel

”.

• If you select

Accept

, then the new calibration settings are automatically accepted.

• If you select

Cancel

, the original settings will be restored without change.

• If you select

Test

, the 25 targets will now be replaced with a set of 16 targets used to verify the linearization performed in steps 1 through 5.

These targets are yellow to begin with. If you successfully touch the target, it turns green.

If you are off, it turns red and returns a percentage error number. If the linearization is not within acceptable tolerances, you should perform the linearization process again.

Repeat the previous process for each of these targets. This process automatically returns to the control panel once complete. If you are using a pen stylus, repeat the linearization procedure with the pen.

To test the accuracy of the linearization process, use the

Draw Test

program (found on the

Tools

Tab) to draw some lines on the screen. Check that they are smooth, straight, and thin. You do not want lines to look keystoned or curved.

To exit this program at any time during the process, press Escape.

Touch Screen Frequency

Note

This option applies to capacitive EX and CX-series controllers.

From the

Tools

tab, you can choose the

Advanced Options

button. From the

Advanced

Options

dialog, select

Enable Frequency Selection

to activate this option on the

Controller

tab if you are using a capacitive EX-based controller.

This option adjusts the operating frequency of the touch controller. In general, you will not need to adjust the

Touch Screen Frequency

. However, if you are experiencing problems with a jittery cursor, ragged lines, or random touch points, you may want to run the

Enable

Frequency Selection

option.

Downloaded From TV-Manual.com Manuals

Using the Software

Use the

Enable Frequency Selection

option to test the available frequency settings and determine the best frequency. The range of frequency settings and the default setting depends on your touch controller. You can set a new operating frequency, and then check the performance of the touch sensor at that frequency setting.

Be aware that if you choose

Restore Factory Settings

Controller

from the

Tools

tab, you will change the

Touch Screen Frequency

to the factory default setting. You may need to redo the

Touch Screen Frequency

at this time

Touch Screen Frequency Procedure

From the

Tools

tab, you can choose the

Advanced Options

button. From the

Advanced

Options

dialog, select

Enable Frequency Selection

to activate this option on the controller tab if you are using a capacitive EX based controller.

In the

Touch Screen Frequency

box, you will see a pull down list of several frequency options. In general, the highest possible frequency will provide the best results. Once you change the frequency, do not touch the sensor for approximately 30 seconds. Touch will return when the frequency has been changed. Test to see if you are satisfied.

On a pen controller system, you have the option to change the frequency for both your finger and the pen if you are using Pen/Finger mode.

Testing the Newly Selected Frequency

Any time you adjust the

Touch Screen Frequency

you should test how the touch sensor is working and verify you are satisfied with the operation of the touch sensor.

Test the sensor by touching in several places and sliding your finger around the sensor.The

cursor should hold steady and smooth. If you see erratic or jittery cursor movement, readjust the

Touch Screen Frequency

.

Adjust the frequency until your touch test produces acceptable results. A good test is to go to the Draw program and hold your finger steady on the sensor. If the resulting pattern is a crisp and clear single dot, you should have a good frequency.

It is recommended that you recalibrate the touch sensor after you run the

Touch Screen

Frequency

option.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Input

Available Modes

PC

HDMI

MagicInfo

Source List

MENU → ENTER → → ENTER →

→ , → ENTER

Use to select

PC

,

DVI

or other external input sources connected to the LCD Display. Use to select the screen of your choice.

1.

PC

2.

HDMI

3.

MagicInfo

Note

• You can also select the source by pressing the SOURCE button on your remote.

Edit Name

MENU → ENTER → → → ENTER →

→ , → ENTER

Name the input device connected to the input jacks to make your input source selection easier.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

VCR

,

DVD

,

Cable STB

,

HD STB

,

Satellite STB

,

AV Receiver

,

DVD Receiver

,

Game

,

Camcorder

,

DVD Combo

,

DHR

,

PC

Picture [PC / MagicInfo Mode]

Available Modes

PC

HDMI

MagicInfo

MagicBright

MENU → → ENTER → → ENTER →

→ , → ENTER

MagicBright

is a feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available:

Entertain

,

Internet

,

Text

and

Custom

. Each mode has its own pre-configured brightness value.

(Not available when

Dynamic Contrast

mode is set to

On

.)

1.

Entertain

High brightness

For watching motion pictures such as from a DVD or VCR.

2.

Internet

Medium brightness

For working with a mixture of images such as texts and graphics.

3.

Text

Normal brightness

For documents or works involving heavy text.

4.

Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste.

If this is the case, adjust the brightness and contrast by using the OSD menu.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Custom

Contrast

By using the on-screen menus, the contrast and brightness can be changed to your personal preference.

MENU → → ENTER → → → ENTER →

(Not available when

Dynamic Contrast

mode is set to

On

.)

Note

By adjusting the picture using the

Custom

function,

MagicBright

will change to

Custom

mode.

MENU → → ENTER → → → ENTER → → ENTER→

→ , → ENTER

Adjusts the Contrast.

Brightness

MENU → → ENTER → → → ENTER → → → ENTER →

→ , → ENTER

Adjusts the Brightness.

Sharpness

MENU → → ENTER → → → ENTER → → → → ENTER →

→ , → ENTER

Adjusts the Sharpness.

Color Tone

MENU → → ENTER → → → →ENTER →

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

→ , → ENTER

The color tones can be changed.

(Not available when

Dynamic Contrast

mode is set to

On

.)

1.

Off

2.

Cool

3.

Normal

4.

Warm

5.

Custom

Note

If you set the

Color Tone

to

Cool

,

Normal

,

Warm

, or

Custom

, the

Color Temp

function is disabled.

If you set the

Color Tone

to

Off

, the

Color Control

function is disabled

Color Control

Adjusts individual Red, Green, Blue color balance.

MENU → → ENTER → → → → → ENTER →

(Not available when

Dynamic Contrast

mode is set to

On

.)

Note

If you adjust the picture by using the

Color Control

function,

Color Tone

will turn to the

Custom

mode.

Red

MENU → → ENTER →

→ → → → ENTER → → ENTER

Green

→ , → ENTER

MENU → → ENTER →

→ → → → ENTER → → → ENTER

Blue

→ , → ENTER

MENU → → ENTER →

ENTER →

→ → → → ENTER → → → →

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

→ , → ENTER

Color Temp.

MENU → → ENTER → → → → → ENTER →

→ , → ENTER

Color Temp

is a measure of the 'warmth' of the image colors.

(Not available when

Dynamic Contrast

mode is set to

On

.)

Note

This function is only enabled if the

Color Tone

is set to

Off

.

Image Lock

Image Lock

is used to fine-tune and get the best image by removing noise that creates unstable images with jitters and shakiness. If satisfactory results are not obtained using the

Fine adjustment, use the Coarse adjustment and then use Fine again.

(Available in

PC

mode only)

(Not available when

Dynamic Contrast

mode is set to

On

.)

MENU → → ENTER → → → → → → ENTER →

Coarse

MENU → → ENTER →

→ → → → → ENTER → → ENTER

→ , → ENTER

Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu.

Fine

MENU → → ENTER →

ENTER →

→ → → → → ENTER → → →

→ , → ENTER

Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).

Downloaded From TV-Manual.com Manuals

H-Position

MENU → → ENTER →

→ ENTER →

Adjusting the LCD Display

→ → → → → ENTER → → →

→ , → ENTER

Adjusts the screen location horizontally.

V-Position

MENU → → ENTER →

→ → ENTER →

→ → → → → ENTER → → →

→ , → ENTER

Adjusts the screen location vertically.

Auto Adjustment

MENU → → ENTER → → → → → → → ENTER →

The values of

Fine

,

Coarse

,

Position

are adjusted automatically. By changing the resolution in the control panel, the auto function is performed.

(Available in

PC

mode only)

(Not available when

Dynamic Contrast

mode is set to

On

.)

Note

The direct button on the remote control is the 'AUTO' button.

Signal Balance

This is used to make up for the weak RGB signal transmitted by a long signal cable.

MENU → → ENTER → → → → → → → → ENTER →

(Available in

PC

mode only)

(Not available when

Dynamic Contrast

mode is set to

On

.)

Signal Balance

MENU → → ENTER →

→ ENTER →

→ → → → → → → ENTER →

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

→ , → ENTER

Selects either

On

or

Off

with the signal control.

Signal Control

MENU → → ENTER →

→ ENTER → →

1.

R-Gain

→ → → → → → → ENTER →

MENU → → ENTER →

→ ENTER → →

→ → → → → → → ENTER →

→ ENTER → → ENTER

→ , → ENTER

2.

G-Gain

MENU → → ENTER →

→ ENTER → →

→ → → → → → → ENTER →

→ → ENTER→ → ENTER

→ , → ENTER

3.

B-Gain

MENU → → ENTER →

→ ENTER → →

→ → → → → → → ENTER →

→ → → ENTER→ → ENTER

→ , → ENTER

4.

R-Offset

MENU → → ENTER →

→ ENTER → →

→ → → → → → → ENTER →

→ → → → ENTER→ → ENTER

→ , → ENTER

5.

G-Offset

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

MENU → → ENTER →

→ ENTER → →

→ → → → → → → ENTER →

→ → → → → ENTER→ → ENTER

→ , → ENTER

6.

B-Offset

MENU → → ENTER →

→ ENTER → →

ENTER

→ → → → → → → ENTER →

→ → → → → → ENTER → →

→ , → ENTER

Size

MENU → → ENTER → → → → → → → → → ENTER →

→ , → ENTER

The

Size

can be switched.

(Not available when

Dynamic Contrast

mode is set to

On

.)

1.

16:9

2.

4:3

Dynamic Contrast

MENU → → ENTER → → → → → → → → → → ENTER →

→ , → ENTER

Dynamic Contrast

automatically detects the distribution of the visual signal and adjusts to create an optimum contrast.

Downloaded From TV-Manual.com Manuals

1.

Off

2.

On

Brightness Sensor

MENU → → ENTER →

Adjusting the LCD Display

→ → → → → → → → → → ENTER →

→ , → ENTER

Brightness Sensor

automatically detects distribution of the inputted visual signal and adjusts to create optimum brightness.

1.

Off

2.

On

Picture [ HDMI Mode]

Available Modes

PC

HDMI

MagicInfo

Mode

MENU → → ENTER → → ENTER →

→ , → ENTER

The LCD Display has four automatic picture settings ("

Dynamic

", "

Standard

", "

Movie

" and

"

Custom

") that are preset at the factory.

Dynamic

,

Standard

,

Movie

, or

Custom

can be activated.

(Not available when

Dynamic Contrast

mode is set to

On

.)

1.

Dynamic

2.

Standard

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

3.

Movie

4.

Custom

Custom

By using the on-screen menus, the contrast and brightness can be changed to your personal preference.

Contrast

MENU → → ENTER → → → ENTER →

(Not available when

Dynamic Contrast

mode is set to

On

.)

MENU → → ENTER → → → ENTER → → ENTER→

→ , → ENTER

Adjusts the Contrast.

Brightness

MENU → → ENTER → → → ENTER → → → ENTER →

→ , → ENTER

Adjusts the Brightness.

Sharpness

MENU → → ENTER → → → ENTER → → → → ENTER →

Color

→ , → ENTER

Adjusts the picture Sharpness.

MENU → → ENTER →

→ → ENTER → → → → → ENTER

→ , → ENTER

Adjusts the picture Color.

Downloaded From TV-Manual.com Manuals

Tint

MENU → → ENTER →

Adjusting the LCD Display

→ → ENTER → → → → → → ENTER

→ , → ENTER

Adds a natural tone to the display.

Color Tone

MENU → → ENTER → → → → ENTER →

→ , → ENTER

The color tones can be changed. The individual Color components are also user adjustable.

(Not available when

Dynamic Contrast

mode is set to

On

.)

1.

Off

2.

Cool2

3.

Cool1

4.

Normal

5.

Warm1

6.

Warm2

Note

If you set the

Color Tone

to

Cool2

,

Cool1

,

Normal

,

Warm1

, or

Warm2

, the

Color Temp

function is disabled.

Color Temp.

MENU → → ENTER → → → → → ENTER →

→ , → ENTER

Color temp.

is a measure of the 'warmth' of the image colors.

(Not available when

Dynamic Contrast

mode is set to

On

.)

Downloaded From TV-Manual.com Manuals

Size

Adjusting the LCD Display

Note

This function is only enabled if the

Color Tone

is set to

Off

.

MENU → → ENTER → → → → → → ENTER →

→ , → ENTER

The

Size

can be switched.

1.

16:9

2.

Zoom 1

3.

Zoom 2

4.

4:3

5.

Just Scan

Note

The

Zoom1

,

Zoom2

are unavailable in

HDMI

mode.

Digital NR (Digital Noise Reduction)

MENU → → ENTER → → → → → → → ENTER →

→ , → ENTER

Turns the Digital Noise Reduction feature

Off

/

On

. The Digital Noise Reduction feature allows you to enjoy clearer and crisper images.

1.

Off

2.

On

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Note

Digital NR

function is not available for all resolutions.

Film Mode

MENU → → ENTER → → → → → → → → ENTER →

→ , → ENTER

The

Film Mode

feature offers you a theater-quality viewing experience.

(In

HDMI

mode, this function is available when the input signal is interlaced scan; it is not available in progressive scan.)

1.

Off

2.

On

Dynamic Contrast

MENU → → ENTER → → → → → → → → → ENTER →

→ , → ENTER

Dynamic Contrast

automatically detects the distribution of the visual signal and adjusts to create an optimum contrast.

1.

Off

2.

On

Brightness Sensor

MENU → → ENTER → → → → → → → → → → → ENTER →

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Sound

→ , → ENTER

Brightness Sensor

automatically detects distribution of the inputted visual signal and adjusts to create optimum brightness.

1.

Off

2.

On

Available Modes

PC

HDMI

MagicInfo

Mode

MENU → → → ENTER → → ENTER →

→ , → ENTER

The LCD Display has a built-in high fidelity stereo amplifier.

1.

Standard

Selects

Standard

for the standard factory settings.

2.

Music

Selects

Music

when watching music videos or concerts.

3.

Movie

Selects

Movie

when viewing movies.

4.

Speech

Selects

Speech

when watching a show that is mostly dialog (i.e., news).

5.

Custom

Selects

Custom

if you want to adjust the settings according to your personal preferences.

Custom

The sound settings can be adjusted to suit your personal preferences.

Downloaded From TV-Manual.com Manuals

Bass

Adjusting the LCD Display

MENU → → → ENTER →

Note

→ → ENTER →

• You can hear the sound even when sound value is set to 0.

• If you adjust sound using

Custom

function,

Mode

will turn to

Custom

mode.

MENU → → → ENTER → → → ENTER → →ENTER→

Treble

→ , → ENTER

Emphasizes low frequency audio.

MENU → → → ENTER → → → ENTER → → → ENTER →

Balance

→ , → ENTER

Emphasizes high frequency audio.

MENU → → → ENTER → → → ENTER → → → → ENTER →

→ , → ENTER

Allows you to Adjusts the sound balance between the left and right speakers.

Auto Volume

MENU → → → ENTER → → → → ENTER →

→ , → ENTER

Reduces the difference in volume control between broadcasters.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

1.

Off

2.

On

SRS TS XT

MENU → → → ENTER → → → → → ENTER →

→ , → ENTER

SRS TS XT

is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1.

Off

2.

On

Setup

Available Modes

PC

HDMI

MagicInfo

Language

MENU → → → → ENTER → → ENTER →

→ , → ENTER

You can choose one of 13 languages.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Note

The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.

Time

Selects from one of 4 time settings,

Clock Set

,

Sleep Timer

,

On Timer

, and

Off Timer

.

MENU → → → → ENTER →

Clock Set

→ → ENTER →

MENU → → → → ENTER → → → ENTER → → ENTER→

→ , / , → ENTER

Current Time Setting.

Sleep Timer

MENU → → → → ENTER → → → ENTER → → → ENTER→

→ , → ENTER

Turns the LCD Display off automatically at certain times.

1.

Off

2.

30

3.

60

4.

90

5.

120

6.

150

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

7.

180

On Timer

MENU → → → → ENTER → → → ENTER → → → → ENTER→

→ , / , → ENTER

Turns the LCD Display on automatically at a preset time. Controls the mode and the volume level at the time the LCD Display turns on automatically.

Off Timer

MENU → → → → ENTER →

→ → ENTER → → → → → ENTER

→ , / , → ENTER

Turns the LCD Display off automatically at a preset time.

Menu Transparency

MENU → → → → ENTER → → → → ENTER →

→ , → ENTER

Change the transparency of the background of the OSD.

1.

High

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

2.

Medium

3.

Low

4.

Opaque

Safety Lock

Change PIN

MENU → → → → ENTER →

ENTER→ [

Change PIN

]

→ → → → ENTER → [

Safety Lock

]→

Lock On

→ [0~9]→ [0~9]→ [0~9]→ [0~9]

The password can be changed.

MENU → → → → ENTER →

ENTER→ → ENTER→[Lock On]

→ → → → ENTER → [

Safety Lock

]→

→ [0~9]→ [0~9]→ [0~9]→ [0~9]

Turns Off/On the

Video Wall

function of the selected display Off/On.

Energy Saving

MENU → → → → ENTER → → → → → → ENTER →

→ , → ENTER

This feature adjusts the power consumption of the unit in order to save energy.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

1.

Off

2.

On

HDMI Black Level

MENU → → → → ENTER → → → → → → → ENTER →

→ , → ENTER

When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the screen quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending on the external device connected. In this case, adjust the screen quality of your TV by configuring the

HDMI black level

.

1.

Normal

2.

Low

Video Wall

A

Video Wall

is a set of video screens connected together, so that each screen shows a part of the whole picture or where the same picture is repeated on each screen.

When the

Video Wall

is on, you can adjust the

Video Wall

screen setting.

MENU → → → → ENTER → → → → → → → → ENTER →

Note

When

Video Wall

is running, the

Auto Adjustment

,

Image Lock

, and

Size

functions are not available.

Video Wall

does not operate in

MagicInfo

mode.

Video Wall

MENU → → → → ENTER →

→ ENTER →

→ → → → → → → ENTER →

→ , → ENTER

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Format

Turns Off/On the

Video Wall

function of the selected display Off/On.

1.

Off

2.

On

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → ENTER →

→ , → ENTER

The

Format

can be selected to see a divided screen.

1.

Full

Provides a full screen without any margins.

2.

Natural

Displays a natural image with the original aspect ratio intact.

Horizontal

MENU → → → → ENTER →

→ → → ENTER →

→ → → → → → → ENTER →

Vertical

→ , → ENTER

Sets how many parts the screen should be divided horizontally.

Five adjustment levels: 1, 2, 3, 4, and 5.

MENU → → → → ENTER →

→ → → → ENTER →

→ → → → → → → ENTER →

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

→ , → ENTER

Sets how many parts the screen should be divided vertically.

Five adjustment levels: 1, 2, 3, 4, and 5.

Screen Divider

MENU → → → → ENTER →

→ → → → → ENTER →

→ → → → → → → ENTER →

The screen can be divided into several images. A number of screens can be selected with a different layout when dividing.

• Select a mode in Screen Divider.

• Select a display in Display Selection.

• The selection will be set up by pressing a number in the selected mode.

Safety Screen

The

Safety Screen

function is used to prevent afterimages that may appear when a still picture is displayed on the screen over a long time.

• The

Safety Screen

function scrolls the screen for the specified period of time.

• This function is not available when the power is turned off.

MENU → → → → ENTER → → → → → → → → → ENTER →

Pixel Shift

Pixel Shift

MENU → → → → ENTER →

→ ENTER →

→ → → → → → → → ENTER →

→ ENTER → → , → ENTER

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

To prevent after-images on the screen you can use this function have pixels move on the

LCD in the horizontal or vertical direction.

1.

Off

2.

On

Horizontal Dot

MENU → → → → ENTER →

→ ENTER →

ENTER

→ → → → → → → → ENTER →

→ → ENTER → → , →

Sets how many pixels the screen moves horizontally.

Five adjustment levels: 0, 1, 2, 3, and 4.

Vertical Line

MENU → → → → ENTER →

→ ENTER →

ENTER

→ → → → → → → → ENTER →

→ → → ENTER → → , →

Time

Sets how many pixels the screen moves vertically.

Five adjustment levels: 0, 1, 2, 3, and 4.

MENU → → → → ENTER →

→ ENTER →

→ → → → → → → → ENTER →

→ → → → ENTER → → , → ENTER

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Timer

Timer

Set the time interval for performing the horizontal or vertical movement, respectively.

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → → ENTER →

→ ENTER → → , → ENTER

Mode

You can set the timer for Screen Burn Protection.

If you start the operation to erase any residual image, the operation will be performed for the set period of time and then automatically finish.

1.

Off

2.

On

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → → ENTER →

→ → ENTER → → , → ENTER

You can change the

Safety Screen

Type.

1.

Scroll

2.

Bar

3.

Eraser

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Period

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → → ENTER →

→ → → ENTER → → , → ENTER

Time

Use this function to set the execution period for each mode set in the timer.

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → → ENTER →

→ → → → ENTER → → , → ENTER

Scroll

Within the set period of time specify a time for execution.

Mode

-

Scroll

: 1~5

sec

Mode

-

Bar

,

Eraser

: 10~50

sec

MENU → → → → ENTER →

→ → → ENTER →

→ → → → → → → → ENTER →

This function helps to remove after-images on the screen by moving all the pixels on the LCD according to a pattern.

Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Bar

MENU → → → → ENTER →

→ → → →ENTER →

→ → → → → → → → ENTER →

Eraser

This function prevents after-images on the screen by moving long black and white vertical lines.

MENU → → → → ENTER → → → → → → → → → ENTER →

→ → → → →ENTER →

This function prevents after-images on the screen by moving a rectangular pattern.

Resolution Select

MENU → → → → ENTER →

→ → → → → → → → →ENTER

→ , → ENTER

When the picture is not displayed properly on the screen when setting the graphics card resolution of the computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz or 1366 x 768 @ 60Hz, by using this function(Resolution Select), you can have the picture displayed on the screen in the specified resolution.

Note

Available in

PC

mode only

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

1.

Off

2.

1024 x 768

3.

1280 x 768

4.

1360 x 768

5.

1366 x 768

Note

Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz,

1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz or 1366 x 768 @ 60Hz.

Power On Adjustment

MENU → → → → ENTER →

→ → → → → → → → → → ENTER

→ , → ENTER

Adjusts the Power On time for the screen.

Side Gray

MENU → → → → ENTER →

ENTER →

→ → → → → → → → → → →

→ , → ENTER

Select the brightness of the grey for the screen background.

1.

Off

2.

Light

3.

Dark

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Reset

Reverts the product settings to factory defaults. The Reset function is only available when

PC

/

DVI

is being used.

→ → → → → → → → → → → MENU → → → → ENTER →

→ ENTER →

Image Reset

MENU → → → → ENTER →

→ ENTER → → ENTER →

→ → → → → → → → → → →

→ , → ENTER

Note

Available in

PC

mode only

Note

The Reset function is not available when

Video Wall

is

On

.

Color Reset

MENU → → → → ENTER →

→ ENTER → → → ENTER →

→ → → → → → → → → → →

→ , → ENTER

OSD Rotation

MENU → → → → ENTER →

→ → → ENTER →

→ → → → → → → → → → →

→ , → ENTER

OSD Rotate

1.

Landscape

2.

Portrait

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Lamp Control

MENU → → → → ENTER →

→ → ENTER →

→ → → → → → → → → → →

→ , → ENTER

Adjusts the inverter lamp in order to reduce energy consumption.

Note

Not available when

Dynamic Contrast

mode is set to

On

.

Multi Control

Available Modes

PC

HDMI

Multi Control

MagicInfo

Assigns an individual ID to the SET.

MENU → → → → → ENTER → → ENTER

→ , → [0~9]

ID Setup

Assigns distinctive IDs to the SET.

ID Input

Use to select the transmitter functions of the individual SET. Only a SET where the ID corresponds to the transmitter setting becomes activated.

MagicInfo

Available Modes

PC

HDMI

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

MagicInfo

Note

• The remote control can be used to select

MagicInfo

. However, it is recommended to use a separate USB keyboard to utilize

MagicInfo

fully.

• For

MagicInfo

in Device mode, moving external devices while booting may cause errors.

Set up external devices only if the LCD Display turns on.

• Do not unplug the LAN cable used for the network (ex: video display). Otherwise, the program (MagicInfo) may stop. If you do unplug the cable, restart the system.

• Do not unplug the LAN cable used by an USB device (ex: video display). Otherwise, the program (MagicInfo) may stop.

• To access other sources, press the SOURCE button in

MagicInfo

.

• The preset password for the LCD Display is "000000".

• The server program's Power-On option works only if the LCD Display's power is completely shut off.

Please make sure not to use the Power-On option when the LCD Display is in the process of shutting down since this may cause system errors on the LCD Display.

• In the OSD image of

MagicInfo

, Network mode is the same as Device.

• When using

MagicInfo

with the MagicInfo Server Program: perform Network mode.

• When using

MagicInfo

with the device directly connected to LCD Display : execute Device mode.

• Press ALT + F12 to directly go to the

MagicInfo

Window screen.

• To setup

MagicInfo

on a Windows screen, a keyboard and mouse are required.

• To setup

MagicInfo

on a Windows screen, refer to the MagicInfo Server Help.

It is highly recommended not to turn off the AC power during an operation.

• For pivoted LCD Displays, ticker transparency is not supported.

• For pivoted LCD Displays, a screen resolution of up to 720*480(SD) is supported for movies.

• For drive D:,

EWF

is not applied.

• To save Setup contents that have been changed when

EWF

is in the

Enable

state, you must

Commit

them.

• By selecting

Disable

,

Enable

or

Commit

, the system is restarted.

MagicInfo

1. Select Application - step 1

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

You can select an Application to be executed in your computer when Windows starts.

2. Select TCP/IP - step 2

In step 2 of MagicInfo Setup Wizard, you don’t have to go to Network Setting on the desktop to make your settings for TCP/IP. You just do that at step 2 of

MagicInfo

installation.

3. Select Language - step 3

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

When using multiple languages, you can choose and set a specific language among them.

4. Select Screen Type - step 4

You can select which rotation type will be applied to your device.

5. Setup Information

Downloaded From TV-Manual.com Manuals

Adjusting the LCD Display

Shows the settings that have been selected by the user.

Note

If the

MagicInfo

icon is not displayed on the notification area, double click the

MagicInfo

icon on the window desktop. The icon will appear.

Downloaded From TV-Manual.com Manuals

Troubleshooting

Self-Test Feature

Note

Before you call for assistance, run a self-test to see if the monitor is working correctly. Contact a Service Center for problems that you cannot solve by yourself.

Running a Self-Test

1.

Turn off both your computer and the LCD Display.

2.

Unplug the video cable from the back of the computer.

3.

Turn on the LCD Display.

The figure shown below ("

Check Signal Cable

") appears on a black background when the LCD Display is working normally even though no video signal is detected: While in the Self-Test mode, the LED power indicator remains green and the figure moves around on the screen.

4.

Turn off your LCD Display and reconnect the video cable; and then turn on both your computer and the LCD Display

If your LCD Display screen remains blank after you've run a self-test, check your video controller and computer system. Your LCD Display is functioning properly.

Warning Messages

If you set your monitor to a resolution and refresh rate it does not support, you will see the message below for a minute on your screen. During that minute, you must reset the resolution and refresh rate to a supported refresh rate and resolution. If the refresh rate is more than

85Hz, you will see a black screen because the LCD Display does not support a refresh rate over 85Hz.

Note

Refer to Specifications > Preset Timing Modes for the resolutions and frequencies supported by the LCD Display. Your LCD Display automatically supports the Preset Timing Modes.

Maintenance and Cleaning

1) Maintaining the LCD Display Case

Clean with a soft cloth after disconnecting the power cord.

Downloaded From TV-Manual.com Manuals

Troubleshooting

• Do not use benzene, thinner or other flammable substances.

2) Maintaining the Flat Panel Display Screen.

Clean with a soft cloth (cotton flannel).

• Never use acetone, benzene or thinner.

(They may cause flaws or deformation of the screen surface.)

• The user is responsible for any damage caused by using these substances.

Symptoms and Recommended Actions

Note

A LCD Display recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the LCD Display to become blank, have poor coloring, become noisy, etc. If you are having one of thes problems, perform the following checks on your computer.

1.

Check if the power cord and the video cables are properly connected to the computer.

2.

Check if the computer beeps more than 3 times when booting. If it does, it may need service.

3.

If you installed a new video card or if you assembled the PC, check if you installed the video adaptor driver.

4.

Check if the scanning ratio of the video screen is set to between 50 Hz ~ 85 Hz.

Important: Do not exceed 60Hz when using the maximum resolution.

5.

If you have problems in installing the video adaptor driver, boot the computer in Safe

Mode, remove the Display Adaptor in the "Control Panel −> System −> Device Administrator" and then reboot the computer to reinstall the video adaptor driver.

Check List

Note

• The following sections lists possible problems and their solutions. Before calling for assistance, check the information in this section to see if you can remedy any problems for yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

• For more network-related information, refer to the MagicInfo Troubleshooting section.

Problems Related to the Installation (PC Mode)

Note

Problems related to the LCD Display installation and their solutions are below.

Q: The LCD Display screen flickers.

Downloaded From TV-Manual.com Manuals

Troubleshooting

A: Check if the signal cable between the computer and the LCD Display is securely connected.

(Refer to Connecting a Computer)

Problems Related to the Screen

Note

Problems related to the LCD Display screen and their solutions are listed below.

Q: The screen is blank and the power indicator is off.

A: Ensure that the power cord is firmly connected and the LCD Display is on.

(Refer to Connecting a Computer)

Q: "

Check Signal Cable

" message.

A: Ensure that the signal cable is firmly connected to the PC or video sources.

(Refer to Connecting a Computer)

A: Ensure that the PC or video sources are turned on.

Q: "

Not Optimum Mode

" message.

A: Check the maximum resolution and the frequency of the video adaptor.

A: Compare these values with the data in the Preset Timing Modes Chart.

Q: The picture rolls vertically.

A: Check if the signal cable is securely connected. Re-connect it, if necessary.

(Refer to Connecting a Computer)

Q: The image is not clear; picture is blurred.

A: Run Frequency

Coarse

and

Fine

tuning.

A: Turn on again after removing all accessories (video extension cable, etc.)

A: Set the resolution and frequency to the recommended ranges.

Q: The picture image is unstable and shakes.

A: Check if the resolution and frequency set for the computer video card falls in the range supported by the LCD Display. If not, reset them referring to the current Information under the LCD Display menu and Preset Timing Modes

Q: Ghost images appear in the picture.

A: Check if the resolution and frequency set for the computer video card falls in the range supported by the LCD Display. The optimum resolution and refresh rate for this monitor is listed in the Specifications section under General Specifications. Other supported resolutions and refresh rates are listed in the Preset Timing Modes table also in the

Specifications section.

Q: The image is too light or too dark.

A: Adjust the

brightness

and

contrast

.

Downloaded From TV-Manual.com Manuals

Troubleshooting

(Refer to the

Brightness

,

Contrast

)

Q: The screen color is inconsistent.

A: Adjust color using Color under

Custom

in the Picture OSD menu.

Q: The color image is distorted by dark shadows.

A: Adjust color using

Custom

under OSD Color Adjustment menu.

Q: The color white is poor.

A: Adjust the color using

Color

under

Custom

in the


OSD menu.

Q: The Power Indicator blinks.

A: The LCD Display is currently saving the changes made in the settings to the OSD memory.

Q: The screen is blank and the power indicator light blinks every 0.5 or 1 seconds.

A: The LCD Display is using its power management system. Press any key on the keyboard.

Q: The screen is blank and it is blinking.

A: If you see the "

TEST GOOD

" message on the screen when you pressing the MENU button, check the cable connection between the LCD Display and the computer to ensure that the connector is properly connected.

Problems Related to Audio

Note

Problems related to audio signals and their solutions are listed below.

Q: No sound.

A: Ensure that the audio cable is firmly connected to both the audio-in port on your LCD

Display and the audio-out port on your sound card.

(Refer to Connecting a Computer)

A: Also, check the volume level.

Q: The sound level is too low.

A: Check the volume level.

A: Also, if the volume is still too low after turning the control to its maximum, check the volume control on the computer sound card or software program.

Q: The sound is too high or too low.

A: Adjust the

Treble

and

Bass

to the appropriate levels.

Problems Related to the Remote Control

Note

Problems related to the remote control and their solutions are listed below.

Q: The remote control buttons do not respond.

Downloaded From TV-Manual.com Manuals

Troubleshooting

A: Check if the batteries are empty.

A: Check if the power is on.

A: Check if the power cord is securely connected.

A: Check if a special fluorescent or neon lamp is on in the vicinity.

Q & A

Q: How can I change the frequency?

A: Windows XP:

Click Start > Settings > Control Panel > Appearance and Themes > Display > Settings

> Advanced > Monitor Tab. Then, select the refresh rate frequency. The optimum refresh rate is 60 Hz..

A: Windows ME./2000:

Click Control Panel > Display > Settings > Advance > Monitor Tab. Then, select the refresh rate frequency. The optimum refresh rate is 60 Hz.

Q: How can I adjust the resolution?

A: Windows XP:

Set the resolution in the Control Panel→ Appearance and Themes → Display→ Settings.

A: Windows ME/2000:

Set the resolution in the Control Panel→ Display→ Settings.

* Contact the video card manufacturer for details.

Q: How can I set the Power Saving function?

A: Windows XP:

Click Start > Settings > Control Panel → Appearance and Themes → Display → Screen

Saver.

Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer

Manual).

A: Windows ME/2000:

Click Start > Settings > Control Panel → Display → Screen Saver.

Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer

Manual).

Q: How can I clean the outer case/LCD Panel?

A: Disconnect the power cord, and then clean the LCD Display with a soft cloth moistened with a small amount of an LCD screen cleaning solution or plain water.

Do not leave any detergent or scratches on the case. Do not let any water enter the

LCD Display. Do not spray any liquid onto the LCD display. Spray on the cloth only.

Q: How can I play the video?

Downloaded From TV-Manual.com Manuals

Troubleshooting

A: The video supports the MPEG1 and WMV codecs only. Install the corresponding codec to play the video. Note that some of the codecs can be incompatible.

Note

Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

Downloaded From TV-Manual.com Manuals

Specifications

General

General

Model Name SyncMaster 230TSN, 230MXN

LCD Panel

Size

Display area

Pixel Pitch

Synchronization

Horizontal

Vertical

Display Color

16.7 M

23 inches (58 cm)

509.76 mm (H) x 286.74 mm (V)

0.2655 mm (H) x 0.2655 mm (V)

31 ~ 81 kHz

56 ~ 75 Hz

Synchronization

Optimum resolution 1920 x 1080 @ 60 Hz

Maximum resolution 1920 x 1080 @ 60 Hz

Input Signal, Terminated

1 RGB Analog, HDMI

0.7 Vp-p ±5 %

Separate H/V sync, Composite, SOG

TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)

Maximum Pixel Clock

164MHz (Analog,Digital)

Power Supply

This product supports 100 – 240 V.

Since the standard voltage may differ from country to country, please check the label on the back of the product.

Less than 30Ap-p at AC 120V or 50Ap-p at AC 220V

Signal Connectors

D-sub, HDMI, RS232C In, PC Audio(Stereo) In, Audio Out, LAN, USB(4port), VGA

OUT(Network)

Dimensions (W x H x D) / Weight

SyncMaster 230TSn 557.5 x 339.0 x 79.2 mm / 21.9 x 13.3 x 3.1 inches / 8.35

kg / 18.4 lb

Downloaded From TV-Manual.com Manuals

Specifications

Dimensions (W x H x D) / Weight

SyncMaster 230MXn 557.5 x 339.0 x 73.9 mm / 21.9 x 13.3 x 2.9 inches / 7 kg /

15.4 lb

VESA Mounting Interface

100 x 100mm

Environmental con- siderations

Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Storage

Humidity : 10 % ~ 80 %, non-condensing

Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Humidity : 5 % ~ 95 %, non-condensing

Plug and Play Capability

This LCD Display can be installed on any Plug & Play compatible system. The interaction of the LCD Display and the computer systems will provide the best operating conditions and LCD Display settings. In most cases, the LCD Display installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT-LCD panels manufactured using advanced semiconductor technology with a precision of 1ppm (one part per million) and above are used for this product.

Sometimes, pixels of RED, GREEN, BLUE and WHITE color appear to be bright or some black pixels may be seen. This does not indicated bad quality and you can use the monitor without any problems.

The number of TFT-LCD sub pixels contained in this product are 6,220,800.

Note

Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA only)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799

PowerSaver

This LCD Display has a built-in power management system called PowerSaver. This system saves energy by switching your LCD Display to low-power mode when it has not been used for a certain amount of time. The LCD Display automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your LCD Display OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

Downloaded From TV-Manual.com Manuals

Specifications

State

Power Indicator

Power Consumption

Normal Operation

On

80 watts

Power saving mode

Blinking

5 watts

Power off

Off

0 watts

Preset Timing Modes

If you select one of the standard Display Modes listed below (for example, 800x600 or

1360x768), your monitor will automatically adjust your screen to the correct Horizontal and

Vertical frequency. However, if you attempt to use a non-standard Display Mode, the screen may go blank even though the power LED indicates the monitor is on. Note that the optimum and recommended Display Mode for this monitor is 1920x1080 with a refresh rate of 60 Hz.

If you select a Display Mode of 1920x1080, your monitor will automatically adjust your screen to the correct Horizontal and Vertical frequency.

Display Mode

IBM, 640 x 350

IBM, 720 x 400

MAC, 640 x 480

MAC, 832 x 624

VESA, 640 x 480

VESA, 640 x 480

VESA, 640 x 480

VESA, 800 x 600

VESA, 800 x 600

VESA, 800 x 600

VESA, 800 x 600

VESA, 1024 x 768

VESA, 1024 x 768

VESA, 1152 x 864

VESA, 1280 x 800

VESA, 1280 x 800

VESA, 1280 x 960

VESA, 1280 x 1024

VESA,1440 x 900

VESA,1440 x 900

VESA,1600 x 1200

VESA,1680 x 1050

VESA,1920 x 1080

Vertical Frequency (Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

60.317

72.188

75.000

60.004

70.069

75.000

59.810

74.934

70.086

70.087

66.667

74.551

59.940

72.809

75.000

56.250

60.000

60.020

59.887

74.984

60.000

59.954

60.000

Horizontal

Frequency

(kHz)

31.469

31.469

35.000

49.726

31.469

37.861

37.500

35.156

37.879

48.077

46.875

48.363

56.476

67.500

49.702

62.795

60.000

63.981

55.935

70.635

75.000

65.290

67.500

25.175

28.322

30.240

57.284

25.175

31.500

31.500

36.000

40.000

50.000

49.500

65.000

75.000

108.000

83.500

106.500

108.000

108.000

106.500

136.750

162.000

146.250

148.500

-/-

+/+

-/+

-/+

+/+

+/+

+/+

-/-

-/-

-/-

-/-

+/+

+/-

-/+

-/-

-/-

+/+

+/+

-/+

-/+

+/+

-/+

+/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the

Horizontal Cycle and the inverse number of the Hor-

Downloaded From TV-Manual.com Manuals

Downloaded From TV-Manual.com Manuals

Specifications izontal Cycle is called the Horizontal Frequency.

Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called the Vertical Frequency or Refresh Rate. Unit:

Hz

Information

For Better Display

For the best picture quality, adjust the computer resolution and screen injection rate (refresh rate) on the computer to the resolution and refresh rate listed below..

• Resolution: 1920 X 1080

• Vertical frequency (refresh rate): 60 Hz

TFT-LCD panels manufactured using advanced semiconductor technology with a precision of 1ppm (one part per million) and above are used for this product.

Sometimes, the pixels of RED, GREEN, BLUE and WHITE color seem to be bright or some black pixels may be seen. This does not indicate bad quality and you can use the monitor without any problems.

• The number of TFT-LCD sub pixels contained in this product is 6,220,800.

To clean the monitor and the panel outside, apply the recommended small amount of cleaner to a clean, soft cloth and then rub softly, especially when cleaning the LCD area. Using excessive force can permanently damage the screen.

If you are not satisfied with the picture quality, you can get a better quality picture by using the Auto Adjustment function in the OSD Menu. If there's still noise after the automatic adjustment, use the Fine/Coarse adjustment functions. Note that the Auto Adjustment functon works in Analog mode only.

When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear. To prevent this, change the mode to energy save or set up a screensaver that displays a moving the picture when you need to be away from the monitor for an extended period of time.

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time.

This guide is to demonstrate correct usage of LCD products in order to protect them from

Image retention.

Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

What is Image retention ?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal.

This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD, are subject to image retention. This is not a product defect.

Downloaded From TV-Manual.com Manuals

Information

Please follow the suggestions below to protect your LCD from image retention.

Ex)

Power Off, Screen Saver, or Power Save Mode

• Turn the power off when using a stationary pattern.

• Turn the power off for 4 hours after 20 hours in use

• Turn the power off for 2 hours after 12 hours in use

• Use a Screen saver if possible

• Screen saver in one color or a moving image is recommended.

• Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

Avoid using a combination of characters and background color with large difference in luminance.

Avoid using Grey colors, which can cause Image retention easily.

• Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

• Recommended settings: Bright colors with little difference in luminance

• Change the characters color and background color every 30 minutes

Ex)

Downloaded From TV-Manual.com Manuals

Information

• Every 30 minutes, change the characters with movement.

Ex)

The best way to protect your monitor from Image retention is to set your PC or

System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the

LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal

(LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed.

To prevent this, the accumulated voltage difference must be decreased.

Downloaded From TV-Manual.com Manuals

Information

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Downloaded From TV-Manual.com Manuals

Appendix

Contact SAMSUNG WORLDWIDE

Note

If you have any questions or comments relating to Samsung products, please contact the

SAMSUNG customer care center.

CANADA

MEXICO

U.S.A

North America

1-800-SAMSUNG (726-7864) www.samsung.com

01-800-SAMSUNG

(726-7864) www.samsung.com

1-800-SAMSUNG(726-7864) www.samsung.com

ARGENTINA

BRAZIL

CHILE

COLOMBIA

COSTA RICA

DOMINICA

ECUADOR

EL SALVADOR

Latin America

0800-333-3733 http://www.samsung.com

0800-124-421, 4004-0000 http://www.samsung.com

800-SAMSUNG (726-7864) http://www.samsung.com

01-8000112112 http://www.samsung.com

0-800-507-7267

1-800-751-2676

1-800-10-7267

800-6225 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

GUATEMALA

HONDURAS

JAMAICA

NICARAGUA

1-800-299-0013

800-27919267

1-800-234-7267

00-1800-5077267 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

PANAMA

PERU

800-7267

0-800-777-08 http://www.samsung.com

http://www.samsung.com

PUERTO RICO 1-800-682-3180 http://www.samsung.com

TRINIDAD & TO-

BAGO

1-800-SAMSUNG (726-7864) http://www.samsung.com

VENEZUELA 0-800-100-5303 http://www.samsung.com

ALBANIA

AUSTRIA

BELGIUM

BOSNIA

BULGARIA

CROATIA

Europe

42 27 5755 -

0810 - SAMSUNG (7267864,

€ 0.07/min) http://www.samsung.com

02-201-24-18 http://www.samsung.com/be

(Dutch) http://www.samsung.com/ be_fr (French)

05 133 1999

07001 33 11

http://www.samsung.com

062 SAMSUNG (062 726

7864) http://www.samsung.com

Downloaded From TV-Manual.com Manuals

CZECH

Appendix

800 -

(800-726786)

Europe

SAMSUNG http://www.samsung.com

DENMARK

FINLAND

FRANCE

GERMANY

70 70 19 70

030 - 6227 515 http://www.samsung.com

http://www.samsung.com

01 48 63 00 00 http://www.samsung.com

01805 - SAMSUNG

(726-7864, € 0,14/Min) http://www.samsung.com

GREECE

HUNGARY

ITALIA

KOSOVO

LUXEMBURG

MACEDONIA

NORWAY

POLAND

2106293100 http://www.samsung.com

06-80-SAMSUNG (726-7864) http://www.samsung.com

800-SAMSUNG (726-7864) http://www.samsung.com

+381 0113216899 -

261 03 710

023 207 777

MONTENEGRO 020 405 888

NETHERLANDS 0900-SAMSUNG

(0900-7267864) ( € 0,10/Min)

815-56 480

0 801 1SAMSUNG (172678)

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

PORTUGAL

022-607-93-33

80820

(7267864)

- SAMSUNG http://www.samsung.com

RUMANIA http://www.samsung.com

SERBIA

SLOVAKIA

0700 SAMSUNG (0700 726

7864) http://www.samsung.com

0800 - SAMSUNG(0800-726

786) http://www.samsung.com/sk

SPAIN 902 - 1 - SAMSUNG (902 172

678) http://www.samsung.com

SWEDEN

SWITZERLAND

0771 726 7864 (SAMSUNG) http://www.samsung.com

0848 - SAMSUNG (7267864,

CHF 0.08/min) http://www.samsung.com/ch http://www.samsung.com/ ch_fr/(French)

U.K

EIRE

0330 SAMSUNG (7267864) http://www.samsung.com

0818 717100 http://www.samsung.com

LITHUANIA

LATVIA

ESTONIA

TURKEY

8-800-77777

8000-7267

800-7267

444 77 11 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

RUSSIA 8-800-555-55-55

CIS

http://www.samsung.com

Downloaded From TV-Manual.com Manuals

Appendix

GEORGIA

ARMENIA

AZERBAIJAN

KAZAKHSTAN

UZBEKISTAN

KYRGYZSTAN

TADJIKISTAN

UKRAINE

BELARUS

MOLDOVA

CIS

8-800-555-555

0-800-05-555

088-55-55-555

8-10-800-500-55-500 (GSM:

7799)

8-10-800-500-55-500

00-800-500-55-500

8-10-800-500-55-500

0-800-502-000

-

-

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com/ua

810-800-500-55-500

00-800-500-55-500 -

http://www.samsung.com/ ua_ru

1300 362 603

Asia Pacific

AUSTRALIA

NEW ZEALAND 0800 SAMSUNG (0800 726

786)

CHINA

HONG KONG

400-810-5858

(852) 3698 - 4698 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com/hk

INDIA

INDONESIA

JAPAN

MALAYSIA

PHILIPPINES http://www.samsung.com/ hk_en/

3030 8282, 1800 3000 8282 http://www.samsung.com

0800-112-8888,

021-5699-7777 http://www.samsung.com

0120-327-527

1800-88-9999

1-800-10-SAMSUNG

(726-7864) http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

SINGAPORE

THAILAND

TAIWAN

VIETNAM

1-800-3-SAMSUNG

(726-7864)

1-800-8-SAMSUNG

(726-7864)

02-5805777

1800-SAMSUNG (726-7864) http://www.samsung.com

1800-29-3232, 02-689-3232 http://www.samsung.com

0800-329-999 http://www.samsung.com

1 800 588 889 http://www.samsung.com

IRAN

OMAN

KUWAIT

Middle East

021-8255 http://www.samsung.com

800-SAMSUNG (726-7864) http://www.samsung.com

183-2255 http://www.samsung.com

Downloaded From TV-Manual.com Manuals

Appendix

BAHRAIN

EGYPT

JORDAN

MOROCCO

SAUDI ARABIA

U.A.E

8000-4726

Middle East

08000-726786

800-22273

080 100 2255 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

9200-21230 http://www.samsung.com

800-SAMSUNG (726-7864) http://www.samsung.com

NIGERIA

Africa

0800 - SAMSUNG (726-7864) http://www.samsung.com

SOUTH AFRICA 0860 - SAMSUNG (726-7864) http://www.samsung.com

Terms

Dot Pitch

Vertical Frequency

Horizontal Frequency

Interlace and Non-Interlace

Methods

Plug & Play

Resolution

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot

Pitch'. Unit: mm

The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called the Vertical

Frequency or Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal

Cycle. The inverse number of the Horizontal Cycle is called

Horizontal Frequency. Unit: kHz

Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.

This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.

The number of horizontal and vertical dots used to compose the screen image is called the 'resolution'. This number shows the accuracy of the display. A high resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1920 x 1080, this means the screen is composed of 1920 horizontal dots (horizontal resolution) and 1080 vertical lines (vertical resolution).

Downloaded From TV-Manual.com Manuals

Appendix

SRS TS XT This feature outputs sonorous and vivid 3D sound as for 5.1

channel speaker sound but through a 2-channel speaker. It has a good effect when stereo signals are input.

Correct Disposal

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Note

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Downloaded From TV-Manual.com Manuals

Appendix

Authority

Information in this document is subject to change without notice.

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR

® name and logo are registered trademarks of the U.S. Environmental Protection Agency

(EPA). All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.

Downloaded From TV-Manual.com Manuals
