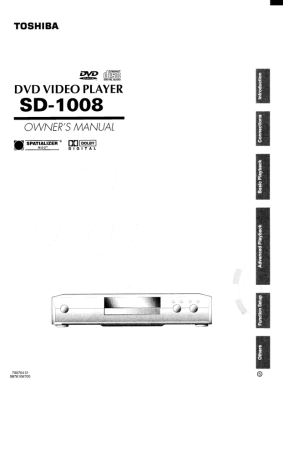

 TOSHIBA
DVD miSE
DIGITAL AUDIO
Tm
DVD VIDEO PLAYER
SD-1008
OWNER'S MANUAL
40) SPATIALIZER * [[][powsY]
NZ N-2-2™ DIGITAL
79070412
9876106700
SAFETY PRECAUTIONS —
RISK OF ELECTRIC SHOCK
DO NOT OPEN A
AVIS RISQUE DE CHOC ELECTRIQUE NE
PAS OUVRIR
WARNING: — TO REDUCE THE RISK OF | The exclamation point within an equilateral triangle is intended to alert the user
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
ELECTRIC SHOCK, DO NOT REMOVE . . ; р
to the presence of important operating and maintenance (servicing) instruc-
COVER (OR BACK). NO USERSERVICEABLE
PARTS INSIDE. REFER SERVICING TO tions in the literature accompanying the appliance.
QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOUD.
CAUTION: This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this owner's manual carefully and retain for future
reference. Should the unit require maintenance, contact an authorized service location - see service
procedure.
Use of controls, adjustments or the performance of procedures other than those specified may result herein
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM.
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties
authorized by Toshiba, could void the user's authority to operate the equipment.
In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.
Model No. Serial No.
Retain this information for future reference.
Location of the required label
PRODUCT IS CERTIFIED BY THE MANUFACTURER TO
COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT THE DATE OF MANUFACTURE.
| MANUFACTURED
TOSHIBA AMERICA CONSUMER PRODUCTS, INC.
82 TOTOWA RD., WAYNE, NJ 07470, U.S.A
or
PRODUCT IS CERTIFIED BY THE MANUFACTURER TO
COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT THE DATE OF MANUFACTURE.
MANUFACTURED |
TOSHIBA OF CANADA,LTD.
191 MCNABB ST., MARKHAM, ONTARIO,
L3R 8H2, CANADA
MPORTANT SAFETY IN
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND
THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard.
The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing.
This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL ONLY.
1.
Read owners manual CNN
After unpacking this product, read CB с
the owner's manual carefully, and NT >
follow all the operating and other
instructions. =
. Power Sources
This product should be operated
only from the type of power source
indicated on the marking label. If
you are not sure of the type of
power supply to your home, con-
sult your product dealer or local
power company. For products in-
tended to operate from battery power, or other sources,
refer to the operating instructions.
3. Grounding or Polarization
This product may be equipped
with a polarized alternating cur-
rent line plug (a plug having one
blade wider than the other). This
plug will fit into the power outlet
only one way. This is a safety
feature. If you are unable to in-
sert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
. Ventilation
Slots and openings in the cabinet
are provided for ventilation and
to ensure reliable operation of
the product and to protect it from
overheating, and these openings
must not be blocked or covered.
The openings should never be
blocked by placing the product on a bed, sofa, rug or other
similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer's in-
structions have been adhered to.
2 Im
5. Heat
The product should be situated
away from heat sources such as
radiators, heat registers, stoves,
or other products (including am-
plifiers) that produce heat.
6. Water and Moisture
Do not use this product near
water - for example, near a bath
tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement;
or near a swimming pool and the
like.
7. Cleaning
Unplug this product from the wall
outlet before cleaning. Do not
use liquid cleaners or aerosol
cleaners. Use a damp cloth for
cleaning.
8. Power-Cord Protection
Power-supply cords should be
routed so that they are not likely
to be walked on or pinched by
items placed upon or against
them, paying particular attention
to cords at plugs, convenience
receptacles, andthe pointwhere
they exit from the product.
9. Overloading
Do not overload wall outlets;
extension cords, or integral con-
venience receptacles as this can
result in a risk of fire or electric
shock.
10.Lightning
For added protection for this
product during storm, or when it
is left unattended and unused
for long periods of time, unplug
it from the wall outlet. This will
prevent damage to the product
due to lightning and power-line
surges.
11.
12.
13.
14.
15.
Object and Liquid Entry
Never push objects of any kind
into this product through openings
as they may touch dangerous
voltage points or short-out parts
that could result in a fire or electric
shock. Never spill liquid of any
kind on the product.
Attachments
IMPORTANT SAFETY INSTRUCTIONS
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
Accessories
Do not place this product on an
unstable cart, stand, tripod,
bracket, or table. The product
may fall, causing serious injury
to a child or adult, and serious
damage to the product. Use only
with a cart, stand, tripod, bracket,
or table recommended by the
manufacturer, or sold with the
AI
331254
product. Any mounting of the product should follow the
manufacturer's instructions, and should use a mounting
accessory recommended by the manufacturer.
A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
Disc Tray
Keep your fingers well clear of
the disc tray as it is closing.
Neglecting to may cause serious
personal injury.
Burden
Do not place a heavy object on or
step on the product. The object
may fall, causing serious personal
injury and serious damage to the
product.
16.Headphones
When you use headphones,
keep the volume at a moderate
level. If you use the headphones
continuously with high volume
sound, it may cause hearing
damage.
.Disc
Do not use a cracked, deformed, = A da
1
№
or repaired disc. These discs fées > p y
are easily broken and may cause {| (J) A CN uu
serious personal injury and > O
product malfunction. x E),
18.Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the
product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its normal
operation.
e) Ifthe product has been dropped or damaged in any way.
When the product exhibits a distinct change in per-
formance - this indicates a need for service.
—
——
19. Servicing
Do not attempt to service this
product yourself as opening or
removing covers may expose
you to dangerous voltage or other
hazards. Refer all servicing to
qualified service personnel.
. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may resultin fire,
electric shock, or other hazards.
21.Safety Check
Upon completion of any service
orrepairs to this product, askthe
service technician to perform
safety checks to determine that
the productis in proper operating
condition.
Introduction )
Precautions
Notes on Handling
m When shipping the DVD video player, the original shipping
carton and packing materials come in handy. For maximum
protection, repack the unit as it was originally packed at the
factory.
Do not use volatile liquids, such as insect spray, near the
DVD video player. Do not leave rubber or plastic products
in contact with the DVD video player for a long time. They
will leave marks on the finish.
The top and rear panels of the DVD video player may
become warm after a long period of use. This is not a
malfunction.
When the DVD video player is not in use, be sure to
remove the disc and turn off the power.
If you do not use the DVD video player for a long period,
the unit may not function properly in the future. Turn on and
use the DVD video player occasionally.
Notes on Locating
E When you place this DVD video player near a TV, radio, or
VCR, the playback picture may become poor and the
sound may be distorted. In this case, place the DVD video
player away from the TV, radio, or VCR.
Notes on Cleaning
Use a soft, dry cloth for cleaning.
e For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the DVD video
player.
O If you use a chemical saturated cloth to clean the unit,
follow that product's instructions.
To Obtain a Clear Picture
The DVD video player is a high technology, precision device. If
the optical pick-up lens and disc drive parts are dirty or worn
down, the picture quality becomes poor. To obtain a clear
picture, we recommend regular inspection and maintenance
(cleaning or parts replacement) every 1,000 hours of use
depending on the operating environment. For details, contact
your nearest dealer.
Notes on Moisture Condensation
Moisture condensation damages the DVD video
player. Please read the following carefully.
Moisture condensation occurs, for example, when you pour a
cold drink into a glass on a warm day. Drops of water form on
the outside of the glass. In the same way, moisture may
condense on the optical pick-up lens inside this unit, one of
the most crucial internal parts of the DVD video player.
examples of moisture
condensation /
H Moisture condensation occurs during the
following cases.
@ When you bring the DVD video player directly from a cold
place to a warm place.
@ When you use the DVD video player in a room where you
just turned on the heater, or a place where the cold wind
from the air conditioner directly hits the unit.
O In summer, when you use the DVD video player in a hot
and humid place just after you move the unit from an air
conditioned room.
@ When you use the DVD video player in a humid place.
+
© ts too
— 7 warm!
© — nes
POSE mi
zZ |
-
H Do not use the DVD video player when moisture
condensation may occur.
If you use the DVD video player in such a situation, it may
damage discs and internal parts. Remove the disc, connect
the power cord of the DVD video player to the wall outlet,
turn on the DVD video player, and leave it for two or three
hours. After two or three hours, the DVD video player will
have warmed up and evaporated any moisture. Keep the
DVD video player connected to the wall outlet and moisture
condensation will seldom occur.
Introduction )
Table of Contents
HB IMPORTANT SAFETY
INSTRUCTIONS
Ш Precautions
Basic Playback
E Playing a Disc
Basic Playback
Playing at x2, x8 or x30 the Normal Speed
Playing Frame by Frame
Playing in Slow-Motion
Resuming Playback from the Same Location
Repeating a Title, Chapter, or Track
E Identification of Controls
Front Panel / Rear Panel / DVD display
Remote Control
Preparing the Remote Control
Operating with the Remote Control
Enjoying Dolby Digital (AC-3) Sound
Enjoying Dolby Pro Logic Surround Sound
Enjoying 2 Channel Digital Stereo Sound
Locating a Title Using the Title Menu
Locating a Title
Locating a Specific Chapter or Track Directly
Locating a Specific Chapter or Track
Locating a Specific Location by Entering the Time
Changing the Camera Angle
Repeating a Specific Segment M Selecting a Language ............... ee... 26
E Playing in a Favorite Order ..................... 22 Selecting a Playback Audio Setting
Setting Titles, Chapters, or Tracks in a Favorite M Selecting Subtitles 27
Order Turning Subtitles on or off
H Playing In Random Order anacenveramenmenmamenn Den 23 Selecting a Subtitle Language
Playing Titles in Random Order ME Using the On-Screen Display .................. 28
Playing Chapter or Tracks in Random Order Checking the Operational Status
Ш Zooming a Picture/ Checking the Remaining Time and Setting Status
Playing 3-D (N-2-2) Sound..................... 24
Zooming a Picture
Playing 3-D (N-2-2) Sound
Function Setup
EM Customizing the Function Settings ....29-36 E Setting the Parental Lock .................. 37, 38
Displaying the SET UP MENU Screen Setting the Parental Lock
Setting the Audio EM Table of Languages... 39
Setting the Operation Modes
Setting the Displays
EH Notes on DISCS..……....….......…rererrenserreneenes 40 EH LIMITED WARRANTY
Notes on Region Numbers DVD VIDEO PLAYER... 43
HB Before Calling Service Personnel ........... 41
E Specifications .....................—..eeeeeeeee 42
Introduction )
See the page in [> for details.
Front Panel / Rear Panel / DVD Display
Identification of Controls
POWER indicator 115)
DVD display
—— SKIP buttons
STOP button
PAUSE button
HEE gr prin HE
PLAY button (15)
— OPEN/CLOSE button 15)
- S VIDEO OUT jack [11) [12)
— VIDEO OUT jack (11) [12)
AJENO JT
Corman core
ANALOG AUDIO OUT (UR) jacks 11) [12) —
BITSTREAM/PCM AUDIO OUT jack 13) —
Power cord
Power plug
Operating status indicator
Title number indicator —
H Pressing of the FL DIMMER button on the
remote control turns the DVD display on or off.
—— Repeat playback mode indicators
FL DIMMER
С)
On -«—» Off
\ Audio CD indicator
(MEMORY indicator
ное еее ее Па ео cl [AB MEMORY of
IL TINE LA LI PoE tet al ..
CZ CHE OO 106 100-100 Zt) |ALL| RANDOM ==
Chapter/track number indicator
Ц
DVD indicator
Total playing time/remaining time/elapsed time indicators
H The indicators vary depending on the kinds of discs you play.
DVD Video disc
When closing the disc tray:
Example
THLE
Ч
||
En
TL
Total number of titles
Audio CD
|
RANDOM indicator
* During playback:
Example
Te СНК |»
| E
Playing chapter 3 — E
in title 2
?- 30000002,
т
lapsed time of
the current title
Some DVD video discs may not display the chapter
numbers or elapsed time.
Hl Other indicators
o
RANDOM
When playing back the
same title, chapter or A-B
track repeatedly. 21)
When playback is
paused. MEMORY
During random
playback. [23
* When closing the disc tray:
Example
CHESTRK co TOTAL
e 46:30
——
Total number of Total playing time of
tracks the disc
* During playback:
Example
CHPITRK y» CD
8, ODE,
TT
When playing back a
specific segment
repeatedly. (A-B repeat)
21)
During memory
playback. 22>
Playing track 6
Elapsed time of
the current track
oO
ALL
&
When playing back the
entire disc repeatedly.
21
When the camera angle
can be changed. [25
Introduction )
Identification of Controls (continued)
The instructions in this manual describe the functions on the remote control. See the page in |) for details.
Remote Control
pupae II
OPEN/CLOSE button [15 } eu TT POWER button 15)
SETUP, TV/VIDEO button — ape OM DISPLAY button
SETUP 3D DISPLAY
TITLE button TVMIDEO \
19) ПЕ + ve 3D button
MENU button*
Direction/CH (channel)/VOL (volume)
buttons 10) 10>|29) е(<_
9
— ENTER, TV button
RETURN button (32) O ©. AUDIO button
ANGLE button 25 > ANGLE ~~ SUBTITLE AUDIO
9 ©) © rm SKIP buttons
BT |
SUBTITLE button 27) REV ED FWD (fast forward) button 17)
<a ||| << >>; [>
REV (fast reverse) button 17) PAUSE/STEP PLAY SLOW STOP STOP button
PAUSE/STEP button 17) J — SLOW button
Te CR © PLAY button 15)
FL DIMMER button
RANDOM button [23
=a
| CLEAR button 21)
© Y
REPEAT button [21) - A-B APT button (21)
Number buttons N me J в T button
ZOOM button 24)
MEMORY button [22)
* MENU button
Use the MENU button to display
the menu screen included on
many DVD video discs. To operate
a menu screen, follow the
instructions in “Locating a Title
Using the Title Menu” |
Preparing the Remote Control Operating with the Remote Control
Insert the batteries into the remote control so you can use it to This section shows you how to use the remote control.
operate the DVD video player.
Open the cover. Point the remote control at the
remote sensor and press the
buttons.
co o € C
—_— жоНИ ии!
М М
30° | 30°
Within about 7 m
Sa
oOo
Distance: About 7 m from the front of the
remote sensor
Angle: About 30° in each direction of
the front of the remote sensor
A
Do not expose the remote sensor of the
DVD video player to a strong light source
such as direct sunlight or other
Make sure to match the + and — on the
batteries to the marks inside the battery
compartment. 4
Р illumination. If you do so, you may not be
able to operate the DVD video player via
Close the cover. the remote control.
To operate a Toshiba TV
You can use some buttons on this remote control to
operate a Toshiba TV.
While holding down the TV button, press the following
buttons.
Point the remote control at the TV to operate.
Hold down. CH A/Y : To select a channel.
ENTER A : up / \ : down
I VOL +/-: To adjust the volume.
м TV/VIDEO: To select the video input.
Improper use of batteries may cause battery leakage and corrosion.
To operate the remote control correctly, follow the instructions below.
« Do not insert batteries into the remote control in the wrong direction.
« Do not charge, heat, open, or short-circuit the batteries. Do not
throw batteries into a fire.
* Some Toshiba TVs may not be compatible with this
remote control.
* If you press the TV (ENTER) button while the DVD video
player is operating, playback may be interrupted. Be
* Do not leave dead or exhausted batteries in the remote control. sure to point the remote control at the TV when you want
* Do not use different types of batteries together, or mix old and new to operate the TV.
batteries.
* |f you do not use the remote control for a long period of time,
remove the batteries to avoid possible damage from battery
corrosion.
e If the remote control does not function correctly or if the operating * Direct the remote control at the remote sensor of the DVD video
range becomes reduced, replace all batteries with new ones. player.
* |f battery leakage occurs, wipe the battery liquid from the battery * Do not drop or give the remote control a shock.
compartment, then insert new batteries. * Do not leave the remote control near an extremely hot or humid
* The batteries should last about one year with normal use. place.
* Do not spill water or put anything wet on the remote control.
* Do not open the remote control.
10 uu
Connections ) For details of output sound, see (26).
Connectingtoa TV
Connect the DVD video player to your TV.
Connectingtoa TV
E Setting of the output sound type To wall outlet
From the on-screen displays, set the “AUDIO OUT SEL.” to “ANALOG.” 31)
Power plug
| ! 1 ? —
To S VIDEO rl] (yellow) | (red) #4 (white)
To VIDEO To ANALOG AUDIO OUT “
OUT
Audio/video cable (supplied)
To video input (yellow)
S video cable (supplied) To S video input
If the TV has an S video input, connect the
DVD video player with the supplied S video TV or monitor with
cable. When using the S video cable, do not audio/video inputs
Signal flow connect the yellow video cable.
* Refer to the owner's manual of the connected TV as well.
* When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
* |f your television set has one audio input, connect the DVD video player to a Y cable adapter (not supplied) and then connect to your TV.
* Connect the DVD video player to your TV directly. If you connect the DVD video player to a VCR, TV/VCR combination or video selector,
the playback picture may be distorted as DVD video discs are copy protected.
mm 71
Connections ) For details of output sound, see (26).
Connecting to an Audio System
You can listen to the sound of audio CDs and DVD video discs in stereo.
Connecting to an Audio System
Ш Setting of the output sound type
From the on-screen displays, set the “AUDIO OUT SEL.” to “ANALOG”. 31
To wall outlet
Power plug
pe о — ee
\
J } — e—
To S VIDEO OUT i (yellow) (white)
To VIDEO Y To ANALOG AUDIO OUT ——
OUT
To audio inputs
of the amplifier
С _— 2
(white) смо! Lr] @
lea |! I= |
| ; у
(red) / rn
Audio system
Video cable To video input (yellow)
Ce >
S video cable (supplied) To $ video input
If the TV has an S video input,
connect the DVD video player TV or monitor with
with the supplied S video cable. a video input
When using the S video cable, do
not connect the yellow video
cable.
Signal flow
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall
outlet before making any connections.
* If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD video
player away from the tuner and radio.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening
level. Otherwise, the speakers may be damaged by a sudden high volume sound.
Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power on, the
speakers may be damaged.
12 mmm
Connections ) For details of output sound, see [26) .
Connecting to Optional Equipment
You can enjoy the high quality dynamic sound of Dolby Digital (AC-3), Dolby Pro Logic, and 2 Channel Digital
Stereo.
Enjoying Dolby Digital (AC-3) Sound
Dolby Digital (AC-3)
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this
realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by
connecting the DVD video player to a 6 channel amplifier equipped with a Dolby Digital (AC-3) decoder or Dolby Digital (AC-3)
processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that
provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.
a
E Setting of the output sound type
* From the on-screen displays, set the
“AUDIO OUT SEL.” to
“BITSTREAM”. ED)
e Select “AC—3” from the sound
recording systems of the To VIDEO OUT
disc.
ww
À To BITSTREAM/PCM
yy AUDIO OUT
. Video cable 75 Y coaxial cable
> Signal flow
\
(Connection example
To COAXIAL type digital audio input
\
O Amplifier equipped with a Dolby Digital
55 о (AC-3) decoder
00 [N
—
oo |
—H =
En video input
Front speaker Front speaker
1 `` left i
Standard equipment to (left) Cv (right)
enjoy Dolby Digital (AC-3) = —— =
* The DVD video player — —_—= Center —
— ker N— N
(equipped with a —— _ sped x N Sub woofer
BITSTREAM output jack) | = = =
* DVD video discs
recorded in Dolby Digital
(AC-3)
* 6 channel amplifier ZZ —
equipped with a Dolby Rear speaker ear speaker
Digital (AC-3) decoder, or (left ren) (== Ea surround)
Dolby Digital (AC-3)
processor and power Ne J
amplifier
* 5 speakers and 1 sub Manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby,” “AC-3, “Pro
woofer о Logic,” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
DO NOT connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Doiby Digital Receiver. This input
on your A/V Receiver is reserved for Laserdisc use only and is not compatible with the BITSTREAM/PCM AUDIO OUT jack of the DVD video
player.
Connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the “DIGITAL” or “COAXIAL” input of a Dolby Digital Receiver or
Processor.
» Refer to the owner's manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet
before making any connections.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level.
Otherwise, the speakers may be damaged by a sudden high volume sound.
« Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power on, the speakers
may be damaged.
Warning
Do not set “AUDIO OUT SEL.” to “BITSTREAM” from the menu (31) unless you are connecting (via the BITSTREAM/PCM AUDIO OUT
jack) an AV decoder that has the Dolby Digital (AC-3) decoding function. High volume sound may damage your hearing as well as the speakers.
Enjoying Dolby Pro Logic Surround Sound
Dolby Pro Logic Surround
You can enjoy the dynamic realistic sound of Dolby Pro Logic
Surround by connecting an amplifier and speaker system (right
and left front speakers, a center speaker, and one or two rear
speakers).
= With an amplifier equipped with Dolby Digital (AC-3)
Connect the equipment the same way as described in
“Enjoying Dolby Digital (AC-3) Sound” (13) . Refer to that
amplifier's owner's manual and set the amplifier so you can
enjoy Dolby Pro Logic Surround sound.
= With an amplifier not equipped with Dolby Digital (AC-3)
Connect the equipment as follows.
Signal flow
A To ANALOG
J AUDIO OUT
Video cable
Audio cabie
N
To audio input
O Amplifier equipped with
|
(Connection
example
Dolby Pro Logic Surround
—)
To video input
Front speaker “==
Front speaker
TV
left =>, (right)
e — >=
=
Ur
Za
(
|
|
Center speaker
= Connect one or two rear
=~ Speakers.
Rear speaker Е The output sound from the
rear speakers will be
monaural even if you
connect two rear speakers.
N
E Set “AUDIO OUT SEL.” to “ANALOG?” ма the on-
screen displays. 3
Enjoying 2 Channel Digital Stereo Sound
2 Channel Digital Stereo
You can enjoy the dynamic sound of 2 Channel Digital Stereo
by connecting an amplifier equipped with a digital audio input
and speaker system (right and left front speakers).
—
To VIDEO OUT
To BITSTREAM/
PCM AUDIO Y
OUT
75 Q coaxial
H Set “AUDIO QUT SEL.” to “PCM” via the on-screen
displays. [31
Video cable
cable
4 prennent
Connection J
example
To digital audio input
D Amplifier equipped with a
оо 00000 О digital audio input
à
dro video
input
Front speaker <a \ 7 Front speaker
(left) = Tv 4 — (right)
= =
———. ii
NTT я vie,
= NS
N & 7
+ Refer to the owner's manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making
any connections.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level. Otherwise, the
speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power on, the speakers may be
damaged.
14 ua
Basic Playback )
CAUTION
Keep your fingers well clear of the disc tray as itis
Mm a
P [ ayl n О а D / S C closing. Neglecting to may cause serious personal
injury.
POWER indicator DVD display STOP
Ea
This section shows you the basics on how to play
a disc.
Basic Playback
E Preparations
* When you want to play DVD video discs, turn on the TV and select the video input connected to the DVD video player.
* When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD
video player.
* For connection details, see “Connections”. (11) —
* Set the playback picture size according to the aspect ratio of the connected TV via the on-screen displays. 35)
POWER Press POWER.
DD
The DVD video player turns on and the POWER indicator
on the player illuminates.
Й] orncose Press OPEN/CLOSE.
(=) The disc tray opens.
Place the disc on the disc
tray.
* There are two different disc sizes. Place the
disc in the correct guide on the disc tray. If the
disc is out of the guide, it may damage the
disc and cause the DVD video player to
malfunction.
* Do not place anything except DVD video
discs or audio CDs on the disc tray.
With the playback side down
Press PLAY.
You may need to press the TITLE or MENU
The disc tray closes and playback starts. button on the remote control to display the disc
menu screen (depending on the actual DVD
If you insert a DVD video disc that contains a title menu, video disc.)
the menu screen will appear.
See “To start playback from the menu screen” (16).
Do not move the DVD video player during playback. Doing so may damage the disc.
* Use the OPEN/CLOSE button on the remote control or DVD video player to open and close the disc tray. Do not push the disc tray while it is
moving. Doing so may cause the DVD video player to malfunction.
* Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.
mu 75
A/V/<4/>
ENTER
PAUSE/STEP
STOP
4
E To obtain a higher quality picture
Occasionally, some picture noise not usually displayed with a
normal broadcast may appear on the TV screen while playing a
DVD video disc because the high resolution pictures on these
discs include a lot of information. While the amount of noise
depends on the TV you use with this DVD video player, you should
generally reduce the sharpness adjustment on your TV when
viewing DVD video discs.
m About DVD CD,
The v2 co ¡cons on the heading bar show the playable discs
for the function described under that heading.
DVD) : You can use this function with DVD video discs.
CD) : You can use this function with audio CDs.
‚DVD | „CD |
To start playback from the menu screen
To stop playback
1 Press s/Y/</D or the number buttons to
select the title you want.
2 Press ENTER.
ENTER The DVD video player begins playback
from the selected title.
(=) Press STOP.
To remove the disc
OPEN/CLOSE
($) Press OPEN/CLOSE.
To pause playback (still mode)
Remove the disc after the disc tray
PAUSE/STEP
TE Press PAUSE/STEP during
playback.
To resume normal playback, press the
PLAY button.
+ The sound is muted during still mode.
opens completely.
* Be sure to press the OPEN/CLOSE
button to close the disc tray after you
remove the disc.
* In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your
television set, permanently etching that image onto its screen. To avoid this, be sure to press the STOP button on your remote control once the
movie is completed.
* If you pause a picture and leave it still for a long while, the screen saver of the DVD video player automatically appears. To turn off the screen
saver, press the PLAY button.
16 =m
Basic Playback )
P
(continued)
ying a Disc
Pos ВВ!
— REV
x 2 x 8 x30 | - E
—— === === LE Ce FWD
PLAY
Frame Slow- ;
by Frame Motion Hesuming PAUSE/STEP
md mil = |
You can play discs at various speeds, and resume playback from the
location where you stopped playback.
‚DVD, CD
Playing at x2, x8 or x30 the Normal Speed
DVD;
Playing Frame by Frame
You can advance a picture frame by frame.
You can play a disc at x2, x8 or x30 the normal speed.
REV Press REV or FWD during playback. PAUSE/STEP Press PAUSE/STEP during still
(<<) DVD video disc nn playback.
| Each time you press the REV or FWD — Each time you press the PAUSE/STEP
FWD button, the playback speed changes. button, the picture advances one frame.
REV: Fastreverse playback
FWD: Fastforward playback
TV screen
ха x8 X30
— —
x30 the
normal speed
x8 the
normal speed
x2 the
normal speed
* Audio CD
The fast reverse or fast forward playback
alternates between two speeds.
TV screen
REV FR1 FR2
(<< | Fast reverse playback
FWD FF1 FF2
[>>) — Fast forward playback
To resume normal playback To resume normal playback
PLAY
Press PLAY. >
PLAY
>
Press PLAY.
* The DVD video player does not play sound and subtitles during The sound is muted during frame by frame playback.
reverse and forward scan of DVD video discs.
However, the DVD video player plays sound during fast forward or
fast reverse play of audio CDs.
* The x2 , x8 and x30 speeds are only approximate speeds. These
speeds may vary slightly from disc to disc.
mm 17
PLAY
SLOW
VD
Playing in Slow-Motion
You can play a disc in slow-motion.
_ SLOW Press SLOW during playback.
1» ) Each time you press the SLOW button, the
и slow-motion speed changes.
TV screen
1/2}. 1/8 1/16
1/2 the 1/8 the 1/16 the
normal speed normal speed normal speed
To resume normal playback
PLAY
>
Press PLAY.
The sound is muted during slow-motion playback.
DVD, CD.
ion
You can stop playback and resume playback later from the
same location on the disc.
Press STOP at the location where
you want to interrupt playback.
The DVD video player memorizes the
location where you stopped playback.
PLAY Press PLAY.
> | The DVD video player resumes playback
from the location where you stopped
playback.
To start playback from the beginning regardless
of the location where you stopped playback —_
1 Press STOP twice.
STOP | |
© The DVD video player's memory is cleared.
2 Press PLAY.
PLAY
If you are using a DVD video disc, playback
> starts from the beginning of the current title.
If you are using an audio CD, playback starts
from the beginning of the disc.
» If you want to return to the beginning of a
DVD video disc, open and close the disc
tray once with the OPEN/CLOSE button
before pressing the PLAY button.
* The DVD video player's memory is also cleared when:
— you unplug the DVD video player from the wall outlet after you
stop playback.
— you open the disc tray.
— you adjust/change parental lock 37 or select a disc menu
language setting (36).
* There may be a difference of the location where playback resumes
depending on the disc.
e |f you change the initial settings of languages (31) or subtitle
languages while the DVD video player is stopped, these new
settings will function only after the DVD video player's memory IS
cleared.
18 um
Basic Playback )
- DVD video disc —
Title 1 „| < Title 2
Chapter 1 Chapter 2| Chapter 1 Chapter2 Chapter 3
| } | | }
7e;
off
Locating a Title Using the Title Menu
If a DVD video disc contains a title menu, you can locate a
specific title using the title menu function.
TITLE = Press TITLE.
O) © The title menu appears on the TV screen.
Example of a title menu
Press A / V / 4/} to select the title
you want.
If the titles in the title menu are assigned a
number, you can directly locate a specific
title by pressing its designated number
with the number buttons.
Press ENTER.
(e) The DVD video player starts playback from
chapter 1 of the selected title.
The instructions above describe basic procedures which may vary
depending on the contents of the DVD video disc. If different
instructions appear on the TV screen, follow those instructions.
* |f you display the title menu during playback and press the TITLE
button again without selecting any title, the DVD video player
resumes playback from the point where you first pressed the TITLE
button.
mu 19
ng a Specific Title, Chapter, or Track
< Audio CD +
Тгаск 1 Track 2 Track 3 Track 4 Track 5
| | | | |
мл АЛ Ам АА Ма.
Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. Audio CDs are
divided into tracks. You can quickly locate any specific title, chapter, or track.
DVD
Locating a Title
If a DVD video disc contains title numbers, you can locate a
specific title by directly selecting a title number.
Ji (т) Press T.
| Make sure that the space next to TITLE is
| highlighted.
e.g.
TITLE:
CHAPTER: 1
MODO Press the corresponding number
00 buttons for the title you want.
0 e.g. To select title 2
© rie A
CHAPTER: 1
To select title 12
[email protected] (es
Rk] PLAY Press PLAY.
> The DVD video player starts playback from
chapter 1 of the selected titie.
* You can shift the highlighted space between TITLE and CHAPTER
by pressing A/V.
* Pressing the CLEAR button resets the TITLE and CHAPTER
numbers. To clear the TITLE, CHAPTER display, press the T button
several times.
You can select a preferred language for on-screen displays. 35)
- | TITLE
Ó a
A/Y/</)>
ENTER
SKIP
PLAY
CLEAR
If you know the chapter or track number you want to play, you
can locate it directly.
Number buttons
| DVD, CD
Locating a Specific Chapter or Track
You can locate consecutive chapters or tracks.
Press T.
Skip steps I and 2 if you are using an
audio CD.
SKIP
Press SKIP |«-« or ppl repeatedly
[rea] to display the chapter or track
number you want.
SKIP
The DVD video player starts playback from
(DVD video disc)
TITLE: IE
CHAPTER: 1
the selected chapter or track.
ld: To locate preceding chapters or tracks
Press Y to highlight the space next
to CHAPTER.
When you press the SKIP Hw< button, the
DVD video player starts playback from the
beginning of the current chapter or track.
When you press the SKIP 1<« button
(DVD video disc)
TITLE: 1
CHAPTER:
twice, the DVD video player starts
playback from the beginning of the
preceding chapter or track.
Press the corresponding number
buttons of the chapter or track you
want.
You can use the €) button to select
numbers from 10 through 99.
e.g. To select chapter or track 25
9-0
-€9-09-0)
(DVD video disc) (Audio CD)
TITLE:
1
CHAPTER: TRACK:
DD: To locate succeeding chapters or tracks
Some titles may not display chapter numbers.
DVD» CD.
Locating a Specific Location by Entering the Time
You can locate a specific location by entering the time (hours,
minutes, seconds).
iO
Press T twice.
You may have to press further depending on the
PLAY
Press PLAY.
The DVD video player starts playback from
the selected chapter or track.
disc. Press the button repeatedly until the
following indication appears.
Tine 071
To select a title and chapter number at the same time
e.g. To select chapter 25 in title 2
[email protected],"-0-©-C
00-00
Title number
PLAY
Chapter number
TITLE: 2
CHAPTER: BEE
Pressing the CLEAR button resets the TITLE and CHAPTER
numbers. To clear the TITLE, CHAPTER display, press the T button
severa! times.
|) © © @ Press the number buttons to enter
o © O the time.
® ® e.g.
D-0-0-0-C) | Time
PLAY Press PLAY.
The DVD video player starts playback from
the specified location.
Some discs may not respond to this process.
Some scenes may not be located correctly as you specified.
This method for accessing specific locations is available only within
the current title of the DVD video disc or within the current track of the
audio CD.
20 ==
Advanced Playback ) e
Playing Repeatedly Smo
REPEAT
A-B REPEAT
CLEAR
You can play a specific title, chapter, track, or segment repeatedly. - © - ©
(Title repeat, chapter/track repeat, A-B repeat) BA
BOB Lo
Repeating a Title, Chapter, or Track Repeating a Specific Segment
You can play the same title, chapter, or track repeatedly. (Title, You can play a specific segment repeatedly.
chapter/track repeat) (A-B repeat)
Select the title, chapter, or track 1 A-B RPT Press A-B RPT at the beginning of
you want to repeat. CO _ the segment (point A) you want to
play repeatedly.
Press REPEAT.
Each time you press the REPEAT button,
the repeat mode changes as follows.
* DVD video disc
Lo HR CHAPTER REPEAT Repeats the same
| Ш M chapter.
+ Press A-B RPT again at the end of
TITLE REPEAT Repeats the same title. ;
the segment (point B).
+
REPEAT OFF Resumes normal
playback.
A-B
* Audio CD
TRACK REPEAT Repeats the same
TS e CAÑA + - | | |
1 | —— Repeats the entire ‘ The DVD video player automatically
FC Le disc. | returns to point A and starts repeat
= ; playback of the selected segment (A-B).
REPEAT OFF Resumes normal
playback.
To resume normal playback To resume normal playback
CLEAR CLEAR
Press CLEAR. Press CLEAR.
Some discs may not permit repeat operation. Some discs may not permit A-B repeat operation.
* You cannot set the A-B repeat function for a segment that includes
multiple camera angles.
* You can specify a segment only within the current title.
» There may be a slight difference between point A and the location
where playback actually resumes depending on the disc.
Advanced PI ay bac к) = _ o ; - —
Playing in a Favorite Order
A/V/</>
>
TITLE : 2 TITLE : 1
CHARTER : 125 CHAPTER : 1.
CHARTER : 25
[os эф Фе e. 2
You can combine your favorite titles, chapters, or tracks and play them
in any order. You can program up to 30 items into the memory.
(Memory playback)
DVD, CD
Setting Titles, Chapters, or Tracks in a Favorite Order
The DVD video player automatically plays titles, chapters, or tracks in the order you program.
] MEMORY Insert a disc and press MEMORY Ш МЕМОВУ SELECT: ode
НЫ . 1 702025 6 T--C--
| | The following menu appears. 9 T02C12 7 t--C--
3 TO1C-- 8 T--C-—-
11 MEMOR 4 1T04C02 9 T--C--
EEE Ga PR JOEL 5 REA 0
To select another chapter in the same title,
you do not need to select the title number.
T: Title number — C: Chapter number | PLAY Press PLAY while the MEMORY
— - > menu appears on the TV screen.
И OO © OO Select the items you want in order
ODO by pressing the number buttons,
The DVD video player starts memory
©@©@ then ENTER for each item. playback.
3 Each time you press the 4/> button, the
) —— indication next to T and C is highlighted To change the programmed items
ENTER in turn. Highlight where you want to enter, — |
| then press the number buttons. 1 While the MEMORY menu appears on the TV screen,
| a press A / V to move the highlighted bar to the item you
e.g. To play chapter 25 in title 2, chapter want to change.
12 in title 2, all the chapters in title 1,
and chapter 2 in title 4. 2 Change the item following the instructions in step 2.
Title number Chapter number
| a ENTER
Memory 1 (<— -(2)> -(2)-6)- (e) ~ To cancel the programmed items
ENTER 1 While the MEMORY menu appears on the TV screen,
Memory 2 (1)-(2)- (e) press 4 / Y to move the highlighted bar to the item you
ENTER want to cancel.
Memory 3 (<_ +(1) > (e) 2 Press the CLEAR button.
ENTER
Memory 4 + _+) — — +(2\-»
© © © To resume normal playback from memory
To select tracks from an audio CD in order, playback
press the number buttons for the track, —
then press the ENTER button for each CLEAR Press CLEAR.
item you want. co The MEMORY indicator disappears.
* Some discs may not permit memory playback operation.
* If you press the REPEAT button during memory playback, the DVD video player repeats the current memory playback.
* |f you press the MEMORY button during memory playback, the programmed selections will be displayed.
* You cannot select title, chapter, and track numbers not included on the disc.
* If you press the MEMORY or RETURN button while the MEMORY menu appears on the TV screen, the MEMORY menu disappears.
» The programmed items will be cleared when:
— you turn off the DVD video player, or
— you remove the disc. 29 ши
Advanced Playback )
TITLE : 1
CHAPTER : 3
TITLE : 3
_CHARTER : 1.
Playing in Random Order
(Random playback)
DVD,
Playing Titles in Random Order
The DVD video player automatically selects the titles in a DVD
video disc and plays them randomly.
RANDOM Press RANDOM twice during stop.
TITLE RANDOM
Ee If you press the RANDOM button during
tés playback, the DVD video player
; automatically starts random playback after
finishing the current title.
PLAY
Press PLAY.
The DVD video player starts random
playback.
Press the PLAY button within about 5
seconds after you press the RANDOM
button.
To resume normal playback
CLEAR
Press CLEAR.
» Some discs may not permit random playback operation.
* You cannot use the random playback function in conjunction with the
memory playback function.
EE 23
You can play titles, chapters within a title, or tracks in random order.
E
N SKIP
5 0 6 0 0 Laon aL PLAY
Ш ss Nw RANDOM
6 CLEAR
00 - Number
00 buttons
© @[& T
OVD, CD,
Playing Chapters or Tracks in Random Order
The DVD video player automatically selects chapters within a
title, or tracks in an audio CD, and plays them randomly.
Jl © ® ® Press the appropriate number
OOO buttons for the title which contains
OOwmo the chapters you want to play in
из random order.
Skip this step if you are using an audio CD.
e.g. To play the chapters in title 2 in
random order
[email protected]
(DVD video disc)
TITLE: MA
CHAPTER: 1
A RANDOM Press RANDOM during stop.
| ED (DVD video disc) (Audio CD)
CHAPTER RANDOM TRACK RANDOM
TITLE: 2 TRACK: [ll
CHAPTER: 1
If you press the RANDOM button during
playback, the DVD video player
automatically starts random playback after
finishing the current chapter or track.
PLAY a Press PLAY.
The DVD video player starts random
playback.
3
Press the PLAY button within about 5
seconds after you press the RANDOM
button.
To resume normal playback
CLEAR
(=
Press CLEAR.
* Some discs may not permit random playback operation.
* You cannot use the random playback function in conjunction with the
memory playback function.
* |f you press the SKIP 1 button during random playback, the DVD
video player goes to another chapter or track and starts random
playback.
Advanced Playback ) TT | E Ee
Zooming a Picture/
Playing 3-D (N-2-2) Sound
A/Y/</)
AUDIO
Zoom playback 3-D (N-2-2) sound playback
A DN = =
í \ — —
70) TI
Wm a,
You can magnify areas within a picture. (Zoom playback)
You can enjoy virtual surround sound. (3-D (N-2-2) sound playback)
DVD, DVD)
Zooming a Picture Selecting 3-D (N-2-2) Sound Enhancement
You can zoom in on a picture and shift the zooming point as You can enjoy expansive surround type effects from two
well. speakers.
ZOOM “Press ZOOM during normal, slow or During playback, press AUDIO
CU still playback. repeatedly until AC-3 appears on
The DVD video player magnifies in the the screen.
center of the picture. | AUDIO 1 ENG AC-3 ECH
Recording system
For details, see
If AC-3 does not appear, the DVD video
disc may not be recorded in the Dolby
Digital (AC-3) recording system. On such a
disc, the 3-D (N-2-2) sound enhancement
ZOOM 5 “cannot function.
If you press À / Y / </ > during zoom 2 SD Press 3D.
playback, the zoom point shifts. CO The current setting appears.
When the zoom point reaches an edge of
the picture, the color of “ZOOM” changes.
If you press the CLEAR button, the zoom a
point returns to the center of the picture. 3 “sp.
3D (N-2-2) OFF
Press 3D to select ON.
CO Each time you press the button, ON and
| OFF alternates.
3D (N-2-2) ON
To resume normal playback To turn off the 3-D (N-2-2) effect
ZOOM 3D
ED Press ZOOM during zoom playback. CO In step 3, Press 3D to select OFF.
* Some discs may not respond to zoom feature. * The effect of 3-D (N-2-2) sound enhancement cannot be fully
* During some scenes, the buttons may not work correctly as realized through headphones.
described above. * You may sense a difference in volume between normal and 3-D
* Zooming does not work on subtitles or menu screens included on enhanced sound.
DVD video discs.
* During zoom playback, the 4 / Y / 4/ buttons cannot work on
menu screens included on the DVD video discs. If you want to use
the menu screens, cancel the zoom playback. Spatializer® 3-Dimensional Sound Processing provided by Desper Products.
Inc.
Certain audio features of this product manufactured under a license from
Desper Products, Inc., Spatializer® and the circle-in-square device are
trademarks owned by Desper Products, Inc.
24 mm
Advanced Playback )
Selecting the Camera
Angle
ANGLE 1 ANGLE 2 ANGLE 3-
©
ES
i ee
ет ев
You can select a preferred camera angle to watch a scene.
! DOS ; o.
Changing the Camera Angle
If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.
Press ANGLE while playing a scene To turn off the angle number indication
recorded with multiple angles. CLEAR
Press CLEAR.
While playing a scene recorded with
multiple angles, the angle icon (£4)
appears in the DVD display and on the TV
screen. ; . .
Press the ANGLE button while the angle To disable the angle icon display on the TV
icon is on. From the on-screen displays, set OSD to OFF.
ANGLE Monitor the DVD display when you want to change the
$ Angle icon camera angle.
Current angle
number
Press ANGLE or à while the angle
number appears on the TV screen.
Each time you press the ANGLE or A
button, the camera angle changes.
ANGLE
|
ANGLE
|
ANGLE
!
|
v : Cycles backwards
You can change the camera angle directly
by pressing the number buttons
corresponding to its angle number instead
of using the 4 / Y buttons.
* You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback.
* If you pause a picture immediately after changing the camera angle, the resumed playback picture may not use the new camera angle.
mu 25
Advanced Playback ) de E — = ;
Selecting a Language
Sa ELA
You can select a preferred language and sound recording system from those included on the DVD video disc.
Io “ Press AUDIO during playback.
To turn off the audio setting indication
CLEAR
(=)
The current audio setting appears for
about 3 seconds.
Press CLEAR.
AUDIO 1 ENG PCM 2CH
Audio channel
Recording system
Language This DVD video player uses the Dolby Digital (AC-3) and
© i Position number PCM recording systems and cannot play DVD video discs
e o | recorded in any other recording system.
The abbreviation of the language appears a
instead of the language name. Refer to AC-3 5.1 Channel is displayed as “AC-3 6CH.”
the list of languages and their
abbreviations.
„Press AUDIO or A while the audio
“setting appears on the TV screen.
About recording systems
Note: Total channels available in AC-3 may vary from 1 — 6.
Each time you press the AUDIO or A
button, the audio settings included on the
DVD video disc change.
e.a.
9 | AUDIO 1 ENG
PCM 2CH
|
AUDIO 2 FRE AC-3 6CH . . . , ;
| * Some discs allow you to change audio selections only via the disc
AUDIO 3 SPA PCM 2CH menu. I this is the case, press the MENU button and choose the
| appropriate language from the selections on the disc menu.
| * When you turn on the DVD video player or replace a disc, player
| returns to the initial default setting. [31)
¥ : Cycles backwards When you select a sound which is not included on the disc, the DVD
video player plays a prior sound programmed on the disc.
Output sound format (sampling frequency/quantization bit)
Audio selection from the menu screen 131 and output jacks on the rear panel
Discs Sound recording system ANALOG BITSTREAM PCM
BITSTREAM/PCM jack] ANALOG jacks |BITSTREAM/PCM jack] ANALOG jacks BITSTREAM/PCM jack] ANALOG jacks
Dolby Digital Bitstream 48 kHz/16 bit Bitstream 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
48 kHz/20 bit — 48 kHz/20 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
DVD video discs Linear PCM 48 kHz/24 bit — 48 kHz/24 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
96 kHz/16 bit — 96 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
96 kHz/20 bit — 96 kHz/20 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
96 kHz/24 bit — 96 kHz/24 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit
Audio CDs Linear PCM 44.1 kHz/16 bit 44 1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit
Advanced Playback ) — ВО
Selecting Subtitles ~~.
A/V/<4/>
SUBTITLE
Bonsoir! | - ¡Buenas tardes! e 8 ®
You can display subtitles on the TV screen and select a preferred subtitle
language. Eo
DVD DVD
Turning Subtitles on or off Selecting a Subtitle Language
You can select whether to display subtitles or not. You can select a subtitle language from those included on the
DVD video disc.
] SUBTITLE Press SUBTITLE during playback. 1 SUBTITLE Press SUBTITLE during playback.
The current subtitle setting appears for | The current subtitle setting appears for
| about 3 seconds. - about 3 seconds.
SUBTITLE 1 ENG ON
|
SUBTITLE 1 ENG ON
Language
Position number
Press < or > while the subtitle The abbreviation of the language appears
setting appears on the TV screen instead of the language name. Refer to the
to select ON or OFF. ; list of languages and their abbreviations.(39>
ON: Subtitles are displayed. PA SUBTITLE Press SUBTITLE or A while the
subtitle setting appears on the TV
screen.
Each time you press the SUBTITLE or A
button, the subtitle languages included on
the DVD video disc change.
SUBTITLE 1 ENG ON
- . ed ts
_Subiitles E Ee G- | SUBTITLE 1 ENG ON _
|
SUBTITLE 2 FRE ON
Good evening!
OFF: Subtitles are not displayed.
SUBTITLE 1 ENG OFF
+
SUBTITLE 3 SPA ON
!
|
Vv : Cycles backwards
To turn off the subtitle setting indicator
CLEAR
(==) Press CLEAR.
* Some DVD video discs are set to display subtitles automatically, and * When you turn on the DVD video player or replace a disc, the player
you cannot turn them off even if you set the subtitle function to off. returns to the initial default setting.
* During some scenes, the subtitles may not appear immediately after When you select a subtitle language which is not included on the
you select ON. disc, the DVD video player plays a prior language programmed on
* Some DVD video discs will allow you to make subtitle selections and the disc.
turn subtitles on or off only via the disc menu. | * During some scenes, the subtitles may not appear immediately after
you change the subtitle language by pressing the 4 / Y buttons.
mu 27
Advanced Playback) QU р
= E IA Com DISPLAY
Using the On-Screen Cpe
Display of
You can view information about a disc and its operational status
on the TV screen.
Checking the Operational Status
You can view the current title number, track number, and total playing time of the disc on the TV screen.
DISPLAY Press DISPLAY during stop.
CD Each time you press the DISPLAY button, the on-screen display changes as follows.
(DVD video disc) (Audio CD)
Current title number Current track number
e.g. | е.9. |
| STOP + Operational status | STOP 1— Operational status
TITLE: 2 TRACK:
CHAPTER: 1 Current chapter number TOTAL 0:46:30 ——- Total playing time of the
disc
1 |
Turns off. Turns off.
DVDz CD
Checking the Remaining Time and Setting Status
You can view the elapsed time, remaining time, and setting status of the disc on the TV screen.
DISPLAY Press DISPLAY during playback.
CD Each time you press the DISPLAY button, the on-screen display changes as follows.
(DVD video disc) {Audio CD)
Current title number Current track number
e.g. | Г Current chapter number | e.g. | р Operational status
| PLAY LF Operational status | PLAY o
TITLE: 3 —0: 50: 45 ——— Remaining time in the TRACK: 3 —0: 02: 00 —1 Remaining time in the
CHAPTER 21 -0:10:24 current title DISC ELAPSED 9: 43 ; 90 current track
LAPSED 0:10:15 — R ining time in th PS : 01: | Lo HE .
— - emaining ime in the Remaining time of the disc
CHAPTER REPEAT current chapter TRACK REPEAT
— Elapsed time of the — Elapsed time of the current
current title
track
Playback mode | Playback mode
у J
PLAY | Turns off.
TITLE: 3 —0: 50:45 — Current audio setting
CHAPTER: 2 -0:10:24
ELAPSED 0:10:15 Current subtitle setting
AUDIO 1 ENG AC-3 2CH |
SUBTITLE12 ENG ON
ANGLE 1 Current angle setting
The abbreviation of the language (e.g. ENG) appears instead of
the language name. Refer to the list of languages and their
abbreviations.
|
BIT RATE: 2-3
Data transfer rate (Mbit/s)
= Amount of picture, sound and subtitle data in the DVD video disc
transferred per second.
The larger the value is, the more data processed, but this does not
necessarily insure better picture quality.
J
— Turns off.
28 mm
Function Setup ) e
Customizing the Function
Settings
SET UP MENU 3 09
+ - и
I = | Pr В наи
Como Sorenson AC oiseLar >
You can change the default settings to customize performance to your
preference.
Displaying the SET UP MENU Screen |
The SET UP MENU screen asks you to select a setting category from AUDIO, OPERATION and DISPLAY. Each selected category
will provide you setting details via the succeeding screen.
SETUP Press SETUP during stop.
The SET UP MENU screen appears.
* The display language can be changed.
Proceed to 35) ,“OSD LANGUAGE”, via step 2 below.
Ш SET UP MENU — — SELECT: =f
== : AUDIO
OPERATION
DISPLAY
Press a / V to select the category, then press ENTER.
Hi SET UP MENU ____ SELECT: «fe Mm AUDIO SELECT : $e
“LANGUAGE — ENG
ENTER AUDIO OUT SEL. ANA
AUDIO D RANGE CONTROL ON
OPERATION KARAOKE VOCAL OFF
DISPLAY
Ju TI
Ju
m SET UP MENU — — SELECT: фе M OPERATION — —— SELECT: Фе
= BLACK LEVEL" NAML
TITLE STOP OFF
AUDIO REMOTE CONFIRM. ON
OPERATION - OSD ON
DISPLAY
meo = № SET UP MENU — — SELECT: 4 HN DISPLAY SELECT : e
ENTER OSD LANGUAGE ENG
TV SHAPE 4:3 LB
AUDIO SUBTITLE ———
OPERATION DISC MENU ENG
— DISPLAY BACK COLOR GRAY
* The SET UP MENU screen disappears when you press the SETUP button.
* The SETUP button can work even during normal playback, however some operations may be inaccessible, and a message will appear. In this
case, try again after playback is stopped.
на 29
DVD | „CD |
Setting Details Page
LANGUAGE To select a preferred language for the sound track. 31
AUDIO OUT SEL. To select ANALOG, BITSTREAM or PCM according to your connection. 31
D RANGE CONTROL To turn on or off a function that makes faint sounds easier to hear even if 31
you lower the volume during late hours playback.
KARAOKE VOCAL To turn on or off the vocal output during DVD KARAOKE disc playback. 32
OPERATION
Setting Details Page
BLACK LEVEL To select the black level of playback pictures. 33
TITLE STOP To turn on or off a feature that automatically stops playback after a title 33
has been viewed.
REMOTE CONFIRM. To turn on or off the confirmation beeper for each remote command received. 33
OSD To turn on or off the operational status display (On-screen display) on the 34
TV screen.
Setting Details Page
OSD LANGUAGE To select a preferred language for on-screen displays. 35
TV SHAPE To select a picture size according to the aspect ratio of your TV. 35
SUBTITLE To select a preferred language for subtitles. 36
DISC MENU To select a preferred language for disc menus. 36
BACK COLOR To select the background color for on-screen displays. 36
30 mm
Function Setup )
Customizing the Function Settings (continued)
AUDIO
it AUDIO SELECT: le
LANGUAGE ENG
AUDIO OUT SEL. ANA
D RANGE CONTROL ON
KARAOKE VOCAL OFF
After you select AUDIO on the SET UP MENU screen [29>, adjust to your preference.
Setting the Audio
(Continued from page 29.)
Press A / у to select the item, then press ENTER.
The setting screen of your selected item appears.
LANGUAGE | 22
ll LANGUAGE SELECT: «fe ENTER Select a preferred language by
В PER = (e) pressing A / v/</» , and then press
С E A ACER
En ENGLISH ITALIA ENTER.
FRENCH JAPANESE
e SPANISH DUTCH i
- DE CHINESE ROREAN You will return to the AUDIO screen.
Lado GERMAN MALAY — If you do not make any other settings,
Оса SS =
МЕ DESCRIP proceed to step 4.
EXITES
* Some DVD video discs contain special language track that describes the actions
—- on-screen for visually impaired persons. When you set DESCRIPTIVE
> SERVICE to ON by pressing the AUDIO button, the DVD video player
| automatically plays this special feature.
* Some DVD video discs may be played in a different language than you selected,
since it may be a prior language programmed on the disc.
‚VD, „OD,
Select the output sound type according to your system connection.
it AUDIO OUT SEL. _SELECT: Pe
11) (12) |132
ANALOG ENTER Select the output sound type ANALOG,
PCM = BITSTREAM or PCM by pressing a/v,
and then press ENTER.
You will return to the AUDIO screen.
— If you do not make any other settings,
proceed to step 4.
_D RANGE CONTROL | 22
ON: Dynamic range is reduced.
OFF: Full dynamic range is maintained.
# D RANGE CONTROL SELECT: фе
D RANGE CONTROL |
ENTER — Select ON or OFF by pressing </ » ,
= and then press ENTER.
You will return to the AUDIO screen.
— If you do not make any other settings,
proceed to step 4.
* This function works only on playback of Dolby Digital (AC-3) recorded discs.
* The level of Dynamic Range Reduction may differ depending on the DVD video
disc.
mu 37
an
3
ENTER
AUDIO
RETURN
RETURN
: If you press the RETURN button while a menu appears on the screen, you will return
O to the previous menu screen displayed.
я ‚ и
ARAOKE VOCAL | 27
il KARAOKE VOCAL SELECT : sues
KARAOKE VOCAL
ON: The primary vocal is output when it is recorded on the disc.
OFF: The primary vocal is not output.
ENTER Select ON or OFF by pressing «/»,
=» (e) and then press ENTER.
You will return to the AUDIO screen.
— If you do not make any other settings,
proceed to step 4.
The vocal output feature is used during playback of Dolby Digital (AC-3, multi-
channel) recorded DVD KARAOKE discs. This feature allows you to turn off vocal
audio tracks, or restore them for background accompaniment.
Press SETUP.
The menu screen disappears.
32 mm
Function Setup )
OPERATION
# OPERATION __ SELECT: «fe
BLACK LEVEL NRML
TITLE STOP OFF
REMOTE CONFIRM. ON
OSD ON
Customizing the Function Settings (continued)
After you select OPERATION on the SET UP MENU screen (29), adjust to your preference.
Setting the Operation Modes
(Continued from page 29.)
Press A / V to select the item, then press ENTER.
The setting screen of your selected item appears.
[ BLACK LEVEL | 29
it BLACK LEVEL — SELECT: af:
BLACK LEVEL
NORMAL: Standard black level.
ENHANCED: Expanded black level.
ENTER Select a preferred black level by
= (e) pressing </» , and then press ENTER.
You will return to the OPERATION screen.
— If you do not make any other settings,
proceed to step 4.
TITLE STOP | 25
# TITLE STOP SELECT: fe
TITLE STOP
—| REMOTE CONFIRM. | 21 <>
HI REMOTE CONF 1 AM. SELECT: ef:
REMOTE CONFIRM. Sex
ON: Player stops after playback of a title is completed.
OFF: Player continues after playback of a title is completed.
e
Select ON or OFF by pressing </P,
and then press ENTER.
You will return to the OPERATION screen.
— If you do not make any other settings,
proceed to step 4.
ENTER
> ©
ON: Beeper sounds with each remote operation.
OFF: The beeper does not sound.
ENTER
> ©
Select ON or OFF by pressing «/»,
and then press ENTER.
You will return to the OPERATION screen.
— If you do not make any other settings,
proceed to step 4.
mu 33
ENTER
RETURN
RETURN
: If you press the RETURN button while a menu appears on the screen, you will return
to the previous menu screen displayed.
DVD | ‚ Ш
WM OSD SELECT : off ON: Operational modes are displayed on-screen. (e.g. “PLAY”, 29 )
ово OFF: Operational modes are not displayed.
ENTER — Select ON or OFF by pressing </»,
= and then press ENTER.
You will return to the OPERATION screen.
— If you do not make any other settings,
proceed to step 4.
Press SETUP.
The menu screen disappears.
34 mm
Function Setup )
Customizing the Function Settings (continued)
DISPLAY
M DISPLAY — — —— SELECT: “fe
OSD LANGUAGE ENG
TV SHAPE 4:3 LB
SUBTITLE ——
DISC MENU ENG
BACK COLOR GRAY
After you select DISPLAY on the SET UP MENU screen (29>, adjust to your preference.
Setting the Displays
(Continued from page 29.)
Press A / т to select the item, then press ENTER.
The setting screen of your selected item appears.
| OSD LANGUAGE | 2 ©
ENTER
(e) ll OSD LANGUAGE _ SELECT: fe | ENTER Select a preferred language by
= (e) pressing 4 / Y , and then press ENTER.
ENGL | SH You will return to the DISPLAY screen.
FRENCH .
SPANISH — If you do not make any other settings,
proceed to step 4.
| TV SHAPE | 2%
4:3 LETTERBOX: Select when a 4:3 TV is
connected.
Displays theatrical images with
4:3 LETTERBOX masking bars above and below
4:3 NORMAL ‚
16:9 WIDESCREEN the picture.
Ш ТУ SHAPE __ SELECT: ##e
4:3 NORMAL: Select when a 4:3 TV is
connected. =e
Displays pictures cropped to fill = 7
your TV screen. Either or both ES |
sides of the picture are cut off.
16:9 WIDESCREEN: Select when a 16:9 wide TV is connected.
ENTER Select your TV type by pressing a /v,
= and then press ENTER.
You will return to the DISPLAY screen.
— If you do not make any other settings,
proceed to step 4.
The displayable picture size is preset on the DVD video disc. Therefore, the playback
picture of some DVD video discs may not conform to the picture size you select.
* When you play DVD video discs recorded in the 4:3 picture size only, the playback
picture always appears in the 4:3 picture size regardless of the TV shape setting.
+ If you select 16:9 WIDE SCREEN and you own a 4:3 TV set, the DVD playback picture
will be horizontally distorted during playback. Images will appear to be horizontally
compressed. Always be sure that your TV shape conforms to the actual TV in use.
mu 35
— SUBTITLE
ANGLE
RETURN
O : If you press the RETURN button while a menu appears on the screen, you will return
to the previous menu screen displayed.
SUBTITLE | ovo
ENTER Select a preferred language by
4 | TLE
Ss =) pressing 4/Y/</b, and then press
ENGLISH | TAL | AN ENTER
FRENCH JAPANESE :
ROBE AN You will return to the DISPLAY screen.
— If you do not make any other settings,
proceed to step 4.
* Some DVD video discs contain special subtitles, an enhancement of closed captioning
for hearing impaired persons. When you set EXTENDED FEATURES 10 “ОМ” Бу
pressing the SUBTITLE button, the DVD video player automatically displays these
special subtitles.
e Some DVD video discs may be set to display subtitles in a different language than you
selected, since it may be a prior subtitle language programmed on the disc.
+ Some DVD video discs allow you to change subtitle selections only via the disc menu.
If this is the case, press the MENU button and choose the appropriate subtitle
language from the selection on the disc menu.
ENTER Select a preferred language by
Ww DISC MENU `
tE O =) pressing 4 / Y /</), and then press
ENGLISH ITALIAN ENTER
FRENCH JAPANESE .
SPANISH DUTCH
CHINESE KOREAN You will return to the DISPLAY screen.
GERMAN MALAY
— If you do not make any other settings,
proceed to step 4.
E To select other languages:
Select OTHERS and press the ENTER button.
1)
# DISC MENU —— SEE: | 2) Obtain the abbreviation of the preferred language
SELECT COUNTRY CODE from the list 39>.
3) Select the first character by pressing the 4/ Y
buttons.
4) Press the « / » buttons to shift and select the second
AY: SCROLL «»:LOCATION .
| character by pressing the 4 / Y buttons.
ES Ens 5) Press the ENTER button to return to the DISPLAY
screen.
* Some DVD video discs may not include your pre-selected language. In this case, the
DVD video player automatically displays disc menus consistent with the disc's initial
language setting.
| BACK COLOR | 217 co
№ ВАСК COLOR SELECT : = BLUE: Blue background.
GRAY: Gray background.
BLUE ENTER Select a preferred background color by
GRAY = pressing A / v, and then press ENTER.
You will return to the DISPLAY screen.
— If you do not make any other settings,
proceed to step 4.
Press SETUP.
The menu screen disappears.
36 и
Function Setup )
Setting the Parental Lock ©
You can use the parental lock function only with DVD video discs
equipped with the parental lock feature.
= — | 1,7
——4 5,6
7 3456
E @— sTOP
cs - - - : : RETU RN
000
‚© ® © | 2, 3
Setting the Parental Lock
DVD video discs equipped with the parerital lock function are rated according to their content. The contents allowed by a parental
lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, if the disc allowed you could edit
out violent scenes unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc altogether.
JA SETUP
Press SETUP during stop.
The SET UP MENU appears on the TV
screen.
Press 9 twice.
The following menu appears.
HN PARENTAL LOCK
PRESET SECURITY CODE
PRESS [0] - [9].
Gars
Press the number buttons to create
a personal 4-digit security code,
USAS
If you make a mistake before pressing the
ENTER button, press the CLEAR button
and enter your 4-digit security code again.
ENTER
Press </D to select ON, then press
ENTER.
The following menu appears.
HE PARENTAL LOCK _ SELECT:
COUNTRY
CAN
LEVELS
an 37
y
ENTER
©
Press </» to select the country
whose standards were used to rate
the DVD video disc, then press
ENTER.
The following menu appears.
it PARENTAL LOCK __ SELECT: =f
JSAS
MV IEWABLE LEVEL SENDA
LEVEL?
LEVELS
“LEVELS
LEVEL4
LEVELS
LEVEL2
LEVEL
ESTA
Press a/v to select the parental
lock level, then press ENTER.
You cannot play DVD video discs rated higher
than the level you selected unless you cancel
the parental lock function.
For example, when you select level 7, discs
rated higher than level 7 are locked out and
cannot be played.
e.g. When you select USA
ME PARENTAL LOCK _ SELECT:
EE When you
* | select CAN,
LEVELS “САМ”
LEVELS
LEVEL4 appears
LEVEL3 instead.
:- LEVELS |
- LEVEL 1 EEN
ENTER
The parental lock level is equivalent to the
following USA movie ratings.
LEVEL 7: NC-17 LEVEL 3: PG
LEVEL 6: R LEVEL 1: G
LEVEL 4: PG 13
The parental lock levels for “CAN” (Canada)
are included for future use. Check the
appropriate parental lock level when you buy
a DVD video disc equipped with the parental
lock feature in the future.
Press SETUP.
The SET UP MENU disappears.
RETURN
O
: If you press the RETURN button while a menu appears on the screen, you will return
to the previous screen displayed.
=
To change the parental lock level
You can change the parental lock level by following the
steps in “Setting the Parental Lock.”
In step 3, press the number buttons to enter your 4-digit
security code, then continue to step 4.
If you make a mistake, press the CLEAR button and enter
the correct 4-digit security code.
To change your 4-digit security code
You can change your 4-digit security code.
1
2
DVD video discs may or may not respond to the parental lock settings.
Follow steps I and 2 in “Setting the Parental Lock.”
Press the STOP button four times and then the ENTER
button while the security code menu appears on the TV
screen.
STOP STOP STOP STOP ENTER
®-®-®-®-©®
The 4-digit security code is cleared.
Press the number buttons to create a new 4-digit
security code, then press the ENTER button.
Complete steps 4 to 7 in “Setting the Parental Lock.”
This is not a defect in the DVD video player.
To cancel the parental lock function
1
2
Follow steps I and 2 in “Setting the Parental Lock.”
Press the number buttons to enter your 4-digit
security code, then press the ENTER button.
If you make a mistake, press the CLEAR button and
enter the correct 4-digit security code.
Press </ > to select OFF, then press the ENTER
button.
MN PARENTAL LOCK _ SELECT: e
PARENTAL LOCK
ENE
The SET UP MENU appears again.
Press the SETUP button.
The SET UP MENU disappears, and the parental lock
function is canceled.
38 mm
Function Setup )
Table of Languages
Table of Languages and Their Abbreviations
Abbreviation | Language Abbreviation | Language Abbreviation | Language Abbreviation | Language
of the of the of the of the
Language Language Language Language
——— No alternate EO Esperanto LN Lingala SL Slovenian
language ET Estonian LO Laotian SM Samoan
CHI Chinese EU Basque LT Lithuanian SN Shona
DUT Dutch FA Persian LV Latvian, Lettish SO Somali
ENG English Fi Finnish MG Malagasy SQ Albanian
FRE French FJ Fiji MI Maori SR Serbian
GER German FO Faroese MK Macedonian SS Siswati
ITA Italian FY Frisian ML Malayalam ST Sesotho
JPN Japanese GA Irish MN Mongolian SU Sundanese
KOR Korean GD Scottish Gaelic MO Moldavian SV Swedish
MAY Malay GL Galician MR Marathi SW Swahili
SPA Spanish GN Guarani MT Maltese TA Tamil
AA Afar GU Gujarati MY Burmese TE Telugu
AB Abkhazian HA Hausa NA Nauru TG Tajik
AF Afrikaans HI Hindi NE Nepali TH Thai
AM Amharic HR Croatian NO Norwegian Tl Tigrinya
AR Arabic HU Hungarian OC Occitan TK Turkmen
AS Assamese HY Armenian OM (Afan) Oromo TL Tagalog
AY Aymara IA Interlingua OR Oriya TN Setswana
AZ Azerbaijani IE Interlingue PA Panjabi TO Tongan
BA Bashkir IK Inupiak PL Polish TR Turkish
BE Belorussian IN Indonesian PS Pashto, Pushto TS Tsonga
BG Bulgarian IS Icelandic PT Portuguese TT Tatar
BH Bihari IW Hebrew QU Quechua TW Twi
BI Bislama JI Yiddish RM Rhaeto-Romance UK Ukrainian
BN Bengali, Bangla JW Javanese RN Kirundi UR Urdu
BO Tibetan KA Georgian RO Rumanian UZ Uzbek
BR Breton KK Kazakh RU Russian VI Vietnamese
CA Catalan KL Greenlandic RW Kinyarwanda Vo Volapük
CO Corsican KM Cambodian SA Sanskrit WO Wolof
CS Czech KN Kannada SD Sindhi XH Xhosa
CY Welsh KS Kashmiri sa Sango YO Yoruba
DA Danish KU Kurdish SH Serbo-Croatian ZU Zulu
DZ Bhutani KY Kirghiz Si Singhalese
EL Greek LA Latin SK Slovak
Others )
Notes on Discs
On Handling Discs
* Do not touch the playback side of the disc.
Playback side
On Cleaning Discs
* Fingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outwards with a
soft cloth. Always keep the disc clean.
* |f you cannot wipe off the dust with a soft cloth, wipe the disc
lightly with a slightly moistened soft cloth and finish with a
dry cloth.
* Do not use any type of solvent such as thinner, benzine,
commercially available cleaners or antistatic spray for vinyl
LPs. It may damage the disc.
On Storing Discs
* Do not store discs in a place subject to direct sunlight or
near heat sources.
* Do not store discs in places subject to moisture and dust
such as a bathroom or near a humidifier.
* Store discs vertically in a case. Stacking or placing objects
on discs outside of their case may cause warping.
About This Owner's Manual
This owner's manual explains the basic instructions of this
DVD video player. Some DVD video discs are produced in a
manner that allows specific or limited operation during
playback. As such, the DVD video player may not respond to
all operating commands. This is not a defect in the DVD video
player. Refer to instruction notes of discs.
“MW” may appear on the TV screen during operation.
White “ ” means that the operation is not permitted by the
DVD video player; red “ W” by the operation is not permitted
by the disc.
Playable Discs
This DVD video player can play the following discs.
Disc mark |Contents!Disc size Maximum
playback time
Approx. 4 hours
(single sided disc)
Audi 12 cm
Чаю Approx. 8 hours
DVD DVD + (double sided disc)
video Video
discs ™ | (moving Approx. 80 minutes
pictures) (single sided disc)
8 cm
Approx. 160 minutes
(double sided disc)
COMPACT 12 cm 74 minutes
Audio .
Audio
DIGITAL AUDIO 20 minutes
(CD single)
You cannot play discs other than those listed above.
This DVD video player uses the NTSC color system, and
cannot play DVD video discs recorded in any other color
system (PAL, SECAM, etc.).
Notes on Region Numbers
The region number of this DVD video player is 1. If region
numbers, which stand for their playable area, are printed on
your DVD video disc and you do not find Er: A
playback will not be allowed by the player. (In this case, the
DVD video player displays the message.)
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on
cable, play in public, and rent copyrighted material without
permission.
DVD video discs are copy protected, and any recordings
made from these discs will be distorted.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
40 mm
Others )
Check the following guide for the possible cause of a problem before contacting service.
Before Calling Service Personnel
Symptoms and Correction
exhausted.
Symptom Cause Correction Page
No power. * The power plug is disconnected. * Connect the power plug securely into the | 11,12
wall outlet.
No picture. * The TV is not set to receive DVD signal | * Select the appropriate video input mode 15
output. on the TV so the picture from the DVD
video player appears on the TV screen.
* The video cable is not connected * Connect the video cable securely into the | 11, 12,
securely. appropriate jacks. 13, 14
No sound. * The equipment connected with the audio | * Select the correct input mode of the audio 15
cable is not set to receive DVD signal receiver so you can listen to the sound
output. from the DVD video player.
* The audio cables are not connected * Connect the audio cable securely into the | 11, 12,
securely. appropriate jacks. 13, 14
* The power of the equipment connected | * Turn on the equipment connected with the —
with the audio cable is turned off. audio cable.
* The setting of output sound type is not * Set the audio setting correctly. 29, 31
correct.
The playback picture has + The disc is dirty. * Eject the disc and clean it. 40
occasional distortion. * It is in fast forward or fast reverse * Sometimes a small amount of picture —
playback. distortion may appear. This is not a
malfunction.
Brightness is unstable or * The effect of copy protection. * Connect the DVD video player directly to 11
noises are produced on the TV. Avoid connecting the DVD video
playback pictures. player to a VCR or TV/VCR combination.
The DVD video player does * No disc is inserted. * Insert a disc. (Check that the DVD or 8
not start playback. audio CD indicator in the DVD display is
lit.)
* An unplayable disc is inserted. * Insert a playable disc. (Check the disc 40
type and color system.)
* The disc is placed upside down. * Place the disc with the playback side 15
down.
* The disc is not placed within the guide. * Place the disc correctly inside the guide 15
on the disc tray.
* The disc is dirty. * Clean the disc. 40
* The parental lock function is set. * Cancel the parental lock function or 37, 38
change the parental lock level.
Buttons do not work. Power supply fluctuations or other * Turn the power on or of with the POWER —
abnormalities such as static electricity button. Or disconnect the power plug and
may interrupt correct operations. insert it into the wall outlet again.
The remote control does not | * The remote control is not pointed at the | « Point the remote control at the remote 10
work properly. remote sensor of the DVD video player. sensor of the DVD video player.
* The remote control is too far from the * Operate the remote control within about 10
DVD video player. 7m.
* The batteries in the remote control are e Replace the batteries with new ones. 10
mu 417
Others )
Specifications
DVD Video Player / Outputs / Supplied Accessories
[DVD Video Player]
Power supply 120 V AC, 60 Hz
Power consumption 18 W
Mass 3.3 kg
External dimensions
430 x 81 x 300 mm (W/H/D)
Signal system
Standard NTSC
Laser
Semiconductor laser, wavelength 650 nm
Frequency range (digital audio) |
DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD: 4 Hz to 20 kHz
More than 110 dB
More than 106 dB
Less than 0.001 %
Wow and
Below measurable level (less than +0.001 % (W.PEAK))
Operating conditions
Temperature: 5 °C to 35 °C, Operation status: Horizontal
[Outputs]
1.0 V (p-p), 75 Q, negative sync., pin jack x 1
S video o
(Y) 1.0 V (p-p), 75 Q, negative sync., Mini DIN 4-pin x 1
(C) 0.286 V (p-p), 75 Q
Audio output (digital audio)
0.5 V (p-p), 75 Q, pin jack x 1
Audio output (analog audio) Ш
2.0 V (rms), 220 Q, pin jacks (L, R) x 1
[Supplied Accessories]
S video cable ..….…..…....…..….……..…srsrsrsrerenrs
Audio/video cable …….…….….………………………...
Remote control (SE-R0001) ..............
Batteries (AAA) coor,
* Designs and specifications are subject to change without notice.
42 um
LIMITED WARRANTY DVD VIDEO PLAYER
Toshiba America Consumer Products, Inc. ("TACP”), Toshiba Hawaii (“THI”) and Toshiba Canada Limited (“TCL”) make the following limited warranties. These limited
warranties extend to original purchaser or any person receiving this set as a gift from the original purchaser and to no other purchaser or transferee.
Limited Ninety (90) Day Warranty
TACP/THI warrant this product against defects in materials or workmanship for a
period of ninety (90) days after the date of original retail purchase. During this
period, TACP/THI will repair a defective product or part without charge to you.
You must deliver the entire product to a TACP/TH! Authorized Service Station.
You are responsible for all transportation and insurance charges for the unit to
and from the Authorized Service Station. !f you live in the U.S.A. you may, at
your option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit with a new or
refurbished unit. Canadian consumers are requested to contact TCL. In
Hawaii consumers are requested to contact THI.
Limited One (1) Year Warranty
TACP/THI further warrant the parts in this product against defects in materials
or workmanship for a period of one (1) year after the date of original retail
purchase. During this period, TACP/THI will replace a defective part without
charge to you, except that if a defective part is replaced after ninety (90) days
from the date of the original retail purchase you pay labor charges involved in
the replacement. You must also deliver the entire product to a TACP/THI
Authorized Service Station. You are responsible for all transportation and
insurance charges for the unit to and from the Authorized Service Station. If you
live in the U.S.A. you may, at your option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit with a new or
refurbished unit. Canadian Consumers are requested to contact TCL. In
Hawaii consumers are requested to contact THI.
Rental Units
The warranty for rental units begin with the first rental or thirty (30) days from
the date of shipment to the rental firm, whichever comes first.
How to Obtain Warranty Service
Commercial Units
Products sold and used for commercial use have a limited ninety (90) day
warranty for all parts and labor.
Owner's Manual
You should read the owner's manual thoroughly before operating this product.
You should complete and mail the enclosed Demographic card within ten (10)
days after you, or the person who has given you this product as a gift,
purchased this product. This is one way to enable TACP to provide you with
better customer service and improved products. Failure to return the card will
not affect your rights under this warranty.
Your Responsibility
The above warranties are subject to the following conditions:
(1) You must retain your bill of sale or provide other proof of purchase.
(2) You must notify a TACP/THI/TCL /Authorized Service Station within thirty
(30) days after you discover a defective product or part.
(3) All warranty servicing of this product must be made by a TACP/THI/TCL
Authorized Service Station.
(4) U.S.A. warranties are effective only if the product is purchased and
operated in the U.S.A. or Puerto Rico.
(5) Labor service charges for set installation. Set up, adjustment of customer
controls and installation or repair of antenna systems are not covered by
this warranty. Reception problems caused by inadequate antenna systems
are your responsibility.
(6) Warranties extend only to defects in materials or workmanship as limited
above and do not extend to any product or parts which have been lost or
discarded by you or to damage to products or parts caused by misuse,
accident, damage caused by Acts of God, such as lighting or fluctuations in
electric power, improper installation, improper maintenance or use in
violation of instructions furnished by us; or to units which have been altered
or modified without authorization of TACP/THI/TCL or to damage to
products or part thereof which have had the serial number removed,
altered, defaced or rendered illegible.
(7) Should you elect to return your DVD Unit to TACP after the ninety (90) days
and within one (1) year, or after the warranty period has expired: Call (800)-
631-3811 to receive information concerning an exchange price. Payment
must be enclosed with product in the form of a certified check or money
order including reason for return.
(8) Physically damaged DVD Units are not acceptable for repair or exchange
whether in or out of warranty and will be returned as received.
part.
proof of purchase must be enclosed.
In Hawaii contact:
Toshiba Hawaii Inc.
327 Kamakee Street
Honolulu, HA 96814
(808)-521-5377
In the Continental United States contact:
Toll Free
800-631-3811
(1) Refer to the troubleshooting guide in your owner's manual. This check list may solve your problem.
(2) Inthe U.S.A. only call the TACP toll free number 800-631-3811, or if in Hawaii or Canada see listing below within (30) days after you find a defective product or
(3) Arrange for the delivery of the product to the TACP/THI/TCL Authorized Service Station or TACP Return Center. Products shipped to the Service Station must be
insured and safely and securely packed, preferably in the original shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other
In Canada contact:
Consumer Electronics Group
191 McNabb Street
Markham, Ontario L3R 8H2
(905)-470-5400
Consumer Electronics Group
22171 Fraserwood Way
Richmond, B.C. V6W 1J5
(604)-303-2500
Consumer Electronics Group
1643 North Service Road
Droval, QC H9P 111
(514)-856-4100
All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are expressly limited to the duration of the
limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other
warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI be
liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within
which an action must be commenced to enforce any obligation of TACP/THI arising under the warranty or under any statute, or law of the Unite States or any state
thereof, is hereby limited to ninety (90) days from the date you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising
under state law.
This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some states do not allow limitation on how long an
implied warranty lasts, when an action may be brought, or the exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to
you.
ATTENTION CANADIAN CONSUMERS:
U.S.A. and used in Canada are not covered by these warranties.
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward this completed form with a copy of bill of
sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be purchased from an Authorized Canadian Dealer. Products purchased in the
IMPORTANT: PACKING AND SHIPPING INSTRUCTION
When you send the product to a Service Station, you must use the original carton box and packing material, then insert the original carton box containing the unit into
another carton using more packing material.
E 43
TOSHIBA
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
