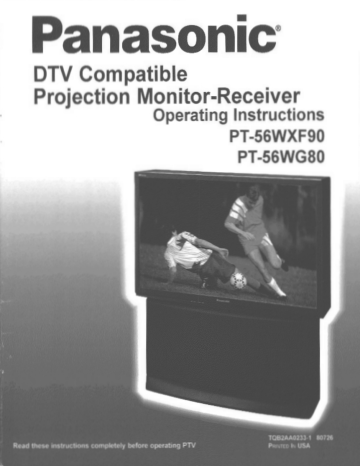

Panasonic
DTV Compatible
Projection Monitor-Receiver
Operating Instructions
PT-56WXF90
PT-56WG80
Read these instructions completely before operating.
Contents are subject to change without notice or obligation.
Copyright 1998 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
WARNING
ELECTRICISHOCK:
5
WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable pans inside. Refer servicing to qualified service personnel.
The lightning flash with arrow The exclamation pont within a
head within a triangle is tnangle is intended to tell the
intended to tell the user that user that important operating
parts inside the product are a and servici ng instructions aré in
risk of electric shock to persons. the papers with the appliance.
WARNING: To prevent fire or shock hazard, do not expose this appliance
to rain or moisture.
Panasonic Consumer Electronics Company,
Division of Matsushita
Electric Corporation of America
Ona Panasonic Way
Secaucus, New Jersey 07094
TABLE OF CONTENTS
Table of Contents
Congratulations...................—.———....e..esmo.. eneroneceannanennnemmacema 2
Customer Record ..................—...emmeree .. es 2
Care and Cleaning ... ve... ercerecacanecararrarererenErENONE TE era 2
SpECIfICATIONS ……..…..…....rrrrrasirannersranaessesas as sénare rrvrec ee serraassere an ara sta avr AvanAN Ans ace sa cc Na ES 2
Important Notes.................—.—. we... enanavenenenmno. ennoooerrareneen anna 3
Television Location ............. re. .ereieerrie rene ee ener ne DReerrEE rre rre renacecacerreararorcavarda 3
Optional Cable Connections ..............e...0r.e eee e ID RI II RI RR e Y
AC Power Supply Cord .................. ===. reee reee ree ee ee entonces 3
Cable / Antenna CONNECTIONS …........……crerrersrarsesssersasaerer EC rETOrreCeNe canoa ree 3
Getting Started .................—...........— eee Laevenerenenarenenenenenene 4
Step 1 - Connect AC Cabte Cord ........... EEE À
Step 2 - Antenna Connections without Cable Box................ carrrraneeeesan mas anne- 4
Step 2a- Antenna Connections with Cable Box ................-.-....ieceerivosnanarecccer eee 4
Step 3 - Tuming Set ON .............=..eri_maccaciocccrecercereecenee eee e taa iacere recerca cer re TEN ecaea 5
Step 4 - Roller Guide Menu................. etree errr career tee ener 5
Step 4a- ACTION / Navegation Button … en
Step 5 - Language.....................ee.emieriria re RR Re aa reee ere Des 6
Step 6 - Prog Chat ee O 7
Installation ............ puuvacanDocnenenneneneamen aa eeDenvenaran anno. caassensemac sen ena unes 8
Antenna Connection with a VO Bar KETTE В
Antenna Connection with a Cable Box and VCH............——.———..er.erereiereereriereeenrer en eee. 9
Optiona! Equipment Connections..................-.==——-====e ere rca een eee nants 10
Amplifier Connection (To Audio Amp)...................—eei——————eserarere erre ren rec eracs 10
Program Out Connection (Prog Qut)...................-—————.-.eeeeiee eee nan eee 10
Home Theater Connection ..............--.ee=.eeííreíierareer re encaaate rre ETrE REE rrErT Taca 11
Remote Control Guide ..........-.......w.... I sen...
Remote Control Functional Key Chart ern EEE EEE EETETKRRRK EEK G 13
Battery Installation and Precautions................ eee erre cesses. 15
Special Remote ButtonS.….….…..…..…..….……neenenncnnanntnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn 16
Remote Control Component Codes ................e. viviera enTrece racer 17
Programming the Remote Control ..................... eee RD aan 21
Split Screen Operation ............. eeenenonenenarenmene aaenanEDon envenenan 22
Without a VCR / With a VCR and Cable Box .............—...... DO
With a VCR ooo ET ra mnes 23
Roller Guide Menu .......... KEKEKEKEAREEARERRERUEDUE anemepad ane nmen sens m2
Navigation / ACTION Button ............— eee reee enero Re eee sesame 24
Roller Guide Feature Chart................... ET ns... 2D
брес!а! Реа!игез.................... anioceunenenenenaaneo erecononenanen nen ennanea ...29
Languages ...... OPTRA 29
Cable Mode / TY Mode ...................—.... erraaanarea re cerrerear rra T DA ramas 29
Closed Caption, (CC) On Mute einer ere e 30
DTV AUlo.............e..emeicemmcerenrionerraceraracareracereeceren enamora ecaaaaacenar e enrerearrENEaIORrerca raraaean res 31
Convergence AQJUSIMENt…..…...…..……...…...…carcserrersamenerrrehacancrarsc cnrs na remer einer 1
Sleep Timer ...............—.m.-.- reir een ra rares sur re oornerccareen eee rr pOrOracrae nen reocaniearr De
Program Timer 1 and 2 .................ieerirreer reee ee ee te Arne ere EEE EEE ENG FO
Picture Adjustments ....................e == ete e ER EII TETTÍEBMNÍ RR IR DIR ER Ie 34
Audio Speakers - Center Speakers........... peuiareacenerec enero rara Erre NVe rea 35
Channels Favorites ................. eee een RR e e Re rrDarerrecerEr enanas 35
Channel Captions..............—..—.—.—e—.—— eee O O 36
Channels Lock, Game Guard, and All.....................ee === A RAAB rare … 46
Unlocking Channels, Game Guard, and All ...............—.—e-erecereeerireii K RETTET RER 37
Digital TV Set-Top Box (DTV-STB) Connection........ ne ЗВ
Glossary EAE E Ad ABI IAA EIN FARE ENENEYER Ag+ EF FFE SINE NR ARNESFET FER SA A ARAAE ERE NAN NEE ESE NgEN 39
Frequently Asked Questions About Digital TV .....................40
Troubleshooting Chart menu Ив Чьи ни Ad FEE FARE ANE A NESE EREERN „о. 41
CONGRATULATIONS
Congratulations
Your new Projection Television (PTV) features state-of-the-art technology for high-
quality picture and sound with complete audio/video connections for your home
theater system. Standard television signals are displayed in a progressive format,
providing a clear, crisp picture without visible scan lines. This PTV is also DTV (Digital
TV)-compatible. When connected to a Panasonic digital TV set-top box, this TV can
display high-definition (HDTV) 1080i format and standard definition (SDTV) 480p
format. Your new PTV is designed to give you many years of enjoyment. It was
thoroughly tuned and tested at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the TV. You
should note the model and serial number in the space provided and retain as a
permanent record of your purchase. This will aid in identification in the event of theft
or loss. Product registration is available at: www.prodreg.comipanasonic.
Model |
Number L
Serial | т =
Number | | _ eh
Care and Cleaning
Protective Screen (Turn PTV Off)
The projection screen is a high precision lens system which has a protective screen.
The protective screen is fully washable with the following precautions:
0 Use a mild soap solution or window cleaner and a clean cloth.
« DO NOT USE ABRASIVE CLEANERS.
+ Do not use laundry detergent or automatic dishwasher soap.
« Do not use alcohol, ammonia, or petroleum based products.
0 Avoid excessive moisture and wipe dry.
+ Prevent solution from running into the receiver below.
3 Avoid bumping or scraping the screen.
Cabinet and Remote Control
O For cabinets and Remote Control, use a soft cloth dampened with water or a mild
detergent solution. Avoid excessive moisture and wipe dry.
J Do not use benzene, thinner or other petroleum based products.
Specifications
Power Source
PT-56WXF90 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-125
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Audio Output Jacks 0-2.0V AMS 4.7K Ohm
S-Video Input Jacks S-Video (Y-C) Connector
DTV Input (Y / PB / PR) 75 Ohm, Phono Jack Type
Specifications are subject to change without notice or obligation.
IMPORTANT NOTES
Important Notes
Television Location
This unit can be used as an entertainment center. Consult your dealer for available options.
D Avoid excessive sunlight or bright lights, including reflections.
О) Keep away from excessive heat or moisture. Inadequate ventilation may cause internal
component failure.
D Fluorescent lighting may reduce Remote Control transmitting range.
O Keep away from magnetic equipment, including motors, fans, or external speakers.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
O Use 75-ohm coaxial shielded cables.
0 Check type of output and input connectors on your components.
O Determine required cable lengths.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A Polarized Plug
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE. FOR SOME MODELS THAT ARE MC =
NON-POLARIZED, THE USE OF AN AC ADAPTOR CONNECTOR MAY
BE NECESSARY
Cable / Antenna Connections
For proper reception, either a cable or antenna connection is required.
Cable Connection Incoming Cable from
. Cable C an
Connect the cable supplied by your local cable company or select DE
Antenna 1 or 2 (Ant 1 or Ant 2) if you do not have cable.
(I
Note: A cable converter box may be required for proper reception. @ Cor
Check with your local cable company for compatibility 45 Onm VHE/UHF
requirements. on back of TV
Antenna Connections
* For proper reception of VHF/UHF channels, an external antenna is
required. For best reception an outdoor antenna is recommended.
. Select Antenna 1 and Antenna 2, in the Roller Guide
SET UP Menu under Prog. Chan.
Incoming Cable from
Home Antenna
=—(y/)— Cable Preset
Cable Mode is preset at the factory.
Antenna users must change to TV Mode
(antenna) for antenna use in the Set Up
Menu.
GETTING STARTED
Step 1 - Connect AC Power Cord
©
Step 2 - Antenna Connection - No Cable Box
Follow this diagram when connecting the TV system to Cable TV System or Antenna.
Note: No additional connections are required for split screen operation.
Incoming Cable from
cable TV system or
Antenna
ANT 1 SPLIT OUT ANT 2
TERMINALS ON BACK OF TV
Step 2a- Antenna Connection with Cable Box
Follow this diagram when connecting the TV system using a Cable Box.
Note: No additional connections are required for split screen operation.
Cable Box
INPUT QUTPUT
Incoming Cable from | A
Cable Company
ANT 1 SPLIT OUT ANT 2
TERMINALS ON BACK OF TV
Note: Inthe SET UP menu choose AUTO POWER SET to power up the TV at the same time
as the Cable Box or other components.
Procedure
The Remote Control must be programmed with supplied codes to operate the
Cable Box. (See Programming the Remote Control.)
Press the Remote Control TY mode button >
Select ANT 2 to view the Cable Box, located in the Roller Guide Set Up Menu
under Prog Chan.
Turn the TV to the appropriate channel for the Cable Box (channel 3 or 4).
Press the Remote Control CBL button.
Use the Remote Control CH (up/down) buttons or the numeric keypad for
selecting channels using the Cable Box.
GETTING STARTED
Step 3 - Turning Set On
Press the Remote Control TV mode putton 5—7 |
Then press the POWER button (POWER)
Step 4 - Roller Guide Menu
Press the ACTION button in the middle of the large blue button on the Remote Control
to display the Roller Guide Menu*. Press the CH (channel) up/down to rotate the
Roller Guide, Press the Left VOL (volume) button to exit the Roller Guide Menu.
*U.S. Patent Pending
IROLLER GUIDE MENU SELECTIONS
|
Note: To exit the Roller Guide Menu, press the left VOL (Volume) arrow on the
ACTION button.
GETTING STARTED
Step 4a- ACTION / Navigation Button
Press the ACTION button to select main menu items. Press the up/down CH
(channel) arrows to highlight sub menus. Press the Right VOL arrow to select and
adjust features. Press the ACTION button to return to sub menus.
Remote ACTION / Navigation Button
CH
Note: Be careful to press ACTION in the middle of the button. If you do not press in the
middle of the button, the (CH) channel or (VOL) volume keys may be activated.
Step 5 - Language
In SET UP Menu, select IDIOMA / LANGUE to change menu language to ENGLISH,
ESPAÑOL or FRANCAIS.
MODE ENGLISH
GETTING STARTED
Step 6 - Prog Chan
In SET UP Menu, Select PROG CHAN to select choices.
Cable Mode/ TV Mode
In SET UP Menu, select PROG CHAN to select TV (antenna) MODE or CABLE
MODE depending on the signal source. Select Antenna 1 or 2 depending on the input
on back of TV.
Program Auto
in SET UP Menu, select PROGRAM AUTO to automatically program all channels with
a signal.
Program Manual
In SET UP Menu, select PROGRAM MANUAL to manually add or delete channels.
EPROG CHANZE> MODE
CON RA ANT 1
ER | БНОСВАМАСТО ob
PROGRAM MANUAL — p
INSTALLATION
Antenna Connection with VCR
Follow this diagram when connecting the TV system using a VCR.
Note: No additional connections are required for split screen operation.
When connecting S-Video Input (1 or 2), connect the S-Video cable instead of the
standard video cable.
CO PU MAA E AL OCT aa ae Mo
AUDIO OUT
© L HR
VIDEO OUT | ;
`
&
Esa x
Pro
| Fo
VIDEO IN. ;
a
AUDIO IN Ч
O:
E.
EJ] — J * — — -
r=
ANT INPUT. |
O {Hr
ANT QUTPUT |
O4
| LEE —-.. EE. a...
TERMINALS ON BACK OF VCR
INCOMING CABLE
CABLES NOT SUPPLIED
Procedure
» The Remote Control must be programmed with supplied codes to operate the
VCR. (See programming the Remote Control.)
* Press the Remote Control TV mode button (©) .
* Select TV or Cable and ANT 1, if necessary, located in the Roller Guide Set Up
Menu under Prog. Chan.
INSTALLATION
Antenna Connection with Cable Box and VCR
Follow this diagram when connecting the TV system using a Cable Box and VCR.
Note: When connecting S-Video Input (1 or 2), connect the S-Video cable instead of the
standard video cable.
FT SBE BUTT
AUDIO OUT -
O. D- J
|
viogo our | peo |
© нь „= 60 |
i EE. e ©) + © On
- O Om |
|
|
| 3 | ado
0 РОВ! / | | |
® L г — . _— mm. mm EZ ateo] DE dd a
INCOMING CABLE
CABLES NOT SUPPLIED
|
|
|
|
|
|
| |
| |
| |
O »—) |
| |
|
|
|
|
|
|
|
|
TERMINA N BACK OF VCR CABLE BOX
Procedure
* The Remote Control must be programmed with supplied codes to operate the
VCR and Cable Box. See Programming the Remote Control.
e Press the Remote Control TV mode button >».
e Select ANT 2 mode located in the Roller Guide Set Up Menu under Prog Chan to
view Cable Box.
* Turnthe TV to the appropriate channel for the Cable Box (usually channel 3 or 4).
« Press the Remote Control CBL mode button.
» Use the Remote Control CH up/down buttons or the numeric keypad for selecting
channels using the Cable Box.
* Turn VCA on channel 3 or 4.
INSTALLATION
Optional Equipment Connections
VCR's, video disc players, video game consoles, and DSS equipment can also be
connected. See the optional equipment manual for full details.
Note: DVD players should be connected to the S-Video input unless the DVD is 480p output.
TERMINALS ON BACK OF TV)
Ml Ey ads lla EE maa EE A mp EEE оке EEE dee TD у
qe |
VCR |
PROG
our Г
го — MES 0 |
| INPUT | O) vineo (©
© © © ©) voeo SO
| VIDEO GUTI |
© =} © © ©: |
© 0/01”
QUTPUT DLE an
| O: I
he = esse wd pps И == == ост = == о === =
TERMINALS ON BACK OF VCR
Procedure
1. Connect equipment to rear Audio/Video input jacks as shown,
2. Select the corresponding video input mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Note: The S-VIDEO connection is optional and overrides other VIDEO connection.
Amplifier Connection (TO AUDIO AMP)
Connect to an external audio amplifier input for listening through a stereo system.
Note: TO AUDIO AMP terminals cannot and should not be connected directly to
external speakers.
Audio Adjustments
Select TV SPEAKERS ON located in the AUDIO Menu.
Set amplifier volume to minimum.
Adjust TV volume to desired level.
Adjust amplifier volume to match the TV.
Select AUDIO SOURCE, EXT & VAO (Variable Audio Out) from AUDIO menu
to control speakers from the TV or select EXT and FAO (Fixed Audio Out) to
control speakers from the external amplifier.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Program Out Connection (PROG OUT)
For monitoring the TV audio and video with optional video equipment, connect to
PROG OUT terminals on the back or front of the TV.
Procedure
1. Connect optional video equipment input to the PROG. OUT (R/L Audio and
Video) terminals.
2. PROG OUT terminal display is the same as the picture on the TV.
3. See optional equipment manual for further instructions for recording or
monitoring.
NS CN
INSTALLATION
Home Theater Connection
Your TV internal speakers can be connected as the center channel for a surround sound
home theater system. Connect a surround sound amplifier (center channel speaker
output) to CENTER CHANNEL INPUT on the back of the TV, as shown. CENT
SPEAKER 8 FIXED AUDIO OUT must be selected in the AUDIO Roller Guide Menu
under SPEAKERS.
TERMINALS ON BACK OF TV
PROG INPUT
]
DIGITAL TV
our 1 INPUT ]
5-VIDEO гол |
` — - O OY
(1) Push and hold ©
down button. |
{2) Insert bare wire |
into hole and
|
release button.
Video
Component
<=
Left Front Right Front
k
Speaker TV Speakers Speaker
Center Channel
Left Rear Right Rear
Surround Speake
REMOTE CONTROL
Remote Control
ASPECT Pav) |
E. his A а
VCR DVD AUX RCVR
TV DTV CBL DBS
ACTION
‘Press 6/adses
From io
PLAYBACK
Press ic diepia
uu
coca
eS notre
Se pee Eu
Eee
yO O Ri
A
Ce
ne TTP
Sa CATCH UP
SE о вещи
Press to beg
res IES >
VCR REC REW STOP PLAY
FF Ie OP N CLOSE CH
- . Coen rman mm ppp
EUR511153
{Turn the light OFF and ON by pressing
R-TUNE and RECALL, together.
REMOTE CONTROL FUNCTIONAL KEY CHART
Remote Control Functional Key Chart
Key, Component Rain
A OWER ALL COMPONENTS Turn components On and Off
LIGHT
CO) REMOTE CONTROL Hiuminate buttons
MUTE -
O TV RCVR CBL Muté audio
TV/VIDEO
TV CABLE VCR DBS DTV
O RCVR LD/CD/OVD AUX Switch between component and TV
ASPECT Chango picture size to fit format:
О
TV DTV
4:3 - Standard picture
— JUST - Standard viewed full screen
FULL - Wide picture {16:9)
ZOOM - Expand picture uniformiy
Coes
VCR DVD AUX (CD VCR 2,
TAPE) RCVR
Component mode selection for
e TV DTV CBL DBS Remote Control
ALL COMPONENTS Except VOR and AUX (Tape)
CH
A Channel up.
Up navigation
V Channel Down
CH Down navigation
vor] vo
ACTION TV Holler Guide Meni:
VCR Menu
CABLE ENTER
DBS Menu
MENU DTV Menu ON/OFF
CD DVD Menu
FROG
Oo DTV Program
MEMO
CD) TV DTV Save on-scresn images
M-DISPLAY
TV DTV Yiew saved on-acreon Images
U
©
REMOTE CONTROL FUNCTIONAL KEY CHART
Remote Control Functional Key Chart
Key, | Component Function
CATCH UP |
(С) TV DTV Audio / Video memory capture
PLAYBACK
CO) ТУ DTV : Audia / Video-mamory playback
EXIT / GUIDE N
С) DBS DTV Exit / Guide Menus
VCR
VCH REC DBS Record
AUX (Cassette Deck) >
ER MS
AUX (Cassette Deck)
REW
<=) DVD LD - Skip:f Search rewind
CD Search rewind
RCVR Decrbasé surround
VCR |
STOP DVD
LD Stop:
Ce) со
AUX (Cassette Dack)
PLAY VCR
(— DVD LD CD Play
AUX
TV Split Screen |
VCR Fast Forward
SPLIT DVD Skip/Search
LD Fast Forward
EF со “Fast Forward
RCVR incrässe surréuné
SEARCH TV Split channel search a
TV/VCR o ns
VCR Switch between TV and VCH
OPEN/CLOSE DVD LD CD Open. / Cosa
SWAP TV “Switch aplit screen
PAUSE VCR Pause
>) DVD COLD Stitt Pause
STILL AUX (Cassette Deck and Tape) | Pause
TV Spit channel up f down
VCR Channel up / dowr:
SPLIT CHANNEL Cable Channel up / down
DBS Channef up / down
> CA) RCVR Center channel sound up/ down (+4)
DVD Slow +/-
SLOW LD Side A/B
CD
Repaat / Random
REMOTE CONTROL FUNCTIONAL KEY CHART
Remote Control Functional Key Chart
inputs, 5= CD, 6 = Tuner, 7 =
Phono, 8 = Cassette Deck, 9 = Aux
Key, Component Function
TV Previous channel
DTV
CABLE
R-TUNE DBS
O DVD Title
LD AB repeat
CD (AUX) Next disc
AUX (Cassette Deck) Deck A/B
TV On screen display
VCR
RECALL DVD
O в
DBS
CD (AUX) Time format
DTV Set top box dispiny.
(1) (2) (3) TV VCR CABLE DBS Selects channel ——
Selects code
(4) (5) (6) LD Selects chapter
CD (AUX) Selects track
@ (9) ACVR Keys 1, 2, 3, and 4 selects A/V
Battery Installation
Incorrect installation can cause battery leakage and
Remote Control.
Use two AA batteries:
Remove the battery cover by pushing in near the arrow and sliding the
cover back.
corrosion that will damage the
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Precautions
« Replace batteries in pairs.
» Do not mix battery types (zinc carbon with alkaline).
° Do not recharge, short-circuit, heat, burn, or disassemble batteries.
SPECIAL REMOTE BUTTONS
Special Remote Buttons
ASPECT
Viewing Mode Selections O
The ASPECT button changes the normal picture display size in response to the signal
format or you can change the picture size for your personal viewing preference.
4:3 ASPECT: Normal picture size displayed in the center of the viewing screen at full
screen height.
JUST (Justified) ASPECT: 4:3 picture displayed across the entire viewing screen in
16:9 aspect ratio. The edges of the picture are stretched while keeping images at the
center of the screen in proper perspective.
FULL ASPECT: 16:9 picture at full screen width and height. Video formats with
aspect ratios greater than 16:9 will be displayed at the proper width, so no video infor-
mation is lost. Black bars will appear above and below the picture.
ZOOM ASPECT: Expands the 4:3 picture uniformly (width and height) filling the
screen horizontally. The top and bottom of the picture is cut, but can be adjusted in
the PICTURE section of the Roller Guide Menu under V-POSITON (Vertical Position).
There is no image distortion.
CATCH UP PLAYBACK
Catch Up Feature С) an
The CATCH UP button captures the video and sound of the TV program and the
PLAYBACK button plays back the still pictures at a faster rate, allowing you to “catch
up” with the TV program. When the stills catch up with the current program, the TV
automatically switches to the current program. The “tortoise and hare” on the bottom
of the screen indicate the progress of the catch up feature.
SEARCH
h
<
The SEARCH button displays 6 channels simultaneously on the right haif of the split
screen, allowing you to view the current program on the left side of the split screen.
You can program the 6-channel display to search through all available channels or
through your “favorite channel” memory.
Advanced Channel Searc
MEMO M-DISPLAY
Memory Function (
The MEMO button saves images on screen for later viewing. Save up to six (6)
screen images, which are displayed simuitaneously or one-at a time on a split screen
by pressing the M-DISPLAY button
Component Codes
The Universal Remote Control is capable of operating many component brands after entering code. Some
components may not operate because memory is limited. The Universai Remote Control does not control
all features in all models.
COMPONENT CODES
Codes for VCR
Brand Brands
Admiral 200 Orion 081, 136
Aiwa 137,160 Panasonic 100, 101, 125, 130
Akai 014, 015, 016,142 J.C. Penney 000, 005, 010, 011, 130, 240, 300
Audio Dynamic | 011,240 Pentax 000, 011, 300
Bell & Howell 005, 013 Philco 081, 125,130, 136, 137, 150
Broksonic 081, 136 Philips 125, 130, 150
Canon 125, 135 Pioneer 125
Citizen 006 Proscan 000, 001, 002, 125,130, 150, 300, 310
Craig 005, 006, 141 Quasar 100, 101, 125, 130
Curtis Mathes 130, 137, 300 Radio Shack 005, 009, 130, 137, 170, 210, 241
Daewoo 001, 130, 250 RCA 000, 001, 002, 125,130, 150, 170, 300, 310
DBX 010, 011, 140 Realistic 005, 009, 130, 137, 210, 241
Dimensia 300 Samsung 002, 004, 220
Emerson 003, 080, 081, 135, 136, 243, 250 Sansui 051, 081, 136, 240, 520
Fisher 005, 007, 008, 009 Sanyo 005, 009
Funai 081, 136, 137 Scott oo 002, 004, 009,081,136, 230, 241,
GE 130, 170, 300
Go Video 220, 512 Sears 000, 005, 006, 007,008
Goldstar 006 Shaintom 050
Hitachi 000, 125, 300 Sharp 200, 210
instant Replay 1125, 130 Signature 2000 | 137, 200
Jensen 240 Singer 050
JVC 010, 011, 190, 240 Sony 140, 141, 142
Kenwood 006, 010, 011, 240 >v2000 137
EXI 000, 005, 006, 007, 008, 009, 137 Sylvania 125, 130, 137, 150
Magnavox 125.130, 150 | Symphonic 137
Marantz 010, 011, 240 Tashiro 006
Marta 005 Tatung 010, 011, 240
Memorex 009, 130 Teac 010, 011, 137, 240
Minolta 000, 300 Technics 100, 101,125, 130
MGA/Mitsubishi |230, 241, 242, 243, 330, 340 Teknika 130, 137
Multitech 004, 137, 330 Toshiba 001,310
NEC 010, 011, 190, 240 Vector Research | 011
Olympic 125-190 Mont.Wards 006, 009, 200, 210, 290
Optimus 006, 100, 140, 200 Yamaha 005, 010, 011, 240
Zenith
290
COMPONENT CODES
Codes for Cable Box
FT
Brand (Code Brand Code
ABC 530 — Puser 544
Archer 531, 544 RCA 170
Cableview 005, 544 Realistic 544
Citizen 005, 522 Regal 130, 350, 720, 730, 731, 900
Curtis 130, 131 Regency 560
Diamond 530, 531, 544 Rembrandt 005, 544, 702
Eagle 541 Samsung 005
Eastern 560 Scientific Atlanta ; 122, 130, 131
GC Brand 005, 544 Simark 001, 005
Gemini 522 Sprucer 005, 121
Stargate 005, 544
ere 122, 360, 520, 521, 522, 530, 531, To иеи 9017005
Jerrold 532,533 Texscan 810
Hamlin 130, 350, 720, 730, 731, 900 Tocom 700, 701
Hitachi 003, 530 Toshiba 004
Macom 003, 004, 005 Unika 531,544
Memorex 542 Universal 522, 544
Movietime 005, 544 Videoway 006
Oak 002, 704, 710 Viewstar 541, 542
Panasonic 120, 121, 132 Zenith 000, 280
Philips 006, 007, 540, 541, 542 НЙ Satellite 000
Pioneer 001, 260
Pulsar 005, 544
Codes for Laser Disc
ЭС
Рюпеег 370
140, 141, 142, 143
Codes for DVD
Brand Brand
Denon 100
Ferguson 110 Saba
Nordmende 110 Sony
Mitsubishi 150 Thomson
Panasonic 100 Toshiba
Pioneer 120 Yamaha
COMPONENT CODES
Codes for CD
Admiral. 510 Onkyo 453, 454
Aiwa 562, 564 Optimus 430, 457, 459, 461
Carver 550 Panasonic 500, 501, 530
Denon 600 Philips 550
Emerson 572 Pioneer 430
Fisher 405 Quasar 501, 530, 500
Gerrard 457 RCA 560, 570, 571, 900
Harman/Kardon |459, 460, 462 Sansui 432, 720
Hitachi 407 Sanyo 405
Jensen 563 Scott 432, 720
JVC 590, 591, 670 Sharp 600, 601
Kardon 458 Sherwood 459
Kenwood 400, 401, 450, 670 Sony 540
LXI/Sears 565 Soundesign 620
Magnavox 550, 561 Teac 451, 455, 457
Marantz 550 Technics 500, 501, 530
Mentosh 460 Victor 590, 591, 670
Nakamichi 432 Yamaha 402, 403, 404
Codes for Cassette Deck
Denon
Fisher
Kenwood
Marantz
Nakamichi
Panasonic
800
603
657
780, 781
600, 650
751
631
651, 652, 656
700, 730
В) |;
Philips 751 —
Pioneer 630
RCA 763, 770, 771
Sansui 631, 653
Sharp 800
Sony 740
Teac 653, 654, 658
Technics 700, 730
Yamaha 601, 602
COMPONENT CODES
Codes for Receiver/Amplifier
Brand Brand
Admiral 170, 730 Optimus 003, 162, 170, 171
Aiwa 160, 161 Panasonic 100, 101, 130
Denon 200, 201, 202 Philips 150
Fisher 004 Pioneer 030, 032
Garrard 055 Quasar 100, 101, 130
Harman 050, 157 RCA 003, 030, 162, 170, 171
Jensen 164 Sansui 003, 053, 320
JVC 190, 191 Sharp 200, 203
Kenwood 000, 050 Sony 140
Magnavox 162 Soundesign 220
Marantz 151 Teac 053, 054, 055
Mcintosh 058 Technics 100, 101, 130
Nakamichi 031 Victor 190, 191
Onkyo 051, 056 Yamaha 001, 002
Codes for DBS
G.E.
Hitachi
Panasonic
Philips
Sony
Toshiba
Uniden
7
390
000
001, 002
Write the code numbers for your components in the space provided below. This will
serve as a reference when you need to reprogram your remote control,
CABLE
Cable Box
DBS
Direct Broadcast
Satellite
Other Components
VCR
Video Cassette
Recorder
RCVR
Receiver or Amplifier
Other Components
CD/LD
Compact / Laser Disc
Player
DVD
Digital Videodisc
Other Components
PROGRAMMING THE REMOTE CONTROL
Programming the Remote Control
The Universal Remote Contral can be programmed to operate many manufacturers’
components using the component function buttons for VCR, DVD,
AUX, RCVR, TV, DTV, CBL, or DBS. Follow the procedures for programming your
Remote Control with and without codes for the component.
Determine the manufacturer of the component and look in the table for the code.
Note:
Be careful to press ACTION in the middle of the button. If you do not press in the
middle of the button, the (CH) channel or (VOL) volume keys may be activated. This
will interrupt your programming.
Programming With Code
Confirm that the external component is plugged in and is turned on.
Turn the component off.
Press the ACTION and POWER button, together, for at least 5 seconds. All
mode buttons will flash, then let go of the buttons.
Press appropriate component button (VCR, CBL, etc.) on the Remote
Control. The pressed button will illuminate steadily. All other buttons will go
out.
Enter the 3-digit component code using the Remote Control numeric keypad
(0 ~ 9 buttons). If a proper code was entered, the mode button will blink twice
and go out.
Press the Remote Control POWER button to test the component. If the
procedure was successful, the component will turn on.
NE.
| =< Unsuccessful Code
If the component does not operate with the Remote Control,
repeat the procedure using another code. (Some brands have
multiple codes.)
If an incorrect code is entered, or if the procedure takes longer
than 30 seconds, the programming will fail.
Programming Without Code
This procedure searches all codes and is called the “sequence method”.
Note:
Confirm that the external component is plugged in and is turned on.
Turn the component off.
Press the ACTION and POWER button, together, for at least 5 seconds. All
mode buttons will flash, then iet go of the button.
Press appropriate component button on the Remote Control. The pressed
button will illuminate. All other buttons will go out.
Press the VOL E> button to move forward to the next code. Press the VOL $
button to move backward.
Press the Remote Control POWER button to test the component. If the
procedure was successful, the component will turn on.
Repeat the praceding two steps until the component code is found. It may lake many attempts
before the correct code is found.
After the code is found, press the ACTION button to store the code.
SPLIT SCREEN OPERATION
Split Screen Operation
This television includes a two tuner split screen feature. This allows watching two (2)
live broadcasts at the same time with or without an external video source (VCR).
Without a VCR
Procedure
e Connect incoming cable to antenna (ANT 1) input on back of TV.
* Press the SPLIT C> button on the Remote Control to display the
Split Screen.
Note: The audio is for the Main Picture, only.
* Choose channels for the Split Screen Picture by pressing the Remote
Control SPLIT CHANNEL up/down buttons.
* Choose channels for the Main Picture by pressing the Remote Control
CH up/down buttons or by using the numeric keypad.
With a VCR and Cable Box
Note: The Remote Control must be programmed with supplied codes to operate the VCR
and Cable Box. (See Programming the Remote Control.)
Procedure
Press the SPLIT > button on the Remote Control to display the Split Screen.
Note: The audio is from the Main Picture only.
To view scrambled channels through your Cable Box on the Split Screen:
* Verify the Cable Box and VCR are ON and the VCR tuned to Channel 3
or 4, depending on the VCR.
e Press the TV/VIDEO button on the Remote Control to select the video
input from your Cable Box.
« Choose channels for the Split Screen by pressing the SPLIT CHANNEL
up/down buttons on the Remote Control and using the numeric keypad
or CH up/down buttons.
* Choose channels for the Main Picture dy pressing the TV button on the
Remote Control and using the numeric keypad or CH up/down buttons.
SPLIT SCREEN OPERA TION {CONT.)
Split Screen Operation (Cont.)
With a VCR- No Cable Box
This television includes a two tuner split screen feature. This allows watching two (2)
live broadcasts at the same time with or without an external video source (VCR).
Note: The Remote Control must be programmed with supplied codes to operate the VCR
and Cable Box. (See Programming the Remote Control)
Procedure
Press the SPLIT button on the Remote Control to display theSplit Screen.
Note: The audio is for the Main Picture, only.
To view an external video source in the Split Screen:
* Press the TV/VIDEO button on the Remote Control to select the video
input for your VCR.
* Verify the VCRs on.
» Choose channels for the Main Picture by pressing the TV button on the
Remote Contro! and using the numeric keypad or CH up/down button.
* Choose channels for the Split Screen Picture by pressing the TV botton
on the Remote Control and using the SPLIT CHANNEL up/down
buttons.
Nz
=< SWAP and RECALL Buttons
The SWAP button switches the Split Screen and
Main Picture source. Press the RECALL button
for Split Screen status, on-screen.
ROLLER GUIDE MENU
Roller Guide Menu
Press the ACTION button in the middle of the large blue button on the Remote Control
to display the Roller Guide Menu*. Press the CH (channel) up/down to rotate the
Roller Guide. Press the Left VOL (volume) button to exit the Roller Guide Menu.
*U.S. Patent Pending
Note: To exit the Roller Guide Menu, press the left VOL (Volume) arrow on the
ACTION button.
ACTION / Navigation Button
Press the ACTION button to select main menu items. Press the up/down CH
(channel) arrows to highlight sub menus. Press the Right VOL arrow to select and
adjust features. Press the ACTION button to return to sub menus.
Remote ACTION / Navigation Button
CH ’
О Л
VOL a (roman) > VOL
CH
Note: Be careful to press ACTION in the middle of the button. If you do not press in the
middle of the button, the (CH) channel or (VOL) volume keys may be activated.
ROLLER GUIDE FEATURE CHART
Roller Guide Feature Chart
Em DESCRIPTION
SET UP
LANGUAGES Select English, Spanish, or French menu.
MODE - Select Cable or TV (Antenna).
See Installation section in Manual.
ANTENNA - Select ANT 1 or ANT 2.
AUTO PROGRAM - Automatically program
channels having a signal into memory.
MANUAL PROGRAM - Manually add or
delete channels from memory.
PROG CHAN
(Program Channels}
QO зо
Q
CC ON MUTE - Select C1-C4 for Closed
Captioning display when the Remote
[ec] MUTE button is pressed.
(Closed Captioned) MI CC MODE - Select T1-T4 or C1-C4 for
transmitted information, if available, in
large black box.
O AUTO POWER - Select SET to power up
AUTO POWER the TV at the same time as the Cable Box
or other components.
O DTV AUTO - Select ON to view digital
broadcasts, when available.
O CONVERGENCE - Adjustment may be
required when the PTV is moved because
of the effects of the Earth's magnetic field
on the projection tubes.
OTHER ADJ.
AUDIO
O MODE - Select STEREO, SAP (Second
Audio Program) or MONO. (Use MONO
when stereo signal is weak.)
0 BASS - Increase or decrease the bass
response.
AUDIO ADJ. O TREBLE - Increase or decrease the treble
(Adjustments) response.
O BALANCE - Emphasize the left/right
speaker volume.
0 NORMAL - Reset BASS, TREBLE and
BALANCE to factory default.
ROLLER GUIDE FEATURE CHART
Roller Guide Feature Chart (Cont.)
zw DESCRIBTION
D AUDIO
AUDIO
SURROUND a SU AROUND - Three dimensional surround
sound with two speakers.
OTHER ADJ. GG Al SOUND - Automatically adjust volume
(Adjustments) to maintain a comfortable listening level.
ad AUDIO SOURCE
+ TV - speakers operate normally.
® EXT & VAQ (Variable Audio Output) -
TV speakers off - audio adjustable by TV.
e EXT & FAQ (Fixed Audio Output)-
TV speakers off — audio adjustable
SPEAKERS only by the external amplifier.
(3 CENT (Center) SPEAKERS - TV
speakers provide center channel with
surround sound connection. (See
Installation section in manual.)
0 SPEAKER VOL - Select HIGH,
MIDDLE, or LOW for volume range.
TIMER
O When set, TIME will display on screen after
pressing POWER button, RECALL button,
ET
CLOCK $ or changing channels. (Clock must be set
to use Timer features.)
SLEEP MO Set timer to turn off TV in 30, 60, or
90 minutes. Select NO to turn timer off.
О) Set two timers to automatically turn TV on
TIMER 1 and off at selected times, on selected
TIMER 2 channels, and on selected days. (Clock
must be set to use Timer features.)
Rol LER GUIDE FEATURE CHART
Roller Guide Feature Chart (Cont.)
MENU, | DESCRIPTION
COLOR - Adjust desired color intensity.
TINT - Adjust natural flesh tones.
BRIGHTNESS - Adjust dark areas for crisp
detail.
PICTURE - Adjust white areas of picture.
SHARPNESS - Adjust clarity of outline
detail.
NORMAL- Reset all picture adjustments to
factory default settings.
COLOR TEMP - Adjust white balance to
COOL (blue), WARM (red) or NORMAL.
SCAN MODE - Picture adjustment when
switching between video games and DTV
picture, if needed.
OTHER ADJ. 0 V-POSITION - Adjust the vertical position
{Adjustments) of the picture on-screen when in ZOOM.
O COLOR MATRIX - Select AUTO to
automatically adjust color parameters for
HD (high definition) and SD (standard
definition) transmissions or use manually
for best picture.
1
= CHANNELS
CHANNELS
VIDEO ADJ.
(Adjustments)
du da ana
Q
Q
O CHANNEL SCAN - Select FAV (15
FAVORITES favorites) or ALL channels to scan
channels using the up/down CH buttons.
OQ PRESET CAPTION - Enter channel
numbers for preset captions.
O MANUAL CAPTION - Enter channel
numbers and captions manually.
O INPUT LABEL - Label video connections for
on-screen display of optional equipment.
CAPTION
ROLLER GUIDE FEATURE CHART
Roller Guide Feature Chart (Cont.)
MENU DESCRIBTION
lr MEN er ¿arpa ES ran
LOCK
O Select channels to lock out for 12, 24, or 48
CHANNEL .
hours with a secret code.
O Lock out video games, cable box, and
GAME GUARD VCR's from being viewed for 12, 24, or 48
hours with a secret code.
O Lock out all channels and video inputs for
ALL 12, 24, or 48 hours with a secret code.
SPECIAL FEATURES
Special Features
SET UP
Language
In SET UP Menu, select IDIOMA / LANGUE to change menu language to ENGLISH,
ESPAÑOL or FRANCAIS.
i MODE ENGLISH
| BUE -—
in E a
‘ve muse
PROG CHAN
TC
A | | O PON u = =
Cable Mode / TV Mode
In SET UP Menu, select PROG CHAN to select TV (antenna) MODE or CABLE
MODE depending on the signal source. Select Antenna 1 or 2 depending on the input
on back of TV. Choose PROGRAM AUTO to automatically program ail channels
having a signat or choose PROGRAM MANUAL to manually add or delete channels.
rem, MODE TV
ANTENNA ANT 1
ee PROGRAM AUTO
OTRERATT— PROGRAM MANUAL >
SPECIAL FEATURES
[CCl (Closed Captioned)
This television contains a built in decoder that is capable of providing a visual
depiction of the audio portion. The program viewed must include Close Captioning
(CC) for the television to display it. CC is displayed in the form of text across the
screen (white or colored letters on black background). It allows the viewer to read the
dialogue of a television program or other information.
[CCl Mode
O In Set Up Menu, select CC (Closed Caption)
O Press the A or Y to select (CC) MODE
0 Press now < or № to select OFF, C1, C2, T1, T2, C3, C4, T3 or T4.
CAPTION OFF - Use when Closed Caption is not desired.
. CAPTION C1 - For video related information that can be displayed (up to 4 lines of script on
the screen, where it does not obstruct relevant parts of the picture). Script can be in any
language.
» CAPTION C2 - Another mode used for video related information.
. CAPTION C3 and C4 - Other modes used for video related information.
. TEXT T1 - Blanks out a large portion of the picture on the television screen, and displays
program guide or any other information currently being transmitted.
. TEXT T2, T3 & T4 - Other Modes that display information and blank out a large portion of
the picture on the television screen.
O Press ACTION twice to exit menus.
[CC] On Mute
Activates the On Screen Closed Caption feature when the MUTE button on the
Remote Control is pressed. To deactivate press the MUTE button again.
Note: This feature only functions when the Closed Caption Mode is in the “OFF” position.
The program being viewed must be broadcast with Closed Caption. (Refer to your
local TV guide).
In Set Up Menu, select [CC] (Closed Caption).
Press the A or ¥ to select {CC] ON MUTE.
Press now < ог № to select No, C1, C2, C3, or C4.
Recommended Set Up for Closed Caption when using the MUTE button
. [CC] ON MUTE: C1
. CC] MODE: OFF
O Press ACTION exit menus.
O Press Mute when the program being viewed is broadcast with Closed Caption to
activate.
Press MUTE again to deactivate.
aaa
MALE | CO ONMUTE TON
User TT — | ] MODE OFF
OTHER ADJ.
DTV
SPECIAL FEATURES
In SET UP menu, select DTV AUTO ON to receive digital TV broadcasts using a
Panasonic Set-top Box.
Convergence
E
N LANGUE
Here
MERU TV AUTO ON
OTHER AD:.> CONVERGENCE
N | 7.
AS DTV AUTO - ON
Leave DTV AUTO - ON for the TV to automatically
switch between HD (high definition) and SD
(standard definition) formats.
In SET UP menu, select CONVERGENCE under OTHER ADJ. only after moving the
TV to adjust for the effects of the earth's magnetic field on the projection tubes.
Note: Convergence seldom needs adjusting, except when moving the TV.
EET
N LANGUE
PROG CHAN
CC
ON
SPECIAL FEATURES
Use the navigation buttons to align the horizontal and vertical green lines on screen with the
outside reference marks, as shown below. Press the SWAP button to move to the RED
CONVERGENCE screen.
—
| GREEN |
Reference Marks _— A
Convergence (Cont.)
Use the navigation buttons to align the red cross with the white cross pattern at the center of the
screen. Press SWAP to continue to the blue convergence adjustment screen and repeat.
nm
Note: TO PREVENT PICTURE TUBE DAMAGE, DO NOT LEAVE TEST PATTERN
ON FOR AN EXTENDED PERIOD OF TIME.
И
y Convergence Adjustment
A properiy adjusted cross pattern appears white
with a minimum of color fringing.
SPECIAL FEATURES
TIMER
Sleep
In TIMER menu, select SLEEP to turn TV off in 30, 60, or 90 minutes. Select NO to
turn off timer.
CLOCK SET 3
[SLEEP-——-——> NOW LONG: 30
Note: SLEEP and TIMER features are unavailable when AUTO POWER is on.
Timer 1 and Timer 2
In TIMER menu select two timers, TIMER 1 and TIMER 2, to turn the TV on and off at
selected times, on selected channels, and on selected days.
He [ETS DAY | ВАТ
ONTIME _ _:__
SLEEP
TEED OFF TIME _ : _
ENTER CHANNEL _ __
Note: TIME must be entered in CLOCK SET to operate TIMER features.
si,
e Turn Off After 90 Minutes
a
The TV automatically tums OFF after 90 minutes
when turned on by the TIMER. If the OFF time is
selected or if any key is pressed, the automatic
OFF after 90 minutes will be cancelled.
4 17
Nue TIMER Activation
The TIMER is active when the TV is OFF or ON.
The TV will Switch to the selected channel at the
selected time setin the TIMER.
SPECIAL FEATURES
Other Adjustments
Use these picture adjustments to improve the picture quality. In PICTURE menu
under OTHER ADJ., select COLOR TEMP (temperature) to increase or decrease
WARM (red) and COOL (blue) colors to suit personal preferences. Select SCAN
CORRECTION ON if the picture looks unusual. Select V-POSITION when in ZOOM
(ASPECT button) to adjust vertical position. Select COLOR MATRIX AUTO to
automatically adjust color for high or low definition signal formats or change manually
for best picture quality.
RUE 6 oR TEMP NORMAL
COTHER ADI oo AN CORRECTION ON
V-POSITION 31
COLOR MATRIX AUTO
Note: When SCAN CORRECTION, V-POSITION, AND COLOR MATRIX are not highlighted,
they are not adjustable in the current operating mode..
Y= COLOR MATRIX - AUTO
Leave COLOR MATRIX on AUTO to adjust for
high definition and low definition color formats or
change manually for best picture.
AUDIO
CHANNELS
Speakers
SPECIAL FEATURES
In AUDIO menu under SPEAKERS, select AUDIO SOURCE - TV for normal TV
speakers, select EXT & VAO (variable audio out) to adjust speakers from TV controls,
or select EXT & FAO (fixed audio out) to adjust speakers from an external amplifier.
Select CENT SPEAKER ON to operate TV speakers as center speakers for surround
sound. (See Installation section in the manual.) Select SPEAKER VOL (volume) to
choose LOW, MIDDLE, or HIGH volume range.
I>
с БН
a WILE че
Q
Favorites
AUDIO ADJ.
OTHER ADJ.
AUDIO SOURCE
{SPEAKERS >> cENT SPEAKER
SPEAKER VOL
ту
ON
LOW
In CHANNELS menu under FAVORITES, select CHANNEL SCAN FAV to enter 15
favorite channels or select CHANNEL SCAN ALL to scan all channels when using the
up/down CH buttons.
ar
5
CHANNELS
LL rn Id CHANNEL SCAN — FAV
LFAVORITES..> ENTER CHANNEL 123
CAPTION
FAVORITE CHANNELS
SPECIAL FEATURES
CHANNELS
LOCK
Caption
in CHANNELS menu under CAPTION, select PRESET CAPTION to enter channel
labels for popular TV stations. Select MANUAL CAPTION to enter numbers and
captions manually. Select INPUT LABEL to label video input connections for
on-screen display by source (VCR, DVD, etc.). Press right VOL arrow on ACTION
button to access sub menus.
ir Wa я
CHANNELS|-
PRESET CAPTION»
Le ATION MANUAL CAPTION +
INPUT LABEL >
Game Guard
In LOCK menu, select GAME GUARD to lock Channel 3, Channel 4, and video inputs
for 12, 24, or 48 hours by entering a three-digit secret code using the numeric keypad.
Select CHANNEL to lock all channels or select ALL to lock both channels and
video inputs.
Unlock GAME GUARD by reentering the same three-digit secret code.
LOCKS CH 3, 4, AND
CHANNEL VIDEO INPUTS
taa HOW LONG? 12HOURS
ENTER CODE ___
SET NO
Note: Understand how to unlock CHANNELS, GAME GUARD, and ALL before locking. Use
a code that is easy to remember or record it in a safe place.
vz
== Unlocking Lock
If you do not remember your code, the LOCK will
unlock in 12, 24, or 48 yours depending on last
selection,
Unlocking Channel, Game Guard, and All
SPECIAL FEATURES
ENTER CODE TO UNLOCK _ _ |
Enter the same three-digit code.
CHANNELS LOCKED
If the three-digit code is not the same as entered previously.
CHANNELS UNLOCKED
If the same three-digit code is used.
DIGITAL TV - SET-Top Box (DTV-STB) CONNECTION
Digital TV - Set-Top Box (DTV-STB) Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the
back of your TV.
DTV TERMINALS ON BACK OF DTV-STB
DTV TERMINALS ON BACK OF TV
фоны =
— 000 8-VINEO
Note: There are three video inputs, Y, Ps, and Pr. Separate component color inputs provide
fuminance and color separation. Use the L (left) and R (nght) audio inputs.
Front Audio/Video Connections
Open the door on the TV front panel to use the connections for your optional equipment.
INSIDE TV FRONT PANEL
7
, vers €) ©
GLOSSARY
Glossary
Digital Television
Digital Television (DTV) broadcasts are scheduled to become available in 10 major
U.S. markets. Broadcasts will be in both high definition (HDTV) and standard
definition (SDTV). The HDTV signal formats are 1080i (interlaced scan) and 720p
(progressive scan). SDTV signal formats are 480i and 480p.
HDTV-Compatible (1080i)
HDTV-compatible TV models process and display the high definition output from a
DTV Set-top Box (STB) at 1080i (interlaced) lines. When 1080i HDTV is available in
your viewing area, your TV will be compatible when using a Panasonic DTV-STB,
Panasonic model #TU-DST50.
SDTV-Compatible (480p)
SDTV-compatible TV models process and display the standard definition output with
the use of a Panasonic DTV-STB at 480 lines, interlaced or progressive scan. When
DTV programming is available, you can view it in the standard format, 4:3 aspect
ratio.
DTV Compatibility of PT-56WXF90
This TV is capable of displaying the 1080i HDTV signal as well as the 480p SDTV
signal using the Panasonic DTV-STB, model TU-DST50. In order to view DTV
programming, the TV must be connected to DTV-STB component video inputs (Y, Pr,
Pe) and audio inputs and in DTV mode. A DTV signal must be available in your area
and the DTV-STB must be tuned to the proper channel.
Note: DVD players should be connected to the S-Video input unless the DVD is 480p output.
Color Matrix Adjustment
When viewing DTV programming from a DTV-STB, this TV automatically adjusts the
color parameters between 10801 and 480p transmissions. However, when viewing a
nonstandard DTV signal format, you can change the color parameters manually in the
Roller Guide PICTURE Menu for best picture quality.
Progressive Scan
Progressive scan de-interlaces the incoming signal and progressively scans the
image. This allows you to sit very close to the TV and not see the thin black horizontal
scan {ines (venetian blind effect) associated with an interlaced picture.
Vertical Position Adjustment (V-Position)
When operating this TV in ZOOM aspect, you can raise or lower the image depending
on your personal viewing preference in the PICTURE Menu under V-POSITION.
Five Speaker Sound System
The 5-speaker sound system combines 2 full-range speakers with 2 tweeters to
reproduce the entire range of audio in crisp, clear stereo. The fifth speaker, a center
speaker, allows you to play center channel audio through the TV without the need for
an external speaker.
FREQUENTLY ASKED QUESTIONS ABOUT DIGITAL TV
Frequently Asked Questions About Digital TV
What is digital TV (DTV)?
In April, 1997, the FCC (Federal Communications Commission) announced that, by
2006, all television broadcasting will be digital. Digital TV broadcasting delivers
crystal-clear pictures, approaching the quality of 35mm movies and CD (compact disc)
sound. Digital broadcasts include both High Definition Television (HDTV) and
Standard Definition Television (SDTV). Broadcasters may choose their own
broadcast formats.
HDTV (High Definition Television)
One form of digital broadcasting is HDTV, which provides the highest resolution
picture. Besides incredible picture, the sound is available in the 5.1 channel surround
sound.
SDTV (Standard Definition Television)
Another form of digital broadcasting is SDTV, which provides lower resolution, but still
presents a very sharp, clear picture. Lower resolution allows broadcasters to transmit
more than one program per channel.
When will TV stations start broadcasting digital signals?
Television stations are required to continue broadcasting regular TV signals along side
the digital signals until 2006. Cable TV and satellite TV are not affected by this FCC
ruling.
All stations are required to become digital by 2006. This will be an evolutionary
process. According to the FCC, digital broadcasting must be available in the top ten
markets, covering 30% of households by May 1999. By the end of 1999, digital
broadcasting must be available in the top 30 markets, covering 50% of households.
Will | be able to adapt my current TV to receive digital broadcasts?
Manufacturers will offer a digital TV set-top box (DTV-STB) which will allow current
televisions to display digitally broadcast programs. The picture and sound quality will
be about the same as small dish digital satellite systems today.
Conventional televisions (non-digital televisions) will not be able to display the HDTV
resolution quality or sound.
What digital formats will broadcasters use?
There are presently four DTV formats: 1080i (interlaced), 720p (progressive), 480i
and 480p. The higher numbers indicate a higher resolution picture.
In an interlaced picture, the odd numbered lines (picture information) are scanned first
creating field 1 and then the even numbered lines are scanned, creating field 2. The
two fields are then interlaced to provide the entire image (one frame). This process
happens in 1/30 of a second and is invisible to the human eye. In progressive
scanning, all lines in the entire frame are scanned sequentially in 1/60" of a second.
Broadcasters may choose to transmit different levels of resolution throughout the day,
broadcasting day programs in SDTV and night sports and movies in HDTV.
TROUBLESHOOTING CHART
Troubleshooting Chart
Before calling for service, determine the symptoms and follow suggested solutions.
PAUDIO AVES Solutions
2» - Л | | |
a SEAR Adjust Antenna Location and Connection
= FN +
Noisy Audio Snowy Video
> Adjust Antenna Location and Connection
‘ Check Antenna Lead-in Wire
Change Scan Correction in PICTURE Menu
Noisy Audio Multiple Image
» N I uE - : : .
J OE: Move TV from Electrical Appliances, Lights, Vehicles,
`` NTR and Medica! Equipment
Noisy Audio Interference
increase Volume
a Check Mute
PT Check TV SPEAKERS on/off
No Audio Normal Video Change Channel
(| > Set TV or Cable Mode Property
N AEE Check Antenna Cables
Noisy Audio No Video
X
No Video / No Split
Check Power Cord is Plugged into Active Qutlet
Adjust Brightness and Audio Controls
Change Channel
Check Cable Connections
Program the Remote Control Again
Change CC (Closed Captioning) from Text Mode
No Audio Screen Check Second Video Source Operation
» 5
4 Adjust Color Settings
N Change Channel
Normal Audio No Color
x © Check Audio Is Set To Stereo Or Mono, Not SAP
Wrong Audio Normal Video
»
/
Normal Audio
Black Box on Screen
A
7
Normal Audio
Normal Video
intermittent Remote Control Operation
Replace Remote Control Batteries
<T
_ = y TT = = + . 3 _ at

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
