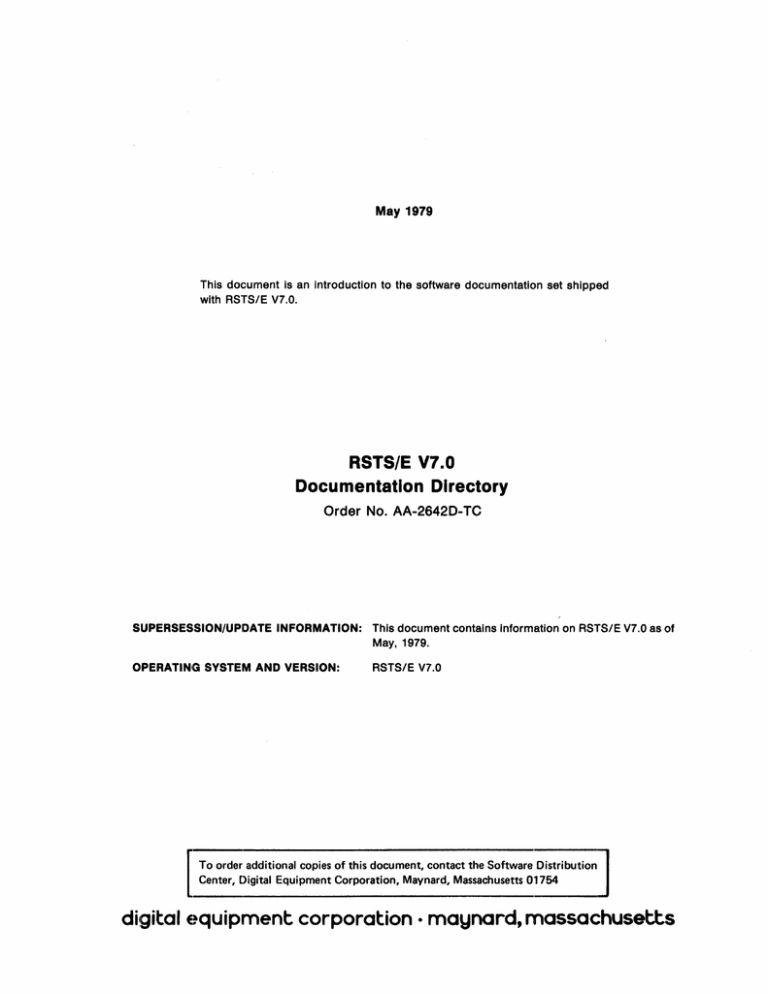

May 1979
This document is an introduction to the software documentation set shipped
with RSTS/E V7.0.
Documentation Directory
Order No. AA-2642D-TC
SUPERSESSION/UPDATE INFORMATION: This document contains information on RSTS/E V7.0 as of
May, 1979.
To order additional copies of this document, contact the Software Distribution
Center, Digital Equipment Corporation, Maynard, Massachusetts 01754
digital equipment corporation - maynard, massachusetts
First Edition: July 1975
Revised: January 1977
Revised: March 1978
Revised: May 1979
The information in this document is subject to change without notice and
should not be construed as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that
may appear in this document.
The software described in this document is furnished under a license, and
may only be used or copied in accordance with the terms of such license.
No responsibility is assumed for the use or reliability of software on equip-
ment that is not supplied by DIGITAL or its affiliated companies.
Copyright © 1975, 1977, 1978, 1979 by Digital Equipment Corporation
Printed in U.S.A.
The postage-paid READER'S COMMENTS form on the last page of this
document requests your critical evaluation to assist us in preparing future
The following are trademarks of Digital Equipment Corporation:
DECsystem-10 PDP
Chapter 1 Documentation Organization
Chapter 2 RSTS/E V7.0 Documentation Summaries
Volume 2 - THE RSTS/E USER
Volume 6 - USING RMS-11
Auxiliary Documentation
С) сл + CO wd
© o
TMS-11 Text Management System.
Commercial Engineering Publications Typeset this manual using DIGITAL’s
RSTS/E (Resource Sharing Timesharing System/Extended) V7.0 consists of:
1. The RSTS/E software contained on the distribution media.
2. A documentation set that describes the functions and operation of
the software.
This document contains a brief discussion of the documentation set shipped
with RSTS/E V7.0. Its purpose is to help you determine which documents you
need in order to use the RSTS/E system.
Chapter 1 describes how the documentation set is organized. Chapter 2 con-
tains an abstract of each document, highlighting new V7.0 features.
This Directory describes the documentation set provided with the RSTS/E
V7.0 Operating System. To learn about the separately licensed software prod-
ucts for use with RSTS/E, consult the RSTS/E and Supported Software Prod-
ucts Catalogue. This Catalogue describes the software documentation and
components for RSTS/E and its optional products. Order the Catalogue from
your Digital representative.
Chapter 1
Documentation Organization
The RSTS/E V7.0 documentation set is assembled into system binders. The
system binders are organized into the following volumes:
Volume 2 - THE RSTS/E USER
Volume 6 - USING RMS-11
Each volume contains documentation directed to a particular audience.
Volume 1, SYSTEM MANAGEMENT, consists of two system binders. The
documentation in Volume 1 is directed to the RSTS/E system manager. The
system manager is responsible for system generation and maintenance, con-
trol of system performance and system users, and supervision of day-to-day
operations. Volume 1 contains the following documents:
Software Product Description for RSTS/E V7.0
RSTS/E V7.0 Documentation Directory
RSTS/E V7.0 Release Notes
RSTS/E V7.0 System Generation Manual
RSTS/E V7.0 System Manager's Guide
Volume 2, THE RSTS/E USER, is one system binder. It contains documenta-
tion for the general time-sharing user:
RSTS/E System User's Guide
Beginner's Guide to the DEC Editor
DEC Editor Reference Manual
Volume 3, BASIC-PLUS PROGRAMMING, is one system binder. It contains
documentation for a time-sharing user who codes programs in BASIC-PLUS:
BASIC-PLUS Language Manual
RSTS/E Programming Manual
Volume 4, MACRO-11 PROGRAMMING, is two system binders. Volume 4
contains the documentation that a time-sharing user needs to code programs
in the MACRO-11 programming language:
PDP-11 MACRO Language Reference Manual
IAS/RSX ODT Reference Manual
RSTS/E System Directives Manual
Volume 5, PROGRAMMING UTILITIES, is two system binders. The manu-
als in Volume 5 describe utility programs used by programmers who code in
languages supported by RSTS/E V7.0:
RSTS/E Programmer’s Utilities Manual
RSTS/E Task Builder Reference Manual
RSTS/E FORTRAN IV Utilities Manual
PDP-11 SORT Reference Manual
PDP-11 TECO User's Guide
RSTS/E Text Editor Manual
RSTS/E RUNOFF User's Guide
Volume 6, USING RMS-11, is for programmers who use the PDP-11 Record
Management Services routines. These documents are:
RMS-11 Installation Guide
RMS-11 User's Guide
RMS-11 MACRO-11 Reference Manual
The following auxiliary documentation is also part of the RSTS/E documenta-
tion set, but is not included in the system binders:
Introduction to BASIC
RSTS/E Pocket Guide
RSTS/E V7.0 Installation Evaluation
Software Product User Survey
Software Performance Report
Documentation Organization
Chapter 2
RSTS/E V7.0 Document Summaries
This chapter describes each document in the V7.0 set, in the order the docu-
ments appear in the system binders. New RSTS/E customers should scan the
summaries for the documents they may need.
For RSTS/E users who are upgrading to V7.0, we have included a description
of features that are new for this version. Manuals that are new to the RSTS/E
V7.0 documentation set have the pointer: t=
RSTS/E V7.0 Software Product Description
AE-3400L-TC 4 pp.
This document describes the minimum hardware and software for the prod-
uct. It lists optional supported hardware and software, defines the product's
support category and update policy, and supplies ordering information. The
Software Product Description (SPD) is the legal definition of RSTS/E V7.0.
RSTS/E V7.0 Documentation Directory
AA-2642D-TC 20 pp.
This directory is a summary description of the documentation set for RSTS/E
RSTS/E V7.0 Release Notes
AA-5246C-TC 236 pp.
This document contains information directed primarily to a system manager,
and is required for generating RSTS/E. The Release Notes describe the differ-
ences between the current RSTS/E release and its preceding release. This
document also contains optional feature patches.
The Release Notes establish a maintenance notebook for documentation cor-
rections, software problems and solutions, and programming notes. These
articles are published in both the RSTS/E Software Dispatch Review and the
monthly RSTS/E Software Dispatch.
RSTS/E V7.0 System Generation Manual
AA-2669E-TC 282 pp.
This manual describes the procedures to do the following:
e Generate and install RSTS/E software components for V7.0.
e Build and patch run-time systems.
e Build the RSTS/E system libraries.
e Add auxiliary run-time systems.
e Build optional software.
Also, the manual contains information you need to change system characteris-
tics, to optimally arrange system components, to optimize system structures,
and to correct hardware and software problems. This material is of interest to
the person responsible for system policy and procedure. Usually that person is
the system manager, but other authorized personnel may find the manual
useful to understand more thoroughly the composition of their RSTS/E
Before attempting to generate a RSTS/E system, you should be familiar with
RSTS/E software, run-time systems, the hardware devices on which RSTS/E
runs, and any published changes (patches) to the system software.
The new system generation features and enhancements for V7.0 are as follows:
¢ Directory and data caching.
e Resident libraries.
* Large file capability.
¢ RSX emulation in the RSTS/E Monitor.
e XBUF line printer.
e RSX or BASIC-PLUS-2 system default run-time systems.
e Integration of autopatching into BUILD procedure.
e Support for new devices.
e RL01 overlap seek.
RSTS/E V7.0 System Manager’s Guide
AA-2762C-TC 254 pp.
This guide tells you how to operate and manage a RSTS/E system. You
should be familiar with the structure and programming of RSTS/E and know
time-sharing software and hardware. The basis for this manual is a program
set with privileged status and features. Only the RSTS/E system manager and
privileged users should have access to this guide.
RSTS/E V7.0 Document Summaries
The guide describes:
e RSTS/E system structure and privilege.
e System start-up, shut down, and automatic restart.
e Time-sharing.
* Account creation.
o Operator services.
e System error package.
* On-line control of RSTS/E using the UTILTY program.
e Disk backup and recovery programs.
e The automated patching facility.
The new features added for V7.0 are:
e SAVE/RESTORE - a fast, disk volume backup and recreate pro-
e DEVTST - hardware exerciser programs that can isolate hardware
errors on the system.
e ONLCLN - a program that repairs corrupt disk file structures while
you are operating under time-sharing.
Volume 2 - THE RSTS/E USER
RSTS/E System User’s Guide
AA-5133B-TC 400 pp.
This manual is directed to the general time-sharing user. It provides informa-
tion on system commands, system programs, and device operating proce-
dures. Most of the functions described are available to the non-privileged
user. The material that has been added or updated for RSTS/E V7.0 includes
the following:
Feature Section
BACKUP Chapter 17
Control characters 4.9
File attributes Chapter 15
FIT 16.3
Multi-volume magnetic tape Chapter 16
PIP.SAV 16.1
PMDUMP Chapter 22
/POSITION option 11.5.3
QUE FLUSH Command Table 20-1
QUE SHORT-LIST Command 20.3
SPR Instructions C.3
RSTS/E V7.0 Document Summaries 2-3
на Beginner's Guide to the DEC Editor
AA-D374A-TC 60 pp.
This manual is a tutorial. It leads first-time users through exercises with
EDT, in order to learn the DEC Editor.
DEC Editor Reference Manual
AA-5789A-TC 76 pp.
This manual describes the DEC Editor, EDT, which allows you to create files
and manipulate their contents. Use this manual as a reference tool for an
overview of the editor and its features.
BASIC-PLUS Language Manual
AA-2623C-TC 280 pp.
This manual is for RSTS/E users who have a knowledge of BASIC program-
ming. The manual is a reference source on regular and advanced program-
ming. techniques in BASIC-PLUS. Commonly used system functions are
described, as well as formatted ASCII, virtual array, and block I/O operations.
Several new features enhance versatility and allow for compatibility with
BASIC-PLUS-2. The following list shows material that has been added or
enhanced for V7.0:
Feature Section
BASIC-PLUS keyword list Appendix A
CCPOS Chapter 10
CHAIN with LINE keyword Chapter 9
CLOSE with a negative channel number 8.3.1
CLOSE statement 9.3
Continuation lines 2.3
DEF* Chapter 3
Large file 1/0 Chapter 11
POSITION switch 9.2.4
Pre-extending a virtual array 11.3
Terminology Glossary
This manual is a complement to the RSTS/E Programming Manual.
RSTS/E Programming Manual
AA-2726C-TC 370 pp.
This manual describes device dependent features and more complex system
functions for the advanced BASIC-PLUS programmer. Included in the man-
ual are descriptions of file structured and non-file structured operations for
disk, magnetic tape, paper tape, card readers, terminals, and line printers.
The manual also defines system function calls to the monitor and explains
RSTS/E V7.0 Document Summaries
programming conventions. The material that has been added or updated for
RSTS/E V7.0 includes the following:
Feature Section
Conditionally contiguous files 1.4.7
Data caching 1.4.9
File placement 1.4.10, 1.4.11
Large file update and extend
New disk file MODEs 1.4
New SYS calls
Assign/Reassign User Logical
Creating a job 7.2.23
Data caching 7.2.18
Deassign User Logical
Directory look up - large files 7.2.16
File position
File utility functions 7.2.24
Return job status 7.2.25
Terminal characteristics 7.2.8
New terminal MODEs 4.3
Non-file structured block access
Paper tape parity 6.2
Privileged file wipeout on delete 1.2.2
RX02 floppy diskette 1.5
SPEC% 1.5, 1.7, 2.12, 4.6
SPR instructions C.3
Tentative files 1.4.6
PDP-11 MACRO-11 Language Reference Manual
AA-5075A-TC 182 pp.
This manual is the primary reference tool for users who are developing pro-
grams coded in the MACRO-11 assembly language. The manual has three
Part I, “Introduction to MACRO-11,” provides an overview of the language
and defines source program format. Part II, “Programming,” describes sym-
bols and expressions, relocation and linking, and addressing modes. Part III,
“MACRO-11 Directives,” defines general assembler directives and macros.
Appendices include information on character sets, directives, error messages,
coding standards, and allocating virtual memory.
JAS/RSX ODT Reference Manual
DEC-11-OIODA-B-D 90 pp.
The Octal Debugging Tool (ODT) described in this manual is available to
RSTS/E users as the object module file ODT.OBJ. A programmer can use
ODT to set breakpoints, display and change the contents of memory locations
RSTS/E V7.0 Document Summaries 2-5
dynamically (as the program is running), and do other operations useful in
debugging. This is done when ODT.OBJ is linked with the user's compiled or
assembled object modules with the RSTS/E Task Builder (TKB), using the
/DA switch.
RSTS/E System Directives Manual
AA-D748A-TC 438 pp.
This manual contains a brief general description of run-time systems. It de-
votes major sections to directives to the RSTS/E Monitor and RSX Emulator
that can be used in MACRO programs.
The directives perform input/output and other operations useful to an
assembly-language programmer in the RSTS/E environment: changing the
memory size allocated for the program, accessing resident libraries, switching
to a new run-time system, and so forth.
The Monitor directives can be used from MACRO programs running under
the RSX Run-Time System, and with some exceptions, from programs run-
ning under the RT11 Run-Time System. They can also be used from a run-
time system itself. The directives to the RSX Emulator can be used only from
MACRO programs running under the RSX Run-Time System or its
RSTS/E Programmer's Utilities Manual
AA-D749A-TC 94 pp.
This manual describes the RSX-based utility programs available to RSTS/E
users. These utility programs are:
e MACRO-11 Assembly Utility Program (MAC).
e Librarian Utility Program (LBR) - a library maintenance program
that helps you create and maintain library files.
e Object Module Patch Utility Program (PAT) - a program that lets
you modify code in a relocatable binary object (.OBJ) module.
e Make a Save Image Library Utility Program (MAKSIL) - a program
that allows you to create either a Save Image Library file, a run-time
system image file, or a resident library.
RSTS/E Task Builder Reference Manual
AA-5072A-TC 192 pp.
This manual describes the functions and use of the Task Builder for advanced
programmers. It contains instructions for linking compiled object modules,
resolving external references, allocating system and task memory, building an
overlaid task, and linking a task to a run-time system.
RSTS/E V7.0 Document Summaries
w= The update to this manual (AD-5072A-T1) contains information on the crea-
tion and use of resident libraries. It describes the switches and options re-
quired for library creation and linkage, and contains information on resident
library memory usage.
ts RSTS/E FORTRAN IV Utilities Manual
AA-2140B-TC 174 pp.
This manual describes the RSTS/E FORTRAN IV Utilities, which is a set of
six programs. These RT11-based utilities are similar to those described in the
RSTS/E Programmer's Utilities Manual. They will enable you to use the
FORTRAN IV compiler and other system resources when running
FORTRAN programs.
Chapter 1 is an overview of all the utilities, and Chapter 2 describes all of the
utilities for assembling MACRO-11 subprograms. Chapters 3 and 4 discuss
linking object modules and debugging assembly language programs.
“hapter 5 discusses creating and maintaining libraries. Chapters 6 and 7
describe patching the utilities and making code modifications to object mod-
The appendices include the ASCII and RADIX-50 character sets, RSTS/E
filename extensions, an option summary, and an error message summary.
rs PDP-11 SORT Reference Manual
AA-3341C-TC 114 pp.
This reference manual describes the features and operation of the SORT
utility program. Chapter 1 describes the program, its operation and environ-
ment. Chapter 2 is an operator’s guide for running SORT. Chapter 3 is a
reference for those who write the instructions for the program. Chapter 4
describes error conditions, and Chapter 5 contains more detailed information
about the program for special applications.
Appendices A and B contain tables of ASCII and EBCDIC, and zone/digit
card punch codes. Appendix C contains several examples of a SORT pro-
grams. Appendix D discusses internal SORT operations, mainly for the bene-
fit of experienced programmers. Appendix E contains SORT-11 installation
information for all systems. Appendix F contains RMS-returned status codes.
A glossary is included to define terminology used in this manual.
ts PDP-11 TECO User's Guide
DEC-11-UTECA-A-D 96 pp.
This manual describes the TECO text editing program and is divided into two
parts. Chapter I contains basic information and introduces enough TECO
commands for first-time users to create and edit text files. These introductory
commands are sufficient for any editing application, although they are less
convenient than the advanced commands in Chapter II.
RSTS/E V7.0 Document Summaries 2-7
In Chapter II the full TECO command set is introduced. This includes a
review of the introductory commands presented earlier. Chapter II also intro-
duces the concept of TECO as a programming language. It explains how basic
editing commands can be combined into sophisticated “programs” for the
most complicated editing tasks.
RSTS/E Text Editor Manual
DEC-11-UTEMA-A-D 50 pp.
This manual describes the features and operation of EDIT, a BASIC-PLUS
editing program distributed with the RSTS/E standard system library. The
manual is written for the RSTS/E user with little or no knowledge of character
RSTS/E RUNOFF User's Guide
DEC-11-URUNA-B-D 36 pp.
This manual describes RUNOFF, a system library program that is distributed
with RSTS/E. RUNOFF is a formatting program that aids in the production
of documents.
Section 1.0 introduces and explains the program for the inexperienced
RUNOFF user. Section 2.0 provides a step-by-step guide for executing
RUNOFF, including input and output file specification. In Section 3.0 the
format for I/O files, commands, case information, and some optional modes of
operation is listed.
Section 4.0 lists all RUNOFF commands and their abbreviations. This chap-
ter can serve as a reference for the experienced RUNOFF user. Section 5.0
describes RUNOFF error processing and the errors that you can encounter.
Volume 6 - Using RMS-11
RMS-11 Installation Guide
AA-H235A-TC 30 pp.
This manual describes the requirements and procedure for installing RMS-11
and RMS-11K software under several operating systems, including RMS-11K
for RSTS/E V7.0.
This manual replaces the RSTS/E RMS-11K Installation Guide.
RMS-11 User's Guide
AA-D538A-TC 300 pp.
The RMS-11 User’s Guide is a reference tool for users of the Record Manage-
ment Services on RSTS/E and other operating systems. This manual
* A general introduction to RMS-11.
* Application design information.
e File-organization-specific chapters covering file structure, file design,
record operations, and task design.
RSTS/E V7.0 Document Summaries
e Description of the purpose, effect, and operating procedures for the
RMS-11 utilities.
* Appendices covering RSTS/E restrictions on RMS-11, RMS-11 re-
strictions on RSTS/E, the programming languages supporting
RMS-11, and error codes.
* A glossary of RMS-11 terms.
This manual introduces RMS-11 and contains information on RMS-11
RMS-11 MACRO-11 Reference Manual
AA-H683A-TC 210 pp.
This manual is written for the advanced MACRO programmer. It includes the
reference material needed to understand and use Record Management Ser-
vices under RSTS/E and other systems. The manual explains how to do the
* Declare RMS-11 facilities.
e Access fields in control blocks.
e Allocate and initialize control blocks.
e Perform file and record operations.
The manual also includes appendices on status code returns, a description of
block I/O, the handling of ANSI-labeled magnetic tapes, formulas for calcu-
lating data capacities of RMS-11 files, sample code segments, and procedures
for assembling and task building programs.
Auxiliary Documentation
Introduction to BASIC
AA-0155A-TK 220 pp.
This handbook introduces the beginning programmer to the concepts, vocabu-
lary, and use of BASIC, The BASIC described is a core language that can be
used as a foundation for learning BASIC-PLUS, BASIC-PLUS-2 or other
BASIC languages. This book describes elementary statements, program
organization, branching, loops, subroutines, functions, and the concept of
files. It also contains a glossary and examples.
RSTS/E Pocket Guide
DEC-11-ORFCA-A-D 68 pp.
The Pocket Guide is a brief summary of RSTS/E capabilities. It contains
information on the RSTS/E system and BASIC-PLUS.
RSTS/E V7.0 Document Summaries 2-9
Documentation Directory
Order No. AA-2642D-TC
NOTE: This form is for document comments only. DIGITAL will use comments submitted on this form at the
company’s discretion. If you require a written reply and are eligible to receive one under Software
Performance Report (SPR) service, submit your comments on an SPR form.
Did you find this manual understandable, usable, and well-organized? Please make suggestions for improvement.
— Did you find errors in this manual? If so, specify the error and the page number.
Please indicate the type of user/reader that you most nearly represent.
0 Assembly language programmer
00 Higher-level language programmer
D Occasional programmer (experienced)
O User with little programming experience
0 Student programmer
OD Other (please specify)
Name Date
City State Zip Code
| or
- — — «Io Not Tear - Fold Here and Tape — ——-
ATTN: Commercial Engineering Publications MK1-2/H3
ams — == Do Not Tear - Fold Here and Tape — — — — === === === == === == == = —
No Postage
if Mailed in the
United States
rc coco coco dr р
Cut Along Dotted Line
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
