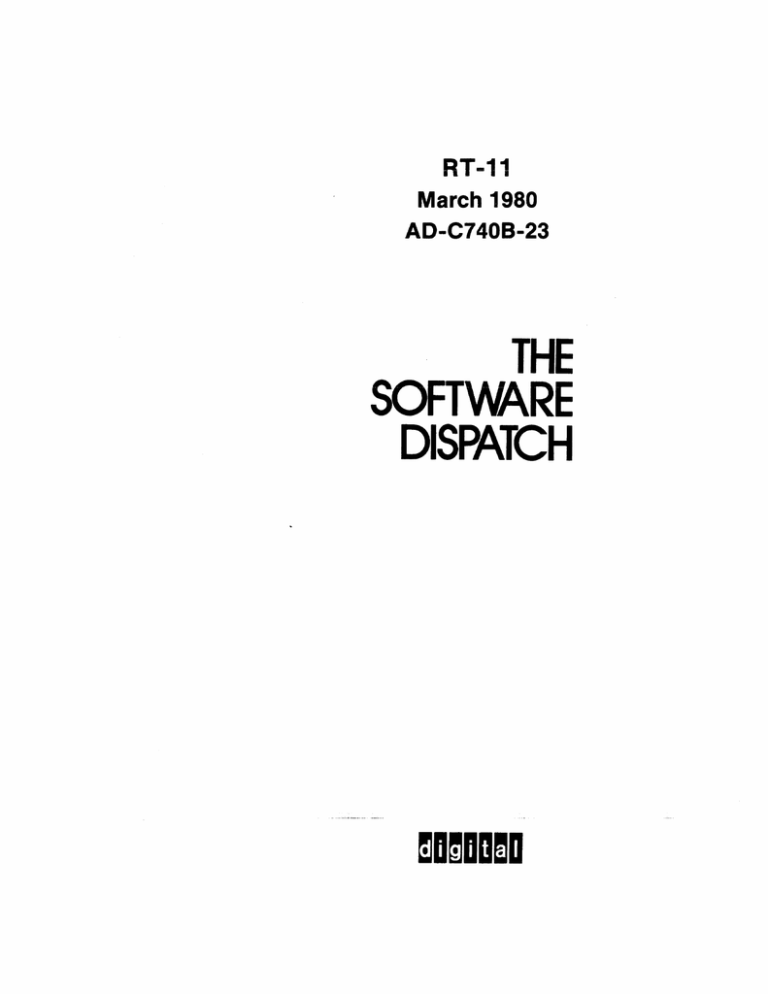

RT-11
March 1980
AD-C740B-23
THE
SOFTWARE
DISPATCH
RT-11 SOFTWARE DISPATCH
Published by
Corporate Administrative Systems Group, Software Services
Digital Equipment Corporation
Р.О. Вох Е
Maynard, MA 01754
The RT-11 Software Dispatch complements the RT-11 Software Dispatch Review. New and revised
Software Product Descriptions, programming notes, software problems and solutions, and
documentation corrections are published here. Much of the material is developed from Software
Performance Report (SPR) answers significant to the general audience and is printed here to
supplement the maintenance notebook (established by the Software Dispatch Review).
PRODUCTS SUPPORTED in the RT-11 SOFTWARE DISPATCH
APL-11 V1 FORTRAN/RT-11 Extensions V1B PEAK-11 Y?
BASIC-11/RT-11 V2 FORTRAN/RT-11 LSI Extensions V1 PLOT 11/RT-11 V1.1
BASIC/RT Extensions V1 FORTRAN IV/RT-11 V2 RT-11/03 FORTRAN
COS-350/2780 GAMMA-11 F/B V2, V2C Extensions V1
CTS-300 V3, V4, V5 Industrial BASIC/RT-11 V1 REMOTE/RT-11 V1
CTS-300 DICAM V1 Lab Applications-11 V3 RT-11 V3, V3B
CTS-300 DICAM II Vi LSP-11 V1 RT-11 (CTS-300) /LSI-11
CTS-300/DIS V1 MSB11 V1 2780 V2
DECnet/RT V1 MSB/FORTRAN IV V1 RT-11/2780 (CTS-300/
FOCAL/RT-11 V1B MU BASIC-11/RT-11 V1 2780) V2
FORTRAN Graphics PDL/RT-11 V1 SSP-11/RT-11 V1
Package V1.1
DISTRIBUTION
The RT-11 Software Dispatch is directed to one software contact for each software product. No
mailing will be made to addresses without a software contact name. Address change requests
should be sent to the nearest DIGITAL field office. Include the new address and mailing label from
the most recently received publication.
Software binary and sources are provided under licenses only. The standard Terms and
Conditions, OEM Agreement, and/or Quantity Discount Agreement contain the licenses for all
binaries other than DECsystem-10.
Eleanor F. Hunter, Editor
Ann Owens, Associate Editor
Copyright © 1980 Digital Equipment Corporation
The material in this document is for information purposes only and is
subject to change without notice. Digital Equipment Corporation assumes
no responsibility for any errors which may appear in this document.
Comments on the contents of this publication should be directed to your
local DIGITAL Field Office.
TRADEMARKS of DIGITAL EQUIPMENT CORPORATION
Maynard, Massachusetts
DEC DECwriter PDT
DECUS DIBOL RSTS
DIGITAL LOGO EDUsystem RSX
DECnet IAS UNIBUS
DECsystem-10 MASSBUS VAX
DECSYSTEM-20 PDP VMS
VT
2/80-14
RT-11 Software Dispatch, March 1980
TABLE OF CONTENTS
SEQ.NO.
SPR USER LETTER
CTS-399 VOS
DIBOL
ACCEPT CAUSES ERRORS 13 M
I-O ERROR ON ISAM STORE/DELETE 14 M
RT-ii Vÿ3B-0P
MONITOR
PROBLEM WHEN FOREGROUND AND BACKGROUND JOB USE CSI
AT SAME TIME 31 M
SYSGEM GENERATED SJ MONITOR WITH ESCAPE SEQUENCE SUPPORT 32 M
SOURCE
HARD ERROR RECOVERY IN DM HANDLER 12 M
UTILITIES /
DUMPING DISK FILES WITH MAGTAPE HANDLER LOADED 24 M
RT-11 CUMULATIVE INDEX
SOFTWARE PRODUCT DESCRIPTIONS
DIGITAL EQUIPMENT COMPUTER USERS SOCIETY (DECUS)
PAGE
13
15
17
29
41
SPR USER LETTER
Submitted by Sheila Hatchell, 8/11 Administration
The Dispatch SPR User Letter has been revised to reflect the new SPR form which is now
available. These forms can be obtained from your local DIGITAL Office or SPR Center, or by
requesting them from SPR Administration.
How to Make the Best Use of the
RN
PI
XJ
“TI
orm
What We Can Do for You:
1. Blank SPR forms are available upon request in the desired quantities through the SPR
Administration (P.O. Box F) and your local office/SPR Center.
2. Copies of the SPR acknowledgement and answer are sent to the appropriate DIGITAL
Office/SPR Center for their information.
3. STATUS FOR SUBMITTED SPRs IS PROVIDED UPON REQUEST.
4. SPRs marked PROBLEM/ERROR will have a response for DIGITAL SUPPORTED
products. These SPRs should refer to suspected deficiencies in the software.
5. SPRs marked SUGGESTION are forwarded to the pertinent software group for informa-
tion purposes, and are responded to at their discretion.
What Your Can Do for Us:
1. Fill out the form completely either by typing or printing clearly. PLEASE INCLUDE
YOUR SOFTWARE SERVICE CUSTOMER NUMBER IN THE ADDRESS BOX.
2. Limit only one problem per SPR form. Several problems on an SPR can lengthen the
turnaround time. |
3. WHENEVER POSSIBLE, SUBMIT ANSPRWITHATTACHMENTS, SUCH AS MACHINE
READABLE DATA, DETAILED INSTRUCTIONS ON HOW TO REPRODUCE THE
PROBLEM, PROGRAM AND/OR DATA FILES, LISTINGS, AND CONSOLE LOG.
4. It would be helpful to all concerned if problems with patches are reported as soon as
possible. |
5. For security SPRs, it is imperative that the DO NOT PUBLISH box be marked.
6. ltwould be helpful if tapes submitted with SPRs are labeled (track and density), and have
a directory attached.
7. Complete the questionnaire that is supplied with each SPR answer. Your feedback is.
essential in monitoring the quality of our responses.
8. SPRsshould not be used for problems concerning software policy, software distribution,
or hardware. The local office should be contacted in these cases.
RT-11 Software Dispatch, March 1980
CTS-3098 VAS
DIBOL
TSD VB95-01H
XMTSD VCO5-01F
(PATCH 18)
ACCEPT CAUSES ERRORS (LG)
Under TSD and XMTSD, if ACCEPT instructions are used to read
single characters from a data file and place them in an Al field,
a TRAP TO 4 or an Inconsistent OPEN error message will occur
under the following conditions:
a. the data file is not terminated with a CTRL/Z.
b. the last block of the file has at least one null
character following the last record.
Patch 18 corrects this problem so that a "MOUNT SUCCESSOR FOR
INPUT" message is generated in the situation described above.
The version number of TSD changes to VB05-01I, and XMTSD changes
to VC05-01G.
Using the editor, create the following source files. Name them
as indicated in the comment line that begins each file. Then, to
install the patch, follow the procedure shown following the
source files.
Seg 13 M
RT-11 Software Dispatch, March 1980
[email protected] [email protected]
DIBOL
TSD [email protected]@1H
XMTSD [email protected]
(PATCH 18)
УРОТВА, МАС
e TITLE
.CSECT
JER
+ FSECT
FOLBA: MOV
MOV
RTS
+ ENT
FFOLSUL. MAC
e TITLE
. CSECT
4
ASCII
ENT
sF0O18K,MéC
TITLE
oCSECT
JER
+ FSECT
FOLLAR: MOV
MOV
RTS
ENT
PFOLSU2, MAC
+ TITLE
e CSECT
+ =
ASCII
«ENT
SOTO
s$UTO
+5420
FC»,PFPOIBA
EtFOLBA
R2r12(R1)
КТ» К
РС
CTO
nro
+4543
Fis
PREUTO
FOTO
.+4740
FCyFO18R
FFOLBE
Rar (RL)
Risk:
FC
$KUTO
SROTO
+ +4110
/G7
Seg 13 M
2 of 3
RT-11 Software Dispatch, March 1980
CTS-3097 VA5
DIBOL
TSD VB05-01H
XMTSD VCQ5-91F
(PATCH 18)
MACRO FOLEA »FOLEUI,FOLOR:FOLSV:
ERRORS DETECTED
ERRORS DETECTED:
ERRORS DETECTED:
ERRORS DETECTED:
Ко © © ©
. RENAME. (ОТО, ПТО, КОТО, КАТО), ОВО ОЖ. Ой
Files о гепаемес
ERICO, EJ to DKICTO, LT
UKIETO,05,1 Lo VE GTO LE
DR SRDIG. OR to URIKDIO.OLD
LKIRIITO, OBJ to DRIKDTO.OLT
o TRACY
e К Ema
#00, 0E1=0T0.0L0/C01151124-F0O18A/C:3012641
‚КО РАТ
XDTO OBLESTITO , DLIZ/CI 112203 FOLSUL/C:005170
A FAT
EKDIO., OBJERTIO., OLTZC: 160315» FOLSB/C:01L3727
‚ВРАТ
EKDTO OBJERITO, OLL/C3075677 POL 8V2/C1005470
.ERTSOGEN sFDR NORMAL TSE
.ROTSCGEN sFOR EXTENDEL MEMORY TSI
Seg 13 M
3 of 3
RT-11 Software Dispatch, March 1980
CTS-399 VO5 Seq 14 M
DIBOL
SUD VAG5-G1F 1 of 2
(PATCH 19)
I-O ERROR ON ISAM STORE/DELETE (LG)
The problem described below occurs under the Single-Job monitor and Single-
User DIBOL only.
If you are STOREing or DELETEing records in an ISAM file, when a group splits
it is possible to receive an error 22 I-0 ERROR, where no error should be re-
ceived at all.
Patch 19 corrects this problem and changes the version number of SUD to
VA95>-01G.
Using the editor, create the following source files. Name them as indicated
in the comment line that begins each file. Then, to install the patch, follow
the procedure shown following the source files.
RT-11 Software Dispatch, March 1980
CTS-388 V#5 Seq 14 M
DIBOL
SUD [email protected] 2 of 2
(PATCH 19)
F019. MAC
TITLE +*ISAM
+CSECT S1SAM
Fo19:
= ‚+3362
JMF FOLYA
PSECT #F019
FOLPA: ECC 4%
TSTK OL
REQ 4%
JMF FOL?+3370
24%: SMF FO19+3376
+ END
s FOLPYUL.,MAC
e TITLE LIRT
:CSECT $DIRT
DE :+11103
ASCII /76/7
+ ENT
+ MACRO FOL?,FOLFVUIL
ERRORS DETECTED: 9
ERRORS DETECTED: O
› КЕМАМЕ ТеАМ, ОВ.) ОТКТ. ОВО Ж, Ор
Files renamed:
KI TISAM., OBJ to DKITISAM.OLE
URIUTRT.OR to TKIDTIRT.DLI
x FAT
XISAM.OBJ=TSAM.OLD/CI156363>F015/C3016570
‚В РАТ
KDIRT .OBJ=HIRT.0L0/C:122216>F019V1/C1005253
‚К LIEBER
XOIBOL=NTIR0OL DIRT/R
x70
RT-11 Software Dispatch, March 1980
RT-11 VO3B-90 Seg 31 M
MONITOR
FB VO3B-90E 1 of 2
ЕВ (5) [email protected]
XM (S) Vÿ3B-0PS
Supersedes article dated Jan 1980
PROBLEM WHEN FOREGROUND AND BACKGROUND JOB USE CSI AT SAME TIME
(SPR 11-24615 MAS)
**Replacement Articie for patch Seq 31 M published in
LL mm am = = - a, a - o Juan Л + de a To A me DD
Orig inal article did not LIiiCLUUE LIE нана у PD
January 1989. The
$ dema de o la Dana deban DN mA
MUIIL LUI ране 101 LIIE LU diu
DD monitors. Also, the size of BSTRAP.MAC must be increased from 57 to 68
blocks.
If a foreground job is using the CSI, and a background job or keyboard
command uses the CSI at the same time, unpredictable results occur. Either
or both jobs may function incorrectly, or be aborted prematurely.
The following patches will correct this problem.
The binary FB monitor patch contains the variable xx, which represents the
physical device name for your system volume,
is RK, RF, DX, DT, DP,
If the physical device name
DY, DS, or DM install the following patch.
.R PATCH <RET>
FILE NAME--
* XXMNFB.SYS/A/C <RET>
*4764\ 105 196 <RET>
*41046/ 42737 52737 <RET>
*E
Checksum? 1661 <RET>
If the physical device name is PD or DD, install the following patch
.R PATCH <RET>
FILE NAME--
*XXMNFB.SYS/A/C <RET>
*4764\ 195 186 <RET>
*41066/ 42737
*E
Checksum?
52737 <RET>
2601 <RET>
The resultant version will be RT-11FB VO3B-09F.
RT~11 Software Dispatch, March 1980
RT-11 VO3B-990 Seg 31 M
MONITOR
FB VO3B-090E 2 of 2
FB (S) VO3B-090M
XM (S) V83B-99S
The following changes are for SYSGENed monitors only.
Patch to RT-11FB (S)V23B-09M and RT-11XM (5)V03B-005.
.R EDIT <RET>
*EBBSTRAP.MAC[68]<ESC>RV<ESC><ESC>
:BSTRAP EDIT LEVEL 22
*G22<ESC>-DI3<ESC>V<ESC><ESC>
sBSTRAP EDIT LEVEL 23
*FESTRNG: <ESC>GFB<ESC>V<ESC><ESC>
.ASCIZ "FB (S)[email protected]'...'M"
*GM<ESC>-DIN<ESC>V<XESC><ESC>
. ASCIZ "FB (S)VO3B-0'...'N"
*GXM<ESC>V<ESC><ESC>
.ASCIZ "XM (S)[email protected]@'...'S"
*G ' SCESC>-DIT<ESC>V<ESC><ESC>
. ASCIZ "XM (S)[email protected]@'...'T"
*EX<ESC><ESC>
.R EDIT <RET>
*EBRMONFB.MAC[ 155 ]XESC>RV<ESC><ESC>
> RMONFB EDIT LEVEL 11
*G11<ESC>-DI2<ESC>V<ESC><ESC>
:RMONFB EDIT LEVEL 12
*FC$SIGN: <ESC>GGTLINS$<ESC>UAL<ESC><ESC>
BIC #GTLINS,@#JSW
*GC<ESC>-DIS<ESC>V<ESC><ESC>
BIS #GTLINS,@#JSW
*EX<ESC><ESC>
The resultant version will be RT-11FB (S)[email protected]@@N and RT-11XM (S)[email protected]@4T.
10
RT-=11 Software Dispatch, March 1980
RT-11 V83B-J8 Seq 32 M
MONITOR |
SJ (S) [email protected] 1 of 1
SYSTEM GENERATED SJ MONITOR WITH ESCAPE SEQUENCE SUPPORT (JM)
A single job monitor generated with escape sequence support will not boot.
The escape sequence conditional code in RMONSJ.MAC causes a symbol (TTO?)
to be out of place. The result is that a wrong value is restored from the
stack.
The following source changes correct the problem in RT-11SJ (5) V03B-001.
.R EDIT <RET>
*EBBSTRAP.MAC{(69]<ESC>RV<ESC><ESC>
;BSTRAP EDIT LEVEL 23
*G3<ESC>=CHYCESC>V<ESC><ESC>
;BSTRAP EDIT LEVEL 24
*2FSJ<ESCPVKESC><ESC>
.ASCIZ "SJ (S) VO3B-0'.,.,'I"
*GI<ESC>=C/<ESC>V<ESC><ESC>
.ASCIZ "SJ (5) VO3B-0'...'J"
*EX<ESC><ESC>
.R EDIT <RET>
*EBRMONSJ.MAC[71]<ESC>RVKESC><ESC>
; RMONSJ EDIT LEVEL 2
*G2<ESC>=C3<ESC>V<ESC><ESC>
; RMONSJ EDIT LEVEL 3
*FTTO2: <ESC>V<ESC><ESC>
TTO2: TST (PC)+
*I<RET>
$-ASK<ESC>-3AU-LL<ESC><ESC>
TTO2:
. IF NE ESC$P
*EX<ESC><ESC>
After installing the above source patches, re-assembling, and re-linking
the resultant version will be RT-11SJ (S) V63B-00J.
11
RT-11 Software Dispatch, March 1980
RT-11 V93B-99
SOURCE
DM. MAC
HARD ERROR RECOVERY IN DM HANDLER (11-25677 SD)
The DM handler does not reset the controller error bit when a hard
occurs causing the next access to also fail.
The following patch will correct this problem.
.R EDIT <RET>
*EBDM.MACCESC>RV<ESC><ESC>
: DM EDIT LEVEL 2.
*G2<ESC>-C3<ESC>V<ESC><ESC>
: DM EDIT LEVEL 3.
*FDMHENL: <ESC>V<ESC><ESC>
DMHENL: BIS #1,e-(R5)
*AVKESC><ESC>
.IF NE RK6$S
#1 BIS #CERR,@R#H ; [email protected] <RET>
<ESC>-AV<ESC><ESC>
BIS #CERR,@R4 ; [email protected]
*EX<ESC><ESC>
13
Seg 12 M
lofil
error
RT-11 Software Dispatch, March 1980
RT-11 VO3B-099 Seg 24 M
UTILITIES
DUMP [email protected] l of 1
DUMPING DISK FILES WITH MAGTAPE HANDLER LOADED (11-27695 MG)
PROBLEM:
If a megtape handler (MM or MT) is LOADed, attempting to dump a disk
using either the /0 or /S Switch confuses DUMP, which begins
sequentially accessing each block on the disk until it reaches the
first block nn ha dumped The 1? XXXL TAPE MARK EXE: message is also
Y E №. VA ALP Ya Lia Lif il
issued after the last block of a disk file is dumped.
The following mandatory patch corrects the problem.
Patch to DUMP [email protected]:
‚В PATCH<RET>
FILE NAME--
*DUMP. SAV/C<RET>
*31927 5001 1278 1<LF>
34947 112767 2<LF>
3486 / 2 T2700<LF>
3418/ 3112 5732<LF>
3412/ 12783 = 12746<LF>
3414/ 4446 5736<LF>
3416/ 18388 104342<LF>
3428/ 12746 193415<LF>
3422/ 6736 116703<LF>
3424/ 184342 3310<LF> —
3426/ 193403 120327<LF>
[email protected]/ 5767 11<LF> —
3432/ 3396 TH11<LF>
3434 / 1812 S201<LF>
3436/ 195267 120327 LF>
[email protected]/ 3062 20<LF>
3442/ 62783 1495<LF>
3444/ 2 5261<LF>
3446/ 5201 120327<LF>
3458/ 28127 T3<LF>
3452/ 3 1981<LF>
3454 / 1368 5983<LF>
3456 / 195967 118367<RET>
*6722\ 148 181<RET>
ЖЕ —
Checksum? 5540 3<RET>
~ The resultant version is DUMP V83.03A.
15
RT-11 SOFTWARE DISPATCH
CUMULATIVE INDEX
MARCH 1980
This is a complete listing of all articles for current versions of RT-11 and related products. In the
case of subordinate software, missing sequence numbers may pertain to problems unique to interaction
with previous versions of the same product or other major operating systems.
IMPORTANT!
Unassigned articles are indicated: UNASSIGNED.
Flags are currently being installed for all articles. The flags and definitions are as follows:
M = Mandatory Patch. These patches correct errors in the software product. All users are required to
apply these patches to maintain consistent "user level" unless the accompanying article specifies
otherwise.
F = Optional Feature Patch. These patches extend or configure functionality into the product. These
functions will be treated as a supported part of the product for the duration of the current
release and will be incorporated with any future release, unless otherwise stated.
R = Restriction. These articles discuss areas that will not be patched in the current release because
they require major modification or because they are not consistent with the design of the product.
Restrictions, except those described as permanent, are reviewed and modified when possible as part
of the normal release cycle.
N = NOTE. These articles provide explanatory information that supplements the manual set and provide
more detailed information about a program or package. They also provide procedural information to
make it easier to use a program or package.
Component Sequence Mon/Yr
APL-11 V1
APL.SAV PROGRAM PATCHES
ERRONEOUS "DEFINITION ERROR" DURING FUNCTION EDITING 01 M Nov 77
LOSS OF LOWER-CASE ON RE-ENTRY TO APL-11 02 M Nov 77
APL WORKSPACE 03 R Nov 77
"SYSTEM ERROR"S GENERATED BY NULL LINE ELEMENTS 04 Dec T7
INTERNAL MEMORY ALLOCATION PROBLEMS 05 M Dec 77
ERROR FOR SCALAR RESULT OF DECODE OR INNER PRODUCT OPERATION 06 M Feb 78
SYSTEM ERROR ON PARAMETER RETURN 07 M May 78
BASIC-11/RT-11 V2
AIRESEQUENCE PRODUCES AN INCORRECT PROGRAM UNDER CERTAIN CONDITIONS 01 M Aug 78
# PRINT USING 02 M Jun 78
MAX SIZE OF LINE ENTERED TO BASIC-11 03 M Jun 78
PREM STATEMENT CONTAINING LEFT PARENTHESIS CAUSES SUBSEQUENT SPACES
AND PERIODS TO BE REMOVED 04 В Jun 78
== RUN (NH) COMMAND MAY GIVE AN ERROR MESSAGE o 05 M Jul 78
# TERMINAL MAY HANG rd 06 M Jul 78
% DATA FILES Sl 07 M Jul 78
A SAVE DEV: AND REPLACE DEV: 08 M Jul 78
.4 SINGLE PRECISION HANG AND NUMERIC CONVERSION PROBLEM (PATCH F) 09 M Aug 78
+ CONVERSION PROGRAM 10 M Sep 78
À OVERLAYING WHILE IN A SUBROUTINE 11 R Nov 78
¢ OPERATION OF CTRLC, AND RCTRLC AND SYS (6) FUNCTIONS AND THE
| CTRL/C COMMAND 12 N Nov 78
#4BASIC-11/RT-11 V2 CONVERSION PROGRAM PATCH 1 13 M Feb 79
A“OPERATION OF OLD, RUN, CHAIN AND OVERLAY WHEN THE SPECIFIED FILE
vez 15 NOT FOUND 00e а [MMMM El ome MN e EDT
"D CREATING AND ACCESSING VIRTUAL ARRAY FILES. LL ptm 15 N Feb
"REPUBLICATION OF PATCHES 16N Feb
PRINT USING - PATCH A 17 M Feb
RESEQ - PATCH B 18 M Feb
EDITING A DIM #n STATEMENT - PATCH C 19 M Feb
DOUBLE PRECISION HANG - PATCH D 20 M Feb
SAVE dev: AND REPLACE dev: - PATCH E 21 M Feb
SINGLE PRECISION HANG AND NUMERIC CONVERSION PROBLEM - PATCH F 22 M Feb 79
17
Component Sequence Mon/Yr
SAVE .XXX 4 UNSAVE .XXX - PATCH G 23 M Feb 79
NEW - PATCH H 24 M Feb 79
STORAGE OF THE NULL CHARACTER IN STRING VARIABLES AND VIRTUAL
STRING ARRAYS 25 N Feb 79
USE OF COMPILE COMMAND 26 N Feb 79
RESEQ - PATCH I 27 M Mar 79
LISTNH /OLD - PATCH J 28 M Mar 79
SYS(1) - PATCH K 29 M Mar 79
CALL - PATCH L 30 M Mar 79
DOUBLE PRECISION INTEGER VARIABLES - PATCH M 31 M May 79
FILESIZE 0 - PATCH № 32 M May 79
INTEGERS IN DOUBLE PRECISION BASIC-11 33 M Jul 79
REM STATEMENTS ON MULTI-STATEMENT LINES — PATCH 0 34 M Jul 79
STRING MANIPULATION IN ASSEMBLY LANGUAGE ROUTINES 35 N Aug 79
MAXIMUM ARRAY SUBSCRIPT SIZE 36 N Aug 79
BASIC/RT-11 EXTENSIONS V1
"TPK" SUBROUTINE 01 M Aug 77
SAMPLING A/D CHANNEL NO. 15 02 R Aug 77
SAMPLING AR11 03 M Sep 77
"CLRD" AND "PUTD" ROUTINES 04 M Nov 77
"SETR" AND "WAIT" COMBINATION MAY FAIL 05 Apr 78
BASIC/RT-11 EXTENSION BUILD PROCEDURE RESTRICTION 06 R Mar 79
CTS-300 V5
DECFORM
TWO PROBLEMS WITH FOCOMP 01 M May 79
DIBOL
TWO PROBLEMS: FILE CORRUPTION POSSIBILITY AND REPETITIVE I/O ERRORS 01 M Mar 79
OPENING NON-STANDARD HANDLERS 02 M Apr 79
ANOTHER FILE CORRUPTION POSSIBILITY 03 M Apr 79
TWO PROBLEMS: OPENING O LENGTH FILE IN SUD AND OPENING LP IN I MODE 04 M Jun 79
LINE PRINTER PROBLEM AND PROBLEM WITH LARGE ISAM FILE 05 M Jun 79
1/0 ERRORS AND PROBLEM WITH FMAC SUBROUTINE 06 M Jun 79
ISAM FILE CORRUPTION 07 M Jun 79
SHUFFLE CAUSES TRAP TO 14 08 M Jul 79
MISLEADING ERROR MESSAGES 09 M Aug 79
ERRONEOUS I/O ERROR 10 M Aug 79
TWO PROBLEMS WITH MULTI-VOLUME FILES | 11 M Oct 79
INCORRECT ERROR ON WRITING DUPLICATE FILE TO MAGTAPE 12 M Dec 79
ACCEPT CAUSES ERRORS 13 M Mar 80
I-O ERROR ON ISAM STORE/DELETE 14 M Mar 80
DICOMP
DICOMP DISLIKES SOME COMMENTS 01 M Sep 79
ISMUTL
REORG PROBLEMS DUE TO INSUFFICIENT SPACE ON DEVICE 01 M Feb 80
REDUCE
HOW TO REDUCE PAINLESSLY 01 N Aug 79
A REDUCING PROBLEM 02 M Dec 79
SORTM
MERGE DOES NOT ACCEPT EMPTY FILES 01 M Apr 79
CTS-300 RDCP (2780/3780) V1.0
SENDING OF TRANSPARENT DATA AND TRANSLATION OF DATA AFTER
SENDING A TRANSPARENT FILE 01 M Jul 79
SEND A TRANSPARENT FILE AFTER RECEIVING AN ASCII DATA FILE 02 M Oct 79
AN ACK IS RECEIVED WHEN ENQ HAS ALREADY BEEN SENT 03 M Oct 79
MISCELLANEOUS ERRORS 04 M Aug 79
RDCP11 LOOP MAY OCCUR 05 M Oct 79
ASCII TRANSMISSION OF A FILE 06 M Oct 79
18
Component Sequence Mon/Yr
DECnet-RT V1
DAP
DAP ROUTINES DO NOT ARBITRATE DAP SEGMENT SIZE PROPERLY 07 M Jan 79
NOTES ON CHANGES TO DAP INTERFACE 09 N Feb 75
CORRECT BUFFER POINTER ERROR 16.11 M May 79
DAP ATTEMPTS TO SEND A MESSAGE TOO LONG 17.7 M Sep 79
DDCMP
DDCMP LINE COUNTERS OVERFLOW TO ZERO 01 0 Jul 78
DMC
DMC LINE COUNTERS OVERFLOW TO ZERO 01 0 Jul 78
DOCUMENTATION
USER'S GUIDE DOCUMENTATION ERRORS 2.1 N Aug 79
FAL |
CORRECT FAL PROCESSING OF END OF STREAM MESSAGE 01 M Jan 79
FAL INCORRECTLY ALLOCATES DISC SPACE FOR FILES 02 M Feb 79
FAL INCORRECTLY HANDLES REMOTE FILE REQUESTS où M Feb 79
TIMING DEPENDENCY IN RT TO RSTS FILE TRANSFERS 17.5 М Jul 79
MRS FIELD NOT DEFAULTED PROPERLY 17.6 M Jul 79
FORTRAN INTERFACE
DIFFERENCES IN RT AND RSX FORTRAN INTERFACE IMPLEMENTATIONS 01 N Jul 78
USE OF THREADED AND INLINE FORTRAN COMPILER OPTIONS 04 R Jan 79
FORTRAN REMOTE OPEN FOR WRITE MODIFIES FILE ATTRIBUTES 05 N Jan 79
MODEM CONTROL
SUPPORT OF ASYNCHRONOUS HALF DUPLEX MODEMS 01 R Jul 78
NFARS
DAP ROUTINES CHANGE MODE DURING FILE TRANSFER 02 M Feb 79
CHECK FOR BLOCK MODE TRANSFER 03 M Feb 79
DAP DEFAULTS DO NOT ALLOW RECORDS TO SPAN BLOCKS 06 0 Jan 79
ASCII FILE ACCESS TO VAX/RSX SYSTEMS 08 M Feb 79
INVALID FILE TYPE SENT TO VAX IN ASCII TRANSFER 10 M Mar 79
NSP
PROTOCOL VIOLATION IN NODE INITIALIZATION 01 M Jan 79
NET
NFT ASCII FILE TRANSFER TO VAX/RSX SYSTEMS 03 M Feb 79
LOGICAL BLOCK NUMBERS NOW START AT ONE 17.5 M May 79
FEP-11, FORTRAN ENHANCEMENT PACKAGE
(ALSO PERTAINS TO: RT-11/FORTRAN UPGRADE PACKAGE FOR MINO)
FEP-11 INITIAL PROBLEMS, SOLUTIONS AND HINTS 01 M May 79
PROBLEMS WITH IEEE-BUS SUBROUTINES 02 M Feb 80
FMS-11 V1
CONSOLE TERMINAL SPECIAL MODE BIT CLEARED 01 M Jun 79
INCORRECT MCDEMO FILE TYPES 02 0 Jun 79
TSKINI INPUT BUFFER TOO SMALL 03 M Jun 79
ARTS ERROR MESSAGES LACK '?' | 04 M Jun 79
HANDLER FETCH CORRUPTS FORM FILE ID 05 M Jul 79
ZERO-FILLED FIELD VALIDATION PROBLEM 06 M Jul 79
FILED VIDEO ATTRIBUTES PROBLEM 07 M Jul 79
FRED ERROR MESSAGES LACK'?! ST Ce 0 08 M otal 79
ERROR IN SCROLL FORWARD/BACKWARD CODE 09 M Jul 79
ERROR IN EXIT SCROLLED AREA FORWARD CODE 10 M Jul 79
ANNOUNCING FMS-11 FORMS MANAGEMENT SYSTEM 11 F Nov 79
19
Component Sequence Mon/Yr
FOCAL/RT-11 V1B
FOR COMMAND WITHOUT AN ARGUMENT 01 M Oct 75
OPERATE COMMAND CAUSES ERROR O4 M Aug 76
FCLK ROUTINE GIVES INCORRECT TIME 05 0 Aug 76
"LIBRARY ASK" COMMAND 06 0 Feb 77
"/2" SWITCH 07 M Aug 77
ESTART NOT WORKING WHEN DOWN-LINE LOADING 08 M Mar 78
LIBRARIES FROM FOCAL SOURCE DISK MUST BE REFORMATTED 09 N Aug 78
CLOCK PROBLEM FOR PAPER TAPE (STAND-ALONE) FOCAL USERS 10 M Nov 78
FORTRAN GRAPHICS PACKAGE, V1.1
DECGRAPHIC
NMBR SUBROUTINE IN DECgraphic 01 R JAN 79
FORTRAN/RT-11 EXTENSIONS V1
RUNNING PROGRAM WITH "SETR" 01 M Oct 78
IBEF NOT PROPERLY DECREMENTED 02 R Oct 78
LPS DEVICE CONFLICT CAUSED BY CALL SETR AFTER CALL RTS 03 R Oct 78
IADC AFTER RTS DOES NOT WORK 04 M Oct 78
SUBROUTINE NAMING CONFLICT 05 N Oct 78
PLOTS5 DESCRIPTION 06 N Oct 78
ILLEGAL MEMORY REFERENCE ERROR 07 M Oct 78
DEVICE CONFLICT ERROR 08 R Oct 78
TWO PROBLEMS WITH THE RT-11/FORTRAN GRAPHICS EXTENSIONS 09 M Oct 78
FORTRAN/RT-11 EXTENSIONS V1B
FORTRAN CRASHES AFTER RUNNING PROGRAM WITH "SETR" 01 M Oct 78
TWO PROBLEMS WITH THE RT-11/FORTRAN GRAPHICS EXTENSIONS 02 M Oct 78
NEGATIVE INTENSITY 03 N Nov 78
PROGRAM TERMINATION ERROR USING RT-11 F/B 04 R Apr 79
FORTRAN/RT-11 EXTENSIONS V2.1
FORTRAN CRASHES AFTER RUNNING PROGRAM WITH "SETR" 01 M Mar 79
TWO PROBLEMS WITH THE RT-11/FORTRAN GRAPHICS EXTENSIONS 02 M Mar 79
NEGATIVE INTENSITY 03 N Mar 79
FORTRAN IV/RT-11 V2
COMPILER
DISPOSE = 'KEEP' OPTION 01 R Jan 79
CRASH DUMPS 02 N Jan 79
SYNTAX ERRORS IN SOURCE PROGRAM MAY CAUSE COMPILER TO ABORT = 03 M Jan 79
SIMRT O4 M Jan 79
SIMRT CONTINUED 05 M Jan 79
KNOWN FORTRAN IV V2 BUGS 06 N Jan 79
USE OF THE FIND STATEMENT 07 M Jan 79
RAISING COMPLEX NUMBERS 08 M Jan 79
EXTRA CHARACTERS MAY RESULT IN COMPILER TRAPPING | 09 M - Jan 79
TRANSMITTING ASCII DATA 10 R Jan 79
IN-LINE CODE 11 N Jan 79
ERRORS OCCUR WITH NO DO LOOP 12 M Jan 79
FORTRAN "ACCEPT" STATEMENT 13 R Jan 79
FORTRAN IV/RT-11 V2.1
FORTRAN IV V2.1 MAINTENANCE RELEASE 01 N Dec 78
PATCH 1 02 M Feb 79
PATCH 2 | 03 M Feb 79
PATCH 3 04 M Feb 79
PATCH 4 05 M Sep 79
CARRIAGE CONTROL OPTION - PATCH 5 06 M May 79
OPEN FAILURE WITH TYPE='OLD' - PATCH 6 07 M Sep 79
20
Component Sequence Mon/Yr
FORTRAN LIBRARY FUNCTION ERRTST - PATCH 7 08 M Aug 79
REGISTER ALLOCATION - PATCH 8 09 M Sep 79
SMALLER EXECUTION-TIME PROGRAMS 10 N Jun 75
FORTRAN OTS - PATCH 9 11 M Sep 79
1/0 FROM A FORTRAN COMPLETION ROUTINE - PATCH 10 12 M Aug 79
FORTRAN FAILS TG COMPILE DO-LOOPS - PATCH 11 13 M Aug 79
CALL CLOSE (FORTRAN LIBRARY SUBROUTINE) - PATCH 12 14 M Aug 79
UNFORMATTED BYTE 1/0 - PATCH 13 15 F Aug 79
LIST DIRECTED INPUT ERRORS - PATCH 14 16 M Aug 79
DISP='DELETE' OPTION - PATCH 15 17 M Aug 79
FORMATTED RECORD OUTPUT - PATCH 16 18 M Aug 79
COMMON SUBEXPRESSION OPTIMIZATION - PATCH 17 19 M Aug 79
CALL ASSIGN CARRIAGE CONTROL - PATCH 18 20 M Aug 79
NON-PLAS VIRTUAL ARRAY INITIALIZATION - PATCH 19 21 M Aug 79
BYTE COMPARISON AND COMMON SUBEXPRESSION OPTIMIZATION - PATCH 20 22 M Aug 79
DIRECT ACCESS READ - PATCH 21 23 M Aug 79
COMPLEX VARIABLE TO CONSTANT COMPARISON —- PATCH 22 24 M Aug 79
GAMMA-11 F/B V2
DATA ANALYSIS PROGRAM Qi M Feb 79
STUDY PROGRAM DISPLAYS TOO MANY INDEX LINES PER PAGE 02 M Feb 77
BASIC AND FOCAL 03 M Feb 77
BACKGROUND PROGRAM CAN HANG THE FOREGROUND TERMINAL OZ M Feb 77
CNTL/C UNDER SINGLE JOB MONITOR 05 M Feb 77
CROSSHAIRS FAIL TO APPEAR IN SLICE 06 M Feb 77
UNDOCUMENTED PROGRAMS 07 N Mar 77
FORTRAN SUPPORT INCORRECTLY CONVERTS DATA AND TIME OF INQUISITION 08 M May 77
"RS" COMMAND IS INCORRECTLY 09 N Jun 77
GAMMA-11 F/B V2C
GATED LIST MODE IMAGES 01 O Sep 78
TU16 SUPPORT 02 M Sep 78
PROBLEMS WITH PLAYBACK BUFFER COMMENTS AND FLOOD CORRECTIONS 03 M Oct 78
STATIC FOREGROUND ACQUISITION FAILS ON RKO6 OR RLO1 SYSTEMS où M Oct 78
DYNAMIC CURVE CALCULATIONS MAY FAIL 05 M Dec 79
RK06, 7 AND RLO1 FOREGROUND ACQUISITIONS PROBLEMS 06 M Dec 78
PROBLEMS WITH FLOOD CORRECTIONS 07 M Dec 78
PROBLEMS WITH REGION OF INTEREST 08 M Dec 78
KW11-P REAL-TIME CLOCK INCORRECTLY INITIALIZED 09 M Dec 78
GAMMA-11 V2C NCV11 REAL-TIME CLOCK CAN BE DISABLED 10 M Dec 78
KW11—-P REAL-TIME CLOCK RUNS TOO FAST DURING GSA STUDIES 11 M Dec 78
BUILDING AN RLO1 GAMMA-11 V2C SYSTEM 12 M Dec 78
PREDEFINED GATED LIST MODE STUDIES 13 M Dec 78
GATED LIST MODE DATA ACQUISITION SET-UP 14 M Dec 78
PROBLEMS WITH MAGTAPE DISTRIBUTION 15 N Dec 78
SUBROUTINE 'GMXG' GENERATES ILLEGAL ADDRESS MESSAGE 16 F Jul 79
FGAMMA/BGAMMA RACE CONDITION 17 M Feb 79
DELAYED START LIST MODE STUDIES 18 M Feb 79
FORMATTING GATED LIST MODE STUDIES 19 M Feb 79
SLICE PROBLEMS 20 M Feb 79
DOUBLE INTERPOLATION OF 6 X 61 MATRIX DATA 21 M Feb 79
GAMMA-11 AND RT-11 DATE ROLLOVER 22 M Feb 79
PROBLEMS WITH PATIENT MONITOR AND GSA ADMIN BLOCKS 23 M Feb 79
FOREGROUND GATED LIST MODE STUDIES FAIL 28 М Feb 79
NCV11 JOYSTICK AND LIST MODE PROBLEMS 25 M May 79
SYSTEM SUMMARY FOR RKQ7 DISKS 26 0 May 79
MORE PROBLEMS WITH FLOOD CORRECTION 27 M May 79
TWO MINOR PROBLEMS WITH PLAYBACK BUFFERS 28 M May 79
TRANSFER STUDY CAN CORRUPT A DISK DIRECTORY 29 M May 79
FOUR FRAME MINIMUM FOR GSA STUDIES meo CEE 30 M May.
GAMMA-11/BASIC PATCHES 31 M May 79
CONTINUE ANALYSIS CA) OCCASIONALLY FAILS 32 M May 79
ASCII STRING VARIABLE TABLE (FORTRAN AND BASIC) —- SUBROUTINE
GPAR AND GPAW — 33 M Jul 79
GAMMA-11 SYSTEMS WITH RK07 AS A DEVICE 34 M Sep 79
INVOKING AN RT-11 INDIRECT COMMAND FILE FROM GAMMA-11 35 0 Oct 79
PROBLEM WITH ABORTING GAMMA-11 36 M Oct 79
PROBLEMS WITH FORTRAN SUBROUTINES 'GPFR' AND 'GPFW! 37 F Nov 79
PROBLEMS WITH THE SAME COMMAND (S) IN RI 38 M Nov 79
21
Component Sequence Mon/Yr
GAMMA-11 F/B v2.4
CONTINUE ANALYSIS (CA) OCCASIONALLY FAILS 01 M Oct 79
GAMMA-11 SYSTEMS WITH RKO7 DISKS AS A DEVICE 02 M Jan 80
PROBLEM WITH ABORTING GAMMA-11 03 M Oct 79
PROBLEMS WITH FOUR BIT MAP ANALYSIS COMMANDS 04 M Oct 79
PROBLEMS WITH FORTRAN SUBROUTINES 'GPFR' AND GPFW' 05 F Jan 80
PROBLEMS WITH DATA ANALYSIS 06 M Jan 80
PROBLEMS WITH DYNAMIC ACQUISTION ON RKO5S GAMMA-11 07 M Nov 79
PROBLEMS WITH DATA ACQUISTION 08 M Nov 79
TRANSFER STUDIES WITH MAGTAPE PROBLEM 09 M Nov 79
LABORATORY APPLICATIONS-11 V3
A NEW MODULE TO ENHANCE DATA FLOW WITHIN LA-11 01 N Oct 76
HISTO.MAC
ACQUIRING AND PROCESSING HISTOGRAM DATA 01 M Sep 76
LABMAC. SML
ERRONEOUS MACRO 01 M Sep 77
INCLUDING LABMAC.SML IN SYSMAC.SML 02 M Mar 79
PEAK.MAC
WIDE PEAKS 01 M Mar 76
PEAK PROBLEMS AND CORRECTIONS 02 M Jul 76
ARITHMETIC CORRECTION FOR PEAK AREA 03 M Dec 76
MISSING PATCH IN RELEASE NOTES 04 M Oct 77
SPARTA
LPS AND AR-11 VECTOR AND STATUS REGISTER 01 N Dec 75
USING SPARTA AND FLOATING POINT BUFFERS 02 N Feb 76
AR-11 TIMING PROBLEMS WITH ADSAM AND SPARTA 03 0 Feb 76
FFT SCALING CORRECTION 04 M Feb 76
SCALE FACTOR CORRECTION FOR SPARTA COMMANDS FAC AND FCC 05 M Mar 76
DATA DISPLAYS USING LA-11 06 N Mar 76
DATA PREPARATION FOR SPARTA COMMANDS FAC AND FCC 07 N Apr 76
SPARTA CORRECTIONS FOR POINT-PLOT DISPLAY 08 M Apr 76
ADDING COMMANDS TO SPARTA 09 M May 76
CORRECTION FOR THE DPV COMMAND WITH POINT PLOT DISPLAY 10 M Jun 76
GENERAL SUBROUTINE MODULE FOR EAE 110 Jun 76
INCORRECT PHASE ANGLE CALCULATION 12 M Oct 76
"MOU" AND "MIN" COMMANDS CAN BE READ OUT AND IN CORRECTLY 13 N Jan 77
MULTIPLE SYNCH PULSES 14 M Jan 77
AUTO AND CROSS CORRELATION 15 M Jan 77
ALLOCATING MORE THAN 16K BUFFERS IN SPARTA 16 M Feb 77
A/D SAMPLING: FAST MODE 17 M Jul 77
A/D SAMPLING: FAST MODE EXIT 19 M Mar 78
SCALE FACTOR PRINT FOR THE FFT 20 M Jan 79
SWEEP .MAC
SWEEP SAMPLING: FAST MODE 01 M Aug 77
THRU
HOW TO START DATA ACQUISITION WHEN CSTART EQUALS ZERO 01 N Jun 76
MULTICHANNEL SINGLE RATE SCHMIT TRIGGER SWITCH BOUNCE 02 M Dec 76
CONTINUOUS SAMPLING: CONDITIONAL ASSEMBLY ERRORS 03 M Jul 77
CONTINUOUS SAMPLING: DMA WITH DUAL SAMPLE + HOLD 04 M Jul 77
DOCUMENTATION CORRECTIONS 05 M Nov 77
LSP—11 V1
PATCH NO. 1 — GENERAL CORRECTIONS NO. 1 01 M Jun 79
PATCH NO. 2 - PEAK CORRECTION NO. 1 02 M Jun 79
PATCH NO. 3 - PEAK CORRECTION NO. 2 03 M Jun 79
LV11/RT-11 PLOTTING PACKAGE V2
SUBROUTINE PLOT DOES NOT CORRECTLY REPRODUCT VT11 PICTURE 01 M Apr 78
22
Component Sequence Mon/Yr
MSB-11 V1.0
MSB-11 SOFTWARE ON THE PDP-11/03 01 M Jul 79
MU BASIC/RT-11 V1
BUILDING MU BASIC/RT-11 UNDER RT-11 V2C 01 Feb 76
REMOTE TERMINAL SUPPORT ON MODEMS 02 May 76
OVERLAY... LINE WORKS INCORRECTLY 03 May 76
USING IMMEDIATE MODE "GOSUBs" 04 Dec 76
CLOCK LOSES TIME ON RT-11 WHEN RUNNING MU BASIC 05 Jul 77
REM STATEMENTS 06 Feb 78
ADDITIONAL FILES ON RELEASE KIT (MUB*, *%) 07 N May 78
MU BASIC/RT-11 SYSTEM INSTALLATION GUIDE
REPLACEMENT PAGES 01 Jan 77
REPLACEMENT PAGES 02 N Jan 78
REPLACEMENT PAGES 03 N Jan 78
MU BASIC-11/RT-11 V2
MU BASIC-11/RT-11 Y2 CONVERSION PROGRAM 01 R Nov 78
OPERATION OF CTRL/C, RCTRLC AND SYS (6) FUNCTIONS AND THE
CTRL/C COMMAND 02 N Nov 78
MEMORY REQUIREMENTS OF OPTIONAL FUNCTIONS ETC. 03 O Nov 78
MU BASIC.11/RT-11 V2 RELEASE NOTES AND INSTALLATION CUIDE CHANGES O N Dec 78
ORDER OF COMMON STATEMENTS AT START OF MUCNFG.BOO, MUCNF1.B00,
MUCNF2.B00 05 M Dec 78
OPERATION OF OLD, RUN, CHAIN AND OVERLAY WHEN THE SPECIFIED FILE
IS NOT FOUND 06 N Feb 79
CREATING AND ACCESSING VIRTUAL ARRAY FILES 07 N Feb 79
STORAGE OF THE NULL CHARACTER IN STRING VARIABLES AND VIRTUAL
STRING ARRAYS 08 N Feb 79
USE OF COMPILE COMMAND 09 N Feb 79
MU. BASIC-11/RT-11 V2 CONFIGURATION PROGRAM PATCH 1 100 Feb 79
CHAINING WITH COMMON -PATCH A 11 M Feb 79
VIRTUAL FILE I/O - PATCH B 12 M Feb 79
SYS (1,n) FUNCTION - PATCH C 13 M Feb 79
RESEQ - PATCH D 14 M Feb 79
VALUES IN PATCHES A, B, C 15 N Feb 79
LISTNH /OLD - PATCH E 16 M Mar 79
CALL - PATCH F 17 M Mar 79
MU BASIC-11 DEVICE INDEPENDENCE FOR INIT.BOO — SPECIIAL PATCH YY1 18 M May 79
DOUBLE PRECISION INTEGER VARIABLES - PATCH G 19 M May 79
INPUT #/PRINT # - PATCH H 20 M May 79
OLD OF A ZERO BLOCK FILE - PATCH I 21 M May 79
ADDITION TO PATCH B - PATCH J 22 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 1 23 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 2 24 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 3 25 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. “a 26 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 4b 27 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. de 28 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 5 29 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 6 30 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 7 31 M May 79
MU BASIC-11/RT-11 V2 PERFORMANCE IMPROVEMENT PATCH NO. 8 32 M May 79
DEVICE MNEMONIC PROBLEM - PATCH K 33 M Jul 79
CLOSE - PATCH L 34 M Jul 79
REM STATEMENTS ON MULTI-STATEMENT LINES 35 M Jul 79
DEASSIGNING A TERMINAL - PATCH N 36 M Jul 79
UNEQUAL USER PARTITION SIZE ALLOCATION — SPECIAL PATCH XX1 38 M Jul 79
HOW TO CHANGE INIT.BOO's DEVICE AFTER INSTALLING SPECIAL PATCH YY1 39 M Jul 79
INTEGERS IN DOUBLE PRECISION MU BASIC-11 40 M Jul 79
STRING MANIPULATION IN ASSEMBLY LANGUAGE ROUTINES 41 N Aug 79
SIZING MU BASIC-11 42 N Aug 79
ERROR IN TABLE 4-1 OF THE USER'S GUIDE 13 N Aug 79
RESTRICTION OF USR RESIDENCY WHEN RUNNING IN FOREGROUND Ly N Aug 79
NOTES ON PERFORMANCE PATCHES NO. Ча, №. 4b, NO. e 45 N Aug 79
MAXIMUM ARRAY SUBSCRIPT SIZE 46 N Aug 79
23
Component Sequence Mon/Yr
ASSEMBLING SOURCE FILES (SOURCE LICENSE HOLDERS ONLY) 47 M Sep 79
USE OF SYS (1,n) FUNCTION WHEN ',n' IS OMITTED 48 M Sep 79
DISABLING CR/LF USING TTYSET — PATCH P 49 M Dec 79
HANDLER FETCH ERROR MAY LEAD TO MONITOR FAULT - PATCH Q 50 M Jan 80
PDL/RT-11 V1B
CLARIFICATION OF SEARCH FAILURE IN SUBROUTINE FIND 01 N Jul 78
FIND SUBROUTINE 02 R Jul 78
PATCHES TO PDL 03 M Jul 78
SUBROUTINE QKGT 04 M Jul 78
PDL SUBROUTINE 'RDAA" 05 M Sep 78
PDL PEAK ALGORITHM WILL NOT RECOGNIZE VALID PEAKS 06 M Sep 78
PEAK-11 V1
"MREPRT" AND "REPRT" GET CONFUSED 01 M Aug 78
REMOTE/RT-11 V1
SCHEDULER DOES NOT PROPERLY SET PROCESSOR PRIORITY 01 M May 76
NOEDIT- 0 HALTS 02 M May 76
NUSERS=1 STAYS IN A FILE MESSAGE LOOP 03 M May 76
INCORRECT SWAP AREA ALLOCATION FOR FOUR OR MORE USERS 04 M May 76
REBOOT FROM SATELLITE DURING EDIT HANGS HOST 05 M Jun 76
HARD ERROR ON LOOKUP IS FATAL 06 M Jun 76
SECONDARY MODE PROGRAM LOAD FEATURE NOT COMPLETELY FUNCTIONAL 07 M Jun 76
ONE SECOND TIMER FOR LINE TIMEOUTS IS SET INCORRECTLY 08 M Aug 76
LINE FEEDS MAY CAUSE SYSTEM ERRORS--ASSEMBLY ERROR WITH DIAL
AND NODDC 09 M Aug 76
PROPER GENERATION OF REMOTE IS DEPENDENT ON MODULE ORDER 10 M Aug 76
ASCII CODES 173 AND 174 DO NOT PRINT 11 M Aug 76
IMPROPER FILLER HANDLING FOR VT05 12 0 Aug 76
SYSTEM CRASHES IF RUN IN FOREGROUND WITHOUT /N 13 0 Aug 76
"UNSAVE" COMMAND CAUSES SYSTEM ERRORS 14 M Dec 76
FLET WILL REMOVE MORE THAN ONE USER FROM THE WAIT QUEUE 15 M Dec 76
STACK FOR USER THREE IMPROPERLY SET 16 O Dec 76
SECONDARY MODE LOADS DO NOT OPERATE PROPERLY 17 M Jan 77
@START COMMAND GIVEN ON TERMINAL WITHOUT SATELLITE CAUSES CRASH 18 O Jan 77
"RTSIM" DOES NOT SUPPORT 50 Hz LINE CLOCK 19 0 Jan 77
CHANNEL ACTIVE ERROR 20 M Mar 77
THREE WORDS LOST ON DOWNLINE LOAD 21 M Mar 77
CSISPC NOT PROPERLY SIMULATED 22 M May 77
EXCEEDING CHARACTERS PER LINE LIMIT 23 M Oct 77
UNASSIGNED 24 XXX XX
@RE IN THE SATELLITE DOES NOT WORK 25 R Mar 78
"HANG" CONDITIONS 26 R Apr 78
UANSSIGNED 27 XXX XX
USING KG-11 CRC CALCULATOR 28 M Aug 78
PASTE CAUSES LINE DUPLICATION 29 M Aug 78
"DAISY CHAIN" ARRANGEMENT IN RTSIM.MAC 30 M Aug 78
OPTIONAL RMON IS OMITTED FROM RTS1M BY DEFINING NORMON=0 31 M Oct 78
DL-11 ERROR AND CRC ERROR IN HOST 32 M Oct 78
RT-11 V3
DOCUMENTATION
TYPOGRAPHICAL ERRORS 01 N Mar 78
ERROR IN FOREGROUND/BACKGROUND DEMONSTRATION 02 M Aug 78
THE /LIST OPTION FOR THE DIBOL, FORTRAN, AND MACRO KEYBOARD
MONITOR COMMANDS 03 M Nov 78
EDIT
EDIT DOES NOT OPERATE CORRECTLY UNDER XM MONITOR 01 M Mar 78
MACRO
.NARG FAILS WHEN AUTOMATIC LABEL GENERATION IS USED 01 M Apr 78
24
Component
MISCELLANEOUS
GETSTR AND PUTSTR ROUTINES FOR IN-LINE CODE
ERROR IN THE CONCAT ROUTINE
ERROR IN MTATCH ROUTINE
ODD RING BUFFER SIZES CAUSE ASSEMBLY ERRORS
MONITOR
INCORRECT IDENTIFIER IN .TWAIT REQUEST CAUSES PROBLEMS
.CHAIN, (EXIT FROM VIRTUAL JOB; USR MOVING INTO PAR1 AREA
PATCH TO INTERRUPT EXIT ROUTINE
IMPROPER HANDLING OF THE KW11-P CLOCK
SPECIFYING 50-CYCLE CLOCK SUPPORT DURING SYSGEN OPERATIONS
EDITORS AND V3B MONITORS
TYPING NON-ASCII FILES TO CONSOLE AFTER ISSUING A GTON HANGS
THE SYSTEM
LINK/FRUN FAILS WHEN PROGRAM IS OVERLAYED AND USES LIBRARIES
MULTITERMINAL CORRECTIONS
PATCH TO XM ADDRESS CHECKING
FIXES FOR TWO FB/XM PROBLEMS
TERMINATING CONSOLE OUTPUT
TSSUING SEEKS TQ DY HANDLER IN ¥M CAUSES I
RAND
CERTAIN EXTENDED MEMORY REQUESTS CANNOT BE IS
MAINLINE CODE AND COMPLETION ROUTINES
THE "RUN" AND "GET" MONITOR COMMANDS DO NOT CORRECTLY LOAD THE
PORTION OF A PROGRAM THAT OVERLAYS KMON
DX SJ MONITOR BOOTSTRAP CORRECTIONS
TYPING CTRL/O TO THE CONSOLE TERMINAL SOMETIMES CRASHES
LINK CAUSES ODD MONITOR ADDRESS TRAP
CHAINING FROM A VIRTUAL JOB AND RELATED PROBLEMS
DIRECTORY CORRUPTION
FIXES FOR FB/XM PROBLEM IN V03.02
CORRECTION TO "DIRECTORY CORRUPTION" PATCH
FLOPPY SYSGEN WITH KW11-P CLOCK
INPUT FILE LOST WHEN USING CSIGEN
SOURCES
UNRESOLVED DIFFERENCES IN DEMOX1.MAC
DISTRIBUTED MAGTAPE HANDLER CORRECTIONS
MAGTAPE XM AND FSM CORRECTIONS
SYSTEM HANDLERS
DM HANDLER CORRECTIONS
DM SYSTEM HANDLERS CORRECTIONS
DM HANDLER ERROR HANDLING CORRECTIONS
DM CTO AND SPFUN 376 CORRECTIONS
TT "Tr > a
UTILITIES
DUP DEFAULT FILE SIZE AND NULL FILE TYPES ARE INCORRECT
DIR MAY INCORRECTLY LIST DIRECTORIES OF MAGTAPES
/L OPTION TO PIP MAY CUASE SYSTEM CRASH
LINK OUTPUT INVALID IF OBJ HAS AN EMPTY GSD RECORD
PAT GIVES FATAL ERROR IF OBJ HAS AN EMPTY RECORD
UNASSIGNED
EDIT VT11 DISPLAY FUNCTIONS WILL NOT OPERATE UNDER XM MONITOR
TRANSFERS IN INTERCHANGE FORMAT WHEN NO SYSTEM DATE IS GIVEN
DUP SCAN RATE FOR FLOPPY
DUP /1 AND /W SWITCHES DO NOT WORK PROPERLY
LINK/FRUN FAILS WHEN PROGRAM IS OVERLAYED AND USES LIBRARIES
DUP DOES NOT DIFFERENTIATE BETWEEN DELETED .BAD FILES AND
PERMANENT ONES |
ERRORS IN FILEX INTERCHANGE FORMAT
LINK PRODUCES INCORRECT .LDA FILES
DUP DOES NOT DETECT END OF SEGMENT IF IT IS FIRST ENTRY IN a
DIRECTORY SEGMENT DURING A SQUEEZE OPERATION. cin mus
LIBR CLEARING OF LOCATION ZERO
LINK ERROR IN PSECTS MOVED TO ROOT
PIP ERRONEOUSLY DELETES FILES
25
Sequence
01
02
03
04
01
02
03
04
05
06
07
08
09
10
11
12
42
"2
14
01
02
03
04
01
02
03
04
05
06
07
08
09
10
11
12
13
14
enn кеш неее mn odin Fide ae md ms АЙ EL
OEA Add ra los
16
17
18
TITRE TX EX
E == <<
EEE ZZ ROH =
2 ==
==
Z2Z== << Ta
e)
= II =
EXE
Mon/Yr
Jun 78
Jun 78
Nov 78
Jun 79
Mar 78
Apr 78
Apr 78
May 78
Jun 78
Jun 78
Jun 78
Jul 78
Aug 78
Aug 78
Aug 78
Aug 78
Get 78
Oct 78
Oct 78
Oct 78
Nov 78
Nov 7
Dec 78
Dec 78
Apr 79
May 79
May 79
Jun 79
Aug 78
Sep 78
May 79
Oct 78
Dec 78
Jan 79
May 79
Mar 78
Mar 78
Mar 78
Mar 78
Apr 78
XXX XX
Apr 78
Jun 78
Jun 78
Jun 78
Jul 78
Jul 78
Jul 78
Sep 78
А AT E mi
: — Op" rr a J
Oct 78
Oct 78
Oct 78
Component Sequence Mon/Yr
LIBR BLOCK BOUNDARY PROBLEM 19 M Dec 78
LINK CAN CAUSE TRAP TO 4 20 M Feb 79
CORRECTIONS TO FILEX 21 M May 79
DIR CORRECTIONS 22 M Nov 79
BAD BLOCK REPLACEMENT ON RK06s 23 N Oct 79
WILD CARD MAGTAPE COPY ERROR PROCESSING CORRECTION ou M Oct 79
RT-11 V3B
DOCUMENTATION
ERROR IN FOREGROUND/BACKGROUND DEMONSTRATION 01 M Aug 78
THE /LIST OPTION FOR- THE DIBOL, FORTRAN, AND MACRO KEYBOARD
MONITOR COMMANDS 02 M Nov 78
UPDATE PAGES 03 N Dec 78
RT-11 SOFTWARE SUPPORT DOCUMENTATION 04 M Feb 79
SUMMARY OF UPDATES FOR RT-11 VO3B DOCUMENTATION 05 M Feb 79
NEW DEVICE RELEASE DOCUMENTATION, RT-11 VO3B 06 N Jun 79
.FORK AND .SYNCH BLOCK DOCUMENTATION 07 N Jul 79
THE DEVICE TIME-OUT FEATURE 08 N Sep 79
CORRECTION OF ERROR RETURNS IN .SYNCH CALL 09 M Aug 79
EXAMPLE CODE IN .FORK DOCUMENTATION IS INCORRECT 10 N Aug 79
EXTENDED MEMORY RESTRICTIONS 11 N Dec 79
MISCELLANEOUS
ERRORS IN THE SYSGEN CONDITIONAL FILE 01 M Jul 78
ERRORS IN MTATCH ROUTINE 02 M Nov 78
ODD RING BUFFER SIZES CAUSE ASSEMBLY ERRORS 03 R Jun 79
INCORRECT NULL HANDLER DEVICE IDENTIFIER ou M Jun 79
GENERATING A SINGLE JOB MONITOR MAY CAUSE AN UNDEFINED GLOBAL 05 M Aug 79
INCORRECT DEVICE IDENTIFIER FOR PC11 06 M Sep 79
ERROR IN MTIN AND MTOUT ROUTINES 07 M Sep 79
HIGH SPEED RING BUFFER PROBLEM ON SYSTEMS WITH ONE DL11 08 M Jan 80
MONITOR
SOURCE PATCHING PROCEDURES FOR V3B 01 M Aug 78
MULTITERMINAL CORRECTIONS 02 M Aug 78
SINGLE JOB TIMER SUPPORT CORRECTIONS 03 M Aug 78
FIXES FOR TWO FB/XM PROBLEMS IN VP3B 04 M Aug 78
TERMINATING CONSOLE OUTPUT 05 M Aug 78
EDITORS AND VO3B MONITORS 06 0 Aug 78
SEEK IN RK DRIVER 07 M Aug 78
RLO1 CONTROLLER VECTOR AT 160 08 M Aug 78
FPU EXCEPTION HANDLING IN XM MONITOR 09 M Sep 78
TWO EXTENDED MEMORY MONITOR PROBLEMS 10 M Oct 78
TYPING CTRL/O TO THE CONSOLE TERMINAL SOMETIMES CRASHES RT-11 11 M Oct 78
DX SJ MONITOR BOOTSTRAP CORRECTIONS 12 0 Oct 78
THE EDIT AND HELP MONITOR COMMANDS FAIL AFTER A VIRTUAL JOB HAS RUN 13 M Nov 78
DIRECTORY CORRUPTION AND .UNPROTECT CORRECTIONS 14 M Jan 79
FB AND XM MONITOR CLOCK SUPPORT 15 M Apr 79
CHANGING CLOCK RATE ON GENERATED MONITORS 16 M Apr 79
MULTI-TERMINAL CORRECTIONS TO DECREASE INTERRUPT LATENCY 17 M Apr 79
FIXES FOR FB/XM PROBLEM IN VO3B.00 18 M Apr 79
FLOPPY SYSGEN WITH KW11-P CLOCK | 19 M May 79
DISTRIBUTED FB MONITOR CLOCK SUPPORT 20 M May 79
OPTIONAL PATCH TO IMPROVE PERFORMANCE ON PDP-11/03 SYSTEMS 21 0 May 79
DISTRIBUTED PD AND DD FB MONITORS CLOCK SUPPORT 22 M May 79
OPTIONAL PATCH TO IMPROVE PERFORMANCE ON PDP-11/03 AND PDT
SYSTEMS FOR DD AND PD FB MONITORS 23 0 May 79
INPUT FILE LOST WHEN USING CSIGEN 24 M Jun 79
NON-STANDARD VECTOR ADDRESSES FOR RX01 AND RX02 SECOND CONTROLLER 25 M Nov 79
ABORT DURING COMPLETION CAUSES SYSTEM FAILURES 26 M Nov 79
.ELRG CAN CAUSE THE SYSTEM TO CRASH 27 M Sep 79
CORRECTION TO BOOTSTRAP TO RECOGNIZE LSI-11/23 PROCESSOR 28 M Oct 79
FPU SAVE AREA IN XM MONITOR 29 M Dec 79
BACKGROUND JOB MAY TRAP WHEN FOREGROUND ISSUES .SYNCH FROM
INTERRUPT ROUTINE 30 M Dec 79
PROBLEM WHEN FOREGROUND AND BACKGROUND JOB USE CSI AT SAME TIME 31 M Mar 80
SYSTEM GENERATED SJ MONITOR WITH ESCAPE SEQUENCE SUPPORT 32 M Mar 80
26
Component Sequence Mon/Yr
SOURCES
UNRESOLVED DIFFERENCES IN DEMOX1.MAC 01 M Jul 78
ISSUING SEEKS TO DX HANDLER IN XM CAUSES RANDOM SYSTEM FAILURES 02 M Sep 78
DISTRIBUTED MAGTAPE HANDLER CORRECTIONS 03 M Sep 78
DY HANDLER DOUBLE DENSITY ONLY SUPPORT O4 M Apr 79
DL QUEUE ELEMENT AND XM ZERO FILL CORRECTIONS 05 M Apr 79
MAGTAPE XM AND FSM CORRECTIONS 06 M May 79
DL HANDLER SEEK AND UNIT CORRECTIONS 07 M Aug 79
MAGTAPE ABORT ENTRY CORRECTION 08 M Sep 7
MAGTAPE ABORT ENTRY CORRECTION IN XM 09 M Dec 79
DL HANDLER SEEK CORRECTION 10 M Jan 80
FILE SEQUENCE NUMBER SEARCH CORRECTION 11 M Feb 80
HARD ERROR RECOVERY IN DM HANDLER 12 M Mar 80
SYSTEM HANDLERS
RLO1 HANDLER CORRECTIONS 01 M Sep 78
ISSUING A SEEK TO THE DY HANDLER CAUSES THE SYSTEM TO CRASH 02 M Oct 78
DM HANDLER CORRECTIONS 03 M Oct 78
DM SYSTEM HANDLERS CORRECTIONS où M Dec 78
DY HANDLER SPFUN CORRECTION 05 M Dec 78
DM HANDLER ERROR HANDLING CORRECTIONS 06 M Jan 79
RLO1 PATCH CLARIFICATION 07 N Jan 79
DM CTO AND SPFUN 376 CORRECTIONS 08 M May 79
UTILITIES
ERRORS IN FILEX INTERCHANGE FORMAT 01 M Jul 78
LINK PRODUCES INCORRECT .LDA FILES 02 M Sep 78
LIBR CLEARING OF LOCATION ZERO 03 M Oct 78
LINK ERROR IN PSECTS MOVED TO ROOT 04 M Oct 78
DUP DOES NOT DETECT END OF SEGMENT 05 M Oct 78
COPY/DEVICE FAILS ON DISK TO MAGTAPE 06 M Oct 78
LINK CAUSES MONITOR ODD ADDRESS TRAP 07 M Nov 78
LIBR BLOCK BOUNDARY PROBLEM 08 M Jan 79
EDIT ESCAPE CODE CORRECTION 09 0 Dec 78
ERROR IN ODT 10 M Feb 79
ERROR IN EDIT 11 M Feb 79
LINK CAN CAUSE TRAP TO 4 12 M Feb 79
CORRECTIONS AND ADDITIONS TO FILEX 13 M May 79
RESORC DISPLAYS STATUS OF FIRST 14 TERMINALS 15 M Jun 79
LIBR /U SWITCH PROBLEM 16 M Aug T9
IMPORTANT RESTRICTIONS FOR SQUEEZE OPERATIONS 17 M Aug 79
DIR PROBLEMS 18 M Oct 79
BAD BLOCK REPLACEMENT ON RK06s 19 N Oct 79
WILD CARD MAGTAPE COPY ERROR PROCESSING CORRECTION 20 M Oct 79
PROBLEM WITH PSECTS MOVED TO ROOT DURING LIBRARY PASS 21 M Jan 80
PIP PROBLEMS 22 M Feb 80
DIR PROBLEM 23 M Feb 80
DUMPING DISK FILES WITH MAGTAPE HANDLER LOADED 24 M Mar 80
RT-11/2780 V2
CORRECTIONS TO 2780 PACKAGE 01 Sep 77
RUNNING 2780 ON RT-11 V3 02 Nov 77
PATCHING THE 2780 IN RT-11 V3 03 M Jan 79
CHECK FOR ZERO LENGTH RECORD 04 M Jan 79
RESTRICTION OF THE CONSOLE AS AN INPUT/OUTPUT DEVICE 05 R Jan 79
27
digita
Software Product Description
PRODUCT NAME: DECnet-RT, Version 1.1, RT-11 Network Software
DESCRIPTION:
DECnet-RT, Version 1.1, allows a suitably configured
RT-11 system to participate as a Phase || DECnet node
in point-to-point computer networks. DECnet-RT
offers task-to-task communications, network file
transfer and network resource-sharing capabilities,
using the DIGITAL Network Architecture (DNA) pro-
tocols. DECnet-RT communicates with adjacent
nodes over synchronous and asynchronous commun-
ication lines. Access to DECnet-RT is supported for
RT-11 user programs written in MACRO-11 and
FORTRAN.
DECnet-RT is a Phase || network product and is war-
ranted for use only with Phase |! DECnet products
supplied by DIGITAL.
The functionality available to an RT-11 user depends,
in part, on the configuration of the rest of the network.
Each DECnet product offers its own level of functional-
ity and its own set of features to the user. Networks
consisting entirely of DECnet-RT nodes (a two-node
network because DECnet-RT supports one communi-
cation line) have the full functionality described in this
SPD. Networks that mix DECnet-RT nodes with other
DECnet products may limit the functions available to
the DECnet-RT user because some DECnet-RT fea-
tures may not be supported by all DECnet products.
The Phase || products and functions available to users
on mixed networks can be determined by comparison
of the SPDs for the component products. An overview
of DECnet and common functionality available with
mixed networks can be obtained from the General
Phase || DECnet SPD.
Task-to- Task Communication
Using DECnet-RT, an RT-11 user program written in
MACRO-11 or FORTRAN can exchange messages
with other programs using Phase || DECnet DNA pro-
tocols. The two user programs must be adjacent
DECnet nodes. (Adjacent nodes control opposite ends
of a point-to-point communication line.) If the nodes
are adjacent, the second node can be any Phase ||
DECnet system. The DECnet messages sent and re-
ceived by the two user programs van be in any data
format.
LER
‘Network File Transfers Utilities om
Using DECnet-RT utilities, a user can transfer sequen-
tial ASCII files between Phase Il DECnet nodes.
January 1980
SPD 10.72.4
Files can be transferred in both directions between a
locally supported RT-11 File System device and the file
system of an adjacent DECnet node.
In addition, other types of files may be transferred
where formats are compatible between the Phase ll
DECnet nodes.
Additional facilities allow system command files or
batch files to be submitted to a remote node where the
list of commands isin the format expected by the node
responsible for the execution. DECnet-RT does not
support system command or batch files to be submit-
ted from other systems.
Network Resource Access
File Access
File access is supported to and from remote DECnet
systems by explicit subroutine calls in FORTRAN and
MACRO tasks.
READ, WRITE, OPEN and CLLOSE, and DELETE oper-
ations can be initiated by local FORTRAN and MACRO
tasks for sequential files residing at remote DECnet
systems. Other nodes supporting File Access can
exercise this capability for files located on the RT-11
node. Fixed and variable length record formats are
supported. Further, files accessed remotely can con-
tain either ASCII or binary information.
Network Information Program
Using the DECnet-RT NIP utility, a user can set node
name and password, and display statistics related to
the communication lines, including data on traffic and
errors. Output can be directed to the terminal or to a
log file.
Terminal Communication Utility
The DECnet-RT TLK utility allows a user at a DECnet-
RT node to send messages to adjacent DECnet nodes
that support the same feature. Messages can be
directed to a specific terminal or to the operator's con-
sole at the destination node. TLK dialog mode allows
users on the two systems to type messages to one
another.
Communications
e DECnet- RT Version 1. 1 supports the DIGITAL Data
“E Message Protocol {DDCMP) for
full- or half- -duplex transmission in point-to-point
operation using serial synchronous or asynchro-
nous facilities. DDCMP provides error detection-
/correction and physical link management facilities.
AE-D431D-TC
29
DECnet-RT, Version 1.1
*e One point-to-point link can be supported by aRT-11
node. Only one link can connect any pair of nodes.
DECnet-RT Operation
DECnet-RT is implemented as a driver under RT-11
FB/XM and as subroutines that would be linked with
the foreground or background RT-11 program. Min-
imum memory residency requirements for a driver and
network code are 7K words (14K bytes), and at least 1K
words (2K bytes) for temporary data storage. Conse-
quently, the user should pian to dedicate at least 8K
words (16K bytes) of memory storage to network con-
trol functions. Additional memory will be required for a
user-written network task or any DECnet utility func-
tions to be invoked (file transfer, TLK). Maximum addi-
tional memory required for DECnet-RT, Version 1.1
utility is 10K words.
DECnet-RT Configuration
The process of configuring a DECnet-RT node is
based primarily on trade-offs of cost, performance,
and functionality, within the realm of satisfying the
user's application requirements. It can be readily
expected that network applications will run the full
gamut from low-speed, low-cost situations to those of
relatively high performance and functionality. The per-
formance of a given DECnet node is a function not only
of the expected network traffic and resultant process-
ing (“global” conditions), but also of the amount of
concurrent processing peculiar to that node (“local”
conditions). Thus, node performance depends on
many factors, including:
e CPU power
e Number of device interrupts per unit time
e Communication line characteristics
e Number and size of buffers
e Message size and frequency
e “Local” applications
It is important to note that the rate at which user data
may be shipped (“throughput”) over a communica-
tions line may sometimes approach, but will never
equal or exceed, the actual line speed. The reason,
simply stated, is that the actual throughput is a func-
tion of many factors, including the user application(s),
network topology, protocol overhead, and the factors
cited at the beginnning of this section.
There are basically two groups of communications
interfaces presented in the tables below. They differ in
many respects, particularly in their effect upon CPU
utilization.
e The DMC11 is a direct memory access (DMA)
device. Also, the DDCMP line protocol is executed
in microcode by the DMC11 communication con-
troller, thus, off-loading the PDP-11. Thus, the only
DECnet load the processor sees is completed
incoming and outgoing messages.
-2-
SPD 10.72.4
e With character interrupt devices such asthe DUP11,
CPU cycles are required for not only the DDCMP
processing, but also each character sent and
received.
The following tables describe what physical hardware
configurations are supported by DECnet-RT in terms
of CPU class and communication interface. It should
be noted that the attachment of such devices as A/D
converters and multiple terminals may reduce the line
speed which can effectively be supported.
DECnet-RT
Maximum Line Configurations On 11/03 CPUs, PDT-11/130 or PDT-11/150
Device Max. No. Maximum Maximum Mode
Group of Lines Linespeed Device
(Kilobits/sec) Bandwidth
(Kilobits/sec)
DUV11, DLV11-E 1 2.4 2.4 FDX.HDX
DECnet-RT
Maximum Line Configurations On 11/04-11/70 CPUs
Device Max. No. Maximum Maximum Mode
Group of Lines Linespeed Device
(Kilobits/sec) Bandwidth
(Kilobits/sec)
DL11
DU11, OUP11 1 9.6* 9.6" FDX.HDX
DMC11-AR, -DA 1 19.2 19.2 FDX.HDX
DMC11-AL, -MD 1 56.0 56.0 FDX.HDX
DMC11-AL, -MA 1 1000.0 1000.0 FDX.HDX
"restricted to maximum of 4.8 on PDP-11/10 or 11/04, 11/23”
Maximum Number of Lines
The largest number of physical lines which can be
attached and driven by the DECnet-RT system.
Maximum Device Bandwidth
The maximum total number of bits per second which
can be handled by a CPU for a given communication
device. For example, DECnet-RT on a PDP-11/04 can
accommodate one fuil-dupiex character-interrupt
device at 4.8KB.
Maximum Line Speed
The fastest clock rate at which the device can be driven
under DECnet-RT. This means that even if devices
have the ability to operate at a maximum rate, they
must be configured subject to the “maximum device
bandwidth” restriction above.
Mode
This indicates whether the line is operating in either
half-duplex (a single bit stream) or full-duplex (two
concurrent bit streams) mode . In some instances in
tables, a half-duplex line is quoted as having maximum
bandwidth approximately double that comparable fuli-
duplex line. This reflects the single bit stream charac-
ter of half-duplex lines, and the fact that two of them
place a load on the CPU roughly equivalent to one
full-duplex line with traffic in both directions.
30
DECnet-RT, Version 1.1
System Generation
Generation and installation of DECnet-RT, Version 1.1
requires a valid RT-11 V3B or later system with at least
32K bytes of memory and an RKOS disk or larger plus
one additional device for distribution media. Genera-
tion on floppy diskette or TU58 DECtape li only sys-
tems is not supported.
MINIMUM HARDWARE REQUIRED:
Any valid RT-11 FB/XM system configuration with:
e¢ a minimum of 8K words (16K bytes additional avail-
able memory for the DECnet-RT software and data
storage
= MAMI) dA AN LL ua e ala PIENTY 44 7 Amend
У FUF-1 UD НОЧИ ПГ COTE
with one or more of the appropriate
tions devices:
La E E? a Ea e E
a
communica-
e DU11-DA low-speed synchronous interface
e DUP11-DA low-speed synchronous interface
e DMC11-AR-DA high-speed synchronous EIA
interface
e DMC11-AL-MD high-speed local synchronous
interface
e DMC11-AL-MA high-speed local synchronous
interface
e DL11-E asynchronous interface with modem
control
e DL11-C asynchronous interface, 20mA current
loop (1)
e DL11-WA asynchronous interface, 20mA current
loop (1)
DUV11-DA low-speed synchronous interface
e DLV11-E asynchronous interface with modem
control
® DLV11-F asynchronous interface (1)
NOTE:
(1) For 20 mA operation requires either the H319
option for optical isolation or one side of the
20mA line to be in passive mode.
e PDT-11/130
e PDT-11/150 with dual floppies
OPTIONAL HARDWARE:
None
PREREQUISITE SOFTWARE:
RT-11 FB/XM operating system, Version 03B
OPTIONAL SOFTWARE:
None
TRAINING CREDITS:
No training credits are included with a DECnet soft-
ware license. Training courses on DECnet software are
31
SPD 10.72.4
scheduled at regular intervals in DIGITAL's Training
Center. Arrangements should be made directly with
DIGITAL's Educational Services Department.
SUPPORT CATEGORY:
DIGITAL SUPPORTED
DECnet-RT isa DIGITAL Supported Software Product
SOFTWARE INSTALLATION:
DIGITAL INSTALLED
DIGITAL installation is required for Software Product
Support. There is no charge for installation if per-
formed at the time of system installation. DIGITAL
installed software products, except for operating sys-
tems, are subject to an add-on installation fee when
purchased subsequent to system installation.
Installation under DIGITAL Supported will convert the
RT-11 system into a node with connection potential to
a DECnet Phase Il network. This installation does not
include a demonstration of network connection.
SOFTWARE PRODUCT SUPPORT:
DECnet-RT includes standard services as defined in
the Software Support Categories Addendum of this
SPD.
The customer may purchase DECnet-RT licenses with
options that do not include support services. The cate-
gory of support applicable to such software is Custo-
mer Supported. When a DECnet-RT product option
that does not include support services is connnected to
a DECnet network, the category of support applicable
to all DECnet products in the network is Customer
Supported.
CUSTOMER RESPONSIBILITIES:
Before installation of the software, the customer must:
1. Install or have installed ail hardware, including ter-
minals, to be used on the system.
2. Make available to DIGITAL personnel all hardware,
including terminals, to be used during installation
for a reasonable period of time each day, as mutu-
ally agreed upon by DIGITAL and the customer,
until installation is complete.
Delays caused by any failure to meet these responsibil-
ities will be charged at the then prevailing rate for time
and materials.
ORDERING INFORMATION:
Options with no support services are only available
after the purchase of one supported license.
A single-use license only option is a license to copy the
software previously obtained under license.
Source.and/or listing options are-only available after
8 ARR LE
the purchase of at least one supported license and after
a source license agreement is in effect.
The following key (D, E, G, M, Q, R, T, V, X, Y, Z)
represents the distribution media for the product and
must be specified at the end of the order number, e.g.,
QJE85-AD = binaries on 9-track 800 BPI Magtape
(NRZI).
DECnet-RT, Version 1.1
9-track 800 BPI Magtape (NRZI)
- RK05 Disk Cartridge
TUS8 DECtape Ii Cartridge
9-track 1600 BPI Magtape (PE)
RLO1 Disk Cartridge
Microfiche
RK06 Disk Cartridge
НКО Disk Cartridge
RX02 Double Density Diskette
RX01 Floppy Diskette
No hardware dependency
N<XxX<-DOTZCMO
MONO AE ARO ANO HN
QJ685 -A— Single-use license, binaries, documen-
tation, support services (media: D, E, G,
M, Q, T, V, X, Y)
QJ685 -C— Single-use license, binaries, documenta-
tion, no support services (media: D, E, G,
M, Q, T, V, X, Y)
QJ685 -D— Single-use license only, no binaries, no
documentation, no support services
(media: Z)
Source /Listing Options
QJ685 -E— All sources (media: D, E, G, M, Q, T, V, X,
Y)
QJ685 -F— Listings (media: R)
Update Options
Users of DECnet-RT, Version 1.0 whose specified
Support Category warranty has expired may order
under license the following software update at the then
current charge for such update. The update is distrib-
uted in binary or source form on the appropriate
medium and includes no installation or other services
unless specifically stated.
32
SPD 10.72.4
QJ685 -H— Binaries, documentation (media: D,E, G, -
M, Q, T, V, X, Y)
QJ685 -H-— Rightto copy for single-use (under exist-
ing license, no binaries, no documenta-
tion, no support service (media: Z)
QJ685 -N— Sources (media: D, E, G, M, Q, T, V, X, Y)
Users of DECnet-RT, Version 1.0, whose specified
Support Category warranty has not'expired may order
under license the following software update for the
then current media charge. The update is distributed in
binary or source form on the appropriate medium and
includes no installation or other services unless specif-
ically stated.
QJ685 -W— Binaries, documentation (media: D, E,
G, M, Q, T, Y, X, Y)
QJ685 -L— Sources (media: D, E, G, M, Q, T, V, X, Y)
Miscellaneous Options
QJ685 -G— Documentation only (media: 2)
ADDITIONAL SERVICES:
QJ680 -S— DECnet Leve! | Services (media: 2)
Level ll services are also available. Consultthe DECnet
Phase Il Products SPD (10.78) for a description of
Level | and Level li services.
eo a
Software Product Description
PRODUCT NAME: FORTRAN/RT-11 Extensions, Version 2.1
DESCRIPTION:
The FORTRAN/RT-11 Extensions consist of:
e FORTRAN IV/RT-11, Version 2.1
e A library of graphics subroutines supporting the
VT11 and VS60 display processors
e A library of laboratory subroutines supporting the
LPS11 Laboratory Peripheral System, the AR11
Analog Real Time Subsystem, and the AD11-K,
KW11-K, and DR11-K laboratory 1/0 modules
® А FORTRAN debugger
The FORTRAN/RT-11 graphics library is a compre-
hensive set of FORTRAN-callable subroutines that
enable the user to create and interact with graphic
output on the VT11 and VS60 display processors. The
subroutines enable the programmer to use many ofthe
features of the VS60. If the library is configured for the
V¥T11, the subroutines emulate the VS60 features when-
ever possible. Programs can thus be written for either
device. The user need only link the program with the
appropriate library. For additional flexibility, most sub-
routines are written in FORTRAN to facilitate mainte-
nance and modification.
The FORTRAN/RT-11 VT55 subroutine provides
access to all of the graphics features of the VT55 gra-
phics terminal. In addition, single subroutine calls can
be used to plot lines or complete data curves.
The laboratory subroutine library provides the capabil-
ity of acquiring data in ail of the modes provided by the
LPS11 and AR11 hardware and to operate a CRT dis-
play through the digital-to-analog converters provided
in these units. A completion routine capability allows
the user to write subroutines which are activated
asynchronously upon completion of many. actions,
such as the filling of a data buffer. DR11-K support
allows up to eight of these interfaces to be operated
simultaneously. The AD11-K (with optional AM11-K),
AA11-K, and KW11-K are supported in a fashion com-
patible with the LPS11 support. The library is easily
configured for the particular set of hardware on the
user's machine.
The FORTRAN debugger enables users at the console
terminal to debug the programs at the FORTRAN
level.
-— MINIMUM HARDWARE REQUIRED: НЕО
Any valid RT-11 configuration with at least 32K bytes of
memory. 48K bytes of memory are recommended for
December 1979
SPD 12.12.6
large graphics display files such as may be encoun-
tered with the VS60.
OPTIONAL HARDWARE:
Any optional devices supported by the operating sys-
tem and FORTRAN IV/RT-11, Version 2.1.
VT11A Graphics Display Processor
VS60 Graphics Display Processor
VT55 Graphics Terminal
LPS-11 Laboratory Peripheral System
AR11 Analog Real-Time Subsystem
DR11-K Digital 1/0 System (up to 8)
AD11-K Analog-to-digital converter
KW11-K Real-time clock
AM11-K Multiplexer
AA11-K Digital-to-analog converter
PREREQUISITE SOFTWARE:
RT-11 Operating System, Version 03B (with the excep-
tion of the XM feature under the Foreground/Back-
ground monitor).
OPTIONAL SOFTWARE:
None
TRAINING CREDITS:
None
SUPPORT CATEGORY:
FORTRAN/RT-11 Extensions is a DIGITAL Supported
Software Product.
SOFTWARE INSTALLATION:
FORTRAN/RT-11 Extensions is a software product
engineered to be installed by the customer and
includes other Software Product Support services
listed below.
SOFTWARE PRODUCT SUPPORT:
FORTRAN/RT-11 Extensions includes Standard Ser-
vices as defined in the Software Support Categories
Addendum of this SPD.
ORDERING INFORMATION:
Options with no support services are only available
after the purchase of one supported license.
nse.only optionisalicensetocopythe
ingle:
software previously obtained under license.
Source and/or listing options are only available after
the purchase of at least one supported license and after
a source license agreement is in effect.
AE-3445G-TC
33
FORTRAN/RT-11 Extensions, Version 2.1
The following key (D, E, Q, R, T, Y, Z) represents the
distribution media for the product and must be speci-
fied at the end of the order number, e.g., QJ980-
AD = binaries on 9-track 800 BPI Magtape (NRZI).
9-track 800 BPI Magtape (NRZI)
RKO5 Disk Cartridge
RLO1 Disk Cartridge
Microfiche
RK06 Disk Cartridge
RX01 Floppy Diskette
No hardware dependency
М < но ото
Hu Hu no
QJ980 -A— Single-use license, binaries, documenta-
tion, support services (media: D, E, Q, T,
Y
QJ980 -C— Single-use license, binaries, documenta-
tion, no support services (media: D, E, Q,
T, Y)
QJ980 -D— Single-use license only, no binaries, no
documentation, no support services
(media: 2)
Source/Listing Options
QJ980 -E— All sources (media: D, E, Q, T)
QJ980 -F— Listings (media: R)
34
SPD 12.12.6
Update Options
Users of FORTRAN/RT-11 Extensions, Version 1.0 or
1B, whose specified Support Category warranty ‘has
expired may order under license the following software
update at the then current charge for such update.
The update is distributed in source or binary form on
the appropriate medium and includes no installation or
other services unless specifically stated.
QJ980 -H— Binaries, documentation (media: D, E, Q,
T, Y)
QJ980 -H— Rightto copy for single-use (under exist-
ing license), no binaries, no documenta-
tion, no support services (media: Z)
QJ980 -N— Sources update (media: D, E, Q, T)
Users of FORTRAN/RT-11 Extensions, Version 1.0 or
1B, whose specified Support Category warranty has
not expired may order under license the following
software update for the then current media charge. The
update is distributed in source or binary form on the
appropriate medium and inciudes no installation or
other services unless specifically stated.
QJ980 -W— Binaries, documentation (media: D, Е,
Q, T, Y)
ADDITIONAL SERVICES:
The following additional service is available:
e Binary Program Update Service
dliigliltlall
Software
PRODUCT NAME: FMS-11/RT-11, Version 1.0
DESCRIPTION:
FMS-11/RT-11 is a set of utilities and subroutines that
provide a multi-terminai video forms capability for
programs written in MACRO-11, BASIC-11, or FOR-
TRAN IV under the RT-11 operating system. Forms
defined using FMS-11 can use the following features of
DIGITAL's VT100 terminal:
Reverse video characters
Bold characters
Underline characters
Blinking characters
132-column lines
Jump and smooth scrolling
Split screen
Reverse screen
FMS-11/RT-11 applications may be developed under
the RT-11 operating system and executed under the
control of either RT-11 or its execute-only subsets, RT?
or RT?/PDT.
The FMS-11 system can be used as a general purpose
manager of formatted operator 1/0 to programs written
in any of the supported languages and also as a front
end in traditional source data entry applications.
Each field in an FMS-11/RT-11 form can be assigned
attributes such as:
Validation “picture”
Embedded text characters
Right/left justification
Fixed decimal
e “Must complete”
A default value and a line of explanatory “HELP” text
can be associatedwith each field of a form. In addition,
a separate “HELP” display can be associated at the
form level.
Another feature of FMS-11/RT-11 is “named data”,
which allows named strings of constant data to be
associated with a form at form creation time and
retrieved dynamically by name or number during pro-
gram execution.
FMS-11/RT-11 applications written in MACRO-11 or
“FORTRAN IV can be built for either single- or multi=. :
terminal. In multi-terminal applications the terminals
January 1980
oduct Description
SPD 12.22.1
can run different tasks and can change tasks inde-
pendently of one another. The FMS-11/RT-11 software
will support the maximum number of VT 100s allowed
under each RT-11 hardware configuration.
FMS-11/RT-11 consists of the following software
components:
hala UE
FRED (Form Editor) — The application developer
uses the interactive Form Editor to create and modify
video forms by typing them on the screen as they are to
appear tothe application user. All of the form attributes
and individual field attributes are assigned in this form
editing process. Form descriptions can be stored as
data files for further processing or in form libraries for
immediate use by application programs.
FRMUTL (Form Utility) — isa multi-function program
which manipulates FMS-11/RT-11 forms descriptions.
It can be used to list the directory of a form library or to
print a complete description of a form from a form
library or from a data file. FRMUTL can also be used to
produce an RT-11 object module of form descriptions
to be linked with the application when
memory-resident forms are desired.
FDV (Form Driver) — is a reentrant subroutine called
from application programs to perform screen process-
ing. The Form Driver manages terminal 1/0, displays
forms, manipulates the screen, performs
basic input validation, and responds to the operator's
requests for “HELP”. Operations are performed on a
per-field or form-wide basis using the form description
generated by FRED during the form editing process.
The Form Driver's high level language call interface
allows applications written in BASIC-11 or FORTRAN
IV to take full advantage of the Form Driver's
capabilities.
ARTS (Application Run-Time Supervisor) — allows
each terminal to run a MACRO-11 or FORTRAN IV
application program independently of the programs on
the other terminals. As an interface between the appli-
cation programs and the RT-11 monitor, ARTS acts as
a multi-tasking submonitor, providing subroutines for
terminal and mass storage I/O and for shared and pri-
vate file access management. Unique ARTS features
include resident tasks not attached to any terminal and
intertask message services. ARTS (with all of its tasks)
; Horotihe RT-1 {mentor
AE-H509B-TC
35
FMS-11/RT-11, Version 1.0
KED (Video Keypad Editor) — is a general purpose
text editor which operates on standard ASCII files.
KED uses the function keypad to control the full spec-
trum of video features of the VT 100. Most editing oper-
ations are implemented as only one or two keystrokes
on the function keypad.
When editing a main file, the user can also copy mate-
rial in from one auxiliary file and write material out to
another auxiliary output file. KED assists in the prepa-
ration of source programs by allowing the user to edit
files through a full-screen, bidirectional scrolled
“window” into the file. In addition to the standard char-
acter, word, and line operations, KED also provides
flexible search, replace, cut, paste, and repeat
functions.
MINIMUM HARDWARE REQUIRED:
For application execution:
Any valid RT-11, RT? or RT?/PDT system with a VT100
terminal.
The table below summarizes the minimum memory
requirement for systems executing FMS-11/RT-11
applications. The figures include 8K bytes for the Form
Driver and from 2K to 12K bytes for ARTS, depending
on the functionality included at FMS-11 SYSGEN time.
MACRO-11 FORTRAN IV BASIC-11
Single-Terminal 32Kb 56Kb 56Kb
Multi- Terminal 56Kb 56Kb"
*Multi-Terminal FORTRAN support is limited to very
small programs.
Form application development:
Any valid RT-11 system with a least 56K bytes of
memory and at least one VT100 terminal. The
DIGITAL-supplied SYSGEN procedure for
FMS-11/RT-11 requires a disk of at least 2.5 MB capa-
city in addition to the software load device.
OPTIONAL HARDWARE:
Supports additional VT100 terminals up to the maxi-
mum allowed under the RT-11/hardware
configuration.
PREREQUISITE SOFTWARE:
For application execution:
RT-11 Operating System, Version 3B
RT, Version 3B or RT?/PDT, Version 3B
For application development:
RT-11 Operating System, Version 3B
OPTIONAL SOFTWARE:
BASIC-11/RT-11, Version 2.0
FORTRAN IV/RT-11, Version 2.1
-2-
36
SPD 12.22.1
TRAINING CREDITS:
None
SUPPORT CATEGORY:
DIGITAL SUPPORTED
FMS-11/RT-11 is a DIGITAL Supported Software
Product
SOFTWARE INSTALLATION:
CUSTOMER INSTALLED
FMS-11/RT-11 is a software product engineered to be
installed by the customer and includes other Software
Product Support services listed below.
SOFTWARE PRODUCT SUPPORT:
FMS-11/RT-11 includes standard services as defined
in the Software Support Categories Addendum of this
SPD.
ORDERING INFORMATION:
Options with no support services are only available
after the purchase of one supported license.
A single-use license only option is alicense to copy the
software previously obtained under license.
The following key (E, G, Q, Y, Z) represents the distri-
bution media for the product and must be specified at
the end of the order number, e.g., QJ713-AY =
binaries on RX01 Floppy Diskette.
E = RKO5 Disk Cartridge
G = TU58 DECtape || Cartridge
Q = RLO1 Disk Cartridge
Y = RX01 Floppy Diskette
Z = No hardware dependency
QJ713 -A—Single-use license, binaries, documenta-
tion, support services (media: E, G, Q, Y)
QJ713 -C— Single-use license, binaries, documenta-
tion, no support services (media: E, G,
Q, Y)
QJ713 -D— Single-use license only for all FMS-
11/RT-11 components, no binaries, no
documentation, no support services
(media: Z)
QJ714 -D— Single-use license for ARTS and FDV
only, no binaries, no documentation, no
support services (media: Z)
Misceltaneous Options
QJ713 -G— Documentation only kit (media: Z)
ADDITIONAL SERVICES:
None
Ris ВВ
Software Product Description |
PRODUCT NAME: GAMMA-11 F/B, version 3.0
DESCRIPTION:
GAMMA-11 F/B is a hardware/software system for
nuclear medicine. GAMMA-11 F/B is designed to
acquire, store, display, and manipulate images from
the gamma camera in order to supply quantitative,
meaningful clinical information.
In the foreground/background configuration, gamma
camera data acquisition can take place independently
of another process. This configuration includes two
terminals. One terminal is designated the foreground
acquisition terminal for the gamma camera and con-
trols the setup and initiation of data collection. The
other terminal, designated the background terminal,
can be used simultaneously with the foreground ter-
minal for data analysis by GAMMA-11 F/B programs,
for program development in BASIC or FORTRAN, or
for running any other programs that do not need
immediate access to the disks for successful
completion.
Only one terminal is included in the single-job configu-
ration. This configuration has all the capabilities of the
foreground/background system, except that data
acquisition and processing can not be carried out
simultaneously.
A transportable configuration (MDA11) also exists
which provides data acquisition capabilities only.
Data Acquisition
stored in seven different size matrices for static studies
and four different size matrices for dynamic studies.
Thus a user can choose the proper size and resolution
forthe job at hand. List mode acquisition (i.e., unstruc-
tured data) is also available. Static studies can be col-
lected and terminated by a preset time, preset count, or
matrix element overflow. Static studies can be linked to
provide easy collection of and access to sequential
static views. Dynamic studies are collected at a speci-
fied frame rate. List mode studies can be acquired with
an effective frame rate of 100 frames per second.
An external synchronizing time marker can be includ-
ed when acquiring either dynamic or list mode studies.
When acquired with the time marker, these modes are
called Gate Synch ronized Acquisition (GSA) and Phy-
-siologica! List Mode (PLM), respectively, and are t
primarily for cardiac studies.
January 1980
SPD 15.60.6
GSA data is stored in 32 x 32, 64 x 64, or 128 x 128
matrices. The maximum number of images per study is
determined by the amount of memory. During GSA
acquisition (background) images are displayed ‘line’
on the video display.
The heart cycle time (or time between external syn-
chronized events) is continuously monitored and dis-
played. During GSA acquisition (foreground) there is
no line display of images, however, heart cycle time is
monitored and displayed.
For GSA data acquisition, the operator can either
choose fixed time intervals for each image or allow the
program to divide the heart cycle time (averaged over
30 seconds) by the number of images chosen. A heart
cycle time window can be selected so that if a given
cycle time falls outside of this window, then the follow-
ing cycle is rejected.
Acquisition in 128 x 128 word and 256 x 256 byte
require the NCV11 interface. 256 x 256 byte acquisi-
tion requires a minimum of 64KW of memory. For dis-
play of 256 x 256 images, two additional M7068 bit
maps are required (four total).
NOTE: List mode studies and 256 x 256 byte acquisi-
tion are not possible on the MDA11.
Physiological List Mode studies are acquired with one
millisecond time intervals.
Data is reframed by creating a number of images based
on the intervai between successive externai time
markers.
With dual isotope collection, two separate images (one
for each isotope) can be collected simultaneously.
This capability does not apply to GSA or PLM.
NOTE: This gamma camera must also have the dual
isotope option.
Once collection parameters and procedures are estab-
lished, they can be set up as protocols or predefined
studies. Up to 20 predefined studies can be used to
speed setup, minimize error, and standardize collec-
tion procedures.
Patient Study Index
Once collected, patient studies are identified by a
wo gystém-gefierated index fite. Each study is-identified
by patient name, number, organ, study type, and
AE-3428G-TC
37
GAMMA-11 F/B, Version 3.0
acquisition date. Studies are selected for analysis by
index number; the user need not be concerned with the
physcial location of disk data.
Patient Monitor
Patient Monitor (background) displays line camera
data prior to acquisition. It allows for patient position-
ing and validation of external trigger input for GSA or
PLM. MDA11 and foreground patient monitors have a
pseudo display. The display is made up of 4-5 ASCII
characters.
Data Analysis and Display
Data is displayed on the VSVO1 color video monitor.
The VSVO01 color display includes a hardware charac-
ter generator permitting display, along with the image,
of patient identification and image counting statistics.
All photographs taken from the display are thus posi-
tively identified.
NOTE: No data analysis or display is possible on the
MDA11 system,
Display Features:
e Color or monochrome display
64 colors; 16 colors displayed simuitaneously
Up to 31 color spectra defined
Intensity or isometric display
4- or 8-image display (16 with optional VSVO1 bit
maps)
e Normal or magnified display
e Lower and upper thresholding with or without con-
trast enhancement
e Dual/full size image display (split screen or
overlayed)
e Negative image display
e Display 256 x 256 byte data
Data Manipulation Features:
Skip frames (forward or backward)
Sequential frame add
Image rotation (90-degree steps)
Image translation (horizontal and vertical)
Non-uniformity correction
Frame algebra — add, subtract, multiply, divide or
merge frames; add, subtract, or multiply frames by a
constant
¢ 9-point smoothing
e O9save areas fortemporary storage of images or ROI
curves
e Up to 55 optional save areas for temporary storage
of images
e Slice profiles (vertical or horizontal)
e Isocontour generation
e Interpolation of images (optional VSVO1 bit maps
required for 256 x 256 byte interpolation)
e Select quarter of image
SPD 15.60.6
Region of Interest Features:
e Regular (keyboard controlled)
e Irregular (joystick controlled)
e Circumference or fill mode definition (irregular)
e Pertinent count rate information for each region
displayed with image
e Up to 12 regions displayed
e Simultaneous display of curves and images with
ROIs outlined
e Select regions by thresholding (irregular)
e Select regions in magnified mode (irregular)
e Time/activity curves displayed normaliy, averaged,
or overlayed
e Ability to expand selected portions of RO! curves
Dynamic Playbáck:
e Seguences of preprocessed images can be dis-
played in cine mode.
2 to 4 playback buffers can be combined into one
and displayed synchronously.
e Speed and direction of playback can be controlled
via the joystick or keyboard.
Predefined Analysis Features:
e Multiple commands can be entered on a single line
oe Predefined analysis procedures (macros) can be
created, edited, saved, and executed from the sys-
tem disk
® Predefined analysis can be linked with predefined
study acquisition to semiautomate the system.
e Macros can call FORTRAN or BASIC programs;
special calls allow macro reentry.
Miscellaneous Features:
s Dual isotope display and processing
* Additional disk space not required for recon-
structed images in list mode analysis
e Comment editor
Utility Programs
Study Deletion — This function requires user verifica-
tion to prevent accidental deletion of important data.
Study Transfer — This function transfers patient stu-
dies between any two RT-11 file-structured devices
(disks, magnetic tape, floppy disks, etc.)
Application Programs
Included with GAMMA-11 F/B is the GAMMA-11
Applications package that provides the user with a
series of application programs for nuclear medicine
written in BASIC or FORTRAN. This application soft-
ware is provided on an “as is” basis.
38
GAMMA-11 F/B, Version 3.0
MINIMUM HARDWARE REQUIRED:
Any UNIBUS PDP-11 (except PDP 11/70) with line
frequency clock that meets the following main memory
requirements:
e 32K bytes for singie-job operation with RKO5 as
system disk
e 64K bytes for foreground/background operation
with RKOS as system disk
e 64K bytes for single job operation with RLO1, RKO6,
or RK07 as system disks
e 96K bytes for foreground/background operation
with RLO1, RKO6, or RKO7 disks
and includes,
Mass Storage (one of the following):
e One RKOS, RLO1, or RKOG6 disk with a second disk or
RT-11 supported magnetic tape unit
e One RKO7 disk and an RT-11 supported magnetic
tape unit (except TS-11)
e Two RKOS, RLO1, or RK06 disks
Terminals:
* Any console terminal supported by the prerequisite
software. (Two terminals are required for fore-
ground/background operation. The foreground
terminal must operate at 1200 baud or greater.)
Foreground terminal requires a DL11 and must be
VT52 or VT100.
Display:
e VSVO1 Video Display
Interface: (one of the following)
e NC11 gamma camera interface with KW11-P (AR11
needed for foreground/background operation
and/or GSA or PLM), or
e NCV11 gamma camera interface (includes KWV11;
AR11 not needed)
OPTIONAL HARDWARE:
* Any RT-11 supported mass storage device for off-
line data storage except TA11 cassette
* A system total of 256K bytes main memory
e MDA11 acquisition system
e MDA11 software for the MDA11 system is distrib-
uted with the GAMMA-11 F/B software. Each
MDA11 system includes a DZ license to copy this
MDA software for use on that MDA11 system. RX02
drive is required on the host system for communi-
cation.
PREREQUISITE SOFTWARE:
None
— OPTIONAL SOFTWARE:
" FORTRAN IV/RT-11, Version 2.1
TRAINING CREDITS:
TWO (2) — Applies only to options that include sup-
port services. Consult the latest Educational Services
Catalog at your local office for the available courses,
course requirements, and guidelines.
-3-
SPD 15.60.6
SUPPORT CATEGORY:
DIGITAL SUPPORTED
GAMMA-11 F/B is a DIGITAL Supported Software
Product.
SOFTWARE INSTALLATION:
DIGITAL INSTALLED
DIGITAL installation is required for Software Product
Support. There is no charge for installation if per-
formed at the time of system installation. DIGITAL
installed software products, except for operating sys-
tems, are subject to an add-on installation fee when
purchased subsequent to system installation.
SOFTWARE PRODUCT SUPPORT:
GAMMA-11 F/B includes standard services as defined
in the Software Support Categories Addendum of this
SPD.
The GAMMA-11 Applications package is offered on an
“as is ” basis. The above DIGITAL INSTALLED does
not apply to the GAMMA-11 Applications package.
ORDERING INFORMATION:
Source and/or listing options are only available after
the purchase of at least one supported license and after
a source license agreement is in effect.
The following key (A, D) represents the form of power
source for the product and must be specified at the end
of the number, i.e., GMA11-AA = system using 115
volt/60 Hertz power.
À = 115 voit/60 Hertz
D = 230 volt/50 Hertz
The following key (D, E, Q, T, Z) represents the distri-
bution media for the product and must be specified at
the end of the ordernumber, e.g., QJ723-AD = binaries
on 9-track 800 BPI Magtape (NRZI).
D = 9-track 800 BPI Magtape (NRZI)
E = RKO05 Disk Cartridge
Q = RLO1 Disk Cartridge
T = RK06 Disk Cartridge
Z = No hardware dependency
GMA11 -C— GAMMA-11 single job system includes
hardware, single-use license for GÂM-
MA-11, RT-11, BASIC-11/RT-11, binar-
ies on RLO1 disk, documentation, sup-
port services (power: A, D)
Source/Listing Options
QJ721 -E— All GAMMA-11 scurces (media: D, E, Q,
T)
Upgrade Options
т Lhe following option is available as an upgrade kit from
GAMMA-11, Version 7.0, for use on the same single
39
CPU on which GAMMA-11, Version 7.0, is licensed.
The license previously granted for GAMMA-11, Ver-
sion 7.0 shall be extended to cover this upgrade.
QJ723 -A— Single-use license for GAMMA-11 F/B,
RT-11, BASIC-11/RT-11, binaries, doc-
umentation, support services (media: D,
E)
GAMMA-11 F/B, Version 3.0
Update Options
Users of GAMMA-11 F/B, Version 2.0, whose specified
Support Category warranty has expired may order
under license the following software update at the then
current media charge for such update. The update is
distributed in source or binary form on the appropriate
medium and includes no installation or other services
unless specifically stated.
QJ721 -H— Binaries, documentation (media: D, E, Q,
T)
QJ721 -H-— Rightto copy for single-use (under exist-
ing license), no binaries, no documenta-
tion (media: Z)
Users of GAMMA-11 F/B, Version 2.0, whose specified
Support Category warranty has not expired may order
under license the following software update for the
-4-
40
SPD 15.60.6
then current media charge. The update is distributed in
source or binary form on the appropriate medium and
includes no installation or other services unless specif-
ically stated.
QJ721 -W— Binaries, documentation (media: D, E,
Q, T)
NOTE: RT-11 and BASIC Updates and Upgrades are
not included in GAMMA-11.
Miscellaneous Options
QJ721 -G— Documentation only kit (media: Z)
ADDITIONAL SERVICES:
The following additional service is available:
e Binary Program Update Service
AL. —AA DIGITAL EQUIPMENT COMPUTER USERS SOCIETY
DECUS
INTRODUCTION
DECUS, the Digital Equipment Computer Users Society, was established in March of 1961 to advance the
effective use of DIGITAL computers. It is a not-for-profit users group supported in part by Digital Equipment
Corporation.
OBJECTIVES
The objectives of the Society are to advance the effective utilization of computers, computer peripheral
equipment, and software manufactured and marketed by Digital Equipment Corporation, by promoting the
interchange of information concerning their uses; advance the art of computation through mutual education
and exchange of ideas and information; establish standards and provide channels to facilitate the exchange of
computer programs among DECUS members; provide feedback to the computer industry on equipment and
software needs; and to reduce the duplication of development efforts.
ORGANIZATION
The Digital Equipment Computer Users Society is a federation of chapters, whose membership is determined
by geographic location. The membership is organized to meet the specific needs of members in its area such
as Symposia and Special User Group activities. The DECUS chapters are:
o AUSTRALIAN CHAPTER (Australia, Indonesia, Malaysia, New Zealand, PNG, Singapore, )
e EUROPEAN CHAPTER (Europe, Middle East, North Africa, Russia)
e CANADIAN CHAPTER (Canada)
e US. CHAPTER (U.S. and All Others)
ACTIVITIES
1. SYMPOSIA
Symposia are sponsored throughout the year by each of the DECUS Chapters and Regional/National User
Groups. These meetings provide an opportunity for users of DIGITAL computers to meet with other users
and with DIGITAL management, engineers, and customer service representatives. They provide a forum for
users to exchange information on technique and approaches to issues of common interest and to provide
feedback to DIGITAL on existing and future products and services. Sessions at the symposia include user-
driven workshops, tutorials, product panels, as well as application /system-specific presentations.
The technical papers and presentations from each symposium are published as DECUS Proceedings.
2. SPECIAL USER GROUPS
DECUS encourages subgrouping of users with common interests and/or geographical proximity.
Special Interest Groups (SIGs) promote the interchange of specialized information for application areas,
subject areas (such as languages), or specific operating systems. A group of users must petition the Chapter
Executive Board for recognition as a Special Interest Group. The group must have a chairman, a DIGITAL
me Jn,
representative, and its organization must meet the guidelines of the Chapter Executive Board.
Geographic subgroupings are formed to service the DECUS members within a specific area although they
may also be based on interests as in SIGs. There are four types of geographic subgroupings:
1. LUGs — Local User Groups
2. NUGs — National User Groups
3. RUGS — Regional User Groups
4. SLUGs — Student Local User Groups
41
3. STANDARDS
DECUS promotes user activity in reviewing DIGITAL standards. Users are given the opportunity to
comment on DIGITAL standards prior to their finalization.
4. PROGRAM LIBRARY
One of the major activities of the users group is the DECUS Program Library. The Library contains
programs written and submitted by users and is maintained and operated separate from the Digital Software
Distribution Center. A wide range of software is available, including languages, editors, numerical functions,
utilities, display routines, and various other types of application software.
MEMBERSHIP
Membership in DECUS is voluntary and is not subject to membership fee. Members are invited to take an
active interest in the Society by contributing to the Program Library, to newsletters, and by participating in
its Special User Groups and Symposia. There are two types of membership: Installation Membership and
Association Membership.
INSTALLATION MEMBERSHIP
An organization, institution, or individual that has purchased, leased or has on order a computer
manufactured by Digital Equipment Corporation is eligible for Installation Membership in DECUS.
An Installation should appoint a person immediately concerned with the use of the computer to act as
delegate to the Society. A delegate receives all official communications and has a vote on DECUS policies
and elections. An organization or company is eligible for as many voting delegates as it has DIGITAL
‘computers. Each delegate must file an application for Installation Membership.
ASSOCIATE MEMBERSHIP
Any person who is not an appointed Installation Delegate, who has a bona fide interest in DECUS is eligible
for Associate Membership.
Membership status is acquired by submitting the enclosed application to the appropriate Chapter Executive
Secretary for approval by the Chapter Executive Board.
To obtain a membership form for DECUS, please return this form to the appropriate Chapter office listed below.
NAME:
(First) (Last/Family Name)
COMPANY: (INSTALLATION):
ADDRESS 1:
2:
3:
4:
(City Town,State Province. and Zip ‘Postal Code
COUNTRY:
TELEPHONE: TELEX
I obtained this form from
DECUS OFFICES
DECUS Australia DECUS Canada DECUS Europe DECUS U.S. and
P.O. Box 384 P.O. Box 11500 P.O. Box 510 Office of the Executive Director
Chatswood Ottawa, Ontario K2H 8K8 12, avenue des Morgines One Iron Way
NSW 2067 Canada CH-1213 Petit-Lancy 1/GE Marlboro, Massachusetts 01752
Australia Switzerland USA
DECEMBER 1979
42
SOFTWARE PROBLEMS OR ENHANCEMENTS
Questions, problems, and enhancements to DIGITAL software should be reported on
a Software Performance Report (SPR) form and mailed to the SPR Center at one of the
following Digital Offices: (SPR forms are available from the SPR Center).
Areas Covered
United States;
remainder of Far East,
Middle East, Africa
Latin America
Administrative Services Group, SWS
P.O.Box F
Maynard, Ma 01754
Areas Covered
Japan
SPR Center
Digital Equipment Corp. INTL
3rd Floor Kowa Bldg.
8-7 Sanban Cho
Chiyoda Ku Tokyo 102
Japan
Canada
Digital Equipment Canada
P.O. Box 11500
Ottawa, Ontario
Canada K2H 8K8
New Zealand
Digital Equipment N.Z. LTD
P.O. Box 17093
Greenlane,
Auckland 5,
New Zealand
United Kingdom, Bahraine,
Egypt, Iraq, Jordan, Kuwait,
Digital Equipment Corp. LTD
Belgium, Holland,
Digital Equipment B.V.
Lebanon, Libya, Qatar, Fountain House Butts Centre Luxemburg KAAP Horndreef 38
Oman, Saudi Arabia, Syria, GB - Reading RG17QN NL - Utrecht/Overvecht
United Arab Emirates, Yemen, England Holland
Arab Republic.
Australia-Melbourne Digital Equipment Aust. PTY. LTD Sweden Digital Equipment Corp. AB
60 Park Street Englundavagen 7
So. Melbourne Victoria S-171 24 Solna,
Australia 3205 Sweden
Australia-Sydney Digital Equipment Aust. PTY. LTD … ‚
123 125 Willoughby Ва. Denmark Digital Equipment Corp. APS
P.O. Box 491 Kristineberg 3
Crows Nest NSW E Copenhagen 9
Austraiia 2065 mar
Brazil Digital Equipment Comercio Ind. CL .
F d
Rua Batatais 429 Esq AL Campin inlan Digital Equipment Corp. OY
01423 Jardim Paulista PL16
SF - 02201 ESPOO 20
Sao Paulo 0100 .
Finland
Brazil
Caribbean De Latin America Norway Digital Equipment Corp. A/S
P. O. Box 11038 Pottenmakerveien 8
Fernando Juncos Sta. N - Oslo 5
Santurce Norway
PR 00910
France Digital Equipment France Austria, East Germany, Digital Equipment Corp. GMBH
18, rue Saarinen France West Germany, Poland, Wallsteinplatz 2
Silic 225 Hungary, Rumania, D - 8 Munich 40
F - 94528 Rungis - Cedex Czechoslovakia, Russia, West Germany
France Bulgaria
Italy Digital Equipment S.P.A. Israel DECSYS Computers LTD.
Viale Fulvio Testi 117
120092 Cinisillo Balsamo
Milan,
Italy
4, Yirmiyahou Str.
Р.О. Вох 6359
IL - Tel-Aviv 63505
Israel
Areas Covered
Greece, Portugal,
Spain, Switzerland,
Yugoslavia & Sina
(Morocco, Algeria,
Tunisia, Cyprus,
Turkey, Malta)
.... SER Center
==" Otal Equipment Corp. SA
9, route des Jeunes
1211 Geneva 26
Switzerland
DIGITAL EQUIPMENT CORPORATION, Corporate Headquarters: Maynard,
Massachusetts 01754, Telephone: (617)897-5111-SALES AND SERVICE
OFFICES: UNITED STATES —ALABAMA, Huntsville « ARIZONA, Phoenix and
Tucson ¢ CALIFORNIA, El Segundo, Los Angeles, Oakland, Ridgecrest, San
Diego, San Francisco (Mountain View), Santa Ana, Santa Clara, Stanford,
Sunnyvale and Woodland Hills «+ COLORADO, Englewood + CONNECTICUT,
Fairfield and Meriden « DISTRICT OF COLUMBIA, Washington (Lanham, MD) *
FLORIDA, Ft. Lauderdale and Orlando + GEORGIA, Atlanta « HAWAII, Honolulu
e ILLINOIS, Chicago (Rolling Meadows) ¢« INDIANA, Indianapolis « IOWA, Betten-
dorf « KENTUCKY, Louisville « LOUISIANA, New Orleans (Metairie) « MARY-
LAND, Odenton « MASSACHUSETTS, Marlborough, Waltham and Westfield e
MICHIGAN, Detroit (Farmington Hills) e MINNESOTA, Minneapolis « MISSOURI,
Kansas City (Independence) and St. Louis e NEW HAMPSHIRE, Manchester e
NEW JERSEY, Cherry Hill, Fairfield, Metuchen and Princeton e NEW MEXICO,
Albuquerque « NEW YORK, Albany, Buffalo (Cheektowaga), Long Island (Hunt-
ington Station), Manhattan, Rochester and Syracuse « NORTH CAROLINA,
Durham/Chapel Hill « OHIO, Cleveland (Euclid), Columbus and Dayton « OKLA-
HOMA, Tulsa » OREGON, Eugene and Portland « PENNSYLVANIA, Allentown,
Philadelphia (Bluebell) and Pittsburgh « SOUTH CAROLINA, Columbia e TEN-
NESSEE, Knoxville and Nashville « TEXAS, Austin, Dallas and Houston « UTAH,
Salt Lake City e VIRGINIA, Richmond « WASHINGTON, Bellevue « WISCONSIN,
Milwaukee (Brookfield) e INTERNATIONAL —ARGENTINA, Buenos Aires ®
AUSTRALIA, Adelaide, Brisbane, Canberra, Melbourne, Perth and Sydney e
AUSTRIA, Vienna e BELGIUM, Brussels e BOLIVIA, La Paz + BRAZIL, Rio
de Janeiro and Sao Paulo « CANADA, Calgary, Edmonton, Halifax, London,
Montreal, Ottawa, Toronto, Vancouver and Winnipeg e CHILE, Santiago e
DENMARK, Copenhagen ¢ FINLAND, Helsinki e FRANCE, Lyon, Grenoble
and Paris e GERMAN FEDERAL REPUBLIC, Cologne, Frankfurt, Hamburg,
Hannover, Munich, Nuremburg, Stuttgart and West Berlin e HONG KONG e
INDIA, Bombay *« INDONESIA, Djakarta e IRELAND, Dublin e ITALY, Milan,
Rome and Turin e IRAN, Tehran JAPAN, Osaka and Tokyo + MALAYSIA,
Kuala Lumpur « MEXICO, Mexico City e NETHERLANDS, Utrecht « NEW
ZEALAND, Auckland and Christchurch + NORWAY, Oslo * PUERTO RICO,
Santurce « SINGAPORE » SPAIN, Madrid « SWEDEN, Gothenburg and Stock-
holm e SWITZERLAND, Geneva and Zurich « UNITED KINGDOM, Birmingham,
Bristol, Epsom, Edinburgh, Leeds, Leicester, London, Manchester and Reading
e VENEZUELA, Caracas e
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
