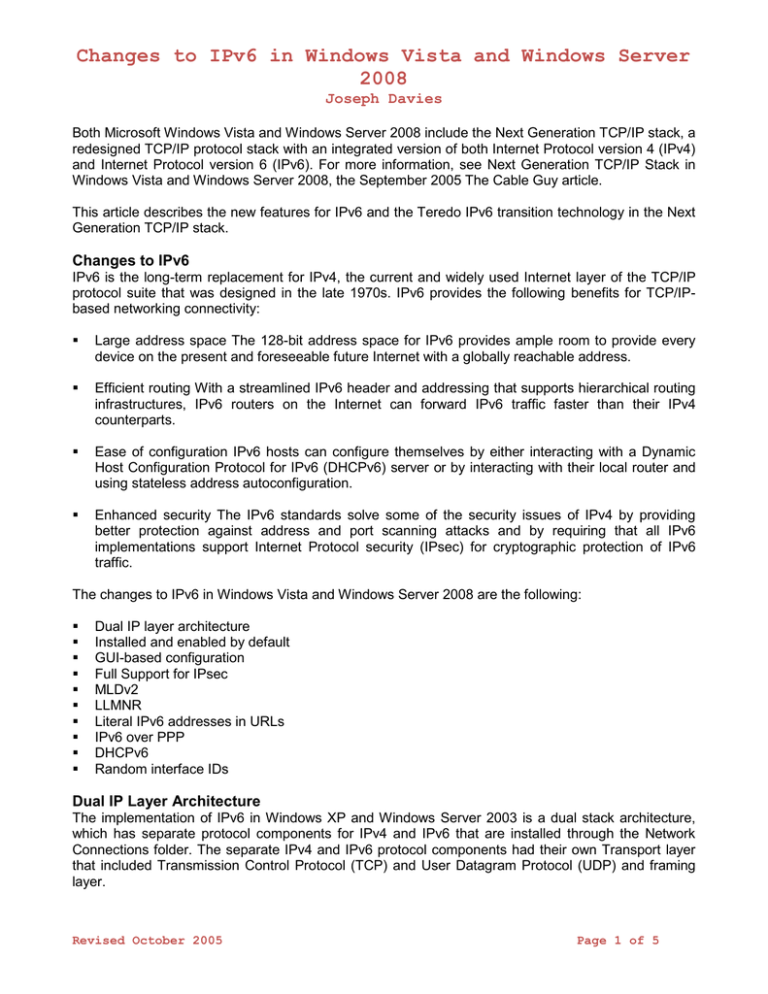

Changes to IPv6 in Windows Vista and Windows Server
2008
Joseph Davies
Both Microsoft Windows Vista and Windows Server 2008 include the Next Generation TCP/IP stack, a
redesigned TCP/IP protocol stack with an integrated version of both Internet Protocol version 4 (IPv4)
and Internet Protocol version 6 (IPv6). For more information, see Next Generation TCP/IP Stack in
Windows Vista and Windows Server 2008, the September 2005 The Cable Guy article.
This article describes the new features for IPv6 and the Teredo IPv6 transition technology in the Next
Generation TCP/IP stack.
Changes to IPv6
IPv6 is the long-term replacement for IPv4, the current and widely used Internet layer of the TCP/IP
protocol suite that was designed in the late 1970s. IPv6 provides the following benefits for TCP/IPbased networking connectivity:

Large address space The 128-bit address space for IPv6 provides ample room to provide every
device on the present and foreseeable future Internet with a globally reachable address.

Efficient routing With a streamlined IPv6 header and addressing that supports hierarchical routing
infrastructures, IPv6 routers on the Internet can forward IPv6 traffic faster than their IPv4
counterparts.

Ease of configuration IPv6 hosts can configure themselves by either interacting with a Dynamic
Host Configuration Protocol for IPv6 (DHCPv6) server or by interacting with their local router and
using stateless address autoconfiguration.

Enhanced security The IPv6 standards solve some of the security issues of IPv4 by providing
better protection against address and port scanning attacks and by requiring that all IPv6
implementations support Internet Protocol security (IPsec) for cryptographic protection of IPv6
traffic.
The changes to IPv6 in Windows Vista and Windows Server 2008 are the following:










Dual IP layer architecture
Installed and enabled by default
GUI-based configuration
Full Support for IPsec
MLDv2
LLMNR
Literal IPv6 addresses in URLs
IPv6 over PPP
DHCPv6
Random interface IDs
Dual IP Layer Architecture
The implementation of IPv6 in Windows XP and Windows Server 2003 is a dual stack architecture,
which has separate protocol components for IPv4 and IPv6 that are installed through the Network
Connections folder. The separate IPv4 and IPv6 protocol components had their own Transport layer
that included Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) and framing
layer.
Revised October 2005
Page 1 of 5
Changes to IPv6 in Windows Vista and Windows Server
2008
Joseph Davies
The Next Generation TCP/IP stack is a single protocol component installed through the Network
Connections folder that supports the dual IP layer architecture, in which both IPv4 and IPv6 share
common Transport and Framing layers.
Because there is a single implementation of TCP, TCP traffic over IPv6 can take advantage of all the
performance features of the Next Generation TCP/IP stack. These features include all of the
performance enhancements of the IPv4 protocol stack of Windows XP and Windows Server 2003 and
additional enhancements new to the Next Generation TCP/IP stack, such as Receive Window Auto
Tuning and Compound TCP which can dramatically improve performance on high-latency/high-delay
connections and better support for TCP traffic in high-loss environments (such as wireless LAN
networks).
Installed and Enabled by Default
In Windows Vista and Windows Server 2008, IPv6 is installed and enabled by default as the Internet
Protocol version 6 (TCP/IPv6) component from the properties of a connection in the Connections and
Adapters folder. In Windows Vista and Windows Server 2008, many operating system components
now support IPv6.
When both IPv4 and IPv6 are enabled, the Next Generation TCP/IP stack prefers the use of IPv6. For
example, if a Domain Name System (DNS) Name Query Response message contains a list of both
IPv6 and IPv4 addresses, the Next Generation TCP/IP stack will attempt to communicate over IPv6
first, subject to the address selection rules that are defined in RFC 3484. For more information, see
Source and Destination Address Selection for IPv6, the February 2006 The Cable Guy article.
The preference of IPv6 over IPv4 offers IPv6-enabled applications better network connectivity
because IPv6 connections can use IPv6 transition technologies such as Teredo, which allow peer or
server applications to operate behind network address translators (NATs) without requiring NAT
configuration or application modification.
Enabling IPv6 by default and preferring of IPv6 traffic does not impair IPv4 connectivity. For example,
on networks without IPv6 records in the DNS infrastructure, communications using IPv6 addresses
are not attempted unless the user or application specifies the destination IPv6 address.
To take advantage of IPv6 connectivity, networking applications must be updated to use Windows
Sockets functions that are not specific to IPv4 or IPv6. For more information, see the IPv6 Guide for
Windows Sockets Applications.
Note: Due to misconfigured DNS servers on the Internet, computers that use both IPv4 and IPv6
might not be able to resolve names and connect to Internet resources. This rare problem occurs when
a misconfigured DNS server receives a request to resolve a name to one or more IPv6 addresses (a
request for AAAA records). If the DNS server does not support IPv6, the name query fails. The
querying node then sends a request to resolve the name to a set of IPv4 addresses (a request for A
records). The misconfigured DNS server drops the subsequent DNS query for IPv4 addresses and
the entire name resolution attempt fails, resulting in impaired network connectivity for the requesting
node. If you are experiencing this problem, ask your Internet service provider to reconfigure their DNS
server to accept the subsequent DNS query for A records after failing the DNS query for AAAA
records. Alternately, you can temporarily disable IPv6 on the requesting computer. This issue exists
on the DNS servers and is common to all computers that use both IPv4 and IPv6.
Revised October 2005
Page 2 of 5
Changes to IPv6 in Windows Vista and Windows Server
2008
Joseph Davies
GUI-based Configuration
In Windows XP and Windows Server 2003, you must manually configure IPv6 configuration settings
with netsh interface ipv6 commands at a Windows command prompt. Windows Vista and Windows
Server 2008 now allow you to also manually configure IPv6 settings through the properties of the
Internet Protocol version 6 (TCP/IPv6) component in the Connections and Adapters folder, similar to
how you can manually configure IPv4 settings.
Full Support for IPsec
Internet Protocol security (IPsec) support for IPv6 traffic in Windows XP and Windows Server 2003 is
limited. There is no support for Internet Key Exchange (IKE) or data encryption. IPsec security policies,
security associations and keys are configured through text files and activated through a command line
tool, IPsec6.exe.
In Windows Vista and Windows Server 2008, IPsec support for IPv6 traffic is the same as that for
IPv4, including support for IKE and data encryption with AES 128/192/256. The IP Security Policies
snap-in now supports the configuration of IPsec policies for IPv6 traffic in the same way as IPv4 traffic
using either the IP Security Policies snap-in or the new Windows Firewall with Advanced Security
snap-in.
MLDv2
Windows Vista and Windows Server 2008 supports Multicast Listener Discovery version 2 (MLDv2),
specified in RFC 3810, which allows IPv6 hosts to register interest in source-specific multicast traffic
with their local multicast routers. A host running on Windows Vista or Windows Server 2008 can
register interest in receiving IPv6 multicast traffic from only specific source addresses (an include list)
or from any source except specific source addresses (an exclude list).
LLMNR
Windows Vista and Windows Server 2008 support Link-Local Multicast Name Resolution (LLMNR),
which allows IPv6 hosts on a single subnet without a DNS server to resolve each other names. This
capability is useful for single-subnet home networks and ad hoc wireless networks. Rather than
unicasting a DNS query to a DNS server, LLMNR nodes send their DNS queries to a multicast
address on which all the LLMNR-capable nodes of the subnet are listening. The owner of the queried
name sends a response. IPv4 nodes can also use LLMNR to perform local subnet name resolution
with having to rely on NetBIOS over TCP/IP broadcasts.
Literal IPv6 Addresses in URLs
The WinINet API in Windows Vista and Windows Server 2008 now supports RFC 2732 and the use of
IPv6 literal addresses in URLs. For example, to connect to the Web server at the IPv6 address
2001:db8:100:2a5f::1, a user with a WinINet-based Web browser (such as Internet Explorer) can type
http://[2001:db8:100:2a5f::1] as the URL. Although typical users might not use IPv6 literal addresses,
the ability to specify the IPv6 address in the URL is valuable to application developers, software
testers, and network troubleshooters.
IPv6 over PPP
The built-in remote access client now supports IPv6 over the Point-to-Point Protocol (PPP) (PPPv6),
as defined in RFC 5072. Native IPv6 traffic can now be sent over PPP-based connections. For
example, PPPv6 support allows you to connect with an IPv6-based Internet service provider (ISP)
through dial-up or PPP over Ethernet (PPPoE)-based connections that might be used for broadband
Internet access.
Revised October 2005
Page 3 of 5
Changes to IPv6 in Windows Vista and Windows Server
2008
Joseph Davies
DHCPv6
The DHCP Client service in Windows Vista and Windows Server 2008 supports Dynamic Host
Configuration Protocol for IPv6 (DHCPv6) defined in RFCs 3315 and 3736. A computer running
Windows Vista or Windows Server 2008 can perform both stateful and stateless DHCPv6
configuration on a native IPv6 network. The DHCP Server service in Windows Server 2008 also
supports DHCPv6.
Random Interface IDs
To prevent address scans of IPv6 addresses based on the known company IDs of network adapter
manufacturers, Windows Vista and Windows Server 2008 by default generates random interface IDs
for non-temporary autoconfigured IPv6 addresses, including public and link-local addresses. A public
IPv6 address is a global address that is registered in DNS and is typically used by server applications
for incoming connections, such as a Web server.
Note that this new behavior is different than that for temporary IPv6 addresses, as described in RFC
4941. Temporary addresses also use randomly derived interface IDs. However, they are not
registered in DNS and are typically used by client applications when initiating communication, such as
a Web browser.
Changes to Teredo
Teredo is an IPv6 transition technology that allows IPv6/IPv4 nodes that are separated by one or
more NATs to communicate end-to-end with global IPv6 addresses. NATs are commonly used on the
Internet to preserve the public IPv4 address space by translating the addresses and port numbers of
traffic to and from private network hosts that use private IPv4 addresses.
Although NATs extend the life of the public IPv4 address space, this functionality comes at the cost of
violating the original design principle of the Internet that all nodes should communicate with a unique
global address. Because of the reuse of private addresses and the translation between private and
public addresses that occur at the NAT, servers and peers that are located on private networks
behind NATs cannot communicate without either manually configuring the NAT or modifying
application protocols.
Although IPv4 traffic for servers and peers that are behind a NAT might have problems traversing a
NAT, Teredo-based IPv6 traffic can traverse a NAT without having to configure the NAT or modify
application protocols. Teredo IPv6 addresses are global addresses, unique to the entire Internet.
Teredo restores global addressing and end-to-end connectivity for IPv6 traffic for an environment that
does not support global addressing and end-to-end connectivity for IPv4 traffic.
Teredo was first released with the Advanced Networking Pack for Windows XP with Service Pack 1
and is included with Windows XP Service Pack 2 and later and Windows Server 2003 Service Pack 1
and later. Teredo is provided with Windows Vista (enabled by default) and Windows Server 2008
(disabled by default). Applications that are already IPv6-enabled require no additional modification.
Teredo is just one of the ways in which the Next Generation TCP/IP stack can send and receive IPv6
traffic.
Teredo in Windows Vista and Windows Server 2008 supports the following:
Revised October 2005
Page 4 of 5
Changes to IPv6 in Windows Vista and Windows Server
2008
Joseph Davies

Teredo is now enabled for domain member computers. Teredo for Windows XP and Windows
Server 2003 automatically disabled itself if the computer was a member of a domain. A domain
member computer is more likely to be attached to a network that has deployed either native IPv6
connectivity or Intra-Site Automatic Tunnel Addressing Protocol (ISATAP), an IPv6 transition
technology. However, domain member computers can also benefit from Teredo-based IPv6
connectivity.

Teredo can now work if there is one Teredo client behind one or more symmetric NATs. A
symmetric NAT maps the same internal (private) address and port number to different external
(public) addresses and ports, depending on the external destination address (for outbound traffic).
Teredo for Windows XP and Windows Server 2003 disables itself if it detects that it is behind a
symmetric NAT. This new behavior allows Teredo to work between a larger set of Internetconnected hosts.
Note: Teredo traffic is IPv6 packets that have been encapsulated as IPv4-based UDP messages. A
Teredo client cannot initialize or communicate with other Teredo clients if an edge firewall drops all
outbound UDP traffic.
Security with IPv6 and Teredo
Having IPv6 and Teredo enabled by default does not make your computer more vulnerable to attack
by malicious users or programs because of the following:

Windows Firewall, included with and enabled by default for both Windows Vista and Windows
Server 2008, is a stateful host-based firewall for both IPv4 and IPv6 traffic. All of the protections
against unwanted, unsolicited, incoming traffic apply to both IPv4 and IPv6 traffic.

Windows Firewall allows exceptions for wanted, unsolicited, incoming traffic based on TCP or
UDP ports or by specifying a program name and apply to an individual computer. Windows
Firewall-based exceptions are much more specific than exceptions configured on typical NATs.

The Windows Filtering Platform is a new architecture in Windows Vista and Windows Server 2008
that allows third-party software developers access to the TCP/IP packet processing path, wherein
outgoing and incoming packets can be examined or changed before allowing them to be
processed further. By tapping into the TCP/IP processing path, ISVs can create firewalls, antivirus
software, diagnostic software, and other types of applications and services. The Windows Filtering
Platform is designed for both IPv4 and IPv6 traffic. Third-party host-based firewall products that
use the Windows Filtering Platform will typically support both IPv4 and IPv6 traffic.
Computers running Windows Vista have IPv6, Teredo, and Windows Firewall enabled by default, and
are protected from unwanted, unsolicited, incoming IPv6 traffic.
Revised October 2005
Page 5 of 5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
