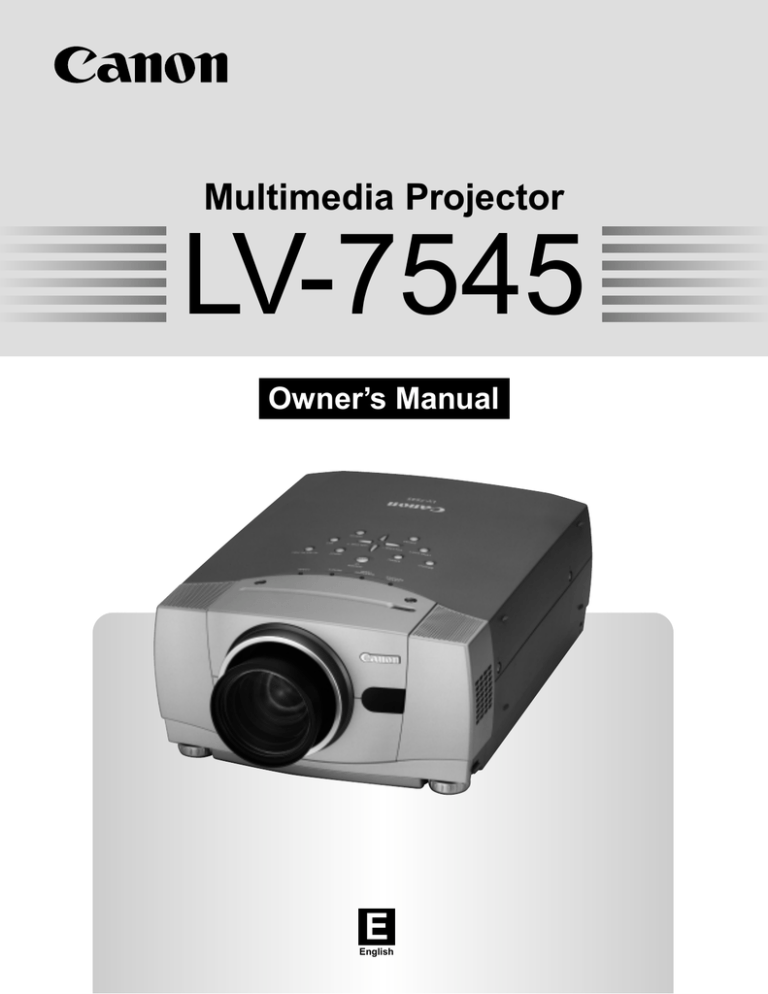

Multimedia Projector
LV-7545
Owner’s Manual
E
English
TO THE OWNER
Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible.
Eye damage could result. Be especially careful that children do not stare directly into the beam.
● This projector should be set in the way indicated. If not, it may result in a fire hazard.
● Take appropriate space on the top, sides and rear of the projector
cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.
SIDE and TOP
REAR
20cm
50cm
50cm
50cm
● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.
● Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser
Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate
laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye
damage may result.
● If the projector is not to be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
2
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Follow all warnings and instructions marked on the projector.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
3
COMPLIANCES
Federal Communication Commission Notice
Multimedia Projector, Model: LV-7545U, LV-7545E
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
For use in Germany
This product is intended for use in residential, commercial and light industry environment.
Canadian Radio Interference Regulations
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
AC POWER CORD REQUIREMENT
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.
Should you be unable to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
4
TABLE OF CONTENTS
FEATURES AND DESIGN
PREPARATION
NAME OF EACH PART OF PROJECTOR
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
POSITIONING PROJECTOR
ADJUSTABLE FEET
MOVING PROJECTOR
6
7
7
8
8
9
9
10
CONNECTING PROJECTOR
11
TERMINALS OF PROJECTOR
CONNECTING TO COMPUTER
CONNECTING TO VIDEO EQUIPMENT
11
12
13
COMPUTER INPUT
SELECTING INPUT SOURCE
SELECTING COMPUTER SYSTEM
PC ADJUSTMENT
AUTO PC ADJUSTMENT
MANUAL PC ADJUSTMENT
COMPATIBLE COMPUTER SPECIFICATIONS
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
VIDEO INPUT
SELECTING INPUT SOURCE
SELECTING VIDEO SYSTEM
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
LASER POINTER FUNCTION
REMOTE CONTROL BATTERIES INSTALLATION
TOP CONTROLS AND INDICATORS
OPERATING ON-SCREEN MENU
HOW TO OPERATE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
MENU BAR
BASIC OPERATION
TURNING ON / OFF PROJECTOR
ADJUSTING SCREEN
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
LENS SHIFT ADJUSTMENT
KEYSTONE ADJUSTMENT
TURBO BRIGHT FUNCTION
PICTURE FREEZE FUNCTION
NO SHOW FUNCTION
P-TIMER FUNCTION
SOUND ADJUSTMENT
22
22
22
23
23
24
26
27
27
28
29
30
30
31
32
32
33
34
14
14
14
15
SETTING
SETTING MENU
35
35
16
17
17
17
18
19
19
20
20
20
20
20
20
21
21
21
APPENDIX
OPERATING WIRELESS MOUSE
MAINTENANCE
37
37
38
WARNING TEMP. INDICATOR
AIR FILTER CARE AND CLEANING
CLEANING PROJECTION LENS
LAMP REPLACEMENT
LAMP REPLACE COUNTER
38
38
38
39
39
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
40
42
21
TRADEMARKS
● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
● Windows and PowerPoint are registered trademarks of Microsoft Corporation.
● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
5
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
◆
Compact Design
This projector is extremely compact in size and weight.
It is designed to carry and work anywhere you wish to
use.
◆
Compatibility
This projector widely accepts various video and
computer input signals including;
● Computers
IBM-compatible or Macintosh computer up to 1280
x 1024 resolution.
● 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.
● Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
● S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
◆
High Resolution Image
This projector provides 1024 x 768 dots resolution for
computer input and 800 horizontal TV lines. Resolution
from a computer between XGA (1024 x 768) and SXGA
(1280 x 1024) is compressed into 1024 x 768 dots. This
projector cannot display image of over 1280 x 1024 dots.
When resolution of your computer is over than 1280 x
1024, reset a computer output for lower resolution.
◆
Multi-Scan System
This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.
◆
One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.
◆
Turbo Bright System
Turbo Bright System switches picture brightness from
normal setting to brighter mode, and it enables you to
select better brightness for projected image.
6
◆
Motor-driven Lens Shift
The projection lens can be moved up and down with the
motor-driven lens shift function. This function makes it
easy to provide the projected image where you want.
The zoom and focus can be also adjusted with motordriven operation.
◆
Digital Zoom (for Computer)
Digital Zoom function adjusts the image size to approx.
1/4 ~ 49 times of original image size, allowing you to
focus on crucial information at a presentation.
◆
Keystone Correction
Positioning height of a projector may result in distorted
image being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
◆
Power Management
Power Management function is provided to reduce power
consumption while a projector is not in use.
This Power Management function operates to turn
Projection Lamp off when a projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when a projector detects signal or any operation
button is pressed.
This projector is shipped with this function ON.
◆
Digital Visual Interface
This projector is equipped with DVI 24-pin terminal for
connecting DVI output from a computer.
◆
Laser Pointer Function
Remote Control Unit supplied with this projector includes
Laser Pointer function. This function helps you to make
a smart presentation on a projected screen.
◆
Wireless Mouse
Remote Control Unit supplied with this projector has
Wireless Mouse function for a connected computer. This
function enables you to operate both projector and
computer with Remote Control Unit only.
◆
Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Chinese, Korean or Japanese.
PREPARATION
NAME OF EACH PART OF PROJECTOR
FRONT OF CABINET
TOP CONTROLS
AND INDICATORS
PROJECTION LENS
AIR INTAKE
VENT
LENS COVER
BACK OF CABINET
EXHAUST VENT
INFRARED
REMOTE RECEIVER
SPEAKERS
INFRARED
REMOTE RECEIVER
POWER CORD
CONNECTOR
HOT AIR EXHAUSTED !
Air blown from exhaust vent is hot. When
using or installing projector, following
precautions should be taken.
● Do not put any flammable object near these
vents.
● Keep rear grills at least 3’(1 m) away from
any object, especially heat-sensitive object.
● Do not touch this area, especially screws
and metallic parts. This area will become
hot while a projector is used.
This projector detects internal temperature
and automatically controls operating power
of Cooling Fans.
CARRYING
HANDLE
LAMP COVER
TERMINALS
AND CONNECTORS
BOTTOM OF CABINET
AIR INTAKE VENTS
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
This projector is equipped with cooling
fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.
● Do not cover vent slots.
● Keep side clear of any objects.
Obstructions may block cooling air.
7
PREPARATION
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being in use.
Connect a projector with a peripheral equipment before turning a
projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug AC Power Cord when an appliance is not
used.
When this projector is connected to the outlet with AC Power
Cord, an appliance is in Stand-by Mode and consumes a little
electric power.
Connect AC Power Cord (supplied) to a projector.
The AC outlet must be near this equipment and
must be easily accessible.
NOTE ON THE POWER CORD
The AC Power Cord must meet the requirement of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.
Projector side
AC Outlet side
For the U.S.A. and Canada
For Continental Europe
Ground
To the POWER CORD
CONNECTOR on the
projector.
8
To the AC Outlet.
(120 V AC)
To the AC Outlet.
(200 - 240 V AC)
PREPARATION
POSITIONING PROJECTOR
● This projector is designed to project on a flat
projection surface.
● The projector can be focused from 4.6’ (1.4m) ~ 48.3’
(14.7m).
● Refer to the figure below to adjust a screen size.
ROOM LIGHT
The brightness in a room has a great
influence on picture quality. It is
recommended to limit ambient lighting in
order to provide the best image.
48.3’(14.7m)
36.1’(11.0m)
24.0’(7.3m)
308”
200”
100”
40”
400”
300”
11.8’(3.6m)
4.6’(1.4m)
Max. Zoom
231” Min. Zoom
154”
77”
31”
Screen
Size
Max. Zoom
40”
100”
150”
200”
250”
300”
400”
Min. Zoom
31”
77”
115”
154”
192”
231”
308”
4.6’ (1.4m)
11.8’ (3.6m)
17.7’ (5.4m)
24.0’ (7.3m)
30.2’ (9.2m)
36.1’ (11.0m)
48.3’ (14.7m)
Distance
LENS SHIFT ADJUSTMENT
The projection lens can be moved up and down with the motor-driven lens shift function. This function makes it
easy to provide the projected image where you want. The U/D ratio can be adjusted 10 : 0 ~ 1 : 1 (refer to the
figure below.). Refer to P 20 for operation.
Highest (10 : 0)
Lowest (1 : 1)
1
10 : 0
1
9
PREPARATION
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by
rotating the ADJUSTABLE FEET. Projection angle can
be adjusted to 10.5 degrees.
1
Lift the front of the projector and pull the FEET LOCK
LATCHES on both sides of the projector.
2
Release the FEET LOCK LATCHES to lock the
ADJUSTABLE FEET and rotate the ADJUSTABLE FEET
to fine tune the position and the tilt.
3
To shorten the ADJUSTABLE FEET, lift the front of the
projector and pull and undo the FEET LOCK LATCHES.
The position and the keystone distortion of the image can
be adjusted using the Menu Operation. (Refer to P 20
and 35.)
ADJUSTABLE FEET
FEET LOCK
LATCHES
MOVING PROJECTOR
Use the Carry Handle when moving a Projector.
When moving a projector, replace the lens cover and
retract the feet to prevent damage to the lens and
cabinet.
When a projector is not in use for an extended period,
put it into the case (dust cover) supplied with a projector.
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
● Do not drop or bump a projector, otherwise damages or malfunctions may result.
● When carrying a projector, use a suitable carrying case.
● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This
may cause damage to a projector. To transport a projector through a courier or transport service, consult
your dealer for best way.
10
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on
pages 11 to 13 and connect properly.
COMPUTER AUDIO
INPUT (1 and 2) JACKS
Connect an audio output
(stereo) from computer to
these jacks.
(Refer to P12.)
COMPUTER INPUT
TERMINALS (DIGITAL/ANALOG)
Connect the computer (digital/analog)
output to one of these terminals.
(Refer to P12.)
USB CONNECTOR (Series B)
When controlling the computer
with Remote Control Unit of this
projector, connect USB port of
your personal computer to this
connector. (Refer to P12.)
R/C JACK
INPUT 1
RGB ANALOG
RGB DIGITAL
R/C JACK
CONTROL PORT
RESET
AUDIO 1
AUDIO 2
CONTROL PORT CONNECTOR
G
B
R
VIDEO/Y
Cb/Pb
H/V
V
Cr/Pr
INPUT 2
RESET BUTTON
This projector uses a micro processor
to control this unit, and occasionally,
this micro processor may malfunction
and need to be reset. This can be
done by pressing RESET button with a
pen, which will shut down and restart
the unit. Do not use RESET function
excessively.
✽ Do not press this button. This button
is used for our optional accessories.
5 BNC INPUT JACKS
Connect the component video
output (Y, Cb, Cr or Y, Pb, Pr)
from video equipment to
VIDEO/Y, Cb/Pb and Cr/Pr
jacks or connect the computer
output {5 BNC Type (Green,
Blue, Red, Horiz. Sync and
Vert. Sync.)} from computer
to G, B, R, H/V and V jacks.
(Refer to P12 and 13.)
When using the Wired/Wireless
Remote Control Unit as Wired
Remote Control, Connect the
Wired Remote Control Unit to
this jack with Remote Control
Cable (supplied).
VIDEO/Y Cb/Pb
Cr/Pr
R–AUDIO–L
(MONO)
S–VIDEO
When controlling the computer
with Remote Control Unit of this
projector, connect the mouse
port of your personal computer
to this connector. (Refer to
P12.)
INPUT 3
VIDEO INPUT JACKS
AUDIO INPUT JACKS
S-VIDEO INPUT JACK
Connect the composite video
output from video equipment
to VIDEO/Y jack or connect
the component video outputs
to VIDEO/Y, Cb/Pb and
Cr/Pr jacks. (Refer to P13.)
Connect an audio output
from video equipment to
these jacks.
(Refer to P13.)
Connect the S-VIDEO
output from video
equipment to this
jack. (Refer to P13.)
11
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
Cables used for connection
(✽ = Cable or adapter is not supplied with this projector.)
• VGA Cable (HDB 15 pin)
• USB Cable ✽
• MAC Adapter (When connecting to Macintosh computer)
• DVI-Digital Cable (for Single Link T.M.D.S.) ✽
• BNC Cable ✽
• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1) ✽
• Control Cable for PS/2 Port, Serial Port or ADB Port
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)
Desktop type
Monitor Output
BNC
Cable ✽
Monitor Output
USB port
USB
Cable ✽
MAC Adapter
Set slide switches
according to chart
below.
DVI
Cable ✽
Laptop type
Audio Output Serial port
Audio
Cable ✽
(stereo)
Control Cable
for Serial Port
Terminal
PS/2 port
ADB port
Control Cable
for PS/2 Port
Terminal
Control Cable
for ADB Port
Terminal
VGA Cable
COMPUTER
AUDIO IN 1 or 2
USB
COMPUTER IN ANALOG
Use one of these Control
Cables corresponding with
the terminal of your
computer.
CONTROL
PORT
COMPUTER IN DIGITAL
INPUT 1
RGB ANALOG
RGB DIGITAL
R/C JACK
CONTROL PORT
RESET
AUDIO 1
AUDIO 2
G
B
R
VIDEO/Y
Cb/Pb
H/V
V
Cr/Pr
INPUT 2
VIDEO/Y Cb/Pb
Cr/Pr
R–AUDIO–L
S–VIDEO
(MONO)
Terminals
of the Projector
INPUT 3
◆ MAC ADAPTER
NOTE :
Set switches as shown in the table
below depending on RESOLUON
TION MODE that you want to use
before you turn on projector and
computer.
OFF
When connecting the cable, the power cords
of both the projector and the external
equipment should be disconnected from AC
outlet. Turn the projector and peripheral
equipment on before the computer is
switched on.
1
13" MODE (640 x 480)
ON
16" MODE (832 x 624) OFF
19" MODE (1024 x 768) OFF
21" MODE (1152 x 870) ON
12
2
ON
ON
ON
ON
3
ON
DIP
1 2 3 4 5 6
4
5
6
OFF OFF OFF OFF
OFF ON OFF OFF
ON OFF OFF OFF
ON ON OFF OFF
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Cables used for connection
(✽ = Cable is not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3) ✽
• BNC Cable ✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
Video Source (example)
Component video output equipment.
Video Cassette Recorder
(such as DVD player or high-definition TV source.)
Video Disc Player
Composite Component Video Output Composite Component Video Output Audio Output
Video Output
(Y, Cb/Pb, Cr/Pr)
Video Output
(Y, Cb/Pb, Cr/Pr)
Video Cables
(RCA x 1 or
RCA x 3) ✽
VIDEO
S-VIDEO Output
Audio Cable
(RCA x 2) ✽
BNC Cable ✽
Y - Cb/Pb - Cr/Pr VIDEO
Y - Cb/Pb - Cr/Pr AUDIO IN
S-VIDEO
Cable ✽
S-VIDEO
INPUT 1
RGB ANALOG
RGB DIGITAL
R/C JACK
CONTROL PORT
RESET
AUDIO 1
AUDIO 2
G
B
R
VIDEO/Y
Cb/Pb
H/V
V
Cr/Pr
INPUT 2
VIDEO/Y Cb/Pb
Cr/Pr
R–AUDIO–L
S–VIDEO
(MONO)
INPUT 3
Terminals of
the Projector
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet.
13
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
Left Side
LASER POINTER INDICATOR
POWER ON-OFF BUTTON
ON
Lights red while laser beam
is emitted from Laser Light
Window.
POWER
ZOOM
Used to turn projector on or
off. (P19)
FOCUS VOLUME
F
ALL OF
INPUT BUTTON
Used to select input source.
(P22, 30)
MUTE D.ZOOM INPUT
MENU BUTTON
POINT BUTTON
Used to select MENU
operation. (P17, 18)
MENU
BRIGHT
SET BUTTON
ALL-OFF SWITCH
When using Remote Control Unit,
turn this switch to “ON.” And turn it
to “ALL OFF” when it is not used.
Used to execute the item
selected, or to expand or
compress the image in
DIGITAL ZOOM +/– mode.
(P29)
It is also used as a PC
mouse in Wireless Mouse
Operation. (P37)
LASER BUTTON
✽ When pressing the center of this
button, it works as SET button.
LASER
LENS SHIFT
RIGHT CLICK BUTTON
KEYSTONE
NO SHOW
FREEZE
AUTO PC ADJ.
Used to operate Laser Pointer
Function. Laser beam is
emitted while pressing this
button within 1 minute.
When using this Laser Pointer
for more than 1 minute, release
LASER button and press it
again.
Used to move a pointer on ONSCREEN MENU, adjust each
item, or pan image in DIGITAL
ZOOM +/– mode. (P29)
It is also used as a PC mouse
in Wireless Mouse Operation.
(P37)
Used as a PC mouse in
Wireless Mouse Operation.
(P37)
P-TIMER
P-TIMER BUTTON
Used to operate P-TIMER
function. (P21)
LASER POINTER FUNCTION
This Remote Control Unit emits a laser beam as the laser pointer function from Laser Light Window. When LASER button is
pressed, the laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is
released, light goes off. LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser
beam is being emitted.
The laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine the laser beam on yourself or
other people. The three marks bellow are the caution labels for the laser beam.
CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result
hazardous radiation exposure.
These caution labels are put on the remote control.
LASER POINTER INDICATOR
Laser Light Window
14
BEFORE OPERATION
Operating Range
POWER
ZOOM BUTTON
Used to adjust zoom.
(P20)
VOLUME BUTTON
ZOOM
FOCUS VOLUME
Used to adjust volume.
(P21)
D.ZOOM BUTTON
FOCUS BUTTON
MUTE D.ZOOM INPUT
Used to adjust focus.
(P20)
MENU
Point Remote Control Unit toward
projector (Receiver Window)
whenever pressing any button.
Maximum operating range for
Remote Control Unit is about 16.4’
(5m) and 60° in front and rear of the
projector.
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P29)
BRIGHT
BRIGHT BUTTON
Used to enhance picture
brightness. (P20)
MUTE BUTTON
Used to mute sound.(P21)
60°
LENS SHIFT BUTTON
16.4’
(5 m)
Used to select LENS
SHIFT function. (P20)
LASER
LENS SHIFT
NO SHOW BUTTON
Used to turn the picture
into black image. (P21)
AUTO PC ADJ. BUTTON
KEYSTONE
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
Use to operate AUTO PC
Adjustment function. (P23)
FREEZE BUTTON
Used to freeze the picture.
(P21)
IMAGE BUTTON
Used to select image
level. (P27, 32)
60°
WIRED REMOTE JACK
KEYSTONE BUTTON
Used to correct keystone
distortion. (P20, 35)
When using as the Wired
Remote Control, connect
the Remote Control Cable
to this jack.
Battery installation is
required when using as the
Wired Remote Control.
16.4’
(5 m)
Remote Control Batteries Installation
1
Remove the battery
compartment lid.
Press the lid downward and slide it.
2
Slide the batteries into
the compartment.
3
Replace the compartment
lid.
Two AA size batteries
For correct polarity (+
and –), be sure the
battery terminals are in
contact with the pins in
the compartment.
To insure safe operation, please observe the following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace two batteries at the same time.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose Remote Control Unit to moisture, or heat.
● Do not drop Remote Control Unit.
● If a battery has leaked on Remote Control Unit, carefully wipe the case clean and install new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to batteries manufacturers instructions and local rules.
15
BEFORE OPERATION
TOP CONTROLS AND INDICATORS
This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.
LAMP REPLACE INDICATOR
WARNING TEMP. INDICATOR
READY INDICATOR
LAMP INDICATOR
Turns to yellow when
the life of projection
lamp draws to an end.
(P39)
Flashes red while
internal
projector
temperature is too
high. (P38)
Lights green when the
projector is ready to be
turned on.
And flashes green while
in Power Management
mode. (P36)
Becomes dim when the
projector is turned on.
And bright when the
projector is in stand-by
mode.
POWER ON–OFF BUTTON
Used to turn a projector
on or off. (P19)
MENU BUTTON
Used to open or close
ON-SCREEN MENU
operation. (P17, 18)
INPUT BUTTON
Used to select input
source. (P22)
BRIGHT BUTTON
Used to enhance
picture brightness.
(P20)
LENS SHIFT BUTTON
AUTO PC ADJ. BUTTON
Used to select LENS
SHIFT function. (P20)
Used to operate AUTO PC
Adjustment function. (P23)
ZOOM BUTTON
SET BUTTON
Used to adjust zoom.
(P20)
FOCUS BUTTON
Used to adjust focus.
(P20)
POINT (VOLUME + / – ) BUTTONS
Used to select an item or adjust
value in ON-SCREEN MENU. They
are also used to pan the image in
DIGITAL ZOOM +/– mode. (P29)
POINT LEFT/RIGHT buttons are
also used as VOLUME +/– buttons.
16
Used to execute the item
selected. It is also used
to expand / compress
the image in DIGITAL
ZOOM mode. (P29)
BEFORE OPERATION
OPERATING ON-SCREEN MENU
HOW TO OPERATE ON-SCREEN MENU
You can control and adjust this projector through ON-SCREEN
MENU. Refer to the following pages to operate each adjustment
on ON-SCREEN MENU.
WIRELESS REMOTE CONTROL
POINT BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
1 DISPLAY MENU
Press MENU button to display ON-SCREEN MENU.
2 MOVING POINTER
Move the pointer (✽ see below) or adjust the value of item by
pressing POINT button(s) on Top Control or on Remote Control
Unit.
✽ Pointer is the icon on ON-SCREEN MENU to select the item.
See the figures on the section "FLOW OF ON-SCREEN MENU
OPERATION" below.
SET BUTTON
Used to select the item.
TOP CONTROL
POINT BUTTONS
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
3 SELECT ITEM
Select the item or set selected function by pressing SET button.
SET BUTTON
Used to select the item.
FLOW OF ON-SCREEN MENU OPERATION
MENU BAR
Display ON-SCREEN MENU
1
Press MENU button to display ON-SCREEN MENU (MENU
BAR). A red frame is POINTER.
Select Menu to be adjusted
2
MENU ICON
Move POINTER (red frame) to MENU ICON that you want to
select by pressing POINT RIGHT / LEFT buttons.
POINTER (red frame)
Press POINT DOWN button to
move POINTER.
POINTER
(red frame)
ITEM
Control or adjust item through ON-SCREEN MENU
3
Press POINT DOWN button and move POINTER (red frame
or red arrow) to ITEM that you want to adjust, and then press
SET button to show ITEM DATA.
4
Adjust ITEM DATA by pressing POINT RIGHT / LEFT
buttons.
Refer to the following pages for details of respective
adjustments.
SET
BUTTON
ITEM DATA
Press POINT LEFT/RIGHT
buttons to adjust value or
set function.
17
BEFORE OPERATION
MENU BAR
FOR PC SOURCE
Press MENU BUTTON while connecting to PC input source.
IMAGE SELECT MENU
SCREEN MENU
SETTING MENU
Used to select image
level among ;
Standard, High
contrast and Custom.
(Refer to P27)
Used to adjust size
of image. [Normal
/ True / Wide /
Digital zoom +/–]
(Refer to P29)
Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P35-37)
INPUT MENU
PC ADJUST MENU
IMAGE ADJUST MENU
SOUND MENU
Used to select
input source (Input
1, Input 2 or Input
3). (Refer to P22)
Used to adjust
parameters to
match with input
signal format.
(Refer to P23-25)
Used to adjust
computer image.
[Contrast / Brightness
/ White Balance
(R/G/B) / Gamma]
(Refer to P28)
Used to adjust
volume or mute
sound.
(Refer to P21)
GUIDE WINDOW
PC SYSTEM MENU
Shows selected
item of ONSCREEN MENU.
Used to select
computer system.
(Refer to P22, 23)
FOR VIDEO SOURCE
Press MENU BUTTON while connecting to VIDEO input source.
INPUT MENU
IMAGE SELECT MENU
Used to select
input source
(Input 1, Input 2
or Input 3).
(Refer to P30)
Used to select image
level among
Standard, Cinema
and Custom.
(Refer to P32)
Same function as
Menu for PC source.
AV SYSTEM MENU
Used to select
system of selected
video source.
(Refer to P31)
Used to set size of
image to Normal
or Wide.
(Refer to P34)
IMAGE ADJUST MENU
Used to adjust picture image.
[Contrast / Brightness / Color /
Tint / White balance (R/G/B) /
Sharpness / Gamma/Noise
Reduction/Progressive]
(Refer to P33, 34)
18
SCREEN MENU
Same function as
Menu for PC source.
BASIC OPERATION
TURNING ON / OFF PROJECTOR
TURNING ON PROJECTOR
1
Complete peripheral connections (with Computer, VCR, etc.)
before turning on projector. (Refer to "CONNECTING TO
PROJECTOR" on pages 11~13 for connecting that equipment.)
2
Connect the projector's AC Power Cord into an AC outlet. LAMP
Indicator lights RED, and READY Indicator lights GREEN.
NOTE : When “On start” function is ON, this projector is turned
on automatically by connecting AC Power Cord to an
AC outlet. (Refer to pages 35, 36.)
3
30
Preparation Display disappears after 30 seconds.
Press POWER ON-OFF button on Top Control or on Remote
Control Unit to ON. LAMP Indicator dims, and Cooling Fans
start to operate. Preparation Display appears on a screen and
the count-down starts. The signal from PC or Video source
appears after 30 seconds.
TURNING OFF PROJECTOR
1
Press POWER ON-OFF button on Top Control or on Remote
Control Unit, and a message "Power off?" appears on a screen.
2
Press POWER ON-OFF button again to turn off projector. LAMP
Indicator lights bright and READY Indicator turns off. After
projector is turned off, Cooling Fans operate (for 90 seconds).
During this "Cooling Down" period, this appliance cannot be
turned on.
3
When projector has cooled down, READY Indicator lights
GREEN again and you can turn projector on. After cooling down
completely, disconnect AC Power Cord.
Power off?
Message disappears after 4 seconds.
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE
TURNING IT OFF.
When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically.
Refer to “Power Management” on pages 35 and 36.
When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on
projector again.
When WARNING TEMP. Indicator continues to flash, follow procedures below:
1. Press POWER ON-OFF button to turn a projector off and disconnect AC Power Cord from an AC outlet.
2. Check Air Filters for dust accumulation.
3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 38.)
4. Turn a projector on again.
If WARNING TEMP. Indicator should still continue to flash, contact the sales dealer where you purchased this projector or
service center.
19
BASIC OPERATION
ADJUSTING SCREEN
ZOOM ADJUSTMENT
1
Press ZOOM button on Top Control or ZOOM ▲/▼ button on
Remote Control Unit. The message “Zoom” is displayed.
2
Press ZOOM ▲ button or POINT UP button to make image
larger, and press ZOOM ▼ button or POINT DOWN button to
make image smaller.
Zoom
Message disappears after 4 seconds.
FOCUS ADJUSTMENT
1
Press FOCUS button on Top Control or FOCUS ▲/▼ button on
Remote Control Unit. The message “Focus” is displayed.
2
Adjust focus of image by pressing FOCUS ▲/▼ button or
POINT UP/DOWN button(s) .
Focus
Message disappears after 4 seconds.
LENS SHIFT ADJUSTMENT
1
Press LENS SHIFT button on Top Control or on Remote Control
Unit. The message “Lens shift” is displayed.
2
Press POINT UP button to move image up, press POINT DOWN
button to move image down.
Lens shift
Message disappears after 4 seconds.
KEYSTONE ADJUSTMENT
If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.
1
Press KEYSTONE (▲/▼) button on Top Control or on Remote
Control Unit, or select Keystone on SETTING menu. (Refer to
P35.) Keystone dialog box appears.
2
Correct keystone distortion by pressing KEYSTONE ▲/▼ button
or POINT UP/DOWN button(s). Press KEYSTONE ▲ button or
POINT UP button to reduce the upper part of image, and press
KEYSTONE ▼ button or POINT DOWN button to reduce the
lower part.
Reduce the upper width with KEY STONE ▲ button
or POINT UP button.
Reduce the lower width with KEY STONE ▼ button
or POINT DOWN button.
TURBO BRIGHT FUNCTION
Turbo Bright System enhances picture brightness. When BRIGHT
button is pressed to on, the message “Bright on” is displayed and
BRIGHT button lights orange. To return to original picture brightness,
press BRIGHT button again.
Bright on
✽ When Turbo Bright System is set to on, the color of image may
change slightly.
Message disappears after 4 seconds.
20
BASIC OPERATION
PICTURE FREEZE FUNCTION
Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE
button again or press any other button.
NO SHOW FUNCTION
Press NO SHOW button on Remote Control Unit to black out the
image. To restore to normal, press NO SHOW button again or press
any other button.
No show
Message disappears after 4 seconds.
P-TIMER FUNCTION
Press P-TIMER button on Remote Control unit. The timer display “00
: 00” appears and the timer starts to count time (00 : 00 ~ 59 : 59).
To stop P-TIMER display, press P-TIMER button. And then, press PTIMER button again to cancel P-TIMER function.
SOUND ADJUSTMENT
Indicates roughly level of
volume.
DIRECT OPERATION
Volume
Press VOLUME (+/–) button(s) on Top Control or on Remote Control
Unit to adjust volume. Volume dialog box appears. (+) button to
increase volume, and (–) button for decreasing.
Mute
Press MUTE button on Remote Control Unit to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–) button(s).
Press MUTE button to set
Mute function On or Off.
Dialog box disappears after 4 seconds.
MENU OPERATION
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SOUND Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to select, and then press SET button.
SOUND MENU
SOUND Menu icon
Indicates roughly level of volume.
Volume
Press POINT RIGHT button to increase volume, and press POINT
LEFT button for decreasing.
Close SOUND Menu.
Mute
Press POINT LEFT/RIGHT button to cut off sound. Dialog box display
is changed to “On” and sound is cut off. To restore sound to its
previous level, press POINT LEFT/RIGHT button again.
21
COMPUTER INPUT
SELECTING INPUT SOURCE
INPUT button
DIRECT OPERATION
INPUT 1
Choose Computer by pressing INPUT button on Top Control or on
Remote Control Unit.
If projector cannot reproduce proper image, select correct input source
through MENU OPERATION (see below).
INPUT 2
INPUT 3
MENU OPERATION
1
2
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to select Input and press SET
button. Another dialog box INPUT SELECT Menu will appear.
INPUT Menu icon
Press POINT DOWN button and a red-arrow icon will appear.
Move arrow to INPUT source that you want to select, and then
press SET button.
SELECTING COMPUTER SYSTEM
WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to Input
1 and then press SET button. Source Select Menu will appear.
3
Move a pointer to either Digital or Analog and then press SET
button.
INPUT MENU
INPUT Menu icon
Move a pointer (red arrow) to
Input 1 and press SET button.
Input 1
Source Select Menu
Digital
When your computer is connected to COMPUTER
INPUT (DIGITAL) terminal, select Digital.
Analog
When your computer is connected to COMPUTER INPUT
(ANALOG) terminal, select Analog.
Move a pointer to Digital or
Analog and press SET button.
WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )
When connect a computer output [5 BNC Type (Green, Blue, Red,
Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V
jacks.
INPUT MENU
INPUT Menu icon
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to Input
2 and then press SET button. Source Select Menu will appear.
3
Press POINT DOWN button and a red-arrow icon will appear.
Move arrow to "RGB", and then press SET button.
Move a pointer (red arrow) to
Input 2 and press SET button.
Input 2
Source Select Menu
22
Move a pointer to RGB and
press SET button.
COMPUTER INPUT
AUTOMATIC MULTI-SCAN SYSTEM
This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to
“COMPATIBLE COMPUTER SPECIFICATION” on page 26). When selecting Computer, this projector automatically tunes
to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)
Note : Projector may display one of the following messages.
Auto
––––
When projector cannot recognize connected signal as PC
system provided in this projector, Auto PC Adjustment
function operates to adjust projector and the message
“Auto” is displayed on SYSTEM Menu icon.
When image is not provided properly, manual adjustment
is required. (Refer to P24 and 25.)
PC SYSTEM MENU
PC SYSTEM Menu icon
Displays system being
selected.
There is no signal input from computer. Make sure the
connection of computer and a projector is set correctly.
(Refer to TROUBLESHOOTING on page 40.)
D-VGA, D-SVGA or D-XGA
When digital computer signal is received on DVI terminal,
above message is displayed on PC SYSTEM Menu icon.
PC SYSTEM MENU
SELECT COMPUTER SYSTEM MANUALLY
PC SYSTEM Menu icon
Displays system being selected.
This projector automatically selects PC system among those provided
in this projector and PC system can be also selected manually.
1
2
The systems on this dialog box
can be selected.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
SYSTEM Menu icon.
Custom Mode (1~5) set in PC
ADJUST Menu. (P24, 25)
Press POINT DOWN button to move a red arrow pointer to the
system that you want to set, and then press SET button.
PC ADJUSTMENT
AUTO PC ADJUSTMENT
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your
computer. Auto PC Adjustment function can be operated as follows.
Auto PC Adj.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to
AUTO PC Adj. icon and then press SET button twice.
This Auto PC Adjustment can be also executed by pressing
AUTO PC ADJ. button on Remote Control Unit.
PC ADJUST MENU
PC ADJUST Menu icon
Move a red frame pointer to AUTO PC Adj.
icon and press SET button.
Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in PC SYSTEM Menu (P23). Refer to
step 3 of MANUAL PC ADJUSTMENT section (P25).
NOTE
● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment
function. When the image is not provided properly through this function, manual adjustments are required. (Refer to page
24, 25.)
● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “RGB”, “720p (HDTV)”,
“1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.
23
COMPUTER INPUT
MANUAL PC ADJUSTMENT
This projector can automatically tune to the display signals from most personal computers currently distributed. However,
some computers employ special signal formats which are different from the standard ones and may not be tuned by MultiScan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized
as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.
This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special
signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This
enables you to recall the setting for a specific computer whenever you use it.
Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal and “RGB” is selected on PC
SYSTEM MENU (P23).
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SET button.
Adjustment dialog box will appear. Press POINT LEFT/RIGHT
button to adjust value.
Fine sync
PC ADJUST MENU
PC ADJUST Menu icon
Move a red frame icon to the item and
press SET button.
Adjusts an image as necessary to eliminate flicker from the display.
Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)
Total dots
The number of total dots in one horizontal period. Press POINT
LEFT/RIGHT button(s) and adjust number to match your PC image.
Selected Mode
Shows status
(Stored / Free) of the
selected Mode.
Horizontal
Adjusts horizontal picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Vertical
Adjusts vertical picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Press POINT LEFT/RIGHT
button to adjust the value.
Press SET button at this icon to adjust
“Clamp,” “Display area (H/V)” or set
“Full screen.”
Current mode
Press SET button to show the information of computer selected.
Clamp
Current mode
Adjusts clamp level. When the image has a dark bar(s), try this
adjustment.
Press SET button at Current
mode icon to show the
information of computer
connected.
24
COMPUTER INPUT
Display area
Selects area displayed with this projector. Select the resolution at
Display area dialog box.
Press SET button at Display
area icon and Display area
dialog box appears.
Display area H
Display area
Adjustment of horizontal area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SET button.
Display area V
Adjustment of vertical area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SET button.
Full screen
Press POINT LEFT
/RIGHT button(s) to
adjust value and then
press SET button.
Press POINT LEFT/RIGHT button(s) to switch Full screen function to
“On” or “Off.” Set “On” to resize the image with 4 x 3 aspect ratio to
fit the screen.
NOTE : Display area (H/V) and Full screen cannot be adjusted when
“1035i (HDTV)” or “1080i (HDTV)” is selected on PC
SYSTEM Menu (P23).
3
To store adjustment data.
This Mode has parameters being stored.
Store
To store adjustment parameters, move a red frame pointer to
Store icon and then press SET button. Move a red arrow pointer
to any of Mode 1 to 5 that you want to store to and then press
SET button.
Mode free
To clear adjustment parameters previously set, move a red
frame pointer to Mode free icon and then SET button. Move a
red arrow pointer to the Mode that you want to clear and then
press SET button.
Vacant Mode
Store icon
Shows values of “Total dots,”
“Horizontal,” “Vertical,” “Display
area H,” and “Display area V.”
Other icons operates as follows.
Reset
Reset all adjust parameters on adjustment dialog box to previous
figure.
To clear adjustment data.
Quit
Closes PC ADJUST MENU.
Mode free icon
Close this dialog box.
25
COMPUTER INPUT
COMPATIBLE COMPUTER SPECIFICATIONS
Basically this projector can accept the signal from all computers with V, H-Frequency below mentioned below
and less than 160 MHz of Dot Clock.
ON-SCREEN
DISPLAY
VGA 1
VGA 2
VGA 3
VGA 4
VGA 5
VGA 6
VGA 7
MAC LC13
MAC 13
RGB
RGB
SVGA 1
SVGA 2
SVGA 3
SVGA 4
SVGA 5
SVGA 6
SVGA 7
SVGA 8
SVGA 9
SVGA 10
SVGA 11
MAC 16
XGA 1
XGA 2
XGA 3
XGA 4
XGA 5
XGA 6
XGA 7
XGA 8
XGA 9
RESOLUTION
640 x 480
720 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
––––––––
(Interlace)
––––––––
(Interlace)
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
(Interlace)
H-Freq.
(kHz)
V-Freq.
(Hz)
ON-SCREEN
DISPLAY
31.47
31.47
31.47
37.86
37.86
37.50
43.269
34.97
35.00
15.734
15.625
35.156
37.88
46.875
53.674
48.08
37.90
34.50
38.00
38.60
32.70
38.00
49.72
48.36
68.677
60.023
56.47
60.31
48.50
44.00
63.48
36.00
59.88
70.09
70.09
74.38
72.81
75.00
85.00
66.60
66.67
30
25
56.25
60.32
75.00
85.06
72.19
61.03
55.38
60.51
60.31
51.09
60.51
74.55
60.00
84.997
75.03
70.07
74.92
60.02
54.58
79.35
43.59
XGA 10
XGA 11
XGA 12
XGA 13
XGA 14
XGA15
MAC 19
MAC 21
SXGA 1
SXGA 2
SXGA 3
SXGA 4
SXGA 5
SXGA 6
SXGA 7
SXGA 8
SXGA 9
SXGA 10
SXGA 11
SXGA 12
SXGA 13
SXGA 14
SXGA 15
SXGA 16
SXGA 17
SXGA 18
SXGA 19
MAC
MAC
RESOLUTION
1024 x 768
1024 x 768
1024 x 768
(Interlace)
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 870
1152 x 864
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 960
1152 x 900
1152 x 900
1280 x 1024
(Interlace)
1280 x 1024
(Interlace)
1280 x 1024
1280 x 1024
1152 x 900
1280 x 1024
(Interlace)
1280 x 1024
1280 x 960
1280 x 1024
1035i (HDTV)
––––––––
(Progressive)
––––––––
(Interlace)
1080i (HDTV)
––––––––
(Interlace)
720p (HDTV)
H-Freq.
(kHz)
V-Freq.
(Hz)
62.04
61.00
35.522
46.90
47.00
58.03
60.24
68.68
64.20
62.50
63.90
63.34
63.74
71.69
81.13
63.98
79.976
60.00
61.20
71.40
50.00
50.00
63.37
76.97
61.85
46.43
63.79
75.00
80.00
45.00
33.75
33.75
77.07
75.70
43.48
58.20
58.30
72.0
75.08
75.06
70.40
58.60
60.00
59.98
60.01
67.19
76.107
60.02
75.025
60.00
65.20
75.60
43.00
47.00
60.01
72.00
66.00
43.35
60.18
75.08
75.08
60.00
30.00
30.00
When a input signal is digital from DVI terminal, refer to chart below.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-VGA
D-SVGA
640 x 480
800 x 600
31.469
37.879
59.940
60.317
D-XGA
1024 x 768
48.363
60.004
NOTE : Specifications are subject to change without notice.
26
COMPUTER INPUT
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, High contrast and Custom by
pressing IMAGE button on Remote Control Unit.
IMAGE button
Standard
Standard
Normal picture adjustment preset on this projector.
High contrast
High contrast
Picture adjustment improved in reproduction of halftones. This
adjustment is suitable for providing better image in brighter place.
Custom
Custom
User preset picture adjustment in IMAGE ADJUST Menu (P28).
IMAGE LEVEL SELECT (MENU)
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SET button.
Standard
Normal picture adjustment preset on this projector.
High contrast
IMAGE SELECT MENU
IMAGE SELECT
Menu icon
Move a red frame pointer to the level
and press SET button.
The level being selected.
Picture adjustment improved in reproduction of halftones. This
adjustment is suitable for providing better image in brighter place.
Custom
User preset picture adjustment in IMAGE ADJUST Menu (P28).
27
COMPUTER INPUT
IMAGE LEVEL ADJUSTMENT
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
IMAGE ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust. and then press SET button. The
level of each item is displayed. Adjust each level by pressing
POINT LEFT/RIGHT button(s).
IMAGE ADJUST MENU
Move a red frame pointer to
the item to be selected and
then press SET button.
IMAGE ADJUST
Menu icon
Contrast
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Brightness
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Selected Image level
White balance (Red)
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Press POINT LEFT/RIGHT buttons
to adjust value.
White balance (Blue)
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Gamma
Store icon
Press SET button at this icon to
store the adjustment.
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
3
Store
To store manually preset image level, move a red frame pointer
to Store icon and press SET button. The message “OK?” will
appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing
IMAGE button or through IMAGE SELECT MENU (refer to P27).
Other icons operates as follows.
Reset
Reset all adjustment to previous figure.
Quit
Closes IMAGE MENU.
28
“OK?” message
Move a red arrow
pointer to [Yes] and
then press SET button.
COMPUTER INPUT
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
2
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SET button.
SCREEN MENU
SCREEN Menu icon
Move a red frame pointer to the
function and press SET button.
Normal
Provides image to fit screen size.
True
Provides image in its original size. When the original image size is
larger than screen size (1024 x 768), this projector enters “Digital
zoom +” mode automatically.
Wide
Provides image to fit wide video aspect ratio (16 : 9) by expanding
image width uniformly. This function can be used for providing a
squeezed video signal at 16 : 9.
Digital zoom +
When Digital zoom + is selected, ON-SCREEN MENU disappears
and the message “D. Zoom +” is displayed. Press SET button to
expand image size. And press POINT UP/DOWN/LEFT/RIGHT
button(s) to pan the image. Panning function can work only when
the image is larger than screen size.
A projected image can be also expanded by pressing D.ZOOM ▲
button on Remote Control Unit.
Digital Zoom –
NOTE
● This SCREEN Menu cannot be operated when
“1035i (HDTV)” or “1080i (HDTV)” is selected on
PC SYSTEM Menu (P23).
● Wide cannot be selected when “720p (HDTV)” is
selected on PC SYSTEM Menu (P23).
● True and Digital zoom +/– cannot be selected
when “RGB” is selected on PC SYSTEM Menu
(P23).
● This projector cannot display any resolution higher
than 1280 X 1024. If your computer’s screen
resolution is higher than 1280 X 1024, reset the
resolution to the lower before connecting projector.
● The image data in other than XGA (1024 x 768) is
modified to fit the screen size in initial mode.
● Panning function may not operate properly if the
computer system prepared on PC ADJUST Menu
is used.
When Digital zoom – is selected, ON-SCREEN MENU disappears
and the message “D. Zoom –” is displayed. Press SET button to
compress image size.
A projected image can be also compressed by pressing D.ZOOM ▼
button on Remote Control Unit.
To cancel Digital Zoom +/– mode, press any button except D.ZOOM
▲/▼, SET, POINT and LASER buttons.
29
VIDEO INPUT
SELECTING INPUT SOURCE
WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )
When connecting to those equipment, select a type of Video
source in SOURCE SELECT Menu.
1
2
INPUT MENU
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
Press POINT DOWN button to move a red arrow pointer to Input
2 and then press SET button. Source Select Menu will appear.
INPUT Menu icon
Move a pointer (red arrow) to
Input 2 and press SET button.
Input 2
Source Select Menu
3
Move a pointer to Video or
Y, Pb/Cb, Pr/Cr and press
SET button.
Move a pointer to source that you want to select and then press
SET button.
Video
When video input signal is connected to VIDEO jack,
select Video.
Y,Pb/Cb,Pr/Cr
When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
WHEN SELECT INPUT 3 (AV TERMINALS )
When connecting to those equipment, select a type of Video
source in SOURCE SELECT (VIDEO) Menu.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to Input
3 and then press SET button. Source Select Menu will appear.
3
Move a pointer to source that you want to select and then press
SET button.
Video
When video input signal is connected to VIDEO jack,
select Video.
Y,Pb/Cb,Pr/Cr
S-Video
30
When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
When video input signal is connected to S-VIDEO jack,
select S-Video.
INPUT MENU
INPUT Menu icon
Move a pointer (red arrow) to
Input 3 and press SET button.
Input 3
Source Select Menu (VIDEO)
Move a pointer to source
and press SET button.
VIDEO INPUT
SELECTING VIDEO SYSTEM
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to AV
SYSTEM Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to the
system that you want to select and then press SET button.
VIDEO (Y) JACK OR S-VIDEO JACK
Auto
Projector automatically detects incoming Video system, and adjusts
itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system manually.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
If projector cannot reproduce proper video image, it is necessary to
select a specific broadcast signal format among PAL, SECAM, NTSC,
NTSC 4.43, PAL-M, and PAL-N.
AV SYSTEM MENU (VIDEO OR S-VIDEO)
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press SET
button.
Y, Pb/Cb, Pr/Cr JACKS
Auto
Projector automatically detects incoming Video signal, and adjusts
itself to optimize its performance.
COMPONENT VIDEO SIGNAL FORMAT
If projector cannot reproduce proper video image, it is necessary to
select a specific component video signal format among 480i, 575i,
480p, 575p, 720p, 1035i and 1080i.
AV SYSTEM MENU (COMPONENT VIDEO)
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press SET
button.
31
VIDEO INPUT
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, Cinema, and Custom by pressing
IMAGE button on Remote Control Unit.
IMAGE button
Standard
Standard
Normal picture level preset on this projector.
Cinema
Cinema
Picture level adjusted for the picture with fine tone.
Custom
Custom
User preset picture adjustment in IMAGE ADJUST Menu (P33-34).
IMAGE LEVEL SELECT (MENU)
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SET button.
IMAGE SELECT MENU
IMAGE SELECT
Menu icon
Standard
Normal picture level preset on this projector.
Cinema
Picture level adjusted for the picture with fine tone.
Custom
User preset picture adjustment in IMAGE ADJUST Menu (P33-34).
32
Move the red frame pointer to the
level and press SET button.
The level being selected.
VIDEO INPUT
IMAGE LEVEL ADJUSTMENT
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
IMAGE ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SET button. The
level of each item is displayed. Adjust each level by pressing
POINT LEFT/RIGHT button(s).
IMAGE ADJUST MENU
Move a red frame pointer to
the item to be selected and
then press SET button.
IMAGE ADJUST
Menu icon
Contrast
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Brightness
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Color
Press POINT LEFT button to lighten color, and POINT RIGHT button
to deeper color. (From 0 to 63.)
Tint
Press POINT LEFT button or POINT RIGHT button to obtain proper
color. (From 0 to 63.)
Press POINT LEFT/RIGHT buttons
to adjust value.
Press SET button at this icon to display other items.
White balance (Red)
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press SET button at this icon to display previous items.
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Blue)
Press POINT LEFT/RIGHT buttons
to adjust value.
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Sharpness
Press POINT LEFT button to soften the image, and POINT RIGHT
button to sharpen the image. (From 0 to 31.)
Gamma
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
Noise reduction
Press POINT LEFT/RIGHT button(s) to change noise reduction
mode. Dialog box display is changed to “On to reduce noise (rough
parts) of image. Press POINT LEFT/RIGHT button(s) again, to
change noise reduction mode to off.
Progressive scan
Press POINT LEFT/RIGHT button(s) to change progressive scan
mode. Dialog box display is changed to “Off” and progressive scan
mode to off. Press POINT LEFT/RIGHT button(s) again, progressive
scan mode to on.
Press SET button at this icon to
store the value.
NOTE :
Tint cannot be adjusted when the video system is
PAL, SECAM, PAL-M or PAL-N.
Noise Reduction cannot be operated when the
video signal types and systems as follow.
● Composite video signal (SECAM, NTSC4.43,
PAL-M and PAL-N systems).
● S-video signal (SECAM, PAL-M and PAL-N
systems).
● Component video signal.
Progressive cannot be operated when “480p”,
“575p”, “720p”, “1035i” or “1080i” is selected on AV
SYSTEM MENU (P31).
33
VIDEO INPUT
3
Store
To store manually preset image level, move a red frame pointer
to Store icon and press SET button. The message “OK?” will
appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing
IMAGE button or through IMAGE SELECT MENU (refer to P32).
“OK?” message
Move a red arrow
pointer to [Yes] and
then press SET button.
Other icons operates as follows.
Reset
Reset all adjustment to previous figure.
Store icon
Quit
Closes IMAGE MENU.
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
2
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SET button.
Normal
SCREEN MENU
SCREEN Menu icon
Move the red frame to the function and
press SET button.
Provides image at a normal video aspect ratio of 4 : 3.
Wide
Provides image at a wide screen ratio of 16 : 9.
34
NOTE : SCREEN Menu cannot be operated when
“720p,” “1035i,” or “1080i” is selected on AV
SYSTEM Menu (P31).
SETTING
SETTING MENU
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red-frame pointer to
SETTING icon.
2
Press POINT DOWN button to move a red-frame pointer to the
item that you want to set and then press SET button. Setting
dialog box appears.
SETTING MENU
Set a red frame
pointer to the item
and press SET
button.
SETTING Menu icon
Language
Language used in ON-SCREEN MENU is selectable from among
English, German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Chinese, Korean and Japanese.
Keystone
When the image is distorted vertically, select Keystone. ONSCREEN MENU disappears and Keystone dialog box is displayed.
Correct keystone distortion by pressing POINT UP/DOWN button(s).
Refer to KEYSTONE ADJUSTMENT on page 20.
When pressing SET button
at Language, Language
Menu appears.
Blue back
When this function is “On,” this projector will produce a blue image
instead of the video noise on the screen when any input source is
unplugged or turned off.
Display
This function decides whether to display On-Screen Displays.
On ··· shows all the On-Screen Displays.
Off ···· sets On-Screen Displays disappeared except;
● ON-SCREEN MENU
● “Power off?” message
Logo
When this function is “On,” projector displays our logo when starting
up.
Ceiling
When this function is “On,” picture is top / bottom and left / right
reversed. This function is used to project the image from a ceiling
mounted projector.
Move a pointer to the item
and then press POINT
LEFT/RIGHT button(s).
Ceiling function
Rear
When this function is “On,” picture is left / right reversed. This
function is used to project the image to a rear projection screen.
Rear function
35
SETTING
Power management
This function turns Projection Lamp off when this projector detects
signal interruption and is not used for a certain period in order to
reduce power consumption and maintain the Lamp-life. (This
projector is shipped with this function ON.)
Power Management function operates to turn Projection Lamp off
when the input signal is interrupted and any button is not pressed
over 5 minutes. This function operates as follows;
1. When any input signal is interrupted, “No signal” and the
counting down display appears (for 5 minutes).
2. After counting down for 5 minutes, projector lamp and READY
indicator are turned off.
3. When READY indicator flashing, Projection Lamp can be
turned on again (Power Management mode).
In this Power Management mode, Projection Lamp is
automatically turned on when the input signal connected or
projector is operated with any button on Top Control or on
Remote Control Unit again.
Time left until Lamp off.
Press SET button at this icon to display other items.
On start
When this function is “On,” projector is automatically turned on just
by connecting AC Power cord to a wall outlet.
Note ; Be sure to turn projector off properly (refer to the section
“TURNING OFF THE PROJECTOR” on P19). If projector is
turned off in the wrong steps, On Start function does not
operate properly.
Press SET button at this icon to display previous items.
Move the pointer to the item and
then press POINT LEFT/RIGHT
button(s).
Remote control
This projector has two different remote control codes; the factory-set
normal code (Code 1) and the secondary code (Code 2). This
switching function prevents remote control operation mixture (jam)
when operating several projectors or video equipment together.
When operating projector in “Code 2,” both projector and Remote
Control Unit must be switched to “Code 2.”
To change the code of Projector;
Set Remote control in the SETTING MENU to “Code 2.”
To change the code of the Remote Control Unit;
Press both MENU and IMAGE buttons on Remote Control Unit
together for over 10 seconds.
After changing the code, make sure Remote Control operates
properly.
To return to the normal code (Code 1), operate both projector and
Remote Control in the ways above again.
NOTE : When batteries of Remote Control Unit are replaced or ALLOFF switch is turned to “ALL-OFF,” the remote transmit
code automatically returns to the normal code (Code 1).
Lamp counter reset
This function is used to reset Lamp Replace Counter. When
replacing Projection Lamp, reset Lamp Replace Counter by using
this function. Refer to page 39 for operation.
36
Move the pointer to Lamp counter reset and then press
SET button. The message “Lamp replace counter
reset?” is displayed.
SETTING/APPENDIX
USB
This Projector is equipped with USB port for interactive operation
between a projector and computer. Set mode following steps below.
Press SET button at this icon to display previous items.
Wireless Mouse mode
Select "
this projector.
" when controlling a computer with Remote Control of
Move pointer to item and then press
POINT LEFT/RIGHT button(s).
Projector mode
Select "
" when controlling a projector with computer.
NOTE: Before you control a projector by computer, install USB driver
(optionally sold parts) and set up computer following instruction in USB driver package. Contact your authorized dealer.
Quit
Closes SETTING MENU.
OPERATING WIRELESS MOUSE
Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most
Personal Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation.
This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ONSCREEN MENU or any message / dialog box is displayed on the screen instead of PC mouse pointer, this Wireless Mouse
function cannot be used.
INSTALLATION
To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not
supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse
port (or USB port) of a Personal Computer is activated.
1
Connect the mouse port (or USB port) of your computer to
Control Port (or USB connector) of this projector with Control
Cable (or USB cable). (Refer to page 11, 12 for connection.)
2
Turn the projector on first, and then turn on your computer.
When the computer is switched on first, Wireless Mouse may not
work properly.
Note : When your computer has no mouse
port, connect Serial Port of your
computer to Control Port of the
projector with Control Cable for Serial
Port (not supplied).
OPERATING WIRELESS MOUSE
When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, SET button, and RIGHT CLICK button on
Wireless Remote Control Unit.
POINT button
POINT button (Move the pointer)
Used to move PC mouse pointer. The pointer is moved
corresponding with the direction you are pressing.
SET (LEFT CLICK) button
This button has the same function as the left button in a PC mouse.
RIGHT CLICK button
This button has the same function as the right button in a PC mouse.
This button is not available for controlling this projector.
SET button
(left button of the
mouse)
RIGHT CLICK button
(right button of the mouse)
37
APPENDIX
MAINTENANCE
WARNING TEMP. INDICATOR
WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds the normal temperature. This
Indicator stops flashing when the temperature of a projector returns to normal.
When WARNING TEMP. Indicator continues to flash, check the items listed below.
1
2
3
Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots
are not obstructed.
Air Filter may be clogged with dust particles. Clean Air Filter by following the section AIR FILTER CARE AND
CLEANING below.
If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or the Internal Circuits may
be malfunctioning. Contact service personnel from an authorized dealer or a service station.
AIR FILTER CARE AND CLEANING
Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air
Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up
and adversely affect the life of the projector. Clean Air Filter following the steps below:
1
Turn off the projector, and disconnect AC power cord from the
AC outlet.
2
Turn the projector upside down and remove Air Filter (2 used) by
pulling the latches upward.
3
4
Clean Air Filter with a brush or wash out dust and particles.
Replace Air Filter properly. Make sure that Air Filter is fully
inserted.
CAUTION
Do not operate the projector with Air Filter removed. Dust
may accumulate on LCD Panel and Projection Mirror
degrading picture quality.
Do not put small parts into Air Intake Vents. It may result in
malfunction of the projector.
AIR FILTER
Pull up and remove.
RECOMMENDATION
We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments
may cause poor image quality.
When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements
inside the projector. This condition may degrade the quality of a projected image.
When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.
CLEANING PROJECTION LENS
Follow these steps to clean Projection Lens:
38
1
Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.
2
3
Lightly wipe a cleaning cloth over Projection Lens.
When the projector is not in use, replace Lens Cover.
APPENDIX
LAMP REPLACEMENT
When the life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a
projected image becomes dark or the color of an image becomes unnatural, replacement of Projection Lamp is required.
CAUTION
CAUTION
For continued safety, replace with a lamp
assembly of the same type.
Allow a projector to cool for at least 45
minutes before you open Lamp Cover. The
inside of a projector can become very hot.
Do not drop a lamp assembly or touch a glass
bulb! The glass can shatter and may cause
injury.
Follow these steps to replace the lamp assembly.
1
Turn off the projector and disconnect AC plug. Allow the
projector to cool for at least 45 minutes.
2
3
Remove 2 screws with a screwdriver and open the Lamp Cover.
4
Replace Lamp Assembly with a new one and tighten 2 screws
back. Make sure that Lamp Assembly is set properly. Replace
Lamp Cover and tighten 2 screws.
5
6
Connect AC Power Cord to the projector and turn it on.
Loosen 2 screws with a screwdriver and pull out Lamp Assembly
by grasping Handle.
LAMP COVER
LAMP
ASSEMBLY
HANDLE
Reset Lamp Replace Counter (refer to the section “Lamp
Replace Counter” below).
NOTE : Do not reset Lamp Replace Counter when Projection
Lamp is not replaced.
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering Projection Lamp, give the following
information to the dealer.
● Model No. of your projector : LV-7545
● Replacement Lamp Type No. : LV-LP13
(610 293 5868)
LAMP REPLACE COUNTER
Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP
REPLACE Indicator stops lighting.
1
Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to
move a red frame pointer to SETTING Menu icon (refer to page 35, 36).
2
Press POINT DOWN button to move a red frame pointer to “Lamp counter reset” and then press SET button. The
message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SET button.
3
Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.
Do not reset Lamp Replace Counter except after Projection Lamp is replaced.
39
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check the matters below once again.
1. Make sure you have connected a projector to your computer or video equipment as described in the section
"CONNECTING THE PROJECTOR" on pages 11 ~ 13.
2. Check cable connection. Verify that all computer, video and power cord are properly connected.
3. Verify that all power is switched on.
4. If a projector still does not produce an image, re-start your computer.
5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. The
problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to
turn the computer and monitor off before you power up the projector. Power the equipment back on in order of : Projector
and computer.)
6. If the problem still exists, check following chart.
Problem:
No power.
Try these Solutions
● Plug a projector into your AC outlet.
● Make sure READY Indicator lights.
● Wait 90 seconds after a projector is turned OFF when turning a projector back on.
NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as
follows:
1. LAMP indicator lights bright and READY indicator turns off.
2. After 90 seconds, READY indicator lights green again and a projector may be
turned on by pressing Power ON-OFF button.
● Check WARNING TEMP. indicator. If this indicator flashes red, a projector cannot be
turned on.
(See "TURNING ON/OFF PROJECTOR" section on page 19.)
● Check Projection Lamp. (Refer to page 39.)
40
Image is out of
focus.
● Adjust focus of a projector.
● Make sure a projection screen is at least 4.6’ (1.4m) from the projector.
● Check Projection Lens to see if it needs cleaning.
NOTE : Moving a projector from a cool temperature location to a warm temperature location
may result in moisture condensation on Projection Lens. In such an event, leave a
projector OFF and wait until condensation disappears.
Picture is Left/Right
reversed.
● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)
Picture is
Top/Bottom
reversed.
● Check Ceiling feature. (See “SETTING” section on page 35.)
Some displays are
not seen during the
Operation.
● Check Display feature.(See “SETTING” section on page 35.)
No image.
●
●
●
●
No sound.
●
●
●
●
Check connection between your computer or video equipment and a projector.
Check NO SHOW function. (Refer to P21.)
When turning a projector on, it takes about 30 seconds to display an image.
Check the system that you select is corresponding with your computer or video
equipment.
● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).
Check audio cable connection from audio input source.
Adjust the audio source.
Press VOLUME (+) button.
Press MUTE button.
APPENDIX
Problem:
Try these Solution
Remote Control Unit
does not work.
●
●
●
●
Wireless Mouse
function does not
work.
● Check cable connection between a projector and your computer.
● Check the mouse setting on your computer.
● Turn a projector on before turning on a computer.
Check the batteries.
Check ALL-OFF switch on Remote Control Unit is set to “ON.”.
Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.
Make sure you are not too far from a projector when using Remote Control Unit.
Maximum operating range is 16.4’ (5m).
● Make sure the code of Remote Control is set to conform to projector.
(See “SETTING” section on page 35, 36.)
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If the problem still persists after following all operating instructions, contact the sales dealer where you purchased the
projector or the service center. Give the model number and explain the difficulty. We will advise you how to obtain service.
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
The CE Mark is a Directive conformity mark of the European Community. (EC)
41
APPENDIX
TECHNICAL SPECIFICATIONS
Projector Type
Dimensions (W x H x D)
Net Weight
LCD Panel System
Panel Resolution
Number of Pixels
Color System
High Definition TV Signal
Scanning Frequency
Projection Image size (Diagonal)
Horizontal Resolution
Projection Lens
Throw Distance
Projection Lamp
Input 1 Jacks
Multi-media Projector
12.6" x 6.6” x 18.5" (319mm x 168mm x 470mm) (not including Adjustable Feet)
18.7 lbs (8.5 kg)
1.3" TFT Active Matrix type, 3 panels
1024 x 768 dots
2,359,296 (1024 x 768 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz
Adjustable from 31” to 400”
800 TV lines (HDTV)
F 1.7 ~ 2.0 lens with f 48.2 mm ~ 62.6 mm with motor zoom and focus
4.6’ ~ 48.3’ (1.4 m ~ 14.7 m)
200 W
DVI Terminal (Digital), HDB 15-pin Terminal (Analog)
and Stereo Mini Type Jack (Audio)
Input 2 Jacks
BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H and V), Stereo Mini
Type Jack (Audio)
Input 3 Jacks
RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L)
and DIN 4-pin (S-Video)
Control Port Connector
USB Connector
Other Jack
Built-in Speakers
Feet Adjustment
Voltage and
Power Consumption
Operating Temperature
Storage Temperature
Remote Control Transmitter
Mini DIN 8 pin x 1
Accessories
USB Series B receptacle x 1
Wired Remote Jack
INP. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)
0˚ to 10.5˚
AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe)
41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)
Power Source
Operating Range
Dimensions
Net Weight
Laser Pointer
:
:
:
:
:
AA, UM3 or R06 Type x 2
16.4’ (5m) / ±30˚
2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)
0.36 lbs (165 g) (including batteries)
Class II Laser (Max. Output : 1mW / Wave length : 650±20nm)
Owner’s Manual
AC Power Cord
Wireless/Wired Remote Control Transmitter and Batteries
Wired remote cable
VGA Cable
MAC/VGA Adapter
3 Types Control Cable (For PS/2, Serial and ADB port)
Protective Dust Cover
Lens Cover
● The specifications are subject to change without notice.
OPTIONAL PARTS
The part listed below is optionally supplied. When ordering this part, give name and Type No. of it to the sales dealer.
● DVI Cable
● Ultra Wide Angle Lens
42
Type No. : LV-CA29
Type No. : LV-IL01
● Wide Angle Zoom Lens
● Long Focus Zoom Lens
Type No. : LV-IL02
Type No. : LV-IL03
APPENDIX
CONFIGURATIONS OF THE TERMINALS
RGB INPUT TERMINAL (ANALOG)
Terminal : HDB15-PIN
Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the
Macintosh computer, MAC Adapter (not supplied) is required.
Pin Configuration
4
5
10
15
14
2
3
9
8
13
1
7
12
6
11
1
2
3
4
5
6
7
8
Red Input
Green Input
Blue Input
Sense 2
Ground (Horiz.sync.)
Ground (Red)
Ground (Green)
Ground (Blue)
9
10
11
12
13
14
15
+5V Power
Ground (Vert.sync.)
Sense 0
DDC Data
Horiz. sync.
Vert. sync.
DDC Clock
RGB INPUT TERMINAL (DIGITAL)
Terminal : DVI 24-pin
Connect the display output terminal of the computer to this terminal with DVI cable (for Single Link T.M.D.S. / not supplied).
Pin Configuration
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
1
2
3
4
5
6
7
8
T.M.D.S. Data2–
T.M.D.S. Data2+
T.M.D.S. Data2 Shield
No Connect
No Connect
DDC Clock
DDC Data
No Connect
9
10
11
12
13
14
15
16
T.M.D.S. Data1–
T.M.D.S. Data1+
T.M.D.S. Data1 Shield
No Connect
No Connect
+5V Power
Ground (for +5V)
Hot Plug Detect
17
18
19
20
21
22
23
24
T.M.D.S. Data0–
T.M.D.S. Data0+
T.M.D.S. Data0 Shield
No Connect
No Connect
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
CONTROL PORT CONNECTOR
Terminal : Mini DIN 8-PIN
Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable.
(Control Cable for PS/2 port is supplied, and Control Cables for Serial port and ADB port are not supplied.)
Pin Configuration
8
5
7 6
4 3
2 1
1
2
3
4
5
6
7
8
PS/2
----CLK
DATA
GND
--------GND
-----
Serial
RXD
--------GND
RTS / CTS
TXD
GND
GND
ADB
----ADB
----GND
------------GND
USB CONNECTOR (Series B)
Connect USB port terminal on your computer or peripheral equipment to this connector with USB Cable (not supplied).
Pin Configuration
2
1
3
4
1
2
3
4
Vcc
- Data
+ Data
Ground
43
