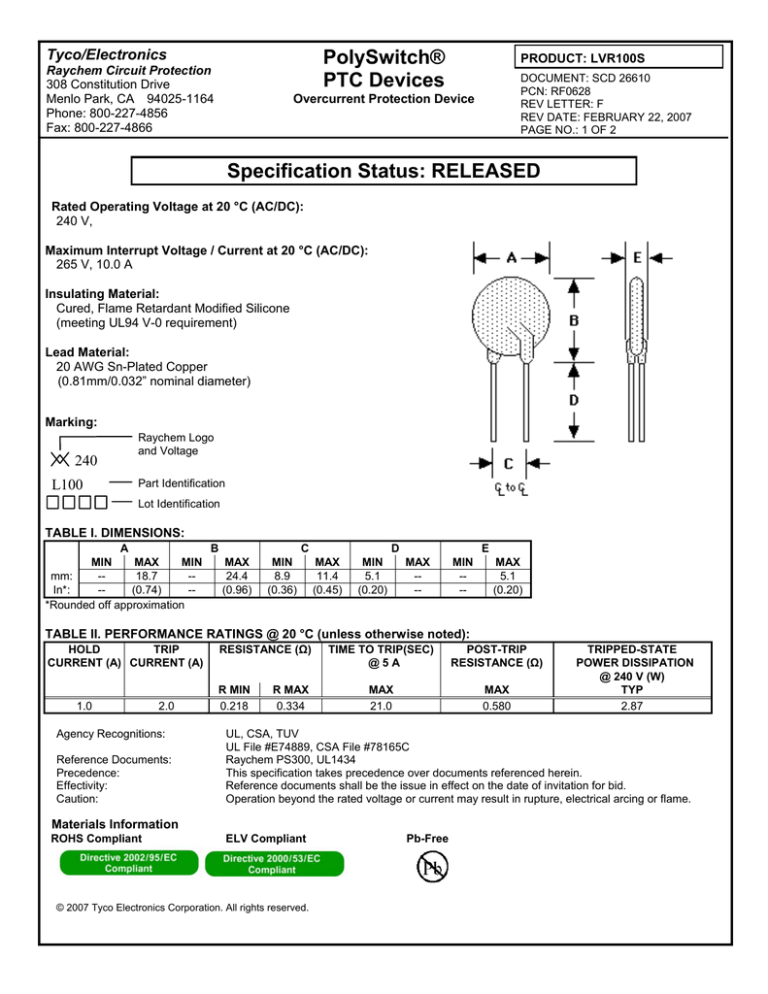

PolySwitch® PTC Devices Specification Status: RELEASED Tyco/Electronics

PolySwitch® PTC Devices Specification Status: RELEASED Tyco/Electronics
PolySwitch®
PTC Devices
Tyco/Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866
PRODUCT: LVR100S
DOCUMENT: SCD 26610
PCN: RF0628
REV LETTER: F
REV DATE: FEBRUARY 22, 2007
PAGE NO.: 1 OF 2
Overcurrent Protection Device
Specification Status: RELEASED
Rated Operating Voltage at 20 °C (AC/DC):
240 V,
Maximum Interrupt Voltage / Current at 20 °C (AC/DC):
265 V, 10.0 A
Insulating Material:
Cured, Flame Retardant Modified Silicone
(meeting UL94 V-0 requirement)
Lead Material:
20 AWG Sn-Plated Copper
(0.81mm/0.032” nominal diameter)
Marking:
240
L100
Raychem Logo
and Voltage
Part Identification
Lot Identification
TABLE I. DIMENSIONS:
A
B
MIN
MAX
MIN
MAX
mm:
-18.7
-24.4
In*:
-(0.74)
-(0.96)
*Rounded off approximation
C
MIN
8.9
(0.36)
D
MAX
11.4
(0.45)
MIN
5.1
(0.20)
E
MAX
---
MIN
---
MAX
5.1
(0.20)
TABLE II. PERFORMANCE RATINGS @ 20 °C (unless otherwise noted):
HOLD
TRIP
CURRENT (A) CURRENT (A)
1.0
2.0
Agency Recognitions:
Reference Documents:
Precedence:
Effectivity:
Caution:
RESISTANCE (Ω)
R MIN
0.218
R MAX
0.334
TIME TO TRIP(SEC)
@5A
POST-TRIP
RESISTANCE (Ω)
MAX
21.0
MAX
0.580
UL, CSA, TUV
UL File #E74889, CSA File #78165C
Raychem PS300, UL1434
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
Materials Information
ROHS Compliant
TRIPPED-STATE
POWER DISSIPATION
@ 240 V (W)
TYP
2.87
ELV Compliant
© 2007 Tyco Electronics Corporation. All rights reserved.
Pb-Free
Tyco/Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866
PolySwitch®
PTC Devices
Overcurrent Protection Device
PRODUCT: LVR100S
DOCUMENT: SCD 26610
PCN: RF0628
REV LETTER: F
REV DATE: FEBRUARY 22, 2007
PAGE NO.: 2 OF 2
Warning: Application Limitations for the LVR Product Line
1. Users should independently evaluate the suitability of and test each product selected for their
own application.
2. This product should not be used in an application where the maximum interrupt voltage or
maximum interrupt current can be exceeded in a fault condition. Operation beyond the
maximum ratings or improper use may result in device damage and possible electrical arcing
and flame.
3. A PTC device is not a fuse - it is a nonlinear thermistor that limits current. Because under a
fault condition all PTC devices go into a high resistance state but not open circuit, hazardous
voltage may be present at PTC locations.
4. The devices are intended for protection against occasional overcurrent or overtemperature
fault conditions and should not be used when repeated fault conditions or prolonged trip events
are anticipated.
5. In most applications, power must be removed and the fault condition cleared in order to reset a
PTC device. However, under certain unusual conditions, a PTC device may automatically
reset (see Raychem Circuit Protection Databook). Accordingly, PTC devices should not be
used in an application where an automatic reset could create a safety hazard, such as garbage
disposals and blenders.
6. It is the responsibility of the user to determine the need for back up or fail safe protection to
prevent damage that may occur in the event of abnormal function or failure of the PTC device.
7. Operation in circuits with a large inductance can generate a circuit voltage (Ldi/dt) above the
rated voltage of a PTC device.
8. Devices are not recommended for reflow soldering.
9. Device performance can be impacted negatively if devices are handled in a manner
inconsistent with recommended electronic, thermal, or mechanical procedures for electronic
components.
10. PTC devices are not recommended to be installed in applications where the device is
constrained such that its PTC properties are inhibited, for example in rigid potting materials or
in rigid housings, which lack adequate clearance to accommodate device expansion.
11. Contamination of the PTC material with certain silicone-based oils or some aggressive
solvents can adversely impact the performance of the devices.
