AlphaServer 8200 Installation Guide Order Number EK–T8230–IN. A01

AlphaServer 8200 Installation Guide Order Number  EK–T8230–IN. A01

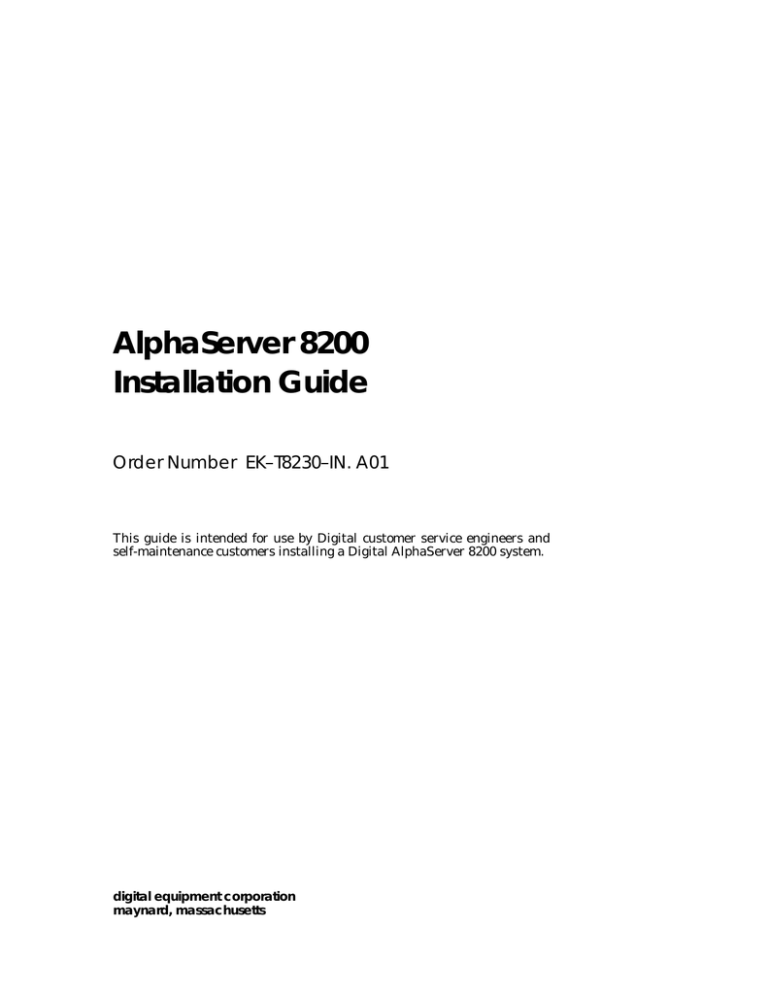

AlphaServer 8200

Installation Guide

Order Number EK–T8230–IN. A01

This guide is intended for use by Digital customer service engineers and self-maintenance customers installing a Digital AlphaServer 8200 system.

digital equipment corporation maynard, massachusetts

First Printing, May 1995

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation.

Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.

The software, if any, described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. No responsibility is assumed for the use or reliability of software or equipment that is not supplied by Digital Equipment Corporation or its affiliated companies.

Copyright © 1995 by Digital Equipment Corporation.

All Rights Reserved.

Printed in U.S.A.

The following are trademarks of Digital Equipment Corporation: AlphaGeneration, AlphaServer, DEC, DECchip, DEC LANcontroller, OpenVMS, StorageWorks,

VAX, the AlphaGeneration logo, and the DIGITAL logo.

OSF/1 is a registered trademark of the Open Software Foundation, Inc. Prestoserve is a trademark of Legato Systems, Inc. UNIX is a registered trademark in the U.S. and other countries, licensed exclusively through X/Open Company Ltd.

FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio frequency energy. The equipment has been type tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of

Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio frequency interference when operated in a commercial environment.

Operation of this equipment in a residential area may cause interference, in which case the user at his own expense may be required to take measures to correct the interference.

Contents

Preface

.................................................................................................... vii

Chapter 1 Installation Overview

1.1 Installation Flowchart ........................................................... 1-2

Chapter 2 Installing the System Cabinet

2.1

2.2

2.3

2.4

2.5

2.6

Inspect the Shipment ............................................................. 2-2

Collect Tools and Resources .................................................. 2-4

Remove Carton and Packing Material .................................. 2-6

Remove from the Pallet ......................................................... 2-8

Level the Cabinet ................................................................. 2-10

Install Stabilizing Brackets ................................................. 2-12

Chapter 3 Installing an Expander Cabinet

3.1

3.2

3.3

3.4

3.5

3.6

Unpack the Cabinet ............................................................... 3-2

Position the Cabinet ............................................................... 3-4

Level All Cabinets .................................................................. 3-6

Install the Securing Brackets ................................................ 3-8

Connect the Power Control Cable ....................................... 3-10

Connect the I/O Cable .......................................................... 3-12

Chapter 4 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

4.1

4.2

4.3

Connect the Console Terminal .............................................. 4-2

Connect the Console Load Device ......................................... 4-4

Connect SCSI Cables ............................................................. 4-6

iii

4.4

4.5

4.6

Connect Ethernet Cables ....................................................... 4-8

Connect FDDI Cables (Optional) ........................................ 4-10

Connect DSSI Cables (Optional) ......................................... 4-12

Chapter 5 Powering Up the System

5.1

5.2

5.3

Prepare to Check the AC Power ............................................ 5-2

Measure the AC Power .......................................................... 5-4

Turn the Power On and Check Indicators ........................... 5-6

Chapter 6 System Self-Test

6.1

6.2

Check Module Status LEDs .................................................. 6-2

Check the Self-Test Display .................................................. 6-4

Chapter 7 Diagnostics and Utilities

7.7

7.8

7.9

7.10

7.11

7.12

7.13

7.14

7.1

7.2

7.3

7.4

7.5

7.6

7.6.1

7.6.2

Console Load Device .............................................................. 7-2

Verification Overview ............................................................ 7-4

Diagnostics Overview ............................................................ 7-6

Run System Self-Test ............................................................ 7-8

Show Commands for Installation ........................................ 7-10

Verify SCSI Devices ............................................................. 7-12

Check SCSI Devices Using Console Commands .......... 7-12

Check Console Output Against Physical Devices ........ 7-14

If Necessary, Run the RAID Configuration Utility ............ 7-16

If Necessary, Run the EISA Configuration Utility ............ 7-18

Booting Factory Installed Software .................................... 7-20

Booting OpenVMS from a CD-ROM ................................... 7-22

Booting Digital UNIX from a CD-ROM .............................. 7-24

Set Commands for Booting ................................................. 7-26

Booting LFU from a CD-ROM ............................................. 7-28

Running the System Exerciser VET ................................... 7-30

Examples

6-1

7-1

7-2

7-3

Self-Test Results ................................................................... 6-4

Self-Test Display ................................................................... 7-8

Show Configuration ............................................................ 7-10

Show Device ......................................................................... 7-11 iv

7-4

7-5

7-6

7-7

7-8

7-9

7-10

7-11

7-12

Checking SCSI Devices ....................................................... 7-12

Running RCU ...................................................................... 7-16

Running ECU ...................................................................... 7-18

Booting the Operating System ........................................... 7-20

CD-ROM OpenVMS Boot .................................................... 7-22

CD-ROM UNIX Boot .......................................................... 7-24

Set Boot Commands ............................................................. 7-26

AlphaServer 8200 LFU Booting .......................................... 7-28

Sample DEC VET User Session for Command Mode ........ 7-30

Figures

4-11

5-1

5-2

5-3

5-4

6-1

7-1

4-3

4-4

4-5

4-6

4-7

4-8

4-9

4-10

3-3

3-4

3-5

3-6

3-7

3-8

4-1

4-2

1-1

2-1

2-2

2-3

2-4

2-5

3-1

3-2

Installation Flowchart ........................................................... 1-2

Inspection Flowchart ............................................................. 2-2

Packing Material .................................................................... 2-6

Preparation and Removal from Pallet .................................. 2-8

Leveler Foot Adjustment ..................................................... 2-10

Stabilizing Bracket Installation .......................................... 2-12

Expander Cabinet ................................................................. 3-2

Expander Cabinet Positioning .............................................. 3-4

System Layout ........................................................................ 3-5

Leveler Foot Adjustment ....................................................... 3-6

Installing Securing Brackets ................................................. 3-8

Power Control Cable Installation ........................................ 3-10

Control Panel and Jack Splitter .......................................... 3-11

I/O Cable Connections ......................................................... 3-12

System Cabinet, Console Terminal, and Printer ................. 4-2

Control Panel and Console Terminal Port ............................ 4-3

KFTIA as the Console Load Device Support ........................ 4-4

KZPAA as the Console Load Device Support ....................... 4-5

System and Expander Cabinets ............................................ 4-6

Ethernet Connectors on KFTIA ........................................... 4-8

Ethernet Connectors on PCI Adapters ................................. 4-9

FDDI Connectors on KFTIA ................................................ 4-10

FDDI Connectors on PCI Adapter ...................................... 4-11

DSSI Connector on KFESB ................................................. 4-12

StorageWorks Shelf with DSSI Controller ......................... 4-13

Circuit Breaker for the AC Power ......................................... 5-2

Measuring System Power ...................................................... 5-4

Control Panel LEDs ............................................................... 5-6

Power Regulator ..................................................................... 5-7

Powering Up and Checking the LEDs .................................. 6-2

Accessing the Console Load Device ....................................... 7-2 v

7-2

7-3

7-4

Verification Procedure ........................................................... 7-4

Diagnostic Overview .............................................................. 7-6

SCSI Disks in StorageWorks Shelves ............................... 7-14

Tables

1

2

2-1

2-2

3-1

4-1

4-2

5-1

6-1

7-1

7-2

AlphaServer 8200 and 8400 Documentation ........................ viii

Related Documents ................................................................... x

Tools and Resources ............................................................... 2-4

Shipping Dimensions and Weights ....................................... 2-7

Cabinet Dimensions and Weights ......................................... 3-5

SCSI Cables to Devices in Other Cabinets ........................... 4-7

FDDI Options and Cables .................................................... 4-11

AC Input Voltage Specifications ........................................... 5-5

LEDs After Self-Test .............................................................. 6-3

Diagnostics ............................................................................. 7-7

DEC VET Exercisers ............................................................ 7-31 vi

Preface

Intended Audience

This manual is written for Digital customer service engineers and selfmaintenance customers who require information to install an AlphaServer

8200 system.

Document Structure

This manual uses a structured documentation design. Topics are organized into small sections for efficient reference. Each topic begins with an abstract. You can quickly gain a comprehensive overview by reading only the abstracts. Next is an illustration or example, which also provides quick reference. Last in the structure are descriptive text and syntax definitions.

This manual has seven chapters as follows:

Chapter 1, Installation Overview, provides a flowchart which summarizes the installation process.

Chapter 2, Installing the System Cabinet, shows how to unpack and install the system cabinet.

Chapter 3, Installing an Expander Cabinet, explains how to install one or more expander cabinets, if present.

Chapter 4, Making Console, SCSI, Ethernet, FDDI, and DSSI

Connections, shows how to connect the console, SCSI, Ethernet, and

FDDI devices if present to the system.

Chapter 5, Powering Up the System, explains how to start the system by applying main power.

Chapter 6, System Self-Test, describes the system self-test and its results.

Chapter 7, Diagnostics and Utilities, describes how to verify system operation using diagnostics and utilities.

vii

Conventions Used in This Document

Icons. The icons shown below are used in illustrations for designating part placement in the system described. A shaded area in the icon shows the location of the component or part being discussed.

Main Cabinet

Front

Rear

Expander Cabinet

Front Rear

Documentation Titles

Table 1 lists the books in the AlphaServer 8200 and 8400 documentation set. Table 2 lists other documents that you may find useful.

Table 1 AlphaServer 8200 and 8400 Documentation

Title

Hardware User Information and Installation

Operations Manual

Site Preparation Guide

AlphaServer 8200 Installation Guide

AlphaServer 8400 Installation Guide

Service Information Kit

Service Manual (hard copy)

Service Manual (diskette)

Order Number

EK–T8030–OP

EK–T8030–SP

EK–T8230–IN

EK–T8430–IN

QZ–00RAC–GC

EK–T8030–SV

AK–QKNFA–CA viii

Table 1 AlphaServer 8200 and 8400 Documentation (Continued)

Title Order Number

Reference Manuals

System Technical Manual

DWLPA PCI Adapter Technical Manual

EK–T8030–TM

EK–DWLPA–TM

Upgrade Manuals for Both Systems

KN7CC CPU Module Installation Card

MS7CC Memory Installation Card

KFTHA System I/O Module Installation Guide

KFTIA Integrated I/O Module Installation Guide

EK–KN7CC–IN

EK–MS7CC–IN

EK–KFTHA–IN

EK–KFTIA–IN

Upgrade Manuals: 8400 System Only

AlphaServer 8400 Upgrade Manual

BA654 DSSI Disk PIU Installation Guide

EK–T8430–UI

EK–BA654–IN

BA655 SCSI Disk and Tape PIU Installation Guide

EK–BA655–IN

DWLAA Futurebus+ PIU Installation Guide

EK–DWLAA–IN

DWLMA XMI PIU Installation Guide

DWLPA PCI PIU Installation Guide

H7237 Battery PIU Installation Guide

EK–DWLMA–IN

EK–DWL84–IN

EK–H7237–IN

H7263 Power Regulator Installation Card

EK–H7263–IN

H9F00 Power Upgrade Manual

KFMSB Adapter Installation Guide

EK–H8463–UI

EK–KFMSB–IN

KZMSA Adapter Installation Guide

EK–KXMSX–IN

EK–RRDRX–IN

RRDCD Installation Guide

Upgrade Manuals: 8200 System Only

DWLPA PCI Shelf Installation Guide

H7266 Power Regulator Installation Card

H7267 Battery Backup Installation Card

EK–DWL82–IN

EK–H7266–IN

EK–H7267–IN ix

Table 2 Related Documents

Title Order Number

General Site Preparation

Site Environmental Preparation Guide

System I/O Options

BA350 Modular Storage Shelf Subsystem

Configuration Guide

BA350 Modular Storage Shelf Subsystem

User’s Guide

BA350-LA Modular Storage Shelf User’s Guide

EK–CSEPG–MA

EK–BA350–CG

EK–BA350–UG

CIXCD Interface User Guide

EK–350LA–UG

EK–CIXCD–UG

DEC FDDIcontroller 400 Installation/Problem Solving

EK–DEMFA–IP

DEC FDDIcontroller/Futurebus+ Installation Guide

EK–DEFAA–IN

DEC FDDIcontroller/PCI User Information

EK–DEFPA–IN

DEC LANcontroller 400 Installation Guide

EK–DEMNA–IN

DSSI VAXcluster Installation/Troubleshooting Manual

EK–410AA–MG

EtherWORKS Turbo PCI User Information

EK–DE435–OM

KZPSA PCI to SCSI User’s Guide

RF Series Integrated Storage Element User Guide

EK–KZPSA–UG

EK–RF72D–UG

EK–SWRA2–IG

StorageWorks RAID Array 200 Subsystem Family

Installation and Configuration Guide

StorageWorks RAID Array 200 Subsystem Family

Software User’s Guide for OpenVMS AXP

StorageWorks RAID Array 200 Subsystem Family

Software User’s Guide for DEC OSF/1

AA–Q6WVA–TE

AA–Q6TGA–TE

Operating System Manuals

Alpha Architecture Reference Manual

DEC OSF/1 Guide to System Administration

Guide to Installing DEC OSF/1

OpenVMS Alpha Version 6.2 Upgrade and

Installation Manual

EY–L520E–DP

AA–PJU7A–TE

AA–PS2DE–TE

AA–PV6XC–TE x

Chapter 1

Installation Overview

This chapter provides a quick overview of the installation procedure and relates the steps of the procedure with chapters in this manual. It consists of one section:

Installation Flowchart

Installation Overview 1-1

1.1 Installation Flowchart

In general, a system is installed as shown in Figure 1-1.

Figure 1-1 Installation Flowchart

Install System Cabinet

Chapter 2

Multiple

Cabinets

Yes

Chapter 3

No

Connect Console,

SCSI, Ethernet, and FDDI cables

Power Up System

Chapter 4

System Self-Test

Chapter 5

Chapter 6

Verification

(Diagnostics and

Utilities)

Chapter 7

BXB-0306E-95

1-2 Installation Overview

In general, the procedure is as follows (Figure 1-1):

1.

Install the system cabinet as described in Chapter 2.

2.

If the system has one or more expander cabinets, refer to Chapter 3 for installation instructions.

3.

Connect the console, and, if appropriate, make the Ethernet, FDDI, and SCSI connections as described in Chapter 4.

4.

Power up the system as described in Chapter 5.

5.

Observe and consider the results of the system self-test as described in

Chapter 6.

6.

Verify system operation by running various diagnostics and utilities as described in Chapter 7.

Installation Overview 1-3

Chapter 2

Installing the System Cabinet

This chapter describes how to install the AlphaServer 8200 system cabinet. The cabinet contains the CPU, memory, at least one PCI I/O subsystem, disks, and power.

If your system has an expander cabinet, unpack it and remove it from the pallet as described in the first four sections of this chapter.

Sections in this chapter include:

Inspect the Shipment

Collect Tools and Resources

Remove Carton and Packing Material

Remove from the Pallet

Level the Cabinet

Install Stabilizing Brackets

Installing the System Cabinet 2-1

2.1 Inspect the Shipment

Check that all system equipment is at the installation site.

Figure 2-1 Inspection Flowchart

Check Equipment

Against Shipping List

Incomplete or

Damaged

Shipment

No

Yes

Customer

Contacts Carrier

Missing or

Incorrect

Equipment

Yes

Enter in LARS Report

Notify Customer

Contact

Unit Manager

Continue Unpacking

BXB-0012-92

2-2 Installing the System Cabinet

NOTE: Physically inspect the system to be sure parts have not become loose during shipment.

If you find a damaged container or package, notify the customer. Wait until the customer contacts the insurance company and gives you permission to continue unpacking.

Compare items listed on the Product Delivery Document (in a slip envelope on the shipping box) with the packing slip contained in a plastic envelope on the shipping box. Items should be compared throughout the installation procedure as boxes are unpacked and cabinets are opened.

It is important to record information on damaged or opened containers on the Labor Activity Reporting System (LARS) form.

Installing the System Cabinet 2-3

2.2 Collect Tools and Resources

You will need the items listed in Table 2-1 to unpack and install the system cabinet. The removal of the cabinet from the pallet requires at least two people.

Table 2-1 Tools and Resources

Item Use

To verify that all hardware has been delivered

Product Delivery

Document and packing slip

Utility knife

To remove straps from cabinet shipping boxes

Adjustable wrench

Level

To remove pallet brackets and to adjust leveler feet

To verify that the cabinet is properly leveled

Socket wrench set To remove and install bolts

Digital voltmeter

To check AC and DC voltages

Table or bench Work space for unpacking and installation

Flathead screwdriver

For installation of I/O port module cable(s)

2-4 Installing the System Cabinet

Review requirements such as power, environmental, and space requirements for the system.

NOTE: Since the cabinet is heavy and has a high center of gravity, remov-

ing it from the pallet requires at least two people.

For more information:

Site Preparation Guide

Installing the System Cabinet 2-5

2.3 Remove Carton and Packing Material

Take off the carton and remove all packing material to prepare the system cabinet for removal from the pallet.

Figure 2-2 Packing Material

6

5

7

2-6 Installing the System Cabinet

BXB-0096A-92

Use the following procedure to unpack the system cabinet:

1.

Position the carton so that the front faces an open space with enough clearance to allow the cabinet to be rolled down ramps.

2.

Using a utility knife, cut the shipping straps from the carton.

3.

Remove the outside top cardboard cover.

4.

Remove the outside shipping box. This is typically done by using a

7/16" socket wrench to remove two bolts that hold the box together.

5.

Remove the inside top cardboard cover.

6.

Remove the protective plastic wrapping by slipping it up and over the cabinet.

7.

Locate the box that contains the ramp kit and open it (see Figure 2-2).

NOTE: It’s a good idea to save all packing materials intact in case the system needs to be shipped in the future.

Table 2-2 Shipping Dimensions and Weights

Cabinet

System

Height cm (in)

Width cm (in)

Depth cm (in)

Weight kg (lbs)

1

195 (76.8) 91.4 (36.0) 122 (47.9) 309–626

(680–1380)

2

Expander 195 (76.8) 91.4 (36.0) 122 (47.9) 309–626

(680–1380)

2

1 Weights are based on a fully configured cabinet.

2

For systems with battery backup add 29 kg (64 lbs) per power supply.

Installing the System Cabinet 2-7

2.4 Remove from the Pallet

Check the cabinet for external damage. Remove the four shipping brackets that attach the cabinet to the pallet. Insert the ramps on the front of the pallet and remove the cabinet.

WARNING: At least two people are required to remove the cabinet from the pallet.

Figure 2-3 Preparation and Removal from Pallet

2

3

1

BXB-0097A-95

2-8 Installing the System Cabinet

WARNING: Serious injury may result if the cabinet is improperly handled or proper safety conditions are not met. Check the cabinet sides, top, front door, and rear panel for damage. If the cabinet is damaged, do the following:

a. Enter the location and extent of the damage on the LARS report.

b. Notify the customer and your unit manager.

c. Stop unpacking until the customer gives you permission to continue.

1.

Using an adjustable wrench, remove the four bolts and shipping brackets that hold the cabinet leveler feet to the pallet (Figure 2-3).

2.

The leveler feet are lowered to the pallet surface for shipment. Using the adjustable wrench, raise the feet to the upmost position before removing the system from the pallet (see Section 2.5).

3.

Attach the ramps by fitting the prongs into the holes on the front of the pallet. Place the ramps so that the runners are on the inside. Align the arrows on the ramps and pallet (see Figure 2-3).

4.

With two people working together (one in front and one in back), slowly roll the cabinet off the pallet down the ramps. Move the cabinet into position. This should be done on a firm level floor. To avoid static electricity which can cause system problems, do not place the system on a carpet.

NOTE: Make sure the space under the cabinet is clear of any debris or extraneous materials.

Installing the System Cabinet 2-9

2.5 Level the Cabinet

Inspect the rubber leveler feet to be sure they have not been damaged during shipping. To level the cabinet, adjust the feet and check the cabinet with a bubble level.

Figure 2-4 Leveler Foot Adjustment

Locknut

Leveler Hexnut

Leveler Foot bx0449-94

2-10 Installing the System Cabinet

1.

Using an adjustable wrench, lower and adjust the leveler feet at each corner of the system. (A shipping bracket can also be used to lower the leveler feet. The bracket cutout and leveler feet hexnuts are the same size.)

2.

Using a bubble level, check to see that the cabinet is properly leveled

(side to side and front to back).

3.

Once the cabinet is level, lock each of the feet into place by tightening the locknut at the top of each leveler foot.

Installing the System Cabinet 2-11

2.6 Install Stabilizing Brackets

The AlphaServer 8200 is tall and narrow. Two stabilizing brackets need to be installed to stabilize the cabinet.

Figure 2-5 Stabilizing Bracket Installation

Leveler Foot

Stabilizing Bracket

Leveler Foot Cutout

BX0449A-94

2-12 Installing the System Cabinet

The two stabilizing brackets must be bolted to the cabinet frame at the front and the back of the machine.

1.

Get the stabilizing brackets from the accessories box. (PN 74-49866)

2.

Open the front door and install one bracket at the front of the system using two of the 6mm screws that come with the brackets. See Figure

2-5.

3.

Move to the back of the system and install the other bracket as you did in step 2. You do not have to remove the back panel for this procedure.

Installing the System Cabinet 2-13

Chapter 3

Installing an Expander Cabinet

This chapter explains how to install one or more expander cabinets for the system. An expander cabinet provides room for I/O adapters and additional storage for the system. The system can have a maximum of two expander cabinets.

The expander cabinet is designed for PCI I/O shelves and BA350

StorageWorks shelves. At the bottom of the cabinet there is room for two power supplies (one is optional) and a CCL panel. Above this area there are eight shelf slots for PCI I/O shelves and BA350 StorageWorks shelves.

The maximum number of PCI I/O shelves in an expander cabinet is four.

The maximum number of PCI I/O shelves for an entire system is eleven.

Sections in this chapter include:

Unpack the Cabinet

Position the Cabinet

Level All Cabinets

Install the Securing Brackets

Connect the Power Control Cable

Connect the I/O Cable

Installing an Expander Cabinet 3-1

3.1 Unpack the Cabinet

Unpack the expander cabinet in the same way you unpacked the system cabinet in Chapter 2.

Figure 3-1 Expander Cabinet

Front

Rear

Expander

PowerComm3

PowerComm2

PowerComm1

Console

External

External

External

StorageWorks

Shelves or

PCI

Shelves

CCL Panel

Power Regulator

BX-0610A-94

3-2 Installing an Expander Cabinet

1.

Inspect the shipment for the expander cabinet as done for the system cabinet (see Section 2.1).

2.

Collect the tools and resources needed to install the expander cabinet

(see Section 2.2).

3.

Remove the carton and packing material from the expander cabinet

(see Section 2.3). Identify and put aside the components of the installation kit.

4.

Use two people to remove the expander cabinet from the shipping pallet (see Section 2.4).

Installing an Expander Cabinet 3-3

3.2 Position the Cabinet

Position the expander cabinet next to the system cabinet. The first expander cabinet is positioned to the right of the system cabinet, and the second to the left as viewed from the front.

Figure 3-2 Expander Cabinet Positioning

2nd

Expander

Cabinet

System

Cabinet

1st

Expander

Cabinet digital AlphaServer

8200

BX-0618B-94

3-4 Installing an Expander Cabinet

1.

As shown in Figure 3-2, place the first expander cabinet to the right of the system cabinet as viewed from the front of the system. Position a second expander cabinet to the left of the system cabinet. A system can have a maximum of two expander cabinets. Figure 3-3 shows the system layout with clearances for access, and Table 3-3 provides information on cabinet dimensions and weights.

Figure 3-3 System Layout

Expander

Cabinet

System

Cabinet

Expander

Cabinet

Width

180 cm (71 in)

Rear

Clearance

75 cm (29.5 in)

92.5 cm

(36.4 in)

Front

Clearance

100 cm (39.4 in)

Depth

267.5 cm

(105.3 in)

BX-0430A-94

Table 3-1 Cabinet Dimensions and Weights

Cabinet

8200

System

Height cm (in)

170 (67)

Width cm (in)

Depth cm (in)

Weight

kg (lbs)

1

60 (23.6) 92.5 (36.4) 272–590

(600–1300)

1

8200

Expander

170 (67) 60 (23.6) 92.5 (36.4) 272–590

(600–1300)

1

For 8200 systems with battery backup add 29 kg (64 lbs) per power supply.

1

Installing an Expander Cabinet 3-5

3.3 Level All Cabinets

Level the cabinets by adjusting the rubber feet on all the cabinets and then check the cabinets with a bubble level. Be sure the sides of the cabinets butt each other and the cabinets are the same height.

Figure 3-4 Leveler Foot Adjustment

Locknut

Leveler Hexnut

Leveler Foot bx0449-94

3-6 Installing an Expander Cabinet

1.

Use an adjustable wrench to lower and adjust the leveler feet. A shipping bracket can also be used to adjust the leveler feet, since the bracket cutout and leveler feet hexnuts are the same size.

2.

Use a bubble level while adjusting the feet and make sure all cabinets are properly leveled in three dimensions (top to bottom, side to side, and front to back). The operation is complete when the tops are level and the sides of the cabinets are snug, top to bottom, front to back.

3.

Once the cabinets are level, lock each of the feet into place by tightening the locknut at the top of each leveler foot.

Installing an Expander Cabinet 3-7

3.4 Install the Securing Brackets

The expander cabinet is secured to the system cabinet by two Lshaped brackets inserted over the front and back top corners of the cabinet’s sides.

Figure 3-5 Installing Securing Brackets

System

Cabinet

Expander

Cabinet

Securing

Bracket digital AlphaServer

8200

BX-0618C-944

3-8 Installing an Expander Cabinet

1.

Locate the L-shaped multi-cabinet securing brackets (PN 74-49873-01) in the expander cabinet installation kit.

2.

The two securing brackets are placed on the top corners of the side panels of adjacent cabinets. See Figure 3-5. The brackets are tight and require some force to install. If the cabinets are not snug against each other, the brackets will not fit and could damage the sides of the cabinets. Position the brackets as shown in Figure 3-5; the longer part of the bracket secures the edge of the cabinet sides and the shorter part of the bracket secures the top of the cabinet sides.

3.

Repeat step 2 if there is a second expander cabinet.

Installing an Expander Cabinet 3-9

3.5 Connect the Power Control Cable

Connect the power control cable from the control panel in the system cabinet to the CCL panel in the expander cabinet. If there are two expander cabinets, install the jack splitter into the control panel in the system cabinet and connect both power control cables to the splitter. Route each cable from the control panel in the system cabinet to the CCL panel in each expander cabinet.

Figure 3-6 Power Control Cable Installation

Cable to Second

Expander

Front

Expander

On/Off

Secure

Restart

2100

SERVER

Enable

PowerComm3

Run

PowerComm2

Fault

PowerComm1

TM

Console

External

External

Enable (XMI/FBUS)

External

UPS Power

PowerEnable

Front

Cable to First

Expander

Expander

PowerComm3

PowerComm2

PowerComm1

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

Console

External

External

External

+ 48VDC-

+ 48VDC-

9 SIGNALS 1

CURRENT

SHARE

10 2

Expander

PowerComm3

PowerComm2

PowerComm1

Console

External

External

External

+ 48VDC-

+ 48VDC-

9 SIGNALS 1

CURRENT

SHARE

10 2

BX-0450B-94

3-10 Installing an Expander Cabinet

WARNING: Before beginning this procedure, make sure the system is powered off.

1.

If there are two expander cabinets, plug the jack splitter (PN 12-

44937-01) into the system cabinet control panel jack marked Expander. See Figure 3-7.

2.

For the right expander cabinet, plug the power control cable (PN 17-

03511-04) into the jack splitter or the jack marked Expander on the system control panel in the system cabinet.

3.

Route the cable according to Figure 3-6 and plug the other end of the cable into the jack marked Expander on the CCL panel in the right expander cabinet.

4.

For the left expander cabinet, plug the second power control cable (PN

17-03511-04) into the jack splitter in the system cabinet.

5.

Route the cable according to Figure 3-6 and plug the other end of the cable into the jack marked Expander on the CCL panel in the left expander cabinet.

6.

Tie wrap the cables in place.

Figure 3-7 Control Panel and Jack Splitter

Front

Expander

PowerComm3

PowerComm2

PowerComm1

Console

Jack Splitter

External

Enable (XMI/FBUS)

External

UPS Power

External

Power Enable

BX-0446A-95

Installing an Expander Cabinet 3-11

3.6 Connect the I/O Cable

Connect the I/O cable(s) between the system and expander cabinets.

Figure 3-8 I/O Cable Connections

I/O Cables to Left

Expander

Front

Front

I/O Cables to Right

Expander

Expander

On/Off

Secure

Restart

2100

SERVER

Enable

PowerComm3

Run

PowerComm2

Fault

PowerComm1

TM

Console

External

External

Enable (XMI/FBUS)

External

UPS Power

PowerEnable

Expander

PowerComm3

PowerComm2

PowerComm1

Console

External

External

External

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

I/O Cable to PCI in System

Expander

PowerComm3

PowerComm2

PowerComm1

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

Console

External

External

External

BX-0450C-94

3-12 Installing an Expander Cabinet

Figure 3-8 shows a system with nine PCIs. In this configuration, a single

KFTIA is in TLSB slot 8 and two KFTHAs are in TLSB slots 7 and 6.

There are nine PCIs, one in the system cabinet and four in each expander cabinet.

Cabling Guidelines:

1.

The PCI in the system cabinet is connected to the KFTIA in slot 8.

2.

If there is one expander cabinet, the PCIs in it are connected to the

KFTHA in slot 7.

3.

If there are two expander cabinets, the PCIs in the right expander are connected to the KFTHA in slot 6, and the PCIs in the left expander are connected to the KFTHA in slot 7.

4.

The cable from the topmost connector on the KFTHA is connected to the PCI in the lowest position in the expander, the cable from the next topmost position is connected to the PCI that is above the lowest one in the expander. The other two cables follow this principle.

To install the cables:

1.

Plan your cabling carefully taking into consideration the above conditions and how the cables are routed and bundled as shown in Figure

3-8.

2.

Each PCI must be connected to a KFTHA or KFTIA. Cable 17-03085-

04 connects the KFTIA to the PCI in the system cabinet, and the longer cable, the 17-03085-03, connects PCIs in expander cabinets to

KFTHAs in the system cabinet.

3.

Using a flathead screwdriver, install the end of the I/O cable labeled

IOP (P/N 17-03085-0x) to the KFTHA or KFTIA connector. Be sure the connector is aligned before tightening the screws.

4.

Route the I/O cable(s) as shown in Figure 3-8.

5.

Using a flathead screwdriver, install the end of the I/O cable labeled

PIU to the appropriate PCI shown in Figure 3-8.

6.

Once all the cables are connected place tie-wraps on them and secure them as best you can in the positions shown in Figure 3-8.

Installing an Expander Cabinet 3-13

Chapter 4

Making Console, SCSI, Ethernet,

FDDI, and DSSI Connections

This chapter describes how to connect a console terminal and how to make

SCSI, Ethernet, FDDI, and connections. It consists of the following sections:

Connect the Console Terminal

Connect the Console Load Device

Connect SCSI Cables

Connect Ethernet Cables

Connect FDDI Cables (Optional)

Connect DSSI Cables (Optional)

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-1

4.1 Connect the Console Terminal

Figure 4-1 shows a system cabinet with a console terminal. Connect the console terminal to the console terminal port in the system cabinet as shown in Figure 4-2.

Figure 4-1 System Cabinet, Console Terminal, and Printer

digital AlphaServer

8200

LA75 Companion Printer d i g i t a l

BX-0618A-94

CAUTION: The system cabinet, console terminal, and printer should all use the same power distribution source to ensure a common ground.

4-2 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

1.

Unpack the VT510 console terminal. The console terminal signal cable is shipped in the loose piece box and consists of a 17-01364-02 cable and H8575-A adapter.

2.

Open the front door and connect one end of the 17-01364-02 cable to the console terminal port on the control panel. Connect the cable ground wire to the cabinet grounding screw nearby (see Figure 4-2).

Connect the other end of the cable to the H8575-A, which connects to a

25-pin D-subminiature connector on the console terminal. Connect the other end of the cable ground wire to one of the screws on the H8575-

A.

3.

If a printer is not present, skip this step. Otherwise, unpack the printer. Connect the BC16E-25 signal cable to the printer and to the console terminal. Plug in the printer.

4.

The following are the default terminal characteristics. If the terminal does not have these characteristics, they must be set accordingly:

Baud rate = 9600 (transmit = receive)

8 bits, no parity

1 Stop Bit

Xoff at 64

Figure 4-2 Control Panel and Console Terminal Port

Expander Console

Possible ground screws

Front

PowerComm3

PowerComm2

PowerComm1

External

Enable (XMI/FBUS)

External

UPS Power

External

Power Enable

BX-0446-95

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-3

4.2 Connect the Console Load Device

Should the console load device cable be dislodged during shipment, follow these instructions. The CD-ROM drive located at the top of the storage drawer in the upper left of the system cabinet is the system load device. It is supported by the KFTIA or a KZPAA in a PCI I/O subsystem.

Figure 4-3 KFTIA as the Console Load Device Support

Front

Console Load

Device

SCSI CD-ROM

Connector

Single-Ended

SCSI Port

BX-0606B-94

4-4 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

The BN21H-0E cable is used to connect the CD-ROM drive to the singleended port on the KFTIA. Figure 4-3 shows the KFTIA and the CD-ROM connector locations. Check to see that the BN21H-0E cable is installed properly.

If there is no KFTIA, support for the CD-ROM comes from the KZPAA in the PCI. Figure 4-4 shows the KZPAA connector on the PCI I/O subsystem. If need be, connect the BN21H-02 cable to the KZPAA and the CD-

ROM connector on the storage drawer.

Figure 4-4 KZPAA as the Console Load Device Support

Console Load

Device

SCSI CD-ROM

Connector

Storage

Drawer

KZPAA

Front

PCI

BX-0447D-94

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-5

4.3 Connect SCSI Cables

SCSI cable connections depend upon the customer order. Connecting and routing cables are dependent on placement of adapters and devices. Read the information provided and install the cables needed.

Figure 4-5 System and Expander Cabinets

Front

Option slot 2

Front

Option slot 1

+ 48VDC-

+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

Space for SCSI Cables

Expander

PowerComm3

PowerComm2

PowerComm1

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

Console

External

External

External

Space for cables if no

Power Supply

BX-0450D-94

4-6 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

Multiple SCSI configurations are possible both inside system and expander cabinets and outside either cabinet. Manufacturing connects all SCSI devices it can in both system and expander cabinets. There is space in both cabinets to pass cables from front to back (see Figure 4-5). If there is only one power supply in the cabinet, pass the SCSI cables along the top of the supply. You can assume that loose SCSI cables provided with a system go from device adapters in the system cabinet to devices in another cabinet.

The following rules apply:

1.

FWD SCSI ports on the KFTIA have "Y" cables (BN21W-0B) plugged into them. Cables to devices plug into these "Y" cables.

2.

All SCSI buses must be terminated at both ends. The terminators for the AlphaServer 8200 are interchangeable and are the H879 or the

H8863.

3.

All cables exit and enter cabinets at the bottom front.

4.

Signal cables should be routed away from the power cables on the front right and rear left frame.

5.

SCSI cables that go to devices at the rear of either cabinet are routed through the space above the first option slot if there are two power supplies; otherwise, lay the cable on top of the only power supply.

6.

The SCSI cables should not be routed in front of power supply fans.

Table 4-1 lists SCSI cables used in AlphaServer 8200 systems to connect devices outside the system cabinet with their adapters.

Table 4-1 SCSI Cables to Devices in Other Cabinets

Cable

Number From

BN21H-05

PCI (M

1

)

BN21K-03

PCI (M)

PCI (E)

To

BA350 (front & rear E

2

) (SE)

DWZZA, BA350 (front E) (FWD)

DWZZA, BA350 (rear E) (FWD)

Length

(meters)

5

3

BN21K-05

PCI (M)

1 M = In main or system cabinet.

2 E = In expander cabinet.

DWZZA, BA350 (front & rear E) 5

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-7

4.4 Connect Ethernet Cables

Two Ethernet ports are available on the KFTIA. Connect the Ethernet cable to the KFTIA and to the Ethernet transceiver if the customer is planning to use this option. Ethernet ports are also available through the PCI I/O subsystem. To connect to the Ethernet through a subsystem, connect the Ethernet cable to the Ethernet adapter in the PCI and to the Ethernet transceiver.

Figure 4-6 Ethernet Connectors on KFTIA

Front

Twisted-Pair Ethernet Ports

BX-0447-94

4-8 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

Two DECchip 21040-AA Ethernet chips on the KFTIA are implemented as twisted-pair Ethernet. They are connected to the Ethernet by a BN25G-xx or a BN26M-xx transceiver cable. The DE435-AA, the PCI Ethernet adapter, implements all three Ethernet variants: twisted-pair, or thick wire, or ThinWire. The KFE70 has twisted-pair or thick wire.

1.

Connect the transceiver cable (BN25G-xx (unshielded) or BN26M-xx

(shielded)) to an Ethernet port on the KFTIA (see Figure 4-6).

2.

Connect the other end of the cable to an Ethernet transceiver or to an appropriate conversion box. See the appropriate Ethernet transceiver manual for more information.

3.

If there is a DE435-AA or a KFE70, connect appropriate cables to the

PCI module (see Figure 4-7). The DE435 has a single chipset that supports either ThinWire, thick wire, or twisted-pair. The KFE70 supports either thick wire or twisted-pair.

Figure 4-7 Ethernet Connectors on PCI Adapters

Front

DE435

Twisted-Pair

Thick wire

Thick wire

ThinWire

Twisted-

Pair

KFE70

BX-0447B-94

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-9

4.5 Connect FDDI Cables (Optional)

If the system includes an FDDI option, connect the FDDI cable to the KFTIA or to the DEFPA option in the PCI I/O subsystem and to the FDDI transceiver.

Figure 4-8 FDDI Connectors on KFTIA

Front

FDDI Option

DEFPZ

PHY

-AA Variant

Multimode

Fiber

FDDI

-UA Variant

Twisted-Pair

BX-0447A-94

FDDI options are available by a daughter card (DEFPZ-XX) on a KFTIA or by a PCI adapter (DEFPA-XX). Table 4-2 lists the FDDI options and the cables required. Figure 4-8 shows connectors for the DEFPZ variants, and

Figure 4-9 shows connectors for the DEFPA variants.

4-10 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

Table 4-2 FDDI Options and Cables

Option

DEFPZ-AA

Multimode fiber (MMF)

DEFPZ-UA Twisted-pair (UTP)

DEFPA-AA

Single attachment

(MMF)

KFTIA

KFTIA

PCI

DEFPA-DA

Dual attachment (MMF) PCI

DEFPA-UA

Description

Twisted-pair (UTP)

Location Associated Cable

PCI

BN24D or BN24E

BN26M or BN26S

BN34A, BN34B, or

BN34D

BN34A, BN34B, or

BN34D

BN26M or BN26S

1.

If you have the KFTIA FDDI option, connect the appropriate cable to the KFTIA FDDI port shown in Figure 4-8, and go to step 3.

2.

If you have a PCI FDDI option, connect the appropriate cable to the

FDDI port (see Figure 4-9).

3.

Connect the other end of the cable to the FDDI network. See the appropriate FDDI manual for details.

Figure 4-9 FDDI Connectors on PCI Adapter

DEFPA Variants

-UA -AA -DA

Front

BX-0447C-95

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-11

4.6 Connect DSSI Cables (Optional)

If the system has a KFESB option on the EISA bus and manufacturing has not cabled it because the placement of the adapter and the devices are in different cabinets, cable the devices to the adapter.

Figure 4-10 DSSI Connector on KFESB

KFESB KFE70

Front

BX-0447F-95

4-12 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections

The KFESB is an EISA to DSSI adapter. Required with this option is the

KFE70 and its attendant hardware.

1.

If the KFESB is not cabled, attach one end of the DSSI cable (BC29Rxx or BC29S-xx) to the KFESB connector in the PCI/EISA I/O subsystem (see Figure 4-10). Identify the slot location using the show de-

vice command. If necessary, install a terminator to terminate this end of the DSSI cable.

2.

To route the DSSI cable, follow the instructions for SCSI cable routing described in Section 4.3.

3.

Attach the end of the DSSI cable to the connector on the HSD05 or

HSD30. (The HSD05 and HSD30 are array controllers that allow connectivity between the DSSI bus and the StorageWorks family of products (SCSI).) Figure 4-11 shows the placement of the HSDxx and its connector.

4.

If necessary, configure the DSSI bus. (See accompanying KFESB documentation.)

Figure 4-11 StorageWorks Shelf with DSSI Controller

DSSI - SCSI

StorageWorks

Shelf

PS 6 5 4 3 2 1

HSD05 or

HSD30

BX-0451C-95

Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-13

Chapter 5

Powering Up the System

This chapter provides an overview of the power-up procedure for the system. Sections include:

Prepare to Check the AC Power

Measure the AC Power

Turn the Power On and Check Indicators

Powering Up the System 5-1

5.1 Prepare to Check the AC Power

As a preliminary step before checking the AC power, make sure that the power cord is not plugged in and that the breaker switch is off.

Figure 5-1 Circuit Breaker for the AC Power

Single Power Unit

Redundant Power

2

Rear

2

1

1

AC Power Line Cord

1

2

Circuit Breakers

Rear

AC Input Boxes

BX-0440C-94

5-2 Powering Up the System

1.

At this point, the AC power cord should still be unplugged.

2.

Pull down the circuit breaker handle on the AC input box (see Figure

5-1).

3.

At the control panel, make sure the pushbutton switch is in the off position.

The circuit breaker on the power supply controls power to the system. For normal operation, the circuit breaker handle must be in the on or up position. To shut the circuit breaker off, push the handle down.

For safety, current overload and over-temperature cause the circuit breaker to trip to the off position, removing all power from the system.

WARNING: The circuit breaker on the power supply controls power to the system. In a battery backed-up system, if you unplug the system and leave the pushbutton switch in the on position, power is still present. Be sure circuit breakers on the

power supplies are in the off position when working on the system. In systems with redundant power, the circuit breaker on the power strip controls AC input but does not control DC output in a battery backed-up system.

Powering Up the System 5-3

5.2 Measure the AC Power

With a digital multimeter, check the AC power supplied at the receptacle at the installation site. There are two types of receptacles: one for Europe and the other for other parts of the world.

Figure 5-2 Measuring System Power

202/208 V NOMINAL (30A)

U.S. & Japanese Version

NEMA L6-30R (50 - 60Hz)

V

X

230 V NOMINAL (32 A)

IEC 309 Type (50 - 60Hz)

PHASE 1

NEUTRAL

V

Y

GND GND

BX-0441A-94

5-4 Powering Up the System

1.

Check that the receptacle provided is correct. This should have been done during site preparation.

2.

Using a voltmeter, measure the voltages between lines in the receptacle as shown in Figure 5-2. Verify that the voltages are within the range specified in Table 5-1. If the voltages are out of range, contact an electrician.

3.

Plug the power cord into the receptacle.

Table 5-1 AC Input Voltage Specifications

Voltage

Measurement

line to line line to ground

(Phase 1 to GND) neutral to ground

208V

Nominal

208

120

NA

220/240V

Nominal

220–240

220–240

0

Powering Up the System 5-5

5.3 Turn the Power On and Check Indicators

Power up the system by pushing up the circuit breaker handle on the AC input box. Push the On/Off button; then monitor the state of the system as it powers up.

Figure 5-3 Control Panel LEDs

Front

On/Off

Secure

Restart

Enable

Run

Fault

TM

BX-0607-94

5-6 Powering Up the System

1.

Turn the power on by pushing the circuit breaker handle up (see Figure 5-1).

2.

Go to the front of the cabinet and check that the green power regulator

LED(s) are blinking (see Figure 5-4).

3.

Push the On/Off button. The following should occur (see Figure 5-3): a. The yellow Fault indicator on the control panel blinks indicating power sequencing is taking place. b. The blower turns on.

c. The yellow Fault indicator stays on continuously for a short time indicating self-test is taking place. Module self-test LEDs light as described in Section 6.1, and a self-test display appears on the console terminal as described in Section 6.2. The console prompt appears at the end of a successful self-test display. The yellow Fault indicator goes out when all modules pass self-test.

The power supplies have two sets of LEDs that indicate normal conditions, faults, or battery conditions. When the system is off, plugged in, and the circuit breaker on, power is present only in the power supply and no LEDs are lit. When the system is on, the MODULE OK LED should also light

(see Figure 5-4).

Figure 5-4 Power Regulator

Front

+ 48VDC+ 48VDC-

CURRENT

SHARE

9 SIGNALS 1

10 2

BX-0448-94

Powering Up the System 5-7

Chapter 6

System Self-Test

On power-up, the system runs an automatic self-test. Self-test results are indicated by module LEDs, the self-test display at the console terminal, and the Fault light on the control panel.

Sections in this chapter include:

Check Module Status LEDs

Check the Self-Test Display

System Self-Test 6-1

6.1

Check Module Status LEDs

Check the system module status LEDs for self-test success. If the

LEDs indicate failure, refer to the Operations Manual for more information.

Figure 6-1 Powering Up and Checking the LEDs

Front

Self-Test

LEDs

KFTHA

KFTIA

BX-0606C-94

6-2 System Self-Test

Processor and memory modules have a green LED that lights when the module passes or completes self-test. These LEDs can be viewed through holes in the shield of the module enclosure from the front of the cabinet.

PCI I/O modules are not visible but some connectors have LEDs on them.

Table 6-1 lists TLSB and DWLPA, the PCI motherboard, modules showing

LED conditions after self-test. For the conditions of LEDs on PCI and

EISA devices/adapters, see the related documentation.

Table 6-1 LEDs After Self-Test

Module

KN7CC

1

Self-Test Passed

Green ON

Self-Test Failed

Green OFF

Green OFF or ON

2

MS7CC

KFTHA

Green ON

Green ON Green OFF

KFTIA

Green ON Green OFF

DWLPA

3

Green ON Green OFF

1 The green LED on the processor module indicates that a single CPU chip on a uniprocessor module passed self-test or both CPU chips on a dual-processor module passed.

The LED will be OFF if there is any failure on the module though it may be configured into the system.

2 The green LED on the memory module indicates that self-test completed, not passed.

3 The DWLPA, the PCI motherboard, has four LEDs. The self-test passed LED is the second from the hose connection.

For more information:

Operations Manual

Service Manual

System Self-Test 6-3

6.2

Check the Self-Test Display

The AlphaServer 8200 contains only the "back" half of the TLSB card cage. Nodes 4 through 8 reflect the right-to-left position of the TLSB slots as viewed from the front of the cabinet. Self-test results are displayed on the console terminal. The pass (+) or fail (-) status of each module is indicated.

Example 6-1 Self-Test Results

F E D C B A 9 8 7 6 5 4 3 2 1 0 NODE #

1

A M . P P . . . . TYP

2

o + . ++ -+ . . . . ST1

3

. . . EE EB . . . . BPD

4

13

o + . ++ -+ . . . . ST2

3

. . . EE EB . . . . BPD

+ + . ++ -+ . . . . ST3

3

. . . EE EB . . . . BPD

. + + + . + + + C0 PCI +

5

. . . . . . . . + + + + C1 PCI +

1

. A0 . . . . . . . ILV

.128 . . . . . . . 128MB

AlphaServer 8200 Console V1.0, SROM V1.0 APR 1 1995 00:00:00

P08>>>

6-4 System Self-Test

1

The NODE # line lists the (hexadecimal) node numbers on the TLSB and I/O buses. Node numbers and slot numbers are identical. For the PCI

I/O subsystem nodes 0 - B are counted from right to left.

2

The TYP line indicates the type of module at each TLSB node:

12

An adapter: the I/O port module (A) is a KFTIA or a KFTHA

2

A memory module (M)

A processor (P)

A period (.) indicates the slot is empty or the module is not reporting.

3

The ST1–ST3 lines show the results of the testing. The self-test bit in the TLCNR register of each module contains this information. For the

KN7CC dual processor one CPU may pass, another fail. Entries are:

+ (pass) A .+ indicates a uniprocessor passed.

3

− (fail) A -+ indicates one CPU failed and one CPU passed on a dualprocessor module.

• o (does not apply). In this example, the I/O port module has "o" because there is no module-resident self-test.

4

The BPD line indicates boot processor designation. The results on this line indicate:

The boot processor (B)

Processors eligible to become the boot processor (E)

Processors ineligible to become the boot processor (D)

The BPD line is printed three times. After the first determination of the boot processor, the processors go through two more rounds of testing.

Since it is possible for a processor to pass self-test at line ST1 and fail ST2 or ST3 testing, the processors again determine the boot processor following each round of tests.

5

The I/O channel line C0 indicates the state of the internal PCI I/O channel on the KFTIA and shows that devices at nodes 0, 1, 2, 4, 5, and 6 all passed self-test. Line C1 indicates the self-test results for the DWLPA ple, self-test passed on PCI nodes 0, 1, 2, 3. Had a KFTHA been present, channel lines for each of the four I/O connections would have been shown.

For more information:

Operations Manual

System Self-Test 6-5

Chapter 7

Diagnostics and Utilities

After the system passes self-test, you must verify proper system operation.

First verify the presence of SCSI devices, then verify the boot device load path. After the path is verified, you can boot the operating system and use operating system-based test programs (such as VET) to complete system verification.

The system is tested automatically during power-up; no off-line loadable diagnostics are required or provided. The Loadable Firmware Update

(LFU) Utility is currently the only supported off-line loadable program. It is used to update firmware on any module residing on the system that has updatable firmware.

Sections in this chapter include:

Console Load Device

Verification Overview

Diagnostics Overview

Run System Self-Test

Show Commands for Installation

Verify SCSI Devices

If Necessary, Run the RAID Configuration Utility

If Necessary, Run the EISA Configuration Utility

Booting Factory Installed Software

Booting OpenVMS from a CD-ROM

Booting Digital UNIX from a CD-ROM

Set Commands for Booting

Booting LFU from a CD-ROM

Running the System Exerciser VET

Diagnostics and Utilities 7-1

7.1 Console Load Device

The compact disk (CD) drive is the in-cabinet console load device.

During system installation the console load device is used to load software and boot various utilities like the Loadable Firmware Update (LFU) Utility.

Figure 7-1 Accessing the Console Load Device

TLSB

KFTIA

CD-ROM

PCI

KZPAA

CD-ROM

BX-0410B-94

7-2 Diagnostics and Utilities

The console load device is used for:

Installing or updating software

Loading a backup utility program

Interchanging user data

Updating module firmware

The compact disk (CD) drive is the console load device for these systems. It is installed in the system cabinet and used to access software and online documentation. The CD-ROM is likely to be installed through the KFTIA, or through a KZPAA in a PCI I/O subsystem.

Diagnostics and Utilities 7-3

7.2 Verification Overview

The following process is used to verify the system after installation.

Figure 7-2 Verification Procedure

1

Power Up System.

Self-Test Runs.

2

Use show commands to become familiar with the system

3

Check that the console configures all the devices on the system

4

Perform special configuration tasks if necessary

5

Boot

Operating System

6

Verify System Under

Operating System

BX-0490-94

7-4 Diagnostics and Utilities

4

5

6

1

2

3

When the system powers up, self-test runs. Verify that all tests have passed by checking the results in the self-test display.

Use the show configuration and show device commands to determine the self-test status for the I/O adapters and devices. Identify the load device. Note what the console configures.

Check that the console configured all the hardware on the system.

Troubleshoot and repair if necessary.

Run configuration utilities if necessary.

Boot the factory installed operating system.

Verify the system under the installed operating system.

Diagnostics and Utilities 7-5

7.3 Diagnostics Overview

Self-tests and additional ROM-based diagnostics are run automatically at power-up. Console-based exercisers can be run from the console in User Mode. The system Verifier and Exerciser Tool is run under the operating system.

Figure 7-3 Diagnostic Overview

ROM-Based

Diagnostics

(RBDs)

Self-Test

Additional Power-Up Tests

Console-Based Exercisers

Online

OpenVMS/UNIX: Verifier and Exerciser Tool (VET)

BXB-0065A-94

7-6 Diagnostics and Utilities

Table 7-1 lists diagnostics provided. Tests in the first two groups run at power-up. The console-based exercisers can be run from the console.

Table 7-1 Diagnostics

Test Group

Self-test

Test

CPU self-test

Memory array self-test

PCI adapter self-test

1

Device peripheral self-test

Additional power-up tests

Power subassembly self-test

CPU/Memory interaction tests

Multiprocessor tests

KFTIA and KFTHA tests

PCI tests

Console-based exerciser

Cache/Memory exerciser

Disk exerciser

2

Floating-point exerciser

Network exerciser

2

1 Self-test on PCI adapters is optional. If the device has and performs self-tests, they are reported by the console.

2 Run in internal loopback (at I/O adapter) mode only.

NOTE: To run console-based diagnostics and utilities using the set host and test commands, see the Service Manual.

Diagnostics and Utilities 7-7

7.4 Run System Self-Test

Gather adapter self-test and address information using self-test results as shown in Example 7-1.

Example 7-1 Self-Test Display

F E D C B A 9 8 7 6 5 4 3 2 1 0 NODE #

A M . . P . . . . TYP

o + . . ++ . . . . ST1

1

. . . . EB . . . . BPD

o + . . ++ . . . . ST2

2

1

. . . . EB . . . . BPD

+ + . . ++ . . . . ST3

2

. . . . EB . . . . BPD

. + + + . + + + C0 PCI +

3

. . . + . . . . . . + . C1 PCI +

. A0 . . . . . . . ILV

.512 . . . . . . . 512MB

AlphaServer 8200 Console V1.0, SROM V1.0, Apr 1 1995 00:00:00

7-8 Diagnostics and Utilities

1

2

3

Check the ST1 line in the self-test results to see that all CPU and memory modules passed self-test. Note that on a system with dualprocessor modules, failing processors are disabled and appear in the

ST1 line. Were both processors to fail on a dual-processor module, nothing appears on the ST1 line. There is minimal TLSB traffic during these tests.

Check the ST2 line to see that memory and the CPU(s) passed their interaction tests and check the ST3 line to see that all three types of modules on the TLSB passed their tests.

Check the C0 through C10 lines to determine which modules on the

PCI I/O subsystem passed self-test. The example shows two PCIs, one internal to the KFTIA in slot 8 and the other connected to the KFTIA through a hose. (The maximum number of PCI I/O subsystems is eleven.)

NOTE: If any module is badly broken on any bus, the console may not get a response or be able to read whether a device passed self-test. Under such conditions, self-test does not indicate a failure but instead indicates that the slot is empty.

Diagnostics and Utilities 7-9

7.5 Show Commands for Installation

Use show commands to obtain information on the system configuration.

Example 7-2 Show Configuration

P08>>> show configuration

1

Name Type Rev Mnemonic

TLSB

4++ KN7CC-AB 8014 0000 kn7cc-ab0

7+ MS7CC 5000 0000 ms7cc0

8+ KFTIA 2020 0000 kftia0

C0 Internal PCI connected to kftia0 pci0

0+ ISP1020 10201077 0001 isp0

1+ ISP1020 10201077 0001 isp1

2+ DECchip 21040-AA 21011 0023 tulip0

4+ ISP1020 10201077 0001 isp2

5+ ISP1020 10201077 0001 isp3

6+ DECchip 21040-AA 21011 0023 tulip1

7+ PCI NVRAM 71011 0000 pci_nvram0

C1 PCI connected to kftia0 pci1

0+ SIO 4828086 0003 sio0

5+ KZPSA 81011 0000 kzpsa0

6+ DECchip 21040-AA 21011 0023 tulip3

8+ ISP1020 10201077 0001 isp4

A+ DAC960 11069 0000 dac0

B+ DEC PCI FDDI F1011 0000 pfi0

Controllers on SIO sio0

0+ DECchip 21040-AA 21011 0023 tulip2

1+ FLOPPY 2 0000 floppy0

2+ KBD 3 0000 kdb0

3+ MOUSE 4 0000 mouse0

EISA connected to pci1 through sio0 eisa0

3+ KFESA 2EA310 0000 kfesa0

7-10 Diagnostics and Utilities

Example 7-3 Show Device

P08>>> show device

2

polling for units on isp0, slot 0, bus 0, hose0...

dka200.2.0.0.0 DKA200 RZ26L 440C dka400.4.0.0.0 DKA400 RZ26L 440C polling for units on isp1, slot 1, bus 0, hose0...

dkb300.3.0.1.0 DKB300 RZ26L 440C dkb500.5.0.1.0 DKB500 RZ26L 440C dkb600.6.0.1.0 DKB600 RZ26L 440C polling for units on isp2, slot 4, bus 0, hose0...

dkc100.1.0.4.0 DKC100 RZ26L 440C dkc200.2.0.4.0 DKC200 RZ26L 440C dkc300.3.0.4.0 DKC300 RZ26L 440C polling for units on isp3, slot 5, bus 0, hose0...

dkd400.4.0.5.0 DKD400 RRD44 0000 dkd500.5.0.5.0 DKD500 RZ26L 440C

1

2

3

Use the show configuration command to see a listing of the modules in the system. This command shows the module TLSB and PCI slot number, module name, module type, revision, mnemonic, and if self-test passed.

The show device command displays information about each I/O device. Polling checks all I/O buses for device configurations. The next line contains the console device name, the name of the device given by the device controller, and the device type. Example 7-3 shows polling of only the internal bus of a KFTIA.

The show network command, not shown in the example, displays information about network connections.

Using these commands (show configuration, show device, and show

network), make sure all devices and system resources are present and

"seen" by the console. Check the results of the two console commands against the manufacturing system manifest. If something is missing, it is likely broken, needs reseating, or is back ordered.

For more information:

Operations Manual

Diagnostics and Utilities 7-11

7.6 Verify SCSI Devices

7.6.1 Check SCSI Devices Using Console Commands

To verify SCSI devices, issue the console command show device.

Check the output against the physical SBBs (storage building blocks). Nodes are defined by the physical position of the SBB and do not have to be set.

Example 7-4 Checking SCSI Devices

Initializing...

1

.

.

.

. + + + . + + + C0 PCI +

. . . . . . + . . . + . C1 PCI +

. A0 . . . . . . . ILV

. 512 . . . . . . . 512MB

AlphaServer 8200 Console V1.0 SROM V1.0 Apr 1 1995 00:00:00

P08>>> show device

2

polling for units on isp0, slot 0, bus 0, hose0... polling for units on isp1, slot 1, bus 0, hose0... polling for units on isp2, slot 4, bus 0, hose0... polling for units on isp3, slot 5, bus 0, hose0... dkd400.4.0.5.0 DKD400 RRD44 0064 dkd500.5.0.5.0 DKD500 RZ26L 440C polling for units on kzpsa0, slot 5, bus 0, hose1...

kzpsa0.7.0.5.1 dke TPwr 1 Fast 1 Bus ID 7 C01 A05 dke100.1.0.5.1 DKE100 RZ26L 440C dke200.2.0.5.1 DKE200 RZ26L 440C dke300.3.0.5.1 DKE300 RZ26L 440C

3

dke400.4.0.5.1 DKE400 RZ26L 440C dke500.5.0.5.1 DKE500 RZ26L 440C dke600.6.0.5.1 DKE600 RZ26L 440C

7-12 Diagnostics and Utilities

Basics:

There are four ways to attach to SCSI devices:

— KZPAA, a PCI adapter with a single-ended SCSI port

— KZPSA, a PCI adapter with a SCSI port

— KZPSC, the RAID adapter with one to three FWD SCSI ports

— ISP1020, a PCI chipset on the KFTIA; each KFTIA has three FWD

(fast wide differential) SCSI ports and one single-ended SCSI port.

Each port has a maximum of eight nodes per bus, including the initiator or host.

Each modular storage shelf (BA350) has a power supply and can hold seven 3.5" SBBs (such as RZ26s or TLZ06s), two 5.25" SBBs (such as the RZ73 drives), or a combination of these.

SCSI configurations vary depending upon the particular adapter being used. Read the manuals associated with each adapter to learn the configuration rules.

All cabling and node setting has been completed prior to shipping. To check the configuration, check self-test and issue a show device console command:

1

The system goes through self-test. Check that the KFTIA, the

KZPAA, the KZPSA, and/or the KZPSC adapters passed self-test.

2

3

Issue a show device command. In this example, the SCSI ports on the KFTIA are polled first; only two devices are found on the singleended port ips3. A KZPSA in slot 5 of the PCI that is connected to the KFTIA through hose1 is polled and shows the adapter at node 7 and six RZ26L disks at nodes 1 through 6.

Each port connects to a shelf housing up to seven RZxx drives on one bus (see Figure 7-4). All devices in this example are reporting to the console and are working. When a DWZZA is used, it occupies a

StorageWorks shelf slot, but it is not a node nor is it "seen" by the console.

Diagnostics and Utilities 7-13

7.6.2 Check Console Output Against Physical Devices

Next check the output from the show device command against the physical SBBs in the cabinet(s).

Figure 7-4 SCSI Disks in StorageWorks Shelves

Front

PS 6 5 4 3 2 1 0

Single-Ended SCSI

Shelf

PS 6 5 4 3 2 1 DWZZA

Fast Wide Differential

SCSI Shelf

BX-0451-95

7-14 Diagnostics and Utilities

Check the output from the show device command against the physical

SBBs. There should be a one-to-one correspondence between SBBs reporting to the console and the physical devices mounted. Note that the node number reported by the console corresponds to the physical position of an

SBB within a shelf; the slots and nodes are numbered 0 to 6, from right to left (see Figure 7-4).

Figure 7-4 shows two storage shelves: one with a DWZZA and one without.

A DWZZA is a bidirectional bus converter that converts differential signals to single-ended signals and converts single-ended signals to differential signals. Figure 7-4 is not exhaustive; other devices fit into StorageWorks shelves and look very different from the configuration shown.

The KFTIA has three differential ports (ips0, ips1, and ips2); RZ26, RZ26L, and RZ28 disks are single-ended devices used in StorageWorks shelves;

DWZZAs are used to perform bus conversion if necessary. Although the

DWZZA-VA takes up a slot, it is not a node on the bus and is not "seen" by the system.

Each SBB has two LEDs. The green LED on the top lights when the SBB is mounted and is being accessed. For a complete discussion of

StorageWorks LED status, see the StorageWorks Solutions Configuration

Guide (EK-BA350-CG).

If you have problems seeing devices, reseat the SBBs and reissue show

device. If you need further testing, use the test command. Refer to

BA350 documentation if you need to reconfigure the buses.

For more information:

Service Manual

BA350 Modular Storage Shelf Subsystem Configura-

tion Guide or User’s Guide

Diagnostics and Utilities 7-15

7.7 If Necessary, Run the RAID Configuration Utility

If a KZPSC is in the system (it shows up in the console display as the DAC960), the customer may want RCU run. When the system was configured in manufacturing, default settings were used when

RCU was run. Example 7-5 shows how to run RCU. See the KZ-

PSC documentation for detailed information on configuring the devices. The RCU software is on a floppy and requires a KFE70.

Example 7-5 Running RCU

P08>>> set arc_enable on

1

P08>>> initialize

2

[Console display appears]

P08>>> run rcu -p 1

3

4

7-16 Diagnostics and Utilities

The RAID Configuration Utility (RCU) need only be run if a KZPSC controller is in the system. The controller comes with its own documentation describing the utility. The controller can operate in several different modes, and the customer should determine how to customize the disk farm. RCU enables the choices. Prior to running the utility, you should read the documentation and discuss which mode the customer wishes. Example 7-5 shows how to run RCU.

Place the RAID Configuration Utility floppy in the floppy drive.

2

3

1

4

Use the set command to turn on the arc_enable environment variable.

Initialize the system to make the set command take effect.

After self-test completes, enter run rcu to identify what program to run. The run command defaults to the floppy as the source of the program for execution so no device need be specified.

-p 1 specifies that PCI1 is to be configured. See Example 7-2 for the

PCI number containing the KZPSC (shown by the console as the

DAC960). (In this case it is connected to a KFTIA hose.)

Diagnostics and Utilities 7-17

7.8 If Necessary, Run the EISA Configuration Utility

If the system has a KFE70, a PCI to EISA bridge, it may be necessary to run ECU, the EISA bus configuration tool. The console will tell you if this is necessary. ECU comes on a floppy that must be placed in the floppy drive.

Example 7-6 Running ECU

Power on the system

1

[console display appears]

AlphaServer 8200 console v1.0. SROM V1.0, Apr 1 1995 00:00:00

EISA Configuration Error - run the EISA Configuration Utility.

2

P08>>> set arc_enable on

3

P08>>> initialize

4

[console displays appears]

P08>>> runecu

5

7-18 Diagnostics and Utilities

The EISA Configuration Utility need only be run if there is a PCI to EISA bridge and EISA devices on the system. Manufacturing will have run ECU prior to shipping the system, so running it again may not be necessary.

The EISA Configuration Utility comes on a floppy, has online help, and configures the EISA bus. The arc_enable environment variable must be on and in effect for ECU to run. There are two versions of the utility, one that runs on graphics terminals, and another that runs on character cell terminals. Both versions are on the floppy; the console determines what kind of terminal is on the system and chooses the correct ECU version to run. Example 7-6 shows how to run ECU.

Place the EISA Configuration Utility floppy in the floppy drive.

1

2

3

4

5

Power on the system or initialize.

After self-test, if the EISA bus is not configured, the console displays the message shown here.

Use the set command to turn on the arc_enable environment variable.

Initialize the system to make the set command take effect.

After self-test enter runecu, the console command to invoke ECU.

The console loads ECU from the floppy drive and passes control to it.

If ECU is not run and OpenVMS is on the system and booted, OpenVMS prints the following message:

%SYSTEM-I-NOCONFIGDATA, IRQ Configuration data for EISA slot xxx was not found, please run the ECU and reboot.

OpenVMS continues to boot after this message and will run without the

EISA devices as system resources.

If ECU is not run and UNIX is on the system and booted, no information messages are printed. The operating system boots but does not use any

EISA resources.

Diagnostics and Utilities 7-19

7.9 Booting Factory Installed Software

The factory installs the operating system ordered by the customer.

After determining that all devices are seen by the console, you will want to know where the operating system is installed and then boot it.

Example 7-7 Booting the Operating System

P08>>> show bootdef_dev

1

bootdef_dev dk200.2.0.2.0

P08>>> show boot_osflag

2

boot_osflags 0 [for OpenVMS] or

boot_osflags a [for UNIX]

P08>>> boot

Building FRU table..........

(boot dka200.2.0.0.0 -flags 0,0)

3

SRM boot identifier: scsi 0 0 0 2 200 ef00 10201077 boot adapter: isp0 rev 0 in bus slot 0 off of kftia0 in TLSB slot 8 block 0 of dka200.2.0.0.0 is a valid boot block reading 1018 blocks from dka200.2.0.0.0

bootstrap code read in base = 200000, image _start = 0, image_bytes = 7f400 initializing HWRPB at 2000 initializing page table at 1f2000 initializing machine state setting affinity to the primary CPU jumping to bootstrap code

OpenVMS Alpha Operating System, Version V6.2

4

7-20 Diagnostics and Utilities

Example 7-7 shows the OpenVMS Alpha operating system as the factory installed software. Had the Digital UNIX operating system been installed, slight variations in the output shown would have occurred. The callouts in the following list refer to Example 7-7.

3

4

1

2

Enter the show bootdef_dev command to see what disk holds the operating system software.

Enter the show boot_osflags command to see what flags have been set. If the flag set is a 0 and the operating system is OpenVMS, the operating system will come up assuming flags of 0,0. If the flag is an

a and the operating system is Digital UNIX, the operating system will come up in multiuser mode. See the AlphaServer 8200/8400

Operations Manual for a complete discussion of booting.

Enter the boot command.

After booting information messages are given, the operating system banner appears.

Diagnostics and Utilities 7-21

7.10 Booting OpenVMS from a CD-ROM

This section shows how to boot OpenVMS from the CD-ROM drive. The first step is to issue the show device command to determine the mnemonic of the CD drive. This method of booting

OpenVMS replaces standalone backup.

Example 7-8 CD-ROM OpenVMS Boot

P08>>> show device

1

polling for units on isp0, slot 0, bus 0, hose0...

dka200.2.0.0.0 DKA200 RZ26L 440C dka400.4.0.0.0 DKA400 RZ26L 440C polling for units on isp1, slot 1, bus 0, hose0...

polling for units on isp2, slot 4, bus 0, hose0...

polling for units on isp3, slot 5, bus 0, hose0...

dkd400.4.0.5.0 DKD400 RRD44 0000 dkd500.5.0.5.0 DKD500 RZ26L 440C

P08>>> boot -flags 0,0 dkd400.4.0.5.0

2

Booting...

3

Connecting to boot device dkd400 initializing HWRPB at 2000 initializing page table at 1ee000 initializing machine state jumping to bootstrap at 1fa000

OpenVMS Alpha Operating System, Version V6.2

4

Copyright (c) 1995 Digital Equipment Corporation. All Rights Reserved.

Installing required known files...

Configuring devices...

*********************************************************

You can install or upgrade the OpenVMS Alpha operating system or you can install or upgrade layered products that are included on the OpenVMS Alpha operating system CD-ROM.

You can also execute DCL commands and procedures to perform "standalone" tasks, such as backing up the system disk.

Please choose one of the following:

1) Install or upgrade OpenVMS Alpha Version V6.2

2) List layered product kits that this procedure can install

7-22 Diagnostics and Utilities

3) Install or upgrade layered product(s)

4) Execute DCL commands and procedures

5) Shut down this system

Enter CHOICE or ? to repeat menu:

3

4

1

2

Show device displays information about each I/O device. Polling checks the KFTIA for device configurations. The next line contains four columns. The first column contains the device type and unit number, node number, device channel number, the internal PCI node number, and I/O channel number, separated by periods. The second column displays the name of the device given by the device controller.

The third column shows the device type, and the fourth column shows the revision of the device. The CD drive in this case is the RRD44 and its mnemonic is DKD400.

In the boot command, -flags indicates that additional command parameters follow, 0 is the system root of the boot device, 0 is the bootstrap option, dk is the device code of the boot device, d is the boot device controller designation, and 400 specifies the hexadecimal unit number of the boot device. The 4 is the node number, 0 is the channel number, 5 is the PCI node number, and 0 is the I/O channel number.

The system boots OpenVMS from the CD-ROM.

The operating system banner appears.

Example 7-8 shows that several choices can be made when booting Open-

VMS in this fashion. Make the appropriate choice and continue. (Note that by choosing option 4 (Execute DCL commands and procedures) you can back up your system disk. Standalone backup is replaced by this method of booting OpenVMS.)

Diagnostics and Utilities 7-23

7.11 Booting Digital UNIX from a CD-ROM

This section shows a sample boot of UNIX from the CD-ROM drive. The first step is to issue the show device command to determine the mnemonic of the CD drive.

Example 7-9 CD-ROM UNIX Boot

p08>>> show device

1

polling for units on isp0, slot 0, bus 0, hose0...

dka200.2.0.0.0 DKA200 RZ26L 440C polling for units on isp1, slot 1, bus 0, hose0...

polling for units on isp2, slot 4, bus 0, hose0...

polling for units on isp3, slot 5, bus 0, hose0...

dkd400.4.0.5.0 DKD400 RRD44 0000 dkd500.5.0.5.0 DKD500 RZ26L 440C

P08>>> boot dkd400.4.0.5.0 -fl a

2

(boot dkd400.4.0.5.0 -flags a)

3

SRM boot identifier: scsi 4 5 0 0 400 ef00 10201077 boot adapter: isp3 rev 0 in bus slot 5 off of kftia0 in TLSB slot 8 block 0 of dkd400.4.0.5.0 is a valid boot block reading 16 blocks from dkd400.4.0.5.0

bootstrap code read in base = 200000, image _start = 0, image_bytes = 2000 initializing HWRPB at 2000 initializing page table at 1f2000 initializing machine state setting affinity to the primary CPU jumping to bootstrap code

OSF Boot - Thu Feb 2 18:13:26 EST 1995

Loading vmunix...

[I/O subsystem reset information, memory information displayed, I/O bus adapters displayed, configured devices displayed, network configuration information displayed]

The system is ready.

DEC UNIX Version 3.2B (oregon.acb.exz.dec.com) console login:

7-24 Diagnostics and Utilities

3

4

1

2

Show device displays information about each I/O device. Polling checks the KFTIA for device configurations. The next line contains four columns. The first column contains the device type and unit number, node number, device channel number, the internal PCI node number, and I/O channel number, separated by periods. The second column displays the name of the device given by the device controller. The third column shows the device type, and the fourth column shows the revision of the device. The CD drive in this case is the RRD44 and its mnemonic is DKD400.

In the boot command, dk is the device code of the boot device, d is the boot device controller designation, and 400 specifies the hexadecimal unit number of the boot device. The 4 is the node number,

0 is the channel number, 5 is the PCI node number, and 0 is the

I/O channel number. The -fl a causes UNIX to come up in multiuser mode.

The system boots from the CD-ROM.

After the system is configured, the operating system banner appears, and the user is given the login: prompt.

For more information:

DEC OSF/1 Guide to System Administration

Diagnostics and Utilities 7-25

7.12 Set Commands for Booting

Use the set command to define a default boot device as shown in

Example 7-10.

Example 7-10 Set Boot Commands

P08>>> set boot_reset on

1

P08>>> set bootdef_dev dka200.2.0.0.0

2

P08>>> set boot_osflags "0,6"

3

P08>>> boot

4

[the system initializes and boots]

7-26 Diagnostics and Utilities

1‘

2

3

4

Enter set boot_reset on to initialize the system before booting.

If you boot from the same boot device each time, you can store the disk name by defining the default boot device. This is done by using the set bootdef_dev command. The default boot device is used for booting during power-up and auto restarts.

Use set boot_osflags to define the boot command flag parameters of

0, 6. Note the flags shown here are for OpenVMS; UNIX uses different flags.

Booting can now be done from that device by typing boot or just b.

NOTE: Refer to the Operations Manual for more information on set commands and environment variables.

Diagnostics and Utilities 7-27

7.13 Booting LFU from a CD-ROM

The Loadable Firmware Update (LFU) Utility is on the Alpha CD-

ROM (PN AG-PTMW*-BE). Make sure this CD-ROM is mounted in the CD drive and then boot LFU.

Example 7-11 AlphaServer 8200 LFU Booting

P08>>> show device

1

polling for units on isp0, slot 0, bus 0, hose0...

dka400.4.0.0.0 DKA400 RZ26L 440C polling for units on isp1, slot 1, bus 0, hose0...

polling for units on isp2, slot 4, bus 0, hose0...

polling for units on isp3, slot 5, bus 0, hose0...

dkd400.4.0.5.0 DKD400 RRD44 0000 dkd500.5.0.5.0 DKD500 RZ26L 440C

P08>>> boot dkd400 -fl 0,a0

2

Building FRU table............

(boot dkd400.4.0.5.0 -flags 0,a0)

SRM boot identifier: scsi 4 0 5 0 400 ef00 81011 boot adapter: isp3 rev 0 in bus slot 5 off of kftia0 in TLSB slot 8 block 0 of dkd400.4.0.5.0 is a valid boot block reading 1018 blocks from dkd400.4.0.5.0

bootstrap code read in base = 200000, image _start = 0, image_bytes = 7f400 initializing HWRPB at 2000 initializing page table at 1f2000 initializing machine state setting affinity to the primary CPU jumping to bootstrap code

Bootfile:[alpha8200]as8000_v01.exe

3

***** Loadable Firmware Update Utility *****

-------------------------------------------------------------------

Function Description

-------------------------------------------------------------------

Display Displays the system’s configuration table.

Exit Return to loadable offline operating environment.

List Lists the device types and firmware revisions

supported by this revision of LFU.

Modify Modifies port parameters and device attributes.

Show Displays device mnemonic, hardware and firmware

revisions.

7-28 Diagnostics and Utilities

Update Replaces current firmware with loadable data

image.

Verify Compares loadable and device images.

? or Help Scrolls the function table.

-------------------------------------------------------------------

UPD>

4

1

2

3

4

Use the show device command to find the mnemonic of the CD-

ROM drive.

Enter the boot command to boot from the RRD44. The RRD44 has a device name of dkd400.

Supply the bootfile directory and name: [alpha8200]as8000_v01.exe.

When this system is introduced, May 1995, the bootfile listed here is the correct name. Over time, the version of this file is likely to change. To obtain the correct file name, follow the instructions found in Alpha Systems Firmware Update Version x.x Release Notes

Overview that comes with the system CD-ROM (AG-PTMW*-BE).

LFU starts, displays a summary of its commands, and issues its prompt UPD>. (The Modify command appears only if there are devices on the system that have modifiable attributes.)

Diagnostics and Utilities 7-29

7.14 Running the System Exerciser VET

Run the DEC Verifier and Exerciser Tool (VET). VET is a tool with generic exercisers designed to ensure proper installation and verification of hardware and operating system software. It is run under the operating system. Install VET from the system CD-ROM

(AG-PTMW*-BE) before running it. Example 7-12 shows a sample

DEC VET user session. See the DEC Verifier and Exerciser Tool

User’s Guide (AA-PX73A-TE (OpenVMS) or AA-PTTMA-TE (UNIX)) for more information.

Example 7-12 Sample DEC VET User Session for Command Mode

$ vet

1

Running system sizer on node cpu2 ... please wait.

COPYRIGHT DIGITAL EQUIPMENT CORPORATION. 1995. ALL RIGHTS RESERVED.

VET_setup> load

2

Enter number of processes for CPU device (decimal [1]): 2

3

Enter number of processes for MEMORY device (decimal [1]): 2

Enter number of processes for NETWORK device (decimal [1]): 0

Enter number of processes for FILE device (decimal [1]): 2

Enter number of processes for each VIDEO device (decimal [1]): 0

...opening script file $19$dka500:[sys0.][sysmgr]vet_load.script.

Process 1, group exer for device CPU

Process 2, group exer for device CPU

Process 3, group exer for device MEMORY

Process 4, group exer for device MEMORY

Process 5, group exer for device FILE

Process 6, group exer for device FILE

...closing script file $19$dka500:[sys0.][sysmgr]vet_load.script.

VET_setup> start

4

...starting [Process 1, Pass 1] group exer for device CPU.

...starting [Process 2, Pass 1] group exer for device CPU.

...starting [Process 3, Pass 1] group exer for device MEMORY.

...starting [Process 4, Pass 1] group exer for device MEMORY.

...starting [Process 5, Pass 1] group exer for device FILE.

...starting [Process 6, Pass 1] group exer for device FILE.

...completed [process 1] group exer for device CPU.

...completed [process 2] group exer for device CPU.

...completed [process 5] group exer for device FILE.

...completed [process 6] group exer for device FILE.

Table 7-2 lists the DEC VET exercisers and descriptions.

7-30 Diagnostics and Utilities

Table 7-2 DEC VET Exercisers

Exerciser

CPU

Memory

Disk

File

Tape

Network

Printer

Video

Description

Tests processor functions including binary operations, integer computations, floating-point computations, and data conversion.

Tests dynamic allocation and deallocation of virtual memory and verifies test patterns written.

Tests logical and physical disk I/O by performing read and write operations and verifies test patterns written.

Tests reading and writing to disk files and verifies test patterns written.

Tests reading and writing to tape device files and verifies test patterns written.

Tests underlying protocol (including caches, buffers, and queues), physical network adapters, local and remote networks, destination adapters, and network services.

Tests printers by sending ASCII, PostScript, or a user specified file to a selected print queue. A PostScript file is provided with the exerciser.

Tests text, graphic, and palette capabilities of video monitors.

1

2

3

4

In Example 7-12 the user enters the command vet at the system prompt. The system sizer message is displayed. The system sizer process finds the devices that are connected to the system and obtains device information needed by the VET programs.

At the VET_setup prompt, the user issues the command load. The

load command creates processes for most devices on the system. Note that the File test exercises disks.

The VET program displays a series of questions. The user can select the number of processes to run for each device type. In the example, two processes are selected for the CPU device, memory device, and file device.

Enter the start command to begin testing.

Diagnostics and Utilities 7-31

Example 7-12 Sample DEC VET User Session (Continued)

^C

5

...stopping [Process 4] group exer for device MEMORY.

...stopping [Process 3] group exer for device MEMORY.

VET_suspend> show runtime

6

Process 1 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 22 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Process 2 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 0 minutes 22 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Process 3 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 3 minutes 39 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Process 4 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 3 minutes 39 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Process 5 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 2 minutes 30 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

Process 6 Runtime:

Requested runtime: 0 hours 0 minutes 0 seconds

Elapsed runtime: 0 hours 3 minutes 20 seconds

Remaining runtime: 0 hours 0 minutes 0 seconds

VET_suspend> continue

7

...continuing [process 3] group exer for device MEMORY.

...continuing [process 4] group exer for device MEMORY.

...completed [process 3] group exer for device MEMORY.

...completed [process 4] group exer for device MEMORY.

...testing completed. Total errors reported by all processes = 0.

8

VET_setup> exit

9

$

7-32 Diagnostics and Utilities

5

6

7

9

The user enters a Ctrl/C to suspend executing processes. DEC VET enters the suspend execution state.

Enter show runtime to list the requested, elapsed, and remaining run times of each process.

The continue command resumes execution of all suspended processes. After testing is completed, a message is displayed to inform the user of the number of errors reported. No errors were reported in this example (see

8

).

Enter exit to exit the DEC VET program. The system prompt is displayed.

Diagnostics and Utilities 7-33

Index

A

AC power checking, 5-2 input voltages, 5-5 measuring, 5-4

B

BA350

StorageWorks shelf, 3-1

Booting factory installed software, 7-20

LFU, 7-28

OpenVMS, 7-22

UNIX, 7-24

Boot command, 7-22

C

Cabinets damage, 2-9 leveling, 2-10 pallet removal, 2-8 unpacking, 2-7

Cables

I/O, 3-12

Carton removal, 2-6

Console load devices, 7-2 terminal, 4-2, 4-3

Console printer, 4-3

Current overload, 5-3

D

DSSI, 4-12

DWZZA, 7-15

E

EISA bus, 7-18

EISA to DSSI, 4-13

Equipment damages, 2-3

Expander cabinet installation, 3-1

I/O cable, 3-12 leveling, 3-6 placement, 3-4 power control cable, 3-10

SCSI cables, 4-6 securing brackets, 3-8 unpacking, 3-2

F

FDDI, 4-10

I

Indicator check, 5-6

Installation flowchart, 1-2

Installation overview, 1-1

K

KFESB, 4-13

KFE70, 7-18

KZPAA, 7-3

L

LARS form, 2-3

Leveler feet, 2-9, 2-10

LFU

CD-ROM booting, 7-28

Load device, 7-3

Index-1

M

Main circuit breaker, 5-3

Memory module LEDs, 6-3

P

Packing material, 2-6

PCI I/O subsystem, 3-1

Power-up diagnostics, 7-6, 7-7

Processor module LEDs, 6-3

R

Ramps, attaching, 2-9

Ramp kit, 2-7

S

SCSI devices, 7-12, 7-14

LEDs, 7-15

Self-test, 7-7

BPD line, 6-5

C# I/O subsystem line, 7-9 display, 6-4, 7-8

I/O channel line, 6-5

LEDs, 6-3

NODE # line, 6-5

ST lines, 6-5, 7-9

TYP line, 6-5

Set bootdef_dev command, 7-26

Set boot_reset command, 7-26

Shipment inspection, 2-2

Shipping dimensions, 2-7 weights, 2-7

Show configuration command, 7-10

Show device command, 7-11, 7-12,

7-15, 7-22

Stabilizing brackets, 2-12

Standalone backup replacement,

7-22

Status LEDs check, 6-2

StorageWorks shelf

BA350, 3-1

System cabinet installation, 2-1

T

Tools, unpacking, 2-4

U

Utilities

ECU, 7-18

LFU, 7-28

RCU, 7-16

VET, 7-30

V

VET, 7-30
