AlphaServer GS60 and 8200 Installation Guide

AlphaServer GS60 and 8200 Installation Guide

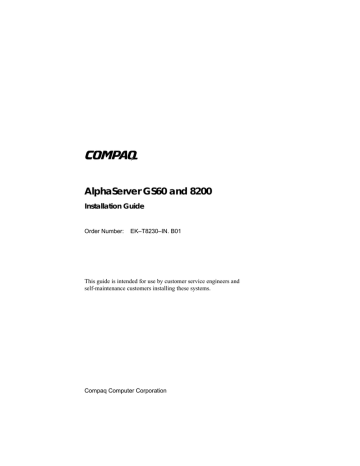

AlphaServer GS60 and 8200
Installation Guide
Order Number:
EK–T8230–IN. B01
This guide is intended for use by customer service engineers and
self-maintenance customers installing these systems.
Compaq Computer Corporation
First Printing, October 1998
The information in this publication is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL
OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
This publication contains information protected by copyright. No part of this publication may
be photocopied or reproduced in any form without prior written consent from Compaq
Computer Corporation.
The software described in this document is furnished under a license agreement or
nondisclosure agreement and may be used or copied only in accordance with the terms of the
agreement.
© 1998 Compaq Computer Corporation.
All rights reserved. Printed in the U.S.A.
COMPAQ and the Compaq logo are trademarks or registered trademarks of Compaq
Computer Corporation. AlphaServer, DIGITAL, OpenVMS, and StorageWorks are
trademarks or registered trademarks of Digital Equipment Corporation. Microsoft, Windows,
and Windows NT are registered trademarks of Microsoft Corporation. UNIX is a registered
trademark in the U.S. and other countries, licensed exclusively through X/Open Company Ltd.
Other product names mentioned herein may be trademarks and/or registered trademarks of
their respective companies.
Digital Equipment Corporation now owned by Compaq Computer Corporation.
FCC Notice: The equipment described in this manual generates, uses, and may emit radio
frequency energy. The equipment has been type tested and found to comply with the limits for
a Class A digital device pursuant to Part 15 of FCC Rules, which are designed to provide
reasonable protection against such radio frequency interference. Operation of this equipment
in a residential area may cause interference, in which case the user at his own expense will be
required to take whatever measures are required to correct the interference.
Shielded Cables: If shielded cables have been supplied or specified, they must be used on the
system in order to maintain international regulatory compliance.
Warning! This is a Class A product. In a domestic environment this product may cause radio
interference, in which case the user may be required to take adequate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei
Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für
entsprechende Gegenmaßnahmen verantwortlich ist.
Avertissement! Cet appareil est un appareil de Classe A. Dans un environnement résidentiel,
cet appareil peut provoquer des brouillages radioélectriques. Dans ce cas, il peut être demandé
à l'utilisateur de prendre les mesures appropriées.
Contents
Preface ...........................................................................................................vii
Chapter 1
1.1
Installation Flowchart ..............................................................................1-2
Chapter 2
2.1
2.2
2.3
2.4
2.5
2.6
Making Console, SCSI, Ethernet, FDDI, and DSSI
Connections
Connect the Console Terminal .................................................................4-2
Connect the Console Load Device ...........................................................4-4
Connect SCSI Cables ...............................................................................4-6
Connect Ethernet Cables ..........................................................................4-8
Connect FDDI Cables (Optional) ........................................................... 4-10
Connect DSSI Cables (Optional)............................................................ 4-12
Chapter 5
5.1
Installing an Expander Cabinet
Unpack the Cabinet..................................................................................3-2
Position the Cabinet .................................................................................3-4
Level All Cabinets ...................................................................................3-6
Install the Securing Brackets....................................................................3-8
Connect the Power Control Cable .......................................................... 3-10
Connect the I/O Cable............................................................................ 3-12
Chapter 4
4.1
4.2
4.3
4.4
4.5
4.6
Installing the System Cabinet
Inspect the Shipment................................................................................2-2
Collect Tools and Resources ....................................................................2-4
Remove Carton and Packing Material ......................................................2-6
Remove from the Pallet............................................................................2-8
Level the Cabinet................................................................................... 2-10
Install Stabilizing Brackets..................................................................... 2-12
Chapter 3
3.1
3.2
3.3
3.4
3.5
3.6
Installation Overview
Powering Up the System
Prepare to Check the AC Power ...............................................................5-2
iii
5.2
5.3
Measure the AC Power ............................................................................5-4
Turn the Power On and Check Indicators ................................................5-6
Chapter 6
6.1
6.2
Check Module Status LEDs .....................................................................6-2
Check the Self-Test Display.....................................................................6-4
Chapter 7
7.1
7.2
7.3
7.4
7.5
7.6
7.6.1
7.6.2
7.7
7.8
7.9
7.10
7.11
7.12
7.13
7.14
System Self-Test
Diagnostics and Utilities
Console Load Device ...............................................................................7-2
Verification Overview..............................................................................7-4
Diagnostics Overview ..............................................................................7-6
Run System Self-Test...............................................................................7-8
Show Commands for Installation ........................................................... 7-10
Verify SCSI Devices .............................................................................. 7-12
Check SCSI Devices Using Console Commands ........................... 7-12
Check Console Output Against Physical Devices .......................... 7-14
If Necessary, Run the RAID Configuration Utility ................................. 7-16
If Necessary, Run the EISA Configuration Utility.................................. 7-18
Booting Factory Installed Software ........................................................ 7-20
Booting OpenVMS from a CD-ROM ..................................................... 7-22
Booting DIGITAL UNIX from a CD-ROM............................................ 7-24
Set Commands for Booting ................................................................... 7-26
Booting LFU from a CD-ROM .............................................................. 7-28
Running the System Exerciser VET ....................................................... 7-30
Examples
6-1
7-1
7-2
7-3
7-4
7-5
7-6
7-7
7-8
7-9
7-10
7-11
7-12
iv
Self-Test Results ......................................................................................6-4
Self-Test Display .....................................................................................7-8
Show Configuration ............................................................................... 7-10
Show Device.......................................................................................... 7-11
Checking SCSI Devices ......................................................................... 7-12
Running RCU ........................................................................................ 7-16
Running ECU......................................................................................... 7-18
Booting the Operating System................................................................ 7-20
CD-ROM OpenVMS Boot ..................................................................... 7-22
CD-ROM UNIX Boot ........................................................................... 7-24
Set Boot Commands............................................................................... 7-26
AlphaServer 8200 LFU Booting............................................................. 7-28
Sample DEC VET User Session for Command Mode............................. 7-30
Figures
1-1
2-1
2-2
2-3
2-4
2-5
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
5-1
5-2
5-3
5-4
6-1
7-1
7-2
7-3
7-4
Installation Flowchart ..............................................................................1-2
Inspection Flowchart................................................................................2-2
Packing Material ......................................................................................2-6
Preparation and Removal from Pallet .......................................................2-8
Leveler Foot Adjustment........................................................................ 2-10
Stabilizing Bracket Installation .............................................................. 2-12
Expander Cabinet ....................................................................................3-2
Expander Cabinet Positioning ..................................................................3-4
System Layout .........................................................................................3-5
Leveler Foot Adjustment..........................................................................3-6
Installing Securing Brackets.....................................................................3-8
Power Control Cable Installation............................................................ 3-10
Control Panel and Jack Splitter .............................................................. 3-11
I/O Cable Connections ........................................................................... 3-12
System Cabinet, Console Terminal, and Printer .......................................4-2
Control Panel and Console Terminal Port ................................................4-3
KFTIA as the Console Load Device Support............................................4-4
KZPAA as the Console Load Device Support ..........................................4-5
System and Expander Cabinets ................................................................4-6
Ethernet Connectors on KFTIA ...............................................................4-8
Ethernet Connectors on PCI Adapters ......................................................4-9
FDDI Connectors on KFTIA .................................................................. 4-10
FDDI Connectors on PCI Adapter .......................................................... 4-11
DSSI Connector on KFESB.................................................................... 4-12
StorageWorks Shelf with DSSI Controller.............................................. 4-13
Circuit Breaker for the AC Power ............................................................5-2
Measuring System Power .........................................................................5-4
Control Panel LEDs .................................................................................5-6
Power Regulator ......................................................................................5-7
Powering Up and Checking the LEDs ......................................................6-2
Accessing the Console Load Device.........................................................7-2
Verification Procedure .............................................................................7-4
Diagnostic Overview................................................................................7-6
SCSI Disks in StorageWorks Shelves .................................................... 7-14
Tables
1
2-1
2-2
3-1
AlphaServer GS60/140 and 8200/8400 Documentation............................... x
Tools and Resources ................................................................................2-4
Shipping Dimensions and Weights...........................................................2-7
Cabinet Dimensions and Weights.............................................................3-5
v
4-1
4-2
5-1
6-1
7-1
7-2
vi
SCSI Cables to Devices in Other Cabinets ...............................................4-7
FDDI Options and Cables ...................................................................... 4-11
AC Input Voltage Specifications ..............................................................5-5
LEDs After Self-Test ...............................................................................6-3
Diagnostics ..............................................................................................7-7
DEC VET Exercisers ............................................................................. 7-31
Preface
This manual describes both the Compaq AlphaServer GS60 and GS140 systems as well
as the AlphaServer 8200 and 8400 systems. The AlphaServer 8200 and 8400 systems
were introduced by Digital Equipment Corporation in 1995. Now Compaq Computer
Corporation, with the introduction of the Alpha 21264 chip, is calling the latest offering
Compaq AlphaServer Global Solutions (GS) systems.
The Compaq AlphaServer GS60 and GS140 systems offer all the robust features of
the current 8200/8400 product plus the fastest processors in the industry, the Alpha
21264 (EV6), a new blue enclosure, and a Compaq AlphaServer brand name. The
GS60 offers the same five-slot system bus with support for up to six CPUs, up to 12
Gbytes memory, and the same I/O options supported by the AlphaServer 8200.
The GS140 has the same nine-slot system bus with support for up to 14 CPUs, up
to 28 Gbytes memory, and the same I/O options as the AlphaServer 8400.
This manual was originally written to describe the DIGITAL AlphaServer 8200 and
8400 systems. Although the console displays in this book show an 8200 or 8400
system, the same examples and descriptions apply to the GS60 and GS140 systems.
Only the identification line at the bottom of the display is different. A sample
GS140 console display is shown in Example 1.
AlphaServer 8200 and 8400 systems can be upgraded to the new GS60 and GS140
systems, respectively, with simple to install CPU module upgrades and minimal
operating system updates.
vii
Example 1 Sample GS140 Console Display
*)('&%23()
%%11448=4
SS78
)))&&4(
SS78
))&)&4(
78
))&)&4(
'4'-
'<1-
'<1-
'
'
'4'-
)-7%
➊
%%-0:
+&+&+&
'SQTEU%PTLE7IVZIV+7'SRWSPI:7)4
7631:3TIR:174%0GSHI:(MKMXEP92-<4%0GSHI:
7]WXIQ7IVMEP!2-37!3TIR:177ITXIQFIV
'SRJMKYVMRK-3EHETXIVW|
4"""
➊
Indicates the type of system, the number of processors, the CMOS technology
and speed, and the console firmware version.
Intended Audience
This manual is written for customer service engineers and self-maintenance customers
who require information to install an AlphaServer GS60 or 8200 system.
Document Structure
This manual uses a structured documentation design. Topics are organized into small
sections for efficient reference. Each topic begins with an abstract. You can quickly
gain a comprehensive overview by reading only the abstracts. Next is an illustration or
example, which also provides quick reference. Last in the structure are descriptive text
and syntax definitions.
viii
This manual has seven chapters as follows:
•
Chapter 1, Installation Overview, provides a flowchart which summarizes the
installation process.
•
Chapter 2, Installing the System Cabinet, shows how to unpack and install the
system cabinet.
•
Chapter 3, Installing an Expander Cabinet, explains how to install one or more
expander cabinets, if present.
•
Chapter 4, Making Console, SCSI, Ethernet, FDDI, and DSSI Connections,
shows how to connect the console, SCSI, Ethernet, and FDDI devices if present to
the system.
•
Chapter 5, Powering Up the System, explains how to start the system by applying
main power.
•
Chapter 6, System Self-Test, describes the system self-test and its results.
•
Chapter 7, Diagnostics and Utilities, describes how to verify system operation
using diagnostics and utilities.
Conventions Used in This Document
Icons. The icons shown below are used in illustrations for designating part placement in
the system described. A shaded area in the icon shows the location of the component or
part being discussed.
Main Cabinet
Front
Rear
Expander Cabinet
Front
Rear
ix
Table 1 AlphaServer GS60/140 and 8200/8400 Documentation
Title
Order Number
Hardware User Information and Installation
Operations Manual
EK–T8030–OP
Site Preparation Guide
EK–T8030–SP
AlphaServer GS60/8200 Installation Guide
EK–T8230–IN
AlphaServer GS140/8400 Installation Guide
EK–T8430–IN
KFE72 Installation Guide
EK–KFE72–IN
AlphaServer GS60/140 8200/8400 Windows NT
Administrator’s Guide and Release Notes
EK–T8WNT–RN
Service Information Kit
QZ–00RAC–GC
Service Manual (hard copy)
EK–T8030–SV
Service Manual (diskette)
AK–QKNFB–CA
AK–QUW7B–CA
AK–QUW6B–CA
Reference Manuals
System Technical Manual
EK–T8030–TM
System Technical Manual Supplement: CPU
EK–T8030–TS
System Technical Manual Supplement: Memory
EK–MS7CC–TS
DWLPA/DWLPB PCI Adapter Technical Manual
EK–DWLPA–TM
Upgrade Manuals for All Systems
KN7CC CPU Module Installation Card
EK–KN7CC–IN
KN7CD CPU Module Installation Card
EK–KN7CD–IN
KN7CE CPU Module Installation Card
EK–KN7CE–IN
KN7CF CPU Module Installation Card
EK–KN7CF–IN
KN7CG CPU Module Installation Card
EK–KN7CG–IN
MS7CC Memory Installation Card
EK–MS7CC–IN
KFTHA System I/O Module Installation Guide
EK–KFTHA–IN
KFTIA Integrated I/O Module Installation Guide
EK–KFTIA–IN
x
Table 1 AlphaServer GS60/140 and 8200/8400 Documentation
(Continued)
Title
Order Number
Upgrade Manuals: GS160/8400 Systems Only
AlphaServer 8400 Upgrade Manual
EK–T8430–UI
BA654 DSSI Disk PIU Installation Guide
EK–BA654–IN
BA655 SCSI Disk and Tape PIU Installation Guide
EK–BA655–IN
DWLMA XMI PIU Installation Guide
EK–DWLMA–IN
DWLPA/DWLPB PCI PIU Installation Guide
EK–DWL84–IN
H7237 Battery PIU Installation Guide
EK–H7237–IN
H7263 Power Regulator Installation Card
EK–H7263–IN
KFMSB Adapter Installation Guide
EK–KFMSB–IN
KZMSA Adapter Installation Guide
EK–KXMSX–IN
RRDCD Installation Guide
EK–RRDRX–IN
Upgrade Manuals: GS60/8200 Systems Only
DWLPA/DWLPB PCI Shelf Installation Guide
EK–DWL82–IN
H7266 Power Regulator Installation Card
EK–H7266–IN
H7267 Battery Backup Installation Card
EK–H7267–IN
xi
Chapter 1
Installation Overview
This chapter provides a quick overview of the installation procedure and
relates the steps of the procedure with chapters in this manual. It consists
of one section:
•
Installation Flowchart
Installation Overview 1-1
1.1 Installation Flowchart
In general, a system is installed as shown in Figure 1-1.
Figure 1-1
Installation Flowchart
Install System Cabinet
Multiple
Cabinets
Yes
Chapter 2
Chapter 3
No
Connect Console,
SCSI, Ethernet,
Chapter 4
and FDDI cables
Power Up System
Chapter 5
System Self-Test
Chapter 6
Verification
(Diagnostics and
Utilities)
Chapter 7
BXB-0306E-95
1-2 Installation Overview
In general, the procedure is as follows (Figure 1-1):
1.
Install the system cabinet as described in Chapter 2.
2.
If the system has one or more expander cabinets, refer to Chapter 3 for
installation instructions.
3.
Connect the console, and, if appropriate, make the Ethernet, FDDI,
and SCSI connections as described in Chapter 4.
4.
Power up the system as described in Chapter 5.
5.
Observe and consider the results of the system self-test as described in
Chapter 6.
6.
Verify system operation by running various diagnostics and utilities as
described in Chapter 7.
Installation Overview 1-3
Chapter 2
Installing the System Cabinet
This chapter describes how to install the AlphaServer 8200 system cabinet. The cabinet contains the CPU, memory, at least one PCI I/O subsystem, disks, and power.
If your system has an expander cabinet, unpack it and remove it from the
pallet as described in the first four sections of this chapter.
Sections in this chapter include:
•
Inspect the Shipment
•
Collect Tools and Resources
•
Remove Carton and Packing Material
•
Remove from the Pallet
•
Level the Cabinet
•
Install Stabilizing Brackets
Installing the System Cabinet 2-1
2.1 Inspect the Shipment
Check that all system equipment is at the installation site.
Figure 2-1
Inspection Flowchart
Check Equipment
Against Shipping List
Incomplete or
Damaged
Shipment
Yes
Customer
Contacts Carrier
Yes
Enter in LARS Report
Notify Customer
No
Missing or
Incorrect
Equipment
Contact
Unit Manager
Continue Unpacking
BXB-0012-92
2-2 Installing the System Cabinet
NOTE: Physically inspect the system to be sure parts have not become loose
during shipment.
If you find a damaged container or package, notify the customer. Wait until the customer contacts the insurance company and gives you permission
to continue unpacking.
Compare items listed on the Product Delivery Document (in a slip envelope
on the shipping box) with the packing slip contained in a plastic envelope
on the shipping box. Items should be compared throughout the installation procedure as boxes are unpacked and cabinets are opened.
It is important to record information on damaged or opened containers on
the Labor Activity Reporting System (LARS) form.
Installing the System Cabinet 2-3
2.2 Collect Tools and Resources
You will need the items listed in Table 2-1 to unpack and install
the system cabinet. The removal of the cabinet from the pallet requires at least two people.
Table 2-1
Tools and Resources
Item
Use
Product Delivery
Document and
packing slip
To verify that all hardware has been delivered
Utility knife
To remove straps from cabinet shipping boxes
Adjustable
wrench
To remove pallet brackets and to adjust leveler feet
Level
To verify that the cabinet is properly leveled
Socket wrench set
To remove and install bolts
Digital voltmeter
To check AC and DC voltages
Table or bench
Work space for unpacking and installation
Flathead screwdriver
For installation of I/O port module cable(s)
2-4 Installing the System Cabinet
Review requirements such as power, environmental, and space requirements for the system.
NOTE: Since the cabinet is heavy and has a high center of gravity, removing it from the pallet requires at least two people.
For more information:
Site Preparation Guide
Installing the System Cabinet 2-5
2.3 Remove Carton and Packing Material
Take off the carton and remove all packing material to prepare the
system cabinet for removal from the pallet.
Figure 2-2
Packing Material
5
6
7
BXB-0096A-92
2-6 Installing the System Cabinet
Use the following procedure to unpack the system cabinet:
1.
Position the carton so that the front faces an open space with enough
clearance to allow the cabinet to be rolled down ramps.
2.
Using a utility knife, cut the shipping straps from the carton.
3.
Remove the outside top cardboard cover.
4.
Remove the outside shipping box. This is typically done by using a
7/16" socket wrench to remove two bolts that hold the box together.
5.
Remove the inside top cardboard cover.
6.
Remove the protective plastic wrapping by slipping it up and over the
cabinet.
7.
Locate the box that contains the ramp kit and open it (see Figure 2-2).
NOTE: It’s a good idea to save all packing materials intact in case the system needs to be shipped in the future.
Table 2-2
Shipping Dimensions and Weights
Cabinet
Height
cm (in)
Width
cm (in)
Depth
cm (in)
Weight
1
kg (lbs)
System
195 (76.8)
91.4 (36.0)
122 (47.9)
309–626
(680–1380)2
Expander
195 (76.8)
91.4 (36.0)
122 (47.9)
309–626
(680–1380)2
1 Weights are based on a fully configured cabinet.
2 For systems with battery backup add 29 kg (64 lbs) per power supply.
Installing the System Cabinet 2-7
2.4 Remove from the Pallet
Check the cabinet for external damage. Remove the four shipping
brackets that attach the cabinet to the pallet. Insert the ramps on
the front of the pallet and remove the cabinet.
WARNING:
Figure 2-3
At least two people are required to remove the cabinet from
the pallet.
Preparation and Removal from Pallet
2
3
1
BXB-0097A-95
2-8 Installing the System Cabinet
WARNING:
Serious injury may result if the cabinet is improperly handled or proper safety conditions are not met. Check the
cabinet sides, top, front door, and rear panel for damage. If
the cabinet is damaged, do the following:
a. Enter the location and extent of the damage on the LARS report.
b. Notify the customer and your unit manager.
c. Stop unpacking until the customer gives you permission to continue.
1.
Using an adjustable wrench, remove the four bolts and shipping
brackets that hold the cabinet leveler feet to the pallet (Figure 2-3).
2.
The leveler feet are lowered to the pallet surface for shipment. Using
the adjustable wrench, raise the feet to the upmost position before removing the system from the pallet (see Section 2.5).
3.
Attach the ramps by fitting the prongs into the holes on the front of
the pallet. Place the ramps so that the runners are on the inside. Align
the arrows on the ramps and pallet (see Figure 2-3).
4.
With two people working together (one in front and one in back),
slowly roll the cabinet off the pallet down the ramps. Move the cabinet
into position. This should be done on a firm level floor. To avoid static
electricity which can cause system problems, do not place the system
on a carpet.
NOTE: Make sure the space under the cabinet is clear of any debris or extraneous materials.
Installing the System Cabinet 2-9
2.5 Level the Cabinet
Inspect the rubber leveler feet to be sure they have not been damaged during shipping. To level the cabinet, adjust the feet and
check the cabinet with a bubble level.
Figure 2-4
Leveler Foot Adjustment
Locknut
Leveler Hexnut
Leveler Foot
bx0449-94
2-10 Installing the System Cabinet
1.
Using an adjustable wrench, lower and adjust the leveler feet at each
corner of the system. (A shipping bracket can also be used to lower
the leveler feet. The bracket cutout and leveler feet hexnuts are the
same size.)
2.
Using a bubble level, check to see that the cabinet is properly leveled
(side to side and front to back).
3.
Once the cabinet is level, lock each of the feet into place by tightening
the locknut at the top of each leveler foot.
Installing the System Cabinet 2-11
2.6 Install Stabilizing Brackets
The AlphaServer 8200 is tall and narrow. Two stabilizing brackets
need to be installed to stabilize the cabinet.
Figure 2-5
Stabilizing Bracket Installation
Leveler Foot
Stabilizing Bracket
Leveler Foot Cutout
BX0449A-94
2-12 Installing the System Cabinet
The two stabilizing brackets must be bolted to the cabinet frame at the
front and the back of the machine.
1.
Get the stabilizing brackets from the accessories box. (PN 74-49866)
2.
Open the front door and install one bracket at the front of the system
using two of the 6mm screws that come with the brackets. See Figure
2-5.
3.
Move to the back of the system and install the other bracket as you did
in step 2. You do not have to remove the back panel for this procedure.
Installing the System Cabinet 2-13
Chapter 3
Installing an Expander Cabinet
This chapter explains how to install one or more expander cabinets for the
system. An expander cabinet provides room for I/O adapters and additional storage for the system. The system can have a maximum of two expander cabinets.
The expander cabinet is designed for PCI I/O shelves and BA350
StorageWorks shelves. At the bottom of the cabinet there is room for two
power supplies (one is optional) and a CCL panel. Above this area there
are eight shelf slots for PCI I/O shelves and BA350 StorageWorks shelves.
The maximum number of PCI I/O shelves in an expander cabinet is four.
The maximum number of PCI I/O shelves for an entire system is eleven.
Sections in this chapter include:
•
Unpack the Cabinet
•
Position the Cabinet
•
Level All Cabinets
•
Install the Securing Brackets
•
Connect the Power Control Cable
•
Connect the I/O Cable
Installing an Expander Cabinet 3-1
3.1 Unpack the Cabinet
Unpack the expander cabinet in the same way you unpacked the
system cabinet in Chapter 2.
Figure 3-1
Expander Cabinet
Rear
Front
StorageWorks
Shelves
or
PCI
Shelves
Expander
Console
PowerComm 3
PowerComm 2
PowerComm 1
External
External
External
CCL Panel
Power Regulator
BX-0610A-94
3-2 Installing an Expander Cabinet
1.
Inspect the shipment for the expander cabinet as done for the system
cabinet (see Section 2.1).
2.
Collect the tools and resources needed to install the expander cabinet
(see Section 2.2).
3.
Remove the carton and packing material from the expander cabinet
(see Section 2.3). Identify and put aside the components of the installation kit.
4.
Use two people to remove the expander cabinet from the shipping pallet (see Section 2.4).
Installing an Expander Cabinet 3-3
3.2 Position the Cabinet
Position the expander cabinet next to the system cabinet. The first
expander cabinet is positioned to the right of the system cabinet,
and the second to the left as viewed from the front.
Figure 3-2
Expander Cabinet Positioning
2nd
Expander
Cabinet
System
Cabinet
1st
Expander
Cabinet
digital AlphaServer
8200
BX-0618B-94
3-4 Installing an Expander Cabinet
1.
As shown in Figure 3-2, place the first expander cabinet to the right of
the system cabinet as viewed from the front of the system. Position a
second expander cabinet to the left of the system cabinet. A system
can have a maximum of two expander cabinets. Figure 3-3 shows the
system layout with clearances for access, and Table 3-3 provides information on cabinet dimensions and weights.
Figure 3-3
System Layout
Rear
Clearance
75 cm (29.5 in)
Expander
Cabinet
System
Cabinet
Expander
Cabinet
Width
180 cm (71 in)
92.5 cm
(36.4 in)
Depth
267.5 cm
(105.3 in)
Front
Clearance
100 cm (39.4 in)
BX-0430A-94
Table 3-1
Cabinet Dimensions and Weights
Height
cm (in)
Width
cm (in)
Depth
cm (in)
Weight
1
kg (lbs)
8200
System
170 (67)
60 (23.6)
92.5 (36.4)
272–590
(600–1300)1
8200
Expander
170 (67)
60 (23.6)
92.5 (36.4)
272–590
(600–1300)1
Cabinet
1 For 8200 systems with battery backup add 29 kg (64 lbs) per power supply.
Installing an Expander Cabinet 3-5
3.3 Level All Cabinets
Level the cabinets by adjusting the rubber feet on all the cabinets
and then check the cabinets with a bubble level. Be sure the sides
of the cabinets butt each other and the cabinets are the same
height.
Figure 3-4
Leveler Foot Adjustment
Locknut
Leveler Hexnut
Leveler Foot
bx0449-94
3-6 Installing an Expander Cabinet
1.
Use an adjustable wrench to lower and adjust the leveler feet. A shipping bracket can also be used to adjust the leveler feet, since the
bracket cutout and leveler feet hexnuts are the same size.
2.
Use a bubble level while adjusting the feet and make sure all cabinets
are properly leveled in three dimensions (top to bottom, side to side,
and front to back). The operation is complete when the tops are level
and the sides of the cabinets are snug, top to bottom, front to back.
3.
Once the cabinets are level, lock each of the feet into place by tightening the locknut at the top of each leveler foot.
Installing an Expander Cabinet 3-7
3.4 Install the Securing Brackets
The expander cabinet is secured to the system cabinet by two Lshaped brackets inserted over the front and back top corners of
the cabinet’s sides.
Figure 3-5
Installing Securing Brackets
System
Cabinet
Expander
Cabinet
Securing
Bracket
digital AlphaServer
8200
BX-0618C-944
3-8 Installing an Expander Cabinet
1.
Locate the L-shaped multi-cabinet securing brackets (PN 74-49873-01)
in the expander cabinet installation kit.
2.
The two securing brackets are placed on the top corners of the side
panels of adjacent cabinets. See Figure 3-5. The brackets are tight
and require some force to install. If the cabinets are not snug against
each other, the brackets will not fit and could damage the sides of the
cabinets. Position the brackets as shown in Figure 3-5; the longer part
of the bracket secures the edge of the cabinet sides and the shorter
part of the bracket secures the top of the cabinet sides.
3.
Repeat step 2 if there is a second expander cabinet.
Installing an Expander Cabinet 3-9
3.5 Connect the Power Control Cable
Connect the power control cable from the control panel in the system cabinet to the CCL panel in the expander cabinet. If there are
two expander cabinets, install the jack splitter into the control
panel in the system cabinet and connect both power control cables
to the splitter. Route each cable from the control panel in the system cabinet to the CCL panel in each expander cabinet.
Figure 3-6
Power Control Cable Installation
Front
Front
Front
Cable
to Second
Expander
Cable
to First
Expander
SERVER
Expander
Console
2100
On/Off
Enable
PowerComm 3
External
Secure
Run
PowerComm 2
External
2.88
Restart
Fault
PowerComm 1
Enable (XMI/FBUS)
External
TM
UPS Power
Power Enable
Expander
Expander
External
External
2
BATTERY CHARGING
1
10
ON BATTERY
9 SIGNALS
OVERVOLTAGE
+ 48VDC-
REPLACE BATTERY
CURRENT
SHARE
MODULE OK
+ 48VDC-
OVER TEMP
2
BATTERY CHARGING
1
10
ON BATTERY
9 SIGNALS
OVERVOLTAGE
+ 48VDC-
REPLACE BATTERY
CURRENT
SHARE
MODULE OK
+ 48VDC-
OVER TEMP
BATTERY CHARGING
2
ON BATTERY
1
10
OVER TEMP
9 SIGNALS
OVERVOLTAGE
+ 48VDC-
REPLACE BATTERY
CURRENT
SHARE
External
PowerComm 2
PowerComm 1
External
External
External
MODULE OK
+ 48VDC-
Console
PowerComm 3
Console
PowerComm 3
PowerComm 2
PowerComm 1
BX-0450B-94
3-10 Installing an Expander Cabinet
WARNING:
Before beginning this procedure, make sure the system is
powered off.
1.
If there are two expander cabinets, plug the jack splitter (PN 1244937-01) into the system cabinet control panel jack marked Expander. See Figure 3-7.
2.
For the right expander cabinet, plug the power control cable (PN 1703511-04) into the jack splitter or the jack marked Expander on the
system control panel in the system cabinet.
3.
Route the cable according to Figure 3-6 and plug the other end of the
cable into the jack marked Expander on the CCL panel in the right expander cabinet.
4.
For the left expander cabinet, plug the second power control cable (PN
17-03511-04) into the jack splitter in the system cabinet.
5.
Route the cable according to Figure 3-6 and plug the other end of the
cable into the jack marked Expander on the CCL panel in the left expander cabinet.
6.
Tie wrap the cables in place.
Figure 3-7
Control Panel and Jack Splitter
Expander
Front
Console
PowerComm 3
External
Enable (XMI/FBUS)
PowerComm 2
External
UPS Power
PowerComm 1
External
Power Enable
Jack Splitter
BX-0446A-95
Installing an Expander Cabinet 3-11
3.6 Connect the I/O Cable
Connect the I/O cable(s) between the system and expander cabinets.
Figure 3-8
I/O Cable Connections
Front
Front
Front
I/O Cables
to Right
Expander
I/O Cables
to Left
Expander
SERVER
Expander
Console
2100
On/Off
Enable
PowerComm 3
External
Secure
Run
PowerComm 2
External
Restart
2.88
Fault
PowerComm 1
Enable (XMI/FBUS)
External
TM
UPS Power
Power Enable
External
External
I/O Cable to PCI in System
3-12 Installing an Expander Cabinet
9 SIGNALS
1
10
2
OVER TEMP
+ 48VDC-
BATTERY CHARGING
CURRENT
SHARE
OVERVOLTAGE
+ 48VDC-
External
ON BATTERY
2
BATTERY CHARGING
1
10
ON BATTERY
9 SIGNALS
OVER TEMP
+ 48VDC-
REPLACE BATTERY
CURRENT
SHARE
MODULE OK
+ 48VDC-
OVERVOLTAGE
BATTERY CHARGING
2
ON BATTERY
1
10
OVER TEMP
9 SIGNALS
MODULE OK
+ 48VDC-
Console
PowerComm 3
PowerComm 2
PowerComm 1
REPLACE BATTERY
CURRENT
SHARE
OVERVOLTAGE
+ 48VDC-
Expander
External
External
External
REPLACE BATTERY
Console
PowerComm 3
PowerComm 2
PowerComm 1
MODULE OK
Expander
BX-0450C-94
Figure 3-8 shows a system with nine PCIs. In this configuration, a single
KFTIA is in TLSB slot 8 and two KFTHAs are in TLSB slots 7 and 6.
There are nine PCIs, one in the system cabinet and four in each expander
cabinet.
Cabling Guidelines:
1.
The PCI in the system cabinet is connected to the KFTIA in slot 8.
2.
If there is one expander cabinet, the PCIs in it are connected to the
KFTHA in slot 7.
3.
If there are two expander cabinets, the PCIs in the right expander are
connected to the KFTHA in slot 6, and the PCIs in the left expander
are connected to the KFTHA in slot 7.
4.
The cable from the topmost connector on the KFTHA is connected to
the PCI in the lowest position in the expander, the cable from the next
topmost position is connected to the PCI that is above the lowest one
in the expander. The other two cables follow this principle.
To install the cables:
1.
Plan your cabling carefully taking into consideration the above conditions and how the cables are routed and bundled as shown in Figure
3-8.
2.
Each PCI must be connected to a KFTHA or KFTIA. Cable 17-0308504 connects the KFTIA to the PCI in the system cabinet, and the
longer cable, the 17-03085-03, connects PCIs in expander cabinets to
KFTHAs in the system cabinet.
3.
Using a flathead screwdriver, install the end of the I/O cable labeled
IOP (P/N 17-03085-0x) to the KFTHA or KFTIA connector. Be sure
the connector is aligned before tightening the screws.
4.
Route the I/O cable(s) as shown in Figure 3-8.
5.
Using a flathead screwdriver, install the end of the I/O cable labeled
PIU to the appropriate PCI shown in Figure 3-8.
6.
Once all the cables are connected place tie-wraps on them and secure
them as best you can in the positions shown in Figure 3-8.
Installing an Expander Cabinet 3-13
Chapter 4
Making Console, SCSI, Ethernet,
FDDI, and DSSI Connections
This chapter describes how to connect a console terminal and how to make
SCSI, Ethernet, FDDI, and connections. It consists of the following sections:
•
Connect the Console Terminal
•
Connect the Console Load Device
•
Connect SCSI Cables
•
Connect Ethernet Cables
•
Connect FDDI Cables (Optional)
•
Connect DSSI Cables (Optional)
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-1
4.1 Connect the Console Terminal
Figure 4-1 shows a system cabinet with a console terminal. Connect the console terminal to the console terminal port in the system cabinet as shown in Figure 4-2.
Figure 4-1
System Cabinet, Console Terminal, and Printer
digital AlphaServer
8200
d i g i t a l
LA75 Companion Printer
BX-0618A-94
CAUTION: The system cabinet, console terminal, and printer should all
use the same power distribution source to ensure a common
ground.
4-2 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
1.
Unpack the VT510 console terminal. The console terminal signal cable
is shipped in the loose piece box and consists of a 17-01364-02 cable
and H8575-A adapter.
2.
Open the front door and connect one end of the 17-01364-02 cable to
the console terminal port on the control panel. Connect the cable
ground wire to the cabinet grounding screw nearby (see Figure 4-2).
Connect the other end of the cable to the H8575-A, which connects to a
25-pin D-subminiature connector on the console terminal. Connect the
other end of the cable ground wire to one of the screws on the H8575A.
3.
If a printer is not present, skip this step. Otherwise, unpack the
printer. Connect the BC16E-25 signal cable to the printer and to the
console terminal. Plug in the printer.
4.
The following are the default terminal characteristics. If the terminal
does not have these characteristics, they must be set accordingly:
•
Baud rate = 9600 (transmit = receive)
•
8 bits, no parity
•
1 Stop Bit
•
Xoff at 64
Figure 4-2
Control Panel and Console Terminal Port
Expander
Possible
ground
screws
Console
PowerComm 3
External
Enable (XMI/FBUS)
Front
PowerComm 2
External
UPS Power
PowerComm 1
External
Power Enable
BX-0446-95
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-3
4.2 Connect the Console Load Device
Should the console load device cable be dislodged during shipment, follow these instructions. The CD-ROM drive located at the
top of the storage drawer in the upper left of the system cabinet is
the system load device. It is supported by the KFTIA or a KZPAA
in a PCI I/O subsystem.
Figure 4-3
KFTIA as the Console Load Device Support
Console Load
Device
Front
SCSI CD-ROM
Connector
Single-Ended
SCSI Port
BX-0606B-94
4-4 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
The BN21H-0E cable is used to connect the CD-ROM drive to the singleended port on the KFTIA. Figure 4-3 shows the KFTIA and the CD-ROM
connector locations. Check to see that the BN21H-0E cable is installed
properly.
If there is no KFTIA, support for the CD-ROM comes from the KZPAA in
the PCI. Figure 4-4 shows the KZPAA connector on the PCI I/O subsystem. If need be, connect the BN21H-02 cable to the KZPAA and the CDROM connector on the storage drawer.
Figure 4-4
KZPAA as the Console Load Device Support
Console Load
Device
SCSI CD-ROM
Connector
Storage
Drawer
KZPAA
Front
PCI
BX-0447D-94
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-5
4.3 Connect SCSI Cables
SCSI cable connections depend upon the customer order. Connecting and routing cables are dependent on placement of adapters and devices. Read the information provided and install the cables needed.
Figure 4-5
System and Expander Cabinets
Front
Front
Option slot 2
Option slot 1
Expander
Console
PowerComm 3
External
PowerComm 2
External
1
10
2
BATTERY CHARGING
9 SIGNALS
OVER TEMP
+ 48VDC-
ON BATTERY
CURRENT
SHARE
MODULE OK
+ 48VDC-
OVERVOLTAGE
REPLACE BATTERY
External
REPLACE BATTERY
2
BATTERY CHARGING
10
ON BATTERY
1
BATTERY CHARGING
9 SIGNALS
ON BATTERY
MODULE OK
2
OVER TEMP
10
+ 48VDC-
REPLACE BATTERY
CURRENT
SHARE
1
OVER TEMP
+ 48VDC-
9 SIGNALS
OVERVOLTAGE
CURRENT
SHARE
+ 48VDC-
MODULE OK
+ 48VDC-
OVERVOLTAGE
PowerComm 1
Space for
cables if no
Power Supply
BX-0450D-94
Space for SCSI Cables
4-6 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
Multiple SCSI configurations are possible both inside system and expander
cabinets and outside either cabinet. Manufacturing connects all SCSI devices it can in both system and expander cabinets. There is space in both
cabinets to pass cables from front to back (see Figure 4-5). If there is only
one power supply in the cabinet, pass the SCSI cables along the top of the
supply. You can assume that loose SCSI cables provided with a system go
from device adapters in the system cabinet to devices in another cabinet.
The following rules apply:
1.
FWD SCSI ports on the KFTIA have "Y" cables (BN21W-0B) plugged
into them. Cables to devices plug into these "Y" cables.
2.
All SCSI buses must be terminated at both ends. The terminators for
the AlphaServer 8200 are interchangeable and are the H879 or the
H8863.
3.
All cables exit and enter cabinets at the bottom front.
4.
Signal cables should be routed away from the power cables on the
front right and rear left frame.
5.
SCSI cables that go to devices at the rear of either cabinet are routed
through the space above the first option slot if there are two power
supplies; otherwise, lay the cable on top of the only power supply.
6.
The SCSI cables should not be routed in front of power supply fans.
Table 4-1 lists SCSI cables used in AlphaServer 8200 systems to connect
devices outside the system cabinet with their adapters.
Table 4-1
SCSI Cables to Devices in Other Cabinets
Cable
Number
From
To
Length
(meters)
BN21H-05
PCI (M1)
BA350 (front & rear E2) (SE)
5
BN21K-03
PCI (M)
PCI (E)
DWZZA, BA350 (front E) (FWD)
DWZZA, BA350 (rear E) (FWD)
3
BN21K-05
PCI (M)
DWZZA, BA350 (front & rear E)
5
1 M = In main or system cabinet.
2 E = In expander cabinet.
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-7
4.4 Connect Ethernet Cables
Two Ethernet ports are available on the KFTIA. Connect the Ethernet cable to the KFTIA and to the Ethernet transceiver if the
customer is planning to use this option. Ethernet ports are also
available through the PCI I/O subsystem. To connect to the Ethernet through a subsystem, connect the Ethernet cable to the Ethernet adapter in the PCI and to the Ethernet transceiver.
Figure 4-6
Ethernet Connectors on KFTIA
Front
Twisted-Pair Ethernet Ports
BX-0447-94
4-8 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
Two DECchip 21040-AA Ethernet chips on the KFTIA are implemented as
twisted-pair Ethernet. They are connected to the Ethernet by a BN25G-xx
or a BN26M-xx transceiver cable. The DE435-AA, the PCI Ethernet
adapter, implements all three Ethernet variants: twisted-pair, or thick
wire, or ThinWire. The KFE70 has twisted-pair or thick wire.
1.
Connect the transceiver cable (BN25G-xx (unshielded) or BN26M-xx
(shielded)) to an Ethernet port on the KFTIA (see Figure 4-6).
2.
Connect the other end of the cable to an Ethernet transceiver or to an
appropriate conversion box. See the appropriate Ethernet transceiver
manual for more information.
3.
If there is a DE435-AA or a KFE70, connect appropriate cables to the
PCI module (see Figure 4-7). The DE435 has a single chipset that
supports either ThinWire, thick wire, or twisted-pair. The KFE70
supports either thick wire or twisted-pair.
Figure 4-7
Ethernet Connectors on PCI Adapters
DE435
KFE70
Twisted-Pair
Thick wire
Thick wire
Front
ThinWire
TwistedPair
BX-0447B-94
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-9
4.5 Connect FDDI Cables (Optional)
If the system includes an FDDI option, connect the FDDI cable to
the KFTIA or to the DEFPA option in the PCI I/O subsystem and to
the FDDI transceiver.
Figure 4-8
FDDI Connectors on KFTIA
FDDI Option
DEFPZ
PHY
-AA Variant
Multimode
Fiber
Front
FDDI
-UA Variant
Twisted-Pair
BX-0447A-94
FDDI options are available by a daughter card (DEFPZ-XX) on a KFTIA or
by a PCI adapter (DEFPA-XX). Table 4-2 lists the FDDI options and the
cables required. Figure 4-8 shows connectors for the DEFPZ variants, and
Figure 4-9 shows connectors for the DEFPA variants.
4-10 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
Table 4-2
FDDI Options and Cables
Option
Description
Location
Associated Cable
DEFPZ-AA
Multimode fiber (MMF)
KFTIA
BN24D or BN24E
DEFPZ-UA
Twisted-pair (UTP)
KFTIA
BN26M or BN26S
DEFPA-AA
Single attachment
(MMF)
PCI
BN34A, BN34B, or
BN34D
DEFPA-DA
Dual attachment (MMF)
PCI
BN34A, BN34B, or
BN34D
DEFPA-UA
Twisted-pair (UTP)
PCI
BN26M or BN26S
1.
If you have the KFTIA FDDI option, connect the appropriate cable to
the KFTIA FDDI port shown in Figure 4-8, and go to step 3.
2.
If you have a PCI FDDI option, connect the appropriate cable to the
FDDI port (see Figure 4-9).
3.
Connect the other end of the cable to the FDDI network. See the appropriate FDDI manual for details.
Figure 4-9
FDDI Connectors on PCI Adapter
DEFPA Variants
-UA
-AA
-DA
Front
BX-0447C-95
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-11
4.6 Connect DSSI Cables (Optional)
If the system has a KFESB option on the EISA bus and manufacturing has not cabled it because the placement of the adapter and
the devices are in different cabinets, cable the devices to the
adapter.
Figure 4-10 DSSI Connector on KFESB
KFESB
KFE70
Front
BX-0447F-95
4-12 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
The KFESB is an EISA to DSSI adapter. Required with this option is the
KFE70 and its attendant hardware.
1.
If the KFESB is not cabled, attach one end of the DSSI cable (BC29Rxx or BC29S-xx) to the KFESB connector in the PCI/EISA I/O subsystem (see Figure 4-10). Identify the slot location using the show device command. If necessary, install a terminator to terminate this
end of the DSSI cable.
2.
To route the DSSI cable, follow the instructions for SCSI cable routing
described in Section 4.3.
3.
Attach the end of the DSSI cable to the connector on the HSD05 or
HSD30. (The HSD05 and HSD30 are array controllers that allow connectivity between the DSSI bus and the StorageWorks family of products (SCSI).) Figure 4-11 shows the placement of the HSDxx and its
connector.
4.
If necessary, configure the DSSI bus. (See accompanying KFESB
documentation.)
Figure 4-11 StorageWorks Shelf with DSSI Controller
DSSI - SCSI
StorageWorks
Shelf
PS 6
5
4
3
2
HSD05 or
HSD30
1
BX-0451C-95
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-13
Chapter 5
Powering Up the System
This chapter provides an overview of the power-up procedure for the system. Sections include:
•
Prepare to Check the AC Power
•
Measure the AC Power
•
Turn the Power On and Check Indicators
Powering Up the System 5-1
5.1 Prepare to Check the AC Power
As a preliminary step before checking the AC power, make sure
that the power cord is not plugged in and that the breaker switch
is off.
Figure 5-1
Circuit Breaker for the AC Power
Single Power Unit
Redundant Power
2
2
Rear
Rear
AC Input Boxes
1
1
1 AC Power Line Cord
2
Circuit Breakers
BX-0440C-94
5-2 Powering Up the System
1.
At this point, the AC power cord should still be unplugged.
2.
Pull down the circuit breaker handle on the AC input box (see Figure
5-1).
3.
At the control panel, make sure the pushbutton switch is in the off position.
The circuit breaker on the power supply controls power to the system. For
normal operation, the circuit breaker handle must be in the on or up position. To shut the circuit breaker off, push the handle down.
For safety, current overload and over-temperature cause the circuit
breaker to trip to the off position, removing all power from the system.
WARNING:
The circuit breaker on the power supply controls power
to the system. In a battery backed-up system, if you unplug
the system and leave the pushbutton switch in the on position, power is still present. Be sure circuit breakers on the
power supplies are in the off position when working on the
system. In systems with redundant power, the circuit
breaker on the power strip controls AC input but does not
control DC output in a battery backed-up system.
Powering Up the System 5-3
5.2 Measure the AC Power
With a digital multimeter, check the AC power supplied at the receptacle at the installation site. There are two types of receptacles: one for Europe and the other for other parts of the world.
Figure 5-2
Measuring System Power
202/208 V NOMINAL (30A)
U.S. & Japanese Version
NEMA L6-30R (50 - 60Hz)
230 V NOMINAL (32 A)
IEC 309 Type (50 - 60Hz)
V
V
PHASE 1
X
NEUTRAL
Y
GND
GND
BX-0441A-94
5-4 Powering Up the System
1.
Check that the receptacle provided is correct. This should have been
done during site preparation.
2.
Using a voltmeter, measure the voltages between lines in the receptacle as shown in Figure 5-2. Verify that the voltages are within the
range specified in Table 5-1. If the voltages are out of range, contact
an electrician.
3.
Plug the power cord into the receptacle.
Table 5-1
AC Input Voltage Specifications
Voltage
Measurement
208V
Nominal
220/240V
Nominal
line to line
208
220–240
line to ground
(Phase 1 to GND)
120
220–240
neutral to ground
NA
0
Powering Up the System 5-5
5.3 Turn the Power On and Check Indicators
Power up the system by pushing up the circuit breaker handle on
the AC input box. Push the On/Off button; then monitor the state
of the system as it powers up.
Figure 5-3
Control Panel LEDs
On/Off
Enable
Secure
Run
Restart
Fault
Front
2.88
TM
BX-0607-94
5-6 Powering Up the System
1.
Turn the power on by pushing the circuit breaker handle up (see Figure 5-1).
2.
Go to the front of the cabinet and check that the green power regulator
LED(s) are blinking (see Figure 5-4).
3.
Push the On/Off button. The following should occur (see Figure 5-3):
a. The yellow Fault indicator on the control panel blinks indicating
power sequencing is taking place.
b. The blower turns on.
c. The yellow Fault indicator stays on continuously for a short time
indicating self-test is taking place. Module self-test LEDs light as
described in Section 6.1, and a self-test display appears on the console terminal as described in Section 6.2. The console prompt appears at the end of a successful self-test display. The yellow Fault
indicator goes out when all modules pass self-test.
The power supplies have two sets of LEDs that indicate normal conditions,
faults, or battery conditions. When the system is off, plugged in, and the
circuit breaker on, power is present only in the power supply and no LEDs
are lit. When the system is on, the MODULE OK LED should also light
(see Figure 5-4).
Figure 5-4
Power Regulator
OVER TEMP
BATTERY CHARGING
2
REPLACE BATTERY
9 SIGNALS 1
10
ON BATTERY
CURRENT
SHARE
+ 48VDC-
OVERVOLTAGE
+ 48VDC-
MODULE OK
Front
BX-0448-94
Powering Up the System 5-7
Chapter 6
System Self-Test
On power-up, the system runs an automatic self-test. Self-test results are
indicated by module LEDs, the self-test display at the console terminal,
and the Fault light on the control panel.
Sections in this chapter include:
•
Check Module Status LEDs
•
Check the Self-Test Display
System Self-Test 6-1
6.1 Check Module Status LEDs
Check the system module status LEDs for self-test success. If the
LEDs indicate failure, refer to the Operations Manual for more information.
Figure 6-1
Powering Up and Checking the LEDs
Front
Self-Test
LEDs
KFTHA
KFTIA
BX-0606C-94
6-2 System Self-Test
Processor and memory modules have a green LED that lights when the
module passes or completes self-test. These LEDs can be viewed through
holes in the shield of the module enclosure from the front of the cabinet.
PCI I/O modules are not visible but some connectors have LEDs on them.
Table 6-1 lists TLSB and DWLPA, the PCI motherboard, modules showing
LED conditions after self-test. For the conditions of LEDs on PCI and
EISA devices/adapters, see the related documentation.
Table 6-1
LEDs After Self-Test
Module
Self-Test Passed
Self-Test Failed
KN7CC1
Green ON
Green OFF
MS7CC
Green ON
Green OFF or ON2
KFTHA
Green ON
Green OFF
KFTIA
Green ON
Green OFF
DWLPA3
Green ON
Green OFF
1 The green LED on the processor module indicates that a single CPU chip on a uniprocessor module passed self-test or both CPU chips on a dual-processor module passed.
The LED will be OFF if there is any failure on the module though it may be configured
into the system.
2 The green LED on the memory module indicates that self-test completed, not passed.
3 The DWLPA, the PCI motherboard, has four LEDs. The self-test passed LED is the second from the hose connection.
For more information:
Operations Manual
Service Manual
System Self-Test 6-3
6.2 Check the Self-Test Display
The AlphaServer 8200 contains only the "back" half of the TLSB
card cage. Nodes 4 through 8 reflect the right-to-left position of
the TLSB slots as viewed from the front of the cabinet. Self-test results are displayed on the console terminal. The pass (+) or fail (-)
status of each module is indicated.
Self-Test Results
Example 6-1
F
E
D
C
B
.
A
.
9
.
12
8
7
6
5
4
3
2
1
0
NODE #
A
o
.
o
.
+
.
M
+
.
+
.
+
.
.
.
.
.
.
.
.
P
++
EE
++
EE
++
EE
P
-+
EB
-+
EB
-+
EB
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
TYP
ST1
BPD
ST2
BPD
ST3
BPD
.
.
.
+
.
+
.
+
.
.
+
+
+
+
+
+
+
C0 PCI + 5
C1 PCI + 1
. A0
.128
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ILV
128MB
AlphaServer 8200 Console V1.0, SROM V1.0 APR 1 1995 00:00:00
P08>>>
6-4 System Self-Test
1
2
3
4 13
3
3
1
The NODE # line lists the (hexadecimal) node numbers on the TLSB
and I/O buses. Node numbers and slot numbers are identical. For the PCI
I/O subsystem nodes 0 - B are counted from right to left.
The TYP line indicates the type of module at each TLSB node:
2
•12
2
An adapter: the I/O port module (A) is a KFTIA or a KFTHA
•
A memory module (M)
•
A processor (P)
A period (.) indicates the slot is empty or the module is not reporting.
3
The ST1–ST3 lines show the results of the testing. The self-test bit
in the TLCNR register of each module contains this information. For the
KN7CC dual processor one CPU may pass, another fail. Entries are:
•
+ (pass) A .+ indicates a uniprocessor passed.
•
− (fail) A -+ indicates one CPU failed and one CPU passed on a dualprocessor module.
•
o (does not apply). In this example, the I/O port module has "o" because there is no module-resident self-test.
3
The BPD line indicates boot processor designation. The results on
4
this line indicate:
•
The boot processor (B)
•
Processors eligible to become the boot processor (E)
•
Processors ineligible to become the boot processor (D)
The BPD line is printed three times. After the first determination of the
boot processor, the processors go through two more rounds of testing.
Since it is possible for a processor to pass self-test at line ST1 and fail ST2
or ST3 testing, the processors again determine the boot processor following
each round of tests.
The I/O channel line C0 indicates the state of the internal PCI I/O
5
channel on the KFTIA and shows that devices at nodes 0, 1, 2, 4, 5, and 6
all passed self-test. Line C1 indicates the self-test results for the DWLPA
4
and
all PCI adapters connected through the KFTIA’s hose. In this example, self-test passed on PCI nodes 0, 1, 2, 3. Had a KFTHA been present,
channel lines for each of the four I/O connections would have been shown.
For more information:
Operations Manual
System Self-Test 6-5
Chapter 7
Diagnostics and Utilities
After the system passes self-test, you must verify proper system operation.
First verify the presence of SCSI devices, then verify the boot device load
path. After the path is verified, you can boot the operating system and use
operating system-based test programs (such as VET) to complete system
verification.
The system is tested automatically during power-up; no off-line loadable
diagnostics are required or provided. The Loadable Firmware Update
(LFU) Utility is currently the only supported off-line loadable program. It
is used to update firmware on any module residing on the system that has
updatable firmware.
Sections in this chapter include:
•
Console Load Device
•
Verification Overview
•
Diagnostics Overview
•
Run System Self-Test
•
Show Commands for Installation
•
Verify SCSI Devices
•
If Necessary, Run the RAID Configuration Utility
•
If Necessary, Run the EISA Configuration Utility
•
Booting Factory Installed Software
•
Booting OpenVMS from a CD-ROM
•
Booting Digital UNIX from a CD-ROM
•
Set Commands for Booting
•
Booting LFU from a CD-ROM
•
Running the System Exerciser VET
Diagnostics and Utilities 7-1
7.1 Console Load Device
The compact disk (CD) drive is the in-cabinet console load device.
During system installation the console load device is used to load
software and boot various utilities like the Loadable Firmware Update (LFU) Utility.
Figure 7-1
Accessing the Console Load Device
TLSB
PCI
KFTIA
KZPAA
CD-ROM
CD-ROM
BX-0410B-94
7-2 Diagnostics and Utilities
The console load device is used for:
•
Installing or updating software
•
Loading a backup utility program
•
Interchanging user data
•
Updating module firmware
•
The compact disk (CD) drive is the console load device for these systems. It is installed in the system cabinet and used to access software
and online documentation. The CD-ROM is likely to be installed
through the KFTIA, or through a KZPAA in a PCI I/O subsystem.
Diagnostics and Utilities 7-3
7.2 Verification Overview
The following process is used to verify the system after installation.
Figure 7-2
Verification Procedure
1
Power Up System.
Self-Test Runs.
2
Use show
commands to
become familiar
with the system
3
Check that the
console configures
all the devices on
the system
4
Perform special
configuration
tasks if necessary
5
Boot
Operating System
6
Verify System Under
Operating System
7-4 Diagnostics and Utilities
BX-0490-94
1
When the system powers up, self-test runs. Verify that all tests have
passed by checking the results in the self-test display.
2
Use the show configuration and show device commands to determine the self-test status for the I/O adapters and devices. Identify the
load device. Note what the console configures.
3
Check that the console configured all the hardware on the system.
Troubleshoot and repair if necessary.
4
Run configuration utilities if necessary.
5
Boot the factory installed operating system.
6
Verify the system under the installed operating system.
Diagnostics and Utilities 7-5
7.3 Diagnostics Overview
Self-tests and additional ROM-based diagnostics are run automatically at power-up. Console-based exercisers can be run from the
console in User Mode. The system Verifier and Exerciser Tool is
run under the operating system.
Figure 7-3
Diagnostic Overview
Self-Test
ROM-Based
Diagnostics
(RBDs)
Additional Power-Up Tests
Console-Based Exercisers
Online
OpenVMS/UNIX: Verifier and Exerciser Tool (VET)
BXB-0065A-94
7-6 Diagnostics and Utilities
Table 7-1 lists diagnostics provided. Tests in the first two groups run at
power-up. The console-based exercisers can be run from the console.
Table 7-1
Diagnostics
Test Group
Test
Self-test
CPU self-test
Memory array self-test
PCI adapter self-test1
Device peripheral self-test
Power subassembly self-test
Additional power-up tests
CPU/Memory interaction tests
Multiprocessor tests
KFTIA and KFTHA tests
PCI tests
Console-based exerciser
Cache/Memory exerciser
Disk exerciser2
Floating-point exerciser
Network exerciser2
1 Self-test on PCI adapters is optional. If the device has and performs self-tests, they are
reported by the console.
2 Run in internal loopback (at I/O adapter) mode only.
NOTE: To run console-based diagnostics and utilities using the set host
and test commands, see the Service Manual.
Diagnostics and Utilities 7-7
7.4 Run System Self-Test
Gather adapter self-test and address information using self-test results as shown in Example 7-1.
Example 7-1
F
E
D
C
Self-Test Display
B
.
A
.
9
.
8
7
6
5
4
3
2
1
0
NODE #
A
o
.
o
.
+
.
M
+
.
+
.
+
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
P
++
EB
++
EB
++
EB
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
TYP
ST1
BPD
ST2
BPD
ST3
BPD
+
.
.
+
.
+
.
+
.
.
.
+
.
+
+
+
.
C0 PCI + 3
C1 PCI +
. A0
.512
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ILV
512MB
1
1
2
2
AlphaServer 8200 Console V1.0, SROM V1.0, Apr 1 1995 00:00:00
7-8 Diagnostics and Utilities
1
Check the ST1 line in the self-test results to see that all CPU and
memory modules passed self-test. Note that on a system with dualprocessor modules, failing processors are disabled and appear in the
ST1 line. Were both processors to fail on a dual-processor module,
nothing appears on the ST1 line. There is minimal TLSB traffic during these tests.
2
Check the ST2 line to see that memory and the CPU(s) passed their
interaction tests and check the ST3 line to see that all three types of
modules on the TLSB passed their tests.
3
Check the C0 through C10 lines to determine which modules on the
PCI I/O subsystem passed self-test. The example shows two PCIs, one
internal to the KFTIA in slot 8 and the other connected to the KFTIA
through a hose. (The maximum number of PCI I/O subsystems is
eleven.)
NOTE: If any module is badly broken on any bus, the console may not get a
response or be able to read whether a device passed self-test. Under
such conditions, self-test does not indicate a failure but instead indicates that the slot is empty.
Diagnostics and Utilities 7-9
7.5 Show Commands for Installation
Use show commands to obtain information on the system configuration.
Example 7-2
Show Configuration
P08>>> show configuration 1
TLSB
4++
7+
8+
Name
Type
Rev
Mnemonic
KN7CC-AB
MS7CC
KFTIA
8014
5000
2020
0000
0000
0000
kn7cc-ab0
ms7cc0
kftia0
C0 Internal PCI connected to kftia0
0+
ISP1020
10201077 0001
1+
ISP1020
10201077 0001
2+
DECchip 21040-AA
21011 0023
4+
ISP1020
10201077 0001
5+
ISP1020
10201077 0001
6+
DECchip 21040-AA
21011 0023
7+
PCI NVRAM
71011 0000
pci0
isp0
isp1
tulip0
isp2
isp3
tulip1
pci_nvram0
C1 PCI connected to kftia0
0+
SIO
4828086
5+
KZPSA
81011
6+
DECchip 21040-AA
21011
8+
ISP1020
10201077
A+
DAC960
11069
B+
DEC PCI FDDI
F1011
0003
0000
0023
0001
0000
0000
pci1
sio0
kzpsa0
tulip3
isp4
dac0
pfi0
Controllers on SIO
0+
DECchip 21040-AA
1+
FLOPPY
2+
KBD
3+
MOUSE
0023
0000
0000
0000
sio0
tulip2
floppy0
kdb0
mouse0
21011
2
3
4
EISA connected to pci1 through sio0
3+
KFESA
2EA310 0000
7-10 Diagnostics and Utilities
eisa0
kfesa0
Example 7-3
Show Device
P08>>> show device 2
polling for units on isp0,
dka200.2.0.0.0
DKA200
dka400.4.0.0.0
DKA400
polling for units on isp1,
dkb300.3.0.1.0
DKB300
dkb500.5.0.1.0
DKB500
dkb600.6.0.1.0
DKB600
polling for units on isp2,
dkc100.1.0.4.0
DKC100
dkc200.2.0.4.0
DKC200
dkc300.3.0.4.0
DKC300
polling for units on isp3,
dkd400.4.0.5.0
DKD400
dkd500.5.0.5.0
DKD500
3
slot 0, bus 0, hose0...
RZ26L
RZ26L
slot 1, bus 0, hose0...
RZ26L
RZ26L
RZ26L
slot 4, bus 0, hose0...
RZ26L
RZ26L
RZ26L
slot 5, bus 0, hose0...
RRD44
RZ26L
440C
440C
440C
440C
440C
440C
440C
440C
0000
440C
1
Use the show configuration command to see a listing of the modules in the system. This command shows the module TLSB and PCI
slot number, module name, module type, revision, mnemonic, and if
self-test passed.
2
The show device command displays information about each I/O device. Polling checks all I/O buses for device configurations. The next
line contains the console device name, the name of the device given
by the device controller, and the device type. Example 7-3 shows
polling of only the internal bus of a KFTIA.
The show network command, not shown in the example, displays
information about network connections.
Using these commands (show configuration, show device, and show
network), make sure all devices and system resources are present and
"seen" by the console. Check the results of the two console commands
against the manufacturing system manifest. If something is missing, it is
likely broken, needs reseating, or is back ordered.
For more information:
Operations Manual
Diagnostics and Utilities 7-11
7.6 Verify SCSI Devices
7.6.1 Check SCSI Devices Using Console Commands
To verify SCSI devices, issue the console command show device.
Check the output against the physical SBBs (storage building
blocks). Nodes are defined by the physical position of the SBB
and do not have to be set.
Example 7-4
Checking SCSI Devices
1
Initializing...
.
.
.
.
.
.
.
.
+
.
+
+
+
.
.
.
+
.
+
+
+
.
C0 PCI +
C1 PCI +
. A0
. 512
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ILV
512MB
.
AlphaServer 8200 Console V1.0 SROM V1.0 Apr 1 1995 00:00:00
P08>>> show device 2
polling for units on isp0, slot 0, bus 0, hose0...
polling for units on isp1, slot 1, bus 0, hose0...
polling for units on isp2, slot 4, bus 0, hose0...
polling for units on isp3, slot 5, bus 0, hose0...
dkd400.4.0.5.0 DKD400 RRD44 0064
dkd500.5.0.5.0 DKD500 RZ26L 440C
polling for units on kzpsa0, slot 5, bus 0, hose1...
kzpsa0.7.0.5.1
dke
TPwr 1 Fast 1 Bus ID 7
C01 A05
dke100.1.0.5.1
DKE100
RZ26L
440C
dke200.2.0.5.1
DKE200
RZ26L
440C
3
dke300.3.0.5.1
DKE300
RZ26L
440C
dke400.4.0.5.1
DKE400
RZ26L
440C
dke500.5.0.5.1
DKE500
RZ26L
440C
dke600.6.0.5.1
DKE600
RZ26L
440C
7-12 Diagnostics and Utilities
Basics:
•
There are four ways to attach to SCSI devices:
— KZPAA, a PCI adapter with a single-ended SCSI port
— KZPSA, a PCI adapter with a SCSI port
— KZPSC, the RAID adapter with one to three FWD SCSI ports
— ISP1020, a PCI chipset on the KFTIA; each KFTIA has three FWD
(fast wide differential) SCSI ports and one single-ended SCSI port.
•
Each port has a maximum of eight nodes per bus, including the initiator or host.
•
Each modular storage shelf (BA350) has a power supply and can hold
seven 3.5" SBBs (such as RZ26s or TLZ06s), two 5.25" SBBs (such as
the RZ73 drives), or a combination of these.
•
SCSI configurations vary depending upon the particular adapter being
used. Read the manuals associated with each adapter to learn the configuration rules.
All cabling and node setting has been completed prior to shipping. To
check the configuration, check self-test and issue a show device console
command:
1
The system goes through self-test. Check that the KFTIA, the
KZPAA, the KZPSA, and/or the KZPSC adapters passed self-test.
2
Issue a show device command. In this example, the SCSI ports on
the KFTIA are polled first; only two devices are found on the singleended port ips3. A KZPSA in slot 5 of the PCI that is connected to
the KFTIA through hose1 is polled and shows the adapter at node 7
and six RZ26L disks at nodes 1 through 6.
3
Each port connects to a shelf housing up to seven RZxx drives on one
bus (see Figure 7-4). All devices in this example are reporting to the
console and are working. When a DWZZA is used, it occupies a
StorageWorks shelf slot, but it is not a node nor is it "seen" by the
console.
Diagnostics and Utilities 7-13
7.6.2 Check Console Output Against Physical Devices
Next check the output from the show device command against the
physical SBBs in the cabinet(s).
Figure 7-4
SCSI Disks in StorageWorks Shelves
Front
PS
6
5
4
3
2
1
0
Single-Ended SCSI
Shelf
Fast Wide Differential
SCSI Shelf
PS
6
5
4
3
7-14 Diagnostics and Utilities
2
1
DWZZA
BX-0451-95
Check the output from the show device command against the physical
SBBs. There should be a one-to-one correspondence between SBBs reporting to the console and the physical devices mounted. Note that the node
number reported by the console corresponds to the physical position of an
SBB within a shelf; the slots and nodes are numbered 0 to 6, from right to
left (see Figure 7-4).
Figure 7-4 shows two storage shelves: one with a DWZZA and one without.
A DWZZA is a bidirectional bus converter that converts differential signals
to single-ended signals and converts single-ended signals to differential
signals. Figure 7-4 is not exhaustive; other devices fit into StorageWorks
shelves and look very different from the configuration shown.
The KFTIA has three differential ports (ips0, ips1, and ips2); RZ26, RZ26L,
and RZ28 disks are single-ended devices used in StorageWorks shelves;
DWZZAs are used to perform bus conversion if necessary. Although the
DWZZA-VA takes up a slot, it is not a node on the bus and is not "seen" by
the system.
Each SBB has two LEDs. The green LED on the top lights when the SBB
is mounted and is being accessed. For a complete discussion of
StorageWorks LED status, see the StorageWorks Solutions Configuration
Guide (EK-BA350-CG).
If you have problems seeing devices, reseat the SBBs and reissue show
device. If you need further testing, use the test command. Refer to
BA350 documentation if you need to reconfigure the buses.
For more information:
Service Manual
BA350 Modular Storage Shelf Subsystem Configuration Guide or User’s Guide
Diagnostics and Utilities 7-15
7.7 If Necessary, Run the RAID Configuration Utility
If a KZPSC is in the system (it shows up in the console display as
the DAC960), the customer may want RCU run. When the system
was configured in manufacturing, default settings were used when
RCU was run. Example 7-5 shows how to run RCU. See the KZPSC documentation for detailed information on configuring the
devices. The RCU software is on a floppy and requires a KFE70.
Example 7-5
Running RCU
P08>>> set arc_enable on
2
P08>>> initialize
1
[Console display appears]
P08>>> run rcu -p 1
3
4
7-16 Diagnostics and Utilities
The RAID Configuration Utility (RCU) need only be run if a KZPSC controller is in the system. The controller comes with its own documentation
describing the utility. The controller can operate in several different
modes, and the customer should determine how to customize the disk
farm. RCU enables the choices. Prior to running the utility, you should
read the documentation and discuss which mode the customer wishes. Example 7-5 shows how to run RCU.
Place the RAID Configuration Utility floppy in the floppy drive.
1
Use the set command to turn on the arc_enable environment variable.
2
Initialize the system to make the set command take effect.
3
After self-test completes, enter run rcu to identify what program to
run. The run command defaults to the floppy as the source of the program for execution so no device need be specified.
4
-p 1 specifies that PCI1 is to be configured. See Example 7-2 for the
PCI number containing the KZPSC (shown by the console as the
DAC960). (In this case it is connected to a KFTIA hose.)
Diagnostics and Utilities 7-17
7.8 If Necessary, Run the EISA Configuration Utility
If the system has a KFE70, a PCI to EISA bridge, it may be necessary to run ECU, the EISA bus configuration tool. The console will
tell you if this is necessary. ECU comes on a floppy that must be
placed in the floppy drive.
Example 7-6
Running ECU
Power on the system
1
[console display appears]
AlphaServer 8200 console v1.0. SROM V1.0, Apr 1 1995 00:00:00
EISA Configuration Error - run the EISA Configuration Utility.
P08>>> set arc_enable on
P08>>> initialize 4
3
[console displays appears]
P08>>> runecu
5
7-18 Diagnostics and Utilities
2
The EISA Configuration Utility need only be run if there is a PCI to EISA
bridge and EISA devices on the system. Manufacturing will have run ECU
prior to shipping the system, so running it again may not be necessary.
The EISA Configuration Utility comes on a floppy, has online help, and
configures the EISA bus. The arc_enable environment variable must be
on and in effect for ECU to run. There are two versions of the utility, one
that runs on graphics terminals, and another that runs on character cell
terminals. Both versions are on the floppy; the console determines what
kind of terminal is on the system and chooses the correct ECU version to
run. Example 7-6 shows how to run ECU.
Place the EISA Configuration Utility floppy in the floppy drive.
1
Power on the system or initialize.
2
After self-test, if the EISA bus is not configured, the console displays
the message shown here.
3
Use the set command to turn on the arc_enable environment variable.
4
Initialize the system to make the set command take effect.
5
After self-test enter runecu, the console command to invoke ECU.
The console loads ECU from the floppy drive and passes control to it.
If ECU is not run and OpenVMS is on the system and booted, OpenVMS
prints the following message:
%SYSTEM-I-NOCONFIGDATA, IRQ Configuration data for EISA
slot xxx was not found, please run the ECU and reboot.
OpenVMS continues to boot after this message and will run without the
EISA devices as system resources.
If ECU is not run and UNIX is on the system and booted, no information
messages are printed. The operating system boots but does not use any
EISA resources.
Diagnostics and Utilities 7-19
7.9 Booting Factory Installed Software
The factory installs the operating system ordered by the customer.
After determining that all devices are seen by the console, you will
want to know where the operating system is installed and then
boot it.
Example 7-7
Booting the Operating System
1
P08>>> show bootdef_dev
bootdef_dev
dk200.2.0.2.0
P08>>> show boot_osflag
boot_osflags
0
or
boot_osflags
a
2
[for OpenVMS]
[for UNIX]
P08>>> boot
Building FRU table..........
3
(boot dka200.2.0.0.0 -flags 0,0)
SRM boot identifier: scsi 0 0 0 2 200 ef00 10201077
boot adapter: isp0 rev 0 in bus slot 0 off of kftia0 in TLSB slot 8
block 0 of dka200.2.0.0.0 is a valid boot block
reading 1018 blocks from dka200.2.0.0.0
bootstrap code read in
base = 200000, image _start = 0, image_bytes = 7f400
initializing HWRPB at 2000
initializing page table at 1f2000
initializing machine state
setting affinity to the primary CPU
jumping to bootstrap code
OpenVMS Alpha Operating System, Version V6.2
7-20 Diagnostics and Utilities
4
Example 7-7 shows the OpenVMS Alpha operating system as the factory
installed software. Had the Digital UNIX operating system been installed,
slight variations in the output shown would have occurred. The callouts in
the following list refer to Example 7-7.
1
Enter the show bootdef_dev command to see what disk holds the
operating system software.
2
Enter the show boot_osflags command to see what flags have been
set. If the flag set is a 0 and the operating system is OpenVMS, the
operating system will come up assuming flags of 0,0. If the flag is an
a and the operating system is Digital UNIX, the operating system
will come up in multiuser mode. See the AlphaServer 8200/8400
Operations Manual for a complete discussion of booting.
3
Enter the boot command.
4
After booting information messages are given, the operating system
banner appears.
Diagnostics and Utilities 7-21
7.10 Booting OpenVMS from a CD-ROM
This section shows how to boot OpenVMS from the CD-ROM
drive. The first step is to issue the show device command to determine the mnemonic of the CD drive. This method of booting
OpenVMS replaces standalone backup.
Example 7-8
CD-ROM OpenVMS Boot
P08>>> show device
1
polling for units
dka200.2.0.0.0
dka400.4.0.0.0
polling for units
polling for units
polling for units
dkd400.4.0.5.0
dkd500.5.0.5.0
on isp0, slot 0, bus
DKA200
DKA400
on isp1, slot 1, bus
on isp2, slot 4, bus
on isp3, slot 5, bus
DKD400
DKD500
P08>>> boot -flags 0,0 dkd400.4.0.5.0
Booting...
Connecting to boot device dkd400
initializing HWRPB at 2000
initializing page table at 1ee000
initializing machine state
jumping to bootstrap at 1fa000
0, hose0...
RZ26L
RZ26L
0, hose0...
0, hose0...
0, hose0...
RRD44
RZ26L
440C
440C
0000
440C
2
3
OpenVMS Alpha Operating System, Version V6.2
4
Copyright (c) 1995 Digital Equipment Corporation. All Rights Reserved.
Installing required known files...
Configuring devices...
*********************************************************
You can install or upgrade the OpenVMS Alpha operating
system or you can install or upgrade layered products that
are included on the OpenVMS Alpha operating system CD-ROM.
You can also execute DCL commands and procedures to
perform "standalone" tasks, such as backing up the system
disk.
Please choose one of the following:
1) Install or upgrade OpenVMS Alpha Version V6.2
2) List layered product kits that this procedure can
install
7-22 Diagnostics and Utilities
3)
4)
5)
Enter
Install or upgrade layered product(s)
Execute DCL commands and procedures
Shut down this system
CHOICE or ? to repeat menu:
1
Show device displays information about each I/O device. Polling
checks the KFTIA for device configurations. The next line contains
four columns. The first column contains the device type and unit
number, node number, device channel number, the internal PCI node
number, and I/O channel number, separated by periods. The second
column displays the name of the device given by the device controller.
The third column shows the device type, and the fourth column shows
the revision of the device. The CD drive in this case is the RRD44
and its mnemonic is DKD400.
2
In the boot command, -flags indicates that additional command parameters follow, 0 is the system root of the boot device, 0 is the bootstrap option, dk is the device code of the boot device, d is the boot
device controller designation, and 400 specifies the hexadecimal unit
number of the boot device. The 4 is the node number, 0 is the channel number, 5 is the PCI node number, and 0 is the I/O channel
number.
3
The system boots OpenVMS from the CD-ROM.
4
The operating system banner appears.
Example 7-8 shows that several choices can be made when booting OpenVMS in this fashion. Make the appropriate choice and continue. (Note
that by choosing option 4 (Execute DCL commands and procedures) you
can back up your system disk. Standalone backup is replaced by this
method of booting OpenVMS.)
Diagnostics and Utilities 7-23
7.11 Booting Digital UNIX from a CD-ROM
This section shows a sample boot of UNIX from the CD-ROM
drive. The first step is to issue the show device command to determine the mnemonic of the CD drive.
Example 7-9
CD-ROM UNIX Boot
p08>>> show device
polling for units
dka200.2.0.0.0
polling for units
polling for units
polling for units
dkd400.4.0.5.0
dkd500.5.0.5.0
1
on isp0,
DKA200
on isp1,
on isp2,
on isp3,
DKD400
DKD500
slot 0, bus 0, hose0...
RZ26L 440C
slot 1, bus 0, hose0...
slot 4, bus 0, hose0...
slot 5, bus 0, hose0...
RRD44 0000
RZ26L 440C
P08>>> boot dkd400.4.0.5.0 -fl a
2
3
(boot dkd400.4.0.5.0 -flags a)
SRM boot identifier: scsi 4 5 0 0 400 ef00 10201077
boot adapter: isp3 rev 0 in bus slot 5 off of kftia0 in TLSB slot 8
block 0 of dkd400.4.0.5.0 is a valid boot block
reading 16 blocks from dkd400.4.0.5.0
bootstrap code read in
base = 200000, image _start = 0, image_bytes = 2000
initializing HWRPB at 2000
initializing page table at 1f2000
initializing machine state
setting affinity to the primary CPU
jumping to bootstrap code
OSF Boot - Thu Feb 2 18:13:26 EST 1995
Loading vmunix...
[I/O subsystem reset information, memory information
displayed, I/O bus adapters displayed, configured devices
displayed, network configuration information displayed]
The system is ready.
DEC UNIX Version 3.2B
login:
7-24 Diagnostics and Utilities
(oregon.acb.exz.dec.com) console
1
Show device displays information about each I/O device. Polling
checks the KFTIA for device configurations. The next line contains
four columns. The first column contains the device type and unit
number, node number, device channel number, the internal PCI
node number, and I/O channel number, separated by periods. The
second column displays the name of the device given by the device
controller. The third column shows the device type, and the fourth
column shows the revision of the device. The CD drive in this case is
the RRD44 and its mnemonic is DKD400.
2
In the boot command, dk is the device code of the boot device, d is
the boot device controller designation, and 400 specifies the hexadecimal unit number of the boot device. The 4 is the node number,
0 is the channel number, 5 is the PCI node number, and 0 is the
I/O channel number. The -fl a causes UNIX to come up in multiuser
mode.
3
The system boots from the CD-ROM.
4
After the system is configured, the operating system banner appears,
and the user is given the login: prompt.
For more information:
DEC OSF/1 Guide to System Administration
Diagnostics and Utilities 7-25
7.12 Set Commands for Booting
Use the set command to define a default boot device as shown in
Example 7-10.
Example 7-10 Set Boot Commands
P08>>>
P08>>>
P08>>>
P08>>>
set boot_reset on 1
set bootdef_dev dka200.2.0.0.0
set boot_osflags "0,6" 3
boot 4
[the system initializes and boots]
7-26 Diagnostics and Utilities
2
1‘
Enter set boot_reset on to initialize the system before booting.
2
If you boot from the same boot device each time, you can store the
disk name by defining the default boot device. This is done by using
the set bootdef_dev command. The default boot device is used for
booting during power-up and auto restarts.
3
Use set boot_osflags to define the boot command flag parameters of
0, 6. Note the flags shown here are for OpenVMS; UNIX uses different flags.
4
Booting can now be done from that device by typing boot or just b.
NOTE: Refer to the Operations Manual for more information on set commands and environment variables.
Diagnostics and Utilities 7-27
7.13 Booting LFU from a CD-ROM
The Loadable Firmware Update (LFU) Utility is on the Alpha CDROM (PN AG-PTMW*-BE). Make sure this CD-ROM is mounted in
the CD drive and then boot LFU.
Example 7-11 AlphaServer 8200 LFU Booting
P08>>> show device
polling for units
dka400.4.0.0.0
polling for units
polling for units
polling for units
dkd400.4.0.5.0
dkd500.5.0.5.0
on isp0,
DKA400
on isp1,
on isp2,
on isp3,
DKD400
DKD500
1
slot 0, bus 0, hose0...
RZ26L 440C
slot 1, bus 0, hose0...
slot 4, bus 0, hose0...
slot 5, bus 0, hose0...
RRD44 0000
RZ26L 440C
2
P08>>> boot dkd400 -fl 0,a0
Building FRU table............
(boot dkd400.4.0.5.0 -flags 0,a0)
SRM boot identifier: scsi 4 0 5 0 400 ef00 81011
boot adapter: isp3 rev 0 in bus slot 5 off of kftia0 in TLSB slot 8
block 0 of dkd400.4.0.5.0 is a valid boot block
reading 1018 blocks from dkd400.4.0.5.0
bootstrap code read in
base = 200000, image _start = 0, image_bytes = 7f400
initializing HWRPB at 2000
initializing page table at 1f2000
initializing machine state
setting affinity to the primary CPU
jumping to bootstrap code
Bootfile:[alpha8200]as8000_v01.exe
3
***** Loadable Firmware Update Utility *****
------------------------------------------------------------------Function
Description
------------------------------------------------------------------Display
Exit
List
Modify
Show
Displays the system’s configuration table.
Return to loadable offline operating environment.
Lists the device types and firmware revisions
supported by this revision of LFU.
Modifies port parameters and device attributes.
Displays device mnemonic, hardware and firmware
revisions.
7-28 Diagnostics and Utilities
Update
Replaces current firmware with loadable data
image.
Verify
Compares loadable and device images.
? or Help
Scrolls the function table.
-------------------------------------------------------------------
UPD>
4
1
Use the show device command to find the mnemonic of the CDROM drive.
2
Enter the boot command to boot from the RRD44. The RRD44 has
a device name of dkd400.
3
Supply the bootfile directory and name: [alpha8200]as8000_v01.exe.
When this system is introduced, May 1995, the bootfile listed here is
the correct name. Over time, the version of this file is likely to
change. To obtain the correct file name, follow the instructions
found in Alpha Systems Firmware Update Version x.x Release Notes
Overview that comes with the system CD-ROM (AG-PTMW*-BE).
4
LFU starts, displays a summary of its commands, and issues its
prompt UPD>. (The Modify command appears only if there are devices on the system that have modifiable attributes.)
Diagnostics and Utilities 7-29
7.14 Running the System Exerciser VET
Run the DEC Verifier and Exerciser Tool (VET). VET is a tool with
generic exercisers designed to ensure proper installation and verification of hardware and operating system software. It is run under the operating system. Install VET from the system CD-ROM
(AG-PTMW*-BE) before running it. Example 7-12 shows a sample
DEC VET user session. See the DEC Verifier and Exerciser Tool
User’s Guide (AA-PX73A-TE (OpenVMS) or AA-PTTMA-TE (UNIX))
for more information.
Example 7-12 Sample DEC VET User Session for Command Mode
$ vet 1
Running system sizer on node cpu2 ... please wait.
COPYRIGHT DIGITAL EQUIPMENT CORPORATION. 1995. ALL RIGHTS RESERVED.
VET_setup> load 2
Enter number of processes for CPU device (decimal [1]): 2 3
Enter number of processes for MEMORY device (decimal [1]): 2
Enter number of processes for NETWORK device (decimal [1]): 0
Enter number of processes for FILE device (decimal [1]): 2
Enter number of processes for each VIDEO device (decimal [1]): 0
...opening script file $19$dka500:[sys0.][sysmgr]vet_load.script.
Process 1, group exer for device CPU
Process 2, group exer for device CPU
Process 3, group exer for device MEMORY
Process 4, group exer for device MEMORY
Process 5, group exer for device FILE
Process 6, group exer for device FILE
...closing script file $19$dka500:[sys0.][sysmgr]vet_load.script.
VET_setup> start 4
...starting [Process 1, Pass 1] group exer for device CPU.
...starting [Process 2, Pass 1] group exer for device CPU.
...starting [Process 3, Pass 1] group exer for device MEMORY.
...starting [Process 4, Pass 1] group exer for device MEMORY.
...starting [Process 5, Pass 1] group exer for device FILE.
...starting [Process 6, Pass 1] group exer for device FILE.
...completed [process 1] group exer for device CPU.
...completed [process 2] group exer for device CPU.
...completed [process 5] group exer for device FILE.
...completed [process 6] group exer for device FILE.
Table 7-2 lists the DEC VET exercisers and descriptions.
7-30 Diagnostics and Utilities
Table 7-2
DEC VET Exercisers
Exerciser
Description
CPU
Tests processor functions including binary operations, integer computations, floating-point computations, and data
conversion.
Memory
Tests dynamic allocation and deallocation of virtual memory and verifies test patterns written.
Disk
Tests logical and physical disk I/O by performing read and
write operations and verifies test patterns written.
File
Tests reading and writing to disk files and verifies test
patterns written.
Tape
Tests reading and writing to tape device files and verifies
test patterns written.
Network
Tests underlying protocol (including caches, buffers, and
queues), physical network adapters, local and remote networks, destination adapters, and network services.
Printer
Tests printers by sending ASCII, PostScript, or a user
specified file to a selected print queue. A PostScript file is
provided with the exerciser.
Video
Tests text, graphic, and palette capabilities of video monitors.
1
In Example 7-12 the user enters the command vet at the system
prompt. The system sizer message is displayed. The system sizer
process finds the devices that are connected to the system and obtains
device information needed by the VET programs.
2
At the VET_setup prompt, the user issues the command load. The
load command creates processes for most devices on the system. Note
that the File test exercises disks.
3
The VET program displays a series of questions. The user can select
the number of processes to run for each device type. In the example,
two processes are selected for the CPU device, memory device, and file
device.
4
Enter the start command to begin testing.
Diagnostics and Utilities 7-31
Example 7-12
Sample DEC VET User Session (Continued)
^C 5
...stopping [Process 4] group
...stopping [Process 3] group
VET_suspend> show runtime 6
Process 1 Runtime:
Requested runtime:
0
Elapsed runtime:
0
Remaining runtime:
0
exer for device MEMORY.
exer for device MEMORY.
hours
hours
hours
0 minutes
0 minutes
0 minutes
0 seconds
22 seconds
0 seconds
Process 2 Runtime:
Requested runtime:
Elapsed runtime:
Remaining runtime:
0 hours
0 hours
0 hours
0 minutes
0 minutes
0 minutes
0 seconds
22 seconds
0 seconds
Process 3 Runtime:
Requested runtime:
Elapsed runtime:
Remaining runtime:
0 hours
0 hours
0 hours
0 minutes
3 minutes
0 minutes
0 seconds
39 seconds
0 seconds
Process 4 Runtime:
Requested runtime:
Elapsed runtime:
Remaining runtime:
0 hours
0 hours
0 hours
0 minutes
3 minutes
0 minutes
0 seconds
39 seconds
0 seconds
Process 5 Runtime:
Requested runtime:
Elapsed runtime:
Remaining runtime:
0 hours
0 hours
0 hours
0 minutes
2 minutes
0 minutes
0 seconds
30 seconds
0 seconds
Process 6 Runtime:
Requested runtime:
Elapsed runtime:
Remaining runtime:
0 hours
0 hours
0 hours
0 minutes
3 minutes
0 minutes
0 seconds
20 seconds
0 seconds
VET_suspend> continue 7
...continuing [process 3] group exer for device MEMORY.
...continuing [process 4] group exer for device MEMORY.
...completed [process 3] group exer for device MEMORY.
...completed [process 4] group exer for device MEMORY.
...testing completed. Total errors reported by all processes = 0. 8
VET_setup> exit 9
$
7-32 Diagnostics and Utilities
5
The user enters a Ctrl/C to suspend executing processes. DEC VET
enters the suspend execution state.
6
Enter show runtime to list the requested, elapsed, and remaining
run times of each process.
7
The continue command resumes execution of all suspended processes. After testing is completed, a message is displayed to inform
the user of the number of errors reported. No errors were reported in
this example (see 8 ).
9
Enter exit to exit the DEC VET program. The system prompt is displayed.
Diagnostics and Utilities 7-33
Index
A
E
AC power
checking, 5-2
input voltages, 5-5
measuring, 5-4
EISA bus, 7-18
EISA to DSSI, 4-13
Equipment damages, 2-3
Expander cabinet
installation, 3-1
I/O cable, 3-12
leveling, 3-6
placement, 3-4
power control cable, 3-10
SCSI cables, 4-6
securing brackets, 3-8
unpacking, 3-2
B
BA350
StorageWorks shelf, 3-1
Booting
factory installed software, 7-20
LFU, 7-28
OpenVMS, 7-22
UNIX, 7-24
Boot command, 7-22
F
FDDI, 4-10
C
Cabinets
damage, 2-9
leveling, 2-10
pallet removal, 2-8
unpacking, 2-7
Cables
I/O, 3-12
Carton removal, 2-6
Console
load devices, 7-2
terminal, 4-2, 4-3
Console printer, 4-3
Current overload, 5-3
D
DSSI, 4-12
DWZZA, 7-15
I
Indicator check, 5-6
Installation flowchart, 1-2
Installation overview, 1-1
K
KFESB, 4-13
KFE70, 7-18
KZPAA, 7-3
L
LARS form, 2-3
Leveler feet, 2-9, 2-10
LFU
CD-ROM booting, 7-28
Load device, 7-3
Index-1
M
System cabinet installation, 2-1
Main circuit breaker, 5-3
Memory module LEDs, 6-3
T
Tools, unpacking, 2-4
P
Packing material, 2-6
PCI I/O subsystem, 3-1
Power-up diagnostics, 7-6, 7-7
Processor module LEDs, 6-3
U
R
Utilities
ECU, 7-18
LFU, 7-28
RCU, 7-16
VET, 7-30
Ramps, attaching, 2-9
Ramp kit, 2-7
V
VET, 7-30
S
SCSI
devices, 7-12, 7-14
LEDs, 7-15
Self-test, 7-7
BPD line, 6-5
C# I/O subsystem line, 7-9
display, 6-4, 7-8
I/O channel line, 6-5
LEDs, 6-3
NODE # line, 6-5
ST lines, 6-5, 7-9
TYP line, 6-5
Set bootdef_dev command, 7-26
Set boot_reset command, 7-26
Shipment inspection, 2-2
Shipping
dimensions, 2-7
weights, 2-7
Show configuration command, 7-10
Show device command, 7-11, 7-12,
7-15, 7-22
Stabilizing brackets, 2-12
Standalone backup replacement,
7-22
Status LEDs check, 6-2
StorageWorks shelf
BA350, 3-1
Index-2
