Integrated 3-Port 10/100 Managed Switch with PHYs
Preliminary Data Sheet Rev. 1.0
General Description
The KS8893M contains two 10/100 transceivers with
patented mixed-signal low-power technology, three
media access control (MAC) units, a high-speed
non-blocking switch fabric, a dedicated address
lookup engine, and an on-chip frame buffer memory.
The KS8893M, a highly integrated layer 2 managed
switch, is designed for low port count, cost-sensitive
10/100 Mbps switch systems. It offers an extensive
feature set that includes rate limiting, tag/port-based
VLAN, QoS priority, management, management
information base (MIB) counters, MII/SNI, and CPU
control/data interfaces to effectively address both
current and emerging Fast Ethernet applications.
Both PHY units support 10BASE-T and 100BASETX. In addition, one PHY unit supports 100BASEFX.
The KS8893ML is the single power supply version
with all the identical rich features of the KS8893M.
___________________________________________________________________________________________________

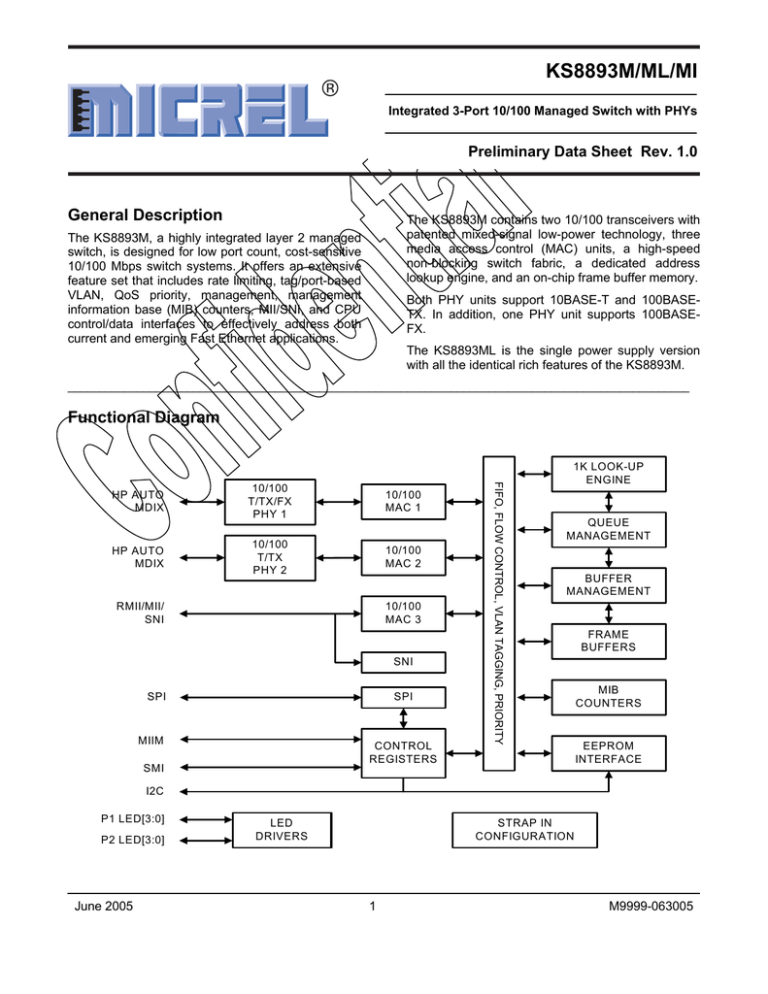

Functional Diagram
HP AUTO
MDIX
10/100
T/TX/FX
PHY 1
10/100
MAC 1
10/100
T/TX
PHY 2
10/100
MAC 2
10/100
MAC 3
RMII/MII/
SNI
SNI
SPI
SPI
MIIM
CONTROL
REGISTERS
SMI
FIFO, FLOW CONTROL, VLAN TAGGING, PRIORITY
HP AUTO
MDIX
1K LOOK-UP
ENGINE
QUEUE
MANAGEMENT
BUFFER
MANAGEMENT
FRAME
BUFFERS
MIB
COUNTERS
EEPROM
INTERFACE
I2C
P1 LED[3:0]
P2 LED[3:0]
June 2005
STRAP IN
CONFIGURATION
LED
DRIVERS
1
M9999-063005
Micrel
KS8893M/ML/MI
Features
• Proven Integrated 3-Port 10/100 Ethernet Switch
• Switch Monitoring Features
– 3rd generation switch with three MACs and two
PHYs fully compliant to IEEE 802.3u standard
– Non-blocking switch fabric assures fast packet
delivery by utilizing an 1K MAC address lookup table
and a store-and-forward architecture
– Full duplex IEEE 802.3x flow control (pause) with
force mode option
– Half-duplex back pressure flow control
– HP Auto MDI-X for reliable detection of and correction
for straight-through and crossover cables with disable
and enable option
TM
– Micrel LinkMD TDR-based cable diagnostics permit
identification of faulty copper cabling
– 100BASE-FX support on port 1
– MII interface supports both MAC mode and PHY
mode
– RMII interface support with external 50MHz system
clock
– 7-wire serial network interface (SNI) support for
legacy MAC
– Comprehensive LED Indicator support for link,
activity, full/half duplex and 10/100 speed
– Port mirroring/monitoring/sniffing: ingress and/or
egress traffic to any port or MII
– MIB counters for fully compliant statistics gathering,
34 MIB counters per port
– Loopback modes for remote diagnostic of failure
• Low Power Dissipation:
– Full-chip hardware power-down (register configuration
not saved)
– Per port based software power-save on PHY (idle link
detection, register configuration preserved)
– Voltages: Core 1.2V
I/O and Transceiver 3.3V
• Industrial Temperature Range: –40oC to +85oC
• Available in 128-Pin PQFP
Applications
• Universal Solutions
– Media Converter
– FTTx customer premises equipment
– VoIP Phone
– SOHO Residential Gateway
– Broadband Gateway / Firewall / VPN
– Integrated DSL/Cable Modem
– Wireless LAN access point + gateway
– Set-top/Game Box
– Standalone 10/100 switch
• Comprehensive Configuration Register Access
– Serial management interface (SMI) to all internal
registers
– MII management (MIIM) interface to PHY registers
2
– SPI and I C Interface to all internal registers
– I/0 pins strapping and EEPROM to program selective
registers in unmanaged switch mode
– Control registers configurable on the fly (port-priority,
802.1p/d/q, AN…)
• Upgradeable Solutions(1)
– Unmanaged switch with future option to migrate to a
managed solution
– Single PHY alternative with future expansion option
for two ports
• QoS/CoS Packet Prioritization Support
– Per port, 802.1p and DiffServ-based
– Re-mapping of 802.1p priority field per port basis
– Four priority levels
• Industrial Solutions
– Applications requiring port redundancy and port
monitoring
– Sensor devices in redundant ring topology
• Advanced Switch Features
– IEEE 802.1q VLAN support for up to 16 groups (fullrange of VLAN IDs)
– VLAN ID tag/untag options, per port basis
– IEEE 802.1p/q tag insertion or removal on a per port
basis (egress)
– Programmable rate limiting at the ingress and egress
on a per port basis
– Broadcast storm protection with % control (global and
per port basis)
– IEEE 802.1d spanning tree protocol support
– Special tagging mode to inform the processor which
ingress port receives the packet
– IGMP snooping (Ipv4) and MLD snooping (Ipv6)
support for multicast packet filtering
– MAC filtering function to forward unknown unicast
packets to specified port
– Double-tagging support
Note:
1. Reduces cost and time of PCB re-spin.
LinkMD is a trademark of Micrel, Inc.
Product names used in this datasheet are for identification purposes only and
may be trademarks of their respective companies.
• Low Latency Support
– Repeater mode
June 2005
2
M9999-063005
Micrel
KS8893M/ML/MI
Ordering Information
Part Number
Temperature Range
o
o
KS8893M
0 C to 70 C
KS8893ML
0oC to 70oC
KS8893MI
KSZ8993M
o
128-Pin PQFP
128-Pin PQFP
o
–40 C to +85 C
o
Package
o
0 C to 70 C
128-Pin PQFP
128-Pin PQFP, Lead-free
