Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Lxx04xx & Qxx04xx Series
®
Description
Sensitive type devices guarantee gate control in Quadrants
I & IV needed for digital control circuitry.
Standard type devices normally operate in Quadrants I & III
triggered from AC line.
Features & Benefits
t3P)4$PNQMJBOU
Agency Approval
t(MBTToQBTTJWBUFE
junctions
Agency
Agency File Number
t7PMUBHFDBQBCJMJUZVQUP
1000 V
-1BDLBHF&
®
t4VSHFDBQBCJMJUZVQUP
55 A
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT (Q1)
Value
Unit
4
A
400 to 1000
V
3 to 25
mA
t&MFDUSJDBMMZJTPMBUFE
“L-Package” is UL
recognized for 2500Vrms
t4PMJETUBUFTXJUDIJOH
eliminates arcing or
contact bounce that
create voltage transients
t/PDPOUBDUTUPXFBSPVU
from reaction of switching
events
t3FTUSJDUFEPSMJNJUFE
3'*
generation, depending on
activation point of
sine wave
t3FRVJSFTPOMZBTNBMMHBUF
activation pulse in each
half-cycle
Applications
Schematic Symbol
Typical applications are AC solid-state switches, power
tools, home/brown goods and white goods appliances.
MT2
Sensitive gate Triacs can be directly driven by
microprocessor or popular opto-couplers/isolators.
MT1
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
G
Absolute Maximum Ratings — Sensitive Triacs (4 Quadrants)
Symbol
Parameter
RMS on-state current
(full sine wave)
IT(RMS)
ITSM
Lxx04Ly / Lxx04Dy
TC = 85°C
Lxx04Ry / Lxx04Vy
TC = 75°C
Non repetitive surge peak on-state current
(full cycle, TJ initial = 25°C)
I2t
I2t Value for fusing
Value
Unit
4
A
f = 50 Hz
t = 20 ms
33
f = 60 Hz
t = 16.7 ms
40
tp = 8.3 ms
A
6.6
A2 s
50
A/μs
Critical rate of rise of on-state current
(IG = 50mA with c 0.1μs rise time)
f = 120 Hz
TJ = 110°C
IGTM
Peak gate trigger current
tp c 10 μs
TJ = 110°C
1.2
A
PG(AV)
Average gate power dissipation
TJ = 110°C
0.3
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 110
°C
di/dt
Tstg
TJ
Note: xx = voltage, y = sensitivity
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
51
Revised: July 29, 2010 09:54 AM
Lxx04xx & Qxx04xx Series
4.0A TRIACs
4 Amp bi-directional solid state switch series is designed
for AC switching and phase control applications such as
motor speed and temperature modulation controls, lighting
controls, and static switching relays.
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Absolute Maximum Ratings — Standard Triacs
Symbol
Parameter
RMS on-state current
(full sine wave)
IT(RMS)
ITSM
Non repetitive surge peak on-state current
(full cycle, TJ initial = 25°C)
I2t
I2t Value for fusing
Value
Unit
4
A
Qxx04Ly / Qxx04Dy
TC¡$
Qxx04Ry / Qxx04Vy
TC = 85°C
f = 50 Hz
t = 20 ms
46
f = 60 Hz
t = 16.7 ms
55
tp = 8.3 ms
A
12.5
A2 s
di/dt
Critical rate of rise of on-state current
(IG = 50mA with c 0.1μs rise time)
f = 120 Hz
TJ = 125°C
50
A/μs
IGTM
Peak gate trigger current
tp ≤ 10 μs;
IGT c IGTM
TJ = 125°C
1.2
A
PG(AV)
Average gate power dissipation
TJ = 125°C
0.3
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
Tstg
TJ
Note: xx = voltage, y = sensitivity
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Sensitive Triac (4 Quadrants)
Symbol
Test Conditions
Quadrant
*o**o***
IGT
IV
VD = 12V RL = 60 8
VGT
VGD
VD = VDRM RL = 3.3 k8 TJ = 110°C
dv/dt
tgt
Lxx04x6
Lxx04x8
5
5
10
3
5
10
20
MAX.
Unit
mA
MAX.
1.3
V
ALL
MIN.
0.2
V
MAX.
400V
VD = VDRM Gate Open TJ = 100°C
(dv/dt)c
Lxx04x5
3
ALL
IT = 100mA
IH
Lxx04x3
TYP.
600V
5
10
10
15
25
25
30
35
15
15
20
25
mA
V/μs
(di/dt)c = 2.16 A/ms TJ = 110°C
TYP.
0.5
1
1
1
V/μs
IG = 2 x IGT PW = 15μs IT = 5.6 A(pk)
TYP.
2.8
3.0
3.0
3.2
μs
Electrical Characteristics (TJ = 25°C, unless otherwise specified) — Standard Triac
Symbol
IGT
Test Conditions
VD = 12V RL = 60 8
VGT
VGD
VD = VDRM RL = 3.3 k8 TJ = 125°C
IH
IT = 200mA
dv/dt
VD = VDRM Gate Open TJ = 125°C
Quadrant
Qxx04x4
Unit
*o**o***
MAX.
10
25
IV
TYP.
25
50
*o**o***
MAX.
1.3
1.3
MIN.
0.2
0.2
V
MAX.
20
30
mA
400V
40
75
600V
30
50
ALL
800V
VD = VDRM Gate Open TJ = 100°C
Qxx04x3
MIN.
40
1000V
mA
V
V/μs
50
(dv/dt)c
(di/dt)c = 2.16 A/ms TJ = 125°C
TYP.
2
2
V/μs
tgt
IG = 2 x IGT PW = 15μs IT = 5.6 A(pk)
TYP.
2.5
3.0
μs
Note: xx = voltage, x = package
Lxx04xx & Qxx04xx Series
52
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Static Characteristics (TJ = 25°C, unless otherwise specified)
Test Conditions
VTM
ITM = 5.6A tp = 380 μs
MAX.
Lxx04xy
IDRM
VDRM = VRRM
IRRM
MAX.
Qxx04xy
Value
Unit
1.60
V
TJ = 25°C
400-600V
5
μA
TJ = 110°C
400-600V
200
μA
TJ = 25°C
400-1000V
10
μA
TJ = 125°C
400-800V
2
TJ = 100°C
1000V
3
4.0A TRIACs
Symbol
mA
Thermal Resistances
Symbol
Parameter
Value
L/Qxx04Dy
3.5
L/Qxx04Ly
3.6
L/Qxx04Ry
3.6
L/Qxx04Vy
6.0
L/Qxx04Ly
50
Unit
Junction to case (AC)
RR(J-C)
°C/W
Junction to ambient
RR(J-A)
L/Qxx04Ry
45
L/Qxx04Vy
70
°C/W
Note: xx = voltage, x = package, y = sensitivity
Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
(+)
IGT
GATE
MT1
IGT
REF
(-)
MT1
IGT
GATE
(+)
3.0
2.0
REF
QII QI
QIII QIV
MT2
IGT
IGT
GATE
MT2
IGT (TJ = 25°C)
(-)
+
4.0
+
Ratio of
MT2
MT2 POSITIVE
(Positive Half Cycle)
IGT
MT2
1.0
IGT
GATE
0.0
MT1
REF
-
MT2 NEGATIVE
(Negative Half Cycle)
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
MT1
-65
-40
-40
10
35
60
85
110
125
Junction Temperature (TJ)- ºC
REF
53
Revised: July 29, 2010 09:54 AM
Lxx04xx & Qxx04xx Series
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
2.0
VGT
2.0
VGT (TJ = 25°C)
3.0
Ratio of
IH
Ratio of
IH (TJ = 25°C)
4.0
1.0
1.5
1.0
0.5
0.0
0.0
-65
-40
-40
10
35
60
85
110
-65
125
-40
-40
Junction Temperature (TJ)- ºC
10
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
60
85
110
125
Figure 6: Maximum Allowable Case Temperature
vs. On-State Current
4.0
110
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
CASE TEMPERATURE: Measured as shown
on Dimensional Drawing
105
CURRENT WAVE FORM: Sinusoidal
3.0
Maximum Allowable
Case Temperature (TC) - °C
Average On-State
Power Dissipation (PD(AV)) - Watts
35
Junction Temperature (TJ)- ºC
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
2.0
1.0
100
95
Lxx04Ly
Lxx04Dy
90
85
Lxx04Vyz
Lxx04Ry
LXX04Vy
80
75
70
65
60
0.0
0.0
1.0
2.0
3.0
4.0
0
5.0
1
2
Figure 7: Maximum Allowable Case Temperature
vs. On-State Current
4
5
6
Figure 8: Maximum Allowable Ambient Temperature
vs. On-State Current
120
110
100
95
Maximum Allowable
Ambient Temperature (TA) - °C
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
CASE TEMPERATURE: Measured as shown
on Dimensional Drawing
105
Maximum Allowable
Case Temperature (TC) - °C
3
RMS On-State Current (IT(RMS)) - Amps
RMS On-State Current (IT(RMS)) - Amps
Lxx04Ly
Lxx04Dy
90
85
Lxx04Vyz
Lxx04Ry
LXX04Vy
80
75
70
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
FREE AIR RATING – NO HEATSINK
100
80
Qxx04Ly
Qxx04Ry
60
L/Qxx04Vy
40
Lxx04Ly
65
20
60
0
1
2
3
4
5
0.0
6
RMS On-State Current (IT(RMS)) - Amps
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
RMS On-State Current [IT(RMS)] - Amps
Note: xx = voltage, y = sensitivity
Lxx04xx & Qxx04xx Series
54
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Figure 9: On-State Current vs. On-State Voltage (Typical)
20
TJ = 25°C
16
14
12
10
8
4.0A TRIACs
Positive or Instantaneous
On-State Current (IT) - Amps
18
6
4
2
0
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Positive or Instantaneous
On-State Voltage (VT) - Volts
Figure 10: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-repetitive) On-State Current
(ITSM) – Amps
100
4VQQMZ'SFRVFODZ)[4JOVTPJEBM
Load: Resistive
RMS On-State [IT(RMS)]: Max Rated Value at
Specific Case Temperature
Qxx04Ry
Qxx04Ly
Qxx04Dy
Qxx04Vy
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
Lxx04Ry
Lxx04Ly
Lxx04Dy
Lxx04Vy
10
1
1
10
100
1000
Surge Current Duration – Full Cycles
Note: xx = voltage, y = sensitivity
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
55
Revised: July 29, 2010 09:54 AM
Lxx04xx & Qxx04xx Series
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Soldering Parameters
1Co'SFFBTTFNCMZ
- Temperature Min (Ts(min))
Pre Heat
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
oTFDT
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
oTFDPOET
tP
TP
Temperature
Reflow Condition
Ramp-up
TL
tL
TS(max)
Preheat
TS(min)
tS
25
Peak Temperature (TP)
260°C +0/-5
Time within 5°C of actual peak
Temperature (tp)
oTFDPOET
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
time to peak temperature
Physical Specifications
Test
100% Matte Tin-plated
Body Material
UL recognized epoxy meeting flammability
DMBTTJmDBUJPO7
Specifications and Conditions
AC Blocking
Temperature Cycling
Copper Alloy
Temperature/
Humidity
Design Considerations
High Temp Storage
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Low-Temp Storage
Lxx04xx & Qxx04xx Series
Time
Environmental Specifications
Terminal Finish
Terminal Material
Ramp-do
Ramp-down
Thermal Shock
Autoclave
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell time
&*"+&%&$+&4%"
1008 hours; 320V - DC: 85°C; 85%
rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
1008 hours; -40°C
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwell
time at each temperature; 10 sec (max)
transfer time between temperature
&*"+&%&$+&4%"
168 hours (121°C at 2 ATMs) and
100% R/H
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
.*-45%.$POE&
56
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead
O
A
E
Dimension
8.13
.320
P
MT2
B
C
13.36
.526
D
7.01
.276
NOTCH IN
GATE LEAD
TO ID.
NON-ISOLATED
TAB
F
R
G
L
H
K
N
J
/PUF.BYJNVNUPSRVFUP
be applied to mounting tab
JTJOMCT/N
M
MT1 MT2 GATE
Inches
Millimeters
Min
Max
Min
Max
A
0.380
0.420
10.67
B
0.105
0.115
2.67
C
0.230
0.250
5.84
6.35
D
0.620
15.75
&
0.142
0.147
3.61
3.73
'
0.110
0.130
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
J
0.205
5.21
K
0.105
2.41
2.67
L
0.060
0.075
1.52
M
0.085
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
1.22
Min
Max
Min
Max
Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab
AREA (REF.) 0.17 IN2
TC MEASURING POINT
O
A
E
Dimension
8.13
.320
P
B
C
13.36
.526
D
7.01
.276
F
Inches
Millimeters
A
0.380
0.420
10.67
B
0.105
0.115
2.67
C
0.230
0.250
5.84
6.35
D
0.620
15.75
&
0.142
0.147
3.61
3.73
'
0.110
0.130
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
R
G
L
H
K
N
J
MT1 MT2 GATE
M
/PUF.BYJNVNUPSRVFUP
be applied to mounting tab
JTJOMCT/N
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
J
0.205
5.21
K
0.105
2.41
2.67
L
0.060
0.075
1.52
M
0.085
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
1.22
57
Revised: July 29, 2010 09:54 AM
Lxx04xx & Qxx04xx Series
4.0A TRIACs
AREA (REF.) 0.17 IN2
TC MEASURING POINT
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Dimensions — TO-251AA (V-Package) — V-PAK Through Hole
AREA: 0.040 IN2
TC MEASURING POINT
E
MT2
H
D
Dimension
5.28
.208
J
A
5.34
.210
B
R
P
Q
S
K
C
MT1
L
F
MT2
GATE
Inches
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.040
0.044
0.050
1.02
1.11
1.27
B
0.235
0.242
0.245
6.15
6.22
C
0.350
0.361
0.375
D
0.205
0.208
0.213
5.21
5.41
&
0.255
0.262
0.265
6.48
6.66
6.73
'
0.027
0.031
0.033
0.80
0.84
G
0.087
2.21
2.28
2.36
H
0.085
2.16
2.34
2.41
I
0.176
0.180
0.184
4.47
4.57
4.67
J
0.018
0.020
0.023
0.46
0.51
0.58
K
0.038
0.040
0.044
1.01
1.12
L
0.018
0.020
0.023
0.46
0.52
0.58
G
I
P
0.042
0.047
0.052
1.06
1.20
1.32
Q
0.034
0.044
0.86
1.00
1.11
R
0.034
0.044
0.86
1.00
1.11
S
0.074
0.084
1.86
2.00
2.11
Dimensions — TO-252AA (D-Package) — D-PAK Surface Mount
MT2
E
D
6.71
.264
5.28
.208
TC MEASURING POINT
Dimension
6.71
.264
B
1.60
.063
P
Q
C
1.80
.071
GATE
F
MT1
MT2
AREA : 0.040 IN2
3
.118
G
4.60
.181
I
O
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.040
0.043
0.050
1.02
1.27
B
0.235
0.243
0.245
6.16
6.22
C
0.106
0.108
0.113
2.74
2.87
D
0.205
0.208
0.213
5.21
5.41
&
0.255
0.262
0.265
6.48
6.65
6.73
A
5.34
.210
Inches
'
0.027
0.031
0.033
0.80
0.84
G
0.087
2.21
2.28
2.36
H
0.085
2.16
2.33
2.41
I
0.176
0.184
4.47
4.55
4.67
J
0.018
0.020
0.023
0.46
0.51
0.58
K
0.038
0.040
0.044
1.02
1.12
L
K
J
H
M
N
Lxx04xx & Qxx04xx Series
L
0.018
0.020
0.023
0.46
0.51
0.58
M
0.000
0.000
0.004
0.00
0.00
0.10
N
0.021
0.026
0.027
0.53
0.67
O
0°
0°
5°
0°
0°
5°
P
0.042
0.047
0.052
1.06
1.20
1.32
Q
0.034
0.044
0.86
1.00
1.11
58
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
Product Selector
Gate Sensitivity Quadrants
Type
Package
3 mA
Sensitive Triac
TO-220L
3 mA
3 mA
Sensitive Triac
TO-252 D-PAK
X
3mA
3mA
Sensitive Triac
TO-220R
X
X
3 mA
3 mA
Sensitive Triac
TO-251 V-PAK
Lxx04L5
X
X
5 mA
5 mA
Sensitive Triac
TO-220L
Lxx04D5
X
X
5 mA
5 mA
Sensitive Triac
TO-252 D-PAK
Lxx04R5
X
X
5mA
5mA
Sensitive Triac
TO-220R
Lxx04V5
X
X
5 mA
5 mA
Sensitive Triac
TO-251 V-PAK
Lxx04L6
X
X
5 mA
10 mA
Sensitive Triac
TO-220L
Lxx04D6
X
X
5 mA
10 mA
Sensitive Triac
TO-252 D-PAK
Lxx04R6
X
X
5mA
10mA
Sensitive Triac
TO-220R
Lxx04V6
X
X
5 mA
10 mA
Sensitive Triac
TO-251 V-PAK
Lxx04L8
X
X
10 mA
20 mA
Sensitive Triac
TO-220L
Lxx04D8
X
X
10 mA
20 mA
Sensitive Triac
TO-252 D-PAK
Lxx04R8
X
X
10mA
20mA
Sensitive Triac
TO-220R
Lxx04V8
X
X
10 mA
20 mA
Sensitive Triac
TO-251 V-PAK
Qxx04L3
X
X
10 mA
Standard Triac
TO-220L
Qxx04D3
X
X
10 mA
Standard Triac
TO-252 D-PAK
Qxx04V3
X
X
10 mA
Standard Triac
TO-251 V-PAK
Qxx04R3
X
X
10mA
Standard Triac
TO-220R
Qxx04L4
X
X
X
X
25 mA
Standard Triac
TO-220L
Qxx04D4
X
X
X
X
25 mA
Standard Triac
TO-252 D-PAK
Qxx04R4
X
X
X
X
25mA
Standard Triac
TO-220R
Qxx04V4
X
X
X
X
25 mA
Standard Triac
TO-251 V-PAK
400V
600V
Lxx04L3
X
Lxx04D3
800V
1000V
I – II – III
IV
X
3 mA
X
X
Lxx04R3
X
Lxx04V3
Packing Options
Part Number
L/Q004L/Ry/TP
Marking
Weight
Packing Mode
Base Quantity
L/Qxx04L/Ry
2.2 g
Bulk
500
L/Qxx04LyTP
L/Qxx04Ly
2.2 g
Tube
500 (50 per tube)
L/Qxx04DyRP
L/Qxx04Dy
0.3 g
&NCPTTFE$BSSJFS
2500
L/Qxx04DyTP
L/Qxx04Dy
0.3 g
Tube Pack
750 (75 per tube)
L/Qxx04VyTP
L/Qxx04Vy
0.4 g
Tube Pack
750 (75 per tube)
Note: xx = Voltage; y = Sensitivity
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
59
Revised: July 29, 2010 09:54 AM
Lxx04xx & Qxx04xx Series
4.0A TRIACs
Voltage
Part Number
Teccor® brand Thyristors
4 Amp Sensitive & Standard Triacs
TO-252 Embossed Carrier Reel Pack (RP) Specifications
Meets all EIA-481-2 Standards
0.157
(4.0)
* Cover tape
0.315
(8.0)
MT1
XXXXXX
XX
XXXXXX
DC
XX
XXXXXX
DC
*
XX
0.524
(13.3)
XXXXXX
0.63
(16.0)
DC
0.059
DIA
(1.5)
Gate
MT2
12.99
(330.0)
0.512 (13.0) Arbor
Hole Dia.
Dimensions
are in inches
(and millimeters).
0.64
(16.3)
Direction of Feed
Part Numbering System
Part Marking System
Q 60 04 L 4 xx
DEVICE TYPE
L : Sensitive Triac
Q : Standard Triac
TO-220 AB
(R & L Packages)
LEAD FORM DIMENSIONS
xx : Lead Form Option
TO-251AA &
TO-252AA
(V and D Packages)

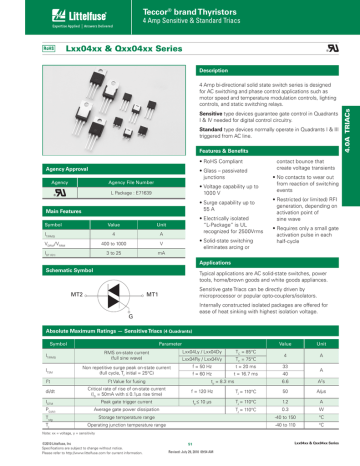

Lxx04xx & Qxx04xx Series
yxxxx
CURRENT RATING
04 : 4A
®
L6004V4
®
VOLTAGE RATING
40 : 400V
60 : 600V
80 : 800V
K0 : 1000V
SENSITIVITY & TYPE
Sensitive Triac:
3 : 3 mA (QI, II, III, IV)
5 : 5 mA (QI, II, III, IV)
6 : 5 mA (QI, II, III)
10 mA (QIV)
8 : 10 mA (QI, II, III)
20 mA (QIV)
Standard Triac:
3 : 10 mA (QI, II, III)
4 : 25 mA (QI, II, III)
PACKAGE TYPE
L :TO-220 Isolated
R :TO-220 Non-Isolated
V :TO-251 (V-Pak)
D :TO-252 (D-Pak)
60
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
