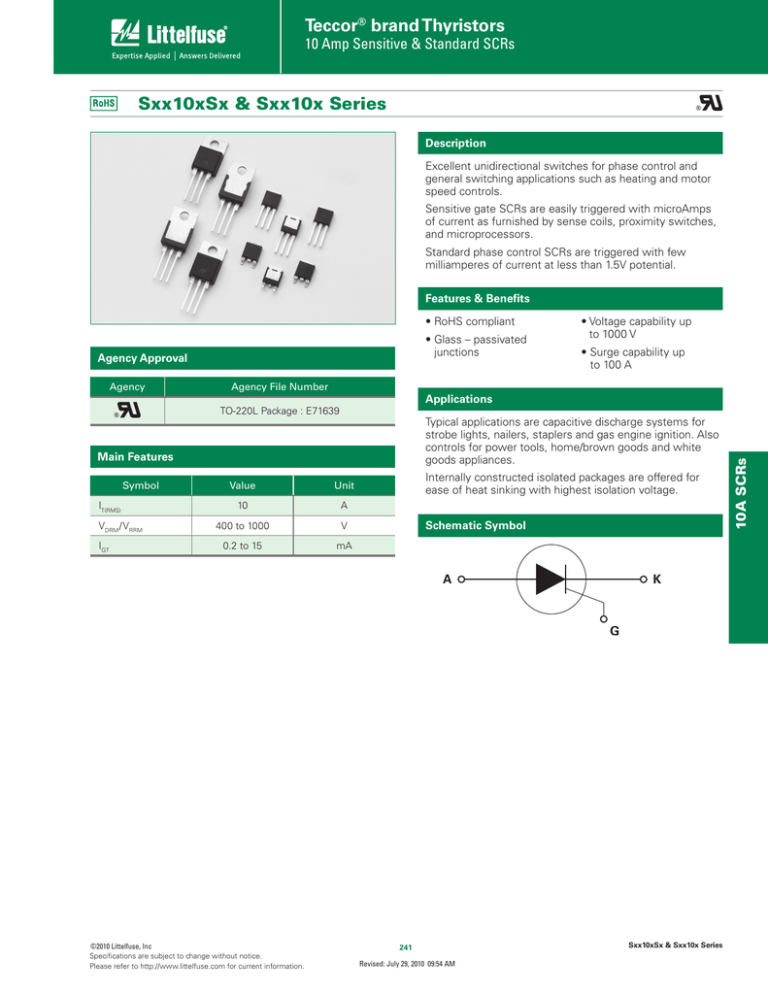

Teccor® brand Thyristors
10 Amp Sensitive & Standard SCRs
Sxx10xSx & Sxx10x Series
®
Description
Excellent unidirectional switches for phase control and
general switching applications such as heating and motor
speed controls.
Sensitive gate SCRs are easily triggered with microAmps
of current as furnished by sense coils, proximity switches,
and microprocessors.
Standard phase control SCRs are triggered with few
milliamperes of current at less than 1.5V potential.
Features & Benefits
t3P)4DPNQMJBOU
t(MBTToQBTTJWBUFE
junctions
Agency Approval
Agency
t7PMUBHFDBQBCJMJUZVQ
to 1000 V
t4VSHFDBQBCJMJUZVQ
to 100 A
Agency File Number
Applications
Typical applications are capacitive discharge systems for
strobe lights, nailers, staplers and gas engine ignition. Also
controls for power tools, home/brown goods and white
goods appliances.
Main Features
Symbol
IT(RMS)
VDRM /VRRM
I(5
Value
Unit
10
A
400 to 1000
V
0.2 to 15
mA
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
Schematic Symbol
A
K
G
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
241
Revised: July 29, 2010 09:54 AM
Sxx10xSx & Sxx10x Series
10A SCRs
TO-220L Package : E71639
®
Teccor® brand Thyristors
10 Amp Sensitive & Standard SCRs
Absolute Maximum Ratings — Sensitive SCRs
Symbol
Parameter
IT(RMS)
IT(AV)
ITSM
Sxx10RSy
Sxx10DSy
Sxx10VSy
TC = 95°C
Sxx10LSy
TC = 80°C
Average on-state current
Sxx10RSy
Sxx10DSy
Sxx10VSy
TC = 95°C
Value
Unit
10
A
6.4
A
83
TJOHMFIBMGDZDMFG)[
TJ (initial) = 25°C
100
I2t Value for fusing
tp = 8.3 ms
41
A2s
Critical rate of rise of on-state current
G)[5J = 110°C
100
A/μs
Peak gate current
TJ = 110°C
1
A
Average gate power dissipation
TJ = 110°C
A
0.1
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 110
°C
Value
Unit
10
A
6.4
A
Tstg
TJ
RMS on-state current
Peak non-repetitive surge current
I(.
P("7
TC = 80°C
TJOHMFIBMGDZDMFG)[
TJ (initial) = 25°C
I2t
di/dt
Test Conditions
Sxx10LSy
Note: xx = voltage, y = sensitivity
Absolute Maximum Ratings — Standard SCRs
Symbol
IT(RMS)
Parameter
RMS on-state current
IT(AV)
Average on-state current
ITSM
Peak non-repetitive surge current
I2t
di/dt
I(.
P("7
Tstg
TJ
Test Conditions
Sxx10L
TC = 95°C
Sxx10R
Sxx10D
Sxx10V
TC = 105°C
Sxx10L
TC = 95°C
Sxx10R
Sxx10D
TC = 105°C
Sxx10V
TJOHMFIBMGDZDMFG)[
TJ (initial) = 25°C
TJOHMFIBMGDZDMFG)[
TJ (initial) = 25°C
83
A
100
I2t Value for fusing
tp = 8.3 ms
41
A2s
Critical rate-of-rise of on-state current
G)[5J = 125°C
100
A/μs
Peak gate current
TJ = 125°C
2
A
Average gate power dissipation
TJ = 125°C
0.5
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
Note: xx = voltage
Sxx10xSx & Sxx10x Series
242
Revised: July 29, 2010 09:54 AM
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Teccor® brand Thyristors
10 Amp Sensitive & Standard SCRs
Electrical Characteristics (TJ = 25°C, unless otherwise specified) – Sensitive SCRs
Symbol
I(5
V(5
Value
Test Conditions
Sxx10xS2
MAX.
VD = 6V RL = 100 8
Sxx10xS3
200
MAX.
500
Unit
μA
0.8
V
dv/dt
VD = VDRM; R(, = 1k8 ; TJ = 110°C
TYP.
8
V/μs
V(%
VD = VDRM; RL = 3.3 k8; TJ = 110°C
MIN.
0.2
V
V(3.
I(3 = 10μA
MIN.
6
I)
IT = 20mA (initial)
MAX.
6
8
mA
tq
(1)
MAX.
50
45
μs
tgt
I( = 2 x I(5; PW = 15μs; IT = 12A
TYP.
4
5
μs
V
NOTE: xx = voltage, x = package
(1) IT=2A; tp=50μs; dv/dt=5V/μs; di/dt=-30A/μs
Electrical Characteristics (TJ = 25°C, unless otherwise specified) – Standard SCRs
I(5
V(5
Value
Test Conditions
Sxx10x
MAX.
VD = 12V RL = 60 8
MAX.
VD = VDRM; gate open; TJ = 100°C
dv/dt
mA
1.5
V
350
600V
300
1000V
250
MIN.
400V
VD = VDRM; gate open; TJ = 125°C
15
400V
800V
Unit
100
V/μs
250
600V
225
800V
200
V(%
VD = VDRM; RL = 3.3 k8; TJ = 125°C
MIN.
0.2
V
I)
IT = 200mA (initial)
MAX.
30
mA
tq
(1)
MAX.
35
μs
tgt
I( = 2 x I(5; PW = 15μs; IT = 20A
TYP.
2
μs
NOTE: xx = voltage, x = package
(1) IT=2A; tp=50μs; dv/dt=5V/μs; di/dt=-30A/μs
Static Characteristics
Symbol
Test Conditions
VTM
IT = 20A; tp = 380 μs
Sxx10xyy
IDRM / IRRM
MAX.
Unit
1.6
V
TJ = 25°C
400 - 600V
5
TJ = 110°C
400 - 600V
250
400 - 800V
10
TJ = 25°C
VDRM / VRRM
Value
1000V
Sxx10x
TJ = 100°C
TJ = 125°C
MAX.
20
μA
400 - 800V
200
1000V
3000
400 - 800V
500
Note: xx = voltage, x = package, yy = sensitivity
©2010 Littelfuse, Inc
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
243
Revised: July 29, 2010 09:54 AM
Sxx10xSx & Sxx10x Series
10A SCRs
Symbol
Teccor® brand Thyristors
10 Amp Sensitive & Standard SCRs
Thermal Resistances
Symbol
Parameter
Value
Sxx10RSy
1.6
Sxx10LSy
3.0
Sxx10VSy
1.7
Sxx10DSy
1.45
Sxx10R
1.6
Sxx10L
3.0
Sxx10V
1.7
Sxx10D
1.45
Sxx10RSy
40
Sxx10LSy
65
Sxx10VSy
85
Sxx10R
40
Sxx10L
50
Sxx10V
70
Unit
Junction to case (AC)
RR(J-C)
°C/W
Junction to ambient
RR(J-A)
°C/W
Note: xx = voltage, y = sensitivity
Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature (Sensitive SCR)
Figure 2: Normalized DC Gate Trigger Current
vs. Junction Temperature (Standard SCR)
4.0
Ratio of IGT / IGT (TJ = 25°C)
Ratio of IGT / IGT (TJ = 25°C)
4.0
3.0
2.0
1.0
0.0
3.0
2.0
1.0
0.0
-40
-15
10
35
60
85
110
Junction Temperature (TJ) -- (°C)
