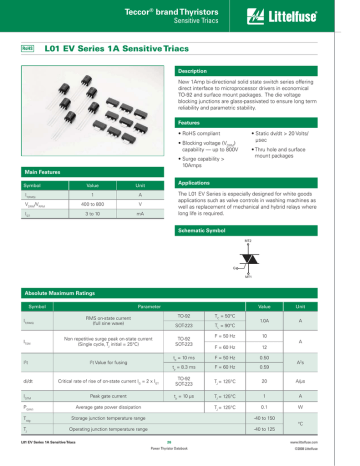

Teccor® brand Thyristors
Sensitive Triacs
L01 EV Series 1A Sensitive Triacs
Description
New 1Amp bi-directional solid state switch series offering
direct interface to microprocessor drivers in economical
TO-92 and surface mount packages. The die voltage
blocking junctions are glass-passivated to ensure long term
reliability and parametric stability.
Features
t3P)4DPNQMJBOU
t4UBUJDEWEU7PMUT
μsec
t#MPDLJOHWPMUBHF7DRM)
capability — up to 800V
t5ISVIPMFBOETVSGBDF
mount packages
t4VSHFDBQBCJMJUZ
10Amps
Main Features
Symbol
IT(RMS)
VDRM/VRRM
I(5
Value
Unit
1
A
400 to 800
V
3 to 10
mA
Applications
The L01 EV Series is especially designed for white goods
applications such as valve controls in washing machines as
well as replacement of mechanical and hybrid relays where
long life is required.
Schematic Symbol
MT2
G
MT1
Absolute Maximum Ratings
Symbol
Parameter
RMS on-state current
(full sine wave)
TO-92
TC = 50°C
SOT-223
TL = 90°C
ITSM
Non repetitive surge peak on-state current
(Single cycle, TJ initial = 25°C)
TO-92
SOT-223
I 2t
I2t Value for fusing
IT(RMS)
Value
Unit
1.0A
A
F = 50 Hz
10
F = 60 Hz
12
tp = 10 ms
F = 50 Hz
0.50
tp = 8.3 ms
F = 60 Hz
0.59
A
A2s
di/dt
Critical rate of rise of on-state current I( = 2 x I(5
TO-92
SOT-223
TJ = 125°C
20
A/μs
I(5.
Peak gate current
tp = 10 μs
TJ = 125°C
1
A
P("7
Average gate power dissipation
TJ = 125°C
0.1
W
Tstg
TJ
Storage junction temperature range
-40 to 150
Operating junction temperature range
-40 to 125
°C
L01 EV Series 1A Sensitive Triacs
26
Power Thyristor Databook
www.littelfuse.com
©2008 Littelfuse
Teccor® brand Thyristors
Sensitive Triacs
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Description
I(5
%$(BUF5SJHHFS$VSSFOU
V(5
%$(BUF5SJHHFS7PMUBHF
IH
Test
Conditions
VD = 12V
RL = 60 Ω
Quadrant
Limit
*o**o***
IV
ALL
L01xx
Unit
03
07
09
MAX.
3
5
5
7
10
10
mA
MAX.
—
1.3
—
V
Holding Current
(BUF0QFO
MAX.
7
10
10
mA
dv/dt
Critical Rate-of-Rise of
Off-State Voltage
TJ = 110°C
VD = VDRM
Exponential Waveform
(BUF0QFO
MIN.
10
20
50
V/μs
(dv/dt)c
Critical
Rate-of-Rise of
Commutating Voltage
(di/dt)c = 0.54A/ms
TJ = 110°C
MIN.
0.5
1.0
2.0
V/μs
Turn-On Time
I( = 25mA
PW = 15μs
IT = 1.2A (pk)
MAX.
2.0
2.0
2.0
μs
Tgt
Static Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Description
Test Conditions
Limit
Value
Unit
VTM
Peak On-State Voltage
ITM = 1.4A (pk)
MAX
1.60
V
IDRM
Off-State Current, Peak Repetitive
5
μA
500
μA
VD= VDRM TJ = 25°C
VD= VDRM TJ = 125°C
MAX
Thermal Resistances
Symbol
1
Description
Test Conditions
Rth(j-c)
Junction to case (AC)
IT = 1.0A (RMS)1
Rth(j-a)
Junction to ambient
IT = 1.0A (RMS)1
Value
TO-92
50
SOT-223
23
TO-92
100
SOT-223
55
Unit
°C/W
°C/W
60Hz AC resistive load condition, 100% conduction.
www.littelfuse.com
©2008 Littelfuse
27
Power Thyristor Databook
L01 EV Series 1A Sensitive Triacs
Teccor® brand Thyristors
Sensitive Triacs
Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
MT2 POSITIVE
(Positive Half Cycle)
MT2
IGT
GATE
(+)
MT2
IGT
GATE
J
(-)
+
MT1
IGT
REF
-
REF
QII QI
QIII QIV
MT2
(-)
MT1
IGT
GATE
(+)
MT1
REF
+
IGT
MT2
IGT
GATE
-
MT2 NEGATIVE
(Negative Half Cycle)
MT1
Junction Temperature (TJ)- ºC
REF
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
J
J
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Junction Temperature (TJ)- ºC
Junction Temperature (TJ)- ºC
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
L01 EV Series 1A Sensitive Triacs
Figure 6: Maximum Allowable Case Temperature
vs. On-State Current
28
Power Thyristor Databook
www.littelfuse.com
©2008 Littelfuse
Teccor® brand Thyristors
Sensitive Triacs
Peak Surge (Non-repetitive) On-State Current
(ITSM ) – Amps.
Figure 7: Surge Peak On-State Current vs. Number of Cycles
20
Supply Frequency: 60Hz Sinusoidal
Load: Resistive
RMS On-State Current [IT(RMS)]: Max Rated Value at Specific
Case Temperature
15
12
10
9
8
7
6
5
Notes:
(BUFDPOUSPMNBZCFMPTUEVSJOHBOEJNNFEJBUFMZ
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state rated value.
4
1A
3
Dev
ices
2
1
1
2
3
4
5 6 7 8 9 10
20
30
40
60 80 100
200
300 400 600
1000
Surge Current Duration – Full Cycle
Soldering Parameters
Reflow Condition
Pre Heat
1Co'SFFBTTFNCMZ
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
oTFDT
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Time (min to max) (ts)
oTFDPOET
Peak Temperature (TP)
260+0/-5 °C
Time within 5°C of actual peak
Temperature (tp)
oTFDPOET
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
www.littelfuse.com
©2008 Littelfuse
29
Power Thyristor Databook
L01 EV Series 1A Sensitive Triacs
Teccor® brand Thyristors
Sensitive Triacs
Physical Specifications
Terminal Finish
Body
Lead Material
Environmental Specifications
Test
100% Matte Tin-plated.
UL recognized epoxy meeting flammability
classification 94V-0.
Specifications and Conditions
AC Blocking
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
Temperature Cycling
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell-time
Temperature/
Humidity
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
High Temp Storage
MIL-STD-750, M-1031,
1008 hours; 150°C
Low-Temp Storage
1008 hours; -40°C
Thermal Shock
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max)
transfer time between temperature
Autoclave
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Copper Alloy
Design Considerations
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
UPXBSEFYUFOEJOHUIFPQFSBUJOHMJGFPGUIFUIZSJTUPS(PPE
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Dimensions — TO-92
Dimensions
L01 EV Series 1A Sensitive Triacs
30
Power Thyristor Databook
Inches
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.175
—
0.205
4.450
—
5.200
B
0.170
—
0.210
4.320
—
5.330
C
0.500
—
—
12.700
—
—
D
0.135
0.165
—
3.430
4.190
—
E
0.125
—
0.165
3.180
—
4.190
F
0.080
0.095
0.105
2.040
2.400
2.660
(
0.016
—
0.021
0.407
—
0.533
H
0.045
0.050
0.055
1.150
1.270
1.390
I
0.095
0.100
0.105
2.420
2.540
2.660
J
0.015
—
0.020
0.380
—
0.500
www.littelfuse.com
©2008 Littelfuse
Teccor® brand Thyristors
Sensitive Triacs
Dimensions – SOT-223
Dimensions
Pad Layout for SOT-223
3.3
(0.130”)
1.5
(0.059”)
1.2
(0.047”)
2.3
(0.091”)
6.4
(0.252”)
(3x)
1.5
(0.059”)
4.6
(0.181”)
Dimensions in Millimeters (Inches)
Inches
Millimeters
Min
Typ
Max
Min
Typ
Max
A
0.248
0.256
0.264
6.30
6.50
6.70
B
0.130
0.138
0.146
3.30
3.50
3.70
C
—
—
0.071
—
—
1.80
D
0.001
—
0.004
0.02
—
0.10
E
0.114
0.118
0.124
2.90
3.00
3.15
F
0.024
0.027
0.034
0.60
0.70
0.85
(
—
0.090
—
—
2.30
—
H
—
0.181
—
—
4.60
—
I
0.264
0.276
0.287
6.70
7.00
7.30
J
0.009
0.010
0.014
0.24
0.26
0.35
10° MAX
K
Product Selector
Part Number
L0103DE
Voltage
400 V
Gate Sensitivity Quadrants
I II III
IV
3 mA
5 mA
Package
TO-92
L0103ME
600 V
3 mA
5 mA
TO-92
L0103NE
800 V
3 mA
5 mA
TO-92
L0103DT
400 V
3 mA
5 mA
SOT-223
L0103MT
600 V
3 mA
5 mA
SOT-223
L0103NT
800 V
3 mA
5 mA
SOT-223
L0107DE
400 V
5 mA
7 mA
TO-92
L0107ME
600 V
5 mA
7 mA
TO-92
L0107NE
800 V
5 mA
7 mA
TO-92
L0107DT
400 V
5 mA
7 mA
SOT-223
L0107MT
600 V
5 mA
7 mA
SOT-233
L0107NT
800 V
5 mA
7 mA
SOT-233
L0109DE
400 V
10 mA
10 mA
TO-92
L0109ME
600 V
10 mA
10 mA
TO-92
L0109NE
800 V
10 mA
10 mA
TO-92
L0109DT
400 V
10 mA
10 mA
SOT-223
L0109MT
600 V
10 mA
10 mA
SOT-223
L0109NT
800 V
10 mA
10 mA
SOT-223
www.littelfuse.com
©2008 Littelfuse
31
Power Thyristor Databook
L01 EV Series 1A Sensitive Triacs
Teccor® brand Thyristors
Sensitive Triacs
Packing Options
Part Number
Marking
Weight
Packing Mode
Base Quantity
L01xxyE
L01xxyE
0.170 g
Bulk
2500
L01xxyEAP
L01xxyE
0.170 g
Ammo Pack
2000
L01xxyERP
L01xxyE
0.170 g
Tape & Reel
2000
L01xxyTRP
L01xxyT
0.120 g
Tape & Reel
1000
Note: xx = gate sensitivity, y = voltage
TO-92 (3-lead) Reel Pack (RP) Radial Leaded
Meets all EIA-468-B 1994 Standards
1.6
(41.0)
0.236
(6.0)
0.708
(18.0)
0.02 (0.5)
0.098 (2.5) MAX
1.26
(32.0)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT1 / Cathode
0.2 (5.08)
MT2 / Anode
Gate
0.157 DIA
(4.0)
14.17(360.0)
Flat up
1.97
(50.0)
Dimensions
are in inches
(and millimeters).
Direction of Feed
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded
Meets all EIA-468-B 1994 Standards
0.236
(6.0)
1.62
(41.2)
0.708
(18.0)
0.02 (0.5)
0.098 (2.5) MAX
1.27
(32.2)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2 / Anode
0.2 (5.08)
0.157
(4.0) DIA
MT1 / Cathode
Gate
Flat down
n of Feed
Directio
25 Devices per fold
1.85
(47.0)
12.2
(310.0)
1.85
(47.0)
Dimensions
are in inches
(and millimeters).
13.3
(338.0)
L01 EV Series 1A Sensitive Triacs
32
Power Thyristor Databook
www.littelfuse.com
©2008 Littelfuse
Teccor® brand Thyristors
Sensitive Triacs
Tape & Reel Specifications for SOT-223
8 mm
4 mm
1.5 mm
2 mm
A / MT2
1.75 mm
12 mm
5.5 mm
K / MT1
GATE
A / MT2
180 mm
13 mm Abor
Hole Diameter
13.4 mm
Part Numbering System
Part Marking System
L 01 xx x xx xx
DC
TRIAC SERIES
CURRENT
01: 1A
SENSITIVITY & TYPE
03: 3, 3, 3, 5mA Triac
07: 5, 5, 5, 7mA Triac
09: 10, 10, 10, 10mA Triac
www.littelfuse.com
©2008 Littelfuse
Date Code
(2 Digits Min.)
Number = Year
Letter = Month
PACKING TYPE
Blank: Bulk Pack
RP : Reel Pack (TO-92)
: Embossed Carrier Pack
(SOT-223)
AP : Ammo Pack (TO-92)
MT2
MT1
PACKAGE TYPE
E: TO-92
T: SOT-223
MT2
MT1
VOLTAGE
D: 400V
M: 600V
N: 800V
G
G
MT2
33
Power Thyristor Databook
L01 EV Series 1A Sensitive Triacs
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
