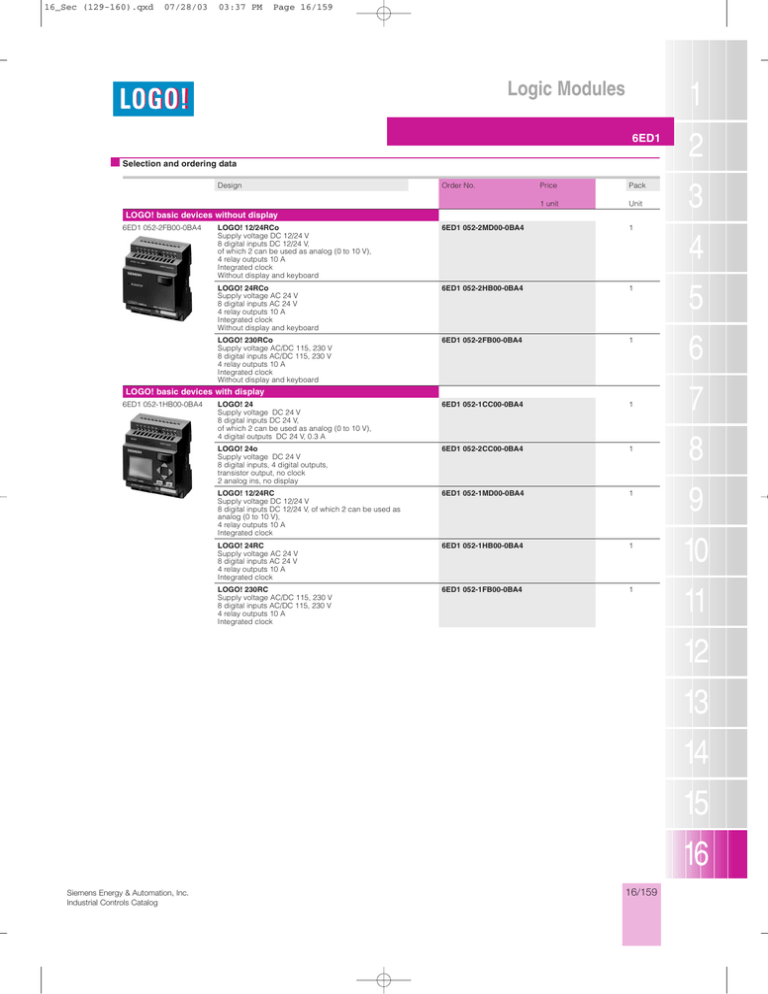

Page 16/159
Logic Modules
6ED1
Actuator Sensor Interface
■ Selection and ordering data
Design
Order No.
Price
Pack
1 unit
Unit
LOGO! basic devices without display
6ED1 052-2FB00-0BA4
LOGO! 12/24RCo
Supply voltage DC 12/24 V
8 digital inputs DC 12/24 V,
of which 2 can be used as analog (0 to 10 V),
4 relay outputs 10 A
Integrated clock
Without display and keyboard
6ED1 052-2MD00-0BA4
1
LOGO! 24RCo
Supply voltage AC 24 V
8 digital inputs AC 24 V
4 relay outputs 10 A
Integrated clock
Without display and keyboard
6ED1 052-2HB00-0BA4
1
LOGO! 230RCo
Supply voltage AC/DC 115, 230 V
8 digital inputs AC/DC 115, 230 V
4 relay outputs 10 A
Integrated clock
Without display and keyboard
6ED1 052-2FB00-0BA4
1
LOGO! 24
Supply voltage DC 24 V
8 digital inputs DC 24 V,
of which 2 can be used as analog (0 to 10 V),
4 digital outputs DC 24 V, 0.3 A
6ED1 052-1CC00-0BA4
1
LOGO! 24o
Supply voltage DC 24 V
8 digital inputs, 4 digital outputs,
transistor output, no clock
2 analog ins, no display
6ED1 052-2CC00-0BA4
1
LOGO! 12/24RC
Supply voltage DC 12/24 V
8 digital inputs DC 12/24 V, of which 2 can be used as
analog (0 to 10 V),
4 relay outputs 10 A
Integrated clock
6ED1 052-1MD00-0BA4
1
LOGO! 24RC
Supply voltage AC 24 V
8 digital inputs AC 24 V
4 relay outputs 10 A
Integrated clock
6ED1 052-1HB00-0BA4
1
LOGO! 230RC
Supply voltage AC/DC 115, 230 V
8 digital inputs AC/DC 115, 230 V
4 relay outputs 10 A
Integrated clock
6ED1 052-1FB00-0BA4
1
LOGO! basic devices with display
6ED1 052-1HB00-0BA4
Siemens Energy & Automation, Inc.
Industrial Controls Catalog
16/159
16_Sec (129-160).qxd
07/28/03
03:37 PM
Page 16/160
Logic Modules
6ED1
■ Selection and ordering data
Design
Order No.
Price
1 unit
Pack
Unit
LOGO! DM8 24
Supply voltage DC 24 V
4 digital inputs DC 24 V,
4 digital outputs DC 24 V, 0.3 A
6ED1 055-1CB00-0BA0
1
LOGO! DM8 12/24R
Supply voltage DC 12/24 V
4 digital inputs DC 12/24 V,
4 relay outputs 10 A
6ED1 055-1MB00-0BA1
1
LOGO! DM8 230R
Supply voltage 115, AC 230 V
4 digital inputs 115, AC 230 V
4 relay outputs 10 A
6ED1 055-1FB00-0BA1
1
LOGO! DM8 24R
Supply voltage 24 V AC
4 inputs, 4 outputs
relay output
6ED1 055-1HB00-0BA0
1
LOGO! AM2
Supply voltage DC 12/24 V
2 AI alternatively 0 to 10 V or 0 to 20 mA
Resolution 10 bit
Sensor supply: not available
6ED1 055-1MA00-0BA0
1
LOGO! AM2 PT 100 Temperature module
Supply voltage 24 V DC
2 analog inputs with PT 100
direct connect for temperature control
6ED1 055-1MD00-0BA0
Expansion modules
6ED1 055-1CB00-0BA0
6ED1 055-1MB00-0BA0
Communication modules
3RK1 400-0CE10-0AA2
1
• German
6ED1 050-1AA00-0AE4
1
• English
6ED1 050-1AA00-0BE4
1
• French
6ED1 050-1AA00-0CE4
1
• Italian
6ED1 050-1AA00-0EE4
1
• Spanish
6ED1 050-1AA00-0DE4
1
• Portuguese
6ED1 050-1AA00-0GE4
1
LOGO! Memory card
allows copying and saving the program utilizing
password protection
6ED1 056-4BA00-0AA0
1
LOGO!Soft Comfort V4.0
User-friendly programming software
programme generation using Drag&Drop
Simulation
Detailed programme documentation
Windows 95 and higher, Linux
Detailed online help in German / English / French / Italian / Spanish / Portuguese
6ED1 058-0BA00-0YA0
1
LOGO!Soft Comfort Upgrade
Upgrade from V1.0, V2.0, V3.0 to 4.0
6ED1 058-0CA00-0YE0
1
LOGO! PC cable
for transferring control programmes from a
PC to LOGO! and vice versa
6ED1 057-1AA00-0BA0
1
• 24 V
6ED1 057-4CA00-0AA0
1
• 230 V
6ED1 057-4EA00-0AA0
1
• LOGO! Power 24 V/1.3 A
6EP1 331-1SH01
1
• LOGO! Power 24 V/2.5 A
6EP1 332-1SH41
1
• LOGO! Power 12 V/1.9 A
6EP1 321-1SH01
1
• LOGO! Power 12 V/4.5 A
6EP1 322-1SH01
1
LOGO! AS-Interface
AS-Interface slave; supply voltage DC 24 V
4 digital inputs, 4 digital outputs
Optional accessories
6ED1 057-4CA00-0AA0
6EP1 331-1SH01
LOGO! Manual
LOGO!Contact
Switching module for direct switching of resistive loads
up to 20 A and motors up to 4 kW
LOGO!Power
Power supply to convert the line voltage AC 120/230 V
to the operating voltage DC 24 V or DC 12 V
16/160
Siemens Energy & Automation, Inc.
Industrial Controls Catalog
16_Sec (161-180).qxd
07/28/03
03:38 PM
Page 16/161
Logic Modules
6ED1
■ Selection and ordering data
Design
Order No.
Price
Pack
1 unit
Unit
Optional accessories
LOGO! News Box, 12/24 V
Contents: LOGO! 12/24RC, LOGO! PC cable,
LOGO!Soft Comfort V3.0, LOGO! Starter kit
• German
6ED1 057-3BA00-0AA3
1
• English
6ED1 057-3BA00-0BA3
1
• German
6ED1 057-3AA00-0AA8
1
• English
6ED1 057-3AA00-0BA8
1
LOGO! Prom
for writing and copying LOGO! memory submodules
6AG1 057-1AA01-0AA0
1
LOGO! mounting kit
4TE for front panel installation,
mounting dimensions (WxHxD) 79x95x57 mm,
IP30 without plexi washer,
IP65 with plexi washer
6AG1 057-1AA00-0AA0
1
LOGO! mounting kit
8TE for use with LOGO! basic plus
2 expansion modules,
IP65 rated
6AG1 057-1AA00-0AA1
1
LOGO! mounting kit
8TE for use with LOGO! basic plus
2 expansion modules with function keys
and membrane style function keys
to operate cursor keys
on the face of the unit
6AG1 057-1AA00-0AA2
1
LOGO! News Box, 230V
Contents: LOGO! 230RC, LOGO! PC cable, LOGO!Soft
Comfort V3.0, LOGO! Starter kit
Siemens Energy & Automation, Inc.
Industrial Controls Catalog
16/161
