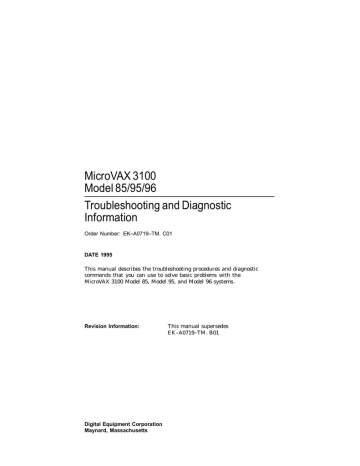

MicroVAX 3100

Model 85/95/96

Troubleshooting and Diagnostic

Information

Order Number: EK–A0719–TM. C01

DATE 1995

This manual describes the troubleshooting procedures and diagnostic commands that you can use to solve basic problems with the

MicroVAX 3100 Model 85, Model 95, and Model 96 systems.

Revision Information:

This manual supersedes

EK–A0719–TM. B01

Digital Equipment Corporation

Maynard, Massachusetts

DATE 1995

Digital Equipment Corporation makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.

Possession, use, or copying of the software described in this publication is authorized only pursuant to a valid written license from Digital or an authorized sublicensor.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Operation of this equipment in a residential area may cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

© Digital Equipment Corporation 1994. All Rights Reserved.

The postpaid Reader’s Comments form at the end of this document requests your critical evaluation to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation: Digital, MicroVAX, OpenVMS, RX,

ThinWire, VAX, VAX DOCUMENT, and the DIGITAL logo.

All other trademarks and registered trademarks are the property of their respective holders.

S2811

This document was prepared using VAX DOCUMENT Version 2.1.

Contents

Preface

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Troubleshooting and Diagnosing Problems

1.1

1.2

1.3

1.3.1

1.3.2

1.3.3

1.3.4

1.3.5

1.4

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using the Troubleshooting Table . . . . . . . . . . . . . . . . . . . .

Diagnostic Tests and Commands . . . . . . . . . . . . . . . . . . . .

Power-Up Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic Tests and Utilities . . . . . . . . . . . . . . . . . . .

Power-Up Error Messages . . . . . . . . . . . . . . . . . . . . . .

Configuration Display . . . . . . . . . . . . . . . . . . . . . . . . .

Error Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contacting Digital Services . . . . . . . . . . . . . . . . . . . . . . . .

Index

Examples

1–1

1–2

1–3

1–4

SYNC Test Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Memory_Setup_CSRs Test Failure . . . . . . . . . . . . . . . .

Memory_Count_Pages Test Failure . . . . . . . . . . . . . . .

No_Memory_Present Test Failure . . . . . . . . . . . . . . . .

v

1–1

1–2

1–9

1–10

1–13

1–18

1–22

1–24

1–25

1–18

1–19

1–20

1–21 iii

Figures

1–1

1–2

Tables

1–1

1–2

1–3

Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Status LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–13

1–26

Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .

Option Card Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MicroVAX 4000-100A/105A Tests . . . . . . . . . . . . . . . . .

1–3

1–15

1–16 iv

Preface

This manual describes the troubleshooting procedures and diagnostic commands that you can use to solve basic problems with the MicroVAX™ 3100 Model 85,

Model 95, and Model 96 systems.

Audience

This manual is intended for people who have some experience with computers.

Structure of This Manual

This manual presents the information you need for solving basic problems with the MicroVAX 3100 Model 85/95/96 system in one chapter. Use the sections in the order presented, starting with Section 1.1, Troubleshooting, when solving a problem with your system. You can follow up with diagnostic testing or by contacting Digital services for support as described in Section 1.3 and Section 1.4.

Additional Information

See the MicroVAX 3100 Model 85/95/96 Operator Information manual for the list of related documents.

v

Conventions

The following conventions are used in this manual:

Convention

MONOSPACE type

italic type

Note

Warning

Description

Text displayed on the screen is shown in monospace type.

Italic type emphasizes important information and indicates the complete titles of manuals.

A note contains information that is of special importance to the user.

A warning contains information to prevent personal injury.

vi

1

Troubleshooting and Diagnosing

Problems

This chapter describes the troubleshooting procedures and diagnostic commands that you can use to solve basic problems with the MicroVAX 3100 Model 85,

Model 95, and Model 96 systems. It contains information on the following:

• Troubleshooting

• Diagnostic tests and commands

• Contacting Digital™ services

It also lists the information that you must give to your Digital services representative and where to find this information.

1.1 Troubleshooting

If a problem occurs, you must first make sure that all the cables, loopback connectors, and terminators are correctly connected and that the connectors are not damaged, for example, the pins may be broken or short-circuited.

Follow these steps:

1.

Shut down the operating system by following the procedures described in the operating system documentation.

2.

Turn off the console terminal and all the peripheral devices, such as printers and modems.

3.

Turn off all the expansion boxes.

4.

Turn off the system unit.

5.

Check that the following cables, if installed, are correctly connected at both ends and that the connectors are not damaged:

• Console terminal cable (linking the console terminal to the system unit)

• Console terminal power cord

Troubleshooting and Diagnosing Problems 1–1

• System unit power cord

• Expansion box SCSI cables

• Expansion box power cords

• ThinWire™ Ethernet cable or standard Ethernet cable

6.

Check that the following terminators, if installed, are correctly connected and are not damaged:

• SCSI terminators

• ThinWire Ethernet terminator (T-connector and two terminators)

• Standard Ethernet loopback connector

If you have correctly followed steps 1 to 5, the on/off switches on all the components are set to the off (O) position, and you have solved any problems caused by incorrectly connected cables or terminators.

7.

Set the on/off switches on the following equipment to the on ( | ) position in the following order: a.

Expansion boxes b.

Peripherals c.

Console terminal d.

System unit

The system responds with the power-up test display. If it does not, see

Section 1.2.

1.2 Using the Troubleshooting Table

Table 1–1 suggests the corrective actions for certain system problems. If you have a problem with the system, follow these steps:

1.

Write down the symptoms of the problem.

2.

Check the Symptom column in Table 1–1 for a match.

3.

Check the causes of the symptom in the Possible Cause column. If the column lists more than one possible cause, check the possible causes and their suggested solutions in the order listed.

4.

Follow the advice in the Suggested Solution column.

5.

See Section 1.4 if the problem persists.

1–2 Troubleshooting and Diagnosing Problems

Table 1–1 Basic Troubleshooting

Symptom Possible Cause

System Problems

The system unit fan is off or the power light is off.

The power-up display does not show after 20 seconds.

The power cord is not connected. The power cord may be faulty. The power socket may not be working. The system breaker or wall outlet may have blown.

The overload protection circuitry of the power supply may have shut down because of an abnormal condition on the power line.

The power supply unit

(PSU) is faulty.

The terminal cable is not correctly connected.

The terminal cable is not connected to the correct MMJ port.

The power cord is not connected. The power cord may be faulty. The wall outlet may not be working.

The terminal fuse may have blown.

The terminal settings may be incorrect.

Suggested Solution

Make sure that all the power cords are connected correctly at both ends. Try a known good power cord or test the power socket with an appliance that works.

Turn the system off and then turn it back on.

Contact your Digital services representative.

Make sure that all the cables are connected at both ends.

Check the MMJ port to which the terminal cable is connected. If this port is not MMJ port 3, remove the terminal cable and connect it to

MMJ port 3.

Make sure that all the power cords are connected correctly at both ends. Try a known good power cord or test the power socket with an appliance that works.

Replace the blown terminal fuse.

See the terminal documentation.

See the MicroVAX 3100 Model

85/95/96 Operator Information

manual for the list of correct terminal settings. See the terminal documentation for information on how to set up the terminal.

(continued on next page)

Troubleshooting and Diagnosing Problems 1–3

Table 1–1 (Cont.) Basic Troubleshooting

Symptom Possible Cause

System Problems

The port to which the terminal connects may be faulty.

The terminal cable may be faulty.

Suggested Solution

Try connecting the terminal to another system. If this solution works, the port to which the terminal was connected is faulty.

If the terminal still does not operate, it is faulty. In either case, contact your Digital services representative.

Connect the terminal cable and the terminal to another system.

If the connected terminal works, the DZ circuitry or MMJ connector is faulty. Otherwise, the cable is faulty. Contact your Digital services representative.

See Section 1.4.

The power-up display contains question marks.

The power-up test display contains unexpected characters.

The system fails to boot the operating system.

A diagnostic error has occurred.

The terminal settings are incorrect or the DZ circuitry is faulty.

The system defaults are incorrectly set.

Make sure the terminal settings are correct, then run the powerup test again. If the terminal is set correctly, contact your Digital services representative.

Set the system defaults as described in the OpenVMS

Factory Installed Software User

Information document, then try to boot the system again. If the system still fails to boot, contact your Digital services representative.

(continued on next page)

1–4 Troubleshooting and Diagnosing Problems

Table 1–1 (Cont.) Basic Troubleshooting

Symptom Possible Cause

RRD43 Compact Disc Drive Problems

The drive does not accept the disc.

The eject button fails to release the disc tray.

The disc is upside-down in the tray or it is not placed correctly in the tray.

A disc is already present.

The eject button is disabled by software.

The system does not have power.

The RRD43 compact disc drive is faulty.

Suggested Solution

Remove the disc from the tray and reinsert it properly.

Remove the disc and replace it with a new one.

Reenable the eject button or manually release the disc tray.

Set the system unit on/off switch to the on ( | ) position and press the eject button again.

If you want to release the disc tray manually, see MicroVAX

3100 Model 85/95/96 Operator

Information for instructions. If the problem persists, contact your

Digital services representative.

(continued on next page)

Troubleshooting and Diagnosing Problems 1–5

Table 1–1 (Cont.) Basic Troubleshooting

Symptom Possible Cause

TZ30 Tape Drive Problems

The TZ30 green LED flashes rapidly.

The drive mechanism is faulty or the tape cartridge is damaged.

The TZ30 does not operate.

The operate lever does not slide.

The operate lever does not lock.

The tape does not load.

The system cannot write to the tape.

The data read from the tape cartridge is corrupted.

The tape does not eject.

The drive does not contain a tape cartridge.

The tape cartridge is in use.

The tape cartridge is not inserted correctly.

The write-protect switch is in the write-protect position.

The tape drive head may be dirty.

The tape is not rewound.

The operate lever is in the lock position.

Suggested Solution

Press and release the unload button to clear the fault. If the

LED continues to flash, do not try to remove the tape cartridge or use the tape drive. Contact your

Digital services representative.

Insert the tape cartridge and slide the lever from the UNLOCK to the

LOCK position.

Wait for the green LED to turn on and try again. If the problem persists, do not use the drive.

Contact your Digital services representative.

Reinsert the tape cartridge. If the problem persists, contact your

Digital services representative.

Press and release the unload button. Wait for the green LED to turn on before sliding the lever and removing the tape. If the

LED flashes, contact your Digital services representative.

If the write-protect LED is on, remove the tape, reset the switch and try writing to the tape again. If the problem persists, contact your Digital services representative.

See the MicroVAX 3100 Model

85/95/96 Operator Information

manual for information on how to clean the drive head.

Follow the procedure for removing a tape from the TZ30 described in the MicroVAX 3100 Model 85/95

/96 Operator Information manual.

(continued on next page)

1–6 Troubleshooting and Diagnosing Problems

Table 1–1 (Cont.) Basic Troubleshooting

Symptom Possible Cause

TLZ06 and TLZ07 Cassette Tape Drive Problems

The system cannot write to the cassette tape.

The write-protect switch is in the write-protect position.

Suggested Solution

If the write-protect LED is on, remove the tape, reset the switch and try writing to the tape again. If the problem persists, contact your Digital services representative.

Load the cassette tape.

The write-protect LED flashes.

The data read from the cassette tape is corrupted.

The cassette tape is not loaded.

The tape drive heads are dirty or the tape is worn.

The tape drive heads may be dirty.

Clean the drive heads (see the

MicroVAX 3100 Model 85/95/96

Operator Information manual). If the problem persists, use a new tape.

See the MicroVAX 3100 Model

85/95/96 Operator Information

manual for information on how to clean the drive heads.

TZK10/TZK11 Quarter Inch Cartridge (QIC) Tape Drive Problems

The data read from the

QIC tape is corrupted.

The system cannot write to the QIC tape.

The system cannot read from or write to the QIC tape.

The drive head is dirty.

The write-protect switch is in the write-protect position.

The QIC tape may be faulty.

Clean the drive head. See the

MicroVAX 3100 Model 85/95/96

Operator Information manual.

Remove the QIC tape, reset the switch and try to write to the

QIC tape again. If the problem persists, contact your Digital services representative.

Remove the QIC tape. If the amber

LED turns off when you remove the QIC tape, the tape is probably faulty. Try a different QIC tape.

If the amber LED stays on or if the problem persists, contact your

Digital services representative.

(continued on next page)

Troubleshooting and Diagnosing Problems 1–7

Table 1–1 (Cont.) Basic Troubleshooting

Symptom Possible Cause

RX™26 Diskette Drive Problems

The system cannot read from or write to the diskette.

The diskette is not formatted.

The diskette is not correctly inserted.

The diskette is faulty.

The diskette drive is faulty.

The diskette density is incorrect.

The diskette drive head may be dirty.

The system can read from but cannot write to a diskette.

The diskette does not eject.

The write-protect switch is in the write-protect position.

The diskette is incorrectly positioned in the drive.

Suggested Solution

Format the diskette.

Eject the diskette. Try to insert the diskette again.

Try a different diskette.

Contact your Digital services representative.

The RX26 accepts only highdensity (HD) or extra-density

(ED) diskettes.

See the MicroVAX 3100 Model

85/95/96 Operator Information

manual for information on how to clean the diskette drive head.

Eject the diskette and reset the switch. Try writing to the diskette again.

Gently press the diskette with your finger and reposition it. Press the eject button again.

RZ-Series SCSI Disk Drive Problems

An installed drive does not work.

The Configuration display does not show a

SCSI device.

Two SCSI identifiers are set to the same number.

Drive cables are not properly connected.

SCSI device is not properly terminated.

Two SCSI identifiers are set to the same number.

Reset each SCSI ID to a unique number.

Check the cable connections.

Check for a SCSI 50-pin terminator.

Reset each SCSI ID to a unique number.

1–8 Troubleshooting and Diagnosing Problems

1.3 Diagnostic Tests and Commands

There are a number of diagnostic tests and commands that can help you to isolate a problem with the system unit. These tests and commands are as follows:

• Power-up tests

• Diagnostic tests and utilities

1

• Configuration display

1

• Error display

1

The following sections describe these tests and commands.

1

You can use these tests and commands in privileged console mode only if the console security feature is enabled and the password is set. See the MicroVAX 3100

Model 85/95/96 Customer Technical Information manual for information on the console security feature.

Troubleshooting and Diagnosing Problems 1–9

1.3.1 Power-Up Tests

The system runs the power-up tests each time you turn on the system. After successful completion of tests, the system will either enter console mode or proceed to automatic bootstrap, depending on the HALT action selected by the user. If HALT action is Default, Halt, or Restart, then the system enters console mode. If HALT action is Reboot or Restart_reboot, then the system proceeds to boot. The following example shows a typical display for a system that passes all tests and then enters console mode.

"

#

$

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

!

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

"

42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..

26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..

10..09..08..07..06..05..04..03..

Tests completed.

#

>>>

$

!

Central Processing Unit (CPU) Name, Firmware Version Number, and Virtual

Memory Boot (VMB) Version Number

Read-Only Memory (ROM) Based Diagnostics Countdown

Status Message

Console Prompt

1–10 Troubleshooting and Diagnosing Problems

The following example shows a typical display for a system that passes all tests and then enters automatic bootstrap.

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..

26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..

10..09..08..07..06..05..04..03..

Tests completed.

Loading system software.

(BOOT/R5:0 EZA0)

2..

-EZA0

1..0..

Note

The operating system messages start here, that is VMS . . .

If the power-up tests encounter an error, one of the following actions occurs:

For minor errors:

• If HALT action is set to a boot condition (that is reboot or restart_reboot), and if a minor error occurs, the system displays an abbreviated error message and continues to boot as normal.

• If HALT action is set to Default, Halt or Restart, then the system enters console mode.

• The only errors defined as minor are errors in memory that cause pages to be marked bad in the memory bitmap. There must be enough good memory left to allow an attempt to bootstrap.

For severe errors:

• The system always enters console mode regardless of HALT action after it attempts to complete all tests possible.

Troubleshooting and Diagnosing Problems 1–11

The following example shows a system with a memory error that only affected one set of memory out of two sets. Because some memory is still usable, the system proceeds to automatic bootstrap if the HALT action is set to a boot condition.

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

42..41..40..39..38..37..36..35..34..33..32..

? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF DE_Memory_count_pages.lis

31..30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..

15..14..13..12..11..10..09..08..07..06..05..04..03..

16 MB RAM, SIMM Set (0A,0B,0C,0D) present

Memory Set 0: 04000000 to 04FFFFFF, 16MB, 0 good pages, 32768 bad pages

64 MB RAM, SIMM Set (1E,1F,1G,1H) present

Memory Set 1: 00000000 to 03FFFFFF, 64MB, 131072 good pages, 0 bad pages

Total of 80MB, 131072 good pages, 32768 bad pages, 136 reserved pages

Tests completed.

Loading system software.

(BOOT/R5:0 EZA0)

2..

-EZA0

1..0..

!

? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF DE_Memory_count_pages.lis

"

16 MB RAM, SIMM Set (0A,0B,0C,0D) present

Memory Set 0: 04000000 to 04FFFFFF, 16MB, 0 good pages, 32768 bad pages

64 MB RAM, SIMM Set (1E,1F,1G,1H) present

Memory Set 1: 00000000 to 03FFFFFF, 64MB, 131072 good pages, 0 bad pages

Total of 80MB, 131072 good pages, 32768 bad pages, 136 reserved pages

!

"

Operating system messages start here; that is VMS . . .

Abbreviated error message for memory error

Memory errors normally cause the results of a SHOW MEMORY display to occur after the tests are completed and before continuing. SHOW MEMORY is the most useful command to determine which memory SIMMs are bad when memory errors occur.

1–12 Troubleshooting and Diagnosing Problems

1.3.2 Diagnostic Tests and Utilities

The diagnostic tests and utilities are similar to the power-up tests except that the power-up tests enable you to test all the devices in the system, whereas the diagnostic tests and utilities enable you to test single devices and the functions of single devices.

Figure 1–1 shows a list of diagnostic tests obtained by entering the following command:

>>> T 9E

Figure 1–1 Diagnostic Tests

Test

# Address Name Parameters

___________________________________________________________________________

20052200 SCB

20055850 De_executive

30 2006A53C Memory_Init_Bitmap *** mark_Hard_SBEs ******

31 2006AB34 Memory_Setup_CSRs *********

32 2005D148 NMC_registers

33 2005D324 NMC_powerup

**********

**

34 2005E6D8 SSC_ROM ***

35 2005FB90 B_Cache_diag_mode bypass_test_mask *********

37 20061590 Cache_w_Memory bypass_test_mask *********

40 2006B5E0 Memory_count_pages SIMM_set0 SIMM_set1 Soft_errs_allowed *****

41 20068CEC Board_Reset *

42 20061880 Chk_for_Interrupts **********

46 200610C4 P_Cache_diag_mode bypass_test_mask *********

47 2006AD04 Memory_Refresh start_a end incr cont_on_err time_seconds *****

48 2006B028 Memory_Addr_shorts start_add end_add * cont_on_err pat2 pat3 ****

4A 2006A23C Memory_ECC_SBEs start_add end_add add_incr cont_on_err ******

4B 2006940C Memory_Byte_Errors start_add end_add add_incr cont_on_err ******

4C 20069BA0 Memory_ECC_Logic start_add end_add add_incr cont_on_err ******

4D 20068FE8 Memory_Address

4E 20069188 Memory_Byte start_add end_add add_incr cont_on_err ****** start_add end_add add_incr cont_on_err ******

4F 2006B7F4 Memory_Data

51 2005803C FPA start_add end_add add_incr cont_on_err ******

**********

52 20058530 SSC_Prog_timers which_timer wait_time_us ***

53 20058818 SSC_TOY_Clock repeat_test_250ms_ea Tolerance ***

54 20057C18 Virtual_Mode

55 20058E6C Interval_Timer

56 2006507C SHAC_LPBCK

58 20065D24 SHAC_RESET

********

*****

From_bus To_bus passes ******* dssi_bus port_number time_secs not_pres *

59 20062778 SGEC_LPBCK_ASSIST time_secs **

(continued on next page)

Troubleshooting and Diagnosing Problems 1–13

Figure 1–1 (Cont.) Diagnostic Tests

5C 20062D10 SHAC

5F 200619B8 SGEC

62 20058B1C console_QDSS

63 20058CA4 QDSS_any

80 2005D3C0 CQBIC_memory

81 200596CC Qbus_MSCP

82 200598AC Qbus_DELQA

83 2005A85C QZA_Intlpbck1

SHAC_number ********* loopback_type no_ram_tests ****** mark_not_present selftest_r0 selftest_r1 ***** input_csr selftest_r0 selftest_r1 ****** bypass_test_mask *********

IP_csr ****** device_num_addr **** controller_number ********

84 2005BF1C QZA_Intlpbck2

85 20059A9C QZA_memory controller_number ********* incr test_pattern controller_number *******

86 20059F44 QZA_DMA Controller_number main_mem_buf ********

90 20058494 CQBIC_registers *

91 20058410 CQBIC_powerup **

99 2005DC4C Flush_Ena_Caches dis_flush_VIC dis_flush_BC dis_flush_PC

9A 20063FB0 INTERACTION pass_count disable_device *******

9B 20068E48 Init_memory **

9C 2006631C List_CPU_registers *

9D 2006C250 Utility Flags *********

9E 2005903C List_diagnostics script_number *

9F 200681CC Create_A0_Script **********

C1 20057888 SSC_RAM_Data *

C2 20057A78 SSC_RAM_Data_Addr *

C5 200589E8 SSC_registers *

D0 20060C70 V_Cache_diag_mode bypass_test_mask *********

D2 2005DE90 O_Bit_diag_mode bypass_test_mask *********

DA 2006139C PB_Flush_Cache

DB 2005E850 Speed

********** print_speed *********

DC 2006C060 NO_Memory_present *

DD 2005F0DC B_Cache_Data_debug start_add end_add add_incr *******

DE 2005EC64 B_Cache_Tag_Debug start_add end_add add_incr *******

DF 2005E2A8 O_BIT_DEBUG start_add end_add add_incr seg_incr ******

E0 2006D4D4 SCSI

E1 2006D7CC SCSI_Utility

E2 2006DA2C SCSI_MAP

E4 2006DFC8 DZ

E8 2006E1DC SYNC

E9 2006E2B4 SYNC_Utility

EC 2006E398 ASYNC

F0 2006D638 SCSI_option environment reset_bus time_s ******* environment util_nbr target_ID lun ****** bypass_test addr_incr_data_tst ******** environment ********* environment ********* environment ********* environment ********* environment reset_bus time_s *******

F1 2006D900 SCSI_Opt_Utility environment util_nbr target_ID lun ******

F2 2006DA40 SCSI_MAP_Option bypass_test addr_incr_data_tst ********

Scripts

# Description

(continued on next page)

1–14 Troubleshooting and Diagnosing Problems

Figure 1–1 (Cont.) Diagnostic Tests

A0 User defined scripts

A1 Powerup tests, Functional Verify, continue on error, numeric countdown

A3 Functional Verify, stop on error, test # announcements

A4 Loop on A3 Functional Verify

A6 Memory tests, mark only multiple bit errors

A7 Memory tests

A8 Memory acceptance tests, mark single and multi-bit errors, call A7

A9 Memory tests, stop on error

B2 Extended tests plus BF, then loop

B5 Extended tests, then loop

BF DZ, SYNC, ASYNC with loopbacks

Load & start system exerciser

100 Customer mode, 2 passes

101 CSSE mode, 2 passes

102 CSSE mode, continous until ^C

103 Manuf mode, continous until ^C

104 Manuf TINA mode, continous until ^C

105 Manuf mode, 2 passes

106 CSSE mode, select tests, continous until ^C

107 Manuf mode, select tests, continous until ^C

Note

Tests 101 through 107 are reserved for use by Digital services.

The tests and utilities shown in Table 1–2 are for option cards, which may or may not be present, depending upon the options you ordered.

Table 1–2 Option Card Tests

Test Name

E8

E9

EC

F0

F1

F2

SYNC

SYNC_Utility

ASYNC

SCSI_option

SCSI_Opt_Utility

SCSI_MAP_Option

Usage

Synchronous COMM option card (DSW41/42)

Synchronous COMM option card (DSW41/42)

Asynchronous option card (DHW41/42)

SCSI option card for 2nd SCSI bus B (KZDDA)

SCSI option card for 2nd SCSI bus B (KZDDA)

SCSI option card for 2nd SCSI bus B (KZDDA)

Troubleshooting and Diagnosing Problems 1–15

Note

The following available tests (Table 1–3) are not used on the MicroVAX

3100 Model 85/95/96; they are used only on the MicroVAX 4000 Model

100A/105A, and are listed here to avoid confusion when you see them in the diagnostic test listing (Figure 1–1 ).

Table 1–3 MicroVAX 4000-100A/105A Tests

Test

No.

Name Usage

82

83

84

85

86

56

58

5C

62

63

81

SHAC_LPBCK

SHAC_RESET

SHAC console_QDSS

QDSS_any

Qbus_MSCP

Qbus_DELQA

QZA_Intlpbck1

QZA_Intlpbck2

QZA_memory

QZA_DMA

Not used on 3100, SHAC option only

Not used on 3100, SHAC option only

Not used on 3100, SHAC option only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

Not used on 3100, QBUS systems only

To run the diagnostic tests, enter either TEST or T followed by the test number.

You can specify optional parameters for some tests, but you would not do so normally. If you decide to specify optional parameters, then the following conditions apply:

• Each test uses up to 10 parameters, no more than 7 may be inputted on a command line.

Most of these parameters are assigned values automatically by the system.

These parameters are indicated by an asterisk (*) in the parameters column of Figure 1–1.

• If a parameter can be assigned a value, the name of the parameter is shown in the parameters column in Figure 1–1.

1–16 Troubleshooting and Diagnosing Problems

You can use test 9E with the test number as a parameter to show a list of legal parameters and valid values for the test number. For example, enter T

9E 30 to show a list of legal parameters and valid values for test number 30

(Memory_Init_Bitmap).

• There is a dependency between some tests.

• Failures can occur if dependencies between tests are not followed.

• Any parameter not entered is given a default value. Enter T 9E nn, where nn is test number to show defaults. During power-up testing or execution of any script of tests (A0 to BF), the values of parameters are determined by the script, not defaults.

• You may dump the contents of a script by entering T 9E nn, where nn is a script to dump. Scripts are always in range of A0 to BF (or 0 for the power-up script).

You must enter three zeros (0) as place holders for the three parameters that occur before the user-specified parameter, mark_hard_SBEs. The last value (1) is a parameter. You can then specify the mark_hard_SBEs parameter in the

Memory_Init_Bitmap test as follows:

>>> T 30 0 0 0 1

The resulting messages differ, depending on the function of the test or utility.

However, most failing tests cause the system to display error messages similar to the following:

>>> T 5F 1

? Test_Subtest_5F_18 Loop_Subtest=0E Err_Type=FF DE_SGEC.lis

Vec=010C Prev_Errs=0000 P1=00000001 P2=00000000 P3=827DFF03 P4=00000000

P5=00000000 P6=00000000 P7=00000000 P8=00000001 P9=00000000 P10=00000000 r0=00000054 r1=000082E2 r2=00000001 r3=000082FA r4=00008230 r5=00000040 r6=000082E2 r7=20008000 r8=00008000 r9=20140758 r10=13000001 r11=2014044B

EPC=2005721A dser=0000 cesr=00000000 icsr=01 pcsts=F800 pcctl=FC13 cctl=00000007 bcetsts=03A0 bcedsts=0400 cefsts=00019200 nests=00 mmcdsr=00C6C600 mesr=00006000

>>>

Write down the error messages before you contact your Digital services representative.

Troubleshooting and Diagnosing Problems 1–17

1.3.3 Power-Up Error Messages

The following are examples of some error messages at power-up.

Example 1–1 is a typical example of a failed test. In this case, test E8 failed testing a SYNC (COMM) option.

Example 1–1 SYNC Test Failure

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..

26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..

10..09..

? Test_Subtest_E8_03 Loop_Subtest=00 Err_Type=FF DE_SYNC.lis

Vec=0000 Prev_Errs=0001 P1=09000001 P2=00000000 P3=00000000 P4=00000000

P5=00000000 P6=00000000 P7=00000000 P8=00000000 P9=00000000 P10=00000000

Stat=0112 FRU=20 LED=00 Ext_Stat 00090014 00EE001D 00020002 0000EFCE 00000000

20040000 7FDEDFFF 00000000 dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=F800 pcctl=FC13 cctl=00000021 bcetsts=0000 bcedsts=0000 cefsts=00019220 nests=00 mmcdsr=01111000 mesr=00006000

08..07..06..05..04..03..

Normal operation not possible.

>>>

1–18 Troubleshooting and Diagnosing Problems

Example 1–2 represents a case where an additional set of memory SIMMs was added and one of the four SIMMs for the set was not the same type of SIMM as the others. In this example SIMM 1H was either not installed or incorrectly installed.

Example 1–2 Memory_Setup_CSRs Test Failure

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

? Test_Subtest_31_05 Loop_Subtest=00 Err_Type=FF DE_Memory_Setup_CSRs.lis

Vec=0000 Prev_Errs=0000 P1=00000000 P2=01000000 P3=00000001 P4=00010000

P5=2101801C P6=00000007 P7=80000003 P8=0000CF4A P9=00000001 P10=2006B8D8 r0=00000002 r1=21018000 r2=00000008 r3=81000000 r4=00000001 r5=01000000 r6=2006EB77 r7=21018048 r8=00000000 r9=20140758 r10=00000000 r11=FFFFFFFF dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=FA00 pcadr=FFFFFFF8 pcctl=FC13 cctl=00000020 bcetsts=0360 bcedsts=0F00 cefsts=00019200 nests=00 mmcdsr=01FE6600 mesr=00000000

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

42..41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..

26..25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..

10..09..08..07..06..05..04..03..

16 MB RAM, SIMM Set (0A,0B,0C,0D) present

Memory Set 0: 00000000 to 00FFFFFF, 16MB, 32768 good pages, 0 bad pages

Error: SIMM Set 1 (1E,1F,1G,1H)

SIMM_1E = 64MB SIMM_1F = 64MB SIMM_1G = 64MB

!

SIMM_1H = 00MB ??

Total of 16MB, 32768 good pages, 0 bad pages, 104 reserved pages

Normal operation not possible.

!

Indicates no memory SIMM installed here or SIMM not correctly installed.

Troubleshooting and Diagnosing Problems 1–19

Example 1–3 represents a case where one SIMM of a set was bad. In this example, SIMM 1G was bad or incorrectly installed.

Example 1–3 Memory_Count_Pages Test Failure

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..

58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..

42..41..40..39..38..37..36..35..34..33..32..

? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF DE_Memory_count_pages.lis

31..30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..

15..14..13..12..11..10..09..08..07..06..05..04..03..

16 MB RAM, SIMM Set (0A,0B,0C,0D) present

Memory Set 0: 04000000 to 04FFFFFF, 16MB, 32768 good pages, 0 bad pages

Error: SIMM Set 1 (1E,1F,1G,1H)

SIMM_1E = 64MB SIMM_1F = 64MB SIMM_1G = 64MB ??

SIMM_1H = 64MB

Memory Set 1: 00000000 to 03FFFFFF, 64MB, 0 good pages, 131072 bad pages

Total of 80MB, 32768 good pages, 131072 bad pages, 136 reserved pages

Tests completed.

1–20 Troubleshooting and Diagnosing Problems

Example 1–4 represents a case where one SIMM of a set is missing or incorrectly installed. In this case, only one set of SIMMs was installed. Since one was missing, there is no usable memory for testing to run to completion. SIMM 1D is missing here.

Example 1–4 No_Memory_Present Test Failure

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

Performing normal system tests.

74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..

? Test_Subtest_DC_87 Loop_Subtest=00 Err_Type=FF DE_NO_Memory_present.lis

Vec=0000 Prev_Errs=0000 P1=EF42EF42 P2=00000000 P3=00000000 P4=00000000

P5=00000000 P6=7F337F7F P7=00000000 P8=0000EF42 P9=00000001 P10=2006B8D8 r0=00000002 r1=21018000 r2=00000008 r3=00000007 r4=03FFFFE0 r5=80000000 r6=FFFFFFFF r7=00000000 r8=00000000 r9=20140758 r10=FFFFFFFE r11=FFFFFFFF dser=0000 cesr=00000000 intmsk=00 icsr=01 pcsts=FA00 pcadr=FFFFFFF8 pcctl=FC13 cctl=00000020 bcetsts=0360 bcedsts=0F00 cefsts=00019200 nests=00 mmcdsr=00666640 mesr=00000000

Error: SIMM Set 0 (0A,0B,0C,0D)

SIMM_0A = 16MB SIMM_0B = 16MB SIMM_0C = 16MB

Total of 0MB, 0 good pages, 0 bad pages, 0 reserved pages

Normal operation not possible.

SIMM_0D = 00MB ??

Troubleshooting and Diagnosing Problems 1–21

1.3.4 Configuration Display

The configuration display shows the system configuration and the error messages that were detected while the most recent power-up tests, diagnostic tests, and utilities were running. If you add expansion boxes to the system and do not run the power-up tests or appropriate diagnostic test or utility, the configuration display does not recognize the reconfiguration. Enter the following command to see the configuration display:

>>> SHOW CONFIG

If the system does not detect any errors in the most recent power-up tests or diagnostic utilities, it responds with a configuration display similar to the following:

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

08-00-2B-33-CF-C9

80MB

!

"

TstNbr DevNam

#

Info

--------------------------------------

0 CPU_BD OK

A8 MEM OK

E4

E0

5F

DZ OK

SCSI OK

3-RZ24L 6-Adapter 7-RRD43

$

NI OK

F0 SCSI_B OK

0

E8

EC

0-RZ23L 6-Adapter

QBUS OK

COMM OK

DSW41/42 2 CHANNEL V4.10-7b

ASYNC OK

DHW41/2 V1.6

!

"

#

$

Test Utility Number Column

Device Mnemonic Column

Device Status Column

SCSI IDs and SCSI Device Names

The test numbers listed identify the normal test or script number to run to verify the device listed. There are additional tests and utilities for some devices. Test 0 calls the power-up script.

1–22 Troubleshooting and Diagnosing Problems

Note

The lines for F0, E8 and EC display only if the applicable option is present.

If the system detects errors in the most recent power-up tests and diagnostic utilities, it responds with a configuration display similar to the following:

KA55-A or KA51-A or KA56-A V2.6, VMB 2.15

08-00-2B-2B-16-91

80MB

TstNbr DevNam Info

--------------------------------------

0 CPU_BD OK

A8 MEMORY OK

E4 DZ ?? 001 0048

!

E0 SCSI OK

5F

E8

EC

3-RZ24L 6-Adapter 7-RRD43

NI OK

COMM OK

DSW41/42 2 CHANNEL V3.11-47

ASYNC OK

DHW41/2 V1.6

>>>

!

Error Information—Write down this information before you contact your

Digital services representative.

Troubleshooting and Diagnosing Problems 1–23

1.3.5 Error Display

You can use the error display to display certain errors detected during the last power-up test or diagnostic utility. To see the error display, enter the following command:

>>> SHOW ERROR

The system responds with a display similar to the following:

?? 001 CPU_BD 0000

B_Cache Test_35 Subtest_33 Loop_sub_27 Error_type_FF

NVAX Test_54 Subtest_00 Loop_sub_01 Error_type_FF

?? 001 DZ 0030

010 0001 00000031 00000020 00000000 00000002 00000000 0000F1F0

Test_E4 Subtest_02 Loop_sub_00 Error_type_FF

?? 020 COMM 0112

005 0014 001E001E 0F0F0311 01010002 00000000 0008001E 80000002 00000000

Write down this information before you contact your Digital services representative.

1–24 Troubleshooting and Diagnosing Problems

1.4 Contacting Digital Services

Warning

Only authorized service personnel should service the MicroVAX 3100

Model 85/95/96.

If you have followed the procedures in this chapter but the problem remains unsolved, your Digital services representative can help you. Before you place your call, follow these steps:

1.

Write down a description of the problem, including the error messages and the number of the tests or utilities that failed.

2.

Look at the status LED display on the back of the system unit and write down the numbers of the LEDs that are lit (see Figure 1–2).

3.

List the steps you took to correct the problem as well and their results.

4.

Write down the serial and model numbers of the system unit and any connected peripheral devices. These numbers are usually printed on a label on the back of the device.

Troubleshooting and Diagnosing Problems 1–25

Figure 1–2 Status LED Display

1

OPAO

3

2

1

!

Status LED Display

1–26 Troubleshooting and Diagnosing Problems

MLO-012035

Index

C

Cables checking connections, 1–13 checking the console terminal cable,

1–1 checking the Ethernet cables, 1–2 checking the expansion box power cords, 1–2 checking the expansion box SCSI cables, 1–1 checking the system unit power cord,

1–1 checking the terminal power cord, 1–1 troubleshooting, 1–1

Configuration display error information, 1–23 use of, 1–22 with errors, 1–23 without errors, 1–22

Connections checking SCSI terminators, 1–2 checking standard Ethernet loopback connector, 1–2 checking ThinWire Ethernet terminator, 1–2

Console security feature, 1–9

Console terminal checking cable, 1–1 checking power cord, 1–1 turning off, 1–1 turning on, 1–2

D

Device mnemonics, 1–22

Device status, 1–22

Diagnostic commands, 1–9 to 1–24

Diagnostic tests, 1–9 to 1–24

Diagnostic tests and utilities, 1–13 listing, 1–13 not applicable, 1–15 option cards, 1–15 optional parameters, 1–16 running, 1–16 typical error display, 1–17

Digital services contacting, 1–25

E

Error display use of, 1–24

Error information in configuration display, 1–23

Ethernet checking cable, 1–2

Expansion boxes addition, 1–22 checking SCSI cables, 1–1 turning off, 1–1 turning on, 1–2

Index–1

F

Fan troubleshooting, 1–3

Field Services

See Digital services

L

Loopbacks checking, 1–1 checking connections, 1–2 standard Ethernet, 1–1

O

Operating system software troubleshooting, 1–3

P

Peripherals turning off, 1–1 turning on, 1–2

Power cord troubleshooting, 1–3

Power-up error messages, 1–18 to 1–21

Memory_Count_Pages test failure,

1–20

Memory_Setup_CSRs test failure,

1–19

No_Memory_Present test failure,

1–21

SYNC test failure, 1–18

Power-up display troubleshooting, 1–3

Power-up tests, 1–22

Halt action variables, 1–10 minor errors, 1–11 severe errors, 1–11 successful display, 1–10, 1–11 unsuccessful display, 1–11, 1–12 use of, 1–10

Privileged console mode, 1–9

R

RRD43 compact disc drive, 1–5 eject button fault, 1–5 troubleshooting, 1–4

RRD43 compact disc drive troubleshooting, 1–4

RX26 disk format error, 1–8 diskette drive, 1–7 diskette insertion error, 1–8 eject error, 1–8 head cleaning, 1–8 troubleshooting, 1–7 write-protect error, 1–8

RZ-series SCSI disk drive, 1–8 drive not functional, 1–8 not on configuration display, 1–8 troubleshooting, 1–8

S

SCSI device names, 1–22

SCSI IDs, 1–22

SCSI terminators, 1–2

Security password, 1–9

SHOW CONFIG command use of, 1–22

SHOW ERROR command use of, 1–24

Standard Ethernet, 1–2

Status LED display, 1–25 location, 1–26

System unit checking power cord, 1–1 troubleshooting, 1–3 turning off, 1–1 turning on, 1–2

Index–2

T

Terminal troubleshooting, 1–3

Terminators checking, 1–1 checking connections, 1–2, 1–13

SCSI, 1–2

ThinWire Ethernet, 1–1

Test utility numbers, 1–22

Tests diagnostic, 1–22

ThinWire Ethernet, 1–2

TLZ06 troubleshooting, 1–6

TLZ07 troubleshooting, 1–6

Troubleshooting, 1–1 to 1–8

RRD43, 1–4

RX26, 1–7

RZ-series SCSI disk drive, 1–8 system unit, 1–3 table, 1–2 terminal, 1–3

TLZ06, 1–6

TLZ07, 1–6

TZ30, 1–5

TZK10, 1–7

TZK11, 1–7

TZ30 green LED, 1–6 head cleaning, 1–6 operate lever faults, 1–6 tape drive, 1–5 troubleshooting, 1–5 unload button, 1–6 write-protect error, 1–6

TZK10 amber LED, 1–7 head cleaning, 1–7

QIC tape drive, 1–7 troubleshooting, 1–7 write-protect error, 1–7

TZK11

QIC tape drive, 1–7 troubleshooting, 1–7

U

Utilities diagnostic, 1–22

W

Write-protect switch

RX26, 1–8

TZ30, 1–6

TZK10, 1–7

Index–3

How to Order Additional Documentation

Technical Support

If you need help deciding which documentation best meets your needs, call 800-DIGITAL

(800-344-4825) and press 2 for technical assistance.

Electronic Orders

If you wish to place an order through your account at the Electronic Store, dial

800-234-1998, using a modem set to 2400- or 9600-baud. You must be using a VT terminal or terminal emulator set at 8 bits, no parity. If you need assistance using the Electronic Store, call 800-DIGITAL (800-344-4825) and ask for an Electronic Store specialist.

Telephone and Direct Mail Orders

From

U.S.A.

Call

DECdirect

Phone: 800-DIGITAL

(800-344-4825)

Fax: (603) 884-5597

Phone: (809) 781-0505

Fax: (809) 749-8377

Write

Digital Equipment Corporation

P.O. Box CS2008

Nashua, NH 03061

Puerto Rico

Canada

International

Internal Orders

(for software documentation)

Internal Orders

(for hardware documentation)

1

Phone: 800-267-6215

Fax: (613) 592-1946

—————

DTN: 264-3030

(603) 884-3030

Fax: (603) 884-3960

DTN: 264-3030

(603) 884-3030

Fax: (603) 884-3960

Digital Equipment Caribbean, Inc.

3 Digital Plaza, 1st Street

Suite 200

Metro Office Park

San Juan, Puerto Rico 00920

Digital Equipment of Canada Ltd.

100 Herzberg Road

Kanata, Ontario, Canada K2K 2A6

Attn: DECdirect Sales

Local Digital subsidiary or approved distributor

U.S. Software Supply Business

Digital Equipment Corporation

10 Cotton Road

Nashua, NH 03063-1260

U.S. Software Supply Business

Digital Equipment Corporation

10 Cotton Road

Nashua, NH 03063-1260

1

Call to request an Internal Software Order Form (EN–01740–07).

Reader’s Comments

MicroVAX 3100

Model 85/95/96

Troubleshooting and Diagnostic Information

EK–A0719–TM. C01

Your comments and suggestions help us improve the quality of our publications.

Thank you for your assistance.

Fair

I rate this manual’s:

Accuracy (product works as manual says)

Completeness (enough information)

Clarity (easy to understand)

Organization (structure of subject matter)

Figures (useful)

Examples (useful)

Index (ability to find topic)

Page layout (easy to find information)

Excellent Good

I would like to see more/less

Poor

What I like best about this manual is

What I like least about this manual is

I found the following errors in this manual:

Page Description

Additional comments or suggestions to improve this manual:

For software manuals, please indicate which version of the software you are using:

Name/Title

Company

Mailing Address

Dept.

Phone

Date

Do Not Tear – Fold Here and Tape

d TM

BUSINESS REPLY MAIL

FIRST CLASS PERMIT NO. 33 MAYNARD MASS.

POSTAGE WILL BE PAID BY ADDRESSEE

DIGITAL EQUIPMENT CORPORATION

Shared Engineering Services

MLO5–5/E76

2 THOMPSON STREET

MAYNARD, MA 01754-1716

Do Not Tear – Fold Here

No Postage

Necessary

If Mailed in the

United States

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
