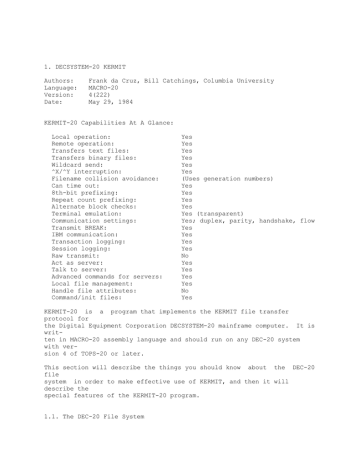

1. DECSYSTEM-20 KERMIT Language:   MACRO-20


Authors: Frank da Cruz, Bill Catchings, Columbia University

Language: MACRO-20

Version: 4(222)

Date: May 29, 1984

KERMIT-20 Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: (Uses generation numbers)

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: Yes

Alternate block checks: Yes

Terminal emulation: Yes (transparent)

Communication settings: Yes; duplex, parity, handshake, flow

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: Yes

Session logging: Yes

Raw transmit: No

Act as server: Yes

Talk to server: Yes

Advanced commands for servers: Yes

Local file management: Yes

Handle file attributes: No

Command/init files: Yes

KERMIT-20 is a program that implements the KERMIT file transfer protocol for the Digital Equipment Corporation DECSYSTEM-20 mainframe computer. It is writ- ten in MACRO-20 assembly language and should run on any DEC-20 system with ver- sion 4 of TOPS-20 or later.

This section will describe the things you should know about the DEC-20 file system in order to make effective use of KERMIT, and then it will describe the special features of the KERMIT-20 program.

1.1. The DEC-20 File System

The features of the DEC-20 file system of greatest interest to KERMIT users are the form of the file specifications, and the distinction between text and bi- nary files.

DEC-20 File Specifications

DEC-20 file specifications are of the form

DEVICE:<DIRECTORY>NAME.TYPE.GEN;ATTRIBUTES where the DIRECTORY, NAME, and TYPE may each be up to 39 characters in length,

GEN is a generation (version number), and various attributes are possible

(protection code, account, temporary, etc). Generation and attributes are nor- mally omitted. Device and directory, when omitted, default to the user's own

(or "connected") disk and directory. Thus NAME.TYPE is normally sufficient to specify a file, and only this information is sent along by KERMIT-20 with an outgoing file.

The device, directory, name, and type fields may contain uppercase letters, digits, and the special characters "-" (dash), "_" (underscore), and "$"

(dollar sign). There are no imbedded or trailing spaces. Other characters may be included by prefixing them (each) with a Control-V. The fields of the file specification are set off from one another by the punctuation indicated above.

The device field specifies a physical or "logical" device upon which the file is resident. The directory field indicates the area on the device, for in- stance the area belonging to the owner of the file. KERMIT-20 does not trans- mit the device or directory fields to the target system, and does not attempt to honor device or directory fields that may appear in incoming file names; for instance, it will not create new directories.

The name is the primary identifier for the file. The type, also called the

"extension", is an indicator which, by convention, tells what kind of file we have. For instance FOO.FOR is the source of a Fortran program named FOO;

FOO.REL might be the relocatable object module produced by compiling


FOO.EXE could an executable program produced by LOADing and SAVing

FOO.REL, and so forth.

The DEC-20 allows a group of files to be specified in a single file specifica- tion by including the special "wildcard" characters, "*" and "%".

A "*" matches any string of characters, including no characters at all; a "%" matches any single character. Here are some examples:

*.FOR All files of type FOR (all Fortran source files) in the connected


FOO.* Files of all types with name FOO.

F*.* All files whose names start with F.

F*X*.* All files whose names start with F and contain at least one X.

%.* All files whose names are exactly one character long.

*.%%%* All files whose types are at least three characters long.

Wildcard notation is used on many computer systems in similar ways, and it is the mechanism most commonly used to instruct KERMIT to send a group of files.

Text Files and Binary Files

The DEC-20, like most computers, has a file system with its own peculiarities.

Like many other systems, the DEC-20 makes a distinction between text files and binary files. Text files are generally those composed only of printing charac- ters (letters, digits, and punctuation) and "carriage control" characters

(carriage return, line feed, form feed, tab). Text files are designed to be read by people. Binary files are designed to be read by a computer program, and may have any contents at all. If you use the DEC-20 TYPE command to dis- play a text file on your terminal, the result will be intelligible.

If you type a binary file on your terminal, you will probably see mainly gibberish.

You can not always tell a text file from a binary file by its name or directory information, though in general files with types like .TXT, .DOC, .HLP are tex- tual (as are "source files" for computer programs like text formatters and pro- gramming language compilers), and files with types like .EXE, .REL,

.BIN are binary.

The DEC-20 has an unusual word size, 36 bits. It differs from most other sys- tems by storing text in 7-bit, rather than 8-bit, bytes. Since text is encoded in the 7-bit ASCII character set, this allows more efficient use of storage.

However, the word size is not a multiple of the normal byte size. The

DEC-20 therefore stores five 7-bit characters per word, with one bit left over.

It is also possible to store files with other byte sizes. The common layouts of bytes within a word are:

7 Text Files: Five 7-bit bytes per word.


| | | | | ||


0 7 14 21 28 35

Normally, bit 35 is unused and set to zero. However, in EDIT

(or SOS,

or OTTO) line-numbered files, bit 35 is set to 1 when the word contains

a line number.

8 "Foreign" binary files: Four 8-bit bytes per word.


| | | | | |


0 8 16 24 32 35

Bits 32-35 are unused.

36 "Native" binary files: One 36-bit byte per word.


| |


0 35

All bits are used.

The minimum unit of disk allocation on the DEC-20 is a page, 512 36-bit words,

or 2560 7-bit characters, or 2048 8-bit bytes. Any file that contains at least one bit of information occupies at least a full page on the disk. The direc- tory information for a file includes the number of pages occupied on the disk, the bytesize of the file, and the number of bytes of that size which are in the file. This information can be seen by using the DEC-20 VDIRECTORY command, for instance

@vdir foo.*


Name Protection Pages Bytes(Size) Creation

FOO.COM.1;P774242 1 384(8) 27-Dec-83

MAC.1;P774242 1 152(7) 27-Dec-83

.REL.1;P774242 1 39(36) 27-Dec-83

.EXE.1;P774242 2 1024(36) 27-Dec-83

Total of 5 pages in 4 files

In this example, FOO.MAC occupies 1 page, and is composed of 152 7-bit bytes.

This file is textual (program source for the MACRO assembler), 152 characters long. Programs which read text files (such as text editors, program compilers, the TYPE command, etc) determine the end of a file from the byte count specified in the directory. KERMIT-20 determines the end of file in the same way, so although FOO.MAC occupies an entire 2560-byte page of storage, only the first 152 characters are transmitted. Binary files, such as FOO.EXE

(an ex- ecutable DEC-20 program), tend to occupy full pages. In this case too,

KERMIT-20 uses the byte count to determine the end of file.

Why do you need to know all this? In most cases, you don't. It depends on whether you are using the DEC-20 as your "home base".

Using a Microcomputer to Archive DEC-20 Files

Most computers (other than the DEC-10 and DEC-20) store characters in

8-bit bytes. Let's call any such system an 8-bit-byte system. This discussion ap-

plies to all 8-bit-byte systems, including all popular microcomputers, minicom- puters like the DEC PDP-11 and VAX, and mainframes like the IBM 370.

For simplicity, we'll focus on microcomputers.

KERMIT can send any "native" DEC-20 sequential file, text or binary, to an

8-bit-byte system and bring it back to the DEC-20 restored to its original form. If you are using a microcomputer to archive your DEC-20 files, you need never concern yourself with details of byte size or file format. The same holds true between two DEC-20s, or a DEC-10 and a DEC-20.

There is, however, one special complication of which you should be aware.

Cer- tain microcomputer operating systems, notably CP/M, do not have an entirely satisfactory way of indicating the end of file. The file length is recorded in blocks rather than bytes. For text files, the end of file is marked within a block by inserting a Control-Z after the last data character. Binary files, however, might easily contain Control-Z characters as data. Therefore, in or- der not to lose data, these systems must transmit binary files in complete blocks. If the binary file is of foreign origin (for instance, from a

DEC-20), and it did not happen to fill up the last block when it was transferred to the micro, then when that file is sent back to the system of origin in


mode," junk will appear at the end (if it is sent back in "text mode," it might be truncated by any data byte that happened to correspond to Control-

Z). For

DEC-20 programs in .EXE format, this generally has no effect on the runnability or behavior of the program. But for other binary files, particularly internal format numerical data or relocatable program object (.REL) files, the junk could have bad effects. Extraneous data at the end of a .REL file will generally cause LINK to fail to load the file.

Using the DEC-20 to Archive Microcomputer Files

You can use KERMIT to send textual files from a microcomputer or any 8bit sys- tem to the DEC-20 with no special provisions, since KERMIT-20 stores incoming characters in 7-bit bytes as text unless you explicitly instruct it otherwise.

But KERMIT-20 has no automatic way of distinguishing an incoming binary file

1 from an incoming text file. Binary files from 8-bit-byte systems generally contain significant data in the 8th bit, which would be lost if the incoming characters were stored in 7-bit bytes, rendering the file useless when sent back to the original system. Thus if you want to use KERMIT to store foreign

8-bit binary data on the DEC-20, you must tell it to store such files with a bytesize of 8 rather than 7. This can be the source of much confusion and in- convenience. In particular, you cannot use a "wildcard send" command to send a mixture of text and binary files from an 8-bit-byte system to the

DEC-20; rather, you must send all text files with KERMIT-20's file bytesize set to 7, and all 8-bit binary files with the bytesize set to 8.

Once you get the foreign binary file into the DEC-20, stored with the correct bytesize (as FOO.COM is stored in the example above), you need take no special measures to send it back to its system of origin. This is because


honors the bytesize and byte count from the directory. For instance, if you told KERMIT-20 to SEND FOO.*, every file in the example above would be trans- mitted in the correct manner, automatically.

Files KERMIT-20 Cannot Handle

The KERMIT protocol can only accommodate transfer of sequential files, files which are a linear sequence of bytes (or words).

Some files on the DEC-20 are not sequential, and cannot be successfully sent or received by KERMIT-20. These include directory files, files with holes

(missing pages), ISAM files, and RMS files. These files require external in- formation (kept in the DEC-20's file descriptor block and/or index table) in order to be reconstructed; when sending files, KERMIT-20 presently transmits only the file name and the contents of the file. External control information

(file attributes) are not transmitted.



Unless the incoming file has an "ITS Binary Header"; see below.

1.2. Program Operation

Kermit-20's prompt is "Kermit-20>". Kermit-20 will accept a single command on the Exec command line, like this:


@kermit send foo.bar

the file is sent

@ or you can run the program interactively to issue several commands, like this:



TOPS-20 KERMIT version 4(222)

Kermit-20>send foo.*

files are sent


performance statistics are printed


files are received



During interactive operation, you may use the TOPS-20 help ("?") and

recognition (ESC) features freely while typing commands. A question mark typed at any point in a command displays the options available at that point; typing an ESC character causes the current keyword or filename to be completed

(or default value to be supplied), and a "guide word" in parentheses to be typed, prompting you for the next field. If you have not typed sufficient characters to uniquely specify the keyword or filename (or if there is no default value) then a beep will be sounded and you may continue typing.

Command keywords may be abbreviated to their shortest prefix that sets them apart from any other keyword valid in that field.

If you have a file called KERMIT.INI in your login directory, KERMIT-20 will execute an automatic TAKE command on it upon initial startup.

KERMIT.INI may contain any KERMIT-20 commands, for instance SET commands, or DEFINEs for SET macros to configure KERMIT-20 to various systems or communications media.

KERMIT-20 provides most of the commands possible for an "ideal" KERMIT program, as described in the main part of the KERMIT User Guide. The following sections will concentrate on system-dependent aspects of KERMIT-20.

KERMIT-20 disables terminal links, advice, and system messages in order to min-

imize interference with data transfer (and restores these to their previous value upon completion of a transfer). However, certain messages cannot be dis- abled by KERMIT because they are issued by KERMIT's superior controlling process, the TOPS-20 EXEC. These include mail notifications and alerts. Be- fore running KERMIT-20 to transfer files, you should SET NO MAIL-WATCH and SET


1.3. Remote and Local Operation

KERMIT-20 normally runs in remote mode, with the user sitting at a

PC. But

KERMIT-20 can also run in local mode. Local operation of KERMIT-20 is useful if the DEC-20 has an autodialer, or a hardwired connection to another computer.

When in local mode, file transfer takes place over an assigned TTY line, and

KERMIT-20 is free to update your screen with status information, and to listen to your keyboard for interrupt characters.

Local Operation of KERMIT-20:

DEC-20 (local)


+----------+ | |


| Terminal |----/ /---+-Your job's TTY | +-------


+----+-----+ | | |


| | TTY assigned by KERMIT-+---/ /---+ Host


You | | |


+-------------------------------+ +-------


KERMIT-20 enters local mode when you issue a SET LINE n command, where n is the octal TTY number of any line other than your own controlling terminal.

1.4. KERMIT-20 Commands

This section describes the KERMIT-20 commands, in detail where they differ from the "ideal" KERMIT, briefly where they coincide.



Sending a single file:

SEND nonwild-filespec1 (AS) [filespec2]

Sending multiple files:

SEND wild-filespec1 (INITIAL) [filespec2]

The SEND command causes a file or file group to be sent from the DEC-20 to the other system. There are two forms of the command, depending on whether filespec1 contains wildcard characters ("*" or "%"). KERMIT-20 automatically recognizes the two cases and issues the appropriate guide word,

(AS) or

(INITIAL), depending on the form of filespec1.

Sending a File Group

If filespec1 contains wildcard characters then all matching files will be sent, in alphabetical order (according to the ASCII collating sequence) by name. If a file can't be opened for read access, it will be skipped. The initial file in a wildcard group can be specified with the optional filespec2. This allows a previously interrupted wildcard transfer from where it left off, or it can be used to skip some files that would be transmitted first.

Sending a Single File

If filespec1 does not contain any wildcard characters, then the single file specified by filespec1 will be sent. Optionally, filespec2 may be used to specify the name under which the file will arrive at the target system; filespec2 is not parsed or validated in any way by KERMIT-20, but lower case letters are raised to upper case, and leading "whitespace" (blanks and tabs) are discarded. If filespec2 is not specified, KERMIT-20 will send the file

2 with its own name.

SEND Command General Operation

Files will be sent with their DEC-20 filename and filetype (for instance

FOO.BAR, no device or directory field, no generation number or attributes). If you expect to be sending files whose names contain characters that would be il- legal in filenames on the target system, and you know that the KERMIT on the target system does not have the ability to convert incoming filenames, you can issue the SET FILE NAMING NORMAL-FORM command to have KERMIT-20 replace suspect characters by X's.

Each file will be sent according to its bytesize and byte count from the direc-

tory unless you specify otherwise using SET FILE BYTESIZE, or unless the file has an "ITS Binary" header. If the bytesize is 8, then four 8-bit bytes will be sent from each DEC-20 36-bit word, and the low order four bits will be skipped. If other than 8, then five 7-bit bytes will be sent from each word, with the 8th bit of the 5th character set to the value of the remaining bit


("bit 35") from the word.

If communication line parity is being used (see SET PARITY), KERMIT-20 will re- quest that the other KERMIT accept a special kind of prefix notation for binary files. This is an advanced feature, and not all KERMITs have it; if the other



Control-V's, which are used to quote otherwise illegal characters in

DEC-20 file specifications, are stripped.


This is the same method used by the DEC-20 to encode 36-bit data on

"ANSI-ASCII" tapes. It allows not only DEC-20 binary files, but also the line- sequence-numbered files produced by EDIT, SOS, or OTTO, which use bit

35 to distinguish line numbers from text, to be sent and retrieved correctly.

KERMIT does not agree to use this feature, binary files cannot be sent cor- rectly. This includes executable programs (like DEC-20 .EXE files, CP/M

.COM files), relocatable object modules (.REL files), as well as text files with line sequence numbers.

KERMIT-20 will also ask the other KERMIT whether it can handle a special prefix encoding for repeated characters. If it can, then files with long strings of repeated characters will be transmitted very efficiently. Columnar data, highly indented text, and binary files are the major beneficiaries of this technique.

If you're running KERMIT-20 locally, for instance dialing out from the

DEC-20 to another system using an autodialer, you should have already run

KERMIT on the remote system and issued either a RECEIVE or a SERVER command.

Once you give KERMIT-20 the SEND command, the name of each file will be displayed on your screen as the transfer begins; a "." will be displayed for every

5 data packets sucessfully sent, and a "%" for every retransmission or timeout that occurs (you may also elect other typeout options with the SET DEBUG command).

If the file is successfully transferred, you will see "[OK]", otherwise there will be an error message. When the specified operation is complete, the program will sound a beep. If you see many "%" characters, you are probably suffering from a noisy connection. You may be able to cut down on the retransmissions by using SET SEND PACKET-LENGTH to decrease the packet length; this will reduce the probability that a given packet will be corrupted by noise, and reduce the time required to retransmit a corrupted packet.

During local operation, you can type Control-A at any point during the transfer to get a brief status report. You may also type Control-X or Control-Z to in- terrupt the current file or file group.


Syntax: RECEIVE [filespec]

The RECEIVE command tells KERMIT-20 to receive a file or file group from the other system. If only one file is being received, you may include the optional filespec as the name to store the incoming file under; otherwise, the name is taken from the incoming file header. Even if the name in the header is not a legal TOPS-20 file name, KERMIT-20 will store it under that name, in which case you can refer to it later only by quoting each illegal character

(spaces, lowercase letters, control characters, etc) with Control-V. If for some reason an incoming filename simply cannot be converted to legal form, the file will be saved as -UNTRANSLATABLE-FILENAME-.KERMIT (new generation). You may also use

SET FILE NAMING NORMAL-FORM to have KERMIT-20 choose more conventional names for incoming files.

If an incoming file has the same name as an existing file, KERMIT-

20 just creates a new generation of the same name and type, for instance


FOO.BAR.4. The oldest generation will be automatically deleted, but you can still UNDELETE it.

Incoming files will all be stored with the prevailing bytesize, 7 by default, which is appropriate for text files. If you are asking KERMIT-20 to receive binary files from a microcomputer or other 8-bit system, you must first type

SET FILE BYTESIZE 8. Otherwise, the 8th bit of each byte will be lost and the

file will be useless when sent back to the system of origin.

If you have SET PARITY, then 8th-bit prefixing will be requested. If the other side cannot do this, binary files cannot be transferred correctly.

In all cases, KERMIT-20 will request the other KERMIT to compress repeated characters; if the other side can do this (not all KERMITs know how) there may be a sig- nificant improvement in transmission speed.

If an incoming file does not arrive in its entirety, KERMIT-20 will normally discard it; it will not appear in your directory. You may change this behavior by using the command SET INCOMPLETE KEEP, which will cause as much of the file as arrived to be saved in your directory.

If you are running KERMIT-20 locally, you should already have issued a


4 command to the remote KERMIT, and then escaped back to DEC-20

Kermit. As files arrive, their names will be displayed on your screen, along with

"." and

"%" characters to indicate the packet traffic; you can type Control-A during the transfer for a brief status report.

If a file arrives that you don't really want, you can attempt to cancel it by typing Control-X; this sends a cancellation request to the remote

Kermit. If the remote Kermit understands this request (not all implementations of

Kermit support this feature), it will comply; otherwise it will continue to send. If a file group is being sent, you can request the entire group be cancelled by typing Control-Z.


Syntax: GET remote-filespec

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used only when KERMIT-

20 is

local, with a KERMIT server on the other end of the line specified by SET


This means that you must have CONNECTed to the other system, logged in, run

KERMIT there, issued the SERVER command, and escaped back to the DEC-20.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally. As files arrive, their names will be displayed on your screen, along with "." and "%" characters to indicate the packet traffic. As in the RECEIVE command, you may type

Control-A to get a brief status report, ^X to request that the current incoming file be cancelled, ^Z to request that the entire incoming batch be cancelled.

If the remote KERMIT is not capable of server functions, then you will probably get an error message back from it like "Illegal packet type". In this case, you must connect to the other Kermit, give a SEND command, escape back, and give a RECEIVE command.



not SERVER -- use the GET command to receive files from a KERMIT server.


The SERVER command puts a remote KERMIT-20 in "server mode", so that it receives all further commands in packets from the local KERMIT. The

KERMIT-20 server is capable (as of this writing) of executing many remote server com- mands, including SEND, GET, FINISH, BYE, REMOTE DIRECTORY, REMOTE CWD,



Any nonstandard parameters should be selected with SET commands before putting

KERMIT-20 into server mode, in particular the file bytesize. The DEC-20

Kermit server can send most files in the correct manner automatically, by recognizing the DEC-20 file bytesize. However, if you need to ask the DEC-20 KERMIT server to receive binary files from an 8-bit-byte system (that is, from almost any system that's not a DEC-10 or DEC-20) you must issue the SET FILE

BYTESIZE 8 command before putting it into server mode, and then you must only send

8-bit binary files. You cannot send a mixture of text files and 8-bit binary files to a KERMIT-20 server.


When running in local mode, KERMIT-20 allows you to give the full range of com- mands to a remote KERMIT server, with no guarantee the that the remote server can process them, since they are all optional features of the protocol.

Com- mands for servers include the standard SEND, GET, BYE, and FINISH commands, as well as the REMOTE command, which has various options.

Syntax: REMOTE command

Send the specified command to the remote server. If the server does not under- stand the command (all of these commands are optional features of the

KERMIT protocol), it will reply with a message like "Unknown KERMIT server command".

If does understand, it will send the results back, and they will be displayed on the screen. The REMOTE commands are:

CWD [directory] Change Working Directory. If no directory name is provided,

the server will change to the default or home directory.

Otherwise, you will be prompted for a password, and the server

will attempt to change to the specified directory.


password is entered on a separate line, and does not echo as

you type it. If access is not granted, the server will provide

a message to that effect.

DELETE filespec Delete the specified file or files. The names of the files

that are deleted will appear on your screen.

DIRECTORY [filespec]

The names of the files that match the given file specification

will be displayed on your screen, perhaps along with size and

date information for each file. If no file specification is

given, all files from the current directory will be listed.

HELP Provide a list of the functions that are available from the


HOST [command] Pass the given command to the server's host command processor,

and display the resulting output on your screen.

SPACE Provide information about disk usage in the current directory,

such as the quota, the current storage, the amount of remaining

free space.

TYPE filespec Display the contents of the specified file on your screen.


Syntax: LOCAL [command]

Execute the specified command on the local system -- on the DEC-20 where

KERMIT-20 is running. These commands provide some local file management capability without having to leave the KERMIT-20 program.

CWD [directory] Change working directory, or, in DEC-20 terminology,


the specified directory.

DELETE filespec Delete the specified file or files, but do not expunge them.

DIRECTORY [filespec]

Provide a directory listing of the specified files.

RUN [filespec] Attempts to run the specified file, which must be in .EXE for-

mat (.EXE is the default filetype), in an inferior fork.


trol returns to KERMIT-20 when the program terminates.


you have used this command, you can restart the same program by

issuing a RUN command with no arguments. If you


SYSTEM:EXEC, then you will be able to issue TOPS-20 commands

without leaving KERMIT; you can get back to KERMIT from the

EXEC by typing the EXEC POP command. You can also use the RUN

command to supply new functions to KERMIT by writing little

programs in the language of your choice, for instance to con-

duct a signon dialog with a remote system when dialing out.

SPACE Show how much space is used and remaining in the current direc-


TYPE Display the contents of the specified file or files at your

terminal. This works like the DEC-20 TYPE command, except that

if a file has a bytesize of 8, KERMIT-20 will do 8-bit input

from it rather than 7-bit. Also, the DEC-20 Control-O command

discards output only from the file currently being displayed;

if multiple files are being typed, then output will resume with

the next file.

The LOCAL commands may also be used without the "LOCAL" prefix.


Syntax: CONNECT [number]

Establish a terminal connection to the system connected to the octal TTY number specified here or in the most recent SET LINE command, using full duplex echo- ing and no parity unless otherwise specified in previous SET commands.

Get back to KERMIT-20 by typing the escape character followed by the letter

C. The escape character is Control-Y by default. When you type the escape character, several single-character commands are possible:

C Close the connection and return to KERMIT-20.

S Show status of the connection.

P Push to a new Exec. POP from the Exec to get back to the connection.

Q If a session log is active, temporarily Quit logging.

R Resume logging to the session log.

B Send a simulated BREAK signal.

? List all the possible single-character arguments.

^Y (or whatever you have set the escape character to be)

Typing the escape character twice sends one copy of it to the connected


You can use the SET ESCAPE command to define a different escape character, and

SET PARITY, SET DUPLEX, SET HANDSHAKE to change those parameters.

KERMIT-20 accomplishes the connection by running the TTLINK program in a lower fork. If all you want to do connect to a remote host over a TTY line, without file transfer, you can run TTLINK itself. Note that the function for sending a simulated BREAK can be dangerous. See the description of the TTLINK program below.

KERMIT-20 does not have any special autodialer interface. It assumes that the connection has already been made and the line assigned.


Syntax: HELP [topic [subtopic]]

Typing HELP alone prints a brief summary of KERMIT-20 and its commands. You can also type

HELP command for any Kermit-20 command, e.g. "help send" or "help set parity" to get more detailed information about a specific command. Type

HELP ? to see a list of the available help commands.


Syntax: TAKE filespec

Execute KERMIT-20 commands from the specified file. The file may contain con- tain any valid KERMIT-20 commands, including other TAKE commands; command files may be nested up to a depth of 20.


Syntax: EXIT

Exit from KERMIT-20. You can CONTINUE the program from the TOPS-20

Exec, provided you haven't run another program on top of it. You can also exit from

KERMIT-20 by typing one or more control-C's, even if it's in the middle of transferring a file. KERMIT-20 will always restore your terminal to its original condition, and you will be able to CONTINUE the program to get back to

"KERMIT-20>" command level with current settings intact.

QUIT is a synonym for EXIT.


Syntax: SET parameter [option [value]]

Establish or modify various parameters for file transfer or terminal connec- tion. You can examine their values with the SHOW command. The following parameters may be SET:

BLOCK-CHECK Packet transmission error detection method

DEBUGGING Record or display state transitions or packets

DELAY How long to wait before starting to send

DUPLEX For terminal connection, FULL (remote echo) or HALF



ESCAPE Character for terminal connection

FILE For setting file parameters like name conversion and byte size

FLOW-CONTROL For enabling or disabling XON/XOFF flow control

HANDSHAKE For turning around half duplex communication line

IBM For communicating with an IBM mainframe

INCOMPLETE What to do with an incomplete file

ITS-BINARY For recognizing a special 8-bit binary file format

LINE TTY line to use for terminal connection or file transfer

PARITY Character parity to use

PROMPT Change the program's command prompt

RECEIVE Various parameters for receiving files

RETRY How many times to retry a packet before giving up

SEND Various parameters for sending files

TVT-BINARY For negotiating binary mode over ARPANET connections

The DEFINE command may be used to compose "macros" by combining SET commands.

Those SET commands which differ from the "ideal" KERMIT are now described in detail.


Syntax: SET DEBUG options

Record the packet traffic, either on your terminal or in a file. Some reasons for doing this would be to debug a version of KERMIT that you are working on, to record a transaction in which an error occurred for evidence when reporting bugs, or simply to vary the display you get when running KERMIT-20 in local mode. Options are:

STATES Show Kermit state transitions and packet numbers (brief).

PACKETS Display each incoming and outgoing packet (lengthy).

OFF Don't display or record debugging information (this is the nor-

mal mode). If debugging was in effect, turn it off and close

any log file.

The debugging information is recorded in the file specified by the most recent



SET ESCAPE octal-number

Specify the control character you want to use to "escape" from remote connec- tions back to KERMIT-20. The default is 31 (Control-Y). The number is the oc- tal value of the ASCII control character, 1 to 37, for instance 2 is


After you type the escape character, you must follow it by a one of the single- character "arguments" described under the CONNECT command, above.



Tell whether you want a DELETE command (either the LOCAL DELETE command or a

REMOTE DELETE command sent to a KERMIT-20 server) to expunge files as it

deletes them. On the DEC-20, a deleted file continues to take up space, and may be "undeleted" at a later time in the same session. To expunge a deleted file means to remove it completely and irrevocably, freeing its space for fur- ther use. EXPUNGE is OFF by default; deleted files are not automatically ex- punged. SET EXPUNGE applies only to files that are deleted explicitly by

KERMIT-20, and not to files that are implicitly deleted when new generations of existing files are created.


Syntax: SET FILE parameter keyword

Establish file-related parameters:

BYTESIZE keyword or number

Byte size for DEC-20 file input/output. The choices are

SEVEN (7),

EIGHT (8), and AUTO.

SEVEN (or 7) Always store or retrieve five 7-bit bytes per word.

When sending a file, ignore the file bytesize and do 7bit in-

put from the file. There would be no reason to use this option

except to explicitly force an 8-bit file to be treated as a

7-bit file.

EIGHT (or 8) Always store or retrieve four 8-bit bytes per word.

When sending a file, ignore the file bytesize and do 8bit in-

put from the file. This command is necessary when receiving

binary files from 8-bit-byte systems, such as most microcom-


AUTO Equivalent to SEVEN for incoming files, and for outgoing files

means to use EIGHT if the DEC-20 file bytesize (as shown by the

Exec VDIR command) is 8, otherwise use SEVEN. The default is


The DEC-20 can send any mixture of file types in the correct way

automatically, but you must set the file bytesize to 8 for any incoming

8-bit binary files, and to AUTO (i.e. 7) for any incoming text files or

DEC-20 binary files.


If NORMAL-FORM the names of incoming or outgoing files will be con-

verted to contain only uppercase letters, digits, and at most one

period; any other characters will be translated to "X". If


LATED, filenames will be sent and used literally. UNTRANSLATED is the



Syntax: SET IBM ON or OFF

SET IBM is really a predefined SET macro rather than a "hardwired" SET command; it can be redefined or undefined (see DEFINE); as distributed from


KERMIT-20 defines IBM to be "parity mark, handshake XON, duplex half".

SET IBM should be used when running KERMIT-20 in local mode, connected to an

IBM or similar mainframe. If you have redefined the SET IBM macro, then your parameters will be used instead.



Specify whether ITS-Binary file headers are to be recognized or ignored.

By default, they are recognized. ITS binary format is a way (devised at

MIT) of storing foreign 8-bit binary data on a 36-bit machine to allow automatic recog- nition of these files when sending them out again, so that you don't have to depend on the file byte size, or to issue explicit SET FILE BYTESIZE commands to KERMIT.

An ITS format binary file contains the sixbit characters "DSK8" leftadjusted in the first 36-bit word. If ITS-BINARY is ON, then KERMIT-20 will send any file starting with this "header word" using 8-bit input from the file even if the file bytesize is not 8, and will not send the header word itself.

KERMIT-20 will also store any incoming file that begins with that header word using 8-bit bytesize, again discarding the header word itself. If ITS-

BINARY is OFF, then the header word, if any, will be sent or kept, and i/o will be ac- cording to the setting of FILE BYTESIZE.

This facility is provided for compatibility with the file formats used on cer- tain public-access CP/M libraries.


Syntax: SET LINE [octal-number]

Specify the octal TTY number to use for file transfer or CONNECT. If you issue this command, you will be running KERMIT-20 locally, and you must log in to the remote system and run Kermit on that side in order to transfer a file.

If you don't issue this command, KERMIT-20 assumes it is running remotely, and does file transfer over its job's controlling terminal line. You can also select the line directly in the CONNECT command; the command

CONNECT 12 is equivalent to



If you type SET LINE with no number argument, you will deassign any previous assigned line and revert to remote mode.

The SHOW LINE command will display the currently selected communication line and its charactistics, including parity, duplex, handshake, flow control, the

speed if known, whether carrier is present (if it is a modem-controlled line), and whether KERMIT-20 is in local or remote mode.


In addition to the full complement of SET RECEIVE commands described in the main part of the manual, you may also SET RECEIVE SERVER-TIMEOUT to a value be- tween 0 and 94. This specifies the number of seconds between timeouts during server command wait, 0 specifies that no timeouts should occur during server command wait. When a KERMIT server times out, it sends a NAK packet.

Some systems cannot clear piled-up NAKs from their input buffers; if you're using such a system to communicate with a KERMIT-20 server, and you expect to be leaving the server idle for long periods of time, you should use this command to turn off server command-wait timeouts.



Only for users running KERMIT-20 on an ARPANET DEC-20, signed on to an

ARPANET virtual terminal (TVT) from another host or through an ARPANET TAC. SET

TVT ON causes KERMIT-20 to negotiate binary mode (8-bit) communication with the AR-

PANET during file transfer. Without this command, file transfer through a TVT would not work in most cases.

TVT-BINARY is OFF by default. If you normally use KERMIT-20 through the AR-

PAnet, you can put the command SET TVT-BINARY ON into your KERMIT.INI file.

CAUTION: This facility requires certain features in the Release 5 TOPS-

20 AR-

PANET monitor, which may not be present in releases distributed by DEC.

See the KERMIT-20 source code for details.


Syntax: DEFINE macroname [set-option [, set-option [...]]]

The DEFINE command is available in KERMIT-20 for building "macros" of

SET com- mands. The macro name can be any keyword-style character string, and the set options are anything you would type after SET in a SET command; several set op- tions may be strung together, separated by commas. Example:

define notimeout send timeout 0, receive timeout 0

Macro definitions may not include macro names. You can list all your macros and their definitions with the SHOW MACROS command. You can list a particular macro definition with HELP SET macroname.


Syntax: SHOW [option]

The SHOW command displays various information:

DAYTIME Current date, time, phase of moon.

DEBUGGING Debugging mode in effect, if any.

FILE-INFO Byte size for DEC-20 file i/o, incomplete file disposition.

LINE TTY line, parity, duplex, flow control, handshake, escape

character, and speed if known. Note that before release

6.0 of

TOPS-20, the DEC-20 does not keep a record of the actual baud

rate of a modem-controlled or "remote" TTY line.

MACROS Definitions for SET macros.

PACKET-INFO For incoming and outbound packets. Items under RECEIVE column

show parameters for packets KERMIT-20 expects to receive, under

SEND shows parameters for outgoing packets.

TIMING-INFO Delays, retries, server NAK intervals.

VERSION Program version of KERMIT-20. This is also displayed when

KERMIT-20 is initially started.

ALL (default) All of the above.


Give statistics about the most recent file transfer. For instance, here's what

KERMIT-20 displayed after transmitting a short binary file, using repeated- character compression:

Maximum number of characters in packet: 80 received; 80 sent

Number of characters transmitted in 2 seconds

Sent: 34 Overhead: 34

Received: 107 Overhead: -408

Total received: 141 Overhead: -374

Total characters transmitted per second: 70

Effective data rate: 2570 baud

Efficiency: 214.1667 per cent

Interpacket pause in effect: 0 sec

Timeouts: 0

NAKs: 0

Note that the data compression allowed the effective baud rate to exceed the actual speed of the communication line, which in this case happened to be

1200 baud. The efficiency is displayed only if the actual baud rate is known.


Syntax: LOG [option [filespec]]

Log the specified option to the specified file:

SESSION During CONNECT, log all characters that appear on the screen to

the specified file. The TTLINK process does the actual log-

ging. The session log can be temporarily turned off during the

remote session by typing the escape character followed by Q

(for Quit logging), and turned on again by typing the escape

character followed by R (for Resume logging). Default log is

SESSION.LOG in the current directory.

TRANSACTIONS During file transfer, log the progress of each file. The

DEC-20 transaction log file looks like this:

KERMIT-20 Transaction Log File, Monday, 27-February-


18:40:13: Opened Log: PS:<TIMREK>SAMPLE.LOG.1

18:40:31: -- Send Begins --

8th bit prefixing: Off

Block check type: 1

18:40:31: Opened File: PS:<SY.FDC>LOGIN.CMD.6

Sending As "LOGIN.CMD"

Sent: 547 7-bit bytes

18:40:34: Closed PS:<SY.FDC>LOGIN.CMD.6

18:40:34: Send Complete

18:40:50: -- Receive Begins --

8th bit prefixing: Off

Block check type: 1

18:40:50: Opened: PS:<TIMREK>AUTOEXEC.BAT.1

Written: 186 7-bit bytes

18:40:51: Closed: PS:<TIMREK>AUTOEXEC.BAT.1

18:40:56: Closed Transaction Log

Transaction logging is recommended for long or unattended file

transfers, so that you don't have to watch the screen.

The log

may be inspected after the transfer is complete to see what

files were transferred and what errors may have occurred.

Default log is TRANSACTION.LOG in the current directory.

DEBUGGING Log STATES or PACKETS, as specified in the most recent SET

DEBUGGING command, to the specified file. If log file not

specified, then use TTY if local, or DEBUGGING.LOG in the cur-

rent directory if remote. If no SET DEBUGGING command was

previously issued, log STATES to the specified file.

Also al-

low specification of bytesize for the log file, 7


default), or 8 (for debugging binary transfers when the parity

bit is being used for data), for instance


A 7-bit log file can be typed, printed, or examined with a text

editor or searching program. An 8-bit log file can only be ex-

amined with a system utility like FILDDT. When logging pack-

ets, each packet is preceded by a timestamp, the current

timeout interval (preceded by a slash), and "R:" or "S:" to in-

dicate data being received and sent, respectively.

Packet for-

mat is described in the KERMIT Protocol Manual.

SESSION is the default option. Thus the command "LOG" alone will cause

CONNECT sessions to be logged in SESSION.LOG in the current directory.

1.5. The TTLINK Program

Author: Frank da Cruz, Columbia University

Language: MACRO-20

Version: 2(23)

Date: March 13, 1984

KERMIT-20 accomplishes the CONNECT command by running a separate program called

TTLINK as an inferior process. KERMIT constructs a command line based upon the current settings for line number, parity, duplex, "IBM mode," session logging, and so forth, and "feeds" this line to TTLINK. Once started, the

TTLINK process can be restarted repeatedly, remembering its previous settings.

TTLINK has the following commands:

CONNECT (TO TTY) octal-line-number optional-switches

STATUS Display current line number, duplex, log file, and escape


HELP Print a help message.

EXIT If you continue, previous defaults are preserved.

Command line arguments are accepted.

Escape character arguments are:

blank Nothing (null command)

C Close Connection, "escape" back to DEC-20

S Show Status of Connection

P PUSH to new Exec

Q Quit logging

R Resume logging

B Send a BREAK signal

? Help

escape character itself

Send the escape character itself.

Initial defaults for CONNECT are FULL DUPLEX, escape character = CTRL-

Y, and

PARITY NONE. No initial default for line or logfile. Defaults for subsequent

CONNECT commands become whatever was specified in the most recent CONNECT com- mand, so that you can escape back to the DEC-20 and reconnect easily.


CONNECT (TO TTY) octal-line-number optional-switches

The CONNECT command connects you to the specified line, with the specified op- tions. The options are specified as "switches," each preceded by a slash, and followed by a colon and an argument. The valid switches are:

/DUPLEX: FULL or HALF. If FULL, remote host echoes; if HALF, local



/LOGFILE: Name of file for logging transcript of remote session.

/ESCAPE:n Octal value of an ASCII control character to be used as the es-

cape character during CONNECT. Examples: 1=CTRL-A,


/SPEED:n See below.

/BREAK-NULLS:n See below.


connect 5 connect over TTY 5, using all defaults

conn 17/duplex:half connect over TTY 17, with local echo

c 33/parity:even connect over TTY 33, sending even parity

c 77/dup:h/par:mark/esc:37 shows how switches may be combined

During CONNECT, all characters that you type will be transmitted to the remote system except for your escape character. If you type your escape character,

TTLINK will wait for you to type a second character to specify the desired ac- tion, as shown above. The single-character commands may be either upper or lower case. If you type any character not on the list, TTLINK will beep at you.


Sending a BREAK signal to the remote host can be a tricky business, because the

DEC-20 supplies no function to do this. Therefore, TTLINK simulates a

BREAK by temporarily setting the speed of the line to 50 baud, sending several null

(ASCII 0) characters, and then setting the speed back to what it was. But

TTLINK has no way of knowing what the speed was unless you tell it, because

TOPS-20 (prior to version 6.0) does not record the speed of a "remote"

(modem- controlled) line. Therefore, if you intend to send a BREAK signal to the remote host, you must use the following switch on the CONNECT command:

/SPEED:n The argument is a decimal number which is the current speed of

the line, such as 300 or 1200.

If you omit this switch, TTLINK will not try to send a BREAK.

You may transmit a BREAK by typing the BREAK key on your terminal ONLY


ARE DIRECTLY CONNECTED TO THE SYSTEM WHICH IS RUNNING TTLINK (if you are con- nected through a network, the BREAK generated by your terminal will not get through to TTLINK). In any case, you can always tell TTLINK to send a


typing your escape character followed by the letter B.

If you find that your BREAK signal is not recognized correctly on the remote system, you may have to adjust the number of NULL characters that are sent; the following CONNECT command switch allows you to do this.


The default number of NULLs transmitted is 3. If that is not enough, the remote system may not react. If that number is too high, the remote system may sense two or more BREAKs.

1.6. Examples

Here are a few examples of the use of KERMIT-20. Text entered by the user is underlined.

Remote Operation

The following example shows use of KERMIT-20 as a server from an IBM

PC. In this example, the user runs KERMIT on the PC, connects to the DEC-

20, and starts KERMIT-20 in server mode. From that point on, the user need never con- nect to the DEC-20 again. In this example, the user gets a file from the

DEC-20, works on it locally at the PC, and then sends the results back to the

DEC-20. Note that the user can leave and restart KERMIT on the PC as often as desired.





TOPS-20 KERMIT version 4(222)


Kermit Server running on DEC-20 host. Please type your escape sequence

to return to your local machine. Shut down the server by typing the

Kermit BYE command on your local machine.


Kermit-86>get foo.txt

The transfer takes place.



A>edit foo.txt ; (or whatever...)



Kermit-86>send foo.txt

The transfer takes place.



The next example shows the special procedure you would have to use in order to send a mixture of text and binary files from a PC (or an 8-bit-byte system) to the DEC-20. Note that in this case, it's more convenient to avoid server mode.




TOPS-20 KERMIT version 4(222)



Kermit-86>send *.txt

Textual files are sent.


Kermit-20>set file bytesize 8



Kermit-86>send *.exe

Binary files are sent.







Local Operation

In this example, a program DIAL is used to direct an autodialer to call another computer (a DECSYSTEM-10); once the connection is made, DIAL starts

KERMIT with an implicit CONNECT command for the appropriate communication line.

DIAL is not part of KERMIT; if your system has an autodialer, there will be some site- specific procedure for using it.


Dial>dial stevens

STEVENS, 1-(201) 555-1234, baud:1200


Dialing your number, please hold...

Your party is waiting on TTY11:.



TOPS-20 KERMIT version 4(222)

Kermit-20>connect 11

[TTLINK: Connecting to remote host over TTY11:, type <CTRL-Y>C to return]


Stevens T/S 7.01A(10) 20:20:04 TTY41 system 1282

Connected to Node DN87S1(101) Line # 57


.log 10,35

JOB 51 Stevens T/S 7.01A(10) TTY41


20:20 15-Dec-83 Thur

.r new:kermit

TOPS-10 KERMIT version 2(106)


[Kermit Server running on the DEC host. Please type your escape sequence

to return to your local machine. Shut down the server by typing the

Kermit BYE command on your local machine.]


[TTLINK: Connection Closed. Back at DEC-20.]

Kermit-20>set file bytesize 8

Kermit-20>get setdtr.cmd

^A for status report, ^X to cancel file, ^Z to cancel batch.


Receiving SETDTR.CMD.7, file bytesize 8

(repeated character compression)

At page 1

Files: 0, packets: 1, chars: 66

NAKs: 0, timeouts: 0



Job 51 User F DA CRUZ [10,35]

Logged-off TTY41 at 20:22:58 on 15-Dec-83

Runtime: 0:00:01, KCS:33, Connect time: 0:02:39

Disk Reads:72, Writes:4, Blocks saved:160


Hangup? y

Click. Call duration was 193 seconds to area 201.


Note the use of Control-A to get a status report during the transfer.

1.7. Installation

KERMIT-20 is built from a single MACRO-20 source file, 20KERMIT.MAC.

It re- quires the standard DEC-distributed tools MONSYM, MACSYM, and CMD; the follow- ing files should be in SYS: -- MONSYM.UNV, MACSYM.UNV, MACREL.REL,

CMD.UNV, and

CMD.REL. The program should work on all TOPS-20 systems as distributed, but many customizations are possible. The site manager may wish to change various default parameters on a site-wide basis; this may be done simply by changing the definitions of the desired symbols, under "subttl Definitions", and reas- sembling.

The most notable site dependency is the definition of "SET IBM".

As dis-

tributed from Columbia, KERMIT-20 defines "SET IBM" in a built-in SET macro definition as "parity mark, duplex half, handshake xon". This definition may be found at MACTAB+1, near the end of the impure data section. It may be changed or deleted, and the program reassembled.

Sites that do not have ARPANET may wish to delete the TVT-BINARY entries from

SET command tables, SETABL and SETHLP.




TAC Binary Mode 17

Binary Files 7, 8 TOPS-20 0

BREAK 21 TVT-Binary 17

Byte Size 2, 10, 14


Cancelling a File Transfer 8, 9

CONTINUE 13 Wildcard 1

Control-A 8 Word Size 2

Control-C 13

Control-V 8

Control-X 8, 9

Control-Z 8, 9

CP/M 3

Debugging 14




Eighth-Bit Prefix 9

Eighth-Bit-Prefix 7

End Of File 3

Escape Character for CONNECT 14


Expunging Deleted Files 14

Generation 8

Help 5

IBM 15

Incomplete File Disposition 9

Initial Filespec 6, 7

Interference 5

ITS-Binary Format 15

Line Sequence Numbers 7

Message Interference 5

Normal Form for File Names 7, 15

Parity 7, 9



Recognition 5

Repeated Character Compression 8, 9


Server 10

Table of Contents



1.1. The DEC-20 File System


1.2. Program Operation


1.3. Remote and Local Operation


1.4. KERMIT-20 Commands


1.5. The TTLINK Program


1.6. Examples


1.7. Installation




Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
