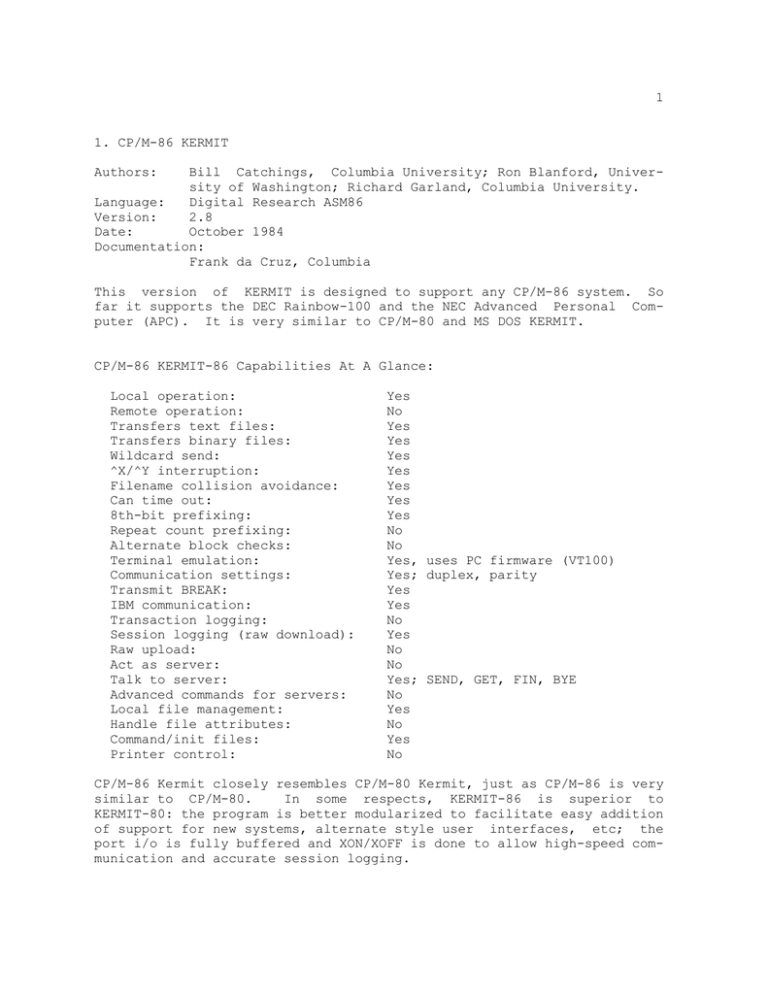

1. CP/M-86 KERMIT
Authors:
Bill Catchings, Columbia University; Ron Blanford, University of Washington; Richard Garland, Columbia University.
Language:
Digital Research ASM86
Version:
2.8
Date:
October 1984
Documentation:
Frank da Cruz, Columbia
This version of KERMIT is designed to support any CP/M-86 system. So
far it supports the DEC Rainbow-100 and the NEC Advanced Personal Computer (APC). It is very similar to CP/M-80 and MS DOS KERMIT.
CP/M-86 KERMIT-86 Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Y interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
IBM communication:
Transaction logging:
Session logging (raw download):
Raw upload:
Act as server:
Talk to server:
Advanced commands for servers:
Local file management:
Handle file attributes:
Command/init files:
Printer control:
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes, uses PC firmware (VT100)
Yes; duplex, parity
Yes
Yes
No
Yes
No
No
Yes; SEND, GET, FIN, BYE
No
Yes
No
Yes
No
CP/M-86 Kermit closely resembles CP/M-80 Kermit, just as CP/M-86 is very
similar to CP/M-80.
In some respects, KERMIT-86 is superior to
KERMIT-80: the program is better modularized to facilitate easy addition
of support for new systems, alternate style user interfaces, etc; the
port i/o is fully buffered and XON/XOFF is done to allow high-speed communication and accurate session logging.
2
CP/M-86 KERMIT DESCRIPTION
Since Kermit-86 runs on a standalone micro, it is always in control of
the screen -- it is always local. Thus, it always keeps the screen updated with the file name and the packet number, whether sending or
receiving. Kermit-86 is capable of timing out an input request, and can
thus break deadlocks automatically. In most cases, however, this is not
desirable because the KERMIT on the other side is most likely better
able to handle the timeouts; therefore, Kermit-86's timer is normally
not used.
If despite the timeout capability, the transmission appears to be stuck
(and you can tell that this has happened if the screen fails to change
for a long while) you can type carriage return to have the micro do what
it would have done on a timeout, namely NAK the expected packet to
cause to foreign host to send it again (or, if the micro is sending, to
retransmit the last packet). Micro/micro or micro/IBM-mainframe transfers could require this kind of manual intervention.
File transfers may be interrupted in several ways.
Control-C
This will return you to Kermit-86 command level immediately, so that you can connect back to the remote
system, or take any other desired action.
Control-X
When sending a file, this will terminate the sending of
the current file with a signal to the KERMIT on the
other side to discard what it got so far. If there are
more files to be sent, KERMIT-86 will go on to the next
one.
When receiving a file, KERMIT-86 will send a signal to the remote KERMIT to stop sending this file.
If
the remote KERMIT understands this signal (not all implementations of KERMIT do), it will comply, otherwise
the file will keep coming. In either case, the remote
KERMIT will go on to the next file in the group, if any.
Control-Z
Like Control-X, except if a file group is being transmitted, this will stop the transmission of the entire
group. If only a single file is being transmitted, it
works exactly like Control-X.
Carriage Returns
If you type carriage return repeatedly Kermit-86 will
retry
the
current packet up to its retry limit
(somewhere between 5 and 16 times) and then, if no valid
response was received, return to Kermit-86 command
level.
When KERMIT-86 is started, it looks for the file KERMIT.INI. If found,
it executes KERMIT-86 commands from it before prompting you for commands. The KERMIT-86 prompt looks like this:
Kermit-86 B3>
in which "B" is your current default disk and "3" is the current default
user number.
3
1.1. Kermit-86 Commands
KERMIT-86 uses the DECSYSTEM-20 keyword style command language. Each
keyword may be abbreviated to its minumum unique length.
"?" may be
typed to request a menu of the available options for the current field
at any point in a command. ESC may be typed at any point in a command
to fill out the current keyword or filename; if sufficient characters
have not been typed to identify the current field uniquely, KERMIT-86
will sound a beep and allow you to continue from that point.
CONNECT Establish a "virtual terminal" connection to any host that may
be connected to the serial port, i.e. pass all typein to the
serial port and display all input from the serial port on the
screen, using the system's own built-in support for ANSI (VT100like) screen control. When you issue the CONNECT command, the
PC will print a message telling you how to get back by typing an
an escape sequence, an uncommonly-used control character, normally CTRL-backslash, followed by a single letter "command".
C
?
B
Q
R
L
^\
Close Connection, return to Kermit-86> command level.
List available single-character commands.
Send a BREAK signal.
Quit logging the remote session.
Resume logging the remote session.
Toggle logging.
(or whatever - a second copy of the escape character)
the escape character itself to the remote host.
SEND filespec
Send file(s) specified by filespec to the remote
the prevailing file mode (ASCII or BINARY;
filespec may contain CP/M wildcards.
Send
Kermit, using
see SET). The
RECEIVE Receive file(s) from the remote Kermit. Store them under the
names provided in the file headers supplied by the remote host.
If the names aren't legal, use as many legal characters from the
name as possible (see the description of SET FILE-WARNING
below). If there's a conflict, and FILE-WARNING is ON, warn the
user and try to build a unique name for the file by adding "&"
characters to the name. You may also provide an optional file
name in the RECEIVE command; if you do, the incoming file will
be stored under the name you specify. If more than one file arrives, only the first will be stored under the given name, unless you included wildcard characters in the RECEIVE filespec;
in that case, the filespec will be used as a mask for incoming
filenames. For instance, you told the remote Kermit to send
*.ASM, you could tell KERMIT-86 to "receive *.A86", thereby
changing the filetype of all the incoming files.
GET filespec
When
Kermit-86
is
talking to a Kermit Server on the host, you
should use the GET command to request the server to
to you, for example: get hlp:k*.hlp
BYE
send
files
When talking to a remote Kermit Server, this command shuts down
the server and logs it out, and also exits from Kermit-86 to
4
CP/M command level.
LOGOUT
Like BYE, but leaves you at Kermit-86 command level.
FINISH
Like LOGOUT, but shuts down the remote server without logging it
out. Leaves you at Kermit-86 command level; a subsequent CONNECT command should put you back at host system command level.
EXIT
Exit from KERMIT-86 back to CP/M.
QUIT
Synonym for EXIT.
SET parameter [value]
Set the specified parameter to the specified
settings:
value.
Possible
BAUD
Change the baud rate of the communications port. This
command only works on some systems, and its actual
operation can vary from system to system. Type SET BAUD
followed by a question mark, and follow the directions.
On systems that do not support this command, you must
set the port baud rate from CP/M or other setup
mechanism outside of KERMIT-86.
DEBUG
ON or OFF. If ON, displays incoming and outbound packets during file transfer. OFF by default.
DEFAULT-DISK disk/user
Specify default disk and user number for subsequent file
reception and transmission. The specification following
the command must be in one of the following forms:
d:
= go to drive d (A through P) without changing
user
u: = go to user u (0 through 15) without changing
drive
du: = go to drive d and user u
:
= go to the defaults when Kermit was loaded
Whenever a drive is specified, even if it is the same as
the current default drive, the drive is logged in so
that disks can be swapped without exiting Kermit to type
control-C. Kermit restores the original drive and user
upon termination.
ESCAPE
Change the escape character for virtual terminal connections. Select a character in the control range that you
will not be likely to need at the remote host; type the
new character literally.
Certain characters, like
Control-X, cannot be specified.
FILE-TYPE
Tells KERMIT-86 what kind of file it is sending, so that
KERMIT can correctly determine the end of the file. SET
FILE BINARY means to send all the 128-byte blocks of the
file, including the last block in its entirety; SET FILE
5
ASCII is used for text files, and transmission stops
when the first Control-Z is encountered anywhere in the
file (this is the CP/M convention for marking the end of
a text file). If binary transmission is used on a text
file, some extraneous characters (up to 127 of them) may
appear at the end of the file on the target system. If
ASCII transmission is used on a binary file, the entire
file will not be sent if it happens to contain any data
bytes that correspond to Control-Z.
ASCII is the
default.
FLOW-CONTROL
Select the desired type of flow control to be used on
the communication line.
The choices are NONE and
XON/XOFF. XON/XOFF is the default. If the remote system is not full duplex or cannot do XON/XOFF, you should
use NONE.
IBM ON (or OFF)
Allow the transfer of files to and from an IBM mainframe
computer. This makes Kermit-86 wait for the IBM turnaround character (XON), ignore parity on input, add appropriate parity to output, and use local echoing during
CONNECT. As distributed, KERMIT-86 uses MARK parity for
IBM communication. If you don't give this command, IBM
mode is OFF.
Since IBM VM/CMS KERMIT does not have
timeout capability, SET IBM ON also turns on the timeout
facility automatically, as if you had typed "SET TIMER
ON".
LOCAL-ECHO ON (or OFF)
When you CONNECT to a remote host, you must set LOCALECHO ON if the host is half duplex, OFF if full duplex.
OFF by default.
LOG
Specify a log file on the current CP/M disk into which
to record incoming characters during CONNECT.
If the
remote host can do XON/XOFF, then the log file will normally capture every character shown on the screen. When
connected to the remote system, several single-character
arguments to the connect escape character can be used to
control logging -- Q (quit), R (resume), L (toggle). If
you use R or L during connect without having previously
specified a log file name, then KERMIT.LOG is used. An
open log is closed when you escape back to the PC.
PARITY
Sets parity for outgoing characters to one of the following: NONE, SPACE, MARK, EVEN, or ODD. On input, if
parity is NONE, then the 8th bit is kept (as data),
otherwise it is stripped and ignored. The parity setting applies to both terminal connection and file trans-
fer.
If you set parity to anything other than NONE,
Kermit-86 will attempt to use "8th bit prefixing" to
transfer binary files.
If the other KERMIT is also
capable of 8th bit prefixing, then binary files can be
transferred successfully; if not, the 8th bit of each
6
data byte will be lost (you will see a warning
screen if this happens).
PORT
on
your
Allows you to switch between different communication
ports on the PC. This command is not available on all
systems.
TIMER ON (or OFF)
Enable or disable the timeout facility.
The timer is
off by default, because in the normal case KERMIT-86 is
communicating with a mainframe KERMIT that has its own
timer.
Mainframe KERMIT timers tend to be more precise
or adaptable to changing conditions.
You should SET
TIMER ON if you are communicating with another KERMIT
that does not have a timer. You should SET TIMER OFF if
you are communicating over a network with long delays.
WARNING ON (or OFF)
Warn user of filename conflicts when receiving files
from remote host, and attempt to generate a unique name
by adding "&" characters to the given name.
OFF by
default.
SHOW
Show the current settings of the SET parameters.
TAKE
Take KERMIT-86 commands from the specified file. The file
should not contain any TAKE commands; nested command files do
not work.
LOCAL
This is a prefix for local file management commands, to distinguish them from remote file management commands (which aren't
implemented yet).
The LOCAL prefix is optional; if left off,
the commands will be performed locally.
SPACE
Show how much space is used and remaining on the
current disk.
DIRECTORY
Provide a directory listing for the current
disk, showing the name and size of each file. A
filespec may be given to select only a certain
file or wildcard file group.
DELETE
Delete the
disk.
specified
files
from
1.2. Installation:
CP/M-86 KERMIT is broken up into several source modules:
the
current
7
86KERCMD.A86
86KERFIL.A86
86KERIO.xxx
86KERMIT.A86
86KERPRO.A86
86KERTRM.A86
86KERUTL.A86
Command parser
File handler
System Dependent I/O
Main Program
Protocol Module
Terminal Emulation
Utilities
The main program module, 86KERMIT.A86, contains INCLUDE directives for
the other files. The 86KERIO module is stored with suffixes that denote
the machine for which the program is being built -- RB for Rainbow, APC
for NEC APC. The program may be built on the CP/M-86 system by obtaining all the source files listed above, storing them on the current disk
with the names indicated, renaming the appropriate 86KERIO.xxx file to
be 86KERIO.A86, and then doing:
ASM86 86KERMIT $PZ
GENCMD 86KERMIT
(takes about 6 minutes on the Rainbow)
(takes less than a minute)
and, if desired,
REN KERMIT.CMD=86KERMIT.CMD
1.3. DEC Rainbow 100 Support
KERMIT-86 runs on the DEC Rainbow 100 or 100+ under CP/M-86/80, version
1 or 2, on the 8088 side. It uses the built-in firmware to emulate a
VT102 ANSI terminal during CONNECT, and runs well at speeds up to 9600
baud.
You should be able to download the program using the old KERMIT on the
Z80 side (Rainbow Kermit, VT180 Kermit, or generic CP/M-80 Kermit will
do the job, but only under DEC CP/M-86/80 version 1.0), or an earlier
version of KERMIT-86.
If you don't have an earlier version of KERMIT, then follow the directions for installing KERMIT-80 (yes, KERMIT-80) in the KERMIT-80 section
of the KERMIT User Guide, but send the KERMIT-86 hex file instead. This
works because the Rainbow can run CP/M-80 programs like DDT.
Another way to get KERMIT onto your Rainbow for the first time would be
from a DEC VT-180 diskette. A VT-180 can use its own KERMIT to load
RBKERMIT onto its disk, which can then be read directly by a Rainbow.
Also, note that VT-180 KERMIT-80 can actually run on the Rainbow on the
Z80 side under DEC CP/M-86/80 version 1 (but not version 2 or higher),
at speeds of 1800 baud or lower.
8
1.4. NEC Advanced Personal Computer Support
(Contributed by Ron Blanford, University of Washington)
Currently only
auxiliary port.
the standard serial port is supported, and not the H14
The SET PORT command is not implemented.
While in Kermit's terminal emulation mode, local commands are initiated
by a two-character sequence consisting of the "escape character" followed by one other character identifying the command. (Make the second
character a '?' to see a list of the valid commands.) As distributed,
the standard Kermit-86 uses the control-backslash character as the escape character in terminal mode. The trouble is that the CP/M-86 BIOS
in the APC ignores a keyboard entry of Control-\ (i.e. holding down the
CTRL key while striking the '\' key), making it difficult (impossible)
to use this method to get out of terminal mode.
One solution is to perform a "SET ESCAPE ^" command before entering terminal mode to change the escape character to a caret (or any other
character the APC keyboard will generate). This command could be placed
in your KERMIT.INI file for automatic execution every time Kermit is
started.
The simpler solution is to realize that the character code for a
Control-\ is a hexadecimal 1C, and that this is the code generated by
the INS key on the numeric keypad. Once you can remember that every
reference to Control-\ should be interpreted as a reference to the INS
key, this is actually easier to use than the two-key Control-\ sequence.
In the standard CP/M-86 BIOS, the unshifted DEL key generates a
Control-X character (hexadecimal 18). This is the CP/M command to erase
the current input line, and is very useful for local processing.
Most
mainframes do not use the Control-X character at all, so it becomes much
less useful during terminal emulation. The DEL character (hexadecimal
7F), on the other hand, is often used by mainframes and can only be
generated on the APC by holding down the SHIFT key while striking the
DEL
key
(this
capability
is
not
mentioned anywhere in the
documentation).
Because the Control-X character is so seldom used while the DEL character is commonly used, the initialization procedure in Kermit-86 modifies
the CP/M-86 BIOS so that the DEL key generates the DEL character whether
shifted or not. Control-X can still be generated if necessary by holding down the CTRL key while striking the 'X' key. The CP/M-86 BIOS is
returned to its original state when Kermit terminates.
The APC uses escape sequences which have been standardized by the
American National Standards Institute (ANSI) to control cursor movement,
screen erasing, and character attribute manipulation. Perhaps the bestknown other terminal which follows ANSI guidelines is the DEC VT100.
The APC only recognizes a few of the more important ANSI commands, and
not the complete set which the VT100 supports.
The ANSI/VT100 features that the NEC APC supports are:
- direct cursor addressing (by row and column)
9
- relative cursor addressing (up, down, left, right)
- line erasing (cursor to end, beginning to cursor, entire line)
- screen erasing (cursor to end, beginning to cursor, entire
screen)
- character attributes (underline, reverse video, blink, but not
bold)
In addition, the first four grey function keys (unshifted) generate the
escape sequences associated with PF1 through PF4 on the VT100 keyboard.
The arrow keys and numeric keypad DO NOT generate the corresponding
VT100 sequences.
These functions are enough to support simple command line editing on
most systems, and allow mailers or paged file display programs to clear
the screen before each display. Underlining and reverse video are also
useful in some applications. This is not enough to support the more
sophisticated screen control required by screen editors such as EMACS or
KED. In addition, due to a bug in the implementation of the CP/M-86
BIOS, the sequence ordinarily used to home the cursor (esc [ H) does not
work correctly; a patch for CP/M to correct this problem is distributed
with APC Kermit-86.
i
Index
APC
8
Baud
BYE
4
4
Connect
3
Debugging
4
DEC Rainbow
7
Eighth-Bit Prefix
Escape Character
File-Warning
FINISH
4
Flow Control
GET
3
IBM
5
Local
2
Local-Echo
LOG
5
LOGOUT
4
5
3, 4
3
5
5
NAK
2
NEC Advanced Personal Computer
Parity
5
Rainbow 100
RECEIVE
3
SEND
SET
SHOW
7
3
4
6
TAKE
6
Timeout
2
TIMER
6
Virtual Terminal
Warning
6
3
8
i
Table of Contents
1. CP/M-86 KERMIT
1.1.
1.2.
1.3.
1.4.
Index
Kermit-86 Commands
Installation:
DEC Rainbow 100 Support
NEC Advanced Personal Computer Support
1
3
6
7
8
i
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
