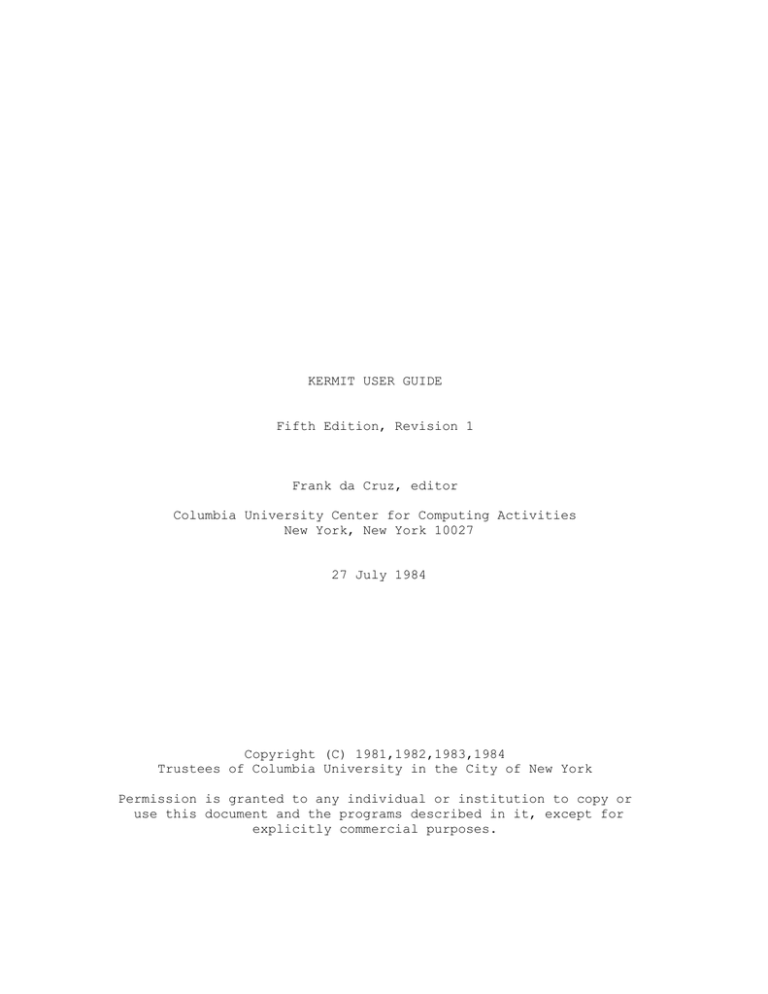

KERMIT USER GUIDE

Fifth Edition, Revision 1

Frank da Cruz, editor

Columbia University Center for Computing Activities

New York, New York 10027

27 July 1984

Copyright (C) 1981,1982,1983,1984

Trustees of Columbia University in the City of New York

Permission is granted to any individual or institution to copy or

use this document and the programs described in it, except for

explicitly commercial purposes.

Preface to the 5th Edition Page 1

Preface to the 5th Edition (March 1984)

Since the 4th Edition of the KERMIT Users Guide was produced in July

1983, the KERMITs have been flying thicker and faster than anyone could keep up with. Old versions have improved, and implementations for many new systems have appeared. It is no longer practical to even attempt to cover all the implementations in a single manual. Therefore, this manual will try to describe a sort of "ideal" KERMIT program, one which has most of the features specified in the KERMIT Protocol Manual. Most real KERMIT programs will fall short of this description in some ways.

After the main, system-independent part of the manual there are sections for several particular KERMIT programs, emphasizing their differences from the ideal, at the time of this writing. The system-dependent por- tions of this manual will rapidly become dated; current information about any particular KERMIT program can be found in the accompanying on-line help or documentation files, or built-in internal help text.

5TH EDITION, REVISION 1 (July 1984)

The major sections of the manual are relatively unchanged. The chapters describing DECSYSTEM-20, MS-DOS, CP/M-86, CP/M-80, and Apple DOS Kermits have been updated to reflect new releases since last March. Meanwhile, a 2-part article describing the Kermit protocol was published in the

June and July 1984 issues of BYTE Magazine, which is recommended reading for anyone who wants to know the reasons why a protocol like Kermit is necessary.

HISTORY AND ACKNOWLEDGEMENTS

The KERMIT file transfer protocol was designed at the Columbia Univer- sity Center for Computing Activities (CUCCA) in 1981-82 mainly by Bill

Catchings and Frank da Cruz. Bill wrote the first two programs, one for the DECSYSTEM-20 and one for a CP/M-80 microcomputer.

The initial objective was to allow users of our DEC-20 and IBM timeshar- ing systems to archive their files on microcomputer floppy disks. The design owes much to the ANSI and ISO models, and ideas were borrowed from similar projects at Stanford University and the University of Utah.

The protocol was designed to accommodate the "sensitive" communications front end of the full-duplex DEC-20 system as well as the peculiarities of half-duplex IBM mainframe communications. The protocol was soon im- plemented successfully on our IBM 4341 systems under VM/CMS by Daphne

Tzoar of CUCCA.

Meanwhile it was becoming apparent that KERMIT was useful for more than just file archiving; IBM PCs were beginning to appear in the offices and departments, and there arose a general need for file transfer among all our systems. Daphne soon had prepared an IBM PC implementation.

After our initial success with KERMIT, we presented it at conferences of user groups like DECUS and SHARE, and we began to get requests for it from other sites. Since we had written down a description of the

protocol, some sites wrote their own implementations for new computers, or adapted one of our implementations to run on additional systems, and sent back these new versions to us so that we could share them with

Preface to the 5th Edition Page 2 others. In this way, KERMIT has grown to support about 50 different systems; it has been sent on magnetic tape from Columbia to hundreds of sites in dozens of countries, and has reached hundreds or thousands more through various user groups and networks.

To date, contributions to the KERMIT effort have been made by in- dividuals at the following institutions: Stevens Institute of Technol- ogy, Cornell University, Rutgers University, Cerritos College, the

University of Toronto, the University of Tennessee at Knoxville, the

University of California at Berkeley, the University of Toledo, the

University of Texas at Austin, the University of Michigan, Oakland

University, the University of Wisconsin, University College Dublin, the

University of Washington, ABC-Klubben Stockholm, the Helsinki University of Technology, the US National Institutes of Health, Digital Equipment

Corporation, The SOURCE Telecomputing, Hewlett-Packard Laboratories,

Litton Data Systems, RCA Laboratories, Atari Computer, the University of

Chicago, SPSS Inc, and others. The list grows constantly.

The Kermit protocol was named after Kermit the Frog, start of the television series THE MUPPET SHOW, and is used by permission of Henson

Associates, Inc.

CUSTOMIZING THIS MANUAL

Although this manual was produced at Columbia University, all attempts have been made to keep it free of site-specific information. However, due to the large number of KERMIT implementations, descriptions of each one would make the manual unnecessarily thick. Therefore, the manual is sent from Columbia with specific documentation about a selection of sys- tems. Some of these descriptions may not be of interest at your site, while others that are may be lacking.

Each site, upon receiving a KERMIT tape, may decide which versions of

KERMIT are important to it, and include the appropriate documentation in this manual. This is most conveniently done if your site has the Scribe text formatting system (from UNILOGIC Ltd in Pittsburgh PA, USA), with which this manual was produced. Scribe runs on a wide variety of sys- tems. There are also Scribe subsets, such as Perfect Writer and Final

Word, that run on various microcomputers.

The system-specific parts of the KERMIT User Guide are included with

"@INCLUDE" statements at the end of the Scribe source file for this manual, whose filename is USER.MSS. You may add or delete @INCLUDE statements to suit your needs, and run the result through the text for- matter to produce a customized manual.

Not all system-specific documentation is provided in .MSS (Scribe input) format, since some KERMIT contributors do not have Scribe at their sites. In that case, you will either have to add Scribe formatting com- mands, or else enclose the whole subfile in @VERBATIM brackets.

If you do not have SCRIBE, you may still use an editor to delete or add sections to the finished documentation file, though the results will not be as satisfactory -- the table of contents, index, and page numbers will not be automatically adjusted.

Preface to the 5th Edition Page 3

If you are running a version of KERMIT for which adequate documentation has not been provided (after all, this is a distributed, volunteer ef- fort!), please feel free to write some, preferably in Scribe input for- mat, and send it back to Columbia so that others may benefit from it.

Likewise if you produce a new implementation of KERMIT.

Ordering Information Page 4

Ordering Information

The KERMIT software is free and available to all. Columbia University, however, cannot afford to distribute free software on the scale required for KERMIT. Therefore, to defray our costs for media, printing, pos- tage, materials, labor, and computing resources, we must request a moderate distribution fee from sites that request KERMIT directly from

Columbia. The schedule is as follows:

Complete KERMIT Distribution $100.00

(Tape, Users Guide, and Protocol Manual)

Printed Documents $5.00 each

(Users Guide, Protocol Manual, or Any Source Listing)

Other sites are free to redistribute KERMIT on their own terms, and are encouraged to do so, with the following stipulations: KERMIT should not be sold for profit; credit should be given where it is due; and new material should be sent back to Columbia University at the address below so that we can maintain a definitive and comprehensive set of KERMIT im- plementations for further distribution.

To order KERMIT from Columbia University, send a letter requesting ei- ther:

(a) The manuals or source listings you desire (specify each one), or

(b) A 9-track magnetic tape in one of the following formats:

System Tape Format Densities

TOPS-10 BACKUP/Interchange, Unlabeled 1600

TOPS-20 DUMPER, Unlabeled 1600

IBM VM/CMS EBCDIC, CMS Format 1600, 6250

or EBCDIC, OS Standard Label 1600, 6250

UNIX TAR 1600

Other ASCII, ANSI Label, Format ``D'' 1600

(Specify system, format, and density.) The "Kermit collection"

has grown so large that we can no longer fit it on a 2400' reel of

magnetic tape at 800bpi. One copy of each manual will be included

with the tape. We will supply the tape, packaging, and postage.

We can only make tapes in the formats listed above. We cannot produce floppy disks; bootstrapping procedures are provided to allow the microcomputer versions to be downloaded from the mainframe for which the tape is produced. The tape includes all source programs, documentation, and, when practical, binaries or hex. Unfortunately, our limited resources to not allow us to provide automatic updates to KERMIT recipients when new implementations, documentation, or bug fixes appear.

Send your letter to:

KERMIT Distribution

Columbia University Center for Computing Activities

7th Floor, Watson Laboratory

612 West 115th Street

Ordering Information Page 5

New York, N.Y. 10025

Please list the machines and operating systems you expect to run KERMIT on, specify the tape format or the listings desired, and mention whether there are additional systems for which you require KERMIT or if you might be interested in attempting your own implementation for a new sys- tem. Make checks payable to Columbia University Center for Computing

Activities.

KERMIT is available to users of the BITNET network via a server at host

CUVMA. BITNET users may type ``SMSG RSCS MSG CUVMA KERMSRV HELP'' for further information. KERMIT is also available to users of ARPANET, via anonymous FTP from host COLUMBIA-20, in the area PS:<KERMIT>. And KER-

MIT is distributed regularly by various computer user groups such as

DECUS and SHARE.

Since new KERMIT programs are added -- and old ones improved -- so fre- quently, sites that use KERMIT heavily are encouraged to contact Colum- bia two or three times a year for news.

No warranty of the software nor of the accuracy of the documentation surrounding it is expressed or implied, and neither the authors nor

Columbia University acknowledge any liability resulting from program or documentation errors.

Introduction Page 6

1. Introduction

Everyone wants to get computers talking to one another. There are many ways to do this, and most of them are very expensive. But there is one way that is cheap and relatively easy: connect the two computers through their terminal (TTY) ports, tricking one computer (or both) into believ- ing that the other is a terminal. This can be expected to work because the standard for connecting computers to terminals is almost universally followed, in both hardware (plug and signal: EIA RS-232) and software

(character code: ASCII). Once two computers are connected in this way, cooperating programs can be run on each to achieve the desired com- munication by means of a communication protocol.

Why is a protocol necessary at all? Three major problems occur when you try to connect two computers via TTY line:

1. Noise -- It is rarely safe to assume that there will be no

electrical interference on a line; any long or switched data

communication line will have occasional interference, or

noise, which typically results in garbled or extra charac-

ters. Noise corrupts data, perhaps in subtle ways that might

not be noticed until it's too late.

2. Synchronization -- Data must not come in faster than the

receiving machine can handle it. Although line speeds at the

two ends of the connection may match, the receiving machine

might not be able to process a steady stream of input at that

speed. Its central processor may be too slow or too heavily

loaded, or its buffers too full or too small. The typical

symptom of a synchronization problem is lost data; most

operating systems will simply discard incoming data they are

not prepared to receive.

3. Line Outages -- A line may stop working for short periods be-

cause of a faulty connector, loss of power, or similar

reason. On dialup or switched connections, such intermittent

failures will cause carrier to drop and the connection to be

closed, but for any connection in which the carrier signal is

not used, the symptom will be lost data.

To prevent corruption of data and to synchronize communication, cooperating computers can send control information to one another at the same time that they are transferring data. This intermingling of con- trol information with data, and the resulting actions, constitute a

"protocol".

KERMIT is such a protocol. It is specifically designed for transfer of sequential files over ordinary serial telecommunication lines. KERMIT is not necessarily better than many other terminal-oriented file trans- fer protocols but it is free, it is well documented, and it has been im- plemented compatibly on a variety of microcomputers and mainframes.

KERMIT transfers data by encapsulating it in "packets" of control infor- mation. This information includes a synchronization marker, a packet number to allow detection of lost packets, a length indicator, and a

"checksum" to allow verification of the data. Lost or corrupt packets

Introduction Page 7 are detected, and retransmission is requested. Duplicated packets are discarded. In addition, various special control packets allow cooperat- ing KERMITs to connect and disconnect from each other and to exchange various kinds of information. Very few assumptions are made about the capabilities of either computer, so the KERMIT protocol can work between many different kinds of systems.

ORGANIZATION OF THIS MANUAL

Section 2, How to Use KERMIT, tells all you need to know to transfer text files in most cases, and shows some specific examples.

If you follow the examples in Section 2 but you can't make a terminal connection or you can't transfer files successfully, consult Section 3,

When Things Go Wrong.

If you expect to be a heavy user of KERMIT, you should read Section 4,

KERMIT Commands, which describes all the features of KERMIT in detail.

You may find that familiarity with the material in this section will help you get past difficulties that can crop up when you are making new kinds of connections or transferring unusual kinds of files. You will also find descriptions of some advanced file management features that have been omitted from the earlier sections.

Section 5, KERMIT Implementations, briefly lists the systems for which

KERMIT is available as of this writing. The subsequent chapters describe selected particular implementations. You should read the ap- propriate section for each system with which you are using KERMIT; each section describes the file naming conventions and other system features that are important to KERMIT users, and lists the KERMIT commands for that system mainly in terms of their differences from the "ideal" KERMIT described in section 4.

How to Use KERMIT Page 8

2. How to Use KERMIT

KERMIT is a protocol for reliable file transfer between computers over the ordinary serial telecommunication lines that are used to connect terminals to computers. The mechanics of using KERMIT to get a file transferred can be confusing until you get the hang of it. A little background material might make the process a bit easier to understand.

KERMIT is probably the cheapest way to put two computers into communica- tion. The required hardware is usually already available, the software is free, and all components run as ordinary user programs, with no sys- tem modifications. This is in sharp contrast to a communication net- work, where there are dedicated high-speed communications channels and drivers, expensive software, and so forth. The network provides more services than KERMIT, usually at higher speed, and with greater con- venience, because the network is usually part of the system. When a network is not available, KERMIT can fill in. But since KERMIT is not integrated with any particular system, but rather grafted on top of many different systems, it requires some extra work from those who use it.

2.1. The KERMIT Program

KERMIT embodies a set of rules for transferring files reliably between computers. In general, one computer is a large system (a host, for in- stance a timesharing system with many terminals), and the other is a

1 personal computer (PC) . The host believes that the PC is an ordinary terminal. In order for the KERMIT protocol to occur, a KERMIT program must be running on each end of the communication line -- one on the host, one on the PC.

The two Kermit programs exchange messages in a special language all their own, the Kermit protocol. The dialog runs something like, "Hi!

I'm going to be sending files to you. When you send messages to me, please don't make them more than 80 characters long, and if you don't hear anything from me for 15 seconds, wake me up, OK?" "OK." "Now, here comes a file called FOO.TXT, OK?" "OK." "Here's the first piece..."

"Got it." "Good, here's the second piece..." "That second piece was junk." "Well, then here it is again..." Et cetera. You don't see any of this. It's all packed into a concise code which the two Kermits can understand; they do all the worrying about transmission, error checking, character set translation, and so forth. Each message is called a packet, and each packet is in a special format that all Kermits can un- derstand.

_______________

1

Host-to-host and PC-to-PC connections are also possible.

How to Use KERMIT Page 9

2.2. Talking to Two Computers at Once

Your task is just to get the two Kermits started. The confusion arises because you have to use a single keyboard and screen to talk to two dif- ferent computers, two different programs. Let's talk about a common

2 case: you are sitting at a personal computer (PC ), which has a serial communication port. The serial port is connected to a host computer

3 using, say, a dialup modem .

Normally, when you use your PC, you are "talking" directly to it; your commands are interpreted directly by the PC's operating system (CP/M,

MS-DOS, UNIX, whatever), or by some program that runs on the PC (an editor, a text formatter, space invaders...). The version of Kermit on your PC is a program like any other, but it has a special ability to ei- ther interpret your commands directly, like other programs, or to pass everything you type through to the host. When you tell Kermit to

CONNECT, it sends every character you type out the serial port, and it will put every character that comes in the serial port onto the screen.

This is called virtual terminal service -- one computer acts "virtually" as though it were a terminal on another. You are now "talking" to the host, and the PC is ignoring you.

Kermit, like most programs, has a prompt. The prompt is a symbol it types on the left margin to indicate that it is ready for you to type a command. Kermit's prompt is normally "Kermit-xx>". The xx identifies the implementation of Kermit; the Kermit that runs on the DEC-20 is called "Kermit-20" and its prompt is "Kermit-20>"; the Kermit that runs on Z80 and 8080-based microcomputers is called "Kermit-80" and its

4 prompt is "Kermit-80>"; the Kermit on the IBM PC is "Kermit-86" , and so forth. If you become confused about who you are talking to, the prompt should provide a clue. In addition, most Kermits print an informative message like

[Connecting to remote host, type CTRL-]C to return] when you CONNECT, and type another message like

[Connection closed, back at PC]

_______________

2

The terms PC, micro, microcomputer, and workstation will all be used loosely in this document to denote a single-user system.

3

The actual means of connection isn't important in this case -- it also could be a direct line to the host, some kind of switched line,

etc.

4

Although the processor in the IBM PC is an 8088, it is programmed as though it were an 8086.

How to Use KERMIT Page 10 when you return.

Having "connected" to the host, there must be a way for you to get back to the PC. This is accomplished by an escape sequence. As Kermit passes your characters through to the host, it checks each one to see if it's a special predefined escape character. When the PC sees this character, it stops ignoring you -- you are once again "talking" to the

PC, not the host. The escape character is normally chosen to be one that you will not need to type while talking to the host, and one that is hard to type by accident -- it's usually a control character, such as

Control-], which is accomplished by holding down the key marked CTRL or

CONTROL and typing the indicated character (in this case, a right bracket "]"). The CTRL key works just like a SHIFT key. Control characters are written either as CTRL-A or ^A, where A is the character to be typed while holding down CTRL.

2.3. Transferring a File

To transfer a file, you must first get the attention of the PC's operat- ing system. This is normally done by starting the PC, possibly insert- ing your system floppy disk first. Once you're at command level on your

PC, you run Kermit. Then you tell Kermit to CONNECT you to the host.

Now you're talking to the host -- at this point you must log in, and then run Kermit on the host.

Now you have a Kermit on each end of the wire. The next step is to tell each Kermit what to do. Suppose you want to transfer a file from the host to the PC; you would first tell the host Kermit to SEND the file, then "escape" back to the PC Kermit and tell it to receive the file.

The transfer begins -- you can sit back and watch, or go make yourself a sandwich. The PC Kermit will continuously show packet and retry counts on your screen, and will notify you when the transfer is complete.

The desired file is now on your PC's disk. The Kermit protocol has en- sured that the file arrived correctly and completely. Now you must clean up after yourself: CONNECT back to the host, exit from Kermit on the host, log out from the host, "escape" back to PC Kermit and exit from it. Now you can do whatever you had planned for your file -- edit it, print it on your PC printer, etc.

The KERMIT protocol, and most Kermit programs, allow you to send a file reliably from the host to the PC, from the PC to the host, from host to host, or PC to PC, usually without any special regard for the nature of the particular machines involved. Most implementations also allow files to be sent in groups, with a single command, such as "Send all my

Fortran files!" The scenario for each of these is always the same as above -- only the details of how to establish the actual connection dif- fer.

KERMIT works best with "printable" files -- files composed only of let-

ters, digits, punctuation marks, carriage returns, tabs, and so forth

-- since these can be represented on almost any kind of computer. KER-

MIT is also able to transfer "binary" files -- files such as executable programs -- composed of arbitrary bit patterns, but binary files nor- mally are meaningful only to the kind of computer on which they are

How to Use KERMIT Page 11 generated. Nevertheless, KERMIT can usually move such files from system

A to system B (where they are not much use) and back to system A in their original condition, although in some cases some special care must be taken to accomplish this.

Now that we have a basic understanding of what KERMIT does and how it works, let's look at some more concrete examples. First you need to know what the basic Kermit commands are.

2.4. Basic KERMIT Commands

These are generic descriptions of the most basic Kermit commands.

Detailed descriptions will come later. In these descriptions, local refers to the system that you are using directly, remote refers to the system to which you are CONNECTed via Kermit. Commands may take one or more operands on the same line, and are terminated by a carriage return.

SEND filespec Send the file or file group specified by filespec from

this Kermit to the other. The name of each file is

passed to the other Kermit in a special control packet,

so it can be stored there with the same name. A file

group is usually specified by including

"wildcard" characters like "*" in the file specifica-

tion. Examples:

send foo.txt

send *.for

Some implementations of Kermit may not support transfer

of file groups; these versions would require a separate

SEND command for each file to be transferred.

RECEIVE Receive a file or file group from the other Kermit. If

an incoming file name is not legal, then attempt to

transform it to a similar legal name, e.g. by deleting

illegal or excessive characters. The name thus formed

cannot be guaranteed to be unique, in which case

previously existing files could be overwritten. Some

versions of Kermit attempt to prevent this by warning

you of filename collisions and taking, or allowing for,

evasive action.

CONNECT Make a "virtual terminal" connection to the remote sys-

tem. On a PC or micro, this usually means to send all

keyboard input out the serial port, and display all in-

put from the serial port on the screen. To "escape"

from a virtual terminal connection, type Kermit's escape

character (e.g. CTRL-], control-rightbracket), followed

by the letter "C" for "Close Connection".

SET Establish various nonstandard settings, such as CONNECT

escape character, file characteristics, communication

line number, parity, or flow control.

How to Use KERMIT Page 12

SHOW Display the values of SET options.

HELP Type a summary of KERMIT commands and what they do.

EXIT Exit from KERMIT back to the host operating system.

? Typed anywhere within a KERMIT command: List the com-

mands, options, or operands that are possible at this

point. This command may or may not require a carriage

return, depending on the host operating system.

2.5. Real Examples

Kermit can be used in several ways: from a PC that is connected to a larger host computer; from a host computer which is connected to another host; from one PC to another.

2.5.1. PC to Host

In this example, the user is sitting at an IBM Personal Computer (PC), which is connected through its serial port to a DECSYSTEM-20 host com- puter. The IBM PC is local, the DEC-20 is remote. This example will also apply almost literally to any other microcomputer implementation of

Kermit.

You have started up your PC and have the Kermit program on your disk.

Begin by running Kermit on the PC. Use Kermit's CONNECT command to be- come a terminal to the DEC-20. In fact, the PC emulates the popular

Heath-19 (or VT52) terminal, so it is desirable to tell the DEC-20 that your terminal is one of these. Login on the DEC-20 and run Kermit there. Here is an example of this procedure with commands you type un- derlined:

5

A>kermit ! Run Kermit on the PC.

Kermit V1.20

Kermit-86> ! This is the Kermit prompt for the PC.

Kermit-86>connect ! Connect to the DEC-20.

[Connecting to host, type control-] to return to PC.

Baud rate is 9600, connecting over COM1.]

! You are now connected to the DEC-20.

CU20B ! The system prints its herald.

@terminal heath-19 ! Set your terminal type (optional).

@login my-id password ! Login using normal login method.

(At this point, the DEC-20 prints various messages.)

_______________

5

Everthing from a "!" mark to the end of line is commentary, not sys- tem typeout or part of a command.

How to Use KERMIT Page 13

@kermit ! Run Kermit on the DEC-20.

Kermit-20> ! This is Kermit-20's prompt.

You are now ready to transfer files between the two machines.

The following example illustrates how to send files from the DEC-20 to the PC. Note the use of the "*" wildcard character to denote a file group.

Kermit-20>send *.for ! Send all my FORTRAN files.

^]c ! Now return back to the PC by

! typing the escape sequence, in this case

! ^]C (Control-] followed by "C")

[Back at PC.]

Kermit-86>receive ! Tell the PC files are coming.

If you take more than about 5 seconds to get back to Kermit-86 and issue the RECEIVE command, the first packets from Kermit-20 may arrive prema- turely and appear on your screen, but no harm will be done because the packet will be retransmitted by the DEC-20 until the PC acknowledges it.

Once the connection is established, the PC will show you what is happen- ing -- it first clears the screen and waits for incoming packets; as packets arrive, the current file name and packet number will be con- tinuously displayed on the screen. When the PC's "Kermit-86>" prompt returns to your screen, the transfer is done. During file transfer, the microcomputer screen looks something like this:

IBM PC Kermit-86 V1.20

Number of Packets: 294 Receiving...

Number of Retries: 2

File Name: FOO.TXT

The packet and retry counts are continuously updated, and the word in the upper right tells the status of the transfer -- receiving, sending, complete, interrupted, or failed.

When the transfer is complete (most versions of KERMIT sound a beep to wake you up), you must CONNECT back to the DEC-20 host, EXIT from Kermit there, logout, and "escape back" to the PC as you did previously.

Kermit-86>connect ! Get back to the DEC-20.

[Connecting to host. Type CTRL-]C to return to PC.]

Kermit-20> ! Here we are.

Kermit-20>exit ! Get out of Kermit-20.

@logout ! Logout from the DEC-20.

Logged out Job 55, User MY-ID, Account MY-ACCOUNT, TTY 146,

at 24-Jan-84 15:18:56, Used 0:00:17 in 0:21:55

How to Use KERMIT Page 14

^]c ! Now "escape" back to the PC,

[Back at PC.]

Kermit-86>exit ! and exit from the PC's Kermit.

The files you transferred should now be on your PC disk.

To send files from the PC to the DEC-20, follow a similar procedure.

First follow the instructions in the previous section to log in to the

DEC-20 through the PC. Then in response to the host Kermit's

"Kermit-20>" prompt you type RECEIVE rather than SEND. Now escape back to the PC and use the SEND command to send the local PC files to DEC-20 host. The PC will show you the progress of the transmission on its screen.

When the "Kermit-86>" prompt indicates that the transmission is complete you should follow the procedure shown above to logout from the DEC-20 host, except that you may first wish to confirm that the files have been stored correctly in your directory on the DEC-20.

2.5.2. Host to Host

This section describes use of Kermit between two hosts. A "host" is considered to be a large or multi-user system, whose distinguishing characteristic is that it has multiple terminals. Use of Kermit for host-to-host file transfers differs from the PC-to-host case in that the line your terminal is connected to is not the same as the line over which the data is being transferred, and that some special commands may have to be issued to allow one Kermit to conform to unusual requirements of the other host.

In this example, you are already logged in to a DEC-20, and you use an

autodialer to connect to an IBM 370-series system running

VM/CMS through DEC-20 TTY port 12. The autodialer, in this example, is invoked from program called DIAL (idealized here, for simplicity), to which you merely supply the phone number.

@dial 765-4321/baud:1200

765-4321, baud 1200

[confirm]

Dialing your number, please hold...

Your party waiting is on TTY12:

@

Other methods exist for connecting two hosts with a serial line. Dedi- cated hookups can be made simply by running an EIA cable between TTY

6 ports on the two systems. For connecting to remote systems when no

_______________

6

Such a connection, by the way, usually requires the receive and transmit leads (pins 2 and 3) be swapped in one of the RS-232 connec- tors; this is called a "null modem" cable.

How to Use KERMIT Page 15 autodialer is available, a manual dialup connection is also possible,

7 but tricky. If you have a microcomputer that supports KERMIT, you may find it easier to first transfer from host A to the micro, then from the micro to host B.

The following procedure would be the same in any case, once a connection is made.

@

@kermit ! Run Kermit on the DEC-20.

Kermit-20>set ibm ! Turn on handshaking, parity, local echo.

Kermit-20>set line (to tty) 12 ! Indicate the line we'll use.

Kermit-20>connect ! And connect to it.

[KERMIT-20: Connecting over TTY12:, type <CTRL-Y>C to return.]

VM/370 ONLINE ! The IBM system prints its herald.

.login myuserid mypassword ! Login to IBM system.

LOGON AT 20:49:21 EST THURSDAY 01/20/84

CUVMB SP/CMS PUT 8210 01/19/84

.

.kermit

KERMIT-CMS>.send profile exec ! Send a file.

^Yc ! KERMIT-20's escape sequence typed here.

[KERMIT-20: Connection Closed. Back at DEC-20.]

Kermit-20>receive ! Tell Kermit-20 to RECEIVE.

The transfer takes place now; Kermit-20 will print the names of incoming files, followed by dots or percents to indicate the packet traffic (a dot for every 5 packets successfully transferred, a percent for every timeout or retransmission). It is complete when when you see "[OK]", a beep is sounded, and the Kermit-20 prompt next appears. At that point we connect back to the remote IBM system, exit from the remote Kermit and log out.

.

PROFILE.EXEC.1 ..%%.[OK]

Kermit-20>connect ! Get back to IBM and clean up.

[KERMIT-20: Connecting over TTY12:, type <CTRL-Y>C to return.]

_______________

7

Here's one way: log in on port x on your system, and assign another

port, y, to which you have physical access. Unplug the terminal from port y, and connect the terminal to a dialup modem. Dial up the remote computer and log in on it. Now, using a null modem cable, connect the modem directly to port y. Go back to your terminal on port x, run Kermit from it, and CONNECT to port y.

How to Use KERMIT Page 16

KERMIT-CMS>.

KERMIT-CMS>.exit

R;

.

SP/CMS

.logout

CONNECT= 00:03:01 VIRTCPU= 000:00.12 TOTCPU= 000:00.60

LOGOFF AT 20:52:24 EST THURSDAY 01/20/84

^Yc ! Type Kermit-20's escape sequence

[KERMIT-20: Connection Closed. Back at DEC-20.]

Kermit-20>exit ! All done with Kermit.

That's the whole procedure. The file is in your DEC-20 directory, com- pletely readable, as PROFILE.EXEC -- note that KERMIT-CMS translated from the IBM EBCDIC character encoding into standard ASCII, and con- verted the space between the file name and file type to a dot.

To send a file from the local host to the remote host, we would merely have reversed the SEND and RECEIVE commands in the example above.

2.5.3. Micro to Micro

Kermit also works between personal computers (microcomputers, workstations). The difference here is that commands are typed on two keyboards, rather than a single one. This is because a personal com- puter normally only accepts commands from its own keyboard. If one PC

Kermit CONNECTs to another, there will normally be no program on the other side to listen.

Making the physical connection between two micros is tricky. If the two

8 units are in close proximity , you can connect their serial ports with a null modem cable. However, different micros have different requirements

-- some may want a male connector on their serial port, others a female;

9 many require that certain of the RS-232 signals be held high or low .

In any case, you must also make sure the port speeds are the same at both ends.

_______________

8

Why would you want to run Kermit between two PCs that are next to each other? One good reason is that if they are different models, their floppy disks are probably incompatible.

9

By wiring certain of the pins in the connector together; for in- stance, some micros want DTR (Data Terminal Ready, pin 20) to be held high, and this might be accomplished by connecting it to CTS (Clear To

Send, pin 5). See EIA Standard RS-232-C, and the appropriate manuals for your micro.

How to Use KERMIT Page 17

Connections at longer distances can be made via dialup, providing the required modems are available (one side needs autoanswer capability), or using any kind of dedicated or switched circuit that may be available

-- PBX, port contention unit, almost anything you can plug an EIA con- nector into.

In this example, a DEC VT180 "Robin" CP/M microcomputer is connected to a Intertec "SuperBrain" CP/M micro, using a female-to-male null modem cable. Getting the cable right is the hard part. The connection can be tested by running Kermit and issuing the CONNECT command on both ends: typein from each micro should appear on the screen of the other.

Suppose you want to send a file FOO.HEX from the Robin to the Super-

Brain. Proceed as follows:

1. Run Kermit on the SuperBrain, and give the RECEIVE command:

A>kermit

Intertec SuperBrain Kermit-80 - V3.7

Kermit-80>receive

2. Run Kermit on the Robin, and give the SEND command for

FOO.HEX.

A>kermit

DEC VT18X Kermit-80 - V3.7

Kermit-80>send foo.hex

Watch the packets fly. When you get the next Kermit-80>

prompt, the transfer is done, and you can EXIT from both Ker-

mits.

The key point is to start the receiving end first -- most microcomputer

Kermits do not include a timeout facility, and if the receiver is not ready to receive when the sender first sends, there will be a protocol deadlock.

2.6. Another Way -- The KERMIT Server

So far, we have been describing the bare-bones version of the KERMIT protocol. An optional extension to the protocol includes the concept of a Kermit server. A KERMIT server is a Kermit program that does not in- teract directly with the user, but only with another Kermit program.

You do not type commands to a Kermit server, you merely start it at one end of the connection, and then type all further commands at the other end.

Not all implementations of Kermit can be servers, and not all know how to talk to servers -- but most of the major ones can and do. The server is run on the remote computer, which would normally be a large host,

such as the DEC-20. You must still connect to the remote host to log in and start the server, but you no longer have to tell one side to SEND and the other to RECEIVE, nor must you connect back to the remote side to clean up and log out when you're done. Using the server, you can do as many send and receive operations as you like without ever having to

How to Use KERMIT Page 18 connect back to the remote host. Some servers also provide additional services, such as directory listings, file deletion, or disk usage in- quiries.

A Kermit server is just a Kermit program running in a special mode. It acts much like ordinary Kermit does after you give it a RECEIVE command

-- it waits for a message from the other Kermit, but in this case the message is a command telling what to do, normally to send or to receive a file or group of files. After escaping back to the local system, you can give as many SEND and GET commands as you like, and when you're finished transferring files, you can give the BYE command, which sends a message to the remote Kermit server to log itself out. You don't have to connect back to the remote host and clean up. However, if you want to connect back to the host, you can use the FINISH command instead of

BYE, to shut down the Kermit server on the remote host without logging it off, allowing you to CONNECT back to your job there.

Here's an example of the use of a Kermit server. The user is sitting at a CP/M-80 microcomputer and a DEC-20 is the remote host.

A>kermit ! Run Kermit on the micro.

Kermit V3.9A

Kermit-80> ! This is the micro Kermit's prompt.

Kermit-80>connect ! Connect to the DEC-20.

[Connecting to remote host. Type CTRL-]C to return to micro.]

CU20E ! The DEC-20 prints its herald.

@login my-id password ! Log in normally.

(The DEC-20 prints various login messages here.)

@kermit ! Run Kermit-20 normally

Kermit-20>server ! Tell it to be a server.

Kermit Server running on DEC-20 host. Please type your escape

sequence to return to your local machine. Shut down the server by

typing the Kermit BYE command on your local machine.

^]c ! Now escape back to the micro.

[Connection closed, back at micro.]

Kermit-80>get *.pas ! Get all my DEC-20 Pascal programs.

Kermit-80>send foo.* ! Send all the "foo" files from my micro.

Kermit-80>exit ! Exit from Kermit back to CP/M.

A>

(Here you can do some work on the micro, edit files, whatever you like.)

A>kermit ! Run Kermit-80 some more.

Kermit-80>send file.pas ! Send another file.

Kermit-80>bye ! That's all. Shut down the Kermit server.

A> ! Back at CP/M automatically.

This is much simpler. Note that once you've started the Kermit Server on the remote end, you can run Kermit as often as you like on the micro without having to go back and forth any more; just make sure to shut the

How to Use KERMIT Page 19 server down when you're done by typing the BYE command.

Here are basic the commands available for talking to servers.

SEND filespec Sends a file or file group from the local host to the

remote host in the normal way.

GET filespec Ask the remote host to send a file or file group. Ex-

ample:

get *.c

This command is exactly equivalent to typing "send *.c"

at the remote host followed by "receive" on the local

host. Note that the local Kermit does not attempt to

validate the filespec. If the server cannot parse it,

or cannot access the specified file(s), it will send

back an appropriate error message.

BYE Shut down the remote server and exit from Kermit. This

will cause the job at the remote end to log itself out.

You need not connect back and clean up unless you get an

error message in response to this command (for instance,

if your logged-out disk quota is exceeded on the remote

host).

FINISH Shut down the server without having it log itself out,

and don't exit from Kermit. A subsequent CONNECT com-

mand will put you back at your job on the remote host,

at system command level.

When Things Go Wrong Page 20

3. When Things Go Wrong

Connecting two computers can be a tricky business, and many things can go wrong. Before you can transfer files at all, you must first estab- lish terminal communication. But successful terminal connection does not necessarily mean that file transfer will also work. And even when file transfer seems to be working, things can happen to ruin it.

3.1. Communication Line Problems

If you have a version of KERMIT on your microcomputer, but the CONNECT command doesn't seem to work at all, please:

- Make sure all the required physical connections have been made

and have not wiggled loose. If you are using a modem, make

sure the carrier light is on.

- If you have more than one connector on your micro, make sure

you are using the right one.

- Make sure that the port is set to the right communication

speed, or baud rate. Some versions of KERMIT have a built-

SET BAUD command, others require that you set the baud rate

using a system command or setup mode before you start the KER-

MIT program. Use the SHOW command to find out what the cur-

rent baud rate is.

- Make sure that the other communication line parameters, like

parity, bits per character, handshake, and flow control are

set correctly.

You must consult the appropriate manuals for the systems and equipment in question.

If all settings and connections appear to be correct, and communication still does not take place, the fault may be in your modem. Internal modems (i.e. those that plug in to a slot inside the microcomputer chassis) are not recommended for use with KERMIT. Many microcomputer

KERMIT programs are written to control the communication hardware ex- plicitly; internal modems can interfere with that control.

KERMIT normally expects to have full control of the communication port.

However, it is sometimes the case that some communications equipment controls the line between the two computers on either end. Examples in- clude modems (particularly "smart" modems), port contention or selection units, multiplexers, local networks, and wide-area networks. Such equi- pment can interfere with the KERMIT file transfer protocol in various ways:

- It can impose parity upon the communication line. This means

that the 8th bit of each character is used by the equipment to

check for correct transmission. Use of parity will:

* Cause packet checksums to appear incorrect to the

receiver and foil any attempt at file transfer. In most

When Things Go Wrong Page 21

cases, not even the first packet will get through.

* Prevent the use of the 8th bit for binary file data.

If terminal connection works but file transfer does not,

parity is the most likely culprit. To overcome this impedi-

ment, you should find out what parity is being used, and in-

form the KERMITs on each side (using the SET PARITY command)

so that they can:

* Compose and interpret the checksums correctly.

* Employ a special encoding to allow 8-bit data to pass

through the 7-bit communication channel.

Many packet-switched networks, such as GTE TELENET, require

10

parity to be set.

- Communications equipment can also interpret certain characters

in the data stream as commands rather than passing them along

to the other side. For instance, you might find your "smart"

modem suddenly disconnecting you and placing a call to Tas-

mania. The only way to work around such problems is to put

the device into "transparent" or "binary" mode. Most com-

munication devices have a way to do this; consult the ap-

propriate manual. In some cases, transparent mode will also

cancel the parity processing and allow the use of the 8th bit

for data.

3.2. The Transfer is Stuck

There are various ways in which Kermit file transfers can become stuck, but since many hosts are capable of generating timeout interrupts when input doesn't appear quickly enough, they can usually resend or "NAK"

(negatively acknowledge) lost packets. Nevertheless, if a transfer seems to be stuck, you can type RETURN on the keyboard of most micros to simulate a timeout.

An interesting exception is the IBM mainframe (VM/CMS) Kermit -- it can- not time out its "virtual console" (i.e. the user's terminal), so when using Kermit from a micro to an IBM host, occasional manual wakeups may be necessary.

The following sections discuss various reasons why a transfer in progress could become stuck. Before examining these, first make sure that you really have a Kermit on the other end of the line, and you have issued the appropriate command: SEND, RECEIVE, or SERVER. If the remote side is not a server, remember that you must connect back between each transfer and issue a new SEND or RECEIVE command.

_______________

10

TELENET uses MARK parity.

When Things Go Wrong Page 22

3.3. The Micro is Hung

The micro itself sometimes becomes hung for reasons beyond Kermit's con- trol, such as power fluctuations. If the micro's screen has not been updated for a long time, then the micro may be hung. Try these steps

(in the following order):

- Check the connection. Make sure no connectors have wiggled

loose from their sockets. If you're using a modem, make sure

you still have a carrier signal. Reestablish your connection

if you have to.

- Press RETURN to wake the micro up. This should clear up any

protocol deadlock. Several RETURNs might be necessary.

- If the problem was not a deadlock, restart the micro and then

restart Kermit, CONNECT back to the host, get back to your job

or login again, and restart the transfer. You may have to

stop and restart Kermit on the remote host.

3.4. The Remote Host Went Away

If your local system is working but the transfer is hung, maybe the remote host or the remote KERMIT program crashed. Get back to command level on the local KERMIT (on microcomputer implementations, you may be able to do this by typing about five RETURNs, or one or more

Control-C's). Issue the CONNECT command so that you can see what hap- pened. If the remote system has crashed then you will have to wait for it to come back, and restart whatever file that was being transferred at the time.

3.5. The Disk is Full

If your local floppy disk or remote directory fills up, the Kermit on the machine where this occurs will inform you and then terminate the transfer. You can continue the transfer by repeating the whole proce- dure either with a fresh floppy or after cleaning up your directory.

Some KERMIT programs allow you to continue the sequence where it left off, for instance on the DEC-20 by using the SEND command and including the name of the file that failed in the "(INITIAL)" field:

Kermit-20>send *.for (initial) foo.for

See the Kermit-20 command summary for further information about the in- itial filespec.

When Things Go Wrong Page 23

3.6. Message Interference

You may find that file transfers fail occasionally and upredictably.

One explanation could be that terminal messages are being mixed with your file packet data. These could include system broadcast messages

(like "System is going down in 30 minutes"), messages from other users

("Hi Fred, what's that KERMIT program you're always running?"), notifications that you have requested ("It's 7:30, go home!" or "You have mail from..."). Most KERMIT programs attempt to disable intrusive messages automatically, but not all can be guaranteed to do so. It may be necessary for you to "turn off" such messages before starting KERMIT.

3.7. Host Errors

Various error conditions can occur on the remote host that could effect file transmission. Whenever any such error occurs, the remote Kermit normally attempts to send an informative error message to the local one, and then breaks transmission, putting you back at Kermit command level on the local system.

3.8. File is Garbage

There are certain conditions under which Kermit can believe it trans- ferred a file correctly when in fact, it did not. The most likely cause has to do with the tricky business of file attributes, such as text vs binary, 7-bit vs 8-bit, blocked vs stream, and so forth. Each system has its own peculiarities, and each KERMIT has special commands to allow you to specify how a file should be sent or stored. However, these dif- ficulties usually crop up only when sending binary files. Textual files should normally present no problem between any two KERMIT programs.

3.9. Junk after End of File

When transferring a text file from a microcomputer to a mainframe, some- times you will find extraneous characters at the end of the file after it arrives on the target system. This is because many microcomputers don't have a consistent way of indicating the end of a file. CP/M is a good example. The minimum unit of storage on a CP/M floppy is a "block" of 128 bytes. Binary files always consist of a whole number of blocks, but a text file can end anywhere within a block. Since CP/M does not record a file's byte count, it uses the convention of marking the end with an imbedded Control-Z character. If your microcomputer version of

KERMIT is not looking for this character, it will send the entire last block, which may contain arbitrary junk after the "real" end of the file. To circumvent this problem, most microcomputer KERMITs have com- mands like SET FILE ASCII or SET FILE TEXT to instruct KERMIT to obey the CTRL-Z convention. Some microcomputer KERMITs operate in "text" mode by default, others in "binary" or "block" mode.

KERMIT Commands Page 24

4. KERMIT Commands

An "ideal" KERMIT program will be described here, which has most of the features specified in the KERMIT Protocol Manual. No KERMIT program will have all these commands or support all these options. The exact form of some of the commands may differ from version to version. Some

KERMIT programs may support system-dependent options not described here.

The intention of this description is to provide a base from which specific KERMIT programs can be described in terms of their differences from the "ideal."

4.1. Remote and Local Operation

Some KERMIT programs can be run in two ways, remote and local. A remote

Kermit is usually running on a mainframe, which you have CONNECTed to through a PC or other computer. When KERMIT runs remotely, all file transfer is done over the job's controlling terminal line -- the same line over which you logged in, and to which you would type interactive commands. What the system thinks is your terminal is really another computer, usually a microcomputer, running its own copy of Kermit.

When KERMIT is in "local mode", file transfer is done over an external device, such as a microcomputer's serial communication port, or an as- signed terminal line on a mainframe. The local Kermit is connected in some way (like a dialout mechanism) to another computer, again running its own copy of Kermit. A local Kermit is in control of the screen, a remote Kermit has no direct access to it. Microcomputer KERMITs usually run in local "mode", whereas mainframe Kermits usually need to be given some special command to run in local mode. Some commands make sense only for remote Kermits, others only for local, still others can be used with either. Local and remote operation of KERMIT is shown schemati- cally here:

PC is Local, Mainframe is Remote:

KERMIT Commands Page 25

Communication

Line (Packets)

+---------------/ /-----------------+ Other terminals

| | | | |

| | | | |

PC | LOCAL Mainframe | | | | REMOTE

+----------+----------+ +------------+--+--+--+--------+

| Serial Port | | | |

| | | | |

| | | | |

| +---------------+ | | Your job's |

| | Packets: 724 | | | terminal line |

| | Retries: 7 | | | |

| | File: FOO.BAR | | | |

| +---------------+ | | |

| Screen | | |

| | | |

+---------------+-----+ +------------------------------+

|

| (Commands)

|

+------------+---------+

\ Keyboard \

+----------------------+

You

The KERMIT program on the PC is a local Kermit. It can control the screen, the keyboard, and the port separately, thus it can update the screen with status information, watch for interrupt signals from the keyboard, and transfer packets on the communications port, all at the same time.

The KERMIT program running on the mainframe is a remote Kermit. The user logs in to the mainframe through a terminal port. The host com- puter cannot tell that the user is really coming in through a microcom- puter. The keyboard, screen, and port functions are all combined in user's mainframe terminal line. Therefore a remote Kermit is cut off from your screen and keyboard during file transfer.

A KERMIT server is always remote, and must get its commands from a local

KERMIT. The following descriptions will indicate when a command must be remote or local.

4.2. Command Interface

Most implementations (the UNIX version is the major exception) have an interactive keyword-style command interface, modeled after that of the

DECSYSTEM-20, which is roughly as follows: In response to the

"Kermit-xx>" prompt you may type a keyword, such as SEND, RECEIVE, or

EXIT, possibly followed by additional keywords or operands, each of which is called a field. You can abbreviate keywords (but not file names) to any length that makes them distinguishable from any other

KERMIT Commands Page 26 keyword valid for that field. You can type a question mark at any time to get information about what's expected or valid at that point. The

ESC and "?" features work best on full duplex systems (all but the IBM mainframe, so far), where the program can "wake up" immediately and per- form the required function. On half duplex or record-oriented systems, the ESC feature is not available, and the "?" requires a carriage return to follow.

In this example, the user types "set" and then a question mark to find out what the SET options are. The user then continues the command at the point where the question mark was typed, adding a "d" and another question mark to see what set options start with "d". The user then adds a "u" to select "duplex" (the only SET option that starts with

"du") followed by an ESC (shown here by a dollar sign) to complete the current field and issue the guide word "(to)" for the next one, then another question mark to see what the possibilities are, and so forth.

The command is finally terminated by a carriage return. Before carriage return is typed, however, the command can be edited using RUBOUT or other command editing keys. Finally, the same command is entered again with a minimum of keystrokes, with each field abbreviated to its shortest unique length. In the example, the parts the user types are underlined; all the rest is system typeout:

Kermit-20>set ? one of the following:

debugging delay duplex escape

file handshake IBM line

parity receive send

Kermit-20>set d? one of the following:

debugging delay duplex

Kermit-20>set du$plex (to) ? one of the following:

full half

Kermit-20>set duplex (to) h$alf

Kermit-20>set du h

4.3. Notation

In the command descriptions, the following notation is used: anything A parameter - the symbol in italics is replaced by an ar-

gument of the specified type (number, filename, etc).

[anything] An optional field. If omitted, it defaults to an ap-

propriate value. number A whole number, entered in prevailing notation of the sys-

tem. character A single character, entered literally, or as a number

(perhaps octal or hexadecimal) representing the ASCII value

of the character. floating-point-number

A "real" number, possibly containing a decimal point and a

fractional part.

KERMIT Commands Page 27 filespec A file specification, i.e. the name of a file, possibly in-

cluding a search path, device or directory name, or other

qualifying information, and possibly containing "wildcard"

or pattern-matching characters to denote a group of files.

^X A control character may be written using "uparrow" or

"caret" notation, since many systems display control charac-

ters this way. Control characters are produced by holding

down the key marked CTRL or Control and typing the ap-

propriate character, e.g. X.

Commands are shown in upper case, but can be entered in any combination of upper and lower case.

KERMIT Commands Page 28

4.4. Summary of KERMIT Commands

Here is a brief list of KERMIT commands as they are to be found in most

KERMIT programs. The following sections will describe these commands in detail.

For exchanging files:

SEND, RECEIVE, GET

For connecting to a remote host:

CONNECT, SET LINE, SET PARITY, SET DUPLEX, SET HANDSHAKE, SET ES-

CAPE, SET FLOW-CONTROL

For acting as a server:

SERVER

For talking to a server:

BYE, FINISH, GET, SEND, REMOTE

Setting nonstandard transmission and file parameters:

SET BLOCK-CHECK, SET DEBUG, SET DELAY, SET FILE, SET INCOMPLETE, SET

PARITY, SET RETRY;

SET SEND (or RECEIVE) END-OF-LINE, START-OF-PACKET, PACKET-LENGTH,

PAUSE, TIMEOUT, PADDING

For defining "macros" of SET commands:

DEFINE

For interrupting transmission:

Control-X, Control-Z, Control-C, Control-E

Getting information:

HELP, STATISTICS, SHOW

Executing command files:

TAKE

For recording the history of a file transfer operation:

LOG TRANSACTIONS

For non-protocol file capture or transmission:

LOG SESSION, TRANSMIT

For closing log files:

CLOSE

Leaving the program:

EXIT, QUIT

If you have a file called KERMIT.INI in your default or home disk, KER-

MIT will execute an automatic TAKE command on it upon initial startup.

KERMIT.INI may contain any KERMIT commands, for instance SET commands, or DEFINEs for SET macros to configure KERMIT to various systems or com- munications media. Note: Your particular implementation of KERMIT may use a different name for this file.

KERMIT Commands Page 29

4.5. The SEND Command

Syntax:

Sending a single file:

SEND nonwild-filespec1 [filespec2]

Sending multiple files:

SEND wild-filespec1 [filespec2]

The SEND command causes a file or file group to be sent to the other system. There are two forms of the command, depending on whether filespec1 contains "wildcard" characters. Use of wildcard characters is the most common method of indicating a group of files in a single file specification. For instance if FOO.FOR is a single file, a FORTRAN program named FOO, then *.FOR might be a group of FORTRAN programs.

Sending a File Group

If filespec1 contains wildcard characters then all matching files will be sent, in directory-listing order (according to the ASCII collating sequence) by name. If a file can't be opened for read access, it will be skipped. The initial file in a wildcard group can be specified with the optional filespec2. This allows a previously interrupted wildcard transfer to continue from where it left off, or it can be used to skip some files that would be transmitted first.

Sending a Single File

If filespec1 does not contain any wildcard characters, then the single file specified by filespec1 will be sent. Optionally, filespec2 may be used to specify the name under which the file will arrive at the target system; filespec2 is not parsed or validated locally in any way. If filespec2 is not specified, the file will be sent with its own name.

SEND Command General Operation

Files will be sent with their filename and filetype (for instance

FOO.BAR, no device or directory field, no generation number or attributes). If communication line parity is being used (see SET

PARITY), the sending KERMIT will request that the other KERMIT accept a special kind of prefix notation for binary files. This is an advanced feature, and not all KERMITs have it; if the other KERMIT does not agree to use this feature, binary files cannot be sent correctly.

The sending KERMIT will also ask the other KERMIT whether it can handle

a special prefix encoding for repeated characters. If it can, then files with long strings of repeated characters will be transmitted very efficiently. Columnar data, highly indented text, and binary files are the major beneficiaries of this technique.

KERMIT Commands Page 30

SEND Remote Operation

If you are running KERMIT remotely (for instance, from a microcomputer), you should "escape back" to your local Kermit within a reasonable amount of time and give the RECEIVE command. Don't take more than a minute or two to complete the switch, or KERMIT may "time out" and give up (in that case, you'll have to CONNECT back to the remote system and reissue the SEND command).

SEND Local Operation

If you're running KERMIT locally, for instance on a microcomputer, you should have already run KERMIT on the remote system and issued either a

RECEIVE or a SERVER command.

Once you give KERMIT the SEND command, the name of each file will be printed on your screen as the transfer begins, and information will be displayed to indicate the packet traffic. When the specified operation is complete, the program will sound a beep, and the status of the opera- tion will be indicated by a message like OK, Complete, Interrupted, or

Failed.

If you see many packet retry indications, you are probably suffering from a noisy connection. You may be able to cut down on the retransmis- sions by using SET SEND PACKET-LENGTH to decrease the packet length; this will reduce the probability that a given packet will be corrupted by noise, and reduce the time required to retransmit a corrupted packet.

If you notice a file being sent which you do not really want to send, you may cancel the operation immediately by typing either Control-X or

Control-Z. If your are sending a file group, Control-X will cause the current file to be skipped, and KERMIT will go on to the next file, whereas Control-Z will cancel sending the entire group and return you to

KERMIT-20 command level.

4.6. The RECEIVE Command

Syntax: RECEIVE [filespec]

The RECEIVE command tells KERMIT to wait for the arrival a file or file group sent by a SEND command from the other system. If only one file is being received, you may include the optional filespec as the name to store the incoming file under; otherwise, the name is taken from the in- coming file header. If the name in the header is not a legal file name on the local system, KERMIT will attempt to transform it to a legal name.

If an incoming file has the same name as an existing file, KERMIT will either overwrite the old file or else try to create a new unique name,

depending on the setting of FILE WARNING.

If you have SET PARITY, then 8th-bit prefixing will be requested. If the other side cannot do this, binary files cannot be transferred cor- rectly. The sending KERMIT may also request that repeated characters be

KERMIT Commands Page 31 compressed.

If an incoming file does not arrive in its entirety, KERMIT will nor- mally discard it; it will not appear in your directory. You may change this behavior by using the command SET INCOMPLETE KEEP, which will cause as much of the file as arrived to be saved in your directory.

RECEIVE Remote Operation

If your are running KERMIT remotely, you should escape back to your local Kermit and give the SEND command. You should do this within about two minutes, or KERMIT may time out and give up; if this happens, you can CONNECT back to the remote system and reissue the RECEIVE command.

RECEIVE Local Operation

If you are running KERMIT locally, you should already have issued a SEND

11 command to the remote KERMIT, and then escaped back to DEC-20 Kermit.

As files arrive, their names will be shown on your screen, along with a continuous display the packet traffic.

If a file begins to arrives that you don't really want, you can attempt to cancel it by typing Control-X; this sends a cancellation request to the remote Kermit. If the remote Kermit understands this request (not all implementations of Kermit support this feature), it will comply; otherwise it will continue to send. If a file group is being sent, you can request the entire group be cancelled by typing Control-Z.

4.7. GET

LOCAL ONLY -- Syntax: GET [remote-filespec]

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. Note the distinction between the

RECEIVE and GET commands: RECEIVE puts KERMIT into a passive wait state, whereas GET actively sends a command to a server.

The GET command can be used only when KERMIT is local, with a KERMIT server on the other end of the line. This means that you must have CON-

NECTed to the other system, logged in, run KERMIT there, issued the

SERVER command, and escaped back to the local KERMIT.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally. As files arrive, their names will be displayed on your screen, along with a con-

_______________

11

not SERVER -- use the GET command to receive files from a KERMIT server.

KERMIT Commands Page 32 tinuous indication of the packet traffic. As in the RECEIVE command, you may type Control-X to request that the current incoming file be can- celled, Control-Z to request that the entire incoming batch be can- celled.

If the remote KERMIT is not capable of server functions, then you will probably get an error message back from it like "Illegal packet type".

In this case, you must connect to the other Kermit, give a SEND command, escape back, and give a RECEIVE command.

Optional Syntax: If you are requesting a single file, you may type the

GET command without a filespec. In that case, Kermit programs that implement the optional GET syntax will prompt you for the remote filespec on the subsequent line, and the name to store it under when it arrives on the line after that:

Kermit-MS>get

Remote Source File: aux.txt

Local Destination File: auxfile.txt

4.8. SERVER

REMOTE ONLY -- Syntax: SERVER

The SERVER command instructs KERMIT to cease taking commands from the keyboard and to receive all further instructions in the form of KERMIT packets from another system. A KERMIT server must be remote; that is, you must be logged in to the system through another computer, such as a microcomputer. In addition, your local KERMIT should have commands for communicating with remote servers; these include GET, FINISH, and BYE.

After issuing this command, escape back to your local system and issue

SEND, GET, BYE, FINISH, or other server-oriented commands from there.

If your local KERMIT does not have a BYE command, then it does not have the full ability to communicate with a KERMIT server and you should not put the remote KERMIT into SERVER mode. If your local KERMIT does have a BYE command, use it to shut down and log out the KERMIT server when you are done with it.

Any nonstandard parameters should be selected with SET commands before putting KERMIT in server mode, in particular the block check type and special file modes.

4.9. BYE

LOCAL ONLY -- Syntax: BYE

When running as a local Kermit talking to a KERMIT server, use the BYE command to shut down and log out the server. This will also close any

debugging log files and exit from the local KERMIT.

KERMIT Commands Page 33

4.10. FINISH

LOCAL ONLY -- Syntax: FINISH

When running as a local Kermit talking to a remote KERMIT server use the

FINISH command to shut down the server without logging out the remote job, so that you can CONNECT back to it. Also, close any local debug- ging log file.

4.11. REMOTE

LOCAL ONLY -- Syntax: REMOTE command

When running in local mode, talking to a remote KERMIT server send the specified command to the remote server. If the server does not under- stand the command (all of these commands are optional features of the

KERMIT protocol), it will reply with a message like "Unknown KERMIT server command". If does understand, it will send the results back, and they will be displayed on the screen. The REMOTE commands are:

CWD [directory] Change Working Directory. If no directory name is

provided, the server will change to the default direc-

tory. Otherwise, you will be prompted for a password,

and the server will attempt to change to the specified

directory. If access is not granted, the server will

provide a message to that effect.

DELETE filespec Delete the specified file or files. The names of the

files that are deleted will appear on your screen.

DIRECTORY [filespec]

The names of the files that match the given file

specification will be displayed on your screen. If no

file specification is given, all files from the current

directory will be listed.

DISK [directory]

Provide information about disk usage in the current

directory, such as the quota, the current storage, the

amount of remaining free space.

HELP Provide a list of the functions that are available.

HOST [command] Pass the given command to the server's host command

processor, and display the resulting output on your

screen.

KERMIT [command]

Pass the given command, which is expressed in the server

KERMIT's own interactive-mode command syntax, to the

server for execution. This is useful for changing set-

tings, logging, and other functions.

RUN program-name [command-line-argument]

Have the remote KERMIT run the indicated program with

KERMIT Commands Page 34

the indicated command line; send the results back to

your screen.

PROGRAM [command]

Send the command to the program started by most recent

REMOTE RUN program, and display the results on the

screen. If no command is given, send newline character.

TYPE filespec Display the contents of the specified file on your

screen.

4.12. LOCAL

Syntax: LOCAL command

Execute the specified command on the local system -- on the system where

KERMIT to which your are typing this command is running. These commands provide some local file management capability without having to leave the KERMIT program, which is particularly useful on microcomputers.

CWD [directory] "Change Working Directory" to the specified directory.

DELETE filespec Delete the specified file or files.

DIRECTORY [filespec] Provide a directory listing of the specified files.

Some KERMIT programs may provide commands for these or other functions in the syntax of their own system, when this would cause no confusion.

For instance, CP/M KERMIT may use ERA in place of LOCAL DELETE.

4.13. CONNECT

LOCAL ONLY -- Syntax: CONNECT [terminal-designator]

Establish a terminal connection to the system at the other end of the communication line. On a microcomputer, this is normally the serial port. On a mainframe, you will have to specify a terminal line number or other identifier, either in the CONNECT command itself, or in a SET

LINE command. Get back to the local KERMIT by typing the escape charac- ter followed by a single character "command". Several single-character commands are possible:

C Close the connection and return to the local KERMIT.

S Show status of the connection.

B Send a BREAK signal.

0 (zero) Send a NUL (0) character.

P Push to the local system command processor without breaking the

connection.

Q Quit logging session transcript.

R Resume logging session transcript.

? List all the possible single-character arguments.

^] (or whatever you have set the escape character to be)

Typing the escape character twice sends one copy of it to the con-

nected host.

KERMIT Commands Page 35

You can use the SET ESCAPE command to define a different escape charac- ter, and SET PARITY, SET DUPLEX, SET FLOW-CONTROL, SET HANDSHAKE to es- tablish or change those parameters.

4.14. HELP

Syntax: HELP

Typing HELP alone prints a brief summary of KERMIT and its commands, and possibly instructions for obtaining more detailed help on particular topics. Most KERMIT implementations also allow the use of "?" within a command to produce a short help message.

4.15. TAKE

TAKE filespec

Execute KERMIT commands from the specified file. The file may contain contain any valid KERMIT commands, including other TAKE commands.

4.16. EXIT, QUIT

EXIT

Exit from KERMIT.

QUIT is a synonym for EXIT.

4.17. The SET Command

Syntax: SET parameter [option] [value]

Establish or modify various parameters for file transfer or terminal connection.

When a file transfer operation begins, the two KERMITs automatically ex- change special initialization messages, in which each program provides the other with certain information about itself. This information in- cludes the maximum packet size it wants to receive, the timeout interval it wants the other KERMIT to use, the number and type of padding charac- ters it needs, the end-of-line character it needs to terminate each packet (if any), the block check type, the desired prefixes for control characters, characters with the "high bit" set, and repeated characters.

Each KERMIT program has its own preset "default" values for these parameters, and you normally need not concern yourself with them. You can examine their values with the SHOW command; the SET command is provided to allow you to change them in order to adapt to unusual con-

ditions.

The following parameters may be SET:

BAUD-RATE Set the speed of the current communications port

KERMIT Commands Page 36

BLOCK-CHECK Packet transmission error detection method

DEBUGGING Mode or log file

DELAY How long to wait before starting to send

DUPLEX For terminal connection, full (remote echo) or half

(local echo)

ESCAPE Character for terminal connection

FILE For setting file parameters like name conversion and

byte size

FLOW-CONTROL Selecting flow control method, like XON/XOFF

HANDSHAKE For turning around half duplex communication line

IBM Set things up for communicating with an IBM mainframe

INCOMPLETE What to do with an incomplete file

LINE Terminal line to use for terminal connection or file

transfer

PARITY Character parity to use

PORT For switching communication ports

PROMPT For changing the program's command prompt

RECEIVE Various parameters for receiving files

RETRY How many times to retry a packet before giving up

SEND Various parameters for sending files

The DEFINE command may be used to compose "macros" by combining SET com- mands. The SET commands are now described in detail.

SET BAUD-RATE

Set or change the baud rate (approximate translation: transmission speed in bits per second) on the currently selected communications device.

The way of specifying the baud rate varies from system to system; in most cases, the actual number (such as 1200 or 9600) is typed. Systems that do not provide this command generally expect that the speed of the line has already been set appropriately outside of KERMIT.

SET BLOCK-CHECK

KERMIT normally uses a 1-character block check, or "checksum", on each packet. The sender of the packet computes the block check based on the other characters in the packet, and the receiver recomputes it the same way. If these quantities agree, the packet is accepted and the trans- mission proceeds. If they disagree, the packet is rejected and trans- mitted again.

However, the block check is not a foolproof method of error detection.

The normal single-character KERMIT block check is only a 6-bit quantity

(the low order 8 bits of the arithmetic sum folded upon itself). With

6 only six bits of accuracy, the chances are one in 2 -- that is, 1/64

-- that an error can occur which will not be detected in the checksum, assuming that all errors are equally likely.

You can decrease the probability that an error can slip through, at the expense of transmission efficiency, by using the SET BLOCK-CHECK command to select more rigorous block check methods. Note that all three methods will detect any single-bit error, or any error in an odd number

KERMIT Commands Page 37 of bits. The options are:

1-CHARACTER-CHECKSUM:

The normal single-character 6-bit checksum.

2-CHARACTER-CHECKSUM:

A 2-character, 12-bit checksum. Reduces the probability

of an error going undetected to 1/4096, but adds an ex-

tra character to each packet.

3-CHARACTER-CRC:

A 3-character, 16-bit Cyclic Redundancy Check, CCITT

format. In addition to errors in any odd number of

bits, this method detects double bit errors, all error

bursts of length 16 or less, and more than 99.99% of all

possible longer bursts. Adds two extra characters to

each packet.

The single character checksum has proven to be quite adequate in prac- tice, much more effective than straightforward analysis would indicate, since all errors are not equally likely, and a simple checksum is well suited to catching the kinds of errors that are typical of telecom- munication lines. The other methods should be requested only when the connection is very noisy.

Note that the 2- and 3-character block checks are not available in all versions of KERMIT; if the other KERMIT is not capable of performing the higher-precision block checks, the transfer will automatically use the standard single-character method.

SET DEBUG

Syntax: SET DEBUG options

Record the packet traffic, either on your terminal or in a file. Op- tions are:

STATES Show Kermit state transitions and packet numbers

(brief).

PACKETS Display each incoming and outgoing packet (lengthy).

LOG-FILE Log the selected information (STATES or PACKETS) to the

specified file. If log file not specified, then use the

terminal if local.

OFF Don't display debugging information (this is the

default). If debugging was in effect, turn it off and

close any log file.

KERMIT Commands Page 38

SET DELAY

Syntax: SET DELAY number

Specify how many seconds to wait before sending the first packet after a

SEND command. Use when remote and SENDing files back to your local Ker- mit. This gives you time to "escape" back and issue a RECEIVE command.

The normal delay is 5 seconds. In local mode or server mode, KERMIT does not delay before sending the first packet.

SET DUPLEX

Syntax: SET DUPLEX keyword

For use when CONNECTed to a remote system. The keyword choices are FULL and HALF. FULL means the remote system echoes the characters you type,

HALF means the local system echoes them. FULL is the default, and is used by most hosts. HALF is necessary when connecting to IBM mainframes. Half duplex is also called "local echo".

SET ESCAPE

Syntax: SET ESCAPE character

Specify or change the character you want to use to "escape" from remote connections back to KERMIT. This would normally be a character you don't expect to be using on the remote system, perhaps a control charac- ter like ^\, ^], ^^, or ^_. Most versions of KERMIT use one of these by default. After you type the escape character, you must follow it by a single-character "argument", such as "C" for Close Connection. The ar- guments are listed above, under the description of the CONNECT command.

SET FILE

Syntax: SET FILE parameter keyword

Establish file-related parameters. Depending on the characteristics of the system, it may be necessary to tell KERMIT how to fetch an outbound file from the disk, or how to store an incoming file. The actual parameters you can specify in this command will vary from system to sys- tem, and you should consult the documentation for your particular ver- sion of KERMIT. Some examples would be byte size (PDP-10 architecture), record length or block size (record oriented systems), end-of-file detection method (on microcomputers).

This can be a very important command if you intend to transfer binary files, but is normally unecessary for transmitting textual files.

KERMIT Commands Page 39

SET FLOW-CONTROL

Syntax: SET FLOW-CONTROL option

For communicating with full duplex systems. System-level flow control is not necessary to the KERMIT protocol, but it can help to use it if the same method is available on both systems. The most common type of flow control on full duplex systems is XON/XOFF.

SET HANDSHAKE

Syntax: SET HANDSHAKE option

For communicating with half duplex systems. This lets you specify the line turnaround character sent by the half duplex host to indicate it has ended its transmission and is granting you permission to transmit.

When a handshake is set, KERMIT will not send a packet until the half duplex host has sent the specified character (or a timeout has occurred). The options may include:

NONE No handshake; undo the effect of any previous SET HANDSHAKE.

XOFF Control-S.

XON Control-Q.

BELL Control-G.

CR Carriage Return, Control-M.

LF Linefeed, Control-J.

ESC Escape, Control-[.

SET INCOMPLETE

Syntax: SET INCOMPLETE option

Specify what to do when a file transfer fails before it is completed.

The options are DISCARD (the default) and KEEP. If you choose KEEP, then if a transfer fails to complete successfully, you will be able to keep the incomplete part that was received.

SET LINE

Syntax: SET LINE [terminal-designator]

Specify the terminal line to use for file transfer or CONNECT. This command is found on mainframe KERMITs, which normally run in "remote mode" using their own controlling terminal for file transfer. Specify- ing a separate line puts the program in "local mode." If no line is specified, revert to the job's controlling terminal, i.e. go back to

"remote mode."

KERMIT Commands Page 40

SET PORT

Syntax: SET PORT terminal-designator

Specify the communications port for file transfer or CONNECT. This com- mand is found on microcomputer KERMITs that run in "local" mode. SET

PORT does not change the remote/local status but simply selects a dif- ferent port for local operation.

SET PARITY

Syntax: SET PARITY keyword

Parity is a technique used by communications equipment for detecting er- rors on a per-character basis; the "8th bit" of each character acts as a check bit for the other seven bits. KERMIT uses block checks to detect errors on a per-packet basis, and it does not use character parity.

However, some systems that KERMIT runs on, or equipment through which these systems communicate, may be using character parity. If KERMIT does not know about this, arriving data will have been modified and the block check will appear to be wrong, and packets will be rejected.

If parity is being used on the communication line, you must inform both

KERMITs, so the desired parity can be added to outgoing characters, and stripped from incoming ones. SET PARITY should be used for communicat- ing with hosts that require character parity (IBM mainframes are typical examples) or through devices or networks (like GTE TELENET) that add parity to characters that pass through them. Both KERMITs should be set to the same parity. The specified parity is used both for terminal con- nection (CONNECT) and file transfer (SEND, RECEIVE, GET).

The choices for SET PARITY are:

NONE (the default) eight data bits and no parity bit.

MARK seven data bits with the parity bit set to one.

SPACE seven data bits with the parity bit set to zero.

EVEN seven data bits with the parity bit set to make the overall

parity even.

ODD seven data bits with the parity bit set to make the overall

parity odd.

NONE means no parity processing is done, and the 8th bit of each charac- ter can be used for data when transmitting binary files.

If you have set parity to ODD, EVEN, MARK, or SPACE, then advanced ver- sions of KERMIT will request that binary files will be transferred using

8th-bit-prefixing. If the KERMIT on the other side knows how to do

8th-bit-prefixing (this is an optional feature of the KERMIT protocol, and not all implementations of KERMIT have it), then binary files can be transmitted successfully. If NONE is specified, 8th-bit-prefixing will

not be requested.

KERMIT Commands Page 41

SET PROMPT

This allows you to change the program's prompt. This is particularly useful if you are using KERMIT to transfer files between two systems of the same kind, in which case you can change the prompts of the KERMIT programs involved to include appropriate distinguishing information.

SET SEND

SET SEND parameter

Parameters for outgoing packets, as follows:

END-OF-LINE character

The ASCII character to be used as a line terminator for packets,

if one is required by the other system, carriage return by

default. You will only have to use this command for systems

that require a line terminator other than carriage return.

PACKET-LENGTH number

Maximum packet length to send between 10 and 94 (decimal).

Shortening the packets might allow more of them to get through

through without error on noisy communication lines. Lengthening

the packets increases the throughput on clean lines.

TIMEOUT number

How many seconds to wait for a packet before trying again.

PAUSE floating-point-number

How many seconds to pause before sending each data packet. Set-

ting this to a nonzero value may allow some slow systems enough

time to consolidate itself packet before the next packet ar-

rives. Normally, no per-packet pausing is done.

PADDING number, PADCHAR character

How much padding to send before a packet, if the other side

needs padding, and what character to use for padding. Defaults

are no padding, and NUL (0) for the padding character.

QUOTE character

What printable character to use for quoting of control charac-

ters, "#" (43) by default. There should be no reason to change

this.

START-OF-PACKET character

The start-of-packet character is the only control character used

"bare" by the KERMIT protocol. It is Control-A by default. If

a bare Control-A causes problems for your communication hardware

or software, you can use this command to select a different con-

trol character to mark the start of a packet. You must also

issue the reciprocal command (SET RECEIVE START-OF-PACKET) to

the KERMIT on the other system (providing it has such a

command).

KERMIT Commands Page 42

SET RECEIVE

Syntax: SET RECEIVE parameter

Parameters to request or expect for incoming packets, as follows:

END-OF-LINE character

Carriage return (15) by default.

PACKET-LENGTH number

Maximum length packet for the other side to send, decimal num-

ber, between 10 and 94, decimal.

TIMEOUT number

How many seconds the other Kermit should wait for a packet be-

fore asking for retransmission.

PAUSE floating-point-number

How many seconds to pause before acknowledging a packet. Set-

ting this to a nonzero value will slow down the rate at which

data packets arrive, which may be necessary for systems that

have "sensitive" front ends and cannot accept input at a high

rate.

PADDING number, PADCHAR character

How many padding characters to request before each incoming

packet, and what the padding character should be. No KERMITs

are known to need padding, and if one did, it would request it

without your having to tell it to do so. This command would

only be necessary, therefore, under very unusual circumstances.

QUOTE character

What printable character to use for quoting of control charac-

ters, "#" (43) by default. There should be no reason to change

this.

START-OF-PACKET character

The control character to mark the beginning of incoming packets.

Normally SOH (Control-A, ASCII 1) (see SET SEND START-OF-PACKET,

above).

SET RETRY

SET RETRY option number

Set the maximum number of retries allowed for:

INITIAL-CONNECTION

How many times to try connecting before giving up, normally

something like 15.

PACKETS How many times to try sending a particular packet before giving

up, normally 5. If a line is very noisy, you might want to in-

crease this number.

KERMIT Commands Page 43

4.18. DEFINE

DEFINE macroname [set-parameters]

Define a "SET macro" to allow convenient association of one or more SET parameters with a mnemonic keyword of your choice. The SET parameters are a list of one or more SET options, separated by commas. If you use

KERMIT to communicate with several different kinds of systems, you may set up a macro for each, for instance:

DEFINE IBM PARITY MARK, DUPLEX HALF, HANDSHAKE XON

DEFINE UNIX PARITY NONE, DUPLEX FULL, HANDSHAKE NONE

DEFINE TELENET PARITY MARK, RECEIVE TIMEOUT 20

You may then type SET IBM, SET UNIX, and so forth to set all the desired parameters with a single command. It is convenient to include these definitions in your KERMIT.INI file.

Another other handy use for SET macros would be for rapid adaptation to different conditions of line noise:

DEFINE CLEAN BLOCK-CHECK 1, SEND PACKET-LENGTH 94, RETRY PACKET 5

DEFINE NOISY BLOCK-CHECK 2, SEND PACKET-LENGTH 60, RETRY PACKET 10

DEFINE VERY-NOISY BLOCK 3, SEND PACKET 40, RETRY PACKET 20

You may redefine an existing macro in the same manner as you defined it.

You can undefine an existing macro by typing an empty DEFINE command for it, for instance:

DEFINE IBM

You can list all your macros and their definitions with the SHOW MACROS command.

4.19. SHOW

Syntax: SHOW [option]

The SHOW command displays the values of the parameters settable by the

SET command. If a particular option is not requested, a complete dis- play will be provided.

4.20. STATISTICS

Give statistics about the most recent file transfer, such as the total number of characters transmitted, the effective baud rate, and so forth.

KERMIT Commands Page 44

4.21. LOG

Syntax: LOG [option] [filespec]

Log the specified entity to the specified log file.

TRANSACTIONS Direct KERMIT to log transactions, such as files suc-

cessfully sent or received or files that could not be

successfully sent or received. A transaction is useful

recording the progress of a long, unattended multifile

transfer.

SESSION Create a transcript of a CONNECT session, when running a

local KERMIT connected to a remote system, in the

specified file. The log is closed when connection is

closed. In some implementations, logging can be

"toggled" by typing the connect escape character fol-

lowed by Q (Quit logging) or R (Resume logging) or

similar single-character commands. Session-logging is

useful for recording dialog with an interactive system,

and for "capturing" from systems that don't have KERMIT.

No guarantee can be made that the file will arrive cor-

rectly or completely, since no error checking takes

place.

DEBUGGING Record debugging information in the specified file.

There may be several options to select the desired in-

formation -- entire packets, state transitions, etc

-- available via the SET DEBUGGING command.

4.22. TRANSMIT

Syntax: TRANSMIT filespec

Send the contents of the specified file to the other system "bare", without protocol, packets, error checking, or retransmission. This com- mand is useful for sending standard logon or connection sequences, and for sending files to systems that don't have KERMIT. No guarantee can be made that the target system will receive the file correctly and com- pletely. When receiving a file, the target system would normally be running a text editor in text collection mode.

KERMIT Implementations Page 45

5. KERMIT Implementations

Kermit has been written for a wide variety of systems, both mainframes and microcomputers. Kermit is not written in a portable language; rather, each implemenation is written in the language best suited for the particular machine. The specification, given in the Kermit Protocol

Manual, is quite general and allows implementation on almost any machine.

Here's a brief table summarizing the known Kermit implementations, as of this writing. This list is constantly growing, and may be far out of date by the time you read it.

Machine Operating System Language

DECsystem-10,20 TOPS-10,20 MACRO-10,20

IBM 370 Series VM/CMS, MVS/TSO IBM Assembler

IBM 370 Series MTS Pascal

CDC Cyber 170 NOS Fortran-77

Sperry/Univac-1100 EXEC EXEC Assembler

Honeywell MULTICS PL/I

DEC VAX-11 VMS Bliss-32, Macro-32

DEC PDP-11 RT,RSX,RSTS,MUMPS MACRO-11 & others

DEC Pro-300 Series P/OS Bliss-16, Macro-11

VAX,PDP-11,SUN,etc UNIX C

PRIME PRIMOS PL/P

HP3000, Univac, etc Software Tools Ratfor

HP1000 RTE Fortran

Apollo Aegis Fortran

Terak, HP-98x6, IBM PC UCSD p-System

8080, 8085, or Z80 CP/M-80 ASM

8086, 8088 PC-DOS, MS-DOS MS MASM-86

8086, 8088 CP/M-86 DR ASM86

Apple II 6502 Apple DOS DEC-10/20 CROSS

TRS80 I, III TRSDOS Z80 Assembler

Atari DOS Action!

The 8080 version runs on the DEC VT180, DECmate II (CP/M), Heath/

Zenith-89 and 100, Superbrain, Apple II/Z80, TRS-80 II (CP/M), Osborne,

Kaypro, and others. There are 8086 MS DOS versions for the IBM PC, DEC

Rainbow, Wang PC, Compaq, Heath/Zenith-100, HP-150, Tandy 2000, Victor

9000, and others. The 8086 CP/M-86 version runs on the DEC Rainbow and the NEC APC.

The remainder of the KERMIT User Guide is devoted to descriptions of selected KERMIT implementations. If a description of your version of

KERMIT does not appear, look in the KERMIT area on your mainframe for an on-line documentation file. Even if your version is described below, the version of the manual you are reading may be out of date and the on- line information may be more current.

DECSYSTEM-20 KERMIT Page 46

6. DECSYSTEM-20 KERMIT

Authors: Frank da Cruz, Bill Catchings, Columbia University

Language: MACRO-20

Version: 4.1(236)

Date: July 3, 1984

KERMIT-20 Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: (Uses generation numbers)

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: Yes

Alternate block checks: Yes

Terminal emulation: Yes

Communication settings: Yes

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: Yes

Session logging: Yes

Raw transmit: No

Act as server: Yes

Talk to server: Yes

Advanced commands for servers: Yes

Local file management: Yes

Handle file attributes: No

Command/init files: Yes

KERMIT-20 is a program that implements the KERMIT file transfer protocol for the Digital Equipment Corporation DECSYSTEM-20 mainframe computer.

It is written in MACRO-20 assembly language and should run on any DEC-20 system with version 4 of TOPS-20 or later.

The KERMIT-20 section will describe the things you should know about the

DEC-20 file system in order to make effective use of KERMIT, and then it will describe the special features of the KERMIT-20 program.

6.1. The DEC-20 File System

The features of the DEC-20 file system of greatest interest to KERMIT users are the form of the file specifications, and the distinctions be- tween text and binary files.

DECSYSTEM-20 KERMIT Page 47

DEC-20 File Specifications

DEC-20 file specifications are of the form

DEVICE:<DIRECTORY>NAME.TYPE.GEN;ATTRIBUTES where the DIRECTORY, NAME, and TYPE may each be up to 39 characters in length, GEN is a generation (version number), and various attributes are possible (protection code, account, temporary, etc). Generation and at- tributes are normally omitted. Device and directory, when omitted, default to the user's own (or "connected") disk and directory. Thus

NAME.TYPE is normally sufficient to specify a file, and only this infor- mation is sent along by KERMIT-20 with an outgoing file.

The device, directory, name, and type fields may contain uppercase let- ters, digits, and the special characters "-" (dash), "_" (underscore), and "$" (dollar sign). There are no imbedded or trailing spaces. Other characters may be included by prefixing them (each) with a Control-V.

The fields of the file specification are set off from one another by the punctuation indicated above.

The device field specifies a physical or "logical" device upon which the file is resident. The directory field indicates the area on the device, for instance the area belonging to the owner of the file. KERMIT-20 does not transmit the device or directory fields to the target system, and does not attempt to honor device or directory fields that may appear in incoming file names; for instance, it will not create new direc- tories.

The name is the primary identifier for the file. The type, also called the "extension", is an indicator which, by convention, tells what kind of file we have. For instance FOO.FOR is the source of a Fortran program named FOO; FOO.REL might be the relocatable object module produced by compiling FOO.FOR; FOO.EXE could an executable program produced by LOADing and SAVing FOO.REL, and so forth.

The DEC-20 allows a group of files to be specified in a single file specification by including the special "wildcard" characters, "*" and

"%". A "*" matches any string of characters, including no characters at all; a "%" matches any single character. Here are some examples:

*.FOR All files of type FOR (all Fortran source files) in the con-

nected directory.

FOO.* Files of all types with name FOO.

F*.* All files whose names start with F.

F*X*.* All files whose names start with F and contain at least one X.

%.* All files whose names are exactly one character long.

*.%%%* All files whose types are at least three characters long.

Wildcard notation is used on many computer systems in similar ways, and it is the mechanism most commonly used to instruct KERMIT to send a

DECSYSTEM-20 KERMIT Page 48 group of files.

Text Files and Binary Files

The DEC-20, like most computers, has a file system with its own peculiarities. Like many other systems, the DEC-20 makes a distinction between text files and binary files. Text files are generally those composed only of printing characters (letters, digits, and punctuation) and "carriage control" characters (carriage return, line feed, form feed, tab). Text files are designed to be read by people. Binary files are designed to be read by a computer program, and may have any contents at all. If you use the DEC-20 TYPE command to display a text file on your terminal, the result will be intelligible. If you type a binary file on your terminal, you will probably see mainly gibberish. You can not always tell a text file from a binary file by its name or directory information, though in general files with types like .TXT, .DOC, .HLP are textual (as are "source files" for computer programs like text for- matters and programming language compilers), and files with types like

.EXE, .REL, .BIN are binary.

The DEC-20 has an unusual word size, 36 bits. It differs from most other systems by storing text in 7-bit, rather than 8-bit, bytes. Since text is encoded in the 7-bit ASCII character set, this allows more ef- ficient use of storage. However, the word size is not a multiple of the normal byte size. The DEC-20 therefore stores five 7-bit characters per word, with one bit left over.

It is also possible to store files with other byte sizes. The common layouts of bytes within a word are:

7 Text Files: Five 7-bit bytes per word.

+------+------+------+------+------++

| | | | | ||

+------+------+------+------+------++

0 7 14 21 28 35

Normally, bit 35 is unused and set to zero. However, in EDIT

(or SOS, or OTTO) line-numbered files, bit 35 is set to 1 when

the word contains a line number.

8 "Foreign" binary files: Four 8-bit bytes per word.

+-------+-------+-------+-------+---+

| | | | | |

+-------+-------+-------+-------+---+

0 8 16 24 32 35

Bits 32-35 are unused.

DECSYSTEM-20 KERMIT Page 49

36 "Native" binary files: One 36-bit byte per word.

+-----------------------------------+

| |

+-----------------------------------+

0 35

All bits are used.

The minimum unit of disk allocation on the DEC-20 is a page, 512 36-bit words, or 2560 7-bit characters, or 2048 8-bit bytes. Any file that contains at least one bit of information occupies at least a full page on the disk. The directory information for a file includes the number of pages occupied on the disk, the bytesize of the file, and the number of bytes of that size which are in the file. This information can be seen by using the DEC-20 VDIRECTORY command, for instance

@vdir foo.*

PS:<MY-DIRECTORY>

Name Protection Pages Bytes(Size) Creation

FOO.COM.1;P774242 1 384(8) 27-Dec-83

MAC.1;P774242 1 152(7) 27-Dec-83

.REL.1;P774242 1 39(36) 27-Dec-83

.EXE.1;P774242 2 1024(36) 27-Dec-83

Total of 5 pages in 4 files

In this example, FOO.MAC occupies 1 page, and is composed of 152 7-bit bytes. This file is textual (program source for the MACRO assembler),

152 characters long. Programs which read text files (such as text editors, program compilers, the TYPE command, etc) determine the end of a file from the byte count specified in the directory. KERMIT-20 deter- mines the end of file in the same way, so although FOO.MAC occupies an entire 2560-byte page of storage, only the first 152 characters are transmitted. Binary files, such as FOO.EXE (an executable DEC-20 program), tend to occupy full pages. In this case too, KERMIT-20 uses the byte count to determine the end of file.

Why do you need to know all this? In most cases, you don't. It depends on whether you are using the DEC-20 as your "home base".

Using a Microcomputer to Archive DEC-20 Files

Most computers (other than the DEC-10 and DEC-20) store characters in

8-bit bytes. Let's call any such system an 8-bit-byte system. This discussion applies to all 8-bit-byte systems, including all popular microcomputers, minicomputers like the DEC PDP-11 and VAX, and mainframes like the IBM 370. For simplicity, we'll focus on microcom- puters.

KERMIT can send any "native" DEC-20 sequential file, text or binary, to an 8-bit-byte system and bring it back to the DEC-20 restored to its original form. If you are using a microcomputer to archive your DEC-20 files, you need never concern yourself with details of byte size or file

DECSYSTEM-20 KERMIT Page 50 format. The same holds true between two DEC-20s, or a DEC-10 and a

DEC-20.

There is, however, one special complication of which you should be aware. Certain microcomputer operating systems, notably CP/M, do not have an entirely satisfactory way of indicating the end of file. The file length is recorded in blocks rather than bytes. For text files, the end of file is marked within a block by inserting a Control-Z after the last data character. Binary files, however, might easily contain

Control-Z characters as data. Therefore, in order not to lose data, these systems must transmit binary files in complete blocks. If the bi- nary file is of foreign origin (for instance, from a DEC-20), and it did not happen to fill up the last block when it was transferred to the micro, then when that file is sent back to the system of origin in

"binary mode," junk will appear at the end (if it is sent back in "text mode," it might be truncated by any data byte that happened to cor- respond to Control-Z). For DEC-20 programs in .EXE format, this generally has no effect on the runnability or behavior of the program.

But for other binary files, particularly internal format numerical data or relocatable program object (.REL) files, the junk could have bad ef- fects. Extraneous data at the end of a .REL file will generally cause

LINK to fail to load the file.

Using the DEC-20 to Archive Microcomputer Files

You can use KERMIT to send textual files from a microcomputer or any

8-bit system to the DEC-20 with no special provisions, since KERMIT-20 stores incoming characters in 7-bit bytes as text unless you explicitly instruct it otherwise. But KERMIT-20 has no automatic way of distin-

12 guishing an incoming binary file from an incoming text file. Binary files from 8-bit-byte systems generally contain significant data in the

8th bit, which would be lost if the incoming characters were stored in

7-bit bytes, rendering the file useless when sent back to the original system. Thus if you want to use KERMIT to store foreign 8-bit binary data on the DEC-20, you must tell it to store such files with a bytesize of 8 rather than 7. This can be the source of much confusion and incon- venience. In particular, you cannot use a "wildcard send" command to send a mixture of text and binary files from an 8-bit-byte system to the

DEC-20; rather, you must send all text files with KERMIT-20's file bytesize set to 7, and all 8-bit binary files with the bytesize set to

8.

Once you get the foreign binary file into the DEC-20, stored with the correct bytesize (as FOO.COM is stored in the example above), you need take no special measures to send it back to its system of origin. This is because KERMIT-20 honors the bytesize and byte count from the direc- tory. For instance, if you told KERMIT-20 to SEND FOO.*, every file in the example above would be transmitted in the correct manner, automati- cally.

_______________

12

Unless the incoming file has an "ITS Binary Header"; see below.

DECSYSTEM-20 KERMIT Page 51

Files KERMIT-20 Cannot Handle

The KERMIT protocol can only accommodate transfer of sequential files, files which are a linear sequence of bytes (or words).

Some files on the DEC-20 are not sequential, and cannot be successfully sent or received by KERMIT-20. These include directory files, files with holes (missing pages), ISAM files, and RMS files. These files re- quire external information (kept in the DEC-20's file descriptor block and/or index table) in order to be reconstructed; when sending files,

KERMIT-20 presently transmits only the file name and the contents of the file. External control information (file attributes) are not trans- mitted.

6.2. Program Operation

Kermit-20's prompt is "Kermit-20>". Kermit-20 will accept a single com- mand on the Exec command line, like this:

@

@kermit send foo.bar

the file is sent

@ or you can run the program interactively to issue several commands, like this:

@

@kermit

TOPS-20 KERMIT version 4.1(236)

Kermit-20>send foo.*

files are sent

Kermit-20>statistics

performance statistics are printed

Kermit-20>receive

files are received

Kermit-20>exit

@

During interactive operation, you may use the TOPS-20 help ("?") and

recognition (ESC) features freely while typing commands. A question mark typed at any point in a command displays the options available at that point; typing an ESC character causes the current keyword or filename to be completed (or default value to be supplied), and a "guide word" in parentheses to be typed, prompting you for the next field. If

DECSYSTEM-20 KERMIT Page 52 you have not typed sufficient characters to uniquely specify the keyword or filename (or if there is no default value) then a beep will be sounded and you may continue typing.

Command keywords may be abbreviated to their shortest prefix that sets them apart from any other keyword valid in that field.

If you have a file called KERMIT.INI in your login directory, KERMIT-20 will execute an automatic TAKE command on it upon initial startup.

KERMIT.INI may contain any KERMIT-20 commands, for instance SET com- mands, or DEFINEs for SET macros to configure KERMIT-20 to various sys- tems or communications media.

KERMIT-20 provides most of the commands possible for an "ideal" KERMIT program, as described in the main part of the KERMIT User Guide. The following sections will concentrate on system-dependent aspects of

KERMIT-20.

KERMIT-20 disables terminal links, advice, and system messages in order to minimize interference with data transfer (and restores these to their previous value upon completion of a transfer). However, certain mes- sages cannot be disabled by KERMIT because they are issued by KERMIT's superior controlling process, the TOPS-20 EXEC. These include mail notifications and alerts. Before running KERMIT-20 to transfer files, you should SET NO MAIL-WATCH and SET NO ALERT.

6.3. Remote and Local Operation

KERMIT-20 normally runs in remote mode, with the user sitting at a PC.

But KERMIT-20 can also run in local mode. Local operation of KERMIT-20 is useful if the DEC-20 has an autodialer, or a hardwired connection to another computer. When in local mode, file transfer takes place over an assigned TTY line, and KERMIT-20 is free to update your screen with status information, and to listen to your keyboard for interrupt charac- ters.

Local Operation of KERMIT-20:

DECSYSTEM-20 KERMIT Page 53

DECSYSTEM-20

+---------------------------------------+

| |

| +--------------------+ |

| | Your Job | |

| | | |

| | +------------+ | <--Commands | Your Job's

| | | KERMIT-20 +---+--------------+-----------------O You

| | | | | Display---> | Controlling TTY

| | | | | |

| | | | | |

| | | | | <--Packets | Kermit's

| | | +---+--------------+-----------------> Remote

| | +------------+ | Packets--> | Assigned TTY System

| | | |

| +--------------------+ |

| |

+---------------------------------------+

KERMIT-20 enters local mode when you issue a SET LINE n command, where n is the octal TTY number of any line other than your own controlling ter- minal.

6.4. Conditioning Your Job for Kermit

Kermit-20 does as much as it can to condition your line for file trans- fer. It saves all your terminal and link settings, and restores them after use. However, there are some sources of interference over which

Kermit-20 can have no control. In particular, messages issued by supe- rior or parellel forks could become mingled with Kermit packets and slow things down or stop them entirely. For this reason, before using

Kermit-20 for any extended period, you should:

- Type the Exec commands SET NO MAIL-WATCH and SET NO ALERTS

- Make sure you don't have any print or batch jobs pending that

were submitted with the /NOTIFY option.

After running Kermit, you can restore your mail-watch and alerts.

6.5. KERMIT-20 Commands

This section describes the KERMIT-20 commands, in detail where they dif- fer from the "ideal" KERMIT, briefly where they coincide.

THE SEND COMMAND

Syntax:

Sending a single file:

SEND nonwild-filespec1 (AS) [filespec2]

DECSYSTEM-20 KERMIT Page 54

Sending multiple files:

SEND wild-filespec1 (INITIAL) [filespec2]

The SEND command causes a file or file group to be sent from the DEC-20 to the other system. There are two forms of the command, depending on whether filespec1 contains wildcard characters ("*" or "%"). KERMIT-20 automatically recognizes the two cases and issues the appropriate guide word, (AS) or (INITIAL), depending on the form of filespec1.

Sending a File Group

If filespec1 contains wildcard characters then all matching files will be sent, in alphabetical order (according to the ASCII collating sequence) by name. If a file can't be opened for read access, it will be skipped. The initial file in a wildcard group can be specified with the optional filespec2. This allows a previously interrupted wildcard transfer from where it left off, or it can be used to skip some files that would be transmitted first.

Sending a Single File

If filespec1 does not contain any wildcard characters, then the single file specified by filespec1 will be sent. Optionally, filespec2 may be used to specify the name under which the file will arrive at the target system; filespec2 is not parsed or validated in any way by KERMIT-20, but lower case letters are raised to upper case, and leading

"whitespace" (blanks and tabs) are discarded. If filespec2 is not

13 specified, KERMIT-20 will send the file with its own name.

SEND Command General Operation

Files will be sent with their DEC-20 filename and filetype (for instance

FOO.BAR, no device or directory field, no generation number or attributes). If you expect to be sending files whose names contain characters that would be illegal in filenames on the target system, and you know that the KERMIT on the target system does not have the ability to convert incoming filenames, you can issue the SET FILE NAMING

NORMAL-FORM command to have KERMIT-20 replace suspect characters by X's.

Each file will be sent according to its bytesize and byte count from the directory unless you specify otherwise using SET FILE BYTESIZE, or un- less the file has an "ITS Binary" header. If the bytesize is 8, then four 8-bit bytes will be sent from each DEC-20 36-bit word, and the low order four bits will be skipped. If other than 8, then five 7-bit bytes will be sent from each word, with the 8th bit of the 5th character set

_______________

13

Control-V's, which are used to quote otherwise illegal characters in

DEC-20 file specifications, are stripped.

DECSYSTEM-20 KERMIT Page 55

14 to the value of the remaining bit ("bit 35") from the word.

If communication line parity is being used (see SET PARITY), KERMIT-20 will request that the other KERMIT accept a special kind of prefix nota- tion for binary files. This is an advanced feature, and not all KERMITs have it; if the other KERMIT does not agree to use this feature, binary files cannot be sent correctly. This includes executable programs (like

DEC-20 .EXE files, CP/M .COM files), relocatable object modules (.REL files), as well as text files with line sequence numbers.

KERMIT-20 will also ask the other KERMIT whether it can handle a special prefix encoding for repeated characters. If it can, then files with long strings of repeated characters will be transmitted very ef- ficiently. Columnar data, highly indented text, and binary files are the major beneficiaries of this technique.

If you're running KERMIT-20 locally, for instance dialing out from the

DEC-20 to another system using an autodialer, you should have already run KERMIT on the remote system and issued either a RECEIVE or a SERVER command. Once you give KERMIT-20 the SEND command, the name of each file will be displayed on your screen as the transfer begins; a "." will be displayed for every 5 data packets sucessfully sent, and a "%" for every retransmission or timeout that occurs (you may also elect other typeout options with the SET DEBUG command). If the file is success- fully transferred, you will see "[OK]", otherwise there will be an error message. When the specified operation is complete, the program will sound a beep. If you see many "%" characters, you are probably suffer- ing from a noisy connection. You may be able to cut down on the retransmissions by using SET SEND PACKET-LENGTH to decrease the packet length; this will reduce the probability that a given packet will be corrupted by noise, and reduce the time required to retransmit a cor- rupted packet.

During local operation, you can type Control-A at any point during the transfer to get a brief status report. You may also type Control-X or

Control-Z to interrupt the current file or file group.

THE RECEIVE COMMAND

Syntax: RECEIVE [filespec]

The RECEIVE command tells KERMIT-20 to receive a file or file group from the other system. If only one file is being received, you may include the optional filespec as the name to store the incoming file under; otherwise, the name is taken from the incoming file header. Even if the

_______________

14

This is the same method used by the DEC-20 to encode 36-bit data on

"ANSI-ASCII" tapes. It allows not only DEC-20 binary files, but also the line-sequence-numbered files produced by EDIT, SOS, or OTTO, which use bit 35 to distinguish line numbers from text, to be sent and retrieved correctly.

DECSYSTEM-20 KERMIT Page 56 name in the header is not a legal TOPS-20 file name, KERMIT-20 will store it under that name, in which case you can refer to it later only by quoting each illegal character (spaces, control characters, etc) with

Control-V. If for some reason an incoming filename simply cannot be converted to legal form, the file will be saved as

-UNTRANSLATABLE-FILENAME-.KERMIT (new generation). You may also use SET

FILE NAMING NORMAL-FORM to have KERMIT-20 choose more conventional names for incoming files.

If an incoming file has the same name as an existing file, KERMIT-20 just creates a new generation of the same name and type, for instance

FOO.BAR.3, FOO.BAR.4. The oldest generation will be automatically deleted, but you can still UNDELETE it.

Incoming files will all be stored with the prevailing bytesize, 7 by default, which is appropriate for text files. If you are asking

KERMIT-20 to receive binary files from a microcomputer or other 8-bit system, you must first type SET FILE BYTESIZE 8. Otherwise, the 8th bit of each byte will be lost and the file will be useless when sent back to the system of origin.

If you have SET PARITY, then 8th-bit prefixing will be requested. If the other side cannot do this, binary files cannot be transferred cor- rectly. In all cases, KERMIT-20 will request the other KERMIT to com- press repeated characters; if the other side can do this (not all KER-

MITs know how) there may be a significant improvement in transmission speed.

If an incoming file does not arrive in its entirety, KERMIT-20 will nor- mally discard it; it will not appear in your directory. You may change this behavior by using the command SET INCOMPLETE KEEP, which will cause as much of the file as arrived to be saved in your directory.

If you are running KERMIT-20 locally, you should already have issued a

15

SEND command to the remote KERMIT, and then escaped back to DEC-20

Kermit. As files arrive, their names will be displayed on your screen, along with "." and "%" characters to indicate the packet traffic; you can type Control-A during the transfer for a brief status report.

If a file arrives that you don't really want, you can attempt to cancel it by typing Control-X; this sends a cancellation request to the remote

Kermit. If the remote Kermit understands this request (not all im- plementations of Kermit support this feature), it will comply; otherwise it will continue to send. If a file group is being sent, you can re- quest the entire group be cancelled by typing Control-Z.

_______________

15

not SERVER -- use the GET command to receive files from a KERMIT server.

DECSYSTEM-20 KERMIT Page 57

THE GET COMMAND

Syntax: GET [remote-filespec]

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used only when

KERMIT-20 is local, with a KERMIT server on the other end of the line specified by SET LINE. This means that you must have CONNECTed to the other system, logged in, run KERMIT there, issued the SERVER command, and escaped back to the DEC-20.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally. If you need to include otherwise illegal characters such as "!" or ";" (the normal command comment delimeters), "?" (the command help character),

"@" (the indirect command file indicator), or certain control charac- ters, then you should precede each such character by a Control-V.

Kermit-20 will discard these Control-V quoting prefixes before sending the file specification to the remote host.

If you want to store the incoming file name with a different name than the remote host sends it with, just type GET alone on a line; Kermit-20 will prompt you separately for the source (remote) and destination

(local) file specification. If more than one file arrives, only the first one will be stored under the name given; the rest will be stored under the names they are sent with. Example:

Kermit-20>get

Remote Source File: profile exec a1

Local Destination File: profile.exec

As files arrive, their names will be displayed on your screen, along with "." and "%" characters to indicate the packet traffic. As in the

RECEIVE command, you may type Control-A to get a brief status report, ^X to request that the current incoming file be cancelled, ^Z to request that the entire incoming batch be cancelled.

If the remote KERMIT is not capable of server functions, then you will probably get an error message back from it like "Illegal packet type".

In this case, you must connect to the other Kermit, give a SEND command, escape back, and give a RECEIVE command.

THE SERVER COMMAND

The SERVER command puts a remote KERMIT-20 in "server mode", so that it receives all further commands in packets from the local KERMIT. The

KERMIT-20 server is capable (as of this writing) of executing many remote server commands, including SEND, GET, FINISH, BYE, REMOTE DIREC-

TORY, REMOTE CWD, REMOTE SPACE, REMOTE DELETE, REMOTE TYPE, REMOTE HELP.

Any nonstandard parameters should be selected with SET commands before putting KERMIT-20 into server mode, in particular the file bytesize.

The DEC-20 Kermit server can send most files in the correct manner automatically, by recognizing the DEC-20 file bytesize. However, if you need to ask the DEC-20 KERMIT server to receive binary files from an

DECSYSTEM-20 KERMIT Page 58

8-bit-byte system (that is, from almost any system that's not a DEC-10 or DEC-20) you must issue the SET FILE BYTESIZE 8 command before putting it into server mode, and then you must only send 8-bit binary files.

You cannot send a mixture of text files and 8-bit binary files to a

KERMIT-20 server.

COMMANDS FOR SERVERS

When running in local mode, KERMIT-20 allows you to give a wide range of commands to a remote KERMIT server, with no guarantee the that the remote server can process them, since they are all optional features of the protocol. Commands for servers include the standard SEND, GET, BYE, and FINISH commands, as well as the REMOTE command, which has various options.

Syntax: REMOTE command

Send the specified command to the remote server. If the server does not understand the command (all of these commands are optional features of the KERMIT protocol), it will reply with a message like "Unknown KERMIT server command". If does understand, it will send the results back, and they will be displayed on the screen. The REMOTE commands are:

CWD [directory] Change Working Directory. If no directory name is

provided, the server will change to the default or home

directory. Otherwise, you will be prompted for a

password, and the server will attempt to change to the

specified directory. The password is entered on a

separate line, and does not echo as you type it. If ac-

cess is not granted, the server will provide a message

to that effect.

DELETE filespec Delete the specified file or files. The names of the

files that are deleted will appear on your screen.

DIRECTORY [filespec]

The names of the files that match the given file

specification will be displayed on your screen, perhaps

along with size and date information for each file. If

no file specification is given, all files from the cur-

rent directory will be listed.

HELP Provide a list of the functions that are available from

the server.

HOST [command] Pass the given command to the server's host command

processor, and display the resulting output on your

screen.

SPACE Provide information about disk usage in the current

directory, such as the quota, the current storage, the

amount of remaining free space.

TYPE filespec Display the contents of the specified file on your

screen.

DECSYSTEM-20 KERMIT Page 59

THE LOCAL COMMAND

Syntax: LOCAL [command]

Execute the specified command on the local system -- on the DEC-20 where

KERMIT-20 is running. These commands provide some local file management capability without having to leave the KERMIT-20 program.

CWD [directory] Change working directory, or, in DEC-20 terminology,

CONNECT to the specified directory.

DELETE filespec Delete the specified file or files, but do not expunge

them.

DIRECTORY [filespec]

Provide a directory listing of the specified files.

RUN [filespec] Attempts to run the specified file, which must be in

".EXE" format (.EXE is the default filetype), in an in-

ferior fork. Control returns to KERMIT-20 when the

program terminates. Once you have used this command,

you can restart the same program by issuing a RUN com-

mand with no arguments. If you RUN SYSTEM:EXEC, then

you will be able to issue TOPS-20 commands without leav-

ing KERMIT; you can get back to KERMIT from the EXEC by

typing the EXEC POP command. You can also use the RUN

command to supply new functions to KERMIT by writing

little programs in the language of your choice, for in-

stance to conduct a signon dialog with a remote system

when dialing out.

SPACE Show how much space is used and remaining in the current

directory.

TYPE Display the contents of the specified file or files at

your terminal. This works like the DEC-20 TYPE command,

except that if a file has a bytesize of 8, KERMIT-20

will do 8-bit input from it rather than 7-bit. Also,

the DEC-20 Control-O command discards output only from

the file currently being displayed; if multiple files

are being typed, then output will resume with the next

file.

The LOCAL commands may also be used without the "LOCAL" prefix.

THE CONNECT COMMAND

Syntax: CONNECT [number]

Establish a terminal connection to the system connected to the octal TTY

number specified here or in the most recent SET LINE command, using full duplex echoing and no parity unless otherwise specified in previous SET commands. Get back to KERMIT-20 by typing the escape character followed by the letter C. The escape character is Control-Backslash (^\) by default. When you type the escape character, several single-character

DECSYSTEM-20 KERMIT Page 60 commands are possible:

C Close the connection and return to KERMIT-20.

S Show status of the connection; equivalent to SHOW LINE.

P Push to a new Exec. POP from the Exec to get back to the connec-

tion.

Q If a session log is active, temporarily Quit logging.

R Resume logging to the session log.

B Send a simulated BREAK signal.

? List all the possible single-character arguments.

^\ (or whatever you have set the escape character to be)

Typing the escape character twice sends one copy of it to the con-

nected host.

You can use the SET ESCAPE command to define a different escape charac- ter, and SET PARITY, SET DUPLEX, SET HANDSHAKE, SET FLOW, and SET SPEED to change those communication-line-oriented parameters. In order for the simulated BREAK signal to work, TOPS-20 must know the speed of the terminal. If it does not, you may use the SET SPEED command.

KERMIT-20 does not have any special autodialer interface. It assumes that the connection has already been made and the line assigned.

THE HELP COMMAND

Syntax: HELP [topic [subtopic]]

Typing HELP alone prints a brief summary of KERMIT-20 and its commands.

You can also type

HELP command for any Kermit-20 command, e.g. "help send" or "help set parity" to get more detailed information about a specific command. Type

HELP ? to see a list of the available help commands.

THE TAKE COMMAND

Syntax: TAKE filespec

Execute KERMIT-20 commands from the specified file. The file may con- tain contain any valid KERMIT-20 commands, including other TAKE com- mands; command files may be nested up to a depth of 20.

DECSYSTEM-20 KERMIT Page 61

THE EXIT AND QUIT COMMANDS

Syntax: EXIT

Exit from KERMIT-20. You can CONTINUE the program from the TOPS-20

Exec, provided you haven't run another program on top of it. You can also exit from KERMIT-20 by typing one or more control-C's, even if it's in the middle of transferring a file. KERMIT-20 will always restore your terminal to its original condition, and you will be able to CON-

TINUE the program to get back to "KERMIT-20>" command level with current settings intact.

QUIT is a synonym for EXIT.

THE SET COMMAND

Syntax: SET parameter [option [value]]

Establish or modify various parameters for file transfer or terminal connection. You can examine their values with the SHOW command. The following parameters may be SET:

BREAK Adjust the BREAK simulation parameter

BLOCK-CHECK Packet transmission error detection method

DEBUGGING Record or display state transitions or packets

DELAY How long to wait before starting to send

DUPLEX For terminal connection, FULL or HALF

ESCAPE Character for terminal connection

FILE For setting file parameters like byte size

FLOW-CONTROL For enabling or disabling XON/XOFF flow control

HANDSHAKE For turning around half duplex communication line

IBM For communicating with an IBM mainframe

INCOMPLETE What to do with an incomplete file

ITS-BINARY For recognizing a special 8-bit binary file format

LINE TTY line to use for file transfer or CONNECT

PARITY Character parity to use

PROMPT Change the program's command prompt

RECEIVE Various parameters for receiving files

RETRY How many times to retry a packet before giving up

SEND Various parameters for sending files

SPEED Baud rate of communication line

TVT-BINARY For negotiating binary mode on ARPANET

The DEFINE command may be used to compose "macros" by combining SET com- mands. Those SET commands which differ from the "ideal" KERMIT are now described in detail.

SET BREAK

Syntax: SET BREAK n Specify the number of nulls to be sent at 50 baud to simulate a BREAK signal when connected to a remote host via SET LINE and

CONNECT.

DECSYSTEM-20 KERMIT Page 62

SET DEBUG

Syntax: SET DEBUG options

Record the packet traffic, either on your terminal or in a file. Some reasons for doing this would be to debug a version of KERMIT that you are working on, to record a transaction in which an error occurred for evidence when reporting bugs, or simply to vary the display you get when running KERMIT-20 in local mode. Options are:

STATES Show Kermit state transitions and packet numbers

(brief).

PACKETS Display each incoming and outgoing packet (lengthy).

OFF Don't display or record debugging information (this is

the normal mode). If debugging was in effect, turn it

off and close any log file.

The debugging information is recorded in the file specified by the most recent LOG DEBUGGING command.

SET ESCAPE

SET ESCAPE octal-number

Specify the control character you want to use to "escape" from remote connections back to KERMIT-20. The default is 34 (Control-\). The num- ber is the octal value of the ASCII control character, 1 to 37 (or 177), for instance 2 is Control-B. After you type the escape character, you must follow it by a one of the single-character "arguments" described under the CONNECT command, above.

SET EXPUNGE

SET EXPUNGE ON or OFF

Tell whether you want a DELETE command (either the LOCAL DELETE command or a REMOTE DELETE command sent to a KERMIT-20 server) to expunge files as it deletes them. On the DEC-20, a deleted file continues to take up space, and may be "undeleted" at a later time in the same session. To expunge a deleted file means to remove it completely and irrevocably, freeing its space for further use. EXPUNGE is OFF by default; deleted files are not automatically expunged. SET EXPUNGE applies only to files that are deleted explicitly by KERMIT-20, and not to files that are im- plicitly deleted when new generations of existing files are created.

SET FILE

Syntax: SET FILE parameter keyword

Establish file-related parameters:

DECSYSTEM-20 KERMIT Page 63

BYTESIZE keyword or number

Byte size for DEC-20 file input/output. The choices are SEVEN

(7), EIGHT (8), and AUTO.

SEVEN (or 7) Always store or retrieve five 7-bit bytes per

word. When sending a file, ignore the file bytesize and

do 7-bit input from the file. There would be no reason

to use this option except to explicitly force an 8-bit

file to be treated as a 7-bit file.

EIGHT (or 8) Always store or retrieve four 8-bit bytes per

word. When sending a file, ignore the file bytesize and

do 8-bit input from the file. This command is necessary

when receiving binary files from 8-bit-byte systems,

such as most microcomputers.

AUTO Equivalent to SEVEN for incoming files, and for outgoing

files means to use EIGHT if the DEC-20 file bytesize (as

shown by the Exec VDIR command) is 8, otherwise use

SEVEN. The default is AUTO.

The DEC-20 can send any mixture of file types in the correct way

automatically, but you must set the file bytesize to 8 for any

incoming 8-bit binary files, and to AUTO (i.e. 7) for any incom-

ing text files or DEC-20 binary files.

NAMING UNTRANSLATED or NORMAL-FORM

If NORMAL-FORM the names of incoming or outgoing files will be

converted to contain only uppercase letters, digits, and at most

one period; any other characters will be translated to "X". If

UNTRANSLATED, filenames will be sent and used literally. UN-

TRANSLATED is the default.

SET IBM

Syntax: SET IBM ON or OFF

SET IBM is really a predefined SET macro rather than a "hardwired" SET command; it can be redefined or undefined (see DEFINE); as distributed from Columbia, KERMIT-20 defines IBM to be "parity mark, handshake XON, duplex half".

SET IBM should be used when running KERMIT-20 in local mode, connected to an IBM or similar mainframe. If you have redefined the SET IBM macro, then your parameters will be used instead.

SET ITS-BINARY

Syntax: SET ITS-BINARY ON or OFF

Specify whether ITS-Binary file headers are to be recognized or ignored.

By default, they are recognized. ITS binary format is a way (devised at

MIT) of storing foreign 8-bit binary data on a 36-bit machine to allow automatic recognition of these files when sending them out again, so

DECSYSTEM-20 KERMIT Page 64 that you don't have to depend on the file byte size, or to issue ex- plicit SET FILE BYTESIZE commands to KERMIT.

An ITS format binary file contains the sixbit characters "DSK8" left-adjusted in the first 36-bit word. If ITS-BINARY is ON, then

KERMIT-20 will send any file starting with this "header word" using

8-bit input from the file even if the file bytesize is not 8, and will not send the header word itself. KERMIT-20 will also store any incoming file that begins with that header word using 8-bit bytesize, again dis- carding the header word itself. If ITS-BINARY is OFF, then the header word, if any, will be sent or kept, and i/o will be according to the setting of FILE BYTESIZE.

This facility is provided for compatibility with the file formats used on certain public-access CP/M libraries.

SET LINE

Syntax: SET LINE [octal-number]

Specify the octal TTY number to use for file transfer or CONNECT. If you issue this command, you will be running KERMIT-20 locally, and you must log in to the remote system and run Kermit on that side in order to transfer a file. If you don't issue this command, KERMIT-20 assumes it is running remotely, and does file transfer over its job's controlling terminal line. You can also select the line directly in the CONNECT command; the command

CONNECT 12 is equivalent to

SET LINE 12

CONNECT

If you type SET LINE with no number argument, you will deassign any pre- vious assigned line and revert to remote mode.

The SHOW LINE command will display the currently selected communication line and its charactistics, including parity, duplex, handshake, flow control, the speed if known, whether carrier is present (if it is a modem-controlled line), and whether KERMIT-20 is in local or remote mode.

SET RECEIVE

In addition to the full complement of SET RECEIVE commands described in the main part of the manual, you may also SET RECEIVE SERVER-TIMEOUT to a value between 0 and 94. This specifies the number of seconds between

timeouts during server command wait, 0 specifies that no timeouts should occur during server command wait. When a KERMIT server times out, it sends a NAK packet. Some systems cannot clear piled-up NAKs from their input buffers; if you're using such a system to communicate with a

KERMIT-20 server, and you expect to be leaving the server idle for long

DECSYSTEM-20 KERMIT Page 65 periods of time, you should use this command to turn off server command- wait timeouts.

SET SPEED

Syntax: SET SPEED n

Set the baud rate of the currently selected communication to n, the decimal baud rate, for instance 300, 1200, 4800. When operating in local mode, it may be necessary to issue this command in order to enable

BREAK simulation.

SET TVT-BINARY

Syntax: SET TVT-BINARY ON or OFF

Only for users running KERMIT-20 on an ARPANET DEC-20, signed on to an

ARPANET virtual terminal (TVT) from another host or through an ARPANET

TAC. SET TVT ON causes KERMIT-20 to negotiate binary mode (8-bit) com- munication with the ARPANET during file transfer. Without this command, file transfer through a TVT would not work in most cases.

TVT-BINARY is OFF by default. If you normally use KERMIT-20 through the

ARPAnet, you can put the command SET TVT-BINARY ON into your KERMIT.INI file.

CAUTION: This facility requires certain features in the Release 5

TOPS-20 ARPANET monitor, which may not be present in releases dis- tributed by DEC. See the KERMIT-20 source code for details.

THE DEFINE COMMAND

Syntax: DEFINE macroname [set-option [, set-option [...]]]

The DEFINE command is available in KERMIT-20 for building "macros" of

SET commands. The macro name can be any keyword-style character string, and the set options are anything you would type after SET in a SET com- mand; several set options may be strung together, separated by commas.

Example:

define notimeout send timeout 0, receive timeout 0

Macro definitions may not include macro names. You can list all your macros and their definitions with the SHOW MACROS command. You can list a particular macro definition with HELP SET macroname.

DECSYSTEM-20 KERMIT Page 66

THE SHOW COMMAND

Syntax: SHOW [option]

The SHOW command displays various information:

DAYTIME Current date, time, phase of moon.

DEBUGGING Debugging mode in effect, if any.

FILE-INFO Byte size for DEC-20 file i/o, incomplete file disposi-

tion.

LINE TTY line, parity, duplex, flow control, handshake, es-

cape character, speed (if known), and session loggin in-

formation. Note that before release 6.0 of TOPS-20, the

DEC-20 does not keep a record of the actual baud rate of

a modem-controlled or "remote" TTY line.

MACROS Definitions for SET macros.

PACKET-INFO For incoming and outbound packets. Items under RECEIVE

column show parameters for packets KERMIT-20 expects to

receive, under SEND shows parameters for outgoing pack-

ets.

TIMING-INFO Delays, retries, server NAK intervals.

VERSION Program version of KERMIT-20. This is also displayed

when KERMIT-20 is initially started.

ALL (default) All of the above.

THE STATISTICS COMMAND

Give statistics about the most recent file transfer. For instance, here's what KERMIT-20 displayed after transmitting a short binary file, using repeated-character compression:

Maximum number of characters in packet: 80 received; 80 sent

Number of characters transmitted in 2 seconds

Sent: 34 Overhead: 34

Received: 107 Overhead: -408

Total received: 141 Overhead: -374

Total characters transmitted per second: 70

Effective data rate: 2570 baud

Efficiency: 214.1667 per cent

Interpacket pause in effect: 0 sec

Timeouts: 0

NAKs: 0

Note that the data compression allowed the effective baud rate to exceed the actual speed of the communication line, which in this case happened

DECSYSTEM-20 KERMIT Page 67 to be 1200 baud. The efficiency is displayed only if the actual baud rate is known.

THE LOG COMMAND

Syntax: LOG [option [filespec]]

Log the specified option to the specified file:

SESSION During CONNECT, log all characters that appear on the

screen to the specified file. The session log can be

temporarily turned off during the remote session by

typing the escape character followed by Q (for Quit

logging), and turned on again by typing the escape

character followed by R (for Resume logging). Default

log is SESSION.LOG in the current directory.

TRANSACTIONS During file transfer, log the progress of each file.

The DEC-20 transaction log file looks like this:

KERMIT-20 Transaction Log File, Monday 27-Feb-1984

18:40:13: Opened Log: PS:<TIMREK>SAMPLE.LOG.1

18:40:31: -- Send Begins --

8th bit prefixing: Off

Block check type: 1

18:40:31: Opened File: PS:<SY.FDC>LOGIN.CMD.6

Sending As "LOGIN.CMD"

Sent: 547 7-bit bytes

18:40:34: Closed PS:<SY.FDC>LOGIN.CMD.6

18:40:34: Send Complete

18:40:50: -- Receive Begins --

8th bit prefixing: Off

Block check type: 1

18:40:50: Opened: PS:<TIMREK>AUTOEXEC.BAT.1

Written: 186 7-bit bytes

18:40:51: Closed: PS:<TIMREK>AUTOEXEC.BAT.1

18:40:56: Closed Transaction Log

Transaction logging is recommended for long or un-

attended file transfers, so that you don't have to watch

the screen. The log may be inspected after the transfer

is complete to see what files were transferred and what

errors may have occurred. Default log is

TRANSACTION.LOG in the current directory.

DEBUGGING Log STATES or PACKETS, as specified in the most recent

SET DEBUGGING command, to the specified file. If log

file not specified, then use TTY if local, or

DEBUGGING.LOG in the current directory if remote. If no

SET DEBUGGING command was previously issued, log STATES

to the specified file. Also allow specification of

bytesize for the log file, 7 (normal, default), or 8

DECSYSTEM-20 KERMIT Page 68

(for debugging binary transfers when the parity bit is

being used for data), for instance

LOG DEBUGGING BINARY.LOG 8

A 7-bit log file can be typed, printed, or examined with

a text editor or searching program. An 8-bit log file

can only be examined with a system utility like FILDDT.

When logging packets, each packet is preceded by a

timestamp, the current timeout interval (preceded by a

slash), and "R:" or "S:" to indicate data being received

and sent, respectively. Packet format is described in

the KERMIT Protocol Manual.

SESSION is the default option. Thus the command "LOG" alone will cause

CONNECT sessions to be logged in SESSION.LOG in the current directory.

Any log files are closed when you EXIT or QUIT from KERMIT, and are reactivated if you CONTINUE the program. You may explicitly close a log file and terminate logging with the CLOSE command.

THE CLOSE COMMAND

Syntax: CLOSE [option]

Close the specified log file, SESSION, TRANSACTION, or DEBUGGING, and terminate logging.

6.6. Examples

Here are a few examples of the use of KERMIT-20. Text entered by the user is underlined.

Remote Operation

The following example shows use of KERMIT-20 as a server from an IBM PC.

In this example, the user runs KERMIT on the PC, connects to the DEC-20, and starts KERMIT-20 in server mode. From that point on, the user need never connect to the DEC-20 again. In this example, the user gets a file from the DEC-20, works on it locally at the PC, and then sends the results back to the DEC-20. Note that the user can leave and restart

KERMIT on the PC as often as desired.

A>kermit

Kermit-86>connect

@

@kermit

TOPS-20 KERMIT version 4.1(236)

Kermit-20>server

DECSYSTEM-20 KERMIT Page 69

Kermit Server running on DEC-20 host. Please type your escape

sequence to return to your local machine. Shut down the server by

typing the Kermit BYE command on your local machine.

^[C

Kermit-86>get foo.txt

The transfer takes place.

Kermit-86>exit

A>

A>edit foo.txt ; (or whatever...)

A>

A>kermit

Kermit-86>send foo.txt

The transfer takes place.

Kermit-86>bye

A>

The next example shows the special procedure you would have to use in order to send a mixture of text and binary files from a PC (or an 8-bit- byte system) to the DEC-20. Note that in this case, it's more con- venient to avoid server mode.

Kermit-86>connect

@

@kermit

TOPS-20 KERMIT version 4.1(236)

Kermit-20>receive

^]C

Kermit-86>send *.txt

Textual files are sent.

Kermit-86>connect

Kermit-20>set file bytesize 8

Kermit-20>receive

^]C

Kermit-86>send *.exe

Binary files are sent.

Kermit-86>connect

Kermit-20>exit

@logout

^]C

Kermit-86>exit

A>

DECSYSTEM-20 KERMIT Page 70

Local Operation

In this example, a program DIAL is used to direct an autodialer to call another computer (a DECSYSTEM-10); once the connection is made, DIAL starts KERMIT with an implicit CONNECT command for the appropriate com- munication line. DIAL is not part of KERMIT; if your system has an autodialer, there will be some site-specific procedure for using it.

@dial

Dial>dial stevens

STEVENS, 1-(201) 555-1234, baud:1200

[confirm]

Dialing your number, please hold...

Your party is waiting on TTY11:.

@

@kermit

TOPS-20 KERMIT version 4.1(236)

Kermit-20>connect 11

[KERMIT-20: Connecting over TTY11:, type <CTRL-\>C to return]

CONNECTING TO HOST SYSTEM.

Stevens T/S 7.01A(10) 20:20:04 TTY41 system 1282

Connected to Node DN87S1(101) Line # 57

Please LOGIN or ATTACH

.log 10,35

JOB 51 Stevens T/S 7.01A(10) TTY41

Password:

20:20 15-Dec-83 Thur

.r new:kermit

TOPS-10 KERMIT version 2(106)

Kermit-10>server

[Kermit Server running on the DEC host. Please type your escape

sequence to return to your local machine. Shut down the server by

typing the Kermit BYE command on your local machine.]

^YC

[KERMIT-20: Connection Closed. Back at DEC-20.]

DECSYSTEM-20 KERMIT Page 71

Kermit-20>set file bytesize 8

Kermit-20>get setdtr.cmd

^A for status report, ^X to cancel file, ^Z to cancel batch.

SETDTR.CMD.7 ^A

Receiving SETDTR.CMD.7, file bytesize 8

(repeated character compression)

At page 1

Files: 0, packets: 1, chars: 66

NAKs: 0, timeouts: 0

.[OK]

Kermit-20>bye

Job 51 User F DA CRUZ [10,35]

Logged-off TTY41 at 20:22:58 on 15-Dec-83

Runtime: 0:00:01, KCS:33, Connect time: 0:02:39

Disk Reads:72, Writes:4, Blocks saved:160

....

Hangup? y

Click. Call duration was 193 seconds to area 201.

Dial>exit

Note the use of Control-A to get a status report during the transfer.

6.7. Installation

KERMIT-20 is built from a single MACRO-20 source file, 20KERMIT.MAC. It requires the standard DEC-distributed tools MONSYM, MACSYM, and CMD; the following files should be in SYS: -- MONSYM.UNV, MACSYM.UNV, MACREL.REL,

CMD.UNV, and CMD.REL. The program should work on all TOPS-20 systems as distributed, but many customizations are possible. The site manager may wish to change various default parameters on a site-wide basis; this may be done simply by changing the definitions of the desired symbols, under

"subttl Definitions", and reassembling.

The most notable site dependency is the definition of "SET IBM". As distributed from Columbia, KERMIT-20 defines "SET IBM" in a built-in SET macro definition as "parity mark, duplex half, handshake xon". This definition may be found at MACTAB+1, near the end of the impure data section. It may be changed or deleted, and the program reassembled.

Sites that do not have ARPANET may wish to delete the TVT-BINARY entries from SET command tables, SETABL and SETHLP.

VAX/VMS KERMIT Page 72

7. VAX/VMS KERMIT

Authors: Bob McQueen, Nick Bush, Stevens Institute of Technology

Language: Bliss-32, Common Bliss

Version: 2.0

Date: November 1983

KERMIT for the Digital Equipment Corporation VAX/VMS system is called

"KERMIT-32" since the VAX is DEC's 32-bit line of computers. KERMIT-32 can be run from SYS$SYSTEM:. It will prompt for input from SYS$COMMAND:

.

Kermit-32 can be run in either local or remote modes. In remote mode, transfers take place over the controlling terminal line. Ususally,

Kermit-32 is used in remote mode as a "server", meaning that it will ac- cept commands from the other Kermit. In local mode, Kermit-32 will per- form transfers over a terminal line other than the controlling terminal.

In local mode, Kermit-32 is capable of giving commands to a "server"

Kermit. Note that in order to use Kermit-32 in local mode, the protec- tion code for the terminal to be used must allow the user access. This is set by the system manager. Kermit-32 is put into local mode by using the SET LINE TTcnn: command.

Currently, VMS Kermit does not allocate the terminal line you are using for CONNECT or transfers. Therefore, when going between CONNECT and

SEND or RECEIVE, VMS hangs up the phone for you. This is easily solved by using the DCL ALLOCATE command to allocate the terminal line before entering Kermit.

VMS KERMIT implements a large subset of "ideal" KERMIT, for both remote and local operation.

Here is a summary of the commands of KERMIT-32:

CONNECT [dev:]

The CONNECT command will allow you to connect as a virtual ter-

minal over the line that was specified by the SET LINE command,

or to the terminal line specified in the command. The terminal

line must be one which is accessible to the users process. This

means that the applicable protection code for the terminal must

have been set to allow your process to access it (done by the

system manager). The format of the CONNECT command is:

Kermit-32>CONNECT

or

Kermit-32>CONNECT TTcn:

where TTcn: is the terminal line name to be used.

HELP [keyword [keyword...]]

Give VMS-style help on KERMIT commands.

EXIT, QUIT

Exit from Kermit-32.

VAX/VMS KERMIT Page 73

RECEIVE The RECEIVE command is used to put Kermit-32 into remote mode

waiting for a single file transfer transaction, or to have a

local Kermit-32 request a file from the remote Kermit. If no

file specification is given, Kermit-32 will wait for a file

transfer initialization sequence from the other Kermit. This is

most useful if the other Kermit does not support local server

commands. In order for a file specification to be given,

Kermit-32 must be running as a local Kermit (i.e. a SET LINE

command must have been done). Kermit-32 will then request the

other Kermit (which must be running in server mode) to transfer

the specified file (or set of files) to Kermit-32. The file

specification must be in the format of the system on which the

server Kermit is running. The format of the command is:

Kermit-32>RECEIVE

or

Kermit-32>RECEIVE file-specification

where "file-specification" is any valid file specification on

the system on which the server Kermit is running.

GET filespec

This command is identical to the RECEIVE filespec command. It

is now the preferred command to cause the other Kermit (when

running in server mode) to transmit a file to Kermit-32.

BYE This command will cause Kermit-32 (when in local mode) to tell

the other Kermit (which should be in server mode) to exit from

Kermit and, if applicable, terminate its job (or process, etc.).

When Kermit-32 receives the acknowledgement that this is being

done, it will exit to VMS.

FINISH This command will cause Kermit-32 (when in local mode) to tell

the other Kermit (which should be in server mode) to exit from

Kermit. After receiving the acknowledgement that this is being

done, Kermit-32 will prompt for another command.

LOGOUT This command will cause Kermit-32 (when in local mode) to tell

the other Kermit (which should be in server mode) to exit from

Kermit and, if applicable, terminate its job (or process, etc.).

When Kermit-32 receives the acknowledgement that this is being

done, it will prompt for another command.

SEND The SEND command will allow you to send a file(s) to the other

Kermit. The SEND command will allow file wild card processing

as is found in VMS. If Kermit-32 is running in remote mode, the

file will be sent on the controlling terminal line after waiting

the number of seconds specified by the SET DELAY command. This

gives the user time to escape back to the other Kermit and issue

a receive command. If Kermit-32 is running in local mode, the

file will be sent immediately on the terminal line specified by

the SET LINE command. The command format is:

Kermit-32>SEND file-specification

VAX/VMS KERMIT Page 74

Where "file-specification" is any normal VAX/VMS file specifica-

tion.

SERVER This command will cause Kermit-32 to enter server mode. The

other Kermit can then issue server commands to send and receive

files without having to give SEND or RECEIVE commands to

Kermit-32. Kermit-32 may be put into SERVER mode while running

as either a remote Kermit (transmitting over the controlling

terminal line), or as a local Kermit (transmitting over a ter-

minal specified by a SET LINE command). Note that in order to

correctly receive binary files while in SERVER mode, a SET

FILETYPE BINARY must be done first. At this time there is no

way for Kermit-32 to determine whether an incoming file is ASCII

or binary. The format of the command is:

Kermit-32>SERVER

STATUS The current status of Kermit-32 will be displayed. This in-

cludes the number of characters that have been sent and received

from the remote Kermit. Also included is an estimate of the ef-

fective baud rate of

THE SET COMMAND

The SET command is used to set various parameters in Kermit.

BLOCK_CHECK_TYPEkeyword

where keyword is one of:

1_CHARACTER_CHECKSUM or ONE_CHARACTER_CHECKSUM

2_CHARACTER_CHECKSUM or TWO_CHARACTER_CHECKSUM

3_CHARACTER_CRC_CCITT or THREE_CHARACTER_CRC_CCITT

DEBUGGING The SET DEBUGGING command is used to set the debug type

out on the user's terminal. The command will accept ei-

ther the keywords ON or OFF. Kermit-32 can only do

debugging type out when running as a local Kermit (SET

LINE command done). This is because the debugging type

out would interfere with the file transfer if it were

sent to the controlling terminal line in remote mode.

Kermit-32>SET DEBUGGING state

Where state is either 'ON' or 'OFF'.

DELAY The DELAY parameter is the number of seconds to wait be-

fore sending data after a SEND command is given. This

is used when Kermit-32 is running in remote mode to al-

low the user time to escape back to the other Kermit and

give a RECEIVE command.

Kermit-32>SET DELAY number-of-seconds

Where number of seconds is the (decimal) number of

seconds to wait before sending data.

VAX/VMS KERMIT Page 75

ESCAPE This command will set the escape character for the CON-

NECT processing. The command will take the octal value

of the character to use as the escape character. This

is the character which is used to "escape" back to

Kermit-32 after using the CONNECT command. It defaults

to CTRL-] (octal 35). It is usually a good idea to set

this character to something which is not used (or at

least not used very much) on the system being to which

Kermit-32 is CONNECTing.

Kermit-32>SET ESCAPE octal-character-value

where octal-character-value is the ASCII value of the

character to use as the escape character (in octal).

FILE_TYPE This command will set the file type that Kermit is

receiving. A file type of ASCII should be used to

receive text files which are to be used as text files on

the VMS system. The file type BINARY should be used for

binary files, such as CP/M .COM files, which need to be

kept in a format that allows the file to be returned

without any changes.

Kermit-32>SET FILE_TYPE type

where type is one of:

ASCII File type ASCII is for text files.

BINARY File type BINARY is for non-text files.

Note that binary files which are

generated on a VMS system cannot be

transferred to another VMS system with-

out losing file attributes. This means

that (for example), an .EXE file cannot

be transmitted with Kermit-32. (This

problem should be resolved in a future

version of Kermit).

IBM_MODE For communicating with IBM mainframes; sets parity MARK,

handshake XON, and local echo during CONNECT.

Kermit-32>SET IBM_MODE keyword

where keyword is either ON or OFF.

INCOMPLETE_FILE_DISPOSITION

The SET INCOMPLETE_FILE_DISPOSITION allows the user to

determine what is done with a file that is not com-

pletely received.

Kermit-32>SET INCOMPLETE_FILE_DISPOSITION keyword

where keyword is either DISCARD or KEEP.

LINE This will set the terminal line that you are using. The

VAX/VMS KERMIT Page 76

terminal line must be one which is accessible to the

user's process. This means that the applicable protec-

tion code for the terminal must have been set to allow

your process to access it (done by the system manager).

You should also ALLOCATE the line from DCL before giving

this command.

Kermit-32>SET LINE device:

The device must be a terminal line (e.g. TTA0:).

LOCAL_ECHO The SET LOCAL_ECHO command specifies whether characters

should be echoed locally when CONNECTing to another sys-

tem.

Kermit-32>SET LOCAL_ECHO keyword

where keyword is either ON (local echo) or OFF (full

duplex, normal case).

MESSAGE This command sets the type of typeout Kermit-32 will do

during transfers in local mode. Kermit-32 can type out

the file specification being transferred, the packet

numbers being sent an received, both or neither. The

default is to type file specifications but not packet

numbers.

Kermit-32>SET MESSAGE type keyword

Where type is either FILE or PACKET, and keyword is ei-

ther ON or OFF.

PARITY This command determines the type of parity to use on the

transmission line. Kermit-32 normally uses characters

which consist of eight data bits with no parity bit.

Kermit-32>SET PARITY keyword

where keyword is NONE (default), MARK, SPACE, EVEN, or

ODD. If any parity other than NONE is specified,

8th-bit-prefixing will be requested for transmission of

binary files.

RETRY This command sets the maximum number of times Kermit-32

should try to send a specific packet.

Kermit-32>SET RETRY keyword number

where keyword is either INITIAL_CONNECTION (for initial

connection packet) or PACKET (for all other packets),

and number is the decimal number of retries to attempt.

RECEIVE It is possible to set various parameters associated with

the receiving of the data from the remote Kermit. SET

RECEIVE will enable you to set the various receive

parameters.

VAX/VMS KERMIT Page 77

PACKET_LENGTH This will set the receive packet length,

between 10 and 96. The default value is

80.

Kermit-32>SET REC PACKET_LEN 60

PADDING This command will set the number of pad-

ding characters that will be sent to the

other Kermit. The default value is 0.

Kermit-32>SET RECEIVE PADDING n

Where n is the decimal number of padding

characters to use.

PADCHAR This parameter is the padding character

that is sent to the remote Kermit. The

parameter must be an octal number in the

range of 0 to 37 or 177. All other

values are illegal. The default value

is 0 (an ASCII NUL).

Kermit-32>SET RECEIVE PADCHAR nnn

where nnn is the ASCII value of the

character to be used as a pad character

(in octal).

START_OF_PACKET This command will set the start of

packet character for Kermit. The start

of packet character must be in the range

of 0 to 36 octal. The default value is 1

(ASCII SOH, CTRL-A). This value should

only be changed if absolutely necessary.

It must be set the same in both Kermits.

Kermit-32>SET REC START_OF_PACK 3

TIMEOUT This will set the number of seconds be-

fore Kermit-32 will time out the attempt

to receive a message. This time out is

used to handle transmission errors which

totally lose a message. The default

value is 15 seconds.

Kermit-32>SET RECEIVE TIMEOUT n

where n is the number of seconds to wait

for a message (in decimal).

END_OF_LINE This will set the end of line character

the Kermit-32 expects to receive from

the remote Kermit. This is the charac-

ter which terminates a packet. The

default value is 15 (ASCII CR, CTRL-M).

VAX/VMS KERMIT Page 78

Kermit-32>SET REC END_OF_LINE nnn

where nnn is the ASCII value of the

character to use for the end of line

character (in octal).

QUOTE This will set the quoting character that

Kermit-32 will expect on incoming mes-

sages. This is the character used to

quote control characters. The default

value is 43 (ASCII "#").

Kermit-32>SET RECEIVE QUOTE nnn

where nnn is the ASCII value of the

quoting character (in octal).

SEND It is possible to set various parameters associated with

the receiving of the data from the remote Kermit. SET

SEND will enable you to set the various SEND parameters.

These parameters should not normally be set, since as

part of the transfer initialization process the two

Kermit's exchange their RECEIVE parameters. The

capability of setting these parameters is provided so

that the transfer initialization can be completed even

if the default parameters are not correct.

PACKET_LENGTH This will set the SEND packet length.

The value for this parameter must be be-

tween 10 and 96. Packet lengths outside

of this range are illegal. The default

value is 80.

PADDING This command will set the number of pad-

ding characters that will be sent to the

other Kermit. The default value is 0.

PADCHAR This parameter is the padding character

that is sent to the remote Kermit. The

parameter must be an octal number in the

range of 0 to 37 or 177. All other

values are illegal. The default value

is 0 (an ASCII NUL).

START_OF_PACKET This command will set the start of

packet character for Kermit. The start

of packet character must be in the range

of 0 to 36 octal. The default value is 1

(ASCII SOH, CTRL-A). This value should

only be changed if absolutely necessary.

It must be set the same in both

Kermit's.

TIMEOUT This will set the number of seconds be-

VAX/VMS KERMIT Page 79

fore Kermit-32 will time out a message

it has sent to the other Kermit. mes-

sage. This time out is used to handle

transmission errors which totally lose a

message. The default value is 15

seconds.

END_OF_LINE This will set the end of line character

the Kermit-32 will send to the remote

Kermit. This is the character which

terminates a packet. The default value

is 15 (ASCII CR, CTRL-M).

QUOTE This will set the quoting character that

Kermit-32 will expect on incoming mes-

sages. This is the character used to

quote control characters. The default

value is 43 (ASCII "#").

The SHOW Command

The SHOW command will allow you to show the various parameters that are set with the SET command.

ALL The SHOW ALL command will cause all of the parameters to

be listed.

BLOCK_CHECK_TYPE

This command will type out what type of block check is

being requested.

COMMUNICATIONS This command will type out the communcations line re-

lated parameters. This includes the terminal line being

used, the parity type, etc.

DEBUGGING The SHOW DEBUGGING command will print the state of the

debugging flag.

DELAY This will display the number of seconds delay that Ker-

mit will use before attempting to send or receive a

file.

ESCAPE This will display the current escape character for the

CONNECT processing.

FILE_PARAMETERS This will display the parameters related to files being

used. This includes the file type and the incomplete

file disposition.

FILE_TYPE This will display the current file type that is used in

sending the file to or receiving the from the micro com-

puter.

INCOMPLETE_FILE_DISPOSITION

This will display the disposition of incompletely

VAX/VMS KERMIT Page 80

received files.

LOCAL_ECHO This will display the status of the local echo flag.

PACKET This will display the current settings of the send and

receive packet parameters.

PARITY This will display the current parity setting.

SEND All of the send parameters will be displayed on the

user's terminal.

RECEIVE The current values of the RECEIVE parameters will be

displayed on the user's terminal. Only the parmeters

that can be set will be displayed.

RETRY This command will show the maximum retry attempts that

Kermit will attempt to send a message the remote.

IBM VM/CMS KERMIT Page 81

8. IBM VM/CMS KERMIT

Author: Daphne Tzoar, Columbia University

Version: ( unnumbered )

Date: February 1983

Written in IBM 370 assembly language to run under VM/CMS on IBM 370- series mainframes (System/370, 303x, 43xx, 308x, ...). These are half duplex systems; the communication line must "turn around" before any data can be sent to it. The fact that a packet has been received from the IBM system is no guarantee that it is ready for a reply. Thus any

Kermit talking to this system must wait for the line turnaround charac- ter (XON) before transmitting the next character.

IBM systems talk to their terminals through a communications front end

(IBM 3705, 3725, COMTEN 3670, etc). These front ends generally insist on using the 8th bit of each character for parity. This means that bi- nary files (files containing other than ordinary letters, digits, punctuation, carriage returns, tabs, and so forth) can not be correctly sent or received by these systems with Kermit (protocol version 1).

The IBM system under VM/CMS is unable to interrupt a read on its

"console". This means that the IBM version of Kermit cannot timeout.

The only way to "timeout" CMS Kermit is from the other side -- typing a carriage return to the micro's Kermit causing it to retransmit its last packet, or an automatic timeout as provided by Kermit-20. For this reason, CMS Kermit waits ten seconds before sending its first packet when sending files from VM/CMS. This gives the user sufficient time to return to the local Kermit and issue the Receive command. Otherwise, a protocol deadlock would arise requiring manual intervention by the user.

Also, VM/CMS stores files as records rather byte streams. VM/CMS Kermit has to worry about assembling incoming data packets into records and stripping CRLFs from incoming lines, and also appending CRLFs to -- and stripping trailing blanks from -- outgoing records.

The VM/CMS file specification is in the form

FILENAME FILETYPE FILEMODE

(abbreviated FN FT FM). FM is equivalent to a device specification on

DEC or microcomputer systems (FN FT FM would translate to FM:FN.FT).

FILENAME and FILETYPE are at most 8 characters in length, each, and

FILEMODE at most 2. When FILEMODE is omitted from a filespec, the user's own disk is assumed. Kermit-CMS sends only FILENAME and

FILETYPE, and converts the intervening blank to a period for com- patibility with most other operating systems. Kermit-CMS Commands:

SEND fn ft [fm]

Send the specified file(s), using * or % as the wildcard charac-

ters (* will match any number of characters while % matches only

one). Kermit-CMS assumes the file is located on the A disk, and

sets the filemode to A1. If, however, the file is located on a

different disk, the filemode must be cited. Also, note that if

you use * for the filemode, Kermit-CMS will send only the first

file that matches. Examples:

IBM VM/CMS KERMIT Page 82

The command SEND CEN SPSS will send CEN SPSS A1. To

send the same file located on your B disk, you must

specify: SEND CEN SPSS B. SEND * FORTRAN will send all

fortran files on your A disk. SEND ABC% EXEC will send

all exec files with a four letter filename beginning

with ABC. If you have the file PLOT SAS on your A disk

and your B disk, SEND PLOT SAS * will send PLOT SAS A1.

RECEIVE [fn ft [fm]]

Receive the file(s) sent from the other Kermit. If a file

specification is not included, Kermit-CMS will use the name(s)

provided by the other Kermit. Use the file specification to in-

dicate a different filename or a disk other than the A disk (in

this case, the file name and type must also be supplied or

= = FM can be used.) Examples:

To receive files using the filename(s) sent by the

micro, use: RECEIVE. To save a file under a different

name, specify: RECEIVE ABC FORTRAN. To save the file

under the same name but on the B disk, specify: RECEIVE

ABC FORTRAN B, or RECEIVE = = B.

SET parameter value

Set the parameter to the specified value. Legal Set commands

are:

RECFM option

Denotes the record format to be used when creating the

file. Only fixed and variable length records are al-

lowed, where variable is the default. Indicate the

desired record format by either an F (fixed) or a V

(variable).

LRECL decimal-number

Indicates the logical record length. The default is 80,

and the maximum allowed is 256.

QUOTE decimal-number

The ASCII value of the control prefix character you wish

to use in place of the default (#). It must be a

single, printable character from among the following:

33-62, 96, or 123-126 (decimal).

END decimal-number

Indicates the ASCII value of the end-of-line character

you choose to send. The default is CR (ASCII 13

decimal), but can be set to any two digit number between

00 and 31 (decimal).

PAC decimal-number

Allows the user to specify the packet size the micro

should use when sending to Kermit-CMS. The range is

26-94, where 94 is the default.

SHOW parameter

Displays the current value of any variable that can be changed

IBM VM/CMS KERMIT Page 83

via the SET command.

STATUS Returns the status of the previous execution of Kermit-CMS.

Therefore, STATUS will either display the message "Kermit com-

pleted successfully", or the last error encountered prior to

aborting.

CMS Issues a CMS command from within Kermit-CMS.

CP Issues a CP command from within Kermit-CMS.

? Lists all legal Kermit-CMS commands.

This is a list of other salient facts about Kermit-CMS:

1. The commands are supplied with a help option, so a question

mark can be typed to get the appropriate format or a list of

options. The question mark, however, must be followed by a

carriage return; Kermit-CMS will respond and display the

prompt again. For instance, SET ? will list all valid op-

tions for the SET command.

2. When receiving files, if the record format is fixed, any

record longer than the logical record length will be trun-

cated. If the record format is variable, the record length

can be as high as 256. For sending files, the maximum record

length is 256.

3. Before connecting to the IBM mainframe from other systems

(like the various microcomputer and PC Kermits, DEC-20 Ker-

mit, etc), you should set the IBM flag ON so that echoing,

parity, and handshaking can be done the way the IBM system

likes.

4. Note that "(" and ")" act as word separators on the input

line. Therefore, if you try to set the quote character to

"(*" or "*(", for example, only the first character will be

used.

5. Since some Kermits do not send an error packet when they

"abort", Kermit-CMS does not always know the micro has

stopped sending it information. Therefore, when you connect

back to the IBM, Kermit-CMS may still be sending packets

(they will appear on the screen). The user must hit a car-

riage return until Kermit-CMS has sent the maximum number of

packets allowed and aborts. The error message, however, will

not indicate that communication stopped because the micro

aborted, but rather that no start of header character was

found.

6. The minimum send packet size Kermit-CMS will allow is 26.

This is necessary to avoid an error while sending the

filename or an error packet. If the micro tries to set the

value to be less than 26, Kermit-CMS will immediately abort

with an error of "Bad send-packet size."

IBM VM/CMS KERMIT Page 84

7. While the IBM's communication front end processor translates

all incoming characters from ASCII terminals to EBCDIC,

Kermit-CMS translates the data it reads back to ASCII

(characters not representable in ASCII are replaced by a

null). Not only is it easier to work with ASCII characters,

but it makes things more consistent throughout the many ver-

sions of Kermit. When the packets are sent to the micro,

Kermit-CMS converts all data back to EBCDIC. The ASCII to

EBCDIC translation table can be found in the Appendix.

8. If a transfer becomes stuck, you can CONNECT back to the CMS

system and type a lot of carriage returns -- each one will

cause KERMIT-CMS to retransmit the current packet, until the

retransmission limit is reached, and you will be back at

"KERMIT-CMS>" command level.

9. Kermit-CMS supplies the micro and the user with numerous er-

ror messages. If the execution must be abnormally ter-

minated, an error packet is sent to the micro before

Kermit-CMS stops. The same message can be retrieved via the

STATUS command when Kermit-CMS returns and displays the

prompt. If Kermit-CMS aborted because the maximum amount of

retries was exceeded (20 on initialization packets and 5 on

others), the error message will display the most recent error

(i.e. the last NAK Kermit-CMS encountered). If execution

stops because the micro gave up, the error message will con-

vey that to the user, but it is the micro's responsibility to

pinpoint the error. The messages Kermit-CMS gives are as

follows:

"Bad send-packet size"

Sent when the micro attempts to set its receive buffer

size to a value that is less than 26 (the minimum that

Kermit-CMS will accept) or larger than 94, the maximum.

It will also occur if Kermit-CMS tries to send a packet

that is larger than the maximum specified.

"Bad message number"

This and the following messages flag inconsistencies in a

Kermit packet.

"Illegal packet type" -- This can be caused by sending server

commands.

"Unrecognized State"

"No SOH encountered"

"Bad Checksum"

"Bad character count"

"Micro sent a NAK"

"Lost a packet"

"Micro aborted"

The micro abnormally terminated the transfer.

"Illegal file name"

When receiving the name of the file from the micro,

Kermit-CMS expects it to be in the format

'filename.filetype'. If the filename, filetype, or dot

is missing, Kermit-CMS will reject (NAK) the packet.

Also, if either the filename or filetype exceeds eight

characters, it will be truncated.

IBM VM/CMS KERMIT Page 85

"Invalid lrecl"

Kermit-CMS will abort on any file-system error it en-

counters when reading from the file it is to send. It

can only send files with variable or fixed length record

formats, therefore, Wylbur Edit or Packed format files

will cause an error.

"Permanent I/O error"

This signifies a permanent I/O error that occured when

reading from an existing file. Execution is aborted im-

mediately.

"Disk is read-only"

Attempt to write on a read-only disk.

"Recfm conflict"

If a filename conflict arises, Kermit-CMS will append the

received file to the existing one, provided the record

formats of the two are the same. Otherwise, this error

will cause a halt of the execution.

"Disk is full"

Refers to any error regarding limitations on a user's

storage space. Most likely, it signifies that the

receiving disk is full, but the error can also mean that

the maximum number of files allowed has been reached, or

virtual storage capacity has been exceeded, and so on.

"Err allocating space"

Kermit-CMS keeps a table of all files it has sent to the

micro, allocating extra space if more than ten files are

sent at one time. If there is an error obtaining more

space, Kermit-CMS will abort with this error.

Work on VM/CMS Kermit continues. Planned future enhancements include:

1. 8-bit quoting, to allow binary files to pass through com-

munication front ends that insist on using the 8th bit for

parity.

2. Ability to act as a Kermit Server.

3. Ability to SET LINE, so that Kermit-CMS can be used as a

local Kermit, connecting to a remote host over another com-

munication port.

UNIX KERMIT Page 86

9. UNIX KERMIT

Authors: Bill Catchings, Bob Cattani, Chris Maio, Columbia University

with fixes and contributions from many others.

Documentation:

Walter Underwood, Ford Aerospace (Palo Alto, CA)

Version: (unnumbered)

Date: October 1983

A sample, working implementation of the Kermit "kernel" was written in the C language, and widely distributed in the Kermit Protocol Manual.

This kernel was intended merely to illustrate the protocol, and did not include a "user interface", nor some of the fancy features like server support, 8-bit quoting, file warning, timeouts, etc. Several sites have added the necessary trappings to make this a production version of Ker- mit, usually under the UNIX operating system.

The keyword style of user/program interaction favored by Kermit (program types prompt, user types command followed by operands, program types another prompt, etc) is contrary to the UNIX style, so UNIX implemen- tations have a style more familiar to UNIX users. C versions of Kermit are running successfully on VAX and PDP-11 UNIX systems, IBM 370-com- patible mainframes under Amdahl UTS, and the SUN Microsystems MC68000- based and other workstations.

UNIX filespecs are of the form

dir1/dir2/dir3/ ... /filename where the tokens delimited by slashes form a path name, and by conven- tion are each limited to 14 characters in length. The final token in a path is the actual file name. By convention, it is of the form name.type, but there is nothing special about the dot separating name and type; to UNIX it's just another character, and there may be many dots in a filename.

In the tradition of UNIX, here's the UNIX KERMIT "man page".

NAME kermit - file transfer, virtual terminal over tty link

SYNOPSIS kermit c[lbe] [line] [baud] [esc]

kermit r[ddilb] [line] [baud]

kermit s[ddilb] [line] [baud] file ...

DESCRIPTION Kermit provides reliable file transfer and primitive

virtual terminal communication between machines. It has

been implemented on many different computers, including

microprocessors (see below). The files transferred may

be arbitrary ASCII data (7-bit characters) and may be of

any length. The file transfer protocol uses small (96

character) checksummed packets, with ACK/NACK responses

and timeouts. Kermit currently uses a five second

timeout and ten retries.

UNIX KERMIT Page 87

The arguments to kermit are a set of flags (no spaces

between the flags), three optional args (which, if in-

cluded, must be in the same order as the flags which in-

dicate their presence), and, if this is a Send operation

a list of one or more files. (It is similar in some way

to the tar command structure).

Kermit has three modes, Connect, Send, and Receive. The

first is for a virtual terminal connection, the other

two for file transfer. These modes are specified by the

first flag, which should be c, s, or r, respectively.

Exactly one mode must be specified.

The d flag (debug) makes kermit a bit more verbose. The

states kermit goes through are printed along with other

traces of its operation. A second d flag will cause

kermit to give an even more detailed trace.

The i flag (image) allows slightly more efficient file

transfer between Unix machines. Normally (on Kermits

defined to run on Unix systems) newline is mapped to

CRLF on output, CR's are discarded on input, and bytes

are masked to 7 bits. If this is set, no mapping is

done on newlines, and all eight bits of each byte are

sent or received. This is the default for non-Unix ker-

mits.

The l flag (line) specifies the tty line that kermit

should use to communicate with the other machine. This

is specified as a regular filename, like "/dev/ttyh1".

If no l option is specified, standard input is used and

kermit assumes it is running on the remote host (ie. NOT

the machine to which your terminal is attached).

The b flag (baud) sets the baud rate on the line

specified by the l flag. No changes are made if the b

flag is not used. Legal speeds are: 110, 150, 300,

1200, 2400, 4800, 9600. Note that this version of ker-

mit supports this option on Unix systems only.

The e flag (escape) allows the user to set the first

character of the two character escape sequence for Con-

nect mode. When the escape character is typed, kermit

will hold it and wait for the next character. If the

next character is c or C, kermit will close the connec-

tion with the remote host. If the second character is

the same as the escape character, the escape character

itself is passed. Any character other than these two

results in a bell being sent to the user's terminal and

no characters passwd to the remote host. All other

typed characters are passed through unchanged. The

default escape character is '^'.

The file arguments are only meaningful to a Send kermit.

The Receiving kermit will attempt to store the file with

the same name that was used to send it. Unix kermits

UNIX KERMIT Page 88

normally convert outgoing file names to uppercase and

incoming ones to lower case (see the f flag). If a

filename contains a slash (/) all outgoing kermits will

strip off the leading part of the name through the last

slash.

EXAMPLE For this example we will assume two Unix machines. We

are logged onto "unixa" (the local machine), and want to

communicate with "unixb" (the remote machine). There is

a modem on "/dev/tty03".

We want to connect to "unixb", then transfer "file1" to

that machine.

We type:

kermit clb /dev/tty03 1200

Kermit answers:

Kermit: connected...

Now we dial the remote machine and connect the modem.

Anything typed on the terminal will be sent to the

remote machine and any output from that machine will be

displayed on our terminal. We hit RETURN, get a

"login:" prompt and login.

Now we need to start a kermit on the remote machine so

that we can send the file over. First we start up the

remote, (in this case receiving) kermit, then the local,

(sending) one. Remember that we are talking to unixb

right now.

We type:

kermit r

(there is now a Receive kermit on unixb)

We type ^ (the escape character) and then the letter c

to kill the local (Connecting) kermit: ^C

Kermit answers:

Kermit: disconnected.

We type:

kermit slb /dev/tty03 1200 file1

Kermit answers:

Sending file1 as FILE1

When the transmission is finished, kermit will type ei-

UNIX KERMIT Page 89

ther "Send complete", or "Send failed.", depending on

the success of the transfer. If we now wanted to trans-

fer a file from unixb (remote) to unixa (local), we

would use these commands:

kermit clb /dev/tty03 1200

(connected to unixb)

kermit s file9

^c (up-arrow c not control-c)

(talking to unixa again)

kermit rl /dev/tty03 1200

After all the transfers were done, we should connect

again, log off of unixb, kill the Connect kermit and

hang up the phone.

FEATURES Kermit can interact strangely with the tty driver. In

particular, a tty with "hangup on last close" set (stty

hup), will reset to 300 Baud between kermit commands.

It will also hang up a modem at that time. It is better

to run with "stty -hup", and use "stty 0" to explicitly

hang up the modem.

The KERMIT Protocol uses only printing ASCII characters,

Ctrl-A, and CRLF. Ctrl-S/Ctrl-Q flow control can be

used "underneath" the Kermit protocol (TANDEM line dis-

cipline on Berkeley Unix).

Since BREAK is not an ASCII character, kermit cannot

send a BREAK to the remote machine. On some systems, a

BREAK will be read as a NUL.

This kermit does have timeouts when run under Unix, so

the protocol is stable when communicating with "dumb"

kermits (that don't have timeouts).

DIAGNOSTICS cannot open device

The file named in the line argument did not exist or had

the wrong permissions.

bad line speed

The baud argument was not a legal speed.

Could not create file

A Receive kermit could not create the file being sent to

it.

nothing to connect to

A Connect kermit was started without a line argument.

MS-DOS KERMIT Page 90

10. MS-DOS KERMIT

Program: Daphne Tzoar and Jeff Damens, Columbia University; contribu-

tions by many others.

Language: Microsoft Macro Assembler (MASM)

Documentation:

Frank da Cruz, Columbia University; Herm Fischer, Litton

Data Systems, Van Nuys CA.

Version: 2.26

Date: July 1984

Kermit-MS Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: Yes

Alternate block checks: Yes

Terminal emulation: Yes

Communication settings: Yes

Transmit BREAK: Yes

IBM mainframe communication: Yes

Transaction logging: No

Session logging: Yes

Raw transmit: No

Act as server: Yes

Talk to server: Yes

Advanced server functions: No

Advanced commands for servers: Yes

Local file management: Yes

Handle file attributes: No

Command/init files: Yes

Command macros: Yes

Kermit-MS is a program that implements the KERMIT file transfer protocol for the IBM PC and several other machines using the same processor family (Intel 8088 or 8086) and operating system family (PC-DOS or

MS-DOS, henceforth referred to collectively as MS-DOS, versions 1.1,

2.0, and 2.1, and thereafter). This section will describe the things you should know about the MS-DOS file system in order to make effective use of Kermit, and then it will describe the Kermit-MS program.

Version 2 of MS-DOS Kermit runs on a variety of systems, including the

IBM PC and XT, the HP-150, the DEC Rainbow 100 and 100+ (MS-DOS 2.05 and

above), the Wang PC, and there is a "generic" MS-DOS version. Version 1 was adapted at various stages of development to run on other systems as well, including the Heath/Zenith 100, Tandy 2000, Victor 9000

(Sirius-1), and Seequa Chameleon, and is still available for those sys- tems until support for them and others is added to version 2.

MS-DOS KERMIT Page 91

The program operates under version 1.1 or 2.0 and above of DOS, although some features require the functionality of 2.0. It runs in ap- proximately 80K of memory -- over and above the memory used by DOS

-- which means that your system should have at least 128K of RAM to use version 2 of MS-DOS Kermit; smaller systems may still use Version 1.

10.1. The MS-DOS File System

The features of the MS-DOS file system of greatest interest to KERMIT users are the form of the file specifications, and the distinction be- tween pre-MS-DOS 2.0 file names and newer file names which allow direc- tory paths.

10.1.1. File Specifications

MS-DOS 2.x file specifications are of the form

DEVICE:\PATHNAME\NAME.TYPE where the DEVICE is a single character identifier (for instance, A for the first floppy disk, C for the first fixed disk, D for a RAM disk emulator), PATHNAME is up to 63 characters of identifier(s) (up to 8 characters each) surrounded by reverse slashes, NAME is an identifier of up to 8 characters, and TYPE is an identifier of up to 3 characters in length. Device and pathname may be omitted. The first backslash in the pathname may be omitted if the specified path is relative to the current directory. In the path field, "." means current directory, ".." means parent directory. Some DOS implementations (like Wang) may use slash

"/" rather than backslash in the path field.

Pathname is normally omitted, and cannot be specified for MS-DOS 1.x or with those commands which allow MS-DOS 1.x use. Device and directory pathnames, when omitted, default to either the user's current disk and directory, or to the current directory search path as specified in the

DOS PATH environment variable, depending on the context in which the file name appears.

When this manual says that a file is searched for "in the cur-

rent path," it means that the PATH is searched first, and if the

file is not found, then Kermit-MS looks on the current disk and

directory. If the PATH environment variable is empty, Kermit

looks only at the current disk and directory.

NAME.TYPE is normally sufficient to specify a file, and only this infor- mation is sent along by Kermit-MS with an outgoing file.

The device, path, name, and type fields may contain uppercase letters, digits, and the special characters "-" (dash), "_" (underscore), and "$"

(dollar sign). (For use only among MS-DOS processors, additional

filename special characters allowed are "#&!%'`(){}". DOS 1.x allows others as well.). There are no imbedded or trailing spaces. Other characters may be not be included; there is no mechanism for "quoting" otherwise illegal characters in filenames. The fields of the file specification are set off from one another by the punctuation indicated

MS-DOS KERMIT Page 92 above.

The name field is the primary identifier for the file. The type, also called the extension or suffix, is an indicator which, by convention, tells what kind of file we have. For instance FOO.BAS is the source of a BASIC program named FOO; FOO.OBJ might be the relocatable object module produced by compiling FOO.BAS; FOO.EXE could be an executable program produced by linking FOO.OBJ, and so forth. .EXE and .COM are the normal suffixes for executable programs.

The MS-DOS allows a group of files to be specified in a single file specification by including the special "wildcard" characters, "*" and "?

". A "*" matches any string of characters from the current position to the end of the field, including no characters at all; a "?" matches any single character. Here are some examples:

*.BAS All files of type BAS (all BASIC source files) in the current

directory.

FOO.* Files of all types with name FOO.

F*.* All files whose names start with F.

F?X*.* All files whose names start with F and contain X in the third

position, followed by zero or more characters.

?.* All files whose names are exactly one character long.

Wildcard notation is used on many computer systems in similar ways, and it is the mechanism most commonly used to instruct Kermit to send a group of files.

Note: Kermit-MS uses the "?" character for help while commands

are being typed, so the single-character wildcard in Kermit-MS

commands is "=" rather than "?". For example

Kermit-MS>send =.*

would send files of all types whose names were exactly one

character long.

Kermit-MS users should bear in mind that other (non-MS-DOS) systems may use different wildcard characters. For instance the DEC-20 uses "%" in- stead of "?" as the single character wildcard; when using Kermit-MS to request a wildcard file group from a KERMIT-20 server, the Kermit-MS "=" must be replaced by the DEC-20 "%".

10.1.2. File Formats

MS-DOS systems store files as bulk collections of 8 bit bytes, with no

particular differences between text, program code, and binary files.

ASCII text files consist of lines separated by carriage-return-linefeed sequences (CRLFs), which conforms exactly to the way Kermit represents text files during transmission. Since a non-MS-DOS receiving system might need to make distinctions as to file type, you may need to use

MS-DOS KERMIT Page 93 various SET functions on the remote system to inform it that the incom- ing file is of some particular (non-default) type, such as binary. In transmitting files between Kermit-MS's, regardless of file contents, the receiving MS-DOS system is equally capable of processing text, code, and data, and in fact has no knowledge of how the bytes in the file are used.

MS-DOS (unlike CP/M) is capable of pinpointing the end of file with precision by keeping a byte count in the directory, so one would expect no particular confusion in this regard. However, certain MS-DOS programs continue to use the CP/M convention of terminating a text file with a Control-Z character, and won't operate correctly unless this ter- minating byte is present. Therefore, Kermit-MS users should be aware of a special SET EOF option for both incoming and outbound files, described below.

Non-MS-DOS systems may well be confused by nonstandard ASCII files from

Kermit-MS. Files produced by Easywriter or Word Star, for example, may need to be converted to conventional ASCII format prior to transmission by commonly available "exporter" programs. Spreadsheet or database files usually need special formatting to be meaningful to non-MS-DOS recipients (though they can be transmitted between MS-DOS systems with

Kermit-MS). Furthermore, files created by word processors (such as BLUE or Easy Writer) that store formatting data at the end of the file, after the control-Z and before physical end, will require special processing via SET EOF to strip the formatting data, lest they confuse non-MS-DOS recipients.

10.2. Program Operation

Kermit-MS can be run interactively, from a batch file, or as an

"external" DOS command. Commands consist of one or more fields, separated by "whitespace" -- one or more spaces or tabs.

Upon initial startup, the program executes any commands found in the file MSKERMIT.INI in the current path. This initialization file may contain command macro definitions, communications settings for one or more ports, or any other Kermit-MS commands. Here is a sample

MSKERMIT.INI file:

set warning on ; Enable filename collision avoidance.

;

; Define some macros

;

define unix set local-echo off, set flow xon, set timer off

def ibm set parity odd, set local on, set handsh xon, set timer on

def modem set port 2, set baud 1200

def noisy set block-check 3, set send packet-length 40

;

; Select a port

;

set port 1 ; Select COM1 for communications,

set baud 4800 ; setting the speed to 4800 baud,

connect ; and make a terminal connection.

MS-DOS KERMIT Page 94

Note that comments may be included by prefixing them with a semicolon.

The program can be run in several ways.

Interactive Operation:

To run Kermit-MS interactively, invoke the program from DOS command level by typing its name. When you see the command's prompt,

Kermit-MS> you may type Kermit commands repeatedly until you are ready to exit the program, for example:

A>

A>kermit

IBM PC Kermit-MS V2.26

Type ? for help

Kermit-MS>send foo.*

informational messages about the files being sent

Kermit-MS>get bar.*

informational messages about the files being received

Kermit-MS>exit

A>

During interactive operation, you may edit the command you're currently typing to erase the character most recently typed (BACKSPACE or DEL), the most recent field (CTRL-W), or the entire command (CTRL-U). In ad- dition, you may use the help ("?") and recognition (ESC) features freely while typing Kermit-MS commands. A question mark typed at almost any point in a command produces a brief description of what is expected or possible at that point; for this reason, Kermit-MS uses "=" for the single-character match wildcard in local filenames. ESC typed at any point, even in a local filename, will cause the current field to be filled out if what you have typed so far is sufficient to identify it, and will leave you in position to type the next field (or to type a "?" to find out what the next field is); otherwise, the program will beep at you and wait for you to type further characters.

Some Kermit-MS commands, like GET, SHOW KEY, SET KEY, may prompt for ad- ditional information on subsequent lines. If you have reached one of these prompts and then wish to cancel the command, you may type

Control-C.

Summary of Kermit-MS Command Characters:

BACKSPACE Delete the character most recently typed. May be typed

repeatedly to delete backwards. You may also use

DELETE, RUBOUT, or equivalent keys.

MS-DOS KERMIT Page 95

CTRL-W Delete the most recent "word", or field, on the command

line. May be typed repeatedly.

CTRL-U Delete the entire command line.

CTRL-C Cancel the current command and return to the

"Kermit-MS>" prompt.

? Type a brief message describing what you are expected to

type in the current field.

ESC If enough characters have been supplied in the current

field (keyword or file name) to uniquely identify it,

supply the remainder of the field and position to the

next field of the command. Otherwise, sound a beep.

= Wildcard character for matching single characters in

filenames, equivalent to MS-DOS "?".

Command Line Invocation:

Kermit-MS may also be invoked with command line arguments from DOS com- mand level, for instance:

A>kermit send foo.bar or

A>kermit set port 1, set baud 9600, connect

In this case, help and recognition are not available (because the program won't start running until after you type the entire command line), and Kermit-MS will exit after completing the specified command or commands. Therefore, when invoked with command line arguments,

Kermit-MS will behave as if it were an external DOS command, like MODE.

Note that several commands may be given on the command line, separated by commas.

Batch Operation:

Like other MS-DOS programs, Kermit-MS may be operated under batch with either command line arguments and/or TAKE files; Kermit will also run interactively if invoked from batch, but it will read commands from the keyboard and not the batch file.

10.3. Kermit-MS Commands

MS-DOS Kermit implements a large subset of the commands of "ideal" Ker-

mit. Here's a brief summary:

BYE to remote server.

CLOSE log file and stop logging remote session.

CONNECT as terminal to remote system.

MS-DOS KERMIT Page 96

DEFINE macros of Kermit-MS commands.

DELETE local files.

DIRECTORY listing of local files.

DO a macro expansion.

EXIT from Kermit-MS.

FINISH Shut down remote server.

GET remote files from server.

HELP about Kermit-MS.

LOCAL prefix for local file management commands.

LOG remote terminal session.

LOGOUT remote server.

PUSH to MS-DOS command level.

QUIT from Kermit-MS

RECEIVE files from remote Kermit.

REMOTE prefix for remote file management commands.

RUN an MS-DOS program.

SEND files to remote Kermit.

SERVER mode of remote operation.

SET various parameters.

SHOW various parameters.

SPACE inquiry.

STATUS inquiry.

TAKE commands from file.

The remainder of this section concentrates on the commands that have special form or meaning for MS-DOS Kermit. Not all of the following commands are necessarily available on all MS-DOS systems, and some of the commands may work somewhat differently between DOS versions.

10.3.1. Commands for File Transfer

The file transfer commands are SEND, GET, and RECEIVE.

THE SEND COMMAND

Syntax: SEND filespec1 [filespec2]

The SEND command causes a file or file group to be sent from the local

MS-DOS system to the Kermit on the remote system. The remote Kermit may be running in either server or interactive mode; in the latter case, you should already have given it a RECEIVE command and escaped back to your

PC. filespec1 may contain a device designator, like "A:" and the wildcard characters "*" and/or "=". The current release of Kermit-MS, however, does not allow pathnames in the SEND command file specification.

If filespec1 contains wildcard characters then all matching files will be sent, in the same order that MS-DOS would show them in a directory

listing. If filespec1 specifies a single file, you may direct Kermit-MS to send that file with a different name, given in filespec2. For in- stance, in the command

Kermit-MS>send foo.bar framus.widget

MS-DOS KERMIT Page 97 filespec2 begins with the first nonblank character after filespec1 and ends with the carriage return; thus it may contain blanks or other un- usual characters that may be appropriate on the target machine. Lower case letters in filespec2 are raised to upper case for transmission.

If a file can't be opened for read access, standard MS-DOS recovery procedures will take place. For example:

Not ready error reading drive A

Abort, Retry, Ignore?

If you select "Abort," you will be returned to DOS.

Files will be sent with their MS-DOS filename and filetype (for instance

FOO.TXT, no device or pathname). Each file is sent as is, with no con- versions done on the data, except for possibly adding or deleting a ter- minating Control-Z character (see the SET EOF command).

Once you give Kermit-MS the SEND command, the name of each file will be displayed on your screen as the transfer begins; packet, retry, and other counts will be displayed along with informational messages during the transfer. If the file is successfully transferred, you will see

"Complete", otherwise there will be an error message. When the specified operation is done, the program will sound a beep.

Several single-character commands may be given while a file transfer is in progress:

^X (Control-X) Stop sending the current file and go on to the next

one, if any.

^Z Stop sending this file, and don't send any further files.

^C Return to Kermit-MS command level immediately without sending any

kind of notification to the remote system.

^E Like ^C, but send an Error packet to the remote Kermit in an at-

tempt to bring it back to server or interactive command level.

CR Simulate a timeout: resend the current packet, or NAK the expected

one.

Control-X and Control-Z send the proper protocol messages to the remote

Kermit to bring it gracefully to the desired state. Control-C leaves the remote Kermit in whatever state it happens to be in. Control-E

"aborts" any protocol that is taking place.

THE RECEIVE COMMAND

Syntax: RECEIVE [filespec]

The RECEIVE command tells Kermit-MS to receive a file or file group from the other system. Kermit-MS simply waits for the file to arrive; this command is not to be used when talking to a Kermit server (use GET for that). You should already have issued a SEND command to the remote Ker-

MS-DOS KERMIT Page 98 mit and escaped back to Kermit-MS before issuing the RECEIVE command.

If the optional filespec is provided, store the incoming file under that name. The filespec may include a device designator, or may consist of only a device designator. The incoming file is stored on the default or specified device (current directory in DOS 2.0 and thereafter). If no name was specified, the name from the incoming file header packet is used; if that name is not a legal MS-DOS file name, Kermit-MS will delete excessive characters from it, and will change illegal characters to the letter X.

If the optional filespec was provided, but more than one file arrives, the first file will be stored under the given filespec, and the remainder will be stored under their own names, but on the specified device.

If an incoming file does not arrive in its entirety, Kermit-MS will nor- mally discard it; it will not appear in your directory. You may change this behavior by using the command SET INCOMPLETE KEEP, which will cause as much of the file as arrived to be saved in your directory.

The same single-character commands are available as during SEND:

^X Request that the remote Kermit stop sending the current file, and

proceed to the next one immediately. Since this is an optional

feature of the Kermit protocol, the remote Kermit might not honor

the request.

^Z Request that the remote Kermit terminate the entire transfer; this

is also an optional feature that may or may not be supported by

the remote Kermit.

^C, ^E, and CR operate in the same way as they do during SEND.

If the incoming file has the same name as a file that already exists, and WARNING is set ON, Kermit-MS will change the incoming name (and in- form you how it renamed it) so as not to obliterate the pre-existing file. If WARNING is OFF, the original file will be overwritten; if you type ^X or ^Z to interrupt the transfer, you'll either get a partial new file, or else both the old and the new file of that name will be lost, depending on SET INCOMPLETE. In any case, when WARNING is off, files with the same name as incoming files will not survive.

Caution: If an incoming file's name (the part before the dot) cor- responds to an MS-DOS device name, such as NUL, COM1, CON, AUX, or PRN, output will go to that device, rather than to a file with that name.

This is a feature of MS-DOS.

MS-DOS KERMIT Page 99

THE GET COMMAND

Syntax: GET remote-filespec

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used only when

Kermit-MS has a KERMIT server on the other end of the connection. This means that you must have CONNECTed to the other system, logged in, run

KERMIT there, issued the SERVER command, and escaped back (e.g. ^]C) to the local Kermit-MS. If the remote Kermit does not have a SERVER com- mand, then you should use SEND and RECEIVE as described above.

You may use the GET command to specify a different name for storing the incoming. Just type GET alone on a line, and you will be prompted separately for the remote filespec and the local filespec:

Kermit-MS>get

Remote Source File: com1.txt

Local Destination File: xcom1.txt

If more than one file arrives, only the first will be renamed.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally. It can contain whatever wildcard or file-group notation is valid on the remote system. As files arrive, their names will be displayed on your screen, along with packet traffic statistics and status messages. You may type

^X to request that the current incoming file be cancelled, ^Z to request that the entire incoming batch be cancelled, and ^C or ^E to return im- mediately to the Kermit-MS> prompt, exactly as described for the RECEIVE command.

10.3.2. Commands for Connecting and Disconnecting

The CONNECT command connects your PC as a terminal to the remote system, so that you can start up Kermit there. The BYE, FINISH, and LOGOUT com- mands allow you to shut down a remote Kermit server.

BYE When communicating with a remote KERMIT server, use the

BYE command to shut down the server, log out its job,

and exit from Kermit-MS to DOS.

FINISH Like BYE, FINISH shuts down the remote server. However,

FINISH does not log out the server's job. You are left

at Kermit-MS prompt level so that you can connect back

to the job on the remote system.

LOGOUT The LOGOUT command is identical to the BYE command, ex-

cept you will remain at Kermit-MS prompt level, rather

than exit to DOS, so that you can establish another con-

nection.

MS-DOS KERMIT Page 100

The CONNECT Command

Establish an interactive terminal connection to the system connected to the currently selected communications port (e.g. COM1 or COM2) using full duplex (remote) echoing and no parity unless otherwise specified in previous SET commands. Get back to Kermit-MS by typing the escape character followed by the letter C. The escape character is Control-] by default.

You can use the SET ESCAPE command to define a different escape charac- ter, and on some systems (including the PC and XT) you can SET BAUD to change the baud rate, and SET PORT to switch between ports.

Terminal emulation is described in greater detail in section 10.4 below.

10.3.3. Commands for File Management

Kermit-MS provides commands or managing both local and remote files.

THE REMOTE COMMANDS

The REMOTE keyword is a prefix for a number of commands. It indicates that the command is to be performed by the remote Kermit, which must be running as a server. Note that not all Kermit servers are capable of executing all these commands, and some Kermit servers may be able to perform functions for which Kermit-MS does not yet have the correspond- ing commands. In case you send a command the server cannot execute, it will send back a message stating that the command is unknown to it. If the remote server can execute the command, it will send the results to your screen. Here are the REMOTE commands which Kermit-MS may issue:

CWD [directory] Change Working Directory on the remote host. Change the

default source and destination area for file transfer

and management. You will be prompted for a password,

which will be erased as you type it. If you do not

supply a password (i.e. you type only a carriage

return), the server will attempt to access the specified

directory without a password. If you do not supply a

directory name, your default or login directory on the

remote system will be assumed.

DELETE filespec Delete the specified file or files on the remote system.

In response, the remote host should display a list of

the files that were or were not successfully deleted.

DIRECTORY [filespec] The remote system will provide a directory listing

of the specified files. If no files are specified, then

all files in the default area (the current working

directory) will be listed.

HELP The remote host tells what server functions it is

capable of.

HOST [command] Send the command to the remote system's command proces-

MS-DOS KERMIT Page 101

sor for execution.

SPACE [directory]

Provide a brief summary of disk usage in the specified

area on the remote host. If none specified, the default

or current area will be summarized.

TYPE filespec Display the contents of the specified remote file or

files on the screen.

THE LOCAL COMMAND

The LOCAL keyword is a prefix for a number of commands. It indicates that the specified command is to be executed on the local MS-DOS system.

The LOCAL prefix may be omitted. The local commands available are:

DELETE filespec Deletes the specified file or files. As in DOS, the

names of the deleted files are not listed, only the mes-

sage "file(s) deleted" or "file(s) not found", and if

you give the command "delete *.*", Kermit-MS will prompt

"Are you sure?", like DOS.

DIRECTORY [filespec] Lists the names, sizes, and creation dates of

files that match the given file specification. If no

filespec is given, the command is equivalent to DIR *.*.

SPACE Performs the MS-DOS CHKDSK function by running the

CHKDSK program from the current path, or default disk

under DOS 1.1.

RUN filespec Runs the specified file, which must be in .EXE or .COM

format, from the specified path or according to the

value of the PATH variable if no path was included in

the filespec. This command requires MS-DOS 2.0 or

higher.

PUSH Invokes an MS-DOS command processor "under" Kermit-MS,

either COMMAND.COM or whatever shell you have specified

with COMSPEC. When you return to Kermit-MS (for in-

stance, by typing the MS-DOS EXIT command), you will

find Kermit-MS as you left it, with all settings intact.

This command only works in MS-DOS 2.0 or higher.

The local RUN command has various uses, one of which is to supplement the features of Kermit-MS. For instance, suppose there is an involved procedure that you regularly perform on a certain remote system -- this might include giving commands to a modem to dial the system, looking for a particular herald or prompt, performing a login command sequence, run- ning a selected application, and then running Kermit to send the results back to your PC. You could write a program in the compiled language of

your choice, say C or BASIC, to send the desired commands to your modem and the remote system and to look for the appropriate responses. You could put all this in a Kermit-MS TAKE command file (see below), like

MS-DOS KERMIT Page 102

run update.com

receive

The program, called UPDATE in this case, does everything up to and in- cluding starting Kermit sending from the remote system. When the program terminates, the next Kermit-MS command, "receive," is executed from the command file. When the end of the command file is reached, in- teractive operation is resumed.

THE TAKE COMMAND

Syntax: TAKE filespec

Execute Kermit commands from the specified file, which may include an explicit path; if no path is specified, the value of the PATH variable is used; if PATH has no value, then the current disk and directory are searched. The command file may include TAKE commands, but it cannot in- clude characters to be sent to a remote host during terminal emulation

(i.e. after a CONNECT command). A command file may include comments prefixed by semicolons.

THE LOG COMMAND

Syntax: LOG filespec

Specifies that all characters that appear on your screen during CONNECT will be recorded in the specified file. This allows you to "capture" files from a remote system that doesn't have Kermit, as well as to record remote command typescripts. The log is closed when you EXIT from

Kermit-MS or when you issue an explicit CLOSE command.

10.3.4. The SERVER Command

Kermit-MS is capable of acting as a Kermit server, providing file trans- fer for users coming in through one of the communication ports. The current version of Kermit-MS can send files (the user on the other end types the GET command), receive files (the user types SEND), and ter- minate, giving control back to the console (user types BYE).

To put Kermit-MS into server mode, first issue any desired SET commands to select and configure the desired port, and then type the SERVER com- mand. Kermit-MS will await all further instructions from the user Ker- mit on the other end of the connection, which may be hardwired or con- nected through an autoanswer modem. For example:

Kermit-MS>set port 1

Kermit-MS>set baud 1200

Kermit-MS>set timer on

Kermit-MS>set warning on

Kermit-MS>server

MS-DOS KERMIT Page 103

10.3.5. The SET Command

Syntax: SET parameter [value]

Establish or modify various parameters for file transfer or terminal connection. You can examine their values with the SHOW command. Note that there is no "set ibm" command; IBM mainframe communication parameters may be selected with a command macro (see below). The fol- lowing SET commands are available in Kermit-MS:

BAUD Communications port line speed

BELL Whether to beep at the end of a transaction

BLOCK-CHECK-TYPE Level of error checking for file transfer

DEBUG Display packet contents during file transfer

DEFAULT-DISK Default disk drive for file i/o

DESTINATION Default destination device for incoming files

END-OF-LINE Packet terminator

EOF Method for determining or marking end of file

ESCAPE Escape character for CONNECT

FLOW-CONTROL Enable or disable XON/XOFF

HANDSHAKE Half-duplex line turnaround option

HEATH19 Heath/Zenith-19 terminal emulation

INCOMPLETE What to do with an incompletely received file

KEY Specify key redefinitions, or "keystroke macros"

LOCAL-ECHO Specify which host does the echoing during CONNECT

PARITY Character parity to use

PORT Select a communications port

PROMPT Change the "Kermit-MS>" prompt to something else

RECEIVE Request remote Kermit to use specified parameters

REMOTE For running Kermit-MS interactively from back port

SEND Use the specified parameters during file transfer

TAKE-ECHO Control echoing of commands from TAKE files

TIMER Enable/disable timeouts during file transfer

WARNING Specify how to handle filename collisions

The SET commands that are peculiar to MS-DOS Kermit are now described in greater detail. The others behave as in "ideal" Kermit.

SET BAUD

Syntax: SET BAUD rate

Set the speed of the currently selected terminal communications port

(COM1 by default) to 300, 1200, 1800, 2400, 4800, 9600 or other common baud rate. Some implementations do not support this command. In any case, Kermit-MS leaves the current communication port settings alone un- less you issue explicit SET commands to change them.

SET BELL

Syntax: SET BELL ON or OFF

Specifies whether bell (beeper) should sound upon completion of a file transfer operation.

MS-DOS KERMIT Page 104

SET DEBUG

Syntax: SET DEBUG ON or OFF

ON Display the Kermit packet traffic on your screen during file

transfer. If the debugger is loaded, transfer control to it

when CTRL-C is typed. In Heath-19 terminal emulation on the IBM

PC, display unusual control characters in uparrow notation.

OFF Don't display debugging information (this is the default). If

debugging was in effect, turn it off.

SET DEFAULT-DISK

Syntax: SET DEFAULT-DISK x:

Specify the default disk drive to use for file transfer, directory list- ings, and so forth. Equivalent to typing the DOS command for changing disks.

SET DESTINATION

Syntax: SET DESTINATION device

Specify the device for incoming files, DISK or PRINTER. SET DESTINATION

PRINTER will cause incoming files to be spooled directly to the printer.

The normal destination is DISK.

END-OF-LINE

Syntax: SET END-OF-LINE number

If the remote system needs packets to be terminated by anything other than carriage return, specify the decimal value of the desired ASCII character.

SET EOF

Syntax: SET EOF option

Controls how the end of file is handled. The options are:

CTRL-Z Append a Control-Z character to the end of an incoming

file, unless it already ends with a Control-Z. Certain

MS-DOS text editors and other applications require files

to be in this format. For outbound files, treat the

first Control-Z as the end of file, and do not send it

nor any characters following it.

NOCTRL-Z (Default) Store incoming files exactly as is, and send

MS DOS files exactly as is (according to their byte

count).

MS-DOS KERMIT Page 105

SET ESCAPE

Syntax: SET ESCAPE character

Specify the control character you want to use to "escape" from remote connections back to Kermit-MS. The default is normally ^] (Control-

Rightbracket). The character is entered literally, and should normally be chosen from the ASCII control range.

SET FLOW-CONTROL

Syntax: SET FLOW-CONTROL option

Specify the full duplex flow control to be done on the currently selected port. The current options are XON/XOFF and NONE. The specified type of flow control will be done during both terminal emula- tion and file transfer. If set to XON/XOFF, HANDSHAKE is automatically set to OFF.

SET HANDSHAKE

Syntax: SET HANDSHAKE option

Specify any half-duplex handshaking to be done on the currently selected port. The options are BELL, CR, LF, NONE, XOFF, or XON. The specified handshaking will be done during file transfer only. If HANDSHAKE is set to anything other than NONE, FLOW-CONTROL is automatically set to OFF.

SET HEATH19

Syntax: SET HEATH19 ON or OFF

Specify whether Kermit-MS should use its built-in software facility for emulating a Heath/Zenith-19 (H19) terminal.

ON During CONNECT, incoming characters are to be examined for H19

terminal screen control commands (escape sequences), and if en-

countered, the commands are to be emulated on the PC screen.

The H19 codes are a superset of the popular DEC VT52 codes, so

if your system does not support the Heath-19, you may tell it

that your terminal type is VT52 (or one of the many VT52

compatibles). The Heath-19 codes are listed in section 10.10,

below.

OFF All incoming characters will be sent to the screen "bare",

through DOS. If you have loaded a device driver into DOS for

the CON: device, such as ANSI.SYS, then that driver will be able

to interpret the codes itself. Most non-IBM systems have their

own screen control code interpreter built into DOS or firmware,

or available as a loadable device driver.

See section 10.4 for details about terminal emulation.

MS-DOS KERMIT Page 106

SET KEY

Syntax: SET KEY key-specifier

Specifies that when the designated key is struck during terminal emula- tion, the associated character string is sent. The key-specifier is one of the keywords F1, F2, ..., or SCAN followed by a scan code. Systems that have a BACKSPACE key also include BACKSPACE as a keyword.

If SCAN is used, it is followed by a decimal number to indicate the scan code of the key, which you would ascertain from your system reference manual, or else by using the Kermit-MS SHOW KEY command. SET KEY prompts you on a new line for the definition string. Certain charac- ters, like ESC and CR, may not be entered literally into the string, but can be included by inserting escape codes of the form \ooo, a backslash followed by a 2- or 3-digit octal number corresponding to the ASCII value of the desired character. If some other key redefinition package, like ProKey, has been loaded, then its redefinitions will take precedence over Kermit's.

The SET KEY command is illustrated in the terminal emulation section,

10.4, below.

SET LOCAL-ECHO

Syntax: SET LOCAL-ECHO option

Specify how characters are echoed during terminal emulation on the cur- rently selected port. ON specifies that characters are to be echoed by

Kermit-MS (because neither the remote computer nor the communications circuitry has been requested to echo), and is appropriate for half- duplex connections. LOCAL-ECHO is OFF by default, for full-duplex, remote echo operation.

When you SET LOCAL-ECHO ON, the current HANDSHAKE (if any) is automati- cally enabled and full-duplex FLOW-CONTROL is automatically turned off.

When you SET LOCAL-ECHO OFF, HANDSHAKE is also disabled, and the current mode of FLOW-CONTROL (if any) is enabled. If this behavior is un- desired, you may override it by typing explicit SET HANDSHAKE or SET

FLOW commands after entering the SET LOCAL-ECHO command.

SET PARITY

Syntax: SET PARITY keyword

Specify the character parity to be used on the currently selected port.

The choices for SET PARITY are NONE (the default), ODD, EVEN, MARK, and

SPACE. NONE means no parity processing is done, and the 8th bit of each character can be used for data when transmitting binary files.

You will need to SET PARITY to ODD, EVEN, MARK, or possibly SPACE when communicating with a system, or over a network, or through modems, con- centrators, multiplexers, or front ends that require or impose character parity on the communication line. For instance, GTE Telenet requires

MS-DOS KERMIT Page 107

MARK parity. If you neglect to SET PARITY when the communications equi- pment requires it, the symptom may be that terminal emulation works par- tially, and file transfer does not work at all.

If you have set parity to ODD, EVEN, MARK, or SPACE, then Kermit-MS will request that binary files will be transferred using 8th-bit-prefixing.

If the other side knows how to do 8th-bit-prefixing (this is an optional feature of the KERMIT protocol, and not all implementations of KERMIT have it), then binary files can be transmitted successfully. If NONE is specified, 8th-bit-prefixing will not be requested. Note that there is no advantage to using parity; it only slows Kermit file transfer down.

The SET PARITY command is provided only to allow Kermit to adapt to hardware that insists upon using parity.

SET PORT

Syntax: SET PORT number

On machines with more than one communications port, select the port to use for file transfer and CONNECT. This command lets you use a dif- ferent asynchronous adapter, or switch between two or more simultaneous remote sessions. Subsequent SET BAUD, PARITY, HANDSHAKE, FLOW, and

LOCAL-ECHO commands will apply to this port only. SET PORT 1 selects

COM1, SET PORT 2 selects COM2.

SET REMOTE

Syntax: SET REMOTE ON or OFF

If you wish to run Kermit-MS interactively through the back port, for instance after the operator has done CTTY COM1, you must give the com- mand SET REMOTE ON; this suppresses the file transfer display screen, so that the display won't interfere with the file transfer itself.

SET RECEIVE

Syntax: SET RECEIVE parameter value

At the beginning of a protocol operation, request the remote Kermit to use the given value specified parameter, or inform Kermit-MS that the remote Kermit will be using it.

PACKET-LENGTH Ask the remote Kermit to use the specified maximum

length for packets that it sends to Kermit-MS. The nor-

mal (and maximum) length is 94. Use this command to

shorten packets if the communication line is noisy; this

will decrease the probability that a particular packet

will be corrupted, and will reduce the retransmission

overhead when corruption occurs, but it will increase

the protocol overhead.

PADCHAR Ask the remote Kermit to use the given character for in-

terpacket padding. Kermit-MS should never require any

MS-DOS KERMIT Page 108

padding.

PADDING Ask the remote Kermit to insert the given number of pad-

ding characters before each packet it sends. This

should never be necessary.

START-OF-PACKET The remote Kermit will be marking the beginning of pack-

ets with something other than Control-A. This will be

necessary only if the hosts or communication equipment

involved cannot pass a Control-A through as data.

TIMEOUT Ask the remote Kermit to time out after the given number

of seconds if a packet expected from Kermit-MS has not

arrived. Use this command to change the normal timeout

interval.

SET SEND

Syntax: SET SEND parameter value

PACKET-LENGTH Use the specified maximum length for outbound packets.

Normally, Kermit-MS uses whatever length the other Ker-

mit requests.

PADCHAR Use the specified character for interpacket padding.

Some hosts may require some padding characters (normally

NUL or DEL) before a packet.

PADDING How many padding characters to use between packets, nor-

mally zero.

QUOTE Use the indicated printable character for prefixing

(quoting) control characters and other prefix charac-

ters. The only reason to change this would be for send-

ing a very long file that contains very many "#" charac-

ters (the normal control prefix) as data.

START-OF-PACKET Mark the beginning of outbound packets with some control

character other than Control-A. This will be necessary

only if the remote host or the communication channel in-

volved cannot accept a Control-A as data. The remote

host must have been given the corresponding SET RECEIVE

START-OF-PACKET command.

TIMEOUT Change Kermit-MS's normal timeout interval; this command

is effective only if TIMER is set to be ON; it is nor-

mally OFF so that the remote KERMIT can control

timeouts.

MS-DOS KERMIT Page 109

SET TAKE-ECHO

Syntax: SET TAKE-ECHO ON or OFF

Specifies whether screen display should occur during implicit or ex- plicit TAKE operations on MSKERMIT.INI or other Kermit-MS command files, and during evaluation of macro definitions. Handy for finding errors in command files.

SET TIMER

Syntax: SET TIMER ON or OFF

Enable or disable the timer that is used during file transfer to break the deadlock that occurs when an expected packet does not arrive. By default, the timer is OFF, because Kermit-MS is usually used in conjunc- tion with a mainframe that is doing its own timeouts. During a file transfer, it is sufficient for one side to do the timing out and the mainframe is usually better equipped to adjust timeout intervals based on system load or other conditions. The timer should be set ON if you are communicating with a system that cannot do timeouts, such as IBM

VM/CMS Kermit.

SET WARNING

Syntax: SET WARNING option

Specify what to do when an incoming file has the same name as an exist- ing file in the default directory of the default device. If ON, Kermit will warn you when an incoming file has the same name as an existing file, and automatically rename the incoming file (as indicated in the warning message) so as not to destroy (overwrite) the pre-existing one.

If OFF, the pre-existing file is destroyed, even if the incoming file does not arrive completely.

10.3.6. The SHOW Command

Syntax: SHOW option

Currently, most parameters that may be altered with SET commands are displayed by the STATUS command. The SHOW command is used for display- ing macro definitions and key redefinitions.

The SHOW MACROS command displays the definitions of all currently defined macros.

The SHOW KEY command allows you to determine the scan code produced by pressing a given key, so that you can construct a SET KEY command to

redefine the key. If the key already has a redefinition in effect, that too will be displayed. In this example, a DEC Rainbow user determines the scan code for the accent grave key, and then redefines that key to send ESC:

MS-DOS KERMIT Page 110

Kermit-MS>show key

Press a key: `

Scan Code: 96

Definition:

Kermit-MS>set key scan 96

Definition string: \33

Kermit-MS>show key

Press a key: `

Scan Code: 96

Definition: \33

Kermit-MS>

The SHOW KEY command only works on certain systems.

10.3.7. Command Macros

Kermit-MS provides a facility for combining commands into "macros."

Command macro definitions may be included in your MSKERMIT.INI file,

TAKEn explicitly from a specified file, or typed interactively, and may be invoked with the DO command.

THE DEFINE COMMAND

Kermit-MS command macros are constructed with the DEFINE command. The syntax is

DEFINE macro-name [command [, command [, ...]]]

Any Kermit-MS commands may be included. Example:

define telenet set parity mark, set baud 1200, connect

THE DO COMMAND

A Kermit-MS command macro is invoked using the DO command. For in- stance, Kermit-MS comes with a predefined macro to allow convenient setup for IBM communications; to invoke it, you would type

do ibm

The IBM macro is defined as "parity mark, handshake xon, local-echo on, timer on". You can delete or replace this definition by adding a new

(perhaps null) definition, such as

define ibm parity even, handshake cr, local-echo on, timer on or

define ibm

MS-DOS KERMIT Page 111

10.4. Terminal Emulation

When you issue the CONNECT command, your PC acts as a terminal connected to a remote computer through the currently selected port. The charac- ters you type are sent out the port, and characters that arrive at the port are displayed on your screen. If you have not previously issued a

SET PORT command, COM1 is used. If you have SET LOCAL-ECHO ON for the selected port, then Kermit-MS will display characters on the screen as you type them. If LOCAL-ECHO is OFF, then XON/XOFF flow control will be done unless you have SET FLOW-CONTROL OFF. If you have SET PARITY to anything other than NONE, Kermit-MS will add the appropriate parity to each outbound character, and strip any parity from incoming ones. While

CONNECTed, you can also communicate with an autodialer or "smart modem" to control the communications line, hang it up, and the like; for in- stance, typing +++ to a Hayes-like modem will allow you to follow that by dialing or hangup commands.

If Heath-19 emulation is being done, incoming characters will be monitored for H19/VT52 escape sequences. These will be interpreted ac- cording to the table in section 10.10. In addition, keys on the numeric keypad will send H19/VT52 sequences unless you disable this feature in some way, for instance by pressing Num Lock on the IBM PC keyboard, or with key redefinitions.

Caution: On some systems, such as the IBM PC and XT, Kermit-MS

accesses the screen memory memory directly to perform certain

H19 emulation functions such as character insert/delete and

screen scroll. Without direct screen memory access, these func-

tions would be painfully slow. Although Kermit-MS has been

tested successfully on a variety of monochrome and color adap-

ters and monitors, there may be combinations for which this

method could cause video problems, such as snow. Should this

occur, you can alleviate the problem by setting HEATH19 emula-

tion OFF. In that case, however, you remove not only the

problems, but also the desirable features of emulation. But

Kermit-MS does permit you to load an external console device

driver, such as IBM's ANSI.SYS, to provide any desired screen

control.

Here are the terminal emulation options for the systems presently sup- ported by Kermit-MS:

System EscChar Cabilities Terminal Service

IBM PC, XT ^] R M P K Heath19 emulation

DEC Rainbow ^] R P K VT102 firmware

HP-150 ^] R HP-2623 firmware

Wang PC ^A Wang firmware

Generic DOS ^] Depends on system

Under Capabilities, R means rollback, M means mode line, P means printer control, and K means key redefinition.

IBM PC/XT Kermit can disable Heath-19 emulation and use an external con- sole device driver like ANSI.SYS instead.

When you first issue the CONNECT command, a message (on some systems, an

MS-DOS KERMIT Page 112 inverse video "mode line") will display the most important facts about the connection you've just established, so that you can quickly diagnose any problems. The items displayed in the mode line include the escape character, port number, the baud rate, the parity, the echo, and how to get help, for instance:

+---------------------------------------------------------------------+

|EscChar:^],Port:1,Baud:9600,Parity:None,Echo:Remote,Type ^]? for Help|

+---------------------------------------------------------------------+

The escape character is used to regain the attention of Kermit-MS. When you type the escape character, Kermit-MS waits for you to follow it with a single character command. For instance, the single-character-command

"?" produces a list of available single character commands, such as this:

? Help -- prints the available single-character commands.

C Close the connection and return to Kermit-MS prompt level.

S Show the status of the connection.

B Send a BREAK signal to the port.

0 (the digit zero) Send a NUL (ASCII 0) to the port.

Q Temporarily quit logging the remote session.

R Resume logging the remote session.

M Toggle the mode line, i.e. turn it off if it is on & vice versa.

^] (or whatever you have set the escape character to be)

Typing the escape character twice sends one copy of it to the con-

nected host.

Typing any other character (except the space bar, which is the "null command") after the escape character will cause Kermit-MS to beep, but will do no harm. The escape character can be changed to something other than Control-Rightbracket by using the SET ESCAPE command.

Kermit-MS includes several advanced features for use during terminal emulation, including screen scroll, printer control, and key redefini- tions.

Screen Scroll

Kermit-MS provides several pages of screen memory, which may be scrolled up and down using keys as follows:

Function IBM PC/XT Rainbow HP-150

Screen Down PgDn PrevScreen Prev

Line Down Ctrl-PgDn Ctrl-PrevScreen Shift-UpArrow

Screen Up PgUp NextScreen Next

Line Up Ctrl-PgUp Ctrl-NextScreen Shift-DownArrow

Top of Memory Home

Bottom of Memory End

There is presently no way to assign these functions to other keys.

MS-DOS KERMIT Page 113

Printer Control

A locally attached printer may be controlled in the normal manner, on most systems. Pushing the "Print Screen" key (shifted on some systems) will cause the current contents of the screen to be printed or spooled; holding down CTRL while depressing Print Screen will start or stop the spooling of incoming characters to the printer. ^P or ^N are sent to the host during terminal emulation, and do not toggle printing, as they do when you're talking directly to DOS.

CTRL-Print-Screen can be simulated with the Kermit-MS LOG PRN and CLOSE commands.

Key Redefinitions

Key redefinitions are useful for defining "keystroke macros" of login sequences, frequently issued commands, and so forth, and for setting up the terminal for use with host resident software designed to work with terminals that send predefined sequences from their function keys. For instance, here's a key redefinition file for arranging the DEC Rainbow keyboard into the normal ASCII keyboard layout:

; Make shift-comma send a left angle bracket

set key scan 556

<

; Shift-period sends a right angle bracket

set key scan 558

>

; Accent grave is where ESC is supposed to be

set key scan 96

\33

; Put accent grave on the ESC function key

set key f11

`

The SET KEY facility may be used provide the PC with a "meta" key for use with editors like EMACS or TVEDIT that can use "meta characters" as commands. A meta key is a shift key whose effect is to turn on the 8th

(parity) bit of the character. For instance, on the IBM PC the scan codes produced by holding down ALT together with other keys can be determined using SHOW KEY, and then 8-bit ASCII equivalents with the 8th bit turned on can be defined using SET KEY; if the scan code produced by typing ALT-a, i.e. the letter "a" (ASCII 141, octal) with the ALT key held down, is 2078 (decimal), you would set the META equivalent to

141+200=341 (octal), or "\341" in octal SET KEY notation:

Kermit-MS>sho key

Press a key: ALT-a

Scan Code: 2078

Definition:

Kermit-MS>set key scan 2078

Definition String: \341

Whenever you type ALT-a with this definition in effect, Kermit-MS will transmit octal 341, rather than 141.

MS-DOS KERMIT Page 114

10.5. Installation of Kermit-MS

by Bill Catchings, Columbia University

If you already have Kermit on your PC, you can use it to obtain new ver- sions of Kermit-MS when they appear on the central system at your site.

If you do not have Kermit or any other reliable file capture facility on your PC, and there is no one from whom you can borrow a floppy disk to copy Kermit, then you should read the following instructions for in- itially "bootstrapping" Kermit-MS from a mainframe where it is stored onto your microcomputer.

There are at least three methods of initially getting Kermit-MS onto your PC:

1. Try again to find a copy on diskette.

2. Use another file capture facility to get it.

3. Type in and run a bootstrapping program.

10.5.1. Try Again To Find A Kermit Disk

Before explaining how to bootstrap Kermit onto your PC, a disclaimer must be made. Although a fair amount of thought and time has gone into these procedures, they are far from error free. If they were foolproof, there would be no need for a protocol such as Kermit. There are many places where things can go wrong, from something as simple as a typing mistake to something as unavoidable and probably inevitable as a com- munications line failure. By far the easiest and best way to install

Kermit is from a floppy disk. Before you embark on any of the following procedures it is a good idea to check once again for a diskette to copy, even it it contains an old version of Kermit. The time you spend searching is likely to be far less frustrating than the time you spend trying to bootstrap Kermit by the methods described below.

10.5.2. Bootstrapping From the Communication Line

If you can't find a diskette with Kermit on it, there are two other methods available for bootstrapping MS-DOS Kermit onto your PC. The first method is to use a file capture method or other file transfer protocol to transfer the file to your PC. Some systems come supplied with facilities like this, and various public domain or commercial packages are available. The second method requires you to type in your own downloading program.

In either case, you must transmit the file from the system where it resides over a communication line and into your PC. Since version 2 of

MS-DOS Kermit is much larger than version 1, it comes with a new

bootstrapping procedure in which the executable program is encoded much more compactly than in the earlier "fix" files. The new encoding packs

3 .EXE file bytes into 4 printable characters in the MSxxx.BOO file, and also compresses adjacent zero bytes (of which there are many). The .BOO file contains only printable characters, to ensure that downloading can

MS-DOS KERMIT Page 115 take place regardless of parity or other peculariaries of the communica- tion channel.

10.5.2.1. Use An Existing File Capture Facility

In the rest of this discussion of bootstrapping, the host-resident boot

.BOO file will be referred to as MSKERMIT.BOO. In fact, the actual name will depend on which MS-DOS system you are using -- MSIBMPC.BOO for the

IBM PC or XT, MSRB100.BOO for the Rainbow 100, etc.

Use your file capture facility, whatever it may be, to get the file

MSKERMIT.BOO onto your PC's disk, but first make sure you have enough room for it. Once the file is on your disk, you must run the BASIC program MSPCTRAN.BAS to decode the file back into KERMIT.EXE. This program can be downloaded by the same method you used with MSKERMIT.BOO.

The program looks on your current disk and directory for the file

MSKERMIT.BOO and outputs KERMIT.EXE to the same place. KERMIT.EXE is about 80K bytes, so make sure there is space for it on your disk or else you will have to start the program over. Since the program will take about twenty minutes to completely translate the file you will want to avoid running it more than once.

10.5.2.2. Type In Your Own Bootstrap

If you can't find some method for downloading the .BOO file and the

BASIC program, the second way of bootstrapping Kermit is to use the programs MSPCBOOT.BAS and MSBOOT.FOR to download via your PC's asynchronous port from your host and translate it directly, "on the fly." You run the program MSBOOT.FOR on your host and then run the program MSPCBOOT.BAS in BASIC on your PC. The FORTRAN program sends the encoded .EXE file to the BASIC program, which decodes it and stores it in executable form on your current directory as KERMIT.EXE. A very rudimentary form of error checking is done to allow obviously corrupted records to be retransmitted. Follow this procedure:

1. First, you must establish a connection from your PC to the

host system. A high speed connection is preferable; a

"clean" line is preferable to a noisy one. In fact, a clean

line is essential for this procedure. You must be able to

log in to the host system over this connection. If your PC

already has a terminal emulation facility, use that. If not,

you might need to put your PC next to a real terminal and use

that for logging in, then switch the connector to the PC at

the crucial moment. If you are using a terminal, make sure

the terminal and PC have their communication ports set to the

same speed.

2. Ensure that the files MSBOOT.FOR and MSKERMIT.BOO are present

on the host system. MSBOOT.FOR is listed below, in case you

need to type it in.

3. Get back to your PC and type in MSPCBOOT.BAS on your PC; a

listing appears below. There is no need to type in the com-

ments (anything following an apostrophe); they are only there

MS-DOS KERMIT Page 116

to clarify what the program is doing. Check very carefully

for errors. You should check line 80 in the program to see

that it reflects the way your system is actually set up. If

necessary, substitute the correct baud rate for the supplied

rate of 9600, and if you are not using COM1: make that change

as well. If you are downloading from an IBM or other half-

duplex mainframe, leave line 1000 as it is; otherwise,

replace it by a RETURN statement. If you type it in directly

to BASIC make sure you save the program before you run it, so

you won't have to type it in again in case of error.

4. Get back to your host system and compile MSBOOT.FOR, if it

needs compiling. Define logical unit numbers 5 and 6 to be

the controlling terminal, and logical unit 7 to be the file

MSKERMIT.BOO. On VAX/VMS systems, for example, use these

commands:

$assign sys$input for005

$assign sys$output for006

$assign mskermit.boo for007

On a DECSYSTEM-20, do:

@define 5: tty:

@define 6: tty:

@define 7: mskermit.boo

On a DECsystem-10, do something like this:

.assign tty: 5:

.assign tty: 6:

.assign dsk: 7:

.rename for007.dat=mskerm.boo

On an IBM system under VM/CMS, do this:

.filedef 5 term ( lrecl 80 recfm v

.filedef 6 term ( lrecl 80 recfm v

.filedef 7 disk mskermit boo ( lrecl 77 recfm f perm

5. Set your host system up for downloading:

- Ensure that your terminal does not automatically pause

at the end of a screenful of output. For instance, on a

DEC-20 you would issue the command "terminal no pause

end-of-page".

- Do whatever you can to disable messages from appearing

at your terminal while these programs are running. This

would include messages from other users, mail notifica-

tion, alarms or alerts, system messages, and so forth.

Such messages will interfere with the procedure, and

probably render the result useless.

- You should put your host terminal in "local echo" or

"half duplex" mode, if possible.

MS-DOS KERMIT Page 117

6. Start the MSBOOT program on your host system.

7. Get back to the PC. If you have been using a terminal,

switch the connector to the PC.

8. Now run the BASIC program, MSPCBOOT.BAS. This procedure will

take at least twenty minutes and possibly longer depending on

line speed. Watch your modem and/or disk lights for reas-

surance that something is happening.

By using one of these installation methods, you should now have a work- ing version of Kermit. If you experience any problems or quirky be- havior with the program, it's possible that some part of it was cor- rupted during the downloading procedure. Perhaps enough usable code remains to allow you to transfer MSKERMIT.EXE from the host. If not, you will have to repeat the downloading procedure.

Once you have Kermit-MS on your disk, you should make the disk available to other users for copying, so that they can be spared the tedium of this bootstrap procedure.

Here is a listing of MSPCBOOT.BAS. The "outdented" PRINT statements with line numbers ending in 5 may be included if you want incoming records to be displayed on the screen. You don't need to include the comments.

1 'Run this program on the PC in conjunction with a Fortran program

2 '(MSBOOT.FOR) on the mainframe to download Kermit to the PC. This

3 'program will run for about thirty minutes, depending on line speed.

4 ' Bill Catchings, June 1984

5 ' Columbia University Center for Computing Activities

10 t$ = time$ ' Save the time.

20 defint a-z ' All integer to gain some speed.

30 n$ = chr$(0)

40 z = asc("0")

50 t = asc("~")-z

60 def fnuchr%(a$)=asc(a$)-z

70 open "com1:9600,s,7,1,cs,ds,cd" as #1

100 print#1,"O ," ' Char constants "O", " " and ","

110 input#1,f$

120 if len(f$) < 5 then goto 110 ' In case the host echos the ACK.

130 input#1,n

135 print f$+" "+str$(n)

140 if n > 20 then goto 900

150 open f$ for output as #2

160 print "Outputting to "+f$

170 goto 300 ' Correct version of the file.

200 gosub 1000 ' Do turnaround char processing

210 print#1,"NO" ' Tell host data was incorrect.

220 goto 320

MS-DOS KERMIT Page 118

300 gosub 1000 ' Do turnaround char processing

310 print#1,"OK" ' Say the line was all right.

320 input#1,x$

330 if len(x$) < 5 then goto 320 ' In case the host echos ACK/NAK

340 input#1,n

345 print x$+" "+str$(n)

350 if len(x$) <> n then goto 200 ' Length doesn't match, NAK it.

360 if x$ = "&&&&&&&&&&" then goto 800 ' End of file?

370 y$ = "" ' Set output string to null.

380 goto 500

400 print#2,y$; ' Print the output string.

410 goto 300 ' Go get another line.

500 if len(x$) = 0 goto 400 ' Done with input string?

510 a = fnuchr%(x$)

520 if a = t then goto 700 ' Null repeat character?

530 q$=mid$(x$,2,3) ' Get the quadruplet to decode.

540 x$=mid$(x$,5)

550 b = fnuchr%(q$)

560 q$ = mid$(q$,2)

570 c = fnuchr%(q$)

580 q$ = mid$(q$,2)

590 d = fnuchr%(q$)

600 y$ = y$ + chr$(((a * 4) + (b \ 16)) and 255) ' Decode the quad.

610 y$ = y$ + chr$(((b * 16) + (c \ 4)) and 255)

620 y$ = y$ + chr$(((c * 64) + d) and 255)

630 goto 500 ' Get another quad.

700 x$ = mid$(x$,2) ' Expand nulls.

710 r = fnuchr%(x$) ' Get the number of nulls.

715 print " Null: ",r

720 x$ = mid$(x$,2)

730 for i=1 to r ' Loop, adding nulls to string.

740 y$ = y$ + n$

750 next

760 print#2,y$; ' Print the nulls.

770 y$ = "" ' Clear the output buffer.

780 goto 500

800 print "Processing complete, elapsed time: "+t$+" to "+time$

810 print "Output in "+f$

820 close #1,#2

830 goto 9999

900 print "?The format of the BOO file is incorrect"

910 goto 820

1000 x$ = input$(1,#1) ' Make this line RETURN for full-duplex

1010 if x$ <> chr$(17) then goto 1000 ' Loop for a turn around char.

1020 return

9999 end

MS-DOS KERMIT Page 119

Here is a listing of MSBOOT.FOR, in case you can't find it on your host system:

C This Fortran program should be run on the mainframe in conjunction

C with a Basic program (MSPCBOOT.BAS) on the PC to transfer

C MSKERMIT.BOO to the PC and translate it into KERMIT.EXE. This

C program uses a very rudimentary technique to try to insure that

C the characters it sends arrive correctly. It just sends a count

C of the number of characters sent after each line. In this way any

C errors of character loss or insertion will be caught. If a

C character is just corrupted it will not be caught. Hopefully if

C this happens it will be in a non-critical part of the KERMIT.EXE

C file. The reason a simple checksum was not used was so that this

C program could run on machines using either EBCIDIC or ASCII

C characters. This program should take about thirty minutes to run.

C This program assumes that 5 and 6 are directed to the terminal and

C 7 is directed to the file MSKERMIT.BOO.

INTEGER LINE(77), ACK(4), CHECK, OK, SPACE, COMMA

WRITE(6,100)

100 FORMAT(' Ready to transfer data, now run MSPCBOOT.BAS on the PC.')

C Get characters for constants (character constants are rough in

C some FORTRANs!)

READ (5,200) OK, SPACE, COMMA, ACK

200 FORMAT(4A1)

GO TO 30

C Get terminal handshake.

10 READ (5,200)ACK

C Did the other side like it? (Did they send OK?)

IF (ACK(1) .NE. OK) GO TO 50

C Yes, get new line from file.

20 READ (7,300,END=99)LINE

300 FORMAT(77A1)

C Count the characters as some rudimentary check for noise.

I = 1

30 IF (LINE(I) .EQ. SPACE) GO TO 40

I = I + 1

GO TO 30

C Put in a comma followed by the count.

40 LINE(I) = COMMA

C Write to TTY.

50 WRITE (6,400)LINE,I-1

400 FORMAT(' ',77A1,I2)

GOTO 10

MS-DOS KERMIT Page 120

C Send good-bye message.

99 WRITE (6,500)

500 FORMAT(' ',10('&'),',10')

STOP

END

10.6. Compatibility with Older Versions of MS-DOS Kermit

MS-DOS Kermit supports many different systems. Like CP/M-80 KERMIT, this support was added to the program piecemeal, at many sites, using conditional assembly. However, before allowing the program to grow into a complicated monolith like CP/M-80 KERMIT, we have broken the program up into separate modules, with system dependencies isolated into a single module consisting of compact collections of low-level primitives for console and port i/o.

The last monolithic (single source file) release of MS-DOS Kermit was

1.20. To this and earlier versions was added support for systems like the Seequa Chameleon, the Tandy 2000, the Victor 9000, the Heath/Zenith

100, and others. Eventually, support for these systems may be in- tegrated with the new modular version. Meanwhile, implementations based on these old versions will have at least the following incompatibilies from the version described here:

- RECEIVE filespec is used instead of GET filespec. There is no

GET command in older versions, and no way to specify a new

name for an incoming file.

- No LOCAL or REMOTE commands.

- No 8th-bit prefixing, repeat counts, CRCs or 2-character

checksums.

- No TAKE or initialization files.

- No command macros or command line arguments.

- No terminal session logging. and others, depending on the specific version.

10.7. What's Missing

Kermit-MS has plenty of room for improvement. Features that need to be improved or added include:

- A built-in facility for sending files "raw" to the remote sys-

tem, obeying current settings for parity, flow control, hand-

shake, and so forth. This might include a script interpreta-

tion facility to allow remote sessions to be conducted

automatically. For the present, this can be accomplished with

a user-supplied program invoked with the Kermit-MS RUN com-

mand.

- Additional functionality when running in server mode

-- directory listings, file deletion, execution of DOS com-

mands, etc.

MS-DOS KERMIT Page 121

- More commands when talking to remote servers -- REMOTE RENAME,

COPY, STATUS, WHO, etc.

- Filename conversion options (normal form, handling of fully

qualified filespecs, etc.).

- Transaction file logging.

- Improved command parsing; for instance, accept default values

for omitted trailing fields.

- A better built-in help facility.

- Support for Kermit file attribute packets.

- The Kermit-MS program is quite large. Much of the size is due

to the deliberate decision to provide support for versions of

MS-DOS prior to 2.0. At some point, this support should be

removed. This will not only reduce the size of the program

considerably, but also provide much more flexibility.

10.8. Program Organization

Kermit-MS version 2 is composed of separate assembler source files, as- sembled separately, and linked together. The modules are:

System/Device Independent:

MSKERM.ASM Main program

MSSEND.ASM File sender

MSRECV.ASM File receiver

MSSERV.ASM Server operation

MSFILE.ASM File i/o

MSCMD.ASM Command parser

MSTERM.ASM CONNECT command

MSCOMM.ASM Communications port buffering & flow control

MSSET.ASM SET, SHOW, and STATUS commands

MSDEFS.H Data structure definitions and equates

System/Device Dependent:

MSXxxx.ASM System-dependent code for system xxx

MSYxxx.ASM System-dependent screen and keyboard code

MSZxxx.ASM Modem control (modem-dependent)

The modular organization allows easier modification of the program, quicker transfer of modified portions from system-to-system. The modules are designed to be well-defined and self-contained, such that they can be easily replaced. For instance, someone who prefers windows and mice to typing commands could replace the command parsing module

without having to worry about the effect on the other modules.

To assemble any of the kermit modules, file MSDEFS.H must be on the default disk.

MS-DOS KERMIT Page 122

All the Kermit implementations require the modules MSCMD, MSCOMM,

MSFILE, MSKERM, MSRECV, MSSEND, MSSERV, MSSET, MSTERM.

The IBM PC version requires MSXIBM and MSYIBM as well.

The Rainbow version requires MSXRB and MSXDMB; MSXDMB must be the first object file given to the linker for Kermit to link properly for the

Rainbow.

The HP150 version requires MSXHP150, the Wang version requires MSXWNG, and the generic version requires MSXGEN.

Once all the required object modules exist, they may be linked together to produce Kermit. For example, on the Rainbow:

A>link

Microsoft Object Linker V2.00

(C) Copyright 1982 by Microsoft Inc.

Object Modules [.OBJ]: msxdmb mskerm msxrb mscomm msset mssend +

msrecv msserv msfile msterm mscmd

Run File [MSXDMB.EXE]: kermit

List File [NUL.MAP]: kermit

A>

10.9. Adding Support For New Systems

You can bring Kermit-MS to systems that are not explicitly supported in one of two ways -- attempt to run the "generic" MS-DOS Kermit on it, or add explicit code to support your system.

10.9.1. Generic MS-DOS Kermit

To get started with Kermit on a new system, try running "generic" MS-DOS

Kermit; in many cases, it will run as is. The generic version ac- complishes all its port and console i/o through DOS calls, and during terminal connection does not attempt to emulate any particular kind of terminal. In some cases, the generic version may still require some fiddling to run on a new system; for instance, different systems refer to their communication ports in different ways -- COM1, AUX, etc. It attempts to do this automatically by trying various DOS file handles for the communication port, and asking you to supply one if it does not succeed.

Generic MS-DOS Kermit will probably run no faster than 1200 baud, and it only works with DOS 2.0 or later.

MS-DOS KERMIT Page 123

10.9.2. Adding System-Dependent Code

The following is a guide to the system dependent module of Kermit-MS.

SPECIFICATION FOR KERMIT SYSTEM-DEPENDENT MODULES

by Jeff Damens, Columbia University

All the system-independent global data structures used in Kermit-MS are defined in the file MSDEFS.H.

The routine MSXxxx.ASM contains system-dependent support for system xxx, except for terminal emulation, which is in MSXxxx.ASM, described below.

The routines in the MSX module may change any registers but the stack pointer and segment registers, unless otherwise noted. A routine that returns via a RET instruction is said to return normally; a routine that skip returns is one that returns to three bytes past the normal return address.

Global variables that must be defined in the system-dependent module:

XOFSNT byte. This should be set to a non-zero value if we are

doing flow control and have sent an XOFF character to

the remote host, zero otherwise.

MACHNAM byte. A $-terminated string identifying the machine

this version of Kermit is for; it is printed when Kermit

starts up.

SETKTAB byte. A keyword table associating terminal key names to

16-bit scan code values, used in the set key command.

If the kermit version can accept arbitrary decimal

values as scan codes, the word "SCAN" should appear in

the table with a scan value of -1. If key redefinition

is not implemented, the first byte of the table should

be a zero.

SETKHLP byte. A $-terminated string to be printed when ? is

typed in the SET KEY command. This is usually simply a

list of the key names in SETKTAB. SETKHLP must be

defined even if key redefinition is not implemented, to

satisfy the linker; if key redefinition is not imple-

mented, SETKHLP will never be displayed.

COUNT word. The number of characters in the serial input

buffer, if known. This is how Kermit knows to send an

XON if the serial handler has sent an XOFF. If the num-

ber of characters in the buffer isn't known, COUNT

should be 0.

These are the required entry points for the system dependent dependent module MSXxxx.ASM.

MS-DOS KERMIT Page 124

SERINI

Parameters None.

Returns Normally, no return value.

Description Perform any initialization that must be done before the

serial port can be used, including setting baud rate,

interrupt vectors, etc. Parity and baud rate should be

set according to the values in the PORTINFO structure.

The external variable PORTVAL points to the PORTINFO

structure for the current port. Calling SERINI more

than once without an intervening call to SERRST should

have no effect.

SERRST

Parameters None.

Returns Normally, no return value.

Description Undoes any initialization done by SERINI, including

resetting the serial port, restoring any interrupt vec-

tors changed by SERINI, etc. Calling this more than

once without an intervening call to SERINI should be

harmless.

CLRBUF

Parameters None.

Returns Normally, no return value.

Description Remove and discard from the serial port's input buffer

any characters sent by the remote host that have not yet

been read by Kermit, and set COUNT to 0. This is used

before a file transfer to flush NAK's that accumulate in

the buffer when the remote host is in server mode.

MS-DOS KERMIT Page 125

OUTCHR

Parameters A character in AH.

Returns Skip returns if the character has been transmitted;

returns normally if the character can not be transmitted

because of a hardware error.

Description Sends the character in AH out the currently selected

serial port. OUTCHR can assume that SERINI will have

been called previously. OUTCHR should call the external

routine DOPAR to set the parity of the character if the

communications hardware doesn't automatically set

parity. Flow control should be honored; the external

variable PORTVAL contains a pointer to a PORTINFO struc-

ture (as defined in MSDEFS.H) containing the current

flow control definitions.

COMS

Parameters None.

Returns Normally if a parse error is encountered, skip returns

otherwise.

Description Called by the SET PORT command. On a machine with mul-

tiple serial ports, COMS should parse for the name or

number of a serial port and make that the port used by

succeeding calls to SERINI, PRTCHR, OUTCHR, and SERRST.

It should set the external variable PORTVAL to point to

one of the external port structures PORT1 or PORT2, and

set COMFLG in the FLAGS structure to 1 for port one, 0

for port 2. For implementations that use only one

serial port, COMS should print a message to that effect

and skip return.

VTS

Parameters None.

Returns Normally if a parse error is encountered, skip returns

otherwise.

Description Parses for an ON or OFF, sets HEATH-19 emulation while

in terminal emulation appropriately. The VTFLG field of

the FLAGS structure should be set non-zero if HEATH-29

emulation is on, zero otherwise. If HEATH-19 emulation

is not done, VTS should print a message and skip return.

MS-DOS KERMIT Page 126

DODEL

Parameters None.

Returns Normally, no return value.

Description Erases the character immediately to the left of the cur-

sor from the screen, then backs up the cursor.

CTLU

Parameters None.

Returns Normally, no return value.

Description Move the cursor to the left margin, then clear the line.

CMBLNK

Parameters None.

Returns Normally, no return value.

Description Clears the screen and homes the cursor.

LOCATE

Parameters None.

Returns Normally, no return value.

Description Homes the cursor.

LCLINI

Parameters None.

Returns Normally, no return value.

Description Performs any system-dependent initialization required by

this implementation.

MS-DOS KERMIT Page 127

PRTCHR

Parameters None.

Returns Normally, with the next character from the currently

selected serial port in AL. Skip returns if no charac-

ter is available.

Description Reads the next character from the current serial port.

PRTCHR can assume SERINI has been called previously, and

should handle flow control correctly.

DOBAUD

Parameters None.

Returns Normally, no return value.

Description Sets the baud rate for the current port. The baud rate

should be obtained from the BAUD field of the PORTINFO

structure, pointed to by the external variable PORTVAL.

CLEARL

Parameters None.

Returns Normally, no return value.

Description Clears from the cursor to the end of the current line.

DODISK

Parameters None.

Returns Normally, no return value.

Description Sets the external variable DRIVES to the number of disk

drives attached to the machine.

GETBAUD

Parameters None.

Returns Normally, no return value.

Description Store current baud rate of the currently selected port

in the BAUD field of the current PORTINFO structure,

which is pointed to by PORTVAL. If the baud rate is to

default to a particular value, this routine can store

that value into the BAUD field instead.

MS-DOS KERMIT Page 128

BEEP

Parameters None.

Returns Normally, no return value.

Description Rings the terminal bell.

PUTHLP

Parameters A pointer to a string in AX.

Returns Normally, no return value.

Description Writes the null-terminated string given in AX to the

terminal. This is used to display help and status mes-

sages. The IBM and Rainbow versions write the string in

a reverse video box.

PUTMOD

Parameters A pointer to a string in AX.

Returns Normally, no return value.

Description Writes the null-terminated string given in AX to the

last line of the screen, in inverse video if possible.

CLRMOD

Parameters None.

Returns Normally, no return value.

Description Clears the line written by PUTMOD.

POSCUR

Parameters Row in DH, column in DL.

Returns Normally, no return value.

Description Positions the cursor to the row and column given in DX.

Rows and columns both originate at 0 (not 1!).

MS-DOS KERMIT Page 129

SENDBR

Parameters None.

Returns Normally, no return value.

Description Send a break to the current serial port.

SHOWKEY

Parameters Pointer to a terminal argument block in AX (see TERM

below).

Returns Normally, with a string pointer in AX and the length of

the string in CX.

Description Called by the SHOW KEY command. Reads a key from the

terminal and returns a string containing

implementation-dependent information about the key. In

the usual case, the string contains the key's

(machine-dependent) scan code, and the key's definition

(if any) from the terminal argument block. The length

of the returned string should be returned in CX. The

string may contain any characters; unprintable charac-

ters will be quoted when the string is printed. If the

implementation does not support key redefinition, SHOW-

KEY may return a static string saying so.

TERM

Parameters Pointer to terminal argument block in AX.

Returns Normally, no return value.

Description Do terminal emulation, based on argument block described

below...

The terminal emulator is supplied in the file MSYxxx.ASM. The terminal argument block passed to the terminal emulator has the following fields:

FLGS Byte containing flags. Flags are:

SCRSAM (80H) If on, the terminal emulator shouldn't

re-display the screen when entered.

CAPT (40H) Capture output. If on, the routine

passed in field CAPTR is called with

each character sent to the screen.

EMHEATH (20H) Emulate a Heath-19 terminal if on.

MS-DOS KERMIT Page 130

HAVTT (10H) A key redefinition table is present.

TRNCTL (08H) Print control character X as ^X (useful

for debugging).

MODOFF (04H) Do not display emulator mode line if on.

LCLECHO (01H) Echo keyboard characters on the screen

in addition to sending them to the port.

PRT Port to use for terminal emulation, used only in mode

line. This is just a copy of COMFLG in FLAGS.

COLS Number of columns on screen.

ROWS Number of rows on screen.

CAPTR Routine to call to with each character sent to the

screen if CAPT flag is on. Characters are passed in AL.

BELLD Bell divisor (used only on IBM).

KLEN Number of keys in key redefinition table, if HAVTT flag

is on.

KTAB Address of key redefinition table. The key redefinition

table is a table of KLEN 16-bit scan codes. Each

(machine dependent) scan code represents a key that is

redefined.

KRPL Address of key replacement table. The key replacement

table parallels the key redefinition table given in

KTAB. Entries in the replacement table are 16-bit

pointers to redefinitions. Each redefinition has a

one-byte length, followed by the definition.

ESCC Escape character (single byte). When this character is

typed to the emulator, it should return.

BAUDB byte. Bits describing the baud rate so it can be

printed on the mode line. This is a copy of the BAUD

field in the PORTINFO structure. Currently used only on

the IBM. See MSDEFS.H for possible values.

PARITY byte. Current parity to print on the mode line. This

is a copy of PARFLG in the PORTINFO structure. Cur-

rently used only on the IBM. See MSDEFS.H for possible

values.

MS-DOS KERMIT Page 131

10.10. Heath/Zenith-19 Control Codes

The Heath/Zenith-19 terminal is equivalent to the DEC VT52 with exten- sions for line and character insertion and deletion. Items marked with an asterisk are not currently supported by Kermit-MS H19 emulation.

Cursor Functions

Sequence Mnemonic Definition

ESC H HCUH Cursor Home

ESC C HCUF Cursor Forward

ESC D HCUB Cursor Backward

ESC B HCUD Cursor Down

ESC A HCUU Cursor Up

ESC I HRI Reverse Index

*ESC n HCPR Cursor Position Report

*ESC j HSCP Save Cursor Position

*ESC k HRCP Set Cursor to Previously Saved Position

ESC Y HDCA Direct Cursor Addressing, 1-based:

31+line# 31+col# (same as VT52)

Erasing and Editing

Sequence Mnemonic Definition

ESC E HCD Clear Display (Shift Erase)

ESC b HBD Erase Beginning of Display

ESC J HEOP Erase to End of Page (Erase Key)

ESC l HEL Erase Entire Line

ESC o HEBL Erase Beginning of Line

ESC K HEOL Erase to End of Line

ESC L HIL Insert Line

ESC M HDL Delete Line

ESC N HDCH Delete Character

ESC @ HEIM Enter Insert Character Mode

ESC O HERM Exit Insert Character Mode

Configuration

Sequence Mnemonic Definition

*ESC z HRAM Reset to Power-Up Configuration

*ESC r Bn HMBR Modify Baud Rate: Bn=

A=110, B=150, C=300, D=600, E=1200,

F=1800, G=2000, H=2400, I=3600, J=4800,

K=7200, L=9600, M=19200

*ESC x Ps HSM Set Mode(s): Ps=

1 = Enable 25th line

2 = No key click

3 = Hold screen mode

4 = Block cursor

5 = Cursor off

MS-DOS KERMIT Page 132

6 = Keypad shifted

7 = Alternate keypad mode

8 = Auto line feed on CR

9 = Auto CR on line feed

*ESC y Ps HRM Reset mode(s): Ps=

1 = Disable 25th line

2 = Enable key click

3 = Exit hold screen mode

4 = Underscore cursor

5 = Cursor on

6 = Keypad unshifted

7 = Exit alternate keypad mode

8 = No auto line feed

9 = No auto CR

*ESC < HEAM Enter ANSI Mode

Modes of Operation

Sequence Mnemonic Definition

*ESC [ HEHS Enter Hold Screen Mode

*ESC \ HXHS Exit Hold Screen Mode

ESC p HERV Enter Reverse Video Mode

ESC q HXRV Exit Reverse Video Mode

*ESC F HEGM Enter Graphics Mode

*ESC G HXGM Exit Graphics Mode

*ESC t HEKS Enter Keypad Shifted Mode

*ESC u HXKS Exit Keypad Shifted Mode

*ESC = HAKM Enter Alternare Keypad Mode

*ESC > HXAM Exit Alternate Keypad Mode

Additional Operations

Sequence Mnemonic Definition

*ESC } HDK Keyboard Disable

*ESC { HEK Keyboard Enable

ESC v HEWA Wrap Around at End of Line

ESC w HXWA Discard at End of Line

ESC Z HID Identify as VT52 (ESC / K)

*ESC ] HX25 Transmit 25th Line

*ESC # HXMP Transmit Page

The Heath-19 transmits the following sequences, but it will not

respond to them if they are received. Kermit-MS will transmit them

only if they are programmed with SET KEY.

ESC S HF1 Function Key #1

ESC T HF2 Function Key #2

ESC U HF3 Function Key #3

ESC V HF4 Function Key #4

ESC W HF5 Function Key #5

MS-DOS KERMIT Page 133

ESC P HF7 Function Key #7

ESC Q HF8 Function Key #8

ESC R HF9 Function Key #9

CP/M-80 KERMIT Page 134

11. CP/M-80 KERMIT

Program: Bill Catchings, Columbia University, with contributions from

Bernie Eiben (DEC), Nick Bush (Stevens), John Bray

(University of Tennessee), Bruce Tanner (Cerritos College),

Greg Small (University of California at Berkeley), Kimmo

Laaksonen (Helskini University of Technology), and many

others.

Language: 8080 Assembler or MAC80

Version: 3.9A

Date: 6 June 1984

Documentation:

Frank da Cruz, Columbia University

KERMIT-80 Capabilities At A Glance:

Local operation: Yes

Remote operation: No

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: Yes

Terminal emulation: Yes, VT52 and others

Communication settings: Yes; duplex, parity

Transmit BREAK: Yes; some versions

IBM communication: Yes

Transaction logging: No

Session logging (raw download): Yes

Raw upload: Yes

Act as server: No

Talk to server: Yes; SEND, GET, FIN, BYE

Advanced commands for servers: No

Local file management: Yes; DIR, ERA, SET DEFAULT disk

Handle file attributes: No

Command/init files: No

Printer control: Yes, limited

SUMMARY OF CP/M

CP/M-80 (version 2.2) has only five built-in commands, and they all deal with files; other functions are done by invoking programs.

CP/M file specifications are of the form DEV:XXXXXXXX.YYY, where

DEV: is a device name, normally the A: or B: floppy. If

omitted, the device name defaults to your connected dis-

kette.

XXXXXXXX is a filename of up to 8 characters.

CP/M-80 KERMIT Page 135

YYY is the file type, up to 3 characters.

File names and file types may contain letters, digits, and some special characters, including dash, dollar sign, and underscore, but no imbedded spaces. Upper and lower case letters are equivalent.

"Wildcard" file-group specifications are permitted in file names and file types (but not device names) within certain contexts; a "*" matches a whole field, a "?" matches a single character, including space. Ex- amples: "*.F??" specifies all files whose types start with F and are 1,

2, or 3 characters long; "F?.*" specifies all files whose names start with F and are no more than two characters long (before the trailing spaces).

The five CP/M commands are:

DIR file Lists the the names of the specified files. The default

file specification is "*.*". Example: "DIR B:*.FOR".

ERA file Erases (deletes) the specified file(s); wildcards al-

lowed.

REN new old Changes the name of a file from old to new, e.g.

"REN NEW.FOR=OLD.FOR".

SAVE Saves the specified number of memory blocks into a file.

TYPE file Types the specified file on the screen, e.g.

"TYPE FOO.TXT".

The most important programs are:

STAT Gives statistics on disk usage.

PIP Peripheral Interchange Program. Copies files. In

response to the "*" prompt, give a command of the form

disk:outfile=disk:infile

Wildcards ("*" for a whole field or "?" for a letter)

can be used. Examples: "A:=B:*.*" to copy a whole disk,

"A:=B:*.FOR" to copy all the Fortran programs from disk

B to disk A. If the disk specification is omitted, your

"connected" disk is assumed. Command line arguments are

also accepted, e.g. "PIP A:=B:*.*".

For further information on CP/M, consult your microcomputer manual or a

CP/M handbook.

CP/M-80 KERMIT Page 136

KERMIT-80 DESCRIPTION

Implementations of Kermit-80 presently exist for the DEC VT180 (Robin), the DECmate II, the Intertec Superbrain, the Heath/Zenith 89 and Z100, the Apple II with the Z80 SoftCard, the Osborne 1, the TRS-80 II with

CP/M, the Telcon Zorba, the Kaypro, the Vector Graphics CP/M system, the

Morrow Decision I, the Nokia MikroMikko, and others. There is also a

"generic" CP/M version that should run on most 8080-compatible CP/M 2.2 systems, but which may provide less performance, and another for CP/M

3.0.

Since Kermit-80 runs on a standalone micro, it is always in control of the screen -- it is always local. Thus, it always keeps the screen up- dated with the file name and the packet number, whether sending or receiving. Kermit-80 is capable of an imprecise or "fuzzy" timeout on an input request, and can break deadlocks automatically. In most cases, this is not important, because the KERMIT on the other side is most likely able to handle the timeouts. The timeouts done by Kermit-80 are fuzzy because they depend on the speed of the Z80 processor and other factors that can vary from system to system.

If despite the timeout capability, the transmission appears to be stuck

(and you can tell that this has happened if the screen fails to change for a while) you can type carriage return to have the micro do what it would have done on a timeout, namely NAK the expected packet to cause to foreign host to send it again (or, if the micro is sending, to retransmit the last packet). Micro/micro or micro/IBM-mainframe trans- fers could require this kind of manual intervention.

File transfers may be interrupted in several ways.

Control-C This will return you to Kermit-80 command level im-

mediately, so that you can connect back to the remote

system, or take any other desired action.

Control-X When sending a file, this will terminate the sending of

the current file with a signal to the KERMIT on the

other side to discard what it got so far. If there are

more files to be sent, KERMIT-80 will go on to the next

one. When receiving a file, KERMIT-80 will send a sig-

nal to the remote KERMIT to stop sending this file. If

the remote KERMIT understands this signal (not all im-

plementations of KERMIT do), it will comply, otherwise

the file will keep coming. In any case, the remote KER-

MIT will go on to the next file in the group, if any.

Control-Z Like Control-X, except if a file group is being trans-

mitted, this will stop the transmission of the entire

group. If only a single file is being transmitted, it

works exactly like Control-X.

Carriage Returns

If you type carriage return repeatedly Kermit-80 will

retry the current packet up to its retry limit

(somewhere between 5 and 16 times) and then, if no valid

response was received, return to Kermit-80 command

CP/M-80 KERMIT Page 137

level.

KERMIT-80 COMMANDS

KERMIT-80 uses the DECSYSTEM-20 keyword style command language. Each keyword may be abbreviated to its minumum unique length. "?" may be typed to request a menu of the available options for the current field at any point in a command. ESC may be typed at any point in a command to fill out the current keyword or filename; if sufficient characters have not been typed to identify the current field uniquely, KERMIT-80 will sound a beep and allow you to continue from that point.

CONNECT Establish a "virtual terminal" connection to any host that may

be connected to the serial port, i.e. pass all typein to the

serial port and display all input from the serial port on the

screen. Also, emulate a DEC VT52 to allow cursor control,

screen clearing, etc., if VT52-EMULATION is ON (see below), in

which case you should also set your terminal type on the remote

host to VT52. (Some versions emulate other terminals.) The es-

cape character differs from micro to micro; when you issue the

CONNECT command, the micro will print a message telling you how

to get back. The escape sequence is generally an uncommonly-

used control character, like CTRL-backslash or

CTRL-rightbracket, followed by a single letter "command".

C Close Connection, return to Kermit-80> command level.

S Display Status of connection, but maintain remote connec-

tion.

? List available single-character commands.

0 (zero) Send a null (0) character.

B Send a BREAK signal. Only some systems provide this func-

tion.

^] (or whatever - a second copy of the escape character) Send

the escape character itself to the remote host.

SEND filespec

Send file(s) specified by filespec to the remote Kermit. The

filespec may contain CP/M wildcards.

RECEIVE Receive file(s) from the remote Kermit. Store them under the

names provided in the file headers supplied by the remote host.

If the names aren't legal, use as many legal characters from the

name as possible (see the description of SET FILE-WARNING

below). If there's a conflict, and FILE-WARNING is ON, warn the

user and try to build a unique name for the file by adding "&"

characters to the name.

GET filespec

When Kermit-80 is talking to a Kermit Server on the host, you

should use the GET command to request the server to send files

to you, for example: get hlp:k*.hlp Limitation: If you request

an alternate block check type using the SET BLOCK command, the

GET command will not communicate it to the remote server. If

you want to have type 2 or 3 block checks done when getting

files from the server, you have to issue the appropriate SET

CP/M-80 KERMIT Page 138

BLOCK command to the remote KERMIT before putting it in server

mode.

LOG filespec

When CONNECTed to a foreign host as a terminal, log the terminal

session to the specified diskette file. This functionality

depends to some extent on the remote host's ability to do

XON/XOFF flow control, and does not guarantee a complete

transcript (after all, that's what the KERMIT protocol is for).

The log file is closed when the connection is closed by typing

the escape character followed by the single-character command

"C".

TRANSMIT filespec

Send the specified file to the system on the other end of the

connection as though it were being typed at the terminal, one

line at a time. No KERMIT protocol is involved. You must

manually confirm each line. This is useful for sending files to

systems that don't have a KERMIT program. During transmission,

you may type the escape character followed by one of these

single-character commands:

C Cease transmission

R Re-transmit the previous line

BYE When talking to a remote Kermit Server, this command shuts down

the server and logs it out, and also exits from Kermit-80 to

CP/M command level.

LOGOUT Like BYE, but leaves you at Kermit-80 command level.

FINISH Like LOGOUT, but shuts down the remote server without logging it

out. Leaves you at Kermit-80 command level; subsequent CONNECT

commands will put you back at host system command level.

SET parameter [value]

Set the specified parameter to the specified value. Possible

settings:

WARNING ON (or OFF)

Warn user of filename conflicts when receiving files

from remote host, and attempt to generate a unique name

by adding "&" characters to the given name. ON by

default.

VT52-EMULATION ON (or OFF)

When connected as a terminal to a foreign host, controls

whether the micro emulates a VT52 or runs in "native

mode". VT52 emulation is ON by default, except on

micros that already have terminal functionality built

in, such as the DEC VT180 and DECmate (these act as

VT100-series terminals). Some systems emulate other

terminals, like the ADM3A.

LOCAL-ECHO ON (or OFF)

When you CONNECT to a remote host, you must set LOCAL-

CP/M-80 KERMIT Page 139

ECHO ON if the host is half duplex, OFF if full duplex.

OFF by default.

ESCAPE Change the escape character for virtual terminal connec-

tions. Kermit-80 will prompt you for the new escape

character, which you enter literally.

BAUD Change the baud rate of the communications port. This

command only works on some systems, and its actual

operation can vary from system to system. Type SET BAUD

followed by a question mark, and follow the directions.

On systems that do not support this command, you must

set the port baud rate from CP/M or other setup

mechanism outside of KERMIT-80.

PARITY Sets parity for outgoing characters to one of the fol-

lowing: NONE, SPACE, MARK, EVEN, or ODD. On input, if

parity is NONE, then the 8th bit is kept (as data),

otherwise it is stripped and ignored. The parity set-

ting applies to both terminal connection and file trans-

fer. If you set parity to anything other than none,

KERMIT-80 will attempt to use "8th bit prefixing" to

transfer binary files. If the other KERMIT is also

capable of 8th bit prefixing, then binary files can be

transferred successfully; if not, the 8th bit of each

data byte will be lost (you will see a warning on your

screen if this happens).

TIMER ON (or OFF)

Enable or disable the "fuzzy timer". The timer is off

by default, because in the normal case KERMIT-80 is com-

municating with a mainframe KERMIT that has its own

timer. Mainframe KERMIT timers tend to be more precise

or adaptable to changing conditions. You should SET

TIMER ON if you are communicating with a KERMIT that

does not have a timer. You should SET TIMER OFF if you

are communicating over a network with long delays.

IBM ON (or OFF)

Allow the transfer of files to and from an IBM mainframe

computer. This makes Kermit-80 wait for the IBM tur-

naround character (XON), ignore parity on input, add ap-

propriate parity to output, and use local echoing during

CONNECT. As distributed, KERMIT-80 uses MARK parity for

IBM communication. If you don't give this command, IBM

mode is OFF. Since IBM VM/CMS KERMIT does not have

timeout capability, SET IBM ON also turns on the "fuzzy

timer" automatically.

BLOCK-CHECK-TYPE

The options are:

1-CHARACTER-CHECKSUM

Normal, default, standard 6-bit checksum.

2-CHARACTER-CHECKSUM

A 12-bit checksum encoded as two characters.

CP/M-80 KERMIT Page 140

3-CHARACTER-CRC-CCITT

A 16-bit CCITT-format Cyclic Redundancy Check,

encoded as 3 characters.

The 2 and 3 character options should only be used under

conditions of extreme line noise. Many implementations

of KERMIT only support the single character checksum.

FILE-MODE

Tells KERMIT-80 what kind of file it is sending, so that

KERMIT can correctly determine the end of the file. SET

FILE BINARY means to send all the 128-byte blocks of the

file, including the last block in its entirety; SET FILE

ASCII is used for text files, and transmission stops

when the first Control-Z is encountered anywhere in the

file (this is the CP/M convention for marking the end of

a text file). If binary transmission is used on a text

file, some extraneous characters (up to 127 of them) may

appear at the end of the file on the target system. If

ASCII transmission is used on a binary file, the entire

file will not be sent if it happens to contain any data

bytes that correspond to Control-Z.

DEFAULT-DISK

This allows you to set the default disk as source and

destination of file transfers. In addition, issuing

this command causes you to switch to the specified disk

and log it in, write-enabled. The selected disk appears

in your KERMIT-80 prompt, for instance

Kermit-80 A:>

PORT Allows you to switch between different communication

ports. This command is not available on all systems.

PRINTER ON or OFF. Turns copying of CONNECT session to printer

on and off. No attempt is made to do buffering or flow

control; it is assumed printer can keep up.

DIR This provides a directory listing of the specified files. If no

files are specified, all files on the default disk are listed.

File sizes, in K, are included. You may interrupt the listing

at any time by typing any character. The listing (even if

interrupted) concludes with a display of the amount of free

storage left on the disk.

ERA This executes the CP/M ERA command on the specified file(s).

The names of the files being erased are not displayed.

CP/M-80 KERMIT Page 141

11.1. Generic KERMIT-80

"Generic Kermit-80" is a implementation of Kermit that should run on any

8080-compatible CP/M system no modification at all, or perhaps only a minor one. Unlike other Kermit-80 implementations, it contains no system-dependent manipulation of the serial port or screen. All I/O is done with standard CP/M BIOS calls, and I/O redirection is done using the CP/M IOBYTE function, which, according to the Digital Research CP/M

Operating System Manual, is an optional feature of any particular CP/M implementation. If your system does not provide the IOBYTE function,

Generic Kermit-80 will not work; furthermore, not all systems that implement IOBYTE do so in the same way.

The reason all Kermit-80 implementations aren't generic is that a good deal of speed is sacrificed by getting all services from the operating system. While a specific implementation of Kermit-80 may be able to operate at 4800, 9600, or even 19200 baud, Generic Kermit will fail to work on some systems at speeds in excess of 1200 baud.

Generic Kermit also differs from other Kermit-80 implementations in that it does not do fancy screen control during file transfer; it simply types the file names, packet numbers, and messages in sequence across and down the screen. This works best if you can put your micro or ter- minal in "autowrap" mode; otherwise the packet numbers will pile up in the rightmost column; the filenames and messages will always appear on a new line, however. Neither does generic Kermit-80 do termimal emula- tion; thus a generic Kermit-80 acts either as a "dumb terminal"

(sometimes called a "glass TTY"), or else its own built in terminal firmware provides cursor control functions independent of the Kermit program.

Note that VT180 and DECmate-II Kermit are simply adaptations of Generic

Kermit that do VT100 (ANSI) screen control during file transfer.

11.2. Installation

Kermit-80 was written originally for the Intertec SuperBrain in lowest- common-denominator 8080 code with the standard assembler, ASM (no mac- ros, no advanced instructions), so that it can be assembled on any

16

CP/M-80 system . It has since been modified to run on many other sys- tems as well. Kermit-80 should be able to run on any 8080-, 8085- or

Z80-based microcomputer under CP/M with only minor modifications (see below).

All versions of Kermit-80 are assembled from the same source, with sys- tem dependencies taken care of by assembly-time conditionals. The most important system dependencies are terminal emulation (when CONNECTed to

_______________

16

The 8080 assembler is distributed as a standard part of CP/M-80, whereas the fancier Z80 or macro assemblers are normally a commercial product

CP/M-80 KERMIT Page 142 the remote host) and screen handling, which are dependent on the in- dividual micro's escape codes (these features are table driven and easily modified for other CP/M systems), and the lowest level i/o routines for the serial communications port. The port routines are best done only with BDOS calls, but some systems do not allow this, primarily because the BDOS routines strip the parity bit during port i/o, and the parity bit is used for data when transmitting binary files. Also, using

BDOS calls, there's no way to poll the serial port; you must hang until input appears.

Kermit-80's i/o routines must check the port status and go elsewhere if no input is available; this allows for virtual terminal connection, keyboard interruption of stuck transmissions, etc. On systems that fully implement i/o redirection via the optional CP/M IOBYTE facility, this may be done by switching the IOBYTE definition. On others, however, IN/OUT instructions explicitly referencing the port device registers must be used.

CP/M-80 KERMIT version 3.8 and above includes a "fuzzy timer" that al- lows a timeout to occur after an interval ranging from 5 to 20 seconds

(depending upon the speed of the processor and the operating system routines) during which expected input does not appear at the port. In this case, retransmission occurs automatically. In any case, you may type a carriage return during transmission to simulate a timeout when the transfer appears to be stuck.

11.2.1. Downloading Kermit-80

If you already have a version of Kermit on your micro and you want to install a new version, simply use your present version to get the new one. If it's stored in the form of a .COM file, you can run it directly. If it's stored as a .HEX file, you must first LOAD it on your micro to produce a .COM file.

If you do not have a copy of KERMIT on your micro, and you cannot borrow a Kermit floppy but you do have access to a mainframe computer with a copy of the Kermit-80 distribution, you should read this section.

There are several ways to get Kermit from a host system to your micro.

The easiest is to "download" the precompiled "hex" file into your micro's memory and then save it on the disk. The following is a proce- dure which, though far from foolproof, should allow you to get a version of Kermit to your CP/M based micro. It depends upon the host prompt, or at least the first character of the host prompt, being some character that cannot appear in a hex file (the valid characters for hex files are the digits 0-9, the upper case letters A-F, the colon ``:'', carriage return, and line feed). As soon as any other character is encountered, the transfer will terminate. If your host does not issue a prompt that will accommodate this scheme, you can achieve the same effect by adding an atsign ``@'' to the very end of the hex file before sending it from

the host. The program below looks for an atsign (the normal DEC-20 prompt, hex 40). DECSYSTEM-10 users would look for a dot, hex 2E.

1. Look for the appropriate hex file in the host's KERMIT area.

The name will be something like CPMROBIN.HEX, CPMHEATH.HEX,

CP/M-80 KERMIT Page 143

CPMOSBORN.HEX, etc. If you don't find it, but you do find a

corresponding .ASM or .M80 file, you'll either have to build

a new hex file on the host using a cross assembler (see below

for how to do this on a DEC-10 or DEC-20), or else bring the

M80 source file to your micro and assemble it there.

2. Connect to your host using a terminal or a terminal emulation

facility. Ensure that your host does not have your terminal

in "page mode". E.g. on the DEC-20, give the Exec command

TERMINAL NO PAUSE END-OF-PAGE.

3. Tell the host to display the hex file at your terminal. E.g.

on the DEC-20, give the Exec command TYPE KERMIT.HEX, without

a terminating carriage return.

4. Return to your micro. Connect to a floppy disk with plenty

of free space. Make sure your IOBYTE is set so that RDR: and

PUN: correspond to the I/O port that is connected to the

DEC-20 (this would normally be the case unless you have done

something special to change things). Run DDT and type in the

following (the comments should not be typed in; they are

there just to tell you what's happening):

-ikermit.hex ;Setup FCB for file KERMIT.HEX.

-a100 ;Begin assembling code at 100.

0100 lxi h,ffe ;Where to put HEX file.

0103 shld 300 ;Save the address.

0106 mvi e,d ;Get a CR.

0108 mvi c,4 ;Output function.

010A call 5

010D mvi c,3 ;Input function.

010F call 5

0112 ani 7f ;Turn off the parity.

0114 cpi 40 ;Our DEC-20 prompt atsign?

0116 jz 124 ;Yes, we have whole file.

0119 lhld 300 ;Get the pointer.

011C mov m,a ;Else, store the char.

011D inx h ;Increment the pointer.

011E shld 300 ;Save the pointer.

011F jmp 10d ;Go around again.

0124 mvi a,1a ;Get a control-Z.

0126 lhld 300 ;Get the pointer.

0129 mov m,a ;Store the char.

012A shld 300 ;Save the pointer.

012D lxi h,1000 ;Pointer to file.

0130 shld 310 ;Save the pointer.

0133 mvi c,16 ;Make file.

0135 lxi d,5c

0138 call 5

013B lhld 310 ;Get the file pointer.

013E xchg ;Put it in DE.

013F mvi c,1a ;Set DMA.

0141 call 5

0144 mvi c,15 ;Write DMA to file.

0146 lxi d,5c

0149 call 5

CP/M-80 KERMIT Page 144

014C lhld 310 ;Get the file pointer.

014F lxi d,80 ;Get the DMA size.

0152 dad d ;Adjust file pointer.

0153 shld 310 ;Save it.

0156 lda 301 ;Get high order byte.

0159 cmp h ;Have we passed the end?

015A jm 170 ;Yes.

015D jz 163 ;Maybe.

0160 jmp 13b ;No.

0163 lda 300 ;Get low order byte.

0166 cmp l ;Passed the end?

0167 jm 170 ;Yes.

016A jz 170 ;Yes.

016D jmp 13b ;Not quite.

0170 mvi c,10 ;Close file.

0172 lxi d,5c

0175 call 5

0178 ret

0179

-g100,179 ;Execute the program.

- ;Reboot

Now there should be a file KERMIT.HEX on your connected disk.

5. Load this using the CP/M command LOAD to produce KERMIT.COM.

This should be a runnable version of Kermit. Note that CP/M

hex files have checksums on each line. If there were any

transmission errors during the downloading process, the CP/M

loader will notice a bad checksum and will report an error

(something like "Illegal Format"). If you get any errors

during loading, either fix the hex file locally with an

editor, or repeat the previous step.

You now should have a running version of Kermit-80.

11.2.2. Building KERMIT.HEX

The source for Kermit-80 should be available on your host computer. It is written using 8080 assembler mnemonics, so it can be assembled on most 8080s and Z80s using the standard 8080 assembler provided with

CP/M. If you have KERMIT.ASM on your CP/M system, you can assemble it directly on the micro using ASM, setting the desired assembly switches as explained below. If you don't have it, you can attempt to download the source file from the host using the procedure outlined above.

A cross assembler is provided that runs on the DEC-10 and DEC-20, called

MAC80, contributed by Bruce Tanner at Cerritos College, that may be used for cross assembling KERMIT-80 as shown in this example (for TOPS-20):

1. Copy PS:<KERMIT>CPMKxx.M80 to your directory, as KERMIT.M80.

TOPS-10 filename rules must be followed. This is the 8080

assembler source file; xx is the current version number; for

instance version 3.8 would be stored as CPMK38.M80.

2. Edit KERMIT.M80 to set the conditional assembly switch for

CP/M-80 KERMIT Page 145

your machine. These are right near the top of the file. The

switch for your machine should be set to TRUE and all the

others to FALSE.

3. The "ibm-flag" setting is site dependent. As shipped from

Columbia, it turns on half duplex line handshaking, using

CTRL-Q as the turnaround character, sets LOCAL-ECHO ON, TIMER

ON, and PARITY MARK. Make any changes required for your

site.

4. The default FILE-MODE is ASCII as shipped from Columbia.

This means that when text files are sent from the CP/M sys-

tem, no extraneous characters will be sent after the end, but

that outgoing binary files may be truncated erroneously if

the user forgets to SET FILE BINARY. You can change the

default to BINARY, so that no data is ever lost from any

file, but text files will usually have extraneous junk at the

end.

5. Run MAC80:

@mac80

*kermit=kermit

*^Z

The result will be in your directory as KERMIT.HEX.

6. Use Kermit, MODEM, or any other downloading mechanism to

transfer KERMIT.HEX to the micro, or download it using the

DDT program shown above.

7. On the micro, load the hex file:

A>load kermit

KERMIT.COM will appear on the floppy.

8. The new Kermit should be ready to run.

11.2.3. Generic Kermit-80

If your CP/M 2.2 system implements i/o redirection via the (optional)

IOBYTE mechanism, you can probably run Generic Kermit on it, either without modification, or by a very simple change to the program. The standard CP/M IOBYTE is set up as follows:

I/O Byte assignments (four 2-bit fields for 4 devices at location 3)

: bits 6+7 LIST field

0 LIST is Teletype device (TTY:)

1 LIST is CRT device (CRT:)

2 LIST is Lineprinter (LPT:)

3 LIST is user defined (UL1:)

CP/M-80 KERMIT Page 146 bits 4+5 PUNCH field

0 PUNCH is Teletype device (TTY:)

1 PUNCH is high speed punch (PUN:)

2 PUNCH is user defined #1 (UP1:)

3 PUNCH is user defined #2 (UP2:) bits 2+3 READER field

0 READER is Teletype device (TTY:)

1 READER is high speed reader (RDR:)

2 READER is user defined #1 (UR1:)

3 READER is user defined #2 (UR2:) bits 0+1 CONSOLE field

0 CONSOLE is console printer (TTY:)

1 CONSOLE is CRT device (CRT:)

2 CONSOLE in Batch-mode (BAT:);READER=Input,LIST=Output

3 CONSOLE is user defined (UC1:)

(Here, bit zero is the least significant, "rightmost", bit).

I/O redirection is accomplished by switching the IOBYTE between two values, "batch i/o" and "normal i/o". In normal i/o mode, the keyboard is defined to be the console. In batch i/o mode, the serial port is defined to be the console. This switching is necessary because the con- sole is the only device that can be tested to see if input is available, but KERMIT must shuttle back and forth between the keyboard and the serial port looking for input. Here are the batch and default i/o mode definitions used in "standard" Generic KERMIT-80: batio EQU 056H ;I/O byte CON=BAT,LIST=CRT,READER=RDR defio EQU 095H ;I/O byte CON=CRT,LIST=LPT,READER=RDR

Other systems may have other logical devices that point to the serial port, in which case you'll need to redefine these symbols to point to those devices and then reassemble the program (with assembly switch

GENER set to TRUE, all others FALSE).

If your system runs CP/M 3.0, then the CPMPLUS version of KERMIT should run on your system without modification, except perhaps for screen con- trol or baud rate setting.

CP/M-86 KERMIT Page 147

12. CP/M-86 KERMIT

Authors: Bill Catchings, Columbia University; Ron Blanford, Univer-

sity of Washington; Richard Garland, Columbia University.

Language: Digital Research ASM86

Version: 2.7

Date: May 1984

Documentation:

Frank da Cruz, Columbia

This version of KERMIT is designed to support any CP/M-86 system. So far it supports the DEC Rainbow-100 and the NEC Advanced Personal Com- puter (APC). It is very similar to CP/M-80 and MS DOS KERMIT.

CP/M-86 KERMIT-86 Capabilities At A Glance:

Local operation: Yes

Remote operation: No

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: No

Terminal emulation: Yes, uses PC firmware (VT100)

Communication settings: Yes; duplex, parity

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: No

Session logging (raw download): Yes

Raw upload: No

Act as server: No

Talk to server: Yes; SEND, GET, FIN, BYE

Advanced commands for servers: No

Local file management: No

Handle file attributes: No

Command/init files: Yes

Printer control: No

CP/M-86 Kermit closely resembles CP/M-80 Kermit, just as CP/M-86 is very similar to CP/M-80. In some respects, KERMIT-86 is superior to

KERMIT-80: the program is better modularized to facilitate easy addition of support for new systems, alternate style user interfaces, etc; the port i/o is fully buffered and XON/XOFF is done to allow high-speed com- munication and accurate session logging. On the other hand, the current version does not include the CP/M-80 Kermit's local file management com- mands.

CP/M-86 KERMIT Page 148

CP/M-86 KERMIT DESCRIPTION

Since Kermit-86 runs on a standalone micro, it is always in control of the screen -- it is always local. Thus, it always keeps the screen up- dated with the file name and the packet number, whether sending or receiving. Kermit-86 is capable of timing out an input request, and can thus break deadlocks automatically. In most cases, however, this is not desirable because the KERMIT on the other side is most likely better able to handle the timeouts; therefore, Kermit-86's timer is normally not used.

If despite the timeout capability, the transmission appears to be stuck

(and you can tell that this has happened if the screen fails to change for a long while) you can type carriage return to have the micro do what it would have done on a timeout, namely NAK the expected packet to cause to foreign host to send it again (or, if the micro is sending, to retransmit the last packet). Micro/micro or micro/IBM-mainframe trans- fers could require this kind of manual intervention.

File transfers may be interrupted in several ways.

Control-C This will return you to Kermit-86 command level im-

mediately, so that you can connect back to the remote

system, or take any other desired action.

Control-X When sending a file, this will terminate the sending of

the current file with a signal to the KERMIT on the

other side to discard what it got so far. If there are

more files to be sent, KERMIT-86 will go on to the next

one. When receiving a file, KERMIT-86 will send a sig-

nal to the remote KERMIT to stop sending this file. If

the remote KERMIT understands this signal (not all im-

plementations of KERMIT do), it will comply, otherwise

the file will keep coming. In either case, the remote

KERMIT will go on to the next file in the group, if any.

Control-Z Like Control-X, except if a file group is being trans-

mitted, this will stop the transmission of the entire

group. If only a single file is being transmitted, it

works exactly like Control-X.

Carriage Returns

If you type carriage return repeatedly Kermit-86 will

retry the current packet up to its retry limit

(somewhere between 5 and 16 times) and then, if no valid

response was received, return to Kermit-86 command

level.

When KERMIT-86 is started, it looks for the file KERMIT.INI. If found, it executes KERMIT-86 commands from it before prompting you for com- mands.

CP/M-86 KERMIT Page 149

12.1. Kermit-86 Commands

KERMIT-86 uses the DECSYSTEM-20 keyword style command language. Each keyword may be abbreviated to its minumum unique length. "?" may be typed to request a menu of the available options for the current field at any point in a command. ESC may be typed at any point in a command to fill out the current keyword or filename; if sufficient characters have not been typed to identify the current field uniquely, KERMIT-86 will sound a beep and allow you to continue from that point.

CONNECT Establish a "virtual terminal" connection to any host that may

be connected to the serial port, i.e. pass all typein to the

serial port and display all input from the serial port on the

screen, using the system's own built-in support for ANSI (VT100-

like) screen control. When you issue the CONNECT command, the

PC will print a message telling you how to get back by typing an

an escape sequence, an uncommonly-used control character, nor-

mally CTRL-backslash, followed by a single letter "command".

C Close Connection, return to Kermit-86> command level.

? List available single-character commands.

B Send a BREAK signal.

Q Quit logging the remote session.

R Resume logging the remote session.

L Toggle logging.

^\ (or whatever - a second copy of the escape character) Send

the escape character itself to the remote host.

SEND filespec

Send file(s) specified by filespec to the remote Kermit, using

the prevailing file mode (ASCII or BINARY; see SET). The

filespec may contain CP/M wildcards.

RECEIVE Receive file(s) from the remote Kermit. Store them under the

names provided in the file headers supplied by the remote host.

If the names aren't legal, use as many legal characters from the

name as possible (see the description of SET FILE-WARNING

below). If there's a conflict, and FILE-WARNING is ON, warn the

user and try to build a unique name for the file by adding "&"

characters to the name.

GET filespec

When Kermit-86 is talking to a Kermit Server on the host, you

should use the GET command to request the server to send files

to you, for example: get hlp:k*.hlp

BYE When talking to a remote Kermit Server, this command shuts down

the server and logs it out, and also exits from Kermit-86 to

CP/M command level.

LOGOUT Like BYE, but leaves you at Kermit-86 command level.

FINISH Like LOGOUT, but shuts down the remote server without logging it

out. Leaves you at Kermit-86 command level; a subsequent CON-

NECT command should put you back at host system command level.

CP/M-86 KERMIT Page 150

EXIT Exit from KERMIT-86 back to CP/M.

QUIT Synonym for EXIT.

SET parameter [value]

Set the specified parameter to the specified value. Possible

settings:

BAUD Change the baud rate of the communications port. This

command only works on some systems, and its actual

operation can vary from system to system. Type SET BAUD

followed by a question mark, and follow the directions.

On systems that do not support this command, you must

set the port baud rate from CP/M or other setup

mechanism outside of KERMIT-86.

DEBUG ON or OFF. If ON, displays incoming and outbound pack-

ets during file transfer. OFF by default.

ESCAPE Change the escape character for virtual terminal connec-

tions. Select a character in the control range that you

will not be likely to need at the remote host; type the

new character literally. Certain characters, like

Control-X, cannot be specified.

FILE-TYPE

Tells KERMIT-86 what kind of file it is sending, so that

KERMIT can correctly determine the end of the file. SET

FILE BINARY means to send all the 128-byte blocks of the

file, including the last block in its entirety; SET FILE

ASCII is used for text files, and transmission stops

when the first Control-Z is encountered anywhere in the

file (this is the CP/M convention for marking the end of

a text file). If binary transmission is used on a text

file, some extraneous characters (up to 127 of them) may

appear at the end of the file on the target system. If

ASCII transmission is used on a binary file, the entire

file will not be sent if it happens to contain any data

bytes that correspond to Control-Z. ASCII is the

default.

FLOW-CONTROL

Select the desired type of flow control to be used on

the communication line. The choices are NONE and

XON/XOFF. XON/XOFF is the default. If the remote sys-

tem is not full duplex or cannot do XON/XOFF, you should

use NONE.

IBM ON (or OFF)

Allow the transfer of files to and from an IBM mainframe

computer. This makes Kermit-86 wait for the IBM tur-

naround character (XON), ignore parity on input, add ap-

propriate parity to output, and use local echoing during

CONNECT. As distributed, KERMIT-86 uses MARK parity for

IBM communication. If you don't give this command, IBM

mode is OFF. Since IBM VM/CMS KERMIT does not have

CP/M-86 KERMIT Page 151

timeout capability, SET IBM ON also turns on the timeout

facility automatically, as if you had typed "SET TIMER

ON".

LOCAL-ECHO ON (or OFF)

When you CONNECT to a remote host, you must set LOCAL-

ECHO ON if the host is half duplex, OFF if full duplex.

OFF by default.

LOG Specify a log file on the current CP/M disk into which

to record incoming characters during CONNECT. If the

remote host can do XON/XOFF, then the log file will nor-

mally capture every character shown on the screen. When

connected to the remote system, several single-character

arguments to the connect escape character can be used to

control logging -- Q (quit), R (resume), L (toggle). If

you use R or L during connect without having previously

specified a log file name, then KERMIT.LOG is used. An

open log is closed when you escape back to the PC.

PARITY Sets parity for outgoing characters to one of the fol-

lowing: NONE, SPACE, MARK, EVEN, or ODD. On input, if

parity is NONE, then the 8th bit is kept (as data),

otherwise it is stripped and ignored. The parity set-

ting applies to both terminal connection and file trans-

fer. If you set parity to anything other than NONE,

Kermit-86 will attempt to use "8th bit prefixing" to

transfer binary files. If the other KERMIT is also

capable of 8th bit prefixing, then binary files can be

transferred successfully; if not, the 8th bit of each

data byte will be lost (you will see a warning on your

screen if this happens).

PORT Allows you to switch between different communication

ports on the PC. This command is not available on all

systems.

TIMER ON (or OFF)

Enable or disable the timeout facility. The timer is

off by default, because in the normal case KERMIT-86 is

communicating with a mainframe KERMIT that has its own

timer. Mainframe KERMIT timers tend to be more precise

or adaptable to changing conditions. You should SET

TIMER ON if you are communicating with another KERMIT

that does not have a timer. You should SET TIMER OFF if

you are communicating over a network with long delays.

WARNING ON (or OFF)

Warn user of filename conflicts when receiving files

from remote host, and attempt to generate a unique name

by adding "&" characters to the given name. OFF by

default.

SHOW Show the current settings of the SET parameters.

TAKE Take KERMIT-86 commands from the specified file. The file

CP/M-86 KERMIT Page 152

should not contain any TAKE commands; nested command files do

not work.

12.2. Installation:

CP/M-86 KERMIT is broken up into several source modules:

86KERCMD.A86 Command parser

86KERFIL.A86 File handler

86KERIO.xxx System Dependent I/O

86KERMIT.A86 Main Program

86KERPRO.A86 Protocol Module

86KERTRM.A86 Terminal Emulation

86KERUTL.A86 Utilities

The main program module, 86KERMIT.A86, contains INCLUDE directives for the other files. The 86KERIO module is stored with suffixes that denote the machine for which the program is being built -- RB for Rainbow, APC for NEC APC. The program may be built on the CP/M-86 system by obtain- ing all the source files listed above, storing them on the current disk with the names indicated, renaming the appropriate 86KERIO.xxx file to be 86KERIO.A86, and then doing:

ASM86 86KERMIT $PZ (takes about 6 minutes on the Rainbow)

GENCMD 86KERMIT (takes less than a minute) and, if desired,

REN KERMIT.CMD=86KERMIT.CMD

12.3. DEC Rainbow 100 Support

KERMIT-86 runs on the DEC Rainbow 100 or 100+ under CP/M-86/80, version

1 or 2, on the 8088 side. It uses the built-in firmware to emulate a

VT102 ANSI terminal during CONNECT, and runs well at speeds up to 9600 baud.

You should be able to download the program using the old KERMIT on the

Z80 side (Rainbow Kermit, VT180 Kermit, or generic CP/M-80 Kermit will do the job, but only under DEC CP/M-86/80 version 1.0), or an earlier version of KERMIT-86.

If you don't have an earlier version of KERMIT, then follow the direc- tions for installing KERMIT-80 (yes, KERMIT-80) in the KERMIT-80 section of the KERMIT User Guide, but send the KERMIT-86 hex file instead. This works because the Rainbow can run CP/M-80 programs like DDT.

Another way to get KERMIT onto your Rainbow for the first time would be from a DEC VT-180 diskette. A VT-180 can use its own KERMIT to load

RBKERMIT onto its disk, which can then be read directly by a Rainbow.

Also, note that VT-180 KERMIT-80 can actually run on the Rainbow on the

Z80 side under DEC CP/M-86/80 version 1 (but not version 2 or higher), at speeds of 1800 baud or lower.

CP/M-86 KERMIT Page 153

12.4. NEC Advanced Personal Computer Support

(Contributed by Ron Blanford, University of Washington)

Currently only the standard serial port is supported, and not the H14 auxiliary port. The SET PORT command is not implemented.

While in Kermit's terminal emulation mode, local commands are initiated by a two-character sequence consisting of the "escape character" fol- lowed by one other character identifying the command. (Make the second character a '?' to see a list of the valid commands.) As distributed, the standard Kermit-86 uses the control-backslash character as the es- cape character in terminal mode. The trouble is that the CP/M-86 BIOS in the APC ignores a keyboard entry of Control-\ (i.e. holding down the

CTRL key while striking the '\' key), making it difficult (impossible) to use this method to get out of terminal mode.

One solution is to perform a "SET ESCAPE ^" command before entering ter- minal mode to change the escape character to a caret (or any other character the APC keyboard will generate). This command could be placed in your KERMIT.INI file for automatic execution every time Kermit is started.

The simpler solution is to realize that the character code for a

Control-\ is a hexadecimal 1C, and that this is the code generated by the INS key on the numeric keypad. Once you can remember that every reference to Control-\ should be interpreted as a reference to the INS key, this is actually easier to use than the two-key Control-\ sequence.

In the standard CP/M-86 BIOS, the unshifted DEL key generates a

Control-X character (hexadecimal 18). This is the CP/M command to erase the current input line, and is very useful for local processing. Most mainframes do not use the Control-X character at all, so it becomes much less useful during terminal emulation. The DEL character (hexadecimal

7F), on the other hand, is often used by mainframes and can only be generated on the APC by holding down the SHIFT key while striking the

DEL key (this capability is not mentioned anywhere in the documentation).

Because the Control-X character is so seldom used while the DEL charac- ter is commonly used, the initialization procedure in Kermit-86 modifies the CP/M-86 BIOS so that the DEL key generates the DEL character whether shifted or not. Control-X can still be generated if necessary by hold- ing down the CTRL key while striking the 'X' key. The CP/M-86 BIOS is returned to its original state when Kermit terminates.

The APC uses escape sequences which have been standardized by the

American National Standards Institute (ANSI) to control cursor movement, screen erasing, and character attribute manipulation. Perhaps the best- known other terminal which follows ANSI guidelines is the DEC VT100.

The APC only recognizes a few of the more important ANSI commands, and

not the complete set which the VT100 supports.

The ANSI/VT100 features that the NEC APC supports are:

- direct cursor addressing (by row and column)

CP/M-86 KERMIT Page 154

- relative cursor addressing (up, down, left, right)

- line erasing (cursor to end, beginning to cursor, entire line)

- screen erasing (cursor to end, beginning to cursor, entire

screen)

- character attributes (underline, reverse video, blink, but not

bold)

In addition, the first four grey function keys (unshifted) generate the escape sequences associated with PF1 through PF4 on the VT100 keyboard.

The arrow keys and numeric keypad DO NOT generate the corresponding

VT100 sequences.

These functions are enough to support simple command line editing on most systems, and allow mailers or paged file display programs to clear the screen before each display. Underlining and reverse video are also useful in some applications. This is not enough to support the more sophisticated screen control required by screen editors such as EMACS or

KED. In addition, due to a bug in the implementation of the CP/M-86

BIOS, the sequence ordinarily used to home the cursor (esc [ H) does not work correctly; a patch for CP/M to correct this problem is distributed with APC Kermit-86.

APPLE-DOS KERMIT Page 155

13. APPLE-DOS KERMIT

Authors: Antonino N. J. Mione, Stevens Institute of Technology

Peter Trei, Columbia University

Documentation:

Antonino N.J. Mione, Stevens Institute of Technology

Peter Trei, Columbia University

Version: 2.1(45)

Date: July 1984

Kermit-65 Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: No

^X/^Y interruption: No

Filename collision avoidance: Yes

Can time out: No

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: No

Terminal emulation: Yes (VT52)

Communication settings: Yes; local echo, parity

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: No

Session logging (raw download): No

Raw upload: No

Act as server: No

Talk to server: Yes

Advanced commands for servers: No

Local file management: No

Handle file attributes: No

Command/init files: No

Printer control: No

KERMIT-65 is a program that implements the KERMIT file transfer protocol for the Apple ][ micro computer system. It is written in 6502 assembly language and should run on any Apple ][ or Apple ][ Plus system running

DOS 3.3. This section will describe the things you should know about the DOS 3.3 file system in order to make effective use of KERMIT, and then it will describe the special features of the KERMIT-65 program.

13.1. The DOS 3.3 File System

Items of importance which will be discussed in this section include

Filenames and File Characteristics.

APPLE-DOS KERMIT Page 156

Apple DOS Filenames

Filenames under Apple DOS may contain almost any ASCII character

(including space). It is not recommended that special characters, (i.e. control characters or spaces) be used in a filename to be transferred by

Kermit-65 since they may cause problems when parsing the filename.

Filenames may be up to 40 characters in length. No wildcarding of any kind can be done in KERMIT-65.

Apple DOS File Characteristics

All files in Apple DOS have a file type associated with them which is contained in the directory entry for the file but is not part of the filename itself. There are four types of files in DOS 3.3. They are:

- APPLESOFT BASIC

- INTEGER BASIC

- BINARY

- TEXT

All file types have their data stored in eight-bit bytes although not all of them need the eighth bit. The two file types containing basic programs required the eighth bit due to the nature of the data being stored. BINARY files are images of memory copied into a file. Often, these are machine code programs. These files require all eight bits.

TEXT files normally contain only printable or carriage control charac- ters. They are stored in the form of seven-bit ASCII characters but the eighth bit should always be set since Apples manipulate all text inter- nally as 'NEGATIVE ASCII'.

When transmitting text files, the byte size should be set to seven-bit.

When transmitting anything else, the user must insure that both Kermits are handling eight bit data so that no information is lost. If an eight-bit data path is not available (i.e. the remote Kermit needs to do parity checking with the eigth bit), then eight-bit quoting should be used. Of course, BINARY files as well as Apple BASIC files will not have much meaning on a different system. If the user desires to edit a BASIC file on a mainframe, for instance, he must convert it to a TEXT file be- fore sending it over. After receiving the file back on the Apple, the user may convert it back to BASIC once again. The reason BASIC files would be meaningless to a different machine is that the Apple stores

BASIC keywords as single character tokens to save space and processing time. To convert a BASIC program to and from a TEXT file, consult the

Apple DOS 3.3 Manual.

File information can be obtained by issuing the CATALOG command. For ex-

ample:

]CATALOG

DISK VOLUME 010

APPLE-DOS KERMIT Page 157

*A 002 HELLO

B 078 KERMIT

A 002 READER

T 005 TESTFILE

]

When KERMIT-65 is receiving a file, the file it creates on diskette will be of the type indicated by the FILE-TYPE parameter. The file will al- ways be left in an unlocked state after it is closed by KERMIT-65. When sending a file, KERMIT-65 will use the FILE-TYPE parameter to determine how to detect an End-of-file condition. Thus, it is important to have this set properly in all cases.

Recommendations for archiving files

When using a large system for archiving purposes, there is no reason to convert Apple Basic programs into text files before sending them since there is no need to edit them on the mainframe.

The FILE-TYPE parameter must always be set correctly when sending and receiving files. Also, when sending files which require eight-bit

FILE-BYTE-SIZEs, this parameter must also be set properly since

KERMIT-65 does not change it automatically based on FILE-TYPE.

The procedure for archiving TEXT files is:

- Run Kermit on remote system

- SET FILE-BYTE-SIZE SEVEN-BIT ! On KERMIT-65

- SET FILE-TYPE-MODE TEXT ! On KERMIT-65

- Send files

The procedure for archiving APPLESOFT, INTEGER, and BINARY files is:

- Run Kermit on remote system

- Set File-byte-size to Eight-bit ! On Remote Kermit

- SET FILE-BYTE-SIZE EIGHT-BIT ! On KERMIT-65

- SET FILE-TYPE-MODE APPLESOFT ! (or INTEGER, or BINARY) On

KERMIT-65

- Send files

APPLE-DOS KERMIT Page 158

13.2. Program Operation

HARDWARE CONSIDERATIONS

Prior to using KERMIT-65 for transferring files, the modem interface must be set to handle data in a certain manner. Firstly, the data format should be 8 data bits and 1 stop bit. Secondly, the card should be set to no parity. The baud rate (if adjustable) must be set to whatever rate the modem can handle. For the Apple Com card and the D.C. Hayes

Micromodem, these parameters are set correctly by default, so very lit- tle has to be done. For the Apple Super Serial Card, however, these have to be set before using KERMIT-65. In all cases, use the same procedure to connect to the mainframe host as is indicated in the section below on

Installing KERMIT.

Some mainframes cannot handle data in the format of 8 data bits and 1 stop bit because they may need parity checking (i.e. most IBM machines).

In this case, 7 data bits and 1 stop bit plus some parity setting (other than none) will usually work. When talking with such mainframes, binary and basic files on the Apple cannot be transferred unless

Eighth-bit-quoting is used.

CONVERSING WITH KERMIT-65

KERMIT-65's prompt is "KERMIT-65>".

To run KERMIT-65 and issue commands to it, type the following:

]BRUN KERMIT

STEVENS/CU - APPLE ][ KERMIT-65 - VER 2.1

Kermit-65>SEND TESTFILE

file is sent

Kermit-65>STATUS

performance statistics are printed

Kermit-65>Other commands

.

.

.

Kermit-65>EXIT

]

KERMIT-65 uses a TOPS-20 style command parser.

During interactive operation, you may use the ?-prompting help feature

("?") and recognition (ESC) features while typing commands. A question mark typed at any point in a command displays the options available at

APPLE-DOS KERMIT Page 159 that point; typing an ESC character causes the current keyword to be completed (or default value to be supplied). If you have not typed suf- ficient characters to uniquely specify the keyword or filename (or if there is no default value) then a beep will be sounded and you may con- tinue typing. Keywords may be abbreviated to any prefix that is unique.

There are several different Apple]['s which can run KERMIT-65. Kermit will have no problems running on an Apple ][ or Apple ][+ system. It will run on the Apple //e as well, however, the 80-column board cannot be used at this time.

Of the different communication devices available for the Apple ][, three are supported:

- Apple Com Card

- D.C. Hayes Micromodem

- Apple Super Serial Card

It is possible that other cards may have operational characteristics very similar or identical to one of the devices above. If this is the case, it may work using one of the currently available device drivers.

The user may want to try each of the above options to see if any of them work.

KERMIT-65 must be told which device is being used so that it may run with the correct device driver. It also must be told in which slot the card resides. This may be done with the 'SET' command (documented below).

13.3. Remote and Local Operation

KERMIT-65 is normally run in local mode. It may be run as a remote Ker- mit as well although there is no advantage to doing things that way.

KERMIT-65 supports User-mode commands for talking to a Server. It does not currently support server mode.

13.4. KERMIT-65 Commands

THE SEND COMMAND

Syntax: SEND filespec

The SEND command causes a file to be sent from the Apple to the remote system. The Filespec is the name of the file on the Apple diskette to be sent. The parser will not accept control characters and certain special characters in a filename (i.e. a comma), so the user may have to rename

the file before it is sent. The user may also have problems in filename compatibility with remote Kermits. If the remote Kermit does not have the facilities to beat the filename into a format that its system likes, the user may have to rename the file before sending it. The default disk drive used for file transfers is the drive used to boot the system

APPLE-DOS KERMIT Page 160 or the last drive accessed with a DOS command. This can be changed with the 'SET DEFAULT-DISK' command (explained below). Either the slot or the drive or both may be altered.

As a file is being sent, the screen displays either 'SENDING PACKET...' or 'WAITING PACKET...' followed by the absolute packet number since start of transmission. If a packet must be transmitted several times and it reaches the maximum retry count, the transfer will fail and the

'KERMIT-65>' prompt will return. If the remote Kermit sends an error packet, the text of the packet will be displayed on the screen and the prompt will return.

Currently, a packet can be retransmitted manually by typing anything on the keyboard. If a 'Q' is typed, the entire transmission will be aborted.

THE RECEIVE COMMAND

Syntax: RECEIVE [filespec]

The RECEIVE command tells KERMIT-65 to receive a file or file group from the other system. If only one file is being received, you may include the optional filespec as the name to store the incoming file under; otherwise, the name is taken from the incoming file header. If the name in the header is not a legal filename in DOS 3.3, KERMIT-65 will attempt to change it into something legal. There are very few things that are illegal in DOS 3.3. If FILE-WARNING is on and an incoming file has a name identical to a file already existing on the diskette, KERMIT-65 will issue a warning to the user and attempt to modify the filename to make it unique.

GET

Syntax: GET remote-filespec

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used with a

KERMIT server on the other end.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally.

If the remote KERMIT is not capable of server functions, then you will probably get an error message back from it like "Illegal packet type".

In this case, you must connect to the other Kermit, give a SEND command, escape back, and give a RECEIVE command.

APPLE-DOS KERMIT Page 161

THE CONNECT COMMAND

Syntax: CONNECT

Establish a terminal connection to the remote system. Get back to

KERMIT-65 by typing the escape character followed by the letter C. The escape character is [email protected] by default. When you type the escape character, several single-character commands are possible:

B Send a BREAK Signal.

C Close the connection and return to KERMIT-65.

S Show status of the connection.

0 Send a null.

Connect-escape

Send the Connect-escape character itself.

? List all the possible single-character arguments.

You can use the SET ESCAPE command to define a different escape charac- ter.

When 'CONNECTED', KERMIT-65 will be passing characters entered on the keyboard to the remote system, and passing characters from the remote system to the Apple screen. If VT52-EMULATION is turned on, Kermit will trap escape codes and simulate the appropriate functions of a VT52 ter- minal.

On an Apple ][+ with an incomplete keyboard, special characters can be obtained by prefixing regular characters with a right-arrow. Also, Up- percase is shown in inverse and lowercase characters are displayed as normal uppercase characters.

Here are the rules for using the special 2/2+ input, to get all print- able ASCII characters, and how they appear on the screen:

Special meanings are applied in various contexts to certain characters.

The left and right arrow keys do special things, and sometimes the es- cape key does as well.

For letters, the keyboard is always in either default UPPERCASE mode or default lowercase mode. When in UPPERCASE, all letters typed are sent out as uppercase. In lowercase, all letters are sent as lowercase. To reverse the case for the next character only, hit the right-arrow

("prefix") key. To switch the default case, hit the prefix-key twice in a row.

For funny characters, the prefix key is also used to get the unusual punctuation characters which are not on the Apple keyboard. Here they are: (To represent the prefix character I am using the letter p).

To get Type Appearence

Left Square Bracket p( [

Right Square Bracket p) ]

Left Curly Bracket p< {

Right Curly Bracket p> }

Underline p- _

APPLE-DOS KERMIT Page 162

Backslash p/ \

Tilde (wiggle) p^ ~

Vertical Line p. |

The left-arrow key sends a rubout.

With left-arrow and right arrow doing special things, its a little hard to enter their characters (^H and ^U respectivly). There is therefore an escape from prefix mode sequence. If you type prefix-ESC, the next character is sent without any interpretation.

Currently, it is impossible to turn this special input and display on and off, so its a bit of a pain if you are on a Apple 2e.

THE HELP COMMAND

Syntax: HELP

Typing HELP alone prints a brief summary of the KERMIT-65 commands.

THE EXIT AND QUIT COMMANDS

Syntax: EXIT

Exit from KERMIT-65. You can restart the program, provided you haven't run anything else, by typing 'CALL 2049'.

Syntax: QUIT

This is merely a synonym for EXIT.

THE SET COMMAND

Syntax: SET parameter [option] [value]

Establish or modify various parameters for file transfer or terminal connection. You can examine their values with the SHOW command. The following parameters may be SET:

DEBUGGING TERSE or VERBOSE packet information.

DEFAULT-DISK Which Diskette drive is used for file transfer?

DEVICE-DRIVER Which communication device is being used?

EIGHT-BIT-QUOTING

Should eight-bit-quoting be used?

ESCAPE Character for terminal connection.

FILE-BYTE-SIZE SEVEN or EIGHT significant bits in a byte.

FILE-TYPE Of Apple DOS file being sent/received.

APPLE-DOS KERMIT Page 163

FILE-WARNING Warn users if incoming file exists?

IBM For communicating with an IBM mainframe

KEYBOARD ][+ or //e keyboard.

LOCAL-ECHO Full or half duplex switch.

PARITY Character parity to use

RECEIVE Various parameters for receiving files

SEND Various parameters for sending files

SLOT Which slot # is communication device in?

VT52-EMULATION Should Kermit emulate a VT52 when connected?

SET DEBUGGING

Syntax: SET DEBUGGING options

Record the packet traffic on your terminal. Options are:

TERSE Show packet info only (brief).

VERBOSE Display packet field descriptions with packet info

(lengthy).

OFF Don't display debugging information (this is the

default).

SET DEFAULT-DISK

Syntax: SET DEFAULT-DISK parameter value

This command will tell KERMIT-65 which disk drive should be used for file transfers. The two parameters which may be set separately are SLOT and DRIVE. The value for SLOT ranges from 1 to 7. The value for DRIVE is either 1 or 2.

SET DEVICE-DRIVER

Syntax: SET DEVICE-DRIVER parameter keyword

This command will tell KERMIT-65 what type of communication device is being used. Currently, three different cards are supported, however, other unsupported cards may work similar enough to one of the three

available that it may be possible to use them. KERMIT-65 must also be told where the card is in the machine (see the SET SLOT command). The options for this set command are:

APPLE-COM-CARD The old Apple communication card (300 baud).

APPLE-DOS KERMIT Page 164

DC-HAYES The D.C. Hayes Micromodem II (300 baud).

SUPER-SERIAL-CARD

The Apple Super Serial Card (300-19.2k baud).

SET ESCAPE

Syntax: SET ESCAPE hexidecimal-number

Specify the control character you want to use to "escape" from remote connections back to KERMIT-65. The default is 0 ([email protected]). The num- ber is the hex value of the ASCII control character, 1 to 37, for in- stance 2 is Control-B.

SET FILE-BYTE-SIZE

Syntax: SET FILE-BYTE-SIZE parameter

Byte size for Apple DOS file I/O. The choices are SEVEN-BIT or

EIGHT-BIT.

SEVEN-BIT

When sending a file, shut the H.O. bit. When receiving, turn the

H.O. bit on. This is done since text files are the only files

which should be sent as SEVEN-BIT files and text files only make

sense to the Apple if they are encoded in 'negative ascii'

values.

EIGHT-BIT

Always send and receive the bytes intact. All 8 bits are sig-

nificant.

SET FILE-TYPE

Syntax: SET FILE-TYPE parameter keyword

This will inform KERMIT-65 what type of DOS file is being sent or received. It is important that this is set correctly since KERMIT-65 must create a file of the appropriate type when receiving (and it has no way of knowing what kind of file it is). When KERMIT-65 is sending, it must also know the type of file since that tells it how to detect the actual end-of-file. The options for this parameter are APPLESOFT, IN-

TEGER, TEXT and BINARY.

APPLESOFT

The file being sent/received is an Applesoft Basic program.

INTEGER The file being sent/received is an Integer Basic program.

TEXT The file being sent/received is an ASCII Text file.

BINARY The file being sent/received is a Binary image.

APPLE-DOS KERMIT Page 165

SET FILE-WARNING

Syntax: SET FILE-WARNING ON or OFF

This tells KERMIT-65 whether to warn the user about incoming filenames conflicting with existing files or not.

SET IBM

Syntax: SET IBM ON or OFF

SET IBM actually sets a number of parameters. When setting it on, the command also turns on LOCAL-ECHO (half-duplex) and sets PARITY to MARK.

When setting IBM OFF, LOCAL-ECHO will revert back to OFF and PARITY will be set to NONE. It should be used when doing file transfers with an IBM or similar mainframe.

SET KEYBOARD

Syntax: SET KEYBOARD 2P or 2E

SET KEYBOARD tells KERMIT-65 if the user has a full keyboard (2E) or not

(2P). If the user is on an Apple ][+, this should be set to 2P (which is the default). When set to that, certain character translations are available by using the right-arrow key as a prefix character.

SET SLOT

Syntax: SET SLOT parameter

This option tells KERMIT-65 in which slot the communication device is located. The range for the parameter is 1-7.

THE SHOW COMMAND

Syntax: SHOW [option]

The SHOW command displays various information:

ALL All parameter settings (this is quite long).

DEBUGGING Debugging mode.

DEFAULT-DISK Which Diskette drive is used for file transfer?

DEVICE-DRIVER Which communication device is being used?

EIGHT-BIT-QUOTING

Should eight-bit-quoting be used?

ESCAPE Character for terminal connection.

APPLE-DOS KERMIT Page 166

FILE-BYTE-SIZE SEVEN or EIGHT significant bits in a byte.

FILE-TYPE Of Apple DOS file being sent/received.

FILE-WARNING Warn users if incoming file exists?

IBM For communicating with an IBM mainframe

KEYBOARD ][+ or //e keyboard.

LOCAL-ECHO Full or half duplex switch.

PARITY Character parity to use

RECEIVE Various parameters for receiving files

SEND Various parameters for sending files

SLOT Which slot # is communication device in?

VT52-EMULATION Should Kermit emulate a VT52 when connected?

The above options are analogous to the equivalent SET commands.

THE STATUS COMMAND

Give statistics about the most recent file transfer. This includes in- formation such as number of characters sent/received, number of data characters sent/received, and last error encountered.

13.5. Customizing, Building, and Installing KERMIT-65

STANDARD INSTALLATION

The Procedure

The procedure to bootstrap an assembled KERMIT object file to the Apple is as follows:

1. On the Apple, Type in the APPLBT.BAS program supplied (See

below). It is recommended that the user save this program as

it may be needed to bootstrap newer versions of KERMIT or

APPHXL in the future. Also, type the APPLESOFT program in

with none of the REMs. It will execute quicker and take up

less room.

2. Call and login to the mainframe on which the KERMIT-65 object

file resides. Do the following:

- ]IN#n ! Where n is between 1 and 7

- For Communication card, do the following:

APPLE-DOS KERMIT Page 167

* Dial number for computer system.

* Seat phone receiver in modem cradle.

* ]<Cntrl/A><Cntrl/F> !Full duplex, 300 baud

- For the D.C. Hayes Micromodem, do the following:

* ]<Cntrl/A><Cntrl/F> ! Full duplex, 300 baud

* MICROMODEM II: BEGIN TERM <Cntrl/A><Cntrl/Q>

* MICROMODEM II: DIALING: nnn-nnnn<cr> ! nnn-nnnn is

number of computer system

- For the Apple Super Serial Card, do the following:

* ]<Cntrl/A>

* APPLE SSC:0D ! 8 data bits, 1 stop bit

* ]<Cntrl/A>

* APPLE SSC:0P ! Force no parity

* ]<Cntrl/A>

* APPLE SSC:nB ! n = 6 for 300 baud, n = 8 for 1200

baud

* Dial number for computer system.

* Seat phone receiver in modem cradle.

* ]<Cntrl/A>

* APPLE SSC:T ! Terminal mode, now talking to remote

host

3. In your directory on the mainframe, the following files

should be present:

- APPLBT.FOR

- APPHXL.HEX

- APPLEK.HEX

Compile and execute APPLBT.FOR. This will be used along with

APPLBT.BAS on the Apple to load the APPHXL program. Once AP-

PLBT is executing on the mainframe, give control back to the

Apple and then run APPLBT.BAS on the Apple. For either the

Communication Card or the D.C. Hayes Micromodem, the proce-

dure is:

- <Cntrl/A><Cntrl/X><cr> ! Give control to Apple's Brain

APPLE-DOS KERMIT Page 168

- ]LOAD APPLBT.BAS<cr>

- ]LOMEM:9500<cr>

- ]RUN<cr>

4. Relocate and save APPHXL. Type the following:

- ]CALL -151<cr> ! Enter Apple's system monitor

- *9000<2000.2280M<cr> ! Move APPHXL from $2000 to $9000

- *<Cntrl/C><cr> ! Reenter APPLESOFT

- ]BSAVE APPHXL,A$9000,L$280<cr> ! Save APPHXL to disk

5. Now simply start executing APPHXL.

- ]CALL -151<cr> ! Enter monitor

- *9000G<cr> ! Start APPHXL

- SLOT FOR MODEM CARD? (1 TO 7 )n ! 'n' is slot # of card

(no <cr>)

- ENTER FILENAME TO LOAD APPLEK.HEX<cr> ! Tell APPHXL what

to load

APPHXL will print the byte count and load address for each

line it is receiving as it loads it into memory. At the end

of each line, it will print '[OK]' if the line was received

properly or '[CHECKSUM ERROR]' if there was a problem with

it.

6. When APPHXL finishes type the following to the Apple:

]BSAVE KERMIT,A$801,L$4E00<cr> ! Save KERMIT to disk

7. The user may set up a turn-key system by having the hello

file on the disk load and run KERMIT. The user may also run

KERMIT-65, change the defaults which are supplied in the

program such as SLOT and DEVICE-DRIVER, and then resave

KERMIT-65. The next time it is run, the user will not have

to set these values again. If the user does not set up a

turn-key system, he must start KERMIT-65 by typing:

]BRUN KERMIT<cr> ! Execute KERMIT-65 on the Apple

The Apple will display the following:

STEVENS/CU - APPLE ][ KERMIT-65 VER. 2.1

KERMIT-65>

The user is now ready to transfer files.

NOTE: For those users with the Apple Super Serial Card, the <cntrl/A>

APPLE-DOS KERMIT Page 169 intercept character should be shut off by typing <cntrl/A>Z to the card before Kermit is run. The reason for this is that Kermit uses <cntrl/A> as a Start-of-Header character and this character may never reach the program if the card is taking it to be a command.

APPLBT.BAS - The APPLESOFT Bootstrap program

10 REM - LOADER FOR HXLOAD

11 OAD = 0

100 N$ = "0123456789ABCDEF"

110 D$ = CHR$ (4)

130 PRINT D$;"IN#2" : REM CHANGE '2' TO SLOT OF COMM. CARD IF NECESSARY

135 PRINT CHR$ (1); CHR$ (6)

136 PRINT D$;"PR#2" : REM CHANGE '2' TO SLOT OF COMM. CARD IF NECESSARY

137 PR#2 : REM THIS LINE SHOULD BE HERE ONLY FOR THE APPLE COMM. CARD

140 C3 = 0

150 HOME

199 REM - REQUEST NEXT LINE

200 REM - PUT A DOT ON THE SCREEN FOR EACH LINE RECEIVED

201 C3 = C3 + 1: POKE 1024 + C3, ASC (".")

202 L$ = "":Y2% = 1: PRINT

203 GET A$:L$ = L$ + A$:Y2% = Y2% + 1: IF Y2% < 81 THEN 203

205 C1 = 0:C2 = 0:I = 0

208 IF LEFT$ (L$,1) > = "0" AND LEFT$ (L$,1) < = "9" THEN 220

210 L$ = RIGHT$ (L$, LEN (L$) - 1): GOTO 208

220 LL = LEN (L$)

249 REM - FETCH THE DATA BYTE COUNT FOR THIS LINE

250 GOSUB 1000:C1 = C1 + B:CO = B

255 IF CO = 0 THEN 990

259 REM - CONSTRUCT THE LOAD ADDRESS FOR THIS LINE

260 GOSUB 1000:C1 = C1 + B:AD = B: GOSUB 1000:C1 = C1 + B

:AD = AD * 256 + B

265 REM - IF THE LATEST VERSION OF CROSS IS USED, THIS SHOULD NOT

BE NEEDED : REM AD = AD - 28672

266 IF AD < OAD THEN 990

267 OAD = AD

270 FOR X = 0 TO CO - 1

275 REM - GO GET A BYTE AND PUT IT IN THE NEXT MEMORY LOCATION

280 GOSUB 1000:C1 = C1 + B

290 POKE AD + X,B

300 NEXT X

310 GOSUB 1000:C2 = B: GOSUB 1000:C2 = C2 * 256 + B

320 IF C1<>C2 THEN POKE 1024+C3,ASC("E")

330 GOTO 201

990 FOR X = 1 TO 1000: NEXT X

995 PRINT D$;"IN#0": PRINT D$;"PR#0": HOME : END

999 REM - GET BYTE

1000 GOSUB 1501:B = N1: GOSUB 1501:B = B * 16 + N1

1010 RETURN

1500 REM - GET NIBBLE

1501 IF LEN (L$) = 0 THEN N1 = 0: RETURN

1510 H$ = LEFT$ (L$,1)

1511 IF LEN (L$) = 1 THEN L$ = "": GOTO 1525

1515 L$ = RIGHT$ (L$, LEN (L$) - 1)

1520 REM - RETURN VALUE OF HEX NIBBLE

APPLE-DOS KERMIT Page 170

1525 FOR X1 = 1 TO 16

1530 IF H$ = MID$ (N$,X1,1) THEN 1610

1540 NEXT X1

1550 REM - DIGIT WAS NOT FOUND, RETURN ZERO

1560 N1 = 0: RETURN

1600 REM

1610 N1 = X1 - 1: RETURN

APPLBT.FOR - The Mainframe Bootstrap program

CHARACTER LINE*80,SENTNL*1

OPEN (UNIT=00,FILE='APPHXL.HEX',MODE='ASCII')

10 READ (UNIT=05,FMT=20) SENTNL

20 FORMAT (A1)

READ (UNIT=00,FMT=25,END=999) LINE

25 FORMAT(A80)

WRITE (UNIT=05,FMT=30) LINE

30 FORMAT(A80)

GO TO 10

999 READ (UNIT=05,FMT=20) SENTNL

STOP

END

ALTERNATIVE INSTALLATION PROCEDURES

HEXloading from Diskette

Once the user has a working version of KERMIT-65 on his system, he can use this to load the .HEX files of future versions of KERMIT. There is another hexload program available called APPDXL. This program will load a hex file from an Apple diskette into memory. To use this procedure, do the following:

1. Start executing APPHXL.

- ]BLOAD APPHXL ! Get APPHXL into memory

- ]CALL -151<cr> ! Enter monitor

- *9000G<cr> ! Start APPHXL

- SLOT FOR MODEM CARD? (1 TO 7 )n ! 'n' is slot # of card

(no <cr>)

- ENTER FILENAME TO LOAD APPDXL.HEX<cr> ! Tell APPHXL what

to load

APPHXL will print what it is receiving on the screen as well

as loading it into memory.

2. Relocate and save APPDXL. Type the following:

APPLE-DOS KERMIT Page 171

- ]CALL -151<cr> ! Enter Apple's system monitor

- *9000<2000.2500M<cr> ! Move APPDXL from $2000 to $9000

- *<Cntrl/C><cr> ! Reenter APPLESOFT

- ]BSAVE APPDXL,A$9000,L$500<cr> ! Save APPDXL to disk

3. Use Kermit-65 to transfer the new version of itself over.

Make the Apple file a Text file. WARNING: This file will take

LOTS of space (about 180 sectors) so make sure the disk is

reasonably empty. The transfer takes a LONG time also, so

please be patient.

4. Start executing APPDXL.

- ]BRUN APPDXL<cr> ! Start APPDXL

- ENTER FILENAME TO LOAD APPLEK.HEX<cr> ! Tell APPDXL what

to load

5. When APPDXL finishes type the following to the Apple:

]BSAVE KERMIT,A$801,L$4E00<cr> ! Save KERMIT to disk

The new version of Kermit is now on disk.

Using KERMIT-65 to transfer APPLEK.BIN

There is yet another way to Bootstrap a new version of KERMIT onto an

Apple. If the user has an older version of KERMIT-65 and has access to a machine with a valid copy of APPLEK.BIN, they can simply transfer

APPLEK.BIN using their version of KERMIT. Be sure to set the

File-byte-size to Eight-bit, and the File-type-mode to Binary before transfering the file since this is the actual object code. No special loading or conversion is needed. The file will be placed on the disk and ready to run.

FILES SUPPLIED FOR KERMIT-65

The following files should be supplied on the distribution tape:

- APPLBT.BAS - Initial bootstrap program to load APPHXL

- APPLBT.FOR - Program on mainframe to talk to APPLBT.BAS

- APPHXL.M65 - Source of program to load KERMIT-65

- APPHXL.HEX - Assembled version of Hex load program

- APPDXL.M65 - Source of program to load KERMIT-65 from Apple

diskette

- APPDXL.HEX - Assembled version of Disk Hex load program

APPLE-DOS KERMIT Page 172

- APPLEK.M65 - Source for the KERMIT-65 program

- APPLEK.HEX - Assembled version of KERMIT-65

- APPLEK.BIN - Assembled version of KERMIT-65 (Eight-bit Binary

object code)

- CROSS.MAC - CROSS Microprocessor Assembler (Source)

- CROSS.EXE - CROSS Microprocessor Assembler (Object)

CUSTOMIZING AND BUILDING KERMIT-65

The source code to KERMIT-65 is in 6502 Assembler. It has been formatted for CROSS which is a micro-Cross Assembler program which runs on

DECsystem-10s and DECSYSTEM-20s. Customizations would be made the easiest if CROSS were available.

KERMIT-65 currently supports the following communications devices:

- FTASER - The Apple Communication card

- FTHAYS - The D.C. Hayes Micromodem.

- FTSSC - The Apple Super Serial Card

All device drivers are included in the assembled version and may be used by issuing a 'SET DEVICE-DRIVER' command to Kermit. If any of the device drivers are not needed, it(they) may be excluded by setting the ap- propriate feature test to zero in the Feature test section of the source code. Excluding one or more device drivers can reduce the size of the object code greatly. DO NOT disable all device drivers since KERMIT-65 will then have no way of talking over the communication device.

The feature test FTCOM must be set to the type of computer for which

KERMIT-65 is being assembled. The only machine KERMIT-65 is available for currently is the Apple ][. This parameter must be set to FTAPPL.

After setting any options necessary in APPLEK.M65, rename it to

KERMIT.M65, and do the following:

- .R CROSS<cr> ! Run CROSS Microprocessor Assembler

- *KERMIT.HEX/PTP:KIM=KERMIT.M65/M65 ! Generate .HEX file

This command will produce an ASCII HEX file which can be downline loaded onto the Apple using APPHXL. If a listing is desired, one can be produced by adding ",KERMIT.LST" after the "/PTP:KIM" in the command line to CROSS.

KERMIT User Guide Page 173

I. The ASCII Character Set

ASCII Code (ANSI X3.4-1968)

There are 128 characters in the ASCII (American national Standard Code for Information Interchange) "alphabet". The characters are listed in order of ASCII value; the columns are labeled as follows:

Bit Even parity bit for ASCII character.

ASCII Dec Decimal (base 10) representation.

ASCII Oct Octal (base 8) representation.

ASCII Hex Hexadecimal (base 16) representation.

EBCDIC Hex EBCDIC hexadecimal equivalent for Kermit translate

tables.

Char Name or graphical representation of character.

Remark Description of character.

The first group consists of nonprintable 'control' characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 000 000 00 00 NUL ^@, Null, Idle

1 001 001 01 01 SOH ^A, Start of heading

1 002 002 02 02 STX ^B, Start of text

0 003 003 03 03 ETX ^C, End of text

1 004 004 04 37 EOT ^D, End of transmission

0 005 005 05 2D ENQ ^E, Enquiry

0 006 006 06 2E ACK ^F, Acknowledge

1 007 007 07 2F BEL ^G, Bell, beep, or fleep

1 008 010 08 16 BS ^H, Backspace

0 009 011 09 05 HT ^I, Horizontal tab

0 010 012 0A 25 LF ^J, Line feed

1 011 013 0B 0B VT ^K, Vertical tab

0 012 014 0C 0C FF ^L, Form feed (top of page)

1 013 015 0D 0D CR ^M, Carriage return

1 014 016 0E 0E SO ^N, Shift out

0 015 017 0F 0F SI ^O, Shift in

1 016 020 10 10 DLE ^P, Data link escape

0 017 021 11 11 DC1 ^Q, Device control 1, XON

0 018 022 12 12 DC2 ^R, Device control 2

1 019 023 13 13 DC3 ^S, Device control 3, XOFF

0 020 024 14 3C DC4 ^T, Device control 4

1 021 025 15 3D NAK ^U, Negative acknowledge

1 022 026 16 32 SYN ^V, Synchronous idle

0 023 027 17 26 ETB ^W, End of transmission block

0 024 030 18 18 CAN ^X, Cancel

1 025 031 19 19 EM ^Y, End of medium

1 026 032 1A 3F SUB ^Z, Substitute

0 027 033 1B 27 ESC ^[, Escape, prefix, altmode

1 028 034 1C 1C FS ^\, File separator

0 029 035 1D 1D GS ^], Group separator

0 030 036 1E 1E RS ^^, Record separator

1 031 037 1F 1F US ^_, Unit separator

The last four are usually associated with the control version of back-

KERMIT User Guide Page 174 slash, right square bracket, uparrow (or circumflex), and underscore, respectively, but some terminals do not transmit these control charac- ters.

The following characters are printable:

First, some punctuation characters.

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 032 040 20 40 SP Space, blank

0 033 041 21 5A ! Exclamation mark

0 034 042 22 7F " Doublequote

1 035 043 23 7B # Number sign, pound sign

0 036 044 24 5B $ Dollar sign

1 037 045 25 6C % Percent sign

1 038 046 26 50 & Ampersand

0 039 047 27 7D ' Apostrophe, accent acute

0 040 050 28 4D ( Left parenthesis

1 041 051 29 5D ) Right parenthesis

1 042 052 2A 5C * Asterisk, star

0 043 053 2B 4E + Plus sign

1 044 054 2C 6B , Comma

0 045 055 2D 60 - Dash, hyphen, minus sign

0 046 056 2E 4B . Period, dot

1 047 057 2F 61 / Slash

Numeric characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 048 060 30 F0 0 Zero

1 049 061 31 F1 1 One

1 050 062 32 F2 2 Two

0 051 063 33 F3 3 Three

1 052 064 34 F4 4 Four

0 053 065 35 F5 5 Five

0 054 066 36 F6 6 Six

1 055 067 37 F7 7 Seven

1 056 070 38 F8 8 Eight

0 057 071 39 F9 9 Nine

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 058 072 3A 7A : Colon

1 059 073 3B 5E ; Semicolon

0 060 074 3C 4C < Left angle bracket

1 061 075 3D 7E = Equal sign

1 062 076 3E 6E > Right angle bracket

0 063 077 3F 6F ? Question mark

1 064 100 40 7C @ "At" sign

KERMIT User Guide Page 175

Upper-case alphabetic characters (letters):

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 065 101 41 C1 A

0 066 102 42 C2 B

1 067 103 43 C3 C

0 068 104 44 C4 D

1 069 105 45 C5 E

1 070 106 46 C6 F

0 071 107 47 C7 G

0 072 110 48 C8 H

1 073 111 49 C9 I

1 074 112 4A D1 J

0 075 113 4B D2 K

1 076 114 4C D3 L

0 077 115 4D D4 M

0 078 116 4E D5 N

1 079 117 4F D6 O

0 080 120 50 D7 P

1 081 121 51 D8 Q

1 082 122 52 D9 R

0 083 123 53 E2 S

1 084 124 54 E3 T

0 085 125 55 E4 U

0 086 126 56 E5 V

1 087 127 57 E6 W

1 088 130 58 E7 X

0 089 131 59 E8 Y

0 090 132 5A E9 Z

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 091 133 5B AD [ Left square bracket

0 092 134 5C E0 \ Backslash

1 093 135 5D BD ] Right square bracket

1 094 136 5E 5F ^ Circumflex, up arrow

0 095 137 5F 6D _ Underscore, left arrow

0 096 140 60 79 ` Accent grave

KERMIT User Guide Page 176

Lower-case alphabetic characters (letters):

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 097 141 61 81 a

1 098 142 62 82 b

0 099 143 63 83 c

1 100 144 64 84 d

0 101 145 65 85 e

0 102 146 66 86 f

1 103 147 67 87 g

1 104 150 68 88 h

0 105 151 69 89 i

0 106 152 6A 91 j

1 107 153 6B 92 k

0 108 154 6C 93 l

1 109 155 6D 94 m

1 110 156 6E 95 n

0 111 157 6F 96 o

1 112 160 70 97 p

0 113 161 71 98 q

0 114 162 72 99 r

1 115 163 73 A2 s

0 116 164 74 A3 t

1 117 165 75 A4 u

1 118 166 76 A5 v

0 119 167 77 A6 w

0 120 170 78 A7 x

1 121 171 79 A8 y

1 122 172 7A A9 z

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 123 173 7B C0 { Left brace (curly bracket)

1 124 174 7C 4F | Vertical bar

0 125 175 7D D0 } Right brace (curly bracket)

0 126 176 7E 7E ~ Tilde

Finally, one more nonprintable character:

0 127 177 7F 07 DEL Delete, rubout

KERMIT User Guide Page 177

Index

DEFINE 65, 110

8080 141 Define SET Macros 43

Delay 38

?-prompting 158 DELETE 56

DEVICE-DRIVER 163

ANSI.SYS 105 Dialup 15

APC 153 Diskette 22

APPLE ][+ 155 DO Command 110

APPLESOFT 164 DOS 3.3 155

ARPANET 65 Downloading 142

ASCII 173 Duplex 38

Autoanswer 17

Autodialer 14, 111 EBCDIC 173

Eighth-Bit Prefix

29, 30, 40, 55,

Batch Operation of Kermit-MS 95 56, 107, 139, 151

Baud 139, 150 EMACS 113

Baud Rate 36, 103 End Of File 50, 93, 104

Beeper 103 End Of Line 41, 42

Bell 103 End-Of-Line (EOL) 82

BINARY 164 EOF 104

Binary Files 21, 29, 40, 55, 56, 107Error Recovery 20

BIOS 141 Escape Character 11,

137, 139, 149,

Block Check 36, 139 150

Bootstrap 142 Escape Character for

CONNECT 38, 62,

BREAK Simulation 61, 65 105, 164

BYE 18, 19, 138, 149 Escape Sequence 10

Byte Size 49, 57, 63, 164 EXIT 35, 61, 162

Expunging Deleted Files

62

Cables 14, 16

Cancelling a File Transfer 30, 31,File Renaming 109

55, 56, 97, 98 File Warning 109

Capturing Files 44 FILE-BYTE-SIZE 164

Checksum 6 FILE-TYPE 164

Command Files 109 File-Warning 137, 149,

165

Command Macro 110 Filespec 159

Command Parsing 25 FINISH 18, 19, 138, 149

CONNECT 9, 11, 111, 137, 149, 161 Flow Control 39, 105,

150

CONTINUE 35, 61

Control Characters 10, 173 Generation 56

Control-A 55 Generic Kermit-80 141,

145

Control-C 35, 61 Generic MS-DOS Kermit

122

Control-V 56 GET 19, 137, 149, 160

Control-X 30, 31, 55, 56, 97, 98

Control-Z 30, 31, 55, 56, 97, 98 Handshake 39, 105

CP/M 50, 141 Heath-19 Terminal

Emulation 105,

Crash 22 111, 131

Cross Assembler 144 Help 51, 94, 158, 162

Hex File 145

Deadlock 22

Debugging 37, 62, 104, 150, 163 IBM 63, 81, 139, 150,

165

DEC Rainbow 152 IBM PC 90

DECsystem-10 144 Incomplete File

Disposition 31, 56,

DECSYSTEM-20 46, 144 98

DEFAULT-DISK 163 Incomplete File Transfer

39

KERMIT User Guide Page 178

Initial Filespec 22, 29, 53, 54 Remote 11, 24

INTEGER 164 Repeated Character

Compression 29,

Interference 52 30, 55, 56

Internal Modem 20 Retry Limit 42

IOBYTE 145

ITS-Binary Format 63 SEND 11, 14, 19, 22,

29, 53, 81,

137, 149, 159

Kermit Commands 11 Server 17, 32, 57

KERMIT Protocol 6 SET 11, 82, 138, 150

Kermit server 17 SHOW 12, 43, 66, 82,

151, 165

Key Redefinition 106 SLOT 165

KEYBOARD 165 Smart Modem 20, 21, 111

Speed 65, 66

Line Sequence Numbers 55 Start Of Packet 41, 42

Local 11, 24, 136, 148 Superbrain 141

Local Echo 38

Local Echoing 106 TAC Binary Mode 65

Local-Echo 138, 151 TAKE 151

LOG 44, 138, 151 TELENET 40, 43, 106

LOGOUT 138, 149 TERSE 163

LRECL 82 TEXT 164

Timeout 41, 42, 81,

109, 136, 142,

MAC80 145 148

Macro 110 TIMER 139, 151

Message Interference 52 TOPS-20 46

META Key 113 TRANSMIT 138

Mode Line 111 TVT-Binary 65

Modem 20, 111

MS-DOS 90 UNDELETE 56

NAK 21, 136, 148 VERBOSE 163

NEC Advanced Personal Computer 153 Virtual Terminal 9, 11,

137, 149

Network 20 VM/CMS 14, 81

Noise 6 VT100 138

Normal Form for File Names 54, 63 VT52 138

Null Modem 14, 16

Warning 109, 138, 151

Packet 6, 8 Wildcard 11, 13, 47, 92

Packet Length 41, 42 Word Size 49

Packet-Length 82

Padding 41, 42 XON/XOFF 138, 173

Parity 20, 29, 30, 40, 55, 56, 106,

139, 151, 173 Z80 141

Pause Between Packets 41, 42

PC-DOS 90

Prompt 9, 41

Protocol 6

QUIT 35, 61, 162

Quote 82

Rainbow 100 152

RECEIVE 11, 13, 14, 30, 55, 82, 97,

137, 149, 160

RECFM 82

Recognition 51, 94, 158

KERMIT User Guide Page i

Table of Contents

Ordering Information 4

1. Introduction 6

2. How to Use KERMIT 8

2.1. The KERMIT Program 8

2.2. Talking to Two Computers at Once 9

2.3. Transferring a File 10

2.4. Basic KERMIT Commands 11

2.5. Real Examples 12

2.5.1. PC to Host 12

2.5.2. Host to Host 14

2.5.3. Micro to Micro 16

2.6. Another Way -- The KERMIT Server 17

3. When Things Go Wrong 20

3.1. Communication Line Problems 20

3.2. The Transfer is Stuck 21

3.3. The Micro is Hung 22

3.4. The Remote Host Went Away 22

3.5. The Disk is Full 22

3.6. Message Interference 23

3.7. Host Errors 23

3.8. File is Garbage 23

3.9. Junk after End of File 23

4. KERMIT Commands 24

4.1. Remote and Local Operation 24

4.2. Command Interface 25

4.3. Notation 26

4.4. Summary of KERMIT Commands 28

4.5. The SEND Command 29

4.6. The RECEIVE Command 30

4.7. GET 31

4.8. SERVER 32

4.9. BYE 32

4.10. FINISH 33

4.11. REMOTE 33

4.12. LOCAL 34

4.13. CONNECT 34

4.14. HELP 35

4.15. TAKE 35

4.16. EXIT, QUIT 35

4.17. The SET Command 35

4.18. DEFINE 43

4.19. SHOW 43

KERMIT User Guide Page ii

4.20. STATISTICS 43

4.21. LOG 44

4.22. TRANSMIT 44

5. KERMIT Implementations 45

6. DECSYSTEM-20 KERMIT 46

6.1. The DEC-20 File System 46

6.2. Program Operation 51

6.3. Remote and Local Operation 52

6.4. Conditioning Your Job for Kermit 53

6.5. KERMIT-20 Commands 53

6.6. Examples 68

6.7. Installation 71

7. VAX/VMS KERMIT 72

8. IBM VM/CMS KERMIT 81

9. UNIX KERMIT 86

10. MS-DOS KERMIT 90

10.1. The MS-DOS File System 91

10.1.1. File Specifications 91

10.1.2. File Formats 92

10.2. Program Operation 93

10.3. Kermit-MS Commands 95

10.3.1. Commands for File Transfer 96

10.3.2. Commands for Connecting and Disconnecting 99

10.3.3. Commands for File Management 100

10.3.4. The SERVER Command 102

10.3.5. The SET Command 103

10.3.6. The SHOW Command 109

10.3.7. Command Macros 110

10.4. Terminal Emulation 111

10.5. Installation of Kermit-MS 114

10.5.1. Try Again To Find A Kermit Disk 114

10.5.2. Bootstrapping From the Communication Line 114

10.5.2.1. Use An Existing File Capture Facility 115

10.5.2.2. Type In Your Own Bootstrap 115

10.6. Compatibility with Older Versions of MS-DOS Kermit 120

10.7. What's Missing 120

10.8. Program Organization 121

10.9. Adding Support For New Systems 122

10.9.1. Generic MS-DOS Kermit 122

10.9.2. Adding System-Dependent Code 123

10.10. Heath/Zenith-19 Control Codes 131

11. CP/M-80 KERMIT 134

KERMIT User Guide Page iii

11.1. Generic KERMIT-80 141

11.2. Installation 141

11.2.1. Downloading Kermit-80 142

11.2.2. Building KERMIT.HEX 144

11.2.3. Generic Kermit-80 145

12. CP/M-86 KERMIT 147

12.1. Kermit-86 Commands 149

12.2. Installation: 152

12.3. DEC Rainbow 100 Support 152

12.4. NEC Advanced Personal Computer Support 153

13. APPLE-DOS KERMIT 155

13.1. The DOS 3.3 File System 155

13.2. Program Operation 158

13.3. Remote and Local Operation 159

13.4. KERMIT-65 Commands 159

13.5. Customizing, Building, and Installing KERMIT-65 166

I. The ASCII Character Set 173

Index 177

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
