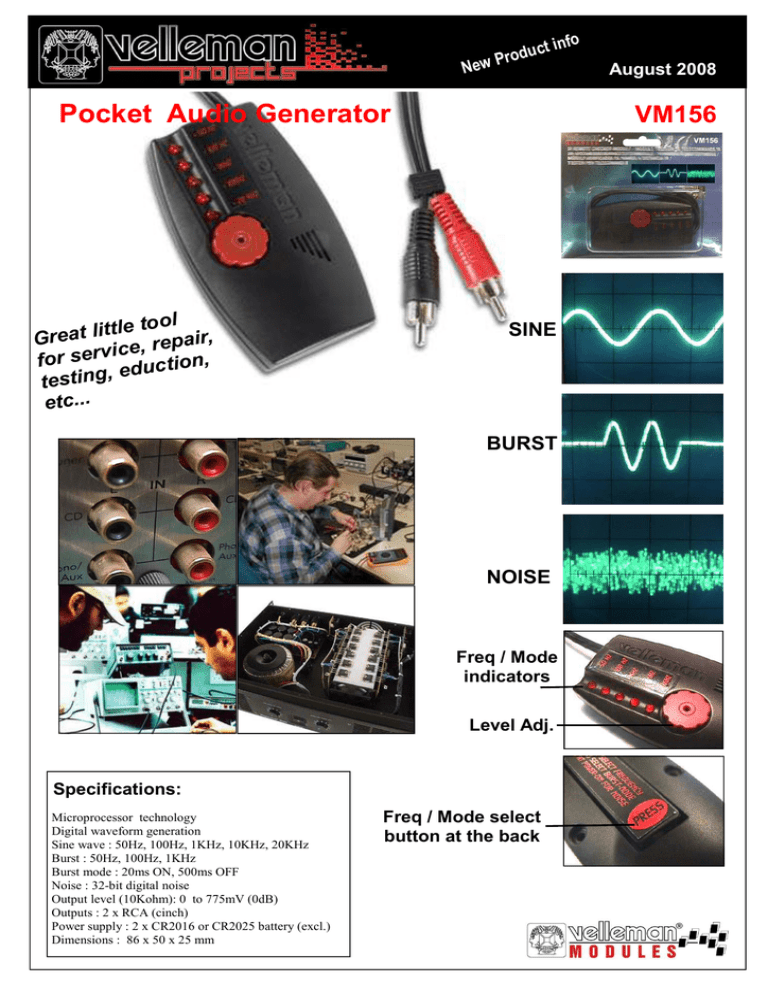

Pocket Audio Generator VM156 SINE BURST

Pocket  Audio Generator VM156 SINE BURST
t
roduc
P
w
Ne
info
Pocket Audio Generator
l
ttle too ir,
i
l
t
a
e
r
G
e, repa
c
i
v
r
e
s
for
ction,
u
d
e
,
g
testin
etc...
VM156
SINE
BURST
NOISE
Freq / Mode
indicators
Level Adj.
Specifications:
Microprocessor technology
Digital waveform generation
Sine wave : 50Hz, 100Hz, 1KHz, 10KHz, 20KHz
Burst : 50Hz, 100Hz, 1KHz
Burst mode : 20ms ON, 500ms OFF
Noise : 32-bit digital noise
Output level (10Kohm): 0 to 775mV (0dB)
Outputs : 2 x RCA (cinch)
Power supply : 2 x CR2016 or CR2025 battery (excl.)
Dimensions : 86 x 50 x 25 mm
August 2008
Freq / Mode select
button at the back
