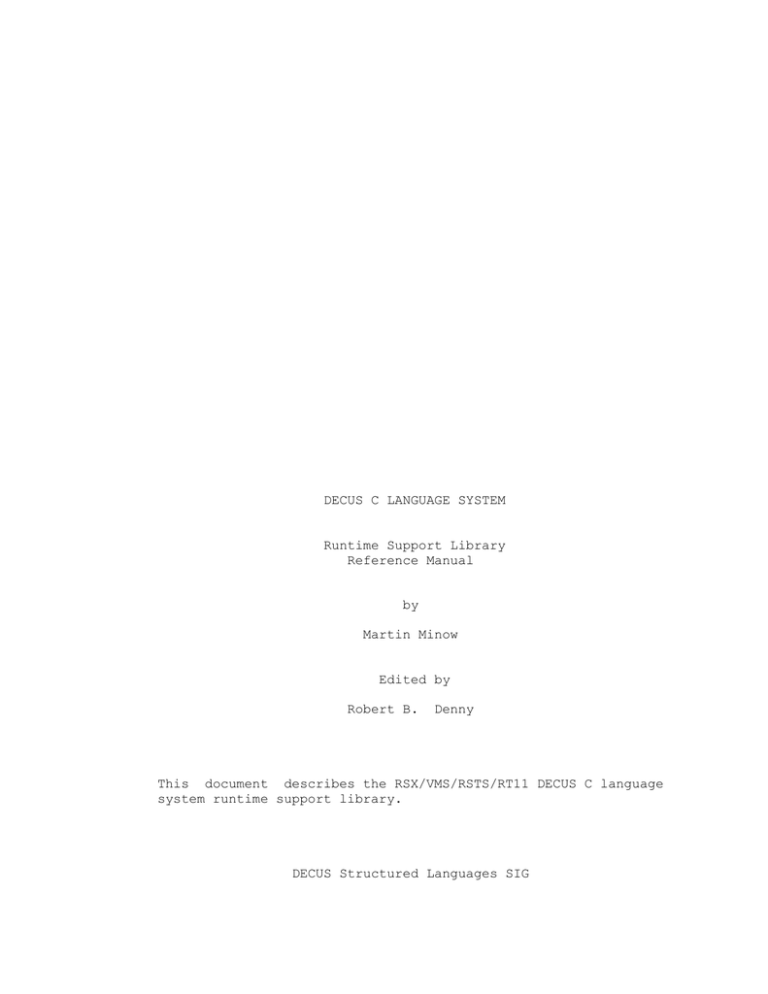

DECUS C LANGUAGE SYSTEM

Runtime Support Library

Reference Manual

by

Martin Minow

Edited by

Robert B. Denny

This document describes the RSX/VMS/RSTS/RT11 DECUS C language

system runtime support library.

DECUS Structured Languages SIG

Version of 11-Nov-83

NOTE

This software is made available without any support

whatsoever. The person responsible for an

implementation of this system should expect to have to

understand and modify the source code if any problems

are encountered in implementing or maintaining the

compiler or its run-time library. The DECUS

'Structured Languages Special Interest Group' is the

primary focus for communication among users of this

software.

UNIX is a trademark of Bell Telephone Laboratories. RSX,

RSTS/E, RT11 and VMS are trademarks of Digital Equipment

Corporation.

CHAPTER 1

INTRODUCTION

The C support library contains three major groups of functions:

o Functions called by the compiler to perform certain

mathematical operations (such as floating-point multiply

or function entrance) that are not performed in-line.

o Functions that may be called by C programs to perform

operations, such as copying a string, that are more

efficiently performed by optimized assembly language

subroutines.

o An implementation of (most of) the Unix Standard I/O

library.

CHAPTER 2

THE STANDARD LIBRARY

The RSX standard run-time library is in LB:[1,1]C.OLB. The RT11

standard run-time library is in C:CLIB.OBJ.

WARNING

This version of the library is somewhat incompatible

with previous versions of the Decus C compiler. This

incompatibility allows greater compatibility with Unix

Version 7, and the capability of generating global

references and definitions containing the radix-50 '$'

and '.' characters.

The standard I/O interface header file is in C:STDIO.H, or

LB:[1,1]STDIO.H and should be included in all C programs as

follows:

#include <stdio.h>

2.1 INTRODUCTION TO UNIX-STYLE STREAM I/O

This section presents an overview of the 'standard' I/O

interface for C programs. These routines have proven easy to

use and, while they do not provide the full functionality of RSX

or RMS, they give the programer essentially all that is needed

for everyday use. The discussion includes the following:

- Opening and closing files

- Reading data from files

- Writing data to files

Note that this file system is limited: files are sequential

with only a limited amount of random-access capability. Also,

little of the power of RMS/FCS is available. On the other hand,

the limitations make C programs easily transportable to other

C Runtime Support Library

Page 2-2

Reference Manual

operating systems.

When a C program is started, three files are predefined and

opened:

stdin The 'standard' input file

stdout The 'standard' output file

stderr The 'standard' error file

Stderr is always assigned to the command terminal. Stdin and

stdout are normally assigned to the command terminal, but may be

reassigned or closed when the program starts.

2.2 OPENING AND CLOSING FILES

The fopen and fclose functions control access to files. They

are normally used as follows:

#include <stdio.h> /* Define standard I/O */

FILE *ioptr; /* Pointer to file area */

...

if ((ioptr = fopen("filename", "mode")) == NULL)

error("Can't open file");

All information about an open file is stored in a buffer whose

address is returned by fopen(). The buffer is dynamically

allocated when the file is opened and deallocated when the file

is closed. Its format is described under the heading IOV. The

mode string contains flags defining how the file is to be

accessed:

r Read only

w Write new file

a Append to existing file (or write new)

(Doesn't work on RT11 modes).

It also defines some record-control information:

n No newlines mode ('binary' files)

u RSX: The user program allocates record buffers

RT11: Console output is done using .ttyout

If mode 'n' is specified, the RSX I/O routines do not interpret

the end of a RMS logical record as defining the end of a

human-readable line. This is necessary to process 'binary'

information. On RT11, the I/O routines do not remove

carriage-returns from input files, nor do they insert

carriage-returns when newlines are output.

Mode 'u' is treated differently on RSX and RT11. If specified

on RSX the user maintains the file's record buffer. The program

may only call the fget() and fput() routines. Each such call

will be translated directly to an RMS/FCS GET$ or PUT$ call.

C Runtime Support Library

Page 2-3

Reference Manual

(In RT11 mode, fput() may be used to write binary records which

are subsequently read by fget(). The file should be opened with

'n' mode.)

If mode 'u' is specified on RT11 mode when opening the console

terminal, single character output will be performed (using the

RT11 monitor routine .ttyout). If not specified, output will be

one line at a time (using the monitor routine .print). The

library initialization process opens stderr in mode 'u' and

stdout in normal mode. This means that mixing I/O to both units

will result in synchronization problems. To obtain

single-character output on stdout, the program need simply

execute:

if (freopen("tt:", "wu", stdout) == NULL) error("");

The program calls fclose(ioptr) to terminate processing on a

file. This closes the file and reclaims system-controlled

buffer space. fmkdl(ioptr) may be called to close and delete an

open file.

2.3 READING DATA FROM A FILE

The simplest way to read a file is to call the getchar() or

getc() routines which read the next character from a file. For

example, the following program counts the number of characters

in a file:

#include <stdio.h>

main()

{

register int ccount;

register int lcount;

register int c;

FILE *ioptr;

if ((ioptr = fopen("foo.bar", "r")) == NULL)

error("Cannot open file");

ccount = 0;

lcount = 0;

while ((c = getc(ioptr)) != EOF) {

count++;

if (c == '\n') lcount++;

}

printf("%d characters, %d lines.\n",

ccount, lcount);

}

Other input routines include:

gets Read a line from the standard input

fgets Read a line from a file

fgetss Read a line from a file, remove terminator

C Runtime Support Library

Page 2-4

Reference Manual

ungetc Push one character back on a file

fseek Position the file to a specific record

These routines are used together with the ferr() and feof()

functions which allow testing for error and end of file

conditions, respectively. The package assumes that all error

conditions are lethal and force end of file.

2.4 WRITING DATA TO A FILE

There are several routines for data output which are directly

analagous to the data input routines:

putchar Write a character to standard output

putc Write a character to a specified file

puts Write a string to the standard outpt

fputs Write a string to a specified file

fputss Write a record to a specified file

ftell Return record location (for fseek)

In addition, the printf() or fprintf() routine is used to format

and print data (as was shown in the previous example). Printf()

is flexible, powerful, and easy to use; and is perhaps the

single most important routine in the file system.

2.5 INTERACTION WITH THE OPERATING SYSTEM

The support library attempts to provide a consistant operating

system interface on several implementations of quite different

operating systems. The possiblities include:

o Native RT11

o Native RSX-11M or IAS

o RT11 emulated on RSTS/E

o RSX-11M emulated on RSTS/E

o RSX-11M emulated on VAX/VMS

This section mentions the inconsistencies and random bugs that

are more or less intentionally present.

2.5.1 Logical Unit Numbers

RT11, RSTS/E, and RSX-11M use small integers to number all I/O

channels. Unfortunately, the numbering is not consistent and

channel usage differs among the various systems. This has

resulted in several quirks:

C Runtime Support Library

Page 2-5

Reference Manual

o On RT11, console terminal interaction uses the .ttyout

and .print monitor functions. While no device is opened

by the fopen() function, an channel number is reserved.

o On RSX-11M, a channel must be allocated to the console

terminal. When a C program starts, the 'command

terminal' is opened on logical unit 1 and assigned to

stderr. This is not done using the fopen() routine

(although the stderr IOV structure is defined as if

fopen() were called). Also, fclose() cannot close

stderr.

In addition to the standard I/O routines, there are two

routines, msg() and regdmp(), that direct output to

logical unit 1. These routines were used to debug the

library, and are otherwise useful for disasters. Note

that, on RT11, msg() and regdmp() use the .print monitor

function.

o On both systems, the first true files are stdin and

stdout. These are opened on logical units 0 and 1

(RT11) or 2 and 3 (RSX). Code in fclose() double-checks

that the logical unit number of the file being closed

corresponds to the proper slot in the logical unit

table.

o Since the standard I/O routines know little about the

operating system, they do not deal with certain special

features.

For example, on RT11, the 'user service routine' (USR)

is used to open files. The file open routine does not

attempt to locate IOV areas so that the USR does not

swap over them. This can be a problem for very large

programs.

On RSX, logical unit numbers are assigned dynamically.

This means that 'LUN assignment' cannot be reliably

performed by task-build control files (or task

initiation).

2.5.2 Wild-Card Files

The fwild() and fnext() routines can be used to process

'wild-card' files.

On RSX-11M and VMS/RSX emulation, the file name, extension,

and/or file version may be expressed as '*' to indicate

wild-card support. Due to restrictions in the RSX-11 Files-11

structure (ODS1), the ' ', ';0' and ';-1' version numbers will

NOT function properly on native RSX-11. This means that '*.MAC'

C Runtime Support Library

Page 2-6

Reference Manual

will not work, for instance. The algorithm in fwild() depends

on the directory being sorted, as it is in the ODS2 file

structure used on VAX/VMS. If you sort the directory to be used

in an fwild() operation (use the SRD program available from

DECUS with the /WB switch) in order of decreasing file version

numbers, then the " ", ";0", and ";-1" versions will work.

Wild-card devices, units, or UIC codes are not supported. Note

that, on RSX11 emulated on VMS, the ';-1' (earliest version)

requires special processing by the user program, as noted in the

description of fwild().

On RSX-11M emulated on RSTS/E, the file name and/or extension

may contain '*' or '?' wild-cards. Wild-card devices, units, or

UIC (PPN) codes are not supported.

On RT-11, the file name and/or extension may contain '*', '%' or

'?' wild cards. The '?' wild-card is synonymous with '%'.

Wild-card devices, or units are not supported. Since wild-card

support is not an RT-11 system service, the filespec parsing and

directory operations are handled by the C library fwild() and

fnext() functions. The fwild/fnext module requires about 480

words of storage. Also, a file opened by wild-card uses a 1024

byte buffer, twice the normal size, which is shared between data

and directory operations.

2.5.3 Memory allocation

Memory is allocated using the malloc() function. It works

correctly on all operating systems, expanding memory on RSX and

RT11/RSTS. On 'native' RT11, all available memory is allocated

by invoking the monitor .settop function with a '-2' argument.

Neither library supports extended memory (PLAS) directives.

The sbreak() routine may be used for permanent allocation of

memory. Once memory has been allocated using sbreak(), it

cannot be freed.

CHAPTER 3

LIBRARY FUNCTION DESCRIPTIONS

This chapter contains descriptions of each of the C-callable

runtime library functions.

In most cases the I/O functions match those of UNIX V7 closely,

with differences normally called out. For more information,

consult "The C Programming Language" by Brian Kernighan and

Dennis Ritchie (Englewood Cliffs, NJ: Prentice-Hall,

ISBN 0-13-110163-3).

abs Integer absolute value

abs(val)

int val;

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
