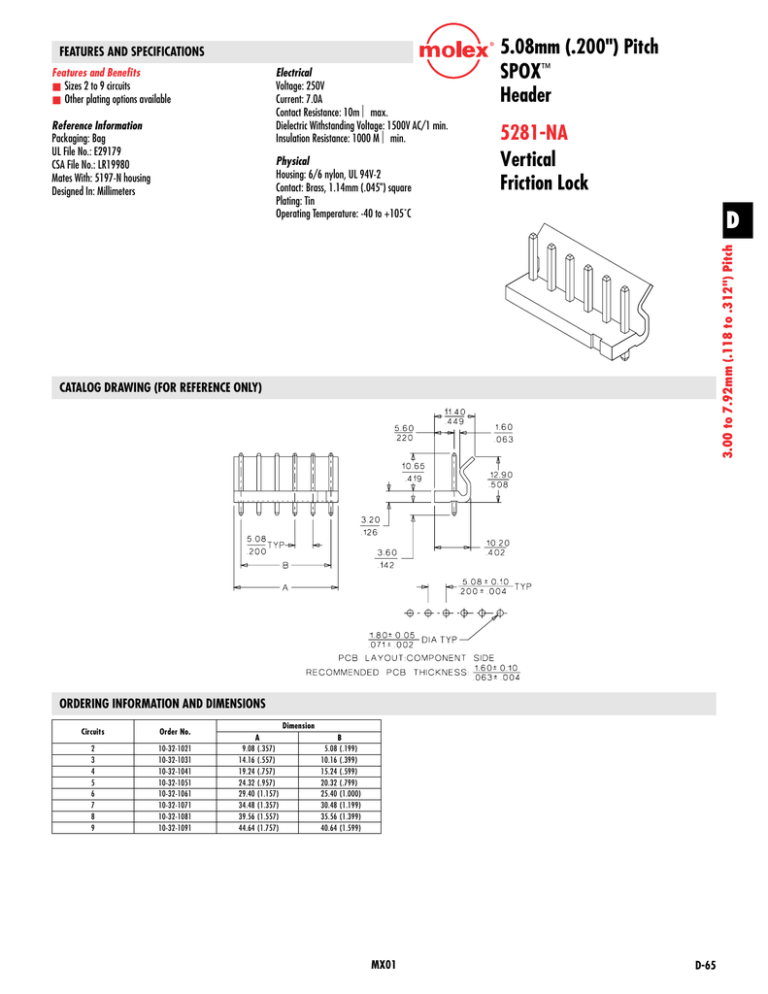

5.08mm (.200") Pitch SPOX Header

5.08mm (.200") Pitch SPOX Header
FEATURES AND SPECIFICATIONS
Features and Benefits
■ Sizes 2 to 9 circuits
■ Other plating options available
Electrical
Voltage: 250V
Current: 7.0A
Contact Resistance: 10mΩ max.
Dielectric Withstanding Voltage: 1500V AC/1 min.
Insulation Resistance: 1000 MΩ min.
Reference Information
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
Mates With: 5197-N housing
Designed In: Millimeters
5281-NA
Vertical
Friction Lock
D
3.00 to 7.92mm (.118 to .312") Pitch
Physical
Housing: 6/6 nylon, UL 94V-2
Contact: Brass, 1.14mm (.045") square
Plating: Tin
Operating Temperature: -40 to +105˚C
5.08mm (.200") Pitch
SPOX™
Header
CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
Order No.
2
3
4
5
6
7
8
9
10-32-1021
10-32-1031
10-32-1041
10-32-1051
10-32-1061
10-32-1071
10-32-1081
10-32-1091
Dimension
A
9.08 (.357)
14.16 (.557)
19.24 (.757)
24.32 (.957)
29.40 (1.157)
34.48 (1.357)
39.56 (1.557)
44.64 (1.757)
5.08
10.16
15.24
20.32
25.40
30.48
35.56
40.64
B
(.199)
(.399)
(.599)
(.799)
(1.000)
(1.199)
(1.399)
(1.599)
MX01
D-65
