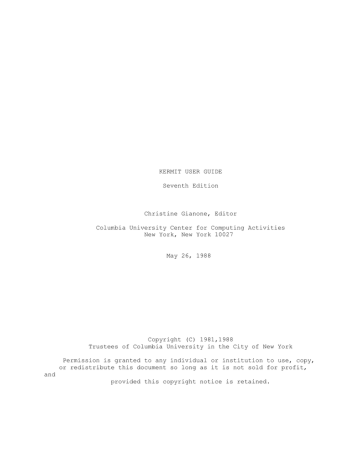

KERMIT USER GUIDE
Seventh Edition
Christine Gianone, Editor
Columbia University Center for Computing Activities
New York, New York 10027
May 26, 1988
Copyright (C) 1981,1988
Trustees of Columbia University in the City of New York
Permission is granted to any individual or institution to use, copy,
or redistribute this document so long as it is not sold for profit,
and
provided this copyright notice is retained.
. PREFACE
Page 1
-----------------------------------------------------------------------------PREFACE
Kermit is the name of a protocol for transferring files from one
computer to
another over ordinary asynchronous terminal connections. Kermit programs
have
been written for many different computers, and in general any two
computers
that have Kermit programs can exchange sequential files correctly and
completely.
This manual gives a brief and general overview of what Kermit
is and
how to use it, but consists mostly of detailed instructions for use and
installation of specific Kermit programs.
For a more detailed introduction to Kermit, complete with
illustrations,
diagrams, and tutorials, consult the book Kermit, A File Transfer
Protocol, by
Frank da Cruz, Digital Press, Bedford MA (1987), ISBN 0-932376-88-6, DEC
order
number EY-6705E-DP (phone 1-800-343-8321). The Kermit book describes
Kermit in
detail, from the points of view of the beginner, the user, the computer
professional who must install Kermit programs or support their use, and the
programmer who wishes to write new Kermit implementations. Also included are
general
introductions to computers, data communications, and file organization,
plus a
detailed troubleshooting guide, bootstrapping hints, and various
appendices and
tables. The latter half of the book is taken up by a complete
description of
the Kermit file transfer protocol, with programming examples in the C
language,
plus some analysis and comparisons of Kermit with other popular protocols
such
as Xmodem.
WHY IS THIS MANUAL SO THICK?
Don't panic, Kermit isn't that complicated! The Kermit User Guide
begins with
a relatively short introduction to Kermit in general -- what it's for,
how to
use it, what the commands are, etc -- in Chapters 1
of the
remaining chapters describes a specific Kermit programs
each
for MS-DOS, UNIX, IBM mainframes, VAX/VMS, DEC-20, DEC
Apple
Macintosh, and CP/M. You only need to use the chapters
systems you're actually using.
through 4.
in detail:
Each
one
PDP-11, Apple II,
that apply to the
In general, the longer the chapter, the more powerful the version of
Kermit
it's describing: MS-DOS, PDP-11, etc. But remember, a major goal of
Kermit is
that it should be easy for you to get started, so the bulk of the
verbiage
covers the "odd cases" that many people won't ever encounter, and the
advanced
features that are available for those who want to learn about them.
The increase in size from the sixth to the seventh edition of this
manual is
mostly because of the growth of the MS-DOS, IBM mainframe, and several
other
chapters, plus the addition of the PDP-11 chapter.
HISTORY AND ACKNOWLEDGEMENTS
The Kermit file transfer protocol was designed at the Columbia
University Center for Computing Activities (CUCCA) in 1981-82 by Bill Catchings and
Frank
da Cruz.
Bill wrote the first two programs, one for the DECSYSTEM-20
and one
for a CP/M-80 microcomputer.
The initial objective was to allow users of our DEC-20 and IBM 370
timesharing
systems to archive their files on microcomputer floppy disks. The
design owes
much to the ANSI and ISO/OSI models, and some ideas were borrowed from
similar
. PREFACE
Page 2
-----------------------------------------------------------------------------projects at Stanford University and the University of Utah. The
protocol was
designed to accommodate the "sensitive" communications front end of the
fullduplex DEC-20 system as well as the peculiarities of half-duplex IBM
mainframe
linemode communications. The protocol was soon implemented successfully
on our
IBM mainframe systems under VM/CMS by Daphne Tzoar of CUCCA.
Meanwhile it was becoming apparent that Kermit was useful for more
than just
file archiving; IBM PCs were beginning to appear in the offices and
departments, and there arose a general need for file transfer among all our
systems,
as well as a need to use the IBM PCs as terminals.
Before long,
Daphne had
prepared an IBM PC implementation.
After our initial success with Kermit, we presented it at conferences
of user
groups like DECUS and SHARE, and began to get requests for it from other
sites.
Since we had written down a description of the protocol, some sites wrote
their
own implementations for new computers, or adapted one of our
implementations to
run on additional systems, and sent back these new versions to us so
that we
could share them with others. In this way, Kermit has grown to support
over
300 different machines and operating systems; it has been sent on
magnetic tape
or diskette from Columbia University to about ten thousand sites all
over the
world, and has reached many thousands more through user groups and
networks.
Thanks to the hundreds of individuals and institutions who have
contributed to
the Kermit storehouse over the years.
The Kermit protocol was named after Kermit the Frog, star of the
television
series THE MUPPET SHOW; the name Kermit is used by permission of
Henson Associates, Inc., New York.
DISCLAIMER
Neither Columbia University, nor the editor, nor the authors of the
individual
chapters, nor any individual or institution contributing Kermit
programs or
documentation to the Columbia University Kermit Distribution,
acknowledge any
liability for any claims arising from use or misuse of Kermit programs
or for
inaccuracies in the documentation or bugs in the programs. Kermit
programs are
produced on a voluntary basis and contributed freely for public use in
the hope
that they will be useful, but without any kind of warranty or guarantee,
or any
commitment to address or fix problems.
In practice, Kermit
programs and
documentation are contributed in good faith, and will be supported on a
besteffort basis, time and other commitments permitting.
CUSTOMIZING THIS MANUAL
Although the Kermit User Guide was produced at Columbia University,
all attempts have been made to keep it free of site-specific information.
However,
due to the large number of Kermit implementations, descriptions of
each one
would make the manual prohibitively thick. Therefore, the manual is sent
from
Columbia with specific documentation about a selection of systems.
Some of
these descriptions may not be of interest at your site, while others
that are
may be lacking.
Each site, upon receiving a Kermit tape, may decide which versions of
Kermit
are important to it, and include the appropriate documentation in this
manual.
. PREFACE
Page 3
-----------------------------------------------------------------------------This is most conveniently done if your site has the Scribe text
formatting system (from UNILOGIC Ltd in Pittsburgh PA, USA), with which this
manual was
produced.
Scribe runs on a wide variety of systems. There are also
Scribe
subsets, such as Perfect Writer and Final Word, that run on various
microcomputers.
Many have asked why Scribe is used for Kermit manuals instead
of TeX.
The answer is simply that TeX can only produce output for
typesetters, not
plain-text ASCII files, which are necessary for online documentation.
The system-specific parts of the Kermit User Guide are included with
"@INCLUDE"
statements at the end of the Scribe source file for this manual, whose
filename
is KUSER.MSS.
You may add or delete @INCLUDE statements to suit your
needs,
and run the result through the text formatter to produce a customized
manual.
If you do this, you should include an indication on the title page
that the
manual has been customized for your site.
Not all system-specific documentation is provided in .MSS (Scribe input)
format, since some Kermit contributors do not have Scribe at their sites.
In that
case, you will either have to add Scribe formatting commands, or else
enclose
the whole subfile in @BEGIN(VERBATIM)[email protected](VERBATIM) brackets (and
replace
all atsigns (@) in the text with double atsigns (@@)).
If you do not have SCRIBE, you may still use an editor to delete or add
sections to the finished documentation file, though the results will not
be as
satisfactory -- the table of contents, index, cross references, and page
numbers will not be automatically adjusted.
If you are running a version of Kermit for which adequate documentation
has not
been provided (after all, this is a distributed, volunteer effort!),
please
feel free to write some, preferably in Scribe input format, and send it
back to
Columbia so that others may benefit from it. Likewise if you produce a
new implementation of Kermit. If you don't know Scribe, you can use one of
the existing chapters as a model.
. How To Get Kermit
Page 4
-----------------------------------------------------------------------------How To Get Kermit
The Kermit software is free and available to all, source code and
documentation
included, from a variety of sources. For example, most universities
are connected to academic computer networks from which the Kermit files at
Columbia
University can be reached. The Kermit files are also available from
many user
groups, dialup information or bulletin board services, diskette
reproduction
services, and private volunteers.
Kermit software is not in the public domain. The Kermit manuals and
most Kermit programs bear copyright notices to protect Columbia University
and the
various contributors from having their work taken by others and
sold as a
product, for profit. This is not to say that the Kermit file transfer
protocol
can never be included as a feature of a commercial product; the
conditions under which this may be done are spelled out in a flyer POLICY ON
COMMERCIAL USE
AND DISTRIBUTION OF KERMIT.
Columbia University distributes Kermit programs by mail order on
various magnetic media (primarily 9-track reel-to-reel tape and certain
kinds
of
diskettes), charging a distribution fee to defray costs for media,
printing,
postage, materials, labor, and computing resources. This is not a
software
license fee; no license is required. To receive a current list of
Kermit implementations, the statement on commercial policy, and a Kermit order
form,
write to:
Kermit Distribution
Columbia University Center for Computing Activities
612 West 115th Street
New York, NY 10025
Everyone is free
documentation,
to copy and redistribute Kermit programs and
and is encouraged to do so, with the following stipulations: Kermit
programs
should not be sold for commercial gain; credit should be given where it
is due;
and new material should be sent back to Columbia University at the
address
above so that we can maintain a definitive and comprehensive set of
Kermit implementations for further distribution.
Since new Kermit programs are added -- and old ones improved -- so
frequently,
sites that use Kermit heavily are encouraged to contact Columbia for
updates
two or three times a year for news.
-- PLEASE USE KERMIT ONLY FOR PEACEFUL AND HUMANE PURPOSES --
. Organization of This Manual
Page 5
-----------------------------------------------------------------------------Organization of This Manual
Chapter 2, How to Use Kermit, describes the basics of text file
transfer, and
shows some specific examples. If you follow the examples but you can't
make a
terminal connection or you can't transfer files successfully, consult
Chapter
3, When Things Go Wrong.
If you expect to be a heavy user of Kermit, you should read Section 4,
Kermit
Commands, which describes most of Kermit's features and commands. You
may find
that familiarity with the material in this section will help you get
past difficulties that can crop up when you are making new kinds of
connections or
transferring unusual kinds of files. You will also find descriptions
of some
advanced file management features that have been omitted from the earlier
sections.
The subsequent chapters describe selected popular Kermit programs in
detail.
You should read the appropriate section for each system you expect to
use; each
section describes the file naming conventions and other system
features that
are important to Kermit users, and lists the Kermit commands for that
system
mainly in terms of their differences from the "ideal" Kermit described
in section 4.
1. Introduction
Page 6
-----------------------------------------------------------------------------1. Introduction
There is an ever-increasing need to move information from one
computer to
another.
Information can be exchanged using magnetic media -- tapes or
disks
-- or over networks. Networks are expensive, and when your computer
is not
connected to one (or to the right one), you must find other means to
transfer
information. In the early days of computing, magnetic media formats were
relatively standardized, but with the arrival of microcomputers
things have
changed: most microcomputer users have no access to tapes, and disk
formats are
incompatible between most microcomputer makes and models. Even when
disk formats agree, the disk must be physically moved from one system to the
other in
order for information to be exchanged -- the effort and delay can
be significant if the systems are widely separated.
The telecommunication line provides a cheap and widely available
alternative to
networks and magnetic media. Asynchronous telecommunication is the
method used
by most terminals to connect to most computers.
When dedicated
"hardwired"
connections, such as those found between a timesharing computer and its
local
terminals, are not available, computer users can create their own dialup
connections with a telephone and a modem.
Most computers come equipped with asynchronous telecommunications
interfaces,
or "serial ports", which allow them to act as, or communicate with,
terminals.
The question is how to use the serial port to exchange data.
Fortunately, the
standards for connecting terminals to computers are almost universally
followed: connector configuration (DB-25 or DB-9), transmission
signals (EIA
RS-232), a commonly accepted set of transmission speeds (baud rates),
and a
convention for encoding characters in storage and during transmission
(ASCII).
These standards provide the physical medium and the data format, but
they do
not specify a process for exchanging data.
1.1. Why Kermit?
When data is transmitted from one computer to another; the receiving
computer
has to be instructed to take in the data and put it somewhere, and it
also
needs a way of ensuring that the data has been received correctly
and completely in spite of several factors that will tend to interfere with
this
process:
1. Noise -- It is rarely safe to assume that there will be no
electrical interference on a line; any long or switched data
communication
line will have occasional interference, or noise, which
typically
results in garbled or extra characters. Noise corrupts data,
perhaps in subtle ways that might not be noticed until it's too late.
2. Synchronization -- Data must not come in faster than the
receiving
machine can handle it. Although line speeds at the two ends of
the
connection must match before communication can take place,
the
receiving machine might not be able to process a steady stream
of
input at that speed. Its central processor may be too slow or
too
heavily loaded, its buffers too full or too small, or its disk
too
slow.
The typical symptom of a timing problem is lost data;
most
operating systems will simply discard incoming data they are
not
prepared to receive.
1.1. Why Kermit?
Page 7
-----------------------------------------------------------------------------To prevent corruption of data and to synchronize communication,
cooperating
computers can send special messages to one another along with the data.
Intermingling of control information with data together requires a set of
rules for
distinguishing messages from data, and specifying what the messages are
and the
actions associated with each message.
Such a set of rules is
called a
protocol.
Kermit is a file transfer protocol. It is specifically designed for
transfer
of sequential files over ordinary telecommunication lines. Kermit
is not
necessarily better than other terminal-oriented file transfer protocols
but it
is free, it is well documented, and it has been implemented
compatibly on a
wide variety of microcomputers, PCs, workstations, minicomputers,
mainframes,
and supercomputers.
1.2. How Kermit Works
Kermit transfers data by encapsulating it in packets of control
information.
This information includes a synchronization marker, a packet sequence
number to
allow detection of lost packets, a length indicator, and a "block check"
to allow verification of the data, as shown in Figure 1-1.
-----------------------------------------------------------------------------+------+------+------+------+--------- - - - -+-------+
| MARK | LEN | SEQ | TYPE | DATA
| CHECK |
+------+------+------+------+--------- - - - -+-------+
Figure 1-1:
A Kermit Packet
-----------------------------------------------------------------------------The MARK (usually an ASCII Control-A character) appears at the beginning
of the
packet.
The next character is a length field (LEN), specifying how
long the
rest of the packet is. The sequence number (SEQ) is used to detect
lost or
duplicated packets; retransmission is requested for lost packets and
duplicate
packets are discarded. The TYPE field specifies whether the packet
contains
data or control information. The CHECK field contains a quantity
obtained by
combining all the other characters in the packet together in one of
several
ways; the sender computes this value and sends it. The packet
receiver also
computes the value and checks it against the value sent; if they
agree, the
packet is accepted; if they disagree, then the packet has been
corrupted and
retransmission is requested. The DATA field contains up to 90
characters of
data. All fields except the mark are encoded as printable ASCII
characters, to
prevent host or network interference. Figure 1-2 shows how a typical
file
transfer proceeds.
Figure 1-2 does not show how Kermit recovers from
errors.
Very briefly, here's how it works:
- If a packet is corrupted in transit by noise or loss of
characters,
the block check will be wrong. A file receiver will NAK
("negatively
acknowledge") a corrupted packet, which causes the sender
to
retransmit the same packet (or, alternatively, it will ACK the
last
correctly received packet again). A file sender only receives
ACKs
and NAKs from the receiver; a corrupted ACK, or a NAK, from
the
receiver causes the sender to retransmit its most recent packet.
1.2. How Kermit Works
Page 8
----------------------------------------------------------------------------------------------------------------------------------------------------------Sender
Receiver
Send-Init ------------->
<-------------------- ACK
File-Header ----------->
Receiver
<-------------------- ACK
Sender and Receiver exchange greetings
Sender sends first file name to
Receiver acknowledges
File-Data ------------->
<-------------------- ACK
Sender sends first file data packet
File-Data ------------->
<-------------------- ACK
Sender sends second file data packet
File-Data --xx~~~p'''-->
noise
<-------------------- NAK
it
File-Data ------------->
<-------------------- ACK
Third data packet is corrupted by
and Receiver negatively acknowledges
Sender retransmits third packet
File-Data packets are sent and acknowledged until the whole file is
sent
End-Of-File ----------->
complete
<-------------------- ACK
Sender indicates first file is
File-Header ----------->
<-------------------- ACK
Name second of file
File-Data ------------->
<-------------------- ACK
First data packet for second file
File-Data packets are sent and ack'd until the whole file is sent
End-Of-File ----------->
complete
<-------------------- ACK
End-Of-Transaction ---->
<-------------------
Sender indicates second file is
Sender indicates no more files to come
ACK
Figure 1-2:
Kermit File Transfer
------------------------------------------------------------------------------ If the file sender does not receive an ACK within the
prescribed
timeout interval, it retransmits the same packet.
If the
file
receiver does not receive an expected packet within the timeout
interval, it sends a NAK for the expected packet (or another ACK
for
the most recently correct packet).
Many encoding, compression, block check, timeout, and packet length
options are
provided.
These options are automatically negotiated by the two
Kermit
programs when they initially make contact, and the greatest common set of
features is used. For this reason, any two Kermit programs should be able
to communicate successfully, from the oldest, most bare-bones version, to the
newest,
1.2. How Kermit Works
Page 9
-----------------------------------------------------------------------------most feature-laden version. The protocol is described in detail in the
Kermit
book.
2. How to Use Kermit
Page 10
-----------------------------------------------------------------------------2. How to Use Kermit
Kermit embodies a set of rules for transferring files reliably between
two computers.
In general, one computer is a large system (a host, for
instance a
timesharing system with many terminals), and the other is a personal
computer
(PC). The host believes that the PC is an ordinary terminal. In order
for the
Kermit protocol to occur, a Kermit program must be running on each end
of the
communication line -- one on the host, one on the PC.
Your task is just to get the two Kermits started. You have to use a
single
keyboard and screen to talk to two different computers, two different
programs.
Let's talk about a common case: you are sitting at a personal computer
(PC),
which has a serial communication port. The serial port is connected to a
host
computer using, say, a dialup modem.
Normally, when you use your PC, you are "talking" directly to it; your
commands
are interpreted directly by the PC's operating system (CP/M, MS-DOS,
UNIX,
etc), or by some program that runs on the PC (an editor, a text
formatter,
space invaders...). The version of Kermit on your PC is a program
like any
other, but it has a special ability to either interpret your commands
directly,
like other programs, or to pass everything you type through to the
other,
remote computer. When you tell Kermit to CONNECT, it sends every
character you
type out the serial port, and it puts every character that comes in the
serial
port onto the screen. This is called "terminal emulation" -- one
computer acts
as if it were a terminal to the other. You are now "talking" to the
remote
computer, and the PC is (mostly) ignoring you.
Kermit,
string
like
most interactive programs, has a prompt.
The prompt is a
of characters it types on the left margin to indicate that it is ready
for you
to type a command.
Kermit's prompt is normally "Kermit-xx>". The xx
identifies the implementation of Kermit; the Kermit that runs on MS-DOS
systems is
called "Kermit-MS" and its prompt is "Kermit-MS>"; the Kermit that runs
on Z80
and 8080-based microcomputers is called "Kermit-80" and its
prompt
is
"Kermit-80>", and so forth. If you become confused about which Kermit
you are
talking to, the prompt should provide a clue. In addition, most Kermits
print
an informative message like
[Connecting to remote host, type CTRL-]C to return]
when you CONNECT, and type another message like
[Connection closed, back at PC]
when you return.
Having "connected" to the host, there must be a way for you to "get
back" to
the PC. This is accomplished by an escape sequence.
As Kermit passes
your
characters through to the host, it checks each one to see if it's a
special
predefined escape character. When the PC sees this character, it stops
ignoring you -- you are once again "talking" to the PC, not to the host. The
escape
character is normally chosen to be one that you will not need to type
while
talking to the host, and one that is hard to type by accident -- it's
usually a
control character, such as Control-], which is entered by holding down
the key
marked CTRL or CONTROL and typing the indicated character (in this
case, a
right bracket "]"). The CTRL key works just like a SHIFT key. Control
characters are written either as Ctrl-A or ^A, where A is the character to be
typed
2. How to Use Kermit
Page 11
-----------------------------------------------------------------------------while holding down the Ctrl key.
2.1. Transferring a File
From system command level on your PC, first run the Kermit program. Then
tell
Kermit to CONNECT you to the host. Now you're talking to the remote host
-- at
this point you must log in, and then run Kermit on the host.
Now you have a Kermit program on each end of the connection. The next
step is
to tell each Kermit what to do. Suppose you want to transfer a file
from the
host to the PC; you would first tell the host Kermit to SEND the file,
then
"escape" back to the PC Kermit and tell it to RECEIVE the file. The
transfer
begins -- you can sit back and watch, or go make yourself a sandwich.
The PC
Kermit will produce a running display on your screen as the transfer
proceeds,
and will notify you when it is complete.
The desired file should now be on your PC's disk. The Kermit protocol
has ensured that the file arrived correctly and completely. Now you must
clean up
after yourself: CONNECT back to the host, exit from Kermit on the host,
log out
from the host, "escape" back to PC Kermit and exit from it. Now you
can do
whatever you had planned for your file -- edit it, print it on your PC
printer,
etc.
Transferring a file in the other direction works the same way,
but with
the SEND and RECEIVE commands exchanged.
The Kermit protocol, and most Kermit programs, allow you to send text
files
reliably from the host to the PC, from the PC to the host, from host to
host,
or PC to PC, usually without any special regard for the nature of the
particular machines involved. Most implementations also allow files to be
sent in
groups, with a single command, such as "send *.*" The scenario for
each of
these is the same as above -- only the details of how to establish the
actual
connection differ.
Kermit works best with "printable" files -- files composed only of
letters,
digits, punctuation marks, carriage returns, tabs, and so forth -- since
these
can be represented on almost any kind of computer.
Kermit is also
able to
transfer "binary" files -- files such as executable programs -- composed
of arbitrary bit patterns, but binary files normally are meaningful only to
the kind
of computer on which they are generated. Nevertheless, Kermit can
usually move
such files from system A to system B (where they are not much use) and
back to
system A in their original condition, although in most cases special
measures
must be taken to accomplish this.
Let's look at some more concrete examples.
what the
basic Kermit commands are.
First you need
to
know
2.2. Basic Kermit Commands
These are generic descriptions of the most basic Kermit commands.
Detailed
descriptions will come later. In these descriptions, local refers to the
system that you are using directly, remote refers to the system to which
you are
CONNECTed via Kermit. Commands may take one or more operands on the same
line,
and are terminated by a carriage return.
SEND filespec
2.2. Basic Kermit Commands
Page 12
-----------------------------------------------------------------------------Send the file or file group specified by filespec from this Kermit
to the
other.
The name of each file is passed to the other Kermit in a
special
control packet, so it can be stored there with the same name. A file
group
is usually specified by including "wildcard" characters like "*"
in the
file specification. Examples:
send foo.txt
send *.for
Some implementations of Kermit may not support transfer of file
groups;
these versions would require a separate SEND command for each file
to be
transferred.
RECEIVE
Receive a file or file group from the other Kermit. If an
incoming file
name is not legal, then attempt to transform it to a similar
name.
Options are be provided for handling filename collisions.
legal
CONNECT
Make a terminal connection to the remote system. To "escape" from
the terminal connection, type Kermit's escape character (e.g. CTRL-],
controlrightbracket), followed by the letter "C" for "Close Connection".
SET Establish various nonstandard settings, such as CONNECT escape
character,
file characteristics, communication line number, speed (baud rate),
parity,
or flow control. All of these are explained later.
SHOW
(or STATUS) Display the values of SET options.
HELP
Type a summary of Kermit commands and what they do.
EXIT
Exit from Kermit back to the host operating system.
?
Typed almost anywhere within a Kermit command: List the commands,
options,
or operands that are possible at this point. This command may or
may not
require a carriage return, depending on the host operating system.
2.3. Real Examples
Kermit can be used in several ways: from a PC that is connected to a
larger
host computer; from a host computer which is connected to another host;
from
one PC to another.
2.3.1. PC to Host
In this example, the user is sitting at an IBM Personal Computer (PC),
which is
connected through its serial port to a DEC VAX/VMS host computer. The
IBM PC
is local, the VAX is remote. This example will also apply almost
literally to
any other microcomputer implementation of Kermit.
You have started up your PC and have the Kermit program on your disk.
Begin by
2.3.1. PC to Host
Page 13
-----------------------------------------------------------------------------running Kermit on the PC. Use Kermit's CONNECT command to become a
terminal to
the VAX. In fact, the PC emulates the popular DEC VT-102 (VT-100), so so
it is
desirable to tell the host that your terminal is of this type. Login
on the
VAX and run Kermit there. Here is an example of this procedure with
commands
you type underlined; the material lined up on the right is commentary,
not system typeout or part of a command:
A>Kermit
Kermit-MS V2.30
IBM-PC Kermit-MS: V2.30
Type ? for help
Run Kermit on the PC.
8 Jan 88
Kermit-MS>
This is the Kermit prompt for the PC.
Kermit-MS>connect
Connect to the VAX.
[Connecting to host, type Control-] to return to PC]
You are now connected to the VAX.
Welcome to CUMIN, MicroVMS V4.6
Username: my-id
Password: my-password
i(The system prints its herald.)
Type your user ID.
Type your password.
(Various greeting or notice messages are displayed.)
$
$ Kermit
This is the VMS system prompt.
Run Kermit on the VAX.
VMS Kermit-32 version 3.3.111
Default terminal for transfers is: _TXA0:
Kermit-32>
This is VMS Kermit's prompt.
You are now ready to transfer files between the two machines.
The following example illustrates how to send files from the VAX to
the PC.
Note the use of the "*" wildcard character to denote a file group.
Kermit-32>send *.for
^]c
[Back at PC.]
Kermit-MS>receive
Send all my FORTRAN files.
Now return back to the PC by
typing the escape sequence, in this case
^]C (Control-] followed by "C")
Tell the PC that files are coming.
If you take more than about 5 seconds to get back to Kermit-MS and
issue the
RECEIVE command, the first packets from Kermit-32 may arrive
prematurely and
appear on your screen, but no harm will be done because the packet
will be
retransmitted by the VAX until the PC acknowledges it.
Once the connection is established, the PC will show you what is
happening -it first clears the screen and waits for incoming packets; as packets
arrive,
the current file name and packet number will be continuously displayed
on the
screen.
When the PC's "Kermit-MS>" prompt returns to your screen (with
an accompanying beep to catch your attention) the transfer is done.
Notice the
screen display; the status should be indicated as "complete". If not, an
error
has occurred and an appropriate message should be displayed to tell you
why.
2.3.1. PC to Host
Page 14
-----------------------------------------------------------------------------After you're finished transferring files, you must CONNECT back to
the VAX
host, EXIT from Kermit there, logout, and "escape back" to the PC as
you did
previously:
Kermit-MS>connect
Get back to the VAX.
[Connecting to host. Type CTRL-]C to return to PC.]
Kermit-32>
Here we are.
Kermit-32>exit
Get out of VMS Kermit.
$ logout
Logout from the VAX.
MY-ID
logged out at 25-JAN-1988 15:12:27.85
^]c
[Back at PC.]
Kermit-MS>exit
A>
Now "escape" back to the PC,
and exit from the PC's Kermit.
Now you see the DOS prompt again.
The files you transferred should now be on your PC disk.
To send files from the PC to the VAX, follow a similar procedure. First
follow
the instructions in the previous section to log in to the VAX through
the PC.
Then in response to the host Kermit's "Kermit-32>" prompt you type
RECEIVE
rather than SEND. Now escape back to the PC and use the SEND command
to send
the local PC files to VAX. The PC will show you the progress of the
transmission on its screen.
When the "Kermit-MS>" prompt indicates that the transmission is
complete you
should follow the procedure shown above to logout from the VAX host,
except
that you may first wish to confirm that the files have been stored
correctly in
your directory on the VAX.
2.3.2. Host to Host
A "host" is considered to be a large or multi-user system, whose
distinguishing
characteristic is that it has multiple terminals. Use of Kermit for
host-to-
host file transfers differs from the PC-to-host case in that the line
your terminal is connected to is not the same as the line over which the data is
being
transferred, and that some special SET commands may have to be issued to
allow
one Kermit to conform to unusual requirements of the other host.
In this example, you are already logged in to a Unix system, and you
use an
autodialer to connect to an IBM 370-series system running VM/CMS through
Unix
device /dev/tty12.
% kermit
C-Kermit, 4E(070) 24 Jan 88, 4.2 BSD
Type ? for help
C-Kermit>set modem hayes
C-Kermit>set line /dev/tty12
C-Kermit>set speed 1200
C-Kermit>dial 7654321
Connected!
Other methods exist for connecting two hosts with a serial line. For
instance,
dedicated hookups can be made by running an RS-232 "null modem" cable
between
2.3.2. Host to Host
Page 15
-----------------------------------------------------------------------------TTY ports on the two systems (null modem cables, RS-232 signals,
modems, and
other data communication apparati are described in detail in the Kermit
book).
The following procedure would be the same in any case, once a
connection is
made. The four "set" commands below are necessary when connecting
to IBM
mainframes in "linemode" (as opposed to full-screen 3270 mode; if you
don't use
IBM mainframes, you can ignore them for now).
C-Kermit>set duplex half The IBM mainframe is half duplex.
C-Kermit>set flow none
No full duplex XON/XOFF.
C-Kermit>set handshake xon
Turn on line
turnaround
C-Kermit>set parity mark The IBM mainframe uses mark parity.
C-Kermit>connect
Connect to the mainframe.
Connecting thru /dev/tty31, speed 1200.
The escape character is CTRL-\ (28).
Type the escape character followed by C to get back,
or followed by ? to see other options.
(Type carriage return here.)
VM/370 ONLINE
The IBM system prints its herald.
.login myuserid mypassword
Login to IBM system.
LOGON AT 15:33:02 EST MONDAY 02/08/88
CUVMA CMS 3.1 8409 01/25/85
.
.Kermit
Kermit-CMS Version 4.0 (87/12/17)
Enter ? for a list of valid commands
Kermit-CMS>.send profile exec
^\c
C-Kermit's escape sequence typed here.
[Back at Local System]
C-Kermit>receive
Tell Unix Kermit to RECEIVE.
The transfer takes place now; Unix Kermit will print the names of
incoming
files, followed by dots or percents to indicate the packet traffic (a
dot for
every 4 packets successfully transferred, a percent for every
timeout or
retransmission).
The transfer is complete when when you see "[OK]", a
beep is
sounded, and the C-Kermit prompt next appears. At that point we connect
back
to the remote IBM system, exit from the remote Kermit and log out.
.
profile.exec ..%%.[OK]
C-Kermit>connect
Get back to mainframe and clean up.
Kermit-CMS>.
Kermit-CMS>.exit
R;
.
SP/CMS
.logout
CONNECT= 00:03:01 VIRTCPU= 000:00.12 TOTCPU= 000:00.60
LOGOFF AT 15:40:13 EST MONDAY 02/08/88
^\c
[Back at Local System]
Type C-Kermit's escape sequence
2.3.2. Host to Host
Page 16
-----------------------------------------------------------------------------C-Kermit>exit
All done with Kermit.
That's the whole procedure.
The file is in your Unix directory,
completely
readable, as profile.exec -- note that Kermit-CMS translated from
the IBM
EBCDIC character encoding into standard ASCII, and converted the space
between
the file name and file type to a dot.
To send a file from the local host to the remote host, we would
have
reversed the SEND and RECEIVE commands in the example above.
merely
2.3.3. Micro to Micro
Kermit also works between personal computers (microcomputers,
workstations).
The difference here is that commands are typed on two keyboards, rather
than a
single one. This is because a personal computer normally only accepts
commands
from its own keyboard. If one PC Kermit CONNECTs to another, there will
normally be no program on the other side to listen.
You can make the physical connection between two micros in two ways:
direct or
dialup. If the two units are in close proximity (say, 50 feet or
less), you
can connect their serial ports with a null modem cable.
Connections at longer distances can be made via dialup, providing the
required
modems are available (one side needs autoanswer capability), or using any
kind
of dedicated or switched circuit that may be available -- CBX, port
contention
unit, almost anything you can plug an EIA connector into.
In this example, a DEC VT180 "Robin" CP/M-80 microcomputer is connected
to a
Intertec "SuperBrain" CP/M-80 micro, using a female-to-male null modem
cable
(these systems have nostalgia value, being among the first for which
Kermit
programs were written). The connection can be tested by running Kermit
and is-
suing the CONNECT command on both ends: typein from each micro should
appear on
the screen of the other.
Suppose you want to
SuperBrain.
Proceed as follows:
send
a
file FOO.HEX from the Robin to the
1. Run Kermit on the SuperBrain, and give the RECEIVE command:
A>Kermit
Intertec SuperBrain Kermit-80 - V4.09
Kermit-80>receive
2. Run Kermit on the Robin, and give the SEND command for FOO.HEX.
A>Kermit
DEC VT18X Kermit-80 - V4.09
Kermit-80>send foo.hex
Watch the packets fly.
When you get the next Kermit-80> prompt,
the
transfer is done, and you can EXIT from both Kermits.
The key point is to start the receiving end first -- some microcomputer
Kermits
do not include a timeout facility, and if the receiver is not ready to
receive
when the sender first sends, there will be a protocol deadlock.
2.4. Another Way -- The Kermit Server
Page 17
-----------------------------------------------------------------------------2.4. Another Way -- The Kermit Server
So far, we have been describing the bare-bones version of the Kermit
protocol.
An optional extension to the protocol includes the concept of a Kermit
server.
A Kermit server is a Kermit program that does not interact directly
with the
user, but only with another Kermit program. You do not type commands to
a Kermit server, you merely start it at one end of the connection, and then
type all
further commands at the other end.
Not all implementations of Kermit can be servers, and not all know how to
talk
to servers -- but most of the major ones can and do. The server is run
on the
remote computer, which would normally be a timesharing system, such as
an IBM
mainframe, a Unix system, or VAX/VMS, but may be a minicomputer or even
a PC.
It depends on whether the particular Kermit program has a "server"
command.
You must still connect to the remote host to log in and start the
server, but
you no longer have to tell one side to SEND and the other to RECEIVE, nor
must
you connect back to the remote side to clean up and log out when you're
done.
Using the server, you can do as many send and receive operations as you
like
without ever having to connect back to the remote host. Some
servers also
provide additional services, such as directory listings, file deletion,
or disk
usage inquiries.
A Kermit server is just a Kermit program running in a special way.
It acts
much like ordinary Kermit does after you give it a RECEIVE command -- it
waits
for a message from the other Kermit, but in this case the message is a
command
saying what to do, normally to send or to receive a file or group of
files.
After escaping back to the local system, you can give as many SEND and
GET com-
mands as you like, and when you're finished transferring files, you can
give
the BYE command, which sends a message to the remote Kermit server to
log itself out. You don't have to connect back to the remote host and
clean up.
However, if you want to connect back to the host, you can use the
FINISH command instead of BYE, to shut down the Kermit server on the remote host
without
logging it off, allowing you to CONNECT back to your job there.
Here's an example of the use of a Kermit server.
an IBM
PC and a DECSYSTEM-20 is the remote host.
The user is sitting at
A>Kermit
Kermit-MS V2.30
IBM-PC Kermit-MS: V2.30
Type ? for help
Run Kermit on the micro.
Kermit-MS>
Kermit-MS>connect
This is the Kermit prompt for the PC.
Connect to the VAX.
CU20B
@login my-id password
The DEC-20 prints its herald.
Log in normally.
8 Jan 88
(The DEC-20 prints various login messages here.)
@Kermit
Kermit-20>server
Run Kermit-20 normally
Tell it to be a server.
Kermit Server running on DEC-20 host. Please type your escape
sequence to return to your local machine. Shut down the server by
typing the Kermit BYE command on your local machine.
2.4. Another Way -- The Kermit Server
Page 18
-----------------------------------------------------------------------------^]c
Now escape back to the PC.
Kermit-MS>get *.pas
Kermit-MS>send foo.*
Kermit-MS>exit
A>
Get all my DEC-20 Pascal programs.
Send all the "foo" files from my PC.
Exit from Kermit back to DOS.
(Here you can do some work on the micro, edit files, whatever you like.)
A>Kermit
Kermit-MS>send file.pas
Kermit-MS>bye
A>
Run Kermit-80 some more.
Send another file.
That's all. Shut down the Kermit server.
Back at DOS automatically.
This is much simpler. Note that once you've started the Kermit Server
on the
remote end, you can run Kermit as often as you like on the micro without
having
to go back and forth any more; just make sure to shut the server down
when
you're done by typing the BYE command.
If it's so much simpler, why not do it this
You can,
provided your remote Kermit has a "server" command.
operation, plus
the special commands the local Kermit needs to
server
(GET, REMOTE, BYE, FINISH) are optional Kermit
Kermit
programs might not have them. All Kermit programs,
provide the
basic SEND/RECEIVE mode of operation.
way all the time?
But server
communicate with the
features,
so
some
however, should
Here are the basic commands available for talking to servers:
SEND filespec
remote
Sends a file or file group from the local host
to
the
host in the normal way.
GET filespec
Example:
Ask the remote host to send a file or file group.
get *.c
This
command is exactly equivalent to typing "send *.c"
at the
remote host followed by "receive" on the local host.
Note that
the local Kermit does not attempt to validate the
filespec.
If
the server cannot access the specified file(s),
it
will
send
back
an
appropriate
error message.
Please note that
GET and
RECEIVE are not the same!
RECEIVE tells
Kermit
to
passively
wait
for
a
file.
GET actively sends a request to a
Kermit
server to send the named file.
REMOTE command [argument]
Ask the server to perform the specified command, and
send the
results to your screen. Not all servers are capable of
performing REMOTE commands; those that can most commonly
provide
REMOTE DIRECTORY, REMOTE DELETE, REMOTE SPACE, and
similar file
management services.
BYE
This will
Shut
down
the
remote server and exit from Kermit.
cause the job at the remote end to log itself out.
You
need
not
connect
back and clean up unless you get an error
message
in response to this command.
2.4. Another Way -- The Kermit Server
Page 19
-----------------------------------------------------------------------------FINISH
Shut down the server without having it log itself
out, and
don't exit from Kermit. A subsequent CONNECT command
will put
you back at your job on the remote host, at system
command
level.
Server operation is not limited
implementations
can also act as servers, notably
PC at
the office with an autoanswer
end of
the day, and then dialed up from
to mainframes.
Some PC Kermit
MS-DOS and Unix.
For instance, an IBM
modem can be left in server mode at the
home in the evening for file transfer.
3. When Things Go Wrong
Page 20
-----------------------------------------------------------------------------3. When Things Go Wrong
Connecting two computers can be a tricky business, and many things
can go
wrong. Before you can transfer files at all, you must first establish
terminal
communication. But successful terminal connection does not necessarily
mean
that file transfer will also work. And even when file transfer seems
to be
working, things can happen to ruin it. The following sections treat
a few
basic problems. See the troubleshooting section of the Kermit book for
greater
detail.
3.1. Basic Connection Problems
If you have a version of Kermit on your microcomputer, but the CONNECT
command
doesn't seem to work at all, please:
- Make sure all the required physical connections have been made
and
have not wiggled loose. If you are using a modem, make sure the
carrier light is on.
- If you have more than one connector on your micro, make sure you
are
using the right one.
- Make sure that the port is set to the right communication
speed,
or
baud
rate.
Some versions of Kermit have a built-in SET BAUD or
SET
SPEED command, others require that you set the baud rate using a
system
command or setup mode before you start the Kermit program.
Some
versions of Kermit have SHOW or STATUS commands that
will
tell
you
what the current baud rate is.
- Make sure that the other communication line parameters, like
parity,
bits per character, handshake, and flow control are set correctly.
You may have to consult the appropriate manuals for the systems
equipment
in question.
and
If all settings and connections appear to be correct, and communication
still
does not take place, the fault may be in your modem.
Internal modems
(i.e.
those that plug in to a slot inside the microcomputer chassis) are not
recommended for use with Kermit unless they totally mimic the asynchronous
serial
port hardware they purport to replace, or unless the Kermit program
claims to
support the particular internal modem. Many microcomputer Kermit
programs are
written to control the communication hardware explicitly; internal
modems can
interfere with that control.
Even external modems can cause trouble -- the "smarter" they are, the
more
potential danger of disagreement between the modem and the microcomputer
about
settings of baud rate, character framing, echo, and so forth. Make sure
your
modem is set up correctly (consult your modem manual).
3.2. Terminal Connection Works But The Transfer Won't Start
Page 21
-----------------------------------------------------------------------------3.2. Terminal Connection Works But The Transfer Won't Start
Once you've made a terminal connection to the remote system, you will
generally
also be able to transfer files. But not always. If Kermit's terminal
emulation seems to work correctly, but a file transfer will not start at
all, then
something in the communication path is probably interfering with the
packet
data:
PARITY:
A device can impose parity upon the communication line.
This means
that
the 8th bit of each character is used by the equipment to check for
correct
transmission. Use of parity will:
- Cause packet checksums to appear incorrect to
the
receiver
and
foil
any
attempt at file transfer.
In most cases, not even
the
first packet will get through.
- Prevent the use of the 8th bit for binary file data.
If terminal connection works but file transfer does not, parity is
the most
likely culprit.
To overcome this impediment, you should find
out what
parity is being used, and inform the Kermits one side or both
(using the
SET PARITY command) so that they can:
- Compose and interpret the checksums correctly.
- Employ a special encoding to allow 8-bit data to pass through
the
7-bit communication channel.
to
Many packet-switched networks, such as GTE TELENET, require
be
set, as do IBM mainframes and their front end processors.
ECHOING:
Some communication processors, typically
input.
front
ends,
echo
parity
their
When this happens, every Kermit packet that is sent to it will bounce
right
back, causing no end of confusion. Some Kermit programs have been
designed
to ignore echoed packets, but others have not. If you
encounter this
problem, there are several possible solutions:
- Disable the front end echoing by typing some special command,
if
such a command is provided by the system.
- Some front ends respond to certain escape or control sequences
as
commands to turn off echoing, either from that point
onward,
or
else
on a per-line basis.
In this case, the appropriate
control
sequence can be inserted between packets by Kermit
programs
instructed to do so, for instance using the SET PAD command.
- If the echoing cannot be disabled, then the two Kermit
programs
should be instructed to use differing packet start markers,
using
the SET START-OF-PACKET command -- for instance, one Kermit
uses
Control-A as usual, and the other uses Control-B. This can
only
be done if both Kermits have this SET command.
3.3. Special Characters
Page 22
-----------------------------------------------------------------------------3.3. Special Characters
There is one problem that can prevent a file transfer from starting at
all, or
may crop up after the file transfer is underway. For instance, during a
file
transfer operation you might find your smart modem suddenly hanging
up your
current connection and placing a call to Tasmania.
Or you might find
that
packets containing a certain character like "@" cannot be transmitted
successfully.
This is the problem of "special characters". Some device in the
communication
path -- a front end, a port switcher, a multiplexer, a "smart" modem -interprets certain characters in the data stream as commands rather than as
data to
be passed them along to the other side. Usually such equipment
interferes only
with the transmission of ASCII control characters; so long as ControlA and
Carriage Return -- Kermit's normal packet start and end delimiters -are not
molested, then Kermit can operate. However, equipment may exist which
swallows
even printable characters.
Since Kermit assumes that ALL printable
ASCII
characters (ASCII 40 through 176, octal) can be transmitted without
interference or modification, such equipment will prevent Kermit file
transfer unless its printable-character-swallowing features can be disabled.
3.4. The Transfer Starts But Then Gets Stuck
Once a Kermit file transfer has begun, there are certain conditions under
which
it can become stuck. Since many hosts are capable of generating timeout
interrupts when input doesn't appear within a reasonable interval, they can
resend
unacknowledged packets or request that missing packets be
retransmitted. But
since not all Kermit programs are capable of timing out, a means for
manual in-
tervention is provided in the local Kermit -- you can type a carriage
return on
the keyboard of most micros to wake up and continue the transfer.
The following sections discuss various reasons why a transfer in progress
could
become stuck.
Before examining these, first make sure that you really
have a
Kermit on the other end of the line, and you have issued the appropriate
command: SEND, RECEIVE, or SERVER. If the remote side is not a server,
remember
that you must connect back between each transfer and issue a new
SEND or
RECEIVE command.
3.4.1. The Connection is Broken
Check the connection.
Make sure no connectors have wiggled loose from
their
sockets. If you're using a modem, make sure you still have a carrier
signal.
Reestablish your connection if you have to.
If upon reconnection you get no response, maybe the remote host or the
remote
Kermit program crashed. Get back to command level on the local
Kermit (on
microcomputer implementations, you may be able to do this by typing
about five
RETURNs, or one or more Control-C's). Issue the CONNECT command so
that you
can see what happened. If the remote system has crashed then you will
have to
wait for it to come back, and restart whatever file that was being
transferred
at the time.
3.4.2. The Disk is Full
Page 23
-----------------------------------------------------------------------------3.4.2. The Disk is Full
If your local floppy disk or remote directory fills up, the Kermit
on the
machine where this occurs will inform you and then terminate the
transfer. You
can continue the transfer by repeating the whole procedure either with a
fresh
floppy or after cleaning up your directory. Some Kermits also have a
feature
that allows you to keep incompletely received files; this would allow
you go
back to the sending system, extract the unsent portion of the file, and
send
it, and then append the two received portions together using an editor or
other
system utility. Kermit does not provide the ability to switch disks
during a
file transfer.
3.4.3. Transmission Delays
Packet transmission can be delayed by various agents: congested
timesharing
systems or networks, earth satellites, etc. When transmission delay
exceeds
the per-packet timeout interval for a significant length of time, the
transfer
could fail. Most Kermit programs provide commands that allow you to
adjust the
timeout interval or the packet transmission retry threshhold in order to
accommodate to severe transmission delays.
3.4.4. Noise Corruption
If your connection is extremely noisy, packets will become corrupted -and require
retransmission
-- more often.
The probability that
successive
retransmissions will fail because of corruption rises with the noise
level until it exceeds the retry threshhold, at which point the file transfer
fails.
There are several recourses. First, try to establish a new connection.
If
that is impractical, then use SET commands (when available) to
reduce the
packet length and increase the retry threshhold. Shorter packets
reduce the
probability that a particular packet will be corrupted and the
retransmission
overhead when corruption does occur, but they also increase the
overall
protocol overhead.
In a noisy environment, you should also request a
higher
level of error checking (SET BLOCK 2 or 3).
3.4.5. Host Errors
Various error conditions can occur on the remote host that could effect
file
transmission.
Whenever any such error occurs, the remote Kermit
normally attempts to send an informative error message to the local one, and then
breaks
transmission, putting you back at Kermit command level on the local
system.
3.5. File is Garbage
There are certain conditions under which Kermit can believe it
transferred a
file correctly when in fact, it did not. The most likely cause has to do
with
the tricky business of file attributes, such as text vs binary, 7-bit vs
8-bit,
blocked vs stream, and so forth. Each system has its own
peculiarities, and
each Kermit has special commands to allow you to specify how a file
should be
sent or stored. However, these difficulties usually crop up only when
sending
binary files. Textual files should normally present no problem between
any two
Kermit programs.
4. Kermit Commands
Page 24
-----------------------------------------------------------------------------4. Kermit Commands
An "ideal" Kermit program will be described here, which has most of the
features specified in the Kermit book. Few Kermit programs will have all
these
commands or support all these options. The exact form of some of the
commands
may differ from version to version. Some Kermit programs may support
systemdependent options not described here. The intention of this description
is to
provide a base from which specific Kermit programs can be described in
terms of
their differences from the "ideal."
4.1. Remote and Local Operation
In any connection between two Kermit programs, one Kermit is remote
and the
other is local. The remote Kermit is usually running on a mainframe,
which you
have CONNECTed to through a PC or other computer. When Kermit runs
remotely,
all file transfer is done over the job's controlling terminal line -the same
line over which you logged in, and to which you would type interactive
commands.
What the system thinks is your terminal is really another
computer,
usually a microcomputer, running its own copy of Kermit.
When Kermit is in "local mode", file transfer is done over an external
device,
such as a microcomputer's serial communication port, or an assigned
terminal
line on a mainframe. The local Kermit is connected in some way (like a
dialout
mechanism) to another computer, again running its own copy of Kermit. A
local
Kermit is in control of the screen, a remote Kermit has no direct access
to it.
Microcomputer Kermits are run in local mode unless instructed
otherwise;
mainframe Kermits run remotely unless some special command places them in
local
mode. Some commands make sense only for remote Kermits, others only for
local,
still others can be used with either. Local and remote operation of
Kermit is
shown schematically here: The Kermit program on the PC is a local
Kermit. It
can control the screen, the keyboard, and the port separately, thus it
can update the screen with status information, watch for interrupt signals
from the
keyboard, and transfer packets on the communications port, all at the
same
time.
The Kermit program running on the mainframe is a remote Kermit. The
user logs
in to the mainframe through a terminal port. The host computer cannot
tell
that the user is really coming in through a microcomputer. The
keyboard,
screen, and port functions are all combined in user's mainframe terminal
line.
Therefore a remote Kermit is cut off from your screen and keyboard
during file
transfer.
4.2. The Command Dialog
Most Kermit programs communicate with you through interactive
keyword-style
command dialog (a prominent exception is Macintosh Kermit, which uses
pulldown
menus that overlay the terminal emulation screen).
The program
issues a
prompt, indicating that it is waiting for you to type a command. The
prompt is
usually of the form
Kermit-xx>
where xx indicates the version of Kermit
Kermit,
Kermit-86> for CP/M-86 Kermit, etc.
--
Kermit-MS>
for
MS-DOS
4.2. The Command Dialog
Page 25
----------------------------------------------------------------------------------------------------------------------------------------------------------PC is Local, Mainframe is Remote:
Communication
Line
(Packets)
+---------------/ /-----------------+ Other terminals
|
| | | |
|
| | | |
PC
|
LOCAL
Mainframe
| | | | REMOTE
+----------+----------+
+------------+--+--+--+--------+
|
Serial Port
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| +---------------+ |
|
Your job's
|
| | Packets: 724 | |
|
terminal line
|
| | Retries:
7 | |
|
|
| | File: FOO.BAR | |
|
|
| +---------------+ |
|
|
|
Screen
|
|
|
|
|
|
|
+---------------+-----+
+------------------------------+
|
| (Commands)
|
+------------+---------+
\
Keyboard
\
+----------------------+
You
Figure 4-1:
Local and Remote Kermits
-----------------------------------------------------------------------------In response to the program's prompt you may type a keyword, such as
SEND,
RECEIVE, or EXIT, possibly followed by additional keywords or operands,
each of
which is called a field. You can abbreviate keywords (but not file
names) to
any length that makes them distinguishable from any other keyword
valid for
that field. You can type a question mark at any time to get information
about
what's expected or valid at that point. The ESC and "?" features work
best on
full duplex systems, where the program can "wake up" immediately and
perform
the required function. On half duplex or record-oriented systems, the
ESC feature is not available, and the "?" requires a carriage return to follow.
In this example, the user types "set" and then a question mark to find
out what
the SET options are. The user then continues the command at the point
where
the question mark was typed, adding a "d" and another question mark to
see what
set options start with "d". The user then adds a "u" to select "duplex"
(the
only SET option that starts with "du") followed by an ESC (shown here by
a dollar sign) to complete the current field, then another question mark to
see what
the possibilities are for the next field, and so forth. The command is
finally
terminated by a carriage return. Before carriage return is typed,
however, the
command can be edited or erased using RUBOUT or other command editing
keys.
Finally, the same command is entered again with a minimum of keystrokes,
with
each field abbreviated to its shortest unique length. In the
example, the
parts the user types are underlined; all the rest is system typeout:
4.2. The Command Dialog
Page 26
-----------------------------------------------------------------------------Kermit-20>set ? one of the following:
debugging
delay
duplex
escape
file
handshake
IBM
line
parity
receive
send
Kermit-20>set d? one of the following:
debugging
delay
duplex
Kermit-20>set du$plex (to) ? one of the following:
full
half
Kermit-20>set duplex (to) h$alf
Kermit-20>set du h
4.3. Notation
In the command descriptions, the following notation is used:
italics
argument
A parameter - the symbol in italics is replaced by an
of
the specified type (number, filename, etc).
[anything] A field enclosed in square brackets is optional. If
omitted, the
field defaults to an appropriate value. You don't type the
brackets.
{x,y,z}
one of
A list of alternatives is enclosed in curly braces; you type
the alternatives.
number
A whole number, entered in prevailing notation of the system.
character
A single character, entered literally, or as a number
(perhaps octal or hexadecimal) representing the ASCII value of the
character.
floating-point-number
A "real" number, possibly containing a decimal point
fractional part.
and
a
filespec
A file specification, i.e. the name of a file, possibly
including a
search path, device or directory name, or other qualifying
information, and possibly containing "wildcard" or patternmatching
characters to denote a group of files.
^X
nota-
A control character may be written using "uparrow" or "caret"
tion, since many systems display control characters this way.
Control characters are produced by holding down the key marked
CTRL or
Control
and
typing
the
appropriate
character,
e.g. X.
Control
characters may also be written Ctrl-X, CTRL-X, CTRL/X, etc.
Commands are shown in upper case, but can be entered in any combination
of upper and lower case.
4.3. Notation
Page 27
-----------------------------------------------------------------------------4.4. Summary of Kermit Commands
Here is a brief list of Kermit commands as they are to be found in most
Kermit
programs. The following sections will describe these commands in detail.
For exchanging files:
SEND, RECEIVE, GET
For connecting to a remote host:
CONNECT, SET LINE, SET PARITY, SET DUPLEX,
ESCAPE,
SET FLOW-CONTROL, SET SPEED (or BAUD)
SET
HANDSHAKE,
SET
For acting as a server:
SERVER
For talking to a server:
BYE, FINISH, GET, SEND, REMOTE
Setting nonstandard transmission and file parameters:
SET BLOCK-CHECK, SET DEBUG, SET DELAY, SET FILE, SET
INCOMPLETE, SET
PARITY, SET RETRY;
SET SEND (or RECEIVE) END-OF-LINE, START-OF-PACKET, PACKET-LENGTH,
PAUSE,
TIMEOUT, PADDING
For defining and executing "macros" of commands:
DEFINE, DO
For interrupting transmission:
Control-X, Control-Z, Control-C, Control-E
Getting information:
HELP, STATISTICS, SHOW
Executing command files:
TAKE
For recording the history of a file transfer operation:
LOG TRANSACTIONS
For non-protocol file capture or transmission:
LOG SESSION, TRANSMIT, INPUT, OUTPUT, PAUSE, CLEAR, SCRIPT
For closing log files:
CLOSE
Leaving the program:
EXIT, QUIT
If you have a file called KERMIT.INI in your default or home disk, Kermit
will
execute an automatic TAKE command on it upon initial startup.
KERMIT.INI may
contain any Kermit commands, for instance SET commands, or DEFINEs for
macros
to configure Kermit to various systems or communications media. Note:
Your
particular implementation of Kermit may use a different name for this
file,
like MSKERMIT.INI for MS-DOS Kermit, or VMSKERMIT.INI for VAX/VMS Kermit.
4.4. Summary of Kermit Commands
Page 28
-----------------------------------------------------------------------------4.5. The SEND Command
Syntax:
Sending a single file:
SEND filespec1 [filespec2]
Sending multiple files:
SEND wild-filespec1
The SEND command causes a file or file group to be sent to the other
system.
There are two forms of the command, depending on whether filespec1
contains
"wildcard" characters. Use of wildcard characters is the most common
method of
indicating a group of files in a single file specification.
For
instance if
FOO.FOR is a single file, a FORTRAN program named FOO, then *.FOR
might be a
group of FORTRAN programs.
Sending a File Group -If filespec1 contains wildcard characters then all matching files will be
sent,
in directory-listing order by name. If a file can't be opened for read
access,
it will be skipped.
Sending a Single File -If filespec1 does not contain any wildcard characters, then the single
file
specified by filespec1 will be sent. Optionally, filespec2 may be
used to
specify the name under which the file will arrive at the target
system;
filespec2 is not parsed or validated locally in any way. If filespec2
is not
specified, the file will be sent with its own name.
SEND Command General Operation --
Files will be sent with their filename and filetype (for instance
FOO.BAR, no
device or directory field, no generation number or attributes). If
communication line parity is being used (see SET PARITY), the sending Kermit
will request that the other Kermit accept a special kind of prefix notation for
binary
files. This is an advanced feature, and not all Kermits have it; if the
other
Kermit does not agree to use this feature, binary files cannot be
sent correctly.
The sending Kermit will also ask the other Kermit whether it can handle a
special prefix encoding for repeated characters. If it can, then files
with long
strings of repeated characters will be transmitted very efficiently.
Columnar
data, highly indented text, and binary files are the major
beneficiaries of
this technique.
4.5. The SEND Command
Page 29
-----------------------------------------------------------------------------SEND Remote Operation -If you are running Kermit remotely (for instance, from a
microcomputer), you
should "escape back" to your local Kermit within a reasonable amount
of time
and give the RECEIVE command. Don't take more than a minute or two to
complete
the switch, or Kermit may "time out" and give up (in that case, you'll
have to
CONNECT back to the remote system and reissue the SEND command).
SEND Local Operation -If you're running Kermit locally, for instance on a microcomputer,
should
have already run Kermit on the remote system and issued either a
RECEIVE or a
SERVER command.
you
Once you give Kermit the SEND command, the name of each file will be
printed on
your screen as the transfer begins, and information will be displayed
to indicate the packet traffic. When the specified operation is
complete, the
program will sound a beep, and the status of the operation will be
indicated by
a message like OK, Complete, Interrupted, or Failed.
If you see many packet retry indications, you are probably suffering
from a
noisy connection. You may be able to cut down on the retransmissions by
using
SET SEND PACKET-LENGTH to decrease the packet length; this will
reduce the
probability that a given packet will be corrupted by noise, and reduce
the time
required to retransmit a corrupted packet.
If you notice a file being sent which you do not really want to send,
you may
cancel the operation immediately by typing either Control-X or ControlZ. If
your are sending a file group, Control-X will cause the current file
to be
skipped, and Kermit will go on to the next file, whereas Control-Z will
cancel
sending the entire group and return you to Kermit-20 command level.
4.6. The RECEIVE Command
Syntax:
RECEIVE [filespec]
The RECEIVE command tells Kermit to wait for the arrival a file or file
group
sent by a SEND command from the other system. If only one file is
being
received, you may include the optional filespec as the name to store the
incoming file under; otherwise, the name is taken from the incoming file
header. If
the name in the header is not a legal file name on the local system,
Kermit
will attempt to transform it to a legal name.
If an incoming file has the same name as an existing file, Kermit will
either
overwrite the old file or else try to create a new unique name,
depending on
the setting of FILE WARNING.
If you have SET PARITY, then 8th-bit prefixing will be requested. If the
other
side cannot do this, binary files cannot be transferred correctly. The
sending
Kermit may also request that repeated characters be compressed.
If an incoming file does not arrive in its entirety, Kermit will
normally discard it; it will not appear in your directory. You may change this
behavior by
using the command SET INCOMPLETE KEEP, which will cause as much of the
file as
4.6. The RECEIVE Command
Page 30
-----------------------------------------------------------------------------arrived to be saved in your directory.
RECEIVE Remote Operation -If your are running Kermit remotely, you should escape back to your local
Kermit and give the SEND command. You should do this within about two
minutes, or
the protocol may time out and give up; if this happens, you can CONNECT
back to
the remote system and reissue the RECEIVE command.
RECEIVE Local Operation -If you are running Kermit locally, you should already have issued a
SEND command to the remote Kermit, and then escaped back to DEC-20 Kermit (you
can not
issue a RECEIVE command to a Kermit server, you must use the GET
command for
that).
As files arrive, their names will be shown on your screen, along
continuous display the packet traffic.
with
a
If a file begins to arrives that you don't really want, you can attempt
to cancel it by typing Control-X; this sends a cancellation request to the
remote
Kermit. If the remote Kermit understands this request (not all
implementations
of Kermit support this feature), it will comply; otherwise it will
continue to
send.
If a file group is being sent, you can request the entire group
be cancelled by typing Control-Z.
4.7. The GET Command
Syntax: GET [remote-filespec]
The GET command requests a Kermit server to send the file or file
group
specified by remote-filespec. Note the distinction between the RECEIVE
and GET
commands: RECEIVE instructs the program to wait passively, whereas GET
actively
sends a request to a server.
The remote filespec is any character sequence that can be a
legal file
specification for the remote system; it is not parsed or validated
locally. As
files arrive, their names will be displayed on your screen, along with
a continuous indication of the packet traffic. As in the RECEIVE command,
you may
type Control-X to request that the current incoming file be
cancelled,
Control-Z to request that the entire incoming batch be cancelled.
Optional Syntax: If you are requesting a single file, you may type the
GET command without a filespec. In that case, Kermit programs that implement
the optional GET syntax will prompt you for the remote filespec on the
subsequent
line, and the name to store it under when it arrives on the line after
that:
Kermit-MS>get
Remote Source File: aux.txt
Local Destination File: auxfile.txt
4.8. The SERVER Command
Page 31
-----------------------------------------------------------------------------4.8. The SERVER Command
Syntax: SERVER
The SERVER command instructs Kermit to cease taking commands from the
keyboard
and to receive all further instructions in the form of Kermit packets
from
another system.
The other Kermit must have commands for
communicating with
remote servers; these include GET, SEND, FINISH, and BYE.
After issuing this command, return to the "client" system and issue SEND,
GET,
BYE, FINISH, or other server-directed commands from there. If your
local Kermit does not have a BYE command, then it does not have the full ability
to communicate with a Kermit server and you should not put the remote
Kermit into
SERVER mode. If your local Kermit does have a BYE command, use it to
shut down
and log out the Kermit server when you are done with it.
Any nonstandard parameters should be selected with SET commands before
putting
Kermit in server mode.
4.9. The BYE Command
Syntax: BYE
When running talking to a Kermit server, use the BYE command to shut
down the
server and, if the server is on a timesharing system, also log out
the job.
This will also close any open log files and exit from the local Kermit.
4.10. The FINISH Command
Syntax: FINISH
When running as a local Kermit talking to a remote Kermit server use the
FINISH
command to shut down the server without logging out the remote job, so
that you
can CONNECT back to it.
4.11. The REMOTE Command
Syntax: REMOTE command
When talking to a remote Kermit server, use the REMOTE command to request
special functions of the remote server. If the server does not
understand the
command or offer the requested service (all of these commands and
services are
optional features of the Kermit protocol), it will reply with a
message like
"Unknown Kermit server command". If it does understand, it will
send the
results back, and they will be displayed on the screen. The REMOTE
commands
include:
REMOTE CWD [directory]
Change Working Directory.
If no directory name is provided, the
server
will change to the default directory. Otherwise, you will be
prompted for
a password, and the server will attempt to change to the specified
directory. If access is not granted, the server will provide a message to
that
effect.
If the remote system does not require a password for
changing
4.11. The REMOTE Command
Page 32
-----------------------------------------------------------------------------directories (UNIX is an example), then you can simply type a
carriage
return in response to the password prompt.
REMOTE DELETE filespec
Delete the specified file or files.
The names
that are
deleted should be displayed on your screen.
of
the
files
REMOTE DIRECTORY [filespec]
The names of the files that match the given file specification will
be displayed on your screen, possibly along with additional information
about
file sizes and dates. If no file specification is given, all files
from
the current directory will be listed.
REMOTE SPACE [directory]
Information about disk usage in the current remote directory -quota, current storage, or amount of remaining free space -- is displayed
on your
screen.
REMOTE HELP
A list of available server functions is displayed.
REMOTE HOST [command]
The given command is passed to the server's host command processor,
and the
resulting output is displayed on your screen.
REMOTE KERMIT [command]
The given command, which is expressed in the server Kermit's
own
interactive-mode command syntax, is passed to the server for
execution.
This is useful for changing settings, logging, and other functions.
REMOTE TYPE filespec
The contents of the specified file is displayed on your screen.
REMOTE WHO [username]
List users, or a specified user, logged in on the server's system.
4.12. Local Commands
Syntax: [LOCAL] command
Execute the specified command on the local system -- on the system where
Kermit
to which your are typing this command is running. These commands
provide some
local file management capability without having to leave the Kermit
program,
which is particularly useful on microcomputers. On most systems, the
LOCAL
prefix for these commands can be omitted.
CWD [directory]
"Change Working Directory" to the specified directory.
DELETE filespec
Delete the specified file or files.
DIRECTORY [filespec]
Provide a directory listing of the specified files.
4.12. Local Commands
Page 33
-----------------------------------------------------------------------------SPACE
Display local disk usage and/or free space.
RUN filespec [operands]
Run the indicated program with the supplied command-line operands.
PUSH Invoke the local system command interpreter in such a way that
it can
return (or "pop" or "exit") back to Kermit.
Some Kermit programs may provide commands for these or other functions
in the
syntax of their own system, when this would cause no confusion. For
instance,
CP/M Kermit may use ERA in place of LOCAL DELETE.
4.13. The CONNECT Command
LOCAL ONLY -- Syntax: CONNECT [terminal-designator]
Establish a terminal connection to the system at the other end of the
communication line.
On a microcomputer, this is normally the serial port.
On a
mainframe, you will have to specify a terminal line number or other
identifier,
either in the CONNECT command itself, or in a SET LINE command. Get
back to
the local Kermit by typing the escape character followed by a single
character
"command". Several single-character commands are possible:
C
Close the connection and return to the local Kermit.
S
Show status of the connection.
B
Send a BREAK signal.
0
(zero) Send a NUL (0) character.
F
Copy the current screen into a disk file.
D
Drop the line, hangup the modem.
P
Push to the local system command processor without breaking the
connection.
Q
Quit logging session transcript.
R
Resume logging session transcript.
?
List all the possible single-character arguments.
^] (or whatever you have set the escape character to be)
Typing the escape character twice sends one copy of it to the
connected
host.
You can use the SET ESCAPE command to define a different escape
character, and
SET PARITY, SET DUPLEX, SET FLOW-CONTROL, SET HANDSHAKE to establish or
change
those parameters.
4.14. HELP
Syntax: The HELP Command
Typing HELP alone prints a brief summary of Kermit and its commands, and
possibly instructions for obtaining more detailed help on particular topics.
Most
Kermit implementations also allow the use of "?" within a command to
produce a
short help message.
4.15. The TAKE Command
Page 34
-----------------------------------------------------------------------------4.15. The TAKE Command
Syntax: TAKE filespec
Execute Kermit commands from the specified file. The file may contain
contain
any valid Kermit commands, including other TAKE commands.
4.16. The EXIT and QUIT Commands
Exit from Kermit.
QUIT is a synonym for EXIT.
4.17. The SET Command
Syntax: SET parameter [option] [value]
Establish or modify various parameters for file transfer
connection.
or
terminal
When a file transfer operation begins, the two Kermits automatically
exchange
special initialization messages, in which each program provides the other
with
certain information about itself. This information includes the maximum
packet
size it wants to receive, the timeout interval it wants the other
Kermit to
use, the number and type of padding characters it needs, the endof-line
character it needs to terminate each packet (if any), the block check
type, the
desired prefixes for control characters, characters with the "high
bit" set,
and repeated characters. Each Kermit program has its own preset
"default"
values for these parameters, and you normally need not concern
yourself with
them. You can examine their values with the SHOW command; the SET
command is
provided to allow you to change them in order to adapt to unusual
conditions.
The following parameters may be SET:
BAUD
BLOCK-CHECK
Set the speed of the current communications port
Packet transmission error detection method
DEBUG
DELAY
DUPLEX
Mode or log file
How long to wait before starting to send
For terminal connection, full (remote echo) or half (local
END
ESCAPE
FILE
Packet termination character (normally CR)
Character for terminal connection
For setting file parameters like name conversion and byte
echo)
size
FLOW-CONTROL
HANDSHAKE
IBM
INCOMPLETE
KEY
LOCAL-ECHO
LINE
transfer
MODEM
PARITY
PORT
PROMPT
RECEIVE
RETRY
SEND
Selecting flow control method, like XON/XOFF
For turning around half duplex communication line
Set parameters for IBM mainframe linemode connection
What to do with an incomplete file
Establish a key redefinition or keyboard macro
Specify who echoes during terminal connection
Terminal line to use for terminal connection or file
Modem type or characteristics
Character parity to use
For switching communication ports
For changing the program's command prompt
Various parameters for receiving files
How many times to retry a packet before giving up
Various parameters for sending files
4.17. The SET Command
Page 35
-----------------------------------------------------------------------------SPEED Synomym for BAUD.
TERMINAL Parameters for terminal emulation
TIMER Enable/disable timeouts
WARNING Filename collision protection
The DEFINE command may be used to compose "macros" by combining SET
and possibly other commands. The SET commands are now described in detail.
SET BAUD
Set or change the baud rate (approximate translation: transmission
speed in
bits per second) on the currently selected communications device. Ten
bits per
second is usually equivalent to one character per second; 300 baud = 30
cps.
The way of specifying the baud rate varies from system to system;
in most
cases, the actual number (such as 1200 or 9600) is typed. Systems that
do not
provide this command generally expect that the speed of the line has
already
been set appropriately outside of Kermit. Common values are 300, 1200,
2400,
4800, 9600, 19200.
SET BLOCK-CHECK {1, 2, 3}
Kermit normally uses a 1-character block check, or "checksum", on each
packet.
The sender of the packet computes the block check based on the other
characters
in the packet, and the receiver recomputes it the same way. If these
quantities agree, the packet is accepted and transmission proceeds. If they
disagree, the packet is rejected and retransmission is requsted.
However, the block check is not a foolproof method of error
detection. The
normal single-character Kermit block check is only a 6-bit quantity
(the low
order 8 bits of the arithmetic sum folded upon itself). With only six
bits of
6
accuracy, the chances are one in 2
occur
which will not be detected in
errors are
equally likely (they aren't).
-- that is, 1/64 -- that an error can
the
You can decrease the probability that an
expense
of transmission efficiency, by using the
select more
rigorous block check methods. Note that
detect any
single-bit error, or any error in an odd
are:
checksum, assuming that all
error can slip through, at the
SET BLOCK-CHECK command to
all
three
methods
number of bits.
will
The options
1-CHARACTER-CHECKSUM:
The normal single-character 6-bit checksum.
2-CHARACTER-CHECKSUM:
A 2-character, 12-bit checksum. Reduces the probability of an error
going
undetected to 1/4096, but adds an extra character to each packet.
3-CHARACTER-CRC:
A 3-character, 16-bit Cyclic Redundancy Check, CCITT format. In
addition
to errors in any odd number of bits, this method detects double bit
errors,
all error bursts of length 16 or less, and more than 99.99% of all
possible
longer bursts. Adds two extra characters to each packet.
The single character checksum has proven to be quite adequate in
practice, much
4.17. The SET Command
Page 36
-----------------------------------------------------------------------------more effective than straightforward analysis would indicate, since all
errors
are not equally likely, and a simple checksum is well suited to
catching the
kinds of errors that are typical of telecommunication lines. The other
methods
should be requested only when the connection is very noisy and/or when
sending
binary files, or when using "long packets" (see SET RECEIVE PACKETLENGTH).
Note that the 2- and 3-character block checks are not available in all
versions
of Kermit; if the other Kermit is not capable of performing the higherprecision block checks, the transfer will automatically use the standard
singlecharacter method.
SET DEBUG {ON, OFF}
Syntax: SET DEBUG options
Record debugging information, either on your terminal or in a
Options
are:
ON
file.
Turn on debugging.
OFF Don't display debugging information (this is the default).
debugging
was in effect, turn it off and close any log file.
If
or possibly others, like STATES, PACKETS, SESSION, etc., to select
logging of
different phenomena. Some Kermit programs may control debugging by use
of the
LOG DEBUG command.
SET DELAY
Syntax: SET DELAY number
Specify how many seconds to wait before sending the first packet after a
SEND
command.
Use when remote and SENDing files back to your local Kermit.
This
gives you time to "escape" back and issue a RECEIVE command. The normal
delay
is 5 seconds. In local mode or server mode, Kermit does not delay before
sending the first packet.
SET DUPLEX
Syntax: SET DUPLEX {FULL, HALF}
For use when CONNECTed to a remote system. The keyword choices are
FULL and
HALF.
FULL means the remote system echoes the characters you type, HALF
means
the local system echoes them. FULL is the default, and is used by most
hosts.
HALF is necessary when connecting to IBM mainframes. Half duplex
is also
called "local echo"; in some Kermits, use SET LOCAL-ECHO ON instead
of SET
DUPLEX HALF.
4.17. The SET Command
Page 37
-----------------------------------------------------------------------------SET ESCAPE
Syntax: SET ESCAPE character
Specify or change the character you want to use to "escape" from remote
connections back to Kermit. This would normally be a character you don't
expect to
be using on the remote system, perhaps a control character like ^\, ^],
^^, or
^_. Most versions of Kermit use one of these by default. After you
type the
escape character, you must follow it by a single-character "argument",
such as
"C" for Close Connection. The arguments are listed above, under the
description of the CONNECT command.
SET FILE
Syntax: SET FILE parameter value
Establish file-related parameters.
Depending on the characteristics
of the
system, it may be necessary to tell Kermit how to fetch an outbound file
from
the disk, or how to store an incoming file. The actual parameters
you can
specify in this command will vary from system to system, and you should
consult
the documentation for your particular version of Kermit. Some examples
would
be file type (text or binary), byte size (PDP-10 architecture), record
length
or block size (record oriented systems), end-of-file detection
method (on
microcomputers), file naming conversion option.
This can be a very important command if you intend to transfer
files,
but is normally unecessary for transmitting textual files.
SET FLOW-CONTROL
Syntax: SET FLOW-CONTROL {XON/XOFF,NONE}
binary
For communicating with full duplex systems. System-level flow control
is not
necessary to the Kermit protocol, but it can help to use it if the same
method
is available on both systems. The most common type of flow control
on full
duplex systems is XON/XOFF. When a system's input buffer comes close to
being
full, it will send an XOFF character (Control-S) to request the other
system to
stop sending. When it has emptied sufficient characters from its input
buffer,
it signals the other system to resume sending by transmitting an XON
character
(Control-Q). This process operates in both directions simultaneously.
The options for the Kermit SET FLOW command are usually restricted to
XON/XOFF and
NONE, which is used to disable this feature.
SET HANDSHAKE
Syntax: SET HANDSHAKE option
For communicating with half duplex systems. This lets you specify the
line
turnaround character sent by the half duplex host to indicate it has
ended its
transmission and is granting you permission to transmit. When a
handshake is
set, Kermit will not send a packet until the half duplex host has
sent the
specified character (or a timeout has occurred). The options may
include:
4.17. The SET Command
Page 38
-----------------------------------------------------------------------------NONE
No handshake; undo the effect of any previous SET HANDSHAKE.
XOFF
Control-S.
XON
Control-Q.
BELL
Control-G.
CR
Carriage Return, Control-M.
LF
Linefeed, Control-J.
ESC
Escape, Control-[.
Some Kermit programs may require the option to be specified by
typing the
character literally or entering its numeric ASCII value. If you use
this command to enable handshaking, you should also SET FLOW OFF.
SET INCOMPLETE
Syntax: SET INCOMPLETE {KEEP, DISCARD}
Specify what to do when a file transfer fails before it is completed.
The options are DISCARD (the default) and KEEP. If you choose KEEP, then if a
transfer fails to complete successfully, you will be able to keep the
incomplete
part that was received.
SET LINE
Syntax: SET LINE [terminal-designator]
Specify the terminal line to use for file transfer or CONNECT. This
command is
found on mainframe Kermits, which normally run in "remote mode" using
their own
controlling terminal for file transfer. Specifying a separate line
puts the
program in "local mode." If no line is specified, revert to the job's
controlling terminal, i.e. go back to "remote mode."
SET PORT
Syntax: SET PORT terminal-designator
Specify the communications port for file transfer or CONNECT.
command is
This
found on microcomputer Kermits that run in "local" mode.
SET PORT
does not
change the remote/local status but simply selects a different port for
local
operation.
SET PARITY
Syntax: SET PARITY {EVEN, ODD, MARK, SPACE, NONE}
Parity is a technique used by communications equipment for detecting
errors on
a per-character basis; the "8th bit" of each character acts as a check
bit for
the other seven bits. Kermit uses block checks to detect errors on a
perpacket basis, and it does not use character parity. However, some
systems that
Kermit runs on, or equipment through which these systems communicate,
may be
using character parity. If Kermit does not know about this, arriving
data will
have been modified and the block check will appear to be wrong, and
packets
will be rejected.
4.17. The SET Command
Page 39
-----------------------------------------------------------------------------If parity is being used on the communication line, you must inform
both Kermits, so the desired parity can be added to outgoing characters, and
stripped
from incoming ones.
SET PARITY should be used for communicating with
hosts
that require character parity (IBM mainframes are typical examples) or
through
devices or networks (like GTE TELENET) that add parity to characters
that pass
through them. Both Kermits should be set to the same parity.
The
specified
parity is used both for terminal connection (CONNECT) and file transfer
(SEND,
RECEIVE, GET).
The choices for SET PARITY are:
NONE
MARK
SPACE
EVEN
parity
(the default) eight data
seven data bits with the
seven data bits with the
seven data bits with the
bits and no parity bit.
parity bit set to one.
parity bit set to zero.
parity bit set to make
the
overall
even.
ODD
seven data bits with the parity bit set to make the overall
parity odd.
NONE means no parity processing is done, and the 8th bit of each
character can
be used for data when transmitting binary files.
If you have set parity to ODD, EVEN, MARK, or SPACE, then most versions
of Kermit will request that binary files be transferred using 8th-bitprefixing. If
the Kermit on the other side knows how to do 8th-bit-prefixing (this is
an optional feature of the Kermit protocol, and not all implementations of
Kermit
have it), then binary files can be transmitted successfully.
If
NONE is
specified, 8th-bit-prefixing will not be requested.
SET PROMPT
Syntax: SET PROMPT string
This allows you to change the program's prompt. This is particularly
useful if
you are using Kermit to transfer files between two systems of the same
kind, in
which case you can change the prompts of the Kermit programs involved
to include appropriate distinguishing information.
SET SEND
SET SEND parameter value
Establish parameters for outgoing packets. This command is generally
used to
override negotiated values, or to establish before negotiation takes
place.
END-OF-LINE character
The ASCII character to be used as a line terminator for outbound
packets, if one is required by the other system, carriage
return by
default. You will only have to use this command for systems
that require a line terminator other than carriage return.
PACKET-LENGTH number
Maximum packet length to send between 10 and 94 (decimal).
Shortening
the packets might allow more of them to get through through
without error on noisy communication lines. Lengthening the packets
increases
4.17. The SET Command
Page 40
-----------------------------------------------------------------------------the throughput on clean lines. This command can be used to
specify a
shorter length than the one requested by the other Kermit, but
not a
longer one.
TIMEOUT number
How many seconds to wait for a packet before trying again.
value of
zero means don't time out -- wait forever.
A
PAUSE floating-point-number
How many seconds to pause before sending each data packet.
Setting
this to a nonzero value may allow a slow system enough time
to consolidate itself before the next packet arrives.
Normally,
no
per-packet pausing is done.
PADDING number, PADCHAR character
How much padding to send before a packet, if the other side needs
padding, and what character to use for padding. Defaults are no
padding,
and NUL (0) for the padding character. This command is also
handy for
inserting special characters that may be required by
communications
equipment.
QUOTE character
What printable character to use for quoting of control
characters, "#"
(43) by default. There should be no reason to change this.
START-OF-PACKET character
The start-of-packet character is the only control character used
"bare"
by the Kermit protocol. It is Control-A by default.
If a
bare
Control-A causes problems for your communication hardware or
software,
you can use this command to select a different control
character to
mark the start of a packet. You must also issue the reciprocal
command
(SET RECEIVE START-OF-PACKET) to the Kermit on the other
system
(providing it has such a command).
SET RECEIVE
Syntax: SET RECEIVE parameter value
Parameters to request or expect for incoming packets, as follows:
END-OF-LINE character
Carriage return (15) by default.
PACKET-LENGTH number
Maximum length packet for the other side to send, decimal
number, between 10 and 94, decimal. Some Kermit programs also support a
"long
packet" protocol extension for improved file transfer
efficiency. If
you specify a value greater than 94 (and normally less than
1000 or
2000), then the two Kermits will attempt to negotiate the use
of long
packets in the receiver's direction. If the negotiation is
unsuccessful (e.g. because the sending Kermit does not support long
packets),
then ordinary packets will be used automatically.
TIMEOUT number
How many
before as-
seconds the other Kermit should wait for a packet
4.17. The SET Command
Page 41
-----------------------------------------------------------------------------king for retransmission.
PAUSE floating-point-number
How many seconds to pause before acknowledging a packet.
Setting this
to a nonzero value will slow down the rate at which data
packets arrive, which may be necessary for systems that have "sensitive"
front
ends and cannot accept input at a high rate.
PADDING number, PADCHAR character
How many padding characters to request before each incoming
packet, and
what the padding character should be. No Kermits are known
need
padding, and if one did, it would request it without your
having to
tell it to do so. This command would only be necessary,
therefore, under very unusual circumstances.
to
QUOTE character
What printable character to use for quoting of control
characters, "#"
(43) by default. There should be no reason to change this.
START-OF-PACKET character
The control character to mark the beginning of incoming packets.
Normally SOH (Control-A, ASCII 1) (see SET SEND START-OF-PACKET,
above).
SET RETRY
SET RETRY option number
Set the maximum number of retries allowed for:
INITIAL-CONNECTION
How many times to try establishing the initial protocol
connection before giving up, normally something like 15.
PACKETS How many times to try sending a particular packet before
giving up,
normally 5. If a line is very noisy, you might want to increase
this
number.
SET WARNING
SET WARNING {ON, OFF}
Tell Kermit whether to let incoming files overwrite existing files of
the same
name. If WARNING is ON, then Kermit will warn you of filename
collisions and
will attempt to construct a new, unique name for the arriving file, and
inform
you what the new name is. When OFF, Kermit silently overwrites existing
files
when there's a name collision. This command may also be called SET FILE
WARNING.
4.18. The DEFINE Command
Page 42
-----------------------------------------------------------------------------4.18. The DEFINE Command
DEFINE macroname [command [, command [, ...] ] ]
Define a "macro" to allow convenient association of one or more Kermit
commands
with a mnemonic keyword of your choice. The definition consists of a
list a
list of one or more Kermit commands, separated by commas. If you use
Kermit to
communicate with several different kinds of systems, you may set up a
macro for
each, for instance:
DEFINE IBM SET PARITY MARK, SET DUPLEX HALF, SET HANDSHAKE XON
DEFINE UNIX SET PARITY NONE, SET DUPLEX FULL, SET HANDSHAKE NONE
DEFINE TELENET SET PARITY MARK, SET RECEIVE TIMEOUT 20
You may then type DO IBM, DO UNIX, and so forth to set all the
desired
parameters with a single command. It is convenient to include these
definitions in your Kermit initialization file.
Another other handy use for macros would be for rapid adaptation
different
conditions of line noise:
to
DEFINE CLEAN SET BLOCK-CHECK 1, SET REC PACKET-LEN 94, SET RETRY 5
DEFINE NOISY SET BLOCK 2, SET SEND PACKET 60, SET RETRY 10
DEFINE VERY-NOISY SET BLOCK 3, SET SEND PACKET 40, SET RETRY 20
You may redefine an existing macro in the same manner as you defined
it. You
can undefine an existing macro by typing an empty DEFINE command for
it, for
instance:
DEFINE IBM
You can list all your macros and their definitions with the SHOW
MACROS command. Syntax of SET and DO commands may vary among Kermit programs.
4.19. The SHOW Command
Syntax: SHOW [option]
The SHOW command displays the values of the parameters settable by the
SET command.
If a particular option is not requested, a complete display
will be
provided. Type "show ?" for a list of what can be shown.
4.20. The STATISTICS Command
Give statistics about the most recent file transfer, such as the total
number
of characters transmitted, the effective baud rate, and so forth. On
some systems, this is SHOW STATISTICS.
4.21. The LOG Command
Page 43
-----------------------------------------------------------------------------4.21. The LOG Command
Syntax: LOG [option] [filespec]
Log the specified entity to the specified log file.
TRANSACTIONS
successfully
Direct Kermit to log transactions, such as
files
sent or received or files that could not be
successfully sent
or received. A transaction is useful recording the
progress of
a long, unattended multifile transfer.
SESSION
local
Create
a transcript of a CONNECT session, when running a
Kermit connected to a remote system,
in
the
specified
file.
The log is closed when connection is closed.
In some
implementations, logging can be "toggled" by typing the connect
escape
character followed by Q (Quit logging) or R (Resume
logging) or
similar single-character commands.
Session-logging
is
useful
for
recording
dialog
with
an
interactive
system,
and for
"capturing"
from systems that don't have Kermit.
No
guarantee
can
be made that the file will arrive correctly or
completely,
since no error checking takes place.
DEBUGGING
There may
Record debugging information in the specified file.
be
several options to select the desired information --
entire
packets, state transitions,
etc
internal
program
trace,
-available via the SET DEBUGGING command.
PACKETS
during file
Record packets, and all communication line traffice
transfer, in the specified file.
4.22. The TRANSMIT Command
Syntax: TRANSMIT filespec
Send the contents of the specified file to the other system "bare",
without
protocol, packets, error checking, or retransmission. This command is
useful
for sending files to systems that don't have Kermit. No guarantee can be
made
that the target system will receive the file correctly and completely.
When
receiving a file, the target system would normally be running a text
editor in
text collection mode.
The current communication settings, such as parity, flow control, and
handshake, are obeyed by most Kermit versions that have a TRANSMIT command.
The
action is normally line-at-a-time. Each line of the file is sent,
terminated
by a carriage return (no linefeed), just as you would type it.
Kermit
waits
for the remote system to echo a linefeed (as it does when you type
carriage
return) before it sends the next line.
Thus TRANSMIT provides a "raw upload" capability.
The opposite,
"raw
download", may be accomplished by using the LOG SESSION command.
4.23. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 44
-----------------------------------------------------------------------------4.23. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
When running Kermit in local mode, you may use the INPUT, OUTPUT,
CLEAR, and
PAUSE commands to carry on a dialog with the remote system. When
combined into
a "script" in a Kermit TAKE command file, these commands provide the
ability to
initially connect and log in to a remote system, and to set it up for
file
transfer.
While you may do this yourself manually using the CONNECT
command,
the login script facility allows this often tedious task to be
automated, and
more important, allows it to take place unattended -- perhaps late at
night
when the phone rates are low and the system is faster.
THE CLEAR COMMAND
Syntax: CLEAR
Clear the input and output buffers of the currently selected line, and
attempt
to clear any XOFF deadlock.
THE PAUSE COMMAND
Syntax: PAUSE [interval]
Pause the specified number of seconds before executing the next
command. The
default interval is one second.
THE INPUT COMMAND
Syntax: INPUT [interval] [string]
On the currently selected communication line, look for the given string
for the
specified interval of time, which is specified in seconds. If no
interval is
specified, then wait for the default interval, which may be specified
by SET
INPUT DEFAULT-TIMEOUT, and is normally 5 seconds. Specifying an
interval of 0
(or less) means no timeout -- wait forever for the specified string. An
INPUT
command can normally be interrupted by typing one or more Control-C's,
which
will return you to Kermit prompt level.
Characters coming in from the line will be scanned for the search
string, and
when a match is found, the command will terminate successfully; if the
string
is not found within the given interval, the command will terminate
unsuccessfully.
The search string may contain any printable characters. Control or
other special characters that you could not normally type as part of a command
may be
included by preceding their ASCII values with a backslash, for instance
foo\13
is "foo" followed by a carriage return (ASCII 13, decimal).
(Some
Kermit
programs expect or allow other number bases, such as octal or
hexadecimal.)
While scanning, alphabetic case is ignored ("a" = "A") unless you have
SET INPUT CASE OBSERVE. If no search string is given, then the INPUT command
will
simply display all incoming characters on your screen until it times out
or is
interrupted.
4.23. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 45
-----------------------------------------------------------------------------If the INPUT command finds the specified string within the alloted
amount of
time, it terminates immediately, without an error message, and the next
command
will be executed. If the INPUT command fails to find the requested
string, it
will "fail"; failure is only significant if the command was issued from
a TAKE
command, and INPUT TIMEOUT-ACTION is SET to QUIT. When a timeout occurs
under
these conditions, the command file is immediately terminated and
control is
returned to the invoking level, either Kermit prompt level or a superior
command file.
If INPUT TIMEOUT-ACTION is SET to PROCEED, then the next
command
(if any) will be executed from the current command file.
In addition to otherwise untypable control characters (like Control-C),
certain
printable characters in the search string may need to be "quoted"
using the
backslash mechanism, including at-sign, question mark, or other
characters that
are significat to Kermit's command processor.
THE OUTPUT COMMAND
Syntax: OUTPUT string
The given string is sent out the currently selected communication
line. The
string is in the same form as the INPUT string; control or special
characters
may be included by prefacing their octal ASCII value with a backslash.
Note
that any terminating carriage return must be included explicitly
as \13
(decimal).
HOW TO USE LOGIN SCRIPTS
Login scripts are useful on computers that have autodialers or TTY
ports
hardwired or otherwise connected to terminal ports on other systems.
Scripts
can be used to automate the task of connecting and logging in. For
instance,
suppose your PC is connected to a VAX Unix system through a hardwired
line on
communication port 2. To send a file to the VAX, you must connect to
the VAX
through the port, log in, run Unix Kermit, escape back to the PC, and
issue the
appropriate file transfer commands, then connect back to the VAX and
logout.
This may all be automated by means of the following "script" stored in
a PC
file invoked by the Kermit TAKE command:
set port 2
output \13
input login:
out myuserid\13
in 10 Password:
out mypassword\13
in 20 %
out kermit -r\13
send foo.bar
out \4
input
The first line points Kermit at the communication line. The next line
sends a
carriage return, which makes Unix issue a "login:" prompt; the following
INPUT
command waits for this prompt to appear.
When it does, Kermit
outputs
"myuserid" followed by a carriage return. Unix then prompts for a
password;
after the prompt appears, Kermit supplies the password. Then, Kermit
waits up
4.23. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 46
-----------------------------------------------------------------------------to 20 seconds for the Unix shell's "%" prompt; this allows time for
various
system messages to be displayed. When the shell prompt appears, Kermit
sends
the command "kermit -r", which tells Unix Kermit to receive a file; then
a SEND
command is given to the local Kermit. After the file is successfully
transferred, Kermit sends a logout command (Control-D, "\4") to Unix. The
final INPUT command causes Kermit to display any typeout (in this case
the Unix
system's logout message) that occurs up to the default timeout interval.
The INPUT command is very important, because it ensures synchronization.
One
might expect to be able to simply send all the characters out the
communication
line at once, and let the remote host's typeahead and buffering
facilities take
care of the synchronization. In rare or simple cases, this might work,
but it
assumes that (a) the remote host allows typeahead, (b) the remote
host's
typeahead buffers are big enough to accommodate all the characters,
and (c)
that the remote host never clears pending typeahead. These conditions
rarely
hold. For instance, Unix clears its input buffer after issuing the
"Password:"
prompt; any typeahead will be lost. Interactive users as well as login
script
facilities must wait for the prompt before entering the password. This
is the
function of the INPUT command. On half duplex systems, this function is
critical -- these systems cannot accept any input in advance of a prompt;
there is
no typeahead.
The Kermit script facility is not a programming language; there is no
conditional execution of commands, no branching, no labels. Nevertheless,
the SET
INPUT command provides a degree of control. If the Unix system were
down in
the sample script above, Kermit would still proceed merrily through the
entire
script, sending its output into the void and waiting the entire timeout
interval on each INPUT command, then attempting to send a file to a
Kermit that
wasn't there. It could take several minutes of timing out to
terminate the
script. This could be avoided by including the command
SET INPUT TIMEOUT-ACTION QUIT
at the top of the script. When the "login:" prompt failed to appear
within the
timeout interval, the rest of the script would be cancelled.
See the chapters on MS-DOS and DEC-20 Kermit
login
scripts.
for
further
examples
of
5. MS-DOS KERMIT
Page 47
-----------------------------------------------------------------------------5. MS-DOS KERMIT
Program:
Joe R. Doupnik (Utah State University), with
contributions by
James Harvey (Indiana/Purdue University), James
Sturdevant
(A.C. Nielson Company), and many others (see History).
Language:
Microsoft Macro Assembler (MASM)
Version:
2.30
Released:
January 8, 1988
Documentation:
Christine Gianone, Frank da Cruz (Columbia University),
Joe R. Doupnik (Utah State University)
Dedicated To:
Peppi
Kermit-MS Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
File transfer interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count compression:
Alternate block check types:
Terminal emulation:
Communication settings:
Handshake, Echo
Transmit BREAK:
IBM mainframe communication:
Transaction logging:
Session logging (raw download):
Raw upload:
Act as server:
Talk to server:
Advanced server functions:
Advanced commands for servers:
Local file management:
Command/init files:
Command macros:
Extended-length packets:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
VT102, H19, VT52, Tektronix 4010
Speed, Parity, Flow Control,
Yes (and Long BREAK)
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Local area networks:
MS-Windows compatibility:
Attribute packets:
Sliding windows:
Yes (NetBIOS support)
Yes
No
No
MS-DOS Kermit, or "Kermit-MS" (or MS-Kermit), is a program that
implements the
Kermit file transfer protocol for the entire IBM PC family, including the
PS/2
series, IBM compatibles, and several other machines based on the
Intel 8086
processor series (8088, 80286, 80386, etc) and the DOS operating system
family
(PC-DOS or MS-DOS, henceforth referred to collectively as MS-DOS or
simply
5. MS-DOS KERMIT
Page 48
-----------------------------------------------------------------------------DOS).
It is assumed you are acquainted with your PC and with DOS, and that
you are
familiar with the general ideas of data communication and Kermit file
transfer.
A very brief overview is given here, but for details consult the early
chapters
of the Kermit User Guide (of which this document is a chapter), or
the book
Kermit, A File Transfer Protocol, by Frank da Cruz, Digital Press (1987),
order
number EY-6705E-DP (phone 1-800-343-8321), which also includes
background
tutorials on computers, file systems, and data communication (including
modems,
cabling, etc).
For further information about Kermit documentation,
updates,
lists of current available versions, and ordering information, write to:
Kermit Distribution
Columbia University Center for Computing Activities
612 West 115th Street
New York, NY 10025 (USA)
5.1. System Requirements
Kermit-MS version 2.30 runs in as little as 70K of memory
(about 55K
contiguous), but will occupy up to 120K, if it can be found, for extra
screen
rollback memory. Versions not using screen rollback memory will not
require
the additional space.
It will also try to leave 24 Kbytes free for a
second
copy of COMMAND.COM which is needed for execution of certain commands.
On the IBM PC family, Kermit-MS 2.30 performs almost complete emulation
of the
DEC VT-102 and Heath/Zenith-19 terminals at speeds up to 19,200
baud or
greater, lacking only the VT102's smooth scrolling and (on some display
boards)
132 column features. And as of version 2.30, Kermit-MS also performs
Tektronix
4010 graphics terminal emulation on IBM PC family systems equipped with
CGA,
EGA, and Hercules graphics adapters, with either color or monochrome
monitors.
Much of Kermit's speed is accomplished by direct writes to screen
memory, but
this is done in a "TopView-aware" manner to allow successful operation in
windowing environments like MS-Windows, DesqView, and TopView itself.
Speed is
also due to direct access of the serial port 8250 UART (Universal
Asynchronous
Receiver/Transmitter) chip, with buffered, interrupt-driven receipt of
characters and selectable XON/XOFF flow control. Full speed 9600 baud
operation is
possible on 4.77Mhz systems without flow control, but flow control is
required
on these systems for 19,200 baud or higher rates. The IBM PC version
should
also run on near-clones like the DG/1 that differ from true PCs only in
their
choice of UART; non-8250 UARTs are detected automatically, and
slower
non-interrupt driven Bios serial port i/o is used, in which case the top
speed
is in the 1200 baud range. On the IBM PC family, COM1 and COM2 are
supported,
and "hooks" are available for (inevitably nonstandard) COM3 and COM4
options.
Kermit-MS 2.30 runs on the entire IBM PC family (the PC, XT, AT, PCjr,
Portable
PC, PC Convertible, PS/2) and compatibles (Compaq, VAXmate, Z150,
etc), and
there are also specially tailored versions for non-IBM-compatibles like
the DEC
Rainbow, NEC APC, Sanyo MBC, Victor 9000, HP-110, HP-150, HP Portable
Plus, and
others, plus a "generic DOS" version that should run (slowly) on any
8086-based
MS-DOS machine. This document concentrates on the IBM version; some
of the
system-dependent capabilities described here may be lacking in the nonIBM versions. See section 5.9 for features of different systems.
5.1. System Requirements
Page 49
-----------------------------------------------------------------------------KERMIT.EXE for the IBM PC family occupies about 86K of disk storage (the
figure
will vary for other versions). This can be reduced by about 15K if you
run it
through EXEPACK. MS-Kermit is not distributed in packed form, because
problems
have been reported on certain systems when this is done. So if you
decide to
pack it, make sure to keep an unpacked version available to fall back
to in
case of problems.
5.2. History
Over the years, MS-Kermit has grown from a Kermit file transfer
program that
embodied a simple terminal emulator into a complex and powerful
communication
program that includes the Kermit file transfer protocol. As a result,
the bulk
of this manual is devoted to the communication features, rather than
Kermit
protocol operation. Skip ahead to the next section if you're not
interested in
the history of MS-Kermit.
MS-DOS Kermit (like the Kermit file transfer protocol itself) is a
product of
the Systems Group of the Columbia University Center for Computing
Activities,
and it was one of the four original Kermit programs (with the CP/M, DEC20, and
IBM mainframe versions). It was initially written for the IBM PC with
DOS 1.1
by Daphne Tzoar in 1981-1982, based largely on Bill Catchings's original
CP/M
8080 assembler version. PC-Kermit (as it was called then) provided
basic Kermit file transfer and VT52 emulation. Joellen Windsor of the
University of
Arizona added conditional assembly support for the Heath/Zenith-100
shortly
thereafter, and soon after that Dave King of Carnegie-Mellon University
added
Heath-19 terminal emulation, and some patches to let the program run
under the
new DOS version, 2.0. During this era, the program version numbers went
from
1.0 to 1.20.
With the appearance in the marketplace of many new MS-DOS machines
that were
not compatible with the IBM PC, it became apparent that conditionally
assembled
code supporting each of these machines within a single monolithic
source file
was not the best way to organize the program.
Therefore Daphne, along
with
Jeff Damens of Columbia, undertook to reorganize the program in a
modular way,
isolating system dependencies into separate files.
The result was
version
2.26, released in July 1984.
It included support for the DEC
Rainbow, the
HP-150, the Wang PC, and generic MS-DOS, as well as for the IBM PC
family and
the H/Z-100. It also included many new features, like 8th-bit prefixing
(code
contributed by The Source Telecomputing), alternate block check
selection,
byte-count compression, server/client operation, access to local file
and DOS
operations, command macros, initialization and command files, screen
rollback,
key redefinition, and more.
For the 2.26 release, the executable
Kermit
programs were encoded printably as ".BOO" files, designed by Bill
Catchings as
part of this effort.
Release 2.27 was produced by Daphne and Jeff in December 1984. Unlike
2.26, it
ran correctly on the new PC/AT under DOS 3.0, and included support for
the NEC
APC from Ron Blanford of Seattle, WA, and Ian Gibbons of the
University of
Hawaii, and for the TI Professional from Joe Smith of the Colorado
School of
Mines, plus some bug fixes and reorganization. 2.27 is the last
version that
runs under pre-2.0 versions of DOS.
Version 2.28 (Daphne, Jeff, June 1985) added dynamic memory
allocation to
reduce disk storage for the .EXE file, and to allow the program to
adjust itself to the PC's memory size, plus the inevitable bug fixes (many of them
con-
5.2. History
Page 50
-----------------------------------------------------------------------------tributed by Edgar Butt of the University of Maryland and Gregg Small
of the
University of California at Berkeley). During this period, support
for additional MS-DOS systems was added by various people.
In December 1985, a tape showed up at Columbia sent by Prof. Joe R.
Doupnik of
the Center for Atmospheric and Space Studies and EE Department at Utah
State
University. This tape contained version 2.28 modified to fully support
the DOS
2.0 file system, and to which many new features had been added,
notably the
ability of the MS-DOS Kermit server to process various REMOTE commands
(DIR,
CWD, SPACE, etc). And at about the same time, a tape arrived from James
Harvey
of Indiana/Purdue University, who had changed Kermit's CONNECT command
to emulate the popular DEC VT100 terminal. This material was sent to Joe, who
then
laboriously fitted James's work into his own code, keeping the VT52
and H19
emulation alive as options, and upgrading the VT100 emulation to VT102
by adding features such as line and character insertion and deletion. The
result
was version 2.29, released in May 1986.
Soon after the release of 2.29, some disks were sent in by James
Sturdevant of
the A.C. Nielson Company, containing a full implementation of the Kermit
script
facility, as described in the Kermit book. This material was sent to
Joe, who
had by now become keeper of MS-DOS Kermit and had already begun work on
version
2.30 by adding support for extended-length packets. Joe had been
carrying on
voluminous network correspondence (Thanks, BITNET!) with Columbia
and with
MS-DOS Kermit users and testers all over the world, giving birth to
many new
features, including Tektronix graphics terminal emulation, support for
operation over local area networks, support for 8-bit ASCII terminal
connections and
international character sets, ANSI printer control, and a
redesigned, more
powerful, more portable key redefinition mechanism. Version 2.30 was
formally
released on January 1, 1988, after many "alpha" and "beta" tests.
Among the many contributors to this version are: Brian Holley and Joe
Smith for
the Tektronix emulation, Robert Goeke for the NEC AP3 support, Brian
Peterson
and Andreas Stumpf for the Victor 9000, Bob Babcock and Joe White
for the
Sanyos, Christopher Lent for the Wang PC, Jack Bryans for an Intel iRMX
version, Jim Noble for the Grid Compass, Geoff Mulligan and others for the
Zenith
100, and David Knoell for the special Rainbow edition. And thanks to
Gisbert
Selke, Jack Bryans, and others for proofreading drafts of this
manual. And
apologies to anyone we neglected to mention.
Finally, please note that the program version number is not a whole
number and
a fraction; 2.30 is pronounced "two point thirty", and is not equal to
2.3.
5.3. Using MS-Kermit
MS-DOS Kermit performs two major functions, terminal emulation and file
transfer. File transfer can be done using either the Kermit file transfer
protocol,
or else (without error checking), ASCII or XON/XOFF capture and
transmission
methods. To use Kermit for "raw" uploading or downloading of files,
see the
descriptions of the LOG SESSION and TRANSMIT commands.
Before you can transfer files with another system using Kermit
protocol, you
must first connect to it as a terminal, login if necessary, and start up
a Kermit program there.
The following example shows this process; the
other computer is a Unix system, but the method is the same with most others. The
parts
you type are underlined (if this document was printed on a printer
that can
5.3. Using MS-Kermit
Page 51
-----------------------------------------------------------------------------underline), and when you type a command, you terminate it with a
carriage
return, which you can't see in the example.
The mysterious
"^]c" is
MS-Kermit's "escape sequence", which you enter by holding down the
Control
(Ctrl) key and pressing "]" (right square bracket), and then typing the
letter
C. The example assumes the MS-Kermit program is stored on disk as
KERMIT.EXE.
Program Dialog:
Explanation:
A>kermit
IBM PC Kermit-MS V2.30 8 Jan 88
Type ? for help
Kermit-MS>set speed 1200
Set the right baud rate.
Kermit-MS>connect
Connect as a terminal.
(Connecting to host, type ^]C to return to PC.)
ATDT7654321
Dial the modem if necessary.
CONNECT 1200
The modem tells you you're connected.
Now you're talking to the Unix system.
Type a carriage return to get its attention.
Login: christin
password:
% kermit
C-Kermit>receive
^]c
Kermit-MS>send autoexec.bat
Login to the host.
(Passwords normally don't echo.)
Run Kermit on the host.
Tell it to receive a file.
Escape back to the PC.
Send a file.
(The file is transferred...)
Kermit-MS>
Transfer complete, prompt reappears.
In this example, the user types "kermit", and sees the program's herald
and its
prompt, "Kermit-MS>". Then she sets the appropriate communication speed
("baud
rate"), connects as a terminal, issues a dialing command to a Hayes-like
modem
(you would skip this step if you had a direct connection), logs in to her
ID on
the Unix system which she has dialed, starts "C-Kermit" on the Unix
system,
tells it to receive a file, escapes back to the PC, and tells MS-Kermit
to send
a file. After the file is transferred, the user would normally connect
back to
the Unix system, exit from the Kermit program there, and log out:
Kermit-MS>connect
Connect again.
(Connecting to host, type ^]C to return.)
C-Kermit>exit
% ^D
Logout from Unix by typing Ctrl-D.
^]c
Escape back to the PC.
Kermit-MS>exit
Return to DOS.
To transfer a file in the other direction, simply exchange the
"send" and
"receive" commands above. That's the easiest and quickest way to use
Kermit.
If this simple scenario does not work for you, issue the MS-Kermit
STATUS command and look for any obvious incorrect settings (speed, parity), fix
them with
SET commands (described in Section 5.6.9), and try again. (IBM
mainframe
linemode connections have so many "different" settings, there's a special
command to do them all at once, "do ibm", which you would type as the
first
Kermit-MS command above.) If that doesn't help, read on.
Many
problems can
5.3. Using MS-Kermit
Page 52
-----------------------------------------------------------------------------crop up when you attempt to connect two unlike systems over a possibly
hostile
communication medium. And if you intend to be a frequent user of Kermit,
there
are many options you can take advantage of to adapt MS-Kermit to
different systems, improve its performance, and automate common tasks.
5.4. The MS-DOS File System
The features of the MS-DOS file system of greatest interest to Kermit
users are
the form of the file specifications, and the formats of the files
themselves.
5.4.1. File Specifications
MS-DOS file specifications (in version 2.0 or later of DOS) are of the
form
DEVICE:\PATHNAME\NAME.TYPE
where the DEVICE is a single character identifier (for instance, A
for the
first floppy disk, C for the first fixed disk, D for a RAM disk emulator)
followed by a colon (":"), PATHNAME is up to 63 characters of identifier(s)
(up to
8 characters each) surrounded by backslashes ("\"), NAME is an identifier
of up
to 8 characters, and TYPE is an identifier of up to 3 characters in
length.
Device and pathname may be omitted. The first backslash in the pathname
may be
omitted if the specified path is relative to the current directory.
In the
path field, "." means the current directory, ".." means the parent
directory.
Some DOS implementations (like Wang) may use slash ("/") rather than
backslash
as a directory separator.
Pathname is normally omitted, but can be specified in all Kermit-MS
commands
(as of version 2.29). Device and directory pathnames, when omitted,
default to
either the user's current disk and directory, or to the current
directory
search path as specified in the DOS PATH environment variable, depending
on the
context in which the file name appears.
When this document says that a file is searched for "in the
current
path," it means that Kermit-MS looks on the current disk and
directory
first, and if the file is not found, then the directories listed in
the
PATH environment variable are searched. If the PATH environment
variable is empty, Kermit looks only at the current disk and directory.
NAME.TYPE is sufficient to specify a file on the current disk and
directory,
and only this information is sent along by Kermit-MS with an outgoing
file.
The device, path, name, and type fields may contain uppercase letters,
digits,
and the special characters "-" (dash), "_" (underscore), "$" (dollar
sign), "&"
(ampersand), "#" (number sign), "@" (at sign), "!" (exclamation
mark), "'"
(single quote), "()" (parentheses), "{}" (curly braces), "^"
(caret or
circumflex), "~" (tilde), and "`" (accent grave). Normally, you should
confine
your filenames to letters and digits for maximum transportability to
non-DOS
systems.
When you type lowercase letters in filenames, they are
converted
automatically to uppercase. There are no imbedded or trailing spaces.
Other
characters may not be included; there is no mechanism for "quoting"
otherwise
illegal characters in filenames. The fields of the file specification
are set
off from one another by the punctuation indicated above.
5.4.1. File Specifications
Page 53
-----------------------------------------------------------------------------The name field is the primary identifier for the file. The type, also
called
the extension or suffix, is an indicator which, by convention, tells what
kind
of file we have. For instance FOO.BAS is the source of a BASIC program
named
FOO; FOO.OBJ might be the relocatable object module produced by
compiling
FOO.BAS; FOO.EXE could be an executable program produced by loading
FOO.OBJ,
and so forth. .EXE and .COM are the normal suffixes for executable
programs.
MS-DOS allows a group of files to be specified in a single file
specification
by including the special "wildcard" characters, "*" and "?". A "*"
matches any
string of characters from the current position to the end of the field,
including no characters at all; a "?" matches any single character. Here
are some
examples:
*.BAS
All files of type BAS (BASIC source files) in the current
directory.
FOO.*
Files of all types with name FOO.
F*.*
All files whose names start with F.
*.?
no type
All files whose types are exactly one character long, or have
at all.
Wildcard notation is used on many computer systems in similar ways, and
it is
the mechanism most commonly used to instruct Kermit to send a group of
files.
Users of Kermit-MS should bear in mind that other (non-MS-DOS) systems
may use
different wildcard characters. For instance VMS and the DEC-20 use "%"
instead
of "?" as the single character wildcard; when using Kermit-MS to
request a
wildcard file group from a Kermit-20 server, the DOS "?" must be
replaced by
the DEC-20 "%".
5.4.2. File Formats
MS-DOS systems store files as streams of 8-bit bytes, with no particular
distinction among text, program code, and binary files. ASCII text files
consist
of lines separated by carriage-return-linefeed sequences (CRLFs), and
this conforms exactly to the way Kermit represents text files during
transmission, so
Kermit-MS has no need for a SET FILE TYPE BINARY command.
But since a
nonMS-DOS receiving system might need to make distinctions as to file
type, you
will probably have to issue SET FILE TYPE commands there if you are
sending it
non-text files.
In transmitting files between Kermit-MS programs,
regardless
of file contents, the receiving MS-DOS system is equally capable of
processing
text, code, and data, and in fact requires no knowledge of how the bytes
in the
file are to be used.
MS-DOS (unlike CP/M) knows the exact end of a file because it keeps a
byte
count in the directory, so one would expect no particular confusion
in this
regard. However, certain MS-DOS programs continue to use the CP/M
convention
of terminating a text file with a Control-Z character, and won't
operate correctly unless this terminating byte is present. Therefore, you should be
aware
of a special SET EOF option for both incoming and outbound files,
described
later.
Non-MS-DOS
sent by
Kermit-MS:
systems
may
be
confused
by
nonstandard
ASCII
files
5.4.2. File Formats
Page 54
------------------------------------------------------------------------------ Files containing any of the 8-bit "extended ASCII" characters
may
need conversion (or translation) to 7-bit ASCII.
- Files produced by word processing programs like Word Perfect or
Word
Star may contain special binary formatting codes, and could need
conversion to conventional 7-bit ASCII format prior to
transmission,
using commonly available "exporter" programs.
- Files created by word processors that store formatting data at
the
end of the file, after the Control-Z and before physical end, may
require special processing via SET EOF to strip the formatting
data,
lest they confuse non-MS-DOS recipients.
- Spreadsheet or database files usually need special formatting
to
be
meaningful to non-MS-DOS recipients (though they can be
transmitted
between MS-DOS systems with Kermit-MS).
- BASIC programs are normally saved in a binary "tokenized" form.
Use
BASIC's ",a" SAVE option to save them as regular ASCII text, as in
save"foofa",a
In general, when attempting to transfer non-text files between MS-DOS
and a
different kind of system, consult the Kermit manual for that system.
5.5. Program Setup and Invocation
The MS-DOS Kermit program can be run from any disk without any special
installation procedure. On hard disk systems, it is convenient to store the
program
in one of the directories listed in your DOS PATH, and it is often
desirable to
customize Kermit's operation to your communications and computing
environment
by creating an initialization file.
Kermit-MS can be run interactively, from a batch file, or as an
"external" DOS
command.
Commands consist of one or more fields, separated by
"whitespace" -one or more spaces or tabs.
Upon initial startup, the program executes any commands found in the
file
MSKERMIT.INI in the current path. This initialization file may contain
command
macro definitions, communications settings for one or more ports, or any
other
Kermit-MS commands, and you may create it using any text editor
capable of
saving files in plain ASCII text format. Here is a sample:
comment -- MSKERMIT.INI, MS-DOS Kermit initialization file
comment -- Don't overwrite my files!
set warning on
comment -- Define macros for the systems I use...
define unix set local-echo off,set par non,set flow xon,set timer off
def ibm set par odd,set loc on,set hands xon,set flo none,set tim on
def modem set port 2, set baud 1200
comment -- Define a macro for quickly adapting to noisy connections...
def noisy set block-check 3, set send packet-length 40, set retry 20
5.5. Program Setup and Invocation
Page 55
-----------------------------------------------------------------------------comment -- I always start out by connecting to my UNIX system...
set port 1
set baud 4800
do unix
connect
A different file may be substituted for MSKERMIT.INI by using "-f
filename" on
the DOS command line, e.g.
kermit -f monday.ini
The meanings of these commands will emerge below. For now, just note
how you
can use command files (and "macro definitions") to easily adapt MSKermit to
widely differing communication environments. A more advanced
initialization
file is shown below in section 5.8.
Interactive Operation:
To run Kermit-MS interactively, invoke the program from DOS command
level by
typing its name, normally "kermit" (this means the program should be
stored in
your path with the name KERMIT.EXE). When you see the program's prompt,
Kermit-MS>
you may type Kermit commands repeatedly until you are ready to
exit the
program, as in the following example (which assumes there's already a
Kermit
"server" set up on the other end):
A>
A>kermit
IBM PC Kermit-MS V2.30
Type ? for help
8 Jan 88
Kermit-MS>set speed 19200
Kermit-MS>send foo.*
The files are sent.
Kermit-MS>get fot.*
The requested files are received.
Kermit-MS>exit
A>
Interactive commands are described in Section 5.6.
Command Line Invocation:
Kermit-MS may be invoked with command line arguments from
level,
for instance:
A>kermit send peter.amy
DOS
command
5.5. Program Setup and Invocation
Page 56
-----------------------------------------------------------------------------or
A>kermit set port 1, set baud 9600, connect
In this case, help and completion are not available (because the
program that
provides them won't start running until after you type the entire
command
line), and Kermit-MS will exit back to DOS after completing the
specified command or commands.
Therefore, when invoked with command line
arguments,
Kermit-MS will behave as if it were an external DOS command, like MODE.
Note
that several commands may be given on the command line, separated by
commas.
This can't be done interactively or from TAKE command files.
As of version 2.30, two new Kermit commands can be given on the DOS
command
line. First is the keyword STAY which prevents Kermit from exiting
naturally
when the last command has completed (unless, of course, EXIT or QUIT was
among
the commands). The second command is
-F filename
This means use the indicated filename as the initialization file rather
than
MSKERMIT.INI.
The path will be searched for this file, if necessary. A
space
or tab must separate -F from the filename, and the F may be in upper or
lower
case. Example:
kermit -f tuesday.ini, set port 2, do ibm, stay
You can run Kermit with no initialization file at all by using the
command
kermit -f nul
If -F is the only command line option, STAY is implied.
Batch Operation:
Like other MS-DOS programs, Kermit-MS may be operated under batch with
command
line arguments. If you invoke it without command line arguments, it
will run
interactively, reading commands from the keyboard and not the batch file.
When
it exits, batch processing will continue to the end of the batch file.
Kermit-MS returns the "errorlevel" parameter used as program exit
status.
Present values are in the range 0 to 7 with three areas yielding
success or
failure reports for the entire Kermit session. The errorlevel values are:
errorlevel
0
1
2
4
3,5,6,7
Kermit session status
entirely successful operation
a Send command completed unsuccessfully
a Receive or GET command completed unsuccessfully
a REMOTE command completed unsuccessfully
combinations (addition) of the above conditions
Note that failures are remembered for the whole session and are not
canceled by
a following successful operation of the same type. Thus, sending several
files
individually yields an errorlevel of 0 only if all the files were sent
successfully. The "errorlevel" parameter also applies to script commands where
OUTPUT
corresponds to SEND and INPUT to RECEIVE. An example of Batch
invocation of
5.5. Program Setup and Invocation
Page 57
-----------------------------------------------------------------------------Kermit is shown in Figure 5-3.
Remote Operation:
The MS-DOS CTTY command allows an MS-DOS system to be used from a
terminal connected to its communication port. Such sessions must be conducted with
great
care, since many programs assume that they are running on the real
console, and
explicitly reference screen memory or keyboard scan codes. Kermit can be
used
in this manner too, but before you give it any file transfer commands,
you must
inform it that it is running in "remote mode" rather than its normal
"local
mode."
Use the SET REMOTE ON command for this purpose, to prevent
the file
transfer display from being sent out the port.
RAM Disk Operation:
If you invoke Kermit frequently, and you have sufficient memory on your
PC, you
may find it convenient to copy Kermit and its initialization file to a
RAM disk
when you start your system. This allows Kermit to be started and used
quickly
and silently, with no disk operations.
For instance, if you're using IBM's VDISK facility to create the RAM
disk, you
might put statements like this in your CONFIG.SYS file:
DEVICE=VDISK.SYS 512 512 32 /e
This assumes you have 512K of extended (/e) memory installed and
VDISK.SYS is
in the root directory of the boot disk. It creates a 512K RAM disk
with 512K
sector size and space for 32 directories in the extended memory,
assigning it
the disk letter of your first unused disk. And then in your
AUTOEXEC.BAT file
(assuming the RAM disk is disk D:)...
COPY KERMIT.EXE
D: >NUL
COPY MSKERMIT.INI D: >NUL
COPY COMMAND.COM D: >NUL
SET COMSPEC=D:\COMMAND.COM
PATH D:\; ...
APPEND D:\; ...
The PATH and APPEND commands allow DOS to find KERMIT.EXE, and Kermit to
find
MSKERMIT.INI and COMMAND.COM, on the RAM disk. If you use Kermit to
transfer
files to your RAM disk, remember to copy those files to a real disk
before you
turn off the system.
Use of MS-Kermit in Windowing Environments:
Kermit-MS can operate within windowing environments like such as
TopView,
DESqview, and MS-Windows. It runs in an active window under MSWindows, accepts cut and paste material, talks with mice, and shrinks to an icon (a
boxed
"KER"). An MS-Windows .PIF file can be constructed for Kermit
using the
PIFEDIT program, supplied with Windows. Memory requirements should be
listed
as 90 to 128KB. It should be noted that Kermit does not modify the
screen,
keyboard, memory, COM1, or COM2 (!). Program switch and exchange
should be
marked as Text, and Close Window on Exit should be checked. This
configuration
5.5. Program Setup and Invocation
Page 58
-----------------------------------------------------------------------------will let you run Kermit with all the Windows features, but very slowly.
To run
at full speed under Windows, tell PIFEDIT that Kermit modifies the
screen.
Then you lose the Windows features (cutting, pasting, running the clock
at the
same time, etc), but you still get back to the Windows interface when you
EXIT
Kermit.
Local Area Network Operation:
MS-Kermit 2.30 is capable of using a serial port on another local area
network
(LAN) node, so long as that node is running an asynchronous communication
server and you have installed a device driver on your own PC that makes
COM1 or
COM2 i/o use the network server.
This type of connection works
because
MS-Kermit 2.30 (but not earlier releases) on IBM PCs checks the selected
port,
COM1 or COM2, to see if it's a real 8250 UART chip, and if it isn't,
Kermit
uses only Bios calls for port i/o, and the network routes these
through your
network device driver. It may be necessary to turn off a real COM1 or
COM2
device (with a switch or jumper on the board) to convince Kermit to
use the
Bios. This style of operation should be transparent to Kermit, except
that not
all asynchronous communications servers utilize this technique.
As of version 2.30, the IBM PC version of Kermit can also communicate
directly
with another PC on a local area network through the IBM NetBIOS emulator
distributed with the LAN. In essence, the LAN substitutes for the serial
port,
modem, and other wiring. Kermit running on one user machine can transfer
files
with another Kermit also on the network much as if they were
connected by
modems, and Kermit can talk with some larger machines the same way. The
important, and only, network command is
SET PORT NET nodename
which is described in the section on SET commands. Also see the SERVER
command
description, and (if you're interested) section 5.16.1 for a technical
description.
Kermit can even communicate with some other computers, such as Unix
systems,
which accept logins via this remote pathway. The initial startup is the
same
as calling a mainframe and logging in except the command SET PORT NET
nodename
is used instead of SET PORT COM1. A connection is established with the
first
use of the communications circuit, such as CONNECT, REMOTE DIR, SEND, or
other
file transfer command, and terminated with the HANGUP command.
5.5. Program Setup and Invocation
Page 59
-----------------------------------------------------------------------------5.6. Kermit-MS Commands
MS-DOS Kermit supplies most of the commands and
Kermit.
Here's a summary:
-F
BYE
CLEAR
CLOSE
COMMENT
CONNECT
CWD
DEFINE
DELETE
DIRECTORY
DISABLE
DO
ECHO
ENABLE
EXIT
FINISH
GET
HANGUP
HELP
INPUT
LOG
LOGOUT
OUTPUT
PAUSE
PUSH
QUIT
RECEIVE
REMOTE
RUN
SEND
SERVER
SET
SHOW
SPACE
STATUS
STAY
TAKE
TRANSMIT
TYPE
VERSION
features
of
"ideal"
specify alternate init file name on DOS command line.
to remote server, exit from MS-Kermit.
serial port buffer.
log files and stop logging remote session.
For including comments in command files.
as terminal to remote system.
change local working directory.
a macro of Kermit-MS commands.
local files.
listing of local files.
server recognition of selected commands.
a command macro.
a line of text on the screen.
server recognition of selected commands.
from Kermit-MS.
Shut down remote server.
remote files from server.
the phone or network connection.
about Kermit-MS.
specified string from serial port, for scripts.
remote terminal session and/or packets.
remote server, don't exit from Kermit-MS.
string out serial port, for scripts.
between commands.
to MS-DOS command level.
from Kermit-MS (same as EXIT).
files from remote Kermit.
Prefix for remote file management commands.
an MS-DOS program or command.
files to remote Kermit.
mode of remote operation.
various parameters.
various parameters.
inquiry (about disk space).
inquiry (about settings).
stay within Kermit after DOS command line invocation.
commands from a file.
a file "raw" (no error checking).
a local file on the screen.
display Kermit-MS program version number.
Not all of these commands are necessarily available on all MS-DOS
systems, and
some of the commands may work somewhat differently between DOS versions.
A command keyword, such as SEND, RECEIVE, HELP, etc, may be
abbreviated, so
long as you have typed enough letters to distinguish it from other
keywords
that are valid in that position. For instance, you can type CLE for
CLEAR and
CLO for CLOSE. Several common commands also have special non-unique
abbreviations, like C for CONNECT, S for SEND, and R for RECEIVE.
5.6. Kermit-MS Commands
Page 60
-----------------------------------------------------------------------------During interactive operation, you may edit the command you're currently
typing
using BACKSPACE to erase the character most recently typed, Ctrl-W to
delete
the most recent field, or Ctrl-U to delete the entire command.
The
editing
characters may be used in any combination until the command is finally
entered
by typing RETURN (Carriage Return, Enter) or Ctrl-L.
You may use the help ("?") and keyword completion (ESC) features freely
while
typing Kermit-MS commands. A question mark typed at almost any point in
a command produces a brief description, or "menu", of what is expected or
possible
at that point. ESC typed at any point, except in a local filename, will
cause
the current field to be filled out if what you have typed so far is
sufficient
to identify it, and will leave you in position to type the next field
(or to
type a "?" to find out what the next field is); otherwise, the program
will
beep at you and wait for you to type more characters.
Kermit-MS recognizes only 7-bit ASCII characters when examining a
Kermit command line. The SET KEY and SHOW KEY commands can prompt for keyboard
input and
understand 8-bit characters but only at their interactive prompt. The
SET KEY,
INPUT, and OUTPUT commands accept "backslash number format" on the main
Kermit
command line. Thus, national characters which are full 8-bit codes can
be expressed on command lines in backslash number form (\ddd), provided the
Kermit
command itself can understand the form. Presently, INPUT, OUTPUT,
ECHO, SET
KEY, SET PROMPT, and DEFINE commands understand this notation.
To
enter
characters in backslash number format, type a backslash ("\")
followed by a
number corresponding to the ASCII code for the character:
\123
a decimal number (decimal is the default number base)
\d249
a decimal number (also \D)
\o177
an octal (base 8) number (also \O)
\x0d
a hexadecimal (base 16) number (also \X)
Table 5-1 shows all of the 7-bit ASCII codes in decimal. Most Kermit
commands
understand backslash-ASCII codes, both imbedded within character
strings, and
alone, as when a single character or number is to be specified.
Some Kermit-MS commands like GET, SHOW KEY, and SET KEY, may prompt
for additional information on subsequent lines. If you have reached one of
these
prompts and then wish to cancel the command, you may type Control-C to
get back
to the main Kermit-MS> prompt.
Summary of Kermit-MS command editing characters:
SPACE
TAB
Ctrl-I for
Separates fields within the command.
Same
as
Space,
and echoes as Space.
You may also use
Tab.
BACKSPACE
Deletes the character most recently typed. May be typed
repeatedly
to delete all the way back to the prompt. You may also use
DELETE,
RUBOUT, Ctrl-H, or equivalent keys.
5.6. Kermit-MS Commands
Page 61
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Dec Name Ctrl
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
22
24
25
26
27
28
29
30
31
NUL
SOH
STX
ETX
EOT
ENQ
ACK
BEL
BS
HT
LF
VT
FF
CR
SO
SI
DLE
DC1
DC2
DC3
DC4
NAK
ETB
SYN
CAN
EM
SUB
ESC
FS
GS
RS
US
^@
^A
^B
^C
^D
^E
^F
^G
^H
^I
^J
^K
^L
^M
^N
^O
^P
^Q
^R
^S
^T
^U
^W
^V
^X
^Y
^Z
^[
^\
^]
^^
^_
Dec Char
|
|
|
|
|
|
|
beep
|
backspace |
tab
|
linefeed |
|
formfeed |
return
|
shift out |
shift in |
|
XON
|
|
XOFF
|
|
|
|
|
|
|
|
escape
|
|
|
|
|
Table 5-1:
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
SP
!
"
#
$
%
&
'
(
)
*
+
,
.
/
0
1
2
3
4
5
6
7
8
9
:
;
<
=
>
?
Dec Char
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
@
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
[
\
]
^
_
Dec Char
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
`
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
{
|
}
~
RUBOUT,DELETE
The US ASCII Character Set (ANSI X3.4-1977)
-----------------------------------------------------------------------------Ctrl-W
line. May
Deletes the most recent "word", or field, on the command
be typed repeatedly.
Ctrl-U
Ctrl-C
prompt.
Deletes the entire command line, back to the prompt.
Cancels the current command and returns to the "Kermit-MS>"
Also, terminates execution of a TAKE command file.
ESC
keyword to
If
enough
characters have been supplied in the current
identify it uniquely the remainder of the field is supplied
and the
cursor
is positioned to the next field of the command.
Otherwise,
completion
a beep is sounded.
in
version 2.30.
ESC does not
provide
filename
5.6. Kermit-MS Commands
Page 62
-----------------------------------------------------------------------------?
Displays a brief message describing what may be typed in
the current command field. Also, wildcard character for
matching any
single character in all but the first position of a filename.
#
filenames.
Wildcard
character
for
matching
Equivalent to MS-DOS "?", but used
of
single characters in
in
the
first
position
a
filename only, so that "?" may be used to get help at the
beginning
of a filename field.
RETURN
ENTER or
Enters the command.
On most keyboards, you may also use
Ctrl-M.
Ctrl-L
Clears the screen and enters the command.
Liberal use of "?" allows you to feel your way through the commands and
their
fields. This feature is sometimes called "menu on demand" or "context
sensitive help" -- unlike systems that force you to negotiate menus at every
turn,
menu-on-demand provides help only when it is needed.
Command parsing is done through DOS calls. Kermit key redefinition
does not
apply at MS-Kermit command level.
But ANSI.SYS or other external
console
drivers can be used for this purpose, for instance to assign ESC to the
PC's
backquote key (ANSI.SYS is the IBM-supplied extended screen and keyboard
device
driver, described in the IBM DOS Technical Reference Manual).
Other
console
drivers available include ProKey, SuperKey, NANSI.SYS (a public-domain
replacement for ANSI.SYS), and FANSICONSOLE.
The notation used in command descriptions is as follows: Optional fields
are in
[square brackets], lists of alternatives are in {curly braces},
separated by
commas. Parameters, such as numbers or filenames, are shown in
italics
(providing the printer is capable of printing italics), and in dialog
examples
user typein is underlined (on printers that can show it) to distinguish
it from
computer typeout.
The following sections describe MS-Kermit's commands. Command
descriptions may
contain references to other commands that haven't been explained
You
might find that this manual makes more sense on a second reading.
yet.
5.6.1. Program Management Commands
"Program management" is a rubric for Kermit-MS commands like TAKE, EXIT,
HELP,
COMMENT, ECHO, and VERSION, that don't fall into any other category.
HELP simply displays a short help message (the same one, in
that you
would see if you typed a question mark in the same place).
fact,
VERSION displays the MS-Kermit program version number, which you should
know in
case you are reporting bugs or seeking technical assistance.
Other program management commands require a bit more explanation.
5.6.1. Program Management Commands
Page 63
-----------------------------------------------------------------------------The EXIT Command
Syntax: EXIT
or
QUIT
EXIT and QUIT are synonyms for each other. They cause MS-Kermit to
return control to DOS or whatever program invoked MS-Kermit. The specific actions
taken
are:
-
Close any open log or other files.
Close any open network connection.
Release all memory claimed by the program.
Disable interrupts for the currently selected communication device.
Terminate execution.
The serial port RS-232 signals are left alone upon EXIT, so that modem
connections are not broken. Kermit-MS may be restarted with the connection
intact.
Use HANGUP to explicitly break a modem connection.
The STAY Command
Syntax: STAY
The STAY command, if included among command line arguments, instructs MSKermit
not to exit upon completion but rather to enter interactive mode,
unless EXIT
or QUIT was among the command arguments. STAY has no effect when
entered interactively or from a TAKE file.
The PUSH Command
Syntax: PUSH
PUSH is similar to EXIT, except it leaves MS-Kermit intact by
invoking an
MS-DOS command processor "under" Kermit-MS, either COMMAND.COM or
whatever
shell you have specified with COMSPEC (or SHELL, depending on the
system) in
your CONFIG.SYS file. You can return to Kermit-MS by typing the MS-DOS
EXIT
command, and you will find Kermit-MS as you left it, with all settings
intact.
The same function is invoked by the CONNECT escape-level command P.
Example:
Kermit-MS>push
Command v3.10
Push to DOS.
COMMAND.COM program herald.
C>diskcopy a: b:
Run a DOS program.
DISKCOPY dialog here...
C>dir b:
More DOS commands...
DOS session continues...
C>exit
Kermit-MS>
When done, type DOS EXIT command.
Back at Kermit.
5.6.1. Program Management Commands
Page 64
-----------------------------------------------------------------------------The TAKE Command
Syntax: TAKE filespec
The TAKE command gives you way a to collect MS-Kermit commands into a
single
file, so that you can execute many commands by typing a single (TAKE)
command.
TAKE instructs MS-Kermit to execute commands from the file that you
specify.
The current directory is searched for the file first, and then any
directories
listed in the PATH environment variable. The command file may
include any
valid Kermit-MS commands, including TAKE, but it cannot include
characters to
be sent to a remote host after a CONNECT command (use scripts for
that,
described below).
Execution of a TAKE file may be cancelled by
typing
Control-C at the keyboard.
An implicit TAKE command is executed upon the initialization file,
MSKERMIT.INI
(or another file specified in the "-f" command-line argument),
whenever you
start MS-Kermit. The MSKERMIT.INI file contains any commands you want
to be
executed each time you run Kermit. A sample is shown above, and a
more ambitious example is shown in section 5.8.
Commands within TAKE files, unlike interactive commands, may include
trailing
comments, preceded by semicolons (if a real semicolon is needed in a
command,
express it as "\;" and it will not be mistaken for the start of a
comment).
set port 2
set speed 1200
connect
hangup
;
;
;
;
Select the modem port.
Set the baud rate for the modem.
Conduct a terminal session.
Hang up the phone after escaping back.
Note the HANGUP command after CONNECT. The HANGUP command is not
executed until after you escape back from your CONNECT session. If this file were
called
MODEM.CMD, the following TAKE command would execute it:
Kermit-MS>take modem.cmd
This directs MS-Kermit to find the MODEM.CMD file, open it, execute the
commands in it, close it, and return to the MS-Kermit> prompt when done.
This
process can take a while on floppy-disk based systems.
Commands from the TAKE file will normally not be displayed on your
screen
during execution.
If you want to see them as they are executing, you
can SET
TAKE-ECHO ON (for instance, at the beginning or end of your MSKERMIT.INI
file).
With the echoing ON, comments are also displayed for reference, but the
semicolon is not shown.
TAKE files may be nested to any reasonable level. A command file that
was invoked by another command file returns to its invoking command file,
rather than
to the MS-Kermit> prompt.
There is currently no parameter substitution mechanism for TAKE files.
Warnings:
- An explicit query mark ("?") in a TAKE file will cause a help
message
to be displayed and the rest of the line will be read as another
command.
5.6.1. Program Management Commands
Page 65
------------------------------------------------------------------------------ Since TAKE file processing discards all characters from a line
beginning with the first semicolon, it is normally not possible to
include
semicolons as part of the commands themselves, e.g.
get dska:foo.bar;6
To get around this restriction, you may precede such semicolons
with
a backslash:
get dska:foo.bar\;6
The -F Command
Syntax: -F filespec
The "-f" command is effective only on the DOS command line. It
instructs
MS-Kermit to use the specified file as its initialization file, rather
than
MSKERMIT.INI.
Unlike other command-line arguments, "-f" does not, of
itself,
cause MS-Kermit to exit upon completion. Example:
C>kermit -f sunday.ini
Kermit-MS>
The -F command line option allows different MS-Kermit initialization
files to
coexist. You can create batch commands to invoke Kermit in different
ways, for
instance MONDAY.BAT might contain "kermit -f monday.ini", TUESDAY.BAT
"kermit
-f tuesday.ini", etc.
The ECHO Command
Syntax: ECHO [string]
The ECHO command writes the string to the screen, without adding a
carriage
return or line feed. ECHO may be used to report progress during
execution of a
TAKE command file, or to issue prompts during the execution of a script.
ECHO Part one completed...\13\10
The numbers at the end are "backslash codes" for ASCII control
characters, in
this case carriage return (\13) and linefeed (\10). Since the ECHO
command interprets
backslash codes, ANSI.SYS and similar console drivers
can be
programmed through this command by embedding ANSI escape sequences (see
section
5.15.3) in the echo string.
The COMMENT Command
Syntax: COMMENT text
The COMMENT command lets you add comments to a TAKE command file.
The word
COMMENT (or any unique prefix thereof) must appear as the first word
on the
line. The COMMENT command may also be entered interactively. It has no
effect
at all. Comments may also be entered in TAKE files, but not on
interactive
command lines, by using the semicolon (";") character. Unlike the
COMMENT com-
5.6.1. Program Management Commands
Page 66
-----------------------------------------------------------------------------mand, semicolon comments may appear on the same line as a Kermit command.
Example:
COMMENT - MS-Kermit command file to connect port 2 to an IBM mainframe
set port 2
set speed 4800
; Baud rate is 4800
do ibm
; Set parameters for IBM linemode
connect
; Be a terminal
Question marks should not be included in comments, as they will invoke
the help
function.
The DEFINE Command
Syntax: DEFINE macro-name [command [, command [, ...]]]
Command macros provide another way of collecting many commands into a
single
command.
The difference between a macro and a TAKE file is that Kermit
keeps
all its macro definitions in memory, and can execute them as many times
as you
like, without having to look them up on disk, whereas every time you
issue a
TAKE command, Kermit has to access a disk. But... you can have as many
TAKE
command files as you like, and they can be as long as you want,
whereas
MS-Kermit's memory for storing macro definitions is limited. You can put
macro
definitions and DO commands for them in TAKE files (or for that matter,
you can
put TAKE commands in macro definitions).
Kermit-MS command macros are constructed with
Any
Kermit-MS commands may be included. Example:
the
DEFINE
command.
define telenet set parity mark, set baud 1200, connect
A macro can be undefined by typing an empty DEFINE command for it, like
define telenet
A macro definition
definitions
may be no longer than 128 characters.
Longer
can be accomplished by "chaining."
define
define
define
define
Example:
setup set port 1, set speed 19200, set par even, do setup2
setup2 set flo no, set handsh xon, set local on, do setup3
setup3 set timer on, set terminal color 1 31 45, do setup4
setup4 set warning on, set incomplete keep, connect
DO SETUP will invoke all of these commands. The commas above stand
for the
carriage returns needed by individual commands.
Commas must be
used to
separate commands in macro definitions; carriage returns (\13) cannot be
used.
When control or other special characters are needed in a macro they may
be expressed in backslash number form, \nnn.
The SHOW MACROS command displays the value of all currently defined
macros, and
tells how much space is left for further definitions.
5.6.1. Program Management Commands
Page 67
-----------------------------------------------------------------------------The DO Command
Syntax: DO macro-name
A Kermit-MS command macro is invoked using the DO command. For
instance,
Kermit-MS comes with a predefined macro to allow convenient setup
for IBM
mainframe line-mode communications; to invoke it, you would type DO
IBM. The
IBM macro is defined as "set timer on, set local-echo on, set parity
mark,
handshake xon, set flow none". You can use the DEFINE command to
redefine this
macro or remove the definition altogether.
There is no automatic way to undo the effect of a macro. If you need
to accomplish this effect, you should define another macro for that
purpose. For
instance, to undo the effect of "do ibm" so that you could connect to,
say, a
DEC VAX, you could:
def vax set par none,set hand none,set flo x,set tim off,set loc off
Then you can "do ibm" whenever you want to use the IBM system, and
"do vax"
whenever you want to use the VAX.
If you wish to view the macro expansion whenever you issue a
command, you
can SET TAKE-ECHO ON.
DO
Local File Management Commands
These commands are executed on your local PC, and generally invoke
DOS services. This allows you to perform common DOS functions without leaving
Kermit.
All file specifications may include device and/or directory fields. The
local
file management commands are:
CWD path
Changes
All
the
current
working
directory
to
the
given
path.
references to local file names without explicit paths will
to
that path. A drive letter may be included to also change disk
drives.
This command affects Kermit and any inferior programs that you
RUN or
PUSH to, but your previous disk and directory are restored
when you
exit from Kermit.
refer
DELETE filespec
Deletes the specified file or files.
As in DOS, the names
of the
deleted files are not listed, only the message "file(s)
deleted" or
"file(s) not found", and if you give the command "delete
*.*",
Kermit-MS will prompt "Are you sure?" since DOS is doing the
work.
DIRECTORY [filespec]
Lists the names, sizes, and creation dates of files that
match the
given file specification. If no filespec is given, the
command is
equivalent to DIR *.*. Normal DOS switches are effective.
SPACE
Performs the MS-DOS CHKDSK function by running the CHKDSK
program from
the current path. CHKDSK summarizes your disk and memory usage.
5.6.1. Program Management Commands
Page 68
-----------------------------------------------------------------------------RUN command
Passes the command line to COMMAND.COM for execution. Any
legal DOS
operation is permitted: running a program (perhaps with command
line
arguments or i/o redirection), executing a DOS command, or
executing a
batch file. The COMMAND.COM file should be in the current path.
Kermit is suspended while the command is executed and
automatically
resumes afterward. You may even nest RUN KERMIT commands several
times
if memory is available.
The command will be executed
directly by
COMMAND.COM so follow the rules of DOS. Example:
Kermit-MS>run more < kim.txt
TYPE filespec
Displays the specified local file on the screen. Automatic
pause is
not available at the end of a page (but see above example for
how to
accomplish this). On most systems, Ctrl-S can be typed to stop
scrolling and Ctrl-Q to continue scrolling.
5.6.1. Program Management Commands
Page 69
-----------------------------------------------------------------------------5.6.2. COMMANDS FOR TERMINAL CONNECTION
The CONNECT command connects your PC as a terminal to the remote system
so that
you may conduct a session there, and the HANGUP command may be used to
disconnect your modem (if you have one) from the remote system. There is
presently
no DIAL command; modems may be dialed "manually" during CONNECT or by
using
scripts. Scripts are described in detail in subsequent sections.
For completeness, the descriptions below contain copious reference to
the SET
commands, which let you modify all sorts of terminal and
communication
parameters (the SET commands are described in a later section).
MSKermit is
initially set up with the following parameters, so that you only need to
issue
SET commands for those that need to be changed:
PORT
family)
TERMINAL
and DEC
SPEED
PARITY
FLOW-CONTROL
HANDSHAKE
LOCAL-ECHO
DISPLAY
INPUT TRANSLATION
ESCAPE
(*) The VT102 terminal
few additional functions.
1 (in most cases, e.g. COM1 on the IBM PC
VT102(*) emulation (on the IBM PC
family
Rainbow)
Whatever the serial card is currently set to.
None
XON/XOFF
None
Off
7-bit characters
Off
Control-Rightbracket
is compatible with the VT100, but includes a
The CONNECT Command
Syntax: CONNECT -or- C
The CONNECT command establishes an interactive terminal connection
to the
remote system using the currently selected communications port (SET
PORT COM1
or COM2) with all settings currently in effect for
emulating the
currently selected type of terminal.
that
port,
During CONNECT, the characters you type are sent out the communication
port,
and the characters that arrive at the port are displayed on the screen
or interpreted by the selected terminal emulator.
If you SET LOCALECHO ON,
MS-Kermit will also display the characters you type on the screen.
Before you issue the CONNECT command, be sure to set the correct
communication
speed (SET SPEED) and any other necessary communication parameters
(e.g. SET
PARITY, SET LOCAL-ECHO). If you have SET DEBUG ON, then (on certain
systems,
particularly the IBM PC), terminal emulation will be disabled and
received control characters will be displayed in special notation.
By default, 7-bit ASCII characters are displayed on the screen.
If
you SET
DISPLAY 8, then 8-bit characters will be used (useful for "national"
character
sets). Character translation will be done according to any SET
TRANSLATION INPUT and SET KEY commands you have issued. In addition, characters
that are
sent to the screen will also be recorded in a disk file or on a printer
if you
have issued a LOG SESSION command.
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 70
-----------------------------------------------------------------------------To get back to the PC, type the escape character followed by the letter
C (for
"Close connection"). On most MS-DOS systems the escape character is
Ctrl-]
(Control-Rightbracket).
That means, hold down the Ctrl key, press
"]", and
then type the letter C.
Kermit-MS>connect
Connect to remote system.
Conduct terminal session here...
^]c
Kermit-MS>
Escape back to PC.
Prompt reappears.
This is called "escaping back". You can use the SET ESCAPE command to
change
the escape character to something besides "^]", or you can assign the
escapingback operation to a single key or key combination with SET KEY (on the
IBM PC
the default for this is Alt-X).
You can include the CONNECT command in a TAKE command file, but not
"bare" text
to be sent to the remote system during CONNECT (use scripts for that, see
Section 5.7).
When a TAKE file includes a CONNECT command, no further
commands
will be executed from the file until after you escape back.
When you CONNECT, the program attempts to raise the DTR and RTS RS-232
signals,
and it takes no specific action to lower them unless you explicitly
issue the
HANGUP command; thus you can EXIT from Kermit-MS and restart it without
dropping a dialup connection. While CONNECTed, you can communicate
directly with
an autodialer or "smart modem" to control the communications line, hang
it up,
and the like, for instance, by typing AT commands to a Hayes-like modem.
Kermit-MS>set speed 2400 (See Section 5.6.9)
Kermit-MS>connect
AT
Now you're talking to the modem.
OK
Your modem responds
ATDT8765432
Type the modem's dialing command.
RINGING
CONNECT 2400
Welcome to ...
Please login:
Now you're talking to the host computer.
MS-Kermit makes no attempt
or Data
Set Ready (DSR) signals, and
is not
possible to automatically
broken.
However, you may query the
using
Kermit's SHOW MODEM command.
to monitor the modem's Carrier Detect (CD)
will take no notice if they drop.
terminate
status
of
a
Thus it
session if the connection is
these
modem
signals
yourself
When using Kermit to connect two PCs "back to back," SET LOCAL-ECHO ON
so that
when you CONNECT to the other PC to send messages to its operator, you
can see
what you are typing. Depending on the system, you may have to type a
carriage
return and a linefeed (Control-J) at the end of each line in order to
make the
display look right.
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 71
-----------------------------------------------------------------------------The HANGUP Command
On serial port connections, the HANGUP command attempts to momentarily
lower
the modem signals DTR and RTS. It may be used to hang up the phone when
dialed
up through a modem, or to get the attention of port contention units
or terminal concentrators that operate in this manner.
On direct
connections, it
will probably have no effect. On local area network connections, the
network
session is fully terminated.
TERMINAL EMULATION
The IBM PC version of Kermit-MS emulates the DEC VT102 terminal by
default, and
may also be instructed to emulate the DEC VT52, the Heath/Zenith19, the
Tektronix 4010 graphics terminal, or no terminal at all, selectable
with the
SET TERMINAL command. Emulation of each of these terminals is nearly
complete.
VT102 emulation lacks only smooth scroll and 132 column mode (some EGA
boards
allow it). Double-height, double-width characters are supported, but
simulated
using ordinary characters.
The IBM PC's 40-column (large character) screen mode may be used during
CONNECT
if you SET TERMINAL NONE (but you may also have to inform the remote
host that
your screen width is 40). This can provide improved readability to
visually
impaired persons, but at the expense of terminal emulation. To use 40column
mode, enter the DOS command "MODE 40" (or CO40 or BW40).
On color monitors, the foreground and background colors may be set
using SET
TERMINAL COLOR, and inverse/normal video display may also be selected,
along
with many other terminal parameters. A complete list of the commands,
default
key configurations, and escape sequences accepted by the IBM PC Kermit
terminal
emulator is given in section 5.15.1.
Non-IBM-compatible
different
terminal emulation options. See section 5.9.
PCs
have
Escape-Level Commands
The escape character, normally Control-], is used to regain the
attention of
Kermit-MS during CONNECT (you can change the escape character
using SET
ESCAPE). When you type the escape character, Kermit-MS waits for you to
follow
it with a single character command. For instance, the single character
command
"?" produces a list of available single character commands. This
command is
executed immediately; it may not be edited, and the program does not wait
for a
carriage return to confirm it. Table 5-2 shows CONNECT escape-level
commands
available in Kermit-MS. Typing any other character (except the space
bar,
which is the "null command") after the escape character will cause
Kermit-MS to
beep, but will do no harm. These actions are also Kermit action verbs
and can
be assigned to single keys. See SET KEY for details.
The Mode Line
When you first issue the CONNECT command, a message (on some systems,
an inverse video "mode line") will display the most important facts about the
connection you've just established, so that you can quickly diagnose any
problems.
Here's what the IBM PC mode line looks like:
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 72
-----------------------------------------------------------------------------------------------------------------------------------------------------------
?
0
B
L
C
H
F
M
P
Q
R
S
^]
Help -- Lists the available single-character commands.
(the digit zero) Transmit a NUL (ASCII 0).
Transmit a BREAK signal.
Transmit a Long BREAK signal (on some systems).
Close the connection and return to Kermit-MS prompt level.
Hangup the phone by lowering DTR and CTS momentarily.
File the current screen in the screen dump file.
Toggle the mode line, i.e. turn it off if it is on or vice versa.
Push to DOS; get back to CONNECT by typing EXIT.
Temporarily quit logging the remote session.
Resume logging the remote session.
Show the status of the connection.
(or whatever you have set the escape character to be)
Typing the escape character twice sends one copy of it to the
connected
host.
Table 5-2:
Kermit-MS Single-Character CONNECT Escape Commands
-----------------------------------------------------------------------------Esc-chr:^] help:^]? port:1 speed:9600 parity:odd echo:rem VT102 .... PRN
This shows that the escape character is Ctrl-Rightbracket, that you would
type
Ctrl-rightbracket followed by question mark ("^]?") to get help during
CONNECT,
that you are connected on port 1 at 9600 baud with odd parity and remote
echo,
and that a VT102 terminal is being emulated. The four dots
represent the
VT102s LEDs (they turn into the digits 1,2,3,4 when "lit") and PRN will
show up
if the printer is activated (e.g. by Ctrl-PrintScreen).
The mode line may be turned on and off using SET MODE, or the CONNECT
escape
character followed by the letter M.
Screen Rollback
On the IBM PC and some other systems (see Table 5-5), Kermit-MS
provides
several pages of screen memory which let you recall earlier terminal
screens.
These may be scrolled up and down using keys as shown in Table 5-6.
For instance, the IBM PC uses PgUp (previous screen), PgDn (next screen),
Ctrl-PgUp
and Ctrl-PgDn (one line at a time). Only lines that scroll off the top
of the
screen are saved.
When an application clears the screen, that screen
is not
saved. These functions and others may be assigned to different keys
with the
SET KEY command.
If you have rolled the screen back and a new character must be
displayed, it
will normally appear at the current cursor position on the old screen.
This is
useful when you are trying to copy something from a previous screen.
If you
wish new characters to appear in their proper place on the "newest"
screen, you
can SET TERMINAL ROLL ON.
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 73
-----------------------------------------------------------------------------Screen Dump
The screen dump feature writes the contents of the current screen to
a file
(KERMIT.SCN unless another file was selected by the SET DUMP command)
when the
CONNECT escape-level command F is typed. The screen dump file is
appended to
on each successive screen dump, with each screen separated by a
formfeed
(Ctrl-L).
This feature may be used in conjunction with screen
rollback -- a
handy way to recapture screenfuls of laboriously typed-in text after a
remote
host has crashed without saving your work. The corresponding action
verb is
"dump". Screen dump does not function when in Tektronix graphics mode;
instead
one of many graphics screen capture programs may be used independently
commonly
via the DOS Shift PrtSc key combination or by LOGging the incoming byte
stream.
A screen dump differs from a session log in two ways.
First, each
desired
screen must be manually filed, and second, the screen dump file
has been
stripped of any escape sequences, whereas the session log records them
(see LOG
SESSION).
Printer Control
During terminal emulation, a locally attached printer may be controlled
in the
normal manner, on most systems. Pushing the "Print Screen" key
(shifted on
some systems) will cause the current contents of the screen to be
printed by
DOS; holding down Ctrl while depressing Print Screen will alternately
start and
stop the spooling of incoming characters to the printer. On the IBM
PC, the
mode line will show PRN when the printer is activated in this manner. ^P
or ^N
are sent to the host during terminal emulation and do not toggle
printing as
they do when you're talking directly to DOS. CTRL-Print-Screen can be
simulated with the Kermit-MS LOG PRN and CLOSE commands. VT102 (ANSI)
style
host-controlled transparent printing is also supported on the IBM PC.
See section 5.16.6 for technical information about MS-Kermit's printer control.
Graphics
MS-Kermit on the IBM PC, compatibles, and several other systems, is
capable of
emulating a Tektronix 4010 graphics terminal, for use with host-based
software
that can generate Tektronix control codes. When you enter Tektronix
emulation,
your cursor will disappear. Don't be alarmed, this is how Tektronix
terminals
behave.
The Tektronix emulator implements a mixture of Tek 4010 and 4014
features to
draw characters, lines, and dots in graphics mode. These Tektronix
terminals
have a graphics display 780 dots high by 1024 dots wide. They use
storage tube
technology whereby a dot stays illuminated until the full screen is
erased.
They also lack cursor keys. Kermit's Tek emulator maps the 1024 by
780 dot
display to the PC's current screen dimensions, say 640 across by 200
or 350
dots high, and retains limited use of the cursor keys. It automatically
senses
the active display adapter (EGA, CGA, Hercules, Mono, and
AT&T/Olivetti
640x400) and retains screen coloring (EGA) and the current graphics
image (EGA
and Hercules) if the adapter has sufficient memory. Pure monochrome
systems,
of course, lack a graphics capability; in this case Kermit
approximates the
graphic image by writing dots as plus signs.
Tektronix graphics mode is entered two different ways, automatically and
volun-
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 74
-----------------------------------------------------------------------------tarily:
1. Automatically (which you can prevent via the Kermit command
DISABLE
TEK). While emulating a VT102, VT52, or Heath-19, reception of
the
byte pair ESCAPE Control-L causes the PC to change to graphics
mode,
clear the screen, and obey new input as Tektronix commands.
A
second
automatic
entry is reception of the escape
sequence
"ESC [ ? 3 8 h" which does the same as above except the screen
is
not cleared.
Automatic mode is exited by either reception
of
Control-X or "ESC [ ? 3 8 l" (lower case L), or by toggling the
terminal type (ALT minus, Kermit verb\KTermtype) to VT102, or
something
other than TEK. (These "ESC [ ? 3 8 h/l" sequences derive from
the
DEC VT340 terminal.)
2. Voluntary mode is when terminal type TEK4010 is selected by the
Kermit command SET TERMINAL TEK4010 or by toggling to it as above.
It
is exited by SET TERMINAL another-kind or by toggling to
another
kind. ENABLE or DISABLE TEK and the exit-Tek-mode escape
sequences
are not applicable to voluntary mode.
Here are several common questions about Tek mode, and their answers:
1. "How do I escape from graphics mode back to being a
regular
terminal?" Within CONNECT mode, you can type the \KTermtype
key,
which is assigned by default to Alt-Minus. Repeated pressing
of
this key "toggles" among Kermit's terminal types, VT102,
VT52,
Heath-19, and Tektronix. You can also escape back to Kermit-MS
command level and issue an explicit SET TERMINAL command to change
the
terminal type.
2. "How can I return to the graphics screen without erasing it?"
The
graphics screen is preserved if your graphics adapter has
sufficient
memory (see Table 5-3). In this case, both your text and
graphics
screens will be preserved when you toggle back and forth between
a
character terminal (e.g. VT102) and Tektronix.
3. "How do I erase the graphics screen?" You can type the \KReset
key,
which is normally assigned to Alt-=. The screen also clears if
the
host sends a Control-L or ESC Control-L.
While acting as a Tek terminal Kermit uses the keyboard translation
appropriate
to the VT102 terminal. However, received escape sequences are
interpreted by
the Tek emulator and VT102 escape codes are inoperative. The Tek
emulator absorbs the ESCAPE and following character and treats any additional
unknown
items as ordinary text.
The emulator can display text characters from a built-in 8-by-8 dot
font for
characters Space through DELete (no control codes nor special
characters).
A
backspace operation erases the character under the final cursor
location (an
extension beyond a real Tektronix 4010). Tabs are converted to single
spaces.
Only the low 7 bits of the character are used.
While in Tek mode the emulator behaves as a simple TTY device for
ordinary text
and as a line or dot drawing Tektronix device for commands listed in
Table 5-8.
The screen resolution is governed by the kind of active display
adapter and
monitor in the PC (Table 5-3). Kermit senses this automatically when
graphics
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 75
-----------------------------------------------------------------------------mode is entered. Graphics are saved on page 1 of screen memory.
Coloring is
determined by the current terminal status, either the default screen or
that
overridden by the command SET TERMINAL COLOR.
------------------------------------------------------------------------------
Display Adapter
EGA w/256KB
Hi res color
Med res color
Monochrome
EGA w/64KB
Hi res color
Display
16 dec
14
15
16
Mode
640x350, graphics
640x200, graphics
640x350, graphics
640x350, graphics
4 colors of red,
14
15
6
none
7
72
640x200,
640x350,
640x200,
720x348,
80 by 25
640x400,
saved, 16 colors.
saved, 8 colors.
saved, b/w.
not saved,
white, blue,
black.
CGA
Hercules
Monochrome
AT&T/Olivetti
Table 5-3:
Emulation
Med res color
Monochrome
Color
Monochrome
Monochrome
any
graphics saved, 8 colors.
graphics not saved.
graphics not saved, b/w.
graphics saved if memory.
text, graphics not saved.
grahics not saved, b/w.
Adapters Supported by IBM PC MS-Kermit for Tektronix
-----------------------------------------------------------------------------The technical details of Tektronix emulation are presented in section
5.15.7.
5.6.2. COMMANDS FOR TERMINAL CONNECTION
Page 76
-----------------------------------------------------------------------------5.6.3. COMMANDS FOR FILE TRANSFER
MS-Kermit's SEND, GET, and RECEIVE invoke the Kermit file transfer
protocol for
error-checked transmission of files between MS-Kermit and another
Kermit
program on the other end of the connection. There are also commands for
"raw"
transfer of files (no error checking) with systems that don't have
Kermit
programs: LOG SESSION (for capturing text files on your PC) and
TRANSMIT (for
uploading text files to the remote system).
During file transfer, MS-Kermit normally displays its progress on the
screen as
shown in Figure 5-1. The items in the right-hand column are updated
more or
less at random. In the current version, the percent done is filled in
only
when sending files, not when receiving. Several other display options
are also
available; see SET DISPLAY.
------------------------------------------------------------------------------
Kermit-MS: V2.30
8 Jan 88
File name: FOT.
KBytes transferred: 7
Percent transferred: 52%
Sending: In progress
Number of packets:
Packet length:
Number of retries:
Last error:
Last warning:
74
93
2
None
None
Figure 5-1:
MS-Kermit File Transfer Display Screen
-----------------------------------------------------------------------------Although MS-Kermit makes no distinction between text
most
and
binary
files,
other Kermit programs do.
Therefore, before you attempt to transfer
binary
files with another type of system (say, a VAX, or an IBM mainframe), be
sure to
give the appropriate command -- usually something like SET FILE TYPE
BINARY -to the Kermit on the remote end.
File transfers involving floppy disks will be slow and noisy. Hard
disks are
much faster (and quieter), and RAM disks faster still (and totally
silent).
But if you store files on a RAM disk, be sure to move them to a real
disk before turning off your PC. And before attempting to transfer files to
the PC,
make sure you have enough room on the selected device. Kermit does not
provide
a way for you to change disks during a file transfer.
The SEND Command
Syntax:
SEND filespec1 [filespec2]
The SEND command causes a file or file group to be sent from the local
MS-DOS
system to the Kermit on the remote system. The remote Kermit may be
running in
5.6.3. COMMANDS FOR FILE TRANSFER
Page 77
-----------------------------------------------------------------------------either server or interactive mode; in the latter case, you should
already have
given it a RECEIVE command and escaped back to your PC.
S is a
special
non-unique abbreviation for SEND.
filespec1 may contain the
wildcard characters "*" to match zero
or more
characters within a field, and/or "#" (first position) or "?"
(elsewhere) to
match any single character. If filespec1 contains wildcard characters
then all
matching files will be sent, in the same order that MS-DOS would show
them in a
directory listing.
If filespec1 specifies a single file, you may
direct
Kermit-MS to send that file with a different name, given in filespec2.
For instance, in the command
Kermit-MS>send foo.bar framus.widget
filespec2 begins with the first nonblank character after filespec1
and ends
with the carriage return; thus it may contain blanks or other unusual
characters that may be appropriate on the target machine. The alphabetic
case of
text in filespec2 is preserved in transmission, so if case matters on the
target system, be sure to type filespec2 appropriately.
If the SEND command is specified by itself on the command line, then
you will
be prompted separately for the name of the file to send, and the name to
send
it under:
Kermit-MS>send
Local Source File: c:\chris\xcom1.txt
Remote Destination File: com1.txt
If a file can't be opened for read access, standard MS-DOS recovery
procedures
will take place. For example:
Not ready error reading drive A
Abort, Retry, Ignore?
Kermit remains active even if you select "Abort" (DOS's word, not ours).
Files will be sent with their MS-DOS filename and filetype (for
instance
FOO.TXT, no device or pathname). Special characters in the file name
are not
converted. If there is no filetype, then only the name will be sent,
without
the terminating dot. Each file is sent as is, with no conversions done
on the
data, except for possibly stopping at a terminating Control-Z character
(see
the SET EOF command).
Once you give Kermit-MS the SEND command, the name of each file will
be displayed on your screen as the transfer begins. Packet, retry, and other
counts
will be displayed along with informational messages during the transfer,
in the
style specified by SET DISPLAY. If the file is successfully
transferred, you
will see "Complete", otherwise there will be an error message.
When the
specified operation is done, the program will sound a beep.
Several single-character commands may be given while
is in
progress:
^X (Control-X)
one, if
any.
Stop
a
file
transfer
sending the current file and go on to the next
5.6.3. COMMANDS FOR FILE TRANSFER
Page 78
-----------------------------------------------------------------------------^Z Stop sending this file, and don't send any further files.
^C Return to Kermit-MS command level immediately without sending any
kind of
notification to the remote system. (^Z or even ^E is preferable.)
^E Like ^C, but send an Error packet to the remote Kermit in an
attempt to
bring it back to server or interactive command level.
CR
one.
Simulate a timeout: resend the current packet, or NAK the expected
Control-X, Control-Z, and Control-E send the proper protocol messages
to the
remote Kermit to bring it gracefully to the desired state. Control-C
leaves
the remote Kermit in whatever state it happens to be in, possibly
retransmitting its last packet over and over, up to its retry limit. You
should only
have to use Control-C in dire emergencies (the remote Kermit is
stuck, the
remote system crashed, etc), or at those times when you realize that
you have
given a file transfer command to Kermit-MS without first having told the
remote
Kermit about it.
The RECEIVE Command
Syntax: RECEIVE [filespec]
The RECEIVE command tells Kermit-MS to receive a file or file group
from the
other system. The file is stored under the name it was transmitted
with, except that any illegal characters are translated to X's. Kermit-MS
passively
waits for the file to arrive; this command is not to be used when talking
to a
Kermit server (use GET for that). You should already have issued a
SEND command to the remote Kermit and escaped back to Kermit-MS before
issuing the
RECEIVE command. R is a special non-unique abbreviation for RECEIVE.
If the optional filespec is provided, incoming files will be stored
under that
name. If the filespec is really just a path then files are stored
where the
path indicates. If it is an actual filename the first incoming file is
renamed
and any additional files either overwrite the first (if FILE WARNING is
OFF) or
are renamed slightly from the filespec (digits are added to the end of
the main
filename part before the dot and extension) if FILE WARNING is ON
(the
default). The filespec may include any combination of the following
fields:
Device designator
Store the file on the designated device, in the current
directory for
that device.
If no device designator is given, store it on the
current
default device.
Directory path
Store the file in the designated directory.
store the
file in the current directory.
If no path given,
File name
Store the file under the name given. If no name is given, store it
under
the name it was sent under, converted, if necessary, to suit DOS
conventions, and modified, if SET WARNING ON, to avoid overwriting any
file of
the same name in the same directory.
If an incoming file does not arrive in its entirety,
normally
Kermit-MS
will
5.6.3. COMMANDS FOR FILE TRANSFER
Page 79
-----------------------------------------------------------------------------discard it and it will not appear in your directory. You may change
this behavior by using the command SET INCOMPLETE KEEP, which will cause as
much of
the file as arrived to be saved on the disk.
The same single-character commands are available as during SEND:
^X Request that the remote Kermit stop sending the current file, and
proceed
to the next one immediately. Since this is an optional feature
of the
Kermit protocol, the remote Kermit might not honor the request.
^Z Request that the remote Kermit terminate the entire transfer;
this is
also an optional feature that may or may not be supported by the
remote
Kermit.
^C, ^E, and CR operate in the same way as they do during SEND.
case,
^E should always do what ^Z is supposed to do.
In this
If WARNING is OFF and you type ^X or ^Z to interrupt the transfer,
you'll either get a partial new file, or else both the old and the new file of
that name
will be lost, depending on SET INCOMPLETE. In any case, when WARNING
off,
files with the same name as incoming files will not survive.
is
Caution: If an incoming file's name (the part before the dot) corresponds
to an
MS-DOS device name, such as NUL, COM1, CON, AUX, or PRN, output will go
to that
device, rather than to a file with that name. This is a feature of MSDOS.
5.6.4. Hints for Transferring Large Files
During a prolonged file transfer session, things can go wrong that are
beyond
Kermit's control. The longer the session, the greater the probability it
will
be fatally interrupted. But you can take a few precautions:
- Make
sure
there
is sufficient disk space at the receiving end.
If
possible, first run a disk utility (such as CHKDSK on MS-DOS
systems)
to clean out any bad disk blocks.
- If you are using a telephone connection, make sure your session
won't
be interrupted by call waiting, people picking up other
extensions,
etc.
- Don't
attempt
to
transfer
a
single file of many megabytes over
a
telephone connection.
The longer the call, the greater the chance
of
disconnection
(carrier
loss).
Although it's a bother, it may
save
time in the long run to break the file up into smaller pieces,
transfer the pieces, and then recombine on the other end.
- SET INCOMPLETE KEEP on the receiving end, so that if the
transfer
fails, then the partial file will be retained. Then chop the
part
that wasn't transferred into a separate file, reconnect, and send
it.
Then join the pieces together.
Consider moving truly massive amounts of data on magnetic media. "Never
understimate the bandwidth of a station wagon full of magnetic tapes!"
5.6.5. Commands for Raw Uploading and Downloading
Page 80
-----------------------------------------------------------------------------5.6.5. Commands for Raw Uploading and Downloading
MS-Kermit can be used to send files to, or capture files from, remote
systems
that do not have Kermit programs available. No error checking or
correction is
done, so the results can very likely contain corrupted characters,
spurts of
noise, gaps, or extraneous system messages or prompts. The command for
uploading is TRANSMIT, and for downloading LOG SESSION.
To minimize loss of data during these operations, be sure to
SET the
FLOW-CONTROL and HANDSHAKE parameters to match the characteristics of the
system on the other end.
The TRANSMIT Command
Syntax: TRANSMIT filespec [prompt-character]
The TRANSMIT command provides a basic raw upload (export) facility
to send
straight ASCII text files to the host without packets, error
checking, or
retransmissions, but using all the currently selected communication
parameters
for flow control, parity, etc. Information is read from the disk file a
line
at a time, sent out the serial port, and the command waits for a single
character prompt (normally linefeed) from the host before sending the next file
line.
A disk file line ends with carriage-return-linefeed (CRLF), but only
the carriage return is sent, just as you only type carriage return at the end
of a
line, not CR and LF. Most remote systems will echo the CR and then also
supply
a LF, which indicates that they have processed the line and are
ready for
another one. Setting the prompt to binary zero, \0, makes the TRANSMIT
command
proceed without waiting for a prompt. Pressing the local Return key
simulates
arrival of a prompt character.
Typically, before using this command to upload a file, you would start
a text
editor (preferably a line-oriented, rather than full-screen, editor)
on the
remote host and put it into text insertion mode. When the file has
been completely transmitted, you would manually enter the required sequence for
getting
the editor out of text insertion mode, and then make any necessary
corrections
by hand. Here's an example for VAX/VMS:
Kermit-MS>set flow xon/xoff Set flow control to match VAX/VMS.
Kermit-MS>connect
Connect to VAX.
$ edt foo.txt
Start the EDT editor.
*i
Put it into "insert" mode.
^]c
Escape back to Kermit-MS.
Kermit-MS>transmit foo.txt Upload the file a line at a time.
...
The lines are displayed on your screen.
Kermit-MS>connect
When done, connect back to the VAX.
^Z
Type Ctrl-Z to exit EDT insert mode.
*exit
Exit from EDT to save the file.
$
If transmission appears to be stuck, you can wake it up by typing a
carriage
return on the keyboard.
You can cancel the TRANSMIT command by
typing a
Control-C. Control-Z's or other control characters in the file may
have adverse effects on the host. For this reason, you should use TRANSMIT
only for
files that contain 7-bit printing ASCII characters, spaces, tabs,
carriage
returns, linefeeds, and possibly formfeeds.
5.6.5. Commands for Raw Uploading and Downloading
Page 81
-----------------------------------------------------------------------------The LOG SESSION Command
Syntax: LOG SESSION [filespec]
The LOG SESSION command lets you copy the characters that appear on your
screen
during CONNECT into the specified file on the PC. You can use this
command to
download files by displaying (usually with a command like TYPE) the file
on the
remote system while logging is in effect. Example:
Kermit-MS>set flow xon/xoff Set flow control to match VAX/VMS.
Kermit-MS>connect
Connect to the VAX.
$ type foo.bar
Give this command, but don't type CR yet.
^]c
Escape back.
Kermit-MS>log sess foo.bar Start logging.
Kermit-MS>connect
Connect back.
Now type the carriage return.
This is the file FOO.BAR.
The file is displayed on your screen
Blah blah ...
and captured into PC file FOO.BAR.
$
The prompt is captured too.
^]c
When done, escape back
Kermit-MS>close
and close the log file.
The PC file FOO.BAR now contains a (possibly mutilated) copy of the
remote
computer's FOO.BAR file.
It probably has the remote system's prompt
at the
end, which you can edit out. The session log can also be used to
record
typescripts, editing sessions, Tektronix graphics output, or any other
output
from, or dialog with, the remote computer. The LOG and CLOSE
commands are
described further below, in section 5.6.8.
5.6.6. Kermit Server Commands
Kermit-MS can act as a Kermit server, and can also interact with other
Kermit
servers. Normally, the remote Kermit is put into server mode. Then the
local
Kermit becomes a "client", and may issue repeated commands to the server
without having to connect and escape back repeatedly. Servers can not only
trans-
fer files, but can also provide a variety of file management
functions. The
SERVER command puts MS-Kermit into server mode, and the DISABLE and
ENABLE commands modify the behavior of the server.
Kermit servers respond only to information sent as Kermit protocol
packets and
not to ordinary CONNECT-mode commands. When MS-Kermit is the client, it
uses
the SEND command (described above) to send files to a server, the GET
command
(not RECEIVE) to get files from a server, the REMOTE commands to
invoke the
file management functions of the server, and the BYE, FINISH, or
LOGOUT commands to shut down the server. The MS-Kermit server can also be
returned to
interactive mode by typing Ctrl-C or Ctrl-Break on the PC's console
keyboard.
The SERVER Command
Kermit-MS is capable of acting as a full-fledged Kermit server for users
coming
in through one of the communication ports or a local area network.
To put
Kermit-MS into server mode, first issue any desired SET commands to
select and
configure the desired port, then DISABLE any undesired functions, and
then type
the SERVER command.
Kermit-MS will await all further instructions
from the
5.6.6. Kermit Server Commands
Page 82
-----------------------------------------------------------------------------client Kermit on the other end of the connection, which may be
hardwired, or
connected through a network or autoanswer modem. In the following
example, a
Kermit server is set up for dialing in:
Kermit-MS>set port 1
Kermit-MS>set baud 1200
Kermit-MS>connect
ATS0=1
OK
^]c
Kermit-MS>set timer on
Kermit-MS>set warning on
Kermit-MS>disable all
Kermit-MS>server
Before putting Kermit in server mode in this case, it was necessary to
connect
to the modem (in this example, a Hayes) and put it into autoanswer
mode by
typing the ATS0=1 command.
MS-Kermit 2.30 server mode supports the following requests:
SEND
GET
FINISH
BYE
LOGO
REMOTE
REMOTE
REMOTE
REMOTE
REMOTE
CWD
DELETE
DIRECTORY
HELP
HOST
REMOTE
REMOTE
REMOTE
REMOTE
SEND
SPACE
TYPE
WHO
REMOTE CWD can be used to change both directories and devices. The
REMOTE SEND
command accepts a one line message on the command line which will be
displayed
on the operator's console. An MS-Kermit Server can DISABLE
recognition of
selected REMOTE commands to help reduce accidents.
CAUTION: The method used for most of the REMOTE commands is to invoke
a
task with the user's command line, redirect standard output to
a
temporary
file,
$KERMIT$.TMP, send that file back to the remote end,
and
then delete the file.
Sufficient space must be available to store
this
file.
a
To service DOS commands or user tasks the boot drive must hold
copy of COMMAND.COM.
PATH will not
be
searched
(this
can
be
disasterous on a floppy disk based system).
FURTHER
CAUTION:
Any
of these DOS tasks or programs may encounter
an
error, and in that case, DOS will generally put the familiar
"Abort,
Retry, Ignore?" message on the screen, and will wait for an answer
from
the keyboard. This will hang the server until a human comes to
the
keyboard and gives a response. The same thing will happen when
any
program is invoked that interacts with the real console. For
instance,
REMOTE SPACE works by running CHKDSK and if CHKDSK finds
something
wrong with the disk while tallying up the space, it will ask (at
the
console) if you want to it to be fixed. This, too, will hang the
server.
MORAL: The MS-DOS Kermit server should probably not be used for
REMOTE
commands unless someone is around to take care of it when it
gets
stuck.
For local network operation, the SET PORT NET command (with no node name)
must
5.6.6. Kermit Server Commands
Page 83
-----------------------------------------------------------------------------be issued before the SERVER command. MS-Kermit then becomes a
network-wide
server, and other client Kermits can start a network session with it by
using
the name of the Kermit Server, which is shown on the server's screen
when SET
PORT NET is given. The Kermit Server accepts connections from other
Kermits,
but only one at a time. There may be many Kermit Servers active on the
network
simultaneously because each has a unique node name. Operations are
exactly the
same as with serial port usage and the session (equivalent to a dialed
phone
connection) is maintained between the pair until too many timeouts
occur, or
the client Kermit issues a HANGUP command, exits to DOS, or SETs PORT
NET to
another node. In the latter cases, the server remains available for
use by
other client Kermits. If a client Kermit issues the BYE or FINISH
command, the
network server is shut down (unless it was started with FIN disabled).
The DISABLE and ENABLE Commands
For security purposes, it may be desirable to leave your PC in Kermit
server
mode so that it can be dialed in to, but with certain functions
unavailable to
those who dial in. The DISABLE and ENABLE commands provide this control.
The DISABLE and ENABLE commands affect the following functions, with the
effect
of DISABLEs noted:
CWD
DEL
DIR
directory.
FIN
entirely.
GET
HOST
entirely.
SEND
SPACE
TYPE
Changing of directories, disabled entirely.
Deletion of files confined to current directory.
Production of directory listings confined to current
Shutting down the server (applies also to BYE) disabled
Getting files from the server confined to current directory.
Execution of all REMOTE HOST (DOS) commands disabled
Forces files sent to server into current directory.
Asking the server for a disk space report, disabled.
REMOTE TYPE files confined to current directory.
ALL
TEK
commands.
All of the above.
Automatic invocation
of Tektronix graphics mode by host
This function is not related to server mode, and is not
included in
the ALL term.
For reasons which should
provide a
REMOTE ENABLE command!
be
obvious,
the Kermit server does not
The GET Command
Syntax: GET remote-filespec
The GET command requests a remote Kermit server to send the file or file
group
specified by remote-filespec. This command can be used only when KermitMS has
a Kermit server active on the other end of the connection. This means
that you
must have CONNECTed to the other system, logged in, run Kermit there,
issued
the SERVER command, and escaped back (e.g. "^]C") to the local Kermit-MS
(or,
in the case of LAN operation, a Kermit server must be running somewhere
on the
network). If the remote Kermit does not have a SERVER command, then you
should
use SEND and RECEIVE as described above.
You may use the GET command in a special way to specify a different
name for
storing the incoming file. Just type GET alone on a line, and you
will be
5.6.6. Kermit Server Commands
Page 84
-----------------------------------------------------------------------------prompted separately for the remote filespec and the local filespec:
Kermit-MS>get
Remote Source File: com1 txt
Local Destination File: a:xcom1.txt
The local file name may contain a device field, and/or a directory
specification. Device and directory specifications in the local destination file
name
work the same way as in the RECEIVE command.
The remote filespec is any string that can be a legal file
specification for
the remote system; it is not parsed or validated locally.
It can
contain
whatever wildcard or file-group notation is valid on the remote system.
Once the file transfer begins, the GET command behaves exactly like the
RECEIVE
command.
Warning: If the remote filespec is to contain a semicolon, and the GET
command
is being issued from a TAKE command file, you must prefix the semicolon
with a
backslash. Otherwise, all characters beginning with the semicolon will
be ignored:
get me.home\;0
5.6.7. Commands for Controlling Remote Kermit Servers
The BYE,
Kermit
server:
FINISH,
and
LOGOUT commands allow you to shut down a remote
BYE
When communicating with a remote Kermit server, use the BYE
command to
shut down the server, log out its job, and exit locally from
Kermit-MS
to DOS. On local area networks, BYE also terminates the network
session.
FINISH Like
FINISH does
BYE,
FINISH
shuts down the remote server.
However,
not log out the server's job.
You are left at Kermit-MS
prompt
level
so that you can connect back to the job on the remote system.
On
local
area nets, FINISH shuts down the MS-Kermit server, but in
a
way
that
allows it to be restarted as if no interruption had occurred.
LOGOUT The LOGOUT command is identical to the BYE command, except
you will
remain at Kermit-MS prompt level, rather than exit to DOS, so
that you
can establish or use another connection without having to
restart
MS-Kermit.
The REMOTE Commands
The REMOTE keyword is a prefix for a number of commands. It indicates
that the
command is to be performed by a remote Kermit server. Not all Kermit
servers
are capable of executing all of these commands, and some Kermit servers
may be
able to perform functions for which Kermit-MS does not yet have the
corresponding commands. In case you send a command the server cannot execute, it
will
send back a message stating that the command is unknown to it. If the
remote
server can execute the command, it will send the results, if any, to
your
5.6.7. Commands for Controlling Remote Kermit Servers
Page 85
-----------------------------------------------------------------------------screen.
Here are the REMOTE commands that Kermit-MS may issue:
REMOTE CWD [directory]
Ask the server to Change your Working Directory on the remote
host,
that is, the default source and destination area for file
transfer and
management. You will be prompted for a password, which will not
echo
as you type it. If you do not supply a password (i.e. you type
only a
carriage return), the server will attempt to access the
specified
directory without a password. If you do not supply a directory
name,
your default or login directory on the remote system will be
assumed
and you will not be prompted for a password.
REMOTE DELETE filespec
Ask the server to delete the specified file or files on the
remote system. In response, the server may display a list of the files
that were
or were not successfully deleted.
REMOTE DIRECTORY [filespec]
Ask the server to display a directory listing of the specified
files.
If no files are specified, then the list should include all
files in
the current working directory.
REMOTE HELP
Ask the server to list the services it provides.
REMOTE HOST [command]
Ask the server to send
command
processor for execution.
the
command to the remote system's
REMOTE KERMIT command
Send the command to the remote Kermit for interpretation as a
Kermit
command in the remote Kermit server's own command syntax. Most
Kermit
servers,
KERMIT commands.
including
Kermit-MS, do not yet recognize REMOTE
REMOTE SEND message
Send the one line message to be displayed on the Server's screen.
REMOTE SPACE [directory]
Ask the server to provide a brief summary of disk usage
in the
specified area on the remote host or, if none specified, the
default or
current area.
REMOTE TYPE filespec
Ask the server to display the contents of the specified remote
file or
files on your screen.
REMOTE WHO [who-spec]
Ask the server to list actively logged on users; optional
who-spec
qualifies the list and uses the syntax of the server system.
5.6.8. The LOG and CLOSE Commands
Page 86
-----------------------------------------------------------------------------5.6.8. The LOG and CLOSE Commands
Syntax: LOG {PACKET, SESSION} [filespec]
CLOSE
LOG SESSION specifies that your terminal session during CONNECT
will be
recorded in the indicated file (whose name defaults to KERMIT.LOG in
the current directory), with any input character translations applied according
to SET
TRANSLATION INPUT.
The filespec may include a device specification
and/or
directory path. The LOG SESSION command allows you to "capture" files
from a
remote
system that doesn't have Kermit, as well as to record
remote
typescripts. LOG PACKET causes the log file to record all packets in
file exchanges (DEBUG need not be set ON). Both kinds of logging can be active
simultaneously but only one filename can be specified -- everything goes to
the same
log file. The log is closed when you EXIT from Kermit-MS or when you
issue an
explicit CLOSE command.
If the log file already exists then new material is appended to it.
not to
delete an open log file (CLOSE it first) because DOS will become
confused.
Try
During terminal emulation, the LOG command records all the characters
that arrive from the remote host in the specified file, including escape
sequences.
If you have SET LOCAL-ECHO ON, it will also record the characters you
type.
Logging may be suspended and resumed within a terminal session with the
CONNECT
escape-level commands Q and R. The log file will be composed of 7-bit
ASCII
bytes if (a) PARITY is other than NONE, or (b) DISPLAY is SET to 7. If
DISPLAY
is 8 and PARITY is NONE, or if DEBUG is ON, then the log will contain
8-bit
bytes.
You may LOG PRN to cause the logging information to be printed directly
on your
printer. Any escape sequences that are sent to the screen are also sent
to the
printer.
If you want to record information without imbedded escape sequences,
use the
screen dump feature, invoked by the CONNECT escape-level command F,
which is
described under the CONNECT command.
A session log cannot be played back directly on the PC from the log file.
To
relive the session, you must transfer it to the remote system and display
it in
"binary mode" (e.g. cat in Unix) which CONNECTed.
5.6.8. The LOG and CLOSE Commands
Page 87
-----------------------------------------------------------------------------5.6.9. The SET Command
Syntax: SET parameter value
-or- SET parameter parameter value
The SET command establishes or modifies parameters for file transfer
terminal connection.
You can examine their values with the STATUS
command. The
following SET commands are available in Kermit-MS:
BAUD
BELL
BLOCK-CHECK-TYPE
DEBUG
DEFAULT-DISK
DELAY
DESTINATION
DISPLAY
DUMP
END-OF-LINE
EOF
ESCAPE
FLOW-CONTROL
HANDSHAKE
INCOMPLETE
INPUT
KEY
LOCAL-ECHO
CONNECT
MODE-LINE
emulation
PARITY
PORT
PROMPT
RECEIVE
REMOTE
RETRY
SEND
SPEED
TAKE-ECHO
TERMINAL
TIMER
TRANSLATION
characters
WARNING
or
Communications port line speed (synonym for SPEED)
Whether to beep at the end of a transaction
Level of error checking for file transfer
Display packet contents during file transfer
Default disk drive for file i/o
Wait number seconds before Sending a file
Default destination device for incoming files
For selecting the type of file transfer display
Screen dump file (or device) name
Packet termination character
Method for determining or marking end of file
Escape character for CONNECT
Enable or disable XON/XOFF
Half-duplex line turnaround option
What to do with an incompletely received file
Behavior of INPUT command for scripts
Specify key redefinitions
Specify which computer does the echoing during
Whether to display a mode line during terminal
Character parity to use
Select a communications port
Change the "Kermit-MS>" prompt to something else
Request remote Kermit to use specified parameters
For running Kermit-MS interactively from back port
Packet retransmission threshold
Use the specified parameters during file transfer
Communications port line speed (synonym for BAUD)
Control echoing of commands from TAKE files
Emulation and parameters
Enable/disable timeouts during file transfer
Enable/disable/specify conversion of arriving
Specify how to handle filename collisions
The SET commands are now described in detail, in alphabetical order.
SET BAUD
Syntax: SET BAUD number
Set the speed (in bits per second, commonly called baud) of the
currently
selected terminal communications port (COM1 by default) to 300, 1200,
1800,
2400, 4800, 9600, or other common speed, and on the IBM PC family,
higher
speeds including 19200, 38400, 57600, and 115200. Both connected
systems, as
well as any intervening communication equipment, must be able to
support the
specified baud rate, and both systems should be set to the same baud
rate.
5.6.9. The SET Command
Page 88
-----------------------------------------------------------------------------Some implementations do not support the SET BAUD command. But Kermit-MS
leaves
the current communication port settings alone unless you issue
explicit SET
commands to change them, so you may use MODE or other DOS programs to
establish
the desired settings before running Kermit.
On certain systems, when you first run Kermit after powering the system
up, you
may get a message "Unrecognized baud rate". This means that Kermit
tried to
read the baud rate from the port and none was set. Simply use SET
BAUD (if
available) or the DOS MODE command to set the desired baud rate.
SET SPEED is a synomym for SET BAUD.
SET BELL
Syntax: SET BELL {ON, OFF}
Specifies whether the bell (beeper)
a file
transfer operation. Normally ON.
should sound upon completion of
SET BLOCK-CHECK-TYPE
Syntax: SET BLOCK-CHECK-TYPE {1, 2, 3}
Selects the error detection method: a 1-character 6-bit checksum (the
normal
case), a 2-character 12-bit checksum, or a 3-character 16-bit cyclic
redundancy
check (CRC). If the other Kermit program is not capable of type 2 or 3
checking methods, automatic fallback to type 1 will occur. The more secure
type 2
and 3 block checks take essentially no more execution time than the
simple 1
character checksum.
SET BLOCK 3 is a stronger check than SET BLOCK
2. SET
BLOCK 2 or 3 is recommended for use with long packets (see below), noisy
communication lines, binary (8-bit data) files, and text files containing
critical
data (budgets, grades, etc).
SET DEBUG
Syntax: SET DEBUG {PACKET, SESSION, ON, OFF}
With DEBUG PACKET, Kermit will display packet traffic on your screen
during
file transfer.
With the normal file transfer display, regular-length
packets
sent and received are displayed in fixed-size slots.
The
display of
extended-length packets, however (see SET RECEIVE PACKET-LENGTH),
tends to
overlap. If this bothers you, then also SET DISPLAY SERIAL, or LOG the
packets
rather than displaying them.
With DEBUG SESSION, during terminal emulation (on the IBM PC, Rainbow,
and a
few others), control characters are displayed in uparrow ("^")
notation and
characters with the 8th bit set are preceded by the tilde ("~") sign,
and your
session log (if any) will record 8-bit bytes, rather than 7-bit ASCII,
regardless of SET DISPLAY or SET PARITY. Character translation (SET
TRANSLATION
INPUT) is not done during session debugging. The effect of SET DEBUG
SESSION
during terminal connection can be disconcerting, but it gives you a
convenient
line monitor equivalent to a specialized device that costs several
thousand
dollars, and it can prove very handy for tracking down data
communication
5.6.9. The SET Command
Page 89
-----------------------------------------------------------------------------problems.
SET DEBUG ON turns on both SESSION and PACKET
DEBUG OFF
turns them both off.
debugging,
and
SET
SET DEFAULT-DISK
Syntax: SET DEFAULT-DISK x:
Specify the default disk drive to use for file transfer, directory
listings,
and so forth. Equivalent to typing the DOS command for changing disks
(A:, B:,
etc).
Affects Kermit and all inferior processes, but when you exit
from Kermit, you will still have the same default disk as when you entered.
SET DELAY
Syntax: SET DELAY number
Wait the specified number of seconds before starting a file transfer.
Intended
for use when the other side needs appreciable time to become ready,
such as
rearranging cables, changing programs, etc., or when MS-DOS Kermit
is the
remote Kermit (e.g. after CTTY COM1, SET REMOTE ON). The number is 0
to 63
seconds, normally 0.
SET DESTINATION
Syntax: SET DESTINATION {DISK, PRINTER, SCREEN}
SET DESTINATION PRINTER will cause incoming files to be sent directly
to the
printer; SCREEN will send output normally destined for the disk to the
screen.
The normal destination is DISK. SET DESTINATION affects only files
transferred
with SEND, GET, or RECEIVE; it cannot be used to reroute the output from
REMOTE
server commands.
SET DISPLAY
Syntax: SET DISPLAY {QUIET, REGULAR, SERIAL, 7-BIT, 8-BIT}
During file transfer, MS-DOS Kermit's regular display is a formatted
screen
whose fields are randomly updated with file names, packet numbers,
error
counts, percent done, error messages, and so forth.
If you wish to run Kermit-MS interactively through the back port, for
instance
after the operator has done CTTY COM1, you must give the command SET
REMOTE ON
(which, currently at least, is equivalent to SET DISPLAY QUIET); this
suppresses the file transfer display screen, so that the display won't
interfere
with the file transfer itself. You can also use this command to
suppress the
display in local mode, in case you are using a system that allows you
to do
other work while file transfer proceeds in the background.
If you have your PC connected to a speaking device (a common
practice for
visually impaired people), or you are logging the display screen to a
printer
5.6.9. The SET Command
Page 90
-----------------------------------------------------------------------------(using DOS ^P or kermit > prn), the random nature of the regular display
will
make the results of little use. SET DISPLAY SERIAL is provided for
this purpose; it causes the program to report progress "serially" on the screen.
In
serial mode, error messages are preceeded with the word "Error" and
repeat messages with the word "Retry". Packets are numbered as dots with every
tenth being a plus sign. The packet display is automatically broken across
lines at
every 70th packet. The serial display makes much more sense when spoken
than
does the regular display.
The serial display does not show the percent and kilobytes transferred.
It is
the default display style for generic MS-DOS Kermit; REGULAR is the
default for
all others.
The last two parameters, 7-BIT and 8-BIT, control the size of
characters sent
to the screen during terminal emulation. 7-BIT is the default and
includes all
ASCII characters. 8-BIT is useful with national and line drawing
characters.
SET DUMP
Syntax: SET DUMP filespec
On those systems that support this feature, change the file or device
name of
the screen dump file. The normal file name is KERMIT.SCN. See the
section on
terminal emulation for details about screen dumps. If the specified
file already exists then new material is appended to old.
SET END-OF-LINE
Syntax: SET END-OF-LINE number
If the remote system needs packets to be terminated by anything other
than car-
riage return, specify the decimal value, 0-31, of the desired ASCII
character.
Equivalent to SET SEND END-OF-LINE (SET END-OF-LINE is kept only for
historical
reasons, and the parameter really should be called END-OF-PACKET anyway.)
SET EOF
Syntax: SET EOF {CTRL-Z, NOCTRL-Z}
Controls how the end of file is handled. CTRL-Z specifies a Control-Z
character should be appended to the end of an incoming file, unless it already
ends
with a Control-Z. Certain MS-DOS text editors and other applications
require
files to be in this format. For outbound files, treat the first
Control-Z as
the end of the local file, and do not send it or any subsequent
characters.
NOCTRL-Z is the default; incoming files are stored, and MS-DOS files are
sent,
exactly as is, in their entirety.
5.6.9. The SET Command
Page 91
-----------------------------------------------------------------------------SET ESCAPE
Syntax: SET ESCAPE character
Specify the control character you want to use to "escape" from remote
connections back to Kermit-MS.
On most systems the default is "^]"
(ControlRightbracket), which was chosen because it is a character you would
otherwise
rarely type.
The character is entered literally after SET ESCAPE or in backslash
number form
(\29), and should be chosen from the ASCII control range. It is not
possible
to use non-ASCII characters (like function keys) for this purpose (but
see SET
KEY for a way around this restriction).
SET FLOW-CONTROL
Syntax: SET FLOW-CONTROL {XON/XOFF, NONE}
Specify the full duplex flow control to be done on the currently selected
port.
The options are XON/XOFF and NONE. The specified type of flow control
will be
done during both terminal emulation and file transfer. By default,
XON/XOFF
flow control is selected. XON/XOFF should not be used on half-duplex
(local
echo) connections, or with other systems that do not support it. If
XON/XOFF
is used, HANDSHAKE should be set to NONE.
SET HANDSHAKE
Syntax: SET HANDSHAKE {CODE number, BELL, CR, LF, NONE, XOFF, XON}
Specify any half-duplex line turnaround handshake character to be used
during
file transfer on the currently selected port. The CODE number form
allows any
ASCII character to be specified by its decimal ASCII code. Handshake is
NONE
by default; if set to other than NONE, then FLOW-CONTROL should be set to
NONE.
In operation the handshake character is sought at the end of each
received
packet, following the normal END-OF-LINE character, but is not sent
for outgoing packets.
SET INCOMPLETE
Syntax: SET INCOMPLETE {DISCARD, KEEP}
Specifies what to do with files that arrive incompletely: discard them or
keep
them. They are normally discarded.
SET INPUT
Syntax: SET INPUT {CASE, DEFAULT-TIMEOUT, ECHO, TIMEOUT-ACTION}
SET INPUT controls the behavior of the script INPUT command (see the
section on
scripts for more information):
5.6.9. The SET Command
Page 92
-----------------------------------------------------------------------------SET INPUT CASE {IGNORE, OBSERVE}
Says whether or not to distinguish upper and lower case letters when
doing
a matchup in the INPUT command. OBSERVE causes upper and lower case
letters to be distinguished. The default is to IGNORE case
distinctions.
SET INPUT DEFAULT-TIMEOUT seconds
Changes the waiting time from one second to this new value.
SET INPUT ECHO {ON, OFF}
Show on the screen characters read from the serial port during the
script
operation, or not. Default is ON, show them.
SET INPUT TIMEOUT-ACTION {PROCEED, QUIT}
Determines whether or not the current TAKE command file is to be
continued
or exited if a timeout occurs. PROCEED is the default and means
that
timeouts are ignored. QUIT causes the current script file to be
exited and
control passed to either the next higher level script file (if
there is
one) or to Kermit's main prompt.
SET KEY
Syntax: SET KEY key-specifier [key-definition]
Also: SET KEY {ON, OFF, CLEAR}
WARNING: The format and functions of this command have changed
substantially since version 2.29B and earlier. The changes were made in
order
to allow key redefinition to work on a wider variety of systems
and
keyboards without customization of the program source code for
each
configuration. See section 5.10 for further details.
The SET KEY command is one of the most useful -- and confusing -features of
MS-Kermit. Typical uses:
- You're used to having the ESC key in the upper
the
left
corner
of
keyboard, but your new PC keyboard has an accent grave ("`")
there.
You can use SET KEY to make the accent key transmit an ESC, and
you
can assign accent grave to some other key.
- You send a lot of electronic mail, and always sign it the same
way.
You can put your "signature" on a single key to save yourself a
lot
of repetitive typing.
- You must set up your PC's function keys or numeric keypad to
work
properly with a host application.
The SET KEY command does these things and more, and SHOW KEY
assistance. A key can be defined to:
-
gives
us
send a single character other than what it would normally send,
send a string of multiple characters,
invoke a CONNECT-mode Kermit action verb,
send itself again.
SET KEY specifies that when the designated key is struck during terminal
emulation, the specified character or string is sent or the specified Kermit
action
5.6.9. The SET Command
Page 93
-----------------------------------------------------------------------------verb is performed.
Key definitions operate only during CONNECT,
not at
Kermit-MS> or DOS command level.
The key-specifier is the identification of the key expressed in systemdependent terms.
This can be a letter, such as Q for the key which emits an
upper
case Q, or the numeric ASCII value of the letter in backslash notation
(e.g.
"\81"), or else the numerical "scan code" observed by the system when
the key
is pressed (e.g. "\3856" for Ctrl-Alt-Q on an IBM PC).
Material
printed on
keycaps is not necessarily a guide to what the key-specifier should be.
When
the word CLEAR is used in place of a key-specifier, all key
definitions are
cleared and then any built-in definitions are restored.
A string definition is one or more characters, including 8-bit values
expressed
in backslash form, such as
SET KEY \315 top \13 list\13
SET KEY S L
SET KEY T \27[m
IBM F1 key sends "top <cr> list<cr>"
S key sends upper case L
T key sends three bytes ESC [ m
The string begins with the first non-spacing character following the key
identification and continues until the end of line, exclusive of any
trailing
spaces. If a semicolon comment is used and the definition is given in a
TAKE
file, the line ends at the last non-spacing character before the
semicolon.
Curly braces, {...<}>, can be use to delimit the string in case you
want the
definition to include trailing spaces. All text after the closing
bracket is
ignored.
SET KEY \315 {login } this extra text is ignored
This manual does not contain a list of all the scan codes for all the
keys on
all the keyboards on all the PCs supported by MS-Kermit -- that
would be a
manual in itself. Rather, in order to obtain the key-specifier for the
SET KEY
command, you must type a SHOW KEY command and press the desired key or
key combination. This will report a scan code that you can use as the key
specifier
in a SET KEY command. To do this for many keys is a laborious process,
so you
should collect all your SET KEY commands into a file, which you can
TAKE, or
put them in your MSKERMIT.INI file.
If you enter SET KEY by itself, with no key specifier, the command will
prompt
you to press the selected key and again for the definition string.
Certain
characters, like ESC and CR, may not be entered literally into the
string, but
can be included by inserting escape codes of the form \nnn, a backslash
followed by a 1- to 4-digit number corresponding to the ASCII value of the
desired
character. Where an ASCII digit follows directly after a backslash
number,
confusion can be avoided by placing curly braces {} around the
backslashed number; thus, \{27}5 represents the two ASCII characters ESC 5.
Here is an example of the use of SET KEY to assign ESC (ASCII 27) to the
accent
grave key. First the user gets the key-specifier for the key:
Kermit-MS>show key
Push key to be shown (? shows all): `
ASCII char: ` \96 decimal is defined as
Self, no translation.
Free space: 145 keys and 96 string definitions, 894 string characters.
5.6.9. The SET Command
Page 94
-----------------------------------------------------------------------------The free space report says that 145 more keys may be redefined, and up to
96 of
them may have multi-character strings assigned to them (as opposed to
single
characters), and that there are 894 bytes left for these strings, in
total.
Confident that there is enough space left for a new key definition, the
user
proceeds:
Kermit-MS>set key
Push key to be defined: `
Enter new definition: \27
Once a key definition is constructed and tested, it may be entered on a
single
line in a command file (such as MSKERMIT.INI):
set key \96 \27
To prevent accidents, SET KEY shows the current definition before asking
for a
new one; enter a Control-C to keep the current definition, or a carriage
return
to undefine the key, or a query mark (?) to see available choices.
A more exact definition of SET KEY follows these construction rules:
SET KEY [<key-ident><whitespace><definition>]
where <key-ident> is:
- a single ordinary printable ASCII character, or
- the numerical equivalent of an ASCII character (ESC is \27), or
- a scan code written as a backslashed number (e.g. \3856
for
Ctrl-Alt-Q), or
- keyword CLEAR which removes all current key definitions and
then
restores any built-in definitions.
- ? (a question mark), which displays a help message.
Scan codes, non-printing ASCII characters, 8-bit characters, and other
binary
codes are written in backslash form (see Table 5-1 for ASCII codes):
\123
\d789
\o177
a decimal number (decimal is the default number base)
a decimal number (also \D)
an octal number (also \O)
\x0d
\{b###}
where the
a hexadecimal number (also \X)
braces around material following
the
slash,
numerical base letter b is d, o, x, or absent.
<whitespace> is one or more spaces and or tabs.
<definition> is:
missing altogether which "undefines" a key.
\number
decimal)
(a number in backslash notation between 0 and 255
- assigns a character with the corresponding 8-bit
value.
\Kverb
for a Kermit action verb; upper or lower case K is
\{Kverb}
Same.
OK.
Verb is the name of an action verb.
5.6.9. The SET Command
Page 95
-----------------------------------------------------------------------------text
a string with allowed embedded whitespace and
embedded binary chars as above. This kind of string may not
commence
with sequences \K or \{K. The string begins with the
first
non-whitespace character and ends at the end of the
line
(exclusive of trailing spaces and comments).
{text}
excluding the
string
braces.
confined
to
material
within
but
Note, where the number of opening
braces
exceeds
the number of closing braces the end of line
terminates the
string:
{ab{}{{c}d ==> ab{}{{c}d
but
{ab}{{c}d ==> ab
?
Displays help message and lists all action verbs.
Control-C
Quits the Set Key command without making changes.
Curly braces can be used to separate backslash numbers from regular ASCII
text,
such as when we want to send the two bytes ESC 8 (ESC is decimal 27):
SET KEY T \{27}8
SET KEY L {words \{27}8 more words} trailing junk to be ignored
If a string begins with a left curly brace then Kermit counts them and
ends the
string on the matching right curly brace (or end of line); the SET KEY
L example above relies on brace matching to omit the trailing comment. The
outer
curly brace delimiters are not sent but the inner ones are; for example:
SET KEY U {a {b}\{27}8}
SET KEY U a{ {b}\{27}8}
SET KEY U a{ {b}\{{27}}8}
sends the 7 bytes "a {b}ESC8"
sends the 9 bytes "a{ {b}ESC8}"
sends the 15 bytes "a{ {b}\{{27}}8}"
A definition is removed, that is a key is defined as itself, by giving an
empty
definition:
SET KEY q
SET KEY \331
q key sends q again
IBM left arrow key is undefined.
The keyboard can be restored to its startup state, that is all
redefinitions
removed and all built-in defitions restored, by using the keyword
CLEAR in
place of the key identification:
SET KEY CLEAR
Undefined keys which do not send ASCII characters are trapped by the
keyboard
translator and are rejected; a beep results from using an undefined
non-ASCII
key.
SET KEY OFF directs MS-Kermit to read keycodes from DOS,
BIOS, so
that console drivers like ANSI.SYS that operate at the DOS
used
during Kermit CONNECT sessions. This would also apply to
keyboard
replacements that come with DOS-level drivers. SET KEY ON
definition
rather than
level
may
any special
turns key
be
5.6.9. The SET Command
Page 96
-----------------------------------------------------------------------------back on, and returns Kermit to processing keystrokes at the BIOS level.
Kermit Action Verbs:
An action verb is the shorthand expression for a named Kermit
procedure, such
as "generate the proper sequence for a left arrow," "show status,"
"send a
BREAK," and others; verbs are complex actions and each verb has a name.
In a
key definition the verb name is preceeded by backslash K (\K) to avoid
being
confused with a string. Verbs and strings cannot be used together on a
key.
SET KEY \331 \Klfarr
SET KEY \2349 \Kexit
makes the IBM keyboard left arrow key execute the verb named lfarr which
sends
the proper escape sequence for a VT102 left arrow key (which changes
depending
on the internal state of the VT102). The leading \K identifies the
definition
as a Kermit verb, so no string can start as \K or as \{K in upper or
lower case
(use \92K). The second example has Alt-X invoking the Leave-ConnectMode verb
"exit" (same as Kermit escape character "^]" followed by C).
Each system has its own list of verbs and predefined keys.
Table 5-4
shows
those available for the IBM PC family (there are also some additional
verbs for
reassigning Heath or VT100 function keys, see section 5.15.2).
The
SET KEY
command shows the list of available verbs when a query mark (?) is
given as a
definition. SHOW KEY displays all currently defined keys or
individually
selected ones; SHOW KEY can be executed only interactively.
Some systems have preset key definitions when Kermit first begins
(those for
the IBM PC are shown in section 5.15.2). You can find out what they
are on
your system by typing SHOW KEY, and then question mark on the next
line. You
may supplement or change the predefined keys with SET KEY commands typed
interactively or in MSKERMIT.INI or other command files.
The MS-Kermit CONNECT command may be used in conjunction with certain
console
drivers that do their own key redefinitions.
Since MS-Kermit
intercepts
keystrokes at the BIOS level, drivers like ANSI.SYS which work at the DOS
level
will have no effect during CONNECT, even though they work at MS-Kermit
command
level.
Other drivers, like SuperKey and ProKey, work at the BIOS
level, and
their key assignments will remain effective during Kermit terminal
sessions,
and additional Kermit SET KEY assignments may be made "on top" of them.
SET LOCAL-ECHO
Syntax: SET LOCAL-ECHO {ON, OFF}
Specify how characters are echoed during terminal emulation on the
currently
selected port. ON specifies that characters are to be echoed by
Kermit-MS
(because neither the remote computer nor the communications circuitry
has been
requested to echo), and is appropriate for half-duplex connections.
LOCAL-ECHO
is OFF by default, for full-duplex, remote echo operation.
5.6.9. The SET Command
Page 97
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Verb
Meaning
\Kupscn
Roll up (back) to previous screen
\Kdnscn
Roll down (forward) to next screen
\Khomscn
Roll up to top of screen memory
\Kendscn
Roll down to end of screen memory (current position)
\Kupone
Roll screen up one line
\Kdnone
Roll screen down one line
\Kprtscn
Print the current screen
\Kdump
Append the current screen to dump file
\Klogoff
Turn off session logging
\Klogon
Turn on session logging
\Ktermtype
Toggle terminal type
\Kreset
Reset terminal emulator to initial state
\Kmodeline
Toggle modeline off/on
\Kbreak
Send a BREAK signal
\Klbreak
Send a "long BREAK" signal
\Khangup
Drop DTR so modem will hang up phone
\Knull
Send a null (ASCII 0)
\Kdos
"Push" to DOS
\Khelp
Display CONNECT help message
\Kstatus
Display STATUS message
\Kexit
Escape back from CONNECT mode
\Kgold,\Kpf1
VT102 keypad function key PF1
\Kpf2..\Kpf4
VT102 keypad function keys
\Kkp0..\Kkp9
VT102 keypad numeric keys
\Kkpdot,\Kkpminus,\Kkpcoma,\Kkpenter
Other VT102 keypad keys
\Kuparr,\Kdnarr,\Klfarr,\Krtarr
VT102 cursor (arrow) keys
Table 5-4:
Kermit-MS Verbs for the IBM PC Family
-----------------------------------------------------------------------------SET MODE-LINE
Syntax: SET MODE-LINE {ON, OFF}
On systems, like the IBM PC family, which are capable of displaying a
status,
or "mode" line on the 25th line during terminal connection, disable or
enable
this function.
This command has no effect on systems that do not
display a
mode line during connect.
The mode line shows several
which
port is being used, the
character,
etc. When the mode line is
the CONNECT escape-level command M
important facts about the
connection,
like
baud rate and parity, the current escape
enabled, it may be turned on and off using
or the Kermit verb "modeline".
The mode line occupies the 25th line of those systems that have such a
thing,
and is not affected by scrolling (on some systems that have large
screens, the
mode line should appear on whatever the bottom line is, e.g. the 43rd).
When
emulating a VT102 or Heath-19, Kermit will allow the host to address the
25th
line directly using cursor positioning commands. If this happens,
Kermit will
5.6.9. The SET Command
Page 98
-----------------------------------------------------------------------------remove its mode line and relinquish control of the 25th line to the host
(as if
you had typed SET MODE OFF). When no terminal is being emulated, the
25th line
(if any) is available for scrolling. If the mode line is disabled by
an application or by the command SET MODE OFF then the only way to revive
Kermit's
mode line display is to give the command SET MODE ON. On IBM systems
supporting different length displays, the host needs to address the bottom
line explicitly. Also, note the line is saved and restored when CONNECT
mode is
exited and reentered so an old "fossil" mode line may reappear
unexpectedly.
If this happens, you can escape back to the Kermit prompt, say SET
MODE ON,
CONNECT, and toggle it off ("^]M") to clear the line.
SET PARITY
Syntax: SET PARITY {EVEN, ODD, MARK, SPACE, NONE}
Specify the character parity to be used on the currently selected port.
NONE
means no parity processing is done, and the 8th bit of each character
can be
used for data when transmitting binary files. This is the normal
case. If
parity is other than none, then there will be 7 data bits (use of parity
with 8
data bits is not supported).
If you have set parity to ODD, EVEN, MARK, or SPACE, then Kermit-MS
will request that binary files be transferred using 8th-bit-prefixing. If the
other
Kermit knows how to do 8th-bit-prefixing (this is an optional feature
of the
Kermit protocol, and some implementations of Kermit don't have it), then
8-bit
binary files can be transmitted successfully. If NONE is specified,
8th-bitprefixing will not be requested. Note that there is no advantage to
using
parity.
It reduces Kermit's file transfer efficiency without
providing ad-
ditional error detection. The SET PARITY command is provided only
allow
Kermit to adapt to conditions where parity is required, or 8-bit
transmission
is otherwise thwarted.
to
You will need to SET PARITY to ODD, EVEN, MARK, or possibly SPACE when
communicating with a system, or over a network, or through modems,
concentrators,
multiplexers, or front ends that require or impose character parity on
the communication line.
For instance, most IBM mainframe computers use EVEN
or MARK
parity; Telenet normally uses MARK parity. If you neglect to SET PARITY
when
the communications equipment requires it, the symptom may be that
terminal
emulation works (well or maybe only partially), but file transfer or
script INPUT commands do not work at all.
If parity is in use, then the display during terminal emulation, as well
as any
session log, will be 7-bit ASCII, unless you have SET DEBUG ON (q.v.).
There may be situations in which you require 7-bit ASCII with no parity
during
terminal emulation, but still want to force 8th bit prefixing
during file
transfer. To accomplish this, SET PARITY SPACE.
The INPUT and TRANSMIT commands use 7 or 8 bits if parity is NONE,
according to
the SET DISPLAY command, and this may upset recognition of received
characters
when the host unexpectedly sends them with its own parity.
5.6.9. The SET Command
Page 99
-----------------------------------------------------------------------------SET PORT
Syntax: SET PORT {number, COM1, COM2, NET [nodename]}
On machines with more than one communications port, select the port to
use for
file transfer and CONNECT. This command lets you use a different
asynchronous
adapter, or switch between two or more simultaneous remote sessions.
Subsequent SET BAUD, PARITY, HANDSHAKE, FLOW, and LOCAL-ECHO commands will
apply
to this port only -- each port remembers its own parameters, so that
you may
set them for each port and then switch between ports conveniently with
the SET
PORT command.
SET PORT 1 selects COM1, SET PORT 2 selects COM2. All versions default
to port
1, except for the IBM PCjr, which uses port 2 if its internal modem
is installed. Additionally, COM3 and COM4 are supported for IBM PC's if the
system
is informed of their presence (as explained in Section 5.16.3).
In "generic" MS-DOS Kermit, the following alternate forms allow you to
experiment with device names or numbers until you find the communication port:
SET PORT {DEVICE, FILE-HANDLE}
Just type a carriage return after either of these commands, and you
will be
prompted for a device name or a numeric port-handle. Keep trying till
you find
one that works. File-handle 3, the system auxillary device, is
conventional on
many machines, as are device names COM1, COM2, and AUX.
MS-Kermit for the IBM PC family is able to operate over local area
networks
through the NetBIOS interface. The command
SET PORT NET [nodename]
redirects communications the LAN board installed in the local computer
and the
associated NetBIOS emulator software, if active, rather than the serial
port or
the COM device driver. It installs a unique Kermit node name in the
local LAN,
so that other nodes can refer to it when files are transferred or
terminal
emulation is done. This name is displayed when you give the SET PORT NET
command.
The server should use SET PORT NET, and the client should use
SET PORT
NAME nodename, specifying the server's name, e.g. CHRIS.K.
Note
that alphabetic case is significant in node names!
Both the regular serial port and a network connection can be kept alive
simultaneously; clearly, only one can be used at a time under MS-DOS. MS-DOS
3.x is
not required for Kermit network usage, but most LANS do need DOS 3.1 or
later
for conventional file server work. Kermit needs only the NetBIOS
emulator network software.
SET PROMPT
Syntax: SET PROMPT [string]
This command allows you to change the MS-DOS Kermit program's
prompt. The
string may be enclosed in curly braces. Control characters like ESC can
be included as backslashed numbers like "\27". ANSI.SYS and similar console
drivers
can be programmed through this command. The string must be less
than 128
5.6.9. The SET Command
Page 100
-----------------------------------------------------------------------------characters.
If the string is omitted (missing) Kermit's original
prompt of
"Kermit-MS>" is restored.
SET RECEIVE
Syntax: SET RECEIVE parameter value
This command lets you modify the ways in which MS-Kermit asks the other
Kermit
to behave. That is, it controls the file transfer protocol options for
packets
sent to MS-Kermit by the other Kermit. The parameters and values you
specify
in the SET RECEIVE command are sent to the other Kermit during initial
negotiations.
END-OF-LINE number
ASCII value of packet terminator to look for on incoming packets.
Normally carriage return. Use this command if the other Kermit is
terminating its packets with some other control character.
PACKET-LENGTH number
Ask the remote Kermit to use the specified maximum length for
packets
that it sends to Kermit-MS. The normal length is 94 bytes.
Use this
command to shorten packets if the communication line is noisy or
terminal buffers somewhere along the path are too small. Shorter
packets
decrease the probability that a particular packet will be
corrupted,
and will reduce the retransmission overhead when corruption
occurs, but
will increase the protocol overhead.
If a length greater than 94 is
specified,
a
protocol
option
called
"long
packets"
will
be used, provided the other Kermit also
supports
it.
Kermit-MS handles extended-length packets up to 1000
bytes
long.
Long Packets can improve efficiency by reducing the per-packet
overhead
for a file, but they will not be used unless you
issue
this
command.
Before using this option, ensure that the equipment on the
communications pathway can absorb a long packet, and that the
connection is
clean (retransmission of long packets is expensive!). You
should also
SET BLOCK-CHECK 2 or 3 for more reliable error checking.
PADCHAR number
Ask the remote Kermit to use the given control character
(expressed as
a decimal number 0-31, or 127) for interpacket padding.
Kermit-MS
should never require any padding.
PADDING number
Ask the remote Kermit to insert the given number of padding
characters
before each packet it sends. MS-Kermit never needs padding,
but this
mechanism might be required to keep some intervening
communication
equipment happy.
5.6.9. The SET Command
Page 101
-----------------------------------------------------------------------------START-OF-PACKET number
If the remote Kermit will be marking the beginning of packets
with a
control character other than Control-A, use this command
to tell
Kermit-MS about it (the number should be the decimal ASCII value
of a
control character).
This will be necessary only if the hosts
or communication equipment involved cannot pass a Control-A through as
data,
or if some piece of communication equipment is echoing packets
back at
you.
TIMEOUT number
Ask the remote Kermit to time out after the given number of
seconds if
a packet expected from Kermit-MS has not arrived. Use this
command to
change the other Kermit's normal timeout interval.
SET REMOTE
Syntax: SET REMOTE {ON, OFF}
SET REMOTE ON removes the file transfer display (as if you had given
the command SET DISPLAY QUIET). It should be used when you are running KermitMS in
remote mode when coming in from another PC through the Kermit-MS's "back
port",
to which the console has been reassigned using the DOS CTTY command, e.g.
CTTY COM1
It is necessary to issue the SET REMOTE ON command because (a) Kermit-MS
has no
way of knowing that its console has been redirected, and (b) when the
console
is the same as the port, the file transfer display will interfere with
the file
transfer itself.
SET REMOTE OFF returns the file transfer display
to its
preferred style (REGULAR or SERIAL). When you SET REMOTE ON, you might
also
want to SET DELAY 5 or thereabouts, to allow yourself time to escape
back to
the local system before MS-Kermit starts sending packets.
WARNING: During CTTY console redirection, many programs still output
to the
real screen and require input from the real keyboard and will hang the
system
until keyboard requests are satisfied. On the IBM PC, CTTY CON returns
control
to the normal keyboard and screen (other systems may use other device
names).
See section 5.16.4 for further details about remote operation.
SET RETRY
Syntax: SET RETRY number
Sets the number of times a packet is retransmitted before the protocol
gives
up.
The number of retries can be between 1 and 63, and is 5 by default.
This
is an especially useful parameter when the communications line is noisy
or the
remote host is very busy. The initial packet of a file exchange is given
three
times as many retries to allow both systems to become ready.
5.6.9. The SET Command
Page 102
-----------------------------------------------------------------------------SET SEND
Syntax: SET SEND parameter value
The SET SEND command is primarily used to override negotiated protocol
options,
or to establish them before they are negotiated.
END-OF-LINE number
ASCII value of packet terminator to put on outbound packets.
Normally
carriage return. Use this command if the other Kermit needs its
packets terminated with a nonstandard control character.
PACKET-LENGTH number
Use this as the maximum length for outbound packets, regardless
of what
was negotiated with the other Kermit. Normally, you would use
this
command only to send shorter packets than the other Kermit
requests,
because you know something the other Kermit doesn't know, e.g.
there's
a device on the communication path with small buffers.
PADCHAR number
Use the specified control character for interpacket padding.
Some
hosts may require some padding characters (normally NUL or DEL)
before
a packet, and certain front ends or other communication
equipment may
need certain control characters to put them in the right
modes. The
number is the ASCII decimal value of the padding character, (0 31, or
127).
PADDING number
How many copies of the pad character to send before each
normally zero.
packet,
PAUSE number
How many milliseconds to pause before sending each packet, 0-127,
normally zero.
This helps half-duplex systems prepare for
reception of
limit
our packet.
expires.
Padding characters are sent only after the time
QUOTE number
Use the indicated printable character for prefixing (quoting)
control
characters and other prefix characters. The only reason to
change this
would be for sending a very long file that contains very
many "#"
characters (the normal control prefix) as data.
START-OF-PACKET number
Mark the beginning of outbound packets with some control
character
other than Control-A. This will be necessary if the remote host
or the
communication channel cannot accept a Control-A as data, or
if it
echoes back your packets.
The remote host must have been
given the
corresponding SET RECEIVE START-OF-PACKET command.
TIMEOUT number
Change Kermit-MS's normal timeout interval; this command is
effective
only if TIMER is set to be ON; it is normally ON so that both
Kermits
can control timeouts. When the timer is ON, the default interval
is 13
seconds.
5.6.9. The SET Command
Page 103
-----------------------------------------------------------------------------SET SPEED
Syntax: SET SPEED rate
Same as SET BAUD, q.v.
SET TAKE-ECHO
Syntax: SET TAKE-ECHO {ON, OFF}
Specifies whether screen display should occur during implicit or explicit
TAKE
operations on MSKERMIT.INI or other Kermit-MS command files, and during
evaluation of macro definitions by the DO command. Handy for finding errors in
TAKE
files or macro definitions.
SET TERMINAL
Syntax: SET TERMINAL parameter [value]
This command controls most aspects of terminal emulation.
Most
of the
parameters are only settable (or meaningful) on the IBM PC family and
compatibles.
(Programmers who are proficient on other MS-DOS systems are
invited
to fill in these functions for those systems and send the results
back to
Columbia.)
On other systems, built-in setup modes or DOS commands can
be used
to accomplish the same functions.
The first group of parameters tells which kind of terminal to emulate.
When
Kermit-MS uses its built-in software for emulation, incoming characters
are examined for screen control commands (escape sequences) specific to that
terminal, and if encountered, the commands are executed on the PC screen.
NONE
to the
Act
as
a
dumb terminal.
All incoming characters will be sent
screen "bare", as-is, through DOS.
driver
If you have loaded a device
into DOS for the CON device, such as ANSI.SYS, then that driver
will be
able to interpret the codes itself.
Many non-IBM
systems
have
their
own screen control code interpreter
firmware, or
available as a loadable device driver.
built into DOS or
VT52
The DEC VT-52 terminal.
HEATH
com-
The Heath/Zenith-19 terminal (H19), which supports all
the
VT52
mands, plus line and character insert/delete editing functions,
an ANSI
mode, and a 25th line.
VT102
also
The DEC VT102 (ANSI) terminal, which is the same as a
supports
line/character
insert/delete
editing
VT100
but
functions
and
ANSI
printer controls.
TEK4010 A Tektronix 4010 graphics terminal. Currently only available
IBM,
TI, and Victor PCs. On the IBM family, Kermit automatically
senses and
adapts to the CGA, EGA, or Hercules color board.
The specific escape sequences supported by Kermit for each of these
terminal
types are listed in section 5.15.1. Note that when a Kermit program
includes
on
5.6.9. The SET Command
Page 104
-----------------------------------------------------------------------------Tektronix emulation, this can be invoked automatically while in character
mode
(VT102, VT52, or Heath emulation) when the emulator receives certain
escape sequences. This can be turned off using the DISABLE TEK command.
The remaining SET TERMINAL commands specify setup options for the
selected terminal:
CHARACTER-SET {UK, US}
UK displays "#" (ASCII 35, number sign) as a pound sterling
sign, US
displays "#" as "#". This command applies during VT100/102
emulation.
COLOR number [, number [, number]]
Several numbers, applied in left to right sequence, separated by
commas
or spaces:
0
Reset
the colors to normal intensity white characters on a
black
background and use the "no-snow" mode on the IBM
Color
Graphics
1
10
Adapter (CGA).
High intensity foreground
Request fast screen updating for use on the IBM Mono, EGA,
or PGA
(usually sensed and set internally by Kermit), and
some
non-IBM
3x
4x
where
CGAs.
Foreground color
Background color
x is a single digit from 0 to 7, which is the sum of the
desired
colors:
1
2
4
Red
Green
Blue
Example: 0, 1, 37, 44 on an IBM CGA would produce bold white
characters
on a blue field with no snow. The snow removal business has to
do with
whether the program should synchronize with vertical retrace
when up-
dating
screen
memory.
This is necessary with certain color
adaptors
(like the CGA) and unnecessary for others (like the EGA).
CURSOR-STYLE {BLOCK, UNDERLINE}
Sets the cursor rendition to your preference. Note that on some
early
IBM PCs and compatibles, the cursor may not be restored correctly
after
escaping back from CONNECT because of a bug in the early IBM
BIOS.
KEYCLICK {ON, OFF}
Turns electronic keyclick ON or OFF. If your keyboard has a
mechanical
clicker (as IBM boards do), you may not notice the effect of
this command.
MARGIN-BELL {ON, OFF}
Controls whether the bell should be sounded when the cursor
passes
column 72 near the right screen margin; wider displays set the
bell 8
columns from the right edge.
5.6.9. The SET Command
Page 105
-----------------------------------------------------------------------------NEWLINE-MODE {ON, OFF}
ON sends a carriage-return-linefeed combination (CRLF) when you
type
carriage return (CR) during terminal emulation. OFF
(default) just
sends a CR when you type CR.
ROLL {ON, OFF}
ON unrolls the screen to the bottom before adding new material
if the
screen had been rolled back, e.g. by Ctrl-PgUp. ROLL OFF (the
default)
displays new material on the current screen, possibly
overwriting old
material.
SCREEN-BACKGROUND {NORMAL, REVERSE}
NORMAL means dark background, light characters.
light
background, dark characters.
REVERSE means
TAB {AT n, CLEAR AT n, CLEAR ALL}
Sets tab stops or clears one or all tab stops; n is the numeric
position of the tab to be set or cleared. By default, tabs are
every 8
spaces, at positions 9, 17, 25, etc. Only meaningful when
emulating a
terminal that has settable tabs (the VT52 doesn't really
but the
emulator can set them anyway). More than one tabstop may be
specified
by separating column numbers with commas, spaces, or tabs. 132
columns
are supported.
WRAP {ON, OFF}
ON automatically breaks screen lines (by inserting a CRLF) when
they
reach the right margin.
OFF disables wrapping -- if a line
is too
long, the excess characters go off the screen. WRAP is OFF by
default,
since most hosts format lines to fit on your screen.
SET TIMER
Syntax: SET TIMER {ON, OFF}
This command enables or disables the timer that is used during file
transfer to
break deadlocks that occur when expected packets do not arrive.
By
default,
the timer is ON.
If the other Kermit is providing timeouts, you can
safely
turn the timer OFF to avoid packet collisions that might occur when two
timers
go off simultaneously.
SET TRANSLATION
Syntax: SET TRANSLATION INPUT {ON, OFF, char1 char2}
This command provides multi-language support (and perhaps other
special
effects) during CONNECT, and during execution of the INPUT, OUTPUT,
PAUSE, and
TRANSMIT script commands, but not during file transfer or at MS-Kermit
command
level. A character that arrives at the communication port (char1)
will be
translated to another character (char2) before display on the screen.
As many
as 256 characters may have translations specified concurrently.
But
to see
characters with ASCII values higher than 127, you must also SET DISPLAY
8 and
SET PARITY NONE.
SET TRANSLATION INPUT ON enables translation (the keyword INPUT is
required to
5.6.9. The SET Command
Page 106
-----------------------------------------------------------------------------allow future translation mechanisms). OFF disables the translation and
is the
default. So even if you have set up a translation table, you must SET
TRANSLATION INPUT ON before it will take effect. SHOW TRANSLATION tells
whether
translation is OFF or ON, and displays any current table entries.
Translation table entries are made by specifying byte pairs in ASCII or
numeric
backslash form:
SET TRANS INPUT \3 \13
converts incoming ASCII ETX characters (decimal 3) to ASCII CR
(decimal 13).
8-bit values are allowed, and refer to characters in the "upper half"
of the
PC's character set, either the ROM characters supplied with the PC or
else substitutions provided by a special device driver.
A more practical example shows how the user of a German PC could use
the SET
TRANSLATION and SET KEY commands to make the PC's umlaut-a key (key
code 132)
send a left curly brace ("{", ASCII 123), and to display incoming curly
braces
as umlaut-a's:
SET KEY \d132 \d123
SET TRANS INP { \d132
(This example applies to the IBM PC German keyboard, and assumes the
German
keyboard driver, KEYBGR, has been loaded.
This is usually
done
in
AUTOEXEC.BAT.)
SET WARNING
Syntax: SET WARNING {ON, OFF}
Specify what to do when an incoming file is about to be stored under
the same
name as an existing file in the target device and directory.
If ON,
Kermit
will warn you when an incoming file has the same name as an existing
file, and
automatically rename the incoming file (as indicated in the warning
message) so
as not to destroy (overwrite) any existing one. If OFF, the preexisting file
is destroyed, even if the incoming file does not arrive completely.
WARNING is
ON by default as a safety measure.
The new name is formed by adding numbers to the part of the name
before the
dot.
For instance, ABC.TXT becomes ABC00001.TXT, ABC00001.TXT
becomes
ABC00002.TXT, etc.
The STATUS Command
Syntax: STATUS
The STATUS command displays the values of all the current SET options.
There
are currently no operands for the STATUS command. It always displays
all the
options, and the display fills the screen.
5.6.9. The SET Command
Page 107
-----------------------------------------------------------------------------The SHOW Command
Syntax: SHOW option
Most parameters that may be altered with SET commands are displayed
by the
STATUS command. The SHOW command is used for displaying macro
definitions, key
redefinitions, file transfer statistics, and translations.
SHOW MACROS
displays the definitions of all currently defined macros,
well as
the amount of space left for new macro definitions.
as
SHOW KEY
allows you to determine a key's identification code and
what
it
will
send in CONNECT mode, most useful for obtaining the
identification of a
key when SET KEY commands will be placed in a TAKE FILE. This
command
can be done only interactively (use a ? to see all defined
keys).
Refer to the terminal emulation section for examples.
SHOW MODEM
displays the status of the modem signals DSR (dataset ready,
modem
tells the PC that it is turned on and in data mode), CTS
(clear to
send, modem grants the PC permission to send data), and CD
(carrier
detect, local modem tells the PC that it is connected to the
remote
modem). The results may be misleading if your asynchronous
adapter, or
the connector or cable that is attached to it, is strapped to
supply
these modem signals itself.
SHOW STATISTICS
displays counts of characters sent and received during file
transfers,
for both the most recent transfer and the entire session, and
an estimate of the average baud rate while sending and listening.
SHOW TRANSLATION
displays
the
entries in the 256 byte input translation table.
Values
are expressed numerically to avoid
confusion
with
different
display
adapters, and the command shows only entries for which input and
output
codes differ.
5.7. SCRIPTS
A script is a file containing Kermit commands to be executed. It is the
same
as a TAKE file, in Kermit terminology, but includes INPUT, OUTPUT, PAUSE,
ECHO,
and CLEAR commands to automatically detect and respond to information
flowing
though the serial port, actions which otherwise would be performed by
the user
during CONNECT. The login sequence of a host computer is a classical
example.
The script commands INPUT, OUTPUT, PAUSE, and ECHO may be terminated by
typing
Control-C at the keyboard.
5.7. SCRIPTS
Page 108
-----------------------------------------------------------------------------The CLEAR command
Syntax: CLEAR
The CLEAR command flushes the buffers of the serial port to forget any
earlier
material to help the INPUT command with a clean start.
(This
command was
called CLRINP in 2.29B and earlier, and CLEAR was used to erase macro
and key
definition memory).
The INPUT command
Syntax: INPUT [timeout] {search-string, @filespec}
INPUT is the most powerful of the script commands. It reads characters
from
the serial port continuously until one of two things occurs: the
received
characters match the search string or the time limit expires. Matching
strings
is the normal use, as in
Kermit-MS>input 5 Login please:
to recognize the phrase "Login please:", or else time out after trying
for 5
seconds. A special binary character \255 or \o377 or \xFF stands for the
combination carriage return and a line feed, in either order, to simplify
pattern
matching.
Beware of characters arriving with parity set because the pattern
matching considers all 8 bits of a byte unless the local parity is other than NONE
and SET
DISPLAY is 7-BITS. Arriving characters are modified by first
removing the
parity bit, if parity is other than NONE, then they are passed through
the SET
TRANSLATION INPUT converter, the high bit is again suppressed if SET
DISPLAY is
7-BITs, the result is logged and stored for pattern matching.
The INPUT
normal
and
OUTPUT
commands
have
a special syntax to replace the
string with text obtained from a file or device:
OUTPUT @filespec
INPUT @filespec
Both forms read one line of text from the file or device and use it
as the
desired string.
A common use is to wait for a password prompt and
then read
the password from the console keyboard.
A string starts with the
first
non-spacing character and ends at either the end of line or, if executed
within
a TAKE file, at a semicolon. Indirectly obtained strings, the @filespec
form,
read the first line of the file up to but not including the explicit
carriage
return. Note if a trailing carriage return is needed it must be
expressed
numerically, such as \13 decimal.
The behavior of the INPUT command can be controlled by SET INPUT
parameters:
CASE, TIMEOUT-ACTION, DEFAULT-TIMEOUT, and ECHO.
If the TIMEOUTACTION is
PROCEED then failure to match strings is ignored and the script
continues with
the next command. Otherwise, QUIT causes the current script file to be
exited
immediately; the next higher level script file or the Kermit prompt
is done
next. CASE controls whether upper and lower case letters should be
considered
the same during matching. DEFAULT-TIMEOUT supplies a different default
for how
long to wait, in case an explicit value is not given in the INPUT
command.
5.7. SCRIPTS
Page 109
-----------------------------------------------------------------------------Finally, ECHO controls displaying of serial port data during
matching and
during the other script commands.
When a script fails because an INPUT command did not encounter the
desired
string within the timeout interval, the message is "?Not confirmed".
The OUTPUT command
Syntax: OUTPUT {string, @filespec}
The OUTPUT command writes the indicated character string to the serial
port as
ordinary text. The string may contain control or other special binary
characters by representing them in the backslash numerical form. Carriage
Return
(CR), for example, is \13 decimal, \o15 octal, or \x0D hexadecimal. The
string
may use 8-bit characters if the communications parity is type NONE.
The OUTPUT string may not contain Kermit CONNECT-mode action verbs, but
it does
recognize a special code \b or \B, which causes a BREAK signal to be
transmitted.
The string to be transmitted starts with the first non-spacing character
after
the OUTPUT command and ends at either the end of line or, if executed
within a
TAKE file, at a semicolon (if you need to output a semicolon from within
a TAKE
file, use backslash notation, e.g. "\59"). Indirectly obtained
strings, the
@filespec form, read the first line of the file up to but not including
the explicit carriage return.
As a convenience, text arriving at the serial port during the OUTPUT
command is
shown on the screen if SET INPUT-ECHO is ON, and stored in a 128-byte
internal
buffer for rereading by a following INPUT command.
The PAUSE command
Syntax: PAUSE [number]
PAUSE simply waits one or more seconds before Kermit executes the next
script
command.
Pauses are frequently necessary to avoid overdriving the host
and to
let a modem proceed through a dialing sequence without interruptions from
Kermit.
The default waiting time is set by SET INPUT DEFAULT-TIMEOUT and
is normally one second. The optional integer number selects the number of
seconds to
pause for this command. An explicit value of zero produces a pause of
just a
few milliseconds which can be useful in some situations.
Text arriving during the PAUSE interval is shown on the screen,
if SET
INPUT-ECHO is ON, and stored in a 128-byte internal buffer for
rereading by a
following INPUT command.
Script Examples
Figure 5-2 shows a simple script file that dials a Hayes modem and logs
in to a
computer, prompting the user for her password, and then connects as a
terminal.
Notice the
these same
semicolons used to indicate comments in TAKE files.
If
5.7. SCRIPTS
Page 110
-----------------------------------------------------------------------------------------------------------------------------------------------------------
CLEAR
SET SPEED 1200
OUTPUT AT\13
PAUSE 2
INPUT OK
OUTPUT ATDT 9,555-1212\13
INPUT 30 CONNECT
PAUSE 2
OUTPUT \13
PAUSE 2
OUTPUT \13
INPUT 15 Please login:
OUTPUT Sari\13
SET INPUT ECHO OFF
INPUT Enter password:
ECHO Type your password now.
OUTPUT @CON
OUTPUT \13
SET INPUT ECHO ON
CONNECT
Figure 5-2:
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
Wakeup modem.
Let it get ready.
Its response.
Dial the phone.
Wait for connection.
Breathing space for modems.
Send carriage returns to
awaken host, wait 2 secs
between them.
Get expected prompt.
Send username and CR.
Privacy, please.
Quietly wait for this.
Make our own prompt.
Send console keystrokes.
Add a real carriage return
Go verbose again.
Start terminal emulation
MS-Kermit Script for Dialing Up and Logging In
-----------------------------------------------------------------------------commands were typed by hand at the Kermit prompt the semicolon material
would
be considered part of a string! Typing a Control-C will interrupt
and terminate any of the commands.
The MS-Kermit script package maintains a small memory buffer to allow the
INPUT
command to inspect characters received during the previous few script
commands.
CLEAR removes them and any others in a lower level main serial port
buffer.
As with any TAKE file, scripts can be nested by using the TAKE command
within a
script.
If an INPUT command fails to obtain a match and uses the QUIT
option
or if the script simply finishes normally the TAKE file is exited and
control
resumes where it left off in the next higher TAKE file or at the Kermit
prompt.
A slightly more complicated combination of DOS Batch and Kermit Script
files is
shown in Figures 5-3 and 5-4 (see your DOS manual for an explanation
of the
batch file syntax). The purpose is to allow a user to say "SEND
filename" at
the DOS prompt. The DOS batch shell, SEND.BAT, and the login script,
KX, are
combined to login to a VAX through a data switch, run VMS Kermit in
server
mode, transfer the file, submit it to VMS Mail, delete the disk file,
shut down
the server and logout from the VAX, and report the overall transfer
status.
The user is asked to provide a password interactively. Scripts are
illustrated
further in the next section.
5.8. Initialization Files Revisited
Page 111
----------------------------------------------------------------------------------------------------------------------------------------------------------File SEND.BAT, DOS batch program:
echo off
Rem Kermit, one-line file mailer, by Joe Doupnik.
Rem Logon to VAX, run Kermit, Send user's file,
Rem post via MAIL, logout from VAX.
if ".%2" == "." goto usage
if exist %1 goto proceed
echo No file to send!
:usage
echo Usage is SEND filename username
goto done
:proceed
echo Logging onto the Vax ...
kermit set disp q,take kx,send %1,pau,rem host mail %1 %2,pau 2,bye,
if errorlevel 3 goto badrem
if errorlevel 2 goto badrcv
if errorlevel 1 goto badsnd
echo File(s) "%1" has been mailed to %2.
goto done
:badrem
echo Mail did not cooperate!
:badrcv
echo Receive failed!
goto done
:badsnd
echo Send failed!
goto done
:done
echo on
Figure 5-3:
MS-DOS Batch File Invoking Kermit to Send VAX Mail
-----------------------------------------------------------------------------5.8. Initialization Files Revisited
At Columbia University, we have IBM 370-series mainframes running
VM/CMS,
DECSYSTEM-20 mainframes running TOPS-20, a VAX 8700 running Unix. All of
these
systems are accessible through a Gandalf PACX port contention unit.
The IBM
systems have two different kinds of front ends, a COMTEN 3695 (similar
to IBM
3705) for linemode half-duplex connections, and various Series/1-style
protocol
converters (including the 7171 and 4994) for full-screen, full-duplex
3270
emulation, all of which use various combinations of parity and other
settings.
Figure 5-5 shows an MSKERMIT.INI file composed by Vace Kundakci of
Columbia to
automate the task of switching his PC/AT among all these systems.
It illustrates the creative use of macros and scripts. Numerous site- and
systemdependent key definitions have been omitted.
A bit of explanation might clarify some of this. PACX is our port
contention
unit. Its output appears in even parity. It prompts us to "Enter node
name
=>", and we respond with the name of one of our systems or front
ends, like
5.8. Initialization Files Revisited
Page 112
----------------------------------------------------------------------------------------------------------------------------------------------------------File KX, Kermit script:
Comment Login script for VAXA via Micom data PBX Switch.
set input timeout quit
set input echo off
set display quiet
output \13
comment - "slowly." and "CLASS" are part of the switch's prompt.
input 10 slowly.
input 10 CLASS
pause
comment - Slowly tell switch "vaxa", wait for beep.
output v
output a
output x
output a
output \13
pause
input 5 \7
comment - Done with Switch, wake up the VAX and log in.
pause
output \13
pause
input 5 Username:
set input timeout proceed
output MYNAME\13
input 2 Password:
comment - Prompt ourselves, then get password from console.
echo Enter password:
output @con
comment - Send a carriage return at the end of the password.
output \13
comment - Expect ESC Z from the VAX's Set Term/Inquire...
comment - Respond ESC [ <query symbol> 6 ; 2 c
(say we are VT102).
comment - Note syntax for including question mark and semicolon!
input 15 \27Z
output \27[\{63}6\;2c
comment Look for VMS dollar sign prompt
input 15 $
comment Start VMS Kermit and place it in server mode
output kermit server\13
comment - allow server's message to finish, "machine." appears twice.
input 10 machine.
input 10 machine.
pause
Figure 5-4:
MS-Kermit Script for Logging into VAX and Sending Mail
-----------------------------------------------------------------------------CU20B or CU20D (DEC-20s), SIMA or SIMB (7171s), CUVMA or CUVMB (IBM
mainframes
front ended by COMTEN), or CUNIXC (a VAX). To connect to a given
system, Vace
types "do cu20b" or "do sima" to invoke a "connecting" macro. Each
these,
of
5.8. Initialization Files Revisited
Page 113
-----------------------------------------------------------------------------------------------------------------------------------------------------------
; MSKERMIT.INI for IBM PC/AT Kermit 2.30, by Vace Kundakci
COMMENT
set inp
set inp
set inp
- INPUT command defaults for scripts
tim quit
echo off
case observe
COMMENT - Macros for connecting to PACX and selecting various systems
def cu20b do pacx,o cu20b\13,do 2065
def cu20d do pacx,o cu20d\13,do 2065
def sima do pacx,o sima\13,do 7171
def simb do pacx,o simb\13,do 4994
def cunixc do pacx,o cunixc\13,do 8700
def cuvma do pacx,o cuvm\13,do 3695,o vma\13,do 3083
def cuvmb do pacx,o cuvm\13,do 3695,o vmb\13,do 3083
COMMENT - Macros for logging in to various systems.
def pacx cle,set par e,o \13,i 5 Enter node name =>\32,pau
def 3695 i 5 SWITCHING CHARACTERS:\32\32
def 3083 i 5 ONLINE,o L\32,do pwd,do vml,c
def 8700 i 5 login:\32,do pwd,do dec,c
def 2065 i 5 \13\10\64,o ter vt102\13,do pwd,do dec,c
def 7171 pau,cle,o \13,i 5 TERMINAL TYPE:\32,o vt-100\13,do 3270
def 4994 pau,cle,o \13,i 5 terminal type:\32,pau,o vt100\13,do 3270
def 3270 pau,cle,o \13,o L\32,do pwd,do xed,c
COMMENT
def vml
def xed
def dec
def def
def tty
- Macros for communicating with various systems
set par m,set k \270 \8,set k \3 \Kbreak,do tty
set par e,set k \270 \8,set k \3,do def
set par n,set k \270 \127,set k \3,do def
set tim of,set loc of,set ter wr of,set han non,set flo xon
set tim on,set loc on,set ter wr on,set han xon,set flo non
COMMENT - Macro for obtaining user ID and password
def pwd echo user:,o @con,o \13, do pw2
def pw2 echo Password:,o @con,o \13
Figure 5-5:
An Advanced MS-Kermit Initialization File
-----------------------------------------------------------------------------in turn,
desired
invokes
the
PACX macro to navigate through the PACX to the
system, and then invokes the appropriate macro (3695, 7171, etc) to get
past
any associated front end (e.g. to tell the COMTEN which IBM
mainframe is
wanted, or to tell the protocol converter what terminal to emulate), and
then
to login on the desired system, prompting on the screen for user
ID and
password. Finally, a macro like "vml" (VM linemode), "xed" (XEDIT,
i.e. VM
full screen), or "dec" (DEC-20 or VAX) is executed to set the
communication
parameters for the system just logged in to.
The key definitions
that are
shown in the "vml", "xed", and "dec" macros assign the host's character
deletion code (backspace or rubout) to the AT's backarrow key.
5.9. MS-Kermit Features for Different Systems
Page 114
-----------------------------------------------------------------------------5.9. MS-Kermit Features for Different Systems
As noted early on, MS-Kermit was designed primarily for the IBM PC
family, and
later adapted to various non-IBM-compatible MS-DOS (and even non-MSDOS) systems. Some of these adaptations provide all the features of the IBM PC
version, others provide only a subset, and still others may include
features not
available on the IBM family. These features are all of the systemdependent
variety; the Kermit file transfer protocol should be implemented
identically on
all versions of MS-Kermit. The most obvious differences are in the
terminal
emulation options and the keyboards. Table 5-5 shows the terminal
emulation
options for the systems presently supported by Kermit-MS, and Table 5-6,
shows
which keys are used for screen rollback on the various systems
supported by
MS-Kermit.
------------------------------------------------------------------------------
System
ACT Apricot
DEC Rainbow
DECmate/DOS
Generic DOS
Grid Compass
HP-110
HP-150
IBM PC family
Intel 3xx
NEC APC3
NEC APC
Olivetti M24
Sanyo MBC55x
Wang PC
TI Pro
Victor 9000
Zenith Z100
EscChar
^]
^]
^]
^]
^]
^]
^]
^]
^]
^]
^]
^]
^]
^A
^]
Alt-]
^]
Capabilities
K
R
P K D
K
K
K
K
R
K
R M P K D
K
R M P K D
R
P K
R M P K D
R M P K D
K
M P K
M P K D
K
Terminal Service
VT52 ???
VT102 firmware
VT100
Depends on system
???
Dumb terminal
HP-2623 firmware
H19,VT52,VT102,Tek emulation
Uses real terminal
H19,VT52,VT102 emulation
VT100, ADM3A firmware
Same as IBM PC
H19,VT52,VT102 emulation
Wang firmware
VT100/Tektronix
H19,VT52,VT102 and/or Tek4010
Heath-19 emulation
R=Rollback, M=Modeline, P=Printer control, K=Key redefinition, D=screen
Dump
Table 5-5:
Kermit-MS Terminal Emulation Options
-----------------------------------------------------------------------------Another difference is the default communication port, the number of
communication ports supported, and the names given to them. For instance, the
IBM PC
family supports COM1 and COM2, and uses COM1 by default. MS-Kermit may
be persuaded to support higher-numbered IBM ports using the method outlined
in section 5.16.3. For remote operation, IBM's name for the console is CON,
so if
you CTTY COM1, you do CTTY CON to put the PC back to normal.
5.9. MS-Kermit Features for Different Systems
Page 115
-----------------------------------------------------------------------------------------------------------------------------------------------------------
System
IBM PC
Rainbow
HP-150
NEC APC
NEC APC3
Sanyo 55x
Screen Down
PgUp
PrevScreen
Prev
Uparrow
PgUp
PgUp
Line Down
Ctrl-PgUp
Ctrl-PrevScreen
Shift-UpArrow
Ctrl-UpArrow
Ctrl-PgUp
Ctrl-RtArrow
Screen Up
PgDn
NextScreen
Next
DownArrow
PgDn
PgDn
Line Up
Ctrl-PgDn
Ctrl-NextScreen
Shift-DownArrow
Ctrl-DownArrow
Ctrl-PgDn
Ctrl-PgDn
The IBM PC also allows use of the Home key to get to the top of its
display
memory and End key to get to the bottom, and the keypad minus (-) key to
toggle
the mode line on and off. The Rainbow uses Shift-Next-Screen to get
to the
bottom of its display memory, but provides no key for moving directly
to the
top.
Table 5-6:
Kermit-MS Screen Scroll Keys
-----------------------------------------------------------------------------The DEC Rainbow
The DEC Rainbow version of MS-Kermit 2.30 uses the built-in VT102
terminal
firmware and setup modes, and can operate at speeds up to 9600 baud. It
has no
25th screen line, and therefore no Kermit mode line during CONNECT.
It supports only the Rainbow's single communication port, and not the printer
port,
so SET PORT for the Rainbow is not implemented (but of course the
printer may
be used for printing.) The Rainbow may be put in remote mode by CTTY
AUX, and
returned to normal with CTTY SCRN. The Rainbow supports several SET
TERMINAL
commands: VT102, VT52, and ROLL.
The keypad and cursor keys all work properly in VT102 and VT52 modes and
in ap-
plication as well as native states (they never had in previous
versions).
Newline mode is activated for received characters (LF ==> CR/LF). Screen
roll
back is almost 11 screenfuls. Table 5-7 shows the verb names and
default key
assignments for the Rainbow. On the main typewriter keyboard the shifted
comma
and period are converted to special keys available for Set Key assignment
without impacting the normal unshifted ASCII actions; Shift Lock has no
effect on
these keys.
The DECmate II
MS-Kermit for the DECmate II with the XPU option is somewhat similar to
Rainbow
Kermit. It uses built-in terminal VT100 firmware and setup modes and
baud
rates up to 9600 on the single communication port. The printer port
is not
available for communications in this version. There is no mode line, but
other
connect-mode escapes are supported, including sending BREAK. Disks A
through I
are supported, and the floppy disk format is compatible with the Rainbow.
DEC
utilities are available for file conversion between DOS and WPS-8 files.
5.9. MS-Kermit Features for Different Systems
Page 116
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Rainbow Key
Verb Name
Operation
PF1
PF2..PF4
keypad 0..9
keypad keypad ,
keypad .
keypad Enter
\Kpf1,\Kgold
\Kpf2..\Kpf4
\Kkp0..\Kkp9
\Kkpminus
\Kkpcoma
\Kkpdot
\Kkpenter
Keypad
Keypad
Keypad
Keypad
Keypad
Keypad
Keypad
up arrow
down arrow
left arrow
right arrow
Shift Prev Screen
Shift Next Screen
Ctrl Prev screen
Ctrl Next screen
Prev screen
Next screen
Print Screen
Ctrl Print Screen
\Kuparr
\Kdnarr
\Klfarr
\Krtarr
\Khome
\Kend
\Kupone
\Kdnone
\Kupscn
\Kdnscn
\Kprtscr
\Ktoggle_prn
Cursor keys
Do
Break
Shift Break
Main Screen
Help
Exit
*
*
*
*
*
\Kdump
\Kbreak
\Klbreak
\KDOS
\Khelp
\Kexit
\Knull
\Khangup
\Klogon
\Klogof
\Kstatus
function key
function keys
digit keys
minus key
commma
dot (period) key
Enter key
Rewind to start of screen buffer
Unwind to end of screen buffer
Backup one screen line
Advance one screen line
Backup one screen
Advance one screen
Copy screen to printer
Toggle echoing screen to printer
(printer failure resets toggle)
Copy screen to file (KERMIT.SCN)
Send a BREAK
Send a Long BREAK
Push to DOS
Show Connect mode help menu
Exit Connect mode
send a null out the serial port
hangup phone by dropping DTR, RTS
resume logging, if active
suspend logging
display status table
* (verbs not pre-assigned to keys)
Table 5-7:
Kermit-MS Verbs for the DEC Rainbow
------------------------------------------------------------------------------
The NEC APC3
The NEC APC3 version of MS-Kermit assumes that the ANSI.SYS driver has
been installed and that a color monitor is being used; the color graphics
option is
not used by Kermit. Although the display should be entirely sensible
with a
monochrome system, it has not been tested. Differences from the IBM PC
version
include:
SET BAUD: The useful baud rates supported range from 300 to 9600.
5.9. MS-Kermit Features for Different Systems
Page 117
-----------------------------------------------------------------------------SET PORT: The available ports are 1, 2, 3, or their equivalents AUX,
AUX2,
AUX3.
SET TERMINAL COLOR: Instead of specifying colors by number, the words
BLUE,
RED, MAGENTA, GREEN, CYAN, YELLOW, or WHITE are appropriate. This is the
color
of the text in connect mode; background colors are not available.
Monochrome
monitors will respond with display changing from most dim to most bright
if the
colors are specified in the order given.
SET TERMINAL KEYCLICK: Not implemented in Kermit; use the NEC provided
command.
SET TERMINAL SCREEN-BACKGROUND: Not implemented.
During terminal emulation, screen scroll is handled by the PgUp and PgDn
keys.
If used in combination with the Ctrl key, the display moves but one
line. If
used in combination with the Fnc key, the display scrolls to the end
of the
buffer.
The Fnc-INS combination toggles the mode line on/off. The
Fnc-DEL
combination toggles the terminal emulation type.
The Fnc-Break
combination
resets the emulator. The Help key pulls down the connect mode menu.
The ANSI
escape sequence for disable/enable cursor is implemented.
5.10. Compatibility with Older Versions of MS-DOS Kermit
The last monolithic (single source file) release of MS-DOS Kermit was
1.20.
Meanwhile, implementations based on versions of that vintage will have at
least
the following incompatibilies from the version described here:
- "RECEIVE filespec" is used instead of "GET filespec".
There
is
no
GET
command
in older versions, and no way to specify a new name
for
an incoming file.
- No LOCAL or REMOTE commands.
- No 8th-bit prefixing, repeat counts, CRCs or 2-character checksums.
- No TAKE or initialization files.
- No command macros or command line arguments.
- No terminal session logging.
and others, depending on the specific version.
Incompatibilities between 2.29 and 2.30 include:
- LOCAL command has been removed from 2.30.
- CLEAR command now means clear serial port buffer rather than key
and
macro definitions. Key and macro definition string space is now
garbage collected, so a CLEAR command for them is no longer necessary.
- CLRINP command is gone (replaced by CLEAR).
- Numbers of the form \nnn default to decimal rather than octal.
- Status of Default Disk is now shown as default disk and path.
- LOG filespec replaced by LOG SESSION filespec and LOG
PACKET
filespec.
- SET KEY and SHOW KEY commands use different key identifications
and
syntax:
MS-Kermit no longer understands keycap names such as F1 and BACKSPACE
because
the codes are now highly dependent on individual keyboards, software,
and computers. Also, not every key press combination is supported by the
system
5.10. Compatibility with Older Versions of MS-DOS Kermit
Page 118
-----------------------------------------------------------------------------software and key codes do depend on the keyboard in use. Thus, the
SHOW KEY
command is normally used to obtain codes for keys on your system.
In
most
cases, defining one key also redefines all other keys sending the same
character. This is a side effect of not knowing the physical details of
every
keyboard.
However, efforts have been made to recognize many such
"aliased"
keys and to generate unique identifications for each. Special keys, such
as F1,
F2 and others which do not send an ASCII code are usually unique and are
identified by scan codes.
Previous versions of MS Kermit used a different key coding algorithm
and not
all old codes map to the expected keys. However, Kermit does attempt
to use
the older SET KEY syntax properly as much as possible. The older
syntax required the keyword SCAN followed by a number WITHOUT the BACKSLASH.
The current MS Kermit uses decimal as the default number base and previous
versions
used octal in certain commands. So, when Kermit senses an old style
SET KEY
command it converts the number, displays the new format and gives a
warning
message. It is best to make a new style SET KEY file.
5.11. What's Missing
Kermit-MS has plenty of room for improvement.
may be
added in future releases) include:
Missing features (which
- Sliding windows.
- Attribute packets.
- Login script elaboration within the Kermit
command
structure
(variables, conditional branching, etc).
- Substitutible parameters for TAKE and DO commands.
- Default filetype for TAKE command files.
- DIAL command, telephone directory, explicit support for
various
modems.
com-
A way to play back session logs directly from disk to screen.
Trapping of carrier loss.
Pause at end of screen during local TYPE.
Piped operation a la UNIX (e.g. "compress foo.bar | kermit send").
Transaction file logging.
A way to accept default values for omitted trailing fields in
mands.
- A better built-in help facility.
- Simple Control and Meta key reassignment.
- Separation of STATUS output into several screens for terminal,
communication, and protocol parameters.
- Specification of character sequences having special meaning to
communications "black boxes" which use ASCII characters for control
purposes. Byte stuffing or character doubling may be required.
Future releases of MS-Kermit will probably have major portions of the
program
(now written entirely in assembler) replaced by C-language code. This
would
include the file transfer portions, the command parser, etc.
5.12. Installation of Kermit-MS
Page 119
-----------------------------------------------------------------------------5.12. Installation of Kermit-MS
If you already have Kermit on your PC, you can use it to obtain new
versions of
Kermit-MS when they appear on the central system at your site. If you
do not
have Kermit or any other reliable file capture facility on your PC, you
can order a Kermit diskette from Columbia (write to Kermit Distribution,
Columbia
University Center for Computing Activities, 612 West 115th Street, New
York, NY
10025, USA, for information), or from any of a number of user groups
or diskette services. If you absolutely can't get a Kermit diskette, but have
access
to another computer that has a copy of the MS-DOS Kermit program
(usually in
".BOO" format, explained below), there are two recommended methods for
getting
it onto your PC:
1. Use another file capture facility to get it.
2. Type
in and run the "baby Kermit" program (72 lines) from chapter
7
of the Kermit book.
The first method involves either "raw capture" (no error checking), or
else use
of (gasp!) another protocol, such as Xmodem, which, like Kermit,
requires a
program to execute the same protocol on both ends of the connection.
Raw capture generally involves "typing" the file on the other computer,
with
your PC taking the place of the terminal, and rather than displaying
the file
on the screen as it's being typed, your PC is storing it on the disk.
This is
a tricky process, however, because data can easily be lost or
corrupted. For
instance, you could write a very short BASIC program to capture a file in
this
way, but it could probably not keep up -- even at low baud rates -with the
transmission speed unless you included the tricky serial port BASIC
commands.
The DOS command COPY COM1 filename command has the same speed problem,
and it
stops only when it receives a Control-Z character from the other
computer.
If the other computer has Kermit on it -- which is likely, since this is
probably the reason you want to get Kermit onto your PC -- you should type
in the
receive-only BASIC Kermit program listed on pp.186-188 of the Kermit
book, and
then use it in conjunction with the other computer's Kermit to
transfer the
file. Make sure to set a long enough delay on the other computer to give
yourself time to escape back to the PC and start up the "baby Kermit" before
packets start to arrive, otherwise you'll probably get fatal DOS i/o errors.
Note that Kermit programs are often distributed under names other
than
"Kermit".
The Columbia Kermit program library contains hundreds of
Kermit
programs, which must be given unique names. MS-DOS Kermit for the IBM
PC, for
instance, is called MSVIBM.BOO. Once you have this program in .EXE
format on
your disk, you probably should rename it to KERMIT.EXE, because it's
harder to
remember (and type) the distribution name.
You will probably also want to create an MS-Kermit initialization
file. A
sample is distributed with MS-Kermit as MSVIBM.INI. This should be
tailored to
your requirements, and then renamed to MSKERMIT.INI, and stored where
Kermit
can find it (according to the DOS PATH and APPEND commands).
Finally, if you run Kermit often, you might want to have your
AUTOEXEC.BAT file
copy Kermit, the initialization file, and a copy of COMMAND.COM to a RAM
disk.
The procedure is explained in section 5.5.
5.12. Installation of Kermit-MS
Page 120
-----------------------------------------------------------------------------".BOO Files"
MS-Kermit (and many other Kermit programs) are often distributed using a
special encoding called "boo" (short for "bootstrap") format, developed
especially
for distribution of MS-Kermit over networks and communication lines. MSKermit
has grown to have so many features that the binary program image
(the .EXE
file) has become quite large. But binary files are generally not
compatible
with the common labeled tape formats (e.g. ANSI D), electronic mail,
or raw
downloading -- the methods most commonly used for Kermit distribution.
A common practice is to encode .EXE and other binary files into
printable
characters, such as hexadecimal digits, for transportability. A simple
"hex"
encoding results in two characters per 8-bit binary byte, plus CRLFs
added
every 80 (or less) hex characters to allow the file to pass
through
card-oriented links. A hex file is therefore more than twice as large
as the
original binary file.
A .BOO file is a more compact, but somewhat more complicated, encoding.
Every
three binary bytes (24 bits) are split up into four 6-bit bytes with 48
(ASCII
character "0") added to each, resulting in four ASCII characters
ranging from
"0" (ASCII 48) to "o" (ASCII 111), with CRLFs added at or near "column
76".
The resulting file size would therefore be about 4/3 the .EXE file size.
This
is still quite large, so .BOO files also compress consecutive null
(zero)
bytes.
Up to 78 consecutive nulls are compressed into two characters.
Tilde
("~") is the null-compression lead-in, and the following character
indicates
how many nulls are represented (subtract 48 from this character's ASCII
value).
For instance "~A" means 17 consecutive nulls; "~~" means 78 of them.
Repeated
nulls are very common in .EXE files.
4-for-3 encoding combined with null compression reduces the size of the
encoded
file to approximately the same size as the original .EXE file, and
sometimes
even smaller. The first line of a .BOO file is the name (in plain text)
of the
original file. Here's what the first few lines of a typical .BOO file
look
like:
MSVIBM.EXE
[email protected][email protected]`W~28bL005\W~2JBP00722V0ZHPYP
:
\8:H2]R2V0[`PYP:68>H2S23V0YHPiP:Xg800;Qd~2UWD006Yg~2Ogl009]o~2L8000;20~~~
~
~~~~~~~:R2H008TV?P761T410<[email protected]@PP?`[email protected]?YSP20o0Ee0nUD0h3l
[email protected]]0VjW03=8L?X4`N0o01h1\H6~20l>0i7n0o1]e7[@2\[email protected]>04^97Xh
0
Programs for Handling .BOO Files
Kermit Distribution includes several useful .BOO-file programs:
MSBPCT.BAS
decode a
This
Microsoft BASIC program can be used on any PC to
.BOO file into an .EXE file.
so
It's about 50 lines line,
it
can be typed in.
MSBPCT.BOO
decoders have
BASIC
also
programs
been
run
written
rather slowly, so .BOO-file
in
high-level
languages
like
C.
The
MSBPCT.EXE
file that was produced by compiling MSBPCT.C
is encoded
into
MSBPCT.BOO,
which
can
be
decoded
back
into
MSBPCT.EXE
using MSBPCT.BAS.
Once you've done that, you
don't
need to run the slow BASIC version any more, which is a
bless-
5.12. Installation of Kermit-MS
Page 121
-----------------------------------------------------------------------------ing, because the MS-Kermit .BOO file takes more than
half an
hour to decode using the BASIC version, but only seconds
using
MSBPCT.EXE.
MSBPCT.*
languages too,
There
are
.BOO-file
decoders written in other
like assembler, Turbo Pascal, etc.
They
Take your pick.
all
do the same thing.
MSBMKB.*
file.
This is the program for encoding an .EXE file into a .BOO
It is written in C, compiled, and translated (by
itself)
into
.BOO
format,
suitable for decoding back into .EXE form
by any
of the MSBPCT programs.
MSBHEX.* are programs for producing and decoding straight hex files.
5.13. Program Organization
Kermit-MS version 2 is composed of separate assembler source
assembled
separately, and linked together. The modules are:
files,
System/Device Independent:
MSSKER.ASM
MSSSEN.ASM
MSSRCV.ASM
MSSSER.ASM
MSSFIL.ASM
MSSCMD.ASM
MSSTER.ASM
MSSCOM.ASM
MSSSET.ASM
MSSSCP.ASM
commands
MSSFIN.ASM
must be
MSSDEF.H
Main program
File sender
File receiver
Server operation
File i/o
Command parser
CONNECT command
Packet reader and sender
SET, SHOW, and STATUS commands
Script CLEAR, ECHO, INPUT, OUTPUT, PAUSE, TRANSMIT
Dummy
module
to
find
the
end
of the data segment;
linked LAST.
Data structure definitions and equates
System/Device Dependent:
MSGxxx.ASM
MSUxxx.ASM
MSXxxx.ASM
MSYxxx.ASM
MSZxxx.ASM
System-dependent graphics terminal for system xxx
System-dependent keyboard translator for system xxx
System-dependent code for system xxx
Terminal emulation for system xxx
More terminal emulation for system xxx
The xxx is replaced by a 3-letter code for the particular system, e.g.
IBM for
the IBM PC family, RB1 for the Rainbow-100, etc.
The modular organization allows easier modification of the program,
quicker
transfer of modified portions from system-to-system. The modules are
designed
to be well-defined and self-contained, such that they can be easily
replaced.
For instance, someone who prefers windows and mice to typing commands
should be
able to replace the command parsing module without having to worry
about the
effect on the other modules.
To assemble any of the Kermit modules, file MSSDEF.H must
default
be
on
the
5.13. Program Organization
Page 122
-----------------------------------------------------------------------------disk.
All the Kermit implementations require the modules MSSCMD, MSSCOM,
MSSFIL,
MSSKER, MSSRCV, MSSSCP, MSSSEN, MSSSER, MSSSET, MSSTER, MSSFIN. MSSFIN
must be
linked last.
Each particular implementation requires at least an MSXxxx module,
usually an
MSUxxx module, and, if it is doing terminal emulation in software,
also an
MSYxxx and possible also an MSZxxx module, and for graphics terminal
emulation,
also an MSGxxx module. See the batch or make files from the source
distribution for details of exactly which modules are required for a
particular implementation.
Once all the required object modules exist, they may be
together to
produce a Kermit program. For example, on the IBM PC:
linked
A>link
Microsoft Object Linker V2.00
(C) Copyright 1982 by Microsoft Inc.
Object Modules [.OBJ]:
msscmd+msscom+mssfil+mssker+mssrcv+mssscp+msssen+
mssser+mssset+msster+msgibm+msuibm+msxibm+msyibm+mszibm+mssfin
Run File [MSSCMD.EXE]: kermit
List File [NUL.MAP]:;
A>
5.14. Bringing Kermit to New Systems
You can bring Kermit-MS to MS-DOS systems that are not explicitly
supported in
one of two ways -- attempt to run the "generic" MS-DOS Kermit on it, or
add explicit code to support your system.
To get started with Kermit on a new system, try running "generic" MSDOS Ker-
mit; in many cases, it will run as is. The generic version
accomplishes all
its port and console i/o through DOS calls, and during terminal
connection does
not attempt to emulate any particular kind of terminal.
In some
cases, the
generic version may still require some fiddling to run on a new system;
for instance, different systems refer to their communication ports in different
ways
-- COM1, J1, AUX, etc. The SET PORT command allows you to specify
the port
using any of these device names, or using DOS file handles -- keep trying
until
you find the one that works. Generic MS-DOS Kermit will probably run no
faster
than 1200 baud, and it only works with DOS 2.0 or later.
If you want to write code to explicitly support a new system, first
call or
write Kermit Distribution at Columbia to make sure no one else is already
doing
the same work. If you're the first, then begin by reading the file
MSXAAA.DOC,
provided with the MS-DOS Kermit sources in the Kermit distribution,
which is a
guide to the system dependent modules of Kermit-MS. Then create new
MSUxxx.ASM
and MSXxxx.ASM modules, and, if your version is also doing terminal
emulation
in software, also an MSY and possibly an MSZ module patterned after those
that
have been written for other systems.
5.14. Bringing Kermit to New Systems
Page 123
-----------------------------------------------------------------------------5.15. Kermit-MS VT102 Terminal Emulator Technical Summary
5.15.1. Treatment of Inbound Characters During Terminal Emulation
Many things can happen to a character that arrives at the
communication port
before you see it, depending on all the factors mentioned above.
actual
sequence of events is:
1.
2.
3.
4.
style
The
Obtain character from serial port.
Remove high bit if parity is other than none.
Detect and remove xon/xoff if FLOW is XON/XOFF.
If DEBUG is active (ON or SESSION) then put character to debug
display, otherwise:
5. If transparent printing is active (for VT102 emulators) then
print
the character but do not show it on the display, otherwise:
6. Remove high-order bit if DISPLAY is 7-bit
7. Translate if TRANSLATE INPUT is ON, but skip this step if an
escape
sequence is in progress
8. If LOG SESSION is active then copy character to the log file
9. Pass the character to the terminal emulator for interpretation
or
display.
The following sections summarize the Kermit-MS keyboard and screen
operation
during emulation of H19, VT52, and VT102 terminals, prinicipally for the
IBM PC
but also used by the NEC APC3, Victor 9000, and Sanyo 55x systems.
Note that
spaces shown between characters of escape sequences are there for ease of
reading. The actual sequences contain no spaces.
5.15.1. Treatment of Inbound Characters During Terminal Emulation
Page 124
-----------------------------------------------------------------------------5.15.2. Keyboard Layout and Characters Sent
Here is how the keypad functions are assigned to the IBM keyboard
function
keys. You may change them by using the SET KEY command to define a
desired key
as the appropriate Kermit action verb; use SET KEY without a definition
to undefine a key. Names of appropriate verbs are also shown for use in the
Set Key
command, such as
Set Key \2352 \Kbreak
(IBM Alt-B assigned to verb BREAK)
Verb names are system dependent, use ? in the Set Key definition part
for a
list of local verbs. IBM PC verbs are listed in Table 5-4; IBM key
values are
either straight ASCII or the IBM Bios scan code, plus 256, plus 512 for
Shift
key held down, plus 1024 for Control key held down, plus 2048 for Alt key
held
down; non-ASCII keys are always 256 decimal or greater. Keys particular
to the
Enhanced Keyboard have 4096 added to the result.
-------------------------------------------------------------------------Heath-19 and VT52 Keypads
IBM Keys
+------+------+-------+----------+
| Blue | Red | Grey | up arrow |
| F1 | F2 | F3
| up arrow |
+------+------+-------+----------+
| 7
| 8
| 9
|down arrow|
| F5 | F6 | F7
|down arrow|
+------+------+-------+----------+
| 4
| 5
| 6
| rgt arrow|
| F9 | F10 | SF1 | rgt arrow|
+------+------+-------+----------+
| 1
| 2
| 3
|left arrow|
| SF3 | SF4 | SF5 |left arrow|
+------+------+-------+----------+
| 0------0
| .
| Enter
|
| SF7
| SF8 | SF6
|
+-------------+-------+----------+
VT102 keypad
IBM keys
+------+------+------+------+
| PF1 | PF2 | PF3 | PF4 |
| F1 | F2 | F3 | F4 |
+------+------+------+------+
| 7
| 8
| 9
| |
| F5 | F6 | F7 | F8 |
+------+------+------+------+
| 4
| 5
| 6
| ,
|
| F9 | F10 | SF1 | SF2 |
+------+------+------+------+
| 1
| 2
| 3
| E
|
| SF3 | SF4 | SF5 | n S|
+------+------+------+ t F|
| 0------0
| .
| e 6|
|
SF7
| SF8 | r
|
+-------------+------+------+
SF1 means push Shift and F1 keys simultaneously
-------------------------------------------------------------------------CURSOR KEYS:
VT52/H19 key
Application
up arrow
down arrow
right arrow
left arrow
IBM Verb
UPARR
DNARR
RTARR
LFARR
IBM key
up arrow
down arrow
right arrow
left arrow
H-19 & VT52
All Modes
ESC
ESC
ESC
ESC
A
B
C
D
VT102
Numeric
ESC
ESC
ESC
ESC
[
[
[
[
A
B
C
D
ESC
ESC
ESC
ESC
O
O
O
O
A
B
C
D
AUXILIARY KEYPAD:
VT52/H19 key
IBM Verb
PF1/HF7/Blue
PF2/HF8/Red
GOLD,PF1
PF2
IBM key
F1
F2
Heath-19 & VT52
Numeric Applic.
VT102
Numeric
Applic.
ESC P
ESC Q
ESC O P
ESC O Q
ESC P
ESC Q
ESC O P
ESC O Q
5.15.2. Keyboard Layout and Characters Sent
Page 125
-----------------------------------------------------------------------------PF3/HF9/Grey
PF3
F3
ESC R
ESC R
ESC O R
ESC O R
PF4/HF1
PF4
F4
ESC S
ESC S
ESC O S
ESC O S
0
KP0
SF7
0
ESC ? p
0
ESC O p
1
KP1
SF3
1
ESC ? q
1
ESC O q
2
KP2
SF4
2
ESC ? r
2
ESC O r
3
KP3
SF5
3
ESC ? s
3
ESC O s
4
KP4
F9
4
ESC ? t
4
ESC O t
5
KP5
F10
5
ESC ? u
5
ESC O u
6
KP6
SF1
6
ESC ? v
6
ESC O v
7
KP7
F5
7
ESC ? w
7
ESC O w
8
KP8
F6
8
ESC ? x
8
ESC O x
9
KP9
F7
9
ESC ? y
9
ESC O y
comma (,)
KPCOMA
SF2
,
ESC ? l
,
ESC O l
minus (-)
KPMINUS
F8
ESC ? m
ESC O m
period (.)
KPDOT
SF8
.
ESC ? n
.
ESC O n
Enter
KPENTER
SF6
^M(cr) ESC ? M
^M
ESC O M
(SFn means hold down Shift key while pressing Function key n.)
An often confusing item is knowing the mode of the auxillary keypad:
numeric or
application.
Digital Equipment Corporation designed the terminal to
change
modes only under command from the remote computer and not at all
from the
keyboard. So the startup state is numeric/cursor mode, and reception of
escape
sequences "ESC [ ? 1 h" or "l" changes the mode. Kermit verbs for the
keypad
and cursor keys generate the correct escape sequences appropriate to
the current mode and terminal type.
A best attempt is made to safely test for the 101/102 key Enhanced
keyboard and
use it if present. If it is present then the keyboard translator
separates the
individual arrow keys from those on the numeric keypad and also
separates the
asterisk and forward slash keys on the keypad from those on the
regular
typewriter keyboard. These special Enhanced keyboard keys are reported
as scan
codes with 4096 added to the base scan code.
OTHER IBM KEYS OPERATIONAL IN CONNECT MODE:
IBM key
IBM Verb
Action
Keypad Del
Backspace (<-)
\8)
Keypad is
Alt emulations.
Alt =
to
Alt
Alt
Alt
Alt
B
H
S
X
Home
End
storage.
PgUp
PgDn
screen.
Ctrl-PgUp
Send ASCII Del code (rubout) \127
Send ASCII Del code (rubout) \127
(BS is
MODELINE
Toggle mode line on/off (only if Mode Line
TERMTYPE
enabled and not used by the host).
Toggle among H-19, VT52, and VT100
RESET
Clear screen and reset terminal emulator
BREAK
HELP
STATUS
EXIT
starting (setup) state.
Send a BREAK signal
Show drop down help menu (detailed below)
Show settings
Exit Connect mode, back to Kermit prompt
HOMSCN
ENDSCN
Roll screen up (text down) to beginning of
storage.
Roll screen down (text up) to end of
UPSCN
DNSCN
Roll screen up (back, earlier) one screen.
Roll screen down (forward, later) one
UPONE
Roll screen up one line.
5.15.2. Keyboard Layout and Characters Sent
Page 126
-----------------------------------------------------------------------------Ctrl-PdDn
DNONE
Roll screen down one line.
Control PrtSc
Control-End
device.
PRTSCN
Toggle on/off copying of received text to
printer, "PRN" shows on far right of mode
line when activated.
DUMP
Dump image of screen to a disk file or
Default filename is KERMIT.SCN in the
current
directory. Use command SET DUMP to change
the
filename.
Screen images are appended to
the
file, separated by formfeeds.
Shift-PrtSc
Standard DOS Print-screen, dump screen image to printer.
"Alt -" means hold down Alt and type minus on the upper key rank.
This
switches among the various kinds of emulation but does not change most
operating parameters of the emulator.
CONNECT ESCAPE COMMANDS:
Type the Kermit escape character (normally "^]"), then one of the keys
below:
(equivalent IBM
Verb)
?
display this short list.
HELP
0
send a null character.
NULL
B
send a BREAK signal.
BREAK
C
close connect session & return to Kermit prompt.
EXIT
F
dump screen to filespec, default is KERMIT.SCN.
DUMP
H
hangup the phone or network connection
HANGUP
L
send a Long BREAK signal
LBREAK
M
toggle mode line on/off.
MODELINE
P
push to DOS.
DOS
Q
quit (suspend) logging.
LOGOFF
R
resume logging.
LOGON
S
show status.
STATUS
Kermit escape character itself: send it to the host.
5.15.3. Responses To Characters Received By the Terminal Emulator
Unknown escape sequences of the form "ESC char" are absorbed by the
emulator
without further effect; longer unknown escape sequences echo the extra
characters.
DEC VT102 functions while in ANSI (VT102) mode, unsupported features
marked by
an asterisk (*):
Escape Seq
ESC D
scroll
ESC E
scroll
ESC H
ESC M
scroll
ESC Z
c)
ESC c
ESC =
Mnemonic
Description of Action
IND
Index, moves cursor down one line, can
NEL
Move cursor to start of line below, can
HTS
RI
Set one horizontal tab at current position
Reverse Index, cursor up one line, can
DECID
Identify terminal (response is ESC [ ? 6
RIS
DECKPAM
Reset terminal to initial state
Enter keypad application mode
5.15.3. Responses To Characters Received By the Terminal Emulator
Page 127
-----------------------------------------------------------------------------ESC >
DECKNPNM
Enter keypad numeric mode
ESC 7
DECSC
Save cursor position and attributes
ESC 8
DECRC
Restore cursor from previously saved
position
ESC # 3
DECDHL
Double height and width line, top half
ESC # 4
DECDHL
Double height and width line, bottom half
ESC # 5
DECSWL
Single height and width line
ESC # 6
DECDWL
Double width single height line
ESC # 8
DECALN
Test screen alignment, fill screen with
E's
ESC [ Pn @
ICH
ANSI insert Pn spaces at and after cursor
ESC [ Pn A
CUU
Cursor up Pn lines, does not scroll
ESC [ Pn B
CUD
Cursor down Pn lines, does not scroll
ESC [ Pn C
CUF
Cursor forward, stays on same line
ESC [ Pn D
CUB
Cursor backward, stays on same line
ESC [ Pn; Pn H CUP
Set cursor to row, column (same as HVP)
ESC [ Ps J
ED
Erase in display:
0 = cursor to end of screen, inclusive
1 = start of screen to cursor, inclusive
2 = entire screen, reset lines to single
width, cursor does not move.
ESC [ Ps K
EL
Erase in line:
0 = cursor to end of line, inclusive
1 = start of line to cursor, inclusive
2 = entire line, cursor does not move
ESC [ Pn L
IL
Insert Pn lines preceding current line.
ESC [ Pn M
DL
Delete Pn lines from current downward,
incl.
ESC [ Pn P
DCH
Delete Pn chars from cursor to left, incl.
ESC [ Pn; Pn R CPR
Cursor report (row, column), sent by
terminal
Example: home position yields ESC [ 1; 1 R
ESC [ Pn c
DA
Device attributes (reports ESC [ ? 6 ; 2
c)
ESC [ Pn; Pn f HVP
Set cursor to row, column (same as CUP)
ESC [ Ps g
TBC
Tabs clear, 0 = at this position, 3 = all
ESC [ 4 h
IRM
Insert mode on
ESC [ 20 h
LNM
Set newline mode (cr => cr/lf)
ESC [ 4 l
IRM
Replacement mode on
ESC [ 20 l
LNM
Reset newline mode (cr => cr)
ESC [ ? Ps;...;Ps h SM
Set mode, see table below
ESC [ ? Ps;...;Ps l RM
Reset mode, see table below
Ps
Mnemonic
Mode
Set (h)
Reset (l)
0
error (ignored)
1
DECCKM
cursor keys
application
cursor/numeric
2
DECANM
ANSI/VT52
ANSI/VT102
VT52
3
DECCOLM
Columns
+132 col
80 col
4
DECSCLM
*Scrolling
smooth
jump
5
6
7
8
9
18
DECSCNM
DECOM
DECAWM
DECARM
DECINLM
DECPFF
Screen
reverse video normal
Origin
relative
absolute
Autowrap
on
off
*Autorepeat
on
off
*Interlace
on
off
Printer termination character, use FF if
19
DECPEX
Printer extent,set=screen,off=scrolling
38
n/a
set
region
ESC [ Pn i
0
4
print)
MC
Graphics (Tek) ++graphics
text
+ See comments on EGA boards.
++ Ignored if DISABLE TEK has been given.
Printer controls (Media Copy)
Print whole Screen
Exit printer controller (transparent
5.15.3. Responses To Characters Received By the Terminal Emulator
Page 128
-----------------------------------------------------------------------------5
Enter printer controller (transparent
print)
ESC [ ? Pn i
MC
Printer controls (Media Copy)
1
Print line containing cursor
4
Exit auto print (stop echoing to printer)
5
Enter autoprint (echo screen chars to
printer)
ESC [ Ps;...;Ps m SGR
Select graphic rendition
0 = all attributes off (#'s 1, 4, 5, 7)
1 = bold, intensify foreground
4 = underscore (reverse video on IBM CGA)
5 = blink
7 = reverse video
non-DEC extensions: 30-37 = foreground color = 30 +
colors
40-47 = background color = 40 +
colors
colors: 1 = red, 2 = green, 4 = blue
ESC [ Ps n
DSR
Device Status Report.
Response from VT100: 0=ready,
3=malfunction.
Command to VT100: 5=report status with
DSR,
6=report cursor position using CPR
sequence.
ESC [ Ps;...;Ps q DECLL
Load LEDs, Ps = 0 means clear LED #1-4
Ps = 1,2,3,4 sets LED # 1,2,3,4 on status
line.
ESC [ Pn; Pn r DECSTBM
Set top and bottom scrolling margins,
resp.
ESC [ r resets margin to full screen.
ESC [ sol x
DECREQTPARM
Request terminal parameters, see table
below
ESC [ sol; par; nbits; xspeed; rspeed; clkmul; flags x
DECREPTPARM
Reports terminal parameters
sol = 0 request; terminal can send
unsolicited
reports - supported as sol = 1 below.
sol = 1, request; term reports only on
request
sol = 2, this is a report (DECREPTPARM)
sol = 3, terminal reporting only on
request
par = 1 none, 2 space, 3 mark, 4 odd, 5
even
nbits = 1 (8 bits/char), 2 (7 bits/char)
xspeed,rspeed = transmit & receive speed
index
0,8,16,24,32,40,48,56,64,72,80,88,96,104,112,120,128 correspond to
speeds of
50,75,110,134.5,150,200,300,600,1200,1800,2000,2400,3600,4800,9600,19200,
and 38400 baud.
clkmul = 1 (clock rate multiplier is 16)
flags = 0-15 (Setup Block #5), always 0
here
ESC [ 2; Ps y DECST
*Confidence tests - not supported
SCS
Select character sets.
ESC ( A
SCS
G0 points to UK symbols
ESC ) A
SCS
G1 points to UK symbols
ESC ( B
SCS
G0 points to ASCII symbols
ESC ) B
SCS
G1 points to ASCII symbols
ESC ( 0
SCS
G0 points to special (line drawing)
graphics
ESC ) 0
SCS
G1 points to special (line drawing)
graphics
ESC ( 1
SCS
G0 points to alt char ROM - UK symbols
ESC ) 1
SCS
G1 points to alt char ROM - UK symbols
ESC ( 2
SCS
G0 points to alt graphics ROM - as ESC ( 0
ESC ) 2
SCS
G1 points to alt graphics ROM - as ESC ) 0
(Separate graphics used for DEC and
Heath)
^E
ENQ
*Answerback message (not supported)
^G
BELL
Sound VT102 style beep
^H
BS
Backspace, move cursor left one character
^I
HT
Horizontal tab, move cursor to next
tabstop
^J
LF
Linefeed, move cursor down one line
^K
VT
Vertical Tab, treated as a line feed
5.15.3. Responses To Characters Received By the Terminal Emulator
Page 129
-----------------------------------------------------------------------------^L
FF
Formfeed, treated as a line feed
^M
CR
Carriage return, move cursor to col 1
^N
SO
Select usage of G1 character set
^O
SI
Select usage of G0 character set
^X
CAN
Cancel escape sequence in progress
^Z
SUB
Treated as a CAN
Other extensions:
ESC [ 25; Pc f
ESC [ 25; Pc H
line.)
ESC * char
VT52/VT100 move cursor to 25th line.
VT52/VT100 move cursor to 25th line.
(These will disable Kermit's own status
VT200 series graphics command, ignored.
5.15.4. DEC VT102 Functions While in VT52 Mode
Escape sequence
Description of action
ESC A
ESC B
ESC C
ESC D
ESC F
ESC G
ESC H
ESC I
ESC J
ESC K
ESC V
ESC X
print
ESC Y row column
ESC W
print
ESC Z
ESC ^ (caret)
screen)
ESC _ (underscore)
ESC ]
ESC =
ESC >
ESC <
Cursor up
Cursor down
Cursor right
Cursor left
Enter graphics mode
Exit graphics mode
Cursor home
Reverse line feed
Erase to end of screen
Erase to end of line
Print cursor line
Exit Printer Controller mode, transparent
Direct cursor address, offset from space
Enter Printer Controller mode,transparent
Identify (response is ESC / Z)
Enter autoprint mode (printer echoes
Exit autoprint mode
Print Screen
Enter alternate keypad mode
Exit alternate keypad mode
Enter ANSI mode (changes to VT102)
5.15.5. Heath-19 Functions While in Non-ANSI Mode
Escape seq
Mnemonic
Description of action
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
A
B
C
D
E
F
G
H
I
J
K
HCUU
HCUD
HCUF
HCUB
HCD
HEGM
HXGM
HCUH
HRI
HEOP
HEOL
Cursor Up
Cursor Down
Cursor Forward, stays on same line
Cursor Backward, stays on same line
Clear display
Enter Graphics mode
Exit Graphic mode
Cursor Home
Reverse Index
Erase to end of page
Erase to end of line
5.15.5. Heath-19 Functions While in Non-ANSI Mode
Page 130
-----------------------------------------------------------------------------ESC L
HIL
Insert line
ESC M
HDL
Delete line
ESC N
HDCH
Delete character
ESC O
HERM
Exit Insert Char mode
ESC Y row col HDCA
Direct cursor addressing, offset from
space
ESC Z
HID
Identify (response is ESC / K which is a
VT52)
ESC b
HBD
Erase Beginning of display
ESC j
HSCP
Save cursor position
ESC k
HRCP
Set cursor to saved position
ESC l
HEL
Erase entire line
ESC n
HCPR
Cursor Position Report request
ESC o
HEBL
Erase beginning of line
ESC p
HERV
Enter Reverse Video mode
ESC q
HXRV
Exit Reverse Video mode
ESC r Bn
HMBR
*Modify baud rate - not supported
ESC t
HEKS
*Enter Keypad shifted mode, not supported
ESC u
HXKS
*Exit Keypad shifted mode, not supported
ESC v
HEWA
Wrap around at end of line
ESC w
HXWA
Discard at end of line
ESC x Ps
HSM
Set Mode. See table below
ESC y Ps
HRM
Reset Mode. See table below
Ps
1
2
3
4
5
6
7
8
9
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
z
=
>
<
@
[
\
{ and }
]
#
Mnemonic
HSM/HRM
Mode
Set (x)
Reset (y)
25th line
enabled
+disabled
*keyclick
off
on
*holdscreen
enabled
disabled
cursor type
block
underline
cursor on/off
on
off
*keypad-shifted shifted
unshifted
alt app keypad enabled
disabled
*linefeed
lf=>cr/lf
lf=>lf
newline mode
cr=>cr/lf
cr=>cr
+ disabling the 25th line also clears it
HRAM
HAKM
HXAM
HEAM
HEIM
HEHS
HXHS
HEK, HDK
HX25
HXMP
Reset to power-up configuration
Enter Alternate Keypad mode
Exit Alternate Keypad mode
Enter ANSI mode (ESC [ stuff)
Enter Insert Char mode
*Enter Hold Screen mode, not supported
*Exit Hold Screen mode, not supported
*Keyboard enable/disable, not supported
*Transmit 25th line, not supported
*Transmit page, not supported
5.15.6. Heath-19 Functions While in ANSI Mode
Escape Seq
ESC [ s
ESC [ u
ESC [ z
ESC [ 2 J
cursor;
ESC [ ? 2 h
Mnenonic
Description of Action
PSCP
PRCP
PRAM
ED
Save cursor position & attributes
Restore cursor position & attributes
Reset to power-up configuration
Erase entire screen but do not move
PEHM
regular Heath-19 moves cursor to Home.
Revert to normal Heath-19 non-ANSI mode
5.15.6. Heath-19 Functions While in ANSI Mode
Page 131
-----------------------------------------------------------------------------ESC [ > Ps h
SM
Same as ESC x Ps
ESC [ > Ps l
RM
Same as ESC y Ps
Plus most of the ANSI escape sequences listed for the VT102.
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
MS-Kermit's Tektronix 4010 emulator responds to ordinary text, several
special
control codes (for drawing lines and dots), and several escape
sequences, as
shown in Table 5-8. The commands SET DEBUG and SET TRANSLATION INPUT
are effective in Tek mode.
------------------------------------------------------------------------------
Control Code
FS, Control-\
GS, Control-]
RS, Control-^
US, Control-_
BEL, Control-G
BS, Control-H
HT, Control-I
LF, Control-J
VT, Control-K
FF, Control-L
CR, Control-M
CAN, Control-X
DEL, RUBOUT
Action
Backslash
draw dots
Right square bracket
draw lines
Caret
Draw dots incrementally
Underscore
Display text
Beep, make a noise
Backspace, destructive delete
Tab, convert to single space
Line feed, go down one line
Move up one text line
Clears the screen
Carriage return, start of line
Exit Tek sub-mode, or ignore
Delete code, same as BS
Escape Sequence
ESC Control-E
ESC Control-L
ESC Control-Z
ESC Z
ESC ` (accent grave)
ESC a through ESC e
ESC [ ? 3 8 l
etc)
ESC [ ? 3 8 h
Action
Send a status report
Clear the screen
Activate crosshairs (GIN mode)
Send terminal identification
Use solid lines in drawing
Use dashed line patterns:
a=fine dots, b=short dashes
c=dash dot, d=long dash dot
e=dash dot dot.
Exit Tek mode (become text terminal, VT102
Enter Tek mode (from VT102 mode)
Table 5-8:
Characters
Response of MS-Kermit Tektronix Emulator to Received
-----------------------------------------------------------------------------In the table, US is the name for the ASCII character ControlUnderscore, 31
decimal. Text is written starting with the last drawn point being the
lower
left corner of the first 8 by 8 character cell. The drawing position
is updated by 8 dots to the right for each character, and lines wrap at
column 80
(column 90 for Hercules boards). If text extends "below the screen"
the sign
"More >" is shown at the bottom right corner and the user needs to press
a key
to continue.
Then the screen will be cleared and the new text will
start at
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
Page 132
-----------------------------------------------------------------------------the top of the screen (no scrolling is done in graphics mode). A real
Tek 4010
begins new text at column 40 and will overwrite dots from older
material. The
high resolution EGA screen and the Hercules screen will hold 43 lines,
the CGA
and Monochome screens hold 25 lines, and the AT&T screen holds 50 lines.
Hercules screens are 90 characters wide and others are 80 characters
wide.
Monochrome systems lack graphics so the text is the normal hardware
character
font placed at the nearest normal 80x25 location (similarly,
"drawing" on
Monochrome systems is achieved by using a text plus ("+") sign where
a dot
would appear). Text mode is interrupted by the drawing commands
discussed
below.
Drawing commands GS, FS, RS:
1. Draw a line or move to a point: GS <xy xy ... xy>
GS is the name for ASCII character Control-] (right square bracket),
decimal
29. <xy> stands for an encoded x,y coordinate as explained below. One
or more
x,y coordinates may follow GS and line segments are drawn from point to
point.
The first point is reached without drawing so that GS and the initial
<xy> is a
simple "move-to" command rather than a "draw-to" command. Lines may
be constructed from six dash patterns described in Table 5-8. <xy>
coordinates are
encoded by separating the 10 bit value of x and of y into 5 bit
components, adding an ASCII space (32) to each to form a printable character, and then
adding
two high bits to each to identify which component is being represented:
high-y,
low-y, high-x, or low-x. They are transmitted in that order, with the
low-x
byte always sent last.
In fact, bytes may be omitted if they do not
change
from point to point, provided that low-x is always sent.
These bytes
range
from ASCII space (32 decimal) to ASCII DEL (127 decimal). Details are
given
below, and summarized in Table 5-10. This mode completes when a new
command or
CRLF (carriage return, line feed) arrives; escape sequences are
processed
transparently but other control codes are ignored. The interrupting
character
is accepted and processed next.
2. Draw dots at given locations: FS <xy xy ... xy>
FS is the name for the ASCII character Control-\ (backslash), decimal 28.
<xy>
is in the same form as above. A dot is drawn at each x,y point.
This
mode
completes when a new command or a CRLF character arrives; escape
sequences are
processed transparently but other control codes are ignored. The
interrupting
character is accepted and processed next.
3. Draw dots from the current location: RS <pen> <direction>
<direction> ...
<direction>
RS is the name for the ASCII character Control-^ (caret), decimal 30.
pen is
the character Space (32 decimal) to move without drawing or P (80
decimal) to
draw while moving. <direction> is one of the letters A, E, D, F, B, J,
H, I as
shown in Table 5-9.
Example: RS P J J J (no spaces here, naturally) means draw three dots
in the
southwest direction, stepping to each in turn. This mode completes when
a new
command or a non-<pen> or non-<direction> character arrives; the
interrupting
character is accepted and processed next.
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
Page 133
-----------------------------------------------------------------------------------------------------------------------------------------------------------
<direction>
A
E
D
F
B
J
H
I
Move One Tek Dot This Way
East (right)
East and North
F
North (up)
North and West
B
West
South and West
J
South
South and East
Table 5-9:
D
E
*
A
H
I
(* is current location)
Tektronix Dot-Drawing Commands
-----------------------------------------------------------------------------Graphics INput (GIN) mode:
Graphics input mode is entered when ESC Control-Z is received. A
crosshair is
drawn on the screen and may be moved by the numeric keypad arrows (fine
scale
motion) or the Shift key and these arrows (coarse scale motion).
Pressing an
ASCII-producing key sends the position of the crosshairs to the host as
the sequence of: pressed key, X coordinate, Y coordinate, carriage return,
then
removes the crosshairs, and then returns to text mode. The coordinates
are encoded as for a GS command, but with the Kind bits omitted (see Table 510). If
the host echos the report Kermit tries to absorb it without comment;
otherwise,
the text might be shown starting at the crosshairs. One may prematurely
exit
GIN mode by typing Control-C or Control-Break. Shift-PrtSc (DOS screen
dump)
remains active, however.
The six byte report string might be echoed by the host so the emulator
attempts
to read the next six incoming bytes and suppress them while they
match the
report. Normally, the host is prepared to receive the report and it
should turn
off echoing during the process.
Status or Position Report:
ESCAPE Control-E requests a status report from the emulator. Tek
terminals
have many sub-fields. Kermit-MS sends a byte of 24 hex for being in text
mode
or 20 hex otherwise, followed by the encoded X then Y coordinates and
a carriage return. Coordinates are encoded 5 bits at a time similar to the GS
command except the Kind bits are omitted (see Table 5-10).
Identification Report:
ESCAPE Z requests terminal identification, as for VT52 and VT102.
Currently
this report is the 10 character sequence IBM_TEK ESCAPE / Z (no spaces).
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
Page 134
-----------------------------------------------------------------------------Screen Capturing:
Kermit does not implement a graphics screen capture facility. There are
many
such Terminate-and-Stay-Resident (TSR) programs in circulation, as
either
public domain offerings or parts of commercial packages (Paint
programs and
even GRAPHICS.COM from DOS). High resolution EGA screens require more
than the
GRAPHICS.COM program. MS Windows tells the program (Kermit-MS) the
system is
using a pure text-only monochrome adapter so dots are shown as plus
signs.
Although Kermit cannot save graphics screens directly (e.g. via
the ^]F
connect-mode command), the received Tektronix escape sequences can
still be
logged to a PC file using the LOG SESSION command. The resulting log
cannot be
"played back" directly on the PC, but it can be transferred to the host
and run
through Kermit's Tek emulator again, just like a character-mode Kermit
session
log.
VGA Modes:
Considerable effort went into ensuring the graphics display would
work
automatically and not damage monitors. Thus, Kermit-MS safely tests the
active
display adapter for its kind and capabilities before starting graphics
mode.
Recent EGA+ display boards are capable of the 640 by 480 scan-line
16-color
"VGA" mode which is now available on IBM PS/2 computers. The Tek
emulator will
happily run with 480 scan lines, but: there is no easy and safe way
to test
systems if they fully support it, and the normal 256KB of video memory
is insufficient to save a full graphics image. So activating these higher
resolution modes is left to individuals to modify three simple constants
in the
source code of file MSGIBM.ASM and experiment with their own system.
Other
systems can be added by individuals in the same manner.
Coordinate Encoding:
Coordinate 0,0 is the lower left corner and the X axis is the horizontal
one.
Tektronix positions are mapped into the typically 640 dots wide by 200
or 350
dots high PC screen and thus adjacent Tek positions may yield the
same PC
screen dot.
4010-like devices use positions from 0 to 1023 for both X and Y,
although only
0 to 779 are visible for Y due to screen geometry. The Tek screen is
10.24 by
7.80 inches and coordinates are sent as 1-4 characters.
4014-like devices use positions 0 to 4095, but each movement is a
multiple of 4
positions unless the high-resolution LSBXY are sent. This makes it
compatible
with the 4010 in that a full sized plot fills the screen. The emulator
accepts
the LSBXY components but does not use them.
The various modes are summarized in Table 5-10, in which the following
notation
is used:
HIX, HIY = High order 5 bits of a 10 or 12 bit position.
LOX, LOY = Middle order 5 bits of position (low order of Tek 4010).
LSBXY = Low order 2 bits of X + low order 2 bits of Y (4014 mode),
recognized by the Tek emulator but not used to calculate position.
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
Page 135
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Hi Y
Same
Same
Same
Same
Same
Same
Same
Same
Diff
Diff
Diff
Diff
Diff
Diff
Diff
Diff
Lo Y
Same
Same
Same
Same
Diff
Diff
Diff
Diff
Same
Same
Same
Same
Diff
Diff
Diff
Diff
Hi X
Same
Same
Diff
Diff
Same
Same
Diff
Diff
Same
Same
Diff
Diff
Same
Same
Diff
Diff
Kind code for byte:
Table 5-10:
LSBXY
Same
Diff
Same
Diff
Same
Diff
Same
Diff
Same
Diff
Same
Diff
Same
Diff
Same
Diff
Characters Sent (Lo-X Always Sent)
Lo-X
LSB, Lo-Y,
Lo-X
4014
Lo-Y, Hi-X, Lo-X
LSB, Lo-Y, Hi-X, Lo-X
4014
Lo-Y,
Lo-X
LSB, Lo-Y,
Lo-X
4014
Lo-Y, Hi-X, Lo-X
LSB, Lo-Y, Hi-X, Lo-X
4014
Hi-Y,
Lo-X
Hi-Y, LSB, Lo-Y,
Lo-X
4014
Hi-Y,
Lo-Y, Hi-X, Lo-X
Hi-Y, LSB, Lo-Y, Hi-X, Lo-X
4014
Hi-Y,
Lo-Y,
Lo-X
Hi-Y, LSB, Lo-Y,
Lo-X
4014
Hi-y,
Lo-Y, Hi-X, Lo-X
Hi-y, LSB, Lo-Y, Hi-X, Lo-X
4014
20h
60h 60h
20h
40h
(transmitted left to right)
MS-Kermit Tektronix Coordinate Interpretation
-----------------------------------------------------------------------------Note that LO-Y must be sent if HI-X has changed so that the Tektronix
knows the
HI-X byte (in the range of 20h-3Fh) is HI-X and not HI-Y. LO-Y must
also be
sent if LSBXY has changed, so that the 4010 will ignore LSBXY and accept
LO-Y.
The LSBXY byte is
60h + (MARGIN * 10h) + (LSBY * 4) + LSBX
MARGIN is 0 here and refers to splitting the screen left
text
rollover, which the Kermit Tek emulator does not do.
Tek 4010 Example:
and
right
for
Suppose <xy> is point y = 300, x = 500 in Tektronix coordinates.
Split each
10-bit coordinate into 5-bit groups, add ASCII Space (32) and add the
Kind code
to each. Send the X part last.
HI-Y
LO-Y
Y=300d=012Ch= 01001
01100
+32d=+20h
+10000
+10000
+Kind code +100000 +1100000
Binary
111001 1111100
ASCII
9
|
HI-X
LO-X
X=500d=01F4h= 01111
10100
+32d=+20h
+10000 +100100
+kind code +100000 +1000000
111111 1100100
?
d
So <xy> = (500,300) is sent or received in a GS command as "9|?d".
example
in C (program fragments):
An
5.15.7. Tektronix 4010/4014 Graphics Terminal Functions
Page 136
-----------------------------------------------------------------------------#define GS
29
#define US
31
FILE *fp;
/* File descriptor for terminal */
. . .
fputc( GS, fp);
fputc( US, fp);
fputc( GS, fp);
coord( 50, 50);
coord(300,200);
coord(175,250);
fputc( GS, fp);
coord( 50, 50);
. . .
coord(x, y) int x,
fputc((y / 32)
fputc((y % 32)
fputc((x / 32)
fputc((x % 32)
}
coord( 75, 65);
/* Move to 75,65
fputs("A House", fp); /* Annotate at 75,65
/* Now draw lines...
coord(300, 50);
/* Bottom side
coord( 50,200);
/* Right wall, top
coord(300,200);
/* Roof
/* Start a new line
coord( 50,200);
/* Left wall at 50,50
y; {
+ 32,
+ 96,
+ 32,
+ 64,
fp);
fp);
fp);
fp);
*/
*/
*/
*/
*/
*/
*/
*/
/* Send x,y coordinates to Tek 4010 */
/* High y */
/* Low y */
/* High x */
/* Low x */
5.16. IBM PC Kermit Technical Summaries
Under normal circumstances, MS-Kermit takes advantage of the
computer's
hardware, and often bypasses DOS (sometimes even BIOS) to achieve high
performance, to exercise special machine features, or to produce an attractive
screen
display. Thus, it is not in all respects a "well behaved" DOS program.
MS-Kermit redirects interrupts 0BH (COM2/4) or 0CH (COM1/3), 16H, 23H,
24H and
returns them when done. It uses the BIOS for keyboard, video display,
and system information interrupts.
It examines segment 40H for EGA operating
modes
and it does direct screen reads and writes. Memory for the screen roll
back
buffer is negotiated with DOS to leave room for a second copy of
COMMAND.COM to
run tasks within Kermit; about 90KB to 128KB is needed for the entire
program.
Video page zero is normally used, but page one is employed to save
screens with
non-standard dimensions. Hercules and other graphics mode displays are
sup-
ported only in Tektronix terminal mode. Kermit's timing delays are
dynamically
adjusted each time the serial port is started to accomodate machines of
different speeds; duration of the normal software timing loop is measured
with the
hardware timer chip and looping is adjusted to produce uniform delays on
8088
through 80386 machines.
5.16.1. Kermit-MS/IBM on Local Area Networks
The IBM version of Kermit-MS has support for the IBM Local Area Network
NetBIOS
(and emulators) interface, Interrupt 5CH, with additional support for
selected
vendor specific features (presently just AT&T STARLAN), activated by
the SET
PORT NET command, described above. Communications across a LAN occur
through
the NetBIOS interface using virtual circuits (Sessions), named nodes,
and conventional NetBIOS packets. Kermit-MS does not use LAN terminal
interface
packages nor the Redirector or similar functions.
Kermit LAN
and many
operations
are
harmonious
with normal network activity
5.16.1. Kermit-MS/IBM on Local Area Networks
Page 137
-----------------------------------------------------------------------------pairs of Kermits can communicate simultaneously. Kermit does not use
conventional LAN File Server functions.
Kermit uses the standard NetBIOS interrupt 5CH interface, for those who
need to
know such things, which means it will run on most LANS including IBM PC
Net,
IBM Token Ring, AT&T STARLAN, and many others, and will run with Novell
NetWare
software. Presently, Kermit knows some details of STARLAN and is able to
send
a BREAK across the net and can use ISN node names with long path
parts. If
STARLAN is not operating these features are not available.
As more
detailed
information becomes available special features of other networks
can be
built-in.
The sequence of operations is similar for a client or server Kermit.
The SET
PORT NET command is issued by both. This command causes Kermit to
validate the
presence of the Interrupt 5CH interface, test for vendor additions, test
for a
session already underway, establish and display a unique Kermit node
name, but
not make a network session. The node name of the remote server machine
follows
the word NET; this is not to be confused with our own node name
discussed
below.
If an earlier LAN session is still active then the current remote node
name
field of the command is examined for presence of a name. If a name is
given
then Kermit asks the user whether to RESUME the session or start a NEW
one.
Starting a new one results in Kermit hanging up the old session (HANGUP)
before
proceeding; resuming an old one requires no further work at this point.
When Kermit attaches to the network for the first time it needs to
select a
unique local node name so that two systems can form a Session by using
these
names as addresses. Kermit uses a simple algorithm to make the name.
Kermit
probes the network adapter board/software for the name of the local
system. If
the name is present Kermit makes its own name by appending a dot K (.K)
to the
local name. If the local name is absent then Kermit first tries a
standard name
of "mskermit.K"; should the network report that the name is not unique
(another
node is using the name) then the user is asked to choose a name. This
process
continues until a unique name is obtained or the user decides to quit.
The
final Kermit node name is reported on the screen; client Kermits will
need to
know the name of the server Kermit.
Communication across the LAN begins differently for client and server
Kermits.
The server must be started first, by simply placing a Kermit in server
mode.
This results in a network Listen request being posted so that arriving
packets
with the correct node name can be delivered to the server Kermit.
Next, a
client Kermit tries to connect to the server by issuing a Kermit server
command
to the proper node name (as given in the client's SET PORT NET node
command);
REMOTE WHO is a satisfactory choice. The client machine actually issues a
network Call to the server's node name to make a connection and then
follows it
with data packets holding the Kermit server request. The initial
exchange of
packets establishes a particular virtual circuit between the two nodes.
If the
connection cannot be started then the client Kermit reports this fact
to the
user. The most common causes of a failure at this point are:
1. The client Kermit did not specify the correct server Kermit
node
name (spelling errors, wrong case for letters, missing dot K),
2. One or both machines are using a network adapter board which is
not
the first in the machine; Kermit uses only the first board,
5.16.1. Kermit-MS/IBM on Local Area Networks
Page 138
-----------------------------------------------------------------------------3. The LAN NetBIOS emulator does not fully support IBM standard
virtual
circuits,
4. The server machine was not started on the network before the
client.
A virtual circuit will be broken if a sender or receiver gets no response
to a
request within a short time interval set by the LAN
hardware/software.
However, the LAN procedures within Kermit automatically reestablish the
circuit
transparently to the user when new information is communicated; the
last used
remote node name is remembered internally for this purpose.
This also
means
the server Kermit will respond to a connection from a new client Kermit
if the
first client is idle for say a minute or so. A session can be terminated
by the
user by issuing the HANGUP command or by exiting Kermit. A session will
not be
broken this way if the user on the client Kermit changes to a regular
serial
port.
Finally, when Kermit returns control to DOS, but not via the PUSH
command, its
unique Kermit node name is removed from the network adapter board.
During network communications Kermit uses network packets holding 256
bytes of
data. If both Kermits are given the command
SET RECEIVE PACKET 1000
then the network and Kermit will be used to best efficiency.
Experience has
shown that the client Kermit should have its TIMER OFF because the
server may
be asked to do an operation via DOS which does not complete before the
client
side would timeout. An observation of some token passing networks
indicates
that Kermit packets slightly longer than 256, 512, etc bytes result in
marked
slowing down because the remaining small piece is not sent until a net
timer
expires.
Carrier sense (Ethernet, STARLAN) boards seem to be more
agressive
and export small packets immediately.
Kermit can access files on the LAN file server via DOS even while using
the LAN
as a communications medium. Network administrators should note this
point because a user operating Kermit in Server mode can allow his or her file
server
directories to be available to other network users also running Kermit,
without
additional security checking of the other users. The network drives
visible to
the Server Kermit can become devices available for Kermit-to-Kermit file
transfers, etc, unless the DISABLE command is used to confine access to the
current
disk and directory. A corollary is when files are accessible to DOS
commands
they can become public.
5.16.2. Use of Kermit-MS with External Device Drivers
It is often desirable to supplement or modify the behavior of a DOS
program by
loading it with special external device drivers. These drivers may
operate at
either the DOS or BIOS level.
When Kermit-MS accesses the BIOS
directly,
DOS-level drivers are ineffective. When Kermit accesses the hardware
directly,
both the DOS and the BIOS level drivers are locked out.
Kermit-MS
provides
several mechanisms to allow these external drivers to operate as
intended.
Here are a few examples:
- IBM's
allows
ANSI.SYS
console driver operates at the DOS level.
It
5.16.2. Use of Kermit-MS with External Device Drivers
Page 139
-----------------------------------------------------------------------------the major IBM PC keys to be redefined, and also interprets
selected
ANSI-format escape sequences for screen control. It works fine
at
Kermit-MS command level, except SHOW KEY does not recognize
strings
assigned to keys via ANSI.SYS, and fine at CONNECT level. To
use
ANSI.SYS at CONNECT level, issue the Kermit-MS commands SET KEY
OFF
(to read keys via DOS) and SET TERMINAL NONE (to display
characters
through DOS).
- Blind people often have speaking
or
Braille
machines
attached
to
their PCs.
DOS-level device drivers are generally used to
redirect
screen output to these devices, which works OK at DOS or MSKermit
command level. SET TERMINAL NONE will allow this redirection to
take
place during CONNECT. But these devices also need to have
the
computer's output appear as a coherent stream of text, so
users
should also take care to inform the remote host to format its
output
for a "dumb" or hardcopy terminal. In addition, Kermit-MS'
normal
file transfer display does not mesh well with these devices, but
that
can be remedied using SET DISPLAY SERIAL.
- People with motor impairments may be using special keyboard
replacements supported by DOS-level device drivers.
As with
ANSI.SYS,
Kermit-MS may be directed to use such keyboard drivers with the
command SET KEY OFF.
- Other keyboard drivers are available that work,
like
Kermit-MS,
at
BIOS level.
Examples include ProKey and SuperKey.
These may be
used
at DOS or Kermit-MS command level as well as during CONNECT.
- Conceivably, drivers exist that allow DOS communication
programs
to
emulate terminals other than ANSI. You should be able to use
them,
if they exist, in conjunction with Kermit-MS by telling Kermit to
SET
TERMINAL NONE, but the speed may not be high because of the
intervening DOS call.
5.16.3. Kermit-MS/IBM Serial Port Information
Kermit-MS for IBM PC's and compatibles does testing of serial ports
before use.
This section describes those tests so users may understand what Kermit
does.
When a serial port is selected by the SET PORT COMx command Kermit looks
at low
memory addresses in segment 40H assigned to hold the base address of each
COMx
port; COM1 is in word 40:0H, COM2 is in word 40:2H, and so on. If the
value in
the appropriate word is binary zero then Kermit declares the port to
be unavailable. Otherwise, Kermit runs read-only (i.e., safe) tests at the
base address to validate the presence of an official 8250 UART chip. If the
tests fail
Kermit indicates it will do i/o through the slow Bios pathway; some PC
clones
need to work this way even though the Bios has speed problems even at
1200
baud. Otherwise, interrupt driven i/o will be done through the 8250 UART
(that
is very fast).
There is a special case when a communications board is present, set for
COM2,
but a normal COM1 serial port is not. Kermit detects this situation,
issues a
short notice and uses the available COM2 board.
Many machines now have more than two serial ports, yet
standard
there
is
no
5.16.3. Kermit-MS/IBM Serial Port Information
Page 140
-----------------------------------------------------------------------------about addresses for COM3 and COM4. PC DOS 3.30 does not assign them
either because it is really a problem of the system ROM Bios boot code run
when the
power is turned on. However, Kermit will use COM3 and/or COM4 if the
base address of a port is placed in low memory words 40:4H (COM3) or 40:6H
(COM4); the
tests described above are then carried out. One restriction is that the
Interrupt ReQuest number (IRQ in the serial port board manual) must be IRQ4
for COM3
(and for COM1) and IRQ3 for COM4 (and for COM2). Check the board
and its
manual. DOS utility DEBUG can be used to create a short program to
insert the
board's addresses into the segment 40H memory locations; a sample
program is
given below.
------------------------------------------------------------------------------
Serial Port
COM1
COM2
COM3
COM4
Base Address
03F8H
02F8H
?
?
Table 5-11:
IRQ
4
3
4
3
Conventions
IBM standard
IBM standard
Board, Kermit wants IRQ4
Board, Kermit wants IRQ3
IBM PC/XT/AT Serial Port Numbers
-----------------------------------------------------------------------------The addresses shown as query marks are to be found in the board's
reference
manual; values such as 2E8H and 2E0H would be common. However, there
is no
standard for anything to do with COM3 and COM4.
Assuming that you have selected an address in harmony with the rest of
the system (good luck on that part), set the board's switches or jumpers,
and use
DEBUG to insert the address(es) in segment 40H memory.
The example
below
creates a small program named SETCOM3.COM to put address 02E8H into the
memory
word 40:04H for COM3 and writes the program to drive A. (Disregard the
xxxx
items below):
A> DEBUG
-n a:setcom3.com
-a
xxxx:100 mov ax,40
xxxx:103 mov es,ax
xxxx:105 mov ah,02
xxxx:107 mov al,e8
xxxx:109 es:
xxxx:10A mov [4],ax
xxxx:10D int 20
xxxx:10F
-r cx
CX 0000
: 0f
-w
-q
A> DEBUG setcom3.com
-u
-q
don't type these comments
sets name of output file
assemble command
value 40h
put it into register es
the 02 part of 02E8H
the E8 part of same
store in 40:4 for com3 ([6] for com4)>
return to DOS
blank line to end assemble mode
show contents of register cx
set register cx to write 0fh bytes
write material to the disk file
quit debug
unassemble to see if all is well
quit debug
5.16.3. Kermit-MS/IBM Serial Port Information
Page 141
-----------------------------------------------------------------------------Note, for COM4, use [6] above rather than [4], and of course
employ your
board's port address in place of 02E8H (check the manual). Finally, try
it:
A> setcom3
A> DEBUG
-d 40:00
( Shows many bytes.
run the program
now see what's down there
display bytes in seg 40H
See yours?
Good. )
-q
A>
A small side effect noted in practice is the first time the extra port is
used
there may be garbage from it. Just return to the Kermit prompt and try
again,
if necessary SET PORT to the other COM lines momentarily, all should be
well
the second time.
More technical comments, for those with an interest. When Kermit
finishes with
a port it disables interrupts for that serial port and returns the IRQ
signal
line to its state found when Kermit started since many devices can
share the
same Interrupt ReQuest line but only one device at a time can be active
on an
IRQ.
If you find that transmissions are good but there is no
reception then
another device has stolen the IRQ; disable it or find a guru. Kermit
will work
with non-standard addresses for COM1 and COM2 but the IRQ's must be as
in the
table above. Accessing a non-existent port produces a message and all
communications are discarded safely in the bit bucket.
5.16.4. CTTY COMx for IBM Machines
The DOS command CTTY COMx redirects the standard input and output
from the
keyboard and screen, respectively, to the indicated communications
channel. If
a Kermit Server is operated this way, "through the back port", then
both DOS
and Kermit can access the port hardware simultaneously; a deadlock
develops on
IBM machines. The items below refer to only the IBM version of KermitMS.
Kermit-MS/IBM version 2.30 successfully resolves the deadlock in the
following
manner. When Kermit requires the serial port it also attaches itself to
Interrupt 16H, the Bios RS232 serial port routine. Code within Kermit
receives the
DOS serial port requests via Interrupt 16H and either passes the request
to the
Bios if the COM line is not that used by Kermit or it handles the
request internally for conflicting situations. When the same port is used by
both DOS
and Kermit, Kermit discards DOS output material (typically a prompt, but
could
be the dreaded Abort, Retry, Ignore message) and returns a success code
to DOS,
it returns an ascii Backspace code to DOS read requests (this is a key
item to
keep DOS complacent while Kermit communicates), and it returns
reasonable
status for modem status.
The interception ceases when Kermit
releases the
port, such as when the Kermit prompt is displayed, and this lets DOS
converse
out the serial port.
It is worth restating that a large number of programs bypass DOS to
achieve
higher performance. When such programs are started through the back door
they
may still require input from the real keyboard and will hang, waiting
for it.
There is nothing to do about this situation except a) don't let it
happen, b)
contact the local operator to push some keys. Kermit-MS is not a
Bulletin
Board Server.
5.16.5. Screen Sizes and the EGA Board, IBM Versions
Page 142
-----------------------------------------------------------------------------5.16.5. Screen Sizes and the EGA Board, IBM Versions
Support has been included for Enhanced Graphics Adapter (EGA) video
display
boards which can be configured for other than the standard 80 columns
by 25
lines, say 132 columns or 43 lines or other. Three boards, the Tseng
Labs EVA
board with the 132 column kit installed, the ATI EGA Wonder, and the
Video 7
Deluxe, can be controlled directly by Kermit for 80/132 column changes.
Other
boards need to be placed in the desired display mode by the user.
Kermit then
adapts to the settings if the board obeys standard rules for using the
Bios EGA
memory areas in segment 40H. The Video-7 Vega Deluxe board has been
used successfully in all screen sizes, including 132 columns by 43 lines, with
an NEC
Multisync monitor.
The IBM EGA board has several noteworthy bugs which are now standards.
One is
the cursor dots are not always on the correct scan lines when the
number of
screen lines is other than 25. Kermit-MS attempts to compensate for
this attribute. Screen roll back space is fixed in size so there are fewer
pages for
more dense screens; standard screens use an internal buffer, nonstandard
screens use a buffer plus video page 1. ANSI.SYS is hard coded for 25
line displays so all DOS i/o will eventually overwrite itself on line 25; the
emulator
does not use DOS i/o. Commercial replacements for ANSI.SYS should be
able to
use all screen lines.
Screen dumps work correctly if done with Kermit commands.
PrintScreen may
or may not, depending on your EGA board.
DOS
When the VT102 receives escape sequences to change between 80 and 132
column
modes the screen is reset and the Tseng Labs, ATI, or Video 7 board is
asked to
change modes (but only if that board is present); other display
adapters are
left in their current state. The right margin is enforced strongly so a
board
in 132 column mode will not display material to the right of column 80
if the
emulator is in 80 column mode. Similarly, material to the right of
column 80
is not preserved in the emulator if the display adapter is operating
in 80
column mode; real VT102s keep that invisible material in hardware
memory
whereas the emulator does not.
Reference is made to line 25 in the emulator; this is normally the
status/mode
line in Kermit.
Real VT102's have only 24 line displays. If the
display
adapter is set for a different number of lines per screen then the 25th
line is
interpreted to mean the bottom display adapter line, such as line 43.
Should
the host access the status/mode line then the line is declared to be
disabled
(same as SET MODE OFF) so that Kermit's own status information does not
overwrite the host's when the screen is restored. Toggling a disabled mode
line
has no effect; only SET MODE ON will enable it again. The Heath-19
terminal
has the unusual feature that disabling the mode line (ESC y 1) also
clears it.
5.16.6. Kermit-MS/IBM Printer Control
The IBM PC MS-Kermit VT102 terminal emulator also supports full
transparent
printing of 8-bit binary bytes.
The escape sequence "ESC [ 5 i"
turns on
transparent printing, in which all further 8-bit characters are sent
directly
to the printer, bypassing the SET TRANSLATION INPUT filter, and are not
shown
on the screen. Escape sequence "ESC [ 4 i" turns off transparent
printing and
the escape sequence is not sent to the printer. Non-transparent
printing is
controlled by the "ESC [ ? 5 i" and "ESC [ ? 4 i" sequences.
Such
printing
5.16.6. Kermit-MS/IBM Printer Control
Page 143
-----------------------------------------------------------------------------simply duplicates text intended for the screen, excluding escape
sequences.
The text also appears on the screen.
Kermit-MS accesses the system printer through DOS calls several ways;
neither
the Bios nor the hardware are used. Files directed to the printer by
the SET
DESTINATION PRINTER command are written by opening a file with the
name PRN
(DOS's name for the system printer) and writing to it the same as to
a disk
file; DOS provides limited buffering. LOGging to device PRN works the
same
way, as can be noticed by the last line or so not being printed until
the log
file is CLOSED. DOS is used again while emulating a terminal in CONNECT
mode.
If the VT102 emulator found in the IBM PC is used for transparent or
Controller
printing (via arcane escape sequences sent from the host) single
characters are
written to DOS file handle 4, the DOS standard print device. If the
screen is
echoed to the printer via the typical Control PrtSc key combination, or
equivalent, single characters are written by the DOS function 05H Printer
Output
call. In both cases of terminal emulation the printer's ready status is
found
by the DOS IOCTL 44H call. Only the Control PrtSc case results in the
PRN message being displayed on the status line. Finally, the classical IBM PC
Shift
PrtSc command to copy the whole screen to the printer is unknown to
Kermit because the system Bios traps the key combination and does not tell Kermit
about
it.
If the Control P command is given to DOS before Kermit starts then
again
characters are echoed by the system Bios without Kermit's knowledge;
this
situation can result in lost characters.
Print spoolers generally operate by being told an existing filename and
then in
the background they steal cpu cycles to read from disk and write
to the
printer.
The DOS PRINT command invokes such a spooler. Although an
active
Kermit does not feed these software programs directly the spooler and
Kermit
can compete for cpu cycles and characters can be lost. If a non-DOS
resident
program intercepts characters destined for the printer device and spools
them
Kermit does not know about it and similar competion can occur.
During file transfers printing is carefully sequenced to occur only
when the
local Kermit is in control of the communications line so that a small
pause
will not result in missing characters arriving at the serial port.
When terminal emulation is active then printing competes for cpu time with the
serial
port routines.
Generally, the serial port wins such contests if the
port is
interrupt driven (Generic Kermit is not interrupt driven, so beware).
However,
the printing itself can use enough cpu cycles to delay processing of
characters
to the screen and eventually the receive buffer of the serial port fills
to the
high water mark and an XOFF flow control character is sent to the
host to
suspend further transmissions until we send an XON. If FLOW is NONE
then expect lost characters at the serial port. Experience with ordinary
IBM PC's
through 80386 machines at very high baud rates indicates no characters
are lost
when FLOW is XON/XOFF.
However, it is possible on some machines
for the
printer to have priority over the serial port, and hence to have lost
characters, especially if a Terminate Stay Resident program intercepts
characters
destined for the printer and keeps interrupts turned off too long.
6. UNIX KERMIT
Page 144
-----------------------------------------------------------------------------6. UNIX KERMIT
Program:
Frank da Cruz, Bill Catchings, Jeff Damens, Columbia
University;
Herm Fischer, Encino CA; contributions by many others.
Language:
C
Documentation:
Christine Gianone, Frank da Cruz
Version:
4E(070)
Date:
January 24, 1988
C-Kermit is an implementation of Kermit, written modularly and
transportably in
C. The protocol state transition table is written in wart, a (nonproprietary)
lex-like preprocessor for C. System-dependent primitive functions are
isolated
into separately compiled modules so that the program should be easily
portable
among Unix systems and also to non-Unix systems that have C compilers,
such as
VAX/VMS, Data General AOS/VS, Apollo Aegis, the Apple Macintosh, and
the Commodore Amiga. This document applies to Unix implementations of CKermit, and
in most ways also to the VMS, Data General, and other implementations.
Unix Kermit Capabilities At A Glance:
Local operation:
Remote operation:
Login scripts:
Transfer text files:
Transfer binary files:
Wildcard send:
File transfer interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
Support for dialout modems:
IBM mainframe communication:
Transaction logging:
Session logging:
Yes
Yes
Yes (UUCP style)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes (most versions)
Yes
Yes
Yes
Yes
Debug logging:
Packet logging:
Act as server:
Talk to server:
Advanced server functions:
Local file management:
Command/Init files:
UUCP and multiuser line locking:
Long packets:
Sliding Windows:
File attributes packets:
Command macros:
Raw file transmit:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
All numbers in the C-Kermit documentation are decimal unless noted
otherwise.
6. UNIX KERMIT
Page 145
-----------------------------------------------------------------------------C-Kermit provides traditional Unix command line operation as well as
interactive command prompting and execution. The command line options
provide access to a basic subset of C-Kermit's capabilities; the interactive
command set
is far richer.
On systems with dialout modems, C-Kermit's command file, DIAL
command, and
login script facilities provide a counterpart to UUCP for file
transfer with
non-UNIX operating systems, including the use of scheduled (e.g.
night)
unattended operation.
late
6.1. The Unix File System
Consult your Unix manual for details about the file system under your
version
of Unix. In general, Unix files have lowercase names, possibly
containing one
or more dots or other special characters. Unix directories are treestructured. Directory levels are separated by slash ("/") characters. For
example,
/usr/foo/bar
denotes the file bar in the directory /usr/foo. Alphabetic case is
significant
in Unix file and directory names, i.e. "a" is a different file (or
directory)
from "A". Wildcard or "meta" characters allow groups of files to be
specified.
"*" matches any string; "?" matches any single character.
When C-Kermit is invoked with file arguments specified on the Unix
command
line, the Unix shell (Bourne Shell, C-Shell, K-Shell, etc) expands
the meta
characters itself, and in this case a wider variety is available. For
example,
kermit -s ~/ck[uvm]*.{upd,bwr}]
is expanded by the Berkeley C-Shell into a list of all the files in the
user's
home directory (~/) that start with the characters "ck", followed by a
single
character "u", "v", or "m", followed by zero or more characters,
followed by a
dot, followed by one of the strings "upd" or "bwr". Internally, the CKermit
program itself expands only the "*" and "?" meta characters.
Unix files are linear (sequential) streams of 8-bit bytes. Text files
consist
of 7-bit ASCII characters, with the high-order bit off (0), and lines
separated
by the Unix newline character, which is linefeed (LF, ASCII 10). This
distinguishes Unix text files from those on most other ASCII systems, in which
lines
are separated by a carriage-return linefeed sequence (CRLF, ASCII 13,
followed
by linefeed, ASCII 10). Binary files are likely to contain data in the
high
bits of the file bytes, and have no particular line or record structure.
When transferring files, C-Kermit will convert between upper and
lower case
filenames and between LF and CRLF line terminators automatically, unless
told
to do otherwise.
When binary files must be transferred, the program
must be
instructed not to perform LF/CRLF conversion (-i on the command line or
"set
file type binary" interactively; see below).
6.2. File Transfer
Page 146
-----------------------------------------------------------------------------6.2. File Transfer
If C-Kermit is in local mode, the screen (stdout) is continously
updated to
show the progress of the file transer. A dot is printed for every four
data
packets, other packets are shown by type:
I
R
S
F
G
C
N
E
T
Q
%
Exchange Parameter Information
Receive Initiate
Send Initiate
File Header
Generic Server Command
Remote Host Command
Negative Acknowledgement (NAK)
Fatal Error
Indicates a timeout occurred
Indicates a damaged, undesired, or illegal packet was received
Indicates a packet was retransmitted
You may type certain "interrupt" commands during file transfer:
Control-F:
any).
Control-B:
transaction.
Control-R:
Control-A:
Interrupt the current File, and go on to the next (if
Interrupt the entire Batch of files, terminate the
Resend the current packet
Display a status report for the current transaction.
These interrupt characters differ from the ones used in other Kermit
implementations to avoid conflict with commonly used Unix shell interrupt
characters.
With Version 7, System III, and System V implementations of Unix,
interrupt
commands must be preceeded by the 'connect' escape character (e.g.
normally-\).
Ctrl-F and Ctrl-B are effective only during the transfer of data (D)
packets,
and cannot be used to interrupt a transfer that has not yet reached that
stage.
CAUTION: If Control-F or Control-B is used to cancel an incoming
file,
and a file of the same name previously existed, and the "file
warning"
feature is not enabled, then the previous copy of the file will
disappear.
EMERGENCY EXIT: When running Unix Kermit in remote mode, if you have
started a
protocol operation (sending or receiving a file, server command wait,
etc), you
will not be able to communicate with the terminal in the normal way.
In particular, you cannot stop the protocol by typing the normal Unix
interrupt
characters, since the terminal has been put in "raw mode". If you
need to
regain control quickly -- for instance, because the protocol is stuck - you
can type two Control-C's directly to the Unix Kermit program ("connect"
first
if necessary):
Control-C Control-C
This will cause the program to exit and restore the terminal to normal.
6.3. Command Line Operation
Page 147
-----------------------------------------------------------------------------6.3. Command Line Operation
The C-Kermit command line syntax conforms to the Proposed Syntax
Standards for
Unix System Commands put forth by Kathy Hemenway and Helene Armitage
of AT&T
Bell Laboratories in Unix/World, Vol.1, No.3, 1984. The rules that apply
are:
one
-
Command names must be between 2 and 9 characters ("kermit" is 6).
Command names must include lower case letters and digits only.
An option name is a single character.
Options are delimited by '-'.
Options with no arguments may be grouped (bundled) behind
delimiter.
Option-arguments cannot be optional.
Arguments immediately follow options, separated by whitespace.
The order of options does not matter.
'-' preceded and followed by whitespace means standard input.
A group of bundled options may end with an option that has an argument.
The following notation is used in command descriptions:
fn
A Unix file specification, possibly containing the "wildcard"
characters `*' or `?' (`*' matches all character strings, `?'
matches any
single character).
fn1
A Unix file specification which may not contain `*' or `?'.
rfn
which
A
remote
file
specification in the remote system's own syntax,
may denote a single file or a group of files.
rfn1
file.
A remote file specification which should denote only a single
n
A decimal number between 0 and 94.
c
ASCII
A decimal number between 0 and 127 representing the value of
character.
cc
A decimal number between 0 and 31, or else exactly 127,
representing
the value of an ASCII control character.
an
[ ]
Any field in square braces is optional.
{x,y,z} Alternatives are listed in curly braces.
C-Kermit command line options may specify any combination of actions and
settings.
If C-Kermit is invoked with a command line that specifies no
actions,
then it will issue a prompt and begin interactive dialog.
Action
options
specify either protocol transactions or terminal connection.
-s fn
(meta)
Send
the
specified
file
or
files.
If fn contains wildcard
characters, the Unix shell expands it into a list.
If fn is
then
kermit sends from standard input, which may come from a file:
kermit -s - < foo.bar
or a parallel process:
'-'
6.3. Command Line Operation
Page 148
-----------------------------------------------------------------------------ls -l | grep christin | kermit -s You
cannot use this mechanism to send terminal typein.
If you
want to
send a file whose actual name is "-" you can precede
it
with
a
path
name, as in
kermit -s ./-r
Receive a file or files.
Wait passively for files to arrive.
-k
Receive (passively) a file or files, sending them to standard
output.
This option can be used in several ways:
kermit -k
Displays
the
incoming
files
on
your screen; to be used
only in
"local mode" (see below).
kermit -k > fn1
Sends the incoming file or files to the named file, fn1.
If more
than one file arrives,
into
all
are
concatenated
together
the
single file fn1.
kermit -k | command
Pipes the incoming data (single or multiple files) to the
indicated
command, as in
kermit -k | sort > sorted.stuff
-a fn1 If you have specified a file transfer option, you may give an
alternate
name for a single file with the -a ("as") option. For example,
kermit -s foo -a bar
sends the file foo telling the receiver that its name is bar.
more
than one file
affected by
the -a option:
kermit -ra baz
arrives or is sent, only the first file is
If
stores the first incoming file under the name baz.
-x
mode.
Begin server operation.
May be used in either local or remote
Before proceeding, a few words about remote and local operation are
necessary.
C-Kermit is "local" if it is running on PC or workstation that you are
using
directly, or if it is running on a multiuser system and transferring
files over
an external communication line -- not your job's controlling terminal
or console. C-Kermit is remote if it is running on a multiuser system and
transferring files over its own controlling terminal's communication line
(normally
/dev/tty), connected to your PC or workstation.
If you are running C-Kermit on a PC, it is normally used in local mode,
with
the "back port" designated for file transfer and terminal connection.
If you
are running C-Kermit on a multiuser (timesharing) system, it is in remote
mode
unless you explicitly point it at an external line for file transfer
or terminal connection. The following command sets C-Kermit's "mode":
6.3. Command Line Operation
Page 149
------------------------------------------------------------------------------l dev Line -- Specify a terminal line to use for file transfer and
terminal
connection, as in
kermit -l /dev/ttyi5
When an external line is being used, you will also need some additional
options
for successful communication with the remote system:
-b n
Baud -- Specify the baud rate for the line given in the -l
option, as
in
kermit -l /dev/ttyi5 -b 9600
This option should always be included with the -l option,
since the
speed of an external line is not necessarily what you expect.
-p x
parity
Parity -- e,o,m,s,n (even, odd, mark, space, or none).
If
is
other than none, then the 8th-bit prefixing mechanism will be
used for
transferring 8-bit binary data, provided the opposite Kermit
agrees.
The default parity is none.
-t
Specifies half
handshake
character.
duplex,
line
turnaround
with
XON
as the
The following commands may be used only with a C-Kermit which is
either
by default or else because the -l option has been specified.
local
-g rfn Actively request a remote server to send the named file or
files; rfn
is a file specification in the remote host's own syntax. If fn
happens
to contain any special shell characters, like space, '*',
'[', etc,
these must be quoted, as in
kermit -g x\*.\?
or
kermit -g "profile exec"
-f
Send a 'finish' command to a remote server.
-c
com-
Establish a terminal connection over
the
specified
or
default
munication line, before any protocol transaction takes place.
Get back
to the local system by typing the escape
(normally
Control-Backslash) followed by the letter 'c'.
-n
-n may
Like
-c,
but
character
after a protocol transaction takes place; -c and
both be used in the same command.
illustrated
below.
The use of -n and -c is
If the other Kermit is on a remote system, the -l and -b options should
also be
included with the -r, -k, or -s options.
Several other command-line options are provided:
-i
Specifies that files should be sent or received exactly "as is"
with no
conversions.
This option is necessary for transmitting binary
files.
6.3. Command Line Operation
Page 150
-----------------------------------------------------------------------------It may also be used in Unix-to-Unix transfers (it must be given
to both
Unix Kermit programs), where it will improve performance by
circumventing the normal text-file conversions, and will allow mixture of
text
and binary files in a single file group.
-w
Write-Protect -- Avoid filename collisions for incoming files.
-e n
Extended packet length -- Specify that C-Kermit is allowed to
receive
packets up to length n, where n may be between 10 and some large
number, like 1000, depending on the system. The default maximum
length
for received packets is 90. Packets longer than 94 will be used
only
if the other Kermit supports, and agrees to use, the "long
packet"
protocol extension.
-q
Quiet -- Suppress screen update during file transfer, for
instance to
allow a file transfer to proceed in the background.
-d
Debug -- Record debugging information in the file debug.log in
the current directory. Use this option if you believe the program is
misbehaving, and show the resulting log to your local Kermit
maintainer.
-h
Help -- Display a brief synopsis of the command line options.
The command line may contain no more than one protocol action option.
Files are sent with their own names, except that lowercase letters are
raised
to upper, pathnames are stripped off, certain special characters like
(`~') and
(`#') are changed to `X', and if the file name begins with a period, an
`X' is
inserted before it. Incoming files are stored under their own names
except
that uppercase letters are lowered, and, if -w was specified, a
"generation
number" is appended to the name if it has the same name as an existing
file
which would otherwise be overwritten. If the -a option is included,
then the
same rules apply to its argument. The file transfer display shows any
transformations performed upon filenames.
During transmission, files are encoded as follows:
- Control characters are converted to prefixed printables.
- Sequences
of repeated characters are collapsed via repeat counts,
if
the other Kermit is also capable of repeated-character compression.
- If parity is being used on the communication line, data
characters
with the 8th (parity) bit on are specially prefixed, provided
the
other Kermit is capable of 8th-bit prefixing; if not, 8-bit
binary
files cannot be successfully transferred.
- Conversion is done between Unix newlines and carriage-returnlinefeed
sequences unless the -i option was specified.
6.3. Command Line Operation
Page 151
-----------------------------------------------------------------------------Command Line Examples:
kermit -l /dev/ttyi5 -b 1200 -cn -r
This command connects you to the system on the other end of ttyi5 at 1200
baud,
where you presumably log in and run Kermit with a 'send' command.
After you
escape back, C-Kermit waits for a file (or files) to arrive.
When the
file
transfer is completed, you are reconnected to the remote system so that
you can
logout.
kermit -l /dev/ttyi4 -b 1800 -cntp m -r -a foo
This command is like the preceding one, except the remote system in this
case
uses half duplex communication with mark parity. The first file that
arrives
is stored under the name foo.
kermit -l /dev/ttyi6 -b 9600 -c | tek
This example uses Kermit to connect your terminal to the system at the
other
end of ttyi6. The C-Kermit terminal connection does not provide any
particular
terminal emulation, so C-Kermit's standard
i/o
is
piped
through
a
(hypothetical) program called tek, which performs (say) Tektronix
emulation.
kermit -l /dev/ttyi6 -b 9600 -nf
This command would be used to shut down a remote server and then connect
to the
remote system, in order to log out or to make further use of it. The -n
option
is invoked after -f (-c would have been invoked before).
kermit -l /dev/ttyi6 -b 9600 -qg foo.\* &
This command causes C-Kermit to be invoked in the background, getting a
group
of files from a remote server (note the quoting of the `*' character).
No display occurs on the screen, and the keyboard is not sampled for
interruption
commands. This allows other work to be done while file transfers
proceed in
the background.
kermit -l /dev/ttyi6 -b 9600 -g foo.\* > foo.log < /dev/null &
This command is like the previous one, except the file transfer
display has
been redirected to the file foo.log. Standard input is also
redirected, to
prevent C-Kermit from sampling it for interruption commands.
kermit -iwx
This command starts up C-Kermit as a server. Files are transmitted
with no
newline/carriage-return-linefeed conversion; the -i option is necessary
for binary file transfer and recommended for Unix-to-Unix transfers. Incoming
files
that have the same names as existing files are given new, unique names.
6.3. Command Line Operation
Page 152
-----------------------------------------------------------------------------kermit -l /dev/ttyi6 -b 9600
This command sets the communication line and speed.
Since no
action is
specified, C-Kermit issues a prompt and enters an interactive dialog
with you.
Any settings given on the command line remain in force during the
dialog, unless explicitly changed.
kermit
This command starts up Kermit interactively with all default settings.
The next example shows how Unix Kermit might be used to send an entire
directory tree from one Unix system to another, using the tar program as
Kermit's
standard input and output. On the orginating system, in this case the
remote,
type (for instance):
tar cf - /usr/fdc | kermit -is This causes tar to send the directory /usr/fdc (and all its files and
all its
subdirectories and all their files...) to standard output instead of to a
tape;
kermit receives this as standard input and sends it as a binary file.
On the
receiving system, in this case the local one, type (for instance):
kermit -il /dev/ttyi5 -b 9600 -k | tar xf Kermit receives the tar archive, and sends it via standard output to
its own
copy of tar, which extracts from it a replica of the original directory
tree.
A final example shows how a Unix compression utility might be used to
speed up
Kermit file transfers:
compress file | kermit -is kermit -ik | uncompress
(sender)
(receiver)
Exit Status Codes:
Unix Kermit returns an exit status of zero, except when a fatal error
is encountered, where the exit status is set to one.
With background
operation
(e.g., `&' at end of invoking command line) driven by scripted
interactive commands (redirected standard input and/or take files), any failed
interactive
command (such as failed dial or script attempt) causes the fatal error
exit.
6.4. Interactive Operation
C-Kermit's interactive command prompt is "C-Kermit>". In response
to this
prompt, you may type any valid interactive C-Kermit command. C-Kermit
executes
the command and then prompts you for another command. The process
continues
until you instruct the program to terminate.
Commands begin with a keyword, normally an English verb, such as "send".
You
may omit trailing characters from any keyword, so long as you
specify suf-
6.4. Interactive Operation
Page 153
-----------------------------------------------------------------------------ficient characters to distinguish it from any other keyword valid in
that
field.
Certain commonly-used keywords (such as "send", "receive",
"connect")
also have special non-unique abbreviations ("s" for "send", "r" for
"receive",
"c" for "connect").
Certain characters
interactive commands:
have
special
functions during typein of
?
Question mark, typed at any point in a command, will produce a
message
explaining what is possible or expected at that point.
Depending on
the context, the message may be a brief phrase, a menu of
keywords, or
a list of files.
ESC (The Escape or Altmode key) -- Request completion of the
current
keyword or filename, or insertion of a default value. The result
will
be a beep if the requested operation fails.
DEL (The Delete or Rubout key) -- Delete the previous character
from the
command. You may also use BS (Backspace, Control-H) for this
function.
^W
(Control-W) -- Erase the rightmost word from the command line.
^U
(Control-U) -- Erase the entire command.
^R
(Control-R) -- Redisplay the current command.
SP
a com-
(Space) -- Delimits fields (keywords, filenames, numbers) within
mand.
HT (Horizontal Tab) may also be used for this purpose.
CR (Carriage Return) -- Enters the command for execution.
(Linefeed)
or FF (formfeed) may also be used for this purpose.
LF
\
(Backslash) -- Enter any of the above characters into the
command,
literally.
To enter a backslash, type two backslashes in a row
(\\).
A backslash at the end of a command line causes the
to
next
line
be
treated
as a continuation line; this is useful for readability
in command files, especially in the 'script' command.
^Z
(Control-Z) -- On systems (like Berkeley Unix, Ultrix)
with
job
control,
suspend
Kermit,
i.e. put it into the
background in such
a way
that it can be brought back into the
foreground
(e.g.
with
an
'fg'
shell command) with all its settings intact.
You may type the editing characters (DEL, ^W, etc) repeatedly, to
delete all
the way back to the prompt. No action will be performed until the
command is
entered by typing carriage return, linefeed, or formfeed. If you make
any mistakes, you will receive an informative error message and a new prompt -make
liberal use of `?' and ESC to feel your way through the commands. One
important command is "help" -- you should use it the first time you run CKermit.
A command line beginning with a percent sign "%" is ignored. Such lines
may be
used to include illustrative commentary in Kermit command dialogs.
Interactive C-Kermit accepts commands from files as well as from the
keyboard.
When you start C-Kermit, the program looks for the file .kermrc in your
home or
current directory (first it looks in the home directory, then in the
current
6.4. Interactive Operation
Page 154
-----------------------------------------------------------------------------one) and executes any commands it finds there. These commands must be
in interactive format, not Unix command-line format.
A "take" command
is also
provided for use at any time during an interactive session, to
allow
interactive-format commands to be executed from a file; command files
may be
nested to any reasonable depth.
Here is a brief list of C-Kermit interactive commands:
%
!
bye
close
connect
cwd
dial
directory
echo
exit
finish
Comment
Execute a Unix shell command, or start a shell.
Terminate and log out a remote Kermit server.
Close a log file.
Establish a terminal connection to a remote system.
Change Working Directory.
Dial a telephone number.
Display a directory listing.
Display arguments literally.
Exit from the program, closing any open files.
Instruct a remote Kermit server to exit, but not log
out.
get
help
log
transaction.
quit
receive
remote
server.
script
send
server
set
show
space
statistics
take
Get files from a remote Kermit server.
Display a help message for a given command.
Open a log file -- debugging, packet, session,
Same as 'exit'.
Passively wait for files to arrive.
Issue file management commands to a remote Kermit
Execute a login script with a remote system.
Send files.
Begin server operation.
Set various parameters.
Display values of 'set' parameters.
Display current disk space usage.
Display statistics about most recent transaction.
Execute commands from a file.
The 'set' parameters are:
block-check Level of packet error detection.
delay How long to wait before sending first packet.
duplex Specify which side echoes during 'connect'.
escape-character Prefix for "escape commands" during 'connect'.
file Set various file parameters.
flow-control Communication line full-duplex flow control.
handshake
incomplete
line
modem-dialer
parity
prompt
receive
retry
send
speed
terminal
Communication line half-duplex turnaround character.
Disposition for incompletely received files.
Communication line device name.
Type of modem-dialer on communication line.
Communication line character parity.
The C-Kermit program's interactive command prompt.
Parameters for inbound packets.
Packet retransmission limit.
Parameters for outbound packets.
Communication line speed.
Terminal parameters.
The 'remote' commands are:
6.4. Interactive Operation
Page 155
-----------------------------------------------------------------------------cwd Change remote working directory.
delete Delete remote files.
directory Display a listing of remote file names.
help Request help from a remote server.
host A command to the remote host in its own command
language.
space Display current disk space usage on remote system.
type Display a remote file on your screen.
who Display who's logged in, or get information about a
user.
Most of these commands are described adequately in the Kermit User Guide
or the
Kermit book.
Special aspects of certain Unix Kermit commands are
described
below.
THE 'SEND' COMMAND
Syntax:
send fn
- or -
send fn1 rfn1
Send the file or files denoted by fn to the other Kermit, which should be
running as a server, or which should be given the 'receive' command. Each
file is
sent under its own name (as described above, or as specified by the 'set
file
names' command). If the second form of the 'send' command is used, i.e.
with
fn1 denoting a single Unix file, rfn1 may be specified as a name to send
it under.
The 'send' command may be abbreviated to 's', even though 's' is
not a
unique abbreviation for a top-level C-Kermit command.
The wildcard (meta) characters `*' and `?' are accepted in fn. If `?' is
to be
included, it must be prefixed by `\' to override its normal function of
providing help. `*' matches any string, `?' matches any single character.
Other
notations for file groups, like `[a-z]og', are not available in
interactive
commands (though of course they are available on the command line).
When fn
contains `*' or `?' characters, there is a limit to the number of
files that
can be matched, which varies from system to system. If you get
message
"Too many files match" then you'll have to make a more judicious
selection. If
fn was of the form
the
usr/longname/anotherlongname/*
then C-Kermit's string space will fill up rapidly -- try
(see
below) to the path in question and reissuing the command.
doing
a
cwd
Note -- C-Kermit sends only from the current or specified directory.
It does
not traverse directory trees. If the source directory contains
subdirectories,
they will be skipped. By the same token, C-Kermit does not create
directories
when receiving files. If you have a need to do this, you can pipe tar
through
C-Kermit, as shown in the example on page 152, or under System III/V
Unix you
can use cpio.
Another Note -- The 'send' command does not skip over "invisible" files
that
match the file specification; Unix systems usually treat files whose
names
start with a dot (like .login, .cshrc, and .kermrc) as invisible.
Similarly
for "temporary" files whose names start with "#".
6.4. Interactive Operation
Page 156
-----------------------------------------------------------------------------THE 'RECEIVE' COMMAND
Syntax:
receive
- or -
receive fn1
Passively wait for files to arrive from the other Kermit, which must be
given
the 'send' command -- the 'receive' command does not work in conjunction
with a
server (use 'get' for that). If fn1 is specified, store the first
incoming
file under that name. The 'receive' command may be abbreviated to 'r'.
THE 'GET' COMMAND:
Syntax:
get rfn
or: get
rfn
fn1
Request a remote Kermit server to send the named file or files. Since a
remote
file specification (or list) might contain spaces, which normally
delimit
fields of a C-Kermit command, an alternate form of the command is
provided to
allow the inbound file to be given a new name: type 'get' alone on a
line, and
you will be prompted separately for the remote and local file
specifications,
for example
C-Kermit>get
Remote file specification: profile exec
Local name to store it under: profile.exec
As with 'receive', if more than one file arrives as a result of the
'get' command, only the first will be stored under the alternate name given by
fn1; the
remaining files will be stored under their own names if possible. If a
`?' is
to be included in the remote file specification, you must prefix it with
`\' to
suppress its normal function of providing help.
If you
lower-
have started a multiline 'get' command, you may escape from its
level prompts by typing a carriage return in response to the prompt, e.g.
C-Kermit>get
Remote file specification: foo
Local name to store it under: (Type a carriage return here)
(cancelled)
C-Kermit>
THE 'SERVER' COMMAND:
The 'server' command places C-Kermit in "server mode" on the currently
selected
communication line.
All further commands must arrive as valid Kermit
packets
from the Kermit on the other end of the line.
The Unix Kermit
server can
respond to the following commands:
Command
get
send
bye
Server Response
Sends files
Receives files
Attempts to log itself out
6.4. Interactive Operation
Page 157
-----------------------------------------------------------------------------finish
Exits to level from which it was invoked
remote directory
Sends directory lising
remote delete
Removes files
remote cwd
Changes working directory
remote type
Sends files to your screen
remote space
Reports about its disk usage
remote who
Shows who's logged in
remote host
Executes a Unix shell command
remote help
Lists these capabilities
The Unix Kermit server cannot always respond properly to a BYE
command. It
will attempt to do so using "kill()", but this will not work on all
systems or
under all conditions because of the complicated process structures that
can be
set up under Unix.
If the Kermit server is directed at an external line (i.e. it is in
"local
mode") then the console may be used for other work if you have 'set
file display off'; normally the program expects the console to be used to observe
file
transfers and enter status queries or interruption commands. The way
to get
C-Kermit into background operation from interactive command level varies
from
system to system (e.g. on Berkeley Unix you would halt the program with
^Z and
then use the C-Shell 'bg' command to continue it in the background). The
more
common method is to invoke the program with the desired command line
arguments,
including "-q", and with a terminating "&".
When the Unix Kermit server is given a 'remote host' command, it
executes it
using the shell invoked upon login, e.g. the Bourne shell or the
Berkeley
C-Shell.
THE 'REMOTE', 'BYE', AND 'FINISH' COMMANDS:
C-Kermit may itself request services from a remote Kermit server. In
addition
to 'send' and 'get', the following commands may also be sent from CKermit to a
Kermit server:
remote cwd [directory]
If the optional remote directory specification is included, you
will be
prompted on a separate line for a password, which will not echo
as you
type it.
If the remote system does not require a password
for this
operation, just type a carriage return.
remote
remote
remote
language.
remote
remote
remote
remote
delete rfn
directory [rfn]
host command
delete remote file or files.
directory listing of remote files.
command in remote host's own command
space
type [rfn]
who [user]
help
disk usage report from remote host.
display remote file or files on the screen.
display information about who's logged in.
display remote server's capabilities.
bye and finish:
When connected to a remote Kermit server, these commands
cause the
remote server to terminate; 'finish' returns it to Kermit or
system
command level (depending on the implementation or how the
program was
invoked); 'bye' also requests it to log itself out.
6.4. Interactive Operation
Page 158
-----------------------------------------------------------------------------THE 'LOG' AND 'CLOSE' COMMANDS:
Syntax: log {debugging, packets, session, transactions} [ fn1 ]
C-Kermit's progress may be logged in various ways. The 'log' command
opens a
log, the 'close' command closes it. In addition, all open logs are
closed by
the 'exit' and 'quit' commands. A name may be specified for a log file;
if the
name is omitted, the file is created with a default name as shown below.
log debugging
This produces a voluminous log of the internal workings of C-Kermit,
of use
to Kermit developers or maintainers in tracking down suspected bugs
in the
C-Kermit program. Use of this feature dramatically slows down the
Kermit
protocol. Default name: debug.log.
log packets
This produces a record
communication port. This
tracking
down protocol problems
Kermit is
connected to. Default
of all the packets that go in and out
of
the
log is of use to Kermit maintainers who are
in either C-Kermit or any Kermit
name:
that
C-
packet.log.
log session
This log will contain a copy of everything you see on your screen
during
the 'connect' command, except for local messages or interaction with
local
escape commands. Default name: session.log.
log transactions
The transaction log is a record of all the files that were sent or
received
while transaction logging was in effect.
It includes time
stamps and
statistics, filename transformations, and records of any errors
that may
have occurred. The transaction log allows you to have long
unattended file
transfer sessions without fear of missing some vital screen
message.
Default name: transact.log.
The 'close' command explicitly closes a log, e.g. 'close debug'.
Note: Debug and Transaction logs are a compile-time option; C-Kermit
may be
compiled without these logs, in which case it will run faster, it will
take up
less space on the disk, and the commands relating to them will not be
present.
LOCAL FILE MANAGEMENT COMMANDS:
Unix Kermit allows some degree of local file management from
command level:
interactive
directory [fn]
Displays a listing of the names, modes, sizes, and dates of files
matching
fn (which defaults to `*'). Equivalent to `ls -l'.
cwd [directory-name]
Changes Kermit's working directory to the one given, or to the
default
directory if the directory name is omitted. This command affects
only the
Kermit process and any processes it may subsequently create.
space
6.4. Interactive Operation
Page 159
-----------------------------------------------------------------------------Display information about disk space and/or quota in the current
directory
and device.
! [command]
The command is executed by the Unix shell. If no command is
specified,
then an interactive shell is started; exiting from the shell,
e.g. by
typing Control-D or 'exit', will return you to C-Kermit command
level. Use
the `!' command to provide file management or other functions
not explicitly provided by C-Kermit commands.
The `!' command has
certain
peculiarities:
- C-Kermit attempts to use your preferred, customary (login)
shell.
- At least one space must separate the '!' from the shell command.
- A 'cd' (change directory) command executed in this manner
will
have no effect -- use the C-Kermit 'cwd' command instead.
THE 'SET' AND 'SHOW' COMMANDS:
Since Kermit is designed to allow diverse systems to communicate, it is
often
necessary to issue special instructions to allow the program to
adapt to
peculiarities of the another system or the communication path. These
instructions are accomplished by the 'set' command. The 'show' command may be
used to
display current settings.
Here is a brief synopsis of settings
available in
the current release of C-Kermit:
block-check {1, 2, 3}
Determines the level of per-packet error detection. "1" is a
singlecharacter 6-bit checksum, folded to include the values of all bits
from
each character.
"2" is a 2-character, 12-bit checksum.
"3" is a
3-character, 16-bit cyclic redundancy check (CRC). The higher the
block
check, the better the error detection and correction and the
higher the
resulting overhead. Type 1 is most commonly used; it is supported
by all
Kermit implementations, and it has proven adequate in most
circumstances.
Types 2 or 3 would be used to advantage when transferring 8-bit
binary
files over noisy lines.
delay n
How many seconds to wait before sending the first packet after a
'send'
command. Used in remote mode to give you time to escape back to your
local
Kermit and issue a 'receive' command. Normally 5 seconds.
duplex {full, half}
For use during 'connect'.
Specifies which side is doing the
echoing;
'full' means the other side, 'half' means C-Kermit must echo typein
itself.
escape-character cc
For use during 'connect' to get C-Kermit's attention. The escape
character
acts as a prefix to an 'escape command', for instance to close the
connection and return to C-Kermit or Unix command level. The normal
escape
character is Control-Backslash (28). The escape character is also
used in
System III/V implementations to prefix interrupt commands
during file
transfers.
file {display, names, type, warning}
Establish various file-related parameters:
6.4. Interactive Operation
Page 160
-----------------------------------------------------------------------------display {on, off}
Normally 'on'; when in local mode, display progress of file
transfers
on the screen (stdout), and listen to the keyboard (stdin) for
interruptions. If off (-q on command line) none of this is done,
and the
file transfer may proceed in the background oblivious to any
other work
concurrently done at the console terminal.
names {converted, literal}
Normally converted, which means that outbound filenames
have path
specifications stripped, lowercase letters raised to upper,
tildes and
extra periods changed to X's, and an X inserted in front of
any name
that starts with period.
Incoming files have uppercase
letters
lowered. Literal means that none of these conversions are done;
therefore, any directory path appearing in a received file
specification
must exist and be write-accessible. When literal naming is being
used,
the sender should not use path names in the file specification
unless
the same path exists on the target system and is writable.
type {binary, text} [{7, 8}]
The file type is normally text, which means that conversion is
done between Unix newline characters and the carriagereturn/linefeed sequences required by the canonical Kermit file transmission
format, and
in common use on non-Unix systems. Binary means to transmit
file contents without conversion. Binary (`-i' in command line
notation) is
necessary for binary files, and desirable in all Unix-to-Unix
transactions to cut down on overhead.
The optional trailing parameter tells the bytesize for file
transfer.
It is 8 by default.
If you specify 7, the high order bit
will be
stripped from each byte of sent and received files. This is
useful for
transferring text files that may have extraneous high order bits
set in
their disk representation (e.g. Wordstar or similar word
processor
files).
warning {on, off}
Normally off, which means that incoming files will silently
overwrite
existing files of the same name. When on (`-w' on command line)
Kermit
will check if an arriving file would overwrite an existing file;
if so,
it will construct a new name for the arriving file, of the form
foo~n,
where foo is the name they share and n is a "generation number";
if foo
exists, then the new file will be called foo~1. If foo and
foo~1 exist, the new file will be foo~2, and so on. If the new name
would be
longer than the maximum length for a filename, then characters
would be
deleted from the end first, for instance, thelongestname on a
system
with a limit of 14 characters would become thelongestn~1.
CAUTION:
If Control-F or Control-B is used to cancel an
incoming file, and a file of the same name previously
existed,
and
the
"file
warning"
feature is not enabled, then the
previous
copy of the file will disappear.
flow-control {none, xon/xoff}
Normally xon/xoff for full duplex flow control. Should be set to
'none' if
the other system cannot do xon/xoff flow control, or if you have
issued a
'set handshake' command. If set to xon/xoff, then handshake should
be set
to none. This setting applies during both terminal connection and
file
6.4. Interactive Operation
Page 161
-----------------------------------------------------------------------------transfer.
Warning: This command may have no effect on certain
Unix systems, where Kermit puts the communication line into 'rawmode', and
rawmode
precludes flow control.
incomplete {discard, keep}
Disposition for incompletely received files. If an incoming file is
interrupted or an error occurs during transfer, the part that was
received so
far is normally discarded. If you "set incomplete keep" then such
file
fragments will be kept.
handshake {xon, xoff, cr, lf, bell, esc, none}
Normally none. Otherwise, half-duplex communication line turnaround
handshaking is done, which means Unix Kermit will not reply to a packet
until
it has received the indicated handshake character or has timed out
waiting
for it; the handshake setting applies only during file transfer.
If you
set handshake to other than none, then flow should be set to none.
line [device-name]
The device name for the communication line to be used for file
transfer and
terminal connection, e.g. /dev/ttyi3. If you specify a device name,
Kermit
will be in local mode, and you should remember to issue any other
necessary
'set' commands, such as 'set speed'. If you omit the device name,
Kermit
will revert to its default mode of operation. If you specify
/dev/tty,
Kermit will enter remote mode (useful when logged in through the
"back
port" of a system normally used as a local-mode workstation).
When Unix
Kermit enters local mode, it attempts to synchronize with other
programs
(like uucp) that use external communication lines so as to
prevent two
programs using the same line at once; before attempting to
lock the
specified line, it will close and unlock any external line
that was
previously in use. The method used for locking is the
file",
explained in more detail later.
"uucp
lock
modem-dialer {direct, hayes, racalvadic, ventel, ...}
The type of modem dialer on the communication line. "Direct"
indicates either there is no dialout modem, or that if the line requires carrier
detection to open, then 'set line' will hang waiting for an incoming
call.
"Hayes", "Ventel", and the others indicate that 'set line' (or
the -l
argument) will prepare for a subsequent 'dial' command for the
given
dialer.
Support for new dialers is added from time to time, so
type 'set
modem ?' for a list of those supported in your copy of Kermit.
See the
description of the 'dial' command
parity {even, odd, mark, space, none}
Specify character parity for use in packets and terminal connection,
normally none.
If other than none, C-Kermit will seek to use the
8th-bit
prefixing mechanism for transferring 8-bit binary data, which can be
used
successfully only if the other Kermit agrees; if not, 8-bit
binary data
cannot be successfully transferred.
prompt [string]
The given string will be substituted for "C-Kermit>" as this
program's
prompt. If the string is omitted, the prompt will revert to "CKermit>".
If the string is enclosed in doublequotes, the quotes will be
stripped and
any leading and trailing blanks will be retained.
send parameter
6.4. Interactive Operation
Page 162
-----------------------------------------------------------------------------Establish parameters to use when sending packets. These will be in
effect
only for the initial packet sent, since the other Kermit may override
these
parameters during the protocol parameter exchange (unless noted
below).
end-of-packet cc
Specifies the control character needed by the other Kermit to
recognize
the end of a packet. C-Kermit sends this character at the end
of each
packet. Normally 13 (carriage return), which most Kermit
implementations require.
Other Kermits require no terminator at all,
still
others may require a different terminator, like linefeed (10).
packet-length n
Specify the maximum packet length to send. Normally 90.
Shorter
packet lengths can be useful on noisy lines, or with systems or
front
ends or networks that have small buffers. The shorter the
packet, the
higher the overhead, but the lower the chance of a packet being
corrupted by noise, and the less time to retransmit corrupted
packets.
This command overrides the value requested by the other Kermit
during
protocol initiation unless the other Kermit requests a shorter
length.
pad-character cc
Designate a character to send before each packet.
Normally,
none is
sent.
Outbound padding is sometimes necessary for
communicating with
slow half duplex systems that provide no other means of line
turnaround
control.
It can also be used to send special characters to
communications equipment that needs to be put in "transparent" or "no
echo"
mode, when this can be accomplished in by feeding it a certain
control
character.
padding n
How many pad characters to send, normally 0.
start-of-packet cc
The normal Kermit packet prefix is Control-A (1); this command
changes
the prefix C-Kermit puts on outbound packets. The only
reasons this
should ever be changed would be: Some piece of equipment
somewhere between the two Kermit programs will not pass through a ControlA; or,
some piece of of equipment similarly placed is echoing its input.
In
the latter case, the recipient of such an echo can change the
packet
prefix for outbound packets to be different from that of arriving
packets, so that the echoed packets will be ignored. The opposite
Kermit
must also be told to change the prefix for its inbound packets.
timeout n
Specifies the number of seconds you want the other Kermit to wait
for a
packet before timing it out and requesting retransmission.
receive parameter
Establish parameters to request the other Kermit to use when sending
packets.
end-of-packet cc
Requests the
specified
character.
packet-length n
other Kermit to terminate its packets with the
6.4. Interactive Operation
Page 163
-----------------------------------------------------------------------------Specify the maximum packet length to that you want the other
Kermit to
send, normally 90. If you specify a length of 95 or greater,
then it
will be used if the other Kermit supports, and agrees to use,
the Kermit protocol extension for long packets. In this case, the
maximum
length depends upon the systems involved, but there would
normally be
no reason for packets to be more than about 1000 characters in
length.
The 'show parameters' command displays C-Kermit's current and
maximum
packet lengths.
pad-character cc
C-Kermit normally does not need to have incoming packets
preceded with
pad characters. This command allows C-Kermit to request the
other Kermit to use cc as a pad character. Default cc is NUL, ASCII 0.
padding n
How many pad characters to ask for, normally 0.
start-of-packet cc
Change the prefix C-Kermit looks for on inbound packets to
correspond
with what the other Kermit is sending.
timeout n
Normally, each Kermit partner sets its packet timeout interval
based on
what the opposite Kermit requests. This command allows you to
override
the normal procedure and specify a timeout interval for Unix
Kermit to
use when waiting for packets from the other Kermit. If you
specify 0,
then no timeouts will occur, and Unix Kermit will wait forever
for expected packets to arrive.
speed {0, 110, 150, 300, 600, 1200, 1800, 2400, 4800, 9600}
The baud rate for the external communication line. This command
cannot be
used to change the speed of your own console terminal. Many Unix
systems
are set up in such a way that you must give this command after a 'set
line'
command before you can use the line. 'set baud' is a synomym for
'set
speed'.
terminal
Used for specifying terminal parameters. Currently, 'bytesize' is
the only
parameter provided, and it can be set to 7 or 8. It's 7 by default.
THE 'SHOW' COMMAND:
Syntax: show {parameters, versions}
The "show" command with the default argument of "parameters"
displays the
values of all the 'set' parameters described above.
If you type
"show
versions", then C-Kermit will display the version numbers and dates of
all its
internal modules. You should use the "show versions" command to
ascertain the
vintage of your Kermit program before reporting problems to Kermit
maintainers.
6.4. Interactive Operation
Page 164
-----------------------------------------------------------------------------THE 'STATISTICS' COMMAND:
The statistics command displays information about the most recent
Kermit
protocol transaction, including file and communication line i/o, timing
and efficiency, as well as what encoding options were in effect (such as
8th-bit
prefixing, repeat-count compression).
THE 'TAKE' AND 'ECHO' COMMANDS:
Syntax: take fn1
echo [text to be echoed]
The 'take' command instructs C-Kermit to execute commands from the named
file.
The file may contain any interactive C-Kermit commands, including
'take'; command files may be nested to any reasonable depth, but it may not contain
text
to be sent to a remote system during the 'connect' command. This means
that a
command file like this:
set line /dev/tty17
set speed 9600
connect
login myuserid
mypassword
etc
will not send "login myserid" or any of the following text to the remote
system. To carry on a canned dialog, use the 'script' command, described
later.
The '%' command is useful for including comments in take-command files.
It may
only be used at the beginning of a line.
The 'echo' command may be used within command files to issue
greetings, announce progress, ring the terminal bell, etc. The 'echo' command should
not be
confused with the Unix 'echo' command, which can be used to show how
meta
characters would be expanded. The Kermit echo command simply displays
its text
argument (almost) literally at the terminal; the argument may contain
octal escapes of the form "\ooo", where o is an octal digit (0-7), and there may
be 1,
2, or 3 such digits, whose value specify an ASCII character, such as
"\007" (or
"\07" or just "\7") for beep, "\012" for newline, etc. Of course, each
backslash must be must be entered twice in order for it to be passed along
to the
echo command by the Kermit command parser.
Take-command files are in exactly the same syntax as interactive
commands.
Note that this implies that if you want to include special characters
like
question mark or backslash that you would have to quote with
backslash when
typing interactive commands, you must quote these characters the same
way in
command files. Long lines may be continued by ending them with a single
backslash.
Command files may be used in lieu of command macros, which have not been
implemented in this version of C-Kermit. For instance, if you commonly
connect to a
system called 'B' that is connected to ttyh7 at 4800 baud, you could
create a
file called b containing the commands
% C-Kermit command file to connect to System B thru /dev/ttyh7
6.4. Interactive Operation
Page 165
-----------------------------------------------------------------------------set line /dev/ttyh7
set speed 4800
% Beep and give message
echo \\007Connecting to System B...
connect
and then simply type 'take b' (or 't b' since no other commands begin
with the
letter 't') whenever you wish to connect to system B. Note the comment
lines
and the beep inserted into the 'echo' command.
For connecting to IBM mainframes, a number of 'set' commands are
required;
these, too, can be conveniently collected into a 'take' file like this
one:
% Sample C-Kermit command file to set up current line
% for IBM mainframe communication
%
set parity mark
set handshake xon
set flow-control none
set duplex half
Note that no single command is available to wipe out all of these
settings and
return C-Kermit to its default startup state; to do that, you can
either restart the program, or else make a command file that executes the necessary
'set'
commands:
% Sample C-Kermit command file to restore normal settings
%
set parity none
set handshake none
set flow-control xon/xoff
set duplex full
An implicit 'take' command is executed upon your .kermrc file when CKermit
starts up, upon either interactive or command-line invocation.
The
.kermrc
file should contain 'set' or other commands you want to be in effect
at all
times. For instance, you might want override the default action when
incoming
files have the same names as existing files -- in that case, put the
command
set file warning on
in your .kermrc file.
On some non-Unix systems that run C-Kermit,
the initialization file might have a different name, such as kermit.ini.
Errors encountered during execution of take files (such as failure to
complete
dial or script operations) cause termination of the current take file,
popping
to the level that invoked it (take file, interactive level, or the
shell).
When kermit is executed in the background, errors during execution of
a take
file are fatal.
Under Unix, you may also use the shell's
cause
C-Kermit to execute commands from a file:
redirection
kermit < cmdfile
or you can even pipe commands in from another process:
mechanism
to
6.4. Interactive Operation
Page 166
-----------------------------------------------------------------------------cmdprocess | kermit
THE 'CONNECT' COMMAND:
The 'connect' command ('c' is an acceptable non-unique
abbreviation for
'connect') links your terminal to another computer as if it were a local
terminal to that computer, through the device specified in the most
recent 'set
line' command, or through the default device if your system is a PC or
workstation.
All characters you type at your keyboard are sent out the
communication
line (and if you have 'set duplex half', also displayed on your
screen), and
all characters arriving at the communication port are displayed on the
screen.
Current settings of speed, parity, duplex, and flow-control are
honored, and
the data connection is 7 bits wide unless you have given the command
'set terminal bytesize 8'. If you have issued a 'log session' command,
everything you
see on your screen will also be recorded to your session log. This
provides a
way to "capture" files from remote systems that don't have Kermit
programs
available.
To get back to your own system, you must type the escape character,
which is
Control-Backslash (^\) unless you have changed it with the 'set escape'
command,
followed by a single-character command, such as 'c' for
"close
connection". Single-character commands include:
c
b
0
s
h
^\
escape
Close the connection
Send a BREAK signal
(zero) send a null
Give a status report about the connection
Hangup the phone
Send Control-Backslash itself (whatever you
have
defined
the
character to be, typed twice in a row sends one copy of it).
Uppercase and control equivalents for (most of) these letters are
also accepted. A space typed after the escape character is ignored.
Any
other
character will produce a beep.
The connect command simply displays incoming characters on the screen.
It is
assumed any screen control sequences sent by the host will be handled
by the
firmware or emulation software in your terminal or PC. If special
terminal
emulation is desired, then the 'connect' command can invoked from the
Unix command line (-c or -n), piped through a terminal emulation filter, e.g.
kermit -l /dev/acu -b 1200 -c | tek
THE 'DIAL' COMMAND:
Syntax: dial telephone-number-string
This command controls dialout modems; you should have already issued
a "set
line" and "set speed" command to identify the terminal device, and a
"set
modem" command to identify the type of modem to be used for dialing.
In the
"dial" command, you supply the phone number and the Kermit program feeds
it to
the modem in the appropriate format and then interprets dialer return
codes and
modem signals to inform you whether the call was completed.
The
telephonenumber-string may contain imbedded modem-dialer commands, such as
comma for
6.4. Interactive Operation
Page 167
-----------------------------------------------------------------------------Hayes pause, or `&' for Ventel dialtone wait and `%' for Ventel pause
(consult
your modem manual for details).
At the time of this writing, support is included for the following
modems:
-
AT&T 7300 Internal Modem
Cermetek Info-Mate 212A
Concord Condor CDS 220
DEC DF03-AC
DEC DF100 Series
DEC DF200 Series
General DataComm 212A/ED
Hayes Smartmodem 1200 and compatibles
Penril
Racal Vadic
US Robotics 212A
Ventel
Support for new modems is added to the program from time to time; you can
check
the current list by typing "set modem ?".
The device used for dialing out is the one selected in the most recent
"set
line" command (or on a workstation, the default line if no "set line"
command
was given). The "dial" command calls locks the path (see the section on
line
locking below) and establishes a call on an exclusive basis. If it is
desired
to dial a call and then return to the shell (such as to do kermit
activities
depending on standard in/out redirection), it is necessary to place the
dialed
call under one device name (say, "/dev/cua0") and then escape to the
shell
within Kermit on a linked device which is separate from the dialed line
(say,
"/dev/cul0"). This is the same technique used by uucp (to allow locks
to be
placed separately for dialing and conversing).
Because modem dialers have strict requirements to override the carrierdetect
signal most Unix implementations expect, the sequence for dialing is more
rigid
than most other C-Kermit procedures.
Example one:
kermit -l /dev/cul0 -b 1200
C-Kermit>set modem-dialer hayes
C-Kermit>dial 9,5551212
Connected!
C-Kermit>connect
logon, request remote server, etc.
^\c
C-Kermit> ...
C-Kermit>quit
hint: abbreviate set m h
hint: abbreviate c
escape back
hint: abbreviate q
this disconnects modem, and unlocks line.
Example two:
kermit
C-Kermit>set modem-dialer ventel
C-Kermit>set line /dev/cul0
C-Kermit>dial 9&5551212%
6.4. Interactive Operation
Page 168
-----------------------------------------------------------------------------Connected!
C-Kermit> ...
Example three:
kermit
C-Kermit>take my-dial-procedure
Connected!
file my-dial-procedure:
set modem hayes
set line /dev/tty99
dial 5551212
connect
In general, C-Kermit requires that the modem provide the "carrier
detect" (CD)
signal when a call is in progress, and remove that signal when the call
completes or the line drops. If a modem switch setting is available to
force CD,
it should normally not be in that setting. C-Kermit also requires (on
most
systems) that the modem track the computer's "data terminal ready"
(DTR) signal. If a switch setting is available to simulate DTR asserted
within the
modem, then it should normally not be in that setting. Otherwise the
modem
will be unable to hang up at the end of a call or when interrupts are
received
by Kermit.
For Hayes
dialers, two important switch settings are #1 and #6.
Switch #1
should be normally be UP so that the modem can act according to your
computer's
DTR signal. But if your computer, or particular implementation of
Kermit, cannot control DTR, then switch 1 should be DOWN. Switch #6 should normally
be UP
so carrier-detect functions properly (but put it DOWN if you have
trouble with
the UP position). Switches #2 (English versus digit result codes)
and #4
(Hayes echoes modem commands) may be in either position.
If you want to interrupt a dial command in progress (for instance,
because you
just realize that you gave it the wrong number), type a Control-C to
back
to command level.
get
THE 'SCRIPT' COMMAND:
Syntax: script expect send [expect send] . . .
"expect" has the syntax: expect[-send-expect[-send-expect[...]]]
The 'script' command carries on a "canned dialog" with a remote
system, in
which data is sent according to the remote system's responses. The
typical use
is for logging in to a remote system automatically.
C-Kermit's script facility operates in a manner similar to that
commonly used
by the Unix UUCP system's "L.sys" file entries. A login script is
sequence
of the form:
a
expect send [expect send] . . .
where expect is a prompt or message to be issued by the remote site,
and send
is the string (names, numbers, etc) to return, and expects are separated
from
6.4. Interactive Operation
Page 169
-----------------------------------------------------------------------------sends by spaces. The send may also be the keyword EOT, to send
Control-D, or
BREAK, to send a break signal. Letters in sends may be prefixed by `~'
to send
special characters, including:
~b backspace
~s space
~q `?'(trapped by Kermit's command interpreter)
~n linefeed
~r carriage return
~t tab
~' single quote
~~ tilde
~" double quote
~x XON (Control-Q)
~c don't append a carriage return
~o[o[o]] an octal character
~d delay approx 1/3 second during send
~w[d[d]] wait specified interval during expect, then time out
As with
have a
~c.
some UUCP systems, sent strings are followed by ~r unless they
Only the last 7 characters in each expect are matched. A null expect,
e.g. ~0
or two adjacent dashes, causes a short delay before proceeding to the
next send
sequence. A null expect always succeeds.
As with UUCP, if the expect string does not arrive, the script attempt
fails.
If you expect that a sequence might not arrive, as with UUCP,
conditional sequences may be expressed in the form:
-send-expect[-send-expect[...]]
where dashed sequences are followed as long as previous expects fail.
Timeouts
for expects can be specified using ~w; ~w with no arguments waits 15
seconds.
Expect/send transactions can be easily be debugged by logging
transactions.
This records all exchanges, both expected and actual.
The script
execution
will also be logged in the session log, if that is activated.
Note that `\' characters in login scripts, as in any other C-Kermit
interactive
commands, must be doubled up. A line may be ended with a single `\'
continuation.
for
Example one:
Using a modem, dial a UNIX host site. Expect "login" (...gin), and
if it
doesn't come, simply send a null string with a ~r. (Some Unixes require
either
an EOT or a BREAK instead of the null sequence, depending on the
particular
site's "logger" program.) After providing user id and password, respond
"x" to
a question-mark prompt, expect the Bourne shell "$" prompt (and send
return if
it doesn't arrive). Then cd to directory kermit, and run the program
called
"wermit", entering the interactive connect state after wermit is loaded.
set modem ventel
set line /dev/tty77
set baud 1200
6.4. Interactive Operation
Page 170
-----------------------------------------------------------------------------dial 9&5551212
script gin:--gin:--gin: smith ssword: mysecret ~q x $--$ \
cd~skermit $ wermit
connect
Note that 'set line' is issued after 'set modem', but before 'set
baud' or
other line-related parameters.
Example two:
Using a modem, dial the Telenet network. This network expects three
returns
with slight delays between them. These are sent following null
expects. The
single return is here sent as a null string, with a return appended by
default.
Four returns are sent to be safe before looking for the prompt.
Then the
Telenet id and password are entered. Then Telenet is instructed to
connect to
a host site (c 12345). The host has a data switch that asks "which
system";
the script responds "myhost" (if the "which system" prompt doesn't
appear, the
Telenet connect command is reissued). The script waits for an "@"
prompt from
the host, then sends the user ID ("joe") and password ("secret"),
looks for
another "@" prompt, runs Kermit, and in response to the Kermit's prompt
(which
ends in ">"), gives the commands "set parity even" and "server".
Files are
then exchanged. The commands are in a take file; note the continuation
of the
'script' command onto several lines using the `\' terminator.
set modem hayes
set line /dev/acu
set speed 1200
set parity mark
dial 9,5551212
script ~0 ~0 ~0 ~0 ~0 ~0 ~0 ~0 @[email protected]@ id~saa001122 = 002211 @ \
c~s12345 ystem-c~s12345-ystem myhost @ joe~ssecret @ kermit \
> set~sparity~seven > server
send some.stuff
get some.otherstuff
bye
quit
Since these commands may be executed totally in the background, they can
also
be scheduled. A typical shell script, which might be scheduled by cron,
would
be as follows (csh used for this example):
#
#keep trying to dial and log onto remote host and exchange files
#wait 10 minutes before retrying if dial or script fail.
#
cd someplace
while ( 1 )
kermit < /tonight.cmd >> nightly.log &
if ( ! $status ) break
sleep 600
end
File tonight.cmd might have two takes in it, for example, one to take a
file
with the set modem, set line, set baud, dial, and script, and a second
take of
a file with send/get commands for the remote server.
The last
lines of
tonight.cmd should be a bye and a quit.
6.4. Interactive Operation
Page 171
-----------------------------------------------------------------------------THE 'HELP' COMMAND:
Syntax: help
or: help keyword
or: help {set, remote} keyword
Brief help messages or menus are always available at interactive command
level
by typing a question mark at any point. A slightly more verbose form of
help
is available through the 'help' command. The 'help' command with no
arguments
prints a brief summary of how to enter commands and how to get further
help.
'help' may be followed by one of the top-level C-Kermit command
keywords, such
as 'send', to request information about a command. Commands such as
'set' and
'remote' have a further level of help. Thus you may type 'help', 'help
set',
or 'help set parity'; each will provide a successively more detailed
level of
help.
THE 'EXIT' AND 'QUIT' COMMANDS:
These two commands are identical.
Both of them do the following:
- Attempt to insure that the terminal is returned to normal.
- Relinquish access to any communication line assigned via 'set line'.
- Relinquish any uucp and multiuser locks on the communications line.
- Hang up the modem, if the communications line supports data
terminal
ready.
- Close any open logs or other files.
After exit from C-Kermit, your default directory will be the same as
when you
started the program. The 'exit' command is issued implicitly whenever CKermit
halts normally, e.g. after a command line invocation, or after certain
kinds of
interruptions.
6.5. UUCP Lock Files
Unix has no standard way of obtaining exclusive access to an
external communication line. When you issue the 'set line' command to Unix Kermit,
Unix
would normally grant you access to the line even if some other
process is
making use of it. The method adopted by most Unix systems to handle
this
situation is the "UUCP lock file".
UUCP, the Unix-to-Unix Copy
program,
creates a file in its directory (usually /usr/spool/uucp, on some
systems
/etc/locks) with a name like LCK..name, where name is the device name,
for instance tty07.
Unix Kermit uses UUCP lock files in order to avoid conflicts with UUCP,
tip, or
other programs that follow this convention. Whenever you attempt to
access an
external line using the 'set line' command or `-l' on the command line,
Kermit
looks in the UUCP directory for a lock file corresponding to that
device. For
instance, if you 'set line /dev/ttyi6' then Kermit looks for the file
/usr/spool/uucp/LCK..ttyi6
If it finds this file, it gives you an error message and a directory
listing of
the file so that you can see who is using it, e.g.
6.5. UUCP Lock Files
Page 172
------------------------------------------------------------------------------r--r--r-- 1 fdc
4 May 7 13:02 /usr/spool/uucp/LCK..ttyi6
In this case, you would look up user fdc to find out how soon the line
will become free.
This convention requires that the uucp directory be publicly
readable and
writable. If it is not, the program will issue an appropriate warning
message,
but will allow you to proceed at your own risk (and the risk of anyone
else who
might also be using the same line).
If no lock file is found, Unix Kermit will attempt create one, thus
preventing
anyone who subsequently tries to run Kermit, UUCP, tip, or similar
programs on
the same line from gaining access until you release the line. If Kermit
could
not create the lock file (for instance because the uucp directory is
writeprotected), then you will receive a warning message but will be
allowed to
proceed at your -- and everyone else's -- risk. When Kermit terminates
normally, your lock file is removed.
Even when the lock directory is writable and readable, the locking
mechanism
depends upon all users using the same name for the same device.
If a
device
has more than one path associated with it, then a lock can be
circumvented by
using an alias.
When a lock-creating program abruptly terminates, e.g. because it crashes
or is
killed via shell command, the lock file remains in the uucp
directory,
spuriously indicating that the line is in use. If the lock file is
owned by
yourself, you may remove it. Otherwise, you'll have to get the owner
or the
system manager to remove it, or else wait for a system task to do so;
uucp supports a function (uuclean) which removes these files after a
predetermined age
-- uucp sites tend to run this function periodically via crontab.
Locking is not needed, or used, if communications occur over the
login
terminal line (normally /dev/tty).
user's
It may be seen that line locking is fraught with peril. It is included
in Unix
Kermit only because other Unix communication programs rely on it. While
it is
naturally desirable to assure exclusive access to a line, it is
also undesirable to refuse access to a vacant line only because of a spurious
lock
file, or because the uucp directory is not appropriately protected.
6.6. C-Kermit under Berkeley or System III/V Unix:
C-Kermit may be interrupted at command level or during file transfer by
typing
Control-C. The program will perform its normal exit function,
restoring the
terminal and releasing any lock. If a protocol transaction was in
progress, an
error packet will be sent to the opposite Kermit so that it can
terminate
cleanly.
C-Kermit may be invoked in the background ("&" on shell commmand line).
If a
background process is "killed", the user will have to manually remove any
lock
file and may need to restore the modem. This is because the kill
signal
(kill(x,9)) cannot be trapped by Kermit.
During execution of a system command ('directory', 'cwd', or `!'), CKermit can
often be returned to command level by typing a single Control-C. (With
System
6.6. C-Kermit under Berkeley or System III/V Unix:
Page 173
-----------------------------------------------------------------------------III/V, the usual interrupt function (often the DEL key) is
replaced by
Control-C.)
Under Berkeley Unix only: C-Kermit may also be interrupted by ^Z to
put the
process in the background. In this case the terminal is not restored.
You
will have to type Control-J followed by "reset" followed by another
Control-J
to get your terminal back to normal.
Control-C, Control-Z, and Control-\ lose their normal functions during
terminal
connection and also during file transfer when the controlling tty line is
being
used for packet i/o.
If you are running C-Kermit in "quiet mode" in the foreground, then
interrupting the program with a console interrupt like Control-C will not
restore the
terminal to normal conversational operation. This is because the system
call
to enable console interrupt traps will cause the program to block if
it's running in the background, and the primary reason for quiet mode is to
allow the
program to run in the background without blocking, so that you can do
other
work in the foreground.
If C-Kermit is run in the background ("&"
the interrupt signal (Control-C) (and System
This
prevents an interrupt signal intended for
compilation)
from being trapped by a background Kermit
on shell commmand line), then
III/V quit signal) are ignored.
a foreground job (say a
session.
6.7. C-Kermit on the DEC Pro-3xx with Pro/Venix Version 1
The DEC Professional 300 series are PDP-11/23 based personal computers.
Venix
Version 1 is a Unix v7 derivative. It should not be confused with Venix
Version 2, which is based on ATT System V; these comments apply to Venix
Version 1
only. C-Kermit runs in local mode on the Pro-3xx when invoked from the
console; the default device is /dev/com1.dout. When connected to a remote
system
(using C-Kermit's 'connect' command), Pro/Venix itself (not Kermit)
provides
VT52 terminal emulation.
Terminal operation at high speeds (like 9600
baud)
requires xon/xoff flow control, which unfortunately interferes with
applications such as the EMACS that use Control-Q and Control-S as commands.
When logging in to a Pro-3xx (or any workstation) through the "back
port", it
may be necessary to give the command "set line /dev/tty" in order
to get
C-Kermit to function correctly in remote mode (on a system in which it
normally
expects to be operating in local mode).
6.8. C-Kermit under VAX/VMS
C-Kermit can be built using VAX-11 C to run under VMS. Most of the
descriptions in this manual hold true, but it should be noted that as of this
writing
the VMS support is not thoroughly tested, and no explicit support
exists for
the various types of VMS files and their attributes.
The C-Kermit init file for VMS is called KERMIT.INI.
6.9. C-Kermit on the Macintosh and other Systems
Page 174
-----------------------------------------------------------------------------6.9. C-Kermit on the Macintosh and other Systems
The "protocol kernel" of C-Kermit is also used by Columbia's Macintosh
Kermit.
The user and system interface is entirely different, and is covered
in a
separate document.
There is also a Kermit for the Commodore Amiga based on C-Kermit, as
well as
versions for MS-DOS, Data General operating systems, etc.
6.10. C-Kermit Restrictions and Known Bugs
1. Editing characters: The program's interactive command
interrupt,
delete, and kill characters are Control-C, Delete (or
Backspace),
and Control-U, respectively. There is currently no way to
change
them to suit your taste or match those used by your shell, in
case
those are different.
2. Flow control: C-Kermit attempts to use XON/XOFF flow control
during
protocol operations, but it also puts the communication line
into
"rawmode". On many systems, rawmode disables flow control, so
even
though you may have "set flow xon/xoff", no flow control will
be
done. This is highly system and Unix-version dependent.
3. High baud rates: There's no way to specify baud rates higher
than
9600 baud. Most Unix systems don't supply symbols for them
(unless
you use EXTA, EXTB), and even when they do, the program has no
way
of knowing whether a specific port's serial i/o controller
supports
those rates.
4. Modem controls: If a connection is made over a communication
line
(rather than on the controlling terminal line), and that line
has
modem controls, (e.g. data terminal ready and carrier
detection
implementation), returning to the shell level will disconnect
the
conversation. In that case, one should use interactive mode
commands, and avoid use of piped shell-level operation (also see
'set
modem-dialer' and 'dial' commands.)
5. Login Scripts: The present login scripts implementation follows
the
Unix conventions of uucp's "L.sys" file, rather than the normal
Kermit "INPUT/OUTPUT" style.
6. Dial-out vs dial-in
communications
lines:
C-Kermit
requires
a
dial-out or dedicated line for the "set line" or "-l" options.
Most
systems have some lines dedicated
to
dial-in,
which
they
enable
"loggers"
on,
and
some
lines
available
for
dial-out.
Recent
releases of Unix (ATT & Berkeley) have mechanisms for
changing
the
directionality of a line.
7. Using C-Kermit on Local Area Networks: C-Kermit can
successfully
operate at speeds up to 9600 baud over LANs, provided the
network
buffers are big enough to accommodate Kermit packets.
When computers are connected to LAN's through asynchronous
terminal
interfaces, then the connection should be configured to do
XON/XOFF
flow control between the network interface and the computer,
rather
6.10. C-Kermit Restrictions and Known Bugs
Page 175
-----------------------------------------------------------------------------than passing these signals through transparently.
This can
help
prevent Kermit from overrunning the LAN's buffers if they are
small
(or if the LAN is congested), and will can also prevent the LAN
from
overrunning a slow Kermit's buffers.
If
the network hardware cannot accept 100 characters at a time,
and
flow control cannot be done between the network and the
computer,
then Kermit's "set send/receive packet-length" command can be
used
to shorten the packets.
8. Resetting terminal after abnormal termination or kill: When CKermit
terminates abnormally (say, for example, by a kill command issued
by
the operator) the user may need to reset the terminal state.
If
commands do not seem to be accepted at the shell prompt,
try
Control-J "stty sane" Control-J (use "reset" on Berkeley
Unix).
That should take the terminal out of "raw mode" if it was
stuck
there.
9. Remote host commands may time-out on lengthy activity:
Using
"remote host" to instruct the C-Kermit server to invoke Unix
functions (like "make") that might take a long time to produce
output
can cause timeout conditions.
10. XOFF deadlocks:
When connecting back to C-Kermit after a
transaction, or after finishing the server, it may be necessary to type
a
Control-Q to clear up an XOFF deadlock.
There's not much
the
program can do about this...
6.11. How to Build C-Kermit for a Unix System
The C-Kermit files, as distributed from Columbia, all begin with the
prefix
"ck".
You should make a directory for these files and then cd to
it. A
makefile is provided to build C-Kermit for various Unix systems
(there are
separate makefiles for VMS and the Macintosh). As distributed, the
makefile
has the name "ckuker.mak". You should rename it to "makefile" and then
type
"make xxx", where xxx is the symbol for your system, for instance "make
bsd" to
make C-Kermit for 4.x BSD Unix. The result will be a program called
"wermit".
You should test this to make sure it works; if it does, then you can
rename it
to "kermit" and install it for general use. See the makefile for a list
of the
systems supported and the corresponding "make" arguments.
6.12. Adapting C-Kermit to Other Systems
C-Kermit is designed for portability. The level of portability is
indicated in
parentheses after the module name: "C" means any system that has a C
compiler
that conforms to the description in "The C Programming Language" by
Kernighan &
Ritchie (Prentice-Hall, 1978). "Cf" is like "C", but also requires
"standard"
features like printf and fprintf, argument passing via argv/argc, and so
on, as
described in Kernighan & Ritchie. "Unix" means the module should be
useful under any Unix implementation; it requires features such as fork() and
pipes.
Anything else means that the module is particular to the indicated
system.
C-Kermit file names are of the form:
ck<system><what>.<type>
6.12. Adapting C-Kermit to Other Systems
Page 176
-----------------------------------------------------------------------------where the part before the dot is no more than 6 characters long, the part
after
the dot no more than 3 characters long, and:
<type> is the file type:
c:
h:
w:
program
nr:
mss:
doc:
hlp:
bld:
bwr:
upd:
mak:
C language source
Header file for C language source
Wart preprocessor source, converted by Wart (or Lex) to a C
Nroff/Troff text formatter source
Scribe text formatter source
Documentation
Help text
Instructions for building the program
A "beware" file - list of known bugs
Program update log
Makefile
<system> is a single character to tell what system the file applies to:
a:
c:
d:
h:
i:
m:
p:
u:
v:
w:
Descriptive material, documentation
All systems with C compilers
Data General
Harris computers (reserved)
Commodore Amiga (Intuition)
Macintosh
IBM PC, PC-DOS (reserved)
Unix
VAX/VMS
Wart
<what> is mnemonic (up to 3 characters) for what's in the file:
aaa:
cmd:
con:
deb:
dia:
fio:
fns:
fn2:
ker:
mai:
pro:
scr:
tio:
usr:
us2:
A "read-me" file, like this one
Command parsing
Connect command
Debug/Transaction Log formats, Typedefs
Modem/Dialer control
System-depdendent File I/O
Protocol support functions
More protocol support functions
General C-Kermit definitions, information, documentation
Main program
Protocol
Script command
System-dependent terminal i/o & control and interrupt handing
User interface
More user interface
us3:
Still more user interface
Examples:
ckufio.c
ckmtio.c
ckuker.mss
ckuker.nr
File i/o for Unix
Terminal i/o for Macintosh
Scribe source for for Kermit User Guide chapter
Nroff source file for Unix C-Kermit man page
6.12. Adapting C-Kermit to Other Systems
Page 177
-----------------------------------------------------------------------------The following material discusses each of the C-Kermit modules briefly.
ckcmai.c, ckcker.h, ckcdeb.h (Cf):
This is the main program. It contains declarations for global
variables
and a small amount of code to initialize some variables and invoke
the command parser.
In its distributed form, it assumes that command
line arguments are passed to it via argc and argv. Since this portion of
code is
only several lines long, it should be easy to replace for systems
that have
different styles of user interaction. The header files define
symbols and
macros used by the various modules of C-Kermit. ckcdeb.h is
the only
header file that is included by all the C-Kermit modules, so it
contains
not only the debug format definitions, but also any compilerdependent
typedefs.
ckwart.c (Cf), ckcpro.w (C):
The ckcpro module embodies the Kermit protocol state table and the
code to
accomplish state switching. It is written in "wart", a language
which may
be regarded as a subset of the Unix "lex" lexical analyzer generator.
Wart
implements enough of lex to allow the ckprot module to function.
Lex itself was not used because it is proprietary. The protocol module
ckcpro.w
is read by wart, and a system-independent C program is produced. The
syntax of a Wart program is illustrated by ckcpro.w, and is
described in
ckwart.doc.
ckcfns.c (C):
The module contains all the Kermit protocol support functions -packet
formation, encoding, decoding, block check calculation, filename and
data
conversion, protocol parameter negotiation, and high-level
interaction with
the communication line and file system. To accommodate small
systems, this
module has been split into two -- ckcfns.c and ckcfn2.c.
ckutio.c:
This module contains the system-dependent primitives for
communication line
i/o, timers, and interrupts for the various versions of Unix.
Certain important variables are defined in this module, which determine
whether
C-Kermit is by default remote or local, what the default
communication
device is, and so forth. The tio module maintains its own private
database
of file descriptors and modes for the console terminal and the file
transfer communication line so that other modules (like ckcfns or the
terminal
connect module) need not be concerned with them. The variations
among Unix
implementations with respect to terminal control and timers are
accommodated via conditional compilation.
ckufio.c:
This module contains system-dependent primitives for file i/o,
wildcard
(meta character) expansion, file existence and access checking, and
system
command execution for the various versions of Unix. It maintains an
internal database of i/o "channels" (file pointers in this case) for the
files
C-Kermit cares about -- the input file (the file which is being
sent), the
output file (the file being received), the various logs, the screen,
and so
forth. This module varies little among Unix implementations except
for the
wildcard expansion code; the directory structure of 4.2bsd Unix
is different from that of other Unix systems. Again, variation among Unix
systems is selected using conditional compilation.
ckuusr.h, ckuusr.c, ckuus2.c, ckuus3.c (Unix):
6.12. Adapting C-Kermit to Other Systems
Page 178
-----------------------------------------------------------------------------This is the "user interface" for C-Kermit. It includes the command
parser,
the screen output functions, and console input functions. The
command parser comes in two pieces -- the traditional Unix command line decoder
(which
is quite small and compact), and the interactive keyword parser
(which is
rather large). This module is fully replacable; its interface to the
other
modules is very simple, and is explained at the beginning of the
source
file. The ckuusr module also includes code to execute any
commands
directly which don't require the Kermit protocol -- local file
management,
etc. The module is rated "Unix" because it makes occasional use
of the
system() function.
Note that while ckuusr is logically one module, it has been split
up into
three C source files, plus a header file for the symbols they share
in common.
This is to accommodate small systems that cannot handle big
modules.
ckuusr.c has the command line and top-level interactive command
parser;
ckuus2.c has the help command and strings; ckuus3 has the set and
remote
commands along with the logging, screen, and "interrupt" functions.
ckucmd.c, ckucmd.h (Cf):
This is an interactive command parsing package developed for CKermit. It
is written portably enough to be usable on any system that has a C
compiler
that supports functions like printf.
The file name parsing
functions
depend upon primitives defined in the fio module; if these primitives
cannot be supplied for a certain system, then the filename parsing
functions
can be deleted, and the package will still be useful for parsing
keywords,
numbers, arbitrary text strings, and so forth. The style of
interaction is
the same as that found on the DECSYSTEM-20.
ckucon.c (Unix):
This is the connect module. As supplied, it should operate in any
Unix environment, or any C-based environment that provides the fork()
function.
The module requires access to global variables that specify line
speed,
parity, duplex, flow control, etc, and invokes functions from
the tio
module to accomplish the desired settings and input/output, and
functions
from the fio module to perform session logging. No terminal
emulation is
performed, but since standard i/o is used for the console, this
may be
piped through a terminal emulation filter. The ckucon function may
be entirely replaced, so long as the global settings are honored by its
replacement. PC implementations of C-Kermit may require the ck?con module
to do
screen control, escape sequence interpretation, etc, and may also
wish to
write special code to get the best possible performance.
ckudia.c (Unix):
This is the dialer module. As supplied, it handles Hayes, Ventel,
Penril,
Racal-Vadic, and several other modems.
ckuscr.c (Unix):
This is the
uucp-style
scripts.
login
script
module.
As supplied, it handles
Moving C-Kermit to a new system entails:
1. Creating a new ck?tio module in C, assembler, or whatever
language
is most appropriate for system programming on the new system.
If
the system is Unix-like, then support may be added within
the
ckutio.c module itself using conditional compilation.
6.12. Adapting C-Kermit to Other Systems
Page 179
-----------------------------------------------------------------------------2. Creating a new ck?fio module, as above.
3. If the system is not Unix-like, then a new ckuusr module may be
required, as well as a different invocation of it from ckcmai.
4. If the distributed connect module doesn't work or performs
poorly,
then it may be replaced. For instance, interrupt-driven i/o may
be
required, especially if the system doesn't have forks.
Those who favor a different style of user/program interaction from
that
provided in ckuusr.c may replace the entire module, for instance with
one that
provides a mouse/window/icon environment, a menu/function-key
environment, etc.
A few guidelines should be followed to maintain portability:
- Keep variable and function names to 6 characters or less. Don't
use
identifiers that are distinguished from one another only by
alphabetic case.
- Keep modules small.
For instance, on a PDP-11
it
is
necessary
to
keep
the
code segment of each module below 8K in order to allow
the
segment mapping to occur which is necessary to
larger
than 64K on a non-I-and-D-space machine.
run
programs
- Keep strings short; many compilers have restrictive maximum
lengths;
128 is the smallest maximum string constant length we've
encountered
so far.
- Keep (f,s)printf formats short. If these exceed some compiler
dependent maximum (say, 128) memory will be overwritten and the
program
will probably core dump.
- Do not introduce system dependencies into ckcpro.w or ckcfn*.c.
- If a variable is a character, declare as CHAR, not int, to
prevent
the various sign extension and byte swapping foulups that occur
when
characters are placed in integer variables.
- Remember that different systems may use different length words
for
different things. Don't assume an integer can be used as a
pointer,
etc.
- Don't declare static functions; these can wreak havoc with
systems
that do segment mapping.
- In conditional compilations expressions, use #ifdef and #ifndef
and
not #if, which is not supported by some compilers. Also, don't
use
any operators in these expressions; many compilers will fail to
understand expressions like #ifdef FOO | BAR. Also, don't put
trailing
tokens on #else's or #endif's (use /* comments */).
- Don't define multiline macros.
In general, remember that this program will have to be compilable by
compilers and runnable on small systems.
old
7. IBM 370 KERMIT
Page 180
-----------------------------------------------------------------------------7. IBM 370 KERMIT
Program:
John Chandler (Harvard/Smithsonian Center for
Astrophysics); contributions from Vace Kundakci and Daphne Tzoar (Columbia
U), Bob
Shields (U. Maryland), Victor Lee (Queens U.), Gary
Bjerke (U.
Texas at Austin), Greg Small (UC Berkeley), Clark
Frazier
(Harvard Bus. Sch.), Bob Bolch and Steve Blankinship
(Triangle),
Ron Rusnak (U. Chicago), Roger Fajman and Dale White (NIH),
Andre
Pirard (U. Liege)
Language:
IBM 370 Assembler
Documentation:
John Chandler (CfA)
Version:
4.0
Date:
1988 February
Kermit-370 is a family of programs implementing the KERMIT file
transfer
protocol for IBM 370-series mainframes (System/370, 303x, 43xx, 308x,
etc.) under a variety of operating systems. Kermit-370 operates over
asynchronous ASCII communication lines attached to 3705-style front ends ("TTY"
devices), to a
Series/1 or 4994 running the Yale ASCII Terminal Communication System
or the
IBM 7171 ASCII Device Control Unit or a 9370 with ASCII subsystem
("SERIES1"
devices), or to SNA-type front-ends with graphics pass-through mode,
such as
the MICOM 7400, Datastream/Leedata 8010, and PCI 1076 ("GRAPHICS"
devices), or,
in some configurations, to an IBM 3708 ("FULLSCREEN" device). As of this
writing, the pending implementation of full 7171 compatibility in the
program
product SIM3278 has not been completed. For more details on frontends, see
the section SET CONTROLLER.
The source is coded in IBM 370 assembly language and is divided into
sections,
some generic and some specific to an individual operating system.
While the
details of file-system and supervisor interaction vary widely among the
systems
available for IBM 370's, the basic features are essentially the same.
This
chapter will describe the features common to all variants of Kermit-370,
and a
separate chapter will deal with the system-specific details for each
variant.
IBM 370 systems have some peculiarities that users should be aware of.
First,
they are essentially half-duplex systems; the communication line must
"turn
around" before any data can be sent to it.
The "TTY" devices are
strictly
half-duplex, and even the "SERIES1" and "GRAPHICS" devices, although they
maintain full-duplex communication with the terminal, must transmit a block
at a
time to the mainframe. The fact that a packet has been received from
the IBM
system through a "TTY" device is no guarantee that it is ready for a
reply;
generally, the true indicator of readiness is the line turnaround
character
(XON), which the operating system sends immediately before issuing a
read request. On some systems, however, it is possible for Kermit to do away
with the
system-supplied turnaround and schedule read requests immediately
after the
corresponding writes.
It is up to the user to tell the other Kermit
that it
must conform to the requirements of the IBM mainframe.
Second, disk files are encoded using the EBCDIC character set.
Consequently,
there are three layers of character translation on packets exchanged on a
"TTY"
device. For an incoming packet, the outer layer is provided by the
operating
system, which translates all characters from ASCII to EBCDIC. Kermit370 must
then translate the packets back to ASCII (the middle layer) in order to
calculate and verify the checksum.
Data arriving through a
"SERIES1" or
"GRAPHICS" device are still in ASCII and therefore bypass the two outer
layers.
7. IBM 370 KERMIT
Page 181
-----------------------------------------------------------------------------In any case, Kermit-370 translates everything finally into EBCDIC (the
inner
layer) before storing on disk (except BINARY files). When Kermit-370
sends a
file, the opposite translations occur. In translation, EBCDIC
characters not
representable in ASCII are replaced by nulls. In some cases, several
EBCDIC
characters are mapped into a single ASCII character, but no two 7-bit
ASCII
characters are translated into the same EBCDIC character.
The
middle-layer
tables used by Kermit must be the inverses of the corresponding
outer-layer
ones used by the host operating system if file transfers are to work at
all.
If
necessary,
the
system
programmer should add the
appropriate SET
TATOE/TETOA/TTABLE subcommands (q.v.) to the global "INIT" file (see the
next
section).
Indeed, it is usually a good idea to set TTABLE ON in the
global
"INIT" file to force using different built-in sets of tables for the
inner and
middle
layers,
whenever the system has "TTY" devices.
The
standard
ASCII-to-EBCDIC translations can be found in the Appendix or the IBM
System/370
Reference Card.
Another distinction of IBM 370's is that they store and retrieve
files as
records rather than byte streams. Records may be either fixed-length
with some
sort of padding (as needed) or varying-length with some sort of
(generally
hidden) delimiters. Thus, Kermit-370 must assemble incoming data packets
into
records by stripping off carriage return-linefeed pairs (CRLF's) and
padding
with blanks or truncating as needed and must strip trailing blanks and
append
CRLF's to outgoing records.
Further, disk files typically have the
records
combined into blocks for efficiency. One consequence of this form of
storage
is that files have attributes describing the component records: maximum
record
length (LRECL), record format (RECFM), and sometimes block size
(BLKSIZE).
As mentioned before, Kermit-370 is a family of programs. At present,
only the
CMS and TSO versions are operational. Versions for DOS/VSE and MTS
have at
least reached the "drawing board," but no others have even been
started.
Volunteers are always welcome to port Kermit-370 to other operating
systems or
add new features to the existing family. Anyone interested should first
get in
touch with the Center for Computing Activities at Columbia University
to find
out what projects of a similar nature are already pending (and thereby
prevent
unnecessary duplication of effort).
7.1. Program Operation
Kermit-370 can be invoked directly or from a command procedure. In
either
case, it reads and executes subcommands sequentially until directed to
quit and
then returns. A subcommand consists of one or more fields (words)
separated by
spaces.
Upon initial startup, the program looks for two (optional)
initialization
files, one system-wide and a second specific to the user. Both
filespecs are,
of course, system-dependent. The purpose of these files is to allow
Kermit to
be customized for a particular system and for a user's specific settings
without changing the source code. The system-wide file, which is maintained
by a
systems programmer, should contain Kermit subcommands that all users
would need
to issue in order for Kermit to run on the system, such as
subcommands to
modify the ASCII/EBCDIC tables used by Kermit-370. The user-specific
file, if
any, should contain subcommands that the user generally issues every time
Kermit is run. Kermit-370 executes any subcommands found in these files as
though
they were typed at the terminal. Here is a sample "INIT" file:
7.1. Program Operation
Page 182
-----------------------------------------------------------------------------* Asterisk in column one is a comment.
set debug on
set warning on
set block 3
During interactive execution, you may use the built-in help feature
while
typing Kermit-370 subcommands. A question mark ("?") typed at almost any
point
in a subcommand, followed by a carriage return, produces a brief
description of
what is expected or possible at that point. Moreover, mistyping a
subcommand
will generally produce a helpful error message or a list of possible
options at
the
point of error.
Keywords in such lists are displayed
with the
minimum-length abbreviation in upper case and the remainder, if any, in
lower
case. In entering Kermit subcommands, any keyword may be shortened to
any substring that contains the minimum abbreviation.
7.2. Kermit-370 Subcommands
The following is a brief summary of Kermit subcommands.
The starred
subcommands can be issued as remote Kermit commands to Kermit-370 when it is in
server mode. System-specific subcommands are omitted from this list.
BYE
CWD*
DIRECTORY*
ECHO
EXIT
FINISH
GET
HELP
HOST*
KERMIT*
QUIT
RECEIVE
SEND
SERVER
SET*
SHOW*
SPACE*
logs out other Kermit server.
establishes a new working directory.
displays all or part of the disk directory.
a line back to the user.
from Kermit-370.
other Kermit server.
file(s) from a Kermit server.
about Kermit-370.
executes a system command.
executes a Kermit subcommand.
from Kermit-370.
file(s) from other Kermit.
file(s) to other Kermit.
mode of remote operation.
various parameters.
various parameters.
displays disk storage allocation.
STATUS*
TAKE*
TDUMP*
TYPE*
XECHO
XTYPE
inquiry.
subcommands from file.
dumps the contents of a table.
a file.
echoes a line (transparently).
displays a file (transparently).
Although Kermit-370 is generally a remote Kermit, it has the capability
of communicating with another Kermit in server mode. In that situation, the
subcommand prefixes REMOTE and LOCAL refer to the Kermit server and
Kermit-370,
respectively, even when Kermit-370 is, strictly speaking, the remote
Kermit.
Any replies from the Kermit server are added to a disk file (whose
filespec is,
of course, system-dependent). Such a transaction can be carried out,
for example, under control of a TAKE file if Kermit-370 is not operating
locally. If
the local Kermit has a "magic" character sequence that switches it
from terminal emulation to server mode, then an entire session could be
controlled from
the mainframe, possibly in response to a single command issued by a naive
user.
7.2. Kermit-370 Subcommands
Page 183
-----------------------------------------------------------------------------For example,
grab
Kermit-370 is invoked and executes the following TAKE file
ECHO Serve Me!
GET file.a
FINISH
the local Kermit switches to server mode
the server uploads file.a
the server switches back to terminal mode
The remainder of this section concentrates on the subcommands that have
special
form or meaning for Kermit-370, but neglects those with highly systemdependent
syntax or use.
THE SEND SUBCOMMAND
Syntax: SEND [filespec [foreign-filespec]]
The SEND subcommand tells Kermit-370 to send a file or file group to the
other
Kermit.
If no such file exists, Kermit-370 simply displays an error
message
and issues another prompt. If one or more files are sent, their
names are
recorded in memory and may be viewed later via the TDUMP subcommand
(but with
no indication of whether any of them were rejected or cancelled by the
other
Kermit).
If this subcommand is issued without any arguments, Kermit370 will
prompt the user for both native and foreign filespecs (and will insist on
getting the former, but will do without the latter).
When Kermit-370 sends files using long packets (longer than 96), the
throughput
is especially sensitive to the level of noise on the line because
retries are
so time-consuming.
Therefore, Kermit-370 adds an extra, heuristic size
limit
for packets when retries have been found necessary. When that is the
case,
after every 20 packets, Kermit computes the packet size for maximum
throughput
assuming that the transmission errors were due to sparse, Poissondistributed
noise bursts. The result of this calculation is then used as another
limit on
the size of outgoing packets besides the one specified by the other
Kermit. If
no retries are required, then Kermit-370 assumes the line to be
noiseless and
sends packets of the maximum length the other Kermit allows. For more
details
on the SEND subcommand syntax and operation, see the chapter on the
desired
system-specific version of Kermit-370.
THE RECEIVE SUBCOMMAND
Syntax: RECEIVE [filespec]
The RECEIVE subcommand tells Kermit-370 to accept a file or file group.
The
user must issue the corresponding SEND subcommand to the other Kermit.
Under
some circumstances, the records of the received file(s) may be truncated;
when
this happens, Kermit does not stop, but notes the fact as an error
(unless
something more serious happens later). For more details on the RECEIVE
subcommand syntax and operation, see the chapter on the desired systemspecific version of Kermit-370.
7.2. Kermit-370 Subcommands
Page 184
-----------------------------------------------------------------------------THE GET SUBCOMMAND
Syntax: GET [foreign-filespec [filespec]]
The GET subcommand tells Kermit to request a file or file group from the
other
system, which must have a Kermit running in server mode. Provided the
other
Kermit complies, the effect is the same as if SEND foreign-filespec had
been
issued directly to the other Kermit and RECEIVE [filespec] to
Kermit-370.
other Kermit). If this subcommand is issued without any arguments,
Kermit-370
will prompt the user for both foreign and native filespecs (and will
insist on
getting the former, but will do without the latter). See the respective
SEND
and RECEIVE subcommands for a description of the each filespec.
THE TAKE SUBCOMMAND
Syntax: TAKE filespec
Execute Kermit subcommands from the specified file, usually called a TAKE
file.
The TAKE file may in turn include TAKE subcommands to a nesting depth of
ten.
If a TAKE file includes the subcommand SERVER, however, the nesting
count
starts over again in server mode. The user has the option of seeing the
subcommands echoed from the TAKE file as they are executed and also the
option of
automatically exiting from a TAKE file on error. See the subcommand SET
TAKE
for details.
THE SERVER SUBCOMMAND
Kermit-370 is capable of acting as a server. In server mode, Kermit370 can
send and receive files, execute host commands, execute a restricted set
of Kermit subcommands, and perform a variety of generic Kermit functions.
The fol-
lowing list shows the typical local Kermit commands along with the server
functions they elicit.
When Kermit-370 is talking to another Kermit
running in
server mode, these same subcommands may be used in the other direction.
BYE
FINISH
GET
REMOTE
COPY
CWD
DIRECTORY
ERASE
HELP
HOST
KERMIT
RENAME
SPACE
TYPE
SEND
log out the Kermit server.
server mode.
a file or files from the server.
a file or files.
set new working directory.
display file attributes.
a file or files.
display this command summary.
execute a system command.
execute a Kermit-370 subcommand.
a file or files.
display disk space.
a file.
a file or files to the server.
If your local Kermit does not support the REMOTE KERMIT command, you may
need
to issue SET subcommands to select various options before typing the
SERVER
subcommand. Once in server mode, Kermit-370 will await all further
instructions from the user Kermit on the other end of the connection until a
FINISH or
7.2. Kermit-370 Subcommands
Page 185
-----------------------------------------------------------------------------BYE command is given.
Command execution in server mode is different in some respects from
normal
operation. First of all, some Kermit subcommands are not allowed (see
the list
at the beginning of this section). Moreover, command errors always
terminate
any active TAKE file. Also, all commands will be run in the special
environment that Kermit sets up during protocol transfers. Among other things,
Kermit
intercepts all terminal I/O (if possible) in this environment in
order to
transmit the data to the local Kermit as text packets.
Note that some operations can be requested by several different commands.
If
for example, the IBM 370 system has a command "PRT" for displaying a
file, a
user interacting with a Kermit-370 server can choose to display a file
by issuing any of the commands: REMOTE TYPE, REMOTE HOST PRT, REMOTE KERMIT
TYPE,
REMOTE KERMIT HOST PRT, or (if SYSCMD has been set ON) REMOTE KERMIT PRT.
The
first form simply transfers the requested file as text, but the others
invoke
the "PRT" command with any specified options, intercept the terminal
output,
and return the results to the local Kermit.
THE SET SUBCOMMAND
Syntax: SET parameter [value]
The SET subcommand establishes or modifies various parameters
controlling file
transfers. The values can, in turn, be examined with the SHOW
subcommand.
Some parameters have two levels. In particular, there are two matching
lists
of SEND and RECEIVE sub-parameters corresponding to the values
exchanged by
Kermits in the Send-Init/ACK sequence. For each of these SEND/RECEIVE
pairs
one element is encoded in outgoing parameter packets, and the other is
decoded
from incoming ones. Setting the latter by hand may be needed to
establish contact and also has the effect of redefining the default value for decoding
from
subsequent parameter packets.
Generally, the distinction between
SEND and
RECEIVE parameters is unambiguous, the only exception being TIMEOUT
(q.v.).
The following SET subcommands are available in Kermit-370:
APPEND
ATOE
BLOCK-CHECK
CONTROLLER
DEBUG
DELAY
EOF
ETOA
FILE
TYPE
other
FOREIGN
PREFIX
SUFFIX
INCOMPLETE
LINE
MARGIN
LEFT
RIGHT
PARITY
Append if file name collision.
Modify the Kermit-370 ASCII-to-EBCDIC table.
Level of error checking for file transfer.
Indicate type of terminal connection.
Log packet traffic during file transfer.
Length of pause before a SEND subcommand.
Text file truncation at CTRL-Z.
Modify the Kermit-370 EBCDIC-to-ASCII table.
Attributes for incoming or outgoing files...
... text or binary.
... system-specific attributes.
Strings added to outgoing filespec...
Determine the action on an aborted file transfer.
Specify alternate communication line.
for sending files...
Indicate if 7-bit or 8-bit data.
7.2. Kermit-370 Subcommands
Page 186
-----------------------------------------------------------------------------RETRY
Maximum retry count...
INIT
... for initial packet exchange.
PACKET
... per packet for ongoing transfer.
SYSCMD
Try apparently invalid Kermit subcommands on host
system.
TABS-EXPAND
Determine tab-to-space conversion on reception.
TAKE
ECHO
Echo subcommands read from TAKE files.
ERROR-ACTION
Exit from TAKE file on command error.
TEST
Facilitate testing of Kermit.
TATOE
Modify the Kermit-370 ASCII-to-EBCDIC table.
TETOA
Modify the Kermit-370 EBCDIC-to-ASCII table.
TTABLE
Determine which tables undo the terminal translation.
WARNING
Rename if filename collision.
8-BIT-QUOTE
Determine state of 8th-bit prefixing.
SEND or RECEIVE
END-OF-LINE
Packet terminator.
PACKET-SIZE
Maximum packet size.
PAD-CHAR
Character to insert before each packet.
PADDING
Number of pad characters to insert.
QUOTE
Use to quote control characters in packets.
START-OF-PACKET
Packet beginning marker.
TIMEOUT
Time limit for response.
SET APPEND
Syntax: SET APPEND ON or OFF
ON
If an incoming file has the same name as an existing one, the
new file
is appended to the old one. This option supersedes SET WARNING.
OFF
Filename collision is
parameter.
(Default.)
handled
according
to
the
WARNING
SET ATOE etc.
Syntax: SET table [num1 num2]
This modifies one of the ASCII/EBCDIC translation tables used by
Kermit-370
(for example, to conform to your system). The valid table names are
ATOE,
ETOA, TATOE, and TETOA. The arguments are, respectively, the offset
within the
named table and the new value for that offset. If the arguments are
omitted,
the table is restored to its initial arrangement. Both num1 and num2
should be
in the range 0-255 (decimal). For example, in ATOE or TATOE, the offset
is the
ASCII character code, and the new value is the new EBCDIC result
code. Initially, ATOE and TATOE each contain two identical copies of the 7-bit
ASCII
character table. Note: the meaning of the tables depends on the TTABLE
setting
-- if TTABLE is OFF, the TATOE and TETOA tables are not used.
7.2. Kermit-370 Subcommands
Page 187
-----------------------------------------------------------------------------SET BLOCK-CHECK
Syntax: SET BLOCK-CHECK number
This determines the type of block check used during file transfer,
provided the
other Kermit agrees.
Valid options for number are: 1 (for a onecharacter
checksum), 2 (for a two-character checksum) and 3 (for a three-character
CRC).
This is one of only two Send-Init parameters that cannot be SET
separately for
SEND and RECEIVE.
SET CONTROLLER
Syntax: SET CONTROLLER type
The type may be TTY, SERIES1, GRAPHICS, or FULLSCREEN.
Kermit-370
automatically determines whether you are connected via a Series/1 (or similar)
emulation controller or a TTY line. This subcommand is provided, though, to
allow
that choice to be superseded, and because Kermit may not be able to
distinguish
between Series/1-type and other 3270-emulation controllers. When
CONTROLLER is
set to SERIES1 or GRAPHICS, Kermit disables the 3270 protocol conversion
function by putting the terminal controller into "transparent mode", which
allows
Kermit packets to pass through intact.
SET DEBUG
Syntax: SET DEBUG ON or RAW or OFF
ON
disk.
Keep
a journal of all packets sent and received in a log file on
If the file already exists, it is erased and overwritten.
The
filespec
of the log is, of course, system-dependent. All packets are
logged in
EBCDIC for legibility, even when CONTROLLER is set to
SERIES1 or
GRAPHICS.
In
addition to the packets themselves, which are
labelled
"S" or "R" for packets sent or
any
received,
the
log
includes
ad-
ditional status information (labelled "A"), such as the AID
returned by
a SERIES1 device.
RAW
to or
The same as ON, but packets are logged in the form that is passed
from
the
operating
system, i.e., EBCDIC for TTY terminals, and
ASCII
for SERIES1 and GRAPHICS terminals.
OFF
Stop logging packets and close the the log file.
(Default.)
SET DELAY
Syntax: SET DELAY number
Normally, Kermit-370 waits 10 seconds after the SEND subcommand before
starting
the transfer, but this delay may be SET to any non-negative value. Two
DELAY
values have special meaning. When DELAY is 1, the usual two-line
greeting displayed during protocol mode is abbreviated to a short message (the
default Kermit prompt with three dots...), and when DELAY is 0, the greeting is
suppressed
entirely, along with the extra one-second pause for the RECEIVE and
SERVER subcommands.
7.2. Kermit-370 Subcommands
Page 188
-----------------------------------------------------------------------------SET EOF
Syntax: SET EOF ON or OFF
ON
Scan each incoming TEXT file for the first occurrence of CTRL-Z
and ignore the remainder of the file (but continue decoding up to the
actual
end of the file). BINARY files are not affected.
OFF
Accept incoming files in their entirety.
(Default.)
SET FILE TYPE
Syntax: SET FILE TYPE TEXT or BINARY or V-BINARY or D-BINARY
TEXT
trans-
Specifies ordinary text.
ASCII-to-EBCDIC or EBCDIC-to-ASCII
lation is performed on the data. Trailing blanks are
removed, and
CRLF's are appended to outgoing records. CRLF's are used,
turn,
to determine the end of incoming records, which are
padded with
blanks if necessary to fill buffers. (Default.)
BINARY
CRLF's
Specifies bit-stream data.
are
added
to
outgoing
No translation is performed,
records,
in
no
and blanks are neither
added nor
removed.
Incoming bytes
are
added
successively
to
the
current
record
buffer,
which
is
written
out
when
the current
LRECL is
reached.
V-BINARY
like BI-
Padding, if necessary, is done with nulls.
Specifies varying-length-record binary data.
This type is
NARY, except that a two-byte binary prefix is added to each
outgoing
record giving the number of data bytes, and incoming records
are set
off by (and stripped of) their prefixes on receipt.
D-BINARY
five-byte
Is
like
V-BINARY
except
that
the
length prefixes are
ASCII-encoded decimal (right-justified with leading zeroes).
SET FOREIGN
Syntax: SET FOREIGN PREFIX string
This defines a prefix string to be added to the outgoing filespec
generated by
the SEND subcommand. For example, the string might be set to "B:" to
specify
output to the B disk drive on the other Kermit's system. The default is
a null
string. There is also a FOREIGN SUFFIX handled in the same manner.
SET HANDSHAKE
Syntax: SET HANDSHAKE number
This defines the character, if any, that Kermit-370 should send (or cause
to be
sent) immediately before reading each packet. The character is given
as the
decimal of an ASCII control character, or as zero if no handshake is
to be
sent. The default is 17 (XON), and any value in the range 0-31 is
valid, but
13 (CR) should not be used because it is generally the end-of-packet
character.
When Kermit-370 is running through a full-duplex connection (such
as a
7.2. Kermit-370 Subcommands
Page 189
-----------------------------------------------------------------------------"SERIES1"), the traditional IBM handshaking is not necessary, and
HANDSHAKE
should be set to 0 (as long as the other Kermit can be instructed not to
expect
a handshake). Note the distinction between SET HANDSHAKE in Kermit-370
(where
it defines a character to be sent) and in many micro Kermits (where it
defines
a character to be expected).
SET INCOMPLETE
Syntax: SET INCOMPLETE DISCARD or KEEP
DISCARD
Specifies that incomplete files (that is, files partially
received in
a transfer cancelled by the other Kermit) are to be erased.
This is
the default. Note that when APPEND is ON, incomplete files are
never
erased, lest pre-existing data be lost.
KEEP
Specifies that incomplete files are to be kept.
SET LINE
Syntax: SET LINE [name]
This specifies an alternate communication line for file transfers. If
the name
is omitted, the default line (the user's terminal) is used. The format
of name
is, of course, system-dependent, and some versions of Kermit-370 do not
support
any alternate lines. No version currently allows Kermit-370 to CONNECT
over an
alternate line.
SET MARGIN
Syntax: SET MARGIN side column
When Kermit-370 sends a text file, each line may be truncated on the
left or
right (or both) at fixed column numbers. Only the text from the left
margin to
the right margin (inclusive) will be sent, and any trailing blanks in the
truncated lines will be stripped. A value of zero for either margin disables
truncation on that side.
SET PARITY
Syntax: SET PARITY MARK or NONE
Transparent-mode ASCII data received from a "SERIES1" or "GRAPHICS"
device will
typically have either all Mark parity (seven data bits with the eighth
bit set)
or no parity (eight data bits). Kermit-370 must know which kind of
parity to
expect in order to calculate checksums properly. Since Kermit-370 does
not actually verify parity, the other possible variants (ODD, EVEN, and
SPACE) are
lumped together with MARK parity for the purpose of this subcommand,
which
merely chooses between 7-bit and 8-bit data transfer. The default is
MARK.
7.2. Kermit-370 Subcommands
Page 190
-----------------------------------------------------------------------------SET PROMPT
Syntax: SET PROMPT string
This defines the character string that Kermit-370 displays when asking
for a
subcommand.
The prompt may be any string of up to 20 characters. The
default
is the name of the system-specific version of Kermit-370 followed by
a ">"
sign, e.g., Kermit-CMS>.
SET RETRY
Syntax: SET RETRY INITIAL or PACKETS number
Kermit-370 resends its last packet after receiving a NAK or bad packet,
but it
eventually gives up after repeated failures or the same packet. The
limit on
retries can be set separately for the initial packet exchange (SendInit or
server-mode command) and for ordinary packets. The default for INITIAL
is 16
and for PACKETS, 5. Either limit can be set to any positive value.
SET SYSCMD
Syntax: SET SYSCMD ON or OFF
ON
If the user enters a command string which is not a valid Kermit
subcommand, Kermit-370 will pass the string along to the host operating
system for execution.
If the string is rejected by the system as
well,
Kermit will report it as an invalid Kermit subcommand.
Otherwise, Kermit will assume the string was intended as a host command
and will
simply report the completion code if non-zero.
OFF
com-
Invalid Kermit subcommands are simply rejected as such.
mands
generic
may
be
System
executed, of course, but only by specifying the
prefix "HOST" or the appropriate system-specific prefix, such as
CMS or
TSO.
(Default.)
SET TABS-EXPAND
Syntax: SET TABS-EXPAND ON [list] or OFF
ON
Tab characters in incoming TEXT files are replaced by one
or more
blanks to bring the record size up to the next higher multiple of
eight
for each tab.
If tab settings other than columns 1, 9, 17,
etc. are
desired, they may be specified explicitly in a list
following the
keyword "ON". Items in the list may be separated by spaces or
commas.
OFF
Incoming tabs are retained.
(Default.)
7.2. Kermit-370 Subcommands
Page 191
-----------------------------------------------------------------------------SET TAKE ECHO
Syntax: SET TAKE ECHO ON or OFF
ON
a TAKE
Subcommands are echoed to the terminal as they are executed from
file.
OFF
Subcommands from a TAKE file are executed "silently."
(Default.)
SET TAKE ERROR-ACTION
Syntax: SET TAKE ERROR-ACTION CONTINUE or HALT
CONTINUE
commands,
Execution continues in a TAKE file regardless of
except in server mode.
illegal
This is the default.
HALT
A command error in a TAKE file causes immediate exit to
Kermit subcommand level.
SET TEST
Syntax: SET TEST ON or OFF
ON
to
Allow setting the START-OF-PACKET and other special characters
any
value, and suppress checksum testing on received packets.
OFF
Normal operation.
(Default.)
SET TTABLE
Syntax: SET TTABLE ON or OFF
ON
The translation that undoes the terminal controller's
ASCII/EBCDIC conversion comes from the TATOE and TETOA tables, rather than the
ATOE and
ETOA tables (which are used only for translating disk files).
This option has no effect when there is no translation built into the
controller, i.e., with SERIES1 and GRAPHICS connections.
OFF
The ATOE and ETOA tables are used for all translations by
Kermit-370.
(Default.)
SET WARNING
Syntax: SET WARNING ON or OFF
ON
disk,
If an incoming file has the same filespec as an existing file on
Kermit
will
attempt
to rename the incoming file so as not to
destroy
(overwrite) the pre-existing one.
OFF
Upon filename collision, the existing file will be erased and
replaced
by the incoming file. (Default.)
7.2. Kermit-370 Subcommands
Page 192
-----------------------------------------------------------------------------SET 8-BIT-QUOTE
Syntax: SET 8-BIT-QUOTE char or ON or OFF
This controls whether eighth-bit prefixing is done and can be used to
specify
the character to be used. This is one of only two Send-Init parameters
that
cannot be SET separately for SEND and RECEIVE.
char
Kermit
Eighth-bit prefixing will be done using char, provided the other
agrees.
ON
Eighth-bit prefixing will be done, provided the other Kermit
explicitly
requests it (and specifies the character).
OFF
Eighth-bit prefixing will not be done.
(Default.)
SET SEND/RECEIVE
The following parameters can be set either as SEND or RECEIVE options.
As a
rule, in each pair, one is the operational value, and the other is
used to
change the default for Send-Init packets received from the other Kermit
and to
set up parameter values as if the other Kermit had specified them on the
previous exchange.
When both values are described, the operational one
will be
first. After a transfer, the operational values will be unchanged,
but the
others (as displayed by SHOW) will reflect the parameters specified
by the
other Kermit. The underlying defaults established by previous SET
subcommands
will still be in effect. In the syntax descriptions, mode is SEND or
RECEIVE.
END-OF-LINE
Syntax: SET mode END-OF-LINE number
RECEIVE should not be changed.
SEND may be needed to establish contact. If the other system needs
packets to
be terminated by anything other than carriage return, specify the decimal
value
of the desired ASCII character. number must be in the range 0-31
(decimal).
The default is 13 (CR).
PACKET-SIZE
Syntax: SET mode PACKET-SIZE number
RECEIVE defines number as the maximum length for incoming packets.
The
valid
range is 26-9024, but 94 is the limit for normal short-packet
protocol. The
default is 80. In practice, the size may be limited by hardware and
programming considerations. See the system-specific chapters for details.
SEND might be needed for sending files to a minimal Kermit that
neither
specifies a buffer size in the Send-Init sequence nor can accept the
default
(80). This parameter has no other function and is meaningful only in the
range
26-94.
7.2. Kermit-370 Subcommands
Page 193
-----------------------------------------------------------------------------PAD-CHAR
Syntax: SET mode PAD-CHAR number
RECEIVE defines number as the character to be used by the other Kermit
for padding packets.
The character must be an ASCII control character (in the
range
0-31). The default is 0 (NULL). This option is seldom useful.
SEND may be needed to establish contact if the other Kermit (or
transmission line) needs padded packets.
the
PADDING
Syntax: SET mode PADDING number
RECEIVE defines the number of pad characters to be used for padding
packets
from the other Kermit. This number may be anywhere from 0 to 94. The
default
is 0. This option is seldom useful.
SEND may be needed to establish contact if the other Kermit (or the
transmission line) needs padded packets.
QUOTE
Syntax: SET mode QUOTE char
SEND indicates a printable character for prefixing (quoting) control
characters
and other prefix characters. The only good reason to change this would
be for
sending a file that contains many "#" characters (the normal control
prefix) as
data.
It must be a single character with ASCII value 33-62 or
96-126
(decimal).
RECEIVE would be needed only for talking to a crippled
uses a
non-standard quoting character, but does not admit it.
Kermit
that
START-OF-PACKET
Syntax: SET mode START-OF-PACKET number
RECEIVE defines number as the character to be expected to mark the
start of
packets from the other Kermit. The character must be an ASCII control
character (in the range 0-31). The default is 1 (SOH). This may be needed to
establish contact.
SEND may also be needed to establish contact.
character to be used to mark outgoing packets.
It defines number as the
7.2. Kermit-370 Subcommands
Page 194
-----------------------------------------------------------------------------TIMEOUT
Syntax: SET mode TIMEOUT time
RECEIVE defines the time in seconds the other Kermit is to wait for a
response
from Kermit-370 before resending a packet. The default is 5.
A value
of 0
means the other Kermit should wait indefinitely.
SEND defines the time in seconds Kermit-370 is to wait for a response
from the
other Kermit before resending a packet. The default is 0.
THE SHOW SUBCOMMAND
Syntax: SHOW [option]
The SHOW subcommand displays the values of all parameters that can be
changed
with the SET subcommand, except for ATOE, ETOA, TATOE, and TETOA (for
those,
see the TDUMP subcommand). If specified, option can be a particular
parameter
or the keyword "ALL" (the default). Groups of parameters, such as SEND,
can be
displayed by requesting the group name, or individual sub-parameters
can be
displayed by specifying the complete name. For example,
SHOW RECEIVE EOL
will display the decimal value of the packet terminator that Kermit370 currently expects, i.e., 13. Similarly,
SHOW FOREIGN
will display the character strings currently in use for prefix
suffix on
each outgoing filespec.
THE STATUS SUBCOMMAND
Syntax: STATUS
and
This subcommand displays information about the previously executed
subcommand.
The response will include either the appropriate error message or the
message
"No errors".
The initial status is "No file transfers yet". If the
status
reflects an error condition, the name of the last file used (excluding
TAKE
files) will be displayed as well. If the error was detected by the
other Kermit, the message will be "Micro aborted" followed by the text from the
Error
packet.
Conversely, if Kermit-370 detected the error, the text of the
status
message will have constituted the error packet sent out. In any case,
if the
last file transfer was cancelled (by virtue of an attribute mismatch or
manual
intervention), the reason for cancellation is displayed. Also, if the
error
occurred in disk I/O, any available explanatory information is displayed.
Normally, the error status is altered only when a transfer-initiating
subcommand
(SEND or RECEIVE) is executed, but in server mode every subcommand is
received
through a transfer from the other Kermit and may affect the status
(except the
STATUS subcommand itself, of course). When Kermit-370 has been forced to
truncate one or more records in a RECEIVE operation (because of the current
maximum
record length), the number of records truncated is reported. The
status display also includes throughput statistics for the last transfer: number of
files
7.2. Kermit-370 Subcommands
Page 195
-----------------------------------------------------------------------------sent, duration, number of packets, number of retries, and
averages of
bytes/packet and bytes/second.
These last two quantities are
calculated
separately for bytes sent and received on the communication (including
padding,
if any), and the last quantity is also calculated on the basis of the
number of
bytes read from or written to disk.
Finally, if retries were necessary, Kermit-370 computes the optimum
packet size
assuming the retries to have been due to sparse, Poisson-distributed
bursts of
noise. This is the same heuristic optimum that Kermit-370 computes and
uses as
an alternative packet-size limit when sending long packets.
THE TDUMP SUBCOMMAND
Syntax: TDUMP table-name or NAMES
This displays the contents of table-name. The same table can be modified
using
the SET subcommand. The ATOE, ETOA, TATOE, and TETOA tables can
presently be
displayed and changed. Alternatively, the filespec of each file sent
in the
last transfer can be displayed.
THE GIVE SUBCOMMAND
Syntax: GIVE table-name filespec
This compares the named table with its default values and saves the
differences
in the form of a TAKE file consisting of SET subcommands that would
convert the
default into the current arrangement. ATOE, ETOA, TATOE, and TETOA
are the
available tables. The details of the filespec are system-dependent, but
those
details will, in general, be the same as for the TAKE subcommand.
THE HOST SUBCOMMAND
Syntax: HOST text of command
This issues a command to the host operating system from Kermit-370.
When a
command returns a non-zero completion code, the code will be
displayed.
Generally, the name of the system (e.g., CMS) is treated as a synonym
for the
HOST subcommand.
THE KERMIT SUBCOMMAND
Syntax: KERMIT text of subcommand
This is provided for redundancy as the counterpart of the HOST
subcommand.
Kermit-370 executes the specified text as a Kermit subcommand just as
if the
LOCAL prefix had been entered.
7.2. Kermit-370 Subcommands
Page 196
-----------------------------------------------------------------------------THE ECHO AND XECHO SUBCOMMANDS
Syntax: [X]ECHO line
These subcommands type the line back at the user. The line may contain
control
characters or any desired text, including upper or lower case. These
subcommands may be used, for example, to test the ASCII/EBCDIC translate tables
or to
issue coded commands to the user's terminal. XECHO differs from ECHO
primarily
in that it uses transparent mode if CONTROLLER is SERIES1 or GRAPHICS.
It also
offers its own brand of control-character quoting, using the "^"
character to
indicate that only the five low-order bits of the ASCII codes are to be
used.
Thus, "^a", "^A", and "^!" are all translated to SOH (CTRL-A), while
"^[" becomes ESC. However, there must be one exception for "^" itself: "^>" and
"^~"
are both translated to RS (CTRL-^), but "^^" becomes just "^".
THE TYPE AND XTYPE SUBCOMMANDS
Syntax: [X]TYPE filespec
These subcommands type the named file. XTYPE differs from TYPE
primarily in
that it uses transparent mode if CONTROLLER is SERIES1 or GRAPHICS, and
sends
the data in bursts no larger than the current SEND PACKET-SIZE. TYPE is
effectively a synonym for (and allows the same options as) the host system
command
for listing files, but XTYPE merely sends the file "raw".
7.3. Before Connecting to the Mainframe
Several flags must be set on the micro version of Kermit before
connecting to
an IBM 370 system as a "TTY" device. You should set the LOCAL-ECHO flag
to ON
(to indicate half-duplex). This is the norm but not true in absolutely
every
case; if each character appears twice on your terminal screen,
set the
LOCAL-ECHO flag OFF. FLOW-CONTROL should be set to NONE, and on some
systems
HANDSHAKE should be set to XON. The parity should be set according
to the
system's specifications. On some micro versions of Kermit, all of the
above is
done in one step using the DO IBM macro (or SET IBM ON). Set the baud
rate to
correspond to the line speed.
Connecting through a "SERIES1" or "GRAPHICS" device also requires that
certain
flags be set on the micro version of Kermit. You should set the
LOCAL-ECHO
flag to OFF (to indicate full-duplex). FLOW-CONTROL should be set to
XON/XOFF,
and HANDSHAKE should be set to OFF. For many systems, the PARITY should
be set
to EVEN. Set the baud rate to correspond to the line speed.
One exception to these rules is the case where the micro Kermit is
attempting
automated file transfer, e.g., downloading several separate files
from
Kermit-370 running in server mode. In fact, under those circumstances,
handshaking is necessary even with "SERIES1" connections, and the two Kermits
must
be instructed to adopt a common handshake character (e.g., by SET
HANDSHAKE 10
to Kermit-370 and SET HANDSHAKE LF to the micro).
In any case, you should make sure that either the micro Kermit or
Kermit-370
will provide timeouts during file transfers (if not both). Some
versions of
Kermit-370 (notably CMS) cannot provide timeouts, and you may need to
set the
TIMER to ON in the micro.
7.4. After Returning from Kermit-370
Page 197
-----------------------------------------------------------------------------7.4. After Returning from Kermit-370
When Kermit-370 receives a QUIT or EXIT subcommand or finishes the
subcommand
or subcommands specified in the original command string that invoked
Kermit,
control is returned to the caller. Before returning, Kermit-370 closes
any active TAKE files (the EXIT or QUIT subcommand may be issued from a TAKE
file).
On return, the completion code is set from the current error status
according
to the codes in Table 7-0.
-----------------------------------------------------------------------------Code
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Symbol
NOE
NFT
TRC
USC
TIE
BPC
IPS
IPT
MIS
NAK
ABO
FNE
FNF
FUL
DIE
MOP
SYS
KCE
TIM
RTR
COM
Error Message
No errors
No file transfers yet
Transfer cancelled
Invalid server command
Terminal I/O error
Bad packet count or chksum
Invalid packet syntax
Invalid packet type
Lost a packet
Micro sent a NAK
Micro aborted
Invalid file name
File not found
Disk or file is full
Disk I/O error
Missing operand
Illegal system command
Kermit command error
No packet received
Records truncated
Bad communication line
Table 7-1:
Error messages and codes for Kermit-370
------------------------------------------------------------------------------
7.5. What's New
Below is a list of the additions in Version 4.0 of Kermit-370:
1. Code reorganization into generic 370 and system-specific sections.
2. Optional separate translation tables for
system
conversion of terminal I/O.
counteracting
the
3. New GIVE subcommand for saving a modified translation table.
4. A new, RAW debug mode for recording the packet traffic as
actually
sent and received on "GRAPHICS" and "SERIES1" devices.
7.5. What's New
Page 198
-----------------------------------------------------------------------------5. Preservation of the case of subcommands as typed, with
uppercase
conversion of only those words that must be uppercase.
6. New
SET
MARGIN
subcommand
for limiting the width of a file to
be
sent.
7. Settable tab stops for Kermit's conversion
spaces
(alternative to the default 1, 9, 17, etc.).
of
tabs
8. Replace SET SERIES1 subcommand with new SET CONTROLLER.
for
multiple terminal controller types.
to
Support
9. New DIRECTORY and HOST subcommands following Kermit standard.
10. Combination of file-attribute SET subcommands (FILE-TYPE, LRECL,
and
RECFM) into a new group SET FILE.
11. Separate retry limits for initial and subsequent packet exchanges.
12. Pad binary records on disk with nulls, rather than blanks.
13. Automatically tune packet length when sending long packets
according
to heuristic optimum based on sparse Poisson statistics,
provided
that transmission errors do occur.
14. Expand STATUS report to include the number of files in the
last
transfer, throughput statistics, heuristic optimum packet
length
(when long packets are enabled), and the reason for any file
rejection based on A-packets.
15. New subcommand TDUMP NAMES to display the list of files sent in
the
last transfer.
16. Add file creation date to A-packet repertoire.
17. REMOTE COPY and REMOTE RENAME commands to a server at the other
end.
18. Allow long packets through a 7171 with VTAM.
19. New type D-BINARY for binary files with undelimited variablelength
records.
20. SET 8-BIT-QUOTE.
Allow 8-bit data where possible via SET PARITY.
21. SET SYSCMD, so that Kermit can be told to try "illegal"
subcommands
as host system commands instead of just rejecting them.
22. SET PROMPT subcommand.
23. Do not forget parameters specified by the other Kermit in Ipackets.
24. Keep track of truncated records during a RECEIVE operation
and
report the count in STATUS; also call truncation an error
after
everything is received.
25. SET
character
HANDSHAKE
subcommand
to alter or suppress handshake
7.5. What's New
Page 199
-----------------------------------------------------------------------------Kermit-370 sends out after each packet.
Both SEND and GET prompt the user for native and foreign filespecs
no arguments are entered.
if
7.6. What's Missing
Work on
added
include:
Kermit-370 will continue.
Features that need to be improved or
- Detect file properties from Attribute packets and allow
overriding
current parameter settings. Also implement file archiving.
- Add SET REPEAT subcommand.
- Improve Kermit-370 operation as a local Kermit.
- Recover
packets.
from sudden line degradation by retransmitting partial
- System-specific upgrades; see the respective chapters for details.
8. IBM VM/CMS KERMIT
Page 200
-----------------------------------------------------------------------------8. IBM VM/CMS KERMIT
Program:
John Chandler (Harvard/Smithsonian Center for
Astrophysics); contributions from Vace Kundakci and Daphne Tzoar (Columbia
U), Bob
Shields (U. Maryland), Victor Lee (Queens U.), Gary
Bjerke (U.
Texas at Austin), Greg Small (UC Berkeley), Clark
Frazier
(Harvard Bus. Sch.), Bob Bolch and Steve Blankinship
(Triangle),
Ron Rusnak (U. Chicago), Andre Pirard (U. Liege)
Language:
IBM/370 Assembler
Documentation:
John Chandler (CfA)
Version:
4.0 (88/1/31)
Date:
1988 February
Kermit-CMS Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Z interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
Transaction logging:
Session logging:
Raw transmit:
Sliding window:
Long packets:
Act as server:
Talk to server:
Advanced server functions:
Advanced commands for servers:
Local file management:
Handle Attribute Packets:
Command/init files:
Command macros:
No
Yes
Yes
Yes
Yes
Yes (through micro)
Yes
No
Yes
Yes
Yes
No
No
No
Yes
No
Yes (no prompts)
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Kermit-CMS is a member of the generic Kermit-370 family and shares most
of the
features and capabilities of the group. As its name implies, Kermit-CMS
is the
version of Kermit-370 that runs under the VM/CMS operating system. The
primary
documentation for Kermit-CMS is actually the chapter on Kermit-370,
which
describes general properties; the present chapter assumes the
reader is
familiar with that material. Only the details specific to CMS
operation will
be discussed here, e.g., command syntax relating to the CMS file system
or commands not offered in general by Kermit-370.
8. IBM VM/CMS KERMIT
Page 201
-----------------------------------------------------------------------------CMS Specifics of Kermit-370:
Global INIT file:
User INIT file:
Debug packet log:
Server reply log:
Maximum packet size:
Maximum disk LRECL:
SYSTEM KERMINI *
<userid> KERMINI *
KER LOG A1
KER REPLY A1
1913
65535
8.1. The VM/CMS File System
The features of the CMS file system of greatest interest to Kermit
users are
the format of file specifications (or filespecs) and the concept of
records.
The latter is described in the Kermit-370 chapter.
The VM/CMS filespec takes the form
filename filetype filemode
(often abbreviated FN FT FM).
The filename and filetype are one to
eight
characters each. The name field is the primary identifier for the
file, and
the type is an indicator which, by convention, tells what kind of file
it is.
For instance, TEST FORTRAN is the source of a Fortran program named
TEST.
MODULE is the filetype for executable programs (as distinct from object
code,
which has a filetype of TEXT!). Although some operating systems
consider the
filetype optional, VM/CMS requires a type for each file. Therefore,
Kermit-CMS
supplies a default type of "$" for any received file if no type is
provided by
the remote system.
The same default is used for a missing filename.
At the
same time, the FN and FT are forced to conform to CMS rules in other
respects.
The FN and FT may contain, in any order, uppercase letters, digits,
and the
special characters "$" (dollar sign), "#" (pound sign), "@" (at
sign), "+"
(plus), "-" (hyphen), ":" (colon), and "_" (underscore). Other
characters may
be not be included. If an invalid character is found in the FN or FT
field, it
is replaced by an underscore (or converted to uppercase if it is a
lowercase
letter). Also, both FN and FT are truncated, if necessary, to eight
characters.
The filemode, which consists of a letter and a number, is similar to a
device
specification on microcomputer systems: FN FT FM would translate to
FM:FN.FT in
CP/M or MS-DOS if the filemode number is ignored. Indeed, the filemode
number
is more properly an attribute of a file than part of its name -- no two
files
can co-exist with names that match all but the filemode number.
Even the
filemode letter is not a fixed part of the filespec because the same
mini-disk
could be accessed under a different mode letter. In some ways, the
filemode
letter is also like a disk directory designator, since many such minidisks may
reside on the same disk drive. For this reason, the Kermit concept
of the
"working directory" is equated with a particular disk mode letter
under
Kermit-CMS.
The current "working directory" is, thus, the "home"
filemode
(normally "A", which is the primary user mini-disk under CMS), and file
transfers take place preferentially to and from the "home" disk. If the
filemode is
omitted from a filespec when sending, the "home" disk is normally
used, but
there is an option for using a default of "*" instead. In this
case, the
user's disks are scanned according to the search order and the first
occurrence
of the file is the one that is sent. If the filemode is omitted
from a
filespec when receiving, the "home" disk is used with a filemode number
of "1".
8.1. The VM/CMS File System
Page 202
-----------------------------------------------------------------------------To provide compatibility with other operating systems, when Kermit-CMS
sends a
file, it ordinarily makes a file header with only the filename and
filetype.
It also converts the intervening blank to a period. On the other hand,
extra
information may be added by way of the SET FOREIGN subcommand.
VM/CMS allows a group of files to be specified in a single filespec by
including the special "wildcard" characters "*" and "%". A "*" matches any
string of
characters (even a null string) from the current position to the end
of the
field; a "%" matches any single character. Here are some examples:
* COBOL A
disk.
All files of type COBOL (all COBOL source files) on the A
F* * *
All files whose names start with F.
% * B
All B-disk files with one-character FN's.
CMS files, like those in other IBM 370 systems, are record-oriented
(see the
introduction to the Kermit-370 chapter). In particular, CMS files are
characterized by record format (RECFM), which may be fixed-length or varyinglength,
and by maximum record length (LRECL). The size of record blocks is
irrelevant,
however, because CMS performs the blocking and deblocking operations
automatically and transparently, including the spanning of records across block
boundaries. Records in CMS files may be up to 65535 bytes long.
Another file system feature of occasional interest is the means of
reporting
errors.
When Kermit-CMS encounters a disk error, it records the
function and
error code for inclusion in the STATUS report. The explanations can
found
in the CMS reference manual under the FSREAD and FSWRITE macros
(which correspond to the RDBUF and WRBUF functions).
8.2. Program Operation
be
At startup time, Kermit-CMS looks for two initialization files, SYSTEM
KERMINI
and <userid> KERMINI (where <userid> is the user's logon ID). If
either of
these files exists on more than one disk, it will be read and executed
from the
first copy in the search order. The file SYSTEM KERMINI should be
placed on a
publicly accessible disk by a systems programmer, preferably the same
disk
where the Kermit executable module is kept. The file <userid> KERMINI
can be
maintained by the user on any convenient disk.
One important distinction between Kermit-CMS and other Kermits is
that a
program running under VM/CMS is unable to interrupt a read on its
"console".
This means that the CMS version of Kermit cannot time out after
sending a
packet.
The only way to time out is from the other side: typing a
carriage
return to the local Kermit causing it to retransmit its last packet,
or an
automatic timeout as provided by most other Kermits.
Five CP SET parameters (MSG, IMSG, WNG, ACNT, and TIMER) are set OFF
during
protocol mode (and restored afterwards) to prevent CP from interrupting
any I/O
in progress, and RUN is set ON to ensure that Kermit can recover from
accidental attention interrupts. Also, on a TTY line, the TERMINAL LINESIZE
is set
OFF to prevent CP from inserting carriage return-linefeed pairs into
packets,
TERMINAL SCROLL is set to CONT to prevent CP pauses, LINEDIT is set OFF
to ensure that all characters are taken literally, and the CMS user terminal
translation tables (established via the CMS SET INPUT and OUTPUT commands) are
tem-
8.2. Program Operation
Page 203
-----------------------------------------------------------------------------porarily suppressed for both short and long packet protocols. The
settings in
effect when Kermit starts up are saved as a sort of "normal" status
snapshot
(as opposed to the "protocol" status just described). The protocol
status is
selected whenever Kermit enters protocol mode and also after Kermit
executes a
CP command in server mode. Similarly, normal status is selected when
Kermit
leaves protocol mode and before Kermit executes a CP command in server
mode.
Note: if Kermit is interrupted in the midst of a transfer or while in
server
mode, these parameters will be left with peculiar settings
(namely, the
protocol status), and they may need to be restored by hand.
CMS is different from some other IBM mainframe systems in that allows a
program
to take control of prompting and synchronization on "TTY" lines.
Kermit-CMS
takes advantage of this option, and it is not, in general, necessary to
enable
handshaking on the micro Kermit before connecting to CMS.
In other
words,
handshaking should be suppressed for both "TTY" and "SERIES1"
devices (the
micro Kermit should have HANDSHAKE set OFF, and Kermit-CMS should have
HANDSHAKE set to 0).
Since the generic Kermit-370 default handshake
(XON) is
retained in Kermit-CMS, the subcommand "SET HANDSHAKE 0" is a good
candidate
for inclusion in SYSTEM KERMINI.
Interactive Operation:
To run Kermit-CMS interactively, invoke the program from CMS by typing
KERMIT.
When you see the prompt,
Kermit-CMS>
you may type a Kermit subcommand. When the subcommand completes, Kermit
issues
another prompt.
The cycle repeats until you exit from the program.
For ex-
ample:
KERMIT
Kermit-CMS Version 4.0 (88/1/31)
Enter ? for a list of valid commands
Kermit-CMS>send foo *
Files with fn FOO are sent
Kermit-CMS>receive test spss
File is received and called TEST SPSS A1
Kermit-CMS>exit
The prompt string under CMS is truly interactive. In other words, the
string
(without carriage return or linefeed) appears only when fresh input is
needed
from the terminal. If, for example, Kermit is invoked after several
subcommands have been stacked up, the stack is read and executed before the
first
prompt appears.
8.2. Program Operation
Page 204
-----------------------------------------------------------------------------Command Line Invocation:
Kermit-CMS may also be invoked with command line arguments from CMS.
The arguments are interpreted as one or more subcommands to be executed by
Kermit
after completion of the initialization. For instance:
KERMIT send test fortran
or
KERMIT set debug on # set file binary # server
Kermit will exit and return to CMS after completing the specified
subcommand or
subcommands.
Note that several commands may be given on the command
line as
long as they are separated by the LINEND character, which is pound sign
in this
case. Note that the LINEND is a concept of CP, rather than Kermit, and
applies
only to commands entered from the terminal and only when LINEDIT is on.
A command line may contain up to 130 characters.
EXEC Operation:
Like other CMS programs, Kermit-CMS may be invoked from a CMS EXEC.
Subcommands can be passed to Kermit using the program stack and/or command
line arguments.
For example, to start up Kermit-CMS and have it act as a
server, include the line:
KERMIT server
To pass more than one subcommand, they must be stacked in the order in
which
they are to be executed. To start up a Kermit-CMS server with a three
character CRC, include:
&STACK set block 3
&STACK server
KERMIT
Another way of setting up multiple subcommands would be to collect the
subcommands into a TAKE file and then issue the TAKE subcommand via the
command line
or program stack. Of course, EXEC's may be executed from Kermit,
either
directly or from a TAKE file, and Kermit subcommands, in turn, may be
issued
from EXEC's as long as Kermit is active. See the TAKE subcommand for
more
details.
Server mode:
Command execution in server mode is different in several respects from
normal
operation. First of all, some Kermit subcommands are not allowed (see
the list
of subcommands in the Kermit-370 chapter). Moreover, command errors
always
terminate any active TAKE file. Also, commands other than CP commands
run in a
special environment with RUN ON, TIMER OFF, and so forth. Another
difference
is that Kermit intercepts all SVC instructions in order to catch
console I/O
and transmit the data to the local Kermit as text packets. Since
Kermit does
not emulate the substitution functions of the LINEDIT macro, some
messages will
appear rather cryptic.
A more serious problem with this redirection
is that
8.2. Program Operation
Page 205
-----------------------------------------------------------------------------some VM/CMS system commands may issue console I/O directly to CP, so that
some
messages never appear to the local Kermit (except, perhaps, as bad
packets).
For non-TTY terminals, such messages are stacked up in the console output
queue
and appear all at once when Kermit returns from server mode.
8.3. Kermit-CMS Subcommands
Kermit-CMS supports all the subcommands described in the corresponding
section
of the Kermit-370 chapter. In addition, there are two more, both of
which can
be issued as remote Kermit commands when Kermit-CMS is in server
mode. The
first is CMS, which is just a synonym for the generic HOST subcommand.
The
second is CP, which specifically issues a command to CP. In
most circumstances, the latter is not needed, since CMS will pass along CP
commands to
CP.
The remainder of this section concentrates on the subcommands that have
special
form or meaning for Kermit-CMS. See also the chapter on Kermit-370 for
further
details.
THE SEND SUBCOMMAND
Syntax: SEND filespec [foreign-filespec]
The SEND subcommand causes a file or file group to be sent from CMS to
the Kermit on the other system. filespec takes the form:
filename filetype [filemode]
but the filemode if optional only if the foreign-filespec is omitted.
filespec may contain the wildcard characters "*" or "%". If filespec
contains
wildcard characters then all matching files will be sent. If, however,
a file
exists by the same name on more than one disk, only the first one
Kermit-CMS
encounters, according to the disk search order, is sent. See also the
CWD subcommand.
The foreign-filespec, if any, is used for the file header of the outgoing
file,
replacing the usual filename.filetype copied from the CMS filespec.
It may
take one of two forms:
filename filetype
or
arbitrary-string
Normally, this form of the SEND subcommand is used only for single
files because the foreign-filespec is used only for the first file of a
group
(subsequent files having default headers). However, in the two-token
form of
the foreign-filespec either the name or type may be an Equals sign "="
to signify that the corresponding CMS name or type is to be retained in the
file
header.
In that case, the partial renaming carries through an entire
group of
files. It is the user's responsibility to prevent such partial renaming
from
sending duplicate file headers within a file group.
8.3. Kermit-CMS Subcommands
Page 206
-----------------------------------------------------------------------------Although the file transfer cannot be cancelled from the CMS side, KermitCMS is
capable of responding to "cancel file" or "cancel batch" signals from the
local
Kermit; these are typically entered by typing Control-X or Control-Z,
respectively.
THE RECEIVE SUBCOMMAND
Syntax: RECEIVE [filespec]
The RECEIVE subcommand tells Kermit to receive a file or file group
from the
other system. You should then issue a SEND subcommand to the other
Kermit.
The format of filespec is:
filename filetype [filemode]
If the optional filespec is omitted, Kermit-CMS will use the name(s)
provided
by the other Kermit. If that name is not a legal CMS file name,
Kermit-CMS
will delete excess characters and will change illegal characters to
underscores. A filespec in the subcommand indicates what name the incoming
file
should be given. The filespec may include a filemode to designate the
destination disk. If none is provided, the file will be saved on the "home"
disk with
filemode number "1".
If you want to use the same name but a
different
filemode, specify "= = FM". Wildcards may not be used.
If the optional filespec is provided, but more than one file arrives, the
first
file will be stored under the given filespec, and the remainder will be
stored
under their own names on the "home" disk. If, however, "= = FM" is
used, all
files will be placed onto the specified disk.
When the
logical
record
format
is
"F", any received record longer than the
record length (LRECL) will be truncated, and shorter records will be
padded.
The padding character is a blank for text files and a null for binary
files.
Received binary (but not V-binary or D-binary) files are treated as
byte
streams and broken up into records all of the logical record length.
See the
SET FILE TYPE, SET FILE LRECL, and SET FILE RECFM subcommands.
If an error occurs during the file transfer, as much of the file
as was
received is saved on disk. If the sending of a file is cancelled by
the user
of the foreign system, Kermit-CMS will discard whatever had arrived,
unless APPEND is ON or INCOMPLETE is KEEP.
If the incoming file has the same name as an existing file, and WARNING
is OFF,
the original file will be overwritten.
If WARNING is set ON,
however,
Kermit-CMS will change the incoming name so as not to obliterate the preexisting file. It attempts to find a unique name by successively
modifying the
original and checking for the existence of such a file at each step.
The procedure begins by truncating the filetype to six characters if
necessary, and
then appending "$0". If a file by that name exists, Kermit then
replaces the
"0" with a "1". It continues in this manner up to "9", and if an unused
name
cannot be found, the transfer fails.
8.3. Kermit-CMS Subcommands
Page 207
-----------------------------------------------------------------------------THE GET SUBCOMMAND
Syntax: GET foreign-filespec [filespec]
The GET subcommand tells Kermit to request a file or file group from the
other
system, which must have a Kermit running in server mode. The syntax is
complicated by the allowance of two forms for the foreign-filespec, just as
in the
SEND subcommand.
Here the parsing is based on the number of
"words"
(blank-delimited strings) in the subcommand argument, which can be
anything
from one to five. If the number is anything but four, the
interpretation is
unambiguous, but when there are four words, the first word plays the key
role.
If it has more than eight characters or contains a "." or "/", it is
assumed to
be the whole foreign-filespec; otherwise, it is assumed to be the first
of two
words that, when joined by a ".", make up the filespec on the other
system.
THE TAKE SUBCOMMAND
Syntax: TAKE filespec
Execute Kermit subcommands from the specified file, where filespec has
the format fn [ft [fm]]. The default filetype is "TAKE", and the default
filemode is
"*".
Kermit subcommands may also be executed from CMS EXEC's, so that the TAKE
subcommand is, in a sense, superfluous under VM/CMS. In CMS terminology,
Kermit
establishes a Kermit subcommand environment, and EXEC's written in EXEC
2 or
REXX may invoke subcommands within that environment. For example, to
display
the current packet checksum type, an EXEC 2 would issue
&SUBCOMMAND KERMIT SHOW BLOCK-CHECK
and a REXX macro would issue
Address KERMIT 'SHOW BLOCK-CHECK'
There is one important difference between executing a TAKE file and an
EXEC:
the former may issue a QUIT or EXIT subcommand, but the latter may not.
Also,
a Kermit subcommand issued from an EXEC returns a completion code
according to
the current error status (see the table under "After Kermit Completes"
in the
Kermit-370 chapter). An EXEC could therefore be set up to react
appropriately
to file transmission errors or other unpredictable events.
THE SET SUBCOMMAND
Syntax: SET parameter [value]
The SET subcommand establishes or modifies various parameters
controlling file
transfers. The following SET parameters are available in Kermit-CMS,
but not
in Kermit-370 in general:
DESTINATION
FILE
LRECL
RECFM
"Home" disk.
Logical Record length for incoming file.
Record format for incoming files.
8.3. Kermit-CMS Subcommands
Page 208
-----------------------------------------------------------------------------SEARCH-ALL
Determine the default disk search scope.
SET DESTINATION
Syntax: SET DESTINATION letter
This subcommand is equivalent to the CWD subcommand (q.v.).
SET FILE LRECL
Syntax: SET FILE LRECL number
This sets the logical record length for incoming files to a number
from 1 to
65535 (64K-1). This variable is used only for fixed format and binary
files.
The default is 80.
SET FILE RECFM
Syntax: SET FILE RECFM option
This sets the record format to use for incoming files. Valid
options are
"Fixed" and "Variable" (the default). Fixed-format records are padded or
truncated, as needed, to the current LRECL.
SET SEARCH-ALL
Syntax: SET SEARCH-ALL ON or OFF
ON
If the user omits the filemode from a SEND subcommand (or a GET
request
to the other Kermit), Kermit-CMS will search all accessed disks
for the
named file or files.
OFF
If the filemode is not specified, only the "home"
and its
read-only extensions will be searched for matching files.
(Default.)
THE CWD SUBCOMMAND
disk
Syntax: CWD letter
The CWD (Change Working Directory) subcommand establishes a new
default
("home") CMS disk. letter may be the mode letter of any accessed disk.
Subsequent file transfers take place preferentially to and from the default
disk.
The initial home disk is "A". Note: setting the home disk in Kermit has
no effect on the CMS search order.
8.3. Kermit-CMS Subcommands
Page 209
-----------------------------------------------------------------------------THE DIRECTORY SUBCOMMAND
Syntax: DIRECTORY [filespec]
Under Kermit-CMS, the DIRECTORY subcommand is identical
LISTFILE
command.
to
the
CMS
THE SPACE SUBCOMMAND
Syntax: SPACE [letter]
This subcommand displays the storage allocation on the specified CMS
disk. If
letter is omitted, the default disk specified by the CWD subcommand is
displayed.
Aside from this default, the subcommand is identical with CMS
QUERY
DISK.
THE GIVE SUBCOMMAND
Syntax: GIVE table-name filespec
This subcommand compares the named table with its default values and
saves the
differences in a TAKE file named filespec. The format of filespec is
fn [ft
[fm]]. The default filetype is "TAKE", and the default filemode is that
of the
"home" disk. See the CWD subcommand.
THE CP AND CMS SUBCOMMANDS
Syntax: CP or CMS text of command
Although Kermit-CMS does not have a full set of its own subcommands for
managing local files, it provides those services through the operating system.
You
can issue any CP or CMS command, but if Kermit-CMS has been invoked as a
normal
user-area program, rather than as a high-memory "resident" program or
nucleus
extension, other user-area CMS commands (such as COPYFILE) are illegal.
Even
then, you can list, type, rename or delete files, send messages, and
so on.
The CMS subcommand under Kermit is synonymous with the HOST subcommand.
8.4. How to build an executable version of Kermit-CMS
Before attempting to build Kermit-CMS, look in the Kermit distribution
under
both IK0KER and IKCKER for an installation document, as well as "beware",
help,
and update files, and read them first. They will probably contain
information
that is more current than what you see here.
Kermit-CMS consists at present of a large assembly and a small optional
one.
The large assembly (KERMIT ASSEMBLE) contains the Kermit program, and the
small
one (KERMBOOT ASSEMBLE) is a bootstrap program for loading Kermit into
high
memory and running it. Although KERMBOOT is all in one file in the
Kermit distribution, the source for Kermit itself is in many pieces, some
generic for
Kermit-370 and some specific to CMS. All the necessary pieces are
sequenced in
columns 73-80 so that the numbers form a strictly increasing sequence
when the
pieces are correctly "pasted" together.
It is important to
preserve the
8.4. How to build an executable version of Kermit-CMS
Page 210
-----------------------------------------------------------------------------original sequence numbers so that updates, if any, can be applied
to the
source.
To create a runnable version:
1. Combine the following "ASM" files from the Kermit distribution
into
a single file with RECFM F and LRECL 80: IK0DOC, IK0MAC,
IKCMAC,
IK0DEF, IK0MAI, IK0CMD, IK0COM, IKCUTL, and IK0PRO. The
resulting
file is the composite source for Kermit-CMS, called KERMIT
ASSEMBLE.
This source must retain the original sequence numbers in
columns
73-80 (in other words, be sure not to resequence the source
accidentally by using the editor!)
2. Copy or rename IKCBOO ASM from the Kermit distribution (if
desired)
to a file called KERMBOOT ASSEMBLE with RECFM F and LRECL 80.
3. GLOBAL the necessary MACLIBs.
CMSLIB,
OSMACRO, and TSOMAC.
Under VM/SP, these are DMSSP,
4. Assemble the source file(s).
5. Load one file into memory via: LOAD KERMIT or LOAD KERMBOOT. In
the
former case, the entire Kermit program is now loaded; in the
latter,
only a bootstrap program which expects to find the object file
KERMIT TEXT at run time. Under CMS/SP Release 4 and above, there is
a
third and better option, namely, LOAD KERMIT (RLDSAVE).
6. Create the executable called KERMIT MODULE via: GENMOD KERMIT.
Alternatively (under CMS/SP Release 3 and below), create both
KERMIT
and KERMBOOT modules to give the user a choice of user-area
or
high-memory execution. Since Kermit-CMS is serially reusable,
it
can
be
reinvoked
in the user area with the START command, but
the
high-memory version must be reloaded each time.
If Kermit is
loaded
using
the
RLDSAVE option (Release 4 and above), the module can,
in
fact, be run either way; the command NUCXLOAD KERMIT will load
Kermit
"permanently"
into
high memory as a nucleus extension for
invocation at need.
Note: the nucleus extension can be removed by
the
command NUCXDROP KERMIT.
7. If your site's ASCII/EBCDIC translation table for TTY lines does
not
conform to the one listed in the appendix (which in turn conforms
to
the one given in the IBM System/370 Reference Summary), then
enter
the appropriate SET ATOE/ETOA/TATOE/TETOA subcommands in the
SYSTEM
KERMINI file, which should reside on the same disk as KERMIT
MODULE
(and KERMIT TEXT). NOTE: If the ASCII/EBCDIC translation is not
invertible, Kermit will not and cannot work.
8.5. What's New
Below is a list of the more important CMS-specific features in Version
4.0 of
Kermit-CMS added since the previous release, Version 3.1, in September
1986.
For the list of generic additions, see the chapter on Kermit-370.
1. System commands issued through Kermit via the CMS or HOST
subcommands are automatically passed on to CP if (a) CMS rejects them
and
8.5. What's New
Page 211
-----------------------------------------------------------------------------(b) IMPCP is set ON.
2. Kermit subcommands may be executed directly from CMS EXEC's.
3. Reject files
available
storage.
known
(via
A-packets)
4. Bypass user translation tables and
for
protocol mode on TTY lines.
set
to
be too big for
TERMINAL
SCROLL
CONT
5. KERMBOOT avoids the loading problem (VIRTUAL STORAGE
CAPACITY
EXCEEDED) due to large GLOBAL TXTLIB's and preserves the
untokenized
command line so that Kermit may be given mixed-case or long words
as
part of the initial command.
8.6. What's Missing
Work on Kermit-CMS will continue.
added
include:
Features that need to be improved
or
- Allow timeouts so Kermit-CMS does not wait forever if a packet
does
not arrive in a timely fashion. This is not possible under CMS
at
present.
- Detect file properties from Attribute packets and allow
overriding
current parameter settings. Also implement file archiving.
- Add a SET REPEAT subcommand.
- Finish SET LINE, so that Kermit-CMS can be used as a local
Kermit,
connecting to a remote host over an alternate communication
port.
Add a CONNECT subcommand.
- Intercept CP messages during protocol mode, rather than just
suppressing them.
Display the messages later or log them or send
in
packets as appropriate.
- Define EXEC variables from Kermit by analogy with the
EXTRACT
subcommand.
XEDIT
9. IBM MVS/TSO KERMIT
Page 212
-----------------------------------------------------------------------------9. IBM MVS/TSO KERMIT
Program:
John Chandler (Harvard/Smithsonian Center for
Astrophysics); contributions from Vace Kundakci and Daphne Tzoar (Columbia
U), Bob
Shields (U. Maryland), Victor Lee (Queens U.), Gary
Bjerke (U.
Texas at Austin), Greg Small (UC Berkeley), Clark
Frazier
(Harvard Bus. Sch.), Bob Bolch and Steve Blankinship
(Triangle),
Ron Rusnak (U. Chicago), Roger Fajman and Dale White (NIH),
Andre
Pirard (U. Liege)
Language:
IBM/370 Assembler
Documentation:
John Chandler (CfA)
Version:
4.0 (88/1/31)
Date:
1988 February
Kermit-TSO Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Z interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
Transaction logging:
Session logging:
Raw transmit:
Sliding window:
Long packets:
Act as server:
Talk to server:
Advanced server functions:
Advanced commands for servers:
Local file management:
Handle Attribute Packets:
No
Yes
Yes
Yes
Yes
Yes (through micro)
Yes
Yes
Yes
Yes
Yes
No
No
No
Yes
No
Yes (no prompts)
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Command/init files:
Command macros:
Yes
No
Kermit-TSO is a member of the generic Kermit-370 family and shares most
of the
features and capabilities of the group. As its name implies, Kermit-TSO
is the
version of Kermit-370 that runs under the MVS/TSO operating system.
The
primary documentation for Kermit-TSO is actually the chapter on
Kermit-370,
which describes general properties; the present chapter assumes the
reader is
familiar with that material. Only the details specific to TSO
operation will
be discussed here, e.g., command syntax relating to the TSO file system
or commands not offered in general by Kermit-370.
9. IBM MVS/TSO KERMIT
Page 213
-----------------------------------------------------------------------------TSO Specifics of Kermit-370:
Global INIT file:
User INIT file:
Debug packet log:
Server reply log:
Maximum packet size:
Maximum disk LRECL:
'SYS1.KERMINI'
KERMINI
KER.LOG
KER.REPLY
1913
32756
9.1. The MVS/TSO File System
The features of the TSO file system of greatest interest to Kermit
users are
the format of file specifications (filespecs) and the concept of records.
The
latter is described in the Kermit-370 chapter.
The MVS/TSO filespec (called the data set name or DSN) takes the form of
tokens
(known as qualifiers) of up to 8 alphanumeric characters each,
separated by
periods.
Each qualifier must begin with an alphabetic or national
character.
The total length must be no more than 44 characters, including periods.
To be
precise, a DSN may contain uppercase letters, digits, and the special
characters "$" (dollar sign), "#" (pound sign), "@" (at sign), and "-"
(hyphen) in
addition to the separating periods. Other characters may be not be
included.
There is another, structural restriction on data set names from the
fact that
TSO data sets are all cataloged. In a standard MVS catalog, each
qualifier of
each DSN is associated with an index of the same name. The index is a
hierarchical catalog component which points downward either to a list of
next-level
indices or to a data set, but never to both. Consequently, a cataloged
DSN is
a chain of indices corresponding one-for-one with DSN qualifers, and the
last
index is a pointer to the data set itself. While there may be many
indices
with the same name, no two such duplicates may both be chained to the
same
next-higher-level index, so that, if DSN's are considered as
strings of
qualifiers (not of characters), no DSN can be a major substring of any
other.
For example, if the name 'A.BB.C' exists in the catalog, then
'A.BB' and
'A.BB.C.X' are illegal, but 'A.B', 'A.BB.Y', 'A.BBB', and 'A.BB.BB'
are all
legal.
A DSN given in its entirety (as in the foregoing examples) is called
"fully
qualified" and must be enclosed in single quotes when entered in TSO.
However,
by convention (and by definition) the first qualifier of each data set
belonging to a given user must be the user's logon ID, and, by default, that
ID is
the assumed prefix in TSO when a DSN is not enclosed in quotes. In
practice,
then, names are abbreviated by omitting the quotes and the prefix.
The
most
common type of name, in fact, consists of the prefix plus two more
qualifiers
giving the data set's name and type, respectively, so that many files
have
DSN's that correspond exactly to the canonical Kermit
representation of a
filespec. For instance, TEST.FORT is the source of a Fortran program
named
TEST, and its fully qualified DSN would be '<userid>.TEST.FORT', where
<userid>
is the owner's logon ID.
While this description is complete as far as it goes, it omits an
important
feature that is widely used in organizing files under MVS and TSO,
namely, the
partitioned data set (PDS). A PDS is a data set like any other, except
that it
has members, each of which can usually be treated as a file in its own
right.
In fact, with QSAM (the file access method employed by Kermit and many
other
9.1. The MVS/TSO File System
Page 214
-----------------------------------------------------------------------------applications), only members, and not the whole PDS, may be read or
written.
Thus, the term "file", as used in this chapter and the Kermit-370
chapter, may
refer to either a PDS member or an ordinary data set, but not to a
PDS. The
notation for a PDS member consists of the member name enclosed in
parentheses
and appended to the DSN (and the whole enclosed in quotes if the DSN is
fully
qualified). For example, if the Fortran program TEST were copied into
a PDS
called DEBUG.FORT, it would then be known as
DEBUG.FORT(TEST)
Although the member name is written together with the DSN, it and the
surrounding parentheses are not really part of the DSN and are not counted
toward the
44-character limit.
Still, a member name must conform to the rules for
a DSN
qualifier and, in addition, must not contain any hyphens.
All these properties of DSN's come into play when a file is being
received by
Kermit-TSO because a valid DSN must be generated for the new data set.
For example, any invalid character in the supplied filespec is replaced by a
pound
sign (or converted to uppercase if it is a lowercase letter).
Also, each
qualifier (and the member name, if any) is prefixed with a pound sign
if it
does not already begin with an alphabetic or national character and then
shortened, if necessary, to eight characters.
If no filespec is
supplied,
Kermit-TSO creates a default DSN of "$.$". The DSN is expanded to its
fully
qualified form and then truncated at 44 characters, if need be.
The DSN prefix, which defaults to the user's logon ID, is similar to a
device
specification on microcomputer systems: it selects an area of disk
storage, and
it usually need not be specified. In some ways, the prefix is also like
a disk
directory designator, since the file system structure is
hierarchical. For
this reason, the Kermit concept of the "working directory" is equated
with a
particular DSN prefix under Kermit-TSO. The current "working directory"
is the
collection of all data sets whose names begin with the current prefix,
and file
transfers take place preferentially to and from that area (i.e., unless a
fully
qualified DSN is given).
To provide compatibility with other operating systems, when Kermit-TSO
sends a
file, it ordinarily makes a file header with only the last two
qualifiers of
the full DSN (or only the member name in the case of a PDS member).
On the
other hand, extra information may be added by way of the SET FOREIGN
subcommand.
Kermit-TSO allows a group of files to be specified in a single filespec
by including the special "wildcard" character "*", which matches any
string of
characters (even a null string) starting at a new DSN qualifier.
Only
one *
may be used in a filespec. Also, the * may not be used for the member
name of
a PDS (nor for any part of a PDS name). Here are some examples:
*.COBOL
current
All files of type COBOL (all COBOL source
files)
in
the
working directory.
BATCH*H.FORT
All files in the current directory which begin with the
qualifier
BATCH
and which end with H.FORT.
This would not
include
BATCH.FORT, however.
TSO files, like those in other IBM 370 systems, are
(see the
record-oriented
9.1. The MVS/TSO File System
Page 215
-----------------------------------------------------------------------------introduction to the Kermit-370 chapter). In particular, TSO files are
characterized by record format (RECFM), which may be fixed-length, varyinglength, or
undefined-length; by maximum record length (LRECL); and by maximum
block size
(BLKSIZE). Fixed-length and varying-length may be (and, under Kermit,
always
are) combined into blocks, but undefined-length records may not.
Indeed, by
convention, they have no logical record length, only a maximum block
size.
Records in TSO files may be up to 32760 bytes long, but varying-length
records
use four bytes to specify the length and have an effective limit of
32756.
Another file system feature of occasional interest is the means of
reporting
errors. When Kermit-TSO encounters a disk error, it attempts to prepare
an explanatory message for inclusion in the STATUS report. The primary
method is
the standard SYNADAF macro.
9.2. Program Operation
At startup time, Kermit-TSO looks for two initialization files,
'SYS1.KERMINI'
and '<userid>.KERMINI' (where, as before, <userid> is the user's
ID).
The latter file would also be known as just KERMINI. The file
'SYS1.KERMINI'
would be maintained by a systems programmer, but KERMINI would be
maintained by
the user.
logon
Two parameters in the user's profile (the character delete and line
delete) are
disabled during protocol mode (and restored afterwards) to prevent any
conflict
in case either of these characters has been defined to be printable.
The settings in effect when Kermit starts up are saved as a sort of "normal"
status
snapshot (as opposed to the "protocol" status just described). The
protocol
status is selected whenever Kermit enters protocol mode, and the normal
status
is selected when Kermit leaves protocol mode. Note: if Kermit is
interrupted
in the midst of a transfer or while in server mode, these parameters
will be
left with peculiar settings (namely, the protocol status), and they may
need to
be restored by hand.
Although TSO does not allow an application program to take control of
terminal
synchronization on "TTY" lines, the various full-screen emulation
front ends
are quite a different matter. The standard IBM handshake (XON) is
unnecessary,
for example, with a 7171 or 4994 because the front end itself turns
the line
around with essentially no delay in transparent mode. Thus, handshaking
should
be suppressed for "SERIES1" devices (the micro Kermit should have
HANDSHAKE set
OFF, and Kermit-TSO should have HANDSHAKE set to 0).
Since the
generic
Kermit-370 default handshake (XON) is retained in Kermit-TSO, the
subcommand
"SET HANDSHAKE 0" is a good candidate for inclusion the KERMINI file
of any
user who habitually uses "SERIES1" lines.
Interactive Operation:
To run Kermit-TSO interactively, invoke the program from TSO by typing
KERMIT.
When you see the prompt,
Kermit-TSO>
you may type a Kermit subcommand. When the subcommand completes, Kermit
issues
another prompt.
The cycle repeats until you exit from the program.
For example:
9.2. Program Operation
Page 216
-----------------------------------------------------------------------------KERMIT
Kermit-TSO Version 4.0 (88/1/31)
Enter ? for a list of valid commands
Kermit-TSO>send foo.*
Files beginning with FOO are sent
Kermit-TSO>receive test.spss
File is received and called TEST.SPSS
Kermit-TSO>exit
Command Line Invocation:
Kermit-TSO may also be invoked with command line arguments from TSO.
The arguments are interpreted as a subcommand to be executed by Kermit after
completion of the initialization. For instance:
KERMIT send test.fort
Kermit will exit and return to TSO after completing the specified
subcommand.
CLIST Operation:
Like other TSO programs, Kermit-TSO may be invoked from a CLIST.
Subcommands
can be passed to Kermit using the program input stack and/or command
line arguments. For example, to start up Kermit-TSO and have it act as a
server, include the line:
KERMIT server
To pass more than one subcommand, they must be stacked in the order in
which
they are to be executed. To start up a Kermit-TSO server with a three
character CRC, create and stack a file with the following:
set block 3
server
and then invoke Kermit.
Like many utility programs, Kermit-TSO
uses the
GETLINE/PUTLINE service routines for terminal I/O, and the nominally
interactive subcommands can thus be supplied under program control. Another
way of
setting up multiple subcommands would be to collect the subcommands into
a TAKE
file and then issue the TAKE subcommand via the command line. Of
course,
CLIST's may be executed from Kermit, either directly or from a TAKE
file, and
CLIST's in turn may freely issue Kermit subcommands. The subcommand
KERMIT is
especially useful in this context for distinguishing Kermit subcommands
from
TSO commands.
9.2. Program Operation
Page 217
-----------------------------------------------------------------------------Server mode:
Command execution in server mode is different in several respects from
normal
operation. First of all, some Kermit subcommands are not allowed (see
the list
of subcommands in the Kermit-370 chapter). Moreover, command errors
always
terminate any active TAKE file. Also, commands run in a special
environment
with the User Profile temporarily modified. Another difference is that
Kermit
intercepts terminal I/O as much as possible and transmits the data to the
local
Kermit as text packets. The problem with this redirection is that some
MVS/TSO
commands issue terminal I/O directly, so that some messages never appear
to the
local Kermit (except, perhaps, as bad packets).
9.3. Kermit-TSO Subcommands
Kermit-TSO supports all the subcommands described in the corresponding
section
of the Kermit-370 chapter. In addition, there is the system-specific
subcommand TSO, which is just a synonym for the generic HOST subcommand. TSO
can be
issued as a remote Kermit command when Kermit-TSO is in server mode.
Also, the
END subcommand is available as a synonym for EXIT and QUIT.
The remainder of this section concentrates on the subcommands that have
special
form or meaning for Kermit-TSO. See also the chapter on Kermit-370 for
further
details.
THE SEND SUBCOMMAND
Syntax: SEND filespec [foreign-filespec]
The SEND subcommand causes a file or file group to be sent from TSO to
the Kermit on the other system. DSN prefixing is done on the filespec in the
usual
way (see also the CWD subcommand).
filespec may contain a wildcard "*".
files will
be sent, up to 711 files in all.
If it does, then all matching
The foreign-filespec, if any, is used for the file header of the outgoing
file,
replacing the usual name.type derived from the MVS/TSO filespec.
Normally,
this form of the SEND subcommand is used only for single files
because the
foreign-filespec is used only for the first file of a group (subsequent
files
having default headers).
Although the file transfer cannot be cancelled from the TSO side, KermitTSO is
capable of responding to "cancel file" or "cancel batch" signals from the
local
Kermit; these are typically entered by typing Control-X or Control-Z,
respectively.
9.3. Kermit-TSO Subcommands
Page 218
-----------------------------------------------------------------------------THE RECEIVE SUBCOMMAND
Syntax: RECEIVE [filespec]
The RECEIVE subcommand tells Kermit to receive a file or file group
from the
other system. You should then issue a SEND subcommand to the other
Kermit.
A filespec in the subcommand indicates what name the incoming file
should be
given. Wildcards may not be used. If the filespec is invalid, KermitTSO will
suppress the transfer. If the optional filespec is omitted (and, in any
case,
for all files after the first in a group) Kermit-TSO will use the
name(s)
provided by the other Kermit. If a name is not a legal DSN, Kermit-TSO
will
delete excess characters, change illegal characters to pound signs, and
so on,
to create a legal name.
When the record format is "F", any received record longer than the
logical
record length (LRECL) will be truncated, and shorter records will be
padded.
The padding character is a blank for text files and a null for binary
files.
Received binary (but not V-binary or D-binary) files are treated
as byte
streams and broken up into records all of the logical record length.
See the
SET FILE TYPE, SET FILE LRECL, SET FILE BLKSIZE, and SET FILE RECFM
subcommands.
If an error occurs during the file transfer, as much of the file
as was
received is saved on disk. If the sending of a file is cancelled by
the user
of the foreign system, Kermit-TSO will discard whatever had arrived,
unless APPEND is ON or INCOMPLETE is KEEP.
If the incoming file has the same name as an existing file (either a
data set
or a PDS member), and WARNING is OFF, the original file will be
overwritten.
If WARNING is set ON, however, Kermit-TSO will protect the existing file
in one
of two ways. If the filespec was entered with the subcommand, Kermit
will
prompt the user for permission to overwrite the file. If the
filespec came
from the foreign Kermit, Kermit-TSO will change the incoming name so as
not to
obliterate the pre-existing file. It attempts to find a unique name by
successively modifying the original and checking for the existence of such a
file at
each step. The procedure operates on the second qualifier of the full
DSN (or
the member name in the case of a PDS member) and begins by truncating
it to
seven characters, if necessary, and then appends "0". If a file by
that name
exists, Kermit then replaces the "0" with a "1". It continues in this
manner
up to "9", and if an unused name cannot be found, the transfer fails.
THE SET SUBCOMMAND
Syntax: SET parameter [value]
The SET subcommand establishes or modifies various parameters
controlling file
transfers. The following SET parameters are available in Kermit-TSO,
but not
in Kermit-370 in general:
FILE
BLKSIZE
LRECL
RECFM
SPACE
Block size for incoming file.
Logical Record length for incoming file.
Record format for incoming files.
Allocation unit (in tracks) for incoming files.
9.3. Kermit-TSO Subcommands
Page 219
-----------------------------------------------------------------------------UNIT
Device type for incoming files.
VOLUME
Disk pack for incoming files.
PREFIX
Default disk area.
TIMER
Determine whether Kermit-TSO should time out.
SET FILE BLKSIZE
Syntax: SET FILE BLKSIZE number
This sets the block size for incoming files to a number from 1 to
32760. In
the case of fixed-format files, this number is just an upper bound; the
actual
block size is taken to be the largest multiple of the LRECL which
does not
exceed this limit. The default is 6233.
SET FILE LRECL
Syntax: SET FILE LRECL number
This sets the effective logical record length for incoming files to a
number
from 1 to 32756. This parameter is not used for files of undefined
record format. Moreover, it is not exactly the same as the MVS/TSO LRECL, which is
four
more than the actual maximum data length for varying-length
records. The
default is 80.
SET FILE RECFM
Syntax: SET FILE RECFM option
This sets the record format to use for incoming files.
Valid
options are
"Fixed", "Varying" (the default), and "Undefined". This parameter
is thus
limited to a subset of the range of possibilities for the MVS/TSO RECFM.
In
Kermit-TSO, all incoming files of fixed or varying format are
automatically
blocked according to the current block size. Fixed-format records are
padded
or truncated, as needed, to the current LRECL.
SET FILE SPACE
Syntax: SET FILE SPACE number
This sets the track allocation unit for incoming files to a number
from 1 to
32760. The default is 5. Since data sets are allowed as many as 15
extents,
this default provides for files up to 75 tracks.
SET FILE UNIT
Syntax: SET FILE UNIT type
This sets the device type or group for incoming files. Valid
options are
installation-dependent. The default is SYSDA, which is universally
available,
but not necessarily desirable, since many installations restrict TSO
data sets
to a particular set of disk volumes. In such cases, there is usually
unit
a
9.3. Kermit-TSO Subcommands
Page 220
-----------------------------------------------------------------------------name which refers only to those TSO volumes, and the global
INIT file
'SYS1.KERMINI' should set the file unit parameter to that name.
SET FILE VOLUME
Syntax: SET FILE VOLUME name
This sets the disk volume for incoming
files.
Valid
namess
are
installation-dependent, but are, in any case, no more than six
alphanumeric
characters. The default is blank (none); in that case, the system
chooses one
of the available volumes of the specified UNIT type.
SET PREFIX
Syntax: SET PREFIX [string]
This subcommand is equivalent to the CWD subcommand (q.v.).
SET TIMER
Syntax: SET TIMER ON or OFF
This specifies whether Kermit-TSO is to maintain a timer for each packet
it expects to read. The default is ON. If the timer is enabled, its
duration is
set by the SET SEND TIMEOUT subcommand initially and then set according
to the
request of the other Kermit.
THE CWD SUBCOMMAND
Syntax: CWD [string or PDSname()]
The CWD (Change Working Directory) subcommand establishes a new
default DSN
prefix or turns prefixing off. This facility is similar to, but not
quite the
same as, the prefix defined in the User Profile.
The string, if
specified,
must consist of one or more DSN qualifiers, and the first must already
be an
index in the disk catalog. Subsequent file transfers take place to and
from
the corresponding disk area whenever a fully qualified DSN (one
enclosed in
quotes) is not given. The initial prefix is the user's logon ID,
i.e., the
same as the default prefix in the User Profile. If no prefix is given
in this
subcommand, then prefixing is no longer performed. The user must be
careful to
remember the distinction between the prefix defined for Kermit and
that for
TSO. Pure Kermit subcommands (like SEND and TAKE) always use the
former, but
TSO commands (and the TSO-related subcommand TYPE) use the latter.
An alternative form of the CWD subcommand allows specifying the
full (but
unquoted) name of a PDS followed by paired parentheses. When such a
"working
directory" is in use, a filespec other than a fully qualified DSN is
taken to
be a member name within the PDS. For that reason, this form should be
used
cautiously, since the Kermit-TSO log filespecs (such as KER.LOG and
KER.REPLY)
would be treated the same way. In particular, it is advisable to turn on
debug
mode only when the Kermit prefix is a partially qualified DSN (once
started,
the log continues to the same data set regardless of what happens
to the
9.3. Kermit-TSO Subcommands
Page 221
-----------------------------------------------------------------------------prefix).
THE DIRECTORY SUBCOMMAND
Syntax: DIRECTORY [filespec]
The DIRECTORY subcommand uses the TSO LISTCAT command to display part
of the
data set catalog, i.e., all data sets whose names begin with the
qualifiers in
the Kermit prefix (if any) concatenated with the given filespec (if any).
THE TSO SUBCOMMAND
Syntax: TSO text of command
Although Kermit-TSO does not have a full set of its own subcommands for
managing TSO files, it provides those services through the operating system.
You
can issue any TSO command, e.g., to list, type, rename or delete
files, send
messages, and so on. The TSO subcommand under Kermit is synonymous
with the
HOST subcommand.
9.4. How to build an executable version of Kermit-TSO
Before attempting to build Kermit-TSO, look in the Kermit distribution
under
both IK0KER and IKTKER for an installation document, as well as "beware",
help,
and update files, and read them first. They will probably contain
information
that is more current than what you see here.
Kermit-TSO consists at present of a large assembly (KERMIT.ASM,
containing the
Kermit program) and a small one (DYNALC.ASM, containing a subroutine
for allocating data sets). Although DYNALC is a single file in the Kermit
distribution, the source for Kermit itself is in many pieces, some
generic for
Kermit-370 and some specific to TSO. All the necessary pieces are
sequenced in
columns 73-80 so that the numbers form a strictly increasing sequence
when the
pieces are correctly "pasted" together.
It is important to
preserve the
original sequence numbers so that updates, if any, can be applied
to the
source.
To create a runnable version:
1. Combine the following "ASM" files from the Kermit distribution
into
a single file with RECFM=F(B) and LRECL=80: IK0DOC, IK0MAC,
IKTMAC,
IK0DEF, IK0MAI, IK0CMD, IK0COM, IKTUTL, and IK0PRO.
The
resulting
file is the composite source for Kermit-TSO, called
KERMIT.ASM.
This source must retain the original sequence numbers in
columns
73-80 (in other words, be sure not to resequence the source
accidentally by using the editor!)
2. Copy or rename IKTDYN.ASM from the Kermit distribution
file
called DYNALC.ASM with RECFM=F(B) and LRECL=80.
to
3. Assemble the source file(s).
4. Create
editor.
the
executable load module KERMIT using the linkage
a
9.4. How to build an executable version of Kermit-TSO
Page 222
-----------------------------------------------------------------------------Kermit is designed to run as a command processor, and so it must
be
placed in SYS1.CMDLIB or in a PDS concatenated to SYS1.CMDLIB
(for
example, via the STEPLIB command).
5. If your site's ASCII/EBCDIC translation table for TTY lines does
not
conform to the one listed in the appendix (which in turn conforms
to
the one given in the IBM System/370 Reference Summary), then
enter
the
appropriate
SET
ATOE/ETOA/TATOE/TETOA
subcommands
into
'SYS1.KERMINI'. NOTE: If the ASCII/EBCDIC translation is not
invertible, Kermit will not and cannot work.
In order to verify the operation of a new version of Kermit-TSO, you may
run it
under TEST using the CP parameter.
9.5. What's New
Below is a list of the more important features in Version 4.0 of
Kermit-TSO
added since the release of TSO/3708 in May 1987. Since Version 4.0
is the
first release of Kermit-370 for TSO, some of the "new" features are
actually
new only to the Columbia TSO distribution.
1. Suppression of LINE and CHAR delete functions during protocol mode.
2. Advanced server functions and
another
Kermit running in server mode.
subcommands for talking to
3. Long packet protocol.
4. TYPE, ECHO, XTYPE, and XECHO subcommands
being
Series/1 analogs of the first two.)
(the
last
two
5. REMOTE KERMIT commands honored by TSO server, including SET,
SHOW,
TAKE, TDUMP, STATUS, HOST, TSO, CWD, DIR, and TYPE.
6. TEST mode for debugging.
7. Multi-column, two-level, selective SHOW display.
8. Send and acknowledge attribute packets.
9. Optionally append to, rather than replace, old data sets with
duplicate names.
10. Automatic detection of terminal controller type (TTY or SERIES1).
11. SYNADAF message in cases of disk I/O error.
9.6. What's Missing
Page 223
-----------------------------------------------------------------------------9.6. What's Missing
Work on
added
include:
Kermit-TSO will continue.
Features that need to be improved or
- Detect file properties from Attribute packets and allow
overriding
current parameter settings. Also implement file archiving.
- Add a SET REPEAT subcommand.
- Finish SET LINE, so that Kermit-TSO can be used as a local
Kermit,
connecting to a remote host over an alternate communication
port.
Add a CONNECT subcommand.
- Compute file size for outgoing A-packets and implement the SPACE
subcommand.
- Reject files known (via
available
storage.
A-packets)
to
be
too
big
- Intercept all terminal output during protocol mode.
- Allow wildcard notation for PDS members.
for
10. VAX/VMS KERMIT
Page 224
-----------------------------------------------------------------------------10. VAX/VMS KERMIT
Authors:
Robert C. McQueen, Nick Bush, Stevens Institute of Technology
Language:
BLISS-32
Documentation:
R. McQueen, N. Bush, C. Gianone
Version:
3.3.111
Date:
April 2, 1987
VAX/VMS Kermit-32 Capabilities At a Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Y interruption:
Filename collision avoidance:
Timeouts:
8th-bit prefixing:
Repeat character compression:
Alternate block check types:
Communication settings:
Transmit BREAK:
IBM mainframe communication:
Transaction logging:
Session logging (raw capture):
Debug logging:
Raw transmit:
Login scripts:
Act as server:
Talk to server:
Advanced commands for servers:
Local file management:
Command/init files:
Long packets:
Sliding windows:
Attribute packets:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
No
No
No
Kermit-32 is a program that implements the Kermit file transfer
protocol for
the Digital Equipment Corporation VAX series computers under the
VAX/VMS
operating system. It is written in BLISS-32 and MACRO-32, with sources
for all
BLISS modules also available as MACRO-32 sources. Kermit-32 should run
on any
VAX/VMS system from version 4.0 on (Version 3.1 of Kermit-32 is the
version that runs under pre-4.0 releases of VMS).
last
The first section of this chapter will describe the things you need
to know
about the VAX/VMS file system and how Kermit-32 uses it.
The second
section
describes the special features of Kermit-32. The final section contains
information of interest to those who need to install Kermit-32 on a system.
10.1. The VAX/VMS File System
Page 225
-----------------------------------------------------------------------------10.1. The VAX/VMS File System
The two main items of interest of the VAX/VMS file system (for the Kermit
user)
are the format of file specifications and the types of files and file
data.
VAX/VMS File Specifications
VAX/VMS file specifications are of the form
NODE::DEVICE:[DIRECTORY]NAME.TYPE;VERSION
Under version 3.x of VMS, NAME may be up to 9 characters, TYPE may be
up to 3
characters and each item in DIRECTORY may be up to 9 character long.
Only alphanumeric characters may be used in DIRECTORY, NAME and TYPE.
Under version 4.0 (and later) of VMS, NAME, TYPE and each item in
DIRECTORY may
be up to 39 characters long, and may contain alphanumeric characters
plus underscore.
VERSION is a decimal number indicating the version of the file
(generation).
DEVICE may be either a physical or logical device name. If it is a
logical
name, it may be up to 63 characters long and may contain alphanumeric
characters plus dollar signs and underscores. NODE may be either a logical
name
which translates to a DECnet node name or a physical DECnet node name.
In either case, access information can be included (see the DECnet-VMS User's
guide
for more information). The node name is not normally present, since most
files
are accessed on the same node where the user's job is running.
The
version
number is not normally given (in fact, should not normally be given).
When
device and/or directory are not supplied, they default to the user's
current
default device and directory.
Therefore, NAME.TYPE is normally all
that is
needed to specify a file on the user's default device and directory.
This is
also all the Kermit-32 will normally send as the name of a file being
transferred.
The node field specifies the name (and access information) for the DECnet
node
where the file is located. Kermit-32 does not transmit the node field
to the
target system, but will attempt to honor a node field in an incoming file
name.
The device field specifies a physical or "logical" device upon which the
file
is resident.
The directory field indicates the area on the device,
for instance the area belonging to the owner of the file. Kermit-32 does not
normally transmit the device or directory fields to the target system,
but will
attempt to honor device or directory fields that may appear in incoming
file
names. It will not create new directories, however, so any directory
must already exist.
The name is the primary identifier for the file. The type, also
called the
"extension", is an indicator which, by convention, tells what kind of
file we
have. For instance FOO.FOR is the source of a Fortran program named
FOO;
FOO.OBJ might be the relocatable object module produced by compiling
FOO.FOR;
FOO.EXE could an executable program produced by LINKing FOO.REL, and so
forth.
VAX/VMS allows a group of files to be specified in a single file
specification
by including the special "wildcard" characters, "*" and "%". A "*"
matches any
string of characters, including no characters at all; a "%" matches any
single
10.1. The VAX/VMS File System
Page 226
-----------------------------------------------------------------------------character. Here are some examples:
*.FOR
direc-
All
files of type FOR (all Fortran source files) in the default
tory.
FOO.*
Files of all types with name FOO.
F*.*
All files whose names start with F.
F*X*.*
All files whose names start with F and contain at least one X.
%.*
All files whose names are exactly one character long.
*.%%*
All files whose types are at least two characters long.
Wildcard notation is used on many computer systems in similar ways, and
it is
the mechanism most commonly used to instruct Kermit to send a group of
files.
TEXT FILES AND BINARY FILES
The file system used by VAX/VMS provides for a large number of attributes
to be
associated with each file. These attributes provide some indication of
whether
the file is a text file, or is some other type of non-text data. The two
major
attributes that affect Pro/Kermit are the record type and record
attribute.
The record type describes how logical records are stored in the file.
Records
may be of some fixed length (specified by another attribute), or
variable
length (specified within each record), or stream (implying no real
record
divisions). The record attributes describe how the breaks between
records are
to be treated.
For example, a record attribute of implied carriage
return
means that any program reading the file with intentions of printing
it out
should add a carriage return/line feed sequence between each record.
Other attributes include FORTRAN carriage control and print file format.
The "standard" method of storing text in a file under VAX/VMS is to
store one
line of text per record (variable length records), with a carriage
return/line
feed sequence implied by the end of the record (implied carriage return).
This
is the method Kermit-32 uses to store files it receives when using
FILE TYPE
TEXT. Note that there are other formats which are used to store text
under
VAX/VMS, however, the one used be Kermit-32 is the only one which is
handled
correctly by all known utility programs under VAX/VMS.
Also, most
programs
which work with text files (the editor EDT, for example) place some
limit on
the length of the lines which can be handled.
Typically this is
255.
Kermit-32 can write files with up to 4095 characters on a line, which
means a
text file from another system may be transferred and stored
correctly by
Kermit-32, but may still be unusable by certain VAX/VMS programs.
There is no standard format for storing binary files. Basically, any
record
format with no record attributes are used for binary files.
Since
programs
which work with binary files under VAX/VMS expect to see some
particular format, more information is needed for transfer of binary files than for
transfer
of text files. The current version of Kermit-32 is not capable of
transferring
all types of binary files which were created on a VAX/VMS system to
another
system and retrieving them intact, nor is it capable of transferring
all of
types binary files created on a VAX/VMS system to another VAX/VMS,
P/OS, or
RSX-11M/M+ system intact.
However, certain formats of binary files
can be
10.1. The VAX/VMS File System
Page 227
-----------------------------------------------------------------------------transferred, and binary files from some other systems may be transferred
to a
VAX and recovered intact.
Binary files which are created on a VAX (or other Files-11 systems) with
fixed
512 byte records (a fairly common format) can be transferred using
Kermit-32.
The only required action is to set the file type to "fixed" in the
receiving
Kermit-32.
Using two programs supplied with Kermit-32, it is possible to transfer
almost
any type of sequential file between VAXen, or between a VAX and a
P/OS or
RSX-11M/M+ system. These two programs (VMSHEX and VMSDEH) will convert
the binary files to text (using a variation on Intel hex format). The
resulting text
file can be transferred like any other, and finally "dehexified"
reproducing
the original file, with the major attributes intact. Unfortunately,
the text
files tend to be about twice the size of the original binary files,
so the
transfers take a bit longer than regular text files. On the plus
side, the
text versions of the files can be transferred to any system with a
Kermit and
still retrieved intact.
They can also be transferred over 7-bit data
paths
without any problems. The bootstrap procedure (described below), makes
use of
hexified versions of the binary file which makes up Kermit-32.
USING THE VAX TO ARCHIVE MICROCOMPUTER FILES
You can use Kermit to send textual files from a microcomputer or any 8bit system to a VAX/VMS system with no special provisions, since Kermit-32
stores incoming files as text files (variable length records with implied
carriage
returns) unless it is explicitly told otherwise.
But Kermit-32
has no
automatic way of distinguishing an incoming binary file from an
incoming text
file. It turns out that because of the method used by Kermit-32 for
storing
text files, a binary file can be stored like a text file so long as it
does not
contain a string of more than 4095 characters between carriage return,
line
feed sequences, and ends with a carriage return line feed. Since most
binary
files do not have these characteristics, you must inform Kermit-32 that a
file
it is about to receive is to be stored as a binary file. This is done
using
the SET FILE TYPE BINARY command. This instructs Kermit-32 to store the
data
it receives in the file without checking for carriage return, line
feed sequences. The file it creates will be variable record length, with no
record
attributes. Each record will contain 510 bytes of data, except the last,
which
will contain whatever amount is left before the end of the file.
This
allows
Kermit-32 to correctly return exactly the data it was sent when the
file is
returned to the original system.
Note that because of the need to use a different file type for binary
files, it
is not possible to use a "wildcard send" command to send a mixture of
text and
binary files to a VAX system unless the text files are not intended for
use on
the VAX; rather, you must send all text files with Kermit-32's file type
set to
text, and all binary files with the file type set to binary.
Once you get the foreign file into the VAX system, stored with the
correct file
type, you need take no special measures to send it back to its
system of
origin. This is because Kermit-32 honors the record type and attributes
of the
file as it is stored on the VAX. In fact, SET FILE TYPE BINARY or
TEXT only
affects how Kermit-32 receives files - it does not affect how Kermit-32
transmits files.
10.1. The VAX/VMS File System
Page 228
-----------------------------------------------------------------------------FILES KERMIT-32 CANNOT HANDLE
The Kermit protocol can only accommodate transfer of sequential files,
files
which are a linear sequence of bytes (or words).
Some files on a VAX/VMS system are not sequential, and cannot be
successfully
sent or received by Kermit-32. These are mainly indexed data files,
but can
also include other files which require more than just the data in the
file to
be completely reconstructed. External control information and file
attributes
are not transmitted. However, any VMS file can be transferred with
Kermit if
it has been "hexified" with VMSHEX.
10.2. Program Operation
Kermit-32's prompt is normally "Kermit-32>". If a foreign command is
defined
to run Kermit-32 (eg. KERMIT := $KERMIT), Kermit-32 will accept a single
command on the command line, like this:
$
$ Kermit send foo.bar
the file is sent
$
$ mcr kermit send foo.bar
the file is sent
$
You can run the program interactively to issue several commands, like
this:
$
$ run sys$system:kermit
VMS Kermit-32 version 3.3.111
Default terminal for transfers is: _TTA1:
Kermit-32>send foo.*
files are sent
Kermit-32>statistics
performance statistics are printed
Kermit-32>receive
files are received
Kermit-32>exit
$
Upon initial startup, Kermit-32 executes commands from its initialization
file,
VMSKERMIT.INI, if any, in your directory.
10.2. Program Operation
Page 229
-----------------------------------------------------------------------------Command keywords may be abbreviated to their shortest prefix that sets
them
apart from any other keyword valid in that field.
Kermit-32 provides most of the commands possible for an "ideal" Kermit
program,
as described in the main part of the Kermit User Guide. The following
sections
will concentrate on system-dependent aspects of Kermit-32.
10.3. Conditioning Your Job for Kermit
Kermit-32 does as much as it can to condition your line for file
transfer. It
saves all your terminal settings, and restores them after use. However,
there
are some sources of interference over which Kermit-32 has no control.
In particular, messages issued by other processes in your job could become
mingled
with Kermit packets and slow things down or stop them entirely.
This is a
fairly rare occurence and can be easily avoided by not running any
other
process which wishes to perform I/O to your terminal while you are
running
Kermit-32.
Normally, when Kermit-32 is run, it assumes you wish to use it in remote
mode
and perform file transfers over the terminal line which controls
your job.
This can be overridden, however, by defining a logical name which
equates to
some other terminal line in the system. The default terminal line to
be used
for file transfers is determined by the first of the following logical
names
which translates to a terminal line which is available for use by your
process:
KER$COMM, SYS$INPUT, SYS$OUTPUT, and SYS$COMMAND. If none of these
logical
names translate to an available terminal line, there is no default
terminal
line and a SET LINE command must be used before any transfer command is
performed. Note that this is the typical case in a batch job.
Kermit-32 will also default the type of parity to be used on the
communication
line to that which is set on its default terminal line when it is
started.
This means that if all communication at a site is normally done
using even
parity (for example), Kermit-32 will also use even parity.
There are two things to keep in mind when using Kermit-32 in local mode
(where
the file transfers are done over a different terminal line from where
commands
are typed):
- Under VAX/VMS, every terminal line has an owner UIC and
protection
code associated with it. This UIC and protection is used to
determine who can allocate (and therefore use) the terminal line when
they
are not logged in on that line. Therefore, in order for Kermit-32
to
be able to perform file transfers over a terminal line other than
the
one on which you are logged in, the field of the protection code
for
the terminal which applies to your job (based on your UIC and
the
owner UIC of the terminal) must allow your job access to the
terminal. You may need to request your system manager to change
the
protection for a terminal line to allow you to use it with Kermit32
in local mode. See the section on Installation for details.
- Terminal lines which have been declared as modem control lines
will
have the phone "hung up" whenever the terminal line becomes
free
(deallocated). This means that if you do not use the DCL
ALLOCATE
command to allocate the terminal line to your job before
entering
Kermit-32, exiting Kermit-32 will cause the terminal line to
"hang
10.3. Conditioning Your Job for Kermit
Page 230
-----------------------------------------------------------------------------up" the modem.
If you do wish to get to DCL after having
used
Kermit-32 to connect a modem control line which you do not have
allocated, you can use the PUSH command to spawn a subprocess
running
DCL.
10.4. Kermit-32 Commands
This section describes the Kermit-32 commands -- in detail where they
differ
from the "ideal" Kermit, briefly where they coincide. Kermit-32 has
the following commands:
@
BYE
CONNECT
EXIT
FINISH
GET
HELP
LOCAL
LOG
LOGOUT
PUSH
QUIT
RECEIVE
REMOTE
SEND
SERVER
SET
SHOW
STATUS
TRANSMIT
TAKE
synonym for "take".
to remote server.
as terminal to remote system.
from Kermit-32.
Shut down remote server.
remote files from server.
with Kermit-32.
prefix for local file management commands.
remote terminal session.
remote server.
to DCL command level.
from Kermit-32.
files from remote Kermit.
prefix for remote file management commands.
files to remote Kermit.
mode of remote operation.
various parameters.
various parameters.
about most recent file transfer.
Transmit (upload) a file with no error checking.
Kermit-32 commands from a file.
10.4.1. Commands for File Transfer
Kermit-32 provides the standard SEND, RECEIVE, and GET commands
transferring files using the Kermit protocol.
THE SEND COMMAND
for
Syntax:
Sending a file or files:
SEND filespec
The SEND command causes a file or file group to be sent from the VAX
to the
other system. If filespec contains wildcard characters then all matching
files
will be sent, in alphabetical order (according to the ASCII collating
sequence)
by name. If filespec does not contain any wildcard characters, then the
single
file specified by filespec will be sent.
10.4.1. Commands for File Transfer
Page 231
-----------------------------------------------------------------------------SEND Command General Operation:
Files will be sent with at least their VAX/VMS file name and type (for
instance
FOO.BAR). If a SET FILE NAMING FULL command has been given, Kermit-32
will
also send the device name, directory name and version number (for
instance
USER$DISK:[JOE]FOO.BAR;25). If a SET FILE NAMING UNTRANSLATED command
has been
given, Kermit-32 will send the file name, type and version number (for
instance
FOO.BAR;25). If a SET FILE NAMING NORMAL_FORM command has been given
(this is
the initial default), Kermit-32 will only send the file name and type.
Each file will be sent according to the record type and attributes
recorded in
its file descriptor. Kermit-32 attempts to translate all formats of text
file
(including those with FORTRAN or print carriage control) to a format
usable on
any system. Note that there is no need to set the FILE TYPE
parameter for
sending files, since Kermit-32 always uses the information from
the file
descriptor to determine how to send the file.
If communication line parity is being used (see SET PARITY), Kermit-32
will request that the other Kermit accept a special kind of prefix notation for
binary
files. This is an advanced feature, and not all Kermits have it; if the
other
Kermit does not agree to use this feature, binary files cannot be
sent correctly. This includes executable programs (like .EXE files, CP/M .COM
files),
relocatable object modules (.OBJ files), as well as any text file
containing
characters with the eighth bit on.
Kermit-32 will also ask the other Kermit whether it can handle a special
prefix
encoding for repeated characters. If it can, then files with long
strings of
repeated characters will be transmitted very efficiently.
Columnar
data,
highly indented
of this
technique.
text,
and
binary
files are the major beneficiaries
If you're running Kermit-32 locally, for instance dialing out from a
VAX to
another system using an autodialer, you should have already run Kermit
on the
remote system and issued either a RECEIVE or a SERVER command. Once you
give
Kermit-32 the SEND command, the name of each file will be displayed
on your
screen as the transfer begins. If the file is successfully
transferred, you
will see "[OK]", otherwise there will be an error message.
During local operation, you can type Control-A at any point during the
transfer
to get a brief status report.
You may also type Control-X or Control-Z
to interrupt the current file or file group.
THE RECEIVE COMMAND
Syntax:
RECEIVE [filespec]
The RECEIVE command tells Kermit-32 to receive a file or file group
from the
other system. If only one file is being received, you may include the
optional
filespec as the name to store the incoming file under; otherwise, the
name is
taken from the incoming file header. If the name in the header is not a
legal
VAX/VMS file name, Kermit-32 will normally replace the illegal
characters with
"X" (see SET FILE NAMING NORMAL_FORM).
If an incoming file has the same name as an existing file, Kermit-32
just
creates a new version of the same name and type, for instance
FOO.BAR;3,
10.4.1. Commands for File Transfer
Page 232
-----------------------------------------------------------------------------FOO.BAR;4.
Incoming files will all be stored with the prevailing file type,
ASCII by
default, which is appropriate for text files.
If you are asking
Kermit-32 to
receive binary files from a microcomputer or other 8-bit system, you must
first
type SET FILE TYPE BINARY. Otherwise, an error may occur when
receiving the
file, or a carriage return, line feed will be added to the end of the
file and
the file will be useless when sent back to the system of origin.
If parity is being used on the communications line, then 8th-bit
prefixing will
be requested. If the other side cannot do this, binary files cannot be
transferred correctly.
If an incoming file does not arrive in its entirety, Kermit-32 will
normally
discard it; it will not appear in your directory. You may change this
behavior
by using the command SET INCOMPLETE KEEP, which will cause as much of
the file
as arrived to be saved in your directory.
If you are running Kermit-32 locally, you should already have issued a
SEND
1
command
to the remote Kermit, and then escaped back to Kermit-32. As
files
arrive, their names will be displayed on your screen. You can type
Control-A
during the transfer for a brief status report.
If a file arrives that you don't really want, you can attempt to cancel
it by
typing Control-X; this sends a cancellation request to the remote Kermit.
If
the remote Kermit understands this request (not all implementations of
Kermit
support this feature), it will comply; otherwise it will continue to
send.
If
a file group is being sent, you can request the entire group be
cancelled by
typing Control-Z.
THE GET COMMAND
Syntax: GET [remote-filespec]
The GET command requests a remote Kermit server to send the file or file
group
specified by remote-filespec. This command can be used only when
Kermit-32 is
local, with a Kermit server on the other end of the line specified by SET
LINE.
This means that you must have CONNECTed to the other system, logged
in, run
Kermit there, issued the SERVER command, and escaped back to the VAX.
The remote filespec is any string that can be a legal file
specification for
the remote system; it is not parsed or validated locally. Any leading
spaces
before the remote filespec are stripped, and lower case characters are
raised
to upper case.
As files arrive, their names will be displayed on your screen. As
in the
RECEIVE command, you may type Control-A to get a brief status report, ^X
to request that the current incoming file be cancelled, ^Z to request that
the entire incoming batch be cancelled.
_______________
1
not SERVER -- use the GET command to receive files from a Kermit
server.
10.4.1. Commands for File Transfer
Page 233
-----------------------------------------------------------------------------If the remote Kermit is not capable of server functions, then you will
probably
get an error message back from it like "Illegal packet type". In this
case,
you must connect to the other Kermit, give a SEND command, escape
back, and
give a RECEIVE command.
THE STATUS COMMAND
Give statistics about the most recent file transfer.
THE PUSH COMMAND
Syntax: TAKE
Invoke an inferior DCL command processor, to which you may issue any
DCL commands. Type LOGOUT to return to Kermit-32.
THE TAKE COMMAND
Syntax: TAKE file-spec [ /DISPLAY ]
Where 'file-spec' is any normal VAX/VMS file specification. If file-spec
does
not specify a file-type Kermit-32 will supply a default of .COM. The
/DISPLAY
option causes the commands read from the file to be displayed on the
user's
terminal.
The TAKE command tells Kermit-32 to execute commands from the specified
file.
You may also use the VAX/VMS notation "@" instead of Take to specify a
command
file.
The file VMSKERMIT.INI is automatically taken upon program startup.
10.4.2. Server Operation
THE SERVER COMMAND
The SERVER command puts a remote Kermit-32 in "server mode", so
that it
receives all further commands in packets from the local Kermit. The
Kermit-32
server is capable (as of this writing) of executing the following remote
server
commands: SEND, GET, FINISH, BYE, REMOTE DIRECTORY, REMOTE CWD, REMOTE
SPACE,
REMOTE DELETE, REMOTE TYPE, REMOTE HELP, REMOTE COPY, REMOTE RENAME,
REMOTE
SEND_MESSAGE, REMOTE WHO, and REMOTE HOST.
Any nonstandard parameters should be selected with SET commands before
putting
Kermit-32 into server mode, in particular the file type. The Kermit-32
server
can send all files in the correct manner automatically. However, if you
need
to ask Kermit-32 to receive binary files you must issue the SET FILE
TYPE BINARY command before putting it into server mode, and then you must only
send
binary files.
You cannot send a mixture of text files and 8-bit binary
files
to a Kermit-32 server unless the files are not for use on the VAX.
10.4.2. Server Operation
Page 234
-----------------------------------------------------------------------------COMMANDS FOR SERVERS
When running in local mode, Kermit-32 allows you to give a wide range of
commands to a remote Kermit server, with no guarantee the that the remote
server
can process them, since they are all optional features of the protocol.
Commands for servers include the standard SEND, GET, BYE, LOGOUT and
FINISH commands, as well as the REMOTE command.
Syntax: REMOTE command
Send the specified command to the remote server. If the server does not
understand the command (all of these commands are optional features of the
Kermit
protocol), it will reply with a message like "Unknown Kermit server
command".
If does understand, it will send the results back, and they will be
displayed
on the screen. The REMOTE commands are:
COPY filespec
specified
Copy file.
file.
The server is asked to make a copy of the
Kermit-32
will
prompt
for
the
new
file
name on a
separate line.
Both filespecs must be in
the
correct
format
for
the
remote
system.
Kermit-32 does not parse or
validate
the file specifications.
Any leading spaces will
be
stripped
and
lower
case characters converted to upper case.
Note that
this command simply provides for
within
copying
a
file
the
server's system - it does not cause a file to be
transferred.
CWD [directory] Change Working Directory.
If no directory name is
provided,
the server will change to the default or home
directory.
Otherwise, you will be prompted for a password, and the
server
will attempt to change to the specified directory.
The
password
is
entered
on a separate line, and does not
echo as
you type it.
If access is not granted, the server will
provide
a
message to that effect.
Note that while not all
server Kermits require (or accept)
a
password
to
change
the
working
directory,
Kermit-32
will always ask for one when a
directory
name is provided.
DELETE filespec Delete the specified file or files. The names
files
that are deleted will appear on your screen.
of
the
DIRECTORY [filespec]
The names of the files that match the given file
specification
will be displayed on your screen, perhaps along with
size and
date information for each file. If no file
specification is
given, all files from the current directory will be
listed.
DISK_USAGE [directory]
Display information about disk usage in the given
directory (or
by the given user). If no directory is provided, disk
usage
information is provided for the current working
directory (or
user). This is the same as the REMOTE SPACE command.
EXIT
terminal to
Requests
the
server to leave Kermit, allowing the
be used for normal commands.
FINISH
allowing
Requests the server to return to the
Kermit
prompt,
statistics to be obtained about the transfers.
10.4.2. Server Operation
Page 235
-----------------------------------------------------------------------------HELP [topic]
Provide information about the given topic. If no
topic is
given, provide a list of the functions that are available
from
the server. Some servers may ignore the topic and
always display the same information.
HOST [command]
processor,
Pass the given command to the server's host command
and display the resulting output on your screen.
LOGIN user-id
indicate what
Supply
information
to
the
server
Kermit
to
user-id, account and password are to be used.
The server
Kermit may use this to validate the user's access to the
system as
well as for billing purposes. It may also use this
information
to provide the user with access to files on its system.
LOGOUT
job (or
Request
the
process).
server
to
exit
Kermit
and
logout its
This command is identical to the LOGOUT
command.
RENAME filespec Change the name on the specified file (or files).
Kermit-32
will prompt for the new file specification on the next
line.
Both file specifications must be valid for the server's
system.
SEND_MESSAGE destination-address
Request the server to send a single line message
to the
specified destination address (which might be a user-id,
terminal designator, or some other item, depending upon the
server
Kermit). Kermit-32 will prompt for the single line
message on
the next line.
SPACE [directory]
Display information about disk usage in the given
directory (or
by
the
given
user).
If no directory is provided, disk
usage
information is provided for the current working
directory
(or
user).
This is the same as the REMOTE DISK_USAGE
command.
STATUS
Display information about the status of the server.
TYPE filespec
screen.
Display the contents of the specified file on your
WHO [user-id]
user-id is
Display
information
about
the
given user.
given, display information about the
If no
currently
active
users.
Kermit-32
will
prompt
for
options for selecting what
information to display and/or formatting parameters.
format
The
of
both
the user-id and the options are dependent upon the
server
Kermit.
10.4.3. Commands for Local File Management
Syntax: LOCAL [command]
Execute the specified command on the local system -- on the VAX/VMS
system
where Kermit-32 is running. These commands provide some local file
management
capability without having to leave the Kermit-32 program. These
commands are
very similar to the REMOTE commands in function and syntax. They are
all executed locally, and are available when Kermit-32 is either local or
remote.
The arguments to these commands are the same as the arguments expected
from the
10.4.3. Commands for Local File Management
Page 236
-----------------------------------------------------------------------------user Kermit when Kermit-32 is processing a command in server mode.
COPY filespec
will
Make a copy of the given
file
(or
files).
prompt for the new file specification.
Kermit-32
The command is
actually
performed by using the
DCL
COPY
command
(COPY/LOG
old-file
new-file), and any options which are valid on the DCL
COPY command may be included.
CWD [directory] Change working directory, or, in VAX/VMS terminology,
change
the default device/directory. This command takes the
same arguments as the DCL SET DEFAULT command (i.e., a
device and
directory, only a directory, or only a device). If no
argument
is given, the default device and directory are reset to
that in
effect when Kermit-32 was run.
The new default
device and
directory will be typed out.
DELETE filespec Delete the specified file or files. This command is
performed
by using the DCL DELETE command (DELETE/LOG filespec).
Therefore, any options which are valid on the DCL DELETE
command may
be included.
DIRECTORY [filespec]
Provide a directory listing of the specified files. This
command is performed by using the DCL DIRECTORY command
(DIRECTORY
filespec), so any options valid for the DCL DIRECTORY
command
may be included.
DISK_USAGE [uic]
Display disk usage information for the given UIC.
UIC is
given,
process UIC.
display
disk
usage
information
for the
If no
This command is performed by using the DCL SHOW
QUOTA
command
(SHOW QUOTA or SHOW QUOTA/USER=uic).
HELP
which
Display
the
help message describing the server commands
are available.
HOST DCL command
Perform
the given DCL command.
The command should not
perform
any action which will require more input.
Any output
resulting
from the command will be typed on the terminal.
RENAME filespec Change the name of the specified file. Kermit-32 will
prompt
for the new name on the next line. This command is
performed
by using the DCL RENAME command (RENAME/LOG old-file newfile),
so any options which are valid on the DCL RENAME command
may be
included.
SEND_MESSAGE terminal-name
Send a single line message to the given terminal.
Kermit-32
will prompt for the message on the next line. Since
this command is performed using the DCL REPLY command
REPLY/TERMINAL=terminal-name "message"
OPER privileges are needed to perform it.
10.4.3. Commands for Local File Management
Page 237
-----------------------------------------------------------------------------TYPE filespec
Display the contents of the specified file or files at
your
terminal.
Each file will be preceded by its name in
angle
brackets.
10.4.4. The CONNECT Command
Syntax: CONNECT [terminal-name]
Establish a terminal connection to the system connected to the terminal
line
specified here or in the most recent SET LINE command, using full duplex
echoing and no parity unless otherwise specified in previous SET commands.
Get
back to Kermit-32 by typing the escape character followed by the letter
C. The
escape character is Control-Close-Square-Bracket (^]) by default.
When you
type the escape character, several single-character commands are
possible:
C
Close the connection and return to Kermit-32.
Q
If a session log is active, temporarily Quit logging.
R
Resume logging to the session log.
S
Show status of the connection.
0
Send a null character.
?
List all the possible single-character arguments.
^] (or whatever you have set the escape character to be):
Typing the escape character twice sends one copy of it to
connected
host.
the
You can use the SET ESCAPE command to define a different escape
character, and
SET PARITY, and SET LOCAL_ECHO to change those communication-lineoriented
parameters. Type the SHOW LINE command for information about your
current communication settings.
Kermit-32 does not have any special autodialer interface.
that the
connection has already been made and the line assigned.
10.4.5. The SET and SHOW Commands
It assumes
THE SET COMMAND
Syntax: SET parameter [option [value]]
Establish or modify various parameters for file transfer or terminal
connection. You can examine their values with the SHOW command.
The
following
parameters may be SET:
BLOCK_CHECK
DEBUGGING
DELAY
ESCAPE
FILE
HANDSHAKE
handshake
IBM_MODE
INCOMPLETE_FILE
LINE
LOCAL_ECHO
Packet transmission error detection method
Record or display state transitions or packets
How long to wait before starting to send
Character for terminal connection
For setting file parameters like file type
For establishing half duplex line turnaround
For communicating with an IBM mainframe
What to do with an incomplete file
Terminal line to use for file transfer or CONNECT
For terminal connection, ON or OFF
10.4.5. The SET and SHOW Commands
Page 238
-----------------------------------------------------------------------------MESSAGE The type of typeout to be done during transfers
PARITY Character parity to use
PROMPT Change the program's command prompt
RECEIVE Various parameters for receiving files
REPEAT_QUOTE Character to use for repeat compression
RETRY How many times to retry a packet before giving up
SEND Various parameters for sending files
TRANSMIT Control TRANSMIT command echo and delay
Those SET commands
described in
detail.
which differ from the "ideal" Kermit are now
SET DEBUGGING
Syntax: SET DEBUGGING options
Record the packet traffic, either on your terminal or in a file. Some
reasons
for doing this would be to debug a version of Kermit that you are
working on,
to record a transaction in which an error occurred for evidence when
reporting
bugs, or simply to vary the display you get when running Kermit-32 in
local
mode. Options are:
ON
Display each incoming and outgoing packet (lengthy).
OFF
the nor-
Don't display or record debugging information (this is
mal mode).
If debugging was in effect, turn it off.
The debugging information is recorded in the file specified by the most
recent
LOG DEBUGGING command.
SET ESCAPE
SET ESCAPE octal-number
Specify the control character you want to use to "escape" from remote
connections back to Kermit-32. The default is 35 (Control-]). The number is
the octal value of the ASCII control character, 1 to 37 (or 177), for instance
2 is
Control-B. After you type the escape character, you must follow it by a
one of
the single-character "arguments" described under the CONNECT command,
above.
SET FILE
Syntax: SET FILE parameter keyword
Establish file-related parameters:
TYPE keyword
Type of file for VAX/VMS file output.
BINARY,
or FIXED.
ASCII
Store the file as a standard
The choices are ASCII,
VAX/VMS
text
file.
Any
file
received
is
stored
as
variable length records with
carriage
return, line feed sequences implied between records.
This
is
10.4.5. The SET and SHOW Commands
Page 239
-----------------------------------------------------------------------------the format preferred by most utility programs under
VAX/VMS.
An error will occur if any line is more than 4096
characters
long.
Note that lines are only terminated by carriage
return,
line feed sequences. A carriage return that is not
followed by
a line feed or a line feed that is not preceded by a
carriage
return is not considered the end of a line, and is
included
within the body of a record.
BINARY
Store
the
file as a binary file.
Any file received is
stored
as
variable
length
records
with
no
record
attributes.
Kermit-32
actually
will write 510 bytes in each record
the last.
This makes each record take up one disk
except
block
(510
data
bytes
plus two bytes of record length).
The last
record
is written containing only as much data is left to the
end
of
the
file.
Any
file
which is just a stream of bytes
can be
stored as a BINARY file, and recovered intact later.
This
is
the preferred file type for use in archiving files.
FIXED
Store
the
file
as
a
fixed
length
binary
file.
Any file
received is stored as fixed length 512
with
byte
records
no
record
attributes.
This is the format used for binary
files
such as VAX/VMS "EXE" files and RSX-11M/M+ "TSK" files.
Since
even
the
last
record
of
the file is written with 512
bytes
(even if it is not filled), this format
does
not
necessarily
maintain the correct length of a file.
It should
normally only
be used for files which are coming from a VAX/VMS system
which
are currently stored in fixed 512 byte records.
NAMING keyword
Determine the form of names to be sent with outgoing files and
determine the translation performed on incoming file names. The
choices are
FULL, NORMAL_FORM and UNTRANSLATED.
FULL
Kermit-32 will send full file names (including
device,
directory, file name, file type and version number).
When
receiving
a file, Kermit-32 will perform no translation of the file
name
(which must therefore be a legal VAX/VMS file
specification).
NORMAL_FORM
Kermit-32 will send only the file
name
and
file
type.
When
receiving a file, Kermit-32 will convert the file
specification
received to contain only uppercase letters, digits, and
at most
one
period.
Any other characters will be translated
to "X".
There will be at most 9 characters before the period (if
any),
and at most 3 characters afterwards.
This forces the
file name
to be a valid VAX/VMS file specification.
Note
that
standard
VAX/VMS
file
names
and
types
are
already normal
form, and
therefore do not need translation.
This is the default.
UNTRANSLATED
Kermit-32 will send only the file name and file
type. When
receiving a file, Kermit-32 will not perform any
conversions on
the file specification, which therefore must be a legal
VAX/VMS
file specification.
10.4.5. The SET and SHOW Commands
Page 240
-----------------------------------------------------------------------------SET HANDSHAKE
Syntax: SET HANDSHAKE o
Sets the half duplex line turnaround handshake character to the ASCII
character
whose octal value is o. Normally required for communication with half
duplex
systems like IBM mainframes.
SET IBM_MODE
Syntax: SET IBM_MODE ON or OFF
When IBM_MODE is set to ON, Kermit-32 will override the parity and local
echo
settings and use odd parity, local echo on, and also enable a handshake
character of XON (control-Q, ASCII 021 octal). This feature allows Kermit-32
to talk
with certain systems (notably some IBM mainframes), which require waiting
for a
XON before sending data.
The various features selected by this command can be overridden
subsequently by
SET PARITY, SET LOCAL_ECHO, and SET HANDSHAKE commands.
SET LINE
Syntax: SET LINE [terminal-name]
Specify
the
terminal name to use for file transfer or
CONNECT; the
terminal-name can be up to 16 characters long. If you issue this command
using
other than your job's controlling terminal, you will be running
Kermit-32
locally, and you must log in to the remote system and run Kermit on that
side
in order to transfer a file. If you don't issue this command, Kermit-32
determines whether it is to run locally or remotely based on the default
terminal
line found when Kermit-32 is started. Kermit-32 uses a list of logical
names
to determine which terminal should be the default terminal line. The
first of
these names which translates to a terminal which is available (i.e.,
not allocated by some other process) is used. The logical names Kermit-32
tries are
KER$COMM, SYS$INPUT, SYS$$OUTPUT, and SYS$COMMAND. If none of these
translate
to an available terminal, Kermit-32 is running detached, and a terminal
must be
specified by the SET LINE command before any actions can be performed.
If a
terminal is found, Kermit-32 is running locally if this is a terminal
other
than the one controlling the job (i.e., different from SYS$COMMAND),
otherwise
Kermit-32 is running remotely. You can also select the line directly
in the
CONNECT command; the command
CONNECT TTA0
is equivalent to
SET LINE TTA0
CONNECT
If you type SET LINE with no argument, you will deassign any previous
assigned
line and revert to remote mode.
10.4.5. The SET and SHOW Commands
Page 241
-----------------------------------------------------------------------------SET SERVER_TIMEOUT
Syntax: SET SERVER_TIMEOUT number
This specifies the number of seconds between timeouts during server
command
wait, 0 specifies that no timeouts should occur during server command
wait.
When a Kermit server times out, it sends a NAK packet.
Some systems
cannot
clear piled-up NAKs from their input buffers; if you're using such a
system to
communicate with a Kermit-32 server, and you expect to be leaving the
server
idle for long periods of time, you should use this command to turn off
server
command-wait timeouts.
SET TRANSMIT
Syntax: SET TRANSMIT DELAY integer, SET TRANSMIT ECHO ON/OFF
It is possible to set a few parameters associated with the raw TRANSMIT
command
that vary both what the user sees on the screen as well as the speed
of the
transmit.
SET TRANSMIT DELAY
This parameter
return is
transmitted.
tenths of
a second. The
is a
single decimal
is the amount of time to delay after
each
carriage
Valid delay values range between 0 (the default) and 9
format of the command is: SET TRANSMIT DELAY
d
Where
d
digit representing tenths of a second.
Some remote hosts may not be able to receive the characters as
fast as
Kermit-32 can send them. The TRANSMIT DELAY can be used to slow up the
transfer by adding a slight delay after each line is sent.
The transfer also runs slower if the transmit echo is on, and the remote
system
is echoing the characters as it receives them. If the transmit delay is
set to
9 tenths of a second, the remote system is echoing characters, the
transmit
echo is on, and the remote system still cannot keep up, then the
connection
should be made at a slower baud rate.
Conversely, the file transfer speed can be increased by: setting the
delay to 0
and the echo off, stopping the remote system from echoing the
characters it
receives, and connecting at higher baud rates.
SET TRANSMIT ECHO
This command controls what the user sees on the screen during the file
transfer. The format of the command is SET TRANSMIT ECHO ON or OFF.
By default, the transmit echo is left off and the user sees the number of
each
line after it has been transmitted.
With transmit echo on, the
user sees
whatever the remote system would normally echo back to him while he is
typing
in a file.
Note that turning the echo on typically slows the file
transfer
down.
10.4.5. The SET and SHOW Commands
Page 242
-----------------------------------------------------------------------------THE SHOW COMMAND
Syntax: SHOW [option]
The SHOW command displays various information:
ALL
All parameters.
BLOCK_CHECK_TYPE
The block check type being requested.
COMMUNICATIONS
for com-
Parameters
affecting
the
terminal
line
being used
munication.
DEBUGGING
DELAY
starting
Debugging mode in effect, if any.
The number of seconds Kermit-32 will delay
before
a
SEND or RECEIVE command when in remote mode.
ESCAPE
The current escape character for the CONNECT processing.
FILE_PARAMETERS File type, file naming, and incomplete file disposition.
INCOMPLETE_FILE_DISPOSITION
The action to take when a transfer is aborted.
LINE
Terminal line in use.
LOCAL_ECHO
CONNECTed.
Whether characters should be echoed locally when
PACKET
For incoming and outbound packets.
PARITY
The parity type in use.
RECEIVE
For inbound packets.
RETRY
The number of retries to be done on bad packets.
SEND
For outbound packets.
TRANSMIT
Parameters for TRANSMIT command.
VERSION
The program version number of Kermit-32.
10.4.6. Program Management Commands
THE HELP COMMAND
Syntax: HELP [topic {subtopic}]
Typing HELP alone prints a brief summary of Kermit-20 and its
You
can also type
HELP command
commands.
10.4.6. Program Management Commands
Page 243
-----------------------------------------------------------------------------for any Kermit-20 command, e.g. "help send" or "help set parity" to
get more
detailed information about a specific command.
THE EXIT AND QUIT COMMANDS
Syntax: EXIT
Exit from Kermit-32. You can also exit from the Kermit-32 when it is
waiting
for a command by typing a control-Z. When Kermit-32 is running
remotely, two
control-Y's will abort the transfer, bringing Kermit-32 back to command
mode.
The two control-Y's must be typed together, as if a timeout occurs
between them
the first is ignored. When Kermit-32 is running locally, two control-Y's
will
stop Kermit-32 and return you to DCL. You will be able to CONTINUE if
you do
not perform any command which runs a program.
However, after
continuing,
control-A, control-X and control-Z will no longer be accepted as
commands.
QUIT is a synonym for EXIT.
THE LOG COMMAND
Syntax: LOG [option [filespec]]
Log the specified option to the specified file:
SESSION
screen to
During
CONNECT log all characters that appear on the
the specified file.
can
During CONNECT, the
session
log
be
temporarily
turned off during the remote session by
typing the
escape character followed by Q (for Quit logging),
and
turned
on
again by typing the escape character followed by R
(for Resume logging).
TRANSACTIONS
Trans-
During file transfer, log the progress of each
file.
action
logging
is
recommended
for
long
or
unattended file
transfers, so that you don't have to watch the screen.
The log
may
be
inspected
after
the transfer is complete to
see what
files were transferred and what errors may have occurred.
DEBUGGING
DEBUGGING
Log debugging info to the specified file.
command
was
If no SET
previously issued, the file will be opened
and no
information written.
If DEBUGGING is turned on (either
via the
SET
DEBUGGING
command
or
by
typed control-D during a
local
transfer), the packet debugging information will be
written
to
the
file.
Packet format is described in the Kermit
Protocol
Manual.
Any log files are closed when you EXIT or QUIT from Kermit. You may
explicitly
close a log file and terminate logging by using the LOG command without
a file
specification.
10.4.6. Program Management Commands
Page 244
-----------------------------------------------------------------------------THE STATUS COMMAND
Syntax: STATUS
The current status of Kermit-32 will be displayed.
number of
characters that have been sent and received from
Also included is an estimate of the effective baud rate of
number
is not intended to be exact, but only an indication
throughput
has been provided.
This includes the
the remote Kermit.
the transfer.
This
of what range of
10.5. Raw Upload and Download
THE TRANSMIT COMMAND
Syntax: TRANSMIT file-spec
The TRANSMIT command allows you to upload files "raw" to systems that
don't
have a Kermit program available. Note that there is no error checking or
packets involved in this method of file transfer.
This command does a raw transmit of an ASCII file, one character at a
time,
with carriage returns (no line-feeds) at the end of each line. It is
used with
Kermit-32 in local mode. The user must first prepare the remote
host to
receive the file by starting an edit session in input mode. Then the
user can
escape back to Kermit-32 and issue the TRANSMIT command. After the
transmit is
finished, the user then CONNECTs back to the remote host again and
ends the
edit session.
During a file transmit, the following control characters can be used to
affect
the transfer in progress:
CTRL-C
Abort the transmit
CTRL-X
Abort the file currently being transmitted
CTRL-Z
Abort the file group currently being transmitted
See SET TRANSMIT for information about controlling echo and delays.
THE LOG SESSION COMMAND
Syntax: LOG SESSION file-spec
"Raw Download" is the term commonly used to describe the capture of a
remote
file on the local system, without any kind of error detection or
correction.
This allows you to obtain files from remote systems that do not have
Kermit,
but with the risk of loss or corruption of data.
Kermit-32 provides raw downloading via the LOG SESSION command during
CONNECT
to a remote system. The session log is described above. To use
session logging to capture a file:
1. Run Kermit on the VAX/VMS system.
10.5. Raw Upload and Download
Page 245
-----------------------------------------------------------------------------2. SET LINE to the terminal line through which you will be connected
to
the remote system.
3. Perform any required SET commands to condition Kermit for
communication with the remote system.
4. CONNECT to the remote system and log in.
5. Condition your job on the remote system not to pause at the end of
a
screenful
of
text,
and give whatever commands may be necessary
to
achieve a "clean" terminal listing -- for instance, disable
messages
from the system or other users.
6. Type
the
appropriate command to have the desired file displayed
at
the terminal, but do not type the terminating carriage return.
On
most systems, the command would be "type", on Unix it's "cat".
7. Escape back to Kermit-32 and give the LOG SESSION command with
the
file specification where you wish to store the data.
8. CONNECT back to the remote system and type a carriage return.
The
file will be displayed on your screen and recorded in the
session
log file.
9. Escape back to Kermit-32 and give the LOG SESSION command without
a
file specification.
The file you specified will contain everything that was typed on your
screen.
You will probably find that some editing necessary to remove
extraneous
prompts, messages, padding characters, or terminal escape sequences, or
to fill
in lost or garbled characters.
Use the TRANSMIT command for raw uploading.
10.6. Installation of Kermit-32
Kermit-32 may be installed either by rebuilding the entire program
from the
sources, or by making use of the distributed copy of the program. When
being
built from sources, it may be built using either a BLISS-32 compiler or
just
the MACRO-32 assembler.
FILES
Kermit-32 is built from a number of BLISS-32 sources and one MACRO-32
source.
In order to make it possible for sites without BLISS-32 to build,
MACRO-32
sources generated by BLISS-32 are also included for all of the BLISS
modules.
In the normal distribution of Kermit-32, all of the files start with the
prefix
"VMS".
This will need to be changed to "KER" in order to build the
program
properly. The following files are distributed as part of Kermit-32:
VMSTT.BLI
Common BLISS source for the terminal text output support.
VMSGLB.BLI
VMSMSG.BLI.
Common BLISS source for the global storage for
10.6. Installation of Kermit-32
Page 246
-----------------------------------------------------------------------------VMSMSG.BLI
Common BLISS source for the protocol handling module.
VMSCOM.REQ
common
Common
BLISS
parameters.
require
file
which
defines
This is required by VMSMSG.BLI.
various
This file
must be
renamed to KERCOM.REQ.
VMSMIT.BWR
"Beware File" for Kermit-32 (read it!).
VMSMIT.BLI
support
BLISS-32 source for the command parser, and some basic
routines.
VMSFIL.BLI
BLISS-32 source for the file I/O.
VMSTRM.BLI
handles the
BLISS-32
source for the terminal processing.
This
driving of the terminal line for the transfers and the
connect
command processing.
VMSSYS.BLI
command
System
interface
routines
for
the
Kermit
generic
processing.
VMSGEN.MAR
text that
Macro-32 source file that contains the REMOTE command
is
given
to
VMS.
Sites desiring to change what DCL
commands
are used to process the various
commands
generic
server
can
make those changes in this source.
This also contains
the text
of the help message returned in response to the server
generic
help command.
VMSERR.MSG
MESSAGE source for error messages used by VAX/VMS Kermit.
VMSERR.REQ
This is
BLISS-32
require
file
which defines the error codes.
REQUIREd by the BLISS-32 sources.
VMSMIT.MSS
SCRIBE source file for VMSMIT.DOC (this document).
VMSMIT.RNH
When this
RUNOFF source for the help files for VAX/VMS Kermit.
is
run through RUNOFF with /VARIANT=SYSTEM, it produces
a .HLP
(VMSSYS.HLP) file suitable for inserting into the
system
help
library
(SYS$HELP:HELPLIB.HLB)
to
provide a KERMIT
topic for
the system HELP command.
without
When run through RUNOFF
the
/VARIANT=SYSTEM,
it
produces
a
.HLP file (VMSUSR.HLP)
to be
stored on SYS$HELP: for use by the Kermit HELP command.
VMSSYS.HLP
RUNOFF output file for system wide Kermit HELP.
VMSUSR.HLP
RUNOFF output file for Kermit's HELP command.
VMSINS.COM
Command file to build and install VAX/VMS Kermit.
VMSMIT.EXE
that this
The executable (binary) file of VAX/VMS Kermit.
is
only
included
when
it is possible.
Note
This may be
either a
copy of the .EXE file which was transferred
10
to
a
TOPS-
or
TOPS-20
system using Kermit with Kermit-10 (or -20)
using FILE
BYTE-SIZE 8-BIT, or a direct copy of the .EXE file (if
the file
is
either on a native VAX/VMS tape or is residing on a
VAX/VMS
system).
10.6. Installation of Kermit-32
Page 247
-----------------------------------------------------------------------------VMSMIT.HEX
A hexified version of .EXE file for VMS Kermit. This
file can
be dehexified using the supplied program. In the
hexified
form, the file should be transferable over any medium
which
handles normal text. This is the most reliable copy of
the executable version of VMS Kermit.
VMSHEX.MAR
which
Source for the hexification program.
was used to produce VMSMIT.HEX.
This is the program
It can also be used to
produce
hexified version of any (or at least almost any) Files-11
file.
The
dehexification
program should then be able to
reproduce a
copy of the original file with the
file
parameters
correctly
set.
Note that the format used for the hexified files is
basically Intel hex format.
There are some additional
records used
to
store the record format, etc.
Also, the file name as
typed
to the prompt from VMSHEX is stored in the hexified
version
of
the file for use by the dehexification program.
By doing
this,
it is possible to store more than one binary file with a
single
hexified file.
VMSDEH.MAR
Source for the dehexification program.
VMSV31.*Version 3.1 of VMS Kermit, the last version that will run under
release
3.x of VMS. Versions 3.2 and later require VMS release
4.0 or
later.
VMSV3x.MEM
3.1, and
Documentation
on the changes between releases 3.1 and
3.2 and 3.3 of Kermit-32, and
information.
additional
installation
As distributed, Kermit-32 should work on any VAX/VMS system (version
4.0 and
later). Customization is possible with or without a BLISS-32
compiler.
Default parameter values may be changed by changing the appropriate
LITERALs in
the BLISS-32 source for VMSMSG, or the actual values which are stored
in the
routine MSG_INIT in the MACRO-32 source for VMSMSG.
Sites can also easily change the commands which are used for
processing the
generic server functions (REMOTE commands when running as a server). The
text
which makes up these commands is in the file VMSGEN.MAR, along with the
text of
the REMOTE HELP message. This allows a site to make use of local
programs for
performing some of the commands (perhaps using FINGER to perform the
WHO command, etc.).
BUILDING KERMIT-32 FROM SOURCES
A command file is included which will build Kermit-32 from either the
BLISS-32
or MACRO-32 sources and optionally install Kermit-32 on the system.
This file
(VMSINS.COM) has not been extensively tested, however it should work
most
systems.
It is also a good example of what needs to be done to
compile each
file and load the entire program. It also contains the commands
necessary to
install a version of Kermit-32 on the system once the .EXE and .HLP
files are
generated.
on
10.6. Installation of Kermit-32
Page 248
-----------------------------------------------------------------------------USING KERMIT-32 TO INSTALL A NEW VERSION OF ITSELF
If you already have a version of Kermit-32 running on a VAX/VMS system,
you can
use it to transfer a new version of itself from another system. If you
have no
need to build Kermit-32 from sources (because you have no local
modifications),
you can just transfer the new VMSMIT.EXE (or VMSMIT.HEX), and the new
help file
VMSMIT.RNH.
If you have access to a system which has a copy of VMSMIT.EXE, you can
transfer
it simply by setting the FILE TYPE to FIXED on the receiving Kermit.
Make sure
that the sending Kermit is willing to send the file as a binary file.
If the
sending Kermit is another copy of Kermit-32, you don't need to do
anything. If
the sending Kermit is Kermit-10 or Kermit-20, make sure the file will be
sent
as an eight-bit binary file by using SET FILE BYTE-SIZE EIGHT. If some
other
Kermit is sending the file, make sure to give it whatever command is
necessary
to ensure that it sends eight-bit binary data from the file. Also,
if the
originating system is not a VAX/VMS, TOPS-10 or TOPS-20 system, make sure
that
the file was stored on that system correctly to start out with.
Normally, the
file VMSMIT.EXE will only be available from a VAX/VMS, TOPS-10 or TOPS-20
system.
If you have access to a copy of VMSMIT.HEX, you will need to transfer
that file
(as a normal ASCII text file). You will also need a copy of VMSDEH.MAR.
After
you have obtained both files, you can produce a copy of the .EXE file
as follows. First compile VMSDEH by using the command MACRO VMSDEH. Then load
it by
LINK VMSDEH. Now run VMSDEH and when it asks for a file name, type
VMSMIT.HEX.
The program will run for a short time and produce the .EXE file.
The system wide and user help files are produced from VMSMIT.RNH by
RUNOFF. To
produce the user help file (the one used by Kermit-32's HELP command),
type:
$ RUNOFF VMSMIT.RNH/OUTPUT=KERUSR.HLP
$ LIBRARY/CREATE/HELP SYS$HELP:KERMIT.HLB KERUSR.HLP
To produce the system wide help file and install it in the system help
library
type:
$ RUNOFF VMSMIT.RNH/OUTPUT=KERSYS.HLP/VARIANT=SYSTEM
$ LIBRARY/REPLACE/HELP SYS$HELP:HELPLIB.HLB KERSYS.HLP
This allows the DCL HELP command to provide information on Kermit-32.
If you want to allow your users to assign external terminal lines for
connecting to remote systems from the VAX, e.g. by dialing out, you will have
to configure those lines to allow the desired access. Otherwise, user's will
get a
message like "No privilege for attempted operation" when they do a
SET LINE
command. Sample commands for terminal TXA0: might include:
$ SET PROTECTION=(W:R) TXA0:/DEVICE
or
$ SET PROTECTION=(W:RWLP)/DEVICE/OWNER=[1,4] TXA0:
or
10.6. Installation of Kermit-32
Page 249
-----------------------------------------------------------------------------$ SET ACL/OBJECT=DEVICE/ACL=(IDENTIFIER=INTERACTIVE,OPTIONS=NONE,ACCESS=READ+WRITE) TXA0:
Consult your VAX/VMS system manager's manual for the ramifications
(especially
on security) of each of these commands.
11. DECSYSTEM-20 KERMIT
Page 250
-----------------------------------------------------------------------------11. DECSYSTEM-20 KERMIT
Authors:
Language:
Version:
Date:
Frank da Cruz, Bill Catchings, Columbia University
MACRO-20
4.2(262)
January 1988
Kermit-20 Capabilities At a Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Y interruption:
Filename collision avoidance:
Timeouts:
8th-bit prefixing:
Repeat character compression:
Alternate block check types:
Communication settings:
Transmit BREAK:
IBM mainframe communication:
Transaction logging:
Session logging:
Debug logging:
Raw transmit:
Login scripts:
Act as server:
Talk to server:
Advanced commands for servers:
Local file management:
Command/init files:
Long packets:
Sliding windows:
Handle file attributes:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Kermit-20 is a program that implements the Kermit file transfer
protocol for
the Digital Equipment Corporation DECSYSTEM-20 mainframe computer. It is
written in MACRO-20 assembly language and should run on any DEC-20 system
with version 4 of TOPS-20 or later.
The Kermit-20 section will describe the things you should know about the
DEC-20
file system in order to make effective use of Kermit, and then it will
describe
the special features of the Kermit-20 program.
11.1. The DEC-20 File System
The features of the DEC-20 file system of greatest interest to Kermit
users are
the form of the file specifications, and the distinctions between text
and binary files.
11.1. The DEC-20 File System
Page 251
-----------------------------------------------------------------------------DEC-20 File Specifications
DEC-20 file specifications are of the form
DEVICE:<DIRECTORY>NAME.TYPE.GEN;ATTRIBUTES
where the DIRECTORY, NAME, and TYPE may each be up to 39 characters in
length,
GEN is a generation (version number), and various attributes are
possible
(protection code, account, temporary, etc). Generation and attributes
are normally omitted.
Device and directory, when omitted, default to the
user's own
(or "connected") disk and directory. Thus NAME.TYPE is normally
sufficient to
specify a file, and only this information is sent along by Kermit-20
with an
outgoing file.
The device, directory, name, and type fields may contain uppercase
letters,
digits, and the special characters "-" (dash), "_" (underscore),
and "$"
(dollar sign). There are no imbedded or trailing spaces. Other
characters may
be included by prefixing them (each) with a Control-V. The fields of
the file
specification are set off from one another by the punctuation indicated
above.
The device field specifies a physical or "logical" device upon which the
file
is resident.
The directory field indicates the area on the device,
for instance the area belonging to the owner of the file. Kermit-20 does not
transmit the device or directory fields to the target system, and does not
attempt
to honor device or directory fields that may appear in incoming file
names; for
instance, it will not create new directories.
The name is the primary identifier for the file. The type, also
called the
"extension", is an indicator which, by convention, tells what kind of
file we
have.
For instance FOO.FOR is the source of a Fortran program
named FOO;
FOO.REL might be the relocatable object module produced by compiling
FOO.FOR;
FOO.EXE could an executable program produced by LOADing and SAVing
FOO.REL, and
so forth.
The DEC-20 allows a group of files to be specified in a single file
specification by including the special "wildcard" characters, "*" and "%".
A "*"
matches any string of characters, including no characters at all; a "%"
matches
any single character. Here are some examples:
*.FOR
All files
connected
directory.
of
type
FOR
(all
Fortran source files) in the
FOO.*
Files of all types with name FOO.
F*.*
All files whose names start with F.
F*X*.*
All files whose names start with F and contain at least one X.
%.*
All files whose names are exactly one character long.
*.%%%*
All files whose types are at least three characters long.
Wildcard notation is used on many computer systems in similar ways, and
it is
the mechanism most commonly used to instruct Kermit to send a group of
files.
11.1. The DEC-20 File System
Page 252
-----------------------------------------------------------------------------TEXT FILES AND BINARY FILES
The DEC-20, like most computers, has a file system with its own
peculiarities.
Like many other systems, the DEC-20 makes a distinction between text
files and
binary files. Text files are generally those composed only of printing
characters (letters, digits, and punctuation) and "carriage control"
characters
(carriage return, line feed, form feed, tab). Text files are designed
to be
read by people. Binary files are designed to be read by a computer
program,
and may have any contents at all. If you use the DEC-20 TYPE command
to display a text file on your terminal, the result will be intelligible.
If you
type a binary file on your terminal, you will probably see mainly
gibberish.
You can not always tell a text file from a binary file by its name or
directory
information, though in general files with types like .TXT, .DOC, .HLP
are textual (as are "source files" for computer programs like text formatters
and programming language compilers), and files with types like .EXE, .REL,
.BIN are
binary.
The DEC-20 has an unusual word size, 36 bits. It differs from most other
systems by storing text in 7-bit, rather than 8-bit, bytes. Since text is
encoded
in the 7-bit ASCII character set, this allows more efficient use of
storage.
However, the word size is not a multiple of the normal byte size. The
DEC-20
therefore stores five 7-bit characters per word, with one bit left over.
It is also possible to store files with other byte sizes.
layouts
of bytes within a word are shown in Figure 11-1.
The
common
The minimum unit of disk allocation on the DEC-20 is a page, 512 36-bit
words,
or 2560 7-bit characters, or 2048 8-bit bytes. Any file that contains at
least
one bit of information occupies at least a full page on the disk. The
directory information for a file includes the number of pages occupied on the
disk,
the bytesize of the file, and the number of bytes of that size which are
in the
file. This information can be seen by using the DEC-20 VDIRECTORY
command, for
instance
@vdir foo.*
PS:<MY-DIRECTORY>
Name
Protection
FOO.COM.1;P774242
MAC.1;P774242
.REL.1;P774242
.EXE.1;P774242
Pages
1
1
1
2
Bytes(Size) Creation
384(8)
27-Dec-83
152(7)
27-Dec-83
39(36)
27-Dec-83
1024(36)
27-Dec-83
Total of 5 pages in 4 files
In this example, FOO.MAC occupies 1 page, and is composed of 152 7-bit
bytes.
This file is textual (program source for the MACRO assembler), 152
characters
long. Programs which read text files (such as text editors, program
compilers,
the TYPE command, etc) determine the end of a file from the byte
count
specified in the directory. Kermit-20 determines the end of file in
the same
way, so although FOO.MAC occupies an entire 2560-byte page of storage,
only the
first 152 characters are transmitted. Binary files, such as FOO.EXE
(an executable DEC-20 program), tend to occupy full pages.
In this case
too,
Kermit-20 uses the byte count to determine the end of file.
Why do you
depends on
need
to know all this?
In most cases, you don't.
It
11.1. The DEC-20 File System
Page 253
-----------------------------------------------------------------------------------------------------------------------------------------------------------
7: Text Files: Five 7-bit bytes per word.
+------+------+------+------+------++
|
|
|
|
|
||
+------+------+------+------+------++
0
7
14
21
28
35
Normally,
bit 35 is unused and set to zero.
However, in EDIT
(or SOS,
or OTTO) line-numbered files, bit 35 is set to 1 when the word
contains
a line number.
8: "Foreign" binary files:
Four 8-bit bytes per word.
+-------+-------+-------+-------+---+
|
|
|
|
|
|
+-------+-------+-------+-------+---+
0
8
16
24
32 35
Bits 32-35 are unused.
36: "Native" binary files:
One 36-bit byte per word.
+-----------------------------------+
|
|
+-----------------------------------+
0
35
All bits are used.
Figure 11-1:
DECSYSTEM-20 Word/Byte Organization
-----------------------------------------------------------------------------whether you are using the DEC-20 as your "home base".
USING A MICROCOMPUTER TO ARCHIVE DEC-20 FILES
Most computers (other than the DEC-10 and DEC-20) store characters in
8-bit
bytes.
Let's call any such system an 8-bit-byte system.
Microcomputers that
run CP/M or MS-DOS or PC-DOS, and any computers than run Unix, store
these
8-bit bytes in a linear sequence. Certain other 8-bit-byte systems
(PDP-11 or
VAX systems with FILES-11, IBM mainframes) have more complex file
formats.
This discussion applies to all linear 8-bit-byte systems,
including most
popular microcomputers.
Kermit can send any "native" DEC-20 sequential file, text or binary,
to an
8-bit-byte system and bring it back to the DEC-20 restored to its
original
form. If you are using a microcomputer to archive your DEC-20 files, you
need
never concern yourself with details of byte size or file format.
The same
11.1. The DEC-20 File System
Page 254
-----------------------------------------------------------------------------holds true between two DEC-20s, or a DEC-10 and a DEC-20.
There is, however, one special complication of which you should be aware.
Certain microcomputer operating systems, notably CP/M, do not have an
entirely
satisfactory way of indicating the end of file. The file length is
recorded in
blocks rather than bytes. For text files, the end of file is marked
within a
block by inserting a Control-Z after the last data character.
Binary
files,
however, might easily contain Control-Z characters as data. Therefore,
in order not to lose data, these systems must transmit binary files in
complete
blocks. If the binary file is of foreign origin (for instance, from a
DEC-20),
and it did not happen to fill up the last block when it was transferred
to the
micro, then when that file is sent back to the system of origin in
"binary
mode," junk will appear at the end (if it is sent back in "text mode," it
could
be truncated at the first data byte that happened to correspond to
Control-Z).
For DEC-20 programs in .EXE format, this generally has no effect on the
runnability or behavior of the program. But for other binary files,
particularly
internal format numerical data or relocatable program object (.REL)
files, the
junk could have bad effects. For instance, extraneous data at the
end of a
.REL file will generally cause LINK to fail to load the file.
Most microcomputer Kermit programs have commands to control end-of-file
detection -- commands like SET FILE TEXT, SET FILE BINARY, SET EOF CTRLZ.
USING THE DEC-20 TO ARCHIVE MICROCOMPUTER FILES
You can use Kermit to send textual files from a microcomputer or any 8bit system to the DEC-20 with no special provisions, since Kermit-20 stores
incoming
characters in 7-bit bytes as text unless you explicitly instruct it
otherwise.
But Kermit-20 has no automatic way of distinguishing an incoming binary
file
2
from an incoming text file. Binary files from 8-bit-byte systems
generally
contain significant data in the 8th bit, which would be lost if the
incoming
characters were stored in 7-bit bytes, rendering the file useless
when sent
back to the original system. Thus if you want to use Kermit to store
foreign
8-bit binary data on the DEC-20, you must tell it to store such files
with a
bytesize of 8 rather than 7. This can be the source of much confusion
and inconvenience. In particular, you cannot use a "wildcard send" command to
send a
mixture of text and binary files from an 8-bit-byte system to the
DEC-20;
rather, you must send all text files with Kermit-20's file bytesize set
to 7,
and all 8-bit binary files with the bytesize set to 8.
Once you get the foreign binary file into the DEC-20, stored with the
correct
bytesize (as FOO.COM is stored in the example above), you need take no
special
measures to send it back to its system of origin. This is because
Kermit-20
honors the bytesize and byte count from the directory. For instance,
if you
told Kermit-20 to SEND FOO.*, every file in the example above would be
transmitted in the correct manner, automatically.
The previous discussion assumes you want to store text files in usable
form on
the DEC-20. However, if you are using the DEC-20 purely as a
repository for
_______________
2
Unless the incoming file has an "ITS Binary Header"; see below.
11.1. The DEC-20 File System
Page 255
-----------------------------------------------------------------------------your microcomputer files, and you have no desire to display or share
the contents of those files on the DEC-20, you can SET FILE BYTESIZE 8 for all
incoming files, both text and binary. When the files are sent back to a
microcomputer, they will be stored correctly.
FILES KERMIT-20 CANNOT HANDLE
The Kermit protocol can only accommodate transfer of
files
which are a linear sequence of bytes (or words).
sequential
files,
Some files on the DEC-20 are not sequential, and cannot be successfully
sent or
received by Kermit-20.
These include directory files, files with
holes
(missing pages), ISAM files, and RMS files. These files require
external information (kept in the DEC-20's file descriptor block and/or index
table) in
order to be reconstructed; when sending files, Kermit-20 presently
transmits
only the file name and the contents of the file. External control
information
and file attributes are not transmitted.
11.2. Program Operation
Kermit-20's prompt is "Kermit-20>".
command on
the Exec command line, like this:
Kermit-20 will accept a single
@
@Kermit send foo.bar
the file is sent
@
or you can run the program interactively to issue several commands, like
this:
@
@Kermit
TOPS-20 Kermit version 4.2(262)
Kermit-20>send foo.*
files are sent
Kermit-20>statistics
performance statistics are printed
Kermit-20>receive
files are received
Kermit-20>exit
@
During interactive operation, you may use the TOPS-20 help ("?")
and
recognition (ESC) features freely while typing commands. A question mark
typed
11.2. Program Operation
Page 256
-----------------------------------------------------------------------------at any point in a command displays the options available at that point;
typing
an ESC character causes the current keyword or filename to be
completed (or
default value to be supplied), and a "guide word" in parentheses to be
typed,
prompting you for the next field. If you have not typed sufficient
characters
to uniquely specify the keyword or filename (or if there is no default
value)
then a beep will be sounded and you may continue typing.
Command keywords may be abbreviated to their shortest prefix that
sets them
apart from any other keyword valid in that field.
If you have a file called KERMIT.INI in your login directory, Kermit-20
will
execute an automatic TAKE command on it upon initial startup.
KERMIT.INI may
contain any Kermit-20 commands, for instance SET commands, or DEFINEs
for SET
macros to configure Kermit-20 to various systems or communications media.
Kermit-20 provides most of the commands possible for an "ideal" Kermit
program,
as described in the main part of the Kermit User Guide. The following
sections
will concentrate on system-dependent aspects of Kermit-20.
11.3. Remote and Local Operation
Kermit-20 normally runs in remote mode, with the user sitting at a
PC. But
Kermit-20 can also run in local mode. Local operation of Kermit-20 is
useful
if the DEC-20 has an autodialer, or a hardwired connection to another
computer.
When in local mode, file transfer takes place over an assigned TTY
line, and
Kermit-20 is free to update your screen with status information, and to
listen
to your keyboard for interrupt characters.
Kermit-20 enters local mode when you issue a SET LINE n command, where n
is the
octal TTY number of any line other than your own controlling terminal.
11.4. Conditioning Your Job for Kermit
Kermit-20 does as much as it can to condition your line for file
transfer. It
saves all your terminal and link settings, and restores them after
use.
However, there are some sources of interference over which Kermit-20
can have
no control. In particular, messages issued by superior or parellel forks
could
become mingled with Kermit packets and slow things down or stop them
entirely.
For this reason, before using Kermit-20 for any extended period, you
should:
- Type the Exec commands SET NO MAIL-WATCH and SET NO ALERTS
- Make sure you don't have any print or batch jobs
were
submitted with the /NOTIFY option.
pending
that
- Make sure you don't have any superior or parallel forks that have
enabled terminal interrupts on Control-A; these could prevent
Kermit
packets (which start with Control-A) from getting through.
After running Kermit, you can restore your mail-watch and alerts by
hand. Alternatively, you could have an Exec command file for invoking Kermit like
this:
set no alerts
set no mail-watch
11.4. Conditioning Your Job for Kermit
Page 257
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Local Operation of Kermit-20:
DECSYSTEM-20
+---------------------------------------+
|
|
|
+--------------------+
|
|
| Your Job
|
|
|
|
|
|
|
|
+------------+
| <--Commands | Your Job's
|
|
| Kermit-20 +---+--------------+----------------- (-: You
|
|
|
|
| Display---> | Controlling TTY
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| <--Packets
| Kermit's
|
|
|
+---+--------------+-----------------> Remote
|
|
+------------+
| Packets-->
| Assigned TTY
System
|
|
|
|
|
+--------------------+
|
|
|
+---------------------------------------+
Figure 11-2:
DEC-20 Kermit Local Operation
-----------------------------------------------------------------------------kermit
set mail-watch
set alert 1:00PM Go to lunch
set alert 6:00PM Go to dinner
set alert 11:30PM Go to sleep
11.5. Kermit-20 Commands
This section describes the Kermit-20 commands -- in detail where they
differ
from the "ideal" Kermit, briefly where they coincide. Kermit-20 has
the following commands:
BYE
CLEAR
CLOSE
to remote server.
a stuck connection
log file and stop logging remote session.
CONNECT
CWD
DEFINE
DELETE
DIRECTORY
ECHO
EXIT
FINISH
GET
HELP
INPUT
as terminal to remote system.
change local working directory.
macros of Kermit-20 commands.
local files.
listing of local files.
a line of text.
from Kermit-20.
Shut down remote server.
remote files from server.
about Kermit-20.
characters from communication line.
11.5. Kermit-20 Commands
Page 258
-----------------------------------------------------------------------------LOCAL prefix for local file management commands.
LOG remote terminal session.
OUTPUT characters to communication line.
PAUSE between commands.
PUSH to TOPS-20 command level.
QUIT from Kermit-20
RECEIVE files from remote Kermit.
REMOTE prefix for remote file management commands.
RUN a DEC-20 program.
SEND files to remote Kermit.
SERVER mode of remote operation.
SET various parameters.
SHOW various parameters.
SPACE inquiry.
STATISTICS about most recent file transfer.
TAKE commands from a file.
TRANSMIT a file "raw".
TYPE a local file.
11.5.1. Commands for File Transfer
Kermit-20 provides the standard SEND, RECEIVE, and GET commands
transferring files using the Kermit protocol.
for
THE SEND COMMAND
Syntax:
Sending a single file:
SEND nonwild-filespec1 (AS) [filespec2]
Sending multiple files:
SEND wild-filespec1 (INITIAL) [filespec2]
The SEND command causes a file or file group to be sent from the DEC-20
to the
other system. There are two forms of the command, depending on
whether
filespec1 contains wildcard characters ("*" or "%"). Kermit-20
automatically
recognizes the two cases and issues the appropriate guide word,
(AS) or
(INITIAL), depending on the form of filespec1.
Sending a File Group
If filespec1 contains wildcard characters then all matching files will be
sent,
in alphabetical order (according to the ASCII collating sequence) by
name.
If
a file can't be opened for read access, it will be skipped. The
initial file
in a wildcard group can be specified with the optional filespec2. This
allows
a previously interrupted wildcard transfer from where it left off, or it
can be
used to skip some files that would be transmitted first.
11.5.1. Commands for File Transfer
Page 259
-----------------------------------------------------------------------------Sending a Single File
If filespec1 does not contain any wildcard characters, then the single
file
specified by filespec1 will be sent. Optionally, filespec2 may be
used to
specify the name under which the file will arrive at the target
system;
filespec2 is not parsed or validated in any way by Kermit-20, but
lower case
letters are raised to upper case, and leading "whitespace" (blanks and
tabs)
are discarded.
If filespec2 is not specified, Kermit-20 will send
the file
3
with its own name.
SEND Command General Operation:
Files will be sent with their DEC-20 filename and filetype (for
instance
FOO.BAR, no device or directory field, no generation number or
attributes). If
you expect to be sending files whose names contain characters that would
be illegal in filenames on the target system, and you know that the Kermit
on the
target system does not have the ability to convert incoming filenames,
you can
issue the SET FILE NAMING NORMAL-FORM command to have Kermit-20 replace
suspect
characters by X's.
Each file will be sent according to its bytesize and byte count from the
directory unless you specify otherwise using SET FILE BYTESIZE, or unless the
file
has an "ITS Binary" header. If the bytesize is 8, then four 8-bit
bytes will
be sent from each DEC-20 36-bit word, and the low order four bits
will be
skipped.
If other than 8, then five 7-bit bytes will be sent from each
word,
with the 8th bit of the 5th character set to the value of the
remaining bit
4
("bit 35") from the word.
If communication line parity is being used (see SET PARITY), Kermit-20
will request that the other Kermit accept a special kind of prefix notation for
binary
files. This is an advanced feature, and not all Kermits have it; if the
other
Kermit does not agree to use this feature, binary files cannot be
sent correctly. This includes executable programs (like DEC-20 .EXE files, CP/M
.COM
files), relocatable object modules (.REL files), as well as text
files with
line sequence numbers.
Kermit-20 will also ask the other Kermit whether it can handle a special
prefix
encoding for repeated characters. If it can, then files with long
strings of
repeated characters will be transmitted very efficiently.
Columnar
data,
highly indented text, and binary files are the major beneficiaries
of this
technique.
_______________
3
Control-V's, which are used to quote otherwise illegal characters in
DEC-20
file specifications, are stripped.
4
This is the same method used by the DEC-20 to encode 36-bit
data on
"ANSI-ASCII" tapes. It allows not only DEC-20 binary files, but also the
linesequence-numbered files produced by EDIT, SOS, or OTTO, which use bit
35 to
distinguish line numbers from text, to be sent and retrieved correctly.
11.5.1. Commands for File Transfer
Page 260
-----------------------------------------------------------------------------If you're running Kermit-20 locally, for instance dialing out from the
DEC-20
to another system using an autodialer, you should have already run
Kermit on
the remote system and issued either a RECEIVE or a SERVER command.
Once you
give Kermit-20 the SEND command, the name of each file will be
displayed on
your screen as the transfer begins; a "." will be displayed for every 5
data
packets sucessfully sent, and a "%" for every retransmission or
timeout that
occurs (you may also elect other typeout options with the SET DEBUG
command).
If the file is successfully transferred, you will see "[OK]", otherwise
there
will be an error message.
When the specified operation is
complete, the
program will sound a beep. If you see many "%" characters, you are
probably
suffering from a noisy connection.
You may be able to cut down
on the
retransmissions by using SET SEND PACKET-LENGTH to decrease the packet
length;
this will reduce the probability that a given packet will be
corrupted by
noise, and reduce the time required to retransmit a corrupted packet.
During local operation, you can type Control-A at any point during the
transfer
to get a brief status report.
You may also type Control-X or Control-Z
to interrupt the current file or file group.
THE RECEIVE COMMAND
Syntax:
RECEIVE [filespec]
The RECEIVE command tells Kermit-20 to receive a file or file group
from the
other system. If only one file is being received, you may include the
optional
filespec as the name to store the incoming file under; otherwise, the
name is
taken from the incoming file header. Even if the name in the header is
not a
legal TOPS-20 file name, Kermit-20 will store it under that name, in
which case
you can refer to it later only by quoting each illegal character (spaces,
control characters, etc) with Control-V. If for some reason an incoming
filename
simply cannot be converted to legal form, the file will be
saved as
-UNTRANSLATABLE-FILENAME-.KERMIT (new generation). You may also use
SET FILE
NAMING NORMAL-FORM to have Kermit-20 choose more conventional names for
incoming files.
If an incoming file has the same name as an existing file, Kermit20 just
creates a new generation of the same name and type, for instance
FOO.BAR.3,
FOO.BAR.4.
The oldest generation will be automatically deleted, but
you can
still UNDELETE it.
Incoming files will all be stored with the prevailing bytesize, 7 by
default,
which is appropriate for text files.
If you are asking Kermit-20 to
receive
binary files from a microcomputer or other 8-bit system, you must first
type
SET FILE BYTESIZE 8. Otherwise, the 8th bit of each byte will be lost
and the
file will be useless when sent back to the system of origin.
If you have SET PARITY, then 8th-bit prefixing will be requested. If the
other
side cannot do this, binary files cannot be transferred correctly.
In all
cases, Kermit-20 will request the other Kermit to compress repeated
characters;
if the other side can do this (not all Kermits know how) there may be
a significant improvement in transmission speed.
If an incoming file does not arrive in its entirety, Kermit-20 will
normally
discard it; it will not appear in your directory. You may change this
behavior
by using the command SET INCOMPLETE KEEP, which will cause as much of the
file
11.5.1. Commands for File Transfer
Page 261
-----------------------------------------------------------------------------as arrived to be saved in your directory.
If you are running Kermit-20 locally, you should already have issued
a SEND
5
command to the remote Kermit, and then escaped back to DEC-20 Kermit.
As
files arrive, their names will be displayed on your screen, along with
"." and
"%" characters to indicate the packet traffic; you can type Control-A
during
the transfer for a brief status report.
If a file arrives that you don't really want, you can attempt to cancel
it by
typing Control-X; this sends a cancellation request to the remote Kermit.
If
the remote Kermit understands this request (not all implementations of
Kermit
support this feature), it will comply; otherwise it will continue to
send.
If
a file group is being sent, you can request the entire group be
cancelled by
typing Control-Z.
THE GET COMMAND
Syntax: GET [remote-filespec]
The GET command requests a remote Kermit server to send the file or file
group
specified by remote-filespec.
This command can be used only when
there is a
Kermit server on the other end of the line. This means that you must
have CONNECTed to the other system, logged in, run Kermit there, issued the
SERVER command, and escaped back to the DEC-20, or else you Kermit-20 is in remote
mode,
TAKEing commands from a file, and interacting with a local Kermit server.
The remote filespec is any string that can be a legal file
specification for
the remote system; it is not parsed or validated locally. You should not
put a
trailing comment on the GET command, since this will be sent as part
of the
remote filespec.
If you need to include otherwise illegal characters such as "!" or ";"
(the
normal command comment delimeters), "?" (the command help character),
"@" (the
indirect command file indicator), or certain control characters,
then you
should precede each such character by a Control-V. Kermit-20 will
discard
these Control-V quoting prefixes before sending the file specification
to the
remote host.
If you want to store the incoming file name with a different name
than the
remote host sends it with, just type GET alone on a line; Kermit-20 will
prompt
you separately for the source (remote) and destination (local) file
specification. If more than one file arrives, only the first one will be stored
under
the name given; the rest will be stored under the names they are sent
with.
Example:
Kermit-20>get
Remote Source File: profile exec a1
Local Destination File: profile.exec
_______________
5
not SERVER -- use the GET command to receive files from a Kermit
server.
11.5.1. Commands for File Transfer
Page 262
-----------------------------------------------------------------------------As files arrive, their names will be displayed on your screen, along
with "."
and "%" characters to indicate the packet traffic. As in the RECEIVE
command,
you may type Control-A to get a brief status report, ^X to request
that the
current incoming file be cancelled, ^Z to request that the entire
incoming
batch be cancelled.
If the remote Kermit is not capable of server functions, then you will
probably
get an error message back from it like "Illegal packet type". In this
case,
you must connect to the other Kermit, give a SEND command, escape
back, and
give a RECEIVE command.
THE STATISTICS COMMAND
Give statistics about the most recent file transfer. For instance,
here's what
Kermit-20 displayed after transmitting a short binary file, using
repeatedcharacter compression:
Maximum number of characters in packet: 80 received; 80 sent
Number of characters transmitted in 2 seconds
Sent:
34
Overhead:
34
Received: 107
Overhead:
-408
Total received: 141
Overhead:
-374
Total characters transmitted per second:
70
Effective data rate:
2570 baud
Efficiency:
214.1667 per cent
Interpacket pause in effect: 0 sec
Timeouts: 0
NAKs:
0
Note that the data compression allowed the effective baud rate to
exceed the
actual speed of the communication line, which in this case happened to be
1200
baud. The efficiency is displayed only if the actual baud rate is known.
11.5.2. Server Operation
THE SERVER COMMAND
The SERVER command puts a remote Kermit-20 in "server mode", so
that it
receives all further commands in packets from the local Kermit. The
Kermit-20
server is capable (as of this writing) of executing the following remote
server
commands: SEND, GET, FINISH, BYE, REMOTE DIRECTORY, REMOTE CWD, REMOTE
SPACE,
REMOTE DELETE, REMOTE TYPE, REMOTE HELP.
Any nonstandard parameters should be selected with SET commands before
putting
Kermit-20 into server mode, in particular the file bytesize. The DEC-20
Kermit
server can send most files in the correct manner automatically, by
recognizing
the DEC-20 file bytesize. However, if you need to ask the DEC-20 Kermit
server
to receive binary files from an 8-bit-byte system (that is, from
almost any
system that's not a DEC-10 or DEC-20) you must issue the SET FILE
BYTESIZE 8
command before putting it into server mode, and then you must only send
8-bit
binary files. You cannot send a mixture of text files and 8-bit binary
files
to a Kermit-20 server.
11.5.2. Server Operation
Page 263
-----------------------------------------------------------------------------COMMANDS FOR SERVERS
When running in local mode, Kermit-20 allows you to give a wide range
of commands to a remote Kermit server, with no guarantee the that the remote
server
can process them, since they are all optional features of the protocol.
Commands for servers include the standard SEND, GET, BYE, and FINISH
commands, as
well as the REMOTE command.
These commands are generally issued when Kermit-20 is in local mode,
i.e. you
have already connected to another system, run Kermit there and put it
into
server mode, and escaped back to Kermit-20. However, Kermit-20 also
allows you
to operate in the opposite direction, i.e. Kermit-20 is the remote
Kermit, and
the local Kermit is in server mode. This is handy when, for instance,
you want
to transfer a disparate collection of files that can't be readily
specified by
a wildcard group, all in a single, unattended operation. In this case,
you can
create a TAKE command file for Kermit-20 that SENDs and/or GETs the
desired
files, and then shuts down local server when done, e.g.:
set delay 0
; No need to pause before sending
; Connect to own directory, leave a blank line for password.
cwd me:
log transactions
; Keep a log
; Change directories on the PC.
remote cwd \kermit
send ker:mskerm.doc
; Send the MS-DOS Kermit manual
send ker:mskerm.bwr
; Send the MS-DOS Kermit "beware file"
; Now change to the MS-DOS binaries area
remote cwd \bin
send kb:msvibm.exe
; Send the executable DOS Kermit program
; Put DOS back in default directory
remote cwd \chris
; Connect back to default directory on the DEC-20
cwd me:
close transactions
send transaction.log
finish
; Close transaction log
; Send it
; Shut down DOS Kermit server
Commands to servers (GET, BYE, FINISH, REMOTE) can be issued from a
remote
Kermit-20 only by means of a TAKE file. When Kermit-20 is local (i.e.
after
SET LINE), you can issue these commands interactively as well.
The REMOTE Command
Send the specified command to the remote server. If the server does not
understand the command (all of these commands are optional features of the
Kermit
protocol), it will reply with a message like "Unknown Kermit server
command".
If does understand, it will send the results back, and they will be
displayed
on the screen. The REMOTE commands are:
CWD [directory] Change
provided,
Working
Directory.
If no directory name is
11.5.2. Server Operation
Page 264
-----------------------------------------------------------------------------the server will change to the default or home
directory.
Otherwise, you will be prompted for a password, and the
server
will attempt to change to the specified directory.
The
password is entered on a separate line, and does not
echo as
you type it. If access is not granted, the server will
provide
a message to that effect. Do not put trailing comments
after a
REMOTE CWD command, or after the password.
DELETE filespec Delete the specified file or files. The names
files
that are deleted will appear on your screen.
of
the
DIRECTORY [filespec]
The names of the files that match the given file
specification
will be displayed on your screen, perhaps along with
size and
date information for each file. If no file
specification is
given, all files from the current directory will be
listed.
HELP
from the
Provide
a
list
of
the functions that are available
server.
HOST [command]
processor,
Pass the given command to the server's host command
and display the resulting output on your screen.
SPACE
directory,
Provide
information about disk usage in the current
such as the quota, the current storage, the amount of
remaining
free space.
TYPE filespec
screen.
Display the contents of the specified file on your
11.5.3. Commands for Local File Management
Syntax: LOCAL [command]
Execute the specified command on the local system -- on the DEC-20
where
Kermit-20 is running.
These commands provide some local file
management
capability without having to leave the Kermit-20 program.
CWD [directory] Change working directory, or, in DEC-20 terminology,
CONNECT to
the specified directory. If a password is required, you
will
be prompted for one. Do not include a trailing comment
after
the password.
DELETE filespec Delete the specified file or files, but
them
(unless you have SET EXPUNGE ON).
do
not
expunge
DIRECTORY [filespec]
Provide a directory listing of the specified files.
RUN [filespec]
".EXE"
Attempts to run the specified file, which
format
(.EXE
is
the
must
be
in
default filetype), in an inferior
fork.
Control returns to Kermit-20 when the program terminates.
Once
you have used this command, you can restart the same
program by
issuing
a
RUN
command
with
no
arguments.
If
you
RUN
SYSTEM:EXEC,
then
you
will be able to issue TOPS-20
commands
without leaving Kermit; you can get back
from
the
to
Kermit
11.5.3. Commands for Local File Management
Page 265
-----------------------------------------------------------------------------EXEC by typing the EXEC POP command.
SPACE
direc-
Show how much space is used and remaining in the current
tory.
TYPE
your
Display the contents of the specified file
terminal.
or
files
at
This works like the DEC-20 TYPE command,
except that
if a file has a bytesize of 8, Kermit-20 will
do
8-bit
input
from
it rather than 7-bit.
Also, the DEC-20 Control-O
command
discards output only from the file currently
being
displayed;
if multiple files are being typed, then output will
resume with
the next file.
The LOCAL commands may also be used without the "LOCAL" prefix.
11.5.4. The CONNECT Command
Syntax: CONNECT [number]
Establish a terminal connection to the system connected to the octal TTY
number
specified here or in the most recent SET LINE command, using full duplex
echoing and no parity unless otherwise specified in previous SET commands.
Get
back to Kermit-20 by typing the escape character followed by the letter
C. The
escape character is Control-Backslash (^\) by default. When you type
the escape character, several single-character commands are possible:
C
Close the connection and return to Kermit-20.
S
Show status of the connection; equivalent to SHOW LINE.
P
Push to a new Exec. POP from the Exec to get back to the
connection.
Q
If a session log is active, temporarily Quit logging.
R
Resume logging to the session log.
B
Send a simulated BREAK signal.
?
List all the possible single-character arguments.
^\ (or whatever you have set the escape character to be):
Typing the escape character twice sends one copy of it to
connected
host.
the
You can use the SET ESCAPE command to define a different escape
character, and
SET PARITY, SET DUPLEX, SET HANDSHAKE, SET FLOW, and SET SPEED to change
those
communication-line-oriented parameters. In order for the simulated
BREAK signal to work, TOPS-20 must know the speed of the terminal. If it does
not, you
may use the SET SPEED command. Type the SHOW LINE command for
information
about your current communication settings.
Kermit-20 does not have any special autodialer interface.
that the
connection has already been made and the line assigned.
It assumes
11.5.5. The SET, SHOW, and DEFINE Commands
Page 266
-----------------------------------------------------------------------------11.5.5. The SET, SHOW, and DEFINE Commands
SET is used for establishing or changing parameters, DEFINE lets you
group
several SET commands together into a single "macro" command, and SHOW
lets you
examine current settings or macro definitions.
THE SET COMMAND
Syntax: SET parameter [option [value]]
Establish or modify various parameters for file transfer or terminal
connection. You can examine their values with the SHOW command.
The
following
parameters may be SET:
BREAK
BLOCK-CHECK
DEBUGGING
DELAY
DUPLEX
ESCAPE
FILE
FLOW-CONTROL
HANDSHAKE
IBM
INCOMPLETE
INPUT
ITS-BINARY
LINE
PARITY
PROMPT
RECEIVE
RETRY
SEND
SPEED
TVT-BINARY
Adjust the BREAK simulation parameter
Packet transmission error detection method
Record or display state transitions or packets
How long to wait before starting to send
For terminal connection, FULL or HALF
Character for terminal connection
For setting file parameters like byte size
For enabling or disabling XON/XOFF flow control
For turning around half duplex communication line
For communicating with an IBM mainframe
What to do with an incomplete file
For specifying behavior of the INPUT command
For recognizing a special 8-bit binary file format
TTY line to use for file transfer or CONNECT
Character parity to use
Change the program's command prompt
Various parameters for receiving files
How many times to retry a packet before giving up
Various parameters for sending files
Baud rate of communication line
For negotiating binary mode on ARPANET
The DEFINE command may be used to compose "macros" by combining SET
commands.
Those SET commands which differ from the "ideal" Kermit are now
described in
detail.
SET BREAK
Syntax: SET BREAK n Specify the number of nulls to be sent at 50 baud to
simulate a BREAK signal when connected to a remote host via SET LINE and
CONNECT.
SET DEBUG
Syntax: SET DEBUG options
Record the packet traffic, either on your terminal or in a file. Some
reasons
for doing this would be to debug a version of Kermit that you are
working on,
to record a transaction in which an error occurred for evidence when
reporting
bugs, or simply to vary the display you get when running Kermit-20 in
local
11.5.5. The SET, SHOW, and DEFINE Commands
Page 267
-----------------------------------------------------------------------------mode. Options are:
STATES
Show Kermit state transitions and packet numbers (brief).
PACKETS
Display each incoming and outgoing packet (lengthy).
OFF
the nor-
Don't display or record debugging information (this is
mal
mode).
If debugging was in effect, turn it off and
close
any log file.
The debugging information is recorded in the file specified by the most
recent
LOG DEBUGGING command, DEBUGGING.LOG by default.
SET ESCAPE
SET ESCAPE octal-number
Specify the control character you want to use to "escape" from remote
connections back to Kermit-20. The default is 34 (Control-\). The number is
the octal value of the ASCII control character, 1 to 37 (or 177), for
instance 2 is
Control-B. After you type the escape character, you must follow it by a
one of
the single-character "arguments" described under the CONNECT command,
above.
SET EXPUNGE
SET EXPUNGE ON or OFF
Tell whether you want a DELETE command (either the LOCAL DELETE
command or a
REMOTE DELETE command sent to a Kermit-20 server) to expunge files
as it
deletes them.
On the DEC-20, a deleted file continues to take up
space, and
may be "undeleted" at a later time in the same session. To expunge a
deleted
file means to remove it completely and irrevocably, freeing its space
for further use. EXPUNGE is OFF by default; deleted files are not
automatically ex-
punged.
SET EXPUNGE applies only to files that are deleted
explicitly by
Kermit-20, and not to files that are implicitly deleted when new
generations of
existing files are created.
SET FILE
Syntax: SET FILE parameter keyword
Establish file-related parameters:
BYTESIZE keyword or number
Byte size for DEC-20 file input/output.
(7),
EIGHT (8), and AUTO.
SEVEN
(or
7)
Always
store
or
The
choices
are
SEVEN
retrieve five 7-bit bytes per
word.
When sending a file, ignore the file bytesize and do 7bit
input from the file.
There would be no reason to use this
option
except to explicitly force an 8-bit file to
as
a
7-bit file.
be
treated
11.5.5. The SET, SHOW, and DEFINE Commands
Page 268
-----------------------------------------------------------------------------EIGHT
(or 8) Always store or retrieve four 8-bit bytes per
word.
When sending a file, ignore the file bytesize and do 8bit input from the file. This command is necessary when
receiving
binary files from 8-bit-byte systems, such as most
microcomputers.
AUTO
Equivalent
to SEVEN for incoming files, and for outgoing
files
means to use EIGHT if the DEC-20 file bytesize (as shown
by the
Exec
VDIR
command) is 8, otherwise use SEVEN.
The
default is
AUTO.
correct
The DEC-20 can send any mixture of file types in the
way
automatically, but you must set the file bytesize to 8 for any
incoming
8-bit binary files, and to AUTO (i.e. 7) for any incoming text
files or
DEC-20 binary files.
NAMING UNTRANSLATED or NORMAL-FORM
If NORMAL-FORM the names of incoming or outgoing files will be
converted to contain only uppercase letters, digits, and at
most one
period; any other characters will be translated to "X".
If
UNTRANSLATED, filenames will be sent and used literally. UNTRANSLATED
is the
default.
SET IBM
Syntax: SET IBM ON or OFF
SET IBM is really a predefined SET macro rather than a "hardwired" SET
command;
it can be redefined or undefined (see DEFINE); as distributed from
Columbia,
Kermit-20 defines IBM to be "parity mark, handshake XON, duplex half".
SET IBM should be used when running Kermit-20 in local mode, connected
to an
IBM or similar mainframe. If you have redefined the SET IBM macro,
then your
parameters will be used instead.
SET ITS-BINARY
Syntax: SET ITS-BINARY ON or OFF
Specify whether ITS-Binary file headers are to be recognized or ignored.
By
default, they are recognized. ITS binary format is a way (devised at
MIT) of
storing foreign 8-bit binary data on a 36-bit machine to allow automatic
recognition of these files when sending them out again, so that you don't
have to
depend on the file byte size, or to issue explicit SET FILE BYTESIZE
commands
to Kermit.
An ITS format binary file contains the sixbit characters "DSK8" leftadjusted
in the first 36-bit word. If ITS-BINARY is ON, then Kermit-20 will
send any
file starting with this "header word" using 8-bit input from the file
even if
the file bytesize is not 8, and will not send the header word
itself.
Kermit-20 will also store any incoming file that begins with that
header word
using 8-bit bytesize, again discarding the header word itself.
If ITSBINARY
is OFF, then the header word, if any, will be sent or kept, and i/o will
be according to the setting of FILE BYTESIZE.
11.5.5. The SET, SHOW, and DEFINE Commands
Page 269
-----------------------------------------------------------------------------This facility is provided for compatibility with the file formats used on
certain public-access CP/M libraries.
SET INPUT
Syntax: SET INPUT parameter value
The INPUT command is used in TAKE command files or DEC-20 Batch control
files
as part of the login script facility, which is explained in greater
detail
later.
SET INPUT controls the behavior of the INPUT command. The
parameters
are as follows:
SET INPUT DEFAULT-TIMEOUT n
n is the number of seconds for an INPUT command to time out
after not
receiving the requested input, when no interval is explicitly
given in
the INPUT command. For instance, if the default timeout interval
is 10
seconds, then the command
INPUT login:
will look for the "login:" prompt for 10 seconds.
may
The default
be
overriden by including an explicit interval in the INPUT command:
INPUT 15 login:
The default timeout interval is 5 seconds.
SET INPUT TIMEOUT-ACTION PROCEED or QUIT
If the INPUT command comes from a Kermit-20 command file (see
TAKE
command) or a TOPS-20 Batch control file, then use this
command to
specify whether processing of the command file should proceed or
quit
after a timeout occurs. For TAKE files, the current command
file is
terminated and control returns to the invoking level (Kermit-20
prompt
level, or a superior TAKE file). The default action is PROCEED.
SET INPUT CASE IGNORE or OBSERVE
Specify whether alphabetic case should be ignored ("a" matches
"A") or
observed ("a" does not match "A") when scanning the input
for the
specified search string. By default, aphabetic case is ignored.
SET INPUT commands are "global"; the settings are
"popped"
when entering or leaving TAKE command files.
not
"pushed"
and
SET LINE
Syntax: SET LINE [octal-number]
Specify the octal TTY number to use for file transfer or CONNECT. If you
issue
this command, you will be running Kermit-20 locally, and you must log in
to the
remote system and run Kermit on that side in order to transfer a file.
If you
don't issue this command, Kermit-20 assumes it is running remotely, and
does
file transfer over its job's controlling terminal line. You can also
select
the line directly in the CONNECT command; the command
11.5.5. The SET, SHOW, and DEFINE Commands
Page 270
-----------------------------------------------------------------------------CONNECT 12
is equivalent to
SET LINE 12
CONNECT
If you type SET LINE with no number argument, you will
previous
assigned line and revert to remote mode.
deassign
any
The SHOW LINE command will display the currently selected
communication line
and its charactistics, including parity, duplex, handshake, flow
control, the
speed if known, whether carrier is present (if it is a modem-controlled
line),
and whether Kermit-20 is in local or remote mode.
SET RECEIVE
In addition to the full complement of SET RECEIVE commands described
in the
main part of the Kermit User Guide, you may also SET RECEIVE SERVERTIMEOUT to
a value between 0 and 94.
This specifies the number of seconds
between
timeouts during server command wait, 0 specifies that no timeouts should
occur
during server command wait. When a Kermit server times out, it sends
a NAK
packet.
Some systems cannot clear piled-up NAKs from their input
buffers; if
you're using such a system to communicate with a Kermit-20 server, and
you expect to be leaving the server idle for long periods of time, you
should use
this command to turn off server command-wait timeouts.
SET SPEED
Syntax: SET SPEED n
Set the baud rate of the currently selected communication to n, the
decimal
baud rate, for instance 300, 1200, 4800. When operating in local mode,
it may
be necessary to issue this command in order to enable BREAK simulation.
SET TVT-BINARY
Syntax: SET TVT-BINARY ON or OFF
Only for users running Kermit-20 on an ARPANET DEC-20, signed on to an
ARPANET
virtual terminal (TVT) from another host or through an ARPANET TAC. SET
TVT ON
causes Kermit-20 to negotiate binary mode (8-bit) communication with
the ARPANET during file transfer. Without this command, file transfer through
a TVT
would not work in most cases.
TVT-BINARY is OFF by default. If you normally use Kermit-20 through
the ARPAnet, you can put the command SET TVT-BINARY ON into your KERMIT.INI
file.
CAUTION: This facility requires certain features in the Release 5 TOPS20 ARPANET monitor, which may not be present in releases distributed by DEC.
See
the Kermit-20 source code for details.
11.5.5. The SET, SHOW, and DEFINE Commands
Page 271
-----------------------------------------------------------------------------THE DEFINE COMMAND
Syntax: DEFINE macroname [set-option [, set-option [...]]]
The DEFINE command is available in Kermit-20 for building "macros" of
SET commands. The macro name can be any keyword-style character string, and
the set
options are anything you would type after SET in a SET command; several
set options may be strung together, separated by commas. Example:
define notimeout send timeout 0, receive timeout 0, receive server 0
Macro definitions may not include macro names. You can list all your
macros
and their definitions with the SHOW MACROS command. You can list a
particular
macro definition with HELP SET macroname.
THE SHOW COMMAND
Syntax: SHOW [option]
The SHOW command displays various information:
DAYTIME
Current date, time, phase of moon.
DEBUGGING
Debugging mode in effect, if any.
FILE-INFO
disposition.
Byte size for DEC-20 file i/o, incomplete file
INPUT
INPUT command parameters.
LINE
escape
TTY line,
character,
parity,
speed
duplex,
(if
flow
control,
handshake,
known), and session loggin
information.
Note that before release 6.0 of TOPS-20, the
does
keep
a record of the actual baud rate of a modem-
controlled or
"remote" TTY line.
MACROS
DEC-20
not
Definitions for SET macros.
PACKET-INFO
column
For incoming and outbound packets.
Items under RECEIVE
show parameters for packets Kermit-20 expects to receive,
under
SEND shows parameters for outgoing packets.
TIMING-INFO
Delays, retries, server NAK intervals.
VERSION
when
Program version of Kermit-20.
Kermit-20 is initially started.
ALL
(default) All of the above.
This
is
also
displayed
11.5.6. Program Management Commands
Page 272
-----------------------------------------------------------------------------11.5.6. Program Management Commands
THE TAKE COMMAND
Syntax: TAKE filespec
Execute Kermit-20 commands from the specified file. The file may
contain contain any valid Kermit-20 commands, including other TAKE commands; command
files
may be nested up to a depth of 20. Default file type for the command
file is
.CMD. Most commands may have trailing comments, beginning by
semicolon, but
these should be avoided in REMOTE commands, GET commands, and the
passwords
that are prompted for after CWD and REMOTE CWD commands.
THE ECHO COMMAND
Syntax: ECHO line of text
The line of text is echoed at the terminal. This is useful when issued
from
within TAKE command files, to report progress or issue instructions.
THE HELP COMMAND
Syntax: HELP [topic [subtopic]]
Typing HELP alone
commands. You
can also type
prints a brief summary of Kermit-20 and its
HELP command
for any Kermit-20 command, e.g. "help send" or "help set parity"
more
detailed information about a specific command. Type
HELP ?
to see a list of the available help commands.
THE EXIT AND QUIT COMMANDS
to
get
Syntax: EXIT
Exit from Kermit-20.
You can CONTINUE the program from the TOPS-20
Exec,
provided you haven't run another program on top of it. You can also exit
from
Kermit-20 by typing one or more control-C's, even if it's in the
middle of
transferring a file. Kermit-20 will always restore your terminal
to its
original condition, and you will be able to CONTINUE the program to get
back to
"Kermit-20>" command level with current settings intact.
QUIT is a synonym for EXIT.
11.5.6. Program Management Commands
Page 273
-----------------------------------------------------------------------------THE LOG COMMAND
Syntax: LOG [option [filespec]]
Log the specified option to the specified file:
SESSION
charac-
During CONNECT or execution of a login script, log all
ters
that
appear on the screen to the specified file.
During
CONNECT, the session log can be temporarily turned
off
during
the remote session by typing the escape character
followed by Q
(for Quit logging), and turned on again by
typing
the
escape
character
followed
by R (for Resume logging).
Default
log is
SESSION.LOG in the current directory.
TRANSACTIONS
The
During file transfer, log the
progress
of
each
file.
DEC-20 transaction log file looks like this:
Kermit-20 Transaction Log File, Monday 27-Feb-1984
18:40:13: Opened Log: PS:<TIMREK>SAMPLE.LOG.1
18:40:31: -- Send Begins -8th bit prefixing: Off
Block check type: 1
18:40:31: Opened File: PS:<SY.FDC>LOGIN.CMD.6
Sending As "LOGIN.CMD"
Sent: 547 7-bit bytes
18:40:34: Closed PS:<SY.FDC>LOGIN.CMD.6
18:40:34: Send Complete
18:40:50: -- Receive Begins -8th bit prefixing: Off
Block check type: 1
18:40:50: Opened: PS:<TIMREK>AUTOEXEC.BAT.1
Written: 186 7-bit bytes
18:40:51: Closed: PS:<TIMREK>AUTOEXEC.BAT.1
18:40:56: Closed Transaction Log
Transaction
logging is recommended for long or
unattended file
transfers, so that you don't have to watch the screen.
The log
may
see what
be
inspected
after
the transfer is complete to
files were transferred
and
what
errors
may
have
occurred.
Default log is TRANSACTION.LOG in the current directory.
DEBUGGING
recent SET
Log
STATES
or
PACKETS,
as
specified in the most
DEBUGGING command, to the specified file.
file
If
log
not
specified,
then use TTY if local, or DEBUGGING.LOG in
the current directory if remote.
command
If
no
SET
DEBUGGING
was
previously
issued, log STATES to the specified file.
Also allow specification of bytesize for
the
log
file,
7
(normal,
default),
or 8 (for debugging binary transfers when the
parity
bit is being used for data), for instance
LOG DEBUGGING BINARY.LOG 8
A 7-bit log file can be typed, printed, or examined with
a text
editor or searching program.
An 8-bit log file can only
be examined with a system utility like FILDDT.
pack-
When
logging
11.5.6. Program Management Commands
Page 274
-----------------------------------------------------------------------------ets, each packet is preceded by a timestamp, the
current
timeout interval (preceded by a slash), and "R:" or "S:"
to indicate data being received and sent, respectively.
Packet format is described in the Kermit Protocol Manual.
SESSION is the default option. Thus the command "LOG" alone will cause
CONNECT
sessions to be logged in SESSION.LOG in the current directory. Any log
files
are closed when you EXIT or QUIT from Kermit, and are reactivated if you
CONTINUE the program. You may explicitly close a log file and terminate
logging
with the CLOSE command.
THE CLOSE COMMAND
Syntax: CLOSE option
Close the specified log file, SESSION, TRANSACTION, or DEBUGGING, and
terminate
logging to that file.
11.6. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
When running Kermit-20 in local mode, connecting from the DEC-20 to
another
system via an external TTY line (for instance, through an autodialer),
you may
use the Kermit-20 INPUT, OUTPUT, CLEAR, and PAUSE commands to carry on a
dialog
with the remote system. When combined into a "script" in a Kermit-20
TAKE command file, or included in a Batch control file, these commands
provide the
ability to initially connect and log in to a remote system, and to set
it up
for file transfer.
During script execution, session logging may be
used to
record the dialog.
THE CLEAR COMMAND
Syntax: CLEAR
Clear the input and output buffers of the currently selected line, and
attempt
to clear any XOFF deadlock.
THE PAUSE COMMAND
Syntax: PAUSE [interval]
Pause the specified number of seconds before executing the next
command. The
default interval is one second.
THE INPUT COMMAND
Syntax: INPUT [interval] [string]
On the currently selected communication line, look for the given string
for the
specified interval of time, which is specified in seconds. If no
interval is
specified, then wait for the default interval, which may be specified
by SET
INPUT DEFAULT-TIMEOUT, and is normally 5 seconds. Specifying an
interval of 0
11.6. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 275
-----------------------------------------------------------------------------(or less) means no timeout -- wait forever for the specified string. An
INPUT
command can by interrupted by typing one or more Control-C's, which will
return
you to Kermit-20> prompt level.
Characters coming in from the line will be scanned for the search
string, and
when a match is found, the command will terminate successfully; if the
string
is not found within the given interval, the command will terminate
unsuccessfully.
While the INPUT command is active, all incoming characters will
appear
on your screen.
The search string may contain any printable characters. Control or other
special characters that you could not normally type as part of a command
may be
included by preceding their octal ASCII values with a backslash, for
instance
foo\15 is "foo" followed by a carriage return (ASCII 15, octal). A
backslash
alone will be taken as is, unless it is followed by an octal digit (07); if
you want to actually specify a backslash in this context, double the
backslash
(\\5 will be taken as \5).
The behavior of the INPUT command is governed by the SET INPUT CASE, SET
INPUT
DEFAULT-TIMEOUT, and SET INPUT TIMEOUT-ACTION commands, as described
in the
Kermit Commands section of the User Guide, or in the Kermit book.
In addition to normal use, Kermit-20 scripts can also be used in DEC-20
batch
control files.
Failure to match an input string in the timeout
interval will
result in a message starting with "?", which signals the Batch
controller to
detect an error. If INPUT TIMEOUT-ACTION is SET to PROCEED, any timeout
error
messages will be issued starting with a "%", which does not signal an
error to
Batch.
In addition to otherwise untypable control characters (like Control-C),
certain
printable characters in the search string may need to be "quoted"
using the
backslash mechanism:
@ (ASCII 100)
tells
If
it
is
the
first
character
in
the string, atsign
TOPS-20 that the following characters will be the
of
name
an
indirect command file, for instance
input 10 @foo.txt
tells
Kermit
to
spend
10 seconds scanning the
communication
line input for the
string
which
is
contained
in
the
file
FOO.TXT.
If you need to specify a string that starts
with "@",
use \100 instead.
? (ASCII 77)
message
A question mark tells TOPS-20 to provide a brief
help
about this part of the command; use \77 instead.
! (ASCII 41)
exclamation
If
it
is
the
first
character in the string, an
point will cause TOPS-20 to ignore the rest of the
string, i.e.
treat it as a comment, use \41.
; (ASCII 73)
Same as exclamation mark, use \73.
( (ASCII 50)
beginning
In
first position, TOPS-20 will think this marks the
of a "guide word"; use \50.
11.6. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 276
------------------------------------------------------------------------------ (ASCII 55)
In final position, a dash tells TOPS-20 that the command
line
is to be continued, concatenated with the following
line. Use
\55 instead of a final dash.
For instance, to
specify the
string "More?--", use "More\77-\55".
THE OUTPUT COMMAND
Syntax: OUTPUT string
The given string is sent out the currently selected communication
line. The
string is in the same form as the INPUT string; control or special
characters
may be included by prefacing their octal ASCII value with a backslash.
Note
that any terminating carriage return must be included explicitly as \15.
The
string will also be echoed at your terminal.
LOGIN SCRIPT HINTS
It is not a good idea to store passwords in plain text in a
file. The
facilities of the TOPS-20 command parser make this unnecessary, so long
as you
are sitting at your terminal. Suppose you have a script that looks
for the
string "Password: " and then outputs your password using a command like
out mypassword\15
If you change this line to
out @tty:
you may enter the password from your terminal as follows:
login: myuserid
Password: mypassword\15^Z
That is, you type the password, a backslash-encoded carriage return, and
then
Control-Z.
This may be done even when executing commands from a TAKE
file;
after the ^Z, control returns to the TAKE file. In the OUTPUT command,
"@TTY:
designates TTY: (your job's controlling terminal) to be an indirect
command
file; the ^Z is the "end of file" for a terminal. This same technique
could
have been used in the first script example to allow you to supply from
the terminal the name of the file to be sent. It might be a good idea to for
you to
include an ECHO command in your script file to remind you to do this,
for instance:
input password:
echo ^GType your password, followed by "\15" and then a CTRL-Z
output @tty:
The ^G is a Control-G, which should get your attention by sounding
beep at
your terminal.
a
One might expect to be able to use the same indirect file mechanism
with the
OUTPUT command to provide a crude "raw upload" facility, as in
output @foo.bar
11.6. Login Scripts: The INPUT, OUTPUT, CLEAR, and PAUSE Commands
Page 277
-----------------------------------------------------------------------------to send the contents of the file FOO.BAR to the remote system,
with no
synchronization or error checking. Unfortunately, there are two
problems with
this approach: first, TOPS-20 converts all carriage return / linefeeds
in an
indirect command file to spaces, and second, only very short files
may be
treated this way, because they must fit within TOPS-20's command "atom"
buffer.
The Kermit-20 TRANSMIT command provides a synchronized raw uploading of
files.
11.7. Raw Download and Upload
"Raw Download" is the term commonly used to describe the capture of a
remote
file on the local system, without any kind of error detection or
correction.
This allows you to obtain files from remote systems that do not have
Kermit,
but with the risk of loss or corruption of data.
Kermit-20 provides raw downloading via the LOG SESSION command during
CONNECT
to a remote system. The session log is described above. To use
session logging to capture a file:
1. Run Kermit on the DEC-20.
2. SET LINE to the TTY number through which you will
be
connected
to
the remote system.
3. Perform any required SET commands to condition Kermit for
communication with the remote system. You may need SET PARITY, SET
DUPLEX,
SET FLOW, SET HANDSHAKE, etc., depending on the characteristics
of
the remote system and the communication medium.
4. CONNECT to the remote system and log in.
5. Condition your job on the remote system not to pause at the end of
a
screenful
of
text,
and give whatever commands may be necessary
to
achieve a "clean" terminal listing -- for instance, disable
messages
from the system or other users.
6. Type
the
appropriate command to have the desired file displayed
at
the terminal, but do not type the terminating carriage return.
On
most systems, the command would be "type", on Unix it's "cat".
7. Escape
command.
back
to
Kermit to the DEC-20 and give the LOG SESSION
8. CONNECT back to the remote system and type a carriage return.
The
file will be displayed on your screen and recorded in the
session
log file.
9. Escape back to Kermit on the DEC-20 and give the CLOSE SESSION
command.
The file will be in SESSION.LOG in your connected directory, unless
you gave
another name for it in your LOG SESSION command. You will probably find
that
some editing necessary to remove extraneous prompts, messages, padding
characters, or terminal escape sequences, or to fill in lost or garbled
characters.
Here's an example showing how to capture a file foo.bar from a remote
Unix system:
11.7. Raw Download and Upload
Page 278
--------------[email protected]kermit
Kermit-20>set line 23
Kermit-20>connect
[KERMIT-20: Connecting to remote host over TTY23:,
type <CTRL-\>C to return.]
4.2 BSD UNIX
login: myuserid
Password: mypassword
% cat foo.bar^\C
[KERMIT-20: Connection Closed]
Kermit-20>log session foo.bar
Kermit-20>connect
[KERMIT-20: Connecting to remote host over TTY23:,
type <CTRL-\>C to return.]
[KERMIT-20: Logging to File FOO.BAR.1]
(Type carriage return now.)
This is the file foo.bar.
It has three lines.
This is the last line.
% ^\
[KERMIT-20: Closing Log File FOO.BAR.1>
[KERMIT-20: Connection Closed]
Kermit-20>close session
Note that in this case, the Unix "% " prompt at the end of the text
have
to be edited out.
will
RAW UPLOAD
"Raw Upload" means sending a file from the local system to a remote one,
again
without error detection or correction. This allows you to send files
from the
DEC-20 to remote systems that don't have Kermit. Kermit-20 provides the
TRANSMIT command for this purpose.
Syntax: TRANSMIT filespec [prompt]
For use in local mode only. Sends the specified text file a line at
time,
"raw" (as is, without using Kermit protocol), to the remote system,
waiting for
the specified prompt for each line. Only a single file may be sent
with the
a
TRANSMIT command; wildcards are not allowed in the filespec. The file
should
be a text file, not a binary file. Since protocol is not being used,
no assurance can be given that the file will arrive at the destination
correctly or
completely.
The prompt is any string, for instance the prompt of a line editor in
text insertion mode.
The prompt string may include special characters by
preceding
their octal ASCII values with a backslash, e.g. \12 for linefeed, \21
for XON
(^Q).
The syntax of the prompt string is explained in greater detail
above,
with the INPUT command.
If a prompt string
searching
for it unless you
supplied,
then linefeed will
HANDSHAKE command, in
used. If
is supplied, alphabetic case will be
SET INPUT CASE OBSERVE.
ignored
in
If a prompt string is not
be used by default, unless you have performed
a
which case the current handshake character will be
SET
11.7. Raw Download and Upload
Page 279
-----------------------------------------------------------------------------you really want to send the entire file without waiting for any
prompts,
specify a prompt of "\0" (ASCII zero, null) (this is not advised).
The file will be sent using the current settings for duplex, parity,
and flow
control. There are no timeouts on input, as there are with the INPUT
command.
The TRANSMIT command waits forever for the prompt to appear. However,
if you
observe that the transfer is stuck, there are three things you can do:
- Type a Carriage Return to transmit the next line.
- Type a Control-P to retransmit the line that was just transmitted.
- Type two Control-C's to cancel the TRANSMIT command and get
back
to
Kermit-20> command level.
TRANSMIT should be used as follows: CONNECT to the remote system,
login, and
start up some kind of process on the remote system to store input from
the terminal into a file. On a DEC-20 (that doesn't have Kermit), you could do
copy tty: foo.bar
or you could start a line editor like EDIT or OTTO and put it into text
insertion mode. On a Unix system, you could
cat /dev/tty > foo.bar
or you could run "ed" and give it the "a" command.
The Kermit-20 TRANSMIT command will send the first line of the
file immediately.
Then it will wait for a "prompt" from the remote system
before
sending the next line. When performing a copy operation from the
terminal to a
file, the "prompt" will probably be a linefeed, "\12" which is the
default
prompt -- most full duplex systems expect you to type a line of text
terminated
by a carriage return; they echo the characters you type and then
output a
linefeed. Half duplex systems, on the other hand, use some kind of line
turnaround handshake character, like XON (Control-Q), to let you know
when they
are ready for the next line of input. Line editors like EDIT and OTTO
prompt
you with a line number followed by a tab; in that case your prompt
character
would be "\11" (be careful -- if the remote DEC-20 doesn't think your
terminal
has hardware tabs, it will simulate them by outputting spaces). In any
case,
to assure synchronization, it is your responsibility to set up the target
system to accept line-at-a-time textual input and to determine what the
system's
prompt will be when it is ready for the next line.
Each line is sent with a terminating carriage return; linefeeds are not
sent,
since these are supplied by the receiving system if it needs them. The
TRANSMIT command continues to send all the lines of the file in this manner
until it
reaches the end, or until you interrupt the operation by typing ControlC's.
If you cannot make the TRANSMIT command work automatically, for
instance because the remote system's prompt changes for each line, you may
TRANSMIT
manually by specifying a prompt string that will not appear, and then
typing a
carriage return at your keyboard for each line you want to send.
If the TRANSMIT command completes successfully (you'll get a message to
the effect that the transmission is complete), then you must connect back
to the
11.7. Raw Download and Upload
Page 280
-----------------------------------------------------------------------------remote system and type whatever command it needs in orderto save and/or
close
the file there.
11.8. Kermit-20 Examples
Here are a few examples of the use of Kermit-20.
user is
underlined.
Text entered by the
REMOTE OPERATION
The following example shows use of Kermit-20 as a server from an IBM PC.
In
this example, the user runs Kermit on the PC, connects to the DEC20, and
starts Kermit-20 in server mode. From that point on, the user need never
connect to the DEC-20 again.
In this example, the user gets a file
from the
DEC-20, works on it locally at the PC, and then sends the results back
to the
DEC-20.
Note that the user can leave and restart Kermit on the PC as
often as
desired.
A>Kermit
Kermit-MS>connect
@
@Kermit
TOPS-20 Kermit version 4.2(262)
Kermit-20>server
Kermit Server running
sequence to return to
typing the Kermit BYE
^[C
Kermit-MS>get foo.txt
The transfer takes
on DEC-20 host. Please type your escape
your local machine. Shut down the server by
command on your local machine.
place.
Kermit-MS>exit
A>
A>edit foo.txt ; (or whatever...)
A>
A>Kermit
Kermit-MS>send foo.txt
The transfer takes place.
Kermit-MS>bye
A>
The next example shows the special procedure you would have to use in
order to
send a mixture of text and binary files from a PC (or an 8-bit-byte
system) to
the DEC-20. Note that in this case, it's more convenient to avoid server
mode.
Kermit-MS>connect
@
@Kermit
TOPS-20 Kermit version 4.2(262)
Kermit-20>receive
11.8. Kermit-20 Examples
Page 281
-----------------------------------------------------------------------------^]C
Kermit-MS>send *.txt
Textual files are sent.
Kermit-MS>connect
Kermit-20>set file bytesize 8
Kermit-20>receive
^]C
Kermit-MS>send *.exe
Binary files are sent.
Kermit-MS>connect
Kermit-20>exit
@logout
^]C
Kermit-86>exit
A>
LOCAL OPERATION
In this example, a program DIAL is used to direct an autodialer to call
another
computer (a DECsystem-10); once the connection is made, DIAL starts
Kermit with
an implicit CONNECT command for the appropriate communication line.
DIAL is
not part of Kermit; if your system has an autodialer, there will be some
sitespecific procedure for using it.
@dial
Dial>dial stevens
STEVENS, 1-(201) 555-1234, baud:1200
[confirm]
Dialing your number, please hold...
Your party is waiting on TTY11:.
@
@Kermit
TOPS-20 Kermit version 4.2(262)
Kermit-20>connect 11
[Kermit-20: Connecting over TTY11:, type <CTRL-\>C to return]
CONNECTING TO HOST SYSTEM.
Stevens T/S 7.01A(10) 20:20:04 TTY41 system 1282
Connected to Node DN87S1(101) Line # 57
Please LOGIN or ATTACH
.log 10,35
JOB 51 Stevens T/S 7.01A(10) TTY41
Password:
20:20
15-Dec-83
Thur
.r new:Kermit
TOPS-10 Kermit version 2(106)
Kermit-10>server
11.8. Kermit-20 Examples
Page 282
-----------------------------------------------------------------------------[Kermit Server running on the DEC host. Please type your escape
sequence to return to your local machine. Shut down the server by
typing the Kermit BYE command on your local machine.]
^YC
[Kermit-20: Connection Closed.
Back at DEC-20.]
Kermit-20>set file bytesize 8
Kermit-20>get setdtr.cmd
^A for status report, ^X to cancel file, ^Z to cancel batch.
SETDTR.CMD.7 ^A
Receiving SETDTR.CMD.7, file bytesize 8
(repeated character compression)
At page 1
Files: 0, packets: 1, chars: 66
NAKs: 0, timeouts: 0
.[OK]
Kermit-20>bye
Job 51 User F DA CRUZ [10,35]
Logged-off TTY41 at 20:22:58 on 15-Dec-83
Runtime: 0:00:01, KCS:33, Connect time: 0:02:39
Disk Reads:72, Writes:4, Blocks saved:160
....
Hangup? y
Click. Call duration was 193 seconds to area 201.
Dial>exit
Note the use of Control-A to get a status report during the transfer.
11.9. Installation of Kermit-20
Kermit-20 is built from a single MACRO-20 source file, K20MIT.MAC. It
requires
the standard DEC-distributed tools MONSYM, MACSYM, and CMD; the following
files
should be in SYS: -- MONSYM.UNV, MACSYM.UNV, MACREL.REL, CMD.UNV, and
CMD.REL.
The CMD package is also included with the Kermit distribution as
K20CMD.*, in
case you can't find it on your system.
The program should work on all TOPS-20 systems as distributed, but many
customizations are possible. The site manager may wish to change various
default
parameters on a site-wide basis; this may be done simply by
changing the
definitions
reassembling.
of
the
desired symbols, under "subttl Definitions", and
The most notable site dependency is the definition of "SET IBM".
As
distributed from Columbia, Kermit-20 defines "SET IBM" in a built-in SET
macro
definition as "parity mark, duplex half, handshake xon". This
definition may
be found at MACTAB+1, near the end of the impure data section. It
may be
changed or deleted, and the program reassembled.
Sites that do not have ARPANET may wish to delete the TVT-BINARY
from
SET command tables, SETABL and SETHLP.
entries
12. PDP-11 Kermit
Page 283
-----------------------------------------------------------------------------12. PDP-11 Kermit
Author:
Documentation:
Language:
Version:
Date:
Systems Supported:
Brian Nelson, University of Toledo, Ohio
Brian Nelson
Macro-11
3.58
September, 1987
RSTS/E, RSX-11M/M+, P/OS, Micro-RSX, RT-11 and TSX+
Kermit-11 Capabilities At A Glance:
Local operation:
Remote operation:
Transfer text files:
Transfer binary files:
Wildcard send:
File transfer interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
LONG Packet protocol support:
Sliding Windows protocol support:
Terminal emulation:
Communication settings:
Transmit BREAK:
IBM mainframe communication:
Transaction logging:
Session logging:
Debug logging:
Packet logging:
Act as server:
Talk to server:
Advanced server functions:
Local file management:
Command/Init files:
File attributes packets:
Command macros:
Raw file transmit:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes (depends on system)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
12. PDP-11 Kermit
Page 284
-----------------------------------------------------------------------------12.1. File Systems on the PDP-11
12.1.1. File Specifications
The general format of a file name is:
NODE::DEVICE:[DIRECTORY]NAME.TYPE;VERSION
'Node' refers to the DECNET node name, for example, FUBAR::, if
applicable.
'Device', if present, refers to the physical device or logical name
where the
file resides.
For RSTS/E, 'device' can be a physical device, such as DB0: or DU1:, or
it can
be a user or system logical name which may include both a physical device
name
and a directory name. If the device name is a logical name, is it
composed of
1 to 9 alphanumeric characters, including '$', as in DISK$ONE:, LB: and
so on.
For instance, the DCL system command
$ ASS/SYS DB1:[200,210] SRC$DIR
would associate both the device DB1: and directory [200,210] with
SRC$DIR:.
Explicitly given directories override directory names imbedded in a
logical
name. Names longer than nine characters are truncated by the executive.
In the case of RSX-11M/M+ and RT-11, the device name can be either a
physical
name, such as DU0:, or a logical name which will translate to a physical
device
name, such as LB:.
On RSTS/E and RSX-11M/M+, the [directory] is a UIC (user identification
code)
or PPN (project,programmer) number of the format [NNN,MMM]. All users
are assigned a UIC (or PPN) when accounts are created, this is the number you
give to
LOGIN to log into the system. It is also your default UIC (or PPN).
Micro-Rsx
and P/OS may have directories in either UIC format or named directory
format,
such as [1,2] or [KERMIT]. For P/OS, the
[USERFILES].
Directories are not used in RT-11.
default
directory
is
The NAME field is the primary identifier for the file. The name can be
one to
nine characters for RSX-11M/M+ and P/OS, and one to six characters for
RSTS/E,
RT-11 and TSX+.
The TYPE field is usually used to group files
according to
some convention. For example, XXX.FTN refers to a Fortran-77 source
file,
FOO.C to a 'C' source file, and K11POS.TSK refers to a task image.
The version field is applicable ONLY to RSX type systems.
version
is always the highest version number.
The default
All systems mentioned support some sort of filename
wildcarding,
the
flexibility of which varies by executive.
All support the use of
'*' to
represent either a fully wildcarded NAME or TYPE. RSTS/E supports the
use of
'?' to match any single character, whereas the others use a '%' to
match any
single character. The RSTS/E Kermit server will translate '%' to '?'
internally for the GET and REMOTE DIR commands (see the section on Kermit-11
server
operation).
Examples of wildcarded filenames:
12.1.1. File Specifications
Page 285
-----------------------------------------------------------------------------*.B2S
Match any file with a TYPE of B2S.
K11%%%.MAC
three
match any file starting with K11,
followed
by
NAME
XYZ
one
to
characters, with a TYPE of MAC.
K11???.MAC
Same as above, but for RSTS/E only.
XYZ.*;*
any TYPE
All
versions
of
files
with
a
of
with
(RSX-11M/M+ and P/OS only).
12.1.2. File Formats (Binary and Text)
12.1.2.1. RT-11 and TSX+
RT-11 treats all files as a contiguous stream of characters. There is
no information stored in the directory to tell the system (or program) that
a file
is readable text (source program, runoff document,...) or consists of
binary
data (executable program, object file, .SYS file,...). An application
program
like Kermit-11 needs to know what type of file to expect, thus the
presence of
the SET FILE TYPE command (discussed later). The only real convention
is that
text files are streams of seven bit data with each record terminated by a
carriage return/line feed character sequence and that binary files normally
follow
a filename TYPE convention. The TYPE (.SAV, .SYS, ...) is what Kermit-11
will
look at to decide if a file should be sent as a text or binary file.
12.1.2.2. RSTS/E, P/OS and RSX-11M/M+
These systems can provide for a large number of file attributes for
each file
by using either FCS11 (RSX-11M/M+) or RMS11 (all).
Text files are
normally
considered to be either STREAM format (FB$STM) or VARIABLE with
implied carriage control (FB$VAR and FB$CR). RSTS/E has historically defaulted to
STREAM,
whereas the RSX based systems use VARIABLE. Kermit-11 follows those
defaults
when creating files unless told to do so otherwise by the presence of
attribute
data.
The conversion of the internal data representation to one that
can be
transmitted to another Kermit is transparent for these types of files.
Both
the file attributes and the filename TYPE are examined by Kermit-11 to
determine if a file needs to be sent as a text file (default) or a binary
file. Additionally, on RSTS/E Kermit checks the file protection code, as one
of the
bits in it is used to flag an executable file (bit 6).
In all cases, unless (at this time) Kermit-11 is talking to another
Kermit-11,
or if Kermit-11 can't tell if a file is consists of binary data, the
command
SET FILE TYPE FIXED must be used to force Kermit to either send or
get a
non-text file correctly. When Kermit-11 is running in binary mode, all
data is
read from (or written to) the file without any translation or internal
record
control information.
Any attribute information in the file's directory
entry
is ignored and the data read (or written) in 512 byte unformatted blocks.
Thus
it is indeed possible to transfer files like task images and object
libraries.
Since Kermit-11 supports a subset of a protocol feature called
'attributes',
two Kermit-11's connected together can also correctly transfer files
other than
simple text and unformatted binary files, such as RMS indexed or
relative
files.
12.1.3. Saving Files on the PDP-11 From Your Microcomputer
Page 286
-----------------------------------------------------------------------------12.1.3. Saving Files on the PDP-11 From Your Microcomputer
You can send textual files to Kermit-11 without any special
considerations as
Kermit-11 defaults to creating normal text files. However, if you are
sending
a binary file (perhaps an .EXE) from say, your Rainbow under MS-DOS, you
would
need to tell Kermit-11 to expect binary data. This is done with the
Kermit-11
command SET FILE TYPE FIXED. This will force Kermit-11 to write the
data out
exactly as it comes, in 512 byte unformatted records. Sending the same
file
back to the Rainbow would not require any special action since the file,
as it
sits on the PDP-11, has the proper information in the directory entry to
tell
Kermit-11 that the file is binary. As a note, for RT-11 you would need
to use
a filetype that is normally considered 'binary' like .SAV or .OBJ (see
above
notes for RT-11).
Never try to do a wildcarded send with mixed binary and text files
with the
file type set to FIXED. The result could be unusable as not all systems
store
text data in the same internal format. For example, if Kermit-11 is
forced
into binary mode (via SET FIL TYP FIX) and is requested to send a file
with implied carriage control (normal for RSX text files), it will actually
send, for
each line, two bytes representing the record length, followed by the
data and
then followed by a ASCII NUL to pad the record to an even length. That
is not
incorrect, rather, it is EXACTLY how the data was stored on disk.
In general, avoid sending anything other than unformatted binary files
and text
file to unlike systems. For example, requesting a RMS indexed file
from the
PDP-11 to be sent to a PC would case Kermit-11 to send it as a binary
file, but
the file attributes would be lost. Sending such a file back to the
PDP-11
would result in an unusable file unless you could reconstruct the
attribute information.
12.1.4. Program Operation
Kermit-11's prompt is normally "Kermit-11>". This can be changed if
need be
via the SET PROMPT command. Invoking Kermit-11 is very site dependent.
12.1.4.1. RSTS/E
If Kermit-11 has a ccl definition, it would likely be invoked as
"KER" or
"KERMIT". If not, try "RUN $KERMIT", as this is a likely place where
Kermit-11
may have been put. Otherwise consult your local support staff.
12.1.4.2. RSX-11M/M+
If Kermit-11 has been installed, it most likely will have a task name of
...KER
which means that typing "KER" should get things running. If not,
consult your
local support staff.
12.1.4.3. RT-11/TSX+
Page 287
-----------------------------------------------------------------------------12.1.4.3. RT-11/TSX+
On version 5 of RT-11, programs can be run simply by typing
filename.
Thus, if there is a file SY:KERMIT.SAV, simply type "KERMIT".
fails,
contact your local support staff for assistance.
the
If this
12.1.4.4. P/OS
Kermit-11 is generally run from DCL on P/OS. The program is invoked
via the
DCL RUN command, as in RUN K11POS or RUN KERMIT, depending on what the
task image name is.
Note that for the case where Kermit is installed (for
11M/M+)
that Kermit-11 can get command line arguments, as in:
$ KER SERV
> KER send fubar.txt
RSTS/E
and
RSX-
Kermit starts as a server.
Kermit sends the file.
Otherwise, the program is run interactively from the Kermit-11> prompt:
$ KERMIT
Kermit-11 V3.54
Kermit-11>SET BLO 3
Kermit-11>SER
Changes checksum type.
Enter Kermit server.
Note that whenever Kermit-11 starts up, it will always try to find
a file
called KERMIT.INI in your current directory. This file can contain any
valid
Kermit command, though the usual use of this is to place various Kermit11 SET
commands in it. If this file does NOT exist, it will try to find
it in
LB:[1,2]KERMIT.INI (excluding RT-11). In addition to the .INI file,
commands
may be placed in a file and then executed via the Kermit-11 TAKE (or @)
command.
12.2. Local and Remote Operation
Kermit-11 by default assumes that all file transfers will occur over
the terminal line that you are currently logged in on (TI:, TT:, KB:). This is
known
as REMOTE mode (the PDP-11 is the remote system). This would be the
desired
case if you are running Kermit on a microcomputer such as a Rainbow
and are
currently logged into the PDP-11 through the micro. However, if you
wanted to
dial out, say by an autodial modem, from the PDP-11 to another system,
you need
to tell Kermit-11 to use some other terminal line. This would be called
LOCAL
mode (the PDP-11 is the local system). The line can be altered with
the SET
LINE command (see section on SET and CONNECT). A SET LINE command is
done implicitly if Kermit-11 finds itself running on a PRO/350, under either
P/OS,
RT-11 or TSX+.
Since support of parity varies by both interface type (DL11 vs DZ11)
and by
operating system, Kermit-11 makes NO attempt to find out what the
current
parity of it's line is. Kermit-11 generates it's own parity which is
set with
the SET PARITY command.
There are a couple of things to point out regarding Kermit-11
mode
(you did a SET LINE command):
and
LOCAL
12.2. Local and Remote Operation
Page 288
------------------------------------------------------------------------------ The system manager may have lines other than your own protected
(or
owned by the system). On RSTS/E lines are often made
unaccessible
unless
your
account
possesses the needed privilege(s).
On
RSX-11M/M+, privilege is required to alter settings on any other
terminal line.
You may have to talk to your system manager to get
access to an outgoing terminal line.
- Once connected to a modem through another line, a means must
exist
for the connection to be broken (if the host you are calling won't
do
it). Given that your line has full or partial modem control
(DZV11,
DZ11, DH11, DHU/V11) the RSX, RT-11/TSX+ and RSTS/E Kermits have
a
HANGUP (or DISCONNECT) command, which instructs the system to
disconnect the modem. Unless this is done, you never get disconnected
and
could run up a tidy phone bill.
Kermit-11 has, as of v3.53, a rudimentary command line editor. You can
recall
previous commands with the UP-Arrow key, and exit the command with the
LEFT and
RIGHT arrow keys. The RUBOUT key, of course, deletes characters,
while the
Control-R key retypes the line. Control-E moves to the end of the
line and
Control-H moves to the start of the line.
12.3. Kermit-11 Commands
Kermit-11 has the following commands available:
@
BYE
CONNECT
COPY
CWD
DELETE
DIAL
DIRECT
Synonym for TAKE
Logout a remote server
Connect to a remote system
Local copy of a file(s)
Set new working directory
Local delete of a file(s)
Have a connected modem dial a number
Local directory display
DISCONNECT
DISPLAY
ERASE
EXIT
FINISH
GET
HANGUP
HOST
LOCAL
LOGFILE
QUIT
PRINT
RECEIVE
REMOTE
RENAME
SEND
SERVER
SET
SHOW
TAKE
TYPE
WHO
Hangup a remote line
Internal debugging
Local delete of a file(s)
Exit to system
Stop a remote server without logging out
Get a file(s) from a remote server
Hangup a remote line
Execute system command locally (where applicable)
Force interpretation of command to the local system
Create a log file
Same as EXIT
Print a file locally (where applicable)
Receive a file(s) from a remote kermit
Prefix for file management commands to a server
Local rename of filename(s)
Send a file(s) to a remote Kermit
start a Kermit server
Change Kermit parameters
Display Kermit parameters
Execute indirect command file
Local display of file on terminal
Local display of logged in users (RSTS/E only)
12.4. Commands for File Transfer
Page 289
-----------------------------------------------------------------------------12.4. Commands for File Transfer
Kermit-11 includes the standard repertoire of Kermit
commands,
including SEND, RECEIVE, and GET.
file
transfer
THE SEND COMMAND
Syntax:
SEND filespec
The SEND command causes a file or file group to be sent from the PDP-11
to the
other system. If filespec contains wildcard characters then all matching
files
will be sent, in alphabetical order (according to the ASCII collating
sequence)
by name. If filespec does not contain any wildcard characters, then the
single
file specified by filespec will be sent.
SEND Command General Operation
:
Files will be sent with their PDP-11 file name and type (for instance
FOO.BAR).
Each file will be sent according to the record type and attributes
recorded in
its file descriptor. Kermit-11 attempts to translate all formats of
text file
to a format usable on any system. Note that there is no need to set the
FILE
TYPE parameter for sending files, since Kermit-11 always uses the
information
from the file directory entry and the filetype (extension) to determine
how to
send the file.
If communication line parity is being used (see SET PARITY), Kermit-11
will request that the other Kermit use a special kind of prefix notation for
binary
files.
This is an advanced feature, and not all Kermits have it; if the
other
Kermit does not agree to use this feature, binary files cannot be sent
cor-
rectly.
This includes executable programs (like .EXE files, CP/M .COM
files),
relocatable object modules (.OBJ files), as well as any text file
containing
characters with the eighth bit on.
Kermit-11 will also ask the other Kermit whether it can handle a special
prefix
encoding for repeated characters. If it can, then files with long
strings of
repeated characters will be transmitted very efficiently. Columnar
data,
highly indented text, and binary files are the major beneficiaries of
this
technique.
If you're running Kermit-11 locally, for instance dialing out from a
PDP-11 to
another system using an autodialer, you should have already run Kermit
on the
remote system and issued either a RECEIVE or a SERVER command. Once
you give
Kermit-11 the SEND command, the name of each file will be displayed on
your
screen as the transfer begins. As the transfer continues, you will get a
small
display of the packet count along with the number of packets rejected.
See the
SET TERMINAL and SET UPDATE commands for more information. You may
also type
Control-X or Control-Z to interrupt the current file or file group.
Control-E
will also abort the transfer by sending an 'error' packet to the other
Kermit.
12.4. Commands for File Transfer
Page 290
-----------------------------------------------------------------------------THE RECEIVE COMMAND
Syntax:
RECEIVE [filespec]
The RECEIVE command tells Kermit-11 to receive a file or file group
from the
other system. The name is taken from the incoming file header. If an
incoming
file has the same name as an existing file, Kermit-11 will by default
create a
new file. On RT-11 and RSTS/E, the old file will be deleted by the
executive.
On RSX-11M/M+ and P/OS, a new file with a higher version number
will be
created. To avoid files being superceded, see the SET FILE [NO]SUPERCEDE
command.
Incoming files will all be stored with the prevailing file type,
ASCII by
default, which is appropriate for text files. If you are asking Kermit11 to
receive binary files from a microcomputer or other 8-bit system, you must
first
type SET FILE TYPE FIXED. Otherwise, an error may occur when
receiving the
file. Please note that this does NOT apply to two Kermit-11 programs
connected
to each other. In that case the sending Kermit-11 will tell the
receiving
Kermit-11 to switch to binary mode if need be.
If parity is being used on the communications line, then 8th-bit
prefixing will
be requested. If the other side cannot do this, binary files cannot be
transferred correctly.
If you are running Kermit-11 locally, you should already have issued
a SEND
command to the remote Kermit, and then escaped back to Kermit-11. As
files arrive, their names will be displayed on your screen.
If a file arrives that you don't really want, you can attempt to cancel
it by
typing Control-X; this sends a cancellation request to the remote Kermit.
If
the remote Kermit understands this request (not all implementations of
Kermit
support this feature), it will comply; otherwise it will continue to
send.
If
a file group is being sent, you can request the entire group be
cancelled by
typing Control-Z.
Normally, one runs the remote Kermit as a SERVER, thus the RECEIVE
command is
never used, rather, the GET command, described next, is used.
THE GET COMMAND
Syntax:
GET [remote-filespec]
The GET command requests a remote Kermit server to send the file or file
group
specified by remote-filespec. This command can be used only when Kermit11 is
local, with a Kermit server on the other end of the line specified by SET
LINE.
This means that you must have CONNECTed to the other system, logged
in, run
Kermit there, issued the SERVER command, and escaped back to the PDP-11.
The remote filespec is any string that can be a legal file
specification for
the remote system; it is not parsed or validated locally. Any leading
spaces
before the remote filespec are stripped, and lower case characters are
raised
to upper case.
As files arrive, their names will be displayed on your screen.
As
in the
RECEIVE command, Control-X (^X) to request that the current incoming
file be
12.4. Commands for File Transfer
Page 291
-----------------------------------------------------------------------------ancelled, ^Z to request that the entire incoming batch be cancelled.
If the remote Kermit is not capable of server functions, then you will
probably
get an error message back from it like "Illegal packet type". In this
case,
you must connect to the other Kermit, give a SEND command, escape
back, and
give a RECEIVE command.
12.4.1. Server Operation
The SERVER command puts a remote Kermit-11 in "server mode", so
that it
receives all further commands in packets from the local Kermit. The
Kermit-11
server is capable (as of this writing) of executing the following remote
server
commands: SEND, GET, FINISH, BYE, REMOTE DIRECTORY, REMOTE CWD, REMOTE
SPACE,
REMOTE DELETE, REMOTE TYPE, REMOTE HELP, REMOTE COPY, REMOTE RENAME,
REMOTE
WHO, REMOTE LOGIN and REMOTE HOST.
Any nonstandard parameters should be selected with SET commands before
putting
Kermit-11 into server mode, in particular the file type. The Kermit-11
server
can send all files in the correct manner automatically. As noted before,
if a
Kermit-11 is talking to another Kermit-11, they will negotiate any
'binary'
parameters automatically. However, if this is NOT the case and you need
to ask
Kermit-11 to receive binary files you must issue the SET FILE TYPE FIX
command
before putting it into server mode, and then you must only send binary
files.
You cannot send a mixture of text files and 8-bit binary files to a
Kermit-11
server unless the files are not for use on the PDP-11.
12.4.2. Commands for Servers
When running in local mode, Kermit-11 allows you to give a wide range
com-
of
mands to a remote Kermit server, with no guarantee the that the remote
server
can process them, since they are all optional features of the protocol.
Commands for servers include the standard SEND, GET, BYE, FINISH commands,
as well
as the REMOTE command.
THE BYE COMMAND
The BYE command tells a remote server to log out of the remote system.
In addition, some remote systems will also disconnect the line for you. If
this is
not the case, the DISCONNECT command will (depending on your interface)
cause
the line to be dropped. See DISCONNECT.
THE FINISH COMMAND
The FINISH command tells the remote Kermit server to exit without
logging out
of the remote system. You can then CONNECT back to the Server operation
system.
12.4.2. Commands for Servers
Page 292
-----------------------------------------------------------------------------THE REMOTE COMMAND
Send the specified command to the remote server. If the server does not
understand the command (all of these commands are optional features of the
Kermit
protocol), it will reply with a message like "Unknown Kermit server
command".
If does understand, it will send the results back, and they will be
displayed
on the screen. The REMOTE commands are:
REMOTE COPY filespec newfilespec
Copy file. The server is asked to make a copy of the
specified
file.
Both filespecs must be in the correct format
for the
remote system. Kermit-11 does not parse or validate the
file
specifications.
Any leading spaces will be stripped and
lower
case characters converted to upper case. Note that this
command simply provides for copying a file within the
server's
system - it does not cause a file to be transferred.
REMOTE CWD directory
Change Working Directory.
If no directory name is
provided,
the server will change to the default or home
directory.
Kermit-11 currently does not ask for a password.
REMOTE DELETE filespec
Delete the specified file or files. The names
files
that are deleted will appear on your screen.
of
the
REMOTE DIRECTORY [filespec]
The names of the files that match the given file
specification
will be displayed on your screen, perhaps along with
size and
date information for each file. If no file
specification is
given, all files from the current directory will be
listed.
REMOTE HELP
commands that
The remote server will send back a list of server
it can execute.
REMOTE HOST command
Pass the given command to the server's host command
processor,
and display the resulting output on your screen. Not all
Kermit servers can do this function. In the case of
Kermit-11,
only the RSTS/E Kermit-11 server can execute the REMOTE
HOST
command.
REMOTE LOGIN user password
Ask a remote server to log into a different account or
username.
The support for this command is rarely
implemented as
many systems layer login/logout support over the
executive.
A
Kermit-11 server can only support this on RSTS/E, and
at that
only for version 9.0 or later.
Of the various DEC
PDP-11
operating systems, only RSTS/E has the support for
logging in
and out built into the executive and accessible with
directives.
REMOTE RENAME oldfile newfile
Change the name on the specified file (or files).
Both
file
specifications must be valid for the server's system.
12.4.2. Commands for Servers
Page 293
-----------------------------------------------------------------------------REMOTE SPACE
Display information about disk usage in the current
directory.
REMOTE TYPE filespec
Display the contents of the specified file on your
screen.
REMOTE WHO
Display current status of user's logged in.
12.5. Commands for Local File Management
These commands provide some local file management capability without
having to
leave the Kermit-11 program.
These commands are very similar to the
REMOTE
commands in function and syntax. They are all executed locally, and are
available when Kermit-11 is either local or remote. The arguments to these
commands
are the same as the arguments expected from the user Kermit when Kermit11 is
processing a command in server mode.
Additionally, these commands
can be
prefixed by the LOCAL keyword.
COPY filespec newfilespec
CWD directory
DELETE filespec
DIRECTORY [filespec]
HELP
HOST command
RENAME oldfile newfile
SPACE
TYPE filespec
WHO
12.5.1. The CONNECT Command
The CONNECT command will allow you to connect in as a terminal over the
line
that was specified by the SET LINE command. (Using the CONNECT command
before
using the SET LINE command will result in an error message.) The
terminal line
must be one which is accessible to the user.
The distributed RSX-11M/M+ task has been built with the /PR:0 switch to
enable
the task to change other terminal settings. Additionally, for RSX11M/M+, the
MCR command SET /SLAVE=TTnn: should be done before entering Kermit-11.
If you are running K11POS.TSK on a PRO/350, Kermit will set the line
to XK0:
and the speed to 9600 by default.
Please note that Kermit-11 CAN NOT change the speed of a DL11 type
interface,
nor can it change the speed of a PDT-150 modem port (use SPEED.SAV).
The following is an example of using a Racal-Vadic VA212 autodialing
modem to
log into a remote TOPS-20 system. There is one point at which there
is no
echoing of the user input, this is following the typing of the local
'escape
sequence', which by default is Control-\ followed by a 'c'. The
control-backslash informs the terminal emulator that the next character is a
command. In
this case, the command was 'C', which means to return to the local PDP-11
system.
Control-\ followed by ? would print a help message. All the
commands
prior to the DIAL command were contained in the INI file, KERMIT.INI.
12.5.1. The CONNECT Command
Page 294
-----------------------------------------------------------------------------$ kermit
Kermit-11 V3.46 Last edit: 21-Feb-1986
Kermit-11>set modem vadic
Kermit-11>set pho num cu 9K12121234567
Kermit-11>set logfile 20.log
Kermit-11>set deb console
Kermit-11>set lin tt58:
Link: TT58: Speed: 9600, DTR not present
Kermit-11>set dtr
Kermit-11>set spe 1200
Kermit-11>dial cu
Using: 9K12121234567
Connection established, type CONNECT to access remote
Kermit-11>connect
enter class 4
class 004 start
CU20B
@log xx.abcdef
CU20B, TOPS-20 Monitor 5.1(5101)-2
Job 28, TTY32, 2-Apr-84 4:15:24PM
Previous login was 2-Apr-84 4:10:16PM
.
.
@logout
[Confirm]
Logged out Job 28, User XX.ABCDEF , TTY 32,
at 2-Apr-84 16:19:34, Used 0:00:11 in 0:04:10
Kermit-11>disc
KERMIT link TT58: disconnected
Kermit-11>exit
$ logout
12.6. The SET Command
Syntax: SET parameter keyword
The SET command is used to set various parameters in Kermit.
of the
SET command is:
SET ATTRIBUTES
Syntax: SET ATTRIBUTES {ON, OFF}
The format
Part of the Kermit protocol is the support of file attributes.
Connected Kermits that support this can send information to each other about file
size,
time/date of creation, RMS file headers and other useful things. Due to
potential problems with incompatible implementations this feature can be
disabled.
In this case, the sending Kermit-11 will never try to send file
attributes,
even though the receiver may have indicated that it supports this.
12.6. The SET Command
Page 295
-----------------------------------------------------------------------------SET BAUD
This is the same as SET SPEED.
See HELP SET SPEED
SET BINARY-TYPE
Kermit-11 has a default list of filetypes that are scanned to decide if a
file
should be sent in binary mode in addition to checking file attributes
for RSX,
P/OS and RSTS/E. The user can, however, override this list with the this
command.
The default list is fairly inclusive, with types such as .SAV
and .TSK
forcing Kermit-11 into binary transmission. See HELP SET FIL for the
default
list. Examples:
Kermit-11> set binary-type .sav
Kermit-11> set bin .exe
SET BLOCK-CHECK
Syntax: SET BLOCK_CHECK {1, 2, 3}
The SET BLOCKCHECK command is used to determine the block check sequence
which
will be used during transmission. The block check sequence is used to
detect
transmission errors.
There are three types of block check available.
These
are the single character checksum (default), the two character
checksum, and
the three character CRC (cyclic redundancy check). This command does
not ensure that the desired type of block check will be used, since both
Kermit's involved in the transfer must agree on the block check type. Kermit-11
will request that the type of block check set by this command be used for a
transfer.
If the other Kermit has also had the same block check type requested,
then the
desired block check type will be used. Otherwise, the single character
checksum will be used. The command should be given to BOTH Kermits since
Kermit-11,
when in server mode, has no say about what kind of checksum it
use.
(See Kermit protocol manual for more information.)
wants
to
SET CONSOLE
Syntax: SET CONSOLE {7, 8}
The SET CONSOLE command is used under P/OS to control the passing of 8
bit data
to the terminal during the connect command. If you are getting
multinational
characters being printed, this is a very useful thing to set. The
default is
SET CON 7.
SET DEBUG
Syntax: SET DEBUG {ALL, CONSOLE, CONNECT, FILE, PACKET, STATE}
The SET DEBUG command is used to specify the type and level of debugging
to a
disk file . This disk file must have been created by the SET LOGFILE
command.
12.6. The SET Command
Page 296
-----------------------------------------------------------------------------SET DEBUG ALL
SET DEBUG ALL will turn on logging for CONSOLE,CONNECT,FILE,PACKET and
STATE to
the disk file specified by SET LOGFILE. This command is the same as SET
DEBUG
ON. The command format is:
SET DEBUG CONSOLE
SET DEBUG CONSOLE will turn on logging for all i/o during a remote
connect to
the disk file specified by SET LOGFILE. This command is the same as SET
DEBUG
CONNECT.
SET DEBUG CONNECT
SET DEBUG CONNECT will turn on logging for all i/o during a remote
connect to
the disk file specified by SET LOGFILE. This command is the same as SET
DEBUG
CONSOLE.
SET DEBUG FILE
SET DEBUG FILE will log all file 'opens' and 'creates' to the file
specified by
SET LOGFILE.
SET DEBUG HELP
SET DEBUG HELP gives the user a list of all qualifiers which can be
with
SET DEBUG.
used
SET DEBUG NONE
SET DEBUG NONE
DEBUG
OFF command.
SET DEBUG OFF
'turns off' all debugging.
This is the same as the SET
SET DEBUG OFF 'turns off' all debugging.
DEBUG
NONE command.
This is the same
as
the
SET
SET DEBUG ON
SET DEBUG ON will 'turn on' logging for CONSOLE,CONNECT,FILE,PACKET and
STATE
to the disk file specified by SET LOGFILE. This command is the same
as SET
DEBUG ALL.
12.6. The SET Command
Page 297
-----------------------------------------------------------------------------SET DEBUG PACKET
SET DEBUG PACKET will 'turn on' logging of all receive and transmit
packets to
the disk file specified by SET LOGFILE.
SET DEBUG STATE
SET DEBUG STATE will turn on logging of
transitions.
all
internal
Kermit-11
state
SET DELAY
Syntax: SET DELAY seconds
The DELAY parameter is the number of seconds to wait before sending data
after
a SEND command is given. This is used when Kermit-11 is running in
remote mode
to allow the user time to escape back to the other Kermit and give a
RECEIVE
command.
SET DEFAULT
Syntax: SET DEFAULT device
The DEFAULT parameter allows you to specify a device and UIC (or PPN)
for all
subsequent file opens (for SENDING) and file creates (for RECEIVING).
It is
disabled by typing SET HOME. Example:
Kermit-11>set default db2:[200,201]
This is quite useful for Kermit-11 running on a DECNET link, as you can
set the
default for file operations to include node names and passwords as in:
Kermit-11>set def orion::sys$system:[fubar]
SET DIAL
Kermit-11 has knowledge built in to it of a number of the more common
'smart'
autodial modems. To find out if your modem is directly supported try the
command SET MODEM ?. If your modem is not in this list then you need the
SET DIAL
command to generate the data base used by Kermit to control the modem.
Kermit
uses this information to implement the DIAL command. A command such
as DIAL
can only be done when Kermit knows both how to format commands to the
modem,
and what kind of text the modem will send back to it in response. As
an example, the VADIC VA212PA modem is awakened from an idle state by the
character
sequence 05 015 (in octal), which is a Control-E followed by a carriage
return.
In response to this two-character string, the modem responds with:
HELLO: I'M READY
*
Thus Kermit has to know that when it sends the wakeup sequence it needs
to wait
for the asterisk to be sent back by the modem. At this point Kermit
will know
12.6. The SET Command
Page 298
-----------------------------------------------------------------------------that the modem is in a state awaiting further commands, such as that to
dial a
phone number.
It is not possible for Kermit to have knowledge of all makes of
modems. Instead Kermit supports a command, SET MODEM USER_DEFINED, which then
allows you
to use the SET DIAL command to inform Kermit how the modem works. Once
Kermit
knows how to control the modem, you can use the DIAL command to initiate
a call
from Kermit.
The SET DIAL commands are:
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
SET
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
DIAL
WAKEUP
PROMPT
INITIATE
CONFIRM
FORMAT
SUCCESS
INFO
FAILURE
CONFIRM
WAKE_RATE
DIAL_RATE
DIAL_PAUSE
Define the wakeup string
Define the prompt the modem uses
Define a string to start dialing
Define the string to confirm number
Define the number formatting string
Define string(s) for call complete
Define string(s) for informative text
Define string(s) for call failure
Define string for number confirmation
Set pause time between wakeup characters
Set pause time between number digits
Define string for dial tone pause
Suppose we had to tell Kermit about the Racal Vadic VA212PA modem
(though in
reality Kermit already knows about that kind). In checking the owners
manual
for it, we find that:
- To wake
carriage
return.
the
modem
up,
we type a control E followed by a
- To dial a number, we type the letter D followed by a carriage
return.
At this point, the modem prints a NUMBER? prompt, we then type
the
desired number in. It reprints the number and then waits for a
carriage return from us to confirm that its really the correct
phone
number.
- When it completes dialing, it will print 'ON LINE' or 'ONLINE' for
a
successful call, otherwise it may display on the terminal
'BUSY',
'FAILED CALL', 'NO DIAL', 'VOICE' or 'TIME OUT'. While it is
waiting
for its call to be answered, it may print the line 'RINGING'
several
times in order to tell you that it is working on it.
The Kermit commands required would be:
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
MODEM USER_DEFINED
DIAL WAKEUP \05\015
DIAL PROMPT *
DIAL INITIATE D\015
DIAL FORMAT %P%S\015
DIAL CONFIRM \015
DIAL SUCCESS ONLINE
DIAL SUCCESS ON LINE
DIAL INFO RINGING
DIAL FAILURE BUSY
DIAL FAILURE FAILED CALL
12.6. The SET Command
Page 299
-----------------------------------------------------------------------------Kermit-11>SET DIAL FAILURE NO DIAL
Kermit-11>SET DIAL FAILURE VOICE
Kermit-11>SET DIAL FAILURE TIME OUT
Kermit-11>SET DIAL DIAL_PAUSE 9K
Kermit-11>DIAL 14195551212
The notation "\05\015" indicates the Control E followed by a carriage
return;
05 is octal for control E, 015 is octal for carriage return. An
alternate
notation for octal numbers can be used by placing the value inside
of inequality characters, as in SET DIAL WAKE <05><015> though the
former is
preferred.
The notation "%P%S\015" indicates to Kermit that the phone number from
the dial
command is to be followed by a carriage return; the %S is simply a
placeholder
for the phone number. The presence of the %P is to indicate where to
insert
the dial pause string, in this case we need to dial 9 and wait for a
second
dial tone. The "K" is the Racal Vadic code to get the modem to pause.
If you
are dialing on a direct line, the DIAL_PAUSE command is unneeded. If
for any
reason you need to pass a "\" or "<" to your modem, simply prefix the
character
with another "\", as in "\\".
Many modems require only the WAKEUP, PROMPT, FORMAT and result
strings. The
Digital DF112 is an example of this; its definition would look like:
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
MODEM USER_DEFINED
DIAL WAKEUP \02
DIAL PROMPT READY
DIAL FORMAT %S#
DIAL SUCCESS ATTACHED
DIAL FAILURE BUSY
DIAL FAILURE DISCONNECTED
DIAL FAILURE ERROR
DIAL FAILURE NO ANSWER
Some modems may be unable to accept data at the line speed;
case we
in
this
would need to use the SET DIAL WAKE_RATE and SET DIAL DIAL_RATE.
These two
commands accept a delay time in milliseconds; the actual delay will
not be
precise as the PDP-11 line clock interrupts sixty times per second.
Furthermore, on RSTS/E the finest granularity for timing is one second; thus
setting
delays would result in delays of one second increments.
In general, not all of the result fields need be specified except for
the call
completed strings; Kermit will time out after a while if it can't
match a
response with any definitions.
Further information can be found in the sections on SET MODEM, DIAL,
REDIAL and
SET PHONE.
12.6. The SET Command
Page 300
-----------------------------------------------------------------------------SET DTR
The SET DTR command is very similar to the DISCONNECT (or HANGUP)
command. SET
DTR, where supported, raises DTR for a predetermined amount of time,
whereas
the DISCONNECT (or HANGUP) command drops DTR. The SET DTR is only
functional
on RSTS/E, which by default keeps DTR low until either RING INDICATOR
or CARRIER DETECT goes high. This is opposite of the behavior on RT11 and
RSX11M/M+,
both of which normally assert DTR. The SET DTR command raises DTR for at
least
30 seconds (depending on the version of RSTS/E) and is useful for making
connections to front end switches (such as MICOM and GANDALF). On RT11,
SET DTR
is identical to the HANGUP command; it simply drops DTR for two seconds.
In
this case (RT11 and TSX+) this command is only supported on RT11 5.2
and TSX+
6.0 with the XL/XC and CL drivers, respectively. This command is a noop on
RSX11M/M+ and P/OS.
For further information on modem support, see the
later
section regarding such.
SET DUPLEX
Syntax: SET DUPLEX {FULL, HALF}
The DUPLEX parameter controls whether an outgoing link (set via the SET
LINE
command) is a full duplex link (the default) or a half duplex link.
All it
does for half duplex is to cause all characters typed after the CONNECT
command
to be echoed locally.
SET END-OF-LINE
Syntax: SET END-OF-LINE <octal ASCII value>
The END-OF-LINE parameter sets the ASCII character which will be used as
a line
terminator for all packets SENT to the other KERMIT.
normally not
needed for most versions of KERMIT.
This
is
SET ESCAPE
Syntax SET ESCAPE <octal ASCII value>)
This command will set the escape character for the CONNECT
processing. The
command will take the octal value of the character to use as the escape
character.
This is the character which is used to "escape" back to Kermit-11
after
using the CONNECT command. It defaults to control (octal 34). It is
usually a
good idea to set this character to something which is not used (or at
least not
used very much) on the system being to which Kermit-11 is CONNECTing.
SET FILE
Syntax: SET FILE {NOSUPERCEDE, SUPERCEDE, TYPE file-type}
The SET FILE command allows you to set various file related parameters.
12.6. The SET Command
Page 301
-----------------------------------------------------------------------------SET FILE TYPE ASCII
File type ASCII is for text files.
SET FILE TYPE TEXT is the same.
SET FILE TYPE AUTO
Kermit-11 will normally try to decide if a file must be sent in binary
mode
based on the file attributes and filetype. If, for instance, the
directory
entry for FUBAR.TXT showed it to be RMS (or FCS) fixed length
records,
Kermit-11 will switch to binary mode and send it verbatim. If the
receiving
Kermit is Kermit-11, then the sending Kermit will send attribute data
over
also.
The file types shown in Table 12-1 also will normally be sent as
binary
files unless you use the SET FILE TYPE NOAUTO command.
------------------------------------------------------------------------------
*.TSK
*.SAV
*.OBJ
*.STB
*.CRF
*.TSD
*.BAC
*.OLB
*.MLB
*.RTS
*.EXE
RSX, IAS, and RSTS tasks
RT11 and RSTS save images
Compiler and macro-11 output
TKB and LINK symbol tables
TKB and LINK cross reference files
'Time shared DIBOL' for RT11
RSTS Basic-plus 'compiled' files
RSX, IAS, and RSTS object libraries
RSX, IAS, and RSTS macro libraries
RSTS/E run time systems
VMS executable
Table 12-1:
Kermit-11 File Types
-----------------------------------------------------------------------------SET FILE TYPE BINARY
File type BINARY is for non-text files.
which are
Note
that
binary
files
generated on a PDP-11 system cannot be transferred to another (non PDP11) system without losing file attributes. This means that (for example), an
RSM11
indexed file cannot be transmitted with Kermit-11 at this time. You
can not
have parity set to anything but NONE to use binary file transfer (see
HELP SET
PARITY) unless the other Kermit can process eight bit quoting. Two
Kermit-11's
connected to each other will use binary transmission automatically via
the Kermit attribute packets, preserving file attributes where it makes sense
(i.e.
RSTS/E and RSX only).
SET FILE TYPE DECMULTINATIONAL
PDP-11 Kermit normally strips the high bit of every character on both
transmission and reception of files (unless the SET FILE TYPE FIXED command was
given).
The SET FIL DEC command will cause Kermit-11 to leave all data intact but
still
obey the host file system when reading or writing files. In other
words, Kermit will write sequential implied carriage control files with eight bit
data if
12.6. The SET Command
Page 302
-----------------------------------------------------------------------------this command is used.
SET FILE TYPE FIXED
This is the same as SET FILE TYPE BINARY.
SET FILE TYPE NOAUTO
SET FILE NOAUTO disables Kermit-11 from trying to base binary
transmission mode
on file attributes or filetype.
SET FILE SUPERCEDE
Syntax: SET FILE {SUPERCEDE, NOSUPERCEDE}
SET FILE [NO]SUPERCEDE allows Kermit-11 to accept or reject files
received
(from either the RECEIVE or GET commands) on a per file basis. The
default is
SUPERCEDE. By doing SET FILE NOSUPERCEDE Kermit-11 will always check to
see if
the file to be created is already there (independent of version
number) and
reject it to the sending server if it exists. This presumes that the
Kermit
sending the file understands the protocol to reject one file of a
(possibly)
wildcarded group of files. The main use of this is to resume getting a
group
of files, as in GET KER:K11*.* or GET KER:MS????.* having lost the
connection
after transferring some of the files. If this is set, then any files
already
transferred will not be transferred again.
SET HOME
SET HOME resets the default device and UIC (or PPN) to nothing, ie,
all file
opens and creates use your default disk (SY:) and your UIC (or PPN).
SET IBM-MODE
Syntax: SET IBM {ON, OFF}
The SET IBM ON (or OFF) will instruct Kermit-11 to wait for an XON
following
each packet sent to an IBM host in linemode. Since the default for
IBM mode
may not always be appropriate for your IBM compatible system, you can
always
use the SET HANDSHAKE XON and SET DUPLEX HALF to avoid the parity
setting implied by using IBM mode.
SET LINE
Syntax: SET LINE device-designator
The SET LINE command sets the terminal name up for use with the connect
command.
To use this you must have access to that device. On many
systems terminal lines other than your own are protected from access, and may
require special procedures to access them. The form of the device name is TTnnn:,
where
'nnn' is a decimal number for RSTS and an octal number for RSX-11M/M+.
For
12.6. The SET Command
Page 303
-----------------------------------------------------------------------------RT-11, the device name is simply the MT unit number shown by the SHO
TER command, as in '5' for DZ11 unit 0 line 4. If the system is running RT-11
version
5 you can do a SET LIN XL:. At worst case, Kermit-11 can use the
console port
on RT-11. For more information see the notes later on for RT-11 If
you are
running K11POS.TSK for P/OS on the PRO/350, Kermit-11 will set the line
to XK0:
and the speed to 9600 baud when Kermit starts. To override the line or
speed,
set HELP SET LINE and HELP SET SPEED. Examples:
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
Kermit-11>SET
LINE
LINE
LINE
LINE
TT55:
5
XK0:
XL:
(for
(for
(for
(for
RSTS and RSX-11M/M+)
RT-11 and MT service)
P/OS, done implicitly)
RT-11 and XL handler)
See HELP CONNECT, HELP SET DUPLEX and HELP SET SPEED for more
information.
Also, for TSX+, see notes regarding TSX later in these notes.
The
11 XL
handler has notes later on also.
RT-
SET LOGFILE
Syntax: SET LOGFILE filespec
The SET LOGFILE command creates a debug dump file for you. It must be
used BEFORE any SET DEBUG commands can be used. See HELP DEBUG for further
information about debugging modes.
SET MODEM
The SET MODEM command defines the type of MODEM use for dialing out on
the line
set with the SET LINE command, or, in the case of the PRO/350, the XC
or XK
port. There are only a few modems defined at this time, they are:
VADIC
VA212PA
VA212PAR
VA4224
Generic RACAL-VADIC autodial
Stand alone VADIC VA212
Rack mounted VADIC VA212
Rack mounted VADIC VA4224 .v22bis
HAYES
DF100
DF200
DF03
MICROCOM
Hayes smartmodem
DEC DF112
DEC DF224
DEC DF03
The DIAL command is then used after the SET MODEM command.
example, on a
PRO/350 running P/OS:
Kermit-11>set prompt PRO>
PRO>set modem va212pa
PRO>dial 5374411
Modem in command mode
Modem dialing
Connection made, type CONNECT to access remote
PRO>con
Enter class ? VX785A
Class start
Username: BRIAN
For
12.6. The SET Command
Page 304
-----------------------------------------------------------------------------Password:
...and so on
SET PACKET-LENGTH
Syntax: SET PACKET-LENGTH length
You can alter the default transmitted packet length with the SET PACKETLENGTH
command.
This should not normally be needed unless the line is very
noisy, at
which time you should probably give up anyway.
SET PARITY
Syntax: SET PARITY {EVEN, ODD, MARK, NONE, SPACE}
This is used with the SET LINE and CONNECT commands to specify the
type of
parity for the remote link. It defaults to NONE and can be any of ODD,
EVEN,
MARK or SPACE.
All parity generation is done via software, no special hardware is used.
The
use of software parity generation is restricted to 8 bit links
only. The
character format, if parity is set to anything but NONE, will be 7 bits
of data
followed with high bit set or cleared to indicate the parity. If
you set
parity to anything but NONE (the default), Kermit-11 will be forced to
request
8bit prefixing from the other Kermit-11, which is a method by which
Kermit can
'prefix' eight bit characters with a shift code. You MUST use parity
(even if
MARK or SPACE) when using Kermit-11 with the IBM CMS Series/1 or
7171 3270
emulator, or in linemode through a 3705 front end.
SET PAUSE
Syntax: SET PAUSE seconds
PAUSE tells Kermit to wait the specified number of seconds between each
packet
being sent to the other Kermit. This may be useful under situations of
heavy
system load. This may be automatically computer by Kermit-11 in a
future
release as a function of line speed.
SET PHONE
Syntax: SET PHONE {NUMBER, TONE, PULSE, BLIND}
The SET PHONE NUMBER command allows you to associate a phone number with
a symbolic name for later use with the DIAL command.
These definitions
could be
placed in your KERMIT.INI file, and then referenced later. Example:
Kermit-11>set pho num work 5374411
Kermit-11>set pho num market 16174671234
Kermit-11>dial work
The other
BLIND
two
SET PHONE options, SET PHONE [TONE][PULSE] and SET PHONE
12.6. The SET Command
Page 305
-----------------------------------------------------------------------------are not useful unless the appropiate dial formatting string and
character sequences for selecting PULSE or TONE, and BLIND dialing are present in the
modem
definition macros in K11DIA.MAC. The format effector for TONE/PULSE is
%M and
the effector for BLIND is %B. Currently (in 3.54) only the VA4224 has
entries
for these options.
SET POS
Syntax: SET POS {DTE, NODTE}
The SET POS command allows options SPECIFIC to P/OS to be altered.
The
most
useful option is the SET POS [NO]DTE command. This allows Kermit-11
to use
PRO/Communications version 2 for terminal emulation, if this product has
been
installed on the PRO/350.
Of course, if this option is chosen,
control is
returned to the PRO with the EXIT key (F10) rather than with Control \C.
SET PROMPT
Syntax: SET PROMPT prompt
The SET PROMPT command is useful if you
talk to
each other.
By using the SET PROMPT
prompt from
'Kermit-11>' on either (or both) Kermit
which
system you are currently connected to.
are using two Kermit-11's
to
command, you can change the
to something that would indicate
Examples:
Kermit-11>set prompt Kermit-11/1170>
Kermit-11>set prompt Fubar>
Kermit-11>set prompt ProKermit-11>
SET RECEIVE
Currently the SET RECEIVE and SET SEND basically work the same in
that they
only alter the END-OF-LINE character and the START-OF-PACKET value, as
in:
Kermit-11>set rec start 2
Kermit-11>set rec end 12
The command SET RECEIVE PACKET-LENGTH command is discussed below.
SET RECEIVE END-OF-LINE
This instructs Kermit-11 to expect something other than the default
carriage
return (octal 15) at the end of a packet. Kermit-11 will ignore
packet terminators. The SET SEND END command is of more use in conditioning
outgoing
packets.
12.6. The SET Command
Page 306
-----------------------------------------------------------------------------SET RECEIVE START-OF-PACKET
The normal Kermit packet prefix is Control-A (ASCII 1); this command
changes
the prefix Kermit-11 expects on incoming packets. The only reasons this
should
ever be changed would be: Some piece of equipment somewhere between
the two
Kermit programs will not pass through a Control-A; or, some piece of of
equipment similarly placed is echoing its input. In the latter case, the
recipient
of such an echo can change the packet prefix for outbound packets to be
different from that of arriving packets so that the echoed packets will
be ignored. The opposite Kermit must also be told to change the prefix for
its inbound packets and the prefix it uses on outgoing packets.
SET RECEIVE PACKET-LENGTH
Syntax: SET RECEIVE PACKET-LENGTH length
This command has two functions. The first, and normal one, is to reduce
incoming packet lengths in the event that normal sized Kermit packets can
not be
passed through the communications circuit.
There could be,
perhaps, some
'black box' somewhere in the link that has a very small buffer size; this
command could be used to reduce the size that the SENDING Kermit will use.
The other use is to enable a protocol extension to Kermit called
'Long
Packets'. The actual protocol is documented elsewhere, let's just say
that
this is a way for two Kermit's to use packet sizes far greater than the
normal
('Classic') packet size if 90 characters or so. The main use of this
feature
is in file transfer over links that introduce considerable delay, it is
not uncommon for packets to incur an one to two second delay. The net result
is a
VERY slow running Kermit with an effective speed of perhaps 300 to
600 baud
rather than 1200 or 2400 baud. By making the packets longer, we raise
the effective speed of such a circuit.
The main restriction on the
packet size
chosen is the link, a given circuit may not pass 500 character packets.
Also,
BOTH Kermits must support this extension to the protocol, they will
always
negotiate it before any file transfer. See the notes at the end of this
document for more information.
It is HIGHLY recommended that you use the CRC block check, as the
default type
one checksum could be inadequate for such long packets, as in:
Kermit-11>SET BLO 3
SET RECORD-FORMAT
Syntax: SET RECORD-FORMAT {STREAM, VARIABLE}
Kermit will, by default, create RMS11 variable length implied carriage
control
records for text files. You can override this and change it to create
stream
ascii records with the SET RECORD-FORMAT STREAM command. This is
useful for
RSTS/E systems if you need file compatability with BASIC Plus. This
command
would be most useful in a KERMIT.INI file, which is executed by KERMIT
when
Kermit starts.
12.6. The SET Command
Page 307
-----------------------------------------------------------------------------SET RETRY
Syntax: (SET RETRY )number
SET RETRY value tells Kermit to try that many times on a NAK'ed packet
before
giving up. This should only be needed if the line is extremely noisy
or the
PDP-11 host is running very slowly due to the system load.
SET RSX
The SET RSX command is intended to deal with the peculiarities often
found with
RSX systems. There are currently three SET RSX commands, as in:
Kermit-11>SET RSX FASTIO
Kermit-11>SET RSX CHARIO
Kermit-11>SET RSX TC.DLU n
Kermit-11>SET RSX CONNECT ALT
Kermit-11>SET RSX CONNECT DEF
Default for packet reading,
waits for <CR>.
Read one char at a time for
packet reading.
Alters the TC.DLU setting.
Uses a new (v2.33) connect
driver which bypasses TTDRV
flow control.
Use old connect code (2.32)
The SET RSX command is subject to change and the above options may be
removed
in the future.
Note the the SET RSX CHARIO may be needed when
transfering
files with parity enabled. This command alters the method by which a
packet is
read; instead of waiting for a carriage return, Kermit reads the
typeahead byte
count and then issues a read for that many characters. This is the same
method
Kermit-11 ALWAYS uses under P/OS.
SET RT-11 CREATE-SIZE
Syntax: (SET RT-11 CREATE-SIZE )number
The SET RT-11 CREATE value command was added to assist those RT-11
users with
very small disks to be able to get files with sizes greater that half
of the
available contiguous space available. While this is NOT a problem
going from
one Kermit-11 to another Kermit-11 since the PDP-11 Kermit supports a
subset of
the protocol known as 'ATTRIBUTES', other Kermits may not support the
exchange
of file sizes (most do not). Thus if your largest contiguous space
is 300
blocks and you want to get a 250 block file, the command:
Kermit-11>set rt-11 cre 250
would be needed, as RT-11 by default only allocates 50 percent of the
available
space.
12.6. The SET Command
Page 308
-----------------------------------------------------------------------------SET RT-11 FLOW-CONTROL
Syntax: SET RT-11 {FLOW-CONTROL, NOFLOW}
Note that for the connect command under RT-11 you will most likely need
xon/off
flow control to be generated by Kermit-11. This is enabled with the SET
RT-11
FLOW command. This is by default NOFLOW since the modem the author
uses, a
Vadic 212PA, can't handle XONs and XOFFs while in command mode. The
solution
here is to escape back to Kermit command mode after the remote system has
been
logged into, and then type SET RT-11 FLOW.
The effect of SET RT-11 FLOW is for Kermit-11, when in connect mode, to
send an
XOFF to the host every eight characters. When the loop in the connect
module
finds no more data in the input buffer, it sends up to 2 XON
characters (in
case the first XON got lost) to tell the remote system to start sending
again.
The reason for doing so is that the RT-11 multiple terminal service
is very
slow about handling input interrupts and does not do any of it's own flow
control when it's internal ring buffer gets full. This has been tested
at line
speeds up to 4800 baud without losing data. This setting should not be
needed
for use with the XC/XL handlers.
SET RT-11 FLOW has NO effect on packet transmission, since the Kermit
packet
size is never mode than 96 characters, and the RT-11 input buffer
is 134
characters in size.
The SET RT-11 [NO]FLOW command replaces the older SET RTFLOW [ON][OFF].
SET RT-11 VOLUME-VERIFY
Syntax: SET RT-11 {VOLUME-VERIFY, NOVOLUME}
Normally
verify
RT-11
Kermit-11
will check the directory header of a disk to
that it most likely contains a valid RT-11 file structure before trying
to read
the directory. If for some reason your disk does not contain the
standard data
at offset 760 in the header, Kermit-11 will reject the disk.
The SET
RT-11
NOVOL command will instruct Kermit-11 to bypass that check.
SET SEND
The SET SEND command controls what Kermit-11 will be doing for outgoing
packets
in that you may want to alter the packet terminator and/or the start of
packet
character (by default, 15 octal and 1 octal respectively. See HELP SET
RECEIVE
for more information.
The only extra option for SET SEND is SET SEND [NO]XON.
If the
command SET
SEND XON is give, then every packet sent will be prefixed with an XON
character. This could be useful in situations where flow control is erratic.
The
actual intent of this option was to try to circumvent a firmware bug
in the
DHV11 when used under RSTS/E.
12.6. The SET Command
Page 309
-----------------------------------------------------------------------------SET SPEED
Syntax: SET SPEED speed
SET SPEED value sets the line speed for the device specified via the SET
LINE
command, and used for the CONNECT command. Changing the speed of a
terminal
line requires privilege for RSTS and RSX-11M/M+. The SET SPEED command
will
only function with a DH11, DHV11, DZ11 or DZV11 multiline interface.
Example:
Kermit-11>set speed 1200
1200 Baud would be a normal speed to use with a VA212PA or a DF03.
Please note that Kermit-11 CAN NOT change the speed of a DL11 type
interface,
nor can it change the speed of a PDT-150 modem port. For a PDT-150 modem
port,
use a command of /M/S:nnnn to change the speed to nnnn for the
SPEED.SAV
program.
SET TIMEOUT
Syntax: SET TIMEOUT seconds
The timeout value tells Kermit how long to wait to get a packet from the
other
Kermit.
If system loads are high, it may be desirable to increase this
beyond
the default of 10 seconds.
SET TERMINAL
Syntax: SET TERMINAL {TTY, VT100}
The SET TERMINAL command simply controls the way which Kermit-11 prints
packet
counts while send or receiving a file (or group of files). The simplest
way is
the default, SET TER TTY. Using SET TER VT100 will cause Kermit to
display
headers for the numbers printed, at a possible cost in packet speed
due to
screen control overhead. On the PRO/350, VT100 is assumed.
v9.0 and
later, the executive is queried for the terminal type.
On RSTS/E
SET UPDATE
Syntax: SET {UPDATE number, NOUPDATE}
The SET UPDATE command controls the frequency at which the packet count
display
is updated. The default is 1, displaying each packet. A SET UPD 0 will
disable all packet count logs, whereas a SET UPD N will update the display
every N
packets. The SET NOUPDATE command is the same as SET UPDATE 0.
12.6.1. The DIAL Command
Page 310
-----------------------------------------------------------------------------12.6.1. The DIAL Command
The DIAL command is new for version 3.29 of Kermit-11.
The DIAL
command is
used to dial a number on an attached modem of known type (see SET
MODEM). To
find out the current known modems, use the SET MODEM ? command. The
following
example shows a RACAL-VADIC VA212 modem connect to the XK: port on a
PRO/350
running P/OS version 2.
Kermit-11>set prompt PRO>
PRO>set modem va212pa
PRO>dial 5374401
Modem in command modem
Modem dialing
Connection failed, !BUSY
PRO>dial 5374411
Modem in command modem
Modem dialing
Connection made, type CONNECT to access remote
PRO>con
Enter class ? VX785A
Class start
Username: BRIAN
Password: ......................
See SET MODEM for more information.
12.7. System Manager's Notes
12.7.1. Odds and Ends
There are a few odds and ends that should be made aware to the system
manager
of any PDP-11 system regarding Kermit-11. They are as follows,
grouped by
operating system. Please note that installation instructions are in
K11INS.DOC
and that additional information may be in Kermit-11's online help
command.
RESTRICTIONS
Prior to version 2.21, Kermit-11 did not support 8-bit prefixing.
Prior to
version 2.23, Kermit-11 did not support repeat character encoding.
The PRO/RT-11 version of Kermit-11 will request 8-bit prefixing due to
the fact
that the XC handler does not support 8BIT data. For most Kermits this
should
not be a problem. The XC handler always strips bit 7 from the character
being
sent, so the PRO/RT-11 version of Kermit will request prefixing of
such. It
does so internally by setting PARITY to SPACE (always clear the high
bit, bit
seven).
Note that this implies that a SET PARITY SPACE command will force
Kermit-11 to
request '8bit' prefixing in order to transfer binary files across a
seven bit
link.
12.7.1. Odds and Ends
Page 311
-----------------------------------------------------------------------------P/OS
Kermit-11 will run on under P/OS on the Pro/350, the executable file is
called
K11POS.TSK. It does NOT run from a menu, the normal way to run it is
via the
RUN command in DCL. It will support the Kermit-11 attribute packets,
thus a
PRO/350 connected to a PDP-11 host can transparently handle binary and
other
types of files.
The P/OS Kermit-11 can be run either as a local
Kermit or a
Kermit server. This has been tested under P/OS version 2 connected to
both a
PDP-11/23+ and PDP-11/70 RSTS/E host.
When Kermit-11 is started on the PRO, it will automatically do a SET
LINE XK0:
and a SET SPEED 9600. You can, of course, change the speed to
whatever you
need with the SET SPEED command. The line should be left as XK0:.
The top row function keys are mapped internally. Kermit-11 maps F5
(break)
into a true BREAK (a space of 275 ms), F6 (interrupt) to Control-C,
F10 to
Control-Z, F11 to escape (octal 33) and F12 to backspace (octal 10).
The incoming escape sequence DECID is intercepted to allow Kermit-11 to send
back a
device response of VT100.
RSTS/E
Kermit-11 runs on version 7.2 or later of RSTS/E. Due to options
present in
version 8, binary file transfers will not be possible under version
7.2 of
RSTS/E.
This is due to the use of 8 bit mode for the terminal link to
allow
all characters to be passed. The so called '8BIT' terminal setting was
new as
of version 8.0-06 of RSTS/E.
Any RSTS/E system running Kermit-11 will need the sysgen option for
multiple
private delimiters in the terminal driver. This special mode is needed
since
the 'normal' RSTS/E binary terminal mode has a 'feature' that disables
binary
mode whenever the terminal times out on a read. Since timeouts are
essential
to Kermit error recovery, binary mode can not be used for i/o.
Certain functions of Kermit-11 require that the system manager install
Kermit
with temporary privileges, these commands are the SYSTEM, WHO and REMOTE
HOST
commands. Kermit-11 does NOT need these to operate correctly.
Kermit-11 can only be built (from source, not from HEX files) under
RSTS/E version 8.0 or later due to the use of RMS11 v2.0 and new assembler
directives.
Support for the server remote login is only available under RSTS/E
9.0 or
later.
Also, a REMOTE LOGIN command to a RSTS/E server will fail
unless the
user has the WACNT privilege. While the LOGIN program will skip the
password
lookup if WACNT is present, Kermit will require a password.
RSX-11M/M+
Kermit-11 can not be installed non-checkpointable due to an apparent
RMS11 bug.
In other words, don't try to install the task '/CKP=NO'.
To use the connect command effectively, typeahead support is needed in
the terminal driver.
For RSX-11M+, set the typeahead buffer size high, as
in SET
/TYPEAHEAD=TT22:200. Also, if your connect line is TT22: (as above),
use the
12.7.1. Odds and Ends
Page 312
-----------------------------------------------------------------------------mcr command SET/SLAVE=TT22:
Kermit-11 can only be built under RSX-11M version 4.1 or later, or
under
RSX-11M Plus version 2.1 or later due to the use of RMS11 v2.0 and
new assembler directives.
There is a SET RSX command, see HELP SET RSX for further information.
As a side issue, please note that the file K11POS.TSK is quite usable
under
RSX, the difference being that K11RSX.TSK has DECNET support and RMS-11
overlayed in the task image (besides which, due to the lack author's
systems running RSX may not be up to date) linked into it, whereas K11POS has NO
Decnet
support but IS linked to the RMS11 library RMSRES (v2), thus K11POS
saves disk
space as well as supporting named directories, ala VMS style.
RT-11
Kermit-11, as of version 2.20, has been tested under RT-11 version 5.0
under
the FB and XM monitors using a DZ11 line for the link, and also on a
PDT-150
using the modem port for the link.
It has additionally been run
under
Micro-11's and the PRO/350 using the XL and XC handlers respectively.
Kermit-11 requires .TWAIT support as well as multiple terminal support
(unless
the XL/XC handler is used).
The use of multiple terminal support
allows
Kermit-11 to use any type of interface sysgened, including the DZ11 and
DZV11.
It is possible under version 5 of RT-11 to use the XL: handler instead
of the
multiple terminal support.
The use of the XL: driver will result
in much
faster file transfer at high baud rates. Note that XL: must be set up at
system startup or at some time later to set the proper speed, CSR and
vector.
For those users who do not have multiple terminal support and do not
have the
XL handler, Kermit-11 will force the use of the console for data
transfers.
This will require that Kermit-11 request eight bit prefixing from any
other
Kermit wishing to send binary data files. Additionally, you can force
console
mode by doing a SET LINE TT:
Please note that the device name syntax for terminal lines follows the
MT unit
numbers, thus if a SHO TER gave unit 5 for DZ11 line 0 the the device
name
would be SET LINE 5. If you use the XL handler, you would say SET
LINE XL:.
To force the console to be used, you would SET LINE TT:.
Additionally, Kermit-11 for RT-11 looks for its help file, K11HLP.HLP,
on DK:
first and then on SY: if the first one fails.
Full wildcarding is supported for RT-11, in the form *.type, name.*,
*.* and
the % character to match any single character.
Kermit-11 can only be built on RT-11 version 5.0 or later due to the use
of new
assembler directives.
Please note that for the connect command under RT-11 and the use of the
MT service, you will most likely need xon/off flow control to be
generated by
Kermit-11. This is enabled with the SET RTFLOW ON command. This is by
default
OFF since the modem the author uses, a Vadic 212P, can't handle XONs and
XOFFs
while in command mode. The solution here is to escape back to Kermit
command
12.7.1. Odds and Ends
Page 313
-----------------------------------------------------------------------------mode after the remote system has been logged into, and then type SET
RTFLOW ON.
Due to overlaying constraints, the RT-11 Kermit-11 will not accept
wildcards
for the RENAME and DELETE commands and the REMOTE server equivalents.
The executable files
K11RT4
for the FB system.
are K11XM.SAV for the XM system and PRO/350, and
As a final (I hope) RT-11 note, see the RT-11 v5.1 Release Notes page 92 and
chapter 12.
The discussion relevant here regards the use of the XL/XC
handlers.
Note that the default XL: handler vector (DL-11, DLV-11) is 300 and the
CSR is
176500.
For the Micro-11, PDP-11 and LSI-11, when the DL11/DLV11
interface is
installed the field service representative will inform you what the
CSR and
VECTOR are.
If they are NOT 176500 and 300, then to use the XL:
handler you
will need, prior to running Kermit-11, to set them. Suppose the DL
vector is
400 and the CSR is 176510. Then the following DCL commands would set
the addresses for RT-11:
.SET XL CSR=176510
.SET XL VECTOR=400
You SHOULD NOT ever alter these settings
ONLY settings you can alter for the PRO/3xx
SET XC
SPEED=nnnn. Kermit-11 CAN NOT alter the
previously
in this document, Kermit-11 executes
XC: implicitly if it finds itself running on a
for XC: on the PRO/3xx.
The
is the speed, as in DCL command
XC: speed itself.
As noted
the Kermit-11 command SET LIN
PRO/3xx system.
Note that if your modem requires DTR to be present, you must use either
an interface that asserts it (as does the PDT and PRO communications port),
force it
high internally to the modem, or build a cable to force
HELP
MODEM for more information.
it
high.
See
TSX+
While most of the above notes for RT-11 apply for TSX+, there are a
few differences of note. The first, in that TSX+ is a timesharing system,
allows the
Kermit user to log in normally from another system running Kermit
(as in a
Rainbow) and give the TSX+ Kermit the SERVER command and commence file
transfer
operations from the other system (ie, the Rainbow). If you are dialing
INTO a
TSX+ system, you need to give the TSX command:
.SET TT 8BIT
to be able to transfer data to your local (PC, other PDP-11,...) system
without incurring the overhead of the Kermit protocol known as eight bit
prefixing.
If this is not possible, due to your local system requiring parity, or
some
other intervening device adds parity, then you should give Kermit the
command
SET PARITY SPACE, to let Kermit know that it can't send binary data asis.
To use Kermit-11 to dial out from the TSX+ system, the following
commands are
needed.
Note that TSX+ commands will be preceeded by the normal RT-11
prompt,
the ever present DOT ('.'), whereas Kermit-11 commands will be prefixed
by the
default Kermit-11 prompt, 'Kermit-11>':
12.7.1. Odds and Ends
Page 314
-----------------------------------------------------------------------------.SET CL LINE=n
Where 'n' is the unit number
.SET CL NOLFOUT
.SET CL SPEED=n
Where 'n' is the speed for that unit
.ASS CL XL
Kermit-11>SET LIN XL:
Kermit-11>CONNECT
As of Kermit-11 version 3.44, you may use CL directly in the SET LINE
command,
as in:
.SET CL3 LINE=3
.R K11XM
Kermit-11>SET LIN CL3
Kermit-11>SET SPEED 1200
Kermit-11>CONNECT
A sample command file in actual use is:
SET CL3 LINE=3
SET CL3 NOLFOUT
SET CL3 TAB
SET CL3 FORM
SET CL3 SPEED=2400
ALLOCATE CL3:
R K11XM
DEALLOC CL3
SET CL3 LFOUT
SET CL3 LINE=0
SH CL
If you are running PRO/TSX+, then Kermit will make the assignment of LINE
3 to
either CL0 or CL1 if you are running Kermit from the console, ie, LINE
1. The
speed will default to the last SET SPEED or the speed set at system boot.
Lastly, TSX+ needs PLAS support to use K11XM.SAV, see
notes
for further data.
the
installation
RSTS/E VERSION 9.X
RSTS/E does not control modems signals in the manner that RSX or VMS
does. VMS
always asserts DTR whereas RSTS/E will not assert DTR until the terminal
driver
can see RCD (also known as DCD) which is pin 8 (eight) for the RS232
connection. To connect directly to a modem (like a VADIC 212, sorry, no DEC
modems
here) we must do one of two things:
1. Force the modem (via strapping options or whatever) to assert
RCD
(DCD) pin 8, thus RSTS/E will see carrier and raise DTR (pin 20
for
RS232)
2. Set
the
terminal
to
LOCAL
(RSTS/E
V9
syntax 'SET
TER
TTxx:/NODIAL/PERM') and break pin 20 (DTR) and connect pin 20 to
8
on the modem side. This will cause the modem to be able to dial
out
and allow RSTS/E to connect to it. You will also need to have
the
modem assert RCD, pin 8. Keep in mind that the Kermit-11
command
DISCONNECT (or HANGUP) will not function if a line is set to
NODIAL
12.7.1. Odds and Ends
Page 315
-----------------------------------------------------------------------------(INIT SET syntax 'LOCAL'). This has been tested on a Racal
Vadic
VA212.
3. Break pin 8 (RCD) and loop DTR (pin 20) on the CPU side to RCD
(pin
8) on the CPU side. Then use the command SET DTR in Kermit-11
to
get RSTS to raise DTR and thus loop it's DTR signal back to
RCD.
See the next note regarding this.
For those of you who have port switches such as the Gandalf type, there
is one
additional problem. For Gandalf, suppose you want to connect a DZ11 line
to to
an AMTB2. You will have a problem, in that the Gandalf AMTB2 wants to
see RCD
(DCD) asserted to make a connection. What you may need to do is this:
Make a cable for the DZ11 to AMTB2 port as follows:
CPU side
AMTB2 side
20--|
8---|-----------8
7---------------7
3---------------2
2---------------3
Note that 20 is tied to 8 on the CPU side.
Also, 2 is swapped for 3.
Then, the Kermit-11 command SET DTR, which forces RSTS to raise DTR
for 30
seconds, will cause the DTR signal to loop back to the RCD (DCD)
signal and
thus tell RSTS that there is carrier detect which will raise DTR (the
chicken
or egg question) and get things rolling. The Kermit-11 HANGUP (or
DISCONNECT)
command will drop DTR and force the modem to break the connection.
RSX AND MODEMS
While the author's experience on RSX is limited, the following notes may
be of
use.
Dialing out on a LOCAL line will often require that the modem
assert in-
ternally DTR. If a line is set REMOTE on RSX, the driver will assert
DTR and
RTS.
For a modem, like a VA212PAR strapped at the factory defaults,
this will
cause the modem to assert DSR and RCD. On the VADIC in particular, the
modem
will drop RCD during a DIAL command unless the modem is configured to
assert
RCD continuously. For dialing out, ideally the modem should be able to
assert
RCD via an option or internally settable strap or switch. If this is
not possible, an alternative is to break line 8 (RCD) and jumper DTR (20) to
RCD (8)
on the CPU side. This will force RSX to always see carrier detect and
allow a
dial sequence to complete. The Kermit-11 command DISCONNECT (or HANGUP)
will
still disconnect the modem as the modem will drop from the line when
it sees
DTR go low (assuming the modem is not strapped to assert DTR internally).
12.8. Typical Kermit-11 Transfer Rates
Some sample timings for Kermit-11 and long packet support. The packet
size in
the RSTS/E to P/OS was 500 bytes, the size from RSTS/E to RSTS/E was 700
bytes.
These sizes are somewhat arbitrary, they depend more on the system's
buffering
capabilities than anything else.
Host buffering capabilities:
12.8. Typical Kermit-11 Transfer Rates
Page 316
-----------------------------------------------------------------------------P/OS
500 (estimated)
RSTS/E 9.0 or later
up to 7000, given sufficient system pool
RSX-11M+
255 (I/D space CPU only)
RSX-11M
34
RT-11
134 (could be larger with mod to XC/XL)
As it can be seen, large packets make sense only for RSTS/E, P/OS and
RSX-11M+
if one wishes to avoid XON/XOFF overhead at high speeds. It should be
possible
to run larger packets on M+ and RT-11 at lower speeds.
File transferred: K11POS.TSK, size 102,400 bytes (200 disk blocks).
Actual
data packet characters AFTER prefixing was 120,857.
Time
Speed
seconds baud
Data rate
Comments
1436
1200
84/sec
1237
1200
97/sec
11/44
local
11/44
local
to PRO/350, 'Classic' Kermit
phone call
to PRO/350, 500 Char packets
phone call
2915
1200
41/sen
1492
1200
81/sec
11/44
local
11/44
local
to PRO/350, 'Classic' Kermit
call, 1 second ACK delay.
to PRO/350, 500 Char packets
call, 1 second ACK delay.
304
9600
397/sec
245
9600
493/sec
11/44 to 11/44, 'Classic' Kermit,
connected locally via Gandalf switch.
11/44 to 11/44, 700 char packets,
connected locally via Gandalf switch.
The last two timings are much lower than the line speed due to the fact
the the
PDP 11/44 is running 100% busy trying to keep up with character
interrupts
using a normal terminal driver. A special purpose driver, such as
the XK
driver found on P/OS, would have lower overhead and allow somewhat
faster data
rates.
Long packets were chosen for Kermit-11 due to the lack of suitable
interrupt
driven i/o (at this time) under one of the operating systems,
RSTS/E. The
Sliding Windows would likely function better in those situations where
the circuit delay is much higher, or when the circuit can not accommodate large
packet
sizes.
12.9. Common Problems
CONNECTION FAILS
Check modem control signals. RSX needs TC.DLU set to two to talk to a
dial out
modem, otherwise you will need to strap or jumper signals in the modem
to have
carrier detect set high. RSTS/E also should have the modem assert
carrier
detect. If not, see the previous notes about modems. If all else fails,
put a
breakout box in the line and observe what signals are present.
12.9. Common Problems
Page 317
-----------------------------------------------------------------------------FILE TRANSFER FAILS.
If the file transfer aborts on retries immediately, there may be a
parity
problem.
If the problem shows up on binary files, try a SET PAR SPACE
command
to Kermit; that will force eight bit data to be prefixed into seven bits.
If
you instead get a retry about once every 10 seconds, the other Kermit
is not
responding and your Kermit is timing out. Check to see if your
connection is
still present, and try the SET PARITY command.
If you are sending binary data between unlike Kermits, you will most
likely
have to give the proper command to each to prepare them for the binary
data;
this is the SET FILE command; for Kermit-11 it's SET FIL BIN (or SET
FIL TYP
FIX); for VMS Kermit it's SET FIL TYP FIX.
If your Kermit's packets are being echoed back, try a SET SEND START
value command for your Kermit, and a SET REC START samevalue for the other Kermit.
This
will force Kermit to ignore any echoed packets as they won't have the
default
start of packet character (a CONTROL A, octal 1).
13. Apple II Kermit
Page 318
-----------------------------------------------------------------------------13. Apple II Kermit
Authors:
Antonino N. J. Mione (Stevens Institute of Technology),
Peter Trei (Columbia University),
Ted Medin (NOSC)
Version:
3.81
Date:
December 1987
Kermit-65 Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Y interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
IBM communication:
Transaction logging:
Session logging (raw download):
Raw upload:
Act as server:
Talk to server:
Advanced commands for servers:
Long packets:
Sliding windows:
Local file management:
Handle file attributes:
Command/init files:
Printer control:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes (VT52, VT100)
Yes
Yes
Yes
No
Yes
No
Yes
Yes
Yes
Yes
No
Yes
No
Yes
Yes
Kermit-65 is a program that implements
protocol for
the Motorola 6502 processor family (hence
Apple II
microcomputer system.
It is written in
should run
on any Apple II or compatible running DOS
will
the Kermit file transfer
the name, Kermit-65) on the
6502 assembly language and
3.3 or PRODOS 8.
This
section
describe the things you should know about the file system in order to
make effective use of Kermit, and then it will describe the special features
of the
Kermit-65 program.
13.1. Supported Systems and Devices
Page 319
-----------------------------------------------------------------------------13.1. Supported Systems and Devices
There are several different Apple II's which can run Kermit-65.
Kermit will
have no problems running on an Apple II, II+, //e or //c system. Of
different communication devices available for the Apple II, Kermit-65
supports the
ones shown in Table 13-1.
the
------------------------------------------------------------------------------
Apple Com Serial Card
Apple Super Serial Card & //c Serial Port
Apple//gs Serial Port
CCS 7710 Serial Card
CPS Serial Card
D.C. Hayes Micromodem.
Microtek sv-622 Card
Prometheus Versacard (Uses the Apple Com Card driver)
Table 13-1:
Apple II Communication Cards Supported by Kermit-65
-----------------------------------------------------------------------------It is possible that other cards may have operational characteristics
very
similar or identical to one of the devices above. If this is the case,
it may
work using one of the currently available device drivers. The user may
want to
try each of the above options to see if any of them work. Kermit-65
must be
told in which slot the card resides. This may be done with the 'SET'
command
(documented below).
13.2. The DOS 3.3 File System
Items of importance which will be discussed in this section include
filenames
and file characteristics.
Apple DOS Filenames
Filenames under Apple DOS may contain almost any ASCII character
(including
space). It is not recommended that special characters, (i.e. control
characters
or spaces) be used in a filename to be transferred by Kermit-65 since
they may
cause problems when parsing the filename. Filenames may be up to 40
characters
in length.
Apple DOS File Characteristics
All files in Apple DOS have a file type associated with them which is
contained
in the directory entry for the file but is not part of the filename
itself.
There are four types of files in DOS 3.3. They are:
1. APPLESOFT BASIC
2. INTEGER BASIC
3. BINARY
13.2. The DOS 3.3 File System
Page 320
-----------------------------------------------------------------------------4. TEXT
All file types have their data stored in eight-bit bytes although not
all of
them need the eighth bit. The two file types containing basic programs
required
the eighth bit due to the nature of the data being stored. BINARY
files are
images of memory copied into a file. Often, these are machine code
programs.
These files require all eight bits. TEXT files normally contain only
printable
or carriage control characters. They are stored in the form of seven-bit
ASCII
characters but the eighth bit should always be set since Apples
manipulate all
text internally as 'Negative ASCII'. When transmitting non-text files
the user
must insure that both Kermits are handling eight-bit data so that no
information is lost. If an eight-bit data path is not available (i.e. the
remote
Kermit needs to do parity checking with the eigth bit), then eight-bit
quoting
should be used. Of course, BINARY files as well as Apple BASIC files
will not
have much meaning on a different system. If the user desires to edit a
BASIC
file on a mainframe, for instance, s/he must convert it to a TEXT file
before
sending it over. After receiving the file back on the Apple, the user may
convert it back to BASIC once again. The reason BASIC files would be
meaningless
to a different machine is that the Apple stores BASIC keywords as
single
character tokens to save space and processing time. To convert a BASIC
program
to and from a TEXT file, consult the Apple DOS 3.3 Manual.
File
information
can be obtained by issuing the CATALOG command. For example:
]CATALOG
DISK VOLUME 010
*A 002 HELLO
B 078 KERMIT
A 002 READER
T 005 TESTFILE
]
When Kermit-65 is receiving a file, the file it creates on diskette will
be of
the type indicated by the FILE-TYPE parameter. The file will always be
left in
an unlocked state after it is closed by Kermit-65. When sending a
file,
Kermit-65 will use the FILE-TYPE parameter to determine how to
detect an
End-of-file condition. Thus, it is important to have this set properly
in all
cases.
Recommendations for Archiving Files
When using a large system for archiving purposes, there is no reason to
convert
Apple Basic programs into text files before sending them if there is no
need to
edit them on the mainframe. The FILE-TYPE parameter must always be set
correctly when sending and receiving files. The procedure for archiving
files is:
1. Run Kermit on remote system.
2. SET FILE-TYPE TEXT (or APPLESOFT or ...) on Kermit-65.
3. Send the files.
13.3. The PRODOS File System
Page 321
-----------------------------------------------------------------------------13.3. The PRODOS File System
The PRODOS system is essentialy the same as the DOS system with the
exception
that performance has been improved, hardware usage has been expanded and
file
names have different syntax. File names are the major importance to the
Kermit
system. File names have the following syntax:
/volname/subdirectory1/.../subdirectoryn/filename
where "volname" is the volume name where the file is located.
Subdirectory(n)
is a subdirectory on the volume and may be omitted. Filenames are
much more
restrictive than DOS filenames. PRODOS filenames are limited to 15
characters
with no imbedded spaces and few special characters, and must begin with
an alphabetic character. Volname may be omited from the filename by use
of the
PREFIX command.
Binary file transfer using PRODOS has its dangers when creating new
files.
PRODOS keeps the file's size and starting location in the directory which
is of
course not transferred.
Therefore a new binary file will have its
starting
location 0 which can cause some interesting problems if you try and
BRUN the
file. Basic files all start at $801 (it says here) so Kermit creates new
basic
files with a starting address of $801.
13.4. Program Operation
Prior to using Kermit-65 for transferring files, the modem interface
must be
set to handle data in a certain manner. First, the data format
should be 8
data bits and 1 stop bit. Second, the card should be set to no parity.
The
baud rate (if adjustable) must be set to whatever rate the modem can
handle.
For the D.C. Hayes Micromodem, these parameters are set correctly by
default,
so very little has to be done. For the Apple Super Serial Card these
are set
from within Kermit-65 except the interrupt switch (sw6-2) which must be
set for
interupts on.
For the Microtek SV-622, all applicable parameters are
set by
Kermit-65. Some mainframes may need parity checking (i.e. most IBM
machines).
In this case some parity setting (other than none) will be required.
When
talking with such mainframes, binary and basic files on the Apple
cannot be
transferred unless Eighth-bit-quoting is acceptable to the host. If
you have
the parameters set correctly then the "connect" command will start Kermit
talking out the communication port.
File transfer is very dependent upon parity. Make sure the host and
local
parity are the same. Following is one IBM site's method for file
transfer.
We have an IBM 3033 and 4381 and use both 3705/3725 and 7171 or Series/1
front
ends. The differences in front ends as far as any microcomputer Kermit
is concerned duplex (local-echo on for the 3705, local-echo off for the
7171 or
Series/1), parity (the two front ends might use different parity, e.g.
Mark for
the 3705 and Even for the 7171), and flow control (None for the 3705,
XON/XOFF
for the 7171).
In Kermit-65, IBM mainframe users need to set the following parameters:
BAUD
Whatever is supported.
PARITY
EVEN, ODD, or MARK, whatever your front end requires.
13.4. Program Operation
Page 322
-----------------------------------------------------------------------------FLOW
XON for the 7171, NONE for the 3705.
FLOW DELAY
00
LOCAL-ECHO
OFF for 7171, ON for 3705
Conversing With Kermit-65
Kermit-65 reads file KERMIT.INIT from the default drive when
started. The
lines of this file are executed one at a time starting at the begining.
This
file should be an ASCII text file and contain commands to set up
Kermit's
parameters as desired. It will also execute Kermit's other commands.
However,
any command which reads a file (like MODEM) or leaves local mode (like
CONNECT)
will terminate reading of this file and continue with the command
specified.
Use your favorite editor to produce this file. Here's a sample:
set display 80 3
set keyboard 2e
set baud 4800
modem
Kermit-65's prompt is "Kermit-65>".
to it,
type "brun kermit". Example:
To run Kermit-65 and issue commands
]BRUN KERMIT
NOSC/STEVENS/CU - APPLE ][ KERMIT-65 - VER 3.81
Kermit-65>send testfile
(file is sent...)
Kermit-65>status
(performance statistics are printed...)
Kermit-65>(other commands...)
.
.
.
Kermit-65>exit
]
Like many Kermit programs, Kermit-65 uses a DEC-20 style command
parser.
During interactive operation, you may use the ?-prompting help feature
("?")
and recognition (ESC) features while typing commands. A question mark
typed at
any point in a command displays the options available at that point;
typing an
ESC character causes the current keyword to be completed (or default
value to
be supplied). If you have not typed sufficient characters to uniquely
specify
the keyword or filename (or if there is no default value) then a beep
will be
sounded and you may continue typing. Keywords may be abbreviated to any
prefix
that is unique.
13.4. Program Operation
Page 323
-----------------------------------------------------------------------------Remote and Local Operation
Kermit-65 is normally run in local mode. It may be run as a remote
Kermit as
well although there is no advantage to doing things that way. Kermit65 supports User-mode commands for talking to a Server, and it does support a
limited
server mode.
13.5. Kermit-65 Commands
THE SEND COMMAND
Syntax: SEND filespec
The SEND command causes a file to be sent from the Apple to the remote
system.
The Filespec is the name of the file on the Apple diskette to be sent.
The
parser will not accept control characters and certain special
characters in a
filename (like comma), so the user may have to rename the file before
it is
sent.
The user may also have problems in filename compatibility with
remote
Kermits. If the remote Kermit does not have the facilities to beat the
filename
into a format that its system likes, the user may have to rename the
file before sending it. Thanks to Dick Atlee, wildcards are now acceptable when
sending files (they have always been acceptable when receiving files). The
"*" is a
multiple character wildcard and the "=" is a single character wildcard.
The default disk drive is used for file transfers this can be changed
with the
'SET DEFAULT-DISK'(DOS) or 'SET PREFIX'(PRODOS) command (explained
below). As
a file is being sent, the screen displays 'SENDING PACKET...'
and
'WAITING
PACKET...' followed by the absolute packet number since start of
transmission.
If a packet must be transmitted several times and it reaches the maximum
retry
count, the transfer will fail and the 'Kermit-65>' prompt will return.
If the
remote Kermit sends an error packet, the text of the packet will be
displayed
on the screen, the transfer will fail, and the prompt will return.
Currently,
a packet can be retransmitted manually by typing anything on the
keyboard. If a
'Q' is typed, the entire transmission will be aborted.
THE RECEIVE COMMAND
Syntax: RECEIVE [filespec]
The RECEIVE command tells Kermit-65 to receive a file or file group
from the
other system. If only one file is being received, you may include the
optional
filespec as the name to store the incoming file under; otherwise, the
name is
taken from the incoming file header. If the name in the header is not a
legal
filename, Kermit-65 will attempt to change it into something
legal. If
FILE-WARNING is on and an incoming file has a name identical to a file
already
existing on the diskette, Kermit-65 will issue a warning to the user
and attempt to modify the filename to make it unique. Currently, a packet
can be
retransmitted manually by typing anything on the keyboard. If a 'Q' is
typed,
the entire transmission will be aborted.
13.5. Kermit-65 Commands
Page 324
-----------------------------------------------------------------------------THE GET COMMAND
Syntax: GET remote-filespec
The GET command requests a remote Kermit server to send the file or file
group
specified by remote-filespec. This command can be used with a Kermit
server on
the other end. The remote filespec is any string that can be a legal
file
specification for the remote system; it is not parsed or validated
locally. So
if the remote Kermit supports wildcards you can specify them in
the
remote-filespec. If the remote Kermit is not capable of server
functions, then
you will probably get an error message back from it like "Illegal packet
type".
In this case, you must connect to the other Kermit, give a SEND command,
escape
back, and give a RECEIVE command. Currently, a packet can be
retransmitted
manually by typing anything on the keyboard. If a 'Q' is typed, the
entire
transmission will be cancelled.
THE CONNECT COMMAND
Syntax:
CONNECT
Establish a terminal connection to the remote system using all the
current SET
paramaters for terminal type, speed, parity, etc. Get back to
Kermit-65 by
typing the escape character followed by the letter C. The escape
character is
[email protected]
by
default.
When you type the escape character,
several
single-character commands are possible. These are shown in Table 13-2.
------------------------------------------------------------------------------
?
B
C
List all the possible single-character arguments.
Send a BREAK signal.
Close the connection and return to Kermit-65.
D
K
P
R
S
W
0
^@
Drop the phone line to the remote and return to Kermit-65.
TOGGLE Keypad application-mode on/off.
Toggle the Printer on/off.
pRint the screen, >= //e required
Show Status of the connection.
sWap the del and backspace key.
Send a null (ASCII 0).
(or whatever the Connect-Escape character is): Send the
Connect-Escape character itself.
Table 13-2:
Kermit-65 Single-Character CONNECT Escape Commands
-----------------------------------------------------------------------------You can use the SET ESCAPE command to define a different escape
character.
When CONNECTed, Kermit-65 will be passing characters entered on the
keyboard to
the remote system, and passing characters from the remote system to the
Apple
screen.
Incoming characters are interpreted according the selected
terminal
type (see SET TERMINAL).
On an Apple II+ with an incomplete keyboard, special characters can be
typed by
prefixing regular characters with a right-arrow. On uppercase-only
screens,
13.5. Kermit-65 Commands
Page 325
-----------------------------------------------------------------------------uppercase characters are shown in inverse and lowercase characters are
displayed as normal uppercase characters.
Here are the rules for using the special 2/2+ input, to get all printable
ASCII
characters, and how they appear on the screen. Special meanings are
applied in
various contexts to certain characters. The left and right arrow keys
do special things, and sometimes the escape key does as well.
For
letters, the
keyboard is always in either default UPPERCASE mode or default lowercase
mode.
When in UPPERCASE, all letters typed are sent out as uppercase. In
lowercase,
all letters are sent as lowercase. To reverse the case for the next
character
only, hit the right-arrow ("prefix") key. To switch the default case,
hit the
prefix-key twice in a row. For funny characters, the prefix key is
also used
to get the unusual punctuation characters which are not on the Apple
keyboard.
Table 13-3 shows the Apple II/II+ keyboard escapes; the letter "p"
represents
the prefix character.
------------------------------------------------------------------------------
To Get
Left Square Bracket
Right Square Bracket
Left Curly Bracket
Right Curly Bracket
Underline
Backslash
Tilde (wiggle)
Vertical Line
Table 13-3:
Type
p(
p)
p<
p>
pp/
p^
p.
Appearence
[
]
{
}
_
\
~
|
Apple II/II+ Keyboard Escapes
------------------------------------------------------------------------------
The left-arrow key sends a rubout (ASCII 127). With left-arrow and right
arrow
doing special things, it's a little hard to enter their characters (^H
and ^U
respectively). There is therefore an escape from prefix mode sequence.
If you
type prefix-ESC, the next character is sent without any interpretation.
If you
have the capability for upper/lower case, etc, then use the 'SET
KEYBOARD' and
'SET DISPLAY' commands to specify complete keyboards.
THE HELP COMMAND
Syntax: HELP
Typing HELP alone prints a brief summary of the Kermit-65 commands.
13.5. Kermit-65 Commands
Page 326
-----------------------------------------------------------------------------THE MODEM COMMAND
Syntax: MODEM
Typing MODEM causes the file KERMIT.MODEM in the default drive to be
used as a
menu. You will be able to select any line in the file to be sent to the
modem.
Sorry, you can't back up to a previous menu, you will have to Quit and
execute
MODEM again. A "connect" response from the modem will cause Kermit to
leave
the modem command and execute the CONNECT command. For a Hayes
modem, this
file should have commands using text status responses (not numbers). One
command per line with comments allowed after the first space (blank).
Use your
favorite editor to produce this ASCII text file.
Since the attention
Hayes
command (AT) requires a delay the "&" character takes one time delay
for Kermit. Each "&" causes a delay of one second on a 6502 chip. If you have a
//gs
or an accelerator board the timing may change and you may require
several to
produce a one second delay. Normally Kermit will wait for 27 seconds
(again on
a 6502 chip) for the modem to respond, but any character typed on the
keyboard
will terminate this wait. You may hear the busy signal and there is no
sense
waiting any longer, so hit (crash-not so hard) any key on the keyboard.
Following is an example of the KERMIT.MODEM file:
+++&&ATH This should get the Hayes modem's attention and then hang up.
ATDP1234567 Call your local BBS with pulse dialing.
ATDT8901234 Call your work dialup phone with touch tone dialing.
THE CATALOG COMMAND
Syntax: CATALOG
Typing CATALOG produces a catalog (directory) listing of your default
drive.
THE DELETE COMMAND
Syntax: DELETE filespec
Typing DELETE causes the file specified to be deleted.
THE SERVER COMMAND
Syntax: SERVER
Typing SERVER alone turns Kermit into a file server to a remote Kermit.
Currently server mode will handle remote "send", "get", "remote" and "fin"
commands.
Variants of the above commands will probably work but file
serving is
very limited at present. Because the Apple requires knowledge of file
types
you can use the "remote Kermit" (or whatever the remote Kermit's
syntax is)
command to set the file-type on the server. Yes, the server will
execute any
command so you can really get the server into trouble (this is not a
BBS). You
must have the appropiate file type set before transfering files. You can
exit
server mode by typing Control-C (^C) when not doing file transfers
or the
remote can of course terminate via the "fin" command.
13.5. Kermit-65 Commands
Page 327
-----------------------------------------------------------------------------THE REMOTE COMMAND
Syntax: REMOTE [option character-string]
The only option currently is "kermit". This command submits the
command
"character-string" to the remote Kermit's command processor.
Currently only
short replys are supported so returned messages about the size of the
"receive
packet size" are the limit.
The obvious usage is for setting and
showing
parameters on the remote Kermit.
THE EXIT AND QUIT COMMANDS
Syntax: EXIT or QUIT
Exit from Kermit-65. You can restart the program,
haven't run
anything else, by typing 'CALL 4096'.
provided
you
THE SET COMMAND
Syntax: SET parameter [option [value]]
Establish or modify various parameters for file transfer or terminal
connection. You can examine their values with the SHOW command.
The
following
parameters may be SET:
APPLICATION-MODE
BAUD
CURSOR-KEYS-VT100
DEBUGGING
DEFAULT-DISK
transfer?
DISPLAY
ESCAPE
FILE-TYPE
FILE-WARNING
FLOW
remote?
KEYBOARD
KEYPAD
Set VT100 gs keypad in/out of application mode.
Which baud rate should the com card use?
In VT100 mode cursor keys give VT100 sequences.
TERSE or VERBOSE packet information.
Which Diskette drive is used for DOS 3.3 file
Which type of screen display is being used?
Character for terminal connection.
Type of Apple DOS file being sent/received.
Warn users if incoming file exists?
Should xon/xoff flow control be used to the
II+ or //e keyboard.
Is there a gs style keypad?
LOCAL-ECHO
PARITY
PREFIX
PRINTER
RECEIVE
SEND
SLOT
TIMER
TERMINAL
Full or half duplex switch.
Character parity to use
Which default prefix to use with PRODOS?
Should the printer be used for the display?
Various parameters for receiving files
Various parameters for sending files
Which slot # is communication device in?
Should Kermit observe the receive timeout value?
Which type of terminal should Kermit emulate?
13.5. Kermit-65 Commands
Page 328
-----------------------------------------------------------------------------SET APPLICATION-MODE
Syntax: SET APPLICATION-MODE {ON, OFF}
For VT100 emulation with a gs-style keypad you can set the keypad in or
out of
application mode. Some computer systems set this via escape sequences so
it may
not be necessary to use this command.
SET BAUD
Syntax: SET BAUD value
Value is the baud rate for your communication card. For the super
serial and
the microtek it can be 300 to 19200. The actual values will depend
upon the
com card you are running with.
SET CURSOR-KEYS-VT100
Syntax: SET CURSOR-KEYS-VT100 {ON, OFF}
In VT100 emulation the cursor keys can also emulate the VT100 cursor
keys.
SET DEBUGGING
Syntax: SET DEBUGGING {TERSE, VERBOSE, OFF}
Record the packet traffic on your terminal. Options are: TERSE, Show
packet
info only (brief). VERBOSE displays packet field descriptions with
packet info
(lengthy).
OFF disables display of debugging information (this
is the
default).
SET DEFAULT-DISK
Syntax: SET DEFAULT-DISK {SLOT, VOLUME, DRIVE} value
This DOS command will tell Kermit-65 which disk drive should be used
file
for
transfers.
The three parameters which may be set separately are SLOT,
VOLUME
and DRIVE. The value for SLOT ranges from 1 to 7. The value for DRIVE
is either 1 or 2. The value for VOLUME ranges from 0 to 255.
SET ESCAPE
Syntax: SET ESCAPE hexidecimal-number
Specify the control character you want to use to "escape" from remote
connections back to Kermit-65. The default is 0 ([email protected]). The number is
the hex
value of the ASCII control character, 1 to 37, for instance 2 is
Control-B, B
is Control-K.
13.5. Kermit-65 Commands
Page 329
-----------------------------------------------------------------------------SET FILE-TYPE
Syntax: SET FILE-TYPE {APPLESOFT, INTEGER, TEXT, BINARY, OTHER hex-value}
This will inform Kermit-65 what type of file is being sent or received.
It is
important that this is set correctly since Kermit-65 must create a file
of the
appropriate type when receiving (and it has no way of knowing what kind
of file
it is).
When Kermit-65 is sending, it must also know the type of file
since
that tells it how to detect the actual end-of-file.
The keywords for
this
parameter are listed below. OTHER includes an added hex-value so that
the user
may specify the hex value of the file-type. This has meaning only in
PRODOS
and allows the user to specify any of the many different file types
used in
PRODOS. I would list the hex values vs file type if I had them. So if
you have
them send them along and I will include them here.
APPLESOFT
program.
The file being transfered is an Applesoft Basic
INTEGER
program.
The file being sent/received is an Integer Basic
TEXT
The file being sent/received is an ASCII Text file.
BINARY
The file being sent/received is a Binary image.
OTHER
by the
The
type
of
file being sent/received is specified
hex-value.
SET FILE-WARNING
Syntax: SET FILE-WARNING {ON, OFF}
This tells Kermit-65 whether to warn the user about incoming filenames
conflicting with existing files or not. If there is a conflict Kermit-65
will attempt to change the file name to something unique.
SET FLOW
Syntax: SET FLOW {OFF, XON, DELAY number}
SET FLOW allows one to use the XON/XOFF protocol when connected to a
remote
site. Delay timings are part of this command. Using delay times is
probably a
desperation move to keep the screen/printer from losing characters.
Setting
the timings will have to be set by experience. Perhaps the best way to
set the
timings is to bring the values down until you get failures and then
double the
timing figure. Both LOG and SET PRINTER will probably depend on flow
control.
OFF
Turn off flow control
XON
Turn on xon/xoff flow control with the remote
DELAY number
Delay the micro until XOFF takes effect
Delay followed by a number (including 0) delays the program for that
many milliseconds after the XOFF is given to the remote. This delay allows the
XOFF to
take effect before the program continues.
13.5. Kermit-65 Commands
Page 330
-----------------------------------------------------------------------------SET KEYBOARD
Syntax: SET KEYBOARD {2P, 2E}
SET KEYBOARD tells Kermit-65 if the user has a full keyboard (2E) or not
(2P).
If the user is on an Apple II+, this should be set to 2P (which
is the
default).
When set to that, character translations are available by
using the
right-arrow key as a prefix character, as shown in Table 13-3.
SET KEYPAD
Syntax: SET KEYPAD {ON, OFF}
SET KEYPAD tells Kermit-65 if the user has an Apple//gs-style keypad
available.
This is automatically set on a gs but must be set manually on other
machines.
With keypad set ON then "VT100 keypad on an Apple keyboard" (see below)
will
not be used but the actual keypad will be.
SET PRINTER
Syntax: SET PRINTER {ON, SLOT} number
or SET PRINTER OFF
This allows one to turn the printer on for printing what is displayed
on the
screen. With all the different printers and printer cards there will be
a lot
of variability here but flow control (XON/XOFF) is probably required
when you
are connected to a remote site. The printer can also be toggled on/off
via the
ESCAPE character followed by the command "P".
Remember when you use your printer there are a lot of variables here.
What was
being sent to the screen now is being sent to your printer.
If you
were
emulating the VT52 your printer may not know how to handle the
escape sequences, tabs, etc. It may be you can tell the host you are a tty or some
such
device that will give produce control codes that your printer can handle.
Some
printers may require the flow control and delay to get readable printing.
ON
Turn the printer on, slot number is required.
OFF
Turn the printer off.
SLOT number
Printer card is in slot "number".
SET SLOT
Syntax: SET SLOT number
This option tells Kermit-65 in which slot the communication device is
located.
The range for the number parameter is 1-7.
13.5. Kermit-65 Commands
Page 331
-----------------------------------------------------------------------------SET TIMER
Syntax: SET TIMER {ON, OFF}
SET TIMER will turn on or off the timeout checking for receive file
transfers.
Since there is no clock for exact timing a loop of instructions has been
set up
assuming a 1 megacycle CPU. CPUs which run faster will have to make
allowances
via the SET RECEIVE TIMEOUT command.
SET TERMINAL
Syntax: SET TERMINAL {MONITOR, NONE, VT100, VT52}
When TERMINAL is NONE, then all incoming characters (except nulls)
passed
directly to the display.
are
MONITOR emulation simply displays all the characters received from the
remote
(except nulls) without any formating of the screen (40 or 80
characters per
line). Control characters are displayed inverse.
VT100 Emulation
The Kermit-65 VT100 emulator is a small but working set of a true
VT100 terminal. It appears to work with most of the standard full screen
editors and
processors on BSD UNIX and VAX/VMS machines. Ah Apple//e, //c, or
//gs is
probably required with the Apple 80 column text card. Sorry, but the
II and
II+ will probably have to use one of the other terminal options. The
VT100
keypad has also been defined for the application mode via the OA/CA/game
button.
Figure 13-1 shows the Apple keypad looks like to ED (VMS), and
Figure
13-2 shows the layout on an Apple//gs keyboard. When using EVE (VMS) the
meaning of the keys will of course change.
As you can see the keypad is physically laid out like the VT100 keypad
except
for the lower right corner. Notice that above the keys are the VT100
labels
while within the box (key) is the Apple key label. Also the arrow keys
work as
VT100 arrow keys with the OA/CA/game button.
VT52 Emulation
SET TERMINAL VT52 will turn on the VT52 terminal emulation. One thing
that is
required is your 80-column card must handle the $16 command in
order for
reverse scrolling to work. The Apple//e 80 column card handles this
fine. The
VT52 keypad has been defined using the open/closed Apple. For II or
II+ one
will have to have a game paddle or joy stick (key shift mod too????)
and use
the buttons. When a button/open/closed Apple is pushed then the keys
starting
with 6,7,8 & 9 form the top of the keypad. Key 6 is the blue key key 7
is the
red key etc. The keys directly below the 6,7,8 & 9 and shifted one-half
key to
the right form the second row of the keypad etc. Every thing is fine
until you
get to the last row on the keypad. There the sp bar is 0 and the other
two keys
are moved to the upper right as the 0 & - keys. This way the arrow
keys are
available as VT52 keys with the OA/CA/game button combination (thanks
to Dick
Atlee for this idea). With those two exceptions the keypad is
physically
similar to a VT52 keypad. Remember the open/closed Apple or the game
button
13.5. Kermit-65 Commands
Page 332
-----------------------------------------------------------------------------------------------------------------------------------------------------------
PF1
PF2
PF3
PF4
.(period)
------- ------- ------- ------- ------|
|
|findnxt|delline|select |
|
6
|
7
|
8
|
9
|
0
|
| gold | help | find |undelln| reset |
------- ------- ------- ------- ------7
8
9
------- ------- ------- ------| page |section|append |delword|
|
Y
|
U
|
I
|
O
|
|command| fill |replace|undelwd|
------- ------- ------- ------4
5
6
,
------- ------- ------- ------|advanc|backup | cut |delchar|
| H
|
J
|
K
|
L
|
|bottom| top | paste |undelch|
------- ------- ------- ------1
2
3
ENTER
------- ------- ------- ------| word | eol | char | enter |
|
N
|
M
|
,
|
.
|
|chgcase|deleol |specins| sub |
------- ------- ------- ------0
--------------------------------------bline
|
space bar
|
openline
|
--------------------------------------Figure 13-1:
VT100 Keypad on an Apple Keyboard
-----------------------------------------------------------------------------must be pushed (like the cntl key) to get the keypad emulation.
13-3
should clear up the questions.
The arrow keys work as VT52 arrow keys with the OA/CA/game button.
THE SHOW COMMAND
Figure
Syntax: SHOW [option]
The SHOW command displays various information:
ALL
All parameter settings (this is quite long).
BAUD
Baud rate of the com card.
CURSOR-KEYS-VT100
cursor
Are
the
cursor
keys
emulating
the VT100
13.5. Kermit-65 Commands
Page 333
-----------------------------------------------------------------------------------------------------------------------------------------------------------
PF1
PF2
PF3
PF4
------- ------- ------- ------|
|
|findnxt|delline|
| CLEAR |
=
|
/
|
*
|
| gold | help | find |undelln|
------- ------- ------- ------7
8
9
------- ------- ------- ------| page |section|append |delword|
|
7
|
8
|
9
|
+
|
|command| fill |replace|undelwd|
------- ------- ------- ------4
5
6
,
------- ------- ------- ------| advanc|backup | cut |delchar|
|
4
|
5
|
6
|
|
| bottom| top | paste |undelch|
------- ------- ------- ------1
2
3
ENTER
------- ------- ------- ------| word | eol | char |
|
|
1
|
2
|
3
|
|
|chgcase|deleol |specins|
|
------- ------- -------| enter |
0
.
| ENTER |
-----------------------| sub |
|
bline
|select |
|
|
0
|
.
|
|
| openline
| reset |
|
------------------------------Figure 13-2:
VT100 Keypad on an Apple//gs or Equivalent Keypad
-----------------------------------------------------------------------------keys?
DEBUGGING
DEFAULT-DISK
transfer?
DEVICE-DRIVER
Debugging mode.
Which Diskette drive is used for file
Which communication device is being used?
DISPLAY
Which screen display is being used?
ESCAPE
Character for terminal connection.
FILE-TYPE
Of Apple DOS/PRODOS file being sent/received.
FILE-WARNING
Warn users if incoming file exists?
FLOW
remote?
Should XON/XOFF flow control be used to the
13.5. Kermit-65 Commands
Page 334
-----------------------------------------------------------------------------------------------------------------------------------------------------------
^ is up arrow
BLUE
RED
GRAY
^
.(period) ENTER
------- ------- ------- ------- ------- ------|
|
|delline| up
|select | enter |
|
6
|
7
|
8
|
9
|
0
|
|
| gold | help |undelln|replace| reset | sub |
------- ------- ------- ------- ------- ------v is down arrow
7
8
9
v
------- ------- ------- ------| page |findnxt|delword| down |
|
Y
|
U
|
I
|
O
|
|command| find |undelwd|section|
------- ------- ------- ------4
5
6
->
------- ------- ------- ------|advanc|backup |delchar| right |
| H
|
J
|
K
|
L
|
|bottom| top |undelch|specins|
------- ------- ------- ------1
2
3
<------- ------- ------- ------| word | eol | cut | left |
|
N
|
M
|
,
|
.
|
|chgcase|deleol | paste |append |
------- ------- ------- ------0
--------------------------------------bline
|
space bar
|
openline
|
--------------------------------------Figure 13-3:
VT52 Keypad on an Apple Keyboard
-----------------------------------------------------------------------------KEYBOARD
II+ or //e keyboard.
KEYPAD
Does a gs-style keypad exist?
LOCAL-ECHO
Full or half duplex switch.
PARITY
Character parity to use
PREFIX
Which default prefix to use with PRODOS?
PRINTER
Should the printer be used for the display?
RECEIVE
Various parameters for receiving files
SEND
Various parameters for sending files
SLOT
Which slot # is communication device in?
13.5. Kermit-65 Commands
Page 335
-----------------------------------------------------------------------------TIMER
Is the receive timeout on or off?
TERMINAL
emulate?
Which terminal (if any) should Kermit
The above options are analogous to the equivalent SET commands.
THE STATUS COMMAND
Syntax: STATUS
Give statistics about the most recent file transfer. This includes
information
such
as number of characters sent/received, number of data
characters
sent/received, and last error encountered.
THE LOG COMMAND
Syntax: LOG filespec
When connected to a remote site, log the remote session's output
to the
specified file.
The file type and file warning protocols are
observed. This
command is dependent upon the flow control (XON/XOFF) working.
Without
flow
control there is little possibility of getting a correct copy of the
terminal
session. The logging begins when you connect to the remote and is
terminated
when you escape back to the local Kermit with the ESCAPE character
followed by
the "C" command.
13.6. Standard Installation
To bootstrap Kermit to the Apple, get the files APP3xx.1 thru APP3xx.2 on
a DOS
3.3 diskette, where xx is the current version. Make sure the
diskette is a
master diskette and empty. Rename the files to ker3xx.1 thru ker3xx.2.
Then:
EXEC KER3xx.1,R25
You will be asked several questions about your hardware and the program
should
execute and produce a binary and kermit.init with some starting
instructions.
If you want to run Kermit on PRODOS simply use the PRODOS conversion
routines
to move the binary and kermit.init to PRODOS. If you want other options
as a
regular thing then change file "kermit.init" with your changes. Then
make sure
the file is on the same disk as the binary.
Files Supplied for Kermit-65
The following files should be supplied on the distribution tape:
APPAAA.HLP
APP381.1
APP381.2
APPACC.HEX
APPACC.M65
APPCCS.HEX
APPCCS.M65
List of files (like this one)
Easy install file 1 (an exec file for DOS 3.3)
Easy install file 2 (an exec file for DOS 3.3)
Apple com card hex
Apple com card source
CCS 7710 com card hex
CCS 7710 com card source
13.6. Standard Installation
Page 336
-----------------------------------------------------------------------------APPCPS.HEX
CPS com card hex
APPCPS.M65
CPS com card source
APPGS.HEX
GS serial port hex
APPGS.M65
GS serial port source
APPHMM.HEX
Hayes micro modem card hex
APPHMM.M65
Hayes micro modem card source
APPLE.DOC
Complete documentation (it says here)
APPLE.MSS
Scribe text formatter source for documentation
APPMAI.HEX
Main kermit pgm hex
APPMAI.M65
Main kermit pgm source
APPMAK.UNX
Make file for UNIX cross assembly (to assemble Kermit)
APPMSV.HEX
Microtec com card hex
APPMSV.M65
Microtec com card source
APPSSC.HEX
Super serial com card hex
APPSSC.M65
Super serial com card source
APPXAS.1
65c02 cross assembler for UNIX system part 1
APPXAS.2
65c02 cross assembler for UNIX system part 2
APPXAS.3
65c02 cross assembler for UNIX system part 3
The syntax of the filenames may vary. On UNIX systems, the filenames
will be
in lowercase. On VM/CMS systems, the period will be replaced by a space.
Alternate Installation
The main problem exists in getting the hex files onto your diskette as
a text
file. But again that is a test of your creativity. If you have a
version of
Kermit running then GET or RECIEVE the file as a text file and you are in
business. Since Kermit has been separated into two assemblies then two hex
files
will have to be present on the diskette. Get the main hex file
APPMAI.HEX and
select which com card hex you will need. First "exec APPMAI.HEX".
Your
Apple
(or compatable) will go into monitor and show you *'s for several
minutes.
This is the monitor loading the hex into binary. If you get beeps
from the
monitor its probably because you didnt get a good copy of the text
file. Now
EXEC the com card driver you are going to use. You will have to get back
into
basic(aha another test for you,try "3d0G") to do this. And you will
see the
monitor loading the com driver. The order of EXEC's is important. The
com card
should
be
loaded last.
Next get back into basic and do a
"bsave
kermit,A$1000,L$6e00". You may have to specify the drive to do this
binary
save, with a slot or drive on the end of the BSAVE (aha another test).
You now
run Kermit via "brun kermit".
If you want to customize Kermit for your equipment, the recommended
method is
to use file "kermit.init" or do all your SETs, etc, and then do an
"exit". Now
you should be back in BASIC. At this point do a "bsave
name,A$1000,L$6e00" and
when you do a "brun name" all your setups will be remembered. NOTE:
If you
save your current settings via "bsave kermit ..." you may find that
moving that
binary to another type of Apple (e.g. from a //e to an //e+) will not
be possible. So make sure you keep the original binary to move between
machine
types.
Since the org is now $1000 if you have been using Kermit and then went
back to
basic for some trivial thing a "CALL 4096" should start up Kermit
without
having to reload it.
In summary:
13.6. Standard Installation
Page 337
-----------------------------------------------------------------------------1. EXEC APPMAI.HEX
2. Choose the com card driver you will use.
For example APPSSC.HEX.
3. 3D0G
4. EXEC APPSSC.HEX
5. BSAVE kermit,A$1000,L$6e00
And you should be in business. Remember there is the command HELP and
whenever
you are into a command a "?" will give you the posible options
available at
that point of a command. The escape key will finish typing an option if
it is
possible. The syntax of all the commands and options only requires
enough
characters to make that command or option unique.
13.7. Problems
Installation
NOTE: When using the super serial driver you must have the cards
sw6-2 on.
This allows the card to use interupts. The rest of the switches are set
from
within Kermit. It appears that you can run your Apple 2 with sw6-2 on
and in
99% of the cases will cause no problems. This is because DOS runs with
interupts locked out ("sei" in assembly language) and the program must
explicitly
give a "cli" for interupts to work (the super serial driver does).
The Microtek driver is a super serial look alike which does not run with
interupts.
If you have trouble with the super serial driver you might try
the MSV
driver. For you people with the MSV-622c card, you might try running a
jumper
from the UART 6551 pin 26 to the card edge pin 30. This will enable
interupts
just like the SSC sw2-6, and then you can use the super serial driver.
The Prometheus card will work with the Apple com driver. However you
will have
to set the switches on the card for baud etc. Evidently this card can
not be
programed by the software. If that is not true then here is an
oportunity for
you to write a better driver. If you do please pass it on for other
Prometheus
users.
Unconfirmed reports have it that the Apple Cat will work
Apple com
driver. Would appreciate a confirmation.
with
the
Some have noted the Apple com card must be initialized via the "IN#x"
before
starting Kermit. Ike has now updated this driver and the initialization
is now
done within the Apple com driver. Thanks Ike.
Usage
There is the command HELP and whenever you are into a command a "?"
will give
you the posible options available at that point of a command. The
escape key
will finish typing an option if it is possible. The syntax of all the
commands
and options only requires enough characters to make that command or
option
unique.
13.7. Problems
Page 338
-----------------------------------------------------------------------------When using flow control you may appear to hang. Type a ^Q (Control-Q)
and that
may free you up.
Remember when you use your printer there are a lot of variables here.
What was
being sent to the screen now is being sent to your printer. If
you were
emulating the VT52 your printer may not know how to handle the
escape sequences, tabs etc. It may be you can tell the host you are a tty or
some such
device that will give carrage returns etc that your printer can handle.
Some
printers may require the flow control and delay to get readable printing.
File transfer is very
local
parity are the same.
dependent
upon
parity. Make sure the host and
13.8. Customizing Kermit-65
The source code to Kermit-65 is in 6502 Assembler. It has been formatted
for a
cross assembler which runs on a unix 2's complement machine. Files
appxas.1
thru appxas.3 are the cross assembler for UNIX. Get the files on a UNIX
system
and then look at the documentation at the start. They will easily make
you a
xasm for Kermit. The file appmak.unx is the makefile to use with the
xasm to
reassemble all of Kermit's parts.
Kermit-65 3.x has been separated into two assemblies, the main routines
and the
com card routines for the devices shown in Table 13-1. A vector has
been set
up in low memory for the two assemblies to communicate. Look at the
working com
drivers for tips on how to incorporate your version of the com driver.
some
things to note: It is probably best to buffer the input from the remote
and to
get input characters from the remote every chance you get. Note the
Microtek
SV-622 driver, whenever the input is checked for a character and has a
charac-
ter the character is put into the buffer immeadiatly. Also when the
output is
checked for ready to output, if the card is not ready to output then
it is
checked for a character to input. All this should help prevent losing
characters.
Communications card vector area:
address size
1003
byte
1004
1005
byte
word
module
main
driver
function
This is the baud rate index as follows:
3 - 110
4 - 135.4
5 - 150
6 - 300
7 - 600
8 - 1200
9 - 1800
10 - 2400
11 - 3600
12 - 4800
13 - 7200
14 - 9600
15 - 19200
for example:
if index is 6 then line should be 300 baud
unused
Address of a null terminated string.
13.8. Customizing Kermit-65
Page 339
-----------------------------------------------------------------------------address should point to a capitalized
string of the drivers id
1007
byte
main
Com slot in the form $n0 where n is slot #.
1008
byte
main
Force initialization flag when 0.
init routine should always initialize when
this flag is 0 & then set flag non-zero.
1009
word
main
Address of the end of Kermit main routine.
100b
byte
main
Flow control is on when high bit is set.
100c
word
driver
Address of the end of the com driver.
1020 3 bytes driver
Jump to initialization routine.
1023 3 bytes driver
Jump to command routine. A reg has command
0 - hang up the line
$0b - set baud rate
$0c - set break on the line
$91 - do xon on the line
$93 - do xoff on the line
routine returns false (P reg zero flag)
if unable to do command.
1026 3 bytes driver
Jump to check for input from the line.
routine returns false (P reg zero flag)
if no character on line
1029 3 bytes driver
Jump to get input character from line.
routine returns character in A reg
102c 3 bytes driver
Jump to put character in A reg on line.
102f 3 bytes driver
Jump to reset com driver.
1040 3 bytes main
Jump to Apple ROM wait rtn. microsecs delay
=1/2(26+27A+5A*A) where A is the accumulator
1043 3 bytes main
Jump to routine to print null-terminated string.
X reg contains least significant byte of address
Y reg contains most significant byte of address
routine does not issue a carriage return.
1046 3 bytes main
Jump to routine to read the keyboard.
A reg contains the character read
1049 3 bytes main
Jump to routine to print carrage rtn & line feed.
104f 3 bytes main
Jump to routine to set characters parity.
A reg contains the character before and after.
All the routines should return with the "rts" instruction. Routines
which can
return a true/false indication should return with the P reg zero flag
set appropiately. That is: a "beq" instruction will branch on a false
indication and
the "bne" will branch on a true indication. The com driver should
start its
routines above the main routines and tell where the end of the com
driver is
via location $100c. If your com driver gets too large then the bsave
address
would have to be changed when you are saving the binary to diskette.
14. MACINTOSH KERMIT
Page 340
-----------------------------------------------------------------------------14. MACINTOSH KERMIT
Program:
(Columbia
Bill
Catchings,
Bill
Schilit,
Frank
da
Cruz
University),
Davide Cervone (University of Rochester),
Matthias Aebi (ECOFIN Research and Consulting, Ltd.,
Zuerich),
Language:
Documentation:
Version:
Date:
Paul Placeway (Ohio State University).
C (MPW)
Christine Gianone, Frank da Cruz, Paul Placeway
0.9(40)
May 26, 1988
MacKermit Capabilities At A Glance:
Local operation:
Remote operation:
Login scripts:
Transfer text files:
Transfer binary files:
MacBinary transfers:
Wildcard send:
File transfer interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
XON/XOFF:
Transmit BREAK:
IBM mainframe communication:
Transaction logging:
Session logging:
Debug logging:
Packet logging:
Act as server:
Talk to server:
Advanced server functions:
Local file management:
Command/Init files:
Key redefinition/macros:
File attributes packets:
Command macros:
Raw file transmit:
Long packets:
Yes
Yes
No
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
Yes
Yes
Yes
No
Yes
No
No
No
Yes
(server mode only)
(whole HFS folders)
(VT100,VT102)
(Speed, Parity, Echo)
Sliding windows:
No
14.1. Introduction
Page 341
-----------------------------------------------------------------------------14.1. Introduction
Macintosh Kermit, or "MacKermit", is an implementation of the Kermit
file
transfer protocol for the Apple Macintosh family of computers. It was
developed
at Columbia University, based on C-Kermit (which also forms the nucleus
of Unix
Kermit and many other Kermit programs). Version 0.9 of MacKermit runs
on the
Macintosh 512, XL (Apple Lisa running MacWorks), 512e, Plus, SE, and II,
under
the regular Finder and the Multifinder, with which it can transfer files
in the
background. MacKermit 0.9 probably does not run on a 128k (original,
classic)
Macintosh, due to lack of sufficient memory, but should run OK on a
"fat Mac"
(a 128K Mac upgraded to 512K). Version 0.8 should be retained for 128K
Macs.
This manual assumes you are acquainted with your Macintosh, and that
you are
familiar with the general ideas of data communication and Kermit file
transfer.
A very brief overview is given here, but for details consult the early
chapters
of the Kermit User Guide (of which this document is a chapter), or
the book
Kermit, A File Transfer Protocol, by Frank da Cruz, Digital Press (1987).
For
further information about Kermit documentation, updates, lists of
current
available versions, and ordering information, write to:
Kermit Distribution
Columbia University Center for Computing Activities
612 West 115th Street
New York, NY 10025 (USA)
14.2. Installation
Before you can use Macintosh Kermit or any other communication program on
your
Mac, you must have a way to connect it to the other computers you wish
to communicate with. This means either a direct cable connection (usually
using a
"null modem" cable), or a modem connected to your Mac and to a
telephone. The
Macintosh poses two special problems at this level. First, its
connectors are
not the standard 25-pin RS-232 style, but either 9-pin or 8-pin special
connectors which you need special adapters for.
Second, the Macintosh
does not
supply a Data Terminal Ready (DTR) signal, which is required by most
modems before they will operate. To use your Mac with a modem that is not
designed
specifically for the Mac, you have to either (a) configure the modem to
ignore
the DTR signal, or (b) feed some other active signal into the modem's
DTR input. The former is usually done with DIP switches on the modem, the
latter can
be done in the connector that plugs into the modem by installing a jumper
wire
between DTR (pin 20) and DSR (pin 6), or by connecting the Mac's +12V
output
(pin 6 on the Mac's 9-pin connector) to DTR (pin 20) on the modem end.
If you have received a Macintosh Kermit diskette from Columbia
University,
there's no special software installation procedure -- just insert the
diskette,
double-click on the appropriate start-up file, or on MacKermit itself,
and go.
If all the communication and other settings agree with your
requirements,
there's nothing else you need to do. This process is illustrated in the
next
section, just below.
MacKermit is not copy-protected, and nothing out of the ordinary is
required to
make copies onto other diskettes, or onto your hard disk if you have one.
Just
use the ordinary Macintosh methods of copying files, folders, etc.
Later, you may wish to create settings files tailored to your
communication en-
14.2. Installation
Page 342
-----------------------------------------------------------------------------vironment, and you might also want to customize the keyboard
configuration.
Use the various Settings options for this, and then select Save
Settings from
the File menu. Settings and settings files are explained in Sections
14.10 and
14.11.
14.3. Getting Started
Kermit programs perform two major functions, terminal emulation and file
transfer. Before transferring files between two systems you must establish a
terminal connection from your system to the other one, either direct
or else
dialed up using a modem. Then to transfer files, login to the remote
system if
necessary, start up a Kermit program there, and then tell the two
Kermit
programs which files to transfer, and in what direction.
Most Kermit programs present you with a prompt, in response to which you
type a
command, repeating the process until you exit from the program. If you
want to
establish a terminal connection to another system, you must give the
CONNECT
command.
Unlike these programs, MacKermit is always connected, and
whatever
keystrokes you type are sent to the other system. To give commands to
MacKermit itself, you must use the mouse to pull down menus from the menu
bar that
overlays your terminal session, or type special Command-key equivalents.
The following example shows how to transfer a file with MacKermit. The
remote
computer is a Unix system, but the method is the same with most others.
- First insert the MacKermit diskette. It should appear on the
screen
as a diskette icon titled Kermit 0.9(40). Click on it twice to
open
if it did not open automatically when you inserted it in the drive.
- Once
across
the
disk
is opened, you will see three MacKermit icons
the top of the screen.
For the Unix system and most others
you
can
use the "Normal Settings" icon -- to start the Kermit program
click
twice on it. For linemode connections to IBM mainframes, you
would
click twice on the "IBM Mainframe Linemode Settings" icon.
- You will see a white backround with menus stored under the
headings
File, Edit, Settings, Remote, and Log.
- Move the mouse pointer
to
the
Settings
select
Communications... by clicking on it once.
menu
and
- MacKermit normally sets the communication speed to 9600 bits
per
second. Click on the circle in front of 1200 (or whatever speed
you
need to match the baud rate of your modem and/or remote
system).
Check to see that the other communication settings like parity are
as
required, and make any necessary changes.
- Click on the "OK" box to accept the settings.
- If you have a Hayes-like dialout modem, follow the next two steps:
1. Type
AT
(uppercase)
and then press the Enter key.
The
modem
should respond with "OK" or
the
digit
"0"
(zero).
it
doesn't,
check
the
modem
manual for details).
cable, the modem, etc (consult your
If
14.3. Getting Started
Page 343
-----------------------------------------------------------------------------2. Now type ATDT 7654321 followed by Enter (replace 7654321 by
the
actual phone number). If the connection succeeds, you'll get
a
message like CONNECT (or the digit "1"), otherwise you'll
see
an error message like NO CARRIER, ERROR, etc, or a digit like
3
or 4 (see your modem manual).
For non-Hayes-compatible modems,
follow
the
instructions
in
your
modem manual.
For direct connections, skip this step altogether.
Now you should be talking to the Unix system. Type a carriage return
to get
its attention, and it will issue its login prompt. In the examples
below, underlining is used to show the parts that you would type.
Login: christin
password:
Login to the host.
(Passwords normally don't echo.)
% kermit
Run Kermit on the host.
C-Kermit>receive
Tell it to receive a file.
Now tell MacKermit what file to send:
- Use the mouse to point to the File menu and select the Send
File...
option. You can either type in the name of the file (if you know
the
name) or select the alternate drive to see what files are on
the
disk. Once you see the file you want to send, click on the
filename
and then click on the SEND option (or you can just click twice on
the
filename).
- A "File Transfer Status" box will appear to report
the
progress
of
the
transer.
NOTE: If the number of retries is increasing but
not
the number of packets, you should check your
settings under the Settings menu.
Communications...
- When the file transfer is completed, the "File Transfer Status"
box
should disappear and the C-Kermit prompt should reappear.
You have just transferred a file from the Macintosh to the Unix system.
To
transfer a file in the other direction, use the "send filename" command
on Unix
instead of "receive", and click on "Receive File..." from the Mac's File
menu,
instead of "Send File...".
After the file is transferred, your terminal connection is
automatically
resumed. Once your Unix session is complete, you can log out, and
exit
from MacKermit:
C-Kermit>exit
% ^D
Logout from Unix by typing Ctrl-D.
1. Select the Quit option in the File menu by clicking on it.
2. Select the Close option in the File menu by clicking on it
(assuming
you want to close the current folder).
3. Select the Eject option in the File menu by clicking on it
(assuming
then
14.3. Getting Started
Page 344
-----------------------------------------------------------------------------you ran Kermit from a diskette that you want to eject).
That's the easiest and quickest way to use Kermit. If this simple
scenario
does not work for you, look for any obvious incorrect settings (speed,
parity),
fix them, and try again. Otherwise, read on.
14.4. The Macintosh File System
The Macintosh file system consists of one or more disks, each disk
containing
files. There are actually two Macintosh file systems, which work
slightly differently.
Disks formatted for the older Macintosh File System (MFS) are
essentially
"flat". All files on one of these disks must have a unique name. Files
may be
collected together into "folders", but folders are not analogous to
directories
on other file systems, and no two folders on the same disk may contain
files of
the same name; the folders exist only to make things look nicer in the
Finder.
All Macintoshes have support for MFS.
Disks formatted with the newer Hierarchical File System (HFS) are not
"flat";
each folder is a directory. There may not be more than one file with
the same
name in a single folder, but there may be identically named files in
different
folders.
Macintosh file names may contain practically any printable characters,
including space and punctuation -- but colon (":") may not be used; it is
used in
device names and as the HFS path element separator.
14.5. Menus
The major
Apple
menus
are Apple, File, Edit, Settings, Remote, and Log.
The
menu gives some information about the program, including the MacKermit
version
number and the C-Kermit protocol mudule version number (useful in
reporting
bugs). It also shows statistics about the most recent file transfer.
The File menu invokes Kermit's file transfer functions, Send, Get, and
Receive.
It also allows settings to be saved and restored, and like most
Macintosh applications, includes a "quit" entry for leaving the program, and a
"transfer"
entry for transferring to another program without going through the
Finder.
The Edit menu provides support for Macintosh desk accessories that need
to have
this menu to do cut and paste. This menu does not currently do
anything in
MacKermit.
The Settings menu provides dialog boxes for file, communications, and
protocol
settings; these will be discussed below.
The Remote menu has the commands that can be sent to Kermit servers, as
well as
an option to turn Macintosh Kermit itself into a server (also discussed
below).
The Log menu contains commands to start and stop session and
transaction logging. It also has an entry to dump the current screen image to
session
log, which is only enabled when the session log is open.
the
14.6. Terminal Emulation
Page 345
-----------------------------------------------------------------------------14.6. Terminal Emulation
Before you can transfer files, you have to establish a terminal
connection with
the other computer. You don't have to give MacKermit any special command
to do
this, just start the program. Assuming you have a physical
connection, then
the software will use it. If you think you have a physical
connection, but
don't see any results, click on the Settings menu and select
Communications to
make sure you have the right speed and parity. If you have to dial out
to make
the connection, you must do this yourself -- Mac Kermit won't do it
for you.
Depending on the type of modem, you must either type dialing commands
to it
directly (like the Hayes ATDT command in the example in section 14.3),
or else
dial the phone manually, wait for an answer and a carrier tone, and
then put
the modem in data mode.
Once you've made the connection, you can use MacKermit's terminal
emulator,
which conforms to ANSI standard X3.64, providing a subset of the
features of
the DEC VT102 terminal (a VT100 with line and character insert and delete
functions added). The functions provided are sufficient to allow MacKermit
to act
as a terminal for the EMACS full-screen editor as it exists on most
timesharing
systems, and for most host-resident display-oriented applications that
expect
to do cursor positioning and editing on the VT100 or VT102 screen, such
as VAX
TPU. MacKermit does not currently support the following VT100/102
functions:
-
Double height or double width lines
Blinking
132 columns
DEC-style line wrapping
Control characters embedded in escape sequences
VT52 mode
(this is not an exhaustive list)
The keyboard is set up by default as follows: If your Macintosh has a
Control
key (ie. an SE or II), Kermit uses it, and the Command (Fan,
Cloverleaf) key
can be used for keyboard equivalents for menus. If your Mac does not
have a
Control key, then the Command key is used as the Control key. The
CAPS LOCK
key forces all alphabetic characters to upper case.
The terminal
emulator
sends ESC (escape) when the "`" (accent grave) key is pressed unshifted
(even
if your keyboard has an ESC key). The character "`" can be sent by
typing Control (or Command) and the same key. The Backspace key sends a Delete
(Rubout)
and Control-Backspace sends a Backspace. On the original Mac
keyboards, the
main keypad Enter key sends a "short" (250ms) BREAK signal. The Mac+,
Mac SE,
and Mac II do not have a main keypad Enter key, so the BREAK function
must be
reassigned to another key.
You can modify the keyboard layout any way you like, defining keyboard
macros,
defining or moving the Control and Escape keys, etc., using
MacKermit's
built-in key configuration features.
Older MacKermits (version
0.8 and
earlier) came with a separate key configuration program called CKMKEY.
This
should not be used, because it does not understand the format of the
0.9 and
later keyboard configuration software.
MacKermit includes a mouse-controlled cursor positioning feature for use
during
terminal emulation. If the "Mouse -> Arrow Keys" feature is turned on
(via the
Terminal entry of the Settings menu), then when the mouse button is
pressed,
the program acts as if you typed the VT100 keypad arrow keys to move
the ter-
14.6. Terminal Emulation
Page 346
-----------------------------------------------------------------------------minal cursor to where the mouse cursor is. MacKermit does this by
sending the
absolute strings for arrow keys, independant of what is bound to the
actual arrow keys of the keyboard.
MacKermit sets the Mac hardware to do 8-bit data communication with no
parity,
and then correctly sets the parity bit of each character itself in
software, as
requested in the Communication settings menu. This has the benefit of
avoiding
the problem of a machine which requires a different input parity than it
sends
back. MacKermit will correctly receive all of the characters sent to
it, no
matter which parity they are.
To allow useful coexistence of desk accessories and Kermit, the terminal
emulation window may be dragged using the drag bar. If a desk accessory
overlays
the emulation window, the emulation window can be clicked upon to move
it in
front of the DA, and later dragged to reveal the hidden desk accessory so
that
it can be restored to the foreground. The same thing can be done with
Kermit's
own remote response window as well. Note that Kermit's terminal
emulation window does not accept input when any other window is in the foreground.
MacKermit uses XON/XOFF (control-Q and control-S) flow control during
terminal
emulation and file transfer. If the other system does not understand
XON/XOFF,
problems may result at high speeds. The terminal emulator can normally
keep up
at 9600 baud, and has a very large input buffer, but after several
continuous
scrolling screens at this speed, some characters may be lost. When
running at
high baud rates on a system that does not understand XON/XOFF flow
control, either keep your terminal in page mode, use a text paging program such
as Unix
"more", or view text with a non-scrolling screen editor. Also, don't
drag the
terminal emulation window while characters are arriving; if you do, the
characters may be lost and the display may become confused.
During terminal emulation, the characters displayed on the screen may
also be
saved on the disk. This allows you to record interactions with the
remote system, or to "capture" files that you can't transfer with Kermit
protocol, for
example when the remote system does not have a Kermit program. Use
the Log
menu, and choose session logging to activate this feature.
The result
goes
into a file called "Kermit Session" in the current folder, which is
always appended to, rather than overwritten. To create a new session log,
delete or
rename the old one first.
The following features are missing from the MacKermit terminal
emulator, and
may be added in subsequent releases:
- Restoration of character attributes such as underlining or
highlighting.
- Cutting text from screen to clipboard.
- Transmission of raw text to host (e.g. pasting to screen).
- Screen rollback.
- Screen resizing.
- Explicit modem or dialer control.
- Login scripts.
- Printer support.
- Ability to use the printer port for terminal emulation.
- A way to disable XON/XOFF flow control, or select other flow
controls.
14.7. File Transfer
Page 347
-----------------------------------------------------------------------------14.7. File Transfer
Like most Kermit programs, MacKermit allows you to send and receive text
or binary files singly or in groups. It will interact with a remote Kermit
server,
and it can act as a server itself. However, due to the unique nature
of the
Macintosh file system, there are some special considerations:
- Mode - Text or Binary. Binary means the data is sent or stored
without modification. Text means that every carriage return
character
(CR) in a Macintosh file is translated to a carriage-returnlinefeed
(CRLF) sequence when sending, and every CRLF in an incoming file
is
turned into a CR when stored on the Mac disk. A text file
is
produced when you save a file from MacWrite or other
applications
using the "text only" option; text files are not associated with
any
particular Macintosh application and can be sent in a useful
fashion
to other kinds of computers.
A word of caution about Macintosh text files: The Macintosh
supports
an extended version of ASCII, with characters like accented and
umlauted vowels in the 128-255 range. These characters allow
representation of Roman-based languages other than English, but they do
not
follow any of the ISO standards for extended character sets, and
thus
are only useful on a Mac. When transferring text files, you
should
ensure that either there are no extended characters in the file,
or
that the other system can understand the Mac's 8-bit characters.
- Fork - Data or Resource. Macintosh files may have two "forks".
The
data fork contains data for an application; the resource fork
con-
tains icons, strings, dialog boxes, and so forth.
For
instance,
a
MacWrite
document
contains
text
and formatting information in
the
data fork, and fonts in the resource fork.
For applications, the
executable code is stored in the resource fork.
File transfer is initiated when you select Send file..., Receive
File..., or
Get file from server... from MacKermit's File menu.
File transfers can be canceled by clicking on the Cancel File or Cancel
Group
buttons.
These will always work when sending. When receiving, they
will work
if the opposite Kermit honors this (optional) feature of the protocol.
There
is also an "emergency exit" from any protocol operation, which can be
taken at
any time by typing "Command-." -- that is, hold down the Command
(Fan,
Cloverleaf) key and type period.
The progress of file transfer operations can be logged into a
Macintosh file
called a "transaction log". This log will show the names of the files
transferred, the date and time, and the completion status. This feature is
useful
with long unattended transfers -- you can come back later and read the
transaction log to find out what happened. The transaction log is called
"Kermit
Log".
The current version of Mac Kermit can only send one fork of a file at a
time.
When a file has two forks, there is no provision for sending both
forks
together. This restriction may be lifted in future releases of
MacKermit, for
example by converting applications to MacBinary format during
transmission.
14.7.1. Sending Files
Page 348
-----------------------------------------------------------------------------14.7.1. Sending Files
To send files, first put the remote Kermit in server mode, or else give
it the
RECEIVE command. Then use the mouse to select Send file... from the File
menu.
This will give you a MacKermit file-open box, which includes the
standard
Macintosh dialog items -- a file list, Disk and Eject buttons, etc.
You can
either send one file at a time, by clicking on its name in the file
list, or
send the entire contents of the current HFS folder (for HFS disks
only, of
course).
Clicking the Disk button will switch the file list to another
physical disk. If desired, you can type an alternate name to send the file
under.
When you select a file, MacKermit examines its type; if the type is
APPL, then
MacKermit expects to send the resource fork in binary mode, otherwise the
data
fork in text mode. The Mode and Fork radio buttons will display these
choices;
you may change them before clicking the Send button.
14.7.2. Receiving Files
You can receive or get multiple files, providing the opposite Kermit is
capable
of sending multiple files in a single transaction (most are). To
receive
files, first give the remote Kermit a SEND command and then select
Receive
file... from the File menu. To get files from a server, first put the
remote
Kermit into server mode, then select the Get file from server... option
from
the File menu, and type in the name of the file you want to get, or a
wildcard
designator for multiple files, in the remote system's filename syntax.
As each file arrives at the Mac, it will be decoded according to the
current
mode (text or binary), and stored in the default fork (data or
resource). The
file names will be either the names the files arrive with (overwriting
existing
files of the same names) or new unique names (when name conflicts
occur), according to the current default for name collisions. You may also elect
to perform an "attended" receive, in which you have an opportunity to
override file
defaults on a per-file basis (do this in the Protocol section of the
Settings
menu).
But attended operation must be used with caution -- if you
take too
long (more than about a minute) to execute an incoming file's dialog
box, the
opposite Kermit could time out and terminate the transaction. If this
happens,
tell the opposite Kermit to send again and try again with the receive
dialog.
The folder for new files is the same as the location of the settings
file, or
if no settings file was used then the new files appear on the desktop.
If you
are transferring a lot of files and want to keep them together,
create a
folder, drag the settings file into it, and double click on the settings
file;
all created files will appear in that folder.
14.8. Remote Commands
When connected to a Kermit server, MacKermit is capable of issuing
special file
management and other commands to it. The Remote menu contains these
commands.
You may request directory listings, you can delete files, change
directories,
etc, on server's machine. The response from these commands (if any)
is displayed in a special pop-up window. Responses to multiple Remote
commands are
separated by a dashed line. The response window can be scrolled,
sized, and
positioned, and can be hidden by clicking the menu item "Hide Response"
or the
window's go-away box; all text remains intact and will be appended to
the next
time you do a Remote command; it can also be brought to the
foreground by
14.8. Remote Commands
Page 349
-----------------------------------------------------------------------------clicking the Show Response menu item.
Note that typein to the
terminal
emulator will not take effect when the response window -- or any other
window
(such as a desk accessory) -- is up front. This is not a bug, but a
feature of
the Macintosh user interface guidelines.
If the response buffer gets too full (greater than 30,000 characters),
MacKermit will remove enough text from the beginning of the buffer, in
512 byte
chunks, to make it less than 30,000 characters again.
A Remote command can be canceled by taking the Emergency Exit (Command.).
To
disengage from the remote Kermit server, click on Bye or Finish in the
Remote
menu.
14.9. Server Operation
MacKermit may itself act as a Kermit server. Just set the desired
parameters
in the Settings menu, then click on Be a Server in the Remote menu. The
MacKermit server can respond to SEND, GET, REMOTE DIRECTORY, FINISH, and BYE
commands.
You can send single or multiple files to a MacKermit server,
and you
can get a single file from it by name. You can also get all the files
in the
current folder by using a colon (":") as the file specification in the
GET command:
GET :
If you give the FINISH command, MacKermit will return to terminal mode.
If you
give the BYE command, the Macintosh will reboot itself.
You can take MacKermit out of server mode from the Mac keyboard by
typing the
emergency exit sequence, Command-dot.
14.10. Settings
You can change File, Communications, Protocol, Terminal, Keyboard
macros, and
Keyboard modifier settings by using the Settings pull-down menu. You
can save
and load these settings by invoking the appropriate selection in the File
menu.
If the "bundle bit" has been correctly set on your version of
MacKermit (it
should be), then you can double-click on the resulting document to start
MacKermit with those settings.
The File settings establish the defaults for file transfer:
- Attended versus Unattended operation for incoming files.
- Naming: When doing unattended file reception, whether incoming
files
should supersede existing files of the same name, or a new
unique
name should be assigned to them. If the latter, the new name
is
formed by adding a dot and a number to the end. For instance, if
a
file called FOO exists and a file called FOO arrives, MacKermit
will
store the arriving file as FOO.1; if FOO.1 exists, then FOO.2, etc.
- Mode: text or binary. Used for received files only.
When
sending,
MacKermit tries to figure out an appropriate mode for the file
being
sent (but then lets you override it the Send File dialog).
14.10. Settings
Page 350
------------------------------------------------------------------------------ Fork: which fork -- data or resource -- to send, or to store an
incoming file into.
The Communications settings allow you to set the baud rate (anywhere
between
300 baud and 57.6K baud, except 38.4K baud), and parity (odd, even,
mark,
space, or none).
When the parity is set to none the Macintosh
uses an
8-bit-wide connection. All other parity settings tell the Macintosh to
use a
7-bit-wide connection, and to request 8th-bit prefixing when transferring
8-bit
data. If the remote host or the communication path uses any kind of
parity,
then you won't be able to transfer files successfully unless you tell
MacKermit
(and in most cases also the Kermit on the other end) about it.
Duplex is
selected in the Terminal settings.
The Protocol settings allow you to set packet parameters for both
incoming and
outbound packets. These include the block check type (1 or 2 character
checksum, 3-character 16-bit CRC-CCITT), line turnaround handshake
character (for
file transfer with half duplex systems), packet start and end characters,
padding, packet length, timeout interval, and packet length.
Characters are
specified by entering their ASCII value in decimal, e.g. 1 for ControlA, 13
for Control-M (Carriage Return), etc. The RECEIVE parameters are
conveyed by
MacKermit to the other
Kermit.
For
instance,
if
you
set
the
receive-packet-length to 500, MacKermit will tell the other Kermit
to send
500-character packets. The SEND parameters are used to override
negotiated
values, and need rarely be used.
Long packets are selected by setting the RECEIVING packet length between
95 and
1000. Normally, you should not change the sending length because
MacKermit,
and most other Kermits, will configure themselves correctly. Note
also that
the fastest file transfers will happen with long packets in the
range of
300-500.
Very long packets actually end up being much slower,
because the
operating systems in both the Mac and the other machine have to do more
work to
cope with such long inputs, and, under noisy conditions, the
probability is
higher that a longer packet will be struck by noise, and will take
longer to
retransmit.
The Terminal settings let you modify the characteristics of the VT102
emulator,
such as auto-linefeed, autowrap, autorepeat keys, block vs underline
cursor,
blinking vs steady cursor, inverted screen (reverse video), and smooth
scrolling. There is also a "visible bell" for those who can't hear the audible
bell
produced upon receipt of a Control-G, and an option to display control
characters visibly by showing their numeric ASCII values (in decimal) in a
single
character cell.
If local echo is needed, as in half-duplex
connections, that
must be specified here also.
14.11. Settings Files
You can start MacKermit with all its "factory settings" by double
clicking on
the MacKermit icon.
Factory settings are designed for direct
communication
with most other microcomputers, DEC minis and mainframes, etc: 9600
bps, no
parity, XON/XOFF, remote echo, etc.
You can change the
communication,
protocol, file, keyboard, and terminal settings by going through the
options in
the Settings menu. Once you have set all parameters as desired, you
can save
your settings in a "MacKermit settings file" by selected "Save
Settings..."
from the File menu. A settings file is, in Macintosh terminology, a
"MacKermit
document". You'll recognize it because it looks like a dog-eared
piece of
14.11. Settings Files
Page 351
-----------------------------------------------------------------------------paper with the MacKermit icon superimposed. You can have more than
one settings file.
There are two ways to use a settings file. First, you can double-click
on it,
just as you can double-click on a MacWrite document to start up
MacWrite to
edit a particular file. This method starts up MacKermit with all the
saved
settings. The other method is to click on the "Load Settings..." option
in the
File menu from inside MacKermit. This lets you change settings without
leaving
and restarting the program.
Load Settings... shows all MacKermit
settings
files in the selected folder. Opening one of them loads all its
settings,
removing all current settings.
You can "edit" a MacKermit settings file by loading it, going through
the Settings menu, and then saving the settings either in a new file, or
overwriting
the same file.
As distributed by Columbia, Mac Kermit comes with two settings files.
One is
called "Normal Settings", and is pretty much identical to Mac Kermit's
factory
settings.
The other is "IBM Mainframe Linemode Settings". It
selects mark
parity, local echo, XON half-duplex line turnaround handshake.
You
can use
these files as-is, customize them for your own environment, or create
new settings files for all the different kinds of systems that you use.
14.12. Reconfiguring the Keyboard
Beginning with version 0.9, MacKermit has keyboard configuration
functions
built in. These are accessed through the Set Key Macros and the Set
Modifiers
entries in the Settings menu.
The Macintosh keyboard is composed of normal keys and modifier keys.
Modifier
keys are those keys that, when held down, change the meaning of other
keys. On
the Mac these are: SHIFT, CAPS LOCK, OPTION, CONTROL (only on the Mac
II and
SE), and COMMAND (also known as APPLE, CLOVER, or FAN). Normal keys
are the
letters, numbers, special symbols, arrow keys, space bar, and function
keys.
Only one normal key can be typed at a time, but one or more modifier
keys can
be pressed down along with it.
When you type a key, Kermit reads both the
ASCII
value,
and
the
keyboard-independent scan code for that key. Kermit looks in its table
of key
macros to see if there is a macro for this combination of key and
modifiers,
and if so sends the macro. If there is no macro, Kermit then looks
in its
modifier table to see if any of the modifiers do special things to the
character; if so, it does these to the character. Finally, Kermit sends the
character. In the normal case when there is no macro and no modifiers
apply, the
character sent is simply the ASCII value for that character.
It is important to keep in mind that if the parity setting is something
other
than none, the high (8th) bit will be stripped off of the characters when
they
are transmitted. Since most systems do not understand characters in the
range
128 -- 255 (decimal), you should avoid using the Apple extended
characters
(accented vowels, for example) during terminal connection.
14.12.1. Defining Key Macros
Page 352
-----------------------------------------------------------------------------14.12.1. Defining Key Macros
To define a new key macro, select the Key Macros entry. A dialog
window will
appear, asking you to press the key to define. Type the key (including
any of
the modifiers).
A new dialog will appear, with an editable text field
in it.
Enter the definition for the key here.
Your definition may be up
to 255
characters long, and can include all of the control characters (including
NUL).
Special characters can be included in the macro by entering a "\"
(backslash),
followed by up to 3 octal (base 8) digits for the value (just like in
the C
programming language). For example, an ASCII NUL (value 0) would be
written as
"\000", carriage return (ASCII 13) would be written "\015" (1 x 8 + 5
= 13).
Also, control characters may be entered with a backslash, followed by a
caret
(or circumflex, "^"), followed by the corresponding letter. Thus a
Control-G
(value 7) could be entered as "\007", "\^G", or "\^g". To include a
literal
backslash in a definition, type in two of them: "\\".
BREAK conditions are also programmable as macros. If the entire
macro the
string is "\break", then typing the defined key will send a short (1/4
second)
break.
A long (3.5 second) BREAK is defined with "\longbreak". Note
that a
macro can define either a BREAK, or a string of normal characters,
but not
both.
14.12.2. Defining Key Modifiers
Skip ahead to the next section if you already know about things like
SHIFT,
CAPS LOCK, CONTROL, and META.
On a typewriter the only modifier key is SHIFT. Typing a character
with no
modifier key depressed selects a lowercase letter or the character
printed on
the lower face of the keytop (say, the digit "4").
Typing a character
with
SHIFT depressed selects an uppercase letter or the character printed on
the upper face of the keytop (say, a dollar sign). Some keyboards also have a
SHIFT
LOCK key, which stays down once pressed and pops up the next time it's
pressed;
its operation is equivalent to holding down SHIFT. And some keyboards
have a
CAPS LOCK key which operates like SHIFT LOCK, but only upon letters.
Computer terminals also have a modifier key called CONTROL (or
CTRL). Its
function is a little less obvious: it is intended to produce one of
the 33
characters in the "control range" of the ASCII alphabet. Control
characters
are not graphic -- they are intended for use as format effectors (like
carriage
return, formfeed, tab, backspace), for transmission control, or for
device control. The remaining 95 characters -- letters, digits, punctuation, and
space
-- are the graphic characters.
When a character is typed with the
CONTROL
modifier pressed, its "control equivalent" (if any) is transmitted. By
convention, the control equivalent of A is Control-A, B is Control-B, etc, and
there
are also seven special control characters generally associated with
punctuation
characters or special keys. For the "alphabetic" control characters
Control-A
through Control-Z, SHIFT or CAPS LOCK modifiers are ignored; for the
others,
operation varies from terminal to terminal.
The SHIFT and CONTROL modifiers allow all 128 ASCII characters to be
sent from
a normal typewriter-like keyboard that has about 50 keys.
However,
certain
host-resident computer applications -- notably the full screen text
editor
EMACS and its descendents -- can be used to greater advantage with
a 256
character 8-bit alphabet (EMACS responds to single-character commands,
and the
14.12.2. Defining Key Modifiers
Page 353
-----------------------------------------------------------------------------more characters a terminal can send, the more commands are directly
available).
For this purpose, some terminals also provide a META modifier key.
This key
simply causes the high-order ("8th") bit of the selected 7-bit ASCII
value to
be set to 1 upon transmission. This can only work when the
connection is
8-data-bits-no-parity.
When parity is in use, EMACS allows a sequence
of two
7-bit ASCII characters to represent a single meta character. The
advantage of
having a real META modifier key is that it can be held down while the
actual
key is struck repeatedly or even autorepeats, whereas a use of a "meta
prefix"
such as <escape> requires much more typing. To illustrate, suppose
META-F is
the command to go forward one word. If you want to execute this
operation
repeatedly, just hold down META and F and let it autorepeat. If you
don't have
a META key, then you'd have to type <escape>F<escape>F<escape>F..., etc.
A common problem faced by computer users who switch from one terminal or
PC to
another is the placement of the modifiers and other special keys.
DEC, IBM,
Apple, and other manufacturers consistently move these keys around
on new
models of their keyboards. MacKermit allows you to assign any of various
functions to any of the Mac's modifier keys, and to assign any desired
character or
character sequence to the regular keys, so that you can tailor the
layout of
your Mac's keyboard to suit your taste.
14.12.3. Modifiers Dialog
To change the action of any of the modifier keys, select Modifiers
from the
Settings menu. A dialog will appear that looks roughly like the one in
Figure
14-1 (the "%" represents the Apple or Clover key).
------------------------------------------------------------------------------
Modifier Pattern:
Ctrl Opt Lock Shift
[X]
[ ]
[ ]
[ ]
[ ]
[ ]
[X]
[ ]
[
[
[
[
]
]
]
]
[
[
[
[
]
]
]
]
-->
Modification:
%
[ ]
[X]
[ ]
[ ]
(Cancel)
|
|
|
|
Unmodify Caps Ctrl Meta Prefix string:
____________
[ ]
[ ] [X] [ ] [____________]
[ ]
[ ] [X] [ ] [____________]
[x]
[ ] [ ] [ ] [\033
]
[ ]
[ ] [ ] [ ] [____________]
(Help)
Figure 14-1:
( OK )
MacKermit Key Modifier Dialog
-----------------------------------------------------------------------------The check boxes are divided into rows, each one describing a
modification. The
left half of each row describes the modifier combination to look for; a
checked
box means that this key is down, and an unchecked box means "don't care".
Note
that there is no way to specify a key being up, and lines with nothing
checked
on the left side will be ignored; the character will be modified in the
normal
Macintosh way.
The right
The Un-
half
describes what modification to do to the characters.
14.12.3. Modifiers Dialog
Page 354
-----------------------------------------------------------------------------modify modification says "make this the character that would be sent
from the
same key with no modifer keys pressed". In other words, un-Option,
un-Caps,
un-Control, and un-Shift this character. The Caps modification
translates all
letters to upper case, Ctrl makes the letter a contol character, Meta
sets the
high (8th) bit on the character, and if a Prefix string is present, it is
sent
before the character is.
Hints about modifiers:
- Beware of the Option key. It changes the value of any characters
you
use with it. If you type Option-F, the Mac will send a D, if
you
type Option-B, the Mac will send a ":", etc. If you want to use
the
option key as a modifier, be sure to check the "Unmodify" box.
- To use MacKermit with a version of EMACS that does not accept 8bit
Meta characters, define a key, like Option, to be unmodified, with
a
prefix string of \033 (ASCII Escape), as in Figure 14-1.
Then
you
can hold down Option and type F (or any other key) repeatedly, or
let
it autorepeat, and MacKermit will send the correct prefix-Meta
sequence.
- When interpreting a keystoke, MacKermit checks the list of
modifiers
from top to bottom, applying the first one that matches. This
means
that if you want a different modifier for Command-Option and
just
plain Command, you must put the definition for Command-Option
first
in the list.
14.13. Bootstrapping
This section applies if you do not have a MacKermit diskette, but
MacKermit is
available for downloading from some other computer.
MacKermit is distributed in source form for building on a Macintosh,
running
Apple's Macintosh Programmers Workbench (in MPW C), in .HQX "BinHex 4"
form,
and sometimes also as a binary resource file. Those who want to work
from the
source are referred to the file CKMKER.BLD for instructions.
If you're downloading, it's best to work with CKMKER.HQX, a textual
encoding of
the MacKermit application. Download this using any technique available
to you
-- an old release of Kermit, an Xmodem implementation, even raw screen
capture.
Then run BinHex (version 4) to convert it into a working application
(select
Upload -> Application from the File menu). Eveything will be set up
correctly
-- icons, forks, etc.
If you don't have the .HQX file available, but you do have access to the
binary
resource
file
(its name will be CKMKER.RSRC, ckmker.rsrc,
CKMKER.RSR,
ckmker.rsr, %ckmker or some variation on these, depending on what system
it's
stored on and how it got there), AND if you have "MacPut" on your
system and
MacTerminal on your Mac, AND if you have an 8-bit-wide (no parity) data
path
between your Mac and your system, then you can use MacPut to download
the binary resource file to your Mac using MacTerminal's "MacBinary"
format (a
variant of XMODEM). After doing this you must use a program such as
SetFile
or ResEdit on the Mac to set the author to KR09, the type to APPL, and
turn on
the bundle bit. Do not bother with the CKMKEY program, as it is not
used with
newer MacKermits. If you have an earlier release of MacKermit, you may
use it
14.13. Bootstrapping
Page 355
-----------------------------------------------------------------------------in place of MacTerminal and MacPut.
14.14. Differences Between Versions 0.8 and 0.9
MacKermit 0.8(34) runs on the 128K Mac, the 512K Mac, and the Mac Plus,
but not
on the Macintosh II or SE. MacKermit 0.9(40) runs on all Macs except the
128K
original. You should use version 0.9 unless you have a 128K Mac.
The second major difference is that the program is has been translated
into Apple MPW C, so that it can be edited, compiled, and built on the
Macintosh itself.
This was done originally by Jim Noble of Planning Research
Corporation,
who converted MacKermit from SUMACC C (which had to be cross compiled on
a UNIX
system) to Megamax C. Jim's version was converted to MPW C by Matthias
Aebi,
who also added most of the new features listed below. Paul Placeway
integrated
the program with the current (long packet) version of C-Kermit and
added additional new features.
Besides these important differences, there were many other changes from
version
0.8 to version 0.9, including:
file
-
The Cursor with open desk accessories now works correctly
Long packet support
New program icon
New settings files are no longer TEXT
Settings can now be written back to an already existing settings
Key redefinition function built in to Kermit, no more CKMKEY
Server mode directory listing feature
Multifile (folder) send
Server "Delete" file command
Server "Space" command
Get whole folder content from the server with filename ":"
Recognition of all the different Mac keyboards
Support of menu command keys (key macros)
Terminal settings dialog separated from communication settings
Non-transparent terminal mode
Display of statistics and protocol version to "About Kermit" dialog.
Parity problems fixed
-
Session logging
Transaction logging
Multifinder support
Additions to the VT102 emulator (smooth scrolling, etc)
Rearrangement of menus and displays
Program no longer hangs if remote response window gets too full
Program now works correctly on 64K ROM machines
A new manual
This manual applies in large part to version 0.8(34), except that the
older
version is missing the new features listed above, and it comes in two
pieces:
CKMKER and CKMKEY.
The CKMKEY program is used to program the keys,
like the
Set Key Macros... and Set Modifiers described in this manual, and
creates a
settings file which Kermit itself uses. The old version only works
well with
early Macintosh keyboards.
15. CP/M-80 KERMIT
Page 356
-----------------------------------------------------------------------------15. CP/M-80 KERMIT
Program:
from
Bill
Catchings,
Charles
Columbia
Carvalho
(ACC),
University,
with
contributions
Bernie Eiben (DEC), Nick Bush
(Stevens),
John
Bray
(University
of
Tennessee),
Bruce
Tanner
(Cerritos
College),
Greg Small (University of California at Berkeley),
Kimmo
Laaksonen (Helskini
University
of
Technology),
Brian
Robertson
(Aberdeen University), A.J. Cole (Leeds University), John
Shearwood
(Birmingham University), Tony Addyman (Salford University),
Godfrey
Nix and Martin Carter (Nottingham University), Ian Young
(Edinburgh
University), Chris Miles (Manchester University), Richard
Russell,
Dave Roberts, and many, many others.
Language:
8080 Assembler, M80, or MAC80
Version:
4.09
Date:
11th January, 1988
Documentation:
Charles Carvalho, ACC; Frank da Cruz, Columbia, Bertil
Schou,
Loughborough University (with lots of help from Jon
Warbrick of
Plymouth Polytechnic), and many others.
KERMIT-80 Capabilities At A Glance:
Local operation:
Remote operation:
Login scipts:
Transfer text files:
Transfer binary files:
Wildcard send:
File transfer interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Yes
Partial, Auto-receive only
No
Yes
Yes
Yes
Yes
Yes, poor
Yes
Yes
No
Yes
Terminal emulation:
Communication settings:
Support for dial-out modems:
Transmit BREAK:
IBM communication:
Transaction logging:
Debug logging:
Session logging:
Raw file transmit:
Act as server:
Talk to server:
Advanced commands for servers:
Command/init files:
Command macros:
Local file management:
Handle file attributes:
Extended packets:
Sliding Windows:
Yes,
Yes;
No
Yes;
Yes
No
No
Yes
Yes
No
Yes;
No
Yes
No
Yes;
No
No
No
VT52 and others
duplex, parity
most versions
SEND, GET, FIN, BYE
DIR, ERA, TYPE, PRINT, COPY
15. CP/M-80 KERMIT
Page 357
-----------------------------------------------------------------------------Printer control:
Yes, better, but not perfect
15.1. Summary of CP/M
There are essentially two versions of CP/M - Versions 2.2
(sometimes
also called CP/M PLUS.)
and
3.0
CP/M-80 Version 2.2 is run in a single 64 Kbyte "page", usually the
largest
amount of memory on Z80 or 8080 systems. The BIOS (Basic input/output
system),
BDOS (Basic Disk Operating System) and CCP (Command console
processor) all
share memory with any transient program the user may wish to run.
Some
basic
commands are available through the CCP, like DIR, ERA etc,while
others are
loaded from disk into the transient program area and run as a program,
like PIP
or STAT.
CP/M Version 3.0 (or CP/M PLUS) effectively removes the requirement of
having
the CCP and BDOS along with a chunk of the BIOS code being resident
in the
single 64k byte page of memory. This allows even more space for
programs in
the TPA, but still a little less than the maximum of 64k. It is
substantially
different from CP/M version 2.2, with lots of added features. Kermit80 uses
very few additional version 3.0 features, and only where absolutely
necessary.
CP/M file specifications are of the form DEV:XXXXXXXX.YYY, where
DEV:
omitted,
is a device name, normally the A: or B: floppy.
If
the device name defaults to your connected diskette.
XXXXXXXX
is a filename of up to 8 characters.
YYY
is the file type, up to 3 characters.
File names and file types may contain letters, digits, and some special
charac-
ters, including dash, dollar sign, and underscore, but no imbedded
spaces. Upper and lower case letters are equivalent.
"Wildcard" file-group specifications are permitted in file names and file
types
(but not device names) within certain contexts; a "*" matches a whole
field, a
"?"
matches a single character, including space. Examples: "*.F??"
specifies
all files whose types start with F and are 1, 2, or 3 characters long;
"F?.*"
specifies all files whose names start with F and are no more than two
characters long (before the trailing spaces).
The five CP/M commands are:
DIR file
file
Lists the the names of the specified files.
specification is "*.*".
The
default
Example: "DIR B:*.FOR".
ERA file
allowed.
Erases (deletes) the specified file(s); wildcards
REN new old
Changes the name of a file from old to new, e.g.
"REN NEW.FOR=OLD.FOR".
SAVE
(Not
Saves
the specified number of memory blocks into a file.
on CP/M Plus systems)
15.1. Summary of CP/M
Page 358
-----------------------------------------------------------------------------TYPE file
Types the specified file on the screen, e.g. "TYPE
FOO.TXT".
The most important programs are:
STAT
(Not
Gives statistics on disk usage; sets and displays IOBYTE.
on CP/M Plus systems)
PIP
response to
Peripheral
Interchange Program.
Copies files.
In
the "*" prompt, give a command of the form
disk:outfile=disk:infile
Wildcards ("*" for a whole field or "?"
can
for a letter)
be
used.
Examples: "A:=B:*.*" to copy a whole disk,
"A:=B:*.FOR"
to copy all the Fortran programs from disk B to disk A.
If
the
disk
specification
is
omitted,
your "connected" disk
is assumed.
Command line arguments are
also
accepted,
e.g.
"PIP
A:=B:*.*".
There are equivalent commands for CP/M Version 3.0, but are not
loaded into
memory in the same way as for CP/M Version 2.2.
For further
information on
CP/M, consult your microcomputer manual or a CP/M handbook.
15.2. Kermit-80 Description
Since Kermit-80 runs on a standalone micro, it is always in control
of the
screen -- it is always local. Thus, it always keeps the screen updated
with
the file name and the packet number, whether sending or receiving.
Kermit-80 is capable of an imprecise or "fuzzy" timeout on an input
request,
and can break deadlocks automatically. In most cases, this is not
important,
because the KERMIT on the other side is most likely able to
handle the
timeouts. The timeouts done by Kermit-80 are fuzzy because they depend
on the
speed of the processor and other factors that can vary from system to
system.
If, despite the timeout capability, the transmission appears to be
stuck (and
you can tell that this has happened if the screen fails to change for a
while)
you can type carriage return to have the micro do what it would have
done on a
timeout, namely NAK the expected packet to cause theforeign host to
send it
again (or, if the micro is sending, to retransmit the last packet).
Micro/
micro or micro/IBM-mainframe transfers could require this kind of manual
intervention.
File transfers may be interrupted in several ways.
Control-C
This will return you to Kermit-80 command level
immediately, so
that you can connect back to the remote system,
take any
other desired action.
Control-X
of the
When
sending
a
file,
or
this will terminate the sending
current file with a signal to the KERMIT on the other
side
to
discard
what
it
got
so
far.
If there are more files
to be
sent, KERMIT-80 will go on to the next one.
receiving
When
a
file, KERMIT-80 will send a signal to the remote KERMIT
to stop
sending this file.
sig-
If the remote KERMIT understands this
15.2. Kermit-80 Description
Page 359
-----------------------------------------------------------------------------nal (not all implementations of KERMIT do), it will
comply,
otherwise the file will keep coming. In any case, the
remote
KERMIT will go on to the next file in the group, if any.
Control-Z
transmitted,
Like
Control-X,
except
if a file group is being
this will stop the transmission of the entire group.
If
only a
single
file
is
being
transmitted,
it
works
exactly
like
Control-X.
Carriage Return If you type a carriage return Kermit-80 will resend the
current
packet.
You may do this repeatedly, up to the packet
retry
limit (somewhere between 5 and 16 times) for a
particular
packet.
KERMIT-80 COMMANDS
KERMIT-80 uses the DECSYSTEM-20 keyword style command language. Each
keyword
may be abbreviated to its minumum unique length. "?" may be typed to
request a
menu of the available options for the current field at any point in a
command.
ESC may be typed at any point in a command to fill out the current
keyword or
filename; if sufficient characters have not been typed to identify the
current
field uniquely, KERMIT-80 will sound a beep and allow you to continue
from that
point.
BREAK
Send a Break condition to the remote computer. This is only
possible
if your system is capable of sending breaks. It is intended to
be used
with PAUSE, STRING etc and the TAKE command to do weird and
wonderful
things, like automatic logging on to a remote host.
BYE
down
When talking to a remote Kermit Server, this
the
command
shuts
server
and
logs it out, and also exits from Kermit-80 to CP/M
command
level.
CONNECT Establish a "virtual terminal" connection to any host that may be
connected to the serial port, i.e. pass all typein to the serial
port and
display all input from the serial port on the screen. Also,
emulate a
DEC
VT52
to
allow cursor control, screen clearing,
etc., if
VT52-EMULATION is ON (see below), in which case you should
also set
your terminal type on the remote host to VT52. (Some versions
emulate
other terminals.)
Warning: VT52 emulation is only successful if your system
its
or
attached
terminal
can
do the same sort of functions as a genuine
VT52.
Things to beware of are cursor addressing, clear to end of page
and end
of line, clear screen, home cursor, and clear-and-home
functions. The
useability of VT52 emulation depends entirely on how many of
VT52
functions can be emulated by your terminal.
The escape character differs
issue the
CONNECT command, the micro will
to get
back.
The escape sequence
control
character, like CTRL-backslash
by a
single letter "command":
C
the
from micro to micro; when you
print a message telling you how
is generally an uncommonly-used
or
CTRL-rightbracket,
followed
Close Connection, return to Kermit-80> command level.
15.2. Kermit-80 Description
Page 360
-----------------------------------------------------------------------------S
Display Status of connection, but maintain remote connection.
?
List available single-character commands.
0
(zero) Send a null (0) character.
B
Send a BREAK signal. Most systems provide this function.
D
Drop the line. Used on the Apple with modem. Automatically
closes
the connection after dropping the line. The TORCH system
acknowledges this command but does nothing.
P
Toggle printer on or off. Allows you to copy whatever goes
to the
screen to the printer.
S
Temporarily suspend logging to the log file.
Q
Restart logging to the log file
^] (or whatever - a second copy of the escape character) Send
the escape character itself to the remote host.
DIRECTORY
This provides a directory listing of the specified files. If no
files
are specified, all files on the default disk are listed. File
sizes,
in K, are included. You may interrupt the listing at any
time by
typing any character. The listing (even if interrupted)
concludes with
a display of the amount of free storage left on the disk. You
can inhibit the display of file sizes by SET DIRECTORY OFF.
ERASE filespec
This executes the CP/M ERA command on the specified file(s).
names
of the files being erased are not displayed.
EXIT
Quit back to CP/M.
The
The return is made by a JMP 0 (Warmstart)
FCOPY source destination
Copy a named file to another file, either on the same drive or
another
drive.
FINISH Like LOGOUT, but shuts down the remote server without logging
it out.
Leaves you at Kermit-80 command level; subsequent CONNECT
commands will
put you back at host system command level.
GET filespec (local_filespec)
When Kermit-80 is talking to a Kermit Server on the host, you
should
use the GET command to request the server to send files to you,
for example:
get hlp:k*.hlp
You may specify a local filename if you want to save
the
remote
file
under a different filename. Limitation: If you request an
alternate
block check type using the SET BLOCK command, the GET command
will not
communicate it to the remote server. If you want to have type
2 or 3
block checks done when getting files from the server, you have to
issue
the appropriate SET BLOCK command to the remote KERMIT before
putting
it in server mode.
HELP
List all these commands, with a short description on what the
commands
do.
A question mark will do the same. If you have already
typed a
command but do not know what the parameters are, type a space
(to indicate the end of the command) and a question mark. You will
be informed of what Kermit can expect at that stage.
15.2. Kermit-80 Description
Page 361
-----------------------------------------------------------------------------INPUT time_delay string
Setup a string and time delay for your CP/M system to expect
from the
host, then wait for that sting to be sent to your CP/M-80 system.
LOG filespec
When CONNECTed to a foreign host as a terminal, log the
terminal session to the specified diskette file.
This functionality
depends to
some extent on the remote host's ability to do XON/XOFF flow
control,
and does not guarantee a complete transcript (after all, that's
what
the KERMIT protocol is for). The log file is closed when the
connection is closed by typing the escape character followed by the
singlecharacter command "C".
LOG (append)
It is possible to temporarily suspend logging during connect
state.
Typing an escape sequence can turn file logging on (<escapecharacter>
R for Resume) or off (<escape-character> Q for quiet).
Re-entering connect state will re-open the previously opened
log
file
and append to that file.
LOGOUT
Like BYE, but leaves you at Kermit-80 command level.
PAUSE delay_period
If this command is issued your CP/M system will wait a while
before
proceeding with another command. This is intended for use in
TAKE commands, where you may want to pause for a while before proceeding
with
the rest of the TAKE file. The actula delay is very variable
between
systems, and values should be determined on a trial and error
basis.
PRINT
Print a file to the console and printer. Output to the printer
is buffered by the Kermit maintained printer buffer This routine is
identical
to TYPE but characters are echoed to the printer
to
as
well
as
the
screen.
Suspending and aborting output is as described in TYPE.
RECEIVE filespec
Receive file(s) from the remote Kermit, and save them under the
names
provided in the file headers supplied by the remote host. If a
local
filespec is given, the file is saved under the given filename.
If the
names aren't legal, use as many legal characters from the name
as possible (see the description of SET FILE-WARNING below).
If
there's a
conflict, and FILE-WARNING is ON, warn the user and try to
build a
unique name for the file by adding "&" characters to the name.
SEND filespec
Send file(s) specified by filespec to the remote Kermit.
filespec
may contain CP/M wildcards.
SET parameter [value]
Set the specified parameter to the specified value.
parameter
settings:
AUTORECEIVE
ON (or
OFF).
Allows
several
The
Possible
files to be received
without
having to type RECEIVE on the receiving machine.
The
routine
simply
fudges
looks for activity on the serial line, and if so
15.2. Kermit-80 Description
Page 362
-----------------------------------------------------------------------------a RECEIVE command. The packet sent by the sender will be
lost.
BAUD-RATE value
Change the baud rate of the communications port.
This
command
only works on some systems.
value is
the
numeric
baud
rate
(300,
9600,
etc.) desired.
Type SET BAUD followed by a
question mark for a list of supported baud rates.
On systems
that
do
not
support
this command, you must set the port
baud rate
from CP/M or other setup mechanism outside of KERMIT-80.
BLOCK-CHECK-TYPE option
The options are:
1-CHARACTER-CHECKSUM
Normal, default, standard 6-bit checksum.
2-CHARACTER-CHECKSUM
A 12-bit checksum encoded as two characters.
3-CHARACTER-CRC-CCITT
A 16-bit CCITT-format Cyclic Redundancy Check,
encoded
as 3 characters.
BUFFER-SIZE value
This allows you to set a buffer size during transfer
of
data.
On
some systems it takes so long that the remote end
times out
while the local system is reading or writing to disk.
The size
is
the
number of 128 disk sectors (nominal) and can be
from 1
(128 bytes) to 64 (8 kbytes).
CASE-SENSITIVITY ON (or OFF)
Kermit-80 usually maps lower case characters to
upper case
character, but there may be times when lower case
should be
left alone. SET CASE-SENSITIVITY ON will do this-but
only for
some functions.
CP/M-80 filenames will still be mapped to uppercase
characters.
DEBUG
on
ON (or OFF).
Enables/disables displaying
of
packets
the
screen during file transfer.
Not performed if the QUIET
option
has been set for the terminal (ie SET TERMINAL QUIET)
DEFAULT-DISK drive letter
This allows you to set the default disk as source and
destination of file transfers.
In
addition,
issuing
this
command
causes
you
to
switch
to
the
specified disk and log
it in,
write-enabled.
The colon must be included
in
the
disk
name
(A:).
The selected disk appears in your KERMIT-80
prompt, for
instance
Kermit-80 14A:>
DIRECTORY-FILE-SIZE ON (or OFF).
By setting DIRECTORY-FILE-SIZE OFF you can
get
an
abreviated
listing of your disk drive.
File sizes are not
calculated, and
five files are shown on a line.
will
show file sizes of each file.
Setting this
option
ON
15.2. Kermit-80 Description
Page 363
-----------------------------------------------------------------------------Both options will list the free space remaining.
ESCAPE
connections.
Change
the
escape character for virtual terminal
Kermit-80 will prompt you for the new escape
character,
which
you enter literally.
FILE-MODE option
Tells KERMIT-80 what kind of file it is sending, so that
KERMIT
can
correctly
determine the end of the file.
SET FILE
BINARY
means to send all the 128-byte blocks (ie logical CP/M
sectors)
of the file, including the last block in its entirety;
SET FILE
ASCII is used for text files, and transmission stops
when
the
first
Control-Z
is
encountered anywhere in the file
(this is
the CP/M convention for marking the end of a text file).
SET FILE-MODE DEFAULT tells Kermit to attempt to
determine
the
file
type
by
examining
the
file
being
transmitted.
If a
Control-Z appears before the last block of the file, it
is
assumed
to
be
BINARY;
if, when the first Control-Z is
encountered, the remainder of the file contains only controlZ's,
it
is
assumed to be a text file.
Unfortunately, not all
programs
fill the remainder of the last
record
of
a
text
file
with
Control-Z's, so this algorithm is not always successful.
If
binary transmission is used on a text file, or a
compressed
file (eg a .DQC file) some extraneous characters (up to
127
of
them) may appear at the end of the file on the target
system.
If
8th bits
ASCII
transmission
is used on a binary file, any
set will be stripped and a warning sent to the console.
When
the
first
control-Z is encountered, the file is assumed
to be
at the end, even if it is not.
FLOW-CONTROL ON (or OFF)
Sets XON/XOFF flow
control on or off.
If set ON the
host is
expected to respond to an XOFF or XON sent by
Kermit-80.
If
set
off,
no
flow
control is assumed and any XON/XOFF
is ignored.
IBM ON (or OFF)
Allow the transfer of files to and from an IBM
mainframe computer. This makes Kermit-80 wait for the IBM
turnaround
character (XON), ignore parity on input, add appropriate
parity
to output, and use local echoing during CONNECT.
As
distributed, KERMIT-80 uses MARK parity for IBM
communication. If
you don't give this command, IBM mode is OFF. Since IBM
VM/CMS
KERMIT does not have timeout capability, SET IBM ON also
turns
on the "fuzzy timer" automatically.
LOCAL-ECHO ON (or OFF)
When you CONNECT to a remote host, you must set LOCALECHO ON
if the host is half
OFF
duplex,
OFF
if
full
duplex.
by
default.
LOGGING ON (or OFF)
Cease or resume logging whenever connect mode is entered.
This
15.2. Kermit-80 Description
Page 364
-----------------------------------------------------------------------------is really only applicable after a LOG command is no
longer required.
NO-EXIT This command is applicable only for
with
Kermit
initiated
a
command tail.
For example, if Kermit was initiated by:
KERMIT ;SEND HELLO;NO-EXIT
Kermit would first seek out and execute the KERMIT.INI
file (if
present), then send file HELLO to a
remote
system.
Usually
Kermit would exit back to CP/M, but NO-EXIT over-rides
this.
Note
the
leading
semicolon.
This clears leading
spaces from
the first command.
PORT port name
Allows
you
to
switch
between different communication
ports.
This command is not available on all systems.
PORT
Type SET
?
for
a
list
of valid options for your system. (Note:
If your
system does not support several ports, this command will
return
a "Not implemented" error if you try to set a port.)
PRINTER ON (or OFF)
Turns copying of CONNECT session to printer on and off.
It
is
also
possible
to
toggle
the printer on/off from the
connect
state, by typing <escape character> followed by P.
PARITY option
Sets parity for outgoing characters to one of the
following:
NONE, SPACE, MARK, EVEN, or ODD. On input, if parity is
NONE,
then the 8th bit is kept (as data), otherwise it is
stripped
and ignored. The parity setting applies to both terminal
con-
nection and file transfer.
If you set parity to anything
other
than none, KERMIT-80 will attempt to use "8th bit
prefixing" to
transfer
binary files.
If the other KERMIT is also
capable of
8th bit prefixing, then binary files can
be
transferred
successfully;
if
not, the 8th bit of each data byte will
be lost
(you will see a warning on your screen if this happens).
RECEIVE parameter [value]
Set a RECEIVE parameter.
PAD-CHAR
Set the PAD character to
use
while
receiving
files.
Currently a dummy, as for SET SEND PAD-CHAR.
PADDING [value]
Set the number of PAD characters to use while
receiving
files. Same as SET SEND PADDING.
START-OF-PACKET [value]
Set the default start of Packet character for
receiving
files.
Apply the same rules and considerations
as for
SET SEND START-OF-PACKET.
SEND parameter [value]
Set a SEND parameter.
15.2. Kermit-80 Description
Page 365
-----------------------------------------------------------------------------PAD-CHAR
Set the Pad character to be used while sending
files.
It is currently a dummy entry, and does not
do anything.
PADDING [value]
Set the number of PAD-CHARS to be used while
sending
files. This too does nothing.
START-OF-PACKET
Set the default start of packet character to
another
character than control-A. This may be
necessary on
systems (including intervening networks) that
trap
control-A characters. Choose a control
character not
otherwise used, ie not carriage return (13D,
ODH), line
feed (10D, OAN), tabs (09D, 09H), backspace
(08H), and
bell (07H) or any other used between you
and your
remote system.
TACTRAP set the TAC intercept character.
a
If you are attached to
TAC
it
will swallow the intercept character (commercial AT
sign by
default) so Kermit sends it twice.
you
With this command
can
set
the
intercept
character
(ie
the
one to send
twice) to
another character.
TERMINAL option
Select one of the following terminal characteristics:
OFF
sets emulation off, and its up to the attached
terminal
to respond to escape sequences
sent
from
remote
host system.
DUMB
characters
Like
off, but carriage return and line feed
the
are the only control characters accepted.
All
other
control characters are simply ignored. (Really a
"Glass
TTY").
EXTERNAL
Emulation
is
provided
for by a routine in the
system
dependent part of Kermit.
this
Attempting to set
option
without
having
and
externally supplied
routine
will returna "Not Implemented" error.
VT52
host,
When connected as a terminal to
a
foreign
the
micro
emulates
a
VT52.
VT52
emulation
is
set by
default, except on micros that
already
have
terminal
functionality
built in, such as the DEC VT180
and DECmate (these act as VT100-series terminals).
Some
systems emulate other terminals, like the ADM3A; see
table
15-5.
QUIET
onto
Do not display any file transfer information
the
console.
This
mode is useful if you console
takes a
long time to update the display.
Only the file
name is
displayed.
DEBUGging information is not
displayed even
if selected.
REGULAR Inverse of
displayed,
as
QUIET.
All
packets
etc
15.2. Kermit-80 Description
Page 366
-----------------------------------------------------------------------------ususal.
TIMER ON (or OFF)
Enable or disable the "fuzzy timer".
off
The
timer
is
by
default,
because in the normal case KERMIT-80 is
communicating
with a mainframe KERMIT that has its own timer.
Mainframe KERMIT
timers
tend
to
be more precise or adaptable to
changing
conditions.
You should SET TIMER ON if you
are
communicating
with a KERMIT that does not have a timer.
You should SET
TIMER
OFF if you are communicating over a network with long
delays.
USER new user number
Sets another user number to be active.
Acceptable user
numbers
are 0 to 31, though it is recommended to use user numbers
0
to
15
only.
This
is really only useful for Winchester
Systems
with high disk capacities.
WARNING ON (or OFF)
Warn user of filename conflicts when receiving
files from
remote host, and attempt to generate a unique name by
adding
"&" characters to the given name. ON by default.
SHOW
of the
Display
all
setable
parameters.
You
will get a page or so
status af all parameters that can be set using the SET command.
STATUS
The same function as Show.
STRING line of text
Send a character string to the host. This simply copies the
string to
the correct line, and assumes all appropriate parameters have
been set
to be used eg baudrate, parity etc. It is intended as an
option for
the TAKE command.
TAKE filespec
Take characters and commands from the specified file as if
they were
entered from the keyboard. This is useful if you want to set
up a
batch job.
A command file can send, get, receive, set
functions etc
automatically.
An automatic "TAKE KERMIT.INI" is executed from the default drive
when
Kermit-80
is
loaded.
This can be used to set defaults of band
rate,
parity, filetype, default drive etc.
If KERMIT.INI does not exist, control is given directly to the
user.
TRANSMIT filespec wait character string
Send the specified file to the system on the other end of the
connection as though it were being typed at the terminal, one line at a
time.
Each line sent is terminated with a carriage return, and any line
feeds
are stripped from the file sent. After each line has been sent
Kermit
waits for a character string from the host (eg a acrriage
return). If
not specified, a carriage return is assumed. No KERMIT protocol
is involved.
An asterix (star) is sent to the console for every line
sent,
to indicate how the transfer is progressing. This is useful for
sending files to systems that don't have a KERMIT program. During
transmission, you may type one of these single-character commands:
15.2. Kermit-80 Description
Page 367
-----------------------------------------------------------------------------Control-C
Cease transmission, and drop into terminal emulation mode.
<CR>
Re-transmit the previous line.
TYPE
Type a file to the console. Typing any character other than
Control-C
while the file is being displayed will suspend the output.
Another
character will resume output. A Control-C will abort the rest
of the
output.
VERSION Show the name, edit number, and edit date of several of the
modules
that make up Kermit-80.
15.3. Kermit-80 Flavors
Many of the systems supported use an external terminal, rather than a
built-in
console.
Kermit may be further customized for these systems by
defining (at
assembly time) the terminal type to be used. If the terminal type is
unknown
or does not match any of the existing terminal options, the generic
"CRT" option may be selected. In this case, Kermit cannot do fancy screen
control
during file transfer; it simply types the file names, packet numbers,
and messages in sequence across and down the screen. This works best if you
can put
your micro or terminal in "autowrap" mode; otherwise the packet
numbers will
pile up in the rightmost column; the filenames and messages will always
appear
on a new line, however. If no specific terminal has been selected,
Kermit cannot do VT52 emulation; it can act as a "dumb terminal" (sometimes
called a
"glass TTY"), or else its own built in terminal firmware provides
cursor control functions independent of the Kermit program.
15.3.1. Generic Kermit-80
"Generic Kermit-80" is an implementation of Kermit that should run on any
8080compatible CP/M 2.2 system with no modification at all, or perhaps only a
minor
one. Unlike other Kermit-80 implementations, it contains no systemdependent
manipulation of the serial port.
All I/O is done with standard
CP/M BIOS
calls, and I/O redirection is done using the CP/M IOBYTE function,
which, according to the Digital Research CP/M Operating System Manual, is an
optional
feature of any particular CP/M implementation. If your system does not
provide
the IOBYTE function, Generic Kermit-80 will not work; furthermore, not
all systems that implement IOBYTE do so in the same way. The SET PORT command
may be
used to select the devices to be used for input and output. Table 15-1
lists
the options to the SET PORT command and their effects.
-----------------------------------------------------------------------SET PORT xxx
CRT
PTR
TTY
UC1
UR1
UR2
input from
CRT:
PTR:
TTY:
UC1:
UR1:
UR2:
output to
CRT:
PTP:
TTY:
UC1:
UP1:
UP2:
15.3.1. Generic Kermit-80
Page 368
-----------------------------------------------------------------------------Table 15-1:
Kermit-80 SET PORT Options
-----------------------------------------------------------------------The default is SET PORT PTR. In all cases, the console (CON:) and list
(LST:)
devices used are those selected when Kermit is started.
The reason all Kermit-80 implementations aren't generic is that a good
deal of
speed is sacrificed by getting all services from the operating system.
While a
specific implementation of Kermit-80 may be able to operate at 4800,
9600, or
even 56 Kilo baud, generic Kermit will fail to work on some systems at
speeds
in excess of 1200 baud.
In addition, many features of Kermit
require more
specific knowledge of the hardware involved.
Generic Kermit cannot
send a
BREAK signal, or change the baud rate, for example.
15.3.2. CP/M 3 Kermit
CP/M-3 Kermit (also known as CP/M-Plus Kermit) is a version of
generic
Kermit-80, and should run on most CP/M-3 (CP/M-Plus) systems.
It
uses the
auxilliary port (AUX:) to communicate to the remote Kermit. The SET
BAUD and
SET PORT commands are not supported; nor can a BREAK be sent.
Like
generic
Kermit-80, a terminal may be selected at assembly time.
15.3.3. System-Specific Versions
There are also many versions of Kermit-80 tailored to specific systems.
Most
of these operate uniformly, but some of them take advantage (or
suffer
limitations) of the specific system. Here are some of the special
features for
particular systems:
Amstrad: -- Two versions:
PCW 8256
The PCW 8256/8512 with the serial inerafce attached.
CPC 6128
The 664 with add on memory and 6128 are both supported.
Both
systems
must run CP/M Plus, so the 664 will need an add on RAM pack
and CP/M
upgrade. A high speed transfer rate of 38k baud can be used
between
Amstrad computers.
ACCESS:
Access Matrix computer using port J5.
rates of
300-9600 baud.
Supports SET BAUD-RATE for
Apple II -- four variations:
APMMDM:
Apple with Z80 Softcard and Micromodem II in slot 2 Dialout
capability
provided in connect command; user is prompted for phone number
if carrier is not present. During connect mode, ^]D drops carrier.
BYE command also causes carrier to be dropped.
AP6551:
15.3.3. System-Specific Versions
Page 369
-----------------------------------------------------------------------------Apple with Z80 Softcard, and one of several 6551-based
communication
cards; the slot number is a compile-time parameter (default is
slot 2).
SET BAUD-RATE supported; speeds are 110-19200 baud.
APCPS:
Apple with Z80 Softcard and CP Multi-Function Card. The slot
number is
again a compile-time parameter. SET BAUD-RATE is supported for
baud
rates from 50 baud to 19200 baud.
AP6850:
Apple II with Z80 Softcard and a 6850-based USART in
slot
2-the
slot
being a compile-time parameter.
SET BAUD-RATE is not supported.
BBC:
Acorn Computers BBC Computer with Acorn Z80 second
running
CP/M-80. Supports SET BAUD-RATE and can send breaks.
processor
BigBoard II:
Uses serial port A. To use port B, change mnport, mnprts, and
baudrt and
reassemble.
Can generate BREAK.
SET BAUD-RATE supported;
speeds are
300-38400 baud.
Cifer:
Originally coded for Cifer 1886 using the VL: port set as TTYI: and
TTYO:
but works successfully on 18xx and 28xx series machines.
There are now two versions, each with two variations: Either
running
Version
The VL:
CP/M
2.2 or 3.0, and either using the VL: or AUX: ports.
port
version can only use seven bits of data, so parity prefixing is
required
for binary file transfers. This restriction is removed by using
the AUX:
port. For those interested, the problem is due to the interprocessor
link
between the video and CPU (!) boards. The VL: port is on the video
board,
and the AUX: port on the CPU board, and the inter processor link can
only
transfer seven bits of data.
Supports SET BAUD-RATE, and can generate breaks on some models with a
BREAK
key.
Comart:
Comart Communicator-Similar to Northstar equipment.
BREAK.
Can generate
Compupro:
Based on Kermit 3.x, and has been merged into V4.09
CPT-85xx word processors:
Can generate BREAK. SET BAUD-RATE supported; speeds are 50-9600
baud.
Cromemco:
Cromemco computers with TU-ART card.
(110-9600
baud).
Supports
SET
BAUD-RATE
DEC DECmate II word processor (with Z80 card):
Can generate BREAK.
DEC VT180 (Robin):
Three output ports,
PRINTER.
referred to as COMMUNICATIONS, GENERAL, and
15.3.3. System-Specific Versions
Page 370
-----------------------------------------------------------------------------Can generate BREAK.
Digicomp Delphi 100:
SET BAUD-RATE supported; speeds are 50-19200 baud.
Discovery:
Action Computer Enterprises "Discovery" Multi-user Computer. Uses
Port B
on an 83U user board.
Supports SET BAUD-RATE for 50-19200
baud. Can
generate BREAK.
Epson:
Epson PX-8 with LCD display. Although it is quite different in
displaying
of Packet Information, it works as any other CP/M-80 Kermit.
Supports SET
BAUD-RATE and can generate BREAK.
Generic Kermit:
Two versions, one for CP/M version 2.2 and version 3.
These
systems use
IOBYTE flipping (V2.2) and the AUX: device to communicate to the
serial
line. You may have to SET PORT xxx before the version 2.2 will
work, as
Kermit needs to know what device is the serial line.
Genie:
Eaca Video Genie.
Heath: Three Versions:
H8QUAD
for Heath-8 systems with the quad io board. This system
has been
derived from V3.x code. Note that this version will not run "as
is" on
H89 systems.
H89 For Heath-89 machines suports baud rates from 50 to 56,000 baud.
Z100
setting
For Z-100 running CP/M-85.
of
baud rates.
Intertec Superbrain: Two Versions:
This version does not
support
BRAINA
For superbrain using AUX port.
supported
Breaks and SET BAUD both
BRAINM
As above, but using the MAIN port.
Ithaca:
Ithaca Intersystems based computer using the VIO card for all IO
to the
outside world. The system is strictly speaking a home-brew variant
of the
Ithaca machine, using an S100 cardcage without a front panel. It
uses the
Extended BIOS by EuroMicro of London. However, I see no reason
for this
version not running on a genuine Ithaca Intersystems machine.
There are
patches needed to the EuroMicro BIOS to make this version work.
Kaypro:
Should work on most Kaypro models,
systems
(Ferguson BigBoard I, Xerox 820).
multiple
as
well
as
some
related
For the newer Kaypros with
15.3.3. System-Specific Versions
Page 371
-----------------------------------------------------------------------------ports, Kermit uses the one labeled "serial data"; it cannot use the
serial
printer or internal modem ports (but it should be possible to
modify the
values for mnport, mnprts, and baudrt to do this).
Can generate
BREAK.
SET BAUD-RATE supported; speeds are 50-19200 baud.
Lobo:
Lobo MAX-80.
Supports SET BAUD-RATE and can generate BREAKS.
Merlin:
British Telecom Merlin M2215 (also Rair Black Box, possibly also
the ICL
PC?). Requires a terminal.
Micromate:
PMC 101 Micromate.
Supports SET BAUD-RATE and can generate BREAK.
Micromint: Two versions
S6 The Ciarcia/Micromint sb-180 board with a 6Mhz procoessor.
System requires a terminal.
S9
As above, but with a 9Mhz processor.
NCR:
Decisionmate 5. Uses the 2651 and is largely the same as the Ithaca
Intersystems machine implementation.
Northstar: -- There are four versions available:
NORTHS:
Northstar
and SET
PORT.
Horizon
HORIZON:
Northstar Horizon
board. Can
generate BREAK.
with
using
HS10-4 board.
the
serial
Supports SET BAUD-RATE
ports on the Mother
BASICNS:
Basic Northstar Horizon using the printer port.
BREAK.
ADVANT:
Can generate
Northstar Advantage.
Supports SET BAUD-RATE and
can
generate
BREAK.
Traps Control-0 in the system filter.
Morrow Decision I:
Uses the Multi-I/O board. Port 1 is the console, port 3 is the
communications line. SET BAUD-RATE supported; speeds are 75-56000 baud.
Morrow Micro Decision I:
Nokia MicroMikko:
Will not echo control-O (which locks keyboard).
supported;
speeds are 75-9600 baud.
Ohio Scientific:
Doesn't have screen control.
SET
BAUD-RATE
15.3.3. System-Specific Versions
Page 372
-----------------------------------------------------------------------------Osborne 1:
Uses serial line, not internal modem.
Left-arrow key generates
<DEL>
("delete" or "rubout" character) during connect mode. SET BAUD-RATE
supported; speeds are 300 and 1200 baud. Now supports multi-sector
buffering.
Research Machines: Two Versions:
RM380ZM:
380Z and 5.25" disks supports SET BAUD.RATE
RM380ZF:
380Z and 8" disks, otherwise as above.
Sanyo:
Sanyo MBC-1100.
This version derived from Kermit V3.x
ScreenTyper:
Details unkown.
TRS-80: Three versions:
TRS80LB:
TRS-80 with Lifeboat CP/M
TRS80PT:
TRS-80 with Pickles and Trout CP/M
TRSM4:
TRS-80 Model 4 with Montezuma CP/M
Teletek:
Teletek Systemaster. Supports SET BAUD.
Telcon:
TELCON ZOBRA portable computer.
Torch:
Torch Unicorn 5 initially, but the code runs on other Z80 based CP/N
(as in
Nut!) systems. It uses the BBC Computer as a "Base processor",
and is
similar to the BBC version. The base processors RS423 port is used
rather
than any built in Modem. (UK telecoms legislation effectively makes
modem
control software tricky business...).
Two potential versions
exist-one
using cursor positioning codes for a MCP and CCCP ROM combination of
revision less than 1.00, the other version uses the additional
facility
MCP/CCCP versions greater than 1. Supports SET BAUD-RATE and can
generate
BREAKs.
Note that binary files must be transferred using SET PARITY to
anything
other than NONE! Parity is neither generated nor checked.
US Micro Sales:
S-100-8 based computer.
Vector Graphics:
Vector
15.3.3. System-Specific Versions
Page 373
-----------------------------------------------------------------------------Xerox:
Xerox 820.
Z80MU:
Development Kermit on a PC running the Z80MU Z80 and CP/M 2.2
development
system. Allows development of the system independent modules to be
done on
an IBM PC or clone. Also allows the generation of new .HEX files,
that may
then be KERMITed to the target system. Note: Not all the BDOS
or BIOS
routines are supported, so avoid "unusual" BIOS/BDOS calls. (For
example,
DIR from within Kermit will fail as one of the BIOS routines
returning disk
parameters is not supported.)
15.4. Installation of Kermit-80
Kermit-80 was written originally for the Intertec SuperBrain in lowestcommondenominator
8080 code with the standard assembler, ASM (single source
module,
no macros, no advanced instructions), so that it could be assembled
on any
CP/M-80 system (the 8080 assembler is distributed as a standard
part of
CP/M-80, whereas the fancier Z80 or macro assemblers are normally
commercial
products).
It has since been modified to run on many other systems as
well.
Kermit-80 should be able to run on any 8080-, 8085- or Z80-based
microcomputer
under
CP/M with appropriate minor changes to reflect the port I/O and
screen
control for the system (see below).
The proliferation of new systems supported by Kermit-80 made the program
grow
so large and complicated that it had to be broken up into systemindependent
and system-dependent modules, as of version 4 (this was done by Charles
Carvalho of ACC).
Each module is composed of multiple files. This has
reduced
the time and disk space necessary for assembly; Kermit-80 may once again
be as-
sembled on a CP/M system with roughly 250Kbytes of space. The majority
of the
code does not need to be reassembled to support a new system.
Unfortunately,
it can no longer be assembled with ASM, since ASM does not support
multiple input files. To allow it to be assembled on any CP/M system, the publicdomain
assembler LASM is included in the distribution kit. Kermit-80 may also
be assembled with Microsoft's M80 (not supplied). In theory, any 8080
assembler
supporting the INCLUDE directive ought to work, as well.
All versions of Kermit-80 are assembled from the same set of sources,
with system dependencies taken care of by assembly-time conditionals within the
systemdependent module (eventually, the system-dependent module will itself be
broken
up into multiple files, one for each system). The most important system
dependencies are terminal emulation (when CONNECTed to the remote host) and
screen
handling, which are dependent on the individual micro's escape codes
(these
features are table driven and easily modified for other CP/M systems),
and the
lowest level I/O routines for the serial communications port.
The
port
routines are best done only with BDOS calls, but some systems do not
allow
this, primarily because the BDOS routines strip the parity bit during
port I/O,
and the parity bit is used for data when transmitting binary files.
Kermit-80's I/O routines must check the port status and go elsewhere if
no input is available; this allows for virtual terminal connection, keyboard
interruption of stuck transmissions, etc.
On systems that fully
implement I/O
redirection via the optional CP/M IOBYTE facility, this may be done by
switching the IOBYTE definition. On others, however, IN/OUT instructions
explicitly
referencing the port device registers must be used.
15.4. Installation of Kermit-80
Page 374
-----------------------------------------------------------------------------CP/M-80 KERMIT versions 3.8 and later include a "fuzzy timer" that
allows a
timeout to occur after an interval ranging from 5 to 20 seconds
(depending upon
the speed of the processor and the operating system routines) during
which expected input does not appear at the port. In this case, retransmission
occurs
automatically. In any case, you may type a carriage return during
transmission
to simulate a timeout when the transfer appears to be stuck.
15.4.1. Organization of Kermit-80
Kermit-80 consists of two modules, each of which is generated from
multiple
source files. The first module contains the system-independent
code; the
second module is configured for a particular system and merged with the
systemindependent module to produce a customized Kermit-80.
The distribution kit contains:
-
the
the
the
the
the
system-independent module, CPSKER.HEX;
system-dependent modules, CPV*.HEX (see table 15-2 and 15-3);
source files, CPS*.ASM and CPX*.ASM,
public-domain CP/M assembler, LASM.*,
public-domain CP/M load/patch utility, MLOAD.*
15.4.1. Organization of Kermit-80
Page 375
----------------------------------------------------------------------------------------------------------------------------------------------------------Symbol
ACCESS
ADVANT
AP6551
AP6850
APMMDM
APCPS
BASICNS
BBC
BBII
BRAINM
BRAINA
CIFER2
CIFER3
CIFER2
CIFER3
CMEMCO
COMART
COMPRO
CPC
CPM3
CPT85XX
DELPHI
DISC
DMII
GENER
GENIE
H8QUAD
HEATH
HORIZON
KPII
LOBO
Filename System
CPVACC Access Matrix
CPVADV Northstar Advantage
CPVAPL Apple II, Z80 Softcard, 6551 ACIA in serial interface
CPVA65 Apple II, Z80 Softcard, 6850 ACIA in Serial Iiterface
CPVAPM Apple II, Z80 Softcard, Micromodem II in slot 2
CPVCPS Apple II, Z80 Softcard, with CPS multifunction card
CPVBNS Northstar Horizon (terminal required)
CPVBBC Acorn "BBC" computer with Acorn Z80 second processor
CPVBB2 BigBoard II (terminal required)
CPVBRM Intertec Superbrain using the main port
CPVBRA Intertec Superbrain using the Aux port
CPVCIF Cifer 1886 using the VL: Serial port and CP/M V2.2
CPVCI3 Cifer 1886 using the VL: Serial port and CP/M V3.0
CPVCA2 Cifer 1886 using the AUX: Serial port and CP/M V2.2
CPVCA3 Cifer 1886 using the AUX: Serial port and CP/M V3.0
CPVCRO Cromemco with TU-ART card. Terminal required)
CPVCOM Comart Communicator (terminal required)
CPVPRO Compupro with Interfacer 4 (or 3). Terminal required.
CPVCPC Amstrad CPC 664 and 6128 and CP/M 3
CPVCP3 "Generic": CP/M 3.0 (CP/M Plus) systems (terminal req'd)
CPVCPT CPT-85xx wordprocessor with CP/M
CPVDEL Digicomp Delphi 100 (terminal required)
CPVDIS Action Computer Enterprises "Discovery" (terminal req'd)
CPVDM2 DECmate II with CP/M option
CPVGEN "Generic": CPM 2.2 systems with IOBYTE (terminal req'd)
CPVGNI Video Genie
CPVH8Q Heath-8 with Quad 8 i/o board
CPVH89 Heath/Zenith H89
CPVHOR Northstar Horizon (terminal required)
CPVKPR Kaypro-II (and 4; probably supports all Kaypro systems)
CPVLBO Lobo Max-80
"symbol" is the symbol used to select the target system, in CPVTYP.ASM;
"filename" is the name under which the module is supplied in the
distribution.
Table 15-2:
Systems supported by Kermit-80 (Part 1)
------------------------------------------------------------------------------
15.4.1. Organization of Kermit-80
Page 376
----------------------------------------------------------------------------------------------------------------------------------------------------------Symbol
M2215
MDI
MIKKO
MMATE
MMDI
NCRDMV
NORTHS
OSBRN1
OSI
PCI2651
PCW
PX8
RM380ZM
RM380ZF
ROBIN
S1008
SANYO
SB6
SB9
SCNTPR
TELCON
TELETEK
TORCH
TRS80LB
TRS80PT
TRSM4
VECTOR
XER820
Z100
Z80MU
Filename System
CPVMRL British Telecom Merlin/Rair Black Box (terminal required)
CPVMDI Morrow Decision I (terminal required)
CPVMIK MikroMikko
CPVMM
PMC 101 Micromate (terminal required)
CPVUD
Morrow Micro Decision I (terminal required)
CPVDMV NCR Decision Mate V. (Terminal required?)
CPVNS
Northstar Horizon with HSIO-4 card (terminal req'd)
CPVOSB Osborne 1
CPVOSI Ohio Scientific
CPVPCI Ithaca Intersystems with VI0 card (terminal required)
CPVPCW Amstrad PCW 8256/8512 with serial interface
CPVPX8 Epson PX-8
CPVRMM Research Machines 380Z with MDS (5.25" discs)
CPVRMF Research Machines 380Z with FDS (8" discs)
CPVROB DEC VT180
CPVUSM US Microsales S-100-8 (terminal required)
CPVSAN Sanyo MBC-1100
CPVSB6 Micromint SB-180 with 6Mhz CPU (terminal required)
CPVSB9 Micromint SB-180 with 9Mhz CPU (terminal required)
CPVSCN Screentyper
CPVTEL TELCON Zobra portable
CPVTET Teletek Systemaster
CPVTRC Torch computers BBC-B with Z80 second processors
CPVTLB TRS-80 model II with Lifeboat 2.25C CP/M Display
CPVTPT TRS-80 model II with Pickles + Trout CP/M Display
CPVTM4 TRS-80 model IV
CPVVEC Vector Graphics
CPVXER Xerox 820
CPVZ00 Z-100 under CP/M-85
CPVZ80 Z80MU development system on a PC
"symbol" is the symbol used to select the target system, in CPXTYP.ASM;
"filename" is the name under which the module is supplied in the
distribution.
Table 15-3:
Systems supported by Kermit-80 (Part 2)
------------------------------------------------------------------------------
15.4.1. Organization of Kermit-80
Page 377
----------------------------------------------------------------------------------------------------------------------------------------------------------Symbol
CRT
ADM3A
ADM22
AM230
H1500
SMRTVD
SOROQ
TVI912
TVI925
VT52
VT100
WYSE
Terminal type
Dumb terminal type. Does not do cursor addressing
Lear Seigler ADM 3A
Lear Seigler ADM 22
Ampro 230
Hazeltine 1500
Netronics Smartvid
Soroq IQ-120
Televideo 912
Televideo 925 or Freedom 100
Dec VT52 or equivalent (H19)
Dec VT100 or equivalent
Wyse 100
"symbol" is the symbol used to select the target system, in CPXTYP.ASM;
"Terminal type" is the type of terminal "symbol" selects.
Table 15-4:
Terminals supported by Kermit-80
-----------------------------------------------------------------------------15.4.2. Downloading Kermit-80
You'll need either a pre-configured .COM file or the system-independent
module,
CPSKER, in binary (.COM) or hex (.HEX) format and the system-dependent
overlay
for your system (from Tables 15-2 and 15-3). If your system is not
listed in
the table, get the generic CP/M 2.2 Kermit or the generic CP/M 3
Kermit. If
you already have a version of Kermit on your micro and you want to
install a
new version, simply use your present version to get the new files.
Transfer
the files to your system and skip ahead to "merging the modules".
If you do not have a copy of Kermit on your micro, and you cannot borrow
a Kermit floppy but you do have access to a mainframe computer with a copy
of the
Kermit-80 distribution, you should read this section.
There are several ways to get CP/M Kermit from a host system to your
micro.
The easiest is to "download" the necessary "hex" files into your micro's
memory
and then save them on the disk. If you have a terminal emulator
program on
your micro which can save a copy of the session to disk, connect to your
host,
and type the necessary files. Exit from the emulator, saving the session
log,
and edit the session log to extract the hex files. Skip ahead to
"merging the
files".
The following is a procedure which, though far from foolproof, should
allow you
to get a version of Kermit to your CP/M based micro. It depends upon
the host
prompt, or at least the first character of the host prompt, being some
character that cannot appear in a hex file (the valid characters for hex
files are
the digits 0-9, the upper case letters A-F, the colon ``:'', carriage
return,
and line feed). As soon the prompt character is encountered, the
transfer will
terminate. If your host does not issue a prompt that will accommodate
this
scheme, you can achieve the same effect by adding an atsign ``@'' to
the very
15.4.2. Downloading Kermit-80
Page 378
-----------------------------------------------------------------------------end of the hex file before sending it from the host. The program below
looks
for an atsign (the normal DEC-20 prompt, hex 40). DECSYSTEM-10 users
would
look for a dot, hex 2E; VAX/VMS or UNIX users would look for a dollar
sign, hex
24; UNIX C-Shell users would look for a percent sign, hex 26.
1. For CP/M 2.2 systems, connect to a floppy disk with plenty of
free
space. Run DDT and type in the following (the comments should
not
be typed in; they are there just to tell you what's
happening):
(Note that this wont work for CP/M Plus or 3.0 systems!)
----------------------------------------------------------------a100
0100
0103
0106
0108
010A
010D
010F
0112
0114
0115
0116
0118
011B
011C
011E
0121
0124
0127
0129
012C
012F
0132
0135
0138
0139
013C
013E
0141
0144
0147
LXI H,2FE
SHLD 200
MVI E,D
MVI C,4
CALL 5
MVI C,3
CALL 5
ANI 7F
PUSH PSW
MOV E,A
MVI C,2
CALL 5
POP PSW
CPI 40
JZ 127
CALL 17A
JMP 10D
MVI A,1A
CALL 17A
LXI H,300
SHLD 202
LDA 201
STA 200
XRA A
STA 201
MVI C,16
LXI D,5C
CALL 5
CALL 15E
CALL 15E
;Begin assembling code at 100
;Where to store in memory
;Keep pointer there
;Get a CR
;Output to PUNCH (send to HOST)
;Input from READER (read from HOST)
;Strip parity bit
;Save a and flags
;Move char to E for echo
;Output to screen
;Restore A and flags
;(or 4E,24,26,etc) System prompt?
;Yes, have whole file in memory
;No, store another byte
;Read another byte
;Get a Control-Z (CP/M EOF mark)
;Store it in memory
;Get memory pointer
;Store as DMA pointer
;Get 'HI' byte of memory pointer
;and store it as 'LO' one
;Zero 'HI' byte (slow *256)
;Make NEW file
;With FCB1
;Write 128 bytes (sector)
;Write another sector
014A
014D
014E
0151
0152
0155
0157
0158
015B
015E
0161
0162
0164
LXI H,FFFF
XCHG
LHLD 200
DAD D
SHLD 200
MVI A,2
CMP L
JZ 183
JMP 144
LHLD 202
XCHG
MVI C,1A
CALL 5
;Get a 16-bit Minus One
;into DE
;Get 256-byte counter
;Decrement
;and store back
;Check if
; 256-byte counter down to offset
;Yes, we're done
;Keep writing..
;Get file-pointer
;into DE
;Set DMA-address
15.4.2. Downloading Kermit-80
Page 379
-----------------------------------------------------------------------------0167
MVI C,15
;Write sector (128 bytes)
0169
LXI D,5C
;using FCB1
016C
CALL 5
016F
LHLD 202
;Get file-pointer
0172
LXI D,80
;128-bytes
0175
DAD D
;added to file-pointer
0176
SHLD 202
;and save
0179
RET
;and return
017A
LHLD 200
;Get Memory-pointer
017D
MOV M,A
;Store character
017E
INX H
;Increment Pointer
017F
SHLD 200
;and save
0182
RET
;and return
0183
MVI C,10
;CLOSE file
0185
LXI D,5C
;using FCB1
0188
CALL 5
018B
JMP 0
;Force WARM BOOT
0179
-^C
;(Type Control-C) Return to CP/M
A>SAVE 1 FETCH.COM
;Save program, we need to run it twice.
Figure 15-1:
Bootstrap program for Kermit-80 and CP/M Version 2.2
---------------------------------------------------------------Alternatively, an assembler source file for
this
program
is
distributed
with
CP/M Kermit as CPKFET.ASM.
You might prefer to
type
the assembler version in and assemble and load it (ASM CPKFET,
LOAD
CPKFET,
or
MASM
CPKFET,
MLOAD
CPKFET), to let the assembler
and
loader catch any typing errors.
2. Connect to your host using a terminal or a terminal
emulation
program. Ensure that your host does not have your terminal in
"page
mode" (does not pause at the end of each screenful).
3. Tell the host to display the first hex file (the systemindependent
module) at your terminal, e.g. give a command like TYPE
CPSKER.HEX,
without a terminating carriage return.
4. Return to your micro by switching the cable from the terminal to
the
micro, or by terminating the micro's terminal program.
5. Make sure your IOBYTE is set so that RDR: and PUN: correspond to
the
I/O port that is connected to the host (this would normally be
the
case unless you have done something special to change things).
6. Load
the program you entered in the first step with DDT, and use
it
to capture the first hex file:
DDT FETCH.COM
-icpsker.hex
-g100,179
;Setup FCB for file CPSKER.HEX
;Execute the program.
Now there should be a file CPSKER.HEX on your connected disk.
7. Return to the host, and tell it to display the second hex file
(the
system-dependent module for your configuration). Again, do not
type
15.4.2. Downloading Kermit-80
Page 380
-----------------------------------------------------------------------------the terminating carriage return.
8. Return to your micro, and run the capture program again:
DDT FETCH.COM
-icpxovl.hex
-g100,179
Now there should be
;Setup FCB to create CPXOVL.HEX
;Execute the program.
a
file
CPXOVL.HEX
on
your
connected
disk.
Replace CPXOVL.HEX in this example with the appropriate overlay
file
for your system.
Merging the files:
1. For purposes of illustration, we will assume the systemdependent
overlay is called "cpxovl.hex". The two hex files may be
combined
with MLOAD or DDT. If you already have a running Kermit, you
can
transfer MLOAD.HEX to your system and create MLOAD.COM by
running
LOAD. If you're bootstrapping Kermit, you could transfer
MLOAD.HEX
to your system the same way you got the other two .HEX files,
but
it's probably simpler to use DDT to get Kermit running, and
get
MLOAD later if you need it.
2. Using MLOAD, the two pieces may be easily merged:
A>mload kermit49=cpsker,cpxovl
(Some messages about program size, etc...)
A>
3. If you don't have MLOAD running, it's a bit more complex:
A>ddt cpsker.hex
NEXT PC
3500 0100
-icpxovl.hex
-r
NEXT PC
xxxx 0000
-^C
A>save dd kermit49.com
The
page
count
("dd") used in the SAVE command is calculated
from
the last address ("xxxx") given by DDT in response to the R
command:
drop the last two digits and add 1 if they were not zero, then
convert from hexadecimal (base 16) to decimal (base 10): 684F
becomes
69 hex, which is 105 decimal (5 times 16 plus 9) -- but 6700
becomes
67 hex, or 103 decimal (consult an introductory computing book
if
you don't understand number base conversion).
4. If
you
are
using the Z80MU CP/M and Z80 development toolkit on
an
IBM PC or clone, then follow the same instructions as for a
genuine
CP/M system. When you have loaded your file, you will have to
ship
the .COM or two .HEX files to the target CP/M system.
(Possibly
using a previous issue of Kermit?)
5. Note that CP/M hex files have checksums on each line.
were
If there
15.4.2. Downloading Kermit-80
Page 381
-----------------------------------------------------------------------------any transmission errors during the downloading process, MLOAD or
DDT
will notice a bad checksum and will report an error (something
like
"Illegal Format"). If you get any errors during loading, either
fix
the hex file locally with an editor, or repeat the transfer.
You now should have a running version of Kermit-80, called KERMIT49.COM.
Test your new Kermit by running it. If it gives you a prompt, it might
be OK.
(don't delete your old one yet...). Instead of a prompt, you could get
one of
two messages indicating that the configuration information is invalid:
?Kermit has not been configured for a target system
or
?Consistency check on configuration failed
Of course, neither of these messages should appear if you're building
Kermit
from the distribution kit. The first message indicates that the
overlay was
not found where the system-independent module expected to find it,
probably because the overlay address is incorrect; the second indicates that the
version
of CPXLNK used in the system-dependent module is incompatible with the
systemindependent module.
Once you are satisfied that KERMIT40 works correctly, you should
your
old KERMIT.COM to something else, like OKERMIT.COM, and rename
KERMIT40.COM to
KERMIT.COM.
15.4.3. Assembling Kermit-80 from the sources
Kermit-80 is built in two pieces from the following files:
The system-independent files:
CPSKER.ASM
header file
CPSDEF.ASM
definitions for both KERMIT and KERSYS
rename
CPSMIT.ASM
EXIT,
CPSCOM.ASM
CPSPK1.ASM
RECEIVE,
CPSPK2.ASM
CPSREM.ASM
CPSSER.ASM
CPSTT.ASM
CPSCPM.ASM
CPSWLD.ASM
CPSCMD.ASM
CPSUTL.ASM
CPSDAT.ASM
CPXLNK.ASM
initialization, main loop, miscellaneous commands
LOG, SET, SHOW, STATUS, and VERSION)
second part of commands, status and set file
part
1
of the KERMIT protocol handler
(BYE,
(SEND,
LOGOUT,and FINISH commands)
part 2 of the KERMIT protocol handler
REMOTE routines (FINISH, BYE and LOGOUT in CPXPK*.ASM)
SERVER routines (for the future)
the transparent commands (TRANSMIT, CONNECT)
CP/M commands (DIR, ERA, USER, TYPE, PRINT, COPY)
the wildcard handler
the command parser
utility routines and data
data space and the overlay definitions
linkage area description
The system-dependent files:
CPXTYP.ASM
system selection
CPXLNK.ASM
system overlay specification and jump table
CPXCOM.ASM
common routines for all systems
15.4.3. Assembling Kermit-80 from the sources
Page 382
-----------------------------------------------------------------------------CPXSWT.ASM
system selector or switcher
One of:
CPXSYS.ASM
CPXTOR.ASM
CPXNOR.ASM
CPXMRL.ASM
CPXSB.ASM
CPXCIF.ASM
CPXHEA.ASM
CPXAPP.ASM
CPXPCW.ASM
CPXBBI.ASM
CPXSYO.ASM
CPXTM4.ASM
CPXGNI.ASM
CPXPRO.ASM
CPXZ80.ASM
family
family
family
family
family
family
family
family
family
family
family
family
family
family
family
file
file
file
file
file
file
file
file
file
file
file
file
file
file
file
for
for
for
for
for
for
for
for
for
for
for
for
for
for
for
some system-specific code
Torch, Superbrain, PCI2651 etc
Northstar and Comart machines
British Telecom merlin/Rair Black Box
Micromint SB-180 systems
Cifer systems
Heath/Zenith systems
Apple II systems
Amstrad PCW 8256/8512 machines
BigBoard, Kaypro and Xerox 820 systems
Sanyo MBS-1100 systems
Tandy Model 4 with CP/M systems
Video Genie systems
Compupro systems
the Z80MU development system
and if you use a terminal,
CPXVDU.ASM
display codes for VDUs etc.
Not always required
The system-independent module contains all of the system-independent
files except for CPXLNK.ASM, which is assembled into the system-dependent
module to
provide the structures needed to connect the two modules. As
distributed, the
system-independent module is named CPSKER.HEX.
If you have a
copy of
CPSKER.HEX, you do not need to reassemble the system-independent module
to configure Kermit for your system.
The system-dependent module consists of CPXTYP.ASM, CPSDEF.ASM,
CPXLNK.ASM,
CPXSWT.ASM, CPSCOM.ASM, one of the family files CPXSYS.ASM,
CPXTOR.ASM,
CPXMRL.ASM,
CPXSB.ASM,
CPXCIF.ASM,
CPXHEA.ASM,
CPXBBI.ASM,
CPXTM4.ASM,
CPXGNI.ASM, CPXNOR.ASM, CPXAPP.ASM, CPXPCW.ASM, or CPXPRO.ASM, and
possibly
CPXVDU.ASM, if your system uses a terminal for the console. One copy
of the
system-dependent module is supplied already assembled for each supported
system; the filename may be obtained from tables 15-2 and 15-3. If a
terminal is
required for a system, a CRT (glass TTY device) has been selected.
After assembling the two pieces separately, they are combined with DDT or
MLOAD
into a system-specific Kermit.
If you want to rebuild the system-independent module, the only change
you may
need to make is to select the assembler to be used, in CPSKER.ASM.
Define one
of MAC80, M80, or LASM to TRUE to select it as the assembler; the others
should
be defined FALSE.
Assuming you have the Microsoft Macro Assembler package (M80/L80), you'll
need
to do the following:
A>m80 cpsker=cpsker.asm
A>l80 /p:100,cpsker,cpsker/n/e
This will produce CPSKER.COM.
If you are using LASM instead, do this:
15.4.3. Assembling Kermit-80 from the sources
Page 383
-----------------------------------------------------------------------------A>lasm cpsker
LASM will generate CPSKER.HEX and CPSKER.PRN.
LASM allows options
to be
specified in the same way as the standard assembler, ASM, so the command
A>lasm cpsker.abz
will read the source files from drive A, send the .HEX file
B, and
suppress the listing file.
to
drive
If you are using the Z80MU development system on an IBM PC or clone,
then assemble your files using either LASM and MLOAD or M80 and L80, as if you
were
using a genuine CP/M-80 system. Note that you will still have the
problem of
transferring your assembled files to the target CP/M system.
If you want to generate a system-dependent overlay for a particular
system, or
want to change the terminal supported, you'll need to check three
areas in
CPXTYP.ASM:
First, the overlay start ADDRESS. The symbol "ovladr" is EQUated to
the address of "LNKFLG" in the system-independent module, as the starting
address of
the overlay (6000H for version 4.09). You'll need to know this value if
you're
building the overlay with M80/L80.
You won't normally need to
change this
value.
Second, the assembler being used. Again, define one of MAC80, M80, and
LASM to
be TRUE to select it, and define the others to be FALSE. The two
modules
(system-independent and system-dependent) do not need to be built with
the same
assembler.
Third, the system configuration. Locate your system in tables 15-2 and
15-3,
then define the appropriate symbol TRUE, and the rest FALSE.
If the
system
comes with a builtin console terminal, define all the terminal switches
FALSE.
If the system uses an external terminal as the console, locate the
terminal in
table 15-5 and define the appropriate symbol TRUE, and the remainder
FALSE. If
the terminal is not listed in table 15-5, use the CRT switch; in this
case,
VT52 emulation is not supported.
In addition, there are a few general and system-specific symbols which
may be
altered to fit your system:
APSLOT
serial
For Apple with 6551 ACIA, defines the slot number of the
card
CPUSPD
only for
Processor
speed
in
units
of 100KHz (currently used
bbII and kpII for timing loops)
TAC
if you
For users connecting through ARPAnet TACs: set to TRUE
wish the default TACTRAP status to be ON. (This may be
overridden with the SET TACTRAP command).
If
you're
not
connecting
through a TAC, set tac to FALSE and ignore tacval.
TACVAL
intercept
For
ARPANET
TAC
users:
defines
the
default
TAC
character (may be overridden with the SET TACTRAP
command).
If you are just assembling an
edit
existing
configuration,
you'll
need
to
15.4.3. Assembling Kermit-80 from the sources
Page 384
-----------------------------------------------------------------------------CPXTYP.ASM only.
If you are adding support for a new system, you
should not
modify CPSDEF.ASM or CPXLNK.ASM; if you do, you'll have to change the
systemindependent module also.
Eventually, CPXSYS.ASM will be split into
separate
files, each of which will generate one or more related systems. When
this happens, you'll want to pick the one closest to your system to use as a
starting
point.
After editing CPXTYP.ASM as necessary, assemble and link the
follows:
overlay
as
- With M80 (where "xxxx" is the hex value of ovladr from CPXLNK.ASM):
A>m80 cpxtyp=cpxtyp.asm
A>l80 /p:xxxx,cpxtyp,cpxtyp/n/x/e
- With LASM:
A>lasm cpxtyp
With an IBM PC or clone using the Z80MU softwrae, follow the instructions
as if
you were using a real CP/M system.
The overlay (CPXTYP.HEX) may then be merged with the system-independent
module
as described above (creating a runnable Kermit from the distribution
kit).
If you are using the Z80MU development system on a PC, and already have
a running Kermit-80 v3.9 or later, you can merge the two .HEX files into a
.COM file
with LINK80 (TOPS 10/20), MLOAD (Z80MU), L80 (Z80MU), and transfer the
new .COM
file to your micro with Kermit:
- Z80MU on a PC and MLOAD:
@MLOAD KERNEW=CPSKER,CPXTYP
- Z80MU on a PC and C80:
@L80 /P:xxxx,CPXTYP,CPXTYP/N/X/E
producing KERNEW.COM.
15.5. Adding Support For A New System
Kermit-80 is built from a common set of source files; the systemdependent
module makes heavy use of conditional assembly (this complication
will be
removed in future releases). The system dependencies arise from
attempts to
answer some questions:
1. What kind of terminal is to be supported?
For
many micros, the console is an integral part of the system,
but
others can use an external terminal. In either case, the
commands
to manipulate the screen (position the cursor, erase the
screen,
etc) must be defined.
2. How is the serial line accessed?
15.5. Adding Support For A New System
Page 385
----------------------------------------------------------------------------------------------------------------------------------------------------------Symbol
crt
adm3a
adm22
am230
h1500
smrtvd
soroq
tvi912
tvi925
vt52
vt100
wyse
Terminal description
Basic CRT, no cursor positioning
ADM3A Display or lookalike
ADM22 Display or lookalike
Ampro 230
Hazeltine 1500
Netronics Smartvid-80
Soroq IQ-120
TVI 912
TVI 925, Freedom 100
VT 52 or VT52 emulator such as Heath H19, H29, etc.
VT 100 or emulator (most ANSI terminals should work)
Wyse 100
Table 15-5:
Terminals known to Kermit-80
-----------------------------------------------------------------------------For systems supporting the IOBYTE function, this is
straightforward;
the symbol "IOBYT" is defined TRUE. If the serial line is
accessed
with IN and OUT instructions, it may be possible to use the
simple
I/O routines provided. In this case, the symbol "INOUT" is
defined
TRUE, the MNPORT and MNPRTS are defined to be the data and
control
addresses, respectively, and bit masks for testing for "input
data
available" and "output buffer empty" must be defined. If the
interface is strange, leave IOBYT and INOUT set to FALSE, and provide
the
I/O routines.
3. What initialization is necessary?
You may wish to set the baud rate or configure the
serial
at
startup.
Examples for a number of devices are present.
4. What special features are to be supported?
line
You may want to provide the capability to select one of
several
serial lines with the SET PORT command, or to change the speed
of
the serial line with the SET BAUD-RATE command. To do this,
you'll
need to build a command table, using the systems already
supported
as examples.
The ability to send a BREAK signal is
desirable.
Again, examples for several different interfaces (ACIA, SIO,
etc)
are present.
5. Do you want to design an external terminal type?
There
is
a
jump
entry
in the overlay file to allow users to
add
their own termainl emulator.
If you write
the
code
for
such
an
emulator,
you
must load this jump address with the address of
your
emulator, and SET TERMINAL EXTERNAL from within Kermit. All
characters will be passed to this routine during connect mode.
15.6. Notes on New Features in Kermit-80 Version 4
Page 386
-----------------------------------------------------------------------------15.6. Notes on New Features in Kermit-80 Version 4
- Debugging aids: SET DEBUG ON will add two fields to the
SEND/RECEIVE
display, labelled "Spack" and "Rpack". These display the last
packet
sent and received.
Of course, this slows down the transfer,
especially if the console is an external terminal. SET DEBUG OFF
removes
these fields.
The VERSION command displays the name, edit
number,
and edit date of several of the modules that make up Kermit.
- TAC support: ARPAnet TACs (and many other communication devices
such
as terminal concentrators, modems, port contention units,
network
PADs, etc) use a printing character (like "@") as an
intercept
character, to allow commands to be issued to the TAC, or modem,
etc.
In order to send this character to the host, it must be typed
twice.
The command "SET TAC CHARACTER" to Kermit enables the "TACtrap"
and
asks the user to specify the TAC intercept character. This
character
will be automatically doubled when it appears in Kermit protocol
messages (sent by the SEND or RECEIVE commands) or when it appears in
a
file being sent with the TRANSMIT command. It is not
automatically
doubled when typed by the user in CONNECT mode. "SET TAC ON"
enables
the TACtrap but does not change the TAC intercept character, which
is
initially "@". "SET TAC OFF" disables the TACtrap.
- File buffering: Previous versions of Kermit-80 buffered only
one
sector (128 bytes) at a time during file transfer operations.
This
version buffers 16Kbytes at a time, reducing the number of times
the
floppy drive must be spun up and down, and increasing the
effective
throughput of the link. If the disk transfer rate is too
slow,
however, the remote Kermit may time out and retransmit packets.
This
will show up on the screen in the "Retries:" field; if this
occurs
after disk activity, you may want to increase the timeout value
on
the remote Kermit, SET BUFFER <new value> while in Kermit,or
reassemble Kermit with a smaller value for MAXSEC (in CPSDEF.ASM)
This
buffer is also used by the TRANSMIT command; the log file enabled
by
the LOG command is still written a sector at a time.
This section is intended for people wanting to implement their own
versions of
Kermit-80 for computers not already defined.
The system independent code communicates to routines for a specific
system
through a set of tables. These tables are defined in CPXLNK.ASM, and
should
not be modified between revisions of Kermit. If an entry is added or
deleted,
then the whole of Kermit-80 needs reassembling. Make sure that the
changes to
CPXLNK.ASM are duplicated in CPSUTL.ASM, which has the system
independent
equivalent of CPXLNK.ASM.
The following entries/definitions apply to
have been
three additional entries since revision 4.05.
revision 4.09.
There
The table is split into three sectors; The first section defines two
byte
"words" giving 16 bits of interface data; The second set is a set of
jumps to
various functions, and finally the third set a set of pure data bytes.
15.6.1. Interface Data.
Page 387
-----------------------------------------------------------------------------15.6.1. Interface Data.
LNKFLG
a
Must be first entry in overlay at overlay address.
Is
two
byte
address
giving
the
size of the linkage table.
This is
used to check for consistency of overlay's
ENTSIZE Length of entry table, also used for consistency checking
after
SYSEDT
the overlay.
Currently 6
The
of
address
a dollar-terminated string giving the
overlay
revision
level
and
date.
Points
to
a
string
like:
CPXSYS.ASM(33) 4-JUN-1986$
FAMILY
The
address
of
a
dollar-terminated string giving the
Family
overlay
is
revision
level
and
date.
If
the
system
in
CPXSYS.ASM
rather
than
a
particular
Family
overlay,
it is
simply a pointer to $
15.6.2. Jump Table.
This is split into three main sectors1. Input/Output routines
2. Screen formatting routines
3. other system dependent routines
SELMDM
Parameters
Returns
Description
simply
None
None
selects the modem port.
return.
OUTMDM
Most systems
do
HL,DE and BC registers preserved.
nothing
and
Parameters
Returns
Description
line.
None
None
Output
the character in E register to the communications
BC,DE,HL registers preserved.
INPMDM
Parameters
Returns
available
Description
HL,DE,BC
None
Accumulator either 0 or character from comms line if
Check modem for character and if so, return it in
A.
registers preserved, flags and accumulator lost.
FLSMDM
Parameters
Returns
Description
from the
None
None
Clear
modem.
any
pending
characters
in
No registers are preserved.
the
input buffer
15.6.2. Jump Table.
Page 388
-----------------------------------------------------------------------------SELCON
Parameters
Returns
Description
sys-
None
None
Select the console.
This is a null subroutine
for
most
tems, but for IOBYTE systems selects the console.
OUTCON
Parameters
Returns
Description
system
Character in E
None
Send the character in E to the console.
Any quirks of
responding in an odd manner should be handled.
No
registers
preserved.
INPCON
Parameters
Returns
Description
charac-
None
Zero or character in A.
Get a character from the console or return a null if no
ter to be read.
OUTLPT
Parameters
Returns
Description
console is
Character in E
None
Send the character in
selected.
LPTSTAT
Parameters
Returns
Description
character
No registers are preserved.
E
to
the
printer.
The
Only DE registers are preserved
None
00H or 0FFH in A register
Test the printer to see if it is ready to receive a
to be printed.
If a 00H is returned then the printer is
ready
to receive a character.
EXTTER
Parameters
emulator in
Returns
Description
overlay
Character
to be sent to the user supplied terminal
the E register
None
If the user has supplied a terminal
emulator
code, EXTTER will be a JMP <non zero address>.
TERMINAL
in
the
If SET
EXTERNAL has been set, all caharcters will be
passed
verbatim
to
this
terminal emulator.
If there is no external
emulator,
this code will never be called.
The user should reset
terminal
conditions on initialisation of both the system and
before CONNECT.
XBDOS
Parameters
Returns
Description
also
All registers should be preserved.
Any required for calling BDOS
Any expected from the called BDOS routine
This is an alternative entry to BDOS.
This
check
the
printer
status etc.
the code
for the BDOS trap in CPSUTL.ASM.
2b)
Parameters
CLRLIN
None
entry
will
For full details see
15.6.2. Jump Table.
Page 389
-----------------------------------------------------------------------------Returns
None
Description
Clear the current line on the terminal
CLRSPC
Parameters
Returns
Description
DELCHR
Parameters
Returns
Description
do a
None
None
Erase the current position (after a backspace)
None
None
Make delete (7FH) look like a backspace.
backspace,
Some
systems
space, backspace automatically others have to
simulate it
CLRTOP
Parameters
Returns
Description
corner
None
None
Clear the screen and place the cursor at the top LH
SCREND
Parameters
Returns
Description
after a
None
None
Place the cursor on the line for the Kermit-80 prompt
file transfer.
SCRERR
Parameters
Returns
Description
transfer
None
None
Move
cursor
(Usually line 13)
to
the
error message field on the file
format screen
SCRFLN
Parameters
Returns
Description
None
None
Move the cursor to the filename field
SCRNP
Parameters
Returns
Description
None
None
Move the cursor to the packet count field
SCRNRT
Parameters
None
Returns
Description
None
Move cursor to the retry count field
SCRST
Parameters
Returns
Description
None
None
Move cursor to the status field
RPPOS
Parameters
Returns
Description
None
None
Move to the receive packet field (debugging use)
15.6.2. Jump Table.
Page 390
-----------------------------------------------------------------------------SPPOS
Parameters
Returns
Description
None
None
Move to the send packet field (for debugging use)
2c)
Parameters
Returns
Description
registers are
SYSINIT
None
None
Initialize
the
preserved.
Any initialization is done once only when
system
specific
items.
No
Kermit-80
is first loaded.
SYSEXIT
Parameters
None
Returns
None
Description
Program termination.
preparation for
a return to CP/M
De-initialize anything in
SYSCON
Parameters
Returns
Description
None
None
Initialize anything before entering the connect state.
SYSCLS
Parameters
Returns
Description
None
None
System dependent close routine when exiting connect state
SYSINH
Parameters
Returns
Description
escape menu
None
None
Help
routine
to
test
for
during the connect state.
any extensions to the
If a system has any special
feature
it
can
use
during
connect
mode,
then
it can be
tested as
<escape-character>xxx.
printing
This entry is a string for
to
the console for an <escape-character>?
generating breaks or controlling a modem.
Often used for
SYSINT
Parameters
Returns
Description
sequence not
None
None
This is a test-and-jump on receipt of an
understood
by
Kermit-80.
escape
If the character in A is not
recognized by your version of Kermit=80, do a rskip
SYSFLT
Parameters
Returns
Description
con-
Character in E
Character in E. Either a 00H or anything else in A
Test the character in E. If it may not be printed to
sole, set A to zero. All other registers preserved.
NB <XON>,<XOFF>,<DEL>,<NULL> are always rejected.
SYSBYE
the
15.6.2. Jump Table.
Page 391
-----------------------------------------------------------------------------Parameters
None
Returns
None
Description
System dependent processing for the BYE command. (eg
hang up
the phone)
SYSSPD
Parameters
Returns
Description
contains
Value from table in DE
None
The system dependent code for baud rate change.
the
two
byte
value
from the baud rate table.
DE
This
value is
also stored in "SPEED"
SYSPRT
Parameters
Returns
Description
parameters
Value in DE
None
The system dependent code for setting the port.
The
are passed in DE, which are obtained from the port tables
SYSSCR
Parameters
Returns
Description
version
String pointer in DE
None
Setup the screen display for file transfer.
string is pointed to by DE.
capable
The Kermit
If the terminal is not
of
cursor
addressing
(eg dumb glass TTY) then only the
screen is
cleared and the version string is printed.
CSRPOS
Parameters
Returns
Description
top LH
Row number in B, column number in C
None
Move the cursor to row B, column C where
corner
of
screen.
The
routine
B=1,C=1
is
should first end a
"cursor
position" leading string (up to four characters) then
use
the
parameters given to complete the versions cursor position
function
SYSSPC
Parameters
Returns
None
K bytes free in HL
Description
drive.
Get the amount of free disk space on the selected
This
could
be
disk
in the system independent code.
Automatically
detects CP/M V2.2 or V3.0.
MOVER
Parameters
Returns
Description
LDIR,
No registers saved.
Source Pointer in HL
Destination Pointer in DE
Byte count in BC
None
Move (BC) bytes from (HL) to (DE) Z80 based systems do an
while 8080 systems do it as a loop.
destroyed
PRTSTR
Parameters
Returns
Description
$ terminated string pointed to by DE
None
Print the string onto the console.
3)
All registers
15.6.2. Jump Table.
Page 392
-----------------------------------------------------------------------------PTTAB
SPDTAB
table
WORD
Points to VT52 equivalent escape sequences.
WORD
Address
of
baud-rate
command
of
baud-rate
help
table, or 0 if
does not exist
SPDHLP
SET
WORD
Address
table,
or
0
if
BAUD-RATE is not supported.
PRTTAB
is not
WORD
Address of port command table or 0 if SET PORT
supported.
is
PRTHLP
not
WORD
Address of port help table or 0 if SET
PORT
supported
TIMOUT
system
BYTE
FUZZY-TIMER.
Set
to value suitable to your
(depends largely on CPU speed)
VTFLG
emulates a
BYTE
VT52,
VT52 emulation flag.
01
if
Set to 0 if terminal
emulation is required, or 0FFH if
emulations not
possible (eg for "CRT")
ESCCHR
some-
BYTE
default escape character-usually control-] but
times control-\
SPEED
as baud
WORD
Storage
space
for baud-rate.
rates are initially unknown.
Set to 0FFFFH
Note that the STATUS
routine only
looks at the first (least significant) byte.
PORT
ports may
WORD
Storage
space
for port.
Set to 0FFFFH as
not be implemented, and is initially unknown
PRNFLG
else =>
BYTE
Printer copy flag-if O no copy.
copy to printer
Anything
DBGFLG
done.
BYTE
Debugging
flag.
If O then no debugging to be
(ie writing of debugging info during a file transfer)
ECOFLG
FLWFLG
overwrite
BYTE
Local ECHO flag (default is off)
BYTE
File warning flag.
files
already
existing
on
If set to 1
disk
will
not
with some-named files
being
transferred
IBMFLG
transfers etc
BYTE
IBM system is the host-assume IBM file
CPMFLG
transferred.
BYTE
Flag indicating type of CP/M files to be
Default setting - DEFAULT
PARITY
BYTE
Type of parity in use
0 = Even parity
3 = Mark parity
6 = No parity (8th bit is data)
9 = Odd parity
12 = Space parity
15.6.2. Jump Table.
Page 393
-----------------------------------------------------------------------------SPSIZ
BYTE
Size of send packet
RPSIZ
BYTE
Size of receive packet
STIME
BYTE
Send timer (time-out)
RTIME
BYTE
Receive timer (time-out)
SPAD
BYTE
Send Padding (default=0)
RPAD
BYTE
Receive Padding (default=0)
SPADCH
BYTE
Send Padding character (default=NULL)
RPADCH
BYTE
Receive Padding character (default=NULC)
SEOL
BYTE
Send EOL character (default=CR)
REOL
BYTE
Receive EOL character (default=CR)
SQUOTE
BYTE
Send quote character (default=#)
RQUOTE
BYTE
Receive quote character (default=#)
CHKTYP
BYTE
Ascii value of checktype
31H="1"=checktype1 (6bits)
32H="2"=checktype2 (12bits)
33H="3"=CCITT checksum (CRC)
Default is 31H("1")
TACFLG
This
BYTE
If
set to on (non zero) send the TACCHR twice.
is for ARPA TAC users, where
the
TAC
swallows
one
"wakeup"
character.
If sent twice the TAC will pas one on and
go back
to normal mode.
TACCHR
trapping
BYTE
is
Desired TAC character.
turned
It is ignored if TAC
off. Value to send twice if TAC interception
is set
on.
Default=0, but set to commercial AT if the
conditional assembly flag TAC is set true
BUFADR
WORD
Address of Multi-Sector buffering for I/O
BUFSEC
hold.
BYTE
The
number
of
bytes
the
big
buffers
can
Default is 1. (0=256 sectors).
FFUSSY
CP/M
BYTE
file
Indicates if funny characters may
be
used
in
names (eg <>.,;?#[]) If zero, allow anything.
Default is
nonzero.
BMAX
drive
SPACE:(2bytes) Highest block number on selected disk
BMASK
SPACE:(1byte) (Records/block)-1
BSHIFTF
SPACE:(1byte) Number of shifts to multiply by rec.block
15.6.2. Jump Table.
Page 394
-----------------------------------------------------------------------------NNAMS
SPACE:(1byte) Counter for file-names per line
15.7. Future Work
Work that needs to be done in future releases includes:
- Merge in support for additional CP/M-80 systems, particularly
those
for which support was recently added to the monolithic v3.x source.
- Break up CPXSYS into discrete source files, one for each
system.
These source files should serve as simple models for adding
support
for new systems to Kermit-80 -- only the very basic screen
definitions, flags, i/o primitives, initializations, and so forth
should
appear in each system-dependent file.
- Addition of missing features -- compression of repeated
characters
during packet transmission,
transmission
of
file
attributes
(particularly size, so that "percent done" can be displayed for
both
incoming and outbound files), advanced commands for servers
(REMOTE
DIRECTORY, etc), command macros and initialization files,
login
scripts, remote operation and server mode, etc etc. Any offers??
16. CP/M-86 KERMIT
Page 395
-----------------------------------------------------------------------------16. CP/M-86 KERMIT
Authors:
University
Bill Catchings, Columbia University; Ron Blanford,
of
Washington; Richard Garland, Columbia University.
Language:
Digital Research ASM86
Version:
2.9
Date:
December 1984
Documentation:
Frank da Cruz, Columbia
This version of KERMIT is designed to support any CP/M-86 system.
So
far it
supports the DEC Rainbow-100 and the NEC Advanced Personal Computer
(APC). It
is very similar to CP/M-80 and MS DOS KERMIT.
CP/M-86 KERMIT-86 Capabilities At A Glance:
Local operation:
Remote operation:
Transfers text files:
Transfers binary files:
Wildcard send:
^X/^Y interruption:
Filename collision avoidance:
Can time out:
8th-bit prefixing:
Repeat count prefixing:
Alternate block checks:
Terminal emulation:
Communication settings:
Transmit BREAK:
IBM communication:
Transaction logging:
Session logging (raw download):
Raw upload:
Act as server:
Talk to server:
Advanced commands for servers:
Local file management:
Handle file attributes:
Command/init files:
Printer control:
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes, uses PC firmware (VT100)
Yes; duplex, parity
Yes
Yes
No
Yes
No
No
Yes; SEND, GET, FIN, BYE
No
Yes
No
Yes
No
CP/M-86 KERMIT DESCRIPTION
Since Kermit-86 runs on a standalone micro, it is always in control
of the
screen -- it is always local. Thus, it always keeps the screen
updated with
the file name and the packet number, whether sending or receiving.
Kermit-86
is capable of timing out an input request, and can thus break
deadlocks
automatically. In most cases, however, this is not desirable because the
KERMIT on the other side is most likely better able to handle the timeouts;
therefore, Kermit-86's timer is normally not used.
If despite the timeout capability, the transmission appears to be stuck
(and
you can tell that this has happened if the screen fails to change for
a long
16. CP/M-86 KERMIT
Page 396
-----------------------------------------------------------------------------while) you can type carriage return to have the micro do what it would
have
done on a timeout, namely NAK the expected packet to cause to foreign
host to
send it again (or, if the micro is sending, to retransmit the last
packet).
Micro/micro or micro/IBM-mainframe transfers could require this kind of
manual
intervention.
File transfers may be interrupted in several ways.
Control-C
This will return you to Kermit-86 command level
immediately, so
that you can connect back to the remote system, or
take any
other desired action.
Control-X
of the
When sending a file, this will terminate
current
file
the
sending
with a signal to the KERMIT on the other
side to
discard what it got so far.
to
If there
are
more
files
be
sent,
KERMIT-86
will go on to the next one.
When
receiving a
file, KERMIT-86 will send a signal to the remote KERMIT
to stop
sending
this file.
If the remote KERMIT understands
this signal (not all implementations of KERMIT
do),
it
will
comply,
otherwise
the
file
will
keep
coming.
In either
case, the
remote KERMIT will go on to the next file in the group,
if any.
Control-Z
transmitted,
Like Control-X, except if a file group
is
being
this will stop the transmission of the entire group.
If
only a
single
file
is
being
transmitted,
it
works
exactly
like
Control-X.
Carriage Returns
If you type carriage return repeatedly Kermit-86 will
retry the
current
packet
up to its retry limit (somewhere between
5 and
16 times) and then, if no valid response was
received,
return
to Kermit-86 command level.
When KERMIT-86 is started, it looks for the file KERMIT.INI.
it executes KERMIT-86 commands from it before prompting you for
The
KERMIT-86 prompt looks like this:
If found,
commands.
Kermit-86 B3>
in which "B" is your current default disk and "3" is the current
default user
number.
16.1. Kermit-86 Commands
KERMIT-86 uses the DECSYSTEM-20 keyword style command language.
Each
keyword
may be abbreviated to its minumum unique length. "?" may be typed to
request a
menu of the available options for the current field at any point in a
command.
ESC may be typed at any point in a command to fill out the current
keyword or
filename; if sufficient characters have not been typed to identify the
current
field uniquely, KERMIT-86 will sound a beep and allow you to continue
from that
point.
CONNECT Establish a "virtual terminal" connection to any host that may be
connected to the serial port, i.e. pass all typein to the serial
port and
display all input from the serial port on the screen,
using the
16.1. Kermit-86 Commands
Page 397
-----------------------------------------------------------------------------system's own built-in support for ANSI (VT100-like) screen
control.
When you issue the CONNECT command, the PC will print a message
telling
you how to get back by typing an an escape sequence, an
uncommonly-used
control character, normally CTRL-backslash, followed by a single
letter
"command".
C
?
B
Q
R
L
^\
Close Connection, return to Kermit-86> command level.
List available single-character commands.
Send a BREAK signal.
Quit logging the remote session.
Resume logging the remote session.
Toggle logging.
(or whatever - a second copy of the escape character) Send
the escape character itself to the remote host.
SEND filespec
Send file(s) specified by filespec to the remote Kermit,
using the
prevailing file mode (ASCII or BINARY; see SET). The filespec
may contain CP/M wildcards.
RECEIVE Receive file(s) from the remote Kermit. Store them under the
names
provided in the file headers supplied by the remote host. If the
names
aren't legal, use as many legal characters from the name as
possible
(see the description of SET FILE-WARNING below).
If there's a
conflict, and FILE-WARNING is ON, warn the user and try to build a
unique
name for the file by adding "&" characters to the name. You may
also
provide an optional file name in the RECEIVE command; if you
do, the
incoming file will be stored under the name you specify. If more
than
one file arrives, only the first will be stored under the given
name,
unless you included wildcard characters in the RECEIVE
filespec; in
that case, the filespec will be used as a mask for incoming
filenames.
For instance, you told the remote Kermit to send *.ASM, you could
tell
KERMIT-86
to "receive *.A86", thereby changing the filetype of
all the
incoming files.
GET filespec
When Kermit-86 is talking to a Kermit Server on the host, you
should
use the GET command to request the server to send files to you,
for example: get hlp:k*.hlp
BYE
When talking to a remote Kermit Server, this command shuts
down the
server and logs it out, and also exits from Kermit-86 to CP/M
command
level.
LOGOUT
Like BYE, but leaves you at Kermit-86 command level.
FINISH Like LOGOUT, but shuts down the remote server without logging
it out.
Leaves you at Kermit-86 command level; a subsequent CONNECT
command
should put you back at host system command level.
EXIT
Exit from KERMIT-86 back to CP/M.
QUIT
Synonym for EXIT.
SET parameter [value]
Set the specified parameter to the specified value.
settings:
Possible
16.1. Kermit-86 Commands
Page 398
-----------------------------------------------------------------------------BAUD
Change the baud rate of the communications port. This
command
only works on some systems, and its actual operation
can vary
from system to system. Type SET BAUD followed by a
question
mark, and follow the directions. On systems that do
not support this command, you must set the port baud rate from
CP/M or
other setup mechanism outside of KERMIT-86.
DEBUG
ON
or
OFF.
If
ON,
displays incoming and outbound
packets
during file transfer.
OFF by default.
DEFAULT-DISK disk/user
Specify default disk and user number for subsequent file
reception and transmission.
The specification following the
command
must be in one of the following forms:
d:
= go to drive d (A through P) without changing
u:
= go to user u (0 through 15) without changing
user
drive
du: = go to drive d and user u
:
= go to the defaults when Kermit was loaded
Whenever
a
drive
is specified, even if it is the same
as the
current default drive, the drive is logged in so that
disks can
be
swapped
without
exiting Kermit to type control-C.
Kermit
restores the original drive and user upon termination.
ESCAPE
connections.
Change the escape character for virtual
Select
a
character
terminal
in the control range that you will
not be
likely to need at the
remote
host;
literally.
characters,
type
the
new
character
cannot be
specified.
FILE-TYPE
Certain
like
Control-X,
Tells KERMIT-86 what kind of file it is sending, so that
KERMIT
can correctly determine the end of the file.
SET
FILE
BINARY
means
to
send
all the 128-byte blocks of the file,
including
the last block in its entirety; SET FILE ASCII is used
for text
files,
and
transmission stops when the first Control-Z
is encountered anywhere in the file (this is the CP/M
convention for
marking
the
end
of
a text file).
If binary
transmission is
used on a text file, some extraneous characters (up to
127
of
them)
may
appear at the end of the file on the target
system.
If ASCII transmission is used on a binary file, the
entire file
will
not
be sent if it happens to contain any data
bytes that
correspond to Control-Z.
FLOW-CONTROL
Select
ASCII is the default.
the desired type of flow control to be used on
the communication line.
The choices are NONE and XON/XOFF.
XON/XOFF
is
the
default.
If the remote system is not full
duplex or
cannot do XON/XOFF, you should use NONE.
IBM ON (or OFF)
Allow the transfer of files to and from an IBM
mainframe computer. This makes Kermit-86 wait for the IBM
turnaround
character (XON), ignore parity on input, add appropriate
parity
to output, and use local echoing during CONNECT.
As
dis-
16.1. Kermit-86 Commands
Page 399
-----------------------------------------------------------------------------tributed, KERMIT-86 uses MARK parity for IBM
communication. If
you don't give this command, IBM mode is OFF. Since IBM
VM/CMS
KERMIT does not have timeout capability, SET IBM ON also
turns
on the timeout facility automatically, as if you had
typed "SET
TIMER ON".
LOCAL-ECHO ON (or OFF)
When you CONNECT to a remote host, you must set
ECHO
LOCAL-
ON
if
the
host
is
half
duplex,
OFF
if
full duplex.
OFF by
default.
which
LOG
to
Specify a log file on the
record
current
CP/M
disk
incoming characters during CONNECT.
into
If the
remote host
can do XON/XOFF, then the log file will normally capture
every
character
shown
on
the screen.
When connected to the
remote
system, several single-character arguments to the
connect
escape
character
can
be used to control logging -- Q
(quit), R
(resume), L (toggle).
If you use R or L during connect
without
having previously specified a log file name, then
KERMIT.LOG is
used.
An open log is closed when you escape back to the
PC.
PARITY
following:
Sets parity for outgoing characters to one
NONE,
SPACE, MARK, EVEN, or ODD.
of
the
On input, if parity is
NONE,
then the 8th bit is kept (as data), otherwise
it
is
stripped
and
ignored.
The parity setting applies to both
terminal connection and file transfer.
If you set parity to anything
other
than NONE, Kermit-86 will attempt to use "8th bit
prefixing" to
transfer binary files.
capable
If the other KERMIT is also
of
8th
bit
prefixing,
then binary files can be
transferred successfully; if not, the 8th bit of each data byte will
be
lost
(you will see a warning on your screen if this happens).
PORT
Allows
you
to switch between different communication
ports on
the PC.
This command is not available on all systems.
TIMER ON (or OFF)
Enable or
disable
the timeout facility.
The timer is
off by
default, because in the normal case KERMIT-86 is
communicating
with a mainframe KERMIT that has its own timer.
Mainframe KERMIT timers tend to be more precise
or
adaptable
to
changing
conditions.
You should SET TIMER ON if you are
communicating
with another KERMIT that does not have a timer.
You
should SET
TIMER
OFF
if
you
are communicating over a network
with long
delays.
WARNING ON (or OFF)
Warn user of filename conflicts when receiving
files from
remote host, and attempt to generate a unique name by
adding
"&" characters to the given name. OFF by default.
SHOW
Show the current settings of the SET parameters.
TAKE
Take KERMIT-86 commands from the specified file. The file
should not
contain any TAKE commands; nested command files do not work.
LOCAL
This is a prefix for local file
distinguish
management
commands,
to
16.1. Kermit-86 Commands
Page 400
-----------------------------------------------------------------------------them from remote file management commands (which aren't
implemented
yet). The LOCAL prefix is optional; if left off, the commands
will be
performed locally.
SPACE
Show
how
much space is used and remaining on
the current disk.
DIRECTORY
Provide a directory listing for the current disk,
showing
the name and size of each file.
A filespec
may be
given to select only a certain file
or
wildcard
file
group.
DELETE
TYPE
displayed al-
Delete the specified files from the current disk.
A wildcard filespec is accepted and files
phabetically.
The display is
paged
in
Unix
fashion
with "--more--" displayed on the last line.
Typein options at that point can be obtained by hitting a
'?'.
16.2. Installation:
CP/M-86 KERMIT is broken up into several source modules:
C86CMD.A86
C86FIL.A86
C86Xxx.A86
C86KER.A86
C86PRO.A86
C86TRM.A86
C86UTL.A86
Command parser
File handler
System Dependent I/O
Main Program
Protocol Module
Terminal Emulation
Utilities
The main program module, C86KER.A86, contains INCLUDE directives for the
other
files.
The C86Xxx module is stored with "xx" replaced by codes
denoting the
machine for which the program is being built -- RB for Rainbow, AP for
NEC APC,
etc.
The program may be built on the CP/M-86 system by obtaining
all the
source files listed above, storing them on the current disk with the
names indicated, renaming the appropriate C86Xxx.A86 file to be C86XXX.A86,
and then
doing:
ASM86 C86KER $PZ
GENCMD C86KER
(takes about 6 minutes on the Rainbow)
(takes less than a minute)
and, if desired,
REN KERMIT.CMD=C86KER.CMD
16.3. DEC Rainbow 100 Support
Kermit-86 runs on the DEC Rainbow 100 or 100+ under CP/M-86/80, version 1
or 2,
on the 8088 side. It uses the built-in firmware to emulate a VT102
ANSI terminal during CONNECT, and runs well at speeds up to 9600 baud.
You should be able to download the program using the old KERMIT on the
Z80 side
(Rainbow Kermit, VT180 Kermit, or generic CP/M-80 Kermit will do the
job, but
16.3. DEC Rainbow 100 Support
Page 401
-----------------------------------------------------------------------------only under DEC CP/M-86/80 version 1.0), or an earlier version of Kermit86.
If you don't have an earlier version of KERMIT, then follow the
directions for
installing KERMIT-80 (yes, KERMIT-80) in the KERMIT-80 section of the
Kermit
User Guide, but send the Kermit-86 hex file instead. This works
because the
Rainbow can run CP/M-80 programs like DDT.
Another way to get Kermit onto your Rainbow for the first time would be
from a
DEC VT-180 diskette. A VT-180 can use its own Kermit to load Rainbow
Kermit
onto its disk, which can then be read directly by a Rainbow. Also,
note that
VT-180 Kermit-80 can actually run on the Rainbow on the Z80 side
under DEC
CP/M-86/80 version 1 (but not version 2 or higher), at speeds of 1800
baud or
lower.
16.4. NEC Advanced Personal Computer Support
(Contributed by Ron Blanford, University of Washington)
Currently only the standard serial port is supported, and not the H14
auxiliary
port. The SET PORT command is not implemented.
While in Kermit's terminal emulation mode, local commands are
initiated by a
two-character sequence consisting of the "escape character" followed
by one
other character identifying the command. (Make the second character a
'?' to
see a list of the valid commands.) As distributed, the standard Kermit86 uses
the control-backslash character as the escape character in terminal
mode. The
trouble is that the CP/M-86 BIOS in the APC ignores a keyboard
entry of
Control-\ (i.e. holding down the CTRL key while striking the '\' key),
making
it difficult (impossible) to use this method to get out of terminal mode.
One solution is to perform a "SET ESCAPE ^" command before entering
terminal
mode to change the escape character to a caret (or any other character
the APC
keyboard will generate). This command could be placed in your KERMIT.INI
file
for automatic execution every time Kermit is started.
The simpler solution is to realize that the character code for a Control\ is a
hexadecimal 1C, and that this is the code generated by the INS key
on the
numeric keypad. Once you can remember that every reference to Control-\
should
be interpreted as a reference to the INS key, this is actually easier
to use
than the two-key Control-\ sequence.
In the standard CP/M-86 BIOS, the unshifted DEL key generates a
Control-X
character (hexadecimal 18). This is the CP/M command to erase the
current input line, and is very useful for local processing. Most mainframes do
not use
the Control-X character at all, so it becomes much less useful during
terminal
emulation.
The DEL character (hexadecimal 7F), on the other hand, is
often
used by mainframes and can only be generated on the APC by holding
down the
SHIFT key while striking the DEL key (this capability is not mentioned
anywhere
in the documentation).
Because the Control-X character is so seldom used while the DEL
character is
commonly used, the initialization procedure in Kermit-86 modifies the
CP/M-86
BIOS so that the DEL key generates the DEL character whether shifted or
not.
Control-X can still be generated if necessary by holding down the
CTRL key
while striking the 'X' key. The CP/M-86 BIOS is returned to its original
state
16.4. NEC Advanced Personal Computer Support
Page 402
-----------------------------------------------------------------------------when Kermit terminates.
The APC uses escape sequences which have been standardized by the
American National Standards Institute (ANSI) to control cursor movement, screen
erasing,
and character attribute manipulation. Perhaps the best-known other
terminal
which follows ANSI guidelines is the DEC VT100. The APC only recognizes
a few
of the more important ANSI commands, and not the complete set which the
VT100
supports.
The ANSI/VT100 features that the NEC APC supports are:
-
direct cursor addressing (by row and column)
relative cursor addressing (up, down, left, right)
line erasing (cursor to end, beginning to cursor, entire line)
screen erasing (cursor to end, beginning to cursor, entire screen)
character attributes (underline, reverse video, blink, but not bold)
In addition, the first four grey function keys (unshifted) generate the
escape
sequences associated with PF1 through PF4 on the VT100 keyboard. The
arrow
keys and numeric keypad DO NOT generate the corresponding VT100
sequences.
These functions are enough to support simple command line editing on most
systems, and allow mailers or paged file display programs to clear the
screen before each display. Underlining and reverse video are also useful in
some applications.
This is not enough to support the more sophisticated
screen control required by screen editors such as EMACS or KED. In addition, due
to a
bug in the implementation of the CP/M-86 BIOS, the sequence ordinarily
used to
home the cursor (esc [ H) does not work correctly; a patch for CP/M to
correct
this problem is distributed with APC Kermit-86.
I. The ASCII Character Set
Page 403
-----------------------------------------------------------------------------I. The ASCII Character Set
ASCII Code (ANSI X3.4-1968)
There are 128 characters in the ASCII (American national Standard Code
for Information Interchange) "alphabet". The characters are listed in order of
ASCII
value; the columns are labeled as follows:
Bit
ASCII Dec
ASCII Oct
ASCII Hex
EBCDIC Hex
tables.
Char
Remark
Even parity bit for ASCII character.
Decimal (base 10) representation.
Octal (base 8) representation.
Hexadecimal (base 16) representation.
EBCDIC hexadecimal equivalent for Kermit translate
Name or graphical representation of character.
Description of character.
The first group consists of nonprintable 'control' characters:
Bit
0
1
1
0
1
0
0
1
1
0
0
1
0
1
1
0
1
0
0
1
0
1
1
0
0
1
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
000
000
00
00
001
001
01
01
002
002
02
02
003
003
03
03
004
004
04
37
005
005
05
2D
006
006
06
2E
007
007
07
2F
008
010
08
16
009
011
09
05
010
012
0A
25
011
013
0B
0B
012
014
0C
0C
013
015
0D
0D
014
016
0E
0E
015
017
0F
0F
016
020
10
10
017
021
11
11
018
022
12
12
019
023
13
13
020
024
14
3C
021
025
15
3D
022
026
16
32
023
027
17
26
024
030
18
18
025
031
19
19
Char
NUL
SOH
STX
ETX
EOT
ENQ
ACK
BEL
BS
HT
LF
VT
FF
CR
SO
SI
DLE
DC1
DC2
DC3
DC4
NAK
SYN
ETB
CAN
EM
Remarks
^@, Null, Idle
^A, Start of heading
^B, Start of text
^C, End of text
^D, End of transmission
^E, Enquiry
^F, Acknowledge
^G, Bell, beep, or fleep
^H, Backspace
^I, Horizontal tab
^J, Line feed
^K, Vertical tab
^L, Form feed (top of page)
^M, Carriage return
^N, Shift out
^O, Shift in
^P, Data link escape
^Q, Device control 1, XON
^R, Device control 2
^S, Device control 3, XOFF
^T, Device control 4
^U, Negative acknowledge
^V, Synchronous idle
^W, End of transmission block
^X, Cancel
^Y, End of medium
1
0
1
0
0
1
026
027
028
029
030
031
032
033
034
035
036
037
1A
1B
1C
1D
1E
1F
3F
27
1C
1D
1E
1F
SUB
ESC
FS
GS
RS
US
^Z,
^[,
^\,
^],
^^,
^_,
Substitute
Escape, prefix, altmode
File separator
Group separator
Record separator
Unit separator
The last four are usually associated with the control version of
backslash,
right square bracket, uparrow (or circumflex), and underscore,
respectively,
but some terminals do not transmit these control characters.
I. The ASCII Character Set
Page 404
-----------------------------------------------------------------------------The following characters are printable:
First, some punctuation characters.
Bit
1
0
0
1
0
1
1
0
0
1
1
0
1
0
0
1
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
032
040
20
40
033
041
21
5A
034
042
22
7F
035
043
23
7B
036
044
24
5B
037
045
25
6C
038
046
26
50
039
047
27
7D
040
050
28
4D
041
051
29
5D
042
052
2A
5C
043
053
2B
4E
044
054
2C
6B
045
055
2D
60
046
056
2E
4B
047
057
2F
61
Char
SP
!
"
#
$
%
&
'
(
)
*
+
,
.
/
Remarks
Space, blank
Exclamation mark
Doublequote
Number sign, pound sign
Dollar sign
Percent sign
Ampersand
Apostrophe, accent acute
Left parenthesis
Right parenthesis
Asterisk, star
Plus sign
Comma
Dash, hyphen, minus sign
Period, dot
Slash
Char
0
1
2
3
4
5
6
7
8
9
Remarks
Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Numeric characters:
Bit
0
1
1
0
1
0
0
1
1
0
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
048
060
30
F0
049
061
31
F1
050
062
32
F2
051
063
33
F3
052
064
34
F4
053
065
35
F5
054
066
36
F6
055
067
37
F7
056
070
38
F8
057
071
39
F9
More punctuation characters:
Bit
0
1
0
1
1
0
1
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
058
072
3A
7A
059
073
3B
5E
060
074
3C
4C
061
075
3D
7E
062
076
3E
6E
063
077
3F
6F
064
100
40
7C
Char
:
;
<
=
>
?
@
Remarks
Colon
Semicolon
Left angle bracket
Equal sign
Right angle bracket
Question mark
"At" sign
I. The ASCII Character Set
Page 405
-----------------------------------------------------------------------------Upper-case alphabetic characters (letters):
Bit
0
0
1
0
1
1
0
0
1
1
0
1
0
0
1
0
1
1
0
1
0
0
1
1
0
0
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
065
101
41
C1
066
102
42
C2
067
103
43
C3
068
104
44
C4
069
105
45
C5
070
106
46
C6
071
107
47
C7
072
110
48
C8
073
111
49
C9
074
112
4A
D1
075
113
4B
D2
076
114
4C
D3
077
115
4D
D4
078
116
4E
D5
079
117
4F
D6
080
120
50
D7
081
121
51
D8
082
122
52
D9
083
123
53
E2
084
124
54
E3
085
125
55
E4
086
126
56
E5
087
127
57
E6
088
130
58
E7
089
131
59
E8
090
132
5A
E9
Char
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Remarks
More punctuation characters:
Bit
1
0
1
1
0
0
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
091
133
5B
AD
092
134
5C
E0
093
135
5D
BD
094
136
5E
5F
095
137
5F
6D
096
140
60
79
Char
[
\
]
^
_
`
Remarks
Left square bracket
Backslash
Right square bracket
Circumflex, up arrow
Underscore, left arrow
Accent grave
Kermit User Guide
Page 406
-----------------------------------------------------------------------------Lower-case alphabetic characters (letters):
Bit
1
1
0
1
0
0
1
1
0
0
1
0
1
1
0
1
0
0
1
0
1
1
0
0
1
1
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
097
141
61
81
098
142
62
82
099
143
63
83
100
144
64
84
101
145
65
85
102
146
66
86
103
147
67
87
104
150
68
88
105
151
69
89
106
152
6A
91
107
153
6B
92
108
154
6C
93
109
155
6D
94
110
156
6E
95
111
157
6F
96
112
160
70
97
113
161
71
98
114
162
72
99
115
163
73
A2
116
164
74
A3
117
165
75
A4
118
166
76
A5
119
167
77
A6
120
170
78
A7
121
171
79
A8
122
172
7A
A9
Char
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
Remarks
More punctuation characters:
Bit
0
1
0
0
.....ASCII.... EBCDIC
Dec
Oct Hex Hex
123
173
7B
C0
124
174
7C
4F
125
175
7D
D0
126
176
7E
A1
Char
{
|
}
~
Remarks
Left brace (curly bracket)
Vertical bar
Right brace (curly bracket)
Tilde
Finally, one more nonprintable character:
0
127
177
7F
07
DEL
Delete, rubout
Kermit User Guide
cdvii
Page
-----------------------------------------------------------------------------List of Figures
Figure 1-1:
A Kermit Packet
Figure 1-2:
Kermit File Transfer
Figure 4-1:
Local and Remote Kermits
Figure 5-1:
MS-Kermit File Transfer Display Screen
7
8
25
76
Figure
110
Figure
111
Figure
112
Figure
113
Figure
253
Figure
257
Figure
332
Figure
333
Figure
334
Figure
353
Figure
379
5-2:
MS-Kermit Script for Dialing Up and Logging In
5-3:
MS-DOS Batch File Invoking Kermit to Send VAX Mail
5-4:
MS-Kermit Script for Logging into VAX and Sending Mail
5-5:
An Advanced MS-Kermit Initialization File
11-1:
DECSYSTEM-20 Word/Byte Organization
11-2:
DEC-20 Kermit Local Operation
13-1:
VT100 Keypad on an Apple Keyboard
13-2:
VT100 Keypad on an Apple//gs or Equivalent Keypad
13-3:
VT52 Keypad on an Apple Keyboard
14-1:
MacKermit Key Modifier Dialog
15-1:
Bootstrap program for Kermit-80 and CP/M Version 2.2
Kermit User Guide
cdviii
Page
-----------------------------------------------------------------------------List of Tables
Table 5-1:
The US ASCII Character Set (ANSI X3.4-1977)
Table 5-2:
Kermit-MS Single-Character CONNECT Escape Commands
Table 5-3:
Adapters Supported by IBM PC MS-Kermit for Tektronix
Table 5-4:
Emulation
Kermit-MS Verbs for the IBM PC Family
61
72
75
97
Table
114
Table
115
Table
116
Table
131
5-5:
Kermit-MS Terminal Emulation Options
5-6:
Kermit-MS Screen Scroll Keys
5-7:
Kermit-MS Verbs for the DEC Rainbow
5-8:
Response of MS-Kermit Tektronix Emulator to Received
Table
133
Table
135
Table
140
Table
197
Table
301
Table
319
Table
324
Table
325
Table
368
Table
375
Table
376
Table
377
Table
385
5-9:
Characters
Tektronix Dot-Drawing Commands
5-10:
MS-Kermit Tektronix Coordinate Interpretation
5-11:
IBM PC/XT/AT Serial Port Numbers
7-1:
Error messages and codes for Kermit-370
12-1:
Kermit-11 File Types
13-1:
Apple II Communication Cards Supported by Kermit-65
13-2:
Kermit-65 Single-Character CONNECT Escape Commands
13-3:
Apple II/II+ Keyboard Escapes
15-1:
Kermit-80 SET PORT Options
15-2:
Systems supported by Kermit-80 (Part 1)
15-3:
Systems supported by Kermit-80 (Part 2)
15-4:
Terminals supported by Kermit-80
15-5:
Terminals known to Kermit-80
