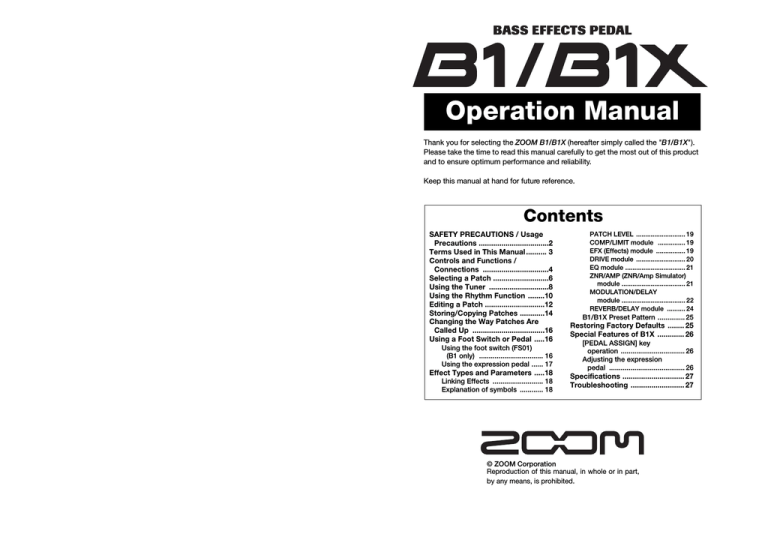

Operation Manual
Thank you for selecting the ZOOM B1/B1X (hereafter simply called the "B1/B1X").
Please take the time to read this manual carefully to get the most out of this product
and to ensure optimum performance and reliability.
Keep this manual at hand for future reference.
Contents
SAFETY PRECAUTIONS / Usage
Precautions ..................................2
Terms Used in This Manual .......... 3
Controls and Functions /
Connections ................................4
Selecting a Patch ...........................6
Using the Tuner .............................8
Using the Rhythm Function ........10
Editing a Patch .............................12
Storing/Copying Patches ............14
Changing the Way Patches Are
Called Up ...................................16
Using a Foot Switch or Pedal .....16
Using the foot switch (FS01)
(B1 only) ................................. 16
Using the expression pedal ...... 17
Effect Types and Parameters .....18
Linking Effects .......................... 18
Explanation of symbols ............ 18
PATCH LEVEL ........................... 19
COMP/LIMIT module ............... 19
EFX (Effects) module ................ 19
DRIVE module ........................... 20
EQ module ................................. 21
ZNR/AMP (ZNR/Amp Simulator)
module ................................... 21
MODULATION/DELAY
module ................................... 22
REVERB/DELAY module .......... 24
B1/B1X Preset Pattern .............. 25
Restoring Factory Defaults ........ 25
Special Features of B1X ............. 26
[PEDAL ASSIGN] key
operation ................................. 26
Adjusting the expression
pedal ....................................... 26
Specifications .............................. 27
Troubleshooting .......................... 27
© ZOOM Corporation
Reproduction of this manual, in whole or in part,
by any means, is prohibited.
Terms Used in This Manual
SAFETY PRECAUTIONS / Usage Precautions
• Excessive dust or sand
• Excessive vibration or shock
SAFETY PRECAUTIONS
IN
Handling
In this manual, symbols are used to highlight warnings and
cautions for you to read so that accidents can be prevented. The
meanings of these symbols are as follows:
Warning
Caution
This symbol indicates explanations about extremely
dangerous matters. If users ignore this symbol and
handle the device the wrong way, serious injury or
death could result.
This symbol indicates explanations about dangerous
matters. If users ignore this symbol and handle the
device the wrong way, bodily injury and damage to
the equipment could result.
• Never place objects filled with liquids, such as vases, on
the B1/B1X since this can cause electric shock.
• Do not place naked flame sources, such as lighted candles,
on the B1/B1X since this can cause fire.
• The B1/B1X is a precision instrument. Do not exert undue
pressure on the keys and other controls. Also take care not
Caution
to drop the unit, and do not subject it to shock or excessive
pressure.
• Take care that no foreign objects (coins or pins etc.) or
liquids can enter the unit.
Warning
Caution
Please observe the following safety tips and precautions to
ensure hazard-free use of the B1/B1X.
Power requirements
Since power consumption of this unit is fairly high, we
Warning
recommend the use of an AC adapter whenever
possible. When powering the unit from batteries, use
only alkaline types.
Connecting cables and input and output
jacks
You should always turn off the power to the B1/B1X
and all other equipment before connecting or
disconnecting any cables. Also make sure to disconnect
all connection cables and the power cord before moving
the B1/B1X.
Alterations
Warning
Never open the case of the B1/B1X or attempt to
modify the product in any way since this can result in
damage to the unit.
[AC adapter operation]
• Be sure to use only an AC adapter which supplies 9 V DC,
300 mA and is equipped with a "center minus" plug
(Zoom AD-0006). The use of an adapter other than the
specified type may damage the unit and pose a safety
hazard.
• Connect the AC adapter only to an AC outlet that supplies
the rated voltage required by the adapter.
• When disconnecting the AC adapter from the AC outlet,
always grasp the adapter itself and do not pull at the cable.
• During lightning or when not using the unit for an
extended period, disconnect the AC adapter from the AC
outlet.
[Battery operation]
• Use four conventional IEC R6 (size AA) batteries
(alkaline).
• The B1/B1X cannot be used for recharging.
• Pay close attention to the labelling of the battery to make
sure you choose the correct type.
• When not using the unit for an extended period, remove
the batteries from the unit.
• If battery leakage has occurred, wipe the battery
compartment and the battery terminals carefully to
remove all remnants of battery fluid.
• While using the unit, the battery compartment cover
should be closed.
Environment
Warning
To prevent the risk of fire, electric shock or
malfunction, avoid using your B1/B1X in environments
where it will be exposed to:
• Extreme temperatures
• Heat sources such as radiators or stoves
• High humidity or moisture
2
Volume
Caution
This section explains some important terms that are used throughout the B1/B1X documentation.
Do not use the B1/B1X at a loud volume for a long time
since this can cause hearing impairment.
Usage Precautions
Electrical interference
For safety considerations, the B1/B1X has been designed to
provide maximum protection against the emission of
electromagnetic radiation from inside the device, and protection
from external interference. However, equipment that is very
susceptible to interference or that emits powerful
electromagnetic waves should not be placed near the B1/B1X,
as the possibility of interference cannot be ruled out entirely.
With any type of digital control device, the B1/B1X included,
electromagnetic interference can cause malfunctioning and can
corrupt or destroy data. Care should be taken to minimize the
risk of damage.
COMP/LIMIT EFX
DRIVE
EQ
ZNR AMP MODULATION/DELAY REVERB/DELAY
■ Effect module
As shown in the illustration above, the B1/B1X can
be thought of as a combination of several single
effects. Each such effect is referred to as an effect
module. In addition to modules such as DRIVE and
MODULATION/DELAY, the B1/B1X also provides
a module for noise reduction and amp simulation
(ZNR/AMP). Parameters such as effect intensity can
be adjusted for each module individually, and
modules can be switched on and off.
■ Effect type
Some effect modules have several different effects
which are referred to as effect types. For example,
the MODULATION/DELAY module comprises
chorus, flanger, and other effect types. Only one of
these can be selected at a time.
■ Effect parameter
All effect modules have various parameters that can
be adjusted. These are called effect parameters.
When thinking of an effect module as a compact
effect, the parameters change the tone and effect
intensity similar to the knobs on the device.
■ Patch
In the B1/B1X, effect module combinations are
stored and called up in units referred to as patches.
A patch comprises information about the on/off
status of each effect module, about the effect type
OUT
used in each module, and about effect parameter
settings. The internal memory of the B1/B1X can
store up to 80 patches.
■ Bank and area
A group of ten patches is called a bank. The
memory of the B1/B1X comprises a total of eight
banks, labelled with letters A to d and numbers 0 to
3. Banks A – d are the user area which allows read/
write. 0 – 3 form the preset area of read-only
patches.
The patches within each
BANK 3
PATCH 0
bank are numbered 0
BANK dPATCH 1
BANK
C0
PATCH
BANK
b 0
through 9. To specify a
PATCH
PATCH
1
BANK
A0
PATCH
PATCH
1
PATCH 9
PATCH
0 1
patch of the B1/B1X, you
PATCH
PATCH 1
PATCH 9
use the format "A1" (patch
PATCH 9
PATCH9
PATCH 9
number 1 from bank A),
"06" (patch number 6 from
bank 0), etc.
■ Mode
The internal status of the B1/B1X is referred to as
the operation mode. In "play mode" you can select
patches and use them for playing your instrument.
In "edit mode" you can modify the effects, and there
is also a "rhythm mode" in which you can make
settings for the rhythm function. The module
selector serves for switching between these three
modes.
Operating the B1/B1X on batteries
1. Turn the B1/B1X over and open the cover
of the battery compartment on the bottom.
B1/B1X bottom view
2. Insert four fresh IEC R6 3. Close the cover of the
(size AA) batteries.
Polarity is opposite for two
banks of two batteries each.
battery compartment.
Push the cover in until the
latch audibly snaps into place.
Cleaning
Use a soft, dry cloth to clean the B1/B1X. If necessary, slightly
moisten the cloth. Do not use abrasive cleanser, wax, or solvents
(such as paint thinner or cleaning alcohol), since these may dull
the finish or damage the surface.
Please keep this manual in a convenient place for
future reference.
ZOOM B1/B1X
Four IEC R6
(size AA)
batteries
Cover
Latch
Press latch to release
and then lift the cover.
ZOOM B1/B1X
Use four IEC R6 (size AA) batteries
When the batteries are getting low, the indication
"bt" appears on the display.
When operating the B1/B1X on batteries, it is advisable
to disconnect the guitar cable plug from the [INPUT]
jack when not using the unit, to conserve battery power.
3
Controls and Functions / Connections
Controls and Functions / Connections
[VALUE] knob
This section describes the names and functions of all parts of the B1 and B1X. Functions that
are special to the B1X are explained on page 26. Please also refer to that section.
This knob allows changing the level of effect parameters
or of the overall patch.
Expression pedal (B1X only)
Top Panel (B1X)
Module selector
Can be used as a volume pedal or as a real-time controller
for effect parameters. (For details, see page 26.)
Switches between play mode, edit mode, and
rhythm mode. In edit mode, the knob selects
the module for operation.
[STORE] key
Serves for storing edited patches in memory.
RHYTHM [R/P] key
In play mode and rhythm mode, this key
serves to start and stop the rhythm pattern.
In edit mode, the key serves to select the
module to control with the pedal.
[PEDAL ASSIGN] key (B1X only)
Serves to select the module to assign to the built-in
expression pedal.
[BANK UP•TAP] key
Display
In play mode, the key switches to the next higher bank. In
other modes, the key lets you manually specify the rhythm
pattern tempo and other parameters related to timing and
cycle.
Shows patch numbers, setting values, and
other information for operating the B1/B1X.
When operating the
B1/B1X on batteries, it
is advisable to
disconnect the bass
cable plug from the
[INPUT] jack when not
using the unit, to
conserve battery power.
Bass
[W]/[Q] foot switches
These switches are used for selecting patches, controlling
the tuner, and other functions.
Rear Panel (B1)
AC adapter
[INPUT] jack
Differences between B1X and B1
B1X special features that differ from B1:
• Equipped with expression pedal as standard feature (→ p. 26)
• [PEDAL ASSIGN] key on top panel allows selection of module to
be controlled with expression pedal (→ p. 26)
• No [CONTROL IN] jack on rear panel; optional foot switch (FS01)
or expression pedal (FP01/FP02) cannot be used.
Serves for connecting the bass When
operating the B1/B1X on batteries,
inserting the bass cable plug into this jack
will turn the unit on.
[DC IN] jack
[OUTPUT/PHONES] jack
This stereo phone jack serves for
connection of the bass amplifier or a
pair of stereo headphones. It is also
possible to use a Y cable and send
the output to a stereo system, to
produce sweeping stereo effects.
4
An AC adapter (ZOOM AD-0006) with a rated output of 9 volts
DC, 300 mA (center minus plug) can be plugged into this jack.
Bass amplifiers
Headphones
[CONTROL IN] jack (B1 only)
FS01
ZOOM B1/B1X
FP01/FP02
ZOOM B1/B1X
Serves for connection of the optional foot switch
(FS01) or expression pedal (FP01/FP02).
5
Selecting a Patch
Selecting a Patch
To try out the various effects of the B1/B1X, we recommend that you simply play your instrument while
switching patches.
Turn power on
When using the B1/B1X on batteries, plug a
shielded cable with mono phone plug into the
[INPUT] jack on the rear panel of the B1/B1X.
Adjust the master level
To adjust the master level in play mode,
you can use the [VALUE] knob.
When using the B1/B1X with the AC
adapter, plug the adapter into the outlet
and plug the cable from the adapter into
the [DC IN] jack on the B1/B1X.
When you turn the [VALUE] knob, the master
level setting is shown for a time on the display.
Turn the bass amplifier on and adjust the
volume to a suitable position.
80
The master level setting range is 0 – 98, 1.0.
It will be reset to 80 when the unit is turned off
and then on again.
Set the B1/B1X to play
mode
NOTE
If the Module selector is set to a position
other than "PLAY", set it to "PLAY".
The currently selected
bank and patch
number are shown on
the display.
HINT
A0
Bank name
Patch number
Immediately after turning the B1/B1X on,
the unit will be in play mode, even if the
Module selector is set to a position other
than "PLAY".
Select a patch
Directly selecting a bank
To switch the patch, press one of the [W]/[Q] foot switches.
Pressing the [W] foot switch calls up the next lower patch, and pressing the [Q] foot
switch calls up the next higher patch.
Repeatedly pressing one foot switch cycles through patches in the order A0 – A9 ... d0 – d9
→ 00 – 09 ... 30 – 39 → A0, or the reverse order.
6
When using headphones, this knob
adjusts the listening volume.
ZOOM B1/B1X
To select the banks A - d, 0 - 3 directly, use the [BANK UP•TAP]
key.
Each push of the key switches to the next higher bank.
NOTE
ZOOM B1/B1X
With the B1, using the foot switch (FS01) to switch banks is also
possible (→ p. 16).
7
Using the Tuner
Using the Tuner
The B1/B1X incorporates an auto-chromatic tuner. To use the tuner function, the built-in effects must be
bypassed (temporarily turned off) or muted (original sound and effect sound turned off).
Adjusting the reference pitch of the tuner
If required, you can fine-adjust the reference pitch of the B1/B1X tuner.
Turn the [VALUE] knob.
When you turn the [VALUE] knob in the
bypass/mute condition, the current reference pitch
is shown for a time on the display. The default
setting is 40 (center A = 440 Hz).
Switch to bypass or mute
Setting the B1/B1X to the bypass state
In play mode or rhythm mode (→ p. 10),
press both [W]/[Q] foot switches
together briefly and release.
40
BP
While the reference pitch is shown, turn
the [VALUE] knob to adjust the value in
the range from 35 - 45 (center A = 435 to
445 Hz).
Setting the B1/B1X to the mute state
In play mode or rhythm mode (→ p. 10),
press both [W]/[Q] foot switches
together and hold for at least 1 second.
NOTE
MT
42
The bypass or mute condition cannot be
activated when the unit is in edit mode.
Shortly after you release the [VALUE] knob, the
display indication will revert to the previous
condition.
Patch change at bypass/mute
When you press both [Q]/[W] foot switches together while
playing your instrument, the sound may change momentarily
just before the bypass/mute condition is activated. This is
because the B1/B1X switches to the next higher or lower
patch when one of the foot switches is pressed slightly
earlier. (When you cancel the bypass/mute condition, the
original patch number will be active again.)
This behavior is not a defect. It is due to the very high speed
at which the B1/B1X responds to patch switching. To
prevent the sound change caused by the above condition,
do not produce sound with your instrument until the
bypass/mute condition is fully established.
NOTE
Return to play mode
Press one of the [W]/[Q] foot switches.
The right side of the display shows
a symbol that indicates by how
much the tuning is off.
Tune your instrument
Play the open string to tune,
and adjust the pitch.
A8
Pitch is high
Pitch is correct Pitch is low
A8
Tune the other strings in the
same way.
The left side of the display shows the
note which is closest to the current pitch.
8
When you turn the B1/B1X off and on
again, the reference pitch setting will be
reset to 40 (center A = 440 Hz).
ZOOM B1/B1X
ZOOM B1/B1X
Indication turns faster the more the pitch is off
9
Using the Rhythm Function
Using the Rhythm Function
The B1/B1X has a built-in rhythm function that plays realistic drum sounds in various patterns. The rhythm
function is available in play mode and in rhythm mode. This section describes how to use the function in
rhythm mode.
Adjust the rhythm volume
25
To adjust the rhythm volume, turn the [VALUE] knob.
When you turn the [VALUE] knob, the current setting (0 – 30) is shown
for a time on the display.
Select rhythm mode
Adjust the tempo
Set the Module selector to the "RHYTHM"
position.
The number of the currently selected
rhythm pattern (01 – 40) appears on the
display.
You cannot switch patches or adjust the
master level.
HINT
The rhythm pattern tempo can be adjusted in the
range of 40 – 250 BPM (beats per minute).
01
To continuously change the rhythm tempo,
hit the [BANK UP•TAP] key once and then
turn the [VALUE] knob while the tempo
value is being shown on the display.
To manually specify the tempo, hit the
[BANK UP•TAP] key at least twice in the
desired interval.
• The rhythm function can also be used in play
mode.
• In play mode, you cannot switch the rhythm
pattern or adjust the rhythm volume and
tempo.
The B1/B1X automatically detects the interval in
which the key is pressed the second and subsequent
times, and sets the tempo accordingly (tap tempo
function).
Start the rhythm function
While the above steps are carried out, the current
tempo value (40 – 250) is shown for a time on the
display. For values in the range from 100 to 199, a
dot is shown in the bottom right corner (after the
second digit). For values of 200 and above, dots
are shown after the first and second digits.
To start the rhythm function, press the
RHYTHM [R/P] key.
NOTE
While the rhythm is playing, the
REVERB/DELAY module effect is disabled.
20 40
Select a rhythm pattern
Dot is shown
Tempo = 120 BPM
The B1/B1X has 40 built-in rhythm patterns. For more
information on pattern contents, see page 25.
HINT
To switch rhythm patterns, press one of the
[W]/[Q] foot switches in rhythm mode.
HINT
10
When you press both [W]/[Q] foot switches in
rhythm mode, the B1/B1X switches to the
bypass/mute condition (→ p. 8). The rhythm
function can also be used in this condition.
Dots are shown
Tempo =240 BPM
With the B1, using the foot switch (FS01)
to manually adjust the tempo is also
possible (→ p. 16). The B1X does not
support use of a foot switch.
Stop the rhythm
To stop the rhythm, press the RHYTHM [R/P] key.
The B1/B1X returns to the previous condition.
ZOOM B1/B1X
ZOOM B1/B1X
11
Editing a Patch
Editing a Patch
Change the setting
The patches of the B1/B1X can be freely edited by changing the effect parameter settings. Try editing the
currently selected patch to create your own sound.
Use the [VALUE] knob to change the effect
type and parameter as shown on the
display.
Select the effect module/
parameter
When the effect type and/or parameter setting has
been changed, a dot (.) appears in the bottom right of
the display. This indicates that a setting has been
changed.
Turn the Module selector to select the
effect module and parameter to edit. The
available settings are listed below.
C2
The EQ module has three parameters, and the DRIVE,
MODULATION/DELAY, and REVERB/DELAY
modules have two parameters each. The Module
selector lets you directly access each of these.
(6) (7)
(5)
(4)
(3)
(2)
(1)
Type = Effect type
(8)
(9)
NOTE
(10)
(11)
(12)
(13)
(14)
12
To switch the currently selected effect
module between on and off, press one of
the [W]/[Q] foot switches.
The indication "oF" appears on the
display. When you press one of the
switches once more, the indication returns
to the previous condition.
Type&Prm or Type&Prm1
Type
Prm, Prm1, or Prm2
Item where the effect type (left
side of display) and parameter
setting value (right side of display)
are adjusted simultaneously.
Item where the effect
type only is selected.
Item where the
parameter setting
value only is adjusted.
C1
Parameter
setting value
Effect type
To terminate the edit mode and return to the play
mode, set the Module selector to the "PLAY" position.
25
Parameter setting value
ZOOM B1/B1X
OF
Terminate the edit mode
NOTE
AG
When you have selected a parameter that
can be set with the tap function (→ p. 18),
you can use the [BANK UP•TAP] key to
specify a time interval or rate by repeatedly
hitting the key.
To switch an effect module
on and off
Prm = Parameter
(1) Patch level (Prm)
(2) COMP/LIMIT module (Type&Prm)
(3) EFX module (Type&Prm)
(4) DRIVE module (Type)
(5) DRIVE module (Prm1)
(6) DRIVE module (Prm2)
(7) – (9) EQ module (Prm)
(10) ZNR/AMP module (Type&Prm)
(11) MODULATION/DELAY module (Type&Prm1)
(12) MODULATION/DELAY module (Prm2)
(13) REVERB/DELAY module (Type&Prm1)
(14) REVERB/DELAY module (Prm2)
Effect type
Dot indicates that setting
has been changed
ZOOM B1/B1X
When you return to play mode and have made any
change to the patch, the dot (.) will be shown in the
bottom right of the display. If you select another patch in
this condition, the changes you have made in edit mode
will be lost unless you store the patch first. To retain the
changes, store the patch as described on page 14.
13
Storing/Copying Patches
Storing/Copying Patches
An edited patch can be stored in a bank of the user area (A – d). It is also possible to store an existing patch
in another location to create a copy.
In play mode or edit mode,
press the [STORE] key.
To cancel the store process
To cancel the store process, operate the [VALUE] knob before
pressing the [STORE] key again in step
.
The bank and patch number are shown on
the display as a flashing indication.
A0
NOTE
Patches of banks in the preset area (0 – 3)
are read-only. No patches can be stored or
copied into these locations. If you press the
[STORE] key while a patch from the preset
area is selected, the patch "A0" (bank A,
patch number 0) will be selected
automatically as default store/copy target.
Press the [STORE] key
once more
When the store/copy process is
completed, the B1/B1X returns to the
previous mode, with the target patch
being selected.
B4
Select the store/copy
target bank
To select the store/copy target bank, use
the [BANK UP•TAP] key.
Specify the store/copy
target patch number
B0
NOTE
14
To specify the store/copy target patch
number, use the [W]/[Q] foot switches.
• Only a bank of the user area (A - d) can be
selected as store/copy target bank.
• During the store/copy process, the foot
switch (FS01) cannot be used to change
banks.
B4
ZOOM B1/B1X
ZOOM B1/B1X
15
Using a Foot Switch or Pedal
Changing the Way Patches Are Called Up
In normal operation, changing a patch in play mode of the B1/B1X will be active immediately. This
means that the sound changes straight away when you make the selection.
In some cases, such as when the new patch is at a memory location not adjacent to the current one, this
method may not be ideal, because the sound will change in various ways as you switch through the
patches. In such a case, you may want to change the patch selection method to "pre-select". In this mode,
you first select the patch to use next, and then perform an additional step to activate the patch.
To change B1/B1X operation to pre-select, perform the following steps.
1.
Turn power to the B1/B1X on while
holding down the [Q] foot switch.
The indication "PrE-SElEct" scrolls on the
display during startup.
2.
In play mode, use the [W]/[Q] foot
switches to specify the patch to use
next.
You can use the [BANK UP•TAP] key or a foot
switch (FS01) connected to the [CONTROL IN]
jack to switch only the bank (The B1X does not
support use of a foot switch.)
The new bank or patch number specified by the
above step flashes on the display. The sound
does not change yet.
3.
When you have specified the patch to
use, press both [W]/[Q] foot
switches together.
The patch change is accepted, the display
changes from flashing to permanently lit, and the
sound changes.
B0
B0
4.
To return the B1/B1X to the normal
patch selection method, simply turn
power off and then on again.
The patch selection method is automatically reset
to conventional operation.
more, the B1 detects the interval and
automatically adjusts the tempo accordingly
(tap tempo function).
Display
● Edit mode
Control target
MP
MODULATION/DELAY
module
RP
REVERB/DELAY module
The foot switch has no effect.
HINT
Using the expression pedal
With the B1, an expression pedal (FP01/FP02)
can be connected to the [CONTROL IN] jack
and used as a volume pedal or for adjusting a
certain parameter of an effect type in real time.
With the B1X, the built-in expression pedal can
be used in the same way. The function of the
expression pedal can be selected and stored
individually for each patch.
1.
To use an expression pedal with the
B1, plug the FP01 or FP02 into the
[CONTROL IN] jack and turn on the
power.
2.
Select the patch in which to use the
expression pedal.
3.
Set the Module selector to a position
other than "PLAY" or "RHYTHM".
The B1/B1X goes into edit mode.
• In the section "Effect Types and Parameters" (page
19 – 24), a pedal symbol indicates which effect
type/parameter is controlled by the pedal.
• When a module has been selected as control
target, but the effect type currently selected for
that module does not have a pedal symbol, the
expression pedal has no effect.
5.
Store the patch as required.
The expression pedal setting is stored for that
patch.
6.
Select this patch in play mode, and
operate the expression pedal.
The respective parameter changes when you
operate the pedal (pushing the pedal down has
the same effect as increasing the value of the
parameter).
In the bypass condition, the expression pedal
always functions as volume pedal, regardless of
the setting made in step 4.
HINT
Using a Foot Switch or Pedal
The B1 is equipped with a [CONTROL IN] jack that allows connection of an optional foot switch or
expression pedal.
This section explains how to use this capability.
Using the foot switch (FS01)
(B1 only)
Simply connect the optional foot switch (FS01)
to the [CONTROL IN] jack of the B1 and turn
the unit on. This allows you to switch banks and
specify the tempo for rhythm patterns with the
foot switch.
16
Depending on the currently selected mode, the
foot switch operates as follows.
● Play mode
Pressing the foot switch selects the next higher
bank.
● Rhythm mode
When you press the foot switch two times or
ZOOM B1/B1X
4.
While holding down the [RHYTHM]
key, use the [VALUE] knob to select
the module to control with the
expression pedal. Available settings
are shown below.
Display
• The expression pedal operates also in edit mode.
• With the B1X, you can also use the [PEDAL
ASSIGN] key on the top panel instead of the
[RHYTHM] key and [VALUE] knob to select the
module to be controlled by the pedal. For details,
see page 26.
Control target
OF
Disabled
VP
Volume
CP
COMP/LIMIT module
WP
EFX module
BP
DRIVE module
ZOOM B1/B1X
17
Effect Types and Parameters
Effect Types and Parameters
■ PATCH LEVEL
PATCH LEVEL (Prm)
illustration below. You can use all effect
modules together or selectively set certain
modules to on or off.
Linking Effects
Determines the overall volume level of the patch.
2
The patches of the B1/B1X consist of eight
serially linked effect modules, as shown in the
1 0 Sets the patch level in the range from 2 – 98, 1.0. A setting of 80 corresponds to unity gain
(input level and output level are equal).
■ COMP/LIMIT module
Effect modules
COMP/LIMIT
EFX
DRIVE
EQ
ZNR
AMP
ZNR
AMP Sim.
MODULATION/DELAY
REVERB/DELAY
Compressor
Auto Wah
AMPEG
Chorus
Delay
Limiter
Resonance Filter
SUPER BASS
Ensemble
Tape Echo
Octave
SWR
Flanger
Analog Delay
Tremolo
ACOUSTIC
Step
Ping Pong Delay
Phaser
BASSMAN
Mono Pitch
Hall
Effect types
This module comprises the effects that control the level dynamics such as compressor and
limiter.
COMP/LIMIT (Type&Prm)
Selects the COMP/LIMIT module effect type and adjusts the effect intensity.
C1
Compressor
C 9 This is a compressor which keeps the level within a certain range by attenuating high-level
signals and boosting low-level signals. Higher setting values result in higher effect sensitivity.
* Manufacturer names and product names mentioned in this listing are trademarks or
registered trademarks of their respective owners. The names are used only to illustrate sonic
characteristics and do not indicate any affiliation with ZOOM CORPORATION.
For some effect modules, you can select an effect type from several possible choices. For example, the
MODULATION/DELAY module comprises Chorus, Flanger, and other effect types. The REVERB/
DELAYmodule comprises Hall, Room, and other effect types from which you can choose one.
L1
Limiter
L 9 This is a limiter that suppresses signal peaks above a certain reference level. The right-digit
value adjusts the limiter reference level.
■ EFX (Effects) module
This module comprises modulation effects such as tremolo and phaser.
EFX (Type&Prm)
Selects the EFX module effect type and adjusts the effect intensity.
Explanation of symbols
● Module selector
The Module selector symbol
shows the position of the knob at
which this module/parameter is
called up.
● Expression pedal
A pedal icon in the listing
indicates a parameter that can be
controlled with the built-in or an
external expression pedal.
● Tap
TAP
A [TAP] icon in the listing
indicates a parameter that can be
set with the [BANK UP•TAP]
key.
A1
Auto Wah
A 9 This effect varies wah in accordance with the input signal intensity. Higher setting values result
in higher effect sensitivity.
F1
Resonance Filter
F 9 This effect varies the frequency band of the resonance filter according to the input signal
intensity. Higher setting values result in higher effect sensitivity.
When the respective module/effect type is
selected in edit mode and the [BANK UP•TAP]
key is pressed repeatedly, the parameter (such as
modulation rate or delay time) will be set
according to the interval in which the key is
pressed.
O1
Octave
O 9 This effect adds a one-octave lower component to the original sound. Higher setting values
increase the level of the effect sound (one-octave lower sound).
T1
Tremolo
T 9 This effect periodically varies the volume. Higher setting values result in faster modulation
rate.
Phaser
P1
P 9 This effect produces sound with a pulsating character. Higher setting values result in faster
modulation rate.
When this item is selected, the parameter in the
module can then be controlled in real time with a
connected expression pedal.
18
R1
Ring Mod (Ring Modulator)
R 9 This effect produces a metallic ringing sound. Higher setting values result in higher modulation
frequency.
ZOOM B1/B1X
ZOOM B1/B1X
19
Effect Types and Parameters
D1
Effect Types and Parameters
Defret
D 9 This effect makes the sound of a fretted bass resemble that of a fretless bass. Higher setting
values result in higher effect sensitivity.
S1
Slow Attack
S 9 This effect reduces the attack rate of each individual note, producing a violin playing style
When MONO SYN effect type is selected
S 1 S 5 Variation
P1
M1
P 5 Allows selection of the oscillator waveform type and tone variation. Available settings are "s"
M 5 (sawtooth), "p" (square), and "m" (PWM = pulse width modulation).
sound. Higher setting values result in slower attack times.
V1
Pedal Vox
MIX (Prm2)
result in higher emphasized frequency.
Sets the DRIVE module parameter 2. This parameter is the same for all effect
types.
V 9 This effect simulates the half-open sound of a vintage Vox wah pedal. Higher setting values
0
■ DRIVE module
Mix
1 0 Sets the mixing balance between the signal before the DRIVE module and the signal after
passing the module. Higher setting values result in more drive sound.
This module includes 13 types of amp/stomp box modeling effects and a bass synthesizer.
For this module, DRIVE (effect type), GAIN (parameter 1), and MIX (parameter 2) can be
adjusted separately.
DRIVE (Type)
* Manufacturer names and product names mentioned in this listing are trademarks or registered
trademarks of their respective owners. The names are used only to illustrate sonic characteristics and
do not indicate any affiliation with ZOOM CORPORATION.
Selects the effect type for the DRIVE module.
AG
SW
BM
TE
SA
OD
AMPEG
Effect modeled on the sound of the
ultimate rock bass amp, the Ampeg SVT.
SWR
Simulation of the SWR SM-900,
famous for its hi-fi sound.
BASSMAN
Effect modeled on the sound of the
Fender Bassman 100.
TRACE ELLIOT
Effect modeled on the sound of the
Trace Elliot AH-500.
SANSAMP
Simulation of the Sansamp Bass Driver
DI, highly popular among bass players.
ODB-3
Simulates the ODB-3 overdrive bass
machine from Boss.
SB
AC
HA
TU
TS
DS
FUZZFACE
FF
Simulation of the Fuzz Face that made
rock history with its zany look and
smashing sound.
■ EQ module
SUPER BASS
Simulation of the Marshall Super Bass
head amp that has made rock history.
This is a 3-band equalizer. For this module, the three items EQ LO, EQ MID, and EQ HI can be
adjusted separately.
ACOUSTIC
EQ LO (Prm)
EQ MID (Prm)
EQ HI (Prm)
Effect modeled on the sound of the
Acoustic 360 with its tight midrange.
Adjusts the LO
band of the EQ
module.
Lo
Adjusts the MID
band of the EQ
module.
Mid
Adjusts the HI
band of the EQ
module.
Hi
HARTKE
Simulation of the Hartke HA3500
famous for its aluminum cone.
TUBE PRE
8
1 8 Adjusts the low
range (70Hz) boost/
cut.
ZOOM original tube preamplifier
sound.
TS9
Simulation of the Tube Screamer used
by many guitarists as a booster.
MXR BASS DI
Simulates the MXR Bass D.I.+
distortion channel.
This is a monophonic bass synthesizer
(for single-note playing) that detects
the pitch of the input signal.
When distortion effect type is selected
Gain
0 30
midrange (450 Hz)
boost/cut.
8
1 8 Adjusts the high
range (3 kHz) boost/
cut.
This module combines two elements. ZNR is a noise reduction circuit developed by ZOOM
which removes noise during play pauses without affecting sound quality. The amp simulator
recreates the sound of speaker cabinets.
ZNR/AMP (Type&Prm)
Selects ZNR sensitivity and amp simulator type at the same time.
0
9
A0
A9
GAIN (Prm1)
Sets the DRIVE module parameter 1. The parameter type depends on the
currently selected effect type.
1 8 Adjusts the
■ ZNR/AMP (ZNR/Amp Simulator) module
MONO SYN
MS
8
ZNR (ZOOM Noise Reduction)
This is the noise reduction function only. Higher setting values result in stronger effect. Set the
value as high as possible without causing the sound to be cut off unnaturally.
AMP&ZNR (Amp Simulator & ZNR)
Combination of ZNR with bass amp cabinet simulator. The right-digit value controls ZNR
sensitivity.
Adjusts the gain (distortion depth).
20
ZOOM B1/B1X
ZOOM B1/B1X
21
Effect Types and Parameters
Effect Types and Parameters
■ MODULATION/DELAY module
Vibrato
This module comprises modulation and delay effects such as chorus, flanger, delay, etc. For
this module, the two items MODULATION/DELAY (effect type & parameter 1) and RATE/TIME
(parameter 2) can be set separately.
MODULATION/DELAY
(Type&Prm1)
C1
Sets the value of parameter 2 for
the MODULATION/DELAY
module.
B1
Rate
1
50
(minimum)
Adjusts the modulation rate.
b1
b2
b3
b4
b5
This is a chorus ensemble with three-
Flanger
Rate TAP
1
50
N1
Adjusts the modulation rate.
Special effect that changes the sound
S 9 in a staircase pattern. Higher rightdigit setting values emphasize the
characteristics of the effect.
Mono Pitch
M1
This is a monophonic pitch shifter (for
M 9 single-note playing) with reduced
flutter. Higher right-digit setting values
increase the level of the effect sound.
HPS (Harmonized Pitch
Shifter)
This is an intelligent pitch shifter that
H1
22
H 9 automatically shifts the pitch of the
original sound along a major scale,
based on a preset key. Higher rightdigit setting values increase the level of
the effect sound.
0 cent
0 cent
0 cent
0 cent
0 cent
Prm2=1.0
Pedal fully depressed
(maximum)
Sets the initial value for the pitch shift
amount (the value that is active when
1 0 the pedal is at rest). The original
sound/effect sound level balance also
changes according to the parameter 1
setting (see Table 1).
Prm2=0
Type&Prm1 Pedal fully raised
+1 octave
+2 octaves
-100 cent
-2 octaves
-∞
(minimum)
b6
b7
b8
b9
By adding a slightly pitch-shifted
harmonic component to the input
N 9 signal, this effect produces a sound
reminiscent of a 12-string guitar.
Higher setting values increase the level
of the effect sound.
D1
Fine
0
1 Shift
2
DT
1
24
C
D
E
F
G
A
B
Sets the pitch shift amount in
1 2 semitones. "dt" results in a detune
effect.
,
,
,
,
,
T1
This effect simulates a tape echo with a
T 9 long delay time of up to 5000 ms. The
right-digit setting values determine the
level of the effect sound and the
feedback amount.
2 5 Allows fine-tuning of pitch shift in 1/
100 semitone units.
Time TAP
This is a long delay with a maximum
D 9 setting of 5000 ms. Higher right-digit
setting values increase the level of the
effect sound and the feedback amount.
Tape Echo
Prm2=1.0
Pedal fully depressed
(maximum)
-1 octave + original sound +1 octave + original sound
-700 cent + original sound +500 cent + original sound
Doubling
Detune + original sound
-∞(0Hz) + original sound +1 octave + original sound
Delay
Step
S1
0
Detune
digit setting values result in higher
effect sound level.
F1
Adjusts the modulation rate.
Pedal Position
This effect allows using the expression
B 9 pedal to change the pitch in real time.
Right-digit setting values select the
pitch change type caused by the
expression pedal (see Table 1).
Prm2=0
Type&Prm1 Pedal fully raised
E 9 dimensional movement. Higher right-
This effect produces a resonating and
F 9 strongly undulating sound. Higher
right-digit setting values emphasize the
characteristics of the effect.
50
[Table1]
Ensemble
E1
1
Pitch Bend
RATE/TIME (Prm2)
Selects the MODULATION/
DELAY module effect type and
controls parameter 1 at the same
time.
Chorus
This effect mixes a variable pitchshifted component to the original
C 9 signal, resulting in full-bodied
resonating sound. Higher right-digit
setting values result in higher effect
sound level.
C1
1
V
Rate TAP
C9
9 This is an automatic vibrato effect.
V
Higher right-digit setting values result
in deeper vibrato.
Sets the delay time. In the 10 - 1000
1
5 0 millisecond range, the adjustment is
performed in 10-ms steps (1 - 99,1.0).
Above 1 second, the adjustment is
performed in 100-ms steps (1.1 - 5.0).
C O Key
DO
F O Specifies the tonic for the scale used
G O for pitch shifting. The "o" symbol
stands for #.
AO
ZOOM B1/B1X
ZOOM B1/B1X
23
Effect Types and Parameters
Restoring Factory Defaults
■ REVERB/DELAY module
This module contains effects that simulate various reverb sounds. For this module, the two
items REVERB/DELAY and DECAY/TIME can be adjusted separately.
REVERB/DELAY
(Type&Prm1)
DECAY/TIME (Prm2)
#
Pattern Name
TimSig
#
TimSig
#
Controls the value of parameter
2.
1
8beat 1
4/4
15
FUNK 1
4/4
29
5per4 2
5/4
2
8beat 2
4/4
16
FUNK 2
4/4
30
LATIN
4/4
Time TAP
3
8beat 3
4/4
17
HIPHOP
4/4
31
BALLAD 1
4/4
4
8shuffle
4/4
18
R'nR
4/4
32
BALLAD 2
3/4
5
16beat 1
4/4
19
POP 1
4/4
33
BLUES 1
4/4
6
16beat 2
4/4
20
POP 2
4/4
34
BLUES 2
3/4
7
16shuffle
4/4
21
POP 3
4/4
35
JAZZ 1
4/4
Tape Echo
8
ROCK
4/4
22
DANCE 1
4/4
36
JAZZ 2
3/4
This effect simulates a tape echo with a
long delay time of up to 3000 ms. The
right-digit setting values determine the
level of the effect sound and the
feedback amount.
9
HARD
4/4
23
DANCE 2
4/4
37
METRO 3
3/4
10
METAL 1
4/4
24
DANCE 3
4/4
38
METRO 4
4/4
11
METAL 2
4/4
25
DANCE 4
4/4
39
METRO 5
5/4
12
THRASH
4/4
26
3per4
3/4
40
METRO
13
PUNK
4/4
27
6per8
3/4
14
DnB
4/4
28
5per4 1
5/4
Selects the REVERB/DELAY
module effect type and controls
parameter 1 at the same time.
Delay
D1
This is a delay with a maximum setting
D 9 of 3000 ms. Higher right-digit setting
1
values increase the level of the effect
sound and the feedback amount.
T1
T9
Sets the delay time. In the 10 - 1000
3 0 millisecond range, the adjustment is
performed in 10-ms steps (1 - 99,1.0).
Above 1 second, the adjustment is
performed in 100-ms steps (1.1 - 3.0).
Analog Delay
A1
B1/B1X Preset Pattern
This effect simulates an analog delay
A 9 with a long delay time of up to 3000
ms. The right-digit setting values
determine the level of the effect sound
and the feedback amount.
Pattern Name
Pattern Name
TimSig
Ping Pong Delay
This is a ping-pong type delay where
P1
Restoring Factory Defaults
P 9 the delay sound alternates between left
and right. The right-digit setting values
determine the level of the effect sound
and the feedback amount.
Hall
H1
This reverb effect simulates the
H 9 acoustics of a concert hall. Higher
right-digit setting values increase the
level of the effect sound.
Decay
1
30
Adjusts the decay duration.
1.
Room
R1
In the factory default condition, the patches of the user area (A0 – d9) of the B1/B1X contain the same
settings as the patches of the preset area (00 – 39). Even after overwriting the user patches, their original
content can be restored in a single operation ("All Initialize" function).
Turn the B1/B1X on while holding
down the [STORE] key.
The indication "AL" appears on the display.
This reverb effect simulates the
R 9 acoustics of a room. Higher right-digit
setting values increase the level of the
effect sound.
Spring
S1
AL
This effect simulates a spring-type
S 9 reverb. Higher right-digit setting
values increase the level of the effect
sound.
24
2.
ZOOM B1/B1X
To carry out the All Initialize function,
press the [STORE] key once more.
ZOOM B1/B1X
All patch settings are returned to the factory
default condition, and the unit switches to play
mode. To cancel All Initialize, press the
RHYTHM [R/P] key instead of the [STORE]
key.
NOTE
When you carry out All Initialize, any newly created
patches that were stored in the user area will be
deleted (overwritten). Perform this operation with care
to prevent losing any patches that you want to keep.
25
Special Features of B1X
Specifications
This section explains features and operating steps that are unique to the B1X.
Effect types
Effect modules
Patch memory
[PEDAL ASSIGN] key operation
Adjusting the expression pedal
The top panel of the B1X has a [PEDAL
ASSIGN] key. Besides the method described on
page 17, the module to be controlled by the pedal
can be selected with this key.
The expression pedal of the B1X can be
readjusted as necessary. If the effect change
seems insufficient when pushing the pedal down,
or if the volume or tone changes excessively
even when the pedal is only lightly pushed,
adjust the pedal as follows.
1. In play mode or edit mode, press the
[PEDAL ASSIGN] key to select the
control target module.
The module currently selected as control target is
indicated by the row of LEDs above the [PEDAL
ASSIGN] key.
1.
Hold down the [PEDAL ASSIGN] key
while turning power to the B1X on.
The indication "dn" appears on the display.
Sampling frequency
A/D converter
D/A converter
Signal processing
Frequency response
Display
Input
Rated input level
Input impedance
Output
Maximum output level
2.
All out
Off
Volume
COMP/LIMIT module
EFX module
DRIVE module
MODULATION/DELAY module
REVERB/DELAY module
Fully raise the expression pedal and
press the [STORE] key.
The indication "UP" appears on the display.
3.
Push the expression pedal fully down
and release it.
Control input
Power requirements
AC adapter
Batteries
Dimensions
Weight
Options
2.
Store the patch as required.
3.
In play mode, select the patch and
operate the expression pedal.
The respective parameter changes in real time.
4.
To toggle the module assigned to the
pedal between on and off, briefly
push the pedal fully down.
When the module is off, the respective LED
above the [PEDAL ASSIGN] key flashes. This
function can also be used in edit mode.
26
Push strongly, so
that pedal touches
here
When foot is lifted,
pedal returns slightly
4.
Press the [STORE] key once more.
The adjustment is complete, and the unit returns
to the play mode. If the indication "Er" is shown,
repeat the procedure from step 2.
ZOOM B1/B1X
46
max. 8 simultaneous modules
User area: 10 patches x 4 banks = 40
Preset area: 10 patches x 4 banks = 40
Total 80 patches
96 kHz
24 bit, 128 times oversampling
24 bit, 128 times oversampling
32 bit
20 Hz – 40 kHz +1.0 dB -4.0 dB (10-kilohm load)
2-digit 7-segment LED
Standard mono phone jack
-20 dBm
470 kilohms
Standard stereo phone jack (doubles as line/headphone jack)
Line +3 dBm
(output load impedance of 10 kilohms or more)
Phones 20 mW + 20 mW (into 32-ohm load)
For FP02/FP01 or FS01 (B1 only)
9 V DC, 300 mA (center minus plug) (ZOOM AD-0006)
B1/B1X Four IEC R6 (size AA) batteries, approx.
12 hours continuous operation (alkaline batteries)
B1
155 mm (D) x 136 mm (W) x 52 mm (H)
B1X
155 mm (D) x 234 mm (W) x 52 mm (H)
B1
350 g (without batteries)
B1X
600 g (without batteries)
Expression pedal FP01/FP02 or Foot switch FS01 (B1 only)
Troubleshooting
● No power
Refer to "Turn power on" on page 6.
● RREVERB/DELAY module effect does
not operate
While a rhythm pattern is playing, the
REVERB/DELAY module effect is not
available. Stop the rhythm pattern first (→ p.
11).
● Patches cannot be switched
Has the method for calling up patches been
changed to "pre-select" (→ p. 16)? Turn
ZOOM B1/B1X
power off and then on again to reset the unit to
normal operation.
● High level of noise
Is ZOOM AC adapter being used? Be sure to
use only an adapter for 9 V DC, 300 mA with
center minus plug (ZOOM AD-0006).
● Battery life is short
Are manganese batteries being used?
Continuous operation time is 12 hours with
alkaline batteries.
27
The FCC regulation warning (for U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ZOOM CORPORATION
ITOHPIA Iwamotocho 2chome Bldg. 2F, 2-11-2, Iwamoto-cho,
Chiyoda-ku, Tokyo 101-0032, Japan
Web Site: http://www.zoom.co.jp
B1/B1X - 5000-1
B1B1XEPL.fm 1 ページ 2006年7月12日 水曜日 午前10時47分
Patch List
VARIATION
ARTIST
MODEL
DEMO
No.
Patch name
Description
Main effect
Pedal setting
BASSMAN
VOLUME
A0
Rock Out
Versatile sound that fits almost any playing style. Modeled on the Fender Bassman 100 that is the realization of
every bassist's dream.
A1
Groovy Ass Funk
Auto Wah lets you get into that seventies Disco groove. Play funky bass lines in the style of the dance band Chic.
Auto Wah
AUTO WAH
SENSE
A2
Punk Trash
This patch gives you bass sound with just the right edge for punk. Sling your bass low and bolster your band's
sound with driving phrases as in "I Wanna Be Sedated" by The Ramones.
TS9
VOLUME
A3
Tapper's Delight
Old-style overdrive sound with many uses. Sometimes even a conservative bass player will want to let loose with
some dramatically distorted solos. That's when this patch comes in handy.
ODB-3
VOLUME
A4
Blow your speaker!!! Mighty octaver sound that will make your speakers wail. You can control the octave mixing ratio with the pedal.
Octave
OCTAVE MIX
A5
ENSEMBLE
This patch produces a wide, transparent bass sound using the Ensemble effect. Try it with moody solos and
arpeggio phrases.
Ensemble
ENSEMBLE MIX
A6
Fretless Maximus
This simulation is great for playing a jazzy walking bass. Turn your instrument into a fretless bass at the flick of a
switch.
Defret
VOLUME
A7
Syn Fifths
Synth bass sound mainly based on MONO SYN, with Resonance Filter and Mono Pitch thrown in for good
measure. Choose it to play lead bass or to get that intense synthesizer sound.
MONO SYN
RESONANCE
FILTER SENSE
A8
SLOW
Slow Attack sound which gives a bow playing effect. The pedal lets you freely adjust the rise time.
Slow Attack
SLOW ATTACK
TIME
A9
Bass + Guitar
This Mono Pitch effect simulates unison playing of electric guitar and bass. Create great unison phrases even
without a guitarist.
Mono Pitch
MONO PITCH
MIX
b0
Big Bassman
Simulates the Fender Bassman 100 made famous by Paul McCartney. Use a Rickenbacker or violin bass and enjoy
that special Beatles sound.
BASSMAN
VOLUME
b1
SansAmp
Simulation of the Sansamp Bass Driver DI, highly popular among bass players. The tight and polished sound is
ideal for recording.
SANSAMP
VOLUME
b2
Buzz Drive
Simulates the Fuzz Face famous for its unique look. The aggressive fuzz sound will give your bass play that extra
bite.
FUZZFACE
PITCH BEND
PEDAL POSITION
b3
HARTKE
Simulation of Hartke HA3500 head amp combined with aluminum-cone cabinet 4.5XL. Note the characteristically
transparent and responsive sound of aluminum.
HARTKE
VOLUME
b4
SVT Saturation
This patch is modeled on the all-tube Ampeg SVT, known as the ultimate rock bass amp. The gutsy sound of tube
saturation creates a solid bottom end.
AMPEG
VOLUME
b5
Dirty Job
Simulation of the MXR Bass D.I.+ distortion channel, great for playing dirty solos. By moving the pedal, you can
control the Delay mix.
MXR BASS DI
DELAY MIX
b6
TUBE
Simulates a high-class tube preamp such as used in recording studios. The fat and creamy sound suits every genre.
TUBE PRE
VOLUME
b7
Drivin' Over
Simulation of the Boss Overdrive ODB-3 for bass guitar. Combination with the Phaser effect results in a brisk and
pleasing drive sound.
ODB-3
PHASER RATE
b8
True Grit
Simulates the combination of the Acoustic 360 head amp and 301 cabinet. Subdued high range and firm midrange
produce an appealing vintage style tone.
ACOUSTIC
VOLUME
b9
SWR
Simulates the SWR sound as produced by the SM-900 head amp together with the Goliath cabinet. Rich low end
and sharp highs are great for slap playing.
SWR
VOLUME
C0
Jaco
The bass sound of Jaco Pastorius with strong chorus. Place your finger on the rear pickup of a Jazz Bass and try out
those cool phrases from "Three Views Of A Secret."
Chorus
ROOM MIX
C1
Tribute
This patch is inspired by the legendary Motown bass player James Jamerson. Every fan of sixties Motown sound
will be thrilled.
AMPEG
VOLUME
C2
Chili Wah
Rock sound with Auto Wah as used by Flea of the Red Hot Chili Peppers. Try some flashy slap play and turn up the
volume.
Auto Wah
AUTO WAH
SENSE
C3
Victor Wooten
Simulates the sound of that ultimate bass virtuoso, Victor Wooten, as heard on his first album "Show of hands."
Select this and explore the boundaries of the bass universe.
Room
ROOM MIX
C4
Billy Sheehan
The distorted bass sound used for solos by Mr.Big bassist Billy Sheehan is programmed into this patch. When not
using the patch for a solo, you can adjust the mixing balance between original sound and distortion with the pedal.
ODB-3
DRIVE BALANCE
C5
Stanley Clarke
Sound in the style of Stanley Clarke who plays electric and acoustic bass with equal finesse. Brush up on your jazz
sense.
TUBE PRE
VOLUME
C6
Will Lee
Simulates the sound of one of New York's top session bass players, Will Lee. The fat tone has a strong fusion
character. Combination with Detune produces an expansive sound with moderate amounts of modulation.
Detune
DETUNE MIX
C7
Tony Levin
Famous for his work with King Crimson, Tony Levin played the kind of tricky inventive phrases that are the
hallmark of progressive rock. This patch produces just the right tone for this kind of play.
Defret
VOLUME
C8
Geezer
Simulates the sound of bassist Geezer Butler as heard on seminal Black Sabbath hits such as "Electric Funeral" and
"N.I.B."
Room
DRIVE BALANCE
C9
Mr. Bruce
Rediscover the sound created by Cream bassist Jack Bruce on "Badge" and "Sunshine of Your Love."
SUPER BASS
VOLUME
d0
Big Bottom Rez
Great patch for playing those pumping Reggae phrases. The tone is also suitable for groovy bass lines using the
Resonance Filter.
Auto Wah
VOLUME
d1
Attack from Mars!
Mysterious, space-like sound using the Step effect. Startle your audience with this effective patch to create a special
moment.
Step
STEP RATE
d2
HEAVY COMP
Clean sound with strong compression. Provides a sharply etched attack but keeps the volume even when playing
slap phrases.
Compressor
VOLUME
d3
Happy disaster
HPS (Harmonized Pitch Shifter) sound. G major scale harmonies bring the bass clearly to the foreground. The
pedal serves to adjust the HPS mix.
HPS
HPS MIX
d4
HornSolo
Unique sound imitating a muted trumpet. Great to grab the listener's attention. Controlling the volume with the
pedal further enhances the realism.
Resonance Filter
VOLUME
d5
Aguabass
Combination of Auto Wah and Delay. Adjust the Delay mix with the pedal and change the ambient feeling while
playing. This adds a twist to slap and finger playing.
Delay
DELAY MIX
d6
Vibe
Vibrato creates a beautiful tone that is well matched to phrases with long held notes.
Vibrato
VOLUME
d7
Phased
Synth bass sound defined by a slight Phaser component. Suitable for lead bass and obtaining intense synth sound
during a live performance.
MONO SYN
PHASER RATE
d8
Dark Octave
Octave sound that can be used for lead solo. Lets you create an earth-shaking bass sound that will hold its own even
against a down-tuned guitar.
Octave
OCTAVE MIX
d9
Dreamscape
Combination of Flanger and Delay results in a dreamy sound that tends to linger on. An excellent choice for
melodious solo phrases and intros.
Flanger
DELAY MIX
• The preset area of banks 0 – 3 contains the same patches as A – d.
• The ZNR value may need to be adjusted depending on the bass guitar
and amplifier.
Manufacturer names and product names mentioned in this patch list are trademarks or registered trademarks of their respective
owners and do not indicate any affiliation with ZOOM CORPORATION. All product and artist names are intended only to
illustrate sonic characteristics that were used as reference in the development of this product.
B1/B1X-PatchList-E-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
