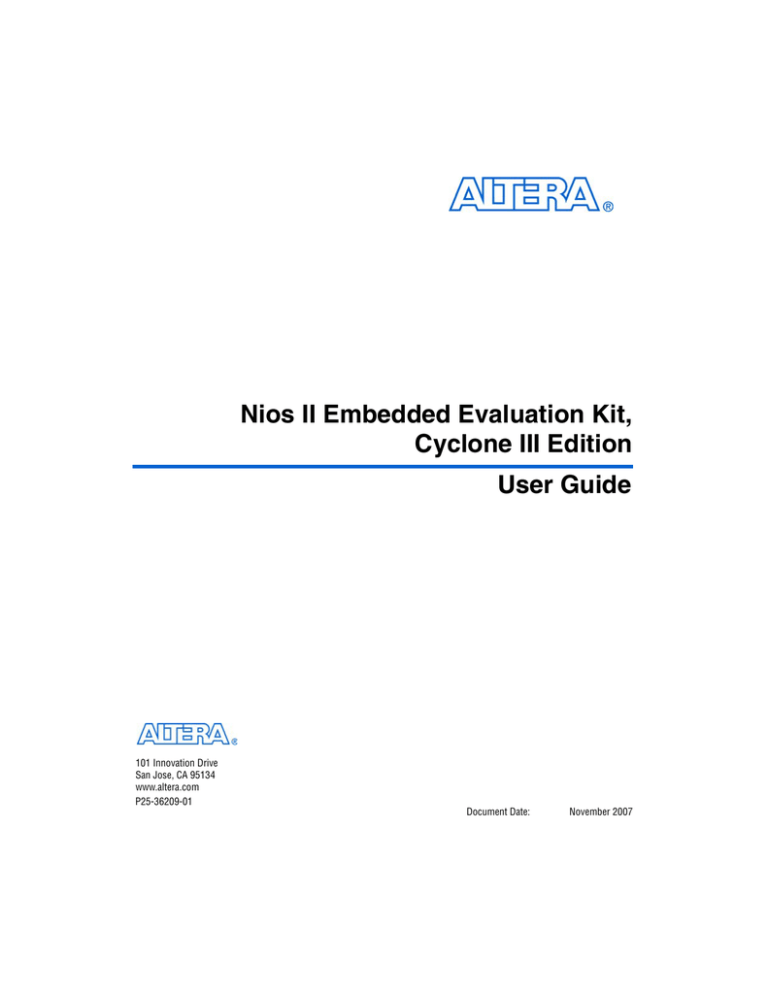

Nios II Embedded Evaluation Kit,

Cyclone III Edition

User Guide

101 Innovation Drive

San Jose, CA 95134 www.altera.com

P25-36209-01

Document Date: November 2007

Copyright © 2007 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera

Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

.

ii

Part Number UG-01025-1.0

Development Board Version 1.0.0

Nios II Embedded Evaluation Kit, Cyclone III Edition User Guide

Altera Corporation

November 2007

Contents

Chapter 1. Getting Started

Introduction ............................................................................................................................................ 1–1

About this User Guide .......................................................................................................................... 1–3

Before You Begin ................................................................................................................................... 1–3

Software Installation ............................................................................................................................. 1–4

Installing the Nios II Embedded Evaluation Kit, Cyclone III Edition CD-ROM .................... 1–4

Installing the Altera Complete Design Suite Software ............................................................... 1–6

Licensing the Quartus II Software ................................................................................................. 1–6

Chapter 2. Development Board Setup

Features ................................................................................................................................................... 2–1

Requirements ......................................................................................................................................... 2–1

Power Up the Development Board ..................................................................................................... 2–2

Chapter 3. Nios II Standard Hardware for the Embedded Evaluation Board

CPU Platform .................................................................................................................................... 3–2

System Functions .............................................................................................................................. 3–3

Memory Interface ............................................................................................................................. 3–4

Communication Interfaces .............................................................................................................. 3–4

Video Pipeline ................................................................................................................................... 3–5

Chapter 4. Application Selector Utility

Overview ................................................................................................................................................. 4–1

Running the Application Selector ....................................................................................................... 4–1

Starting the Utility ............................................................................................................................ 4–1

Viewing Information about an application .................................................................................. 4–2

Loading and Running an application ............................................................................................ 4–2

Chapter 5. Design Examples

About the Design Examples ................................................................................................................. 5–1

Picture Viewer Application .................................................................................................................. 5–1

Picture Viewer .................................................................................................................................. 5–1

Operation ........................................................................................................................................... 5–2

Mandelbrot Application ....................................................................................................................... 5–5

Using the Mandelbrot application ................................................................................................. 5–6

Operation ......................................................................................................................................... 5–10

Web Server Application ...................................................................................................................... 5–11

Operation ......................................................................................................................................... 5–12

About Remote Reconfiguration Over Ethernet ......................................................................... 5–13

Altera Corporation

November 2007 iii

Preliminary

Contents

Appendix A. Video Pipeline Data Flow

Creating a new 5:6:5 Pixel-Format component ................................................................................ A–2

Appendix B. Application Selector Details

SD Card .................................................................................................................................................. B–1

Application Files ................................................................................................................................... B–1

SD Card Directory Structure ............................................................................................................... B–1

CFI Flash ................................................................................................................................................ B–2

Hardware images ............................................................................................................................ B–2

Software Images .............................................................................................................................. B–2

Application Boot Code ................................................................................................................... B–3

Flash Hardware Image Catalog .................................................................................................... B–3

Hardware Image Caching ................................................................................................................... B–4

Flash Hardware Image Catalog .......................................................................................................... B–5

Creating Your Own Loadable Applications ..................................................................................... B–5

Rebuilding the Application Selector .................................................................................................. B–7

Create a BSP ..................................................................................................................................... B–7

Build the project ............................................................................................................................... B–8

Build the boot code ......................................................................................................................... B–8

Modifying the Application Selector ................................................................................................... B–8

Changing the CFI flash map .......................................................................................................... B–8

Appendix C. Re-building the Factory Image

Boot Code ............................................................................................................................................... C–1

Hardware Image Catalog .................................................................................................................... C–1

Application Selector Hardware Image .............................................................................................. C–2

Application Selector Software Image ................................................................................................ C–2

Combining factory recovery image files ........................................................................................... C–3

Appendix D. Frequently Asked Questions

Why do I get the error “Can't find valid feature line for core SD_MMC_SPI_CORE (EC11_0002) in current license; Error: Error (10003): Can't open encrypted VHDL or Verilog HDL file” when

I try to re-generate the Nios II Standard hardware design? ..................................................... D–1

Where can I get the SD-Card Controller IP License? ................................................................. D–1

How do I add pictures so the Picture Viewer Application can find them? ............................ D–2

How do I add my own design so the Application Selector can find and run it? ................... D–2

Where do I go to get more designs for the Nios II Embedded Evaluation Kit? ..................... D–2

How do I open a design example in the Nios II IDE? ................................................................ D–3

How do I restore the factory image? ............................................................................................ D–3

How do I re-build the factory image? .......................................................................................... D–4

Additional Information

Further Information ............................................................................................................................... i–i

iv

Preliminary November 2007

1. Getting Started

Introduction

The Altera

®

Nios II Embedded Evaluation Kit, Cyclone III Edition includes a full-featured field-programmable gate array (FPGA) development board, LCD Multimedia Daughtercard, hardware and software development tools, documentation, and accessories needed to begin embedded and system on a programmable chip (SOPC) designs using FPGAs.

The development board includes an Altera Cyclone III FPGA and comes preconfigured with an FPGA hardware reference design stored in flash memory as well as several sample applications stored on the SD-Card

Flash provided. Hardware designers can use the development board as a platform to prototype complex embedded systems. Software developers can use the hardware reference design plus sample software applications as a starting point for their own applications.

The list of applications is shown in table Table 1–1 below.

Table 1–1. List of Example Applications

Demo

Application Selector

Picture Viewer

Mandelbrot C2H

Web Server

Spinning Cube

Tacquin Game

Watch

Avionics uC-GUI

Photo Frame

SpectraWorks

DAVE 2D Graphics

Altera

Altera

Altera

Altera

Altera

Imagem

Imagem

Imagem

Micrium

PlanetWeb

PlanetWeb

TES

Vendor

Altera Corporation

November 2007

Development Board Version 1.0.

1–1

Preliminary

Nios II is an embedded processor system that can be configured by the user, meaning the actual hardware of the processor is easily customized for a particular application through the SOPC Builder feature of the

Quartus II and SOPC Builder FPGA design software. This microprocessor design process involves four elements:

1.

Specifying functionality of the core processor and memory

2.

Adding peripherals such as memory interfaces, I/O, or interfaces to external devices (such as the LCD Display)

3.

Connecting the I/O pins of the processor in the FPGA to the external devices

4.

Writing C/C++ software application for your custom processor within the NIOS II IDE

In the vast majority of cases, all this hardware design can be accomplished using drop-down menus and drag and drop operations in

SOPC Builder.

The sophistication of the Altera design tools brings many hardware processor designs within the reach of the embedded software engineer.

The detailed construction of the processor is managed by Quartus II and

SOPC Builder. All the embedded designer has to do is to specify functionality and basic connectivity of the processor. They can then concentrate on the software with the knowledge that the microprocessor encapsulates all of the best trade-offs for their particular design.

For simplicity, the Nios II Embedded Evaluation Kit, Cyclone III Edition provides a standard hardware example named the Nios II Standard

System that serves as a starting point for embedded software development. The Nios II Standard System is a pre-generated hardware system that includes

Nios II core (32-bit soft processor)

LCD Controller

Multi-port memory controllers

Communication Interface controllers

Using the pre-generated Nios II Standard System enables embedded developers to focus on application development without having to concern themselves with the details of generating the FPGA hardware system.

1–2 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Getting Started

Before You

Begin

Altera Corporation

November 2007

The Application Selector, Picture Viewer, Mandelbrot, and Web Server examples are provided in source-code on the development kit CD-ROM and described in this document.

About this User

Guide

f

This user guide describes how to start using the Altera

®

Nios

®

II

Embedded Evaluation Kit, including unpacking the kit, installing required software, and running the Application Selector utility and other design examples. This user guide addresses the following topics:

How to set up, power up, and verify correct operation of the Nios II

Embedded Evaluation board

Nios II standard hardware for the Embedded Evaluation board

Where to get and how to install the Altera Development Suite Tools

How to install the Nios II Embedded Evaluation Kit, Cyclone III Edition

CD-ROM

How to start and run the Application selector utility

Design examples

Taking the next step

Frequently asked questions

For a full description of the development boards and their design and use, refer to the Cyclone III FPGA Starter Board Reference manual and LCD

Multimedia Daughtercard Reference Manual.

This document was written to help you quickly get started and provide an overview of some of the applications. In the appendices more detail about key hardware components and the structure of the application selector utility have been presented. However, we opted to provide extensive source-code comments rather than formal documentation regarding the other applications.

1

We are actively interested in knowing if this structure for the documentation is adequate for you to be able to develop your applications. If you have comments or suggestions on what we can do to improve the user experience through our documentation, please contact us through [email protected]

.

To ensure that you have the most up-to-date information on this product, go to the Altera website @

www.altera.com/products/devkits/altera/kit-cyc3-embedded.html

Before proceeding, check the contents of the kit:

Nios II Embedded Evaluation Board

Nios II Embedded Evaluation Kit CD-ROM

Development Board Version 1.0.

1–3

Nios II Embedded Evaluation Kit, Cyclone III Edition

Software Installation

Software

Installation

Altera Complete Design Suite DVD

SD-Card Reader (USB 2.0)

SD-Card Flash

USB Cable

12 V DC power supply with the appropriate cable for your region

The Altera Complete Design Suite DVD contains the Quartus II Tools and

Nios II Embedded Design Suite tools and OpenCore Plus versions of

Altera IP (including the Nios II processor core). The Nios II Embedded

Evaluation Kit, Cyclone III Edition CD ROM contains the documentation and examples that were created (and you can modify) with these tools and IP.

To use the Nios II Embeded Evaluation Kit you will first need to install the following software:

Nios II Embedded Evaluation Kit CD-ROM

Nios II Embedded Development Suite, Altera Complete Design Suite

Installing the Nios II Embedded Evaluation Kit, Cyclone III

Edition CD-ROM

The Nios II Embedded Evaluation Kit CD-ROM contains the following items:

Documentation, including

Quick Start Guide

Hardware and Software Tutorial

Nios II Embedded Evaluation Kit, Cyclone III Edition User Guide

(this document)

LCD Multimedia Daughtercard Reference Manual

Cyclone III FPGA Starter Board Reference Manual

Example Applications

Board Design Files

To install the Nios II Embedded Evaluation Kit CD-ROM, perform the following steps:

1.

Insert the Nios II Embedded Evaluation Kit CD-ROM into the CD-

ROM drive.

1

The CD-ROM should start an auto-install process. If it does not, browse to the CD-ROM drive and double-click on the

setup.exe

file.

1–4 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Getting Started

2.

Follow the online instructions to complete the installation process.

The installation program copies the Nios II Embedded Evaluation

Kit, Cyclone III Edition files to the hard-disk and creates an icon labeled: Programs > Altera > Nios II Embedded Evaluation Kit,

Cyclone III Edition <version #>

, which is accessible from the

Windows Start menu. Use this icon to launch the Windows-style development kit GUI.

The Nios II Embedded Evaluation Kit, Cyclone III Edition installation program creates a directory structure for the installed files ( Figure 1–1 ).

Figure 1–1. Nios II I Embedded Evaluation Kit Installed Directory Structure

Table 1–2 lists the file directory names and a description of their contents.

Table 1–2. Installed Directory Contents

Directory Name

board_design_files

Description of Contents

Contains schematic, layout, assembly, and bill of material board design files.

Altera Corporation

November 2007

Development Board Version 1.0.

1–5

Nios II Embedded Evaluation Kit, Cyclone III Edition

Software Installation

f

Table 1–2. Installed Directory Contents

Directory Name

documents examples factory_recovery

Description of Contents

Contains the Nios II Embedded Evaluation Kit,

Cyclone III Edition documentation, including hardware and software tutorials

.

Contains design examples for the Nios II

Embedded Evaluation Kit, Cyclone III Edition,

Application Selector Utility, and Nios II

Embedded Evaluation Standard hardware system.

Contains image files for the SD-Card and flash that can be used to reprogram the board to the factory default state.

Installing the Altera Complete Design Suite Software

Load the Altera Complete Design Suite DVD into the DVD player, and click on Install free package on the startup screen ( Figure 1–2 ). Follow the on-screen instructions and accept all defaults. After installing the software, request and install a license to enable it.

1

During installation of the Quartus II software, choose to install the MegaCore IP Library when presented the option and follow the on-screen instructions.

For information on obtaining a license file, refer to

“ “Licensing the

Quartus II Software” on page 1–6 .

1

If you have difficulty installing the Quartus II software, refer to

Installing the Quartus II Software in the Quartus II Installation &

Licensing Manual for PCs found at

www.altera.com

.

The Quartus II software is the primary FPGA development tool used to create the reference designs used in this development kit.

The Nios II Embedded Design Suite is the set of tools used to compile, debug, and run the software that runs on the Nios processor in the provided example designs.

Licensing the Quartus II Software

Before using the Quartus II software, you must request a license file from the Altera website at www.altera.com/licensing and install it on your

PC.When you request a license file, Altera e-mails you a license.dat file that enables the software. To obtain a license, perform the following steps:

1–6 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Getting Started

1.

Go to the Altera website at www.altera.com/licensing .

2.

Click Quartus II Web Edition Software.

Figure 1–2. Installing the Altera Complete Design Suite Software

3.

Follow the on-line instructions to request your license. A license file is e-mailed to you. Save this file on your computer.

4.

Run the Quartus II software.

5.

Choose License Setup (Tools menu).

6.

Under License File, indicate the location and license file name you received and saved onto your computer in step 3.

Altera Corporation

November 2007

Development Board Version 1.0.

1–7

Nios II Embedded Evaluation Kit, Cyclone III Edition

2. Development Board Setup

Features

Requirements

Altera Corporation

November 2007

The Nios II Embedded Evaluation Kit features:

Cyclone III Starter Board

Cyclone III EP3C25F324 FPGA

Configuration

• Embedded USB-Blaster™ circuitry (includes an Altera

EPM3128A CPLD) allowing download of FPGA configuration files via the users USB port

Power and analog devices from Linear Technology

Memory

• 256-Mbit DDR SDRAM

• 1-Mbyte Synchronous SRAM

• 16-Mbytes Intel P30/P33 flash

Clocking

• 50-MHz on-board oscillator

Switches and indicators

• Six push buttons total, 4 user controlled

• Four user-controlled LEDs

LCD Daughtercard

LCD Touch-screen Display

• 800 X 480 pixel size

10-bit VGA DAC

Video Decoder

24-bit Audio Codec

RS232 transceiver

SD Flash

10/100 Mbps Ethernet Controller (PHY)

Connectors

• VGA Output

• Composite Video in

• Serial connector (RS-232 DB9 port)

• PS/2

• Ethernet Connector (RJ 45)

• SD Card Socket

If not already installed, you should:

Install the Altera

®

Complete Design Suite software on the host computer

Install the Nios II Embedded Evaluation Kit CD ROM

Development Board Version 1.0.

2–1

Preliminary

Power Up the

Development

Board

Development Board Setup

1

Install the USB-Blaster

driver software on the host computer. The

Cyclone III FPGA starter development board includes integrated

USB-Blaster circuitry for FPGA programming.

The USB Blaster driver software is provided with the Quartus II software installation

.

Communication between the host computer and the development board requires that the USB-

Blaster driver software be set up.

To power up the development board, perform the following steps:

1.

Ensure that the red on/off switch (SW1)

- on the back-side of the development board is in the OFF position (up).

2.

Connect the USB-Blaster cable from the host computer to the USB-

Blaster port on the development board.

3.

Connect the 12 V DC adapter to the development board and to a power source.

c

Only use the supplied 12 V power supply. Power regulation circuitry on the board could be damaged by supplies greater than 12 V.

4.

Press the Power Switch (SW1).

5.

A Welcome screen displays as shown in Figure 2–1 .

Altera Corporation

November 2007

Development Board Version 1.0.

2–2

Nios II Embedded Evaluation Kit, Cyclone III Edition

Power Up the Development Board

Figure 2–1. Development Board Setup - Welcome Screen

2–3 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

3. Nios II Standard Hardware for the Embedded Evaluation

Board

The board in the Nios II Embedded Evaluation kit is comprised of the components shown in the

Figure 3–1

below.

Figure 3–1. Block Diagram of Nios II Embedded Evaluation Kit, Cyclone III Edition

t t t o r r r n n e c

C o

H

S

M

C

Altera Corporation

November 2007

If you examine your Nios II Embedded Evaluation Kit, Cyclone III

Edition, you will find that it is comprised of 2 boards, the Cyclone III

FPGA Starter Board and the LCD Multimedia Daughtercard. On the

Cyclone III FPGA Starter board resides the Cyclone III 3c25 FPGA which configures from flash with the Nios II Standard Hardware system on startup.

1

The HSMC Connector shown in Figure 3–1

is actually a flex extension cable with HSMC connectors on each end going between the two boards. This detail was removed for simplicity.

On the LCD Multimedia Daughtercard resides a MAX II CPLD whose function is to relay data and control signals to the various peripheral

devices as shown in the Figure 3–1

. The MAX II CPLD performs voltage translation and de-multiplexing of video pipeline signals to the LCD

Development Board Version 1.0.

3–1

Preliminary

Touch panel. The video pipeline signals have been multiplexed inside the

FPGA and de-multiplexed by the MAX II CPLD to provide a full range of functionality on the daughter card over a limited number of pins on the

HSMC connector. (see the LCD Multimedia Daughtercard Reference Manual for details)

Within the FPGA is the Nios II Standard System. It is a pre-generated

Nios II processor based hardware system that can be used as a starting point for embedded application development. The components in this embedded microprocessor system are shown in

Figure 3–2 .

Figure 3–2. Nios II Embedded Evaluation Standard Hardware System Block Diagram

CPU Platform

The CPU platform for the Nios II Standard System consists of

Nios II/f cpu core

JTAG Debug Port

3–2 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Nios II Standard Hardware for the Embedded Evaluation Board

32KB Instruction Cache

32KB Data Cache

System Functions

PLL

The PLL accepts the global input clock source from the 50MHz on-board oscillator and generates the following clocks

100 MHz CPU Clock

100 MHz SSRAM Clock

66.5 MHz DDR SDRAM Clock

60 MHz Peripheral Clock (“slow peripherals”)

40 MHz Remote System Update Clock

System Clock Timer

General purpose system timer.

Performance Counter

Counter used for debug and system performance analysis.

System ID

Used to sync the hardware system generation with the software generation tools.

Remote System Update Block

Used for automatic configuration at boot-time from the on-board active parallel flash. The Nios II processor writes reset address of the hardware system stored in flash for reconfiguration

LED PIO

Output only control block for LED1-LED4

Pushbutton PIO

Input only control block for the on-board pushbuttons.

Altera Corporation

November 2007

Development Board Version 1.0.

3–3

Nios II Embedded Evaluation Kit, Cyclone III Edition

f

PIO for ID EEPROM (I2C)

Used to communicate with the EEPROM ID chip which stores information about the board including the touch panel calibration data and Ethernet MAC address

1

The I2C interface is implemented using software and general purpose I/Os connected to the Nios II Standard System.

Memory Interface

There are four different types of on-board memory or storage devices.

The memory controllers for three of these devices are provided as part of

Altera’s IP Suite. These include

1

SSRAM Controller

DDR SDRAM Controller

CFI Flash Controller

SD Card

The controller, API, and FAT File System for the SD-Card used in the Nios II Standard System is provided under license agreement by El Camino (http://www.elcamino.de

)

For technical details on the components in standard hardware system refer to

Quartus II Handbook Volume 5: Embedded Peripherals.

Communication Interfaces

There are several communication interfaces included in the Nios II

Standard System:

JTAG UART

Used for Serial communication and debugging Nios II applications via the on-board USB-Blaster circuitry.

UART

Serial communication link for general purpose communications and debug.

SPI

Used to communicate with the touch panel portion of the LCD

Touchscreen.

3–4 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Nios II Standard Hardware for the Embedded Evaluation Board

f

10/100 Ethernet Controller

The Ethernet controller uses the Triple-speed Ethernet MAC to communicate with the PHY on the LCD Multimedia Daughtercard.

Video Pipeline

The video pipeline outputs the appropriate pixel data and sync signals to the LCD Touch Panel. It provides high bandwidth memory access that allows for flicker free display on the color LCD.

1

A more detailed description of the data flow for the video pipeline can be found in

Appendix A .

The video pipeline is comprised of:

PIO for LCD I2C controller

The I2C pins are used to configure the LCD panel for brightness and set the gamma correction curves.

SPI touch panel controller

Used to communicate with the touch panel ADCs.

Pixel Converter

Logic block that converts parallel 32-bit R-G-B-0 data to an 8-bit data stream. This is required because of the pin-limitation placed on the system by the HSMC connector. The video data-stream is multiplexed in the FPGA on the Cyclone III Starter Board and de-multiplexed in the

MAX II device on the LCD Multimedia Daughtercard.

Sync Generator

Generates the horizontal and vertical sync signals for each frame displayed on the LCD touch screen.

For more information on the video pipeline (pixel converter and Video

Sync Generator) and GPIO components refer to

Quartus II Handbook

Chapter 5 Embedded Peripherals

.

Altera Corporation

November 2007

Development Board Version 1.0.

3–5

Nios II Embedded Evaluation Kit, Cyclone III Edition

4. Application Selector Utility

Overview

Running the

Application

Selector

Altera Corporation

November 2007

The Nios II Embedded Evaluation Kit, Cyclone III Edition application selector is the default utility which allows users to quickly select, load, and run different applications using the LCD touch panel. Applications are stored using a FAT file system on an SD Card and retrieved at loadtime. An application consists of a hardware and a software image, both of which are loaded and run by the application selector.

1

The FAT File System used on the SD-Card is licensed by El

Camino. www.elcamino.de

In addition to the pre-packaged applications which come with the Nios II

Embedded Evaluation Kit, Cyclone III Edition, more applications are available from Altera or through third party vendors. Also, you can easily convert your own applications to be loadable by the application selector.

This section describes the general operation of the Application Selector utility.

Starting the Utility

To start the application selector, connect power to the Nios II Embedded

Evaluation Kit board, Cyclone III Edition, and switch on the power

(SW1). If the board is already powered, reset the board by pressing the button labeled RECONFIGURE.

1

You may have to press the RECONFIGURE button twice to properly reset the board.

The application selector will boot from flash, and a splash screen will appear while the application selector searches for applications on the SD

Card. Then the main menu will appear and a list of loadable applications

will be displayed (see Figures 4–1

).

1

If the application selector does not start when power is applied or when the board is reset, see the FAQ

“How do I restore the factory image?”

.

When the main menu appears, you will see a scrollable list of applications. These are the applications which were found on the SD Card and are now available to load. You can highlight any of the applications

Development Board Version 1.0.

4–1

Preliminary

Application Selector Utility

by touching them. If there are more than five applications on the SD Card, you can scroll through the list by touching the scroll-up and scroll-down buttons on the right hand side of the screen.

Viewing Information about an application

To get more information about a particular application, highlight the application by touching it then touch the button labeled Show Info. If there is additional information available for the application you highlighted, a scrollable text window will appear. To return to the main menu, touch the button labeled OK.

Loading and Running an application

When you’ve selected the application you want to load, touch the button labeled Load. The application will begin loading, and a small window will be displayed showing the progress. Loading will take between 2 and

30 seconds, depending on the size of the application, and whether it was previously cached in on-board flash memory.

Figure 4–1. View of the Application Selector User Interface

Altera Corporation

November 2007

For more detailed information about the Application Selector Utility, see

Appendix B: Application Selector Details .

4–2

Nios II Embedded Evaluation Kit, Cyclone III Edition

5. Design Examples

About the

Design

Examples

The Nios II Embedded Evaluation kit comes with several applications that showcase the versatility of the Nios II processor in various applications such as imaging, graphics, networking etc.

To aid in the learning process of software developers, three design examples have been provided in source code form in the examples directory in the Nios II Embedded Evaluation Kit CD. These design examples are:

Picture Viewer

Mandelbrot

Web Server

For each of these applications a basic overview and discussion of operation is given. However much more detailed information can be found in the source-code which is loaded when the Nios II Embedded

Evaluation Kit CD ROM is installed.

The Nios II Embedded Evaluation kit also contains more applications provided from third party vendors to showcase available graphics libraries and middleware that have been ported to the Nios II processor, but these design are shipped in binary form not as source code.

Picture Viewer

Application

Picture Viewer

The picture viewer application is built for the standard hardware system to show-case video display via the LCD touch panel.

The picture viewer application takes JPEG images or bitmaps stored on the SD Card and displays them on the LCD Touch Panel. The Nios II CPU decodes the images and stores the pixels in a video buffer in DDR. A

Scatter-Gather DMA is used to transfer pixel data from the video buffer to the video pipeline.

1

You can customize the picture viewer application's image selection by adding your own images in to the folder on the SD-

Card entitled images.

Altera Corporation

November 2007

Development Board Version 1.0.

5–1

Preliminary

Design Examples

Operation

The Picture Viewer application displays a new picture on the LCD screen after a settable delay (1,2,3,4,5,10,15,20 seconds). If decoding the image takes longer than this delay time, then the image is displayed as soon as it has been decoded. The image is scaled to optimally fit the LCD screen.

The operation of Picture Viewer application is explained below:

1.

Power on the board by pressing the switch SW1. You will see the

Application Selector

menu on the LCD Touch Screen Display. See

Figure 5–1

.

Figure 5–1. Application Selector Menu

Altera Corporation

November 2007

2.

Select the Pic Viewer option by touching it in the application selector menu.

3.

Touch the Load button located on the bottom left corner of the

Touch Screen to load the Pic Viewer application. You will see the progress bar on the screen. See

Figure 5–2 .

5–2

Nios II Embedded Evaluation Kit, Cyclone III Edition

Picture Viewer Application

Figure 5–2. Loading the Picture Viewer Application

4.

After loading the Pic Viewer application you will see the a slide show of pictures stored on the SD card. Figures 5–4 . shows the first image stored on the SD card. The miniature view on the bottom right corner shows the next image of the slide show.

Figure 5–3. Running the Picture Viewer Application - Displaying First Image

5.

The next image will be displayed after the delay period. See

Figure 5–4 .

5–3 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Figure 5–4. Running the Picture Viewer Application

Design Examples

Altera Corporation

November 2007

You can control the slide show as explained below:

To display the next image before the delay time is finished, touch the Forward panel.

button located at the right center of the touch

● located at the left center of the touch panel.

To play or stop the slide, touch the Play button.

/Stop

On the top center of touch panel you will see the Delay-period

(in Sec.). You can increase or decrease the delay period by touching the Plus buttons respectively.

The maximum delay period you can set is 20 seconds. The minimum is 1 second. The default delay period is 5 seconds.

5–4

Nios II Embedded Evaluation Kit, Cyclone III Edition

Mandelbrot Application

Mandelbrot

Application

You can hide the control buttons by clicking on the Hide button located at the top left corner of the touch screen. To show the control buttons again touch anywhere on the LCD Touch panel.

On the bottom right corner, you will see the miniature view of the next picture being decoded in the background.

6.

The slide show continues until you tap the Stop button.

7.

To return to the Application Selector menu press the Reconfigure push-button switch on Cyclone III Starter Board.

The Mandelbrot Set is a mathematical set of complex numbers that form a fractal. The Mandelbrot set is generated from a surprisingly simple formula involving only multiplication and addition to produce a shape of great organic beauty and infinite subtle variation. Though the

Mandelbrot set is intriguing in itself, the Mandelbrot C2H Demo on the

Nios II Embedded Evaluation kit showcases a powerful solution to a common engineering problem: increasing the performance of a system bound by processing through put.

1

This example design shows a greater than 100x improvement in performance between software only and software with hardware accelerators! The C to Hardware tool was used to take working software code and automatically generate the hardware accelerators that provide this performance improvement.

There are two processes at play here:

1.

The calculation of the Mandelbrot Set to generate pixel data

2.

The rendering of the pixel data on the LCD screen

Traditional processors will perform these functions purely in software. Options available to increase throughput once the processor and clock frequency are selected are extremely limited.

The unfortunate trade-off of porting the entire application to a faster more expensive processor with a higher clock frequency (and hence power consumption) is unacceptable for cost and power sensitive applications.

5–5 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Design Examples

The Nios II Embedded Evaluation kit, features not a traditional processor but a Nios II-based FPGA and using automated hardware acceleration. The Nios II C to Hardware (C2H) Acceleration

Compiler, takes standard ANSI C code, in this case the Mandelbrot algorithm and automatically generates hardware accelerators.

In the hardware accelerated version of the design the Nios II processor handles common video functions such as the rendering the image, panning, zooming etc. The hardware accelerator concentrates on generating the pixels by computing the Mandelbrot function all in time for the next frame.

You can use the design to observe the differences between a general purpose processor executing software and a group of hardware accelerators performing the same functionality. When comparing the software-only version with the software plus hardware accelerators you should expect to see a 250 times speed improvement between the software and hardware in the image rendering.

Using the Mandelbrot application

The Mandelbrot application utilizes the LCD and touchscreen for all user interactions. When the application starts you will be prompted with a blue welcome screen that you must touch to continue.The operation of

Mandelbrot application is explained below:

1.

Power on the board by pressing the switch SW1. You will see the

Application Selector

menu on the LCD Touch Screen Display.

2.

Select Manelbrot Application by touching it in the application selector menu.

3.

Touch the button marked Load. TheLCD Touch panel display begins loading the Manelbrot application as shown in Figure 5–5 .

Altera Corporation

November 2007

5–6

Nios II Embedded Evaluation Kit, Cyclone III Edition

Mandelbrot Application

Figure 5–5. Loading the Mandelbrot Application

4.

After complete loading of application, you will see a welcome

screen

as shown in Figure 5–6 .

Figure 5–6. Welcome Screen of Mandelbrot Application

5–7 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Design Examples

5.

When you tap the touchscreen, the hardware accelrated version of the Mandelbrot application will begin running, changing coordinates and zooming in and out of the complex space with default mode settings. See Figure 5–7

Figure 5–7. Running the Mandelbrot Application

1

The default mode used in the design uses hardware acceleration.

6.

To change modes, color palettes, or pause the design simply tap the touch panel to bring up the menu.

7.

The menu will offer you the choice of using hardware or software rendering. To select software rendering press the Software button followed by the Continue button. See Figure 5–8 .

1

It is important to note that software rendering can be very slow so you may have to wait a long time for a single frame to be displayed.

Altera Corporation

November 2007

5–8

Nios II Embedded Evaluation Kit, Cyclone III Edition

Mandelbrot Application

Figure 5–8. Mandelbrot Application Menu

8.

To change the color palette used in the final image simply press the

Color

button followed by the Continue button. See Figure 5–8 .

1

While the menu is being displayed, all rendering will be paused as well. If you opened the menu and wish to continue without changing any settings press the Continue button.

Whether the design is rendering data using hardware or software, benchmark data is being collected and displayed to the screen.

When hardware rendering is selected the benchmark data is updated every 5 frames.

When software rendering is selected the benchmark data is updated every frame.

The benchmark data is displayed in the bottom right of the screen and it represents the instantaneous frames per second being rendered and displayed.

Consider the implications of what you have observed: What one would traditionally do with an expensive, power hungry GHz processor was just accomplished on an inexpensive Cyclone III FPGA, running at 100

MHz. Such is the power of hardware acceleration using FPGAs.

5–9 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Altera Corporation

November 2007

Design Examples

Operation

The design performs panning and zooming on the complex plane which gives a video like effect. Every time a new frame is rendered, a new set of coordinates must be calculated. These coordinates contain a center point, zoom factor, and maximum number of iterations. Knowing the center point and zoom factor the top left point of the screen is then determine and passed to the Mandelbrot algorithm. The maximum number of iterations is used to determine how much effort is spent per pixel before it is determined that the point is included in the Mandelbrot set (these points appear as black pixels). The pixel calculation is based on the following software segment: inline int int_mandelbrot(long long cr, long long ci, int max_iter)

{

long long xsqr=0, ysqr=0, x=0, y=0;

int iter=0;

// go ahead and shift these up to the new decimal offset

ci = ci<<28;

cr = cr<<28;

while( ((xsqr + ysqr) < 0x0400000000000000LL) &&

(iter < max_iter) )

{

xsqr = x * x;

ysqr = y * y;

y = ((2 * x * y) + ci) >> 28;

x = (xsqr - ysqr + cr) >> 28;

iter++; return(iter);

}

The implementation is fixed point with all values pre-scaled by

0x10000000. The loop will continue until the number of iterations reaches

‘max_iter’ or x

2

+ y

2 converges to the value of 4. This function is called for each pixel so for this design that would be 384000 times since the screen resolution is 800x480. The value of ‘iter’ is used as the index into the color palette which picks the color of the pixel displayed on the screen. Even though the main processor supports dynamic branch prediction and contains cache memory, this operation of filling the screen can be very time consuming.

The approach taken for the C2H accelerated version is to offload this algorithm to pipelined and parallel hardware. Each Mandelbrot engine contains dedicated multiply, addition, and subtraction logic to perform multiple operations in parallel. Each Mandelbrot accelerator operates on a quarter of the frame and is only called once per frame. The workload is

5–10

Nios II Embedded Evaluation Kit, Cyclone III Edition

Web Server Application

distributed on a pixel basis so each accelerator handles every fourth pixel and a Frame Stuffer accelerator is responsible for reassembling the pixels together to form a frame.

Figure 5–9. Mandelbrot Engine Pixel Interleaving

Web Server

Application

While the hardware accelerators are calculating a frame, the coordinates of the next frame are prepared by the main i.e. the Nios II processor. The hardware accelerators contain a C pragma that instructs the compiler to implement non-blocking accelerators which allows both the main processor and Mandelbrot hardware accelerators to operate in parallel.

The main processor polls the Frame Stuffer accelerator to determine if the entire frame has been rendered.

The web server application is built for the standard hardware system to show-case web applications running on Nios II and specifically highlighting remote reconfiguration over Ethernet.

This design example shows an HTTP server using the sockets interface of the NicheStack TCP/IP Stack, Nios

®

II Edition running on MicroC/OS-II real time operating system.

The server can process basic requests to serve HTML, JPEG, and GIF files from the Altera

®

read-only zip file system. Additionally, it demonstrates control of various board elements from the web page.

5–11 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Design Examples

Operation

A Web Server serving webpages from a FAT file system residing on the

SD card on the Nios II Embedded Evaluation Kit Development Board.

REQUIREMENTS

This example runs on the standard and web_server hardware designs provided with the kit. The NEEK development board is required.

PERIPHERALS USED

This example exercises the following peripherals:

Triple speed Ethernet MAC (named lan91c111 in SOPC Builder)

STDOUT device (UART or JTAG UART)

NEEK LCD display (optional, provides additional information.)

BOARD/HOST REQUIREMENTS

This example requires an Ethernet cable connected to the development board's RJ-45 jack, and a JTAG connection with the development board. If the host communication settings are changed from JTAG UART (default) to use a conventional UART, a serial cable between board DB-9 connector and the host is required.

Operating Instructions

1.

Using an Ethernet cable connect the Ethernet RJ-45 jack on the

LCD Multimedia Daughtercard to the internet.

2.

Using the application selector, scroll to select and load the Altera

Web Server

.

3.

Please wait while the web server application establishes a connection to the internet and acquires an IP Address via DHCP. On completion a welcome screen appears with the acquired IP Address as shown below:

Altera Corporation

November 2007

5–12

Nios II Embedded Evaluation Kit, Cyclone III Edition

Web Server Application

Figure 5–10. Welcome Screen

4.

Open an explorer window and type: http://<ip address>/ where ip address is the address shown in the command shell on the

LCD Screen.

5.

The web page you will see is called index.html. This page is being served up by the web server application from the webserver_html directory on the SD Card.

6.

On the upper left hand side click on the link under “Please read the

instructions”

.

Follow the instruction on index.html to update and remotely configure your Nios II Embedded Evaluation kit with a new design.

About Remote Reconfiguration Over Ethernet

Imagine you are working at your desk on a new FPGA design and your system is physically elsewhere (such as in the lab). Your FPGA design is now ready and both hardware and software needs to be updated in your

5–13 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Altera Corporation

November 2007

Design Examples

remote system. Having remote reconfiguration capability you can now update your system with the new FPGA image over an Ethernet connection. The implications of this are obvious; hardware and software updates can be made to any system, not just in your lab but in the field, a customer site or in the manufacturing facility as long as there is a persistent Ethernet connection!

Basic remote configuration features are included with this web server.

The methodology chosen uses HTTP forms (HTML standard) to upload the hardware or software images and then a series of additional web pages to control the flow for programming flash and (optionally) resetting the system. Both the web content and the server side processing are provided to make this feature possible.

The basic steps are:

1.

Fill out the upload form.

Select the image you'd like to upload

This is usually a .flash file produced (and tested) using the flash programmer.

1

The .flash file format is an SREC file with addressing offset from the base address of your flash device. For this application, the ext_flash device is used.

2.

Upload your selected image.

This could take a while, depending on the size of your image.

On completion, a new page will load giving you a new form for programming the flash.

3.

Program the Flash

Click the button in the form located on the Remote

Configuration section of this page and the flash will start programming.

Again, this could take a while, depending on the size of your image.

Upon completion, you'll see a reset system option in the Remote

Configuration section.

4.

Reset the System

If this is the only image you need to update, then reset your system to see if it functions.

5–14

Nios II Embedded Evaluation Kit, Cyclone III Edition

Web Server Application

If you need to update more images (hardware or software) click the main hyperlink (takes you back to the main/index page) and repeat steps 1-3 as necessary.

Additional Information

If DHCP is available, the application will attempt to obtain an IP address from a DHCP server. Otherwise, a static IP address (defined in web_server.h) will be assigned after a time-out. This is an example HTTP server using NicheStack on MicroC/OS-II. The server can process basic requests to serve HTML, JPEG, and GIF files from the Altera FAT file system on an SD card. It is in no way a complete implementation of a fullfeatured HTTP server. This example uses the sockets interface.

1

A good introduction to sockets programming is the book Unix

Network Programming by Richard Stevens. Additionally, the text "Sockets in C", by Donahoo & Calvert, is a concise and inexpensive text for getting started with sockets programming.

The HTTP server looks for content contained in the webserver_html directory at the top level of the SD card. Though default content is provided, the server will read any valid files that are placed into this directory.

5–15 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Appendix A. Video Pipeline

Data Flow

Altera Corporation

November 2007

The video display subsystem embodied in the Nios II Embedded

Evaluation Kit designs was intentionally-designed to be modular & flexible to make customization a snap. The design style used for the video pipeline highlights the use of several simple “microcores” which can be configured or customized for other video applications.

The video subsystem consists of these operational components, in roughly-logical order:

1

A frame-buffer (which happens to reside in DDR memory)

A memory-to-stream DMA controller, which reads memory 64 bits at a time and produces a stream of 64-bit data values.

A width (data format adapter) to break the 64-bit stream into sequential 32-bit (pixel) values.

A FIFO

A Pixel Format Converter

Another Data Format Adapter, to produce a stream of 8-bit values.

A sync-generator (which you could think of as an LCD-display PHY)

If you actually look at the design, there are several other Avalon

Streaming components in this flow. These have been omitted from this discussion for clarity because they are not operational.

They are just timing-adapters which allow the operational pieces to fit together properly.

Starting from the end of the chain: The sync-generator just takes a stream of 8-bit-wide data values on its streaming input. Three consecutive 8-bit values make a single color pixel (R, G, B, R, G, B…) An start of packet

(SOP)-pulse marks the start of each frame. The sync-generator drives external pins so that the pixel-stream appears on the display.

The DMA controller fetches pixel-data from the in-memory frame-buffer and drives it in row-major (raster) order on its streaming output-port and, through the video-subsystem pipeline, to the sync-generator termination.

The system has a FIFO because all systems like this always have FIFOs.

It’s there to “take up the slack” and keep the display fed even when the

DDR memory is unavailable (due to contention, refresh, etc.).

Development Board Version 1.0.

A–1

Preliminary

Creating a new 5:6:5 Pixel-Format component

The Pixel Format Converter subsystem assumes that the frame-buffer is storing 32-bit pixel values in (0:R:G:B) (8:8:8:8) format. The sync-generator, however, accepts 24-bit values. So the Pixel Format

Converter

takes-in a stream of 32-bit (0:R:G:B) pixels and produces a stream of 24-bit (R:G:B) values. This is done by throwing-away the unused 8 bits.

Once the Pixel Format Converter has produced a stream of 24-bit (8:8:8)

(R:G:B) values, the data format adapter serializes the data into a stream of

8-bit (R, then G, then B) values. This is the input to the sync generator block which produces the horizontal and vertical timing signals.

1

The video pipeline used in the Nios II Standard System is just one implementation for video systems. FPGAs give you the power of flexibility to change this with just a few lines of code.

For example, the next section describes what is necessary to support a 5:6:5 pixel format.

Creating a new

5:6:5 Pixel-

Format component

The Nios II Standard System is designed to use a 32-bit 0:R:G:B data format. Suppose you wanted to change the entire display subsystem to work with 16-bit 5:6:5 pixels instead of 32-bit 0:R:G:B pixels. This can be accomplished with a few simple steps:

1.

Copy the Nios II Standard System into your own project directory.

2.

Create a new Verilog module called pixel_converter_565 starting from the Verilog in altera_avalon_pixel_converter.v, modify this

Verilog so it has a 16-bit data_in port and a 24-bit data_out port. All the other ports remain the same. You create the data_out value by inserting 8 new bits (3xR, 2xG, and 3xB) at the right points in the 16bit word to “pad” it to a 24-bit word. You can use either zero- or

LSB-padding.

3.

Import your Verilog module into SOPC Builder using the

Component Editor.

4.

From an Nios II Standard System, replace the existing Pixel Format

Converter

with your new pixel_converter_565 component.

5.

Edit the data-format-adapter named lcd_64_to_32_bits_dfa.

Change its (Output Interface Parameters)/(Data Symbols Per Beat) from 4 to 2.

This changes its width-adaptation from 64

.32 to 64.16.

Rename it to lcd_64_to_16_bits_dfa.

6.

Regenerate your system.

A–2 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Your software application is now responsible for filling the frame-buffer with aligned 16-bit 5:6:5 pixel data; and the firmware which controls the

DMA must be modified to understand the different memory-buffer size implications of 16-bit (instead of 32-bit) pixels.

Altera Corporation

November 2007

A–3

Nios II Embedded Evaluation Kit, Cyclone III Edition

Appendix B. Application

Selector Details

SD Card

This section describes some details about the operation of the Application

Selector.

The Application Selector uses the SD Card for storing applications and data used by these applications (such as the pictures used by the picture viewer or the HTML pages used by the Web Server application). The SD

Card must be formatted with the FAT 16 file system, and can be any capacity up to 2GB. Long file names are supported.

Application Files

Each loadable application consists of two flash files, and an optional text file, all stored on an SD Card.

The first flash file represents the software portion of the example and must be derived from an .ELF file as described in the section of this

document titled “Creating Your Own Loadable Applications”

. This flash file can be named anything supported by the FAT16 file system, the only restriction being that the name must end with _sw.flash.

The second flash file represents the hardware portion of the example and must be derived from a .SOF file as described in the section of this

document titled “Creating Your Own Loadable Applications” . This file

can be named anything supported by the FAT 16 file system, the only restriction being that the name must end with _hw.flash

The optional "info.txt" file contains additional information about the application. In the application selector utility, touching the “Show Info” button while your application is highlighted, brings up a window showing the text contained in this file. The name of this text file must be

info.txt, or the application selector will not recognize it.

SD Card

Directory

Structure

Altera Corporation

November 2007

All loadable applications on the SD Card must be located in a top-level directory named Altera_EEK_Applications. Under the

Altera_EEK_Applications directory, each application is located in its own subdirectory. The name of that subdirectory is important because the application selector utility uses that name as the title of the application when displaying it in the main menu. The name of the subdirectory is the title that will be displayed for your application in the menu. The subdirectory names can be anything so long as they adhere to the FAT file system long file name rules. Spaces are permitted.

Development Board Version 1.0.

B–1

Below is an example of how applications are organized on the SD Card.

Figure B–1. SD Card Directory Structure

CFI Flash

Altera Corporation

November 2007

The Application Selector uses the on-board CFI flash to store several

different things. Table B–1

shows a map of how the different sections of flash are used by the Application Selector.

Hardware images

CFI flash is used to store both the hardware image of the Application

Selector itself, as well as up to 10 hardware images of applications which are being loaded.

The Application Selector hardware image is permanently stored in flash at offset 0x20000

Hardware images for the applications being loaded get written to flash at load time to an offset between 0x580000 and 0xD00000, depending on caching. Hardware image caching is described in more detail in the section titled

“Hardware Image Caching”

Software Images

CFI flash is used to store the software images of both the Application

Selector utility itself as well as software images of applications being loaded. All software images used by the application selector contain a boot copier which is pre-pended by the elf2flash utility during file conversion process described in the

“Creating Your Own Loadable

Applications”

section. The boot copier copies the software code to program memory before running it.

B–2

Nios II Embedded Evaluation Kit, Cyclone III Edition

CFI Flash

The Application Selector software image is permanently stored in flash at offset 0x100000

Software images for the applications being loaded get written to flash at load time to offset 0x180000. Software images must be smaller than 4MB, or they will overwrite the application HW images located at offset

0x580000.

Application Boot Code

All applications which are loaded by the application selector must contain a Nios II CPU whose reset address is set to CFI flash at offset 0x0.

For this reason, a generic bit of boot code is permanently programmed at offset 0x0 in the CFI Flash as part of the factory recovery image. This boot code is very small and only performs the following functions

Flushes the Nios II instruction cache

Flushes the Nios II instruction pipeline

Branches to offset 0x180000

Offset 0x180000 is where the application software image is located after being loaded by the Application Selector, so when the FPGA is reconfigured, the Nios II CPU executes this boot code, which branches to the boot copier of the actual application software image, which then copies the application to program memory, then runs the application.

1

The Application Selector relies on a feature of the Cyclone III family of FPGAs called remote update. The remote update feature allows the Nios II CPU, to force the FPGA to reconfigure from a specific location in a parallel flash memory, such as the on-board CFI flash. The way the Application Selector is able to reconfigure itself with a new hardware image is by using Nios II to read the hardware image from the SD Card, program it to some location in CFI flash, then force the FPGA to reconfigure from that location using the remote update feature.

Flash Hardware Image Catalog

The CFI flash holds up to 10 of the most recently loaded application hardware images to speed the load times of applications which are loaded often. To keep track of which hardware images are currently

B–3 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

stored in flash, a flash image catalog is kept in CFI flash at offset 0x8000.

The implementation details of this catalog are described in the Hardware

Image Caching section below.

Table B–1. Memory Map of CFI Flash

Flash

0x000000 - 0x007FFF 32K

0x008000 - 0x00FFFF 32K

0x010000 - 0x01FFFF 64K

0x020000 - 0x0FFFFF 896K

0x100000 - 0x17FFFF 512K

0x180000 - 0x57FFFF 4M

0x580000 - 0xCFFFFF 7.5M

0xD00000 - 0xFFFFFF 3M

Size Flash Contents

Application Boot Code

HW Image Catalog

Unused

Selector HW Image

Selector SW Image

Application SW

Application HW Images

Unused

Hardware Image

Caching

Copying data from the SD Card to flash is slow due to both the read speed from the SD Card in SPI mode and the write speed of the CFI flash

.

However the remote update feature allows us to reconfigure the FPGA from anywhere in flash, so we can benefit by persistently holding

(caching) a certain number of frequently used application hardware images in flash to avoid having to copy them from the SD Card every time the application is loaded.

The Application Selector utility can cache up to 10 application hardware images in CFI flash. When the user chooses an application to load from the SD Card using the Application Selector, the Application Selector first scans through its catalog of hardware images currently stored in CFI flash to see if any of them match the hardware image being requested. If one of the images cached in CFI flash does match, the Application Selector reconfigures from the offset of that cached hardware image instead of copying the image from SD Card to flash. This significantly reduces the load time.

Caching the hardware images requires the application selector to be able to quickly tell if an image in CFI flash is the same as one on the SD Card.

To determine whether a hardware image in flash matches a hardware image on the SD Card, a 32-bit timestamp value is used as a tag. During the file conversion process, the sof2flash utility inserts a 32-bit timestamp in the hardware image .flash file as an S0-type record on the first line of the file. When the Application Selector is about to load a hardware image,

Altera Corporation

November 2007

B–4

Nios II Embedded Evaluation Kit, Cyclone III Edition

Flash Hardware Image Catalog

it inspects the .flash file on the SD Card. If the .flash file contains an S0 record on its first line which contains a 32-bit ASCII-encoded number, it is considered to be a valid timestamp tag.

The Application Selector then scans the flash catalog for entries which contain a matching timestamp. If a matching timestamp value is found, then it means the desired hardware image is already stored in flash, and can be used to directly reconfigure the FPGA without first copying it from the SD-Card into the flash. For details on the flash catalog, refer to the section below titled

“Flash Hardware Image Catalog”

.

Flash Hardware

Image Catalog

The flash hardware image catalog is a simple database which keeps track of what application hardware images are currently stored (cached) in flash. The flash catalog is located in sector 1 of the flash at offset 0x8000, and is 0x8000 (32K) bytes long.

The catalog mechanism uses a scheme referred to as "Zero = Spent, 'F' =

Available", or ZSFA. This scheme avoids erasing entire flash sectors when only a few words need to be written to the flash. Using ZSFA, a word in the flash which is 0x0 is considered "spent" and cannot be used to store data. A word which is 0xFFFFFFFF is "available" since it is in its erased state. Every other value is considered a valid entry in the catalog.

The way ZSFA works is that whenever a catalog entry needs to be read, the sector is scanned from its lowest address until the first 0xFFFFFFFF value is encountered. Every non-zero value encountered along the way is a valid catalog entry. When a catalog entry needs to be written, the sector is scanned until the first 0xFFFFFFFF value is found, and the new catalog entry is written to that offset. To erase a catalog entry, you scan for it in the sector, then write 0x0 to it to mark it as "spent". The sector(s) containing the ZSFA catalog only need to be erased once enough data has been stored there that there are no more “available” entry spots available.

Each flash catalog entry consists of two sequential 32-bit words. The first word is the 32-bit timestamp value of a hardware image which is currently in flash. The second word is the 32-bit flash offset of the image itself. Entries are always created and erased as whole units, two 32-bit words at a time.

Creating Your

Own Loadable

Applications

It is easy to convert your own Nios II design into an application which is loadable by the Application Selector utility. All you need is a hardware image (a Cyclone III 3C25 .SOF file) and a software image which runs on that hardware (a Nios II .ELF file).

The only restrictions are:

B–5 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Altera Corporation

November 2007

1.

The .SOF file must contain a CFI flash component.

2.

The .SOF file must contain a Nios II CPU whose reset address is set to CFI Flash at offset 0x00000000.

3.

The size of the software image must be no larger than 4MB.

1

If you require a software image larger than 4MB, refer to the

section of this document titled “Modifying the Application

Selector”

Once you have your working .SOF and .ELF file pair, perform the following steps to convert them to a loadable application selectorcompatible application.

1.

Copy both the .SOF and .ELF files into a common directory of your choosing. This directory is where you will convert the files.

2.

Copy the script: examples/application_selector/application_utilities/ flash_file_conversion_script to the directory where you copied your .SOF and .ELF files.

Optionally, copy it to a directory in the Nios II Command Shell search path i.e. <nios2 install>/bin

3.

Open a Nios II Command Shell and change to the directory where you copied the .SOF and .ELF files.

4.

Convert the .ELF and .SOF files by running the script:

./eek.sh <elf file>.elf <sof file>.sof

1

The eek.sh script runs the Nios II Command Line utilities sof2flash and elf2flash to convert the .SOF and .ELF files to application selector-compatible .FLASH files.

Feel free to open eek.sh in a text editor to see the exact commands which are run.

5.

You will now see two new files in the directory, <elf file>_sw.flash, and <sof file>_hw.flash. These are the application files you will put on the SD Card

6.

Now create a file named info.txt in the same directory.

B–6

Nios II Embedded Evaluation Kit, Cyclone III Edition

Rebuilding the Application Selector

1

This is the file which will be displayed in the Application

Selector when the Show Info button is pressed for your application.

Fill info.txt with some descriptive text about your application’s operation.

7.

Create a new subdirectory and name it what you would like the title of your application to be shown as in the application selector.

8.

Copy both .flash files and info.txt into the new directory.

9.

Using an SD Card reader, copy the directory onto an SD Card into a directory named “Altera_EEK_Applications”. The directory structure on the SD Card should look like this:

Altera_EEK_Applications

<Name of Application>

<elf name>_sw.flash

<sof_name>_hw.flash

info.txt

10. Place the SD Card in the Nios II Embedded Evaluation Kit, Cyclone

III Edition board, and switch on the power. The Application

Selector will start up, and you will now see your application appear as one of the selections

Rebuilding the

Application

Selector

This section describes how to rebuild the Application Selector utility from source code using the Nios II Software Build Tools. If you are new to developing software on the Nios II processor it is recommended that you first go through the tutorial My First Nios II Software Tutorial. This will walk you through compiling a simple project that runs on the Nios.

Create a BSP

The first thing that’s needed to build the software project is a board support package (BSP). To create a BSP perform these steps:

1.

Open a Nios II Command Shell.

2.

Change to the directory: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/software_examples/ bsp/hal_application_selector

B–7 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Modifying the

Application

Selector

3.

Run the command ./create_this_bsp.

Build the project

The next step is to build the Application Selector project. To build the project, perform these steps:

1.

In the Nios II Command Shell, change to the directory: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/software_examples/ app/application_selector

2.

Run the command make all.

1

For more information regarding BSPs and the Nios II

Software Build Tools, see Chapter 3 of the Nios II Software

Developer’s Handbook

http://www.altera.com/literature/hb/nios2/n2sw_nii52014.pdf

Build the boot code

To rebuild the boot code which runs when an application is loaded and run from the Application Selector, perform these steps:

1.

Open a Nios II Command Shell.

2.

Change to the directory: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/ application_utilities/app_selector_boot_code

3.

Run the command make.

This section discusses the parts of the Application Selector you can modify in order to tailor the utility to your needs

Changing the CFI flash map

If your application needs to use the CFI flash in a particular manner which is not compatible with the Application Selector’s default flash layout, you can modify the way some things are mapped in flash fairly easily.

Altera Corporation

November 2007

B–8

Nios II Embedded Evaluation Kit, Cyclone III Edition

Modifying the Application Selector

General Guidelines

If you choose to modify the flash map, take great care in ensuring that you leave enough space in each block for the data you intend to store there.

Otherwise, you may overlap sections and the Application Selector utility may overwrite important data and cause a failure.

Also, it is a good idea to completely erase the flash before altering the flash map. This will prevent stale, unused data from accidentally causing errors in the Application Selector Utility.

Application Selector Hardware Image

One of the flash layout restrictions with the Application Selector is that the Application Selector hardware image itself must reside at byte offset

0x20000 in flash. It cannot be changed. This is because the Cyclone III

FPGA always performs its first configuration after reset from offset

0x20000.

Application Hardware Images

The section of flash which is used to hold and cache loadable application hardware images can be adjusted. The adjustments can be made by editing the file: altera/72/kits/cycloneIII_3c25_niosII_eval/examples/ application_selector/software_examples/app/ application_selector/src/app_selector.h

Edit the lines:

#define AS_HW_IMAGE_OFFSET_START 0x580000

#define AS_HW_IMAGE_OFFSET_END 0xD00000 to reflect what section of flash you would like to use to hold and cache application hardware images. Note that one hardware image consumes

0xC0000 bytes ( 6 flash sectors ), so ensure that

AS_HW_IMAGE_OFFSET_END

- AS_HW_IMAGE_OFFSET_START is always greater than or equal to 0xC0000. The Application Selector will cache as many images in this section as it is able to fit. For instance, the default section is 0x780000 bytes in size ( 60 flash sectors ), so it is able to cache up to 10 loadable application hardware images.

B–9 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Altera Corporation

November 2007

Application Selector Software Image

The default location of the Application Selector software image is flash offset 0x100000. This is necessary because flash offset 0x100000 is the reset address of the Nios II CPU in the Application Selector hardware image. It’s recommended that you do not change the location of the

Application Selector software image because it also requires changing the reset vector of the Nios II CPU in the Application Selector hardware image, and recompiling that design in Quartus II.

Application Software Image

The application software image can be relocated in flash by performing the following steps:

1.

In a text editor, open the file: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/ application_utilities/app_selector_boot_code/ app_selector_boot_code.s

2.

Edit the line

#define SW_APP_CODE 0x180000 to reflect the flash offset where you would like to put the loadable application software images. Ensure that there is enough space allocated at that offset to hold your application software images.

3.

In a text editor, open the file: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/software_examples/ app/application_selector/src/app_selector.h

4.

Edit the line

#define AS_SW_IMAGE_OFFSET 0x180000 to reflect the flash offset where you would like to put the loadable application software images. Ensure that there is enough space allocated at that offset to hold your application software images.

1

You will need to rebuild both the boot code and the application selector utility for these changes to take effect.

B–10

Nios II Embedded Evaluation Kit, Cyclone III Edition

Modifying the Application Selector

Flash Catalog

The flash catalog can be relocated in flash and size-adjusted by performing the following steps.

1.

In a text editor, open the file: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/software_examples/ app/application_selector/src/app_selector.h

2.

Edit the lines

#define AS_FLASH_IMAGE_CATALOG_OFFSET 0x8000

#define AS_FLASH_IMAGE_CATALOG_SIZE 0x8000 to reflect the flash offset where you would like to put flash catalog.

1

You will need to rebuild the boot code for these changes to take effect.

B–11 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Appendix C. Re-building the

Factory Image

Boot Code

This section describes the process of rebuilding the factory recovery image from source files. You may wish to modify and rebuild the factory recovery image if you’ve modified the application selector or boot code and would like a single recovery file which includes your modifications.

Keep in mind that any modifications you make to the application selector or boot code, may make them incompatible with existing applications.

Each portion of the factory recovery image is described below, with instructions on how to create it and program it to flash. The last section

here, titled “Combining factory recovery image files”

, includes instructions for creating a single factory recovery image that you can program into flash at any time to restore the factory configuration of the

Embedded Evaluation Kit board.

To perform the tasks illustrated in this section, you must first open a

Nios II command shell.

The first portion of the factory recovery image is the application boot code, located at flash offset 0x0.

Appendix B

describes the functionality of the boot code and how to rebuild it from the source files.

Building the boot code produces a file named app_selector_boot_code.srec.

This file can be directly programmed to flash using nios2-flashprogrammer in the Nios II command shell. The command is: nios2-flash-programmer -–base=0x4000000 app_selector_boot_code.srec

Hardware Image

Catalog

The hardware image catalog section of flash is located at offset 0x8000.

This section holds the locations of the currently cached hardware images in flash. Any time a factory recovery is performed, this section of flash should be erased to ensure no stale catalog entries exist. To erase this section of flash, enter the command: nios2-flash-programmer --base=0x4000000 –-erase

0x8000+0x8000

Altera Corporation

November 2007

Development Board Version 1.0.

C–1

Application Selector Hardware Image

After erasing this section, you may wish to read back the erased contents into a file, so that you can combine this file into the final factory recover image. The command to read back this section into a file named catalog.srec is: nios2-flash-programmer --base=0x4000000 --read catalog.flash

--read-bytes 0x8000+0x8000

Application

Selector

Hardware Image

The application selector hardware image section contains the FPGA hardware image for the application selector utility. This section is located at flash offset 0x20000. The FPGA gets configured with this image upon power-up and after a board reset. The file you will need to create this portion of the factory recovery image is named

cycloneIII_embedded_evaluation_kit_application_selector.sof, and is located in the application selector’s Quartus II project directory. The command needed to create the application selector hardware portion of the factory recovery image is: sof2flash --activeparallel --offset=0x20000

--input= cycloneIII_embedded_evaluation_kit_application_selector.sof

--output=appsel_hw.flash

To program this .flash file to flash, run the command: nios2-flash-programmer --base=0x4000000 appsel_hw.flash

Application

Selector

Software Image

The final portion of the factory recovery image is the application selector software image. This section is located at flash offset 0x100000. The Nios

II processor resets to this address and runs this code every time the FPGA gets configured with the application selector hardware image. The file you will need to create this portion of the factory recovery image is named ext_flash.flash, and is located in the application selector software project directory. You need to run the following command from the application selector software project directory to create ext_flash.flash if it does not already exist: make flash

Once “ext_flash.flash” is created, you can program it into flash with the following command: nios2-flash-programmer --base=0x4000000 ext_flash.flash

C–2 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

Combining factory recovery image files

Once you’ve created flash (or srec) files for all the sections of the factory recovery image, you can combine them all into one file using the cat command: cat app_selector_boot_code.srec catalog.flash appsel_hw.flash ext_flash.flash > temp_restore.flash

However, you are still not done. Some of the individual files we combined contained non-data records in them. Some non-data records, such as “S0” records cannot appear anywhere in an SREC file except for the beginning, so you want to remove all the non-data records from the final factory recovery image. Data record types, are S1, S2, and S3, so you want to remove all the other types of records (S0, S5, S7, S8, and S9).You can use the command “sed” to perform this task. Use the following command to remove all non-data records from the new factory recovery image file: sed '/^S[05789]/ d' temp_restore.flash >

restore_cycloneIII_3c25.flash

You can now restore the Embedded Evaluation Kit board to its factory state by running the command nios2-flash-programmer --base=0x4000000 restore_cycloneIII_3c25.flash

Altera Corporation

November 2007

C–3

Nios II Embedded Evaluation Kit, Cyclone III Edition

Appendix D. Frequently

Asked Questions

Altera Corporation

November 2007

This section below explains the frequently asked questions of Nios II

Embedded Evaluation Kit.

Why do I get the error “Can't find valid feature line for core

SD_MMC_SPI_CORE (EC11_0002) in current license;

Error: Error (10003): Can't open encrypted VHDL or Verilog HDL file” when I try to re-generate the Nios II Standard hardware design?

The Nios II Standard hardware design contains the SD MMC SPI CORE which is a component that has been provided by a third party vendor, El

Camino. To compile this core in your SOPC Builder system, you will need to get a license from El Camino. However, if your particular application has no need to access the SD Card then you do not need to include the SD

Card core in your system. Simply uncheck this core or delete it and re-generate the system. You should now be able to rebuild the hardware system without error.

When your hardware and software image is ready you can add your design to be loadable by the application selector by following the steps listed in the FAQ:

“How do I add my own design so the Application

Selector can find and run it?”

Where can I get the SD-Card Controller IP License?

If your design requires access to the on-board SD Card then you can request an evaluation license or purchase the SD-Card Controller IP, drivers and FAT File system from El Camino.

El Camino GmbH

Landshuter Str. 1

D-84048 Mainburg

Germany

Tel. +49 - 8751 - 8787 - 0

Fax +49 - 8751 - 842876

Web: www.elcamino.de

E-mail: [email protected]

Development Board Version 1.0.

D–1

f

How do I add pictures so the Picture Viewer Application can find them?

1.

Connect the SD-Card reader provided in the Nios II Embedded

Evaluation Kit to your PC via a USB port.

2.

Remove the SD-Card and place in the SD-Card Reader.

3.

Add any .JPEG or .BMP file to the “images” folder on the SD Card.

4.

Re-insert the SD-Card in the Nios II Embedded Evaluation Kit board.

The next time you run the Picture Viewer application, these new files will be found.

How do I add my own design so the Application Selector can find and run it?

The Nios II Embedded Evaluation Kit provides an elegant way to add designs such that a user can scroll through and select the design of choice using the application selector. Details of the application selector can be found in the ‘readme.txt’ located in the application_selector folder under examples in the Nios II Embedded Evaluation Kit directory.

To convert your own Nios II design into an application which is loadable by the Application Selector utility you will need the following

1.

A hardware image (a Cyclone III 3C25 .SOF file)

2.

A software image which runs on that hardware (a Nios II .ELF file).

3.

An SD Card reader

For a step by step instructions refer to section in Appendix B of this document entitled

“Creating Your Own Loadable Applications”

Where do I go to get more designs for the Nios II Embedded

Evaluation Kit?

Be sure to check for the latest demos available for download to your

Nios II Embedded Evaluation kit by visiting the web site: www.altera.com/nios2eval.

Altera Corporation

November 2007

D–2

Nios II Embedded Evaluation Kit, Cyclone III Edition

You will be able to download the designs to your local drive and add them to your SD Card by placing them in the SD Card folder entitled

Altera_EEK_Appliations

. The application selector should automatically detect these new designs and load them on to your kit.

How do I open a design example in the Nios II IDE?

Several example applications have been provided to you in source code form so that you can use them to learn how to develop your own software applications. The example applications have been provided in the Nios II

Software Build flow format, i.e. in the form of application (APP) and board support package (BSP).

If you would like to open these Nios II Software Build flow projects to the

Nios II IDE for debugging purposes, then you will import the app and bsp projects into the Nios II IDE.

For step by step instructions on importing a Nios II Software Build flow project in to the Nios II IDE, refer to the software tutorial “My First Nios II

Software Application” in the documents/tutorials/software_tutorials folder of the Nios II Embedded Evaluation kit directory.

How do I restore the factory image?

To restore the factory image, perform the following steps:

1.

Using the Quartus II Programmer, configure the FPGA with the SOF file: altera/72/kits/cycloneIII_3c25_niosII_eval/ examples/application_selector/cycloneIII_embedded_ evaluation_kit_applicatoin_selector.sof

2.

Open a Nios II Command Shell and change to the directory: altera/72/kits/cycloneIII_3c25_niosII_eval/factory

_recovery/flash_contents

3.

In the Nios II Command Shell, program the factory image into flash with the command: nios2-flash-programmer

−−base=0x04000000 restore_cycloneIII_3c25.flash

D–3 Development Board Version 1.0.

Nios II Embedded Evaluation Kit, Cyclone III Edition

Altera Corporation

November 2007

1

If you get the error message: No CFI table found at address

<address> Leaving target processor paused

Check that either the address is correct (hex four million - i.e. 6 zeroes after the 4) or that you have two "-" characters before

"base".

4.

You should now be able to reset the board to start the Application

Selector.

How do I re-build the factory image?

To re-build the factory image refer to

Appendix C, Re-building the

Factory Image

.

Altera Corporation

November 2007

D–4

Nios II Embedded Evaluation Kit, Cyclone III Edition

Additional Information

Revision History

The table below displays the revision history for the chapters in this user guide.

Chapter

All

Date Version

November 2007 1.0.0

● First publication.

Changes Made

How to Contact

Altera

For the most up-to-date information about Altera products, refer to the following table.

Information Type

Technical support

Technical training

Technical training services

Product literature

Product literature services

FTP site

Contact

Note (1)

www.altera.com/mysupport/ www.altera.com/training/ [email protected]

www.altera.com/literature [email protected]

ftp.altera.com

Note to table:

(1) You can also contact your local Altera sales office or sales representative.

Further

Information

Altera Corporation

November 2007

For other related information, refer to the following websites:

For the Cyclone III handbook:

www.altera.com/literature/lit-cyc3.jsp

For the Cyclone III reference designs:

www.altera.com/ endmarkets/refdesigns/device/cyclone3/cyclone3-index.jsp

For eStore if you want to purchase devices:

www.altera.com/buy/devices/buy-devices.html

For Cyclone III Orcad symbols:

Info–i

Preliminary

Additional Information Typographic Conventions www.altera.com/support/software/download/pcb/ pcbpcb_index.html

For Nios

®

II 32-bit embedded processor solutions:

www.altera.com/technology/embedded/emb-index.html

This document uses the typographic conventions shown below.

Typographic

Conventions

Visual Cue Meaning

Bold Type with Initial

Capital Letters

bold type External timing parameters, directory names, project names, disk drive names, filenames, filename extensions, and software utility names are shown in bold type. Examples: f

MAX

, \qdesigns directory, d: drive, chiptrip.gdf file.

Italic Type with Initial Capital

Letters

Document titles are shown in italic type with initial capital letters. Example: AN 75:

High-Speed Board Design.

Italic type

Command names, dialog box titles, checkbox options, and dialog box options are shown in bold, initial capital letters. Example: Save As dialog box.

Internal timing parameters and variables are shown in italic type.

Examples: t

PIA

, n + 1.

Initial Capital Letters

“Subheading Title”

Courier type

1., 2., 3., and a., b., c., etc.

● • v

1 c

Variable names are enclosed in angle brackets (< >) and shown in italic type.

Example: <file name>, <project name>.pof file.

Keyboard keys and menu names are shown with initial capital letters. Examples:

Delete key, the Options menu.

References to sections within a document and titles of on-line help topics are shown in quotation marks. Example: “Typographic Conventions.”

Signal and port names are shown in lowercase Courier type. Examples: data1

, tdi

, input.

Active-low signals are denoted by suffix n

, e.g., resetn

.

Anything that must be typed exactly as it appears is shown in Courier type. For example: c:\qdesigns\tutorial\chiptrip.gdf

. Also, sections of an actual file, such as a Report File, references to parts of files (e.g., the AHDL keyword

SUBDESIGN

), as well as logic function names (e.g.,

TRI

) are shown in

Courier.

Numbered steps are used in a list of items when the sequence of the items is important, such as the steps listed in a procedure.

Bullets are used in a list of items when the sequence of the items is not important.

The checkmark indicates a procedure that consists of one step only.

The hand points to information that requires special attention.

A caution calls attention to a condition or possible situation that can damage or destroy the product or the user’s work.

Altera Corporation Info–ii

Typographic Conventions

w r f

Visual Cue

Nios II Embedded Evaluation Kit, Cyclone III Edition

Meaning

A warning calls attention to a condition or possible situation that can cause injury to the user.

The angled arrow indicates you should press the Enter key.

The feet direct you to more information on a particular topic.

Info–iii

Preliminary November 2007

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
